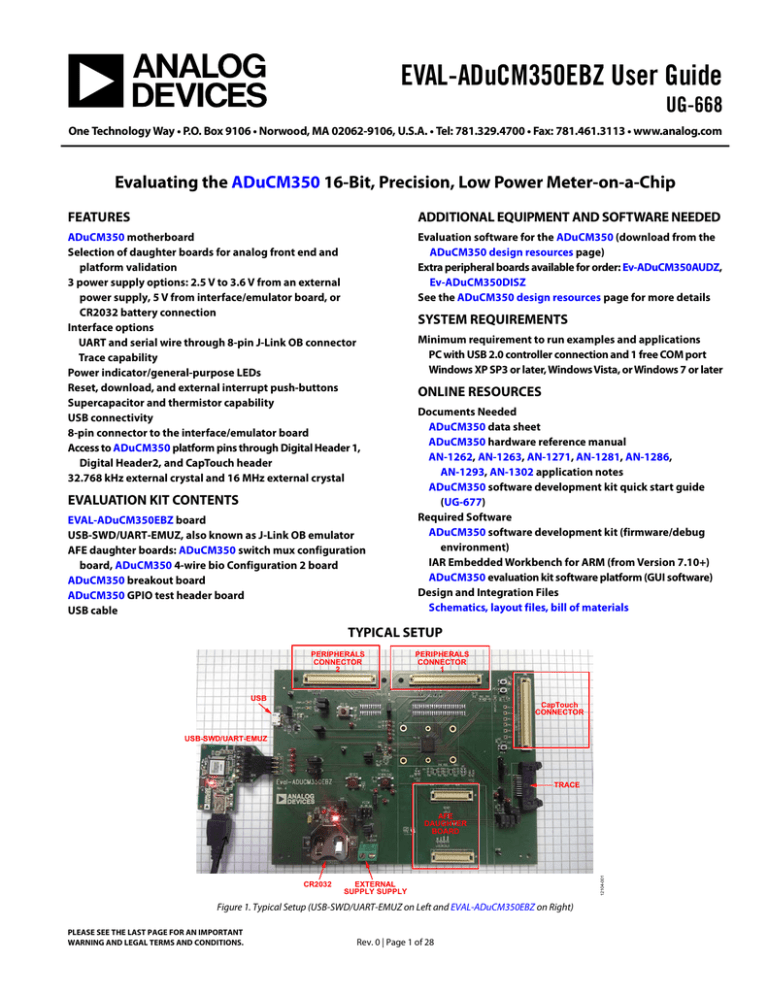

Eval-ADuCM350EBZ User Guide (Rev. 0)

EVAL-ADuCM350EBZ User Guide

UG-668

One

Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com

Evaluating the

ADuCM350

16-Bit, Precision, Low Power Meter-on-a-Chip

FEATURES

ADuCM350 motherboard

Selection of daughter boards for analog front end and platform validation

3 power supply options: 2.5 V to 3.6 V from an external power supply, 5 V from interface/emulator board, or

CR2032 battery connection

Interface options

UART and serial wire through 8-pin J-Link OB connector

Trace capability

Power indicator/general-purpose LEDs

Reset, download, and external interrupt push-buttons

Supercapacitor and thermistor capability

USB connectivity

8-pin connector to the interface/emulator board

Access to ADuCM350 platform pins through Digital Header 1,

Digital Header2, and CapTouch header

32.768 kHz external crystal and 16 MHz external crystal

EVALUATION KIT CONTENTS

EVAL-ADuCM350EBZ board

USB-SWD/UART-EMUZ, also known as J-Link OB emulator

AFE daughter boards: ADuCM350 switch mux configuration board, ADuCM350 4-wire bio Configuration 2 board

ADuCM350 breakout board

ADuCM350 GPIO test header board

USB cable

ADDITIONAL EQUIPMENT AND SOFTWARE NEEDED

Evaluation software for the ADuCM350 (download from the

ADuCM350 design resources page)

Extra peripheral boards available for order: Ev-ADuCM350AUDZ ,

Ev-ADuCM350DISZ

See the ADuCM350 design resources page for more details

SYSTEM REQUIREMENTS

Minimum requirement to run examples and applications

PC with USB 2.0 controller connection and 1 free COM port

Windows XP SP3 or later, Windows Vista, or Windows 7 or later

ONLINE RESOURCES

Documents Needed

ADuCM350 data sheet

ADuCM350 hardware reference manual

AN-1262 , AN-1263 , AN-1271 , AN-1281 , AN-1286 ,

AN-1293 , AN-1302 application notes

ADuCM350 software development kit quick start guide

( UG-677 )

Required Software

ADuCM350 software development kit (firmware/debug environment)

IAR Embedded Workbench for ARM (from Version 7.10+)

ADuCM350 evaluation kit software platform (GUI software)

Design and Integration Files

Schematics, layout files, bill of materials

TYPICAL SETUP

PERIPHERALS

CONNECTOR

2

PERIPHERALS

CONNECTOR

1

USB

CapTouch

CONNECTOR

USB-SWD/UART-EMUZ

TRACE

AFE

DAUGHTER

BOARD

CR2032 EXTERNAL

SUPPLY SUPPLY

Figure 1. Typical Setup (USB-SWD/UART-EMUZ on Left and EVAL-ADuCM350EBZ on Right)

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT

WARNING AND LEGAL TERMS AND CONDITIONS.

Rev. 0 | Page 1 of 28

UG-668

TABLE OF CONTENTS

Features .............................................................................................. 1

Evaluation Kit Contents ................................................................... 1

Additional Equipment and Software Needed ................................... 1

System Requirements ....................................................................... 1

Online Resources .............................................................................. 1

Typical Setup ..................................................................................... 1

Revision History ............................................................................... 2

General Description ......................................................................... 3

Getting Started .................................................................................. 4

Software Installation Procedures ................................................ 4

Evaluation Board Setup Procedures ........................................... 4

Evaluation Board Hardware ............................................................ 5

Power Supplies .............................................................................. 5

REVISION HISTORY

5/14—Revision 0: Initial Version

EVAL-ADuCM350EBZ User Guide

Jumper Settings ..................................................................................6

Evaluation Board Circuitry ..............................................................7

J-Link OB Emulator ......................................................................7

Digital Header Pad Lookup Table ...............................................8

ADuCM350 Motherboard Schematics ...........................................9

ADuCM350 Daughter Board Schematics ................................... 16

ADuCM350 Switch Mux Configuration Board ..................... 16

ADuCM350 4-Wire Bio Configuration 2 Board ................... 18

Audio Daughter Board Reference Schematics ....................... 20

Display Board Reference Schematics ....................................... 22

Breakout Board Pin Connections ............................................ 25

GPIO Test Header Board........................................................... 26

Rev. 0 | Page 2 of 28

EVAL-ADuCM350EBZ User Guide

GENERAL DESCRIPTION

The ADuCM350 is a 16 MHz ARM® Cortex-M3 processor with a high precision AFE specifically designed for high precision data acquisition.

The ADuCM350 has a 16-bit precision analog core with four dedicated voltage measurement channels and up to eight current measurement channels. It has an integrated complex impedance measurement system and uses an integrated parameterizable waveform generator to generate complex waveforms. It uses an excitation amplifier control loop to perform accurate potentiostat type measurements and has a highly configurable switch matrix that allows application specific amplifier configuration.

The device has a large array of peripherals, including USB,

CapTouch®, display, audio, and an array of serial interfaces and GPIOs.

The ADuCM350 includes 384 kB of flash, 32 kB of SRAM, and

16 kB of flash configured as EEPROM.

UG-668

The EVAL-ADuCM350EBZ kit provides scientists, system analyzers, and software developers a platform to migrate from sensor investigation and analysis to full ecosystem development.

The evaluation kit consists of an ADuCM350 motherboard and a selection of analog front end and digital peripheral daughter boards.

The evaluation kit is designed specifically to work with the

ADuCM350 software development kit (SDK) and the evaluation kit support package (EKSP)—both of which are available for download on the ADuCM350 design resources page.

The software development kit is designed to work with the IAR debugging environment only. The user guide for the ADuCM350

SDK is available on the SDK installer.

An example of where the kit is downloaded follows: C:\Analog

Devices\ADuCM350BBCZ\Eval-ADUCM350EBZ\doc

The SDK quick start guide and the EKSP user guide are available in the Support Documentation zipped folder.

Rev. 0 | Page 3 of 28

UG-668

GETTING STARTED

SOFTWARE INSTALLATION PROCEDURES

For software installation procedures, refer to the following

ADuCM350 software documentation for further details:

• For more information about the EKSP LabVIEW® GUI, refer to the EKSP user guide (ADuCM350_Evaluation_Kit_

Software_Platform.pdf) within the Documentation

folder of the software development kit.

• For more information about the SDK firmware/debug environment, refer to SDK user guide (ADuCM350BBCZ_

Software_Users_Guide.pdf) within the Documentation

folder of the software development kit and to the ADuCM350 software development kit quick start guide, UG-677 .

EVAL-ADuCM350EBZ User Guide

EVALUATION BOARD SETUP PROCEDURES

1. Plug the ADuCM350 switch mux configuration board into the ADuCM350 evaluation board, EVAL-ADuCM350EBZ .

2. Plug the USB-SWD/UART-EMUZ board into J14 on the

ADuCM350 evaluation board, EVAL-ADuCM350EBZ .

3. Plug the USB cable into the USB-SWD/UART-EMUZ board.

After the drivers are downloaded, you can begin communicating with the board.

Figure 2. EVAL-ADuCM350EBZ Setup

Rev. 0 | Page 4 of 28

EVAL-ADuCM350EBZ User Guide

EVALUATION BOARD HARDWARE

POWER SUPPLIES

VCCM_ANA

Table 1 describes the three options for supplying power to the

VCCM_ANA pin.

Table 1. VCCM_ANA Supply Options

Link J10 Position VCCM_ANA Supply

A (Default Position) Regulated 3.3 V from J3 wall socket supplied with board

B

C

CR2032 battery connection, J19

External supply

UG-668

VDD_IO

Table 2 describes the two options for supplying power to the

VDD_IO pin.

Table 2. VDD_IO Supply Options

Link M5 Position VDD_IO Supply

A (Default Position)

B

From VCCM_ANA

Regulated 3.3 V from J3 wall socket

(supplied with board)

VLCDVDD

Table 3 describes the three options for supplying power to the

VLCDVDD pin.

3.3V_BOARD

Table 3. VLCDVDD Supply Options

LK14 Position

1

VLCDVDD Supply

Inserted Powered by VCCM

Open Not powered

1 The default position for LK14 is to be removed.

OPTION 1

T68

5V_USB

+

C37

10uF

U6

2 IN

OUT

1

SD

7

GND

3

R32

0r

R30

560r

L2

BEAD

R31

1r6

LK5

VDDOUT

D4

POWER

OPTION 2

USB REGULATOR

LK24

VUSB

T3

J10

A

B

C

VCCM_ANA

J19

BATT-3002-20MM

BATTERY CONTACT

LK10

OPTION 3

J12-2

C34

0.1uF

C40

10uF

J12-1

NOTES

1. LK24 IS NOT INSERTED BY DEFAULT.

Figure 3. Power Supply Schematic for VCCM_ANA Pin

Rev. 0 | Page 5 of 28

UG-668

JUMPER SETTINGS

Table 4. Link Option Functions

Link Number Default Position

LK10

LK11

LK12

LK13

LK14

LK24

M1

LK1

LK2

LK3

LK4

LK6

LK7

LK8

LK9

M2

M3

M5

Short

Open

Short

Short

Open

Open

B

Short

Open

Open

Short

Open

Open

Short

Open

B

Open

A

EVAL-ADuCM350EBZ User Guide

Function

AN_A to AFE daughter board.

LED GPIO functionality of P2.1.

AN_B to AFE daughter board.

Connect the supercapacitor to the VBACK pin.

Thermistor voltage output measurement (AN_A).

VCCM_DIG to VCCM_ANA external connection (connected internally on chip).

LED GPIO functionality of P0.11.

AN_C to AFE daughter board.

AGND To DGND connector.

AN_D to AFE daughter board.

LED GPIO functionality of P4.2.

VBUS link.

Supply for VLCDVDD.

VUSB to VCCM_ANA connector. The battery must be removed when this link is inserted.

P0.6 selected for UART Tx.

P0.7 selected For UART Rx.

AN_EXCITE used for thermistor operation.

VDD_IO connection. When this link is in Position A, the VDD_IO supply is from

VCCM_ANA.

Rev. 0 | Page 6 of 28

EVAL-ADuCM350EBZ User Guide

EVALUATION BOARD CIRCUITRY

J-LINK OB EMULATOR

The J-Link OB emulator provides nonintrusive emulation via a serial wire and allows supply and UART communication with the ADuCM350 evaluation board ( EVAL-ADuCM350EBZ ).

Figure 4 shows a top view of the emulator board. The J2

connector plugs into the ADuCM350 evaluation board ( EVAL-

ADuCM350EBZ

). The J2 connector pinout is shown in Figure 5.

UG-668

Figure 5. J2 Connector

For downloading and debugging, LK1, LK2, LK4, and LK6 must be inserted. LK3 and LK5 are required to communicate via

UART. The required driver software for the J-Link OB can be downloaded from the Segger website. Ensure that you also

install the virtual COM port drivers (see Figure 6).

Figure 4. Emulator Top View

Figure 6. J-Link OB Download Options

Rev. 0 | Page 7 of 28

UG-668

DIGITAL HEADER PAD LOOKUP TABLE

Table 5. Pinout for Digital Header 1 Pad (J20) on

EVAL-ADuCM350EBZ

Top Row (from Left to Right)

J20-20

J20-22

J20-24

J20-26

J20-28

J20-30

J20-32

J20-34

J20-36

J20-38

J20-40

J20-42

J20-44

J20-46

J20-48

J20-50

Pin No.

J20-2

J20-4

J20-6

J20-8

J20-10

J20-12

J20-14

J20-16

J20-18

P2.13

P3.11

P3.0

P3.1

P3.5

P3.7

N/A

N/A

N/A

P1.11

P1.13

P1.15

P2.11

P2.12

P2.15

P3.10

Internal Connection

P2.1

P2.3

P2.5

P1.0

P1.2

P1.4

P1.6

P3.8

P3.3

J20-19

J20-21

J20-23

J20-25

J20-27

J20-29

J20-31

J20-33

J20-35

J20-37

J20-39

J20-41

J20-43

J20-45

J20-47

J20-49

Pin No.

J20-1

J20-3

J20-5

J20-7

J20-9

J20-11

J20-13

J20-15

J20-17

Table 6. Pinout for Digital Header 2 Pad (J5) on

EVAL-ADuCM350EBZ

Top Row (from Left to Right)

Pin No.

J5-19

J5-17

J5-15

J5-13

J5-11

J5-9

J5-7

J5-5

J5-3

J5-1

Internal Connection

N/A

N/A

N/A

N/A

P0.14

P0.12

P1.0

P4.1

P3.14

P3.12

Pin No.

J5-20

J5-18

J5-16

J5-14

J5-12

J5-10

J5-8

J5-6

J5-4

J5-2

EVAL-ADuCM350EBZ User Guide

Bottom Row (from Left to Right)

Internal Connection

P2.0

P2.2

P2.4

P1.1

P1.3

P2.10

P2.9

P2.8

P2.7

P2.6

P2.14

P3.2

P1.5

P1.7

P1.9

P3.9

P1.8

P1.10

P1.12

P1.14

P3.4

P3.6

N/A

N/A

N/A

Bottom Row (from Left to Right)

Internal Connection

N/A

N/A

N/A

N/A

P0.15

P0.13

P0.11

P4.2

P4.0

P3.13

Rev. 0 | Page 8 of 28

EVAL-ADuCM350EBZ User Guide

ADUCM350 MOTHERBOARD SCHEMATICS

ADuCM350

P3.8

P3.9

P3.10

P3.11

P3.12

P3.13

P3.14

P3.0

P3.1

P3.2

P3.3

P3.4

P3.5

P3.6

P3.7

P2.0

P2.1

P2.2

P2.3

P2.4

P2.5

P2.6

P2.7

P2.8

P2.9

P2.10

P2.11

P2.12

P2.13

P2.14

P2.15

P1.7

P1.8

P1.9

P1.10

P1.11

P1.12

P1.13

P1.14

P1.15

P1.0

P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P4.0

P4.1

P4.2

P0.9

P0.10

P0.11

P0.12

P0.13

P0.14

P0.15

P0.0

P0.1

P0.2

P0.3

P0.4

P0.5

P0.6

P0.7

P0.8

F14

G14

F15

F10

G10

H10

G15

J10

F8

F9

C14

E14

K6

K7

J6

D15

C15

B15

A14

A13

B13

B14

D14

E15

A15

B2

A2

B3

A3

B4

A4

A5

B5

P1.0

P1.1

A6

P1.2

A7

B7

P1.4

P1.5

A8

B8

A9

P1.6

P1.7

B9

A10

B10

A11

B11

P1.8

P1.9

P1.10

P1.11

P1.12

P1.13

A12

B12

P1.14

P1.15

P2.0

P2.1

P2.2

P2.3

P2.4

P2.5

P2.6

P2.7

P2.8

P2.9

P2.10

P2.11

P2.12

P2.13

P2.14

P2.15

P3.0

P3.1

P3.2

P3.3

P3.4

P3.5

P3.6

P3.7

P3.8

P3.9

P3.10

P3.11

P3.12

P3.13

P3.14

L1

L2

P4.0

J1

J2

H1

H2

R2

K2

R3

K15

J15

L15

K14

J14

L14

P2

P3

M2

P0.0

P0.1

P0.2

P0.3

P0.4

P0.5

P0.6

P0.7

P0.8

P0.9

P0.10

P0.11

P0.12

P0.13

P0.14

P0.15

U1

ADUCM350-OM

KERNEL_GPIO

APLATFORM_TEST

RESETX

N2

A1

K8

VREF

VBIAS

R10

P10

RCAL1

RCAL2

P5

R5

AFE1

AFE2

AFE3

AFE4

AFE5

AFE6

AFE7

AFE8

R6

P6

R7

P7

R8

P8

R9

P9

TIA_I

TIA_O

P11

R11

REF_EXCITE

R12

AN_A

AN_B

AN_C

AN_D

P12

P13

R13

R14

TRST

TRACECLK

TRACEDATA0

TRACEDATA1

TRACEDATA2

TRACEDATA3

R15

M15

M14

N15

N14

P15

VUSB

DGND_USB

VBUS

USB_DM

USB_DP

E1

F6

G2

F1

G1

RTC_XTAL2

RTC_XTAL1

HF_XTAL1

HF_XTAL2

N1

P1

D1

C1

TRST

TRACECLK

TRACEDATA0

TRACEDATA1

TRACEDATA2

TRACEDATA3

VUSB

VBUS

USB_DM

USB_DP

RTC_XTAL2

RTC_XTAL1

HF_XTAL1

HF_XTAL2

KERNEL_GPIO

RESETX

VREF

VBIAS

RCAL1

RCAL2

AFE1

AFE2

AFE3

AFE4

AFE5

AFE6

AFE7

AFE8

TIA_I

TIA_O

REF_EXCITE

AN_A

AN_B

AN_C

AN_D

UG-668

Figure 7. ADuCM350 Motherboard Schematic Device Drawing

Rev. 0 | Page 9 of 28

UG-668

LF 32kHz XTAL HF 16MHz XTAL

C7

15pF

RTC_XTAL1

Y1

C8

15pF

Layout: Needs To Be Near DUT

Layout: Shielding on 16MHz

RTC_XTAL2

HF_XTAL1

C2

24pF

HF_XTAL2

Y3

1

2

GND GND

XTAL-FA238

3

4

C4

24pF

EVAL-ADuCM350EBZ User Guide

P2.1

LK2

R60

560r

DISPLAY2

VCCM_DIG

LED-0603-RED

P0.11

LK8

DISPLAY

R2

560r

LED-0603-RED

3.3V_BOARD

P3.6

R62

DNI

R61

560r

DISPLAY3

3.3V_BOARD

LED-0603-RED

GPIO LEDs

P4.2

LK12

DISPLAY1

R59

560r

LED-0603-RED

3.3V_BOARD

T4

VLCD_FLY2

T5

VLCD_FLY1

LCD CHARGE PUMP

C11

4700pF

VLCD_VDD

T6

C14

1uF

C21 DNI

T7

T8

C22 DNI

VLCD_13

VLCD_23

EXT INT

P3.4

S4

T11

C5

0.1uF

R12

0r

P3.4

S2

T9

P0.10

R48

C15

0.1uF

0r

P0.10

Figure 8. Digital Schematics 1

Rev. 0 | Page 10 of 28

EVAL-ADuCM350EBZ User Guide

12104-109

UG-668

Figure 9. Digital Schematics 2

Rev. 0 | Page 11 of 28

UG-668 EVAL-ADuCM350EBZ User Guide

12104-110

Figure 10. Analog Schematics 1

Rev. 0 | Page 12 of 28

EVAL-ADuCM350EBZ User Guide

T67

THERMISTOR

REF_EXCITE_1

REF_EXCITE

R9

22.6K

T77

LK6

AN_A

R11

47K

C20

100pF

AGND

UNCOMITTED INPUTS - CONNECTORS.

LK11

AN_D_1

LK9

AN_C_1

LK3

AN_B_1

LK1

AN_A_1

AN_A

AN_B

AN_C

AN_D

INT ON CAP TOUCH

S1

R63

C18

0.1uF

0r

P0.2

S3

C23

0.1uF

R65 0r

P0.4

T10

UG-668

9

10

11

12

13

14

15

16

17

3

4

1

2

7

8

5

6

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

39

40

41

42

43

44

45

46

47

48

49

50

51

34

35

36

37

38

56

57

58

59

60

52

53

54

55

J21

*

*

*

*

*

*

*

*

*

CONNECTOR

STANDARD

SDP

*

*

*

*

76

75

74

73

80

79

78

77

72

71

70

69

68

67

66

65

64

63

62

61

93

92

91

90

97

96

95

94

105

104

103

102

101

100

99

98

85

84

83

82

81

89

88

87

86

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

3.3V_BOARD

R58 0r

These can be re-arranged to suit Layout

P0-1

P0.1

P0-0

P0.0

P0-2

P0.2

P0-3

P0.3

P0-5

P0.5

P0-4

P0.4

CAP TOUCH CONNECTOR.

Figure 11. Analog Schematics 2

Rev. 0 | Page 13 of 28

UG-668

9 R4

10K

EVAL-ADuCM350EBZ User Guide

12104-112

B A

B A

R CTO NNE DCO AR BO CE FA ER INT

Figure 12. Interface

Rev. 0 | Page 14 of 28

EVAL-ADuCM350EBZ User Guide

B A

12104-113

UG-668

+

Figure 13. Power

Rev. 0 | Page 15 of 28

UG-668

ADUCM350 DAUGHTER BOARD SCHEMATICS

ADUCM350

SWITCH MUX CONFIGURATION BOARD

MOTHERBOARD CONNECTOR—ALIGN J8 AND J9.

J8-6

J8-7

J8-8

J8-9

J8-10

J8-11

J8-12

J8-13

J8-1

J8-2

J8-3

J8-4

J8-5

J8-14

J8-15

J8-16

J8-17

J8-18

J8-19

J8-20

AFE1

P4.2

AFE2

P0.10

AFE3

AFE4

AFE5

J8-26

J8-27

J8-28

J8-29

J8-30

J8-31

J8-32

J8-33

J8-21

J8-22

J8-23

J8-24

J8-25

J8-34

J8-35

J8-36

J8-37

J8-38

J8-39

J8-40

AFE6

AFE7

REF_EXCITE_1

AFE8

RCAL1

RCAL2

TIA_I

TIA_O

J8-46

J8-47

J8-48

J8-49

J8-50

J8-51

J8-52

J8-53

J8-41

J8-42

J8-43

J8-44

J8-45

J8-54

J8-55

J8-56

J8-57

J8-58

J8-59

J8-60

AN_A_1

AN_B_1

AN_C_1

AN_D_1

3.3V_BOARD

VBIAS_1

VREF_1

J9-8

J9-9

J9-10

J9-11

J9-12

J9-1

J9-2

J9-3

J9-4

J9-5

J9-6

J9-7

J9-13

J9-14

J9-15

J9-16

J9-17

J9-18

J9-19

J9-20

EVAL-ADuCM350EBZ User Guide

VCCM_ANA

3.3V_BOARD

J9-28

J9-29

J9-30

J9-31

J9-32

J9-21

J9-22

J9-23

J9-24

J9-25

J9-26

J9-27

J9-33

J9-34

J9-35

J9-36

J9-37

J9-38

J9-39

J9-40

J9-48

J9-49

J9-50

J9-51

J9-52

J9-41

J9-42

J9-43

J9-44

J9-45

J9-46

J9-47

J9-53

J9-54

J9-55

J9-56

J9-57

J9-58

J9-59

J9-60

Figure 14. Switch Mux Configuration

Rev. 0 | Page 16 of 28

EVAL-ADuCM350EBZ User Guide

LK1

R1

AFE1

DNI

LK2

AFE2

R2

DNI

LK3

AFE3

R3

DNI

LK4

AFE4

R4

DNI

LK5

AFE5

R5

DNI

LK6

AFE6

R6

DNI

AFE7

AFE8

LK19

LK21

LK7

R7

DNI

LK8

R8

DNI

Figure 15. Switch Mux Configuration—Sensor Hookup

LK20

LK22

UG-668

Rev. 0 | Page 17 of 28

UG-668

ADUCM350

4-WIRE BIO CONFIGURATION 2 BOARD

MOTHERBOARD CONNECTOR—ALIGN J8 AND J9.

AFE1

J8-10

J8-11

J8-12

J8-13

J8-14

J8-15

J8-16

J8-17

J8-18

J8-19

J8-20

J8-5

J8-6

J8-7

J8-8

J8-9

J8-1

J8-2

J8-3

J8-4

P4.2

AFE2

P0.10

AFE3

AFE4

AFE5

J8-30

J8-31

J8-32

J8-33

J8-34

J8-35

J8-36

J8-37

J8-38

J8-39

J8-40

J8-21

J8-22

J8-23

J8-24

J8-25

J8-26

J8-27

J8-28

J8-29

AFE6

AFE7

REF_EXCITE_1

AFE8

RCAL1

RCAL2

TIA_I

TIA_O

J8-50

J8-51

J8-52

J8-53

J8-54

J8-55

J8-56

J8-57

J8-58

J8-59

J8-60

J8-41

J8-42

J8-43

J8-44

J8-45

J8-46

J8-47

J8-48

J8-49

AN_A_1

AN_B_1

AN_C_1

AN_D_1

3.3V_BOARD

VBIAS_1

VREF_1

J9-8

J9-9

J9-10

J9-11

J9-12

J9-13

J9-14

J9-15

J9-16

J9-17

J9-18

J9-19

J9-20

J9-1

J9-2

J9-3

J9-4

J9-5

J9-6

J9-7

EVAL-ADuCM350EBZ User Guide

VCCM_ANA

3.3V_BOARD

J9-28

J9-29

J9-30

J9-31

J9-32

J9-33

J9-34

J9-35

J9-36

J9-37

J9-38

J9-39

J9-40

J9-21

J9-22

J9-23

J9-24

J9-25

J9-26

J9-27

J9-48

J9-49

J9-50

J9-51

J9-52

J9-53

J9-54

J9-55

J9-56

J9-57

J9-58

J9-59

J9-60

J9-41

J9-42

J9-43

J9-44

J9-45

J9-46

J9-47

Figure 16. 4-Wire Bio Configuration Header Connections

AFE8

4 WIRE BIO IMPEDANCE CONFIGURATION

LK8

R32

RLIMIT (3.0K)

R24

47nF

Isolation +Lead

R25

4K99

UNCOMITTED CONFIGURATION

LK1

INAMP_P

LK9

VCCM_ANA

Sensor

AFE1

AFE2

AFE3

LK2

LK3

R1A

DNI

R1

DNI

R2A

DNI

R2

DNI

R3A

DNI

R3

18nF

VBIAS_1

R23

47nF

Isolation +Lead

R28

4K99

AN_A_1

C3

0.1uF

7

8

+VS

-IN

1

RG

2

OUT

6

REF

U3

AD8226

-VS

5

RG

3

+IN

4

VBIAS_1

INAMP_M

LK19 LK20

AFE4

AFE5

LK4

LK5

R4A

DNI

R4

2K

R5A

DNI

R5

10uF

VBIAS_1

INAMP_P

LK21 LK22

AFE6

LK6

R6A

DNI

R6

6.8K

AFE7

INAMP_M

LK7

LK10

R26

47nF

Isolation +Lead

R29

4K99

Isolation +Lead

R19

47nF

R27

4K99

Figure 17. 4-Wire Bio Configuration Sensor Connections

Rev. 0 | Page 18 of 28

EVAL-ADuCM350EBZ User Guide

RCAL

RCAL2

RCAL1

1K

R18

3.3V_BOARD

REF_EXCITE_1

VBIAS_1

VREF_1

VCCM_ANA

TP4

TEST POINTS

TP1 TP5 TP6 TP12

M20-9991246

Harwin

M20-9991246

Harwin

M20-9991246

Harwin

M20-9991246

Harwin

M20-9991246

Harwin

J1-4

J1-1

J1-5

J1-6

J1-12

UG-668

IV GAIN

TIA_I

TIA_O

R11

R7

DNI

TP3 TP2

P0.10

P4.2

M20-9991246

Harwin

M20-9991246

Harwin

J1-3

J1-2

33K

TP10 TP9 TP8 TP7

AN_A_1

AN_B_1

AN_C_1

AN_D_1

TP11

M20-9991246

Harwin

M20-9991246

Harwin

M20-9991246

Harwin

M20-9991246

Harwin

J1-10

J1-9

J1-8

J1-7

M20-9991246

Harwin

J1-11

Figure 18. 4-Wire Bio Configuration Miscellaneous Connections

Rev. 0 | Page 19 of 28

UG-668 EVAL-ADuCM350EBZ User Guide

AUDIO DAUGHTER BOARD REFERENCE SCHEMATICS

The Figure 19 schematic is connected to Digital Header 2 (J1) on the

EVAL-ADuCM350EBZ board.

BEEPER AND I2S AMPLIFIER

J1

40

39

38

37

48

47

46

45

52

51

50

49

44

43

42

41

56

55

54

53

60

59

58

57

16

15

14

13

20

19

18

17

12

11

10

9

8

24

23

22

21

28

27

26

25

32

31

30

29

36

35

34

33

3

2

1

5

4

7

6

21

20

19

18

25

24

23

22

29

28

27

26

33

32

31

30

37

36

35

34

41

40

39

38

45

44

43

42

49

48

47

46

56

55

54

53

60

59

58

57

52

51

50

17

16

3

2

1

5

4

7

6

11

10

9

8

15

14

13

12

*

*

*

*

*

*

*

*

*

STANDARD

CONNECTOR

*

*

*

*

81

82

83

84

65

66

67

68

69

70

71

72

61

62

63

64

73

74

75

76

77

78

79

80

98

99

100

101

94

95

96

97

102

103

104

105

106

107

108

109

85

86

87

88

89

90

91

92

93

110

111

112

113

114

115

116

117

118

119

120

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

61

62

63

64

65

66

67

68

69

70

71

P3.12

P3.13

P3.14

P4.0

P4.1

P0.12

P0.13

P0.14

P0.15

LK1

PINOUT

BEEPER

BEEP - P3.12

BEEPX - P3.1

I2S

MCLK - P3.12

SDATA - P3.13

LRCLK - P3.14

A = 3.3V_BOARD

B = VCCM_ANA

VDD

EXT INT = P4.0 and P0.10

Figure 19. Audio Schematic

Rev. 0 | Page 20 of 28

EVAL-ADuCM350EBZ User Guide

Figure 20 is a reference schematic both for the beeper/piezoelectric buzzer setup and for the I

2 S setup using the SSM2518 .

J2-1

Ext PVD

PVDD

LK3

BUZZER

C3

0.1uF

U5

1

A1

A2

4

6

AC1 AC2

3

2

C1

C2

5

DIODE-BAS40DW-04

VDD

BEEP

SELECTOR

J2-2

GND

D1

PKLCS1212E4001

C1

0.1uF

C2

4.7uF

PVDD

BEEP

AUDIO SELECTOR

For Beeper M2 = A

For I2S M2 = B

For I2C M2 = B

VDD

BMCLK

P3.12

BEEP

20 S1A

1 D1

2 S1B

19 IN1

14

VDD

C6 0.1uF

U1

ADG788

S4A

17

D4 16

S4B 15

IN4 18

SELECTOR

R3

2K2

R9

10K

LK2

LRCLK

SDATA

BMCLK

7

BCLK

9

LRCLK

10

SDATA

6

MCLK

12

DVDD

16

PVDD

20

PVDD

OUTL+

OUTL-

SDATA

P3.13

BEEP

7 S2A

6 D2

5 S2B

8 IN2

S3A 11

D3 12

S3B 13

IN3 9

LK4

LRCLK

P3.14

SELECTOR

I2S DAC/DRIVER

VDD

BEEPER

SCL

SDA

SELECTOR

R4 2K2

R1

R2

U2

SSM2518CPZ

5

SCL

4

SDA

13

/SD

OUTR+

OUTR-

14

0r

0r

11

3

SAMOD

ADDR

GND GND GND

18

19 17 8

GND

DGND

SCL

P4.0

VDD

C7

0.1uF

U4

1

3

S1A

S1B

2

4

D1

IN1

S2A

S2B

9

7

D2

IN2

8

5

6

VDD GND

ADG772BCPZ

10

DGND

SDA

P4.1

DGND

Figure 20. Audio Schematic

UG-668

OUTPUT1-1

OUTPUT1-2

OUTPUT2-1

OUTPUT2-2

Rev. 0 | Page 21 of 28

UG-668 EVAL-ADuCM350EBZ User Guide

DISPLAY BOARD REFERENCE SCHEMATICS

The Figure 21 schematic is the connector to Digital Header 1 (J6) on the

EVAL-ADuCM350EBZ board.

DISPLAY/PDI HEADER

P0.12

P2.0

J1-11

J1-12

J1-13

J1-14

J1-15

J1-16

J1-17

J1-18

J1-19

J1-20

J1-21

J1-22

J1-1

J1-2

J1-3

J1-4

J1-5

J1-6

J1-7

J1-8

J1-9

J1-10

J1-23

J1-24

J1-25

J1-26

J1-27

J1-28

J1-29

J1-30

J1-31

J1-32

J1-33

J1-34

J1-47

J1-48

J1-49

J1-50

J1-51

J1-52

J1-53

J1-54

J1-55

J1-56

J1-57

J1-58

J1-59

J1-60

J1-35

J1-36

J1-37

J1-38

J1-39

J1-40

J1-41

J1-42

J1-43

J1-44

J1-45

J1-46

P2.1

P2.2

P2.3

P2.4

P2.5

P1.0

P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

P1.8

P1.9

P1.10

P1.12

P1.14

P2.10

P2.9

P2.8

P2.7

P2.6

P2.14

P3.8

J1-92

J1-91

J1-90

J1-89

J1-88

J1-87

J1-86

J1-85

J1-84

J1-83

J1-82

J1-81

J1-104

J1-103

J1-102

J1-101

J1-100

J1-99

J1-98

J1-97

J1-96

J1-95

J1-94

J1-93

J1-120

J1-119

J1-118

J1-117

J1-116

J1-115

J1-114

J1-113

J1-112

J1-111

J1-110

J1-109

J1-108

J1-107

J1-106

J1-105

J1-80

J1-79

J1-78

J1-77

J1-76

J1-75

J1-74

J1-73

J1-72

J1-71

J1-70

J1-69

J1-68

J1-67

J1-66

J1-65

J1-64

J1-63

J1-62

J1-61

P0.13

P0.14

P0.15

P1.11

P1.13

P1.15

P2.11

P2.12

P2.15

P3.10

P2.13

P3.11

P3.9

VUSB

VCCM_DIG

VLCD_VDD

3.3V_BOARD

VDD_IO

Figure 21. Display (LCD or TFT) Header Connector

Rev. 0 | Page 22 of 28

EVAL-ADuCM350EBZ User Guide UG-668

TFT Display Reference Schematic

The schematic shown in Figure 22 is used to connect to an INT035TFT or INT035TFT-TS thin film transistor LCD module from

Displaytech Ltd.

3.3V_BOARD

J2

LCD_MODULE_SINT035TFT

1

GND

VDDIO

2

VDDD

3

4

VDDLCD

5

GND

TP_AUX

6

7

TP_TIRQ

TP_DIN

8

TP_CLK

9

TP_DOUT

10

11

TP_CS

GND

12

CS

13

14

RS

E(RD)

15

R/W(RD)

16

17

RESET

GND

18

D0

19

D1

20

21

D2

D3

22

D4

23

24

D5

D6

25

D7

26

D8

D9

27

28

D10

29

30

D11

31

D12

D13

32

33

D14

34

D15

D16

35

D17

36

37

NC(PWM)

NC

38

NC(BL+)

39

40

NC(BL-)

VDD_IO

VLCD_VDD

R6

30k

R7

15k

P2.2

P2.3

P2.4

P2.5

P2.1

CSX

DCX

RDX

WEX

RESX

P1.0

P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

P1.8

P1.9

P1.10

P1.11

P1.12

P1.13

P1.14

P1.15

D0

D15

3.3V_BOARD

P0.15

P0.13

LCD_PWM LCD_BL+LCD_BL-

1

2

3

4

CS

DO

WP

GND

U1

VCC

8

HOLD

7

CLK

6

DI

5

3.3V_BOARD

P0.12

P0.14

W25Q128FVEIG

Figure 22. TFT Connector Displaytech Screen and External Flash Memory Schematic

Rev. 0 | Page 23 of 28

UG-668 EVAL-ADuCM350EBZ User Guide

LCD Segment Display Reference Schematic

The schematic shown in Figure 23 is used to connect to a VIM-828 LCD segment display from Varitronix.

CONNECTOR FOR VIM-828 - TO DISCUSS

J3

VIM-828

P2.3

P2.4

P2.5

P1.0

P1.1

1

2

3

4

COM3_P2.3

S1_P2.4

S2_P2.5

P1.2

P1.3

P1.4

5

6

S3_P1.0

S4_P1.1

P1.5

P1.6

P1.7

P1.8

10

11

7

8

9

S5_P1.2

S6_P1.3

S7_P1.4

S8_P1.5

S9_P1.6

P1.9

P1.10

P1.11

P1.12

12

13

14

S10_P1.7

S11_P1.8

S12_P1.9

S13_P1.10

P1.13

P2.2

P2.0

15

16

S14_P1.11

S15_P1.12

17

18

19

S16_P1.13

COM2_P2.2

COM0_P2.0

P1.14

P1.15

P2.6

P2.7

P2.8

20

21

S17_P1.14

S18_P1.15

P2.9

P2.10

P2.11

P2.12

P2.13

22

23

24

25

S19_P2.6

S20_P2.7

S21_P2.8

P2.14

P2.15

26

27

28

29

30

S22_P2.9

S23_P2.10

S24_P2.11

S25_P2.12

S26_P2.13

P3.8

P3.9

31

32

S27_P2.14

S28_P2.15

P3.10

P3.11

33

34

35

S29_P3.8

S30_P3.9

S31_P3.10

S32_P3.11

P2.1

36

COM1_P2.1

Figure 23. LCD Connector Schematic for VIM-828 LCD Segment Display

Rev. 0 | Page 24 of 28

EVAL-ADuCM350EBZ User Guide

BREAKOUT BOARD PIN CONNECTIONS

If using the ADuCM350

breakout board, the connections shown in Figure 24 and Figure 25 are required.

J2 J4 J3

GND 1

2

GND GND 1

2

P0.13

GND 1

GND 3 GND GND 3 P0.14

GND 3

GND

GND

5

7

4

6

8

GND

NC

GND

GND

5

7

4

6

8

P0.15

NC

GND

GND

5

7

GND 9

10

NC GND 9

10

NC GND 9

10

2

4

6

8

GND 11 NC GND 11 NC GND 11

GND

GND

13

15

12

14

16

NC

NC

GND

GND

13

15

12

14

16

NC

NC

GND

GND

13

15

12

14

16

GND 17

18

NC GND 17

18

NC GND 17

18

GND 19

20

NC GND 19

20

GND GND 19

20

GND 21 NC GND 21 NC GND 21

GND

GND

23

25

22

24

26

NC

NC

GND

GND

23

25

22

24

26

NC

NC

GND

GND

23

25

22

24

26

GND 27

28

NC GND 27

28

NC GND 27

28

GND 29

30

NC GND 29

30

NC GND 29

30

GND 31 NC GND 31 NC GND 31

GND

GND

33

35

32

34

36

NC

NC

GND

GND

33

35

32

34

36

VCCM_ANA

VCCM_ANA

GND

GND

33

35

32

34

36

GND 37

38

NC GND 37

38

3.3V_BOARD

GND 37

38

GND 39

40

NC GND 39

40

3.3V_BOARD

GND 39

40

Figure 24. Breakout Board Connections for J1 on EVAL-ADuCM350EBZ with LK1 in Position B

J2 J4 J3

22

24

26

28

30

32

34

36

38

40

14

16

18

20

10

12

6

8

2

4

P0.12

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

P1.5

P1.6

P1.7

P1.8

P1.9

P1.1

P1.2

P1.3

P1.4

P1.10

P1.12

P1.14

P2.10

P2.0

P2.1

P2.2

P2.3

P2.4

P2.5

P1.0

25

27

29

31

19

21

23

33

35

37

39

9

11

13

15

17

5

7

1

3

23

25

27

29

31

15

17

19

21

33

35

37

39

5

7

1

3

9

11

13

22

24

26

28

30

32

34

36

38

40

14

16

18

20

10

12

6

8

2

4

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

P2.11

P1.15

P1.13

P1.11

GND

GND

GND

P0.15

P0.14

P0.13

VDD_IO

VDD_IO

3.3V_BOARD

3.3V_BOARD

VLCDVDD

VLCDVDD

VCCM_DIG

VCCM_DIG

VUSB

VUSB

14

16

18

20

22

10

12

6

8

2

4

24

26

28

30

32

34

36

38

40

25

27

29

31

19

21

23

33

35

37

39

9

11

13

15

17

5

7

1

3

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

Figure 25. Breakout Board Connections for J1 on EVAL-ADuCM350EBZ with LK1 in Position A

Rev. 0 | Page 25 of 28

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

P3.12

P3.13

P3.14

P4.0

P4.1

P4.2

P0.10

P0.11

P0.12

P2.9

P2.8

P2.7

P2.6

P2.14

P3.2

P3.4

P3.6

P3.8

P3.9

P3.7

P3.5

P3.3

P3.1

P3.0

P3.11

P2.13

P3.10

P2.15

P2.12

UG-668

UG-668 EVAL-ADuCM350EBZ User Guide

GPIO TEST HEADER BOARD

The Figure 26 schematic is the connector to Digital Header 1 (J6) on the

EVAL-ADuCM350EBZ board.

DIGITAL HEADER 1

P1.14

P2.10

P2.9

P2.8

P2.7

P2.6

P2.14

P3.2

P3.4

P3.6

P3.8

P1.6

P1.7

P1.8

P1.9

P1.2

P1.3

P1.4

P1.5

P2.0

P2.1

P2.2

P2.3

P2.4

P2.5

P1.0

P1.1

P1.10

P1.12

J6-35

J6-36

J6-37

J6-38

J6-39

J6-40

J6-41

J6-42

J6-27

J6-28

J6-29

J6-30

J6-31

J6-32

J6-33

J6-34

J6-43

J6-44

J6-45

J6-46

J6-47

J6-19

J6-20

J6-21

J6-22

J6-23

J6-24

J6-25

J6-26

J6-11

J6-12

J6-13

J6-14

J6-15

J6-16

J6-17

J6-18

J6-48

J6-49

J6-50

J6-51

J6-52

J6-53

J6-54

J6-55

J6-56

J6-57

J6-58

J6-59

J6-60

J6-1

J6-2

J6-3

J6-4

J6-5

J6-6

J6-7

J6-8

J6-9

J6-10

J6-120

J6-119

J6-118

J6-117

J6-116

J6-115

J6-114

J6-113

J6-112

J6-111

J6-110

J6-109

J6-108

J6-107

J6-106

J6-105

J6-104

J6-103

J6-102

J6-101

J6-100

J6-99

J6-98

J6-97

J6-96

J6-95

J6-94

J6-93

J6-92

J6-91

J6-90

J6-89

J6-88

J6-87

J6-86

J6-85

J6-84

J6-83

J6-82

J6-81

J6-80

J6-79

J6-78

J6-77

J6-76

J6-75

J6-74

J6-73

J6-72

J6-71

J6-70

J6-69

J6-68

J6-67

J6-66

J6-65

J6-64

J6-63

J6-62

J6-61

3.3V_BOARD

P1.11

P1.13

P1.15

P2.11

P2.12

P2.15

P3.10

P2.13

P3.11

P3.1

P3.3

P3.5

P3.9

VIM-828 LCD CONNECTOR

P2.3

P2.4

P2.5

P1.0

P1.9

P1.10

P1.11

P1.12

P1.13

P2.2

P2.0

P1.14

P1.15

P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

P1.8

P2.6

P2.7

P2.8

P2.9

P2.10

P2.11

P2.12

P2.13

P2.14

P2.15

P3.8

P3.9

P3.10

P3.11

P2.1

22

23

24

25

18

19

20

21

26

27

14

15

16

17

10

11

12

13

32

33

34

35

36

28

29

30

31

5

6

7

3

4

1

2

8

9

COM3_P2.3

S1_P2.4

S2_P2.5

S3_P1.0

S4_P1.1

S5_P1.2

S6_P1.3

S7_P1.4

S8_P1.5

S9_P1.6

S10_P1.7

S11_P1.8

S12_P1.9

S13_P1.10

S14_P1.11

S15_P1.12

S16_P1.13

COM2_P2.2

COM0_P2.0

S17_P1.14

S18_P1.15

S19_P2.6

S20_P2.7

S21_P2.8

S22_P2.9

S23_P2.10

S24_P2.11

S25_P2.12

S26_P2.13

S27_P2.14

S28_P2.15

S29_P3.8

S30_P3.9

S31_P3.10

S32_P3.11

COM1_P2.1

VIM-828

J3

Figure 26. LCD Connector Schematic for VIM-828 LCD and Digital Header Schematic

Rev. 0 | Page 26 of 28

EVAL-ADuCM350EBZ User Guide

3.3V_BOARD

TP0_4

R48

P0_4_

P0.4

M4

560r

P0_4

R31

0r

C23

0.1uF

DGND2

P0.5

TP0_5

M5

C1

0.1uF

R19

560r

R20

0r

DGND1

P0_5

P0_5_

3.3V_BOARD

UG-668

P3.4

TP3_4

M6

C2

0.1uF

3.3V_BOARD

2

5

COM

COM

B1

B2

B4

B8

1

4

3

6

S2

SW-ROTARY-HEX

R6

0r

R5

560r

P3_4_

3.3V_BOARD

P3_4

P3.6

TP3_6

LK6

R22

560r

P3_6

3.3V_BOARD

3.3V_BOARD

P0_0

3.3V_BOARD

P0_1

3.3V_BOARD

P0_2

R29

R15

R30

R16

R28

R17

560r

TP0_0

M0

P0.0

560r

10k

R1

560r

TP0_1

M1

P0.1

560r

560r

10k

R2

TP0_2

M2

560r

P0.2

3.3V_BOARD

P0_3

R27

R18

10k

R3

TP0_3

560r

M3

P0.3

560r

R4

10k

Figure 27. GPIO Evaluation Schematic

R23

3.3V_BOARD

DGND3

3

4

1

2

S1

SW4DIP

8

7

6

5

R24

R25

R26

TP3_1

560r

LK1

TP3_2

560r

LK2

TP3_3

560r

LK3

560r

LK4

TP3_5

P3.1

P3.2

P3.3

P3.5

Rev. 0 | Page 27 of 28

UG-668

NOTES

EVAL-ADuCM350EBZ User Guide

ESD Caution

ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.

Legal Terms and Conditions

By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc.

(“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands and agrees that the Evaluation Board is provided for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license granted is expressly made subject to the following additional limitations: Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board; and (ii) permit any Third Party to access the Evaluation Board. As used herein, the term

“Third Party” includes any entity other than ADI, Customer, their employees, affiliates and in-house consultants. The Evaluation Board is NOT sold to Customer; all rights not expressly granted herein, including ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall all be considered the confidential and proprietary information of ADI. Customer may not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation of use of the Evaluation Board or termination of this Agreement, Customer agrees to promptly return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble, decompile or reverse engineer chips on the Evaluation Board. Customer shall inform ADI of any occurred damages or any modifications or alterations it makes to the Evaluation Board, including but not limited to soldering or any other activity that affects the material content of the Evaluation Board.

Modifications to the Evaluation Board must comply with applicable law, including but not limited to the RoHS Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice to Customer. Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION OF LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS” AND ADI MAKES NO

WARRANTIES OR REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALLY DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED

TO THE EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL

PROPERTY RIGHTS. IN NO EVENT WILL ADI AND ITS LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF

THE EVALUATION BOARD, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE

AMOUNT OF ONE HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable

United States federal laws and regulations relating to exports. GOVERNING LAW. This Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of

Massachusetts (excluding conflict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby submits to the personal jurisdiction and venue of such courts. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement and is expressly disclaimed.

©2014 Analog Devices, Inc. All rights reserved. Trademarks and

registered trademarks are the property of their respective owners.

UG12104-0-5/14(0)

Rev. 0 | Page 28 of 28

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
