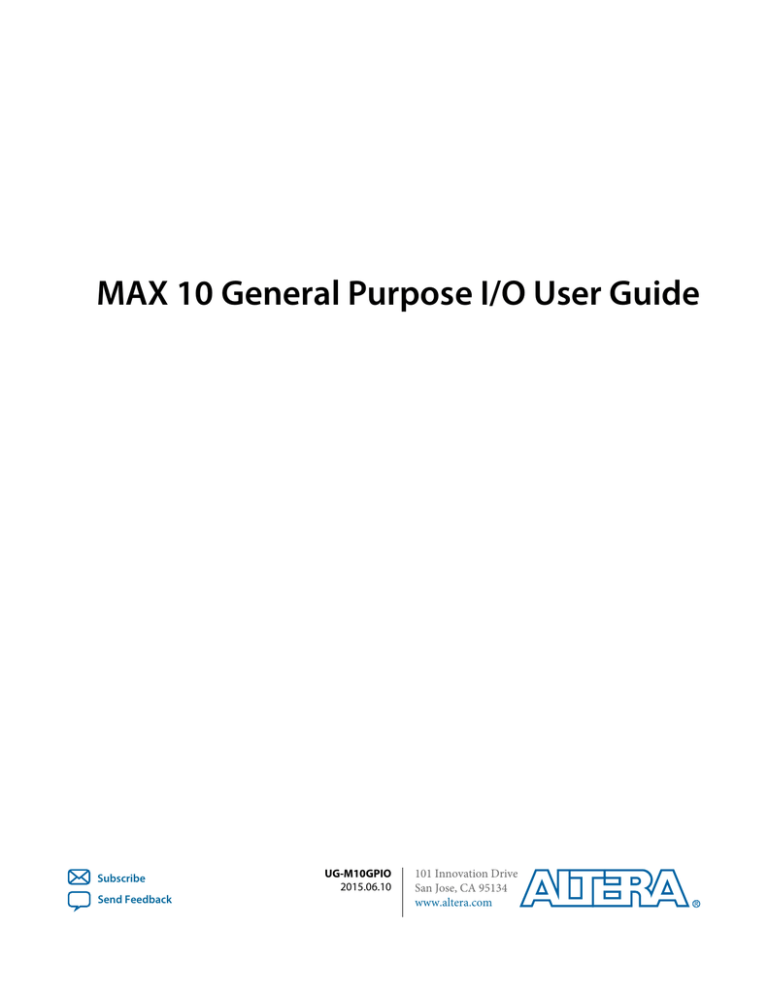

MAX 10 General Purpose I/O User Guide

MAX 10 General Purpose I/O User Guide

MAX 10 General Purpose I/O User Guide

Subscribe

Send Feedback

UG-M10GPIO

2015.06.10

101 Innovation Drive

San Jose, CA 95134 www.altera.com

TOC-2

Contents

MAX 10 I/O Overview.........................................................................................1-1

MAX 10 Devices I/O Resources Per Package ..........................................................................................1-1

MAX 10 I/O Vertical Migration Support................................................................................................. 1-3

MAX 10 I/O Architecture and Features..............................................................2-1

MAX 10 I/O Standards Support................................................................................................................ 2-1

MAX 10 I/O Standards Voltage and Pin Support....................................................................... 2-4

MAX 10 I/O Elements.................................................................................................................................2-7

MAX 10 I/O Banks Architecture................................................................................................... 2-8

MAX 10 I/O Banks Locations........................................................................................................ 2-9

MAX 10 I/O Buffers.................................................................................................................................. 2-11

Schmitt-Trigger Input Buffer.......................................................................................................2-12

Programmable I/O Buffer Features.............................................................................................2-12

I/O Standards Termination......................................................................................................................2-18

Voltage-Referenced I/O Standards Termination...................................................................... 2-18

Differential I/O Standards Termination.....................................................................................2-19

MAX 10 On-Chip I/O Termination............................................................................................2-21

MAX 10 I/O Design Considerations...................................................................3-1

Guidelines: V

CCIO

Range Considerations.................................................................................................3-1

Guidelines: Voltage-Referenced I/O Standards Restriction.................................................................. 3-1

Guidelines: Enable Clamp Diode for LVTTL/LVCMOS Input Buffers...............................................3-2

Guidelines: Adhere to the LVDS I/O Restrictions Rules........................................................................3-3

Guidelines: I/O Restriction Rules.............................................................................................................. 3-3

Guidelines: Analog-to-Digital Converter I/O Restriction..................................................................... 3-3

Guidelines: External Memory Interface I/O Restrictions.......................................................................3-7

Guidelines: Dual-Purpose Configuration Pin..........................................................................................3-8

MAX 10 I/O Implementation Guides................................................................. 4-1

Altera GPIO Lite IP Core............................................................................................................................4-1

Altera GPIO Lite IP Core Data Paths............................................................................................4-2

IP Catalog and Parameter Editor...................................................................................................4-4

Specifying IP Core Parameters and Options................................................................................4-6

Files Generated for Altera IP Cores (Legacy Parameter Editor)............................................... 4-7

Verifying Pin Migration Compatibility.................................................................................................... 4-8

Altera GPIO Lite IP Core References................................................................. 5-1

Altera GPIO Lite Parameter Settings........................................................................................................ 5-1

Altera GPIO Lite Interface Signals............................................................................................................ 5-5

Altera Corporation

TOC-3

Additional Information for MAX 10 General Purpose I/O User Guide...........A-1

Document Revision History for MAX 10 General Purpose I/O User Guide..................................... A-1

Altera Corporation

MAX 10 I/O Overview

1

2015.06.10

UG-M10GPIO

Subscribe

Send Feedback

The MAX

®

10 general purpose I/O (GPIO) system consists of the I/O elements (IOE) and the Altera

GPIO Lite IP core.

• The IOEs contain bidirectional I/O buffers and I/O registers located in I/O banks around the periphery of the device.

• The Altera GPIO Lite IP core supports the GPIO components and features, including double data rate

I/O (DDIO), delay chains, I/O buffers, control signals, and clocking.

Related Information

MAX 10 I/O Architecture and Features

on page 2-1

Provides information about the architecture and features of the I/Os in MAX 10 devices.

MAX 10 I/O Design Considerations

on page 3-1

Provides I/O design guidelines for MAX 10 Devices.

MAX 10 I/O Implementation Guides

on page 4-1

Provides guides to implement I/Os in MAX 10 Devices.

Altera GPIO Lite IP Core References

on page 5-1

Lists the parameters and signals of Altera GPIO Lite IP core for MAX 10 Devices.

MAX 10 Devices I/O Resources Per Package

Table 1-1: Package Plan for MAX 10 Single Power Supply Devices—Preliminary

Device

10M02

10M04

10M08

10M16

Type

Size

Ball Pitch

M153

153-pin MBGA

8 mm × 8 mm

0.5 mm

112

112

112

Package

U169

169-pin UBGA

11 mm × 11 mm

0.8 mm

130

130

130

130

E144

144-pin EQFP

22 mm × 22 mm

0.5 mm

101

101

101

101

©

2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

www.altera.com

101 Innovation Drive, San Jose, CA 95134

ISO

9001:2008

Registered

1-2

MAX 10 Devices I/O Resources Per Package

Device

10M25

10M40

10M50

Type

Size

Ball Pitch

M153

153-pin MBGA

8 mm × 8 mm

0.5 mm

Package

U169

169-pin UBGA

11 mm × 11 mm

0.8 mm

Table 1-2: Package Plan for MAX 10 Dual Power Supply Devices—Preliminary

Device

Type

Size

V36

36-pin

WLCSP

3 mm × 3 mm

0.4 mm

V81

81-pin

WLCSP

4 mm × 4 mm

0.4 mm

Package

U324

324-pin

UBGA

F256

256-pin

FBGA

15 mm × 15 mm

0.8 mm

17 mm × 17 mm

1.0 mm

10M02

10M04

10M08

10M16

10M25

10M40

10M50

Ball

Pitch

27

56

160

246

246

246

178

178

178

178

178

178

F484

484-pin

FBGA

23 mm × 23 mm

1.0 mm

250

320

360

360

360

E144

144-pin EQFP

22 mm × 22 mm

0.5 mm

101

101

101

F672

672-pin FBGA

500

500

UG-M10GPIO

2015.06.10

27 mm × 27 mm

1.0 mm

Altera Corporation

MAX 10 I/O Overview

Send Feedback

UG-M10GPIO

2015.06.10

MAX 10 I/O Vertical Migration Support

1-3

MAX 10 I/O Vertical Migration Support

Figure 1-1: Migration Capability Across MAX 10 Devices—Preliminary

• The arrows indicate the migration paths. The devices included in each vertical migration path are shaded. Some packages have several migration paths. Devices with lesser I/O resources in the same path have lighter shades.

• To achieve the full I/O migration across product lines in the same migration path, restrict I/Os usage to match the product line with the lowest I/O count.

Package

V36 V81 M153 U169 U324 F256 E144 F484 F672

Device

10M02

10M04

10M08

10M16

10M25

10M40

10M50

Note: To verify the pin migration compatibility, use the Pin Migration View window in the Quartus

® software Pin Planner.

II

Related Information

Verifying Pin Migration Compatibility

on page 4-8

MAX 10 I/O Overview

Send Feedback

Altera Corporation

MAX 10 I/O Architecture and Features

2015.06.10

UG-M10GPIO

Subscribe

Send Feedback

The I/O system of MAX 10 devices support various I/O standards. In the MAX 10 devices, the I/O pins are located in I/O banks at the periphery of the devices. The I/O pins and I/O buffers have several programmble features.

Related Information

MAX 10 I/O Overview

on page 1-1

2

MAX 10 I/O Standards Support

MAX 10 devices support a wide range of I/O standards, including single-ended, voltage-referenced singleended, and differential I/O standards.

Table 2-1: Supported I/O Standards in MAX 10 Devices

The voltage-referenced I/O standards are not supported in the following I/O banks of these device packages:

• All I/O banks of V36 package of 10M02.

• All I/O banks of V81 package of 10M08.

• Bank 1A and 1B of E144 package of 10M50.

I/O Standard Type

Input

Yes

Direction

Output

Yes

Application

General purpose

Standard Support

JESD8-B 3.3 V LVTTL/3.3 V

LVCMOS

3.0 V LVTTL/3.0 V

LVCMOS

2.5 V LVCMOS

1.8 V LVCMOS

1.5 V LVCMOS

Singleended

Singleended

Singleended

Singleended

Singleended

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

General purpose

General purpose

General purpose

General purpose

JESD8-B

JESD8-5

JESD8-7

JESD8-11

©

2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

www.altera.com

101 Innovation Drive, San Jose, CA 95134

ISO

9001:2008

Registered

2-2

MAX 10 I/O Standards Support

I/O Standard

1.2 V LVCMOS

3.0 V PCI

3.3 V Schmitt Trigger

2.5 V Schmitt Trigger

1.8 V Schmitt Trigger

1.5 V Schmitt Trigger

SSTL-2 Class I

SSTL-2 Class II

SSTL-18 Class I

SSTL-18 Class II

SSTL-15 Class I

SSTL-15 Class II

SSTL-15 (1)

SSTL-135

(1)

1.8 V HSTL Class I

1.8 V HSTL Class II

1.5 V HSTL Class I

Type

Voltagereferenced

Voltagereferenced

Voltagereferenced

Voltagereferenced

Voltagereferenced

Voltagereferenced

Voltagereferenced

Voltagereferenced

Voltagereferenced

Voltagereferenced

Voltagereferenced

Singleended

Singleended

Singleended

Singleended

Singleended

Singleended

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Input

Direction

Output

Yes Yes

Yes Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Application

General purpose

General purpose

General purpose

General purpose

General purpose

General purpose

DDR1

DDR1

DDR2

DDR2

DDR3

DDR3

DDR3

DDR3L

DDR II+, QDR II+, and RLDRAM 2

DDR II+, QDR II+, and RLDRAM 2

DDR II+, QDR II+,

QDR II, and

RLDRAM 2

UG-M10GPIO

2015.06.10

Standard Support

JESD8-12

PCI Rev. 2.2

JESD8-9B

JESD8-9B

JESD8-15

JESD8-15

JESD79-3D

JESD8-6

JESD8-6

JESD8-6

(1) Available in MAX 10 16, 25, 40, and 50 devices only.

Altera Corporation

MAX 10 I/O Architecture and Features

Send Feedback

UG-M10GPIO

2015.06.10

I/O Standard

1.5 V HSTL Class II

Type

Voltagereferenced

1.2 V HSTL Class I

1.2 V HSTL Class II

Voltagereferenced

Voltagereferenced

HSUL-12 (1)

Differential SSTL-2

Class I and II

Differential SSTL-18

Class I and Class II

Differential SSTL-15

Class I and Class II

Differential SSTL-15

Voltagereferenced

Differential

Differential

Differential

Differential

Differential SSTL-135 Differential

Differential 1.8 V

HSTL Class I and Class

II

Differential

Differential Differential 1.5 V

HSTL Class I and Class

II

Differential 1.2 V

HSTL Class I and Class

II

Differential

Differential HSUL-12 Differential

LVDS (dedicated)

(4)

Differential

Differential LVDS (external resistor)

Mini-LVDS

(dedicated) (4)

Differential

Yes (2)

Yes

MAX 10 I/O Standards Support

2-3

Input

Direction

Output

Yes Yes

Yes

Yes

Yes

Yes (2)

Yes

(2)

Yes (2)

Yes

(2)

Yes (2)

Yes

(2)

Yes

Yes

(2)

(2)

Yes

Yes

Yes

Yes

Yes

Yes

(3)

(3)

(3)

Yes

(3)

Yes (3)

Yes

(3)

Yes

Yes

(3)

(3)

Application

DDR II+, QDR II+,

QDR II, and

RLDRAM 2

General purpose

Standard Support

JESD8-6

JESD8-16A

General purpose JESD8-16A

LPDDR2

DDR1

DDR2

DDR3

DDR3

DDR3L

DDR II+, QDR II+, and RLDRAM 2

DDR II+, QDR II+,

QDR II, and

RLDRAM 2

General purpose

JESD8-9B

JESD8-15

JESD79-3D

JESD8-6

JESD8-6

JESD8-16A

Yes (3)

Yes

Yes

Yes

LPDDR2

ANSI/TIA/EIA-644

ANSI/TIA/EIA-644

(2)

(3)

(4)

The inputs treat differential inputs as two single-ended inputs and decode only one of them.

The outputs use two single-ended output buffers with the second output buffer programmed as inverted.

You can use dedicated LVDS transmitters only on the bottom I/O banks. You can use LVDS receivers on all

I/O banks.

MAX 10 I/O Architecture and Features

Altera Corporation

Send Feedback

2-4

MAX 10 I/O Standards Voltage and Pin Support

I/O Standard Type

Differential

Input

Direction

Output

— Yes Mini-LVDS (external resistor)

RSDS (dedicated)

(4)

RSDS (external resistor, 1R)

RSDS (external resistor, 3R)

PPDS (dedicated)

(4)

PPDS (external resistor)

LVPECL

Bus LVDS

TMDS

Sub-LVDS

SLVS

HiSpi

Differential

Differential

Differential

Differential

Differential

Differential

Differential

Differential

Differential

Differential

Differential

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes (5)

Yes (6)

Yes (7)

I/O Standard

3.3 V LVTTL/

3.3 V LVCMOS

Input

V

CCIO

(V)

Output

3.3/3.0/

2.5

3.3

V

REF

(V)

PLL_

CLKOUT

Yes Yes

Application

Related Information

MAX 10 I/O Buffers

on page 2-11

Provides more information about available I/O buffer types and supported I/O standards.

LVDS Transmitter I/O Termination Schemes, MAX 10 High-Speed LVDS I/O User Guide

MAX 10 I/O Standards Voltage and Pin Support

Table 2-2: MAX 10 I/O Standards Voltage Levels and Pin Support

Pin Type Support

MEM_CLK CLK DQS

Yes

UG-M10GPIO

2015.06.10

Standard Support

Yes

User I/O

Yes

(5)

(6)

(7)

The outputs use two single-ended output buffers with the second output buffer programmed as inverted. A single series resistor is required.

Requires external termination resistors.

The outputs uses two single-ended output buffers as emulated differential outputs. Requires external termination resistors.

Altera Corporation

MAX 10 I/O Architecture and Features

Send Feedback

UG-M10GPIO

2015.06.10

I/O Standard

3.0 V LVTTL/

3.0 V LVCMOS

2.5 V LVCMOS

1.8 V LVCMOS

1.5 V LVCMOS

1.2 V LVCMOS

3.0 V PCI

3.3 V Schmitt

Trigger

2.5 V Schmitt

Trigger

1.8 V Schmitt

Trigger

1.5 V Schmitt

Trigger

SSTL-2 Class I

SSTL-2 Class II

SSTL-18 Class I

SSTL-18 Class II

SSTL-15 Class I

SSTL-15 Class II

SSTL-15

SSTL-135

I

1.8 V HSTL Class

1.8 V HSTL Class

II

I

1.5 V HSTL Class

1.5 V HSTL Class

II

1.8

1.5

1.5

1.5

1.5

1.35

1.8

2.5

2.5

1.8

1.8

1.8

1.5

Input

V

CCIO

(V)

Output

V

REF

(V)

3.0/2.5

3.0

MAX 10 I/O Standards Voltage and Pin Support

Pin Type Support

MEM_CLK CLK DQS PLL_

CLKOUT

Yes Yes Yes Yes

2-5

User I/O

Yes

3.0/2.5

1.8/1.5

1.8/1.5

1.2

3.0

3.3

2.5

2.5

1.8

1.5

1.2

3.0

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes (8)

Yes

(8)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

1.5

1.5

1.5

1.5

1.35

1.8

2.5

2.5

1.8

1.8

1.8

1.5

1.5

1.25

1.25

0.9

0.9

0.75

0.75

0.75

0.675

0.9

0.9

0.75

0.75

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes Yes Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes (8)

Yes (8)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

(8) Bidirectional— use Schmitt Trigger input with LVTTL output.

MAX 10 I/O Architecture and Features

Send Feedback

Altera Corporation

2-6

MAX 10 I/O Standards Voltage and Pin Support

I/O Standard

Input

V

CCIO

(V)

Output

V

REF

(V)

1.2

1.2

0.6

PLL_

CLKOUT

Yes

I

1.2 V HSTL Class

1.2 V HSTL Class

II

HSUL-12

Differential SSTL-

2 Class I and II

Differential SSTL-

18 Class I and

Class II

Differential SSTL-

15 Class I and

Class II

Differential SSTL-

15

Differential SSTL-

135

Differential 1.8 V

HSTL Class I and

Class II

Differential 1.5 V

HSTL Class I and

Class II

Differential 1.2 V

HSTL Class I and

Class II

Differential

HSUL-12

LVDS (dedicated)

LVDS (external resistor)

Mini-LVDS

(dedicated)

Mini-LVDS

(external resistor)

1.2

1.2

2.5

1.8

1.5

1.5

1.35

1.8

1.5

1.2

1.2

2.5

1.2

2.5

2.5

0.6

Yes

Yes

Yes

1.5

1.2

1.2

2.5

2.5

1.2

2.5

1.8

1.5

1.5

1.35

1.8

0.75

0.6

0.6

0.6

1.25

0.9

0.75

0.75

0.675

0.9

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Pin Type Support

MEM_CLK CLK DQS

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

UG-M10GPIO

2015.06.10

User I/O

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Altera Corporation

MAX 10 I/O Architecture and Features

Send Feedback

UG-M10GPIO

2015.06.10

I/O Standard

RSDS (dedicated)

RSDS (external resistor, 1R)

RSDS (external resistor, 3R)

PPDS (dedicated)

PPDS (external resistor)

LVPECL

Bus LVDS

TMDS

Sub-LVDS

SLVS

HiSpi

2.5

2.5

2.5

2.5

2.5

2.5

Input

V

CCIO

(V)

Output

V

REF

(V)

2.5

2.5

PLL_

CLKOUT

Yes

Yes

MAX 10 I/O Elements

Pin Type Support

MEM_CLK CLK DQS

2-7

User I/O

Yes

Yes

Yes

Yes

2.5

2.5

2.5

2.5

1.8

2.5

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

MAX 10 I/O Elements

The MAX 10 I/O elements (IOEs) contain a bidirectional I/O buffer and five registers for registering input, output, output-enable signals, and complete embedded bidirectional single data rate (SDR) and double data rate (DDR) transfer.

The I/O buffers are grouped into groups of four I/O modules per I/O bank:

• The MAX 10 devices share the user I/O pins with the

VREF

,

RUP

,

RDN

,

CLKPIN

,

PLLCLKOUT

, configura‐ tion, and test pins.

• Schmitt Trigger input buffer is available in all I/O buffers.

Each IOE contains one input register, two output registers, and two output-enable (OE) registers:

• The two output registers and two OE registers are used for DDR applications.

• You can use the input registers for fast setup times and output registers for fast clock-to-output times.

• You can use the OE registers for fast clock-to-output enable times.

You can use the IOEs for input, output, or bidirectional data paths. The I/O pins support various singleended and differential I/O standards.

MAX 10 I/O Architecture and Features

Send Feedback

Altera Corporation

2-8

MAX 10 I/O Banks Architecture

Figure 2-1: IOE Structure in Bidirectional Configuration

io_clk[5..0]

Column or Row

Interconnect

OE clkout oe_out

OE Register

D Q

ENA

ACLR/PRN aclr/prn

Chip-Wide Reset

Output

Pin Delay

Current Strength Control

Open-Drain Out

Slew Rate Control sclr/ preset

Output Register

D Q

ENA

ACLR/PRN data_in1 data_in0 clkin oe_in

D Q

ENA

ACLR/PRN

Input Register

Input Pin to

Input Register

Delay or Input Pin to

Logic Array

Delay

VCCIO

Optional

PCI Clamp

VCCIO

UG-M10GPIO

2015.06.10

Programmable

Pull-Up

Resistor

Bus Hold

Related Information

MAX 10 Power Management User Guide

Provides more information about the I/O buffers in different power cycles and hot socketing.

MAX 10 I/O Banks Architecture

The I/O elements are located in a group of four modules per I/O bank:

• High speed DDR3 I/O banks—supports various I/O standards and protocols including DDR3. These

I/O banks are available only on the right side of the device.

• High speed I/O banks—supports various I/O standards and protocols except DDR3. These I/O banks are available on the top, left, and bottom sides of the device.

• Low speed I/O banks—lower speeds I/O banks that are located at the top left side of the device.

For more information about I/O pins support, refer to the pinout files for your device.

Altera Corporation

MAX 10 I/O Architecture and Features

Send Feedback

UG-M10GPIO

2015.06.10

MAX 10 I/O Banks Locations

Related Information

MAX 10 Device Pin-Out Files

MAX 10 I/O Banks Locations

The I/O banks are located at the periphery of the device.

For more details about the modular I/O banks available in each device package, refer to the relevant device pin-out file.

Figure 2-2: I/O Banks for MAX 10 02 Devices—Preliminary

2-9

VREF8 VCCIO8

8

VREF1

VCCIO1

1

VREF2

VCCIO2

2

6

VREF6

VCCIO6

5

VREF5

VCCIO5

3

VCCIO3 VREF3

Low Speed I/O

High Speed I/O

MAX 10 I/O Architecture and Features

Send Feedback

Altera Corporation

2-10

MAX 10 I/O Banks Locations

Figure 2-3: I/O Banks for MAX 10 04 and 08 Devices—Preliminary

VREF8 VCCIO8 VREF7 VCCIO7

8 7

VCCIO1A

VREF1

VCCIO1B

VREF2

1A

1B

2

VCCIO2

6

VREF6

VCCIO6

5

VREF5

VCCIO5

3

VCCIO3 VREF3

4

VCCIO4 VREF4

UG-M10GPIO

2015.06.10

Low Speed I/O

High Speed I/O

Altera Corporation

MAX 10 I/O Architecture and Features

Send Feedback

UG-M10GPIO

2015.06.10

Figure 2-4: I/O Banks for MAX 10 16, 25, 40, and 50 Devices—Preliminary

VREF8 VCCIO8 VREF7 VCCIO7

MAX 10 I/O Buffers

8 7

2-11

VCCIO1A

VREF1

VCCIO1B

VREF2

1A

1B

6

VREF6

VCCIO6

VREF5

2 5

VCCIO2 VCCIO5

3

VCCIO3 VREF3

Related Information

MAX 10 Device Pin-Out Files

4

VCCIO4 VREF4

OCT

Low Speed I/O

High Speed I/O

High Speed DDR3 I/O

MAX 10 I/O Buffers

The general purpose I/Os (GPIOs) in MAX 10 devices consist of LVDS I/O and DDR I/O buffers.

MAX 10 I/O Architecture and Features

Send Feedback

Altera Corporation

2-12

Schmitt-Trigger Input Buffer

Table 2-3: Types of GPIO Buffers in MAX 10 Devices

UG-M10GPIO

2015.06.10

LVDS I/O Buffers

• Support differential and single-ended I/O standards.

• Available only on I/O banks at the bottom side of the device.

• For LVDS, the bottom I/O banks support LVDS transmitter, emulated LVDS transmitter, and

LVDS receiver buffers.

DDR I/O Buffers

• Support differential and single-ended I/O standards.

• Available on I/O banks at the left, right, and top sides of the device.

• For LVDS, the DDR I/O buffers support only

LVDS receiver and emulated LVDS transmitter buffers.

• For DDR, only the DDR I/O buffers on the right side of the device supports DDR3 external memory interfaces. DDR3 support is only available for MAX 10 16, 25, 40, and 50 devices.

Related Information

MAX 10 I/O Standards Support

on page 2-1

LVDS Transmitter I/O Termination Schemes, MAX 10 High-Speed LVDS I/O User Guide

Schmitt-Trigger Input Buffer

The MAX 10 devices feature selectable Schmitt trigger input buffer on all I/O banks.

The Schmitt trigger input buffer has similar V mode.

IL

and V

IH

as the LVTTL I/O standard but with better noise immunity. The Schmitt trigger input buffers are the used as default input buffers during configuration

Related Information

MAX 10 Device Datasheet

Programmable I/O Buffer Features

The MAX 10 I/O buffers support a range of programmable features. These features increase the flexibility of I/O utilization and provide an alternative to reduce the usage of external discrete components such as a pull-up resistor and a diode.

Programmable Open Drain

The optional open-drain output for each I/O pin is equivalent to an open collector output. If it is configured as an open drain, the logic value of the output is either high-Z or logic low.

Use an external resistor to pull the signal to a logic high.

Programmable Bus Hold

Each I/O pin provides an optional bus-hold feature that is active only after configuration. When the device enters user mode, the bus-hold circuit captures the value that is present on the pin by the end of the configuration.

The bus-hold circuitry holds this pin state until the next input signal is present. Because of this, you do not require an external pull-up or pull-down resistor to hold a signal level when the bus is tri-stated.

Altera Corporation

MAX 10 I/O Architecture and Features

Send Feedback

UG-M10GPIO

2015.06.10

Programmable Pull-Up Resistor

2-13

For each I/O pin, you can individually specify that the bus-hold circuitry pulls non-driven pins away from the input threshold voltage—where noise can cause unintended high-frequency switching. To prevent over-driving signals, the bus-hold circuitry drives the voltage level of the I/O pin lower than the V

CCIO level.

If you enable the bus-hold feature, you cannot use the programmable pull-up option. To configure the

I/O pin for differential signals, disable the bus-hold feature.

Programmable Pull-Up Resistor

Each I/O pin provides an optional programmable pull-up resistor during user mode. The pull-up resistor, typically 25 kΩ, weakly holds the I/O to the V

CCIO

level.

If you enable the weak pull-up resistor, you cannot use the bus-hold feature.

Programmable Current Strength

You can use the programmable current strength to mitigate the effects of high signal attenuation that is caused by a long transmission line or a legacy backplane.

Table 2-4: Programmable Current Strength Settings for MAX 10 Devices

The output buffer for each MAX 10 device I/O pin has a programmable current strength control for the I/O standards listed in this table.

I/O Standard

I

OH

/ I

OL

Current Strength Setting (mA)

(Default setting in bold)

3.3 V LVCMOS

3.3 V LVTTL

3.0 V LVTTL/3.0 V LVCMOS

2.5 V LVTTL/2.5 V LVCMOS

1.8 V LVTTL/1.8 V LVCMOS

1.5 V LVCMOS

1.2 V LVCMOS

SSTL-2 Class I

SSTL-2 Class II

SSTL-18 Class I

SSTL-18 Class II

SSTL-15 Class I

SSTL-15 Class II

1.8 V HSTL Class I

1.8 V HSTL Class II

1.5 V HSTL Class I

1.5 V HSTL Class II

1.2 V HSTL Class I

2

8, 4

16, 12, 8, 4

16, 12, 8, 4

16, 12, 10, 8, 6, 4, 2

16, 12, 10, 8, 6, 4, 2

12, 10, 8, 6, 4, 2

12, 8

16

12, 10, 8

16, 12

12, 10, 8

16

12, 10, 8

16

12, 10, 8

16

12, 10, 8

MAX 10 I/O Architecture and Features

Send Feedback

Altera Corporation

2-14

Programmable Output Slew Rate Control

UG-M10GPIO

2015.06.10

I/O Standard

1.2 V HSTL Class II

BLVDS

SLVS

Sub-LVDS

I

OH

/ I

OL

Current Strength Setting (mA)

(Default setting in bold)

14

16, 12, 8

16, 12, 8

12, 8, 4

Note: Altera recommends that you perform IBIS or SPICE simulations to determine the best current strength setting for your specific application.

Programmable Output Slew Rate Control

You have the option of three settings for programmable slew rate control—0, 1, and 2 with 2 as the default setting. Setting 0 is the slow slew rate and 2 is the fast slew rate.

• Fast slew rate—provides high-speed transitions for high-performance systems.

• Slow slew rate—reduces system noise and crosstalk but adds a nominal delay to the rising and falling edges.

Table 2-5: Programmable Output Slew Rate Control for MAX 10 Devices

This table lists the single-ended I/O standards and current strength settings that support programmable output slew rate control. For I/O standards and current strength settings that do not support programmable slew rate control, the default slew rate setting is 2 (fast slew rate).

I/O Standard

I

OH

/ I

OL

Current Strength Supporting Slew Rate Control

3.0 V LVTTL/3.0 V LVCMOS

2.5 V LVTTL/2.5 V LVCMOS

1.8 V LVTTL/1.8 V LVCMOS

1.5 V LVCMOS

1.2 V LVCMOS

SSTL-2 Class I

SSTL-2 Class II

SSTL-18 Class I

SSTL-18 Class II

SSTL-15 Class I

SSTL-15 Class II

1.8 V HSTL Class I

1.8 V HSTL Class II

1.5 V HSTL Class I

1.5 V HSTL Class II

16, 12, 8

16, 12, 8

16, 12, 8

16, 12, 10, 8

12, 10, 8

12, 8

16

12, 10, 8

16, 12

12, 10, 8

16

12, 10, 8

16

12, 10, 8

16

Altera Corporation

MAX 10 I/O Architecture and Features

Send Feedback

UG-M10GPIO

2015.06.10

I/O Standard

1.2 V HSTL Class I

1.2 V HSTL Class II

Programmable IOE Delay

2-15

I

OH

/ I

OL

Current Strength Supporting Slew Rate Control

12, 10, 8

14

You can specify the slew rate on a pin-by-pin basis because each I/O pin contains a slew rate control. The slew rate control affects both the rising and falling edges.

Note: Altera recommends that you perform IBIS or SPICE simulations to determine the best slew rate setting for your specific application.

Programmable IOE Delay

You can activate the programmable IOE delays to ensure zero hold times, minimize setup times, increase clock-to-output times, or delay the clock input signal. This feature helps read and write timing margins because it minimizes the uncertainties between signals in the bus.

Each pin can have a different input delay from pin-to-input register or a delay from output register-to-output pin values to ensure that the signals within a bus have the same delay going into or out of the device.

Table 2-6: Programmable Delay Chain

Programmable Delays

Input pin-to-logic array delay

Input pin-to-input register delay

Output pin delay

Dual-purpose clock input pin delay

Quartus II Logic Option

Input delay from pin to internal cells

Input delay from pin to input register

Delay from output register to output pin

Input delay from dual-purpose clock pin to fan-out destina‐ tions

There are two paths in the IOE for an input to reach the logic array. Each of the two paths can have a different delay. This allows you to adjust delays from the pin to the internal logic element (LE) registers that reside in two different areas of the device. You must set the two combinational input delays with the input delay from pin to internal cells logic option in the Quartus II software for each path. If the pin uses the input register, one of the delays is disregarded and the delay is set with the input delay from pin to input register logic option in the Quartus II software.

The IOE registers in each I/O block share the same source for the preset or clear features. You can program preset or clear for each individual IOE, but you cannot use both features simultaneously. You can also program the registers to power-up high or low after configuration is complete. If programmed to power-up low, an asynchronous clear can control the registers. If programmed to power-up high, an asynchronous preset can control the registers. This feature prevents the inadvertent activation of the active-low input of another device upon power up. If one register in an IOE uses a preset or clear signal, all registers in the IOE must use that same signal if they require preset or clear. Additionally, a synchro‐ nous reset signal is available for the IOE registers.

Related Information

MAX 10 Device Datasheet

MAX 10 I/O Architecture and Features

Send Feedback

Altera Corporation

2-16

PCI Clamp Diode

UG-M10GPIO

2015.06.10

Timing Closure and Optimization chapter, Volume 2: Design Implementation and Optimization,

Quartus II Handbook

Provides more information about the input and output pin delay settings.

PCI Clamp Diode

The MAX 10 devices are equipped with optional PCI clamp diode that you can enable for the input and output of each I/O pin.

The PCI clamp diode is available and enabled by default in the Quartus II software for the following I/O standards:

• 3.3 V LVTTL/3.3 V LVCMOS

• 3.0 V LVTTL/3.0 V LVCMOS

• 3.0 V PCI

Programmable Pre-Emphasis

The differential output voltage (V

OD

) setting and the output impedance of the driver set the output current limit of a high-speed transmission signal. At a high frequency, the slew rate may not be fast enough to reach the full V

OD

level before the next edge, producing pattern-dependent jitter. Pre-emphasis momentarily boosts the output current during switching to increase the output slew rate.

Pre-emphasis increases the amplitude of the high-frequency component of the output signal. This increase compensates for the frequency-dependent attenuation along the transmission line.

The overshoot introduced by the extra current occurs only during change of state switching. This overshoot increases the output slew rate but does not ring, unlike the overshoot caused by signal reflection. The amount of pre-emphasis required depends on the attenuation of the high-frequency component along the transmission line.

Figure 2-5: LVDS Output with Programmable Pre-Emphasis

Voltage boost from pre-emphasis

V

P

OUT

V

OD

OUT

V

P

Differential output voltage (peak–peak)

Table 2-7: Quartus II Software Assignment for Programmable Pre-Emphasis

Field

To

Assignment name

Assignment

tx_out

Programmable Pre-emphasis

Altera Corporation

MAX 10 I/O Architecture and Features

Send Feedback

UG-M10GPIO

2015.06.10

Field

Programmable Differential Output Voltage

Assignment

0 (disabled), 1 (enabled). Default is 1.

2-17

Allowed values

Programmable Differential Output Voltage

The programmable V

OD

settings allow you to adjust the output eye opening to optimize the trace length and power consumption. A higher V

V

OD

OD

swing reduces power consumption.

swing improves voltage margins at the receiver end, and a smaller

Figure 2-6: Differential V

OD

This figure shows the V

OD

of the differential LVDS output.

Single-Ended Waveform

Positive Channel (p)

V

OD

Negative Channel (n)

V

CM

Ground

Differential Waveform

V

OD

V

OD

(diff peak - peak) = 2 x V

OD

(single-ended)

V

OD p - n = 0 V

You can statically adjust the V software Assignment Editor.

OD

of the differential signal by changing the V

OD

settings in the Quartus II

Table 2-8: Quartus II Software Assignment Editor—Programmable V

OD

Field

To

Assignment name

Allowed values

Assignment

tx_out

Programmable Differential Output Voltage (V

OD

)

0 (low), 1 (medium), 2 (high). Default is 2.

Programmable Emulated Differential Output

The MAX 10 devices support emulated differential output where a pair of IOEs drives bidirectional I/O pins.

The emulated differential output feature is supported for the following I/O standards:

• Differential SSTL-2 Class I and II

• Differential SSTL-18 Class I and II

• Differential SSTL-15 Class I and II

• Differential SSTL-15

MAX 10 I/O Architecture and Features

Send Feedback

Altera Corporation

2-18

Programmable Dynamic Power Down

• Differential SSTL-135

• Differential 1.8 V HSTL Class I and II

• Differential 1.5 V HSTL Class I and II

• Differential 1.2 V HSTL Class I and II

• Differential HSUL-12

• LVDS 3R

• Mini-LVDS 3R

• PPDS 3R

• RSDS 1R and 3R

• BLVDS

• SLVS

• Sub-LVDS

UG-M10GPIO

2015.06.10

Programmable Dynamic Power Down

The MAX 10 16, 25, 40, and 50 devices feature programmable dynamic power down for several I/O standards to reduce the static power consumption.

In these devices, you can apply the programmable dynamic power down feature to the I/O buffers for the following I/O standards:

• Input buffer—SSTL, HSTL, HSUL, LVDS

• Output buffer—LVDS

Related Information

MAX 10 Power Management User Guide

Provides more information about using the programmable dynamic power down feature.Provides more information about the programmable output delay specifications.

I/O Standards Termination

Voltage-referenced and differential I/O standards requires different termination schemes.

The 3.3-V LVTTL, 3.0-V LVTTL and LVCMOS, 2.5-V LVTTL and LVCMOS, 1.8-V LVTTL and

LVCMOS, 1.5-V LVCMOS, 1.2-V LVCMOS, and 3.0-V PCI I/O standards do not specify a recommended termination scheme per the JEDEC standard.

Voltage-Referenced I/O Standards Termination

Voltage-referenced I/O standards require an input reference voltage (V

REF

(V

TT device.

) and a termination voltage

). The reference voltage of the receiving device tracks the termination voltage of the transmitting

Altera Corporation

MAX 10 I/O Architecture and Features

Send Feedback

UG-M10GPIO

2015.06.10

Figure 2-7: HSTL I/O Standard Termination

Termination

External

On-Board

Termination

OCT with and without

Calibration

Transmitter

Series OCT

50 Ω

HSTL Class I

50 Ω

50 Ω

VREF

VTT

50 Ω

50 Ω

VREF

VTT

Transmitter

Receiver

Receiver

Differential I/O Standards Termination

2-19

HSTL Class II

VTT

50 Ω 50 Ω

50 Ω

VREF

VTT

Transmitter

Series OCT

25 Ω

VTT

50 Ω 50 Ω

VTT

50 Ω

VREF

Transmitter

Receiver

Receiver

Figure 2-8: SSTL I/O Standard Termination

Termination

External

On-Board

Termination

SSTL Class I

25 Ω

50 Ω

50 Ω

VREF

VTT

Transmitter

Series OCT

50 Ω

OCT with and without

Calibration

50 Ω

50 Ω

VREF

VTT

Receiver

Transmitter Receiver

SSTL Class II

50 Ω

25 Ω

VTT VTT

50 Ω

50 Ω

VREF

Transmitter

Series OCT

25 Ω

50 Ω

VTT VTT

50 Ω

50 Ω

VREF

Transmitter

Receiver

Receiver

Differential I/O Standards Termination

Differential I/O standards typically require a termination resistor between the two signals at the receiver.

The termination resistor must match the differential load impedance of the bus.

MAX 10 I/O Architecture and Features

Send Feedback

Altera Corporation

2-20

Differential I/O Standards Termination

Figure 2-9: Differential HSTL I/O Standard Termination

Termination

External

On-Board

Termination

Differential HSTL

V

TT

V

TT

50 Ω

50 Ω

50 Ω

50 Ω

Transmitter

OCT

Series OCT

50 Ω

50 Ω

50 Ω

V

TT

50 Ω

V

TT

50 Ω

Transmitter

Receiver

Receiver

UG-M10GPIO

2015.06.10

Figure 2-10: Differential SSTL I/O Standard Termination

Termination

External

On-Board

Termination

Differential SSTL Class I

25 Ω

50 Ω

V

TT

V

TT

50 Ω 50 Ω

25 Ω

50 Ω

Transmitter Receiver Transmitter

OCT

Series OCT

50 Ω

V

TT

V

TT

50 Ω 50 Ω

50 Ω

50 Ω

Series OCT

25 Ω

Transmitter Receiver Transmitter

Differential SSTL Class II

50 Ω

25 Ω

V

TT

V

TT

50 Ω 50 Ω

50 Ω

V

TT

V

TT

50 Ω

25 Ω

50 Ω

V

TT

V

TT

V

TT

V

TT

50 Ω 50 Ω 50 Ω 50 Ω

50 Ω

50 Ω

Receiver

Receiver

Related Information

MAX 10 High-Speed LVDS I/O User Guide

Provides more information about differential I/O external termination.

Altera Corporation

MAX 10 I/O Architecture and Features

Send Feedback

UG-M10GPIO

2015.06.10

MAX 10 On-Chip I/O Termination

MAX 10 On-Chip I/O Termination

The on-chip termination (OCT) block in MAX 10 devices provides I/O impedance matching and termination capabilities. OCT maintains signal quality, saves board space, and reduces external component costs.

2-21

The MAX 10 devices support serial (R

S

) OCT for single-ended output pins and bidirectional pins. For bidirectional pins, OCT is active for output only.

Figure 2-11: Single-ended I/O Termination (R

S

)

This figure shows the single-ended termination scheme supported in MAX 10 device.

Driver

Series Termination

Receiving

Device

R

S

Z

0

= 50 Ω

V

REF

Table 2-9: OCT Schemes Supported in MAX 10 Devices

Direction OCT Schemes

R

S

OCT with calibration

Output

R

S

OCT without calibration

Device Support

MAX 10 16, 25,

40, and 50 devices

All MAX 10 devices

I/O Bank Support

Right bank only

All I/O banks

OCT Calibration

The OCT calibration circuit compares the total impedance of the output buffer to the external resistors connected to the

RUP

and

RDN

pins. The circuit dynamically adjusts the output buffer impedance until it matches the external resisters.

Each calibration block comes with a pair of

RUP

and

RDN

pins.

During calibration, the

RUP

and

RDN

pins are each connected through an external 25 Ω, 34 Ω, 40 Ω, 48 Ω, or 50 Ω resistor for respective on-chip series termination value of 25 Ω, 34 Ω, 40 Ω, 48 Ω, and 50 Ω:

RUP

—connected to

VCCIO

.

RDN

—connected to

GND

.

The OCT calibration circuit compares the external resistors to the internal resistance using comparators.

The OCT calibration block uses the comparators' output to dynamically adjust buffer impedance.

MAX 10 I/O Architecture and Features

Send Feedback

Altera Corporation

2-22

RS OCT in MAX 10 Devices

UG-M10GPIO

2015.06.10

During calibration, the resistance of the

RUP

and

RDN

pins varies. To estimate of the maximum possible current through the external calibration resistors, assume a minimum resistance of 0 Ω on the

RUP

and

RDN

pins.

R

S

OCT in MAX 10 Devices

Table 2-10: Selectable I/O Standards for R

S

OCT

This table lists the output termination settings for R

S standards.

OCT with and without calibration on different I/O

• R

• R

S

OCT with calibration—supported only on the right side I/O banks of the MAX 10 16, 25, 40, and 50 devices.

S

OCT without calibration—supported on all I/O banks of all MAX 10 devices.

SSTL-2 Class I

SSTL-2 Class II

SSTL-18 Class I

SSTL-15 Class I

SSTL-15

SSTL-135

HSUL-12

I/O Standard

3.0 V LVTTL/3.0V LVCMOS

2.5 V LVTTL/2.5 V LVCMOS

1.8 V LVTTL/1.8 V LVCMOS

1.5 V LVCMOS

1.2 V LVCMOS

SSTL-18 Class II

SSTL-15 Class II

1.8 V HSTL Class I

1.8 V HSTL Class II

1.5 V HSTL Class I

1.5 V HSTL Class II

1.2 V HSTL Class I

1.2 V HSTL Class II

Differential SSTL-2 Class I

Differential SSTL-2 Class I

Calibrated OCT (Output)

50

25

34, 40

34, 40

50

50

25

50

25

R

S

(Ω)

25, 50

25, 50

25, 50

25, 50

25, 50

25

50

25

50

25

34, 40, 48

50

25

Uncalibrated OCT (Output)

50

25

34, 40

34, 40

50

50

25

50

25

R

S

(Ω)

25, 50

25, 50

25, 50

25, 50

25, 50

25

50

25

50

25

34, 40, 48

50

25

Altera Corporation

MAX 10 I/O Architecture and Features

Send Feedback

UG-M10GPIO

2015.06.10

I/O Standard

Differential SSTL-18 Class I

Differential SSTL-18 Class II

Differential SSTL-15 Class I

Differential SSTL-15 Class II

Differential SSTL-15

Differential SSTL-135

Differential 1.8 V HSTL Class I

Differential 1.8 V HSTL Class II

Differential 1.5 V HSTL Class I

Differential 1.5 V HSTL Class II

Differential 1.2 V HSTL Class I

Differential 1.2 V HSTL Class II

Differential HSUL-12

Calibrated OCT (Output)

R

S

(Ω)

50

25

50

25

34, 40

34, 40

50

25

50

25

50

25

34, 40, 48

RS OCT in MAX 10 Devices

Uncalibrated OCT (Output)

R

S

(Ω)

50

25

50

25

34, 40

34, 40

50

25

50

25

50

25

34, 40, 48

2-23

MAX 10 I/O Architecture and Features

Send Feedback

Altera Corporation

MAX 10 I/O Design Considerations

2015.06.10

UG-M10GPIO

Subscribe

Send Feedback

There are several considerations that require your attention to ensure the success of your designs. Unless noted otherwise, these design guidelines apply to all variants of this device family.

Related Information

MAX 10 I/O Overview

on page 1-1

3

Guidelines: V

CCIO

Range Considerations

There are several V

CCIO location.

range considerations because of I/O pin configuration function and I/O bank

• The shared I/O pins can only support a V

CCIO

range of 1.5 V to 3.3 V when you access the configura‐ tion function in user mode.The configuration function of the I/O pins can only support 1.5 V to 3.3 V.

If you need to access, for example, JTAG pins during user mode, the bank where the pin resides will be constrained by this V

CCIO

range. If you want to use I/O standards within the 1.2 V to 1.35 V range, you must not use the configuration function of any of the I/O pins during user mode. This only affects bank 1 (including bank 1A and bank 1B in applicable devices) and bank 8 because only these banks have I/O pins with configuration function.

• If you plan to migrate from devices that has banks 1A and 1B to devices that has only bank 1, ensure that the V

CCIO

of bank 1A and 1B are the same.

• For the V36 package of the 10M02 device, the V

CCIO

of these groups of I/O banks must be the same:

• Group 1—banks 1, 2 and 8

• Group 2—banks 3, 5, and 6

• For the V81 package of the 10M08 device, the V

CCIO

of these groups of I/O banks must be the same:

• Group 1—banks 1A, 1B, and 2

• Group 2—banks 5 and 6

Guidelines: Voltage-Referenced I/O Standards Restriction

These restrictions apply if you use the V

REF

pin.

©

2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

www.altera.com

101 Innovation Drive, San Jose, CA 95134

ISO

9001:2008

Registered

3-2

Guidelines: Enable Clamp Diode for LVTTL/LVCMOS Input Buffers

UG-M10GPIO

2015.06.10

• If you use a shared

VREF

pin as an I/O, all voltage-reference input buffers (SSTL, HSTL, and HSUL) are disabled.

• If you use a shared

VREF

pin as a voltage reference, you must enable the input buffer of specific I/O pin to use the voltage-reference I/O standards.

• The voltage-referenced I/O standards are not supported in the following I/O banks of these device packages:

• All I/O banks of V36 package of 10M02.

• All I/O banks of V81 package of 10M08.

• Bank 1A and 1B of E144 package of 10M50.

• Maximum number of voltage-referenced inputs for each

VREF

pin is 75% of total number of I/O pads.

The Quartus II software will provide a warning if you exceed the maximum number.

• Except for I/O pins that you used for static signals, all non-voltage-referenced output must be placed two pads away from a

VREF

pin. The Quartus II software will output an error message if this rule is violated.

Related Information

MAX 10 I/O Standards Support

on page 2-1

Guidelines: Enable Clamp Diode for LVTTL/LVCMOS Input Buffers

If the V

CCIO

of the I/O bank is lower than the voltage of the LVTTL/LVCMOS input buffers, Altera recommends that you enable the clamp diode.

• 3.3 V LVCMOS/LVTTL input buffers—enable clamp diode if V

CCIO

of the I/O bank is 3.0 V.

• 3.3 V or 3.0 V LVCMOS/LVTTL input buffers—enable clamp diode if V

CCIO

of the I/O bank is 2.5 V.

By enabling the clamp diode under these conditions, you will be able to limit overshoot or undershoot.

However, this does not comply with hot socket current specification.

If you do not enable the clamp diode under these conditions, the signal integrity for the I/O pin will be impacted and there will be overshoot or undershoot problem. In this situation, you must ensure that your board design conforms to the overshoot/undershoot specifications.

Table 3-1: Voltage Tolerance Maximum Ratings for 3.3 V or 3.0 V

This table lists the voltage tolerance specifications. Ensure that your board design conforms to these specifications if you do not want to follow the clamp diode recommendation.

Voltage Minimum (V) Maximum (V)

V

CCIO

= 3.3 V

V

CCIO

= 3.0 V

V

IH

(AC)

V

IH

(DC)

V

IL

(DC)

3.135

2.85

–0.3

3.45

3.15

4.1

3.6

0.8

Altera Corporation

MAX 10 I/O Design Considerations

Send Feedback

UG-M10GPIO

2015.06.10

Guidelines: Adhere to the LVDS I/O Restrictions Rules

3-3

Guidelines: Adhere to the LVDS I/O Restrictions Rules

For LVDS applications, adhere to the I/O restriction pin connection guidelines to avoid excessive jitter on the LVDS transmitter output pins. The Quartus II software generates a critical warning if these rules are violated.

Related Information

MAX 10 FPGA Device Family Pin Connection Guidelines

Guidelines: I/O Restriction Rules

For different I/O standards and conditions, you must limit the number of I/O pins. This I/O restriction rule is applicable if you use LVDS transmitters or receivers.

Table 3-2: Maximum Percentage of I/O Pins Allowed for Specific I/O Standards in an I/O Bank

This table lists the maximum number of general purpose output pins allowed in a bank in terms of percentage to the total number of I/O pins available in an I/O bank if you use these combinations of I/O standards and conditions.

I/O Standard Condition Max Pins Per Bank (%)

25

2.5 V LVTTL/

LVCMOS

2.5 V SSTL

16 mA current strength and 25 Ω OCT (fast and slow slew rate)

12 mA current strength (fast and slow slew rate)

8 mA current strength (fast and slow slew rate) and 50

Ω OCT (fast slew rate)

4 mA current strength (fast and slow slew rate)

30

45

65

100

Guidelines: Analog-to-Digital Converter I/O Restriction

These restrictions are applicable if you use the analog-to-digital converter (ADC) block.

The Quartus II software uses physics-based rules to define the number of I/Os allowed in a particular bank. These rules are based on noise calculation to analyze accurately the impact of I/O placement on the

ADC performance.

Implementation of the physics-based rules will be in stages, starting from Quartus II software version 14.1

for 10M04, 10M08, 10M40, and 10M50 devices. The physics-based rules for other MAX 10 devices will be implemented in future versions of the software.

Altera highly recommends that you adhere to these guidelines to ensure ADC performance. Furthermore, following these guidelines prevents additional critical warning from future versions of the Quartus II software when the physics-based rules are implemented.

MAX 10 I/O Design Considerations

Send Feedback

Altera Corporation

3-4

Guidelines: Analog-to-Digital Converter I/O Restriction

Table 3-3: I/O Restrictions Related to ADC Usage—Preliminary

UG-M10GPIO

2015.06.10

This table lists the I/O restrictions by MAX 10 device package if you use the dedicated analog input (

ANAIN1

or

ANAIN2

) or any dual function ADC I/O pins as ADC channel inputs.

Package Restriction/Guideline

All Disable all JTAG operation during ADC sampling. The ADC signal-to-noise and distortion ratio (SINAD) is not guaranteed during JTAG operation.

M153

U169

U324

F256

F484

F672

• Banks 1A and 1B—You cannot use GPIO pins in these banks.

• Banks 2, 3, 4, 5, 6, and 7—You can use GPIO pins located in these banks.

• Bank 8—You can use a percentage of the GPIO pins in this bank based on drive strength:

• For the percentage of GPIO pins allowed, refer to

Table 3-4

(9)

.

• Use low drive strength (8 mA and below) and differential I/O standards.

• Do not place transmitter pins in this bank. Use banks 2, 3, 4, 5, 6, or 7 instead.

• You can use static pins such as

RESET

or

CONTROL

.

• GPIO pins in this bank are governed by physics-based rules. The Quartus II software will issue a critical warning I/O settings violates any of the I/O physicbased rule.

E144 • Bank 1A, 1B, 2, and 8—You cannot use GPIO pins in these banks.

• Banks 4 and 6—You can use GPIO pins located in these banks.

• Banks 3, 5, and 7—You can use a percentage of the GPIO pins in this bank based on drive strength:

• For the percentage of GPIO pins allowed, refer to

Table 3-5

.

• Use low drive strength (8 mA and below) and differential I/O standards.

• GPIO pins in these banks are governed by physics-based rules. The Quartus II software will issue a critical warning I/O settings violates any of the I/O physicbased rule.

Table 3-4: I/O Usage Restriction for Bank 8 in MAX 10 F484 Package

This table lists the percentage of I/O pins available in I/O bank 8 if you use the dedicated analog input (

ANAIN1

or

ANAIN2

) or any dual function ADC I/O pins as ADC channel. Refer to

Table 3-6

for the list of I/O standards in each group.

I/O Standards TX RX Total Availability (%)

Group 1

Group 2

Group 3

Group 4

Group 5

18

16

7

5

4

18

16

11

7

6

36

32

18

12

10

100

89

50

33

28

(9) Percentage of GPIO pins allowed in bank 8 for other packages will be made available in the future.

Altera Corporation

MAX 10 I/O Design Considerations

Send Feedback

UG-M10GPIO

2015.06.10

I/O Standards

Group 6

Group 7

TX

4

0

RX

4

8

Guidelines: Analog-to-Digital Converter I/O Restriction

Total

8

8

Availability (%)

22

22

3-5

Table 3-5: I/O Usage Restriction for Banks 3, 5, and 7 in MAX 10 E144 Package

This table lists the percentage of I/O pins available in banks 3, 5, and 7 if you use the dedicated analog input

(

ANAIN1

or

ANAIN2

) or any dual function ADC I/O pins as ADC channel inputs. Refer to

Table 3-6

for the list of

I/O standards in each group.

Bank 3 Bank 5 Bank 7

I/O Standards

TX RX Availabilit y (%)

TX RX Availabilit y (%)

TX RX Availabilit y (%)

Device I/O

Availability (%)

Group 1

Group 2

Group 3

Group 4

Group 5

Group 6

Group 7

7

7

4

3

2

1

0

8

8

5

4

3

2

0

88

88

50

39

28

17

0

6

6

6

5

5

5

5

6

6

6

5

5

5

5

100

100

100

83

83

83

83

4

4

2

0

0

0

0

3

3

0

0

0

0

0

100

100

29

0

0

0

0

54

54

45

39

37

35

32

Table 3-6: I/O Standards Groups Categorized According to Drive Strengths

I/O Standard Group

Group 1

I/O Standards Name and Drive Strength

• 2.5 V LVDS

• 2.5 V RSDS

• BLVDS at 4 mA

• SLVS at 4 mA

MAX 10 I/O Design Considerations

Send Feedback

Altera Corporation

3-6

Guidelines: Analog-to-Digital Converter I/O Restriction

I/O Standard Group

Group 2

I/O Standards Name and Drive Strength

• BLVDS at 8 mA

• SLVS at 8 mA

• Sub-LVDS at 8 mA

• 1.8 V, 1.5 V, and 1.2 V HSTL Class I at 8 mA

• SSTL-15 at 34 Ω or 40 Ω

• SSTL-135 at 34 Ω or 40 Ω

• HSUL-12 at 34 Ω or 40 Ω

• SSTL-2 Class I at 8 mA

• SSTL-18 Class I at 8 mA

• SSTL-15 Class I at 8 mA

• 2.5 V and 1.8 V LVTTL at 4 mA

• 2.5 V, 1.8 V, 1.5 V, and 1.2 V LVCMOS at 4 mA

• 1.8 V LVTTL at 2 mA

• 1.8 V, 1.5 V, and 1.2 V LVCMOS at 2 mA

Group 3

Group 4

• BLVDS at 12 mA

• SLVS at 12 mA

• Sub-LVDS at 12 mA

• SSTL-2 Class I at 10 mA or 12 mA

• SSTL-18 Class I at 10 mA or 12 mA

• SSTL-15 Class I at 10 mA or 12 mA

• 1.8 V, 1.5 V, and 1.2 V HSTL Class I at 10 mA or 12 mA

• SSTL-2 at 50 Ω

• SSTL-18 at 50 Ω

• SSTL-15 at 50 Ω

• 1.8 V, 1.5 V and 1.2 V HSTL at 50 Ω

• HSUL-12 at 48 Ω

• 2.5 V and 1.8 V LVTTL at 50 Ω

• 2.5 V, 1.8 V, 1.5 V, and 1.2 V LVCMOS at 50 Ω

• 1.8 V LVTTL at 6 mA or 8 mA

• 1.8 V, 1.5 V, and 1.2 V LVCMOS at 6 mA or 8 mA

• 3.0 V LVTTL at 4 mA

• 3.0 V LVCMOS at 4 mA

• SSTL-18 Class II at 12 mA

• 3.0 V LVTTL at 50 Ω

• 3.0 V LVCMOS at 50 Ω

• 2.5 V LVTTL at 8 mA

• 2.5 V LVCMOS at 8 mA

• 1.8 V LVTTL at 10 mA or 12 mA

• 1.8 V, 1.5 V, and 1.2 V LVCMOS at 10 mA or 12 mA

• 3.3 V LVCMOS at 2 mA

Altera Corporation

UG-M10GPIO

2015.06.10

MAX 10 I/O Design Considerations

Send Feedback

UG-M10GPIO

2015.06.10

I/O Standard Group

Group 5

Group 6

Group 7

Guidelines: External Memory Interface I/O Restrictions

I/O Standards Name and Drive Strength

• SSTL-2 Class II at 16 mA

• SSTL-18 Class II at 16 mA

• SSTL-15 Class II at 16 mA

• 1.8 V and 1.5 V HSTL Class II at 16 mA

• 1.2 V HSTL Class II at 14 mA

• SSTL-18 at 25 Ω

• SSTL-15 at 25 Ω

• SSTL-2 at 25 Ω

• 1.8 V, 1.5 V, and 1.2 V HSTL at 25 Ω

• 2.5 V and 1.8 V LVTTL at 25 Ω

• 2.5 V, 1.8 V, 1.5 V, and 1.2 LVCMOS at 25 Ω

• 1.8 V LVTTL at 16 mA

• 1.8 V and 1.5 V LVCMOS at 16 mA

• 2.5 V LVCMOS at 12 mA

• 2.5 V LVTTL at 12 mA

• 3.0 V LVCMOS at 8 mA

• 3.0 V LVTTL at 8 mA

• 3.3 V LVTTL at 4 mA or 8 mA

• 2.5 V LVTTL at 16 mA

• 2.5 V LVCMOS at 16 mA

• 3.0 V LVTTL at 12 mA

• 3.0 V LVCMOS at 12 mA

• 3.0 V LVTTL at 25 Ω

• 3.0 V LVCMOS at 25 Ω

• 3.0 V LVTTL at 16 mA

• 3.0 V LVCMOS at 16 mA

3-7

Guidelines: External Memory Interface I/O Restrictions

These I/O rules are applicable if you use external memory interfaces in your design.

Two GPIOs Adjacent to DQ Pin Is Disabled

This limitation is applicable to MAX 10 10M16, 10M25, 10M40, and 10M50 devices, and only if you use

DDR3 and LPDDR2 SDRAM memory standards.

MAX 10 I/O Design Considerations

Send Feedback

Altera Corporation

3-8

Guidelines: Dual-Purpose Configuration Pin

UG-M10GPIO

2015.06.10

Table 3-7: DDR3 and LPDDR2 Memory Interface Widths and Device Packages Where Two GPIOs Adjacent to DQ Pins Are Disabled

This table lists the combination of MAX 10 10M16, 10M25, 10M40, and 10M50 device packages, and DDR3 and

LPDDR2 memory interface widths where you cannot use two GPIO pins that are adjacent to the DQ pins.

Device Package Memory Interface Width (DDR3 and LPPDR2 only)

U324

F484

F672 x8 x8, x16, x24 x8, x16, x24

Total I/O Utilization In Bank Must Be 75 Percent or Less In Some Devices

If you use DDR3 or LPDDR2 SDRAM memory interface standards, you can generally use a maximum of

75 percent of the total number of I/O pins available in a bank. This restrictions differ from device to device. In some devices packages you can use all 100 percent of the I/Os. The Quartus II software will output an error message if the I/O usage per bank of that device is affected by this rule.

If you use DDR2 memory interface standards, you can assign 25 percents of the I/O pins as input pins only.

Guidelines: Dual-Purpose Configuration Pin

To use configuration pins as user I/O pins in user mode, you have to adhere to the following guidelines.

Table 3-8: Dual-Purpose Configuration Pin Guidelines for MAX 10 Devices

Pins

nCONFIG nSTATUS

CONF_DONE

Guidelines

During initialization:

• tri-state the external I/O driver and drive an external pull-up resistor

(10)

or

• use the external I/O driver to drive the pins to the state same as the external weak pullup resistor nSTATUS

CONF_DONE

TDO

Tri-state the external driver of the configuration pins before the t

WAIT

(minimum) wait time is reached. You can use these pins for configuration purpose after t

WAIT

(maximum).

nCONFIG

You can only use the nCONFIG

pin as a single-ended input pin in user mode.

If the nCONFIG

is set as user I/O, you can trigger the reconfiguration by:

• asserting

RU_nCONFIG

of the remote system upgrade circuitry

• issuing

PULSE_NCONFIG

JTAG instruction

(10) If you intend to remove the external weak pull-up resistor, Altera recommends that you remove it after the device enters user mode.

Altera Corporation

MAX 10 I/O Design Considerations

Send Feedback

UG-M10GPIO

2015.06.10

TDO

Pins

TMS

TCK

TDI

Guidelines: Dual-Purpose Configuration Pin

Guidelines

• If you intend to switch back and forth between user I/O pins and JTAG pin functions using the JTAGEN pin, all JTAG pins must be assigned as single-ended I/O pins or voltage-referenced I/O pins. Schmitt trigger input is the recommended input buffer.

• JTAG pins cannot perform as JTAG pins in user mode if you assign any of the JTAG pin as a differential I/O pin.

• You must use the JTAG pins as dedicated pins and not as user I/O pins during JTAG programming.

• Do not toggle JTAG pin during the initialization stage.

• Put the test access port (TAP) controller in reset state and drive the

TDI

and

TMS

pins high and

TCK

pin low before the initialization.

3-9

Related Information

MAX 10 FPGA Configuration User Guide

Provides more information about the dual-purpose I/O pins in configuration and user modes.

MAX 10 I/O Design Considerations

Send Feedback

Altera Corporation

MAX 10 I/O Implementation Guides

2015.06.10

UG-M10GPIO

Subscribe

Send Feedback

You can implement your I/O design in the Quartus II software. The software contains tools for you to create and compile your design, and configure your device.

The Quartus II software allows you to prepare for device migration, set pin assignments, define placement restrictions, setup timing constraints, and customize IP cores. For more information about using the

Quartus II software, refer to the related information.

Related Information

MAX 10 I/O Overview

on page 1-1

4

Altera GPIO Lite IP Core

The Altera GPIO Lite IP core supports the MAX 10 GPIO components. To implement the GPIOs in your design, you can customize the Altera GPIO Lite IP core to suit your requirements and instantiate it in your design.

GPIOs are I/Os used in general applications not specific to transceivers, memory-like interfaces or LVDS.

The Altera GPIO Lite IP core features the following components:

• Double data rate input/output (DDIO)—A digital component that doubles the data-rate of a communication channel.

• I/O buffers—connect the pads to the FPGA.

Figure 4-1: High Level View of Single-Ended GPIO

Core

OEIN[1:0]

DATAIN[3:0]

DATAOUT[3:0]

GPIO

OE

Path

Output

Path

Input

Path

Buffer

©

2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

www.altera.com

101 Innovation Drive, San Jose, CA 95134

ISO

9001:2008

Registered

4-2

Altera GPIO Lite IP Core Data Paths

Related Information

Altera GPIO Lite IP Core References

on page 5-1

Introduction to Altera IP Cores

Specifying IP Core Parameters and Options

on page 4-6

Files Generated for Altera IP Cores (Legacy Parameter Editor)

Simulating Altera IP Cores in other EDA Tools

Upgrading Outdated IP Cores

Altera GPIO Lite IP Core Data Paths

Table 4-1: Altera GPIO Lite Data Path Modes

UG-M10GPIO

2015.06.10

Data Path

Input

Output

Bidirectional

Bypass

Data goes from the delay element to the core, bypassing all double data rate I/Os (DDIOs).

Data goes from the core straight to the delay element, bypassing all DDIOs.

The output buffer drives both an output pin and an input buffer.

Mode

Single Register

The full-rate DDIO operates as a single register.

The full-rate DDIO operates as a single register.

The full-rate DDIO operates as a single register. The output buffer drives both an output pin and an input buffer.

DDR

The full-rate DDIO operates as a regular

DDIO.

The full-rate DDIO operates as a regular

DDIO.

The full-rate DDIO operates as a regular

DDIO. The output buffer drives both an output pin and an input buffer. The input buffer drives a set of three flip-flops.

If you use asynchronous clear and preset signals, all DDIOs share these same signals.

DDR Input Path

The pad sends data to the input buffer and the input buffer feeds the delay element. From the delay element, the data is fed to the DDIO stage, which consists of three registers:

RegAi

samples the data from pad_in

at the positive clock edge.

RegBi

samples the data from pad_in

at the negative clock edge.

RegCi

samples the data from

RegAi

at the negative clock edge.

Altera Corporation

MAX 10 I/O Implementation Guides

Send Feedback

UG-M10GPIO

2015.06.10

DDR Output Path with Output Enable

Figure 4-2: Simplified View of Altera GPIO Lite DDR Input Path

pad_in

Input

Buffer

Delay

Element inclk

DDIO_IN

D

RegAi

Q D

RegCi

Q IO_DATAIN0

D

RegBi

Q

IO_DATAIN1

4-3

Figure 4-3: Altera GPIO Lite Input Path Timing Diagram

High Z

D0 D1 D2 D3 D4 D5 D6 D7 pad_in inclk

Output from RegAi

Output from RegBi

Output from RegCi

D0

D1

D0

D2

D3

D2

D4

D5

D4

D6

D7

D6

High Z

DDR Output Path with Output Enable

RegCo

samples the data from

IO_DATAOUT0

at the positive clock edge.

RegDo

samples the data from

IO_DATAOUT1

when outclock

value is 0.

Output DDR

samples the data from

RegCo

at the positive clock edge, and from

RegDo

at the negative clock edge.

MAX 10 I/O Implementation Guides

Send Feedback

Altera Corporation

4-4

IP Catalog and Parameter Editor

Figure 4-4: Simplified View of Altera GPIO Lite DDR Output Path with Output Enable

IO_DATAOUT0

DDIO_OUT

RegCo

D Q

OE

Delay

Element

Output DDR

UG-M10GPIO

2015.06.10

IO_DATAOUT1 outclock

D

RegDo

Q

QB

Figure 4-5: Altera GPIO Lite Output Path Timing Diagram

OE

IO_DATAOUT1

IO_DATAOUT0 outclock

RegCo

RegD0

Output DDR

D0

D1

D2

D3

D4

D5

D6

D7

D1 D3 D5 D7

D0 D2 D4 D6

D0 D1 D2 D3 D4 D5 D6 D7

IP Catalog and Parameter Editor

The Quartus II IP Catalog (Tools > IP Catalog) and parameter editor help you easily customize and integrate IP cores into your project. You can use the IP Catalog and parameter editor to select, customize, and generate files representing your custom IP variation.

Note: The IP Catalog (Tools > IP Catalog) and parameter editor replace the MegaWizard the IP Catalog and parameter editor to locate and paramaterize Altera IP cores.

Plug-In

Manager for IP selection and parameterization, beginning in Quartus II software version 14.0. Use

The IP Catalog lists installed IP cores available for your design. Double-click any IP core to launch the parameter editor and generate files representing your IP variation. The parameter editor prompts you to specify an IP variation name, optional ports, and output file generation options. The parameter editor generates a top-level Qsys system file (

.qsys

) or Quartus II IP file (

.qip

) representing the IP core in your project. You can also parameterize an IP variation without an open project.

Altera Corporation

MAX 10 I/O Implementation Guides

Send Feedback

UG-M10GPIO

2015.06.10

IP Catalog and Parameter Editor

4-5

Use the following features to help you quickly locate and select an IP core:

• Filter IP Catalog to Show IP for active device family or Show IP for all device families. If you have no project open, select the Device Family in IP Catalog.

• Type in the Search field to locate any full or partial IP core name in IP Catalog.

• Right-click an IP core name in IP Catalog to display details about supported devices, open the IP core's installation folder, and view links to documentation.

• Click Search for Partner IP, to access partner IP information on the Altera website.

Figure 4-6: Quartus II IP Catalog

Show IP only for target device

Search for installed IP cores

Double-click to customize, right-click for detailed information

Note: The IP Catalog is also available in Qsys (View > IP Catalog). The Qsys IP Catalog includes exclusive system interconnect, video and image processing, and other system-level IP that are not available in the Quartus II IP Catalog. For more information about using the Qsys IP Catalog, refer to Creating a System with Qsys in the Quartus II Handbook.

Related Information

Provides more information about the programmableCreating a System With Qsys, Volume 1: Design and Synthesis, Quartus II Handbook

MAX 10 I/O Implementation Guides

Send Feedback

Altera Corporation

4-6

Specifying IP Core Parameters and Options

UG-M10GPIO

2015.06.10

Specifying IP Core Parameters and Options

You can quickly configure a custom IP variation in the parameter editor. Use the following steps to specify IP core options and parameters in the parameter editor. Refer to Specifying IP Core Parameters

and Options (Legacy Parameter Editors) for configuration of IP cores using the legacy parameter editor.

1. In the IP Catalog (Tools > IP Catalog), locate and double-click the name of the IP core to customize.

The parameter editor appears.

2. Specify a top-level name for your custom IP variation. The parameter editor saves the IP variation settings in a file named <your_ip>

.qsys

. Click OK.

3. Specify the parameters and options for your IP variation in the parameter editor, including one or more of the following. Refer to your IP core user guide for information about specific IP core parameters.

• Optionally select preset parameter values if provided for your IP core. Presets specify initial parameter values for specific applications.

• Specify parameters defining the IP core functionality, port configurations, and device-specific features.

• Specify options for processing the IP core files in other EDA tools.

4. Click Generate HDL, the Generation dialog box appears.

5. Specify output file generation options, and then click Generate. The IP variation files generate according to your specifications.

6. To generate a simulation testbench, click Generate > Generate Testbench System.

7. To generate an HDL instantiation template that you can copy and paste into your text editor, click

Generate > HDL Example.

8. Click Finish. The parameter editor adds the top-level

.qsys

file to the current project automatically. If you are prompted to manually add the

.qsys

file to the project, click Project > Add/Remove Files in

Project to add the file.

9. After generating and instantiating your IP variation, make appropriate pin assignments to connect ports.

Altera Corporation

MAX 10 I/O Implementation Guides

Send Feedback

UG-M10GPIO

2015.06.10

Figure 4-7: IP Parameter Editor

Files Generated for Altera IP Cores (Legacy Parameter Editor)

4-7

View IP port and parameter details

Specify your IP variation name and target device

Apply preset parameters for specific applications

Related Information

Altera GPIO Lite IP Core

on page 4-1

Quartus II Handbook, Volume 1: Design and Synthesis

Provides more information about using IP cores in the Quartus II software.

Files Generated for Altera IP Cores (Legacy Parameter Editor)

The Quartus II software version 14.0 and previous generates the following output for IP cores that use the legacy MegaWizard parameter editor.

MAX 10 I/O Implementation Guides

Send Feedback

Altera Corporation

4-8

Verifying Pin Migration Compatibility

Figure 4-8: IP Core Generated Files

<Project Directory>

<your_ip>.qip - Q uartus II IP integration file

<your_ip>.v, .sv. or .vhd - T op-level IP synthesis file

<your_ip> - IP core synthesis files

<your_ip>.sv, .v, or .vhd - HDL synthesis files

<your_ip>.sdc - T iming constraints file

<your_ip>.bsf - B lock symbol schematic file

<your_ip>.cmp - VHDL c omponent declaration file

<your_ip>_syn.v or .vhd - Timing & resource estimation netlist1

<your_ip>.sip - Lists files for simulation

<your_ip>.ppf - XML I/O pin inf ormation file

<your_ip>.spd - C ombines individual simulation scripts

1

<your_ip>_sim.f - Refers to simulation models and scripts

1

<your_ip>_sim 1

<AlteraIP_name>_instance

<Altera IP>_instance.vo - IPFS model 2

<simulator_vendor>

<simulator setup scripts>

<your_ip>_t

estbench

or _example - Testbench or example1

Notes:

1. If supported and enabled for your IP variation

2. If functional simulation models are generated

UG-M10GPIO

2015.06.10

Verifying Pin Migration Compatibility

You can use the Pin Migration View window in the Quartus II software Pin Planner to assist you in verifying whether your pin assignments migrate to a different device successfully.

You can vertically migrate to a device with a different density while using the same device package, or migrate between packages with different densities and ball counts.

1. Open Assignments > Pin Planner and create pin assignments.

2. If necessary, perform one of the following options to populate the Pin Planner with the node names in the design:

• Analysis & Elaboration

• Analysis & Synthesis

• Fully compile the design

3. Then, on the menu, click View > Pin Migration View.

4. To select or change migration devices:

Altera Corporation

MAX 10 I/O Implementation Guides

Send Feedback

UG-M10GPIO

2015.06.10

Verifying Pin Migration Compatibility

4-9

a. Click Device to open the Device dialog box.

b. Under Migration compatibility click Migration Devices.

5. To show more information about the pins:

a. Right-click anywhere in the Pin Migration View window and select Show Columns.

b. Then, click the pin feature you want to display.

6. If you want to view only the pins, in at least one migration device, that have a different feature than the corresponding pin in the migration result, turn on Show migration differences.

7. Click Pin Finder to open the Pin Finder dialog box and find and highlight pins with specific function‐ ality.

If you want to view only the pins found and highlighted by the most recent query in the Pin Finder dialog box, turn on Show only highlighted pins.

8. To export the pin migration information to a Comma-Separated Value File (.csv), click Export.

Related Information

MAX 10 I/O Vertical Migration Support

on page 1-3

MAX 10 I/O Implementation Guides

Send Feedback

Altera Corporation

Altera GPIO Lite IP Core References

2015.06.10

UG-M10GPIO

Subscribe

Send Feedback

You can set various parameter settings for the Altera GPIO Lite IP core to customize its behaviors, ports, and signals.

The Quartus II software generates your customized Altera GPIO Lite IP core according to the parameter options that you set in the parameter editor.

Related Information

MAX 10 I/O Overview

on page 1-1

Altera GPIO Lite IP Core

on page 4-1

5

Altera GPIO Lite Parameter Settings

You can set the parameter settings for the Altera GPIO Lite IP core in the Quartus II software. There are three groups of options: General, Buffer, and Registers.

Table 5-1: Altera GPIO Lite Parameters - General

Parameter Condition Description

Data direction

Data width

Allowed

Values

• input

• output

• bidir

1 to 128

Specifies the data direction for the

GPIO.

Specifies the data width.

Table 5-2: Altera GPIO Lite Parameters - Buffer

Parameter Condition Description

Use true differential buffer Data direction = input or output

Allowed

Values

• On

• Off

If turned on, enables true differential I/O buffers and disables pseudo differential I/O buffers.

©

2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

www.altera.com

101 Innovation Drive, San Jose, CA 95134

ISO

9001:2008

Registered

5-2

Altera GPIO Lite Parameter Settings

Parameter Condition

Use pseudo differential buffer Data direction = output or bidir

Use bus-hold circuitry

Use open drain output

Enable oe port

Data direction = input or output

Data direction = output or bidir

Data direction = output

UG-M10GPIO

2015.06.10

Allowed

Values

• On

• Off

• On

• Off

• On

• Off

• On

• Off

Description

• If turned on in output mode— enables pseudo differential output buffers and disables true differential I/O buffers.

• If turned on in bidir mode— enables true differential input buffer and pseudo differential output buffer.

If turned on, the bus hold circuitry can weakly hold the signal on an I/O pin at its lastdriven state where the output buffer state will be 1 or 0 but not high-impedance.

If turned on, the open drain output enables the device to provide system-level control signals such as interrupt and write enable signals that can be asserted by multiple devices in your system.

If turned on, enables user input to the OE port. This option is automatically turned on for bidirectional mode.

Altera Corporation

Altera GPIO Lite IP Core References

Send Feedback

UG-M10GPIO

2015.06.10

Table 5-3: Altera GPIO Lite Parameters - Registers

Parameter Condition

Register mode —

Enable aclr port

• Register mode = ddr

• On

• Off

Enable aset port

• Data direction = output or bidir

• Register mode = ddr

• Set registers to power up high

(when aclr and aset ports are not used) = off

• On

• Off

Set registers to power up high

(when aclr and aset ports are not used)

• Register mode = ddr

• Enable aclr port = off

• Enable aset port = off

• Enable sclr port = off

• On

• Off

Altera GPIO Lite Parameter Settings

5-3

Allowed

Values

• bypass

• singleregister

• ddr

Description

Specifies the register mode for the

Altera GPIO Lite IP core:

bypass—specifies a simple wire connection from/to the buffer.

single-register—specifies that the DDIO is used as a simple register in single data-rate mode (SDR). The Fitter may pack this register in the I/O.

ddr— specifies that the IP core uses the DDIO.

If turned on, enables the

ACLR port for asynchronous clears.

If turned on, enables the

ASET port for asynchronous preset.

If you are not using the

ASET

ports:

ACLR

and

On—specifies that registers power up HIGH.

Off—specifies that registers power up LOW.

Altera GPIO Lite IP Core References

Send Feedback

Altera Corporation

5-4

Enable inclocken/outclocken ports

Altera GPIO Lite Parameter Settings

Parameter Condition Allowed

Values

Register mode = ddr • On

• Off

Invert din

Description

UG-M10GPIO

2015.06.10

On—exposes the clock enable port to allow you to control when data is clocked in or out.

This signal prevents data from being passed through without your control.

Off—clock enable port is not exposed and data always pass through the register automati‐ cally.

If turned on, inverts the data out output port.

Invert DDIO inclock

• Data direction = output

• Register mode = ddr

• Data direction = input or bidir

• Register mode = ddr

• On

• Off

• On

• Off

On—captures the first data bit on the falling edge of the input clock.

Off—captures the first data bit on the rising edge of the input clock.

If turned on, specifies that a single register drives the

OE

signal at the output buffer.

Use a single register to drive the output enable (oe) signal at the I/O buffer

Use DDIO registers to drive the output enable (oe) signal at the I/O buffer

• Data direction = output or bidir

• Register mode = single-register or ddr

• Use DDIO registers to drive the output enable

(oe) signal at the I/

O buffer = off

• On

• Off

• Data direction = output or bidir

• Register mode = ddr

• Use a single register to drive the output enable

(oe) signal at the I/

O buffer = off

• On

• Off

If turned on, specifies that the

DDR I/O registers drive the signal at the output buffer. The output pin is held at high impedance for an extra half clock cycle after the

OE

OE

port goes high.

Altera Corporation

Altera GPIO Lite IP Core References

Send Feedback

UG-M10GPIO

2015.06.10

Parameter Condition

Implement DDIO input registers in hard implementa‐ tion (Only available in certain devices)

• Data direction = input or bidir

• Register mode = ddr

Allowed

Values

• On

• Off

Altera GPIO Lite Interface Signals

Description

On—implements the DDIO input registers using hard block at the I/O edge.

Off—implements the DDIO

5-5

input registers as soft implementation using registers in the FPGA core fabric.

This option is applicable only for

MAX 10 16, 25, 40, and 50 devices because the DDIO input registers hard block is available only in these devices. To avoid Fitter error, turn this option off for other MAX 10 devices.

Altera GPIO Lite Interface Signals

Depending on parameter settings you specify, different interface signals are available for the Altera GPIO

Lite IP core.

Table 5-4: Pad Interface Signals

The pad interface connects the Altera GPIO Lite IP core to the pads.

Signal Name Direction

pad_in

Input

Description

Input pad port if you use the input path.

pad_in_b

Input

Input negative pad port if you use the input path and enable the true or pseudo differential buffers.

pad_out pad_out_b pad_io pad_io_b

Output

Output pad port if you use the output path.

Output

Output negative pad port if you use the output path and enable the true of pseudo differential buffers.

Bidirectional Bidirectional pad port if you use bidirectional paths.

Bidirectional Bidirectional negative pad port if you use bidirectional paths and enable true or pseudo differential buffers.

Altera GPIO Lite IP Core References

Send Feedback

Altera Corporation

5-6

Altera GPIO Lite Interface Signals

Table 5-5: Data Interface Signals

UG-M10GPIO

2015.06.10

The data interface is an input or output interface from the Altera GPIO Lite IP core to the FPGA core.

Signal Name Direction Description

din

Input

Data received from the input pin.

Signal width for each input pin:

• DDR mode—2

• Other modes—1 dout

Output

Data to send out through the output pin.

Signal width for each output pin:

• DDR mode—2

• Other modes—1 oe

Input

Control signal that enables the output buffer. This signal is active HIGH.

nsleep

Input

Control signal that enables the input buffer. This signal is active LOW.

This signal is available for the 10M16, 10M25, 10M40, and

10M50 devices.

Table 5-6: Clock Interface Signals

The clock interface is an input clock interface. It consists of different signals, depending on the configuration. The

Altera GPIO Lite IP core can have zero, one, two, or four clock inputs. Clock ports appear differently in different configurations to reflect the actual function performed by the clock signal.

Signal Name Direction Description

inclock

Input

Input clock that clocks the registers in the input path.

inclocken

Input

Control signal that controls when data is clocked in. This signal is active HIGH.

outclock

Input

Input clock that clocks the registers in the output path.

ouctlocken

Input

Control signal that controls when data is clocked out. This signal is active HIGH.

Altera Corporation

Altera GPIO Lite IP Core References

Send Feedback

UG-M10GPIO

2015.06.10

Table 5-7: Reset Interface Signals

Altera GPIO Lite Interface Signals

The reset interface connects the Altera GPIO Lite IP core to the DDIOs.

Signal Name Direction

aclr

Input

Description

Control signal for asynchronous clear that sets the register output state to 0. This signal is active HIGH.

aset

Input

Control signal for asynchronous preset that sets the register output state to 1. This signal is active HIGH.

sclr

Input

Control signal for synchronous clear that sets the register output to 0. This signal is active HIGH.

5-7

Altera GPIO Lite IP Core References

Send Feedback

Altera Corporation

2015.06.10

UG-M10GPIO

Additional Information for MAX 10 General

Purpose I/O User Guide

A

Send Feedback

Subscribe

Document Revision History for MAX 10 General Purpose I/O User Guide

Date

June 2015

May 2015

Version Changes

2015.06.10 • Added related link to the MAX 10 device pin-outs in topic about I/

O banks locations. The device pin-out files provide more informa‐ tion about available I/O pins in each I/O bank.

• Updated the ADC I/O restriction guidelines topic.

2015.05.04 • Removed the F672 package of the MAX 10 10M25 device.

• Updated footnote for LVDS (dedicated) in the table listing the supported I/O standards to clarify that you can use LVDS receivers on all I/O banks.

• Added missing footnote number for the DQS column of the 3.3 V

Schmitt Trigger row in the table that lists the I/O standards voltage levels and pin support.

• Added a table listing the I/O standards and current strength settings that support programmable output slew rate control.

• Updated the topic about external memory interface I/O restrictions to add x24 memory interface width to the F484 package.

• Added topic about the programmable differential output voltage.

• Updated the guidelines for voltage-referenced I/O standards to add a list of device packages that do not support voltage-referenced I/O standards.

• Updated the topic about the I/O restriction rules to remove statements about the differential pad placement rules.

• Renamed the input_ena

signal name to nsleep

and updated the relevant description.

• Updated the description for the Invert DDIO inclock parameter of the Altera GPIO Lite IP core.

©

2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

www.altera.com

101 Innovation Drive, San Jose, CA 95134

ISO

9001:2008

Registered

A-2

Document Revision History for MAX 10 General Purpose I/O User Guide

Date

December 2014

September 2014

UG-M10GPIO

2015.06.10

Version Changes

2014.12.15 Updated the topic about the ADC I/O restriction:

• Added information about implementation of physics-based rules in the Quartus II software.

• Updated the list of I/O standards groups for the ADC I/O restric‐ tion.

2014.09.22 Initial release.

Altera Corporation

Additional Information for MAX 10 General Purpose I/O User Guide

Send Feedback

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
