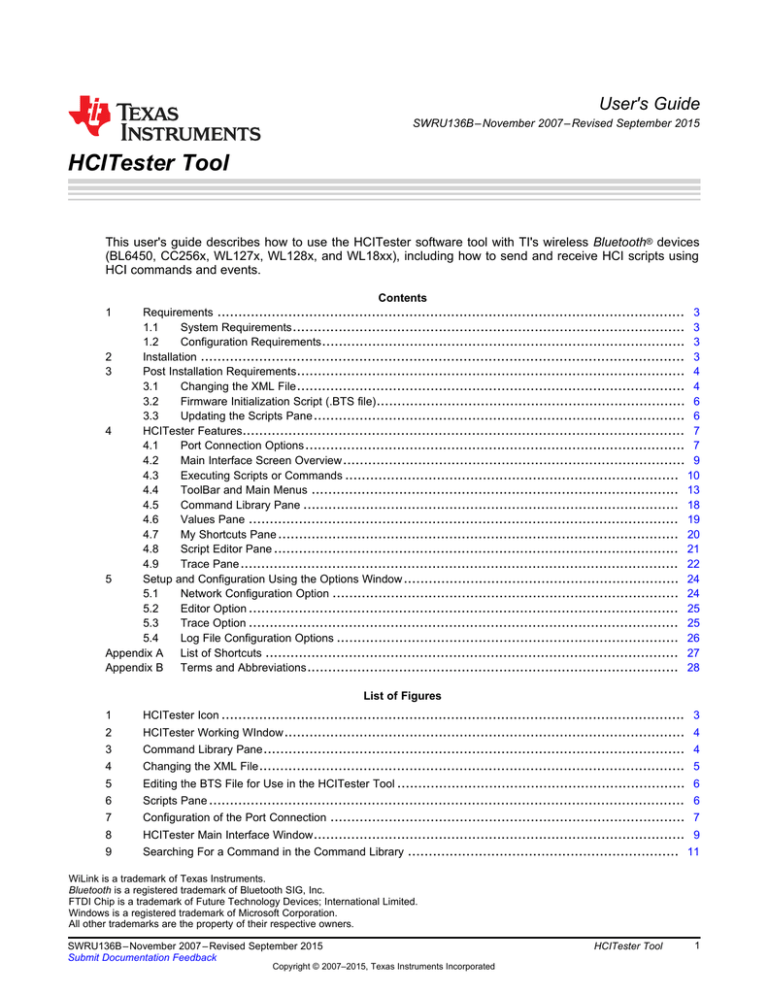

HCITester Tool (Rev. B)

HCITester Tool (Rev. B)

User's Guide

SWRU136B – November 2007 – Revised September 2015

HCITester Tool

This user's guide describes how to use the HCITester software tool with TI's wireless Bluetooth

® devices

(BL6450, CC256x, WL127x, WL128x, and WL18xx), including how to send and receive HCI scripts using

HCI commands and events.

Contents

1

2

3

4

Requirements

1.1

................................................................................................................

3

System Requirements

..............................................................................................

3

1.2

Configuration Requirements

.......................................................................................

3

Installation

....................................................................................................................

3

Post Installation Requirements

.............................................................................................

4

3.1

4.1

Changing the XML File

.............................................................................................

4

3.2

3.3

Firmware Initialization Script (.BTS file)

..........................................................................

6

Updating the Scripts Pane

.........................................................................................

6

HCITester Features

..........................................................................................................

7

Port Connection Options

...........................................................................................

7

4.2

4.3

4.4

4.5

4.6

4.7

4.8

4.9

Main Interface Screen Overview

Executing Scripts or Commands

..................................................................................

9

................................................................................

10

ToolBar and Main Menus

........................................................................................

13

Command Library Pane

Values Pane

..........................................................................................

18

.......................................................................................................

19

My Shortcuts Pane

................................................................................................

20

Script Editor Pane

Trace Pane

.................................................................................................

21

.........................................................................................................

22

5 Setup and Configuration Using the Options Window

..................................................................

24

5.1

5.2

5.3

5.4

Network Configuration Option

Editor Option

Trace Option

Log File Configuration Options

...................................................................................

24

.......................................................................................................

25

.......................................................................................................

25

..................................................................................

26

Appendix A List of Shortcuts

...................................................................................................

27

Appendix B Terms and Abbreviations

.........................................................................................

28

6

7

8

9

1

2

3

4

5

List of Figures

HCITester Icon

...............................................................................................................

3

HCITester Working WIndow

................................................................................................

4

Command Library Pane

.....................................................................................................

4

Changing the XML File

......................................................................................................

5

Editing the BTS File for Use in the HCITester Tool

.....................................................................

6

Scripts Pane

..................................................................................................................

6

Configuration of the Port Connection

.....................................................................................

7

HCITester Main Interface Window

.........................................................................................

9

Searching For a Command in the Command Library

.................................................................

11

WiLink is a trademark of Texas Instruments.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

FTDI Chip is a trademark of Future Technology Devices; International Limited.

Windows is a registered trademark of Microsoft Corporation.

All other trademarks are the property of their respective owners.

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

1

25

26

27

28

29

20

21

22

23

24

15

16

17

18

19

10

11

12

13

14

7

8

9

10

11

1

2

3

4

5

6

12

13

14

15

16 www.ti.com

Executing a Single Command from the Command Library

...........................................................

11

Execution Status Indicators

...............................................................................................

12

HCITester Menu Bar and Toolbar

........................................................................................

13

File Command Drop-Down Menu

........................................................................................

14

Edit Command Drop-Down Menu

........................................................................................

15

View Command Drop-Down Menu

.......................................................................................

16

Window Menu Drop-Down Menu

.........................................................................................

17

Help Command Drop-Down Menu

.......................................................................................

17

Command Library Pane

...................................................................................................

18

Visible Categories Dialog Box

............................................................................................

19

Values Pane

................................................................................................................

19

My Shortcuts Pane

.........................................................................................................

20

Script Editor

.................................................................................................................

21

Trace Pane

..................................................................................................................

22

Selecting Raw HCI Data to Trace on the View Menu

Network Configuration Option

................................................................

23

............................................................................................

24

Status Bar Indicator for Network Configuration

........................................................................

24

Editor Configuration

........................................................................................................

25

Trace Configuration Option

...............................................................................................

25

Log File Configuration Options

...........................................................................................

26

List of Tables

XML File Changing Icon Functions

........................................................................................

5

Scripts Pane Icon Functions

...............................................................................................

7

Flow Control Options

........................................................................................................

8

Sleep Type Functions

.......................................................................................................

8

Execution Status Indicators

...............................................................................................

12

HCITester Menu Functions

...............................................................................................

13

File Command Drop-Down Menu Functions

............................................................................

14

Edit Command Drop-Down Menu Functions

View Command Drop-Down Menu Functions

...........................................................................

15

..........................................................................

16

Window Command Drop-Down Menu Functions

......................................................................

17

Command Library Icon Functions

........................................................................................

18

Values Pane Command Functions

.......................................................................................

19

Trace Pane Icon Functions

Log Configuration Options

...............................................................................................

23

................................................................................................

26

Available HCITester Shortcuts

............................................................................................

27

Terms and Abbreviations

..................................................................................................

28

2

HCITester Tool

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

www.ti.com

1 Requirements

Requirements

1.1

System Requirements

The HCITester tool requires the following components:

• Minimum requirements: PC running Pentium II

• Operating systems: Windows

®

2000, Windows XP, Windows 7

• Access to Bluetooth HCI pins

• Access to Bluetooth HCI UART lines

• For Bluetooth TX validation, standard RF equipment (such as a power meter, spectrum analyzer, vector signal analyzer, or a combined tester such as Litepoint™ IQxel™) for TX output power,

Bluetooth mask, and DEVM measurements.

• For Bluetooth RX validation, a vector signal generator to generate Bluetooth packets for the IC to analyze.

Debug and calibration tools for WLAN and Bluetooth

® require four UART ports. The most efficient way to drive these ports to the PC is to use a UART-to-USB converter (not included in the wireless tools package). TI recommends using the WL18XXCOM82SDMMC adapter with the TI WL1837MODCOM8I module or the WL1835MODCOM8B module on the COM8 board.

NOTE:

Multiple UART-to-USB adapters are available on the market, such as the FTDI Chip™ development modules .

1.2

Configuration Requirements

The HCITester tool for the WiLink™ 8 TI Bluetooth release requires the latest versions of the following configuration files:

• XML file

• Bluetooth script

NOTE:

The XML file and the Bluetooth script support all of the WiLink family and are based on the

BTS naming format; for information on the WL128x and prior releases, follow the README file .

The installation files are in the directory named Wireless Tools at the installation path configured during installation. By default, the files are at the following path:

C:\Program Files (x86)\Texas Instruments\Wireless Tools

NOTE:

Throughout this document, the directory in which the installation files reside is referred to as

Installation directory.

2 Installation

The HCITester application is part of the TI wireless tools package release. When the wireless tools package is installed, the HCITtester icon is created in the Texas Instrument\Wireless Tools folder at

Start →Programs and on the desktop (see

Figure 1

).

Figure 1. HCITester Icon

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

3

Post Installation Requirements

To start the HCITester, double-click the HCITester icon. The software initializes and displays the

HCITester working window (see

Figure 2

).

www.ti.com

Figure 2. HCITester Working WIndow

3 Post Installation Requirements

3.1

Changing the XML File

TI Bluetooth devices require specific XML files. To change the XML file to match your specific TI Bluetooth device, perform the following steps:

1. From the toolbar, open the View menu and select Command Library. The Command Library pane appears (see

Figure 3

).

Figure 3. Command Library Pane

4

HCITester Tool

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

www.ti.com

Post Installation Requirements

2.

To open the Change Library Files dialog box, click the Change Library button (for more information on the Change Library button, see

Table 11

). The Change Library Files dialog box displays (see

Figure 4

).

Figure 4. Changing the XML File

3. Select the appropriate XML file for your device. and click OK.

NOTE:

Select only one XML file at a time.

Table 4

describes the XML file changing functions.

Icon

Table 1. XML File Changing Icon Functions

Function

Create a new file

Browse to the location of a saved file

Delete a file from the list

Move a file up in the list

Move a file down in the list

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

5

Post Installation Requirements

www.ti.com

3.2

Firmware Initialization Script (.BTS file)

The BTS file or initialization script must be modified to work with HCITester. Perform the following steps to modify the BTS file for HCITester:

1. Open HCITester tool.

2. Open the BTS file (File → Open).

3. Create a new script (File → New).

4. Copy the contents of the BTS file into the new tab.

5. Click Edit → Replace→ Replace All and replace 0x00 in the Number of HCI Commands parameter with any (see

Figure 5

).

Figure 5. Editing the BTS File for Use in the HCITester Tool

6. Save that script as the new initialization file in TXT format.

NOTE:

Run this initialization file before running any scripts on the module.

7. Click Execution → Execute to run the initialization file.

3.3

Updating the Scripts Pane

The Scripts pane contains all the script files from the chosen root file.

Figure 6

shows the Scripts pane.

6

HCITester Tool

Figure 6. Scripts Pane

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

www.ti.com

To search the Scripts pane, use the incremental search function in the following ways:

• To locate the desired script, type a partial text string.

• To search forward, press the F3 function key.

• To search backward from the present location, press Shift+F3.

Table 2

describes the Scripts pane functions.

HCITester Features

Icon

Table 2. Scripts Pane Icon Functions

Function

Refresh the contents of the Script pane

The Scripts pane lists all available scripts. You can choose any script to be loaded, executed, and edited. By default, the list of HCITester scripts is empty after software installation.

To update the pane, perform the following steps:

1. Press Open on the scripts pane.

2. Select the scripts folder.

4 HCITester Features

This section summarizes the features of the HCITester software.

4.1

Port Connection Options

The port connection Options dialog box enables configuration of the specific type of communication between the HCITester and the device.

Figure 7

shows the port connection Options dialog box.

Figure 7. Configuration of the Port Connection

The port connection Options dialog box includes the following tabs:

• None: No connection is established between the HCITester software and the device.

• Serial: Connects a serial port connection with the device. This connection supports various types of flow control and power mode (sleep) controls.

• Squirt: Connects to the device using a squirt serial connection in parallel with other applications using a squirt port (such as Logger)

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

7

HCITester Features

www.ti.com

• TCP/IP: Connects to the device over all types of TCP/IP protocol (synchronized or not, servers, or clients)

NOTE:

When selecting serial or squirt port connections, remember to select the port number, desired baud rate, flow control, and sleep type.

The default device baud rate is 115200 but can be configured up to 3MB using the HCI switch baud rate vendor-specific (VS) command. For more information, see the Bluetooth (WL18xx and WL18xxQ) Vendor-

Specific HCI Commands User's Guide ( SWRU303 ).

4.1.1

Flow Control Options

Table 3

summarizes the flow control options.

None

Hardware

Packet Wise

Negotiate

Segmentation

Three Wire

Option

Table 3. Flow Control Options

Result

Flow control is not used.

CTS/RTS flow control

Reserved

Reserved

Reserved

Software flow control (Xon/Xoff)

4.1.2

Sleep Type Options

HCITester supports three sleep protocols:

• HCILL

• Palau

• ThreeWire (set automatically if ThreeWire flow control is selected)

Table 4

describes the sleep type functions.

Icon

Status

Table 4. Sleep Type Functions

Auto Control

Manual Control

Function

HCITester automatically controls the power mode of the device. The software is set to sleep on a timeout and awake if required.

The SetAutoSuspend script command controls this feature.

The SetSuspendTimeout command sets the idle timeout value.

The default value is 2000 ms.

The user sets the power mode manually. Click to set the device in sleep mode or to awake from sleep mode.

The SetAutoState command is a script command that controls this feature.

Status bar indicator showing when the host (that is, the

HCITester) is in sleep mode.

8

HCITester Tool

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

www.ti.com

HCITester Features

4.2

Main Interface Screen Overview

Figure 8

shows the names of the areas and functions that make up the HCITester main interface window

Figure 8. HCITester Main Interface Window

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

9

HCITester Features

4.3

Executing Scripts or Commands

www.ti.com

4.3.1

Executing Scripts

Executing a script involves three steps:

• Loading the script

• Editing the script (as required)

• Running the script

4.3.1.1

Loading the Script

A script can be loaded in the following ways:

• Select Open Script… from the File menu.

• To select a previously used script, click the Load icon (

• Double-click the requested script in the scripts pane.

) on the toolbar button.

4.3.1.2

Editing a Script

To edit a script, select a line of the script in the Edit script View window and change the values.

Alternatively, edit scripts in the values in the Values pane. This option automatically updates the text in the script.

The Script Editor functions similarly to any other text editor. To copy, cut, and paste lines in the script or from one script to the other, right-click and select the desired option from the pop-up menu. The basic

Control (Ctrl) commands to copy (Ctrl+C), cut (Ctrl+X), and paste (Ctrl+V) selected text are also available.

4.3.1.3

Executing a Script

After loading to the script editor pane, a script can be executed by clicking the Start icon ( toolbar or pressing the F5 button on the keyboard.

To stop a running script, click the Stop button ( ) on the toolbar or press F5 again.

The Trace Port view displays the output of the running script.

) on the

4.3.2

Executing Commands

4.3.2.1

Searching for a Specific Command in the Command Library

To search for a specific command in the Command Library, follow these steps

Figure 9

:

1. Place the curser on any command in the Command Library.

2. Type a key phrase from the command in the Incremental Search field.

3. Press F3 to scroll between all the commands that contain the phrase within them (SHIFT+F3 searches backwards).

10

HCITester Tool

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

www.ti.com

HCITester Features

Alternatively, use the toolbar button to select one of the previously used commands for execution.

Figure 9

shows a search for the word sleep.

Figure 9. Searching For a Command in the Command Library

4.3.2.2

Executing a Single Command

Select the desired command in the Command Library pane. Right-click the desired command and select the desired option from the pop-up menu: Execute; Add the command to a currently active script; or Add the command to your list of shortcuts.

Figure 10

shows an example of this selection.

Figure 10. Executing a Single Command from the Command Library

Double-clicking a command line in the Command Library Pane also executes the command. A third way to execute a command is to press the icon (as explained in

Section 4.6

, Values Pane).

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

11

HCITester Features

4.3.3

Execution Shortcut-Keys and Status Indicators

There are three shortcut keys when working with scripts.

• (F5): Execute current script

(F5): Stop running current script www.ti.com

• (Ctrl+F5): Execute only current selection:

– Selected script text

– Current line (if no text selected)

– Current command in Values pane

A complete list of shortcuts is provided in

Appendix A , List of Shortcuts.

As

Figure 11

shows, there are also four possible execution status indicators displayed in the status bar.

Figure 11. Execution Status Indicators

Table 5

summarizes the execution status indicators.

Table 5. Execution Status Indicators

Icon

Running

Description

Normal indicator; the script or command is running

Failed

Port

Shows that the previous script or command failed

Indicates the COM port that is in use

Sleep Sleep indicator

12

HCITester Tool

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

www.ti.com

4.4

ToolBar and Main Menus

HCITester Features

4.4.1

Menu Bar and Toolbar

Figure 12

shows the menu bar and toolbar.

Table 6

summarizes the program commands and functions available using the toolbar icons.

Icon

Figure 12. HCITester Menu Bar and Toolbar

Table 6. HCITester Menu Functions

Function

Open a new script in the Scripts pane

Open a new screen to browse through files on the PC.

Save the active script

Cut selected text to the clipboard

Copy selected text to the clipboard

Paste selected text from the clipboard to the present cursor location

Print the active script or selection

Execute the active script

Stop executing the active script

Execute a selected part of the active script

Clear the Trace pane display

Configure various display and command options

Configure the HCITester software to automatically wake up the device from sleep mode

Put the device into sleep mode

Execute the most recent command

Load and execute the most recent script

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

13

HCITester Features

4.4.2

Drop-Down Menus

4.4.2.1

File Commands

Figure 13

shows the File drop-down menu.

www.ti.com

Figure 13. File Command Drop-Down Menu

Table 7

summarizes the File menu command functions.

Command

New

Open script

Close

Save

Save As

Print

Print Preview

Print Setup

Export Trace

Log

Exit

Table 7. File Command Drop-Down Menu Functions

Shortcut

Ctrl+N

Ctrl+O

Ctrl+S

Ctrl+P

Function

Open a new file (script)

Open an existing (saved) script. This option opens a new screen to browse through files on the PC

Close a currently open script

Save the currently active script

Save the currently active script under a different name. This option opens a new screen from which to enter a new file name and select a location to save the file.

Print the currently active script

Preview the file to be printed

Open a new screen to configure printing options on the PC

Export the Trace log as an HTML file. This option opens a new screen from which to enter a new file name and select a location to export the file.

Exit the HCITester application

14

HCITester Tool

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

www.ti.com

HCITester Features

4.4.2.2

Edit Commands

The Edit menu contains actions that relate to editing scripts.

Figure 14

shows the Edit drop-down menu.

Figure 14. Edit Command Drop-Down Menu

Table 8

summarizes the Edit command functions.

Command

Undo

Redo

Cut

Copy

Paste

Select All

Find

Replace

Line Numbers

Table 8. Edit Command Drop-Down Menu Functions

Shortcut

Ctrl + Z

Ctrl + X

Ctrl + C

Ctrl + V

Ctrl + A

Ctrl + F

Ctrl + H

Function

Undo last action

Repeat last action

Cut selected text

Copy selected text to clipboard

Paste selected text from clipboard

Select all text in currently active script

Find selected text or item

Replace selected text with new text

Add line numbers to the currently active script

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

15

HCITester Features

www.ti.com

4.4.2.3

View Commands

The View menu contains commands related to how the HCITester software displays the currently active script file.

Figure 15

shows the View menu.

Figure 15. View Command Drop-Down Menu

Table 9

summarizes the View menu command functions.

Table 9. View Command Drop-Down Menu Functions

Options

Customize

Command

Application Look

Restore to default windows layout

Toggle Sleep Indicator

Hex Dump of Incoming Data

Hex Dump of Outgoing Data

Function

Trigger the Options screen (see

Section 5

, Setup and Configuration)

Enable the selection of different looks for the HCITester based on the selection in the screen that is triggered

Enable customization of the HCITester menus and buttons based on user-defined parameters

Restore the program to default view options (requires exiting and restarting the HCITester software)

Toggle the SLEEP state of the connected Bluetooth device (This function is identical to the function of the Device Sleep icon located on the toolbar.)

Enable a hex view of the incoming data from the Bluetooth device to the host

Enable a hex view of the outgoing data from the host to the Bluetooth device

Command Library

Scripts

Trace

Values

Shortcuts

General Toolbar

Display or hide specific panes in the active window

16

HCITester Tool

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

www.ti.com

4.4.2.4

Window Commands

Figure 16

shows the Window drop-down menu.

HCITester Features

Figure 16. Window Menu Drop-Down Menu

Table 10

summarizes the Window menu command functions.

Table 10. Window Command Drop-Down Menu Functions

Command Function

Cascade

Tile

Arrange Icons

1, 2, etc.

These commands are not enabled in the current release of the

HCITester software.

These markers indicate the active panes of the currently active

HCITester session.

4.4.2.5

Help Commands

The Help menu contains an option for the user to read about the HCITester software (as shown in

Figure 17 ).

Figure 17. Help Command Drop-Down Menu

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

17

HCITester Features

www.ti.com

4.5

Command Library Pane

The Command Library pane, shown in

Figure 18 , contains a list of all the supported commands and

events.

Figure 18. Command Library Pane

To search the Command Library, use the incremental search function as follows: Type a string of partial text to locate the desired command. Press F3 to search forward and Shift+F3 to search backward from the present location (for more information about the incremental search feature, see

Section 4.3.2.1

,

Searching for a Specific Command in the Command Library).

To add the command (along with any related commands) to the active script, hold down the Ctrl key and double-click the left mouse button, or use the right mouse button pop-up menu (for more information, see

Section 4.3.2.2

, Executing a Single Command).

Table 11

summarizes the three Command Library functions.

Icon

Table 11. Command Library Icon Functions

Refresh

Function

Refresh the contents of the Command Library pane

Change

Filter

Change the HCI Library. Use this button to change between different XML files (for more information, see

Section 3.1

,

Changing the XML File).

Filters the contents of the Scripts pane. Pressing this icon displays the Visible Categories dialog box (see

Figure 19 ).

18

HCITester Tool

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

www.ti.com

Figure 19

shows the Visible Categories dialog box.

HCITester Features

Figure 19. Visible Categories Dialog Box

4.6

Values Pane

The Values pane displays the values of the currently selected command (see

Figure 20 ).

Figure 20. Values Pane

The Values pane reflects the command selected in the Command Library pane or a selected line in the script Editor pane. When the Values pane shows a script line in the Editor, changing a value in the script also changes the script text.

Table 12

describes the Values pane command functions.

Icon

Table 12. Values Pane Command Functions

Shortcut Function

Ctrl + F5 Execute the listed command

Add the listed command to the active script

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

19

HCITester Features

www.ti.com

4.7

My Shortcuts Pane

The My Shortcuts pane allows quick access to predefined script files and code fragments (see

Figure 21

).

Figure 21. My Shortcuts Pane

To create a shortcut, follow these steps:

• To create a shortcut to a script file, Drag the desired script from the Scripts pane or from the Explorer window to the Shortcuts pane.

• To create a shortcut to a code fragment, Drag the selected code in the Editor to the Shortcuts pane.

The following commands are available from the Shortcut pane:

• Run and/or Load: Right-click and select Edit… to specify the desired behavior while clicking on this shortcut.

• Display name: Right-click and select Edit… to specify a customized label.

• Right-Click menu: Explicitly Run, Load, Delete, or Edit the shortcut properties.

• Shift + Click: Run the selected shortcut.

• Ctrl+ Click: Load the selected shortcut.

20

HCITester Tool

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

www.ti.com

HCITester Features

4.8

Script Editor Pane

The Script editor pane displays the currently loaded script to execute. While a script is executed, the executed line is highlighted at the bottom of the pane.

More than one script can be loaded into the Script Editor pane. To toggle between the scripts, select the tab of the desired script. For more information regarding loading, editing, and executing scripts, see

Section 4.3.1

, Executing Scripts.

Figure 22

shows the Script Editor pane.

Figure 22. Script Editor

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

21

HCITester Features

www.ti.com

4.9

Trace Pane

The Trace pane displays the commands, events, and raw data communication of the HCITransport program.

Figure 23

shows the Trace pane.

Figure 23. Trace Pane

22

HCITester Tool

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

www.ti.com

HCITester Features

The following display options are available in the Trace pane:

• Customize Colors: Select the Trace option in the Options dialog box (for information on customizing the font and display colors of the trace elements, see

Section 5.3

, Trace).

• Automatic Save to File: Select the Log option in the Options dialog box (for information on log file configuration options, see

Figure 29

).

Table 13

describes the Trace pane icon functions.

Table 13. Trace Pane Icon Functions

Icon Function

Export the Trace log file to a different location. This option

Export Trace Log opens a new screen for selecting a new name for and location to save the file.

Clear Trace Pane Clear the Trace pane display.

Automatic Scroll Automatically scrolls through the active script.

To trace the raw data of a running command or script, select Hex Dump of Incoming Data or Hex Dump of

Outgoing Data from the View menu for the selected COM port.

Figure 24

shows the View menu.

Figure 24. Selecting Raw HCI Data to Trace on the View Menu

After the menu option is selected, all data transferred through the UART interface are visible in the Port

Trace View window.

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

23

Setup and Configuration Using the Options Window

5 Setup and Configuration Using the Options Window

www.ti.com

The Options window controls software setup and configuration and is available from the View menu (see

Section 4.4.2.3

, View Commands).

5.1

Network Configuration Option

The Network configuration option enables multiple HCITester applications running on different machines to be linked on the same network domain.

To bind multiple HCITester applications, specify a group name and check the Network Control Active box, as shown in

Figure 25 .

Figure 25. Network Configuration Option

When multiple HCITester applications are in the same network group, the programs start operating together. When Stop is clicked on one program, all running programs stop.

The status bar indication shown in

Figure 26

displays a unique name given to the running process and the group name.

Figure 26. Status Bar Indicator for Network Configuration

24

HCITester Tool

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

www.ti.com

Setup and Configuration Using the Options Window

5.2

Editor Option

The Editor option allows the font and display colors of the Editor elements to be customized

(see Figure 27 ).

Figure 27. Editor Configuration

5.3

Trace Option

The Trace configuration option allows the font and display colors of the trace elements to be customized

(see

Figure 28

).

Figure 28. Trace Configuration Option

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

HCITester Tool

25

Setup and Configuration Using the Options Window

www.ti.com

5.4

Log File Configuration Options

The log file option automatically saves the trace window contents while a script is running.

Figure 29

shows the log file configuration options.

Figure 29. Log File Configuration Options

Table 14

summarizes the log configuration options.

File Name

Append

Prepend

Option

Table 14. Log Configuration Options

Result

Three types of file extensions are allowed:

.txt (plain text file)

.htm (HTML formatted file)

.xml (XML data file information)

If this box is checked, then new log traces are appended to the existing file. Otherwise, a file is created each time a new script is executed.

Adds currently displayed events to the active log file.

26

HCITester Tool

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

Appendix A

SWRU136B – November 2007 – Revised September 2015

List of Shortcuts

Command

F5

Ctrl+F5

F11

F12

Ctrl+F11

Ctrl+F12

F8

Editor Commands

Ctrl+C

Ctrl+V

Ctrl+X

Ctrl+F

Ctrl+H

F3

Shift+F3

Ctrl+F3

Ctrl+A

Ctrl+Z

Ctrl+Y

File Commands

Ctrl+N

Ctrl+O

Ctrl+P

Ctrl+S

Ctrl+F6

Ctrl+Shift+F6

Undocumented Commands

Table 15. Available HCITester Shortcuts

Action

Execute or Stop script execution

Execute current selection

Execute last command

Switch to last executed script

Pop-up a list of recently-used commands

Pop-up a list of recently executed scripts

Clear Trace

Copy selection to clipboard

Paste from clipboard

Cut selection to clipboard

Pop-up Find dialog box

Pop-up Replace dialog box

Repeat last search

Repeat last search backwards

Search for current word

Select all text

Undo last action

Redo the previously undone action

Create a new script

Open an existing script file

Print the current script

Save the current script

Switch to the next script

Switch to the previous script

Ctrl +

Ctrl+Shift+ Numpad-

Ctrl+Shift+ Numpad+

Ctrl+0..9

Ctrl+Alt+0..9

Resets the COM port in cases when an error on the H4 protocol causes the port to get stuck

Switch RTS on the serial port

Switch DTR on the serial port

Run pre assigned scripts 0 to 9

Add Shift for 10 to 19

Assign a script 0 to 9.

Add Shift for 10 to 19

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

List of Shortcuts

27

Appendix B

SWRU136B – November 2007 – Revised September 2015

Terms and Abbreviations

Table 16

lists terms and abbreviations.

LMP

LQM

PER

RF

RSSI

SW

VS

Term

BD_ADDR

BER

BT

HCI

Host/host PC

Table 16. Terms and Abbreviations

Description

Bluetooth device address

Bit error rate

Bluetooth

Host controller interface

A PC connected to the device through the serial port

Link manager protocol

Link quality monitor

Packet error rate

Radio frequency

Received signal strength indication

Software

Vendor-specific

Revision History

Changes from A Revision (June 2015) to B Revision

....................................................................................................

Page

• Changed organization of user's guide

• Added Added Section

.................................................................................................

1

.....................................................................................................................

1

• Added

Section 1 , Requirements

• Added

Section 2 , Installation

........................................................................................................

3

............................................................................................................

3

• Added

Section 3 , Post Installation Requirements

.....................................................................................

4

• Added highlighted Change Library button in

Figure 3

• Added Added Section

................................................................................

4

.....................................................................................................................

6

• Added Bluetooth (WL18xx and WL18xxQ) Vendor-Specific HCI Commands User's Guide (SWRU303) in

Section 4.1

, Port

Connection

.................................................................................................................................

8

• Added

Appendix B , Terms and Abbreviations

.......................................................................................

28

28

Terms and Abbreviations

SWRU136B – November 2007 – Revised September 2015

Submit Documentation Feedback

Copyright © 2007–2015, Texas Instruments Incorporated

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily performed.

TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.

TI is not responsible or liable for any such statements.

Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use of any TI components in safety-critical applications.

In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and requirements. Nonetheless, such components are subject to these terms.

No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties have executed a special agreement specifically governing such use.

Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.

Products

Audio

Amplifiers

Data Converters

DLP® Products

DSP

Clocks and Timers

Interface

Logic

Power Mgmt

Microcontrollers

RFID

OMAP Applications Processors

Wireless Connectivity www.ti.com/audio amplifier.ti.com

dataconverter.ti.com

www.dlp.com

dsp.ti.com

www.ti.com/clocks interface.ti.com

logic.ti.com

power.ti.com

microcontroller.ti.com

Applications

Automotive and Transportation

Communications and Telecom

Computers and Peripherals

Consumer Electronics

Energy and Lighting

Industrial

Medical

Security

Space, Avionics and Defense

Video and Imaging www.ti-rfid.com

www.ti.com/omap

TI E2E Community

www.ti.com/wirelessconnectivity www.ti.com/automotive www.ti.com/communications www.ti.com/computers www.ti.com/consumer-apps www.ti.com/energy www.ti.com/industrial www.ti.com/medical www.ti.com/security www.ti.com/space-avionics-defense www.ti.com/video e2e.ti.com

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2015, Texas Instruments Incorporated

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
