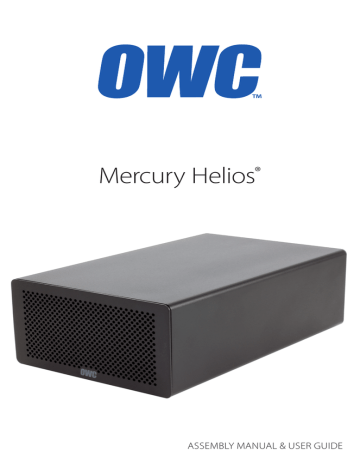

Mercury Helios

®

ASSEMBLY MANUAL & USER GUIDE

TABLE OF CONTENTS

INTRODUCTION

...............................................................................................

1

1.1 MINIMUM SYSTEM REQUIREMENTS

1.1.1 Apple Mac Requirements

1.1.2 PC Requirements

1.1.3 Supported PCIe Cards

NOTE: Boot Camp is not supported. The Thunderbolt certification process does not include Macs running Windows through Boot Camp.

1.2 PACKAGE CONTENTS

1.3 ABOUT THIS MANUAL

1.4 FRONT VIEW

1.5 REAR VIEW

1.6 SPECIFICATIONS

DEVICE SETUP

...................................................................................................

3

2.1 ASSEMBLY

2.2 CONNECTION

SUPPORT RESOURCES

...................................................................................

9

3.1 TROUBLESHOOTING

3.2 CONTACTING TECHNICAL SUPPORT

OWC MERCURY HELIOS TABLE OF CONTENTS

INTRODUCTION

1.1 MINIMUM SYSTEM REQUIREMENTS

1.1.1 Apple Mac Requirements 1.1.2 PC Requirements

• Thunderbolt™ port, OS X 10.9 or later • Thunderbolt port, Windows

®

7 or later

NOTE: Boot Camp is not supported. The Thunderbolt certification process does not include Macs running Windows through Boot Camp.

1.1.3 Supported PCIe Cards

• Thunderbolt-compatible PCIe cards (see Section 1.6 for details).

1.2 PACKAGE CONTENTS

Mercury Helios®

Power Supply and cable

Thunderbolt cable

1.3 ABOUT THIS MANUAL

Firmware, images, and descriptions may vary slightly between this manual and the unit shipped. Functions and features may change depending on the firmware version. Please visit the product webpage for the most recent product specifications.

1.4 FRONT VIEW

1

1. LED Power Indicator — This LED illuminates when there is an active data connection between the Helios and the computer. If the Helios is unplugged from power or if the

Thunderbolt cable is unplugged, the Helios will power off and the LED power indicator will also turn off.

1

OWC MERCURY HELIOS INTRODUCTION

1

2

4

1.

3

1. PCIe slot cover — Remove this PCIe slot cover if you are installing a double-width PCIe card in the Helios. Even though the Helios has an extra PCIe slot cover, it does NOT contain two PCIe slots.

2. PCIe slot — Note that there is an opening at the rear of the Helios. This opening lines up with the single PCIe slot inside the Helios, and the opening will be filled by the bracket of the PCIe card that you will install.

3. Thunderbolt 2 ports — Connect the included Thunderbolt cable between one of these ports and another Thunderbolt port on your computer. The other Thunderbolt 2 port can be used to chain additional Thunderbolt devices. Thunderbolt device chains can contain up to six total Thunderbolt devices, and a display can be connected at the end.

4. DC power input — Connect the included 12V DC power supply here.

1.6 SPECIFICATIONS

Interface Ports

Expansion Slot

Supported PCIe Cards

Power to PCIe Card

Two Thunderbolt 2 (20Gb/s) ports

One PCIe 2.0 (x16 slot, operates at x4)

One half-length (up to 7.75”), full-height, single- or double-width

PCIe card up to x16 (operates at x4);

Graphics cards are NOT supported

25W (slot) +75W (supplemental power cable)

Power Adapter AC Input: 100-240V, ~50-60Hz

DC Output: 12V, 10A (120W)

Dimensions 9.17 in. x 5.87 in. x 2.99 in. (23.3 cm x 14.9 cm x 7.6 cm)

Weight (Without PCIe Card) 3.85 lbs. (1.75 kg)

Fan Noise Level

Operating Temperatures

Compliances

23 dB(A)

41° F to 95° F (5° C to 35° C)

CE, FCC

2

1.5 REAR VIEW

OWC MERCURY HELIOS INTRODUCTION

DEVICE SETUP

These are static-sensitive devices. They are susceptible to invisible damage from static electricity if not protected during assembly.

We recommend proper grounding by using a grounding strap. Make sure to work in a clean and static-free area, and avoid wearing clothing that retains static charges. For more information, visit:

www.owcdigital.com/support/anti-static

2.1 ASSEMBLY

1. Remove the OWC Mecury Helios® from its packaging and place it on a soft surface.

2. Loosen the two thumscrews on the rear panel of the Helios, circled below in red. You can use your hands or a Phillips screwdriver. These are captive screws, so you will not be able to remove them from the enclosure. Simply loosen the screws until they spin freely.

OWC MERCURY HELIOS

3

DEVICE SETUP

3. Push on the inner chassis at the rear to get the inner chassis to begin sliding out of the outer enclosure, as shown below. When the inner chassis has moved far enough, pull on the front of the inner chassis to remove it fully from the outer enclosure.

4. Turn the inner chassis so that the PCIe slot is facing up, as shown below. Using your fingers or a Phillips screwdriver, remove the screw from the empty PCIe slot, circled below in red.

If you are installing a double-width PCIe card, remove the second screw and lift out the

PCIe slot cover. If you are not installing a double-width card, leave the PCIe slot cover in place and proceed to the next step.

OWC MERCURY HELIOS

4

DEVICE SETUP

5 Install the PCIe card as shown below. Line up the connectors on the PCIe card with the

PCIe slot, and make sure that the edge of the metal bracket on the PCIe card lines up with the slot in the bottom of the Helios.

NOTE: Handle the PCIe card only by its edges. Do not touch any of the components on the face of the PCIe card or the golden connectors.

6. Press down on the PCIe card to seat the connectors into the PCIe slot, as shown below.

Press staight down; do not twist or rock the card. If the card does not seat fully, do not force it in. Remove the card, check to make sure that there is no damage to the card or the slot and that the bracket is not bent, then try again.

OWC MERCURY HELIOS

5

DEVICE SETUP

7. Use the screw(s) that you removed earlier to secure the PCIe card to the inner chassis, as circled below. Do not overtighten the screw(s).

8. Slide the inner chassis back into the outer enclosure as shown below, then turn the Helios so that it is standing on its feet.

OWC MERCURY HELIOS

6

DEVICE SETUP

9. When the inner chassis is fully seated into the outer enclosure, tighten the thumbscrews on the rear panel, circled below in red. Press each screw in toward the enclosure, then twist clockwise while still applying pressure. Keep twisting until you feel increased resistance.

Assembly is now complete. Proceed to Section 2.2 for information on connecting the

Helios to a computer and to other Thunderbolt devices.

OWC MERCURY HELIOS

7

DEVICE SETUP

2.2 CONNECTION

1. Connect the included Thunderbolt cable between the Helios and your computer. If you intend to chain more Thunderbolt devices, connect a cable between the other

Thunderbolt port on the Helios and a Thunderbolt port on the device you would like to add to the chain.

2. Make any necessary cable connections to the PCIe cards you have installed.

3. Connect the power adapter to the Helios and into a power outlet.

NOTES:

• The Helios does not have an on/off switch. As long as the power supply is connected, the Helios will turn on when it receives a data signal through the Thunderbolt cable.

If there is no Thunderbolt cable connected, or if the computer is off or in a sleep or hibernation mode, the Helios will turn off.

• Thunderbolt chains can contain up to six total Thunderbolt devices, and a display can be connected at the end.

• Make sure that the installed PCIe card is Thunderbolt compatible, either natively or through a Thunderbolt-compatible driver from the manufacturer.

• Never install a PCIe card while the Helios is connected to power or to a computer.

Doing so carries a risk of injury as well as damage to the PCIe card, the Helios, and the computer.

OWC MERCURY HELIOS

8

DEVICE SETUP

SUPPORT RESOURCES

3.1 TROUBLESHOOTING

NOTE: Boot Camp is not supported. The Thunderbolt certification process does not include

Macs running Windows through Boot Camp.

Begin your troubleshooting by verifying that the power cable is connected to the Helios and to a power source. If the power cable is connected to a power strip, make sure that the power switch on the strip is turned on. Then, verify that both ends of your Thunderbolt cable are properly plugged into the computer and the Helios.

Try to confirm the Helios and any installed PCIe cards are seen correctly by the computer. In

OS X, go to System Information (click on the Apple logo, hold down the ‘Option’ key, then select ‘System Information’). The Helios will show up under ‘Thunderbolt’ if it is connected correctly. Any installed PCIe cards will show up under ‘PCI Cards’. If you do not see the Helios, try using a different Thunderbolt cable. If you do not see your PCIe card, unplug the Helios and follow the assembly steps in Section 2.1 to remove and re-install the PCIe card. If you do see the PCIe card in System Information, check the ‘Tunnel Compatible’ section. If it says

‘No’, the PCIe card is not currently using a Thunderbolt-compatible driver. Check with the

PCIe card manufacturer for a Thunderbolt-compatible driver.

In Windows, you can look at all connected Thunderbolt devices by using the ‘Thunderbolt

Software’ application. Go to the system tray in the task bar and right-click on the Thunderbolt icon, then select ‘View Connected Devices’. If connected correctly, the Helios will be displayed in the list. Installed PCIe cards will show up in the appropriate subsection of Device

Manager, though there is no way in Device Manager to determine if a PCIe card is using a

Thunderbolt-compatible driver.

If your computer does not have the ‘Thunderbolt Software’ icon in the system tray, go to

Device Manager, expand the ‘System devices’ list, and count how many PCI-to-PCI bridges are listed. Compare the number of these bridges when you have the Helios connected and when the Helios is disconnected. If this number does not change, then the computer is not detecting the Helios. Try using a different Thunderbolt cable. If your computer does not have Thunderbolt 2 ports, hot-swapping may not be reliable in Windows.

If problems persist, consult Section 3.2 for OWC technical support information.

3.2 CONTACTING TECHNICAL SUPPORT

Hours:

8am to 8pm (CT) Monday - Friday

Live Chat:

www.owcdigital.com/support

Telephone:

866-692-7100 (North America)

+1 (815) 338-4751 (International)

Email:

www.owcdigital.com/support

9

OWC MERCURY HELIOS SUPPORT RESOURCES

Changes:

The material in this document is for information purposes only and subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, Other World Computing and its officers and employees assume no liability resulting from errors or omissions in this document, or from the use of the information contained herein. Other World Computing reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.

FCC Statement:

Warning! Modifications not authorized by the manufacturer may void the user’s authority to operate this device.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

Health And Safety Precautions:

• Use proper anti-static precautions while performing the installation of your hard drives into this drive enclosure.

Failure to do so can cause damage to your drive mechanisms and/or the hard drive enclosure.

• Read this user guide carefully and follow the correct procedures when setting up the device.

• Do not attempt to disassemble or modify the device. To avoid any risk of electrical shock, fire, short-circuiting or dangerous emissions, never insert any metallic object into the device. If it appears to be malfunctioning, contact Other World

Computing technical support.

• Never expose your device to rain, or use it near water or in damp or wet conditions. Never place objects containing liquids on the drive, as they may spill into its openings. Doing so increases the risk of electrical shock, short-circuiting, fire or personal injury.

General Use Precautions:

• To avoid damage, do not expose the device to temperatures outside the range of 5° C to 40° C (41° F to 104° F).

• Always unplug the device from the electrical outlet if there is a risk of lightning or if it will be unused for an extended period of time. Otherwise, there is an increased risk of electrical shock, short-circuiting or fire.

• Do not use the device near other electrical appliances such as televisions, radios or speakers. Doing so may cause interference which will adversely affect the operation of the other products.

• Do not place the device near sources of magnetic interference, such as computer displays, televisions or speakers. Magnetic interference can affect the operation and stability of hard drives.

• Do not place heavy objects on top of the device.

• Protect your device from excessive exposure to dust during use or storage. Dust can build up inside the device, increasing the risk of damage or malfunction.

• Do not block any ventilation openings on the device. These help to keep the device cool during operation. Blocking the ventilation openings may cause damage to the device and cause an increased risk of short-circuiting or fire.

• For up-to-date product and warranty information, please visit the product webpage.

Copyrights and Trademarks:

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Other World Computing.

© 2015 Other World Computing. All rights reserved.

Mercury Helios, Other World Computing, and OWC are trademarks of New Concepts Development Corporation, registered in the U.S. Patent and Trademark Office and/or in Canada. The OWC logo and Other World Computing logo are trademarks of New

Concepts Development Corporation. Apple, Boot Camp, Mac, and OS X are trademarks of Apple Inc., registered in the U.S. and other countries. Thunderbolt and Thunderbolt 2 are trademarks of Intel Corporation in the U.S. and/or other countries. Windows is a registered trademark of Microsoft Corporation in the U.S. and other countries. Other marks may be the trademark or registered trademark property of their owners.

R4 12/17/15 DM OWCMANHELIOS1.2

Copyright 2015 Other World Computing. All Rights Reserved. Other World Computing’s

Limited Warranty is not transferable and subject to limitations.
