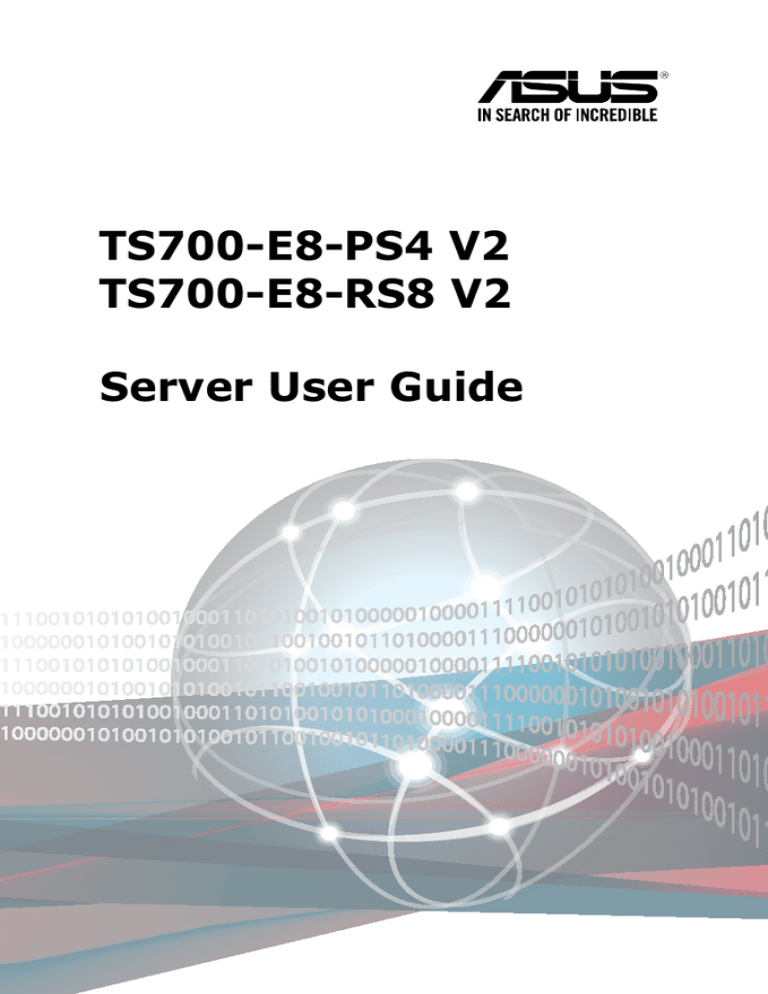

Server User Guide TS700-E8-PS4 V2 TS700-E8

TS700-E8-PS4 V2

TS700-E8-RS8 V2

Server User Guide

E10674

First Edition

August 2015 ii

Copyright © 2015 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASUS, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of use or data, interruption of business and the like), even if ASUS has been advised of the possibility of such damages arising from any defect or error in this manual or product.

Specifications and information contained in this manual ae furnished for informational use only, and are subject to change at any time without notice, and should not be construed as a commitment by ASUS.

ASUS assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual, including the products and software described in it.

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

Contents

Notices ..................................................................................................................... viii

Safety information ...................................................................................................... ix

About this guide ......................................................................................................... xi

Chapter 1: Product Introduction

1.1

1.2

1.3

1.4

1.5

1.6

1.7

System package contents .........................................................................1-2

Serial number label ....................................................................................1-3

System specifications ...............................................................................1-4

Front panel features ...................................................................................1-6

Rear panel features ....................................................................................1-7

Internal features .........................................................................................1-9

LED information .......................................................................................1-10

1.7.1 Front panel LEDs ......................................................................1-10

1.7.2 LAN (RJ-45) LEDs ....................................................................1-11

Chapter 2: Hardware Information

2.1

2.2

2.3

2.4

2.5

2.6

Chassis cover .............................................................................................2-2

2.1.1

2.1.2

Removing the side cover.............................................................2-2

Reinstalling the side cover ..........................................................2-3

Central Processing Unit (CPU) .................................................................2-4

2.2.1

2.2.2

Installing the CPU .......................................................................2-4

Installing the CPU heatsink .........................................................2-9

System memory .......................................................................................2-10

2.3.1

2.3.2

2.3.3

2.3.4

Overview ...................................................................................2-10

Memory Configurations .............................................................2-10

Installing a DIMM on a single clip DIMM socket........................2-12

Removing a DIMM from a single clip DIMM socket ..................2-12

Front panel assembly ..............................................................................2-13

2.4.1 Removing the front panel assembly ..........................................2-13

2.4.2 Reinstalling the front panel assembly .......................................2-13

SATA/SAS hard disk drives ....................................................................2-14

2.5.1

2.5.2

2.5.3

2.5.4

Removing the HDD module cage..............................................2-14

Installing the HDD module cage................................................2-15

Removing the backplane...........................................................2-16

Installing a hot-swap SATA/SAS hard disk drive ......................2-16

2.5.5 Installing a 2.5-inch hard disk drive (TS700-E8-RS8 V2 only) .. 2-18

5.25-inch or 3.5-inch drives .....................................................................2-20

2.6.1 Installing a 5.25-inch drive ........................................................2-20

iii

iv

Contents

2.7

2.8

2.9

Expansion slots ........................................................................................2-21

2.7.1

2.7.2

2.7.3

Installing an expansion card......................................................2-21

Installing an ASUS PIKE II card ................................................2-23

Configuring an expansion card .................................................2-26

2.7.4 Installing an M.2 expansion card...............................................2-28

Cable connections ...................................................................................2-29

2.8.1

2.8.2

Motherboard connections..........................................................2-29

SATA/SAS backplane cabling ...................................................2-30

Removable components ..........................................................................2-32

2.9.1 System fans ..............................................................................2-32

2.9.2

2.9.3

Redundant power supply module (TS700-E8-RS8 V2 only) .....2-34

Chassis footpads.......................................................................2-35

Chapter 3: Installation Options

3.1

3.2

3.3

3.4

Preparing the system for rack mounting .................................................3-2

Attaching the inner rail to the server .......................................................3-2

Attaching the rails to the rack ..................................................................3-3

Mounting the server to the rack ...............................................................3-4

Chapter 4: Motherboard Info

4.1

4.2

4.3

4.4

Motherboard layout ....................................................................................4-2

Onboard LEDs ............................................................................................4-4

Onboard buttons, switches and jumpers ..............................................4-12

4.3.1 Onboard buttons and switches..................................................4-12

4.3.2 Jumpers ....................................................................................4-14

Internal connectors ..................................................................................4-18

Chapter 5: BIOS setup

5.1

5.2

Managing and updating your BIOS ..........................................................5-2

5.1.1 ASUS CrashFree BIOS 3 utility...................................................5-2

5.1.2

5.1.3

ASUS EZ Flash Utility .................................................................5-3

BUPDATER utility .......................................................................5-4

BIOS setup program ..................................................................................5-6

5.2.1 BIOS menu screen ......................................................................5-7

5.2.2

5.2.3

Menu bar .....................................................................................5-7

Menu items..................................................................................5-8

5.2.4

5.2.5

Submenu items ...........................................................................5-8

Navigation keys ...........................................................................5-8

Contents

5.3

5.4

5.5

5.6

5.7

5.8

5.2.6

5.2.7

5.2.8

General help................................................................................5-8

Configuration fields .....................................................................5-8

Pop-up window............................................................................5-8

5.2.9 Scroll bar .....................................................................................5-8

Main menu ..................................................................................................5-9

5.3.1 System Date [Day xx/xx/xxxx] .....................................................5-9

5.3.2 System Time [xx:xx:xx] ...............................................................5-9

AiTweaker menu .......................................................................................5-10

Advanced menu .......................................................................................5-13

5.5.1

5.5.2

5.5.3

5.5.4

5.5.5

5.5.6

ACPI Settings ............................................................................5-14

Smart Settings...........................................................................5-14

NCT6779D Super IO Configuration ..........................................5-15

Onboard LAN I210 Configuration .............................................5-16

Serial Port Console Redirection ................................................5-17

APM ..........................................................................................5-20

5.5.7

5.5.8

5.5.9

Advance Power Management Configuration.............................5-21

PCI Subsystem Settings ...........................................................5-22

Network Stack Configuration.....................................................5-23

5.5.10 CSM Configuration ....................................................................5-24

5.5.11 Trusted Computing....................................................................5-25

5.5.12 USB Configuration ....................................................................5-26

5.5.13 iSCSI Configuration...................................................................5-27

IntelRCSetup menu ..................................................................................5-28

5.6.1 Processor Configuration............................................................5-29

5.6.2

5.6.3

5.6.4

Advanced Power Management Configuration...........................5-31

Common RefCode Configuration ..............................................5-32

QPI Configuration......................................................................5-33

5.6.5

5.6.6

5.6.7

Memory Configuration ...............................................................5-34

IIO Configuration .......................................................................5-37

PCH Configuration ....................................................................5-38

5.6.8

5.6.9

Miscellaneous Configuration .....................................................5-42

Server ME Configuration ...........................................................5-43

5.6.10 Runtime Error Logging Support ................................................5-43

Server Mgmt menu ...................................................................................5-44

Event Logs menu .....................................................................................5-48

5.8.1 Change Smbios Event Log Settings .........................................5-48

5.8.2 View Smbios Event Log ............................................................5-49

v

vi

Contents

5.9 Monitor menu ...........................................................................................5-50

5.10 Security menu ..........................................................................................5-51

5.11 Boot menu ................................................................................................5-54

5.12 Tool menu .................................................................................................5-55

5.13 Exit menu ..................................................................................................5-56

Chapter 6: RAID Configuration

6.1

6.2

Setting up RAID ..........................................................................................6-2

6.1.1 RAID definitions ..........................................................................6-2

6.1.2

6.1.3

6.1.4

Installing hard disk drives ............................................................6-3

Setting the RAID item in BIOS ....................................................6-3

RAID configuration utilities ..........................................................6-3

LSI Software RAID Configuration Utility .................................................6-4

6.2.1

6.2.2

6.2.3

Creating a RAID set ....................................................................6-5

Adding or viewing a RAID configuration....................................6-11

Initializing the virtual drives .......................................................6-12

6.2.4

6.2.5

6.2.6

6.2.7

Rebuilding failed drives .............................................................6-16

Checking the drives for data consistency..................................6-18

Deleting a RAID configuration ...................................................6-21

Selecting the boot drive from a RAID set ..................................6-22

6.2.8 Enabling WriteCache ................................................................6-23

6.3 Intel

®

Rapid Storage Technology enterprise

SATA/SSATA Option ROM Utility ...........................................................6-24

6.4

6.3.1

6.3.2

Creating a RAID set ..................................................................6-25

Deleting a RAID set...................................................................6-27

6.3.3

6.3.4

6.3.5

Resetting disks to Non-RAID ....................................................6-28

Exiting the Intel

®

Rapid Storage Technology enterprise

SATA/SSATA Option ROM utility ..............................................6-29

Rebuilding the RAID..................................................................6-29

6.3.6 Setting the Boot array in the BIOS Setup Utility ........................6-31

Intel

®

Rapid Storage Technology enterprise (Windows) ......................6-32

6.4.1

6.4.2

Creating a RAID set ..................................................................6-33

Changing a Volume Type..........................................................6-35

6.4.3 Deleting a volume .....................................................................6-36

6.4.4 Preferences ...............................................................................6-37

Contents

Chapter 7: Driver Installation

7.1

7.2

7.3

7.4

7.5

RAID driver installation .............................................................................7-2

7.1.1

7.1.2

Creating a RAID driver disk.........................................................7-2

Installing the RAID controller driver.............................................7-3

Software drivers and utilities installation ..............................................7-13

Running the Support DVD ......................................................................7-13

Installing the drivers and utilities ..........................................................7-16

7.4.1 Using the ASUS InstAll application ...........................................7-16

7.4.2 Installing a driver or utility..........................................................7-18

Running the utilities .................................................................................7-20

7.5.1 USB Charger+ ...........................................................................7-20

Appendix

Z10PE-D16 WS block diagram ............................................................................... A-2

ASUS contact information ...................................................................................... A-3

vii

viii

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING! The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of

Communications.

This Class A digital apparatus complies with Canadian ICES-003.

REACH

Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of

Chemicals) regulatory framework, we publish the chemical substances in our products at

ASUS REACH website at http://csr.asus.com/english/REACH.htm.

Safety information

Electrical Safety

• Before installing or removing signal cables, ensure that the power cables for the system unit and all attached devices are unplugged.

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.

• When adding or removing any additional devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.

• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your dealer.

Operation Safety

• Any mechanical operation on this server must be conducted by certified or experienced engineers.

• Before operating the server, carefully read all the manuals included with the server package.

• Before using the server, ensure all cables are correctly connected and the power cables are not damaged. If any damage is detected, contact your dealer as soon as possible.

• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Place the server on a stable surface.

This product is equipped with a three-wire power cable and plug for the user’s safety. Use the power cable with a properly grounded electrical outlet to avoid electrical shock.

Lithium-Ion Battery Warning

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

CD-ROM Drive Safety Warning

CLASS 1 LASER PRODUCT

Heavy System

CAUTION! This server system is heavy. Ask for assistance when moving or carrying the system.

ix

x

DO NOT

throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT

throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Australia statement notice

From 1 January 2012 updated warranties apply to all ASUS products, consistent with the Australian Consumer Law. For the latest product warranty details please visit http:// support.asus.com. Our goods come with guarantees that cannot be excluded under the

Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at http://support.asus.com

About this guide

Audience

This user guide is intended for system integrators, and experienced users with at least basic knowledge of configuring a server.

Contents

This guide contains the following parts:

1. Chapter 1: Product introduction

This chapter describes the general features of the server, including sections on front panel and rear panel specifications.

2. Chapter 2: Hardware setup

This chapter lists the hardware setup procedures that you have to perform when installing or removing system components.

3. Chapter 3: Installation options

This chapter describes how to install optional components into the barebone server.

4. Chapter 4: Motherboard information

This chapter gives information about the motherboard that comes with the server. This chapter includes the motherboard layout, jumper settings, and connector locations.

5. Chapter 5: BIOS information

This chapter tells how to change system settings through the BIOS Setup menus and describes the BIOS parameters.

6. Chapter 6: RAID configuration

This chapter tells how to change system settings through the BIOS Setup menus.

Detailed descriptions of the BIOS parameters are also provided.

7 Chapter 7: Driver installation

This chapter provides instructions for installing the necessary drivers for different system components.

xi

xii

Conventions

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when trying to complete a task.

CAUTION: Information to prevent damage to the components when trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text

Italics

<Key>

<Key1>+<Key2+<Key3>

Command

Indicates a menu or an item to select.

Used to emphasize a word or a phrase.

Keys enclosed in the less-than and greater-than sign means that you must press the enclosed key.

Example: <Enter> means that you must press the Enter or Return key.

If you must press two or more keys simultaneously, the key names are linked with a plus sign (+).

Example: <Ctrl>+<Alt>+<Del>

Means that you must type the command exactly as shown, then supply the required item or value enclosed in brackets.

Example: At the DOS prompt, type the command line:

format A:/S

References

Refer to the following sources for additional information, and for product and software updates.

1. ASUS Server Web-based Management (ASWM) user guide

This manual tells how to set up and use the proprietary ASUS server management utility.

2. ASUS websites

The ASUS websites worldwide provide updated information for all ASUS hardware and software products. Refer to the ASUS contact information.

Chapter 1: Product Introduction

Product Introduction

This chapter describes the motherboard features and the new technologies it supports.

1

1-2

1.1 System package contents

Check your system package for the following items.

Model Name TS700-E8-PS4 V2, TS700-E8-RS8 V2

Chassis ASUS T50A Pedestal / 5U Rackmount Chassis

Motherboard ASUS Z10PE-D16 WS Server Board

Component

1 x 1200W 80PLUS Platinum Single Power Supply Module (TS700-E8-PS4 V2)

1 x 800W 80PLUS Gold Redundant Power Supply Module (TS700-E8-RS8 V2)

4 x Hot-swap 3.5-inch HDD Trays (Front panel, TS700-E8-PS4 V2)

8 x Hot-swap 3.5-inch HDD Trays (Front panel, TS700-E8-RS8 V2)*

2 x Hot-swap 2.5-inch SSD Trays (Rear panel, TS700-E8-RS8 V2 only)

1 x SAS/SATA backplane (TS700-E8-PS4 V2)

2 x SAS/SATA backplanes (TS700-E8-RS8 V2)

1 x Front I/O Board

3 x System Fans (Front: 2 x 80mm x 38mm; Rear: 1 x 120mm x 38mm)

Accessories

Optional

Items

1 x Support DVD (including the User Guide)

1 x ASWM** Enterprise DVD

1 x ASMB8 DVD

1 x Bag of Screws

1 x AC Power Cable (TS700-E8-PS4 V2)

2 x AC Power Cables (TS700-E8-RS8 V2)

2 x CPU Heatsinks

1 x Second 800W 80PLUS Gold Redundant Power Supply Module (TS700-E8-

RS8 V2)

1 x DVD-ROM / DVD-RW

1 x ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 Rackmount Rail Kit

1 x ASUS PIKE RAID Card

* Six hot-swap 3.5-inch HDDs are supported by default. Upgrade the optional PIKE card before using eight hot-swap

3.5-inch HDDs.

** ASUS System Web-based Management

If any of the above items is damaged or missing, contact your retailer.

Chapter 1: Product Introduction

1.2 Serial number label

Before requesting support from the ASUS Technical Support team, you must take note of the product’s serial number containing 12 characters such as xxS0xxxxxxxx shown as the figure below. With the correct serial number of the product, ASUS Technical Support team members can then offer a quicker and satisfying solution to your problems.

TS700-E8-PS4 V2 xxS0xxxxxxxx

TS700-E8-RS8 V2 xxS0xxxxxxxx

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 1-3

1-4

1.3 System specifications

The ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 is a Pedestal / 5U Rackmount barebone server system featuring the ASUS Z10PE-D16 WS Server Board. The server supports Intel

LGA2011-3 Intel

® chipsets onboard.

Xeon

®

E5-2600 Processor v3 plus other latest technologies through the

®

Model Name

Core Logic

TS700-E8-PS4 V2 TS700-E8-RS8 V2

Processor Support / System

Bus

2 x Socket R3 LGA 2011-3 Intel

®

Family

Xeon

®

Processor E5-2600 v3

QPI 6.4 / 8.0 / 9.6GT/s

Intel

®

C612 PCH Chipset

Total Slots

Capacity

16 (4 Channels per CPU, 8 DIMMs per CPU)

Maximum up to 1024 GB

DDR4 2133 / 1866 / 1600 / 1333 RDIMM / LR-DIMM/ NVDIMM

Memory Type

Memory

Refer to www.asus.com for the latest memory AVL update.

Memory Size

32GB, 16GB, 8GB and 4GB (RDIMM)

64GB, 32GB (LRDIMM)

Expansion

Slots (follow

SSI Location #)

Storage

HDD Bays

Networking

Graphic

Refer to www.asus.com for the latest memory AVL update.

Total PCI/PCI-E

Slots

6

4 x PCI-E x16 (Gen3 x16 link, Full-height/FL)

Slot Type

SATA Controller

1 x PCI-E x16 (Gen3 x8 link, Full-height/FL)

1 x PCI-E x16 (Gen3 x8 link, Full-height/HL)

Intel

®

C612

10 x SATA 6 Gbps ports or

9 x SATA 6 Gbps ports + 1 x discrete M.2 socket

Intel

®

RSTe (for Windows only; supports software RAID 0, 1, 10 and 5)

LSI

®

MegaRAID driver supports RAID 0, 1 and 10) (for Linux and Windows)

SAS Controller

I = internal

A or S = hotswappable

RAID card (optional):

ASUS PIKE II 3008 8-port SAS HBA card

ASUS PIKE II 3108 8-port SAS HW RAID card

4 x Hot-swap 3.5-inch HDD

Bays

8 x Hot-swap 3.5-inch HDD

Bays

* Six hot-swap 3.5-inch HDDs are supported by default. Upgrade the optional PIKE card before using eight hot-swap 3.5-inch HDDs.

2 x Hot-swap 2.5-inch SSD

Bays

LAN

VGA

2 x Intel

®

I210T

1 x Management LAN

Aspeed AST2400 32MB

(continued on the next page)

Chapter 1: Product Introduction

Model Name

Auxiliary Storage Device Bay

(Floppy / Optical Drive)

Onboard I/O Connectors / LED indicators

OS Support

TS700-E8-PS4 V2

3 x 5.25" media bays

(Options: No Device / DVD-RW)

1 x PS/2 keyboard/mouse combo port

1 x Q-Code Logger button with LED

1 x BIOS Flashback button with LED

1 x S/PDIF Out port

1 x RJ-45 management port

2 x RJ-45 GbE port

8-channel Audio I/O

4 x USB 3.0 ports

2 x USB 2.0 ports

1 x VGA port

Windows

®

Server 2012 R2

Windows

®

Server 2012

Windows

®

Server 2008 R2

RedHat

®

Enterprise Linux

SuSE

®

Liunx Enterprise Server

CentOS

Unbuntu

VMWare

Citrix XenServer

TS700-E8-RS8 V2

Management

Solution

Software

Out of Band

Remote

Management

* Support versions are subject to change without notice. Refer to www.asus.com for updates.

ASWM Enterprise

ASMB8-iKVM for KVM-over-Internet

Dimensions (HH x WW x DD)

455 mm x 217.50 mm x 545.00 mm

Net Weight Kg

(CPU, DRAM & HDD not included)

20 Kg

Power Supply

Power Rating

Environment

1200W 80PLUS Platinum Single

Power Supply Module

100-240Vac, 10-5A, 50/60Hz,

Class I

800W 80PLUS Gold Redundant

Power Supply Module

100-127 / 200-240V, 9.4A/4.72A,

47-63Hz, Class I

Operating temperature: 10°C – 35°C

Non operation temperature: -40°C – 70°C

Non operation humidity: 20% – 90% (Non condensing)

*Specifications are subject to change without notice.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 1-5

1.4

Message LED

HDD access LED

Power LED

Optical drive (optional)

Front panel features

2 x Empty 5.25-inch bays

4-bay HDD module

(First set*)

4-bay HDD module

(Second set,

TS700-E8-RS8 V2 only**)

1 2

LAN1 LED

LAN2 LED

Location LED

(Reserved)

Security lock

Power button

Reset button

SPDIF OUT

USB3.0

USB3.0

side rear c/sub

MIC IN LINE OUT LINE IN

KY

Headphone jack

Microphone jack

2 x USB 2.0 ports

2 x USB 3.0 ports

1-6

• Refer to the 1.7.1 Front panel LEDs section for the LED descriptions.

• * Only the first set of 4-bay HDD module is provided on TS700-E8-PS4 V2.

• ** For TS700-E8-RS8 V2, six hot-swap 3.5-inch HDDs are supported by default.

Upgrade the optional PIKE card before using eight hot-swap 3.5-inch HDDs.

LAN port 3 LAN port 1

Chapter 1: Product Introduction

1

2

1.5 Rear panel features

TS700-E8-PS4 V2

Power connector

PS/2 keyboard/ mouse combo port

2 x USB 2.0 ports

BIOS Flashback button with LED

2 x USB 2.0 ports

4 x USB 3.0 ports

Audio I/O ports

SPDIF OUT

USB3.0

USB3.0

side rear c/sub

MIC IN LINE OUT LINE IN

KY

120mm x 38mm system fan

Q-Code Logger button with LED

SPDIF Out port

Management LAN port*

LAN (RJ-45) port 2

LAN (RJ-45) port 1

Expansion slots

VGA port

* This port is for ASUS ASMB8-iKVM controller and for technicians only.

LAN port 3 LAN port 1

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 1-7

1 2

1-8

TS700-E8-RS8 V2

Power connectors

PS/2 keyboard/ mouse combo port

2 x USB 2.0 ports

BIOS Flashback button with LED

2 x USB 2.0 ports

4 x USB 3.0 ports

Audio I/O ports

SPDIF OUT

USB3.0

USB3.0

side rear c/sub

MIC IN LINE OUT LINE IN

KY

2 x 2.5-inch SSD bays

120mm x 38mm system fan

Q-Code Logger button with LED

SPDIF Out port

Management LAN port*

LAN (RJ-45) port 2

LAN (RJ-45) port 1

Expansion slots

VGA port

* This port is for ASUS ASMB8-iKVM controller and for technicians only.

LAN port 3 LAN port 1

Chapter 1: Product Introduction

1.6 Internal features

The barebone server includes the basic components as shown.

1. 1200W 80PLUS Platinum Single Power Supply Module (TS700-E8-PS4 V2) or

800W 80PLUS Gold 1+1 Redundant Power Supply Module (TS700-E8-RS8 V2)

2. 120mm x 38mm system fan

3. ASUS Z10PE-D16 WS Server Board

4. Chassis intrusion switch

5. Expansion card locks

6. Optical drive (optional)

7. 2 x 5.25-inch drive bays

8. 4-bay HDD module (First set with backplane; TS700-E8-PS4 V2 only supports this set)

9. 4-bay HDD module (Second set with backplane, TS700-E8-RS8 V2 only)

10. 2 x 80mm x 38mm system fans (hidden beside the backplane)

11. 2 x 2.5-inch SSD bays (TS700-E8-RS8 V2 only)

Turn off the system power and detach the power supply before removing or replacing any system component.

The barebone server does not include a floppy disk drive. Connect a USB floppy disk drive to any of the USB ports on the front or rear panel if you need to use a floppy disk.

*WARNING

HAZARDOUS MOVING PARTS

KEEP FINGERS AND OTHER BODY PARTS AWAY

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 1-9

1.7 LED information

1.7.1 Front panel LEDs

Message LED

HDD access LED

Power LED

1

2

LAN1 LED

LAN2 LED

Location LED

(Reserved)

HDD Status LED

HDD Activity LED

SPDIF OUT

USB3.0

USB3.0

side rear c/sub

MIC IN LINE OUT LINE IN

KY

1-10

LED

Power LED

HDD

Access

LED

Icon

Display status

ON

OFF

Blinking

OFF

Message

LED

ON

HDD Status

LED

System power ON

No activity

Description

Read/write data into the HDD

Green

System is normal; no incoming event

A hardware temperature overheat is detected. Use ASWM to check the abnormal status.

Bridge board connected to backplane; Installed HDD is in good condition

HDD failure Red

Green/Red

Blinking

OFF

HDD rebuilding using the RAID card

No LAN connection

LAN LEDs Blinking

ON

LAN is transmitting or receiving data

LAN connection is present

The Power LED, HDD Status LED and Message LED are visible even if the system front bezel is closed.

Chapter 1: Product Introduction

LAN port 3 LAN port 1

1

2

SPDIF OUT

1.7.2 LAN (RJ-45) LEDs

USB3.0

Status

OFF

ORANGE

BLINKING

USB3.0

MIC IN rear c/sub

Description

No link

LINE IN

Linked

KY

Data activity

ACT/LINK LED

SPEED LED

ACT/LINK LED

SPEED LED

Status

OFF

ORANGE

GREEN

SPEED LED

Description

10 Mbps connection

100 Mbps connection

1 Gbps connection

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 1-11

LAN port 3 LAN port 1

1-12 Chapter 1: Product Introduction

Chapter 2: Hardware Information

Hardware Information

This chapter lists the hardware setup procedures that you have to perform when installing or removing system components.

2

2-2

2.1 Chassis cover

2.1.1 Removing the side cover

• Ensure that you unplug the power cord before removing the side cover.

• Take extra care when removing the side cover. Keep your fingers from components inside the chassis that can cause injury, such as the CPU fan, rear fan, and other sharp-edged parts.

To remove the side cover:

1. Remove the two screws that secure the side cover.

2. Slide the side cover for about half an inch toward the rear until it is disengaged from the chassis.

3. Carefully lift the side cover and set it aside.

1

3

2

1

Chapter 2: Hardware Setup

2.1.2 Reinstalling the side cover

To reinstall the side cover:

1. Match and insert the lower sliding edge of the side cover to the corresponding chassis edge.

2. Slide the side cover toward the front panel until it snaps in place.

3. Drive in the two screws you removed earlier to secure the side cover.

1

3

1

2

3

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-3

2.2 Central Processing Unit (CPU)

The motherboard comes with two surface mount LGA 2011-3 sockets designed for the Intel

®

Xeon E5-2600 v3 family processor.

• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components.

• Keep the cap after installing the motherboard. ASUS will process Return Merchandise

Authorization (RMA) requests only if the motherboard comes with the cap on the LGA

2011-3 socket.

• The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

2.2.1 Installing the CPU

To install a CPU:

1. Locate the CPU socket on the motherboard.

2-4

Before installing the CPU, ensure that the socket box is facing toward you and the triangle mark is on the top-right position.

Triangle mark

Chapter 2: Hardware Setup

2. Press the left load lever down with your thumb (A), move it to the right until it is released from the retention tab (B) then gently lift the load lever (C).

To prevent damage to the socket pins, do not remove the PnP cap unless you are installing a CPU.

Load lever

3. Press the right load lever with your thumb (D), move it to the left (E) until it is released from then gently lift the load lever (F).

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-5

2-6

4. Push the left load lever to slightly lift the load plate (G).

Do not insert the load lever into the retention tab.

5. Hold the edge then gently lift the load plate (H).

Edge of the

Load plate

Load plate

6. Get the CPU.

7. Align and position the CPU over the socket ensuring that the triangle mark on the CPU matches the triangle mark on the socket box.

8. Install the CPU into the slot.

The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the

CPU pins on the socket.

9. Gently push the load plate just enough to let it sit on top of the CPU.

Do not force to close the load plate as it may damage the CPU.

Triangle mark

Chapter 2: Hardware Setup

10. Push down the right load lever (I) ensuring that the edge of the load plate is fixed and tucked securely under the lever (J) then insert the right load lever under the retention tab (K).

The PnP cap pops out of the load plate when the right load lever is inserted into the retention tab.

Keep the PnP cap. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the PnP cap on the LGA 2011 socket.

PnP cap

11. Push down the left load lever (L) then insert it under the retention tab (M).

Retention tab

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-7

12. Apply some Thermal Interface Material to the exposed area of the CPU that the heatsink will be in contact with.

• Ensure that the Thermal Interface Material is spread in an even thin layer.

• Some heatsinks come with pre-applied Thermal Interface Material. If so, skip this step.

The Thermal Interface Material is toxic and inedible. DO NOT eat it. If it gets into your eyes or touches your skin, wash it off immediately, and seek professional medical help.

2-8 Chapter 2: Hardware Setup

2.2.2 Installing the CPU heatsink

To install the CPU heatsink:

1. Place the CPU heatsink and fan on top of the installed CPU, ensuring that the four screws match the holes on the support plate, and the arrow on the fan faces the rear panel of the server chassis.

2. Twist each of the four screws with a Philips (cross) screwdriver just enough to attach the CPU heatsink and fan to the motherboard. When the four screws are attached, tighten them one by one to completely secure the CPU heatsink and fan.

A B

B A

Tighten the four heatsink screws in a diagonal sequence.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-9

2-10

2.3 System memory

2.3.1 Overview

The motherboard comes with sixteen (16) Double Data Rate 4 (DDR4) Dual Inline Memory

Modules (DIMM) sockets.

The figure illustrates the location of the DDR4 DIMM sockets:

2.3.2 Memory Configurations

You may install 4 GB, 8 GB, 16 GB, and 32 GB RDIMMs or 32 GB and 64 GB LR-DIMMs into the DIMM sockets using the memory configurations in this section.

• Refer to ASUS Server AVL for the updated list of compatible DIMMs.

• When installing DIMMs, always start from slot A1 (CPU1) and E1 (CPU2).

• Always install DIMMs with the same CAS latency. For optimum compatibility, it is recommended that you obtain memory modules from the same vendor.

Chapter 2: Hardware Setup

Single CPU configuration

You can refer to the following recommended memory population for a single CPU configuration.

Single CPU configuration (must be installed on CPU1)

DIMM

A2 A1 B2 B1 C2

1 DIMM

2 DIMMs

4 DIMMs

8 DIMMs

P

P

P

P

P P

P

P

P P

C1

P

P

D2

P

D1

P

P

Dual CPU configuration

You can refer to the following recommended memory population for a dual CPU configuration.

Dual CPU configuration

DIMM (CPU1) DIMM (CPU2)

A2 A1 B2 B1 C2 C1 D2 D1

E2 E1 F2 F1 G2 G1 H2 H1

2 DIMMs

4 DIMMs

8 DIMMs

P

P

P

P

P P P

P

P

P

P

P P P

12 DIMMs

P P P P P P P P P P P P

16 DIMMs

P P P P P P P P P P P P P P P P

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-11

2.3.3 Installing a DIMM on a single clip DIMM socket

1. Press the retaining clip outward to unlock the DIMM socket.

2. Align a DIMM on the socket such that the notch on the DIMM matches the

DIMM slot key on the socket.

DIMM notch

DIMM slot key Unlocked retaining clip

A DIMM is keyed with a notch so that it fits in only one direction. DO NOT force a DIMM into a socket in the wrong direction to avoid damaging the DIMM.

3. Hold the DIMM at both ends then insert the DIMM into the socket. Apply force to both ends of the DIMM simultaneously until the retaining clip clicks into place and the DIMM is seated securely in place.

Locked Retaining Clip

Always insert the DIMM into the socket VERTICALLY to prevent DIMM notch damage.

• To install two or more DIMMs, refer to the user guide bundled with the motherboard package.

• Refer to the user guide for qualified vendor lists of the memory modules.

2.3.4 Removing a DIMM from a single clip DIMM socket

1. Press the retaining clip outward to unlock the DIMM.

2. Remove the DIMM from the socket.

2-12

Support the DIMM lightly with your fingers when pressing the retaining clips. The DIMM might get damaged when it flips out with extra force.

Chapter 2: Hardware Setup

2.4 Front panel assembly

Before you can install a 5.25-inch drive, you should first remove the front panel assembly (front bezel and front panel cover).

2.4.1 Removing the front panel assembly

To remove the front panel assembly

1. Locate the three hooked tabs on the chassis side rail.

2. Shift the hooked tabs and take off the front bezel.

2.4.2 Reinstalling the front panel assembly

To reinstall the front panel assembly:

1. Hook the other side of the front panel assembly to the chassis.

2. Swing the front panel assembly and snap it back into place.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-13

2.5 SATA/SAS hard disk drives

The system comes with two sets of hard disk drive modules. TS700-E8-PS4 V2 supports the first set as default. TS700-E8-RS8 V2 supports both sets. Each hard disk drive module, including externally removable trays for mounting four hot-swap SATA/SAS hard disk drives, allows you to access the drive trays by simply opening the front bezel.

An HDD module cage comes with a SATA or SAS backplane. Take note of the type of HDD module cage you purchase before buying hard disks.

2.5.1 Removing the HDD module cage

1. Disconnect all the cables from the SATA/SAS backplane on the HDD module cage.

2. Level the HDD module cage latch counterclockwise. The HDD module cage will be pushed out of the chassis.

3. Remove the HDD module cage.

3

2

2-14 Chapter 2: Hardware Setup

2.5.2 Installing the HDD module cage

1. Find a HDD tray. Locate an empty bay and insert the HDD tray into the bay.

2. Level the HDD module cage latch counterclockwise.

3. Insert the HDD module cage into the bay.

4. When the HDD module cage is completely inserted, the cage latch will be pushed back clockwise.

5. Lock the cage latch properly.

6. Connect the appropriate cables to the SATA/SAS backplane on the HDD module cage.

3

2

4

5

By default, only TS700-E8-RS8 V2 supports the second set of HDD module.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-15

2.5.3 Removing the backplane

DO NOT remove the backplane unless necessary!

1. Remove all hot-swap HDD trays from the chassis.

2. Disconnect all cables from the SATA/

SAS backplane.

3. Loosen the four screws on the backplane.

4. Firmly hold the backplane, and turn it in the direction of the arrow.

5. Remove the backplane from the module.

2-16

2.5.4 Installing a hot-swap SATA/SAS hard disk drive

1. Release a drive tray by pushing the spring lock to the right, and then pulling the tray lever outward. The drive tray ejects slightly after you pull out the lever.

Chapter 2: Hardware Setup

2. Firmly hold the tray lever and pull the drive tray out of the bay.

3. Take note of the drive tray holes.

Each side has three holes to fit different types of hard disk drives.

Use two screws on each side to secure the hard disk drive.

4. Place a SATA/SAS hard disk drive on the tray, and then secure it with four screws.

5. Carefully insert the drive tray and push it all the way to the depth of the bay until just a small fraction of the tray edge protrudes.

When installed, the SATA/SAS connector on the drive connects to the SATA/SAS interface on the backplane.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-17

6. Push the tray lever until it clicks, and secures the drive tray in place. The drive tray is correctly placed when its front edge aligns with the bay edge.

7. Repeat steps 1 to 6 if you wish to install a second SATA/SAS drive.

2.5.5 Installing a 2.5-inch hard disk drive (TS700-E8-RS8 V2 only)

The system comes with two hot-swap 2.5-inch hard disk drives on the rear panel for mounting

SATA/SAS or SSD hard disk drives.

To install a 2.5-inch hard disk drive:

1. Release a drive tray by pushing the spring lock to the right, and then pulling the tray lever outward. The drive tray ejects slightly after you pull out the lever.

2. Firmly hold the tray lever and pull the drive tray out of the bay.

2-18

When the drive tray is out, its case is facing downwards.

3. Place the drive tray on a flat surface.

4. Release the screws on each side of the drive tray to release the drive tray metal beam.

5. Find the hard disk drive you want to install and its bundled screws.

Support beam

Chapter 2: Hardware Setup

6. Orient and place the SSD into the tray.

Ensure that the SSD is fitted firmly inside the drive tray and that the four screws of the SSD matches the four screws holes of the drive tray.

7. Carefully insert the drive tray with its case facing downwards and push it all the way to the drive bay.

When installed, the SATA/SAS connector on the drive connects to the SATA/

SAS interface on the backplane.

8. Lock the secure tab to secure the drive tray in place.

When the drive tray assembly is properly installed, you will see the edge of the drive tray is in align with the chassis cover.

9. Repeat steps 1 to 8 to install other 2.5-inch hard disk drives.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-19

2-20

2.6 5.25-inch or 3.5-inch drives

Ensure to unplug the power cable before installing or removing any system components.

Failure to do so may cause damage to the motherboard and other system components!

The system comes with three 5.25-inch drive bays located on the upper front part of the chassis. An optical drive that comes standard with the system package occupies the uppermost bay (labeled 1). The lower bays

(labeled 2 and 3) are available for additional

5.25-inch drives or 5.25-inch to 3.5-inch hard drive adapter for installing 3.5-inch zip or floppy disk drives.

1

2

3

You must remove the front panel assembly before installing a 5.25-inch drive.

2.6.1 Installing a 5.25-inch drive

1. Unscrew and remove the metal cover of the bay where you want to install the 5.25inch drive.

2. Insert the drive into the bay and slide the bay lock to the right until it clicks in place.

2

3. Connect the SATA cable to the SATA connector on the back of the drive.

4. Connect the 4-pin power connector from the power supply to the power connector on the back of the drive.

4

3

Chapter 2: Hardware Setup

2.7 Expansion slots

Remove the metal slot cover before installing an expansion card.

Ensure to unplug the power cord before installing or removing expansion cards. Failure to do so may cause severe damage to the motherboard and other system components!

2.7.1 Installing an expansion card

1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.

TS700-E8-PS4 V2 supports up to three GPU cards. TS700-E8-RS8 V2 supports only one

GPU card.

2. Remove the side chassis cover.

Lay the system on its side on a flat, stable surface.

3. Release the screws on the metal slot cover where you wish to install the expansion card.

4. Remove the metal slot cover.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-21

2-22

5.

Align the card’s golden fingers with the slot, and then press firmly until the card is completely seated on the slot.

6. Secure the expansion card with the screws that you removed earlier in step 3.

7. When installing a PCIex16 graphics card that requires external power supply, connect the 6+2 pin connector of the bundled power cable to the graphics card.

8. Connect the 8-pin ATX power connector of the power cable to the power supply module to get external power supply.

Chapter 2: Hardware Setup

2.7.2 Installing an ASUS PIKE II card

You can install an ASUS PIKE II card on the provided PCI-E slot onboard.

To install an ASUS PIKE II card:

1. Remove the default cable from the motherboard and the backplane.

2. Remove the screw on the metal cover and then remove the metal cover, put them aside for future use.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-23

3. Prepare your ASUS PIKE II card.

4. Insert the expansion card into the PCI-E slot. Ensure that the golden fingers are totally inserted into the slot.

2-24

5. Connect the two mini-SAS HD cables to the ASUS PIKE II card.

Connect only one (1) mini-SAS HD cable to ASUS PIKE II connector 1 for TS700-E8-PS4

V2.

connect to ASUS PIKE II connector 2 connect to ASUS PIKE II connector 1

Chapter 2: Hardware Setup

6. Connect connector 1 on the ASUS PIKE II card to connector 1 on the backplane and connector 2 on the ASUS PIKE II card to connector 2 on the backplane using two mini-

SAS HD cables.

Connect only one (1) mini-SAS HD cable to backplane connector 1 for TS700-E8-PS4 V2.

connector 2 connector 1

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-25

2-26

2.7.3 Configuring an expansion card

After installing the expansion card, configure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 5 for information on BIOS setup.

2. Assign an IRQ to the card. Refer to the following tables.

3. Install the software drivers for the expansion card.

Standard Interrupt assignments

Priority

4

5

6

14

15

3

11

12

13

-

1

2

7

8

9

10

IRQ

6

7*

8

9*

10*

11*

3*

4*

5*

0

1

2

12*

13

14*

15*

Standard function

System Timer

Keyboard Controller

Programmable Interrupt

Communications Port (COM2)

Communications Port (COM1)

--

Floppy Disk Controller

--

System CMOS/Real Time Clock

ACPI Mode when used

IRQ Holder for PCI Steering

IRQ Holder for PCI Steering

PS/2 Compatible Mouse Port

Numeric Data Processor

Primary IDE Channel

Secondary IDE Channel

* These IRQs are usually available for PCI devices.

Chapter 2: Hardware Setup

Expansion slots

PCIEX16_1

1 x PCIE x16 (x8 Gen3 Link)

PCIEX16_2

1 x PCIE X16 (x16 Gen3 Link)

PCIEX16_3

1 x PCIE x16 (x8 Gen3 Link)

PCIEX16_4

1 x PCIE X16 (x16 Gen3 Link)

PCIEX16_5

1 x PCIE x16 (x16 Gen3 Link)

PCIEX16_6

1x PCIE x16 (x16 Gen3 Link)

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-27

2.7.4 Installing an M.2 expansion card

You can install an M.2 expansion card on the provided M.2 socket (labeled M2) onboard.

To install an M.2 expansion card:

1. Remove the screw on the M.2 socket and set it aside.

2. Find your M.2 expansion card.

2-28

The illustrations below vary with models. The installation steps are the same.

3. Align and insert the M.2 card into the M.2 slot onboard as shown.

4. Secure the M.2 card with a screw that you removed earlier in step 1.

4

3

M2 socket

Chapter 2: Hardware Setup

2.8 Cable connections

• The bundled system cables are pre-connected before shipment. You do not need to disconnect these cables unless you will remove pre-installed components to install additional devices.

• Refer to Chapter 4 for detailed information on the connectors.

2.8.1 Motherboard connections

2 1

2

3

3

3

3

3

3

3

6

3

5

7

4

3

Standard cables connected to the motherboard

1. 24-pin ATX power connector (from power supply to motherboard)

2. 8-pin 12V power connector (from power supply to motherboard)

3. System fan connector (from system fan to motherboard)

4. USB 3.0 connector (from motherboard to front I/O board)

5. USB 2.0 connector (from motherboard to front I/O board)

6. SATA connector (system default; from motherboard to front 3.5-inch SATA/SAS backplane)

7. SSATA connector (system default; from motherboard to optical drive or rear 2.5-inch

SATA/SAS backplane)

8. System auxiliary panel connector (from motherboard to front I/O board)

9. System panel connector (from motherboard to front I/O board)

8

9

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-29

2.8.2 SATA/SAS backplane cabling

The system comes with a pre-installed SATA/SAS backplane. The SATA/SAS backplane has four 22-pin SATA/SAS connectors to support Serial ATA hard disk drives and SAS hard disk drives. The backplane design incorporates a hot-swap feature to allow easy connection or removal of SATA/SAS hard disks. The LEDs on the backplane connect to the front panel

LEDs to indicate HDD status. See section 1.7 LED information for details.

Front side

The front side of the SATA/SAS backplane faces the front panel when installed. This side includes four SATA/SAS connectors for the hot-swap drive trays.

2-30

HDD1

HDD2

HDD3

Drive status LEDs

HDD4

Each SATA/SAS connector is labeled (HDD1, HDD2,

HDD3, HDD4) so you can easily determine their counterpart connectors at the back side of the backplane.

Refer to the table for reference.

HDD1

HDD Device

HDD 1

HDD 2

HDD 3

HDD 4

Front side connector

HDD1

HDD2

HDD3

HDD4

Back side connector

CON1

CON2

CON3

CON4

Chapter 2: Hardware Setup

Back side

The back side of the SATA/SAS backplane faces the rear panel when installed. This side includes the power connectors and SATA/SAS interfaces for the motherboard Serial ATA connectors or the SAS card.

PWR1

MSAS_HD1

Connectors

MSAS_HD1

BPSMB1

PWR1

BPSMB1

Description

Connects to SATA SGPIO1 connector on the motherboard or connects to SATA/SAS connectors on the ASUS PIKE II card.

Connects to AUX_PANEL1 connector on the motherboard

Connects to 4-pin plug of the power supply

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-31

1

2

SPDIF OUT

USB3.0

USB3.0

side rear c/sub

MIC IN LINE OUT LINE IN

KY

2-32

2.9 Removable components

You may need to remove previously installed system components when installing or removing system devices, or when you need to replace defective components. This section tells how to remove the following components:

1. System fans (front and rear)

2. Redundant power supply module

3. Chassis footpads

2.9.1 System fans

Removing the front system fan

To remove the front system fan:

1. Remove the two screws that secure the right side cover. Then remove the side cover.

1 2

1

SPDIF OUT

USB3.0

USB3.0

side rear c/sub

MIC IN LINE OUT LINE IN

KY

1

2. Locate the front system fan near the

5.25-inch drive bays.

3. Squeeze the front system fan latches

(step a) and pull out the front system fan

(step b), as shown in the right figure.

4. Follow the previous instructions in reverse to reinstall the front system fan.

a

LAN port 3 LAN port 1 b a

Chapter 2: Hardware Setup

LAN port 3 LAN port 1

Removing the rear system fan

To remove the rear system fan:

1. Squeeze the front system fan latches (step a) and pull out the front system fan (step b), as shown in the figure below.

a a b

2. Unplug the system fan cable from the REAR_FAN1 connector on the motherboard.

3. Carefully remove the system fan.

Follow the previous instructions in reverse to reinstall the rear system fan.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-33

2-34

2.9.2 Redundant power supply module (TS700-E8-RS8 V2 only)

To install the redundant power supply module:

1. Locate the redundant power supply you want to remove on the rear panel of your chassis. Move the handle on it upward.

2. Press the latch to the left and pull the power supply module out of the system chassis.

3. Insert the replacement power supply module into the chassis. You will hear a sound when the power supply module is secured in place.

Chapter 2: Hardware Setup

2.9.3 Chassis footpads

The barebone server system is shipped with four footpads attached to the bottom of the chassis for stability. You need to remove these footpads if you wish to install the system to a rack. Refer to Chapter 3: Installation options of this user guide, and to the “Rackmount Kit” user guide for instructions.

To remove the footpads:

1. Lay the system chassis on its side.

2. Remove the footpad by rotating it counterclockwise with a Philips (cross) screwdriver.

3. Repeat steps 1 and 2 to remove the other three footpads.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 2-35

2-36 Chapter 2: Hardware Setup

Chapter 3: Installation Options

Installation Options

This chapter describes how to install the optional components and devices into the barebone server.

3

3.1 Preparing the system for rack mounting

• The items required for the optional configurations described in this chapter are not included in the standard barebone system package. These items are purchased separately.

• We recommend that you allot at least 1U space above the server system to ensure optimal thermal performance.

Removing the footpads

Refer to section 2.9.3 Chassis footpads for instructions on removing the footpads.

Removing the top cover

Unscrew and slide the top cover toward the rear panel, and then lift it up from the chassis.

3-2

3.2 Attaching the inner rail to the server

1. Press the lock on side of the rail and slide the inner rail out from the rackmount rail kit.

2. Slide the inner rail into the rail on top of the chassis.

3. Align the screw holes on the inner rail and the chassis top, and then secure the inner rail to the chassis top with screws.

Chapter 3: Installation Options

4. Repeat the previous steps to secure the other inner rail to the bottom of the chassis with screws.

5. Use three screws to secure the side hooks to both rails.

3.3 Attaching the rails to the rack

To attach the rails to the rack:

1. Select one unit of space (1U) on the rack where you wish to install the server.

1U space

2. Drive in two screws on the rack rails.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 3-3

3-4

3. Align the front end holes of a rack rail pair to the 1U space.

4. Drive in two screws on the outer holes to secure the front end.

5. Find the rear 1U space that corresponds to the front 1U space where you attached the rail. Drive in two screws on the outer holes to secure the rear end.

6. From the rack front, find the corresponding 1U space for the second rail pair.

7. Repeat steps 3–6 to attach the second rail pair.

3.4 Mounting the server to the rack

To mount the server to the rack:

1. Align the server rails with the rack rails.

2. Press the lock on side of the rail and slide the server into the rack.

3. When the server is fully slide into the rack, secure both sides using screws.

Chapter 3: Installation Options

Chapter 4: Motherboard Info

Motherboard Info

This chapter includes the motherboard layout and brief descriptions of the jumpers and internal connectors.

4

4.1 Motherboard layout

4-2

Layout contents

Onboard LEDs

1. Memory Error LED (ERR_DIMMA1, ERR_DIMMB1, ERR_DIMMC1,

ERR_DIMMD1, ERR_DIMME1, ERR_DIMMF1, ERR_DIMMG1,

ERR_DIMMH1)

2. Baseboard Management Controller LED (BMC_LED1)

3. Location LED (LOCLED2)

4. CATT LED (CATTERR_LED1)

5. CPU Warning LED (ERR_CPU1, ERR_CPU2)

6. M2 LED (M2_LED)

7. ASUS Dr. Power LED (PGLED3)

8. Q-Code LED (LED1)

Page

4-4

4-6

4-7

4-8

4-4

4-5

4-5

4-6

Chapter 4: Motherboard Information

Onboard buttons and switches

1. Power-on button

2. Reset button

3. Dr. Power switch (DR_POWER)

Page

4-12

4-12

4-13

Jumpers

1. Clear RTC RAM (CLRTC1)

2. VGA controller setting (VGA_SW1)

3. SMBUS connection setting (TESLA_M_SW)

4. RAID selection jumper setting (3-pin RAID_SEL1)

5. ME firmware force recovery setting (3-pin ME_RCVR1)

6. DDR4 thermal event setting (3-pin DIMMTRIP1)

7. PMBus 1.2 PSU select jumper (3-pin SMART_PSU1)

Internal connectors

1. Hard disk activity LED connector (4-pin HDLED1)

2. USB 2.0 connectors (10-1 pin USB1112)

3. USB 3.0 connector (20-1 pin USB3_56)

4. CPU, front and rear fan connectors (4-pin CPU_FAN1-2,

FRNT_FAN1–5, REAR_FAN1-2)

5. Power supply SMBus Connector (PSUSMB1)

6. Serial port connectors (10-1 pin COM1)

7. Serial ATA 6.0/3.0 Gb/s connectors (7-pin SATA_1-6 [gray])

Serial ATA 6.0/3.0 Gb/s connectors (7-pin SSATA_1-4 [gray])

8. Serial General Purpose Input/Output connector (6-1 pin SGPIO1,

SSGPIO1)

9. M.2 (NGFF) connector (NGFF1)

10. Trusted Platform Module connector (20-1 pin TPM1)

11. EATX power connectors (24-pin EATXPWR1; 8-pin EATX12V1/

EATX12V2; 6-pin EATX12V3)

12. Chassis Intrusion (2-pin INTRUSION1)

13. System panel connector (20-1 pin PANEL1)

14. Auxiliary panel connector (20-2 pin AUX_PANEL1)

15. Digital audio connector (4-1 pin SPDIF_OUT)

16. VGA connector (VGA_HDR1)

17. Front panel audio connector (10-1 pin AAFP)

Page

4-18

4-18

4-19

4-19

4-20

4-20

4-21

4-22

4-22

4-23

4-23

4-24

4-25

4-26

4-27

4-27

4-28

4-16

4-16

4-17

4-17

Page

4-14

4-15

4-15

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-3

4.2 Onboard LEDs

1. Memory Error LED (ERR_DIMMA1, ERR_DIMMB1, ERR_DIMMC1, ERR_DIMMD1,

ERR_DIMME1, ERR_DIMMF1, ERR_DIMMG1, ERR_DIMMH1)

These LEDs light up to indicate an error in its nearby DIMM.

2. Baseboard Management Controller LED (BMC_LED1)

The BMC LED works with the ASUS ASMB8 management device and indicates its initiation status. When the PSU is plugged and the system is OFF, ASUS ASMB8 management device starts system initiation for about one (1) minute. The BMC LED blinks after system initiation finishes.

4-4 Chapter 4: Motherboard Information

3. Location LED (LOCLED2)

This onboard LED lights up when the Location button on the server is pressed or when triggered by a system management software. The Location LED helps visually locate and quickly identify the server in error on a server rack.

4. CATT LED (CATTERR_LED1)

The CATT LED indicates that the system has experienced a fatal or catastrophic error and cannot continue to operate.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-5

5. CPU Warning LED (ERR_CPU1, ERR_CPU2)

The CPU warning LEDs light up to indicate failure on either CPU1, CPU2, or both.

6. M2 LED (M2_LED)

This LED lights up to indicate that the installed M.2 (NGFF) card is being accessed.

4-6 Chapter 4: Motherboard Information

7. ASUS Dr. Power LED (PGLED3)

This LED near the Dr. Power switch lights up when the Dr. Power switch is on Enable.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-7

8. Q-Code LED (LED1)

The Q-Code LED design provides you the 2-digit display, allowing you to know the system status. Refer to the Q-code table below for details.

4-8

Q-Code table

Code

00

01

02

08

09

0A

0B

03

04

06

07

0C – 0D

0E

0F

10

11 – 14

15 – 18

19 – 1C

2B – 2F

30

Description

Not used

Power on. Reset type detection (soft/hard).

AP initialization before microcode loading

System Agent initialization before microcode loading

PCH initialization before microcode loading

Microcode loading

AP initialization after microcode loading

System Agent initialization after microcode loading

PCH initialization after microcode loading

Initialization after microcode loading

Cache initialization

Reserved for future AMI SEC error codes

Microcode not found

Microcode not loaded

PEI Core is started

Pre-memory CPU initialization is started

Pre-memory System Agent initialization is started

Pre-memory PCH initialization is started

Memory initialization

Reserved for ASL (see ASL Status Codes section below)

Chapter 4: Motherboard Information

E1

E2

E3

E4 – E7

E8

E9

EA

EB

EC – EF

F0

F1

F2

F3

F4

F5 – F7

Code

31

32 – 36

37 – 3A

3B – 3E

4F

57

58

59

50 – 53

54

55

56

5A

5B

5C – 5F

E0

F8

F9

FA

FB – FF

60

61

62

Q-Code table (continued)

Description

Memory Installed

CPU post-memory initialization

Post-Memory System Agent initialization is started

Post-Memory PCH initialization is started

DXE IPL is started

Memory initialization error. Invalid memory type or incompatible memory speed

Unspecified memory initialization error

Memory not installed

Invalid CPU type or Speed

CPU mismatch

CPU self test failed or possible CPU cache error

CPU micro-code is not found or micro-code update is failed

Internal CPU error

Reset PPI is not available

Reserved for future AMI error codes

S3 Resume is stared (S3 Resume PPI is called by the DXE IPL)

S3 Boot Script execution

Video repost

OS S3 wake vector call

Reserved for future AMI progress codes

S3 Resume Failed

S3 Resume PPI not Found

S3 Resume Boot Script Error

S3 OS Wake Error

Reserved for future AMI error codes

Recovery condition triggered by firmware (Auto recovery)

Recovery condition triggered by user (Forced recovery)

Recovery process started

Recovery firmware image is found

Recovery firmware image is loaded

Reserved for future AMI progress codes

Recovery PPI is not available

Recovery capsule is not found

Invalid recovery capsule

Reserved for future AMI error codes

DXE Core is started

NVRAM initialization

Installation of the PCH Runtime Services

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-9

4-10

A7

A8

A9

AA

96

97

98

99

9A

9B

9C

A3

A4

A5

A6

9D

9E – 9F

A0

A1

A2

92

93

94

95

Code

63 – 67

68

69

6A

6B – 6F

70

71

72

73 – 77

78

79

7A – 7F

90

91

AB

Q-Code table (continued)

Description

CPU DXE initialization is started

PCI host bridge initialization

System Agent DXE initialization is started

System Agent DXE SMM initialization is started

System Agent DXE initialization (System Agent module specific)

PCH DXE initialization is started

PCH DXE SMM initialization is started

PCH devices initialization

PCH DXE Initialization (PCH module specific)

ACPI module initialization

CSM initialization

Reserved for future AMI DXE codes

Boot Device Selection (BDS) phase is started

Driver connecting is started

PCI Bus initialization is started

PCI Bus Hot Plug Controller Initialization

PCI Bus Enumeration

PCI Bus Request Resources

PCI Bus Assign Resources

Console Output devices connect

Console input devices connect

Super IO Initialization

USB initialization is started

USB Reset

USB Detect

USB Enable

Reserved for future AMI codes

IDE initialization is started

IDE Reset

IDE Detect

IDE Enable

SCSI initialization is started

SCSI Reset

SCSI Detect

SCSI Enable

Setup Verifying Password

Start of Setup

Reserved for ASL (see ASL Status Codes section below)

Setup Input Wait

Chapter 4: Motherboard Information

Code

AC

AD

AE

AF

B0

B1

B2

B3

B4

B5

B6

B7

B8– BF

D0

D1

D6

D7

D8

D9

D2

D3

D4

D5

DA

DB

DC

Q-Code table (continued)

Description

Reserved for ASL (see ASL Status Codes section below)

Ready To Boot event

Legacy Boot event

Exit Boot Services event

Runtime Set Virtual Address MAP Begin

Runtime Set Virtual Address MAP End

Legacy Option ROM Initialization

System Reset

USB hot plug

PCI bus hot plug

Clean-up of NVRAM

Configuration Reset (reset of NVRAM settings)

Reserved for future AMI codes

CPU initialization error

System Agent initialization error

PCH initialization error

Some of the Architectural Protocols are not available

PCI resource allocation error. Out of Resources

No Space for Legacy Option ROM

No Console Output Devices are found

No Console Input Devices are found

Invalid password

Error loading Boot Option (LoadImage returned error)

Boot Option is failed (StartImage returned error)

Flash update is failed

Reset protocol is not available

Code

0x01

0x02

0x03

0x04

0x05

0x10

0x20

0x30

0x40

0xAC

0xAA

ACPI/ASL Checkpoints

Description

System is entering S1 sleep state

System is entering S2 sleep state

System is entering S3 sleep state

System is entering S4 sleep state

System is entering S5 sleep state

System is waking up from the S1 sleep state

System is waking up from the S2 sleep state

System is waking up from the S3 sleep state

System is waking up from the S4 sleep state

System has transitioned into ACPI mode. Interrupt controller is in PIC mode.

System has transitioned into ACPI mode. Interrupt controller is in APIC mode.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-11

4-12

4.3 Onboard buttons, switches and jumpers

4.3.1 Onboard buttons and switches

Onboard switches allow you to fine-tune performance when working on a bare or opencase system. This is ideal for overclockers and gamers who continually change settings to enhance system performance.

1. Power-on

The motherboard comes with a power-on switch that allows you to power up or wake up the system. The switch also lights up when the system is plugged to a power source indicating that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard power-on switch.

2. Reset button (RESET)

Press the reset switch to reboot the system.

Chapter 4: Motherboard Information

3. Dr. Power switch (DR_POWER)

Toggle this switch to enable or disable the Dr. Power feature of the system.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-13

4.3.2 Jumpers

1. Clear RTC RAM (CLRTC1)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the

CMOS RTC RAM data. The onboard button cell battery powers the RAM data in

CMOS, which include system setup information such as system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pins 1–2 (default) to pins 2–3. Keep the cap on pins 2–3 for about 5–10 seconds, then move the cap back to pins 1–2.

3. Plug the power cord and turn ON the computer.

4. Hold down the <Del> key during the boot process and enter BIOS setup to reenter data.

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure!

If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After the CMOS clearance, reinstall the battery.

4-14 Chapter 4: Motherboard Information

2. VGA controller setting (VGA_SW1)

This jumper allows you to enable to disable the onboard VGA controller. Set to pins 1-2 to activate the VGA feature.

3. SMBUS connection setting (TESLA_M_SW)

This jumper allows you to select the connection to BMC or PHC for PCIE 1/3/5/7 SMBUS.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-15

4. RAID selection jumper setting (3-pin RAID_SEL1)

This jumper allows you to select the PCH SATA RAID mode to use LSI MegaRAID software or Intel ® Rapid Storage Technology enterprise 3.0 RAID. Place the jumper caps over pins 1–2 if you want to use the LSI MegaRAID software RAID Utility (default); otherwise, place the jumper caps to pins 2–3 to use the Intel

Enterprise Option ROM Utility.

® Rapid Storage Technology

5. ME firmware force recovery setting (3-pin ME_RCVR1)

This jumper allows you to force Intel Management Engine (ME) boot from recovery mode when ME become corrupted.

4-16 Chapter 4: Motherboard Information

6. DDR4 thermal event setting (3-pin DIMMTRIP1)

This jumper allows you to enable or disable DDR4 DIMM thermal sensing event pin.

7. PMBus 1.2 PSU select jumper (3-pin SMART_PSU1)

This jumper allows you to select PSU PMBus version. Set to pins 1–2 for PMBus, set to pins 2–3 for others.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-17

4.4 Internal connectors

1. Hard disk activity LED connector (4-pin HDLED1)

This LED connector is for the storage add-on card cable connected to the SATA or

SAS add-on card. The read or write activities of any device connected to the SATA or

SAS add-on card causes the front panel LED to light up.

2. USB 2.0 connectors (10-1 pin USB1112)

These connectors are for USB 2.0 ports. Connect the USB module cables to connectors USB78 and USB910, then install the modules to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps connection speed.

4-18 Chapter 4: Motherboard Information

3. USB 3.0 connector (20-1 pin USB3_56)

This connector allows you to connect a USB 3.0 module for additional USB 3.0 front or rear panel ports. With an installed USB 3.0 module, you can enjoy all the benefits of

USB 3.0 including faster data transfer speeds of up to 5Gbps, faster charging time for

USB-chargeable devices, optimized power efficiency, and backward compatibility with

USB 2.0.

4. CPU, front and rear fan connectors (4-pin CPU_FAN1-2, FRNT_FAN1–5,

REAR_FAN1-2)

The fan connectors support cooling fans. Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

• DO NOT forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components.

• These are not jumpers! DO NOT place jumper caps on the fan connectors!

• All fans feature the ASUS Fan Speed Control technology.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-19

5. Power supply SMBus connector (PSUSMB1)

This connector supplies power for low-speed system management communications.

6. Serial port connectors (10-1 pin COM1)

These connectors are for the serial (COM) port. Connect the serial port module cable to one of these connectors, then install the module to a slot opening at the back of the system chassis.

4-20 Chapter 4: Motherboard Information

7. Serial ATA 6.0/3.0 Gb/s connectors (7-pin SATA_1-6 [gray], SSATA_1-4 [gray])

These connectors are for the Serial ATA signal cables for Serial ATA hard disk drives that allows up to 6 Gbps of data transfer rate.

If you installed Serial ATA hard disk drives, you can use a software RAID solution to create a RAID 0, RAID 1, RAID 5, or a RAID 10 configuration. For more information on the SATA RAID solutions supported on this motherboard, refer to the RAID

Configuration

chapter of this user guide.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-21

8. Serial General Purpose Input/Output connector (6-1 pin SGPIO1, SSGPIO1)

The SGPIO1 and SSGPIO1 connectors are used for the Intel Rapid Storage

Technology Enterprise SGPIO interface that controls the LED pattern generation, device information, and general purpose data. SGPIO1 is the jumper for SATA1~4.

SSGPIO1 is the jumper for SSATA1~4.

9. M.2 (NGFF) connector (NGFF1)

This connector allows you to install an M.2 device.

4-22

This connector supports type 2260 / 2280 / 22110 devices on both PCI-E and SATA interface.

The M.2 (NGFF) device is purchased separately

Chapter 4: Motherboard Information

10. Trusted Platform Module connector (20-1 pin TPM1)

This connector supports a Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

11. EATX power connectors (24-pin EATXPWR1; 8-pin EATX12V1/EATX12V2)

These connectors are for an EATX power supply plugs. The power supply plugs are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit.

• DO NOT forget to connect the 24+8+8-pin power plugs; otherwise, the system will not boot up.

• Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate.

• This motherboard supports EATX2.0 PSU or later version.

• Ensure that your power supply unit (PSU) can provide at least the minimum power required by your system.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-23

12. Chassis Intrusion (2-pin INTRUSION)

These leads are for the intrusion detection feature for chassis with intrusion sensor or microswitch. When you remove any chassis component, the sensor triggers and sends a high level signal to these leads to record a chassis intrusion event. The default setting is short CHASSIS# and GND pin by jumper cap to disable the function.

4-24 Chapter 4: Motherboard Information

13. System panel connector (20-1 pin PANEL1)

This connector supports several chassis-mounted functions.

(1) System power LED (3-pin PLED)

This 3-pin connector is for the system power LED. Connect the chassis power

LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

(2) Message LED (3-pin PLED)

This 2-pin connector is for the message LED cable that connects to the front message LED. The message LED is controlled by Hardware monitor to indicate an abnormal event occurrence.

(3)

System warning speaker (4-pin SPEAKER)

This 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

(4) Hard disk drive activity LED (2-pin +HDLED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The HDD LED lights up or flashes when data is read from or written to the HDD.

(5) Power button/soft-off button (2-pin PWRSW)

This connector is for the system power button. Pressing the power button turns the system on or puts the system in sleep or soft-off mode depending on the

BIOS settings. Pressing the power switch for more than four seconds while the system is ON turns the system OFF.

(6) Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-25

4-26

14. Auxiliary panel connector (20-2 pin AUX_PANEL1)

This connector is for additional front panel features including front panel SMB, locator

LED and switch, and LAN LEDs.

(1) Front panel SMB (6-1 pin FPSMB)

These leads connect the front panel SMBus cable.

(2) LAN activity LED (2-pin LAN12_LED)

These leads are for Gigabit LAN activity LEDs on the front panel.

(3) Locator LED (2-pin LOCATORLED1 and 2-pin LOCATORLED2)

These leads are for the locator LED1 and LED2 on the front panel. Connect the

Locator LED cables to these 2-pin connector. The LEDs will light up when the

Locator button is pressed.

(4) Locator Button/Swich (2-pin LOCATORBTN)

These leads are for the locator button on the front panel. This button queries the state of the system locator.

Chapter 4: Motherboard Information

15. Digital audio connector (4-1 pin SPDIF_OUT)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port(s). Connect the S/PDIF Out module cable to this connector, then install the module to a slot opening at the back of the system chassis.

The S/PDIF module is purchased separately.

16. VGA connector (VGA_HDR1)

This connector supports the VGA High Dynamic-Range interface.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 4-27

17. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports either

HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector.

• We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard’s high-definition audio capability.

• If you want to connect a high-definition front panel audio module to this connector, set the Front Panel Type item in the BIOS setup to [HD]; if you want to connect an AC'97 front panel audio module to this connector, set the item to [AC97]. By default, this connector is set to [HD].

4-28 Chapter 4: Motherboard Information

Chapter 5: BIOS setup

BIOS Setup

This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.

5

5-2

5.1 Managing and updating your BIOS

The following utilities allow you to manage and update the motherboard Basic Input/Output

System (BIOS) setup:

1.

ASUS CrashFree BIOS 3

To recover the BIOS using a bootable USB flash disk drive when the BIOS file fails or gets corrupted.

2.

ASUS EzFlash

Updates the BIOS using a USB flash disk.

3.

BUPDATER

Updates the BIOS in DOS mode using a bootable USB flash disk drive.

Refer to the corresponding sections for details on these utilities.

Save a copy of the original motherboard BIOS file to a bootable USB flash disk drive in case you need to restore the BIOS in the future. Copy the original motherboard BIOS using the BUPDATER utility.

5.1.1 ASUS CrashFree BIOS 3 utility

The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can update a corrupted BIOS file using a USB flash drive that contains the updated BIOS file.

Prepare a USB flash drive containing the updated motherboard BIOS before using this utility.

Recovering the BIOS from a USB flash drive

To recover the BIOS from a USB flash drive:

1. Insert the USB flash drive with the original or updated BIOS file to one USB port on the system.

2. The utility will automatically recover the BIOS. It resets the system when the BIOS recovery finished.

DO NOT shut down or reset the system while recovering the BIOS! Doing so would cause system boot failure!

The recovered BIOS may not be the latest BIOS version for this motherboard. Visit the

ASUS website at www.asus.com to download the latest BIOS file.

Chapter 5: BIOS Setup

5.1.2 ASUS EZ Flash Utility

The ASUS EZ Flash Utility feature allows you to update the BIOS without having to use a

DOS-based utility.

Before you start using this utility, download the latest BIOS from the ASUS website at www.asus.com.

To update the BIOS using EZ Flash Utility:

1. Insert the USB flash disk that contains the latest BIOS file into the USB port.

2. Enter the BIOS setup program. Go to the Tool menu then select ASUS EZ Flash

Utility

. Press <Enter>.

ASUS Tek. EzFlash Utility

Current Platform

Platform : Z10PE-D16 WS

Version : 0215

Build date: 05/13/2014

FS0

FS1

New Platform

Platform : Z10PE-D16 WS

Version : 0217

Build date: 06/30/2014

[Up/Down/Left/Right]:Switch [Enter]:Choose [q]:Exit

3. Press <Tab> to switch to the Drive field.

4. Press the Up/Down arrow keys to find the USB flash disk that contains the latest BIOS, then press <Enter>.

5. Press <Tab> to switch to the Folder Info field.

6. Press the Up/Down arrow keys to find the BIOS file, and then press <Enter> to perform the BIOS update process. Reboot the system when the update process is done.

• This function can support devices such as a USB flash disk with FAT 32/16 format and single partition only.

• DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

Ensure to load the BIOS default settings to ensure system compatibility and stability. Press

<F5> and select Yes to load the BIOS default settings.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-3

5.1.3 BUPDATER utility

The succeeding BIOS screens are for reference only. The actual BIOS screen displays may not be the same as shown.

The BUPDATER utility allows you to update the BIOS file in the DOS environment using a bootable USB flash disk drive with the updated BIOS file.

Updating the BIOS file

To update the BIOS file using the BUPDATER utility:

1. Visit the ASUS website at www.asus.com and download the latest BIOS file for the motherboard. Save the BIOS file to a bootable USB flash disk drive.

2. Copy the BUPDATER utility (BUPDATER.exe) from the ASUS support website at support.asus.com to the bootable USB flash disk drive you created earlier.

3. Boot the system in DOS mode, then at the prompt, type:

BUPDATER /i[filename].CAP

where [filename] is the latest or the original BIOS file on the bootable USB flash disk drive, then press <Enter>.

A:\>BUPDATER /i[file name].CAP

5-4 Chapter 5: BIOS Setup

4. The utility verifies the file, then starts updating the BIOS file.

ASUS Tek. EzFlash Utility

Current Platform

Platform : Z10PE-D8 WS

Version : 0215

Build date: 05/13/2014

New Platform

Platform : Z10PE-D8 WS

Version : 0217

Build date: 06/30/2014

Start Programming Flash. DO NOT SHUTDOWN THE SYSTEM!!!

Write

75%

DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

5. The utility returns to the DOS prompt after the BIOS update process is completed.

Reboot the system from the hard disk drive.

The BIOS update is finished! Please restart your system.

C:\>

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-5

5-6

5.2 BIOS setup program

This motherboard supports a programmable firmware chip that you can update using the provided utility described in section 5.1 Managing and updating your BIOS.

Use the BIOS Setup program when you are installing a motherboard, reconfiguring your system, or prompted to “Run Setup.” This section explains how to configure your system using this utility.

Even if you are not prompted to use the Setup program, you can change the configuration of your computer in the future. For example, you can enable the security password feature or change the power management settings. This requires you to reconfigure your system using the BIOS Setup program so that the computer can recognize these changes and record them in the CMOS RAM of the firmware chip.

The firmware chip on the motherboard stores the Setup utility. When you start up the computer, the system provides you with the opportunity to run this program. Press <Del> during the Power-On Self-Test (POST) to enter the Setup utility; otherwise, POST continues with its test routines.

If you wish to enter Setup after POST, restart the system by pressing <Ctrl>+<Alt>+<Del>, or by pressing the reset button on the system chassis. You can also restart by turning the system off and then back on. Do this last option only if the first two failed.

The Setup program is designed to make it as easy to use as possible. Being a menu-driven program, it lets you scroll through the various sub-menus and make your selections from the available options using the navigation keys.

• The default BIOS settings for this motherboard apply for most conditions to ensure optimum performance. If the system becomes unstable after changing any BIOS settings, load the default settings to ensure system compatibility and stability. Press

<F5> and select Yes to load the BIOS default settings.

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.

• Visit the ASUS website (www.asus.com) to download the latest BIOS file for this motherboard.

Chapter 5: BIOS Setup

5.2.1 BIOS menu screen

Menu items Menu bar Configuration fields

General help

Navigation keys

5.2.2 Menu bar

The menu bar on top of the screen has the following main items:

Main

AiTweaker

Advanced

IntelRCSetup

Server Mgmt

Event Logs

Monitor

Security

Boot

Tool

Exit

For changing the basic system configuration

For overclocking and advanced tuning of system settings

For changing the advanced system settings

For changing the Intel RC settings

For changing the Server Mgmt settings

For changing the event log settings

For displaying the system temperature, power status, and changing the fan settings

For changing the security settings

For changing the system boot configuration

For configuring options for special functions

For selecting the exit options

To select an item on the menu bar, press the right or left arrow key on the keyboard until the desired item is highlighted.

Press the key on the upper right section of the menu screen to display the Tool and Exit menus.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-7

5-8

5.2.3 Menu items

The highlighted item on the menu bar displays the specific items for that menu. For example, selecting Main shows the Main menu items.

The other items (Event Logs, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have their respective menu items.

5.2.4 Submenu items

A solid triangle before each item on any menu screen means that the item has a submenu.

To display the submenu, select the item then press <Enter>.

5.2.5 Navigation keys

At the bottom right corner of a menu screen are the navigation keys for the BIOS setup program. Use the navigation keys to select items in the menu and change the settings.

5.2.6 General help

At the top right corner of the menu screen is a brief description of the selected item.

5.2.7 Configuration fields

These fields show the values for the menu items. If an item is user-configurable, you can change the value of the field opposite the item. You cannot select an item that is not userconfigurable.

A configurable field is enclosed in brackets, and is highlighted when selected. To change the value of a field, select it and press <Enter> to display a list of options.

5.2.8 Pop-up window

Select a menu item and press <Enter> to display a pop-up window with the configuration options for that item.

5.2.9 Scroll bar

A scroll bar appears on the right side of a menu screen when there are items that do not fit on the screen. Press the Up/Down arrow keys or <Page Up> /<Page Down> keys to display the other items on the screen.

Chapter 5: BIOS Setup

5.3 Main menu

When you enter the BIOS Setup program, the Main menu screen appears. The Main menu provides you an overview of the basic system information, and allows you to set the system date, time settings.

5.3.1 System Date [Day xx/xx/xxxx]

Allows you to set the system date.

5.3.2 System Time [xx:xx:xx]

Allows you to set the system time.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-9

5.4 AiTweaker menu

The AiTweaker menu allows you to perform overclocking and advance tuning of your memory and CPU settings.

5-10

Ai Overclock Tuner [Auto]

Allows you to optimize the CPU Core Ratio, BCLK Frequency, or memory parameters.

Configuration options: [Auto] [Manual] [OC Tune]

Spread Spectrum [Auto]

Allows you to enable or disable the spread spectrum.

Configuration options: [Auto] [Enabled] [Disabled]

Xeon Turbo Charger [Auto]

Allows you to enable or disable Xeon Turbo Charger feature.

Configuration options: [Auto] [Enabled] [Disabled]

External Digi+ Power Control

CPU1/CPU2 Load-line Calibration [Auto]

Higher levels of the load-line calibration can get a higher voltage and a better overclocking performance but increase the CPU and VRM thermal production. Select from level 1 to 9 to adjust the CPU power voltage from 0% to 125%.

Configuration options: [Auto] [Level 1] [Level 2] [Level 3] [Level 4] [Level 5] [Level 6]

[Level 7] [Level 8] [Level 9]

CPU1/CPU2 Current Capability [Auto]

The CPU current capability adjusts the total power range for CPU overclocking.

A higher value provides a wider total power range and extends the overclocking frequency range simultaneously.

Configuration options: [Auto] [100%] [110%] [120%] [130%] [140%]

Chapter 5: BIOS Setup

CPU1/CPU2 VRM Switching Frequency [Auto]

The switching frequency will affect the VRM transient response speed and the component thermal production.

Configuration options: [Auto] [Manual]

CPU1/CPU2 Power Phase Control [Auto]

[Auto] Automatically defines the optimum settings.

[Standard] The phase control will be based on the CPU command.

[Optimized] Set to the ASUS optimized phase tuning profile.

[Extreme] Set to the full phase mode.

[Power Phase The phase number will be adjusted by the current (A) step.

Response]

CPU1/CPU2 Power Duty Control [T.Probe]

CPU Power Duty Control adjusts the current and thermal of every phase component.

[T.Probe] Thermal balance

[Extreme] Current balance

CPU1/CPU2 Power Thermal Control [130]

A higher temperature provides a wider CPU power thermal range and extends the overclocking tolerance to enlarge the overclocking potential.

DRAM-AB/CD/EF/GH Current Capability [100%]

The DRAM current capability adjusts the total power range for DRAM overclocking.

A higher value provides a wider total power range and extends the overclocking frequency range simultaneously.

Configuration options: [100%] [110%] [120%] [130%] [140%]

DRAM-AB/CD/EF/GH Switching Frequency [Auto]

The DRAM switching frequency will affect the overclocking range and the system stability. Configure a higher frequency to increase the overclocking range or a lower frequency to enhance the system stability.

Configuration options: [Auto] [Manual]

DRAM-AB/CD/EF/GH Power Phase Control [Auto]

This is for the power supply

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-11

5-12

CPU1/2 Input Voltage [Auto]

This is the input voltage for the processor by the external voltage regulator.

DRAM Voltage(CHA, CHB)/(CHC, CHD)/(CHE, CHF)/(CHG, CHH) [Auto]

Power supply for the DRAM.

VCCIO Offset Mode Sign [

+

]

[+]

[-]

VCCIO Voltage Offset by a positive value.

VCCIO Voltage Offset by a negative value.

VCCIO Voltage Offset [Auto]

Maximum offset value is 0.65 with an increment of 0.01V. Use +/- to raise or reduce the value.

PCH 1.05V Offset Mode Sign [

+

]

[+]

[-]

PCH 1.05V Voltage Offset by a positive value.

PCH 1.05V Voltage Offset by a negative value.

PCH 1.05V Voltage Offset [Auto]

Main Power supply for the PCH Chipset. Maximum offset value is 0.15V with an increment of

0.01V. Use +/- to raise or reduce the value.

PCH 1.5V Offset Mode Sign [

+

]

[+]

[-]

PCH 1.5V Voltage Offset by a positive value.

PCH 1.5V Voltage Offset by a negative value.

PCH 1.5V Voltage Offset [Auto]

Power supply for the PCH Chipset I/O Interface. Maximum offset value is 0.20V with an increment of 0.01V. Use +/- to raise or reduce the value.

Chapter 5: BIOS Setup

5.5 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.

Take caution when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction.

Front Panel Type [HD Audio]

Allows you to select the Front Panel Type audio.

Configuration options: [HD Audio] [AC97]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-13

5.5.1 ACPI Settings

Enable ACPI Auto Configuration [Disabled]

Allows you to enable or disable the BIOS ACPI Auto Configuration.

Configuration options: [Disabled] [Enabled]

Enable Hibernation [Enabled]

Allows you to enable or disable the ability of the system to hibernate (OS/Sleep State).

Configuration options: [Disabled] [Enabled]

This option may be not effective with some OS.

ACPI Sleep State [S3 (Suspend to RAM)]

This item allows you to select the highest ACPI sleep state the system will enter when the

SUSPEND button is pressed.

Configuration options: [S3 (Suspend to RAM)] [Suspend Disabled]

5.5.2 Smart Settings

5-14

SMART Self Test [Enabled]

Allows you to run SMART Self Test on all HDDs during POST.

Configuration options: [Disabled] [Enabled]

Chapter 5: BIOS Setup

5.5.3 NCT6779D Super IO Configuration

Serial Port 1 / Serial Port 2 Configuration

Allows you to set the parameters of Serial Port 1/ Serial Port 2.

Serial Port [Enabled]

Allows you to enable or disable Serial Port.

Configuration options: [Disabled] [Enabled]

Change Settings [Auto]

Allows you to choose the setting for Super IO device.

Configuration options:

[Auto]

[IO=3F8h; IRQ=4;]

[IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;]

[IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;]

[IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;]

[IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-15

5.5.4 Onboard LAN I210 Configuration

Intel LAN1/LAN2 Enable [Enabled]

Allows you to enable or disable the Intel LAN.

Configuration options: [Disabled] [Enabled]

Intel LAN ROM Type [PXE]

Allows you to select the Intel LAN ROM type.

Configuration options: [Disabled] [PXE] [iSCSI]

5-16 Chapter 5: BIOS Setup

5.5.5 Serial Port Console Redirection

COM1/COM2

Console Redirection [Enabled]

Allows you to enable or disable the console redirection feature.

Configuration options: [Disabled] [Enabled]

The following item appears only when you set Console Redirection to [Enabled].

Console Redirection Settings

This item becomes configurable only when you enable the Console Redirection item. The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-17

5-18

Terminal Type [VT-UTF8]

Allows you to set the terminal type.

[VT100] ASCII char set.

[VT100+]

[VT-UTF8]

[ANSI]

Extends VT100 to support color, function keys, et.

Uses UTF8 encoding to map Unicode chars onto 1 or more bytes

Extended ASCII char set

Bits per second [57600]

Selects serial port transmission speed. The speed must be matched on the other side.

Long or noisy lines may require lower speeds.

Configuration options: [9600] [19200] [38400] [57600] [115200]

Data Bits [8]

Configuration options: [7] [8]

Parity [None]

A parity bit can be sent with the data bits to detect some transmission errors. [Mark] and [Space] parity do not allow for error detection.

[None] None

[Even]

[Odd]

[Mark]

[Space]

Stop Bits [1]

parity bit is 0 if the num of 1’s in the data bits is even parity bit is 0 if num of 1’s in the data bits is odd parity bit is always 1 parity bit is always 0

Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning.)

The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit. Configuration options: [1] [2]

Flow Control [Hardware RTS/CTS]

Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a “stop” signal can be sent to stop the data flow. Once the buffers are empty, a “start” signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals.

Configuration options: [None] [Hardware RTS/CTS]

VT -UTF8 Combo Key Support [Enabled]

This allows you to enable the VT -UTF8 Combination Key Support for ANSI/VT100 terminals. Configuration options: [Disabled] [Enabled]

Recorder Mode [Disabled]

With this mode enabled only text will be sent. This is to capture Terminal data.

Configuration options: [Disabled] [Enabled]

Legacy OS Redirection Resolution [80x24]

This allows you to set the number of rows and columns supported on the Legacy OS.

Configuration options: [80x24] [80x25]

Putty Keypad [VT100]

This allows you to select the FunctionKey and Keypad on Putty. Configuration options:

[VT100] [LINUX] [XTERMR6] [SCO] [ESCN] [VT400]

Chapter 5: BIOS Setup

Redirection After BIOS POST [Always Enable]

This setting allows you to specify if Bootloader is selected than Legacy console redirection. Configuration options: [Always Enable] [Bootloader]

Serial Port for Out-of-Band Management/

Windows Emergency Management Services (EMS)

Console Redirection [Disabled]

Allows you to enable or disable the console redirection feature.

Configuration options: [Disabled] [Enabled]

The following item appears only when you set Console Redirection to [Enabled].

Console Redirection Settings

Out-of-Band Mgmt Port [COM1]

Microsoft Windows Emergency Management Services (EMS) allow for remote management of a Windows Server OS through a serial port.

Configuration options: [COM1] [COM2]

Terminal Type [VT-UTF8]

Microsoft Windows Emergency Management Services (EMS) allow for remote management of a Windows Server OS through a serial port.

Configuration options: [VT100] [VT100+] [VT-UTF8] [ANSI]

Bits per second [115200]

Microsoft Windows Emergency Management Services (EMS) allow for remote management of a Windows Server OS through a serial port.

Configuration options: [9600] [19200] [57600] [115200]

Flow Control [None]

Microsoft Windows Emergency Management Services (EMS) allow for remote management of a Windows Server OS through a serial port.

Configuration options: [None] [Hardware RTS/CTS] [Software Xon/Xoff]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-19

5-20

5.5.6 APM

Allows you to configure the Advance Power Management (APM) settings.

Restore AC Power Loss [Last State]

When set to [Power Off], the system goes into off state after an AC power loss. When set to [Power On], the system will reboot after an AC power loss. When set to [Last State], the system goes into either off or on state, whatever the system state was before the AC power loss.

Configuration options: [Power Off] [Power On] [Last State]

Power On By PCIE [Disabled]

[Disabled] Disables the PCIE devices to generate a wake event.

[Enabled] Enables the PCIE devices to generate a wake event.

Power On By Ring [Disabled]

[Disabled] Disables the PCIE devices to generate a wake event.

[Enabled] Enables the PCIE devices to generate a wake event.

Power On By RTC [Disabled]

[Disabled] Disables RTC to generate a wake event.

[Enabled] When set to [Enabled], the items RTC Alarm Date (Days) and Hour/

Minute/Second

will become user-configurable with set values.

Chapter 5: BIOS Setup

5.5.7 Advance Power Management Configuration

Allows you to configure the Advance Power Management settings.

Power Boost [Normal]

Enabling this item allows you to increase extra power input to the processor(s) and computing performance depending on the applications.

Ensure that your thermal solution and power supply are available to handle this circumstance.

Configuration Options: [Normal] [High] [Extreme]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-21

5.5.8 PCI Subsystem Settings

Allows you to configure PCI, PCI-X, and PCI Express Settings.

Load RT32 Image [Enabled]

Allows you to enable or disable RT32 Image Loading.

Configuration options: [Disabled] [Enabled]

Above 4G Decoding [Disabled]

Allows you to enable or disable 64-bit capable devices to be decoded in above 4G address space. It only works if the system supports 64-bit PCI decoding.

Configuration options: [Disabled] [Enabled]

SR-IOV Support [Disabled]

This option enables or disables SIngle Root IO Virtualization Support if the system has SR-

IOV capable PCIe devices.

Configuration options: [Disabled] [Enabled]

5-22 Chapter 5: BIOS Setup

5.5.9 Network Stack Configuration

Network stack [Disabled]

Enables or disables the network stack feature.

Configuration options: [Disable] [Enable]

The following item appears only when Network stack is set to [Enabled].

Ipv4 PXE Support [Enabled]

Enables or disables the Ipv4 PXE Boot Support. If disabled, Ipv4 PXE boot option will not be created. Configuration options: [Disabled] [Enabled].

Ipv6 PXE Support [Enabled]

Enables or disables the Ipv6 PXE Boot Support. If disabled, Ipv6 PXE boot option will not be created. Configuration options: [Disabled] [Enabled].

PXE boot wait time [0]

Wait time to press ESC key to abort the PXE boot.

Media detect time [0]

Wait time (in seconds) to detect media.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-23

5.5.10 CSM Configuration

5-24

CSM Support [Enabled]

This option allows you to enable or disable CSM Support.

Configuration options: [Disabled] [Enabled]

GateA20 Active [Upon Request]

This allows you to set the GA20 option.

Configuration options: [Upon Request] [Always]

Option ROM Messages [Force BIOS]

This allows you to set the display mode for option ROM.

Configuration options: [Force BIOS] [Keep Current]

Boot Option filter [Legacy only]

This option allows you to control the Legacy/UEFI ROMs priority.

Configuration options: [UEFI and Legacy] [Legacy only] [UEFI only]

Network / Storage / Video [Legacy]

This option allows you to control the execution of UEFI and Legacy PXE/ Storage/ Video

OpROM.

Configuration options: [UEFI ] [Legacy]

Other PCI devices [Legacy]

This item determines the OpROM execution policy for devices other than Network, Storage, or Video.

Configuration options: [UEFI ] [Legacy]

Chapter 5: BIOS Setup

5.5.11 Trusted Computing

Configuration

Security Device Support [Disabled]

Allows you to enable or disable the BIOS support for security device.

Configuration options: [Disabled] [Enabled]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-25

5.5.12 USB Configuration

5-26

Legacy USB Support [Enabled]

Allows you to enable or disable Legacy USB device support.

Configuration options: [Enabled] [Disabled] [Auto]

XHCI Hand-off [Enabled]

This is a workaround for 0Ses without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.

Configuration options: [Disabled] [Enabled]

EHCI Hand-off [Disabled]

This is a workaround for 0Ses without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver.

Configuration options: [Disabled] [Enabled]

USB Mass Storage Driver Support [Enabled]

Allows you to enable or disable the USB Mass Storage driver support.

Configuration options: [Disabled] [Enabled]

Port 60/64 Emulation [Enabled]

This allows you to enable the I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes.

Configuration options: [Disabled] [Enabled]

Chapter 5: BIOS Setup

USB hardware delays and time-outs

USB transfer time-out [20 sec]

The time-out value for control, bulk, and interrupt transfer.

Configuration options: [1 sec] [5 sec] [10 sec] [20 sec]

Device reset time-out [20 sec]

USB mass storage device start unit command time-out.

Configuration options: [10 sec] [20 sec] [30 sec] [40 sec]

Device power-up delay [Auto]

This is the maximum time the device will take before it properly reports itself to the host controller.

Configuration options: [Auto] [Manual]

Mass Storage Devices

AMI Virtual CDROM0 / Floppy0 / HDisk0 1.00 [Auto]

Allows you to select the mass storage device emulation type.

Configuration options: [Auto] [Floppy] [Forced FDD] [Hard Disk] [CD-ROM]

AMI Virtual CDROM1/ Floppy1 1.00 [Auto]

Allows you to select the mass storage device emulation type.

Configuration options: [Auto] [Floppy] [Forced FDD] [Hard Disk] [CD-ROM]

5.5.13 iSCSI Configuration

Allows you to configure the iSCSi parameters.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-27

5.6 IntelRCSetup menu

The IntelRCSetup menu items allow you to change the processor and chipset settings.

5-28 Chapter 5: BIOS Setup

5.6.1 Processor Configuration

Per Socket Configuration

Allows you to set the number of cores to enable. 0 means all cores.

Hyper Threading [Enabled]

Allows you to enable or disable the Intel

®

Hyper-Threading Technology function. When disabled, only one thread per activated core is enabled.

Configuration options: [Disabled] [Enabled]

Execute Disable Bit [Enabled]

When disabled, forces the XD feature flag to always return 0.

Configuration options: [Disabled] [Enabled]

Enable Intel TXT Support [Disabled]

This item enables Intel Trusted Execution Technology Configuration.

Configuration options: [Disabled] [Enabled]

Disable EV DFS Features when TXT is enabled.

VMX [Enabled]

Enables the Vanderpool Technology. Takes effect after reboot.

Configuration options: [Disabled] [Enabled]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-29

5-30

Enable SMX [Disabled]

Enables the Safer Mode Extensions

Configuration options: [Disabled] [Enabled]

Hardware Prefetcher [Enabled]

This Item allows you to turn on/off the mid level cache(L2) streamer prefetcher.

Configuration options: [Disabled] [Enabled]

Adjacent Cache Prefetch [Enabled]

This Item allows you to turn on/off prefetching of adjacent cache lines.

Configuration options: [Disabled] [Enabled]

DCU Streamer Prefetcher [Enabled]

This Item allows you to enable or disable prefetcher of next L1 data line.

Configuration options: [Disabled] [Enabled]

DCU IP Prefetcher [Enabled]

This Item allows you to enable or disable prefetch of next L1 line based upon sequential load history.

Configuration options: [Disabled] [Enabled]

DCU Mode [32K 8Way Without ECC]

Configuration options: [32K 8Way Without ECC] [16K 4Way With ECC]

Direct Cache Access (DCA) [Auto]

This Item allows you to enable or disable Direct Cache Access.

Configuration options: [Auto] [Disabled] [Enabled]

DCA Prefetch Delay [32]

This Item allows you to set the time for the DCA Prefetch delay Help.

Configuration options: [Disabled] [8] [16] [24] [32] [40] [48] [56] [64] [72] [80] [88] [96] [104] [112]

X2APIC [Disabled]

This Item allows you to enable or disable the extended APIC support.

Configuration options: [Disabled] [Enabled]

AES-NI [Enabled]

This Item allows you to enable or disable the AES-NI support.

Configuration options: [Disabled] [Enabled]

Down Stream PECI [Disabled]

This Item allows you to enable the PCIe Down Stream PECI writer.

Configuration options: [Disabled] [Enabled]

Chapter 5: BIOS Setup

5.6.2 Advanced Power Management Configuration

Power Technology [Energy Efficient]

This item allows you to enable power management features.

Configuration options: [Disabled] [Energy Efficient] [Custom]

Config TDP [Disabled]

This item allows you to enable/disable the Config TDP.

Configuration options: [Disabled] [Enabled]

CPU Advanced PM Turning

This item allows you to set additional CPU Power Management settings.

Energy Perf BIAS

Energy Performance Tuning [Disabled]

Allows your system to select from BIOS or operating system to choose enable energy performance bias tuning.

Configuration options: [Disabled] [Enabled]

Energy Performance BIAS setting. [Balanced Performance]

Allows you to set the Energy Performance Bias which overrides the OS setting.

Configuration options: [Performance] [Balanced Performance] [Balanced Power]

[Power]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-31

5-32

Power/Performance Switch [Enabled]

Allows you to switch between Power or performance.

Configuration options: [Disabled] [Enabled]

Workload Configuration [Balanced]

Optimization for the workload characterization.

Configuration options: [Balanced] [I/O sensitive]

Averaging Time Window [23]

This is used to control the effective window of the average for CO and PO time.

PO TotalTimeThreshold Low [35]

The HW switching mechanism disables the performance setting (0) when the total PO time is less than this threshold.

PO TotalTimeThreshold High [58]

The HW switching mechanism enables the performance setting (0) when the total PO time is greater than this threshold.

5.6.3 Common RefCode Configuration

Numa [Enabled]

This item enables or disables the Non uniform Memory Access (NUMA).

Configuration options: [Disabled] [Enabled]

Chapter 5: BIOS Setup

5.6.4 QPI Configuration

QPI General Configuration

QPI Status

This item displays information about the QPI status.

Link Speed Mode [Fast]

This item allows you to select the QPI link speed as either the fast mode or slow mode.

Configuration options: [Slow] [Fast]

Link Frequency Select [Auto]

This item allows for selecting the QPI link frequency

Configuration options: [Auto] [6.4 GT/s] [8.0 GT/s] [9.6 GT/s]

Link L0p/L1 Enable [Enable]

This item allows you to disable or enable Link L0p or Link L1.

Configuration options: [Disable] [Enable]

COD Enable [Auto]

This item allows you to disable or enable cluster on Die.

Configuration options: [Auto] [Disable] [Enable]

Early Snoop [Auto]

Configuration options: [Disabled] [Enabled] [Auto]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-33

5.6.5 Memory Configuration

5-34

Enforce POR [Auto]

Allows you to enforce POR restrictions for DDR4 frequency adn voltage programming.

Configuration options: [Auto] [Enforce POR] [Disabled] [Enforce Stretch Goals]

Memory Frequency [Auto]

Allows you to select the memory frequency setting.

Configuration options: [Auto] [1333] [1600] [1866] [2133]

Halt on mem Training Error [Enabled]

Allows you to enable or disable halt on mem Training Error.

Configuration options: [Disabled] [Enabled]

ECC Support [Auto]

Allows you to enable or disable the ECC support.

Configuration options: [Auto] [Disabled] [Enabled]

Enhanced Log Parsing [Disabled]

Allows you to enable or disable the Enhanced Log Parsing.

Configuration options: [Disabled] [Enabled]

Data Scrambling [Auto]

Allows you to enable/disable data scrambling.

Configuration options: [Auto] [Disabled] [Enabled]

Enable ADR [Disabled]

Allows you to set the detecting and enabling of ADR.

Configuration options: [Disabled] [Enabled]

Chapter 5: BIOS Setup

C/A Parity Enable [Auto]

Allows you to enable or disable the DDR4's command address parity.

Configuration options: [Auto] [Disabled] [Enabled]

Memory Topology

Displays memory topology with DIMM population information.

Memory Thermal

Allows you to configure thermal settings.

Set Throttling Mode [Disabled]

Configuration options: [Disabled] [OLTT] [CLTT]

OLLT Peak BW % [50]

Allows you to set the peak allowed bandwidth for OLTT. This is in percentage and valid offset values is from 25-100.

DIMM Temp Stat [92]

Allows you to select DIMMTEMPSTAT as temp_mid or tem_hi.

Memory Power Savings Mode [Auto]

Allows you to configure the CKE and other related Memory Power Savings features.

Configuration options: [Auto] [Disabled] [APD On] [User Defined] [Reserved]

Memory Power Savings Advanced Options

CK in SR [Auto]

Configuration options: [Auto] [Driven] [Tri-State] [Pulled Low] [Pulled High]

MDLL Off [Auto]

Allows you to shutdown MDLL during SR when enabled.

Configuration options: [Auto] [Disabled] [Enabled]

MEMHOT Throttling Mode [Input-only]

Allows you to shutdown MDLL during SR when enabled.

Configuration options: [Disabled] [Input-only] [Output-only]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-35

Mem Electrical Throttling [Disabled]

Allows you to configure Memory Electrical throttling.

Configuration options: [Disabled] [Enabled] [Auto]

Memory Map

Channel Interleaving [Auto]

Select different channel interleaving setting.

Configuration options: [Auto] [1-way Interleave] [2-way Interleave] [3-way Interleave] [4way Interleave]

Rank Interleaving [Auto]

Select different rank interleaving setting.

Configuration options: [Auto] [1-way Interleave] [2-way Interleave] [4-way Interleave] [8way Interleave]

Memory RAS Configuration

5-36

RAS Mode [Disabled]

Allows you to enable or disable RAS Modes. Enabling Sparing and Mirroring is not supported. In case enabled, Sparing will be selected.

Configuration options: [Disabled] [Mirror] [Lockstep Mode]

Memory Rank Sparing [Disabled]

Allows you to enable or disable Memory Rank Sparing.

Configuration options: [Disabled] [Enabled]

Correctable Error Threshold [32767]

Allows you to set the Correctable Error Threshold used for sparing, tagging, and leaky bucket. The range is from 1 to 32767.

Patrol Scrub [Enabled]

Allows you to enable or disable Patrol Scrub.

Configuration options: [Disabled] [Enabled]

Demand Scrub [Enabled]

Allows you to enable or disable Demand Scrub.

Configuration options: [Disabled] [Enabled]

Chapter 5: BIOS Setup

5.6.6 IIO Configuration

EV DFX Features [Disabled]

Set this option to allow DFX Lock Bits to remain clear.

Configuration options: [Disabled] [Enabled]

PCIE Slot Option ROM Configuration

PCIE1-PCIE6 Option ROM [Enabled]

Allows you to enable or disable the PCIE1-6 Option ROM.

Configuration options: [Disabled] [Enabled]

Intel VT for Directed I/O (VT-d)

Intel VT for Directed I/O (VT-d) [Enabled]

Allows you to enable or disable the Intel Virtualization Technology for Directed I/O.

Configuration options: [Disabled] [Enabled]

PCI Express Global Options

TX EQ WA [Enabled]

Use special table for TX_EQ and vendor specific cards.

Configuration options: [Disabled] [Enabled]

PCI-E ASPM Support (Global) [L1 Only]

This option enables or disables the ASPM support for all downstream devices.

Configuration options: [Disabled] [L1 Only]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-37

5.6.7 PCH Configuration

5-38

PCH Devices

DeepSx Power Policies [Disabled]

Allows you to configure the DeepSx Mode configuration.

Configuration options: [Disabled] [Enabled in S5] [Enabled in S4 and S5]

PCI Express Configuration

PCH DMI ASPM [Enabled]

Allows you to configure the PCH DMI ASPM.

Configuration options: [Disabled] [Enabled]

Chapter 5: BIOS Setup

PCH sSATA Configuration sSATA Controller [Enabled]

Allows you to enable or disable the sSATA Controller.

Configuration options: [Disabled] [Enabled]

Configure sSATA as [AHCI]

Allows you to identify the SATA port is connected to Solid State Drive or Hard Disk Drive.

Configuration options: [IDE] [AHCI] [RAID]

Support Aggressive Link Power Management [Enabled]

Allows you to enable or disable the Support Aggressive Link Power (SALP) Management.

Configuration options: [Disabled] [Enabled]

SATA Port 1/ SATA Port 2/ SATA Port 3/ SATA Port 4

Port 1/ Port 2/ Port 3/ Port 4

Allows you to enable or disable the SATA port

Configuration options: [Disabled] [Enabled]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-39

PCH SATA Configuration

5-40

SATA Controller [Enabled]

Allows you to enable or disable the SATA Controller.

Configuration options: [Disabled] [Enabled]

Configure SATA as [AHCI]

Allows you to identify the SATA port is connected to Solid State Drive or Hard Disk Drive.

Configuration options: [IDE] [AHCI] [RAID]

Support Aggressive Link Power Management [Enabled]

Allows you to enable or disable the Support Aggressive Link Power (SALP) Management.

Configuration options: [Disabled] [Enabled]

SATA Port 1-6

Port 1/ Port 2/ Port 3/ Port 4/ Port 5/ Port 6 [Enabled]

Allows you to enable or disable the SATA port

Configuration options: [Disabled] [Enabled]

Chapter 5: BIOS Setup

USB Configuration xHCI Mode [Auto]

Allows you to enable or disable the mode of operation of xHCI controller.

Configuration options: [Auto] [Disabled] [Enabled]

USB Ports Per-Port Disable Control [Disabled]

Allows you to control each of the USB ports 1 to 8 disabling.

Configuration options: [Disabled] [Enabled]

The following items appears only when the USB Ports Per-Port Disable Control is set to

[Enabled].

USB Port #1/ #2/ #3/ #4/ #5/ #6 [Enabled]

Configuration options: [Disabled] [Enabled]

USB 3.0 Port #1/ #2/ #3/ #4/ #5/ #6 [Enabled]

Configuration options: [Disabled] [Enabled]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-41

Azalia Configuration

Azalia [Auto]

Allows you to enable or disable the control detection of the Azalia device.

Configuration options: [Auto] [Disabled] [Enabled]

Platform Thermal Configuration

PCH Thermal Device [Auto]

Allows you to enable or disable the PCH Thermal Device (D31:F6).

Configuration options: [Auto] [Disabled] [Enabled]

Alert Enable Lock [Disabled]

Allows you to lock all Alert Enable settings.

Configuration options: [Disabled] [Enabled]

5.6.8 Miscellaneous Configuration

5-42

Active Video [Offboard Device]

Allows you to select the video type.

Configuration options: [Onboard Device] [Offboard Device]

Chapter 5: BIOS Setup

5.6.9 Server ME Configuration

Displays the Server ME Technology parameters on your system.

5.6.10 Runtime Error Logging Support

Runtime Error Logging

S/W Error Injection Support [Disabled]

This item allows you to enable or disable the S/W Error Injection support.

Configuration options: [Disabled] [Enabled]

Whea Settings

Whea Support [Enabled]

This item allows you to enable or disable the WHEA support.

Configuration options: [Disabled] [Enabled]

Memory Error Enabling

Memory corrected Error enabling [Disabled]

This item allows you to enable or disable Memory corrected Errors.

Configuration options: [Disabled] [Enabled]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-43

5.7 Server Mgmt menu

The Server Management menu displays the server management status and allows you to change the settings.

5-44

OS Watchdog Timer [Disabled]

This item allows you to start a BIOS timer which can only be shut off by Intel Management

Software after the OS loads.

Configuration options: [Disabled] [Enabled]

The following items is configurable only when the OS Watchdog Timer is set to [Enabled].

OS Wtd Timer Timeout [10 minutes]

Allows you to configure the length of the OS Boot Watchdog Timer.

Configuration options: [5 minutes] [10 minutes] [15 minutes] [20 minutes]

OS Wtd Timer Policy [Reset]

This item allows you to configure the how the system should respond if the OS Boot Watch

Timer expires.

Configuration options: [Do Nothing] [Reset] [Power Down]

Serial Mux [Disabled]

This item allows you to enable or disable Serial Mux configuration.

Configuration options: [Disabled] [Enabled]

Chapter 5: BIOS Setup

System Event Log

Allows you to change the SEL event log configuration.

SEL Components [Enabled]

Allows you to enable or disable all features of system Event Logging during boot.

Configuration options: [Disabled] [Enabled]

• The following items appears only when you set SEL Components to [Enabled].

• All values changed here do not take effect until computer is restarted.

Erase SEL [No]

Allows you to choose options for erasing SEL.

Configuration options: [No] [Yes, On next reset] [Yes, On every reset]

When SEL is Full [Do Nothing]

Allows you to choose options for reactions to a full SEL.

Configuration options: [Do Nothing] [Erase Immediately]

Log EFI Status Codes [Error code]

Disable the logging of EFI Status Codes, or log only error code, or only progress code or, both.

Configuration options: [Disabled] [Both] [Error code] [Progress code]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-45

BMC network configuration

The sub-items in this configuration allow you to configure the BMC network parameters.

5-46

BMC network configuration

The sub-items in this configuration allow you to configure the BMC network parameters.

Configuration Address source DM_LAN1/Shared LAN [Unspecified]

This item allows you to configure LAN channel parameters statically or dynamically (by

BIOS or BMC). Unspecified option will not modify any BMC network parameters during

BIOS phase.

Configuration options: [Unspecified] [Static] [DynamicBmcDhcp]

View System Event Log

This item allows you to view the system event log records.

Chapter 5: BIOS Setup

IPv6 BMC Network Configuration

This item allows you to configure the parameter settings of IPv6 BMC network.

IPv6 BMC Network Configuration

This item allows you to configure the parameter settings of IPv6 BMC network.

IPv6 Display Full Field [Enable]

Displays the full or brief IPv6 Field.

Configuration options: [Disable] [Enable]

IPv6 Display Full Formula [Enable]

Displays the full or brief IPv6 Formula.

Configuration options: [Disable] [Enable]

IPv6 Display Letter Case [Upper Case]

Displays the uppercase or lowercase letters of the alphabet.

Configuration options: [Lower Case] [Upper Case]

IPv6 BMC DM_LAN1/Shared LAN

IPv6 BMC LAN IP Address source [Unspecified]

Select to configure LAN channel parameters statically or dynamically(by BIOS or

BMC).

Configuration options: [Unspecified] [Static] [Dynamic-Obtained by BMC running

DHCP]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-47

5.8 Event Logs menu

The Event Logs menu items allow you to change the event log settings and view the system event logs.

5.8.1 Change Smbios Event Log Settings

Press <Enter> to change the Smbios Event Log configuration.

5-48

All values changed here do not take effect until computer is restarted.

Enabling/Disabling Options

Smbios Event Log [Enabled]

Change this to enable or disable all features of Smbios Event Logging during boot.

Configuration options: [Disabled] [Enabled]

Erasing Settings

Erase Event Log [No]

Choose options for erasing Smbios Event Log. Erasing is done prior to any logging activation during reset.

Configuration options: [No] [Yes, Next reset] [Yes, Every reset]

When Log is Full [Do Nothing]

Allows you to choose options for reactions to a full Smbios Event Log.

Configuration options: [Do Nothing] [Erase Immediately]

Log System Boot Event [Disabled]

Allows you to choose options to enable/disable logging of System boot event.

Configuration options: [Enabled] [Disabled]

Chapter 5: BIOS Setup

5.8.2 View Smbios Event Log

Press <Enter> to view all smbios event logs.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-49

5.9 Monitor menu

The Monitor menu displays the system temperature/power status, and allows you to change the fan settings.

Scroll down to view the other items

5-50

CPU1/2 Temperature [xx.x°C/xx.x°F]

The onboard hardware monitor automatically detects and displays the CPU temperatures.

CPU FAN1/2 Speed; FRNT FAN1–5 Speed; REAR FAN1/2 Speed

[xxxx RPM] or [N/A]

The onboard hardware monitor automatically detects and displays the speed of CPU fans, front fans, and rear fan in rotations per minute (RPM). If the fan is not connected to the motherboard, the field shows N/A.

+VCCIO, VCORE1/2 Voltage, +VDDQ_AB Voltage, +VDDQ_CD Voltage,

+VDDQ_EF Voltage, +VDDQ_GH Voltage, +5VSB Voltage, +5V Voltage, +12V

Voltage, +3.3V Voltage, VBAT Voltage, +3.3VSB Voltage

The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators.

CPU FAN1&2 FRNT FAN1 mode [Generic Speed]

Allows you to configure the ASUS Smart Fan feature that smartly adjusts the fan speeds for more efficient system operation.

Configuration options: [Generic Speed] [High Speed] [Full Speed] [Manual Mode] [Energy

Efficiency]

Duty % [50]

This item appears only when CPU FAN1&2 FRNT FAN1 mode is set to [Manual Mode].

This item allows you to configure the fan duty setting from 10% to 100%.

FRNT FAN2&3/4&5 mode; REAR FAN1&2 mode [Generic Speed]

Allows you to configure the ASUS Smart Fan feature that smartly adjusts the fan speeds for more efficient system operation.

Configuration options: [Generic Speed] [High Speed] [Full Speed] [Manual Mode] [Energy

Efficiency]

Chapter 5: BIOS Setup

5.10 Security menu

This menu allows a new password to be created or a current password to be changed. The menu also enables or disables the Secure Boot state and lets the user configure the System

Mode state.

Administrator Password

To set an administrator password:

1. Select the Administrator Password item and press <Enter>.

2. From the Create New Password box, key in a password, then press <Enter>.

3. Confirm the password when prompted.

To change an administrator password:

1. Select the Administrator Password item and press <Enter>.

2. From the Enter Current Password box, key in the current password, then press

<Enter>.

3. From the Create New Password box, key in a new password, then press <Enter>.

4. Confirm the password when prompted.

To clear the administrator password, follow the same steps as in changing an administrator password, but press <Enter> when prompted to create/confirm the password.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-51

User Password

To set a user password:

1. Select the User Password item and press <Enter>.

2. From the Create New Password box, key in a password, then press <Enter>.

3. Confirm the password when prompted.

To change a user password:

1. Select the User Password item and press <Enter>.

2. From the Enter Current Password box, key in the current password, then press

<Enter>.

3. From the Create New Password box, key in a new password, then press <Enter>.

4. Confirm the password when prompted.

To clear a user password:

1. Select the Clear User Password item and press <Enter>.

2. Select from the Warning message window then press <Enter>.

Secure Boot Menu

This item allows you to customize the Secure Boot settings.

5-52

Secure Boot [Disabled]

Secure Boot can be enabled if the system is running in User mode with enrolled platform Key (EPK) or if the CSM function is disabled.

Configuration options: [Disabled] [Enabled]

Secure Boot Mode [Custom]

Allows you to set the Secure Boot selector.

Configuration options: [Custom] [Standard]

Chapter 5: BIOS Setup

Key Management

This item only appears when the item Secure Boot Mode is set to [Custom]. The

Key Management item allows you to modify Secure Boot variables and set Key

Management page.

Default Key Provision [Disabled]

Configuration options: [Disabled] [Enabled]

Enroll All Factory Default Keys

This item will ask you if you want to Install Factory Default secure keys. Select Yes if you want to load the default secure keys, otherwise select No.

Save All Secure Boot Variables

This item will ask you if you want to save all secure boot variables. Select Yes if you want to save all secure boot variables, otherwise select No.

Configuration options: [Set New] [Delete] [Append]

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-53

5.11 Boot menu

The Boot menu items allow you to change the system boot options.

5-54

Setup Prompt Timeout [xx]

Use the <+> and <-> keys to adjust the number of seconds to wait for setup activation key.

Bootup NumLock State [On]

Allows you to select the power-on state for the NumLock.

Configuration options: [Off] [On]

Boot Logo Display [Disabled]

Allows you to enable or disable the full screen logo display feature.

Configuration options: [Auto] [Full Screen] [Disabled]

POST Report [5 sec]

Allows you to set the desired POST Report waiting time from 1 to 10 seconds.

Configuration options: [1 sec] ~ [10 sec] [Until Press ESC]

Chassis Intrusion Message [Warning]

Allows you to set an action when chassis intrusion has occurred.

Configuration options: [Warning] [Halt]

Boot Option Priorities

These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system.

Chapter 5: BIOS Setup

• To select the boot device during system startup, press <F8> when ASUS Logo appears.

• To access Windows OS in Safe Mode, please press <F8> after POST.

Hard Drive BBS Priorities / Network Device BBS Priorities

These items appear only when you connect SATA ODD or hard drive to the SATA ports and allow you to set the booting order of the SATA devices.

5.12 Tool menu

The Tool menu items allow you to configure options for special functions. Select an item then press <Enter> to display the submenu.

ASUS EZ Flash

Allows you to run ASUS EZ Flash BIOS ROM Utility when you press <Enter>. Refer to the

ASUS EZ Flash Utility section for details.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-55

5.13 Exit menu

The Exit menu items allow you to save or discard your changes to the BIOS items.

5-56

Pressing <Esc> does not immediately exit this menu. Select one of the options from this menu or <F10> from the legend bar to exit.

Save Changes & Exit

Exit System setup after saving the changes.

Discard Changes & Exit

Exit System setup without saving any changes.

Save Changes & Reset

Reset the system setup after saving the changes.

Discard Changes & Reset

Reset system setup without saving any changes.

Save Options

Save Changes

Save changes done so far to any of the setup options.

Discard Changes

Discard changes done so far to any of the setup options.

Chapter 5: BIOS Setup

Restore Defaults

Restore/load default values for all the setup options.

Save as User Defaults

Save the changes done so far as User Defaults.

Restore User Defaults

Restore the User Defaults to all the setup options.

Boot Override

This items displays the available devices. The items that appears on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device.

Launch EFI Shell from filesystem device

Attempts to launch EFI Shell application (shell.efi) from one of the available filesystem devices.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 5-57

5-58 Chapter 5: BIOS Setup

Chapter 6: RAID Configuration

RAID Configuration

This chapter provides instructions for setting up, creating, and configuring RAID sets using the available utilities.

6

6-2

6.1 Setting up RAID

The motherboard supports the following SATA RAID solutions:

LSI MegaRAID software RAID Configuration Utility

10 support (for both Linux and Windows OS).

with RAID 0, RAID 1, and RAID

Intel

®

Rapid Storage Technology enterprise Option ROM

Utility with RAID 0, RAID 1,

RAID 10, and RAID 5 support (for Windows OS only).

6.1.1 RAID definitions

RAID 0

(Data striping) optimizes two identical hard disk drives to read and write data in parallel, interleaved stacks. Two hard disks perform the same work as a single drive but at a sustained data transfer rate, double that of a single disk alone, thus improving data access and storage. Use of two new identical hard disk drives is required for this setup.

RAID 1

(Data mirroring) copies and maintains an identical image of data from one drive to a second drive. If one drive fails, the disk array management software directs all applications to the surviving drive as it contains a complete copy of the data in the other drive. This RAID configuration provides data protection and increases fault tolerance to the entire system. Use two new drives or use an existing drive and a new drive for this setup. The new drive must be of the same size or larger than the existing drive.

RAID 10

is data striping and data mirroring combined without parity (redundancy data) having to be calculated and written. With the RAID 10 configuration you get all the benefits of both

RAID 0 and RAID 1 configurations. Use four new hard disk drives or use an existing drive and three new drives for this setup.

RAID 5

stripes both data and parity information across three or more hard disk drives. Among the advantages of RAID 5 configuration include better HDD performance, fault tolerance, and higher storage capacity. The RAID 5 configuration is best suited for transaction processing, relational database applications, enterprise resource planning, and other business systems.

Use a minimum of three identical hard disk drives for this setup.

• If you want to boot the system from a hard disk drive included in a created RAID set, copy first the RAID driver from the support DVD to a floppy disk before you install an operating system to the selected hard disk drive.

• Please refer to chapter 2 for how to select the RAID configuration utility. Move the jumper to choose between LSI MegaRAID and Intel

®

Rapid RAID.

Chapter 6: RAID Configuration

6.1.2 Installing hard disk drives

The motherboard supports Serial ATA for RAID set configuration. For optimal performance, install identical drives of the same model and capacity when creating a disk array.

To install the SATA hard disks for RAID configuration:

1. Install the SATA hard disks into the drive bays following the instructions in the system user guide.

2. Connect a SATA signal cable to the signal connector at the back of each drive and to the SATA connector on the motherboard.

3. Connect a SATA power cable to the power connector on each drive.

6.1.3 Setting the RAID item in BIOS

You must set the RAID item in the BIOS Setup before you can create a RAID set from SATA hard disk drives attached to the SATA connectors supported by Intel ® C612 chipset.

To do this:

1. Enter the BIOS Setup during POST.

2. Go to the Advanced Menu > PCH SATA Configuration, then press <Enter>.

3. Set SATA Mode to [RAID Mode]

4. Press <F10> to save your changes and exit the BIOS Setup.

Refer to Chapter 4 for details on entering and navigating through the BIOS Setup.

6.1.4 RAID configuration utilities

Depending on the RAID connectors that you use, you can create a RAID set using the utilities embedded in each RAID controller. For example, use the LSI MegaRAID Software

Configuration Utility

or the Intel

® Rapid Storage Technology

if you installed Serial ATA hard disk drives on the Serial ATA connectors supported by the Intel

®

C612 chipset.

Refer to the succeeding section for details on how to use the RAID configuration utility.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-3

6.2 LSI Software RAID Configuration Utility

The LSI MegaRAID software RAID configuration utility allows you to create RAID 0, RAID 1, or

RAID 10 set(s) from SATA hard disk drives connected to the SATA connectors supported by the motherboard southbridge chip.

To enter the LSI MegaRAID software RAID configuration utility:

1. Turn on the system after installing all the SATA hard disk drives.

2. During POST, the LSI MegaRAID software RAID configuration utility automatically detects the installed SATA hard disk drives and displays any existing RAID set(s).

Press <Ctrl> + <M> to enter the utility.

LSI MegaRAID Software RAID BIOS Version A.10 09231523R

LSI SATA RAID Found at PCI Bus No:00 Dev No:1F

Device present at Port 0 ST3160812AS 152114MB

Device present at Port 1 ST3160812AS 152114MB

Device present at Port 2 ST3160812AS 152114MB

Device present at Port 3 ST3160812AS 152114MB

Press Ctrl-M or Enter to run LSI Software RAID Setup Utility.

• The LSI MegaRAID software RAID configuration utility automatically configures to

RAID 1 when the SATA to RAID Mode is enabled.

• The RAID setup screens shown in this section are for reference only and may not exactly match the items on your screen due to the controller version difference.

• When you create RAID sets with the LSI MegaRAID software RAID configuration utility, the boot priority of the SATA optical drive has to be manually adjusted.

Otherwise, the system will not boot from the connected SATA ODD.

3. The utility main window appears. Use the arrow keys to select an option from the

Management Menu

and then press <Enter>. Refer to the Management Menu descriptions on the next page.

At the bottom of the screen is the legend box. The keys on the legend box allow you to navigate through the setup menu options or execute commands. The keys on the legend box vary according to the menu level.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

6-4

Configure VD(s)

Use Cursor Keys to Navigate Between Items And Press Enter To Select An Option

Chapter 6: RAID Configuration

Menu Description

Configure

Allows you to create RAID 0, RAID 1 or RAID 10 set using the Easy

Configuration or the New Configuration command. This menu also allows you to view, add, or clear RAID configurations or select the boot drive

Initialize

Objects

Allows you to initialize the virtual drives of a created RAID set

Allows you to initialize virtual drives or change the virtual drive parameters

Rebuild

Allows you to rebuild failed drives

Check Consistency Allows you to check the data consistency of the virtual drives of a created RAID set

6.2.1 Creating a RAID set

The LSI Software RAID Configuration Utility allows you to create a RAID 0, RAID 1, or RAID

10 set using two types of configurations: Easy and New.

In Easy Configuration, the virtual drive parameters are set automatically.

In New Configuration, you manually set the virtual drive parameters.

Using Easy Configuration

To create a RAID set using the Easy Configuration option:

1. From the Management Menu, select Configure > Easy Configuration, and then press

<Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Configuration Menu

Configure

Initialize

Objects

Rebuild

New Configuration

View/Add Configuration

Clear Configuration

Select Boot Drive

Check Consistency

Defines Physical Arrays. An Array Will Automatically Become A VD

Use Cursor Keys to Navigate Between Items And Press Enter To Select An Option

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-5

6-6

2. The ARRAY SELECTION MENU displays the available drives connected to the SATA ports. Use the up/down arrow keys to select the drives you want to include in the RAID set, and then press <Space>. When selected, the drive indicator changes from READY to ONLIN A[X]-[Y], where X is the array number, and Y is the drive number.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

Easy Configuration - ARRAY SELECTION MENU

0

1

2

PORT #

ONLIN A00-00

ONLIN A00-01

READY

3 READY

Port # 2 DISK 74.74GB HDS728080PLA380 05.01C05

SPACE-Sel,ENTER-EndArray,F10-Configure,F2-Drive Info,F3-Virtual Drives,F4-HSP

• The information of the selected hard disk drive displays at the bottom of the screen.

• You need at least two identical hard disk drives when creating a RAID 1 set.

• You need at least four identical hard disk drives when creating a RAID 10 set.

3. Select all the drives required for the RAID set, and then press <F10> to configure array setting.

4. Press <Space> to select the configurable array.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

Easy Configuration - ARRAY SELECTION MENU

Select Configurable Array(s)

A-0

SPAN-1

0

1

2

ONLIN A00-00

ONLIN A00-01

READY

3 READY

Cursor Keys, SPACE-(De)Select F2-Chidinfo F3-SlotInfo F10-Configure Esc-Quit

Chapter 6: RAID Configuration

5. Press <F10> again, the virtual drive information appears including a Virtual Drive menu that allows you to change the virtual drive parameters.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Virtual Drive(s) Configured

Management Menu

Configure

0 1 148.580GB 2 64KB ONLINE

Objects

Rebuild

Check Consistency

0

1

2

ONLIN A00-00

ONLIN A00-01

RAID = 1

Units= MB

Size = 152146MB

DWC = OFF

RA = On

Accept

SPAN = NO

3 READY

Choose RAID Level For This VD

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

6. Select RAID from the Virtual Drive sub-menu, and then press <Enter>.

7. Select the RAID level from the menu, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Configure

Objects

Rebuild

Check Consistency

Virtual Drive(s) Configured

Easy Configuration - ARRAY SELECTION MENU

0 1 148.580GB 2 64KB ONLINE

0

1

2

3

ONLIN A00-00

ONLIN A00-01

READY

RAID Level

RAID 0

RAID 1

RAID = 1

Units= MB

Size = 152146MB

DWC = OFF

RA = On

Accept

SPAN = NO

Choose RAID Level For This VD

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-7

6-8

8. Select Units from the Virtual Drive sub-menu, and then press <Enter>.

9. Select the units for virtual drive size from the menu, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Virtual Drive(s) Configured

Management Menu

Configure

0 1 148.580GB 2 64KB ONLINE

Objects

Rebuild

Check Consistency

0

1

2

3

ONLIN A00-00

READY

Select Units For VD Size

MB

GB

TB

RAID = 1

Units= MB

Size = 152146MB

DWC = OFF

RA = On

Accept

SPAN = NO

Select Units For VD Size

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

10. When creating a RAID 1 or a RAID 10 set, select DWC from the Virtual Drive menu, and then press <Enter>.

When creating a RAID 0 set, proceed to step 12.

11. Select On to enable the Disk Write Cache setting, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Virtual Drive(s) Configured

Management Menu

Configure

0 1 148.580GB 2 64KB ONLINE

Objects

Rebuild

Check Consistency

0

1

2

ONLIN A00-00

Change DWC

Off

On

RAID = 1

Units= MB

Size = 152146MB

DWC = OFF

RA = On

Accept

SPAN = NO

3 READY

Disk Write Cache Setting of VD

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

Enabling DWC can improve the performance, but with the risk of data loss.

Chapter 6: RAID Configuration

12. When finished setting the selected virtual drive configuration, select Accept from the menu, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Configure

Initialize

Virtual Drive(s) Configured

Easy Configuration - ARRAY SELECTION MENU

0 1 148.580GB 2 64KB ONLINE

Objects

Rebuild

Check Consistency

0

1

PORT #

ONLIN A00-00

ONLIN A00-01

READY

RAID = 1

Units= MB

Size = 152146MB

DWC = OFF

RA = On

Accept

SPAN = NO

3 READY

Accept This VD Configuration And Go To Next VD

Cursor Keys, SPACE-(De) Select F2-ChIdInfo F3-SlotInfo F10-Configure Esc-Quit

13. Follow step 2 to 12 to configure additional virtual drives.

14. Press <Esc> to finish RAID configuration. When prompted to save configuration, select

Yes

from the menu, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Configuration Menu

Easy Configuration

New Configuration

View/Add Configuration

Clear Configuration

Select Boot Drive

Virtual Drive(s) Configured

Save Configuration?

Yes

No

LD RAID Size #Stripes StripSz Status

0 1 148.580GB 2 64KB ONLINE

Select Yes Or No

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-9

Using New Configuration

When a RAID set already exists, using the New Configuration command erases the existing RAID configuration data. If you do not want to delete the existing RAID set, use the

View/Add Configuration

command to view or create another RAID configuration.

To create a RAID set using the New Configuration option

1. From the Management Menu, select Configure > New Configuration, and then press

<Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Configuration Menu

Configure

Initialize

Objects

Rebuild

Easy Configuration

Management Menu

View/Add Configuration

Clear Configuration

Select Boot Drive

Check Consistency

6-10

Clear Existing Configuration And Start A New Configuration

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

2. Follow step 2 to 9 of the previous section: Using Easy Configuration.

3. Select Size from the Virtual Drive menu, and then press <Enter>.

4. Key-in the desired virtual drive size, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Configure

Initialize

Objects

Rebuild

Virtual Drive(s) Configured

Easy Configuration - ARRAY SELECTION MENU

0 1 148.580GB 2 64KB ONLINE

0

1

PORT #

ONLIN A00-00

ONLIN A00-01

2

RAID = 1

Units= MB

Size = 152146MB

DWC = OFF

RA = On

Accept

SPAN = NO

3 READY

Enter VD Size:

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

5. Follow step 10 to 14 of the previous section: Using Easy Configuration to create the

RAID set.

Chapter 6: RAID Configuration

6.2.2 Adding or viewing a RAID configuration

You can add a new RAID configuration or view an existing configuration using the View/Add

Configuration

command.

Adding a new RAID configuration

To add a new RAID configuration:

1. From the Management Menu, select Configure > View/Add Configuration, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Configuration Menu

Configure

Initialize

Objects

Rebuild

Easy Configuration

Management Menu

View/Add Configuration

Clear Configuration

Select Boot Drive

Check Consistency

View/Add to The Existing Configuration

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

2. The ARRAY SELECTION MENU displays the available drives connected to the SATA ports. Select the drive(s) you want to include in the RAID set, then press <Space>.

When selected, the drive indicator changes from READY to ONLIN A[X]-[Y], where X is the array number, and Y is the drive number.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

0

1

2

PORT #

ONLIN A00-00

ONLIN A00-01

READY

3 READY

Port # 2 DISK 77247MB HDS72808PLA380 PF20A60A

SPACE-Sel,ENTER-EndArray,F10-Configure,F2-Drive Info,F3-Virtual Drives,F4-HSP

The information of the selected hard disk drive displays at the bottom of the screen.

3. Follow step 3 to 12 of section 6.2.1 Creating a RAID set: Using Easy Configuration to add a new RAID set.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-11

6-12

6.2.3 Initializing the virtual drives

After creating the RAID set(s), you must initialize the virtual drives. You may initialize the virtual drives of a RAID set(s) using the Initialize or Objects command on the Management

Menu

.

Using the Initialize command

To initialize the virtual drive using the Initialize command

1. From the Management Menu, select Initialize, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

Initialize VD(s)

Use Cursor Keys to Navigate Between Items And Press Enter To Select An Option

2. The screen displays the available RAID set(s) and prompts you to select the virtual drive to initialize. Use the arrow keys to select the virtual drive from the Virtual Drive selection, and then press <Space>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Virtual Drive(s) Configured

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

0 1 148.580GB 2 64KB ONLINE

Virtual Drives

Virtual Drive 0

Select VD

SPACE-(De)Select, F10-Initialize

Chapter 6: RAID Configuration

3. Press <F10> to start initialization. When prompted, select Yes from the Initialize? dialog box, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

Virtual Drive(s) Configured

LD RAID Size #Stripes StripSz Status

0 1 148.580GB 2 64KB ONLINE

Initialize?

Yes

No

Virtual Drives

Virtual Drive 0

Init Will Destroy Data On Selected VD(s)

SPACE-(De)Select, F10-Initialize

Initializing a virtual drive erases all data on the drive.

4. A progress bar appears on screen. If desired, press <Esc> to abort initialization. When initialization is completed, press <Esc>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Virtual Drive(s) Configured

LD RAID Size #Stripes StripSz Status

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

0 1 148.580GB 2 64KB ONLINE

VD 0 Initialization Complete. Press Esc..

100% Completed

Virtual Drives

Virtual Drive 0

SPACE-(De)Select, F10-Initialize

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-13

6-14

Using the Objects command

To initialize the virtual drives using the Objects command

1. From the Management Menu, select Objects > Virtual Drive, and then press

<Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Objects

Configure

Initialize

Objects

Rebuild

Adapter

Virtual Drive

Physical Drive

Check Consistency

Change VD Parameters

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

2. Select the virtual drive to initialize from the Virtual Drives sub-menu, and then press

<Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Virtual Drive(1)

Virtual Drive 0

Objects

Configure

Initialize

Objects

Rebuild

Adapter

Virtual Drive

Physical Drive

Check Consistency

Select VD

Press ENTER To Select A VD, <Del> To Delete A VD

Chapter 6: RAID Configuration

3. Select Initialize from the pop-up menu, and then press <Enter> to start initialization.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Configure

Initialize

Objects

Rebuild

Adapter

Virtual Drive

Physical Drive

Check Consistency

Objects

Virtual Drive(1)

Virtual Drive 0

Virtual Drive(0)

Initialize

Check Consistency

View/Update Parameters

Initialize VD

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

4. When prompted, press the <Space> to select Yes from the Initialize? dialog box, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Configure

Initialize

Objects

Rebuild

Check Consistency

Objects

Adapter

Virtual Drive

Physical Drive

Initialize

Virtual Drive(1)

Virtual Drive 0

Virtual Drive(0)

Check Consistency

Initialize?

Yes

No

Init Will Destroy Data On Selected VD(s)

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

5. A progress bar appears on screen. If desired, press <Esc> to abort initialization. When initialization is completed, press <Esc>.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-15

6-16

6.2.4 Rebuilding failed drives

You can manually rebuild failed hard disk drives using the Rebuild command in the

Management Menu

.

To rebuild a failed hard disk drive

1. From the Management Menu, select Rebuild, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

Rebuild VD(s)

Use Cursor Keys to Navigate Between Items And Press Enter To Select An Option

2. The PHYSICAL DRIVES SELECTION MENU displays the available drives connected to the SATA ports. Select the drive you want to rebuild, and then press <Space>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

REBUILD - PHYSICAL DRIVES SELECTION MENU

0

1

PORT #

ONLIN A00-00

FAIL A00-01

Port # 1 DISK 77247MB HDS72808PLA380 PF20A60A

SPACE-(De)Select,F10-Start Rebuild,F2-Drive Information,F3-View Virtual Drives

Chapter 6: RAID Configuration

3. After selecting the drive to rebuild, press <F10>. When prompted, press <Y> to rebuild the drive.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

REBUILD - PHYSICAL DRIVES SELECTION MENU

0

1

PORT #

ONLIN A00-00

FAIL A00-01

Port # 1 DISK 77247MB HDS72808PLA380 PF20A60A

SPACE-(De)Select,F10-Start Rebuild,F2-Drive Information,F3-View Virtual Drives

4. When rebuild is complete, press any key to continue.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-17

6-18

6.2.5 Checking the drives for data consistency

You can check and verify the accuracy of data redundancy in the selected virtual drive. The utility can automatically detect and/or detect and correct any differences in data redundancy depending on the selected option in the Objects > Adapter menu.

The Check Consistency command is available only for virtual drives included in a RAID 1 or RAID 10 set.

Using the Check Consistency Command

To check data consistency using the Check Consistency command

1. From the Management Menu, select Check Consistency, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

CC of VD(s)

Use Cursor Keys to Navigate Between Items And Press Enter To Select An Option

2. The screen displays the available RAID set(s) and prompts you to select the virtual drive to check. Press <Space> to select the virtual drive from the Virtual Drive submenu, and then press <F10>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

Virtual Drive(s) Configured

LD RAID Size #Stripes StripSz Status

0 1 148.580GB 2 64KB ONLINE

Virtual Drives

Virtual Drive 0

Select VD

SPACE-(De)Select, F10-Initialize

Chapter 6: RAID Configuration

3. When prompted, use the arrow keys to select Yes from the Consistency Check? dialog box, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Virtual Drive(s) Configured

LD RAID Size #Stripes StripSz Status

0 10 154494MB 2 64KB ONLINE

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

Yes

No

Consistency Check?

Virtual Drives

Virtual Drive 0

Select VD(s)

SPACE-(De)Select, F10-Initialize

A progress bar appears on screen.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

Virtual Drive(s) Configured

LD RAID Size #Stripes StripSz Status

0 10 154494MB 2 64KB ONLINE

VD 0 Consistency Check. Press Esc to Abort.

85% Completed

Virtual Drives

Virtual Drive 0

The Data On The Drives Is Inconsistency. Repair Done!

SPACE-(De)Select, F10-Initialize

4. While checking the disk consistency, press <Esc> to display the following options.

• Stop

- Stops the consistency check. The utility stores the percentage of disk checked, and when you restart checking, it continues from the last percentage completed rather than from zero percent.

• Continue

• Abort

- Continues the consistency check.

- Aborts the consistency check. When you restart checking, it continues from zero percent.

5. When checking is complete, press any key to continue.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-19

Using the Objects command

To check data consistency using the Objects command

1. From the Management Menu, select Objects, and then select Virtual Drive from the sub-menu.

2. Use the arrow keys to select the virtual drive you want to check, and then press

<Enter>.

3. Select Check Consistency from the pop-up menu, and then press <Enter>.

4. When prompted, use the arrow keys to select Yes from the dialog box to check the drive.

5. When checking is complete, press any key to continue.

6-20 Chapter 6: RAID Configuration

6.2.6 Deleting a RAID configuration

To delete a RAID configuration

1. From the Management Menu, select Configure > Clear Configuration, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Configuration Menu

Management Menu

Configure

Initialize

Objects

Rebuild

Easy Configuration

New Configuration

View/Add Configuration

Clear Configuration

Select Boot Drive

Check Consistency

Clear Existing Configuration

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

2. When prompted, use the arrow keys to select Yes from the Clear Configuration? dialog box, and then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

Configuration Menu

Easy Configuration

New Configuration

View/Add Configuration

No

Clear Configuration?

Clear Existing Configuration

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

The utility clears all the current array(s).

3. Press any key to continue.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-21

6-22

6.2.7 Selecting the boot drive from a RAID set

You must have created a new RAID configuration before you can select the boot drive from a

RAID set. See section 6.2.1 Creating a RAID set: Using New Configuration for details.

To select the boot drive from a RAID set

1. From the Management Menu, select Configure > Select Boot Drive, and then press

<Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Configuration Menu

Configure

Initialize

Objects

Rebuild

Easy Configuration

Management Menu

View/Add Configuration

Clear Configuration

Select Boot Drive

Check Consistency

Select A Boot VD

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

2. When prompted, use the arrow keys to select the bootable virtual drive from the list, then press <Enter>.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Management Menu

Configure

Initialize

Objects

Rebuild

Easy Configuration

New Configuration

View/Add Configuration

Clear Configuration

Select Boot Drive

Check Consistency

Select A Boot VD

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

3. The virtual drive is selected as boot drive. Press any key to continue.

Chapter 6: RAID Configuration

6.2.8 Enabling WriteCache

You may manually enable the RAID controller’s WriteCache option after creating a RAID set to improve the data transmission performance.

When you enable WriteCache, you may lose data when a power interruption occurs while transmitting or exchanging data among the drives.

The WriteCache function is recommended for RAID 1 and RAID 10 sets.

To enable WriteCache

1. From the Management Menu, select Objects > Adapter, select an existing adapter, and then press <Enter> to display the adapter properties.

2. Select Disk WC, and then press <Enter> to turn on the option.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Objects

Configure

Initialize

Objects

Rebuild

Adapter

Virtual Drive

Physical Drive

Check Consistency

Adapter 0

Rebuild Rate = 30

Chk Const Rate = 30

FGI Rate = 30

BGI Rate = 30

Disk WC = Off

Read Ahead = On

Bios State = Enable

Cont On Error = Yes

Fast Init = Enable

Auto Rebuild = On

Auto Resume = Enable

Disk Coercion = 1GB

Factory Default

Disk Write Cache - Off(Write Through or On(Write Back)

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

3. From the Management Menu, select Objects > Virtual Drive, select an existing adapter and press <Enter>. Select View/Update Parameters and press <Enter> to display the adapter properties.

4. Select Disk WC, and then press <Enter> to turn on the option.

LSI Software RAID Configuration Utility Ver C.05 Sep 17,2010

BIOS Version A.10.09231523R

Objects

Configure

Initialize

Objects

Rebuild

Adapter

Virtual Drive

Physical Drive

Check Consistency

Virtual Drive

RAID = 0

Size = 148.580GB

Stripe Size = 64KB

#Stripes = 2

State = OPTIMAL

Spans = 1

Disk WC = On

Read Ahead = On

Disk Write Cache Setting of VD

Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option

5. When finished, press any key to continue.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-23

6-24

6.3 Intel

®

Rapid Storage Technology enterprise

SATA/SSATA Option ROM Utility

The Intel ® Rapid Storage Technology enterprise SATA/SSATA Option ROM utility allows you to create RAID 0, RAID 1, RAID 10 (RAID 1+0), and RAID 5 set from Serial ATA hard disk drives that are connected to the Serial ATA connectors supported by the Southbridge.

Before you proceed, ensure that you have installed the Serial ATA hard disk drives, have set the correct jumper settings of the motherboard, and have set the correct SATA mode in the BIOS setup. You can refer to the Installing hard disk drives, Setting Jumpers, and

Setting the RAID mode sections in BIOS

for more information.

To launch the Intel ® Rapid Storage Technology enterprise SATA/SSATA Option ROM utility:

1. Turn on the system.

2. During POST, press <Ctrl>+<I> to display the utility main menu.

[ MAIN MENU ]

[ DISK/VOLUME INFORMATION ]

2 ST3300656SS 397600009846UEDY 279.3GB Non-RAID Disk

[ ]-Select [ESC]-Exit [ENTER]-Select Menu

The navigation keys at the bottom of the screen allow you to move through the menus and select the menu options.

The RAID BIOS setup screens shown in this section are for reference only and may not exactly match the items on your screen.

Chapter 6: RAID Configuration

6.3.1 Creating a RAID set

To create a RAID set:

1. From the utility main menu, select 1. Create RAID Volume and press <Enter>.

2. Key in a name for the RAID set and press <Enter>.

[ CREATE VOLUME MENU ]

Name:

0.0 GB

Create Volume

[ HELP ]

[ ]Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select

3. Press the up/down arrow keys to select a RAID Level that you wish to create then press <Enter>.

4. From the Disks item field, press <Enter> to select the hard disk drives that you want to include in the RAID set.

[ SELECT DISKS ]

Port Drive Model Serial # Size Status

0 ST3300656SS HWAS0000991753TR 279.3GB Non-RAID Disk

1 ST3300656SS 37VN00009846RAJ1 279.3GB Non-RAID Disk

2 ST3300656SS 397600009846UEDY 279.3GB Non-RAID Disk

3 ST3300656SS GWC50000991756G6 279.3GB Non-RAID Disk

Select 1 Master and 1 Recovery disk to create volume.

[ ]-Prev/Next [TAB]-(M)aster [SPACE]-(R)ecovery [ENTER]-Done

5. Use the up/down arrow keys to move the selection bar then press <Space> to select a disk. A small triangle before the Port number marks the selected drive. Press <Enter> when you are done.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-25

6. Use the up/down arrow keys to select the stripe size for the RAID array (for RAID 0,

10 and 5 only) then press <Enter>. The available stripe size values range from 4 KB to

128 KB. The following are typical values:

RAID 0: 128KB

RAID 10: 64KB

RAID 5: 64KB

We recommend a lower stripe size for server systems, and a higher stripe size for multimedia computer systems used mainly for audio and video editing.

7. In the Capacity field item, key in the RAID volume capacity that you want to use and press <Enter>. The default value field indicates the maximum allowed capacity.

8. Press <Enter> to start creating the RAID volume.

9. From the following warning message, press <Y> to create the RAID volume and return to the main menu, or press <N> to go back to the CREATE VOLUME menu.

WARNING: ALL DATA ON SELECTED DISKS WILL BE LOST.

Are you sure you want to create this volume? (Y/N):

6-26 Chapter 6: RAID Configuration

6.3.2 Deleting a RAID set

Take caution when deleting a RAID set. You will lose all data on the hard disk drives when you delete a RAID set.

To delete a RAID set:

1. From the utility main menu, select 2. Delete RAID Volume and press <Enter>.

2. From the Delete Volume Menu, press the up/down arrow keys to select the RAID set you want to delete then press <Del>.

[ DELETE VOLUME MENU ]

[ HELP ]

Deleting a volume will reset the disks to non-RAID

WARNING: ALL DISK DATA WILL BE DELETED.

[ ]-Select [ESC]-Previous Menu [DEL]-Delete Volume

3. Press <Y> to confirm deletion of the selected RAID set and return to the utility main menu, or press <N> to return to the DELETE VOLUME menu.

[ DELETE VOLUME VERIFICATION ]

ALL DATA IN THE VOLUME WILL BE LOST!

(This does not apply to Recovery volumes)

Are you sure you want to delete volume “Volume0”? (Y/N):

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-27

6.3.3 Resetting disks to Non-RAID

Take caution before you reset a RAID volume hard disk drive to non-RAID. Resetting a

RAID volume hard disk drive deletes all internal RAID structure on the drive.

To reset a RAID set:

1. From the utility main menu, select 3. Reset Disks to Non-RAID and press <Enter>.

2. Press the up/down arrow keys to select the drive(s) or disks of the RAID set you want to reset, then press <Space>. A small triangle before the Port number marks the selected drive. Press <Enter> when you are done.

[ RESET RAID DATA ]

Resetting RAID disk will remove its RAID structures and revert it to a non-RAID disk.

WARNING: Resetting a disk causes all data on the disk to be lost.

(This does not apply to Recovery volumes)

Port Drive Model Serial # Size Status

0 ST3300656SS HWAS0000991753TR 279.3GB Member Disk

1 ST3300656SS 37VN00009846RAJ1 279.3GB Member Disk

Select the disks that should be reset.

[ ]-Previous/Next [SPACE]-Selects [ENTER]-Selection Complete

3. Press <Y> in the confirmation window to reset the drive(s) or press <N> to return to the utility main menu.

6-28 Chapter 6: RAID Configuration

6.3.4 Exiting the Intel

®

Rapid Storage Technology enterprise

SATA/SSATA Option ROM utility

To exit the utility:

1. From the utility main menu, select 4. Exit then press <Enter>.

2. Press <Y> to exit or press <N> to return to the utility main menu.

[ CONFIRM EXIT ]

Are you sure you want to exit? (Y/N):

6.3.5 Rebuilding the RAID

This option is only for the RAID 1 set.

Rebuilding the RAID with other non-RAID disk

If any of the SATA hard disk drives included in the RAID 1 array failed, the system displays the status of the RAID volume as “Degraded” during POST. You can rebuild the RAID array with other installed non-RAID disks.

To rebuild the RAID with other non-RAID disk:

1. During POST, press <Ctrl>+<I> at the prompt to enter the Intel Rapid Storage

Technology option ROM utility.

2. If there is a non-RAID SATA Hard Disk available, the utility will prompt you to rebuild the RAID. Press the up/down arrow keys to select the destination disk then Press

<Enter> to start the rebuilding process, or press <ESC> to exit.

[ DEGRADED VOLUME DETECTED ]

“Degraded” volume and disk available for rebuilding detected. Selectign a disk initiates a rebuild. Rebuild completes in the operating system.

Select the port of destination disk for rebuilding (ESC to exit):

Port Drive Model Serial # Size

X XXXXXXXXXXX XXXXXXXX XXX.GB

[ ]-Previous/Next [ENTER]-Select [ESC]-Exit

Select a destination disk with the same size as the original hard disk.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-29

3. The utility immediately starts rebuilding after the disk is selected. When done, the status of the degraded RAID volume is changed to “Rebuild”.

[ MAIN MENU ]

[ DISK/VOLUME INFORMATION ]

6-30

Volumes with “Rebuild” status will be rebuilt within the operating system.

[ ]-Select [ESC]-Exit [ENTER]-Select Menu

4. Press <Esc> to exit Intel Rapid Storage Technology and reboot the system.

5. Select Start > Programs > Intel Rapid Storage > Intel Rapid Storage Console or click the Intel Rapid Storage Technology tray icon to load the Intel Rapid Storage

Manager utility.

6. From the View menu, select Advanced Mode to display the details of the Intel Rapid

Storage Console.

7. From the Volumes view option, select RAID volume to view the rebuilding status.

When finished, the status is changed to “Normal”.

Rebuilding the RAID with a new hard disk

If any of the SATA hard disk drives included in the RAID array failed, the system displays the status of the RAID volume as “Degraded” during POST. You may replace the disk drive and rebuild the RAID array.

To rebuild the RAID with a new hard disk:

1. Remove the failed SATA hard disk and install a new SATA hard disk of the same specification into the same SATA Port.

Select a destination disk with the same size as the original hard disk.

2. Reboot the system then follow the steps in section Rebuilding the RAID with other

non-RAID disk

.

Chapter 6: RAID Configuration

6.3.6 Setting the Boot array in the BIOS Setup Utility

You can set the boot priority sequence in the BIOS for your RAID arrays when creating multi-

RAID using the Intel

®

Rapid Storage Technology enterprise SATA Option ROM utility.

To set the boot array in the BIOS:

Set at least one of the arrays bootable to boot from the hard disk.

1. Reboot the system and press <Del> to enter the BIOS setup utility during POST.

2. Go to the Boot menu and select the boot option priority.

3. Use up/down arrow keys to select the boot priority and press <Enter>. See the Boot

menu

section of Chapter 4 for more details.

4. From the Exit menu, select Save Changes & Exit, then press <Enter>.

5. When the confirmation window appears, select Yes, then press <Enter>.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-31

6.4 Intel

®

Rapid Storage Technology enterprise

(Windows)

The Intel ® Rapid Storage Technology enterprise allows you to create RAID 0, RAID 1, RAID

10 (RAID 1+0), and RAID 5 set(s) from Serial ATA hard disk drives that are connected to the

Serial ATA connectors supported by the Southbridge.

You need to manually install the Intel

®

Rapid Storage Technology enterprise utility on a

Windows

®

operating system. Please refer to the installation instructions in Chapter 6.

To enter the Intel

® system:

Rapid Storage Technology enterprise utility under Windows operating

1. Turn on the system and go to the windows desktop.

2. Click the Intel

® Rapid Storage Technology enterprise

icon to display the main menu.

Your storage system is configured for data protection, increased performance and optimal data storage capacity. You can create additional volumes to further optimize your storage system.

6-32

You can click Rescan to re-scan any attached hard disks.

Chapter 6: RAID Configuration

6.4.1 Creating a RAID set

To create a RAID set:

1. From the utility main menu, select Create Volume and select volume type.

2. Click Next.

3. Enter a name for the RAID set, then select the array disks.

4. Select Volume Size tab, you can drag the bar to decide the volume size.

5. Click Next.

• If you do not want to keep the data on one of the selected disks, select NO when prompted.

• If you want to Enable volume write-back cache or Initialize volume, click

Advanced

.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-33

6. Confirm the volume creation, than click Create Volume to continue.

This process could take a while depending on the number and size of the disks. You can continue using other applications during this time.

6-34

7. Wait until the process is completed, then click OK when prompted.

You still need to partition your new volume using Windows Disk Management before adding any data.

The RAID set is displayed in the Volumes list and you can change the settings in Volume

Properties

.

Chapter 6: RAID Configuration

6.4.2 Changing a Volume Type

To change the volume type in Volume Properties:

1. Click the SATA array items you want to change in Volumes field.

2 From the Volume Properties field, select Type:RAID 1 Change type.

3. You can change the Name, Select the new volume type, and Select additional

disks to include in the new volume

if needed.

4. Select the Data stripe size for the RAID array (for RAID 0, 10 and 5 only), and click

OK

. The available stripe size values range from 4 KB to 128 KB. The following are typical values:

RAID 0: 128KB

RAID 10: 64KB

RAID 5: 64KB

We recommend a lower stripe size for server systems, and a higher stripe size for multimedia computer systems used mainly for audio and video editing.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-35

6-36

6.4.3 Deleting a volume

Be cautious when deleting a volume. You will lose all data on the hard disk drives. Before you proceed, ensure that you back up all your important data from your hard drives.

To delete a volume:

1. From the utility main menu, select the volume (exp. Volume_0000) in Volumes field you want to delete.

2. Select Delete volume in Volume Properties field. The following screen appears.

3. Click Yes to delete the volume and return to the utility main menu, or click No to return to the main menu.

Chapter 6: RAID Configuration

6.4.4 Preferences

System Preferences

Allow you to set to show the notification area icon and show system information, warning, or errors here.

E-Mail Preferences

Allow you to set to sent e-mail of the following events:

• Storage system information

Storage system warnings

Storage system errors

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 6-37

6-38 Chapter 6: RAID Configuration

Chapter 7: Driver Installation

Driver Installation

This chapter provides the instructions for installing the necessary drivers for different system components in both

Linux

®

and Windows

®

Operating Systems.

7

7-2

7.1 RAID driver installation

After creating the RAID sets for your server system, you are now ready to install an operating system to the independent hard disk drive or bootable array. This part provides the instructions on how to install the RAID controller drivers during OS installation.

7.1.1 Creating a RAID driver disk

The system does not include a floppy drive. You have to use a USB floppy drive when creating a SATA RAID driver disk.

If you have created RAID sets with the LSI Software RAID configuration utility, the boot priority of the SATA optical disk drive has to be manually adjusted. Otherwise, the system will not boot from the connected SATA ODD.

To create a RAID driver disk in Windows ® environment

1. Start Windows ® .

2. Place the motherboard support DVD into the optical drive.

3. Go to the Make disk menu, and then select the type of RAID driver disk you want to create.

4. Insert a floppy disk into the USB floppy disk drive.

5. Follow succeeding screen instructions to complete the process.

Write-protect the floppy disk to avoid computer virus infection.

To create a RAID driver disk in Red Hat

®

Enterprise Linux server environment

1. Insert a blank formatted high-density floppy disk to the USB floppy disk drive.

dd if=XXX.img of=/dev/fd0 to decompress the file into the floppy disk from the following path in the support DVD:

For LSI MegaRAID Driver

\Drivers\C610 LSI RAID\Driver\makedisk\Linux

3. Eject the floppy disk.

Chapter 7: Driver Installation

7.1.2 Installing the RAID controller driver

During Windows

®

Server 2008 R2 OS installation

To install the RAID controller driver when installing Windows ® Server 2008 R2 OS

1. Boot the computer using the Windows ® Server 2008 R2 OS installation disc. Follow the screen instructions to start installing Windows Server 2008 R2.

2. When prompted to choose a type of installation, click Custom (advanced).

3. Click .

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 7-3

7-4

4. A message appears, reminding you to insert the installation media containing the driver of the RAID controller driver. If you have only one optical drive installed in your system, eject the Windows OS installation disc and replace with the motherboard Support DVD into the optical drive. Click Browse to continue.

5. Locate the driver in the corresponding folder of the Support DVD then click OK to continue.

6. Select the RAID controller driver you need from the list and click Next.

7. When the system finishes loading the RAID driver, replace the motherboard Support

DVD with the Windows Server installation disc. Select the drive to install Windows and click Next.

8. Setup then proceeds with the OS installation. Follow screen instructions to continue.

Chapter 7: Driver Installation

Red Hat

®

Enterprise Linux OS 5.x

To load the LSI MegaRAID controller driver when installing Red Hat

®

Enterprise OS:

1. Boot the system from the Red Hat

®

OS installation CD.

2. At the

boot:, type linux dd then press <Enter>.

- To install or upgrade in graphical mode, press the <ENTER> key.

- To install or upgrade in text mode, type: linux text <ENTER>.

- Use the function keys listed below for more information.

[F1-Main] [F2-Options] [F3-General] [F4-Kernel] [F5-Rescue] boot: linux dd

3. Select using the <Tab> key when asked if you have the driver disk, then press

<Enter>.

Main Menu

Do you have a driver disk?

Yes No

4. Insert the Red Hat

®

Enterprise RAID driver disk to the USB floppy disk drive, select

OK

, then press <Enter>.

Insert Driver Disk

Insert your driver disk into /dev/fd0 and press “OK” to continue.

OK Back

The drivers for the RAID card are installed to the system.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 7-5

5. When asked if you will load additional RAID controller drivers, select No, then press

<Enter>.

More Driver Disks?

Do you wish to load any more driver disks?

Yes No

6. Follow the onscreen instructions to finish the OS installation.

7. When the installation is completed, DO NOT click Reboot. Press <Ctrl> + <Alt> +

<F2> to switch to the command-line interface from graphic user interface.

8. Type the following commands when using a Legacy floppy.

mkdir /mnt/driver mount /dev/fd0 /mnt/driver cd /mnt/driver sh replace_ahci.sh reboot

7-6 Chapter 7: Driver Installation

Red Hat

®

Enterprise Linux OS 6.x

To install the LSI MegaRAID controller driver when installing Red Hat

®

Enterprise OS:

1. Boot the system from the Red Hat

®

OS installation CD.

2. Press <Tab> to edit options.

3. While booting from DVD, press <ESC> to give the third party driver. Enter the following command at the boot:

Linux dd blacklist=isci blacklist=ahci nodmraid, then press <ENTER>.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 7-7

4. Select Yes using the <Tab> key when asked if you have the driver disk, then press

<Enter>.

Main Menu

Do you have a driver disk?

Yes No

5 . You have multiple devices which could serve as source for a driver disk. Choose one you like to use and select OK, then press <Enter>.

Driver Disk Sou8rce

You have multiple devices which could

serve as source for a driver disk.

Which would you like to use?

sdc sdd sdb sr0

OK Cancel

7-8 Chapter 7: Driver Installation

6. Insert the Red Hat

®

Enterprise RAID driver disk to the USB floppy disk drive, select

OK

, then press <Enter>.

Insert Driver Disk

Insert your driver disk into /dev/sdb and press “OK” to continue.

OK Back

The drivers for the RAID card are installed to the system.

7. When asked if you will load additional RAID controller drivers, select No, then press

<Enter>.

More Driver Disks?

Do you wish to load any more driver disks?

Yes No

8. Follow the onscreen instructions to finish the OS installation.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 7-9

7-10

Preparing the Linux Driver

Ensure that there is another computer with a Linux-based OS to create the RAID driver.

When creating the RAID driver, you may refer to the examples below which uses a 64bit

SUSE Linux system to create a 64bit RAID driver for SUSE11 sp1.

1. Copy the image file into the Linux system.

Example:

megasr-15.00.0120.2012-1-sles11-ga-x86_64.img

2. Create a folder.

3. Mount the image file into the image folder using this command format:

mount -oloop [image file name] image mount -oloop megasr-15-15.00.0120.2012-1-sles11ga-x86__64.img image

4. Copy the contents of the image directory, labeled as 01, into a FAT32 USB drive.

5. Rename the 01 folder to CD Image.

Chapter 7: Driver Installation

Installing SUSE 11 Linux OS

To install the LSI MegaRAID controller driver when installing SUSE Linux Enterprise Server

OS:

1. Boot the system from the SUSE OS installation CD.

2. Use the arrow keys to select Installation from the Boot Options menu.

3. Press <F6>, then select Yes from the menu. Press <Enter>.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 7-11

4. Use the USB drive to provide the third-party driver during the OS installation. Type the command brokenmodules=ahci in Boot Options field, and press <Enter>.

7-12

5. When below screen appears, select the USB floppy disk drive (sda) as the driver update medium. Select OK, then press <Enter>.

Please choose the Driver Update medium.

sda: USB Floppy other device

OK

Back

6. Select and follow the onscreen instructions to finish the installation.

Chapter 7: Driver Installation

7.2 Software drivers and utilities installation

The support DVD bundled with your motherboard contains the user guide of your motherboard, drivers, management applications, and utilities that you can install to maximize the features of your motherboard.

1. The contents of the support DVD are subject to change at any time without notice.

Visit the ASUS website (www.asus.com) for the latest updates on software and utilities.

2. The support DVD is supported on Windows ® and Windows

®

Server 2012 R2.

Server 2008 R2, Windows ® Server 2012,

7.3 Running the Support DVD

When you place the support DVD into the optical drive, the DVD automatically displays the main screen if Autorun is enabled in your computer.

If Autorun is NOT enabled in your computer, browse the contents of the support DVD to locate the file ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run the support DVD.

By default, the Drivers menu is displayed on the main screen. The other menus on the main screen includes Utilities, Make Disk, Manual, and Contact. These menus are further explained on the succeeding section.

7.3.1 Drivers menu

The Drivers menu shows the available device drivers if the system detects installed devices.

Install the necessary drivers to activate the devices.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 7-13

7.3.2 Utilities menu

The Utilities menu displays the software applications and utilities that the motherboard supports.

7.3.3 Make Disk menu

The MakeDisk menu contains items to create the Intel RAID driver disks.

Press the arrow down button in the lower left part of the menu to view more items.

7-14 Chapter 7: Driver Installation

7.3.4 Manual menu

The Manual menu provides lists of available user guides or manuals for your motherboard.

Content may vary depending on motherboard model.

7.3.5 Contact information menu

The Contact menu displays ASUS contact information, e-mail addresses, and useful links if you seek for more information or in need of technical support.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 7-15

7.4 Installing the drivers and utilities

This section provides instructions and guidelines on how to install the required drivers, management applications, and optional utilities from the support DVD.

7.4.1 Using the ASUS InstAll application

This sections describes how to install the drivers and utilities using ASUS InstAll, an ASUS exclusive installation wizard that allows you to conveniently install the drivers and utilities with just a few steps.

To install drivers and utilities using ASUS InstAll:

1. Restart the computer, and then log on with Administrator privileges.

2. Insert the motherboard/system support DVD into the optical drive. The support DVD automatically displays the Drivers menu if Autorun is enabled in your computer.

If Autorun is NOT enabled in your computer, browse the contents of the support DVD to locate the file ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run the support DVD.

3. From the Drivers tab, click ASUS InstAll Drivers Installation Wizard.

7-16 Chapter 7: Driver Installation

4. Tick

(recommended)

then click OK to open the main ASUS InstAll screen

Tick Customize the installation of drivers or Install drivers only if you want to install selected drivers or utilities. When you select either of these two options, you need to specify the drivers or utilities you want to install.

5. From the following screen, click OK to start the installation.

The installation process may take a while. Depending on the number of drivers or applications being installed, you may also be required to restart and log-in to the system several times.

If you do not move the cursor of the mouse to the progress bar, the information shown on the display area may appear differently from the information shown below.

display area progress bar

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 7-17

6. Click to complete the installation.

7.4.2 Installing a driver or utility

This section describes the steps on how to install a particular driver or utility from the support DVD.

To install a driver or utility:

1. Restart the computer, and then log on with Administrator privileges.

2. Insert the motherboard/system support DVD into the optical drive. The support DVD automatically displays the Drivers menu if Autorun is enabled in your computer.

If Autorun is NOT enabled in your computer, browse the contents of the support DVD to locate the file ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run the support DVD.

3. From the Drivers tab, select the driver that you want to install.

7-18

list of available drivers for your system

Chapter 7: Driver Installation

The following table shows the component or device and its corresponding driver on the support DVD that you need to install.

Component / device

1. Intel chipset

2. VGA card

3. USB Controllers

4. Audio

Installer on the support DVD

• Intel Chipset Device Software

• Intel I350-AM4 / I350-AM2 / I210 / X540-

BT2 Gigabit Adapters Drivers

• Intel C610 MEI Null HECI Driver

• Intel(R) C610 series Chipset sSATA AHCI

Controller Driver

ASPEED AST2300 / AST2400 Display Driver

ASMedia ASM1042 / ASM1142 USB 3.0 Host

Controller Driver

Realtek High Definition Audio Driver

4. Follow onscreen instructions to complete the installation.

5. Restart the system.

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 7-19

7.5 Running the utilities

This section provides information about the utilities bundled with your motherboard. This section also includes detailed steps on how to launch and use the utilities after installing them.

7.5.1 USB Charger+

USB Charger+ allows you to quick-charge your portable USB devices even if your computer is off, in sleep mode or hibernate mode.

Ensure to connect your USB device into the USB port that supports this utility. Refer to section Rear I/O connection of your user guide for more details.

• The USB Charger+ does not support USB hubs and USB extension cables, and generic USB cables.

• The USB Charger+ may not recognize some ASUS devices due to a special design.

Launching USB Charger+

To launch USB Charger+, locate and double-click the USB Charger+ icon on your system.

USB Charger+ screen

Click to fast-charge your USB device

Indicates that the connected USB device is in charging mode

Click to detect the connected USB device

Click to stop charging your USB device

7-20

Click to discard the settings

Click to apply the settings

Click to select the type of USB device that you wish to charge when the system is off

Chapter 7: Driver Installation

Appendix

Appendix

This appendix includes additional information that you may refer to when configuring the motherboard.

Z10PE-D16 WS block diagram

A-2 Appendix

ASUS contact information

ASUSTeK COMPUTER INC.

Address

Telephone

Fax

E-mail

Web site

15 Li-Te Road, Peitou, Taipei, Taiwan 11259

+886-2-2894-3447

+886-2-2890-7798

[email protected]

http://www.asus.com

Technical Support

Telephone

Fax

Online Support

+86-21-38429911

+86-21-58668722 ext: 9101 http://support.asus.com/techserv/techserv.aspx

ASUSTeK COMPUTER INC. (Taiwan)

Address

Telephone

Fax

E-mail

Web site

15 Li-Te Road, Peitou, Taipei, Taiwan 11259

+886-2-2894-3447

+886-2-2890-7798

[email protected]

http://www.asus.com.tw

Technical Support

Telephone

Online Support

+886-2-2894-3447 (0800-093-456) http://support.asus.com/techserv/techserv.aspx

ASUSTeK COMPUTER INC. (China)

Address

Telephone

Fax

Web site

No.508, Chundong Road, Xinzhuang Industrial Zone,

Minhang District, Shanghai, China.

+86-21-5442-1616

+86-21-5442-0099 http://www.asus.com.cn

Technical Support

Telephone

Online Support

400-620-6655 http://support.asus.com/techserv/techserv.aspx

ASUS TS700-E8-PS4 V2, TS700-E8-RS8 V2 A-3
