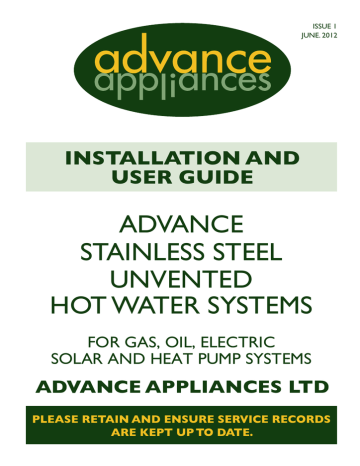

ADVANCE STAINLESS STEEL UNVENTED HOT WATER SYSTEMS

ADVANCE STAINLESS STEEL UNVENTED HOT WATER SYSTEMS

ISSUE 1

JUNE. 2012

INSTALLATION AND

USER GUIDE

ADVANCE

STAINLESS STEEL

UNVENTED

HOT WATER SYSTEMS

FOR GAS, OIL, ELECTRIC

SOLAR AND HEAT PUMP SYSTEMS

ADVANCE APPLIANCES LTD

PLEASE RETAIN AND ENSURE SERVICE RECORDS

ARE KEPT UP TO DATE.

1. Introduction

The Advance unvented water heater is a high quality stainless steel unvented cylinder to provide hot water from a cold mains water supply of between 3 bar and 16 bar.

Reduced performance is available at lower pressures although the units are not suitable for pressures lower than 1.5 bar and a flow rate of less than 20 litres per minute. The indirect heat exchange surfaces are designed to provide a rapid heat up time. The unit comes complete with all the necessary safety equipment to comply with legislation governing the installation of such systems. The Advance solar unvented water heater has been designed for use with all solar panels and for heat pump systems a special range is available.

1.1

Specifiers Guide

The Law & Unvented

It is legal to fit an unvented unit intoany property, UK water byelaws were amended to allow this change. There is no longer a requirement to have an old-fashioned

‘Tank in the Roof’ system.

The Benefits of Unvented

The Benefits of Unvented

Systems

• A real Power Shower without the noisy pump

• No tanks in the roof

No ball cocks to jam or leak

Annual inspection as per warranty

• Duplex stainless steel

• All your water, hot and cold, is direct from the mains

• Site the Advance unvented water heater wherever convenient

• High quality finish

Low heat loss for maximum economy

• No sacrificial anode - low maintenance

The Advance fills your bath in minutes and will run two at the same time

(subject to good plumbing and flow rates)

• The Advance can work with electricity alternative energy systems and conventional gas/oil boilers.

ADVANCE Solar

The Advance solar range is available models.

Each cylinder has been specifically designed for use with an solar energy heating system and includes a large corrugated coil that provides optimum heat transfer.

The Advance solar unvented water heater should only be used as part of a solar installation and configured as shown.

Additional safety devices may be required if the cylinder is operated with other heat sources.

Special heat pump cylinders are also available.

1.2

Standard Equipment

Before commencing installation check that all the components of your Advance unit are contained in the kit or fitted to the cylinder.

3kW Incoloy 825 heating element

- incorporating thermostat 70°C and re-setable safety

cut-out set at 80°C

Cold water control valve

- comprising line strainer, check valve & appropriate pressure reducing valve

Pressure relief valve

- with non-return valve set at 6 bar

Tundish

- 15mm x 22mm Female x Female

Temperature/Pressure relief valve

- set at 90 °C and 7 bar pressure (factory fitted)

Motorised valve (indirect units and twin coil heat pump cylinder only)

Cylinder thermostat

- maximum setting 85 °C

(factory fitted to indirect units only)

Thermal cut-out

- set to operate at 87°C +/-3°C (indirect units only)

Expansion vessel

- where required with capacity to suit vessel size

2. Installation Instructions

2.1

Installation

WARNING: UNDER NO CIRCUMSTANCES MUST THE FACTORY FITTED TEMPERATURE PRESSURE RELIEF

VALVE BE REMOVED. THIS WILL TOTALLY INVALIDATE ANY GUARANTEE OR CLAIM. THE COLD-WATER

INLET VALVE ASSEMBLY MUST BE FITTED OR THE ADVANCE UNIT WILL NOT PERFORM SATISFACTORILY.

DO NOT ATTEMPT TO VENT THE PRIMARY CIRCUIT THROUGH THE ADVANCE UNIT.

ALL BOILERS SHOULD BE INSTALLED TO MANUFACTURERS INSTRUCTIONS AND THE PRIMARY CIRCUIT

THROUGH THE ADVANCE UNIT MUST BE PUMPED.

Benchmark Checklist

Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the installation instructions supplied with the product and that you have signed it to say that you have received a full and

Storage & Handling

If the cylinder is not being installed immediately, it should remain in its carton with all pipe end protective

Connecting the Water Supply

minimum requirements for satisfactory operation. Below this the unit will still operate but you will not be able to run

85% of all UK homes have more than 2 bar pressure.

The mains supply must not exceed

16 bar. If it does a special pressure installer is legally required to complete a commissioning checklist as a means of complying with the appropriate Building

Pipework is not supplied.

All installations must be notified to Local

Area Building Control either directly or

• All pipework should be installed recommend 22mm mains cold water supply is used.

Consideration should be given to the routing of the discharge pipe and the location of the solar panel or alternative energy source.

A Building Regulations Compliance

Certificate will then be issued to the customer who should, on receipt, write the Notification Number on the

Benchmark Checklist .

• Install a Stop Cock Valve before the cold water inlet assembly on the incoming mains water supply so the

Drain Tap

Siting the Advance Unit

The unit can be placed anywhere convenient. Since it is connected directly to the mains water supply it is equally efficient on any floor – ground, first or second. Avoid areas that may be subject to frost. Try to keep pipe runs as short as possible for maximum economy, especially hot water discharge pipes running down from the

Advance unit.

Cold Water Valve

The combined cold water valve

(supplied) can be connected anywhere on the cold water mains prior to the unit. It can be located at a point near to where the mains supply enters the premises if this is more convenient.

When installing the cold water valve,

. 8 ensure that the arrow is pointing in the same direction as the mains water supply flow when connecting (see fig and 9).

A drain tap to drain the unit must be fitted to the cold-water inlet pipe between the Advance unit and the cold water valve assembly at it’s lowest level possible (see fig. 8 and 9).

Pipeworks to Taps

Ideally a 22mm pipe run should supply the outlets throughout the property with short lengths (max 1 metre) runs of 15mm going to baths, showers, and basin taps. Smaller bore pipe can be used to suit taps.

The unit can be fitted into a conventional airing cupboard and does

It MUST be accessible for maintenance.

The cold water balancing port, on the valve, allows you to connect the cold water mains to the rest of the property thus giving balanced pressure throughout. If this facility is not required

ALL ADVANCE UNITS MUST BE

STORED VERTICALLY FOR INDOOR

USE ONLY.

The water supply to the cylinder should be potable water direct from a public mains supply with any water treatment

Check Water Pressure &

Flow Rates

Advance suggest 1.5 bar pressure &

20 litres/minute flow rate to be the

Taps & Fittings

All taps and fittings incorporated into the unvented system should have a rated

Inlet Group

The inlet group will vary according to whether the vessel is fitted as internal or external expansion (see fig 7).

2.1

Installation (Continued)

Primary Circuit

The motorised valve supplied and the thermal cut-out (Hi limit stat) must compression fittings only).

fitted in the cold water inlet to facilitate

This is particularly easy to fit on the

Advance units; and is illustrated in

Operation of the cut-out

& motorised valve

is needed for all indirect models if secondary circulation is required and is fitted as per the illustration. A non-return

To comply with regulations and to prevent the temperature reaching 100°C the thermal cut-out supplied must be fitted.

valve (not supplied) must also be fitted to prevent backflow. A pump will be required to circulate the hot water (not

The thermal cut-out is wired in series to the cylinder thermostat. When the thermal cut-out senses an abnormal rise in temperature in the primary flow the electrical supply to the motorised valve will be cut, and the valve will be in the closed position. This will cut-off the primary water from the boiler to the

Primary Circuit

(ADVANCE Solar)

Advance solar cylinders are suitable for connecting to a solar collector system and, where a twin coil is present

(INDIRECT) to a gas or oil central

.

If this occurs it must be reset manually

If the thermal cut-out operates check

The cylinder should be installed in accordance with the solar installation instructions for connection to the primary flow and return.

Secondary Return

Secondary circuit connections MUST be made to the cylinder in accordance with be connected to solar installations containing a hydraulic station with two non-return valves (one in the flow to the

A drain cock (not supplied) should be

The Advance solar range must only

This will prevent thermal siphoning of the heat transfer fluid when the pump is switched off. Where two non-return valves are not present or hydraulic station is not used in the solar system, a second two-port valve must be installed into the flow of the solar coil

The Advance solar is supplied with one two-port motorised valve which should be connected in the flow to the auxiliary coil and wired to the upper twin

Solar Pump - the lower twin thermostat should be connected in line with the solar pump power supply.

The temperature and pressure relief valve (factory fitted) should not be removed from the cylinder or tampered with in any way. The valve is precalibrated to lift at 7 bar or 90°C and any attempt to adjust it will invalidate the warranty and could affect the safety

Advance Heat Pump Cylinders

Larger coils are fitted to Heat Pump

Cylinders to utilise the out put from low temperature devices.

(Fig 5) Secondary Return

IMPORTANT. IF A SECONDARY

CIRCULATION CIRCUIT IS INSTALLED

THEN A LARGER EXPANSION VESSEL

MAY BE REQUIRED TO HANDLE

THE INCREASE IN WATER VOLUME.

CALCULATE THE ADDITIONAL

WATER VOLUME AND CONTACT OUR

CUSTOMER SERVICES DEPARTMENT

REGARDING SUITABLE VESSEL SIZES.

NOTE - NOT SUITABLE

FOR USE WITH HEAT

PUMP CYLINDERS .

CONTACT ADVANCE

APPLIANCES FOR ADVICE

2.2 Recommended Installation Schematics

(Fig 6) External Expansion

1. Temperature & Pressure Relief Valve

2. Motorised Valve

3. Tundish

4. Expansion Valve

5. Expansion Vessel

6. Drain Valve

7. Check Valve

8. Balanced Pressure Cold Draw-off

9. Pressure Control Valve

10. Strainer

11. Isolating Valve

(Fig 7) Inlet Group External Expansion

2.3

Wiring Instructions

WARNING: ALL ELECTRICAL WIRING SHOULD BE CARRIED OUT BY A COMPETENT ELECTRICAL

CONTRACTOR AND MUST CONFORM TO THE LATEST IEE WIRING REGULATIONS. DO NOT SWITCH THE

POWER ON UNTIL THE UNIT HAS BEEN FILLED WITH WATER AND ALL WIRING HAS BEEN EARTHED.

(SEE FIG 8, 9 & 10)

(Fig. 8) 2 Port (Fig. 9) 3 Port

THE ABOVE SCHEMATIC MAY NOT BE SUITABLE FOR HEAT PUMP SYSTEMS

ALLWAYS CONSULT THE HEAT PUMP SUPPLIERS INSTALLATION ADVICE

Fitting Immersion Heaters

These are supplied as standard 3kW rating.

An ‘O’ ring is supplied as the seal and must be fitted against the flange of the element Take care not to cross

thread and DO NOT use any other type of seal.

As our heating element is Incoloy

825 and is fitted with a cut-out and thermostat for safety, a nonstandard 1¾" boss is fitted to the unit

Replacement elements can be obtained through your authorised service agent

If 6 kW immersion heaters are supplied always use contactors to switch the element as the thermostats are rated at only 3kW.

(Fig. 10)

IMPORTANT. ENSURE THAT THE

IMMERSION HEATER THERMOSTAT

IS SET TO 60°C.

2.3

Wiring Instructions (Continued)

Fitting the thermal Cut-Out

& Primary Connections

The motorised valve supplied and the thermal cut-out (Hi limit stat) must be fitted to the primary flow

(Use compression fittings only).

Operation of the cut-out and motorised valve; to comply with regulations and to prevent the temperature reaching 100°C the thermal cut-out supplied must be fitted.

Two Port Valve

The two port valve should be wired to the thermostat

(see Fig 8 or 9) depending on required configuration.

Connect the live supply to the thermal cut-out and connect the brown wire of the two port valve to terminal 2 on the thermosta. Earth and Neutral supplies can be connected directly to the valve.

The thermal cut-out is wired in series to the cylinder thermostat. When the thermal cut-out senses an abnormalrise in temperature in the primary flow the electrical supply to the motorised valve will be cut, and the valve will bein the closed position thus cutting off the primary water from the boiler to the indirect coil in the cylinder. If this occurs it must be reset manually.

The orange wire of the two port valve should be connected to the central heating boiler and the cylinder thermostat set to 60°C.

The power supply to the pump station should be connected via the lower valve.

If the thermal cut-out operates check the cylinder stat and or boiler stat.

2.4

Tundish

Tundish

The tundish supplied must be fitted so it is visible to the occupie. The discharge pipe must be 22mm copper pipe. Regulations do not permit more than

3 x 90 - degree bends between the Advance unit and the outflow. Between the temperature & pressure relief valve and the first 90-degree bend there must be a fall of at least 300mm. The fall of the pipework must be continuous and the pipe should terminate in the gully or be bent backwards onto an outside wall, in a place where discharge cannot be injurious to persons.

External Expansion Vessel

This smaller tank is connected to the cold-water inlet side of the vessel. Mount the tank according to separate manufacturers instructions provided with the External Expansion vessel (see Fig 7).

A suitable expansion vessel with a pre-charge pressure of 3.5 bar is supplied with the Advance solar.

If you need to site the Advance unit in the middle of the house your discharge pipe to the tundish can be as far away as 9m, which in most cases is enough to run the final discharge point. After 9m, increase the pipe size to a greater diameter than

22mm and accordingly for subsequent 9m lengths,

(Table 1).

The expansion vessel should be Tee’d off between the pressure relief valve and the cylinder

(see installation diagram) and should always be positioned with the entry point at the bottom

Installation should always be by means of a standard T connector ensuring no other valve is between this and the cylinder. Adjust the pressure to 3.5 bar.

2.4

Tundish (Continued)

Scale

In hard water areas lower water temperatures can result in less scale being deposited.

If a water softener is used it should be capable of flows of approximately. 50 lt/min, this will maintain maximum performance of the Advance unit. If no descaler or softener is used then the heating element(s) will need descaling periodically for maximum efficiency and to prevent damage.

(Fig. 11) Tundish Installation

IMPORTANT: Regular checks should be carried out to ensure that the expansion vessel is correctly pressurised to 3.5 bar at all times.

2.5

Discharge Pipework

G3 Requirement

that the hot water discharged from safety devices is safely conveyed to where it is visible but will not cause danger to persons in or about the building.’

G3 Guidance Section 3.5

The discharge pipe (D1) from the vessel up to and including tundish is generally supplied by the manufacturer of the hot the installation should include the discharge pipe(s) (D1) from the safety device(s). In either case the tundish should be vertical, located in the same place as the unvented hot water storage system and be fitted as close as possible to, and lower than, the safety device, with no more than 600mm of pipe between the valve outlet and the tundish

The discharge pipe (D2) should be made of:

a. metal; or

The discharge pipe (D2)

The discharge pipe (D2) from the tundish should:

a. have a vertical section of pipe at least 300mm long below the tundish before any elbows or bends in the pipework (see Fig. 12); and

b. be installed with a continuous fall of at least 1 in 200 thereafter.

b. other material that has been demonstrated to be capable of safely withstanding temperatures of the water discharged and is clearly and permanently marked to identify the product and performance standard

(e.g. as specified in the relevant part of BS 7291-1:2006 Thermostatic pipes and fittings for hot and cold water for domestic purposes and heating installations in buildings,

General Requirements).

2.5

Discharge Pipework (Continued)

Termination of Discharge Pipe Sizing

The discharge pipe (D2) from the undish should terminate in a safe place where there is no risk to persons in the vicinity of the discharge.

Examples of acceptable discharge arrangements are: a. to a trapped gully with the end of the pipe below a fixed grating and above the water seal; b. downward discharges at low level; i.e. up to 100mm above external surfaces such as car parks, hard standings, grassed areas etc. are acceptable providing that a wire cage or similar guard is positioned to prevent contact, whilst maintaining visibility; and, c. discharges at high level: e .g . into a metal hopper and metal downpipe with the end of the discharge pipe clearly visible or onto a roof capable of withstanding high temperature discharges of water and 3m from any plastic guttering system that would collect such discharges .

The discharge would consist of high temperature water and steam roofing felt and non-metallic rainwater goods may be damaged by such. Asphalt, discharges.

.

Worked Example of Discharge Pipe Sizing

The example below is for a G

1/2 temperature relief valve with a discharge pipe (D2) having 4 No elbows and length of 7m from the tundish to the point of discharge. From table 1:

(overleaf)

Maximum resistance allowed for a straight length of 22mm copper discharge pipe (D2) from G

1/2 the resistance for 4 No 22mm elbows at 0. 8m each = 3 .2m, therefore the permitted length equates to 5.8m. This is less than the actual length of 7m

Maximum resistance allowed for a straight length of 28mm pipe (D2) from a G

1 /2

temperature relief valve equates to 18m Subtract the resistance of 4 No

28mm elbows at 1m each = 4m .

Therefore the maximum permitted length equates to 14m As the actual length is 7m a 28mm (D2) copper pipe will be satisfactory.

(Fig. 12) Typical discharge pipe arrangement

IMPORTANT: The discharge will consist of scalding water and steam. Asphalt, roofing felt and non-metallic rainwater goods may be damaged by such discharges.

2.5

Discharge Pipework (Continued)

Valve Outlet Size

Minimum Size of Discharge

Pipe D1

Minimum Size of Discharge

Pipe D2

Minimum Resistance Allowed, expressed as a Length of Straight Pipe

(i.e no elbows or bends)

Resistance Created by each

Elbow or Bend

G1/2

G3/4

G1

15 mm

22 mm

28 mm

22mm

28mm

35mm

28mm

35mm

42mm

35mm

42mm

54mm

Up to 9m

Up to 18m

Up to 27m

Up to 9m

Up to 18m

Up to 27m

Up to 9m

Up to 18m

Up to 27m

1.4m

1.7m

1.4m

1.7m

2.3m

0.8m

1.0m

1.4m

1.0m

2.6

Commissioning a Newly

Installed Advance Cylinder

Fillin g

Check all connections for water tightness including any factory made connections such as the immersion heater and the temperature and pressure relief valve. The pressure in the expansion vessel should be checked to ensure it is 3 bar (45PSI).

The valve is of the car tyre (Schrader) type.

The hot tap furthest away from the

Advance Appliances should be opened

The system should be flushed before use. The remaining taps should be

Direct Units

The system must be fully filled and flushed before switching on the power to the immersion heaters and allowing the unit to heat up. The immersion heater is supplied preset at 55°C

Turning fully to + sets to approx 65°C

Indirect Units

Ensure the lever on the two port valve is set to the filling position and use the boiler manufacturers commissioning instructions to fill the primary circuit. programmer to Domestic Hot water

(DHW) and allow the unit to start to heat. Adjust the dial of the dual thermostat to between 55°C and 65°C as required.

2.6

Storage Temperature

A storage temperature of 60-65°C is normal for both direct and indirect water areas consideration should be given to reducing this to 55-60°C.

In many healthcare applications the guidance on Legionella control and safe water delivery temperatures will require storing the water at 60-65°C, distributing at 50-55°C and using thermostatic mixing valves to control the final temperature. For details consult the NHS estates guidance on

Storage at lower temperatures (for example with heat pump cylinders) will require thermal disinfection on a weekly or daily basis - please consult

WRAS guide lines.

Switch off electrical power

to the immersion heaters

and/or shut down the boiler.

Close the stopcock valve to

isolate the Advance unit.

Safety Checks

Any water coming from either the expansion relief valve or the temperature / pressure relief valve during heat up is indicative of a problem which needs to be identified and rectified. The temperature relief and expansion relief valves should be fully opened, one at a time then both together allowing as much water as possible to flow through the tundish .

Check that your discharge pipework is free from debris and is carrying the water away without spillage over the tundish and release the valves and

2.7

Fault Finding

Fault

No hot water

Water from hot taps is cold

Intermittent water discharge through tundish on warm-up

WARNING: Disconnect electrical supply before removing any electrical equipment cover.

Possible Cause

1. Mains supply off

2. Strainer blocked

3. Pressure reducing valve

(PRV) fittedthe wrong way

Remedy

1. Open stopcock

2. Turn water supply off, remove strainer and clean.

3. Re-fit with arrow pointing in direction of flow

1. Programmer set to heating only or not switched on for hot water

2. Central heating boiler malfunction

3. High limit thermostat has tripped

4. Pump malfunction

1. Expansion vessel has lost its charge pressure

1. Set programmer to call

2. Check boiler operation if faulty consult your boiler manufacturers instructions

3. Check and re-set

4. Check wiring and/or plumbing connections to pump

1. Turn off stopcock open a hot water tap check vessel charge pressure and recharge to 3 .5 bar

Continuous water discharge

1. Pressure reducing valve (PRV) not working

2. Expansion relief valve not seating correctly

3. Temperature and pressure relief valve not seating correctly

1. Check pressure from PRV if greater than 3.5 bar replace cartridge

2. Manually lift the valve once or twice to clear any debris from the seat otherwise replace valve

3. Manually lift the valve once or twice to clear any debris from the seat

Users Instructions

Your Advance unvented hot water duplex stainless cylinder has been designed to give many years of trouble free service and is made from hygienic electric immersion heater which heats the water to 60°C once pre-heating of the solar system is completed (Advance solar only) .

The flow temperature of the hot water can be set to your requirements on the immersion heater ideally 60°C. Higher temperatures can cause tripping of the high limit thermostat and introduces normal with unvented systems and

When you first fill a basin the water may sometimes appear milky This is due to very tiny air bubbles in the water which will clear very quickly.

When a hot tap is turned on there may be a short surge of water, this is quite

WARNING: IF COLD/WARM WATER EXITS FROM THE TEMPERATURE AND PRESSURE RELIEF VALVE (TPV) OR

FROM THE PRESSURE RELIEF VALVE (PRV) CALL YOUR INSTALLER OR THE ADVANCE CUSTOMER SERVICE

CENTRE. IF VERY HOT WATER EXITS FROM EITHER VALVE SWITCH OFF THE HEAT SOURCE IMMEDIATELY AND

ISOLATE THE ELECTRICITY SUPPLY TO THE CYLINDER AND SEPARATE HEAT SOURCE.

THE SOLAR SYSTEM IS CONFIGURED TO HEAT THE WATER TO ITS MAXIMUM ECONOMIC TEMPERATURE

WHICH MAY VARY WITH OUTSIDE TEMPERATURE AND WEATHER CONDITIONS. THE IMMERSION MAY BE

PROGRAMMED TO OPERATE DURING FIXED PERIODS OF THE DAY OR NIGHT.

IF THE HOT WATER RUNS COOL IT MAY BE NECESSARY TO MANUALLY SWITCH ON THE IMMERSION TO HEAT

THE WATER – PLEASE SEE THE RELEVANT INSTRUCTIONS FOR YOUR ALTERNATIVE ENERGY DEVICE.

3. Warranty

Advance guarantee the immersion(s) and controls for a period of 1 year from the date of purchase, excluding any failure caused by lime-scale, provided that they have been installed for their intended use by a competent person time of installation) EU standards and is not fed with water from a private source.

c) It had not been modified in any way .

In addition Advance guarantees the stainless steel inner hot water cylinder for a period of 25 years from the date of purchase against faulty material or manufacture provided that: a) The vessel has been installed by a competent person in accordance with this manual and all current regulations and codes of practice in place at the time of installation.

b) It has been used solely for the purpose of heating potable water that complies with current (at the d) It has not been subjected to excessive pressure or electrolytic action from dissimilar materials, or attack from any salt deposits.

e) It has been installed indoors in a frost-free environment..

f) The cylinder is connected to a public water supply maintained by a local water authority.

h) Chlorine water content must be less than 200 ppm.

i) Water with more than 200 ppm calcium carbonate is treated.

This warranty is not transferable and does not include claims due to frost or lime scale damage.

This guarantee does not cover a procedure of flushing the system not in accordance to the WRAS guidelines pertaining to B.S.6700.

Proof of purchase will be required against any claim. This guarantee does not affect your statutory rights.

4. Servicing & Maintenance

Servicing and maintenance should only be carried out by a competent unvented hot water installer or Advance authorised personnel.

Before any work whatsoever is carried out on the installation, it must be

Only use spare parts authorised by

Advance. The use of other parts will

This product should be serviced regularly to optimise it’s safety, efficiency should complete the relevant Service

Record on the Benchmark Checklist

Both the primary and secondary systems will contain very hot water that will scald, therefore care should be taken when opening any joints, seals or valves.

Spare parts

Expansion Vessel

Expansion Vessel Bracket

24 litre

19 litre

24 litre

19 litre

T&P valve 7bar 90°C

15 - 22mm straight tundish

3Kw Immersion heater

22mm pressure reducing valve kit

22mm 2-port motorised valve

Twin thermostat

MANUFACTURED TO BS EN 12897

COMPLIES WITH

BUILDING REGULATIONS

GB 10/80385

Advance Appliances Ltd

Unit 4, Coppice Side Industrial Estate

Brownhills, Walsall

West Midlands WS8 7EX

Tel: 01543 377723

Fax: 01543 360620

www.advanceappliances.co.uk

Advance-Installation:04:12

AUWHI-UK

UR

.

YO CT T A

Date

Date

VAL RECORD SHEET

, PLEASE CON ED ET PL

RVICE INTER

OM

ure nat

N C

Sig

EE E B AV

8

e e

E 1

am

Nam

No.

ts y N rs ee an

VIC

o.

al en

ER

N T el

S

Engin

Comp

ID Seri

Comm ure nat Sig

7

e e

E 1

am

Nam

No.

ts en al y N an rs

VIC

ee o.

ER

N T el

S

Engin

Comp

ID Seri

Comm ure nat Sig

N ADDITIONAL SE A

VE SERVICE H

Date

Date

BO A HE F T L O

RVICE ENGINEER FOR

AL

SE

EN

ure nat

WH

Sig

15

o.

N o.

N T el

ID Serial

Company Name

Comments ure nat Sig

SERVICE

Engineers Name o.

N o.

N T el

ID Serial

Comments

Company Name ure nat Sig

SERVICE 14

Engineers Name nce ave

Date plia u h yo om re n c nsu d i an

e ase ns le io

, p uct

6

No.

ts en al e e am

E 1

str elow ce.

in

b cti

’s rd pra

Nam

IC

o.

N y N an rs ee

ERV

rer eco of tu l R es fac rva od

OVIDER

S

Engin

Comp

T el

ID Seri

Comm manu nte t c e I evan ce rvi se

.

ur yo elow b hat rd d t an eco ly l R lar rva egu te In d r ce ice rvi erv

Se s s

VAL RECORD

ate pri pro rvic Se

RVICE PR

ate pri

SE

our heating system i

RVICE INTER

with all the rel

Date pro ap he rvice as described in the g t tin le mp

SE

engineer completes the ap o.

N o.

N T el

ID Serial

Company Name

Comments

It is recommended that y

co ried out the se fore car

Be

SERVICE 13

Engineers Name

UR

.

YO CT T A

AL RECORD SHEET

Date

VICE INTERV

, PLEASE CON

ER

ure nat Sig

L S NA IO IT

AVE BEEN COMPLETED

DD N A A

VE SERVICE H

2

e e

E 1

am

Nam

IC

No.

ts en al y N rs ee an o.

ERV

N T el

S

Engin

Comp

ID Seri

Comm ure nat Sig

Date

BO A HE F T L O

RVICE ENGINEER FOR

AL

SE

EN

ure nat

WH

Sig o.

N o.

N T el

ID Serial

Company Name

Comments ure nat Sig

SERVICE 9

Engineers Name

Date

1

e e

E 1

am

Nam

IC

No.

ts en al y N rs ee an o.

ERV

N T el

S

Engin

Comp

ID Seri

Comm ure nat Sig

Date nce ave

Date plia u h yo om re n c nsu d i an

e ase ns le io

, p uct

0

No.

ts en al o.

N e e am

E 1

str elow ce.

in

b cti

’s rd pra

Nam

IC

y N an rs ee

ERV

rer eco of tu l R es fac rva od

OVIDER

S

Engin

Comp

T el

ID Seri

Comm manu nte t c e I evan ce rvi se

.

ur yo elow b hat rd d t an eco ly l R lar rva egu te In d r ce ice rvi erv

Se s s

VAL RECORD

ate pri pro rvic Se

RVICE PR

ate pri

SE

our heating system i

RVICE INTER

with all the rel

Date pro ap he rvice as described in the g t tin le mp

SE

engineer completes the ap o.

N o.

N T el

ID Serial

Comments

Company Name

It is recommended that y

co ried out the se fore car

Be

SERVICE 7

Engineers Name

Engineers Name o.

N o.

N T el

ID Serial

Company Name

Comments ure nat Sig

SERVICE 8

UR

T .

YO CT T A

Date

VAL RECORD SHEE

, PLEASE CON

RVICE INTER

ure nat Sig e e

E 6

am

Nam

IC

No.

ts en al y N rs ee an o.

ERV

N T el

S

Engin

Comp

ID Seri

Comm ure nat Sig

AVE BEEN COMPLETED

N ADDITIONAL SE A

VE SERVICE H

Date

BO A HE F T L O

RVICE ENGINEER FOR

AL

SE

EN

ure nat

WH

Sig e Nam o.

N o.

N T el

ID Serial

Comments

Company Name rs ee Engin

SERVICE 3

ure nat Sig

Date e e

E 5

am

Nam

IC

No.

ts en al y N rs ee an o.

ERV

N T el

S

Engin

Comp

ID Seri

Comm ure nat Sig

Date e Nam o.

N o.

N T el

ID Serial

Company Name

Comments rs ee Engin

SERVICE 2

ure nat Sig nce ave plia u h yo om re

Date n c nsu d i

e an ase ns le io

, p e.

uct ts en

No.

al e e am

E 4

str elow in

b tic

’s rd rac

IC

Nam y N an rs f p rer eco s o tu

R ee o.

ERV

N de fac val

OVIDER

S

Engin

Comp

T el

ID Seri

Comm co anu nt e m eva

th rvice Inter

in ed

Se

RVICE PR

ib ate scr pri

SE

de pro with all the rel ce rvi se

.

ur yo elow b hat rd d t an eco ly l R lar rva egu te In d r ce ice rvi erv

Se s s

VAL RECORD

ate m i pri te pro sys ng ati he ur yo

RVICE INTER

Date

ap he ervice as g t e s tin th le ut mp at

SE

th ed nd me engineer completes the ap e o.

om

Nam

N rs ee d o

co ie fore o.

N T el

It is rec carr

Be

SERVICE 1

Engin

Company Name

ID Serial

Comments

T AILS

or unvented systems etc) applicable f AILS (Where

.

REG No.

REGISTRA TION DET

TEL No.

ID SERIAL No. etc

S AIL ET R D EE GIN COMMISSIONING EN

or unvented systems etc) applicable f AILS (Where

.

REG No.

REGISTRA TION DET

TEL No.

ID SERIAL No. etc

ADDRESS

NAME

ADDRESS

NAME

R DET AILS INST ALLE

TEL No.

ADDRESS

NAME

AILS CUSTOMER DET

INST ALLER & COMMISSIONING ENGINEER DE

R A B

No

No

°

C

No

No

No

No

R A B

No

No

No

No

TURE:

Y es

Y es

Y es

Y es

Y es

Y es

Y es

Y es

Y es

Y es

OCEDURE INFORMA TION

.

O N A I R E S

L E D O M

ALLA TION

KS?

EA L ND A

?

?

ER LD HO SE OU H HE

S CT DU

NLY S O EM ST

AL SAFETY

GENERAL INST

THE HOUSEHOLDER?

AILS

TIGHTNESS

E R T I L ( Y A C P

R E R U T C A F U N A M

A C

HAS THE CHECK BEEN DONE FOR JOINT

HAS A CHECK BEEN DONE FOR ELECTRIC

APPLIANCE DET AILS /

TURE

WITH T STEMS LITERA TURE BEEN LEFT

STEM BEEN EXPLAINED TO

ALL PRO

VESSEL OR INTERNAL

T AT SETTING ?

THE CYLINDER THERMOS A T IS

TION DEBRIS ?

E R U

TESTED ?

ES L V VA ON

E R

VE) ?

NSI

A TED ?

G N

T VAL

A R E P O S I T A H

RV SETTINGS) ?

(P

W

(NORMALL Y 2 POR

WHERE IS PRV SITU

IS PRIMAR Y ENERGY CUT OUT FITTED

FITTED AND DISCHARGE

XPA E ND A &P E T AR

OF INST ALLA

HAS EXPANSION

AIR GAP BEEN CHECKED ?

WH

UNVENTED SY

E ?

YP T T

E IC EV D NT

HA

TION DEBRIS ?

N W

ME

HE T VE BO O A S T YE IF

A T RE T ER A T W S A HA

BEEN FITTED ?

OF INST ALLA

? E R U E R P R E T A W D L O C G N I M O C N I S I T A H W

CUSTOMER DET

COMMISSIONING PR

HAS STRAINER (IF FITTED) BEEN CLEANED

HAS STRAINER (IF FITTED) BEEN CLEANED

HAS THE SY

HAS THE SY

ENGINEERS SIGNA TURE

CUSTOMERS SIGNA

ENGINEERS SIGNA

EX 8 7 WS s nd la Mid st We

D.

all,

es

als

LT

3

ES

nc

0

72

, W ills

NC

62 60

77

plia

nh

ap

3 3

3 3

LIA

ow

ce

54

PP

54

an

01

,Br

01

te

E A

dv

l:

sta

Fax:

T e

NC

l E

wwwa

ria

VA

ust

AD

nd e I id e S

NIT

.

U

E.

HTS IG R RY

HIS

R’S

NTE

RE

E T

RA

TU

VIC

UA

AC

ER

UF

S

E G

TO TU

TH

AN

ND

E M

N A

ATE

TH

LID VA

SIO

ITH

MIS

IN AY

E W

OM

NC

C

M

DA

LL,

NS

OR

STA

TIO

THIS DOES NOT AFFECT YOUR STA

CC

IN

UC

A

TO

STR

IN

RE

IN

ILU FA

NT RTA PO IM

Unit 4, Coppic

k oo B og e L ic rv Se

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
