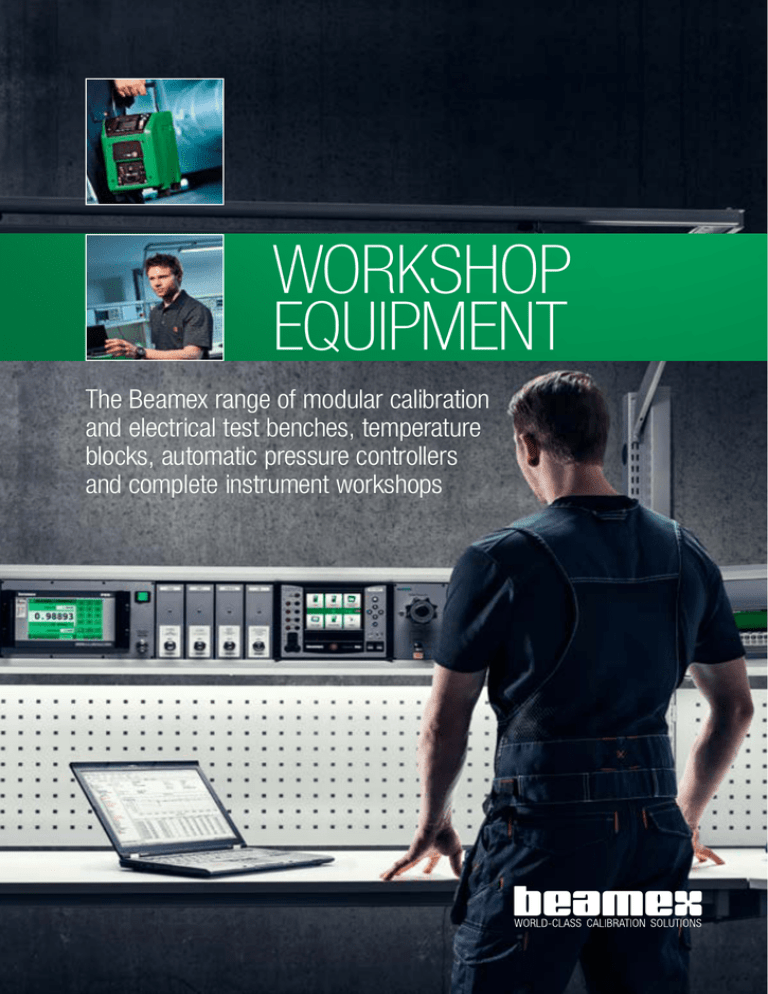

WORKSHOP

EQUIPMENT

The Beamex range of modular calibration and electrical test benches, temperature blocks, automatic pressure controllers and complete instrument workshops

Workshop equipment

Beamex is a technology and service company that develops, manufactures and markets high-quality calibration equipment, software, systems and services for the calibration and maintenance of process instruments. The company is a leading worldwide provider of integrated calibration solutions that meet even the most demanding requirements.

4

Success stories

10,000 companies worldwide use Beamex calibration solutions.

Now you can read some of these success stories.

© 2015 Beamex Oy Ab. All rights reserved. Beamex is a trademark of Beamex Oy Ab.

All other trademarks are the property of their respective owners.

6

Solutions

Beamex solutions for paperless calibration as well as configuration and calibration of smart instruments.

13

MCS200 modular test and calibration system

Beamex MCS200 is a modular test and calibration system for workshops and laboratories. MCS200 offers efficient and ergonomic facilities for the maintenance of process instruments.

WORKSHOP EQUIPMENT | CONTENTS

20

MC6

Workstation

Beamex MC6 communicates with the pressure measurement modules, automatic pressure controllers, temperature blocks and calibration management software.

31

MB

metrology temperature block

Beamex MB metrology temperature block is a portable temperature dry block delivering bath-level accuracy for industrial applications.

3

37

FB

field temperature block

Beamex FB field temperature block is an ideal temperature block for industrial field use. Lightweight and easy to carry, Beamex FB is a fast-acting dry block which still provides excellent accuracy.

42

Smart reference probes

The Beamex smart reference probe is a high-quality and extremely stable PRT probe with an integrated memory that stores the individual sensor coefficients.

45

POC6

automatic pressure controller

Beamex POC6 is an accurate and user-friendly automatic pressure output controller, providing regulated output from vacuum to 100 bar

(1450 psi).

49

Complete instrument workshops

Beamex is a world-class specialist when it comes to supplying instrument and electrical workshop solutions for new industrial plants and for existing plants that are looking to modernize their workshops.

CONTENTS

| WORKSHOP EQUIPMENT

SUCCESS STORIES

4

OIL AND GAS INDUSTRY

Essar Oil Limited, India

Essar Oil Limited, part of Essar group, has a world-class

20-million tonne (405,000 barrels per day) refinery.

It currently yields 300,000 bpd at Vadinar in Gujarat, which is being progressively expanded to a capacity of 36 million tonnes

(750,000 bpd). It has the capacity to produce petrol and diesel suitable for use in India and advanced international markets.

Refining capacity will also include LPG, Naphtha, light diesel oil,

Aviation Turbine Fuel (ATF) and kerosene.

The Essar Oil Limited, Vadinar refinery site, has approximately

15,000 instruments that are calibrated periodically. All of the instruments are calibrated using secondary calibrators.

The Beamex test and calibration bench system is used to recalibrate all these secondary calibrators. In addition to calibration, the system also facilitates electrical and electronic repair and testing. A similar Beamex test and calibration bench system has also been purchased to the Essar Power Limited,

Salaya and Essar Power Limited, Mahan facilities.

Solution

• Beamex test and calibration bench system

– including HART option

– fully automatic pressure and temperature calibration

• Beamex CMX Professional calibration management software

• Beamex PG hand-pump kits

• Beamex professional services

Main benefits

• Extreme accuracy

• Centralized, server-based calibration management system

• Time savings due to automated pressure and temperature calibration capability

• Communication with temperature bath

• Reliable, user-friendly system

WORKSHOP EQUIPMENT | SUCCESS STORIES

READ COMPLETE CASE STORIES AT: WWW.BEAMEX.COM/CASESTORIES

AVIATION INDUSTRY

GKN Aerospace, UK

GKN Aerospace is one of the world’s largest independent first-tier suppliers to the global aviation industry using advanced manufacturing technologies to supply high-value, integrated assemblies in both metallic and composite materials, employing approximately 12,000 people in more than 30 facilities across four continents. GKN

Aerospace is a leader in wing technology, thanks to its continuous progress in manufacturing processes.

Calibrating process instruments is a function that helps maintain high quality standards in the manufacturing process. Calibration documentation plays a major role, as all calibration data must be documented until 10 years after the life of an aircraft.

With a calibration management system providing excellent calibrator communication, GKN Aerospace Filton is able to automate the pre-defined calibration procedures. In addition, calibration management software is used to produce dispatch sheets, position labels, work lists for each area and the weekly and monthly report sheets.

Solution

• Beamex calibration bench system

• CMX calibration management software

• Portable MC5 documenting multifunction calibrators

• Portable MC4 documenting process calibrators

• Accessories: calibration hand-pumps, etc.

Main benefits

• Ability to automate certain calibration procedures due to excellent communication between calibrators and calibration management software

• A calibration system that meets high standards

• Electronic storage of calibration data is easy and safe

SUCCESS STORIES

| WORKSHOP EQUIPMENT

5

6

SOLUTIONS

PAPERLESS

CALIBRATION

A paperless calibration system comprising documenting calibrators and calibration software improves quality and cuts costs.

The business benefits are significant for companies that use software-based calibration systems. The entire calibration process – from initial recording of calibration data to historical trend analysis – will take less time, while virtually eliminating mistakes and manual errors.

RELATED PRODUCTS

Beamex MC6 Workstation

Beamex MC6 calibrator

Beamex MC5-IS calibrator

Beamex MC4 calibrator

Beamex CMX Light calibration software

Beamex CMX Professional calibration software

Beamex CMX Enterprise calibration software

Beamex Business Bridge

WORKSHOP EQUIPMENT | SOLUTIONS

RELATED PRODUCTS

Traditional paper-based systems

While using a manual, paper-based system requires little or no investment in new technology or IT systems, it is extremely labor-intensive and means that historical trend analysis of calibration results becomes very difficult. In addition, accessing calibration data quickly is not easy. Paper systems are time consuming, they soak up lots of company resources and manual

(typing) errors are commonplace. Dual effort and the re-keying of calibration data into multiple databases become significant costs to the business.

Business benefits of paperless calibration

The business benefits of a paperless calibration system are significant. The entire calibration process – from initial recording of calibration data to historical trend analysis – will take less time, virtually eliminating mistakes and manual errors, which results in higher quality of gathered data. In turn, this means that operators, engineers and management will have more confidence in the data, particularly when it comes to plant audits. In addition, this greater confidence in calibration data leads to a better understanding and analysis of business performance and KPIs

(particularly if the calibration software is integrated into other business IT system, such as a CMMS) leading to improved processes, increased efficiency and reduced plant downtime.

SOLUTIONS

| WORKSHOP EQUIPMENT

7

STEP-BY-STEP

BEAMEX ICS INTEGRATED CALIBRATION SOLUTION

THE CALIBRATION PROCESS

8

1.

The Beamex CMX alerts what needs to be calibrated and when

• Easy, fast and efficient

• No need to search archived paper files

2.

Download calibration procedures and instructions from the software to the MC6

• Fast procedure

• No pen, paper or notepads needed

5.

Create, store and manage calibration information safely and efficiently with the software

• All calibration data is stored and managed in the

CMX database

• Calibration certificates, reports and labels in electronic format, on paper or both

• All documentation in the CMX is auditable and traceable (e.g. ISO 17025, cGMP, 21 CFR Part 11)

Integration to a maintenance management system

• Plant hierarchy and work orders are stored in ERP/CMMS (e.g. SAP, Maximo) and from there transferred to the CMX, which stores all calibration procedures, standards and results

• When calibration work has been performed, the

CMX sends acknowledgement of the calibration back to ERP/CMMS

WORKSHOP EQUIPMENT | SOLUTIONS

3.

Perform instrument calibration and data collection with the MC6

• The MC6 replaces many individual measurement devices and calibrators

• Automated calibration is fast

4.

Upload calibration results to the software

• Automatically download calibration results back to the software

• Data transfer is fast and efficient, writing mistakes are eliminated

9

SOLUTIONS

| WORKSHOP EQUIPMENT

SOLUTIONS

CALIBRATION AND

CONFIGURATION

OF SMART

INSTRUMENTS

10

Fieldbus is becoming more and more common in today’s instrumentation and fieldbus transmitters must also be calibrated.

The fieldbus functionality includes reading the digital output of the fieldbus transmitter, changing the configurations of transmitters and trimming of transmitters.

RELATED PRODUCTS

Beamex MC6 Workstation

Beamex MC6 calibrator

Beamex MC5-IS calibrator

WORKSHOP EQUIPMENT | SOLUTIONS

RELATED PRODUCTS

Fieldbus transmitters must also be calibrated

Are you aware that fieldbus transmitters need to be calibrated just like any other transmitters? The main difference between fieldbus and conventional transmitters is that the output signal is a fully digital fieldbus signal. Although modern fieldbus transmitters have been improved compared to older transmitter models, it does not eliminate the need for calibration. Major time-savings can also be achieved by using the MC6 HART and/or Fieldbus functionality to enter transmitter data into the MC6 memory where the data can then be populated to the CMX calibration software instead of manually entering the data into the calibration database.

There are no such instruments, neither digital nor analog, that would remain stable indefinitely. Therefore, the

“digitality” of an instrument does not mean that calibration is unnecessary. There are also many other reasons, such as quality systems and regulations, that make the periodic calibrations compulsory.

Beamex’s fieldbus calibration solution

Beamex offers two products for calibrating fieldbus transmitters: MC5-IS (intrinsically safe) and MC6.

The MC6 is a one-of-a-kind measurement device being an advanced calibrator and full multi-bus communicator. The

MC5-IS and MC6 can be used to calibrate HART,

FOUNDATION Fieldbus H1 and Profibus PA instruments.

SOLUTIONS

| WORKSHOP EQUIPMENT

11

12

MCS200

MODULAR CALIBR ATION SYSTEM

13

MCS200 is a modular test and calibration system for workshops and laboratories

14

MCS200 modular test a nd calibration system

MCS200 OffERS EffICIENT AND ERGONOMIC fACILITIES fOR PROCESS INSTRUMENT MAINTENANCE.

MULTIPLE APPLICATIONS fLExIBLE AND ERGONOMIC

MCS200 modular test and calibration system offers a solution for a large variety of applications, such as calibration of pressure, temperature and electrical signals; electrical tests and measurements; maintenance & testing of single and three-phase motors and other electronic devices; soldering and desoldering, educational use, etc.

The advanced design of the MCS200 table frame and module rack offers many advantages such as easier installation, height adjustable tabletop and module rack, dual panel possibility, 2 benches – 3 legs solution, LED lighting and movable accessories under the tabletop.

WORKSHOP EQUIPMENT | BEAMEx MCS200

MCS200 modular test a nd calibration system

15

VERSATILE ESD PROTECTED

The module rack hosts a great variety of modules including calibration modules, AC & DC power supplies, multimeters, function generators, oscilloscopes, etc. This makes the MCS200 test and calibration system ideal for both instrument and electrical workshops, as well as for laboratory use.

Electrostatic discharges cause problems to electrical components, e.g. in repair and production facilities. MCS200 is a safe choice for places where sensitive components are handled.

MCS200 test and calibration system and its accessories are supplied with an electrically semiconducting coat of paint. For full ESD protection, a semiconducting tabletop, ESD wrist straps, mats and grounding sets are available.

BEAMEx MCS200

| WORKSHOP EQUIPMENT

Built to meet your specific requirements

BEAMEx hAS VARIOUS SAMPLE LAYOUTS fOR INDUSTRY-SPECIfIC

AND APPLICATION-SPECIfIC MCS200 MODULAR TEST AND CALIBRATION SYSTEM

16

ExAMPLE WORKSTATIONS

1.

2.

3.

PRESSURE

CALIBRATION BENCh

Highly accurate pressure calibration facility for ranges from vacuum to 1000 bar.

APPLICATIONS

• Periodic calibration of process instruments, such as:

– Pressure transmitters, sensors, gauges, switches, recorders

– Differential pressure transmitters

– I/P converters

– HART, Profibus PA, FOUNDATION

Fieldbus instruments

TEMPERATURE

CALIBRATION BENCh

Efficient calibration of temperature and electrical instruments.

APPLICATIONS

• Periodic calibration of process instruments, such as:

– Temperature transmitters, sensors, indicators, switches, recorders

– Thermocouples and RTD’s

– Electrical limit switches

– Frequency meters, tachometers, pulse meters

– HART, Profibus PA, FOUNDATION

Fieldbus instruments

ELECTRICAL AND

ELECTRONIC REPAIR BENCh

ESD-protected facility for safe handling of PCBs and components.

APPLICATIONS

• Testing and maintenance of electrical and electronic devices

• Soldering and de-soldering of surface- mounted and traditional electronic components

WORKSHOP EQUIPMENT | BEAMEx MCS200

4.

5.

6.

hEAVY-DUTY

3- PhASE BENCh

Heavy-duty workbench for testing and maintenance.

CALIBRATION

TROLLEY

Movable trolley with accurate and versatile calibration modules.

APPLICATIONS

• Testing electrical equipment up to 16A, such as electrical motors, tools, extension cables, heaters and coolers

• Soldering and de-soldering

APPLICATIONS

• Periodic calibration of process instruments, such as:

– Pressure transmitters, sensors, gauges, switches, recorders, I/P converters

– Temperature transmitters, sensors, indicators, switches, recorders

– Thermocouples and RTD’s

– Electrical limit switches

– Frequency meters, tachometers, pulse meters

– HART, Profibus PA, FOUNDATION

Fieldbus instruments

MOTOR TESTING

TROLLEY

Functional tests of 3-phase electrical motors up to 100 kW

(without load).

APPLICATIONS

• Functional tests are necessary after repair, maintenance or longer storage of electrical motors

• Measurements during motor test run:

Temperature

– Rotation speed

– Overall vibration

– Bearing condition

• Voltage, current, frequency, etc.

BEAMEx MCS200

| WORKSHOP EQUIPMENT

17

Calibration modules

Beamex POC6 automatic pressure output modules

Beamex POC6 is an accurate and user-friendly automatic pressure controller, providing regulated output from vacuum to 100 bar (1450 psi). POC6 is designed for applications requiring automatic pressure testing and calibration.

Pressure measurement modules

The P (pressure measurement) modules ranging from −1 to 600 bar

(external modules up to 1000 bar) incorporate advanced pressure measurement technology resulting in only a few P modules being required to cover a wide pressure range with excellent levels of uncertainty. The low pressure measurement modules are provided with built-in relief valves for over pressure protection.

18

Pressure output modules

The PO (pressure output) modules are designed to regulate vacuum and pressure sources with high precision.

WORKSHOP EQUIPMENT | BEAMEx MCS200

Beamex MC6 Workstation host module

With its large color touchscreen the MC6 Workstation is the host module for temperature, electrical and pressure calibration. The MC6 communicates with the pressure measurement modules, automatic pressure controllers, temperature blocks and calibration management software.

19

BEAMEx MCS200

| WORKSHOP EQUIPMENT

20

Module specifications

BEAMEx MC6 WORKSTATION

ADVANCED WORKSTATION CALIBRATOR AND COMMUNICATOR

Beamex MC6 workstation is an advanced, high-accuracy calibrator and communicator. It offers calibration capabilities for pressure, temperature and various electrical signals. The MC6 also contains a full fieldbus communicator for HART,

FOUNDATION Fieldbus and Profibus PA instruments.

The usability and ease-of-use are among the main features of the MC6. It has a large 5.7" color touch-screen with a multilingual user interface.

The MC6 is one device with several different operation modes, which means that it is fast and easy to use. The operation modes are: meter, calibrator, documenting calibrator, data logger and fieldbus communicator.

MC6 communicates with automatic pressure controllers and temperature dry blocks enabling fully automatic calibration.

In addition, the MC6 communicates with Beamex CMX calibration software, enabling paperless calibration.

Summary of measurement, generation and simulation functions

• Pressure measurement

• Voltage measurement and generation

• Current measurement and generation

• Frequency measurement and generation

• Pulse counting and generation

• Switch state sensing

• Built-in 24 VDC loop supply

• Resistance measurement

(two simultaneous channels) and simulation

• RTD measurement (two simultaneous channels) and simulation

• TC measurement (two simultaneous channels) and simulation

• HART communicator

• FOUNDATION Fieldbus communicator

• Profibus PA communicator

WORKSHOP EQUIPMENT | BEAMEx MCS200

Module specifications

PRESSURE MEASUREMENT MODULES

The pressure modules ranging from −1 to 600 bar incorporate advanced pressure measurement technology resulting in only a few modules being required to cover a wide pressure range with excellent uncertainty.

The barometric module measures the ambient barometric pressure. When the barometric module is incorporated in the system, the ranges of all other pressure measurement modules can be displayed both in gauge and absolute pressure.

The read out from pressure modules is displayed in the MC6.

PRESSURE OUTPUT MODULES

The PO modules are designed to regulate vacuum and pressure sources with high precision. For pressures up to 20 bar (290 psi), a regulator in combination with an adjustable volume is used to help achieve the exact pressure. The high-pressure modules are provided with high-pressure regulators combined with ball valves for coarse adjustment and needle valves for fine adjustment. The pressure supply module PS7 provides a basic pressure supply for devices such as I/P, E/P, etc.

MODULE

PO8C

PO20

PO60

PO160

PO250

PS7

RANGE

–1 to 8 bar g / –14.5 to 116 psi

0 to 20 bar g / 0 to 290 psi

0 to 60 bar g / 0 to 870 psi

0 to 160 bar g / 0 to 2320 psi

0 to 250 bar g / 0 to 3625 psi

0 to 7 bar g / 0 to 100 psi

AUTOMATIC PRESSURE OUTPUT MODULES

Beamex POC6 is an accurate and user-friendly automatic pressure controller, providing regulated output from vacuum to 100 bar

(1450 psi). POC6 is designed for applications requiring automatic pressure testing and calibration. POC6 communicates with

Beamex MC6 calibration host module (optional). POC6 automatically regulates the pressure output signal according to commands from MC6, enabling fully automated calibration of pressure transmitters and other pressure instruments.

FEATURE

Output range

Precision

1 year uncertainty

SPECIFICATION

± 1 bar (±14.5 psi)

–1 to 6 bar (–14.5 to 87 psi)

–1 to 20 bar (–14.5 to 290 psi)

–1 to 70 bar (–14.5 to 1015 psi)

–1 to 100 bar (–14.5 to 1450 psi)

Special range within –1 to 100 bar (–14.5 to 1450 psi)

< 0.015% FS

< 0.025% FS

BEAMEx MCS200

| WORKSHOP EQUIPMENT

21

22

Specifications

MC6 WORKSTATION GENERAL SPECIfICATIONS

FEATURE

Display

Touch panel

Keyboard

Backlight

Weight

Dimensions

Battery type

Charging time

Charger supply

Battery operation

Operating temperature

Operating temperature while charging batteries

Storage temperature

Specifications valid

Humidity

Warmup time

Max. input voltage

Display update rate

Safety

EMC

Vibration

Max altitude

Warranty

VALUE

5.7” Diagonal 640 x 480 TFT LCD module

5-wire resistive touch screen

Membrane keyboard

LED backlight, adjustable brightness

5.5. kg (12 lb)

250 mm x 200 mm x 305 mm (W x H x D) (9.84 in x 7.87 in x 12.01 in)

(9.84 in x 7.87 in x 12.01 in)

Approximately 4 hours

100 … 240 VAC, 50–60 Hz

10 … 16 hours

−10 … 45 °C (14 … 113 °F)

0 … 30 °C (32 … 86 °F)

−20 … 60 °C (−4 … 113 °F)

−10 … 45 °C, unless other mentioned

0 … 80 % R.H. non condensing

Specifications valid after a 5 minute warmup period.

30 V AC, 60 V DC

3 readings/second

Directive 2006/95/EC, EN 61010-1:2001

Directive 2004/108/EC, EN 61326-1:2006

IEC 60068-2-64. Random, 2 g, 5 … 500 Hz

3,000 m (9,842 ft)

Warranty 3 Years. 1 year for battery pack. Warranty extension programs are also available.

MEASUREMENT, GENERATION AND SIMULATION fUNCTIONS

• Pressure measurement

(internal/external pressure modules)

• Voltage measurement (±1 V and −1 … 60 VDC)

• Current measurement (±100 mA)

(internal or external supply)

• Frequency measurement (0 … 50 kHz)

• Pulse counting (0 … 10 Mpulse)

• Switch state sensing (dry/wet switch)

• Built-in 24 VDC loop supply

(low impedance, HART impedance or

FF/PA impedance)

• Voltage generation ( ±1 V and −3 … 24 VDC)

• Current generation (0 … 55 mA)

(active/passive, i.e. Internal or external supply)

• Resistance measurement, two simultaneous channels (0 … 4 kΩ)

• Resistance simulation (0 … 4 kΩ)

• RTD measurement, two simultaneous channels

• RTD simulation

• TC measurement, two simultaneous channels

(universal connector/mini-plug)

• TC simulation

• Frequency generation (0 … 50 kHz)

• Pulse queue generation (0 … 10 Mpulse)

• HART communicator

• FOUNDATION Fieldbus communicator

• Profibus PA communicator

(Some of the above functions are optional)

WORKSHOP EQUIPMENT | BEAMEx MCS200

PRESSURE MEASUREMENT

PRESSURE

MODULE

UNIT RANGE

(3

PB

P10mD

P100m

P400mC

P1C

P2C

P6C

P20C

P60

P100

P160

P250

P600

EXT1000

MPa bar psi

MPa bar psi

MPa bar psi

MPa bar psi kPa bar psi kPa bar psi

MPa bar psi kPa bar psi kPa bar psi kPa mbar iwc kPa bar psi kPa a mbar a psi a kPa diff mbar diff iwc diff kPa mbar iwc

–100 to 2000

–1 to 20

–14.5 to 300

0 to 6000

0 to 60

0 to 900

0 to 10

0 to 100

0 to 1500

0 to 16

0 to 160

0 to 2400

0 to 25

0 to 250

0 to 3700

0 to 60

0 to 600

0 to 9000

0 to 100

0 to 1000

0 to 15000

70 to 120

700 to 1200

10.15 to 17.4

±1

±10

±4

0 to 10

0 to 100

0 to 40

±40

±400

±160

±100

±1

–14.5 to 15

–100 to 200

–1 to 2

–14.5 to 30

–100 to 600

–1 to 6

–14.5 to 90

RESOLUTION

0.0001

0.001

0.01

0.001

0.01

0.1

0.001

0.01

0.1

0.001

0.01

0.1

0.01

0.0001

0.001

0.1

0.001

0.01

0.0001

0.001

0.01

0.01

0.1

0.001

0.0001

0.001

0.001

0.0001

0.001

0.001

0.001

0.01

0.001

0.001

0.00001

0.0001

0.001

0.00001

0.0001

0.01

0.0001

0.001

ACCURACY

(1

(±)

0.3 mbar

0.05 % Span

0.015 % FS + 0.0125 % RDG

0.01 % FS + 0.0125 % RDG

0.007 % FS + 0.0125 % RDG

0.005 % FS + 0.01 % RDG

0.005 % FS + 0.01 % RDG

0.005 % FS + 0.01 % RDG

0.005 % FS + 0.0125 % RDG

0.005 % FS + 0.0125 % RDG

0.005 % FS + 0.0125 % RDG

0.007 % FS + 0.0125 % RDG

0.007 % FS + 0.01 % RDG

0.007 % FS + 0.01 % RDG

1 YEAR UNCERTAINTY (±)

(2

0.05 kPa

0.5 mbar

0.0073 psi

0.05 % Span + 0.1 % RDG

0.025 % FS + 0.025 % RDG

0.02 % FS + 0.025 % RDG

0.015 % FS + 0.025 % RDG

0.01 % FS + 0.025 % RDG

0.01 % FS + 0.025 % RDG

0.01 % FS + 0.025 % RDG

0.01 % FS + 0.025 % RDG

0.01 % FS + 0.025 % RDG

0.01 % FS + 0.025 % RDG

0.015 % FS + 0.025 % RDG

0.015 % FS + 0.025 % RDG

0.015 % FS + 0.025 % RDG

1) Accuracy includes hysteresis, nonlinearity and repeatability (k=2).

2)

Uncertainty includes hysteresis, nonlinearity, repeatability and typical long term stability for mentioned period (k=2).

3) Every internal/external gauge pressure module’s range may be displayed also in absolute pressure if the barometric module (PB or EXT B) is installed/connected.

Maximum number of installed pressure modules is 10 pcs.

Beamex EXT external pressure modules can also be used with MC6 Workstation.

OVER-PRESSURE PROTECTION

The pressure measurement modules from P100m to P6C are provided with internal safety valves for over-pressure protecti

on.

SUPPORTED PRESSURE UNITS

Pa, kPa, hPa, MPa, mbar, bar, gf/cm

2

, kgf/cm

2

, kgf/m

2

, kp/cm

2

, lbf/ft

2

, psi, at, torr, atm, ozf/in

2

, iwc, inH2O, ftH2O, mmH inHg, mmHg(0 °C), inHg(0 °C), mmH

(4 °C), cmH inH

2

2

O(60°F), cmH

2

O(4 °C), ftH

2

O, mH

O(60°F), mmH

2

O(68°F), cmH

2

O(60°F), ftH

2

2

O(68°F), ftH

2

2

O, cmH

2

O(68°F), mmH

O(4 °C), inH

2

O(4 °C).

Large number of user pressure units can be created.

2

O, mmHg, cmHg, mHg,

O(60°F), inH

2

2

O

O(68°F),

TEMPERATURE COEFFICIENT

<±0.001 % RDG/ °C outside 15–35 °C (59–95 °F).

P10mD / EXT10mD: < ±0.002 % Span/ °C outside 15–35 °C (59–95 °F)

MAX OVERPRESSURE

2 times the nominal pressure. Except following modules;

PB/EXTB: 1200 mbar abs (35.4 inHg abs). P10mD/EXT10mD: 200 mbar (80 iwc).

EXT600: 900 bar (13000 psi). EXT1000: 1000 bar (15000 Psi).

PRESSURE MEDIA

Modules up to P6C/EXT6C: dry clean air or other clean, inert, non-toxic, noncorrosive gases. Modules P20C/EXT20C and higher: clean, inert, non-toxic, non-corrosive gases or liquids.

WETTED PARTS

AISI316 stainless steel, Hastelloy, Nitrile rubber

PRESSURE CONNECTION

PB/EXTB: M5 (10/32") female.

P10mD/EXT10mD: Two M5 (10/32”) female threads with hose nipples included.

P100m/EXT100m to P20C/EXT20C: G1/8” (ISO228/1) female. A conical 1/8"

BSP male with 60° internal cone adapter included for Beamex hose set.

P60, P100, P160: G1/8" (ISO228/1) female.

EXT60 to EXT1000: G ¼" (ISO228/1) male.

BEAMEx MCS200

| WORKSHOP EQUIPMENT

23

24

TC MEASUREMENT & SIMULATION

TC1 measurement & simulation / TC2 measurement

TYPE RANGE (°C)

B

(3

R

(3

S

(3

E (3

J

(3

K (3

N

(3

T

(3

U

(5

L

(5

C

(6

G (7

D (6

0 … 1820

–50 … 1768

–50 … 1768

–270 … 1000

–210 … 1200

–270 … 1372

–270 … 1300

–270 … 400

–200 … 600

–200 … 900

0 … 2315

0 … 2315

0 … 2315

RANGE (°C)

–210 … –200

–200 … 0

0 … 1200

–270 … –200

–200 … 0

0 … 1000

1000 … 1372

–270 … –200

–200 …–100

–100 … 0

0 … 800

800 … 1300

–270 … –200

–200 … 0

0 … 400

0 … 200

200 … 500

500 … 800

800 … 1820

–50 … 0

0 … 150

150 … 400

400 … 1768

–50 … 0

0 … 100

100 … 300

300 … 1768

–270 … -200

–200 … 0

0 … 1000

–200 … 0

0 … 600

–200 … 0

0 … 900

0 … 1000

1000 … 2315

0 … 60

60 … 200

200 … 400

400 … 1500

1500 … 2315

0 … 140

140 … 1200

1200 … 2100

2100 … 2315

ACCURACY

(1

(8

1.5 °C

0.6 °C

0.4 °C

0.8 °C

0.6 °C

0.35 °C

0.3 °C

0.7 °C

0.6 °C

0.4 °C

0.35 °C

(8

0.05 °C + 0.04 % RDG

0.05 °C + 0.003 % RDG

(8

0.06 °C + 0.05 % RDG

0.06 °C + 0.003 % RDG

(8

0.08 °C + 0.07 % RDG

0.08 °C + 0.004 % RDG

0.012 % RDG

(8

0.15 % RDG

0.11 °C + 0.04 % RDG

0.11 °C

0.06 °C + 0.006 % RDG

(8

0.07 °C + 0.07 % RDG

0.07 °C

0.07 °C + 0.05 % RDG

0.07 °C

0.06 °C + 0.025 % RDG

0.06 °C + 0.002 % RDG

0.22 °C

0.018 % RDG

(8

0.9 °C

0.4 °C

0.2 °C

0.014 % RDG

0.3 °C

0.2 °C

0.016 % RDG

0.45 °C

Resolution 0.01 °C.

With internal reference junction please see separate specification.

Also other thermocouple types available as option, please contact Beamex.

1)

Accuracy includes hysteresis, nonlinearity and repeatability (k=2).

2) Uncertainty includes hysteresis, nonlinearity, repeatability and typical long term stability for mentioned period (k=2).

3)

IEC 584, NIST MN 175, BS 4937, ANSI MC96.1

4) ±0.007 % of thermovoltage + 4 µV

5)

DIN 43710

6) ASTM E 988 - 96

7)

ASTM E 1751 - 95e1

8) ±0.004 % of thermovoltage + 3 µV

Measurement input impedance

Simulation maximum load current

Simulation load effect

Supported units

Connector

> 10 MΩ

5 mA

< 5 μV/mA

°C, °F, Kelvin, °Ré, °Ra

TC1: Universal TC connector , TC2: TC Miniplug

1 YEAR UNCERTAINTY (±)

(2

(4

2.0 °C

0.8 °C

0.5 °C

1.0 °C

0.7 °C

0.45 °C

0.4 °C

0.9 °C

0.7 °C

0.55 °C

0.45 °C

(4

0.07 °C + 0.06 % RDG

0.07 °C + 0.005 % RDG

(4

0.08 °C + 0.06 % RDG

0.08 °C + 0.006 % RDG

(4

0.1 °C + 0.1 % RDG

0.1 °C + 0.007 % RDG

0.017 % RDG

(4

0.2 % RDG

0.15 °C + 0.05 % RDG

0.15 °C

0.07 °C + 0.01 % RDG

(4

0.1 °C + 0.1 % RDG

0.1 °C

0.1 °C + 0.07 % RDG

0.1 °C

0.08 °C + 0.04 % RDG

0.08 °C + 0.005 % RDG

0.3 °C

0.027 % RDG

(4

1.0 °C

0.5 °C

0.3 °C

0.02 % RDG

0.4 °C

0.3 °C

0.024 % RDG

0.65 °C

WORKSHOP EQUIPMENT | BEAMEx MCS200

RTD MEASUREMENT & SIMULATION

R1 & R2 measurement

SENSOR TYPE RANGE (°C)

Pt50(385)

Pt100(375)

Pt100(385)

Pt100(389)

Pt100(391)

Pt100(3926)

Pt100(3923)

Pt200(385)

Pt400(385)

Pt500(385)

Pt1000(385)

Ni100(618)

Ni120(672)

Cu10(427)

−200 … 850

–200 … 850

–200 … 600

–200 … 850

–200 … 850

–200 … 850

–200 … 850

–60 … 180

–80 … 260

–200 … 260

RANGE (°C)

–200 … 270

270 … 850

–200 … 0

0 … 850

–200 … 0

0 … 600

–200 … –80

–80 … 0

0 … 260

260 … 850

–200 … –100

–100 … 0

0 … 850

–200 … –120

–120 … –50

–50 … 0

0 … 850

−200 … −150

−150 … −50

−50 … 0

0 … 850

−60 … 0

0 … 180

−80 … 0

0 … 260

−200 … 260

ACCURACY

(1

0.025 °C

0.009 % RDG

0.011 °C

0.011 °C + 0.009 % RDG

0.011 °C

0.011 °C + 0.009 % RDG

0.007 °C

0.016 °C

0.016 °C + 0.009 % RDG

0.03 °C + 0.011 % RDG

0.007 °C

0.015 °C

0.026 °C + 0.01 % RDG

0.008 °C

0.013 °C

0.025 °C

0.025 °C + 0.01 % RDG

0.007 °C

0.018 °C

0.022 °C

0.022 °C + 0.01 % RDG

0.009 °C

0.009 °C + 0.005 % RDG

0.009 °C

0.009 °C + 0.005 % RDG

0.012 °C

1 YEAR UNCERTAINTY (±)

(2

0.03 °C

0.012 % RDG

0.015 °C

0.015 ° + 0.012 % RDG

0.015 °C

0.015 °C + 0.012 % RDG

0.01 °C

0.02 °C

0.02 °C + 0.012 % RDG

0.045 °C + 0.02 % RDG

0.01 °C

0.02 °C

0.045 °C + 0.019 % RDG

0.01 °C

0.02 °C

0.045 °C

0.045 °C + 0.019 % RDG

0.008 °C

0.03 °C

0.04 °C

0.04 °C + 0.019 % RDG

0.012 °C

0.012 °C + 0.006 % RDG

0.012 °C

0.012 °C + 0.006 % RDG

0.16 °C

R1 Simulation

SENSOR TYPE

Pt50(385)

RANGE (°C)

–200 … 850

RANGE (°C)

–200 … 270

270 … 850

ACCURACY (1

0.055 °C

0.035 °C + 0.008 % RDG

1 YEAR UNCERTAINTY (±) (2

0.11 °C

0.11 °C + 0.015 % RDG

Pt100(375)

Pt100(385)

Pt100(389)

Pt100(391)

Pt100(3926)

–200 … 850

–200 … 0

0 … 850

0.025 °C

0.025 °C + 0.007 % RDG

0.05 °C

0.05 °C + 0.014 % RDG

Pt100(3923)

Pt200(385)

Pt400(385)

Pt500(385)

Pt1000(385)

Ni100(618)

Ni120(672)

–200 … 600

–200 … 850

–200 … 850

–200 … 850

–200 … 850

–60 … 180

–80 … 260

–200 … 0

0 … 600

–200 …–80

–80 … 0

0 … 260

260 … 850

–200 … –100

–100 … 0

0 … 850

–200 … –120

–120 … –50

-50 … 0

0 … 850

–200 … –150

–150 … –50

–50 … 0

0 … 850

–60 … 0

0 … 180

–80 … 0

0 … 260

–200 … 260

0.025 °C

0.025 °C + 0.007 % RDG

0.012 °C

0.02 °C

0.02 °C + 0.006 % RDG

0.03 °C + 0.011 % RDG

0.01 °C

0.015 °C

0.027 °C + 0.01 % RDG

0.008 °C

0.012 °C

0.026 °C

0.026 °C + 0.01 % RDG

0.006 °C

0.017 °C

0.023 °C

0.023 °C + 0.01 % RDG

0.021 °C

0.019 °C

0.021 °C

0.019 °C

0.26 °C

0.05 °C

0.05 °C + 0.014 % RDG

0.025 °C

0.035 °C

0.04 °C + 0.011 % RDG

0.06 °C + 0.02 % RDG

0.015 °C

0.03 °C

0.05 °C + 0.019 % RDG

0.015 °C

0.025 °C

0.05 °C

0.05 °C + 0.019 % RDG

0.011 °C

0.03 °C

0.043 °C

0.043 °C + 0.019 % RDG

0.042 °C

0.037 °C + 0.001 % RDG

0.042 °C

0.037 °C + 0.001 % RDG

0.52 °C Cu10(427) –200 … 260

Resolution 0.001 °C.

For platinum sensors ITS-90 and Callendar van Dusen coefficients can be programmed. Also other RTD types available as option, please contact Beamex.

BEAMEx MCS200

| WORKSHOP EQUIPMENT

25

RTD Measurement current

4-wire connection

3-wire measurement

Max resistance excitation current

Min resistance excitation current

Simulation settling time with pulsed excitation current

Supported units

Pulsed, bi-directional 1 mA (0..500 Ω), 0.2 mA (>500 Ω)

Measurement specifications valid

Add 10 mΩ

5 mA (0 … 650 Ω). Iexc * Rsim < 3.25 V (650 … 4000 Ω)

> 0.2 mA (0 … 400 Ω). >0.1 mA (400 … 4000 Ω)

< 1 ms

°C, °F, Kelvin, °Ré, °Ra

Internal reference junction TC1 & TC2

RANGE (°C)

–10 … 45 °C

ACCURACY

(1

±0.10 °C

1 YEAR UNCERTAINTY

(2

±0.15 °C

26

Specifications valid in temperature range: 15 … 35 °C.

Temperature coefficient outside of 15 … 35 °C: ±0.005 °C/ °C.

Specifications assumes that calibrator has stabilized in environmental condition, being switched on, for minimum of 90 minutes. For a measurement or simulation done sooner than that, please add uncertainty of 0.15 °C.

In order to calculate the total uncertainty of thermocouple measurement or simulation with internal reference junction used, please add the relevant thermocouple uncertainty and the uncertainty together as a root sum of the squares.

VOLTAGE MEASUREMENT

IN (–1 … 60 V)

RANGE

–1.01 … 1 V

1 … 60.6 V

Input impedance

Supported units

RESOLUTION

0.001 mV

0.01 mV

ACCURACY

(1

3 µV + 0.003 % RDG

0.125 mV + 0.003 % RDG

> 2 MΩ

V, mV, µV

1 YEAR UNCERTAINTY

(2

5 µV + 0.006 % RDG

0.25 mV + 0.006 % RDG

TC1 & TC2 (–1 … 1 V)

RANGE

–1.01 … 1.01 V

Input impedance

Supported units

Connector

RESOLUTION

0.001 mV

ACCURACY

(1

3 µV + 0.004 % RDG

1 YEAR UNCERTAINTY

4 µV + 0.007 % RDG

> 10 MΩ

V, mV, µV

TC1: Universal TC connector , TC2: TC Miniplug

(2

1)

Accuracy includes hysteresis, nonlinearity and repeatability (k=2).

2) Uncertainty hysteresis, nonlinearity, repeatability and typical long term stability for mentioned period (k=2).

WORKSHOP EQUIPMENT | BEAMEx MCS200

VOLTAGE GENERATION

OUT (–3 … 24 V)

RANGE

–3 … 10 V

10 … 24 V

RESOLUTION

0.00001 V

0.0001 V

Maximum load current

Short circuit current

Load effect

Supported units

TC1 (-1 … 1 V)

RANGE

–1 … 1 V

Maximum load current

Load effect

Supported units

RESOLUTION

0.001 mV

CURRENT MEASUREMENT

IN (-100 … 100 mA)

RANGE

−25 … 25 mA

±(25 … 101 mA)

RESOLUTION

0.0001 mA

0.001 mA

Input impedance

Supported units

Loop supply

CURRENT GENERATION

OUT (0 … 55 mA)

RANGE

0 … 25 mA

25 … 55 mA

Internal loop supply

Max load impedance w. internal supply

Max external loop supply

Supported units

RESOLUTION

0.0001 mA

0.001 mA

ACCURACY

(1

0.05 mV + 0.004 % RDG

0.05 mV + 0.004 % RDG

10 mA

>100 mA

< 50 µV/mA

V, mV, µV

1 YEAR UNCERTAINTY

(2

0.1 mV + 0.007 % RDG

0.1 mV + 0.007 % RDG

ACCURACY

(1

3 µV + 0.004 % RDG

5 mA

< 5 µV/mA

V, mV, µV

1 YEAR UNCERTAINTY

(2

4 µV + 0.007 % RDG

ACCURACY

(1

0.75 µA + 0.0075 % RDG

0.75 µA + 0.0075 % RDG

1 YEAR UNCERTAINTY

1 µA + 0.01 % RDG

1 µA + 0.01 % RDG

< 10 Ω mA, µA

Internal 24 V ±10 % (max 55 mA), or external max 60 VDC

(2

ACCURACY

(1

0.75 µA + 0.0075 % RDG

1.5 µA + 0.0075 % RDG

1 YEAR UNCERTAINTY

1 µA + 0.01 % RDG

2 µA + 0.01 % RDG

24 V ±5 %. Max 55 mA.

24 V / (generated current). 1140 Ω @ 20 mA, 450 Ω @ 50 mA

60 VDC mA, µA

(2

1)

Accuracy includes hysteresis, nonlinearity and repeatability (k=2).

2) Uncertainty hysteresis, nonlinearity, repeatability and typical long term stability for mentioned period (k=2).

BEAMEx MCS200

| WORKSHOP EQUIPMENT

27

28

fREqUENCY MEASUREMENT

IN (0.0027 … 51000 Hz)

RANGE

0.0027 … 0.5 Hz

0.5 … 5 Hz

5 … 50 Hz

50 … 500 Hz

500 … 5000 Hz

5000 … 51000 Hz

RESOLUTION

0.000001 Hz

0.00001 Hz

0.0001 Hz

0.001 Hz

0.01 Hz

0.1 Hz

Input impedance

Supported units

Trigger level

Minimum signal amplitude

fREqUENCY GENERATION

OUT (0.0005 … 50000 Hz)

RANGE

0.0005 … 0.5 Hz

0.5 … 5 Hz

5 … 50 Hz

50 … 500 Hz

500 … 5000 Hz

5000 … 50000 Hz

Maximum load current

Vawe forms

Output amplitude positive square wave

Output amplitude symmetric square wave

Duty Cycle

Amplitude accuracy

Supported units

RESOLUTION

0.000001 Hz

0.00001 Hz

0.0001 Hz

0.001 Hz

0.01 Hz

0.1 Hz

ACCURACY

(1

0.000002 Hz + 0.001 % RDG

0.00002 Hz + 0.001 % RDG

0.0002 Hz + 0.001 % RDG

0.002 Hz + 0.001 % RDG

0.02 Hz + 0.001 % RDG

0.2 Hz + 0.001 % RDG

>1 MΩ

Hz, kHz, cph, cpm, 1/Hz(s), 1/kHz(ms), 1/MHz(µs)

Dry contact, wet contact -1 … 14 V

1.0 Vpp (<10kHz), 1.2 Vpp (10 … 50 kHz)

1 YEAR UNCERTAINTY

(2

0.000002 Hz + 0.002 % RDG

0.00002 Hz + 0.002 % RDG

0.0002 Hz + 0.002 % RDG

0.002 Hz + 0.002 % RDG

0.02 Hz + 0.002 % RDG

0.2 Hz + 0.002 % RDG

ACCURACY

(1

0.000002 Hz + 0.001 % RDG

0.00002 Hz + 0.001 % RDG

0.0002 Hz + 0.001 % RDG

0.002 Hz + 0.001 % RDG

0.02 Hz + 0.001 % RDG

0.2 Hz + 0.001 % RDG

10 mA

Positive square, symmetric square

0 … 24 Vpp

0 … 6 Vpp

1 … 99 %

< 5 % of amplitude

Hz, kHz, cph, cpm, 1/Hz(s), 1/kHz(ms), 1/MHz(µs)

1 YEAR UNCERTAINTY

(2

0.000002 Hz + 0.002 % RDG

0.00002 Hz + 0.002 % RDG

0.0002 Hz + 0.002 % RDG

0.002 Hz + 0.002 % RDG

0.02 Hz + 0.002 % RDG

0.2 Hz + 0.002 % RDG

PULSE COUNTING

IN (0 … 9 999 999 pulses)

Input impedance

Trigger level

Minimum signal amplitude

Max frequency

Trigger edge

>1 MΩ

Dry contact, wet contact -1 … 14 V

1 Vpp (< 10 kHz), 1.2 Vpp (10 … 50 kHz)

50 kHz

Rising, falling

1)

Accuracy includes hysteresis, nonlinearity and repeatability (k=2).

2)

Uncertainty hysteresis, nonlinearity, repeatability and typical long term stability for mentioned period (k=2).

WORKSHOP EQUIPMENT | BEAMEx MCS200

PULSE GENERATION

OUT (0 … 9 999 999 pulses)

Resolution

Maximum load current

Output amplitude positive pulse

Output amplitude symmetric pulse

Pulse frequency range

Duty cycle

RESISTANCE MEASUREMENT

R1 & R2 (0 … 4000 Ω)

RANGE

–1 … 100 Ω

100 … 110 Ω

110 … 150 Ω

150 … 300 Ω

300 … 400 Ω

400 … 4040 Ω

RESOLUTION

0.001 Ω

0.001 Ω

0.001 Ω

0.001 Ω

0.001 Ω

0.01 Ω

Measurement current

Supported units

4-wire connection

3-wire measurement

RESISTANCE SIMULATION

R1 (0 … 4000 Ω)

RANGE

0 … 100 Ω

100 … 400 Ω

400 … 4000 Ω

RESOLUTION

0.001 Ω

0.001 Ω

0.01 Ω

Max resistance excitation current

Min resistance excitation current

Settling time with pulsed exitation current

Supported units

1 pulse

10 mA

0 … 24 Vpp

0 … 6 Vpp

0.0005 … 10000 Hz

1 … 99 %

ACCURACY

(1

4.5 mΩ

0.0045 % RDG

0.005 % RDG

0.006 % RDG

0.007 % RDG

9 mΩ + 0.008 % RDG

1 YEAR UNCERTAINTY

6 mΩ

0.006 % RDG

0.007 % RDG

0.008 % RDG

0.009 % RDG

12 mΩ + 0.015 % RDG

Pulsed, bi-directional 1 mA (0..500 Ω), 0.2 mA (>500 Ω)

Ω, kΩ

Measurement specifications valid

Add 10 mΩ

(2

29

ACCURACY (1

10 mΩ

5 mΩ + 0.005 % RDG

10 mΩ + 0.008 % RDG

1 YEAR UNCERTAINTY

20 mΩ

10 mΩ + 0.01 % RDG

20 mΩ + 0.015 % RDG

5 mA (0 … 650 Ω). Iexc * Rsim < 3.25 V (650 … 4000 Ω)

> 0.2 mA (0 … 400 Ω). >0.1 mA (400 … 4000 Ω)

< 1ms

Ω, kΩ

(2

1) Accuracy includes hysteresis, nonlinearity and repeatability (k=2).

2)

Uncertainty hysteresis, nonlinearity, repeatability and typical long term stability for mentioned period (k=2).

BEAMEx MCS200

| WORKSHOP EQUIPMENT

30

Beamex MB

METROLOGY TEMPERATURE BLOCK

31

Portable temperature dry block delivering bath-level accuracy for industrial applications

32

Highly accurate temperature dry block

Portable temperature dry block delivering bath-level accuracy for industrial applications

The Beamex metrology temperature block (MB) is a user friendly and highly accurate temperature dry block. It delivers bath-level accuracy in a convenient dry block with temperature ranges from –45 °C ... + 700 °C (–49 °F ... 1,292 °F). It enables you to take laboratory-level accuracy with you out into the field.

Main features of MB

Part of the Beamex ICS integrated calibration solution

The MB temperature block communicates with MC6 Workstation enabling fully automatic temperature calibration.

High accuracy and stability

With a conventional dry block, you typically needed an external reference sensor if you wanted better accuracy. The Beamex MB has accurate internal temperature measurement and display accuracy up to ±0.1 °C, so you can get high accuracy even without an external reference sensor. With the unique temperature control techniques the Beamex MB has excellent stability up to

±0.005 °C. This kind of stability has usually been found only in baths, not in dry blocks.

Built-in high-accuracy reference input

In order to receive the best accuracy from the MB, there is a possibility to connect an external reference sensor into the reference sensor connection (R model). This eliminates the need for a separate reference thermometer. The reference sensor measurement is accurate up to ±0.006 °C. ITS-90 or CVD coefficients can be used to compensate any sensor errors.

Axial uniformity

With the unique dual zone control and extended well depth, the Beamex MB has an excellent axial uniformity up to ±0.02 °C.

Radial uniformity

Radial uniformity is the temperature difference between the holes in the insert.

It is naturally crucial that the reference sensor and the sensor being tested are at the same temperature. The Beamex MB offers radial uniformity up to ±0.01

°C.

Immersion Depth

The Beamex MB series provides immersion depth up to 203 mm (160 mm in

MB140), which, together with the control techniques, provides more stable calibration. Moreover, a deeper immersion depth reduces the stem conduction error (heat loss into the atmosphere), especially in higher temperatures.

Loading

With the extended well depth and the dual zone temperature control feature, the Beamex MB can correct the effect of loading and provides loading specifications up to ±0.005 °C.

BEAMEx MB

| WORKSHOP EQUIPMENT

33

34

Beamex MB series specifications

Loading effect (with a 6.35 mm reference probe and three 6.35 mm probes)

Hysteresis

Immersion depth

Resolution

Display

Key pad

Insert OD dimensions

Cooling time

MB140

Temperature range at 23 °C

–45 °C to 140 °C

(–49 °F to 284 °F)

Display accuracy

±0.1 °C Full range

Stability

Axial uniformity

40 mm (1.6 in)

Radial uniformity

Heating time

Size (H x W x D)

Weight

Power requirements

Computer interface

Calibration

Environmental operating conditions

Specifications valid in environmental conditions

±0.005 °C Full range

18 °C … 28 °C

MB155

–30 °C to 155 °C

(–22 °F to 311 °F)

±0.1 °C Full range

±0.005 °C Full range

5 °C to 40 °C, 0 % to 80 % RH (non-condensing)

MB425

35 °C to 425 °C

(95 °F to 797 °F)

±0.1 °C to 100 °C

±0.15 °C to 225 °C

±0.2 °C to 425 °C

±0.005 °C to 100 °C

±0.008 °C to 225 °C

±0.01 °C to 425 °C

±0.08 °C to –35 °C

±0.04 °C to 0 °C

±0.02 °C to 50 °C

±0.07 °C to 140 °C

±0.025 °C to 0 °C

±0.02 °C to 50 °C

±0.05 °C to 155 °C

32 min: 23 °C to 140 °C

45 min: –45 °C to 140 °C

366 x 203 x 323 mm

(14.4 x 8 x 12.7 in)

14.2 kg (31.5 lb)

44 min: 23 °C to 155 °C

56 min: –30 °C to 155 °C

230 VAC (±10 %), 550 W

115 VAC (±10 %), 550 W

14.6 kg (32 lb)

230 VAC (±10 %), 550 W

115 VAC (±10 %), 550 W

RS-232

Accredited calibration certificate provided

±0.05 °C to 100 °C

±0.09 °C to 225 °C

±0.17 °C to 425 °C

±0.01 °C Full range ±0.01 °C Full range

±0.01 °C to 100 °C

±0.02 °C to 225 °C

±0.025 °C to 425 °C

±0.02 °C to –35 °C

±0.005 °C to 100 °C

±0.01 °C to 140 °C

±0.025 °C

±0.005 °C to 0 °C

±0.005 °C to 100 °C

±0.01 °C to 155 °C

±0.025 °C

±0.01 °C Full range

160 mm (6.3 in)

0.001 °C / °F

203 mm (8 in)

30.0 mm (1.18 in)

±0.04 °C

LCD, °C or °F, user-selectable

Ten key with decimal and +/– button. Function keys, menu key, and °C / °F key.

30.0 mm (1.18 in)

44 min: 23 °C to –45 °C

19 min: 23 °C to –30 °C

19 min: 140 °C to 23 °C

30 min: 23 °C to –30 °C

25 min: 155 °C to 23 °C

203 mm (8 in)

30.0 mm (1.18 in)

220 min: 425 °C to 35 °C

100 min: 425 °C to 100 °C

27 min: 35 °C to 425 °C

12.2 kg (27 lb)

230 VAC (±10 %), 1025 W

115 VAC (±10 %), 1025 W

3) Calibrated to 660 °C; reference thermometer recommended at higher temperatures.

MB700

50 °C to 700 °C 3)

(122 °F to 1292 °F)

±0.2 °C to 425 °C

±0.25 °C to 660 °C

±0.005 °C to 100 °C

±0.01 °C to 425 °C

±0.03 °C to 700 °C

±0.09 °C to 100 °C

±0.22 °C to 425 °C

±0.35 °C to 700 °C

±0.01 °C to 100 °C

±0.025 °C to 425 °C

±0.04 °C to 700 °C

±0.02 °C to 425 °C

±0.04 °C to 700 °C

±0.07 °C

203 mm (8 in)

29.2 mm (1.15 in)

235 min: 700 °C to 50 °C

153 min: 700 °C to 100 °C

46 min: 50 °C to 700 °C

14.2 kg (31.5 lb)

230 VAC (±10 %), 1025 W

115 VAC (±10 %), 1025 W

R MODEL SPECIFICATIONS

Resistance range

Resistance accuracy

1)

Characterizations

Temperature accuracy (100 ohm PRT)

2)

Sensor connection

Calibration

MB

0 Ω to 400 Ω

0 Ω to 20 Ω: ±0.0005 Ω

20 Ω to 400 Ω: ±25 ppm of reading

ITS-90, CVD, Resistance

Below zero: ±(0.006 °C + 0.001 % of temperature reading)

Above zero: ±(0.006 °C + 0.003 % of temperature reading)

4-wire, 6-pin Lemo

Accredited calibration certificate provided

1) Measurement accuracy specifications apply within the specified environmental operating conditions and assume 4-wires for PRTs.

2) The built-in reference thermometer readout accuracy does not include the sensor probe accuracy.

WORKSHOP EQUIPMENT | BEAMEx MB

Inserts

INSERTS fOR MB MODELS

INSERT

MH1

MH2

B

Special

MODEL

All models

All models

All models

All models

Please contact Beamex for custom inserts.

DESCRIPTION

Multihole, metric / reference; ¼", 3 mm, 4 mm, 6 mm, 8 mm, 10 mm

Multihole, metric / reference; ¼", 2x3 mm, 2x4 mm, 6 mm

Blank

Special

10 mm

4 mm

6 mm

8 mm

3 mm

1/4 in

MH1

3 mm

4 mm

1/4 in

6 mm

3 mm

4 mm

MH2

STANDARD ACCESSORIES

• Power Cord

• RS-232 Cable

• User Guide

• Accredited Calibration Certificate

• LEMO Connector for reference sensor (R models only)

• Block Insulator (in MB140, MB155 and MB425)

• Tongs (insert removal tool)

OPTIONAL ACCESSORIES

• Transport Case for temperature block

• Inserts

• Beamex Smart Reference Probes

35

36

Beamex FB

FIELD TEMPERATURE BLOCK

Lightweight, highly accurate temperature dry block for industrial field use

37

38

An ideal temperature block for industrial field use

Lightweight, highly accurate temperature dry block for industrial field use

The Beamex field temperature block (FB) is an ideal temperature block for industrial field use. It is lightweight and easy to carry. It is an extremely quick dry block, yet it provides excellent accuracy.

Main features of the Beamex fB

Lightweight, portable

The Beamex FB field temperature block is ideal for industrial field use. It only weighs about 8 kg (18 lb), and it is small enough to carry around.

Speed

The Beamex FB is extremely quick to reach various temperatures, i.e. it cools down to –25 °C (–13 °F) in 15 minutes and heats up to +660 °C

(+1,220 °F) in 15 minutes. This saves time and increases productivity.

Accuracy and performance

The Beamex FB is an easily portable unit that also provides excellent calibration accuracy. The display accuracy is up to ±0.2 °C and its control technology provides great stability up to ±0.01 °C. The dual zone controlled block provides excellent axial uniformity up to ±0.04 °C and radial uniformity up to ±0.01 °C.

Smart reference sensors

The Beamex FB has an internal reference thermometer (in R models), which enables connections to the Beamex smart reference sensors.

These sensors have a memory that contains all of the sensor correction data. This enables the use of the reference sensor as a real plug-and-play.

Accredited calibration

Each Beamex FB field temperature block is delivered with an accredited calibration certificate.

Usability

The large LCD display, function keys and multilingual, menu-based user interface makes the Beamex FB easy to use. A graphic and audible stability indicator lets you know when a block is stable. The HOT warning light indicates when the block is hot (over +50 °C). It blinks as long as the block is too hot to touch, even when the unit is switched off or when the mains cable is disconnected.

Part of the Beamex ICS integrated calibration solution

The communication port enables communication with selected Beamex

MC calibrators for automation calibration and documentation, making the

Beamex FB products part of the Beamex ICS integrated calibration solution. Combined with the Beamex MC6 calibrator, loop calibrations are possible with conventional, HART and Fieldbus temperature transmitters with sensors.

BEAMEx fB

| WORKSHOP EQUIPMENT

39

40

Beamex fB series specifications

Temperature range at 23 °C

Display accuracy

FB150

–25 °C to 150 °C

(–13 °F to 302 °F)

±0.2 °C Full range

FB350

33 °C to 350 °C

(91 °F to 662 °F)

±0.2 °C Full range

Stability

Axial uniformity at 40 mm (1.6 in)

Radial uniformity

±0.01 °C Full range

±0.05 °C Full range

±0.01 °C Full range

±0.02 °C at 33 °C

±0.02 °C at 200 °C

±0.03 °C at 350 °C

±0.04 °C at 33 °C

±0.1 °C at 200 °C

±0.2 °C at 350 °C

±0.01 °C at 33 °C

±0.015 °C at 200 °C

±0.02 °C at 350 °C

Loading effect

(with a 6.35 mm reference probe and three 6.35 mm probes)

Hysteresis

Immersion depth

±0.006 °C Full range

±0.025 °C

150 mm (5.9 in)

±0.015 °C Full range

±0.06 °C

Insert OD dimensions

Heating time

Cooling time

30 mm (1.18 in)

16 min: 23 °C to 140 °C

23 min: 23 °C to 150 °C

25 min: –25 °C to 150 °C

15 min: 23 °C to –25 °C

25 min: 150 °C to –25 °C

0.01 °C / °F

25.3 mm (0.996 in)

5 min: 33 °C to 350 °C

32 min: 350 °C to 33 °C

14 min: 350 °C to 100 °C

Resolution

Display

Size (H x W x D)

LCD, °C or °F user-selectable

290 mm x 185 mm x 295 mm (11.4 x 7.3 x 11.6 in)

8.16 kg (18 lb) 7.3 kg (16 lb)

Weight

Power requirements

Computer interface

Calibration

230 V (±10 %) 50/60 Hz, 575 W

100 V to 115 V (±10 %) 50/60 Hz, 635 W

RS-232

Accredited calibration certificate provided

Environmental operating conditions

0 °C to 50 °C, 0 % to 90 % RH (non-condensing)

Specifications valid in environmental conditions

13 °C … 33 °C

230 V (±10 %), 50/60 Hz, 1800 W

100 V to 115 V (±10 %), 50/60 Hz,

1400 W

RS-232

FB660

50 °C to 660 °C

(122 °F to 1220 °F)

±0.35 °C at 50 °C

±0.35 °C at 420 °C

±0.5 °C at 660 °C

±0.03 °C at 50 °C

±0.05 °C at 420 °C

±0.05 °C at 660 °C

±0.05 °C at 50 °C

±0.35 °C at 420 °C

±0.5 °C at 660 °C

±0.02 °C at 50 °C

±0.05 °C at 420 °C

±0.10 °C at 660 °C

±0.015 °C at 50 °C

±0.025 °C at 420 °C

±0.035 °C at 660 °C

±0.2 °C

24.4 mm (0.96 in)

15 min: 50 °C to 660 °C

35 min: 660 °C to 50 °C

25 min: 660 °C to 100 °C

7.7 kg (17 lb)

230 V (±10 %), 50/60 Hz, 1800 W

100 V to 115 V (±10 %), 50/60 Hz,

1400 W

RS-232

R MODEL SPECIFICATIONS

Resistance range

Resistance accuracy

1)

FB

0 Ω to 400 Ω

0 Ω to 42 Ω: ±0.0025 Ω

42 Ω to 400 Ω: ±60 ppm of reading

ITS-90, CVD, IEC-60751, resistance

Characterizations

Temperature accuracy (100 ohm PRT)

Sensor connection

Calibration

2)

±(0.015 °C + 0.008 % of temperature reading)

4-wire, 6-pin Smart Lemo

Accredited calibration certificate provided

1) Measurement accuracy specifications apply within the specified environmental operating conditions and assume 4-wires for PRTs.

2) The built-in reference thermometer readout accuracy does not include the sensor probe accuracy.

WORKSHOP EQUIPMENT | BEAMEx fB

Inserts

INSERTS fOR fB MODELS

INSERT

MH1

MH1

MH2

B

Special

MODEL

FB150

FB350, FB660

All models

All models

All models

Please contact Beamex for custom inserts.

DESCRIPTION

Multihole, metric / reference; ¼”, 3 mm, 4 mm, 6 mm, 8 mm, 10 mm

Multihole, metric / reference; ¼”, 4 mm, 6 mm, 8 mm, 10 mm

Multihole, metric / reference; ¼”, 2x3 mm, 2x4 mm, 6 mm

Blank

Special

10 mm

4 mm

6 mm

8 mm

3 mm

1/4 in

FB150-MH1

3 mm

4 mm

1/4 in

6 mm

3 mm

4 mm

FB150-MH2

10 mm

4 mm

6 mm

8 mm

1/4 in

FB350-MH1, FB660-MH1

3 mm

4 mm

1/4 in

6 mm

3 mm

4 mm

FB350-MH2, FB660-MH2

41

STANDARD ACCESSORIES

• Power Cord

• RS-232 Cable

• User Guide

• Accredited Calibration Certificate

• LEMO Connector for reference sensor (R models only)

• Block Insulator (in FB150)

• Tongs (insert removal tool)

OPTIONAL ACCESSORIES

• Transport Case for temperature block

• Inserts

• Beamex Smart Reference Probes

BEAMEx fB

| WORKSHOP EQUIPMENT

42

BEAMEx SMART REfERENCE PROBES

Smart reference probes

The Beamex smart reference probe is a high-quality and extremely stable PRT probe with an integrated memory that stores the individual sensor coefficients. The sensor works as plug-and-play with Beamex FB series of temperature blocks (R model). The temperature block automatically reads the sensor coefficients from the sensor and makes the necessary adjustments. This eliminates the need to enter the coefficients manually.

The sensor can also be used with the Beamex MB series of temperature blocks (R model). The sensor coefficients can be manually entered via the MB user interface. The sensor is available as a 300 mm straight version or a 90° bent version, making it an ideal reference sensor for the

Beamex temperature block. The smart reference probe is also compatible with MC6 Workstation.

MAIN fEATURES:

• Temperature range -200 °C… 420 °C / 660 °Ct

• High stability, up to ±0.007 °C

• 300 mm straight and 90° bent versions

• Accredited calibration certificate with data and ITS-90 coefficients included as standard

MODEL

RPRT-420-300

RPRT-420-230A

RPRT-660-300

RPRT-660-230A

DESCRIPTION

Reference PRT, max 420 °C, length 300 mm, straight

Reference PRT, max 420 °C, length 230 mm (before angle), 90° angled

Reference PRT, max 660 °C, length 300 mm, straight

Reference PRT, max 660 °C, length 230 mm (before angle), 90° angled

43

BEAMEx SMART REfERENCE PROBES

| WORKSHOP EQUIPMENT

44

SPECIfICATIONS

PARAMETER RPRT-420-300 & RPRT-420-230A

Temperature range

Nominal resistance at 0.010 °C

Temperature coefficient

Sheath diameter x length

Short-term repeatability

Drift

2)

1)

–200 to 420 °C

100 Ω ±0.5 Ω

0.003925 Ω/Ω/°C

Straight: 6.35 mm ±0.08 mm x 305mm ±3 mm

(0.25 in ±0.003 x 12 in ±0.13 in)

Angled: 6.35 mm ±0.08 mm x 300 mm ±6 mm

(0.25 in ±0.003 x 11.75 in ±0.25 in)

±0.007 °C at 0.010 °C

±0.013 °C at max temp

±0.007 °C at 0.010 °C

±0.013 °C at max temp

Hysteresis

Sensor length

Sensor location

Sheath material

Maximum immersion (nominal)

±0.010 °C maximum

50.8 mm (2.0 in)

9.5 mm ±3.2 mm from tip (0.375 in ±0.13 in)

Inconel 600

Straight: 305 mm (12 in)

Angled: 210 mm (8.3 in)

Minimum immersion (<5 mK error)

Minimum insulation resistance

102 mm (4.0 in)

500 MΩ at 23 °C

Transition junction temperature range

3)

–50 °C to 150 °C

Transition junction dimensions Straight: 76.2 mm x 10.7 mm (3.0 in x .38 in)

Angled: 70 mm x 10.6 mm (2.8 in x .42 in)

RPRT-660-300 & RPRT-660-230A

– 200 to 660 °C

100 Ω ±0.5 Ω

0.0039250 Ω/Ω/°C

6.35 mm ±0.08 mm x 305 mm ±0.08 mm

(0.25 in ±0.003 x 12 in ±0.13 in)

±0.007 °C at 0.010 °C

±0.013 °C at max temp

±0.007 °C at 0.010 °C

±0.013 °C at max temp

±0.010 °C maximum

30 mm ±5 mm (1.2 in ±0.2 in)

3 mm ±1 mm from tip (0.1 in ±0.1 in)

Inconel 600

Straight: 305 mm (12 in)

Angled: 210 mm (8.3 in)

100 mm (3.9 in)

500 MΩ at 23 °C, 10 MΩ at 670 °C

–50 °C to 200 °C

71 mm x 12.5 mm (2.8 in x .42 in)

Typical response time

Self heating (in 0 °C bath)

Lead-wire cable

Lead-wire length

Lead-wire temperature range

8 seconds

60 mW/°C

Teflon cable, Teflon insulated, 24 AWG stranded, silverplated copper

1.8 m (6 ft)

–50 °C to 150 °C

12 seconds

50 mW/°C

Teflon cable, Teflon insulated, 24 AWG stranded, silver plated copper

1.8 m (6 ft)

–50 °C to 250 °C

1) Three thermal cycles from min to max temp, includes hysteresis, 95% confidence

2) After 100 hrs at max temp, 95% confidence

3) Temperatures outside this range will cause irreparable damage. For best performance, transition junction should not be too hot to touch.

WORKSHOP EQUIPMENT | BEAMEx SMART REfERENCE PROBES

Beamex POC6

AUTOMATIC PRESSURE CONTROLLER

45

Pressure calibration made fast and easy

An accurate and user-friendly automatic pressure output controller

The Beamex POC6 is an accurate and user-friendly automatic pressure output controller, providing regulated output from vacuum to 100 bar (1450 psi). The POC6 can be delivered as a panel mounted to the Beamex MCS200 modular test and calibration system or as a portable desk top version.

The POC6 can be used as a stand-alone pressure controller or it can be integrated into the Beamex calibration system. Together with the MC6 and Beamex CMX calibration software, the

POC6 offers a fully automated, integrated solution for performing, documenting and managing calibrations easily, efficiently and accurately.

46

Main features of the POC6

User friendly

With its touch screen, the POC6 is fast and efficient to use.

Panel mounted to a Beamex workstation

The POC6 can be used as panel mounted to a Beamex

MCS200 modular test and calibration system.

Portable desk top version

The POC6 can also be used as a desk top pressure controller, which makes it a very mobile solution.

Part of Beamex ICS integrated calibration solution

Together with the Beamex MC6 Workstation calibrators as well as the Beamex CMX calibration software, the POC6 offers an integrated, automated calibration system for performing, documenting and managing calibrations easily and efficiently.

WORKSHOP EQUIPMENT | BEAMEx POC6

General specifications

FEATURE

Display

Weight

Dimensions

Digital interface

Power consumption

Warranty

Supported user interface languages

Communication emulation

Connections

SPECIFICATION

7.0" color LCD with touch screen

Approx. 9.1 kg (20 lbs)

Portable: 228(w) x 148(h) x 310(d) mm (without handle)

Panel mounting: 321(w) x 200(h) mm

RS232, Ethernet, IEEE-488

Max. 90 VA

2 years

English, German, French, Spanish, Italian, Chinese, Russian, Japanese, Polish, Portuguese, Korean

DPI510

Pressure supply, Vacuum supply, Test port

All connections 7/16"-20 SAE

SPECIfICATIONS

FEATURE

Output range

Precision

1 year uncertainty

Pressure units

Control stability

Slew rate

Control range maximum

Test volume

Pressure media

Overpressure protection

Resolution

Measuring rate

Max overpressure

Supply pressure range

Compensated temperature range

Operation temperature

INSTALLATION ALTERNATIVES

• Portable unit

• Panel mounted to a workstation or mobile trolley

STANDARD ACCESSORIES

• User guide

• Accredited calibration certificate

• Mains cable

• Connecting kits for:

– High pressure and vacuum supply or

– Low pressure and vacuum supply

– Appropriate pressure adapters and hoses

SPECIFICATION

± 1 bar (±14.5 psi)

–1 to 6 bar (–14.5 to 87 psi)

–1 to 20 bar (–14.5 to 290 psi)

–1 to 70 bar (–14.5 to 1015 psi)

–1 to 100 bar (–14.5 to 1450 psi)

Special range within –1 to 100 bar (–14.5 to 1450 psi)

< 0.015 % FS

< 0.025 % FS

33 selectable and 2 programmable

< 0.004 % FS

< 3 sec. (regarding a 10 % press. increase in a 250 ml test volume)

From 0 up to 100 % FS

50 to 1,000 ccm (without throttle)

Clean dry non-corrosive gases

Safety relief valve

4 to 6 digits

25 / sec

Supply port 110 % FS

Test port max. 105 % FS

Minimum 100%, Maximum 110% of nominal pressure range

15 to 45 °C

0 … 50°C

OPTIONS

• Barometric precision reference

– enables absolute range

• Panel mounting kit

• Bezel and handle

• Carrying case

BEAMEx POC6

| WORKSHOP EQUIPMENT

47

Calibration accessories

Electrical and other equipment

MAIN SUPPLY UNITS

The main supply unit powers the modules installed in the

MCS200 modular test and calibration system. Each type of main supply unit includes a mains switch, emergency off switch, internal socket outlets for device modules, thermal overload and fault current protections, and earth terminal screw. More features are available depending on the model.

48

POWER SUPPLY MODULES

Many types of power supplies can be integrated into the

MCS200 workstation, such as variable and constant AC & DC supplies, dual power supplies, programmable DC supplies, isolated supply outlets, variable 3-phase AC supplies and

3-phase connections.

MEASURING EqUIPMENT

Various types of measuring equipment can be included in the module rack, such as digital multimeters, oscilloscopes, function generators / frequency counters, power analysers etc., providing an ergonomic and efficient measuring facility.

SOLDERING EqUIPMENT

The MCS200 workstation can be fitted with soldering/ desoldering stations, fume extraction equipment, vision accessories, infrared soldering and preheat system etc., enabling soldering and desoldering of surface mounted and traditional electronic components.

ESD EqUIPMENT

ESD equipment available for the MCS200 workstation removes the problems caused by electrostatic discharges into sensitive components. The range of ESD equipment includes semiconducting laminated tabletops, semiconducting mats under the bench, wrist straps, grounding sets, etc. All metal parts of the workstation are ESD painted as standard.

ACCESSORIES

A large variety of fittings and accessories are available for the MCS200 Workstation, such as drawer units, steel shelves, pick-up boxes, swivel stands, PC racks, tool holders, chairs, etc.

WORKSHOP EQUIPMENT | CALIBRATION ACCESSORIES

Complete instrument workshops

49

High-quality, instrument and electrical workshops delivered as a customized solution

Complete instrument workshops

hIGh-qUALITY INSTRUMENT AND ELECTRICAL WORKShOPS DELIVERED

AS A CUSTOMIzED SOLUTION

The ideal instrument and electrical workshop is designed to meet the specific needs of an industrial plant in addition to having high-performing, reliable measurement equipment and systems delivering improved efficiency and quality.

Beamex is a world-class specialist when it comes to supplying instrument and electrical workshops for new industrial plants and for existing plants that are looking to modernize their workshops. Whether it is a single workstation or an entire workshop,

Beamex will be your partner in the different phases regarding design, planning, detailed specifications and documentation, installation, training, supplying of high-quality equipment and accessories, and lastly, after sales services.

There are hundreds of Beamex workshops installed and in use in more than 50 countries. Our workshops are highly popular especially in power plants, oil, gas, petrochemical and chemical plants, offshore platforms and thermal and combined power plants.

50

Typical Beamex workshops customers come from following industries:

• Oil & Gas

• Petrochemical & Chemical

• Offshore platforms

• Power plants

According to Beamex customer survey 2012

95% will probably recommend Beamex to a colleague.

95% say that using Beamex products has improved the efficiency of their calibration procedures.

90% say that using Beamex products has resulted in costsavings.

97% claim that using Beamex products has improved the quality of their calibration system.

BEAMEx – YOUR PARTNER IN EVERY PhASE Of ThE INSTRUMENT

& ELECTRICAL WORKShOP PROjECT

Planning and specification

Visualize your future workshop

The Beamex workshop solution: equipment & software

High-quality, customized system to improve efficiency and quality

Project documentation

Complete vendor drawings and data are available to meet project requirements

Implementation and start-up

Fast and efficient implementation

After sales services

Support when the system is in use

WORKSHOP EQUIPMENT | COMPLETE INSTRUMENT WORKShOPS

51

52

PLANNING AND SPECIfICATION

Visualize your future workshop

PROjECT DOCUMENTATION

Documentation available to meet project requirements

Good design is half the work. When designing and planning a workshop, Beamex helps by providing its knowledge and workshop layout services. Module by module, the workstation layout outlines and visualizes the specifications of a Beamex workstation.

An important part of a workshop project is documentation.

Beamex can provide documentation regarding specifications, layout planning, calibration certificates, factory acceptance tests

(FAT), commissioning, instruction guides, training materials and workstation certificates.

Specifying the equipment

Beamex has vast experience in specifying comprehensive solutions for workshops and laboratories. This specification work includes analysis of functions performed in the workshop and type of equipment needed, clarification of electrical requirements and vacuum & pressure supplies, selection of workstation frames efficiently fitting to the premises, and specification of modules, options, accessories, portable equipment, tools, storage systems and spare parts. Professional specification work results in meeting user requirements in the most efficient way and ensuring a fully compatible system.

The available sample layouts include:

• Calibration workstations

• Electrical and electronic workstations

• Motor testing workstations and trolley

• Soldering workstations

• Power plant workstations

IMPLEMENTATION AND START-UP

Fast and efficient implementation

Training

Training ensures that both equipment users and managers will obtain the necessary skills to use the calibration system to its fullest potential. The training courses combine hands-on workshops with classroom lectures and presentations. Training increases your knowledge and productivity and can be provided by a Beamex professional or by a Beamex authorized partner who is able to offer training courses in your local language.

Training workshops:

• Last from 1 to 5 days, depending on the amount of different equipment

• Start with demonstrations made by the instructor

• Hands-on, supervised learning

• Question & answer sessions

• All training material available on paper

• Provide a certificate upon workshop completion

ThE BEAMEx WORKShOP SOLUTION:

EqUIPMENT & SOfTWARE

High-quality, customized system to improve efficiency and quality

• Total calibration supplier

• For calibration, electrical and electronic maintenance, and motor testing

• A combination of workstations, portable calibrators, calibration software, accessories and professional services

• The most automated, integrated system available

• Modular design allows user-specific configuration

• Many different types of applications

• Safe, ergonomic and reliable

Delivery, installation & commissioning

Beamex’s installation services ensure that your new instrument & electrical workshop is up and running in no time.

Installation services available for:

• Beamex MCS200 modular test and calibration system

• Beamex CMX calibration software

• Database conversions

• CMX integration to a management system (CMMS)

• User-specific customizations for CMX

(e.g. certificates, user-interface)

WORKSHOP EQUIPMENT | COMPLETE INSTRUMENT WORKShOPS

Example of workshop solution

AfTER SALES SERVICES

Support when the system is in use

Program updates

Regular program updates to calibrators and calibration software keep the system constantly up-to-date with new added features.

Spare parts

Beamex provides spare parts for all their products.

Re-calibration and repair

Regular re-calibrations maintain a high quality of specifications.

Beamex offers service and re-calibrations through its accredited calibration laboratory.

Help Desk

Beamex’s dedicated support staff consists of highly qualified professionals who deliver technical solutions quickly and efficiently. Help Desk support services are available by email, fax and telephone.

Support from local Beamex partner

Local Beamex support is available through Beamex’s global and qualified partner network.

COMPLETE INSTRUMENT WORKShOPS

| WORKSHOP EQUIPMENT

53

w w w . b e a m e x . c o m

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
