Knox County Schools Program Standards - Middle

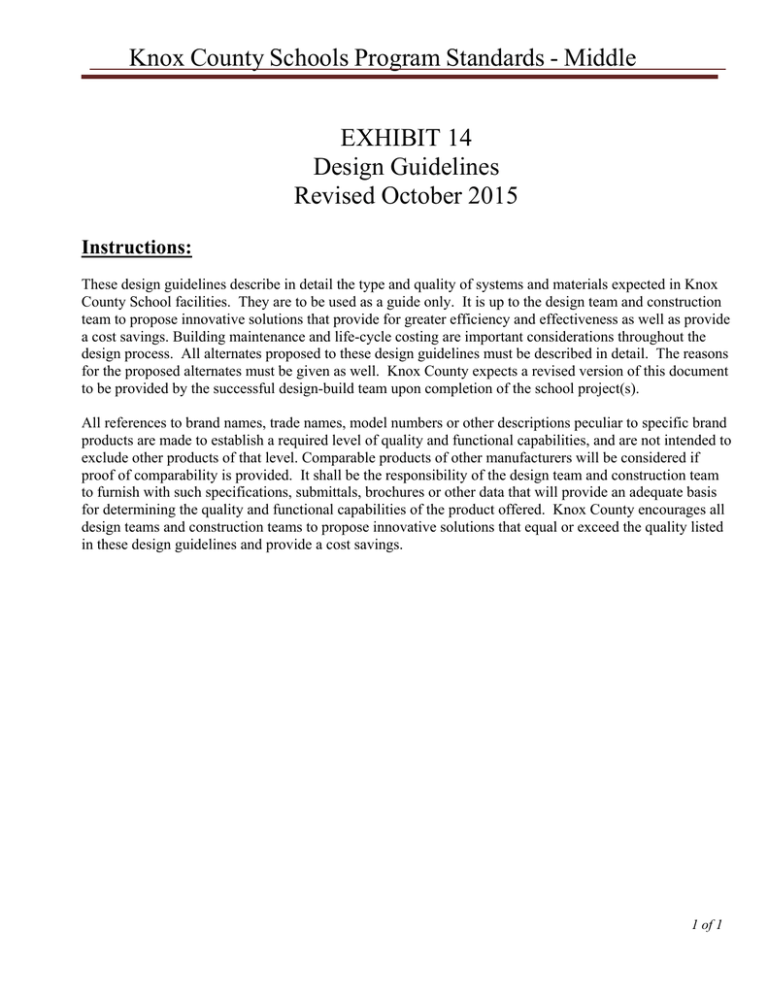

EXHIBIT 14

Design Guidelines

Revised October 2015

Instructions:

These design guidelines describe in detail the type and quality of systems and materials expected in Knox

County School facilities. They are to be used as a guide only. It is up to the design team and construction team to propose innovative solutions that provide for greater efficiency and effectiveness as well as provide a cost savings. Building maintenance and life-cycle costing are important considerations throughout the design process. All alternates proposed to these design guidelines must be described in detail. The reasons for the proposed alternates must be given as well. Knox County expects a revised version of this document to be provided by the successful design-build team upon completion of the school project(s).

All references to brand names, trade names, model numbers or other descriptions peculiar to specific brand products are made to establish a required level of quality and functional capabilities, and are not intended to exclude other products of that level. Comparable products of other manufacturers will be considered if proof of comparability is provided. It shall be the responsibility of the design team and construction team to furnish with such specifications, submittals, brochures or other data that will provide an adequate basis for determining the quality and functional capabilities of the product offered. Knox County encourages all design teams and construction teams to propose innovative solutions that equal or exceed the quality listed in these design guidelines and provide a cost savings.





1 of 1































Knox County Schools Program Standards - Middle



SITE WORK

A. Design Guidelines

1. Provide concrete paving at dock and dumpster areas; also any area subject to extraordinary loads or heavy vehicular traffic.

2. All dedicated parking spaces and directional surface applied graphics should be marked as designed including but not limited to: service, visitor, and accessible handicapped parking spaces; bus lanes, fire lanes, speed limits, directional arrows, crosswalks, etc.

B. Technical Guidelines

02500 – BITUMINOUS PAVING a. Paving shall have a one year guarantee and consist of the following:

Standard Duty – Autos – 6” compacted crushed stone base course, 2” binder course, 1-1/2 finish course.

Heavy Duty – Trucks, Busses - 8” compacted crushed stone base course, 2-1/2” binder course, 2” finish course.

Paving should proceed only, after verification of subgrade compaction by an approved testing agency.

02510 – CONCRETE PAVING a. Concrete shall be a minimum of 4" thick; no reinforcing, with no pour larger than 25’ x

25’. Compressive strength shall be 4,000 PSI throughout. b. Use non-yellowing curing and sealing, and a heavy broom finish.

02830 - FENCES AND GATES a. Fencing shall be Black Plastic Coated Aluminum Coated Steel chain link fencing.

Type "A" shall have 9 ga. Woven wire in a 2-inch mesh, 3" corner posts, 2-3/8" line posts, 1-5/8" top rail and brace rail; all Schedule 40 with 0.9oz. of zinc. Type "B" shall have 9 ga. Woven wire in a 2-inch mesh 2-1/2" terminal posts, 1-5/8” line posts, 1-3/8” top rails and brace rails. All Schedule 40 with 0.9 oz of zinc. Bottom tension wire shall be

No. 7 gauge aluminum-coated steel. All gates and fittings shall be manufacturers standard.

Type "A" - 6'-0" high with top rail, no barbed wire. –Property perimeter, H. S.

Athletic complex, detention ponds, H. S. Baseball fields, between playfields and street, steep embankments, equipment enclosures, vandal prone areas.

Type "B" – 4'-0" high with top rail. –Playfields.





1 of 1



























































































Knox County Schools Program Standards - Middle

CONCRETE

A. Design Guidelines

1. No color additives will be accepted.

B. Technical Guidelines

03533 – CEMENTITIOUS WOOD FIBER ACOUSTICAL PANELS a. The panel material shall be Tectum as manufactured by Tectum, Inc., Newark,

Ohio, or approved substitute. b. The panel material shall be rated in accordance with the Federal Specification SS-

S-118B, Type IX, Class 25 and classified by Underwriters Laboratories as to

Surface Burning Characteristics. c. The material shall be uniformly 1" thick with tolerance not to exceed plus or minus

1/8", 48" wide by lengths required. d. The material shall be manufactured with an unpainted off white color with a light reflectance of 60% minimum. e. Detail panels wall mounted high in room on tapered 2 x 6 wood blocking with batt insulation back-up fill between blocking, in Music areas, Gymnasiums and

Playrooms.

  Concrete

1 of 1























Knox County Schools Program Standards - Middle

MASONRY

A. Design Guidelines

1. Eliminate or minimize horizontal masonry surfaces exposed to weather due to the lessened durability and heightened susceptibility of those surfaces to freeze / thaw, standing water, mortar joint failure, etc.

(04200)

A.

B.

C.

D.

Recommend "vee" or "chisel" mortar joint for maximum weathering strength; do not use "extruded" or "flush" joints on masonry exposed to weather.

Where possible protect masonry openings and walls from direct precipitation by the incorporation of overhangs, soffits, recesses, etc., to protect or minimize "sheeting."

Avoid single wythe exterior masonry wall due to their tendency to leak under moderate to heavy rainfall.

Masonry coping must receive metal cap flashing; run roof material over parapet and under metal coping.

2. Consider use of glass block in areas benefiting from ambient light or obscured view yet needing security or sound control. (04270)

B. Technical Guidelines

04200 – BRICK AND BLOCK WORK a. Face brick shall be provided of Grade SW, 8" x 3-3/4" x 2-1/4" to lay up 3 courses in 8". Furnish 7-5/8" units for soldier course work, and other special shapes as required. One corner of the building may be started up and used as the sample panel. Specify allowance based on (amount to be filled by designing

architect)per 1000 Face Brick, including taxes, delivery to the site and unloading. b. Concrete masonry units (cmu) shall conform to ASTM C90, Grade N-1, made with Stalite, or equivalent light weight aggregate. Units shall contain no combustion by-products or waste materials. All concrete blocks shall be UL listed or shall conform to requirements of the International Building Code for one-hour fire resistance. Concrete block in 2 and 4-hour rated walls shall be UL certified as conforming to those ratings. c. Mortar shall conform to requirements of ASTM C270 Latest Edition. Mortar for masonry work below grade shall be one part Portland Cement, 1/4 part hydrated lime or lime putty, and not less than 2-1/4 nor more than 3 parts sand, by volume, or any other mix conforming to ASTM requirements for Type M mortar. Mortar for masonry work above grade shall be one part Masonry Cement to not less than

2-1/4 nor more than 3 parts sand, by volume, or any other mix conforming to

ASTM requirements for Type M or S mortar.

Masonry 1 of 2























Knox County Schools Program Standards - Middle d. Sand for mortar shall be measured in a damp, loose condition. Mix mortar with the maximum amount of water consistent with satisfactory workability for a minimum of 3 minutes in a drum type mechanical mixer. Mixer shall be thoroughly cleaned between batches. No retempered or partially hardened mortar shall be used. e. Hydrated lime shall be made into a putty by soaking at least 16 hours before use, or as recommended by the manufacturer if quick-soaking lime is used. f. Masonry wall reinforcing for all walls, cavity walls, and partitions shall be No. 9 gauge Standard Dur-o-Wal truss design for single wythe masonry work and Dur-o-

Eye adjustable multi-wythe truss design for cavity walls, or approved equivalent.

All reinforcing for use in masonry wall shall have mill galvanized finish conforming to ASTM A116, Class 3. g. Use prefabricated "L" and "T" joints at corners and intersections, or fabricate corners and intersections in the field strictly in accordance with the manufacturer’s instructions. Lap end joints in reinforcing not less than 6". h. Reinforcing shall be properly positioned so that not less than 5/8" mortar coverage over the side rods is obtained at the face of the masonry.

04210 – ARCHITECTURAL SPLIT-FACE MASONRY UNITS a. Exposed Architectural Split-Face Masonry Units shall be manufactured in accordance with ASTM C-90-94A, Type II for hollow and solid load bearing units. Architectural units are to be as manufactured by Metromont Materials Corp,

Asheville, NC or equivalent products by Allied Concrete Co., Atlanta, GA; or

Dixie Concrete Co., Winston-Salem, NC. Pattern and color as selected from manufacturer’s standard colors.

04300 – STRUCTURAL GLAZED FACING TILE a. Structural Glazed Ceramic Facing Tile shall be Stark Ceramics, Inc, East

Canton, Ohio of approved substitute. All units shall conform to the specifications of ASTM C-126 or the Facing Tile Institute for color finish of

Select quality. Shading shall be consistent with the manufacturer's process and approved samples. The nominal face sizes of Structural Facing Tile and fittings shall match existing in accordance with the 6T series and the wall thickness as shown in the plans. b. Mortar shall conform to the requirements of ASTM Specification C-720-Mortar for Unit Masonry, except that all sand shall pass a No. 16 sieve.

Masonry 2 of 2



























Knox County Schools Program Standards - Middle

METALS

A. Design Guidelines

1. No Owner specific guidelines offered.

B. Technical Guidelines

05110 – SHOP FABRICATED METAL a. Provide equipment supports of structural shapes where shown and as detailed and where not furnished by equipment contractors. b. Prefer ships ladder to vertical ladder. Treads shall be Irving steel X-bar Treads, 5" wide, as manufactured by IKG Industries or approved substitute. c. Vertical ladders - minimum of 18" wide with 3/8" x 2-1/2" stringers and ¾" diameter rungs at 12" on centers. Supporting brackets shall be bent from 3/8" X 2-

1/2" flat bar, designed to hold ladder not less than 6-1/2” away from face of wall

(to center of rungs). Brackets shall be spaced not over 6 feet apart and shall be secured to wall with ½" expansion bolts, equivalent to Parasleeve Concrete

Anchors for concrete; block voids to be filled with concrete. Railings shall /be fabricated of 1-1/2 Schedule 40 black steel pipe. Assembled by welded construction. d. Metal Handrails and Guardrails: Schedule 40 black seamless steel pipe and / or tubular steel of sizes indicated, cast or malleable iron flanges. Joints: Welded, ground smooth. Sleeves: Wrought iron in concrete. Steel mesh: 1" rectangular wire panels of 8 gauge round wire as manufactured by Kentucky Metal Products.

05300 – METAL DECKING a. Standard roof decking shall be 1-1/2" deep wide rib painted steel, as manufactured by Wheeling Corrugating Company, Wheeling, W. Va., or equivalent products as manufactured by United Steel Deck, Inc. or Vulcraft or approved substitute. b. Acoustical metal painted deck exposed over Gymnasiums, Music, and Playrooms shall be similar to Boman Quiet Deck as manufactured by Elwin G. Smith

Division, Vulcraft Acoustical Deck Type BIA or approved substitute.

05310 – METAL STAIRS a. Stairs shall be detailed in accordance with recommended details of the National

Association of Architectural Metal Manufacturers, and the requirements of the latest approved Standard Building Code.

Metals 1 of 2





















Knox County Schools Program Standards - Middle

05531 – STAIR TREADS a. Similar and equivalent to Wooster Stairmaster Type 511SN 11" wide Supergrit stair treads on all treads.

05560 – WALL MOUNTING BRACKETS a. Television Brackets shall be equivalent to PA746F Universal Articulating Wall

Arm for 26" to 46" Flat Panel Screens as manufactured by Peerless Sales

Company. Coordinate exact bracket with Owner's selection of equipment.

05600 - STOCK FABRICATED METAL a. Expansion joint covers shall be in mill finish aluminum, equivalent to Balco expansion joint closures as follows:

1. Type 5FL-1m for joints in floor.

2. Type 5FVL-1m for joints at intersection of floor and wall.

3. Type 6ADWC-1 for joints at wall intersections.

4. Type 6ADWC-1 for joints at wall and ceiling intersections on ground floor.

Wall members shall be dark bronze anodized finish. b. Brick vents for installation in exterior walls to vent cavity walls shall be

Model 11EX extruded aluminum brick vents, 8” long x 2-1/2” deep, manufactured by Construction Specialties, Inc. or approved substitute.

Vents shall have baked enamel finish of color to be selected from the manufacturer’s standard colors to match face brick.



Metals 2 of 2































Knox County Schools Program Standards - Middle

WOOD AND PLASTIC

A. Design Guidelines

1. Utilize only light oak trim and finishes.

B. Technical Guidelines

06100 – ROUGH CARPENTRY a. Moisture content of framing lumber shall not exceed 19% at time of installation. b. Dressed lumber shall be surfaced 4 sides. c. Lumber for framing, plates, blocking, furring, etc., may be of any of the following species provided the grade for each is not lower than the minimum shown:

Fir, Douglas – Standard Pine, Southern Yellow Leaf or Shortleaf – No. 2 or better.

All wood blocking shall be fire rated. d. Pressure treated lumber: Lumber in contact with the ground; joists, girders, beams, sills, plates, grounds, nailers, wood cants and all other wood used relative to the roof and canopy construction, copings, caps, etc; all wood in contact with concrete or inaccessible enclosures; and wherever else required by the drawings shall be pressure treated as called for by Federal Specifications TT-W-571, or the published standards of the American Wood Preserver's Association. e. Provide rough hardware and metal fastenings as shown on the drawings, specified herein, or required for proper installation of carpentry work. Nails, spikes, screws, bolts, and similar fastenings shall be of proper size and type and sufficient in number to draw members into place and securely hold and support them – size and number of fastenings shall conform to requirements of the International Building

Code. f. Metal framing anchors and joist hangers shall be as manufactured by Simpson

Strong-Tie Company or equal products manufactured by Silver Metal Products

Company, or TECO. g. Fastenings exposed on the exterior or in damp locations on the interior shall be of corrosion resistant material or shall have corrosion resistant plating or coating.

06420 – MILLWORK a. Verify items to be constructed and furnished by Knox County Schools.

Wood and Plastic 1 of 2





























Knox County Schools Program Standards - Middle b. Use full ¾” thick Birch veneer plywood to match that manufactured by

Knox County Schools. c. Workmanship: The intent is that joints be neatly and carefully made, surfaces straight and clean, work sanded with grain, all machine marks removed by sanding, except on exterior material which shall be cleanly machined. All cross scratches shall be eliminated. Shop assembled surfaces shall be glued where possible and shall be glue-blocked at concealed locations. All shelves shall be mortised and tenon where possible, etc. All work and material shall conform to the quality standards of the Architectural Woodwork Industry (AWI) for Custom

Grade. d. Wood is considered exposed in cabinet work as follows:

1. All visible wood with cabinet door shut.

2. Tops of bottoms and tops of shelves in cabinets with or without doors.

3. Wood inside knee spaces or open spaces except drawer bottoms or back, or underside of cabinet tops or behind drawers. e. Poplar will not be acceptable as a hardwood under this specification. f. Moisture Content: To a range of 5% to 10%. g. Plywood:

1. Hardwood: Custom Grade as per AWI.

2. Softwood: Unless noted otherwise, AWI Grade AA, where exposed on one side shall be AWI Grade A-2.

3. No kind of pressboard material for tops will be accepted. h. Laminated Plastic: 1/16" Consoweld, Micarta, Formica or equivalent, 1/16" thick of colors other than white and pattern as selected, except fire-rated material specified hereinafter. i. Shelf brackets and standards: Wall-mounted standards shall be Knape & Vogt No.

80 steel with No. 180 shelf brackets for 12" shelves. Finish shall be ebony black. j. Oak benches wall-mounted in Toilet Rooms and free standing in Locker Rooms shall be 1'-6" wide and 1-1/2" deep. Laminated plain sawn white oak, finished natural.

Wood and Plastic 2 of 2





































Knox County Schools Program Standards - Middle

THERMAL AND MOISTURE PROTECTION

A. Design Guidelines

1. The Owner’s preference regarding roofing systems is in order as follows:

A. Low Slope

1 Fully Adhered Reflective Membrane (TPO or rubber)

2 Mechanically Fastened Reflective Membrane

3 Modified Bitumen

4 Other:

B. High Slope

1 Metal

2 Shingles

2. Substantial Completion Certificate will not be signed until all roof leaks have been corrected.

3. Use of skylights and sloping glass panels (except in Greenhouses) will not be acceptable.

B. Technical Guidelines

07110 – MEMBRANE WATERPROOFING a. Install premolded membrane waterproofing under concrete floor slabs on grade in all rooms below grade and on exterior face of all new foundation walls below grade. b. Premolded membrane shall be 1/8" thick. Meadows Premolded Membrane Vapor

Seal with Plasmatic Core, in 8'-0" x 4'-0" sheets, as manufactured by W.R.

Meadows, Inc.; Grace Construction Products; or approved equivalent. c. Sealtight Catalytic Asphalt shall be used to seal joints either lapped or gusseted and as a seal around soil pipes, water pipes and steel rods. d. Sealtight PM-5X, or Celotex WVR Adhesive, a quick-setting bitumen with strong initial tack, shall be used to adhere the premolded membrane to vertical surfaces. e. Hot asphalt may also be used for bonding to vertical surfaces and sealing joints.

Use a mopping asphalt with a softening point in the range of 180 to 200 degrees

F., conforming to ASTM D312, Type III.

Thermal and Moisture Protection 1 of 6























Knox County Schools Program Standards - Middle

07155 – MASTIC DAMPPROOFING a. Mastic dampproofing on exterior face of concrete block in cavity wall shall be asphalt emulsion type equivalent to Karnak 220 Fibrated, manufactured by

Karnak Chemical Company, or Hydrocide 700B Semi-Mastic, manufactured by

Sonneborn Building Products Division Contect, Inc., or W.R. Meadows

"Sealmastic".

07190 – MOISTURE BARRIERS a. Barrier under all new concrete floor slabs on grade where Section 07110 does not apply shall be Sisalkraft Moistop Grade 395 as made by Fortifibre Corporation. J

& P Petroleum Products, Inc., Tex-Mastic Vapor Barrier Membrane, or approved substitute.

07210 – BUILDING INSULATION a. Perimeter Insulation shall be rigid board 1-1/2” thick extruded polystyrene thermal insulation having a minimum compressive strength of 20 psi, a minimum “R” value of 6.0 at 75 degrees F mean temperature, and a maximum water vapor transmission rate of 0.7 perm-inch, and shall conform to Federal Specifit\cation

HH-1-524B, Type II, Class B. Insulation shall be 2.0 pound density Foamular

Extruded Polystyrene Insulation as manufactured by V.C. Industries, Chicago ,

Illinois, Styrofoam SM, or approved substitute, and shall be furnished in boards

8’-0” long by 24” wide. b. Insulation for cavity walls shall be rigid board 1" thick extruded polystyrene thermal insulation having a minimum compressive strength of 20 psi, a minimum

"R" value of 5.0 at 75 degrees F mean temperature and a maximum water vapor transmission rate of 0.7 perm-inch, and shall conform to Federal Specification HH-

I-524B, Type II, Class B. Insulation shall be 2.0 pound density Foamular

Extruded Polystyrene Insulation as manufactured by Styrofoam SM, or approved substitute, and shall be furnished in boards 8'- 0" long by 16" wide.

Miscellaneous batt insulation shall be 6-1/2” thick foil faced fiberglass roll. c. Poured fill insulation in cells of exterior concrete block in non-cavity wall construction shall be Zonolite Masonry Insulation as manufactured by W. R. Grace

& Co., or approved substitute. Insulation shall meet or exceed Federal

Specification for insulation, Thermal (Vermiculite) HH-1-585C, and shall exhibit a

“U” value od 0.17 in 8” concrete block when test in accordance with ASTM C-

236. d. Miscellaneous batt insulation shall be 6-1/2"thick foil faced fiberglass roll or batt

Insulation. e. All building insulation shall meet the standards established in the most current

ASHRAE 90.

07211 - BUILDING INSULATION (ROCK WOOL)

Attic insulation shall be blown-in rock wool insulation installed to a uniform thickness necessary to attain an “R” value of 30.0.

Thermal and Moisture Protection 2 of 6





















Knox County Schools Program Standards - Middle

07220 – ROOF INSULATION a. Determined by type of deck, membrane system, membrane manufacturer, and

Designer preference.

07240 – EXTERIOR INSULATION AND FINISH SYSTEM a. Furnish High Impact Wall System; composite wall and soffitt insulation and finish system for Knox County Schools.

07255 – SPRAY APPLIED FIREPROOFING a. The sprayed fireproofing material shall be certified asbestos-free Cafco Blaze-

Shield for structural steel sections and Deck-Shield for steel deck surfaces (UL designations "Type DC/F" or "Type C/F", respectively) as manufactured by United

States Mineral Products Company (marketed abroad by Cafco International

Limited), or approved substitute. Material shall be free of all forms of asbestos, including actinolite, amosite, anthophyllite, chrysotile, crocidolite, and tremolite, and manufacturer shall provide written certification to the Knox County Schools and the Architect.

07270 – FIRESTOPPING a. Comply with provisions of the current Standard Building Code Edition. b. Mineral wool safing material shall be 6 pound per cubic foot density Thermafiber

Safing Insulation as manufactured by U.S.G., or other U. L. Rated approved substitute. Fire stop compound shall be SpecSeal Pillows as manufactured by

STI, or other U. L. Rated approved substitute. c. Systems or devices listed in the UL Fire Resistance Directory under categories

XHCR and XHEZ may be used, providing that it conforms to the construction type, penetrant type, annular space requirements and fire rating involved in each separate instance, and that the system be symmetrical for wall applications.

Systems or devices must be asbestos free.

1.

2.

3.

Additional requirements: Withstand the passage of cold smoke either as an inherent property of the system, or by the use of a separate product included as part of the UL system or device, and designed to perform this function.

Acceptable manufacturers and products. Those listed in the UL Fire

Resistance director for the UL system involved and as further defined in the Firestopping User’s Guide by Specified Technologies Inc. (STI)

All firestopping products must be from a single manufacturer. All trades shall use products from the same manufacturer.

07310 – SHINGLES

3. Shingles shall be Class "A" Wind and Fire heavy duty fiberglass similar to Elk Roofing Products Prestique Fiberglass Laminate shingles (or approved substitute), 13-1/4" x 39-3/8", with laminated overlay tabs.

Thermal and Moisture Protection 3 of 6































Knox County Schools Program Standards - Middle

4. Shingle underlayment shall be Johns-Manville No. 15 Asphalt Saturated

Felt, or approved equivalent.

5. Fasteners for shingles and underlayment shall be aluminum or hot- dipped galvanized steel, sharp-pointed, barbed shank roofing nails (no staples), 12 gauge minimum with 3/8" diameter heads. Nails shall be of sufficient length to penetrate thru the sheathing. Nail shingles above notch, using six (6) nails per shingle.

6. Substantial Completion Certificate will not be signed until roof leaks have been corrected.

07412 – STANDING SEAM METAL ROOF SYSTEM a. Specify a twenty (20) year watertight warranty agreeing to repair or replace the roof in the event of water entering through the system. This Warranty is to cover both materials and workmanship. b. The roofing contractor shall also provide a copy of his agreement with the

Manufacturer of the roof system he is providing. This agreement is to list the actual time the roofing contractor is solely responsible for the TOTAL ROOF

SYSTEM he is providing and the responsibility the roofing contractor is assuming in the event the roofing manufacturer goes out of business. c. Exposed metal roof covering shall be .032 gauge aluminum. Panel shall have a

Kynar finish color coating. Acceptable manufacturers:

1. Peterson Aluminum

2. Imetco d. For Steel Roof Panel System:

Metal roofing shall be TR 100 Standing Seam Roofing Panels by ECI

Building Components Inc., or approved substitute. Panel style shall be concealed fastener. Furnished in 24 gauge steel with smooth Kynar 500 finish in standard color. Furnish in uninterrupted lengths where possible.

07500 – MEMBRANE ROOFING a. Patching of existing built-up membrane roofing shall be 20-year bonded type Coal

Tar Bitumen 4-ply built-up membrane roofing with aggregate surfacing for installation over insulation on steel deck roof, Kopper's Specification No. 220BS. b. Roof base flashing shall be 20-year bonded Kopper's Specification No. 710KMM

(aluminum). This type of base flashing shall be used regardless of the type base flashing that was installed on the existing building. a. Provide maximum warranty available.

Thermal and Moisture Protection 4 of 6































Knox County Schools Program Standards - Middle

07531 – EPDM SHEET ROOFING – ADHERED SYSTEM a. The membrane shall be a nominal 0.060” (60 m) thick EPDM. b. Acceptable manufacturers: Subject to compliance with requirements, manufacturers offering products which may be incorporated in the work equivalent to or better than the following:

1. Carlisle Syntec Systems

2. Firestone Building Products Co.

3. GenCorp (Genflex) c. Provide maximum warranty available.

07540 –EPDM SHEET ROOFING – MECHANICALLY FASTENED SYSTEM a. Acceptable manufacturers: Subject to compliance with requirements, manufacturers offering products which may be incorporated in the work equivalent to or better than the following:

1. Carlisle Syntec Systems

2. Firestone Building Products Co.

3. GenCorp (Genflex) b. Provide maximum warranty available.

07561 – ASPHALT ELASTOMER MEMBRANE ROOFING a. Furnish Siplast, or approved substitute, 2030IH membrane roofing, and flashing.

Furnish with standard written 10-year water-tight guarantee on all areas of roofing with an option of an additional 10 years.

07600 – FLASHING AND SHEET METAL a. Sheet Metal material in connection with roofing, flashing, gutter, downspouts, copings, eyebrow canopies, and metal soffits on the exterior shall be as per Section s07412and 07800. Finish shall be Super-Cote I Kynar finish.

07610 – THRU-WALL FLASHING a. Thru-wall flashing material shall be Vinyl Flash as manufactured by Plascal Corp. or approved substitute.

07800 – ROOFING ACCESSORIES a. Metal coping, fascia panels, soffit panels, and all matching trim shall be formed from pre-finished material specified in sections 07412. Flashing and Sheet Metal. as per Section 07600. b. Roof access hatches shall be NB-20 for vertical ladders to roof, manufactured by

Bilco Company or approved substitute. Cover shall be

#14 gauge galvanized bonderized steel with 3" beaded flange, neatly welded, insulated with 1" thick glass fiber, fully covered and protected by #22 gauge galvanized steel liner.

Thermal and Moisture Protection 5 of 6



















Knox County Schools Program Standards - Middle c. Roof access hatches for ships ladders shall be Type L, 2'-6" x 8'-0", manufactured by Bilco Company or approved substitute. d. Reglets shall be MM Systems Type RF-1 Rib-Lock reglet and counterflashing for exterior brick walls and Type RF-2 reglet and counterflashing for other surfaces.

Finish shall match sheet metal specified hereinbefore. e. Roof expansion joints covers, including "Tee's" and intersections, shall be

Manville Expand-O-Flash prefabricated sections for bituminous roof systems. f. Ridge vent for shingle roofing shall be Cor-A-Vent V-400 as manufactured by

Cor-A-Vent or approved equivalent. Furnish with end caps and any and all necessary items required for a complete and watertight installation. g. Continuous drip edge vent at soffits shall be Air Vent inc. No. 82-5 in 0.024" aluminum, white in color. Furnish with AV Air Flash to prevent insulation blockage.

07900 – SEALANTS AND CAULKING a. Sealant for all exterior caulking shall be a two-component or one-component non- sagging sealant based on Dynatrol I or Dynatrol II manufactured by Pecora

Corporation, conforming to Federal Specification TT-S-227E, Type II, Class A, for two-component and TT-S-230C, Type II, Class A, for one-component sealants.

Acceptable manufacturers include Dap, Sonneborn, and Tremco. b. Sealant for interior use shall be paintable type equivalent to Pecora AC-20 Acrylic

Latex, Dap Acrylic Latex Caulk, or Tremco Acrylic Latex Caulk.



Thermal and Moisture Protection 6 of 6































Knox County Schools Program Standards - Middle

DOORS AND WINDOWS

A. Design Guidelines

1. Exterior doors, windows, storefronts and curtain walls should be protected from direct weather by soffits, recesses, canopies, etc. to afford longer life to finishes and installations as well as minimizing opportunities for water leaks and direct solar gain.

2. Retractable/folding/accordion partitions should be concealed when not in use by means of an alcove, pocket, closet, etc.

B. Technical Guidelines

08100 – HOLLOW METAL DOORS AND FRAMES a. Doors and frames shall be products of (or approved substitute):

1. Steelcraft Manufacturing Company

2. Metal Products Inc.

3. Pioneer Industries,

4. Ceco Door Products (beveled lock edge) b. Fully glazed doors shall be Type S-16 with 16 gauge stile and rail construction, with 8-9/16" high bottom rails and 5-1/2" wide stiles. All other doors shall be full flush construction, 1-3/4" thick, Type L-18 on interior and Type L-16 on the exterior, made of cold, rolled steel. c. Doors and window frames shall be flush frames with 2" wide faces, formed of #16 gauge cold, rolled steel for windows and interior doors and 14 gauge for exterior doors and windows. Frames shall be set up and welded. Mitered corners shall have reinforcements with integral tabs for secure and easy interlocking of jambs to head. Strike jambs shall be supplied with three factory installed rubber bumpers.

Mullions at pairs of doors shall be removable type. d. Frames shall be furnished with a minimum of six masonry wall anchors and two adjustable base anchors of manufacturer's standard design. Anchors for labeled frames shall be UL approved type. e. Stops for fixed glass window frames shall be installed on the interior of exterior windows. Frames shall be painted prior to installation of glass. f. Doors shall have 1/8" clearance at top, 3/32" clearance at sides, and 5/8" clearance above finished floor at the bottom. g. Doors and frames shall be cleaned, phosphatized and finished with one coat of baked-on rust-inhibiting prime paint, in accordance with ANSI A224.1.

Door and Windows 1 of 12

































Knox County Schools Program Standards - Middle

08200 – WOOD AND PLASTIC DOORS a. Flush wood doors shall be 5 ply, particleboard core, flush doors, similar in quality to Algoma Novodoor or Weyerhaeuser DPC-1 Pairs of doors shall match in color and grain. b. Flush wood fire doors shall be Algoma Hardwoods "Superstile" mineral core fire doors with stile edge split resistance of 1305 pounds and stile edge screw withdrawal of 887 pounds. Furnish with Algoma U.L. approved wood frames for glazing for all doors up to 20-minute label, and metal frames for all labeled doors above 20-minute rating.

08331 – FIRE RATED COUNTER SHUTTER a. Shutters shall be galvanized steel fire-rated counter shutters bearing Underwriter's

Laboratory Class "B" (1-1/2 hour) label or "C" (3/4 hour) label as manufactured by

Atlas Door Corporation, Edison, Cornell, Overhead Door, or approved substitute. b. Shutters are to be manually or crank operated, as recommended by manufacturer for sizes shown. Shutters are to close automatically in case of fire. Furnish large openings with governor type closing. Furnish with magnetic release/holder that can connect doors to and is compatible with fire alarm system as shown on the

Electrical Drawings. c. Finish for all steel surfaces shall be baked gray prime coat. Final color by schedule.

08341 – ROLLING GRILLE a. Rolling grille shall be similar to Model G11-DA as manufactured by Atlas Door

Corporation or approved substitute. Suggested construction shall be Brick Pattern with all exposed metal to be aluminum. Hoods shall be aluminum. Operation shall be manual. Finish shall be Bronze Anodizing. b. Furnish with optimal cylinder locking in bottom bar. Masterkeyed cylinder shall be furnished under Section 08710, Finish Hardware. c. Furnish with manufacturer's standard spring counterbalance, bracket plates, guides, and hood bottom closure.

08351 – WOOD FOLDING DOORS a. Door shall be Pella Wood folding Doors Series 358 as manufactured by Rolscreen

Company. Door shall be wood, folding, accordion type suspended from a track at the head. There shall be no guides or track at the floor. All spring hinges shall be concealed in the closed position. Doors shall be furnished assembled.

Door and Windows 2 of 12



























Knox County Schools Program Standards - Middle

08360 – ROLLING SERVICE DOORS a. Rolling steel service doors to conditioned spaces shall be Thermal Series Standard as manufactured by Atlas Door Corporation, Ediso or approved substitute. b. Operation to be manually operated using gear reduction and galvanized hand chain. Exterior doors are to be "All-Weather" fully weatherstripped at sill, hood, and at guides. Galvanized surfaces are to be furnished with a baked-on coat of acrylic primer. Other surfaces except for bearings are to be shop painted with a coat of metallic primer. c. Furnish cylinder locks on bottom bars, master key to building system.

08370 – SLIDING SERVICE WINDOW a. Windows shall be Model BP-2624 as manufactured by Nissen and Company, Inc., or approved substitute. Frames and glass channels shall be heavy type 6063-T5 aluminum extrusion. Furnish with clear anodized 204R-1 finish, ¼" DBS glazing, and key lock.

08410 – ALUMINUM ENTRANCE DOORS, STOREFRONT, AND CURTAIN WALLS a. Aluminum doors and frames and framing of aluminum glazed partitions and storefront are not recommended or preferred by Knox County Schools.

08520 – ALUMINUM WINDOWS a. Single Hung Windows shall be Croft Series 25 Single Hung Windows glazed with

Insulglas insulating glass, or similar and equivalent windows manufactured by

Alcan Building Products (Series 430); Better-Bilt Aluminum Products Company; or Gapco. Windows shall be glazed on inside with removable rigid vinyl glazing beads. Operating sash shall be provided with two automatic interior locks. b. All single hung side load aluminum windows shall have a 4-1/4" depth and be TR-

9100 manufactured by TRACO.

c. All double hung tilt aluminum windows shall have a 3-1/4" depth and be TR-5000

(optional TR-5020, if flush flange frame) manufactured by TRACO. d. Fixed and operable windows shall be Kawneer Sealair Isolock No. 8225T aluminum windows as manufactured by Kawneer Company, Inc. or approved substitute. e. Aluminum windows shall be provided with a thermal break.

Door and Windows 3 of 12

















































Knox County Schools Program Standards - Middle

08661 – TICKET WINDOWS AND SPEAK HOLES a. Ticket windows shall be No. 720 aluminum as manufactured by Nissen and

Company Inc. or approved equivalent. b. Speak holes shall be No. 400 aluminum as manufactured by Nissen and Company,

Inc. c. Ticket windows and speak holes shall be installed in ¼" thick plate glass.

08710 – FINISH HARDWARE

1.1 SECTION INCLUDES: a. Hardware for Steel, Wood and Aluminum Entrance Doors. b. Maintenance. c. Installation.

1.2 PRODUCTS FURNISHED BUT NOT INSTALLED UNDER THIS SECTION

Furnish lock cylinders to the following sections:

1. Section 08341 – Rolling Grille.

2. Section 08360 – Rolling Service Doors.

1.3 RELATED SECTIONS a. Section 06400 – Architectural Woodwork b. Section 08110 – Steel Doors and Frames. c. Section 08200 – Wood and Plastic Doors. d. Section 08330 – Coiling Doors: Hardware for same, except cylinders. e. Division 16 – Electrical: Electrical connection to activate electrified hardware supplied by this section.

1.4 REFERENCES a. United States Standard (US) is used as a reference standard for finish designations. b. Door and Hardware Institute (DHI) “Recommended Locations for Builders’

Hardware for Standard Steel Doors and Frames” is used as a reference standard for hardware locations.

1. This standard is referred to as “DHI” Recommended Locations.

Door and Windows 4 of 12









































Knox County Schools Program Standards - Middle

2. Maintain copy of this standard at job site during progress of work.

1.5 REGULATORY REQUIREMENTS a. For fire-rated door assemblies, provide hardware listed in Underwriters’

Laboratories “Building Materials Directory”, edition current at time of installation. b. Comply with National Fire Protection Association (NFPA) “Standard for Fire

Doors and Windows, NFPA 80-1995: for products and installation. c. Comply with all requirements of the Americans with Disabilities Act. d. Tennessee handicap requirements.

1.6 QUALITY ASSURANCE a. Suppliers’ Qualifications: Employ an Architectural Hardware Consultant (AHC) for consultation to Architect about project’s hardware requirements, during course of the work. b. Comply with American National Standards Institute (ANSI) Builders Hardware

Manufacturer’s Association (BHMA) A156 series for performance standards of the products referenced.

1.7 MAINTENANCE DATA a. Submit all available maintenance data.

1.8 DELIVERY, STORAGE, AND HANDLING a. Package hardware items individually.

1. Label and identify package with door opening code to match hardware schedule. b. Protect hardware from theft by cataloging and storing in secure area. c. Deliver keys to Owner by security shipment direct from lock manufacturer.

1.11 PROTECT CONDITIONS a. Whenever cutting and fitting is required to install hardware onto or into surfaces which are later to be painted or finished, coordinate removal, storage, and reinstallation with finishing work. b. Do not install surface mounted items until finishes on the substrate have been completed.

Door and Windows 5 of 12

































Knox County Schools Program Standards - Middle

1.12 EXTRA MATERIALS a. Furnish al complete set of specialized tools as needed for Owner’s continued adjustment, maintenance, and removal and replacement of builders’ hardware.

2.1 ACCEPTABLE MANUFACTURERS a. For each product, one of the listed manufacturers. b. Butts and Hinges:

1. Hager Hinge Company.

2. Stanley Hardware.

3. McKinney, Subsidiary of Kiddle, Inc. c. Lock and Latchsets and Deadlocks:

1. Medeco Security Locks

2. Schlage Lock Company

3. Yale Security

4. Corbin/Russwin

Note: Locksets and deadbolts shall accept the small format interchangeable cores as manufactured by Medeco. Permanent cores shall be furnished and installed by Knox County Schools. d. Exit Devices:

1. Von Duprin. e. Cylinders:

1. Medeco Security Locks (furnished and installed by Knox County Schools) f. Key Removable Mullions:

1. Von Duprin. g. Overhead Closers:

1. LCN Closers. h. Flush Bolts:

1. H. B. Ives.

2. Glynn-Johnson.

3. Trimco.

4. Rockwood Manufacturing Company. i. Coordinators:

1. H. B. Ives

2. Glynn-Johnson j. Stops and Bumpers:

1. Rockwood Manufacturing Company.

2. Baldwin Hardware Corporation.

Door and Windows 6 of 12

































Knox County Schools Program Standards - Middle

3. Glynn-Johnson.

4. Builders Brass Works Corp.

5. Trimco.

6. H. B. Ives k. Overhead Stops and Holders:

1. Rixson.

2. Glynn-Johnson l. Plates:

1. Rockwood Manufacturing Company.

2. Baldwin Hardware Corporation.

3. Glynn-Johnson.

4. Builders Brass Works Corp.

5. Trimco. m. Thresholds, Door Stripping and Seals:

1. National Guard Products, Inc.

2. Reese Enterprises, Inc.

3. Zero International, Inc.

4. Pemko. n. Key Cabinet:

1. Telkee.

2. Key Control Systems. o. No substitutions, except under provisions of Section 01600.

2.2 BUTTS AND HINGES a. Butts: As scheduled, manufactured by Hager Hinge Company.

1. Provide non-removable pins for exterior doors and out-swinging corridor doors. b. Provide 4-1/2” x 4-1/2” butts for doors not over 36” wide.

1. Provide 5” x 4-1/2” butts for doors over 36” wide. c. Provide one and one-half pair butts for each door leaf to 7’-2” high.

1. Provide one additional butt for each 30” of door height over 7’-2”. d. Finish: US26D

2.3 LOCKS AND LATCHSETS a. Comply with ANSI A156.2 Series 4000, Grade 1, for cylindrical locksets and

ANSI A156.13, Series 1000, Grade 1, for mortise locksets. b. Locksets and Latchsets: 9K Series for Cylindrical locksets and 35H Series for mortise locksets, manufactured by Medeco Security Locks.

Door and Windows 7 of 12













































Knox County Schools Program Standards - Middle

1. Function as scheduled.

2. “Columbine” type. c. Dummy Trim: match lock and latchsets.

1. Unless otherwise indicated, provide trim both sides of door. d. Design: 9K Series 14D; 35H Series 14H

1. Provide knurling for locations indicated. e. Finish: US26D f. Warranty: One year after the date of substantial completion.

2.4 EXIT DEVICES a. Exit Devices: 99 Series devices, manufactured by Von Duprin.

1. Trim: 994L with Breakaway #17 lever.

2. Function: As scheduled. b. Finish: US26D. c. Warranty: Three years after the date of substantial completion.

2.5 CYLINDERS AND KEYING a. Provide small format interchangeable core cylinders, manufactured by Medeco

Security Locks.

1. Provide temporary inserts for the construction period. Remove when directed.

2. Furnish ten construction keys for use during construction period.

3. Permanent cores shall be furnished and installed installed by Owner. b. All locksets and cylinders shall be great grand master keyed into the existing Knox

County School system with new grand masterkey for this project. c. Furnish 3 change keys for each lock and 4 master keys for each master and grand master system.

2.6 REMOVABLE MULLIONS a. Removable Mullions: KR454, manufactured by Von Duprin. b. Finish: SP28. c. Removable mullions shall be furnished with a lock that will accept a Knox County

Schools furnished and installed cylinder that can be keyed to the master key system.

2.7 PUSH AND PULLS

Door and Windows 8 of 12













































Knox County Schools Program Standards - Middle a. Push Plates: 70C, manufactured by Rockwood Manufacturing Company.

1. Stainless Steel, US32D finish. b. Pulls: 102 x 70C, manufactured by Rockwood Manufacturing Company.

1. Stainless Steel, US32D finish.

2.8 OVERHEAD CLOSERS a. Overhead Closers: The following manufactured by LCN Closers.

1. 4110 series for exterior openings; 4041 series for interior openings.

2. Size in accordance with manufacturer’s recommendations. b. Provide hold-open EDA arms for exterior doors and where scheduled (HO) for interior doors. c. Provide bracket mount for out-swinging exterior doors and where scheduled (PA) for interior doors. Mount closers on inside of doors away from public areas. d. Finish: Silver lacquer. e. Provide the following:

1. Spring power adjustable to comply with ADA requirements.

2. Separate adjustments for latch speed, general speed, and hydraulic back check.

3. Hydraulic fluid requiring no seasonal closer adjustment for temperatures ranging from 120 degrees F to –30 degrees F.

4. Warranty: Ten years after the date of substantial completion.

2.9 SMOKE ACTIVATED CLOSERS a. Smoke Activated Closers: Firemark manufactured by Rixson. b. Finish: BHMA 689, sprayed AL. c. Warranty: One year after the date of substantial completion.

2.10 OVERHEAD HOLDERS a. Door Holders: 9 series, manufactured by Rixson. b. Finish: US26D c. Warranty: One year after the date of substantial completion.

2.11 FLUSH BOLTS a. Flush Bolts: As scheduled, manufactured by H. B. Ives.

1. Furnish 12” rod for bottom bolts.

Door and Windows 9 of 12

















































Knox County Schools Program Standards - Middle

2. Furnish rod for top bolt of sufficient length that center of bolt mechanism will be not more than 6’-0” above the floor. b. Provide dustproof strike for bottom bolts on all manual bolts. c. Finish: US26D d. Warranty: One year after the date of substantial completion.

2.12 STOPS AND BUMPERS a. Stops: No 409, manufactured by Rockwood Manufacturing Company.

1. Substitute No. 440 where wall mounted stop cannot be used.

2. US26D finish. b. Silencers: GJ64 for all hollow metal frames; 3 each single door frame, 2 each double door frame.

2.13 PLATES a. Kick Plates: Manufactured by Rockwood Manufacturing Company.

1. Stainless steel.

2. Height: 8”

3. Thickness: 16ga. (.051) b. Length:

1. Single Doors: Nominal width of door leaf less 1” except less 2” when plate is on push side.

2. Double Doors: Nominal width of door leaf less 1” c. All plates to be beveled three sides.

2.14 DOOR STROPPING AND SEALS a. Seals: As scheduled, manufactured by National Guard Products, Inc.

2.15 THRESHOLDS a. Thresholds and Saddles: As scheduled, manufactured by National Guard Products,

Inc. b. Comply with all ADA requirements. c. Finish: Mill. d. Provide threshold full width of masonry opening notched to frame profile.

Door and Windows 10 of 12













































Knox County Schools Program Standards - Middle

2.16 COORDINATOR a. Coordinators: 900 Series, manufactured by H. B. Ives.

1. US26D

2.17 KEY CABINET a. Key Cabinet: Hinged panel type cabinet, for wall mounting.

1. Size as required for project plus minimum 25 percent. b. Manufacturer: Telkee, type AWC complete.

2.18 FASTENERS a. Provide fasteners to suit conditions.

1. Provide concealed fasteners for units, which are exposed when the door is closed.

2. Provide Phillips screws, except as otherwise indicated. b. Provide exposed fasteners of finish to match the finish of the hardware item. c. Provide sex nuts and bolts for all surface mounted door closers and exit devices.

2.19 EXAMINATION a. Verify that doors and frames are of size and materials indicated on schedule.

1. Verify door swings.

2. Verify fire rating requirements. b. Ensure that electric power of the operated devices. proper characteristics is available to electric

3.1 INSTALLATION a. Mount hardware items in accordance with DHI Recommended Locations. b. Install in accordance with manufacturer’s recommendations. c. Drill and countersink fasteners for units which are not anchorage fasteners. factory prepared for

3.2 ADJUST AND CLEAN a. Adjust and check each operating item of hardware to ensure proper operation or function.

1. Adjust door control devices to compensate for final operation of heating and ventilating equipment.

Door and Windows 11 of 12

























Knox County Schools Program Standards - Middle

3.3 MAINTENANCE a. After approximately six months occupancy, and within 10 days of notification by

Architect, inspect the finish hardware installation, accompanied by the Supplier.

1. Readjust each hardware item to restore proper functions.

2. Replace hardware items that have deteriorated or failed.

3. Instruct Owner’s personnel in recommended additions procedures. to the maintenance

08800 – GLAZING a. Glass shall meet or exceed the requirements of Federal Specifications DD-G-451C and each piece of glass shall bear factory applied label. Tempered glass shall meet the requirements of Federal Specifications DD-G-1403B. Glass shall be equivalent to that manufactured by AFG Industries, Inc. or PPG Industries. b. Exterior aluminum windows, exterior hollow metal windows, entrance doors and adjacent side lights shall be 1" thick Low-E insulating glass consisting of two sheets of ¼" thick glass separated by a ½" thick airspace filled with argon. Both sheets of glass in insulated units shall also be tempered safety glass in doors, side lights, and elsewhere as required by Federal and State Safety Glazing laws. Safety glass shall conform to requirements of Federal Safety Standard 16CFR1201. c. Interior doors and adjacent side lights, interior glazed partitions, and elsewhere are required by Federal and State Safety Glazing laws. Safety glass shall conform to requirements of Federal Safety Standard 16CFR1201, and shall be ¼" thick

Herculite Tempered Safety Glass manufactured by PPG industries or equivalent. d. Metal windows in interior fire-rated walls and in interior fire-labeled doors shall be ¼" thick clear Nuweld Diamond Wire Glass, Nuweld Diamond Wire Glass, or approved equivalent wire glass listed by Underwriter's Laboratories, Inc., as fire resistant. e. Glass for other interior and exterior metal windows where fire resistant or safety glazing materials are not required shall be 1/4" thick double strength clear plate glass.

Door and Windows 12 of 12



























Knox County Schools Program Standards - Middle

FINISHES

A. Design Guidelines

1. Synopsis of finishes: a. Floors

(1) Administrative Area, Music, Library: Carpet

(2) Classrooms: Vinyl Composition Tile

(3) Cafeteria, Concessions: Vinyl Composition Tile

(4) Corridors: Carpet or Vinyl Composition Tile

(5) Storage, Work Rooms: Vinyl Composition Tile

(6) Kitchen, Lobbies: Seamless Epoxy

(7) Entrance Vestibules, Ramps: Rubber Tile

(8) All Toilets, Shower Areas: Seamless Epoxy

(9) Stage/Platforms: Wood Flooring

(10) Gymnasium, Wood in H. S. & M. S., Sheet Vinyl Athletic

Flooring in Elem.

(11) Art Room, Outside Storage, Janitor, Mechanical: Sealed

Concrete

(12) Computer Rooms: Vinyl Composition Tile b. Base

(1) Rubber Base with Carpet, Vinyl Tile, Wood and Rubber

Flooring

(2) Quarry Tile Base with Quarry Tile Flooring

(3) Ceramic Tile Base with Ceramic Tile

(4) Integral epoxy with seamless epoxy flooring c. Walls

(1) Toilets, Kitchen, Clinic, Dressing and Showers, Corridors, and Cafeteria wainscots: Epoxy Paint

(2) All other interior areas: Semi-gloss Enamel or Latex

(3) Janitor, Mechanical, Exterior Storage: Semi-gloss Enamel or

Latex

(4) All wall paint colors to be off white (Gray or Beige Tint) d. Ceilings

(1) Gymnasium, Gang Toilets: Exposed Structure Painted.

Painted.

(3) All other areas: Acoustical Tile (Ceramaguard or equivalent in Kitchen)

Finishes 1 of 7





























Knox County Schools Program Standards - Middle

DESIGN STANDARDS

2. Resilient floor patterns should be limited to three floor tiles; one of which is to be the dominant field tile of a light color with high light reflectance. Remaining tiles may be of a complimentary and/or contrasting color. Solid color tiles in high traffic areas are discouraged due to their tendency to "frost" or discolor.

3. Specify each coat of paint slightly darker than preceding coat, and field approve each to ascertain their application.

4. Designer shall submit for approval, a complete color schedule and sample board, for all interior and exterior selections.

B. Technical Guidelines

09310 – CERAMIC TILE a. Tile shall be Standard Grade, conforming to requirements of ANSI A137.1-1967 and containers shall be grade sealed, and shall be American Olean, Daltile,

Summitville Tile, or approved substitute. Deliver all products to building in manufacturer's unopened containers with seals unbroken and labels intact.

Furnish master grade certification to the Architect. b. Tile shall be bullnosed and coved shape A-3610, 6" high by 6" long. Base shall have bright glaze finish. Internal corners shall be mitered and external corners shall be combination angle and stretcher tile. Wall tile shall be 4-1/4" x 4-1/4". c. Floor tile shall be unglazed ceramic mosaics, 2" x 2". Pattern and color shall be as selected by the architect from manufacturer's standard patterns in price range

"B" for solid colors and price range "C" for patterns. d. Setting mortar for setting bed shall be Portland Cement mortar, conforming to requirements of ANSI A108.1-1976. Setting mortar for thin-set tile shall be Dry-

Set Mortar conforming to the requirements of ANSI A108.5-1976 and ANSI

A118.1-1976. e. Grout shall be Commercial Portland Cement wet cure formulation and shall be equivalent to L&M, Upco, Kaiser, or Custom. Color shall be as selected by the

Designers. Damp cure grout as required.

09330 – QUARRY TILE a. Quarry tile shall be 6" x 6" x ½" thick standard grade quarry tile ground four sides after firing as manufactured by the American Olean Tile Company,

Daltile Corp., Summitville Tile or approved substitute. Base shall be section Q-

3565. Furnish all bullnose corners and trim pieces required. Floor tile shall be 50 percent standard finish and 50 percent non-slip finish alternating. b. Tile shall conform to ANSI A137.1-1967 and Federal Specifications SS-T-308C.

Finishes 2 of 7





























Knox County Schools Program Standards - Middle c. Adhesive for Base: Shall conform to U. S. Department of Commerce

Commercial Standard SC 181-52 (Water resistant organic adhesive for installation of clay tile). d. Grout: Equivalent to L&M, Upco, Kaiser, or Custom. e. Caulking (Kitchen area): Dow Chemical DAP Silicone with – 60° F to 400° F

Temperature rating.

09500 – ACOUSTICAL TREATMENT a. Tile shall be Minaboard, Cortega Design, #770, 24" x 24" x 5/8" square-edge lay- in as manufactured by Armstrong World Industries, or an approved substitute.

NCR=.50-.60, STC=35-39, LR-1, Class A Flame Spread. b. Kitchen Tile shall be Ceramaguard, Travertine Design, #601, 24" x 48" x 5/8" square-edge lay-in as manufactured by Armstrong World Industries, or an approved substitute. NCR=.55-.65, STC=40-44, LR-1, Class A Flame Spread. c. Tile for extra sound protection shall be fiberglass, Painted Nubby Design, #3100,

24" x 48" x 3/4" square-edge lay-in as manufactured by Armstrong World

Industries, or an approved substitute. NCR=.80-.90, LR-1 Class A Flame Spread

. d. Suspension system shall conform to requirements of ASTM C635 for intermediate duty service. e. Provide extra acoustical ceiling system material in unopened, clearly marked cartons equivalent to 2% of the total quantity of installed acoustical panel material, and 24 pieces each of 4'-0" long tees and 2'-0" long tees.

09561 –WOOD GYMNASIUM FLOOR SYSTEM a. “Scissor-Loc I” as manufactured by Superior Floor Company or approved

Equivalent.

1. 1/4" multi-cellular, linear linked, closed cell polyethylene foam vapor- proofing, density PCF 2.0 nominal.

2. Subfloor shall be 1” x 6” #2 Spruce, Pine, Fir, KD S2S to ¾” x 6 RL.

3. Finish Flooring: a. Domestic Manufacture, Mixed Grain RL TGEM KD Northern Hard

Maple, MFMA graded and trademarked. 25/32" thick x 2-1/4" width, second and better b. Fasteners shall be 2” barbed cleats. c. Wall base shall be 4” x 3” Heavy Duty Molded, vented, rubber cove base with pre-molded outside corners as supplied by Superior Floor

Company. d. Finish shall be Superior Gym Seal and Finish.

09563 – WOOD PLATFORM FLOORING SYSTEM (PINE) a. Flooring shall be nominal 25/32" T&G Pine Flooring

Finishes 3 of 7























Knox County Schools Program Standards - Middle b. Pine flooring shall be installed over one layer of 15# Building Felt on plywood subfloor. Subfloor material shall be two layers of 8'-0" x 4'-0" sheets of ½" thick

5-ply Douglas Fir Plywood. Top layer shall be underlayment INT-DFPA Grade, installed at a 45 degree angle to bottom layer of plywood and bottom layer shall be

C-D grade, installed of one layer of 6 mil polyethylene. Plywood shall be manufactured using exterior grade glue. Plywood shall not be attached to concrete slab. c. Furnish and install 4" x 3" ventilating cove base as specified above.

09650 – RESILIENT FLOORING AND BASE a. Vinyl Composition Tile – 12" x 12" x 1/8" tile shall be Armstrong, Mannington

Commercial, or approved equivalent. Colors shall be as selected from standard color selections from the manufacturer. Three Colors maximum. b. Rubber tile shall be 12" x 12" x 1/8" as manufactured by Burke Flooring Products,

AFCO Rubber Corporation (AF-71); the R.C.A. Rubber Company; The R.C.

Musson Rubber Company; or approved substitute. c. Athletic Flooring shall be equivalent to Taraflex Multi-Use 5.0 as manufactured by

Gerflor and installed in accordance with the manufacturer’s specifications and recommendations. Colors to be selected by designer and approved by the Owner. d. Rubber base shall be "Johnsonite" base as manufactured by Johnson Rubber

Company, "Robbins Rubber Base" as manufactured by Robbins Products, Inc.,

"Burke Rubber Base" as manufactured by Burke Flooring Products, or approved substitute. Base shall be set-on cove type, 6" high in all areas. Colors to be selected by the Architect. All outside and inside corners shall be preformed corner sections. e. Adhesive for installing resilient flooring shall be types specified by the flooring manufacturer. Verify compatibility with water base acrylic curing and sealing compounds specified. Adhesive for installing rubber base shall be in accordance with the manufacturer's written instructions, including recommended trowel tooth configuration. f. Tapered edging strips for vinyl flooring termination shall be 1/8" thick by 1" wide, vinyl with tapered or rounded edges, in color to be selected by the designer. g. Stair treads shall be Burke 0.125" square Nose, Rouleau Square Profile or Flexco

Medium Duty Radial Tread No. 550. Furnish with Burke Matching Risers or

Flexco Rubber Stringers Type STR. Rubber flooring shall be installed in strict accordance with manufacturer's printed instructions using Flexco #76 Epoxy

Adhesive and Flexco #36 Epoxy Caulking. Install stair treads in #5 epoxy flooring adhesive. All voids between stair nosings and tread shall be filled with #10 epoxy stair caulk.

Finishes 4 of 7





















Knox County Schools Program Standards - Middle h. Preparation: Sand concrete slabs with rotary power sander. Sweep or brush all surfaces clean of dust and foreign material with a new broom, fill all holes and depressions with underlayment, and be sure that all surface irregularities have been corrected before resilient material is installed It is assumed that all sub-floors on which tile work is laid will be smooth and level. The contractor shall, however, provide approved "underlayment", recommended by tile manufacturer for specific purpose, for filling small cracks, irregularities, as job conditions require. At stent with of work, remove all damaged, defective, scratched, and discolored tile.

All tile shall be stripped of factory wax finish, cleaned, and shall receive a minimum of four coats of wax before buffing, all in accordance with manufacturer's current published recommendations. Replace all damaged materials without additional cost.

09680 – CARPETING a. Furnished and installed under separate Contract for Knox County Schools.

09900 – PAINTING a. Furnish extra stock to Owner. Provide one gallon unopened container of each product in each color used. Label with color identification and locations where used. b. For Paint Materials, provide one of the following:

1. Pittsburgh Paints, PPG Industries, Inc. (examples listed)

2. The Sherwin-Williams Company

3. Glidden Coatings and Resins Div., SCM Corporation

4. Pratt and Lambert, Inc. / Southern Coatings, nc.

5. Devoe and Raynolds Co.

6. Duron Paint Manufacturing Co. c. Provide materials which are VOC Compliant d. Exterior Paint Systems

1. Exterior Ferrous Metals (CONVENTIONAL ALKYD SYSTEM):

First Coat: PPG Multi-prime Inhibitive Primer 97-682.

Second and Third Coats: PPG Speedhide Gloss Oil Interior/Exterior

Enamels, 6-252 Series.

2. Exterior Galvanized Metal (CONVENTIONAL SYSTEM):

First Coat: PPG Galvanized Steel Primer, 6-209.

Second and Third Coats: PPG Speedhide Gloss Oil Int/Ext Enamel 6-

252.

3. Exterior Concrete and Concrete Block (EXCEPT FLOORS):

Finishes 5 of 7



































Knox County Schools Program Standards - Middle

First and Second Coats: Sonneborn Super Color Colorcoat, 50-60 sq. ft./gal. (80 for concrete), 10 mil dry film thickness.

4. Exterior Wood Surfaces (PAINT SYSTEM):

First Coat: PPG Speedhide Exterior Oil-Based Primer 6-809.

Second and Third Coats: PPG Speedhide flat 6-610 flat or Semi-gloss 6-

900 series. e. Interior Paint Systems

1. Interior Ferrous Metals (WATER BASED ACRYLIC SYSTEM):

First Coat: PPG Pitt Tech Waterborne Acrylic Primer 90-712.

Second and Third Coats: PPG Pitt Tech Waterborne Interior Exterior

Acrylic

Acrylic Enamel 90-374 Gloss or 90-474 Satin.

2. Galvanized Metal (WATER REDUCIBLE ACRYLIC SYSTEM):

First and Second Coats: PPG Pitt Tech Waterborne Interior/Exterior

Acrylic Enamel 90-374 Gloss or 90-474 Satin.

3. Concrete and Masonry (LATEX FINISH):

First Coat: PPG Speedhide Latex Masonry Block Filler 6-7.

Second and Third Coats: PPG Speedhide Acrylic Latex interior Flat 6-

70.

Or

Second and Third Coats PPG Speedhide Int. Vinyl Acrylic semi-gloss enamel,

6-510 Series.

4. Concrete and Masonry (EPOXY FINISH):

First Coat: PPG Speedhide Latex Masonry Block Filler, 6-7

Second and Third Coats: PPG Pitt Tech Waterborne Int Ext Acrylic 90-

374 gloss or 90-474 satin.

5. Interior Woodwork (PAINTED):

First Coat: PPG Speedhide Quick Drying Enamel Undercoat 6-6.

Second Coat: PPG Speedcraft Interior Eggshell Latex Enamel 5-411.

6. Interior Woodwork (STAINED):

First Coat: PPG Interior Semi-Transparent Stain Rez 77-302.

Second and Third Coats: PPG Rez Polyurethane Clear Varnishes 77- series.

Finishes 6 of 7



















Knox County Schools Program Standards - Middle

7. Drywall (LATEX FINISH):

First Coat: PPG Speedcraft Interior Latex Primer-Sealer White 5-2.

Second and Third Coats: PPG Speedcraft Interior flat latex 5-70. or

Second and Third Coats: PPG Speedcraft Interior Eggshell Enamels 5-

411.

Or

Second and Third Coats: PPG Speedhide Low Odor Interior Enamel

Wall and Trim Lo-Lustre Oil 6-90 Series.

8. Equipment and Other metal Surfaces

First Coat: PPG Speedhide Rust Inhibitive Steel Primer 6-208.

Second and Third Coats: PPG Speedhide Gloss-Oil Int/Ext Enamels 6-

252.

09960 – SEAMLESS EPOXY FLOORING AND BASE a. Seamless Epoxy Flooring shall have a minimum 4” high integral base. Colors shall be as selected from manufacturer’s standard color selections, three colors maximum. b. Preparation and installation shall be in strict accordance with the manufacturer’s specifications and recommendations. Flooring shall be topped with GS7 finish sealer, installed as directed. Replace all damaged materials without additional cost.



Finishes 7 of 7





































Knox County Schools Program Standards - Middle

SPECIALTIES

A. Design Guidelines

1. Designer shall provide appropriate mounting heights for each grade level.

2. Canopies clearance heights for buses and delivery vehicles, shall be confirmed (10530).

B. Technical Guidelines

10115 – MARKERBOARDS AND TACKBOARDS a. Markerboards and Tackboards shall be series specified as manufactured by

Claridge Products and Equipment, Inc., or similar and equal products manufactured by Best-Rite Markerboard Company; or approved substitute. b. Trim: Trim shall be heavy gauge aluminum extrusion. Claridge Factory Built

Series #1, with No. 271 Chalk Trough with closed ends with aluminum satin finish or approved substitute. Both Markerboards and tackboards shall have continuous map rail at top of unit. Furnish 2 each map hooks per four feet (4'-0") of markerboard (No. 51c). c. Markerboards: 24 gauge LCS white porcelain enamel face on 3/8" particleboard core material with aluminum foil backing (LCS24W-118-F). Markerboards shall accept magnetic aids. Markerboard shall be Music Ruled where noted in Music

Instruction Areas. d. Tackboards shall be Fabricork Vinyl, No. 1550 Mounted, or Claridge Products and

Equipment, Inc., or approved equal. Tackboards shall consist of vinyl fabric facing on underlay of ¼" thick cord with ¼" hardboard backing, color to be selected by designer. Furnish tack strips in corridors where shown on drawings. e. Feltboards shall be No. 934 EW Hook-Fab with 7/32" cork underlay on ¼" hardboard with edges wrapped. f. Mounting: Exposed angle mounting or concealed clips or combination thereof. g. Furnish vertical mullions similar to Claridge #803A. Mullions shall be same color as markerboards.

10130 – DISPLAY RAILS

Display rails shall be 12" long Grip-A-Strip rails as supplied by Interstate School

Supply and Equipment Company or approved substitute.

Specialties 1 of 6























Knox County Schools Program Standards - Middle

Rails shall be Style 51, Satin Finish. Furnish with mounting brackets for masonry walls and for gypsum wallboard.

10150 –CUBICLE CURTAINS

Curtain cubicles for clinics shall be Cubi-Trac Model 110-S as specified, manufactured by ADC Drapery Track Division of Automatic

Devices Company, or Equal product of A.R. Nelson Company, Inc.;

Grant Pulley & Hardware Corporation; or Stanley-Judd; or approved substitute.

10160 – TOILET PARTITIONS



  a.   b.







Solid Phenolic Core Toilet Partitions

All S.P.C. (Solid Phenolic Core) toilet partitions shall be 40 Series , floor supported with headrail as manufactured by General Partitions

Manufacturing Corp., Erie, Pennsylvania. Doors shall be manufactured of solid phenolic core material ¾" thick with high pressure matte finish melamine surfaces. Edges shall be dark brown. Panels shall be same construction as doors - ½" thick.

1.



Plastic Overhead Braced Toilet Partitions

Toilet compartments shall be floor mounted, overhead braced, with noncorrosive doors, panels, and pilasters similar and equal to Poly-Mar HD® compartments as manufactured by Santana Products, Inc., Scranton,

Pennsylvania, or approved equivalent.

2.



Panels, doors and Pilasters shall be fabricated from High Density

Polyethylene (HDPE) containing a minimum of 50% recycled material manufactured under pressure forming a single component section which is waterproof, non-absorbent and has a self-lubricating surface that resists marking with pens, pencils, of other writing utensils. Manufacturer to supply a written warranty covering all Poly-Mar HD® plastic components against breakage, corrosion, and delamination for a period of 15

10260 – CORNER GUARDS a. Corner guards in Kitchen areas shall be Pro-Tex, Style CG-2, heavy duty, black neoprene corner guards, manufactured by Pawling Rubber Corporation, Pawling,

NY, or approved substitute. Corner guards shall be 4" x 4" angles (inside dimension) and 48" long.

10350 –FLAGPOLE a. Flagpole shall be manufactured by Baartol Company, The American Flagpole and

Equipment Company, Inc., or the Lingo Flagpole Company, or approved substitute. Flagpole shall be 35 feet high, ground set type, Alcoa 6063T-6

Specialties 2 of 6

































Knox County Schools Program Standards - Middle aluminum seamless extruded tubing cone tapered and of length dimensioned on the Drawings. Finish: Dark Bronze Duranodic. b. Pole assembly designed to withstand 100 MPH wind. Furnish standard fittings and installation accessories including: Flash collar, ground protection, metal tube, steel wedges, rope and lightning rod.

10420 – PLAQUE a. Layout for the plaque will include Title of Project, as determined by the Owner, date and name of Superintendent of Schools, School Board Members, the

Architect, General Contractor, and any other information to be included. b. Plaque shall be 36" x 24" cast bronze with helvetica letters on pebble background texture and No. 1 flat ban border, fastened to wall using mounting method "B", as manufactured by Andco Industries Corporation, or approved substitute.

10430 – BUILDING AND YARD SIGNS a. Provide and install letters on yard sign. Letters shall be equal to Andco

Industries Corporation, Microgramma Bold 2001 style cast aluminum letters.

Stroke shall be 2-1/4", height of letter 8". Finish shall be baked-on enamel, color to be selected by the Architect. Size of sign to be determined by amount of letters required.

10440 – DOOR SIGNS a. Bidders shall include an allowance in the Base Bid sufficient to furnish and install door signs. Schedule, showing room name and number, to be prepared, reviewed with Owner, and forwarded to Contractor. b. Provide ADA compliant InTouch series plaques, with raised graphics and Grade II

Braille, as manufactured by ASI Sign Systems or approved substitute. c. Signs to be photomechanically etched polymer, with 1/32" raised lettering and

Grade II Braille, laminated to 1/16" styrene. Panels shall be mounted to wall with double sided adhesive tape. All colors shall have eggshell, non-glare finish.

Braille shall be same color as background. Type style shall be Helvetica Medium, upper case, 1" high. Lettering shall be computer generated, accurately reproducing the letterform. Grade II Braille shall be computer translated from English and shall meet ADA requirements for size and spacing.

10505 – METAL LOCKERS a. Lockers shall be Superior Lockers as manufactured by List Industries, Medart,

Inc, Penco, Republic Steel, or approved substitute. All single and double tier lockers shall have recessed

Specialties 3 of 6































Knox County Schools Program Standards - Middle stainless steel handle, sloped top, and three wall hook's and number plates.

Lockers shall be such that they can receive padlocks by the Owner. Lockers shall be designed to mount on concrete base. b. Team Room Athletic lockers, shall be MVP as manufactured by Republic.

Lockers shall have diamond perforated doors and shall measure 24" wide x 24" deep x 72" high and shall be delivered to the job site fully assembled. c. Pedestals for locker room benches shall be No. 480 heavy duty cast iron with 6" diameter top and bottom. Securely attach to top and floor with appropriate anchors. Space pedestals at 4" o.c. max. Wood locker benches shall be furnished in Section 06220, Millwork.

10510 – BULLETIN BOARD CASES a. Furnish and install Contemporary Series No. 2046 surface mounted multiple bulletin board case, 4 feet high x 8 feet long with 4 sliding doors, and ¼"

Fabricork on ¼" backing as manufactured by Claridge Products and Equipment,

Inc., or approved substitute. Aluminum frame and trim shall have baked-on bronze enamel finish. Similar product as manufactured by Best- Rite Chalkboard

Company, Temple, Texas, will be acceptable.

10522 – FIRE EXTINGUISHER CABINETS a. Cabinets in non-rated walls shall be Larsen 2409-6R Architectural Series, Semi- recessed cold rolled steel cabinet prefinished on the interior and exterior in white baked acrylic enamel. Door style shall be Duo Break Glass. b. Cabinets in fire-rated wall shall be Larsen FS-2409-6R Flame Shield Fire Rated

Architectural Series Cabinets, Semi-recessed cold rolled steel cabinet prefinished on the interior and exterior in white baked acrylic enamel. Door style shall be Duo

Break Glass. c. Provide extinguishers as follows: (by Badger) Verify with Knox County Schools

1. Kitchen Areas – 6 Liter Model WC-100 UL Rated 2A:1B;C;K, WC Series

Wet Chemical with potassium acetate based low PH agent HB-11 wall bracket mounting.

2. Electrical and Mechanical Rooms – 10 Pound Model B10M UL Rated 4A-

80B:C Multi-Purpose Dry Chemical with UB-10 wall bracket mounting.

3. Elsewhere – 10 Pound Model B10M UL Rated 4A-80B:C Multi-Purpose Dry

Chemical in cabinets specified.

10530 – WALKWAY COVERS AND CANOPIES a. Prefer prefinished steel, Kynar finish, roof to support foot traffic, internally drained as manufactured by (or approved substitute):

Manufacturer: Nu-Vent, Inc.

Specialties 4 of 6































Knox County Schools Program Standards - Middle

Roof Deck: 3-1/2" tall D-35 Deck

Fascia

Beam: 4" by 6" standard beam

.125"



Manufacturer: E.L. Burns Company

Roof Deck: Minimum 3-1/2" tall

Beam: 4" by 6"

.125"



Fascia: 6" tall F-107



  by 4" by

Fascia: Minimum 6" tall

Column: 4" by 4" by

Manufacturer: Dittmer Architectural Aluminum

Roof Deck: Spread 80

Beam: 4" by 6"

.125"

Fascia: Minimum 6" tall

Column: 4" by 4" by

10552 – MAILBOXES a. Horizontal letter boxes shall be of Supreme Series as manufactured by Cutler-

Federal, Inc. or approved substitute. Mail box loading doors and components shall be heavy gauge aluminum construction with extruded aluminum support bars.

Fronts shall be finished in U. S. 28 anodized aluminum. Sizes: 6-3/8" wide by 5" deep; 13" wide by 5" deep as shown. Provide with plastic insert numbering system beginning with Number 100.

10652 – FOLDING PARTITIONS a. Folding partitions shall be paired panels, center stacking Emco Wall Model No.

8241 or similar, furnished and installed by an authorized representative of Emco,

Inc., Lenexa, Kansas, or approved substitute. b. Model 8241 shall consist of paired sliding panels that are top-supported and manually operated. No floor track shall be required. The final closing action of these panels shall produce the positive vertical sound seal; between all panels.

Furnish with automatic floor seals. Panels shall consist of 3" thick factory- fabricated units. All panels shall be factory finished with standard vinyl fabric.

Four panels shall have tackboard panels both sides with anodized aluminum edge trim on both faces. Tackboard panels shall be 4 feet high.

10800 – TOILET ROOM ACCESSORIES a. Mirror: Bobrick Model No. B-292 1824 or Bobrick Model 1 B-290 2436. b. Towel Cabinet: Furnished by Knox County Schools, installed by contractor. c. Grab Bar: Bobrick B-5507 Series, 1-1/2" outside diameter, 1 1/2" clear hand space to wall – model numbers as scheduled. Bars shall be anchored to support

250# vertical load.

Specialties 5 of 6





















Knox County Schools Program Standards - Middle d. Soap Dispenser: Furnished by Knox County Schools, installed by contractor. e. Toilet Paper Dispenser: Furnished by Knox County Schools, installed by contractor. f. Sanitary Napkin Vendor and Disposal: Bobrick Model No. B-352 with B-353

Disposal. g. Tub Grab Bar Set: 1 Bobrick Model No. B-56187 and 1 B-5507 x 48. h. Shower Grab Bar Set: 1 Bobrick Model No. B-56187 (72 x 30). i. Towel Pin: Bobrick Model No. B—6777. j. Shower Curtain Set: Bobrick Model No. 204-3 curtain and Bobrick Model No.

204-1 hooks. k. Shower Seat: Bobrick Model No. B-5171 (verify handing). l. Mop Holder: Bobrick Model No. B-224 x 48.



Specialties 6 of 6



































Knox County Schools Program Standards - Middle

EQUIPMENT

A. Design Guidelines

1. No Owner specific guidelines offered.

B. Technical Guidelines

11050 – BOOK DEPOSITORIES a. Book Depository shall be model 1112SD as manufactured by Mosler Depository Corp., or approved equivalent. Front facing of frames and doors shall be Satin Finished

Alumilited Aluminum with words "Book Depository" engraved in front frame.

11102 – TROPHY CASES a. Cases shall be Claridge Numbers of size required, with fluorescent lighting, three 10" wide shelves and extruded aluminum frame. The rear wall of the cases shall be fitted with Claridge Cork, ¼" thick, No. 1100, color selected. Where lights are provided within the trophy case, they shall be wired so that they are controlled by the corridor light switch.

11130 – PROJECTION SCREENS a. Projection screens shall be heavy duty manually operated "B" series as manufactured by

Da-Lite Screen Company, Inc. or approved equivalent. Screen shall be matte white finish fiberglass fabric. Screen size shall be 70" x 70" except in Music area and

Auditorium which shall be 12' x 12' Model "C" Screen.

11160 - LOADING DOCK EQUIPMENT a. Dock leveler shall be Blue Giant A" Series hydraulic dock leveler Model

A746FH with 16" hinged lip extension. Dock leveler platform shall be 83" wide x 75 3/8" long with lip extension and shall require no manual lifting to activate. Capacity shall be 25,000 lbs. Required at raised docks only. b. Furnish and install 10" x 36" rubber loading dock bumpers located on Kitchen Loading

Dock, where raised dock is provided.. c. Bumpers shall be Model B610-36 manufactured by the Durable Mat Company, or approved equivalent..

11400 – FOOD SERVICE EQUIPMENT a. Food Service Equipment Contractor shall completely furnish all food service equipment, labor, materials, tools and equipment necessary for the complete installation of kitchen

Equipment

1 of 6



























Knox County Schools Program Standards - Middle equipment and refrigeration in a first-class manner, including all work incidental thereto in accordance with design drawings and these specifications. b. The term "Complete Installation" shall mean the delivery of all kitchen equipment and refrigeration, with transportation and trucking charged prepaid to the building site, removal from crates, assembled, set in place, leveled, ready for final connection, re- leveled, calibrated, started-up and adjusted, cleaned, demonstrated and training completed. The Food Service Equipment Contractor shall clean all equipment using cleaners approved by and as recommended by the manufacturers to a condition of sanitation ready and acceptable for intended food service use. Equipment shall be cleaned just prior to Owner's acceptance. c. Food Service Equipment Contractor shall erect the equipment at the site in full compliance with all current local, state and Federal rules, regulations and codes. d. Any reference to “standard” in the Itemized Specifications shall be supplied whether or not it is identified as standard by the manufacturer. e. ANSI Standards: Comply with applicable ANSI standards for electric powered and gas burning appliances, for piping to compressed gas cylinders, and for plumbing fittings including vacuum breakers and air gaps to prevent back siphonage in water piping

(including ANSI C33.103, ANSI C33.96, ANSI/UL 471, ANSI/UL 923, ANSI/AHAM

FM-1, ANSI/UL 621, ANSI C33.118, ANSI 33.59; ANSI Z21-series, ANSI Z83-series;

ANSI B57.1; and ANSI A112-series, respectively). f. NFPA Codes: Comply with NFPA No. 70 "National Electrical Code", and NFPA No. 96

"Removal of Smoke and Grease-Laden Vapors from Commercial Cooking Equipment', and NFPA No. 54 "National Fuel Gas Code". g. ASME Boiler Code: Construct steam generating and closed steam heated equipment to comply with ASME Boiler and Pressure Vessel Code; Section IV for units not exceeding 15 psig or 250° F. (121°C), Section I for higher pressure/temperature rated units. h. All electrical equipment is U.L. Approved and Listed. i. All gas equipment is AGA Approved and Listed.

FOOD SERVICE EQUIPMENT SCHEDULE

ITEM 1 WALK-IN COOLER/FREEZER - Thermo-Kool, or Kolpak – 1each required

ITEM 2 SLICER TABLE - Food Warming Equipment Company, Inc., Model OTR-15-MSWT –

2 required

ITEM 3 SLICER - Hobart Corporation, Model No. 2912 – 2 required

ITEM 4 PROCESSOR TABLE - Food Warming Equipment Company, Inc.,Model OTR-15-

MSWT –1 required

ITEM 5 SALAD PREP TABLE - T & S Brass and Bronze Works -30" wide x 120” long x 34”-

1 required

ITEM 6 DISPOSAL - Salvajor, Model 200- 1 required.



Equipment

2 of 6









Knox County Schools Program Standards - Middle

ITEM 7 VERTICAL CUTTER/MIXER – Hobart, Model HCM-450; 45 quart capacity –

1 required

ITEM 8 PAN/TRAY RACKS - Food Warming Equipment Company, Model OTR-UA-13 –

7 required

ITEM 9 PRODUCE RACK - Food Warming Equipment Company, Model OTR-PRODUCE 6 –

1 required

ITEM 10 FOOD PROCESSOR- Hobart Model FP-250 – 1 required

ITEM 11 COMBI OVEN - Manufacturer: Blodgett, Model BCM - 102 – 1 doublestack or 2 each

ITEM 12 BRAISING PAN - Groen, Model BPM-40G; 40 gallon – 1 required

ITEM 13 STEAMER – Panasonic 3280, with stand double stack – 2 required

ITEM 14 CONVECTION OVEN – Blodgett, Model DFG-100 Xcel, double stack (each full size) –

2 required

ITEM 15 20 QUART KETTLE – Groen, Model TDB-20 - 1 required

ITEM 16 KETTLE STAND – Groen, Model TS/9S – 1 required

ITEM 17 BLAST CHILLER – Traulsen, RBC - 200, 1 required

ITEM 18 SALAD SPINNER – Hobart, Model SDPE – 11 – 2 required

ITEM 19 2 DOOR REACH-IN REFRIGERATOR – Traulsen, Model RHT232WUT-FHS –

1 required – glass front

ITEM 20 FILL UNIT - T & S Brass and Bronze Works – 2 required

ITEM 21 MOBILE TABLE - Advance Tabco, Model VSS-305, 30” x 60”- 8 required

ITEM 22 MOBILE TABLE WITH UNDERSHELF - Advance Tabco, Model VSS-305,

30” x 48”- 1 required

ITEM 23 UTILITY CART - Amco Corporation, Model Amco II – 3 required

ITEM 24 ICE MACHINE - Hoshizaki, Model KM320MAH/B-300SF – 1 required

ITEM 25 WATER FILTER - Cuno, Model IceAssure 1-1; 1 required

ITEM 26 40 QUART MIXER w/attachments - Hobart Corporation, Model HL400-DDEL–1 required

ITEM 27 MIXER FILL UNIT - T & S Brass and Bronze Works – 1 required

ITEM 28 MIXER ACCESSORY RACK - Amco Corporation, Model Amco MR 22448-PG –

1 required

ITEM 29 BAKER’S TABLE - 102" long x 30" wide x 34" high – 1 required

ITEM 30 HEATED/PROOFING CABINET - Food Warming Equipment Company, Inc.,

Model PHU-12 – 2 required

ITEM 31 1 Door ROLL-IN REFRIGERATOR- Traulsen, Model RRI 132HUTFHS – 2 required glass front

ITEM 32 ROLL-IN RACKS - Food Warming Equipment Company, Model OTR-UA45-12RR –

6 required

ITEM 33 2-SECTION HEATED PASS - Traulsen, Model AHF 232 WP – 2 required

ITEM 34 SINK HEATER - Hatco, Model: 3CS-9B – 1 required

ITEM 35 HANDWASH SINK - Advance Tabco, Model 7-PS-66 – 8 required

ITEM 36 THREE COMPARTMENT SINK - Eagle, Model FN-2860-3-24 – 1 required

ITEM 37 HOT WATER CLEANING SYSTEM - Spray Master Technologies, Model SMT 600-

WC-Y Central System with one (1) Mobile Hose Rack and eight (8) recessed remote

ITEM 38

ITEM 39 stations.

DISH MACHINE - Hobart, Model CLPS-66E – 1 required

DISPOSAL – Salvajor, scrapmaster Model SM – 1 required

Equipment

3 of 6











Knox County Schools Program Standards - Middle b.

ITEM 40 MOBILE UNIT FOR DISPOSABLES - Amco ,Model, Amco II – 3 required

ITEM 41 CLOTHES WASHER/DRYER - General Electric, Model WSM2420T – 1 required

ITEM 42 PANT LEG DUCT - As required to fit Item No. 38 – Dish Machine; 1 required.

ITEM 43 DISH TABLES - stainless steel tables fabricated to fit specified dish machine at load and unload ends.

ITEM 44 MOBILE MILK UNIT – Nor-Lake Model AR164– 2 required

ITEM 45 REFRIGERATED - Duke serving counter: 60” length, 26.5” wide and 30” high Modified

One (2) 333-25PG Modified– 2 required

ITEM 46 FILL UNIT - T & S Brass and Bronze Works, Inc., Model B-312 (cold water) –

3 required

ITEM 47 5-WELL HOT FOOD UNIT - Duke serving counter: 74” length, 32” wide and 34” high

(modified) TEHF-74PG Modified) – 2 required

ITEM 48 BUSSING CART – Amco, Model Amco II, Solid Plasteel – 1 required

ITEM 49 ICE CREAM/DESSERT UNIT – Duke, Model: NG46IF Modified – 1 required

ITEM 50 CASHIER UNIT WITH STOOL - Two (2) #306-25PG cashier stand unit

MODIFIED/CUSTOM: 24-1/2” long, 26-1/2” wide, 36” high MODIFIED TO ONE

ITEM 51

UNIT WITH ONE TOP.– 2 required

DISH RACK DOLLY – Amco, Model 232 – 6 required

ITEM 52 BEVERAGE UNIT - Duke Model (To be determined – approx. $3500 each) - 2 required

ITEM 53 TRAY/SILVERWARE UNIT - Duke, Model TBD – 3 required

ITEM 54 FLOOR TROUGH W/ GRATE – Eastern Steel, Model FT Drain Trough/Model SFB

Subway Style Grating, 12” x 36” – 3 required

ITEM 55 FLOOR TROUGH W/ GRATE – Eastern Steel, Model FT Drain Trough/Model SFB

Subway Style Grating, 12” x 24” – 1 required

ITEM 56 UTENSIL RACK - Amco Corporation, Model MAR-2 – 1 required

ITEM 57 STEAM TABLE PAN RACK - Amco, Model STPRK – 2 required

ITEM 58 POT/PAN RACK - Amco, Model T-H56PG-AC2 – 1 required

ITEM 59 Sheet PAN RACK - Amco, Model BPRK -6 required

ITEM 60 TRAY CART - Duke, Model TBD – 2 required

ITEM 61 RECEIVING CART - Duke, Model TBD – 2 required

ITEM 62 BARREL DOLLY - Food Warming Equipment Company, Model BD-1818SS –

1 required

ITEM 63 MILK CASE DOLLY - KelMax, Model SSD1428 – 2 required

ITEM 64 BOOSTER HEATER - Hatco Corporation, Model S-30 – 1 required

ITEM 65 SHELVING, 21” x 48”, WALK-IN FREEZER – Metro Max “Q” Shelves – Minimum 6 required

ITEM 66 SHELVING, 21” x 42”, WALK-IN FREEZER - Metro Max “Q” Shelves Minimum 6 required

ITEM 67 SHELVING, 21” x 48”, WALK-IN COOLER - Metro Max “Q” Shelves Minimum 6 required

ITEM 68 SHELVING, 21” x 42”, WALK-IN COOLER - Metro Max “Q” Shelves – Minimum 6 required

ITEM 69 SHELVING, 21” x 48”, DRY FOOD STORAGE- Metro Max “Q” Shelves – Minimum

16 required

ITEM 70 SHELVING, 21” x 42”, NON-FOOD STORAGE- Metro Max “Q” Shelves – Minimum

6 required

ITEM 71 SAFETY LADDER - KelMax, Model RSL-3 with handrails– 1 required

ITEM 72 #10 CAN STORAGE UNIT - Amco, Model SM3-B – 2 required

Equipment

4 of 6















Knox County Schools Program Standards - Middle

ITEM 73 HOSE REEL - Fisher Manufacturing Company, Model 1801

Reel Rinse Control unit with Model 2985 Closed Reel Rinse,

Wall mounted, 30’ hose with insulated hose handle and spray

Valve – 1 required

ITEM 74 LANDING TABLE – AMCO, Model Amco II Plasteel Shelves

1 required

ITEM 75 WALL SHELF - Advance Tabco, Model WS-10-24 – 5 required

ITEM 76 MOP RACK - Handy Hanger, Model SS6 – 2 required

ITEM 77 Can Opener - Edlund, Model 203 – 2 required

ITEM 78 EXHAUST HOOD W/ FIRE SUPPRESSION SYSTEM - To be supplied and installed by the HVAC (Mechanical) Contractor – 1 required

ITEM 79 AIR CURTAIN - Mars, Model 48CH Unheated – 1 required

ITEM 80 TRASH - Rubbermaid, Model 3536 Containers (40 gallon) with lids and dollies –

10 required

ITEM 81 TRASH RECPT. - Delfield, Model TU-92 Modified – 1 required

ITEM 82 TRASH CONTAINER - Rubbermaid, Model 3526 Containers (28 gallon) – 6 required

ITEM 83 AIR CURTAIN - Mars, Model WA36 Unheated – 2 required

ITEM 84 CONDIMENT RACK - Amco, Model CR-HAL-PE – 1 required

ITEM 85 INGREDIENT BINS - Rubbermaid, Model 3602 – 4 required

ITEM 86 SILVERWARE SOAK SINK - 1 required

ITEM 87 WATER FILTRAITION SYSTEM – Kinetico Reverse-Osmosis and softening system

11452 – RESIDENTIAL APPLIANCES a. All suggested numbers hereafter



  listed are General Electric. Other brands are acceptable.

Kitchens, Break Areas, Home Ec.

1 –Microwave JEM31M with undercounter mounting kit.

1 –Garbage Disposal GFC1000G

1 –Dishwasher GSD840P

1 –Refrigerator TFX24RR

1 –Slide-in Gas Range JGSP20GER

1 –Range Hood JN334J

Laundry

1 –Washer WWA7600R

1 –Dryer DDG5980R

11481 – SCOREBOARDS a. Furnish and install one electric remote controlled basketball scoreboard with remote control system. Scoreboard shall be Model 215-1S as manufactured by Electro-Mech

Corporation, Wrightsville, Georgia, or approved equivalent. Scoreboards shall be provided with an on/off switch.

11484 – BASKETBALL BACKSTOPS a. Basketball backstops shall be E-Z-Fold design as manufactured by Progressive Athletics,

Inc. as listed herein, 900 Center-Strut Series by Porter Athletic Equipment Company, or approved equivalent.

Equipment

5 of 6





















Knox County Schools Program Standards - Middle b. Install 10797-100 “SAF-STRAP” basketball backstop safety lock and manufactured by

Porter on all retractable basketball goals. c. Rectangular Glass Bank-2 required main court. Shall be 42" x 72" x ½" Herculite tempered glass with aluminum frame. A 2" wide fused border and rectangular target area shall be provided. The padding as required by the National Basketball Committee will be included. 8'-10' adjustable feature – all goals. Rectangular Wood Bank-4 required cross courts. Shall be 42" x 72’ x 1-9/16’. d. Floor sleeves for volleyball net supports shall be 3 ½” I.D. flush type similar to

Porter 00872-100 with chrome plated cover plate. Two required in each gymnasium or as directed by Knox County Schools.

11485 – BASEBALL BACKSTOPS a. Baseball backstops shall be Model No. ABSO-12, as manufactured by Aalco

Manufacturing Company, or approved equivalent. All upright supports are 2-7/8” O.D. galvanized pipe with cross rails of O.D. galvanized tubing No. 9 galvanized chain link fencing used on main upright sections. Overhang supports are 1-5/8” O.D. galvanized pipe with 1-1/2” ).D. galvanized tubing for cross rails. Overhang wire covering is No. 11 chain link fencing, factory cut and ready to assemble. Size: 16’ wide with two 16’ wings

12’ high with 8” overhang.

11486– GYMNASIUM DIVIDERS a. Furnish all labor, materials and equipment, and perform all work required to install one

Performance Model 4013 Walk Draw Curtain in Gymnasium. b. The lower 12 feet shall be solid 18 oz. polyester reinforced, fire retardant and mildew resistant vinyl fabric. A pocket shall be formed along the bottom edge to accommodate a 4/0 coil proof chain for ballast. The upper section shall be a 6 oz. vinyl coated polyester mesh. c. The track shall be an enclosed galvanized steel channel 1 7/16” wide and 1-1/4" high, with all standard hardware. Curtain shall be supplied with a 1/4" poly tow rope to operate the curtain.

Equipment

6 of 6



































Knox County Schools Program Standards - Middle

FURNISHINGS

A. Design Guidelines

1. Student and Teacher desks shall be provided by Knox County Schools.

See Finishes, Chapter 9, for color coordination.

B. Technical Guidelines

12345 – SCHOOL AND LABORATORY CASEWORK a. School and Laboratory casework shall be Capri Cumberland Series as manufactured, delivered and installed by Collegedale Casework LLC. b. Countertops for Laboratory casework shall be Permaresin. Other casework shall have laminated plastic finish tops. c. Casework manufacturer shall be responsible for all electrical, mechanical and plumbing work, such as sinks, faucets, sink outlets, tail pieces, wiring, conduits, junction boxes, disconnects and other items necessary to prepare units for single connections at point of rough-in by electrical, mechanical or plumbing subcontractors. d. Casework manufactured by Kewaunee, Campbell Rhea/Mohon and

Sheldon are considered capable of manufacturing products to substitute the Collegedale Casework. e. Fume Hoods shall be Wood Airfoil Fume Hood No. 8A-6004 (4 Ft. wide), as distributed by Collegedale. f. Shower/Eyewash shall be No. 8324 as distributed by Collegedale.

12391 – KITCHEN AND BATH CABINETS a. Cabinet frames to be made of all solid oak, kiln dried to 8% moisture content.

Side panels shall have woodgrain finish over ½" particleboard. Cabinet tops and bottoms to be made of quality particleboard. Cabinet backs to be made of hardboard and hanging rails are of medium density fiberboard. Tops, bottoms and backs receive a woodgrain finish for a clean, smooth, durable interior surface.

Specifications are based on American Woodwork Corporation Cabinets conforming to ANSI A161.1/1985 and certified in accordance with NKCA

Specifications, or approved equivalent.

12710 – AUDITORIUM AND THEATER SEATING a. Manufacturer: Irwin Seating Company.

Gladiator Auditorium Chair Model 9986

Furnishings

1 of 2























Knox County Schools Program Standards - Middle

1. Plastic Seat: Seat shall be plastic, fabricated of one piece double wall construction. The seat shall be high density and high impact resistance linear polyethylene with textured surface. Top of the seat shall be plain, uninterrupted by surface grooves, and formed to fit the contour of the body.

The rear edge of the seat shall be shaped to conform to the curvature of the back. The bottom of the seat shall have transverse grooves for added strength.

2. Armrests: Armrests shall be blow-molded, double wall construction, linear polyethylene. Armrests shall have two keyhole slots in bottom to securely lock onto steel lugs at the top of the standard. Further, one security screw shall be utilized.

OR b. Chairs shall be as manufactured by Hussey Seating Company or approved equivalent. Chairs shall be Hussey Concordia Series Model No. C-45110 or approved equivalent. Accessories: Panic Proof folding tablet arms.

1. Upholstered Back: Injection Molded Plastic Back – The rear shield shall be one piece injection molded high impact linear polypropylene plastic. The shield shall be channeled to form a textured closure returning on the front face to enclose the upholstered inner panel. The entire seat shall be not less than 27" long to provide complete protection of the seat from the rear and a back height not less than 33-1/4" from the floor.

12760 – TELESCOPIC BLEACHERS (Where Provided) a. Telescopic Seating System (Plastic)

Seating shall be as manufactured by Universal Telescopic Seating Systems.

1. Minimum 17-1/2" seat height, (Adult seating).

2. Fully encapsulated closed deck.

3. Aluminum nose beam for maximum rigidity.

4. Module, sloped at front and contoured at rear for full leg movement and maximum foot room, is a one-piece molded unit with diagonal integral structural brace.

5. Seats shall be Universal Contoured Seat Modules.

Furnishings

2 of 2





































Knox County Schools Program Standards - Middle

ENERGY MONITORING

A. Design Guidelines

1. No Owner specific guidelines offered.

B. Technical Guidelines

13810 – ENERGY MONITORING AND CONTROL SYSTEMS a. Building Automation System (BAS) for all new buildings shall be Trane

Tracer Summit Control System, energy management, and equipment monitoring and control. All software, hardware, and programming necessary to provide a complete and operating system shall be provided. b. On existing buildings where a functional pneumatic control system is in place, actuators for valves, dampers, etc. shall be pneumatic with interface to the BAS. If the existing pneumatic control system is considered deficient by the Owner, new work will be undertaken with the goal of converting the system to the BAS system. c. A list of points to be controlled must be signed and authorized by the

Owner prior to construction. Detailed control drawings detailing sequences of operation for all controlled equipment will be provided to the Owner at project close-out. d. All temperature sensors (for air and water) shall be nickel wound RTD requiring no calibration. Sensors shall be accurate to + or – 0.5 degrees

F to 250 degrees F. e. All control devices including dampers, valves, etc. for the temperature control shall be by the manufacturer’s authorized agent. All control wiring and conduit shall be by the control subcontractor. All power wiring shall be by the electrical contractor under the supervision of the control subcontractor. Refer to “ELECTRICAL WORK” in Section

15050 of the specifications. f. Control wiring shall be in metal conduit where subjected to physical damage such as in equipment rooms. All wiring shall be concealed except in mechanical equipment. g. The BAS shall incorporate automatic alarm notification through an email or text message system compatible with Owner’s cell-phone vendor at the time of construction. h. Each BAS shall be connected to the Central Operator Workstation. The central workstation will be provided with the most up-to-date version of

Energy Monitoring 1 of 2















Knox County Schools Program Standards - Middle the control software. The interface will be graphical and match existing graphics to the extent possible. All control programming and setup will be coordinated with the Owner’s representative charged with monitoring the BAS. i. The preferred BAS connection will be web-based. At a minimum the

BAS will be operated from the central operator workstation over the

Owner’s Ethernet network. The control contractor will provide network connection requirements to the Owner prior to construction. Under no circumstances will a modem based communication system be installed. j. All room thermostats shall have a momentary software defined, timed override switch for unscheduled occupied heating and cooling. k. A complete controls commissioning will be undertaken to verify that all controls are properly installed and functioning as designed. Not less than 25% of the points will be verified. A representative of the Owner will be present during commissioning. A thorough commissioning report will be provided to the Owner. l. Provide the services of a temperature controls technician for a minimum of one day to instruct the Owner’s personnel in the operation of the system.



Energy Monitoring 2 of 2

























Knox County Schools Program Standards - Middle

CONVEYING SYSTEMS

A. Design Guidelines

1. No Owner specific guidelines offered.

B. Technical Guidelines

14210 – PASSENGER ELEVATOR a. All work shall be performed in accordance with the latest revised edition (as of the date bids are taken) of the Safety Code for Elevators and Escalators (ASME

A17.1), the National Electrical Code, ADA, North Carolina Handicapped Code, and/or such State and Local elevator codes as may be applicable. b. The Elevator Contractor shall furnish maintenance and call-back service for a period of one year on each elevator after it is completed and placed in operation.

This service shall consist of periodic examinations of the equipment, adjustments, lubrication, cleaning, supplies, and parts to keep the equipment in proper operation, except for adjustments, parts or repairs necessary by abuse, misuse, or any other causes beyond the control of the Elevator Contractor. c. All work will be done by trained employees of the Elevator Contractor during regular working hours of the trade.

Manufacturer:

Signals:

Car Enclosure:

Walls:

Canopy:

Front and Transom:

Doors:

Ceiling:

ThyssenKrupp, Otis, or approved substitute

Car Position Indicator, Car Riding Directional

DLP

Made of durable solid wood core, covered on both sides with high pressure laminate.

Made of unitized steel construction. Includes emergency lights.

Stainless steel fronts & transoms with integral swing return.

Hollow metal, horizontal sliding type with baked enamel finish.

Suspended with plastic diffuser in baked enamel steel frame with fluorescent lights.

Handrail(s):

Floor

Finishes:

2" stainless steel bar on rear wall.

To match adjacent room (Corridor) in material and color.

As selected by Owner from Manufacturer's

Standard.

Conveying Systems

1 of 2









Knox County Schools Program Standards - Middle

14300 – WHEELCHAIR LIFT

Lift shall be Model GSL-2 Stair Lift with Type S Platform by Garaventa

(Canada) Ltd. or approved substitute. Furnish with all structural supports required for Type V wall including pipe supports to transfer load to floor, spanner plates, and rail connectors. Furnish with two key-call control stations for upper and lower levels, emergency stops, and all standard features.



Conveying Systems

2 of 2































Knox County Schools Program Standards - Middle

MECHANICAL

A. Design Guidelines

1. No Owner specific guidelines offered.

B. Technical Guidelines

15050 – GENERAL MECHANICAL WORK a. All work shall comply with all applicable laws, ordinances and codes of the state of Tennessee and local authorities having jurisdiction, and with applicable rules and regulations of the local utility. Except as inconsistent with the aforementioned State and local laws, ordinances and codes, the work shall conform to requirements of ASHRAE 90.1-

2010, ASHRAE 62, NFPA, ADA, the Standard Plumbing Code and the Standard Mechanical Code. b. HVAC systems shall be selected based on functional performance of a system, including flexibility and reliability. Factors that affect life cycle costs such as energy costs, maintenance and service costs must be given serious consideration. c. HVAC systems must be compatible with Trane Tracer Summit Control

System. Every effort will be taken to factory-mount proper control boards and points to reduce field-mounting cost and confusion. d. The Energy Use Intensity (EUI) target for all new construction is 35 kBtu/ft

2 and all design and equipment selection should focus on meeting that goal. e. Design conditions used shall be as follows:

Inside Design Conditions:

Cooling: 74 FDB; 50% R.H.

Heating: 68 FBD

Outside Design Conditions:

Summer: 95 FDB; 78 FWB

Winter: 0 FDB

Cooling towers and fluid coolers shall be specified and selected at ambient conditions of 89 FWB. f. The minimum quantity of ventilation air consistent with physiological needs, exhaust make-up, and infiltration neutralization shall be provided. Ventilation air shall conform to the most current

Mechanical

1 of 18































Knox County Schools Program Standards - Middle

ANSI/ASHRAE Standard 62, Ventilation for Acceptable Indoor Air

Quality.

The design of HVAC systems shall be such that the relative humidity of the building is maintained below 60%.

Use of separate dedicated fresh air systems is preferred. Dedicated fresh air units should use heat recovery wheels to reduce energy waste.

Reheating with new energy as a means to control humidity is discouraged for all systems other than separate make-up air systems. g. Natural gas is the preferred fossil fuel for providing space and water heating. Fuel oil shall not be used. h. Air handling units, water source heat pump units or any other mechanical equipment producing condensate from a DX or chilled water coil shall not be located above concealed ceilings. Mechanical rooms shall be provided for all such equipment. i. All mechanical equipment such as water source heat pump units, air handling units, etc. shall be located such that servicing of such equipment can be accomplished without entering a classroom.

Unit ventilators, or other similar console type room unit, shall not be used.

A strong preference is for volume boxes, or other similar equipment to be located above the corridor ceiling or otherwise outside of classrooms.

Mechanical equipment rooms shall be designed for ease of maintenance and service and replacement of mechanical and electrical equipment. Clearance shall be provided for servicing air handling unit bearings, fan shaft belts, and motors. One side of each air-handling unit shall have enough free space for withdrawal of all coils for service. Coils shall be arranged and piped for removal without disturbing piping. Mechanical equipment rooms shall be arranged so they are easily accessible to maintenance and service personnel.

Ladders and spiral stairs are not acceptable for access to mechanical rooms. j. All mechanical equipment shall be installed and connected in accordance with the best engineering practices and in strict accordance with the manufacturer’s installation instructions.

All service clearance requirements recommended by the manufacturer of each piece of mechanical equipment shall be provided for.

Mechanical

2 of 18

























Knox County Schools Program Standards - Middle

Servicing of mechanical equipment shall be accomplished without moving or relocating any piece of equipment or building element.

If substitute equipment is furnished, the Contractor shall furnish all additional, supplementary engineering drawings required by such substitutions, and shall make all necessary incidental omissions, additions or adjustments in other work that may be necessitated by such substitutions, without additional cost to the Owner. k. All valves above the lay-in tile ceiling shall have black bakelite locator plate with white letters attached to the tee bar with pop rivets or sheet metal screws. The tag shall be 1” wide with ¾” high letters. The length shall be as required. A tag shall be placed for the following piping:

DOMESTIC WATER, NATURAL GAS, LOOP WATER,

CIRC. HOT WATER, CIRC. CHILLED WATER, STEAM

SUPPLY, STEAM CONDENSATE

Each tag shall have an arrow pointing to which ceiling tile should be removed to access each valve.

Fire and smoke damper labels shall be placed on a tee bar below the damper. The label shall be the same size as described for valves and shall be marked FIRE DAMPER or SMOKE DAMPER. l. Closed loop water source heat pump systems shall be used for all new buildings and renovated buildings where practical. Ground-coupled loops, commonly called geothermal, are preferred and are required to be presented as a design option for all new construction. Four-pipe chilled water/hot water systems or DX/hot water systems are acceptable taking into account the EUI target. Package rooftop gas packs are acceptable for new and renovated buildings. Air-to-air heat pumps and HVAC units with primary electric heat shall not be used. m. Space cooling is not desired in classroom corridors. Space heating shall be provided in classroom corridors. n. Equipment will be sized and selected to allow use of a 100% economizer cycle except in areas where dedicated outside air units are in use. Activation of economizer cycles shall be controlled by sensing outside air and return air enthalpies. Humidity override controls shall be used. The exhaust or relief air shall be removed from the building using fans. Gravity or barometric relief is not acceptable. Integrated make up air for large exhaust fans is desired. o. Mechanical exhaust systems shall be installed in all sanitary facilities including but not limited to toilets, shower rooms, and janitors closets.

The rate of exhaust from toilets shall not be less then 2-1/2 CFM/sq. ft.

Mechanical

3 of 18































Knox County Schools Program Standards - Middle of floor area. Corrosion resistant exhaust grilles shall be used and located directly over sources of odor or moisture.

Exhaust fans shall be located at the terminous of the exhaust ductwork.

Exhaust fans shall not be installed in concealed or inaccessible locations. Exhaust outlets shall not be located within 10 ft. horizontally of an outside air intake. Directly-operated or shaft- operated exhaust fans are preferred to belt-drive fans.

All mechanical and electrical rooms containing heat generating equipment (boilers, chillers, switchgear, etc.) shall be mechanically ventilated to prevent excessive room temperature. Air shall be introduced on the cool side of the room and be exhausted on the hot side in order to avoid diffusing heated air. Mechanical room exhaust fans shall be thermostatically controlled. p. Outside air intakes shall not be located within 25 feet of loading docks, etc. Or otherwise as required to prevent vehicular exhaust from being drawn into the ventilation system.

Outside air intakes shall be located a minimum of 3 feet above finished grade or roof. q. Noise levels as caused by operation of the combined heating, cooling, and ventilation systems shall not exceed NC 30. r. All electric motors greater than ¾ HP shall be the premium efficiency type. All belts will be cogged belts, not V belts. s. Each piece of mechanical equipment requiring a starter shall be furnished with starter with control circuit transformer and HOA switch, and coils as required to meet the control description.

15400 – PLUMBING a. Plumbing systems shall be installed in accordance with the requirements of the Standard Plumbing Code and applicable state codes. The design shall incorporate provisions for the handicapped. b. Pipe shall conform to ASTM Specifications as follows: A74 or A888 for cast iron soil pipe, B88 for copper pipe, A120 for steel pipe, D2665 or D1785 for PVC-DWV, and D3034-SDR35 for PSM PVC pipe.

Cast iron soil pipe shall be centrifugally cast.

Screwed fittings for steel pipe shall be 150 pound malleable iron banded fittings. Fittings for copper pipe shall be wrought copper conforming to ANSI Standard B16.22.

Mechanical

4 of 18

























Knox County Schools Program Standards - Middle c. Joints in copper pipe shall be made with 95-5 tin/antimony solder meeting ASTM Specifications B32-89 and non corrosive paste flux. d. Joints in copper piping below grade shall be made with high temperature solder, sil-fos, or equal. Acid core solder shall not be used. e. Vacuum breakers shall be installed on all wall hydrants, sill cocks and on all fixtures to which hoses or tubing can be attached such as janitor sinks if vacuum breaker is not furnished as part of the plumbing fixture. Vacuum breakers shall be Watts, or equal. f. Valves shall be installed in all main branches and otherwise as required for service. Gate and ball valves shall be installed with the stems upright and within 15 degrees of vertical wherever possible. Butterfly valves shall be mounted with the stem in the horizontal wherever possible.

Butterfly or gate valves shall be installed around all pieces of equipment such as water heaters, circulating water pumps, etc. Valves shall be arranged such that a minimum of fluid is lost and to facilitate servicing when removing a component.

All domestic water ball valves 2 inches and smaller shall be rated 150

SWP, 600 WOG meeting WWV 35C Type II, Class A, Style 3. Valves shall be two piece threaded bronze body, solid or tunnel drilled, large port, chrome ball. Seats and seals shall be teflon. Stem shall be of blowout-proof design with threaded adjustable packing follower.

Packing shall be retained under full working pressure with handle or nut removed.

All domestic water butterfly valves shall be tapped lug body style, meeting MSS SP67. Body to be cast iron, stems shall be stainless steel and positively retained with lock plate or gear removed. Disc to be aluminum bronze, with integral disc/stem connection. Waterway shall be free of all pins or bolts. Seats and seals shall be field replaceable

EPDM cartridge type suitable for isolation or temporary deadend service to the rated pressure of the valve. Valves shall be rated 200

WOG. Butterfly valves shall have lock lever handles with minimum of

10 locking positions.

All gate valves 2 inches and smaller shall be Class 125 SWP, 200

WOG, rising stem, B-62 bronze body, bronze stem, solid wedge, meeting MSS SP80, with mallable iron handwheel. Aluminum or zinc die cast handwheels shall not be substituted.

Check valves 2-1/2 inches and smaller shall be Class 125 SWP, 5 degree swing check type, meeting MSS SP80. Body and cap shall be

B-62 bronze.

Mechanical

5 of 18





























Knox County Schools Program Standards - Middle

Check valves 3 inches and larger shall be Class 125 SWP, flanged end, cast iron body, bronze trim, swing check meeting MSS SP71.

Hammond IR-1124 g. All insulating materials for piping shall be heavy density fiberglass with all service jacket with self-sealing lap. Fittings and elbows shall be insulated with pre-formed insulation covered with PVC zip jacket.

Insulation shall have a flame spread and smoke developed rating not exceeding 25 and 50 respectively. Materials shall be applied in strict accordance with the manufacturer’s instructions. h. The material used for plumbing fixtures shall be of non-absorptive, acid resistant material. Lavatories and sinks shall have the water supply spout mounted so that its discharge point is above the rim of the fixture. All fixture traps shall be provided with cleanouts. i. Alternative domestic hot water heating systems designed for greater energy efficiency are preferred. The contractor should consider using tankless (instantaneous) water heaters to provide hot water to areas that will significantly reduce hot water piping length.

While natural gas hot water heaters are standardly specified, solar thermal hot water systems should be considered, particularly where hot water storage tanks are large due to planned kitchen or locker room use.

Use heat pump hot water heaters rather than standard electric hot water heaters if at all possible. Hot water circulation pumps should be minimized or eliminated if possible. If a circulation pump is required it will be controlled by the BAS.

All domestic hot water heaters with a capacity that falls under the

EPA’s Energy Star guidelines will be Energy Star rated. j. Hot water to hand washing lavatories, showers, etc. shall not exceed

110 F. A separate hot water system will be installed if water exceeding

110 F is required for kitchen use. All domestic hot water piping, supply and return, will be fully insulated. k. All buildings shall be equipped with reduced pressure backflow preventers on the main water service. Backflow preventers shall be installed in strict accordance with the requirements of the local utility company. l. After piping is installed, but before it is covered or connected to the sewers or fixtures, test all systems for water-tightness (or gas- tightness) as required by the authorities having jurisdiction, or in the absence of such requirements, with minimum tests as follows:

Mechanical

6 of 18





























Knox County Schools Program Standards - Middle

1) Fill all drainage and vent piping with water and allow to stand thus filled for three hours without showing leaks.

Piping may be tested in sections, but no section shall be tested with less than a 10 foot head.

2) Test all water supply piping by applying a hydrostatic pressure of not less than 120 pounds per sq. In. for a period of not less than 24 hours without loss in pressure other than may be due to change in temperature.

Furnish necessary labor, materials and equipment for making tests. All leaks disclosed by testing shall be repaired in an approved manner and the leaking system shall then be retested until proven tight under pressure.

Test all plumbing fixtures for soundness, stability of support, and satisfactory operation. m. After the domestic water system has been tested for leaks and before the system has been placed in use, introduce HTH solution, chlorine gas, or other similar chlorinating agent in sufficient quantity to produce a residual of 100 ppm throughout the entire system and allow to stand thus filled for 24 hours. After the 24 hour period, flush clean water throughout the piping system until all noticeable trace of chlorine gas has disappeared. Verify procedures and testing requirements with the public health agency having jurisdiction.

15500 – HEATING, VENTILATING, AND AIR CONDITIONING a. Concrete foundations shall be provided under all mechanical equipment such as condensing units, air handling units, etc. All equipment pads shall be 6 inches larger than equipment on all sides and all edges shall be chamfered. b. This Contractor shall furnish to the Owner three (3) bound, type written copies of an air filter list. The list shall include as a minimum the project name and a list by air handling unit of all filters used giving physical size, and filter type. The air handling units shall be identified on the list using the same mark numbers as used in the construction documents. c. HVAC units that are required to be opened to change filters or to access commonly serviced controls or components will have a hand- operable latching mechanism installed on access panels and will not be screwed shut. d. All ductwork shall be fabricated from galvanized steel constructed in accordance with 1985 SMACNA “Low Pressure Duct Construction

Mechanical

7 of 18

























Knox County Schools Program Standards - Middle

Standards”. No ducts shall be lighter than #24 gauge. Self-inflating

“sock” ductwork may be used where appropriate, such as in gymnasiums or large common areas where distribution would require excessive amounts of metal ductwork. Fiberglass ductboard shall not be used.

Connections of ducts to equipment shall be made with glass fiber canvas and shall be tightly lapped. All duct connections shall be airtight and adequately stiffened.

Install single thickness turning vanes at right angles and small radius turns in ducts. Make reductions in duct size with tapered transition pieces. Transitions for connections to equipment shall be designed to suit conditions and so that the airflow will not be restricted.

Flexible duct shall comply with U.L. Standards and NFPA 90A and

90B. Duct runs shall be as straight as possible and limited to a maximum of 5 feet in length. Connections shall be made with

Panduit, or equal, nylon strap. On horizontal runs, the duct shall be supported on 48” centers with minimum ¾” wide metal bands. The minimum inside radius of any bend shall be no less than one-half the diameter of the duct. Thoroughly tape over joint. e. Rectangular medium pressure ductwork shall be as specified in the

SMACNA High Pressure Duct Construction Standards manual. All joints and seams shall be made up with woven fiber tape impregnated with an activator type adhesive, equal to Hardcast Pressure-Less with

FTA-20 adhesive. The static pressure rating shall be 6” W.G.

All take-offs in round rigid and flat oval ductwork shall be off the conical type. All access doors shall be factory insulated with hinges and cam latch. Full radius ells shall be used.

Installation of the medium pressure ductwork shall be in strict accordance with the manufacturer of the duct and fittings. Use sleeve type couplings for all joints. Seal all joints on the inside with sealer, install pop rivets to secure the joint, apply duct sealer to the outside of the joint to a 2” band width making sure the rivets and joint gap are covered, apply a single wrap of approved duct tape over the wet sealer, and allow to sure before pressure testing.

Pressure test all medium pressure ductwork prior to installation of external insulation in accordance with the latest version of “HVAC

Air Duct Leakage Test Manual” published by SMACNA. f. All insulating materials for ductwork shall be installed in strict accordance with the manufacturer’s recommendations. Duct linings, coverings, vapor barriers, and the adhesives used for applying them shall have a flame spread classification of not more than 25 and a

Mechanical

8 of 18

























Knox County Schools Program Standards - Middle smoke developing rating of not more than 50 as tested in accordance with ASTM Standard E84.

Insulation for all rectangular supply and return ductwork located in mechanical equipment rooms shall be fiberglass board. Thoroughly tape all joints and seams with SMACNA tape. g. Exhaust fan motors shall have built-in thermal overload protection.

Exhaust fans shall be furnished with unit mounted safety disconnect.

The units shall be UL listed and bear the AMCA Certified Ratings Seal for sound and air performance. All exhaust fans will be scheduled and under the control of the BAS. h. All water source heat pumps and air handling units shall be quipped with extended media type filters. As a minimum, all filters shall be warranted by the manufacturer as having an initial efficiency of not less than 30% as tested in accordance with ASHRAE Standard 52-76.

Higher efficiency filters can be used where appropriate.

An air filter gauge of the dial and pointer type shall be installed across each filter bank serving air handling units of over 2500 CFM.

Filter boxes shall be provided with a hinged access door with latches. i. Circulating hot and chilled water piping and heat pump loop water piping 2-1/2” and smaller shall be Type L, hard drawn, seamless copper tubing with wrought copper, solder joint type fittings, ANSI

B16.22. Elbows are to be long radius pattern. Solder shall be 95-5 type. All copper joints are to be soldered except at instrument and control connections, where compression fittings are to be used, and at equipment connections, which are to have union, flanged, or flared connections. All necessary screwed nipples, bushings, unions, adapters, etc. shall be brass. “Tee-Pullers” shall not be used in place of tees on copper piping.

Circulating hot and chilled water piping and heat pump loop water piping 3” and larger shall be Schedule 40, ASTM a-53 Grade B

ERW with welded or flanged fittings, ANSI B16.9. Elbows are to be long radius pattern. Field-fabricated fittings are not acceptable.

Forged steel, gasketed flanges, ANSI B16.5, of the welded neck-type are to be used at flanged connections. “Slip-on” type may be used on straight pipe. Flanges must be compatible with valve and equipment connections. Where a branch connection from a main or header pipe is one half the main diameter or smaller, saddle-type , forged steel welding fittings may be used.

Welding shall conform to ANSI Code for Pressure Piping, Section

B31.1. All welds shall be of the single “V” butt joint-type with optimum fusion and 100% weld penetration of wall thickness of

Mechanical

9 of 18























Knox County Schools Program Standards - Middle piping. Piping should be welded by the shield arc type electrode- electric arc process. Butt joints should be made using split backing rings. Direct welded connections shall not be made to valves, strainers, equipment, etc. A certificate shall be obtained from the

Contractor indicating certification of all pipe welders on the project, in accordance with Section IX of the ASME Code.

Where size changes on horizontal lines use reducing fittings having eccentricity down, hold top level. Bushings shall not be used. Avoid

“bullheading” of tee connections.

Grade piping up stream allowing air in mains and risers to be carried up and discharged at venting points. Vents shall be manual type and where required extend ¼” copper line with key air vent from venting point to accessible location. Provide ¾” drain with hose connection at all low points. Automatic air vents shall not be used.

Prior to start-up of the circulating water system the piping shall be thoroughly cleaned for several hours using tri-sodium phosphate, or approved commercial detergent using a temporary circulating pump.

The concentration of tri-sodium phosphate used shall be 1/2j lb dry weight per 30 gallon of system water. The tri-sodium phosphate shall be dissolved in warm water then added to the system in liquid form. After circulating for several hours, thoroughly flush the system and clean all strainers. After addition of fresh water, the pH of the circulating water shall be checked. If the pH is greater than 9, the system shall be flushed until the pH is less than 9 but not less than 7. Use of side-stream filtration of water loops may be required at the discretion of the Owner. j. Below grade hot and chilled water piping and heat pump loop water piping shall avoided. Use of below grade piping shall be approved by the Owner. k. Below grade cooling tower water piping is acceptable but not desired.

Where used, below grade cooling tower water piping shall be Class

150 push-on joint ductile iron pipe. All elbows and other fittings shall have mechanical joint. l. Balancing valves for circulating water lines shall be equal to Bell &

Gossett circuit setter balancing valves Model CB. Provide a read out meter for use during system balancing equal to B & G RO-4, and turn over to the Owner at completion of the project. m. Hot and chilled water coils shall be aluminum plate fin and copper tube type. Fins shall have collars drawn, belled, and firmly bonded to the tubes by means of mechanical expansion of the tubes. No soldering or tinning shall be used in the bonding process. Coils shall have a galvanized casing. Coils shall mount in the coil casing to be accessible

Mechanical

10 of 18

































Knox County Schools Program Standards - Middle for service, and can be taken from the unit through removable panels.

All coils are to be ARI certified. The coil tubes shall have a minimum thickness of not less than 0.016. The coil fins shall have a minimum thickness of not less than 0.009”. The coil fins shall have fin spacing of 120 fins per foot or less.

All water coils shall be enclosed in an insulated coil section. Coil head and U-bends shall not be exposed. All water coils shall be tested at 250 psig air pressure under water. n. All circulating hot and chilled water piping, valves, and fittings shall be insulated with heavy density fiberglass pipe insulation having a factory applied all-service jacket with self-sealing lap. All insulating materials shall have a flame spread and smoke developed rating not exceeding 25 and 50 respectively. Materials shall be applied in strict accordance with the manufacturer’s instructions. Insulate all fittings and elbows with pre-formed insulation covered with PVC zip jacket.

Runout piping 1” and smaller to VAV box hot water coils, unit heaters, etc. may be insulated with elastometric pipe insulation.

Elastometric pipe insulation shall have a smoke developed rating not exceeding 25 and 100 respectively. Materials shall be applied in strict accordance with the manufacturer’s instructions. o. Minimum insulation thickness shall be as follows:

PIPING TYPE INSULATION THICKNESS FOR PIPE

SIZES





  hot water



1”& 1-1/4” 2-1/2” 5”& less to 2” to 4” over



1.0” 1.0”



1.5”



1.5”

  chilled water 1.0” 1.0” 1.0” 1.5” p. Valves shall be installed in all main branches and otherwise as required for service. Gate and ball valves shall be installed with the stems upright and within 15 degrees of vertical wherever possible. All ball valves installed in insulated chilled water piping shall be furnished with stem extension. Butterfly valves shall be mounted with the stem in the horizontal wherever possible.

Butterfly or gate valves shall be installed around all pieces of equipment such as water source heat pumps, circulating water pumps, boilers, chillers, cooling towers, etc. Valves shall be

Mechanical

11 of 18





















Knox County Schools Program Standards - Middle arranged such that a minimum of fluid is lost and to facilitate servicing when removing a component. Triple duty valves shall not be used as a service valve.

All circulating hot and chilled water ball valves 2 inches and smaller shall be rated 150 SWP, 600 WOG meeting WWV 35C Type II, class A, Style 3. Valves shall be two piece threaded bronze body, solid or tunnel drilled, large port, chrome ball. Seats and seals shall be teflon. Stem shall be of blowout-proof design with threaded adjustable packing follower. Packing shall be retained under full working pressure with handle or nut removed.

All circulating hot and chilled water butterfly valves shall be tapped lug body style, meeting MSS SP67. Body to be cast iron, stems shall be stainless steel and positively retained with lock plate or gear removed. Disc to be aluminum bronze, with integral disc/stem connection. Waterway shall be free of all pins or bolts. Seats and seals shall be field replaceable EPDM cartridge type suitable for isolation or temporary deadend service to the rated pressure of the valve. Valves 12 inches and smaller shall be rated 200 WOG, 14 inches and larger 150 WOG. Butterfly valves 6 inches and smaller shall have lock lever handles with minimum of 10 locking positions.

Butterfly valves 8 inches and larger shall have a weatherproof worm gear and cast iron actuator with iron handwheel.

All gate valves 2 inches and smaller shall be Class 125 SWP, 200

WOG, rising stem, B-62 bronze body, bronze stem, solid wedge, meeting MSS SP80, with mallable iron handwheel. Aluminum or zinc die cast handwheels shall not be substituted.

Check valves 2-1/2 inches and smaller shall be Class 125 SWP, 5 degree swing check type, meeting MSS SP80. Body and cap shall be

B-62 bronze.

Check valves 3 inches and larger shall be Class 125 SWP, flanged end, cast iron body, bronze trim, swing check meeting MSS SP71.

Hammond IR-1124. q. All circulating water pumps shall be non-over loading at any head.

The impeller shall be of the enclosed type, dynamically and hydraulically balanced. Pumps shall employ a mechanical seal, with carbon seal ring and ceramic seat. The pump bearing frame assembly and motor shall be furnished with oil-lubricated sleeve bearings with readily accessible lubrication fittings. Pump and motor shall be mounted on a common baseplate of heavy structural steel. A flexible coupler, capable of absorbing torsional vibration shall be employed between the pump and motor and it shall be equipped with coupling guard.

Mechanical

12 of 18























Knox County Schools Program Standards - Middle

All pumps shall be re-aligned in accordance with the manufacturer’s instructions after the pump is grouted into the base and all pipe connections are made but prior to operation.

For all pumps 10 HP and greater, the impeller shall be trimmed as required after the system is completely balanced for the flow rates indicated on the drawings or as required for proper operation.

Pumps shall be selected to operate at the most efficient point on the curve. Variable frequency drives are desired on all appropriate pump motors to reduce energy consumption.

Pumps without internally flushed seals shall be equipped with a flush connection and line from the pump discharge to the stuffing box. r. All scroll and reciprocating refrigeration compressors shall have a full

5 year warranty on parts commencing at the date of installation.

All screw and centrifugal refrigeration compressors shall have a full

5 year warranty on parts and labor commencing at the date of installation. The warranty shall include refrigerant. s. The rooftop air conditioning units shall be completely factory assembled, piped, internally wired and fully charged with refrigerant and run tested before leaving the factory. Operating range shall be between 115 F and 0 F outdoor ambient temperature as standard from the factory for all units. Cooling and heating capacities shall be rated in accordance with ARI standards and certified by AGA, specifically for outdoor applications using natural gas. All units shall be U.L. listed and designed for outdoor rooftop or ground level installation. t. All units shall be furnished with roof curb designed to mate with the unit and provide support and watertight installation. The roof curb design shall allow rectangular supply/return ductwork to be connected directly to the curb. Curb design shall comply with NRCA requirements. The curbs shall include wood nailer strips. Verify roof slope prior to ordering curb. u. Air handling unit casings shall be fabricated of galvanized steel reinforced and braced with steel angle framework. Factory assembled, sectionalized casing shall consist of separate fan and coil sections.

Removable panels shall not affect the structural integrity of each module. The casings shall be able to withstand up to 6 inches positive or 4 inches negative static pressure. All units shall have a slopped, insulated, double wall, galvanized steel drain pan under the coil section. Condensate drain lines will be sized sufficiently and have sufficient slope to remove all condensate to an appropriate drain.

Condensate drain slopes will be tested with water prior to close-out.

Mechanical

13 of 18























Knox County Schools Program Standards - Middle

Full size hinged removable double-wall access doors with two step safety handles shall be provided for access to the interior of the unit casing. Doors attached by screws or doors not continuously gasketed are not acceptable. The coils shall be removable through access doors.

Fans shall be equipped with self-aligning, anti-friction pillow block bearings with a minimum life of L-50 200,000 hours. Bearings shall be equipped with grease lines allowing for lubrication from one side of the fan. v. Chillers shall comply with ARI 550 ANSI/ASHRAE 15, ASME

Section VIII, NEC and OSHA as adopted by the State of Tennessee.

Provide factory mounted and wired water pressure differential switches on each vessel to act as flow switches and prevent unit operation with not flow.

A microprocessor based control panel shall be fully wired and factory mounted on the chiller and have the following features:

The display shall have a minimum of 160 character liquid crystal display and be backlit with a light emitting diode. Messages shall be in plain English. Coded two or three character displays are not acceptable.

The following information shall be available on the display with simple entry on the keypad:

- entering and leaving chilled water temperatures

- entering and leaving condenser water temperatures, evaporator, suction, discharge, condenser, and liquid temperatures

- suction and discharge superheat

- liquid subcooling, evaporator and condenser approach temperatures

- evaporator, condenser, and compressor lift pressures oil feed and sump temperatures

- oil pump discharge and oil differential pressure

- motor amps and amps as a percent of rated load amps

- hours of operation and number of starts, time of last start and stop

- chilled water setpoint and reset temperature setpoint amp limit for manual and remote

- fault history for last 8 failures with date and time plus critical sensor values

- unit status; start-up and shutdown sequence, operational status.

Mechanical

14 of 18



























Knox County Schools Program Standards - Middle

The microprocessor shall either unload or shut down the compressor during an abnormal condition. At a minimum the following safeties shall be incorporated in the control system:

High and low discharge pressure

Low evaporator pressure

High discharge temperature

Chilled or condenser water pump failure

No evaporator or condenser water flow

High or low oil feed temperature

Low oil differential pressure

High motor temperature, low motor current Surgehigh suction superheat

Starter fault, no starter transition

Vanes open during start sequence

Sensor failure, specific to sensor

Operating and maintenance instruction for the Owner’s representatives shall be provided within 30 days after substantial completion of the project by the manufacture of the equipment furnished. This instruction shall be at the factory by factory engineers. Travel expenses for the owner’s personnel shall be borne by the owner. w. Cooling towers and fluid coolers shall be selected and specified for a

80 degree F. entering wet bulb. The performance shall be certified by the Cooling Tower Institute in accordance with CTI Certification STD-

201.

Cooling tower fans will be controlled by a variable speed drive. A valved by-pass shall be provided around each fluid cooler such that operation of the heat pump loop is maintained during servicing of the fluid cooler. x. The boilers for hot water systems shall be copper tube, modular, fan assisted combustion type. High efficiency condensing boilers are preferred.

The boilers shall bear the ASME “H” stamp and shall be National

Board listed for 160 PSI working pressure. The boilers shall be listed and approved by the American Gas Association under ANSIZ21.13 test standard.

After installation of the boiler has been completed, start-up services shall be furnished by the manufacturer or his duly assigned representative.

Operating and maintenance instruction for the Owner’s representatives shall be provided within 30 days after substantial completion of the

Mechanical

15 of 18



























Knox County Schools Program Standards - Middle project by the manufacture of the equipment furnished. This instruction shall be at the factory by factory engineers. Travel expenses for the owner’s personnel shall be borne by the owner. y. When installation of the HVAC system is complete, all equipment and controls shall be tested for proper operation and functioning.

All equipment, pumps, fans and motors shall run at their required speeds without vibration or objectionable noise. No bearing or journal, or any part of a motor shall heat to a temperature higher than 40 degrees C above the temperature of the surrounding air. Check for proper rotation of all fans and pumps.

After installation of all ductwork, air handling units and exhaust fans, the fan speeds shall be adjusted as necessary. Adjustment shall include any required belt and drive changes. Verify that all smoke dampers and fire dampers are 100% open.

Hot and chilled water piping shall be hydrostatically tested at 125 psi minimum for a period of not less than 24 hours without loss in pressure other than may be due to change in temperature.

Check expansion tank to make certain the system is full of water.

Check all air vents at high points of water system to make certain all air is removed.

Measure the specific gravity of the final glycol/water solution in the water source heat pump loop piping system and record the results. z. The testing and balancing (T&B) contractor shall be a member in good standing of AABC, NEBB or SMACNA employing a minimum of one certified testing and adjusting supervisor. The T & B contractor shall be one normally engaged in such work. Approval of the T & B contractor shall be made by the Architect during the submittal phase of the project. The T & B work shall include all air handling units, chillers, boilers, exhaust fans, ventilation fans, coils, pumps, converters, etc.

In all cases, air volumes shall be adjusted by means of manual dampers in the ductwork, not by integral dampers in the terminal outlets or inlets. Duct damper positions shall be marked with permanent ink markers or black spray paint after the final setting has been made.

The T & B contractor shall record the test results on standard forms of

AABC, NEBB or SMACNA forms. Submit a minimum of 2 copies to the Architect and Owner for approval a minimum of 10 days prior to the final inspection. Tests shall be made during a period of stable operating conditions with minimal load fluctuation. These results shall include, as a minimum, the following:

Mechanical

16 of 18

















Knox County Schools Program Standards - Middle

1. Adjust and record chiller and hot water system design operating temperatures.

2. Adjust and record all air and water flows for all devices where a flow rate is specified on the drawings. The minimum and maximum air quantities shall be adjusted and recorded for VAV systems. Fan speeds shall be adjusted as necessary.

Balancing shall be performed to within 10% of design flows or as to provide uniform space temperatures. Any balancing of more than 10% of design should be communicated to Architect as a possible design issue.

3. Adjust and record all outside air and exhaust air quantities to that shown on the drawings.

4. Test and record coil air pressure drops and water pressure drops in all built-up air handling units.

Record design air and water pressure drops.

5. Adjust flow patterns from air distribution devices to minimize drafts.

6. Record static pressure entering and leaving each air unit.

7. Record air temperatures entering and leaving each coil.

8. After testing and adjusting work is complete, test and record all fan motor and pump motor actual operating amperes, voltage, RPM, and horsepower.

Record design full load amperes, voltage, RPM and horsepower. aa. Make arrangements with a Water Treatment Contractor, approved by the Architect, to perform all required water treatment for a period of one year after final acceptance of the heating and air conditioning system without any cost to the Owner.

The Water Treatment Contractor shall provide all chemicals and perform monthly testing and chemical addition for a period of one year. Corrosion inhibitors shall be nitrite based with a minimum of

800 ppm.

The Water Treatment Contractor shall furnish and install all chemical shot feeders indicated on the drawings. The capacity of all shot feeders shall be as noted on the drawings. Shot feeders shall be as manufactured by Neptune or Cambridge with ¼” vent, ¾” drain, stand with adjustable legs, and minimum 3-1/2: diameter fill opening with cap. As an alternate the Mechanical Contractor may shop fabricate the shot feeder from schedule 40 black steel pipe. All welding, etc. shall be as called for circulating water piping. The shop fabricated shot feeder shall be equivalent to Neptune or Cambridge.

Mechanical

17 of 18











Knox County Schools Program Standards - Middle

For fluid coolers the Water Treatment Contractor shall furnish and install conductivity controller with probe and bleed-off solenoid with wye strainer upstream piped to a suitable drain. The size of the solenoid and wye strainer shall be as determined by the Water

Treatment Contractor and shall be energized only when the fluid cooler spray pump is energized by using auxiliary contacts on the spray pump starter. The Water Treatment Contractor shall also furnish and install a pump for addition of scale and corrosion inhibitor. This pump shall be controlled with the conductivity controller. The conductivity controller and chemical pump shall be installed in a water proof cabinet adjacent to, or attached to, the fluid cooler. For open towers the Water

Treatment Contractor shall furnish and install conductivity controller with probe and bleed-off solenoid with wye strainer upstream piped to a suitable drain. The size of the solenoid and wye strainer shall be as determined by the Water Treatment Contractor and confirmed with the

Architect. The conductivity controller shall be energized only when the condenser water pump is energized by using auxiliary contacts on the condenser water pump starter.

The Water Treatment Contractor shall furnish and install 7-day, 24 hour timer and chemical pump for biocide addition. The Water

Treatment Contractor shall furnish and install a pump for addition of scale and corrosion inhibitor. This pump shall be controlled with the conductivity controller.



Mechanical

18 of 18



























Knox County Schools Program Standards - Middle

ELECTRICAL

A. Design Guidelines

1. All lighting must comply within +/- 5% of the IES (Illuminating

Engineering Society) design standard in place at the time of construction unless directed by the Owner to illuminate to a different level in a particular space.

2. Provide 120 volt, 20 amp. double duplex grounded receptacles adjacent to information outlets.

3. Unless otherwise directed, all offices typically should locate computer and telephone outlets opposite the main entrance to the space.

4. Artificial lighting is not to be used for decoration.

B. Technical Guidelines

16010 – ELECTRICAL GENERAL PROVISIONS a. Work in this division includes, but is not limited to, all electrical work as indicated on the drawings and herein specified in division 16000. Without limiting the generality implied by the drawings and specifications, electrical work shall consist of furnishing all materials, accessories, tools, and labor required to provide.

1. Lighting fixtures and lamps.

2. A complete system of conduit and conductors to supply electricity throughout the building.

3. Main ( switchboard or distribution panelboard), branch circuit panelboards, wiring devices, etc.

4. A system of temporary wiring to be used during construction.

5. Wiring in connection with (heating, ventilating, water heating, and air conditioning applicable systems.

6. Roughing-in and final connection to all Mechanical work and Kitchen

Equipment Work, if applicable.

7. Telephone conduit & telephones, if requested by Owner.

8. A (underground/overhead) primary electrical service. Overhead service will normally be provided by KUB/CUB/LCUB and the underground duct bank will be provided by the electrical installer. Utilities prefer to provide the primary cable.

9. Exterior Lighting

10. Battery-powered emergency lighting and exit signs.

11. Trenching and backfilling for electrical work.

12. Cable TV system if requested by Owner.

13. Concrete transformer pad, if pad mounted transformer will be provided by the

Utility Company.

14. Fire alarm system coordinate with Division 17.

15. Intercom system coordinate with Division 17.

Electrical

1 of 37











Knox County Schools Program Standards - Middle b. 1. Entire Electrical installation shall be made in strict accordance with the requirements of all City, County, State, or Federal Codes of Law having jurisdiction, the requirements and recommendations of Underwriters

Laboratories, including all amendments and/or additions to the said Codes, laws, requirements and recommendations of the local electrical utility. This shall include, but not be limited to, the latest editions of National Electrical

Code, National Electrical Safety Code, and Chapter 0780-2-1 (State of

Tennessee Electrical Code) and the Americans With Disabilities Act (ADA).

2. The Contractor shall be required to bring to the attention of the Architect any work construed as being contrary to or not conforming to the previously mentioned codes. The Architect will review all questions or code. The

Contractor is to execute all work in strict conformity with the various Codes, etc., without additional cost to the Owner.

3. Should any work shown on the drawings or herein specified be more rigid as to requirements than the requirements of the various codes, etc., the drawings and specifications shall be followed in executing the work.

4. Contractor shall be required to file with proper authorities all necessary drawings as required by various codes, laws, ordinances or other requirements.

5. Contractor shall be required to obtain and pay for all permits and for all required inspection certificates. c. 1. Manufacturer's data: for information only, require the Contractor to submit two (2) copies of manufacturer's specifications, descriptions, illustrations and installation instructions for each type material, fittings, equipment, fixtures, etc., intended for use on this project.

2. The Contractor shall be required to submit all shop drawings for all fabricated items and assemblies which are not completely shown by the manufacturer' data sheets in quantity indicated in Section 01300 of the Specifications.

3. Alternate systems and equipment will be considered based upon their ability to provide the functions and features of the specified equipment and as hereinafter specified. Upon request from the Architect the Contractor shall submit samples of any or all such items and set up, as directed, for inspection.

4. The Contractor shall be required to furnish three complete sets of operating and maintenance instructions applying to each piece of equipment installed; include parts lists, wiring diagrams, catalog data, stamped approval submittal data, and operational checkout data as called for in these specifications, bound in hardback binders. Instructions shall be submitted to the Architect for approval at least one month in advance of initial system start-up. In main electrical equipment room, provide schematic wiring diagrams, and operating and maintenance instructions for the entire and complete system as installed

Diagrams and instructions are to be fade-proof and mounted on the equipment room wall. Provide in aluminum frame with "plexiglass" or

"lucite" cover, such as No. 111-P by Sexton Name Plate Corporation or approved equivalent by Brady and Avery. Diagrams and instructions may be reduced in size, but in no case shall lettering be smaller than "Elite".

Electrical

2 of 37













Knox County Schools Program Standards - Middle d. 1. The Contractor shall be required to warrant and guarantee that all work executed under this section of the specifications will be free from defects of materials and workmanship for a period of one (1) year from date of final acceptance of the building. The Contractor shall be required to agree that they will, at their own expense, repair and replace all such defective work, and all other work damage which becomes defective during term of the warranty-guarantee.

2. The Contractor shall be instructed not to order materials until the Architect's review has been completed. e. 1. The Contractor shall be cautioned that the electrical drawings which show the work included in the section are diagrammatic only; that the locations, routing, etc., of the various fixtures, items of equipment, wiring, etc., are approximate only. The entire installation shall be subject to such deviations, modifications, re-routing, etc., as may be necessary to meet the requirements of the architectural, structural, and other drawings; and also as necessary to obtain a proper co-ordination of the work with that of all other trades.

2. The Contractor shall be required to carefully check and familiarize himself with the drawings, and shall frequently consult with all other trades so that the work may proceed as a harmonious whole.

3. Any work which the Contractor may install without properly checking and coordinating, which as a result interfere with proper installation of the work of other trades, shall if necessary be removed and properly reinstalled by the

Contractor without additional cost to the Owner.

4. It shall be the responsibility of the Electrical Installer to notify well in advance, all trades affected, of any chases, recesses, etc., which may be required for the installation of the electrical work. Should the Electrical

Installer neglect doing so, any cutting and /or patching required for such chases, recesses, etc., shall be done at the Electrical installer's expense.

5. The General Contractor shall be required to furnish and install all concrete foundations and piers required for equipment to be furnished under this section of the specifications. The Electrical Installer shall be held responsible for proper size and location of pads, anchor bolts, sleeves, and other items required to be built into work.

6. The Electrical Installer shall be required to carefully examine all architectural, structural, plumbing, heating, electrical, and other drawings, and all other sections of the specifications for items, equipment, etc., not a part of the electrical contract which may require electrical connection.

Unless explicitly indicated to the contrary, the Electrical Installer shall furnish and install all necessary electrical lines, boxes, etc., and shall make final connections to all such items, equipment, etc. f. 1. All wiring shall be concealed except where the Architect grants specific permission to run same exposed.

2. The Installer shall be required to defer installation of all electrical fixtures liable to damage. After fixtures are permanently installed, completely protect against breaking, damage, or the depositing of any waste or material therein until the system is accepted.

Electrical

3 of 37

















Knox County Schools Program Standards - Middle

3. The Electrical Installer shall be required to furnish excavating and backfilling necessary for the installation of any underground work required by the electrical installations. Excavating and backfilling shall comply with all provisions of Section 02200, Earthwork, and in particular, backfilling within the area of the building shall comply with requirements for "Engineered Fill". g. 1. The Electrical Installer shall be required to protect all work, fixtures, and materials at all time. Fixtures and equipment shall be tightly covered and protected against dirt, water, chemical, or mechanical injury. At final completion, all work shall be thoroughly cleaned and delivered in perfect unblemished condition.

2. Touch up all damaged painted surfaces on equipment to match original paint. h. The Electrical Installer shall provide temporary wiring for construction in strict accordance with the requirements of the latest edition of the National Electrical

Code. i. 1. The Electrical Installer shall provide all conduit and wiring necessary for the power and control of, all plumbing and heating, ventilating and air conditioning equipment. All starters, control devices, and multi-speed switches will be furnished with the equipment with which they operate unless otherwise noted or specified on the electrical drawings. Disconnect switches shall be provided with the motors where required by the Code. Refer to the

Plumbing and Mechanical drawings and specifications for a description of the controls required in connection with these sections for the coordination of installation of junction boxes and conduit by electrical.

2. Cover plate for manual motor starters or remote pushbuttons shall be furnished as a part of the electrical work to match wall switch plates and shall be engrave to indicate function of equipment. The name of the equipment controlled shall be stenciled on the cover of all starters and disconnect switches not located adjacent to motors. Stencils to be 1" high in black letters on white background or match those required in mechanical specifications.

3. The Electrical Installer shall be responsible for verifying mechanical equipment/electrical requirements. If any discrepancies in regard to electrical requirements/nameplates are discovered the Electrical Installer shall notify the Architect of any and all such items immediately.

4. All devices, conductors, conduit, junction boxes, etc., to be used for controls wiring shall be provided by Electrical Installer except where otherwise noted in electrical drawings j. The Electrical Installer shall check service required by equipment prior to making final connection. He shall call differences to attention of the Architect.

He shall check equipment for proper protective devices and safety devices to allow proper operation of equipment and prevent burnout. The Electrical

Installer is to assist Owner in initial operation of equipment and make necessary adjustment for proper operations.

Electrical

4 of 37



























Knox County Schools Program Standards - Middle k. The Electrical Installer shall be directed to refer to architectural drawings for details such as finish dimensions, material, door locations, door switches, partition locations, cabinets and counters, etc., making proper allowances therefore. He shall refer to equipment plans for exact location of electrical connections, which are dimensioned. l. The Electrical Installer shall be directed to perform on all equipment furnished in the contract an operational test prior to final acceptance. He shall assist the

Owner in the initial operation when the Owner operates the building and equipment. He shall instruct the Owner's personnel in the proper operation and maintenance of all the equipment furnished under this section of the specifications. m. 1. Electrical work shall be coordinated with roofing work in regard to any electrical items which may pierce or otherwise affect the roof.

Consultation shall be held well in advance of the installation of the final roofing and allow sufficient time for the roofing work to be prepared for electrical work.

2. The Electrical Installer is to arrange for any cutting or repairing to roofing which might already be installed when an electrical installation is made.

Coordinate with specification for roofing with relation to work of other trades piercing the roof. If necessary when coordination is not made between the trades, any roof repairs necessitated by the electrical installation will be made by the roof installer and paid for by the Electrical Installer. n. Connections to all kitchen equipment shall be included in the electrical contract work. Equipment shall be properly prepared to receive a single connection with all wiring internal to the equipment installed by the equipment supplier. The

Electrical Installer shall be required to verify and coordinate all connections and rough-in locations as well as any special electrical requirements or devices with the food service consultant and equipment supplier prior to start of work. o. A plastic engraved name plate shall be required on the inside of the door of each electrical cabinet to indicate the following as illustrated by this example.

"Panel A" "480/277-

Volts" "3-phase/4wire" "Fed from

MDP" p. The Electrical Installer shall be required to perform all excavating and backfilling required for installation of Electrical Work. Excavations shall fully comply with applicable provisions of Section 02200 "Earthwork", and in particular backfill in area of the building or paving shall comply with requirements listed therein for

"Engineered Fill".

16100 – BASIC MATERIALS AND METHODS

Electrical

5 of 37















Knox County Schools Program Standards - Middle a. Every coil of wire used shall be in the original wrapping and shall bear the

Underwriter's Label. b. 1. Specify wiring to be in conduit. All conduit 1-1/4" or less in diameter shall be EMT, except conduit installed in concrete or masonry, conduit buried underground, or exposed conduit less than 6 feet above floor.

2. Conduits over 1-1/4" in diameter or meeting one of the prior exceptions shall be rigid steel.

3. Conduits installed in concrete or buried underground shall be PVC. All PVC conduit shall contain a green insulated grounding conductor of a size as required by NEC. Size conduit accordingly to accommodate this grounding conductor.

4. EMT shall be General Electric, or approved equivalent. All EMT conduits shall contain a green insulated grounding conductor of a size as required.

Increase size of conduit, if required, to accommodate this grounding conductor.

5. All rigid conduits shall be electro-galvanized or Sheradized. Each length shall be stamped with the name and trademark of the manufacturer and the stamp of approval of the Underwriter's Laboratories.

6. All conduit terminated in other than threaded hubs shall have double locknuts and a bushing. All locknuts shall be "Bondnuts" or approved equivalent.

7. Minimum size of all conduit for lighting and power shall be ¾".

8. Insulated bushings shall be used on all conduit 1" and larger.

9. Fittings for electrical metallic tubing shall be set-screw type.

10. Use flexible metal conduit for motor connections less than 30 inches long and for terminal connections to recessed fluorescent light fixtures in suspended ceilings. Flexible metal conduit shall be Sealtite, or approved equivalent.

Fittings for flexible metal conduit shall be of steel or malleable iron only, with nylon insulated throats and shall be of wedge and screw type having an angular wedge between convolutions of conduit, similar and equivalent to

Thomas and Betts Corporation Series 3100. c. 1. All conductors shall be 98% conductivity copper, thoroughly insulated. All wire insulation (600-volts) shall be THW or THWN.

2. All conductors No. 8 and larger shall be stranded. All conductors No. 10 and smaller shall be solid.

3. Minimum size of Conductor for all power, lighting, wiring shall be No. 12

AWG.

4. Conduits and conductors shown on the Electrical drawings should not be sized for voltage drop; the contractor shall be made responsible for sizing conductors and conduit for voltage drop per the latest edition of the National

Electrical Code (NEC). d. 1. All junction, outlet, switch, receptacle and panelboard boxes shall be galvanized

2. Ceiling outlet boxes shall be 4" octagonal, by 2-1/8" or 3-1/2" deep with a fixture stud where required.

3. Flush switch and receptacle boxes shall be standard switch and outlet boxes of sufficient depth to make box flush with the finished surface of the wall.

Electrical

6 of 37













Knox County Schools Program Standards - Middle

Where two or more devices occur, they shall be gang mounted. Where plastered walls occur, 4" square boxes with deep plaster rings shall be used for switches and plug receptacles. Boxes shall be Steel City, Raco, or approved equivalent. Any switch boxes containing two phases of the 480 volt system shall contain suitable barriers.

4. Provide galvanized malleable iron fittings with threaded hubs for screw connection and with the proper type covers for switches and receptacles served by exposed conduit. Use pressed steel boxes only for exposed ceiling fixtures.

5. Provide galvanized malleable iron condulets with threaded hubs and covers and with proper configurations for all changes of direction of exposed conduit.

6. Junction boxes shall be 4" x 2-1/8" x 1-1/2" deep with raised cover, where required or a 4" square by 1-1/2" or 2-1/8" or 3-1/2" deep as required by

NEC.

7. Surface mounted Junction boxes shall be 4" x 2-1/8" x 1-1/2" deep with raised cover, where required or a 4" square by 1-1/2" or 2-1/8" or 3-1/2" deep as required by NEC. e. 1. Switches and receptacles shall be grey unless otherwise directed. Special colors may be required by the Architect and request for color variations must be made well in advance of product procurement.

2. Receptacles shall be 20 amp, 3-wire grounded, Bryant 5352, or approved equivalent.

3. Isolated ground receptacles shall be 20 amp, 3-wire grounded, orange Bryant

5362, or approved equivalent.

4. Ground fault receptacles (G.F.I.) shall be Bryant GFR53FT-GRY. Contractor may have option of using feed-through outlets as long as current leakage does not cause false tripping. G.F.I. receptacles shall be required where shown on drawings or where required by the National Electrical Code.

5. Switches shall be 20 amp, 120/277 volt, Bryant 4901 single pose, 4903 3- way, or 4904 4-way, or approved equivalent. Provide mullion-mounted switches where necessary.

6. Key operated switch shall be, 20 amp, 120/277 volt, grey, Bryant 4901-L or approved equivalent.

7. Plates shall be stainless steel unless otherwise decided by Architect to be colored plastic. Plates shall be "Jumbo" as manufactured by Bryant. Switch plates mounted to mullions shall be Bryant #S671W138.

8. Specify "JUMBO" blank stainless steel cover plates for computer outlets.

9. Dimmers shall be Lutron "NOVA" type, slide to off, maximum capacity 2000 watts. All dimmers are to be rated for the sources controlled. Provide power failure memory. f. 1. Floor outlets with boxes flush with the finish floor are preferred to serve desks and equipment located in open spaces away from walls. Service fittings shall be furnished with each box.

2. Boxes shall be Steel City No. 68-S-AL, 2 3/4" minimum depth.

3. Service fittings shall be P60-DC-AL with flush receptacle for electric service and P-60-2" with base No. 463 and standpipe No. 467 for telephone.

Electrical

7 of 37















Knox County Schools Program Standards - Middle

4. Provide P-60-LCP carpet plate in areas having carpet.

5. Fittings shall have an aluminum or bronze finish as decided by the Architect.

Contract price shall be based on bronze.

6. Underfloor units to be installed in compliance with manufacturer's instructions and recommendations. g. 1. All wiring shall be continuous from outlet box to outlet box, from outlet box to pull or junction box. Pressure connectors shall be used for conductors No.

10 and larger. No joints or splices shall be pulled into conduit.

2. All locknuts shall be drawn up tight, so as to effectively ground boxes to conduit.

3. All bends in conduit shall be made with a conduit bender, any bends which change the cross sectional area of the conduit will be rejected.

4. All rigid steel conduit shall be cut and reamed smooth and properly threaded to receive coupling. Couplings shall have tapered threads to fit the tapered threads of the conduit. Job cut male threads shall be painted with sealant prior to making a joint.

5. All conduit shall be installed concealed within the wall, floor, or ceiling construction, except where Architect grants permission to run conduit exposed.

6. Seal all conduits penetrating fire rated barriers with 3-M, or approved equivalent, fire rated sealants. See sealant details on electrical schedules and details sheet.

16400 – ELECTRICAL SERVICE SYSTEM a. 1. The characteristics of the electrical supply to the building will be either

277/480 or 120/208, volts, 3-phase- 4-wire, grounded wye.

2. Power to the building will be supplied by the Knoxville Utilities Board.

3. Provide 480 volt delta to 120/208 volts, 3-phase, 4-wire, grounded wye transformers to supply low voltage power to the various panelboards.

Transformers shall be: 2 winding, provided with standard taps, U.L. listed.

Transformers shall be located in the electrical rooms where shown on the drawings.

4. Primary cable is to be provided by the local utilities company. Duct bank from the pad mounted transformer to the riser pose shall be provided by the

Electrical Installer.

5. Trenching and backfill for primary duct band is to be provided as directed by the local utilities company.

6. Specify a concrete transformer pad for pad mounted transformer. Pad to be provided in strict accordance with local utilities recommendation. Obtain detailed drawings from local utilities.

7. Specify secondary underground service from pad mounted transformer to switchboard 'MDP".

8. Specify all grounding in strict accordance with the latest edition of the

National Electrical Code.

9. Specify equipment grounding conductor in any PVC conduit.

Electrical

8 of 37

















Knox County Schools Program Standards - Middle

10. Specify No. 500MCM bare stranded copper conductor at transformer pad as a grounding mat. Conductor shall extend completely around pad. Ground rods shall be ¾" x 8' copperweld. Both ends of the conductor shall extend into the transformer pad to be connected to grounding point on pad mounted transformer by local Utilities. Extend grounding conductor in trench with secondary service entrance and bond to neutral bus. Connect other end to transformer grounding grid.

11. Specify a separately derived ground at each dry type transformer. Size of this grounding conductor shall be in accordance with Article 250, NEC.

16401 – POWER EQUIPMENT a. 1. Alternate systems and equipment will be considered based upon their ability to provide the functions and features of the specified equipment b. Panel boards and Cabinets:.

1. Directories are to filled out with typewriter. Indicate installation on the drawings, 3-phase, 4-wire panelboards or switchboards, mounted in enclosing cabinets containing equipment specified in the panelboard schedule. Require six (6) copies of shop drawings for approval. Front shall have shop coat only of paint for final field painting.

2. Specify contractors controlled by photo-cell. Contactors shall be Square-D

Company Class 8903, or equivalent by ASCO.

3. Specify separate doors over contactor spaces. Separate doors shall be used where "split" doors are called for on the drawings. All contactor installations in panels shall be dead front when door is open.

4. Specify doors with concealed hinges and attachment clamps. Require submittal of drawings for approval.

5. Specify lighting and power panels as General Electric, ITE Siemens, Square-

D Co. or Westinghouse for flush or surface mounting, circuit breaker type; for voltage indicated. Single panel boxes shall be 20" wide by 5-3/4" deep.

Use common trip for multi-pole breakers. Minimum interrupting capacity for branches shall be 22,000 amperes, with greater capacities where indicated on drawings.

6. All electrical panels shall have a copper ground bar and a copper bus.

7. All electrical panel configurations larger than single panels shall be provided as separate panels and shall be equipped with factory installed separate trim with milled edges.

8. All electrical panels (1200 amps or less) shall be equipped with door-in-door enclosures.

9. All breakers used to serve package type air conditioning equipment shall be

U. L. Listed "HACR", where available.

10. Specify shunt trip type breakers and shunt trip switches and indicate on drawings. If not shown on drawings, but required by authority having jurisdiction, provide a shunt trip in the main breaker. The Electrical Installer shall contact the Architect to verify location of shunt trip switch. c. Switchboard and Main Distribution Panel.

Electrical

9 of 37













Knox County Schools Program Standards - Middle

1. Either 480/277, or 208/120 volts, 3-phase, 4-wire A.C., 100% neutral capacity. Switchboard shall be rated at 50,000- RMS short circuit asymmetrical amperes. Switchboard shall bear the U.L. Label for service entrance equipment. Conduit entry shall be in the bottom. Height of switchboard shall be not more than 7'-6". It shall be free standing for mounting on a concrete housekeeping pad. Unit shall be equipped with secondary surge arrestors on line side of main breaker. Switchboard shall be front accessible only.

2. Main Breaker: Rated current to be indicated on drawings, 3-pole, 4-wire, main breaker shall be braced for 50,000 amps asymmetrical short circuit current. Specify zero sequence ground fault protection in accordance with the National Electric Code. Specify shunt trip in breaker and shunt trip switch located where indicated on drawings.

3. Future Circuit Breaker or Fusible Switch Space: Specify space and bus for future feeder circuit breakers or fusible switches, to be indicated on drawings.

Capacity and quantity of space shall be indicated on the drawings.

4. Feeder Switches or Breakers: Use molded case with 400-amp minimum frame size, 480-volts, interchangeable trip type for circuit breakers or fusible switches with current limiting fuses, as indicated on drawings. Load current rating circuit rating shall be as shown on the drawings. Short circuit current ratings shall be equivalent to, or greater than, the available fault current.

Fusible switches shall be equipped with Bussmann Type LPS, current limiting fuses. Specify one spare set (3 fuses) for each switch in the main panel. Spare fuses shall be mounted in a locked fuse cabinet adjacent to main switchboard.

5. Name Plates: Specify black-white engraved plastic. Wording to be as indicated on shop drawings. Each item of equipment shall be identified as to size and name of load served.

6. Specify lightning arresters ahead of the main switch.

7. The switchboard shall be equipped copper bus and copper ground bar.

8. Specify if surge protection is required. Specify a Liebert LC 277Y, transient voltage surge suppressor, rated at 50kA current capacity, located on load side of breaker. d. Incoming conduit and cable shall enter from the bottom. Conduit entering from the bottom shall turn upward approximately 6 inches and terminate with a bushing. Junction boxes above or below the switchboard will not be allowed. Set steel channel sill along the front and rear of the switchboard to provide a level support for the board. The switchboard housing and the neutral bus should be grounded. Specify 4" concrete housekeeping slab. Ground all conduits to switchboard grounding bus with stranded copper grounding conductors and grounding bushings. e. Manufacturers: General Electric, ITE Siemens, Square-D Co. or Westinghouse.

16501 – LIGHTING

1. All fixtures shall be Underwriters’ Laboratories approved.

2. Total building lighting should be designed to a target of 0.85 W/ft

2 maximum of 1.0 W/ft

2 will be accepted by the Owner.

. A

3. Require submission of manufacturer's data sheets for each item with



Electrical

10 of 37







Knox County Schools Program Standards - Middle identification by Architect's designation. Require Manufacturer’s literature for all lamps.

4. Specify full-size samples of fixtures, upon request.

5. Incandescent lamps will not be used.

6. HID lamps will not be used on the building interior.

New standard – LED lighting/ Current standard – fluorescent lighting:



Lighting shall be LED, including: internal, site and parking lot lighting. All LED fixtures shall be by major manufacturer with five (5) years LED lighting experience

    required. Interior lighting shall incorporate day lighting strategies wherever practical and cost effective. Classroom and Library lighting shall include bi-level switching (desktop work vs. electronic media). Auditorium, general assembly, gymnasium and parking lot lighting shall be dimmable and programmable. Site and parking lot lighting shall be designed to minimize “light pollution” as experienced by the surrounding neighborhoods. Lighting levels shall meet local/state code- or

IES requirements, whichever is greater. All rooms to be “double switched” for controlling during presentations. a. Hand operated switching is required for all interior lights not controlled completely by photocells or occupancy sensors. No lights will be controlled only at the breaker or by a switch requiring a key to operate. b. Switching options in classrooms and other areas with ample daylight from windows should allow occupants to turn off fixtures near the windows when they are not needed. c. Occupancy sensors will be Sensormatic, or equivalent and will be designed to fail in the “on” mode. No occupancy sensors will be installed if a failure of the sensor or the power pack causes the light to become inoperable. d. Occupancy sensors will be installed in all hallways and common areas. The time delay of an occupancy sensor will be set to 10 minutes with a maximum delay of

30 minutes depending on space occupancy patterns. e. Occupancy sensors will be installed in classrooms on a case by case basis at the direction of the Owner. f. Occupancy sensors will not be installed in restrooms accessible to students. g. Daylighting controls may be used in appropriate areas. h. Lighting controls will not be time-of-day scheduled or connected to BAS controls. i. New or highly efficient light sources should be considered as options to meet the

EUI target of 35 kBtu/ft

2

. Examples are LED and Induction lighting. j. Sport and field lighting shall not exceed the 2009 or most recent TSSAA standard in all cases. Where light level required varies based on spectators being present, switching options will be installed so that the lower light level will be used when a spectator event is not taking place. k. Reference "LIGHTING FIXTURE SCHEDULE" on the drawings for specific information on fixtures. All lighting fixtures are to be warranted, fluorescent fixtures for two (2) years, H.I.D. fixtures for five (5) years. l. Conductors within individual fluorescent lighting fixtures shall not be smaller than 18 awg with Type CF insulation. m. 1. Fluorescent lamps shall be specified in the fixture schedule as manufactured by G.E., Sylvania, Osram, or Phillips only. U-bent fluorescents are to be

Sylvania only.

2. H.I.D. lamps shall be specified in the fixture schedule as manufactured by

G.E., or Sylvania only; metal halide are to be Sylvania only.

Electrical

11 of 37







Knox County Schools Program Standards - Middle

3. All lamp warranties shall be assumed to begin at Date of Substantial

Completion.

4. Fluorescent lamps shall be 28W T-8.

5. The Contractor will coordinate lighting and ballast selection with the current

KCSMO inventory selections at the time of construction. n. Each ballast shall bear CBM seal of approval and shall be Underwriters' Class P.

Ballasts shall be energy efficient equivalent to Advance Mark V electronic, or approved equivalent. o. 1. Recessed lighting fixtures in acoustical ceilings shall be installed on exposed tee for "lay-in" fixtures unless scheduled otherwise.

2. Recessed lighting fixtures in sheetrock ceiling shall be installed by use of a plaster ring and flange type fixtures.

3. All recessed lighting fixtures shall be attached to the structural system in strict accordance with the latest edition of the National Electrical Code.

4. Surface or pendant fixtures shall be installed in a manner that engages the building structural system. p. 1. Specify illuminated exit signs. Exit sign shall conform to the requirements of the National Fire Code. All exit signs shall be equipped with battery backup, rechargeable batteries, and a battery charger. Batteries shall be capable of maintaining the exit signs at rated output for a period of 90 minutes. Exit signs shall be equipped with LED lamps.

2. Exit signs shall be specified on drawings. It is preferred that exit signs with integral emergency lighting be specified.

3. Directional arrows shall be as required by project conditions.

4. Units to be installed in accordance with manufacturer's recommendations.

Voltage requirements to be coordinated with available voltage. q. Specify Iota I-80 emergency lighting power supplies in emergency lighting fixtures. Units shall be capable of maintaining emergency lighting for a period of

90 minutes. Lithonia "Power Sentry" devices are NOT to be specified or accepted. r. Exterior lighting will comply with the IES Model Lighting Ordinance. s. All exterior lighting will be photocell controlled. The contractor will minimize the number of photocells required by placing as many fixtures as possible under control of each photocell. Fixture-mounted photocells are discouraged.

16502 – AUDITORIUM STAGE LIGHTING SYSTEM

  a. 1. Specify a complete working dimming system and lighting instruments.

2. All equipment shall be the original product of one manufacturer. The manufacturer shall have been consecutively manufacturing stage lighting and control equipment for at least fifteen years.

3. Specific manufacturer and product names are used herein as standards. Other products will be considered by the Architect and, if in the opinion of the

Architect, are found to be of equivalent quality, will be reviewed as shop drawings.



4.

5.

All equipment shall be U. L. Listed, shall comply with the National Electrical

Code, and the U.S. Institute for Theatre Technology.

A factory representative employed full time by the manufacturer shall visit



Electrical

12 of 37











Knox County Schools Program Standards - Middle











  the job site after installation is complete and prior to the energization of the system to inspect, test, and adjust the system. He shall also at that time instruct the Owner's representatives in the operation and maintenance of the system. These services shall not exceed one day and shall be provided within

14 days written notice by the Contractor.

6.

Service shall be provided directly by the manufacturer and service calls shall





7. be made within a 24 hour time period.

Stage lighting controls must be separate from ambient light switches and house lighting controls.





  b.

















1.



2.

3.

4.

5.

The dimmer racks shall be fully digital and shall consist of up to 48 dimmer module spaces, free standing dead-front switchboard, and not exceed 80"H x

24.5"W x 19.5"D and they shall be U.L. listed.

Rack setup and preset data shall be fully user programmable.

Multiple low-noise fans shall be provided to allow redundancy in case of fan failure.

Dimmer racks shall operate at 120/208 VAC 3-phase, 4-wire wye, at a maximum of 800 A per phase and be housed in one Rack Processor Module

(RPM) plug in module.

The control electronics shall provide the following control and communication inputs as standard:

(a.) Two optically isolated DMX512 control inputs. The first input can be

AMX192 as an alternative to DMX512.

The control electronics shall provide outputs as standard:

(b.) Up to 96 phase controlled signals to control dimmer SSRs.

(c.) Twelve analog 0 to +10V signals for control of external devices, (With

96 channel processor). c. 1. The dimmer modules shall be designed using advanced, state-of-the-art components specifically for stage lighting.

2. The dimmer modules shall be fully plug in and factory wired. Dimmer modules shall be of rugged and heavy duty construction and enclosed by a formed aluminum chassis.

3. Each dimmer modules shall contain one or two single pole circuit breakers, associated solid state switching modules, filters, power and control components.

4. The dimmer module shall be capable of "hot patching" cold, incandescent loads up to its full rated capacity without malfunctioning with the control signal at full ON.

5. The dimmer power efficiency shall be at least 97% at full load with a no load loss of 3v RMS for type i dimmers.



Electrical

13 of 37















Knox County Schools Program Standards - Middle d. 1. The control console shall be a microprocessor based control system specifically designed and constructed for the control of stage lighting and presentation systems.

2. The control system shall consist of a free standing table top console with a separate video monitor.

3. All control functions shall be governed by the dimmer cabinets, and all programmed and stored intensity levels (presets) shall be resident in the dimmer cabinets.

4. The control station face plates shall be free of visible fasteners and shall be of aesthetic appearance. e. Slider Station shall feature:

1. 1 to 12 Channel sliders corresponding to the number of channels for manual control.

2. The Entrance Stations shall be wired to a Microcontrol Slider Station to provide remote selection of the On, Off or Manual scenes.

3. Stations shall operate on 10.6 volt circuits (SELV)l and contain no hazardous voltages. f. Theatrical Lighting:

1. Ellipsoidal Spotlights: Luminaires shall be 500W, 750W, 1000W ellipsoidal reflector spotlights with a medium two pin socket to accommodate an axially mounted tungsten-halogen lamp, a double flatted ellipsoidal, specular Alzak processed aluminum reflector, four push shutter and a template slot, all mounted within a die-cast aluminum housing.

2. Fresnelite Spotlight: Luminaires shall be a variable focus fresnel spotlight designed to accommodate tungsten-halogen or incandescent medium prefocus base lamps in 500, 750, and 1000 watt sizes.

3. Iris Cyclorama Light System: Cyclorama luminaires shall be of modular construction to allow four basic versions: one, two, three and four light units.

4. Followspot Light: The luminaire shall be a 575 watt follow spotlight designed to accept only a 575 HMI type metal halide lamp.

16601 – TELEPHONE CONDUIT FOR PHONE SERVICE a. 1. Specify empty conduit for the use of the telephone system in installing cable and equipment. Minimum size of conduit shall be 3/4" with larger sizes used where noted in the drawings. Phones and conductors will be provided under

Section 17605. Delete this requirement if phones are not in the Contract.

Outlet boxes shall be 4" size with one gang device rig and telephone type coverplates to match wiring device plates.

2. Telephone terminal space shall consist of ¾" x 4' x 4' plywood bolted to the wall with the top of the plywood 6' above floor. Paint the plywood with two coats of paint to match adjacent surfaces.

3. Terminal cabinets shall be similar construction to the electric panelboards with oversized door and a ¾" plywood backboard bolted to the back interior of the cabinet. Minimum size shall be 4" deep by 18" wide by 30" high with larger sizes used where noted on the drawings.



Electrical

14 of 37















Knox County Schools Program Standards - Middle

4. Specify 4" coordinate incoming phone conduit with phone service supplier conduit below grade from primary riser pole to telephone equipment backboard for telephone service entrance cable.

5. Specify that any charges required by the local service provider for providing phone service to the building are to be included in the total cost.

6. The designer is to require the phone service company to provide gas filled surge arresters on incoming phone lines.

16604 – CABLE TV SYSTEM a. 1. Cable TV to be interconnected with local cable company.

2. All cable, connectors, and televisions related accessories will be CATV

DIGTAL and OUTSIDE PLANT grade provided by the installer as shown on the drawings and as specified. System and materials provided will allow an interactive video system with necessary 2-way amplifiers. Processor and

Modulator for sub-band transmission on the interactive CATV system.

3. Each CATV location will have a minimum of 0 dB (+ or – 10 dB). All systems will be designed using a star type topology. No daisy chaining will be permitted.

4. A dedicated 4-inch conduit shall be provided for CATV services to connect from the “street” to the demarcation point for the building in the MDF. This conduit shall originate from an appropriate location at the property boundary and shall be installed underground. This conduit must be provided separately from Electric Utility primary cable and shall be located a minimum 1'-0" from electrical primary cable.

16607 – SECURITY SYSTEM



  a. 1. Specify a complete security system compatible with the current Knox County

















2.

3.

4.

Schools monitoring system, wired, connected and left in first class condition.

All equipment shall be UL Listed for use as Grade A Local and Grade B

Central Station systems in an Institutional type structure as defined in the

National Building Codes.

Equipment shall be provided by vendor as specified by Knox County

Schools.

The catalog numbers specified are those of the Alarm Device Equipment

Manufacturing Company and constitute the type and quantity of the equipment to be furnished.

Submittals are required for the Security System and are to include catalog cut

    sheets on all devices and system components. Specifications shall provide that final determination of compliance with the Specifications shall rest with the Architect, who may at his discretion require proof of performance.

  b.



1.



Activation of any monitored device shall display the area and point number for which the breach in security has occurred on the 32 character digital keypad and display unit. Alarms from this breach shall immediately transmit a digital coded message to the local Police Department via a UL Listed and approved Central Monitoring Station. Telephone dialers which use tape recorded messages will not be accepted. Local alarms from a breach of



Electrical

15 of 37









Knox County Schools Program Standards - Middle security may sound immediately or be delayed, the control of which is field programmable at the local panel via digital keypad using a special entry code. The Security System Supplier shall include in and make a part of his bid a one-year alarm system monitoring fee.

2. The system shall be capable of being armed and disarmed at multiple points by digital keypads. The main console shall be the primary program point with the secondary keypads as needed. Each keypad shall contain an

"Armed" and "Ready" indication allowing the user to know at a glance the present status of the system.

3. Upon loss of operating power or if supervisory problems should occur, a trouble LED shall illuminate on the console and transmission of the trouble condition shall be immediately transmitted to the Monitoring Station. Upon loss of power, the system shall immediately transfer to the internal battery supply for continued system operation. c. 1. Alpha Console: Mounting of the Security System status command center shall be indicated on the drawings. This console shall feature a two-line, 32 character alpha-numeric display which will show the status indication with descriptive message for all system connected security points. The descriptive message may be configured at the console for ease of customer point recognition. This unit shall have a built-in users manual which will display after any function key is depressed and held for 2-3 seconds. The alphanumeric display shall be backlit for easy operation in the dark and shall be capable of having backlighting removed 5 minutes after the last depression of a function key. The function keys shall also be backlit for easy recognition. The keys shall be soft and provide both a tactile and audible feedback when pressed. The console shall have system "Armed" and

"Ready" lights and be capable of indicating via the alphanumeric display the exact area creating alarm conditions, recall at a later date the area of a breach of the system, and display "System Not Ready" if the user tries to arm the system while a point is not in the secure position.

2. The location of the Secondary keypads shall be indicated on the drawings and shall have the program functions as indicated for the main console keypad except that it may not program the system and does not contain the 32 character alphanumeric display. Secondary keypads may have control, depending on how they are programmed from the main console, over the entire area of protection or sections of protection.

3. Magnetic Contacts shall be either recessed or surface depending on the type of door or window being protected. Rated doors and windows, metal doors and window frames, and overhead roll-up style doors are to have surface contacts. Unrated wooden doors are to have recessed contacts. All contacts are to have programmable Remote Point Modules (RPM) as an integral part of the contact.

4. Passive Infrared Detectors (PIR) shall be used for space protection. These units shall be system compatible, deriving power from the system control panel. PIR's shall contain interchangeable short or long-range lenses to allow for field adjustment to meet individual circumstances. Each PIR is to contain a built-in RPM.



Electrical

16 of 37













Knox County Schools Program Standards - Middle

5. Area Remote Point Modules (ARPM) shall be capable of being interconnected to the system and provide a minimum of eight (8) supervised contact loops, each of which shall be monitored via an End-Of-Line Resistor

(EOLR). Each loop of the ARPM shall report back to the main system as an individual point.

6. Alarm sirens shall be located on the roof to indicate that the security system has been activated. This should in no way alter the operation of the digital dialer as specified above. The function of the alarm siren is to give an audible signal to the surrounding area. Roof mounted sirens shall be complete with a weather tight enclosure to prevent corrosion. d. 1. Furnish and install in accordance with the manufacturer's instructions all wiring. Conduit and outlet boxes required for the installation of a complete system shall be provided by the Electrical Installer. The Security Installing

Company shall have been engaged in the installation of digitally transmitted systems for a minimum of five years prior to the award of this contract, have in his possession employees (more than one) who are qualified factory trained installers, and maintain sufficient spare parts and equipment to replace defective equipment should the need arise. All wiring shall be installed in accordance with Article 725, "Class 1, Class 2, and Class 3

Remote-Control Signaling, and Power-Limited Circuits", of the National

Electrical Code.

2. The entire installation, including wiring, supervision, initiation of devices, and proper operation of sirens and digital transmitters, shall be tested by a trained technician. A detailed report of the testing and results shall be furnished to the Owner and Architect.

3. The equipment installer and manufacturer shall have in the area fill time service facilities with more than one trained technician who is regularly engaged in the installation, service, maintenance, and inspection of the type equipment installed. The equipment installer shall furnish the Owner a one- year maintenance agreement for service and semi-annual inspections to be conducted during the installers normal working hours. Seven-day/week, 24 hour/day emergency service with a minimum one hour response time shall be available outside normal working hours at the current overtime rate. The one-year contract shall be provided at no cost to the Owner.

16607b – VIDEO SURVEILANCE SECURITY SYSTEM

1. A minimum of one 16 Channel Remote Viewable H.264 DVR with H.264 compression security video technology with 720 x 480 max resolution and

120 max FPS. Triplex operation allows for simultaneous playback, recording and network access. Allows quick and easy off-load video evidence to multimedia device or via network connection. Must be compatible with existing Knox County Schools systems.



Electrical

17 of 37









Knox County Schools Program Standards - Middle

16608 – PREPARATION FOR NETWORKING a. REFERENCES AND DOCUMENTS FOR TELECOMMUINCATIONS

STANDARDS AND GUIDELINES

1. ANSI/TIA-568-C - Standard for Generic Telecommunications Cabling for

Customer Premises

2. ANSI/TIA-568-C.1 - Commercial Building Telecommunications Cabling

Standard

3. ANSI/TIA-568-C.2 - Balanced Twisted Pair Cabling and Components Standard

4. ANSI/TIA-568-C.3 - Optical Fiber Cabling Components Standard

5. ANSI/TIA/EIA-569-A - Commercial Building Standard for

Telecommunications Pathways and Spaces

6. ANSI/TIA/EIA-606 (A) - The Administration Standard for the

Telecommunications Infrastructure of Commercial Buildings

7. ANSI/TIA/EIA-607 (A) - Commercial Building Grounding and Bonding

Requirements for Telecommunications

8. ANSI/TIA/EIA-526-7 - Measurement of Optical Power Loss of Installed Single-

Mode Fiber Cable Plant

9. ANSI/TIA/EIA-526-14A - Measurement of Optical Power Loss of Installed

Multimode Fiber Cable Plant

10. ANSI/EIA-310-D - Racks, Panels, and Associated Equipment

11. ANSI/NFPA-101 - Life Safety Code

12. ANSI/TIA/EIA-758 - Customer Owned Outside Plant Telecommunications

13. ASTM E814 and UL1479 – Fire-Stop Standards

14. ISO/IEC-11801 - Generic Cabling for Customer Premise

15. FCC PART 68 - Code of Federal Regulations, Title 47,Telecommunications

16. National Fire Protection Agency (NFPA-70), National Electrical Code (NEC)

17. OSHA CFR 29, Applicable portions of Parts 1910 & 1926 b. INSTALLATION STANDARDS - All cabling shall be installed in accordance with the most recent edition of the following BICSI® publications:

1. BICSI – Telecommunications Distribution Methods Manual

2. BICSI – Cabling Installation Manual

3. BICSI – LAN Design Manual c. GENERAL REQUIREMENTS:

1. PREPARATION FOR STAR TOPOLGY REQUIRED: i. All voice, data and video cabling between the Main Distribution Frame

(MDF) and Intermediate Distribution Frames (IDFs), MDF and individual information outlet, and IDF and individual information outlet shall be installed using "star" topology. ii. In new construction and major renovations that provide space dedicated to the MDF and IDF's, "daisy-chain" topology will not be acceptable. In existing situations where "star" topology between the

MDF and IDF's is not practical or possible, "daisy-chain" topology via patch panels may be considered acceptable. iii. Under no circumstance will "daisy-chain" topology between the MDF and individual information outlets or IDF's and individual information outlets be acceptable.

2. PREPARATION OF CABLE PATHWAYS:



Electrical

18 of 37



















Knox County Schools Program Standards - Middle i. Provide pathways to facilitate building entrance of outside services. ii. Provide cable tray and other pathways for the installation of a computer networking system to be installed under a separate contract. iii. Provide all boxes, conduit in wall, hangers, J-hooks, penetrations, sleeves, and cable tray necessary to receive and distribute all networking, telecommunications, ITV/CATV, and other low-voltage cables.

3. DETERMINATION OF APPROPRIATE CABLE SYSTEM:

Determination of whether plenum or non-plenum rated cable shall be required. This determination may be unique to each facility, as determined by code requirements. All preparation for networking must be consistent with the appropriate code requirements. d. MAIN DISTRIBUTION FRAME: Each facility will require one (1) Main

Distribution Frame (MDF). The MDF will be the source of delivery and distribution for communications to all areas within the building. The room will serve as the distribution or cross connect point between outside services (such as internet and phone service) and distribute these services throughout the facility.

The room should be located within the building in an area least likely to flood.

1. LOCATION: The following considerations must be considered in the location of the MDF: i. Preferred location of MDF room is near the center of the educational portion of the building. The MDF should be accessible from a main hallway or common area for convenient access for performing system administration and maintenance. ii. The MDF shall not be shared with electrical installations, other than those if required for telecommunications. The MDF must not be near water pipes or below rest room facilities and shall not serve as janitorial or a storage room. iii. The room shall be dedicated to Telecommunications Functions. iv. The Main Distribution Frame (MDF) shall contain all "head-end" equipment for voice and data systems, telephone service, ITV/CATV service, intercom control panel, energy management system control equipment, file servers, etc., provided for the building. v. The room should be located within the building in the area least likely to flood. vi. All 4 inch conduits for low voltage utilities will terminate in the

MDF. All installations.

2. SIZE: MDF space in new construction and major renovations that provide space dedicated for the MDF, shall not be less than 180 square feet arranged in a roughly rectangular floor plan with at least three clear walls.

At least one wall of the MDF room shall be covered with minimum 3/4"



Electrical

19 of 37





























Knox County Schools Program Standards - Middle plywood. For existing situations, the minimum space requirement for the

MDF room may be adjusted to meet existing conditions.

3. DISTRIBUTION FROM THE MDF: Cable placed from this room to other locations within the building, will be used to feed telecommunications from this room to other rooms throughout the building known as Intermediate Distribution Frames. Satellite rooms, known as Intermediate Distribution Frames (IDF) will house the distributed services from the MDF. In many cases, based on location and need, this room may also be used to feed workstations. In this instance, a section of the MDF will be used to terminate workstation cables.

IDFs are discussed in a subsequent section of this document.

4. DESIGN OF THE MDF: A cable tray should be installed around the perimeter of the room to route cables from the point where they enter the room to the termination point of each. Additional cable tray will be specified to route network cabling to the Network Cabinets.

SIZE: The standard MDF size for a campus building is 12’ x 15’ – literal dimensions. These dimensions may be adjusted only with the documented approval of the IT Network Department. Exact sizing may differ based on the equipment required for the requested services for the particular building being designed. Note: In renovations or retrofits, effort needs to be made to achieve these dimensions as closely as possible.

5. ENVIRONMENT (Minimum): The following environmental conditions must be met for all projects: i. Door Width - The door should be at least 36” wide, 80” high and hinged to open outward (if code permits) and there should be no doorsill. Access to telecom rooms should be from hallways only with no through access to other areas. Doors should be placed in the corner of the room if possible. ii. Door Keying - All IT Network Engineering MDF/IDFs should be keyed with the standard district-specified key. iii. Door Swing - The door shall swing out and not in to the room. iv. Continuous climate control – Dedicated HVAC - (24/7) Temperatures should be maintained between 64 and 75 degrees Fahrenheit with relative humidity between 30% to 55%. There should be a minimum of one (1) air exchange per hour. v. Electrical Capacity - The average equipment load in a main MDF is approximately 20,000 – 40,000 watts depending on the area being served from this room.

Electrical

20 of 37

























Knox County Schools Program Standards - Middle vi. Flooring - Carpet should not be installed in communication closets.

VCT or sealed concrete floors will protect equipment from static electricity and dust. vii. Lighting Requirements – Provide a minimum of 50 foot-candles, measured 3 feet above the finished floor and mounted 8.5 feet above finished floor. viii. If the room contains a sprinkler head, the head shall contain a wire cage to prevent accidental activation. ix. Ceilings are not needed in the MDF, but if one must be installed to facilite appropriate climate control, a minimum of 10’ must be maintained above the finished floor. x. The room shall not be used as a passage way for water pipes, roof drains and other facilities not a part of telecommunications. xi. The room shall be as rectangular as possible and not installed with angled walls. xii. If columns are placed within the room, the room size and layout shall be adjusted to accommodate the loss of space caused by the column.

6. POWER: Power requirements for the MDF shall meet or exceed the following: e. A minimum of three dedicated, non-switched alternating current duplex receptacles for equipment power, each on individual circuits. f. A minimum of one 30 AMP dedicated, non-switched alternating current

NEMA L5-30 (Twistlock) female orange isolated ground receptacle. g. All outlets should be located each receptacle at least 6 inches AFF. h. Each wall in the communications room requires two (2) duplex receptacles for convenience. i. Providing emergency power with automatic switchover capability to this room.

7. GROUNDING: Grounding requirements shall meet or exceed the following: i. Grounding shall be provided in accordance with NFPA 70, Article 250,

Article 800 and TIA/EIA 607. ii. There must be a grounding bus bar available for each MDF and IDF that is electrically connected via a proper sized copper conductor to the Building

Grounding Electrode. iii. Each telecom room will have a Telecommunication Grounding Busbar

(TGB) requiring a grounding plate that is bonded to building ground and the building electrical ground. iv. All Telecommunications rooms shall be connected and bonded to a common ground via a Telecommunications Bonding Backbone (TBB). A minimum #6AWG shall be used for the grounding backbone. v. Following EIA/TIA-607 - A #6AWG ground and ground bus bar shall be

Electrical

21 of 37



















Knox County Schools Program Standards - Middle provided to the room and installed on the plywood backboard. This ground busbar shall be a pre-drilled copper busbar provided with standard NEMA bolt hole sizing and spacing. vi. Each shall be bonded to building ground at the electrical service entrance equipment for the building. vii. Cable tray shall be bonded and grounding to the TBB.

8. CONDUIT AND SLEEVES: Conduit and sleeve requirements shall meet or exceed the following: i. The MDF will contain a minimum of four (4) dedicated 4-inch conduits to facilitate CATV, Telecommunications, Network and Future Uses. These shall be connected from the “street” to the demarcation point for the building in the MDF. This conduit shall originate from an appropriate location at the property boundary and shall be installed underground. This conduit must be provided separately from Electric Utility primary cable and shall be located a minimum 1'-0" from electrical primary cable. ii. The MDF shall be connected via Quick Pass Fire Barrier sleeves (or 4” conduit for under slab applications) to each IDF. iii. Each MDF shall have a minimum of four (4), 4” Quick Pass Fire Barrier devices from the room to the cable tray. iv. IDFs on different floors should be stacked vertically or as close to vertical as possible with the MDF, and contain a minimum of two (2), 4” Quick

Pass Fire Barrier Floor systems between the MDF and each IDF.

9. PLYWOOD: A minimum of three wall of the MDF shall be covered with ¾” plywood. The plywood shall be securely fastened to the walls, mounting each

4’x8’ sheet vertically to maximize the 8 foot height of each sheet. The plywood shall be painted on all six exposed sides with two (2) coats of fire retardant paint, black in color, with intumescent, elastomeric, and ablative properties. j. INTERMEDIATE DISTRIBUTION FRAME(S): The Intermediate

Distribution Frame is the location where information is received and distributed to the end-users from the Main Distribution Frame. This is accomplished using cabling the IDF to the data communications outlets in the individual user areas. The IDF will contain the Network Cabinets for the termination of the user outlet cables and the backbone cabling back to the MDF which feeds the area. The connection from horizontal to backbone facilities will be accomplished in this location.

1. NUMBER AND LOCATION: The location and quantity of IDF rooms is unique to each facility. There must be a minimum of one (1) Intermediate

Distribution Frame (IDF) for voice & data communications on each floor.

The IDF must not be near water or below rest room facilities and shall not serve as custodial or storage space. Factors determining IDF locations include equipment capacity, minimum signal strength requirements as set by EIA/TIA standards, etc.

In most cases, the MDF will serve as the IDF space on the floor where it is located.

Electrical

22 of 37

































Knox County Schools Program Standards - Middle

Additional IDF locations will be required when the horizontal cabling lengths will exceed 100 meters to meet EIA/TIA certification requirements for cable lengths.

The total horizontal and vertical measurement from each IDF to the communications outlets shall not exceed 250 feet linear measurement in order to stay within the 100-meter limit for total cable length.

The IDF should be centrally located to each space it serves and act as a junction point for communications cabling.

Each IDF will serve an area within 250 feet of the user area (the number of IDFs is determined by the number of outlets to be served and the distance of the user areas from the Telecommunications Room.

IDFs should be located in a stacked position with the MDF.

2. DESIGN OF THE IDF: A cable tray should be installed along two walls of the IDF to route cables from the point where they enter the room to the termination point of each cable.

SIZE - In new construction and major renovations that provide space dedicated for the IDF, shall not be less than 100 square feet of dedicated space arranged in a 8’x10’ rectangular orientation with at least three clear walls. These dimensions may only be adjusted with the documented approval of the IT Network Department. Angular walls are not acceptable unless the 8’ x10’ dimension can be met within the angular room space.

Note: For existing renovations or retrofits, the minimum space requirement for the IDF room may be adjusted to meet existing conditions but effort needs to be made to achieve these dimensions as closely as possible.

3. ENVIRONMENT (Minimum): As with the MDF, the IDF space shall not be used for storage, contains plumbing, HVAC equipment (other than IDF room climate control equipment), electrical equipment (other than electrical facilities required for the operation equipment housed in the

MDF), and must be capable of being secured from unauthorized personnel. i. Door Width - The door should be at least 36” wide, 80” high and hinged to open outward (if code permits) and there should be no doorsill. Access to telecom rooms should be from hallways only with no through access to other areas. Doors should be placed in the corner of the room if possible. ii. Door Keying - All IT Network Engineering MDF/IDFs should be keyed with the standard district-specified key. iii. Door Swing - The door shall swing out and not in to the room.

Electrical

23 of 37



























Knox County Schools Program Standards - Middle iv. Continuous climate control – Dedicated HVAC - (24/7) Temperatures should be maintained between 64 and 75 degrees Fahrenheit with relative humidity between 30% to 55%. There should be a minimum of one (1) air exchange per hour. v. Electrical Capacity - The average equipment load in a main MDF is approximately 10,000 – 15,000 watts depending on the area being served from this room. vi. Flooring - Carpet should not be installed in communication closets.

VCT or sealed concrete floors will protect equipment from static electricity and dust. vii. Lighting Requirements – Provide a minimum of 50 foot-candles, measured 3 feet above the finished floor and mounted 8.5 feet above finished floor. viii. If the room contains a sprinkler head, the head shall contain a wire cage to prevent accidental activation. ix. Ceilings are not needed in the IDF, but if one must be installed to accomplish appropriate climate control, a minimum of 9’-6” must be maintained above the finished floor. x. If columns are placed within the room, the room size and layout shall be adjusted to accommodate the loss of space caused by the column.

9. POWER: Power requirements for the MDF shall meet or exceed the following: i. A minimum of two dedicated, non-switched alternating current duplex receptacles for equipment power, each on individual circuits. ii. A minimum of one 30 AMP dedicated, non-switched alternating current NEMA L5-30 (Twistlock) female orange isolated ground receptacle. iii. All outlets should be located each receptacle at least 6 inches AFF. iv. Each wall in the communications room requires two (2) duplex receptacles for convenience. Providing emergency power with automatic switchover capability to this room.

10. GROUNDING: Grounding requirements shall meet or exceed the following: i. Grounding shall be provided in accordance with NFPA 70, Article

250, Article 800 and TIA/EIA 607. ii. There must be a grounding bus bar available for each MDF and IDF that is electrically connected via a proper sized copper conductor to the Building Grounding Electrode.

Electrical

24 of 37















Knox County Schools Program Standards - Middle

11. CONDUIT AND SLEEVES: Conduit and sleeve requirements shall meet or exceed the following: i. Multiple IDFs on the same floor shall be connected by a minimum of two (2), 4” Quick Pass fire Barrier devices. ii. IDFs on different floors should be stacked vertically or as close to vertical as possible with the MDF, and contain a minimum of two (2),

4” Quick Pass Fire Barrier Floor systems between the MDF and each

IDF. iii. Each IDF shall have a minimum of three (3), 4” Quick Pass Fire

Barrier devices from the room to the cable tray.

12. PLYWOOD: A minimum of two walls of the MDF shall be covered with

¾” plywood. The plywood shall be securely fastened to the walls, mounting each 4’x8’ sheet vertically to maximize the 8 foot height of each sheet. The plywood shall be painted on all six exposed sides with two (2) coats of fire retardant paint, black in color, with intumescent, elastomeric, and ablative properties. k. GENERAL INFORMATION REGARDING FIREWALL PENETRATIONS:

It is the responsibility of the Architect to provide adequate passage ways through fire rated barriers.

1. Where cable trays or “J” hook pathways need to traverse through a fire-rated wall, fire-rated pass through devices shall be specified by the Architect and installed by the building contractor at the time of the installation of the Wire Mesh Cable Management System.

2. Where it is necessary for cable to pass through walls, 3M Quick Pass

Fire Barriers or STI EZ-Path Fire Barriers shall be installed through these walls to accommodate the transition.

3. In limited cases where penetrations are required through non-rated walls, conduit sleeves may be used as alternative to accommodate the transition.

4. Penetrations through rated walls must comply with all code requirements.

5. Under no circumstance will the penetration of a four-hour firewall with conduit be acceptable. In order to traverse a four-hour firewall, cable (in conduit) shall be routed underneath the footing of the firewall. In existing situations, this conduit may be installed over or around the firewall. l. WIRE MESH CABLE TRAY SECTIONS AND COMPONENTS

1. Provide a complete assembly of wire mesh cable tray of types and sizes indicated; with connector assemblies, clamp assemblies, connector plates, splice plates and splice bars for all data, voice, intercom cabling, etc., in all open spaces.

2. Cable trays shall be open (closed bottom systems are required when cable

trays are exposed) and shall be run above corridor ceilings.

3. Construct units with rounded edges and smooth surfaces; in compliance with applicable standards;

Electrical

25 of 37









Knox County Schools Program Standards - Middle

4. Cable tray shall be of a ventilated wire basket cable support system with widths and depths as indicated on the drawings and engineering specifications.

5. The cable tray shall be center supported.

6. Cable Tray Materials and Finishes: Material and finish specifications for the wire mesh cable tray are as follows: i. For Controlled Interior Applications: Electro-Plated Zinc

Galvanized Finish applied after fabrication: Straight sections shall be made from steel meeting the minimum mechanical properties of

ASTM A 510, Grade 1008 and shall be electro-plated zinc in accordance with ASTM B633, Type III, SC-1, or ii. For Controlled Interior Applications: Black Powder Coat: Straight sections shall be powder coated black with an average paint thickness of 1.2mils (30microns) to 3.0mils (75microns) iii. Black Oxide: When specified, certain support accessories and miscellaneous hardware shall be manufactured with a black oxide finish in accordance with ASTM D 769. iv. For Food Preparation, wash-down areas: Stainless Steel: Straight sections and accessories shall be made from AISI Type 304L

Stainless Steel meeting the minimum mechanical properties of

ASTM A 580. v. For some limited interior locations: Pre-Galvanized Zinc: Straight section shall be made from pre-galvanized steel meeting the minimum mechanical properties of ASTM A 641. vi. For Exterior, Corrosive Applications: Hot Dipped Galvanizing:

Straight sections shall be made from steel meeting the minimum mechanical properties of ASTM A 510, Grade 1008 and shall be hot dipped galvanized after fabrication in accordance with ASTM A

123.

7. All straight section longitudinal wires shall be constructed with a continuous top wire safety edge. Safety edge must be kinked and T- welded on all tray sizes.

8. Wire mesh cable tray shall be made of high strength steel wires and formed into a standard 2-inch by 4-inch wire mesh pattern with intersecting wires welded together. All mesh sections must have at least one bottom longitudinal wire along entire length of straight section.

9. Wire mesh cable tray sizes shall conform to the following nominal criteria: i. Straight sections shall be furnished in standard 118 inch lengths ii. Wire diameter shall be 0.196” (5mm) minimum on all mesh sections (minimum size of 4.5mm on stainless steel) iii. Wire mesh cable tray shall be available with a usable loading depth of 1” – 6 iv. Wire mesh cable tray shall in widths available from 2” – 30”. v. All fittings shall be field formed, from straight sections, in accordance with manufacturer's instructions.

10. In order for system to be approved as an Equipment Ground Conductor

(EGC), all splicing assemblies shall be UL/CSA approved as an EGC.

When using powder coated wire mesh cable tray as an EGC, the paint must be completely removed at all contact points of splice/ground bolt

Electrical

26 of 37











Knox County Schools Program Standards - Middle attachment.

11. Wire mesh cable tray supports shall be center support hangers, trapeze hangers or wall brackets as manufactured by Cooper B-Line, Inc. or engineer and owner approved equal.

12. Trapeze hangers or center support hangers shall be supported by 1/4 inch,

3/8 inch, or 1/2 inch diameter rods as specified. Center support hangers are preferred.

13. Special accessories shall be furnished as required to protect, support and install a wire mesh cable tray support system.

14. Sections of tray and all other fittings shall be joined by using a two bolt,

4" long rectangular splice connector which telescopes into the spline of the tray. Splice connectors shall allow for thermal expansion/contraction of the tray system. The splice connectors shall be provided with a vertical hole to accept a 1/2" threaded rod which is used to support the tray in an overhead application.

15. Horizontal and vertical angle connectors shall be used for angles of 30º to

90º and fasten into the spline in the same manner as the above splice connectors.

16. Tray inserts and covers, as well as other accessories shall effect a complete rigid mechanical tray installation of compatible material and design

17. The tray shall be supported on maximum 5'-0" centers by a single 1/2" threaded rod which passes through the vertical hole in the splice connector and fastens directly to the stressed central spline by one 1/2" nut and washer on the top and bottom of the spline.

18. Loads shall be uniformly distributed so that the tray does not appear unbalanced. Cable tray shall be installed with a minimal number of bends, turns, etc.

19. Cable tray and fittings shall be as manufactured by Cooper B-Line. m. CONDUITS: Conduit is used to facilitate the distribution and management of communications cabling and other low voltage systems within a building.

1. OUTLET CONDUIT: Outlet conduit is used to connect the information outlet to the distribution and/or cable management system. The following specification apply to all outlet conduits: i. Outlet conduits for new construction shall not be smaller than 1” in diameter unless otherwise specified. ii. “LB’s” or other tight 90 degree fittings shall not be used unless otherwise specified. iii. If continuous conduit is run from the outlet box, the conduit shall have no continuous sections longer than 100 feet without the placement of an appropriately sized, and easily accessible junction box. iv. Outlet conduits shall not be looped from one outlet to another. v. Outlet conduits shall not contain more than three (3) 90 degree sweeping bends. vi. Flex-conduit shall not be used for communications pathways without the specific approval of the IT Network Department.

Electrical

27 of 37















Knox County Schools Program Standards - Middle vii. No more than two (2) 90 degree bends are allowed between pull boxes. viii. A Nylon pull line shall be installed in each conduit placed. ix. All conduits shall contain bushings to prevent cutting or scraping of cable during installation and maintenance.

2. INSLAB CONDUITS: In Slab conduits should be avoided in the Ground

Floor slab whenever possible due to potential moisture problems. i. The preferred pathway for low voltage conduits and cabling is overhead in the ceiling areas of the building and not run under or in the slab. ii. If conduits for communications are to be placed in the slab, the

Architect must assure that the pathway will be as dry as possible. iii. Please note: Article 300.D.5 – The National Electrical Code now considers conduits within the concrete slab as “wet locations.” iv. It should be understood that cabling designed for wet locations is substantially more expensive than regular dry location cables. The

General Contractor will be required to provide materials for wet locations as specified by the IT Network Department as part of the contract. v. The Installation Team will be responsible for the installation, termination, and testing of these materials. n. FLOOR BOX REQUIREMENTS: If floor outlets are to be used in the infrastructure, the outlet boxes to be used must be approved by the IT Network

Department. The locations, the routing and the size of conduits to each, must be approved by the IT Network Department. o. INTERCONNECTION OF EQUIPMENTS ROOMS AND THE CABLE

DISTRIBUTION SYSTEM: The interconnection of equipment rooms with one another and the cable distribution system is essential to the design of a successful structured communications cabling deployment.

1. LINKING EQUIPMENT ROOMS BETWEEN FLOORS (MDF/IDFs): A pathway must be provided from the MDF to reach each of the IDF locations. This may be accomplished by providing access between the

Equipment Rooms. When this pathway is in place, cable can be placed from the MDF to the IDFs located on the same floor as the MDF and passed to the other closets. i. When equipment rooms are stacked, provide two (2), 4” floor- mounted fire-barrier systems between floors. These systems shall not exceed 60% capacity at the time of deployment. ii. In certain circumstances, 4” conduit sleeves may be proposed. These applications must be preapproved by the IT Network Department.

When conduit sleeves are used, each sleeve shall be attached securely to the floor and should extend above the finished floor a minimum of 3” and contain bushings. These systems shall not exceed 60% capacity at the time of deployment. iii. When rooms are not stacked, provide two (2), 4” closed conduit systems between Equipment Rooms unless otherwise specified by

Electrical

28 of 37











Knox County Schools Program Standards - Middle the IT Network Department. These systems shall not exceed 30% capacity at the time of deployment.

2. WALL PENETRATIONS: Wall sleeves shall be adequately sized to accommodate immediate needs as well as future needs. i. A minimum of four (4), 4” fire-barrier systems shall be installed from each equipment room location to the corridor cable tray. Fire– barriers systems shall be installed according to manufacturer’s specifications. Fire-barrier systems shall not exceed 60% capacity at the time of deployment. ii. In certain circumstances, 4” conduits sleeves may be proposed.

These applications must be preapproved by the IT Network

Department. When conduit sleeves are used, each sleeve shall protrude a minimum of 2” into the ceiling space. There shall be a minimum of ½” between sleeve. Sleeves must have a protective bushing on each end to prevent chaffing. Wall sleeves should not exceed 60% capacity at the time of deployment.

3. FIRE SEALANT: Any penetration through fire-rated wall will be sealed with an UL-approved sealant, restoring the fire rated wall to its originally rated level following ASTME 814, UL 1479 and local/state building codes.

4. BUSHINGS: All sleeves shall contain bushing to prevent the cutting or scraping of cables during installation. p. OUTSIDE SERVICE ENTRANCE CONDUIT:

1. SPECIFICATIONS: i. Each building will require a minimum of four (4), 4” conduits from the MDF to the campus telecom infrastructure for connection with the campus networks. This infrastructure will consist of linking to an adjacent building or to an adjacent handhole or manhole on the telecom duct bank system. ii. If no existing manhole or handhole exists, the design shall include the installation of conduit from the building MDF to a handhole with the minimum dimensions of 36” x 48” x 36”. iii. Each handhole shall have a heavy duty lid with the

“Communications” logo. iv. Each outside entrance conduit for telecom entrance facility should extend from the outside in to the MDF room and terminate approximately 3” above the finished slab. Each conduit should contain bushings to prevent cable damage during placement. v. Each conduit shall slope away from the building. vi. Cap all conduits to prevent debris, water and gases from entering the conduit before cable installation. vii. All PVC conduits will be Schedule 40 UL approved with minimum wall thickness of .237. viii. At the building entrance, all conduits will transition to 4” GIP conduit, extended a minimum of 4 feet beyond the foundation of each building.

Electrical

29 of 37











Knox County Schools Program Standards - Middle ix. All conduits should be installed with a minimum of 30” to 36” of cover. The general rule will be, if foreign obstacles are encountered at the proposed depth, the depth will be increased. x. If outside wall conduit entrances are necessary, they should be GIP

(rigid galvanized) and shall be permanently attached using Unistrut.

The conduit entrance in to the building will be made using a

Galvanized pull box, attached to the side of the building with sleeves through the back of the pull box in to the Telecom Entrance Room. xi. All inside penetrations shall be sleeved with metallic conduit that contains bushings on each end. xii. Fire wall penetrations must be sleeved and properly fire stopped in accordance with ASTME 814-84. xiii. All conduits shall be sealed at the building entrances. xiv. All conduits shall contain a ¼” pull rope or pull line with a minimum of 200 pounds rating.

2. SOIL RESTORATION i. Backfill shall be made in layers of 6” and tamped or flooded after a 6” cover is in place. It shall be dense and compacted sufficiently to prevent any further settling. It should be compacted to 95% proctor as measured by industry standard measurements of soil density. ii. Disposing of surplus soil and spoil shall be Contractor’s responsibility. iii. Where trenching or conduit burial is in close proximity to a building, grading of the soil must be away from the building to provide proper drainage of surface water. iv. Every effort must be made to restore the premises to their original condition, or to the satisfaction of the owner.

3. WARNING TAPE: Install one (1 each), 3” wide Warning Tape over all underground conduit runs. This tape will be installed at a depth of 12” below grade along the entire conduit route.

4. PROTECTED INSTALLATIONS: In areas where it is likely that future excavation may be performed, plastic cable covers may be specified to afford additional protection to outside service conduits. Products such as

Centriforce Stokbord® meet these guidelines.

5. PULL TAPE: Provide one (1), ¼” diameter poly rope or nylon pull line rated for 200 pounds in each conduit. l. DISTRIBUTION CABLING:

1. PREPARATION FOR PREPARATION FOR RISER CABLING: i. Minimum allowable cable size between MDF and IDF's (riser cable) shall be 24 AWG conductors. ii. Cabling shall be filled core shielded buried, air core aerial shielded self-supporting or shielded air core, as determined by individual situations. iii. Cables shall be Copper Riser Cable, FDDI (Fiber) Optic Riser

Cable, Semi-Flexible .500 Cable, or Systimax Twisted Pair Cable;

All installations.

2. PREPARATION FOR FIBER INTERCONNECTIONS:

Electrical

30 of 37

















Knox County Schools Program Standards - Middle i. Fiber Optic Distribution Cabling installed between the MDF and

IDF's for data and video distribution shall be a minimum of 6-strand,

50 μm multimode fiber. ii. No fiber optic cable shall be installed in any manner that causes the cable to have less than the manufacturer's recommended bending radius. iii. Cable shall be installed per manufacturer's specifications.

Installation shall provide for a minimum warranty of 20 years for parts and labor. iv. Warranty for both parts and labor shall be provided by the manufacturer.

3. INTERACTIVE / CABLE TELEVISION DISTRIBUTION CABLING:

Coaxial video distribution cable installed between the MDF and IDF's shall be .500 semi-flexible coaxial cable. m. INFORMATION OUTLET & STATION CABLING STANDARDS: Cabling between the MDF location and individual information outlets or an IDF location and individual information outlets are referred to as station cabling.

Station cabling is installed in information outlets, sometime referred to as

“locations” within a single, logical space.

1. NUMBER OF INFORMATION OUTLETS (LOCATIONS): The following guidance regarding the number of information outlets (locations) shall apply to all projects: i. All logical spaces in the facility shall receive network services. These include all maintenance areas, office areas, storage rooms, instructional areas, etc. Other miscellaneous areas such as hallways, circulation areas, etc must be evaluated on a case by case basis. The IT Network

Department and the users of that area must evaluate size, location and possible future use of each area. ii. A minimum of three locations shall be deployed per instructional area. iii. A minimum of two locations shall be deployed in all others areas.

These areas include any office area, workroom, storage area, or any area that could be used as office or instructional space in the future. iv. Larger areas such as the media center, auditorium, gymnasium, commons, music rooms, art rooms, etc. may require more than three locations and shall be coordinated with the IT Network Department. v. Other areas may also require additional services regardless of square footage. These areas include laboratory spaces, teacher workrooms, etc. and shall be coordinated with the IT Network Department.

2. PLACEMENT OF INFORMATION OUTLETS: Outlet locations shall be placed appropriately within the room on opposing walls and in areas that are practical for use with instructional or office arrangements.

3. INFORMATION OULTET / LOCATION BOXES: The following guidelines shall apply to all information outlet (location) boxes: i. Outlet boxes shall be double gang (4”x4”), deep boxes with trim ring specified by the IT Network Department for that application.

Electrical

31 of 37















Knox County Schools Program Standards - Middle ii. Distribution boxes shall be flush mounted at all locations. iii. The architect must coordinate the color of the outlet plate with the IT

Network Department. Electrical ivory or gray are preferred. iv. Non-standard decorative or specialty boxes and plates, required for either floor or wall; i.e., brass, wood, etc. must contain all of the necessary fittings to bring the information outlet to standard size and fittings and be included in the electrical contract. v. Items such as floor boxes, floor duct, furniture boxes, and other non- standard items, that cannot house a standard single gang faceplate, must be retrofitted as part of the electrical contract and brought to standard size and conformity. vi. Double gang information outlet boxes shall contain plaster rings as specified by the IT Network Department.

4. INFORMATION OUTLET/STATION CABLING CONDUIT: The following guidelines will apply to all information outlets unless otherwise specified: i. Conduits shall be installed to all information outlets in all locations. ii. Outlet boxes shall be connected to one 1” conduit. iii. Conduits may not have more than two (2) 90-degree elbows without providing a junction box to facilitate installation and service. iv. Pull wires shall be provided in all conduits. v. In suspended ceiling applications, conduit shall turn out a minimum of

6” above the ceiling with a 90-degree elbow and terminate with a bushing. In exposed ceiling applications, conduits must be provided continuously from the information outlet to the cable tray located in the corridor. vi. 3M Fire Barrier Quick Pass® systems shall be placed through all fire- rated walls between the classrooms and cable management system in the corridor. Any conduits passing through fire-rated walls shall be treated with UL sealants after the installations of all cables. vii. No cable shall be installed in any manner that causes the cable to have less than the manufacturer's recommended bending radius. All conduits, raceways and cable trays will be designed in such a manner that the minimum bending radiuses of the fiber or copper cabling are not exceeded.

5. POWER OUTLET COORDINATION: Unless otherwise specified by the

IT Network Department, a minimum of one duplex receptacle shall be placed adjacent to each information outlet.

6. STATION CABLING STANDARDS: a. For new construction or major renovations, station cabling shall meet the following minimum standards:

Data: A minimum of three Systimax GigaSpeed X10D plenum or non-plenum (as required by construction) Category 6a cables per location.

Voice/Spare: A minimum of one Systimax GigaSpeed XL plenum or non-plenum Category 6 cable per location.

Electrical

32 of 37













Knox County Schools Program Standards - Middle

CATV: One RG-6, 75-Ohm cable, per location. b. For Existing buildings, station cable shall meet the following minimum standards:

Data: a minimum of two Systimax GigaSpeed XL plenum or non- plenum Category 6 cable per location.

Voice/Spare: A minimum of one Systimax GigaSpeed XL plenum or non-plenum Category 6 cable per location.

CATV: One RG-6, 75-Ohm cable, per location n. WIRELESS ACCESS POINT OUTLETS: Wireless access is an integral part of Knox County Schools Strategic Technology Plan and must be incorporated into every facility and area on campus. The following standards shall apply to the deployment of wireless access points:

1. WIRELESS STANDARDS: The wireless infrastructure will be planned based on current industry specifications for approved standards at the time of installation.

2. NUMBER OF WIRELESS OUTLETS: Information outlets will also be provided in such a manner to provide complete and adequate coverage of the entire facility including all common areas, all administrative spaces, all instructional spaces, and in some cases, exterior zones. i. Each instructional space shall receive a minimum of one information outlet to facilitate the deployment of wireless access points. ii. Wireless access points and antennas will be placed around the campus, with the choice of locations for each dependent on the size of the area to be served, the range of the antenna, and the number of computers to be served.

3. PLACEMENT OF WIRELESS OUTLETS: The following guidelines shall apply to the placement of information outlets to support wireless access points: i. The exact location of wireless access points will be determined by the IT Networking Department at the time the building is in the design stages. ii. Wireless outlets shall be located above the suspended ceiling within

12” of the ceiling grid. iii. Wireless outlets may be located on the outside of building structure to service adjacent courtyard areas or buildings. The type of installation may require the outlet to be mounted inside that parapet with an antenna mounted outside. iv. Special applications such as access points deployed within in a gymnasium space may require the outlet to be protected by a protective device.

4. WIRELESS ACCESS POINT BOXES: A minimum of one (1) single gang box shall be located above the suspended ceiling or affixed to exposed ceilings.

5. WIRELESS ACCESS POINT CONDUIT: Wireless access point boxes shall be connected with a 1” conduit. These connections shall be consistent with the requirements for conduit connections to information outlets as documented above.

Electrical

33 of 37















Knox County Schools Program Standards - Middle

6. WIRELESS ACCESS POINT CABLING STANDARDS: For all applications, a minimum of one Systimax GigaSpeed XL plenum or non- plenum Category 6 cable per location. This cable shall be terminated with red jacks to indicate that the station cabling shall be connected to a

Power-Over-Ethernet port. o. TYPICAL CABLE TERMINATIONS:

1. Station cabling will typically be terminated using Systimax "M"-series hardware appropriate to the deployed cable system and/or Systimax

M81C video couplers.

2. Copper Cabling within MDF/IDF Locations will typically be terminated using Systimax PatchMax termination hardware.

3. Cable connections from distribution cable to station cable shall be accomplished by either hardware cross-connects or patch cords.

4. Fiber Optic Cable Interconnections will typically be terminated using

Systimax LazrSPEED Interconnection hardware and appropriate connectors..

5. Coaxial Cable will typically be terminated using "F" compression connectors. p. COORDINATION OF JOB SERVICES: Knox County Schools Network

Maintenance and Installation Team or their assigned subcontractor

(Installation Team) shall be charged with the installation, termination, and testing of all low voltage cabling unless otherwise indicated in the project specifications. The following considerations must be adhered to in regard to the coordination of these job services to insure that this arrangement produces an efficient and cost-effective deployment of the specified communication systems:

1. ARCHITECTURAL COORDINATION: The Architect shall work closely with the IT Network Department to insure that Design

Standards are met. i. The Architect will provide the IT Network Department with two

(2) clean drawings of the facility once design and development have been completed. These should be complete sets of drawings included floor plans, site plans, and all electrical and communications drawings. ii. The Architect will also provide one drawing in a CAD format that will be used to develop a set of as-built network drawings and to specify the wireless overlay. iii. The Architect will be required to include adequate access to the building structure and include a cable pathway designated in the design plan. This effort is to prevent ceiling spaces from being taken on a “first come” basis. iv. The Architect shall insure that the network and cable pathways are designed so that it is not necessary for cables to be laid on top of acoustical panels.

Electrical

34 of 37









Knox County Schools Program Standards - Middle v. The Architect shall insure that the network and cable pathways are not supported by acoustical ceiling hanger wires that support ceiling grid systems. vi. The Architect shall insure that the network and cable pathways are not supported by other trade material, equipment, or devices. vii. The Architect will ensure that the IT Network Department has reviewed any Change Orders or RFI’s pertaining to low voltage cabling pathways before these are released to the General

Contractor.

2. JOB SITE COORDINATION: A member of the IT Network

Department will be included in all job site meetings. i. The General Contractor shall include the IT Network

Department in all discussions regarding outside excavation that may impact existing or future communication services. ii. The General contractor must allow the Installation Team and the

IT Network Department personnel site access during all phases of construction and provide any needed safety training. iii. All onsite toilets and dumpsters will be available as well. iv. The General Contractor shall be responsible for removing all trash from the construction site. v. Room numbers should be placed on hinges as soon as the doors are in place.

3. CONSTRUCTION SCHEDULE: Construction schedule will be shared with the IT Network Department. All updates to the schedule will be forwarded to the IT Network Department.

4. INSTALLATION TEAM MANAGEMENT: The work of the

Installation Team will be coordinated by the IT Network Department through the General Contractor. The Installation Team will function as would any other subcontractor on the project and follow similar policies as set forth for those subcontractors. Any issues with the

Installation Team shall be addressed to the IT Network Department.

5. INSTALLATION SCHEDULING: The General Contractor will allow adequate time within the schedule for the Installation Team to complete the deployment of low voltage cabling. i. The IT Network Department will work with the General

Contractor to develop an appropriate schedule for installation of cabling at the appropriate point of construction. ii. Painting should be completed prior to the installation of cabling.

The General Contractor is responsible for assuring that no low voltage cabling is painted. Wiring that is painted after installation must be replaced. In the event that cabling is painted, the General Contractor shall be responsible for the cost of labor and materials to replace the cabling. This shall be provided at no additional cost to the project. iii. All low voltage cabling systems shall be scheduled for installation prior to the installation of the ceiling grid.

6. INSPECTIONS: All ceiling, elevator and fire inspection dates must be forwarded to the IT Network Department 2 weeks before the intended inspection.

Electrical

35 of 37



















Knox County Schools Program Standards - Middle

7. ACTIVITIES OF THE INSTALLATION TEAM: The Installation

Team shall have full access of the overhead during all phases of construction and after final inspections.

8. INSTALLATION OF NETWORK ELECTRONICS: The IT

Network Department shall have the responsibility to specifying, deploying, and testing network electronics appropriate to the needs of the facility. i. To facilitate the installation of network electronics, completion of communications rooms and pathways must be a high priority of the General Contractor and completed 3 weeks before substantial completion. ii. Communications rooms (MDF and all IDFs) must have doors and locks in place and flooring complete before network electronics can be installed. iii. All other materials and trash must be removed from the rooms.

No equipment may be stored in these spaces.

16609 – PREPARATION FOR INSTALLATION OF INTERACTIVE

WHITEBOARD CONTROL SYSTEMS – SEE EXTRON WVS 310 Three-

Input WallVault System with HDMI for wall mounted displays:

Accommodates two VGA computer-video and one composite video source and includes a WMK 100 wall mount kit.

A/V EQUIPMENT CONNECTION PANEL - All classrooms and other specified areas that will be receiving an interactive whiteboard system must have a triple gang box installed 18” AFF connected via 1” conduit to a junction box above the mounted interactive whiteboard. This box should be positioned to one side of the proposed interactive whiteboard and in such a way to minimize the number of bends required to reach the A/V Feed to the

Data Projector.

A/V CONTROL PANEL – All classrooms and other specified areas that will be receiving an interactive whiteboard system must have a double-gang, deep box located 48” AFF This junction box shall be connected via 1” conduit to the This junction box must also be connected to the communications network via 1” conduit conforming to a typical station cabling connection.

A/V FEED TO THE DATA PROJECTOR - All classrooms and other specified areas that will be receiving an interactive whiteboard system must have a double-gang, deep box located above the finished frame of the interactive whiteboard. This junction box must be connected via 1” conduit to the A/V Connection Box. This junction box must also be connected via 1” conduit to the A/V Control panel.

ELECTRICAL CONNECTIVITY - A junction box shall be included above the ceiling 10 feet from the wall and centered perpendicular to the location specified for the interactive white board for the connection of a data projector.

This box should contain 120 volt, 20 amp. service. The electrical feed shall be

MC Cable (flexible metal 12/3 wire) of approximately eight feet to allow

Electrical

36 of 37

















Knox County Schools Program Standards - Middle appropriate placement of the outlet box in the suspended ceiling. The outlet box shall be installed so the electrical outlet is exposed. The final location of this outlet will be coordinated by the IT Network Department.

16900 – MOTORS AND MOTOR CONTROLS a. 1. Magnetic motor starters shall be furnished with the equipment with which they are to work with the exception of exhaust fans. Heaters shall be furnished with the starters and therefore by the supplier of the equipment, in order to fix responsibility for the motor with the supplier.

2. Manual motor starters shall be furnished with all motors which do not have magnetic starters furnished, and they shall be furnished with the equipment with which they operate and shall be flush wall mounted with a ganged low heat output pilot.

3. Disconnect switches shall be Westinghouse 'HEAVY DUTY" fusible,

General Electric, or approved equivalent, as required. All safety switches shall be fusible. Fuses shall be Busmann Type LPS or LPN and shall be sized in accordance with manufacturer's recommendations for protecting equipment served.

4. Exhaust fans which are to be controlled by BAS shall be equipped with magnetic motor starters. b. 1. All wiring required for supply and control of plumbing, heating, air- conditioning and ventilation equipment shall be furnished and installed as part of the electrical work. This shall include all fans and motor starters, pilot light, etc. Pilot lights shall be furnished built-in multiple gang with the manual motor starter or remote pushbutton.

2. Furnish and install disconnect switches for all motors, where required by the codes, as a part of the electrical work.

3. (Specify if a Controls Contractor is involved in the Project). Wiring for certain controls will be provided by the controls installer.

4. “Functions Marking" cover plates for manual motor starters or remote pushbuttons shall be furnished as a part of the electrical work to match wall switch plates and shall be engraved to indicate function. Where starter is located near the motor, the function may be omitted. Stencil the name of the equipment controlled on the covers of all starters and disconnect not located adjacent to the motor. c. 1. The Contractor shall adhere to all stipulations specified under section 16010,

16.5

2. Equipment submissions must include, as a minimum, complete descriptive data indicating UL Listing for all system components.

Electrical

37 of 37























Knox County Schools Program Standards - Middle

Fire Alarm & Intercommunications

A. Design Guidelines

1. Specify that all conduit and standard boxes will be provided under Division

16. Special boxes shall be furnished by Division 17 installer and installed by

Division 16 installer.

2. Technical Guidelines

17602 – FIRE ALARM SYSTEM











  a. 1. Specifications are to require complete documentation for the Fire Alarm/Life



Safety System showing the Model Number, Type, Rating, Size, Style,



Manufacturer's Names, and Manufacturer's Catalog Data Sheet for all items

  to ensure compliance with specifications.

2. Only Fire Alarm Control Panel Equipment and Peripheral Field Devices

  should be shown on the Contract Bid Drawing. Specific and complete wiring

  between Control Equipment and Peripheral Equipment should be deleted for clarity. Upon acceptance, and prior to start of system installation, the

Distributor shall be required to submit a complete riser diagram and layout of the entire Fire Alarm/Life Safety System, showing all interconnect wiring and equipment, to the General Contractor.

3. All equipment and material shall be new and unused, and listed by

Underwriters Laboratories for the specific intended purpose intended. All control panel components and field peripherals shall be capable of continuous duty without degradation of function or performance.. All equipment covered by specifications or noted on Installation Drawings shall be required to be the best equipment suited for the application and shall be provided by a single manufacturer or be recognized and U.L. Listed as compatible by both manufacturers.

4. The specification should provide the requirements for a Fire Alarm and Life

Safety Control System. The system shall include, but not be limited to: control panel, alarm initiating and indication peripheral devices, conduit, wire and accessories required to provide a complete operational system.

5. The equipment and installation shall comply with the current applicable provisions of the following standards:

(a.) National Electrical Code, Article 760

(b.) National Fire Protection Standards:

(1) NFPA 71-Central Station Signaling Systems-Protected Premises

Unit.

(2) NFPA 72A-Fire Alarm Code.

(c.) Local and State Building Codes.

(d.) All requirements of the Local Authority having Jurisdiction.

Fire Alarm & Intercommunications 1 of 8



















Knox County Schools Program Standards - Middle

The system and all components shall be listed by Underwriters Laboratories,

Inc. for use in fire protective signaling systems. b. Fire Alarm System:

1. The control panel shall be housed in a cabinet designed for mounting directly on a wall or vertical surface.

2. The Initiating Zone Module shall provide 8 fully supervised style B Initiating

Device Circuits (IDC).

3. Walk Test Operation: The Walk Test mode shall test Initiating Device

Circuits and Indicating Device Circuits from the field without returning to the panel to reset the system Upon activation of an Initiating device, the controlled outputs shall operate for approximately four seconds with the circuits that were selected under walk test.

4. Waterflow Operation: All Initiating Device Circuits of the system shall be programmable to provide Waterflow detection operation.

5. Supervisory Operation. All Initiating Device Circuits of the system shall be programmable to provide Supervisory operation.

6. Signal Silence Operation: All Indicating Appliance Circuits of the system shall be programmable to provide Manual Signal Silence capability.

7. Coded Circuit Operation: All Indicating Appliance Circuits of the system shall be programmable to provide Coded Circuit Operations

8. Non-Alarm Input Operation: Any Initiating Device Circuit in the system may be used as a Non-Alarm input to monitory any Normally-Open contact device.

9. History Mode Operation: The system shall be able to store and display the last 255 system events which have occurred. c. The system shall include special software to detect, diagnose and report failures and isolate such failures to a printed circuit board level. d. The system shall be fully programmable, configurable, and expandable in the field without the need for special tools or PROM programmers and shall not require replacement of memory ICs. e. Specify that products be provided and tested as indicated on the drawings and specifications, Manual Fire Alarm Stations, Ceiling Mounted Smoke Detectors,

Duct Mounted Smoke Detectors, Heat Detectors, and Audible and Visual

Signaling Devices, and install smoke detectors as follows:

1. Manual Fire Alarm Stations shall be non-code, crush tube type with a key operated test-reset lock, and shall be designed so that after actual Emergency

Operation, they cannot be restored to normal use except by the use of a key.

2. Automatic Heat Detectors shall be combination rate of rise and fixed temperature rated at 135° for areas where ambient temperatures do not exceed

100°, and 200° for areas where the temperature exceeds 100°, but does not exceed 150°.

3. Photoelectric smoke detectors shall be 24 VDC, ceiling-mounted, optical type using an LED light source.

Fire Alarm & Intercommunications 2 of 8



















Knox County Schools Program Standards - Middle

4. Specify that Magnetic Door Holders be provided as shown on drawings.

Supply voltage shall be from and controlled by the Fire Alarm Control Panel.

5. Audio/Visual Signals shall produce a sound output of 90 dB or greater, with a strobe output rating of a minimum of 100 candela and meet or exceed the requirements of the Americans with Disabilities Act (ADA).

6. Specify High Intensity Strobes Model GXS4HR to be installed as indicated on the drawings. f. 1. Specify a voice control panel with remote mounted microphone and indicate on plans for areas of assembly.

2. Voice panel shall be equipped with a minimum of 8 digitally recorded tones and two digitally recorded voice evacuation messages. g. 1. Specifications should address the furnishing and installation, in accordance with manufacturer's instructions, of all wiring, conduit and outlet boxes required for the installation of a complete system as described herein and as shown on the drawings.

2. Specifications should required the equipment installer and manufacturer to have in the area full time service facilities with multiple numbers of factory trained technicians regularly engaged in installation, service, maintenance, and inspection of the type system installed.

17605 – INTEGRATED COMMUNICATIONS a. This system shall be an integrated system that will satisfy the following scope of work in addition to meeting or exceeding all functions, features, operation, expectations and standards established within the specifications. This system and its installation shall meet the following criteria:

1. Digital; telephone system interface for normal telephone system operation and use, as well as analog telephone integration capability. Telephone handsets, with touchtone dialing, shall be located in all classrooms, but shall not have the capability of direct access to CO lines. All classroom telephones shall be nonproprietary standard analog telephones.

2. Master clock timing unit shall be integrated with the intercom system in order to generate distinctive tones on the intercom system for changing classes.

3. CATV distribution with Satellite and Distance Learning Hookup capability.

The CATV distribution system shall have the capability for local or remote origination from every TV outlet location shown on the prints. All associated equipment needed to make local and remote origination shall be provided in the cost.

4. The Intercommunication system (specify the following if telephone system to

is provided by this installer.) and the digital telephone switch shall be provided with modems and all appropriate connections to allow remote diagnostics and programming functions to be utilized by the installer as well as the Owner's maintenance department.

5. Telephone operation, intercommunications operation, CATV distribution operation and master clock unit shall all have battery backup UPS systems installed to allow total system functionality for the following time frames:

Fire Alarm & Intercommunications 3 of 8

























Knox County Schools Program Standards - Middle outside CO line access even after total power loss.

(b.) Intercommunications operation: Full system functionality for 2 hours.

(c.) Local / remote origination operations: Full system functionality for 1 hour.

6. All areas of the system shall have AC line conditioning, surge protection on all equipment with a protection warranty on all associated equipment of

$5,000,000.00. All CO lines and the CATV fed from the local cable company shall be protected by lightning and surge suppression to ensure that any associated equipment will be protected or covered by the above mentioned warranty on equipment damage.

7. The integrated communications system shall be a broadband information delivery system, a digital phone switch with analog input, as set forth in the drawings and specifications. b. 1. The Installer shall be an Authorized Factory Agent or Distributor of the

Information Delivery System proposed.

2. All material and equipment shall be listed, labeled, or certified by

Underwriters Laboratories, Inc. All power supplies and computers shall be

UL Listed.

3. The future media retrieval system shall be capable of providing advanced media distribution and control capabilities to individual rooms. c. Broadband CATV Distribution System

1. Amplifier: Provide a rack-mount broad-band distribution amplifier for the headend. The unit shall be capable of a flat operating gain of 33db with gain and slope controls.

2. Modulators: Provide a quantity of six agile modulators. These modulators shall provide the video distribution of sources for the information delivery system. Provide a quantity of one agile modulator to be utilized for the purpose of local/remoter origination.

3. The following equipment shall be provided to supplement the distribution of the information delivery system as well as the capabilities for remote / local origination:

(a.) A quantity of one saw filtered processor.

(b.) A quantity of two headend combiners.

(c.) A quantity of two sub channel multiplexers.

Provide all miscellaneous and associated equipment to ensure proper installation including all appropriate splitters.

4. Provide all necessary equipment to allow low pass filter transmission on this system. d. 1. UL Listing- All material and equipment shall be listed, labeled, or certified by Underwriters Laboratories, Inc.

Fire Alarm & Intercommunications 4 of 8











Knox County Schools Program Standards - Middle

2. FCC Approval- The telephone system shall be approved under Part 68 of

FCC rules and regulations.

3. Specify a microprocessor controlled voice telephone and communication system as shown on the drawings to provide a complete sound, program distribution and voice intercommunication system in the building. The installation shall consist of standard non-proprietary single line memory telephones in classrooms and all locations shown on the prints for a telephone/intercommunications handset. This handset will serve as the intercom handset to call any classroom speaker and/or to call the intercom administrative telephone and/or call another telephone/intercommunications handset. This handset shall serve as the telephone for internal telephone conversations only. As an example, Teacher's Work Rooms and Cafeteria

Office.

4. Central Switching Exchange: The central switching exchange shall utilize a local operating network (LON) based, multi-channel microprocessor controlled communications system. The system in full operation shall be capable of simultaneous handling of telephone conversations, intercom, program, and paging distribution using standard DTMF telephones. The system central equipment shall provided at least thirty-two simultaneous

Global, voice speech paths between all telephones in the system.

5. The system shall provide user programmable room number assignments.

6. The system shall provide 3, 4, or 5 digit alpha/numeric architectural room numbering with the letters A through Z being utilized.

7. The Administrative Telephone shall display the alpha/numeric room address of the calling station.

8. Calls from call-in devices may be programmed to call into Staff Telephones.

These phones shall ring when called.

9. The system shall consist of a minimum of 32 Multipurpose Zones which can be assigned and programmed as desired between paging, program or time zones.

10. The system shall accept up to three (3) call-in devices (normal call, emergency call, & cancel), each with different priorities and destination locations, over the same pair of wires which serve the loudspeaker.

11. Specify a rack mounted integrated AM/FM/DVD Player to be located in the equipment rack.

12. The system shall provide up to two simultaneous operating non-restrictive, multiple input sources, program distributing channels.

13. Administrative Telephone (ATEL): The ATEL shall be constructed of high- impact flame retardant beige plastic, containing matching telephone handset with retractable coiled cord, and conductive rubber button switches with clearly designated touch points.

14. The Power Amplifiers shall be provided with a battery backup schedule listed previously in this specification. e. 1. The PBX/KSU Interface shall be provided through a Trunk Interface Card

(TIC).

2. The interface connection to a PBX/KSU shall be made from the TIC trunk to a PBX/KSU extension to allow any system telephone to have access to all the extension functionality of the PBX/KSU.

Fire Alarm & Intercommunications 5 of 8











Knox County Schools Program Standards - Middle

3. The facility shall have 6 CO lines tied to the digital telephone switch upon installation.

4. The ports provided to the intercom from the digital switch are analog ports which require a conversion process to be addressed between both systems. f. The system shall contain an integral master clock and programmer which shall be capable of performing the following functions:







1. Displaying the time of day.

2. Providing 256 discrete time event entries for programming functions

3. Selection of any one or any combination of eight {8} zones or outputs to be activated.

4. Selection of any one of eight schedules.

5. Selection of fourteen user programmable tones.

6. Provide for an editing and review routine to permit the user to change and edit time events, zones, and schedules.

7. Correct compatible brands of secondary clocks, analog or digital or both.



  g.



1. All systems shall be protected by lighting and AC power surges.

2. The following battery back up schedule shall be followed to ensure the backup times shown previously in this specification:





(a.) Telephone system Battery Backup shall be provided with a UPS. This

UPS shall provide 1000 watts no exceptions.

(b.) Intercom system Battery Backup shall be provided with a UPS. This

UPS shall provide 1250 watts no exceptions.

(c.) Information Delivery System Backup shall be provided with a UPS.

This UPS shall provide 1250 watts no exceptions.

(d.) TV Distribution System Battery Backup shall be provided with a UPS.

This UPS shall provide 1250 watts no exceptions.





  h.

































1.



2.

3.

4.

5.

The distribution of audio programs shall utilize the microprocessor control equipment, power amplifiers and loudspeakers described in the communications section.

The system shall exist such that the Classroom Control Center (CCC) shall be the single line telephone, wall mounted or desk mounted as indicated on the drawings.

The classroom speakers shall be flush mount supported by a lay-in ceiling T-

Bar support, complete with back boxes and round, white grills. Classroom speakers shall be eight inch seamless cone type. The frequency range shall be 30-15kHz and the normal wattage rating shall be 15 watts. The voice coil diameter shall be ¾" and the impedance 8 ohms. The loudspeaker shall be equipped with a universal matching transformer suitable for use on an industry standard 25- volt output line with taps at ½, 1,2 or 4 watts.

Corridor speakers shall be flush mount and shall be the same as the classroom speakers.

Outside speakers shall be a weather proof horn. The unit shall be of double re-entrant type with audio power rating of 15 watts at full range on 20 watts at frequencies above horn cutoff. Frequency response shall be 475Hz-14kHz,

Fire Alarm & Intercommunications 6 of 8

















Knox County Schools Program Standards - Middle dispersion angle 180 degrees, and sound pressure level 121 dB at rated power. i. 1. All headend Integrated Communications & Information Delivery System equipment shall be located at one centralized location utilizing equipment racks as indicated on the drawings.

2. The installer shall provide a TV distribution system that has been certified for optimal functionality by the manufacturer. All installations shall comply with the requirements of the National Electrical Code (NEC). All equipment shall be UL Listed. The entire installation shall meet the requirements of the

Federal Aviation Agency as it relates to radiation of signals in the frequency range of the aircraft navigation system.

3. Adequate ventilation of the equipment installed in equipment racks shall be provided to maintain manufacturer specified heat tolerances for the installed equipment. The Contractor shall coordinate the size and provide a UPS

(uninterruptable power supply) to maintain the system for a minimum of time which has been specified previously in these design standards. The UPS shall have the capability of initiating a controlled shutdown of the SCP software. j. 1. Specifications should require provision of all conduit systems and mounting of all backboxes for the Integrated Communications and Information

Delivery System wiring. Special boxes, as shown on the project drawings, shall be provided by the Contractor for installation by the Electrical Installer.

A 6" x 6" box will be required to be located outside of all classrooms as well as any location shown on the drawings.

2. The classroom speaker shall be a UL Listed 22 AWG stranded copper conductor with PVC insulation. Each cable shall have two (2) twisted conductors shielded with an aluminum mylar tape shielded material and have a 22 AWG tinned drain wire. Each cable shall also have one (1) conductor not shielded. Each cable shall incorporate an overall PVC jacket. (Specify

plenum rated cable in the event that a plenum return system is specified).

3. Speaker cable for corridor and outside speaker circuits shall be UL Listed 18

AWG stranded, shielded with PVC insulation. Each cable shall be a twisted pair with an overall PVC jacket. k. TESTING

1. Upon completion of the installation, the Contractor shall be required to conduct a functional system test in the presence of the Owner and his representatives. The Contractor shall prepare and submit a written test plan that will demonstrate the system's operation, critical component operation, and software feature set functionality.

2. The Contractor shall be required to provide system training for all Owner designated personnel. The Contractor shall also provide the Owner with information and pricing on any training offered at the manufacturer's facility or designated training facility tat will not be included as part of this specifications.

3. Specifications shall require bound instructional manuals in an 8-1/2" x 11" format. Of the complete system be provided to the Owner. Manuals shall

Fire Alarm & Intercommunications 7 of 8

















Knox County Schools Program Standards - Middle include instructions, block and schematic diagrams, wiring diagrams, specification and technical data of the components, and as-built drawings of the completed system. All drawing placed in the manuals shall be a minimum of 11" x 17" engineering format and shall include full engineering title blocks. One set of reproducible drawings shall be provided. A complete set of "E"-size as-built engineering drawings shall be provided on disk in an

AutoCad-Compatible format. Two separate manuals shall be provided, including a user operations manual and a systems engineering and maintenance manual. The maintenance manual shall contain copies of all final system configuration settings, wire diagrams, inter-rack cabling, cable termination and labeling information, cross connect diagrams, jumper diagrams, recommended spares and parts list, service contact list, and local and manufacturer's support telephone numbers.

17606 – SOUND REINFORCING SYSTEM

2. Specifications should require that the installer provide the equipment, conductors, labor and services for the installation of the sound equipment.

3. Each of these areas shall have a sound system for local origination of sound reinforcement. b. 1. Specifications should require furnishing and installation of an in-wall flush mounted amplifier area. Amplifier shall be 125 watt with plug in modules for expansion. Each amp shall be set up with separate mic modules for each mic jack. Specify one spare module installed in each amplifier. Each amplifier shall have an aux. input on the front of the amplifier for local inputs from customer provided source. Amplifier shall have a 9-band graphic equalizer with 25 and 70 volt outputs. Amplifiers shall be provided with backbox and pre-amp modules.

2. Specify two (2) each cardioid microphones with 25 ft. cables and two (2) each microphone stands.

3. Microphone jacks shall be three pin cannon type installed on stainless steel plates and wired with 20 gauge shielded mic cable separately from each location to the amplifier. Jacks shall be similar to Switchcraft j3fs. (NOTE:

Owner to provide locking cabinet for housing electronics.) c. 1. The Sound Contractor shall be required to furnish all labor, materials and equipment necessary for the complete installation of the sound system, in full accordance with the design standards and with the recommendations of the equipment manufacturers.

2. Maintain proper and constant phasing in electronic component and speaker wiring.

Fire Alarm & Intercommunications 8 of 8

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
