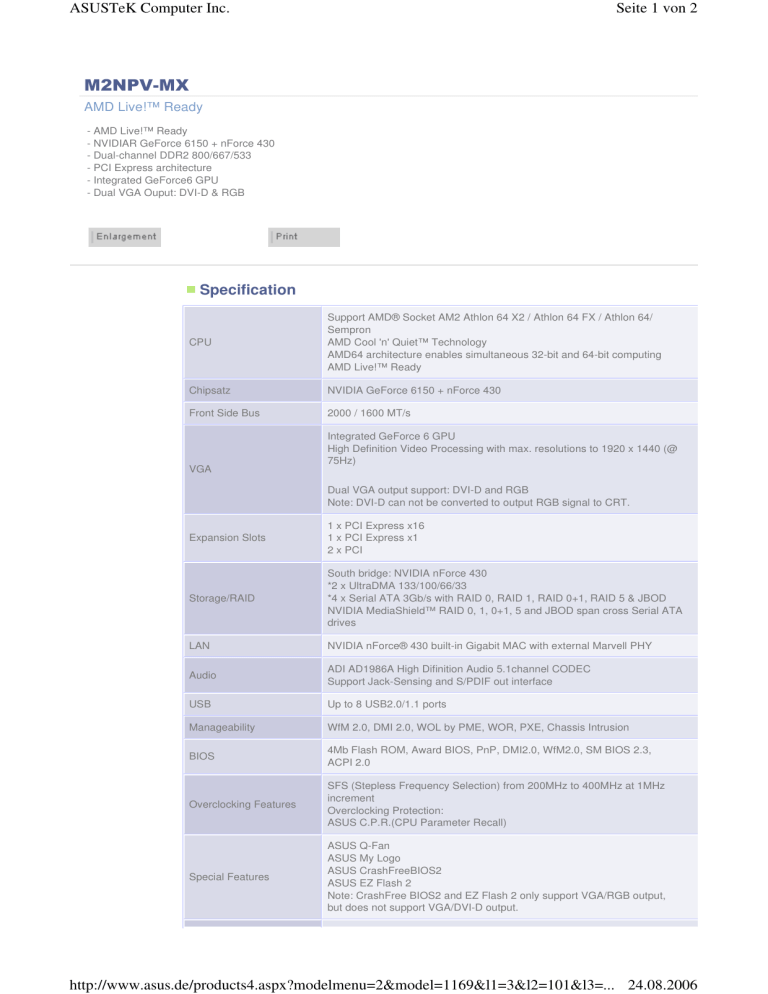

ASUSTeK Computer Inc.
Seite 1 von 2
M2NPV-MX
AMD Live!™ Ready
- AMD Live!™ Ready
- NVIDIAR GeForce 6150 + nForce 430
- Dual-channel DDR2 800/667/533
- PCI Express architecture
- Integrated GeForce6 GPU
- Dual VGA Ouput: DVI-D & RGB
Specification
CPU
Support AMD® Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64/
Sempron
AMD Cool 'n' Quiet™ Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!™ Ready
Chipsatz
NVIDIA GeForce 6150 + nForce 430
Front Side Bus
2000 / 1600 MT/s
VGA
Integrated GeForce 6 GPU
High Definition Video Processing with max. resolutions to 1920 x 1440 (@
75Hz)
Dual VGA output support: DVI-D and RGB
Note: DVI-D can not be converted to output RGB signal to CRT.
Expansion Slots
1 x PCI Express x16
1 x PCI Express x1
2 x PCI
Storage/RAID
South bridge: NVIDIA nForce 430
*2 x UltraDMA 133/100/66/33
*4 x Serial ATA 3Gb/s with RAID 0, RAID 1, RAID 0+1, RAID 5 & JBOD
NVIDIA MediaShield™ RAID 0, 1, 0+1, 5 and JBOD span cross Serial ATA
drives
LAN
NVIDIA nForce® 430 built-in Gigabit MAC with external Marvell PHY
Audio
ADI AD1986A High Difinition Audio 5.1channel CODEC
Support Jack-Sensing and S/PDIF out interface
USB
Up to 8 USB2.0/1.1 ports
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR, PXE, Chassis Intrusion
BIOS
4Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3,
ACPI 2.0
Overclocking Features
SFS (Stepless Frequency Selection) from 200MHz to 400MHz at 1MHz
increment
Overclocking Protection:
ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS Q-Fan
ASUS My Logo
ASUS CrashFreeBIOS2
ASUS EZ Flash 2
Note: CrashFree BIOS2 and EZ Flash 2 only support VGA/RGB output,
but does not support VGA/DVI-D output.
http://www.asus.de/products4.aspx?modelmenu=2&model=1169&l1=3&l2=101&l3=... 24.08.2006
ASUSTeK Computer Inc.
Seite 2 von 2
Back Panel I/O Ports
1 x VGA/DVI-D out
1 x VGA/RGB out
4 x USB 2.0 ports
1 x 5.1 channel Audio I/O
1 x RJ45
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x Parallel
Internal I/O Connectors
2 x USB 2.0 connector supports additional 4 USB 2.0 ports
1 x TV out connector
1 x S/PDIF output connector
High Definition Front panel audio connector
4-pin CPU Fan /1*Chassis Fan connectors
Chassis Intrusion connector
CD audio-in connector
24-pin ATX power connector
4-pin ATX 12V Power connector
1 x COM connectors
Support CD
Drivers
NVIDIA MediaShield™ RAID
ASUS PC Probe II
ASUS LiveUpdate Utility
AMD Cool ' n' Quiet Utility
Anti-virus software (OEM version)
Accessories
1 x Serial ATA cables
1 x SATA power cable
1 x UltraDMA 133/100/66 cable
1 x FDD cable
1 x I/O Shield
User manual
Form Factor
uATX Form Factor, 9.6" x 9.6" (24.5cm x 24.5cm)
Memory
Dual channel memory architecture
4 x 240-pin DIMM, support max. 8GB DDR2 800/667/533 ECC and nonECC,un-buffered memory
