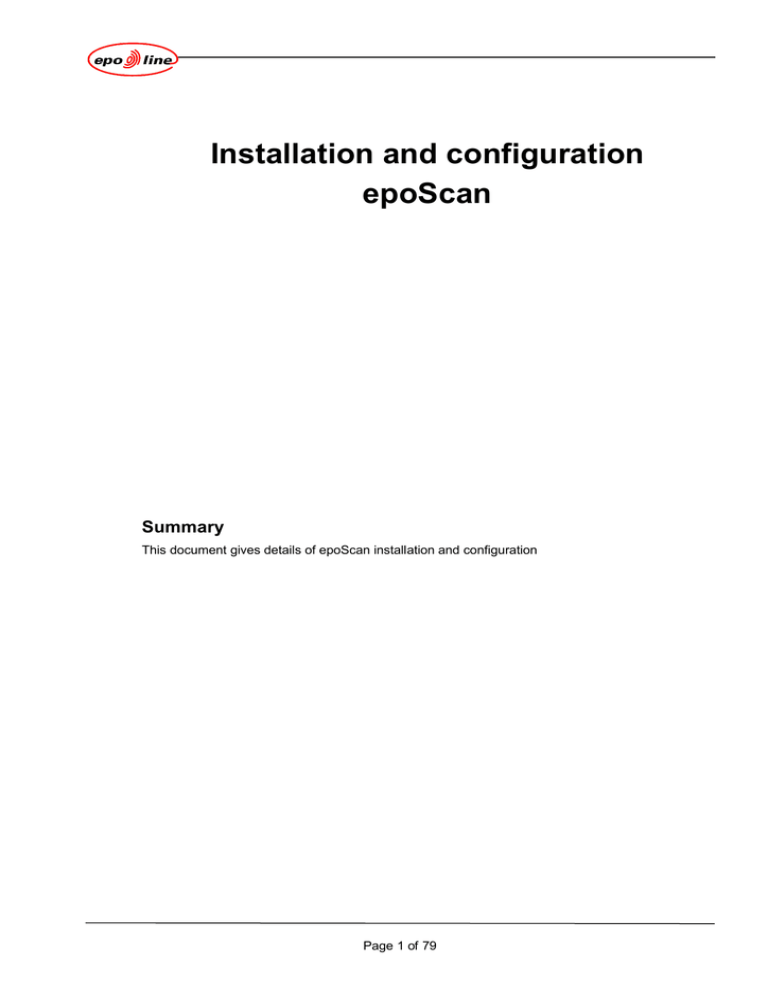

Installation and configuration
epoScan
Summary
This document gives details of epoScan installation and configuration
Page 1 of 79
Copyright notice
© European Patent Office 2005
You may only copy and distribute this publication together with the software program to which it
applies in accordance with the terms of the applicable licence. You must reproduce this copyright
notice without alteration. You are granted no rights in or to any of the European Patent Office
trademarks or logo. The names of actual companies and products mentioned herein may be the
trademarks of the respective owners.
European Patent Office
Postbus 5818
NL-2280 HV Rijswijk
The Netherlands
Page 2 of 79
Document information
Document title
Installation and Configuration
epoScan
Document number
INS1.0D epoScan B.doc
Contact point in case of questions or problems
Person
Location
Room
Extension
Document history
Document
version
Date
Changes
Author
0.1
09 DEC 04
Document created
P.G.Dedman
0.2
22 DEC 04
Updated
P.G.Dedman
0.3
14 JAN 05
Updated
P.G.Dedman
1.0
01 MAR 05
Updated
P.G.Dedman
Reviews
Version being reviewed
Reviewed by
(Position in CAPITALS)
1.0
Reviewed by
(Name in CAPITALS)
Reviewed by
(Signature)
Date
reviewed
Signed off by
(Signature)
Date
signed off
Sign-off
Version being signed off
Signed off by
(Position in CAPITALS)
Version 1.0
Signed off by
(Name in CAPITALS)
Page 3 of 79
Table of contents
Copyright notice .............................................................................................................................. 2
Document information ..................................................................................................................... 2
Table of contents............................................................................................................................. 4
Table of figures ............................................................................................................................... 7
1 Introduction .............................................................................................................................. 10
1.1
Audience........................................................................................................................................................................ 10
1.2
Overview........................................................................................................................................................................ 10
2 General information.................................................................................................................. 11
3 epoScan installation ................................................................................................................. 12
4 Database installation ................................................................................................................ 14
4.1
System database type selection................................................................................................................................... 14
4.1.1
Installation with MS Access ............................................................................................................................. 14
4.1.2
Installation with Firebird ................................................................................................................................... 15
4.1.2.1
On the server:.................................................................................................................................. 15
4.1.2.2
On the client .................................................................................................................................... 15
4.1.3
Installation with Oracle..................................................................................................................................... 16
4.1.4
Installation with MaxDB ................................................................................................................................... 16
4.1.4.1
Installing MaxDB on Microsoft Windows ........................................................................................ 16
4.1.4.2
On the server................................................................................................................................... 16
4.1.4.3
On the client .................................................................................................................................... 16
5 Scanning database installation decision chart........................................................................... 17
6 Group 1.................................................................................................................................... 18
6.1
Access ........................................................................................................................................................................... 18
7 Group 2.................................................................................................................................... 22
7.1
Firebird, Oracle, and MaxDB database options ........................................................................................................... 22
7.1.1
Yes selected (YES 1)....................................................................................................................................... 23
7.1.2
Yes selected (YES 2)....................................................................................................................................... 24
7.1.3
No selected (NO 2) .......................................................................................................................................... 27
7.1.4
No selected (NO 1) .......................................................................................................................................... 32
8 Login........................................................................................................................................ 40
9 epoScan initial screen .............................................................................................................. 41
Page 4 of 79
10 Batch ....................................................................................................................................... 43
10.1 Scanning mode ............................................................................................................................................................. 45
10.2 Scanning configuration ................................................................................................................................................. 45
10.2.1 Page orientation ............................................................................................................................................... 45
10.2.2 Software rotation .............................................................................................................................................. 45
10.3 Image............................................................................................................................................................................. 45
10.4 Colour scanning ............................................................................................................................................................ 46
10.4.1 Automatic colour detection .............................................................................................................................. 46
10.5 Auto-start ....................................................................................................................................................................... 47
11 Setup ....................................................................................................................................... 48
11.1 Options .......................................................................................................................................................................... 49
11.1.1 General............................................................................................................................................................. 49
11.1.2 Kodak ............................................................................................................................................................... 51
11.1.3 ISIS ................................................................................................................................................................... 51
11.1.4 Databases ........................................................................................................................................................ 52
11.1.4.1
Access database........................................................................................................................... 52
11.1.4.2
Firebird database .......................................................................................................................... 53
11.1.4.3
Oracle database............................................................................................................................ 54
11.1.5 System databases ........................................................................................................................................... 54
11.1.6 Magnifier........................................................................................................................................................... 55
11.2 Barcode reading............................................................................................................................................................ 56
11.2.1 Scanner configuration ...................................................................................................................................... 56
11.2.2 Supported ISIS® scanners ............................................................................................................................... 57
11.2.3 For a Kodak scanner........................................................................................................................................ 66
11.3 Image enhancement ..................................................................................................................................................... 66
11.3.1 Image enhancement deskew........................................................................................................................... 67
11.3.2 Image enhancement image rotation................................................................................................................ 68
11.3.3 Image enhancement colour settings ............................................................................................................... 68
11.3.4 Image enhancement preview .......................................................................................................................... 69
11.3.5 While scanning................................................................................................................................................. 70
11.3.6 While generating CD........................................................................................................................................ 70
11.3.7 As a separate process ..................................................................................................................................... 70
11.4 Calibration Manager...................................................................................................................................................... 70
12 Admin ...................................................................................................................................... 72
12.1 Users ............................................................................................................................................................................. 73
12.1.1 Adding a new user ........................................................................................................................................... 73
12.2 Permissions ................................................................................................................................................................... 74
Page 5 of 79
13 Database batch status.............................................................................................................. 75
Glossary........................................................................................................................................ 77
Index............................................................................................................................................. 78
Page 6 of 79
Table of figures
Figure 1: change destination location ...........................................................................................................12
Figure 2: setup type .....................................................................................................................................13
Figure 3: setup type .....................................................................................................................................14
Figure 4: select components ........................................................................................................................15
Figure 5: decision flow diagram....................................................................................................................17
Figure 6: setup type .....................................................................................................................................18
Figure 7: select epoScan features ................................................................................................................18
Figure 8: select components ........................................................................................................................19
Figure 9: select program folder.....................................................................................................................19
Figure 10: review settings before copying files..............................................................................................20
Figure 11: installing files...............................................................................................................................20
Figure 12: installation complete....................................................................................................................21
Figure 13: setup type ...................................................................................................................................22
Figure 14: keep Access: yes ........................................................................................................................22
Figure 15: Access system database setting..................................................................................................23
Figure 16: keep current settings ...................................................................................................................23
Figure 17: select epoScan features ..............................................................................................................24
Figure 18: select components ......................................................................................................................24
Figure 19: select program folder...................................................................................................................25
Figure 20: review settings ............................................................................................................................25
Figure 21: installing files...............................................................................................................................26
Figure 22: installation complete....................................................................................................................26
Figure 23: empty Firebird server name for system database.........................................................................27
Figure 24: completed Firebird server name for system database ..................................................................27
Figure 25: Firebird databases setting ...........................................................................................................28
Figure 26: Firebird databases setting ...........................................................................................................28
Figure 27: select epoScan features ..............................................................................................................29
Figure 28: select components ......................................................................................................................29
Figure 29: select program folder...................................................................................................................30
Figure 30: review settings ............................................................................................................................30
Figure 31: installing files...............................................................................................................................31
Figure 32: installation complete....................................................................................................................31
Figure 33: keep Access: no..........................................................................................................................32
Figure 34: Firebird server name for system database ...................................................................................32
Figure 35: Firebird sys. db. (server name) ....................................................................................................33
Figure 36: empty Firebird database settings (system)...................................................................................33
Figure 37: Firebird database settings (system) .............................................................................................34
Figure 38: empty Firebird server name for system database.........................................................................34
Page 7 of 79
Figure 39: completed Firebird server name for system database ..................................................................35
Figure 40: Firebird databases setting ...........................................................................................................35
Figure 41: Firebird databases setting ...........................................................................................................36
Figure 42: select epoScan features ..............................................................................................................36
Figure 43: select components ......................................................................................................................37
Figure 44: select program folder...................................................................................................................37
Figure 45: review settings ............................................................................................................................38
Figure 46: installing files...............................................................................................................................38
Figure 47: installation complete....................................................................................................................39
Figure 48: epoScan login .............................................................................................................................40
Figure 49: eposcan initial screen ..................................................................................................................41
Figure 50: epoScan initial screen .................................................................................................................43
Figure 51: batch id entry...............................................................................................................................43
Figure 52: batch id entry...............................................................................................................................44
Figure 53: image tabs ..................................................................................................................................45
Figure 54: color detection settings................................................................................................................46
Figure 55:auto-start......................................................................................................................................47
Figure 56: epoScan initial screen .................................................................................................................48
Figure 57: setup screen ...............................................................................................................................48
Figure 58: setup screen: options ..................................................................................................................49
Figure 59: configuration options: general......................................................................................................49
Figure 60: configuration options: Kodak........................................................................................................51
Figure 61: configuration options: ISIS...........................................................................................................51
Figure 62: scanner selection ........................................................................................................................52
Figure 63: configuration options: databases: Access ....................................................................................52
Figure 64: configuration options: databases: Firebird....................................................................................53
Figure 65: configuration options: databases: Oracle .....................................................................................54
Figure 66: configuration options ...................................................................................................................54
Figure 67: magnifyer default zoom ...............................................................................................................55
Figure 68: barcode reader configuration .......................................................................................................56
Figure 69: scanner settings ..........................................................................................................................64
Figure 70: advanced settings colour.............................................................................................................65
Figure 71: advanced settings black and white ..............................................................................................65
Figure 72: Kodak scanner configuration .......................................................................................................66
Figure 73: setup of image enhancement.......................................................................................................67
Figure 74: image enhancement configuration ...............................................................................................67
Figure 75: image rotation .............................................................................................................................68
Figure 76: black overscan removal...............................................................................................................68
Figure 77: deskew2......................................................................................................................................69
Figure 78: image enhancement setup ..........................................................................................................69
Page 8 of 79
Figure 79: image enhancement while scanning ............................................................................................70
Figure 80: image enhancement while generating CD....................................................................................70
Figure 81: set scanning area ........................................................................................................................71
Figure 82: epoScan initial screen .................................................................................................................72
Figure 83: administration drop-down menu...................................................................................................72
Figure 84: security .......................................................................................................................................73
Figure 85: blank line.....................................................................................................................................73
Figure 86: add profile and confirm ................................................................................................................73
Figure 87: allow operations ..........................................................................................................................74
Figure 88: access window ............................................................................................................................75
Figure 89: batches with this staus ................................................................................................................75
Figure 90: batches to be modified ................................................................................................................76
Page 9 of 79
1
Introduction
This documents describes the steps to set up and configure epoScan.
To operate the scanning software refer to the ePhoenix Document Capture manual.
1.1
Audience
The intended audience is people need to know the installation and configuration parameters of
epoScan. These people must
•
•
•
understand the concepts of paths and directories
know the names and pathname locations of servers and items on servers
be able to follow the instructions in this document and successfully install and configure a
default version of epoScan that matches their local environment.
There are some descriptions of advanced options included so that specialists can modify how
epoScan is configured. The audience for this is
•
•
•
analysts
developers
systems administrators.
Note:
Only those sufficiently qualified and experienced should attempt to use the advanced
options to modify the default installation and configuration settings.
1.2
Overview
This document has the following general structure:
•
•
•
•
•
•
•
•
•
•
•
•
chapter 2 gives general information
chapter 3 covers the epoScan installation
chapter 4 covers database installation
chapter 5 is the scanning database installation decision chart
chapter 6 describes the group 1 path
chapter 7 describes the group 2 paths
chapter 8 covers logging in
chapter 9 describes the epoScan initial screen
chapter 10 covers Batch
chapter 11 covers Setup
chapter 12 covers Admin.
chapter 13 describes the database batch status
Page 10 of 79
2
General information
epoScan has been developed by the European Patent Office (EPO) to allow the scanning of patent
applications, trademark registrations, and related documents for ePhoenix systems as well as
published IP documents for patent dissemination systems like BNS and espacenet.
ePHOENIX is also a product developed by the European Patent Office. It is a Java-based patent
dossier management system. BNS is the European Patent Office’s service for storing and delivering
published patents and non-patent literature.
The epoScan installation CD comes with drivers for almost all ISIS® scanners with a SCSI interface.
For some of the very large capacity scanners a separate licence may have to be acquired. All the
other third party components such as
•
•
•
barcode reading
image enhancement
ASPI32 drivers.
are included in the installation.
The epoScan product can be installed on all modern Windows platforms and it will operate on a
single PC or on several machines connected to a central server. This allows the same product to be
installed on a series of machines with each machine dedicated to a particular feature such as
scanning and image enhancement.
Page 11 of 79
3
epoScan installation
Note:
•
Full administrator rights are required on the PC in order to install epoScan otherwise
certain DLLs cannot be installed.
•
If it is intended for Firebird, Oracle, or MaxDB to be the management database for
epoScan it is necessary to install it.
•
Installation of the ASPI32 drivers (version 7.1) is required for scanning . (Read the
readme.txt file on the CD for installation instructions).
epoScan will install in the directory C:\Program Files\epoScan by default, but any other directory
can be selected. To perform the installation process
•
•
•
•
•
•
insert the CD
open the CD and go to epoScan directory
double click on Setup.exe
the welcome screen opens
click on Next
change destination location
Figure 1: change destination location
•
•
click on Next
select the type of documents you intend to scan:
•
•
•
applications (for ePhoenix)
patents (for literature)
others (such as trademarks).
Page 12 of 79
Figure 2: setup type
Note
Switching between the different types of document scanning by the user is still possible.
Page 13 of 79
4
Database installation
The epoScan database is needed in order to manage the scanning process and needs to be
installed. A system database is also required, to store the program settings, such as
•
•
•
4.1
authorisation
users
databases.
System database type selection
The type of system database has to be chosen before installation of the epoScan software. The
epoScan software has been built to work with four types of databases, which are categorised into
two groups:
•
•
Group 1, stored locally or on a central server, suitable for small sites with few workstations
•
MS Access (No licenses required).
Group 2, stored on the database server, suitable for large sites with many workstations
•
Firebird (Open Source DB – no licenses required)
•
Oracle (License is required).
•
MaxDB (Open Source DB – no licenses required).
Select the database type you want to use with epoScan:
Access
Firebird
Oracle
MaxDB
Figure 3: setup type
4.1.1
Installation with MS Access
The MS Access database is sufficient for small offices that operate one or two low or medium
volume production scanners. If higher scanning volumes are expected or more scanners are
installed it is highly recommended to use Firebird, Oracle, or MaxDB as the database.
If MS Access is installed on the PC then this can be used as usual to view the database tables and
the contents.
During installation database templates are installed in the epoScan directory. When the installation
is finished these templates can be copied to a different directory or a directory on a central server.
The available templates are
•
•
•
EpoScan_app.mdb, a database for application scanning
EpoScan_pat.mdb, a database for patent scanning
EpoScan_oth.mdb, a database for other scanning.
Page 14 of 79
4.1.2
Installation with Firebird
Firebird is an open source database and has been selected by the EPO for several of its epoline
products. To view the database tables and the contents of these tables install the Firebird user
interface found on the CD in \EPOSCAN\Firebird\GUI.
Before installing epoScan, Firebird must be installed on the scan server and on scanning
workstation(s).
Note:
The order of installation on the client workstation is important, first Firebird and
then epoScan.
Figure 4: select components
4.1.2.1
On the server:
Open the CD and open EpoScan directory
Open Firebird directory
Double click on Firebird-[version]-Win32.exe
If requested to select components select Full installation of server and development tools for
installation on the server
4.1.2.2
On the client
Select Minimum client install for installation on the client, which is the epoScan work station.
During installation database templates are installed in the epoScan directory. When the installation
is finished these templates can be copied to a different directory or a directory on a central server.
The available templates are
•
•
•
EpoScan_app.gdb, a database for application scanning
EpoScan_pat.gdb, a database for patent scanning
EpoScan_oth.gdb, a database for other scanning
Page 15 of 79
4.1.3
Installation with Oracle
When using the Oracle database the National Office (NO) must purchase the required Oracle
license.
Note:
Only those sufficiently qualified and experienced should attempt to install Oracle
There are installation instructions in the epoScan/Oracle directory. The installer must read
the documents Readme.txt and EpoDB.doc before attempting an installation.
4.1.4
Installation with MaxDB
When using the MaxDB database the National Office (NO) must obtain MaxDB, which is licensed in
two ways, public licence or commercial licence. Please see http://www.mysql.com/products/maxdb/
Note:
Only those sufficiently qualified and experienced should attempt to installMaxDB
There are installation instructions in the epoScan/MaxDB directory. The installer must read
the documents Readme.txt and EpoDB.doc before attempting an installation.
4.1.4.1
Installing MaxDB on Microsoft Windows
Microsoft Windows 2000 SP2 or higher is required
To install MaxDB:
•
•
•
•
•
4.1.4.2
Change to the maxdb-all-win-32bit-i386-imbeta-7_5_00_19 directory.
Double-click SDBSETUP.exe To start the Installation Manager
Choose Start MaxDB installation.
Follow the instructions of the Installation Manager.
After finishing the installation, reboot Microsoft Windows.
On the server
Install the software maxdb-all-win-32bit-i386-7_5_00_23.zip
Please see http://dev.mysql.com/doc/maxdb/instguide.html#windows for install instructions
4.1.4.3
On the client
Before installing eposcan you have to install a client ODBC driver on the epoScan workstation. To do this run
odbc75.exe (EPOScan\MAXDB\ODBC driver\odbc75.exe).
Page 16 of 79
5
Scanning database installation decision chart
Select
epoScan
features
Select
compnts.
Select
program
folöder
Review
settings
before
copying
Installing
files
InstalShield
wizard
complete
GROUP 1
Choose a database type
Select
epoScan
fearures
YES 2
GROUP 2
YES 1
Access
system
database
setting
Select
compnts.
Select
program
folder
Review
settings
before
installing
Installing
files.
InstalShield
wizard
complete
Keep
current
settings?
Keep
Access ?
NO 2
NO 1
Firebird
sys.db
(server
name)
Firebird
database
settings
(system)
Firebird
prod. db
(server
name)
Firebird
database
settings
(prod.)
Select
epoScan
fearures
Select
compnts.
Select
program
folder
Review
settings
before
installing
Installing
files.
InstalShield
wizard
complete
Firebird
prod. db
(server
name)
Firebird
database
settings
(prod.)
Select
epoScan
fearures
Select
compnts.
Select
program
folder
Review
settings
before
installing
Installing
files.
InstalShield
wizard
complete
Figure 5: decision flow diagram
Page 17 of 79
6
Group 1
6.1
Access
Select the database type you want to use with epoScan:
Access
Firebird
Oracle
MaxDB
Figure 6: setup type
Click on the radio button to select the database type you want to use with epoScan. Click on Next.
The Select epoScan features screen is displayed.
Figure 7: select epoScan features
Click on the radio button to select the features you want to use with epoScan.
Click on Next.
Choose Scan, view and image enhancements, and click on Next.
Page 18 of 79
The Select components screen is displayed.
Figure 8: select components
Note:
the ticked components are the default settings. these should not be changed except by an
expert user.
Click on Next.
The Select Program Folder screen is displayed.
Figure 9: select program folder
Click on Next.
Page 19 of 79
The Review settings before copying files screen is displayed.
Figure 10: review settings before copying files
Click on Next.
The Installing files screen is displayed.
Figure 11: installing files
Click on Next. The setup commences. The blue bar and the percentage of setup completed is
displayed.
Page 20 of 79
Once the installation has completed the InstallShield Wizard Complete screen is displayed. Select
the required option and click on Finish.
Figure 12: installation complete
Page 21 of 79
7
Group 2
7.1
Firebird, Oracle, and MaxDB database options
The installation and configuration are almost identical for all three options, so Firebird has been
used as an example.
Select the database type you want to use with epoScan:
Access
Firebird
Oracle
MaxDB
Figure 13: setup type
Click on the radio button to select the database type you want to use with epoScan. Click on Next.
The Keep Access: Yes screen will be displayed.
Figure 14: keep Access: yes
Select Yes or No.
If Yes was selected, go to 7.1.1
If No was selected, go to 7.1.4 No selected (NO 1)
Page 22 of 79
7.1.1
Yes selected (YES 1)
Depending upon your local system environment, the database path will either be displayed and
highlighted in blue, or the field will be blank. Leave the path as it is, or correct it, or enter a database
path, as required.
Figure 15: Access system database setting
Click on Next. The Keep current settings screen is displayed.
Figure 16: keep current settings
Select Yes or No and click on Next.
If Yes was selected, go to 7.1.2 Yes selected (YES 2)
If No was selected, go to 7.1.3 No selected (NO 2)
Page 23 of 79
7.1.2
Yes selected (YES 2)
Figure 17: select epoScan features
View only is used for quality control, and so is never normally selected.
Chose Scan, view and image enhancements, and click on Next. The Select components screen
is displayed.
Figure 18: select components
Note:
the ticked components are the default settings. these should not be changed except by an
expert user.
Click on Next.
Page 24 of 79
The Select Program Folder screen is displayed.
Figure 19: select program folder
Click on Next. The Review settings screen is displayed.
Figure 20: review settings
Click on Next.
Page 25 of 79
The Installing files screen is displayed.
Figure 21: installing files
Click on Next. The setup commences. The blue bar and the percentage of setup completed is
displayed. Once the installation has completed the InstallShield Wizard Complete screen is
displayed. Select the required option and click on Finish.
Figure 22: installation complete
Page 26 of 79
7.1.3
No selected (NO 2)
An empty Firebird server name for system database screen is displayed.
Figure 23: empty Firebird server name for system database
Figure 24: completed Firebird server name for system database
Click on Next.
Note:
Installing production database from here on.
Page 27 of 79
The Firebird databases setting screen is displayed.
Figure 25: Firebird databases setting
Enter the server databases paths. These paths are defined from the Firebird server`s point of view.
Note
Each path is different.
Figure 26: Firebird databases setting
Click on Next.
Page 28 of 79
The Select epoScan features screen is displayed.
Figure 27: select epoScan features
View only is used for quality control, and so is never normally selected.
Chose Scan, view and image enhancements, and click on Next.
The Select components screen is displayed.
Figure 28: select components
Note:
the ticked components are the default settings. these should not be changed except by an
expert user.
Click on Next.
Page 29 of 79
The Select Program Folder screen is displayed.
Figure 29: select program folder
Click on Next.
The Review settings screen is displayed.
Figure 30: review settings
Click on Next..
Page 30 of 79
The Installing screen is displayed.
Figure 31: installing files
Click on Next. The setup commences. The blue bar and the percentage of setup completed is
displayed.
Once the installation has completed the InstallShield Wizard Complete screen is displayed. Select
the required option and click on Finish.
Figure 32: installation complete
Page 31 of 79
7.1.4
No selected (NO 1)
Figure 33: keep Access: no
Click on Next. Because Firebird was selected in the Setup Type screen to provide this example
(see Figure 13: setup type), the Firebird server setting for system database screen is displayed.
Figure 34: Firebird server name for system database
Complete the blank field by entering the server name where Firebird is running.
Click on Next.
Page 32 of 79
The Firebird Sys. DB (server name) screen is displayed
Figure 35: Firebird sys. db. (server name)
Click on Next.
An empty Firebird database settings (system) screen is displayed.
Figure 36: empty Firebird database settings (system)
Complete the blank field by entering the server databases path.
Page 33 of 79
Figure 37: Firebird database settings (system)
Click on Next.
An empty Firebird server name for system database screen is displayed.
Figure 38: empty Firebird server name for system database
Complete the blank field by entering the server names.
Page 34 of 79
Figure 39: completed Firebird server name for system database
Click on Next.
Note:
Installing production database from here on
The Firebird databases setting screen is displayed.
Figure 40: Firebird databases setting
Enter the server databases paths. These paths are defined from the Firebird server`s point of view.
Note
Each path is different.
Page 35 of 79
Figure 41: Firebird databases setting
Click on Next. The Select epoScan features screen is displayed.
Figure 42: select epoScan features
View only is used for quality control, and so is never normally selected.
Chose Scan, view and image enhancements, and click on Next.
Page 36 of 79
The Select components screen is displayed.
Figure 43: select components
Note:
The ticked components are the default settings. These should not be changed except by an
expert user.
Click on Next.
The Select Program Folder screen is displayed.
Figure 44: select program folder
Click on Next.
Page 37 of 79
The Review settings screen is displayed.
Figure 45: review settings
Click on Next. The Installing screen is displayed.
Figure 46: installing files
Click on Next. The setup commences. The blue bar and the percentage of setup completed is
displayed.
Once the installation has completed the InstallShield Wizard Complete screen is displayed. Select
the required option and click on Finish.
Page 38 of 79
Figure 47: installation complete
Page 39 of 79
8
Login
Double click on the epoScan icon on the desktop to start epoScan. The login window will be
displayed.
Figure 48: epoScan login
Enter the UserID and Password, and select the database.
Login UserID and Password
Field
Default
UserId
admin
Password
ADMIN (Case sensitive)
These values can be changed by the user.
In order to use epoScan the settings have to be configured.
Note:
Only those sufficiently qualified and experienced should attempt to use the advanced
options to modify the default installation and configuration settings.
Page 40 of 79
9
epoScan initial screen
Note:
The scanner is configured and set up by the administrator. Any changes made to these
settings may cause image quality problems.
Menu bar
Figure 49: eposcan initial screen
The menu bar gives access to all of the available functions.
EPOScan functions
Function
Meaning
Batch
Scan
List
Troubleshooting
Exit
CD
Generate
Re-generate
RQC Troubleshooting
Quality control
• Systematic
• Interactive
• Random Sample
Maintenance
Page 41 of 79
Availability
EPOScan functions
Function
Meaning
View
Availability
Print
Print Setup
Uploading
Not available for applications
Downloading
Not available for applications
Cleaning
Not available for applications
Send Email
Transfer by FTP
For use with "Flowport"™
Automatic post-indexing
Not available for applications
Manual post-indexing
Not available for applications
Indexing correction
Not available for applications
Batch image enhancement
Clipping
Not available for applications
Test incrustation
Quality control
Setup
Options
Bar code reading
Image enhancement
Email options
For use with Flowport™
FTP options
For use with Flowport™
Calibration manager
Admin
Users
Permissions
Database
Info
Select
• Application
• Patents
• Others.
Reports
Batch status modification.
Daily production
Rejected package
Batches partially scanned
CD Contents
Quality control
Scanning
Help
Contents
About
Page 42 of 79
10
Batch
Batch
Figure 50: epoScan initial screen
Click on Batch. The batch drop-down menu will be displayed. Select Scan, and the Batch ID Entry
screen will be displayed.
Figure 51: batch id entry
Click on Setup.
Page 43 of 79
The Batch ID Entry screen is displayed.
Figure 52: batch id entry
Enter information and adjust the settings as required. Click on Setup << to return to the initial
screen.
Note
A scanner must have already been set up. See 11.2.2 Supported ISIS® scanners.
Page 44 of 79
10.1
Scanning mode
Options
Option
Result
Stop
Index file is used during scanning. Scanning will stop if a mismatch
between pages indexed and pages scanned is found. Scan operator is
able to correct scan/index errors immediately.
Non stop
Index file is used during scanning but scanning doesn’t stop. When
scanning is complete an automatic index process will run. During this
process the comparison between pages indexed and pages scanned is
made. If errors are found they are displayed in a list and the operator can
correct the errors using the Document Correction functionality.
Post controls
No index file required.
Used for scanning other- and patent documents.
If patent document are scanned in this mode, images can be used for
manual indexing afterwards.
10.2
Scanning configuration
10.2.1
Page orientation
Dependent on the paper quality (for example; position of staple holes, position of perforated date)
specific page orientation can be selected.
Scanning in landscape mode gives a 25% performance increase.
10.2.2
Software rotation
Most scanners can cope with pages fed in widthways and will rotate the image accordingly.
However, some devices may have difficulties in which case this setting will allow the epoScan
software to do the rotation (this is slower).
Checking this box will solve a known problem with Kodak 1500D.
10.3
This setting determines the quality of the image scanned. Use binary for plain black text on white
paper and for documents with shades of grey use the appropriate level of grey. The more shades of
grey the larger the image file becomes.
Figure 53: image tabs
Click on Adjust. The Color detection settings screen is displayed
Page 45 of 79
10.4
Colour scanning
Colour scanning is available in all scanning modes, for all document types. Please see 10.1.
During application scanning, automatic switching between black white and colour is executed based
on a flag in the DMS file. Please see ePHOENIX Document Capture User Manual, section 3.8.1.
10.4.1
Automatic colour detection
Automatic Color detection causes an image to be processed as colour once the set threshold has
been reached.
Note:
Automatic colour detection is only available for application scanning.
Figure 54: color detection settings
The Threshold property is the minimum colourfulness threshold level. The average threshold of a
neighbourhood is compared to the threshold value that is set. If the threshold value is set to 0, then
all neighbourhoods are colourful because the average threshold of each neighbourhood is probably
greater than 0. If the threshold value is set to 256, then no neighbourhoods are colourful.
For most applications, the default colourfulness threshold is probably suitable. However, some
applications might require adjustment of this parameter. If only bright colours should trigger colour
processing, the colourfulness threshold might be increased to 200. If very pale colours need to be
detected, it might be lowered to 50.
The image is broken into cells and the Sample Size property sets the cell size for checking the
colour content.
For most applications, the default sampling neighbourhood is probably suitable. However, some
applications might require adjustment of these parameters. If the resolution is especially low (100
dpi or less), the sampling neighbourhood might be reduced to 1 x 1 or 2 x 2, and if it is high (600 dpi
or more), it might be increased to 5 x 5. Also, if the colour channel misalignment is particularly high,
the sampling neighbourhood might be increased to compensate.
Page 46 of 79
10.5
Auto-start
Checking the auto start means that the scanner will start scanning after a delay of five seconds.
Figure 55:auto-start
If the scanner which is connected to a single PC or on several machines connected to a central
server does not support automatic starting of the scanner when starting batch Scanning the Autostart” check box must be unchecked.
•
•
•
Select Batch à Scan
Select Setup
Uncheck Auto-start.
Page 47 of 79
11
Setup
Setup
Figure 56: epoScan initial screen
Click on Setup. The setup drop-down menu will be displayed.
Figure 57: setup screen
Select Options.
Page 48 of 79
An alternative is to select Options from the menu bar.
Figure 58: setup screen: options
11.1
Options
11.1.1
General
Figure 59: configuration options: general
Page 49 of 79
Configuration options: general
Item
Explanation
Setting
Language
GUI language
English or Spanish
Type of Workstation
Related to installed licenses and
purpose of workstation. See 1.1
Scanning, CD generation,
Quality Control
Type of Scanner
ISIS: ISIS driver used. See list
under ISIS Tab, Select scanner
to select/Setup your scanner.
ISIS or Kodak
KODAK: Kodak Twain drivers
used. See list under Kodak Tab
Barcode Reading
First Document Separator Sheet
(DSS) present.
Checked Yes/No
Auto Batch
If checked the Batch/Scan
window will be automatically
opened after completion of a
batch.
Checked Yes/No
DMS Directories
INBOX – Directory where Index
files are stored.
Drive:\DMS\Inbox
OUTBOX– Directory where
results files are stored.
Drive:\DMS\Outbox
ERROR: DMS file containing
error(s) will be moved here. (E.g.
Duplex batch with an odd
number of pages)
Drive:\DMS\Error
Output PathBase
Directory where images are
stored directly after scanning.
Directory has to be created
manually if not using the
directory installed during
installation.
Drive:\Images
Min. Free Space (MB)
Minimum required size to store
images. If size is less than
indicated a warning will be given.
Size in MB
CD-R’s generation
CD imgs. Output path - Directory
where the CD Image is stored.
Directory has to be created
manually if not using the
directory installed during
installation.
Drive:\CD
CD drive – Location of CD for
Quality Check
Drive letter
CDRID site code – Site Code is
part of CD number. See CD
generation
Two digits
CD Default size – Maximum size
of CD/DVD. Prevents creating a
CD/DVD Image larger than the
allowed CD size
Size in MB
Check for available free space in
HDD
Checked Yes/No
Page 50 of 79
11.1.2
Kodak
If Kodak is selected as Type of scanner then the Kodak tab will become available.
Figure 60: configuration options: Kodak
11.1.3
ISIS
If ISIS® is selected as Type of scanner then the ISIS tab will become available.
Figure 61: configuration options: ISIS
epoScan is delivered with PIXTOOL® licenses required to control the scanning process. ISIS®
drivers are also available to allow epoScan to communicate with the scanner. Please refer to 11.2.2
®
®
Supported ISIS scanners for the list of supported ISIS scanners.
®
Select ISIS followed by Select Scanner after which the scanner which has been installed can be
configured.
Page 51 of 79
Figure 62: scanner selection
It is better to select the scanner setting later. Please refer to section 11.2.1 Scanner
The latest Kodak models (I series) are delivered with ISIS® drivers.
11.1.4
Databases
Select a database type from the drop-down menu within the Database type field.
11.1.4.1
Access database
Note
It is recommended to rename the database to, for example, 200603_app.mdb because it is a
requirement to start with an empty database at regular intervals, suggested as once per
month.
Figure 63: configuration options: databases: Access
Enter the path in which databases are stored on the server. The drive on the server must be
entered here. Once completed Test connection can be used to see if the server is available.
Page 52 of 79
11.1.4.2
Firebird database
Note
It is recommended to rename the database to, for example, 200603_app.gdb because it is a
requirement to start with an empty database at regular intervals, suggested as once per
month.
The database templates (.gdb) must be copied to the server before proceeding with the
configuration.
Figure 64: configuration options: databases: Firebird
Firebird is normally installed on a (scan) server, where the name of the scan server is entered
during installation of epoScan.
Enter the path in which databases are stored on the server. The drive on the server must be
entered here. Once completed Test connection can be used to see if the server is available.
Make sure that the Report Database points to the same path as the Applications Database.
Click on OK.
Page 53 of 79
11.1.4.3
Oracle database
Figure 65: configuration options: databases: Oracle
Oracle is normally installed on a (scan) server. Data Source name is created during execution of
the installation scripts.
Click on OK.
11.1.5
System databases
Figure 66: configuration options
Note
Please obey the instruction shown at the base of the screen.
Page 54 of 79
11.1.6 Magnifier
Figure 67: magnifyer default zoom
The Default zoom (%) can be changed in this field. The magnifier is used during image viewing and
document correction.
Page 55 of 79
11.2
Barcode reading
Select Setup à Barcode Reading. The Barcode Reader Configuration screen will be displayed.
Use region
Figure 68: barcode reader configuration
In this window the region, where barcodes are located on the different barcode sheets, can be
configured. To assist in this process a previously scanned barcode sheet can be selected to define
this area. The size of the region will have an influence on the barcode reading performance and
slows down the scanning process.
11.2.1
Scanner configuration
The scanner which is connected to a single PC or on several machines connected to a central
server must be configured.
•
•
•
Ensure that the ASPI32 drivers have been installed
Select Setup à Options in the main window
Select Type of Scanner:
•
If scanning with an ISIS® driver select ISIS® and then select the ISIS® Tab
•
If scanning with a Kodak Twain driver select Kodak and then select the Kodak Tab.
Page 56 of 79
11.2.2
Supported ISIS® scanners
•
Select Scanner
•
Select the scanner from the list If the scanner is not in the list then it is necessary to
®
purchase the ISIS drivers license for the scanner.
Note:
See http://www.pixtran.com/scanner_list.asp for the latest additions.
Supported scanner list
Scanner
ISIS® driver used
Agfa Duoscan T1200
AGFADUO.PXN
Any Bell & Howell (duplex) with Kofax Kipp 2.1
KOFAXBIC.PXN
Any Bell & Howell (simplex) with Kofax Kipp 2.1
KFSIMPLX.PXN
Any Fujitsu (duplex) with Kofax Kipp 2.1
KOFAXBIC.PXN
Any Fujitsu (simplex) with Kofax Kipp 2.1
KFSIMPLX.PXN
Any Scanner w/Adrenaline
KOFAXIC3.PXN
Apple Color One 1200/30
APPLEONE.PXN
Apple Color One 600/27
APPLEONE.PXN
Bell & Howell 1000FB
BH5000.PXN
Bell & Howell 1500FB
BH5000.PXN
Bell & Howell 2135 with RSC
BELLHOWL.PXN
Bell & Howell 2137 with RSC
BELLHOWL.PXN
Bell & Howell 2138 with RSC
BELLHOWL.PXN
Bell & Howell 3238 with RSC
BELLHOWL.PXN
Bell & Howell 3338 with Kofax Kipp 2.1
KFSIMPLX.PXN
Bell & Howell 3338 with RSC
BELLHOWL.PXN
Bell & Howell 4040 SCSI
BH4000.PXN
Bell & Howell 5000F
BH5000.PXN
Bell & Howell 500F
BH500.PXN
Bell & Howell 6000F
BH5000.PXN
Bell & Howell 6338 (duplex) with Kofax Kipp 2.1
KOFAXBIC.PXN
Bell & Howell 6338 (simplex) with Kofax Kipp 2.1
KFSIMPLX.PXN
Bell & Howell 6338 with RSC
BELLHOWL.PXN
Bell & Howell 8000 Series
BH8000.PXN
Bell & Howell 8080D SCSI
BH8000.PXN
Bell & Howell 8080S SCSI
BH8000.PXN
Bell & Howell 8100D SCSI
BH8000.PXN
Bell & Howell 8100S SCSI
BH8000.PXN
Bell & Howell 8125D SCSI
BH8000.PXN
Bell & Howell 8125S SCSI
BH8000.PXN
Page 57 of 79
Supported scanner list
Scanner
ISIS® driver used
Bell and Howell 2000 FB
BH2000.PXN
Bell and Howell 730DC FB
BH730DC.PXN
Bell+Howell 2135 w/Adrenaline
KOFAXIC3.PXN
Bell+Howell 2137 w/Adrenaline
KOFAXIC3.PXN
Bell+Howell 2138A w/Adrenaline
KOFAXIC3.PXN
Bell+Howell 3338 World Trade w/Adrenaline
KOFAXIC3.PXN
Bell+Howell 3338A w/Adrenaline
KOFAXIC3.PXN
Bell+Howell 6338 Duplex w/Adrenaline
KOFAXIC3.PXN
Bell+Howell 8080D/8125D Video w/Adrenaline
KOFAXIC3.PXN
Canon CanoScan 300 w/ASPI
CANON.PXN
Canon CanoScan 300 w/ASPI (extended
resolutions)
CANONX.PXN
Canon CanoScan 600 w/ASPI
CANON.PXN
Canon CanoScan 600 w/ASPI (extended
resolutions)
CANONX.PXN
Canon DR-2080C
DR2080C.PXN
Canon DR-3020
CANON_DR.PXN
Canon DR-3060
DR3080.PXN
Canon DR-3080C
DR3080.PXN
Canon DR-4080U
DR4080.PXN
Canon DR-4580U
DR4580.PXN
Canon DR-5020
CA5080.PXN
Canon DR-5060F
DR5060.PXN
Canon DR-5080C
CA5080.PXN
Canon GP215/210
CANGP200.PXN
Canon GP315/355/405
CANGP200.PXN
Canon GP335/405
CANGP200.PXN
Canon image RUNNER 330/400
CANGP200.PXN
Canon IX-3010 w/ASPI
CANON.PXN
Canon IX-3010 w/ASPI (extended resolutions)
CANONX.PXN
Canon IX-4015 w/ASPI
CANON.PXN
Canon IX-4015 w/ASPI (extended resolutions)
CANONX.PXN
Canon IX-4025 w/ASPI
CANON.PXN
Canon IX-4025 w/ASPI (extended resolutions)
CANONX.PXN
Canon MS 400/500
CANONMS.PXN
Canon MS 800
MS800.PXN
Canon MS300
MS300.PXN
Page 58 of 79
Supported scanner list
Scanner
ISIS® driver used
Canon RFS 1000
CANONRFS.PXN
Epson ES-1000C
EPSON.PXN
Epson ES-1000C with Transparency
EPSONT.PXN
Epson ES-1200C
EPSON.PXN
Epson ES-1200C with Transparency
EPSONT.PXN
Epson ES-1400C
EPSON.PXN
Epson ES-1400C with Transparency
EPSONT.PXN
Epson ES-300C
EPSON.PXN
Epson ES-300C with Transparency
EPSONT.PXN
Epson ES-300GS
EPSON.PXN
Epson ES-300GS with Transparency
EPSONT.PXN
Epson ES-600C
EPSON.PXN
Epson ES-600C with Transparency
EPSONT.PXN
Epson ES-800C
EPSON.PXN
Epson ES-800C with Transparency
EPSONT.PXN
Epson Expression 636
EPSON.PXN
Epson Expression 636 with Transparency
EPSONT.PXN
Epson Expression 836XL
ES836.PXN
Epson GT-10000
GT10000.PXN
EPSON GT-10000 Plus
GT10P.PXN
EPSON GT-30000
GT30000.PXN
Epson GT-4000
EPSON.PXN
Epson GT-4000 with Transparency
EPSONT.PXN
Epson GT-6000
EPSON.PXN
Epson GT-6000 with Transparency
EPSONT.PXN
Epson GT-6500
EPSON.PXN
Epson GT-6500 with Transparency
EPSONT.PXN
Epson GT-8000
EPSON.PXN
Epson GT-8000 with Transparency
EPSONT.PXN
Epson GT-8500
EPSON.PXN
Epson GT-8500 with Transparency
EPSONT.PXN
Epson GT-9000
EPSON.PXN
Epson GT-9000 with Transparency
EPSONT.PXN
Epson GT-9500
EPSON.PXN
Epson GT-9500 with Transparency
EPSONT.PXN
Epson Scanner (Generic Model)
EPSON.PXN
Page 59 of 79
Supported scanner list
Scanner
ISIS® driver used
Epson Scanner (Generic Model) with Transparency
EPSONT.PXN
Fujitsu 3093DE w/Adrenaline
KOFAXIC3.PXN
Fujitsu 3093E w/Adrenaline
KOFAXIC3.PXN
Fujitsu 3096E w/Adrenaline
KOFAXIC3.PXN
Fujitsu 3096E+ w/Adrenaline
KOFAXIC3.PXN
Fujitsu 3096EX w/Adrenaline
KOFAXIC3.PXN
Fujitsu 3097DE w/Adrenaline
KOFAXIC3.PXN
Fujitsu 3097E/E+ w/Adrenaline
KOFAXIC3.PXN
Fujitsu 3097EX w/Adrenaline
KOFAXIC3.PXN
Fujitsu 3099A w/Adrenaline
KOFAXIC3.PXN
Fujitsu fi-4110CU
FI4110U.PXN
Fujitsu fi-4120C
FI4120.PXN
Fujitsu fi-4220C
FI4120.PXN
Fujitsu fi-4340C
M4340.PXN
Fujitsu fi-4640S
M4640.PXN
Fujitsu fi-4750C
M4750.PXN
Fujitsu fi-4750L
M4750L.PXN
Fujitsu fi-4860C
M4860.PXN
Fujitsu fi-4990C
M4990.PXN
Fujitsu M3091DCd
F3091.PXN
Fujitsu M3092DCd
F3091.PXN
Fujitsu M3093DE (duplex) with Kofax Kipp 2.1
KOFAXBIC.PXN
Fujitsu M3093DE (simplex) with Kofax Kipp 2.1
KFSIMPLX.PXN
Fujitsu M3093DG
FUJIGINE.PXN
Fujitsu M3093DG (extended resolutions)
FUJIGINX.PXN
Fujitsu M3093E with Kofax Kipp 2.1
KFSIMPLX.PXN
Fujitsu M3093EX with Kofax Kipp 2.1
KFSIMPLX.PXN
Fujitsu M3093GX
FUJIGINE.PXN
Fujitsu M3093GX (extended resolutions)
FUJIGINX.PXN
Fujitsu M3096E Plus with Kofax Kipp 2.1
KFSIMPLX.PXN
Fujitsu M3096E with Kofax Kipp 2.1
KFSIMPLX.PXN
Fujitsu M3096EX with Kofax Kipp 2.1
KFSIMPLX.PXN
Fujitsu M3096G
FUJIGINE.PXN
Fujitsu M3096G (extended resolutions)
FUJIGINX.PXN
Fujitsu M3096GX
FUJIGINE.PXN
Fujitsu M3096GX (extended resolutions)
FUJIGINX.PXN
Page 60 of 79
Supported scanner list
Scanner
ISIS® driver used
Fujitsu M3097DG
FUJIGINE.PXN
