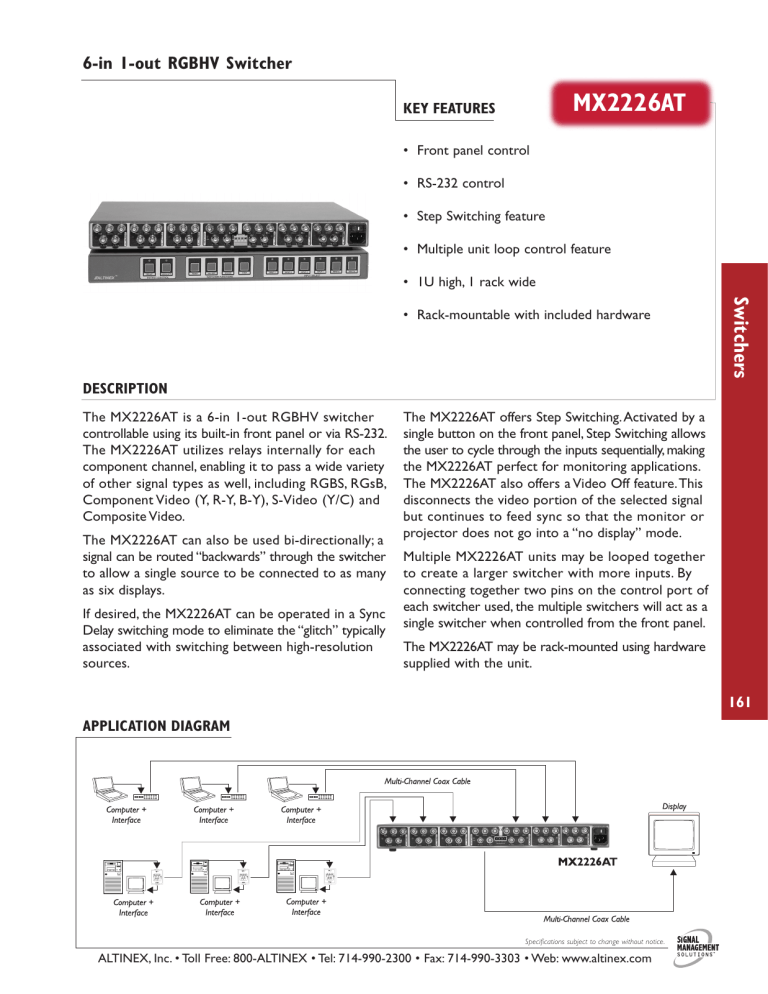

6-in 1-out RGBHV Switcher
MX2226AT
KEY FEATURES
• Front panel control
• RS-232 control
• Step Switching feature
• Multiple unit loop control feature
• 1U high, 1 rack wide
Switchers
• Rack-mountable with included hardware
DESCRIPTION
The MX2226AT is a 6-in 1-out RGBHV switcher
controllable using its built-in front panel or via RS-232.
The MX2226AT utilizes relays internally for each
component channel, enabling it to pass a wide variety
of other signal types as well, including RGBS, RGsB,
Component Video (Y, R-Y, B-Y), S-Video (Y/C) and
Composite Video.
The MX2226AT can also be used bi-directionally; a
signal can be routed “backwards” through the switcher
to allow a single source to be connected to as many
as six displays.
If desired, the MX2226AT can be operated in a Sync
Delay switching mode to eliminate the “glitch” typically
associated with switching between high-resolution
sources.
The MX2226AT offers Step Switching.Activated by a
single button on the front panel, Step Switching allows
the user to cycle through the inputs sequentially, making
the MX2226AT perfect for monitoring applications.
The MX2226AT also offers a Video Off feature.This
disconnects the video portion of the selected signal
but continues to feed sync so that the monitor or
projector does not go into a “no display” mode.
Multiple MX2226AT units may be looped together
to create a larger switcher with more inputs. By
connecting together two pins on the control port of
each switcher used, the multiple switchers will act as a
single switcher when controlled from the front panel.
The MX2226AT may be rack-mounted using hardware
supplied with the unit.
161
APPLICATION DIAGRAM
Specifications subject to change without notice.
ALTINEX, Inc. • Toll Free: 800-ALTINEX • Tel: 714-990-2300 • Fax: 714-990-3303 • Web: www.altinex.com
MX2226AT
6-in 1-out RGBHV Switcher
Switchers
Front Panel
Back Panel
SPECIFICATIONS
GENERAL
ELECTRICAL
Inputs: ........................................(6) 5-BNC Female
Output: .....................................5-BNC Female
Compatibility: ..........................RGBHV, RGBS, RGsB,
Component Video (Y, R-Y, B-Y), S-Video (Y/C), and
Composite Video. All channels utilize relays internally.
Video or Sync may be passed through Red, Green, Blue,
and/or Sync channels.
Input Video Signal:
Analog .................................-10V to +10V
(+/-10V p-p max.)
Impedance...........................75 Ohm (unselected inputs)
Input Sync Signal:
Composite Sync ................TTL (+/-), Analog 0.3-1.0V
Sync on Green ...................-0.3V
Impedance...........................pass-through
Output Video Signal:
Analog ..................................-10V to +10V
(+/-10V p-p max.)
Fall/Rise Time .....................1.9 ns
Impedance...........................75 Ohm (pass-through)
Output Sync Signal:
Composite Sync ................TTL (+/-), Analog 0.3-1.0V
(not buffered)
Sync on Green ...................-0.3V
Impedance...........................pass-through
Frequency Compatibility:
Horizontal...........................15-200 kHz
Vertical.................................30-190 Hz
Bandwidth ...........................400 MHz @ -3dB
Cross-talk ................................-48dB @ 10 MHz
(between adjacent inputs)
Coupling ...................................DC
Power .....................................90-140V/200-240V
Selectable
Power Consumption .............12 watts Max.
MECHANICAL
162
Width .........................................17.00 in .............432 mm
Height.........................................1.75 in................44 mm
Depth .........................................9.00 in................229 mm
Weight........................................5.2 lb. .................2.36 kg
Ship Weight ...............................7.4 lb. .................3.36 kg
Material......................................0.1” Al
Finish ..........................................Gray
Front/Back Panels....................Lexan
T° Operating ............................10°C-35°C
T° Maximum.............................50°C
Humidity....................................90% non-condensing
MTBF (calc.)..............................40,000 hrs
OPTIONAL ACCESSORIES
DA1292FC: Rack ears for single unit
(included with MX2226AT)
