Generic Energy Harvesting Adapter Module for

Generic Energy Harvesting Adapter Module for

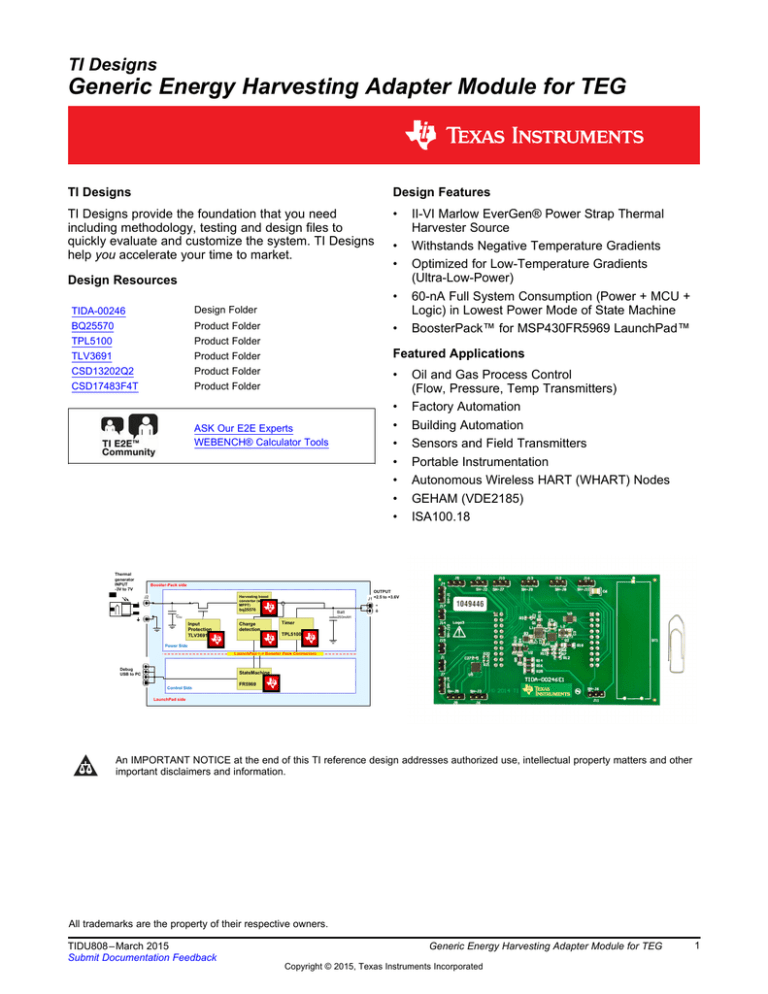

TI Designs
Generic Energy Harvesting Adapter Module for TEG
TI Designs
Design Features
TI Designs provide the foundation that you need
including methodology, testing and design files to
quickly evaluate and customize the system. TI Designs
help you accelerate your time to market.
•
•
•
Design Resources
•
II-VI Marlow EverGen® Power Strap Thermal
Harvester Source
Withstands Negative Temperature Gradients
Optimized for Low-Temperature Gradients
(Ultra-Low-Power)
60-nA Full System Consumption (Power + MCU +
Logic) in Lowest Power Mode of State Machine
BoosterPack™ for MSP430FR5969 LaunchPad™
TIDA-00246
BQ25570
TPL5100
Design Folder
Product Folder
Product Folder
•
TLV3691
CSD13202Q2
CSD17483F4T
Product Folder
Product Folder
Product Folder
Featured Applications
•
•
•
•
•
•
•
•
ASK Our E2E Experts
WEBENCH® Calculator Tools
Thermal
generator
INPUT
-3V to 7V
Oil and Gas Process Control
(Flow, Pressure, Temp Transmitters)
Factory Automation
Building Automation
Sensors and Field Transmitters
Portable Instrumentation
Autonomous Wireless HART (WHART) Nodes
GEHAM (VDE2185)
ISA100.18
Booster-Pack side
Harvesting boost
convertor (w/
MPPT)
J2
+
J1
OUTPUT
+2.5 to +3.6V
+
bq25570
Batt
CIN
250mAH
Input
Protection
TLV3691
Charge
detection
Timer
TPL5100
Power Side
LaunchPad <-> Booster Pack Connectors
Debug
USB to PC
StateMachine
Control Side
FR5969
LaunchPad side
An IMPORTANT NOTICE at the end of this TI reference design addresses authorized use, intellectual property matters and other
important disclaimers and information.
All trademarks are the property of their respective owners.
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
1
System Overview
1
www.ti.com
System Overview
The system described in this TI Design aims at solving the following challenges:
Table 1. TIDA-00246 Solutions
INDUSTRY CHALLENGE
1.1
TIDA-00246 SOLUTION
Diversity of harvesters types and performances
GEHAM electronic reference design
Energy harvesting designs requires full system power
optimizations
Full system (power, MCU with state machine, signal chain)
optimized to achieve power consumption as low as 130 nA
Thermoelectricity projects require multi-physics domain
collaboration
Reference design including thermal, mechanics and electronics
aspects
Key System Parameters
Table 2. Key System Parameters
PARAMETER
2
SPECIFICATION
VALUE
DETAILS
II-VI Marlow EverGen PowerStrap spec
80°C pipe, 20°C ambient — matched load
power is 350 mW
30 mW
Section 3.1
II-VI Marlow EverGen PowerStrap spec
120°C pipe, 20°C ambient — matched load
power is 870 mW
90 mW
Section 3.1
ΔTmin_OP
Min temp delta between cold and hot side for
positive energy generation
4 K (TBC)
Section 3.1
ΔTmin_Protection
Max negative temperature gradient where
system is protected
100 k
Section 3.4
ΔTmax
Max temperature gradient where energy is
harvested
130 k
Section 3.4
POUT
Average P generated
> PWHART_node
Section 2.4
Section 5.2
Autonomy
WHART capabilities from fully charged batter,
without any harvesting
8 days
Section 2.4
Section 3.6
IDEEP_SLEEP
Battery current drain when Vbat < UVLO
(including wake-up every 17 mn for sensing if
input power is restored)
60 nA
Section 3.2
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Theory of Operation
www.ti.com
2
Theory of Operation
While thermal energy harvesting has been known for decades, applications beyond space exploration
have started deployments only in the last decade. One area where this technology is of most practical
application is the oil and gas industry, especially in the case of heavy crude oils (API gravity < 10), where
steam can be injected to reduce viscosity and facilitate flows. As the steam is injected, it increases
significantly the gradient temperature, making energy harvesting possible.
This section will provide the following generic background information to facilitate the understanding of this
TI Design:
• Thermoelectricity
• Energy harvesting
• Ultra-low-power design guidelines
• Recent industry standards released to facilitate adoption of energy harvesting
2.1
2.1.1
Thermoelectricity
History
Thermal energy harvesting is based on the physical phenomenon known as the Seebeck effect. The
Seebeck effect, which was discovered in 1821 by T.J. Seebeck, is the physical effect by which some
materials under the effect of heat flux will generate free electrons (n-type) or absorb free electrons
(p-type). When n-types and p-types are connected, an electrical current is generated that is proportional to
the temperature difference between the hot side and the cold side.
NOTE: A pair of n-type and p-type makes a thermo-generator element. Thermo-generators can be
associated in series (to increase voltage) or parallel (to increase current).
Seebeck elements have been characterized as a function of their figure of merit: zT. zT is a dimensionless
measure of the efficiency of the material to convert heat flux to electricity and is defined in relation to the
efficiency of the thermogenerator: While there is no theoretical limit to zT, no known material of zT > 3 are
known and known with zT > 2 are in production.
While research for different materials with higher zT has been active since the discovery of
thermoelectricity, the most recent focus has been on improving the industrial process of connecting single
elements in different ways to improve the voltages and current capabilities of those thermogenerators. As
of today, three generations of thermogenerators are being discussed:
• Bulk (first generation): Multiple elements of typical sizes are approximately 1 mm and already in
production for decades based on material with zT ~ 0.9 (Bi2Te3). The assembly is automated.
• Thin-films (second generation): Elements are assembled using a semiconductor-related process,
allowing a much smaller size of elements (~10 s of μm). The materials are similar to first generation.
The first pre-series production started after 2010. Thin films usually put more elements in series and
hence generate higher output voltages but with a higher series resistance.
• Nanostructures (third generation): At the time of writing in 2014, this is still in the research phase but
focuses on bringing zT towards 3. This level of performances being enabled by a combination of new
materials and new structures (quantum dots, nanowires, lattices, and so on). This technology can be
considered as having a TRL between 5 and 7.
NOTE: For practical projects, the choice of the first two generations and the design decision is
guided by a compromise between cost and desired output voltage.
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
3
Theory of Operation
2.1.2
www.ti.com
Physics
Consider a thermogenerator with M pairs of P-N elements in series as described by Figure 1 and Figure 2:
Ambient side: Tamb
Radiator: RCA
Hot Side:
Temp = T H
L
N type
P type
A
Cold side: TC
Contact
Pads
TEG: RTEG
Cold Side:
Temp = T C
Thermal contact
(paste, «): RSH
Hot side: TH
Source side: Tsource
Figure 1. View of the TEG
Figure 2. View of the TEG in System With the Different
Thermal Resistances Highlighted
Each p-type and n-type material has a Seebeck coefficient (αp and αn, respectively,) and thermal
coefficient (kp and kn) and resistivity (Þp and Þn), and each element has a length L and cross section area
A (λ = L / A).
Define the average Seebeck coefficient:
a = ap - an
(1)
The electrical resistance of the thermoelectric generator (TEG) Rel-TEG made of an assembly of M pairs of
material, with contact pads is
L
é
ù
R el-TEG = M ´ ê rp + rn ´ + R C ú = M ´ él ´ rp + rn + R C ù
ë
û
A
ë
û
(
)
(
)
where
•
Rc is the resistance of the contact pads
(2)
In the following equations, this parameter will be neglected.
The open circuit output voltage is:
Voc = M ´ a ´ DT
where
•
•
Voc is the open circuit (in absence of load) voltage
ΔT is the temperature difference between the hot side and the cold side of the TEG
(3)
NOTE: The unloaded TEG output voltage varies linearly with the temperature difference.
4
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Theory of Operation
www.ti.com
The current flowing through a load Rload is
a DT
I= ´
1
R
1+
u
where
•
R is the electrical resistance of a single pair of n-type and p-type
u=
•
u is the ratio between the TEG internal impedance and the load:
R load
R TEG
(4)
This theoretical analysis does not consider the case where TEGs are set in parallel to increase the output
current. In that case, the previous equations need to be scaled by P, the number of parallel TEG.
While ΔT is TH-TC, TH and TC are not necessarily the temperature of the physical elements to which the
TEG is attached as the thermal resistance of the TEG needs to be taken into account.
NOTE: More specifically, in most cases a heat sink needs to ensure the temperature gradient across
the actual Seebeck material stays as high as possible.
While it would go beyond the scope of this introduction, those equations (except Equation 4) are valid only
under open circuit conditions. As soon as the current is allowed to flow from the TEG, the heat flow
through the TEG increases. For more details, refer to Energy harvesting for wireless sensors, Synergistic
analysis of thermoelectric devices, heat sinks and associated electronics for optimized energy harvesting
systems [2].
2.1.3
Theoretical Maximum TEG Efficiency
NOTE: A frequent topic of discussion is whether the efficiency of a TEG is "sufficient". This topic has
specifically not discussed as the only design criteria for this design is whether the TEG
produces enough energy for the system to be operated and whether this is done at an
economical point.
The maximum efficiency is a function of the Carnot efficiency (thermodynamic limit):
hmax =
DT
´
TH
1 + zT - 1
T
1 + zT + C
TH
zT = Thermoelectric figure of merit (dim ensionless) =
a2T
rk
DT
= Carnot efficiency (max imum possible theoretically)
TH
(5)
The simplifications to obtain this equation, which are also its limit of validity, are relatively small delta of
temperature. Under industrial operating conditions, this will always be the case.
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
5
Theory of Operation
2.1.4
www.ti.com
Maximizing System Efficiency
If a TEG is shorted, it will generate the maximum amount of current, but as no voltage will be on its output,
no power is available. Reciprocally, if the TEG is left open, the highest possible voltage will be available,
but as no current flows, no power is available.
The electrically available output power PELEC can be written as:
PELEC =
VOC2
u
´
RTEG (1 + u )2
(6)
N orm a lize d O u tp u t P o w e r V s Pm a x at Δ Tm a x
N orm a lize d O u tp u t P o w e r
1
0.8
0.6
0.4
0.2
0
0
1
2
3
Normalized R load / R TEG_elec
4
Figure 3. Normalized POUT Versus POUT_MAX
5
1
ΔT: 50
ΔT: 20
ΔT: 2
0.8
0.6
0.4
0.2
0
0
1
2
3
Normalized R load / R TEG_elec
4
5
Figure 4. Normalized POUT Versus POUT_MAX at ΔTMAX
Solving it numerically yields a maximum for u = 1, which can be expected when matching the internal
resistance with the load.
NOTE: To extract the maximum amount of energy, the load should be kept at the same value as the
TEG internal impedance (which can be difficult for reusing across multiple projects) or the
TEG output voltage should be kept at 50% of its open circuit voltage. Keeping VTEG at 50% of
VTEG-OC is much more easily achieved.
NOTE: The system achieves maximum efficiency when thermal impedances are matched. Refer to
Energy harvesting for wireless sensors, Synergistic analysis of thermoelectric devices, heat
sinks and associated electronics for optimized energy harvesting systems for more details
[2].
2.1.5
Negative Voltage Generation
Following Equation 3, if there is a negative temperature gradient (for example, if the side defined as "cold
side" becomes hotter than the side named "hot side") the TEG element will generated a negative voltage.
NOTE: In applications where negative temperature gradients can occur, few integrated circuits for
power management can withstand negative input voltages.
As such a case is industry dependent, protection against negative voltages is dependent on the target
end-application as the protection in itself would draw current and could reduce the overall efficiency of the
system without gains if this use case never occurs (controlled process environment with known
temperature side on the process side and controlled room temperature).
However, given the focus of this design for the oil and gas industry and because the steam used to reduce
the viscosity of some heavy oils can under some extreme cases be released at or near the radiator of the
harvester, a negative temperature gradient could be generated. Therefore, a protection circuitry will be
part of the design.
6
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Theory of Operation
www.ti.com
2.2
Impedance Matching (MPPT)
Impedance matching is also referred to in the literature as MPPT. Both aim at extracting the maximum
amount of energy from the source which has a varying impedance dependent on physical parameter
changes (ambient temperature change, delta temperature change, and so on).
The difference, which is often made explicit, is that impedance matching is more a static process while
MPPT is often used for a fast response loop (mostly for PV inverters).
The proper selection of an MPPT strategy must be correlated tightly to the speed of variations of the
impedance of the TEG and with the cost (in silicon as well as in power) associated with higher speed of
reactions to changes from the MPPT algorithms. A detailed study, which goes beyond the scope of this
paper, can be found in Energy comparison of MPPT techniques for PV Systems.
The most effective method for μW and mW power levels is dynamic tracking of fractional voltage method.
2.3
Efficiency Optimization
A key aspect of energy harvesting systems is that by nature the power source is a stochastic process.
While the average value can be well characterized and so its distribution over time, the instant value
cannot be predicted.
Resultantly, the following are the key parameters that should be determined by design:
• The average harvesting power must match or exceed the average system power
• System autonomy must be designed to address the time when the harvested energy is less than the
used one (either low input energy or no input energy)
NOTE: Take special attention to the corner case where no energy is available at the input to ensure
that the energy used by the power management is minimized until the input power source is
available again.
Assuming the TEG impedance is matched, a more visual way to see this is to write:
DT
´ RTEG - C ´ V 2 ´ f ´ V ´ I leak
Psystem = PTEG - Pdyn + Pstat = h ´ a ´
4
(
(
)
)
where
•
•
•
•
Psystem is the total power of the system (including power devices, microcontroller, logics, and so on)
η is the efficiency of the power conversion and for first order approximation we can lump the leakage current
of the power conversion with the leakage current of the digital logic
CV2 is the dynamic power, which scales squarely with the supply voltage
V × Ileak is the static power dissipation, which shows that the static power is proportional to the supply
voltage
(7)
Therefore, optimizing the system power leads to:
1. Reducing the supply voltage to the minimum needed to get the processing performances
2. Removing the leakage current of unneeded peripherals (load switch either integrated or discrete)
While scaling dynamically the voltage to the computing performances might be still unrealistic for
low-power systems, an often overlooked and easily achieved optimization is to add a power regulation
between the storage element and the microcontroller to reduce the power dissipation. The application note
Using power solutions to extend battery life in MSP430 applications details the reasons for which an extra
power stage will decrease the overall power consumption, which can be summarized with Equation 8:
(
)
Vsupply ´ I MCU > Vsupply ´ Iq _ LDO + Vsupply - Vout _ LDO ´ I MCU + Vout _ LDO ´ I MCU
(8)
Given the range of power consumption from systems in a few hundreds of μA for active MCU, and recent
introduction of DC-DC the above can be further optimized with usage of DC-DC with ultra-low leakage
current, which becomes
Vsupply ´ I MCU > Vsupply ´ I q _ DCDC + Vout _ DCDC ´ I MCU
(9)
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
7
Theory of Operation
2.4
www.ti.com
WHART Power Needs
There are multiple ways to determine WHART network power consumption needs. One could look at the
physical network setup, the frequency of update, or the depth of the network (between the deepest sensor
and the gateway), which was done extensively in A Simulation Model for the Performance Evaluation of
WirelessHART TDMA Protocol [17]; however, it still remains difficult to model actual network conditions.
Alternatively, look at existing products guaranteed lifetime and the battery they embed. Looking at existing
products on the market [9] [10] [11], they have a 19-Ah battery for an average of operation time of five
years. A simple calculation gives that an average WHART node consumes: PWHART_node ~ 3 mW
This average power consumption is also the target for the ISA100.18 working group [1].
2.5
GEHAM – VDE2185
Wir verbinden Kompetenz is the standard from the German industry specifying "requirements and
specifications for power supply solutions based on batteries and energy harvesting" for industrial systems
[16].
The standard specifies requirements for battery (primary or rechargeable) powered radio-communicating
systems but also for a "Generic Energy Harvesting Adapter Module" (GEHAM).
The standard specifies that the GEHAM should be mechanically compatible with existing batteries as well
as electrically compatible (3.6 or 7.2 V).
The GEHAM is a system made of harvesters, batteries, electronics, and mechanics that abstract the
variability of harvester to provide a common interface to the electronics (similar to classical batteries).
Sensor 1
Analog to
Digital
Sensor 1
Microcontroller
averaging, linearisation,
diagnostic,
communication, ...
Sensor N
Analog to
Digital
Microcontroller
RF
communication
Reference
averaging, linearisation,
diagnostic,
communication, ...
Sensor N
RF
communication
Reference
Power Management
Power Management
Battery
GEHAM: battery + electronics
External harvester (physically connected to GEHAM)
Figure 5. Traditional Wireless Sensor Transmitter Used
in the Industry
8
Figure 6. Sensor Transmitter With GEHAM as Defined by
VDE2185
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Theory of Operation
www.ti.com
2.6
Symbol for TEG
While TEG has been around for long time, they have rarely made it to schematics, so few tools and
electronic engineers are aware of the TEG symbol defined by EN60617:
Figure 7. TEG Symbol
To connect this symbol to the electronics, the author modified the symbol to expose connections, the
resulting symbol is:
Figure 8. TEG Symbol With Connections
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
9
Design
www.ti.com
3
Design
3.1
Harvester Selection
Given the multiple aspects listed in Section 2, the TEG harvester for a GEHAM reference design for oil
and gas industry needed to have the following specification:
• Required:
– First generation (bulk type) for reliability (with historical data) and broad availability
– Strong mechanical and thermal design to help the design to focus on electronics
• Recommended:
– Existing field testing results giving average and standard deviation temperature gradients
Given this criteria, only one harvester was found, the II-IV Marlow EverGen PowerStrap, with the following
characteristics:
• Renewable power source addresses costs, maintenance, and disposal associated with battery
replacement of wireless sensors
• Five-minute installation
– Single bolt tightening
• Electrical storage as safe (or safer) as most existing batteries
– Actually classified as safer for transportation — not subject to DGR shipping requirements
– Long operating lifetime, long shelf life, extremely high cycling capability
• Operational in all geographic locations (pervasive)
• Harvester storage capable of operating transmission for more than two weeks with zero ΔT at eightsecond update rate. Storage capacity may be scaled up for longer holdup
• Low and high voltage protection circuitry
• Regulated voltage output to protect the sensor and transmitter
• Configurable for vertical and horizontal pipes of all standard pipe diameters
• High volume manufacturing by II-VI Marlow in Vietnam
– Designed for economical manufacturing
Figure 9. II-VI Marlow EverGen PowerStrap
10
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Design
www.ti.com
3.2
Integrated Circuits Selection
For the power management, the bq25570 was selected as it addresses the following needs, which were
highlighted in Section 2:
Table 3. Selection Criteria for Power Management IC
CRITERIA
bq25570 VALUES
High-efficiency at input power between 100 nW and > 100 mW
Up to 90%
Higher than 70% from 60-µW input power
MPPT (while achieving the above target)
YES
Low input voltage (compatible with TEG voltages)
Input voltage as low as 100 mV
Buck conversion to address the need for limiting the operating
voltage to the minimum needed
YES
Low quiescent current when not active
5 nA in ship mode at 25°C
< 30 nA over full temperature range
Addressing the need for ultra-low leakage current in standby mode, the two industry leading devices were
selected:
Table 4. Selection Criteria for Digital
CRITERIA
VALUES
MSP430FR5969 in LPM4.5
(can be woken-up from asynchronous interrupts)
80 nA at 85°C
(20 nA at 60°C)
TPL5100
30 nA
The decision to go to the lowest power mode Deep_Sleep is taken when there is no more input power (no
temperature gradient) and when the battery is too low.
Because the input voltage can go negative, a load switch is built to protect the input of the power
management. To minimize the power taken by this load with the following goals are set:
• Built with discrete to minimize power consumption
• Designed to be a "normally open" switch (selection of NFET low RDS(on) and low threshold voltage
(VGS(th)): selected CSD13202Q2 which has VGS(th) of 0.8 V and RDS(on) of 9.1 mΩ (at VGS
of 2.5 V)
• Power can be removed when not needed (to optimize power consumption)
• Uses best in class comparators for power consumption: TLV3691 (Iq: 75 nA)
To be able to take the decision to switch the different power rails on or off based on the input power, two
options are possible:
1. Monitor the input voltage
2. Monitor the charge of the battery
Given the fact that the input voltage could be negative and that offsetting the voltage would burn power,
the monitoring of the battery charging was decided. For this, a low gate charge transistor was selected
and used in a "pulse stretching" topology to enable the detection of the pulse by the MSP430.
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
11
Design
3.3
www.ti.com
Design Overview
Figure 10 through Figure 12 describe the design:
Thermal
generator
INPUT
-3V to 7V
Booster-Pack side
Harvesting boost
convertor (w/
MPPT)
J2
+
J1
OUTPUT
+2.5 to +3.6V
+
bq25570
Batt
CIN
250mAH
Input
Protection
TLV3691
Charge
detection
Timer
TPL5100
Power Side
LaunchPad <-> Booster Pack Connectors
Debug
USB to PC
StateMachine
FR5969
Control Side
LaunchPad side
Figure 10. Overview of GEHAM for II-VI Marlow TEG Reference Circuit
12
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Design
www.ti.com
No power
Insertion of battery
In the factory, then stored on
shelves before shipping
Commissionning at the final
customer
Ship mode
(RF link (TSMP): OFF,
MCU: OFF,
Power: OFF)
Charging
(RF link (TSMP): ON, MCU:
synchronous wake-up/RTC,
Power: ON
Deep_Sleep
(RF link (TSMP):OFF, MCU:
LPM4.5 (wake-up by
TPL5100),
Power: OFF (wake-up by
MSP430)
Pin>0
Input power too low for charging
Small_Sleep
Vbatt<UVLO
(RF link (TSMP): ON, MCU:
LPM3.5,
Power: OFF
System powered
Figure 11. Overview of Different States from TIDA-00246
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
13
Design
www.ti.com
Deep_Sleep_0
(RF link (TSMP):OFF, MCU:
LPM4.5 (wake-up by
TPL5100),
Power: OFF (wake-up by
MSP430)
TPL5100 wake-up event (HW
settable from 16s to 15mn)
Deep_Sleep_1
(RF link :OFF,
MSP430: Active
Power: OFF)
MSP430 ack
TPL5100, lowers
bq25570:EN, goes
to LPM4.5
Charging
(RF link (TSMP): ON, MCU:
synchronous wake-up/RTC,
Power: ON
MSP430 raises EN from
bq25570 and enables charging
detection circuit
MSP430 timer expires before
charging detection circuit
reports charging pulses
Deep_Sleep_2
(RF link :OFF,
MSP430: LPM3.5
Power: ON)
MSP430 receives charging
notification (deglitched)
Deep Sleep
Figure 12. Details of the Deep_Sleep State of TIDA-00246
14
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Design
www.ti.com
The system is considered to have three main states:
• Active
– In this state, the bq25570 charges the battery and the full system makes regular measurement and
reporting values over WHART as its configuration demands.
• Small_Sleep (shorter name for Active and Not_Charging)
– In this state, the system is also making measures and radio communication but the battery is not
charging. Because the battery is not charging, the bq25570 is disabled to allow reducing even
further the drain from the battery (from the range of 445 to 900 nA down to 1 to 30 nA)
Table 5. bq25570 Quiescent Current in Different Modes
PARAMETER
TEST CONDITIONS
EN = 0, VOUT_EN = 1 - Full operating mode
IQ
EN = 0, VOUT_EN = 0 - Partial standby mode
EN = 1, VOUT_EN = × - Ship mode
TIDU808 – March 2015
Submit Documentation Feedback
VIN_DC = 0 V; VSTOR = 2.1 V;
TJ = 25°C
MIN
TYP
MAX
488
700
VIN_DC = 0 V; VSTOR = 2.1 V;
–40°C < TJ < 85°C
VIN_DC = 0 V; VSTOR = 2.1 V;
TJ = 25°C
900
445
VBAT = 2.1 V; –40°C < TJ < 85°C;
VSTOR = VIN_DC = 0 V
615
nA
VIN_DC = 0 V; VSTOR = 2.1 V;
–40°C < TJ < 85°C
VBAT = 2.1 V; TJ = 25°C;
VSTOR = VIN_DC = 0 V
UNIT
615
1
5
30
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
15
Design
www.ti.com
•
Deep_Sleep
– In this state, the battery is below the UVLO and the system is not measuring nor communicating
through radio. It has entered the state of lowest power consumption with MSP430FR5969 in
LPM4.5, and the MSP430 is woken-up by the TPL5100 every 1024 seconds (which is 17 minutes).
– Also in this state, all components other than MSP430FR5969 and TPL5100 are disabled leading to
a battery current drain of 130 nA where the MSP430FR5969 will monitor conditions at the input of
the bq25570 (enabling briefly the bq25570, the AFE circuitry and the sensing). If the battery is
charging, it will let the system try to recover. If the battery is not charging, it will set the entire
system back to sleep and wait for another 17 minutes to do the same procedure.
• 80 nA (MSP430FR5969_LPM4.5_SVSOFF) + 50 nA (TPL5100)
Table 6. MSP430 Lowest Power Consumption
PARAMETER
ILPM4.5
(1)
Low-power mode 4.5,
excludes SVS (1)
VCC
–40°C
TYP
MAX
25°C
TYP
60°
MAX
TYP
85°C
MAX
TYP
2.2 V
0.02
0.02
0.02
0.08
3.0 V
0.02
0.02
0.02
0.08
MAX
UNIT
0.35
µA
Low-power mode 4.5, excludes SVS test conditions:
Current for brownout is included. SVS is disabled (SVSHE = 0). Core regulator is disabled.
PMMREGOFF = 1, CPUOFF = 1, SCG0 = 1 SCG1 = 1, OSCOFF = 1 (LPMx.5),
fXT1 = 0 Hz, fACLK = 0 Hz, fMCLK = fSMCLK = 0 MHz
Table 7. TPL5100 Power Consumption
SYMBOL
IVDD
(1)
(2)
(3)
16
PARAMETER
Supply current (3)
TYP (2)
MAX (1)
UNIT
PGOOD=VDD
30
50
nA
PGOOD=GND
12
CONDITIONS
MIN (1)
nA
Limits are specified by testing, design, or statistical analysis at 25°C. Limits over the operating temperature range are specified
through correlations using statistical quality control (SQC) method.
Typical values represent the most likely parametric norm as determined at the time of characterization. Actual typical values may
vary over time and will also depend on the application and configuration. The typical values are not tested and are not ensured
on shipped production material.
Typical values represent the most likely parametric norm as determined at the time of characterization. Actual typical values may
vary over time and will also depend on the application and configuration. The typical values are not tested and are not ensured
on shipped production material.
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Design
www.ti.com
3.4
bq25570 Overview
3.4.1
Features
•
•
•
•
•
•
Ultra-low power DC-DC boost charger
– Cold-start voltage: VIN ≥ 330 mV
– Continuous energy harvesting from VIN as low as 100 mV
– Input voltage regulation prevents collapsing high impedance input sources
– Full operating quiescent current of 488 nA (typical)
– Ship mode with < 5 nA from battery
Energy storage
– Energy can be stored to re-chargeable li-ion batteries, thin-film batteries, super-capacitors, or
conventional capacitors
Battery charging and protection
– Internally set undervoltage level
– User programmable overvoltage levels
Battery good output flag
– Programmable threshold and hysteresis
– Warn attached microcontrollers of pending loss of power
– Can be used to enable or disable system loads
Programmable step down regulated output (buck)
– High Efficiency up to 93%
– Supports peak output current up to 110 mA (typical)
Programmable maximum power point tracking (MPPT)
– Provides optimal energy extraction from a variety of energy harvesters including solar panels,
thermal and piezo electric generators
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
17
Design
www.ti.com
3.4.2
Applications
•
•
•
•
•
•
•
•
•
•
Energy harvesting
Solar chargers
TEG harvesting
Wireless sensor networks (WSN)
Low-power wireless monitoring
Environmental monitoring
Bridge and structural health monitoring (SHM)
Smart building controls
Portable and wearable health devices
Entertainment system remote controls
Table 8. Device Information (1)
(1)
PART NUMBER
PACKAGE
BODY SIZE (NOM)
bq25570
VQFN (20)
3.50 × 3.50 mm
For all available packages, see the orderable addendum at the end of the datasheet.
Typical Application Schematic
Charger Efficiency versus Input Voltage
100
CSTOR
CBYP
+
90
BAT
80
VOC_SAMP
CIN
70
LBOOST
VREF_SAMP
LBUCK
Boost
Controller
+
VSS
VSTOR
COUT
Buck
Controller
MPPT
VIN_DC
L2
VOUT
CREF
-
ROV2
ROK3
OK_HYST
VBAT_OK
VBAT_OV
GPIO3
30
VSTOR = 2.0 V
VSTOR = 3.0 V
VSTOR = 5.5 V
0
0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8 3
OK_PROG
VOUT_EN
VRDIV
GPIO2
40
10
Nano-Power
Management
Host
EN
50
20
Cold Start
VBAT
GPIO1
System
Load
IIN = 100 PA
60
VSS
VOUT_SET
Solar
Cell
VBAT
Efficiency (%)
L1
VSTOR
Input Voltage (V)
bq25570
ROUT2
ROK2
ROV1
ROUT1
ROK1
3.4.3
Description
The bq25570 device is specifically designed to efficiently extract microwatts (µW) to milliwatts (mW) of
power generated from a variety of high output impedance DC sources like photovoltaic (solar) or TEGs
without collapsing those sources. The battery management features ensure that a rechargeable battery is
not overcharged by this extracted power, with voltage boosted, or depleted beyond safe limits by a system
load. In addition to the highly efficient boosting charger, the bq25570 integrates a highly efficient, nanopower buck converter for providing a second power rail to systems such as WSNs, which have stringent
power and operational demands. All the capabilities of bq25570 are packed into a small foot-print 20-lead
3.5×3.5-mm QFN package (RGR).
18
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Design
www.ti.com
3.4.4
bq25570 MPPT Scheme
The bq25570 employs an MPPT known as the dynamic tracking of fractional voltage method. Dynamic
means that the open circuit voltage is regularly sampled (16 seconds for the bq25570) and the input
current is limited to ensure the input voltage of bq25570 stays above the defined fraction of the open
circuit voltage (50% in the case of TEG).
The bq25570 provides a predefined setting for TEG, allowing the VOC_SAMP to be grounded to reduce
the component count and set the ratio to 50%.
Table 9. Bias and MPPT Control Stage Characteristics
PARAMETER
TEST CONDITIONS
VOC_SAMPLE Time period between two MPPT samples
VOC_STLG
Setting time for MPPT sample measurement
of VIN_DC open circuit voltage
Device not switching
MIN
TYP
MAX
UNIT
16
s
256
ms
Table 10. VOC_SAMP Pin Function
PIN
3.4.5
NAME
NO.
VOC_SAMP
3
I/O
1
DESCRIPTION
Sampling pin for MPPT network. Connect to VSTOR to sample at 80% of input source open circuit
voltage. Connect to GND for 50% or connect to the mid-point of external resistor divider between
VIN_DC and GND.
bq25570 State Machine
The state machine of the bq25570 with respect to battery protection and usage of VBAT_OK is best
explained in the bq25570 user's guide [8]:
"To further assist users in the strict management of their energy budgets, the bq25570 toggles a user
programmable battery good flag (VBAT_OK), checked every 64 ms, to signal the microprocessor when
the voltage on an energy storage element or capacitor has risen above (OK_HYST threshold) or
dropped below (OK_PROG threshold) a pre-set critical level. To prevent the system from entering an
undervoltage condition or if starting up into a depleted storage element, it is highly recommended to
isolate the system load from VSTOR by 1) setting VBAT_OK equal to the buck converter's enable
signal VOUT_EN and 2) using an NFET to invert the BAT_OK signal so that it drives the gate of PFET,
which isolates the system load from VSTOR."
The scope of this design is to further enhance the capabilities of the bq25570 state machine and system
level efficiencies by allowing the system to reduce its battery drain when the battery is not charging by
disabling the bq25570. To allow the system to still be operational the control logic has to be powered
directly on the VBAT node and draw current in the order of magnitude of the self-discharge of the battery
since the UVLO protection of the bq25570 cannot operate on loads connected in parallel to the battery.
Those details are explained in Section 3.3.
3.4.6
bq25570 PCB Settings
To facilitate the PCB design of the bq25570, a configuration tool [7] has been made available to identify
the different resistance sets needed to configure the bq25570.
Given the objectives VBAT_OV = 3.7 V:
VBAT_OK = 2.5 V, VBAT_OK_HYST = 2.6, VOUT = 2 V
The excel sheet with all values is also available as a collateral and can be downloaded as
"TIDA-00246_collateral_bq25570Configurator.xls" found at TIDA-00246.
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
19
Design
Front-End Protection
By pass jumper (Normally Open)
1
2
J15
TEG_VP_PROT
3.5
www.ti.com
Q3
VTEG_COMP
5,6,8
1,2,
4,7
3
AFE_3.6V
R10
10.0M
CSD13202Q2
R4
5
6.81M
3
VTEG_COMP
1
U2
TLV3691IDCK
R5
4.53M
V+
GND
4
2
VGND_COMP
AFE_3.6V
GND_EH
GND_EH
R14
6.81M
VGND_COMP
R25
10.0M
R16
4.53M
GND_EH
Figure 13. Front-End Protection Schematic
When it comes to reverse polarity protection, there are a few possible options:
• Passive full-wave rectifier
• Active full-wave rectifier
• Bi-stable relays
• Switch
The key parameters to consider when designing the protection are:
• How much above and below the max ratings of the selected IC is the input voltage going
• How fast the input voltage is going above the max ratings
• How often the input voltage is going beyond the max ratings of the IC
In this case, given the forward voltage, the diodes introduced in the option of the passive full-wave rectifier
would significantly impact the energy harvested as it would reduce the ΔT from which energy would be
harvested and would also reduce the total efficiency.
On the other hand, active rectification would add quiescent current, which would overall also reduce the
system efficiency.
Bi-stable relays are also a technical option for connecting the TEG to the input of the bq25570 but are
often considered cost prohibitive, so the relays were not designed in.
Given the thermal inertia of the radiator and more generally of any thermal system, the voltage would not
change "fast" to go out of range. Fast being much lower than say 10 kHz was the reason why an ultra-lowpower comparator like TLV3691 was selected.
For the switch, there are two options: series switch and shunt switch. A shunt switch is preferred when the
input voltage raises too high for the monitoring circuit. Given the system specs (7 VOC_MAX), a series switch
was selected as it is easier to protect against negative voltages.
20
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Design
www.ti.com
3.6
Charging Detection
According to Section 2, when there is no energy coming in the system, it is preferred to switch the
harvesting IC "OFF" to reduce the leakage. To this end, the MCU should be notified when energy is
flowing into the storage element to enable or disable the charging circuit.
3.6.1
Considered Options
To detect that the bq25570 is charging the battery, there are multiple options:
• Monitor the VSTOR voltage; however, this was dismissed as the battery could be charging yet have a
higher load and lead to wrong decisions.
• Monitor the input voltage; however, given the possibility of a negative voltage this option is dismissed
for this design. Also, because the design goal is to have a generic solution, voltage monitoring can be
misleading for photovoltaics harvester. The two reasons (negative voltage, low accuracy for
photovoltaics) being the reasons for not selecting this method for charging detection.
• Monitor the switch node and compare to the input voltage.
• Monitor the switch node and compare to the ground.
The key aspects when monitoring the switch node are:
• To remember that a boost convertor software node will be switching between GND (when the low side
switch is ON) and OUT (when the low side switch is OFF but the high-side is ON) see Figure 14.
• Also parasitic capacitance should be reduced to minimum.
• Comparators should be selected with high-bandwidth to ensure the minimum pulse width.
PWM
VIN
VDS(Q1)
IQ1
ID1
IL
V
tON
TP
Figure 14. Boost – Voltage and Current Waveforms
A quick calculation to estimate the pulse width leads to
1
1
Vout / Vin =
Û 1 - D = Vin / Vout ³
´ (1 - Dmax ) = Vin _ min / Vout _ max
1- D
Fs
(10)
This leads to the small burst width is 18 ns (Fs = 1 MHz, Vin_min = 100 mV, Vout_max = 5.5 V)
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
21
Design
www.ti.com
Considering that a GPIO from MSP430FR5969 can only see a pulse of 20-ns wide (see the
MSP430FR59xx datasheet [19]), a pulse stretcher topology was used, which offers the additional
advantage of significantly reducing the parasitic capacitance added to the software node, and given
bandwidth of pulse stretcher no further comparators are needed, the output is fed directly to the
MSP430FR5969.
Another parameter for such a pulse stretcher is to ensure that the additional power consumption is kept
low. To this effect, two things were done:
• The power of the pulse stretcher is taken from a GPIO to ensure that one the function is not needed,
no current will be drawn
• The R and C were designed to achieve minimum power consumption when running.
It was decided that the function when running should not take more than 300 nA when VBATT is at its
lowest (as higher power when the battery is charged is not so critical and also the circuit can be controlled
by MSP430 GPIO so integral power consumption is small).
Given I = CDV / DT , I = 300 nA, and DVmax = 2.5 and DT = 1/1 MHz
Û C = 300 nA ´ 1 mS / 2.5 V = 0.12 pF
(11)
To ensure that in steady state the voltage is settled, set 7 t = 7 × R × C = 1 µs
R ~ 1 MΩ
The FET was then selected to have the lowest gate charge.
Charge Detection Notification (Pulse Stretcher)
VCC_PulseStretcher
3.6.2
R3
10.0M
3
Charging
Q1
CSD17483F4T
C1
0.15pF
2
1
GND_EH
Figure 15. Charge_DETECT Schematic
22
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Design
www.ti.com
3.7
GEHAM and Selected Battery
Given the requirements for 3.6- or 7.2-V output, this design is set on a 3.6-V output.
Given the objective to provide a generic energy harvesting adapter module, the system should provide
voltages compatible with lithium-thionyle voltages. A lithium-thionyle battery typically operates in the 2.5to 3.7-V range so the same is targeted for this design.
The bq25570 was selected as it allows an additional rail to power low-power devices. For low-power
evaluations, a 2-V rail can be provided to facilitate evaluations of the most effective system setup, which
depends on application needs (either running more effectively from a 2-V rail the MCU and rest of system
but adding the quiescent of a 300-nA buck, or running from 3-V rail without the quiescent current of a
buck.
To
•
•
•
this end, the HLC-1550A battery was selected. Its features include:
Capacity when charge to 3.67 V, 560 A
Discharge end voltage 2.5 V (discharge below 2.5 V at RT may increase the HLC internal impedance)
Nominal capacity 560 As (155 mAh) at 3.6 V
Given an average power consumption of 3 mW, the autonomy of the system is:
3.6 V ´ 155 mAh
» 8 days
13 mW
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
(12)
23
Design
3.8
www.ti.com
Design for Test
To facilitate the test and characterization, the following features were added to the core functionality of the
design.
3.8.1
Design Identification
For forward compatibility, U5 is added to allow automatic identification of the BoosterPack added on top of
a launchpad. The MCU on the BoosterPack can read through I2C, the values of GPIO connected on the
U5 circuit, and know the unique ID of the design as well as the revision.
3.8.2
Signal Monitoring
The following headers are added to facilitate signal monitoring and configuration of the design:
• J1: Input voltage for the TEG
• J2: Interface to the LaunchPad
• J3: Interface to the LaunchPad
• J4: Power the LaunchPad from the BoosterPack (intended functionality)
NOTE: In this configuration, the LaunchPad power must be removed. Refer to the respective
LaunchPad documentation for removing appropriate jumpers.
•
•
•
•
•
•
•
•
•
•
•
24
J5: Power the launchpad from 5 V.
This function is only provided for forward compatibility and not intended to be used on this version
J6, J7, J8: I2C address settings for U5
J9: Control of the bq25570 enable signal either through hardware (connect J9:2 to J9:1 to enable) or
through GPIO from the LaunchPad (connect J9:2 and J9:3)
J10: Control of the buck integrated in the bq25770 either through jumpers or through GPIO from the
LaunchPad
J11: Jumpers to control the FE
J12: Jumpers enabling loads to be disconnected from the battery when the battery falls below the
UVLO level. To enable this functionality, connect a load ground to J12:2.
This jumper is in association to Q2, which will disconnect loads when VBATT_OK goes "LOW", when
VBATT_OK goes "HIGH" its RDS(on) is specified as 240 mΩ (under VGS = 2.5 V)
J13: Control of the charge detect functionality.
Connecting J13:2 with J13:1 allows the software to control if the function draws current or not (and
resultantly if the MSP430 will get interrupts when the bq25570 is charging the battery).
J14: Jumpers to connect or disconnect the charge notification to the MCU. This jumper can also be
used to monitor the signal "CHARGING"
J15: Jumpers to by-pass the front-end protection
J16: Jumpers to select the power source or power reserve of the system:
– If a power source is connected to J16:2, it can be used to control the system power consumption
– If J16:2 and J16:3 are connected together, the system is running from the battery
– if J16:2 and J16:1 are connected together, the system is running from the 10 µF (which allows to
see faster voltage changes than with the default 250-mAh battery).
J17: Allows to connect VSTOR to the 3.3-V rail from the rest of the system
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Design
www.ti.com
3.8.3
BoosterPack Setup
To allow rapid prototyping, the reference design is made to follow the electrical convention of
BoosterPacks, which allows different MCU (on the LaunchPad) to be tested.
For more details on BoosterPack, LaunchPad and Energia, TI rapid prototyping environment refer to:
• http://www.ti.com/tool/Energia
• http://www.ti.com/ww/en/launchpad/boosterpacks.html
• http://www.ti.com/ww/en/launchpad/launchpad.html
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
25
Layout Considerations
4
www.ti.com
Layout Considerations
The reference design features the following devices.
4.1
bq25570
For layout of the bq25570, follow the guidelines from the bq25570 datasheet.
4.2
TPL5100
For layout of the TPL5100, follow the guidelines from the TPL5100 datasheet.
4.3
MSP430FR5969
Pay special attention to the power supply decoupling and bulk capacitors recommendations from the
MSP430FR5969 datasheet.
4.4
TLV3691
For layout of the TLV3691, follow the guidelines from the TLV3691 datasheet.
26
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Verification and Characterization
www.ti.com
5
Verification and Characterization
5.1
Test Setup
5.1.1
Measuring TEG Impedance for Startup-Voltage Characterization
As detailed in Section 2.1, the impedance of the TEG is a key electrical characteristics. For a test setup to
characterize electrical performances, it is important to get a realistic figure for this impedance.
However, because Ohm meters usually inject a small amount of current in the load to measure the voltage
drop generated (or a small voltage and measuring the current) [18], this current will create a small ΔT
across the TEG, which will induce a small emf and cause bad readings.
To measure the RTEG-el, the following procedure is recommended by II-VI Marlow:
• Do not measure impedance with a DC resistance meter, you must use an AC resistance meter
• There should be no ΔT across the TEG (that is, heat source should be turned off); otherwise, the
output of the TEG will impact the resistance reading
Using an LCR Meter 4270, the electrical resistance of the II-VI Marlow TEG was measured at 10 Ω, which
is the expected value given the two elements in series each having a 5-Ω internal impedance.
5.1.2
Deep_Sleep Testing Jumpers Configuration
To test the Deep_Sleep enter and exit sequence, the following jumper configurations are needed:
To measure the system current consumption, the jumper settings are as follow (counter-clockwise from
the top right corner of the PCB):
• J16:2 (VBATT)→Connected to PSU to measure the current, emulate a battery being connected to the
system when no power is available at the input
• J12:3 (GND_EH)→Connect to the PSU to measure the current
• J13:1↔J13:2 to ensure that the "Charge Detection" is disabled through software
NOTE: J13:1 --- J3:20 --- BP11 - P1.3 - GPIO drive low.
•
J10:1 and J10:2 are connected to ensure bq25570 DC/DC is disabled (to reduce power), controlled by
GPIO. J10:1 = J2-9 = BP8 = P3.5, which is set high by software
Table 11. bq25570 Logic Level: VOUT_EN
PIN
•
NAME
NO.
VOUT_EN
6
I/O
I
DESCRIPTION
Active high digital programming input for enabling and disabling the buck converter.
Connect to VSTOR to enable the buck converter.
J9:2 and J9:3 are connected to ensure the bq25570 charging is disabled (to reduce power). J2:9 =
BP5 = P4.3 is set high by software
Table 12. bq25570 Logic Level: EN
PIN
NAME
NO.
EN
5
TIDU808 – March 2015
Submit Documentation Feedback
I/O
I
DESCRIPTION
Active low digital programming input for enabling and disabling the IC. Connect to
GND to enable the IC.
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
27
Verification and Characterization
•
•
www.ti.com
J5: Do not connect (not used with MSP-EXP430FR5969 as the board does not have a 5-V supply→J5
is left open)
J4:3 and J4:2 must be connected so the LaunchPad is powered from the BoosterPack VBATT node
CAUTION
The MSP430FR5969 on the LaunchPad is by default powered from the USB. In
this test setup, the device will be powered by the TIDA-00246 BoosterPack.
Carefully follow instructions from the MSP-EXP430FR5969 LaunchPad User's
Guide (SLAU535) on jumper settings needed for this configuration (see
Figure 16 for guidance).
Note that only removing the V+ and GND is not enough to isolate the target from the eZ-FET section as
the debug signals are driven from the eZ-FET section and thus the source power to the target.
BoosterPack Power
Configuration
J13
V+
J3
Bypass
Use
J2
J11
Charge
J10
Debugger
External
VCC
J12
GND
J9
J4
VCC
Measure
Current
GND
J5
GND
Target
MSP430FR5969
Device
MSP430FR5969
target and
BoosterPack
GND
J1
GND
VCC
Figure 16. LaunchPad Jumper Configurations
28
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Verification and Characterization
www.ti.com
•
•
•
•
•
•
J17: VSTOR; To be connected to 3V3 from PSU (for testing purposes only): J17:1 ↔ J17:2
Connect J14:1 and J14:2 (charge detect functionality; connect to avoid floating input on MSP430 as
J14:1 – J3:18 – BP12 – P1.4; input pull-down low)
J15: Front-end bypass; do not connect
J1: TEG input; do not connect as in Deep_Sleep. Do not have any TEG voltage present
J6, J7, J8: TIDA-identification. Do not leave floating → connect to GND
J11: Front-end; do not connect
CAUTION
If in possession of an E1 hardware, cut the traces from 3V3 to U5 to avoid the
U5 IC current consumption to be taken into account when measuring the
Deep_Sleep current consumption. Also, connect through the blue wire the
GND_EH and GND traces.
NOTE: To obtain representative numbers, do not connect scope probes to the PCB.
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
29
Verification and Characterization
5.1.3
www.ti.com
Board Enter and Exit Deep_Sleep – Test Code Validation – LaunchPad Only
J5
BP20-GND
U1
BP18
PJ.1/TDI13
PJ.3/TCK15
PJ.2/TMS/ACLK14
P4.1/A9 17
P4.0/A8 16
P4.3/A11 19
P4.2/A1018
P2.5/TB0.020
P2.6/TB0.121
TEST/SBWTCK22
P2.0/TB0.624
NMI/SBWTDIO/RST
23
BP19
BP17-TEST
BP16-RST
PJ.0/TDO12
BP15
P1.5/TB0.211
BP14
P1.4/TB0.110
BP13
P1.3/TA1.2 9
BP12
P4.7 8
BP11
P3.3/A15/C15 7
LaunchPad Header (right)
P3.2/A14/C14 6
MSP430FR5969RGZ
P3.1/A13/C13 5
P3.0/A12/C12 4
S2
P1.2/TA1.1 3
Y1
4 MHz (DNP)
Basic User Interface (right)
0
VCC
100n
C8
Crystals
Low Current Green
R4
10p10p
C4
27p (DNP)
LED2
390
32.7638 kHz, 7.0pF
Y4
C5 C6
C3
27p (DNP)
R6
49 PWPD
48 AVCC
P1.0/TA0.1/DMAE01
47 AVSS
46 PJ.5/LFXOUT
45 PJ.4/LFXIN
44 AVSS
43 PJ.7/HFXOUT
42 PJ.6/HFXIN
41 AVSS
40 P2.4/TA1.0
39 P2.3/TA0.0
38 P2.7
37 DVCC
P1.1/TA0.2 2
R5
0
Figure 17. MSP-EXP430FR5969 Schematic Highlighting P1.2 and BP19
30
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Verification and Characterization
www.ti.com
Testing of the functionality can be first tested on a LaunchPad only by slightly modifying one of the
MSP430FR5969 code example:
1. Open the "msp430fr59xx_lpm4-5_02.c" from the project named "Entering and waking up from LPM4.5
via P1.1 interrupt with SVS disabled"
Applying following software patch at
1) diff -r .\msp430fr59xx_lpm4-5_02\msp430fr59xx_lpm4-5_02.c .\TIDA00246_GoBackToDeepSleepTest.c
46c46,50
> // Credits: based on the LPM4.5 code demo from William Goh / Andreas Dannenberg
> //
> // TIDA-00246 DEMO - Entering and waking up from LPM4.5
> // via P1.1 interrupt (Launchpad S2)
> // or via P1.2 interrupt (WAKEUP from TIDA-00246)
50,51c54,57
> // LPM4.5 is correctly entered. Use a button S2 (or P1.1) on the
> // EXP board to wake the device up from LPM4.5. This will enable
--> // LPM4.5 is correctly entered.
> // Use a button S2 (or P1.1) on the EXP board
> // or wait for WAKEUP (P1.2) from the booster pack
> // to wake the device up from LPM4.5. This will enable
63c69,71
< // | P4.6|---> LED1 (MSP-EXP430FR5969)
--> // | |
> // | | ___ J6
> // | P4.6|--| |-> LED1 (MSP-EXP430FR5969)
65a74,80
> // | P1.2|<--- J5.19 = WAKEUP from BoosterPack (TIDA-00246BP)
> // | P1.3|---> BP11 = Charge Detect Enable (drive 'LOW' for DeepSleep)
> // | P1.4|<--- B12 = Charge Notification (no pull-down)
> // | P4.3|---> BP5 -> /EN bq25570 ( drive 'HIGH' to disable bq25570
> // | P3.4|---> BP8 -> VOUTEN bq25570 ( drive 'HIGH' to disable bq25570 buck DCDC)
> // | PJ.0|---> NOT CONNECTED ON PCB !?!?!!!!!!! -> BP17 >-J3:8------>DONE (tpl5100)
> // | P1.6|--->
-> BP15->J3:12---blue wire -> J3:8^
67c82
< // William Goh / Andreas Danneberg
--> // M. Chevrier
69c84
< // June 2014
--> // 2015/Feb/28
73a89,92
> #define TIDA00246 1 //we differentiate the case with TIDA-00246 BoosterPack
> #ifndef TIDA00246
> #define EXPMSP430FR5969 1 //from the case without TIDA-00246 as the MSP430 input need pullup / pull-down to not be floating
> #endif
74a94
>
75a96,98
> int i;
> int LPM45;
>
78,80c101,106
< // Configure GPIO
< P1OUT = 0; // Pull-up resistor on P1.1
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
31
Verification and Characterization
www.ti.com
< P1DIR = 0xFF; // Set all but P1.1 to output direction
-->
>
> // Determine cause for entering main()
> if (SYSRSTIV == SYSRSTIV_LPM5WU) {
> //we came here from LPM4.5
>
82,83c108,176
< P2OUT = 0;
< P2DIR = 0xFF;
-->
>
> // PJSEL0 = BIT4; // For XT1
> //
> // // Clock System Setup
> // CSCTL0_H = CSKEY >> 8; // Unlock CS registers
> // CSCTL1 = DCOFSEL_0; // Set DCO to 1MHz
> // CSCTL2 = SELA__LFXTCLK | SELS__DCOCLK | SELM__DCOCLK;
> // CSCTL3 = DIVA__1 | DIVS__1 | DIVM__1; // Set all dividers
> // CSCTL4 &= ~LFXTOFF;
>
>
> // Disable the GPIO power-on default high-impedance mode to activate
> // previously configured port settings. The oscillator should now start...
> // PM5CTL0 &= ~LOCKLPM5;
> LPM45=1;
>
>}
> else {
> LPM45=0;
>}
> /*
> After the wake-up from LPM4.5 the state of the I/Os are locked and remain unchanged until you
clear the
> LOCKLPM5 bit in the PM5CTL0 register.
> Do the following steps after a wake-up from LPM4.5:
> 1. Initialize the port registers exactly the same way as they were configured before the device
entered
> LPM4.5 but do not enable port interrupts.
> 2. Clear the LOCKLPM5 bit in the PM5CTL0 register.
> 3. Enable port interrupts as necessary.
> 4. After enabling the port interrupts the wake-up interrupt will be serviced as a normal interrupt.
> If a crystal oscillator is needed after a wake-up from LPM4.5 then configure the corresponding pins
and
> start the oscillator after you cleared the LOCKLPM5 bit.
> */
>
>
>
>
> // | P1.0|---> LED2 (MSP-EXP430FR5969
> // | |
> // | | ___ J6
> // | P4.6|--| |-> LED1 (MSP-EXP430FR5969)
> // | |
> // | | P1.1|<--- S2 push-button (MSP-EXP430FR5969)-interrupt MUST be enabled to wake-up from
LMP4.5
> // | P1.3|---> BP11 = Charge Detect Enable (drive 'LOW' for DeepSleep)
32
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Verification and Characterization
www.ti.com
> // | P1.4|---> BP12 = Charge Notification (no pull-down)
> // | P4.3|---> BP5 -> /EN bq25570 ( drive 'HIGH' to disable bq25570
> // | P3.4|---> BP8 -> VOUTEN bq25570 ( drive 'HIGH' to disable bq25570 buck DCDC)
> // | PJ.0|---> NOT CONNECTED ON PCB !?!?!!!!!!! -> BP17 >-J3:8------>DONE (tpl5100)
> // | P1.6|---> -> BP15->J3:12---blue wire -> J3:8^
>
>
>
> // P1.2 does not need a pull-up or pull-down as it is driven actively by TPL5100
> //below two lines not needed for application but added for testing to ensure the LaunchPad does not
have floating pins when measuring consumption of LP only before connecting BP
>
>
> // Configure GPIO, by default output low
> P1DIR = 0xFF ^ (BIT1|BIT2|BIT4); // Set all to output except P1.1, P1.2 P1.4
> P1OUT = (BIT1 |BIT2); // Set all GPIO to low except P1.1 and P1.2
> #ifdef TIDA00246
> P1REN = ( BIT1 | BIT4); // Enable pull for P1.1 and P1.4
> #endif
> #ifdef EXPMSP430FR5969
> P1REN = ( BIT1 | BIT4 | BIT2); // Enable pull for P1.1 and P1.4
> #endif
>
> P2OUT = 0;
> P2DIR = 0xFF;
85,96c178,186
< P3OUT = 0;
< P3DIR = 0xFF;
<
< P4OUT = 0;
< P4DIR = 0xFF;
<
< PJOUT = BIT4; // Set PJ.4 / LFXTIN to high
<
< // Determine whether we are coming out of an LPMx.5 or a regular RESET.
< if (SYSRSTIV == SYSRSTIV_LMP5WU) {
< PJSEL0 = BIT4; // For XT1
--> P3DIR = 0xFF; // all output
> P3OUT = BIT4; // all all low except P3.4, must be 'high' for bq25570 buck
>
> P4DIR = 0xFF; // all output
> P4OUT = BIT3; // all all low except P4.3, must be 'high' for bq25570 charger
> // P4OUT &= ~BIT6;
>
> PJDIR = 0xFFFF;
> PJOUT = 0; // keep xal 32k off
98,110c188,190
< // Clock System Setup
< CSCTL0_H = CSKEY >> 8; // Unlock CS registers
< CSCTL1 = DCOFSEL_0; // Set DCO to 1MHz
< CSCTL2 = SELA__LFXTCLK | SELS__DCOCLK | SELM__DCOCLK;
< CSCTL3 = DIVA__1 | DIVS__1 | DIVM__1; // Set all dividers
< CSCTL4 &= ~LFXTOFF;
<
< // Configure LED pin for output
< P1DIR |= BIT0;
<
< // Disable the GPIO power-on default high-importance mode to activate
< // previously configured port settings. The oscillator should now start...
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
33
Verification and Characterization
www.ti.com
< PM5CTL0 &= ~LOCKLPM5;
--> // Disable the GPIO power-on default high-impedance mode to activate
> // previously configured port settings
> PM5CTL0 &= ~LOCKLPM5;
112,132c192,236
< do {
< CSCTL5 &= ~LFXTOFFG; // Clear XT1 fault flag
< SFRIFG1 &= ~OFIFG;
< } while (SFRIFG1 & OFIFG); // Test oscillator fault flag
<}
< else {
< // Configure P1.1 Interrupt
< P1OUT |= BIT1; // Pull-up resistor on P1.1
< P1REN |= BIT1; // Select pull-up mode for P1.1
< P1DIR = 0xFF ^ BIT1; // Set all but P1.1 to output direction
< P1IES |= BIT1; // P1.1 Hi/Lo edge
< P1IFG = 0; // Clear all P1 interrupt flags
< P1IE |= BIT1; // P1.1 interrupt enabled
<
< P4OUT |= BIT6; // Turn on P4.6 (LED1) on EXP board
< // to indicate we are about to enter
< // LPM4.5
<
< // Disable the GPIO power-on default high-impedance mode to activate
< // previously configured port settings
< PM5CTL0 &= ~LOCKLPM5;
--> P1IES |= (BIT1|BIT2); // P1.1 and P1.2 Hi/Lo edge
> P1IFG = 0; // Clear all P1 interrupt flags
> P1IE |= (BIT1|BIT2); // P1.1 and P1.2 interrupt enabled
>
>
>
> // // Clock System Setup
> // CSCTL0_H = CSKEY >> 8; // Unlock CS registers
> // CSCTL1 = DCOFSEL_0; // Set DCO to 1MHz
> // CSCTL2 = SELA__LFXTCLK | SELS__DCOCLK | SELM__DCOCLK;
> // CSCTL3 = DIVA__1 | DIVS__1 | DIVM__1; // Set all dividers
> // CSCTL4 &= ~LFXTOFF;
>
>
>
> // do {
> // CSCTL5 &= ~LFXTOFFG; // Clear XT1 fault flag
> // SFRIFG1 &= ~OFIFG;
> // } while (SFRIFG1 & OFIFG); // Test oscillator fault flag
>
>
> if (LPM45==1){
> //we enter here because we exited LPM4.5: either SW2 or WAKE signal from TPL5100
> //so we toggle P1.6 = DONE signal to clear the TPL5100
> P1OUT |= BIT6;
> // P1OUT |=BIT6;
> // __delay_cycles(1);
> P1OUT &= ~BIT6; //we toggle P1.7 to indicate TPL5100 we are 'done'
> P4OUT |= BIT6; //we toggle P4.6 to indicate LPM4.5
>
> //
> // for (i=20;i>0;i--){
34
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Verification and Characterization
www.ti.com
> // P4OUT ^= BIT6; // P4.6 = toggle to show we woke-up from lpm4.5
> // __delay_cycles(1);
> // }
>}
> else{
> for (i=20;i>0;i--){
> P1OUT ^= BIT0; // P1.0 = toggle and
> P4OUT ^= BIT6; // P4.6 = toggle to show we just powered-up
> __delay_cycles(100000);
>}
>}
>
>
135,138c239,242
< PMMCTL0_H = PMMPW_H; // Open PMM Registers for write
< PMMCTL0_L &= ~(SVSHE); // Disable high-side SVS
< PMMCTL0_L |= PMMREGOFF; // and set PMMREGOFF
< PMMCTL0_H = 0; // Lock PMM Registers
--> PMMCTL0_H = PMMPW_H; // Open PMM Registers for write
> PMMCTL0_L &= ~(SVSHE); // Disable high-side SVS
> PMMCTL0_L |= PMMREGOFF; // and set PMMREGOFF
> PMMCTL0_H = 0; // Lock PMM Registers
140,147c244,248
< // Enter LPM4 Note that this operation does not return. The LPM4.5
< // will exit through a RESET event, resulting in a re-start
< // of the code.
< __bis_SR_register(LPM4_bits);
<
< // Should never get here...
< while (1);
<}
--> // Enter LPM4 Note that this operation does not return. The LPM4.5
> // will exit through a RESET event, resulting in a re-start
> // of the code.
> __bis_SR_register(LPM4_bits);
>}
149,154d249
< // Now blink the LED in an endless loop.
< while (1) {
< P1OUT ^= BIT0; // P1.0 = toggle
< __delay_cycles(100000);
<}
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
35
Verification and Characterization
www.ti.com
2. Use a wire to connect BP19 to VCC (BP1).
JTAG
TDO
TDI
TMS
JTAG
TCK
TEST
RST
RST
CTS_TARGETIN
RTS_TARGETOUT
TX_TARGETOUT
RX_TARGETIN
APPLICATION_UART
VCC
J4
J5
BP1-VCC
BP20-GND
BP7
26 P2.2/TB0.2
BP8
27 P3.4/TB0.3/SMCLK
BP9
28 P3.5/TB0.4/COUT
BP10
LaunchPad Header (left)
MSP430FR5969RGZ
PJ.1/TDI13
PJ.3/TCK15
P4.1/A9 17
P4.0/A8 16
P4.3/A11 19
P4.2/A1018
U1
PJ.2/TMS/ACLK14
BP6
25 P2.1/TB0.0
P2.5/TB0.020
BP5
P2.6/TB0.121
BP4
TEST/SBWTCK22
BP18
P2.0/TB0.624
BP19
BP3
NMI/SBWTDIO/RST
23
BP2
BP17-TEST
BP16-RST
PJ.0/TDO12
BP15
P1.5/TB0.211
BP14
P1.4/TB0.110
BP13
P1.3/TA1.2 9
BP12
29 P3.6/TB0.5
P4.7 8
30 P3.7/TB0.6
P3.3/A15/C15 7
31 P1.6/TB0.3
BP11
LaunchPad Header (right)
P3.2/A14/C14 6
Figure 18. LaunchPad Connectors and Connections Highlighted
3. Disconnect the cable between BP19 and BP1 and connect it to BP20 (that is, simulating a high-to-low
transition on P1.2).
4. The LED1 will start blinking RED.
36
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Verification and Characterization
www.ti.com
5.1.4
Measuring Power Consumption of Boards for Currents < 100 nA
Given the challenge to find test equipment which measures current below 100 nA, the following setup is
used:
• A PSU (E3631A) supplies 3.3 V.
• A resistor measured to be at 1 MΩ is put in series with V+.
• A HP34401A measures across the resistor the voltage drop.
NOTE: A wire is used to short the resistor to allow the system to power-up properly before the
current is measured.
Voltmeter
10 Power
Supply
DUT
Figure 19. Setup Used to Measure Current Below 100 nA
The test procedure is as follows:
1. Set power supply unit (PSU) to target voltage: 2.5 V.
2. Enable PSU outputs:
(a) Check that voltmeter has a reading < 1 mV (to ensure that the 1 MΩ is shorted so the inrush
current from all parasitic caps supply the board properly (to ensure the MSP430 boots properly)
(b) If the voltmeter was not shorted, set PSU voltage to 0, wait for 10 seconds (to ensure all parasitic
capacitors are discharge), and start again from Step 1.
3. Wait for one minute. To ensure that the inrush current is over, see Section 5.1.
4. Remove short from the voltmeter to be able to read voltage.
5. Read voltage from the voltmeter. Read multiple times to assess the noise in measurement.
6. Go back to Step 1 and increase the PSU voltage by 100 mV from the previous value.
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
37
Verification and Characterization
5.1.5
www.ti.com
Startup Voltage
When testing the startup voltage of the TIDA-00246, remember the system is designed to handle power
sources with limited capabilities.
CAUTION
If VIN_DC is higher than VSTOR and VSTOR is equal to VBAT_OV, the input
VIN_DC is pulled to ground through a small resistance to stop further charging of
the attached battery or capacitor. It is critical that if this case is expected, the
impedance of the source attached to VIN_DC be higher than 20 Ω and not a low
impedance source.
To have more representative results, an impedance in series with the power supply of value equivalent to
the impedance of the harvester should be placed.
For TEG, the impedance of the TEG should be measured as described in Section 5.1.1.
Should the impedance of the TEG be less than the recommended impedance, the maximum rating of the
bq25570 for input power is 510 mW, which must under no condition be exceeded.
Figure 20. Absolute Maximum Ratings
38
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Verification and Characterization
www.ti.com
5.1.6
Active Mode
The setup to measure the active mode is the same as the Deep_Sleep mode except that the software is
changed to enable the different functions.
• P1.3 drives the "Charge Detection Enable" is configured as output high\
• P1.4 is the input for the charge detect notification is configured as "INPUT" without pull-down or pull-up
as the signal is driven by the charge detect circuit
• P1.6 is by default output low and generates the "DONE" signal to acknowledge the "WAKE" signal
from TPL5100
• P3.4 is output "LOW" to enable the bq25570 charge functionality
• P4.3 is output "LOW" to enable the bq25570 DC/DC buck functionality
• The jumpers are set (order anti-clockwise on the PCB):
• VBATT supplied on J16:2 (3.3 V)
• GND on J12:3
• J13:2 and J13:1 are connected together to enable the control by the GPIO from MSP430
• J10:2 and J10:1 are connected together to enable the control by the GPIO from the MSP430 of the
bq25570 buck
• J9:2 and J19:1 are connected together to enable the control by the GPIO from the MSP430 of the
charging by the bq25570
• J5 is not connected
• J4 is not connected
• J17:1 and J17:2 are connected
• J14:1 and J14:2 are connected to allow the GPIO from MSP430 to be biased
• J15:1 and J15:2 are connected to by-pass the front-end
• J1:2 is connected to the TEG V+
• J1:1 is connected to the TEG V– (which is also connected to PSU GND)
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
39
Verification and Characterization
5.2
5.2.1
www.ti.com
Thermal Test Results
TEG Load Matching and Impedance Measurements
Figure 21 shows the theoretical values and the measured values for output voltage and output power.
Figure 21. TEG_Vout_Pout
40
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Verification and Characterization
www.ti.com
5.2.2
Thermal Data from II-VI Marlow
2.75
2.5
P o w e r (W a tts/S tra p )
2.25
2
4 mph Wind Speed
1.75
1.5
1.25
1
Static Air
0.75
0.5
0.25
-50
-40
-30
-20
-10
0
10
Ambient Temperature (°F)
20
30
40
Figure 22. Power Generation With Wind Speed
5.2.3
Field Measures from II-VI Marlow
Figure 23 is an extra month of characterization in open air conditions ran by II-VI Marlow showing that in
the hottest month of the year (when the ΔT is the smallest) an overall net increase of the power going into
the battery. The small dips are during the hottest hours of the day when the battery is supplying more
power than it is receiving. Nonetheless, it shows the total viability of a system that has a positive energy
balance even in worst case conditions in the field.
Figure 23. II-VI Marlow Field Testing
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
41
Test Results
www.ti.com
6
Test Results
6.1
Board Boot Timing Diagram
Figure 24 is one example of how the current varies over time, showing that every time the supply is varied
a long time needs to be waited for taking a representative measurement of the current consumption.
Figure 24. Current Response to 100-mV Step
As seen in the above plots, the current will slowly decay to its final value. This behavior is totally normal
but needs to be taken into consideration during any test procedure that uses the setup described in
Section 5.1.4.
The reason for this behavior is simply that there is a 1-MΩ resistor, which makes a RC circuit with the
10-μF capacitor mounted on the PCB of TIDA-00246 (C1 on top-right corner)
BT1
J16
3
2
1
61300311121
VBAT
GND_EH
C6
10µF
Figure 25. Schematic Extract Showing 10-μF Capacitor
42
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Test Results
www.ti.com
6.2
LaunchPad Only Power Consumption Measurement
Figure 26. Current Measurement for the LaunchPad at
–40°C With 2.5 and 3.6 V on 3.3-V Rail
6.3
Figure 27. Current Measurement for the LaunchPad at
85°C With 2.5 and 3.6 V on 3.3-V Rail
Power Consumption TIDA-00246 Booster Pack + MSP-EXP430FR5969
Following the setup in Section 5.1 and with a resistor measured at 0.917 MΩ, a voltage drop of 65 mV is
measured in series with the power supply.
Leading to an equivalent power consumption from the system in deep sleep of 76 nA at room
temperature.
Section 6.5 gives more statistical information about current consumption as a function of temperature and
voltage.
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
43
Test Results
6.4
www.ti.com
Scope Plot of System Exiting and Going Back to Deep_Sleep
When the system wake-up needs to be tested, the switch S2 can be used.
Figure 28. TIDA-00246 + MSP-EXP430FR5969, Exiting and Re-Entering Deep_Sleep
NOTE: Ch1: P4.6 (set to ‘LOW’ when exiting LPM4.5 and ‘HIGH’ just before entering LPM4.5)
CH3: P1.6 (DONE signal from MSP340 back to TPL5100)
44
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Test Results
www.ti.com
Figure 29. Complete Timing Diagram of Deep_Sleep Exit and Re-Entry
NOTE: Ch1: P4.6 (set to ‘LOW’ when exiting LPM4.5 and ‘HIGH’ just before entering LPM4.5)
Ch2: WAKE signal from TPL5100 (pin MOS_DRV)
CH3: P1.6 (DONE signal from MSP340 back to TPL5100)
Ch1 will go low after a few instructions of code. Using the cursors, the signal WAKE is low for 512 µs.
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
45
Test Results
6.5
www.ti.com
Current Consumption of System
This section gives an indication on eight boards of the current consumption of the system over
temperature and voltage supply.
The information is displayed using boxplot diagram, using the following convention:
IQR: inner quartile range
The box represents the first and third quartiles, with the red line the median (second quartile)
The whiskers are at 1.5 IQR
Any data not within the whiskers are plotted as individual dots.
IQR
Q1
Q3
Q1 >1.5 × IQR
Q3 + 1.5 × IQR
Median
>4
>3
>2
>2.698
>4
>3
>2
>1
15.73%
>4
>3
>2
>1
2
0.6745
>0.6745
24.65%
1
0
>1
50%
0
68.27%
0
3
4
2.698
24.65%
1
2
3
4
2
3
4
15.73%
1
Figure 30. Visual Explanation of Whiskers in Relation to Statistical Distribution
46
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Test Results
www.ti.com
6.5.1
At –40°C
Figure 31. Board Current Spread at –40°C and 2.5 V
6.5.2
Figure 32. Board Current Spread at –40°C and 3.6 V
At 25°C
Figure 33. Board Current Spread at 25°C and 2.5 V
TIDU808 – March 2015
Submit Documentation Feedback
Figure 34. Board Current Spread at 25°C and 3.6 V
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
47
Test Results
6.5.3
www.ti.com
At 85°C
Figure 35. Board Current Spread at 85°C and 2.5 V
Figure 36. Board Current Spread at 85°C and 3.6 V
The high number of outlier on the board 246LP1-BP109451 is due to the initial characterization software
not taking into account the current response to step voltage (see Section 6.1).
Because the average value was well inline with the other boards characterized, this data set was
maintained.
6.5.4
Summary
From the above characterization, it is clear that as expected while the voltage influences the leakage, the
dominant factor is temperature.
Assuming that the electronics for the GEHAM are not located on the pipe like the TEG, it is assumed that
the ambient temperature can estimated to 25°C and hence the average power consumption of the
GEHAM to be 70 nA.
48
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
Test Results
www.ti.com
6.6
Charging Detection Function
Figure 37 is a plot made at J14:on the jumper between J14:1 and J14:2.
NOTE: Because the probe used at a 10-MΩ impedance, the amplitude is 50% of the amplitude on
the PCB (given that R3 is a 10-MΩ resistor).
From Figure 37, it is clear that the MCU can see the signal and can react accordingly.
Figure 37. Snapshot of Charging Signal
6.7
Startup Voltage of Circuit
By monitoring the ChargeDetect signal and slowly increasing the VTEG voltage, the startup voltage is
measured at 75 mV.
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
49
Design Files
7
Design Files
7.1
Schematics
www.ti.com
To download the most recent schematics, see the design files at TIDA-00246.
7.2
Bill of Materials
To download the bill of materials (BOM), see the design files at TIDA-00246.
7.3
Layer Plots
To download the layer plots, see the design files at TIDA-00246.
7.4
Altium Project
To download the Altium project files, see the design files at TIDA-00246.
7.5
Gerber Files
To download the Gerber files, see the design files at TIDA-00246.
8
Lexicon
Seebeck coefficient: The physical measure of the magnitude of the voltage induced by a temperature
gradient.
Thermoelectric generator (TEG): The physical artifact made from the assembly of multiple pairs of p-type
and n-type thermo-elements with the aim to provide power to a sub-system from an existing temperature
gradient.
Technology readiness level (TRL): A scale used to estimate the maturity of a technology and its
applicability for industrial projects. The scale starts at 1 with basic research and ends at 9 when being
used in systems being mass produced.
50
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
TIDU808 – March 2015
Submit Documentation Feedback
References
www.ti.com
9
References
1. ISA, Roy Freeland, Practical Power Solutions for Wireless Sensing (PDF)
2. Energy harvesting for wireless sensors, Synergistic analysis of thermoelectric devices, heat sinks and
associated electronics for optimized energy harvesting systems, Robin McCarty, II-VI Marlow White
paper
3. IEEE, Hal Edwards, Jeff Debord, Toan Tran, Dave Freeman, and Ken Maggio, Performance metrics
for thermoelectric energy harvesting studied using a novel planar 65 nm silicon CMOS-based
thermopile, SENSORS, 2013 IEEE; 3–6 Nov. 2013
(http://ieeexplore.ieee.org/xpls/icp.jsp?arnumber=6688611)
4. Marlow Industries, Joshua Moczygemba, Energy harvesting TEG Power Strap for Industrial, Chemical,
Oil and Gas Applications (PDF)
5. Marlow Industries, Joshua Moczygemba, Converting waste heat into electrical energy (PDF)
6. IEEE, Jim Bierschenk, Optimized Thermoelectrics for Energy Harvesting Applications (PDF)
7. bq25505 and bq25570 Design Files (SLUC484)
8. Texas Instruments, User's Guide for bq25570 Battery Charger Evaluation Module for Energy
Harvesting, bq25570 User's Guide (SLUUAA7)
9. Emerson Process Management, SmartPower™ Solutions, Quick Start Guide (PDF)
10. Pepperl+Fuchs, W-BAT-B2-Li Battery (PDF)
11. Endress+Hauser, WirelessHART Adapter SWA70 Technical Information (PDF)
12. IEEE, J. Rodriguez, K. Remack, J. Gertas, L. Wang, C. Zhou, K. Boku, J. Rodriguez-Latorre,
Reliability of Ferroelectric Random Access memory embedded within 130nm CMOS, Reliability
Physics Symposium (IRPS), 2010 IEEE International, Vol. May 2010, pp.750–758
(http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=5488738)
13. WSEAS Transactions On Power Systems, Energy comparison of MPPT techniques for PV Systems,
Roberto Faranda, Sonia Leva, Issue 6, Vol. 3, June 2008 (PDF)
14. EU PVSEC, A Study Of Dye Sensitized Solar Cells under Indoor and Low Level Outdoor Lighting:
Comparison to Organic and Inorganic Thin Film Solar Cells and Methods to Address Maximum Power
Point Tracking, Nagarajan Sridhar1 and Dave Freeman, EU PVSEC Proceedings 2011,
(http://www.eupvsec-proceedings.com/proceedings?paper=13959)
15. Texas Instruments, Michael Day, Using power solutions to extend battery life in MSP430 applications,
Technical Brief (SLYT356)
16. VDI The Association of German Engineers (www.vdi.eu/2185)
17. A Simulation Model for the Performance Evaluation of WirelessHART TDMA Protocol, Osama Khader,
Andreas Willig, and Adam Wolisz, Technical University Berlin, Telecommunication Networks Group,
Berlin May 2011 (PDF)
18. Keithley, Low Level Measurements Handbook: Precision DC Current, Voltage, and Resistance
Measuments, 7th edition (PDF)
19. Texas Instruments, MSP430FR59xx Mixed-Signal Microcontrollers, MSP430FR59xx Datasheet
(SLAS704)
10
About the Author
MATTHIEU CHEVRIER is a systems architect at Texas Instruments, where he is responsible for defining
and developing reference design solutions for the industrial segment. Matthieu brings to this role his
extensive experience in embedded system designs in both hardware (power management, mixed signal,
and so on) and software (such as low level drivers, RTOS, and compilers). Matthieu earned his master of
science in electrical engineering (MSEE) from Supélec, an Ivy League university in France. Matthieu holds
patents from IPO, EPO, and USPTO.
TIDU808 – March 2015
Submit Documentation Feedback
Generic Energy Harvesting Adapter Module for TEG
Copyright © 2015, Texas Instruments Incorporated
51
IMPORTANT NOTICE FOR TI REFERENCE DESIGNS
Texas Instruments Incorporated ("TI") reference designs are solely intended to assist designers (“Buyers”) who are developing systems that
incorporate TI semiconductor products (also referred to herein as “components”). Buyer understands and agrees that Buyer remains
responsible for using its independent analysis, evaluation and judgment in designing Buyer’s systems and products.
TI reference designs have been created using standard laboratory conditions and engineering practices. TI has not conducted any
testing other than that specifically described in the published documentation for a particular reference design. TI may make
corrections, enhancements, improvements and other changes to its reference designs.
Buyers are authorized to use TI reference designs with the TI component(s) identified in each particular reference design and to modify the
reference design in the development of their end products. HOWEVER, NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL
OR OTHERWISE TO ANY OTHER TI INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY THIRD PARTY TECHNOLOGY
OR INTELLECTUAL PROPERTY RIGHT, IS GRANTED HEREIN, including but not limited to any patent right, copyright, mask work right,
or other intellectual property right relating to any combination, machine, or process in which TI components or services are used.
Information published by TI regarding third-party products or services does not constitute a license to use such products or services, or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
TI REFERENCE DESIGNS ARE PROVIDED "AS IS". TI MAKES NO WARRANTIES OR REPRESENTATIONS WITH REGARD TO THE
REFERENCE DESIGNS OR USE OF THE REFERENCE DESIGNS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING ACCURACY OR
COMPLETENESS. TI DISCLAIMS ANY WARRANTY OF TITLE AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE, QUIET ENJOYMENT, QUIET POSSESSION, AND NON-INFRINGEMENT OF ANY THIRD PARTY
INTELLECTUAL PROPERTY RIGHTS WITH REGARD TO TI REFERENCE DESIGNS OR USE THEREOF. TI SHALL NOT BE LIABLE
FOR AND SHALL NOT DEFEND OR INDEMNIFY BUYERS AGAINST ANY THIRD PARTY INFRINGEMENT CLAIM THAT RELATES TO
OR IS BASED ON A COMBINATION OF COMPONENTS PROVIDED IN A TI REFERENCE DESIGN. IN NO EVENT SHALL TI BE
LIABLE FOR ANY ACTUAL, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES, HOWEVER CAUSED, ON ANY
THEORY OF LIABILITY AND WHETHER OR NOT TI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, ARISING IN
ANY WAY OUT OF TI REFERENCE DESIGNS OR BUYER’S USE OF TI REFERENCE DESIGNS.
TI reserves the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per
JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant
information before placing orders and should verify that such information is current and complete. All semiconductor products are sold
subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques for TI components are used to the extent TI
deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not
necessarily performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
Reproduction of significant portions of TI information in TI data books, data sheets or reference designs is permissible only if reproduction is
without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for
such altered documentation. Information of third parties may be subject to additional restrictions.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards that
anticipate dangerous failures, monitor failures and their consequences, lessen the likelihood of dangerous failures and take appropriate
remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use of any TI components in
Buyer’s safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed an agreement specifically governing such use.
Only those TI components that TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components that
have not been so designated is solely at Buyer's risk, and Buyer is solely responsible for compliance with all legal and regulatory
requirements in connection with such use.
TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of
non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.IMPORTANT NOTICE
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2015, Texas Instruments Incorporated
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
