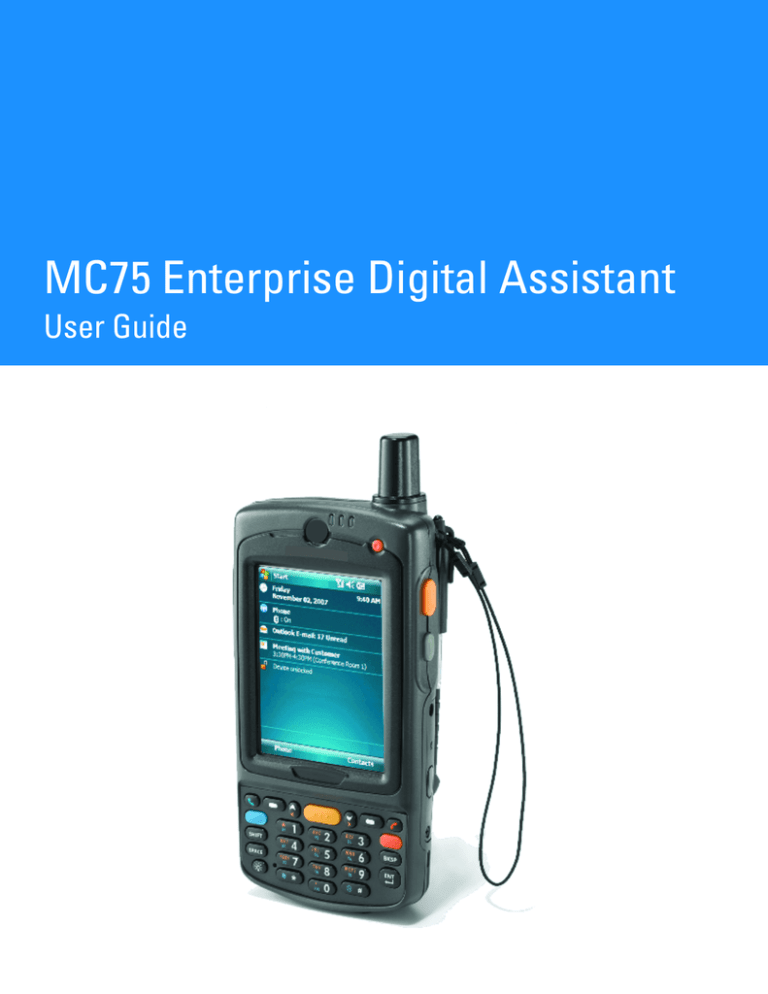

MC75 Enterprise Digital Assistant
User Guide
MC75 Enterprise Digital Assistant
User Guide
72E-103077-05
Rev. A
April 2015
ii
MC75 User Guide
© 2015 ZIH Corp
No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means,
without permission in writing from Zebra. This includes electronic or mechanical means, such as photocopying,
recording, or information storage and retrieval systems. The material in this manual is subject to change
without notice.
The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on
a licensed basis. Zebra grants to the user a non-transferable and non-exclusive license to use each software
or firmware program delivered hereunder (licensed program). Except as noted below, such license may not be
assigned, sublicensed, or otherwise transferred by the user without prior written consent of Zebra. No right to
copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall
not modify, merge, or incorporate any form or portion of a licensed program with other program material, create
a derivative work from a licensed program, or use a licensed program in a network without written permission
from Zebra. The user agrees to maintain Zebra’s copyright notice on the licensed programs delivered
hereunder, and to include the same on any authorized copies it makes, in whole or in part. The user agrees not
to decompile, disassemble, decode, or reverse engineer any licensed program delivered to the user or any
portion thereof.
Zebra reserves the right to make changes to any software or product to improve reliability, function, or design.
Zebra does not assume any product liability arising out of, or in connection with, the application or use of any
product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under any Zebra, intellectual
property rights. An implied license only exists for equipment, circuits, and subsystems contained in Zebra
products.
iii
Revision History
Changes to the original manual are listed below:
Change
Date
Description
-01 Rev. A
6/10/08
Initial release.
-02 Rev. A
08/14/08
Add re-boot after installing SIM card. Add dual line SIM support.
-03 Rev. A
03/09/10
Add OEM Version 02.35.000 and 02.35.001support. Add DSD keypad.
-04 Rev. A
10/22/10
Add OENM Version 03.38.xxx support.
-05 Rev. A
04/02/15
Zebra rebranding.
iv
MC75 User Guide
Table of Contents
Revision History.................................................................................................................................... ii
About This Guide
Introduction ...........................................................................................................................................
Documentation Set
Configurations.......................................................................................................................................
Software Versions
Chapter Descriptions ............................................................................................................................
Notational Conventions.........................................................................................................................
Related Documents ..............................................................................................................................
Service Information...............................................................................................................................
xiii
xiii
xiv
xiv
xvii
xvii
xviii
xviii
Chapter 1: Getting Started
Introduction ..........................................................................................................................................
Unpacking ............................................................................................................................................
Getting Started .....................................................................................................................................
Installing the SIM Card ...................................................................................................................
Installing the Main Battery ..............................................................................................................
Charging the Battery ......................................................................................................................
Charging the Main Battery and Memory Backup Battery .........................................................
Charging Spare Batteries .........................................................................................................
Charging Temperature .............................................................................................................
Powering On the MC75 ..................................................................................................................
Calibrating the Screen ...................................................................................................................
Checking Battery Status ................................................................................................................
Micro Secure Digital (microSD) Card ...................................................................................................
Adjusting the Handstrap ......................................................................................................................
Removing the Screen Protector ...........................................................................................................
Replacing the Main Battery ..................................................................................................................
Battery Management ...........................................................................................................................
Changing the Power Settings ........................................................................................................
Changing the Backlight Settings ....................................................................................................
Changing the Keypad Backlight Settings .......................................................................................
1-1
1-2
1-4
1-4
1-6
1-7
1-7
1-8
1-8
1-8
1-8
1-9
1-9
1-10
1-10
1-11
1-12
1-12
1-12
1-12
vi
MC75 User Guide
Turning Off the Radios ................................................................................................................... 1-13
Chapter 2: Using the MC75
Introduction ..........................................................................................................................................
Today Screen ......................................................................................................................................
Status Icons .........................................................................................................................................
Programs .............................................................................................................................................
Settings ................................................................................................................................................
Battery Status Indications ....................................................................................................................
Battery Reserve Options ................................................................................................................
Main Battery Temperature Notifications .........................................................................................
Performing a Warm Boot ...............................................................................................................
Performing a Cold Boot ..................................................................................................................
Waking the MC75 ................................................................................................................................
Locking the MC75 ................................................................................................................................
Numeric Keypad Configuration ......................................................................................................
DSD Keypad Configuration ............................................................................................................
Special Character Key .............................................................................................................
Stylus ...................................................................................................................................................
Entering Data .......................................................................................................................................
Linear Scanning .............................................................................................................................
Imaging ..........................................................................................................................................
Operational Modes ...................................................................................................................
Digital Camera ...............................................................................................................................
Scanning Considerations ...............................................................................................................
Linear Scanning .............................................................................................................................
Imager Scanning ............................................................................................................................
Digital Camera Scanning ...............................................................................................................
Using the RS507 Hands-free Imager .............................................................................................
Taking Photos ......................................................................................................................................
Recording Video ..................................................................................................................................
Viewing Photos and Videos .................................................................................................................
Infrared Connection .......................................................................................................................
Exchanging Files using IR Connection ....................................................................................
2-1
2-2
2-2
2-5
2-8
2-11
2-12
2-13
2-15
2-15
2-15
2-16
2-17
2-21
2-30
2-32
2-33
2-34
2-34
2-34
2-35
2-35
2-35
2-36
2-37
2-38
2-39
2-39
2-39
2-40
2-40
Chapter 3: Using GPS Navigation
Introduction ..........................................................................................................................................
Software Installation ............................................................................................................................
MC75 GPS Setup ................................................................................................................................
Operation .............................................................................................................................................
GPS Maps on microSD Cards .......................................................................................................
Answering a Phone Call While Using GPS ....................................................................................
Losing the GPS Signal While in a Vehicle .....................................................................................
Assisted GPS .......................................................................................................................................
3-1
3-1
3-1
3-2
3-2
3-2
3-2
3-2
Chapter 4: Using Bluetooth
Introduction .......................................................................................................................................... 4-1
Table of Contents
Adaptive Frequency Hopping ..............................................................................................................
Security ................................................................................................................................................
Disabling Bluetooth ........................................................................................................................
Enabling Bluetooth .........................................................................................................................
Bluetooth Power States .................................................................................................................
Cold Boot .................................................................................................................................
Warm Boot ...............................................................................................................................
Suspend ...................................................................................................................................
Resume ....................................................................................................................................
Modes ..................................................................................................................................................
Wizard Mode ..................................................................................................................................
Explorer Mode ................................................................................................................................
Available Services ...............................................................................................................................
File Transfer Services ....................................................................................................................
Creating a New File or Folder ..................................................................................................
Deleting a File ..........................................................................................................................
Getting a File ............................................................................................................................
Copying a File ..........................................................................................................................
Connecting to the Internet Using an Access Point .........................................................................
Dial-Up Networking Services .........................................................................................................
Object Exchange Push Services ....................................................................................................
Sending a Contact ...................................................................................................................
Swapping Contacts ..................................................................................................................
Fetching a Contact ...................................................................................................................
Sending a Picture .....................................................................................................................
Headset Services ...........................................................................................................................
Hands-free Services ......................................................................................................................
Serial Port Services .......................................................................................................................
ActiveSync Using Serial Port Services ..........................................................................................
Personal Area Network Services ...................................................................................................
IrMC Synchronization Services ......................................................................................................
Bonding with Discovered Device(s) .....................................................................................................
Deleting a Bonded Device .......................................................................................................
Accepting a Bond .....................................................................................................................
Bluetooth Settings ................................................................................................................................
Device Info Tab ..............................................................................................................................
Services Tab ..................................................................................................................................
Dial-Up Networking Service .....................................................................................................
File Transfer Service ................................................................................................................
Hands-Free Audio Gateway Service ........................................................................................
Headset Audio Gateway Service .............................................................................................
IrMC Synchronization Service ..................................................................................................
OBEX Object Push Service .....................................................................................................
Personal Area Networking Service ..........................................................................................
Serial Port Service ...................................................................................................................
Security Tab ...................................................................................................................................
Discovery Tab ................................................................................................................................
Virtual COM Port Tab .....................................................................................................................
HID Tab ..........................................................................................................................................
Profiles Tab ....................................................................................................................................
vii
4-1
4-2
4-3
4-3
4-4
4-4
4-4
4-4
4-4
4-4
4-4
4-4
4-9
4-9
4-10
4-11
4-11
4-11
4-11
4-12
4-12
4-13
4-14
4-15
4-15
4-16
4-17
4-18
4-18
4-20
4-20
4-20
4-22
4-22
4-23
4-23
4-23
4-24
4-25
4-26
4-26
4-26
4-27
4-28
4-29
4-29
4-30
4-31
4-32
4-32
viii
MC75 User Guide
System Parameters Tab ................................................................................................................ 4-33
Miscellaneous Tab ......................................................................................................................... 4-33
Chapter 5: Using the Phone
Introduction ..........................................................................................................................................
Accessing the Phone Keypad ..............................................................................................................
Turning the Phone On and Off .............................................................................................................
Using a Wired Headset ..................................................................................................................
Using a Bluetooth Headset ............................................................................................................
Adjusting Audio Volume .................................................................................................................
Making a Call .......................................................................................................................................
Using the Phone ............................................................................................................................
Using Contacts ...............................................................................................................................
Using Call History ..........................................................................................................................
Making a Speed Dial Call ...............................................................................................................
Making an Emergency Call ..................................................................................................................
Answering a Call ..................................................................................................................................
Incoming Call Features ..................................................................................................................
Smart Dialing .......................................................................................................................................
Muting a Call ........................................................................................................................................
Taking Notes ........................................................................................................................................
Using Speed Dial .................................................................................................................................
Adding a Speed Dial Entry .............................................................................................................
Editing a Speed Dial Entry .............................................................................................................
Deleting a Speed Dial Entry ...........................................................................................................
Using Call History ................................................................................................................................
Managing Call History ....................................................................................................................
Changing the Call History View ...............................................................................................
Resetting the Recent Calls Counter .........................................................................................
Deleting Call History Items by Call Date ..................................................................................
Deleting All Call History Items ..................................................................................................
Viewing Call Status ..................................................................................................................
Using the Call History Menu ....................................................................................................
Swapping Calls on an MC7506/96 ......................................................................................................
Swapping Calls on an MC7508/98 ......................................................................................................
Conference Calling on an MC7506/96 .................................................................................................
Three-way Calling on an MC7508/98 ..................................................................................................
Text Messaging ...................................................................................................................................
Viewing Text Messages .................................................................................................................
Sending a Text Message ...............................................................................................................
Using a Dual Line SIM .........................................................................................................................
5-1
5-1
5-2
5-3
5-4
5-4
5-5
5-5
5-5
5-6
5-6
5-7
5-7
5-8
5-8
5-9
5-10
5-11
5-11
5-13
5-14
5-15
5-15
5-15
5-15
5-16
5-17
5-18
5-18
5-19
5-20
5-20
5-22
5-23
5-23
5-24
5-26
Chapter 6: Accessories
Introduction ..........................................................................................................................................
Single Slot USB/Serial Cradle .............................................................................................................
Charging the MC75 Battery ...........................................................................................................
Charging the Spare Battery ...........................................................................................................
Battery Charging Indicators ...........................................................................................................
6-1
6-2
6-2
6-3
6-3
Table of Contents
Charging Temperature .............................................................................................................
Four Slot Ethernet Cradle ....................................................................................................................
Charging ........................................................................................................................................
Battery Charging Indicators ...........................................................................................................
Charging Temperature .............................................................................................................
Charging ........................................................................................................................................
Battery Charging Indicators ...........................................................................................................
Charging Temperature .............................................................................................................
Charging the MC75 Battery ...........................................................................................................
Removing the MC75 ................................................................................................................
Charging the Spare Battery ...........................................................................................................
Battery Charging Indicators ...........................................................................................................
Charging Temperature .............................................................................................................
MC75 Battery Shim Installation ......................................................................................................
Spare Battery Charging .................................................................................................................
Battery Charging Indicators ...........................................................................................................
Charging Temperature .............................................................................................................
Attaching and Removing the MSR .................................................................................................
Using the MSR ...............................................................................................................................
Getting Started ...............................................................................................................................
Installation ......................................................................................................................................
Removal ...............................................................................................................................................
Credit Card Transactions ...............................................................................................................
Debit Card Transactions ................................................................................................................
Keypad ...........................................................................................................................................
Display Messages ....................................................................................................................
Check the DCR Battery Level ........................................................................................................
Installation ......................................................................................................................................
Removal ...............................................................................................................................................
Credit Card Transactions ...............................................................................................................
Debit Card Transactions ................................................................................................................
Chip and PIN Transactions ............................................................................................................
Keypad .....................................................................................................................................
Display Messages ..........................................................................................................................
Battery Charging and Operating Power .........................................................................................
LED Charge Indications .................................................................................................................
Charging Temperature .............................................................................................................
Chapter 7: Maintenance & Troubleshooting
Introduction ..........................................................................................................................................
Maintaining the MC75 ..........................................................................................................................
Battery Safety Guidelines ....................................................................................................................
Cleaning ...............................................................................................................................................
Materials Required .........................................................................................................................
Cleaning the MC75 ........................................................................................................................
Housing ....................................................................................................................................
Display .....................................................................................................................................
Scanner Exit Window ...............................................................................................................
Connector ................................................................................................................................
ix
6-3
6-4
6-4
6-4
6-4
6-5
6-5
6-5
6-6
6-6
6-7
6-8
6-8
6-9
6-9
6-10
6-10
6-11
6-11
6-13
6-13
6-13
6-14
6-14
6-15
6-16
6-16
6-18
6-18
6-19
6-19
6-20
6-20
6-21
6-24
6-25
6-25
7-1
7-1
7-2
7-3
7-3
7-3
7-3
7-3
7-3
7-3
x
MC75 User Guide
Cleaning Cradle Connectors ..........................................................................................................
Cleaning Frequency .......................................................................................................................
Troubleshooting ...................................................................................................................................
MC75 .............................................................................................................................................
Bluetooth Connection .....................................................................................................................
Single Slot USB/Serial Cradle ........................................................................................................
Four Slot Ethernet Cradle ..............................................................................................................
Vehicle Cradle ................................................................................................................................
Four Slot Battery Charger ..............................................................................................................
Cables ............................................................................................................................................
Magnetic Stripe Reader .................................................................................................................
7-4
7-4
7-5
7-5
7-7
7-8
7-10
7-10
7-11
7-12
7-12
Appendix A: Technical Specifications
MC75 Technical Specifications ............................................................................................................
MC75 .............................................................................................................................................
Single Slot USB/Serial Cradle ........................................................................................................
Four Slot Ethernet Cradle ..............................................................................................................
Four Slot Charge Only Cradle ........................................................................................................
Four Slot Battery Charger ..............................................................................................................
Magnetic Stripe Reader .................................................................................................................
A-1
A-1
A-6
A-6
A-7
A-7
A-8
Appendix B: Voice Quality Manager
Introduction ..........................................................................................................................................
Features ...............................................................................................................................................
Enabling VQM ......................................................................................................................................
Audio Modes ........................................................................................................................................
Changing Audio Modes ..................................................................................................................
Voice Packet Prioritization ...................................................................................................................
Acoustic Echo Cancellation ............................................................................................................
Limitations ......................................................................................................................................
Disabling VQM .....................................................................................................................................
B-1
B-1
B-1
B-2
B-2
B-4
B-4
B-4
B-4
Appendix C: Windows Mobile 6.5
Introduction ..........................................................................................................................................
Finger Scrolling ....................................................................................................................................
Home Screen .......................................................................................................................................
Classic Today Screen ....................................................................................................................
Status Bar ......................................................................................................................................
Tile Bar ...........................................................................................................................................
Start Screen ...................................................................................................................................
Speaker Icon ..................................................................................................................................
Battery Icons ..................................................................................................................................
Connectivity Icon ............................................................................................................................
Locking the MC75 ................................................................................................................................
Locking without PIN or Password ..................................................................................................
Locking with Simple PIN ................................................................................................................
Locking with Strong Password .......................................................................................................
C-1
C-1
C-1
C-3
C-5
C-8
C-8
C-13
C-14
C-14
C-15
C-15
C-16
C-16
Table of Contents
Password Locking Setup ...............................................................................................................
Using the RS507 Hands-free Imager ...................................................................................................
Removing the Battery ..........................................................................................................................
Battery Removal ............................................................................................................................
Suspend Mode ...............................................................................................................................
Assisted GPS .......................................................................................................................................
UI Settings ...........................................................................................................................................
Start Screen Settings .....................................................................................................................
IE Zoom Mapping ...........................................................................................................................
Glossary
Index
xi
C-17
C-18
C-18
C-18
C-19
C-19
C-21
C-21
C-22
xii
MC75 User Guide
About This Guide
Introduction
This guide provides information about using the MC75 Enterprise Digital Assistant (EDA) and accessories.
NOTE
Screens and windows pictured in this guide are samples and can differ from actual screens.

For configurations with OEM version 03.38.000X and Windows Mobile 6.5 operating system, refer to
Appendix C, Windows Mobile 6.5 for more information about new features.
Documentation Set
The documentation set for the MC75 provides information for specific user needs, and includes:
• MC75 Quick Start Guide - describes how to get the MC75 EDA up and running.
• MC75 User Guide - describes how to use the MC75 EDA.
• MC75 Integrator Guide - describes how to set up the MC75 EDA and accessories.
• Microsoft® Windows Mobile 6.0 Applications User Guide for Enterprise Mobility Devices - describes
how to use Microsoft developed applications.
• Application Guide - describes how to use Zebra developed sample applications.
• Enterprise Mobility Developer Kit (EMDK) Help File - provides API information for writing applications.
xiv
MC75 User Guide
Configurations
This guide covers the following configurations:
Configuration
Radios
Display
Memory
Data Capture
Operating
System
Keypads
MC7506
WPAN: Bluetooth
WWAN: HSDPA
GPS: SiRF III
3.5” VGA
Color
128 MB RAM/
256 MB Flash
1D laser
scanner, 2D
imager
Windows
Mobile 6.X
Professional
Numeric,
QWERTY,
AZERTY or
QWERTZ
keypad
MC7508
WPAN: Bluetooth
WWAN: EVDO
GPS: SiRF III
3.5” VGA
Color
128 MB RAM/
256 MB Flash
1D laser
scanner, 2D
imager
Windows
Mobile 6.X
Professional
Numeric,
QWERTY,
AZERTY or
QWERTZ
keypad
MC7596
WLAN: 802.11a/b/g
WPAN: Bluetooth
WWAN: HSDPA
GPS: SiRF III
3.5” VGA
Color
128 MB RAM/
256 MB Flash
or 128 MB
RAM/512 MB
Flash
1D laser
scanner, 2D
imager, 1D laser
scanner with
2MP camera, 2D
imager with 2MP
camera
Windows
Mobile 6.X
Professional
Numeric,
DSD,
QWERTY,
AZERTY or
QWERTZ
keypad
MC7598
WLAN: 802.11a/b/g
WPAN: Bluetooth
WWAN: EVDO
GPS: SiRF III
3.5” VGA
Color
128 MB RAM/
256 MB Flash
or 128 MB
RAM/512 MB
Flash
1D laser
scanner, 2D
imager,1D laser
scanner with
2MP camera, 2D
imager with 2MP
camera
Windows
Mobile 6.X
Professional
Numeric,
QWERTY,
AZERTY or
QWERTZ
keypad
Software Versions
This guide covers various software configurations and references are made to operating system or software
versions for:
• Adaptation Kit Update (AKU) version
• OEM version
• Phone version
• BTExplorer version
• Fusion version
• Phone version.
AKU Version
To determine the Adaptation Kit Update (AKU) version:
Tap Start > Settings > System tab > About icon > Version tab.
About This Guide
The second line lists the operating system version and the build number. The last part of the build number
represents the AKU number. For example, Build 18552.0.7.5 indicates that the device is running AKU version
0.7.5.
OEM Version
To determine the OEM software version:
Tap Start > Settings > System tab > System Info icon > System tab.
MC75
BTExplorer Software
To determine the BTExplorer software version:.
NOTE
For configurations with Windows Mobile 6.5 operating system, tap Start > BTExplorer > Menu >
About to view version information.
Tap BTExplorer icon > Show BTExplorer> Menu > About.
BTExplorer icon
xv
xvi
MC75 User Guide
Fusion Software
To determine the Fusion software version:
Tap Signal Strength icon > Wireless Status > Versions.
Signal Strength icon
Phone Software
To determine the Phone software version:
Tap Start > Phone > Menu > Options > Phone Info or Version Information tab.
About This Guide
MC7506/96
MC7508/98
Chapter Descriptions
Topics covered in this guide are as follows:
• Chapter 1, Getting Started provides information on getting the MC75 up and running for the first time.
• Chapter 2, Using the MC75 provides basic instructions for using the MC75, including powering on and
resetting the MC75, and entering and capturing data.
• Chapter 3, Using GPS Navigation provides information about GPS navigation with the MC75.
• Chapter 4, Using Bluetooth explains Bluetooth functionality on the MC75.
• Chapter 5, Using the Phone provides basic instructions for using the MC75 phone.
• Chapter 6, Accessories describes the available accessories and how to use them with the MC75.
• Chapter 7, Maintenance & Troubleshooting includes instructions on cleaning and storing the MC75, and
provides troubleshooting solutions for potential problems during MC75 operation.
• Appendix A, Technical Specifications provides the technical specifications for the MC75.
• Appendix B, Voice Quality Manager provides inflammation on using the Voice Quality Manager software.
Notational Conventions
The following conventions are used in this document:
• “EDA” refers to the Zebra MC75 series of hand-held computers.
• Italics are used to highlight the following:
• Chapters and sections in this and related documents
• Icons on a screen.
xvii
xviii
MC75 User Guide
• Bold text is used to highlight the following:
• Dialog box, window, and screen names
• Drop-down list and list box names
• Check box and radio button names
• Key names on a keypad
• Button names on a screen.
• bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential
• Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.
Related Documents
• MC75 Quick Start Guide, p/n 72-103079-xx.
• MC75 Windows Mobile 6 Regulatory Guide, p/n 72-103080-xx.
• MC75 Integrator Guide, p/n 72E-103078-xx.
• Microsoft® Applications for Mobile 6 User Guide, p/n 72E-108299-xx
• Application Guide for Zebra Devices, p/n 72E-68901-xx
• Enterprise Mobility Developer Kits (EMDKs), available at: http://www.zebra.com/support.
• Latest ActiveSync software, available at: http://www.microsoft.com.
For the latest version of this guide and all guides, go to: http://www.zebra.com/support.
Service Information
If you have a problem with your equipment, contact Zebra support for your region. Contact information is available
at: http://www.zebra.com/support.
When contacting Zebra support, please have the following information available:
• Serial number of the unit
• Model number or product name
• Software type and version number
Zebra responds to calls by email, telephone or fax within the time limits set forth in support agreements.
If your problem cannot be solved by Zebra Support, you may need to return your equipment for servicing and will
be given specific directions. Zebra is not responsible for any damages incurred during shipment if the approved
shipping container is not used. Shipping the units improperly can possibly void the warranty.
If you purchased your business product from a Zebra business partner, contact that business partner for support.
Chapter 1 Getting Started
Introduction
This chapter lists the parts and accessories for the MC75 and explains how to install and charge the batteries,
replace the strap, and power on the MC75 for the first time.
Radio
Scan/Decode Charging/Battery
Status LED
Status LED
LED
Receiver
Power Button
Scan/Action Button
Up/Down Button
Touch Screen with
Protective Overlay
Microphone
Keypad
(QWERTY Keypad Shown)
I/O Connector
Handstrap
Figure 1-1 MC75 Front View
1-2
MC75 User Guide
Battery Cover
Handstrap
Handstrap Slot
Battery Cover Latch
Headset Jack
Camera Flash
IrDA Window
Camera
Memory Card Cover
Speaker
Action Button
Scan Window
(Imager Configuration
Shown)
Scan/Action Button
Stylus
Tether Point
Figure 1-2 MC75 Rear View
Unpacking
Carefully remove all protective material from the MC75 and save the shipping container for later storage and
shipping.
Verify that you received the following:
• MC75 EDA
• 3600 mAh Lithium-ion battery
• Battery cover/strap assembly
• Tethered stylus
• Protective overlay, installed on display window
• Regulatory Guide
• Quick Start Guide.
Inspect the equipment for damage. If any equipment is missing or damaged, contact the Zebra Support center
immediately. See page xviii for contact information.
Getting Started
1-3
Accessories
Table 1-1 lists the accessories available for the MC75.
Table 1-1 MC75 Accessories
Accessory
Part Number
Description
Cradles
Single Slot USB/Serial
Cradle
CRD7X00-1000RR
Charges the MC75 main battery and a spare battery.
Synchronizes the MC75 with a host computer through a USB
connection.
Four Slot Ethernet Cradle
CRD7000-4000ER
Charges the MC75 main battery and connects the MC75 with an
Ethernet network.
Four Slot Charge Only
Cradle
CRD7X00-4000CR
Charges up to four MC75 devices.
VCD7000 Vehicle Cradle
VCD7X00-P000R
Installs in a vehicle and charges the MC75 main battery and a
spare battery. Provides serial data communication between an
MC75 and an external device.
Four Slot Battery Charger
SAC7X00-4000CR
Charges up to four MC75 spare batteries. Includes an
MC75 shim.
Serial Charging Cable
25-102776-01R
Provides power to the MC75 and serial communication
with a host computer.
USB Charging Cable
25-102775-01R
Provides power to the MC75 and USB communication with
a host computer.
Charge Only Cable
25-95214-02R
Provides power to the MC75.
Auto Charge Cable
25-70979-01R
Charges the MC75 using a vehicle’s cigarette lighter.
DEX Cable
25-76793-01R
Connects the MC75 to a vending machine.
Modem Inverter Cables
25-70924-03R
Modem inverter cable.
O’Neil Printer Cable
25-91519-01R
Printer cable for O’Neil printers.
Zebra Printer Cable
25-91518-01R
Printer cable Zebra Road Warrior printers.
Zebra Printer Cable
25-91515-01R
Printer cable for Zebra QL printers.
Magnetic Stripe Reader
(MSR)
MSR7000-100R
Snaps on to the MC75 and adds magstripe read
capabilities.
Debit Card Reader
DCR7X00-100R
Allows easy data capture with the swipe of a magnetic
stripe card and personal identification number (PIN)
entry using a numeric keypad.
Snap-on Mobile Payment
Module with Chip and PIN
DCR7X00-200R
Allows easy data capture with magnetic stripe cards, EMV
compliant Chip and PIN cards and personal identification
number (PIN) entry using a numeric keypad.
Chargers
Cables
Miscellaneous
1-4
MC75 User Guide
Table 1-1 MC75 Accessories (Continued)
Accessory
Part Number
Description
Biometric Attachment
MC7XFPR-01R
Contains a finger print reader.
Biometric Attachment
MC7XFPSCR-01R
Contains a finger print reader, a contact smart card reader
and a contactless smart card reader.
Modem Dongle
MDM9000-100R
Provides modem connectivity.
Spare 3600 mAh
lithium-ion battery
BTRY-MC7XEAB00
Replacement 3600 mAh battery.
Spare 4800 mAh
lithium-ion battery
BTRY-MC7XEAB0H
Optional 4800 mAh battery.
Battery Kit for 3600 mAh
battery
BTRY-KT-1R5X-MC7XR
Replacement 3600 mAh battery and battery door.
Battery Kit for 4800 mAh
battery
BTRY-KT-2R5X-MC7XR
Replacement 4800 mAh battery and battery door.
Headset
50-11300-050R
Use in noisy environments.
Belt Mounted Rigid Holster
SG-MC70011110-01R
Clips onto belt to hold the MC75 when not in use.
Fabric Holster
SG-MC7521215-01R
Soft holder for added protection.
Stylus
Stylus-00002-03R
Replacement stylus (3-pack).
Wall Mounting Kit
8710-050006-01R
Use for wall mounting the four slot cradles.
Screen Protector
KT-67525-01R
Package of 3 screen protectors.
Software
-
Enterprise Mobility Developer Kits (EMDKs), available at:
http://support.symbol.com.
Getting Started
To start using the MC75 for the first time:
• Install the SIM card (MC7506 and MC7596 only)
• Install the main battery.
• Charge the MC75.
• Power on the MC75.
• Configure the MC75.
Installing the SIM Card
NOTE
MC7506 and MC7596 configurations only.
GSM phone service requires a Subscriber Identification Module (SIM) card, or smart card. Obtain this card from the
your service provider. The card fits into the MC75 and can contain the following information:
Getting Started
1-5
• Mobile phone service provider account details.
• Information regarding service access and preferences.
• Contact information, which can be moved to Contacts on the MC75.
• Any additional services to which you have subscribed.
NOTE
For more information about SIM cards, refer to the service provider's documentation.
To install the SIM card:
1.
Lift the SIM cover using the stylus tip.
Figure 1-3 Lifting the SIM Cover
2.
Insert the SIM card, as shown in Figure 1-4, with the cut edge of the card facing out and the contacts facing
down.
Figure 1-4 Inserting the SIM Card
3.
Lower the SIM cover and using the stylus tip, slide it in place.
4.
Install the battery. See Installing the Main Battery on page 1-6 for more information.
5.
After completing initial MC75 setup or after replacing a SIM card:
a.
Press the red Power button.
b.
On the Today screen, tap Wireless Manager.
c.
Ensure Phone is on.
1-6
MC75 User Guide
d.
Press the red Power button to suspend the MC75.
e.
Perform a warm boot. See Resetting the MC75 on page 2-15.
f.
Make a call to verify cellular connection.
NOTE
For detailed information about WWAN activation and settings, refer to the MC75 Integrator Guide.
Installing the Main Battery
NOTE
The MC75 ships with a 3600 mAh battery. An optional 4800 mAh battery is available.
To install the main battery:
1.
Insert the battery, top first, into the battery compartment in the back of the MC75.
NOTE
2.
Position the battery correctly, with the battery charging contacts on top of the charging contacts in the battery
compartment.
Press the battery down into the battery compartment until the battery release latch snaps into place.
Battery
Battery Cover Latch
Battery Cover
Release Latch
Figure 1-5 Inserting the Battery
3.
With the battery cover latches open, insert the cover, bottom first, then press down on the top of the cover.
4.
Close the battery cover latches on either side of the battery cover.
5.
Insert the handstrap through the handstrap slot, then tighten and press down to secure.
Getting Started
1-7
Handstrap
Handstrap Slot
Figure 1-6 Inserting the Handstrap
The MC75 powers up after inserting the battery and replacing the battery cover.
Charging the Battery
CAUTION
Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 7-2.
Charging the Main Battery and Memory Backup Battery
Before using the MC75 for the first time, charge the main battery until the amber Charging/Battery Status LED
remains lit (see Table 1-2 on page 1-8 for charge status indications). To charge the MC75, use a cable or a cradle
with the appropriate power supply. For information about the accessories available for the MC75, see Chapter 6,
Accessories.
The MC75 is equipped with a memory backup battery which automatically charges from the fully-charged main
battery. When using the MC75 for the first time, the backup battery requires approximately 36 hours to fully charge.
This is also true any time the backup battery is discharged, which occurs when the main battery is removed for
several hours. The backup battery retains RAM data in memory for at least 15 minutes (at room temperature) when
the MC75's main battery is removed. When the MC75 reaches a very low battery state, the combination of main
battery and backup battery retains RAM data in memory for at least 48 hours.
To charge the main battery, use either a charging cable or a cradle. For cable and cradle setup and charging
procedures refer to the MC75 Integrator Guide.
• Single Slot USB/Serial Cradle
• Four Slot Ethernet Cradle
• Four Slot Charge Only Cradle
• Vehicle Cradle.
To charge the main battery:
1.
Connect the charging accessory to the appropriate power source.
2.
Insert the MC75 into a cradle or attach to a cable. The MC75 begins charging. The Charging/Battery Status
LED blinks amber while charging, then turns solid amber when fully charged. See Table 1-2 for charging
indications.
1-8
MC75 User Guide
The 3600 mAh battery fully charges in approximately five hours and the 4800 mAh battery charges in
approximately seven hours.
Table 1-2 LED Charge Indicators
Charging/Battery
Status LED
Indication
Off
MC75 is not charging.
MC75 is not inserted correctly in the cradle or connected to a power source.
Charger/cradle is not powered.
Slow Blinking Amber
(1 blink every 2 seconds)
MC75 is charging.
Solid Amber
Charging complete.
Note: When the battery is initially inserted in the MC75, the amber LED flashes
once if the battery power is low or the battery is not fully inserted.
Fast Blinking Amber
(2 blinks/second)
Charging error, e.g.:
• Temperature is too low or too high.
• Charging has gone on too long without completion (typically eight hours).
Single Blink Amber (when
Power button pressed)
Battery depleted.
Blinking Amber (when
Power button pressed)
Battery over-temperature condition.
Charging Spare Batteries
See Chapter 6, Accessories for information on using accessories to change spare batteries.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC75.
To accomplish this, for small periods of time, the MC75 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC75 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-2.
Powering On the MC75
Press the Power button to turn on the MC75. If the MC75 does not power on perform a warm boot. See Resetting
the MC75 on page 2-15.
When turning the MC75 on for the first time, the splash screen displays for about a minute as the MC75 initializes
its flash file system, then the calibration window appears. Note that these windows also appear upon cold boot.
NOTE
When the MC75 powers up after inserting a battery for the first time, the device boots and powers on
automatically.
Calibrating the Screen
To calibrate the screen so the cursor on the touch screen aligns with the tip of the stylus:
Getting Started
1.
Remove the stylus from its holder on the back of the MC75.
2.
Carefully press and briefly hold the tip of stylus on the center of each target that appears on the screen.
3.
Repeat as the target moves around the screen, then tap the screen to continue.
1-9
Checking Battery Status
To check the charge status of the main battery or backup battery in the MC75, tap Start > Settings > System tab >
Power icon to display the Power window.
To save battery power, tap the Advanced tab and set the MC75 to turn off after a specified number of minutes.
Micro Secure Digital (microSD) Card
The microSD card slot provides secondary non-volatile storage. The slot is located on the side of the MC75 (see
Figure 1-7). Refer to the documentation provided with the card for more information, and follow the manufacturer’s
recommendations for use.
CAUTION
Follow proper ESD precautions to avoid damaging the microSD card. Proper ESD precautions
include, but are not limited to, working on an ESD mat and ensuring that the operator is properly
grounded.
To install the microSD card:
1.
Power off the MC75.
2.
Remove the memory card cover on the side of the MC75 by loosening the two captive screws.
Figure 1-7 Card Installation
3.
Insert the card with the card contacts facing up and the cut corner on the left, until you feel a click.
4.
Replace the memory card cover and tighten the screws.
To remove an microSD card:
1.
Power off the MC75.
2.
Remove the memory card cover by loosening the screws.
1 - 10 MC75 User Guide
Figure 1-8 Card Removal
3.
Carefully press and release the card to eject it.
4.
Remove the card from the card slot.
5.
Replace the memory card cover and tighten the screws.
Adjusting the Handstrap
The MC75 handstrap is attached to the bottom of the battery cover. Adjust the handstrap to increase comfort when
holding the MC75 for extended periods of time. To adjust the handstrap:
1.
Feed the handstrap through the handstrap slot in either direction, to tighten or loosen.
2.
Secure the handstrap by pressing the two sides together as shown in Figure 1-9.
Figure 1-9 Handstrap Adjustment
Removing the Screen Protector
A screen protector is applied to the MC75. Zebra recommends using this to minimize wear and tear. Screen
protectors enhance the usability and durability of touch screen displays.
To remove the screen protector, lift the corner using a thin plastic card, such as a credit card, then carefully lift it off
the display.
Getting Started 1 - 11
Lift Screen
Protector
Corner
Figure 1-10 Removing the Screen Protector
CAUTION
NOTE
Do not use a sharp object to remove the protector. Doing so can damage the display.
Not using a screen protector can affect warranty coverage. To purchase replacement protectors, contact your
local account manager or Zebra. These include screen protector installation instructions. Part number:
KT-67525-01R Screen Protector 3/pk.
Replacing the Main Battery
1.
Press the red Power button to suspend the MC75.
2.
Loosen the handstrap.
3.
Open the battery cover latches on either side of the battery cover.
Battery Cover Latch
Figure 1-11 Removing the Battery Cover
4.
Lift the top of the battery cover and remove.
5.
Press the battery release latch on the bottom of the battery to unlock, and lift the battery out of the well.
6.
Insert the replacement battery, top first, into the battery compartment in the back of the MC75.
7.
Press the battery down into the battery compartment until the battery release latch snaps into place.
NOTE
Position the battery correctly, with the battery charging contacts on top of the charging contacts in the battery
compartment.
1 - 12 MC75 User Guide
8.
With the battery cover latches open, insert the cover, bottom first, then press down on the top of the cover.
9.
Close the battery cover latches on either side of the battery cover.
10. Insert the handstrap through the handstrap slot, then tighten and press down to secure.
The MC75 powers up after inserting the battery and replacing the battery cover.
Battery Management
Observe the following battery saving tips:
NOTE
The MC75 factory default settings for the WWAN and WLAN radios are set to ON.
• Leave the MC75 connected to AC power at all times when not in use.
• Set the MC75 to turn off after a short period of non-use.
• Set the backlight to turn off after a short period of non-use.
• Turn off all wireless activities when not in use.
• Power off the MC75 when charging to charge at a faster rate.
Changing the Power Settings
To set the MC75 to turn off after a short period of non-use:
1.
Tap Start > Settings > System tab > Power icon > Advanced tab.
2.
Select the On battery power: Turn off device if not used for check box and select a value from the
drop-down list.
3.
Select ok.
Changing the Backlight Settings
To change the backlight settings in order to conserve more battery power:
1.
Tap Start > Settings > System tab > Backlight icon > Battery Power tab.
2.
Select the Disable backlight if device is not used for check box and select a value from the drop-down list.
3.
Select the Brightness tab.
4.
Tap the Disable backlight check box to turn off the display backlight, or use the slider to set a low value for the
backlight.
5.
Select ok.
Changing the Keypad Backlight Settings
To change the keypad backlight settings in order to conserve more battery power:
1.
Tap Start > Settings > System tab > Keylight icon > Battery Power tab.
Getting Started 1 - 13
2.
Select the On battery power: Disable keylight if device if not used for check box and select a value from the
drop-down list.
3.
Select the Advanced tab.
4.
Tap the Disable keylight check box to turn off the keypad backlight.
5.
Select ok.
Turning Off the Radios
NOTE
On devices with Windows Mobile 6.5.3, see Status Bar on page C-5 for more information.
Windows Mobile 6 devices include Wireless Manager, which provides a simple method of enabling, disabling, and
configuring all the device’s wireless capabilities in one place.
To open Wireless Manager, tap the Connectivity icon or tap Wireless Manager on the Today screen.
Connectivity icon
Figure 1-12 Opening Wireless Manager
Select Wireless Manager.
1 - 14 MC75 User Guide
Figure 1-13 Wireless Manager Window
NOTE
Wireless connection options vary depending upon configurations.
To enable or disable a wireless connection, tap the specific button.
To enable or disable all wireless connections, tap the All button.
To configure settings for a connection, tap Menu.
Figure 1-14 Wireless Manager Menu
Chapter 2 Using the MC75
Introduction
This chapter explains the buttons, status icons, and controls on the MC75, and provides basic instructions for using
the MC75, including powering on and resetting the MC75, and entering and capturing data.
The MC75 factory default radio states are:
• Bluetooth - OFF
• Phone - ON
• Wireless LAN - ON.
2-2
MC75 User Guide
Today Screen
NOTE
On devices with Windows Mobile 6.5.3, the Today screen is different. See Home Screen on page C-1 for more
information.
The Today screen displays important information, such as upcoming appointments and status indicators. Tap a
section on the screen to open the associated program. Alternatively, tap Start > Today to display the Today
screen.
Connectivity
Notification
Open the Start Menu
WAN Status
Adjust volume
Battery Status
Change the date and time, set up the alarm, and more
Change the date and time
Turn on or off radios
BTExplorer
Wireless Applications
Command Bar
Soft Keys
Figure 2-1 Today Screen
To customize the Today screen, tap Start > Settings > Today icon. Use the Appearance tab to customize the
background and the Items tab to change the list and order of items that appear on the screen.
Status Icons
NOTE
On devices with Windows Mobile 6.5.3, see Status Bar on page C-5 for more information.
The Navigation bar at the top of the screen can contain the status icons listed in Table 2-1.
Table 2-1 Status Icons
Icon
Function
Notification
Description
Backup Battery Low.
Notification that one or more instant messages were received.
Notification that one or more e-mail/text messages were received.
Notification that one or more voice messages were received.
There are more notification icons than can be displayed. Tap to display
remaining icons.
Indicates a reminder of an upcoming calendar event.
Using the MC75
Table 2-1 Status Icons (Continued)
Icon
Function
Connectivity
Description
Connection is active.
Connection is not active.
Synchronization is occurring.
Wi-Fi available.
Wi-Fi in use.
HSDPA available. (MC7506 and MC7596)
3G available. (MC7506 and MC7596)
GPRS available. (MC7506 and MC7596)
EGPRS available. (MC7506 and MC7596)
1xRTT available. (MC7508 and MC7598)
EVDO Rev. 0 available. (MC7508 and MC7598)
EVDO Rev. A available. (MC7508 and MC7598)
Dormant State - no data transmission during a 1x or EVDO connection.
(MC7508 and MC7598)
2-3
2-4
MC75 User Guide
Table 2-1 Status Icons (Continued)
Icon
Function
WAN
Description
Call missed.
Dialing while no SIM card is installed.
Voice call in progress.
Calls are forwarded.
Call on hold.
Speakerphone is on.
Antenna/signal icon: wireless on/good signal.
Antenna/signal icon: wireless off.
Antenna/signal icon: no service or searching.
HSDPA connecting. (MC7506 and MC7596)
HSDPA in use. (MC7506 and MC7596)
3G connecting. (MC7506 and MC7596)
3G in use. (MC7506 and MC7596)
GPRS connecting. (MC7506 and MC7596)
GPRS in use. (MC7506 and MC7596)
EGPRS connecting. (MC7506 and MC7596)
EGPRS in use. (MC7506 and MC7596)
EVDO connecting. (MC7508 and MC7598)
EVDO in use. (MC7508 and MC7598)
Roaming.
SIM Card not installed. (MC7506 and MC7596)
Speaker
All sounds are on.
All sounds are off.
Vibrate is on.
Battery
Main battery is charging.
Battery power completely depleted.
Main battery is low.
Main battery level.
Time and Next
Appointment
Displays current time in analog or digital format.
Using the MC75
2-5
The command bar at the bottom of the screen can contain the task tray icons listed in Table 2-2.
Table 2-2 Task Tray Icons
Icon
Description
Wireless connection
status
Indicates WLAN signal strength.
Bluetooth Enabled
Bluetooth radio is on.
Bluetooth Disabled
Bluetooth radio is off.
Bluetooth Connection
Bluetooth radio is connected to another Bluetooth device.
ActiveSync
Active serial connection between the MC75 and the host computer.
Programs
NOTE
On devices with Windows Mobile 6.5.3, see Start Screen on page C-8 for more information.
Table 2-3 lists the default programs on the Start menu.
Table 2-3 Programs in the Start Menu
Icon
Name
Office Mobile
Description
Use the complete suite of Microsoft® Office applications for your mobile
device.
Excel Mobile - Create new workbooks or view and edit Microsoft®
Excel® workbooks.
OneNote Mobile - Create new notes or view existing notes.
PowerPoint Mobile - View Microsoft® PowerPoint® slides and
presentations.
Word Mobile - Create, view, and edit Microsoft® Word documents.
Calendar
Keep track of appointments and create meeting requests.
Contacts
Keep track of friends and colleagues.
Internet Explorer Mobile
Browse Web and WAP sites as well as download new programs and
files from the Internet.
2-6
MC75 User Guide
Table 2-3 Programs in the Start Menu
Icon
Name
Description
Messaging
Send and receive e-mail, and text messages.
Phone
Make and receive calls, switch between calls, and set up conference
calling.
Help
See Help topics for the current screen or program.
Table 2-4 lists programs that are listed in the Programs window.
Table 2-4 Programs in Program Window
Icon
Name
Description
ActiveSync
Synchronize information between the MC75 and a host computer or the
Exchange Server.
AirBEAM
Allows specially designed software packages to be transferred between
a host server and the MC75. Refer to the MC75 Integrator Guide for
more information.
BT Information
Displays information about the Bluetooth radio. See
BTExplorer
Manages Bluetooth StoneStreet One Bluetooth connections. Refer to
the MC75 Integrator Guide for more information. Appears only if the
StoneStreet One Bluetooth stack is enabled.
BT ScannerCtlPanel
Configures the COM port used with Bluetooth scanners.
Calculator
Perform basic arithmetic and calculations, such as addition,
subtraction, multiplication, and division.
Display_BD_Address
Displays the MC75’s Bluetooth address in a bar code format.
File Explorer
Organize and manage files on your device.
Internet Sharing
Connect a notebook computer to the Internet using the MC75's data
connection.
Using the MC75
2-7
Table 2-4 Programs in Program Window (Continued)
Icon
Name
Description
Messenger
Use this mobile version of Windows Live Messenger.
Modem Link
Enables the MC75 to be used as a modem.
MSP Agent
Interacts with MSP agents to collect monitoring and asset information
to enable the configuration, provisioning, monitoring and
troubleshooting of the MC75. Refer to the MC75 Integrator Guide for
more information.
Notes
Create handwritten or typed notes, drawings, and voice recordings.
Pictures & Videos
View and manage pictures, animated GIFs, and video files.
Rapid Deployment
Facilitates software downloads from a Mobility Services Platform Console
FTP server to the MC75. Refer to the MC75 Integrator Guide for more
information.
Remote Desktop
Log onto Windows NT server type computers and use all of the programs
that are available on that computer from the MC75.
Search
Search contacts, data, and other information on your MC75.
SIM Toolkit
Manage the contacts that are stored on your SIM card. Copy SIM
contents to Contacts on the MC75.
SMS Staging
Used to push a staging profile to the MC75.
Tasks
Keep track of your tasks.
Windows Live
Use this mobile version of Windows Live™ to find information on the
web.
Windows Media Player
Mobile
Play back audio and video files.
2-8
MC75 User Guide
Settings
NOTE
On devices with Windows Mobile 6.5.3, see Start Screen on page C-8 for more information.
Table 2-5 lists control applications pre installed on the MC75. Tap Start > Settings to open the Settings window.
Table 2-5 Settings in the Setting Window
Icon
Name
Description
Personal Tab
Buttons
Assign a program to a button.
Input
Set options for each of the input methods.
Lock
Set a password for the MC75.
Menus
Set what programs appear in the Start menu.
Owner Information
Enter personal information on the MC75.
Phone
Make and receive calls, switch between calls, and set up conference
calling.
Sounds & Notifications
Enable sounds for events, notifications, and more, and set the type of
notification for different events.
Today
Customize the appearance and the information to be displayed on the
Today screen.
About
View basic information such as the Windows Mobile® version and type
of processor used on the MC75.
Backlight
Set the display backlight time-out and adjust brightness.
Certificates
See information about certificates installed on the MC75.
System Tab
Using the MC75
2-9
Table 2-5 Settings in the Setting Window (Continued)
Icon
Name
Description
Clock & Alarms
Set the device clock to the date and time of your locale or to a visiting
time zone when you’re traveling. Alarms can also be set at specified
days and times of a week.
Customer Feedback
Submit feedback on the Windows Mobile 6 software.
Encryption
Allow files on a storage card to be encrypted. Encrypted files are
readable only on your device.
Error Reporting
Enable or disable the device's error reporting function. When this
function is enabled and a program error occurs, technical data about
the state of the program and your computer is logged in a text file and
delivered to Microsoft's technical support if you choose to send it.
External GPS
Set the appropriate GPS communication ports, if required. You may
need to do this when there are programs on your device that access
GPS data or you have connected a GPS receiver to the MC75.
GPS Setup
View GPS SUPL information.
Keylight
Set the keypad backlight time-out.
Managed Programs
Lists applications that have been installed remotely by your system
administrator. Refer to the Microsoft Applications for Windows Mobile 6
User Guide for more information.
Memory
Check the device memory allocation status and memory card
information and stop currently running programs.
Phone Info
Displays the phone version information.
Power
Check battery power and set the time-out for turning off the display to
conserve battery power.
Regional Settings
Set the regional configuration to use, including the format for displaying
numbers, currency, date, and time on the MC75.
Remove Programs
Remove programs that you installed on the MC75.
Screen
Change the screen orientation, re-calibrate the screen, and change the
screen text size.
2 - 10 MC75 User Guide
Table 2-5 Settings in the Setting Window (Continued)
Icon
Name
Description
System Info
Displays the MC75’s software and hardware information.
Task Manager
Enables viewing of memory and CPU allocations and stops running
processes. Refer to the Microsoft Applications for Windows Mobile 6
User Guide for more information.
Trigger Settings
Enables the MC75 to be used with the TRG7000 Trigger Handle.
USB Config
Configures the USB port. Set the port mode to either USB Client or
USB host. USB Client mode has two options: ActiveSync and Mass
Storage. USB Mass Storage allows a device partition (storage card,
application or cache disk) to be seen on the host computer as a USB
flash memory drive instead of ActiveSync.
Windows Update
Link to Microsoft's web site and update Windows Mobile® on your
device with the latest security patches or fixes. Do not use. Obtain
updates from Zebra.
Connections Tab
Beam
Set the MC75 to receive incoming IrDA beams.
Bluetooth
Enables Bluetooth radio and functionality. See Chapter 4, Using
Bluetooth for more information.
Connections
Set up one or more types of modem connections for your device, such
as phone dial-up, GPRS, Bluetooth, and more, so that your device can
connect to the Internet or a private local network.
USB to PC
Enables or disables the enhanced network connectivity.
Wi-Fi
Setup wireless network connection and customize settings.
Wireless Manager
Enables or disables the MC75’s wireless radios and customizes Wi-Fi,
Bluetooth and Phone settings.
Using the MC75 2 - 11
Adjusting Volume
NOTE
On devices with Windows Mobile 6.5.3, see Status Bar on page C-5 for more information.
To adjust the system volume using the Speaker icon in the navigation bar:
1.
Tap the Speaker icon. The Volume dialog box appears.
Figure 2-2 Volume Dialog Box
2.
Tap and move the slide bar to adjust the volume.
3.
Select the On or Off radio button to turn the volume on or off.
You can also adjust the system volume using the Sounds & Notifications window, or use the Up/Down button on
the side of the MC75.
Battery Status Indications
Battery icons appear on the navigation bar indicating the battery power level. When the main battery or backup
battery power falls below a predetermined level the icon indicates the status and a battery dialog box appears
indicating the status of the main or backup battery.
Figure 2-3 Battery Status Dialog Box
2 - 12 MC75 User Guide
The Battery icon always appears in the navigation bar when the Today screen is visible. The icon indicates the
battery power level. The message displays until the Dismiss button is pressed.
Figure 2-4 Battery Icon on the Title Bar
Also view the battery status using the Power window.
Battery Reserve Options
If the charge of the battery reaches a critical threshold, the MC75 shuts down. This threshold can be changed but
affects the amount of time that data can be retained.
1.
Tap Start > Settings > Power icon > RunTime tab. A warning message appears.
Figure 2-5 Warning Message
2.
Read the warning message and tap ok.
Figure 2-6 RunTime Tab
3.
Select one of the Battery Reserve Options.
• Option 1: Minimum - After a low battery shutdown, data will be retained for minimum amount of time.
Battery should be replaced immediately to avoid data loss.
• Option 2: Less - After a low battery shutdown, data will be retained for less than normal amount of time.
Using the MC75 2 - 13
• Option 3: Normal - After a low battery shutdown, data will be retained for maximum amount of time.
4.
Tap ok.
Main Battery Temperature Notifications
The temperature notification system implements three levels of notification when the temperature within the battery
exceeds specific temperature thresholds:
• Level 1: Temperature Watch; this level is similar to main battery low warning. It indicates that the battery
temperature has reached the first threshold level. The user should move to an environment within proper
operating temperature.
• Level 2: Temperature Warning; this level is similar to main battery very low warning. It indicates the battery
temperature has reached the second threshold level. The user should stop using the MC75.
• Level 3: Temperature Error; this level indicates the battery has reached an unusable temperature threshold
and immediately suspends the MC75. This level does not have any graphical notification associated with it.
Figure 2-7 Main Battery Temperature Watch Dialog Box
Figure 2-8 Main Battery Temperature Warning Dialog Box
NOTE
The Temperature Warning dialog box remains visible until you tap Hide.
2 - 14 MC75 User Guide
LED Indicators
The MC75 has three LED indicators. The Scan/Decode LED indicates status for bar code scanning. The
Charging/Battery Status LED indicates battery charging and status. The Radio Status LED indicates WAN radio
status. Table 2-6 describes the LED indications.
Scan/Decode Charging/Battery Radio Status
Status LED
LED
LED
Figure 2-9 LED Indicators
Table 2-6 LED Indications
LED State
Indication
Scan/Decode LED
Solid Green
Successful decode/capture.
Solid Red
Laser enabled, scanning/imaging in process.
Off
Not enabled.
Charging/Battery Status LED
Slow Blinking Amber
Main battery in MC75 is charging.
Solid Amber
Main battery in MC75 is fully charged.
Fast Blinking Amber
Charging error.
Off
Not charging.
Single Blink Amber (when Power button pressed)
Battery depleted.
Blinking Amber (when Power button pressed)
Battery over-temperature condition.
Radio Status LED
Slow Blinking Green
WAN radios is on.
Off
WAN radio is off.
NOTE
For information about scanning/decoding, see Data Capture on page 2-34. For information about WAN radio
status and settings, see Chapter 5, Using the Phone, or refer to the MC75 Integrator Guide.
Using the MC75 2 - 15
Resetting the MC75
There are two reset functions, warm boot and cold boot. A warm boot restarts the MC75 by closing all running
programs. A cold boot also restarts the MC75, and also resets the clock. Data saved in flash memory or a memory
card is not lost.
If the MC75 is not functioning properly, perform a warm boot first. If the MC75 still does not respond, perform a cold
boot.
Performing a Warm Boot
Hold down the Power button for approximately five seconds. As soon as the MC75 starts to boot release the
Power button.
Performing a Cold Boot
To perform a cold boot simultaneously press the Power button and the 1 and 9 keys.
Waking the MC75
The wake-up conditions define what actions wake up the mobile computer after it has gone into suspend mode.
The mobile computer can go into suspend mode by either pressing the Power button or automatically by Control
Panel time-out settings. These settings are configurable and the factory default settings are shown in Table 2-7 are
subject to change/update.
Table 2-7 Wake-up Default Settings
Condition for Wake-up
Power Button
Automatic Time-out
AC power is applied.
No
Yes
Mobile computer is inserted into a cradle.
No
Yes
Mobile computer is removed from a cradle.
No
Yes
Mobile computer is connected to a USB device.
No
Yes
Mobile computer is disconnected from a USB device.
No
Yes
A key is pressed.
No
Yes
The scan triggered is pressed.
No
Yes
The screen is touched.
No
No
Audio Jack
No
No
Audio Btn
No
No
Bluetooth communication
Yes
Yes
Incoming phone call
Yes
Yes
2 - 16 MC75 User Guide
Locking the MC75
NOTE
On devices with Windows Mobile 6.5.3, see Locking the MC75 on page C-15 for more information.
Use the Device Lock feature to prevent use of the device. Note that when locked, the MC75 does not respond to
screen or keypad input.
To lock the device, tap the Device unlocked icon. The icon changes to locked.
Device Unlocked Icon
Device Locked Icon
Figure 2-10 Device Locked/Unlocked Icons
To unlock the device and free it for use, tap Unlock.
Figure 2-11 Unlock Device Window
Tap Unlock on the Unlock window.
NOTE
You can make emergency calls even when the MC75 is locked. See Making an Emergency Call on page 5-7
for more information.
Using the MC75 2 - 17
Keypads
The MC75 offers two types modular keypad configurations: Numeric and alpha-numeric.
Numeric Keypad Configuration
The numeric keypad contains application keys, scroll keys, and function keys. The keypad is color-coded to
indicate the alternate function key (blue) values. Note that an application can change keypad functions so the
MC75’s keypad may not function exactly as described. See Table 2-8 for key and button descriptions and Table 2-9
on page 2-19 for the keypad’s special functions.
F2
Figure 2-12 MC75 Numeric Keypad
Table 2-8 MC75 Numeric Keypad Descriptions
Key
Blue Key (left)
Description
Use this key to launch applications or access items (shown on the keypad in blue).
Press the Blue key once to activate this mode, followed by another key.
A single press displays the following icon at the bottom of the screen, until a second key is
pressed:
Orange Key
Use this key to access the secondary layer of characters and actions (shown on the keypad
in orange). Press the Orange key once to lock the keypad into Alpha state. 
A single press displays the following icon at the bottom of the screen:
Press the Orange key a second time to return to the normal state.
Press the Orange key, then the Shift key to add a temporary shift (that applies only to the
next key pressed) to the orange lock state. This displays the following icon at the bottom of
the screen:
2 - 18 MC75 User Guide
Table 2-8 MC75 Numeric Keypad Descriptions (Continued)
Key
Description
Talk/End
Talk (Green Phone): press to display the phone keypad window or to dial a phone number
(from the phone keypad window).
End (Red Phone): press when the phone keypad window displays to stop dialing or end a
call.
Scan (yellow)
Activates the scanner/imager in a scan enabled application.
Scroll Up and Down
Moves up one item.
Moves left one item when pressed with the Orange key.
Scroll Left and Right
Moves down one item.
Moves right one item when pressed with the Orange key.
Soft Keys
Accesses the command or menu above it on the screen.
Star
Produces an asterisk in default state.
Press and release the blue key, then press the Star key to open the Start menu.
Alphanumeric
In default state, produces the numeric value on the key.
In Alpha state, produces the lower case alphabetic characters on the key. Each key press
produces the next alphabetic character in sequence. For example, press and release the
Orange key and then press the ‘4’ key once to produce the letter ‘g’; press and release the
Orange key and then press the ‘4’ key three times to produce the letter ‘i’.
Press the SHIFT key in Alpha state to produce the upper case alphabetic characters on the
key. For example, press and release the Orange key, press and release the SHIFT key, and
then press the ‘4’ key once to produce the letter ‘G’; press and release the Orange key,
press and release the SHIFT key and then press the ‘4’ key three times to produce the letter
‘I’.
SPACE
Produces a space.
BACKSPACE
Produces a backspace.
Using the MC75 2 - 19
Table 2-8 MC75 Numeric Keypad Descriptions (Continued)
Key
Description
SHIFT
Press and release the SHIFT key to activate the keypad alternate SHIFT functions.
A single press displays the following icon at the bottom of the screen, until a second key is
pressed:
Press the Orange key, then the Shift key to add a temporary shift (that applies only to the
next key pressed) to the orange lock state. This displays the following icon at the bottom of
the screen:
ENT (Enter)
Executes a selected item or function.
Pound
Produces a pound/number sign.
Press and release the blue key, then press the Pound key to produce an OK.
Table 2-9 Numeric Keypad Input Modes
Orange Key
(Alpha Lowercase Mode)
Numeric Mode
Orange + Shift Keys
(Alpha Uppercase Mode)
Key
Blue+
Key
SHIFT
+ Key
1st
Press
2nd
Press
3rd
Press
4th
Press
*
1st
Press
2nd
Press
3rd
Press
4th
Press
*
*
*
*
1
1
F1
!
*
*
*
2
2
F2
@
a
b
c
A
B
C
3
3
F3
#
d
e
f
D
E
F
4
4
F4
$
g
h
i
G
H
I
5
5
F5
%
j
k
l
J
K
L
6
6
F6
^
m
n
o
M
N
O
7
7
F7
&
p
q
r
P
Q
R
8
8
F8
*
t
u
v
T
U
V
9
9
F9
(
w
x
y
W
X
Y
0
0
F10
)
.
s
z
>
Note: An application can change the key functions. The keypad may not function exactly as described.
S
Z
2 - 20 MC75 User Guide
Table 2-9 Numeric Keypad Input Modes (Continued)
Orange Key
(Alpha Lowercase Mode)
Numeric Mode
Orange + Shift Keys
(Alpha Uppercase Mode)
Key
Blue+
Key
SHIFT
+ Key
1st
Press
2nd
Press
3rd
Press
4th
Press
1st
Press
Up
Up
Up
Hilight
Up
Left
Left
Down
Down
Down
Hilight
Down
Right
Right
Enter
Action
Action
Action
Action
Action
2nd
Press
3rd
Press
Note: An application can change the key functions. The keypad may not function exactly as described.
4th
Press
Using the MC75 2 - 21
DSD Keypad Configuration
The DSD keypad contains application keys, scroll keys, and function keys. The keypad is color-coded to indicate
the alternate function key (blue) values. Note that an application can change keypad functions so the MC75’s
keypad may not function exactly as described. See Table 2-10 for key and button descriptions and Table 2-11 on
page 2-23 for the keypad’s special functions.
Figure 2-13 MC75 DSD Keypad
Table 2-10 MC75 DSD Keypad Descriptions
Key
Blue Key (left)
Description
Use this key to launch applications or access items (shown on the keypad in blue).
Press the Blue key once to activate this mode, followed by another key.
A single press displays the following icon at the bottom of the screen, until a second key is
pressed:
Orange Key
Use this key to access the secondary layer of characters and actions (shown on the keypad
in orange). Press the Orange key once to lock the keypad into Alpha state. 
A single press displays the following icon at the bottom of the screen:
Press the Orange key a second time to return to the normal state.
Press the Orange key, then the Shift key to add a temporary shift (that applies only to the
next key pressed) to the orange lock state. This displays the following icon at the bottom of
the screen:
Talk/End
Talk (Green Phone): press to display the phone keypad window or to dial a phone number
(from the phone keypad window).
End (Red Phone): press when the phone keypad window displays to stop dialing or end a
call.
Scan (yellow)
Activates the scanner/imager in a scan enabled application.
2 - 22 MC75 User Guide
Table 2-10 MC75 DSD Keypad Descriptions (Continued)
Key
Description
Scroll Up
Moves up one item.
Scroll Left
Moves left one item.
Scroll Down
Moves down one item.
Scroll Right
Moves right one item.
Alphanumeric
In default state, produces the numeric value on the key.
In Alpha state, produces the lower case alphabetic characters on the key. Each key press
produces the next alphabetic character in sequence. For example, press and release the
Orange key and then press the ‘4’ key once to produce the letter ‘g’; press and release the
Orange key and then press the ‘4’ key three times to produce the letter ‘i’.
Press the SHIFT key in Alpha state to produce the upper case alphabetic characters on the
key. For example, press and release the Orange key, press and release the SHIFT key, and
then press the ‘4’ key once to produce the letter ‘G’; press and release the Orange key,
press and release the SHIFT key and then press the ‘4’ key three times to produce the letter
‘I’.
SPACE
Produces a space.
BACKSPACE
Produces a backspace.
ESC
Cancels an operation or action.
ENT (Enter)
Executes a selected item or function.
Period
Produces a period character.
Dash
Produces a dash character.
Using the MC75 2 - 23
Table 2-11 DSD Keypad Input Modes
Orange Key
(Alpha Lowercase Mode)
Numeric Mode
Orange + Shift Keys
(Alpha Uppercase Mode)
Key
Blue+
Key
SHIFT
+ Key
1st
Press
2nd
Press
3rd
Press
4th
Press
*
1st
Press
2nd
Press
3rd
Press
4th
Press
*
*
*
*
1
1
F1
!
*
*
*
2
2
F2
@
a
b
c
A
B
C
3
3
F3
#
d
e
f
D
E
F
4
4
F4
$
g
h
i
G
H
I
5
5
F5
%
j
k
l
J
K
L
6
6
F6
^
m
n
o
M
N
O
7
7
F7
&
p
q
r
P
Q
R
8
8
F8
*
t
u
v
T
U
V
9
9
F9
(
w
x
y
W
X
Y
0
0
F10
)
.
>
.
.
.
.
-
-
-
-
Up
Up
Up
Hilight
Up
Down
Down
Down
Hilight
Down
Left
Left
Left
Hilight
Left
Right
Right
Right
Hilight
Right
Enter
Action
Action
Action
Action
Action
ESC
ESC
ESC
ESC
ESC
ESC
s
z
Note: An application can change the key functions. The keypad may not function exactly as described.
S
Z
2 - 24 MC75 User Guide
Alpha-numeric Keypad Configurations
The three types of alpha-numeric keypads produce the 26-character alphabet (A-Z, both lowercase and
uppercase), numbers (0-9), and assorted characters. The keypad is color-coded to indicate which modifier key to
press to produce a particular character or action. The keypad default is alphabetic, producing lowercase letters.
See Table 2-12 for key and button descriptions and Table 2-13 on page 2-27 for the keypad’s special functions.
Figure 2-14 QWERTY Keypad Configuration
Figure 2-15 AZERTY Keypad Configuration
Figure 2-16 QWERTZ Keypad Configuration
Using the MC75 2 - 25
Table 2-12 Alpha-numeric Keypad Descriptions
Key
Blue Key
Action
Launches applications (shown on the keypad in blue).
Press the Blue key once to activate this mode temporarily, followed by another key. This
displays the following icon at the bottom of the screen, until a second key is
pressed:
Press the Blue key twice to lock this mode. This displays the following icon at the bottom
of the screen:
Press the Blue key a third time to unlock.
Press and hold the Blue key while selecting a sequence of keys to activate this mode
temporarily. This displays the following icon at the bottom of the screen as long as the key
is pressed:
Orange Key
Accesses the secondary layer of characters and actions (shown on the keypad in
orange).
Press the Orange key once to activate this mode temporarily, followed by another key.
This displays the following icon at the bottom of the screen, until a second key is
pressed:
Press the Orange key twice to lock this mode. This displays the following icon at the
bottom of the screen:
Press the Orange key a third time to unlock.
Press and hold the Orange key while selecting a sequence of keys to activate this mode
temporarily. This displays the following icon at the bottom of the screen as long as the key
is pressed:
Talk/End
Talk (Green Phone): press to display the phone keypad window or to dial a phone number
(from the phone keypad window).
End (Red Phone): press when the phone keypad window displays to stop dialing or end a
call.
Scroll Up and Left
Moves up one item.
Moves left one item when pressed with the Orange key.
Scroll Down and Right
Moves down one item.
Moves right one item when pressed with the Orange key.
Soft Keys
Accesses the command or menu above it on the screen.
2 - 26 MC75 User Guide
Table 2-12 Alpha-numeric Keypad Descriptions (Continued)
Key
Shift
Action
Changes the state of the alpha characters from lowercase to uppercase.
• Press the Shift key to activate this mode temporarily, followed by another key.
This displays the following icon at the bottom of the screen, until a second key is
pressed:
• Press the Shift key twice to lock this mode. This displays the following icon at the
bottom of the screen:
• Press the Shift key a third time to unlock.
Backlight
Turns the display backlight on and off.
Backspace
Produces a backspace.
Enter
Executes a selected item or function.
Star
Produces an asterisk.
OK
Use this key in conjunction with the Blue key as an OK or close button. This function is
user programmable.
Start Menu
Use this key in conjunction with the Blue key to instantly display the Start menu from any
application without tapping the screen. This function is user programmable.
Menu
Use this key in conjunction with the Blue key to instantly display the context menu from
any application without tapping the screen. This function is user programmable.
Phonepad
Use this key in conjunction with the Blue key to display the Phonepad application
without tapping the screen. This function is user programmable.
Using the MC75 2 - 27
Table 2-13 QWERTY Keypad Input Modes
Key
Normal
Shift + Key
Orange + Key
Blue + Key
Q
q
Q
*
Start Menu
W
w
W
1
Menu
E
e
E
2
Phone
R
r
R
3
T
t
T
+
Y
y
Y
_
U
u
U
-
I
i
I
=
O
o
O
“
P
p
P
áü
A
a
A
#
S
s
S
4
D
d
D
5
F
f
F
6
G
g
G
(
H
h
H
)
J
j
J
/
K
k
K
:
L
l
L
‘
Backspace
Backspace
Shift
Shift
Z
z
Z
7
X
x
X
8
C
c
C
9
V
v
V
%
B
b
B
&
N
n
N
!
M
m
M
?
,
,
<
@
OK
Note: An application can change the key functions. The keypad may not function exactly as described.
2 - 28 MC75 User Guide
Table 2-13 QWERTY Keypad Input Modes (Continued)
Key
Normal
Shift + Key
Orange + Key
Blue + Key
ENTER
Enter
Backlight
Backlight
Backlight
0
Backlight
TAB
Tab
Tab
Back tab
Tab
SPACE
Space
Space
Space
Space
Star
*
*
*
*
.
.
>
.
.
Note: An application can change the key functions. The keypad may not function exactly as described.
Table 2-14 AZERTY Keypad Input Modes
Key
Normal
Shift + Key
Orange + Key
Blue + Key
A
a
A
*
Start Menu
Z
z
Z
1
Menu
E
e
E
2
Phone
R
r
R
3
T
t
T
+
Y
y
Y
_
U
u
U
-
I
i
I
=
O
o
O
“
P
p
P
áü
Q
q
Q
#
S
s
S
4
D
d
D
5
F
f
F
6
G
g
G
(
H
h
H
)
J
j
J
/
K
k
K
:
L
l
L
‘
M
m
M
?
OK
Note: An application can change the key functions. The keypad may not function exactly as described.
Using the MC75 2 - 29
Table 2-14 AZERTY Keypad Input Modes (Continued)
Key
Normal
Shift + Key
Orange + Key
Blue + Key
Shift
Shift
W
w
W
7
X
x
X
8
C
c
C
9
V
v
V
%
B
b
B
&
N
n
N
!
,
,
<
@
Backspace
backspace
Enter
Enter
Backlight
Backlight
Backlight
0
Backlight
TAB
Tab
Tab
Back tab
Tab
SPACE
Space
Space
Space
Space
Star
*
*
*
*
.
.
>
.
.
Note: An application can change the key functions. The keypad may not function exactly as described.
Table 2-15 QWERTZ Keypad Input Modes
Key
Normal
Shift + Key
Orange + Key
Blue + Key
Q
q
Q
*
Start Menu
W
w
W
1
Menu
E
e
E
2
Phone
R
r
R
3
T
t
T
+
Z
z
Z
_
U
u
U
-
I
i
I
=
O
o
O
“
P
p
P
áü
A
a
A
#
OK
Note: An application can change the key functions. The keypad may not function exactly as described.
2 - 30 MC75 User Guide
Table 2-15 QWERTZ Keypad Input Modes (Continued)
Key
Normal
Shift + Key
Orange + Key
Blue + Key
S
s
S
4
D
d
D
5
F
f
F
6
G
g
G
(
H
h
H
)
J
j
J
/
K
k
K
:
L
l
L
‘
Backspace
Backspace
Shift
Shift
Y
y
Y
7
X
x
X
8
C
c
C
9
V
v
V
%
B
b
B
&
N
n
N
!
M
m
M
?
,
,
<
@
ENTER
Enter
Backlight
Backlight
Backlight
0
Backlight
TAB
Tab
Tab
Back tab
Tab
SPACE
Space
Space
Space
Space
Star
*
*
*
*
.
.
>
.
.
Note: An application can change the key functions. The keypad may not function exactly as described.
Special Character Key
NOTE
Special characters are only available on the alpha-numeric keypad configurations.
To add special characters using the MC75 áü key, type the related character first, then press the Orange twice
followed by the áü (P) key. Continue pressing the áü key until the special character displays. To modify an existing
Using the MC75 2 - 31
character, move the cursor to the right of the character then press the Orange key twice and then press the áü key
until the special character replaces the original character. Table 2-16 lists the special characters you can generate.
Table 2-16 Special Characters
Key
Special Characters
Key
a
A
c
C
d
D
e
E
i
I
l
L
n
N
o
O
p
P
r
R
s
S
t
T
u
U
y
Y
z
Z
$
/
“
(
)
+
!
.
*
@
%
,
#
&
_
‘
?
:
-
Special Characters
2 - 32 MC75 User Guide
Function Buttons
The MC75’s buttons perform certain functions.
Power Button
Scan/Action
Button
Up/Down Button
Action Button
Scan/Action
Button
Figure 2-17 Function Buttons
• Power: Press the red Power button to turn the MC75 screen on and off. The MC75 is in suspend mode when
the screen is off. For more information, see Powering On the MC75 on page 1-8. Also use the Power button
to reset the MC75 by performing a warm or cold boot. See Resetting the MC75 on page 2-15.
• Scan/Action: Press to scan bar codes or capture images. See Data Capture on page 2-34. 
Or, press to open an application or perform a function. See the Microsoft® Applications for Mobile 6 User
Guide to set an application to open.
• Up/Down: Press to increase or decrease the MC75’s volume.
• Action: Press to open an application or perform a function. See the Microsoft® Applications for Mobile 6
User Guide to set an application to open.
Stylus
Use the MC75 stylus to select items and enter information. The stylus functions as a mouse.
• Tap: Touch the screen once with the stylus to press option buttons and open menu items.
• Tap and Hold: Tap and hold the stylus on an item to see a list of actions available for that item. On the pop-up
menu that appears, tap the action to perform.
• Drag: Hold the stylus on the screen and drag across the screen to select text and images. Drag in a list to
select multiple items.
NOTE
Zebra recommends using the spring-loaded tip of the stylus to write on the screen, and the back end of the
stylus to tap the screen. Use your finger to press the Power button and keypad buttons.
Using the MC75 2 - 33
CAUTION
To prevent damage to the screen, do not use any device other than the Zebra-provided stylus.
Entering Data
When entering data on the keypad, use either the single-hand method or the two-hand method as shown in Figure
2-18.
Single-hand Method
Figure 2-18 Entering Data on the Keypad
Two-hand Method
2 - 34 MC75 User Guide
Data Capture
The MC75 offers three types of data capture options:
• Linear scanning
• Imaging
• Digital camera.
NOTE
To perform data capture a scanning enabled application must be installed on the MC75. A sample scanning
application can be downloaded from the Zebra Support site at http://www.zebra.com/support.
Linear Scanning
MC75 with an integrated linear scanner have the following features:
• Reading of a variety of bar code symbologies, including the most popular linear, postal, and 1-D code types.
• Intuitive aiming for easy point-and-shoot operation.
Imaging
MC75 with an integrated imager have the following features:
• Omnidirectional reading of a variety of bar code symbologies, including the most popular linear, postal,
PDF417, and 2D matrix code types.
• The ability to capture and download images to a host for a variety of imaging applications.
• Advanced intuitive laser aiming for easy point-and-shoot operation.
The imager uses digital camera technology to take a digital picture of a bar code, stores the resulting image in its
memory, and executes state-of-the-art software decoding algorithms to extract the data from the image.
Operational Modes
MC75 with an integrated imager support three modes of operation, listed below. Activate each mode by pulling the
trigger or pressing the Scan button.
• Decode Mode: In this mode, the MC75 attempts to locate and decode enabled bar codes within its field of
view. The imager remains in this mode as long as you hold the trigger, or until it decodes a bar code.
NOTE
To enable Pick List Mode, download the Control Panel applet from the web site at
http://www.zebra.com/support. Pick List can also be set in an application using a API command.
• Pick List Mode: This mode allows you to selectively decode a bar code when more than one bar code is in
the MC75’s field of view. To accomplish this, move the aiming crosshair over the required bar code to decode
only this bar code. This feature is ideal for pick lists containing multiple bar codes and manufacturing or
transport labels containing more than one bar code type (either 1D or 2D).
• Image Capture Mode: Use this mode to capture an image within the MC75’s field of view. This is useful for
capturing signatures or images of items like damaged boxes.
Using the MC75 2 - 35
Digital Camera
MC75 with an integrated digital camera have the following features:
• Omnidirectional reading of a variety of bar code symbologies, including the most popular linear, postal,
PDF417, and 2D matrix code types.
• Advanced intuitive aiming for easy point-and-shoot operation.
The camera uses digital camera technology to take a digital picture of a bar code, stores the resulting image in its
memory, and executes state-of-the-art software decoding algorithms to extract the data from the image.
Scanning Considerations
Typically, scanning is a simple matter of aim, scan, and decode and a few quick trial efforts master it. However,
consider the following to optimize scanning performance:
• Range
Any scanning device decodes well over a particular working range — minimum and maximum distances from
the bar code. This range varies according to bar code density and scanning device optics.
Scanning within range brings quick and constant decodes; scanning too close or too far away prevents
decodes. Move the scanner closer and further away to find the right working range for the bar codes being
scanned.
• Angle
Scanning angle is important for promoting quick decodes. When laser beams reflect directly back into the
scanner from the bar code, this specular reflection can “blind” the scanner.
To avoid this, scan the bar code so that the beam does not bounce directly back. But don’t scan at too sharp
an angle; the scanner needs to collect scattered reflections from the scan to make a successful decode.
Practice quickly shows what tolerances to work within.
• Hold the MC75 farther away for larger symbols.
• Move the MC75 closer for symbols with bars that are close together.
NOTE
Scanning procedures depend on the application and MC75 configuration. An application may use different
scanning procedures from the one listed above.
Linear Scanning
1.
Ensure that a scan enabled application is loaded on the MC75.
2.
Aim the scan window at the bar code.
2 - 36 MC75 User Guide
Figure 2-19 Linear Scanning
3.
Press the scan button. Ensure the red scan beam covers the entire bar code. The Scan/Decode LED lights red
to indicate that scanning is in process, then lights green and a beep sounds, by default, to indicate the bar code
was decoded successfully.
Correct
Incorrect
Figure 2-20 Linear Scanner Aiming Pattern
Imager Scanning
1.
Ensure that a scan-enabled application is loaded on the MC75.
2.
Aim the scan window at the bar code.
Figure 2-21 Imager Scanning
3.
Press the scan button. The red laser aiming pattern turns on to assist in aiming. Ensure the bar code is within
the area formed by the brackets in the aiming pattern. The Scan/Decode LED lights red to indicate that
scanning is in process, then lights green and a beep sounds, by default, to indicate the bar code was decoded
successfully. Note that when the MC75 is in Pick List Mode, the imager does not decode the bar code until the
crosshair touches the bar code.
Using the MC75 2 - 37
Linear bar code
PDF417 symbol
Symbol
View Finder
(Aiming Pattern)
Correct
Figure 2-22 Imager Aiming Pattern: Bar Code Centered
Incorrect
Correct
Figure 2-23 Imager Aiming Pattern: Bar Code Not Centered
Figure 2-24 Pick List Mode with Multiple Bar Codes in Aiming Pattern
4.
Release the scan button.
NOTE
Imager decoding usually occurs instantaneously. The MC75 repeats the steps required to take a digital
picture (image) of a poor or difficult bar code as long as the scan button remains pressed.
Digital Camera Scanning
1.
Ensure that a scan-enabled application is loaded on the MC75.
2.
Aim the camera lens on the back of the MC75 at a bar code.
3.
Press and hold the scan button. A preview window appears on the display window with a red aiming reticle in
the center. The Scan/Decode LED lights red to indicate that scanning is in process.
2 - 38 MC75 User Guide
Figure 2-25 Sample Scan Application with Preview Window
4.
Move the MC75 until the red aiming reticle is on the bar code to scan. The aiming reticle turns green when the
MC75 is able to decode the bar code.
Figure 2-26 Digital Camera Scanning
5.
Release the scan button. The Scan/Decode LED lights green and a beep sounds, by default, to indicate the
bar code was decoded successfully.
Using the RS507 Hands-free Imager
An RS507 Hands-free Imager can be used with the MC75 to capture bar code data.
NOTE
OEM version 02.35.000 or higher is required.
To set up the RS507:
1.
Tap Start > Programs > BTScannerCtlPanel icon.
2.
If required, select the BT Scanner checkbox and then select the appropriate Com port from the drop-down list.
3.
Tap Save and Exit.
4.
Tap Start > Programs > BD Address icon. A bar code displays.
5.
Point the RS507 to the bar code. The RS507 reads the bar code and begins pairing with the MC75.
Using the MC75 2 - 39
Refer to the RS507 Hands-free Imager Product Reference Guide for more information.
Taking Photos
To take a photo:
1.
Tap Start > Programs > Pictures & Videos icon.
2.
Tap Camera on the command bar.
3.
Check the image on the view finder, adjust if necessary.
4.
Press the Enter key to take the picture. Hold the MC75 still until the camera flash occurs or the shutter sound
is heard.
Recording Video
To record a video clip:
1.
Tap Start > Programs > Pictures & Videos icon.
2.
Tap Camera on the command bar.
3.
Tap Menu > Video to set shooting mode to video.
The available recording time displays on the screen.
NOTE
4.
By default, the time limit for recording videos is set to 30 seconds.
Press the Enter key to begin recording.
Recording stops when you press the Enter button again.
Viewing Photos and Videos
NOTE
For detailed information on the Photos and Videos, refer to the Microsoft Applications User Guide for
Mobile 6, p/n 72E-108299-xx.
To view photos and video clips:
1.
Tap Start > Programs > Pictures & Videos icon.
2.
Tap the picture or video clip to view.
2 - 40 MC75 User Guide
Using IrDA
In a Microsoft Windows Mobile program (except Messaging), and Picture & Videos, you can exchange files using
either infrared or Bluetooth.
NOTE
You can also beam files (not folders) from the File Explorer window. Tap and hold the item you want to
send, then tap Beam File from the pop-up menu.
First activate the beam function before exchanging files with another IrDA device.
To activate the Beam function:
1.
Tap Start > Settings > Connections tab > Beam icon.
2.
Tap Receive all incoming beams check box.
Figure 2-27 Beam Window
3.
Tap ok.
Infrared Connection
Using infrared, you can enable short-range file exchange between your MC75 and another IrDA device.
Exchanging Files using IR Connection
Ensure that the IrDA function on both the MC75 and the other device are enabled.
To send files via IrDA connection:
1.
Switch to the program where you created the item you want to send and locate the item in the list.
NOTE
2.
Do not cover or block the IrDA window.
Align the IrDA port of the MC75 with that of the IrDA device so that they are unobstructed and within a close
range.
Using the MC75 2 - 41
Figure 2-28 Align MC75 with IrDA Device
3.
Tap and hold the item, then tap Beam [type of item] on the pop-up menu.
4.
Tap the device that you want to send the file to.
Figure 2-29 Beam Contact
To receive files via IrDA connection:
1.
Align the IrDA port of the MC75 with that of the other IrDA device so that they are unobstructed and within a
close range.
2.
On the other device, send the file to the MC75.
2 - 42 MC75 User Guide
Figure 2-30 Receive File
3.
When the Receiving Data dialog displays, tap Yes.
Chapter 3 Using GPS Navigation
Introduction
The MC75 includes Global Positioning System (GPS) technology using the SiRF III chipset. GPS technology is
based on a worldwide system of GPS satellites orbiting the earth that continuously transmit digital radio signals.
These radio signals contain data on the satellites’ locations and their exact clock time and are used to determine
your location on the earth.
WARNING!
When using the MC75 in a vehicle, it is the user’s responsibility to place, secure and use in a
manner that will not cause accidents, personal injury or property damage or obstruct their view. It
is the responsibility of the driver to operate the vehicle in a safe manner, maintain observation of
all driving conditions at all times, and not become distracted by the device to the exclusion of safe
driving practices. It is unsafe to operate the controls of the device while driving.
Software Installation
Third-party GPS navigation software is required. Evaluation software is available from various suppliers. For
example; VisualGPS, visit: http://www.visualgps.net/VisualGPSce/
If interested in purchasing GPS navigation software check with the GPS software vendor (before purchasing,
downloading, or installing any software) to determine that the application is compatible with the MC75. Refer to the
application’s user guide for application installation and setup information.
MC75 GPS Setup
The GPS-enabled MC75 uses Microsoft Windows Mobile 6, so the operating system automatically manages
access to the GPS receiver to allow multiple programs to simultaneously access GPS data.
By default, the MC75 has the following Settings:
1.
Tap Start > Settings > System > External GPS icon.
2.
In the Programs tab, the GPS program port is set to None.
3.
In the Hardware tab, the GPS hardware port is set to COM8.
3-2
MC75 User Guide
To access the GPS receiver from multiple programs simultaneously, the user can either use the Microsoft GPS API
or change the GPS program port setting and access the GPS program port in the multiplexed way.
Operation
Acquiring satellite signals may take a few minutes. It is best to be outside and have a clear, unobstructed view of
the sky. Without a clear view, acquisition takes much longer and could result in the MC75 being unable to compute
the initial position quickly. When operating the device indoors access to the GPS signals may be limited or
unavailable.
NOTE
When using a GPS navigation application, ensure that the MC75 does not go into suspend mode. If the MC75
suspends then the power to the GPS radio is removed. Upon resume the GPS receiver must reacquire a valid GPS
signal, resulting in a a delay of positional information.
GPS Maps on microSD Cards
GPS navigation software vendors may sell maps on microSD cards. If using a microSD card with the GPS
navigation software:
1.
Remove the Memory Card Cover on the side of the MC75.
2.
Insert the microSD card into the slot.
3.
Replace the Memory Card Cover.
Answering a Phone Call While Using GPS
If you receive a phone call while using your GPS navigation software:
1.
Answer the phone call by pressing the Answer button.
2.
Once you end the phone call, press the End Call button to resume the audio on the GPS software.
NOTE
Anytime you are using GPS on the MC75 and you receive a phone call, the audio on the GPS navigation software
is muted until you finish the call.
Losing the GPS Signal While in a Vehicle
GPS performance on the MC75 may be affected if the vehicle has thermal glass windows and windshields, which
can block the MC75 from receiving a GPS signal from satellites. To improve GPS signal strength, place the MC75
where there is a clear view of the sky. A direct line of sight is required between the MC75 and the GPS satellites to
access information from the satellites.
The Global Positioning System (GPS) is a system that allows the user to track their position anywhere on the earth.
Assisted GPS
NOTE
On devices with OEM version 03.38.0004, to configure the MC75 to obtain GPS data from a SUPL server see
Assisted GPS on page C-19 for more information.
GPS can be used in stand-alone or Assisted GPS (A-GPS) modes. A Stand-alone GPS receiver downloads data
from GPS satellites. It can take several minutes to get a fix. By using GPS Location servers, A-GPS dramatically
Using GPS Navigation
3-3
improves the performance of the Time To First Fix (TTFF) of GPS receivers by providing them with data that they
would ordinarily have to download from the GPS satellites. With the A-GPS data, GPS receivers can operate faster
and more reliably.
A-GPS follows the Secure User Plane Location (SUPL) protocol which allows the MC75 to communicate with a
location server. Refer to the EMDK Help file for information on setting up SUPL on the MC75.
3-4
MC75 User Guide
Chapter 4 Using Bluetooth
Introduction
Bluetooth-equipped devices can communicate without wires, using frequency-hopping spread spectrum (FHSS)
radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM) band
(802.15.1). Bluetooth wireless technology is specifically designed for short-range (30 feet/10 meters)
communication and low power consumption.
MC75s with Bluetooth capabilities can exchange information (e.g., files, appointments, and tasks) with other
Bluetooth enabled devices such as phones, printers, access points, and other mobile computers. To use the MC75
as a modem, create a dial-up modem connection between a computer and MC75.
Zebra mobile computers with Bluetooth technology use the StoneStreet Bluetooth stack. To program Bluetooth
within the MC75 refer to the Enterprise Mobility Developer Kit (EMDK) Help.
Adaptive Frequency Hopping
Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used with
Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH to work.
There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections and discoveries
during critical 802.11b communications. AFH for Bluetooth consists of four main sections:
• Channel Classification - A method of detecting an interference on a channel-by-channel basis, or pre-defined
channel mask.
• Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth network.
• Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping channels.
• Channel Maintenance - A method for periodically re-evaluating the channels.
When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate channels. AFH
coexistence allows Zebra mobile computers to operate in any infrastructure.
4-2
MC75 User Guide
The Bluetooth radio in this MC75 operates as a Class 2 device power class. The maximum output power is 2.5mW
and the expected range is 32.8 feet (10 meters). A definition of ranges based on power class is difficult to obtain
due to power and device differences, and whether one measures open space or closed office space.
NOTE
It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b operation is
required.
Security
The current Bluetooth specification defines security at the link level. Application-level security is not specified. This
allows application developers to define security mechanisms tailored to their specific need. Link-level security
occurs between devices, not users, while application-level security can be implemented on a per-user basis. The
Bluetooth specification defines security algorithms and procedures needed to authenticate devices, and if needed,
encrypt the data flowing on the link between the devices. Device authentication is a mandatory feature of Bluetooth
while link encryption is optional.
Pairing of Bluetooth devices is accomplished by creating an initialization key that is used to authenticate the
devices and create a link key for them. Entering a common PIN number in the devices being paired generates the
initialization key. The PIN number is never sent over the air. By default, the Bluetooth stack responds with no key
when a key is requested (it is up to user to respond to the key request event). Authentication of Bluetooth devices
is based-upon a challenge-response transaction. Bluetooth allows for a PIN number or passkey that is used to
create other 128-bit keys used for security and encryption. The encryption key is derived from the link key used to
authenticate the pairing devices. Also worthy of note is the limited range and fast frequency hopping of the
Bluetooth radios that makes long-distance eavesdropping difficult.
Recommendations are:
• Perform pairing in a secure environment
• Keep PIN codes private and don't store the PIN codes in the mobile computer
• Implement application-level security.
Using Bluetooth
4-3
Turning the Bluetooth Radio Mode On and Off
NOTE
On devices with Windows Mobile 6.5.3, turn the Bluetooth radio on or off using the Wireless Manager. Tap the
Status bar and select the Connectivity icon. Tap Wireless Manager.
Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (e.g., an airplane). When the
radio is off, other Bluetooth devices cannot see or connect to the MC75. Turn on the Bluetooth radio to exchange
information with other Bluetooth devices (within range). Communicate only with Bluetooth radios in close proximity.
NOTE
To achieve the best battery life turn off radios not in use.
Disabling Bluetooth
To disable Bluetooth, tap Bluetooth icon > Disable Bluetooth. The Bluetooth icon changes to indicate that
Bluetooth is disabled.
Figure 4-1 Disable Bluetooth
Enabling Bluetooth
To enable Bluetooth, tap Bluetooth icon > Enable Bluetooth. The Bluetooth icon changes to indicate that
Bluetooth is enabled.
Figure 4-2 Enable Bluetooth
4-4
MC75 User Guide
Bluetooth Power States
Cold Boot
Performing a cold boot on the MC75 turns off Bluetooth after initialization (which takes a few moments). It is normal
to see the Bluetooth icon appear and disappear, as well as a wait cursor, when initialization proceeds in all modes.
Warm Boot
Performing a warm boot on the MC75 returns Bluetooth to the last state after initialization.
Suspend
Suspending the MC75 turns off Bluetooth.
NOTE
If there is an active Bluetooth connection between the MC75 and another Bluetooth device, the MC75 will not
timeout. However, if the user presses the Power button on the MC75, the MC75 will suspend and upon
receiving data from a remote Bluetooth device, the MC75 will wake from suspend mode. For example,
headset redial or Bluetooth scanner sending data to the MC75.
Resume
When the MC75 resumes, Bluetooth turns on if it was on prior to suspend.
Modes
The BTExplorer application has two modes for managing Bluetooth connections: Wizard Mode and Explorer Mode.
The Wizard Mode is for novice Bluetooth users and the Explorer Mode is for experienced Bluetooth users. To
switch between modes, select View > Wizard Mode or View > Explorer Mode.
Wizard Mode
Wizard Mode provides a simple process for discovering and connecting to Bluetooth devices.
NOTE
Switching between Wizard Mode and Explorer Mode closes all active connections.
Wizard Mode shows the devices and services in a simple Favorites view created by following the step-by-step
wizard.
Explorer Mode
The Explorer Mode window is easy to navigate and provides greater control to users familiar with Bluetooth. The
menu bar provides quick access to the options and tools used to connect to devices. To access Explorer Mode, tap
View > Explorer Mode.
Using Bluetooth
4-5
Figure 4-3 Explorer Mode Window
You can also use the “tap and hold” technique to view available options. Scroll bars and view options are similar to
those on the Windows desktop. The tree structure lists the following sub-items:
• Local Device - This device
• Remote Device - Other Bluetooth devices
• Trusted Devices - Bonded (paired) Bluetooth devices
• Untrusted Devices - Discovered devices that are not bonded
• Favorites - Selected services that are set as Favorite for quick access.
NOTE
Switching between Wizard Mode and Explorer Mode closes all active connections.
4-6
MC75 User Guide
Discovering Bluetooth Device(s)
The MC75 can receive information from discovered devices without bonding. However, once bonded, the MC75
and a bonded device exchange information automatically when you turn the Bluetooth radio on. See Bonding with
Discovered Device(s) on page 4-20 for more information.
To find Bluetooth devices in the area:
1.
Ensure that Bluetooth is enabled on both devices.
2.
Ensure that the Bluetooth device to discover is in discoverable and connectable modes.
3.
Ensure that the require profile is enabled on the MC75. See Profiles Tab on page 4-32 for more information.
4.
Ensure that the two devices are within 30 feet (10 meters) of one another.
5.
Tap the Bluetooth icon and select Show BTExplorer. The BTExplorer window appears.
NOTE
6.
If favorite connections have already been created, the Favorites screen displays. If no favorite connections
have been created, the New Connection Wizard screen displays.
Tap Menu > New Connection.The New Connection Wizard appears.
Figure 4-4 BTExplorer Window
7.
Select Explore Services on Remote Device or another from the drop-down list and tap Next.
The following actions are available in the drop-down list (actions may vary depending upon configurations):
• Explore Services on Remote Device
• Pair with a Remote Device
• Active Sync via Bluetooth
• Browse Files on Remote Device
• Connect to Headset
• Connect to Internet using Access Point
• Connect to Internet using Phone/Modem
• Connect to Personal Area Network
• Connect to Printer
Using Bluetooth
4-7
• Send or Exchange Objects
• Associate Serial Port.
NOTE
8.
If a device discovery action has not been previously performed, a device discovery is automatically initiated. If
a device discovery has previously been performed, the device discovery process is skipped, and the
previously found list of devices displays. To start a new device discovery, tap and hold in the window and select
Discover Devices from the pop-up menu.
BTExplorer searches for Bluetooth devices in the area.
Figure 4-5 Discover Devices Dialog Box
The discovered devices display in the Select Remote Device window.
Figure 4-6 Select Remote Device Window
9.
Select a device from the list and tap Next. The MC75 searches for services on the selected Bluetooth device.
4-8
MC75 User Guide
Figure 4-7 Device Services
NOTE
If the MC75 discovers a service but the service is not supported, the service icon is grayed-out.
10. Select a service from the list and press Next. The Connection Favorite Options window appears.
Figure 4-8 Connection Favorite Options Window
11. In the Favorite Name text box, enter a name for this service that will appear in the Favorite window.
12. Tap Next. The Connection Summary window appears.
13. Tap Connect to add the service to the Favorite window and connect to the service.
Using Bluetooth
4-9
Figure 4-9 Favorites Window
Available Services
NOTE
Some devices might not require a PIN. This depends upon the device’s authentication.
The MC75 offers the following services:
• File Transfer Services
• Dial-Up Networking Services
• OBEX Object Push Services
• Headset Audio Gateway Services
• Hands-Free Audio Gateway Services
• Serial Port Services
• Personal Area Networking Services
• IrMC Services.
See the following sections for information on these services.
File Transfer Services
NOTE
Shared folders are a security risk.
To transfer files between the MC75 and another Bluetooth enabled device:
1.
Ensure the MC75 is discoverable and connectable. See Device Info Tab on page 4-23.
2.
Ensure that OBEX File Transfer profile is enabled on the MC75. See Profiles Tab on page 4-32 for more
information.
NOTE
3.
If favorite connections have already been created, the Favorites screen displays. If no favorite connections
have been created, the New Connection Wizard screen displays.
Use the Connection Wizard to search for a Bluetooth device.
4 - 10 MC75 User Guide
4.
Select the device and tap Next. The Select Remote Service window appears.
5.
Tap Next. The Connection Favorite Options window appears.
6.
Tap Next. The Connection Summary window appears.
7.
Tap Connect. The remote device’s accessible folders appear.
Figure 4-10 File Transfer Window
8.
Double-tap the file to copy. The Save Remote File window appears.
Figure 4-11 Save Remote File Window
9.
Tap and hold on the file. A pop-up menu appears.
10. Select the action to perform:
• New - create a new file or folder on the remote device
• Delete - delete the selected file on the remote device.
• Get File - copy the file from the remote device to the MC75.
• Put File - copy a file from the MC75 to the remote device.
Creating a New File or Folder
To create a new folder or file on the remote device:
1.
Tap and hold on the screen and select New > Folder or New > File. The Create New Folder or Create New
File window appears.
Using Bluetooth 4 - 11
2.
Enter the name for the new folder or file.
3.
Tap OK to create the new folder or file on the remote device.
Deleting a File
To delete a file from the remote device:
1.
Tap and hold on the file to delete and select Delete.
2.
In the Delete Remote Device File dialog box tap Yes.
Getting a File
To copy a file from a remote device:
1.
Double-tap or tap and hold on the file and select Get. The Save Remote File window appears.
2.
Navigate to the directory to save the file.
3.
Tap Save. The file is transferred from the remote device to the MC75.
Copying a File
To copy a file to a remote device:
1.
Tap Action > Put. The Send Local File window appears.
2.
Navigate to the directory to save the file and select a file.
3.
Tap Open. The file copies from the MC75 to the remote device.
Connecting to the Internet Using an Access Point
This section explains how to access a Bluetooth-enabled LAN access point (AP) for a network connection. Use
Internet Explorer to connect to a server.
1.
Ensure the MC75 is discoverable and connectable. See Device Info Tab on page 4-23.
2.
Ensure that the Personal Area Networking profile is enabled on the MC75. See Profiles Tab on page 4-32 for
more information.
3.
Use the Connection Wizard to search for a Bluetooth AP.
NOTE
If favorite connections have already been created, the Favorites screen displays. If no favorite connections
have been created, the New Connection Wizard screen displays.
4.
Select the Personal Area Network or Network Access service and select Connect from the pop-up menu.
The MC75 connects with the access point.
5.
Tap Start > Internet Explorer. The Internet Explorer window appears.
6.
In the address field, enter an internet address and tap the Enter button. The web page loads.
NOTE
Network Access profile is not supported.
4 - 12 MC75 User Guide
Dial-Up Networking Services
Dial-up networking allows the user to connect a PC or laptop to the MC75 and use the MC75 as a modem to
connect to an office network or ISP.
Before setting up dial-up networking, obtain dial-up information and other necessary settings (username, password
and domain name, if required) for the office network or ISP. To create a new Bluetooth connection:
1.
Ensure the MC75 is discoverable and connectable. See Device Info Tab on page 4-23.
2.
Ensure that the Dial-Up Networking profile is enabled on the MC75. See Profiles Tab on page 4-32 for more
information.
3.
Tap Menu > Settings > Services tab.
4.
Tap Add button.
5.
Select Dial-up networking Service.
6.
Tap OK. The Edit Local Services window appears.
Figure 4-12 Edit Local Service Window
7.
In the Local COM Port drop-down list, select DUN1 for GSM configurations or WMP9 for CDMA
configurations.
8.
Tap OK twice.
9.
On the PC or laptop, set up Bluetooth according to the manufacturer’s instructions.
10. On the PC or laptop Bluetooth software, search for the MC75 and select the Dial-up Networking service.
11. Using dial-up software on the PC or laptop, connect to the MC75.
12. The MC75 phone function dials the ISP number and connects to the ISP.
13. To verify, on the PC or laptop, launch Internet Explorer and open a web site.
Object Exchange Push Services
Object Exchange (OBEX) is a set of protocols that allows sharing objects such as Contacts or pictures using
Bluetooth.
To exchange contact information with another Bluetooth enabled device:
1.
Ensure the MC75 is discoverable and connectable. See Device Info Tab on page 4-23.
Using Bluetooth 4 - 13
2.
Ensure that the OBEX Object Push profile is enabled on the MC75. See Profiles Tab on page 4-32 for more
information.
NOTE
If favorite connections have already been created, the Favorites screen displays. If no favorite connections
have been created, the New Connection Wizard screen displays.
3.
Use the Connection Wizard to search for a Bluetooth device.
4.
Select the device and tap Next.
5.
Select the OBEX Object Push service and select Connect. The OBEX Object Push window appears.
6.
In the Action drop-down list, select one of the following options: Send Contact Information, Swap Contact
Information, Fetch Contact Information, or Send a Picture.
Sending a Contact
To send a contact to another device:
NOTE
1.
Prior to sending and receiving contacts, a default contact must be set up before attempting to send a
contact.
Tap and hold on OBEX Object Push and select Connect. The OBEX Object Push window appears.
Figure 4-13 OBEX Object Push Window
2.
In the Action: drop-down list, select Send Contact Information.
3.
Tap
. The Select Contact Entry window appears.
4 - 14 MC75 User Guide
Figure 4-14 Select Contact Entry Window
4.
Select a contact to send to the other device.
5.
Tap OK.
6.
Tap OK to send the contact to the other device and display a confirmation dialog box on the other device to
accept the contact. A Send Contact dialog appears.
7.
Tap Ok.
Swapping Contacts
To swap contacts with another device:
NOTE
1.
Prior to swapping contacts, a default contact must be set up before attempting to send a contact.
Tap and hold on OBEX Object Push and select Connect. The OBEX Object Push window appears.
Figure 4-15 OBEX Object Push Window
2.
In the Action: drop-down list, select Swap Contact Information.
3.
Tap
. The Select Contact Entry window appears.
Using Bluetooth 4 - 15
Figure 4-16 Select Contact Entry Window
4.
Select a contact to send to the other device.
5.
Tap OK.
6.
Tap OK to swap contacts with the other device and display a confirmation dialog box on the other device to
accept the contact.
7.
Tap Ok.
Fetching a Contact
To fetch a contact from another device:
NOTE
1.
Prior to sending and receiving contacts, a default contact must be set up before attempting to send a contact.
Tap and hold on OBEX Object Push and select Connect. The OBEX Object Push window appears.
Figure 4-17 OBEX Object Push Window
2.
In the Action: drop-down list, select Fetch Contact information.
3.
Tap OK. The contact on the other device is copied.
Sending a Picture
To send a picture to another device:
4 - 16 MC75 User Guide
1.
Tap and hold on OBEX Object Push and select Connect. The OBEX Object Push window appears.
Figure 4-18 OBEX Object Push Window
2.
In the Action: drop-down list, select Send A Picture.
3.
Tap
. The Send Local Picture window appears.
Figure 4-19 Send Local Picture Window
4.
Navigate to the picture to send to the other device.
5.
Tap Open.
6.
Tap OK to send the picture to the other device and display a confirmation dialog box on the other device to
accept the picture. A Send Picture dialog appears.
7.
Tap Ok.
Headset Services
To connect to a Bluetooth headset:
NOTE
1.
Newer Bluetooth headsets are device dependant and remember the last device they connected to. If problems
occur while connecting to the headset, place the headset in discovery mode. Refer to the headset user manual
for more information.
Ensure the MC75 is discoverable and connectable. See Device Info Tab on page 4-23.
Using Bluetooth 4 - 17
2.
Ensure that the Headset profile is enabled on the MC75. See Profiles Tab on page 4-32 for more information.
3.
Use the Connection Wizard to search for a Bluetooth headset.
4.
Select the device and tap Next.
5.
Select the Headset service name and select Connect. The MC75 connects to the headset. Refer to the
headset user manual for instructions on communicating with a Bluetooth device.
NOTE
When using a Bluetooth headset with Headset Services, you cannot accept or end a call from the headset.
You must accept or end a call on the MC75.
6.
Press the communication button on the headset. This routes both system and WAN call audio to the headset.
7.
When a call is received on the MC75, tap the Accept button to answer the call.
8.
Press the communication button on the headset to route the audio back to the MC75.
NOTE
If a wired headset is connected to the MC75, the Bluetooth headset connection is disconnected.
Hands-free Services
To connect to a Bluetooth headset:
NOTE
Newer Bluetooth headsets are device dependant and remember the last device they connected to. If problems
occur while connecting to the headset, place the headset in discovery mode. Refer to the headset user manual
for more information. 

Only WAN audio is routed to the headset. System audio is still emitted through the MC75 speaker.

You can accept calls and re-dial using the Hands-free profile.

Hands-free profile does not support 3-way calling.
1.
Ensure the MC75 is discoverable and connectable. See Device Info Tab on page 4-23.
2.
Ensure that the Hands Free profile is enabled on the MC75. See Profiles Tab on page 4-32 for more
information.
3.
Use the Connection Wizard to search for a Bluetooth hands-free headset.
4.
Select the hand-free device and tap Next.
5.
Select the Hands-free service name and select Connect. The MC75 connects to the headset. Refer to the
headset user manual for instructions on communicating with a Bluetooth device.
6.
During an active connection, the MC75 cannot go into suspend mode when the Power Button is pressed. A
message appears notifying the user.

Once the WAN call is disconnected (with Hands-free profile) the Power button is enabled.
4 - 18 MC75 User Guide
Headset icon
Figure 4-20 WWAN Bluetooth Audio Notification Dialog Box
Serial Port Services
Use the wireless Bluetooth serial port connection as you would a physical serial cable connection. Configure the
application that will use the connection to the correct serial port.
To establish a serial port connection:
1.
Ensure the MC75 is discoverable and connectable. See Device Info Tab on page 4-23.
2.
Use the Connection Wizard to search for a Bluetooth serial device.
3.
Select the device and tap Next. The Connection Favorite Options window appears.
4.
In the Local COM Port: drop-down list select a COM port.
5.
Tap Finish.
ActiveSync Using Serial Port Services
NOTE
By default, COM ports COM5, COM9, COM11, COM21, COM22 and COM23 are Bluetooth virtual ports. If an
application opens one of these ports, the Bluetooth driver activates and guides you through a Bluetooth
connection.
Use the wireless Bluetooth serial port connection for ActiveSync just as you would a physical serial cable
connection. You must configure the application that will use the connection to the correct serial port.
Using Bluetooth 4 - 19
Figure 4-21 ActiveSync Connection Settings Window on PC
To establish an ActiveSync connection:
1.
Ensure the MC75 is discoverable and connectable. See Device Info Tab on page 4-23.
2.
Ensure that the Sync profile is enabled on the MC75. See Profiles Tab on page 4-32 for more information.
3.
Use the Connection Wizard to search for a Bluetooth device, such as a PC. In the drop-down list select
ActiveSync via Bluetooth.
4.
Select the device and tap Next. The Connection Favorite Options window appears.
5.
Tap Connect. The Remote Service Connection window appears.
Figure 4-22 Remote Service Connection Window
6.
In the Service Type drop-down list, select Active Sync.
7.
Tap OK. The MC75 connects the PC and an ActiveSync session begins.
8.
Tap Finish. The Connection Favorite Options window appears.
9.
To end the session, tap the ActiveSync icon in the Favorite window and select Disconnect from the pop-up
window.
4 - 20 MC75 User Guide
Personal Area Network Services
NOTE
This profile supports Ad-hoc and PAN User. Network Access Profile is not supported.
Connect two or more Bluetooth devices to share files, collaborate, or play multi-player games. To establish a
Personal Area Network connection:
1.
Ensure the MC75 is discoverable and connectable. See Device Info Tab on page 4-23.
2.
Ensure that the Personal Area Networking profile is enabled on the MC75. See Profiles Tab on page 4-32 for
more information.
3.
Use the Connection Wizard to search for a Bluetooth device.
4.
Select the device and tap Next. The Connection Favorite Options window appears.
5.
Tap Next. The Connection Summary window appears.
6.
Tap Connect. The MC75 connects to the Bluetooth device.
IrMC Synchronization Services
IrMC Synchronization is used to synchronize PIM contacts between a remote device and the MC75. To establish
an IrMC synchronization:
1.
Ensure the MC75 is discoverable and connectable. See Device Info Tab on page 4-23.
2.
Ensure that the Sync profile is enabled on the MC75. See Profiles Tab on page 4-32 for more information.
3.
Tap Menu > Settings > Services tab.
4.
Tap Add button.
5.
Select IrMC Synchronization.
6.
Tap OK. The Edit Local Services window appears.
7.
Tap OK twice.
8.
Use the Connection Wizard to search for a Bluetooth device, such as a Car Kit.
9.
Select the device and tap Next. The Connection Favorite Options window appears.
10. Tap and hold IrMA Synchronization and select Connect in the pop-up menu.
NOTE
To automatically transfer contact with a Car Kit, ensure that the IrMC Synchronization service is enabled on
the MC75.
Bonding with Discovered Device(s)
A bond is a relationship created between the MC75 and another Bluetooth device in order to exchange information
in a secure manner. Creating a bond involves entering the same PIN on the two devices. After creating a bond and
turning on the Bluetooth radios, the devices recognize the bond and can exchange information without re-entering
a PIN.
Using Bluetooth 4 - 21
To bond with a discovered Bluetooth device:
NOTE
If favorite connections have already been created, the Favorites screen displays. If no favorite connections
have been created, the New Connection Wizard screen displays.
1.
Tap the Bluetooth icon and select Show BTExplorer. The BTExplorer window appears.
2.
Tap Menu > New Connection. The New Connection Wizard window appears.
3.
In the drop-down list, select Pair with Remote Device.
4.
Tap Next. The Select Remote Device window appears.
NOTE
Devices discovered previously are listed to save time. To start a new device discovery, tap and hold on the list
area and select Discover Devices from the pop-up menu.
Figure 4-23 Select Remote Device Window
5.
Select a device from the list and tap Next. The PIN Code Request window appears.
Figure 4-24 Connection Favorite Options Window
6.
In the PIN Code field, enter the PIN code.
7.
Tap OK. The Pairing Status window displays.
4 - 22 MC75 User Guide
Figure 4-25 Pairing Status Window
8.
Tap Finish. The devices are successfully paired. The device name moves to the Trusted Devices window.
Deleting a Bonded Device
To delete a device no longer needed:
1.
Tap the Bluetooth icon and select Show BTExplorer. The BTExplorer window appears.
2.
Tap Menu > Trusted Devices. The Trusted Devices window appears.
3.
Tap and hold on the device select Delete Link Key in the pop-up menu.
4.
A confirmation dialog appears. Tap Yes.
Accepting a Bond
When a remote device wants to bond with the MC75, enter a PIN when requested to grant permission.
1.
Ensure that the MC75 is set to discoverable and connectable. See Bluetooth Settings on page 4-23. When
prompted to bond with the remote device the PIN Code Request window appears.
Figure 4-26 PIN Code Request Window
2.
In the PIN Code: text box, enter the same PIN entered on the device requesting the bond. The PIN must be
between 1 and 16 characters.
3.
In the Device Name: text box, edit the name of the device requesting the bond, if desired.
Using Bluetooth 4 - 23
4.
Tap OK to create the bond. The MC75 can now exchange information with the other device.
Bluetooth Settings
Use the BTExplorer Settings window to configure the operation of the BTExplorer application. Tap Menu >
Settings. The BTExplorer Settings window appears.
Device Info Tab
Use the Device Info tab to configure the MC75’s Bluetooth connection modes.
Figure 4-27 BTExplorer Settings - Device Info Tab
Device Name
Displays the name of the MC75.
Discoverable Mode
Select whether or not the MC75 is discoverable by other Bluetooth devices.
Connectable Mode
Select whether or not the MC75 is connectable by other Bluetooth devices.
Services Tab
Use the Services tab to add or delete Bluetooth services.
Figure 4-28 BTExplorer Settings - Services Tab
4 - 24 MC75 User Guide
To add a service:
1.
Tap Add. The Add Local Service window displays.
Figure 4-29 Add Local Service Window
2.
In the list, select a service to add.
3.
Tap OK. The Edit Local Service window displays for the selected service.
4.
Select the appropriate information and then tap OK. See the following sections for information on the available
services.
Dial-Up Networking Service
Dial-up Networking allows other Bluetooth devices to access a dial-up modem.
Figure 4-30 Add Local Service Window
Table 4-1
Item
Description
Service Name
Displays the name of the service.
Service Security
Select the type of security from the drop-down list. Options are None, Authenticate, or
Authenticate/Encrypt.
Using Bluetooth 4 - 25
Table 4-1
Item
Description
Local COM Port
Select the COM port.
Local Baud Rate
Select the communication baud rate.
Local Port Options
Select the port option.
File Transfer Service
File transfer allows other Bluetooth devices to browse files.
Figure 4-31 BTExplorer Settings - File Transfer Information
Table 4-2 File Transfer Information Data
Item
Description
Service Name
Displays the name of the service.
Service Security
Select the type of security from the drop-down list. Options are None, Authenticate,
or Authenticate/Encrypt.
Root Directory
Select the directory that other Bluetooth devices can access.
File Permissions
Select the file permissions for the selected directory. Check the appropriate box to
grant read access, write access, and delete access.
4 - 26 MC75 User Guide
Hands-Free Audio Gateway Service
Hands-Free Service Audio Gateway allows connection to hands-free devices.
Figure 4-32 BTExplorer Settings - Hands-Free Audio Gateway
Table 4-3 Hands-Free Audio Gateway Data
item
Service Name
Description
Lists the name of the audio service.
Headset Audio Gateway Service
Headset Service Audio Gateway allows connection to headset devices.
Figure 4-33 BTExplorer Settings - Headset Audio Gateway
Table 4-4 Headset Audio Gateway Data
Item
Service Name
Description
Lists the name of the audio service.
IrMC Synchronization Service
The IrMC Synchronization service used to synchronize PIM contacts between a remote device and the MC75.
Using Bluetooth 4 - 27
Figure 4-34 BTExplorer Settings - IrMC Synchronization
Table 4-5 IrMC Synchronization Data
Item
Description
Service Name
Displays the name of the service.
Service Security
Select the type of security from the drop-down list. Options are None, Authenticate, or
Authenticate/Encrypt.
Phonebook
Select the Phonebook checkbox to allow synchronization with the MC75’s contacts.
Select Read, Write, Create and/or Delete to allow phonebook permissions.
OBEX Object Push Service
OBEX Object Push allows other Bluetooth devices to push contacts, business cards, pictures, appointments, and
tasks to the MC75.
4 - 28 MC75 User Guide
Figure 4-35 BTExplorer Settings - OBEX Exchange Information
Table 4-6 OBEX Exchange Information Data
Item
Description
Service Name
Displays the name of the service.
Service Security
Select the type of security from the drop-down list. Options are None,
Authenticate, or Authenticate/Encrypt.
Do not allow clients to push objects
Disables clients from pushing objects to the MC75.
Inbox Directory
Select a directory where another Bluetooth device can store files.
Personal Area Networking Service
Personal Area Networking hosts a Personal Area Network which allows communication with other Bluetooth
devices.
Figure 4-36 BTExplorer Settings - Personal Area Networking
Using Bluetooth 4 - 29
Table 4-7 Personal Area Networking Data
Item
Description
Service Name
Displays the name of the service.
Service Security
Select the type of security from the drop-down list. Options are None,
Authenticate, or Authenticate/Encrypt.
Support Group Ad-Hoc
Networking
Select to enable Ad-Hoc networking.
Serial Port Service
Serial port allows other Bluetooth devices to access COM ports.
Figure 4-37 BTExplorer Settings - Serial Port Services
Table 4-8 Serial Port Services Data
Item
Description
Service Name
Displays the name of the service.
Service Security
Select the type of security from the drop-down list. Options are None, Authenticate, or
Authenticate/Encrypt.
Local COM Port
Select the COM port.
Local Baud Rate
Select the communication baud rate.
Local Port Options
Select the port option.
Security Tab
Security settings allows you to set global security policies for Bluetooth. Note that these settings are only active on
local Services that are set to Authenticate or Authenticate/Encryption. You can set authentication on local Services
under the Services tab.
To adjust the security settings for an individual service, select the Services tab first, then select the individual
service, then Properties.
4 - 30 MC75 User Guide
Figure 4-38 BTExplorer Settings - Security Tab
NOTE
To use PIN Code, select Authenticate or Authenticate/Encrypt from the Service Security drop-down
list on each local service.
Table 4-9 Security Tab Data
Item
Description
Use PIN Code (Incoming
Connection)
Select for automatic use of the PIN code entered in the PIN Code text box.
It is recommended not to use this automatic PIN code feature. See Security
on page 4-2 for more information.
PIN Code
Enter the PIN code.
Encrypt Link On All Outgoing
Connections
Select to enable or disable encryption on all outgoing connections to other
Bluetooth devices.
Discovery Tab
Use the Discovery tab to set and modify discovered devices.
Figure 4-39 BTExplorer Settings - Discovery Tab
Using Bluetooth 4 - 31
Table 4-10 Discovery Tab Data
Item
Description
Inquiry Length
Sets the amount of time the MC75 takes to discover Bluetooth devices in the
area.
Name Discovery Mode
Select either Automatic or Manual to automatically attempt to discover a
Bluetooth device's name after finding the device.
Discovered Devices - Delete
Devices
Deletes all discovered devices and link keys from memory.
Discovered Devices - Delete
Linked Keys
Removes all pairing from remote Bluetooth devices, and makes them all
un-trusted.
Virtual COM Port Tab
Virtual COM Port defines which COM ports BTExplorer attempts to use for virtual COM ports. Check the
appropriate checkbox to use the port as a virtual COM port. When finished, choose Apply to enforce changes, or
Revert to restore the original settings.
Figure 4-40 BTExplorer Settings - Virtual COM Port Tab
Table 4-11 Virtual COM Port Tab Data
Item
Description
COM5:Bluetooth
Enable or disable COM Port 5.
COM9:Bluetooth
Enable or disable COM Port 9.
COM11:Bluetooth
Enable or disable COM Port 11.
COM21:Bluetooth
Enable or disable COM Port 21.
COM22:Bluetooth
Enable or disable COM Port 22.
COM23:Bluetooth
Enable or disable COM Port 23.
4 - 32 MC75 User Guide
HID Tab
Use the HID tab to select The Human Interface Device Profile programming interface defines the protocols and
procedures to be used to implement HID capabilities.
Provides support for devices such as mice, joysticks, keyboards.
Figure 4-41 BTExplorer Settings - HID Tab
Table 4-12 HID Tab Data
Item
Description
Enable Key Repeat
Enables key repeat functionality.
Delay
To increase key repeat delay, drag the Delay slider to the right. To decrease
key repeat delay, drag the Delay slider to the left.
Rate
To increase key repeat speed, drag the Rate slider to the left. To decrease
key repeat speed, drag the Rate slider to the right.
Profiles Tab
Use the Profile tab to load or remove Bluetooth services profiles. If a profile is not used, it can be removed to save
memory.
Figure 4-42 BTExplorer Settings - Profile Tab
1.
Tap a check box next to the profile to load (activate).
Using Bluetooth 4 - 33
The Serial Port profile is always active and cannot be removed.
2.
Tap Select All to select all profiles or tap Deselect All to deselect all profiles.
3.
Tap Apply to activate the profiles and then Close to exit the application.
System Parameters Tab
Figure 4-43 BTExplorer Settings - System Parameters Tab
Table 4-13 System Parameters Tab Data
item
Description
Page Timeout
Sets the amount of time the MC75 searches for a device before moving on
the next device.
Link Supervision Timeout
Sets the amount of time that the MC75 will wait for a device to come back
into range after it has gone out of range. If the device does not come back
into range by the set time, the MC75 drops the connection.
Miscellaneous Tab
Figure 4-44 BTExplorer Settings - Miscellaneous Tab
4 - 34 MC75 User Guide
Table 4-14 Miscellaneous tab Data
Item
Description
Highlight Connections
Select the connection type to highlight when connected. In the Wizard Mode,
the only options are Favorites or None. In the Explorer Mode the options are
None, Tree View Only, List View Only, or Tree and List View.
Apply Text Style
Select the text style to apply to the connection text.
Apply Text Color
Select the text color to apply to the connection text.
Chapter 5 Using the Phone
Introduction
Use the MC75 to make phone calls, set up speed dials, keep track of calls, and send text messages. Your wireless
service provider may also provide other services such as voice mail, call forwarding, and caller ID.
Also use the integrated phone to connect to an ISP or work network in order to browse the Web and read e-mail.
Connect to the Internet or work network over High-Speed Downlink Packet Access (HSDPA) (MC7506 and
MC7596) or Evolution Data-Optimized (EvDO) (MC7508 and MC7598) using Cellular Line, or using the modem
specified by the mobile operator. For more information, or to customize the MC75 phone by changing phone
settings, see the MC75 Integrator Guide.
Accessing the Phone Keypad
NOTE
Keypads vary depending on services and the state of the phone. For example, place calls on hold and use
Swap to switch active calls on hold. (See Conference Calling on an MC7506/96 on page 5-20.)
Access the keypad regardless of the program in use. Applications on the MC75 can be in use during a call.
Antenna Signal
MC7506/96
Figure 5-1 Phone Keypads
MC7508/98
5-2
MC75 User Guide
To access the phone keypad tap Start > Phone or press the green phone key on the MC75’s keypad.
To receive calls when the MC75 is suspended, leave the phone radio turned on and ensure the MC75 is set to
wake with any key.
Turning the Phone On and Off
NOTE
On devices with Windows Mobile 6.5.3, see Status Bar on page C-5 for more information.
Windows Mobile 6 devices include Wireless Manager, which provides a simple method of enabling and disabling
the phone.
To open Wireless Manager, tap the Connectivity icon.
Figure 5-2 Opening Wireless Manager
Select Wireless Manager. The Wireless Manager window appears.
To toggle on or off the phone, tap blue Phone bar.
To configure settings for a connection, tap Menu > Phone Settings.
NOTE
To receive calls when your device is suspended, leave the phone turned on.
Using the Phone
5-3
Audio Modes
The MC75 offers three audio modes for use during phone calls:
• Handset Mode: Switches audio to the speaker at the top front of the MC75, so you can use the MC75 as a
handset. This is the default mode.
• Speaker Mode: Use the MC75 as if on speaker phone. Tap the Speaker On button to activate this mode.
Tap the Speaker Off button to switch back to handset mode.
• Headset Mode: Connect a wired or Bluetooth headset to automatically switch audio to the headset.
The MC75 defaults to handset mode. When a wired headset is plugged into the MC75 audio connector or a
Bluetooth headset is configured for use with the MC75, the earpiece and speakerphone are muted and audio is
heard through the headset.
NOTE
While using a Bluetooth headset during a call, the mobile computer will not go into suspend mode.
Handset Mode
Speaker Mode
Headset Mode
Figure 5-3 Audio Modes
Using a Wired Headset
You can use a stereo headset for audio communication when using an audio-enabled application. To use a
headset, plug the headset jack into the audio connector on the side of the MC75. Set the MC75’s volume
appropriately before putting the headset on. Plugging a headset into the jack mutes the speaker.
For the best audio performance, Zebra recommends a 2.5mm jack headset, see Accessories on page 1-3.
5-4
MC75 User Guide
Figure 5-4 Using a Headset
Using a Bluetooth Headset
You can use a Bluetooth headset for audio communication when using an audio-enabled application. See Chapter
4, Using Bluetooth for information on connecting a Bluetooth headset to the MC75. Set the MC75’s volume
appropriately before putting the headset on. When a Bluetooth headset is connected the speakerphone is muted.
It is recommended for phone conversations to use the Bluetooth Hands-free profile instead of the Headset profile.
See Chapter 4, Using Bluetooth for more information.
NOTE
When using a Bluetooth headset during a call, the MC75 power button is disabled and the MC75 will not go
into suspend mode. Once the call is completed, the power button functionality is enabled.
The following dialog box displays when a Bluetooth headset connection is established.
Figure 5-5 WWAN Bluetooth Audio Notification Dialog Box
Adjusting Audio Volume
Use the Volume Control Slider or the keypad keys to adjust the volume of the ringer when not in a call and the
audio volume when in a call.
Using the Phone
5-5
Phone Volume Slider
Figure 5-6 Phone Volume Slider
To adjust the volume tap the Speaker icon in the Title bar. Move the slider up or down to adjust the volume.
NOTE
Adjust the conversation phone volume during a call. Adjusting the volume while not in a call affects the ring
and notification sound levels.
Making a Call
NOTE
You can make emergency calls even when the MC75 is locked or when a SIM card is not installed. See
Making an Emergency Call on page 5-7 for more information.
With the MC75, you can make a call from the phone, contacts, speed dial and call history.
Using the Phone
To make a call using the phone keypad:
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad.
2.
From the Phone keypad, tap the number to call.
3.
Tap Talk.
4.
Tap End to stop dialing or end the call.
NOTE
Alternatively, use the green and red phone keys on the MC75 keypad to dial (green) and end (red) calls.

If you tap a wrong number, tap Delete key to erase each subsequent digit of a number. To erase the entire
number, tap and hold the Delete key.
Using Contacts
Use Contacts to make a call without looking up or entering the phone number.
To make a call from Contacts:
1.
Tap Start > Contacts.
2.
From the contact list, tap and hold the contact name.
5-6
MC75 User Guide
Figure 5-7 Contacts Menu
3.
Tap Call Work, Call Home or Call Mobile.
NOTE
To make a call from an open contact, tap the number to call. See On-Device Help for more information about
Contacts.
Using Call History
To make a call using Call History:
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad.
2.
From the Phone keypad, tap Call History.
Phone icon
Figure 5-8 Call History
3.
Tap the phone icon next to the number to begin dialing and return to the phone keypad.
4.
Tap End or press the red phone key on the MC75 keypad to stop dialing or end the call.
Making a Speed Dial Call
Use Speed Dial to call someone saved in the speed dial directory.
To make a speed dial call:
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad.
Using the Phone
2.
5-7
From the Phone keypad, tap and hold the speed dial location number assigned to a contact. (To dial a one-digit
speed dial location number, tap and hold the speed dial number. To dial a two-digit speed dial location number,
tap the first digit and then tap and hold the second digit.)
or
From the Phone keypad, tap Speed Dial and tap the speed dial location number of the desired contact in the
list.
Speed Dial
Location Number
Figure 5-9 Speed Dial Contact List
3.
To stop dialing or end the call, tap End or press the red phone key on the MC75 keypad.
Making an Emergency Call
Your service provider programs one or more emergency phone numbers, such as 911 or 999, that you can call
under any circumstances, even when your phone is locked or the SIM card is not inserted (on MC7506/96). Your
service provider can program additional emergency numbers into your SIM card. However, your SIM card must be
inserted in your phone in order to use the numbers stored on it. See your service provider for additional
information. See Installing the SIM Card on page 1-4 for SIM card installation procedures.
When the alpha-numeric keypad phone is locked, press the Orange key twice to set the keypad to numeric mode
and then enter the emergency number.
NOTE
Emergency numbers vary by country. Your phone’s pre-programmed emergency number(s) may not work in
all locations, and sometimes an emergency call cannot be placed due to network, environmental, or
interference issues.
Answering a Call
A dialog box appears on the MC75 when it receives an incoming call. If the phone is set to ring, a ring tone sounds.
Answer or ignore the incoming call.
To answer an incoming call tap Answer on the Phone - Incoming dialog or press the green phone key on the
MC75 keypad.
5-8
MC75 User Guide
Figure 5-10 Incoming Call
To ignore the incoming call tap Ignore. This may send the caller to voice mail, depending on the service provider.
Otherwise, this presents busy signal to the calling party.
To end the call tap End or press the red phone key on the MC75 keypad.
Incoming Call Features
• If you receive a call while in a call, tap Wait to place the call in call waiting.
• You can use other programs on the MC75 during a call. To switch back to Phone, tap Talk or tap Start >
Phone. Tap End to end the call.
• If a caller isn't in your contact list, create a contact during the call or from Call History by tapping Menu >
Save to Contacts.
• To terminate a call when a second call comes in and answer the waiting call, tap End on the Phone keypad to
disconnect the active call, then tap Answer or press the Send key to answer the waiting call.
• To hold the current call and answer a waiting call, tap Answer or press the Send key to place the current call
on hold and answer the incoming call.
• To put a call on hold to call another number or answer an incoming call, tap Hold on an MC7506/96 or Talk
on an MC7508/98. To move from one call to another, tap Swap on an MC7506/96 or Talk on an MC7508/98.
Smart Dialing
Smart Dialing makes it easy to dial a phone number. When you start entering numbers or characters, Smart Dialing
automatically searches and sorts the contact entries on the SIM card, in Contacts, and the phone numbers in Call
History (including incoming, outgoing, and missed calls). You can then select the desired number or contact from
the filtered list to dial.
Open the Phone screen, then tap the keys on the Phone keypad that correspond to the phone number or contact to
call. The contact panel lists contacts that match the sequence that you entered.
Smart Dialing starts looking for numbers or contacts that match the sequence entered.
To find a phone number:
• Enter the first one or two digits to find a phone number in Call History.
• Enter the first three digits or more to find a phone number from the saved Contacts and SIM card.
Using the Phone
5-9
To find a contact name:
• Enter the first letter of a contact’s first name or last name. Smart Dialing searches for the letter starting
from the first character of a contact name as well as from the character that appears after a space, dash,
or underscore in a contact name. For example, if you tap number “2” which is associated with [a, b, c] on
the Phone keypad, contact names such as the following will be considered matches: “Smith, Bernard”,
“Adams, John”, “Carlson, Eileen”, “Dillon, Albert”, “Childs, Larry”, “Cooper, Robert” and “Parks, Celine”.
• If the matching list is long narrow down the search further by entering another letter. Using the same
example above, tap “3” which is associated with (d, e, f), the matching list is narrowed down to the
following names: “Smith, Bernard”, “Adams, John”, and “Parks, Celine”.
Figure 5-11 Finding a Contact
To make a call or send a text message using Smart Dialing:
1.
Begin entering the first few numbers or characters.
2.
In the Smart Dialing panel, use the up and down arrows on the keypad to navigate to the desired contact or
phone number.
3.
When the correct contact is selected, press TALK to make a voice call.
4.
To send a text message to the selected contact, tap Menu > Send Text Message.
5.
To call a different phone number associated with the selected contact, tap the contact name and select the
phone number to call.
Muting a Call
During a call, you can mute the microphone so you can hear the person on the line but he or she cannot hear
conversation from the microphone. This is useful when there is conversation or background noise on your end.
To mute or unmute a call:
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad.
2.
Make a call.
3.
Tap Mute on the display to mute the audio. The Mute icon appears.
5 - 10 MC75 User Guide
Mute Icon
Figure 5-12 Mute Button and Icon
Taking Notes
To create a note during a call, tap Note on the display, then enter the note. For more information about creating
notes see the Windows On-Device Help.
To access a note created during a call:
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad.
2.
From the Phone keypad, tap Call History.
3.
Tap and hold the number or the Note icon for the phone call entry containing the note.
Note icon
Figure 5-13 Call History - Notes Menu
4.
Tap View Note.
Using the Phone 5 - 11
Figure 5-14 Call History - Notes
5.
Tap ok to exit.
NOTE
Also access notes directly from the Notes application by tapping Start > Notes.
Using Speed Dial
Create speed dial numbers to dial frequently called numbers with a single tap. Before creating a speed dial entry,
ensure the phone number exists in Contacts.
Adding a Speed Dial Entry
To add a speed dial entry from the phone keypad:
1.
Ensure the contact and phone number are in the Contacts list.
2.
Tap Start > Phone or press the green phone key on the MC75’s keypad.
3.
Tap Menu > Speed Dial > Menu > New.
Figure 5-15 Contacts
4.
Tap the desired contact name and number in the list.
5 - 12 MC75 User Guide
Figure 5-16 Speed Dial Contact Location
5.
In the Location field, tap the up/down arrows to select an available location to assign as the new speed dial
entry. The first speed dial location is reserved for voice mail.
6.
Tap ok to add the contact to the speed dial list.
Figure 5-17 Speed Dial Contact List
7.
Tap ok to exit the Speed Dial Contact List.
To add a speed dial entry from the Contacts window:
1.
Tap Start > Contacts.
Using the Phone 5 - 13
Figure 5-18 Contacts
2.
Tap a contact name.
3.
Tap Menu > Add to Speed Dial.
Figure 5-19 Speed Dial Contact Location
4.
Tap the up/down arrows to select an available location to assign as the new speed dial entry. The first speed
dial location is reserved for voice mail.
5.
Tap ok.
Editing a Speed Dial Entry
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad.
2.
Tap Menu > Speed Dial.
5 - 14 MC75 User Guide
Figure 5-20 Speed Dial Contact List
3.
Tap and hold the contact name.
4.
Tap Edit... .
5.
Change the name, phone number, or location information.
6.
Tap ok.
NOTE
Editing names and phone numbers in Speed Dial does not alter contact information in Contacts (Start
> Contacts).
Deleting a Speed Dial Entry
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad.
2.
Tap Menu > Speed Dial.
3.
Tap and hold the contact name.
Figure 5-21 Speed Dial Delete Menu
4.
Tap Delete.
5.
Tap Yes to confirm permanently deleting the speed dial entry.
NOTE
Deleting names and phone numbers in Speed Dial does not delete the contact information in Contacts (Start
> Contacts).
Using the Phone 5 - 15
Using Call History
Use Call History to call someone who was recently called, or recently called in. Call History provides the time and
duration of all incoming, outgoing, and missed calls. It also provides a summary of total calls and easy access to
notes taken during a call. Table 4-1 lists the call history icons that appear in the Call History window.
Table 5-1 Call History Icons
Icon
Description
This icon appears next to the contact information for all outgoing calls.
This icon appears next to the contact information for all incoming calls.
This icon appears next to the contact information for all missed calls.
Managing Call History
Change views, reset the call timer, and delete calls to manage the calls stored in Call History.
Changing the Call History View
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad to display the Phone keypad.
2.
From the Phone keypad, tap Call History.
3.
Tap Menu > Filter to show the menu.
Figure 5-22 Call History - All Calls/Show Menu
4.
Select a view type from the menu to display only missed calls, outgoing calls, incoming calls, or calls listed
alphabetically by caller name.
5.
Tap ok to exit the Call History window.
Resetting the Recent Calls Counter
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad to display the Phone keypad.
2.
From the Phone keypad, tap Call History.
5 - 16 MC75 User Guide
3.
Tap Menu.
Figure 5-23 Call History - Tools Menu
4.
Select Call Timers... .
Figure 5-24 Call History - Call Timers
5.
Tap Reset. (The All Calls: counter cannot be reset.)
6.
Tap ok to exit the Call Timers window.
Deleting Call History Items by Call Date
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad to display the Phone keypad.
2.
From the Phone keypad, tap Call History.
3.
Tap Menu > Call Timers... .
Using the Phone 5 - 17
Figure 5-25 Call History - Call Timers
4.
In the Delete call history items older than: drop-down list select a time period on which to base deletion of
stored items.
5.
Tap ok to exit the Call Timers window.
Deleting All Call History Items
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad to display the Phone keypad.
2.
From the Phone keypad, tap Call History.
3.
Tap Menu.
Figure 5-26 Call History - Tools Menu
4.
Select Delete all calls.
Figure 5-27 Call History - Delete All Dialog
5.
Tap Yes.
6.
Tap ok to exit the Call History window.
5 - 18 MC75 User Guide
Viewing Call Status
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad to display the Phone keypad.
2.
From the Phone keypad, tap Call History.
3.
Tap an entry. The Call Status window appears.
Figure 5-28 Call History - Detail
NOTE
4.
When more than one call is on the phone line, only the duration of the first call is recorded.
Tap ok and then ok to exit.
Using the Call History Menu
Use the Call History menu to dial voice mail, access the Activation Wizard, save to contacts, view a note, delete a
listing, send an SMS, and make a call.
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad to display the Phone keypad.
2.
From the Phone keypad, tap Call History.
3.
Tap and hold an item in the list.
Figure 5-29 Call History - Menu
4.
Select an applicable item from the menu, as needed.
Using the Phone 5 - 19
5.
Depending on the item selected, the appropriate window displays. For example, select Send SMS to display
the Inbox window.
6.
Tap ok to exit the Call History window.
Swapping Calls on an MC7506/96
To move between two or more phone calls:
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad to display the Phone keypad.
2.
Enter the first phone number and press Talk. When the call connects, Hold appears on the keypad.
MC7506/96
Figure 5-30 Call Swapping - Hold
3.
Tap Hold on to place the first number on hold.
4.
Enter the second number and tap Talk.
Figure 5-31 Call Conferencing - Conferencing
5.
Tap Swap to move from one call to the other.
6.
Tap End or press the red phone key on the MC75 keypad to end each call.
5 - 20 MC75 User Guide
Swapping Calls on an MC7508/98
To swap between two incoming phone calls:
1.
Tap Answer to connect to the first call.
Figure 5-32 Answer a Call
2.
When a second call arrives, tap Answer. The first call is placed on hold.
3.
Tap Talk to swap from one call to the other.
Figure 5-33 Call Swapping
4.
Tap End or press the red phone key on the MC75 keypad to end active call. The remaining call re-connects,
tap Answer to connect to the call.
5.
Tap End or press the red phone key on the MC75 keypad to end the last call.
Conference Calling on an MC7506/96
NOTE
Conference Calling and the number of conference calls allowed may not be available on all services. Please
check with your service provider for Conference Calling availability.
To create a conference phone session with multiple people:
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad to display the Phone keypad.
Using the Phone 5 - 21
2.
Enter the first phone number and press Talk. When the call connects, Hold appears on the keypad.
Figure 5-34 Conference Call - Hold
3.
Tap Hold to place the first call on hold.
4.
Enter the second phone number and tap Talk.
5.
After the call is answered, tap Menu > Conference to place the calls in conference mode.
Figure 5-35 Creating a Conference Call
6.
Tap Hold to place the conference on hold.
7.
Enter another phone number and tap Talk.
8.
After the call is answered, tap Menu > Conference to place all the calls in conference mode.
9.
Repeat steps 6 through 8 for up to six phone numbers.
10. Tap End or press the red phone key on the MC75 keypad to end the conference call.
NOTE
To speak privately with one party during a conference call, tap Menu > Private. To include all parties again,
tap Menu > Conference.
5 - 22 MC75 User Guide
Figure 5-36 Creating a Private Call
Three-way Calling on an MC7508/98
NOTE
Three-way Calling may not be available on all services. Please check with your service provider for availability.
To create a three-way phone session with two people and you as the initiator:
1.
Tap Start > Phone or press the green phone key on the MC75’s keypad to display the Phone keypad.
2.
Enter the first phone number and press Talk.
3.
To call a second person, tap Keypad. Enter the second number and tap Talk.
Figure 5-37 Calling Another Person
4.
When the second person answers the call, tap Talk to create a three-way calling session.
5.
Tap Talk to drop the last call.
6.
Tap End to drop the first call.
Using the Phone 5 - 23
Text Messaging
Use the Text Messages window to send and receive text messages to and from mobile phones. The text can
contain words, numbers, or an alphanumeric combination no longer than 160 characters.
Short text messages delivered over mobile networks transmit from the sending MC75, are stored in a central short
message center, then forwarded to the destination mobile device. If the recipient is not available, the message is
stored and can be sent later.
Viewing Text Messages
To view a text message:
You can view a text message whether the phone is on or off. When the phone is on, you can view a text message
from its notification callout. Tap the text message notification icon on the navigation bar to display the message.
Text Message Notification Icon
Figure 5-38 New Text Message Notification
The Caller Identification feature matches incoming text message numbers with those stored in Contacts so you
know who is sending you a message. Furthermore, the New Text Message dialog box gives you the option to call
the sender or save, dismiss, or delete the message.
Figure 5-39 New Text Message Options
When the phone function is off, you can still view received text message in Messaging:
1.
Tap Start > Messaging > Text Messages, or on the Today screen, tap Text Messages.
5 - 24 MC75 User Guide
Tap Text Messages.
Figure 5-40 Text Messaging on Today Screen
The Messaging window appears.
Figure 5-41 Messaging Window
2.
In the message list, tap a Text Messages.
Tap to reply the message.
Figure 5-42 Text Messages List
NOTE
If the phone is turned off and you tried to call the sender, send a reply, or forward the message, you are
prompted to turn the phone function on.
Sending a Text Message
To create a text message:
1.
On the Phone screen, select a contact name that you want to send a message to.
Using the Phone 5 - 25
2.
Tap Menu > Send Text Message.
Figure 5-43 Phone Screen Contact List
3.
Compose your message.
Address Area
Message Area
Figure 5-44 Create Text Message
• The auto-correct feature automatically fixes common spelling errors as you type so your messages are
more accurate.
• The character counter lets you see and control the size of the message as you compose.
• If you want to know if your text message was received, tap Menu > Message Options, then select the
Request SMS text message delivery notification check box.
Figure 5-45 Message Options Window
4.
Tap Send when you've finished the message.
5 - 26 MC75 User Guide
If the phone is turned on, your text message is sent. If it’s off, you are prompted to turn on the phone. If you do
so, the message is sent; otherwise when you tap ok, the message is saved in the Drafts folder and sent when
the phone is turned on.
If you are out of coverage area, the message is saved in the Drafts folder and sent when you return to a
coverage area.
NOTE
On MC7506 and MC7596 devices, the message remains in the Drafts folder and has to be manually re-sent
when you return to a coverage area.
Using a Dual Line SIM
NOTE
Dual Line SIM support is only available on MC7506 and MC7596 configurations.

Check with your service provider for availability.
Dual line SIM cards allow for two phone lines on a single card. For example, one line can be a business phone line
and the other a personal phone line.
To switch between phone lines:
1.
Tap Start > Programs > SIM Toolkit.
Figure 5-46 SIM UI Window
2.
Select Dual and then tap Select.
Figure 5-47 Change Phone Line
Using the Phone 5 - 27
3.
Select Change and then tap Select.
4.
If applicable, sign in with the PIN number for the other line.
5 - 28 MC75 User Guide
Chapter 6 Accessories
Introduction
MC75 accessories, listed below, provide a variety of product support capabilities.
• Four Slot Ethernet Cradle - Charges the MC75 main battery and connects the MC75 with an Ethernet
network.
• Four Slot Charge Only Cradle - Charges up to four MC75 devices.
• Single Slot USB/Serial Cradle - Charges the MC75 main battery and a spare battery. Synchronizes the MC75
with a host computer through a USB connection.
• Vehicle Cradle - Provides secure mounting of the MC75 in a vehicle. Charges the MC75 and a spare battery.
Provides a serial port for data communication between an MC75 and an external device.
• Four Slot Battery Charger - Charges spare standard and high capacity batteries.
• Auto Charge Cable - Plugs into a vehicle cigarette lighter to charge the MC75 while on the road.
• Charge Only Cable - Provides power to the MC75.
• DEX Cable - Enables the transmission of data between the MC75 and a customer's inventory system at the
time of delivery.
• Modem Inverter Cable - Connects the MC75 to the modem dongle.
• Modem Dongle - provide modem connectivity.
• Printer Cables - Connects the MC75 to a printer.
• Serial Cable - Provides serial communication from cradle with a host computer.
• Serial Charging Cable - Provides power to the MC75 and serial communication with a host computer.
• USB Cable - Provides USB communication from cradle with a host computer.
• USB Charging Cable - Provides power to the MC75 and USB communication with a host computer.
• Belt Mounted Rigid Holster - Holds the MC75 when not in use.
• Belt Mounted Fabric Holster - Provides additional protection for the MC75.
• Headset - Used in noisy environments.
• MSR - Snaps on to the MC75 and adds magstripe read capabilities.
6-2
MC75 User Guide
• Debit Card Reader - snaps onto the bottom of the MC75 to allow easy data capture with the swipe of a
magnetic stripe card and personal identification number (PIN) entry using a numeric keypad.
• Snap-on Mobile Payment Module with Chip and PIN - snaps onto the bottom of the MC75 to allow easy data
capture with magnetic stripe cards, EMV compliant Chip and PIN cards and personal identification number
(PIN) entry using a numeric keypad.
Single Slot USB/Serial Cradle
This section describes how to use a Single Slot USB/Serial cradle with the MC75. For USB communication setup
procedures refer to the MC75 Integrator Guide.
The Single Slot USB/Serial Cradle:
• Provides 5.4 VDC power for operating the MC75.
• Synchronizes information between the MC75 and a host computer. Refer to the MC75 Integrator Guide for
information on setting up a partnership between the MC75 and a host computer.
• Charges the MC75’s battery.
• Charges a spare battery.
Charging the MC75 Battery
Connect the cradle to power. Insert the MC75 into the slot to begin charging.
Charging/Battery Status
LED
Figure 6-1 MC75 Battery Charging
Accessories
6-3
Charging the Spare Battery
Spare Battery
Spare Battery
Charging LED
Figure 6-2 Spare Battery Charging
Battery Charging Indicators
The Single Slot USB/Serial Cradle charges the MC75’s main battery and a spare battery simultaneously.
The MC75’s charge LED indicates the status of the battery charging in the MC75. See Table 1-2 on page 1-8 for
charging status indications.
The spare battery charging LED on the cradle indicates the status of the spare battery charging in the cradle. See
Table 6-1 for charging status indications.
The 3600 mAh battery fully charges in less than five hours and the 4800 mAh battery fully charges in less than
seven hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC75.
To accomplish this, for small periods of time, the MC75 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC75 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-2 on page 1-8 and Table 6-1.
Table 6-1
Spare Battery LED Charging Indicators
Spare Battery LED
(on cradle)
Indication
Off
Battery is not charging; battery is not inserted correctly in the cradle;
cradle is not powered
Slow Blinking Amber
Spare battery is charging.
Solid Amber
Charging complete.
Fast Blinking Amber
Charging error.
6-4
MC75 User Guide
Four Slot Ethernet Cradle
This section describes how to set up and use a Four Slot Ethernet cradle with the MC75. For cradle communication
setup procedures refer to the MC75 Integrator Guide.
The Four Slot Ethernet cradle:
• Provides 5.4 VDC power for operating the MC75.
• Connects the MC75 (up to four) to an Ethernet network.
• Simultaneously charges up to four MC75 devices.
Charging
Insert the MC75 into a slot to begin charging.
Figure 6-3 MC75 Battery Charging
Battery Charging Indicators
The MC75’s charge LED shows the status of the battery charging in the MC75. See Table 1-2 on page 1-8 for
charging status indications.
The 3600 mAh battery fully charges in less than five hours and the 4800 mAh battery fully charges in less than
seven hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC75.
To accomplish this, for small periods of time, the MC75 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC75 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-2 on page 1-8.
Accessories
6-5
Four Slot Charge Only Cradle
This section describes how to set up and use a Four Slot Charge Only cradle with the MC75.
The Four Slot Charge Only cradle:
• Provides 5.4 VDC power for operating the MC75.
• Simultaneously charges up to four MC75 devices.
Charging
Insert the MC75 into a slot to begin charging.
Figure 6-4 MC75 Battery Charging
Battery Charging Indicators
The MC75’s charge LED shows the status of the battery charging in the MC75. See Table 1-2 on page 1-8 for
charging status indications.
The 3600 mAh battery fully charges in less than five hours and the 4800 mAh battery fully charges in less than
seven hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC75.
To accomplish this, for small periods of time, the MC75 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC75 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-2 on page 1-8.
6-6
MC75 User Guide
VCD7X00 Vehicle Cradle
This section describes how to use a VCD7X00 vehicle cradle with the MC75. For cradle installation and
communication setup procedures refer to the MC75 Integrator Guide.
Once installed in a vehicle, the cradle:
• holds the MC75 securely in place
• provides power for operating the MC75
• provides a serial port for data communication between an MC75 and an external device (e.g., a printer)
• re-charges the battery in the MC75
• re-charges a 3600 mAh or 4800 mAh spare battery.
Charging the MC75 Battery
Insert the MC75 into the vehicle cradle to begin charging. A click indicates that the MC75 button release locking
mechanism is enabled and the MC75 is locked in place.
Release Lever
Figure 6-5 MC75 Battery Charging
CAUTION
Ensure the MC75 is fully inserted in the cradle. Lack of proper insertion may result in property damage
or personal injury. Zebra is not responsible for any loss resulting from the use of the products while
driving.
Removing the MC75
To remove the MC75, hold back the release lever on the cradle and pull the MC75 up and out of the cradle.
Accessories
6-7
Release Lever
Figure 6-6 Removing the MC75
Charging the Spare Battery
Insert a spare battery to begin charging:
1.
Lift the battery release lever.
Battery Release Lever
Battery
Figure 6-7 Inserting the Spare Battery
2.
Insert the spare battery in the spare battery charging slot in the cradle with the charging contacts facing up and
to the rear of the cradle.
3.
Release the battery release lever. The battery release lever locks the spare battery into place.
To remove a spare battery, hold back the battery release lever and lift the battery from the spare battery slot.
Battery
Battery Release Lever
Figure 6-8 Removing the Spare Battery
6-8
MC75 User Guide
Battery Charging Indicators
The Vehicle Cradle charges the MC75’s main battery and a spare battery simultaneously.
The MC75’s charge LED indicates the status of the battery charging in the MC75. See Table 1-2 on page 1-8 for
charging status indications.
The spare battery charging LED on the cradle indicates the status of the spare battery charging in the cradle. See
Table 6-2 for charging status indications.
The 3600 mAh battery fully charges in less than five hours and the 4800 mAh battery fully charges in less than
seven hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC75.
To accomplish this, for small periods of time, the MC75 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC75 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-2 on page 1-8 and Table 6-2.
Table 6-2
Vehicle Cradle Spare Battery LED Charging Indicators
Spare Battery LED
(on cradle)
Indication
Off
Battery is not charging; battery is not inserted correctly in the cradle;
cradle is not powered
Slow Blinking Amber
Spare battery is charging.
Solid Amber
Charging complete.
Fast Blinking Amber
Charging error.
Accessories
6-9
Four Slot Battery Charger
This section describes how to use the Four Slot Battery Charger to charge up to four MC75 batteries.
MC75 Battery Shim Installation
Before charging a spare battery, snap the MC75 shim into the battery slot as shown in Figure 6-9.
Shim
Figure 6-9 MC75 Battery Shim Installation
NOTE
To purchase additional shims, contact your local account manager or Zebra. Part number: KT-76490-01R.
Spare Battery Charging
1.
Connect the charger to a power source.
2.
Insert the spare battery into a spare battery charging well and gently press down on the battery to ensure
proper contact.
6 - 10 MC75 User Guide
Spare Battery
Spare Battery
Charging LEDs (4)
Figure 6-10 Four Slot Battery Charger
Battery Charging Indicators
The charger has an amber LED for each battery charging well. See Table 6-3 for charging status indications. The
3600 mAh battery fully charges in less than five hours and the 4800 mAh battery fully charges in less than seven
hours.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC75.
To accomplish this, for small periods of time, the charger alternately enables and disables battery charging to keep
the battery at acceptable temperatures. The charger indicates when charging is disabled due to abnormal
temperatures via its LED. See Table 6-3.
Table 6-3
Spare Battery LED Charging Indicators
LED
Indication
Off
No spare battery in slot; battery is not charging; battery is not inserted correctly in
the charger; charger is not powered.
Slow Blinking Amber
Spare battery is charging.
Solid Amber
Charging complete.
Fast Blinking Amber
Charging error.
Accessories 6 - 11
Magnetic Stripe Reader (MSR)
This section describes how to set up and use the snap-on MSR with the MC75. The MSR snaps on to the bottom
of the MC75 and removes easily when not in use.
When attached to the MC75, the MSR allows the MC75 to capture data from magnetic stripe cards. To download
MSR data capture software, visit the Zebra web site at http://www.zebra.com/support.
With the MSR attach, the MC75 can still be charged by placing the MC75 with MSR into a cradle or connecting to a
charging cable.
Attaching and Removing the MSR
To attach, slide the MSR onto the bottom of the MC75 and secure by snapping the arms into the MC75 housing.
Figure 6-11 MSR Installation
To remove the MSR open the arms and pull the MSR from the MC75.
NOTE
When attaching a cable with a cup connector through the MSR to charge the device, you cannot swipe
cards.
Using the MSR
Install an MSR enabled application onto the MC75.
To use the MSR:
1.
Attach the MSR to the MC75.
2.
Power on the MC75.
3.
Launch the MSR application.
4.
Swipe the magnetic stripe card through the MSR, with the magnetic stripe on the card facing down. Swipe the
card in either direction, from left to right or from right to left. For best results, gently press down on the card
while swiping to ensure contact with the bottom of the reader.
6 - 12 MC75 User Guide
Figure 6-12 Magnetic Stripe Card Swiping
5.
The application indicates if the data has been read correctly.
Accessories 6 - 13
Debit Card Reader
The DCR7X00-100R Debit Card Reader (DCR) snaps onto the bottom of the MC75 to allow easy data capture with
the swipe of a magnetic stripe card and personal identification number (PIN) entry using a numeric keypad.
Getting Started
When using the DCR for the first time, charge the DCR in a cradle for a minimum of three hours.
Installation
1.
Align the DCR with the bottom of the MC75 and push up until the locking tabs snap into place.
Figure 6-13 DCR Installation
2.
Pull on the DCR to ensure it is securely connected to the MC75.
Removal
To remove the DCR from the MC75, push in the bottom of the two locking tabs and pull the DCR from the MC75.
6 - 14 MC75 User Guide
Figure 6-14 DCR Removal
Credit Card Transactions
Launch a transaction application on the MC75. In the application, select Credit Card transaction.
Swipe the credit card through the magnetic stripe reader (MSR) slot, orienting the magnetic stripe as shown. Data
encoded on the credit card is captured and, depending on the application, may display in an application data field.
Figure 6-15 Swipe Card
NOTE
Swipe the card in either direction, from left to right, or right to left. For best results, gently press down on the
card while swiping to ensure contact with the bottom of the slot.
Debit Card Transactions
Launch a transaction application on the MC75. In the application, select Debit Card transaction.
Swipe the debit card through the MSR slot, orienting the magnetic stripe as shown. Data encoded on the debit card
is captured and, depending on the application, may display in an application data field.
Accessories 6 - 15
Figure 6-16 Swipe Card
NOTE
Swipe the card in either direction, from left to right, or right to left. For best results, gently press down on the
card while swiping to ensure contact with the bottom of the slot.
Turn the MC75 over and present the DCR keypad to the customer. The customer enters their PIN following the
instructions on the DCR display.
Figure 6-17 Enter PIN on DCR
Keypad
The back of the DCR contains a display and a numeric keypad for entering data.
Figure 6-18 DCR Keypad
6 - 16 MC75 User Guide
Table 6-4 Keypad Key Descriptions
Key
Description
Numeric
Used to enter PIN.
Cancel
Cancels the current transaction.
Clear
Clears the entered data.
Enter
Submits the entered data.
Display Messages
The follow messages may appear on the DCR display:
ENTER PIN - A PIN is required to complete the transaction.
PIN ERR - The entered PIN is not between 4 and 12 characters.
CANCELED - The transaction was cancelled by the user.
COMPLETE - The transaction was completed.
KEYCLEAR - The DCR was tampered with or the battery completely discharged. The DCR must have the key
re-injected. See your system administrator.
BATT OK - Battery is significantly charged.
BATT LOW - Battery charge is low. Re-charge as soon as possible.
STAND BY - DCR is performing a firmware check. This occurs if it has been powered off for more than 24 hours.
Check the DCR Battery Level
When the DCR is not used for extended periods of time or in storage it must be charged periodically to maintain the
battery charge. Zebra recommends charging the DCR once every three months.
If the DCR battery fully discharges the debit function will be inoperable but the MSR will still function for credit card
transactions. Return the DCR for service.
NOTE
While the DCR is being used in normal operation (application is accessing the DCR port), the DCR charges
from the MC75.
To check the battery level:
1.
Remove the DCR from the MC75.
2.
Press and hold the 5 key until the battery status displays on the DCR display.
• BATT OK - Battery is significantly charged
Accessories 6 - 17
• BATT LOW - Battery charge is low.
If BATT LOW displays, charge the DCR for approximately three hours.
To charge the DCR, place it in a cradle or connect it to a charging cable. The DCR also charges when connected to
the MC75 and the transaction application is running.
Figure 6-19 Charging the DCR
6 - 18 MC75 User Guide
Snap-on Mobile Payment Module with Chip and PIN
The DCR7X00-200R Snap-on Mobile Payment Module with Chip and PIN smart card reader snaps onto the
bottom of the MC75 to allow easy data capture with magnetic stripe cards, EMV compliant Chip and PIN cards and
personal identification number (PIN) entry using a numeric keypad.
Installation
NOTE
1.
The module only functions when attached to the MC75.
Align the module with the bottom of the MC75 and push up until the locking tabs snap into place.
Figure 6-20 Attach Module to MC75
2.
Pull on the module to ensure it is securely connected to the MC75.
Removal
To remove the module from the MC75, push in the bottom of the two locking tabs and pull the module from the
MC75.
Figure 6-21 Press Latches In to Lock
Accessories 6 - 19
Credit Card Transactions
NOTE
Credit Card transactions will function without an encryption key injected but will not function if a tamper event
occurs.
Launch a transaction application on the MC75. In the application, select Credit Card transaction.
Swipe the credit card through the magnetic stripe reader (MSR) slot, orienting the magnetic stripe as shown. Data
encoded on the credit card is captured and, depending on the application, may display in an application data field.
Figure 6-22 Swipe Card
NOTE
Swipe the card in either direction, from left to right, or right to left. For best results, gently press down on the
card while swiping to ensure contact with the bottom of the slot.
Debit Card Transactions
NOTE
Debit Card transactions will only function with an encryption key injected. It will not function if a tamper event
occurs.
Launch a transaction application on the MC75. In the application, select Debit Card transaction.
Swipe the debit card through the MSR slot, orienting the magnetic stripe as shown. Data encoded on the debit card
is captured and, depending on the application, may display in an application data field.
Figure 6-23 Swipe Card
NOTE
Swipe the card in either direction, from left to right, or right to left. For best results, gently press down on the card while
swiping to ensure contact with the bottom of the slot.
Turn the MC75 over and present the keypad to the customer. The customer enters their PIN following the instructions on the display.
6 - 20 MC75 User Guide
Figure 6-24 Enter PIN
Chip and PIN Transactions
NOTE
Chip and PIN transactions will function without an encryption key injected but will not function if a tamper event
occurs.
Launch a transaction application on the MC75. In the application, select Chip and PIN transaction.
Customer inserts the Chip and Pin card into the slot, orienting the card with the contacts facing down and toward
the DCR keypad.
Figure 6-25 Insert Card
Customer turns the MC75 over, and enters their PIN following the instructions on the display.
Customer removes the card when transaction is complete.
Keypad
The back of the module contains a display and a numeric keypad for entering data.
Accessories 6 - 21
Figure 6-26 Keypad
Table 6-5 Keypad Button Descriptions
Key
Description
Numeric
Used to enter PIN.
Cancel (Red)
Cancels the current transaction.
Clear (Yellow)
Clears the entered data.
Enter (Green)
Submits the entered data.
Display Messages
After connecting the module to the MC75 and an application opens the COM port, the following displays:
.
Figure 6-27 Display
Line 1 indicates the model number and the firmware version. The firmware version displays after the model
number. In this example the firmware version is 0.09.
Line 2 indicates the keyload code. Each characters of the keyload code represents a different key type.
6 - 22 MC75 User Guide
Table 6-6 Keyload Codes
Display
D
D
D
-
M
M
-
M
M
-
M
M
-
Operating Status
Normal
-
-
M
-
M
-
d - - - -
d m m - -
d--mm
- m m - -
---mm
Return to key injection facility.
* * * * *
Blank display
Return to Zebra for service.
The follow messages may appear on the display:
Table 6-7 Display Messages
Message
Description
Line 1:
Line 2: Enter PIN
Instructs the user to enter their PIN.
Line 1: PIN
Line 2: ENT to Accept
Displays “*” as PIN is entered and instructs the user to press enter key
when done.
Accessories 6 - 23
Headset
Use the headset to communicate via Voice-Over-IP (VOIP) or for audio playback and telephony applications. To
connect the headset, remove the plug from the headset jack at the top of the MC75 and insert the headset
connector. Contact a Zebra representative for compatible headsets.
For best performance, Zebra recommends a 2.5mm jack headset, p/n 50-11300-050R.
Figure 6-28 Headset Connection
6 - 24 MC75 User Guide
Cables
This section describes how to set up and use the cables. The cables are available with a variety of connection
capabilities.
The following communication/charge cables are available:
• Serial (RS232) Charge cable (9-pin D female with power input receptacle)
• USB Client Charge cable (standard-A connector and a barrel receptacle for power)
• Auto charge cable
• DEX cable
• Modem inverter cable
• Charge only cable.
The following printer cables are available directly from Zebra:
• O’Neil Printer cable
• Zebra Printer cable.
Figure 6-29 Cables
Communication/charge cables:
• Provide the MC75 with operating and charging power when used with the approved power supply.
• Synchronize information between the MC75 and a host computer. With customized or third party software, it
can also synchronize the MC75 with corporate databases.
• Provide serial connection through the serial pass-through port for communication with a serial device, such
as a host computer. For communication setup procedures, refer to the MC75 Integrator Guide.
• Provide USB connection through the USB pass-through port for communication with a USB device, such as
a host computer. For communication setup procedures, refer to the MC75 Integrator Guide.
Dedicated printer cables provide communication with a printer.
Battery Charging and Operating Power
The communication/charge cables can charge the MC75 battery and supply operating power.
To charge the MC75 battery:
1.
Connect the communication/charge cable power input connector to the approved power source.
Accessories 6 - 25
2.
Slide the bottom of the MC75 into the connector end of the communication/charge cable and gently press in
until it latches into the MC75. The MC75 amber Charge LED indicates the MC75 battery charging status. The
3600 mAh standard battery charges in less than five hours and the 4800 mAh standard battery charges in less
than seven hours. See Table 1-2 on page 1-8 for charging status indications.
3.
When charging is complete, remove the cable by gently pulling the MC75 and the cable apart.
LED Charge Indications
The amber Charge LED on the MC75 indicates battery charging status. See Table 1-2 on page 1-8 for charging
status indications.
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC75.
To accomplish this, for small periods of time, the MC75 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC75 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 1-2 on page 1-8.4
6 - 26 MC75 User Guide
Chapter 7 Maintenance & Troubleshooting
Introduction
This chapter includes instructions on cleaning and storing the MC75, and provides troubleshooting solutions for
potential problems during MC75 operation.
Maintaining the MC75
For trouble-free service, observe the following tips when using the MC75:
• Do not scratch the screen of the MC75. When working with the MC75, use the supplied stylus or
plastic-tipped pens intended for use with a touch-sensitive screen. Never use an actual pen or pencil or other
sharp object on the surface of the MC75 screen. 

Zebra recommends using a screen protector, p/n KT-67525-01R.
• The touch-sensitive screen of the MC75 is glass. Do not to drop the MC75 or subject it to strong impact.
• Protect the MC75 from temperature extremes. Do not leave it on the dashboard of a car on a hot day, and
keep it away from heat sources.
• Do not store or use the MC75 in any location that is dusty, damp, or wet.
• Use a soft lens cloth to clean the MC75. If the surface of the MC75 screen becomes soiled, clean it with a soft
cloth moistened with a diluted window-cleaning solution.
• Periodically replace the rechargeable battery to ensure maximum battery life and product performance.
Battery life depends on individual usage patterns.
7-2
MC75 User Guide
• A screen protector is applied to the MC75. Zebra recommends using this to minimize wear and tear. Screen
protectors enhance the usability and durability of touch screen displays. Benefits include:
• Protection from scratches and gouges
• Durable writing and touch surface with tactile feel
• Abrasion and chemical resistance
• Glare reduction
• Keeping the device’s screen looking new
• Quick and easy installation.
Battery Safety Guidelines
• The area in which the units are charged should be clear of debris and combustible materials or chemicals.
Particular care should be taken where the device is charged in a non commercial environment.
• Follow battery usage, storage, and charging guidelines found in the user's guide.
• Improper battery use may result in a fire, explosion, or other hazard.
• To charge the mobile device battery, the battery and charger temperatures must be between +32 ºF and
+104 ºF (0 ºC and +40 ºC)
• Do not use incompatible batteries and chargers. Use of an incompatible battery or charger may present a risk
of fire, explosion, leakage, or other hazard. If you have any questions about the compatibility of a battery or a
charger, contact Zebra support.
• For devices that utilize a USB port as a charging source, the device shall only be connected to products that
bear the USB-IF logo or have completed the USB-IF compliance program.
• To enable authentication of an approved battery, as required by IEEE1725 clause 10.2.1, all batteries will
carry a Zebra hologram. Do not fit any battery without checking it has the Zebra authentication hologram.
• Do not disassemble or open, crush, bend or deform, puncture, or shred.
• Severe impact from dropping any battery-operated device on a hard surface could cause the battery to
overheat.
• Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water
or other liquids, or expose to fire, explosion, or other hazard.
• Do not leave or store the equipment in or near areas that might get very hot, such as in a parked vehicle or
near a radiator or other heat source. Do not place battery into a microwave oven or dryer.
• Battery usage by children should be supervised.
• Please follow local regulations to promptly dispose of used re-chargeable batteries.
• Do not dispose of batteries in fire.
• Seek medical advice immediately if a battery has been swallowed.
• In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has
been made, wash the affected area with large amounts of water and seek medical advice.
• If you suspect damage to your equipment or battery, contact Zebra support to arrange for inspection.
Maintenance & Troubleshooting
7-3
Cleaning
CAUTION
WARNING!
Always wear eye protection.

Read warning label on compressed air and alcohol product before using.

If you have to use any other solution for medical reasons please contact Zebra for more information.
Avoid exposing this product to contact with hot oil or other flammable liquids. If such exposure
occurs, unplug the device and clean the product immediately in accordance with these guidelines.
Materials Required
• Alcohol wipes
• Lens tissue
• Cotton tipped applicators
• Isopropyl alcohol
• Can of compressed air with a tube.
Cleaning the MC75
Housing
Using the alcohol wipes, wipe the housing including keys and in-between keys.
Display
The display can be wiped down with the alcohol wipes, but care should be taken not to allow any pooling of liquid
around the edges of the display. Immediately dried the display with a soft, non-abrasive cloth to prevent streaking.
Scanner Exit Window
Wipe the scanner exit window periodically with a lens tissue or other material suitable for cleaning optical material
such as eyeglasses.
Connector
1.
Remove the main battery from mobile computer. See Replacing the Main Battery on page 1-11.
2.
Close battery door.
3.
Dip the cotton portion of the cotton tipped applicator in isopropyl alcohol.
4.
Rub the cotton portion of the cotton tipped applicator back-and-forth across the connector on the bottom of the
MC75. Do not leave any cotton residue on the connector.
5.
Repeat at least three times.
6.
Use the cotton tipped applicator dipped in alcohol to remove any grease and dirt near the connector area.
7.
Use a dry cotton tipped applicator and repeat steps 4 through 6.
7-4
MC75 User Guide
8.
Spray compressed air on the connector area by pointing the tube/nozzle about ½ inch away from the surface.
CAUTION: Do not point nozzle at yourself and others, ensure the nozzle or tube is away from your face.
9.
Inspect the area for any grease or dirt, repeat if required.
Cleaning Cradle Connectors
To clean the connectors on a cradle:
1.
Remove the DC power cable from the cradle.
2.
Dip the cotton portion of the cotton tipped applicator in isopropyl alcohol.
3.
Rub the cotton portion of the cotton tipped applicator along the pins of the connector. Slowly move the
applicator back-and-forth from one side of the connector to the other. Do not let any cotton residue on the
connector.
4.
All sides of the connector should also be rubbed with the cotton tipped applicator.
5.
Spray compressed air in the connector area by pointing the tube/nozzle about ½ inch away from the surface.
CAUTION: do not point nozzle at yourself and others, ensure the nozzle or tube is pointed away from your
face.
6.
Ensure that there is no lint left by the cotton tipped applicator, remove lint if found.
7.
If grease and other dirt can be found on other areas of the cradle, use lint free cloth and alcohol to remove.
8.
Allow at least 10 to 30 minutes (depending on ambient temperature and humidity) for the alcohol to air dry
before applying power to cradle.
If the temperature is low and humidity is high, longer drying time is required. Warm temperature and dry
humidity requires less drying time.
Cleaning Frequency
The cleaning frequency is up to the customer’s discretion due to the varied environments in which the mobile
devices are used. They may be cleaned as frequently as required. However when used in dirty environments it
may be advisable to periodically clean the scanner exit window to ensure optimum scanning performance.
Maintenance & Troubleshooting
7-5
Troubleshooting
MC75
Table 7-1 Troubleshooting the MC75
Problem
MC75 does not turn
on.
Cause
Solution
Lithium-ion battery
not charged.
Charge or replace the lithium-ion battery in the MC75.
Lithium-ion battery
not installed
properly.
Install the battery properly. See Installing the Main Battery on page
1-6.
System crash.
Perform a warm boot. If the MC75 still does not turn on, perform a
cold boot. See Resetting the MC75 on page 2-15.
Battery failed.
Replace battery. If the MC75 still does not operate, perform a warm
boot, then a cold boot. See Resetting the MC75 on page 2-15.
MC75 removed
from cradle while
battery was
charging.
Insert MC75 in cradle. The 3600 mAh battery fully charges in less
than six hours.
Extreme battery
temperature.
Battery does not charge if ambient temperature is below 0°C (32°F)
or above 40°C (104°F).
Cannot see characters
on display.
MC75 not powered
on.
Press the Power button.
During data
communication, no
data transmitted, or
transmitted data was
incomplete.
MC75 removed
from cradle or
disconnected from
host computer
during
communication.
Replace the MC75 in the cradle, or reattach the communication
cable and re-transmit.
Incorrect cable
configuration.
See the system administrator.
Communication
software was
incorrectly installed
or configured.
Perform setup. Refer to the MC75 Integrator Guide for details.
Volume setting is
low or turned off.
Adjust the volume. See Adjusting Volume on page 2-11.
Rechargeable
lithium-ion battery did
not charge.
No sound.
7-6
MC75 User Guide
Table 7-1 Troubleshooting the MC75 (Continued)
Problem
MC75 shuts off.
Tapping the window
buttons or icons does
not activate the
corresponding feature.
A message appears
stating that the MC75
memory is full.
MC75 keeps powering
down to protect
memory contents.
Cause
Solution
MC75 is inactive.
The MC75 turns off after a period of inactivity. If the MC75 is
running on battery power, set this period from 1 to 5 minutes, in
one-minute intervals. If the MC75 is running on external power, set
this period to 1, 2, 5, 10, 15, or 30 minutes.
Check the Power window by selecting Start > Settings > System tab
and tapping the Power icon. Select the Advanced tab and change
the setting for a longer delay before the automatic shutoff feature
activates.
Battery is depleted.
Replace the battery.
Battery is not
inserted properly.
Insert the battery properly. See Installing the Main Battery on page
1-6.
Screen is not
calibrated correctly.
Re-calibrate the screen. See Calibrating the Screen on page 1-8.
The system is not
responding.
Warm boot the system. See Resetting the MC75 on page 2-15.
Too many files
stored on the MC75.
Delete unused memos and records. If necessary, save these
records on the host computer (or use an SD card for additional
memory).
Too many
applications
installed on the
MC75.
Remove user-installed applications on the MC75 to recover
memory. Select Start > Settings > System tab and tap the Remove
Programs icon. Select the unused program and tap Remove.
The MC75’s battery
is low.
Recharge the battery.
The internal
Bluetooth radio is
powered on for a
long time.
Because this mode requires battery power, power it off when not
needed.
Maintenance & Troubleshooting
7-7
Table 7-1 Troubleshooting the MC75 (Continued)
Problem
The MC75 does not
accept scan input.
Cause
Solution
Scanning
application is not
loaded.
Load a scanning application on the MC75. See the system
administrator.
Unreadable bar
code.
Ensure the symbol is not defaced.
Distance between
exit window and bar
code is incorrect.
Place the MC75 within proper scanning range.
MC75 is not
programmed for the
bar code.
Program the MC75 to accept the type of bar code being scanned.
MC75 is not
programmed to
generate a beep.
If the MC75 does not beep on a good decode, set the application to
generate a beep on good decode.
Battery is low.
If the scanner stops emitting a laser beam upon a trigger press,
check the battery level. When the battery is low, the scanner shuts
off before the MC75 low battery condition notification. Note: If the
scanner is still not reading symbols, contact the distributor or Zebra.
Bluetooth Connection
Table 7-2 Troubleshooting Bluetooth Connection
Problem
MC75 cannot find any
Bluetooth devices
nearby.
When trying to
connect a Bluetooth
phone and MC75, the
phone thinks a
previously paired
MC75 is used.
Cause
Solution
Too far from other
Bluetooth devices.
Move closer to the other Bluetooth device(s), within a range of 10
meters.
The Bluetooth
device(s) nearby are
not turned on.
Turn on the Bluetooth device(s).
The Bluetooth
device(s) are not in
discoverable mode.
Set the Bluetooth device(s) to discoverable mode. If needed, refer to
the device’s user documentation for help.
The phone
remembers the
name and address
of the MC75 it last
paired with via the
Bluetooth radio.
Manually delete the pairing device and name from the phone. Refer
to the phone’s user documentation for instructions.
7-8
MC75 User Guide
Table 7-2 Troubleshooting Bluetooth Connection (Continued)
Problem
Cause
Solution
Can’t make my
Ericsson R520 phone
discoverable.
You attempted to
bond with the
phone, and when
the phone
presented a “pairing
query,” you entered
No. This prevents
the phone from
being discoverable
until it is reset.
Reset the phone by removing its battery.
There is a delay in the
Bluetooth stack
re-initializing during a
resume from
suspend.
This is normal
behavior.
No solution required.
The Bluetooth
connection drops.
The MC75
suspends and the
Bluetooth radio
power turns off.
When the MC75 suspends the Bluetooth connection is dropped.
Re-connect the Bluetooth connection when the MC75 returns from
suspend mode.
Single Slot USB/Serial Cradle
Table 7-3 Troubleshooting the Single Slot USB/Serial Cradle
Symptom
LEDs do not light
when MC75 or spare
battery is inserted.
Possible Cause
Action
Cradle is not
receiving power.
Ensure the power cable is connected securely to both the cradle
and to AC power.
MC75 is not seated
firmly in the cradle.
Remove and re-insert the MC75 into the cradle, ensuring it is firmly
seated.
Spare battery is not
seated firmly in the
cradle.
Remove and re-insert the spare battery into the charging slot,
ensuring it is firmly seated.
Maintenance & Troubleshooting
7-9
Table 7-3 Troubleshooting the Single Slot USB/Serial Cradle (Continued)
Symptom
MC75 battery is not
charging.
Spare battery is not
charging.
During data
communication, no
data transmits, or
transmitted data was
incomplete.
Possible Cause
Action
MC75 was removed
from cradle or
cradle was
unplugged from AC
power too soon.
Ensure cradle is receiving power. Ensure MC75 is seated correctly.
Confirm main battery is charging under Start > Settings > System >
Power. The 3600 mAh battery fully charges in less than six hours.
Battery is faulty.
Verify that other batteries charge properly. If so, replace the faulty
battery.
The MC75 is not
fully seated in the
cradle.
Remove and re-insert the MC75 into the cradle, ensuring it is firmly
seated.
Ambient
temperature of the
cradle is too warm.
Move the cradle to an area where the ambient temperature is
between 0°C (32°F) and 35°C (95°F).
Extreme battery
temperature.
Battery does not charge if ambient temperature is below 0°C (32°F)
or above 40°C (104°F).
Battery not fully
seated in charging
slot.
Remove and re-insert the spare battery in the cradle, ensuring it is
firmly seated.
Battery inserted
incorrectly.
Re-insert the battery so the charging contacts on the battery align
with the contacts on the cradle.
Battery is faulty.
Verify that other batteries charge properly. If so, replace the faulty
battery.
Ambient
temperature of the
cradle is too warm.
Move the cradle to an area where the ambient temperature is
between 0°C (32°F) and 35°C (95°F).
MC75 removed
from cradle during
communications.
Replace MC75 in cradle and retransmit.
Incorrect cable
configuration.
See the system administrator.
Communication
software is not
installed or
configured properly.
Perform setup as described in the MC75 Integrator Guide.
7 - 10 MC75 User Guide
Four Slot Ethernet Cradle
Table 7-4 Troubleshooting the Four Slot Ethernet Cradle
Symptom
Cause
Solution
During
communication, no
data transmits, or
transmitted data was
incomplete.
MC75 removed
from cradle during
communications.
Replace MC75 in cradle and retransmit.
MC75 has no active
connection.
An icon is visible in the status bar if a connection is currently active.
Battery is not
charging.
MC75 removed
from the cradle too
soon.
Replace the MC75 in the cradle. The 3600 mAh battery fully
charges in less than six hours. Tap Start > Settings > System >
Power to view battery status.
Battery is faulty.
Verify that other batteries charge properly. If so, replace the faulty
battery.
MC75 is not
inserted correctly in
the cradle.
Remove the MC75 and reinsert it correctly. Verify charging is active.
Tap Start > Settings > System > Power to view battery status.
Ambient
temperature of the
cradle is too warm.
Move the cradle to an area where the ambient temperature is
between 0°C (32°F) and 35°C (95°F).
Vehicle Cradle
Table 7-5 Troubleshooting the Vehicle Cradle
Symptom
Possible Cause
Action
MC75 battery charging
LED does not light up.
Cradle is not
receiving power.
Ensure the power input cable is securely connected to the cradle’s
power port.
MC75 battery is not
recharging.
MC75 was removed
from the cradle too
soon.
Replace the MC75 in the cradle. The 3600 mAh battery fully
charges in less than six hours.
Battery is faulty.
Replace the battery.
MC75 is not placed
correctly in the
cradle.
Remove the MC75 from the cradle, and re-insert correctly. If the
battery still does not charge, contact customer support.
The MC75 battery charging LED slowly blinks amber when the
MC75 is correctly inserted and charging.
Ambient
temperature of the
cradle is too warm.
Move to an area where the ambient temperature is between 0oC
and 35oC.
Maintenance & Troubleshooting 7 - 11
Table 7-5 Troubleshooting the Vehicle Cradle
Symptom
No data transmitted, or
transmitted data was
incomplete.
Possible Cause
Action
MC75 removed
from cradle during
communication.
Replace MC75 in cradle and retransmit.
No null modem
cable was used.
Some external devices require a null modem cable. Retransmit
using a null modem cable.
Incorrect cable
configuration.
See the system administrator.
Cable missing or
disconnected.
Re-connect cable.
Four Slot Battery Charger
r
Table 7-6 Troubleshooting The Four Slot Battery Charger
Symptom
Battery not charging.
Possible Cause
Action
Battery was
removed from the
charger or charger
was unplugged from
AC power too soon.
Re-insert the battery in the charger or re-connect the charger’s
power supply. The 3600 mAh battery fully charges in less than six
hours.
Battery is faulty.
Verify that other batteries charge properly. If so, replace the faulty
battery.
Battery contacts not
connected to
charger.
Verify that the battery is seated in the battery well correctly with the
contacts facing down.
Ambient
temperature of the
cradle is too warm.
Move the cradle to an area where the ambient temperature is
between 0oC and 35oC.
7 - 12 MC75 User Guide
Cables
Table 7-7 Troubleshooting the Cables
Symptom
MC75 battery is not
charging.
During data
communication, no
data transmits, or
transmitted data was
incomplete.
Possible Cause
Action
MC75 was
disconnected from
AC power too soon.
Connect the power cable correctly. Confirm main battery is charging
under Start > Settings > System > Power. The 3600 mAh battery
fully charges in less than six hours.
Battery is faulty.
Verify that other batteries charge properly. If so, replace the faulty
battery.
The MC75 is not
fully attached to
power.
Detach and re-attach the power cable to the MC75, ensuring it is
firmly connected.
Cable was
disconnected from
MC75 during
communications.
Re-attach the cable and retransmit.
Incorrect cable
configuration.
See the system administrator.
Communication
software is not
installed or
configured properly.
Perform setup as described in the MC75 Integrator Guide.
Magnetic Stripe Reader
Table 7-8 Troubleshooting the Magnetic Stripe Reader
Symptom
MSR cannot read
card.
Possible Cause
Action
MSR removed from
MC75 during card
swipe.
Reattach MSR to MC75 and reswipe the card.
Faulty magnetic
stripe on card.
See the system administrator.
MSR application is
not installed or
configured properly.
Ensure the MSR application is installed on the MC75.
Ensure the MSR application is configured correctly.
Maintenance & Troubleshooting 7 - 13
