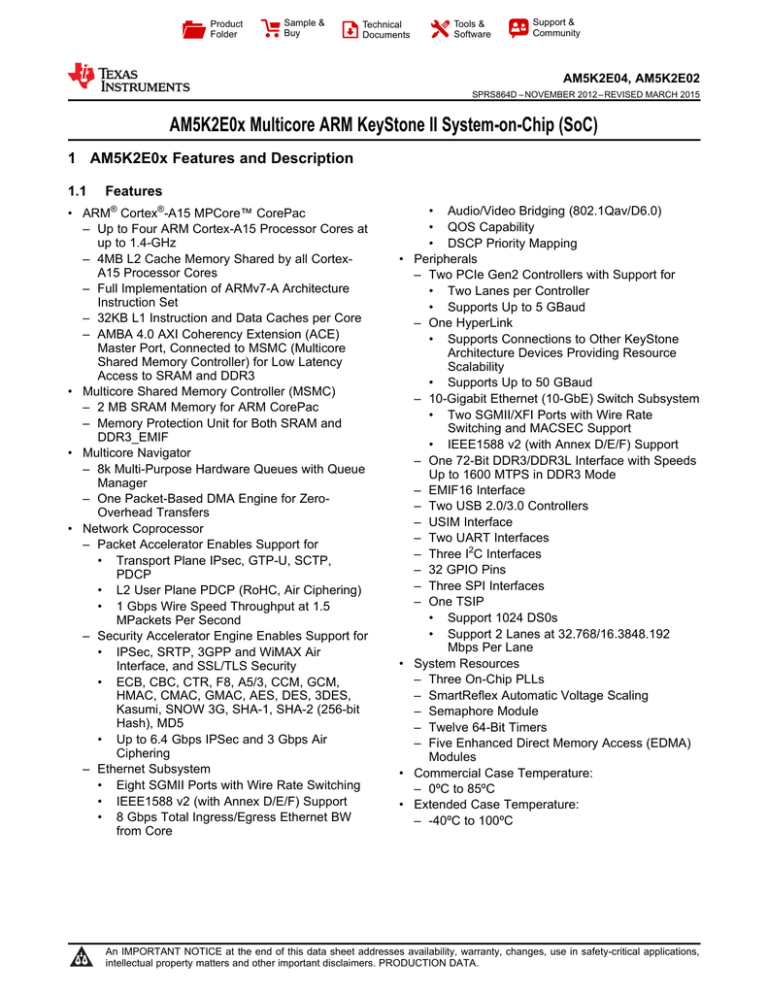

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

AM5K2E0x Multicore ARM KeyStone II System-on-Chip (SoC)

1 AM5K2E0x Features and Description

1

1.1

Features

• ARM

®

Cortex

®

-A15 MPCore™ CorePac

– Up to Four ARM Cortex-A15 Processor Cores at up to 1.4-GHz

– 4MB L2 Cache Memory Shared by all Cortex-

A15 Processor Cores

– Full Implementation of ARMv7-A Architecture

Instruction Set

– 32KB L1 Instruction and Data Caches per Core

– AMBA 4.0 AXI Coherency Extension (ACE)

Master Port, Connected to MSMC (Multicore

Shared Memory Controller) for Low Latency

Access to SRAM and DDR3

• Multicore Shared Memory Controller (MSMC)

– 2 MB SRAM Memory for ARM CorePac

– Memory Protection Unit for Both SRAM and

DDR3_EMIF

• Multicore Navigator

– 8k Multi-Purpose Hardware Queues with Queue

Manager

– One Packet-Based DMA Engine for Zero-

Overhead Transfers

• Network Coprocessor

– Packet Accelerator Enables Support for

• Transport Plane IPsec, GTP-U, SCTP,

PDCP

• L2 User Plane PDCP (RoHC, Air Ciphering)

• 1 Gbps Wire Speed Throughput at 1.5

MPackets Per Second

– Security Accelerator Engine Enables Support for

• IPSec, SRTP, 3GPP and WiMAX Air

Interface, and SSL/TLS Security

• ECB, CBC, CTR, F8, A5/3, CCM, GCM,

HMAC, CMAC, GMAC, AES, DES, 3DES,

Kasumi, SNOW 3G, SHA-1, SHA-2 (256-bit

Hash), MD5

• Up to 6.4 Gbps IPSec and 3 Gbps Air

Ciphering

– Ethernet Subsystem

• Eight SGMII Ports with Wire Rate Switching

• IEEE1588 v2 (with Annex D/E/F) Support

• 8 Gbps Total Ingress/Egress Ethernet BW from Core

• Audio/Video Bridging (802.1Qav/D6.0)

• QOS Capability

• DSCP Priority Mapping

• Peripherals

– Two PCIe Gen2 Controllers with Support for

• Two Lanes per Controller

• Supports Up to 5 GBaud

– One HyperLink

• Supports Connections to Other KeyStone

Architecture Devices Providing Resource

Scalability

• Supports Up to 50 GBaud

– 10-Gigabit Ethernet (10-GbE) Switch Subsystem

• Two SGMII/XFI Ports with Wire Rate

Switching and MACSEC Support

• IEEE1588 v2 (with Annex D/E/F) Support

– One 72-Bit DDR3/DDR3L Interface with Speeds

Up to 1600 MTPS in DDR3 Mode

– EMIF16 Interface

– Two USB 2.0/3.0 Controllers

– USIM Interface

– Two UART Interfaces

– Three I

2

C Interfaces

– 32 GPIO Pins

– Three SPI Interfaces

– One TSIP

• Support 1024 DS0s

• Support 2 Lanes at 32.768/16.3848.192

Mbps Per Lane

• System Resources

– Three On-Chip PLLs

– SmartReflex Automatic Voltage Scaling

– Semaphore Module

– Twelve 64-Bit Timers

– Five Enhanced Direct Memory Access (EDMA)

Modules

• Commercial Case Temperature:

– 0ºC to 85ºC

• Extended Case Temperature:

– -40ºC to 100ºC

1

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA.

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

1.2

Applications

• Avionics and Defense

• Communications

• Industrial Automation

• Automation and Process Control

• Servers

• Enterprise Networking

• Cloud Infrastructure

1.3

KeyStone II Architecture

TI's KeyStone II Multicore Architecture provides a unified platform for integrating RISC processing cores along with both hardware/firmware based application-specific acceleration and high performance I/Os. The

KeyStone II Multicore Architecture is a proven device architecture to achieve the full performance entitlement through the following major components: TeraNet, Multicore Shared Memory Controller,

Multicore Navigator, and HyperLink.

TeraNet is a multipoint to multipoint non-blocking switch fabric. Its distributed arbiter provides multiple duplex communication channels in parallel between the master and slave ports without interference. The priority based arbitration mechanism ensures the delivery of the critical traffic delivery in the system.

The Multicore Shared Memory Controller (MSMC) is the center of the KeyStone II memory architecture. It provides multiple fast and high-bandwidth channels for processor cores to access DDR and minimizes the access latency by directly connecting to the DDR. The MSMC also provides the flexibility to expand processor cores with little impact at the device level. In addition, it provides multi-bank based fast on-chip

SRAM shared among processor cores and IOs. It also provides the I/O cache coherency for the device when the Cortex-A15 processor core is integrated.

The Multicore Navigator provides a packet-based IPC mechanism among processing cores and packet based peripherals. The hardware-managed queues supports multiple-in-multiple-out mode without using mutex. Coupled with the packet-based DMA, the Multicore Navigator provides a highly efficient and software-friendly tool to offload the processing core to achieve other critical tasks.

HyperLink provides a 50-GBaud chip-level interconnect that allows devices to work in tandem. Its low latency, low overhead and high throughput makes it an ideal interface for chip-to-chip interconnections.

There are two generations of KeyStone architecture. The AM5K2E0x device is based on KeyStone II, which integrates a Cortex-A15 processor CorePac.

1.4

Device Description

The AM5K2E0x is a high performance device based on TI's KeyStone II Multicore SoC Architecture, incorporating the most performance-optimized Cortex-A15 processor dual-core or quad-core CorePac that can run at a core speed of up to 1.4 GHz. TI's AM5K2E0x device enables a high performance, powerefficient and easy to use platform for developers of a broad range of applications such as enterprise grade networking end equipment, data center networking, avionics and defense, medical imaging, test and automation.

TI's KeyStone II Architecture provides a programmable platform integrating various subsystems (for example, ARM CorePac (Cortex-A15 Processor Quad Core CorePac), network processing, and uses a queue-based communication system that allows the device resources to operate efficiently and seamlessly. This unique device architecture also includes a TeraNet switch that enables the wide mix of system elements, from programmable cores to high-speed IO, to each operate at maximum efficiency with no blocking or stalling.

The AM5K2E0x KeyStone II device integrates a large amount of on-chip memory. The Cortex-A15 processor cores each have 32KB of L1Data and 32KB of L1 Instruction cache. The up to four Cortex A15 cores in the ARM CorePac share a 4MB L2 Cache. The device also integrates 2MB of Multicore Shared

Memory (MSMC) that can be used as a shared L3 SRAM. All L2 and MSMC memories incorporate error detection and error correction. For fast access to external memory, this device includes a 64-bit DDR-3

(72-bit with ECC support) external memory interface (EMIF) running at 1600 MTPS.

2

AM5K2E0x Features and Description

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

The device enables developers to use a variety of development and debugging tools that include GNU

GCC, GDB, Open source Linux, Eclipse based debugging environment enabling kernel and user space debugging using a variety of Eclipse plug-ins including TI's industry leading IDE Code Composer Studio.

1.5

Enhancements in KeyStone II

The KeyStone II architecture provides many major enhancements over the previous KeyStone I generation of devices. The KeyStone II architecture integrates an ARM Cortex-A15 processor quad-core cluster to enable Layer 2 (MAC/RLC) and higher layer processing. The external memory bandwidth has been doubled with the integration of dual DDR3 1600 EMIFs. MSMC internal memory bandwidth is quadrupled with MSMC V2 architecture improvements. Multicore Navigator supports 2× the number of queues, descriptors and packet DMA, 4× the number of micro RISC engines and a significant increase in the number of push/pops per second, compared to the previous generation. The new peripherals that have been added include the USB 3.0 controller and Asynchronous EMIF controller for NAND/NOR memory access. The 2-port Gigabit Ethernet switch in KeyStone I has been replaced with an 8-port

Gigabit Ethernet switch and a 10 GbE switch in KeyStone II. Time synchronization support has been enhanced to reduce software workload and support additional standards like IEEE1588 Annex D/E and

SyncE. The number of GPIOs and serial interface peripherals like I

2

C and SPI have been increased to enable more board level control functionality.

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E0x Features and Description

3

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

1.6

Functional Block Diagram

The figures below show the functional block diagrams of the AM5K2E0x devices.

AM5K2E04

Memory Subsystem

72-Bit

DDR3 EMIF

2MB

MSM

SRAM

MSMC

Debug & Trace

Boot ROM

Semaphore

Secure Mode

Power

Management

PLL

EDMA

3

´

5

´

HyperLink

32KB L1

P-Cache

32KB L1

D-Cache

32KB L1

P-Cache

32KB L1

D-Cache

ARM

A15

ARM

A15

4MB L2 Cache

ARM

A15

ARM

A15

32KB L1

P-Cache

32KB L1

D-Cache

32KB L1

P-Cache

32KB L1

D-Cache

4 ARM Cores @ up to 1.4 GHz

TeraNet

3-Port

Ethernet

Switch www.ti.com

Multicore Navigator

Queue

Manager

Packet

DMA

Network Coprocessor

9-Port

Ethernet

Switch

Security

Accelerator

Packet

Accelerator

Figure 1-1. AM5K2E04 Functional Block Diagram

4

AM5K2E0x Features and Description

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

AM5K2E02

Memory Subsystem

72-Bit

DDR3 EMIF

2MB

MSM

SRAM

MSMC

Debug & Trace

Boot ROM

Semaphore

Secure Mode

Power

Management

PLL

3

´

EDMA

5

´

HyperLink

4MB L2 Cache

ARM

A15

ARM

A15

32KB L1

P-Cache

32KB L1

D-Cache

32KB L1

P-Cache

32KB L1

D-Cache

2 ARM Cores @ up to 1.4 GHz

TeraNet

Multicore Navigator

Queue

Manager

Packet

DMA

Network Coprocessor

9-Port

Ethernet

Switch

Security

Accelerator

Packet

Accelerator

Figure 1-2. AM5K2E02 Functional Block Diagram

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E0x Features and Description

5

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table of Contents

1 AM5K2E0x Features and Description

...............

1

1.1

Features

..............................................

1

1.2

Applications

...........................................

2

1.3

KeyStone II Architecture

..............................

2

1.4

Device Description

...................................

2

1.5

Enhancements in KeyStone II

........................

3

1.6

Functional Block Diagram

2 Revision History

............................

4

.........................................

7

3 Device Characteristics

..................................

8

3.1

ARM CorePac

........................................

9

3.2

Development Tools

..................................

10

3.3

Device Nomenclature

...............................

10

3.4

Related Documentation from Texas Instruments

...

12

3.5

Related Links

........................................

13

3.6

Community Resources

..............................

13

3.7

Trademarks

..........................................

13

3.8

Electrostatic Discharge Caution

.....................

13

3.9

Glossary

.............................................

13

4 ARM CorePac

4.1

Features

...........................................

14

.............................................

16

4.2

System Integration

..................................

16

4.3

ARM Cortex-A15 Processor

.........................

16

4.4

CFG Connection

....................................

18

4.5

Main TeraNet Connection

...........................

18

4.6

Clocking and Reset

.................................

19

5 Terminals

................................................

20

5.1

Package Terminals

..................................

20

5.2

Pin Map

.............................................

20

5.3

Terminal Functions

..................................

25

5.4

Pullup/Pulldown Resistors

..........................

53

6 Memory, Interrupts, and EDMA for AM5K2E0x

..

55

6.1

Memory Map SummaryAM5K2E0x

.................

55

6.2

Memory Protection Unit (MPU) for AM5K2E0x

.....

64

6.3

Interrupts for AM5K2E0x

............................

77

6.4

Enhanced Direct Memory Access (EDMA3)

Controller

...........................................

103

7 System Interconnect

.................................

114

7.1

Internal Buses and Switch Fabrics

................

114

7.2

Switch Fabric Connections Matrix - Data Space

..

114

7.3

Switch Fabric Connections Matrix - Configuration

Space

..............................................

120

7.4

Bus Priorities

.......................................

128

8 Device Boot and Configuration

....................

129

8.1

Device Boot

........................................

129

8.2

Device Configuration

...............................

148

9 Device Operating Conditions

.......................

175

9.1

Absolute Maximum Ratings

........................

175

9.2

Recommended Operating Conditions

.............

176

9.3

Electrical Characteristics

...........................

177

9.4

Power Supply to Peripheral I/O Mapping

..........

178

10 AM5K2E0x Peripheral Information and Electrical

Specifications

.........................................

179

10.1

Recommended Clock and Control Signal Transition

Behavior

............................................

179

10.2

Power Supplies

....................................

179

10.3

Power Sleep Controller (PSC)

.....................

187

10.4

Reset Controller

....................................

193

10.5

Core PLL (Main PLL), DDR3 PLL, NETCP PLL and the PLL Controllers

................................

198

10.6

DDR3 PLL

..........................................

212

10.7

NETCP PLL

........................................

214

10.8

DDR3 Memory Controller

..........................

216

10.9

I

2

C Peripheral

......................................

217

10.10

SPI Peripheral

....................................

221

10.11

HyperLink Peripheral

10.12

UART Peripheral

.............................

224

.................................

226

10.13

PCIe Peripheral

...................................

227

10.14

Packet Accelerator

10.15

Security Accelerator

...............................

227

..............................

228

10.16

Network Coprocessor Gigabit Ethernet (GbE)

Switch Subsystem

.................................

228

10.17

SGMII/XFI Management Data Input/Output

(MDIO)

.............................................

230

10.18

Ten-Gigabit Ethernet (10GbE) Switch

Subsystem

.........................................

231

10.19

Timers

.............................................

231

10.20

General-Purpose Input/Output (GPIO)

10.21

Semaphore2

...........

232

......................................

233

10.22

Universal Serial Bus 3.0 (USB 3.0)

...............

233

10.23

TSIP Peripheral

...................................

234

10.24

Universal Subscriber Identity Module (USIM)

....

236

10.25

EMIF16 Peripheral

................................

236

10.26

Emulation Features and Capability

...............

239

10.27

Debug Port (EMUx)

...............................

241

11 Mechanical Data

11.1

Thermal Data

......................................

248

......................................

248

11.2

Packaging Information

.............................

248

6

Table of Contents

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

2 Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

Changes from Revision C (August 2014) to Revision D Page

• Added Top Navigation links to front page of the document

• Changed Product Status to Production Data

.....................................................................

1

.....................................................................................

1

• Changed Mission Critical Systems to Avionics and Defense in

Section 1.2

..................................................

2

• Changed mission critical to avionics and defense in first paragraph of

Section 3.2.1

......................................

2

• Changed Product Status to PD and changed footnote (3) in

Table 3-1

.......................................................

8

• Changed second list item under Software Development Tools in

Section 3.2.1

...........................................

10

• Added Related Links, Community Resources, Trademarks, Electrostatic Discharge Caution, and Glossary sections to

Section 3

................................................................................................................

13

• Added

Figure 4-1

....................................................................................................................

14

• Changed DDR3A to DDR3 in

Table 4-1

.........................................................................................

16

• Changed All instances of DDR3A to DDR3 in

Table 5-2

......................................................................

25

• Changed Supply DDR3AREFSSTL to DDR3REFSSTL in

Table 5-3

........................................................

38

• Changed the DVDD15 Volts and Supply Description in

Table 5-3

...........................................................

38

• Changed Start Address for PCIe1SerDes Config to 00 0232 6000, End Address for USB 0 MMR CFG to 00

026F FFFF, and all instances of DDR3A to DDR3 in

Table 6-1

• Changed CPT_DDR3A to CPT_DDR3 in

Table 6-6

..............................................................

55

............................................................................

66

• Changed DDR3A to DDR3 in Event No. 388 Name and Description in

Table 6-22

• Changed DDR3A to DDR3 in

Section 6.4

.......................................

78

......................................................................................

104

• Changed DDR3A to DDR3 in

Section 7

• Changed DDR3A to DDR3 in

Figure 7-3

........................................................................................

114

.......................................................................................

117

• Changed DDR3A to DDR3 in

Figure 7-6

.......................................................................................

122

• Added EMIF and NAND to Description in

Table 8-2

..........................................................................

131

• Changed DDR3A to DDR3 in

Section 8.1.4

....................................................................................

147

• Changed DDR3APLLCTL0 and DDR3APLLCTL1 to DDR3PLLCTL0 and DDR3PLLCTL1 in

Table 8-26

............

149

• Changed AVSIFSEL Description value 11 to Reserved in

Table 8-27

.....................................................

153

• Changed ARMENDIAN_CFG4_0 Default Value to 0x00023A00 in

Table 8-42

...........................................

164

• Changed ARMENDIAN_CFG5_1 Default Value to 0x00000006 in

Table 8-44

...........................................

165

• Changed DDR3AVREFSSTL to DDR3VREFSSTL and DDR3A to DDR3 in

Section 9.1

................................

175

• Changed MIN, NOM, and MAX values for CVDD Initial and CVDD1; changed DVDD15 to DDR3 I/O voltage and added values; changed DDR3A to DDR3 and DDR3AVREFSSTL to DDR3VREFSSTL; changed DSP to SOC in footnote (4) in

Section 9.2

........................................................................................................

176

• Changed DDR3A to DDR3 in

Section 9.3

......................................................................................

177

• Changed DDR3A to DDR3 and changed DVDD15 to DDR3 memory I/O voltage and DDR3 (1.5/1.35 V) I/O

Buffer Type in

Table 9-1

..........................................................................................................

178

• Changed DDR3A to DDR3 and added 1.35 V to Voltage for DVDD15 in

Table 10-1

....................................

179

• Changed EMIF(DDR3A) to EMIF(DDR3) in

Table 10-6

• Changed DDR3A EMIF to DDR3 EMIF in

Table 10-7

......................................................................

187

........................................................................

188

• Changed DDR3A in

Section 10.4.3

• Changed DDR3A in

Section 10.5

.............................................................................................

195

................................................................................................

198

• Changed

Figure 10-7

..............................................................................................................

199

• Deleted second sentence from

Section 10.5.1.1

..............................................................................

200

• Changed DDR3A to DDR3 in

Table 10-13

.....................................................................................

201

• Changed Address Range 00 0231 0128 to Reserved in

Table 10-15

......................................................

202

• Changed OUTPUT DIVIDE Field Description in

Table 10-16

...............................................................

203

• Changed MAX value for tj(CORECLKN) and tj(CORECLKP) in

Table 10-27

.............................................

209

• Changed

Figure 10-26

............................................................................................................

214

• Changed PAPLL Field Description in

Table 10-32

............................................................................

215

• Changed MAX value for tc(NETCPCLKN) and tc(NETCPCLKP) in

Table 10-33

.........................................

215

• Changed DDR3A Memory Controller to DDR3 Memory Controller in

Section 10.8

......................................

216

• Changed MIN and MAX values for t c

(CEL) in

Table 10-56

• Changed DDR3A to DDR3 in

Table 10-62

..................................................................

236

.....................................................................................

244

Revision History

7

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

3 Device Characteristics

Table 3-1

provides an overview of the AM5K2E0x device. The table shows the significant features of the device, including the capacity of on-chip RAM, the peripherals, the CPU frequency, and the package type with pin count.

Table 3-1. Characteristics of the AM5K2E0x Processor

ARM Cores

Peripherals

Accelerators

On-Chip L3 Memory

JTAG BSDL_ID

Frequency

Voltage

BGA Package

Process Technology

Product Status

(3)

HARDWARE FEATURES

ARM Cortex A15 Cores

ARM L1 instruction cache memory size (per core)

ARM L1 data cache memory size (per core)

ARM L2 unified cache memory size (shared by all cores)

DDR3 memory controller (72-bit bus width) [1.5 V/1.35V] (clock source =

DDRREFCLKN|P)

EDMA3 (64 independent channels) [CPU/3 clock rate]

Hyperlink

USB 3.0

USIM

I

2

C

SPI

(1)

PCIe (2 lanes per instance)

UART

10/100/1000/10000 Ethernet ports

10/100/1000 Ethernet ports

Management Data Input/Output (MDIO)

64-bit timers (configurable)

General-Purpose Input/Output port (GPIO)

TSIP

Packet Accelerator

Security Accelerator

(2)

Organization

JTAGID Register (address location: 0x02620018)

ARM-A15 Processor

Core (V)

I/O (V)

27 mm x 27 mm nm

Product Preview (PP), Advance Information (AI), or Production Data (PD)

AM5K2E02

2

32KB

32KB

4MB

1

AM5K2E04

4

2

1

3

5

1

0

8

2

8

3

Twelve 64-bit or Twenty four 32-bit

32

1

1

3

2

2

1

2MB MSM SRAM

256 KB L3 ROM

0x0B9A_602F

1.25 GHz

1.4 GHz

SmartReflex variable supply

1.35 V, 1.5 V, 1.8 V, and 3.3 V

1089-Pin Flip-Chip Plastic BGA

(ABD)

28 nm

PD

(1) The USIM is implemented for support of secure devices only. Contact your local technical sales representative for further details.

(2) The Security Accelerator function is subject to export control and will be enabled only for approved device shipments.

(3) PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of Texas

Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

8

Device Characteristics

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

3.1

ARM CorePac

The ARM CorePac of the AM5K2E0x integrates a Cortex-A15 Cluster (4 Cortex-A15 processors) with additional logic for bus protocol conversion, emulation, interrupt handling, and debug related enhancements. The Cortex-A15 processor is an ARMv7A-compatible, multi-issue out-of-order, superscalar pipeline with integrated L1 caches. The implementation also supports advanced SIMDV2 (Neon technology) and VFPv4 (Vector Floating Point) architecture extensions, security, virtualization, LPAE

(Large Physical Address Extension), and multiprocessing extensions. The quad core cluster includes a

4MB L2 cache and support for AMBA4 AXI and AXI Coherence Extension (ACE) protocols. For more information see the KeyStone II Architecture ARM CorePac User's Guide User Guide ( SPRUHJ4 ).

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Characteristics

9

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

3.2

Development Tools

3.2.1

Development Support

In case the customer would like to develop their own features and software on the AM5K2E0x device, TI offers an extensive line of development tools for the KeyStone II platform, including tools to evaluate the performance of the processors, generate code, develop algorithm implementations, and fully integrate and debug software and hardware modules. The tool's support documentation is electronically available within the Code Composer Studio™ Integrated Development Environment (IDE).

The following products support development of KeyStone devices:

Software Development Tools:

– Code Composer Studio Integrated Development Environment (IDE), including Editor

C/C++/Assembly Code Generation, and Debug plus additional development tools

– Scalable, Real-Time foundation software, which provides the basic run-time target software needed to support any application

Hardware Development Tools:

– Extended Development System (XDS™) Emulator (supports multiprocessor system debug) XDS™

– EVM (Evaluation Module)

3.3

Device Nomenclature

To designate the stages in the product development cycle, TI assigns prefixes to the part numbers of all devices and support tools. Each family member has one of two prefixes: X or [blank]. These prefixes represent evolutionary stages of product development from engineering prototypes through fully qualified production devices/tools.

3.3.1

Device Development Evolutionary Flow

The device development evolutionary flow is as follows:

X: Experimental device that is not necessarily representative of the final device's electrical specifications

[Blank]: Fully qualified production device

Support tool development evolutionary flow:

X: Development-support product that has not yet completed Texas Instruments internal qualification testing.

[Blank]: Fully qualified development-support product

Experimental (X) and fully qualified [Blank] devices and development-support tools are shipped with the following disclaimer:

Developmental product is intended for internal evaluation purposes.

Fully qualified and production devices and development-support tools have been characterized fully, and the quality and reliability of the device have been demonstrated fully. TI's standard warranty applies.

Predictions show that experimental devices (X) have a greater failure rate than the standard production devices. Texas Instruments recommends that these devices not be used in any production system because their expected end-use failure rate still is undefined. Only qualified production devices are to be used.

TI device nomenclature also includes a suffix with the device family name. This suffix indicates the package type (for example, ABD), the temperature range (for example, blank is the default case temperature range), and the device speed range, in Megahertz (for example, blank is 1000 MHz [1 GHz]).

For device part numbers and further ordering information for AM5K2E0x in the ABD package type, see the

TI website www.ti.com

or contact your TI sales representative.

10

Device Characteristics

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

3.3.2

Part Number Legend

The following figures provide a legend for reading the complete device name for a KeyStone II device.

( _ )

AM5 K2 E 02

( _ ) ( _ )

ABD

( _ ) ( _ )

PREFIX

X = Experimental device

Blank = Qualified device

DEVICE FAMILY

AM5 = ARM SoC

ARCHITECTURE

K2 = KeyStone II

PLATFORM

E

DEVICE NUMBER

02

SILICON REVISION

Blank = Initial 1.0 silicon

MAXIMUM DEVICE SPEED

25 = 1.25 GHz

4 = 1.4 GHz

TEMPERATURE RANGE

Blank = Commercial temperature range ( 0°C to +85°C)

A = Extended temperature range (-40°C to +100°C)

PACKAGE TYPE

ABD = 1089-pin plastic ball grid array, with Pb-free solder balls and die bumps

SECURITY

Blank = Security Accelerator disabled / General Purpose device

X = Security Accelerator enabled / General Purpose device

D = Security Accelerator enabled / High Security device with TI developmental keys

S = Security Accelerator enabled / High Security device with production keys

Figure 3-1. Device Nomenclature for AM5K2E02

( _ )

AM5 K2 E 04

( _ ) ( _ )

ABD

( _ ) ( _ )

PREFIX

X = Experimental device

Blank = Qualified device

DEVICE FAMILY

AM5 = ARM SoC

ARCHITECTURE

K2 = KeyStone II

PLATFORM

E

DEVICE NUMBER

04

SILICON REVISION

Blank = Initial 1.0 silicon

MAXIMUM DEVICE SPEED

25 = 1.25 GHz

4 = 1.4 GHz

TEMPERATURE RANGE

Blank = Commercial temperature range ( 0°C to +85°C)

A = Extended temperature range (-40°C to +100°C)

PACKAGE TYPE

ABD = 1089-pin plastic ball grid array, with Pb-free solder balls and die bumps

SECURITY

Blank = Security Accelerator disabled / General Purpose device

X = Security Accelerator enabled / General Purpose device

D = Security Accelerator enabled / High Security device with TI developmental keys

S = Security Accelerator enabled / High Security device with production keys

Figure 3-2. Device Nomenclature for AM5K2E04

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Characteristics

11

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

3.4

Related Documentation from Texas Instruments

These documents describe the AM5K2E0x Multicore ARM KeyStone II System-on-Chip (SoC). Copies of these documents are available on the Internet at www.ti.com

.

KeyStone Architecture Timer 64P User's Guide

KeyStone II Architecture ARM Bootloader User's Guide

KeyStone II Architecture ARM CorePac User's Guide

KeyStone Architecture Chip Interrupt Controller (CIC) User's Guide

KeyStone I Architecture Debug and Trace User's Guide

DDR3 Design Requirements for KeyStone Devices application report

KeyStone Architecture DDR3 Memory Controller User's Guide

KeyStone Architecture External Memory Interface (EMIF16) User's Guide

Emulation and Trace Headers Technical Reference Manual

KeyStone Architecture Enhanced Direct Memory Access 3 (EDMA3) User's Guide

KeyStone Architecture General Purpose Input/Output (GPIO) User's Guide

Gigabit Ethernet (GbE) Switch Subsystem (1 GB) User's Guide

KeyStone Architecture Gigabit Ethernet (GbE) Switch Subsystem User's Guide

KeyStone Architecture HyperLink User's Guide

Hardware Design Guide for KeyStone II Devices application report

KeyStone Architecture Inter-IC control Bus (I

2

C) User's Guide

KeyStone Architecture Memory Protection Unit (MPU) User's Guide

KeyStone Architecture Multicore Navigator User's Guide

KeyStone Architecture Multicore Shared Memory Controller (MSMC) User's Guide

KeyStone II Architecture Multicore Shared Memory Controller (MSMC) User's Guide

KeyStone II Architecture Network Coprocessor (NETCP) for K2E and K2L Devices User's Guide

Optimizing Application Software on KeyStone Devices application report

KeyStone II Architecture Packet Accelerator 2 (PA2) for K2E and K2L Devices User's Guide

KeyStone Architecture Peripheral Component Interconnect Express (PCIe) User's Guide

KeyStone Architecture Phase Locked Loop (PLL) Controller User's Guide

KeyStone Architecture Power Sleep Controller (PSC) User's Guide

KeyStone II Architecture Security Accelerator 2 (SA2) for K2E and K2L Devices User's Guide

Security Addendum for KeyStone II Devices application report

(1)

KeyStone Architecture Semaphore2 Hardware Module User's Guide

KeyStone II Architecture Serializer/Deserializer (SerDes) User's Guide

KeyStone Architecture Serial Peripheral Interface (SPI) User's Guide

KeyStone Architecture Telecom Serial Interface Port (TSIP) User's Guide

KeyStone Architecture Universal Asynchronous Receiver/Transmitter (UART) User's Guide

KeyStone II Architecture Universal Serial Bus 3.0 (USB 3.0) User's Guide

KeyStone II Architecture IQN2 User's Guide

(1) Contact a TI sales office to obtain this document.

SPRUGV5

SPRUHJ3

SPRUHJ4

SPRUGW4

SPRUGZ2

SPRABI1

SPRUGV8

SPRUGZ3

SPRU655

SPRUGS5

SPRUGV1

SPRUGV9

SPRUHJ5

SPRUGW8

SPRABV0

SPRUGV3

SPRUGW5

SPRUGR9

SPRUGW7

SPRUHJ6

SPRUHZ0

SPRABG8

SPRUHZ2

SPRUGS6

SPRUGV2

SPRUGV4

SPRUHZ1

SPRABS4

SPRUGS3

SPRUHO3

SPRUGP2

SPRUGY4

SPRUGP1

SPRUHJ7

SPRUH06

12

Device Characteristics

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

3.5

Related Links

The table below lists quick access links. Categories include technical documents, support and community resources, tools and software, and quick access to sample or buy.

PARTS

AM5K2E04

AM5K2E02

PRODUCT FOLDER

Click here

Click here

Table 3-2. Related Links

SAMPLE & BUY

Click here

Click here

TECHNICAL

DOCUMENTS

Click here

Click here

TOOLS &

SOFTWARE

Click here

Click here

SUPPORT &

COMMUNITY

Click here

Click here

3.6

Community Resources

The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use .

TI E2E™ Online Community

TI's Engineer-to-Engineer (E2E) Community.

Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers.

TI Embedded Processors Wiki

Texas Instruments Embedded Processors Wiki. Established to help developers get started with Embedded Processors from Texas Instruments and to foster innovation and growth of general knowledge about the hardware and software surrounding these devices.

3.7

Trademarks

Code Composer Studio, XDS, E2E are trademarks of Texas Instruments.

MPCore is a trademark of ARM Ltd or its subsidiaries.

ARM, Cortex are registered trademarks of ARM Ltd or its subsidiaries.

All other trademarks are the property of their respective owners.

3.8

Electrostatic Discharge Caution

This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.

3.9

Glossary

SLYZ022 — TI Glossary.

This glossary lists and explains terms, acronyms, and definitions.

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Characteristics

13

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

4 ARM CorePac

The ARM CorePac is added in the AM5K2E0x to enable the ability for layer 2 and layer 3 processing onchip. Operations such as traffic control, local O&M, NBAP/FP termination, and SCTP processing can all be performed with the Cortex-A15 processor core.

The ARM CorePac of the AM5K2E0x integrates one or more Cortex-A15 processor clusters with additional logic for bus protocol conversion, emulation, interrupt handling, and debug related enhancements. The Cortex-A15 processor is an ARMv7A-compatible, multi-issue out-of-order superscalar execution engine with integrated L1 caches. The implementation also supports advanced SIMDv2 (NEON technology) and VFPv4 (vector floating point) architecture extensions, security, virtualization, LPAE (large physical address extension), and multiprocessing extensions. The ARM CorePac includes an L2 cache and support for AMBA4 AXI and AXI coherence extension (ACE) protocols. An interrupt controller is included in the ARM CorePac to handle host interrupt requests in the system.

The ARM CorePac has three functional clock domains, including a high-frequency clock domain used by the Cortex-A15. The high-frequency domain is isolated from the rest of the device by asynchronous bridges.

The following figures show the ARM CorePac.

480 SPI

Interrupts

TeraNet

(CFG)

AM5K2E04

KeyStone II ARM CorePac (Quad Core)

ARM

ARM INTC

Generic

Interrupt

Controller

400

IRQ,

FIQ,

VIRQ,

VFIQ

16

PPI

VBUSP2AXI

Bridge

Global

Time Base

Counter

64

Bits

ARM Cluster

ARM

A15

32KB L1

P-Cache

32KB L1

D-Cache

ARM

A15

32KB L1

P-Cache

32KB L1

D-Cache

ARM

A15

32KB L1

P-Cache

32KB L1

D-Cache

ARM

A15

32KB L1

P-Cache

32KB L1

D-Cache

STM

ATB

ARM

Trace

ATB

PTM (

´

4)

Debug

CTI/CTM

CTM

CTI (

´

4)

APB

APB MUX

APB

VBUSP

OCP

ATB

APB

ARM

VBUSP

Registers

VBUSP

AXI-VBUS

Master

256b

VBUSM

Endian

CFG

ARM

CorePac

Clock

Main PLL

ARM

A15 Core

Clock

ARM PLL

Boot Config

Figure 4-1. AM5K2E04 ARM CorePac Block Diagram

PSC

TeraNet

(DMA)

Debug

SubSystem

TeraNet

(CFG)

MSMC

DDR3

14

ARM CorePac

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

480 SPI

Interrupts

TeraNet

(CFG)

AM5K2E02

KeyStone II ARM CorePac (Dual Core)

ARM

ARM INTC

Generic

Interrupt

Controller

400

IRQ,

FIQ,

VIRQ,

VFIQ

8

PPI

VBUSP2AXI

Bridge

ARM Cluster

ARM

A15

32KB L1

P-Cache

32KB L1

D-Cache

STM

ATB

ARM

Trace

ATB

PTM (

´

4)

Debug

APB

APB MUX

APB

CTI/CTM

Global

Time Base

Counter

64

Bits

ARM

A15

32KB L1

P-Cache

32KB L1

D-Cache

CTM

CTI (

´

4)

VBUSP

OCP

ATB

APB

ARM

VBUSP

Registers

VBUSP

AXI-VBUS

Master

256b

VBUSM

Endian

CFG

Boot Config

ARM

CorePac

Clock

Main PLL

ARM

A15 Core

Clock

Figure 4-2. AM5K2E02 ARM CorePac Block Diagram

PSC

TeraNet

(DMA)

Debug

SubSystem

TeraNet

(CFG)

MSMC

DDR3

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

ARM CorePac

15

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

4.1

Features

The key features of the Quad Core ARM CorePac are as follows:

• One or more Cortex-A15 processors, each containing:

– Cortex-A15 processor revision R2P4.

– ARM architecture version 7 ISA.

– Multi-issue, out-of-order, superscalar pipeline.

– L1 and L2 instruction and data cache of 32KB, 2-way, 16 word line with 128-bit interface.

– Integrated L2 cache of 4MB, 16-way, 16-word line, 128-bit interface to L1 along with ECC/parity.

– Includes the NEON media coprocessor (NEON™), which implements the advanced SIMDv2 media processing architecture and the VFPv4 Vector Floating Point architecture.

– The external interface uses the AXI protocol configured to 128-bit data width.

– Includes the System Trace Macrocell (STM) support for non-invasive debugging.

– Implements the ARMv7 debug with watchpoint and breakpoint registers and 32-bit advanced peripheral bus (APB) slave interface to CoreSight™ debug systems.

• Interrupt controller

– Supports up to 480 interrupt requests

– An integrated Global Time Base Counter (clocked by the SYSCLK divided by 6)

• Emulation/debug

– Compatible with CoreSight™ architecture

4.2

System Integration

The ARM CorePac integrates the following group of submodules.

Cortex-A15 Processors: Provides a high processing capability, including the NEON™ technology for mobile multimedia acceleration. The Cortex-A15 communicates with the rest of the ARM CorePac through an AXI bus with an AXI2VBUSM bridge and receives interrupts from the ARM CorePac interrupt controller (ARM INTC).

Interrupt Controller: Handles interrupts from modules outside of the ARM CorePac (for details, see

Section 4.3.3

).

Clock Divider: Provides the required divided clocks to the internal modules of the ARM CorePac and has a clock input from the Main PLL.

In-Circuit Emulator: Fully compatible with CoreSight™ architecture and enables debugging capabilities.

4.3

ARM Cortex-A15 Processor

4.3.1

Overview

The ARM Cortex-A15 processor incorporates the technologies available in the ARM7™ architecture.

These technologies include NEON™ for media and signal processing and Jazelle™ RCT for acceleration of real-time compilers, Thumb®-2 technology for code density, and the VFPv4 floating point architecture.

For details, see the ARM Cortex-A15 Processor Technical Reference Manual.

4.3.2

Features

Table 4-1

shows the features supported by the Cortex-A15 processor core.

FEATURES

ARM version 7-A ISA

Table 4-1. Cortex-A15 Processor Core Supported Features

DESCRIPTION

Standard Cortex-A15 processor instruction set + Thumb2, ThumbEE, JazelleX Java accelerator, and media extensions

Backward compatible with previous ARM ISA versions

16

ARM CorePac

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

FEATURES

Cortex-A15 processor version

Integer core

NEON core

Architecture Extensions

L1 Lcache and Dcache

L2 cache

Cache Coherency

Table 4-1. Cortex-A15 Processor Core Supported Features (continued)

Branch target address cache

DESCRIPTION

R2P4

Main core for processing integer instructions

Gives greatly enhanced throughput for media workloads and VFP-Lite support

Security, virtualization and LPAE (40-bit physical address) extensions

32KB, 2-way, 16 word line, 128 bit interface

4096KB, 16-way, 16 word line, 128 bit interface to L1, ECC/Parity is supported shared between cores

L2 valid bits cleared by software loop or by hardware

Support for coherent memory accesses between A15 cores and other non-core master peripherals

(Ex: EDMA) in the DDR3 and MSMC SRAM space.

Dynamic branch prediction with Branch Target Buffer (BTB) and Global History Buffer (GHB), a return stack, and an indirect predictor

Mapping sizes are 4KB, 64KB, 1MB, and 16MB Enhanced memory management unit

Buses

Non-invasive Debug Support

Misc Debug Support

Voltage

Power

128b AXI4 internal bus from Cortex-A15 converted to a 256b VBUSM to interface (through the

MSMC) with MSMC SRAM, DDR EMIF, ROM, Interrupt controller and other system peripherals

Processor instruction trace using 4x Program Trace Macrocell (Coresight™ PTM), Data trace (print-f style debug) using System Trace Macrocell (Coresight™ STM) and Performance Monitoring Units

(PMU)

JTAG based debug and Cross triggering

SmartReflex voltage domain for automatic voltage scaling

Support for standby modes and separate core power domains for additional leakage power reduction

4.3.3

ARM Interrupt Controller

The ARM CorePac interrupt controller (AINTC) is responsible for prioritizing all service requests from the system peripherals and the secondary interrupt controller CIC2 and then generating either nIRQ or nFIQ to the Cortex-A15 processor. The type of the interrupt (nIRQ or nFIQ) and the priority of the interrupt inputs are programmable. The AINTC interfaces to the Cortex-A15 processor via the AXI port through an

VBUS2AXI bridge and runs at half the processor speed. It has the capability to handle up to 480 requests, which can be steered/prioritized as A15 nFIQ or nIRQ interrupt requests.

The general features of the AINTC are:

• Up to 480 level sensitive shared peripheral interrupts (SPI) inputs

• Individual priority for each interrupt input

• Each interrupt can be steered to nFIQ or nIRQ

• Independent priority sorting for nFIQ and nIRQ

• Secure mask flag

On the chip level, there is a dedicated chip level interrupt controller to serve the ARM interrupt controller.

See

Section 6.3

for more details.

The figures below show an overall view of the ARM CorePac Interrupt Controller.

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

ARM CorePac

17

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Peripherals

CIC2

CPU/6 Clock

GTB Counter Clock

Power On Reset

480 SPI

Interrupts

ARM INTC

Generic

Interrupt

Controller

400

Global

Time Base

Counter

FIQ, IRQ,

Virtual FIQ,

Virtual IRQ

8 PPIs

64 Bits

Cortex

A15

VBUSP Interface

VBUSP2AXI

Bridge

16 Software

Generated

Inputs

Figure 4-3. ARM Interrupt Controller for Two Cortex-A15 Processor Cores

FIQ, IRQ,

Virtual FIQ,

Virtual IRQ

Peripherals

CIC2

480 SPI

Interrupts

ARM INTC

Generic

Interrupt

Controller

400

16 PPIs

CPU/6 Clock

GTB Counter Clock

Power On Reset

Global

Time Base

Counter

64 Bits

Cortex

A15

VBUSP Interface

VBUSP2AXI

Bridge

16 Software

Generated

Inputs

Figure 4-4. ARM Interrupt Controller for Four Cortex-A15 Processor Cores

4.3.4

Endianess

The ARM CorePac can operate in either little endian or big endian mode. When the ARM CorePac is in little endian mode and the rest of the system is in big endian mode, the bridges in the ARM CorePac are responsible for performing the endian conversion.

4.4

CFG Connection

The ARM CorePac has two slave ports. The AM5K2E0x masters cannot access the ARM CorePac internal memory space.

1. Slave port 0 (TeraNet 3P_A) is a 32 bit wide port used for the ARM Trace module.

2. Slave port 1 (TeraNet 3P_B) is a 32 bit wide port used to access the rest of the system configuration.

4.5

Main TeraNet Connection

There is one master port coming out of the ARM CorePac. The master port is a 256 bit wide port for the transactions going to the MSMC and DDR_EMIF data spaces.

18

ARM CorePac

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

4.6

Clocking and Reset

4.6.1

Clocking

The Cortex-A15 processor core clocks are sourced from the Controller. The Cortex-A15 processor core clock has a maximum frequency of 1.4 GHz. The ARM CorePac subsytem also uses the SYSCLK1 clock source from the main PLL which is locally divided (/1, /3 and /6) and provided to certain sub-modules inside the ARM CorePac. AINTC sub module runs at a frequency of SYSCLK1/6.

4.6.2

Reset

The ARM CorePac does not support local reset. It is reset whenever the device is under reset. In addition, the interrupt controller (AINTC) can only be reset during POR and RESETFULL. AINTC also resets whenever device is under reset.

For the complete programming model, refer to the KeyStone II Architecture ARM CorePac User's Guide

( SPRUHJ4 ).

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

ARM CorePac

19

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

5 Terminals

5.1

Package Terminals

Figure 5-1

shows the ABD 1089-ball grid array package (bottom view).

32 30 28 26 24 22 20 18 16 14 12 10 8

33 31 29 27 25 23 21 19 17 15 13 11 9 7

6

5

4

3

2

1

A

B

C

D

E

F

G

H

J

K

L

M

N

P

R

T

U

V

W

Y

AA

AB

AC

AD

AE

AF

AG

AH

AJ

AK

AL

AN

AM

Figure 5-1. ABD 1089-Pin BGA Package (Bottom View)

5.2

Pin Map

The following figures show the AM5K2E0x pin assignments in four panels (A, B, C, and D).

www.ti.com

A B

C

D

20

Terminals

Figure 5-2. Pin Map Panels (Bottom View)

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

NOTE

XFI pins are associated with the 10-GbE feature and are supported only in the AM5K2E04 part.

AJ

AK

AL

AM

AN

AE

AF

AG

AH

AA

AB

AC

AD

U

V

W

Y

R

T

N

P

L

M

J

K

G

H

E

F

C

D

A

B

UART1RTS

UART0DTR

GPIO03

GPIO09

GPIO14

GPIO16

GPIO18

GPIO21

GPIO28

GPIO30

RSV029

RSV028

POR

TCK

TSIP0CLKB

TSIP0TR1

DVDD18

VSS

33

33

VSS

DVDD15

DDRDQS7P

DDRDQS7N

DDRD60

DDRD57

VCNTL1

USIMIO

USIMCLK

TIMI0

SPI2CLK

SPI1CLK

SPI1SCS3

SPI2SCS2

UART0CTS

UART1TXD

VSS

GPIO04

GPIO06

GPIO12

VSS

GPIO17

GPIO24

GPIO27

VSS

RESETFULL

TRST

TMS

SDA1

TSIP0FSB

TSIP0TX0

TSIP0TX1

DVDD18

32

32

DVDD15

DDRD63

DDRD61

DDRD62

DDRD59

DDRD58

VCNTL4

RSV000

RSV001

TIMI1

SPI0SCS3

SPI1SCS1

VSS

SPI1DOUT

UART0RTS

UART1CTS

DVDD18

GPIO07

GPIO08

GPIO15

DVDD18

GPIO19

GPIO23

GPIO29

DVDD18

BOOTCOMPLETE

TDI

SCL2

TSIP0FSA

TSIP0CLKA

VSS

TSIP0TR0

VSS

31

31

DDRDQM7

DDRD50

DVDD15

VSS

DDRDQM6

DDRD56

VSS

VCNTL2

VCNTL5

TIMO0

SPI0SCS0

SPI0DIN

DVDD18

SPI2SCS0

SPI2DOUT

UART0RXD

UART1RXD

VCL

UART0DSR

GPIO02

GPIO01

GPIO10

GPIO20

GPIO22

RESET

TDO

SDA2

RESETSTAT

VSS

SGMII0TXN1

SGMII0TXP0

SGMII0RXP1

SGMII0RXN0

29

29

DDRD48

DDRD52

VSS

DVDD15

DDRD51

DVDD15

VSS

VCNTL0

RSV014

USIMRST

SPI0SCS2

SPI0SCS1

SPI0DOUT

SPI1SCS0

SPI2SCS1

UART0TXD

VD

GPIO00

GPIO05

GPIO11

GPIO13

GPIO25

GPIO26

GPIO31

RSV030

HOUT

SCL0

SCL1

DVDD18

VSS

SGMII0TXN0

VSS

SGMII0RXP0

30

30

DDRDQS6P

DDRDQS6N

DDRD53

DDRD55

DDRD54

VSS

DVDD15

VCNTL3

RSV013

TIMO1

SPI2SCS3

SPI0CLK

SPI1SCS2

SPI2DIN

SPI1DIN

Figure 5-3. AM5K2Ex Left End Panel (A) — Bottom View

VSS

DVDD18

VSS

DVDD18

VSS

DVDD18

VSS

DVDD18

VSS

DVDD18

VSS

SDA0

VSS

RSV018

SGMII0TXP1

VSS

SGMII0RXN1

VSS

28

28

DDRD49

DDRD44

DDRD42

DDRD41

DDRD40

VSS

DVDD15

VSS

DVDD18

VSS

DVDD18

VSS

DVDD18

VSS

DVDD18

DVDD18

VSS

DVDD18

VSS

DVDD18

VSS

DVDD18

VSS

DVDD18

VSS

DVDD18

VSS

DVDD18

SGMII00REFRES

VSS

SGMII0TXN2

VSS

SGMII0RXP2

27

27

DDRDQS5P

DDRDQS5N

VSS

DVDD15

DDRD43

DVDD15

VSS

DVDD15

VSS

DVDD18

VSS

DVDD18

VSS

DVDD18

VSS

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

DVDD18

VSS

DVDD18

VSS

RSV019

SGMII0TXN3

SGMII0TXP2

SGMII0RXP3

SGMII0RXN2

26

26

DDRD45

DDRD46

DDRD47

DDRDQM5

DDRDQM4

VSS

DVDD15

VSS

CVDD

VSSTMON

CVDDTMON

VSS

CVDD

VSS

CVDD

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Terminals

21

AJ

AK

AL

AM

AN

AE

AF

AG

AH

AA

AB

AC

AD

W

Y

U

V

R

T

N

P

L

M

J

K

E

F

G

H

C

D

A

B

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

VDDALV

VSS

VDDAHV

SGMII0CLKN

SGMII0TXP3

VSS

SGMII0RXN3

VSS

25

25

DDRD39

DDRD38

DVDD15

VSS

DDRD37

DVDD15

VSS

DVDD15

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

VSS

CVDD

VSS

CVDD

VSS

CVDD1

VSS

CVDD

VSS

VDDALV

VSS

VDDALV

VSS

SGMII0CLKP

VSS

SGMII0TXN4

VSS

SGMII0RXP4

24

24

DDRDQS4P

DDRDQS4N

DDRD35

DDRD34

DDRD36

VSS

AVDDA10

VSS

VNWA2

VSS

CVDD1

VSS

CVDD1

VSS

CVDD

CVDD

VSS

CVDD

VSS

CVDD1

VSS

CVDD1

VSS

VNWA3

VSS

VDDALV

VSS

VDDAHV

VSS

SGMII0TXN5

SGMII0TXP4

SGMII0RXP5

SGMII0RXN4

23

23

DDRCB00

DDRD32

VSS

DVDD15

DDRD33

DVDD15

VSS

DVDD15

VSS

CVDD

VSS

CVDD1

VSS

CVDD

VSS

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

VDDALV

VSS

VDDALV

VSS

SGMII01REFRES

SGMII0TXP5

VSS

SGMII0RXN5

VSS

22

22

DDRDQS8N

DDRDQS8P

DDRCB04

DDRCB01

DDRCB02

VSS

AVDDA9

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

VDDALV

VSS

VDDAHV

VSS

VSS

SGMII0TXN6

VSS

SGMII0RXP6

21

21

DDRCB07

DDRCB05

DVDD15

VSS

DDRCB03

DVDD15

VSS

DVDD15

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

Figure 5-4. AM5K2Ex Left Center Panel (B) — Bottom View

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

VDDALV

VSS

VDDALV

VSS

RSV016

SGMII0TXN7

SGMII0TXP6

SGMII0RXP7

SGMII0RXN6

20

20

DDRCB06

DDRDQM8

DDRCKE0

DDRRESET

RSV022

VSS

DVDD15

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

VDDALV

VSS

VDDAHV

VSS

SGMII0TXP7

VSS

SGMII0RXN7

VSS

19

19

DDRCKE1

RSV021

VSS

DVDD15

DDRA15

DVDD15

VSS

DVDD15

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

www.ti.com

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

VDDALV

VSS

VDDALV

VSS

PCIE0CLKN

VSS

PCIE0TXN0

VSS

PCIE0RXP0

18

18

DDRA08

DDRBA2

DDRA14

DDRA11

DDRA12

VSS

DDRRZQ2

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

22

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

VDDALV

VSS

VDDAHV

PCIE0CLKP

PCIE0TXN1

PCIE0TXP0

PCIE0RXP1

PCIE0RXN0

17

17

DDRA06

DDRA09

DVDD15

VSS

DDRA07

DVDD15

VSS

DVDD15

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

VDDALV

VSS

VDDALV

VSS

VSS

PCIE0TXP1

VSS

PCIE0RXN1

VSS

16

16

DDRCLKOUTP1

DDRA02

DDRA03

DDRA04

DDRA05

VSS

AVDDA8

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

VDDALV

VSS

VDDAHV

PCIE1CLKN

VSS

PCIE1TXN0

VSS

PCIE1RXP0

15

15

DDRCLKOUTN1

DDRCLKOUTP0

DDRA01

DDRA00

DDRRZQ0

DDRVREFSSTL

VSS

DVDD15

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

VSS

CVDD

VSS

CVDD

VSS

CVDD1

VSS

CVDD

VSS

VDDALV

VSS

RSV017

VSS

XFICLKN

VSS

XFITXN0

VSS

XFIRXP0

12

12

DDRCE0

DDRCAS

DDRCE1

DDRODT0

DDRA13

VSS

DDRRZQ1

VSS

CVDD

VSS

CVDD

VSS

CVDD1

VSS

VDDUSB1

CVDD

VSS

CVDD

VSS

CVDD1

VSS

CVDD

VSS

CVDD

VSS

VDDALV

VSS

VDDAHV

VSS

PCIE1TXP1

VSS

PCIE1RXN1

VSS

13

13

DDRA10

DDRRAS

DDRBA1

DDRBA0

DDRWE

DVDD15

VSS

DVDD15

VSS

CVDD

VSS

CVDD1

VSS

CVDD

VSS

VSS

CVDD

VSS

CVDD

VSS

CVDD1

VSS

CVDD

VSS

VDDALV

VSS

PCIE0REFRES

VSS

PCIE1CLKP

PCIE1TXN1

PCIE1TXP0

PCIE1RXP1

PCIE1RXN0

14

14

RSV023

DDRCLKOUTN0

VSS

DVDD15

AVDDA7

VSS

DVDD15

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

Figure 5-5. AM5K2Ex Right Center Panel (C) — Bottom View

VDDUSB1

VSS

VDDUSB0

VSS

USB0DVDD33

VSS

CVDD

VSS

CVDD

VSS

VDDALV

VSS

VDDAHV

XFICLKP

XFITXN1

XFITXP0

XFIRXP1

XFIRXN0

11

11

DDRD26

DDRD25

DVDD15

VSS

DDRODT1

DVDD15

VSS

DVDD15

VSS

CVDD

VSS

CVDD1

VSS

USB1DVDD33

VSS

VSS

VDDUSB0

VSS

USB0VPH

VSS

CVDD

VSS

CVDD

VSS

VDDALV

VSS

XFIREFRES0

VSS

PCIE1REFRES

XFITXP1

VSS

XFIRXN1

VSS

10

10

DDRDQS3P

DDRDQS3N

DDRD27

DDRD28

DDRD24

VSS

DVDD15

VSS

CVDDCMON

VSS

CVDD

VSS

CVDD

VSS

USB1VPH

9

DDRD31

DDRD29

VSS

DVDD15

DDRD30

DVDD15

VSS

DVDD15

VSSCMON

VPP0

VSS

VPP1

VSS

VNWA1

VSS

USB1VPTX

VSS

USB0VPTX

VSS

CVDD

VSS

CVDD

VSS

VNWA4

VSS

VDDALV

VSS

RSV020

VSS

VSS

A

B

C

D

E

F

G

H

J

K

L

M

N

P

R

T

U

V

W

Y

AA

AB

AC

AD

AE

AF

AG

AH

AJ

AK

HYPLNK0TXN0 AL

VSS

AM

HYPLNK0RXP0 AN

9

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Terminals

23

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

VSS

USB0VP

VSS

RSV011

VSS

DVDD18

VSS

DVDD18

VSS

DVDD18

VSS

RSV015

VSS

HYPLNK0CLKN

HYPLNK0TXN1

HYPLNK0TXP0

HYPLNK0RXP1

HYPLNK0RXN0

8

8

DDRD22

DDRD23

DDRD21

DDRDQM2

DDRDQM3

VSS

AVDDA6

VSS

RSV010

RSV009

DVDD18

VSS

DVDD18

VSS

USB1VP

DVDD18

VSS

DVDD18

RSV012

DVDD18

VSS

DVDD18

VSS

AVDDA3

XFIMDIO

AVDDA1

VSS

XFIREFRES1

HYPLNK0CLKP

HYPLNK0TXP1

VSS

HYPLNK0RXN1

VSS

7

7

DDRDQS2N

DDRDQS2P

DVDD15

VSS

DDRD18

DVDD15

VSS

DVDD15

VSS

AVDDA2

VSS

DVDD18

VSS

DVDD18

VSS

EMIFWAIT0

EMIFA02

EMIFA03

USB1ID0

USB0RESREF

EMU01

HYPLNK0TXPMCLK

HYPLNK0TXFLCLK

EMU04

EMU03

XFIMDCLK

NETCPCLKSEL

MDCLK0

VSS

VSS

HYPLNK0TXN2

VSS

HYPLNK0RXP2

6

6

DDRD09

DDRD19

DDRD20

DDRD16

DDRD17

VSS

EMIFD09

EMIFD06

EMIFD05

EMIFD14

EMIFA23

EMIFA18

EMIFA05

EMIFA04

EMIFBE1

EMIFA13

EMIFA12

USB1RESREF

USB0VBUS

EMU17

EMU15

EMU06

EMU00

VSS

TSSYNCEVT

HYPLNK0TXPMDAT

RSV008

MDIO0

HYPLNK0REFRES

HYPLNK0TXN3

HYPLNK0TXP2

HYPLNK0RXP3

HYPLNK0RXN2

5

5

DDRD08

DDRD10

VSS

DVDD15

DDRD11

DVDD15

EMIFD00

EMIFD04

EMIFD15

EMIFD10

EMIFA17

EMIFA09

EMIFA08

EMIFA01

EMIFWE

USBCLKM

USBCLKP

USB1VBUS

USB0ID0

EMIFCE1

VSS

EMU08

EMU02

DVDD18

SYSCLKOUT

TSCOMPOUT

EMU11

HYPLNK0TXFLDAT

VSS

HYPLNK0TXP3

VSS

HYPLNK0RXN3

VSS

4

4

DDRDQS1P

DDRDQS1N

DDRD12

DDRD13

DDRD14

VSS

DDRCLKP

EMIFD13

EMIFD12

EMIFD02

EMIFA21

EMIFA10

EMIFA07

USB1DM

USB1DP

3

DDRDQM0

DDRD15

DVDD15

VSS

DDRDQM1

DDRD06

DDRCLKN

EMIFD11

VSS

EMIFD01

EMIFA14

EMIFA06

EMIFWAIT1

EMIFA00

EMIFA22

EMIFA15

VSS

USB0DP

USB0DM

EMIFRW

DVDD18

EMU14

EMU07

VSS

USB0TX0M

USB0TX0P

VSS

EMIFOE

EMIFBE0

EMU16

EMU13

EMU05

HYPLNK0RXFLDAT

EMU10

TSPUSHEVT0

EMU12

RSV002

RSV003

TSRXCLKOUT1P

EMU09 EMU18

HYPLNK0RXFLCLK TSRXCLKOUT0N

VSS

RSV006

TSREFCLKP

RSV007

VSS

NETCPCLKN

3

NETCPCLKP

VSS

2

2

DVDD15

DDRD07

DDRDQS0N

DDRD05

DDRD00

DDRD02

RSV004

EMIFD08

DVDD18

EMIFA19

EMIFA16

DVDD18

VSS

USB1TX0P

USB1TX0M

1

VSS

DVDD15

DDRDQS0P

DDRD01

DDRD03

DDRD04

RSV005

EMIFD07

EMIFD03

EMIFA20

EMIFA11

VSS

USB1RX0M

USB1RX0P

VSS

USB0RX0M

USB0RX0P

VSS

EMIFCE2

EMIFCE3

EMIFCE0

USB0DRVVBUS

USB1DRVVBUS

A

B

C

D

E

F

G

H

J

K

L

M

N

P

R

T

U

V

W

Y

AA

AB

AC

HYPLNK0RXPMDAT AD

HYPLNK0RXPMCLK

AE

CORECLKP

AF

CORECLKN

AG

TSRXCLKOUT1N

AH

TSRXCLKOUT0P

AJ

TSREFCLKN

AK

TSPUSHEVT1

VSS

VSS

1

AL

AM

AN

Figure 5-6. AM5K2Ex Right End Panel (D) — Bottom View

24

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

5.3

Terminal Functions

The terminal functions table ( Table 5-2 ) identifies the external signal names, the associated pin (ball)

numbers, the pin type (I, O/Z, or I/O/Z), whether the pin has any internal pullup/pulldown resistors, and gives functional pin descriptions. This table is arranged by function. The power terminal functions table

(

Table 5-3

) lists the various power supply pins and ground pins and gives functional pin descriptions.

Table 5-4

shows all pins arranged by signal name.

Table 5-5

shows all pins arranged by ball number.

Some pins have additional functions beyond their primary functions. There are 21 pins that have a secondary function and 15 pins that have a tertiary function. Secondary functions are indicated with a superscript 2 (

2

) and tertiary functions are indicated with a superscript 3 (

3

).

For more detailed information on device configuration, peripheral selection, multiplexed/shared pins, and pullup/pulldown resistors, see

Section 8.2

.

Use the symbol definitions in

Table 5-1

when reading

Table 5-2

.

Table 5-1. I/O Functional Symbol Definitions

FUNCTIONAL

SYMBOL

IPD or IPU

A

GND

I

O

P

Z

DEFINITION

Internal 100-µA pulldown or pullup is provided for this terminal. In most systems, a 1-k Ω resistor can be used to oppose the IPD/IPU.

Analog signal

Ground

Input terminal

Output terminal

Power supply voltage

Three-state terminal or high impedance

Table 5-2

COLUMN

HEADING

IPD/IPU

Type

Type

Type

Type

Type

Type

SIGNAL NAME

BOOTMODE_RSVD

2

AVSIFSEL[0]

2

AVSIFSEL[1]

2

BOOTCOMPLETE

BOOTMODE00

2

BOOTMODE01

2

BOOTMODE02

2

BOOTMODE03

2

BOOTMODE04

2

BOOTMODE05

2

BOOTMODE06

2

BOOTMODE07

2

BOOTMODE08

2

BOOTMODE09

2

BOOTMODE10

2

BOOTMODE11

2

BOOTMODE12

2

BOOTMODE13

2

BOOTMODE14

2

BOOTMODE15

2

LENDIAN

2

Table 5-2. Terminal Functions — Signals and Control by Function

BALL NO.

TYPE IPD/IPU

Y31

K33

K32

AF31

AA29

Y29

V33

V32

W30

W32

V31

W31

W33

AB29

Y30

Y32

AA30

AA33

AB32

AB33

V30

I

I

I

I

I

I

OZ

I

I

I

I

I

I

I

I

I

I

I

I

I

I

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Up

DESCRIPTION

Boot Configuration Pins

ARM Big Endian Configuration pin. Secondary function for GPIO15.

Default value (bootstrapped) for SR PINMUX Register (SR_PINCTL). Secondary function for TIMI0

Default value (bootstrapped) for SR PINMUX Register (SR_PINCTL). Secondary function for TIMI1

Boot progress indication output

User defined Boot Mode pin. Secondary function for GPIO01.

User defined Boot Mode pin. Secondary function for GPIO02.

User defined Boot Mode pin. Secondary function for GPIO03.

User defined Boot Mode pin. Secondary function for GPIO04.

User defined Boot Mode pin. Secondary function for GPIO05.

User defined Boot Mode pin. Secondary function for GPIO06.

User defined Boot Mode pin. Secondary function for GPIO07.

User defined Boot Mode pin. Secondary function for GPIO08.

User defined Boot Mode pin. Secondary function for GPIO09.

User defined Boot Mode pin. Secondary function for GPIO10.

User defined Boot Mode pin. Secondary function for GPIO11.

User defined Boot Mode pin. Secondary function for GPIO12.

User defined Boot Mode pin. Secondary function for GPIO13.

User defined Boot Mode pin. Secondary function for GPIO16.

User defined Boot Mode pin. Secondary function for GPIO17.

User defined Boot Mode pin. Secondary function for GPIO18.

Little Endian Configuration pin. Secondary function for GPIO00.

Terminals

25

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

CORECLKN

CORECLKP

DDRCLKN

DDRCLKP

HOUT

HYPLNK0CLKN

HYPLNK0CLKP

NETCPCLKN

NETCPCLKP

NETCPCLKSEL

PCIE0CLKN

PCIE0CLKP

PCIE1CLKN

PCIE1CLKP

POR

RESETFULL

RESETSTAT

SIGNAL NAME

MAINPLLODSEL

2

RESET

SGMII0CLKN

SGMII0CLKP

SYSCLKOUT

TSREFCLKN

TSREFCLKP

TSRXCLKOUT0N

TSRXCLKOUT0P

TSRXCLKOUT1N

TSRXCLKOUT1P

USBCLKM

USBCLKP

XFICLKN

XFICLKP

AK2

AJ2

AJ1

AH1

AG2

T4

AE29

AJ25

AJ24

AE4

AK1

U4

AJ12

AJ11

Table 5-2. Terminal Functions — Signals and Control by Function (continued)

BALL NO.

TYPE

Y33 I

IPD/IPU

Down

DESCRIPTION

Post divider select for main PLL.. Secondary function for GPIO14.

Clock / Reset

AJ8

AJ7

AN3

AM2

AG6

AJ18

AJ17

AG1

AF1

G3

G4

AF30

AJ15

AJ14

AH33

AF32

AH29

I

I

I

I

I

I

I

I

I

I

I

OZ

I

I

I

I

O

Up

Down

Up

Up

Up

System clock input to main PLL

DDR3 reference clock input to DDR PLL

Interrupt output pulse created by IPCGRH

HyperLink reference clock to drive HyperLink SerDes

NETCP sub-system reference clock

NETCP clock select to choose between core clock and NETCPCLK pins

PCIe Clock input to drive PCIe0 SerDes

PCIe Clock Input to drive PCIe1 SerDes

Power-on reset

Full reset

Reset Status Output. Drives low during Power-on Reset (No HHV override). Available after core and IOs are completely powered-up.

Warm reset of non-isolated portion of the device

I

O

O

I

O

O

I

I

I

I

I

I

I

OZ Down

SGMII reference clock to drive both SGMII0 SerDes SGMII reference clock to drive the SGMII

SerDes

System clock output to be used as a general purpose output clock for debug purposes

Clock from external OCXO/VCXO for SyncE

SERDES recovered clock output for SyncE

SERDES recovered clock output for SyncE

USB0_3.0 reference clock

XFI reference clock to drive the XFI SerDes

26

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

SIGNAL NAME

DDRA11

DDRA12

DDRA13

DDRA14

DDRA15

DDRBA0

DDRBA1

DDRBA2

DDRCAS

DDRCB00

DDRCB01

DDRCB02

DDRCB03

DDRA00

DDRA01

DDRA02

DDRA03

DDRA04

DDRA05

DDRA06

DDRA07

DDRA08

DDRA09

DDRA10

DDRCB04

DDRCB05

DDRCB06

DDRCB07

DDRCE0

DDRCE1

DDRCKE0

DDRCKE1

DDRCLKOUTN0

DDRCLKOUTP0

DDRCLKOUTN1

DDRCLKOUTP1

Table 5-2. Terminal Functions — Signals and Control by Function (continued)

BALL NO.

TYPE IPD/IPU DESCRIPTION

DDR3

B18

B12

A23

D22

E22

E21

D18

E18

E12

C18

E19

D13

C13

D16

E16

A17

E17

A18

B17

A13

D15

C15

B16

C16

A19

B14

B15

A15

A16

C22

B21

A20

A21

A12

C12

C20

OZ

OZ

IOZ

IOZ

IOZ

IOZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

OZ

IOZ

IOZ

IOZ

IOZ

OZ

OZ

OZ

DDR3 EMIF address bus

DDR3 EMIF bank address

DDR3 EMIF column address strobe

DDR3 EMIF check bits

DDR3 EMIF chip enable0

DDR3 EMIF chip enable1

DDR3 EMIF clock enable0

DDR3 EMIF clock enable1

DDR3 EMIF Output Clocks to drive SDRAMs for Rank0

DDR3 EMIF Output Clocks to drive SDRAMs for Rank1

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Terminals

27

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

DDRD39

DDRD40

DDRD41

DDRD42

DDRD43

DDRD44

DDRD45

DDRD46

DDRD47

DDRD25

DDRD26

DDRD27

DDRD28

DDRD29

DDRD30

DDRD31

DDRD32

DDRD33

DDRD34

DDRD35

DDRD36

DDRD37

DDRD38

DDRD12

DDRD13

DDRD14

DDRD15

DDRD16

DDRD17

DDRD18

DDRD19

DDRD20

DDRD21

DDRD22

DDRD23

DDRD24

SIGNAL NAME

DDRD00

DDRD01

DDRD02

DDRD03

DDRD04

DDRD05

DDRD06

DDRD07

DDRD08

DDRD09

DDRD10

DDRD11

Table 5-2. Terminal Functions — Signals and Control by Function (continued)

IPD/IPU DESCRIPTION

A25

E28

D28

C28

E27

B28

A26

B26

C26

B23

E23

D24

C24

E24

E25

B25

B9

E9

A9

B11

A11

C10

D10

B6

C6

C8

A8

B8

E10

B3

D6

E6

E7

C4

D4

E4

A6

B5

E5

D2

F3

B2

A5

F2

E1

F1

BALL NO.

TYPE

E2 IOZ

D1 IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

DDR3 EMIF data bus

DDR3 EMIF data bus

DDR3 EMIF data bus

www.ti.com

28

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

DDRDQS7N

DDRDQS7P

DDRDQS8N

DDRDQS8P

DDRODT0

DDRODT1

DDRRAS

DDRRESET

DDRRZQ0

DDRRZQ1

DDRRZQ2

DDRWE

DDRDQS0N

DDRDQS0P

DDRDQS1N

DDRDQS1P

DDRDQS2N

DDRDQS2P

DDRDQS3N

DDRDQS3P

DDRDQS4N

DDRDQS4P

DDRDQS5N

DDRDQS5P

DDRDQS6N

DDRDQS6P

DDRD60

DDRD61

DDRD62

DDRD63

DDRDQM0

DDRDQM1

DDRDQM2

DDRDQM3

DDRDQM4

DDRDQM5

DDRDQM6

DDRDQM7

DDRDQM8

SIGNAL NAME

DDRD48

DDRD49

DDRD50

DDRD51

DDRD52

DDRD53

DDRD54

DDRD55

DDRD56

DDRD57

DDRD58

DDRD59

Table 5-2. Terminal Functions — Signals and Control by Function (continued)

IPD/IPU DESCRIPTION

B13

D20

E15

G12

G18

E13

D33

C33

A22

B22

D12

E11

A10

B24

A24

B27

A27

B30

A30

C2

C1

B4

A4

A7

B7

B10

E8

E26

D26

E31

A31

B20

E33

C32

D32

B32

A3

E3

D8

C30

E30

D30

F31

F33

F32

E32

BALL NO.

TYPE

A29 IOZ

A28 IOZ

B31

E29

B29

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

OZ

OZ

OZ

OZ

OZ

OZ

IOZ

IOZ

IOZ

IOZ

OZ

OZ

OZ

A

A

OZ

OZ

A

OZ

IOZ

IOZ

IOZ

IOZ

OZ

OZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

Up/Dn

DDR3 EMIF data bus

DDR3 EMIF Data Masks

DDR3 EMIF data strobe. Programmable pull-up/dn 350-650 ohm.

DDR3 EMIF on-die termination outputs used to set termination on the SDRAMs

DDR3 EMIF on-die termination outputs used to set termination on the SDRAMs

DDR3 EMIF row address strobe

DDR3 reset signal. IO will work in LVCMOS mode to comply with JEDEC standard.

PTV compensation reference resistor pin for DDR3

PTV compensation reference resistor pin for DDR3

PTV compensation reference resistor pin for DDR3

DDR3 EMIF write enable

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

29

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

EMIFA11

EMIFA12

EMIFA13

EMIFA14

EMIFA15

EMIFA16

EMIFA17

EMIFA18

EMIFA19

EMIFA20

EMIFA21

EMIFA22

EMIFA23

EMIFA00

EMIFA01

EMIFA02

EMIFA03

EMIFA04

EMIFA05

EMIFA06

EMIFA07

EMIFA08

EMIFA09

EMIFA10

EMIFBE0

EMIFBE1

EMIFCE0

EMIFCE1

EMIFCE2

EMIFCE3

EMIFOE

EMIFRW

EMIFWAIT0

EMIFWAIT1

EMIFWE

SIGNAL NAME

Table 5-2. Terminal Functions — Signals and Control by Function (continued)

BALL NO.

TYPE IPD/IPU DESCRIPTION

EMIF

L4

R3

L6

M6

K2

K1

L3

T3

L2

L5

L1

U5

T5

P6

N6

M3

N4

N5

M5

M4

P3

P5

U6

V6

Y3

T6

N3

R5

AA2

R6

AA1

Y4

W1

Y1

Y2

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

I

I

O

O

O

O

O

O

O

O

O

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Up

Up

Up

Up

Up

Up

Up

Up

Down

Down

Up

EMIF address

EMIF address

EMIF control signals

www.ti.com

30

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

EMU12

EMU13

EMU14

EMU15

EMU16

EMU17

EMU18

EMU19

3

EMU20

3

EMU21

3

EMU22

3

EMU23

3

EMU24

3

EMU25

3

EMU26

3

EMU27

3

EMU28

3

EMU29

3

EMU30

3

EMU31

3

EMU32

3

EMU00

EMU01

EMU02

EMU03

EMU04

EMU05

EMU06

EMU07

EMU08

EMU09

EMU10

EMU11

SIGNAL NAME

EMIFD00

EMIFD01

EMIFD02

EMIFD03

EMIFD04

EMIFD05

EMIFD06

EMIFD07

EMIFD08

EMIFD09

EMIFD10

EMIFD11

EMIFD12

EMIFD13

EMIFD14

EMIFD15

AC29

AC33

AD29

AC31

AC32

AB30

AC30

AD3

AB5

AC3

AB4

AH3

AF3

AG4

AC5

AA6

AC4

AE6

AD6

AD2

AC2

AB3

AA5

AB2

Y5

AH2

AB32

AB33

AB31

AD32

AD33

AD31

AE33

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

Table 5-2. Terminal Functions — Signals and Control by Function (continued)

DESCRIPTION

J4

H4

K6

J5

J6

H6

H1

H2

G6

K5

H3

K4

J1

H5

BALL NO.

TYPE

G5 IOZ

K3 IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

Down

Down

Down

Down

Down

Down

Down

IPD/IPU

Down

Down

Down

Down

Down

Down

Down

Down

Down

EMIF data

EMU

Down

Down

Down

Down

Down

Down

Down

Up

Up

Up

Up

Up

Up

Up

Up

Up

Up

Up

Up

Up

Up

Up

Up

Up

Up

Up

Down

Down

Down

Down

Down

Down

Down

Emulation and trace port

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO17.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO18.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO19.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO20.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO21.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO22.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO23.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO24.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO25.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO26.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO27.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO28.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO29.

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO30.

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

31

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

GPIO12

GPIO13

GPIO14

GPIO15

GPIO16

GPIO17

GPIO18

GPIO19

GPIO20

GPIO21

GPIO22

GPIO23

GPIO24

GPIO00

GPIO01

GPIO02

GPIO03

GPIO04

GPIO05

GPIO06

GPIO07

GPIO08

GPIO09

GPIO10

GPIO11

GPIO25

GPIO26

GPIO27

GPIO28

GPIO29

GPIO30

GPIO31

SIGNAL NAME

EMU33

3

HYPLNK0RXN0

HYPLNK0RXN1

HYPLNK0RXN2

HYPLNK0RXN3

HYPLNK0RXP0

HYPLNK0RXP1

HYPLNK0RXP2

HYPLNK0RXP3

HYPLNK0TXN0

HYPLNK0TXN1

HYPLNK0TXN2

HYPLNK0TXN3

HYPLNK0TXP0

HYPLNK0TXP1

HYPLNK0TXP2

HYPLNK0TXP3

AM8

AN6

AM5

AL9

AK8

AL6

AK5

AN8

AM7

AN5

AM4

AN9

AL8

AK7

AL5

AK4

Table 5-2. Terminal Functions — Signals and Control by Function (continued)

BALL NO.

TYPE

AD30 IOZ

IPD/IPU

Down

DESCRIPTION

EMU (Unique select for EMU muxing on each GPIO pin.) Tertiary function for GPIO31.

General Purpose Input/Output (GPIO)

AB33

AB31

AC29

AC33

AD29

AC31

AC32

Y32

AA30

Y33

Y31

AA33

AB32

AB30

AC30

AD32

AD33

AD31

AE33

AD30

V30

AA29

Y29

V33

V32

W30

W32

V31

W31

W33

AB29

Y30

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Up

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

GPIOs

GPIOs

HyperLink

O

O

O

I

O

I

I

I

I

I

I

I

O

O

O

O

HyperLink receive data

HyperLink transmit data

32

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

SCL0

SCL1

SCL2

SDA0

SDA1

SDA2

SIGNAL NAME

HYPLNK0RXFLCLK

HYPLNK0RXFLDAT

HYPLNK0RXPMCLK

HYPLNK0RXPMDAT

HYPLNK0TXFLCLK

HYPLNK0TXFLDAT

HYPLNK0TXPMCLK

HYPLNK0TXPMDAT

HYPLNK0REFRES

Table 5-2. Terminal Functions — Signals and Control by Function (continued)

DESCRIPTION BALL NO.

TYPE

AJ3 O

AE3 O

AE1

AD1

AC6

I

I

I

AH4

AB6

AF5

AJ5

O

A

I

O

IPD/IPU

down down down down down down down down

HyperLink sideband signals

TCK

TDI

TDO

TMS

TRST

MDCLK0

MDIO0

XFIMDCLK

XFIMDIO

PCIE0REFRES

PCIE0RXN0

PCIE0RXP0

PCIE0RXN1

PCIE0RXP1

PCIE0TXN0

PCIE0TXP0

PCIE0TXN1

PCIE0TXP1

PCIE1REFRES

PCIE1RXN0

PCIE1RXP0

PCIE1RXN1

PCIE1RXP1

PCIE1TXN0

PCIE1TXP0

PCIE1TXN1

PCIE1TXP1

AG30

AH30

AH31

AG28

AJ32

AG29

AJ33

AG31

AF29

AH32

AG32

AH6

AH5

AF6

AE7

AL17

AK17

AK16

AJ10

AN14

AN15

AG14

AN17

AN18

AM16

AM17

AL18

AM13

AM14

AL15

AL14

AK14

AK13

IOZ

IOZ

IOZ

IOZ

IOZ

IOZ

I

I

A

O

O

O

I

O

I

I

I

A

O

O

I

I

O

O

O

IOZ

O

IOZ

I

I

I

I

OZ

Up

Up

Up

Up

Down

Down

Up

Down

Up

HyperLink SerDes reference resistor input (3 k Ω ±1%)

I

2

C

I

2

C0 clock

I

2

C1 clock

I

2

C2 clock

I

2

C0 data

I

2

C1 data

I

2

C2 data

JTAG

JTAG clock input

JTAG data input

JTAG data output

JTAG test mode input

JTAG reset

MDIO

MDIO0 Clock

MDIO0 Data

XFI MDIO Clock

XFI MDIO Data

PCIe

PCIexpress0 SerDes reference resistor input (3 k Ω ±1%)

PCIexpress0 lane 0 receive data

PCIexpress0 lane 1 receive data

PCIexpress0 lane 0 transmit data

PCIexpress0 lane 1 transmit data

PCIexpress1 SerDes reference resistor input (3 k Ω ±1%)

PCIexpress1lane 0 receive data

PCIexpress1lane 1 receive data

PCIexpress1 lane 0 transmit data

PCIexpress1 lane 1 transmit data

SGMII00REFRES

SGMII01REFRES

SGMII0RXN0

SGMII0RXP0

AJ27

AJ22

AN29

AN30 I

I

A

A

SGMII

SGMII0 SerDes reference resistor input (3 k Ω ±1%)

SGMII1 SerDes reference resistor input (3 k Ω ±1%)

Ethernet MAC SGMII0 port 0 receive data

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Terminals

33

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

VCL

VCNTL0

VCNTL1

VCNTL2

VCNTL3

VCNTL4

VCNTL5

VD

SGMII0RXN7

SGMII0RXP7

SGMII0TXN0

SGMII0TXP0

SGMII0TXN1

SGMII0TXP1

SGMII0TXN2

SGMII0TXP2

SGMII0TXN3

SGMII0TXP3

SGMII0TXN4

SGMII0TXP4

SGMII0TXN5

SIGNAL NAME

SGMII0RXN1

SGMII0RXP1

SGMII0RXN2

SGMII0RXP2

SGMII0RXN3

SGMII0RXP3

SGMII0RXN4

SGMII0RXP4

SGMII0RXN5

SGMII0RXP5

SGMII0RXN6

SGMII0RXP6

SGMII0TXP5

SGMII0TXN6

SGMII0TXP6

SGMII0TXN7

SGMII0TXP7

SPI0CLK

SPI0DIN

SPI0DOUT

SPI0SCS0

SPI0SCS1

SPI0SCS2

SPI0SCS3

SPI1CLK

SPI1DIN

SPI1DOUT

Table 5-2. Terminal Functions — Signals and Control by Function (continued)

IPD/IPU DESCRIPTION

AL26

AK26

AK25

AL24

AL23

AK23

AM19

AM20

AL30

AL29

AK29

AK28

AL27

AM26

AN23

AN24

AM22

AM23

AN20

AN21

BALL NO.

TYPE

AM28 I

AM29 I

AN26

AN27

AM25

I

I

I

I

I

I

I

I

I

I

AK22

AL21

AL20

AK20

AK19

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

I

I

O

Ethernet MAC SGMII0 port 1 receive data

Ethernet MAC SGMII0 port 2 receive data

Ethernet MAC SGMII0 port 3 receive data

Ethernet MAC SGMII1 port 4 receive data

Ethernet MAC SGMII1 port 5 receive data

Ethernet MAC SGMII1 port 6 receive data

Ethernet MAC SGMII1 port 7 receive data

Ethernet MAC SGMII0 port 0 transmit data

Ethernet MAC SGMII0 port 1 transmit data

Ethernet MAC SGMII0 port 2 transmit data

Ethernet MAC SGMII0 port 3 transmit data

Ethernet MAC SGMII1 port 4 transmit data

Ethernet MAC SGMII1 port 5 transmit data

Ethernet MAC SGMII1 port 6 transmit data

Ethernet MAC SGMII1 port 7 transmit data

SmartReflex

Voltage control I

2

C clock

V29

H29

G33

H31

H30

G32

J31

U30

IOZ

OZ

OZ

OZ

OZ

OZ

OZ

IOZ

Voltage control outputs to variable core power supply

M30

M31

N29

L31

M29

L29

L32

M33

R30

P32

I

OZ

OZ

OZ

OZ

OZ

OZ

OZ

I

OZ

Down

Down

Down

Up

Up

Up

Up

Down

Down

Down

Voltage control I

2

C data

SPI0

SPI0 clock

SPI0 data in

SPI0 data out

SPI0 interface enable 0

SPI0 interface enable 1

SPI0 interface enable 2

SPI0 interface enable 3

SPI1

SPI1 clock

SPI1 data in

SPI1 data out

34

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

SIGNAL NAME

SPI1SCS0

SPI1SCS1

SPI1SCS2

SPI1SCS3

SPI2CLK

SPI2DIN

SPI2DOUT

SPI2SCS0

SPI2SCS1

SPI2SCS2

SPI2SCS3

TSCOMPOUT

TSPUSHEVT0

TSPUSHEVT1

TSSYNCEVT

TIMI0

TIMO0

TIMI1

TIMO1

TSIP0CLKA

TSIP0CLKB

TSIP0FSA

TSIP0FSB

TSIP0TR0

TSIP0TR1

TSIP0TX0

TSIP0TX1

UART0CTS

UART0DSR

UART0DTR

UART0RTS

UART0RXD

UART0TXD

UART1CTS

UART1RTS

UART1RXD

UART1TXD

USB0DM

USB0DP

USB0DRVVBUS

USB0ID0

USB0RESREF

USB0RX0M

USB0RX0P

Table 5-2. Terminal Functions — Signals and Control by Function (continued)

K33

K31

K32

K30

L33

P30

R31

P31

R29

P33

L30

BALL NO.

TYPE

P29 OZ

M32 OZ

N30

N33

OZ

OZ

AF4

AG3

AL1

AE5

AK31

AK33

AJ31

AK32

AM31

AL33

AL32

AM32

I

I

I

I

I

I

OZ

OZ

I

I

OZ

OZ

I

OZ

OZ

OZ

OZ

OZ

OZ

I

O

I

O

IPD/IPU

Up

Up

Up

Up

Down

Down

Down

Down

Down

Down

Down

Down

Up

Up

Up

Down

Down

Down

Up

Down

Down

Down

Down

Down

Down

Down

Down

DESCRIPTION

SPI1 interface enable 0

SPI1 interface enable 1

SPI1 interface enable 2

SPI1 interface enable 3

SPI2

SPI2 clock

SPI2 data in

SPI2 data out

SPI2 interface enable 0

SPI2 interface enable 1

SPI2 interface enable 2

SPI2 interface enable 3

Sync-Ethernet / IEEE1588

IEEE1588 compare output

PPS push event from GPS for IEEE1588

Push event from BCN for IEEE1588

IEEE1588 sync event output

Timer

Timer 0 input

Timer 0 output

Timer 1 input

Timer 1 output

TSIP

CLKA0 TSIP0 external clock A

CLKB0 TSIP0 external clock B

FSA0 TSIP0 frame sync A

FSB0 TSIP0 frame sync B

TR00 TR01 TSIP0 receive data

TX00 TX01 TSIP0 transmit data

T31

T33

U29

T32

W3

V3

AB1

W4

Y6

T1

U1

R33

W29

U33

R32

T29

T30

I

I

IOZ

A

A

IOZ

O

I

I

OZ

OZ

I

I

OZ

I

OZ

OZ

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

Down

UART0

UART0 clear to send

UART0 data set ready

UART0 data terminal ready

UART0 request to send

UART0 serial data in

UART0 serial data out

UART1

UART1 clear to send

UART1 request to send

UART1 serial data in

UART1 serial data out

USB0 (USB_3.0)

USB0 D-

USB0 D+

USB0 DRVVBUS output

USB0 ID

Reference resistor connection for USB0 PHY (200 Ω +- 1% resistor to ground)

USB0_3.0 receive data

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Terminals

35

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

SIGNAL NAME

USB0TX0M

USB0TX0P

USB0VBUS

USB1DM

USB1DP

USB1DRVVBUS

USB1ID0

USB1RESREF

USB1RX0M

USB1RX0P

USB1TX0M

USB1TX0P

USB1VBUS

USIMCLK

USIMIO

USIMRST

XFIRXN0

XFIRXP0

XFIRXN1

XFIRXP1

XFITXN0

XFITXP0

XFITXN1

XFITXP1

XFIREFRES0

XFIREFRES1

AN11

AN12

AM10

AM11

AL12

AL11

AK11

AK10

AG10

AH7

Table 5-2. Terminal Functions — Signals and Control by Function (continued)

IPD/IPU DESCRIPTION BALL NO.

TYPE

U2 O

V2 O

W5 A

USB0_3.0 transmit data

N1

P1

R2

P2

V4

P4

R4

AC1

W6

V5

I

I

O

O

A

IOZ

A

A

IOZ

O Down

USB0 5-V analog input. Connect to VBUS pin on USB connector through protection switch

USB1 (USB_3.0)

USB1 D-

USB1 D+

USB1 DRVVBUS output

USB1 ID

Reference resistor connection for USB1 PHY (200 Ω +- 1% resistor to ground)

USB1_3.0 receive data

USB1_3.0 transmit data

J33

H33

K29

OZ

IOZ

OZ

Down

Up

Down

USB1 5-V analog input. Connect to VBUS pin on USB connector through protection switch

USIM

USIM clock

USIM data

USIM reset

XFI (AM5K2E04 only)

I

O

O

I

I

I

A

A

O

O

Ethernet MAC XFI port 0 receive data

Ethernet MAC XFI port 1 receive data

Ethernet MAC XFI port 0 transmit data

Ethernet MAC XFI port 1 transmit data

XFI port 0 SerDes reference resistor input (3 k Ω ±1%)

XFI port 1 SerDes reference resistor input (3 k Ω ±1%)

36

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

RSV011

RSV012

RSV013

RSV014

RSV015

RSV016

RSV017

RSV018

RSV019

RSV020

RSV021

RSV022

RSV023

RSV028

RSV029

RSV030

RSV000

RSV001

RSV002

RSV003

RSV004

RSV005

RSV006

RSV007

RSV008

RSV009

RSV010

SIGNAL NAME

AJ28

AJ26

AH9

B19

E20

A14

W8

W7

J30

J29

AG8

AJ20

AG12

AG33

AF33

AE30

H32

J32

AE2

AF2

G2

G1

AL3

AL2

AG5

K8

J8

I

I

I

A

A

A

OZ

OZ

A

A

A

A

A

A

A

A

O

O

O

O

OZ

A

A

OZ

OZ

O

O

Table 5-2. Terminal Functions — Signals and Control by Function (continued)

BALL NO.

TYPE IPD/IPU

Down

Down

Down

DESCRIPTION

Reserved

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Connect to GND

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Leave unconnected

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Terminals

37

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

SUPPLY

AVDDA1

AVDDA2

AVDDA3

AVDDA6

AVDDA7

AVDDA8

AVDDA9

AVDDA10

CVDD

CVDD1

CVDDCMON

CVDDTMON

DDR3VREFSSTL

DVDD15

DVDD18

USB0DVDD33

USB0VP

USB0VPH

USB0VPTX

USB1DVDD33

USB1VP

USB1VPH

USB1VPTX

VDDAHV

VDDALV

VDDUSB0

VDDUSB1

VNWA1

VNWA2

VNWA3

VNWA4

VPP0

VPP1

Table 5-3. Terminal Functions — Power and Ground

BALL NO.

AF7

K7

AD7

G8

E14

VOLTS

1.8 V

1.8 V

1.8 V

1.8 V

1.8 V

G16

G22

G24

J12, J14, J16, J18, J20, J22, J26, K11, K13, K15, K17, K19,

K21, K23, K25, L10, L12, L14, L16, L18, L20, L22, M15, M17,

M19, M21, M25, N10, N14, N16, N18, N20, N22, N26, P13,

P15, P17, P19, P21, P23, P25, R14, R16, R18, R20, R22, R24,

R26, T13, T15, T17, T19, T21, T23, T25, U12, U14, U16, U18,

U20, U22, U24, U26, V13, V15, V17, V19, V21, V23, V25, W12,

W14, W16, W18, W20, W22, W24, W26, Y9, Y15, Y17, Y19,

Y21, Y25, AA10, AA16, AA18, AA20, AA22, AA26, AB9, AB11,

AB13, AB15, AB17, AB19, AB21, AB25, AC10, AC12, AC14,

AC16, AC18, AC20, AC22, AC24, AC26, AD11, AD13, AD15,

AD17, AD19, AD21, AD25

AVS

L24, M11, M13, M23, N12, N24, Y13, Y23, AA12, AA14, AA24, 0.95 V

AB23

J10 AVS

L26

F15

A2, A32, B1, B33, C3, C7, C11, C17, C21, C25, C31, D5, D9,

D14, D19, D23, D27, D29, F5, F7, F9, F11, F13, F17, F19, F21,

F23, F25, F27, F29, G10, G14, G20, G26, G28, G30, H7, H9,

H11, H13, H15, H17, H19, H21, H23, H25, H27

J2, J28, K27, L8, L28, M2, M7, M27, N8, N28, N31, P7, P27,

R28, T7, T27, U28, U31, V7, V27, W28, Y7, Y27, AA3, AA8,

AA28, AA31, AB7, AB27, AC8, AC28, AD4, AD27, AE8, AE26,

AE28, AE31, AF27, AG26, AH27, AJ30, AM33, AN32

1.8 V

1.8 V

1.8 V

AVS

DVDD15/2

1.5 V/1.35 V

1.8 V

Y11

U8

3.3 V

0.85 V

DESCRIPTION

COREPLL supply

NETCPPLL supply

DDRPLL supply

DDRA DLL supply

DDRA DLL supply

DDRA DLL supply

DDRA DLL supply

DDRA DLL supply

Smart Reflex core supply voltage

Core supply voltage for memory array

CVDD Supply Monitor

CVDD Supply Monitor

DDR3 reference voltage

DDR IO supply

1.8-V IO supply

W10

V9

P11

R8

3.3 V

0.85 V

3.3 V

0.85 V

3.3 V

0.85 V

1.8 V

0.85 V

3.3-V USB0 high supply High-speed

0.85-V USB0 PHY analog and digital Super-speed supply

3.3-V USB0 high supply Super-speed

0.85-V USB0 PHY transmit supply

3.3-V USB1 high supply High-speed

0.85-V USB1 PHY analog and digital Super-speed supply

3.3-V USB1 high supply Super-speed

0.85-V USB1 PHY transmit supply

1.8-V high analog supply

SerDes low voltage

R10

T9

AH11, AH13, AH15, AH17, AH19, AH21, AH23, AH25

AE10, AE12, AE14, AE16, AE18, AE20, AE22, AE24, AF9,

AF11, AF13, AF15, AF17, AF19, AF21, AF23, AF25, AG16,

AG18, AG20, AG22, AG24

U10, V11

R12, T11

P9

J24

AD23

AD9

K9

M9

0.85 V

0.85 V

0.95 V

0.95 V

0.95 V

0.95 V

USB0 PHY analog and digital High-speed supply

USB1 PHY analog and digital High-speed supply

Fixed Nwell supply - connect to CVDD1

Fixed Nwell supply - connect to CVDD1

Fixed Nwell supply - connect to CVDD1

Fixed Nwell supply - connect to CVDD1

Leave unconnected

Leave unconnected

38

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

SUPPLY

VSS

VSSCMON

VSSTMON

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 5-3. Terminal Functions — Power and Ground (continued)

BALL NO.

VOLTS

A1, A33, C5, C9, C14, C19, C23, C27, C29, D3, D7, D11, D17, GND

D21, D25, D31, F4, F6, F8, F10, F12, F14, F16, F18, F20, F22,

F24, F26, F28, F30, G7, G9, G11, G13, G15, G17, G19, G21,

G23, G25, G27, G29, G31, H8, H10, H12, H14, H16, H18, H20,

H22, H24, H26, H28, J3, J7, J11, J13, J15, J17, J19, J21, J23,

J25, J27, K10, K12, K14, K16, K18, K20, K22, K24, K28, L7,

L9, L11, L13, L15, L17, L19, L21, L23, L25, L27, M1, M8, M10,

M12, M14, M16, M18, M20, M22, M24, M26, M28, N2, N7, N9,

N11, N13, N15, N17, N19, N21, N23, N25, N27, N32, P8, , P10,

P12, P14, P16, P18, P20, P22, P24, P26, P28, R1, R7, R9,

R11, R13, R15, R17, R19, R21, R23, R25, R27, T2, T8, T10,

T12, T14, T16, T18, T20, T22, T24, T26, T28, U3, U7, U9, U11,

U13, U15, U17, U19, U21, U23, U25, U27, U32, V1, V8, V10,

V12, V14, V16, V18, V20, V22, V24, V26, V28, W2, W9, W11,

W13, W15, W17, W19, W21, W23, W25, W27, Y8, Y10, Y12,

Y14, Y16, Y18, Y20, Y22, Y24, Y26, Y28, AA4, AA7, AA9,

AA11, AA13, AA15, AA17, AA19, AA21, AA23, AA25, AA27,

AA32, AB8, AB10, AB12, AB14, AB16, AB18, AB20, AB22,

AB24, AB26, AB28, AC7, AC9, AC11, AC13, AC15, AC17,

AC19, AC21, AC23, AC25, AC27, AD5, AD8, AD10, AD12,

AD14, AD16, AD18, AD20, AD22, AD24, AD26, AD28, AE9,

AE11, AE13, AE15, AE17, AE19, AE21, AE23, AE25, AE27,

AE32, AF8, AF10, AF12, AF14, AF16, AF18, AF20, AF22,

AF24, AF26, AF28, AG7, AG9, AG11, AG13, AG15, AG17,

AG19, AG21, AG23, AG25, AG27, AH8, AH10, AH12, AH14,

AH16, AH18, AH20, AH22, AH24, AH26, AH28, AJ4, AJ6, AJ9,

AJ13, AJ16, AJ19, AJ21, AJ23, AJ29, AK3, AK6, AK9, AK12,

AK15, AK18, AK21, AK24, AK27, AK30, AL4, AL7, AL10, AL13,

AL16, AL19, AL22, AL25, AL28, AL31, AM1, AM3, AM6, AM9,

AM12, AM15, AM18, AM21, AM24, AM27, AM30, AN1, AN2,

AN4, AN7, AN10, AN13, AN16, AN19, AN22, AN25, AN28,

AN31, AN33

J9 GND

K26 GND

DESCRIPTION

Ground

GND Monitor

GND Monitor

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Terminals

39

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 5-4. Terminal Functions — By Signal Name www.ti.com

40

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

SIGNAL NAME

BOOTMODE_RSVD

2

AVDDA1

AVDDA2

AVDDA3

AVDDA6

AVDDA7

AVDDA8

AVDDA9

AVDDA10

AVSIFSEL[0]

2

AVSIFSEL[1]

2

BOOTCOMPLETE

BOOTMODE00

2

BOOTMODE01

2

BOOTMODE02

2

BOOTMODE03

2

BOOTMODE04

2

BOOTMODE05

2

BOOTMODE06

2

BOOTMODE07

2

BOOTMODE08

2

BOOTMODE09

2

BOOTMODE10

2

BOOTMODE11

2

BOOTMODE12

2

BOOTMODE13

2

BOOTMODE14

2

BOOTMODE15

2

CORECLKN

CORECLKP

CVDD

CVDD

CVDD

CVDD

CVDD1

CVDDCMON

CVDDTMON

DDRA00

DDRA01

K32

AF31

AA29

Y29

V33

BALL NUMBER

Y31

E14

G16

G22

G24

K33

AF7

K7

AD7

G8

W33

AB29

Y30

Y32

AA30

V32

W30

W32

V31

W31

DDRBA1

DDRBA2

DDRCAS

DDRCB00

DDRCB01

DDRCB02

DDRCB03

DDRCB04

DDRCB05

DDRCB06

AA33

AB32

AB33

DDRCB07

DDRCE0

DDRCE1

J10

L26

D15

C15

AG1

AF1

DDRCKE0

DDRCKE1

J12, J14, J16, J18, J20, J22,

J26, K11, K13, K15, K17, K19,

K21, K23, K25, L10, L12, L14,

L16, L18, L20, L22, M15, M17,

M19, M21, M25, N10, N14, N16,

N18, N20, N22

N26, P13, P15, P17, P19, P21,

P23, P25, R14, R16, R18, R20,

R22, R24, R26, T13, T15, T17,

T19, T21, T23, T25, U12, U14,

U16, U18, U20, U22, U24, U26,

V13, V15

V17, V19, V21, V23, V25, W12,

W14, W16, W18, W20, W22,

W24, W26, Y9, Y15, Y17, Y19,

Y21, Y25, AA10, AA16, AA18,

AA20, AA22, AA26, AB9, AB11,

AB13, AB15

DDRCLKN

DDRCLKOUTN0

DDRCLKOUTN1

DDRCLKOUTP0

DDRCLKOUTP1

DDRCLKP

DDRD00

DDRD01

DDRD02

DDRD03

DDRD04

DDRD05

AB17, AB19, AB21, AB25, AC10, DDRD06

AC12, AC14, AC16, AC18,

AC20, AC22, AC24, AC26,

DDRD07

AD11, AD13, AD15, AD17,

DDRD08

AD19, AD21, AD25

DDRD09 L24, M11, M13, M23, N12, N24,

Y13, Y23, AA12, AA14, AA24,

AB23

DDRD10

DDRD11

DDRD12

DDRD13

DDRD14

SIGNAL NAME

DDRA02

DDRA03

DDRA04

DDRA05

DDRA06

DDRA07

DDRA08

DDRA09

DDRA10

DDRA11

DDRA12

DDRA13

DDRA14

DDRA15

DDRBA0

A6

B5

E5

C4

D4

E4

E22

E21

C22

B21

A20

C13

B18

B12

A23

D22

A21

A12

C12

F2

E1

F1

D2

F3

B2

A5

A16

G4

E2

D1

C20

A19

G3

B14

A15

B15

E18

E12

C18

E19

D13

BALL NUMBER

B16

E17

A18

B17

A13

D18

C16

D16

E16

A17

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

DDRD30

DDRD31

DDRD32

DDRD33

DDRD34

DDRD35

DDRD36

DDRD37

DDRD38

DDRD39

DDRD40

DDRD41

DDRD42

DDRD43

DDRD44

DDRD45

DDRD46

DDRD47

DDRD48

DDRD49

DDRD50

DDRD51

DDRD52

DDRD53

DDRD54

DDRD55

DDRD56

DDRD57

DDRD58

DDRD59

SIGNAL NAME

DDRD15

DDRD16

DDRD17

DDRD18

DDRD19

DDRD20

DDRD21

DDRD22

DDRD23

DDRD24

DDRD25

DDRD26

DDRD27

DDRD28

DDRD29

DDRD60

DDRD61

DDRD62

DDRD63

DDRDQM0

DDRDQM1

E33

C32

D32

B32

A3

E3

C24

E24

E25

B25

A25

E9

A9

B23

E23

D24

E28

D28

C28

C30

E30

D30

F31

A28

B31

E29

B29

F33

F32

E32

E27

B28

A26

B26

C26

A29

B11

A11

C10

D10

B9

BALL NUMBER

B3

C6

C8

A8

B8

E10

D6

E6

E7

B6

Terminals

41

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

DDRDQS6P

DDRDQS7N

DDRDQS7P

DDRDQS8N

DDRDQS8P

DDRODT0

DDRODT1

DDRRAS

DDRRESET

DDRRZQ0

DDRRZQ1

DDRRZQ2

DDRVREFSSTL

DDRWE

DVDD15

SIGNAL NAME

DDRDQM2

DDRDQM3

DDRDQM4

DDRDQM5

DDRDQM6

DDRDQM7

DDRDQM8

DDRDQS0N

DDRDQS0P

DDRDQS1N

DDRDQS1P

DDRDQS2N

DDRDQS2P

DDRDQS3N

DDRDQS3P

DDRDQS4N

DDRDQS4P

DDRDQS5N

DDRDQS5P

DDRDQS6N

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

DVDD15

DVDD18

DVDD18

EMIFA00

EMIFA01

EMIFA02

EMIFA03

EMIFA04

A24

B27

A27

B30

A4

A7

B7

B10

A10

D26

E31

A31

B20

C2

C1

B4

BALL NUMBER

D8

E8

E26

B24

A30

D33

C33

A22

B22

EMIFBE1

EMIFCE0

EMIFCE1

EMIFCE2

EMIFCE3

D12

E11

B13

D20

EMIFD00

EMIFD01

EMIFD02

E15

G12

G18

F15

E13

A2, A32, B1, B33, C3, C7, C11,

C17, C21, C25, C31, D5, D9,

D14, D19, D23, D27, D29, F5,

F7, F9, F11, F13, F17, F19, F21

F23, F25, F27, F29, G10, G14,

G20, G26, G28, G30, H7, H9,

H11, H13, H15, H17, H19, H21,

H23, H25, H27

J2, J28, K27, L8, L28, M2, M7,

M27, N8, N28, N31, P7, P27,

R28, T7, T27, U28, U31, V7,

V27, W28, Y7, Y27, AA3, AA8

P3

P5

U6

V6

P6

AA28, AA31, AB7, AB27, AC8,

AC28, AD4, AD27, AE8, AE26,

AE28, AE31, AF27, AG26, AH27,

AJ30, AM33, AN32

EMIFD03

EMIFD15

EMIFOE

EMIFRW

EMIFWAIT0

EMIFWAIT1

EMIFWE

EMU00

EMU01

EMU02

EMU03

EMU04

EMIFD04

EMIFD05

EMIFD06

EMIFD07

EMIFD08

EMIFD09

EMIFD10

EMIFD11

EMIFD12

EMIFD13

EMIFD14

SIGNAL NAME

EMIFA05

EMIFA06

EMIFA07

EMIFA08

EMIFA09

EMIFA10

EMIFA11

EMIFA12

EMIFA13

EMIFA14

EMIFA15

EMIFA16

EMIFA17

EMIFA18

EMIFA19

EMIFA20

EMIFA21

EMIFA22

EMIFA23

EMIFBE0

G5

K3

K4

J1

R5

AC5

AA6

AC4

AE6

AD6

J5

Y2

Y3

T6

N3

H2

G6

K5

H3

J4

H4

K6

H5

J6

H6

H1

R6

AA1

Y4

W1

Y1

L4

R3

L6

AA2

T3

L2

L5

M6

K2

N5

M5

M4

L1

U5

T5

L3

BALL NUMBER

N6

M3

N4

K1

AD33

AD31

AE33

AD30

AA33

AB32

AB33

AB31

AC29

AC33

Y30

Y32

AA30

Y33

Y31

V30

AA29

Y29

V33

V32

W30

W32

V31

W31

W33

AB29

AC31

AC32

AB30

AC30

AD32

AA5

AB2

Y5

AH2

AB32

BALL NUMBER

AD3

AB5

AC3

AB4

AH3

AF3

AG4

AD2

AC2

AB3

AB33

AB31

AC29

AC33

AD29

www.ti.com

EMU23

3

EMU24

3

EMU25

3

EMU26

3

EMU27

3

EMU28

3

EMU29

3

EMU30

3

EMU31

3

EMU32

3

GPIO11

GPIO12

GPIO13

GPIO14

GPIO15

GPIO16

GPIO17

GPIO18

GPIO19

GPIO20

GPIO21

EMU33

3

GPIO00

GPIO01

GPIO02

GPIO03

GPIO04

GPIO05

GPIO06

GPIO07

GPIO08

GPIO09

GPIO10

SIGNAL NAME

EMU05

EMU06

EMU07

EMU08

EMU09

EMU10

EMU11

EMU12

EMU13

EMU14

EMU15

EMU16

EMU17

EMU18

EMU19

3

EMU20

3

EMU21

3

EMU22

3

42

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

Y33

AH6

AH5

AN3

AM2

AG6

AJ18

AJ17

AG14

AN17

AM16

AN18

AL6

AK5

AL8

AK7

AL5

AK4

AB6

AF5

V30

AD1

AC6

AH4

AL9

AK8

AN9

AM8

AN6

AM5

AE1

AE3

AN8

AM7

AN5

AM4

AF30

AJ8

AJ7

AJ5

AJ3

BALL NUMBER

AD29

AC31

AC32

AB30

AC30

AD32

AD33

AD31

AE33

AD30

HYPLNK0RXP0

HYPLNK0RXP1

HYPLNK0RXP2

HYPLNK0RXP3

HYPLNK0RXPMCLK

HYPLNK0RXPMDAT

HYPLNK0TXFLCLK

HYPLNK0TXFLDAT

HYPLNK0TXN0

HYPLNK0TXN1

HYPLNK0TXN2

HYPLNK0TXN3

HYPLNK0TXP0

HYPLNK0TXP1

HYPLNK0TXP2

HYPLNK0TXP3

HYPLNK0TXPMCLK

HYPLNK0TXPMDAT

SIGNAL NAME

GPIO22

GPIO23

GPIO24

GPIO25

GPIO26

GPIO27

GPIO28

GPIO29

GPIO30

GPIO31

HOUT

HYPLNK0CLKN

HYPLNK0CLKP

HYPLNK0REFRES

HYPLNK0RXFLCLK

HYPLNK0RXFLDAT

HYPLNK0RXN0

HYPLNK0RXN1

HYPLNK0RXN2

HYPLNK0RXN3

LENDIAN

2

MAINPLLODSEL

2

MDCLK0

MDIO0

NETCPCLKN

NETCPCLKP

NETCPCLKSEL

PCIE0CLKN

PCIE0CLKP

PCIE0REFRES

PCIE0RXN0

PCIE0RXN1

PCIE0RXP0

AJ26

AH9

B19

E20

A14

AG33

AF33

AE30

AG30

AH30

AH31

AG28

J8

W8

W7

J30

J29

AG8

AJ20

AG12

AJ28

G1

AL3

AL2

AG5

K8

H32

J32

AE2

AF2

G2

AN15

AM14

AL15

AK14

AL14

AK13

AH33

AF32

AH29

AE29

BALL NUMBER

AM17

AL18

AK17

AL17

AK16

AJ15

AJ14

AJ10

AN14

AM13

RSV019

RSV020

RSV021

RSV022

RSV023

RSV028

RSV029

RSV030

SCL0

SCL1

SCL2

SDA0

RSV010

RSV011

RSV012

RSV013

RSV014

RSV015

RSV016

RSV017

RSV018

RSV000

RSV001

RSV002

RSV003

RSV004

RSV005

RSV006

RSV007

RSV008

RSV009

SIGNAL NAME

PCIE0RXP1

PCIE0TXN0

PCIE0TXN1

PCIE0TXP0

PCIE0TXP1

PCIE1CLKN

PCIE1CLKP

PCIE1REFRES

PCIE1RXN0

PCIE1RXN1

PCIE1RXP0

PCIE1RXP1

PCIE1TXN0

PCIE1TXN1

PCIE1TXP0

PCIE1TXP1

POR

RESETFULL

RESETSTAT

RESET

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

SPI0DIN

SPI0DOUT

SPI0SCS0

SPI0SCS1

SPI0SCS2

SPI0SCS3

SPI1CLK

SPI1DIN

SPI1DOUT

SPI1SCS0

SPI1SCS1

SPI1SCS2

SGMII0RXP6

SGMII0RXP7

SGMII0TXN0

SGMII0TXN1

SGMII0TXN2

SGMII0TXN3

SGMII0TXN4

SGMII0TXN5

SGMII0TXN6

SGMII0TXN7

SGMII0TXP0

SGMII0TXP1

SGMII0TXP2

SGMII0TXP3

SGMII0TXP4

SGMII0TXP5

SGMII0TXP6

SGMII0TXP7

SPI0CLK

SIGNAL NAME

SDA1

SDA2

SGMII00REFRES

SGMII01REFRES

SGMII0CLKN

SGMII0CLKP

SGMII0RXN0

SGMII0RXN1

SGMII0RXN2

SGMII0RXN3

SGMII0RXN4

SGMII0RXN5

SGMII0RXN6

SGMII0RXN7

SGMII0RXP0

SGMII0RXP1

SGMII0RXP2

SGMII0RXP3

SGMII0RXP4

SGMII0RXP5

M31

M33

R30

P32

P29

M32

N30

N29

L31

M29

L29

L32

AL29

AK28

AL26

AK25

AL23

AK22

AL20

AK19

M30

AK26

AL24

AK23

AL21

AK20

AN21

AM20

AL30

AK29

AL27

AN23

AM22

AN20

AM19

AN30

AM29

AN27

AM26

AN24

AM23

BALL NUMBER

AJ32

AG29

AJ27

AJ22

AJ25

AJ24

AN29

AM28

AN26

AM25

Terminals

43

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

SIGNAL NAME

SPI1SCS3

SPI2CLK

SPI2DIN

SPI2DOUT

SPI2SCS0

SPI2SCS1

SPI2SCS2

SPI2SCS3

SYSCLKOUT

TCK

TDI

TDO

TIMI0

TIMI1

TIMO0

TIMO1

TMS

TRST

TSCOMPOUT

TSIP0CLKA

TSIP0CLKB

TSIP0FSA

TSIP0FSB

TSIP0TR0

TSIP0TR1

TSIP0TX0

TSIP0TX1

TSPUSHEVT0

TSPUSHEVT1

TSREFCLKN

TSREFCLKP

TSRXCLKOUT0N

AK33

AJ31

AK32

AM31

AL33

AL32

AM32

AG3

AL1

AK1

AK2

AJ2

AG31

AF29

K33

K32

K31

K30

AH32

AG32

AF4

AK31

BALL NUMBER

N33

L33

P30

R31

P31

R29

P33

L30

AE4

AJ33

SIGNAL NAME

TSRXCLKOUT0P

TSRXCLKOUT1N

TSRXCLKOUT1P

TSSYNCEVT

UART0CTS

UART0DSR

UART0DTR

UART0RTS

UART0RXD

UART0TXD

UART1CTS

UART1RTS

UART1RXD

UART1TXD

USB0DM

USB0DP

USB0DRVVBUS

USB0DVDD33

USB0ID0

USB0RESREF

USB0RX0M

USB0RX0P

USB0TX0M

USB0TX0P

USB0VBUS

USB0VP

USB0VPH

USB0VPTX

USB1DM

USB1DP

USB1DRVVBUS

USB1DVDD33

USB1ID0

U8

W10

V9

P4

R4

T1

U1

U2

V2

W5

AC1

P11

W6

V3

AB1

Y11

W4

Y6

T31

T33

U29

T32

W3

BALL NUMBER

AJ1

AH1

AG2

AE5

R33

W29

U33

R32

T29

T30

USBCLKP

USIMCLK

USIMIO

USIMRST

VCL

VCNTL0

VCNTL1

VCNTL2

VCNTL3

VCNTL4

VCNTL5

VD

VDDAHV

SIGNAL NAME

USB1RESREF

USB1RX0M

USB1RX0P

USB1TX0M

USB1TX0P

USB1VBUS

USB1VP

USB1VPH

USB1VPTX

USBCLKM

VDDALV

VDDUSB0

VDDUSB1

VNWA1

VNWA2

www.ti.com

R2

P2

V4

R8

R10

T9

T4

BALL NUMBER

V5

N1

P1

H29

G33

H31

H30

G32

U4

J33

H33

K29

V29

J31

U30

AH11, AH13, AH15, AH17,

AH19, AH21, AH23, AH25

AE10, AE12, AE14, AE16, AE18,

AE20, AE22, AE24, AF9, AF11,

AF13, AF15, AF17, AF19, AF21,

AF23, AF25, AG16, AG18,

AG20, AG22, AG24

U10, V11

R12, T11

P9

J24

44

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

SIGNAL NAME

VNWA3

VNWA4

VPP0

VPP1

VSS

VSS

VSS

VSS

VSS

BALL NUMBER

AD23

AD9

K9

M9

SIGNAL NAME

VSS

A1, A33, C5, C9, C14, C19, C23, VSS

C27, C29, D3, D7, D11, D17,

D21, D25, D31, F4, F6, F8, F10,

F12, F14, F16, F18, F20, F22,

F24, F26, F28, F30, G7, G9,

G11, G13, G15, G17

VSS G19, G21, G23, G25, G27, G29,

G31, H8, H10, H12, H14, H16,

H18, H20, H22, H24, H26, H28,

J3, J7, J11, J13, J15, J17, J19,

J21, J23, J25, J27, K10, K12,

K14, K16, K18

K20, K22, K24, K28, L7, L9, L11, VSS

L13, L15, L17, L19, L21, L23,

L25, L27, M1, M8, M10, M12,

M14, M16, M18, M20, M22, M24,

M26, M28, N2, N7, N9, N11,

N13, N15, N17

VSS N19, N21, N23, N25, N27, N32,

P8, P10, P12, P14, P16, P18,

P20, P22, P24, P26, P28, R1,

R7, R9, R11, R13, R15, R17,

R19, R21, R23, R25, R27, T2,

T8, T10, T12, T14

T16, T18, T20, T22, T24, T26,

T28, U3, U7, U9, U11, U13, U15,

U17, U19, U21, U23, U25, U27,

U32, V1, V8, V10, V12, V14,

V16, V18, V20, V22, V24, V26,

V28, W2, W9

VSS

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

BALL NUMBER

W11, W13, W15, W17, W19,

W21, W23, W25, W27, Y8, Y10,

Y12, Y14, Y16, Y18, Y20, Y22,

Y24, Y26, Y28, AA4, AA7, AA9,

AA11, AA13, AA15, AA17, AA19,

AA21, AA23

AA25, AA27, AA32, AB8, AB10,

AB12, AB14, AB16, AB18, AB20,

AB22, AB24, AB26, AB28, AC7,

AC9, AC11, AC13, AC15, AC17,

AC19, AC21, AC23, AC25

AC27, AD5, AD8, AD10, AD12,

AD14, AD16, AD18, AD20,

AD22, AD24, AD26, AD28, AE9,

AE11, AE13, AE15, AE17, AE19,

AE21, AE23, AE25, AE27, AE32

AF8, AF10, AF12, AF14, AF16,

AF18, AF20, AF22, AF24, AF26,

AF28, AG7, AG9, AG11, AG13,

AG15, AG17, AG19, AG21,

AG23, AG25, AG27, AH8, AH10

AH12, AH14, AH16, AH18,

AH20, AH22, AH24, AH26,

AH28, AJ4, AJ6, AJ9, AJ13,

AJ16, AJ19, AJ21, AJ23, AJ29,

AK3, AK6, AK9, AK12, AK15,

AK18, AK21, AK24

AK27, AK30, AL4, AL7, AL10,

AL13, AL16, AL19, AL22, AL25,

AL28, AL31, AM1, AM3, AM6,

AM9, AM12, AM15, AM18,

AM21, AM24, AM27, AM30, AN1,

AN2

SIGNAL NAME

VSS

VSSCMON

VSSTMON

XFICLKN

XFICLKP

XFIMDCLK

XFIMDIO

XFIREFRES0

XFIREFRES1

XFIRXN0

XFIRXN1

XFIRXP0

XFIRXP1

XFITXN0

XFITXN1

XFITXP0

XFITXP1

BALL NUMBER

AN4, AN7, AN10, AN13, AN16,

AN19, AN22, AN25, AN28,

AN31, AN33

AE7

AG10

AH7

AN11

AM10

AN12

AM11

AL12

J9

K26

AJ12

AJ11

AF6

AK11

AL11

AK10

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Terminals

45

B5

B6

B7

B8

B9

A33

B1

B2

B3

B4

A28

A29

A30

A31

A32

A23

A24

A25

A26

A27

B15

B16

B17

B18

B19

B10

B11

B12

B13

B14

A18

A19

A20

A21

A22

A13

A14

A15

A16

A17

A6

A7

A8

A9

A10

A11

A12

BALL NUMBER

A1

A2

A3

A4

A5

DDRCB00

DDRDQS4P

DDRD39

DDRD45

DDRDQS5P

DDRD49

DDRD48

DDRDQS6P

DDRDQM7

DVDD15

VSS

DVDD15

DDRD07

DDRD15

DDRDQS1N

DDRD10

DDRD19

DDRDQS2P

DDRD23

DDRD29

SIGNAL NAME

VSS

DVDD15

DDRDQM0

DDRDQS1P

DDRD08

DDRD09

DDRDQS2N

DDRD22

DDRD31

DDRDQS3P

DDRD26

DDRCE0

DDRA10

RSV023

DDRCLKOUTN1

DDRCLKOUTP1

DDRA06

DDRA08

DDRCKE1

DDRCB06

DDRCB07

DDRDQS8N

DDRDQS3N

DDRD25

DDRCAS

DDRRAS

DDRCLKOUTN0

DDRCLKOUTP0

DDRA02

DDRA09

DDRBA2

RSV021

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 5-5. Terminal Functions — By Ball Number

C24

C25

C26

C27

C28

C19

C20

C21

C22

C23

C14

C15

C16

C17

C18

C9

C10

C11

C12

C13

D1

D2

D3

D4

D5

C29

C30

C31

C32

C33

C4

C5

C6

C7

C8

B32

B33

C1

C2

C3

B25

B26

B27

B28

B29

B30

B31

BALL NUMBER

B20

B21

B22

B23

B24

VSS

DDRCKE0

DVDD15

DDRCB04

VSS

DDRD35

DVDD15

DDRD47

VSS

DDRD42

VSS

DDRD27

DVDD15

DDRCE1

DDRBA1

VSS

DDRA01

DDRA03

DVDD15

DDRA14

SIGNAL NAME

DDRDQM8

DDRCB05

DDRDQS8P

DDRD32

DDRDQS4N

DDRD38

DDRD46

DDRDQS5N

DDRD44

DDRD52

DDRDQS6N

DDRD50

DDRD63

DVDD15

DDRDQS0P

DDRDQS0N

DVDD15

DDRD12

VSS

DDRD20

DVDD15

DDRD21

VSS

DDRD53

DVDD15

DDRD61

DDRDQS7P

DDRD01

DDRD05

VSS

DDRD13

DVDD15

E10

E11

E12

E13

E14

E5

E6

E7

E8

E9

D33

E1

E2

E3

E4

D28

D29

D30

D31

D32

E20

E21

E22

E23

E24

E15

E16

E17

E18

E19

D23

D24

D25

D26

D27

D18

D19

D20

D21

D22

D11

D12

D13

D14

D15

D16

D17

BALL NUMBER

D6

D7

D8

D9

D10

DDRRZQ0

DDRA05

DDRA07

DDRA12

DDRA15

RSV022

DDRCB03

DDRCB02

DDRD33

DDRD36

DDRD11

DDRD17

DDRD18

DDRDQM3

DDRD30

DDRD24

DDRODT1

DDRA13

DDRWE

AVDDA7

DDRD41

DVDD15

DDRD55

VSS

DDRD62

DDRDQS7N

DDRD03

DDRD00

DDRDQM1

DDRD14

SIGNAL NAME

DDRD16

VSS

DDRDQM2

DVDD15

DDRD28

VSS

DDRODT0

DDRBA0

DVDD15

DDRA00

DDRA04

VSS

DDRA11

DVDD15

DDRRESET

VSS

DDRCB01

DVDD15

DDRD34

VSS

DDRDQM5

DVDD15

www.ti.com

46

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

F28

F29

F30

F31

F32

F23

F24

F25

F26

F27

F18

F19

F20

F21

F22

F13

F14

F15

F16

F17

G5

G6

G7

G8

G9

G10

F33

G1

G2

G3

G4

F8

F9

F10

F11

F12

F3

F4

F5

F6

F7

E31

E32

E33

F1

F2

BALL NUMBER

E25

E26

E27

E28

E29

E30

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

H14

H15

H16

H17

H18

H9

H10

H11

H12

H13

H4

H5

H6

H7

H8

G32

G33

H1

H2

H3

H24

H25

H26

H27

H28

H29

H19

H20

H21

H22

H23

G27

G28

G29

G30

G31

G22

G23

G24

G25

G26

G17

G18

G19

G20

G21

BALL NUMBER

G11

G12

G13

G14

G15

G16

Table 5-5. Terminal Functions — By Ball Number (continued)

DDRD57

RSV005

RSV004

DDRCLKN

DDRCLKP

EMIFD00

EMIFD09

VSS

AVDDA6

VSS

DVDD15

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

DDRD56

DDRD58

DVDD15

VSS

DDRVREFSSTL

VSS

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

DDRD06

VSS

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

SIGNAL NAME

DDRD37

DDRDQM4

DDRD43

DDRD40

DDRD51

DDRD54

DDRDQM6

DDRD59

DDRD60

DDRD04

DDRD02

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

VCNTL4

VCNTL1

EMIFD07

EMIFD08

EMIFD11

EMIFD13

EMIFD04

EMIFD06

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

VCNTL0

AVDDA9

VSS

AVDDA10

VSS

DVDD15

VSS

DVDD15

VSS

DVDD15

VSS

SIGNAL NAME

VSS

DDRRZQ1

VSS

DVDD15

VSS

AVDDA8

VSS

DDRRZQ2

VSS

DVDD15

VSS

J33

K1

K2

K3

K4

J28

J29

J30

J31

J32

J23

J24

J25

J26

J27

J18

J19

J20

J21

J22

K10

K11

K12

K13

K14

K15

K5

K6

K7

K8

K9

J13

J14

J15

J16

J17

J8

J9

J10

J11

J12

J3

J4

J5

J6

J7

BALL NUMBER

H30

H31

H32

H33

J1

J2

DVDD18

RSV014

RSV013

VCNTL5

RSV001

USIMCLK

EMIFA20

EMIFA19

EMIFD01

EMIFD02

CVDD

VSS

CVDD

VSS

CVDD

VSS

VNWA2

VSS

CVDD

VSS

EMIFD10

EMIFD14

AVDDA2

RSV009

VPP0

VSS

CVDD

VSS

CVDD

VSS

CVDD

SIGNAL NAME

VCNTL3

VCNTL2

RSV000

USIMIO

EMIFD03

DVDD18

VSS

EMIFD12

EMIFD15

EMIFD05

VSS

RSV010

VSSCMON

CVDDCMON

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

Terminals

47

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

K27

K28

K29

K30

K31

K32

K32

K22

K23

K24

K25

K26

BALL NUMBER

K16

K17

K18

K19

K20

K21

K33

K33

L17

L18

L19

L20

L21

L12

L13

L14

L15

L16

L5

L6

L7

L8

L9

L10

L11

L1

L2

L3

L4

L27

L28

L29

L30

L31

L32

L22

L23

L24

L25

L26

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

CVDD

VSS

CVDD1

VSS

CVDDTMON

VSS

DVDD18

SPI0SCS2

SPI2SCS3

SPI0SCS0

SPI0SCS3

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

AVSIFSEL[0]

2

EMIFA11

EMIFA16

EMIFA14

EMIFA21

EMIFA17

EMIFA23

VSS

DVDD18

VSS

CVDD

VSS

SIGNAL NAME

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSSTMON

DVDD18

VSS

USIMRST

TIMO1

TIMO0

TIMI1

AVSIFSEL[1]

2

TIMI0

Table 5-5. Terminal Functions — By Ball Number (continued)

M11

M12

M13

M14

M15

M16

M17

M6

M7

M8

M9

M10

BALL NUMBER

L33

M1

M2

M3

M4

M5

CVDD1

VSS

CVDD1

VSS

CVDD

VSS

CVDD

SIGNAL NAME

SPI2CLK

VSS

DVDD18

EMIFA06

EMIFA10

EMIFA09

EMIFA18

DVDD18

VSS

VPP1

VSS

M18

M19

VSS

CVDD

N30

N31

N32

N33

P1

P2

P3

N25

N26

N27

N28

N29

BALL NUMBER

N19

N20

N21

N22

N23

N24

P4

P5

VSS

CVDD

VSS

CVDD1

VSS

CVDD

VSS

DVDD18

VSS

SPI0SCS1

SPI0CLK

SPI0DIN

SPI1SCS1

SPI1CLK

USB1RX0M

VSS

EMIFWAIT1

EMIFA07

EMIFA08

EMIFA05

VSS

DVDD18

VSS

CVDD

VSS

CVDD1

VSS

CVDD

VSS

CVDD

VSS

CVDD

N3

N4

N5

N6

N7

M31

M32

M33

N1

N2

M20

M21

M22

M23

M24

M25

M26

M27

M28

M29

M30

N13

N14

N15

N16

N17

N18

N8

N9

N10

N11

N12

P22

P23

P24

P25

P26

P17

P18

P19

P20

P21

P10

P11

P12

P13

P14

P15

P16

P6

P7

P8

P9

R2

R3

R4

P32

P33

R1

P27

P28

P29

P30

P31

DVDD18

VSS

SPI1SCS0

SPI2DIN

SPI2SCS0

SPI1DOUT

SPI2SCS2

VSS

USB1TX0M

EMIFA22

USB1DP

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

EMIFA04

DVDD18

VSS

VNWA1

VSS

USB1DVDD33

VSS

CVDD

VSS

CVDD

VSS

SIGNAL NAME

VSS

CVDD

VSS

CVDD

VSS

CVDD1

VSS

CVDD

VSS

DVDD18

SPI0DOUT

SPI1SCS2

DVDD18

VSS

SPI1SCS3

USB1RX0P

USB1TX0P

EMIFA00

USB1DM

EMIFA01

www.ti.com

48

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

R27

R28

R29

R30

R21

R22

R23

R24

R25

R26

R16

R17

R18

R19

R20

R11

R12

R13

R14

R15

BALL NUMBER

R5

R6

R7

R8

R9

R10

R31

R32

T18

T19

T20

T21

T22

T23

T13

T14

T15

T16

T17

T6

T7

T8

T9

T10

T11

T12

R33

T1

T2

T3

T4

T5

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

SPI2DOUT

UART0RTS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

UART0CTS

USB0RX0M

VSS

EMIFA15

USBCLKM

EMIFA13

EMIFWAIT0

DVDD18

VSS

USB1VPTX

VSS

VDDUSB1

VSS

Table 5-5. Terminal Functions — By Ball Number (continued)

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

SIGNAL NAME

EMIFWE

EMIFBE1

VSS

USB1VP

VSS

USB1VPH

VSS

VDDUSB1

VSS

CVDD

VSS

U7

U8

U9

U10

U11

U12

U2

U3

U4

U5

U6

T30

T31

T32

T33

U1

BALL NUMBER

T24

T25

T26

T27

T28

T29

USB0TX0M

VSS

USBCLKP

EMIFA12

EMIFA02

VSS

USB0VP

VSS

VDDUSB0

VSS

CVDD

SIGNAL NAME

VSS

CVDD

VSS

DVDD18

VSS

UART0RXD

UART0TXD

UART1CTS

UART1TXD

UART1RTS

USB0RX0P

V26

V27

V28

V29

V30

V30

V21

V22

V23

V24

V25

V16

V17

V18

V19

V20

BALL NUMBER

V10

V11

V12

V13

V14

V15

VSS

DVDD18

SPI2SCS1

SPI1DIN

U13

U14

U15

U16

U17

U18

V7

V8

V9

V4

V5

V6

U32

U33

V1

V2

V3

U25

U26

U27

U28

U29

U30

U31

U19

U20

U21

U22

U23

U24

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

DVDD18

UART1RXD

VD

DVDD18

VSS

UART0DTR

VSS

USB0TX0P

USB0DP

USB1VBUS

USB1RESREF

EMIFA03

DVDD18

VSS

USB0VPTX

V31

V31

V32

V32

V33

V33

W19

W20

W21

W22

W23

W24

W14

W15

W16

W17

W18

W7

W8

W9

W10

W11

W12

W13

W1

W2

W3

W4

W5

W6

CVDD

VSS

CVDD

VSS

CVDD

VSS

DVDD18

VSS

VCL

GPIO00

SIGNAL NAME

VSS

VDDUSB0

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

LENDIAN

2

GPIO07

BOOTMODE06

2

GPIO04

BOOTMODE03

2

GPIO03

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

USB0VPH

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

BOOTMODE02

2

EMIFCE2

VSS

USB0DM

USB0ID0

USB0VBUS

USB1ID0

RSV012

RSV011

Terminals

49

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Y31

Y31

Y32

Y32

Y27

Y28

Y29

Y29

Y23

Y24

Y25

Y26

Y30

Y30

Y33

Y33

AA1

Y8

Y9

Y10

Y11

Y12

Y13

Y14

Y15

Y16

Y17

Y18

Y19

Y20

Y21

Y22

Y5

Y6

Y7

W33

W33

Y1

Y2

Y3

Y4

W31

W31

W32

W32

BALL NUMBER

W25

W26

W27

W28

W29

W30

W30

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

CVDD1

VSS

CVDD

VSS

DVDD18

VSS

GPIO02

BOOTMODE01

2

GPIO11

BOOTMODE10

2

GPIO15

BOOTMODE_RSVD

2

GPIO12

BOOTMODE11

2

GPIO14

MAINPLLODSEL

2

EMIFCE0

SIGNAL NAME

VSS

CVDD

VSS

DVDD18

UART0DSR

GPIO05

BOOTMODE04

2

GPIO08

BOOTMODE07

2

GPIO06

Table 5-5. Terminal Functions — By Ball Number (continued)

BALL NUMBER

AA2

AA3

AA4

AA5

AA6

AA7

AA8

SIGNAL NAME

EMIFBE0

DVDD18

VSS

EMU15

EMU01

VSS

DVDD18

BALL NUMBER

AB18

AB19

AB20

AB21

AB22

AB23

AB24

AA9

AA10

AA11

AA12

VSS

CVDD

VSS

CVDD1

AB25

AB26

AB27

AB28

BOOTMODE05

2

GPIO09

BOOTMODE08

2

EMIFCE3

EMIFOE

AA13

AA14

AA15

AA16

VSS

CVDD1

VSS

CVDD

AB29

AB29

AB30

AB30

SIGNAL NAME

VSS

CVDD

VSS

CVDD

VSS

CVDD1

VSS

CVDD

VSS

DVDD18

VSS

EMIFRW

EMIFCE1

EMU17

USB0RESREF

DVDD18

VSS

CVDD

VSS

USB0DVDD33

VSS

CVDD1

VSS

CVDD

VSS

AA17

AA18

AA19

AA20

AA21

AA22

AA23

AA24

AA25

AA26

AA27

AA28

AA29

AA29

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

AB31

AB31

AB32

AB32

AB32

AB33

AB33

AB33

AC1

AC2

AC3

AC4

AC5

AC6

GPIO10

BOOTMODE09

2

GPIO25

EMU27

3

GPIO19

EMU21

3

GPIO17

EMU19

3

BOOTMODE14

2

GPIO18

EMU20

3

BOOTMODE15

2

USB1DRVVBUS

EMU13

EMU07

EMU02

EMU00

HYPLNK0TXFLCLK

CVDD

VSS

CVDD

VSS

CVDD

VSS

AA30

AA30

AA31

AA32

AA33

AA33

AB5

AB6

AB7

AB8

AB1

AB2

AB3

AB4

AB9

AB10

CVDD1

VSS

CVDD

VSS

DVDD18

GPIO01

BOOTMODE00

2

GPIO13

BOOTMODE12

2

DVDD18

VSS

GPIO16

BOOTMODE13

2

USB0DRVVBUS

EMU16

EMU14

EMU08

EMU06

HYPLNK0TXPMCLK

DVDD18

VSS

CVDD

VSS

AC7

AC8

AC9

AC10

AC11

AC12

AC13

AC14

AC15

AC16

AC17

AC18

AC19

AC20

AC21

AC22

VSS

DVDD18

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

AB11

AB12

AB13

AB14

AB15

AB16

AB17

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

AC23

AC24

AC25

AC26

AC27

AC28

AC29

VSS

CVDD

VSS

CVDD

VSS

DVDD18

GPIO20

www.ti.com

50

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AD31

AD31

AD32

AD32

AD33

AD33

AE1

AE2

AE3

AE4

AE5

AC32

AC32

AC33

AC33

AD13

AD14

AD15

AD16

AD17

AD18

AD19

AD20

AD1

AD2

AD3

AD4

AD5

AD6

AD7

AD8

AD9

AD10

AD11

AD12

AD21

AD22

AD23

AD24

AD25

AD26

AD27

AD28

AD29

AD29

AD30

AD30

BALL NUMBER

AC29

AC30

AC30

AC31

AC31

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

CVDD

VSS

VNWA3

VSS

CVDD

VSS

DVDD18

VSS

GPIO22

EMU24

3

GPIO31

Table 5-5. Terminal Functions — By Ball Number (continued)

SIGNAL NAME BALL NUMBER

AE6

SIGNAL NAME

EMU03

BALL NUMBER

AF24

EMU22

3

GPIO26

EMU28

3

GPIO23

AE7

AE8

AE9

AE10

XFIMDIO

DVDD18

VSS

VDDALV

AF25

AF26

AF27

AF28

EMU25

3

GPIO24

EMU26

3

GPIO21

VSS

VNWA4

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

CVDD

VSS

EMU23

3

HYPLNK0RXPMDAT

EMU12

EMU05

DVDD18

VSS

EMU04

AVDDA3

AE11

AE12

AE13

AE14

AF1

AF2

AF3

AF4

AF5

AF6

AF7

AF8

AF9

AF10

AE27

AE28

AE29

AE30

AE31

AE32

AE33

AE33

AE22

AE23

AE24

AE25

AE26

AE15

AE16

AE17

AE18

AE19

AE20

AE21

VSS

VDDALV

VSS

VDDALV

VSS

VDDALV

VSS

VDDALV

VSS

VDDALV

VSS

VDDALV

VSS

VDDALV

VSS

DVDD18

VSS

DVDD18

RESET

RSV030

DVDD18

VSS

GPIO30

EMU32

3

CORECLKP

RSV003

EMU10

TSCOMPOUT

HYPLNK0TXPMDAT

XFIMDCLK

AVDDA1

VSS

VDDALV

VSS

AF29

AF30

AF31

AF32

AG20

AG21

AG22

AG23

AG24

AG25

AG26

AG27

AG28

AG29

AG12

AG13

AG14

AG15

AG16

AG17

AG18

AG19

AF33

AG1

AG2

AG3

AG4

AG5

AG6

AG7

AG8

AG9

AG10

AG11

AF11

AF12

VDDALV

VSS

AG30

AG31

EMU33

3

GPIO29

EMU31

3

GPIO27

AF13

AF14

AF15

AF16

VDDALV

VSS

VDDALV

VSS

AG32

AG33

AH1

AH2

EMU29

3

GPIO28

EMU30

3

HYPLNK0RXPMCLK

RSV002

HYPLNK0RXFLDAT

SYSCLKOUT

TSSYNCEVT

AF17

AF18

AF19

AF20

AF21

AF22

AF23

VDDALV

VSS

VDDALV

VSS

VDDALV

VSS

VDDALV

AH3

AH4

AH5

AH6

AH7

AH8

AH9

SIGNAL NAME

VSS

VDDALV

VSS

DVDD18

VSS

TDO

HOUT

BOOTCOMPLETE

RESETFULL

VDDALV

VSS

VDDALV

VSS

VDDALV

VSS

DVDD18

VSS

SDA0

SDA2

RSV029

CORECLKN

TSRXCLKOUT1P

TSPUSHEVT0

EMU11

RSV008

NETCPCLKSEL

VSS

RSV015

VSS

XFIREFRES0

VSS

RSV017

VSS

PCIE0REFRES

VSS

VDDALV

VSS

VDDALV

VSS

SCL0

TDI

TRST

RSV028

TSRXCLKOUT1N

EMU18

EMU09

HYPLNK0TXFLDAT

MDIO0

MDCLK0

XFIREFRES1

VSS

RSV020

Terminals

51

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AJ13

AJ14

AJ15

AJ16

AJ17

AJ8

AJ9

AJ10

AJ11

AJ12

AJ3

AJ4

AJ5

AJ6

AJ7

AH31

AH32

AH33

AJ1

AJ2

AJ23

AJ24

AJ25

AJ26

AJ27

AJ28

AJ18

AJ19

AJ20

AJ21

AJ22

AH21

AH22

AH23

AH24

AH25

AH26

AH27

AH28

AH29

AH30

BALL NUMBER

AH10

AH11

AH12

AH13

AH14

AH15

AH16

AH17

AH18

AH19

AH20

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

AK32

AK33

AL1

AL2

AL3

AK27

AK28

AK29

AK30

AK31

AK22

AK23

AK24

AK25

AK26

AK17

AK18

AK19

AK20

AK21

AL9

AL10

AL11

AL12

AL13

AL14

AL4

AL5

AL6

AL7

AL8

AK12

AK13

AK14

AK15

AK16

AK7

AK8

AK9

AK10

AK11

AK2

AK3

AK4

AK5

AK6

BALL NUMBER

AJ29

AJ30

AJ31

AJ32

AJ33

AK1

Table 5-5. Terminal Functions — By Ball Number (continued)

SCL2

TMS

POR

TSRXCLKOUT0P

TSRXCLKOUT0N

HYPLNK0RXFLCLK

VSS

HYPLNK0REFRES

VSS

HYPLNK0CLKP

HYPLNK0CLKN

VSS

PCIE1REFRES

XFICLKP

XFICLKN

VSS

PCIE1CLKP

PCIE1CLKN

VSS

PCIE0CLKP

SIGNAL NAME

VSS

VDDAHV

VSS

VDDAHV

VSS

VDDAHV

VSS

VDDAHV

VSS

VDDAHV

VSS

VDDAHV

VSS

VDDAHV

VSS

VDDAHV

VSS

DVDD18

VSS

RESETSTAT

SCL1

PCIE0CLKN

VSS

RSV016

VSS

SGMII01REFRES

VSS

SGMII0CLKP

SGMII0CLKN

RSV019

SGMII00REFRES

RSV018

PCIE0TXN1

VSS

SGMII0TXP7

SGMII0TXN7

VSS

SGMII0TXP5

SGMII0TXN5

VSS

SGMII0TXP3

SGMII0TXN3

VSS

SGMII0TXP1

SGMII0TXN1

VSS

TSIP0CLKA

TSIP0FSB

TSIP0CLKB

TSPUSHEVT1

RSV007

RSV006

SIGNAL NAME

VSS

DVDD18

TSIP0FSA

SDA1

TCK

TSREFCLKN

TSREFCLKP

VSS

HYPLNK0TXP3

HYPLNK0TXN3

VSS

HYPLNK0TXP1

HYPLNK0TXN1

VSS

XFITXP1

XFITXN1

VSS

PCIE1TXP1

PCIE1TXN1

VSS

PCIE0TXP1

VSS

HYPLNK0TXP2

HYPLNK0TXN2

VSS

HYPLNK0TXP0

HYPLNK0TXN0

VSS

XFITXP0

XFITXN0

VSS

PCIE1TXP0

AM13

AM14

AM15

AM16

AM17

AM18

AM19

AM20

AM21

AM22

AM3

AM4

AM5

AM6

AM7

AM8

AM9

AM10

AM11

AM12

AM23

AM24

AM25

AM26

AM27

AM28

AM29

AM30

AM31

AM32

AM33

AL31

AL32

AL33

AM1

AM2

AL26

AL27

AL28

AL29

AL30

AL21

AL22

AL23

AL24

AL25

BALL NUMBER

AL15

AL16

AL17

AL18

AL19

AL20

VSS

HYPLNK0RXN3

HYPLNK0RXP3

VSS

HYPLNK0RXN1

HYPLNK0RXP1

VSS

XFIRXN1

XFIRXP1

VSS

PCIE1RXN1

PCIE1RXP1

VSS

PCIE0RXN1

PCIE0RXP1

VSS

SGMII0RXN7

SGMII0RXP7

VSS

SGMII0RXN5

SIGNAL NAME

PCIE1TXN0

VSS

PCIE0TXP0

PCIE0TXN0

VSS

SGMII0TXP6

SGMII0TXN6

VSS

SGMII0TXP4

SGMII0TXN4

VSS

SGMII0TXP2

SGMII0TXN2

VSS

SGMII0TXP0

SGMII0TXN0

VSS

TSIP0TX0

TSIP0TR1

VSS

NETCPCLKP

SGMII0RXP5

VSS

SGMII0RXN3

SGMII0RXP3

VSS

SGMII0RXN1

SGMII0RXP1

VSS

TSIP0TR0

TSIP0TX1

DVDD18

www.ti.com

52

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

BALL NUMBER

AN1

AN2

AN3

AN4

AN5

AN6

AN7

AN8

AN9

AN10

AN11

Table 5-5. Terminal Functions — By Ball Number (continued)

SIGNAL NAME

VSS

VSS

NETCPCLKN

VSS

HYPLNK0RXN2

HYPLNK0RXP2

VSS

HYPLNK0RXN0

HYPLNK0RXP0

VSS

XFIRXN0

BALL NUMBER

AN12

AN13

AN14

AN15

AN16

AN17

AN18

AN19

AN20

AN21

AN22

SIGNAL NAME

XFIRXP0

VSS

PCIE1RXN0

PCIE1RXP0

VSS

PCIE0RXN0

PCIE0RXP0

VSS

SGMII0RXN6

SGMII0RXP6

VSS

AN29

AN30

AN31

AN32

AN33

BALL NUMBER

AN23

AN24

AN25

AN26

AN27

AN28

SIGNAL NAME

SGMII0RXN4

SGMII0RXP4

VSS

SGMII0RXN2

SGMII0RXP2

VSS

SGMII0RXN0

SGMII0RXP0

VSS

DVDD18

VSS

5.4

Pullup/Pulldown Resistors

Proper board design should ensure that input pins to the device always be at a valid logic level and not floating. This may be achieved via pullup/pulldown resistors. The device features internal pullup (IPU) and internal pulldown (IPD) resistors on most pins to eliminate the need, unless otherwise noted, for external pullup/pulldown resistors.

An external pullup/pulldown resistor needs to be used in the following situations:

Device Configuration Pins: If the pin is both routed out and not driven (in Hi-Z state), an external pullup/pulldown resistor must be used, even if the IPU/IPD matches the desired value/state.

Other Input Pins: If the IPU/IPD does not match the desired value/state, use an external pullup/pulldown resistor to pull the signal to the opposite rail.

For the device configuration pins (listed in

Table 8-25 ), if they are both routed out and are not driven (in

Hi-Z state), it is strongly recommended that an external pullup/pulldown resistor be implemented.

Although, internal pullup/pulldown resistors exist on these pins and they may match the desired configuration value, providing external connectivity can help ensure that valid logic levels are latched on these device configuration pins. In addition, applying external pullup/pulldown resistors on the device configuration pins adds convenience to the user in debugging and flexibility in switching operating modes.

Tips for choosing an external pullup/pulldown resistor:

• Consider the total amount of current that may pass through the pullup or pulldown resistor. Be sure to include the leakage currents of all the devices connected to the net, as well as any internal pullup or pulldown resistors.

• Decide a target value for the net. For a pulldown resistor, this should be below the lowest V

IL all inputs connected to the net. For a pullup resistor, this should be above the highest V

IH level of level of all inputs on the net. A reasonable choice would be to target the V the limiting device; which, by definition, have margin to the V

IL

OL or V

OH and V

IH levels for the logic family of levels.

• Select a pullup/pulldown resistor with the largest possible value that still ensures that the net will reach the target pulled value when maximum current from all devices on the net is flowing through the resistor. The current to be considered includes leakage current plus, any other internal and external pullup/pulldown resistors on the net.

• For bidirectional nets, there is an additional consideration that sets a lower limit on the resistance value of the external resistor. Verify that the resistance is small enough that the weakest output buffer can drive the net to the opposite logic level (including margin).

• Remember to include tolerances when selecting the resistor value.

• For pullup resistors, also remember to include tolerances on the DVDD rail.

For most systems:

• A 1-k Ω resistor can be used to oppose the IPU/IPD while meeting the above criteria. Users should confirm this resistor value is correct for their specific application.

Terminals

53

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

• A 20-k Ω resistor can be used to compliment the IPU/IPD on the device configuration pins while meeting the above criteria. Users should confirm this resistor value is correct for their specific application.

For more detailed information on input current (I

I

), and the low-level/high-level input voltages (V

IL and V

IH for the AM5K2E0x device, see

Section 9.3

. To determine which pins on the device include internal

) pullup/pulldown resistors, see

Table 5-2 .

54

Terminals

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

6 Memory, Interrupts, and EDMA for AM5K2E0x

6.1

Memory Map SummaryAM5K2E0x

The following table shows the memory map address ranges of the device.

00 01D2 0080

00 01D2 8000

00 01D2 8080

00 01D3 0000

00 01D3 0080

00 01D3 8000

00 01D3 8080

00 01D4 0000

00 01D4 0080

00 01D4 8000

00 01D4 8080

00 01D5 0000

00 01D5 0080

00 01D5 8000

00 01D5 8080

00 01D6 0000

00 01D6 0080

00 01D6 8000

00 01D6 8080

00 01D7 0000

00 01D7 0080

00 01D7 8000

00 01D7 8080

Physical 40-bit Address

Start

00 0000 0000

00 0004 0000

End

00 0003 FFFF

00 007F FFFF

00 0080 0000

00 0090 0000

00 00E0 0000

00 00E0 8000

00 00F0 0000

00 00F0 8000

00 0100 0000

00 008F FFFF

00 00DF FFFF

00 00E0 7FFF

00 00EF FFFF

00 00F0 7FFF

00 00FF FFFF

00 0100 FFFF

00 0101 0000

00 0110 0000

00 0101 0000

00 01C0 0000

00 01D0 0000

00 01D0 0080

00 01D0 8000

00 01D0 8080

00 01D1 0000

00 01D1 0080

00 01D1 8000

00 01D1 8080

00 01D2 0000

00 010F FFFF

00 0110 FFFF

00 01BF FFFF

00 01CF FFFF

00 01D0 007F

00 01D0 7FFF

00 01D0 807F

00 01D0 FFFF

00 01D1 007F

00 01D1 7FFF

00 01D1 807F

00 01D1 FFFF

00 01D2 007F

00 01D2 7FFF

00 01D2 807F

00 01D2 FFFF

00 01D3 007F

00 01D3 7FFF

00 01D3 807F

00 01D3 FFFF

00 01D4 007F

00 01D4 7FFF

00 01D4 807F

00 01D4 FFFF

00 01D5 007F

00 01D5 7FFF

00 01D5 807F

00 01D5 FFFF

00 01D6 007F

00 01D6 7FFF

00 01D6 807F

00 01D6 FFFF

00 01D7 007F

00 01D7 7FFF

00 01D7 807F

00 01D7 FFFF

Table 6-1. Device Memory Map Summary AM5K2E0x

Reserved

Tracer CFG7

Reserved

Tracer CFG8

Reserved

Tracer CFG9

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Tracer CFG0

Reserved

Tracer CFG1

Reserved

Tracer CFG2

Reserved

Tracer CFG3

Reserved

Tracer CFG4

Reserved

Tracer CFG5

Reserved

Tracer CFG6

ARM View

ARM ROM

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

ARM AXI2VBUSM registers

Reserved

ARM STM Stimulus Ports

Reserved

32K-128

128

32K-128

128

32K-128

128

32K-128

128

32K-128

128

32K-128

128

32K-128

128

32K-128

128

32K-128

128

32K-128

1M

128

32K-128

128

32K-128

128

32K-128

128

32K-128

128

32K-128

128

32K-128

128

Bytes

256K

8M-256K

1M

5M

32K

1M-32K

32K

1M-32K

64K

1M-64K

64K

11M-64K

Reserved

Tracer CFG7

Reserved

Tracer CFG8

Reserved

Tracer CFG9

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Tracer CFG0

Reserved

Tracer CFG1

Reserved

Tracer CFG2

Reserved

Tracer CFG3

Reserved

Tracer CFG4

Reserved

Tracer CFG5

Reserved

Tracer CFG6

SOC View

ARM ROM

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

55

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 6-1. Device Memory Map Summary AM5K2E0x (continued)

00 01DE 0000

00 01DE 0080

00 01DE 0400

00 01DD 0480

00 01DE 0800

00 01DE 0880

00 01DE 8000

00 01DE 8080

00 01E0 0000

00 01E4 0000

00 01E8 0000

00 01E8 4000

00 01EC 0000

00 01F0 0000

00 01F8 0000

00 01F9 0000

00 01FA 0000

00 01FC 0000

00 01FE 0000

00 0200 0000

00 01DA 8080

00 01DB 0000

00 01DB 0080

00 01DB 8000

00 01DB 8080

00 01DC 0000

00 01DC 0080

00 01DC 8000

00 01DC 8080

00 01DD 0000

00 01DD 0080

00 01DD 8000

00 01DD 8080

Physical 40-bit Address

Start

00 01D8 0000

End

00 01D8 007F

00 01D8 0080

00 01D8 8000

00 01D8 8080

00 01D8 7FFF

00 01D8 807F

00 01D8 8FFF

00 01D9 0000

00 01D9 0080

00 01D9 8000

00 01D9 8080

00 01DA 0000

00 01DA 0080

00 01DA 8000

00 01D9 007F

00 01D9 7FFF

00 01D9 807F

00 01D9 FFFF

00 01DA 007F

00 01DA 7FFF

00 01DA 807F

00 01DA FFFF

00 01DB 007F

00 01DB 7FFF

00 01DB 807F

00 01DB 8FFF

00 01DC 007F

00 01DC 7FFF

00 01DC 807F

00 01DC FFFF

00 01DD 007F

00 01DD 7FFF

00 01DD 807F

00 01DD FFFF

00 01DE 007F

00 01DE 03FF

00 01DE 047F

00 01DD 07FF

00 01DE 087F

00 01DE 7FFF

00 01DE 807F

00 01DF FFFF

00 01E3 FFFF

00 01E7FFFF

00 01E8 3FFF

00 01EB FFFF

00 01EF FFFF

00 01F7 FFFF

00 01F8 FFFF

00 01F9 FFFF

00 01FB FFFF

00 01FD FFFF

00 01FF FFFF

00 020F FFFF

00 0210 0000

00 0211 0000

00 0212 0000

00 0214 0000

00 0216 0000

00 0210 FFFF

00 0211 FFFF

00 0213 FFFF

00 0215 FFFF

00 0217 FFFF

64K

64K

128K

128K

128K

1M

128

1K-128

128

1K-128

128

30K-128

128

64K-128

256K

256k

16K

240k

256K

512K

32K-128

128

32K-128

128

32K-128

128

32K-128

128

32K-128

128

32K-128

128

32K-128

Bytes

128

32K-128

128

32K-128

128

32K-128

128

32K-128

128

32K-128

128

64K

64K

128K

128K

128K

ARM View

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Tracer CFG20

Reserved

Reserved

Reserved

Tracer CFG22

Reserved

Reserved

Reserved

Tracer CFG24

Reserved

Tracer CFG25

Reserved

Tracer CFG26

Reserved

Tracer CFG27

Reserved

Tracer CFG28

Reserved

Tracer CFG29

Reserved

Tracer CFG30

Reserved

Tracer CFG31

Reserved

Reserved

TSIP_CFG

ARM CorePac_CFG

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Network Coprocessor 0(Packet Accelerator,

1-gigabit Ethernet switch subsystem and

Security Accelerator)

Reserved

Reserved

Reserved

Reserved

Reserved

SOC View

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Tracer CFG20

Reserved

Reserved

Reserved

Tracer CFG22

Reserved

Reserved

Reserved

Tracer CFG24

Reserved

Tracer CFG25

Reserved

Tracer CFG26

Reserved

Tracer CFG27

Reserved

Tracer CFG28

Reserved

Tracer CFG29

Reserved

Tracer CFG30

Reserved

Tracer CFG31

Reserved

Reserved

TSIP_CFG

ARM CorePac_CFG

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Network Coprocessor 0(Packet Accelerator,

1-gigabit Ethernet switch subsystem and

Security Accelerator)

Reserved

Reserved

Reserved

Reserved

Reserved

56

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-1. Device Memory Map Summary AM5K2E0x (continued)

64K-128

128

64K-128

128

64K-128

128

64K-128

128

64K-128

128

64K-128

128

64K

2K

2K

2K

10K

2K

14K

2K

14K

2K

14K

128

64K-128

128

1K

31K

1K

128

15K-128

256

16K-256

256

16K-256

256

12K-256

128

4K-128

7K

1K

7K

64K

1K

15K

1K

Bytes

32k

32k

64k

64K

00 021E 0000

00 021F 0000

00 021F 0800

00 021F 1000

00 021F 1800

00 021F 4000

00 021F 4800

00 021F 8000

00 021F 8800

00 021F C000

00 021F C800

00 0220 0000

00 0220 0080

00 0221 0000

00 0221 0080

00 0222 0000

00 0222 0080

00 0223 0000

00 0223 0080

00 0224 0000

00 0224 0080

00 0225 0000

00 0225 0080

00 0226 0000

00 0226 0080

00 0227 0000

00 021C 8000

00 021C 8400

00 021D 0000

00 021D 0400

00 021D 0100

00 021D 4000

00 021D 4100

00 021D 8000

00 021D 8100

00 021D C000

00 021D C100

00 021D F000

00 021D F080

Physical 40-bit Address

Start

00 0218 0000

End

00 0218 7FFF

00 0218 8000

00 0219 0000

00 021A 0000

00 0218 FFFF

00 0219 FFFF

00 021A FFFF

00 021B 0000

00 021C 0000

00 021C 0400

00 021C 4000

00 021C 4400

00 021C 6000

00 021C 6400

00 021B FFFF

00 021C 03FF

00 021C 3FFF

00 021C 43FF

00 021C 5FFF

00 021C 63FF

00 021C 7FFF

00 021C 83FF

00 021C FFFF

00 021D 03FF

00 021D 047F

00 021D 3FFF

00 021D 40FF

00 021D 7FFF

00 021D 80FF

00 021D BFFF

00 021D C0FF

00 021D EFFF

00 021D F07F

00 021D FFFF

00 021E FFFF

00 021F 07FF

00 021F 0FFF

00 021F 17FF

00 021F 3FFF

00 021F 47FF

00 021F 7FFF

00 021F 87FF

00 021F BFFF

00 021F C7FF

00 021F FFFF

00 0220 007F

00 0220 FFFF

00 0221 007F

00 0221 FFFF

00 0222 007F

00 0222 FFFF

00 0223 007F

00 0223 FFFF

00 0224 007F

00 0224 FFFF

00 0225 007F

00 0225 FFFF

00 0226 007F

00 0226 FFFF

00 0227 007F

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

ARM View

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Memory protection unit (MPU) 15

Tracer CFG32

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

USIM configuration

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

SOC View

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Memory protection unit (MPU) 15

Tracer CFG32

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

USIM configuration

Reserved

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

57

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 6-1. Device Memory Map Summary AM5K2E0x (continued)

256

16K

256

16K

256

16K

256

16K

4K

64K-4K

1K

31K

8K

4K

4K

8K

1K

1K

62K

8K

4K

4K

8K

8K

16K

8K

128

64K-128

128

64K-128

128

128

128

128

128

64K

512

40K-512

8K

Bytes

64K-128

128

64K-128

128

64K-128

128

64K-128

128

64K-128

128

64K-128

00 0231 C000

00 0231 E000

00 0232 0000

00 0232 4000

00 0232 6000

00 0232 8000

00 0232 9000

00 0232 A000

00 0232 C000

00 0232 D000

00 0232 E000

00 0233 0000

00 0233 0400

00 0233 0400

00 0234 0000

00 0234 0100

00 0234 4000

00 0234 4100

00 0234 8000

00 0234 8100

00 0234 C000

00 0234 C100

00 0235 0000

00 0235 1000

00 0236 0000

00 0236 0400

00 022D 0000

00 022D 0080

00 022E 0000

00 022E 0080

00 022F 0000

00 022F 0080

00 022F 0100

00 022F 0180

00 022F 0200

00 0230 0000

00 0231 0000

00 0231 0200

00 0231 A000

Physical 40-bit Address

Start

00 0227 0080

End

00 0227 FFFF

00 0228 0000

00 0228 0080

00 0229 0000

00 0228 007F

00 0228 FFFF

00 0229 007F

00 0229 0080

00 022A 0000

00 022A 0080

00 022B 0000

00 022B 0080

00 022C 0000

00 022C 0080

00 0229 FFFF

00 022A 007F

00 022A FFFF

00 022B 007F

00 022B FFFF

00 022C 007F

00 022C FFFF

00 022D 007F

00 022D FFFF

00 022E 007F

00 022E FFFF

00 022F 007F

00 022F 00FF

00 022F 017F

00 022F 01FF

00 022F 027F

00 0230 FFFF

00 0231 01FF

00 0231 9FFF

00 0231 BFFF

00 0231 DFFF

00 0231 FFFF

00 0232 3FFF

00 0232 5FFF

00 0232 7FFF

00 0232 8FFF

00 0232 9FFF

00 0232 BFFF

00 0232 CFFF

00 0232 DFFF

00 0232 EFFF

00 0233 03FF

00 0233 07FF

00 0233 FFFF

00 0234 00FF

00 0234 3FFF

00 0234 40FF

00 0234 7FFF

00 0234 80FF

00 0234 BFFF

00 0234 C0FF

00 0234 FFFF

00 0235 0FFF

00 0235 FFFF

00 0236 03FF

00 0236 7FFF

ARM View

Reserved

Timer 8

Reserved

Timer 9

Reserved

Timer 10

Reserved

Timer 11

Reserved

Timer 12

Reserved

Timer 13

Reserved

Timer 14

Reserved

Timer 15

Timer 16

Timer 17

Timer 18

Timer 19

Reserved

PLL Controller

Reserved

HyperLink0 SerDes Config

Reserved

10GbE SerDes Config

PCIe0 SerDes Config

SGMII 1 SerDes Config

PCIe1SerDes Config

Reserved

DDRA PHY Config

SGMII 0 SerDes Config

Reserved

Reserved

Reserved

SmartReflex0

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Power sleep controller (PSC)

Reserved

Memory protection unit (MPU) 0

Reserved

SOC View

Reserved

Timer 8

Reserved

Timer 9

Reserved

Timer 10

Reserved

Timer 11

Reserved

Timer 12

Reserved

Timer 13

Reserved

Timer 14

Reserved

Timer 15

Timer 16

Timer 17

Timer 18

Timer 19

Reserved

PLL Controller

Reserved

HyperLink0 SerDes Config

Reserved

10GbE SerDes Config

PCIe0 SerDes Config

SGMII 1 SerDes Config

PCIe1SerDes Config

Reserved

DDRA PHY Config

SGMII 0 SerDes Config

Reserved

Reserved

Reserved

SmartReflex0

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Power sleep controller (PSC)

Reserved

Memory protection unit (MPU) 0

Reserved

58

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

62K

192K

128

32K-128

32K

64K

1K

64K-1K

128

16K

48K

16K

48K

512

1K-512

1K

48K

16K

48K

16K

48K

16K

48K

256K

16K

48K

16K

48K

16K

1K

1K

1K

1K

1K

1K

471K

1K

1K

1K

1K

31K

1K

1K

Bytes

1K

31K

1K

31K

1K-128

128

1K-128

Table 6-1. Device Memory Map Summary AM5K2E0x (continued)

00 0246 4000

00 0247 0000

00 0247 4000

00 0248 0000

00 0248 4000

00 0249 0000

00 0249 4000

00 024A 0000

00 024A 4000

00 024B 0000

00 024B 4000

00 024C 0000

00 024C 0200

00 024C 0400

00 024C 0800

00 024D 0000

00 0250 0000

00 0250 0080

00 0250 8000

00 0251 0000

00 0252 0000

00 0252 0400

00 0253 0000

00 0238 9000

00 0238 9400

00 0238 9800

00 0238 9C00

00 0238 A000

00 0238 A400

00 0238 A800

00 0240 0000

00 0244 0000

00 0244 4000

00 0245 0000

00 0245 4000

00 0246 0000

Physical 40-bit Address

Start

00 0236 8000

End

00 0236 83FF

00 0236 8400

00 0237 0000

00 0237 0400

00 0236 FFFF

00 0237 03FF

00 0237 7FFF

00 0237 8000

00 0237 8400

00 0238 0000

00 0238 8000

00 0238 8400

00 0238 8800

00 0238 8C00

00 0237 83FF

00 0237 FFFF

00 0238 03FF

00 0238 83FF

00 0238 87FF

00 0238 8BFF

00 0238 8FFF

00 0238 93FF

00 0238 97FF

00 0238 9BFF

00 0238 9FFF

00 0238 A3FF

00 0238 A7FF

00 023F FFFF

00 0243 FFFF

00 0244 3FFF

00 0244 FFFF

00 0245 3FFF

00 0245 FFFF

00 0246 3FFF

00 0246 FFFF

00 0247 3FFF

00 0247 FFFF

00 0248 3FFF

00 0248 FFFF

00 0249 3FFF

00 0249 FFFF

00 024A 3FFF

00 024A FFFF

00 024B 3FFF

00 024B FFFF

00 024C 01FF

00 024C 03FF

00 024C 07FF

00 024C FFFF

00 024F FFFF

00 0250 007F

00 0250 7FFF

00 0250 FFFF

00 0251 FFFF

00 0252 03FF

00 0252 FFFF

00 0253 007F

00 0253 0080

00 0253 0400

00 0253 0480

00 0253 03FF

00 0253 047F

00 0253 07FF

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

I

2

C0

Reserved

I

2

C1

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

ARM View

Memory protection unit (MPU) 1

Reserved

Memory protection unit (MPU) 2

Reserved

Reserved

Reserved

Reserved

Memory protection unit (MPU) 5

Reserved

Memory protection unit (MPU) 7

Memory protection unit (MPU) 8

Memory protection unit (MPU) 9

Memory protection unit (MPU) 10

Memory protection unit (MPU) 11

Memory protection unit (MPU) 12

Memory protection unit (MPU) 13

Memory protection unit (MPU) 14

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

I

2

C0

Reserved

I

2

C1

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

SOC View

Memory protection unit (MPU) 1

Reserved

Memory protection unit (MPU) 2

Reserved

Reserved

Reserved

Reserved

Memory protection unit (MPU) 5

Reserved

Memory protection unit (MPU) 7

Memory protection unit (MPU) 8

Memory protection unit (MPU) 9

Memory protection unit (MPU) 10

Memory protection unit (MPU) 11

Memory protection unit (MPU) 12

Memory protection unit (MPU) 13

Memory protection unit (MPU) 14

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

59

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Bytes

128

31K

1K

31K

1K

1K

31K

1K

31K

1K

31K

1K

1K

31K

1K

31K

1K

31K

32K

64K

32K

32K

64K

32K

96K

60K

64K

2K

62K

192K

512K

32K

8K

8K-256

256

64K

16K

4K

1K-128

64

1K-64

64

60K-64

8K

8K

8K

8K

128K

128K

512K

Table 6-1. Device Memory Map Summary AM5K2E0x (continued)

Physical 40-bit Address

Start

00 0253 0800

End

00 0253 087F

00 0270 8000

00 0271 0000

00 0272 0000

00 0272 8000

00 0273 0000

00 0274 0000

00 0274 8000

00 0276 0000

00 0276 0400

00 0276 8000

00 0276 8400

00 0277 0000

00 0277 0400

00 0277 8000

00 0278 0400

00 0278 0000

00 0278 0400

00 0278 8000

00 0278 8400

00 0279 0000

00 0279 0400

00 0279 8000

00 0279 8400

00 027A 0000

00 0253 0880

00 0253 0C00

00 0253 0C40

00 0253 1000

00 0253 1040

00 0254 0000

00 0256 0080

00 0258 0000

00 0260 0000

00 0260 2000

00 0260 4000

00 0260 6000

00 0260 8000

00 0260 A000

00 0260 BF00

00 0260 C000

00 0261 C000

00 0262 0000

00 0262 1000

00 0263 0000

00 0264 0000

00 0264 0800

00 0265 0000

00 0268 0000

00 0270 0000

00 0270 FFFF

00 0271 FFFF

00 0272 7FFF

00 0272 FFFF

00 0273 FFFF

00 0274 7FFF

00 0275 FFFF

00 0276 03FF

00 0276 7FFF

00 0276 83FF

00 0276 FFFF

00 0277 03FF

00 0277 7FFF

00 0277 83FF

00 0277 FFFF

00 0278 03FF

00 0278 7FFF

00 0278 83FF

00 0278 FFFF

00 0279 03FF

00 0279 7FFF

00 0279 83FF

00 0279 FFFF

00 027A 03FF

00 0253 0BFF

00 0253 0C3F

00 0253 FFFF

00 0253 103F

00 0253 FFFF

00 0255 FFFF

00 0257 FFFF

00 025F FFFF

00 0260 1FFF

00 0260 3FFF

00 0260 5FFF

00 0260 7FFF

00 0260 9FFF

00 0260 BEFF

00 0260 BFFF

00 0261 BFFF

00 0261 FFFF

00 0262 0FFF

00 0262 FFFF

00 0263 FFFF

00 0264 07FF

00 0264 FFFF

00 0267 FFFF

00 026F FFFF

00 0270 7FFF

ARM View

I

2

C2

Reserved

UART0

Reserved

UART1

Reserved

Reserved

ARM CorePac INTC

Reserved

Secondary interrupt controller (CIC) 0

Reserved

Reserved

Reserved

Secondary interrupt controller (CIC) 2

Reserved

GPIO Config

Reserved

Reserved

BOOTCFG chip-level registers

Reserved

USB 0 PHY CFG

Semaphore Config

Reserved

Reserved

USB 0 MMR CFG

EDMA channel controller (TPCC) 0

EDMA channel controller (TPCC) 4

Reserved

EDMA channel controller (TPCC) 1

EDMA channel controller (TPCC) 3

Reserved

EDMA channel controller (TPCC) 2

Reserved

EDMA TPCC0 transfer controller (TPTC) 0

Reserved

EDMA TPCC0 transfer controller (TPTC) 1

Reserved

EDMA TPCC1 transfer controller (TPTC) 0

Reserved

EDMA TPCC1 transfer controller (TPTC) 1

Reserved

EDMA TPCC1 transfer controller (TPTC) 2

Reserved

EDMA TPCC1 transfer controller (TPTC) 3

Reserved

EDMA TPCC2 transfer controller (TPTC) 0

Reserved

EDMA TPCC2 transfer controller (TPTC) 1

Reserved

EDMA TPCC2 transfer controller (TPTC) 2

SOC View

I

2

C2

Reserved

UART0

Reserved

UART1

Reserved

Reserved

ARM CorePac INTC

Reserved

Secondary interrupt controller (CIC) 0

Reserved

Reserved

Reserved

Secondary interrupt controller (CIC) 2

Reserved

GPIO Config

Reserved

Reserved

BOOTCFG chip-level registers

Reserved

USB 0 PHY CFG

Semaphore Config

Reserved

Reserved

USB 0 MMR CFG

EDMA channel controller (TPCC) 0

EDMA channel controller (TPCC) 4

Reserved

EDMA channel controller (TPCC) 1

EDMA channel controller (TPCC) 3

Reserved

EDMA channel controller (TPCC) 2

Reserved

EDMA TPCC0 transfer controller (TPTC) 0

Reserved

EDMA TPCC0 transfer controller (TPTC) 1

Reserved

EDMA TPCC1 transfer controller (TPTC) 0

Reserved

EDMA TPCC1 transfer controller (TPTC) 1

Reserved

EDMA TPCC1 transfer controller (TPTC) 2

Reserved

EDMA TPCC1 transfer controller (TPTC) 3

Reserved

EDMA TPCC2 transfer controller (TPTC) 0

Reserved

EDMA TPCC2 transfer controller (TPTC) 1

Reserved

EDMA TPCC2 transfer controller (TPTC) 2

60

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

00 027D 8000

00 027E 0000

00 027E 4000

00 027F 0000

00 027F 4000

00 0280 0000

00 0280 4000

00 0281 0000

00 0281 4000

00 0282 0000

00 0282 4000

00 0283 0000

00 0283 4000

00 0284 0000

00 0284 4000

00 0285 0000

00 0285 8000

00 0286 0000

00 0290 0000

00 0294 0000

00 02A0 0000

00 02B0 0000

00 02C0 0000

00 02C1 0000

00 02C2 0000

00 02C4 0000

00 02C6 0000

00 02C8 0000

00 02C9 0000

00 02CA 0000

00 02CC 0000

00 02CE 0000

00 02F0 0000

00 0300 0000

00 0310 0000

00 0800 0000

Table 6-1. Device Memory Map Summary AM5K2E0x (continued)

Physical 40-bit Address

Start

00 027A 0400

End

00 027A 7FFF

00 027A 8000

00 027A 8400

00 027B 0000

00 027A 83FF

00 027A FFFF

00 027B 03FF

00 027B 0400

00 027B 8000

00 027B 8400

00 027B 8800

00 027B 8C00

00 027C 0000

00 027C 0400

00 027D 0000

00 027D 4000

00 027B 7FFF

00 027B 83FF

00 027B 87FF

00 027B 8BFF

00 027B FFFF

00 027C 03FF

00 027C FFFF

00 027D 3FFF

00 027D 7FFF

00 027D FFFF

00 027E 3FFF

00 027E FFFF

00 027F 3FFF

00 027F FFFF

00 0280 3FFF

00 0280 FFFF

00 0281 3FFF

00 0281 FFFF

00 0282 3FFF

00 0282 FFFF

00 0283 3FFF

00 0283 FFFF

00 0284 3FFF

00 0284 FFFF

00 0285 7FFF

00 0285 FFFF

00 028F FFFF

00 0293 FFFF

00 029F FFFF

00 02AF FFFF

00 02BF FFFF

00 02C0 FFFF

00 02C1 FFFF

00 02C3 FFFF

00 02C5 FFFF

00 02C7 FFFF

00 02C8 FFFF

00 02C9 FFFF

00 02CB FFFF

00 02CD FFFF

00 02EF FFFF

00 02FF FFFF

00 030F FFFF

00 07FF FFFF

00 0801 FFFF

256K

768K

1M

1M

64K

64K

128K

16K

48K

16K

48K

32K

32K

640K

16K

48K

16K

48K

16K

48K

32K

16K

48K

16K

48K

128K

128K

64K

64K

128K

128K

15M-896K

1M

1M

79M

128K

31K

1K

1K

1K

29K

1K

63K

16K

16K

Bytes

31K

1K

31K

1K

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

ARM View

Reserved

EDMA TPCC2 transfer controller (TPTC) 3

Reserved

EDMA TPCC3 transfer controller (TPTC) 0

SOC View

Reserved

EDMA TPCC2 transfer controller (TPTC) 3

Reserved

EDMA TPCC3 transfer controller (TPTC) 0

Reserved

EDMA TPCC3 transfer controller (TPTC) 1

EDMA TPCC4 transfer controller (TPTC) 0

EEDMA TPCC4 transfer controller (TPTC) 1

Reserved

Reserved

Reserved

Reserved

EDMA TPCC3 transfer controller (TPTC) 1

EDMA TPCC4 transfer controller (TPTC) 0

EEDMA TPCC4 transfer controller (TPTC) 1

Reserved

Reserved

Reserved

TI embedded trace buffer (TETB) - CorePac0 TI embedded trace buffer (TETB) - CorePac0

TBR_ARM CorePac - Trace buffer - ARM

CorePac

Reserved

TBR_ARM CorePac - Trace buffer - ARM

CorePac

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

TBR_SYS- Trace buffer - System

Reserved

Reserved

Reserved

Reserved

Navigator configuration

Navigator linking RAM

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

10GbE Config

DBG Config

Reserved

Extended memory controller (XMC) configuration

TBR_SYS- Trace buffer - System

Reserved

Reserved

Reserved

Reserved

Navigator configuration

Navigator linking RAM

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

10GbE Config

DBG Config

Reserved

Extended memory controller (XMC) configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

61

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Physical 40-bit Address

Start

00 0802 0000

End

00 0BBF FFFF

00 0BC0 0000 00 0BCF FFFF

00 13E0 8000

00 13F0 0000

00 13F0 8000

00 1480 0000

00 1490 0000

00 14E0 0000

00 14E0 8000

00 14F0 0000

00 14F0 8000

00 1580 0000

00 1590 0000

00 15E0 0000

00 15E0 8000

00 15F0 0000

00 15F0 8000

00 1680 0000

00 1690 0000

00 16E0 0000

00 16E0 8000

00 16F0 0000

00 16F0 8000

00 1780 0000

00 0BD0 0000

00 0C00 0000

00 0C20 0000

00 0C60 0000

00 1000 0000

00 1080 0000

00 1090 0000

00 10E0 0000

00 10E0 8000

00 10F0 0000

00 10F0 8000

00 1180 0000

00 1190 0000

00 11E0 0000

00 11E0 8000

00 11F0 0000

00 11F0 8000

00 1280 0000

00 1290 0000

00 12E0 0000

00 12E0 8000

00 12F0 0000

00 12F0 8000

00 1380 0000

00 1390 0000

00 13E0 0000

Table 6-1. Device Memory Map Summary AM5K2E0x (continued)

00 13EF FFFF

00 13F0 7FFF

00 147F FFFF

00 148F FFFF

00 14DF FFFF

00 14E0 7FFF

00 14EF FFFF

00 14F0 7FFF

00 157F FFFF

00 158F FFFF

00 15DF FFFF

00 15E0 7FFF

00 15EF FFFF

00 15F0 7FFF

00 167F FFFF

00 168F FFFF

00 16DF FFFF

00 16E0 7FFF

00 16EF FFFF

00 16F0 7FFF

00 177F FFFF

00 178F FFFF

00 0BFF FFFF

00 0C1F FFFF

00 0C5F FFFF

00 0FFF FFFF

00 107F FFFF

00 108F FFFF

00 10DF FFFF

00 10E0 7FFF

00 10EF FFFF

00 10F0 7FFF

00 117F FFFF

00 118F FFFF

00 11DF FFFF

00 11E0 7FFF

00 11EF FFFF

00 11F0 7FFF

00 127F FFFF

00 128F FFFF

00 12DF FFFF

00 12E0 7FFF

00 12EF FFFF

00 12F0 7FFF

00 137F FFFF

00 1388 FFFF

00 13DF FFFF

00 13E0 7FFF

Bytes

60M-128K

1M

1M-32K

32K

9M-32K

1M

5M

32K

1M-32K

32K

9M-32K

1M

5M

32K

1M-32K

32K

9M-32K

1M

5M

32K

1M-32K

32K

9M-32K

1M

5M

32K

1M-32K

32K

9M-32K

1M

5M

32K

1M-32K

32K

9M-32K

1M

5M

32K

3M

2M

4M

58M

8M

1M

5M

32K

1M-32K

32K

9M-32K

1M

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

ARM View

Reserved

Multicore shared memory controller (MSMC) config

Reserved

Multicore shared memory (MSM)

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

SOC View

Reserved

Multicore shared memory controller (MSMC) config

Reserved

Multicore shared memory (MSM)

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

62

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-1. Device Memory Map Summary AM5K2E0x (continued)

00 2100 0800

00 2100 0A00

00 2100 0B00

00 2101 0000

00 2101 0200

00 2101 0800

00 2101 0A00

00 2101 1000

00 2102 0000

00 2102 8000

00 2104 0000

00 2140 0000

00 2140 0100

00 2140 0400

00 2180 0000

00 2180 8000

00 21C0 0000

00 2200 0000

00 22A0 0000

00 22A1 0000

00 22B0 0000

00 22B1 0000

00 22C0 0000

00 22C1 0000

00 22D0 0000

00 22D1 0000

00 2079 0000

00 2080 0000

00 2090 0000

00 20A0 0000

00 20A4 0000

00 20A5 0000

00 20B0 0000

00 20B4 0000

00 20BF 0000

00 20C0 0000

00 2100 0000

00 2100 0400

00 2100 0600

Physical 40-bit Address

Start

00 1790 0000

End

00 17DF FFFF

00 17E0 0000

00 17E0 8000

00 17F0 0000

00 17E0 7FFF

00 17EF FFFF

00 17F0 7FFF

00 17F0 8000

00 2000 0000

00 2010 0000

00 2020 0000

00 2060 0000

00 2070 0000

00 2078 0000

00 1FFF FFFF

00 200F FFFF

00 201F FFFF

00 205F FFFF

00 206F FFFF

00 2077 FFFF

00 2078 FFFF

00 207F FFFF

00 208F FFFF

00 209F FFFF

00 20A3 FFFF

00 20A4 FFFF

00 20AF FFFF

00 20B3 FFFF

00 20BE FFFF

00 20BF 01FF

00 20FF FFFF

00 2100 03FF

00 2100 05FF

00 2100 07FF

00 2100 09FF

00 2100 0AFF

00 2100 FFFF

00 2101 01FF

00 2101 07FF

00 2101 09FF

00 2101 0FFF

00 2101 FFFF

00 2102 7FFF

00 2103 FFFF

00 217F FFFF

00 2140 00FF

00 2140 01FF

00 217F FFFF

00 2180 7FFF

00 21BF FFFF

00 21FF FFFF

00 229F FFFF

00 22A0 FFFF

00 22AF FFFF

00 22B0 FFFF

00 22BF FFFF

00 22C0 FFFF

00 22CF FFFF

00 22D0 FFFF

00 22DF FFFF

PCIe 0 config

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

SPI2

EMIF Config

Reserved

DDR3 EMIF Config

Reserved

Reserved

Reserved

Reserved

PCIe 1 config

Reserved

Reserved

HyperLink0 config

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Boot ROM

Reserved

Reserved

Reserved

Reserved

SPI0

SPI1

ARM View

Reserved

Reserved

Reserved

Reserved

Reserved

System trace manager (STM) configuration

Reserved

Reserved

Reserved

Reserved

Reserved

32K

4M-32K

4M

10M

64K

1M-64K

64K

1M-64K

64K

1M-64K

64K

1M-64K

512

256

62K-768

512

2K-512

512

2K-512

60K

32K

96K

4M-256K

256

256

4M-512

704K

64K

4M

1K

512

512

448K

1M

1M

256K

64K

704K

256K

Bytes

5M

32K

1M-32K

32K

129M-32K

1M

1M

4M

1M

512K

64K

PCIe 0 config

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

SPI2

EMIF Config

Reserved

DDR3 EMIF Config

Reserved

Reserved

Reserved

Reserved

PCIe 1 config

Reserved

Reserved

HyperLink0 config

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Boot ROM

Reserved

Reserved

Reserved

Reserved

SPI0

SPI1

SOC View

Reserved

Reserved

Reserved

Reserved

Reserved

System trace manager (STM) configuration

Reserved

Reserved

Reserved

Reserved

Reserved

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

63

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 6-1. Device Memory Map Summary AM5K2E0x (continued)

00 23C0 0000

00 2400 0000

00 2500 0000

00 2508 0000

00 2509 0000

00 2800 0000

00 3000 0000

00 3400 0000

00 3800 0000

00 3C00 0000

00 4000 0000

00 5000 0000

00 6000 0000

Physical 40-bit Address

Start

00 22E0 0000

End

00 22E0 FFFF

00 22E1 0000

00 22F0 0000

00 22F1 0000

00 22EF FFFF

00 22F0 FFFF

00 22FF FFFF

00 2300 0000

00 2301 0000

00 2310 0000

00 2311 0000

00 2320 0000

00 2325 0000

00 23A0 0000

00 2300 FFFF

00 230F FFFF

00 2310 FFFF

00 231F FFFF

00 2324 FFFF

00 239F FFFF

00 23BF FFFF

00 7000 0000

01 0000 0000

01 2100 0000

01 2100 0200

08 0000 0000

0A 0000 0000

00 23FF FFFF

00 24FF FFFF

00 2507 FFFF

00 2508 FFFF

00 27FF FFFF

00 2FFF FFFF

00 33FF FFFF

00 37FF FFFF

00 3BFF FFFF

00 3FFF FFFF

00 4FFF FFFF

00 5FFF FFFF

00 6FFF FFFF

00 FFFF FFFF

01 20FF FFFF

01 2100 01FF

07 FFFF FFFF

09 FFFF FFFF

FF FFFF FFFF

ARM View

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Navigator

Reserved

NETCP15 config

USB 1 MMR config

USB 1 PHY config

Reserved

Reserved

EMIF16 CE0

EMIF16 CE1

EMIF16 CE2

EMIF16 CE3

HyperLink0 data

PCIe 0 data

PCIe 1data

Reserved

Reserved

Reserved

Reserved

DDR3 data

Reserved

64M

64M

64M

256M

256M

256M

4M

16M

512K

64K

48M-576K

128M

64M

Bytes

64K

1M-64K

64K

1M-64K

64K

1M-64K

64K

1M-64K

384K

8M-384K

2M

2304M

528M

512

32G-512

8G

984G

SOC View

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Navigator

Reserved

NETCP15 config

USB 1 MMR config

USB 1 PHY config

Reserved

Reserved

EMIF16 CE0

EMIF16 CE1

EMIF16 CE2

EMIF16 CE3

HyperLink0 data

PCIe 0 data

PCIe 1data

Reserved

Reserved

DDR3 EMIF configuration

Reserved

DDR3 data

Reserved

6.2

Memory Protection Unit (MPU) for AM5K2E0x

64

CFG (configuration) space of all slave devices on the TeraNet is protected by the MPU. The AM5K2E0x contains sixteen MPUs of which thirteen MPUs are used:

• MPU0 is used to protect main CORE/3 CFG TeraNet_3P_B (SCR_3P (B)).

• MPU1/2/5 are used for QM_SS (one for VBUSM port and one each for the two configuration VBUSP port).

• MPU3/4/6 are not used.

• MPU7 is used for PCIe1.

• MPU8 is used for peripherals connected to TeraNet_6P_A (SCR_6P (A)).

• MPU9 is used for interrupt controllers connected to TeraNet_3P (SCR_3P).

• MPU10 is used for semaphore.

• MPU11 is used to protect TeraNet_6P_B (SCR_6P (B)) CPU/6 CFG TeraNet.

• MPU12/13/14 are used for SPI0/1/2.

• MPU15 is used for USB1.

This section contains MPU register map and details of device-specific MPU registers only. For MPU features and details of generic MPU registers, see the KeyStone Architecture Memory Protection Unit

(MPU) User's Guide ( SPRUGW5 ).

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

The following tables show the configuration of each MPU and the memory regions protected by each

MPU.

Table 6-2. MPU0-MPU5 Default Configuration

SETTING

Default permission

MPU0 MPU1

MAIN SCR_3P QM_SS DATA

(B) PORT

Assume allowed Assume allowed

16 16 Number of allowed IDs supported

Number of programmable 16 ranges supported

Compare width

16

1KB granularity 1KB granularity

MPU2

QM_SS CFG1

PORT

Assume allowed

16

16

1KB granularity

MPU3

Reserved

MPU4

Reserved

MPU5

QM_SS CFG2

PORT

Assume allowed

16

16

1KB granularity

SETTING

Default permission

Number of allowed IDs supported

Number of programmable ranges supported

Compare width

MPU6

Reserved

Table 6-3. MPU6-MPU11 Default Configuration

MPU7

PCIe1

Assume allowed

16

MPU8

EMIF16

Assume allowed

16

MPU9

CIC

Assume allowed

16

16

1KB granularity

8

1KB granularity

4

MPU10

SM

Assume allowed

16

2

MPU11

SCR_6P (B)

Assume allowed

16

16

1KB granularity 1KB granularity 1KB granularity

SETTING

Default permission

Number of allowed IDs supported

Number of programmable ranges supported

Compare width

Table 6-4. MPU12-MPU15 Default Configuration

MPU12

SPI0

Assume allowed

16

2

MPU13

SPI1

Assume allowed

16

2

MPU14

SPI2

Assume allowed

16

2

1KB granularity 1KB granularity 1KB granularity

MPU15

USB1

Assume allowed

16

8

1KB granularity

MPU0

MPU1

MPU2

MPU3

MPU4

MPU5

MPU6

MPU7

MPU8

MPU9

MPU10

MPU11

MPU12

MPU13

MPU14

Table 6-5. MPU Memory Regions

MEMORY PROTECTION

Main CFG SCR

QM_SS DATA PORT

QM_SS CFG1 PORT

Reserved

Reserved

QM_SS CFG2 PORT

Reserved

PCIe1

SPIROM/EMIF16

CIC/AINTC

Semaphore

SCR_6 and CPU/6 CFG SCR

SPI0

SPI1

SPI2

START ADDRESS

0x01D0_0000

0x23A0_0000

0x02A0_0000

N/A

N/A

0x02A0_4000

N/A

0x2101_0000

0x20B0_0000

0x0264_0000

0x0260_0000

0x0220_0000

0x2100_0400

0x2100_0400

0x2100_0800

END ADDRESS

0X01E7_FFFF

0x23BF_FFFF

0x02AF_FFFF

N/A

N/A

0x02BF_FFFF

N/A

0xFFFF_FFFF

0x3FFF_FFFF

0x0264_07FF

0x0260_9FFF

0x03FF_FFFF

0x2100_07FF

0x2100_07FF

0x2100_0AFF

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

65

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

MPU15

Table 6-5. MPU Memory Regions (continued)

MEMORY PROTECTION

USB1

START ADDRESS

0x2400_0000

END ADDRESS

0x2508_FFFF

Table 6-6

shows the unique Master ID assigned to each CorePac and peripherals on the device.

Table 6-6. Master ID Settings

Reserved

Reserved

Reserved

EDMA0_TC0 read

EDMA0_TC0 write

EDMA0_TC1 read

Hyperlink0

USB1

Reserved

PCIe0

EDMA0_TC1 write

EDMA1_TC0 read

EDMA1_TC0 write

EDMA1_TC1 read

EDMA1_TC1write

EDMA1_TC2 read

EDMA1_TC2 write

EDMA1_TC3 read

EDMA1_TC3 write

EDMA2_TC0 read

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

AM5K2E0x

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

ARM CorePac 0

ARM CorePac1

ARM CorePac 2

ARM CorePac 3

37

38

39

40

41

32

33

34

35

36

27

28

29

30

31

22

23

24

25

26

17

18

19

20

21

12

13

14

15

16

7

8

9

5

6

10

11

1

2

3

4

Master ID

0

66

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-6. Master ID Settings (continued)

EDMA3CC2

Reserved

Reserved

Reserved

Queue Manager

NETCP_GLOBAL1

Reserved

TSIP

Reserved

Reserved

Reserved

10GbE

Reserved

Reserved

Packet DMA MST1

Reserved

PCIe1

Reserved

Reserved

Reserved

Reserved

DBG_DAP

Reserved

NETCP_LOCAL

Reserved

Reserved

AM5K2E0x

EDMA2_TC0 write

EDMA2_TC1 read

EDMA2_TC1 write

EDMA2_TC2 read

EDMA2_TC2 write

EDMA2_TC3 read

EDMA2_TC3 write

EDMA3_TC0 read

EDMA3_TC0 write

EDMA3_TC1 read

Reserved

EDMA3_TC1 write

Reserved

USB0

Reserved

Reserved

Reserved

Reserved

Reserved

EDMA3CC0

EDMA3CC1

83

84-87

88-91

92-95

96-99

100-101

102

103

104

105

64

65

66

67

68-71

72-75

76-79

80

81

82

106

107

108-111

112-119

120-139

140

59

60

61

62

63

53

54-55

56

57

58

48

49

50

51

52

Master ID

42

43

44

45

46

47

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

67

172

173

174

175

176

177

178

179

180-183

184-255

167

168

169

170

171

162

163

164

165

166

157

158

159

160

161

152

153

154

155

156

147

148

149

150

151

Master ID

141

142

143

144

145

146

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-6. Master ID Settings (continued)

AM5K2E0x

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

CPT_MSMC0

CPT_MSMC1

CPT_MSMC2

CPT_MSMC3

CPT_DDR3

CPT_SM

CPT_QM_CFG1

CPT_QM_M

CPT_CFG

Reserved

Reserved

Reserved

CPT_QM_CFG2

CPT_PCIe1

Reserved

Reserved

CPT_EDMA3CC0_4

CPT_EDMA3CC1_2_3

CPT_CIC

CPT_SPI_ROM_EMIP16

Reserved

EDMA4_TC0 read

EDMA4_TC0 write

EDMA4_TC1 read

EDMA4_TC1 write

EDMA4_CC_TR

CPT_MSMC7

CPT_MSMC6

CPT_MSMC5

CPT_MSMC4

CPT_NETCP_CFG_MST

Reserved

NETCP_GLOBAL0

Reserved

www.ti.com

68

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-7

shows the privilege ID of each mastering peripheral. The table also shows the privilege level

(supervisor vs. user), security level (secure vs. non-secure), and access type (instruction read vs.

data/DMA read or write) of each master on the device. In some cases, a particular setting depends on software being executed at the time of the access or the configuration of the master peripheral.

10

11

12

13

14

15

7

8

9

5

6

1

2

3

4

PRIVILEGE ID MASTER

0 Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

ARM CorePac

All packet DMA masters

(Both NetCP, Both

QM_CDMA) Both USB

QM_SECOND

PCIe0

DAP

PCIe1

Hyperlink

TSIP

Table 6-7. Privilege ID Settings

PRIVILEGE LEVEL

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

User/Supervisor (S/W dependent)

User

User

User/Supervisor

User/Supervisor (Emulation S/W dependent)

User/Supervisor

User/Supervisor

User

Data

Data

Data

Data

Data

Data

ACCESS TYPE

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Instruction/Data

Data

6.2.1

MPU Registers

This section includes the offsets for MPU registers and definitions for device-specific MPU registers. For

Number of Programmable Ranges supported (PROGx_MPSA, PROGxMPEA) refer to the following tables.

6.2.1.1

MPU Register Map

208h

210h

214h

218h

220h

224h

228h

18h

1Ch

20h

200h

204h

OFFSET

0h

4h

10h

14h

NAME

REVID

CONFIG

IRAWSTAT

IENSTAT

IENSET

IENCLR

EOI

PROG0_MPSAR

PROG0_MPEAR

PROG0_MPPAR

PROG1_MPSAR

PROG1_MPEAR

PROG1_MPPAR

PROG2_MPSAR

PROG2_MPEAR

PROG2_MPPAR

Table 6-8. MPU Registers

DESCRIPTION

Revision ID

Configuration

Interrupt raw status/set

Interrupt enable status/clear

Interrupt enable

Interrupt enable clear

End of interrupt

Programmable range 0, start address

Programmable range 0, end address

Programmable range 0, memory page protection attributes

Programmable range 1, start address

Programmable range 1, end address

Programmable range 1, memory page protection attributes

Programmable range 2, start address

Programmable range 2, end address

Programmable range 2, memory page protection attributes

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

69

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

2F0h

2F4h

2F8h

300h

304h

308h

2D4h

2Dh

2E0h

2E4h

2E8h

2A0h

2A4h

2A8h

2B0h

2B4h

2B8h

2C0h

2C4h

2C8h

2D0h

284h

288h

290h

294h

298h

268h

270h

274h

278h

280h

250h

254h

258h

260h

264h

OFFSET

230h

234h

238h

240h

244h

248h

PROG10_MPSAR

PROG10_MPEAR

PROG10_MPPAR

PROG11_MPSAR

PROG11_MPEAR

PROG11_MPPAR

PROG12_MPSAR

PROG12_MPEAR

PROG12_MPPAR

PROG13_MPSAR

PROG13_MPEAR

PROG13_MPPAR

PROG14_MPSAR

PROG14_MPEAR

PROG14_MPPAR

PROG15_MPSAR

PROG15_MPEAR

PROG15_MPPAR

FLTADDRR

FLTSTAT

FLTCLR

NAME

PROG3_MPSAR

PROG3_MPEAR

PROG3_MPPAR

PROG4_MPSAR

PROG4_MPEAR

PROG4_MPPAR

PROG5_MPSAR

PROG5_MPEAR

PROG5_MPPAR

PROG6_MPSAR

PROG6_MPEAR

PROG6_MPPAR

PROG7_MPSAR

PROG7_MPEAR

PROG7_MPPAR

PROG8_MPSAR

PROG8_MPEAR

PROG8_MPPAR

PROG9_MPSAR

PROG9_MPEAR

PROG9_MPPAR

Table 6-8. MPU Registers (continued)

DESCRIPTION

Programmable range 3, start address

Programmable range 3, end address

Programmable range 3, memory page protection attributes

Programmable range 4, start address

Programmable range 4, end address

Programmable range 4, memory page protection attributes

Programmable range 5, start address

Programmable range 5, end address

Programmable range 5, memory page protection attributes

Programmable range 6, start address

Programmable range 6, end address

Programmable range 6, memory page protection attributes

Programmable range 7, start address

Programmable range 7, end address

Programmable range 7, memory page protection attributes

Programmable range 8, start address

Programmable range 8, end address

Programmable range 8, memory page protection attributes

Programmable range 9, start address

Programmable range 9, end address

Programmable range 9, memory page protection attributes

Programmable range 10, start address

Programmable range 10, end address

Programmable range 10, memory page protection attributes

Programmable range 11, start address

Programmable range 11, end address

Programmable range 11, memory page protection attributes

Programmable range 12, start address

Programmable range 12, end address

Programmable range 12, memory page protection attributes

Programmable range 13, start address

Programmable range 13, end address

Programmable range 13, memory page protection attributes

Programmable range 14, start address

Programmable range 14, end address

Programmable range 14, memory page protection attributes

Programmable range 15, start address

Programmable range 15, end address

Programmable range 15, memory page protection attributes

Fault address

Fault status

Fault clear

6.2.1.2

Device-Specific MPU Registers

6.2.1.2.1 Configuration Register (CONFIG)

The configuration register (CONFIG) contains the configuration value of the MPU.

70

www.ti.com

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-9. Configuration Register Field Descriptions

Bits

31-24

Field

ADDR_WIDTH

Description

Address alignment for range checking

• 0 = 1KB alignment

• 6 = 64KB alignment

23-20 NUM_FIXED

19-16 NUM_PROG

15-12 NUM_AIDS

11-1 Reserved

0

Number of fixed address ranges

Number of programmable address ranges

Number of supported AIDs

Reserved. Always read as 0.

ASSUME_ALLOWED Assume allowed bit. When an address is not covered by any MPU protection range, this bit determines whether the transfer is assumed to be allowed or not.

• 0 = Assume disallowed

• 1 = Assume allowed

6.2.2

MPU Programmable Range Registers

6.2.2.1

Programmable Range n Start Address Register (PROGn_MPSAR)

The Programmable Address Start Register holds the start address for the range. This register is writeable by a supervisor entity only. If NS = 0 (non-secure mode) in the associated MPPAR register, then the register is also writeable only by a secure entity.

The start address must be aligned on a page boundary. The size of the page is 1K byte. The size of the page determines the width of the address field in MPSAR and MPEAR.

Figure 6-1. Programmable Range n Start Address Register (PROGn_MPSAR)

10 9 31

START_ADDR

R/W

Legend: R = Read only; R/W = Read/Write

Reserved

R

0

Bit

31-10

9-0

Table 6-10. Programmable Range n Start Address Register Field Descriptions

Field

START_ADDR

Reserved

Description

Start address for range n

Reserved. Always read as 0.

Table 6-11. MPU0-MPU5 Programmable Range n Start Address Register (PROGn_MPSAR) Reset Values

REGISTER

PROG0_MPSAR

PROG1_MPSAR

PROG2_MPSAR

PROG3_MPSAR

PROG4_MPSAR

PROG5_MPSAR

PROG6_MPSAR

PROG7_MPSAR

PROG8_MPSAR

PROG9_MPSAR

PROG10_MPSAR

PROG11_MPSAR

PROG12_MPSAR

PROG13_MPSAR

MPU0

0x01D0_0000

0x01F0_0000

0x02F0_0000

0x0200_0000

0x020C_0000

0x021C_0000

0x021D_0000

0x021F_0000

0x0234_0000

0x0254_0000

0x0258_0000

0x0000_0000

0x0290_0000

0x01E8_0000

MPU1

0x23A0_0000

0x23A0_2000

0x023A_6000

0x23A0_6800

0x23A0_7000

0x23A0_8000

MPU2

0x02A0_0000

0x02A0_2000

0x02A0_6000

0x02A0_6800

0x02A0_7000

0x02A0_8000

0x23A0_C000 0x02A0_C000

0x23A0_E000

0x23A0_F000

0x02A0_E000

0x02A0_F000

0x23A0_F800

0x23A1_0000

0x02A0_F800

0x02A1_0000

0x23A1_C000 0x02A2_0000

0x23A4_0000

0x23A8_0000

0x02A4_0000

0x02A8_0000

MPU3

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MPU4

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MPU5

0x02A0_4000

0x02A0_5000

0x02A0_6400

0x02A0_7400

0x02A0_A000

0x02A0_D000

0x02A0_E000

0x02A0_F000

0x02A0_F800

0x02A1_2000

0x02A1_C000

0x02A2_8000

0x02A6_0000

0x02AA_0000

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

71

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 6-11. MPU0-MPU5 Programmable Range n Start Address Register (PROGn_MPSAR) Reset

Values (continued)

REGISTER

PROG14_MPSAR

PROG15_MPSAR

MPU0

0x01E8_0800

0x01E0_0000

MPU1

0x23B0_0000

0x23B8_0000

MPU2

0x02AC_0000

0x02AE_0000

MPU3

Reserved

Reserved

MPU4

Reserved

Reserved

MPU5

0x02B0_0000

0x02B8_0000

Table 6-12. MPU6-MPU11 Programmable Range n Start Address Register (PROGn_MPSAR) Reset Values

REGISTER

PROG0_MPSAR

PROG1_MPSAR

PROG2_MPSAR

PROG3_MPSAR

PROG4_MPSAR

PROG5_MPSAR

PROG6_MPSAR

PROG7_MPSAR

PROG8_MPSAR

PROG9_MPSAR

PROG10_MPSAR

PROG11_MPSAR

PROG12_MPSAR

PROG13_MPSAR

PROG14_MPSAR

PROG15_MPSAR

MPU6

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MPU7

0x2101_0000

0x0000_0000

0x0800_0000

0x1000_0000

0x1800_0000

0x2000_0000

0x2800_0000

0x3000_0000

0x3800_0000

0x4000_0000

0x4800_0000

0x5000_0000

0x5800_0000

0x6000_0000

0x6800_0000

0x7000_0000

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU8

0x3000_0000

0x3200_0000

0x3400_0000

0x3600_0000

0x3800_0000

0x3A00_0000

0x3C00_0000

0x2100_0800

MPU9

0x0260_0000

0x0260_4000

0x0260_8000

0x0256_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU10

0x0264_0000

0x0000_0000

N/A

MPU11

0x0220_0000

0x0231_0000

0x0231_A000

0x0233_0000

0x0235_0000

0x0263_0000

0x0244_0000

0x024C_0000

0x0250_0000

0x0253_0000

0x0253_0C00

0x0260_B000

0x0262_0000

0x0300_0000

0x021E_0000

0x0268_0000

Table 6-13. MPU12-MPU15 Programmable Range n Start Address Register (PROGn_MPSAR) Reset

Values

REGISTER

PROG0_MPSAR

PROG1_MPSAR

PROG2_MPSAR

PROG3_MPSAR

PROG4_MPSAR

PROG5_MPSAR

PROG6_MPSAR

PROG7_MPSAR

PROG8_MPSAR

PROG9_MPSAR

PROG10_MPSAR

PROG11_MPSAR

PROG12_MPSAR

PROG13_MPSAR

PROG14_MPSAR

PROG15_MPSAR

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU12

0x2100_0400

0x0000_0000

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU13

0x2100_0400

0x0000_0000

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU14

0x2100_0800

0x0000_0000

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU15

0x2400_0000

0x2408_0000

0x2410_0000

0x2500_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

N/A

6.2.2.2

Programmable Range n - End Address Register (PROGn_MPEAR)

The programmable address end register holds the end address for the range. This register is writeable by a supervisor entity only. If NS = 0 (non-secure mode) in the associated MPPAR register then the register is also writeable only by a secure entity.

72

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

The end address must be aligned on a page boundary. The size of the page depends on the MPU number. The page size for MPU1 is 1K byte and for MPU2 it is 64K bytes. The size of the page determines the width of the address field in MPSAR and MPEAR.

Figure 6-2. Programmable Range n End Address Register (PROGn_MPEAR)

10 9 31

END_ADDR

R/W

Legend: R = Read only; R/W = Read/Write

Reserved

R

0

Bit

31-10

9-0

Field

END_ADDR

Reserved

Table 6-14. Programmable Range n End Address Register Field Descriptions

Description

End address for range n

Reserved. Always read as 3FFh.

Table 6-15. MPU0-MPU5 Programmable Range n End Address Register (PROGn_MPEAR) Reset Values

REGISTER

PROG0_MPEAR

PROG1_MPEAR

PROG2_MPEAR

PROG3_MPEAR

PROG4_MPEAR

PROG5_MPEAR

PROG6_MPEAR

PROG7_MPEAR

PROG8_MPEAR

PROG9_MPEAR

PROG10_MPEAR

PROG11_MPEAR

PROG12_MPEAR

PROG13_MPEAR

PROG14_MPEAR

PROG15_MPEAR

MPU0

0x01DF_FFFF

0x01F7_FFFF

0x02FF_FFFF

0x020B_FFFF

0x020F_FFFF

0x021C_83FF

0x021D_C0FF

0x021F_C7FF

0x0234_C0FF

0x0255_FFFF

0x025F_FFFF

0x0000_0000

0x029F_FFFF

0x01E8_07FF

0x01E8_43FF

0x01E7_FFFF

MPU1

0x23A0_1FFF

0x23A0_5FFF

0x23A0_67FF

0x23A0_6FFF

0x23A0_7FFF

0x23A0_BFFF

0x23A0_DFFF

0x23A0_EFFF

0x23A0_F7FF

0x23A0_FFFF

0x23A1_BFFF

0x23A3_FFFF

0x23A7_FFFF

0x23AF_FFFF

0x23B7_FFFF

0x23BF_FFFF

MPU2

0x02A0_00FF

0x02A0_3FFF

0x02A0_63FF

0x02A0_6FFF

0x02A0_73FF

0x02A0_9FFF

0x02A0_CFFF

0x02A0_E7FF

0x02A0_F7FF

0x02A0_FFFF

0x02A1_1FFF

0x02A2_5FFF

0x02A5_FFFF

0x02A9_FFFF

0x02AD_FFFF

0x02AF_FFFF

MPU3

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MPU4

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MPU5

0x02A0_4FFF

0x02A0_5FFF

0x02A0_67FF

0x02A0_7FFF

0x02A0_BFFF

0x02A0_DFFF

0x02A0_E7FF

0x02A0_F7FF

0x02A0_FFFF

0x02A1_7FFF

0x02A1_FFFF

0x02A3_FFFF

0x02A7_FFFF

0x02AB_FFFF

0x02B7_FFFF

0x02BF_FFFF

Table 6-16. MPU6-MPU11 Programmable Range n End Address Register (PROGn_MPEAR) Reset Values

REGISTER

PROG0_MPEAR

PROG1_MPEAR

PROG2_MPEAR

PROG3_MPEAR

PROG4_MPEAR

PROG5_MPEAR

PROG6_MPEAR

PROG7_MPEAR

PROG8_MPEAR

PROG9_MPEAR

PROG10_MPEAR

PROG11_MPEAR

PROG12_MPEAR

MPU6

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MPU7

0x2103_FFFF

0x07FF_FFFF

0x0FFF_FFFF

0x17FF_FFFF

0x1FFF_FFFF

0x27FF_FFFF

0x2FFF_FFFF

0x37FF_FFFF

0x3FFF_FFFF

0x47FF_FFFF

0x4FFF_FFFF

0x57FF_FFFF

0x5FFF_FFFF

N/A

N/A

N/A

N/A

MPU8

0x31FF_FFFF

0x33FF_FFFF

0x35FF_FFFF

0x37FF_FFFF

0x39FF_FFFF

0x3BFF_FFFF

0x3FFF_FFFF

0x2100_0AFF

N/A

MPU9 MPU10 MPU11

0x0260_1FFF 0x0264_07FF 0x022F_027F

0x0260_5FFF 0x0000_0000 0x0231_01FF

0x0260_9FFF N/A

0x0257_FFFF N/A

0x0232_FFFF

0x0233_07FF

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

0x0000_0000

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

0x0235_0FFF

0x0263_FFFF

0x024B_3FFF

0x024C_0BFF

0x0250_7FFF

0x0253_0BFF

0x0253_FFFF

0x0260_BFFF

0x0262_0FFF

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

73

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 6-16. MPU6-MPU11 Programmable Range n End Address Register (PROGn_MPEAR) Reset

Values (continued)

REGISTER

PROG13_MPEAR

PROG14_MPEAR

PROG15_MPEAR

MPU6

Reserved

Reserved

Reserved

MPU7

0x67FF_FFFF

0x6FFF_FFFF

0x7FFF_FFFF

MPU8

N/A

N/A

N/A

MPU9

0x0000_0000

0x0000_0000

0x0000_0000

MPU10

N/A

N/A

N/A

MPU11

0x03FF_FFFF

0x021E_1FFF

0x026F_FFFF

Table 6-17. MPU12-MPU15 Programmable Range n End Address Register (PROGn_MPEAR) Reset Values

REGISTER

PROG0_MPEAR

PROG1_MPEAR

PROG2_MPEAR

PROG3_MPEAR

PROG4_MPEAR

PROG5_MPEAR

PROG6_MPEAR

PROG7_MPEAR

PROG8_MPEAR

PROG9_MPEAR

PROG10_MPEAR

PROG11_MPEAR

PROG12_MPEAR

PROG13_MPEAR

PROG14_MPEAR

PROG15_MPEAR

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU12

0x2100_07FF

0x0000_0000

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU13

0x2100_07FF

0x0000_0000

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU14

0x2100_0AFF

0x0000_0000

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU15

0x2407_FFFF

0x240F_FFFF

0x24FF_FFFF

0x2507_FFFF

0x2508FFFF

0x0000_0000

0x0000_0000

0x0000_0000

N/A

N/A

N/A

N/A

6.2.2.3

Programmable Range n Memory Protection Page Attribute Register (PROGn_MPPAR)

The programmable address memory protection page attribute register holds the permissions for the region. This register is writeable only by a non-debug supervisor entity. If NS = 0 (secure mode) then the register is also writeable only by a non-debug secure entity. The NS bit is writeable only by a non-debug secure entity. For debug accesses, the register is writeable only when NS = 1 or EMU = 1.

Figure 6-3. Programmable Range n Memory Protection Page Attribute Register (PROGn_MPPAR)

31

14 13

Reserved

R

12 11

26

10

25

AID15

R/W

9

AID4 AID3 AID2 AID1 AID0 AIDX

24

AID14

R/W

8

23

AID13

R/W

Reserved

22

AID12

R/W

7

NS

21

AID11

R/W

6

EMU

20

AID10

R/W

5

SR

19

AID9

R/W

4

SW

18

AID8

R/W

3

SX

17

AID7

R/W

2

UR

16

AID6

R/W

1

UW

15

AID5

R/W

0

UX

R/W R/W R/W R/W R/W

Legend: R = Read only; R/W = Read/Write

R/W R R/W R/W R/W R/W R/W R/W R/W R/W

Bits

31-26

25

24

Table 6-18. Programmable Range n Memory Protection Page Attribute Register Field Descriptions

Name

Reserved

AID15

AID14

Description

Reserved. Always read as 0.

Controls access from ID = 15

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 14

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

74

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

8

7

Bits

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

Table 6-18. Programmable Range n Memory Protection Page Attribute Register Field Descriptions

(continued)

Name

AID13

AID12

AID11

AID10

AID9

AID8

AID7

AID6

AID5

AID4

AID3

AID2

AID1

AID0

AIDX

Reserved

NS

Description

Controls access from ID = 13

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 12

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 11

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 10

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 9

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 8

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 7

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 6

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 5

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 4

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 3

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 2

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 1

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID = 0

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Controls access from ID > 15

• 0 = Access is not checked for permissions

• 1 = Access is checked for permissions

Reserved. Always reads as 0.

Non-secure access permission

• 0 = Only secure access allowed

• 1 = Non-secure access allowed

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

75

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Bits

6

5

4

3

2

1

0

Table 6-18. Programmable Range n Memory Protection Page Attribute Register Field Descriptions

(continued)

Name

EMU

SR

SW

SX

UR

UW

UX

Description

Emulation (debug) access permission. This bit is ignored if NS = 1

• 0 = Debug access not allowed

• 1 = Debug access allowed

Supervisor Read permission

• 0 = Access not allowed

• 1 = Access allowed

Supervisor Write permission

• 0 = Access not allowed

• 1 = Access allowed

Supervisor Execute permission

• 0 = Access not allowed

• 1 = Access allowed

User Read permission

• 0 = Access not allowed

• 1 = Access allowed

User Write permission

• 0 = Access not allowed

• 1 = Access allowed

User Execute permission

• 0 = Access not allowed

• 1 = Access allowed

Table 6-19. MPU0-MPU5 Programmable Range n Memory Protection Page Attribute Register

(PROGn_MPPAR) Reset Values

REGISTER

PROG0_MPPAR

PROG1_MPPAR

PROG2_MPPAR

PROG3_MPPAR

PROG4_MPPAR

PROG5_MPPAR

PROG6_MPPAR

PROG7_MPPAR

PROG8_MPPAR

PROG9_MPPAR

PROG10_MPPAR

PROG11_MPPAR

PROG12_MPPAR

PROG13_MPPAR

PROG14_MPPAR

PROG15_MPPAR

MPU0

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB4

0x03FF_FCB6

0x03FF_FCB0

0x03FF_FCB6

MPU1 MPU2

0x03FF_FCB6 0x03FF_FCB6

0x03FF_FCB4 0x03FF_FCB4

0x03FF_FCA4 0x03FF_FCA4

0x03FF_FCB4 0x03FF_FCB4

0x03FF_FCF4 0x03FF_FCF4

0x03FF_FCB4 0x03FF_FCB4

0x03FF_FCB4 0x03FF_FCB4

0x03FF_FCB4 0x03FF_FCB4

0x03FF_FCB4 0x03FF_FCB4

0x03FF_FCF4 0x03FF_FCF4

0x03FF_FCB4 0x03FF_FCB4

0x03FF_FCF4 0x03FF_FCF4

0x03FF_FCA4 0x03FF_FCA4

0x03FF_FCB6 0x03FF_FCB6

0x03FF_FCA4 0x03FF_FCB6

0x03FF_FCA4 0x03FF_FCB6

MPU3

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MPU4

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MPU5

0x03FF_FCB4

0x03FF_FCB4

0x03FF_FCA4

0x03FF_FCF4

0x03FF_FCB4

0x03FF_FCB4

0x03FF_FCB4

0x03FF_FCB4

0x03FF_FCF4

0x03FF_FCB4

0x03FF_FCF4

0x03FF_FCF4

0x03FF_FCA4

0x03FF_FCB6

0x03FF_FCA4

0x03FF_FCA4

Table 6-20. MPU6-MPU11 Programmable Range n Memory Protection Page Attribute Register

(PROGn_MPPAR) Reset Values

REGISTER

PROG0_MPPAR

PROG1_MPPAR

PROG2_MPPAR

MPU6

Reserved

Reserved

Reserved

MPU7 MPU8

0x03FF_FCB6 0x03FF_FCBF

0x03FF_FCBF 0x03FF_FCBF

0x03FF_FCBF 0x03FF_FCBF

MPU9 MPU10 MPU11

0x03FF_FCB6 0x03FF_FCB6 0x03FF_FCB6

0x03FF_FCB6 0x03FF_FCB6 0x03FF_FCB0

0x03FF_FCB6 N/A 0x03FF_FCB6

76

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-20. MPU6-MPU11 Programmable Range n Memory Protection Page Attribute Register

(PROGn_MPPAR) Reset Values (continued)

REGISTER

PROG3_MPPAR

PROG4_MPPAR

PROG5_MPPAR

PROG6_MPPAR

PROG7_MPPAR

PROG8_MPPAR

PROG9_MPPAR

PROG10_MPPAR

PROG11_MPPAR

PROG12_MPPAR

PROG13_MPPAR

PROG14_MPPAR

PROG15_MPPAR

MPU6

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MPU7 MPU8

0x03FF_FCBF 0x03FF_FCBF

0x03FF_FCBF 0x03FF_FCBF

0x03FF_FCBF 0x03FF_FCBF

0x03FF_FCBF 0x03FF_FCBF

0x03FF_FCBF 0x03FF_FCB6

0x03FF_FCBF N/A

0x03FF_FCBF N/A

0x03FF_FCBF N/A

0x03FF_FCBF N/A

0x03FF_FCBF N/A

0x03FF_FCBF N/A

0x03FF_FCBF N/A

0x03FF_FCBF N/A

MPU9 MPU10

0x03FF_FCB6 N/A

0x03FF_FCB6 N/A

0x03FF_FCB6 N/A

0x03FF_FCB6 N/A

0x03FF_FCB6 N/A

0x03FF_FCB6 N/A

0x03FF_FCB6 N/A

0x03FF_FCB6 N/A

0x03FF_FCB6 N/A

0x03FF_FCB6 N/A

0x03FF_FCB6 N/A

0x03FF_FCB6 N/A

0x03FF_FCB6 N/A

MPU11

0x03FF_FCB0

0x03FF_FCB0

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB0

0x03FF_FCB0

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB0

0x03FF_FCB6

0x03FF_FCB0

0x03FF_FCB6

Table 6-21. MPU12-MPU15 Programmable Range n Memory Protection Page Attribute Register

(PROGn_MPPAR) Reset Values

REGISTER

PROG0_MPPAR

PROG1_MPPAR

PROG2_MPPAR

PROG3_MPPAR

PROG4_MPPAR

PROG5_MPPAR

PROG6_MPPAR

PROG7_MPPAR

PROG8_MPPAR

PROG9_MPPAR

PROG10_MPPAR

PROG11_MPPAR

PROG12_MPPAR

PROG13_MPPAR

PROG14_MPPAR

PROG15_MPPAR

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU12

0x03FF_FCB6

0x03FF_FCBF

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU13

0x03FF_FCB6

0x03FF_FCBF

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU14

0x03FF_FCB6

0x03FF_FCBF

N/A

N/A

N/A

N/A

N/A

N/A

N/A

MPU15

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

0x03FF_FCB6

N/A

N/A

N/A

N/A

6.3

Interrupts for AM5K2E0x

This section discusses the interrupt sources, controller, and topology. Also provided are tables describing the interrupt events.

6.3.1

Interrupt Sources and Interrupt Controller

The ARM CorePac interrupts on the AM5K2E0x device are configured through the ARM CorePac Interrupt

Controller. It allows for up to 480 system events to be programmed to any of the ARM core’s IRQ/FIQ interrupts. In addition error-class events or infrequently used events are also routed through the system event router to offload the ARM CorePac interrupt controller. This is accomplished through the CorePac

Interrupt Controller block CIC2. Further, CIC2 provides 8 events each to EDMA3CC0, EDMA3CC1,

EDMA3C2, EDMA3CC3, EDMA3CC4, and Hyperlink.

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

77

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Modules such as CP_MPU, BOOT_CFG, and CP_Tracer have level interrupts and EOI handshaking interface. The EOI value is 0 for CP_MPU, BOOT_CFG, and CP_Tracer.

Figure 6-4

shows the AM5K2E0x interrupt topology.

11

12

13

14

15

16

17

18

19

6

7

8

9

10

1

2

3

4

5

EVENT NO.

0

AM5K2E

479 Events CIC2

448 Primary Events

32 Secondary Events †

56 Primary Events

8 Secondary Events

56 Primary Events

8 Secondary Events †

ARM

INTC

HyperLink

EDMA3

CC0

56 Primary Events

8 Secondary Events †

56 Primary Events

8 Secondary Events †

56 Primary Events

8 Secondary Events †

EDMA3

CC1

EDMA3

CC2

EDMA3

CC3

56 Primary Events

8 Secondary Events †

EDMA3

CC4

† ARM shares two secondary events with every instance of EDMA.

Figure 6-4. Interrupt Topology

Table 6-22

lists the ARM CorePac event inputs

Table 6-22. System Event Mapping — ARM CorePac Interrupts

EVENT NAME

RSTMUX_INT8

RSTMUX_INT9

RSTMUX_INT10

RSTMUX_INT11

IPC_GR8

IPC_GR9

IPC_GR10

IPC_GR11

SEM_INT8

SEM_INT9

SEM_INT10

SEM_INT11

SEM_ERR8

SEM_ERR9

SEM_ERR10

SEM_ERR11

MSMC_MPF_ERROR8

MSMC_MPF_ERROR9

MSMC_MPF_ERROR10

MSMC_MPF_ERROR11

DESCRIPTION

Boot config watchdog timer expiration (timer 16) event for ARM core 0

Boot config watchdog timer expiration (timer 17) event for ARM core 1

Boot config watchdog timer expiration (timer 18) event for ARM core 2

Boot config watchdog timer expiration (timer 19) event for ARM core 3

Boot config IPCG

Boot config IPCG

Boot config IPCG

Boot config IPCG

Semaphore interrupt

Semaphore interrupt

Semaphore interrupt

Semaphore interrupt

Semaphore error interrupt

Semaphore error interrupt

Semaphore error interrupt

Semaphore error interrupt

Memory protection fault indicators for system master PrivID = 8

Memory protection fault indicators for system master PrivID = 9

Memory protection fault indicators for system master PrivID = 10

Memory protection fault indicators for system master PrivID = 11

78

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

56

57

58

59

60

51

52

53

54

55

64

65

66

61

62

63

46

47

48

49

50

41

42

43

44

45

36

37

38

39

40

31

32

33

34

35

26

27

28

29

30

EVENT NO.

20

21

22

23

24

25

Table 6-22. System Event Mapping — ARM CorePac Interrupts (continued)

EVENT NAME

ARM_NPMUIRQ0

ARM_NPMUIRQ1

ARM_NPMUIRQ2

ARM_NPMUIRQ3

ARM_NINTERRIRQ

ARM_NAXIERRIRQ

PCIE_0_INT0

PCIE_0_INT1

PCIE_0_INT2

PCIE_0_INT3

PCIE_0_INT4

PCIE_0_INT5

PCIE_0_INT6

PCIE_0_INT7

PCIE_0_INT8

PCIE_0_INT9

PCIE_0_INT10

PCIE_0_INT11

PCIE_0_INT12

PCIE_0_INT13

QMSS_QUE_PEND_658

QMSS_QUE_PEND_659

QMSS_QUE_PEND_660

QMSS_QUE_PEND_661

QMSS_QUE_PEND_662

QMSS_QUE_PEND_663

QMSS_QUE_PEND_664

QMSS_QUE_PEND_665

QMSS_QUE_PEND_528

QMSS_QUE_PEND_529

QMSS_QUE_PEND_530

QMSS_QUE_PEND_531

QMSS_QUE_PEND_532

QMSS_QUE_PEND_533

QMSS_QUE_PEND_534

QMSS_QUE_PEND_535

QMSS_QUE_PEND_536

QMSS_QUE_PEND_537

QMSS_QUE_PEND_538

QMSS_QUE_PEND_539

QMSS_QUE_PEND_540

QMSS_QUE_PEND_541

QMSS_QUE_PEND_542

QMSS_QUE_PEND_543

QMSS_QUE_PEND_544

QMSS_QUE_PEND_545

QMSS_QUE_PEND_546

DESCRIPTION

ARM performance monitoring unit interrupt request

ARM performance monitoring unit interrupt request

ARM performance monitoring unit interrupt request

ARM performance monitoring unit interrupt request

ARM internal memory ECC error interrupt request

ARM bus error interrupt request

PCIE0 legacy INTA interrupt

PCIE0 legacy INTB interrupt

PCIE0 legacy INTC interrupt

PCIE0 legacy INTD interrupt

PCIE0 MSI interrupt

PCIE0 MSI interrupt

PCIE0 MSI interrupt

PCIE0 MSI interrupt

PCIE0 MSI interrupt

PCIE0 MSI interrupt

PCIE0 MSI interrupt

PCIE0 MSI interrupt

PCIE0 error interrupt

PCIE0 power management interrupt

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

79

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

103

104

105

106

107

98

99

100

101

102

108

109

110

111

112

113

93

94

95

96

97

88

89

90

91

92

83

84

85

86

87

78

79

80

81

82

73

74

75

76

77

EVENT NO.

67

68

69

70

71

72

80

Table 6-22. System Event Mapping — ARM CorePac Interrupts (continued)

TSIP_XMT_SFINT0

TSIP_EINT0

TSIP_RCV_FINT1

TSIP_XMT_FINT1

TSIP_RCV_SFINT1

TSIP_XMT_SFINT1

TSIP_EINT1

Reserved

TIMER_8_INTL

TIMER_8_INTH

TIMER_9_INTL

TIMER_9_INTH

TIMER_10_INTL

TIMER_10_INTH

TIMER_11_INTL

TIMER_11_INTH

TIMER_12_INTL

TIMER_12_INTH

TIMER_13_INTL

TIMER_13_INTH

TIMER_14_INTL

TIMER_14_INTH

TIMER_15_INTL

TIMER_15_INTH

TIMER_16_INTL

TIMER_16_INTH

EVENT NAME

QMSS_QUE_PEND_547

QMSS_QUE_PEND_548

QMSS_QUE_PEND_549

QMSS_QUE_PEND_550

QMSS_QUE_PEND_551

QMSS_QUE_PEND_552

QMSS_QUE_PEND_553

QMSS_QUE_PEND_554

QMSS_QUE_PEND_555

QMSS_QUE_PEND_556

QMSS_QUE_PEND_557

QMSS_QUE_PEND_558

QMSS_QUE_PEND_559

Reserved

Reserved

USIM_PONIRQ

USIM_RREQ

USIM_WREQ

TSIP_RCV_FINT0

TSIP_XMT_FINT0

TSIP_RCV_SFINT0

DESCRIPTION

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Reserved

Reserved

USIM interrupt

USIM read DMA event

USIM write DMA event

TSIP receive frame interrupt for channel 0

TSIP transmit frame interrupt for channel 0

TSIP receive super frame interrupt for channel 0

TSIP transmit super frame interrupt for channel 0

TSIP error interrupt for channel 0

TSIP receive frame interrupt for channel 1

TSIP transmit frame interrupt for channel 1

TSIP receive super frame interrupt for channel 1

TSIP transmit super frame interrupt for channel 1

TSIP error interrupt for channel 1

Reserved

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

150

151

152

153

154

145

146

147

148

149

155

156

157

158

159

160

140

141

142

143

144

135

136

137

138

139

130

131

132

133

134

125

126

127

128

129

120

121

122

123

124

EVENT NO.

114

115

116

117

118

119

Table 6-22. System Event Mapping — ARM CorePac Interrupts (continued)

GPIO_INT15

GPIO_INT16

GPIO_INT17

GPIO_INT18

GPIO_INT19

GPIO_INT20

GPIO_INT21

GPIO_INT22

GPIO_INT23

GPIO_INT24

GPIO_INT25

GPIO_INT26

GPIO_INT27

GPIO_INT28

GPIO_INT29

GPIO_INT30

GPIO_INT31

USB_0_INT00

USB_0_INT01

USB_0_INT02

USB_0_INT03

USB_0_INT04

USB_0_INT05

USB_0_INT06

USB_0_INT07

USB_0_INT08

EVENT NAME

TIMER_17_INTL

TIMER_17_INTH

TIMER_18_INTL

TIMER_18_INTH

TIMER_19_INTL

TIMER_19_INTH

GPIO_INT0

GPIO_INT1

GPIO_INT2

GPIO_INT3

GPIO_INT4

GPIO_INT5

GPIO_INT6

GPIO_INT7

GPIO_INT8

GPIO_INT9

GPIO_INT10

GPIO_INT11

GPIO_INT12

GPIO_INT13

GPIO_INT14

DESCRIPTION

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

USB 0 event ring 0 interrupt

USB 0 event ring 1 interrupt

USB 0 event ring 2 interrupt

USB 0 event ring 3 interrupt

USB 0 event ring 4 interrupt

USB 0 event ring 5 interrupt

USB 0 event ring 6 interrupt

USB 0 event ring 7 interrupt

USB 0 event ring 8 interrupt

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

81

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

197

198

199

200

201

192

193

194

195

196

202

203

204

205

206

207

187

188

189

190

191

182

183

184

185

186

177

178

179

180

181

172

173

174

175

176

167

168

169

170

171

EVENT NO.

161

162

163

164

165

166

82

Table 6-22. System Event Mapping — ARM CorePac Interrupts (continued)

EVENT NAME

USB_0_INT09

USB_0_INT10

USB_0_INT11

USB_0_INT12

USB_0_INT13

USB_0_INT14

USB_0_INT15

USB_0_OABSINT

USB_0_MISCINT

MSMC_DEDC_CERROR

MSMC_DEDC_NC_ERROR

DESCRIPTION

USB 0 event ring 9 interrupt

USB 0 event ring 10 interrupt

USB 0 event ring 11 interrupt

USB 0 event ring 12 interrupt

USB 0 event ring 13 interrupt

USB 0 event ring 14 interrupt

USB 0 event ring 15 interrupt

USB 0 OABS interrupt

USB0_misc_int

MSMC interrupt

MSMC interrupt

MSMC_DEDC_SCRUB_CERROR MSMC interrupt

MSMC_DEDC_SCRUB_NC_ERROR MSMC interrupt

Reserved Reserved

Reserved

QMSS1_ECC_INTR

Reserved

Navigator ECC error interrupt

QMSS_INTD_1_PKTDMA_0

QMSS_INTD_1_PKTDMA_1

QMSS_INTD_1_HIGH_0

QMSS_INTD_1_HIGH_1

QMSS_INTD_1_HIGH_2

Navigator interrupt for Packet DMA starvation

Navigator interrupt for Packet DMA starvation

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

QMSS_INTD_1_HIGH_3

QMSS_INTD_1_HIGH_4

QMSS_INTD_1_HIGH_5

QMSS_INTD_1_HIGH_6

QMSS_INTD_1_HIGH_7

QMSS_INTD_1_HIGH_8

QMSS_INTD_1_HIGH_9

QMSS_INTD_1_HIGH_10

QMSS_INTD_1_HIGH_11

QMSS_INTD_1_HIGH_12

QMSS_INTD_1_HIGH_13

QMSS_INTD_1_HIGH_14

QMSS_INTD_1_HIGH_15

QMSS_INTD_1_HIGH_16

QMSS_INTD_1_HIGH_17

QMSS_INTD_1_HIGH_18

QMSS_INTD_1_HIGH_19

QMSS_INTD_1_HIGH_20

QMSS_INTD_1_HIGH_21

QMSS_INTD_1_HIGH_22

QMSS_INTD_1_HIGH_23

QMSS_INTD_1_HIGH_24

QMSS_INTD_1_HIGH_25

QMSS_INTD_1_HIGH_26

QMSS_INTD_1_HIGH_27

QMSS_INTD_1_HIGH_28

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

244

245

246

247

248

239

240

241

242

243

249

250

251

252

253

254

234

235

236

237

238

229

230

231

232

233

224

225

226

227

228

219

220

221

222

223

214

215

216

217

218

EVENT NO.

208

209

210

211

212

213

Table 6-22. System Event Mapping — ARM CorePac Interrupts (continued)

EVENT NAME

QMSS_INTD_1_HIGH_29

QMSS_INTD_1_HIGH_30

QMSS_INTD_1_HIGH_31

QMSS_INTD_1_LOW_0

QMSS_INTD_1_LOW_1

QMSS_INTD_1_LOW_2

QMSS_INTD_1_LOW_3

QMSS_INTD_1_LOW_4

QMSS_INTD_1_LOW_5

QMSS_INTD_1_LOW_6

QMSS_INTD_1_LOW_7

QMSS_INTD_1_LOW_8

QMSS_INTD_1_LOW_9

QMSS_INTD_1_LOW_10

QMSS_INTD_1_LOW_11

QMSS_INTD_1_LOW_12

QMSS_INTD_1_LOW_13

QMSS_INTD_1_LOW_14

QMSS_INTD_1_LOW_15

Reserved

Reserved

QMSS_INTD_2_HIGH_0

QMSS_INTD_2_HIGH_1

QMSS_INTD_2_HIGH_2

QMSS_INTD_2_HIGH_3

QMSS_INTD_2_HIGH_4

QMSS_INTD_2_HIGH_5

QMSS_INTD_2_HIGH_6

QMSS_INTD_2_HIGH_7

QMSS_INTD_2_HIGH_8

QMSS_INTD_2_HIGH_9

QMSS_INTD_2_HIGH_10

QMSS_INTD_2_HIGH_11

QMSS_INTD_2_HIGH_12

QMSS_INTD_2_HIGH_13

QMSS_INTD_2_HIGH_14

QMSS_INTD_2_HIGH_15

QMSS_INTD_2_HIGH_16

QMSS_INTD_2_HIGH_17

QMSS_INTD_2_HIGH_18

QMSS_INTD_2_HIGH_19

QMSS_INTD_2_HIGH_20

QMSS_INTD_2_HIGH_21

QMSS_INTD_2_HIGH_22

QMSS_INTD_2_HIGH_23

QMSS_INTD_2_HIGH_24

QMSS_INTD_2_HIGH_25

DESCRIPTION

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Reserved

Reserved

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

83

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

291

292

293

294

295

286

287

288

289

290

296

297

298

299

300

301

281

282

283

284

285

276

277

278

279

280

271

272

273

274

275

266

267

268

269

270

261

262

263

264

265

EVENT NO.

255

256

257

258

259

260

84

Table 6-22. System Event Mapping — ARM CorePac Interrupts (continued)

EVENT NAME

QMSS_INTD_2_HIGH_26

QMSS_INTD_2_HIGH_27

QMSS_INTD_2_HIGH_28

QMSS_INTD_2_HIGH_29

QMSS_INTD_2_HIGH_30

QMSS_INTD_2_HIGH_31

QMSS_INTD_2_LOW_0

QMSS_INTD_2_LOW_1

QMSS_INTD_2_LOW_2

QMSS_INTD_2_LOW_3

QMSS_INTD_2_LOW_4

QMSS_INTD_2_LOW_5

QMSS_INTD_2_LOW_6

QMSS_INTD_2_LOW_7

QMSS_INTD_2_LOW_8

QMSS_INTD_2_LOW_9

QMSS_INTD_2_LOW_10

QMSS_INTD_2_LOW_11

QMSS_INTD_2_LOW_12

QMSS_INTD_2_LOW_13

QMSS_INTD_2_LOW_14

QMSS_INTD_2_LOW_15

UART_0_UARTINT

UART_0_URXEVT

UART_0_UTXEVT

UART_1_UARTINT

UART_1_URXEVT

UART_1_UTXEVT

I2C_0_INT

I2C_0_REVT

I2C_0_XEVT

I2C_1_INT

I2C_1_REVT

I2C_1_XEVT

I2C_2_INT

I2C_2_REVT

I2C_2_XEVT

SPI_0_INT0

SPI_0_INT1

SPI_0_XEVT

SPI_0_REVT

SPI_1_INT0

SPI_1_INT1

SPI_1_XEVT

SPI_1_REVT

SPI_2_INT0

SPI_2_INT1

DESCRIPTION

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

UART0 interrupt

UART0 receive event

UART0 transmit event

UART1 interrupt

UART1 receive event

UART1 transmit event

I2C interrupt

I2C receive event

I2C transmit event

I2C interrupt

I2C receive event

I2C transmit event

I2C interrupt

I2C receive event

I2C transmit event

SPI interrupt

SPI interrupt

SPI DMA TX event

SPI DMA RX event

SPI interrupt

SPI interrupt

SPI DMA TX event

SPI DMA RX event

SPI interrupt

SPI interrupt

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

338

339

340

341

342

333

334

335

336

337

343

344

345

346

347

348

328

329

330

331

332

323

324

325

326

327

318

319

320

321

322

313

314

315

316

317

308

309

310

311

312

EVENT NO.

302

303

304

305

306

307

Table 6-22. System Event Mapping — ARM CorePac Interrupts (continued)

EDMACC_1_GINT

EDMACC_1_TC_0_INT

EDMACC_1_TC_1_INT

EDMACC_1_TC_2_INT

EDMACC_1_TC_3_INT

EDMACC_1_TC_4_INT

EDMACC_1_TC_5_INT

EDMACC_1_TC_6_INT

EDMACC_1_TC_7_INT

EDMACC_2_GINT

EDMACC_2_TC_0_INT

EDMACC_2_TC_1_INT

EDMACC_2_TC_2_INT

EDMACC_2_TC_3_INT

EDMACC_2_TC_4_INT

EDMACC_2_TC_5_INT

EDMACC_2_TC_6_INT

EDMACC_2_TC_7_INT

EDMACC_3_GINT

EDMACC_3_TC_0_INT

EDMACC_3_TC_1_INT

EDMACC_3_TC_2_INT

EDMACC_3_TC_3_INT

EDMACC_3_TC_4_INT

EDMACC_3_TC_5_INT

EDMACC_3_TC_6_INT

EVENT NAME

SPI_2_XEVT

SPI_2_REVT

DBGTBR_DMAINT

DBGTBR_ACQCOMP

ARM_TBR_DMA

ARM_TBR_ACQ

NETCP_MDIO_LINK_INT0

NETCP_MDIO_LINK_INT1

NETCP_MDIO_USER_INT0

NETCP_MDIO_USER_INT1

NETCP_MISC_INT

Reserved

EDMACC_0_GINT

EDMACC_0_TC_0_INT

EDMACC_0_TC_1_INT

EDMACC_0_TC_2_INT

EDMACC_0_TC_3_INT

EDMACC_0_TC_4_INT

EDMACC_0_TC_5_INT

EDMACC_0_TC_6_INT

EDMACC_0_TC_7_INT

DESCRIPTION

SPI DMA TX event

SPI DMA RX event

Debug trace buffer (TBR) DMA event

Debug Trace buffer (TBR) acquisition has been completed

ARM Trace Buffer (TBR) DMA event

ARM Trace Buffer (TBR) Acquisition has been completed

Packet Accelerator 1subsystem MDIO interrupt

Packet Accelerator 1subsystem MDIO interrupt

Packet Accelerator 1subsystem MDIO interrupt

Packet Accelerator 1subsystem MDIO interrupt

Packet Accelerator 1subsystem MDIO interrupt

EDMA3CC0 global completion interrupt

EDMA3CC0 individual completion interrupt

EDMA3CC0 individual completion interrupt

EDMA3CC0 individual completion interrupt

EDMA3CC0 individual completion interrupt

EDMA3CC0 individual completion interrupt

EDMA3CC0 individual completion interrupt

EDMA3CC0 individual completion interrupt

EDMA3CC0 individual completion interrupt

EDMA3CC1 global completion interrupt

EDMA3CC1 individual completion interrupt

EDMA3CC1 individual completion interrupt

EDMA3CC1 individual completion interrupt

EDMA3CC1 individual completion interrupt

EDMA3CC1 individual completion interrupt

EDMA3CC1 individual completion interrupt

EDMA3CC1 individual completion interrupt

EDMA3CC1 individual completion interrupt

EDMA3CC2 global completion interrupt

EDMA3CC2 individual completion interrupt

EDMA3CC2 individual completion interrupt

EDMA3CC2 individual completion interrupt

EDMA3CC2 individual completion interrupt

EDMA3CC2 individual completion interrupt

EDMA3CC2 individual completion interrupt

EDMA3CC2 individual completion interrupt

EDMA3CC2 individual completion interrupt

EDMA3CC3 global completion interrupt

EDMA3CC3 individual completion interrupt

EDMA3CC3 individual completion interrupt

EDMA3CC3 individual completion interrupt

EDMA3CC3 individual completion interrupt

EDMA3CC3 individual completion interrupt

EDMA3CC3 individual completion interrupt

EDMA3CC3 individual completion interrupt

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

85

366

367

368

369

370

385

386

387

388

389

380

381

382

383

384

390

391

392

375

376

377

378

379

371

372

373

374

360

361

362

363

364

355

356

357

358

359

EVENT NO.

349

350

351

352

353

354

365

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 6-22. System Event Mapping — ARM CorePac Interrupts (continued)

EVENT NAME

EDMACC_3_TC_7_INT

EDMACC_4_GINT

EDMACC_4_TC_0_INT

EDMACC_4_TC_1_INT

EDMACC_4_TC_2_INT

EDMACC_4_TC_3_INT

EDMACC_4_TC_4_INT

EDMACC_4_TC_5_INT

EDMACC_4_TC_6_INT

EDMACC_4_TC_7_INT

SR_0_PO_VCON_SMPSERR_INT

SR_0_SMARTREFLEX_INTREQ0

SR_0_SMARTREFLEX_INTREQ1

SR_0_SMARTREFLEX_INTREQ2

SR_0_SMARTREFLEX_INTREQ3

SR_0_VPNOSMPSACK

SR_0_VPEQVALUE

SR_0_VPMAXVDD

SR_0_VPMINVDD

SR_0_VPINIDLE

SR_0_VPOPPCHANGEDONE

SR_0_VPSMPSACK

SR_0_SR_TEMPSENSOR

SR_0_SR_TIMERINT

PCIE_1_INT0

PCIE_1_INT1

PCIE_1_INT2

PCIE_1_INT3

PCIE_1_INT4

PCIE_1_INT5

PCIE_1_INT6

PCIE_1_INT7

PCIE_1_INT8

PCIE_1_INT9

PCIE_1_INT10

PCIE_1_INT11

PCIE_1_INT12

PCIE_1_INT13

HYPERLINK_0_INT

DDR3_ERR

ARM_NCTIIRQ0

ARM_NCTIIRQ1

ARM_NCTIIRQ2

ARM_NCTIIRQ3

DESCRIPTION

EDMA3CC3 individual completion interrupt

EDMA3CC4 global completion interrupt

EDMA3CC4 individual completion interrupt

EDMA3CC4 individual completion interrupt

EDMA3CC4 individual completion interrupt

EDMA3CC4 individual completion interrupt

EDMA3CC4 individual completion interrupt

EDMA3CC4 individual completion interrupt

EDMA3CC4 individual completion interrupt

EDMA3CC4 individual completion interrupt

SmartReflex SMPS error interrupt

SmartReflex controller interrupt

SmartReflex controller interrupt

SmartReflex controller interrupt

SmartReflex controller interrupt

SmartReflex VPVOLTUPDATE has been asserted, but SMPS has not been responded to in a defined time interval

SmartReflex SRSINTERUPT is asserted, but the new voltage is not different from the current SMPS voltage

SmartReflex. The new voltage required is equal to or greater than MaxVdd

SmartReflex. The new voltage required is equal to or less than MinVdd

SmartReflex indicating that the FSM of voltage processor is in idle

SmartReflex indicating that the average frequency error is within the desired limit

SmartReflex VPVOLTUPDATE asserted and SMPS has acknowledged in a defined time interval

SmartReflex temperature threshold crossing interrupt

SmartReflex internal timer expiration interrupt

PCIE1 legacy INTA interrupt

PCIE1 legacy INTB interrupt

PCIE1 legacy INTC interrupt

PCIE1 legacy INTD interrupt

PCIE1 MSI interrupt

PCIE1 MSI interrupt

PCIE1 MSI interrupt

PCIE1 MSI interrupt

PCIE1 MSI interrupt

PCIE1 MSI interrupt

PCIE1 MSI interrupt

PCIE1 MSI interrupt

PCIE1 error interrupt

PCIE1 power management interrupt

HyperLink interrupt

DDR3 interrupt

ARM cross trigger (CTI) IRQ interrupt

ARM cross trigger (CTI) IRQ interrupt

ARM cross trigger (CTI) IRQ interrupt

ARM cross trigger (CTI) IRQ interrupt

86

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

429

430

431

432

433

424

425

426

427

428

434

435

436

437

438

439

419

420

421

422

423

414

415

416

417

418

409

410

411

412

413

404

405

406

407

408

399

400

401

402

403

EVENT NO.

393

394

395

396

397

398

Table 6-22. System Event Mapping — ARM CorePac Interrupts (continued)

EVENT NAME

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

10GbE_LINK_INT0

10GbE_USER_INT0

10GbE_LINK_INT1

10GbE_USER_INT1

10GbE_MISC_INT

10GbE_INT_PKTDMA_0

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

USB_1_INT00

USB_1_INT01

USB_1_INT02

USB_1_INT03

USB_1_INT04

USB_1_INT05

USB_1_INT06

USB_1_INT07

USB_1_INT08

USB_1_INT09

USB_1_INT10

USB_1_INT11

USB_1_INT12

USB_1_INT13

USB_1_INT14

USB_1_INT15

USB_1_OABSINT

USB_1_MISCINT

NETCP_GLOBAL_STARVE

NETCP_LOCAL_STARVE

NETCP_PA_ECC_INT

NETCP_SA_ECC_INT

NETCP_SWITCH_ECC_INT

NETCP_SWITCH_STAT_INT0

NETCP_SWITCH_STAT_INT1

NETCP_SWITCH_STAT_INT2

DESCRIPTION

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

10 Gigabit Ethernet subsystem MDIO interrupt

10 Gigabit Ethernet subsystem MDIO interrupt

10 Gigabit Ethernet subsystem MDIO interrupt

10 Gigabit Ethernet subsystem MDIO interrupt

10 Gigabit Ethernet subsystem MDIO interrupt

10 Gigabit Ethernet Packet DMA starvation interrupt

USB 1 event ring 0 interrupt

USB 1 event ring 1 interrupt

USB 1 event ring 2 interrupt

USB 1 event ring 3 interrupt

USB 1 event ring 4 interrupt

USB 1 event ring 5 interrupt

USB 1 event ring 6 interrupt

USB 1 event ring 7 interrupt

USB 1 event ring 8 interrupt

USB 1 event ring 9 interrupt

USB 1 event ring 10 interrupt

USB 1 event ring 11 interrupt

USB 1 event ring 12 interrupt

USB 1 event ring 13 interrupt

USB 1 event ring 14 interrupt

USB 1 event ring 15 interrupt

USB 1 OABS interrupt

USB 1 miscellaneous interrupt

NETCP GLOBAL interrupt

NETCP LOCAL interrupt

NETCP PA ECC interrupt

NETCP SA ECC interrupt

NETCP SWITCH ECC interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

87

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

471

472

473

474

475

476

477

478

479

466

467

468

469

470

461

462

463

464

465

456

457

458

459

460

451

452

453

454

455

446

447

448

449

450

EVENT NO.

440

441

442

443

444

445

Table 6-23

lists the CIC2 event inputs.

Table 6-22. System Event Mapping — ARM CorePac Interrupts (continued)

CIC_2_OUT42

CIC_2_OUT43

CIC_2_OUT44

CIC_2_OUT45

CIC_2_OUT46

CIC_2_OUT47

CIC_2_OUT18

CIC_2_OUT19

CIC_2_OUT22

CIC_2_OUT23

CIC_2_OUT50

CIC_2_OUT51

CIC_2_OUT66

CIC_2_OUT67

CIC_2_OUT88

CIC_2_OUT89

CIC_2_OUT90

CIC_2_OUT91

CIC_2_OUT92

EVENT NAME

NETCP_SWITCH_STAT_INT3

NETCP_SWITCH_STAT_INT4

NETCP_SWITCH_STAT_INT5

NETCP_SWITCH_STAT_INT6

NETCP_SWITCH_STAT_INT7

NETCP_SWITCH_INT

NETCP_SWITCH_STAT_INT0

Reserved

CIC_2_OUT29

CIC_2_OUT30

CIC_2_OUT31

CIC_2_OUT32

CIC_2_OUT33

CIC_2_OUT34

CIC_2_OUT35

CIC_2_OUT36

CIC_2_OUT37

CIC_2_OUT38

CIC_2_OUT39

CIC_2_OUT40

CIC_2_OUT41

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

DESCRIPTION

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH interrupt

NETCP SWITCH STAT interrupt

Reserved

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

CIC2 interrupt

1

2

EVENT NO.

0

88

Table 6-23. CIC2 Event Inputs (Secondary Events for EDMA3CC and Hyperlink)

EVENT NAME

GPIO_INT8

GPIO_INT9

GPIO_INT10

DESCRIPTION

GPIO interrupt

GPIO interrupt

GPIO interrupt

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-23. CIC2 Event Inputs (Secondary Events for EDMA3CC and Hyperlink) (continued)

EVENT NAME

GPIO_INT11

GPIO_INT12

GPIO_INT13

GPIO_INT14

GPIO_INT15

DBGTBR_DMAINT

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

DFT_PBIST_CPU_INT

QMSS_INTD_1_HIGH_16

QMSS_INTD_1_HIGH_17

QMSS_INTD_1_HIGH_18

QMSS_INTD_1_HIGH_19

QMSS_INTD_1_HIGH_20

QMSS_INTD_1_HIGH_21

QMSS_INTD_1_HIGH_22

QMSS_INTD_1_HIGH_23

QMSS_INTD_1_HIGH_24

QMSS_INTD_1_HIGH_25

QMSS_INTD_1_HIGH_26

QMSS_INTD_1_HIGH_27

QMSS_INTD_1_HIGH_28

QMSS_INTD_1_HIGH_29

QMSS_INTD_1_HIGH_30

QMSS_INTD_1_HIGH_31

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

TRACER_DDR_INT

39

40

41

42

43

34

35

36

37

38

47

48

49

44

45

46

29

30

31

32

33

24

25

26

27

28

19

20

21

22

23

14

15

16

17

18

9

10

11

12

13

4

5

6

7

8

EVENT NO.

3

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

DESCRIPTION

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

Debug trace buffer (TBR) DMA event

Reserved

Reserved

Reserved

Reserved

Reserved

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Tracer sliding time window interrupt for MSMC-DDR3

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

89

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 6-23. CIC2 Event Inputs (Secondary Events for EDMA3CC and Hyperlink) (continued)

86

87

88

89

90

81

82

83

84

85

94

95

96

91

92

93

76

77

78

79

80

71

72

73

74

75

66

67

68

69

70

61

62

63

64

65

56

57

58

59

60

EVENT NO.

50

51

52

53

54

55

EVENT NAME

TRACER_MSMC_0_INT

TRACER_MSMC_1_INT

TRACER_MSMC_2_INT

TRACER_MSMC_3_INT

TRACER_CFG_INT

TRACER_QMSS_QM_CFG1_INT

TRACER_QMSS_DMA_INT

TRACER_SEM_INT

Reserved

Reserved

Reserved

Reserved

BOOTCFG_INT

NETCP_0_PKTDMA_INT0

MPU_0_INT

MSMC_SCRUB_CERROR

MPU_1_INT

Reserved

MPU_2_INT

QMSS_INTD_1_PKTDMA_0

Reserved

QMSS_INTD_1_PKTDMA_1

MSMC_DEDC_CERROR

MSMC_DEDC_NC_ERROR

MSMC_SCRUB_NC_ERROR

Reserved

MSMC_MPF_ERROR0

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MSMC_MPF_ERROR8

MSMC_MPF_ERROR9

MSMC_MPF_ERROR10

MSMC_MPF_ERROR11

MSMC_MPF_ERROR12

MSMC_MPF_ERROR13

MSMC_MPF_ERROR14

MSMC_MPF_ERROR15

Reserved

GPIO_INT16

GPIO_INT17

GPIO_INT18

GPIO_INT19

DESCRIPTION

Tracer sliding time window interrupt for MSMC SRAM bank0

Tracer sliding time window interrupt for MSMC SRAM bank1

Tracer sliding time window interrupt for MSMC SRAM bank2

Tracer sliding time window interrupt for MSMC SRAM bank3

Tracer sliding time window interrupt for TeraNet CFG

Tracer sliding time window interrupt for Navigator CFG1 slave port

Tracer sliding time window interrupt for Navigator VBUSM slave port

Tracer sliding time window interrupt for Semaphore interrupt

Reserved

Reserved

Reserved

Reserved

BOOTCFG error interrupt

Packet Accelerator0 Packet DMA starvation interrupt

MPU0 interrupt

MSMC error interrupt

MPU1 interrupt

Reserved

MPU2 interrupt

Navigator Packet DMA interrupt

Reserved

Navigator Packet DMA interrupt

MSMC error interrupt

MSMC error interrupt

MSMC error interrupt

Reserved

Memory protection fault indicators for system master PrivID = 0

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Memory protection fault indicators for system master PrivID = 8

Memory protection fault indicators for system master PrivID = 9

Memory protection fault indicators for system master PrivID = 10

Memory protection fault indicators for system master PrivID = 11

Memory protection fault indicators for system master PrivID = 12

Memory protection fault indicators for system master PrivID = 13

Memory protection fault indicators for system master PrivID = 14

Memory protection fault indicators for system master PrivID = 15

Reserved

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

90

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-23. CIC2 Event Inputs (Secondary Events for EDMA3CC and Hyperlink) (continued)

EVENT NAME

GPIO_INT20

GPIO_INT21

GPIO_INT22

GPIO_INT23

GPIO_INT24

GPIO_INT25

GPIO_INT26

GPIO_INT27

GPIO_INT28

GPIO_INT29

GPIO_INT30

GPIO_INT31

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

AEMIF_EASYNCERR

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

QMSS_INTD_1_HIGH_0

QMSS_INTD_1_HIGH_1

QMSS_INTD_1_HIGH_2

QMSS_INTD_1_HIGH_3

QMSS_INTD_1_HIGH_4

QMSS_INTD_1_HIGH_5

133

134

135

136

137

128

129

130

131

132

138

139

140

141

142

143

123

124

125

126

127

118

119

120

121

122

113

114

115

116

117

108

109

110

111

112

103

104

105

106

107

EVENT NO.

97

98

99

100

101

102

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

DESCRIPTION

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Asynchronous EMIF16 error interrupt

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

91

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 6-23. CIC2 Event Inputs (Secondary Events for EDMA3CC and Hyperlink) (continued)

EVENT NAME

QMSS_INTD_1_HIGH_6

QMSS_INTD_1_HIGH_7

QMSS_INTD_1_HIGH_8

QMSS_INTD_1_HIGH_9

QMSS_INTD_1_HIGH_10

QMSS_INTD_1_HIGH_11

QMSS_INTD_1_HIGH_12

QMSS_INTD_1_HIGH_13

QMSS_INTD_1_HIGH_14

QMSS_INTD_1_HIGH_15

QMSS_INTD_2_HIGH_0

QMSS_INTD_2_HIGH_1

QMSS_INTD_2_HIGH_2

QMSS_INTD_2_HIGH_3

QMSS_INTD_2_HIGH_4

QMSS_INTD_2_HIGH_5

QMSS_INTD_2_HIGH_6

QMSS_INTD_2_HIGH_7

QMSS_INTD_2_HIGH_8

QMSS_INTD_2_HIGH_9

QMSS_INTD_2_HIGH_10

QMSS_INTD_2_HIGH_11

QMSS_INTD_2_HIGH_12

QMSS_INTD_2_HIGH_13

QMSS_INTD_2_HIGH_14

QMSS_INTD_2_HIGH_15

QMSS_INTD_2_HIGH_16

QMSS_INTD_2_HIGH_17

QMSS_INTD_2_HIGH_18

QMSS_INTD_2_HIGH_19

QMSS_INTD_2_HIGH_20

QMSS_INTD_2_HIGH_21

QMSS_INTD_2_HIGH_22

QMSS_INTD_2_HIGH_23

QMSS_INTD_2_HIGH_24

QMSS_INTD_2_HIGH_25

QMSS_INTD_2_HIGH_26

QMSS_INTD_2_HIGH_27

QMSS_INTD_2_HIGH_28

QMSS_INTD_2_HIGH_29

QMSS_INTD_2_HIGH_30

QMSS_INTD_2_HIGH_31

MPU_12_INT

MPU_13_INT

MPU_14_INT

MPU_15_INT

Reserved

180

181

182

183

184

175

176

177

178

179

185

186

187

188

189

190

170

171

172

173

174

165

166

167

168

169

160

161

162

163

164

155

156

157

158

159

150

151

152

153

154

EVENT NO.

144

145

146

147

148

149

DESCRIPTION

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

Navigator second hi interrupt

MPU12 addressing violation interrupt and protection violation interrupt

MPU13 addressing violation interrupt and protection violation interrupt

MPU14 addressing violation interrupt and protection violation interrupt

MPU15 addressing violation interrupt and protection violation interrupt

Reserved

92

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

219

220

221

222

223

214

215

216

217

218

209

210

211

212

213

202

203

204

205

206

207

208

229

230

231

232

233

234

235

236

237

224

225

226

227

228

Table 6-23. CIC2 Event Inputs (Secondary Events for EDMA3CC and Hyperlink) (continued)

197

198

199

200

201

EVENT NO.

191

192

193

194

195

196

EVENT NAME

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

TRACER_QMSS_QM_CFG2_INT

TRACER_EDMACC_0

TRACER_EDMACC_123_INT

TRACER_CIC_INT

Reserved

MPU_5_INT

Reserved

MPU_7_INT

MPU_8_INT

Reserved

Reserved

Reserved

DDR3_0_ERR

HYPERLINK_0_INT

EDMACC_0_ERRINT

EDMACC_0_MPINT

EDMACC_0_TC_0_ERRINT

EDMACC_0_TC_1_ERRINT

EDMACC_1_ERRINT

EDMACC_1_MPINT

EDMACC_1_TC_0_ERRINT

EDMACC_1_TC_1_ERRINT

EDMACC_1_TC_2_ERRINT

EDMACC_1_TC_3_ERRINT

EDMACC_2_ERRINT

EDMACC_2_MPINT

EDMACC_2_TC_0_ERRINT

EDMACC_2_TC_1_ERRINT

EDMACC_2_TC_2_ERRINT

EDMACC_2_TC_3_ERRINT

EDMACC_3_ERRINT

EDMACC_3_MPINT

EDMACC_3_TC_0_ERRINT

EDMACC_3_TC_1_ERRINT

EDMACC_4_ERRINT

EDMACC_4_MPINT

EDMACC_4_TC_0_ERRINT

EDMACC_4_TC_1_ERRINT

QMSS_QUE_PEND_652

DESCRIPTION

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Tracer sliding time window interrupt for Navigator CFG2 slave port

Tracer sliding time window interrupt foR EDMA3CC0

Tracer sliding time window interrupt for EDMA3CC1, EDMA3CC2, and

EDMA3CC3

Tracer sliding time window interrupt for interrupt controllers (CIC)

Reserved

MPU5 addressing violation interrupt and protection violation interrupt

Reserved

MPU7 addressing violation interrupt and protection violation interrupt

MPU8 addressing violation interrupt and protection violation interrupt

Reserved

Reserved

Reserved

DDR3 error interrupt

HyperLink interrupt

EDMA3CC0 error interrupt

EDMA3CC0 memory protection interrupt

EDMA3CC0 TPTC0 error interrupt

EDMA3CC0 TPTC1 error interrupt

EDMA3CC1 error interrupt

EDMA3CC1 memory protection interrupt

EDMA3CC1 TPTC0 error interrupt

EDMA3CC1 TPTC1 error interrupt

EDMA3CC1 TPTC2 error interrupt

EDMA3CC1 TPTC3 error interrupt

EDMA3CC2 error interrupt

EDMA3CC2 memory protection interrupt

EDMA3CC2 TPTC0 error interrupt

EDMA3CC2 TPTC1 error interrupt

EDMA3CC2 TPTC2 error interrupt

EDMA3CC2 TPTC3 error interrupt

EDMA3CC3 error interrupt

EDMA3CC3 memory protection interrupt

EDMA3CC3 TPTC0 error interrupt

EDMA3CC3 TPTC1 error interrupt

EDMA3CC4 error interrupt

EDMA3CC4 memory protection interrupt

EDMA3CC4 TPTC0 error interrupt

EDMA3CC4 TPTC1 error interrupt

Navigator transmit queue pending event for indicated queue

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

93

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 6-23. CIC2 Event Inputs (Secondary Events for EDMA3CC and Hyperlink) (continued)

EVENT NAME

QMSS_QUE_PEND_653

QMSS_QUE_PEND_654

QMSS_QUE_PEND_655

QMSS_QUE_PEND_656

QMSS_QUE_PEND_657

QMSS_QUE_PEND_658

QMSS_QUE_PEND_659

QMSS_QUE_PEND_660

QMSS_QUE_PEND_661

QMSS_QUE_PEND_662

QMSS_QUE_PEND_663

QMSS_QUE_PEND_664

QMSS_QUE_PEND_665

QMSS_QUE_PEND_666

QMSS_QUE_PEND_667

QMSS_QUE_PEND_668

QMSS_QUE_PEND_669

QMSS_QUE_PEND_670

QMSS_QUE_PEND_671

QMSS_QUE_PEND_672

QMSS_QUE_PEND_673

QMSS_QUE_PEND_674

QMSS_QUE_PEND_675

QMSS_QUE_PEND_676

QMSS_QUE_PEND_677

QMSS_QUE_PEND_678

QMSS_QUE_PEND_679

QMSS_QUE_PEND_680

QMSS_QUE_PEND_681

QMSS_QUE_PEND_682

QMSS_QUE_PEND_683

QMSS_QUE_PEND_684

QMSS_QUE_PEND_685

QMSS_QUE_PEND_686

QMSS_QUE_PEND_687

QMSS_QUE_PEND_688

QMSS_QUE_PEND_689

QMSS_QUE_PEND_690

QMSS_QUE_PEND_691

10GbE_LINK_INT0

10GbE_LINK_INT1

10GbE_USER_INT0

10GbE_USER_INT1

10GbE_MISC_INT

10GbE_INT_PKTDMA_0

Reserved

Reserved

274

275

276

277

278

269

270

271

272

273

279

280

281

282

283

284

264

265

266

267

268

259

260

261

262

263

254

255

256

257

258

249

250

251

252

253

244

245

246

247

248

EVENT NO.

238

239

240

241

242

243

DESCRIPTION

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

10 Gigabit Ethernet subsystem MDIO interrupt

10 Gigabit Ethernet subsystem MDIO interrupt

10 Gigabit Ethernet subsystem MDIO interrupt

10 Gigabit Ethernet subsystem MDIO interrupt

10 Gigabit Ethernet subsystem MDIO interrupt

10 Gigabit Ethernet Packet DMA starvation interrupt

Reserved

Reserved

94

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-23. CIC2 Event Inputs (Secondary Events for EDMA3CC and Hyperlink) (continued)

EVENT NAME

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

SEM_INT8

SEM_INT9

SEM_INT10

SEM_INT11

SEM_INT12

Reserved

Reserved

Reserved

SEM_ERR8

SEM_ERR9

SEM_ERR10

SEM_ERR11

SEM_ERR12

QMSS1_ECC_INTR

QMSS_INTD_1_LOW_0

QMSS_INTD_1_LOW_1

QMSS_INTD_1_LOW_2

QMSS_INTD_1_LOW_3

QMSS_INTD_1_LOW_4

QMSS_INTD_1_LOW_5

QMSS_INTD_1_LOW_6

QMSS_INTD_1_LOW_7

QMSS_INTD_1_LOW_8

QMSS_INTD_1_LOW_9

QMSS_INTD_1_LOW_10

QMSS_INTD_1_LOW_11

QMSS_INTD_1_LOW_12

QMSS_INTD_1_LOW_13

QMSS_INTD_1_LOW_14

QMSS_INTD_1_LOW_15

QMSS_INTD_2_LOW_0

QMSS_INTD_2_LOW_1

QMSS_INTD_2_LOW_2

QMSS_INTD_2_LOW_3

QMSS_INTD_2_LOW_4

QMSS_INTD_2_LOW_5

QMSS_INTD_2_LOW_6

QMSS_INTD_2_LOW_7

QMSS_INTD_2_LOW_8

QMSS_INTD_2_LOW_9

QMSS_INTD_2_LOW_10

321

322

323

324

325

316

317

318

319

320

326

327

328

329

330

331

311

312

313

314

315

306

307

308

309

310

301

302

303

304

305

296

297

298

299

300

291

292

293

294

295

EVENT NO.

285

286

287

288

289

290

DESCRIPTION

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Semaphore interrupt

Semaphore interrupt

Semaphore interrupt

Semaphore interrupt

Semaphore interrupt

Reserved

Reserved

Reserved

Semaphore error interrupt

Semaphore error interrupt

Semaphore error interrupt

Semaphore error interrupt

Semaphore error interrupt

Navigator ECC error interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

95

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 6-23. CIC2 Event Inputs (Secondary Events for EDMA3CC and Hyperlink) (continued)

EVENT NAME

QMSS_INTD_2_LOW_11

QMSS_INTD_2_LOW_12

QMSS_INTD_2_LOW_13

QMSS_INTD_2_LOW_14

QMSS_INTD_2_LOW_15

NETCP_MDIO_LINK_INT0

NETCP_MDIO_LINK_INT1

NETCP_MDIO_USER_INT0

NETCP_MDIO_USER_INT1

NETCP_MISC_INT

NETCP_GLOBAL_STARVE_INT

NETCP_LOCAL_STARVE_INT

NETCP_PA_ECC_INT

NETCP_SA_ECC_INT

NETCP_SWITCH_ECC_INT

NETCP_SWITCH_STAT_INT0

NETCP_SWITCH_STAT_INT1

NETCP_SWITCH_STAT_INT2

NETCP_SWITCH_STAT_INT3

NETCP_SWITCH_STAT_INT4

NETCP_SWITCH_STAT_INT5

NETCP_SWITCH_STAT_INT6

NETCP_SWITCH_STAT_INT7

NETCP_SWITCH_STAT_INT8

NETCP_SWITCH_INT

Reserved

Reserved

Reserved

Reserved

Reserved

PSC_ALLINT

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MPU_9_INT

MPU_10_INT

MPU_11_INT

TRACER_MSMC_4_INT

TRACER_MSMC_5_INT

TRACER_MSMC_6_INT

TRACER_MSMC_7_INT

368

369

370

371

372

363

364

365

366

367

373

374

375

376

377

378

358

359

360

361

362

353

354

355

356

357

348

349

350

351

352

343

344

345

346

347

338

339

340

341

342

EVENT NO.

332

333

334

335

336

337

DESCRIPTION

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator second interrupt

Navigator interrupt

Packet Accelerator subsystem MDIO interrupt

Packet Accelerator subsystem MDIO interrupt

Packet Accelerator subsystem MDIO interrupt

Packet Accelerator subsystem MDIO interrupt

Packet Accelerator subsystem MDIO interrupt

Packet Accelerator interrupt

Packet Accelerator interrupt

Packet Accelerator interrupt

Packet Accelerator interrupt

NETCP SWITCH ECC interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH STAT interrupt

NETCP SWITCH interrupt

Reserved

Reserved

Reserved

Reserved

Reserved

PSC interrupt

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MPU9 addressing violation interrupt and protection violation interrupt

MPU10 addressing violation interrupt and protection violation interrupt

MPU11 addressing violation interrupt and protection violation interrupt

Tracer sliding time window interrupt for MSMC SRAM bank 4

Tracer sliding time window interrupt for MSMC SRAM bank 4

Tracer sliding time window interrupt for MSMC SRAM bank 4

Tracer sliding time window interrupt for MSMC SRAM bank 4

96

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-23. CIC2 Event Inputs (Secondary Events for EDMA3CC and Hyperlink) (continued)

USB_0_INT01

USB_0_INT02

USB_0_INT03

USB_0_INT04

USB_0_INT05

USB_0_INT06

USB_0_INT07

USB_0_INT08

USB_0_INT09

USB_0_INT10

USB_0_INT11

USB_0_INT12

USB_0_INT13

USB_0_INT14

USB_0_INT15

USB_0_MISCINT

USB_0_OABSINT

Reserved

USB_1_INT00

USB_1_INT01

USB_1_INT02

USB_1_INT03

USB_1_INT04

USB_1_INT05

USB_1_INT06

USB_1_INT07

EVENT NAME

TRACER_PCIE1_INT

Reserved

Reserved

Reserved

Reserved

TRACER_SPI_ROM_EMIF_INT

Reserved

TRACER_USB1_INT

TIMER_8_INTL

TIMER_8_INTH

TIMER_9_INTL

TIMER_9_INTH

TIMER_10_INTL

TIMER_10_INTH

TIMER_11_INTL

TIMER_11_INTH

TIMER_14_INTL

TIMER_14_INTH

TIMER_15_INTL

TIMER_15_INTH

USB_0_INT00

415

416

417

418

419

410

411

412

413

414

420

421

422

423

424

425

405

406

407

408

409

400

401

402

403

404

395

396

397

398

399

390

391

392

393

394

385

386

387

388

389

EVENT NO.

379

380

381

382

383

384

DESCRIPTION

Tracer sliding time window interrupt for PCIE1

Reserved

Reserved

Reserved

Reserved

Tracer sliding time window interrupt for SPI/ROM/EMIF16 modules

Reserved

Tracer sliding time window interrupt for USB1 CFG port tracer

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

USB 0 event ring 0 interrupt

USB 0 event ring 1 interrupt

USB 0 event ring 2 interrupt

USB 0 event ring 3 interrupt

USB 0 event ring 4 interrupt

USB 0 event ring 5 interrupt

USB 0 event ring 6 interrupt

USB 0 event ring 7 interrupt

USB 0 event ring 8 interrupt

USB 0 event ring 9 interrupt

USB 0 event ring 10 interrupt

USB 0 event ring 11 interrupt

USB 0 event ring 12 interrupt

USB 0 event ring 13 interrupt

USB 0 event ring 14 interrupt

USB 0 event ring 15 interrupt

USB 0 Miscellaneous interrupt

USB 0 OABS interrupt

Reserved

USB 1 event ring 0 interrupt

USB 1 event ring 1 interrupt

USB 1 event ring 2 interrupt

USB 1 event ring 3 interrupt

USB 1 event ring 4 interrupt

USB 1 event ring 5 interrupt

USB 1 event ring 6 interrupt

USB 1 event ring 7 interrupt

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

97

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 6-23. CIC2 Event Inputs (Secondary Events for EDMA3CC and Hyperlink) (continued)

TIMER_12_INTH

TIMER_13_INTL

TIMER_13_INTH

TIMER_16_INTL

TIMER_16_INTH

TIMER_17_INTL

TIMER_17_INTH

TIMER_18_INTL

TIMER_18_INTH

TIMER_19_INTL

TIMER_19_INTH

Reserved

RSTMUX_INT8

RSTMUX_INT9

RSTMUX_INT10

RSTMUX_INT11

GPIO_INT0

GPIO_INT1

GPIO_INT2

GPIO_INT3

GPIO_INT4

GPIO_INT5

GPIO_INT6

GPIO_INT7

Reserved

Reserved

EVENT NAME

USB_1_INT08

USB_1_INT09

USB_1_INT10

USB_1_INT11

USB_1_INT12

USB_1_INT13

USB_1_INT14

USB_1_INT15

USB_1_MISCINT

USB_1_OABSINT

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

TIMER_12_INTL

462

463

464

465

466

457

458

459

460

461

467

468

469

470

471

472

452

453

454

455

456

447

448

449

450

451

442

443

444

445

446

437

438

439

440

441

432

433

434

435

436

EVENT NO.

426

427

428

429

430

431

DESCRIPTION

USB 1 event ring 8 interrupt

USB 1 event ring 9 interrupt

USB 1 event ring 10 interrupt

USB 1 event ring 11 interrupt

USB 1 event ring 12 interrupt

USB 1 event ring 13 interrupt

USB 1 event ring 14 interrupt

USB 1 event ring 15 interrupt

USB 1 miscellaneous interrupt

USB 1 OABS interrupt

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Reserved

Boot config watchdog timer expiration event for ARM Core 0

Boot config watchdog timer expiration event for ARM Core 1

Boot config watchdog timer expiration event for ARM Core 2

Boot config watchdog timer expiration event for ARM Core 3

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

Reserved

Reserved

98

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-23. CIC2 Event Inputs (Secondary Events for EDMA3CC and Hyperlink) (continued)

EVENT NO.

473

474

475

476

477

478

EVENT NAME

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

DESCRIPTION

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

6.3.2

CIC Registers

This section includes the CIC memory map information and registers.

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

99

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

6.3.2.1

CIC2 Register Map

Table 6-24. CIC2 Registers

0x294

0x298

0x29C

0x2A0

0x2A4

0x2A8

0x2AC

0x2B0

0x2B4

0x2B8

0x22C

0x230

0x234

0x238

0x23C

0x280

0x284

0x288

0x28C

0x290

0x2BC

0x300

0x304

0x308

0x30C

0x310

0x204

0x208

0x20C

0x210

0x214

0x218

0x21C

0x220

0x224

0x228

ADDRESS

OFFSET

0x0

0x10

0x20

0x24

0x28

0x2C

0x34

0x38

0x200

100

REGISTER MNEMONIC

REVISION_REG

GLOBAL_ENABLE_HINT_REG

STATUS_SET_INDEX_REG

STATUS_CLR_INDEX_REG

ENABLE_SET_INDEX_REG

ENABLE_CLR_INDEX_REG

HINT_ENABLE_SET_INDEX_REG

HINT_ENABLE_CLR_INDEX_REG

RAW_STATUS_REG0

RAW_STATUS_REG1

RAW_STATUS_REG2

RAW_STATUS_REG3

RAW_STATUS_REG4

RAW_STATUS_REG5

RAW_STATUS_REG6

RAW_STATUS_REG7

RAW_STATUS_REG8

RAW_STATUS_REG9

RAW_STATUS_REG10

RAW_STATUS_REG11

RAW_STATUS_REG12

RAW_STATUS_REG13

RAW_STATUS_REG14

RAW_STATUS_REG15

ENA_STATUS_REG0

ENA_STATUS_REG1

ENA_STATUS_REG2

ENA_STATUS_REG3

ENA_STATUS_REG4

ENA_STATUS_REG5

ENA_STATUS_REG6

ENA_STATUS_REG7

ENA_STATUS_REG8

ENA_STATUS_REG9

ENA_STATUS_REG10

ENA_STATUS_REG11

ENA_STATUS_REG12

ENA_STATUS_REG13

ENA_STATUS_REG14

ENA_STATUS_REG15

ENABLE_REG0

ENABLE_REG1

ENABLE_REG2

ENABLE_REG3

ENABLE_REG4

REGISTER NAME

Revision Register

Global Host Int Enable Register

Status Set Index Register

Status Clear Index Register

Enable Set Index Register

Enable Clear Index Register

Host Int Enable Set Index Register

Host Int Enable Clear Index Register

Raw Status Register 0

Raw Status Register 1

Raw Status Register 2

Raw Status Register 3

Raw Status Register 4

Raw Status Register 5

Raw Status Register 6

Raw Status Register 7

Raw Status Register 8

Raw Status Register 9

Raw Status Register 10

Raw Status Register 11

Raw Status Register 12

Raw Status Register 13

Raw Status Register 14

Raw Status Register 15

Enabled Status Register 0

Enabled Status Register 1

Enabled Status Register 2

Enabled Status Register 3

Enabled Status Register 4

Enabled Status Register 5

Enabled Status Register 6

Enabled Status Register 7

Enabled Status Register 8

Enabled Status Register 9

Enabled Status Register10

Enabled Status Register 11

Enabled Status Register 12

Enabled Status Register 13

Enabled Status Register 14

Enabled Status Register 15

Enable Register 0

Enable Register 1

Enable Register 2

Enable Register 3

Enable Register 4

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-24. CIC2 Registers (continued)

REGISTER MNEMONIC

ENABLE_REG5

ENABLE_REG6

ENABLE_REG7

ENABLE_REG8

ENABLE_REG9

ENABLE_REG10

ENABLE_REG11

ENABLE_REG12

ENABLE_REG13

ENABLE_REG14

ENABLE_REG15

ENABLE_CLR_REG0

ENABLE_CLR_REG1

ENABLE_CLR_REG2

ENABLE_CLR_REG3

ENABLE_CLR_REG4

ENABLE_CLR_REG5

ENABLE_CLR_REG6

ENABLE_CLR_REG7

ENABLE_CLR_REG8

ENABLE_CLR_REG9

ENABLE_CLR_REG10

ENABLE_CLR_REG11

ENABLE_CLR_REG12

ENABLE_CLR_REG13

ENABLE_CLR_REG14

ENABLE_CLR_REG15

CH_MAP_REG0

CH_MAP_REG1

CH_MAP_REG2

CH_MAP_REG3

CH_MAP_REG4

CH_MAP_REG5

CH_MAP_REG6

CH_MAP_REG7

CH_MAP_REG8

CH_MAP_REG9

CH_MAP_REG10

CH_MAP_REG11

CH_MAP_REG12

CH_MAP_REG13

CH_MAP_REG14

CH_MAP_REG15

CH_MAP_REG116

CH_MAP_REG117

CH_MAP_REG118

CH_MAP_REG119

0x404

0x408

0x40C

0x410

0x414

0x418

0x41C

0x420

0x424

0x428

0x39C

0x3A0

0x3A4

0x3A8

0x3AC

0x3B0

0x3B4

0x3B8

0x38C

0x400

0x42C

0x430

0x434

0x438

0x43C

0x5C0

0x5C4

0x5C8

0x5CC

0x334

0x338

0x33C

0x380

0x384

0x388

0x38C

0x390

0x394

0x398

ADDRESS

OFFSET

0x314

0x318

0x31C

0x320

0x324

0x328

0x32C

0x330

REGISTER NAME

Enable Register 5

Enable Register 6

Enable Register 7

Enable Register 8

Enable Register 9

Enable Register 10

Enable Register 11

Enable Register 12

Enable Register 13

Enable Register 14

Enable Register 15

Enable Clear Register 0

Enable Clear Register 1

Enable Clear Register 2

Enable Clear Register 3

Enable Clear Register 4

Enable Clear Register 5

Enable Clear Register 6

Enable Clear Register 7

Enable Clear Register 8

Enable Clear Register 9

Enable Clear Register 10

Enable Clear Register 11

Enable Clear Register 12

Enable Clear Register 13

Enable Clear Register 14

Enable Clear Register 15

Interrupt Channel Map Register for 0 to 0+3

Interrupt Channel Map Register for 4 to 4+3

Interrupt Channel Map Register for 8 to 8+3

Interrupt Channel Map Register for 12 to 12+3

Interrupt Channel Map Register for 16 to 16+3

Interrupt Channel Map Register for 20 to 20+3

Interrupt Channel Map Register for 24 to 24+3

Interrupt Channel Map Register for 28 to 28+3

Interrupt Channel Map Register for 32 to 32+3

Interrupt Channel Map Register for 36 to 36+3

Interrupt Channel Map Register for 40 to 40+3

Interrupt Channel Map Register for 44 to 44+3

Interrupt Channel Map Register for 48 to 48+3

Interrupt Channel Map Register for 52 to 52+3

Interrupt Channel Map Register for 56 to 56+3

Interrupt Channel Map Register for 60 to 60+3

Interrupt Channel Map Register for 464 to 464+3

Interrupt Channel Map Register for 468 to 468+3

Interrupt Channel Map Register for 472 to 472+3

Interrupt Channel Map Register for 476 to 476+3

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

101

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 6-24. CIC2 Registers (continued)

102

CH_MAP_REG138

CH_MAP_REG139

CH_MAP_REG140

CH_MAP_REG141

CH_MAP_REG142

CH_MAP_REG143

CH_MAP_REG144

CH_MAP_REG145

CH_MAP_REG146

CH_MAP_REG147

CH_MAP_REG148

CH_MAP_REG149

CH_MAP_REG150

CH_MAP_REG151

CH_MAP_REG152

CH_MAP_REG153

CH_MAP_REG154

CH_MAP_REG155

CH_MAP_REG156

CH_MAP_REG157

REGISTER MNEMONIC

CH_MAP_REG120

CH_MAP_REG121

CH_MAP_REG122

CH_MAP_REG123

CH_MAP_REG124

CH_MAP_REG125

CH_MAP_REG126

CH_MAP_REG127

CH_MAP_REG128

CH_MAP_REG129

CH_MAP_REG130

CH_MAP_REG131

CH_MAP_REG132

CH_MAP_REG133

CH_MAP_REG134

CH_MAP_REG135

CH_MAP_REG136

CH_MAP_REG137

CH_MAP_REG158

CH_MAP_REG159

CH_MAP_REG160

CH_MAP_REG161

CH_MAP_REG162

CH_MAP_REG163

CH_MAP_REG164

CH_MAP_REG165

CH_MAP_REG166

0x640

0x644

0x648

0x64C

0x650

0x654

0x658

0x65C

0x660

0x664

0x618

0x61C

0x620

0x624

0x628

0x62C

0x630

0x634

0x638

0x63C

0x668

0x66C

0x670

0x674

0x678

0x67C

0x680

0x684

0x688

0x5F0

0x5F4

0x5F8

0x5FC

0x600

0x604

0x608

0x60C

0x610

0x614

ADDRESS

OFFSET

0x5D0

0x5D4

0x5D8

0x5DC

0x5E0

0x5E4

0x5E8

0x5EC

REGISTER NAME

Interrupt Channel Map Register for 480 to 480+3

Interrupt Channel Map Register for 484 to 484+3

Interrupt Channel Map Register for 488 to 488+3

Interrupt Channel Map Register for 482 to 492+3

Interrupt Channel Map Register for 496 to 496+3

Interrupt Channel Map Register for 500 to 500+3

Interrupt Channel Map Register for 504 to 504+3

Interrupt Channel Map Register for 508 to 508+3

Interrupt Channel Map Register for 512 to 512+3

Interrupt Channel Map Register for 516 to 516+3

Interrupt Channel Map Register for 520 to 520+3

Interrupt Channel Map Register for 524 to 524+3

Interrupt Channel Map Register for 528 to 528+3

Interrupt Channel Map Register for 532 to 532+3

Interrupt Channel Map Register for 536 to 536+3

Interrupt Channel Map Register for 540 to 540+3

Interrupt Channel Map Register for 544 to 544+3

Interrupt Channel Map Register for 548 to 548+3

Interrupt Channel Map Register for 552 to 552+3

Interrupt Channel Map Register for 556 to 556+3

Interrupt Channel Map Register for 560 to 560+3

Interrupt Channel Map Register for 564 to 564+3

Interrupt Channel Map Register for 568 to 568+3

Interrupt Channel Map Register for 572 to 572+3

Interrupt Channel Map Register for 576 to 576+3

Interrupt Channel Map Register for 580 to 580+3

Interrupt Channel Map Register for 584 to 584+3

Interrupt Channel Map Register for 588 to 588+3

Interrupt Channel Map Register for 592 to 592+3

Interrupt Channel Map Register for 596 to 596+3

Interrupt Channel Map Register for 600 to 600+3

Interrupt Channel Map Register for 604 to 604+3

Interrupt Channel Map Register for 608 to 608+3

Interrupt Channel Map Register for 612 to 612+3

Interrupt Channel Map Register for 616 to 616+3

Interrupt Channel Map Register for 620 to 620+3

Interrupt Channel Map Register for 624 to 624+3

Interrupt Channel Map Register for 628 to 628+3

Interrupt Channel Map Register for 632 to 632+3

Interrupt Channel Map Register for 636 to 636+3

Interrupt Channel Map Register for 640 to 640+3

Interrupt Channel Map Register for 644 to 644+3

Interrupt Channel Map Register for 648 to 648+3

Interrupt Channel Map Register for 652 to 652+3

Interrupt Channel Map Register for 656 to 656+3

Interrupt Channel Map Register for 660 to 660+3

Interrupt Channel Map Register for 664 to 664+3

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

0x85C

0x860

0x864

0x868

0x86C

0x1500

0x1504

0x1508

0x150C

0x834

0x838

0x83C

0x840

0x844

0x848

0x84C

0x850

0x854

0x858

0x80C

0x810

0x814

0x818

0x81C

0x820

0x824

0x828

0x82C

0x830

ADDRESS

OFFSET

0x68C

0x690

0x694

0x698

0x69C

0x800

0x804

0x808

REGISTER MNEMONIC

CH_MAP_REG167

CH_MAP_REG168

CH_MAP_REG169

CH_MAP_REG170

CH_MAP_REG171

HINT_MAP_REG0

HINT_MAP_REG1

HINT_MAP_REG2

HINT_MAP_REG3

HINT_MAP_REG4

HINT_MAP_REG5

HINT_MAP_REG6

HINT_MAP_REG7

HINT_MAP_REG8

HINT_MAP_REG9

HINT_MAP_REG10

HINT_MAP_REG11

HINT_MAP_REG12

HINT_MAP_REG13

HINT_MAP_REG14

HINT_MAP_REG15

HINT_MAP_REG16

HINT_MAP_REG17

HINT_MAP_REG18

HINT_MAP_REG19

HINT_MAP_REG20

HINT_MAP_REG21

HINT_MAP_REG22

HINT_MAP_REG23

HINT_MAP_REG24

HINT_MAP_REG25

HINT_MAP_REG26

HINT_MAP_REG27

ENABLE_HINT_REG0

ENABLE_HINT_REG1

ENABLE_HINT_REG2

ENABLE_HINT_REG3

Table 6-24. CIC2 Registers (continued)

REGISTER NAME

Interrupt Channel Map Register for 668 to 668+3

Interrupt Channel Map Register for 672 to 672+3

Interrupt Channel Map Register for 676 to 676+3

Interrupt Channel Map Register for 680 to 680+3

Interrupt Channel Map Register for 684 to 684+3

Host Interrupt Map Register for 0 to 0+3

Host Interrupt Map Register for 4 to 4+3

Host Interrupt Map Register for 8 to 8+3

Host Interrupt Map Register for 12 to 12+3

Host Interrupt Map Register for 16 to 16+3

Host Interrupt Map Register for 20 to 20+3

Host Interrupt Map Register for 24 to 24+3

Host Interrupt Map Register for 28 to 28+3

Host Interrupt Map Register for 32 to 32+3

Host Interrupt Map Register for 36 to 36+3

Host Interrupt Map Register for 40 to 40+3

Host Interrupt Map Register for 44 to 44+3

Host Interrupt Map Register for 48 to 48+3

Host Interrupt Map Register for 52 to 52+3

Host Interrupt Map Register for 56 to 56+3

Host Interrupt Map Register for 60 to 60+3

Host Interrupt Map Register for 63 to 63+3

Host Interrupt Map Register for 66 to 66+3

Host Interrupt Map Register for 68 to 68+3

Host Interrupt Map Register for 72 to 72+3

Host Interrupt Map Register for 76 to 76+3

Host Interrupt Map Register for 80 to 80+3

Host Interrupt Map Register for 84 to 84+3

Host Interrupt Map Register for 88 to 88+3

Host Interrupt Map Register for 92 to 92+3

Host Interrupt Map Register for 94 to 94+3

Host Interrupt Map Register for 96 to 96+3

Host Interrupt Map Register for 100 to 100+3

Host Int Enable Register 0

Host Int Enable Register 1

Host Int Enable Register 2

Host Int Enable Register 3

6.4

Enhanced Direct Memory Access (EDMA3) Controller

The primary purpose of the EDMA3 is to service user-programmed data transfers between two memorymapped slave endpoints on the device. The EDMA3 services software-driven paging transfers (e.g., data movement between external memory and internal memory), performs sorting or subframe extraction of various data structures, services event driven peripherals, and offloads data transfers from the device

ARM CorePac.

There are 5 EDMA channel controllers on the device:

• EDMA3CC0 has two transfer controllers: TPTC0 and TPTC1

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

103

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

• EDMA3CC1 has four transfer controllers: TPTC0, TPTC1, TPTC2, and TPTC3

• EDMA3CC2 has four transfer controllers: TPTC0, TPTC1, TPTC2, and TPTC3

• EDMA3CC3 has two transfer controllers: TPTC0 and TPTC1

• EDMA3CC4 has two transfer controllers: TPTC0 and TPTC1

In the context of this document, TPTCx is associated with EDMA3CCy, and is referred to as EDMA3CCy

TPTCx. Each of the transfer controllers has a direct connection to the switch fabric.

Section 7.2

lists the peripherals that can be accessed by the transfer controllers.

EDMA3CC0 is optimized to be used for transfers to/from/within the MSMC and DDR3 subsytems. The others are used for the remaining traffic.

Each EDMA3 channel controller includes the following features:

• Fully orthogonal transfer description

– 3 transfer dimensions:

• Array (multiple bytes)

• Frame (multiple arrays)

• Block (multiple frames)

– Single event can trigger transfer of array, frame, or entire block

– Independent indexes on source and destination

• Flexible transfer definition:

– Increment or FIFO transfer addressing modes

– Linking mechanism allows for ping-pong buffering, circular buffering, and repetitive/continuous transfers, all with no CPU intervention

– Chaining allows multiple transfers to execute with one event

• 512 PaRAM entries for all EDMA3CC

– Used to define transfer context for channels

– Each PaRAM entry can be used as a DMA entry, QDMA entry, or link entry

• 64 DMA channels for all EDMA3CC

– Manually triggered (CPU writes to channel controller register)

– External event triggered

– Chain triggered (completion of one transfer triggers another)

• 8 Quick DMA (QDMA) channels per EDMA3CCx

– Used for software-driven transfers

– Triggered upon writing to a single PaRAM set entry

• Two transfer controllers and two event queues with programmable system-level priority for

EDMA3CC0, EDMA3CC3 and EDMA3CC4

• Four transfer controllers and four event queues with programmable system-level priority for each of

EDMA3CC1 and EDMA3CC2

• Interrupt generation for transfer completion and error conditions

• Debug visibility

– Queue watermarking/threshold allows detection of maximum usage of event queues

– Error and status recording to facilitate debug

6.4.1

EDMA3 Device-Specific Information

The EDMA supports two addressing modes: constant addressing and increment addressing mode.

Constant addressing mode is applicable to a very limited set of use cases. For most applications increment mode can be used. For more information on these two addressing modes, see the KeyStone

Architecture Enhanced Direct Memory Access 3 (EDMA3) User's Guide ( SPRUGS5 ).

104

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

For the range of memory addresses that includes EDMA3 channel controller (EDMA3CC) control registers and EDMA3 transfer controller (TPTC) control registers, see Section

Section 6.1

. For memory offsets and other details on EDMA3CC and TPTC Control Register entries, see the KeyStone Architecture Enhanced

Direct Memory Access 3 (EDMA3) User's Guide ( SPRUGS5 ).

6.4.2

EDMA3 Channel Controller Configuration

Table 6-25

shows the configuration for each of the EDMA3 channel controllers present on the device.

Table 6-25. EDMA3 Channel Controller Configuration

DESCRIPTION

Number of DMA channels in channel controller

Number of QDMA channels

Number of interrupt channels

Number of PaRAM set entries

Number of event queues

Number of transfer controllers

Memory protection existence

Number of memory protection and shadow regions

512

2

2

Yes

8

EDMA3 CC0 EDMA3 CC1 EDMA3 CC2 EDMA3 CC3 EDMA3 CC4

64 64 64 64 64

8

64

8

64

8

64

8

64

8

64

512

4

4

Yes

8

512

4

4

Yes

8

512

2

2

Yes

8

512

2

2

Yes

8

6.4.3

EDMA3 Transfer Controller Configuration

Each transfer controller on the device is designed differently based on considerations like performance requirements, system topology (like main TeraNet bus width, external memory bus width), etc. The parameters that determine the transfer controller configurations are:

FIFOSIZE: Determines the size in bytes for the data FIFO that is the temporary buffer for the in-flight data. The data FIFO is where the read return data read by the TC read controller from the source endpoint is stored and subsequently written out to the destination endpoint by the TC write controller.

BUSWIDTH: The width of the read and write data buses in bytes, for the TC read and write controller, respectively. This is typically equal to the bus width of the main TeraNet interface.

Default Burst Size (DBS): The DBS is the maximum number of bytes per read/write command issued by a transfer controller.

DSTREGDEPTH: This determines the number of destination FIFO register sets. The number of destination FIFO register sets for a transfer controller determines the maximum number of outstanding transfer requests.

All four parameters listed above are fixed by the design of the device.

Table 6-26

shows the configuration of each of the EDMA3 transfer controllers present on the device.

Table 6-26. EDMA3 Transfer Controller Configuration

PARAMETER

FIFOSIZE

BUSWIDTH

EDMA3 CC0/CC4

TC0

1024 bytes

32 bytes

TC1

1024 bytes

32 bytes

TC0

1024 bytes

16 bytes

TC1

1024 bytes

16

EDMA3 CC1

bytes

TC2

1024 bytes

16 bytes

TC3

1024 bytes

16 bytes

TC0

1024 bytes

16 bytes

EDMA3 CC2

TC1

1024 bytes

16 bytes

TC2

1024 bytes

16 bytes

TC3

1024 bytes

16 bytes

EDMA3CC3

TC0

1024 bytes

16 bytes

TC1

1024 bytes

16 bytes

DSTREGDEPTH 4 4 4 4 4 4 4 4 4 4 4 4 entries entries entries entries entries entries entries entries entries entries entries entries

DBS 128 bytes

128 bytes

128 bytes

128 bytes

128 bytes

128 bytes

128 bytes

128 bytes

128 bytes

128 bytes

64 bytes

64 bytes

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

105

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

29

30

31

32

33

34

35

36

24

25

26

27

28

19

20

21

22

23

14

15

16

17

18

9

10

11

12

13

4

5

6

7

8

2

3

EVENT NO.

0

1

6.4.4

EDMA3 Channel Synchronization Events

The EDMA3 supports up to 64 DMA channels for all EDMA3CC that can be used to service system peripherals and to move data between system memories. DMA channels can be triggered by synchronization events generated by system peripherals. The following tables list the source of the synchronization event associated with each of the EDMA3CC DMA channels. On the AM5K2E0x, the association of each synchronization event and DMA channel is fixed and cannot be reprogrammed.

For more detailed information on the EDMA3 module and how EDMA3 events are enabled, captured, processed, prioritized, linked, chained, and cleared, etc., see the KeyStone Architecture Enhanced Direct

Memory Access 3 (EDMA3) User's Guide ( SPRUGS5 ).

GPIO_INT11

GPIO_INT12

GPIO_INT13

GPIO_INT14

GPIO_INT15

TIMER_16_INTL

TIMER_16_INTH

TIMER_17_INTL

TIMER_17_INTH

TIMER_18_INTL

TIMER_18_INTH

TIMER_19_INTL

TIMER_19_INTH

GPIO_INT0

GPIO_INT1

GPIO_INT2

GPIO_INT3

GPIO_INT4

EVENT NAME

TIMER_8_INTL

TIMER_8_INTH

TIMER_9_INTL

TIMER_9_INTH

TIMER_10_INTL

TIMER_10_INTH

TIMER_11_INTL

TIMER_11_INTH

CIC_2_OUT66

CIC_2_OUT67

CIC_2_OUT68

CIC_2_OUT69

CIC_2_OUT70

CIC_2_OUT71

CIC_2_OUT72

CIC_2_OUT73

GPIO_INT8

GPIO_INT9

GPIO_INT10

Table 6-27. EDMA3CC0 Events for AM5K2E0x

DESCRIPTION

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

106

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

53

54

55

56

57

48

49

50

51

52

61

62

63

58

59

60

43

44

45

46

47

EVENT NO.

37

38

39

40

41

42

Table 6-27. EDMA3CC0 Events for AM5K2E0x (continued)

EVENT NAME

GPIO_INT5

GPIO_INT6

GPIO_INT7

Reserved

Reserved

TIMER_12_INTL

TIMER_12_INTH

TIMER_13_INTL

TIMER_13_INTH

Reserved

SEM_INT8

SEM_INT9

SEM_INT10

SEM_INT11

SEM_INT12

DBGTBR_DMAINT

ARM_TBR_DMA

QMSS_QUE_PEND_560

QMSS_QUE_PEND_561

QMSS_QUE_PEND_562

QMSS_QUE_PEND_563

QMSS_QUE_PEND_564

QMSS_QUE_PEND_565

QMSS_QUE_PEND_566

QMSS_QUE_PEND_567

QMSS_QUE_PEND_568

QMSS_QUE_PEND_569

DESCRIPTION

GPIO interrupt

GPIO interrupt

GPIO interrupt

Reserved

Reserved

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Reserved

Semaphore interrupt

Semaphore interrupt

Semaphore interrupt

Semaphore interrupt

Semaphore interrupt

Debug trace buffer (TBR) DMA event

ARM trace buffer (TBR) DMA event

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

14

15

16

11

12

13

6

7

8

9

10

1

2

3

4

5

EVENT NO.

0

Table 6-28. EDMA3CC1 Events for AM5K2E0x

EVENT NAME

GPIO_INT28

GPIO_INT29

SPI_0_XEVT

SPI_0_REVT

SEM_INT8

SEM_INT9

GPIO_INT0

GPIO_INT1

GPIO_INT2

GPIO_INT3

QMSS_QUE_PEND_570

QMSS_QUE_PEND_571

QMSS_QUE_PEND_572

QMSS_QUE_PEND_573

Reserved

QMSS_QUE_PEND_574

QMSS_QUE_PEND_575

DESCRIPTION

GPIO interrupt

GPIO interrupt

SPI0 transmit event

SPI0 receive event

Semaphore interrupt

Semaphore interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Reserved

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

107

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

53

54

55

56

57

48

49

50

51

52

61

62

63

58

59

60

43

44

45

46

47

38

39

40

41

42

33

34

35

36

37

28

29

30

31

32

23

24

25

26

27

EVENT NO.

17

18

19

20

21

22

Table 6-28. EDMA3CC1 Events for AM5K2E0x (continued)

EVENT NAME

QMSS_QUE_PEND_576

QMSS_QUE_PEND_577

QMSS_QUE_PEND_578

QMSS_QUE_PEND_579

QMSS_QUE_PEND_580

TIMER_8_INTL

TIMER_8_INTH

TIMER_9_INTL

TIMER_9_INTH

TIMER_10_INTL

TIMER_10_INTH

TIMER_11_INTL

TIMER_11_INTH

TIMER_12_INTL

TIMER_12_INTH

TIMER_13_INTL

TIMER_13_INTH

TIMER_14_INTL

TIMER_14_INTH

TIMER_15_INTL

TIMER_15_INTH

SEM_INT10

SEM_INT11

SEM_INT12

SR_0_SR_TEMPSENSOR

TSIP_RCV_FINT0

TSIP_XMT_FINT0

TSIP_RCV_SFINT0

TSIP_XMT_SFINT0

TSIP_RCV_FINT1

TSIP_XMT_FINT1

TSIP_RCV_SFINT1

TSIP_XMT_SFINT1

CIC_2_OUT8

GPIO_INT30

GPIO_INT31

I2C_0_REVT

I2C_0_XEVT

CIC_2_OUT13

CIC_2_OUT14

CIC_2_OUT15

CIC_2_OUT16

CIC_2_OUT17

CIC_2_OUT18

CIC_2_OUT19

Reserved

Reserved

DESCRIPTION

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Semaphore interrupt

Semaphore interrupt

Semaphore interrupt

SmartReflex temperature threshold crossing interrupt

TSIP receive frame interrupt for Channel 0

TSIP transmit frame interrupt for Channel 0

TSIP receive super frame interrupt for Channel 0

TSIP transmit super frame interrupt for Channel 0

TSIP receive frame interrupt for Channel 1

TSIP transmit frame interrupt for Channel 1

TSIP receive super frame interrupt for Channel 1

TSIP transmit super frame interrupt for Channel 1

CIC2 Interrupt Controller output

GPIO interrupt

GPIO interrupt

I2C0 receive

I2C0 transmit

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

Reserved

Reserved

108

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

37

38

39

40

41

32

33

34

35

36

42

43

44

45

46

27

28

29

30

31

22

23

24

25

26

17

18

19

20

21

12

13

14

15

16

7

8

9

5

6

10

11

1

2

3

4

EVENT NO.

0

Table 6-29. EDMA3CC2 Events for AM5K2E0x

GPIO_INT24

GPIO_INT25

GPIO_INT26

GPIO_INT27

GPIO_INT0

GPIO_INT1

GPIO_INT2

GPIO_INT3

GPIO_INT4

GPIO_INT5

GPIO_INT6

GPIO_INT7

ARM_NCNTVIRQ3

ARM_NCNTVIRQ2

ARM_NCNTVIRQ1

ARM_NCNTVIRQ0

CIC_2_OUT48

Reserved

UART_0_URXEVT

UART_0_UTXEVT

CIC_2_OUT22

CIC_2_OUT23

CIC_2_OUT24

CIC_2_OUT25

CIC_2_OUT26

EVENT NAME

UART_1_URXEVT

UART_1_UTXEVT

SPI_1_XEVT

SPI_1_REVT

SPI_2_XEVT

SPI_2_REVT

DBGTBR_DMAINT

ARM_TBR_DMA

Reserved

Reserved

I2C_1_REVT

I2C_1_XEVT

I2C_2_REVT

I2C_2_XEVT

GPIO_INT16

GPIO_INT17

GPIO_INT18

GPIO_INT19

GPIO_INT20

GPIO_INT21

GPIO_INT22

GPIO_INT23

DESCRIPTION

UART1 receive event

UART1 transmit event

SPI1 receive event

SPI1 transmit event

SPI2 receive event

SPI2 transmit event

Debug trace buffer (TBR) DMA event

ARM trace buffer (TBR) DMA event

Reserved

Reserved

I2C1 receive

I2C1 transmit

I2C2 receive

I2C2 transmit

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

ARM virtual timer interrupt for core 3

ARM virtual timer interrupt for core 2

ARM virtual timer interrupt for core 1

ARM virtual timer interrupt for core 0

CIC2 Interrupt Controller output

Reserved

UART0 receive event

UART0 transmit event

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

109

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

61

62

63

58

59

60

53

54

55

56

57

EVENT NO.

47

48

49

50

51

52

Table 6-29. EDMA3CC2 Events for AM5K2E0x (continued)

EVENT NAME

CIC_2_OUT27

CIC_2_OUT28

SPI_0_XEVT

SPI_0_REVT

Reserved

ARM_NCNTPNSIRQ3

ARM_NCNTPNSIRQ2

ARM_NCNTPNSIRQ1

ARM_NCNTPNSIRQ0

QMSS_QUE_PEND_581

QMSS_QUE_PEND_582

QMSS_QUE_PEND_583

QMSS_QUE_PEND_584

QMSS_QUE_PEND_585

QMSS_QUE_PEND_586

QMSS_QUE_PEND_587

QMSS_QUE_PEND_588

DESCRIPTION

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

SPI0 receive event

SPI0 transmit event

Reserved

ARM non secure timer interrupt for Core 3

ARM non secure timer interrupt for Core 2

ARM non secure timer interrupt for Core 1

ARM non secure timer interrupt for Core 0

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

16

17

18

19

20

11

12

13

14

15

24

25

26

21

22

23

6

7

8

9

10

1

2

3

4

5

EVENT NO.

0

EVENT NAME

Reserved

Reserved

SPI_2_XEVT

SPI_2_REVT

I2C_2_REVT

I2C_2_XEVT

UART_1_URXEVT

UART_1_UTXEVT

Reserved

Reserved

SPI_1_XEVT

SPI_1_REVT

I2C_0_REVT

I2C_0_XEVT

I2C_1_REVT

I2C_1_XEVT

TIMER_16_INTL

TIMER_16_INTH

TIMER_17_INTL

TIMER_17_INTH

ARM_TBR_DMA

DBGTBR_DMAINT

UART_0_URXEVT

UART_0_UTXEVT

GPIO_INT16

GPIO_INT17

GPIO_INT18

Table 6-30. EDMA3CC3 Events for AM5K2E0x

DESCRIPTION

Reserved

Reserved

SPI2 transmit event

SPI2 receive event

I2C2 receive

I2C2 transmit

UART1 receive event

UART1 transmit event

Reserved

Reserved

SPI1 transmit event

SPI1 receive event

I2C0 receive

I2C0 transmit

I2C1 receive

I2C1 transmit

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Debug trace buffer (TBR) DMA event

ARM trace buffer (TBR) DMA event

UART0 receive event

UART0 transmit event

GPIO interrupt

GPIO interrupt

GPIO interrupt

110

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

53

54

55

56

57

48

49

50

51

52

61

62

63

58

59

60

43

44

45

46

47

38

39

40

41

42

33

34

35

36

37

EVENT NO.

27

28

29

30

31

32

Table 6-30. EDMA3CC3 Events for AM5K2E0x (continued)

EVENT NAME

GPIO_INT19

GPIO_INT20

GPIO_INT21

GPIO_INT22

GPIO_INT23

GPIO_INT24

GPIO_INT25

GPIO_INT26

GPIO_INT27

GPIO_INT28

GPIO_INT29

GPIO_INT30

GPIO_INT31

QMSS_QUE_PEND_589

QMSS_QUE_PEND_590

QMSS_QUE_PEND_591

QMSS_QUE_PEND_592

QMSS_QUE_PEND_593

QMSS_QUE_PEND_594

QMSS_QUE_PEND_595

QMSS_QUE_PEND_596

QMSS_QUE_PEND_597

QMSS_QUE_PEND_598

QMSS_QUE_PEND_599

QMSS_QUE_PEND_600

QMSS_QUE_PEND_601

QMSS_QUE_PEND_602

QMSS_QUE_PEND_603

QMSS_QUE_PEND_604

CIC_2_OUT57

CIC_2_OUT50

CIC_2_OUT51

CIC_2_OUT52

CIC_2_OUT53

CIC_2_OUT54

CIC_2_OUT55

CIC_2_OUT56

DESCRIPTION

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

4

5

6

1

2

3

EVENT NO.

0

EVENT NAME

GPIO_INT16

GPIO_INT17

GPIO_INT18

GPIO_INT19

GPIO_INT20

GPIO_INT21

GPIO_INT22

Table 6-31. EDMA3CC4 Events for AM5K2E0x

DESCRIPTION

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

111

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

43

44

45

46

47

38

39

40

41

42

51

52

53

48

49

50

33

34

35

36

37

28

29

30

31

32

23

24

25

26

27

18

19

20

21

22

13

14

15

16

17

EVENT NO.

7

8

9

10

11

12

Table 6-31. EDMA3CC4 Events for AM5K2E0x (continued)

EVENT NAME

GPIO_INT23

GPIO_INT24

GPIO_INT25

GPIO_INT26

GPIO_INT27

GPIO_INT28

GPIO_INT29

GPIO_INT30

GPIO_INT31

Reserved

SEM_INT8

SEM_INT9

SEM_INT10

SEM_INT11

SEM_INT12

TIMER_12_INTL

TIMER_12_INTH

TIMER_8_INTL

TIMER_8_INTH

TIMER_14_INTL

TIMER_14_INTH

TIMER_15_INTL

TIMER_15_INTH

DBGTBR_DMAINT

ARM_TBR_DMA

QMSS_QUE_PEND_658

QMSS_QUE_PEND_659

QMSS_QUE_PEND_660

QMSS_QUE_PEND_661

QMSS_QUE_PEND_662

QMSS_QUE_PEND_663

QMSS_QUE_PEND_664

QMSS_QUE_PEND_665

QMSS_QUE_PEND_605

QMSS_QUE_PEND_606

QMSS_QUE_PEND_607

QMSS_QUE_PEND_608

QMSS_QUE_PEND_609

QMSS_QUE_PEND_610

QMSS_QUE_PEND_611

QMSS_QUE_PEND_612

ARM_NCNTVIRQ3

ARM_NCNTVIRQ2

ARM_NCNTVIRQ1

ARM_NCNTVIRQ0

ARM_NCNTPNSIRQ3

ARM_NCNTPNSIRQ2

DESCRIPTION

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

GPIO interrupt

Reserved

Semaphore interrupt

Semaphore interrupt

Semaphore interrupt

Semaphore interrupt

Semaphore interrupt

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Timer interrupt low

Timer interrupt high

Debug trace buffer (TBR) DMA event

ARM trace buffer (TBR) DMA event

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

Navigator transmit queue pending event for indicated queue

ARM virtual timer interrupt for Core 3

ARM virtual timer interrupt for Core 2

ARM virtual timer interrupt for Core 1

ARM virtual timer interrupt for Core 0

ARM non secure timer interrupt for Core 3

ARM non secure timer interrupt for Core 2

112

Memory, Interrupts, and EDMA for AM5K2E0x

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

60

61

62

63

EVENT NO.

54

55

56

57

58

59

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 6-31. EDMA3CC4 Events for AM5K2E0x (continued)

EVENT NAME

ARM_NCNTPNSIRQ1

ARM_NCNTPNSIRQ0

CIC_2_OUT82

CIC_2_OUT83

CIC_2_OUT84

CIC_2_OUT85

CIC_2_OUT86

CIC_2_OUT87

CIC_2_OUT88

CIC_2_OUT89

DESCRIPTION

ARM non secure timer interrupt for Core 1

ARM non secure timer interrupt for Core 0

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

CIC2 Interrupt Controller output

Copyright © 2012–2015, Texas Instruments Incorporated

Memory, Interrupts, and EDMA for AM5K2E0x

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

113

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

7 System Interconnect

On the KeyStone II devices, the EDMA3 transfer controllers and the system peripherals are interconnected through the TeraNets, which are non-blocking switch fabrics enabling fast and contentionfree internal data movement. The TeraNets provide low-latency, concurrent data transfers between master peripherals and slave peripherals. The TeraNets also allow for seamless arbitration between the system masters when accessing system slaves.

The ARM CorePac is connected to the MSMC and the debug subsystem directly, and to other masters via the TeraNets. Through the MSMC, the ARM CorePacs can be interconnected to DDR3 and TeraNet 3_A, which allows the ARM CorePacs to access to the peripheral buses:

• TeraNet 3P_A for peripheral configuration

• TeraNet 6P_A for ARM Boot ROM

7.1

Internal Buses and Switch Fabrics

The the ARM CorePacs, the EDMA3 traffic controllers, and the various system peripherals can be classified into two categories: masters and slaves.

Masters are capable of initiating read and write transfers in the system and do not rely on the EDMA3 for their data transfers.

Slaves on the other hand rely on the masters to perform transfers to and from them.

Examples of masters include the EDMA3 traffic controllers and network coprocessor packet DMA.

Examples of slaves include the SPI, UART, and I

2

C.

The masters and slaves in the device communicate through the TeraNet (switch fabric). The device contains two types of switch fabric:

Data TeraNet is a high-throughput interconnect mainly used to move data across the system

Configuration TeraNet is mainly used to access peripheral registers

Some peripherals have both a data bus and a configuration bus interface, while others only have one type of interface. Furthermore, the bus interface width and speed varies from peripheral to peripheral.

Note that the data TeraNet also connects to the configuration TeraNet.

7.2

Switch Fabric Connections Matrix - Data Space

The figures below show the connections between masters and slaves through various sections of the

TeraNet.

114

System Interconnect

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Bridge_1

Bridge_2

Bridge_3

From TeraNet_3_C

QM

Packet DMA

USB_0_MST

M

QM_2

Packet DMA

M

Debug_SS

TSIP

M

M

M

TNet_3_D

CPU/3

TNet_3_G

CPU/3

Bridge_11

Tracer_SPI_

ROM_EMIF16

TNet_6P_A

CPU/6

MPU_8

MPU_12

MPU_13

MPU_14

S

S

S

S

EMIF16

SPI_0

SPI_1

SPI_2

AM5K2E

S

Boot_ROM

ARM

To TeraNet_3_C

To TeraNet_3P_A

Bridge_5

Bridge_6

Bridge_7

Bridge_8

Bridge_9

Bridge_10

Bridge_12

Bridge_13

Bridge_14

Figure 7-1. TeraNet 3_A-1

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

System Interconnect

115

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

NETCP_

Global_0

NETCP_

Global_1

EDMA

CC1

10GbE

TC_0

TC_1

TC_2

TC_3

EDMA

CC2

EDMA

CC3

TC_0

TC_1

TC_2

TC_3

TC_0

TC_1

M

M

M

M

M

M

M

M

M

M

M

M

M

PCIe_0

PCIe_1

M

M

TNet_3_L

CPU/3

Figure 7-2. TeraNet 3_A-2 www.ti.com

Tracer_QM_M

MPU_1

S

QM_SS

Tracer_SPI_

ROM_EMIF16

S

PCIe

AM5K2E

116

System Interconnect

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

ARM CorePac

NETCP_LOCAL

HyperLink_0

USB_1

M

M

M

Bridge_5

Bridge_6

Bridge_7

Bridge_8

Bridge_9

Bridge_10

From TeraNet_3_A

QM_Second

M

EDMA

CC0

EDMA

CC4

TC_0

TC_1

TC_0

TC_1

M

M

M

M

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

AM5K2E

MPU_15

S

USB_1 MMR CFG

S

USB_1 PHY CFG

S

NetCP

Tracer_NETCP_

USB_CFG

S

S

SES

SMS

M

S

MSMC

M

Tracer_

MSMC0-8

DDR3

BR_SES_0

BR_SES_1

BR_SES_2

BR_SMS_0

BR_SMS_1

BR_SMS_2

TNet_SES

CPU/1

TNet_SMS

CPU/1

TNet_msmc_sys

CPU/1

To TeraNet_3_A

To TeraNet_3P_A

CPU Port

Sys Port

TNet_3_U

CPU/3

MPU_7

Tracer_PCIe1

PCIe_1

To TeraNet_3_A

Bridge_1

Bridge_2

Bridge_3

Figure 7-3. TeraNet 3_C

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

System Interconnect

117

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

The following table lists the master and slave end-point connections.

Intersecting cells may contain one of the following:

Y — There is a connection between this master and that slave.

- — There is NO connection between this master and that slave.

n — A numeric value indicates that the path between this master and that slave goes through bridge n.

Table 7-1. AM5K2E04/02 Data Space Interconnect

Slaves

EDMA1_CC_TR

EDMA1_TC0_RD

EDMA1_TC0_WR

EDMA1_TC1_RD

EDMA1_TC1_WR

EDMA1_TC2_RD

EDMA1_TC2_WR

EDMA1_TC3_RD

EDMA1_TC3_WR

EDMA2_CC_TR

EDMA2_TC0_RD

EDMA2_TC0_WR

EDMA2_TC1_RD

EDMA2_TC1_WR

EDMA2_TC2_RD

EDMA2_TC2_WR

EDMA2_TC3_RD

EDMA2_TC3_WR

MASTERS

10GbE

CPT_CFG

CPT_DDR3

CPT_INTC

CPT_MSMC(0-7)

CPT_QM_CFG1

CPT_QM_CFG2

CPT_QM_M

CPT_SPI_ROM_EMIF16

CPT_TPCC(0_4)T

CPT_TPCC(1_2_3)T

DBG_DAP

TSIP_DMA

EDMA0_CC_TR

EDMA0_TC0_RD

EDMA0_TC0_WR

EDMA0_TC1_RD

EDMA0_TC1_WR

118

System Interconnect

11

11

11

11

11

11

11

11

11

11

11

11

-

-

11

11

11

11

-

2, 11

2, 11

3, 11

3, 11

-

-

-

Y

Y

AEMIF16

-

-

-

-

-

-

-

-

-

-

Y

-

-

-

-

-

-

-

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

-

Y

-

Y

-

-

-

Y

-

-

-

-

-

Y

-

-

Y

Y

Y

Y

-

Y

Y

Y

Y

-

-

-

-

-

Y

Y

-

-

-

-

-

-

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

-

-

11

-

Y

-

-

2, 11

-

3, 11

-

-

-

-

-

-

Y

Y

-

-

-

-

-

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

-

SES_2

-

-

-

-

-

-

-

-

-

-

Y

Y

-

SES_0

SES_0

SES_1

SES_1

-

SES_0

SES_0

SES_1

SES_1

SES_1

SES_1

SES_1

SES_1

-

SES_2

SES_2

SES_2

SES_2

SES_0

SES_0

SES_0

SES_0

MSMC_SMS

SMS_2

-

-

-

Y

Y

SMS_0

SMS_0

SMS_1

SMS_1

-

-

-

-

-

-

-

-

-

SMS_0

SMS_0

SMS_1

SMS_1

SMS_1

SMS_1

SMS_1

SMS_1

-

SMS_2

SMS_2

SMS_2

SMS_2

SMS_0

SMS_0

SMS_0

SMS_0

-

Y

Y

Y

Y

-

Y

Y

Y

Y

-

-

-

-

-

Y

Y

-

-

-

-

Y

-

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

-

-

Y

Y

Y

Y

-

Y

Y

Y

Y

-

-

-

-

-

Y

Y

-

-

-

-

Y

-

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

-

-

11

11

11

11

-

2, 11

2,11

3, 11

3, 11

-

-

-

-

-

Y

Y

-

-

-

-

-

-

11

11

11

11

11

11

11

11

11

11

11

11

-

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Y

Y

Y

Y

-

-

-

-

-

-

-

-

-

-

Y

Y

Y

Y

-

Y

Y

-

-

-

-

-

Y

Y

-

-

-

-

-

QM

Y

-

-

www.ti.com

MASTERS

EDMA3_CC_TR

EDMA3_TC0_RD

EDMA3_TC0_WR

EDMA3_TC1_RD

EDMA3_TC1_WR

EDMA4_CC_TR

EDMA4_TC0_RD

EDMA4_TC0_WR

EDMA4_TC1_RD

EDMA4_TC1_WR

HyperLink0_Master

MSMC_SYS

NETCP

PCIE0

PCIE1

QM_Master1

QM_Master2

QM_SEC

USB0

USB1

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 7-1. AM5K2E04/02 Data Space Interconnect (continued)

Slaves

-

-

-

-

-

-

-

-

-

3, 11

-

1, 11

11

-

Y

-

-

Y

-

2, 11

-

11

11

-

-

-

-

-

AEMIF16

-

11

11

11

11

-

2, 11

2, 11

3, 11

3, 11

11

11

-

10

10

Y

Y

Y

Y

Y

Y

Y

Y

-

Y

Y

Y

Y

-

Y

-

Y

-

Y

Y

-

-

Y

Y

Y

-

-

-

-

Y

Y

-

-

-

-

-

-

SES_1

SES_2

SES_2

SES_0

SES_1

SES_2

SES_0

SES_0

-

SES_1

SES_1

SES_1

SES_1

-

SES_1

SES_1

SES_1

SES_1

Y

-

Y

-

-

-

-

-

-

-

Y

Y

Y

Y

Y

Y

Y

Y

-

Y

-

Y

MSMC_SMS

-

SMS_1

SMS_1

SMS_1

SMS_1

-

SMS_1

SMS_1

SMS_1

SMS_1

Y

-

SMS_1

SMS_2

SMS_2

SMS_0

SMS_1

SMS_2

SMS_0

SMS_0

-

11

11

-

-

-

-

-

2, 11

3, 11

3, 11

Y

11

-

11

11

11

11

-

2, 11

Y

Y

Y

Y

Y

-

Y

Y

Y

-

-

-

Y

Y

Y

QM

-

Y

Y

-

-

Y

-

-

-

-

-

-

-

Y

Y

Y

Y

Y

Y

Y

Y

-

Y

-

Y

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

System Interconnect

119

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

7.3

Switch Fabric Connections Matrix - Configuration Space

The figures below show the connections between masters and slaves through various sections of the

TeraNet.

Bridge_12

Bridge_13

Bridge_14

From TeraNet_3_A

From TeraNet_3_C

AM5K2E

MPU_2

Tracer_QM_CFG1

MPU_6

Tracer_QM_CFG2

Tracer_SM

MPU_10

S

M

QM_SS_

CFG1

M

QM_SS_

CFG2

S

Semaphore

Tracer

_EDMA

CC0 & CC4

TNet_3P_M

CPU/3

S

S

S

S

CC0

CC4

Tracer

_EDMA

CC1 - CC3

TNet_3P_C

CPU/3

MPU_9

Tracer_INTC

TNet_3P_L

CPU/3

Tracer_CFG

MPU_0

S

S

S

S

S

S

CC1

CC2

CC3

S

S

ARM INTC

CP_INTC02

DBG_TBR_SYS

(Debug_SS)

TBR_SYS_

ARM_CorePac

To TeraNet_3P_B

To TeraNet_3P_Tracer

Figure 7-4. TeraNet 3P_A

120

System Interconnect

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

From TeraNet_3P_A

AM5K2E

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

TNet_3P_N

CPU/3

TNet_3P_D

CPU/3

S

CP_T0-T8

(MSMC)

S

S

S

NetCP

TSIP

S

10GbE CFG

AM5K2E04 Only

MPU_11

To TeraNet_6P_B

Figure 7-5. TeraNet 3P_B

Bridge 20

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

System Interconnect

121

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Bridge 20

From TeraNet_3P_B

AM5K2E

Figure 7-6. TeraNet 6P_B www.ti.com

S

S

S

S

S

S

S

USIM

OTP

Debug SS

PLL_CTL

GPSC

BOOT_CFG

S

S

S

GPIO

S

USB PHY CFG 0-1

S

PCIe SerDes CFG 0-1

S

HyperLink SerDes

CFG 0-1

S

XGE SerDes CFG

AM5K2E04 Only

S

NetCP SerDes CFG

S

S

S

DDR3 PHY CFG

USB MMR CFG 0-1

SmartReflex

122

System Interconnect

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

Tracer_MSMC_0

Tracer_MSMC_1

Tracer_MSMC_2

Tracer_MSMC_3

Tracer_MSMC_4

Tracer_MSMC_5

Tracer_MSMC_6

Tracer_MSMC_7

Tracer_MSMC_8

M

M

M

M

M

M

M

M

M

From TeraNet_3P_A

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

AM5K2E

Tracer_SM

Tracer_CIC

Tracer_QM_CFG1

Tracer_QM_CFG2

Tracer_QM_M

M

M

M

M

M

Tracer_CFG

M

Tracer_EDMA3CC0_4

M

Tracer_EDMA3CC1_2_3

M

Tracer_SPI_

ROM_EMIF16

M

S

Debug_SS

STM

Figure 7-7. TeraNet 3P_Tracer

The following tables list the master and slave end point connections.

Intersecting cells may contain one of the following:

Y — There is a connection between this master and that slave.

- — There is NO connection between this master and that slave.

n — A numeric value indicates that the path between this master and that slave goes through bridge n.

System Interconnect

123

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 7-2. Configuration Space Interconnect - Section 1

SLAVES www.ti.com

EDMA2_TC1_RD

EDMA2_TC1_WR

EDMA2_TC2_RD

EDMA2_TC2_WR

EDMA2_TC3_RD

EDMA2_TC3_WR

EDMA3_CC_TR

EDMA3_TC0_RD

EDMA3_TC0_WR

EDMA3_TC1_RD

EDMA3_TC1_WR

EDMA4_CC_TR

EDMA4_TC0_RD

EDMA4_TC0_WR

EDMA4_TC1_RD

EDMA4_TC1_WR

HyperLink0

MSMC_SYS

NETCP

MASTERS

DBG_DAP

TSIP_DMA

EDMA0_CC_TR

EDMA0_TC0_RD

EDMA0_TC0_WR

EDMA0_TC1_RD

EDMA0_TC1_WR

EDMA1_CC_TR

EDMA1_TC0_RD

EDMA1_TC0_WR

EDMA1_TC1_RD

EDMA1_TC1_WR

EDMA1_TC2_RD

EDMA1_TC2_WR

EDMA1_TC3_RD

EDMA1_TC3_WR

EDMA2_CC_TR

EDMA2_TC0_RD

EDMA2_TC0_WR

-

-

-

-

-

-

12

Y

-

-

-

13

13

-

-

-

12

12

-

12

12

-

12

12

12

-

-

-

-

-

-

-

-

12

-

-

Y

Y

124

System Interconnect

-

-

-

-

-

-

12

Y

-

-

-

13

13

-

-

-

12

12

-

12

12

-

12

12

12

-

-

-

-

-

-

-

-

12

-

-

Y

Y

-

-

-

-

-

-

12

Y

-

-

-

13

13

-

-

-

12

12

-

12

12

-

12

12

12

-

-

-

-

-

-

-

-

12

-

-

Y

Y

-

-

-

-

-

-

12

Y

-

-

-

13

13

-

-

-

12

12

-

12

12

-

12

12

12

-

-

-

-

-

-

-

-

12

-

-

Y

Y

-

-

-

-

-

-

12

Y

-

-

-

13

13

-

-

-

12

12

-

12

12

-

12

12

12

-

-

-

-

-

-

-

-

12

-

-

Y

Y

-

-

-

-

-

-

12

Y

-

-

-

13

13

-

-

-

12

12

-

12

12

-

12

12

12

-

-

-

-

-

-

-

-

12

-

-

Y

Y

-

-

-

-

-

-

12

Y

-

-

-

13

13

-

-

-

12

12

-

12

12

-

12

12

12

-

-

-

-

-

-

-

-

12

-

-

Y

Y

Y

Y

-

-

-

-

-

-

12

12

-

-

-

-

12

12

-

12

12

-

12

12

-

-

-

-

13

13

-

-

-

-

-

-

-

12

Y

-

Y

Y

-

-

12

12

12

-

12

12

12

Y

-

-

-

13

13

-

-

-

12

12

-

-

-

-

-

-

-

-

-

12

-

-

-

-

-

-

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

-

-

-

-

-

-

12

Y

-

-

-

13

13

-

-

-

12

12

-

12

12

-

12

12

12

-

-

-

-

-

-

-

-

12

-

-

Y

Y

-

-

-

-

-

-

12

Y

-

-

-

13

13

-

-

-

12

12

-

12

12

-

12

12

12

-

-

-

-

-

-

-

-

12

-

-

Y

Y

-

-

-

-

-

-

12

Y

-

-

-

13

13

-

-

-

12

12

-

12

12

-

12

12

12

-

-

-

-

-

-

-

-

12

-

-

Y

Y

-

-

-

-

-

-

12

Y

-

-

-

13

13

-

-

-

12

12

-

12

12

-

12

12

12

-

-

-

-

-

-

-

-

12

-

-

Y

Y

-

-

-

-

-

-

12

Y

-

-

-

13

13

-

-

-

12

12

-

12

12

-

12

12

12

-

-

-

-

-

-

-

-

12

-

-

Y

Y

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 7-2. Configuration Space Interconnect - Section 1 (continued)

SLAVES

MASTERS

PCIE0

PCIE1

QM_Master1

QM_Master2

QM_SEC

USB0

USB1

-

-

12

12

-

-

-

-

-

12

12

12

-

-

-

-

12

12

-

-

-

-

-

12

12

-

-

-

-

-

12

12

-

-

-

-

-

12

12

-

-

-

-

-

12

12

-

-

-

-

-

12

12

-

-

-

-

-

12

12

-

-

-

-

-

12

12

-

-

-

Table 7-3. Configuration Space Interconnect - Section 2

SLAVES

-

-

12

12

-

-

-

-

-

12

12

-

-

-

-

-

12

12

-

-

-

-

-

12

12

-

-

-

MASTERS

DBG_DAP

TSIP_DMA

EDMA0_CC_TR

EDMA0_TC0_RD

EDMA0_TC0_WR

EDMA0_TC1_RD

EDMA0_TC1_WR

EDMA1_CC_TR

EDMA1_TC0_RD

EDMA1_TC0_WR

EDMA1_TC1_RD

EDMA1_TC1_WR

EDMA1_TC2_RD

EDMA1_TC2_WR

EDMA1_TC3_RD

EDMA1_TC3_WR

EDMA2_CC_TR

EDMA2_TC0_RD

EDMA2_TC0_WR

Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y

Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y

Y -

12 12 12 12 12 12 12 12 12 12 12 -

12 12 12 12 12 12 12 12 12 12 -

12 12 12 12 12 12 12 12 12 12 12 -

12 12 12 12 12 12 12 12 12 12 -

Y -

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

13 13 13 13 13 13 13 13 13 13 -

13 13 13 13 13 13 13 13 13 13 -

14 14 14 14 14 14 14 14 14 14 -

14 14 14 14 14 14 14 14 14 14 -

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

Y -

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

System Interconnect

125

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 7-3. Configuration Space Interconnect - Section 2 (continued)

SLAVES www.ti.com

MASTERS

EDMA2_TC1_RD

EDMA2_TC1_WR

EDMA2_TC2_RD

EDMA2_TC2_WR

EDMA2_TC3_RD

EDMA2_TC3_WR

EDMA3_CC_TR

EDMA3_TC0_RD

EDMA3_TC0_WR

EDMA3_TC1_RD

EDMA3_TC1_WR

13 13 13 13 13 13 13 13 13 13 -

13 13 13 13 13 13 13 13 13 13 -

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

14 14 14 14 14 14 14 14 14 14 -

14 14 14 14 14 14 14 14 14 14 -

-

13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13

13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13

14 14 14 14 14 14 14 14 14 14 14 -

14 14 14 14 14 14 14 14 14 14 -

EDMA4_CC_TR

EDMA4_TC0_RD

EDMA4_TC0_WR

EDMA4_TC1_RD

EDMA4_TC1_WR

-

12 12 12 12 12 12 12 12 12 12 12 -

12 12 12 12 12 12 12 12 12 12 -

12 12 12 12 12 12 12 12 12 12 12 -

12 12 12 12 12 12 12 12 12 12 -

HyperLink0_Master 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

MSMC_SYS

NETCP

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

Y

-

PCIE0

PCIE1

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

QM_Master1

QM_Master2

QM_SEC

USB0

USB1

12 12 12 12 12 -

12 12 12 12 12 -

12 -

12 -

12 -

Table 7-4. Configuration Space Interconnect - Section 3

SLAVES

MASTERS

DBG_DAP

TSIP_DMA

EDMA0_CC_TR

126

System Interconnect

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Y

Y

-

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 7-4. Configuration Space Interconnect - Section 3 (continued)

SLAVES

EDMA3_CC_TR

EDMA3_TC0_RD

EDMA3_TC0_WR

EDMA3_TC1_RD

EDMA3_TC1_WR

EDMA4_CC_TR

EDMA4_TC0_RD

EDMA4_TC0_WR

EDMA4_TC1_RD

EDMA4_TC1_WR

HyperLink0_Master

MSMC_SYS

NETCP

PCIE0

PCIE1

QM_Master1

QM_Master2

QM_SEC

USB0

USB1

MASTERS

EDMA0_TC0_RD

EDMA0_TC0_WR

EDMA0_TC1_RD

EDMA0_TC1_WR

EDMA1_CC_TR

EDMA1_TC0_RD

EDMA1_TC0_WR

EDMA1_TC1_RD

EDMA1_TC1_WR

EDMA1_TC2_RD

EDMA1_TC2_WR

EDMA1_TC3_RD

EDMA1_TC3_WR

EDMA2_CC_TR

EDMA2_TC0_RD

EDMA2_TC0_WR

EDMA2_TC1_RD

EDMA2_TC1_WR

EDMA2_TC2_RD

EDMA2_TC2_WR

EDMA2_TC3_RD

EDMA2_TC3_WR

-

-

-

-

-

-

-

-

-

-

12 12 12

12 12 12

-

-

-

-

-

-

-

-

-

-

-

-

12 12 12

-

-

-

12 12 12

-

12 12 12

12 12 12

-

-

-

-

12 12 12

12 12 12

-

-

-

-

-

-

-

-

-

-

-

-

-

13 13

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

13 13

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

14 14

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

14 14

-

-

-

-

-

-

-

-

-

-

-

Y

-

-

-

-

-

12 12

-

-

-

-

-

Y

-

-

12 12

-

12 12

-

-

-

-

12 12

-

-

-

-

-

12 12

-

-

-

-

-

-

-

-

-

-

-

-

13

13

-

-

-

-

-

-

-

-

-

-

-

-

-

-

14

-

-

-

-

-

-

-

-

14

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

12 12 12 12 12 12 12

12 12 12 12 12 12 12

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

12 12 12 12 12 12 12

-

-

-

12 12 12 12 12 12 12

-

12 12 12 12 12 12 12

12 12 12 12 12 12 12

-

-

-

-

12 12 12 12 12 12 12

12 12 12 12 12 12 12

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13 13

13 13 13 13 13 13 13 13 13 13

-

-

-

14 14 14 14 14 14 14 14

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

12

12

12

12 -

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

12 12

-

12

-

-

12

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

12 12 12

Y

-

Y

-

Y

-

-

Y

-

-

Y

-

-

Y

-

-

Y

-

-

Y

-

-

Y

-

-

Y

-

-

Y

-

12

Y

-

12

Y

-

12

Y

-

12

Y

-

12

Y

-

12

Y

-

12

Y

-

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

-

-

-

-

-

-

12

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

12 12 12 12 12 12 12 12 12

12 12 12 12 12 12 12 12 12

-

-

-

-

-

-

-

-

-

-

-

-

-

-

12

-

-

-

-

-

-

-

-

-

12

-

-

-

-

-

-

-

-

-

-

-

-

System Interconnect

127

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

7.4

Bus Priorities

The priority level of all master peripheral traffic is defined at the TeraNet boundary. User-programmable priority registers allow software configuration of the data traffic through the TeraNet. Note that a lower number means higher priority — PRI = 000b = urgent, PRI = 111b = low.

All other masters provide their priority directly and do not need a default priority setting. All the Packet

DMA-based peripherals also have internal registers to define the priority level of their initiated transactions.

The Packet DMA secondary port is one master port that does not have priority allocation register inside the Multicore Navigator. The priority level for transaction from this master port is described by the

QM_PRIORITY bit field in the CHIP_MISC_CTL0 register shown in and

Table 8-48 .

For all other modules, see the respective User's Guides listed in

Section 3.4

for programmable priority registers.

128

System Interconnect

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

8 Device Boot and Configuration

START ADDRESS SIZE

0xc17_e000 0xc00

0xc18_6f80

0xc18_7000

0x80

0x5000

0xc18_c000

0xc18_d000

0xc18_e000

0xc18_f000

0xc19_0000

0xc19_7e80

0xc19_7f00

0x1000

0x1000

0x1000

0x1000

0x7e80

080

4

0xc1a_6e00

0xc1a_7000

0xc1a_a000

0xc1a_d000

0xc1a_d004

0xc1a_d008

0xc1a_d00c

0xc1a_e000

0xc1a_e400

0xc1a_e800

4

4

0x200

0x3000

0x3000

4

4

0x400

0x400

0x400

0xc1a_ec00

0xc1a_f000

0xc1a_f400

0xc1a_f800

0xc1a_fc00

0xc1b_0000

0xc1b_0180

0xc1b_0200

0xc1b_0300

0x400

0x400

0x400

0x400

0x400

0x180

0x80

0x100

0x100

8.1

Device Boot

8.1.1

Boot Sequence

The boot sequence is a process by which the internal memory is loaded with program and data sections.

The boot sequence is started automatically after each power-on reset or warm reset.

The

AM5K2E0x supports several boot processes that begins execution at the ROM base address, which contains the bootloader code necessary to support various device boot modes. The boot processes are software-driven and use the BOOTMODE[15:0] device configuration inputs to determine the software configuration that must be completed. For more details on boot sequence see the KeyStone II Architecture

ARM Bootloader User's Guide ( SPRUHJ3 ).

For AM5K2E0x non-secure devices, there is only one type of booting: the ARM CorePac as the boot master.The ARM CorePac does not support no-boot mode. The ARM CorePac needs to read the bootmode register to determine how to proceed with the boot.

Table 8-1

shows addresses reserved for boot by the ARM CorePac.

Table 8-1. ARM Boot RAM Memory Map

DESCRIPTION

Context RAM not Scrubbed on Secure boot

Global Level 0 Non-secure Translation table

Global Non-secure Page Table for memory Covering ROM

Core 0 Non-secure Level 1 Translation table

Core 1 Non-secure Level 1 Translation table

Core 2 Non-secure Level 1 Translation table

Core 3 Non-secure Level 1 Translation table

Packet Memory Buffer

PCIE Block

Host Data Address (boot magic address for secure boot through master peripherals)

DDR3 Configuration Structure

Boot Data

Supervisor Stack, Each Core Gets 0xc000 Bytes

ARM Boot Magic Address, Core 0

ARM Boot Magic Address, Core 1

ARM Boot Magic Address, Core 2

ARM Boot Magic Address, Core 3

Abort Stack, Core 0

Abort Stack, Core 1

Abort Stack, Core 2

Abort Stack, Core 3

Unknown Mode Stack, Core 0

Unknown mOde Stack, Core 1

Unknown Mode Stack, Core 2

Unknown Mode Stack, Core 3

Boot Version String, Core 0

Boot Status Stack, Core 0

Boot Stats, Core 0

Boot Log, Core 0

Device Boot and Configuration

129

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

START ADDRESS SIZE

0xc1b_0400 0x100

0xc1b_0500

0xc1b_0600

0xc1b_1fe0

0xc1b_4000

0xc1b_4180

0x100

0x19e0

0x1010

0x180

0x80

0xc1b_4200

0xc1b_4300

0xc1b_4400

0xc1b_4500

0xc1b_4600

0x100

0x100

0x100

0x100

0x19e0

0xc1b_5fe0

0xc1b_6000

0xc1b_6180

0xc1b_6200

0xc1b_6300

0xc1b_6400

0xc1b_6500

0xc1b_6600

0xc1b_7fe0

0xc1b_8000

0x1010

0x180

0x80

0x100

0x100

0x100

0x100

0x19e0

0x1010

0x180

0xc1b_8180

0xc1b_8200

0xc1b_8300

0xc1b_8400

0xc1b_8500

0xc1b_8600

0xc1b_9fe0

0xc1c_0000

0x80

0x100

0x100

0x100

0x100

0x19e0

0x1010

0x4_0000

Table 8-1. ARM Boot RAM Memory Map (continued)

DESCRIPTION

Boot RAM Call Table, Core 0

Boot Parameter Tables, Core 0

Boot Data, Core 0

Boot Trace, Core 0

Boot Version String, Core 1

Boot Status Stack, Core 1

Boot Stats, Core 1

Boot Log, Core 1

Boot RAM Call Table, Core 1

Boot Parameter Tables, Core 1

Boot Data, Core 1

Boot Trace, Core 1

Boot Version String, Core 2

Boot Status Stack, Core 2

Boot Stats, Core 2

Boot Log, Core 2

Boot RAM Call Table, Core 2

Boot Parameter Tables, Core 2

Boot Data, Core 2

Boot Trace, Core 2

Boot Version String, Core 3

Boot Status Stack, Core 3

Boot Stats, Core 3

Boot Log, Core 3

Boot RAM Call Table, Core 3

Boot Parameter Tables, Core 3

Boot Data, Core 3

Boot Trace, Core 3

Secure MSMC

8.1.2

Boot Modes Supported

The device supports several boot processes, which leverage the internal boot ROM. Most boot processes are software-driven, using the BOOTMODE[15:0] device configuration inputs to determine the software configuration that must be completed. From a hardware perspective, there are two possible boot modes:

Public ROM Boot when the ARM CorePac Core0 is the boot master — In this boot mode, the ARM

CorePac performs the boot process. When the ARM CorePac Core0 finishes the boot process, it may send Cortex-A15 processor cores through IPC registers.

Secure ROM Boot when the ARM CorePac0 is the boot master — The ARM CorePac Core0 are released from reset simultaneously and begin executing from secure ROM. The ARM CorePac Core0 initiates the boot process. For more information, refer to the Secure device Addendum.

The boot process performed by the ARM CorePac Core0 in public ROM boot and secure ROM boot are determined by the BOOTMODE[15:0] value in the DEVSTAT register. The ARM CorePac Core0 read this value, and then execute the associated boot process in software. The figure below shows the bits associated with BOOTMODE[15:0] pins (DEVSTAT[16:1] register bits) when the ARM CorePac is the boot master. Note that

Figure 8-1

does not include bit 0 of the DEVSTAT contents. Bit 0 is used to select overall system endianess that is independent of the boot mode.

130

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

The boot ROM will continue attempting to boot in this mode until successful or an unrecoverable error occurs.

The PLL settings are shown at the end of this section, and the PLL set-up details can be found in

Section 10.5

.

NOTE

It is important to keep in mind that BOOTMODE[15:0] pins map to DEVSTAT[16:1] bits of the DEVSTAT register.

Figure 8-1. DEVSTAT Boot Mode Pins ROM Mapping

16

X

SlaveAddr

NETC

P clk

X

Port

15

X

X

14

0

1

13

X

Port

12

PLLEN

Bus Addr

0

Width

Base Addr

Csel

Wait

1 First Block

Ref clk

Ref clk

X

Mode

Width

Clear

Ext Con

Bar Config

Data Rate

Port

11

DEVSTAT Boot Mode Pins ROM Mapping

10 9 8 7 6 5 4 3 2 1

X

SYS PLL

CONFIG

Min

0 0 0

0 0 0

Param ldx

Port

X Port

Param ldx

0 0 1

0 1 0

X

Port

Chip Sel 0 (ARM Boot

Master)

Lane Setup

X

X

SYS PLL

CONFIG

0

Min

0

1

0

0

1

1

1

1

1

0

1

1

1

1

1

0

0

Min 1 1 1

Mode

SLEEP

I

2

C SLAVE

I

2

C MASTER

SPI

EMIF

NAND

Ethernet

PCIe

HyperLink

UART

8.1.2.1

Boot Device Field

The Boot Device field DEVSTAT[16-14-4-3-2-1] defines the boot device that is chosen.

Table 8-2

shows the supported boot modes.

Bit Field

16, 14, 4, 3, 2, Boot Device

1

Table 8-2. Boot Mode Pins: Boot Device Values

Description

Device boot mode - ARM is a boot master when BOOTMODE[8]=0

• Sleep = X0[Min]000b

• I

2

C Slave = [Slave Addr1]1[Min]000 b

• I

2

C Master = XX[Min]001b

• SPI = [Width][Csel0][Min]010b

• EMIF = 0X0011b

• NAND = 1X[Min]011b

• Ethernet (SGMII) = [Pa clk][Ref Clk0][Min]101b

• PCI = XBar Config2]0110b

• Hyperlink = [Port][Ref Clk0]1110b

• UART = XX[Min]111b

8.1.2.2

Device Configuration Field

The device configuration fields DEVSTAT[16:1] are used to configure the boot peripheral and, therefore, the bit definitions depend on the boot mode.

8.1.2.2.1 Sleep Boot Mode Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

131

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

16

X

15

X

14

0

13

X

Figure 8-2. Sleep Boot Mode Configuration Fields Description

12

PLLEN

11

DEVSTAT Boot Mode Pins ROM Mapping

10 9 8 7 6 5

X

Boot

Master

Sys PLL Config

4

Min

3 2

000

1 0

Lendian

Table 8-3. Sleep Boot Configuration Field Descriptions

Bit Field

16-15 Reserved

4

Description

Reserved

14

13

12

11-9

8

Boot Devices Boot Device- used in conjunction with Boot Devices [Used in conjunction with bits 3-1]

• 0 = Sleep (default)

• Others = Other boot modes

Reserved

PLLEN

Reserved

Boot Master

Enable the System PLL

• 0 = PLL disabled (default)

• 1 = PLL enabled

Reserved

This pin must be pulled down to GND

7-5 SYS PLL

Setting

Min

The PLL default settings are determined by the [7:5] bits. This will set the PLL to the maximum clock setting for the device.

Table 8-24

shows settings for various input clock frequencies.

Minimum boot configuration select bit.

• 0 = Minimum boot pin select disabled

• 1 = Minimum boot pin select enabled.

3-1

0

When Min = 1, a predetermined set of values is configured (see the Device Configuration Field Descriptions table for configuration bits with a "(default)" tag added in the description column).

When Min = 0, all fields must be independently configured.

Boot Devices Boot Devices[3:1] used in conjunction with Boot Device [14]

• 000 = Sleep

• Others = Other boot modes

Lendian Endianess (device)

• 0 = Big endian

• 1 = Little endian

8.1.2.2.2 I

2

C Boot Device Configuration

8.1.2.2.2.1 I

2

C Passive Mode

In passive mode, the device does not drive the clock, but simply acks data received on the specified address.

16 15

Slave Addr

14

1

13

Port

12

Figure 8-3. I

2

C Passive Mode Device Configuration Fields

11

DEVSTAT Boot Mode Pins ROM Mapping

10 9 8 7 6 5

X

Boot

Master

Sys PLL Config

4

Min

3 2

000

1 0

Lendian

Bit Field

16-15 Slave Addr

Table 8-4. I

2

C Passive Mode Device Configuration Field Descriptions

Description

I

2

C Slave boot bus address

• 0 = I

2

C slave boot bus address is 0x00

• 1 = I

2

C slave boot bus address is 0x10 (default)

• 2 = I

2

C slave boot bus address is 0x20

• 3 = I

2

C slave boot bus address is 0x30

132

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

8.1.2.2.2.2 I

2

C Master Mode

In master mode, the I

2

C device configuration uses ten bits of device configuration instead of seven as used in other boot modes. In this mode, the device makes the initial read of the I

2

C EEPROM while the

PLL is in bypass mode. The initial read contains the desired clock multiplier, which must be set up prior to any subsequent reads.

16 15

Reserved

14 13 12

Bus Addr

Figure 8-4. I

2

C Master Mode Device Configuration Fields

11

DEVSTAT Boot Mode Pins ROM Mapping

10

Param ldx/Offset

9 8

Boot Master

7

Reserved

6 5

Port

4

Min

3 2 1

001

0

Lendian

Bit Field

16-14 Reserved

13-12 Bus Addr

11-9 Param Idx

8

7

Table 8-4. I

2

C Passive Mode Device Configuration Field Descriptions (continued)

Bit Field Description

14

13-12

Boot Devices Boot Device[14] used in conjunction with Boot Devices [Use din conjunction with bits 3-1]

• 0 = Other boot modes

• 1= I

2

C Slave boot mode

Port I

2

C port number

• 0 = I

2

C0

• 1 = I

2

C1

• 2 = I

2

C2

• 3 = Reserved

11-9 Reserved

8 Boot Master

7-5

4

SYS PLL

Setting

Min

Reserved

This pin must be pulled down to GND

The PLL default settings are determined by the [7:5] bits. This will set the PLL to the maximum clock setting for the device.

Table 8-24

shows settings for various input clock frequencies.

Minimum boot configuration select bit.

• 0 = Minimum boot pin select disabled

• 1 = Minimum boot pin select enabled.

3-1

0

When Min = 1, a predetermined set of values is configured (see the Device Configuration Field Descriptions table for configuration bits with a "(default)" tag added in the description column).

When Min = 0, all fields must be independently configured.

Boot Devices Boot Devices[3:1] used in conjunction with Boot Device [14]

• 000 = I

2

C Slave

• Others = Other boot modes

Lendian Endianess

• 0 = Big endian

• 1 = Little endian

Boot Master

Reserved

Table 8-5. I

2

C Master Mode Device Configuration Field Descriptions

Description

Reserved

I

2

C bus address slave device

• 0 = I

2

C slave boot bus address is 0x50 (default)

• 1 = I

2

C slave boot bus address is 0x51

• 2 = I

2

C slave boot bus address is 0x52

• 3 = I

2

C slave boot bus address is 0x53

Parameter Table Index

• 0-7 = This value specifies the parameter table index (default = 0)

This pin must be pulled down to GND

Reserved

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

133

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Bit

6-5

4

3-1

0

www.ti.com

Field

Port

Min

Table 8-5. I

2

C Master Mode Device Configuration Field Descriptions (continued)

Description

I

2

C port number

• 0 = I

2

C0 (default)

• 1 = I

2

C1

• 2 = I

2

C2

• 3 = Reserved

Minimum boot configuration select bit.

• 0 = Minimum boot pin select disabled

• 1 = Minimum boot pin select enabled.

When Min = 1, a predetermined set of values is configured (see the Device Configuration Field Descriptions table for configuration bits with a "(default)" tag added in the description column).

When Min = 0, all fields must be independently configured.

Boot Devices Boot Devices[3:1]

• 001 = I

2

C Master

• Others = Other boot modes

Lendian Endianess

• 0 = Big endian

• 1 = Little endian

134

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

8.1.2.2.3 SPI Boot Device Configuration

Bit Field

16-15 Width

14-13 Csel

12-11 Mode

10-9

8

7-5

4

3-1

0

16

Width

15

Port

Boot Master

Param Idx

Min

14

Csel

13

Boot Devices

Lendian

12

Mode

11

Figure 8-5. SPI Device Configuration Fields

DEVSTAT Boot Mode Pins ROM Mapping

10 9 8

Port Boot Master

7 6 5

Param Ind

4

Min

3 2 1

010

0

Lendian

Table 8-6. SPI Device Configuration Field Descriptions

Description

SPI address width configuration

• 0 = 16-bit address values are used

• 1 = 24-bit address values are used (default)

The chip select field value 0-3 (default = 0)

Clk Polarity/ Phase

• 0 = Data is output on the rising edge of SPICLK. Input data is latched on the falling edge.

• 1 = Data is output one half-cycle before the first rising edge of SPICLK and on subsequent falling edges. Input data is latched on the rising edge of SPICLK.

• 2 = Data is output on the falling edge of SPICLK. Input data is latched on the rising edge (default).

• 3 = Data is output one half-cycle before the first falling edge of SPICLK and on subsequent rising edges. Input data is latched on the falling edge of SPICLK.

Specify SPI port

• 0 = SPI0 used (default)

• 1 = SPI1 used

• 2 = SPI2 used

• 3 = Reserved

This pin must be pulled down to GND

Parameter Table Index

• 0-7 = This value specifies the parameter table index (default = 0)

Minimum boot configuration select bit.

• 0 = Minimum boot pin select disabled

• 1 = Minimum boot pin select enabled.

When Min = 1, a predetermined set of values is configured (see the Device Configuration Field

Descriptions table for configuration bits with a "(default)" tag added in the description column).

When Min = 0, all fields must be independently configured.

Boot Devices[3:1]

• 010 = SPI boot mode

• Others = Other boot modes

Endianess

• 0 = Big endian

• 1 = Little endian

8.1.2.2.4 EMIF Boot Device Configuration

16

0

15 14

Base Addr

13

Wait

Figure 8-6. EMIF Boot Device Configuration Fields

12

Width

DEVSTAT Boot Mode Pins ROM Mapping

11 10 9 8

X Chip Sel Boot Master

7 6 5 4 3 2 1

Sys PLL Cfg 0 011

0

Lendian

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

135

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Bit

16

Field

Boot Devices

15-14 Base Addr

13

12

11

10-9

8

7-5

4-1

0

Wait

Width

Reserved

Chip Sel

Boot Master

SYS PLL Setting

Boot Devices

Lendian

Table 8-7. EMIF Boot Device Configuration Field Descriptions

Description

Boot Devices[16] used conjunction with Boot Devices[4] and Boot Devices [Used in conjunction with bits

3-1]

• 0 = EMIF boot mode

• 1 = Other boot modes

Base address (0-3) used to calculate the branch address. Branch address is the chip select plus

Base Address *16MB

Extended Wait

• 0 = Extended Wait disabled

• 1 = Extended Wait enabled

EMIF Width

• 0 = 8-bit EMIF Width

• 1 = 16-bit EMIF Width

Reserved

Chip Sel that specifies the chip select region, EMIF16 CS2-EMIF16 CS5.

• 00 = EMIF16 CS2(EMIFCE0)

• 01 = EMIF16 CS3 (EMIFCE1)

• 10 = EMIF16 CS4 (EMIFCE2)

• 11 = EMIF16 CS5 (EMIFCE3)

This pin must be pulled down to GND

The PLL default settings are determined by the [7:5] bits. This will set the PLL to the maximum clock setting for the device.

Table 8-24

shows settings for various input clock frequencies.

Boot Devices[4] used conjunction with Boot Devices[16]

• 0011 = EMIF boot mode

• 1XXX = Other boot modes

Endianess

• 0 = Big endian

• 1 = Little endian

8.1.2.2.5 NAND Boot Device Configuration

16

1

Bit

16

11-9

8

15 14

First Block

13 12

Clear

Field

Boot Devices

15-13 First Block

12 Clear

Chip Sel

Boot Master

11

X

Figure 8-7. NAND Boot Device Configuration Fields

10

DEVSTAT Boot Mode Pins ROM Mapping

9

Chip Sel

8

Boot Master

7 6

Sys PLL Cfg

5 4

Min

3 2 1

011

0

Lendian

Table 8-8. NAND Boot Device Configuration Field Descriptions

Description

Boot Devices[16] used conjunction with Boot Devices [3-1]

• 0 = Other boot modes

• 1 = NAND boot mode

First Block. This value is used to calculate the first block read. The first block read is the first block value

*16.

ClearNAND

• 0 = Device is not a ClearNAND (default)

• 1 = Device is a ClearNAND

Chip Sel that specifies the chip select region, EMIF16 CS2-EMIF16 CS5.

• 00 = EMIF16 CS2(EMIFCE0)

• 01 = EMIF16 CS3 (EMIFCE1)

• 10 = EMIF16 CS4 (EMIFCE2)

• 11 = EMIF16 CS5 (EMIFCE3)

This pin must be pulled down to GND

136

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Bit

7-5

4

3-1

0

Field

SYS PLL Setting

Min

Lendian

Table 8-8. NAND Boot Device Configuration Field Descriptions (continued)

Boot Devices

Description

The PLL default settings are determined by the [7:5] bits. This will set the PLL to the maximum clock setting for the device.

Table 8-24

shows settings for various input clock frequencies.

Minimum boot pin select. When Min is 1, it means that the BOOTMODE [15:3] pins are don't cares. Only

BOOTMODE [2:0] pins (DEVSTAT[3:1]) will determine boot. Default values are assigned to values that would normally be set by the other BOOTMODE pins when Min is 0.

• 0 = Minimum boot pin select disabled

• 1 = Minimum boot pin select enabled.

Boot Devices

• 011 = NAND boot mode

• Others = Other boot modes

Endianess

• 0 = Big endian

• 1 = Little endian

8.1.2.3

Ethernet (SGMII) Boot Device Configuration

16

NETCP clk

15 14

Ref Clock

13

Figure 8-8. Ethernet (SGMII) Boot Device Configuration Fields

12

Ext Con

11

DEVSTAT Boot Mode Pins ROM Mapping

10 9 8 7

X

Lane

Setup

Boot Master

6 5

Sys PLL Cfg

4

Min

3 2 1

101

0

Lendian

Bit

16

8

7-5

Field

NETCP clk

15-14 Ref Clock

13-12 Ext Con

11-9 Lane Setup

Boot Master

SYS PLL Setting

Table 8-9. Ethernet (SGMII) Boot Device Configuration Field Descriptions

Description

NETCP clock reference

• 0 = NETCP clocked at the same reference as the core reference

• 1 = NETCP clocked at the same reference as the SerDes reference (default)

Reference clock frequency

• 0 = 125MHz

• 1 = 156.25MHz (default)

• 2 = Reserved

• 3 = Reserved

External connection mode

• 0 = MAC to MAC connection, master with auto negotiation

• 1 = MAC to MAC connection, slave with auto negotiation (default)

• 2 = MAC to MAC, forced link, maximum speed

• 3 = MAC to fiber connection

Lane Setup.

• 0 = All SGMII ports enabled (default)

• 1 = Only SGMII port 0 enabled

• 2 = SGMII port 0 and 1 enabled

• 3 = SGMII port 0, 1 and 2 enabled

• 4-5 = Reserved

This pin must be pulled down to GND

The PLL default settings are determined by the [7:5] bits. This will set the PLL to the maximum clock setting for the device. Default system reference clock is 156.25 MHz.

Table 8-24

shows settings for various input clock frequencies. (default = 4)

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

137

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Bit

4

3-1

0

Table 8-9. Ethernet (SGMII) Boot Device Configuration Field Descriptions (continued)

Field

Min

Description

Minimum boot configuration select bit.

• 0 = Minimum boot pin select disabled

• 1 = Minimum boot pin select enabled.

Boot Devices

Lendian

When Min = 1, a predetermined set of values is configured (see the Device Configuration Field

Descriptions table for configuration bits with a "(default)" tag added in the description column).

When Min = 0, all fields must be independently configured.

Boot Devices

• 101 = Ethernet boot mode

• Others = Other boot modes

Endianess

• 0 = Big endian

• 1 = Little endian

8.1.2.3.1 PCIe Boot Device Configuration

Bit

16

16

Ref clk

15 14 13

Bar Config

12

Figure 8-9. PCIe Boot Device Configuration Fields

11

Port

DEVSTAT Boot Mode Pins ROM Mapping

10

X

9 8

Boot Master

7 6

Sys PLL Cfg

5 4 3 2 1

0110

Field

Ref clk

15-12 Bar Config

Table 8-10. PCIe Boot Device Configuration Field Descriptions

Description

PCIe Reference clock frequency

• 0 = 100MHz

• 1 = Reserved

PCIe BAR registers configuration

This value can range from 0 to 0xf. See

Table 8-11

.

PCIe Port number (0-1) 11

10-9

8

7-5

Port

Reserved

Boot Master

SYS PLL Setting

4-1

0

Boot Devices

Lendian

0

Lendian

This pin must be pulled down to GND

The PLL default settings are determined by the [7:5] bits.This will set the PLL to the maximum clock setting for the device. Default system reference clock is 156.25 MHz.

Table 8-24

shows settings for various input clock frequencies.

Boot Devices[4:1]

• 0110 = PCIe boot mode

• Others = Other boot modes

Endianess

• 0 = Big endian

• 1 = Little endian

138

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 8-11. BAR Config / PCIe Window Sizes

BAR0 BAR1

PCIe MMRs 32

16

16

32

16

16

32

32

64

4

4

4

32

16

32

32

32

64

128

128

128

32-BIT ADDRESS TRANSLATION

BAR2

32

BAR3

32

BAR4

32

16

32

32

32

64

64

32

64

64

64

64

128

128

128

256

64

64

64

64

128

256

128

256

256

64-BIT ADDRESS

TRANSLATION

BAR2/3 BAR4/5

0b1000

0b1001

0b1010

0b1011

0b1100

0b1101

0b1110

0b1111

BAR CFG

0b0000

0b0001

0b0010

0b0011

0b0100

0b0101

0b0110

0b0111

BAR5

Clone of

BAR4

256

512

1024

2048

256

512

1024

2048

8.1.2.3.2 HyperLink Boot Device Configuration

16

X

15 14

RefClk

13 12

Data Rate

Figure 8-10. HyperLink Boot Device Configuration Fields

11

DEVSTAT Boot Mode Pins ROM Mapping

X

10 9 8

Boot Master

7 6

Sys PLL Cfg

5 4 3 2 1

1110

Table 8-12. HyperLink Boot Device Configuration Field Descriptions

Description Bit

16

Field

Reserve

15-14 Ref Clocks

13-12 Data Rate

HyperLink reference clock configuration

• 0 = 125 MHz

• 1 = 156.25 MHz

• 2-3 = Reserved

HyperLink data rate configuration

• 0 = 1.25 GBs

• 1 = 3.125 GBs

• 2 = 6.25 GBs

• 3 = 12.5GBs

11-9 Reserved

8 Boot Master

7-5 SYS PLL

Setting

4-1 Boot Devices

0 Lendian

0

Lendian

This pin must be pulled down to GND

The PLL default settings are determined by the [7:5] bits. This will set the PLL to the maximum clock setting for the device. Default system reference clock is 156.25 MHz.

Table 8-24

shows settings for various input clock frequencies.

Boot Devices[4:1]

• 1110 = HyperLink boot mode

• Others = Other boot modes

Endianess

• 0 = Big endian

• 1 = Little endian

Device Boot and Configuration

139

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

8.1.2.3.3 UART Boot Device Configuration

16

X

15

X

14

X

13

X

12

Port

Figure 8-11. UART Boot Mode Configuration Field Description

11

X

DEVSTAT Boot Mode Pins ROM Mapping

10

X

9

X

8

Boot Master

7 6

Sys PLL Config

5 4

Min

3 2 1

111

0

Lendian

Table 8-13. UART Boot Configuration Field Descriptions

Bit

12

Field

16-13 Reserved

Port

11-9 Reserved

8 Boot Master

7-5

4

3-1

0

SYS PLL

Setting

Min

Description

Not Used

UART Port number

• 0 = UART0

• 1 = UART1

Not Used

This pin must be pulled down to GND

The PLL default settings are determined by the [7:5] bits. This will set the PLL to the maximum clock setting for the device.

Table 8-24

shows settings for various input clock frequencies. (default = 4)

Minimum boot configuration select bit.

• 0 = Minimum boot pin select disabled

• 1 = Minimum boot pin select enabled.

When Min = 1, a predetermined set of values is configured (see the Device Configuration Field Descriptions table for configuration bits with a "(default)" tag added in the description column).

When Min = 0, all fields must be independently configured.

Boot Devices Boot Devices[3:1]

• 111 = UART boot mode

• Others = Other boot modes

Lendian Endianess

• 0 = Big endian

• 1 = Little endian

8.1.2.4

Boot Parameter Table

The ROM Bootloader (RBL) uses a set of tables to carry out the boot process. The boot parameter table is the most common format the RBL employs to determine the boot flow. These boot parameter tables have certain parameters common across all the boot modes, while the rest of the parameters are unique to the boot modes. The common entries in the boot parameter table are shown in

Table 8-14

.

4

6

8

10

12

14

16

18

20

BYTE OFFSET NAME

0 Length

2 Checksum

Boot Mode

Port Num

SW PLL, MSW

SW PLL, LSW

Reserved

Reserved

System Freq

Core Freq

Boot Master

Table 8-14. Boot Parameter Table Common Parameters

DESCRIPTION

The length of the table, including the length field, in bytes.

The 16 bits ones complement of the ones complement of the entire table. A value of 0 will disable checksum verification of the table by the boot ROM.

Internal values used by RBL for different boot modes.

Identifies the device port number to boot from, if applicable

PLL configuration, MSW

PLL configuration, LSW

Reserved

Reserved

The Frequency of the system clock in MHz

The frequency of the core clock in MHz

Set to FALSE if ARM is the master core.

140

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

8.1.2.4.1 EMIF16 Boot Parameter Table

BYTE OFFSET NAME

22 Options

24

26

28

30

32

34

36

38

Type

Branch Address MSW

Branch Address LSW

Chip Select

Memory Width

Wait Enable

Async Config MSW

Async Config LSW

Table 8-15. EMIF16 Boot Parameter Table

DESCRIPTION

Async Config Parameters are used.

• 0 = Value in the async config paramters are not used to program async config registers.

• 1 = Value in the async config paramters are used to program async config registers.

Set to 0 for EMIF16 (NOR) boot

Most significant bit for Branch address (depends on chip select)

Least significant bit for Branch address (depends on chip select)

Chip Select for the NOR flash

Memory width of the EMIF16 bus (16 bits)

Extended wait mode enabled

• 0 = Wait enable is disabled

• 1 = Wait enable is enabled

Async Config Register MSW

Async Config Register LSW

CONFIGURED

THROUGH BOOT

CONFIGURATION PINS

NO

NO

YES

YES

YES

YES

YES

NO

NO

8.1.2.4.2 Ethernet Boot Parameter Table

24

26

28

30

32

BYTE

OFFSET

22

34

NAME

Options

MAC High

MAC Med

MAC Low

Multi MAC High

Multi MAC Med

Multi MAC Low

Table 8-16. Ethernet Boot Parameter Table

DESCRIPTION

Bits 02 - 00 Interface

• 000 - 100 = Reserved

• 101 = SGMII

• 110 = Reserved

• 111 = Reserved

Bits 03 HD

• 0 = Half Duplex

• 1 = Full Duplex

Bit 4 Skip TX

• 0 = Send Ethernet Ready Frame every 3 seconds

• 1 = Don't send Ethernet Ready Frame

CONFIGURED

THROUGH BOOT

CONFIGURATION PINS

NO

Bits 06 - 05 Initialize Config

• 00 = Switch, SerDes, SGMII and NETCP are configured

• 01 = Initialization is not done for the peripherals that are already enabled and running.

• 10 = Reserved

• 11 = None of the Ethernet system is configured.

Bits 15 - 07 Reserved

The 16 MSBs of the MAC address to receive during boot

The 16 middle bits of the MAC address to receive during boot

NO

NO

The 16 LSBs of the MAC address to receive during boot NO

The 16 MSBs of the multi-cast MAC address to receive during boot NO

The 16 middle bits of the multi-cast MAC address to receive during NO boot

The 16 LSBs of the multi-cast MAC address to receive during boot NO

Device Boot and Configuration

141

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

52

66

68

70

72

54

56

58

60

62

64

38

40

42

44

46

48

50

BYTE

OFFSET

36

NAME

Source Port

Dest Port

Device ID 12

Device ID 34

Dest MAC High

Dest MAC Med

Dest MAC Low

Lane Enable

SGMII Config

SGMII Control

SGMII Adv Ability

SGMII TX Cfg High

SGMII TX Cfg Low

SGMII RX Cfg High

SGMII RX Cfg Low

SGMII Aux Cfg High

SGMII Aux Cfg Low

PKT PLL Cfg MSW

PKT PLL CFG LSW

Table 8-16. Ethernet Boot Parameter Table (continued)

DESCRIPTION

The destination port to accept boot packets on.

CONFIGURED

THROUGH BOOT

CONFIGURATION PINS

The source UDP port to accept boot packets from. A value of 0 will NO accept packets from any UDP port

NO

NO The first two bytes of the device ID. This is typically a string value, and is sent in the Ethernet ready frame

The 2nd two bytes of the device ID.

NO

The 16 MSBs of the MAC destination address used for the Ethernet NO ready frame. Default is broadcast.

The 16 middle bits of the MAC destination address NO

NO The 16 LSBs of the MAC destination address

One bit per lane.

• 0 - Lane disabled

• 1 - Lane enabled

Bits 0-3 are the config index, bit 4 set if direct config used, bit 5 set if NO no configuration done

The SGMII control register value NO

The SGMII ADV Ability register value

The 16 MSBs of the SGMII Tx config register

NO

NO

The 16 LSBs of the SGMII Tx config register

The 16 MSBs of the SGMII Rx config register

The 16 LSBs of the SGMII Rx config register

NO

NO

NO

The 16 MSBs of the SGMII Aux config register

The 16 LSBs of the SGMII Aux config register

The packet subsystem PLL configuration, MSW

The packet subsystem PLL configuration, LSW

NO

NO

NO

NO

8.1.2.4.3 PCIe Boot Parameter Table

Table 8-17. PCIe Boot Parameter Table

BYTE

OFFSET

22

NAME

Options

CONFIGURED

THROUGH BOOT

CONFIGURATION PINS

NO

24

26

Address Width

Link Rate

DESCRIPTION

Bits 00 Mode

• 0 = Host Mode (Direct boot mode)

• 1 = Boot Table Boot Mode

Bits 01 Configuration of PCIe

• 0 = PCIe is configured by RBL

• 1 = PCIe is not configured by RBL

Bit 03-02 Reserved

Bits 04 Multiplier

• 0 = SERDES PLL configuration is done based on SERDES register values

• 1 = SERDES PLL configuration based on the reference clock values

Bits 05-15 Reserved

PCI address width, can be 32 or 64

SerDes frequency, in Mbps. Can be 2500 or 5000

YES with in conjunction with BAR sizes

NO

142

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

44

46

48

50

52

54

56

58

36

38

40

42

30

32

34

BYTE

OFFSET

28

Table 8-17. PCIe Boot Parameter Table (continued)

NAME

Reference clock

Window 1 Size

Window 2 Size

Window 3 Size

Window 4 Size

Vendor ID

Device ID

Class code Rev ID

MSW

DESCRIPTION

CONFIGURED

THROUGH BOOT

CONFIGURATION PINS

Reference clock frequency, in units of 10 kHz. Value values are 10000 NO

(100 MHz), 12500 (125 MHz), 15625 (156.25 MHz), 25000 (250 MHz) and 31250 (312.5 MHz). A value of 0 means that value is already in the SerDes cfg parameters and will not be computed by the boot

ROM.

Window 1size.

YES

Window 2 size.

Window 3 size. Valid only if address width is 32.

Window 4 Size. Valid only if the address width is 32.

Vendor ID

Device ID

Class code revision ID MSW

Class code Rev ID

LSW

SerDes cfg msw

SerDes cfg lsw

Class code revision ID LSW

PCIe SerDes config word, MSW

PCIe SerDes config word, LSW

SerDes lane 0 cfg msw SerDes lane config word, msw lane 0

SerDes lane 0 cfg lsw SerDes lane config word, lsw, lane 0

SerDes lane 1 cfg msw SerDes lane config word, msw, lane 1

SerDes lane 1 cfg lsw SerDes lane config word, lsw, lane 1

Timeout period (Secs) The timeout period. Values 0 disables the time out

YES

YES

YES

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

8.1.2.4.4 I

2

C Boot Parameter Table

OFFSET

22

24

26

28

30

34

36

38

40

FIELD

Option

Boot Dev Addr

Boot Dev Addr Ext

Broadcast Addr

Local Address

Bus Frequency

Next Dev Addr

Next Dev Addr Ext

Address Delay

Table 8-18. I

2

C Boot Parameter Table

VALUE

Bits 02 - 00 Mode

• 000 = Boot Parameter Table Mode

• 001 = Boot Table Mode

• 010 = Boot Config Mode

• 011 = Load GP header format data

• 100 = Slave Receive Boot Config

Bits 15 - 03= Reserved

The I

2

C device address to boot from

CONFIGURED

THROUGH BOOT

CONFIGURATION PINS

NO

Extended boot device address

I

2

C address used to send data in the I

2

C master broadcast mode.

The I

2

C address of this device

The desired I

2

C data rate (kHz)

The next device address to boot (Used only if boot config option is selected)

YES

YES

NO

NO

NO

NO

The extended next device address to boot (Used only NO if boot config option is selected)

The number of CPU cycles to delay between writing the address to an I

2

C EEPROM and reading data.

NO

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

143

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

22

24

26

28

30

32

34

14

16

18

20

42

44

46

36

38

40

40

42

44

34

36

38

24

26

28

30

32

8.1.2.4.5 SPI Boot Parameter Table

BYTE

OFFSET

22

Table 8-19. SPI Boot Parameter Table

NAME

Options

Address Width

NPin

Chipsel

Mode

C2Delay

Bus Freq, 100kHz

Read Addr MSW

Read Addr LSW

DESCRIPTION

Bits 01 & 00 Modes

• 00 = Load a boot parameter table from the SPI (Default mode)

• 01 = Load boot records from the SPI (boot tables)

• 10 = Load boot config records from the SPI (boot config tables)

• 11 = Load GP header blob

Bits 15- 02= Reserved

The number of bytes in the SPI device address. Can be 16 or 24 bit

The operational mode, 4 or 5 pin

The chip select used (valid in 4 pin mode only). Can be 0-3.

Standard SPI mode (0-3)

Setup time between chip assert and transaction

The SPI bus frequency in kHz.

The first address to read from, LSW

Next Chip Select Next Chip Select to be used (Used only in boot Config mode)

Next Read Addr MSW The Next read address (used in boot config mode only)

Next Read Addr LSW The Next read address (used in boot config mode only)

CONFIGURED

THROUGH BOOT

CONFIGURATION PINS

NO

YES

YES

YES

YES

NO

NO

The first address to read from, MSW (valid for 24 bit address width only) YES

YES

NO

NO

NO

8.1.2.4.6 HyperLink Boot Parameter Table

Table 8-20. HyperLink Boot Parameter Table

BYTE

OFFSET

12

NAME

Options

CONFIGURED THROUGH

BOOT CONFIGURATION

PINS

NO

Number of Lanes

SerDes cfg msw

SerDes cfg lsw

SerDes CFG RX lane 0 cfg msw

SerDes CFG RXlane 0 cfg lsw

SerDes CFG TX lane 0 cfg msw

SerDes CFG TXlane 0 cfg lsw

SerDes CFG RX lane 1 cfg msw

SerDes CFG RXlane 1 cfg lsw

SerDes CFG TX lane 1 cfg msw

SerDes CFG TXlane 1 cfg lsw

SerDes CFG RX lane 2 cfg msw

SerDes CFG RXlane 2 cfg lsw

SerDes CFG TX lane 2 cfg msw

SerDes CFG TXlane 2 cfg lsw

SerDes CFG RX lane 3 cfg msw

SerDes CFG RXlane 3 cfg lsw

DESCRIPTION

Bits 00 Reserved

Bits 01 Configuration of Hyperlink

• 0 = HyperLink is configured by RBL

• 1 = HyperLink is not configured by RBL

Bits 15-02 = Reserved

Number of Lanes to be configured

PCIe SerDes config word, MSW

PCIe SerDes config word, LSW

SerDes RX lane config word, msw lane 0

SerDes RX lane config word, lsw, lane 0

SerDes TX lane config word, msw lane 0

SerDes TX lane config word, lsw, lane 0

SerDes RX lane config word, msw lane 1

SerDes RX lane config word, lsw, lane 1

SerDes TX lane config word, msw lane 1

SerDes TX lane config word, lsw, lane 1

SerDes RX lane config word, msw lane 2

SerDes RX lane config word, lsw, lane 2

SerDes TX lane config word, msw lane 2

SerDes TX lane config word, lsw, lane 2

SerDes RX lane config word, msw lane 3

SerDes RX lane config word, lsw, lane 3

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

144

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 8-20. HyperLink Boot Parameter Table (continued)

BYTE

OFFSET

48

50

NAME

SerDes CFG TX lane 3 cfg msw

SerDes CFG TXlane 3 cfg lsw

DESCRIPTION

SerDes TX lane config word, msw lane 3

SerDes TX lane config word, lsw, lane 3

CONFIGURED THROUGH

BOOT CONFIGURATION

PINS

NO

NO

34

36

38

28

30

32

8.1.2.4.7 UART Boot Parameter Table

BYTE

OFFSET

22

24

26

40

42

44

46

48

Table 8-21. UART Boot Parameter Table

NAME

Reserved

DESCRIPTION

None

Data Format

Protocol

Bits 00 Data Format

• 0 = Data Format is BLOB

• 1 = Data Format is Boot Table

Bits 15 - 01 Reserved

Bits 00 Protocol

• 0 = Xmodem Protocol

• 1 = Reserved

Bits 15 - 01 Reserved

Initial NACK Count Number of NACK pings to be sent before giving up

Max Err Count

NACK Timeout

Character Timeout nDatabits

Maximum number of consecutive receive errors acceptable.

Time (msecs) waiting for NACK/ACK.

Time Period between characters

Number of bits supported for data. Only 8 bits is supported.

NO

Parity nStopBitsx2

Bits 01 - 00 Parity

• 00 = No Parity

• 01 = Odd parity

• 10 = Even Parity

Bits 15 - 02 Reserved

NO

Number of stop bits times two. Valid values are 2 (stop bits = 1), 3 (Stop NO

Bits = 1.5), 4 (Stop Bits = 2)

Over sample factor The over sample factor. Only 13 and 16 are valid.

Flow Control Bits 00 Flow Control

• 0 = No Flow Control

• 1 = RTS_CTS flow control

Bits 15 - 01 Reserved

NO

NO

Data Rate MSW

Data Rate LSW

Baud Rate, MSW

Baud Rate, LSW

NO

NO

NO

NO

NO

NO

NO

CONFIGURED THROUGH

BOOT CONFIGURATION

PINS

NA

NO

8.1.2.4.8 NAND Boot Parameter Table

Table 8-22. NAND Boot Parameter Table

BYTE OFFSET

22

NAME

Options

DESCRIPTION

Bits 00 Geometry

• 0 = Geometry is taken from this table

• 1 = Geometry is queried from NAND device.

Bits 01 Clear NAND

• 0 = NAND Device is a non clear NAND and requires ECC

• 1 = NAND is a clear NAND and doesn.t need

ECC.

Bits 15 - 02 Reserved

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

CONFIGURED THROUGH

BOOT CONFIGURATION PINS

NO

Device Boot and Configuration

145

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 8-22. NAND Boot Parameter Table (continued)

36

38

40

30

32

34

BYTE OFFSET NAME

24 numColumnAddrBytes

26

28 numRowAddrBytes

DESCRIPTION

Number of bytes used to specify column address

Number of bytes used to specify row address.

numofDataBytesperPage_msw Number of data bytes in each page, MSW numofDataBytesperPage_lsw numPagesperBlock busWidth

Number of data bytes in each page, LSW

Number of Pages per Block

EMIF bus width. Only 8 or 16 bits is supported.

numSpareBytesperPage csel

First Block

Number of spare bytes allocated per page.

Chip Select number (valid chip selects are 2-5)

First block for RBL to try to read.

CONFIGURED THROUGH

BOOT CONFIGURATION PINS

NO

NO

NO

NO

NO

NO

NO

YES

YES

8.1.2.4.9 DDR3 Configuration Table

The RBL also provides an option to configure the DDR table before loading the image into the external memory. More information on how to configure the DDR3, refer to the Bootloader User Guide. The configuration table for DDR3 is shown in

Table 8-23

Table 8-23. DDR3 Boot Parameter Table

BYTE

OFFSET

0

NAME

configselect msw

CONFIGURED

THROUGH BOOT

CONFIGURATION PINS

NO

4

8

76

80

84

88

92

96

100

56

60

64

68

72

28

32

36

40

44

48

52

12

16

20

24 configselect slsw configselect lsw pllprediv pllMult pllPostDiv sdRamConfig sdRamConfig2 sdRamRefreshctl sdRamTiming1 sdRamTiming2 sdRamTiming3

IpDfrNvmTiming powerMngCtl iODFTTestLogic performcountCfg performCountMstRegSel readIdleCtl sysVbusmIntEnSet sdRamOutImpdedCalcfg tempAlertCfg ddrPhyCtl1 ddrPhyCtl2 proClassSvceMap mstId2ClsSvce1Map mstId2ClsSvce2Map

DESCRIPTION

Selecting the configuration register below that to be set. Each filed below is represented by one bit each.

Selecting the configuration register below that to be set. Each filed below is represented by one bit each.

Selecting the configuration register below that to be set. Each filed below is represented by one bit each.

PLL pre divider value (Should be the exact value not value -1)

PLL Multiplier value (Should be the exact value not value -1)

PLL post divider value (Should be the exact value not value -1)

SDRAM config register

SDRAM Config register

SDRAM Refresh Control Register

SDRAM Timing 1 Register

SDRAM Timing 2 Register

SDRAM Timing 3 Register

LP DDR2 NVM Timing Register

Power management Control Register

IODFT Test Logic Global Control Register

Performance Counter Config Register

Performance Counter Master Region Select Register

Read IDLE counter Register

System Interrupt Enable Set Register

SDRAM Output Impedence Calibration Config Register

Temperature Alert Configuration Register

DDR PHY Control Register 1

DDR PHY Control Register 1

Priority to Class of Service mapping Register

Master ID to Class of Service Mapping 1 Register

Master ID to Class of Service Mapping 2Register

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

146

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 8-23. DDR3 Boot Parameter Table (continued)

BYTE

OFFSET

104

108

112

116

120 - 376

NAME

eccCtl eccRange1 eccRange2 rdWrtExcThresh

Chip Config

DESCRIPTION

ECC Control Register

ECC Address Range1 Register

ECC Address Range2 Register

Read Write Execution Threshold Register

Chip Specific PHY configuration

CONFIGURED

THROUGH BOOT

CONFIGURATION PINS

NO

NO

NO

NO

NO

8.1.2.5

Second-Level Bootloaders

Any of the boot modes can be used to download a second-level bootloader. A second-level bootloader allows for:

• Any level of customization to current boot methods

• Definition of a completely customized boot

8.1.3

SoC Security

The TI SoC contains security architecture that allows the ARM CorePac to perform secure accesses within the device. For more information, contact a TI sales office for additional information available with the purchase of a secure device.

8.1.4

System PLL Settings

The PLL default settings are determined by the BOOTMODE[7:5] bits.

Table 8-24

shows the settings for various input clock frequencies. This will set the PLL to the maximum clock setting for the device.

CLK = CLKIN × ((PLLM+1) ÷ ((OUTPUT_DIVIDE+1) × (PLLD+1)))

Where OUTPUT_DIVIDE is the value of the field of SECCTL[22:19]

NOTE

Other frequencies are supported, but require a boot in a pre-configured mode.

The configuration for the NETCP PLL is also shown. The NETCP PLL is configured with these values only if the Ethernet boot mode is selected with the input clock set to match the main PLL clock (not the SGMII

SerDes clock). See

Table 8-9

for details on configuring Ethernet boot mode. The output from the NETCP

PLL goes through an on-chip divider to reduce the frequency before reaching the NETCP. The NETCP

PLL generates 1050 MHz, and after the chip divider (/3), applies 350 MHz to the NETCP.

The Main PLL is controlled using a PLL controller and a chip-level MMR. DDR3 PLL and NETCP PLL are controlled by chip level MMRs. For details on how to set up the PLL see

Section 10.5

. For details on the

operation of the PLL controller module, see the KeyStone Architecture Phase Locked Loop (PLL)

Controller User's Guide ( SPRUGV2 ).

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

147

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 8-24. System PLL Configuration

BOOTMODE

[7:5]

0b000

0b001

0b010

0b011

0b100

0b101

0b110

0b111

INPUT

CLOCK

FREQ

(MHz)

50.00

66.67

80.00

100.00

156.25

250.00

312.50

122.88

800 MHz DEVICE

4

7

0

0

3

0

0

PLLD PLLM SoC ƒ

0 31 800

23

19

800.04

800

15

40

31

40

12

800

800.78

800

800.78

798.72

1000 MHz DEVICE

0

4

3

0

4

0

0

PLLD PLLM SoC ƒ

0 39 1000

29

24

1000.05

1000

19

63

7

31

64

1000

1000

1000

1000

999.989

1200 MHz DEVICE

4

2

0

0

2

0

0

PLLD PLLM SoC ƒ

0 47 1200

35

29

1200.06

1200

23

45

47

22

19

1200

1197.92

1200

1197.92

1228.80

1400 MHz DEVICE

4

0

0

0

0

0

0

PLLD PLLM SoC ƒ

0 55 1400

41

34

1400.1

1400

27

17

55

8

22

1400

1406.3

1400

1406.3

1413.1

(1) The NETCP PLL generates 1050 MHz and is internally divided by 3 to feed 350 MHz to the packet accelerator.

(2) ƒ represents frequency in MHz.

NETCP = 350 MHz

(1)

PLLD PLLM SoC ƒ

(2)

0 41 1050

1

3

0

24

4

24

11

62

104

20

335

41

167

204

1050.053

1050

1050

1050

1050

1050

1049.6

8.2

Device Configuration

Certain device configurations like boot mode and endianess are selected at device power-on reset. The status of the peripherals (enabled/disabled) is determined after device power-on reset. By default, the peripherals on the device are disabled and need to be enabled by software before being used.

8.2.1

Device Configuration at Device Reset

The logic level present on each device configuration pin is latched at power-on reset to determine the device configuration. The logic level on the device configuration pins can be set by using external pullup/pulldown resistors or by using some control device (e.g., FPGA/CPLD) to intelligently drive these pins. When using a control device, care should be taken to ensure there is no contention on the lines when the device is out of reset. The device configuration pins are sampled during power-on reset and are driven after the reset is removed. To avoid contention, the control device must stop driving the device configuration pins of the SoC.

Table 8-25

describes the device configuration pins.

NOTE

If a configuration pin must be routed out from the device and it is not driven (Hi-Z state), the internal pullup/pulldown (IPU/IPD) resistor should not be relied upon. TI recommends the use of an external pullup/pulldown resistor. For more detailed information on pullup/pulldown resistors and situations in which external pullup/pulldown resistors are required, see

Section 5.4

.

148

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 8-25. Device Configuration Pins

CONFIGURATION PIN

LENDIAN

(1) (2)

PIN NO.

V30

IPD/IPU

IPU

(1)

DESCRIPTION

Device endian mode (LENDIAN)

• 0 = Device operates in big endian mode

• 1 = Device operates in little endian mode

Method of boot

• See

Section 8.1.2

for more details.

BOOTMODE[15:0]

(1) (2)

AB33, AB32, AA33, IPD

AA30, Y32, Y30,

AB29, W33, W31,

V31, W32, W30,

V32, V33, Y29,

AA29

K32, K33 IPD AVSIFSEL[1:0]

(1) (2)

MAINPLLODSEL

(1) (2)

BOOTMODE_RSVD

(1)

Y33

Y31

IPD

IPD

AVS interface selection

• 00 = AVS 4-pin 6-bit Dual-Phase VCNTL[5:2] (Default)

• 01 = AVS 4-pin 4-bit Single-Phase VCNTL[5:2]

• 10 = AVS 6-pin 6-bit Single-Phase VCNTL[5:0]

• 11 = I

2

C

Main PLL Output divider select

• 0 = Main PLL output divider needs to be set to 2 by BOOTROM

• 1 = Reserved

Boot Mode Reserved. Secondary function for GPIO15. Pulldown resistor required on pin.

(1) Internal 100μA pulldown or pullup is provided for this terminal. In most systems, a 1-kΩ resistor can be used to oppose the IPD/IPU.

For more detailed information on pulldown/pullup resistors and situations in which external pulldown/pullup resistors are required, see

Section 5.4

.

(2) These signal names are the secondary functions of these pins.

8.2.2

Peripheral Selection After Device Reset

Several of the peripherals on the AM5K2E0x are controlled by the Power Sleep Controller (PSC). By default, the PCIe and HyperLink are held in reset and clock-gated. The memories in these modules are also in a low-leakage sleep mode. Software is required to turn these memories on. Then, the software enables the modules (turns on clocks and de-asserts reset) before these modules can be used.

If one of the above modules is used in the selected ROM boot mode, the ROM code automatically enables the module.

All other modules come up enabled by default and there is no special software sequence to enable. For more detailed information on the PSC usage, see the KeyStone Architecture Power Sleep Controller

(PSC) User's Guide ( SPRUGV4 ).

8.2.3

Device State Control Registers

The AM5K2E0x device has a set of registers that are used to control the status of its peripherals. These registers are shown in

Table 8-26

.

Table 8-26. Device State Control Registers

ADDRESS

START

0x02620000

0x02620008

0x02620018

0x0262001C

0x02620020

0x02620024

0x02620038

0x0262003C

0x02620040

ADDRESS

END

0x02620007

0x02620017

0x0262001B

0x0262001F

0x02620023

0x02620037

0x0262003B

0x0262003F

0x02620043

20B

4B

4B

4B

SIZE ACRONYM

8B Reserved

16B

4B

4B

4B

Reserved

JTAGID

Reserved

DEVSTAT

Reserved

KICK0

KICK1

Reserved

DESCRIPTION

See

Section 8.2.3.3

See

Section 8.2.3.1

See

Section 8.2.3.4

Device Boot and Configuration

149

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 8-26. Device State Control Registers (continued)

0x0262014C

0x02620150

0x02620154

0x02620158

0x0262015C

0x02620160

0x02620164

0x02620168

0x0262016C

0x02620180

0x02620184

0x02620190

0x02620194

0x02620198

0x0262019C

0x026201A0

0x026201A4

0x026201A8

0x026201AC

0x026201B0

ADDRESS

START

0x02620044

0x02620048

0x0262004C

0x02620050

0x02620054

0x02620058

0x0262005C

0x02620060

0x026200E0

0x02620110

0x02620118

0x02620130

0x02620134

0x02620138

0x0262013C

0x02620140

0x02620144

0x02620148

0x026201B4

0x026201B8

0x026201BC

0x026201C0

0x026201C4

0x026201C8

0x026201CC

0x026201D0

0x02620200

150

Device Boot and Configuration

0x0262014F

0x02620153

0x02620157

0x0262015B

0x0262015F

0x02620160

0x02620167

0x0262016B

0x0262017F

0x02620183

0x0262018F

0x02620193

0x02620197

0x0262019B

0x0262019F

0x026201A3

0x026201A7

0x026201AB

0x026201AF

0x026201B3

ADDRESS

END

0x02620047

0x0262004B

0x0262004F

0x02620053

0x02620057

0x0262005B

0x0262005F

0x026200DF

0x0262010F

0x02620117

0x0262012F

0x02620133

0x02620137

0x0262013B

0x0262013F

0x02620143

0x02620147

0x0262014B

0x026201B7

0x026201BB

0x026201BF

0x026201C3

0x026201C7

0x026201CB

0x026201CF

0x026201FF

0x02620203

4B

4B

4B

4B

4B

12B

4B

4B

4B

4B

4B

4B

4B

20B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

48B

4B

4B

4B

4B

4B

4B

48B

8B

24B

4B

4B

SIZE ACRONYM

4B Reserved

4B

4B

Reserved

Reserved

4B

4B

4B

Reserved

Reserved

Reserved

4B Reserved

128B Reserved

Reserved

MACID

Reserved

Reserved

RESET_STAT_CLR

Reserved

BOOTCOMPLETE

Reserved

RESET_STAT

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

DEVCFG

PWRSTATECTL

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

SmartReflex Class0

DESCRIPTION

See

See

See

See

See

See

See

Section 10.16

Section 8.2.3.6

Section 8.2.3.7

Section 8.2.3.5

Section 8.2.3.2

Section 8.2.3.8

Section 10.2.4

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

0x02620268

0x0262026C

0x02620270

0x0262027C

0x02620280

0x02620284

0x02620288

0x0262028C

0x02620290

0x02620294

0x02620298

0x0262029C

0x026202A0

0x026202A4

0x026202A8

0x026202AC

0x026202B0

0x026202BC

0x026202C0

0x02620300

0x02620304

ADDRESS

START

0x02620204

0x02620208

0x0262020C

0x02620210

0x02620214

0x02620218

0x0262021C

0x02620220

0x02620240

0x02620244

0x02620248

0x0262024C

0x02620250

0x02620254

0x02620258

0x0262025C

0x02620260

0x02620264

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 8-26. Device State Control Registers (continued)

4B

12B

4B

64B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

12B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

32B

SIZE ACRONYM

4B Reserved

4B

4B

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

IPCGR8

IPCGR9

IPCGR10

IPCGR11

Reserved

IPCGRH

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

IPCAR8

IPCAR9

IPCAR10

IPCAR11

Reserved

IPCARH

Reserved

TINPSEL

TOUTPSEL

0x0262026B

0x0262026F

0x0262027B

0x0262027F

0x02620283

0x02620287

0x0262028B

0x0262028F

0x02620293

0x02620297

0x0262029B

0x0262029F

0x026202A3

0x026202A7

0x026202AB

0x026202AF

0x026202BB

0x026202BF

0x026202FF

0x02620303

0x02620307

ADDRESS

END

0x02620207

0x0262020B

0x0262020F

0x02620213

0x02620217

0x0262021B

0x0262021F

0x0262023F

0x02620243

0x02620247

0x0262024B

0x0262024F

0x02620253

0x02620257

0x0262025B

0x0262025F

0x02620263

0x02620267

DESCRIPTION

See

Section 8.2.3.11

See

Section 8.2.3.11

See

Section 8.2.3.10

See

Section 8.2.3.12

See

Section 8.2.3.13

See

Section 8.2.3.14

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

151

0x02620364

0x02620368

0x0262036C

0x02620370

0x02620374

0x02620378

0x0262039C

0x02620400

0x02620404

0x02620408

0x0262040C

0x02620600

0x02620700

0x02620704

0x02620710

0x02620714

0x02620718

0x0262071C

0x02620720

0x02620730

ADDRESS

START

0x02620308

0x0262030C

0x02620310

0x02620314

0x02620318

0x0262031C

0x02620320

0x02620324

0x02620328

0x0262032C

0x02620330

0x02620334

0x02620338

0x02620350

0x02620354

0x02620358

0x0262035C

0x02620360

0x02620734

0x02620738

0x02620750

0x02620800

0x02620C7C

0x02620C80

0x02620C98

0x02620C9C

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

4B

SIZE ACRONYM

4B Reserved

4B

4B

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

RSTMUX8

RSTMUX9

RSTMUX10

RSTMUX11

Reserved

CorePLLCTL0

CorePLLCTL1

PASSPLLCTL0

PASSPLLCTL1

DDR3PLLCTL0

4B

4B

4B

4B

4B

DDR3PLLCTL1

Reserved

Reserved

Reserved

Reserved

132B Reserved

4B

4B

Reserved

ARMENDIAN_CFG0_0

4B

4B

ARMENDIAN_CFG0_1

ARMENDIAN_CFG0_2

4B

4B

4B

16B

4B

62B Reserved

256B Reserved

4B CHIP_MISC_CTL0

12B

4B

Reserved

SYSENDSTAT

Reserved

Reserved

Reserved

Reserved

SYNECLK_PINCTL

4B Reserved

24B USB_PHY_CTL

176B Reserved

1148B Reserved

4B CHIP_MISC_CTL1

24B Reserved

4B DEVSPEED

868B Reserved

0x02620367

0x0262036B

0x0262036F

0x02620373

0x02620377

0x0262039B

0x0262039F

0x02620403

0x02620407

0x0262040B

0x026205FF

0x026206FF

0x02620703

0x0262070F

0x02620713

0x02620717

0x0262071B

0x0262071F

0x0262072F

0x02620733

ADDRESS

END

0x0262030B

0x0262030F

0x02620313

0x02620317

0x0262031B

0x0262031F

0x02620323

0x02620327

0x0262032B

0x0262032F

0x02620333

0x02620337

0x0262034F

0x02620353

0x02620357

0x0262035B

0x0262035F

0x02620363

0x02620737

0x0262074F

0x026207FF

0x02620C7B

0x02620C7F

0x02620C97

0x02620C9B

0x02620FFF

Table 8-26. Device State Control Registers (continued)

DESCRIPTION

See

Section 8.2.3.15

See

Section 10.5

See

Section 10.7

See

Section 10.6

See

Section 8.2.3.17

See

Section 8.2.3.20

See

Section 8.2.3.22

See

Section 8.2.3.23

See

Section 8.2.3.24

See

Section 8.2.3.21

See

Section 8.2.3.16

152

Device Boot and Configuration

www.ti.com

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

8.2.3.1

Device Status (DEVSTAT) Register

The Device Status Register depicts device configuration selected upon a power-on reset by the POR or

RESETFULL pin. Once set, these bits remain set until a power-on reset. The Device Status Register is shown in the figure below.

31

Reserved

R-0

22

Figure 8-12. Device Status Register

21 20

Reserved

R/W-00

19

MAINPLLODSEL

R/W-x

18 17

AVSIFSEL

R/W-xx

16 1

BOOTMODE

R/W-x xxxx xxxx xxxx xxx

0

LENDIAN

R-x

(1)

LEGEND: R/W = Read/Write; R = Read only; -n = value after reset

(1) x indicates the bootstrap value latched via the external pin

Table 8-27. Device Status Register Field Descriptions

Bit Field

31-22 Reserved

21-20 Reserved

19 MAINPLLODSEL

Reserved

Main PLL Output divider select

• 0 = Main PLL output divider needs to be set to 2 by BOOTROM

• 1 = Reserved

18-17 AVSIFSEL

Description

Reserved

16-1 BOOTMODE

AVS interface selection

• 00 = AVS 4-pin 6-bit Dual-Phase VCNTL[5:2] (Default)

• 01 = AVS 4-pin 4-bit Single-Phase VCNTL[5:2]

• 10 = AVS 6-pin 6-bit Single-Phase VCNTL[5:0]

• 11 = Reserved

Determines the bootmode configured for the device. For more information on bootmode, see

Section 8.1.2

.

0 LENDIAN

See the KeyStone II Architecture ARM Bootloader User's Guide ( SPRUHJ3 ).

Device endian mode (LENDIAN) — shows the status of whether the system is operating in big endian mode or little endian mode (default).

• 0 = System is operating in big endian mode

• 1 = System is operating in little endian mode (default)

8.2.3.2

Device Configuration Register

The Device Configuration Register is one-time writeable through software. The register is reset on all hard resets and is locked after the first write. The Device Configuration Register is shown in

Figure 8-13

and described in

Table 8-28 .

Figure 8-13. Device Configuration Register (DEVCFG)

31 5

Reserved

R-0

LEGEND: R/W = Read/Write; R = Read only; -n = value after reset

4

PCIE1SSMODE

3

R/W-00

2

PCIE0SSMODE

1

R/W-00

0

SYSCLKOUTEN

R/W-1

Table 8-28. Device Configuration Register Field Descriptions

Bit Field Description

31-5 Reserved

4-3 PCIE1SSMODE

Reserved. Read only, writes have no effect.

Device Type Input of PCIe1SS

• 00 = Endpoint

• 01 = Legacy Endpoint

• 10 = Rootcomplex

• 11 = Reserved

Device Boot and Configuration

153

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Bit

2-1

0

Table 8-28. Device Configuration Register Field Descriptions (continued)

Field Description

PCIE0SSMODE Device Type Input of PCIe0SS

• 00 = Endpoint

• 01 = Legacy Endpoint

• 10 = Rootcomplex

• 11 = Reserved

SYSCLKOUTEN SYSCLKOUT enable

• 0 = No clock output

• 1 = Clock output enabled (default)

8.2.3.3

JTAG ID (JTAGID) Register Description

The JTAG ID register is a read-only register that identifies to the customer the JTAG/Device ID. For the device, the JTAG ID register resides at address location 0x02620018. The JTAG ID Register is shown below.

Figure 8-14. JTAG ID (JTAGID) Register

12 31 28 27

VARIANT

R-xxxx

PART NUMBER

R-1011 1001 1010 0110

LEGEND: R/W = Read/Write; R = Read only; -n = value after reset

11

MANUFACTURER

R-0000 0010 111

1 0

LSB

R-1

Table 8-29. JTAG ID Register Field Descriptions

Bit Field

31-28 VARIANT

Value

xxxx

Description

Variant value

27-12 PART NUMBER 1011 1001 1010 0110 Part Number for boundary scan

11-1 MANUFACTURER 0000 0010 111 Manufacturer

0 LSB 1 This bit is read as a 1

NOTE

The value of the VARIANT and PART NUMBER fields depends on the silicon revision being used. See the Silicon Errata for details.

8.2.3.4

Kicker Mechanism (KICK0 and KICK1) Register

The Bootcfg module contains a kicker mechanism to prevent spurious writes from changing any of the

Bootcfg MMR (memory mapped registers) values. When the kicker is locked (which it is initially after power on reset), none of the Bootcfg MMRs are writable (they are only readable). This mechanism requires an MMR write to each of the KICK0 and KICK1 registers with exact data values before the kicker lock mechanism is unlocked. See

Table 8-26

for the address location. Once released, all the Bootcfg

MMRs having write permissions are writable (the read only MMRs are still read only). The KICK0 data is

0x83e70b13. The KICK1 data is 0x95a4f1e0. Writing any other data value to either of these kick MMRs locks the kicker mechanism and blocks writes to Bootcfg MMRs. To ensure protection to all Bootcfg

MMRs, software must always re-lock the kicker mechanism after completing the MMR writes.

8.2.3.5

Reset Status (RESET_STAT) Register

The Reset Status Register (RESET_STAT) captures the status of global device reset (GR). Software can use this information to take different device initialization steps. The GR bit is written as 1 only when a global reset is asserted.

The Reset Status Register is shown in the figure and table below.

154

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Figure 8-15. Reset Status Register (RESET_STAT)

31

GR

30

R-1

Legend: R = Read only; -n = value after reset

Reserved

R- 0

Bit

31 GR

Field

30-0 Reserved

Table 8-30. Reset Status Register Field Descriptions

Description

Global reset status

• 0 = Device has not received a global reset.

• 1 = Device received a global reset.

Reserved.

0

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

155

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

8.2.3.6

Reset Status Clear (RESET_STAT_CLR) Register

The RESET_STAT bits can be cleared by writing 1 to the corresponding bit in the RESET_STAT_CLR register. The Reset Status Clear Register is shown in the figure and table below.

Figure 8-16. Reset Status Clear Register (RESET_STAT_CLR)

31

GR

30

RW-0

Legend: R = Read only; RW = Read/Write; -n = value after reset

Reserved

R- 0

1 0

Bit

31

Field

GR

30-0 Reserved

Table 8-31. Reset Status Clear Register Field Descriptions

Description

Global reset clear bit

• 0 = Writing a 0 has no effect.

• 1 = Writing a 1 to the GR bit clears the corresponding bit in the RESET_STAT register.

Reserved.

8.2.3.7

Boot Complete (BOOTCOMPLETE) Register

The BOOTCOMPLETE register controls the BOOTCOMPLETE pin status to indicate the completion of the

ROM booting process. The Boot Complete register is shown in the figure and table below.

Figure 8-17. Boot Complete Register (BOOTCOMPLETE)

6 5 31 12

Reserved

11

BC11

10

BC10

9

BC9

8

BC8

R-0 RW-0 RW-0 RW-0 RW-0

Legend: R = Read only; RW = Read/Write; -n = value after reset

7 4

Reserved

3

R-0

2 1 0

Table 8-32. Boot Complete Register Field Descriptions

Description Bit Field

31-12 Reserved

11 BC11

10

9

8

7-0

BC10

BC9

BC8

ARM CorePac 3 boot status (AM5K2E04 only)

• 0 = ARM CorePac 3 boot NOT complete

• 1 = ARM CorePac 3 boot complete

ARM CorePac 2 boot status (AM5K2E04 only)

• 0 = ARM CorePac 2 boot NOT complete

• 1 = ARM CorePac 2 boot complete

ARM CorePac 1 boot status (AM5K2Ex)

• 0 = ARM CorePac 1 boot NOT complete

• 1 = ARM CorePac 1 boot complete

ARM CorePac 0 boot status

• 0 = ARM CorePac 0 boot NOT complete

• 1 = ARM CorePac 0 boot complete

Reserved

The BCx bit indicates the boot complete status of the corresponding ARM CorePac. All BCx bits are sticky bits — that is, they can be set only once by the software after device reset and they will be cleared to 0 on all device resets (warm reset and power-on reset).

Boot ROM code is implemented such that each ARM CorePac sets its corresponding BCx bit immediately before branching to the predefined location in memory.

156

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

8.2.3.8

Power State Control (PWRSTATECTL) Register

The Power State Control Register (PWRSTATECTL) is controlled by the software to indicate the powersaving mode. Under ROM code, the CorePac reads this register to differentiate between the various power saving modes. This register is cleared only by POR and is not changed by any other device reset.

See the Hardware Design Guide for KeyStone II Devices application report ( SPRABV0 ) for more information. The PWRSTATECTL register is shown in

Figure 8-18

and described in

Table 8-33 .

Figure 8-18. Power State Control Register (PWRSTATECTL)

3 31

Hibernation Recovery Branch Address

RW-0000 0000 0000 0000 0

Legend: R = Read Only, RW = Read/Write; -n = value after reset

2

Hibernation Mode

RW-0

1

Hibernation

RW-0

0

Standby

RW-0

Bit Field

31-3 Hibernation

Recovery Branch

Address

2 Hibernation Mode

Table 8-33. Power State Control Register Field Descriptions

Description

Used to provide a start address for execution out of the hibernation modes.

1

0

Hibernation

Standby

Indicates whether the device is in hibernation mode 1 or mode 2.

• 0 = Hibernation mode 1

• 1 = Hibernation mode 2

Indicates whether the device is in hibernation mode or not.

• 0 = Not in hibernation mode

• 1 = Hibernation mode

Indicates whether the device is in standby mode or not.

• 0 = Not in standby mode

• 1 = standby mode

8.2.3.9

IPC Generation (IPCGRx) Registers

The IPCGRx Registers facilitate inter-C66x CorePac interrupts.

The AM5K2E device has four IPCGRx registers (IPCGR8-IPCGR11) and the 66AK2E02 has two IPCGRx registers (IPCGR8 and IPCGR9). These registers can be used by external hosts or CorePacs to generate interrupts to other CorePacs. A write of 1 to the IPCG field of the IPCGRx register generates an interrupt pulse to the ARM CorePac.

These registers also provide a Source ID facility identifying up to 28 different sources of interrupts.

Allocation of source bits to source processor and meaning is entirely based on software convention. The register field descriptions are given in the following tables. There can be numerous sources for these registers as this is completely controlled by software. Any master that has access to BOOTCFG module space can write to these registers. The IPC Generation Register is shown in

Figure 8-19

and described in

Table 8-34

.

Figure 8-19. IPC Generation Registers (IPCGRx)

31

SRCS27 - SRCS0

RW +0 (per bit field)

Legend: R = Read only; RW = Read/Write; -n = value after reset

4 3 1

Reserved

R-000

0

IPCG

RW-0

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

157

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Bit Field

31-4 SRCSx

3-1

0

Bit Field

31-4 SRCCx

3-0

Reserved

IPCG

Reserved

Table 8-34. IPC Generation Registers Field Descriptions

Description

Reads return current value of internal register bit.

Writes:

• 0 = No effect

• 1 = Sets both SRCSx and the corresponding SRCCx.

Reserved

Reads return 0.

Writes:

• 0 = No effect

• 1 = Creates an inter-ARM interrupt.

8.2.3.10 IPC Acknowledgment (IPCARx) Registers

The IPCARx registers facilitate inter-CorePac interrupt acknowledgment.

The AM5K2E04 device has four IPCARx registers and the AM5K02 has two IPCARx registers. These registers also provide a Source ID facility by which up to 28 different sources of interrupts can be identified. Allocation of source bits to source processor and meaning is entirely based on software convention. The register field descriptions are given in the following tables. Virtually anything can be a source for these registers as this is completely controlled by software. Any master that has access to

BOOTCFG module space can write to these registers. The IPC Acknowledgment Register is shown in the following figure and table.

Figure 8-20. IPC Acknowledgment Registers (IPCARx)

4 31

SRCC27 - SRCC0

RW +0 (per bit field)

Legend: R = Read only; RW = Read/Write; -n = value after reset

3

Reserved

R-0000

0

Table 8-35. IPC Acknowledgment Registers Field Descriptions

Description

Reads return current value of internal register bit.

Writes:

• 0 = No effect

• 1 = Clears both SRCCx and the corresponding SRCSx

Reserved

8.2.3.11 IPC Generation Host (IPCGRH) Register

The IPCGRH register facilitates interrupts to external hosts. Operation and use of the IPCGRH register is the same as for other IPCGR registers. The interrupt output pulse created by the IPCGRH register appears on device pin HOUT.

The host interrupt output pulse is stretched so that it is asserted for four bootcfg clock cycles (SYSCLK1/6) followed by a deassertion of four bootcfg clock cycles. Generating the pulse results in a pulse-blocking window that is eight SYSCLK1/6-cycles long. Back-to-back writes to the IPCRGH register with the IPCG bit (bit 0) set, generates only one pulse if the back-to-back writes to IPCGRH are less than the eight

SYSCLK1/6 cycle window — the pulse blocking window. To generate back-to-back pulses, the back-toback writes to the IPCGRH register must be written after the eight SYSCLK1/6 cycle pulse-blocking window has elapsed. The IPC Generation Host Register is shown in

Figure 8-21

and described in

Table 8-

36 .

158

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Figure 8-21. IPC Generation Registers (IPCGRH)

31

SRCS27 - SRCS0

RW +0 (per bit field)

Legend: R = Read only; RW = Read/Write; -n = value after reset

4

Bit Field

31-4 SRCSx

3-1

0

Reserved

IPCG

Table 8-36. IPC Generation Registers Field Descriptions

Description

Reads return current value of internal register bit.

Writes:

• 0 = No effect

• 1 = Sets both SRCSx and the corresponding SRCCx.

Reserved

Reads return 0.

Writes:

• 0 = No effect

• 1 = Creates an interrupt pulse on device pin (host interrupt/event output in HOUT pin)

3 1

Reserved

R-000

0

IPCG

RW +0

8.2.3.12 IPC Acknowledgment Host (IPCARH) Register

The IPCARH register facilitates external host interrupts. Operation and use of the IPCARH register is the same as for other IPCAR registers. The IPC Acknowledgment Host Register is shown in

Figure 8-22

and described in

Table 8-37 .

Figure 8-22. Acknowledgment Register (IPCARH)

31

SRCC27 - SRCC0

RW +0 (per bit field)

Legend: R = Read only; RW = Read/Write; -n = value after reset

4 3

Reserved

R-0000

0

Bit Field

31-4 SRCCx

3-0 Reserved

Table 8-37. IPC Acknowledgment Register Field Descriptions

Description

Reads the return current value of the internal register bit.

Writes:

• 0 = No effect

• 1 = Clears both SRCCx and the corresponding SRCSx

Reserved

8.2.3.13 Timer Input Selection Register (TINPSEL)

The Timer Input Selection Register selects timer inputs and is shown in

Figure 8-23

and described in

Table 8-38

.

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

159

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Figure 8-23. Timer Input Selection Register (TINPSEL)

31

TINPHSEL15

RW-0

23

TINPHSEL11

RW-0

30

TINPLSEL15

RW-0

22

TINPLSEL11

RW-0

29

TINPHSEL14

RW-0

21

TINPHSEL10

RW-0

28

TINPLSEL14

RW-0

20

TINPLSEL10

RW-0

15

Reserved

R-0

LEGEND: R = Read only; RW = Read/Write; -n = value after reset

27

TINPHSEL13

RW-0

19

TINPHSEL9

RW-0

26

TINPLSEL13

RW-0

18

TINPLSEL9

RW-0

25

TINPHSEL12

RW-0

17

TINPHSEL8

RW-0

Table 8-38. Timer Input Selection Field Description

Bit Field Description

31 TINPHSEL15 Input select for TIMER15 high.

• 0 = TIMI0

• 1 = TIMI1

30 TINPLSEL15 Input select for TIMER15 low.

• 0 = TIMI0

• 1 = TIMI1

29 TINPHSEL14 Input select for TIMER14 high.

• 0 = TIMI0

• 1 = TIMI1

28 TINPLSE14 Input select for TIMER14 low.

• 0 = TIMI0

• 1 = TIMI1

27 TINPHSEL13 Input select for TIMER13 high.

• 0 = TIMI0

• 1 = TIMI1

26 TINPLSEL13 Input select for TIMER13 low.

• 0 = TIMI0

• 1 = TIMI1

25 TINPHSEL12 Input select for TIMER12 high.

• 0 = TIMI0

• 1 = TIMI1

24 TINPLSEL12 Input select for TIMER12low.

• 0 = TIMI0

• 1 = TIMI1

23 TINPHSEL11 Input select for TIMER11 high.

• 0 = TIMI0

• 1 = TIMI1

22 TINPLSEL11 Input select for TIMER11 low.

• 0 = TIMI0

• 1 = TIMI1

21 TINPHSEL10 Input select for TIMER10 high.

• 0 = TIMI0

• 1 = TIMI1

20 TINPLSEL10 Input select for TIMER10 low.

• 0 = TIMI0

• 1 = TIMI1

24

TINPLSEL12

RW-0

16

TINPLSEL8

RW-0

0

160

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 8-38. Timer Input Selection Field Description (continued)

Bit Field Description

19 TINPHSEL9 Input select for TIMER9 high.

• 0 = TIMI0

• 1 = TIMI1

18 TINPLSEL9 Input select for TIMER9 low.

• 0 = TIMI0

• 1 = TIMI1

17 TINPHSEL8 Input select for TIMER8 high.

• 0 = TIMI0

• 1 = TIMI1

16 TINPLSEL8 Input select for TIMER8 low.

• 0 = TIMI0

• 1 = TIMI1

15-0 Reserved

8.2.3.14 Timer Output Selection Register (TOUTPSEL)

The control register TOUTSEL handles the timer output selection and is shown in

Figure 8-24

and described in

Table 8-39 .

Figure 8-24. Timer Output Selection Register (TOUTPSEL)

5 4 31

Reserved

R-0000000000000000000000

Legend: R = Read only; RW = Read/Write; -n = value after reset

10 9

TOUTPSEL1

RW-00001

TOUTPSEL0

RW-00000

0

Bit Field

31-10 Reserved

9-5 TOUTPSEL1

Table 8-39. Timer Output Selection Field Description

Description

Reserved

Output select for TIMO1

• 00000: Reserved

• 00001: Reserved

• 00010: Reserved

• 00011: Reserved

• 00100: Reserved

• 00101: Reserved

• 00110: Reserved

• 00111: Reserved

• 01000: Reserved

• 01001: Reserved

• 01010: Reserved

• 01011: Reserved

• 01100: Reserved

• 01101: Reserved

• 01110: Reserved

• 01111: Reserved

• 10000: TOUTL8

• 10001: TOUTH8

• 10010: TOUTL9

• 10011: TOUTH9

• 10100: TOUTL10

• 10101: TOUTH10

• 10110: TOUTL11

• 10111: TOUTH11

• 11000: TOUTL12

• 11001: TOUTH12

• 11010: TOUTL13

• 11011: TOUTH13

• 11100: TOUTL14

• 11101: TOUTH14

• 11110: TOUTL15

• 11111: TOUTH15

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

161

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Bit

4-0

Field

TOUTPSEL0

Table 8-39. Timer Output Selection Field Description (continued)

Description

Output select for TIMO0

• 00000: Reserved

• 00001: Reserved

• 00010: Reserved

• 00011: Reserved

• 00100: Reserved

• 00101: Reserved

• 00110: Reserved

• 00111: Reserved

• 01000: Reserved

• 01001: Reserved

• 01010: Reserved

• 01011: Reserved

• 01100: Reserved

• 01101: Reserved

• 01110: Reserved

• 01111: Reserved

• 10000: TOUTL8

• 10001: TOUTH8

• 10010: TOUTL9

• 10011: TOUTH9

• 10100: TOUTL10

• 10101: TOUTH10

• 10110: TOUTL11

• 10111: TOUTH11

• 11000: TOUTL12

• 11001: TOUTH12

• 11010: TOUTL13

• 11011: TOUTH13

• 11100: TOUTL14

• 11101: TOUTH14

• 11110: TOUTL15

• 11111: TOUTH15

8.2.3.15 Reset Mux (RSTMUXx) Register

Software controls the Reset Mux block through the reset multiplex registers using RSTMUX8-RSTMUX11 for the ARM CorePac (AM5K2E04) or RSTMUX8_RSTMUX9 for the ARM CorePac (AM5K2E02) on the device. These registers are located in Bootcfg memory space. The Reset Mux Register is shown in

Figure 8-25

and

Table 8-40

below.

Figure 8-25. Reset Mux Register

31

Reserved

10

R-0000 0000 0000 0000 0000 00

9

EVTSTATCLR

RC-0

8

Reserved

R-0

7

DELAY

RW-100

5 4

EVTSTAT

R-0

Legend: R = Read only; RW = Read/Write; -n = value after reset; RC = Read only and write 1 to clear

3

OMODE

RW-000

1 0

LOCK

RW-0

8

7-5

4

Reserved

DELAY

EVTSTAT

Table 8-40. Reset Mux Register 8..11(RSTMUX8-RSTMUX11) Field Descriptions

Bit Field

31-10 Reserved

9 EVTSTATCLR

Description

Reserved

Clear event status

• 0 = Writing 0 has no effect

• 1 = Writing 1 to this bit clears the EVTSTAT bit

Reserved

Delay cycles between interrupt and device reset

• 000b = 256 SYSCLK1/6 cycles delay between interrupt and device reset, when OMODE = 100b

• 001b = 512 SYSCLK1/6 cycles delay between interrupt and device reset, when OMODE = 100b

• 010b = 1024 SYSCLK1/6 cycles delay between interrupt and device reset, when OMODE = 100b

• 011b = 2048 SYSCLK1/6 cycles delay between interrupt and device reset, when OMODE = 100b

• 100b = 4096 SYSCLK1/6 cycles delay between interrupt and device reset, when OMODE = 100b (default)

• 101b = 8192 SYSCLK1/6 cycles delay between interrupt and device reset, when OMODE = 100b

• 110b = 16384 SYSCLK1/6 cycles delay between interrupt and device reset, when OMODE = 100b

• 111b = 32768 SYSCLK1/6 cycles delay between interrupt and device reset, when OMODE = 100b

Event status

• 0 = No event received (Default)

• 1 = WD timer event received by Reset Mux block

162

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Bit

3-1

0

Table 8-40. Reset Mux Register 8..11(RSTMUX8-RSTMUX11) Field Descriptions (continued)

Field

OMODE

LOCK

Description

Timer event operation mode

• 000b = WD timer event input to the Reset Mux block does not cause any output event (default)

• 001b = Reserved

• 010b = Cortex-A15 processor watchdog timers, the Local Reset output event of the RSTMUX logic generates reset to PLL Controller.

• 011b = WD Timer Event input to the Reset Mux block causes Local Reset output event of the RSTMUX logic to generate reset to PLL Controller.

• 100b = WD Timer Event input to the Reset Mux block causes an interrupt to be sent to the GIC.

• 101b = WD timer event input to the Reset Mux block causes device reset to AM5K2E0x. Note that for

Cortex-A15 processor watchdog timers, the Local Reset output event of the RSTMUX logic is connected to the Device Reset generation to generate reset to PLL Controller.

• 110b = Reserved

• 111b = Reserved

Lock register fields

• 0 = Register fields are not locked (default)

• 1 = Register fields are locked until the next timer reset

8.2.3.16 Device Speed (DEVSPEED) Register

The Device Speed Register shows the device speed grade and is shown below.

Figure 8-26. Device Speed Register (DEVSPEED)

16 15 12 31 28 27

Reserved

Legend: R = Read only; -n = value after reset

DEVSPEED

R-n

Reserved

11

Table 8-41. Device Speed Register Field Descriptions

Bit Field

31-28 Reserved

Description

Reserved. Read only

27-16 DEVSPEED Indicates the speed of the device (read only)

• 0b0000 0000 0000 = 800 MHz

• 0b0000 0000 0001 = 1000 MHz

• 0b0000 0000 001x = 1200 MHz

• 0b0000 0000 01xx = 1350 MHz

• 0b0000 0000 1xxx = 1400 MHz

• 0b0000 0001 xxxx = 1500 MHz

• 0b0000 001x xxxx = 1400 MHz

• 0b0000 01xx xxxx = 1350.8 MHz

• 0b0000 1xxx xxxx = 1200 MHz

• 0b0001 xxxx xxxx= 1000 MHz

• 0b001x xxxx xxxx = 800 MHz

15-12 Reserved Reserved. Read only

ARMSPEED

R-n

0

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

163

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 8-41. Device Speed Register Field Descriptions (continued)

Bit Field Description

11-0 ARMSPEED Indicates the speed of the ARM (read only)

• 0b0000 0000 0000 = 800 MHz

• 0b0000 0000 0001 = 1000 MHz

• 0b0000 0000 001x = 1200 MHz

• 0b0000 0000 01xx = 1350 MHz

• 0b0000 0000 1xxx = 1400 MHz

• 0b0000 0001 xxxx = 1500 MHz

• 0b0000 001x xxxx = 1400 MHz

• 0b0000 01xx xxxx = 1350.8 MHz

• 0b0000 1xxx xxxx = 1200 MHz

• 0b0001 xxxx xxxx= 1000 MHz

• 0b001x xxxx xxxx = 800 MHz

8.2.3.17 ARM Endian Configuration Register 0 (ARMENDIAN_CFGr_0), r=0..7

The registers defined in ARM Configuration Register 0 (ARMENDIAN_CFGr_0) and ARM Configuration

Register 1 (ARMENDIAN_CFGr_1) control the way Cortex-A15 processor core access to peripheral

MMRs shows up in the Cortex-A15 processor registers. The purpose is to provide an endian-invariant view of the peripheral MMRs when performing a 32-bit access. (Only one of the eight register sets is shown.)

Figure 8-27. ARM Endian Configuration Register 0 (ARMENDIAN_CFGr_0), r=0..7

8 7 31

BASEADDR

RW

Legend: RW = Read/Write; R = Read only

Reserved

R-0000 0000

0

Bit Field

31-8 BASEADDR

7-0 Reserved

Table 8-42. ARM Endian Configuration Register 0

Default Values

ARM ENDIAN CONFIGURATION REGISTER 0

ARMENDIAN_CFG0_0

ARMENDIAN_CFG1_0

ARMENDIAN_CFG2_0

ARMENDIAN_CFG3_0

ARMENDIAN_CFG4_0

ARMENDIAN_CFG5_0

ARMENDIAN_CFG6_0

ARMENDIAN_CFG7_0

DEFAULT

VALUES

0x0001C000

0x00020000

0x000BC000

0x00210000

0x00023A00

0x00240000

0x01000000

0xFFFFFF00

Table 8-43. ARM Endian Configuration Register 0 Field Descriptions

Description

24-bit Base Address of Configuration Region R

This base address defines the start of a contiguous block of Memory Mapped Register space for which a word swap is done by the ARM CorePac bridge.

Reserved

164

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

8.2.3.18 ARM Endian Configuration Register 1 (ARMENDIAN_CFGr_1), r=0..7

Figure 8-28. ARM Endian Configuration Register 1 (ARMENDIAN_CFGr_1), r=0..7

4 3 31

Reserved

R-0000 0000 0000 0000 0000 0000 0000

Legend: RW = Read/Write; R = Read only

SIZE

RW

0

Bit Field

31-4 Reserved

3-0 SIZE

Table 8-44. ARM Endian Configuration Register 1

Default Values

ARM ENDIAN CONFIGURATION REGISTER 1

ARMENDIAN_CFG0_1

ARMENDIAN_CFG1_1

ARMENDIAN_CFG2_1

ARMENDIAN_CFG3_1

ARMENDIAN_CFG4_1

ARMENDIAN_CFG5_1

ARMENDIAN_CFG6_1

ARMENDIAN_CFG7_1

DEFAULT

VALUES

0x00000006

0x00000009

0x00000004

0x00000008

0x00000005

0x00000006

0x00000000

0x00000000

Table 8-45. ARM Endian Configuration Register 1 Field Descriptions

Description

Reserved

4-bit encoded size of Configuration Region R

The value in the SIZE field defines the size of the contiguous block of Memory Mapped Register space for which a word swap is done by the ARM CorePac bridge (starting from ARMENDIAN_CFGr_0.BASEADDR).

• 0000 : 64KB

• 0001 : 128KB

• 0010 : 256KB

• 0011 : 512KB

• 0100 : 1MB

• 0101 : 2MB

• 0110 : 4MB

• 0111 : 8MB

• 1000 : 16MB

• 1001 : 32MB

• 1010 : 64MB

• 1011 : 128MB

• Others : Reserved

8.2.3.19 ARM Endian Configuration Register 2 (ARMENDIAN_CFGr_2), r=0..7

The registers defined in ARM Configuration Register 2 (ARMENDIAN_CFGr_2) enable the word swapping of a region.

31

Figure 8-29. ARM Endian Configuration Register 2 (ARMENDIAN_CFGr_2), r=0..7

1

Reserved

R-0000 0000 0000 0000 0000 0000 0000 000

0

DIS

RW-0

Legend: RW = Read/Write

Device Boot and Configuration

165

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Bit Field

31-1 Reserved

0 DIS

Table 8-46. ARM Endian Configuration Register 2

Default Values

ARM ENDIAN CONFIGURATION REGISTER 2

ARMENDIAN_CFG0_2

ARMENDIAN_CFG1_2

ARMENDIAN_CFG2_2

ARMENDIAN_CFG3_2

ARMENDIAN_CFG4_2

ARMENDIAN_CFG5_2

ARMENDIAN_CFG6_2

ARMENDIAN_CFG7_2

DEFAULT

VALUES

0x00000001

0x00000001

0x00000001

0x00000001

0x00000001

0x00000001

0x00000001

0x00000001

Table 8-47. ARM Endian Configuration Register 2 Field Descriptions

Description

Reserved

Disabling the word swap of a region

• 0 : Enable word swap for region

• 1 : Disable word swap for region

8.2.3.20 Chip Miscellaneous Control (CHIP_MISC_CTL0) Register

Figure 8-30. Chip Miscellaneous Control Register (CHIP_MISC_CTL0)

31

Reserved

R-0

17 13

Reserved

RW -0

Legend: R = Read only; W = Write only; -n = value after reset

19

12

MSMC_BLOCK_PARITY_RST

RW-0

USB_PME_EN

RW-0

11 3

Reserved

RW-0

18

2

QM_PRIORITY

RW-0

0

Table 8-48. Chip Miscellaneous Control Register (CHIP_MISC_CTL0) Field Descriptions

Bit

31-19

18

Field

Reserved

USB_PME_EN

Description

Reserved.

Enables wakeup event generation from USB

• 0 = Disable PME event generation

• 1 = Enable PME event generation

17-13 Reserved

12 MSMC_BLOCK_PARITY_RST Controls MSMC parity RAM reset. When set to ‘1’ means the MSMC parity RAM will not be reset.

11-3 Reserved

2-0 QM_PRIORITY

Reserved

Control the priority level for the transactions from QM Master port, which access the external linking RAM.

8.2.3.21 Chip Miscellaneous Control (CHIP_MISC_CTL1) Register

Figure 8-31. Chip Miscellaneous Control Register (CHIP_MISC_CTL1)

13 31

Reserved

R- 0000 0000 00000000

15

Legend: R = Read only; RW = Read/Write; -n = value after reset

14

IO_TRACE_SEL

RW-0

Reserved

RW-0

0

166

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 8-49. Chip Miscellaneous Control Register (CHIP_MISC_CTL1) Field Descriptions

Bit Field

31-15 Reserved

14 IO_TRACE_SEL

Description

Reserved.

This bit controls the pin muxing of GPIO[31:17] and EMU[33:19] pin

• 0 = GPIO[31:17] is selected

• 1 = EMU[33:19] pins is selected

13-0 Reserved

8.2.3.22 System Endian Status Register (SYSENDSTAT)

This register provides a way for reading the system endianness in an endian-neutral way. A zero value indicates big endian and a non-zero value indicates little endian. The SYSENDSTAT register captures the

LENDIAN bootmode pin and is used by the BOOTROM to guide the bootflow. The value is latched on the rising edge of POR or RESETFULL .

Figure 8-32. System Endian Status Register

31

Reserved

R-0000 0000 0000 0000 0000 0000 0000 000

Legend: RW = Read/Write; -n = value after reset

1 0

SYSENDSTAT

R-0

Bit Field

31-1 Reserved

0 SYSENDSTAT

Table 8-50. System Endian Status Register Descriptions

Description

Reserved

Reflects the same value as the LENDIAN bit in the DEVSTAT register.

• 0 - SoC is in Big Endian

• 1 - SoC is in Little Endian

8.2.3.23 SYNECLK_PINCTL Register

This register controls the routing of recovered clock signals from any Ethernet port (SGMII/XFI of the multiport switches) to the clock output TSRXCLKOUT0/TSRXCLKOUT1.

31

Reserved

R-0000 0000 0000 0000 0000 0000 0

Legend: RW = Read/Write; - n = value after reset

Figure 8-33. SYNECLK_PINCTL Register

7 6

TSRXCLKOUT1SEL

4

RW-0

3

Reserved

2

TSRXCLKOUT0SEL

0

RW-0

Table 8-51. SYNECLK_PINCTL Register Descriptions

Bit Field Description

31-7 Reserved

6-4 TSRXCLKOUT1SEL •

Reserved

000 - SGMII Lane 0 rxbclk

• 001 - SGMII Lane 1 rxbclk

• 010 - SGMII Lane 2 rxbclk

• 011 - SGMII Lane 3 rxbclk

• 100 - XFI Lane 0 rxbclk

• 101 - XFI Lane 1 rxbclk

• 110 - XFI Lane 2 rxbclk

• 111 - XFI Lane 3 rxbclk

3 Reserved Reserved

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

167

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Bit

2-0

Table 8-51. SYNECLK_PINCTL Register Descriptions (continued)

Field Description

TSRXCLKOUT0SEL •

000 - SGMII Lane 0 rxbclk

• 001 - SGMII Lane 1 rxbclk

• 010 - SGMII Lane 2 rxbclk

• 011 - SGMII Lane 3 rxbclk

• 100 - XFI Lane 0 rxbclk

• 101 - XFI Lane 1 rxbclk

• 110 - XFI Lane 2 rxbclk

• 111 - XFI Lane 3 rxbclk

8.2.3.24 USB PHY Control (USB_PHY_CTLx) Registers

The following registers control the USB PHY.

Figure 8-34. USB_PHY_CTL0 Register

31

10

PHY_RTUNE_REQ

9

Reserved

Reserved

8

R-0

7 6

12 11

PHY_RTUNE_ACK

R-0

5

PHY_TC_VATESTENB PHY_TC_TEST_POWERDOWN PHY_TC_TEST_POWERDOWN

_SSP _HSP

R/W-00 R/W-0 R/W-0 R/W-0

4

PHY_TC_LOOPBACKENB

R-0

3

Reserved

2

UTMI_VBAUSVLDEXT

R/W-0 R-0

Legend: R = Read only; W = Write only; -n = value after reset

R/W-0

1

UTMI_TXBITSTUFFENH

R/W-0

0

UTMI_TXBITSTUFFEN

R/W-0

Table 8-52. USB_PHY_CTL0 Register Field Descriptions

Bit

10

9

8-7

6

5

Field

31-12 Reserved

11 PHY_RTUNE_ACK

Description

Reserved

The PHY uses an external resistor to calibrate the termination impedances of the PHY's highspeed inputs and outputs.

The resistor is shared between the USB2.0 high-speed outputs and the Super-speed I/O. Each time the PHY is taken out of a reset, a termination calibration is performed. For SS link, the calibration can also be requested externally by asserting the PHY_RTUNE_REQ. When the calibration is complete, the PHY_RTUNE_ACK transitions low.

PHY_RTUNE_REQ

Reserved

PHY_TC_VATESTENB

A resistor calibration on the SS link cannot be performed while the link is operational

See PHY_RTUNE_ACK.

Reserved

Analog Test Pin Select.

Enables analog test voltages to be placed on the ID pin.

• 11 = Invalid setting.

• 10 = Invalid setting.

• 01 = Analog test voltages can be viewed or applied on ID.

• 00 = Analog test voltages cannot be viewed or applied on ID.

PHY_TC_TEST_POWERDOWN SS Function Circuits Power-Down Control.

_SSP

Powers down all SS function circuitry in the PHY for IDDQ testing.

PHY_TC_TEST_POWERDOWN HS Function Circuits Power-Down Control

_HSP

Powers down all HS function circuitry in the PHY for IDDQ testing.

168

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

3

2

Bit

4

1

0

Table 8-52. USB_PHY_CTL0 Register Field Descriptions (continued)

Field

PHY_TC_LOOPBACKENB

Description

Loop-back Test Enable

Places the USB3.0 PHY in HS Loop-back mode, which concurrently enables the HS receive and transmit logic.

• 1 = During HS data transmission, the HS receive logic is enabled.

• 0 = During HS data transmission, the HS receive logic is disabled.

Reserved

UTMI_VBAUSVLDEXT

• Reserved

External VBUS Valid Indicator

UTMI_TXBITSTUFFENH

UTMI_TXBITSTUFFEN

Function: Valid in Device mode and only when the VBUSVLDEXTSEL signal is set to 1'b1.

VBUSVLDEXT indicates whether the VBUS signal on the USB cable is valid. In addition,

VBUSVLDEXT enables the pull-up resistor on the D+ line.

• 1 = VBUS signal is valid, and the pull-up resistor on D+ is enabled.

• 0 = VBUS signal is not valid, and the pull-up resistor on D+ is disabled.

High-byte Transmit Bit-Stuffing Enable

Function: controls bit stuffing on DATAINH[7:0] when OPMODE[1:0]=11b.

• 1 = Bit stuffing is enabled.

• 0 = Bit stuffing is disabled.

Low-byte Transmit Bit-Stuffing Enable

Function: controls bit stuffing on DATAIN[7:0] when OPMODE[1:0]=11b.

• 1 = Bit stuffing is enabled.

• 0 = Bit stuffing is disabled.

Figure 8-35. USB_PHY_CTL1 Register

31

4

PIPE_TX2RX_LOOPBK

R/W-0

Reserved

R-0

3 2

PIPE_EXT_PCLK_REQ PIPE_ALT_CLK_SEL

R/W-0

Legend: R = Read only; R/W = Read/Write, -n = value after reset

R/W-0

6

1

PIPE_ALT_CLK_REQ

R-0

5

PIPE_REF_CLKREQ_N

R-0

0

PIPE_ALT_CLK_EN

R/W-0

Bit

31-6

5

4

3

2

Field

Reserved

PIPE_REF_CLKREQ_N

PIPE_TX2RX_LOOPBK

Table 8-53. USB_PHY_CTL1 Register Field Descriptions

Description

Reserved

Reference Clock Removal Acknowledge.

When the pipeP_power-down control into the PHY turns off the MPLL in the P3 state,

PIPE_REF_CLKREQ_N is asserted after the PLL is stable and the reference clock can be removed.

Loop-back.

PIPE_EXT_PCLK_REQ

PIPE_ALT_CLK_SEL

When this signal is asserted, data from the transmit predriver is looped back to the receiver slicers. LOS is bypassed and based on the tx_en input so that rx_los=!tx_data_en.

External PIPE Clock Enable Request.

When asserted, this signal enables the pipeP_pclk output regardless of power state (along with the associated increase in power consumption).

Alternate Clock Source Select.

Selects the alternate clock sources instead of the internal MPLL outputs for the PCS clocks.

• 1 = Uses alternate clocks.

• 0 = Users internal MPLL clocks.

Change only during a reset.

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

169

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Bit

1

0

Table 8-53. USB_PHY_CTL1 Register Field Descriptions (continued)

Field

PIPE_ALT_CLK_REQ

PIPE_ALT_CLK_EN

Description

Alternate Clock Source Request.

Indicates that the alternate clocks are needed by the slave PCS (that is, to boot the master

MPLL). Connect to the alt_clk_en on the master.

Alternate Clock Enable.

Enables the ref_pcs_clk and ref_pipe_pclk output clocks (if necessary, powers up the MPLL).

Figure 8-36. USB_PHY_CTL2 Register

31

20

13

Reserved

R-0

PHY_PC_TXRESTUNE

R/W-01

PHY_PC_TXFSLSTUNE

30

10

29

19

9

PHY_PC_LOS_BIAS

R/W-101

18

PHY_PC_

TXPREEMPPULSETUNE

R/W-0

PHY_PC_SQRXTUNE

27

7

26

PHY_PC_TXVREFTUNE

R/W-1000

17

23 22

16

PHY_PC_TXPREEMPAMPTUNE

4

R/W-00

6

PHY_PC_OTGTUNE

3

Reserved

PHY_PC_TXRISETUNE

15

2

R/W-01

PHY_PC_

TXHSXVTUNE

R/W-11

PHY_PC_

COMPDISTUNE

21

14

0

R/W-0011 R/W-011

Legend: R = Read only; R/W = Read/Write, -n = value after reset

R/W-100 R-0 R/W-100

Bit Field

31-30 Reserved

29-27 PHY_PC_LOS_BIAS

26-23 PHY_PC_TXVREFTUNE

22-21 PHY_PC_TXRISETUNE

Table 8-54. USB_PHY_CTL2 Register Field Descriptions

Description

Reserved

Loss-of-Signal Detector Threshold Level Control.

Sets the LOS detection threshold level.

• +1 = results in a +15 mVp incremental change in the LOS threshold.

• -1 = results in a -15 mVp incremental change in the LOS threshold.

Note: the 000b setting is reserved and must not be used.

HS DC Voltage Level Adjustment.

Adjusts the high-speed DC level voltage.

• +1 = results in a +1.25% incremental change in high-speed DC voltage level.

• -1 = results in a -1.25% incremental change in high-speed DC voltage level.

HS Transmitter Rise/Fall TIme Adjustment.

20-19 PHY_PC_TXRESTUNE

18 PHY_PC_

TXPREEMPPULSETUNE

Adjusts the rise/fall times of the high-speed waveform.

• +1 = results in a -4% incremental change in the HS rise/fall time.

• -1 = results in a +4% incremental change in the HS rise/fall time.

USB Source Impedance Adjustment.

Some applications require additional devices to be added on the USB, such as a series switch, which can add significant series resistance. This bus adjusts the driver source impedance to compensate for added series resistance on the USB.

HS Transmitter Pre-Emphasis Duration Control.

Controls the duration for which the HS pre-emphasis current is sourced onto DP or DM. It is defined in terms of unit amounts. One unit of pre-emphasis duration is approximately 580 ps and is defined as 1x pre-emphasis duration.

This signal valid only if either txpreempamptune[1] or txpreempamptune[0] is set to 1.

• 1 = 1x, short pre-emphasis current duration.

• 0 = 2x, long pre-emphasis current duration.

170

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 8-54. USB_PHY_CTL2 Register Field Descriptions (continued)

Bit Field Description

17-16 PHY_PC_TXPREEMPAMPTUNE HS Transmitter Pre-Emphasis Current Control.

Controls the amount of current sourced to DP and DM after a J-to-K or K-to-J transition.

15-14 PHY_PC_TXHSXVTUNE

13-10 PHY_PC_TXFSLSTUNE

9-7

6-4

3

2-0

PHY_PC_SQRXTUNE

PHY_PC_OTGTUNE

Reserved

PHY_PC_COMPDISTUNE

The HS Transmitter pre-emphasis current is defined in terms of unit amounts. One unit amount is approximately 600 µ;A and is defined as 1x pre-emphasis current.

• 11 = 3x pre-emphasis current.

• 10 = 2x pre-emphasis current.

• 01 = 1x pre-emphasis current.

• 00 = HS Transmitter pre-emphasis is disabled.

Transmitter High-Speed Crossover Adjustment.

Adjusts the voltage at which the DP and DM signals cross while transmitting in HS mode.

• 11 = Default setting.

• 10 = +15 mV

• 01 = -15 mV

• 00 = Reserved

FS/LS Source Impedance Adjustment.

Adjusts the low- and full-speed single-ended source impedance while driving high.

This parameter control is encoded in thermometer code.

• +1 = results in a -2.5% incremental change in threshold voltage level.

• -1 = results in a +2.5% incremental change in threshold voltage level.

Any non-thermometer code setting (that is 1001) is not supported and reserved.

Squelch Threshold Adjustment.

Adjusts the voltage level for the threshold used to detect valid high-speed data.

• +1 = results in a -5% incremental change in threshold voltage level.

• -1 = results in a +5% incremental change in threshold voltage level.

VBUS Valid Threshold Adjustment.

Adjusts the voltage level for the VBUS valid threshold.

• +1 = results in a +1.5% incremental change in threshold voltage level.

• -1 = results in a -1.5% incremental change in threshold voltage level.

Reserved

Disconnect Threshold Adjustment.

Adjusts the voltage level for the threshold used to detect a disconnect event at the host.

• +1 = results in a +1.5% incremental change in the threshold voltage level.

• -1 = results in a -1.5% incremental change in the threshold voltage level.

Figure 8-37. USB_PHY_CTL3 Register

31 30

22 17

PHY_PC_PCS_TX_DEEMPH_6DB

Reserved

R-0

16 11

Reserved

R/W-100000 R-0

Legend: R = Read only; R/W = Read/Write, -n = value after reset

10 5

PHY_PC_PCS_TX_DEEMPH_3P5DB

R/W-010101

29

PHY_PC_PCS_TX_SWING_FULL

23

R/W-1111000

4

PHY_PC_LOS_LEVEL

R/W-01001

0

Table 8-55. USB_PHY_CTL3 Register Field Descriptions

Bit Field

31-30 Reserved

29-23 PHY_PC_PCS_TX_SWING_

FULL

Description

Reserved

Tx Amplitude (Full Swing Mode).

Sets the launch amplitude of the transmitter. It can be used to tune Rx eye for compliance.

Device Boot and Configuration

171

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 8-55. USB_PHY_CTL3 Register Field Descriptions (continued)

Bit Field Description

22-17 PHY_PC_PCS_TX_DEEMPH_ Tx De-Emphasis at 6 dB.

6DB

Sets the Tx driver de-emphasis value when pipeP_tx_deemph[1:0] is set to 10b (according to the PIPE3 specification). This bus is provided for completeness and as a second potential launch amplitude.

16-11 Reserved

10-5 PHY_PC_PCS_TX_DEEMPH_

3P5DB

Reserved

Tx De-Emphasis at 3.5 dB.

Sets the Tx driver de-emphasis value when pipeP_tx_deemph[1:0] is set to 10b (according to the PIPE3 specification). Can be used for Rx eye compliance.

4-0 PHY_PC_LOS_LEVEL Loss-of-Signal Detector Sensitivity Level Control.

Sets the LOS detection threshold level. This signal must be set to 0x9.

Figure 8-38. USB_PHY_CTL4 Register

27

31

PHY_SSC_EN

R/W-1

PHY_FSEL

R/W-100111

16

R/W-0

22

PHY_OTG_VBUSVLDEXTSEL

30

PHY_REF_USE_PAD

21

R/W-0

PHY_RETENABLEN

R/W-1 R/W-10

29

PHY_REF_SSP_EN

20

R/W-0

19

PHY_REFCLKSEL

18

PHY_MPLL_REFSSC_CLK_EN

PHY_COMMONONN

R/W-0

28

R/W-0

17

Reserved

15

PHY_OTG_

OTGDISABLE

R/W-1

14 12 11 7

PHY_PC_TX_VBOOST PHY_PC_LANE0_TX_TERM_

_LVL OFFSET

R/W-100 R/W-00000

Legend: R = Read only; R/W = Read/Write, -n = value after reset

R-0

6 0

Reserved

R-0

Table 8-56. USB_PHY_CTL4 Register Field Descriptions

Bit

31

30

Field

PHY_SSC_EN

PHY_REF_USE_PAD

Description

Spread Spectrum Enable.

Enables spread spectrum clock production (0.5% down-spread at ~31.5 KHz) in the USB3.0

PHY. If the reference clock already has spread spectrum applied, ssc_en must be de-asserted.

Select Reference Clock Connected to ref_pad_clk_{p,m}.

When asserted, selects the external ref_pad_clk_{p,m} inputs as the reference clock source.

When de-asserted, ref_alt_clk_{p,m} are selected for an on-chip reference clock source.

Reference Clock Enables for SS function.

29 PHY_REF_SSP_EN

28

27-22

Enables the reference clock to the prescaler. The ref_ssp_en signal must remain de asserted until the reference clock is running at the appropriate frequency, at which point ref_ssp_en can be asserted. For lower power states, ref_ssp_en can also be de asserted.

PHY_MPLL_REFSSC_CLK_EN Double-Word Clock Enable.

PHY_FSEL

Enables/disables the mpll_refssc_clk signal. To prevent clock glitch, it must be changed when the PHY is inactive.

Frequency Selection.

21 PHY_RETENABLEN

Selects the reference clock frequency used for both SS and HS operations. The value for fsel combined with the other clock and enable signals will determine the clock frequency used for

SS and HS operations and if a shared or separate reference clock will be used.

Lowered Digital Supply Indicator.

Indicates that the vp digital power supply has been lowered in Suspend mode. This signal must be de-asserted before the digital power supply is lowered.

• 1 = Normal operating mode.

• 0 = The analog blocks are powered down.

172

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 8-56. USB_PHY_CTL4 Register Field Descriptions (continued)

Bit

20-19

18

17

16

Field

PHY_REFCLKSEL

Description

Reference Clock Select for PLL Block.

Selects reference clock source for the HS PLL block.

• 11 = HS PLL uses EXTREFCLK as reference.

• 10 = HS PLL uses either ref_pad_clk_{p,m} or ref_alt_clk_{p,m} as reference.

• x0 = Reserved.

Common Block Power-Down Control.

PHY_COMMONONN

Controls the power-down signals in the HS Bias and PLL blocks when the USB3.0 PHY is in

Suspend or Sleep mode.

• 1 = In Suspend or Sleep mode, the HS Bias and PLL blocks are powered down.

• 0 = In Suspend or Sleep mode, the HS Bias and PLL blocks remain powered and continue to draw current.

Reserved Reserved

PHY_OTG_VBUSVLDEXTSEL External VBUS Valid Select.

15

14-12

PHY_OTG_OTGDISABLE

PHY_PC_TX_VBOOST_LVL

Selects the VBUSVLDEXT input or the internal Session Valid comparator to indicate when the

VBUS signal on the USB cable is valid.

• 1 = VBUSVLDEXT input is used.

• 0 = Internal Session Valid comparator is used.

OTG Block Disable.

Powers down the OTG block, which disables the VBUS Valid and Session End comparators.

The Session Valid comparator (the output of which is used to enable the pull-up resistor on DP in Device mode) is always on irrespective of the state of otgdisable. If the application does not use the OTG function, setting this signal to high to save power.

• 1 = OTG block is powered down.

• 0 = OTG block is powered up.

Tx Voltage Boost Level.

11-7

6-0

PHY_PC_LANE0_TX_TERM_

OFFSET

Reserved

Sets the boosted transmit launch amplitude (mV ppd

).

The default setting is intended to set the launch amplitude to approximately 1,008mV ppd

.

• +1 = results in a +156 mV ppd change in the Tx launch amplitude.

• -1 = results in a -156 mV ppd change in the Tx launch amplitude.

Transmitter Termination Offset.

Enables adjusting the transmitter termination value from the default value of 60 Ω.

Reserved

Figure 8-39. USB_PHY_CTL5 Register

19 31

12

Reserved

R-0

PHY_SSC_REF_CLK_SEL

R/W-000000000

21

4

20

PHY_REF_CLKDIV2

R/W-0

3

Reserved

R-0

Legend: R = Read only; R/W = Read/Write, -n = value after reset

PHY_MPLL_MULTIPLIER[6:0]

R/W +0011001

2

PHY_SSC_RANGE

R/W-000

13

0

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Boot and Configuration

173

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Bit Field

31-21 Reserved

20 PHY_REF_CLKDIV2

12-4

3

2-0

PHY_SSC_REF_CLK_SEL

Reserved

PHY_SSC_RANGE

Table 8-57. USB_PHY_CTL5 Register Field Descriptions

19-13 PHY_MPLL_MULTIPLIER[6:0]

Description

Reserved

Input Reference Clock Divider Control.

If the input reference clock frequency is greater than 100 MHz, this signal must be asserted.

The reference clock frequency is then divided by 2 to keep it in the range required by the

MPLL.

When this input is asserted, the ref_ana_usb2_clk (if used) frequency will be the reference clock frequency divided by 4.

MPLL Frequency Multiplier Control.

Multiplies the reference clock to a frequency suitable for intended operating speed.

Spread Spectrum Reference Clock Shifting.

Enables non-standard oscillator frequencies to generate targeted MPLL output rates. Input corresponds to frequency-synthesis coefficient.

• . ssc_ref_clk_sel[8:6] = modulous - 1

• . ssc_ref_clk_sel[5:0] = 2's complement push amount.

Reserved

Spread Spectrum Clock Range.

Selects the range of spread spectrum modulation when ssc_en is asserted and the PHY is spreading the high-speed transmit clocks. Applies a fixed offset to the phase accumulator.

174

Device Boot and Configuration

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

9 Device Operating Conditions

9.1

Absolute Maximum Ratings

(1)

Over Operating Case Temperature Range (Unless Otherwise Noted)

Supply voltage range

(2)

:

CVDD

CVDD1

DVDD15

DVDD18

DDR3VREFSSTL

VDDAHV

VDDALV

USB0DVDD33, USB0DVDD33

VDDUSB0, VDDUSB1

USB0VP, USB1VP

USB0VPH, USB1VPH

USB0VPTX, USB1VPTX

AVDDA1, AVDDA2, AVDDA3

AVDDA6, AVDDA7

-0.3 V to 1.3 V

-0.3 V to 1.3 V

-0.3 V to 1.98 V

-0.3 V to 2.45 V

0.49 × DVDD15 to 0.51 × DVDD15

-0.3 V to 1.98 V

-0.3 V to 0.935 V

-0.3V to 3.63 V

-0.3V to 0.935 V

-0.3V to 0.935 V

-0.3V to 3.63 V

-0.3V to 0.935 V

-0.3 V to 1.98 V

-0.3 V to 1.98 V

Input voltage (V

I

) range

(3)

:

AVDDA8, AVDDA9, AVDDA10

VSS Ground

LVCMOS (1.8 V)

DDR3

I

2

C

LVDS

LJCB

SerDes

LVCMOS (1.8 V)

0 V

-0.3 V to DVDD18+0.3 V

-0.3 V to 1.98 V

-0.3 V to 2.45 V

-0.3 V to DVDD18+0.3 V

Output voltage (V

O

) range

Operating case temperature range, T

ESD stress voltage, V

ESD

(3)

(4)

:

C

:

DDR3

I

2

C

SerDes

Commercial

Extended

HBM (human body model)

(5)

CDM (charged device model)

(6)

-0.3 V to 1.3 V

-0.3 V to VDDAHV1+0.3 V

-0.3 V to DVDD18+0.3 V

-0.3 V to 1.98 V

-0.3 V to 2.45 V

-0.3 V to VDDAHV+0.3 V

0°C to 85°C

-40°C to 100°C

±1000 V

±250 V

Overshoot/undershoot

(7)

LVCMOS (1.8 V)

DDR3

I

2

C

20% overshoot/undershoot for 20% of signal duty cycle

Storage temperature range, T stg

: -65°C to 150°C

(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating

conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) All voltage values are with respect to V

SS

.

(3) For USB High-Speed, Full-Speed, and Low -Speed modes, USB I/Os adhere to Universal Serial Bus, revision 2.0 standard. For USB

Super-Speed mode, USB I/Os adhere to Universal Serial Bus, revision 3.1 specification, revision 1.0 standard.

(4) Electrostatic discharge (ESD) to measure device sensitivity/immunity to damage caused by electrostatic discharges into the device.

(5) Level listed above is the passing level per ANSI/ESDA/JEDEC JS-001-2010. JEDEC document JEP155 states that 500 V HBM allows safe manufacturing with a standard ESD control process, and manufacturing with less than 500 V HBM is possible if necessary precautions are taken. Pins listed as 1000 V may actually have higher performance.

(6) Level listed above is the passing level per EIA-JEDEC JESD22-C101E. JEDEC document JEP157 states that 250 V CDM allows safe manufacturing with a standard ESD control process. Pins listed as 250 V may actually have higher performance.

(7) Overshoot/Undershoot percentage relative to I/O operating values - for example the maximum overshoot value for 1.8 V LVCMOS signals is DVDD18 + 0.20 × DVDD18 and maximum undershoot value would be V

SS

- 0.20 × DVDD18

Device Operating Conditions

175

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

9.2

Recommended Operating Conditions

(1) (2)

CVDD SR core supply

Initial

(3)

1250MHz and

1400MHz Device

MIN

1.0

SRVnom*0.95

(4)

NOM

1.05

SRVnom

MAX

1.10

SRVnom*1.05

UNIT

V

V

CVDD1

DVDD18

DVDD15

Core supply

1.8-V supply I/O voltage

DDR3 I/O voltage

DDR3VREFSSTL DDR3 reference voltage

VDDAHV

VDDALH

AVDDx

(5)

SerDes regulator supply

SerDes termination supply

PLL analog, DDR DLL supply

USB0VP, USB1VP 0.85-V USB PHY supply

3.3-V USB USB0VPH,

USB1VPH

USB0VPTX,

USB1VPTX

VDDUSB0,

VDDUSB1

USBPHY Transmit supply

USB PHY supply

USB0DVDD33,

USB1DVDD33

V

SS

USB 3.3-V high supply

Ground

DDR3

DDR3L @ 1.5 V

DDR3L @ 1.35 V

0.95

1.71

1.425

1.425

1.283

0.49 × DVDD15

1.71

0.807

1.71

0.807

3.135

0.807

0.807

3.135

1.0

1.8

1.5

1.5

1.35

0.5 × DVDD15

1.8

0.85

1.8

0.85

3.3

0.85

0.85

3.3

1.05

1.89

1.575

1.575

1.45

0.51 × DVDD15

1.89

0.892

1.89

0.892

3.465

0.892

0.892

3.465

V

V

V

V

V

V

V

V

V

V

V

V

V

IH

(6)

V

IL

(6)

T

C

High-level input voltage

Low-level input voltage

Operating case temperature

LVCMOS (1.8 V)

I

2

C

DDR3 EMIF

LVCMOS (1.8 V)

DDR3 EMIF

I

2

C

Commercial

Extended

0

0.65 × DVDD18

0.7 × DVDD18

VREFSSTL + 0.1

-0.3

0

-40

0 0

0.35 × DVDD18

VREFSSTL - 0.1

0.3 × DVDD18

85

100

(1) All differential clock inputs comply with the LVDS Electrical Specification, IEEE 1596.3-1996 and all SerDes I/Os comply with the XAUI

Electrical Specification, IEEE 802.3ae-2002.

(2) All SerDes I/Os comply with the XAUI Electrical Specification, IEEE 802.3ae-2002.

(3) Users are required to program their board CVDD supply initial value to 1.0 V on the device. The initial CVDD voltage at power-on will be

1.0V nominal and it must transition to VID set value, immediately after being presented on the VCNTL pins. This is required to maintain full power functionality and reliability targets guaranteed by TI.

(4) SRVnom refers to the unique SmartReflex core supply voltage that has a potential range of 0.8 V and 1.1 V which preset from the factory for each individual device. Your device may never be programmed to operate at the upper range but has been designed accordingly should it be determined to be acceptable or necessary. Power supplies intended to support the variable SRV function shall be capable of providing a 0.8V-1.1V dynamic range using a 4- or 6-bit binary input value which as provided by the SOC SmartReflex output.

(5) Where x=1,2,3,4... to indicate all supplies of the same kind.

(6) For USB High-Speed, Full-Speed, and Low -Speed modes, USB I/Os adhere to Universal Serial Bus, revision 2.0 standard. For USB

Super-Speed mode, USB I/Os adhere to Universal Serial Bus, revision 3.1 specification, revision 1.0 standard.

V

V

V

V

V

V

V

°C

°C

176

Device Operating Conditions

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

9.3

Electrical Characteristics

Over Recommended Ranges of Supply Voltage and Operating Case Temperature (Unless Otherwise Noted)

V

OH

(2)

V

OL

(2)

PARAMETER

High-level output voltage

Low-level output voltage

LVCMOS (1.8 V)

DDR3

I

2

C

(3)

LVCMOS (1.8 V)

DDR3

TEST

CONDITIONS

(1)

I

O

= I

OH

I

O

= I

OL

MIN

DVDD18 - 0.45

DVDD15 - 0.4

TYP

(3)

I

I

(4)

Input current [DC]

I

2

C

LVCMOS (1.8 V)

I

2

C

I

O

= 3 mA, pulled up to 1.8 V

No IPD/IPU

Internal pullup

Internal pulldown

0.1 × DVDD18 V < V

I

< 0.9 × DVDD18 V

-10

50

-170

-10

100

-100

I

I

OH

OL

I

OZ

(6)

High-level output current

[DC]

LVCMOS (1.8 V)

DDR3

I

2

C

(5)

LVCMOS (1.8 V)

Low-level output current [DC] DDR3

I

2

C

LVCMOS (1.8 V)

Off-state output current [DC] DDR3

I

2

C

-10

-10

-10

(5)

MAX UNIT

0.45

0.4

0.4

10

170

-50

10

-6

-8

V

V

µA

µA mA

3

10

10

10

6

8 mA

µA

(1) For test conditions shown as MIN, MAX, or TYP, use the appropriate value specified in the recommended operating conditions table.

(2) For USB High-Speed, Full-Speed, and Low -Speed modes, USB I/Os adhere to Universal Serial Bus, revision 2.0 standard. For USB

(3) I

Super-Speed mode, USB I/Os adhere to Universal Serial Bus, revision 3.1 specification, revision 1.0 standard.

2

C uses open collector IOs and does not have a V

OH

Minimum.

(4) I

I applies to input-only pins and bidirectional pins. For input-only pins, I

I indicates the input leakage current. For bidirectional pins, I

I

(5) I includes input leakage current and off-state (Hi-Z) output leakage current.

2

C uses open collector IOs and does not have a I

OH

Maximum.

(6) I

OZ applies to output-only pins, indicating off-state (Hi-Z) output leakage current.

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

Device Operating Conditions

177

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

9.4

Power Supply to Peripheral I/O Mapping

Table 9-1. Power Supply to Peripheral I/O Mapping

(1) (2)

Over Recommended Ranges of Supply Voltage and Operating Case Temperature (Unless Otherwise Noted)

CVDD

VDDALV

VDDAHV

DVDD15

DVDD18

POWER SUPPLY

Supply core AVS voltage

SerDes IO voltage

DDR3 memory I/O voltage

1.8-V supply I/O voltage

I/O BUFFER TYPE

LJCB

SerDes/CML

SerDes/CML

ASSOCIATED PERIPHERAL

CORECLK(P|N) PLL input buffer

DDR3CLK(P|N) PLL input buffer

NETCPCLK(P|N) PLL input buffer

USBCLK(P|M) PLL input buffer

SGMII0CLK(P|N) PLL input buffer

SERDES low voltage

PCIECLK(P|N) SerDes Clock Reference

HYPCLK(P|N) SerDes Clock Reference

XFICLK(P|N) SerDes Clock Reference

(3)

DDR3 (1.5/1.35 V) All DDR3 memory controller peripheral I/O buffer

All GPIO peripheral I/O buffer

All JTAG and EMU peripheral I/O buffer

All TIMER peripheral I/O buffer

LVCMOS (1.8 V)

All SPI peripheral I/O buffer

All TSIP peripheral I/O buffer

All RESETs, control peripheral I/O buffer

All SmartReflex peripheral I/O buffer

All Hyperlink sideband peripheral I/O buffer

All MDIO peripheral I/O buffer

All UART peripheral I/O buffer

Open-drain (1.8 V) All I

2

C peripheral I/O buffer

LVDS TSREFCLK SerDes Clock Reference

(1) Please note that this table does not attempt to describe all functions of all power supply terminals but only those whose purpose it is to power peripheral I/O buffers and clock input buffers.

(2) Please see the Hardware Design Guide for KeyStone II Devices application report ( SPRABV0 ) for more information about individual peripheral I/O.

(3) 10 GbE supported in AM5K2E04 only.

178

Device Operating Conditions

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

10 AM5K2E0x Peripheral Information and Electrical Specifications

This chapter covers the various peripherals on the AM5K2E0x device. Peripheral-specific information, timing diagrams, electrical specifications, and register memory maps are described in this chapter.

10.1 Recommended Clock and Control Signal Transition Behavior

All clocks and control signals must transition between V

IH manner.

and V

IL

(or between V

IL and V

IH

) in a monotonic

10.2 Power Supplies

The following sections describe the proper power-supply sequencing and timing needed to properly power on the AM5K2E0x. The various power supply rails and their primary functions are listed in

Table 10-1 .

NAME

AVDDAx

DVDD15

DVDD18

USB0DVDD33, USB1DVDD33

VDDAHV

VDDALV

VDDUSB0, VDDUSB1

USB0VP, USB0VPTX, USB0VP,

USB0VPTX

VSS

Table 10-1. Power Supply Rails on the AM5K2E0x

PRIMARY FUNCTION

Core PLL, DDR3 DLL supply voltage

DDR3 I/O power supply voltage

1.8-V I/O power supply voltage

USB 3.3-V IO supply

SerDes I/O power supply voltage

SerDes analog power supply voltage

USB LV PHY power supply voltage

Filtered 0.85-V supply voltage

VOLTAGE

1.8 V

1.5/1.35 V

1.8 V

3.3 V

1.8 V

0.85 V

0.85 V

0.85 V

NOTES

Core PLL, DDR3 DLL supply

DDR3 I/O power supply

1.8-V I/O power supply

USB high voltage supply

SerDes I/O power supply

SerDes analog supply

USB LV PHY supply

Filtered 0.85-V USB supply

Ground GND Ground

10.2.1 Power-Up Sequencing

This section defines the requirements for a power-up sequencing from a power-on reset condition. There are two acceptable power sequences for the device.

The first sequence stipulates the core voltages starting before the IO voltages as shown below.

1. CVDD

2. CVDD1, VDDAHV, AVDDAx, DVDD18

3. DVDD15

4. VDDALV, VDDUSBx, USBxVP, USBxVPTX

5. USBxDVDD33

The second sequence provides compatibility with other TI processors with the IO voltage starting before

the core voltages as shown below.

1. VDDAHV, AVDDAx, DVDD18

2. CVDD

3. CVDD1

4. DVDD15

5. VDDALV, VDDUSBx, USBxVP, USBxVPTX

6. USBxDVDD33

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

179

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

The clock input buffers for CORECLK, DDRCLK, NETCPCLK, and SGMIICLK use CVDD as a supply voltage. These clock inputs are not failsafe and must be held in a high-impedance state until CVDD is at a valid voltage level. Driving these clock inputs high before CVDD is valid could cause damage to the device. Once CVDD is valid, it is acceptable that the P and N legs of these clocks may be held in a static state (either high and low or low and high) until a valid clock frequency is needed at that input. To avoid internal oscillation, the clock inputs should be removed from the high impedance state shortly after CVDD is present.

If a clock input is not used, it must be held in a static state. To accomplish this, the N leg should be pulled to ground through a 1-k Ω resistor. The P leg should be tied to CVDD to ensure it will not have any voltage present until CVDD is active. Connections to the IO cells powered by DVDD18 and DVDD15 are not failsafe and should not be driven high before these voltages are active. Driving these IO cells high before

DVDD18 or DVDD15 are valid could cause damage to the device.

The device initialization is divided into two phases. The first phase consists of the time period from the activation of the first power supply until the point at which all supplies are active and at a valid voltage level. Either of the sequencing scenarios described above can be implemented during this phase. The figures below show both the core-before-IO voltage sequence and the IO-before-core voltage sequence.

POR must be held low for the entire power stabilization phase.

This is followed by the device initialization phase. The rising edge of POR followed by the rising edge of

RESETFULL triggers the end of the initialization phase, but both must be inactive for the initialization to complete. POR must always go inactive before RESETFULL goes inactive as described below. SYSCLK1 in the following section refers to the clock that is used by the CorePacs. See

Figure 10-7

for more details.

10.2.1.1 Core-Before-IO Power Sequencing

The details of the Core-before-IO power sequencing are defined in

Table 10-2 .

Figure 10-1

shows power sequencing and reset control of the AM5K2E0x. POR may be removed after the power has been stable for the required 100 µsec. RESETFULL must be held low for a period (see item 9 in

Figure 10-1 ) after the

rising edge of POR, but may be held low for longer periods if necessary. The configuration bits shared with the GPIO pins will be latched on the rising edge of RESETFULL and must meet the setup and hold times specified. SYSCLK1 must always be active before POR can be removed.

NOTE

TI recommends a maximum of 80 ms between one power rail being valid and the next power rail in the sequence starting to ramp.

ITEM

1

2a

Table 10-2. Core-Before-IO Power Sequencing

SYSTEM STATE

Begin Power Stabilization Phase

• CVDD (core AVS) ramps up.

• POR must be held low through the power stabilization phase. Because POR is low, all the core logic that has asynchronous reset (created from POR) is put into the reset state.

• Each supply must ramp monotonically and must reach a stable valid level in 20 ms or less.

• CVDD1 (core constant) ramps at the same time or within 80 ms of CVDD. Although ramping CVDD1 simultaneously with

CVDD is permitted, the voltage for CVDD1 must never exceed CVDD until after CVDD has reached a valid voltage.

• The purpose of ramping up the core supplies close to each other is to reduce crowbar current. CVDD1 should trail CVDD as this will ensure that the Word Lines (WLs) in the memories are turned off and there is no current through the memory bit cells. If, however, CVDD1 (core constant) ramps up before CVDD (core AVS), then the worst-case current could be on the order of twice the specified draw of CVDD1.

• Each supply must ramp monotonically and must reach a stable valid level in 20 ms or less.

• The timing for CVDD1 is based on CVDD valid. CVDD1 and DVDD18/ADDAVH/AVDDAx may be enabled at the same time but do not need to ramp simultaneously. CVDD1 may be valid before or after DVDD18/ADDAVH/AVDDAx are valid, as long as the timing above is met.

180

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

2c

2d

3

3a

4

5

6

7

www.ti.com

8

9

ITEM

2b

10

11

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 10-2. Core-Before-IO Power Sequencing (continued)

SYSTEM STATE

• VDDAHV, AVDDAx and DVDD18 ramp at the same time or shortly following CVDD. DVDD18 must be enabled within 80 ms of CVDD valid and must ramp monotonically and reach a stable level in 20ms or less. This results in no more than 100

ms from the time when CVDD is valid to the time when DVDD18 is valid.

• Each supply must ramp monotonically and must reach a stable valid level in 20 ms or less.

• The timing for DVDD18/ADDAVH/AVDDAx is based on CVDD valid. DVDD18/ADDAVH/AVDDAx and CVDD1 may be enabled at the same time but do not need to ramp simultaneously. DVDD18/ADDAVH/AVDDAx may be valid before or after

CVDD1 is valid, as long as the timing above is met.

• Once CVDD is valid, the clock drivers can be enabled. Although the clock inputs are not necessary at this time, they should either be driven with a valid clock or be held in a static state with one leg high and one leg low.

• The DDRCLK and SYSCLK1 may begin to toggle anytime between when CVDD is at a valid level and the setup time before

POR goes high specified by item 7.

• DVDD15 can ramp up within 80ms of when DVDD18 is valid.

• RESETSTAT is driven low once the DVDD18 supply is available.

• All LVCMOS input and bidirectional pins must not be driven or pulled high until DVDD18 is present. Driving an input or bidirectional pin before DVDD18 is valid could cause damage to the device.

• Each supply must ramp monotonically and must reach a stable valid level in 20 ms or less.

• RESET may be driven high any time after DVDD18 is at a valid level. RESET must be high before POR is driven high.

• VDDALV, VDDUSBx, USBxVP and USBxVPTX ramp up within 80ms of when DVDD15 is valid.

• Each supply must ramp monotonically and must reach a stable valid level in 20 ms or less.

• USBxDVDD33 supply is ramped up within 80 ms of when VDDALV, VDDUSBx, USBxVP and USBxVPTX are valid.

• Each supply must ramp monotonically and must reach a stable valid level in 20 ms or less.

• POR must continue to remain low for at least 100

μs after all power rails have stabilized.

End power stabilization phase

• Device initialization requires 500 SYSCLK1 periods after the Power Stabilization Phase. The maximum clock period is 33.33

nsec, so a delay of an additional 16 μs is required before a rising edge of POR. The clock must be active during the entire

16 μs.

• RESETFULL must be held low for at least 24 transitions of the SYSCLK1 after POR has stabilized at a high level.

• The rising edge of the RESETFULL will remove the reset to the eFuse farm allowing the scan to begin.

• Once device initialization and the eFuse farm scan are complete, the RESETSTAT signal is driven high. This delay will be

10000 to 50000 clock cycles.

End device initialization phase

• GPIO configuration bits must be valid for at least 12 transitions of the SYSCLK1 before the rising edge of RESETFULL.

• GPIO configuration bits must be held valid for at least 12 transitions of the SYSCLK1 after the rising edge of RESETFULL.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

181

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Power Stabilization Phase Device Initialization Phase

POR

8

RESETFULL

Configuration

Inputs

10 11

RESET

1

1

CVDD

2a

CVDD1

2

VDDAHV

AVDDAx

DVDD18

2b

3

DVDD15

4

VDDALV

USBxVP

USBxVPTX

5 USBxDVDD33

3

4

5

3a

2d

6

7

SYSCLK1

2c

DDRCLKOUT

9

www.ti.com

RESETSTAT

Figure 10-1. Core-Before-IO Power Sequencing

182

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

10.2.1.2 IO-Before-Core Power Sequencing

The timing diagram for IO-before-core power sequencing is shown in

Figure 10-2

and defined in

Table 10-

3

.

NOTE

TI recommends a maximum of 100 ms between one power rail being valid, and the next power rail in the sequence starting to ramp.

3a

3b

4

2

2a

3

5

6

7

8

ITEM

1

9

10

11

12

Table 10-3. IO-Before-Core Power Sequencing

SYSTEM STATE

Begin Power Stabilization Phase

• VDDAHV, AVDDAx and DVDD18 ramp up.

• POR must be held low through the power stabilization phase. Because POR is low, all the core logic that has asynchronous reset (created from POR ) is put into the reset state.

• Each supply must ramp monotonically and must reach a stable valid level in 20 ms or less.

• CVDD (core AVS) ramps within 80 ms from the time ADDAHV, AVDDAx and DVDD18 are valid.

• Each supply must ramp monotonically and must reach a stable valid level in 20 ms or less.

• RESET may be driven high any time after DVDD18 is at a valid level. must be high before POR is driven high.

• CVDD1 (core constant) ramp at the same time or within 80 ms following CVDD. Although ramping CVDD1 simultaneously with CVDD is permitted, the voltage for CVDD1 must never exceed CVDD until after CVDD has reached a valid voltage.

• The purpose of ramping up the core supplies close to each other is to reduce crowbar current. CVDD1 should trail CVDD as this will ensure that the Word Lines (WLs) in the memories are turned off and there is no current through the memory bit cells. If, however, CVDD1 (core constant) ramp up before CVDD (core AVS), then the worst-case current could be on the order of twice the specified draw of CVDD1.

• Each supply must ramp monotonically and must reach a stable valid level in 20 ms or less.

• Once CVDD is valid, the clock drivers can be enabled. Although the clock inputs are not necessary at this time, they should either be driven with a valid clock or held in a static state.

• The DDRCLK and SYSCLK1 may begin to toggle anytime between when CVDD is at a valid level and the setup time before

POR goes high specified by item 8.

• DVDD15 can ramp up within 80 ms of when CVDD1 is valid.

• RESETSTAT is driven low once the DVDD18 supply is available.

• All LVCMOS input and bidirectional pins must not be driven or pulled high until DVDD18 is present. Driving an input or bidirectional pin before DVDD18 is valid could cause damage to the device.

• Each supply must ramp monotonically and must reach a stable valid level in 20 ms or less.

• VDDALV, VDDUSBx, USBxVP and USBxVPTX should ramp up within 80 ms of when DVDD15 is valid.

• Each supply must ramp monotonically and must reach a stable valid level in 20 ms or less.

• USBxDVDD33 supply is ramped up within 80 ms of when VDDALV, VDDUSBx, USBxVP and USBxVPTX are valid.

• Each supply must ramp monotonically and must reach a stable valid level in 20 ms or less.

• POR must continue to remain low for at least 100 μs after all power rails have stabilized.

End power stabilization phase

• Device initialization requires 500 SYSCLK1 periods after the Power Stabilization Phase. The maximum clock period is 33.33

nsec, so a delay of an additional 16 μs is required before a rising edge of POR. The clock must be active during the entire

16 μs.

• RESETFULL must be held low for at least 24 transitions of the SYSCLK1 after POR has stabilized at a high level.

• The rising edge of the RESETFULL will remove the reset to the efuse farm allowing the scan to begin.

• Once device initialization and the efuse farm scan are complete, the RESETSTAT signal is driven high. This delay will be

10000 to 50000 clock cycles.

End device initialization phase

• GPIO configuration bits must be valid for at least 12 transitions of the SYSCLK1 before the rising edge of RESETFULL.

• GPIO configuration bits must be held valid for at least 12 transitions of the SYSCLK1 after the rising edge of RESETFULL.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

183

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Power Stabilization Phase Device Initialization Phase

POR

RESETFULL

Configuration

Inputs

1

2

RESET

VDDAHV

AVDDAx

DVDD18

1

2

CVDD

3

3

CVDD1

4

DVDD15

5

VDDALV

USBxVP

USBxVPTX

6 USBxDVDD33

SYSCLK1

3a

2a

4

6

5

3b

7

8

DDRCLKOUT

9

11 12

10

www.ti.com

RESETSTAT

Figure 10-2. IO-Before-Core Power Sequencing

184

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

10.2.1.3 Prolonged Resets

Holding the device in POR, RESETFULL, or RESET for long periods of time may affect the long-term reliability of the part (due to an elevated voltage condition that can stress the part). The device should not be held in a reset for times exceeding one hour at a time and no more than 5% of the total lifetime for which the device is powered-up. Exceeding these limits will cause a gradual reduction in the reliability of the part. This can be avoided by allowing the device to boot and then configuring it to enter a hibernation state soon after power is applied. This will satisfy the reset requirement while limiting the power consumption of the device.

10.2.1.4 Clocking During Power Sequencing

Some of the clock inputs are required to be present for the device to initialize correctly, but behavior of many of the clocks is contingent on the state of the boot configuration pins.

Table 10-4

describes the clock sequencing and the conditions that affect clock operation. Note that all clock drivers should be in a highimpedance state until CVDD is at a valid level and that all clock inputs be either active or in a static state with one leg pulled to ground and the other connected to CVDD.

Table 10-4. Clock Sequencing

CLOCK

DDRCLK

CORECLK

NETCPCLK

PCIECLK

HYPLNK0CLK

CONDITION

None

None

NETCPCLKSEL = 0

NETCPCLKSEL = 1

SEQUENCING

Must be present 16 µsec before POR transitions high.

CORECLK is used to clock the core PLL. It must be present 16 µsec before POR transitions high.

NETCPCLK is not used and should be tied to a static state.

NETCPCLK is used as a source for the NETCP PLL. It must be present before the NETCP

PLL is removed from reset and programmed.

PCIECLK must be present 16 µsec before POR transitions high.

PCIE will be used as a boot device.

PCIE will be used after boot.

PCIE will not be used.

PCIECLK is used as a source to the PCIE SerDes PLL. It must be present before the PCIe is removed from reset and programmed.

PCIECLK is not used and should be tied to a static state.

HyperLink will be used as HYPLNK0CLK must be present 16 µsec before POR transitions high.

a boot device.

HyperLink will be used after boot.

HyperLink will not be used.

HYPLNK0CLK is used as a source to the HyperLink SerDes PLL. It must be present before the HyperLink is removed from reset and programmed.

HYPLNK0CLK is not used and should be tied to a static state.

10.2.2 Power-Down Sequence

The power down sequence is the exact reverse of the power-up sequence described above. The goal is to prevent an excessive amount of static current and to prevent overstress of the device. A power-good circuit that monitors all the supplies for the device should be used in all designs. If a catastrophic power supply failure occurs on any voltage rail, POR should transition to low to prevent over-current conditions that could possibly impact device reliability.

A system power monitoring solution is needed to shut down power to the board if a power supply fails.

Long-term exposure to an environment in which one of the power supply voltages is no longer present will affect the reliability of the device. Holding the device in reset is not an acceptable solution because prolonged periods of time with an active reset can affect long term reliability.

10.2.3 Power Supply Decoupling and Bulk Capacitor

To properly decouple the supply planes on the PCB from system noise, decoupling and bulk capacitors are required. Bulk capacitors are used to minimize the effects of low-frequency current transients and decoupling or bypass capacitors are used to minimize higher frequency noise. For recommendations on selection of power supply decoupling and bulk capacitors see the Hardware Design Guide for KeyStone II

Devices application report ( SPRABV0 ).

185

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

10.2.4 SmartReflex

Increasing the device complexity increases its power consumption. With higher clock rates and increased performance comes an inevitable penalty: increasing leakage currents. Leakage currents are present in any powered circuit, independent of clock rates and usage scenarios. This static power consumption is mainly determined by transistor type and process technology. Higher clock rates also increase dynamic power, which is the power used when transistors switch. The dynamic power depends mainly on a specific usage scenario, clock rates, and I/O activity.

Texas Instruments SmartReflex technology is used to decrease both static and dynamic power consumption while maintaining the device performance. SmartReflex in the

AM5K2E0x device is a feature that allows the core voltage to be optimized based on the process corner of the device. This requires a voltage regulator for each AM5K2E0x device.

To help maximize performance and minimize power consumption of the device, SmartReflex is required to be implemented. The voltage selection can be accomplished using 4 VCNTL pins or 6 VCNTL pins

(depending on power supply device being used), which are used to select the output voltage of the core voltage regulator.

For information on implementation of SmartReflex see the Power Consumption Summary for KeyStone

TCI66x Devices application report ( SPRABL4 ) and the Hardware Design Guide for KeyStone II Devices application report ( SPRABV0 ).

Table 10-5. SmartReflex 4-Pin 6-bit VID Interface Switching Characteristics

(see

Figure 10-3 )

2

3

NO.

1

4

PARAMETER

td(VCNTL[4:2]-VCNTL[5]) Delay time - VCNTL[4:2] valid after VCNTL[5] low toh(VCNTL[5]-VCNTL[4:2]) Output hold time - VCNTL[4:2] valid after VCNTL[5] td(VCNTL[4:2]-VCNTL[5]) Delay time - VCNTL[4:2] valid after VCNTL[5] high toh(VCNTL[5]-VCNTL[2:0) Output hold time - VCNTL[4:2] valid after VCNTL[5] high

MIN MAX UNIT

300.00

0.07

172020C

(1) ns ms

0.07

300.00

172020C ns ms

(1) C = 1/SYSCLK1 frequency, in ms (see

Figure 10-9 )

4

VCNTL[5]

VCNTL[4:2]

1 3

LSB VID[2:0] MSB VID[5:3]

2

Figure 10-3. SmartReflex 4-Pin 6-Bit VID Interface Timing

10.2.5 Monitor Points

Two pairs of monitor points for the CVDD voltage level are provided. Both CVDDCMON and CVDDTMON are connected directly to the CVDD supply plane on the die itself. VSSCMON and VSSTMON are connected to the ground plane on the die. These pairs provide the best measurement points for the voltage at the silicon. They also provide the best point to connect the remote sense lines for the CVDD power supply. The use of a power supply with a differential remote sense input is highly desirable. The positive remote sense line should be connected to CVDDCMON and the negative remote sense line should be connected to VSSCMON. CVDDTMON and VSSTMON can be used as an alternative but always use either the CMON pair or the TMON pair. If the power supply remote sense is not differential

CVDDCMON or CVDDTMON can be connected to the sense line.

186

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

10.3 Power Sleep Controller (PSC)

The Power Sleep Controller (PSC) includes a Global Power Sleep Controller (GPSC) and a number of

Local Power Sleep Controllers (LPSC) that control overall device power by turning off unused power domains and gating off clocks to individual peripherals and modules. The PSC provides the user with an interface to control several important power and clock operations.

For information on the Power Sleep Controller, see the KeyStone Architecture Power Sleep Controller

(PSC) User's Guide ( SPRUGV4 ).

10.3.1 Power Domains

The device has several power domains that can be turned on for operation or off to minimize power dissipation. The Global Power Sleep Controller (GPSC) is used to control the power gating of various power domains.

The following table shows the AM5K2E0x power domains.

15

16

17

18

19

10

11

12

13

14

5

6

7

8

9

3

4

1

2

28

29

30

25

26

27

20

21

22

23

24

DOMAI

N

0

BLOCK(S)

Most peripheral logic (BOOTCFG,

EMIF16, I

2

C, INTC, GPIO, USB)

Per-core TETB and system TETB

Network Coprocessor

PCIe0

Reserved

HyperLink

SmartReflex

MSMC RAM

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

EMIF(DDR3)

Reserved

PCIe1

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

10GbE

ARM Smart Reflex

Table 10-6. AM66K2Ex Power Domains

NOTE

Cannot be disabled

RAMs can be powered down

Logic can be powered down

Logic can be powered down

Logic can be powered down

Cannot be disabled

MSMC RAM can be powered down

Logic can be powered down

Logic can be powered down

Logic can be powered down

Logic can be powered down

POWER CONNECTION

Always on

Software control

Software control

Software control

Software control

Always on

Software control

Software control

Software control

Software control

Software control

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

187

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

DOMAI

N

31

BLOCK(S)

ARM CorePac

Table 10-6. AM66K2Ex Power Domains (continued)

NOTE

Logic can be powered down

POWER CONNECTION

Software control

25

26

27

28

29

20

21

22

23

24

30

31

32

33

34

15

16

17

18

19

10

11

12

13

14

5

6

7

3

4

8

9

1

2

LPSC NUMBER

0

10.3.2 Clock Domains

Clock gating to each logic block is managed by the Local Power Sleep Controllers (LPSCs) of each module. For modules with a dedicated clock or multiple clocks, the LPSC communicates with the PLL controller to enable and disable that module's clock(s) at the source. For modules that share a clock with other modules, the LPSC controls the clock gating logic for each module.

Table 10-7

shows the AM5K2E0x clock domains.

Table 10-7. Clock Domains

Reserved

Reserved

PCIe_1

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

MODULE(S) NOTES

Shared LPSC for all peripherals other than those listed in this table Always on

USB_1

USB_0

EMIF16 and SPI

TSIP

Software control

Software control

Software control

Software control Debug subsystem and tracers

Reserved

Packet Accelerator

Always on

Software control

Ethernet SGMIIs

Security Accelerator

PCIe_0

Reserved

HyperLink

SmartReflex

MSMC RAM

Software control

Software control

Software control

Software control

Always on

Software control

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

DDR3 EMIF

Reserved

Software control

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

188

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

41

42

43

44

45

LPSC NUMBER

35

36

37

38

39

40

46

47

48

49

50

51

52

No LPSC

Table 10-7. Clock Domains (continued)

MODULE(S)

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

10GbE

ARM Smart Reflex

ARM CorePac

Bootcfg, PSC, and PLL Controller

NOTES

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Software control

Software control

Software control

These modules do not use LPSC

10.3.3 PSC Register Memory Map

Table 10-8

shows the PSC Register memory map.

0x208

0x20C

0x210

0x214

0x218

0x21C

0x220

0x224

0x228

0x22C

0x230

0x234

OFFSET

0x000

REGISTER

PID

0x004 - 0x010 Reserved

0x014 VCNTLID

0x018 - 0x11C Reserved

0x120 PTCMD

0x124 Reserved

0x128 PTSTAT

0x12C - 0x1FC Reserved

0x200

0x204

PDSTAT0

PDSTAT1

PDSTAT2

PDSTAT3

PDSTAT4

PDSTAT5

PDSTAT6

PDSTAT7

PDSTAT8

PDSTAT9

PDSTAT10

PDSTAT11

PDSTAT12

PDSTAT13

Table 10-8. PSC Register Memory Map

DESCRIPTION

Peripheral Identification Register

Reserved

Voltage Control Identification Register

Reserved

Power Domain Transition Command Register

Reserved

Power Domain Transition Status Register

Reserved

Power Domain Status Register 0

Power Domain Status Register 1

Power Domain Status Register 2

Power Domain Status Register 3

Power Domain Status Register 4

Power Domain Status Register 5

Power Domain Status Register 6

Power Domain Status Register 7

Power Domain Status Register 8

Power Domain Status Register 9

Power Domain Status Register 10

Power Domain Status Register 11

Power Domain Status Register 12

Power Domain Status Register 13

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

189

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

0x330

0x334

0x338

0x33C

0x340

0x344

0x348

0x34C

0x350

0x354

0x308

0x30C

0x310

0x314

0x318

0x31C

0x320

0x324

0x328

0x32C

0x358

0x35c

0x360

0x364

0x368

0x36C

OFFSET

0x238

0x23C

0x240

0x244

0x248

0x24C

0x250

0x254

0x258

0x25C

0x260

REGISTER

PDSTAT14

PDSTAT15

PDSTAT16

PDSTAT17

PDSTAT18

PDSTAT19

PDSTAT20

PDSTAT21

PDSTAT22

PDSTAT23

PDSTAT24

0x264

0x268

0x26C

0x270

0x274

PDSTAT25

PDSTAT26

PDSTAT27

PDSTAT28

PDSTAT29

0x278 PDSTAT30

0x27C PDSTAT31

0x27C - 0x2FC Reserved

0x300

0x304

PDCTL0

PDCTL1

PDCTL12

PDCTL13

PDCTL14

PDCTL15

PDCTL16

PDCTL17

PDCTL18

PDCTL19

PDCTL20

PDCTL21

PDCTL2

PDCTL3

PDCTL4

PDCTL5

PDCTL6

PDCTL7

PDCTL8

PDCTL9

PDCTL10

PDCTL11

PDCTL22

PDCTL23

PDCTL24

PDCTL25

PDCTL26

PDCTL27

Table 10-8. PSC Register Memory Map (continued)

DESCRIPTION

Power Domain Status Register 14

Power Domain Status Register 15

Power Domain Status Register 16

Power Domain Status Register 17

Power Domain Status Register 18

Power Domain Status Register 19

Power Domain Status Register 20

Power Domain Status Register 21

Power Domain Status Register 22

Power Domain Status Register 23

Power Domain Status Register 24

Power Domain Status Register 25

Power Domain Status Register 26

Power Domain Status Register 27

Power Domain Status Register 28

Power Domain Status Register 29

Power Domain Status Register 30

Power Domain Status Register 31

Reserved

Power Domain Control Register 0

Power Domain Control Register 1

Power Domain Control Register 2

Power Domain Control Register 3

Power Domain Control Register 4

Power Domain Control Register 5

Power Domain Control Register 6

Power Domain Control Register 7

Power Domain Control Register 8

Power Domain Control Register 9

Power Domain Control Register 10

Power Domain Control Register 11

Power Domain Control Register 12

Power Domain Control Register 13

Power Domain Control Register 14

Power Domain Control Register 15

Power Domain Control Register 16

Power Domain Control Register 17

Power Domain Control Register 18

Power Domain Control Register 19

Power Domain Control Register 20

Power Domain Control Register 21

Power Domain Control Register 22

Power Domain Control Register 23

Power Domain Control Register 24

Power Domain Control Register 25

Power Domain Control Register 26

Power Domain Control Register 27

190

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

0x868

0x86C

0x870

0x874

0x878

0x87C

0x880

0x884

0x888

0x88C

0x840

0x844

0x848

0x84C

0x850

0x854

0x858

0x85C

0x860

0x864

0x890

0x894

0x898

0x89C

0x8A0

0x8A4

0x818

0x81C

0x820

0x824

0x828

0x82C

0x830

0x834

0x838

0x83C

OFFSET

0x370

0x374

0x378

0x37C

REGISTER

PDCTL28

PDCTL29

PDCTL30

PDCTL31

0x380 - 0x7FC Reserved

0x800 MDSTAT0

0x804

0x808

0x80C

0x810

0x814

MDSTAT1

MDSTAT2

MDSTAT3

MDSTAT4

MDSTAT5

MDSTAT6

MDSTAT7

MDSTAT8

MDSTAT9

MDSTAT10

MDSTAT11

MDSTAT12

MDSTAT13

MDSTAT14

MDSTAT15

MDSTAT16

MDSTAT17

MDSTAT18

MDSTAT19

MDSTAT20

MDSTAT21

MDSTAT22

MDSTAT23

MDSTAT24

MDSTAT25

MDSTAT26

MDSTAT27

MDSTAT28

MDSTAT29

MDSTAT30

MDSTAT31

MDSTAT32

MDSTAT33

MDSTAT34

MDSTAT35

MDSTAT36

MDSTAT37

MDSTAT38

MDSTAT39

MDSTAT40

MDSTAT41

Table 10-8. PSC Register Memory Map (continued)

DESCRIPTION

Power Domain Control Register 28

Power Domain Control Register 29

Power Domain Control Register 30

Power Domain Control Register 31

Reserved

Module Status Register 0 (never gated)

Module Status Register 1

Module Status Register 2

Module Status Register 3

Module Status Register 4

Module Status Register 5

Module Status Register 6

Module Status Register 7

Module Status Register 8

Module Status Register 9

Module Status Register 10

Module Status Register 11

Module Status Register 12

Module Status Register 13

Module Status Register 14

Module Status Register 15

Module Status Register 16

Module Status Register 17

Module Status Register 18

Module Status Register 19

Module Status Register 20

Module Status Register 21

Module Status Register 22

Module Status Register 23

Module Status Register 24

Module Status Register 25

Module Status Register 26

Module Status Register 27

Module Status Register 28

Module Status Register 29

Module Status Register 30

Module Status Register31

Module Status Register 32

Module Status Register 33

Module Status Register 34

Module Status Register 35

Module Status Register 36

Module Status Register 37

Module Status Register 38

Module Status Register 39

Module Status Register 40

Module Status Register 41

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

191

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

0xA4C

0xA50

0xA54

0xA58

0xA5C

0xA60

0xA64

0xA68

0xA6C

0xA70

0xA24

0xA28

0xA2C

0xA30

0xA34

0xA38

0xA3C

0xA40

0xA44

0xA48

0xA74

0xA78

0xA7C

0xA80

0xA84

0xA88

OFFSET

0x8A8

0x8AC

0x8B0

0x8B4

0x8B8

0x8BC

0x8C0

0x8C4

0x8C8

0x8CC

0x8D0

0x8D4 - 0x9FC Reserved

0xA00

0xA04

MDCTL0

MDCTL1

0xA08

0xA0C

MDCTL2

MDCTL3

0xA10

0xA14

0xA18

0xA1C

0xA20

MDCTL4

MDCTL5

MDCTL6

MDCTL7

MDCTL8

REGISTER

MDSTAT42

MDSTAT43

MDSTAT44

MDSTAT45

MDSTAT46

MDSTAT47

MDSTAT48

MDSTAT49

MDSTAT50

MDSTAT51

MDSTAT52

MDCTL19

MDCTL20

MDCTL21

MDCTL22

MDCTL23

MDCTL24

MDCTL25

MDCTL26

MDCTL27

MDCTL28

MDCTL9

MDCTL10

MDCTL11

MDCTL12

MDCTL13

MDCTL14

MDCTL15

MDCTL16

MDCTL17

MDCTL18

MDCTL29

MDCTL30

MDCTL31

MDCTL32

MDCTL33

MDCTL34

Table 10-8. PSC Register Memory Map (continued)

DESCRIPTION

Module Status Register 42

Module Status Register 43

Module Status Register 44

Module Status Register 45

Module Status Register 46

Module Status Register 47

Module Status Register 48

Module Status Register 49

Module Status Register 50

Module Status Register 51

Module Status Register 52

Reserved

Module Control Register 0 (never gated)

Module Control Register 1

Module Control Register 2

Module Control Register 3

Module Control Register 4

Module Control Register 5

Module Control Register 6

Module Control Register 7

Module Control Register 8

Module Control Register 9

Module Control Register 10

Module Control Register 11

Module Control Register 12

Module Control Register 13

Module Control Register 14

Module Control Register 15

Module Control Register 16

Module Control Register 17

Module Control Register 18

Module Control Register 19

Module Control Register 20

Module Control Register 21

Module Control Register 22

Module Control Register 23

Module Control Register 24

Module Control Register 25

Module Control Register 26

Module Control Register 27

Module Control Register 28

Module Control Register 29

Module Control Register 30

Module Control Register31

Module Control Register 32

Module Control Register 33

Module Control Register 34

192

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

OFFSET

0xA8C

0xA90

0xA94

0xA98

0xA9C

0xAA0

0xAA4

0xAA8

0xAAC

0xAB0

0xAB4

REGISTER

MDCTL35

MDCTL36

MDCTL37

MDCTL38

MDCTL39

MDCTL40

MDCTL41

MDCTL42

MDCTL43

MDCTL44

MDCTL45

0xAB8

0xABC

0xAC0

0xAC4

0xAC8

MDCTL46

MDCTL47

MDCTL48

MDCTL49

MDCTL50

0xACC MDCTL51

0xAD0 MDCTL52

0xAD4 - 0xFFC Reserved

Table 10-8. PSC Register Memory Map (continued)

DESCRIPTION

Module Control Register 35

Module Control Register 36

Module Control Register 37

Module Control Register 38

Module Control Register 39

Module Control Register 40

Module Control Register 41

Module Control Register 42

Module Control Register 43

Module Control Register 44

Module Control Register 45

Module Control Register 46

Module Control Register 47

Module Control Register 48

Module Control Register 49

Module Control Register 50

Module Control Register 51

Module Control Register 52

Reserved

10.4 Reset Controller

The reset controller detects the different type of resets supported on the AM5K2E0x device and manages the distribution of those resets throughout the device. The device has the following types of resets:

• Power-on reset

• Hard reset

• Soft reset

• Local reset

Table 10-9

explains further the types of reset, the reset initiator, and the effects of each reset on the device. For more information on the effects of each reset on the PLL controllers and their clocks, see

Section 10.4.8

.

TYPE

Power-on reset

INITIATOR

POR pin

RESETFULL pin

Hard reset

RESET pin

PLLCTL Register

(RSCTRL)

(1)

Watchdog timers

Emulation

Table 10-9. Reset Types

EFFECT(S)

Resets the entire chip including the test and emulation logic. The device configuration pins are latched only during power-on reset.

Hard reset resets everything except for test, emulation logic, and reset isolation modules.

This reset is different from power-on reset in that the PLL Controller assumes power and clocks are stable when a hard reset is asserted. The device configurations pins are not relatched.

Emulation-initiated reset is always a hard reset.

By default, these initiators are configured as hard reset, but can be configured (except emulation) as a soft reset in the RSCFG Register of the PLL Controller. Contents of the

DDR3 SDRAM memory can be retained during a hard reset if the SDRAM is placed in selfrefresh mode.

(1) All masters in the device have access to the PLL Control Registers.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

193

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

TYPE

Soft reset

Local reset

INITIATOR

RESET pin

PLLCTL Register

(RSCTRL)

Watchdog timers

LRESET pin

Watchdog timer timeout

LPSC MMRs

Table 10-9. Reset Types (continued)

EFFECT(S)

Soft reset behaves like hard reset except that PCIe MMRs (memory-mapped registers) and

DDR3 EMIF MMRs contents are retained.

By default, these initiators are configured as hard reset, but can be configured as soft reset in the RSCFG Register of the PLL Controller. Contents of the DDR3 SDRAM memory can be retained during a soft reset if the SDRAM is placed in self-refresh mode.

Resets the C66x CorePac, without disturbing clock alignment or memory contents. The device configuration pins are not relatched.

10.4.1 Power-on Reset

Power-on reset is used to reset the entire device, including the test and emulation logic.

Power-on reset is initiated by the following:

1. POR pin

2. RESETFULL pin

During power-up, the POR pin must be asserted (driven low) until the power supplies have reached their normal operating conditions. Also a RESETFULL pin is provided to allow reset of the entire device, including the reset-isolated logic, when the device is already powered up. For this reason, the

RESETFULL pin, unlike POR, should be driven by the on-board host control other than the power good circuitry. For power-on reset, the Core PLL Controller comes up in bypass mode and the PLL is not enabled. Other resets do not affect the state of the PLL or the dividers in the PLL Controller.

The following sequence must be followed during a power-on reset:

1. Wait for all power supplies to reach normal operating conditions while keeping the POR and

RESETFULL pins asserted (driven low). While POR is asserted, all pins except RESETSTAT will be set to high-impedance. After the POR pin is deasserted (driven high), all Z group pins, low group pins, and high group pins are set to their reset state and remain in their reset state until otherwise configured by their respective peripheral. All peripherals that are power-managed are disabled after a power-on reset and must be enabled through the Device State Control Registers (for more details, see

Section 8.2.3

).

2. Clocks are reset, and they are propagated throughout the chip to reset any logic that was using reset synchronously. All logic is now reset and RESETSTAT is driven low, indicating that the device is in reset.

3. POR and RESETFULL must be held active until all supplies on the board are stable, and then for at least an additional period of time (as specified in

Section 10.2.1

) for the chip-level PLLs to lock.

4. The POR pin can now be de-asserted.

5. After the appropriate delay, the RESETFULL pin can now be de-asserted. Reset-sampled pin values are latched at this point. Then, all chip-level PLLs are taken out of reset, locking sequences begin, and all power-on device initialization processes begin.

6. After device initialization is complete, the RESETSTAT pin is de-asserted (driven high). By this time, the DDR3 PLL has completed its locking sequences and are supplying a valid clock. The system clocks of the PLL controllers are allowed to finish their current cycles and then are paused for 10 cycles of their respective system reference clocks. After the pause, the system clocks are restarted at their default divide-by settings.

7. The device is now out of reset and code execution begins as dictated by the selected boot mode.

194

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

NOTE

To most of the device, reset is de-asserted only when the POR and RESET pins are both de-asserted (driven high). Therefore, in the sequence described above, if the RESET pin is held low past the low period of the POR pin, most of the device will remain in reset. The

RESET pin should not be tied to the POR pin.

10.4.2 Hard Reset

A hard reset will reset everything on the device except the PLLs, test logic, emulation logic, and resetisolated modules. POR should also remain de-asserted during this time.

Hard reset is initiated by the following:

• RESET pin

• RSCTRL Register in the PLL Controller

• Watchdog timer

• Emulation

By default, all the initiators listed above are configured to generate a hard reset. Except for emulation, all of the other three initiators can be configured in the RSCFG Register in the PLL Controller to generate soft resets.

The following sequence must be followed during a hard reset:

1. The RESET pin is asserted (driven low) for a minimum of 24 CLKIN1 cycles. During this time, the

RESET signal propagates to all modules (except those specifically mentioned above). To prevent offchip contention during the warm reset, all I/O must be Hi-Z for modules affected by RESET.

2. Once all logic is reset, RESETSTAT is asserted (driven low) to denote that the device is in reset.

3. The RESET pin can now be released. A minimal device initialization begins to occur. Note that configuration pins are not re-latched and clocking is unaffected within the device.

4. After device initialization is complete, the RESETSTAT pin is de-asserted (driven high).

NOTE

The POR pin should be held inactive (high) throughout the warm reset sequence. Otherwise, if POR is activated (brought low), the minimum POR pulse width must be met. The RESET pin should not be tied to the POR pin.

10.4.3 Soft Reset

A soft reset behaves like a hard reset except that the EMIF16 MMRs, DDR3 EMIF MMRs, PCIe MMRs sticky bits, and external memory content are retained. POR should also remain de-asserted during this time.

Soft reset is initiated by the following:

• RESET pin

• RSCTRL Register in the PLL Controller

• Watchdog timer

In the case of a soft reset, the clock logic and the power control logic of the peripherals are not affected and, therefore, the enabled/disabled state of the peripherals is not affected. On a soft reset, the DDR3 memory controller registers are not reset. If the user places the DDR3 SDRAM in self-refresh mode before invoking the soft reset, the DDR3 SDRAM memory content is retained.

During a soft reset, the following occurs:

1. The RESETSTAT pin goes low to indicate an internal reset is being generated. The reset propagates through the system. Internal system clocks are not affected. PLLs remain locked.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

195

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

2. After device initialization is complete, the RESETSTAT pin is deasserted (driven high). In addition, the

PLL Controller pauses system clocks for approximately 8 cycles. At this point:

– The peripherals remain in the state they were in before the soft reset.

– The states of the Boot Mode configuration pins are preserved as controlled by the DEVSTAT

Register.

– The DDR3 MMRs and PCIe MMRs retain their previous values. Only the DDR3 memory controller and PCIe state machines are reset by the soft reset.

– The PLL Controller remains in the mode it was in prior to the soft reset.

– System clocks are unaffected.

The boot sequence is started after the system clocks are restarted. Because the Boot Mode configuration pins are not latched with a soft reset, the previous values (as shown in the DEVSTAT Register), are used to select the boot mode.

10.4.4 Local Reset

The local reset can be used to reset a particular C66x CorePac without resetting any other device components.

Local reset is initiated by the following:

• LRESET pin

• Watchdog timer should cause one of the below and RSTCFG registers in the PLL Controller. (See

Section 10.5.2.8

and

Section 6.3.2

.)

– Local reset

– NMI

– NMI followed by a time delay and then a local reset for the C66x CorePac selected

– Hard reset by requesting reset via the PLL Controller

• LPSC MMRs (memory-mapped registers)

For more details see the KeyStone Architecture Phase Locked Loop (PLL) Controller User's Guide

( SPRUGV2 ).

10.4.5 ARM CorePac Reset

The ARM CorePac uses a combination of power-on-reset and module-reset to reset its components, such as the Cortex-A15 processor, memory subsystem, debug logic, etc. The ARM CorePac incorporates the

PSC to generate resets for its internal modules. Details of reset generation and distribution inside the

ARM CorePac can be found in the KeyStone II Architecture ARM CorePac User's Guide ( SPRUHJ4 ).

10.4.6 Reset Priority

If any of the above reset sources occur simultaneously, the PLL Controller processes only the highest priority reset request. The reset request priorities are as follows (high to low):

• Power-on reset

• Hard/soft reset

10.4.7 Reset Controller Register

The reset controller registers are part of the PLL Controller MMRs. All AM5K2E0x device-specific MMRs are covered in

Section 10.5.2

. For more details on these registers and how to program them, see the

KeyStone Architecture Phase Locked Loop (PLL) Controller User's Guide ( SPRUGV2 ).

10.4.8 Reset Electrical Data/Timing

196

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 10-10. Reset Timing Requirements

(1)

(see

Figure 10-4

and

Figure 10-5 )

NO.

1

2 tw(RESETFULL) tw(RESET)

RESETFULL Pin Reset

Pulse width - pulse width RESETFULL low

Soft/Hard-Reset

Pulse width - pulse width RESET low

(1) C = 1/SYSCLK1 clock frequency in ns

Table 10-11. Reset Switching Characteristics

(1)

(see

Figure 10-4

and

Figure 10-5 )

NO.

PARAMETER

RESETFULL Pin Reset

Delay time - RESETSTAT high after RESETFULL high 3 td(RESETFULLH-

RESETSTATH)

4 td(RESETH-RESETSTATH)

(1) C = 1/SYSCLK1 clock frequency in ns

Soft/Hard Reset

Delay time - RESETSTAT high after RESET high

MIN

500C

500C

MIN

MAX UNIT

ns ns

MAX UNIT

50000C ns

50000C ns

POR

1

RESETFULL

RESET

RESETSTAT

3

Figure 10-4. RESETFULL Reset Timing

POR

RESETFULL

2

RESET

4

RESETSTAT

Figure 10-5. Soft/Hard Reset Timing

Table 10-12. Boot Configuration Timing Requirements

(1)

(see

Figure 10-6 )

NO.

1

2 tsu(GPIOn-RESETFULL) Setup time - GPIO valid before RESETFULL asserted th(RESETFULL-GPIOn) Hold time - GPIO valid after RESETFULL asserted

(1) C = 1/SYSCLK1 clock frequency in ns.

MIN

12C

12C

MAX UNIT

ns ns

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

197

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

POR

1

RESETFULL

GPIO[15:0]

2

Figure 10-6. Boot Configuration Timing

10.5 Core PLL (Main PLL), DDR3 PLL, NETCP PLL and the PLL Controllers

This section provides a description of the Core PLL, DDR3 PLL, NETCP PLL, and the PLL Controller. For details on the operation of the PLL Controller module, see the KeyStone Architecture Phase Locked Loop

(PLL) Controller User's Guide ( SPRUGV2 ).

The Core PLL is controlled by the standard PLL Controller. The PLL Controller manages the clock ratios, alignment, and gating for the system clocks to the device. By default, the device powers up with the Core

PLL bypassed.

Figure 10-7

shows a block diagram of the Core PLL and the PLL Controller.

The DDR3 PLL and NETCP PLL are used to provide dedicated clock to the DDR3 and NETCP respectively. These chip level PLLs support a wide range of multiplier and divider values, which can be programmed through the chip level registers located in the Device Control Register block. The Boot ROM will program the multiplier values for Core PLL and NETCP PLL based on boot mode. (See

Section 8

for more details.)

The DDR3 PLL is used to supply clocks to DDR3 EMIF logic. This PLL can also be used without programming the PLL Controller. Instead, they can be controlled using the chip-level registers

(DDR3PLLCTL0, DDR3PLLCTL1) located in the Device Control Register block. To write to these registers, software must go through an unlocking sequence using the KICK0/KICK1 registers.

The multiplier values for all chip-level PLLs can be reprogrammed later based on the input parameter table. This feature provides flexibility in that these PLLs may be able to reuse other clock sources instead of having its own clock source.

198

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

CORECLK(P|N)

PLLD

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

PLLM

VCO

CLKOD

PLL

0

1

BYPASS

PLLOUT

PLLDIV1

PLL Controller

/1

/1

PLLDIV2

/x

PLLDIV3

/x

PLLDIV4

SYSCLK1

SYSCLK2

SYSCLK3

SYSCLK4

To Peripherals,

HyperLink, etc.

To Switch Fabric,

Accelerators,

SmartReflex, etc.

Figure 10-7. Core PLL and PLL Controller

Note that the Core PLL Controller registers can be accessed by any master in the device. The PLLM[5:0] bits of the multiplier are controlled by the PLLM Register inside the PLL Controller and the PLLM[12:6] bits are controlled by the chip-level COREPLLCTL0 Register. The output divide and bypass logic of the PLL are controlled by fields in the SECCTL Register in the PLL Controller. Only PLLDIV3, and PLLDIV4 are programmable on the device. See the KeyStone Architecture Phase Locked Loop (PLL) Controller User's

Guide ( SPRUGV2 ) for more details on how to program the PLL controller.

The multiplication and division ratios within the PLL and the post-division for each of the chip-level clocks are determined by a combination of this PLL and the Core PLL Controller. The Core PLL Controller also controls reset propagation through the chip, clock alignment, and test points. The Core PLL Controller monitors the PLL status and provides an output signal indicating when the PLL is locked.

Core PLL power is supplied externally via the Core PLL power-supply pin (AVDDA1). An external EMI filter circuit must be added to all PLL supplies. See the Hardware Design Guide for KeyStone II Devices application report ( SPRABV0 ) for detailed recommendations. For the best performance, TI recommends that all the PLL external components be on a single side of the board without jumpers, switches, or components other than those shown. For reduced PLL jitter, maximize the spacing between switching signal traces and the PLL external components (C1, C2, and the EMI Filter).

The minimum CORECLK rise and fall times should also be observed. For the input clock timing requirements, see

Section 10.5.4

.

It should be assumed that any registers not included in these sections are not supported by the device.

Furthermore, only the bits within the registers described here are supported. Avoid writing to any reserved memory location or changing the value of reserved bits.

The PLL Controller module as described in the KeyStone Architecture Phase Locked Loop (PLL)

Controller User's Guide ( SPRUGV2 ) includes a superset of features, some of which are not supported on the device. The following sections describe the registers that are supported.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

199

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

10.5.1 Core PLL Controller Device-Specific Information

10.5.1.1 Internal Clocks and Maximum Operating Frequencies

The Core PLL, used to drive the SoC, the switch fabric, and a majority of the peripheral clocks (all but the

ARM CorePacs, DDR3, and the NETCP modules) requires a PLL Controller to manage the various clock divisions, gating, and synchronization. PLLM[5:0] input of the Core PLL is controlled by the PLL controller

PLLM register.

The Core PLL Controller has four SYSCLK outputs that are listed below along with the clock descriptions.

Each SYSCLK has a corresponding divider that divides down the output clock of the PLL. Note that dividers are not programmable unless explicitly mentioned in the description below.

SYSCLK1: Using local dividers, SYSCLK1 is used to derive clocks required for the majority of peripherals that do not need reset isolation.

The system peripherals and modules driven by SYSCLK1 are as follows; however, not all peripherals are supported in every part. See the Features chapter for the complete list of peripherals supported in your part.

EMIF16, USB 3.0, XFI, HyperLink, PCIe, SGMII, GPIO, Timer64, I

2

C, SPI, TSIP, TeraNet, UART,

ROM, CIC, Security Manager, BootCFG, PSC, Queue Manager, Semaphore, MPUs, EDMA, MSMC,

DDR3, EMIF.

SYSCLK2:Full-rate, reset-isolated clock used to generate various other clocks required by peripherals that need reset isolation: e.g., SmartReflex.

SYSCLK3: The default rate for this clock is 1/3. This clock is programmable from /1 to /32, where this clock does not violate the maximum of 350 MHz. SYSCLK3 can be turned off by software.

SYSCLK4: 1/z-rate clock for the system trace module only. The default rate for this clock is 1/5. This clock is configurable: the maximum configurable clock is 210 MHz and the minimum configuration clock is 32 MHz. SYSCLK4 can be turned off by software.

Only SYSCLK3 and SYSCLK4 are programmable.

10.5.1.2 Local Clock Dividers

The clock signals from the Core PLL Controller are routed to various modules and peripherals on the device. Some modules and peripherals have one or more internal clock dividers. Other modules and peripherals have no internal clock dividers, but are grouped together and receive clock signals from a shared local clock divider. Internal and shared local clock dividers have fixed division ratios. See table

Table 10-13

.

200

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 10-13. Core PLL Controller Module Clock Domains Internal and Shared Local Clock Dividers

CLOCK

SYSCLK1

MODULE

INTERNAL CLOCK

DIVIDER(S)

SYSCLK1 Internal Clock Dividers

/1, /3, /3, /6, /6 ARM CorePac

Chip Interrupt Controllers (CICx)

DDR3 Memory Controller A (also receives clocks from the

DDR3_PLL)

EMIF16

HyperLink

MultiCore Shared Memory Controller (MSMC)

/6

/2

/6

/2, /3, /6

/1

/2, /3, /4, /6 PCI express (PCIe)

ROM

Serial Gigabit Media Independent Interface (SGMII)

/6

/2, /3, /6, /8

Universal Asynchronous Receiver/Transmitter (UART)

Universal Serial Bus 3.0 (USB 3.0)

Power/Sleep Controller (PSC)

EDMA

/6

/3, /6

SYSCLK1 Shared Local Clock Dividers

--

SYSCLK1 Memory Protection Units (MPUx)

Semaphore

TeraNet (SYSCLK1/3 domain)

Boot Config

General-Purpose Input/Output (GPIO)

I

2

C

SYSCLK1

Security Manager

Telecom Serial Interface Port (TSIP)

Serial Peripheral Interconnect (SPI)

TeraNet (CPU /6 domain)

Timers

--

--

SHARED LOCAL CLOCK

DIVIDER

--

--

--

--

--

--

--

--

--

--

--

/12, /24

/3

/6

10.5.1.3 Module Clock Input

Table 10-7

lists various clock domains in the device and their distribution in each peripheral. The table also shows the distributed clock division in modules and their mapping with source clocks of the device

PLLs.

10.5.1.4 Core PLL Controller Operating Modes

The Core PLL Controller has two modes of operation: bypass mode and PLL mode. The mode of operation is determined by the BYPASS bit of the PLL Secondary Control Register (SECCTL).

• In bypass mode, PLL input is fed directly out as SYSCLK1.

• In PLL mode, SYSCLK1 is generated from the PLL output using the values set in the PLLM and PLLD fields in the COREPLLCTL0 Register.

External hosts must avoid access attempts to the SoC while the frequency of its internal clocks is changing. User software must implement a mechanism that causes the SoC to notify the host when the

PLL configuration has completed.

10.5.1.5 Core PLL Stabilization, Lock, and Reset Times

The PLL stabilization time is the amount of time that must be allotted for the internal PLL regulators to become stable after device power-up. The device should not be taken out of reset until this stabilization time has elapsed.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

201

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

The PLL reset time is the amount of wait time needed when resetting the PLL (writing PLLRST = 1), in order for the PLL to properly reset, before bringing the PLL out of reset (writing PLLRST = 0). For the

Core PLL reset time value, see

Table 10-14

.

The PLL lock time is the amount of time needed from when the PLL is taken out of reset to when the PLL

Controller can be switched to PLL mode. The Core PLL lock time is given in

Table 10-14

.

Table 10-14. Core PLL Stabilization, Lock, and Reset Times

PARAMETER

PLL stabilization time

PLL lock time

PLL reset time

(1) C = SYSCLK1(N|P) cycle time in ns.

MIN

100

1000

TYP MAX UNIT

µs

2000 × C

(1) ns

10.5.2 PLL Controller Memory Map

The memory map of the Core PLL Controller is shown in

Table 10-15 . AM5K2Exx-specific Core PLL

Controller Register definitions can be found in the sections following

Table 10-15

. For other registers in the table, see the KeyStone Architecture Phase Locked Loop (PLL) Controller User's Guide ( SPRUGV2 ).

It is recommended to use read-modify-write sequence to make any changes to the valid bits in the Core

PLL Controller registers.

Note that only registers documented here are accessible on the AM5K2Exx. Other addresses in the Core

PLL Controller memory map including the Reserved registers must not be modified. Furthermore, only the bits within the registers described here are supported.

Table 10-15. PLL Controller Registers (Including Reset Controller)

HEX ADDRESS RANGE

00 0231 0000 - 00 0231 00E3 -

ACRONYM

00 0231 00E4

00 0231 00E8

00 0231 00EC

RSTYPE

RSTCTRL

RSTCFG

00 0231 00F0

00 0231 00F0 - 00 0231 00FF -

RSISO

00 0231 0100

00 0231 0104

00 0231 0108

00 0231 010C

00 0231 0110

-

-

PLLCTL

SECCTL

PLLM

00 0231 0114

00 0231 0118

00 0231 011C

00 0231 0120

00 0231 0124

-

PLLDIV1

PLLDIV2

-

PLLDIV3

00 0231 0128 -

00 0231 012C - 00 0231 0134 -

00 0231 0138 PLLCMD

00 0231 013C

00 0231 0140

PLLSTAT

ALNCTL

00 0231 0144

00 0231 0148

00 0231 014C

DCHANGE

CKEN

CKSTAT

REGISTER NAME

Reserved

Reset Type Status Register (Reset Core PLL Controller)

Software Reset Control Register (Reset Core PLL Controller)

Reset Configuration Register (Reset Core PLL Controller)

Reset Isolation Register (Reset Core PLL Controller)

Reserved

PLL Control Register

Reserved

PLL Secondary Control Register

Reserved

PLL Multiplier Control Register

Reserved

PLL Controller Divider 1Register

PLL Controller Divider 2 Register

PLL Controller Divider 3Register

Reserved

Reserved

Reserved

PLL Controller Command Register

PLL Controller Status Register

PLL Controller Clock Align Control Register

PLLDIV Ratio Change Status Register

Reserved

Reserved

202

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 10-15. PLL Controller Registers (Including Reset Controller) (continued)

HEX ADDRESS RANGE

00 0231 0150

ACRONYM

SYSTAT

00 0231 0154 - 00 0231 015C -

00 0231 0160

00 0231 0164

PLLDIV4

PLLDIV5

00 0231 0168

00 0231 016C

PLLDIV6

PLLDIV7

00 0231 0170 PLLDIV8

00 0231 0174 - 00 0231 0193 PLLDIV9 - PLLDIV16

00 0231 0194 - 00 0231 01FF -

REGISTER NAME

SYSCLK Status Register

Reserved

PLL Controller Divider 4Register

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

10.5.2.1 PLL Secondary Control Register (SECCTL)

The PLL Secondary Control Register contains extra fields to control the Core PLL and is shown in

Figure 10-8

and described in

Table 10-16

.

Figure 10-8. PLL Secondary Control Register (SECCTL)

22 19 31

Reserved

R-0000 0000

24 23

BYPASS

RW-1

Legend: R/W = Read/Write; R = Read only; -n = value after reset

OUTPUT DIVIDE

RW-0001

18 0

Reserved

RW-001 0000 0000 0000 0000

Table 10-16. PLL Secondary Control Register Field Descriptions

Bit Field

31-24 Reserved

Description

Reserved

23 BYPASS Core PLL bypass enable

• 0 - Core PLL bypass disabled

• 1 - Core PLL bypass enabled

22-19 OUTPUT DIVIDE Output divider ratio bits

• 0h - ÷1. Divide frequency by 1

• 1h - ÷2. Divide frequency by 2

• 2h - invalid entry

• 3h - ÷4. Divide frequency by 4

• 4h - invalid entry

• 5h - ÷6. Divide frequency by 6

• 6h - invalid entry

• 7h - ÷8. Divide frequency by 8

• 8h - invalid entry

• 9h - ÷10. Divide frequency by 10

• Ah - invalid entry

• Bh - ÷12. Divide frequency by 12

• Ch - invalid entry

• Dh - ÷14. Divide frequency by 14

• Eh - invalid entry

• Fh - ÷16. Divide frequency by 16

18-0 Reserved Reserved

10.5.2.2 PLL Controller Divider Register (PLLDIV3, and PLLDIV4)

The PLL Controller Divider Registers (PLLDIV3 and PLLDIV4) are shown in

Figure 10-9

and described in

Table 10-17 . The default values of the RATIO field on a reset for PLLDIV3, and PLLDIV4 are different as

mentioned in the footnote of

Figure 10-9 .

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

203

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Figure 10-9. PLL Controller Divider Register (PLLDIVn)

8 7 31

Reserved

R-0

16

Dn

15

(1)

EN

R/W-1

14

Legend: R/W = Read/Write; R = Read only; -n = value after reset

(1) D3EN for PLLDIV3; D4EN for PLLDIV4

(2) n=02h for PLLDIV3; n=03h for PLLDIV4

Reserved

R-0

Bit Field

31-16 Reserved

15 DnEN

14-8

7-0

Reserved

RATIO

RATIO

R/W-n

(2)

Table 10-17. PLL Controller Divider Register Field Descriptions

Description

Reserved

Divider Dn enable bit (See footnote of

Figure 10-9

)

• 0 = Divider n is disabled

• 1 = No clock output. Divider n is enabled.

Reserved. The reserved bit location is always read as 0. A value written to this field has no effect.

Divider ratio bits (See footnote of

Figure 10-9 )

• 0h = ÷1. Divide frequency by 1

• 1h = ÷2. Divide frequency by 2

• 2h = ÷3. Divide frequency by 3

• 3h = ÷4. Divide frequency by 4

• 4h - 4Fh = ÷5 to ÷80. Divide frequency range: divide frequency by 5 to divide frequency by 80.

0

10.5.2.3 PLL Controller Clock Align Control Register (ALNCTL)

The PLL Controller Clock Align Control Register (ALNCTL) is shown in

Figure 10-10

and described in

Table 10-18

.

Figure 10-10. PLL Controller Clock Align Control Register (ALNCTL)

31

Reserved

R-0

Legend: R/W = Read/Write; R = Read only; -n = value after reset, for reset value

5 4 3

ALN4 ALN3

R/W-1 R/W-1

2

Reserved

R-0

0

Bit

31-5

2-0

4

3

Field

Reserved

ALN4

ALN3

Table 10-18. PLL Controller Clock Align Control Register Field Descriptions

Description

Reserved. This location is always read as 0. A value written to this field has no effect.

SYSCLKn alignment. Do not change the default values of these fields.

• 0 = Do not align SYSCLKn to other SYSCLKs during GO operation. If SYSn in DCHANGE is set, SYSCLKn switches to the new ratio immediately after the GOSET bit in PLLCMD is set.

• 1 = Align SYSCLKn to other SYSCLKs selected in ALNCTL when the GOSET bit in PLLCMD is set and SYSn in DCHANGE is 1. The SYSCLKn rate is set to the ratio programmed in the RATIO bit in PLLDIVn.

10.5.2.4 PLLDIV Divider Ratio Change Status Register (DCHANGE)

Whenever a different ratio is written to the PLLDIVn registers, the PLL CTL flags the change in the

DCHANGE Status Register. During the GO operation, the PLL controller changes only the divide ratio of the SYSCLKs with the bit set in DCHANGE. Note that the ALNCTL Register determines if that clock also needs to be aligned to other clocks. The PLLDIV Divider Ratio Change Status Register is shown in

Figure 10-11

and described in

Table 10-19

.

204

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Bit

31-5

2-0

4

3

Figure 10-11. PLLDIV Divider Ratio Change Status Register (DCHANGE)

31

Reserved

R-0

Legend: R/W = Read/Write; R = Read only; -n = value after reset, for reset value

5 4 3

SYS4 SYS3

R/W-1 R/W-1

2

Reserved

R-0

Field

Reserved

Table 10-19. PLLDIV Divider Ratio Change Status Register Field Descriptions

Description

Reserved. This bit location is always read as 0. A value written to this field has no effect.

SYS4

SYS3

Identifies when the SYSCLKn divide ratio has been modified.

• 0 = SYSCLKn ratio has not been modified. When GOSET is set, SYSCLKn will not be affected.

• 1 = SYSCLKn ratio has been modified. When GOSET is set, SYSCLKn will change to the new ratio.

0

10.5.2.5 SYSCLK Status Register (SYSTAT)

The SYSCLK Status Register (SYSTAT) shows the status of SYSCLK[4:1]. SYSTAT is shown in

Figure 10-12

and described in

Table 10-20

.

Figure 10-12. SYSCLK Status Register (SYSTAT)

4 31

Reserved

R-n

Legend: R/W = Read/Write; R = Read only; -n = value after reset

3 2 1 0

SYS4ON SYS3ON SYS2ON SYS1ON

R-1 R-1 R-1 R-1

Table 10-20. SYSCLK Status Register Field Descriptions

Bit

31-4

3-0

Field Description

Reserved Reserved. This location is always read as 0. A value written to this field has no effect.

SYS[N

(1)

]ON SYSCLK[N] on status

• 0 = SYSCLK[N] is gated

• 1 = SYSCLK[N] is on

(1) Where N = 1, 2, 3, or 4

10.5.2.6 Reset Type Status Register (RSTYPE)

The Reset Type Status (RSTYPE) Register latches the cause of the last reset. If multiple reset sources occur simultaneously, this register latches the highest priority reset source. The Reset Type Status

Register is shown in

Figure 10-13

and described in

Table 10-21 .

Figure 10-13. Reset Type Status Register (RSTYPE)

11 8 31 29

Reserved

28

EMU-RST

27 12

Reserved

R-0 R-0 R-0

LEGEND: R = Read only; -n = value after reset

WDRST[N]

R-0

7 3

Reserved

R-0

2

PLLCTRLRST

R-0

1

RESET

R-0

0

POR

R-0

Bit Field

31-29 Reserved

28 EMU-RST

Table 10-21. Reset Type Status Register Field Descriptions

Description

Reserved. Always reads as 0. Writes have no effect.

Reset initiated by emulation

• 0 = Not the last reset to occur

• 1 = The last reset to occur

Reserved. Always reads as 0. Writes have no effect.

27-12 Reserved

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

205

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Bit

11

10

9

8

7-3

2

1

0

Field

WDRST3

WDRST2

WDRST1

WDRST0

Reserved

PLLCTLRST

RESET

POR

Table 10-21. Reset Type Status Register Field Descriptions (continued)

Description

Reset initiated by Watchdog Timer[N]

• 0 = Not the last reset to occur

• 1 = The last reset to occur

Reserved. Always reads as 0. Writes have no effect.

Reset initiated by PLLCTL

• 0 = Not the last reset to occur

• 1 = The last reset to occur

RESET reset

• 0 = RESET was not the last reset to occur

• 1 = RESET was the last reset to occur

Power-on reset

• 0 = Power-on reset was not the last reset to occur

• 1 = Power-on reset was the last reset to occur

10.5.2.7 Reset Control Register (RSTCTRL)

This register contains a key that enables writes to the MSB of this register and the RSTCFG register. The key value is 0x5A69. A valid key will be stored as 0x000C. Any other key value is invalid. When the

RSTCTRL or the RSTCFG is written, the key is invalidated. Every write must be set up with a valid key.

The Software Reset Control Register (RSTCTRL) is shown in

Figure 10-14

and described in

Table 10-22

.

Figure 10-14. Reset Control Register (RSTCTRL)

17 15 31

Reserved

R-0x0000

Legend: R = Read only; -n = value after reset;

(1) Writes are conditional based on valid key.

16

SWRST

R/W-0x

(1)

KEY

R/W-0x0003

0

Bit Field

31-17 Reserved

16 SWRST

15-0 KEY

Table 10-22. Reset Control Register Field Descriptions

Description

Reserved

Software reset

• 0 = Reset

• 1 = Not reset

Key used to enable writes to RSTCTRL and RSTCFG.

10.5.2.8 Reset Configuration Register (RSTCFG)

This register is used to configure the type of reset (a hard reset or a soft reset) initiated by RESET, the watchdog timer, and the Core PLL Controller’s RSTCTRL Register. By default, these resets are hard resets. The Reset Configuration Register (RSTCFG) is shown in

Figure 10-15

and described in

Table 10-

23 .

Figure 10-15. Reset Configuration Register (RSTCFG)

31

Reserved

R-0x000000

14 13

PLLCTLRSTTYPE

R/W-0

(2)

Legend: R = Read only; R/W = Read/Write; -n = value after reset

(1) Where N = 1, 2, 3,....N (Not all these outputs may be used on a specific device.)

(2) Writes are conditional based on valid key. For details, see

Section 10.5.2.7

.

12

RESETTYPE

R/W-0

(2)

206

11 4

Reserved

R-0x0

3

WDTYPE[N

(1)

]

R/W-0x00

(2)

0

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 10-23. Reset Configuration Register Field Descriptions

Bit

3

2

1

0

Field Description

31-14 Reserved

13 PLLCTLRSTTYPE

Reserved

PLL controller initiates a software-driven reset of type:

• 0 = Hard reset (default)

• 1 = Soft reset

12 RESETTYPE

11-4 Reserved

RESET initiates a reset of type:

• 0 = Hard reset (default)

• 1 = Soft reset

Reserved

WDTYPE3

WDTYPE2

WDTYPE1

WDTYPE0

Watchdog timer [N] initiates a reset of type:

• 0 = Hard reset (default)

• 1 = Soft reset

10.5.2.9 Reset Isolation Register (RSISO)

This register is used to select the module clocks that must maintain their clocking without pausing through non-power-on reset. Setting any of these bits effectively blocks reset to all Core PLL Control Registers in order to maintain current values of PLL multiplier, divide ratios, and other settings. Along with setting the module-specific bit in RSISO, the corresponding MDCTLx[12] bit also needs to be set in the PSC to resetisolate a particular module. For more information on the MDCTLx Register, see the KeyStone Architecture

Power Sleep Controller (PSC) User's Guide ( SPRUGV4 ). The Reset Isolation Register (RSISO) is shown in

Figure 10-16

and described in

Table 10-24

.

Figure 10-16. Reset Isolation Register (RSISO)

9 7 31

Reserved

R-0

Legend: R = Read only; R/W = Read/Write; -n = value after reset

8

SRISO

R/W-0

Reserved

R-0

0

Bit Field

31-9 Reserved

8 SRISO

7-0 Reserved

Table 10-24. Reset Isolation Register Field Descriptions

Description

Reserved.

Isolate SmartReflex control

• 0 = Not reset isolated

• 1 = Reset isolated

Reserved

10.5.3 Core PLL Control Registers

The Core PLL uses two chip-level registers (COREPLLCTL0 and COREPLLCTL1) along with the Core

PLL Controller for its configuration. These MMRs (memory-mapped registers) exist inside the Bootcfg space. To write to these registers, software should go through an unlocking sequence using the KICK0 and KICK1 registers. These registers reset only on a POR reset.

For valid configurable values of the COREPLLCTL registers, see

Section 8.1.4

. See

Section 8.2.3.4

for the address location of the KICK registers and their locking and unlocking sequences.

See

Figure 10-17

and

Table 10-25

for COREPLLCTL0 details and

Figure 10-18

and

Table 10-26

for

COREPLLCTL1 details.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

207

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Figure 10-17. Core PLL Control Register 0 (COREPLLCTL0)

19 18 12 31 24 23

BWADJ[7:0]

RW,+0000 0101

Reserved

RW - 0000 0

Legend: RW = Read/Write; -n = value after reset

PLLM[12:6]

RW,+0000000

11

Reserved

6

RW, +000000

5 0

PLLD

RW,+000000

Bit Field

31-24 BWADJ[7:0]

23-19 Reserved

18-12 PLLM[12:6]

11-6 Reserved

5-0 PLLD

Table 10-25. Core PLL Control Register 0 (COREPLLCTL0) Field Descriptions

Description

BWADJ[11:8] and BWADJ[7:0] are located in COREPLLCTL0 and COREPLLCTL1 registers. BWADJ[11:0] should be programmed to a value related to PLLM[12:0] value based on the equation: BWADJ =

((PLLM+1)>>1) - 1.

Reserved

7 bits of a 13-bit field PLLM that selects the values for the multiplication factor. PLLM field is loaded with the multiply factor minus 1.

The PLLM[5:0] bits of the multiplier are controlled by the PLLM register inside the PLL Controller and the

PLLM[12:6] bits are controlled by the above chip-level register. COREPLLCTL0 register PLLM[12:6] bits should be written just before writing to PLLM register PLLM[5:0] bits in the controller to have the complete 13 bit value latched when the GO operation is initiated in the PLL controller. See the KeyStone Architecture Phase Locked

Loop (PLL) Controller User's Guide ( SPRUGV2 ) for the recommended programming sequence. Output Divide ratio and Bypass enable/disable of the Core PLL is also controlled by the SECCTL register in the PLL

Controller. See the

Section 10.5.2.1

for more details.

Reserved

A 6-bit field that selects the values for the reference divider. PLLD field is loaded with reference divide value minus 1.

Figure 10-18. Core PLL Control Register 1 (COREPLLCTL1)

7 31

Reserved

RW - 0000000000000000000000000

Legend: RW = Read/Write; -n = value after reset

6

ENSAT

RW-0

5 4

Reserved

R-00

3

BWADJ[11:8]

RW- 0000

0

Bit Field

31-7 Reserved

6 ENSAT

5-4

3-0

Reserved

BWADJ[11:8]

Table 10-26. Core PLL Control Register 1 (COREPLLCTL1) Field Descriptions

Description

Reserved

Needs to be set to 1 for proper PLL operation

Reserved

BWADJ[11:8] and BWADJ[7:0] are located in COREPLLCTL0 and COREPLLCTL1 registers. BWADJ[11:0] should be programmed to a value related to PLLM[12:0] value based on the equation: BWADJ =

((PLLM+1)>>1) - 1.

208

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

10.5.4 Core PLL Controller/SGMII/XFI/TSREF/HyperLink/PCIe/USB Clock Input Electrical

Data/Timing

Table 10-27. Core PLL Controller/SGMII/XFI/TSREF/HyperLink/PCIe/USB Clock Input Timing

Requirements

(1)

3

2

1

1

2

3

4

(see

Figure 10-19

through

Figure 10-21 )

NO.

4

5

5

3

4

2

2

1

1

3

2

3

4

1

1

3

2

4

5

5 tc(CORECLKN) tc(CORECLKP) tw(CORECLKN) tw(CORECLKN) tw(CORECLKP) tw(CORECLKP) tr(CORECLK_200 mV) tf(CORECLK_200 mV) tj(CORECLKN) tj(CORECLKP) tc(SGMII0CLKN) tc(SGMII0CLKP) tw(SGMII0CLKN) tw(SGMII0CLKN) tw(SGMII0CLKP) tw(SGMII0CLKP) tr(SGMII0CLK_200mV) tf(SGMII0CLK_200mV) tj(SGMII0CLKN) tj(SGMII0CLKP)

CORECLK[P:N]

Cycle time CORECLKN cycle time

Cycle time CORECLKP cycle time

Pulse width CORECLKN high

Pulse width CORECLKN low

Pulse width CORECLKP high

Pulse width CORECLKP low

Pulse width SGMII0CLKN low

Pulse width SGMII0CLKP high

Pulse width SGMII0CLKP low

Transition time SGMII0CLK differential rise time (200 mV)

Transition time SGMII0CLK differential fall time (200 mV)

Jitter, RMS SGMII0CLKN

3.2

3.2

0.45*tc

0.45*tc

0.45*tc

0.45*tc

25

25

0.55*tc

0.55*tc

0.55*tc

0.55*tc

Transition time CORECLK differential rise time (200 mV)

Transition time CORECLK differential fall time (200 mV)

Jitter, peak_to_peak _ periodic

CORECLKN

Jitter, peak_to_peak _ periodic

CORECLKP

50

50

350

350

0.02*tc(CORECLKN)

0.02*tc(CORECLKP)

SGMII0CLK[P:N]

Cycle time SGMII0CLKN cycle time

Cycle time SGMII0CLKP cycle time

Pulse width SGMII0CLKN high

3.2 or 6.4 or 8

3.2 or 6.4 or 8

0.45*tc(SGMII0CLKN) 0.55*tc(SGMII0CLKN)

0.45*tc(SGMII0CLKN)

0.45*tc(SGMII0CLKP)

0.45*tc(SGMII0CLKP)

50

50

0.55*tc(SGMII0CLKN)

0.55*tc(SGMII0CLKP)

0.55*tc(SGMII0CLKP)

350

350

4

Jitter, RMS SGMII0CLKP

MIN MAX UNIT

4 ps ps ps ps ps ps ps,

RMS ps,

RMS ns ns ns ns ns ns ns ns ns ns ns ns

4

5

5 tc(XFICLKN) tc(XFICLKP) tw(XFICLKN) tw(XFICLKN) tw(XFICLKP) tw(XFICLKP) tr(XFICLK_200mV) tf(XFICLK_200mV) tj(XFICLKN) tj(XFICLKP)

XFICLK[P:N]

Cycle time XFICLKN cycle time

Cycle time XFICLKP cycle time

Pulse width XFICLKN high

Pulse width XFICLKN low

Pulse width XFICLKP high

Pulse width XFICLKP low

Transition time XFICLK differential rise time (200 mV)

Transition time XFICLK differential fall time (200 mV)

Jitter, RMS XFICLKN

Jitter, RMS XFICLKP

3.2 or 6.4

3.2 or 6.4

0.45*tc(XFICLKN)

0.45*tc(XFICLKN)

0.45*tc(XFICLKP)

0.45*tc(XFICLKP)

50

50

0.55*tc(XFICLKN)

0.55*tc(XFICLKN)

0.55*tc(XFICLKP)

0.55*tc(XFICLKP)

350

350

4

4 ps ps ps,

RMS ps,

RMS ns ns ns ns ns ns

HYPLNK0CLK[P:N]

(1) See the Hardware Design Guide for KeyStone II Devices application report ( SPRABV0 ) for detailed recommendations.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

209

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

1

1

3

2

3

4

1

1

3

2

3

2

2

1

1

3

4

Table 10-27. Core PLL Controller/SGMII/XFI/TSREF/HyperLink/PCIe/USB Clock Input Timing

Requirements

(1)

(continued)

(see

Figure 10-19

through

Figure 10-21 )

1

3

NO.

1

2

2

3

4

4

5 tc(HYPLNK0CLKN) tc(HYPLNK0CLKP) tw(HYPLNK0CLKN) tw(HYPLNK0CLKN) tw(HYPLNK0CLKP) tw(HYPLNK0CLKP) tr(HYPLNK0CLK) tf(HYPLNK0CLK) tj(HYPLNK0CLKN)

Cycle time HYPLNK0CLKN cycle time

Cycle time HYPLNK0CLKP cycle time

Pulse width HYPLNK0CLKN high

Pulse width HYPLNK0CLKN low

Pulse width HYPLNK0CLKP high

Pulse width HYPLNK0CLKP low

Rise time HYPLNK0CLK differential rise time (10% to 90%)

Fall time HYPLNK0CLK differential fall time (10% to 90%)

Jitter, RMS HYPLNK0CLKN

MIN

3.2 or 6.4

MAX UNIT

ns

3.2 or 6.4

0.45*tc(HYPLNK0CLKN) 0.55*tc(HYPLNK0CLKN) ns ns

0.45*tc(HYPLNK0CLKN) 0.55*tc(HYPLNK0CLKN)

0.45*tc(HYPLNK0CLKP) 0.55*tc(HYPLNK0CLKP)

0.45*tc(HYPLNK0CLKP) 0.55*tc(HYPLNK0CLKP) ns ns ns

0.2*tc(HYPLNK0CLKP)

0.2*tc(HYPLNK0CLKP)

4 ps ps

5 tj(HYPLNK0CLKP) Jitter, RMS HYPLNK0CLKP

4 ps,

RMS ps,

RMS

4

5

5 tc(PCIECLKN) tc(PCIECLKP) tw(PCIECLKN) tw(PCIECLKN) tw(PCIECLKP) tw(PCIECLKP) tr(PCIECLK) tf(PCIECLK) tj(PCIECLKN) tj(PCIECLKP)

PCIECLK[P:N]

Cycle time PCIECLKN cycle time

Cycle time PCIECLKP cycle time

Pulse width PCIECLKN high

Pulse width PCIECLKN low

Pulse width PCIECLKP high

Pulse width PCIECLKP low

Rise time PCIECLK differential rise time (10% to 90%)

Fall time PCIECLK differential fall time

(10% to 90%)

Jitter, RMS PCIECLKN

Jitter, RMS PCIECLKP

10

10

0.45*tc(PCIECLKN)

0.45*tc(PCIECLKN)

0.45*tc(PCIECLKP)

0.45*tc(PCIECLKP)

10

10

0.55*tc(PCIECLKN)

0.55*tc(PCIECLKN)

0.55*tc(PCIECLKP)

0.55*tc(PCIECLKP)

0.2*tc(PCIECLKP)

0.2*tc(PCIECLKP)

4

4 ps ps ps,

RMS ps,

RMS ns ns ns ns ns ns

4

5

5 tc(USBCLKN) tc(USBCLKP) tw(USBCLKN) tw(USBCLKN) tw(USBCLKP) tw(USBCLKP) tr(USBCLK) tf(USBCLK) tj(USBCLKN) tj(USBCLKP)

USBCLK[P:M]

Cycle time USBCLKM cycle time

Cycle time USBCLKP cycle time

Pulse width USBCLKM high

Pulse width USBCLKM low

Pulse width USBCLKP high

Pulse width USBCLKP low

Rise time USBCLK differential rise time

(10% to 90%)

Fall time USBCLK differential fall time

(10% to 90%)

Jitter, RMS USBCLKM

Jitter, RMS USBCLKP

10

10

0.45*tc(USBCLKN)

0.45*tc(USBCLKN)

0.45*tc(USBCLKP)

0.45*tc(USBCLKP)

50

50

10

10

0.55*tc(USBCLKN)

0.55*tc(USBCLKN)

0.55*tc(USBCLKP)

0.55*tc(USBCLKP)

350

350

4

4 ns ns ns ns ns ns ps ps ps,

RMS ps,

RMS tc(TSREFCLKN) tc(TSREFCLKP) tw(TSREFCLKN)

TSREFCLK[P:N]

(2)

Cycle time TSREFCLKN cycle time

Cycle time TSREFCLKP cycle time

Pulse width TSREFCLKN high

3.25

3.25

0.45*tc(TSREFCLKN)

32.55

32.55

0.55*tc(TSREFCLKN) ns ns ns

(2) TSREFCLK clock input is LVDS compliant.

210

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

5

Table 10-27. Core PLL Controller/SGMII/XFI/TSREF/HyperLink/PCIe/USB Clock Input Timing

Requirements

(1)

(continued)

(see

Figure 10-19

through

Figure 10-21 )

2

3

NO.

2

4

4

5 tw(TSREFCLKN) tw(TSREFCLKP) tw(TSREFCLKP) tr(TSREFCLK_200mV) tf(TSREFCLK_200mV) tj(TSREFCLKN)

Pulse width TSREFCLKN low

Pulse width TSREFCLKP high

Pulse width TSREFCLKP low

Transition time TSREFCLK differential rise time (200 mV)

Transition time TSREFCLK differential fall time (200 mV)

Jitter, RMS TSREFCLKN tj(TSREFCLKP) Jitter, RMS TSREFCLKP

MIN

0.45*tc(TSREFCLKN)

0.45*tc(TSREFCLKP)

0.45*tc(TSREFCLKP)

50

50

MAX UNIT

0.55*tc(TSREFCLKN) ns

0.55*tc(TSREFCLKP)

0.55*tc(TSREFCLKP) ns ns

350

350

5.8

5.8

ps ps ps,

RMS ps,

RMS

1

2 3

<CLK_NAME>CLKN

<CLK_NAME>CLKP

4

Figure 10-19. Clock Input Timing

5 peak-to-peak Differential Input

Voltage (250 mV to 2 V)

0 200 mV Transition Voltage Range for the 200-mV Transition Voltage Range

Figure 10-20. CORECLK, SGMII0CLK and USBCLK Clock Transition Time

peak-to-peak

Differential

Input Voltage

(400 mV to 1100 mV)

0

10% to 90% of peak-to-peak

Voltage

Max T = 0.2

× T from

10% to 90% of the peak-to-peak

Differential Voltage

Max T = 0.2

× T from

90% to 10% of the peak-to-peak

Differential Voltage

Figure 10-21. HYPLNK0CLK, XFICLK, and PCIECLK Rise and Fall Times

10.6 DDR3 PLL

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

211

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

The DDR3 PLL generates interface clocks for the DDR3 memory controller. When coming out of power-on reset, DDR3 PLL is programmed to a valid frequency during the boot configuration process before being enabled and used.

DDR3 PLL power is supplied via the DDR3 PLL power-supply pin (AVDDA2). An external EMI filter circuit must be added to all PLL supplies. See the Hardware Design Guide for KeyStone II Devices application report ( SPRABV0 ) for detailed recommendations.

PLLM

DDR3 PLL

DDRCLK(N|P)

PLLD

VCO

0

PLLOUT

CLKOD

1

BYPASS

Figure 10-22. DDR3 PLL Block Diagram

´

2

DDR3

PHY

DDR3CLKOUT

10.6.1 DDR3 PLL Control Registers

The DDR3 PLL, which is used to drive the DDR3 PHY for the EMIF, does not use a PLL controller. DDR3

PLL can be controlled using the DDR3PLLCTL0 and DDR3PLLCTL1 registers located in the Bootcfg module. These MMRs (memory-mapped registers) exist inside the Bootcfg space. To write to these registers, software must go through an unlocking sequence using the KICK0 and KICK1 registers. For suggested configurable values, see

Section 8.1.4

. See

Section 8.2.3.4

for the address location of the registers and locking and unlocking sequences for accessing the registers. These registers are reset on

POR only.

Figure 10-23. DDR3 PLL Control Register 0 (DDR3PLLCTL0)

18 31

BWADJ[7:0]

RW,+0000 1001

24 23

BYPASS

RW,+0

Legend: RW = Read/Write; -n = value after reset

22

CLKOD

19

RW,+0001

PLLM

RW,+0000000010011

6 5 0

PLLD

RW,+000000

Bit Field

31-24 BWADJ[7:0]

23 BYPASS

22-19 CLKOD

18-6 PLLM

5-0 PLLD

Table 10-28. DDR3 PLL Control Register 0 Field Descriptions

Description

BWADJ[11:8] and BWADJ[7:0] are located in DDR3PLLCTL0 and DDR3PLLCTL1 registers. BWADJ[11:0] should be programmed to a value related to PLLM[12:0] value based on the equation: BWADJ =

((PLLM+1)>>1) - 1.

Enable bypass mode

• 0 = Bypass disabled

• 1 = Bypass enabled

A 4-bit field that selects the values for the PLL post divider. Valid post divider values are 1 and even values from 2 to 16. CLKOD field is loaded with output divide value minus 1

A 13-bit field that selects the values for the PLL multiplication factor. PLLM field is loaded with the multiply factor minus 1

A 6-bit field that selects the values for the reference (input) divider. PLLD field is loaded with reference divide value minus 1

212

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Figure 10-24. DDR3 PLL Control Register 1 (DDR3PLLCTL1)

31 15

Reserved

RW - 00000000000000000

Legend: RW = Read/Write; -n = value after reset

14

PLLRST

RW-0

13 7

Reserved

RW-0000000

6

ENSAT

RW-0

5 4

Reserved

R-00

3

BWADJ[11:8]

RW- 0000

0

Bit Field

31-15 Reserved

14 PLLRST

13-7 Reserved

6 ENSAT

5-4

3-0

Reserved

BWADJ[11:8]

Table 10-29. DDR3 PLL Control Register 1 Field Descriptions

Description

Reserved

PLL Reset bit

• 0 = PLL Reset is released

• 1 = PLL Reset is asserted

Reserved

Needs to be set to 1 for proper PLL operation

Reserved

BWADJ[11:8] and BWADJ[7:0] are located in the DDR3PLLCTL0 and the DDR3PLLCTL1 registers.

BWADJ[11:0] should be programmed to a value related to PLLM[12:0] value based on the equation: BWADJ =

((PLLM+1)>>1) - 1.

10.6.2 DDR3 PLL Device-Specific Information

As shown in

Figure 10-22

, the output of DDR3 PLL (PLLOUT) is divided by 2 and directly fed to the DDR3 memory controller. During power-on resets, the internal clocks of the DDR3 PLL are affected as described in Section

Section 10.4

. The DDR3 PLL is unlocked only during the power-up sequence and is locked by the time the RESETSTAT pin goes high. It does not lose lock during any of the other resets.

10.6.3 DDR3 PLL Input Clock Electrical Data/Timing

Table 10-30

applies to DDR3 memory interface.

Table 10-30. DDR3 PLL DDRCLK(N|P) Timing Requirements

(see

Figure 10-25

and

Figure 10-20 )

No.

4

5

5

3

4

2

2

1

1

3 tc(DDRCLKN) tc(DDRCLKP) tw(DDRCLKN) tw(DDRCLKN) tw(DDRCLKP) tw(DDRCLKP) tr(DDRCLK_200 mV) tf(DDRCLK_200 mV) tj(DDRCLKN) tj(DDRCLKP)

DDRCLK[P:N]

Cycle time _ DDRCLKN cycle time

Cycle time _ DDRCLKP cycle time

Pulse width _ DDRCLKN high

Pulse width _ DDRCLKN low

Pulse width _ DDRCLKP high

Pulse width _ DDRCLKP low

Transition time _ DDRCLK differential rise time (200 mV)

Transition time _ DDRCLK differential fall time (200 mV)

Jitter, peak_to_peak _ periodic DDRCLKN

Jitter, peak_to_peak _ periodic DDRCLKP

Min Max Unit

3.2

25

3.2

25

0.45*tc(DDRCLKN) 0.55*tc(DDRCLKN)

0.45*tc(DDRCLKN) 0.55*tc(DDRCLKN)

0.45*tc(DDRCLKP) 0.55*tc(DDRCLKP)

0.45*tc(DDRCLKP) 0.55*tc(DDRCLKP)

50

50

350

350

0.02*tc(DDRCLKN)

0.02*tc(DDRCLKP) ps ps ps ps ns ns ns ns ns ns

1

2 3

DDRCLKN

DDRCLKP

4

5

Figure 10-25. DDR3 PLL DDRCLK Timing

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

213

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

10.7 NETCP PLL

The NETCP PLL generates interface clocks for the Network Coprocessor. Using the NETCPCLKSEL pin the user can select the input source of the NETCP PLL as either the output of the Core PLL mux or the

NETCPCLK clock reference source. When coming out of power-on reset, NETCP PLL comes out in a bypass mode and needs to be programmed to a valid frequency before being enabled and used.

NETCP PLL power is supplied via the NETCP PLL power-supply pin (AVDDA3). An external EMI filter circuit must be added to all PLL supplies. See the Hardware Design Guide for KeyStone II Devices application report ( SPRABV0 ) for detailed recommendations.

CORECLK(P|N)

NETCPCLK(P|N)

0

1

PLLD

PLLM

VCO

NETCP PLL

CLKOD

0

1

BYPASS

NETCP

Clock Source

MUX

SYSCLK0

0

/3

1

NETCP

Sub-system

NETCPCLKSEL

NETCPPLLCTL1.PAPLL

(bit13)

Figure 10-26. NETCP PLL Block Diagram

10.7.1 NETCP PLL Local Clock Dividers

The clock signal from the NETCP PLL Controller is routed to the Network Coprocessor. The NETCP module has two internal dividers with fixed division ratios. See table

Table 10-31 .

10.7.2 NETCP PLL Control Registers

The NETCP PLL, which is used to drive the Network Coprocessor, does not use a PLL controller. NETCP

PLL can be controlled using the NETCPPLLCTL0 and NETCPPLLCTL1 registers located in the Bootcfg module. These MMRs (memory-mapped registers) exist inside the Bootcfg space. To write to these registers, software must go through an unlocking sequence using the KICK0 and KICK1 registers. For suggested configuration values, see

Section 8.1.4

. See

Section 8.2.3.4

for the address location of the registers and locking and unlocking sequences for accessing these registers. These registers are reset on

POR only.

Figure 10-27. NETCP PLL Control Register 0 (NETCPPLLCTL0)

18 31

BWADJ[7:0]

RW,+0000 1001

24 23

BYPASS

RW,+0

Legend: RW = Read/Write; -n = value after reset

22

CLKOD

19

RW,+0001

PLLM

RW,+0000000010011

6 5 0

PLLD

RW,+000000

Bit Field

31-24 BWADJ[7:0]

23 BYPASS

22-19 CLKOD

Table 10-31. NETCP PLL Control Register 0 Field Descriptions (NETCPPLLCTL0)

Description

BWADJ[11:8] and BWADJ[7:0] are located in NETCPPLLCTL0 and NETCPPLLCTL1 registers. BWADJ[11:0] should be programmed to a value related to PLLM[12:0] value based on the equation: BWADJ =

((PLLM+1)>>1) - 1.

Enable bypass mode

• 0 = Bypass disabled

• 1 = Bypass enabled

A 4-bit field that selects the values for the PLL post divider. Valid post divider values are 1 and even values from 2 to 16. CLKOD field is loaded with output divide value minus 1

214

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Bit Field

18-6 PLLM

5-0

Table 10-31. NETCP PLL Control Register 0 Field Descriptions (NETCPPLLCTL0) (continued)

PLLD

Description

A 13-bit field that selects the values for the multiplication factor. PLLM field is loaded with the multiply factor minus 1.

A 6-bit field that selects the values for the reference divider. PLLD field is loaded with reference divide value minus 1.

Figure 10-28. NETCP PLL Control Register 1 (NETCPPLLCTL1)

31

Reserved

15

RW - 00000000000000000

14

PLLRST

RW-0

Legend: RW = Read/Write; -n = value after reset

13

PAPLL

RW-0

12 7

Reserved

RW-000000

6

ENSAT

RW-0

5 4

Reserved

R-00

3

BWADJ[11:8]

RW-0000

0

Bit Field

31-15 Reserved

14 PLLRST

13 PAPLL

12-7 Reserved

6 ENSAT

5-4

3-0

Reserved

BWADJ[11:8]

Table 10-32. NETCP PLL Control Register 1 Field Descriptions (NETCPPLLCTL1)

Description

Reserved

PLL Reset bit

• 0 = PLL Reset is released

• 1 = PLL Reset is asserted

NETCP Clock Source MUX Control

• 0 = SYSCLK0

• 1 = NETCP PLL

Reserved

Needs to be set to 1 for proper PLL operation

Reserved

BWADJ[11:8] and BWADJ[7:0] are located in NETCPPLLCTL0 and NETCPPLLCTL1 registers. BWADJ[11:0] should be programmed to a value related to PLLM[12:0] value based on the equation: BWADJ =

((PLLM+1)>>1) - 1.

10.7.3 NETCP PLL Device-Specific Information

As shown in

Figure 10-26

, the output of NETCP PLL (PLLOUT) is divided by 3 and directly fed to the

Network Coprocessor. During power-on resets, the internal clocks of the NETCP PLL are affected as described in

Section 10.4

. The NETCP PLL is unlocked only during the power-up sequence and is locked

by the time the RESETSTAT pin goes high. It does not lose lock during any other resets.

10.7.4 NETCP PLL Input Clock Electrical Data/Timing

1

1

3

2

2

3

4

4

5

5 tc(NETCPCLKN) tc(NETCPCLKP) tw(NETCPCLKN) tw(NETCPCLKN) tw(NETCPCLKP) tw(NETCPCLKP) tr(NETCPCLK_250mV) tf(NETCPCLK_250mV) tj(NETCPCLKN) tj(NETCPCLKP)

Table 10-33. NETCP PLL Timing Requirements

(see

Figure 10-29

and

Figure 10-20 )

NO.

NETCPCLK[P:N]

Cycle time _ NETCPCLKN cycle time

Cycle time _ NETCPCLKP cycle time

Pulse width _ NETCPCLKN high

Pulse width _ NETCPCLKN low

Pulse width _ NETCPCLKP high

Pulse width _ NETCPCLKP low

Transition time _ NETCPCLK differential rise time

(250 mV)

Transition time _ NETCPCLK differential fall time

(250 mV)

Jitter, peak_to_peak _ periodic NETCPCLKN

Jitter, peak_to_peak _ periodic NETCPCLKP

MIN

3.2

3.2

0.45*tc(NETCPCLKN)

0.45*tc(NETCPCLKN)

0.45*tc(NETCPCLKP)

0.45*tc(NETCPCLKP)

50

50

MAX UNIT

25

25

0.55*tc(NETCPCLKN)

0.55*tc(NETCPCLKN)

0.55*tc(NETCPCLKP)

0.55*tc(NETCPCLKP)

350

350 ps

100 ps, pk-pk

100 ps, pk-pk ns ns ns ns ns ns ps

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

215

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

1

2 3

NETCPCLKN

NETCPCLKP

4

Figure 10-29. NETCP PLL Timing

5

10.8 DDR3 Memory Controller

The 72-bit DDR3 Memory Controller bus of the AM5K2E0x is used to interface to JEDEC standardcompliant DDR3 SDRAM devices. The DDR3 external bus interfaces only to DDR3 SDRAM devices and does not share the bus with any other type of peripheral.

10.8.1 DDR3 Memory Controller Device-Specific Information

216

The AM5K2E0x includes one 64-bit wide, 1.5-V DDR3 SDRAM EMIF interface. The DDR3 interface can operate at 800 mega transfers per second (MTS), 1033 MTS, 1333 MTS, and 1600 MTS.

Due to the complicated nature of the interface, a limited number of topologies are supported to provide a

16-bit, 32-bit, or 64-bit interface.

The DDR3 electrical requirements are fully specified in the DDR JEDEC Specification JESD79-3C.

Standard DDR3 SDRAMs are available in 8-bit and 16-bit versions allowing for the following bank topologies to be supported by the interface:

72-bit: Five 16-bit SDRAMs (including 8 bits of ECC)

72-bit: Nine 8-bit SDRAMs (including 8 bits of ECC)

36-bit: Three 16-bit SDRAMs (including 4 bits of ECC)

36-bit:Five 8-bit SDRAMs (including 4 bits of ECC)

64-bit:Four 16-bit SDRAMs

64-bit:Eight 8-bit SDRAMs

32-bit:Two 16-bit SDRAMs

32-bit: Four 8-bit SDRAMs

16-bit:One 16-bit SDRAM

16-bit:Two 8-bit SDRAMs

The approach to specifying interface timing for the DDR3 memory bus is different than on other interfaces such as I

2

C or SPI. For these other interfaces, the device timing was specified in terms of data manual specifications and I/O buffer information specification (IBIS) models. For the DDR3 memory bus, the approach is to specify compatible DDR3 devices and provide the printed circuit board (PCB) solution and guidelines directly to the user.

A race condition may exist when certain masters write data to the DDR3 memory controller. For example, if master A passes a software message via a buffer in external memory and does not wait for an indication that the write completes before signaling to master B that the message is ready, when master B attempts to read the software message, the master B read may bypass the master A write. Thus, master B may read stale data and receive an incorrect message.

Some master peripherals (e.g., EDMA3 transfer controllers with TCCMOD=0) always wait for the write to complete before signaling an interrupt to the system, thus avoiding this race condition. For masters that do not have a hardware specification of write-read ordering, it may be necessary to specify data ordering in the software.

If master A does not wait for an indication that a write is complete, it must perform the following workaround:

1. Perform the required write to DDR3 memory space.

2. Perform a dummy write to the DDR3 memory controller module ID and revision register.

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

3. Perform a dummy read to the DDR3 memory controller module ID and revision register.

4. Indicate to master B that the data is ready to be read after completion of the read in step 3. The completion of the read in step 3 ensures that the previous write was done.

10.8.2 DDR3 Slew Rate Control

The DDR3 slew rate is controlled by use of the PHY registers. See theKeyStone Architecture DDR3

Memory Controller User's Guide

SPRUGV8 for details.

10.8.3 DDR3 Memory Controller Electrical Data/Timing

The DDR3 Design Requirements for KeyStone Devices application report SPRABI1 specifies a complete

DDR3 interface solution as well as a list of compatible DDR3 devices. The DDR3 electrical requirements are fully specified in the DDR3 JEDEC Specification JESD79-3C. TI has performed the simulation and system characterization to ensure all DDR3 interface timings in this solution are met. Therefore, no electrical data/timing information is supplied here for this interface.

NOTE

TI supports only designs that follow the board design guidelines outlined in the application report.

10.9 I

2

C Peripheral

The Inter-Integrated Circuit (I

2

C) module provides an interface between SoC and other devices compliant with Philips Semiconductors (now NXP Semiconductors) Inter-Integrated Circuit bus specification version

2.1. External components attached to this 2-wire serial bus can transmit/receive up to 8-bit data to/from the device through the I

2

C module.

10.9.1 I

2

C Device-Specific Information

The device includes multiple I

2

C peripheral modules.

NOTE

When using the I

2

C module, ensure there are external pullup resistors on the SDA and SCL pins.

The I

2

C modules on the AM5K2E0x may be used by the SoC to control local peripheral ICs (DACs, ADCs, etc.), communicate with other controllers in a system, or to implement a user interface.

The I

2

C port supports:

• Compatibility with Philips I

2

C specification revision 2.1 (January 2000)

• Fast mode up to 400 kbps (no fail-safe I/O buffers)

• Noise filter to remove noise of 50 ns or less

• 7-bit and 10-bit device addressing modes

• Multi-master (transmit/receive) and slave (transmit/receive) functionality

• Events: DMA, interrupt, or polling

• Slew-rate limited open-drain output buffers

Figure 10-30

shows a block diagram of the I

2

C module.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

217

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

SCL

Noise

Filter

SDA

Noise

Filter

Clock

Prescale

Bit Clock

Generator

Transmit

Transmit

Shift

Transmit

Buffer

Receive

Receive

Buffer

Receive

Shift

Peripheral Clock

(CPU/6)

Control

Own

Address

Slave

Address

Mode

Data

Count

Extended

Mode

Interrupt/DMA

Interrupt

Mask/Status

Interrupt

Status

Interrupt

Vector

Shading denotes control/status registers.

Figure 10-30. I

2

C Module Block Diagram

10.9.2 I

2

C Peripheral Register Description

HEX ADDRESS OFFSETS ACRONYM

0x0000 ICOAR

0x0004

0x0008

ICIMR

ICSTR

0x000C

0x0010

0x0014

0x0018

0x001C

0x0020

0x0024

ICCLKL

ICCLKH

ICCNT

ICDRR

ICSAR

ICDXR

ICMDR

0x0028

0x002C

0x0030

0x0034

0x0038

ICIVR

ICEMDR

ICPSC

ICPID1

ICPID2

Table 10-34. I

2

C Registers

REGISTER NAME

I

2

C Own Address Register

I

2

C Interrupt Mask/status Register

I

2

C Interrupt Status Register

I

2

C Clock Low-time Divider Register

I

2

C Clock High-time Divider Register

I

2

C Data Count Register

I

2

C Data Receive Register

I

2

C Slave Address Register

I

2

C Data Transmit Register

I

2

C Mode Register

I

2

C Interrupt Vector Register

I

2

C Extended Mode Register

I

2

C Prescaler Register

I

2

C Peripheral Identification Register 1 [value: 0x0000 0105]

I

2

C Peripheral Identification Register 2 [value: 0x0000 0005]

218

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

HEX ADDRESS OFFSETS ACRONYM

0x003C -0x007F -

Table 10-34. I

2

C Registers (continued)

REGISTER NAME

Reserved

10.9.3 I

2

C Electrical Data/Timing

10.9.3.1 Inter-Integrated Circuits (I

2

C) Timing

Table 10-35. I

2

C Timing Requirements

(1)

(see

Figure 10-31

)

NO.

1

2

3 t t t c(SCL) su(SCLH-SDAL) h(SDAL-SCLL)

Cycle time, SCL

Setup time, SCL high before SDA low (for a repeated START condition)

Hold time, SCL low after SDA low (for a START and a repeated START condition)

STANDARD MODE

MIN

10

4.7

4

MAX

FAST MODE

MIN

2.5

0.6

0.6

MAX UNIT

µs

µs

µs

4

5

6

7 t w(SCLL) t w(SCLH) t su(SDAV-SCLH) t h(SCLL-SDAV)

Pulse duration, SCL low

Pulse duration, SCL high

Setup time, SDA valid before SCL high

Hold time, SDA valid after SCL low (for I

2

C bus devices)

4.7

0

4

250

(3)

3.45

1.3

0.6

100

(2)

0

(3)

0.9

(4)

µs

µs ns

µs

8 t w(SDAH)

Pulse duration, SDA high between STOP and START conditions

4.7

1.3

µs

9

10

11

12

13 t t t r(SDA) r(SCL) f(SDA) t f(SCL) t su(SCLH-SDAH)

Rise time, SDA

Rise time, SCL

Fall time, SDA

Fall time, SCL

Setup time, SCL high before SDA high (for STOP condition) 4

1000 20 + 0.1C

b

(5)

1000 20 + 0.1C

b

(5)

300 20 + 0.1C

b

(5)

300 20 + 0.1C

b

(5)

0.6

300

300

300

300 ns ns ns ns

µs

14 t w(SP)

C b

(5)

Pulse duration, spike (must be suppressed)

Capacitive load for each bus line 400

0 50

400 ns pF

(1) The I

2

C pins SDA and SCL do not feature fail-safe I/O buffers. These pins could potentially draw current when the device is powered down.

(2) A Fast-mode I

2

C-bus device can be used in a Standard-mode I

2

C-bus system, but the requirement tsu(SDA-SCLH) ≥ 250 ns must then be met. This will automatically be the case if the device does not stretch the LOW period of the SCL signal. If such a device does stretch the LOW period of the SCL signal, it must output the next data bit to the SDA line t r

(according to the Standard-mode I

2 max + t

C-Bus Specification) before the SCL line is released.

su(SDA-SCLH)

(3) A device must internally provide a hold time of at least 300 ns for the SDA signal (referred to the V

IHmin undefined region of the falling edge of SCL.

= 1000 + 250 = 1250 ns of the SCL signal) to bridge the

(4) The maximum t h(SDA-SCLL)

(5) C b has to be met only if the device does not stretch the low period [t w(SCLL)

] of the SCL signal.

= total capacitance of one bus line in pF. If mixed with HS-mode devices, faster fall-times are allowed.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

219

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

11

9

SDA

8

4

10

5

6

14

13

SCL

1

7

12

2

3

3

Stop Start Repeated

Start

Figure 10-31. I

2

C Receive Timings

Stop

Table 10-36. I

2

C Switching Characteristics

(1)

(see

Figure 10-32

)

NO.

16

17

18 t t t c(SCL) su(SCLH-SDAL) h(SDAL-SCLL)

PARAMETER

Cycle time, SCL

Setup time, SCL high to SDA low (for a repeated START condition)

Hold time, SDA low after SCL low (for a START and a repeated

START condition)

STANDARD

MODE

MIN

10

4.7

4

MAX

FAST MODE

MIN

2.5

0.6

0.6

19

20

21

22

23 t t t t w(SCLL) t w(SCLH) d(SDAV-SDLH) v(SDLL-SDAV) w(SDAH)

Pulse duration, SCL low

Pulse duration, SCL high

Delay time, SDA valid to SCL high

Valid time, SDA valid after SCL low (for I

2

C bus devices)

Pulse duration, SDA high between STOP and START conditions

4.7

4

250

0

4.7

1.3

0.6

100

0

1.3

24

25

26

27

28 t r(SDA) t r(SCL) t f(SDA) t f(SCL) t d(SCLH-SDAH)

C p

Rise time, SDA

Rise time, SCL

Fall time, SDA

Fall time, SCL

Delay time, SCL high to SDA high (for STOP condition)

Capacitance for each I

2

C pin

4

1000 20 + 0.1C

b

(1)

1000 20 + 0.1C

b

(1)

300 20 + 0.1C

b

(1)

300 20 + 0.1C

b

(1)

10

(1) C b

= total capacitance of one bus line in pF. If mixed with HS-mode devices, faster fall-times are allowed.

0.6

MAX UNIT

0.9

300

300

300

300

10

µs

µs

µs

µs

µs ns

µs

µs ns ns ns ns

µs pF

220

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

26

24

SDA

23

19

25

20

21

28

SCL

16

22

27

17

18

18

Stop Start Repeated

Start

Figure 10-32. I

2

C Transmit Timings

Stop

10.10 SPI Peripheral

The Serial Peripheral Interconnect (SPI) module provides an interface between the SoC and other SPIcompliant devices. The primary intent of this interface is to allow for connection to an SPI ROM for boot.

The SPI module on AM5K2E0x is supported only in master mode. Additional chip-level components can also be included, such as temperature sensors or an I/O expander.

10.10.1 SPI Electrical Data/Timing

Table 10-37. SPI Timing Requirements

7

7

8

7

7

8

8

8

(see

Figure 10-33

)

NO.

Master Mode Timing Diagrams — Base Timings for 3 Pin Mode

tsu(SPIDIN-SPC) Input setup time, SPIDIN valid before receive edge of SPICLK. Polarity = 0 Phase = 0 tsu(SPIDIN-SPC) Input setup time, SPIDIN valid before receive edge of SPICLK. Polarity = 0 Phase = 1 tsu(SPIDIN-SPC) Input setup time, SPIDIN valid before receive edge of SPICLK. Polarity = 1 Phase = 0 tsu(SPIDIN-SPC) Input setup time, SPIDIN valid before receive edge of SPICLK. Polarity = 1 Phase = 1 th(SPC-SPIDIN) Input hold time, SPIDIN valid after receive edge of SPICLK. Polarity = 0 Phase = 0 th(SPC-SPIDIN) Input hold time, SPIDIN valid after receive edge of SPICLK. Polarity = 0 Phase = 1 th(SPC-SPIDIN) Input hold time, SPIDIN valid after receive edge of SPICLK. Polarity = 1 Phase = 0 th(SPC-SPIDIN) Input hold time, SPIDIN valid after receive edge of SPICLK. Polarity = 1 Phase = 1

Table 10-38. SPI Switching Characteristics

3

4

1

2

(see

Figure 10-33

and

Figure 10-34 )

NO.

4

4

PARAMETER MIN

tc(SPC) tw(SPCH) tw(SPCL)

Master Mode Timing Diagrams — Base Timings for 3 Pin Mode

Cycle time, SPICLK, all master modes

Pulse width high, SPICLK, all master modes

Pulse width low, SPICLK, all master modes td(SPIDOUT-SPC) Setup (Delay), initial data bit valid on SPIDOUT to initial edge on SPICLK. Polarity = 0, Phase = 0.

3*P2

(1)

0.5*(3*P2) - 1

0.5*(3*P2) - 1 td(SPIDOUT-SPC) Setup (Delay), initial data bit valid on SPIDOUT to initial edge on SPICLK. Polarity = 0, Phase = 1.

td(SPIDOUT-SPC) Setup (Delay), initial data bit valid on SPIDOUT to initial edge on SPICLK Polarity = 1, Phase = 0

MIN MAX UNIT

2

2

5

2

2

5

5

5

MAX UNIT

ns ns ns ns ns ns ns ns

5

5 ns ns

5 ns ns ns ns

(1) P2=1/(SYSCLK1/6)

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

221

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

Table 10-38. SPI Switching Characteristics (continued)

(see

Figure 10-33

and

Figure 10-34 )

NO.

4

5

5

5

5

6

6

6

6

19

19

19

19

20

20

20

20

PARAMETER

td(SPIDOUT-SPC) Setup (Delay), initial data bit valid on SPIDOUT to initial edge on SPICLK Polarity = 1, Phase = 1 td(SPC-SPIDOUT) Setup (Delay), subsequent data bits valid on SPIDOUT to initial edge on SPICLK. Polarity = 0 Phase = 0 td(SPC-SPIDOUT) Setup (Delay), subsequent data bits valid on SPIDOUT to initial edge on SPICLK Polarity = 0 Phase = 1 td(SPC-SPIDOUT) Setup (Delay), subsequent data bits valid on SPIDOUT to initial edge on SPICLK Polarity = 1 Phase = 0 td(SPC-SPIDOUT) Setup (Delay), subsequent data bits valid on SPIDOUT to initial edge on SPICLK Polarity = 1 Phase = 1 toh(SPC-

SPIDOUT)

Output hold time, SPIDOUT valid after receive edge of

SPICLK except for final bit. Polarity = 0 Phase = 0 toh(SPC-

SPIDOUT) toh(SPC-

SPIDOUT) toh(SPC-

SPIDOUT) td(SCS-SPC)

Output hold time, SPIDOUT valid after receive edge of

SPICLK except for final bit. Polarity = 0 Phase = 1

Output hold time, SPIDOUT valid after receive edge of

SPICLK except for final bit. Polarity = 1 Phase = 0

Output hold time, SPIDOUT valid after receive edge of

SPICLK except for final bit. Polarity = 1 Phase = 1

0.5*tc - 2

0.5*tc - 2

0.5*tc - 2

0.5*tc - 2

Additional SPI Master Timings — 4 Pin Mode with Chip Select Option

Delay from SPISCSx\ active to first SPICLK. Polarity = 0

Phase = 0

2*P2 - 5 td(SCS-SPC)

0.5*tc + (2*P2) - 5

2

2*P2 + 5

0.5*tc + (2*P2) + 5 td(SCS-SPC) td(SCS-SPC)

Delay from SPISCSx\ active to first SPICLK. Polarity = 0

Phase = 1

Delay from SPISCSx\ active to first SPICLK. Polarity = 1

Phase = 0

Delay from SPISCSx\ active to first SPICLK. Polarity = 1

Phase = 1

2*P2 - 5

0.5*tc + (2*P2) - 5

2*P2 + 5

0.5*tc + (2*P2) + 5 td(SPC-SCS) td(SPC-SCS) td(SPC-SCS) td(SPC-SCS) tw(SCSH)

Delay from final SPICLK edge to master deasserting

SPISCSx\. Polarity = 0 Phase = 0

Delay from final SPICLK edge to master deasserting

SPISCSx\. Polarity = 0 Phase = 1

Delay from final SPICLK edge to master deasserting

SPISCSx\. Polarity = 1 Phase = 0

Delay from final SPICLK edge to master deasserting

SPISCSx\. Polarity = 1 Phase = 1

Minimum inactive time on SPISCSx\ pin between two transfers when SPISCSx\ is not held using the CSHOLD feature.

MIN

1*P2 - 5

0.5*tc + (1*P2) - 5

1*P2 - 5

0.5*tc + (1*P2) - 5

2*P2 - 5

MAX UNIT

5

2

2

2

1*P2 + 5

0.5*tc + (1*P2) + 5

1*P2 + 5

0.5*tc + (1*P2) + 5 ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns

222

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

SPICLK

SPIDOUT

SPIDIN

2

1

3

4

MO(0)

7

MI(0)

8

5

MO(1)

MI(1)

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

MASTER MODE

POLARITY = 0 PHASE = 0

6

MO(n−1)

MI(n−1)

MO(n)

MI(n)

SPICLK

SPIDOUT

SPIDIN

SPICLK

SPIDOUT

SPIDIN

MASTER MODE

POLARITY = 0 PHASE = 1

4

MO(0)

7

MI(0)

8

5

MO(1)

6

MI(1)

MO(n−1)

MI(n−1)

MO(n)

MI(n)

4

MO(0)

7

MI(0)

8

5

MO(1)

MI(1)

MASTER MODE

POLARITY = 1 PHASE = 0

6

MO(n−1)

MI(n−1)

MO(n)

MI(n)

MASTER MODE

POLARITY = 1 PHASE = 1

SPICLK

SPIDOUT

4

MO(0)

7

MI(0)

8

5

MO(1)

6

MO(n−1) MO(n)

SPIDIN

MI(1) MI(n−1) MI(n)

Figure 10-33. SPI Master Mode Timing Diagrams — Base Timings for 3-Pin Mode

MASTER MODE 4 PIN WITH CHIP SELECT

19 20

SPICLK

SPIDOUT

SPIDIN

SPISCSx

MO(0)

MI(0)

MO(1)

MI(1)

MO(n−1)

MI(n−1)

MO(n)

MI(n)

Figure 10-34. SPI Additional Timings for 4-Pin Master Mode with Chip Select Option

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

223

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

10.11 HyperLink Peripheral

The AM5K2E0x includes HyperLink for companion device interfaces. This is a four-lane SerDes interface designed to operate at up to 10 Gbps per lane from pin-to-pin. The interface is used to connect with external accelerators that are manufactured using TI libraries. The HyperLink lines must be connected with DC coupling.

The interface includes the serial station management interfaces used to send power management and flow messages between devices. Each HyperLink interface consists of four LVCMOS inputs and four

LVCMOS outputs configured as two 2-wire input buses and two 2-wire output buses. Each 2-wire bus includes a data signal and a clock signal.

Table 10-39. HyperLink Peripheral Timing Requirements

3

6

1

2

1

2

3

6

(see

Figure 10-35

,

Figure 10-36

and

Figure 10-37

)

NO.

tc(HYPTXFLCLK) tw(HYPTXFLCLKH) tw(HYPTXFLCLKL)

FL Interface

Clock period - HYPTXFLCLK (C1)

High pulse width - HYPTXFLCLK

Low pulse width - HYPTXFLCLK

7

6 tsu(HYPTXFLDAT-HYPTXFLCLKH) th(HYPTXFLCLKH-HYPTXFLDAT) tsu(HYPTXFLDAT-HYPTXFLCLKL)

Setup time - HYPTXFLDAT valid before HYPTXFLCLK high

Hold time - HYPTXFLDAT valid after HYPTXFLCLK high

Setup time - HYPTXFLDAT valid before HYPTXFLCLK low

7 th(HYPTXFLCLKL-HYPTXFLDAT)

7

6

7 tc(HYPRXPMCLK) tw(HYPRXPMCLK) tw(HYPRXPMCLK) tsu(HYPRXPMDAT-

HYPRXPMCLKH) th(HYPRXPMCLKH-HYPRXPMDAT) tsu(HYPRXPMDAT-

HYPRXPMCLKL) th(HYPRXPMCLKL-HYPRXPMDAT)

Hold time - HYPTXFLDAT valid after HYPTXFLCLK low

PM Interface

Clock period - HYPRXPMCLK (C3)

High pulse width - HYPRXPMCLK

Low pulse width - HYPRXPMCLK

Setup time - HYPRXPMDAT valid before

HYPRXPMCLK high

Hold time - HYPRXPMDAT valid after HYPRXPMCLK high

Setup time - HYPRXPMDAT valid before

HYPRXPMCLK low

Hold time - HYPRXPMDAT valid after HYPRXPMCLK low

MIN

5.75

0.4*C1

0.4*C1

1

1

1

1

5.75

0.4*C3

0.4*C3

1

1

1

1

MAX

0.6*C1

0.6*C1

0.6*C3

0.6*C3

UNIT

ns ns ns ns ns ns ns ns ns ns ns ns ns ns

Table 10-40. HyperLink Peripheral Switching Characteristics

3

4

1

2

3

4

1

2

(see

Figure 10-35

,

Figure 10-36

and

Figure 10-37

)

NO.

5

4

5 tc(HYPRXFLCLK) tw(HYPRXFLCLKH) tw(HYPRXFLCLKL) tosu(HYPRXFLDAT-

HYPRXFLCLKH) toh(HYPRXFLCLKH-HYPRXFLDAT)

PARAMETER

FL Interface

Clock period - HYPRXFLCLK (C2)

High pulse width - HYPRXFLCLK

Low pulse width - HYPRXFLCLK

Setup time - HYPRXFLDAT valid before HYPRXFLCLK high

Hold time - HYPRXFLDAT valid after HYPRXFLCLK high tosu(HYPRXFLDAT-

HYPRXFLCLKL)

Setup time - HYPRXFLDAT valid before HYPRXFLCLK low toh(HYPRXFLCLKL-HYPRXFLDAT) Hold time - HYPRXFLDAT valid after HYPRXFLCLK low

PM Interface

tc(HYPTXPMCLK) tw(HYPTXPMCLK) tw(HYPTXPMCLK) tosu(HYPTXPMDAT-

HYPTXPMCLKH)

Clock period - HYPTXPMCLK (C4)

High pulse width - HYPTXPMCLK

Low pulse width - HYPTXPMCLK

Setup time - HYPTXPMDAT valid before HYPTXPMCLK high

MIN

6.4

0.4*C2

0.4*C2

0.25*C2-0.4

0.25*C2-0.4

0.25*C2-0.4

0.25*C2-0.4

6.4

0.4*C4

0.4*C4

0.25*C2-0.4

224

MAX

0.6*C2

0.6*C2

0.6*C4

0.6*C4

UNIT

ns ns ns ns

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

ns ns ns ns ns ns ns

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 10-40. HyperLink Peripheral Switching Characteristics (continued)

(see

Figure 10-35

,

Figure 10-36

and

Figure 10-37

)

NO.

5

4

5 toh(HYPTXPMCLKH-

HYPTXPMDAT) tosu(HYPTXPMDAT-

HYPTXPMCLKL) toh(HYPTXPMCLKL-HYPTXPMDAT)

PARAMETER

Hold time - HYPTXPMDAT valid after HYPTXPMCLK high

Setup time - HYPTXPMDAT valid before HYPTXPMCLK low

Hold time - HYPTXPMDAT valid after HYPTXPMCLK low

MIN

0.25*C2-0.4

0.25*C2-0.4

0.25*C2-0.4

MAX UNIT

ns ns ns

1

2 3

Figure 10-35. HyperLink Station Management Clock Timing

4 5 4 5

HYPTX<xx>CLK

HYPTX<xx>DAT

<xx> represents the interface that is being used: PM or FL

Figure 10-36. HyperLink Station Management Transmit Timing

6

7 6 7

HYPRX<xx>CLK

HYPRX<xx>DAT

<xx> represents the interface that is being used: PM or FL

Figure 10-37. HyperLink Station Management Receive Timing

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

225

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

10.12 UART Peripheral

The universal asynchronous receiver/transmitter (UART) module provides an interface between the device and a UART terminal interface or other UART-based peripheral. The UART is based on the industry standard TL16C550 asynchronous communications element which, in turn, is a functional upgrade of the

TL16C450. Functionally similar to the TL16C450 on power up (single character or TL16C450 mode), the

UART can be placed in an alternate FIFO (TL16C550) mode. This relieves the SoC of excessive software overhead by buffering received and transmitted characters. The receiver and transmitter FIFOs store up to

16 bytes including three additional bits of error status per byte for the receiver FIFO.

The UART performs serial-to-parallel conversions on data received from a peripheral device and parallelto-serial conversion on data received from the SoC to be sent to the peripheral device. The SoC can read the UART status at any time. The UART includes control capability and a processor interrupt system that can be tailored to minimize software management of the communications link. For more information on

UART, see the KeyStone Architecture Universal Asynchronous Receiver/Transmitter (UART) User's Guide

( SPRUGP1 ).

Table 10-41. UART Timing Requirements

(see

Figure 10-38

and

Figure 10-39 )

NO.

5

6

6

6

4

5

8 tw(RXSTART) tw(RXH) tw(RXL) tw(RXSTOP1) tw(RXSTOP15) tw(RXSTOP2) td(CTSL-TX)

Receive Timing

Pulse width, receive start bit

Pulse width, receive data/parity bit high

Pulse width, receive data/parity bit low

Pulse width, receive stop bit 1

Pulse width, receive stop bit 1.5

Pulse width, receive stop bit 2

Autoflow Timing Requirements

Delay time, CTS asserted to START bit transmit

(1) U = UART baud time = 1/programmed baud rate

(2) P = 1/(SYSCLK1/6)

MIN

0.96U

(1)

0.96U

0.96U

0.96U

0.96U

0.96U

P

(2)

MAX UNIT

1.05U

1.05U

1.05U

1.05U

1.05U

1.05U

5P ns ns ns ns ns ns ns

RXD

Stop/Idle

4

Start Bit 0

5

Bit 1 Bit N-1 Bit N

5

Parity

6

Stop Idle Start

Figure 10-38. UART Receive Timing Waveform

8

TXD Bit N-1 Bit N Stop Start Bit 0

CTS

Figure 10-39. UART CTS (Clear-to-Send Input) — Autoflow Timing Waveform

226

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 10-42. UART Switching Characteristics

(see

Figure 10-40

and

Figure 10-41 )

NO.

2

3

1

2

3

3

7 tw(TXSTART) tw(TXH) tw(TXL) tw(TXSTOP1) tw(TXSTOP15) tw(TXSTOP2) td(RX-RTSH)

PARAMETER

Transmit Timing

Pulse width, transmit start bit

Pulse width, transmit data/parity bit high

Pulse width, transmit data/parity bit low

Pulse width, transmit stop bit 1

Pulse width, transmit stop bit 1.5

Pulse width, transmit stop bit 2

Autoflow Timing Requirements

Delay time, STOP bit received to RTS deasserted

MIN

P

(2)

MAX UNIT

U

(1)

- 2

U - 2

U - 2

U - 2

U + 2

U + 2

U + 2

U + 2

1.5 * (U - 2) 1.5 * ('U + 2)

2 * (U - 2) 2 * ('U + 2)

5P ns ns ns ns ns ns ns

(1) U = UART baud time = 1/programmed baud rate

(2) P = 1/(SYSCLK1/6)

TXD Stop/Idle

1

Start Bit 0

2

Bit 1 Bit N-1 Bit N

2

Parity

3

Stop Idle Start

Figure 10-40. UART Transmit Timing Waveform

RXD Bit N-1 Bit N

7

Stop Start

CTS

Figure 10-41. UART RTS (Request-to-Send Output) – Autoflow Timing Waveform

10.13 PCIe Peripheral

The two-lane PCI express (PCIe) module on AM5K2E0x provides an interface between the device and other PCIe-compliant devices. The PCIe module provides low pin-count, high-reliability, and high-speed data transfer at rates up to 5.0 Gbps per lane on the serial links. For more information, see the KeyStone

Architecture Peripheral Component Interconnect Express (PCIe) User's Guide ( SPRUGS6 ).

10.14 Packet Accelerator

The Packet Accelerator (PA) provides L2 to L4 classification functionalities and supports classification for

Ethernet, VLAN, MPLS over Ethernet, IPv4/6, GRE over IP, and other session identification over IP such as UDP ports. It maintains 8k multiple-in, multiple-out hardware queues and also provides checksum capability as well as some QoS capabilities. The PA enables a single IP address to be used for a multicore device and can process up to 1.5 Mpps. The Packet Accelerator is coupled with the Network

Coprocessor. For more information, see the KeyStone II Architecture Packet Accelerator 2 (PA2) for K2E

and K2L Devices User's Guide ( SPRUHZ2 ).

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

227

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

10.15 Security Accelerator

The Security Accelerator (SA) provides wire-speed processing on 1 Gbps Ethernet traffic on IPSec, SRTP, and 3GPP Air interface security protocols. It functions on the packet level with the packet and the associated security context being one of the above three types. The Security Accelerator is coupled with the Network Coprocessor, and receives the packet descriptor containing the security context in the buffer descriptor and the data to be encrypted/decrypted in the linked buffer descriptor. For more information, see the KeyStone II Architecture Security Accelerator 2 (SA2) for K2E and K2L Devices User's Guide

( SPRUHZ1 ).

10.16 Network Coprocessor Gigabit Ethernet (GbE) Switch Subsystem

The gigabit Ethernet (GbE) switch subsystem provides an efficient interface between the device and the networked community.

The Ethernet Media Access Controller (EMAC) supports 10Base-T

(10 Mbits/second), and 100BaseTX (100 Mbps), in half- or full-duplex mode, and 1000BaseT (1000 Mbps) in full-duplex mode, with hardware flow control and quality-of-service (QOS) support. The GbE switch subsystem is coupled with the Network Coprocessor. For more information, see the Gigabit Ethernet

(GbE) Switch Subsystem (1 GB) User's Guide ( SPRUGV9 ).

An address range is assigned to the AM5K2E0x. Each individual device has a 48-bit MAC address and consumes only one unique MAC address out of the range. There are two registers to hold these values,

MACID1[31:0] (32 bits) and MACID2[15:0] (16 bits) . The bits of these registers are defined as follows:

Figure 10-42. MACID1 Register (MMR Address 0x02620110)

31

MACID

R,+xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx

Legend: R = Read only; -x, value is indeterminate

0

Bit

31-0

Field

MAC ID

Table 10-43. MACID1 Register Field Descriptions

Description

MAC ID. Lower 32 bits.

Figure 10-43. MACID2 Register (MMR Address 0x02620114)

18 31 24

CRC

R+,cccc cccc

LEGEND: R = Read only; -x = value is indeterminate

23

Reserved

R,+rr rrrr

17

FLOW

R,+z

16

BCAST

R,+y

15 0

MACID

R,+xxxx xxxx xxxx xxxx

Bit Field

31-24 Reserved

23-18 Reserved

17 FLOW

16

15-0

BCAST

MAC ID

Table 10-44. MACID2 Register Field Descriptions

Description

Variable

000000

MAC Flow Control

• 0 = Off

• 1 = On

Default m/b-cast reception

• 0 = Broadcast

• 1 = Disabled

MAC ID. Upper 16 bits.

228

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

There is a central processor time synchronization (CPTS) submodule in the Ethernet switch module that can be used for time synchronization. Programming this register selects the clock source for the

CPTS_RCLK. See the Gigabit Ethernet (GbE) Switch Subsystem (1 GB) User's Guide ( SPRUGV9 ) for the register address and other details about the time synchronization submodule.

The register

CPTS_RFTCLK_SEL for reference clock selection of the time synchronization submodule is shown in

Figure 10-44

.

CPTS also allows 8 HW signal inputs for timestamping. Two of these signals are connected to

TSPUSHEVT0 and TSPUSHEVT1. The other 6 are connected to internal SyncE and timer signals. See

Table 10-45

for interconnectivity. Regarding the SyncE signal, see

Section 8.2.3.23

for more details on how to control this input. Furthermore, see the Gigabit Ethernet (GbE) Switch Subsystem (1 GB) User's

Guide ( SPRUGV9 ) for details on how to enable HW timestamping on CPTS.

Table 10-45. CPTS Hardware Push Events

6

7

8

2

3

4

5

EVENT NUMBER

1

CONNECTION

syncE

XGE sync

Tspushevt1

Tspushevt0

Timi1

Timi0

Reserved

Reserved

Figure 10-44. RFTCLK Select Register (CPTS_RFTCLK_SEL)

4 3 31

Reserved

R - 0

Legend: R = Read only; -x, value is indeterminate

CPTS_RFTCLK_SEL

RW - 0

0

Bit

31-4

3-0

Table 10-46. RFTCLK Select Register Field Descriptions

Field

Reserved

Description

Reserved. Read as 0.

CPTS_RFTCLK_SE Reference clock select. This signal is used to control an external multiplexer that selects one of 8 clocks for

L time sync reference (RFTCLK). This CPTS_RFTCLK_SEL value can be written only when the CPTS_EN bit is cleared to 0 in the TS_CTL register.

• 0000 = SYSCLK2

• 0001 = SYSCLK3

• 0010 = TIMI0

• 0011 = TIMI1

• 0100 = TSIPCLKA

• 1000 = TSREFCLK

• 1100 = TSIPCLKB

• Others = Reserved

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

229

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

10.17 SGMII/XFI Management Data Input/Output (MDIO)

The management data input/output (MDIO) module implements the 802.3 serial management interface to interrogate and control up to 32 Ethernet PHY(s) connected to the device, using a shared two-wire bus.

Application software uses the MDIO module to configure the auto-negotiation parameters of each PHY attached to the EMAC, retrieve the negotiation results, and configure required parameters in the gigabit

Ethernet (GbE) and 10-gigabit Ethernet (10GbE) switch subsystems for correct operation. The module allows almost transparent operation of the MDIO interface, with very little attention from the SoC. For more information, see the Gigabit Ethernet (GbE) Switch Subsystem (1 GB) User's Guide ( SPRUGV9 ) and the

KeyStone II Architecture 10 Gigabit Ethernet Subsystem User's Guide ( SPRUHJ5 ).

Table 10-47. MDIO Timing Requirements

(see

Figure 10-45

)

4

5

2

3

NO.

1 tc(MDCLK) tw(MDCLKH)

Cycle time, MDCLK

Pulse duration, MDCLK high tw(MDCLKL) Pulse duration, MDCLK low tsu(MDIO-MDCLKH) Setup time, MDIO data input valid before MDCLK high th(MDCLKH-MDIO) tt(MDCLK)

Hold time, MDIO data input valid after MDCLK high

Transition time, MDCLK

MIN

400

180

180

10

10

MAX

5

UNIT

ns ns ns ns ns ns

1

MDCLK

2 3

4 5

MDIO

(Input)

Figure 10-45. MDIO Input Timing

Table 10-48. MDIO Switching Characteristics

(see

Figure 10-46

)

7

8

NO.

6

PARAMETER

td(MDCLKH-MDIO) Delay time, MDCLK high to MDIO data output valid th(MDCLKH-MDIO) Hold time, MDIO data output valid after MDCLK high td(MDCLKH-MDIO) Delay time, MDCLK high to MDIO Hi-Z

1

MDCLK

7

6 8

7

MDIO

(Ouput)

Figure 10-46. MDIO Output Timing

MIN

10

10

10

MAX

300

300

UNIT

ns ns ns

230

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

10.18 Ten-Gigabit Ethernet (10GbE) Switch Subsystem

The 3-port Ten Gigabit Ethernet Switch Subsystem (different from the Network Coprocessor integrated switch) includes a standalone EMAC switch subsystem and a 2-lane SerDes macro. The 2-lane macro enables only 2 external ports. It does not include any packet acceleration or security acceleration engine.

10.18.1 10GbE Supported Features

The key features of the 10GbE module are listed below:

• 10 Gbps EMAC switch subsystem

– MDIO: Media-dependent input/output module

– SGMII Interface for 10/100/1000 and 10GBASE-KR for 10G

– Ethernet switch with wire-rate switching (only two external ports are supported by the SerDes)

– CPTS module that supports time-stamping for IEEE1588v2 with support for eight hardware push events and generation of compare output pulses

– Supports XFI electrical interface

• CPDMA

The CPDMA component provides CPPI 4.2 compatible functionality, and provides a 128-bit wide data path to the TeraNet, enabling:

• Support for 8 transmit channel and 16 receive channels

• Support for reset isolation option

For more information, see the KeyStone II Architecture 10 Gigabit Ethernet Subsystem User's Guide

( SPRUHJ5 ).

10.19 Timers

The timers can be used to time events, count events, generate pulses, interrupt the ARM CorePac and send synchronization events to the EDMA3 channel controller.

10.19.1 Timers Device-Specific Information

The AM5K2E0x device has up to twenty 64-bit timers in total, but only 12 timers are used in AM5K2E04 and 10 timers are used in AM5K2E02, of which Timer16 and Timer17 (AM5K2E02) and Timer16 through

Timer19 (AM5K2E04) are dedicated to each of the Cortex-A15 processor cores as a watchdog timer and can also be used as general-purpose timers. The Timer8 through Timer15 can be configured as generalpurpose timers only, with each timer programmed as a 64-bit timer or as two separate 32-bit timers.

When operating in 64-bit mode, the timer counts either module clock cycles or input (TINPLx) pulses

(rising edge) and generates an output pulse/waveform (TOUTLx) plus an internal event (TINTLx) on a software-programmable period. When operating in 32-bit mode, the timer is split into two independent 32bit timers. Each timer is made up of two 32-bit counters: a high counter and a low counter. The timer pins,

TINPLx and TOUTLx are connected to the low counter. The timer pins, TINPHx and TOUTHx are connected to the high counter.

When operating in watchdog mode, the timer counts down to 0 and generates an event. It is a requirement that software writes to the timer before the count expires, after which the count begins again.

If the count ever reaches 0, the timer event output is asserted. Reset initiated by a watchdog timer can be set by programming the Reset Type Status Register (RSTYPE) (see

Section 10.5.2.6

) and the type of

reset initiated can set by programming the Reset Configuration Register (RSTCFG) (see

Section 10.5.2.8

). For more information, see the KeyStone Architecture Timer 64P User's Guide

SPRUGV5 .

10.19.2 Timers Electrical Timing

The tables and figures below describe the timing requirements and switching characteristics of the timers.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

231

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 10-49. Timer Input Timing Requirements

(1)

(see

Figure 10-47

)

NO.

1

2 t w(TINPH) t w(TINPL)

Pulse duration, high

Pulse duration, low

(1) C = 1/SYSCLK1 clock frequency in ns

Table 10-50. Timer Output Switching Characteristics

(1)

(see

Figure 10-47

)

NO.

3

4 t w(TOUTH) t w(TOUTL)

Pulse duration, high

Pulse duration, low

(1) C = 1/SYSCLK1 clock frequency in ns.

PARAMETER

1 2

TIMIx

3 4

TIMOx

MIN

12C

12C

MIN

12C - 3

12C - 3

www.ti.com

MAX UNIT

ns ns

MAX UNIT

ns ns

Figure 10-47. Timer Timing

10.20 General-Purpose Input/Output (GPIO)

10.20.1 GPIO Device-Specific Information

The GPIO peripheral pins are used for general purpose input/output for the device. These pins are also used to configure the device at boot time.

For more detailed information on device/peripheral configuration and the AM5K2E0x device pin muxing, see

Section 8.2

.

These GPIO pins can also be used to generate individual core interrupts (no support of bank interrupt) and EDMA events.

10.20.2 GPIO Peripheral Register Description

Hex Address Offsets

0x0008

0x000C

0x0010

0x0014

0x0018

0x001C

0x0020

0x0024

0x0028

0x002C

0x0030

0x008C

Acronym

-

BINTEN

DIR

OUT_DATA

SET_DATA

CLR_DATA

IN_DATA

SET_RIS_TRIG

CLR_RIS_TRIG

SET_FAL_TRIG

-

CLR_FAL_TRIG

Table 10-51. GPIO Registers

Register Name

GPIO interrupt per bank enable register

Reserved

GPIO Direction Register

GPIO Output Data Register

GPIO Set Data Register

GPIO Clear Data Register

GPIO Input Data Register

GPIO Set Rising Edge Interrupt Register

GPIO Clear Rising Edge Interrupt Register

GPIO Set Falling Edge Interrupt Register

GPIO Clear Falling Edge Interrupt Register

Reserved

232

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Hex Address Offsets

0x0090 - 0x03FF -

Acronym

Table 10-51. GPIO Registers (continued)

Register Name

Reserved

10.20.3 GPIO Electrical Data/Timing

Table 10-52. GPIO Input Timing Requirements

(1)

(see

Figure 10-48

)

NO.

1

2 t w(GPOH) t w(GPOL)

Pulse duration, GPOx high

Pulse duration, GPOx low

(1) C = 1/SYSCLK1 clock frequency in ns

MIN

12C

12C

Table 10-53. GPIO Output Switching Characteristics

(1)

(see

Figure 10-48

)

NO.

PARAMETER

3

4 t w(GPOH) t w(GPOL)

Pulse duration, GPOx high

Pulse duration, GPOx low

(1) C = 1/SYSCLK1 clock frequency in ns

MIN

36C - 8

36C - 8

1 2

GPIx

3 4

GPOx

MAX UNIT

ns ns

MAX UNIT

ns ns

Figure 10-48. GPIO Timing

10.21 Semaphore2

The device contains an enhanced Semaphore module for the management of shared resources of the

SoC. The Semaphore enforces atomic accesses to shared chip-level resources so that the read-modifywrite sequence is not broken. The Semaphore module has unique interrupts to each of the CorePacs to identify when that CorePac has acquired the resource.

Semaphore resources within the module are not tied to specific hardware resources. It is a software requirement to allocate semaphore resources to the hardware resource(s) to be arbitrated.

The Semaphore module supports three masters and contains 64 semaphores that can be shared within the system.

There are two methods of accessing a semaphore resource:

Direct Access: A CorePac directly accesses a semaphore resource. If free, the semaphore is granted.

If not free, the semaphore is not granted.

Indirect Access: A CorePac indirectly accesses a semaphore resource by writing to it. Once the resource is free, an interrupt notifies the CorePac that the resource is available.

10.22 Universal Serial Bus 3.0 (USB 3.0)

The device includes a USB 3.0 controller providing the following capabilities:

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

233

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

• Support of USB 3.0 peripheral (or device) mode at the following speeds:

– Super Speed (SS) (5 Gbps)

– High Speed (HS) (480 Mbps)

– Full Speed (FS) (12 Mbps)

• Support of USB 3.0 host mode at the following speeds:

– Super Speed (SS) (5 Gbps)

– High Speed (HS) (480 Mbps)

– Full Speed (FS) (12 Mbps)

– Low Speed (LS) (1.5 Mbps)

• Integrated DMA controller with extensible Host Controller Interface (xHCI) support

• Support for 14 transmit and 14 receive endpoints plus control EP0

For more information, see the KeyStone II Architecture Universal Serial Bus 3.0 (USB 3.0) User's Guide

( SPRUHJ7 ).

10.23 TSIP Peripheral

The Telecom Serial Interface Port (TSIP) module provides a glueless interface to common telecom serial data streams. For more information, see the KeyStone Architecture Telecom Serial Interface Port (TSIP)

User Guide ( SPRUGY4 ).

10.23.1 TSIP Electrical Data/Timing

Table 10-54. Timing Requirements for TSIP 2x Mode

(1)

(see

Figure 10-49

)

8

9

10

5

6

7

3

4

NO.

1

2 t c

(CLK) t w

(CLKL) t w

(CLKH) t t

(CLK) t su

(FS-CLK) t h

(CLK-FS) t su

(TR-CLK) t h

(CLK-TR) t d

(CLKL-TX) t dis

(CLKH-TXZ)

Cycle time, CLK rising edge to next CLK rising edge

Pulse duration, CLK low

Pulse duration, CLK high

Transition time, CLK high to low or CLK low to high

Setup time, FS valid before rising CLK

Hold time, FS valid after rising CLK

Setup time, TR valid before rising CLK

Hold time, TR valid after rising CLK

Delay time, CLK low to TX valid

Disable time, CLK low to TX Hi-Z

MIN

61

(2)

0.4×t c

(CLK)

0.4×t c

(CLK)

5

1

2

5

5

5

MAX

2

12

10

(1) Polarities of XMTFSYNCP = 0b, XMTFCLKP = 0, XMTDCLKP = 1b, RCVFSYNCP = 0, RCVFCLKP = 0, RCVDCLKP = 0. If the polarity of any of the signals is inverted, then the timing references of that signal are also inverted.

(2) Timing shown is for 8.192 Mbps links. Timing for 16.384 Mbps and 32.768 Mbps links is 30.5 ns and 15.2 ns, respectively.

ns ns ns ns ns ns

UNIT

ns ns ns ns

234

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

1 2 3

CLKA/B

5

6

FSA/B

TR[n]

ts127-3 ts127-2 ts127-1

8

7

ts127-0

9

ts000-7 ts000-6 ts000-5 ts000-4 ts000-3 ts000-2 ts000-1 ts000-0

TX[n]

ts127-3 ts127-2 ts127-1 ts127-0 ts000-7 ts000-6 ts000-5 ts000-4 ts000-3 ts000-2 ts000-1 ts000-0

A.

Example timeslot numbering shown is for 8.192 Mbps links; 16.384 Mbps links have timeslots numbered 0 through

255 and 32.768 Mbps links have timeslots numbered 0 through 511. The data timing shown relative to the clock and frame sync signals would require a RCVDATD=1 and a XMTDATD=1

Figure 10-49. TSIP 2x Timing Diagram

(A)

Table 10-55. Timing Requirements for TSIP 1x Mode

(1)

(see

Figure 10-50

)

18

19

20

15

16

17

NO.

11

12

13

14 t c

(CLK) t w

(CLKL) t w

(CLKH) t t

(CLK) t su

(FS-CLK) t h

(CLK-FS) t su

(TR-CLK) t h

(CLK-TR) t d

(CLKL-TX) t dis

(CLKH-TXZ)

Cycle time, CLK rising edge to next CLK rising edge

Pulse duration, CLK low

Pulse duration, CLK high

Transition time, CLK high to low or CLK low to high

Setup time, FS valid before rising CLK

Hold time, FS valid after rising CLK

Setup time, TR valid before rising CLK

Hold time, TR valid after rising CLK

Delay time, CLK low to TX valid

Disable time, CLK low to TX Hi-Z

MIN

122.1

(2)

0.4×t c

(CLK)

0.4×t c

(CLK)

5

1

2

5

5

5

MAX

2

12

10

(1) Polarities of XMTFSYNCP = 0b, XMTFCLKP = 0, XMTDCLKP = 0b, RCVFSYNCP = 0, RCVFCLKP = 0, RCVDCLKP = 1. If the polarity of any of the signals is inverted, then the timing references of that signal are also inverted.

(2) Timing shown is for 8.192 Mbps links. Timing for 16.384 Mbps and 32.768 Mbps links is 61 ns and 30.5 ns, respectively.

ns ns ns ns ns ns

UNIT

ns ns ns ns

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

235

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

11 12 13

CLKA/B

16

15

FSA/B

TR[n]

ts127-3 ts127-2 ts127-1 ts127-0

17

18

ts000-7

19

ts000-6 ts000-5 ts000-4 ts000-3 ts000-2 ts000-1 ts000-0

TX[n]

ts127-3 ts127-2 ts127-1 ts127-0 ts000-7 ts000-6 ts000-5 ts000-4 ts000-3 ts000-2 ts000-1 ts000-0

A.

Example timeslot numbering shown is for 8.192 Mbps links; 16.384 Mbps links have timeslots numbered 0 through

255 and 32.768 Mbps links have timeslots numbered 0 through 511. The data timing shown relative to the clock and frame sync signals would require a RCVDATD=1023 and a XMTDATD=1023.

Figure 10-50. TSIP 1x Timing Diagram

(A)

10.24 Universal Subscriber Identity Module (USIM)

The AM5K2E0x is equipped with a Universal Subscriber Identity Module (USIM) for user authentication.

The USIM is compatible with ISO, ETSI/GSM, and 3GPP standards.

The USIM is implemented for support of secure devices only. Contact your local technical sales representative for further details.

10.25 EMIF16 Peripheral

The EMIF16 module provides an interface between the device and external memories such as NAND and

NOR flash. For more information, see the KeyStone Architecture External Memory Interface (EMIF16)

User's Guide ( SPRUGZ3 ).

10.25.1 EMIF16 Electrical Data/Timing

Table 10-56. EMIF16 Asynchronous Memory Timing Requirements

(1)

(see

Figure 10-51

through

Figure 10-54 )

NO.

2

28

14

3

3

4

5

4

5

6 t w

(WAIT) t d

(WAIT-WEH) t d

(WAIT-OEH) t

C

(CEL) t

C

(CEL) t osu

(CEL-OEL) t oh

(OEH-CEH) t osu

(CEL-OEL) t oh

(OEH-CEH) t osu

(BAV-OEL)

General Timing

Pulse duration, WAIT assertion and deassertion minimum time

Setup time, WAIT asserted before WE high

Setup time, WAIT asserted before OE high

Read Timing

EMIF read cycle time when ew = 0, meaning not in extended wait mode

EMIF read cycle time when ew =1, meaning extended wait mode enabled

Output setup time from CE low to OE low. SS = 0, not in select strobe mode

Output hold time from OE high to CE high. SS = 0, not in select strobe mode

Output setup time from CE low to OE low in select strobe mode, SS =

1

Output hold time from OE high to CE high in select strobe mode, SS =

1

Output setup time from BA valid to OE low

MIN

2E

4E + 3

4E + 3

(RS+RST+RH+3) (RS+RST+RH+3)

*E-3 *E+3

(RS+RST+RH+3) (RS+RST+RH+3)

*E-3 *E+3

(RS+1) * E - 3

(RH+1) * E - 3

(RS+1) * E - 3

(RH+1) * E - 3

(RS+1) * E - 3

MAX

(RS+1) * E + 3

(RH+1) * E + 3

(RS+1) * E + 3

(RH+1) * E + 3

(RS+1) * E + 3

UNIT

ns ns ns ns ns ns ns ns ns ns

(1) E = 1/(SYSCLK1/6)

236

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

Table 10-56. EMIF16 Asynchronous Memory Timing Requirements

(1)

(continued)

24

26

27

25

22

23

24

18

19

20

21

(see

Figure 10-51

through

Figure 10-54 )

9

10

10

11

NO.

7

8

12

13

15

15

16

17

16

17 t oh

(OEH-BAIV) t osu

(AV-OEL) t oh

(OEH-AIV) t w

(OEL) t w

(OEL) t d

(WAITH-OEH) t su

(D-OEH) t h

(OEH-D) t c

(CEL) t c

(CEL) t osu

CEL-WEL) t oh

(WEH-CEH) t osu

CEL-WEL) t oh

(WEH-CEH) t osu

(RNW-WEL) t oh

(WEH-RNW) t osu

(BAV-WEL) t oh

(WEH-BAIV) t osu

(AV-WEL) t oh

(WEH-AIV) t w

(WEL) t w

(WEL) t osu

(DV-WEL) t oh

(WEH-DIV) t d

(WAITH-WEH)

Output hold time from OE high to BA invalid

Output setup time from A valid to OE low

Output hold time from OE high to A invalid

OE active time low, when ew = 0. Extended wait mode is disabled.

OE active time low, when ew = 1. Extended wait mode is enabled.

Delay time from WAIT deasserted to OE# high

Input setup time from D valid to OE high

Input hold time from OE high to D invalid

Write Timing

EMIF write cycle time when ew = 0, meaning not in extended wait mode

EMIF write cycle time when ew =1., meaning extended wait mode is enabled

Output setup time from CE low to WE low. SS = 0, not in select strobe mode

Output hold time from WE high to CE high. SS = 0, not in select strobe mode

Output setup time from CE low to WE low in select strobe mode, SS =

1

Output hold time from WE high to CE high in select strobe mode, SS =

1

Output setup time from RNW valid to WE low

Output hold time from WE high to RNW invalid

Output setup time from BA valid to WE low

Output hold time from WE high to BA invalid

Output setup time from A valid to WE low

Output hold time from WE high to A invalid

WE active time low, when ew = 0. Extended wait mode is disabled.

WE active time low, when ew = 1. Extended wait mode is enabled.

Output setup time from D valid to WE low

Output hold time from WE high to D invalid

Delay time from WAIT deasserted to WE# high

MIN

(RH+1) * E - 3

(RS+1) * E - 3

(RH+1) * E - 3 (RH+1) * E + 3

(RST+1) * E - 3 (RST+1) * E + 3

(RST+1) * E - 3 (RST+1) * E + 3

4E + 3

3

0.5

MAX

(RH+1) * E + 3

(RS+1) * E + 3

(WS+WST+WH+ (WS+WST+WH+

3)*E-3 3)*E+3

(WS+WST+WH+ (WS+WST+WH+

3)*E-3 3)*E+3

(WS+1) * E - 3

(WH+1) * E - 3

(WS+1) * E - 3

(WH+1) * E - 3

(WS+1) * E - 3

(WH+1) * E - 3

(WS+1) * E - 3

(WH+1) * E - 3

(WS+1) * E - 3

(WH+1) * E - 3

(WST+1) * E - 3

(WST+1) * E - 3

(WS+1) * E - 3

(WH+1) * E - 3

4E + 3

UNIT

ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns

3

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

EM_CE[3:0]

EM_R/W

EM_BA[1:0]

EM_A[21:0]

4

6

8

5

7

9

10

EM_OE

12

13

EM_D[15:0]

EM_WE

Figure 10-51. EMIF16 Asynchronous Memory Read Timing Diagram

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

237

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

15

EM_CE[3:0]

EM_R/W

EM_BA[1:0]

EM_A[21:0]

EM_WE

16

18

20

22

26

24

17

19

21

23

27

EM_D[15:0]

EM_OE

EM_CE[3:0]

EM_BA[1:0]

EM_A[21:0]

EM_D[15:0]

EM_OE

Figure 10-52. EMIF16 Asynchronous Memory Write Timing Diagram

Setup Strobe Extended Due to EM_WAIT Strobe Hold

EM_WAIT

2

Asserted

14

2

Deasserted

11

Figure 10-53. EMIF16 EM_WAIT Read Timing Diagram

Setup Strobe Extended Due to EM_WAIT Strobe Hold

EM_CE[3:0]

EM_BA[1:0]

EM_A[21:0]

EM_D[15:0]

EM_WE

EM_WAIT

2

Asserted

28

2

Deasserted

25

Figure 10-54. EMIF16 EM_WAIT Write Timing Diagram

10.26 Emulation Features and Capability

238

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

The debug capabilities of KeyStone II devices include the Debug subsystem module (DEBUGSS). The

DEBUGSS module contains the ICEPick module which handles the external JTAG Test Access Port

(TAP) and multiple secondary TAPs for the various processing cores of the device. It also provides Debug

Access Port (DAP) for system wide memory access from debugger, Cross triggering, System trace,

Peripheral suspend generation, Debug port (EMUx) pin management etc. The DEBUGSS module works in conjunction with the debug capability integrated in the processing cores to provide a comprehensive hardware platform for a rich debug and development experience.

10.26.1 Chip Level Features

• Support for 1149.1(JTAG and Boundary scan) and 1149.6 (Boundary scan extensions).

• Trace sources to DEBUG SubSystem System Trace Module (DEBUGSS STM)

– Provides a way for hardware instrumentation and software messaging to supplement the processor core trace mechanisms.

– Hardware instrumentation support of CPTracers to support logging of bus transactions for critical endpoints

– Software messaging/instrumentation support for SoC and QMSS PDSP cores through DEBUGSS

STM.

• Trace Sinks

– Support for trace export (from all processor cores and DEBUGSS STM) through emulation pins.

Concurrent trace of ARM and STM traces via EMU pins is possible.

– Support for 32KB DEBUGSS TBR (Trace Buffer and Router) to hold system trace. The data can be drained using EDMA to on-chip or DDR memory buffers. These intermediate buffers can subsequently be drained through the device high speed interfaces. The DEBUGSS TBR is dedicated to the DEBUGSS STM module. The trace draining interface used in KeyStone II for

DEBUGSS and ARMSS are based on the new CT-TBR.

• Cross triggering: Provides a way to propagate debug (trigger) events from one processor/subsystem/module to another

– Cross triggering between multiple devices via EMU0/EMU1 pins

– Cross triggering between multiple processing cores within the device like ARM Cores and nonprocessor entities like ARM STM (input only), CPTracers, CT-TBRs and DEBUGSS STM (input only)

• Synchronized starting and stopping of processing cores

– Global start of all ARM cores

– Global stopping of all ARM cores

• Emulation mode aware peripherals (suspend features and debug access features)

• Support system memory access via the DAP port (natively support 32-bit address, and it can support

36-bit address through configuration of MPAX inside MSMC). Debug access to any invalid memory location (reserved/clock-gated/power-down) does not cause system hang.

• Scan access to secondary TAPs of DEBUGSS is disabled in Secure devices by default. Security override sequence is supported (requires software override sequence) to enable debug in secure devices. In addition, Debug features of the ARM cores are blockable through the ARM debug authentication interface in secure devices.

• Support WIR (wait-in-reset) debug boot mode for Non-secure devices.

• Debug functionality survives all pin resets except power-on resets (POR/RESETFULL) and test reset

(TRST).

• PDSP Debug features like access/control through DAP, Halt mode debug and software instrumentation.

10.26.1.1 ARM Subsystem Features

• Support for invasive debug like halt mode debugging (breakpoint, watchpoints) and monitor mode debugging

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

239

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

• Support for non-invasive debugging (program trace, performance monitoring)

• Support for A15 Performance Monitoring Unit (cycle counters)

• Support for per core CoreSight™ Program Trace Module (CS-PTM) with timing

• Support for an integrated CoreSight System Trace Module (CS-STM) for hardware event and software instrumentation

• A shared timestamp counter for all ARM cores and STM is integrated in ARMSS for trace data correlation

• Support for a 16KB Trace Buffer and Router (TBR) to hold PTM/STM trace. The trace data is copied by EDMA to external memory for draining by device high speed serial interfaces.

• Support for simultaneous draining of trace stream through EMUn pins and TBR (to achieve higher aggregate trace throughput)

• Support for debug authentication interface to disable debug accesses in secure devices

• Support for cross triggering between MPU cores, CS-STM and CT-TBR

• Support for debug through warm reset

10.26.2 ICEPick Module

The debugger is connected to the device through its external JTAG interface. The first level of debug interface seen by the debugger is connected to the ICEPick module embedded in the DEBUGSS. ICEPick is the chip-level TAP, responsible for providing access to the IEEE 1149.1 and IEEE1149.6 boundary scan capabilities of the device.

ICEPick manages the TAPs as well as the power/reset/clock controls for the logic associated with the

TAPs as well as the logic associated with the APB ports.

ICEPick provides the following debug capabilities:

• Debug connect logic for enabling or disabling most ICEPick instructions

• Dynamic TAP insertion

– Serially linking up to 32 TAP controllers

– Individually selecting one or more of the TAPS for scan without disrupting the instruction register

(IR) state of other TAPs

• Power, reset and clock management

– Provides the power and clock status of the domain to the debugger

– Provides debugger control of the power domain of a processor.

• Force the domain power and clocks on

• Prohibit the domain from being clock-gated or powered down

– Applies system reset

– Provides wait-in-reset (WIR) boot mode

– Provides global and local WIR release

– Provides global and local reset block

The ICEPick module implements a connect register, which must be configured with a predefined key to enable the full set of JTAG instructions. Once the debug connect key has been properly programmed,

ICEPick signals and subsystems emulation logic should be turned on.

10.26.2.1 ICEPick Dynamic Tap Insertion

To include more or fewer secondary TAPS in the scan chain, the debugger must use the ICEPick TAP router to program the TAPs. At its root, ICEPick is a scan-path linker that lets the debugger selectively choose which subsystem TAPs are accessible through the device-level debug interface. Each secondary

TAP can be dynamically included in or excluded from the scan path. From external JTAG interface point of view, secondary TAPS that are not selected appear not to exist.

240

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

The CoreSight components are interfaced with ICEPick through the CS_DAP module. The CS_DAP is attached to the ICEPick secondary TAP and translates JTAG transactions into APBv3 transactions.

Table 10-57

shows the ICEPick secondary taps in the system. For more details on the test related P1500

TAPs, see the DFTSS specification.

3

4

5

6

1

2

7

8

9..13

14

TAP # TYPE NAME

0 n/a n/a

JTAG

JTAG

JTAG

JTAG

JTAG

JTAG

JTAG

JTAG

JTAG Reserved

CS CS_DAP (APB-AP)

NA

4

CS_DAP (AHB-AP)

Table 10-57. ICEPick Debug Secondary TAPs

ACCESS IN

IR SCAN SECURE

LENGTH DEVICE

n/a No

No

No

DESCRIPTION

Reserved (This is an internal TAP and not exposed at the DEBUGSS boundary)

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Spare ports for future expansion

ARM A15 Cores (This is an internal TAP and not exposed at the

DEBUGSS boundary)

PDSP Cores (This is an internal TAP and not exposed at the

DEBUGSS boundary)

For more information on ICEPick, see the KeyStone II Architecture Debug and Trace User’s Guide

( SPRUHM4 ).

10.27 Debug Port (EMUx)

The device also supports 34 emulation pins — EMU[33:0], which includes 19 dedicated EMU pins and 15 pins multiplexed with GPIO. These pins are shared by SoC STM trace, cross triggering, and debug boot modes as shown in

Table 10-60

. The 34-pin dedicated emulation interface is also defined in the following table.

NOTE

Note that if EMU[1:0] signals are shared for cross-triggering purposes in the board level, they

SHOULD NOT be used for trace purposes.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

241

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

10.27.1 Concurrent Use of Debug Port

The following combinations are possible concurrently:

• Trigger 0/1

• Trigger 0/1 and STM Trace (up to 4 data pins)

• Trigger 0/1 and STM Trace (up to 4 data pins)

• Trigger 0/1 and STM Trace (1-4 data pins) and ARM Trace (27-24 data pins)

• STM Trace (1-4 data pins) and ARM Trace (29-26 data pins)

• Trigger 0/1 and ARM Trace (up to 29 data pins)

• ARM Trace (up to 32 data pins)

10.27.2 Master ID for HW and SW Messages

Table 10-58

describes the master ID for the various hardware and software masters of the STM.

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Table 10-58. MSTID Mapping for Hardware Instrumentation (CPTRACERS)

CPTRACER NAME

CPT_MSMCx_MST, where x =

0..3

CPT_MSMC4_MST

CPT_MSMCx_MST, where x =

5..7

CPT_DDR3_MST

CPT_L2_x_MST, where x = 0..7

CPT_TPCC0_4_MST

CPT_TPCC1_2_3_MST

CPT_INTC_MST

CPT_SM_MST

CPT_QM_CFG1_MST

CPT_QM_CFG2_MST

CPT_QM_M_MST

CPT_SPI_ROM_EMIF16_MST

CPT_CFG_MST

CLOCK

MSTID [7:0] DOMAIN

0x94-0x97 SYSCLK1/1

0xB1 SYSCLK1/1

0xAE - 0xB0 SYSCLK1/1

0x98 SYSCLK1/1

0x8C - 0x93 SYSCLK1/3

0xA4

0xA5

SYSCLK1/3

SYSCLK1/3

0xA6

0x99

0x9A

0xA0

0x9B

0xA7

0x9C

SYSCLK1/3

SYSCLK1/3

SYSCLK1/3

SYSCLK1/3

SYSCLK1/3

SYSCLK1/3

SYSCLK1/3

SID[4:0]

0x0..3

0x4

0x5..7

DESCRIPTION

MSMC SRAM Bank 0 to MSMC SRAM Bank 3 monitors

MSMC SRAM Bank 4

MSMC SRAM Bank 5to MSMC SRAM Bank 7 monitors

0x1A

0x1B

0x1C

0x1D

0x1E

0x1F

0x8 MSMC DDR3 port monitor

0x9..0x10

Reserved

0x11

0x12

EDMA 0 and EDMA 4 CFG port monitor

EDMA 1, EDMA2 and EDMA3 CFG port monitor

0x13

0x14

0x15

0x16

0x17

0x18

0x19

INTC port monitor (for INTC 0/1/2 and GIC400)

Semaphore CFG port monitors

QMSS CFG1 port monitor

QMSS CFG2 port monitor

QM_M CFG/DMA port monitor

SPI ROM EMIF16 CFG port monitor

SCR_3P_B and SCR_6P_B CFG peripheral port monitors

Reserved

Reserved

Reserved

Reserved

Reserved

DDR 3B port monitor (on SCR 3C)

CORE NAME

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

0x3

0x4

0x5

0x6

MSTID [7:0]

0x0

0x1

0x2

Table 10-59. MSTID Mapping for Software Messages

DESCRIPTION

242

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

CORE NAME

Reserved

A15 Core0

A15 Core1

A15 Core2

A15 Core3

QMSS PDSPs

TSIP

Table 10-59. MSTID Mapping for Software Messages (continued)

MSTID [7:0]

0x7

0x8

0x9

0xA

0xB

0x46

0x80

DESCRIPTION

ARM Master IDs

ARM Master ID (AM5K2E04 only)

ARM Master ID(AM5K2E04 only)

ARM Master ID(AM5K2E04 only)

All QMSS PDSPs share the same master ID. Differentiating between the 8 PDSPs is done through the channel number used

TSIP Master ID

10.27.3 SoC Cross-Triggering Connection

The cross-trigger lines are shared by all the subsystems implementing cross-triggering. An MPU subsystem trigger event can therefore be propagated to any application subsystem or system trace component. The remote subsystem or system trace component can be programmed to be sensitive to the global SOC trigger lines to either:

• Generate a processor debug request

• Generate an interrupt request

• Start/Stop processor trace

• Start/Stop CBA transaction tracing through CPTracers

• Start external logic analyzer trace

• Stop external logic analyzer trace

NAME

Device-to-device trigger via EMU0/1 pins

MIPI-STM

CT-TBR

CS-TPIU

CP_Tracers

ARM

Table 10-60. Cross-Triggering Connection

SOURCE

TRIGGERS

SINK

TRIGGERS

Inside DEBUGSS

YES

NO

YES

NO

YES

YES

YES

YES

Outside DEBUGSS

YES

YES

YES

YES

COMMENTS

This is fixed (not affected by configuration)

Trigger input only for MIPI-STM in DebugSS

DEBUGSS CT-TBR

DEBUGSS CS-TPIU

ARM Cores, ARM CS-STM and ARM CT-

TBR

The following table describes the crosstrigger connection between various cross trigger sources and TI

XTRIG module.

Table 10-61. TI XTRIG Assignment

NAME

CPTracer 0..31 (The CPTracer number refers to the SID[4:0] as shown in

Table 10-58

ASSIGNED XTRIG CHANNEL NUMBER

XTRIG 8 .. 39

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

243

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

10.27.4 Peripherals-Related Debug Requirement

Table 10-62

lists all the peripherals on this device, and the status of whether or not it supports emulation suspend or emulation request events.

The DEBUGSS supports upto 32 debug suspend sources (processor cores) and 64 debug suspend sinks

(peripherals). The assignment of processor cores is shown in and the assignment of peripherals is shown in

Table 10-62 . By default the logical AND of all the processor cores is routed to the peripherals. It is

possible to select an individual core to be routed to the peripheral (For example: used in tightly coupled peripherals like timers), a logical AND of all cores (Global peripherals) or a logical OR of all cores by programming the DEBUGSS.DRM module.

The SOFT bit should be programmed based on whether or not an immediate pause of the peripheral function is required or if the peripheral suspend should occur only after a particular completion point is reached in the normal peripheral operation. The FREE bit should be programmed to enable or disable the emulation suspend functionality.

PERIPHERAL

I

2

C_X, where X = 0/1/2

SPI_X, where X = 0/1/2

UART_X, where X = 0/1

USIM

STOP-

MODE

EDMA_x, where

X=0/1/2/3/4

QM_SS

N

CP_Tracers_X, where X =

0..32

MPU_X, where X = 0..11

CP_INTC

BOOT_CFG

SEC_MGR

PSC

PLL

TIMERx, x=0, 1..7, 8..19

Semaphore

GPIO

Y (CPDMA only)

N

N

N

N

N

N

N

Y

N

N

DDR3

MSMC

EMIF16

Hyperlink

PCIeSS 0..1

Reserved

NetCP (ethernet switch)

Y

N

Y

Y

N

N

N

N

N

Y

Table 10-62. Peripherals Emulation Support

EMULATION SUSPEND SUPPORT

REAL-TIME

MODE FREE BIT

Infrastructure Peripherals

N N

STOP BIT

N

EMULATION

REQUEST

SUPPORT

(cemudbg/emudbg)

Y

Y (CPDMA only)

N

Y

Y (CPDMA only)

N

N

N

N

N

N

N

N

N

N

N

N

N

N

N

Y

N

N N

Memory Controller Peripherals

N

N

N

Serial Interfaces

N Y

N

N

N

N

N

N

N

Y

Y

High Speed Serial Interfaces

N N

N N

Y

Y (CPDMA only)

N

Y

N

Y

N

N

N

N

N

N

N

N

N

N

N

N

Y

N

N

Y

Y

N

Y

Y

Y

N

Y

Y

Y

Y

N

Y

Y

Y

Y

N

N

N

Y

N

N

DEBUG

PERIPHERAL

ASSIGNMENT

NA

20

NA

NA

NA

NA

NA

NA

NA

0, 1..7, 8..19

NA

NA

NA

NA

NA

21/22/23

NA

24/25

28

26

27

244

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

Table 10-62. Peripherals Emulation Support (continued)

EMULATION SUSPEND SUPPORT

PERIPHERAL

10GbE (ethernet switch)

(1)

USBSS

STOP-

MODE

Y

N

(1) 10 GbE supported by AM5K2E04 only.

REAL-TIME

MODE

N

N

FREE BIT

Y

N

STOP BIT

Y

N

EMULATION

REQUEST

SUPPORT

(cemudbg/emudbg)

N

N

DEBUG

PERIPHERAL

ASSIGNMENT

29

NA

Based on the above table the number of suspend interfaces in Keystone II devices is listed below.

Table 10-63. EMUSUSP Peripheral Summary (for EMUSUSP handshake from DEBUGSS)

INTERFACES

EMUSUSP Interfaces

EMUSUSP Realtime Interfaces

NUM_SUSPEND_PERIPHERALS

54

15

Table 10-64

summarizes the DEBUG core assignment. Emulation suspend output of all the cores are synchronized to SYSCLK1/6 which is frequency of the slowest peripheral that uses these signals.

Core #

8..11

12..29

30

31

Table 10-64. EMUSUSP Core Summary(for EMUSUSP handshake to DEBUGSS)

Assignment

ARM CorePac0-3

Reserved

Logical OR of Core #0..11

Logical AND of Core #0..11

10.27.5 Advanced Event Triggering (AET)

The device supports advanced event triggering (AET). This capability can be used to debug complex problems as well as understand performance characteristics of user applications. AET provides the following capabilities:

Hardware program breakpoints: specify addresses or address ranges that can generate events such as halting the processor or triggering the trace capture.

Data watchpoints: specify data variable addresses, address ranges, or data values that can generate events such as halting the processor or triggering the trace capture.

Counters: count the occurrence of an event or cycles for performance monitoring.

State sequencing: allows combinations of hardware program breakpoints and data watchpoints to precisely generate events for complex sequences.

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

245

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

For more information on the AET, see the following documents:

Using Advanced Event Triggering to Find and Fix Intermittent Real-Time Bugs application report

( SPRA753 )

Using Advanced Event Triggering to Debug Real-Time Problems in High Speed Embedded

Microprocessor Systems application report ( SPRA387 )

10.27.6 Trace

The device supports trace. Trace is a debug technology that provides a detailed, historical account of application code execution, timing, and data accesses. Trace collects, compresses, and exports debug information for analysis. Trace works in real-time and does not impact the execution of the system.

For more information on board design guidelines for trace advanced emulation, see the Emulation and

Trace Headers Technical Reference Manual ( SPRU655 ).

10.27.6.1 Trace Electrical Data/Timing

Table 10-65. Trace Switching Characteristics

2

2

3

(see

Figure 10-55

)

NO.

1

1

PARAMETER

t t w

(DPnH) w

(DPnL)

Pulse duration, DPn/EMUn high t w

(DPnH)90% Pulse duration, DPn/EMUn high detected at 90% Voh

Pulse duration, DPn/EMUn low t w

(DPnL)10% Pulse duration, DPn/EMUn low detected at 10% Voh t sko

(DPn) Output skew time, time delay difference between DPn/EMUn pins configured as trace t skp

(DPn) Pulse skew, magnitude of difference between high-to-low (tphl) and low-tohigh (tplh) propagation delays.

t sldp_o

(DPn) Output slew rate DPn/EMUn

MIN

2.4

1.5

2.4

1.5

-1

3.3

MAX UNIT

ns ns ns ns

1 ns

600 ps

V/ns

Buffer

Inputs

Buffers DP[n] /

EMU[n] Pins

B

A

C

B

C

A

T

PLH

1

3

T

PLH

2

Figure 10-55. Trace Timing

10.27.7 IEEE 1149.1 JTAG

The Joint Test Action Group (JTAG) interface is used to support boundary scan and emulation of the device. The boundary scan supported allows for an asynchronous test reset (TRST) and only the five baseline JTAG signals (e.g., no EMU[1:0]) required for boundary scan. Most interfaces on the device follow the Boundary Scan Test Specification (IEEE1149.1), while all of the SerDes (SGMII) support the

AC-coupled net test defined in AC-Coupled Net Test Specification (IEEE1149.6).

It is expected that all compliant devices are connected through the same JTAG interface, in daisy-chain fashion, in accordance with the specification. The JTAG interface uses 1.8-V LVCMOS buffers, compliant with the Power Supply Voltage and Interface Standard for Nonterminated Digital Integrated Circuit

Specification (EAI/JESD8-5).

246

AM5K2E0x Peripheral Information and Electrical Specifications

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

www.ti.com

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

10.27.7.1 IEEE 1149.1 JTAG Compatibility Statement

For maximum reliability, the AM5K2E0x device includes an internal pulldown (IPD) on the TRST pin to ensure that TRST will always be asserted upon power up and the device’s internal emulation logic will always be properly initialized when this pin is not routed out. JTAG controllers from Texas Instruments actively drive TRST high. However, some third-party JTAG controllers may not drive TRST high, but expect the use of an external pullup resistor on TRST. When using this type of JTAG controller, assert

TRST to initialize the device after powerup and externally drive TRST high before attempting any emulation or boundary scan operations.

10.27.7.2 JTAG Electrical Data/Timing

Table 10-66. JTAG Test Port Timing Requirements

(see

Figure 10-56

)

NO.

4

4

3

3

1 t c(TCK)

1a tw(TCKH)

1b tw(TCKL)

Cycle time, TCK

Pulse duration, TCK high (40% of tc)

Pulse duration, TCK low(40% of tc) tsu(TDI-TCK) Input setup time, TDI valid to TCK high tsu(TMS-TCK) Input setup time, TMS valid to TCK high th(TCK-TDI) th(TCK-TMS)

Input hold time, TDI valid from TCK high

Input hold time, TMS valid from TCK high

Table 10-67. JTAG Test Port Switching Characteristics

(see

Figure 10-56

)

NO.

2 t d(TCKL-TDOV)

PARAMETER

Delay time, TCK low to TDO valid

MIN

23

9.2

9.2

2

2

10

10

MIN

MAX UNIT

ns ns ns ns ns ns ns

MAX UNIT

8.24

ns

1

1a 1b

TCK

2

TDO

4

3

TDI / TMS

Figure 10-56. JTAG Test-Port Timing

Copyright © 2012–2015, Texas Instruments Incorporated

AM5K2E0x Peripheral Information and Electrical Specifications

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

247

AM5K2E04, AM5K2E02

SPRS864D – NOVEMBER 2012 – REVISED MARCH 2015

www.ti.com

11 Mechanical Data

11.1 Thermal Data

Table 11-1

shows the thermal resistance characteristics for the PBGA - ABD 1089-pin mechanical package.

Table 11-1. Thermal Resistance Characteristics (PBGA Package) ABD

NO.

1 R

θ

JC

2 R θ

JB

Junction-to-case

Junction-to-board

°C/W

0.34

3.14

11.2 Packaging Information

The following packaging information reflects the most current released data available for the designated device(s). This data is subject to change without notice and without revision of this document.

248

Mechanical Data

Copyright © 2012–2015, Texas Instruments Incorporated

Submit Documentation Feedback

Product Folder Links:

AM5K2E04 AM5K2E02

PACKAGE OPTION ADDENDUM

www.ti.com

18-Feb-2016

PACKAGING INFORMATION

Orderable Device

AM5K2E02ABD25

AM5K2E02ABD4

AM5K2E02ABDA25

AM5K2E02ABDA4

AM5K2E02XABD25

Status

(1)

ACTIVE

ACTIVE

Package Type Package

Drawing

Pins Package

Qty

FCBGA

FCBGA

ABD

ABD

1089

1089

40

40

Eco Plan

(2)

Green (RoHS

& no Sb/Br)

Green (RoHS

& no Sb/Br)

ACTIVE

ACTIVE

ACTIVE

FCBGA

FCBGA

FCBGA

ABD 1089

ABD 1089

ABD 1089

40

40

40

Green (RoHS

& no Sb/Br)

Green (RoHS

& no Sb/Br)

TBD

Lead/Ball Finish

(6)

Call TI

SNAGCU

Call TI

SNAGCU

Call TI

MSL Peak Temp

(3)

Level-4-245C-72HR

Op Temp (°C)

0 to 85

Level-4-245C-72HR

Level-4-245C-72HR

Level-4-245C-72HR

Call TI

0 to 85

-40 to 100

-40 to 100

0 to 85

Device Marking

(4/5)

AM5K2E02ABD

@2012 TI

AM5K2E02ABD

@2012 TI

1.4GHZ

AM5K2E02ABD

A1.25GHZ

AM5K2E02ABD

@2012 TI

A1.4GHZ

AM5K2E02XABD

AM5K2E04XABD25 ACTIVE FCBGA ABD 1089 40 Green (RoHS

& no Sb/Br)

Call TI Level-4-245C-72HR 0 to 85 AM5K2E04XABD

@2012 TI

AM5K2E04XABD4

AM5K2E04XABDA25

ACTIVE

ACTIVE

FCBGA

FCBGA

ABD 1089

ABD 1089

40

40

Green (RoHS

& no Sb/Br)

Green (RoHS

& no Sb/Br)

SNAGCU

Call TI

Level-4-245C-72HR

Level-4-245C-72HR

0 to 85

-40 to 100

AM5K2E04XABD

@2012 TI

1.4GHZ

AM5K2E04XABD

A1.25GHZ

AM5K2E04XABDA4 ACTIVE FCBGA ABD 1089 40 Green (RoHS

& no Sb/Br)

Call TI Level-4-245C-72HR -40 to 100 AM5K2E04XABD

@2012 TI

A1.4GHZ

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.

LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.

NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.

OBSOLETE: TI has discontinued the production of the device.

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined.

Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.

Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.

Addendum-Page 1

Samples

PACKAGE OPTION ADDENDUM

www.ti.com

18-Feb-2016

Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4)

There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.

(5)

Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation of the previous line and the two combined represent the entire Device Marking for that device.

(6)

Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.

TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

Addendum-Page 2

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily performed.

TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.

TI is not responsible or liable for any such statements.

Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use of any TI components in safety-critical applications.

In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and requirements. Nonetheless, such components are subject to these terms.

No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties have executed a special agreement specifically governing such use.

Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.

Products

Audio

Amplifiers

Data Converters

DLP® Products

DSP

Clocks and Timers

Interface

Logic

Power Mgmt

Microcontrollers

RFID

OMAP Applications Processors

Wireless Connectivity www.ti.com/audio amplifier.ti.com

dataconverter.ti.com

www.dlp.com

dsp.ti.com

www.ti.com/clocks interface.ti.com

logic.ti.com

power.ti.com

microcontroller.ti.com

Applications

Automotive and Transportation

Communications and Telecom

Computers and Peripherals

Consumer Electronics

Energy and Lighting

Industrial

Medical

Security

Space, Avionics and Defense

Video and Imaging www.ti-rfid.com

www.ti.com/omap

TI E2E Community

www.ti.com/wirelessconnectivity www.ti.com/automotive www.ti.com/communications www.ti.com/computers www.ti.com/consumer-apps www.ti.com/energy www.ti.com/industrial www.ti.com/medical www.ti.com/security www.ti.com/space-avionics-defense www.ti.com/video e2e.ti.com

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2016, Texas Instruments Incorporated

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
