For preview purpose only

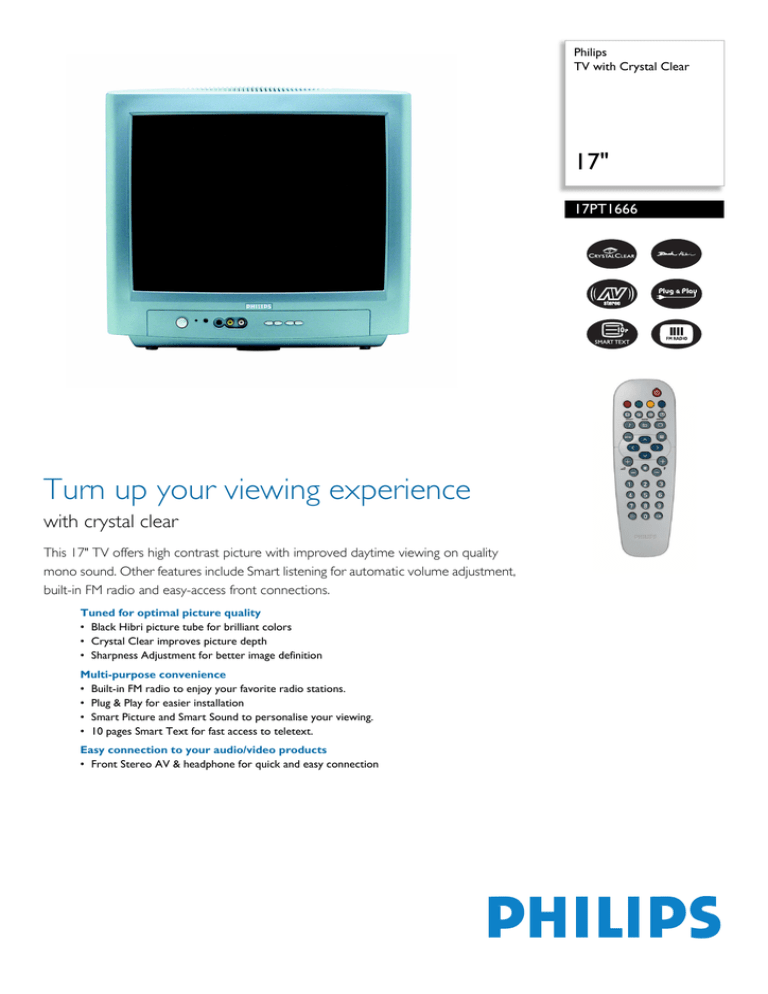

TV with Crystal Clear
Turn up your viewing experience
with crystal clear
This 17" TV offers high contrast picture with improved daytime viewing on quality
mono sound. Other features include Smart listening for automatic volume adjustment,
built-in FM radio and easy-access front connections.
Tuned for optimal picture quality
• Black Hibri picture tube for brilliant colors
• Crystal Clear improves picture depth
• Sharpness Adjustment for better image definition
Multi-purpose convenience
• Built-in FM radio to enjoy your favorite radio stations.
• Plug & Play for easier installation
• Smart Picture and Smart Sound to personalise your viewing.
• 10 pages Smart Text for fast access to teletext.
Easy connection to your audio/video products
• Front Stereo AV & headphone for quick and easy connection
For preview purpose only
TV with Crystal Clear
Technical specifications
Aspect ratio: 4:3
Diagonal screen size: 17 inch / 43 cm
Visible diagonal screen size: 41 cm
Display screen type: Black Hibri picture tube
Picture enhancement: Crystal Clear, Color
Temperature Adjustment, Sharpness
• Picture processing: 50 Hz
• Sound System: Mono
• Output power (RMS): 4w
• Music Power: 8 W
• Built-in speakers: 1
FM Radio
• FM Radio functions: 40 Preset channel,
Autostore/Manual store, Preset List, Sorting
• Ease of Installation: Autostore, Fine Tuning, PLL
Digital Tuning, Plug & Play, Sorting, Smart ATS
and ACI
• Ease of Use: Smart Listening, Smart Picture
Control, Smart Sound Control
• Remote control type: RCLE011
• Teletext: 10 page Smart Text
• Teletext enhancements: 4 favourite pages,
Program information Line
Product highlights
• Clock: Sleep Timer, Smart Clock
• Child Protection: Child Lock+Parental Control
• Remote Control: TV
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/
• Video Playback: NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 100
• Number of Scarts: 1
• Ext 1 Scart: CVBS in/out, RGB
• Front / Side connections: Audio in, CVBS in,
Headphone out
• Headphone: 3.5 mm
• Power consumption: 38 W
• Standby power consumption: < 3 w
• Mains power: AC 220 - 240 V, 50/60 Hz
Product weight: 14 kg
Weight incl. Packaging: 18 kg
Color cabinet: Silver Shadow (10811)
Box dimensions (W x H x D):
540 x 475 x 520 mm
• Set dimensions (W x H x D):
421 x 393 x 410 mm
Black Hibri picture tube
Black HiBri is a TV tube technology used on Philips
small-screen TVs, giving good color reproduction on
smaller sets.
Crystal Clear
Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture
Sharpness Adjustment
FM Radio (TV)
An FM radio capable of storing 40 preset stations in
built in. On-screen station naming makes navigation
simple, and a handy Clock Screensaver is also included
for use while listening.
Plug & Play
Plug & Play gives you the ability to install or add a new
component and have it work without having to perform
any complex installation procedure or technical analysis.
Smart Picture and Smart Sound
Philips preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select optimized picture and
sound settings for the various picture modes such as
Eco, Natural, Rich, Multimedia and Personal, and sound
modes such as Movie, Voice, Music and Personal. Do
refer to the DFU for the various picture and sound
smart modes.
10 page Smart Text
The teletext is a common system transmitted by most
broadcasters. The 10 page smart text feature gives you
fast access to information when changing pages.
Front Stereo AV & headphone
Front stereo AV & headphone makes it much more
convenient to connect external devices like audio
equipment, games and video cameras. It's the easy way
to enjoy an extra audio sensation or a totally immersive
gaming experience.
Date of issue 2006-08-16
Version: 17.0
12 NC: 8670 000 14115
EAN: 87 10895 71146 3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
