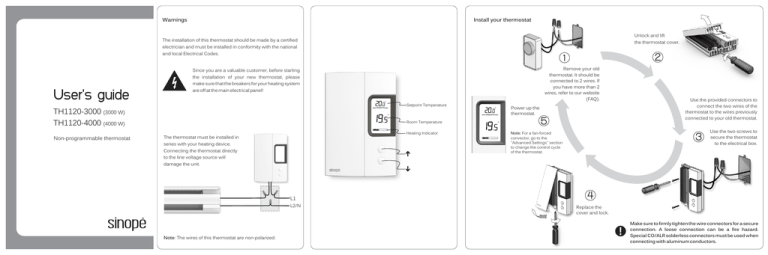

Installation guide TH1120-4000

Installation guide TH1120-4000
Install your thermostat
Warnings
Unlock and lift
the thermostat cover.
The installation of this thermostat should be made by a certified
electrician and must be installed in conformity with the national
and local Electrical Codes.
User's guide
Non-programmable thermostat
Remove your old
thermostat. It should be
connected to 2 wires. If
you have more than 2
wires, refer to our website
(FAQ).
Since you are a valuable customer, before starting
the installation of your new thermostat, please
make sure that the breakers for your heating system
are off at the main electrical panel!
TH1120-3000 (3000 W)
TH1120-4000 (4000 W)
setpoint
Setpoint Temperature
setpoint
Room Temperature
Heating Indicator
The thermostat must be installed in
series with your heating device.
Connecting the thermostat directly
to the line voltage source will
damage the unit.
L1
L2/N
Note: The wires of this thermostat are non-polarized.
2
1
Power up the
thermostat.
Use the provided connectors to
connect the two wires of the
thermostat to the wires previously
connected to your old thermostat.
5
Note: For a fan-forced
convector, go to the
''Advanced Settings'' section
to change the control cycle
of the thermostat.
3
Use the two screws to
secure the thermostat
to the electrical box.
4
Replace the
cover and lock.
!
Make sure to firmly tighten the wire connectors for a secure
connection. A loose connection can be a fire hazard.
Special CO/ALR solderless connectors must be used when
connecting with aluminum conductors.
Advanced Settings
Order
To change the thermostat's setting you need to:
1
Get the setpoint to its minimum and
hold the
button for 3 seconds to
access the menu.
button to change the setting.
Press the
button to select the next parameter.
Temperature format
°C or °F
Default
Display
Temp
Control Cycle
SHT (short cycle for electric baseboard)
FAN (long cycle for fan-forced heat)
3 sec.
Press the
Parameters & settings
Press and hold the
button for 3 seconds to exit the
menu and return to normal display.
Backlight
3
OFF (active for 6 sec if a button is pressed)
ON (always active)
(Default: OFF)
Technical specifications
Operating voltage: 120/208/240 VAC, 60 Hz
Setpoint range: 5 ˚C to 30 ˚C (41 ˚F to 86 ˚F)
Display range: 0 ˚C to 70 ˚C (32 ˚F to 99 ˚F)
Resolution: ± 0.5 ˚C (± 1 ˚F)
Storage: -20 ˚C to 50 ˚C (-4 ˚F to 122 ˚F)
Cycle
Light
3-year limited warranty
TH1120-3000 thermostat
Maximum load:
12.5 A / 3000 W @ 240 VAC
Resistive load only
Minimum load:
0.5 A / 120 W @ 240 VAC
TH1120-4000 thermostat
Maximum load:
16.7 A / 4000 W @ 240 VAC
Resistive load only
Minimum load:
0.5 A / 120 W @ 240 VAC
SINOPÉ TECHNOLOGIES INC. warrants the components of their
products against defects in material and workmanship for a 3 year
period from the date of purchase, under normal use and service,
when proof of purchase of such is provided to the manufacturer.
This warranty does not cover any transportation costs that may be
incurred by the consumer.
Nor does it cover a product subjected to misuse or accidental
damage.
The obligation of Sinopé Technologies Inc., under the terms of this
warranty, will be to supply a new unit and this releases the
manufacturer from paying the installation costs or other
secondary charges linked to replacing the unit or the components.
For more information, visit our website at:
www.sinopetech.com
Compatible with an electric heating system such as:
Baseboard heater
Ÿ
Convector (short cycle)
Ÿ
Fan-forced convector (long cycle)
Ÿ
660-1120-0004-F
