DCSD – Northeast Elementary School

DCSD – Northeast Elementary School

TO:

ATTN:

Yon Tanner Architecture

Roy Tanner

PROJECT: Northeast Elementary

RETURNED

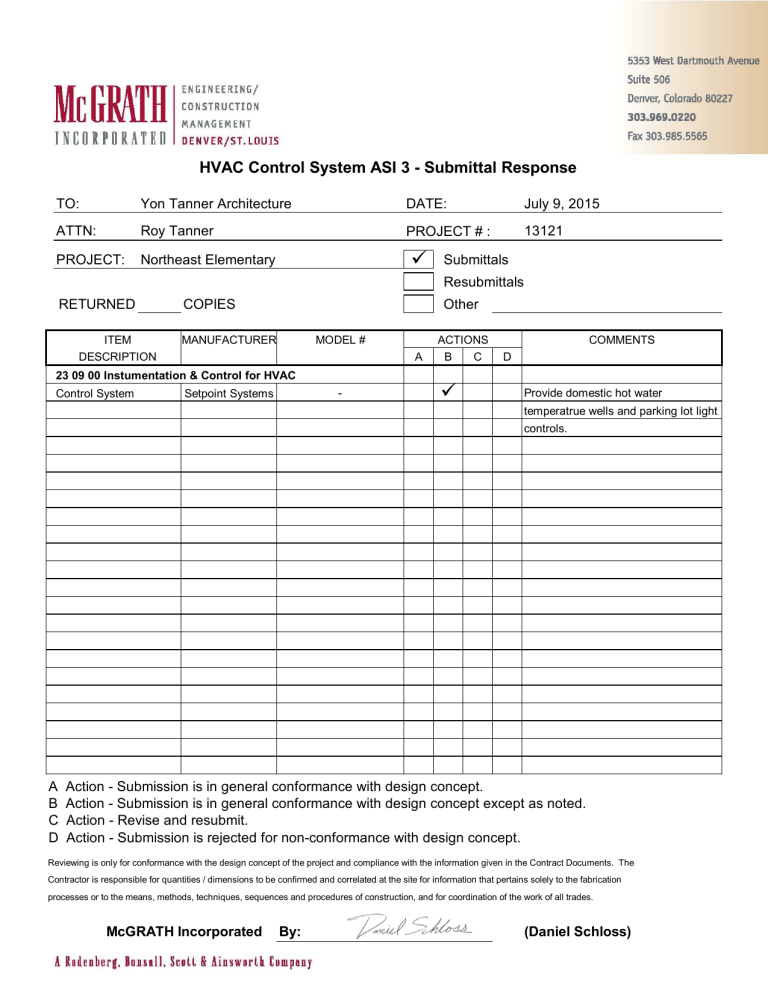

HVAC Control System ASI 3 - Submittal Response

COPIES

DATE: July 9, 2015

PROJECT # :

Submittals

Resubmittals

13121

Other

ITEM

DESCRIPTION

MANUFACTURER

23 09 00 Instumentation & Control for HVAC

Control System Setpoint Systems

MODEL #

-

A

ACTIONS

B C D

COMMENTS

Provide domestic hot water temperatrue wells and parking lot light controls.

A Action - Submission is in general conformance with design concept.

B Action - Submission is in general conformance with design concept except as noted.

C Action - Revise and resubmit.

D Action - Submission is rejected for non-conformance with design concept.

Reviewing is only for conformance with the design concept of the project and compliance with the information given in the Contract Documents. The

Contractor is responsible for quantities / dimensions to be confirmed and correlated at the site for information that pertains solely to the fabrication processes or to the means, methods, techniques, sequences and procedures of construction, and for coordination of the work of all trades.

McGRATH Incorporated By: (Daniel Schloss)

Submittal Transmittal

Detailed, Grouped by Each Number

DCSD Northeast ES Mechanical Upgrades

6598 N. State Highway 83

Parker, Co 80134

Project # 1658

Tel: Fax:

Date: 6/29/2015

Transmitted To:

Qty

1

Roy Tanner

Yon Tanner Architect, P. C.

2175 South Jasmine Street

#217

Denver, CO 80222

Tel: 303-691-8000

Fax:

Submittal Package No

23 09 0000 - 002 - 0

Description

HVAC Controls ASI 3

Transmitted By:

Transmitted For

Items

0001

Qty

Cc: Company Name

Description

Controls

Contact Name

Delivered Via

E-Mail

Notes

Copies Notes

Reference Number: 0064

Nate Lucht

JHL Constructors, Inc.

7076 S. Alton Way

Building H

Centennial, CO 80112

Tel: 303-741-6116

Fax: 303-741-2785

Due Date Package Action

Tracking Number

Item Action

Remarks

These plans and/or submittals have been checked for general compliance with design concept given in the plans and specifications

Project:

1658

Yon Tanner

JHL Constructors

230900.002

Description:

HVAC Controls for ASI 3

Subcontractor/Supplier:

Central Mech

06/29/2015 Nate Lucht

Signature

Prolog Converge

Printed on: 6/29/2015 PM2008Database

Signed Date

Page 1

Northeast Elementary School

6598 N Highway 83

Parker, CO 80134

Douglas County School District

Northeast Elementary School

ASI #3 Submittal Data

Project #C2340

“Excellence is Our Standard, Customer Service is Our Passion”™

Submittal Data

DCSD – Northeast Elementary School

1

Panel Equipment

2

3

4

Field Equipment

Valve Schedule

Shop Draw ings

Submittal Data

DCSD – Northeast Elementary School

1

Panel Equipment

8 Port 10/100 Switch

DPDT Relay Base

24VAC DPDT Relay w/ Light eBM-440-M enteliBUS Module - 4xUI eBM-800 enteliBUS Module - 8x UI eBX-04 enteliBUS Expander plus 4 slot Expander Backplane

Dual 100VA 120 to 24VAC Transformer

SPDT Panel Relay 10VDC

M4/6 White Terminal Block Standard Single Tier

100VA 120/24VAC Transformer eBCON enteliBUS Controller

NEMA1 Metal Housing 25×25×9.5 w/SP5503L Subpanel

DFM-404 Delta Field Module

SD208

SH2B-05

RH2B-ULAC24V

375601

375606

311601

PSH100A100AB10

RIBMU1C

10505120

TR100VA002

311600

MH5503L

332404

Data Sheet

SD208

Cisco SD208 8-Port 10/100 Switch

Cisco Small Business Unmanaged Switches

Easy-to-Use, Flexible Switching for Small Businesses

Highlights

Designed for small businesses that require speed, reliablity, and simple management

Connects up to eight devices - PCs, printers, and wireless access points, with auto-sensing ports

Works right out of the box with no software to configure

Compact size provides multiple placement options for areas with limited space

Figure 1. Cisco SD208 8-Port 10/100 Switch

Product Overview

The Cisco

®

SD208 8-Port 10/100 Switch can significantly increase the speed of your network traffic. A switch serves the same function as a hub in a network design, tying your network equipment together. But unlike a simple-minded hub, which divides the network’s bandwidth among all the attached devices, a switch delivers full network speeds at each port. Installing this cost-effective 8-port 10/100 switch can potentially give you eight times your current network speed.

It’s also the perfect way of integrating 10-Mbps Ethernet and 100-Mbps Fast Ethernet devices. All eight ports are auto speed negotiating and have automatic medium dependent interface (MDI) and

MDI crossover (MDI-X) detection, so you don’t have to worry about the cable type. Each port independently negotiates for best speed and half- or full-duplex mode, for up to 200 Mbps of bandwidth per port. Fast store-and-forward switching prevents damaged packets from being passed on to the network.

The ultra-compact case design is sure to fit into your workgroup environment. Let the Cisco SD208

8-Port 10/100 Switch kick your 10/100 network into high gear.

© 2008 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information. Page 1 of 3

Data Sheet

Features

Ideal for integrating your 10BASE-T and 100BASE-TX network hardware

Eight 10/100 ports provide dedicated bandwidth in half- or full-duplex modes

Each port supports auto MDI/MDI-X cable detection

Compatible with all major network operating systems

Advanced store-and-forward packet switching optimizes data transfers

Auto partitioning protects PCs from downed network lines

Signal regeneration ensures data transfer integrity

Specifications

Table 1 contains the specifications, package contents, and minimum requirements for the Cisco

SD208 8-Port 10/100 Switch.

Table 1.

Specifications for the Cisco SD208 8-Port 10/100 Switch

Specifications

Standards

Ports

Cabling type

LEDs

Environmental

IEEE 802.3, IEEE 802.3u

8 RJ-45 10/100

Category 5 Ethernet

System, Port Status 1 through 8

Dimensions

W x H x D

Unit weight

Power

Certification

Operating temperature

Storage temperature

5.12 x 1.18 x 5.00 in.

(130 x 30 x 127 mm)

15 oz. (0.43 kg)

DC 12V, 500 mA

FCC Class B, CE

32º to 122ºF (0º to 50ºC)

-40º to 158ºF (40º to 75ºC)

Operating humidity

Storage humidity

20% to 95%, noncondensing

5% to 90%, noncondensing

Package Contents

Cisco SD208 8-Port 10/100 Switch

Power adapter

Printed user guide

Registration card

Minimum Requirements

200-MHz or faster processor

64 MB RAM recommended

● Ethernet adapter capable of 10 Mbps

Windows 95/98/Me/NT 4.0/2000/XP

Product Warranty

Limited lifetime hardware warranty with return to factory replacement and 1-year limited warranty for fans and power supplies

© 2008 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information. Page 2 of 3
