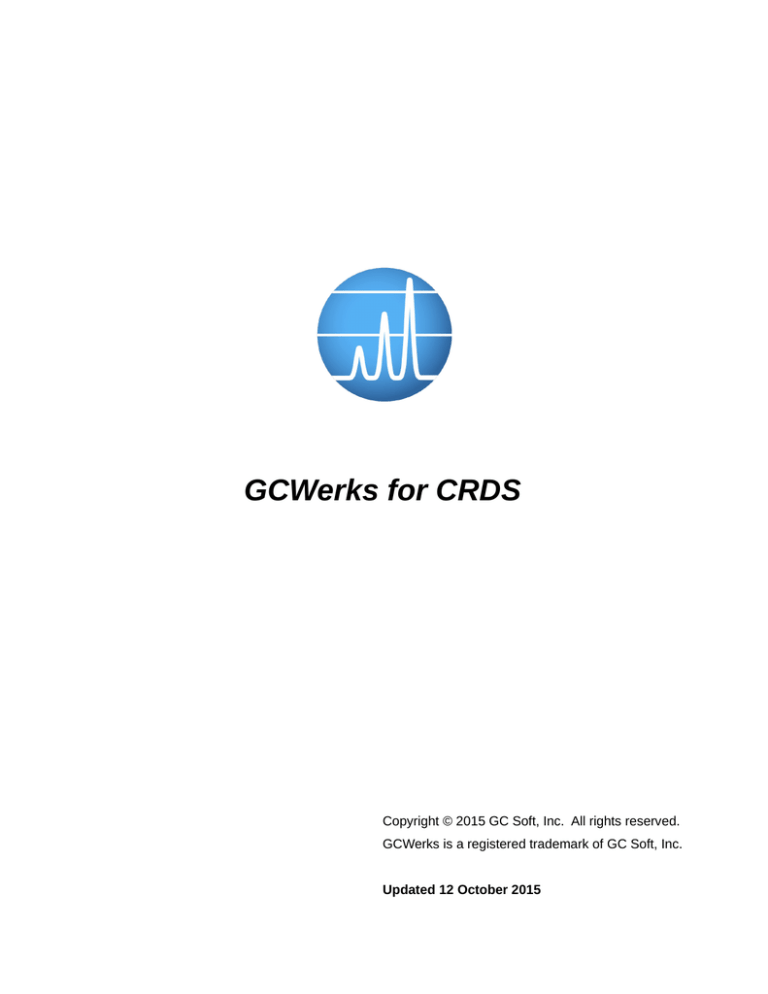

GCWerks for CRDS

Copyright © 2015 GC Soft, Inc. All rights reserved.

GCWerks is a registered trademark of GC Soft, Inc.

Updated 12 October 2015

Contents

1 Introduction

1.1 Supported instruments

1.2 Features

2 High-frequency CRDS data

3 Meta data

3.1 Inlet port plumbing (ports log)

3.2 Standards file

3.3 Flags

3.4 Filters

4 Graphical data review

4.1 View all run types

4.2 Exporting data

4.3 Viewing a single run type

4.4 Changing plot scales

4.5 Graphical flagging

4.6 Viewing flagged or filtered data

4.7 Y-axis variables

4.8 Diagnostic plots

5 Calibration strategy

5.1 Zooming in on high-frequency data

5.2 The sample/standard ratio

5.3 Assessing linearity

5.4 Sensitivity as function of time

5.5 Sensitivity as function of concentration

5.6 Applying nonlinearity corrections

5.7 Calibrating isotope data

6 Filtering data

6.1 Cycle time filter

6.2 Value out of range (min/max) filter

6.3 Standard deviation filter

7 Data analysis in GCcompare

8 Acquiring data with GCWerks

8.1 Sequence file

8.2 Configuring Picarro for data acquisition

10

11

12

14

15

16

17

18

20

21

21

21

5

8

9

7

8

5

5

6

6

3

4

4

3

4

22

23

24

25

1

1

1

2

1 Introduction

GCWerks for CRDS is part of the GCWerks product family for greenhouse gas measurements, with the same software interface for GC, GC/MS and CRDS measurements.

This document provides an overview of GCWerks for CRDS capabilities, whether importing existing data or acquiring data from the instrument. For more details and up-to-date documentation see http://gcwerks.com

.

1.1 Supported instruments

GCWerks acquires or imports data from leading instrument manufacturers. It shields the user for the specifics of each manufacturer's data formats and variable naming conventions, providing a uniform structure across manufacturers and models. Supported instruments include:

Picarro: Acquires or imports data from the latest Picarro concentration or isotope analyzers, such as the G2401. Imports data from the older Picarro G1301 analyzer.

Los Gatos Research: Acquires or imports data from the latest LGR analyzers.

Aerodyne: Capability to import data from Aerodyne QC laser analyzers is being developed, with possible direct data acquisition to follow.

Valco valves for automation of sampling.

1.2 Features

A single Linux system can acquire data from all instruments at a remote site (CRDS,

GC, GC/MS), providing a secure point of access to remote instruments.

Automation for reliable unattended operation, with email notification of user-defined alarm conditions

Easy handling of large volumes of data, fast interactive graphics for years of data

Uniform control of addition hardware for sampling (Valco valves, inlet sample pressure and temperature, etc.).

Team access to a single multi-user Linux server with all project's instruments data.

Imported or acquired data stored as binary strip-charts over 30 times smaller than hourly Picarro files (for fast data processing and copying over the Internet).

Calculates results based on periodic standard measurements

Nonlinearity and other diagnostics

Graphical data flagging

GCWerks for CRDS - 1

2 High-frequency CRDS data

CRDS data which are imported or acquired directly by GCWerks are stored in binary stripcharts. These strip-charts include all the relevant data from the instrument, and for data acquired by GCWerks any additional sample data (inlet temperature, pressure, ambient temperature, etc.) and any corresponding weather-station data.

Files are named by GMT date and time. A new file is created each time the inlet port has changed, with normally a maximum of 1 hour of data in each file. All files for one year are stored in a single directory (e.g. victorville-picarro/13/strip-chart/) and are named as follows: yymmdd.hhmmss.port - imported files yymmdd.hhmmss.type.port - files acquired by GCWerks

Imported files include the inlet port number in the file name. Files acquired directly by

GCWerks also include the run type (air, std, tank, etc.) in the file name.

Figure 1: Strip-chart showing high-frequency CRDS data

GCWerks for CRDS - 2

3 Meta data

3.1 Inlet port plumbing (ports log)

The ports log describes what is on each inlet for each time period.

# Date Time Port Tank Regulator Type Reject Bin

#------ ---- ---- -------- --------- ---- ------ ---

110101 0000 1 90m - air 1

110101 0000 2 90m - air 1

110101 0000 3 50m - air 1

#

110101 0000 4 JB03331 - cal 10

110101 0000 5 JB03203 - std 10

#

130601 0000 5 JB03205 - std 10

The 'Type' column specifies the run type. Common types are:

air: ambient air

cal: calibration tanks

std: one of the cal tanks, used as the reference to calibrate the data

zero: zero gas

tank: tank being calibrated

One of the cal tanks (usually near ambient) is defined as the reference standard which is used to calibrate the data. If there are two near-ambient cal tanks, either one can be used at any time as the standard to calculate results.

The 'Reject' column specifies the number of minutes to reject after switching to a new inlet.

This is normally longer for calibration tanks (10 minutes in the example above). If the previous inlet has a greater reject time than the new inlet (air following cal in the example above), then the longer reject time is used for the new inlet (this may be disabled by setting

“crds-reject-after: 0” in gcwerks.conf).

The 'Bin' column affects the time-interval over which data are averaged. If set to 1, the air data are binned in even time interval (e.g. 00-01, 01-02, for hourly means); 0000-0020, 0020-

0040 for 20-minute means, etc.). This is most useful when there is a single air inlet. (1minute data are always binned in even minutes).

GCWerks for CRDS - 3

3.2 Standards file

Calibration tank concentrations are specified in the standards file. The header defines the columns in the file.

tank co2 ch4

#

JB03331 393.392 1858.17

JB03203 393.169 1871.4

3.3 Flags

Section 4.5 describes graphical data flagging. This is useful for flagging occasional outliers or

groups of outliers.

For flagging very long time periods, months or years, it is better to enter the flag manually in the “range flags file”. This specifies the date range, inlet port number and species:

#

#date time date time port gas flag

#----- ---- ------ ---- ---- --- ----

120101 0000 120607 2000 4 all F

This can also be useful for ongoing problems, by setting the ending date into the future, so that newly acquired data are automatically flagged (for the specified inlet port) until the problem is resolved.

3.4 Filters

Filters specify conditions for automatically rejecting bad data, for example cavity temperature or pressure out of range. Statical filters may also be used to eliminate outliers from the highfrequency data before averaging.

GCWerks for CRDS - 4

4 Graphical data review

Mean data may be viewed graphically in a number of ways. The displayed mean may be changed by selecting 60 min, 20 min, 5 min or 1 min on the lower left-hand corner.

4.1 View all run types

Any of the raw or calculated data may be displayed for any run type (air, cal, tank, etc.) simultaneously in different colors.

Figure 2: Reviewing air data (blue), ambient-level and high calibration tanks as 20 minute averages.

The data listing below corresponds to the plotted data.

4.2 Exporting data

The report below the time-series plot is displayed with View > report. For any displayed mean (5 minute, 20 minute, etc.) the listed data may be saved to a file with File > Saveas....

To automate exporting or for more control over exported columns and data, see exporting

results on the GCWerks website documentation.

GCWerks for CRDS - 5

4.3 Viewing a single run type

When viewing an individual run type (air, cal, tank, etc.), each inlet port is plotted in a different color. The list at left shows what is plumbed on each inlet port for each time period, and allows selecting data to plot or export from the report listing.

Figure 3: Air data with each inlet in a different color.

4.4 Changing plot scales

Dragging the cursor on the time-series plot (left mouse button) zooms only the time-axis, with the y-axis self-scaled. This is useful as the y-axis will always scale properly for any displayed time period, gas, or y-axis variable. To disable this zoom mode and allow a rectangle zoom box (x and y zoom), un-check the option Options > x-zoom only.

The left/right and up/down arrow buttons on the axes may also be used to change the the plot scales. Press the left mouse button on an arrow to move the view. Press the right mouse button to compress or stretch the scale.

GCWerks for CRDS - 6

4.5 Graphical flagging

The 1-minute data may be flagged graphically, with the resulting flags applying to the 5minute, 20-minute and 60-minute means. To select a single point to flag, hold down the

SHIFT key and click on the point. Click on the point again to un-select it. To flag a group of

points, hold down the SHIFT key and use the zoom box as shown in Figure 4. To clear all

selected points, press clear.

The default flag is the 'F' flag, which flags a point as a flyer to exclude from the calculated results. The 'U' flag may be used to unflag a point. Press apply flags to flag the currently selected points for the displayed gas.

After applying flags in this way, select update > update all to re-calculate mean data with the new flags applied. If flagging only the latest year, use select update > update latest year.

Figure 4: SHIFT-zoom box to select points to flag graphically. Only 1-minute data may be flagged.

GCWerks for CRDS - 7

4.6 Viewing flagged or filtered data

When all the points in a mean (5-minute, 20-minute, etc.) are flagged or filtered (or fewer than a minimum number of points remain), the means are not normally displayed. They may be displayed with the following options:

Options > show flagged points ('F')

Options > show filtered points ('*')

Options > show rejected points ('x') - only plotted for 1-minute data

(The rejected points are in the transient period after switching to a new inlet port, as specified in the 'Reject' column in the ports.log.)

4.7 Y-axis variables

For each y-axis variable, the displayed mean may be changed by selecting 60 min, 20 min, 5

min or 1 min on the lower left-hand corner. The y-axis variables are:

level (dry): instrument response for each species (assumed uncalibrated even though

the Picarro leaves the factory nominally calibrated), corrected for water (and matrix effects for isotope analyzers).

level (wet): instrument response not corrected for water for matrix effects (not available for all species or analyzer models).

stdev: standard deviation of the mean of the high-frequency raw data for each species

N: the number of high-frequency data points in each mean

N filtered: the number of high-frequency data points filtered or flagged for each mean

concentration: calibrated results for each species, based on periodic standard

measurements

sample / standard: the ratio of each mean to the time-interpolation of its neighboring

standard means for each species

sensitivity = [level / Ctank]: instrument response divided by tank concentration

(useful to plot for calibration tanks).

[level / Ctank] / [level / Cstd]: a measure of nonlinearity, see section 5.4

level / concentration: the ratio of raw data to the calibrated data, a useful diagnostic

seconds / cycle: The number of seconds for a complete measurement cycle (e.g.

CO2, CH4, CO, H2O on a G2401).

cavity press, cavity temp, etc: all other instrumental data

GCWerks for CRDS - 8

4.8 Diagnostic plots

Any of the Picarro parameters may be plotted to diagnosing instrument performance over time. Below is a plot of “seconds / cycle” for a Picarro G2301. This is the number of seconds required for a complete measurement cycle (CO2, CH4, H2O) and should typically be below 5 seconds. This is an important diagnostic of laser performance. Values above 5 seconds, or large variability, indicate need for service (usually remote calibration).

Figure 5: The number of seconds required for a complete measurement cycle (CO2, CH4, H2O on this G2301). This should be typically below 5 seconds.

GCWerks for CRDS - 9

5 Calibration strategy

By default GCWerks uses a single (near-ambient) standard to track changes in instrument response, with optional standards spanning a range of concentrations to assess nonlinearity:

1) A single calibration gas (run type std), measured frequently (e.g. daily) to track drift in instrument response

2) One or more calibration tanks (run type cal) spanning a range of concentrations, measured infrequently (e.g. monthly or longer) to track nonlinearity (slope relative to standard response)

This strategy assumes nonlinearity changes much more slowly than instrumental response.

If this is not the case (if the tank/std ratio for a high concentration tank is time-dependent on a similar time scale as changes in instrument response), then at least two tanks spanning the range of concentration would need to be run frequently enough to track this change (a twopoint calibration).

Questions:

1) How often should the standard tank be run to adequately track variations in instrument response? (Section 5.2)

2) How often should calibration tanks be run to track time-dependence of nonlinearity?

(section 5.4)

3) For how long should a tank be run (to achieve a stable value) and how much of the initial data should be rejected (the transient period)? (section 5.1)

GCWerks for CRDS - 10

5.1 Zooming in on high-frequency data

Use View > stripchart to display the strip-chart, then click (or drag the cursor) on any point on the time-series to view the corresponding high-frequency data. Select 60 min to see the mean of the full standard or tank measurement (assuming measurements are 60 minutes or shorter).

Time=0 on each strip-chart corresponds to change of inlet port, making it easy to asses the transient period (to reject after an inlet change). In the example below, "reject minutes" in the ports.log has been set to 10 minutes so the first 10 minutes are excluded from the mean. The remaining data (between the vertical black lines) are averaged. Standard measurements used to calibrate the data are always averaged for the full measurement time, after the transient period has been rejected.

Figure 6: The high-frequency data between the vertical lines below correspond to the mean pointed to by the cursor above.

GCWerks for CRDS - 11

5.2 The sample/standard ratio

To take out time-dependent drift in instrument response, the ratio is taken of any measurement to the time interpolation of the neighboring standards.

Figure 4 shows two near-ambient calibration tanks run daily over several months on a Picarro

2301. The striking feature is the coherent pattern of instrumental response between the two tanks. Either of these two calibration tanks may be used as the reference standard (this is done by assigning it type 'std' in the ports.log). In this case the tank plotted in red was designated as the 'std'. The red points on the bottom panel show the std/std ratio, which is the ratio of each std to the time interpolation of its neighboring standards. The orange points show the tank/std ratio for the cal tank.

Figure 7: The bottom panel shows the sample/standard ratio calculated by linear interpolation from the neighboring standard measurements.

.

GCWerks for CRDS - 12

Below is an example from LGR showing two near-ambient tanks with a significant N2O response drift over a two month period. Drift correction by linear interpolation here results in standard deviations of about 0.017% for the std/std ratio and 0.012% for the tank/std ratio.

Figure 8: LGR N2O response for two tanks (top), and sample/standard ratio determined by time interpolation from neighboring daily standards (bottom).

GCWerks for CRDS - 13

5.3 Assessing linearity

Linearity is assessed by measuring tanks with a range of concentrations. For a linear instrument the response/concentration ratio (sensitivity) should be independent of concentration. Of importance is how the tanks of high and low concentrations are prepared

(in particular are high tanks spiked with compounds in roughly their naturally-occurring isotopic ratios?) and how the tanks are assigned values. The linearity of the instrument used to assign values to the calibration tanks must be independently verified.

Figure 9 shows calibration tanks spanning a range of concentrations measured approximately

monthly over a 9 month period. The Picarro responses are plotted as ratios to the standard

(with the standard defined at y=1.0).

Figure 9: Calibration tank measurements plotted as ratio to the standard . In blue are the daily standard measurements (at y=1.0 by definition).

GCWerks for CRDS - 14

5.4 Sensitivity as function of time

To assess linearity the response/concentration ratio (sensitivity) is calculated, and then divided by the same quantity for the standard tank (defined as y=1.0). This is the quantity:

y = [level / conc] tank

/ [level / conc] std

Figure 10 shows that this quantity is fairly constant over a 9 month period on the Picarro 2301

used in these measurements. If the instrument response were completely linear over the range of calibration tank concentrations, then all the points would lie along 1.0.

Figure 10: Calibration tank measurements plotted as CH4 response/concentration relative to the standard (at y=1.0). If completely linear response then all points would line on the line y=1.0.

Since the time-variability is small compared with both the magnitude of the nonlinearity and the variability within each set of measurements, it appears that these measurements do not need to be made frequently and a single nonlinearity correction may be applied to a long time period.

GCWerks for CRDS - 15

5.5 Sensitivity as function of concentration

When the data in Figure 10 are plotted a function of concentration we see a fairly significant

slope of about 0.3% over the range 1600 to 2200 ppb.

Figure 11: Calibration tank measurements plotted as CH4 response/concentration relative to the standard (at y=1.0) versus x=tank concentration.

Here it is clear that a single fit of the calibration tanks measured over the 9 month period is sufficient to correct for the nonlinearity. This fit is relative to the standard's response, so

values above 1.0 indicate a greater sensitivity than at the concentration of the standard. This can be fitted as a simple slope over a limited concentration range or as a quadratic as shown above.

GCWerks for CRDS - 16

For CO2 the measured nonlinearity is an order of magnitude smaller, and it may not be necessary to correct for over a limited concentration range.

Figure 12: Calibration tank measurements plotted as CO2 response/concentration relative to the standard (at y=1.0) versus x=tank concentration.

5.6 Applying nonlinearity corrections

Details of fitting and applying nonlinearity corrections are described on the GCWerks website documentation under calculating results / nonlinearity correction.

GCWerks for CRDS - 17

5.7 Calibrating isotope data

Figure 13 shows an example of Picarro G2132-i δ

13

C CH4 data. δ

13

C is defined as:

δ

13

C = [ (

13

C/

12

C)/REF – 1] x 1000

The top panel of the figure shows the measured δ

13

C for air (blue), working standard (green) and periodic calibration tanks (orange). The bottom panel shows the sample/standard ratio in terms of (δ + 1000): sample/standard = (

13

C/

12

C) sample

/ (

13

C/

12

C) standard

Figure 13: Picarro-reported δ13C CH4 values (top), and sample/standard ratio determined by time interpolation from neighboring standards (bottom).

GCWerks for CRDS - 18

The approach taken by GCWerks is to calibrate

13

C and

12

C independently, including any nonlinearity corrections, and then to compute a calibrated δ. This takes into consideration that

13

C is a small peak (about 1% of

12

C) and vulnerable to small offsets in spectroscopic baseline fitting, resulting in a potentially large nonlinearity compared with

12

C. A nonlinearity in terms of δ would be much more complicated mathematically as the absolute peak size (e.g.

12

C concentration) must also be part of the function.

GCWerks for CRDS - 19

6 Filtering data

A number of filters are automatically applied to the high-frequency data before the mean is taken. These are configured in the gcwerks.conf file and the default settings are described in the sections below. Filter results are shown on the high-frequency strip-chart with a letter code for each filtered or flagged point. The codes are:

P = cavity pressure out of range

T = cavity temperature out of range

W = water value too high

C = cycle time too high

S = standard deviation filtered (for measured compound or water)

Flagged or rejected data are also displayed with letter codes.

F = flagged data

x = rejected data (transient period after switch to a new inlet port)

Notes: Filters are not applied to rejected ('x') or flagged ('F') data. Any filter may be turned off by changing its setting to 0.

Figure 14: Strip-chart corresponding to cursor in top panel, showing filtered cal tank points (here labled 'S ' and 'P') and initial rejection period (labeled 'x').

GCWerks for CRDS - 20

The number of points filtered or flagged for each mean point (5-min, 20-min, etc.) is displayed with y=Nfiltered. To see means which have been completely flagged for filtered (because not enough points remain for an unflagged or unfiltered mean):

Options > show flagged points ('F')

Options > show filtered points ('*')

6.1 Cycle time filter

The cycle time filter finds points which are separated from both adjacent points by more than the specified maximum cycle time, in which case all 3 points are filtered. For Picarro, the cycle time should be less than 5 seconds. The default filter maximum is set to 8 seconds for

Picarro (and 0 for LGR): crds-filter-cycle-time-max: 8

6.2 Value out of range (min/max) filter

Values outside of the minimum or maximum settings are filtered. The H2O maximum value is in the units reported by the instrument (e.g. percent for Picarro, ppm for LGR). The default values for Picarro are: crds-filter-cavity-temp-min: 44.98 crds-filter-cavity-temp-max: 45.02 crds-filter-cavity-press-min: 139.9 crds-filter-cavity-press-max: 140.1 crds-filter-h2o-max: 10

6.3 Standard deviation filter

For each measured compound and water, points outside of the set number of standard deviations are filtered. This is done recursively until no more points are filtered in each mean.

For air data, a narrow 2-minute moving window is used along with a large standard deviation

(default 10) to filter extreme outliers resulting from instrument errors. The moving windows overlap 1-minute, and the center 1-minute is filtered. The ends (first and last 30 seconds of each air measurement) are not filtered.

| 1-min | 1-min | 2-minute moving window, step 1-minute

| 1-min | points in center filtered

For tank data, then entire period is filtered at once (no moving window), after the rejection

period, using a tighter standard deviation test of 3 (see Figure 14).

crds-filter-air-window-minutes: 2 crds-filter-air-stdev: 10 crds-filter-tank-stdev: 3

GCWerks for CRDS - 21

7 Data analysis in GCcompare

GCcompare may be used to overlay data from several sites, including calculated results and any useful instrumental parameters (to compare instrument performance). It is also a useful

data analysis and visualization tool as shown in Figure 15. Here modeled air back-

trajectories (done with the NAME model at the UK met office) is displayed for the point under the cursor on the time-series. Dragging the cursor on the time-series results in a 'movie' of the air trajectories.

Figure 15: Two sites in the UK with air back-trajectory plot corresponding to clean baseline point at cursor above.

GCWerks for CRDS - 22

8 Acquiring data with GCWerks

Figure 16 shows the GCWerks instrument control display with a sequence running to acquire

data from a Picarro 2401. The real time strip-chart and numerical displays can show any of the CRDS instrument or other sample data (such as inlet pressure, ambient temperature, etc.).

In addition to automated control from the sequence, the valve position can be controlled interactively from the panel.

Figure 16: GCWerks acquiring data from Picarro 2401.

GCWerks for CRDS - 23

8.1 Sequence file

An example default sequence is shown below. Any number of sequences may be created and scheduled to run at various times. The default sequence simply repeats forever if nothing else is scheduled. The sequence specifies the run type (air, cal), the inlet port, and the duration of each measurement.

Figure 17: An example default sequence which runs air on port 1 and calibration tanks from ports 2 and 3.

GCWerks for CRDS - 24

8.2 Configuring Picarro for data acquisition

The instructions and figures below apply generally to the G2000 series Picarro (G2301, 2302,

G2401, etc.). These steps enable data acquisition over TCP/IP via the GCWerks CRDS software:

1) Stop analyzer software only. Do not shut down the analyzer, only stop the software.

2) Under the Picarro Setup Tool "Port Manager" tab, set "TCP" for the "Command

Interface" as shown in Figure 18, then press "Apply".

3) Under the Picarro Setup Tool "Command Interface" tab, select all the available output

data columns as shown in Figure 19, then press "Apply".

4) Either disable the Windows Firewall or enable TCP port 51020.

5) Set user calibration factors of 1000 for species better reported in ppb units (CH4, CO

and N2O) as shown in Figure 21. This step increases the number of significant digits

acquired over TCP/IP. Since Picarro reports values over TCP/IP to 3 decimal places in ppm units, this corresponds to only 1 ppb resolution. By applying user calibration factor 1000, this increases the resolution to 0.001 ppb.

6) Start the analyzer software

After the Picarro software is restarted test that the TCP/IP port is open by using telnet: telnet picarro_IP_address 51020

GCWerks for CRDS - 25

Figure 18: Select TCP for "Command Interface" under the "Port Manager" tab and press Apply.

GCWerks for CRDS - 26

Figure 19: "Command Interface" tab for Picarro G2401. Select all data columns and press Apply.

GCWerks for CRDS - 27

Figure 20: "Command Interface" tab for Picarro G2301. Select all data columns and press Apply.

GCWerks for CRDS - 28

Figure 21: Set ppb units for CH4, CO and N2O with user calibration factor 1000. This also increases the number of significant digits acquired over TCP/IP. NOTE: the name of this file varies by Picarro model. For G2301 UserCal_CFADS.ini, for G2401 UserCal_CFKADS.ini.

GCWerks for CRDS - 29

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
