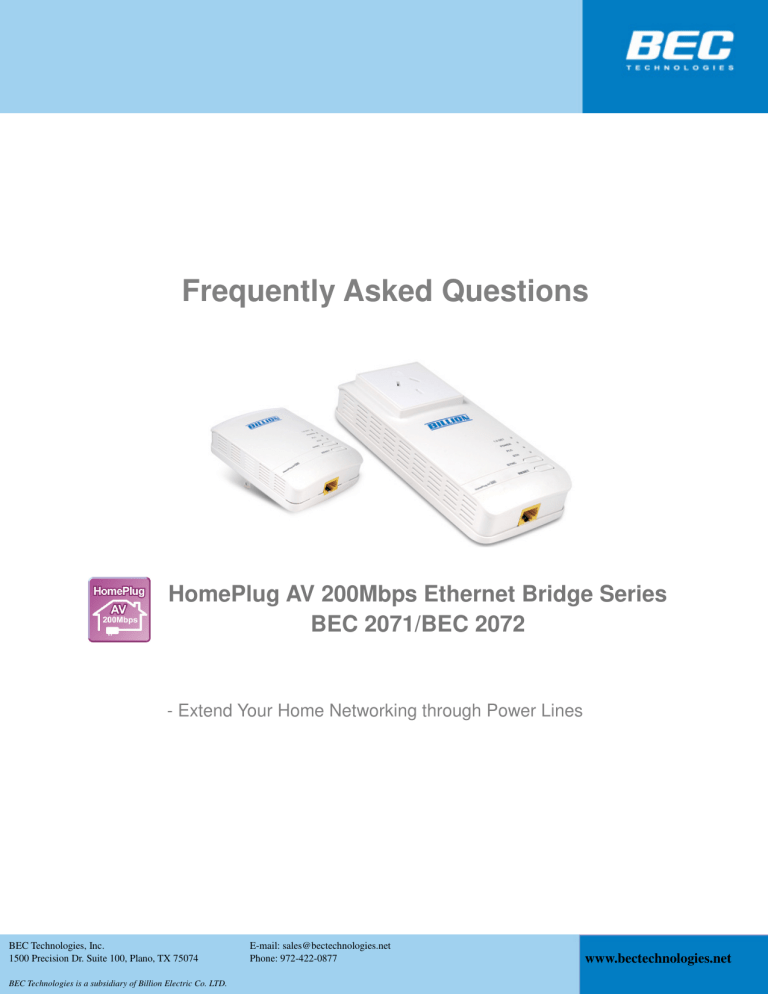

Frequently Asked Questions
HomePlug AV 200Mbps Ethernet Bridge Series
BEC 2071/BEC 2072
- Extend Your Home Networking through Power Lines
BEC Technologies, Inc.
1500 Precision Dr. Suite 100, Plano, TX 75074
BEC Technologies is a subsidiary of Billion Electric Co. LTD.
E-mail: sales@bectechnologies.net
Phone: 972-422-0877
www.bectechnologies.net
Frequently Asked Questions
Q1
Why is my BEC 2071/2072 transfer rate below 200Mbps?
Q2
Why can’t two of my BEC 2071/2072 devices synchronized through the powerline system?
Q3
What is the maximum number of BEC 2071/2072 devices that can a single power line
environment support? What is the maximum number of Private Network groups can be
supported?
Q4
Does BEC 2071/2072 encrypt the data before transmitting it?
Q5
Does it support QoS feature? Does it support Multicast and MOD file transfer features?
Q6
Does it support FTTH or 3.5G mobile internet feature?
Q7
What is the effective data transfer range of BEC 2071/2072?
Q8
Can I use HomePlug 1.0 with HomePlug Turbo together? Or can I use DS2 with PLC
products?
Q9
How does BEC 2072 reduce electrical interference in order to increase its transfer rate?
Q10
What operating systems does BEC 2071/2072 support?
Q11
Can I use BEC 2071/2072 in a 3-phase environment?
Q12
Does BEC 2071/2072 function normally in the same electric meter but different voltage and
phase condition? Or in cross-meter condition? Or in the same electric meter but different
power loop?
Q13
Does BEC 2071/2072 have the wireless network problem such as data unreachable corner
and radio wave interference?
Q14
Can I plug in BEC 2071/2072 directly to the extension cord socket?
Q15
Does this equipment have plug-and-play feature without requiring Utility configuration or
installation of device drivers?
Q16
Setting NFB (No Fuse Breaker), surge protectors, voltage regulator or UPS will affect the
operation of this equipment?
Q17
Does this equipment have any safety mechanism such as fire prevention?
Q18
Does BEC 2071/2072 have environmental protection and energy-saving design?
Q19
Is the operation of household electrical appliances affected by using BEC 2071/2072?
Q20
Does this equipment have the risk of radio waves and electromagnetic interference?
Q21
Does household appliances interfere the device data transfer quality and reduce the
performance efficiency?
Q22
What applications does BEC 2071/2072 support?
Q23
What are the benefits of using BEC 2071/2072 at home?
Q24
How to upgrade the BEC 2071/2072 firmware? Does the Utility in attached CD-ROM have
the firmware upgrade feature?
Q25
What is the function of DAK?
2
BEC Technologies, Inc.
1500 Precision Dr. Suite 100, Plano, TX 75074
BEC Technologies is a subsidiary of Billion Electric Co. LTD.
E-mail: sales@bectechnologies.net
Phone: 972-422-0877
www.bectechnologies.net
Q26
Can BEC 2071/2072 be used in different voltage fields such as Japan 100V or Germany
230V?
Q27
Does BEC 2071/2072 support Unix / Linux operating system?
Q28
How to use Sync Button?
3
BEC Technologies, Inc.
1500 Precision Dr. Suite 100, Plano, TX 75074
BEC Technologies is a subsidiary of Billion Electric Co. LTD.
E-mail: sales@bectechnologies.net
Phone: 972-422-0877
www.bectechnologies.net
Q.1. Why is my BEC 2071/2072 transfer rate below 200Mbps?
A: 200Mbps is just a theory. In reality, your BEC 2071/2072 transfer rate is highly related to the
quality of the power line network environment, the device quality, its transfer range, and the overall
effect of other devices being used.
Q.2. Why can’t two of my BEC 2071/2072 devices synchronized through the
powerline system?
A: Please make sure that your devices are in the same power loop. In addition, if any sort of
extension cord, uninterruptible power system (UPS) or surge protector are present, these
appliances may possess filter protective or surge protective features that will interfere the
synchronization of your BEC 2071/2072 devices. Thus, plug in your BEC 2071/2072 devices
directly to the wall socket to avoid the interference.
Q.3. What is the maximum number of BEC 2071/2072 devices that can a single
power line environment support? What is the maximum number of Private Network
groups can be supported?
A: A single powerline environment can support up to 16 BEC 2071/2072 devices and up to 4
Private Network groups.
Q.4. Does BEC 2071/2072 encrypt the data before transmitting it?
A: BEC Homeplug device supports a higher end of AES 128-bit encryption protocol when
compare with other competitive products in the market that only support DES/3DES, this has
made the transfer rate of our product more efficient.
Q.5. Does it support QoS feature? Does it support Multicast and MOD file transfer
features?
A: BEC 2071/2072 QoS feature is set to have the highest access level for both Multicast and
MOD. Even if there are too many users accessing the internet at the same time, the quality of the
image files will not be affected.
4
BEC Technologies, Inc.
1500 Precision Dr. Suite 100, Plano, TX 75074
BEC Technologies is a subsidiary of Billion Electric Co. LTD.
E-mail: sales@bectechnologies.net
Phone: 972-422-0877
www.bectechnologies.net
Q.6. Does it support FTTH or 3.5G mobile internet feature?
A: Yes. But both FTTH and 3.5G mobile internet devices must support the standard Ethernet
interface.
Q.7. What is the effective data transfer range of BEC 2071/2072?
A: 300 meters. However, the actual data transfer range will be affected by the following factors:
the number of PLC devices on the powerline network, the quality of your powerline system and
HomePlug device and the effect caused by other appliances.
Q.8. Can I use HomePlug 1.0 with HomePlug Turbo together? Or can I use DS2 with
PLC products?
A: BEC 2071/2072 is not compatible with HomePlug 1.0 and HomePlug Turbo devices. But they
can be present in the same network without interfering each other. However, if PLC and BEC
2071/2072 are in the same network, it will cause interference and reduce the data transfer rate.
Q.9. How does BEC 2072 reduce electrical interference in order to increase its
transfer rate?
A: The BEC 2072 features a built-in electrical power outlet with noise filter - AC Pass Through. It
allows user to plug in those appliances that will affect the quality of power line communication
network such as IT networking devices while ensuring the data signal is transmitted smoothly.
With noise filtering, the BEC 2072 enhances power-line communications coverage within the
home when the AC Pass Through outlet is used by the appliance. In this way, those appliances
will not be able to interfere with the data transfer quality.
Note: Electric appliances such as microwave, hair dryer or oven that consume more than
6A of electric current must not use the built-in power outlet of BEC 2072.
Q.10. What operating systems does BEC 2071/2072 support?
A: BEC 2071/2072 has its an embedded operating system, therefore user does not have to worry
about what type of operating system to use. The computer must however have the Ethernet port.
Currently, BEC provides the Utility that supports Windows 98/ME/2000/XP/Vista 32&64 and MAC.
5
BEC Technologies, Inc.
1500 Precision Dr. Suite 100, Plano, TX 75074
BEC Technologies is a subsidiary of Billion Electric Co. LTD.
E-mail: sales@bectechnologies.net
Phone: 972-422-0877
www.bectechnologies.net
Q.11. Can I use BEC 2071/2072 in a 3-phase environment?
A: Yes. Please make sure that both of your Power line devices are located in the same power
loop and power panel.
Q.12. Does BEC 2071/2072 function normally in the same electric meter but
different voltage and phase condition? Or in cross-meter condition? Or in the
same electric meter but different power loop?
A: (a) In the same meter but different voltage and phase, devices located in the same power loop can
work normally.
(b) Since the meter will cause great signal reduction, the signal transfer over the power line is almost
not able to cross the meter.
(c) Even in the same meter but different power loop, devices cannot work normally.
Q.13. Does BEC 2071/2072 have the wireless network problem such as data
unreachable corner and radio wave interference?
A: Powerline products use existing power lines and electrical outlets to set up communication
networks. This makes the operation easy and ensures transmission efficiency. There is no data
unreachable corner and radio wave interference problem.
Q.14. Can I plug in BEC 2071/2072 directly to the extension cord socket?
A: Yes. But if the extension cord possesses filter protective or surge protective features, plug in
your BEC 2071/2072 devices to the extension cord socket will reduce signal transfer rate or even
not work. It is suggested you plug in your BEC 2071/2072 devices directly to the wall socket
without the addition of other devices.
Q.15. Does this equipment have plug-and-play feature without requiring Utility
configuration or installation of device drivers?
A: BEC 2071/2072 devices have plug-and-play feature without requiring Utility configuration or
installation of device drivers, enabling users to easily and securely access network via power lines
by pressing Sync button to synchronize two BEC 2071/2072 devices.
6
BEC Technologies, Inc.
1500 Precision Dr. Suite 100, Plano, TX 75074
BEC Technologies is a subsidiary of Billion Electric Co. LTD.
E-mail: sales@bectechnologies.net
Phone: 972-422-0877
www.bectechnologies.net
Q.16. Setting NFB (No Fuse Breaker), surge protectors, voltage regulator or UPS
will affect the operation of this equipment?
A: If BEC 2071/2072 devices are configured in NFBs of different power panel in the house, it
requires bridging two NFBs by coupling circuit to work via power lines. However, if BEC 2071/2072
devices are configured in the same power panel, it will work normally. If BEC 2071/2072 devices
are plugged into surge protectors, voltage regulator or UPS, that possess filter protective or surge
protective features, it will reduce signal transfer rate or even not work. It is suggested you plug in
your BEC 2071/2072 devices directly to the wall socket without the addition of other devices.
Q.17. Does this equipment have any safety mechanism such as fire prevention?
A: The shell of BEC 2071/2072 is made from fire prevention material, so it can be used safely.
Q.18. Does BEC 2071/2072 have environmental protection and energy-saving
design?
A: BEC 2071/2072 device processes the Power Saving feature developed by BEC. This
equipment will detect its Ethernet connection automatically, if no Ethernet device is being used,
the BEC 2071/2072 will automatically go into sleep mode and close most applications after 90
seconds to reduce power consumption. The BEC 2071/2072 will automatically go back to work
when detecting data transmission, which cuts power consumption from 62% to 87% varying from
country to country.
Q.19. Is the operation of household electrical appliances affected by using BEC
2071/2072?
A: No. BEC 2071/2072 is low electric consuming product, using the power line communication
network, and will not affect the current use of other household appliances.
Q.20. Does this equipment have the risk of radio waves and electromagnetic
interference?
A: BEC 2071/2072 is adopted by the International FCC / CE Certificate Authority. All
electromagnetic waves comply with the limits of international rules, so the device can be used
safely.
7
BEC Technologies, Inc.
1500 Precision Dr. Suite 100, Plano, TX 75074
BEC Technologies is a subsidiary of Billion Electric Co. LTD.
E-mail: sales@bectechnologies.net
Phone: 972-422-0877
www.bectechnologies.net
Q.21. Does household appliances interfere the device data transfer quality and
reduce the performance efficiency?
A: Data transfer quality may be affected by using household appliances in the power line network,
but not be able to interfere and reduce signal performance too much. In the power line network
environment, heavy electrical load may cause great interference and signal reduction. In addition,
high electric consuming products, such as microwave, hair dryer or oven, are suggested not to use
at the same time to avoid interference and signal reduction.
Q.22. What applications does BEC 2071/2072 support?
A: (a) Compliant with the latest HomePlug AV standards which support data rate of
200Mbps, the BEC 2071/2072 delivers the fast connectivity needed for High
Definition (HD) and Standard Definition (SD) home networks.
(b) The BEC 2071/2072 allows people elsewhere in the house to share bandwidth
and Internet access with wireless network.
(c) Supports streaming and trensmittion of video and voice files.
(d) Supports the application of VoIP (voice over IP) phone.
(e) Supports the application of Triple Play and IPTV.
(f) Provides higher physical layer data rate then traditional Ethernet 100Mbps to
share files more easily and efficiently.
(g) Supports the equipment connecting to Ethernet interface such as scanner,
printer and fax, sharing is easier.
(h) Enables the setting of home monitor more convenient.
(i) Supports the connection of home game console.
Q.23. What are the benefits of using BEC 2071/2072 at home?
A: Cabling traditional Ethernet is inconvenient and may destroy the decoration, setting wireless
network could be obstructed by the walls and exists the unreachable corners, and the effects on
human health caused by electromagnetic wave is uncertain. Power line communication can
overcome the above disadvantages. The power lines exist in all rooms of any house, enabling
secure, easy and efficient data transmission via existing in-home power lines, supporting
bandwidth-consuming applications such as Triple Play, IPTV, VoIP, Home Security, etc.
8
BEC Technologies, Inc.
1500 Precision Dr. Suite 100, Plano, TX 75074
BEC Technologies is a subsidiary of Billion Electric Co. LTD.
E-mail: sales@bectechnologies.net
Phone: 972-422-0877
www.bectechnologies.net
Q.24. How to upgrade the BEC 2071/2072 firmware? Does the Utility in attached
CD-ROM have the firmware upgrade feature?
A: Firmware updates will be released on the website from time to time, please refer to
http://www.billion.com/support/download/fd/fd.html for details. Download and run the firmware files.
The firmware upgrade program will detect current version of this device automatically and show on
the screen. Click “Firmware Upgrade” button to update firmware. The Power Packet attached in
the CD does not have the firmware upgrade function.
Q.25. What is the function of DAK?
A: A set of DAK (Device Access Key) on the label at the back of every BEC 2071/2072 device
allows remote users to control BEC 2071/2072 by inputting DAKs in Power Packet of all the
devices in power line communication network, such as change all Private Network Name of BEC
2071/2072 at one time.
9
BEC Technologies, Inc.
1500 Precision Dr. Suite 100, Plano, TX 75074
BEC Technologies is a subsidiary of Billion Electric Co. LTD.
E-mail: sales@bectechnologies.net
Phone: 972-422-0877
www.bectechnologies.net
Q.26. Can BEC 2071/2072 be used in different voltage fields such as Japan 100V or
Germany 230V?
A: The input voltage of BEC 2071/2072 is 100~240V AC, 50~60Hz and can be used in these
countries.
Q.27. Does BEC 2071/2072 support Unix / Linux operating system?
A: Yes. As long as the Ethernet card of Unix / Linux platform use standard TCP / IP, BEC
2071/2072 can still use the Power Line Communication for data transmission. Power Packet does
not have the corresponding version to support Unix / Linux operating system, but when Power
Packet installed on any computer with Microsoft 98/ME/2000/XP/Vista or MAC OS in power line
communication network, remote users can access the internet through DAK and change the
Private Network Name.
Q.28. How to use Sync Button?
A: Sync Button is the simplest way to set up Power Line Communication. Take P.104 for example,
plug two BEC 2071 devices into any power socket, press the Sync Button of one device for 2~3
seconds, and then press the Sync Button of the other for 2~3 seconds as well. The sync process
between two devices should be completed within two minutes. If the PLC LED indicators of both
devices flash, the two BEC 2071 devices are now synchronized successfully in the same private
network.
10
BEC Technologies, Inc.
1500 Precision Dr. Suite 100, Plano, TX 75074
BEC Technologies is a subsidiary of Billion Electric Co. LTD.
E-mail: sales@bectechnologies.net
Phone: 972-422-0877
www.bectechnologies.net
Note: Please connect to an Ethernet cable to the adapters when synchronized in order to prevent
the system from entering standby mode when operation is too long.
HomePlug AV 200Mbps - BEC 2071/BEC 2072
Frequently Asked Questions
Copyright © BEC Technologies, Inc.
Technical Support
:support@bectechnologies.net
www.bectechnologies.net
11
BEC Technologies, Inc.
1500 Precision Dr. Suite 100, Plano, TX 75074
BEC Technologies is a subsidiary of Billion Electric Co. LTD.
E-mail: sales@bectechnologies.net
Phone: 972-422-0877
www.bectechnologies.net
Download PDF
