GA0110E0

1/1

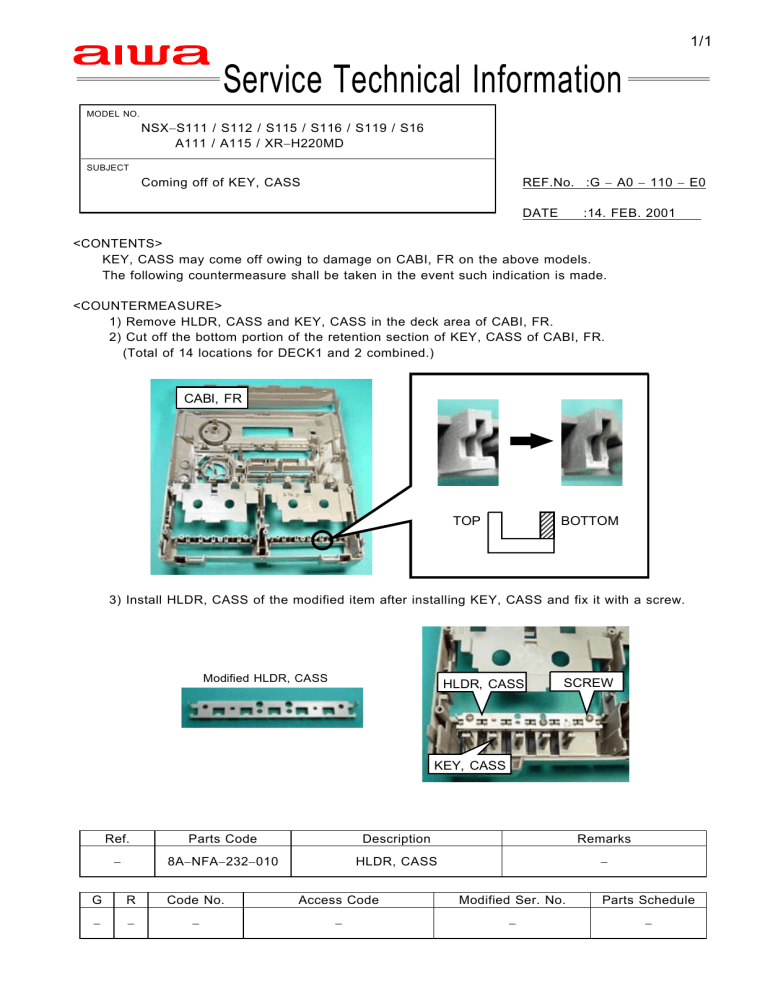

Service Technical Information
MODEL NO.
NSX −S111 / S112 / S115 / S116 / S119 / S16
A111 / A115 / XR − H220MD
SUBJECT
REF.No. :G − A0 − 110 − E0
Coming off of KEY, CASS
DATE
:14. FEB. 2001
<CONTENTS>
KEY, CASS may come off owing to damage on CABI, FR on the above models.
The following countermeasure shall be taken in the event such indication is made.
<COUNTERMEASURE>
1) Remove HLDR, CASS and KEY, CASS in the deck area of CABI, FR.
2) Cut off the bottom portion of the retention section of KEY, CASS of CABI, FR.
(Total of 14 locations for DECK1 and 2 combined.)
CABI, FR
bbb
bbb
bbb
bbb
bbb
bbb
TOP
BOTTOM
3) Install HLDR, CASS of the modified item after installing KEY, CASS and fix it with a screw.
Modified HLDR, CASS
HLDR, CASS
SCREW
KEY, CASS
Ref.
Parts Code
Description
Remarks
−
8A−NFA −232−010
HLDR, CASS
−
G
R
Code No.
Access Code
Modified Ser. No.
Parts Schedule
−
−
−
−
−
−
