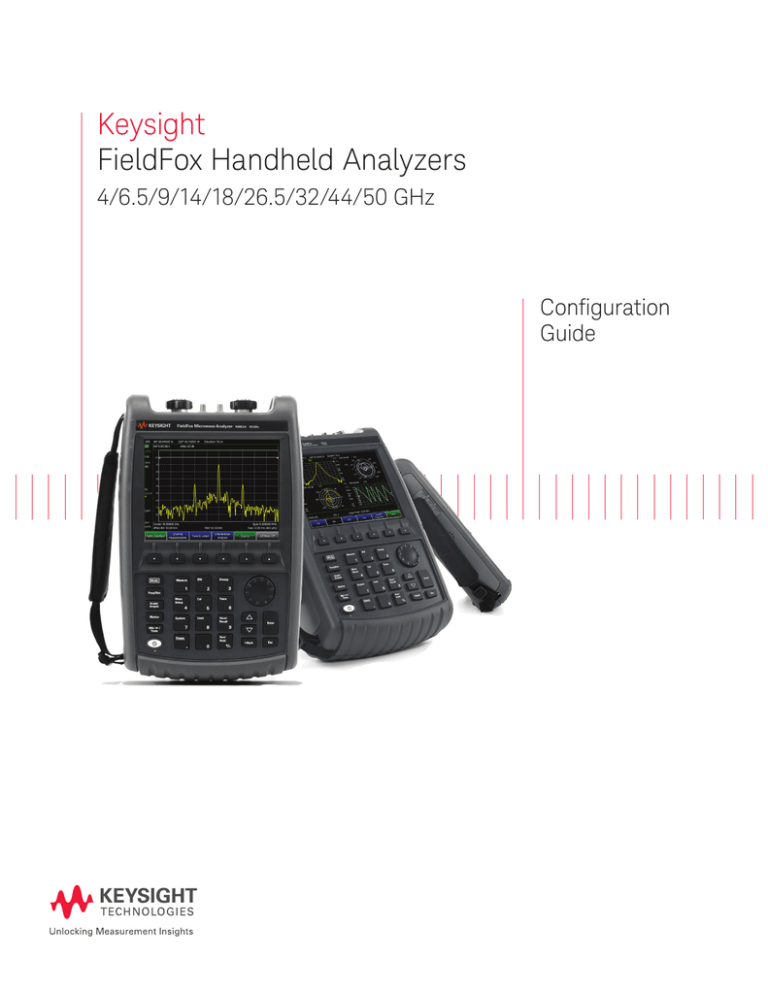

FieldFox Handheld Analyzers

FieldFox Handheld Analyzers

Keysight

FieldFox Handheld Analyzers

4/6.5/9/14/18/26.5/32/44/50 GHz

Configuration

Guide

02 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

The FieldFox Analyzer Family

This configuration guide describes configurations, options and accessories for the FieldFox family of portable analyzers. This guide should be used in conjunction with the technical overview and data sheet for a complete description of the analyzers. The table below shows a comparison of the functions available in the FieldFox family of analyzers.

The following accessories are included with every FieldFox: AC/DC adapter, battery, soft carrying case, LAN cable and Quick Reference

Guide.

Note: Combination analyzer (combo) = Cable and antenna tester (CAT) + Vector network analyzer (VNA) + Spectrum analyzer (SA)

FieldFox family and options

Option Description

RF and microwave

(combination) analyzer

N991xA

N995xA

Microwave vector network analyzer (VNA)

N992xA

Microwave spectrum analyzer (SA)

N993xA

N996xA

CAT/vector network analysis

010

112

VNA time domain

QuickCal

210

211

212

VNA transmission/reflection

VNA full 2-port S-parameters

1-port mixed-mode S-parameters

215

305

308

TDR cable measurements

Cable and antenna analyzer

Vector voltmeter

320 Reflection meas. (RL, VSWR and scalar meas.)

Spectrum analysis

209

220

233

Extended range transmission analysis (ERTA)

Tracking generator

Spectrum analyzer

235

236

Pre-amplifier

Interference analyzer and spectrogram

238 Spectrum analyzer time gating

Power measurements

208

302

310

USB power sensor meas. versus frequency

USB power sensor support

Built-in power meter

330 Pulse meas. with USB peak power sensor

System features

030

307

309

Remote control capability

GPS receiver

DC bias variable-voltage source

√ on N991xA

- on N995xA

Base model

Note 2

Note 3

Base model

Note 2

Note 1

Base model

Notes:

Base model means that the functionality listed is the primary function of that instrument. For example, on the N991xA or N995xA combo analyzers, cable and antenna analysis is the standard function included with every N991xA or N995xA.

1. Option 305 is not available on the N993xA or N996xA. However, a subset of cable and antenna analyzer measurements, return loss and VSWR, is available as Option 320.

2. Option 320 is not applicable to N991xA, N995xA, or N992xA. The reflection measurements of return loss and VSWR are included with every N991xA,

N995xA, and N992xA. So there is no need for an Option 320 on these analyzers.

3. On the N991xA or N995xA analyzers, order Options 233 and 210 to obtain a tracking generator with the spectrum analyzer. There is no Option 220 on the

N991xA or N995xA analyzers. To obtain tracking generator capability, you need Options 233 and 210. Option 233 provides the spectrum analyzer capability and Option 210 the “tracking” capability.

03 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

FieldFox Microwave (Combination) Analyzers

FieldFox microwave (combination) analyzer models

Step 1. Select the model that provides the desired frequency range.

Model

N9913A

N9914A

N9915A

N9916A

N9917A

N9918A

N9950A

N9951A

N9952A

Description

4 GHz FieldFox RF analyzer

6.5 GHz FieldFox RF analyzer

9 GHz FieldFox microwave analyzer

14 GHz FieldFox microwave analyzer

18 GHz FieldFox microwave analyzer

26.5 GHz FieldFox microwave analyzer

32 GHz FieldFox microwave analyzer

44 GHz FieldFox microwave analyzer

50 GHz FieldFox microwave analyzer

CAT and VNA frequency

30 kHz to 4 GHz

30 kHz to 6.5 GHz

30 kHz to 9 GHz

30 kHz to 14 GHz

30 kHz to 18 GHz

30 kHz to 26.5 GHz

300 kHz to 32 GHz

300 kHz to 44 GHz

300 kHz to 50 GHz

SA frequency

1

100 kHz to 4 GHz

100 kHz to 6.5 GHz

100 kHz to 9 GHz

100 kHz to 14 GHz

100 kHz to 18 GHz

100 kHz to 26.5 GHz

9 kHz to 32 GHz

9 kHz to 44 GHz

9 kHz to 50 GHz

Step 2.

Select optional measurement capabilities.

Any of these options can easily be added as a software upgrade in the future.

Exception: Option 112 is only applicable to N991xA models. It is not applicable to N995xA models.

Test port connectors

Type-N (f)

Type-N (f)

Type-N (f)

Type-N (f)

Type-N (f)

3.5 mm (m)

NMD 2.4 mm (m)

NMD 2.4 mm (m)

NMD 2.4 mm (m)

FieldFox microwave (combination) analyzer options

Option Description

CAT/vector network analysis

010 VNA time domain

112

210

211

212

215

QuickCal

VNA transmission/reflection

VNA full 2-port S-parameters

1-port mixed-mode S-parameters

TDR cable measurements

308 Vector voltmeter

Spectrum analysis

209

233

235

Extended range transmission analysis (ERTA)

Spectrum analyzer

Pre-amplifier

236

238

Interference analyzer and spectrogram

Spectrum analyzer time gating

Power measurements

208

302

USB power sensor meas. versus frequency

USB power sensor support

310

330

Built-in power meter

Pulse meas. with USB peak power sensor

System features

030

307

309

Remote control capability

GPS receiver

DC bias variable-voltage source

Prerequisite options/notes

Requires 210, recommend 211

Not available for N995xA models. See page 4, FAQ #9

Recommend ordering a cal kit

Requires 210, recommend ordering a cal kit

Requires 210 and 211

-

210 and 211 required to obtain full VVM functionality. See page 4, FAQ #8

Requires 233 and 210. Recommend 307. Requires two FieldFoxes. See page 5, FAQ # 10.

-

Requires 233

Requires 233

Requires 233

Requires 302

Need to order USB power sensor

2

No power sensor required. See page 7, FAQ #1

Need to order USB peak power sensor. See page 8, FAQs #7 and #8

Requires an iOS device

Need to order GPS antenna, N9910X-825. See page 8, FAQ #3

-

1. Usable to 5 kHz

2. List of compatible sensors available from www.keysight.com/find/fieldfoxsupport

04 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

FieldFox Combo Analyzer FAQs

Question

1. What is included with a base

N991xA/N995xA analyzer?

2. What is included with N991xA/

N995xA Option 233?

3. What is included with N991xA/

N995xA Option 236?

4. What is included with N991xA/

N995xA Option 210?

5. What is included with N991xA/

N995xA Option 211?

6. Can I measure group delay on

N991xA/N995xA analyzers?

7. What is included with N991xA/

N995xA Option 010?

8. What is included with N991xA/

N995xA Option 308?

9. What is included with N991xA

Option 112?

Answer

– The base model includes the cable and antenna analyzer

– Measurements: DTF (dB, linear, VSWR), return loss and DTF, return loss (dB), and 1-port cable loss

– Calibrations: CalReady, OSL, and response cal

Note: 2-port insertion loss is NOT included with the base model, if 2-port insertion loss is needed, order Option 210

Note: There is no phase information with the base analyzer, to obtain S11 or S21 phase, order Option 210

– Basic spectrum analysis, four traces, different detector types, radio standard selection, limit lines

– Channel power, occupied bandwidth, adjacent channel power

– AM/FM tune and listen, field strength measurements, antenna factors, frequency counter marker

– Tracking generator (TG)/Independent source:

– TG CW mode (source CW frequency can be set independent of SA frequency) - included

– TG CW coupled mode (source CW frequency is autocoupled to SA’s center frequency) - included

– TG tracking mode (traditional TG operation, swept SA coupled to swept source) - (requires Option 210)

– Interference analyzer and spectrogram

– Trace playback and recording

– Option 210 adds a VNA with transmission/reflection (T/R) capability

– Measurements: S21, S11, magnitude and phase

– Additionally, in the CAT mode, you can measure 2-port insertion loss

– Calibrations: CalReady, OSL, response, and enhanced response cal

– If you need all four S-parameters, order Options 210 and 211

– If you need 2-port cal, order Options 210 and 211

– Adds tracking mode to the tracking generator/independent source included with Option 233, spectrum analyzer

– Option 211 adds full 2-port S-parameter capability to the VNA mode

– Measurements: All four S-parameters (S11, S21, S22, S12), magnitude and phase

– Calibrations: CalReady, OSL, response, enhanced response, and full 2-port cal

If you have phase measurement capability, then you can measure group delay. Option 210 is required for any phase measurement capability. So if you do not have Option 210, you cannot measure group delay.

– S11/S21 in time domain, if Option 210 is ordered. To get time domain data for all four S-parameters and full

2-port cal, order Option 211.

– View both time and frequency domain data at the same time

– Low-pass, impulse, and band-pass modes

– Minimum, medium, and maximum window

– Gating

– With Option 308: 1-port cable trimming

– With Options 308 and 210: 1-port cable trimming, 2-port transmission

– With Options 308, 210, and 211: 1-port cable trimming, 2-port transmission, A/B and B/A

Note: A/B and B/A measurements require an external source

– Option 112 (QuickCal), is not available for N995xA analyzers. It is available for N991xA analyzers.

– QuickCal is included with Option 112.

– 1-port QuickCal with a base analyzer.

– 1-port and enhanced response QuickCal with a T/R analyzer (one that has Option 210).

– 1-port, enhanced response, and 2-port QuickCal with a full 2-port analyzer (one that has Option 211).

– QuickCal is most accurate for DUTs with 7/16 and Type-N connectors and measurement uncertainties are provided for frequencies ≤ 18 GHz. Reduced accuracy for DUTs with 3.5 mm (m), SMA (m), or other male coaxial connectors; performance is unspecified. QuickCal is not recommended for DUTs with 3.5 mm (f), SMA (f), or other similar female connectors. QuickCal is not applicable to waveguide.

05 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

FieldFox Combo Analyzer FAQs (continued)

Question

10. What are the requirements for

Option 209?

Answer

Extended Range Transmission Analysis (ERTA) or Option 209 is a scalar measurement system based on the use of two FieldFoxes. One FieldFox acts as the source and reference receiver, while the second FieldFox acts as the

measurement receiver.

Required hardware

A. Two FieldFoxes. FieldFoxes can be any of these models:

– FieldFox microwave combination analyzers: N9913A, N9914A, N9915A, N9916A, N9917A, N9918A, N9950A,

N9951A, N9952A

– FieldFox microwave spectrum analyzers: N9935A, N9936A, N9937A, N9938A, N9960A, N9961A, N9962A

– ERTA cannot use N9912A, N9923A, N9925A, N9926A, N9927A or N9928A

The two FieldFoxes used in ERTA do not have to be the same model.

ERTA requires the following options on Combo FieldFoxes.

(N9913A, N9913A, N9914A, N9915A, N9916A, N9917A, N9918A, N9950A, N9951A, N9952A)

– Option 210, VNA transmission/reflection

– Option 233, spectrum analyzer

ERTA requires the following options on SA FieldFoxes.

(N9935A, N9936A, N9937A, N9938A, N9960A, N9961A, N9962A)

– Option 220, tracking generator

Both FieldFoxes (the one used as the source, and the other used as the receiver) must have the options listed above. The ERTA option (209) cannot be installed unless 210 and 233 are present on a combo analyzer, or 220 is present on an SA analyzer.

With either the Combo or SA FieldFoxes, the following options are highly recommended:

– Option 235, preamplifier – this option increases the measurement dynamic range by increasing the received signal power.

– Option 307, GPS receiver – this option increases the dynamic range by increasing the frequency accuracy and permitting the use of a narrower RBW.

B. Power splitter, two-resistor model, Keysight 11667A, 11667B, or 11667C. Other power splitters can be used but the specifications listed are based on the match and tracking performance of 11667A, 11667B, or 11667C. Three-resister power splitters are not recommended.

C. N9910X-712, Trigger/Reference-in cable, SMA (m) to BNC(f), 1 m, quantity two

D. N9910X-713, Trigger/Reference-out cable, SMB (m) to BNC (m), 1 m, quantity two

E. LAN connection – For ERTA, the two FieldFoxes communicate via a LAN connection. For a direct connection, a cross-over LAN cable is required. Alternately, both analyzers can be on a local area network.

Recommended accessory

F. N9910X-825, GPS Antenna

06 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

FieldFox Combo Analyzer FAQs (continued)

ERTA System Typical Configuration

Item

FieldFox

Power splitter

Type-N(m) to Type-N(m) adapter

Trigger cables

1

RF test cable

RF test cable or adapter

RF jumper cable or adapter

RF jumper cable or adapter

Description/Options

Combo analyzer: required Option 210, 233. Recommended: 235, 307

SA analyzer: required: Option 220, recommended: 235, 307

11667A (Type-N) or 11667B (3.5 mm) or 11667C (2.4 mm)

N9910X-850 (for use with 11667A or Type-N systems)

N9910X-712, SMA(m) to BNC(f)

N9910X-713, SMB(m) to BNC(m)

Connecting FieldFox source port 1 to power splitter input

Connecting power splitter output arm to FieldFox port 2

Power splitter output arm to DUT input

DUT output to FieldFox receiver port 2

LAN cable

N9910X-825

LAN cable to connect FieldFoxes directly, or the analyzers must be on the LAN

GPS antenna, recommended. Necessary if Option 307 is ordered.

1. The trigger cables and LAN cables must be at least as long as the separation distance between the two ends of the DUT.

Quantity

2

1

2

1

1

1

1

1

1

2 of each

Total of 4 cables

ERTA system diagram

07 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

FAQs – Applicable To All FieldFox Microwave Analyzers

Question

1. What is the difference between USB power sensor (Option 302) and built-in power meter (Option 310)?

Description

External hardware

Option 302

USB power sensor

Option 302 allows users to connect a USB power sensor to FieldFox’s USB port and make broadband power measurements.

USB power sensor required

Option 310

Built-in power meter (or channel power meter)

Option 310 is a channelized power measurement capability built into FieldFox analyzers. Maximum bandwidth is 100 MHz.

None. Uses internal receiver.

Power measurement Broadband diode detector, measures all frequencies

Frequency range

Settings

Power range

Warm-up time

Accuracy

Programmable

Physical connection

FieldFox source control

Depends on USB sensor

Set CW frequency

Depends on USB sensor

30 minutes to meet accuracy specifications

Depends on USB sensor

Yes, via SCPI

The power sensor can easily be moved to the measurement point, with a USB cable connecting the detector to

FieldFox.

Yes, on/off, and nominal power level control

Tuned receiver, so measures frequencies within defined channel bandwidth

Frequency range of the analyzer

Set CW frequency, Set channel width/span

Depends on channel width and attenuator setting.

No warm-up time required

InstAlign accuracy: ± 0.5 dB typical for a CW signal. Since the measurement is within a certain frequency channel or bandwidth, to make an accurate measurement, the user needs to know the exact center frequency and the signal’s bandwidth and set those accurately.

Yes, via SCPI

The measurement point needs to be connected to Field-

Fox’s RF input port. If a RF jumper cable is used, the user needs to account for the loss of the cable with an offset value (can be entered into the analyzer).

No access to FieldFox's source from the built-in power meter mode

08 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

FAQs – Applicable To All FieldFox Microwave Analyzers (continued)

Question

3. What do I need to get GPS information?

4. What is the connector for Option

309, DC output?

5. What are the connectors for the

Reference/Trigger In and Reference/Trigger Out?

Answer

(1) The recommended GPS solution is to order:

– Option 307 - built-in GPS receiver

– A GPS antenna such as N9910X-825

– Other GPS antennas can also be used

– The GPS connector on the instrument is SMA (f)

(2) Alternatively, you can purchase a USB-based GPS receiver. You do not need to purchase any FieldFox options for the USB-based GPS to work. However, the USB-based GPS only provides time and location data, and time synchronization capability. It cannot be used to increase the frequency accuracy of the instrument.

The DC output has a SMB (m) connector. Recommend ordering N9910X Option 713 bias-tee power cable SMB (f) to BNC (m).

The connector for the Ref/Trig In is SMA (f). Recommend ordering N9910X Option 712 Trig/Ref in SMA (m) to BNC

(f) cable.

The connector for the Ref/Trig Out is SMB (m). Recommend ordering N9910X Option 713 bias-tee power cable

SMB (f) to BNC (m).

6. What is Option 030 Remote control capability?

7. What USB sensor is required for

Option 330?

8. What measurement capabilities are included with Option 330?

(1) Option 030 provides a license for FieldFox to allow remote control via an iOS device.

(2) Not supplied by user, but necessary for operation of Option 030 are:

– iOS device: iPad, iPhone, or iPod Touch with iOS 6.1 or higher with free FieldFox app

– A WiFi or 3G/4G network connection between FieldFox and iOS device

Option 330 or pulse measurements requires a Keysight USB peak power sensor. Visit www.keysight.com/find/usbsensorsforfieldfox for a list of supported peak power sensors. Average power sensors cannot be used with Option 330, only peak power sensors. The peak power sensor needs to be purchased separately.

Average power, peak power, and peak to average ratio

Analog gauge display and digital display, dBm and watts

Relative/absolute measurements, dB or %, minimum and maximum limits

Trace graph for pulse profiling with gating

Rise time, fall time, pulse width, pulse period, pulse repetition frequency

9. What is included with Option 208? Option 302, USB power sensor measurements, includes CW power measurements (one frequency at a time). With

Option 208 added, you can make swept-frequency power measurements. You can plot source power, gain, and receive power versus frequency. Additionally, the source frequency can be offset from the receiver frequency. The power sensor needs to be purchased separately.

09 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

FieldFox Microwave Vector Network Analyzers

FieldFox microwave vector network analyzer models

Step 1. Select the model that provides the desired frequency range.

Model

N9925A

N9926A

N9927A

N9928A

Description

9 GHz FieldFox microwave VNA

14 GHz FieldFox microwave VNA

18 GHz FieldFox microwave VNA

26.5 GHz FieldFox microwave VNA

Frequency

30 kHz to 9 GHz

30 kHz to 14 GHz

30 kHz to 18 GHz

30 kHz to 26.5 GHz

Test port connectors

Type-N (f)

Type-N (f)

Type-N (f)

3.5 mm (m)

A standard N992xA FieldFox microwave VNA includes transmission/reflection measurement capability. Additional functionality such as full 2-port S-parameters can be added using the options listed below.

Step 2. Select optional measurement capabilities.

Any of these options can easily be added as a software upgrade in the future.

FieldFox microwave vector network analyzer options

211

212

215

305

308

Option Description

Vector network analysis / CAT

010

112

VNA time domain

QuickCal

VNA full 2-port S-parameters

1-port mixed-mode S-parameters

TDR cable measurements

Cable and antenna analyzer

Vector voltmeter

Power measurements

208 USB power sensor meas. versus frequency

302 USB power sensor support

310

330

Built-in power meter

Pulse meas. with USB peak power sensor

System features

030

307

309

Remote control capability

GPS receiver

DC bias variable-voltage source

Prerequisite options/notes

Recommend 211

See page 10, FAQ #7

Requires 211

Requires 305

211 required to obtain full VVM functionality. See page 10, FAQ #5

Requires 302

Need to order USB power sensor

1

No power sensor required. See page 7, FAQ #1

Need to order USB peak power sensor. See page 8, FAQs #7 and #8

Requires an iOS device

Need to order GPS antenna, N9910X-825. See page 8, FAQ #3

-

1. List of compatible sensors available from www.keysight.com/find/fieldfoxsupport

10 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

FieldFox Microwave Vector Network Analyzer FAQs

Question

1. What is included with a base

N992xA analyzer?

2. What is included with N992xA

Option 211?

3. What is included with N992xA

Option 010?

4. What is included with N992xA

Option 305?

5. What is included with N992xA

Option 308?

6. If I have the full 2-port VNA with time domain, why would I order

Option 305? What additional functionality is available?

7. What is included with N992xA

Option 112?

Answer

– Measurements: Transmission/reflection or S21 and S11, magnitude and phase

– Calibrations: CalReady, OSL, response, and enhanced response cal

– Option 211 adds full 2-port S-parameter capability

– Measurements: All four S-parameters (S11, S21, S22, S12), magnitude and phase

– Calibrations: CalReady, OSL, response, enhanced response, and full 2-port cal

– S11/S21 in time domain. To get time domain data for all four S-parameters and full 2-port cal, order Option 211

– View both time and frequency domain data at the same time

– Low-pass, impulse, and band-pass modes

– Minimum, normal, and maximum window

– Gating

– Measurements: DTF (dB, linear, VSWR), return loss and DTF, return loss (dB), and 1-port cable loss, 2-port insertion loss, TDR (linear, ohm)

– Calibrations: CalReady, OSL, and response cal

– N992xA with Option 308: 1-port cable trimming, 2-port transmission

– N992xA with Options 308 and 211: 1-port cable trimming, 2-port transmission, A/B and B/A

– Note: A/B and B/A measurements require an external source

CAT mode’s basic measurements are similar to VNA measurements. The features listed below are often used for distance-to-fault cable testing and are only available in CAT mode:

– 3-peak marker tracking for finding faults for DTF measurements

– 1-port cable loss

– Cable type selection and editing, includes the cable’s velocity factor and loss

– QuickCal is included with Option 112.

– 1-port and enhanced response QuickCal with a base analyzer

– 1-port, enhanced response, and 2-port QuickCal with a full 2-port analyzer (one that has Option 211).

– QuickCal is most accurate for DUTs with 7/16 and Type-N connectors and measurement uncertainties are provided for frequencies 18 GHz. Reduced accuracy for DUTs with 3.5 mm (m), SMA (m), or other male coaxial connectors; performance is unspecified. QuickCal is not recommended for DUTs with 3.5 mm (f), SMA (f), or other similar female connectors. QuickCal is not applicable to waveguide.

Additional FAQs on pages 7 and 8. FAQs on pages 7 and 8 apply to all microwave FieldFox models.

11 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

FieldFox Microwave Spectrum Analyzers

FieldFox microwave spectrum analyzer models

Step 1. Select the model that provides the desired frequency range.

Model

N9935A

N9936A

N9937A

N9938A

N9960A

N9961A

N9962A

Description

9 GHz FieldFox microwave spectrum analyzer

14 GHz FieldFox microwave spectrum analyzer

18 GHz FieldFox microwave spectrum analyzer

26.5 GHz FieldFox microwave spectrum analyzer

32 GHz FieldFox microwave spectrum analyzer

44 GHz FieldFox microwave spectrum analyzer

50 GHz FieldFox microwave spectrum analyzer

Frequency range

1

100 kHz to 9 GHz

100 kHz to 14 GHz

100 kHz to 18 GHz

100 kHz to 26.5 GHz

9 kHz to 32 GHz

9 kHz to 44 GHz

9 kHz to 50 GHz

Test port connectors

Type-N (f)

Type-N (f)

Type-N (f)

Type-N (f)

2

NMD 2.4 mm (m)

NMD 2.4 mm (m)

NMD 2.4 mm (m)

Step 2. Select optional measurement capabilities.

Any of these options can easily be added as a software upgrade in the future.

FieldFox microwave spectrum analyzer options

Option Description

Spectrum analyzer

100 3.5 mm (m) connectors

Prerequisite options/notes

209

220

235

236

Extended range transmission analysis (ERTA)

Full-band tracking generator

Pre-amplifier

Interference analyzer and spectrogram

238

320

Spectrum analyzer time gating

Reflection measurements

Power measurements

208

302

USB power sensor meas. vs. frequency

USB power sensor support

310

330

Built-in power meter

Pulse meas. with USB peak power sensor

System features

030

307

309

Remote control capability

GPS receiver

DC bias variable-voltage source

Only available on N9938A. Option 100 is only available at time of purchase. It is not available as an upgrade.

Requires 220. Recommend 307. Requires two FieldFoxes. See page 5, FAQ # 10.

CW, CW coupled, and tracking

-

-

-

320 requires 220 on all models. On N9938A specifically, 320 also requires 100.

Requires 302

Need to order USB power sensor

3

No power sensor required. See page 7, FAQ #1

Need to order USB peak power sensor. See page 8, FAQs #7 and #8

Requires an iOS device

Need to order GPS antenna, N9910X-825. See page 8, FAQ #3

-

1. The spectrum analyzer can be tuned to 5 kHz.

2. Order Option 100 for 3.5 mm (m) test port connectors. With N9938A-100, the spectrum analyzer is built with 3.5 mm test port connectors instead of the standard Type-N (f). Option 100 is a prerequisite for Option 320 for N9938A.

3. List of compatible power sensors available from www.keysight.com/find/fieldfoxsupport

12 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

FieldFox Spectrum Analyzer FAQs

Question

1. What is included with the basic spectrum analyzer?

2. What is included with Option 236?

3. What is included with Option 320?

4. What is the difference between Option 320 and the CAT mode on the combo base model?

Additional FAQs on pages 7 and 8.

Answer

– Basic spectrum analysis, four traces, different detector types, radio standard selection, limit lines

– Channel power, occupied bandwidth, adjacent channel power

– AM/FM tune and listen, field strength measurements, antenna factors, frequency counter marker

– Interference analyzer and spectrogram

– Trace playback and recording

– Return loss and VSWR

– Normalization using data/memory

Option 320 on the N993xA/N996xA SA offers RL and VSWR. CAT mode on the N991xA/N995xA combo analyzers offers RL and VSWR, DTF, insertion loss, and also various calibration capabilities such as QuickCal and OSL.

FAQs on pages 7 and 8 apply to all microwave FieldFox models.

Warranty and Service

All FieldFox analyzers come standard with a 3 year warranty.

Documentation

A printed copy of the User’s Guide is included with all FieldFox orders. If you do not wish to receive the printed User’s Guide, order

N99xxA Option 0B0.

Option

N99xxA-0B0

N99xxA-ABA

Description

Do not include User’s Guide

Printed User’s Guide in English

Notes

Default option

The latest FieldFox User’s Guide (manual) is available online from: www.keysight.com/find/fieldfoxsupport

The Service Guide, SCPI Programming Guide, Quick Reference Guide, and Data Link software help file can also be found via the website above.

13 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

Upgrades

Information on upgrades is available from: www.keysight.com/find/fieldfoxsupport

FieldFox microwave (combination) upgrades

N9913AU, N9914AU, N9915AU, N9916AU, N9917AU, N9918AU,

N9950AU, N9951AU, N9952AU

238

302

307

308

309

310

330

212

215

233

235

236

Option

010

030

112

208

209

210

211

Description

VNA time domain analysis

Remote control capability

Enable QuickCal

USB power sensor measurements versus frequency

Extended range transmission analysis (ERTA)

VNA transmission and reflection

VNA full 2-port S-parameters

Mixed-mode S-parameters

TDR cable measurements

Spectrum analyzer

Preamplifier

Interference analyzer and spectrogram

Spectrum analyzer time gating

External USB power sensor support

GPS receiver

Vector voltmeter

DC bias variable-voltage source

Built-in power meter

Pulse measurements

Upgrade contents

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

Additional requirements

210

None

None (Does not apply to N995xAU)

302

233 and 210

1

None

210

210 and 211

None

None

233

233

233

None

None

None

None

None

None

1. 209 is a system based on two FieldFoxes. See page 6, FAQ # 10, for a detailed description of the system requirements.

FieldFox VNA upgrades

N9925AU, N9926AU, N9927AU, N9928AU

215

302

305

307

308

Option

010

030

112

208

211

212

309

310

330

Description

VNA time domain analysis

Remote control capability

Enable QuickCal

USB power sensor measurements versus frequency

VNA full 2-port S-parameters

Mixed-mode S-parameters

TDR cable measurements

External USB power sensor support

Cable and antenna analyzer

GPS receiver

Vector voltmeter

DC bias variable-voltage source

Built-in power meter

Pulse measurements

Upgrade contents

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

Additional requirements

None

None

None

302

None

211

305

None

None

None

None

None

None

None

14 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

Upgrades (continued)

Information on upgrades is available from: www.keysight.com/find/fieldfoxsupport

FieldFox SA upgrades

N9935AU, N9936AU, N9937AU, N9938AU,

N9960AU, N9961AU, N9962AU

302

307

309

310

320

209

220

235

236

238

Option

030

100

208

Description

Remote control capability

3.5 mm connectors

USB power sensor measurements versus frequency

Extended range transmission analysis (ERTA)

Full-band tracking generator

Preamplifier function

Interference analyzer and spectrogram

Spectrum analyzer time gating

External USB power sensor support

GPS receiver

DC bias variable-voltage

Built-in power meter

Reflection measurements

Upgrade contents

License key

Not applicable

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

2

Additional requirements

None

Not applicable

302

220 1

None

None

None

None

None

None

None

None

– Option 220 for all models

– Option 100 and 220 for N9938A

None 330 Pulse measurements License key

1. 209 is a system based on two FieldFoxes. See page 6, FAQ # 10, for a detailed description of the system requirements.

2. On N9938A, Option 320 is only available as a software upgrade if the spectrum analyzer is already equipped with Option 100, which is 3.5 mm connectors on the test port. Option 100 must have been ordered at the time of original purchase. It cannot be upgraded later.

You Can Upgrade!

Options can be added after your initial purchase.

UP

GRADE

Most FieldFox options are license-key upgradeable.

15 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

Calibration Kits

FieldFox analyzers support most standard HP/Agilent/Keysight mechanical calibration kits and all Keysight USB ECal modules.

Custom calibration kits can be created and uploaded to FieldFox using Data Link software.

Model Description

7-16

N9910X-802 3-in-1 OSL cal kit

N9910X-803 3-in-1 OSL cal kit

85038A Standard cal kit

Type-N, 50 Ω

N9910X-800 3-in-1 OSL cal kit

N9910X-801 3-in-1 OSL cal kit

85032E

85514A

Economy cal kit

4-in-1 OSLT cal kit

85515A

85032F

85518A

85519A

85054D

4-in-1 OSLT cal kit

Standard cal kit

4-in-1 OSLT cal kit

4-in-1 OSLT cal kit

Economy cal kit

Standard cal kit

ECal, 2-ports

ECal, 2-ports

85054B

85092C

N4690B/C

Type-N, 75 Ω

2

85036B

85036E

85096C

3.5 mm

85520A

85521A

85033D/E

85052D

85052B

85052C

Standard cal kit

Economy cal kit

ECal, 2-ports

4-in-1 OSLT

4-in-1 OSLT

Economy cal kit

Economy cal kit

Standard cal kit

Precision TRL kit

Connector

7/16 (m)

7/16 (f)

7/16

Type-N (m)

Type-N (f)

Type-N (m)

Type-N (m)

Type-N (f)

Type-N

Type-N (m)

Type-N (f)

Type-N

Type-N

Type-N

Type-N

Type-N 75 Ω

Type-N(m) 75 Ω

Type-N(m) 75 Ω

3.5 mm (m)

3.4 mm (f)

3.5 mm

3.5 mm

3.5 mm

3.5 mm

Frequency range

DC to 4 GHz

DC to 4 GHz

DC to 7.5 GHz

DC to 6 GHz

DC to 6 GHz

DC to 6 GHz

DC to 9 GHz

DC to 9 GHz

DC to 9 GHz

DC to 18 GHz

DC to 18 GHz

DC to 18 GHz

DC to 18 GHz

300 kHz to 9 GHz

300 kHz to 18 GHz

DC to 3 GHz

DC to 3 GHz

300 kHz to 3 GHz

Components

1

open, short, load (all male) open, short, load (all female) open, short, load (both female and male) open, short, load (all male) open, short, load (all female) open, short, load (all male) open, short, load, thru (all male) open, short, load, thru (all female) open, short, load (both female and male) open, short, load, thru (all male) open, short, load, thru (all female) open, short, load, thru (both female and male) open, short, fixed load, sliding load (both female and male) connectors configurable connectors configurable open, short, load (both female and male) open, short, load, all male connectors configurable

DC to 26.5 GHz

DC to 26.5 GHz

DC to 6/9 GHz

DC to 26.5 GHz

DC to 26.5 GHz open, short, load, thru (all male) open, short, load, thru (all female) open, short, fixed load (both female and male) open, short, fixed load (both female and male) open, short, fixed load, sliding load (both female and male)

DC to 26.5 GHz open, short, fixed load (both female and male), two line lengths

300 kHz to 9 GHz connectors configurable

300 kHz to 26.5 GHz connectors configurable

85093C

N4691B

ECal, 2-ports

ECal, 2-ports

2.92 mm (same as K connector)

85056KE01

85056KE02

N4692A

3

4

Standard cal kit

Economy cal kit

ECal

3.5 mm

3.5 mm

2.92 mm

2.92 mm

2.92 mm

DC to 40 GHz

DC to 40 GHz

10 MHz to 40 GHz

1. Component list shows calibration components. Some cal kits also include adapters.

2. Recommend ordering quantity 2 of N9910X Option 846, 50 to 75 Ω adapter.

3. Same as Maury’s 8770C47

4. Same as Maury’s 8770D47 open, short, fixed load, sliding load (both female and male) open, short, fixed load (both female and male) connectors configurable

16 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

Calibration Kits (continued)

FieldFox analyzers support most standard HP/Agilent/Keysight mechanical calibration kits and all Keysight USB ECal modules.

Custom calibration kits can be created and uploaded to FieldFox using Data Link software.

Model

2.4 mm

85056D

85056A

Description

Economy cal kit

Standard cal kit

N4693A

Waveguide

ECal

N9911X-11x Econ. waveguide cal kit

N9911X-21x Econ. waveguide cal kit

N9911X-31x Econ. waveguide cal kit

N9911X-41x Econ. waveguide cal kit

X11644A Waveguide cal kit

P11644A Waveguide cal kit

K11644A

R11644A

Q11644A

U11644A

Waveguide cal kit

Waveguide cal kit

Waveguide cal kit

Waveguide cal kit

Connector

2.4 mm

2.4 mm

2.4 mm

WR-137

WR-90

WR-62

WR-42

WR-90

WR-62

WR-42

WR-28

WR-22

WR-19

Frequency range

DC to 50 GHz

DC to 50 GHz

10 MHz to 50 GHz

5.38 to 8.18 GHz

8.2 to 12.5 GHz

11.9 to 18 GHz

17.6 to 26.7 GHz

8.2 to 12.4 GHz

12.4 to 18 GHz

18 to 26.5 GHz

26.5 to 40 GHz

33 to 50 GHz

40 to 60 GHz

Components

open, short, fixed load (both female and male) open, short, load, fixed load, sliding load (both female and male) connectors configurable short, termination, offset length short, termination, offset length short, termination, offset length short, termination, offset length short, shim, termination, standard section short, shim, termination, standard section short, shim, termination, standard section short, shim, termination two straight sections short, shim, termination, two straight sections short, shim, termination, two straight sections

17 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

Accessories

Cables

All cables listed below are rugged phase-stable cables.

Model Cable connector Other cable connector

N9910X-700

N9910X-701

N9910X-708

N9910X-709

N9910X-714

N9910X-715

N9910X-810

Type-N (m)

Type-N (m)

3.5 mm (m)

3.5 mm (f)

2.4 mm (f)

2.4 mm (f)

Type-N (m)

Type-N (f)

Type-N (m)

3.5 mm (f)

3.5 mm (f)

2.4 mm (m)

2.4 mm (f)

Type-N (m)

N9910X-811

N9910X-812

N9910X-813

N9910X-814

N9910X-815

N9910X-816

N9910X-817

Antennas

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (f)

Type-N (m)

Type-N (f)

7/16 (m)

7/16 (m)

Type-N (f)

Type-N (m)

Max frequency

18 GHz

18 GHz

26.5 GHz

26.5 GHz

50 GHz

50 GHz

6 GHz

6 GHz

8 GHz

8 GHz

6 GHz

6 GHz

6 GHz

6 GHz

N9910X-820

N9910X-821

N9910X-822

N9910X-823

N9910X-824

Antenna, directional, multiband, 800 to 2500 MHz, 10 dBi, Type-N (f)

Antenna, telescopic whip, 70 MHz to 1 GHz, BNC (m)

Antenna, directional, log periodic, 600 MHz to 9 GHz, Type-N(f)

Antenna, cellular narrowband, 824 to 869 MHz, Type-N (f)

Antenna, cellular narrowband, PCS 1850 to 1990 MHz, Type-N (f)

N9910X-825 Antenna, GPS, active, SMA (m)

RF and microwave adapters

83059A Coaxial adapter, 3.5 mm (m) to 3.5 mm (m), 26.5 GHz

83059B

83059C

Coaxial adapter, 3.5 mm (f) to 3.5 mm (f), 26.5 GHz

Coaxial adapter, 3.5 mm (m) to 3.5 mm (f), 26.5 GHz

N9910X-843

N9910X-845

N9910X-846

N9910X-847

N9910X-848

Coaxial adapter, Type-N (m) to 7/16 DIN (f)

Adapter kit: Type-N (f) to 7/16 DIN (f), Type-N (f) to 7/16 DIN (m), Type-N (f) to Type-N (f)

Coaxial adapter, Type-N (m) 50 ohm to Type-N (f) 75 ohm

Adapter kit: Type-N (f) to TNC (m) adapter, Type-N (f) to TNC (f) adapter, 11 GHz

Coaxial adapter, Type-N (f) to 3.5 mm (f), 18 GHz

N9910X-849

N9910X-850

N9910X-851

Coaxial adapter, Type-N (f) to 3.5 mm (m), 18 GHz

Coaxial adapter, Type-N (m) to Type-N (m), 18 GHz

Coaxial adapter, Type-N (f) to Type-N (f), 18 GHz

N9910X-852 Coaxial adapter, Type-N (m) to Type-N (f), 18 GHz

Other RF and microwave accessories

N9910X-860

N9910X-861

N9910X-874

Fixed attenuator, 40 dB, 100 W, DC to 3 GHz, Type-N (m) to Type-N (f)

Fixed attenuator, 40 dB, 50 W, DC to 8.5 GHz, Type-N (m) to Type-N (f)

External bias-tee, 2.5 MHz to 6 GHz, 1 W, 0.5 A

N9910X-712

N9910X-713

Other FieldFox accessories

Trig/Ref in Cable SMA (m) to BNC (f), 1 m or 3.28 ft

Bias-tee power cable SMB (f) to BNC (m), 1 m or 3.28 ft

N9910X-870

N9910X-872

N9910X-873

N9910X-875

N9910X-880

N9910X-881

N9910X-886

Extra battery

External battery charger

AC/DC adapter

DC car charger and adapter

Extra soft carrying case with backpack and shoulder strap

Hard transit case

Torque wrench, 17 mm, 90 N-cm (8in-lb), recommended for N995x and N996x analyzers

5 ft

12 ft

12 ft

5 ft

12 ft

3.28 ft

3.28 ft

Length (ft)

3.28 ft

3.28 ft

3.28 ft

3.28 ft

3.28 ft

3.28 ft

5 ft

1.5 m

3.6 m

3.6 m

1.5 m

3.6 m

1 m

1 m

Length (m)

1 m

1 m

1 m

1 m

1 m

1 m

1.5 m

18 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

Accessories (continued)

Below are images for a subset of FieldFox accessories. Complete list of accessories are on pages 15 to 17 of this document.

Description

N9910X-701

Type-N (m) to Type-N (f) cable, 3.28 ft

Accessory Description

N9910X-811

Type-N (m) to Type-N (f) cable, 5 ft

Accessory

N9910X-708

3.5 mm (m) to 3.5 mm (f) cable, 3.28 ft

N9910X-812

Type-N (m) to Type-N (m) cable, 12 ft

N9910X-820

Antenna, directional

N9910X-816

Type-N (m) to Type-N (f) cable, 3.28 ft

N9910X-823

Antenna, cellular narrowband

N9910X-824

Antenna, cellular narrowband

N9910X-822

Antenna, directional

N9910X-848

Coaxial adapter, Type-N(f) to 3.5 mm (f)

N9910X-825

Antenna, GPS, active

N9910X-870

Extra battery

N9910X-875

DC car charger and adapter

N9910X-873

AD/DC adapter

N9910X-872

External battery charger

N9910X-874

External bias-tee

N9910X-881

Hard transit case

19 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

Accessories (continued)

Below are images for a subset of FieldFox accessories. Complete list of accessories are on pages 15 to 17 of this document.

Description

N4690B

2-port ECal, Type-N, 18 GHz

Accessory Description

N4691B

2-port ECal, 3.5 mm, 26.5 GHz

Accessory

N9910X-800

3-in-1 OSL cal kit, Type-N (m), 6 GHz

N991X0-801

3-in-1 OSL cal kit, Type-N (f), 6 GHz

85514A

4-in-1 OSLT cal kit, Type-N (m) 9 GHz

85515A

4-in-1 OSLT cal kit, Type-N (f), 9 GHz

85518A

4-in-1 OSLT cal kit, Type-N (m), 18 GHz

85519A

4-in-1 OSLT cal kit, Type-N (f), 18 GHz

85054D

Economy cal kit, Type-N, 18 GHz

85520A

4-in-1 OSLT cal kit, 3.5 mm (m), 26.5 GHz

85521A

4-in-1 OSLT cal kit, 3.5 mm (f), 26.5 GHz

85033D/E

3.5 mm cal kit, 9 GHz

85052D

3.5 mm cal kit, 26.5 GHz

N4692A

2.92 mm, 2-port ECal, 40 GHz

N4693A

2.4 mm 2-port ECal, 50 GHz

85056D

2.4 mm cal kit, 50 GHz

N9911X-211/212/213/214

WR-90 economical cal kit

X11644A

WR-90 standard cal kit

20 | Keysight | FieldFox Handheld Analyzers - Configuration Guide

Carry Precision With You

Every piece of gear in your field kit had to prove its worth. Measuring up and earning a spot is the driving idea behind Keysight Technologies, Inc. FieldFox analyzers. They're equipped to handle routine maintenance, in-depth troubleshooting and anything in between. Better yet, FieldFox delivers Keysight-quality measurements - wherever you need to go. Add FieldFox to your kit and carry precision with you.

myKeysight www.keysight.com/find/mykeysight

A personalized view into the information most relevant to you.

Three-Year Warranty www.keysight.com/find/ThreeYearWarranty

Keysight’s commitment to superior product quality and lower total cost of ownership. The only test and measurement company with three-year warranty standard on all instruments, worldwide.

Keysight Assurance Plans www.keysight.com/find/AssurancePlans

Up to five years of protection and no budgetary surprises to ensure your instruments are operating to specification so you can rely on accurate measurements.

www.keysight.com/find/fieldfox

For more information on Keysight

Technologies’ products, applications or services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus

Americas

Canada

Brazil

Mexico

United States

(877) 894 4414

55 11 3351 7010

001 800 254 2440

(800) 829 4444

Asia Pacific

Australia

China

Hong Kong

India

Japan

Korea

Malaysia

Singapore

Taiwan

Other AP Countries

1 800 629 485

800 810 0189

800 938 693

1 800 11 2626

0120 (421) 345

080 769 0800

1 800 888 848

1 800 375 8100

0800 047 866

(65) 6375 8100

Europe & Middle East

Austria

Belgium

Finland

France

Germany

Ireland

Israel

Italy

Luxembourg

Netherlands

Russia

Spain

Sweden

Switzerland

United Kingdom

0800 001122

0800 58580

0800 523252

0805 980333

0800 6270999

1800 832700

1 809 343051

800 599100

+32 800 58580

0800 0233200

8800 5009286

800 000154

0200 882255

0800 805353

Opt. 1 (DE)

Opt. 2 (FR)

Opt. 3 (IT)

0800 0260637

For other unlisted countries: www.keysight.com/find/contactus

(BP-04-23-15)

This information is subject to change without notice.

© Keysight Technologies, 2014, 2015

Published in USA, August 20, 2015

5990-9836EN www.keysight.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
