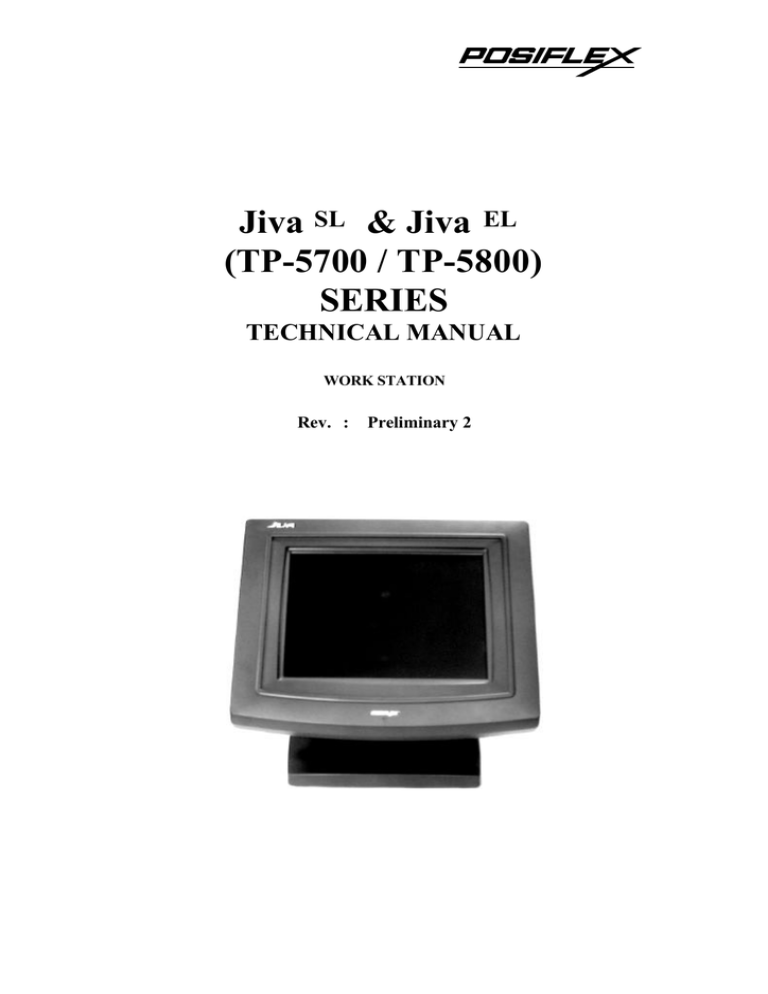

SL & Jiva EL
EL
Jiva SL
(TP-5700 / TP-5800)
SERIES
TECHNICAL MANUAL
WORK STATION
Rev. :
Preliminary 2
SOME IMPORTANT NOTES
FCC NOTES
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions manual, may cause interference to radio communications.
It has been tested and found to comply with limits for a Class A digital device pursuant to subpart J of
Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when
operated in a commercial environment. Operation of this equipment in a residential area is likely to
cause interference in which case the user at his own expense will be required to take whatever
measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than
the authorized technicians. The user should consult his/her dealer for the problem happened. Warranty
voids if the user does not follow the instructions in application of this merchandise. The manufacturer
is by no means responsible for any damage or hazard caused by improper application.
ABOUT THIS MANUAL
This manual assists the user especially the software programmer who provides the software
system for POS application to utilize the hardware of the Jiva SL (TP5700) & Jiva EL (TP5800)
series which is a member of the POSIFLEX integrated point-of-sale terminal product family. The Jiva
SL (TP5700) & Jiva EL (TP5800) is a compact point-of-sale system that gives the most user friendly
application interface by providing a touch control LCD panel and combines the performance and
affordability of personal computers with the elegance and reliability of business machine. The Jiva SL
(TP5700) & Jiva EL (TP5800) also provides the built-in networking capability for easy
communication among multiple terminals in addition to the data transfer and control through back
office server.
The manufacturer of the Jiva SL (TP5700) & Jiva EL (TP5800) series heartily apologizes to the user
for reserving the right to change or to modify this manual without notice due to the rapid and constant
progress and improvement on science and technology. The user may always obtain the most up to date
information or software utilities through any of our web sites:
http://www.posiflex.com.tw; http://posiflexuk.com; http://www.posiflexusa.com
© Copyright Mustek Corp. 2003
All rights are strictly reserved. No part of this documentation may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, electronic, mechanical, photocopying, or
otherwise, without the prior written consent of Mustek Corp. the publisher of this documentation.
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Mustek Corp..
Other brand and product names are trademarks and registered trademarks and service marks
of their respective owners.
TABLE OF CONTENTS
OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 - 1
SCOPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
OPTIONAL ITEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
GENERAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1
SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
POWER SOURCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SYSTEM POWER ON/OFF CONTROL . . . . . . . . . . . . . . . . . .
UPS SUPPORT (battery option) . . . . . . . . . . . . . . . . . . . . . . .
12VDC POWER SUPPLY INTO TP5700 / TP5800 . . . . . . . . .
OVERALL POWER OUTPUT LIMIT . . . . . . . . . . . . . . . . . . . . .
INPUT / OUTPUT PORTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TOUCH PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PS/2 TOUCH PANEL OPERATION . . . . . . . . . . . . . . . . . . . . .
PRELOAD OS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATOR DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUDIO PORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LED COLOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EXTERIOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MECHANICAL NOISE LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . .
ENVIRONMENTAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAFETY APPROVALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CUSTOMER DISPLAY UPGRADE KIT . . . . . . . . . . . . .
DRAM EXPANSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL UPGRADE KIT SD100 . . . . . . . . . . . . . . . . .
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
-
1
1
1
2
2
2
2
3
3
3
4
4
4
4
5
5
5
5
6
6
6
6
i
DELUXE UPGRADE KIT KP100 . . . . . . . . . . . . . . . . . . .
MAGNETIC STRIPE READER . . . . . . . . . . . . . . . . . . . .
SMART CARD READER . . . . . . . . . . . . . . . . . . . . . . . . .
FINGER PRINT SENSOR . . . . . . . . . . . . . . . . . . . . . . . .
iBUTTON READER . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UPS BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INTERNAL CD ROM DRIVE . . . . . . . . . . . . . . . . . . . . . .
ELOTOUCH TOUCH PANEL . . . . . . . . . . . . . . . . . . . . .
CASH DRAWER CONTROL CABLE . . . . . . . . . . . . . . .
WIRELESS LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WALL MOUNT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EXTERNAL FLOPPY DISK DRIVE . . . . . . . . . . . . . . . .
PRINTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PP-1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PP-2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PP-3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PP-5600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PP-6000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PP-7000 / PP-7000-II . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
-
7
7
7
7
7
7
7
8
8
8
8
8
8
8
8
9
9
9
9
RELIABILITY SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . .
3
-
1
SYSTEM DEFINITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
4
4
4
4
4
4
4
4
-
1
1
2
2
2
3
3
4
4
BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 V DC IN CONNECTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VGA CONNECTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CASH DRAWER CONTROLLER . . . . . . . . . . . . . . . . . . . . . . .
USB0 / USB1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SERIAL PORT COM1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SERIAL PORT COM2 / COM3 / COM4 . . . . . . . . . . . . . . . . . .
CD ROM CONNECTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ii
PARALLEL PORT LPT1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LAN PORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PS/2 KEYBOARD CONNECTOR . . . . . . . . . . . . . . . . . . . . . . .
PS/2 MOUSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUDIO OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MIC IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UPS BATTERY CONNECTOR . . . . . . . . . . . . . . . . . . . . . . . . .
CF CARD CONNECTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
4
4
4
4
4
4
4
-
5
6
6
7
7
7
7
8
APPLICATION GUIDES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1
POWER SUPPLY TO COM PORTS . . . . . . . . . . . . . . . . . . . . .
CUSTOMER DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
COM1 APPLICATION COMMENT . . . . . . . . . . . . . . . . . . . . . .
CASH DRAWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD ROM CONNECTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
POWER ON/OFF CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . .
EXTERNAL POWER SWITCH . . . . . . . . . . . . . . . . . . . .
SOFTWARE SWITCH OFF . . . . . . . . . . . . . . . . . . . . . . .
FORCED SWITCH OFF . . . . . . . . . . . . . . . . . . . . . . . . .
UPS BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UPS FUNCTION ENABLING . . . . . . . . . . . . . . . . . . . . . . . . . . .
UPS DETECTION FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . .
POSIFLEX TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TOUCH CALIBRATOR . . . . . . . . . . . . . . . . . . . . . . . . . .
TOUCH MANAGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ENABLE TOUCH BEEP . . . . . . . . . . . . . . . . . . . . . . . .
BEEP FREQUENCY . . . . . . . . . . . . . . . . . . . . . . . . . .
BEEP DURATION TIME . . . . . . . . . . . . . . . . . . . . . . .
DOUBLE CLICK TIME . . . . . . . . . . . . . . . . . . . . . . . .
DOUBLE CLICK SNAP DOTS . . . . . . . . . . . . . . . . . . .
TASK BAR STATE . . . . . . . . . . . . . . . . . . . . . . . . . . .
EXIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
-
1
1
1
2
2
2
2
3
4
4
5
6
7
7
8
8
8
8
8
8
9
9
iii
POWER SWITCH MANAGER . . . . . . . . . . . . . . . . . . . .
POWER CONTROL FUNCTIONS . . . . . . . . . . . . . . . . .
POWER SWITCH SETTING . . . . . . . . . . . . . . . . . . . . .
UPS BATTERY STATUS . . . . . . . . . . . . . . . . . . . . . . .
POWER OFF DELAY TIME . . . . . . . . . . . . . . . . . . . . .
SAVE AND EXIT . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CANCEL AND EXIT . . . . . . . . . . . . . . . . . . . . . . . . . .
PROGRAMMABLE KEYBOARD . . . . . . . . . . . . . . . . . .
STARTING THE PROGRAM . . . . . . . . . . . . . . . . . . . .
KEY MAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
COMMAND MENU . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIAL KEY CONTENT . . . . . . . . . . . . . . . . . . . . . .
MSR MANAGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USE ALT-NUM EMULATION . . . . . . . . . . . . . . . . . . .
ENABLE MSR TRACK 1 . . . . . . . . . . . . . . . . . . . . . . .
ENABLE MSR TRACK 2 . . . . . . . . . . . . . . . . . . . . . . .
ENABLE MSR TRACK 3 . . . . . . . . . . . . . . . . . . . . . . .
MSR WILL SEND THE LEADING CODE . . . . . . . . . . . .
MSR TRACK 1 LEADING CODE . . . . . . . . . . . . . . . . .
MSR TRACK 2 LEADING CODE . . . . . . . . . . . . . . . . .
MSR TRACK 3 LEADING CODE . . . . . . . . . . . . . . . . .
MSR ENDING CODE . . . . . . . . . . . . . . . . . . . . . . . . . .
INTERCHARACTER TRANSMISSION DELAY . . . . . . . .
RESET TO ENGLISH DEFAULTS . . . . . . . . . . . . . . . . .
RESET TO NON-ENGLISH DEFAULTS . . . . . . . . . . . . .
SAVE AND EXIT . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CANCEL AND EXIT . . . . . . . . . . . . . . . . . . . . . . . . . .
SOFTWARE COMMAND INDEX . . . . . . . . . . . . . . . . . . . . . . .
5 - 9
5 - 10
5 - 9
5 - 9
5 - 10
5 - 10
5 - 10
5 - 10
5 - 10
5 - 10
5 - 11
5 - 11
5 - 12
5 - 12
5 - 13
5 - 13
5 - 13
5 - 13
5 - 13
5 - 13
5 - 13
5 - 13
5 - 14
5 - 14
5 - 14
5 - 14
5 - 14
5 - 14
HARDWARE DETAILS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 1
MAIN BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 COMPONENT SIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 -
iv
1
1
SOLDER SIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
JUMPERS AND CONNECTORS . . . . . . . . . . . . . . . . . .
On component side . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On solder side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
JUMPER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CMOS data control . . . . . . . . . . . . . . . . . . . . . . . . . . .
COM1/COM2 DC supply select . . . . . . . . . . . . . . . . . . .
COM3/COM4 DC supply select . . . . . . . . . . . . . . . . . . .
Software awareness of UPS status . . . . . . . . . . . . . . . . . .
Touch signal setting . . . . . . . . . . . . . . . . . . . . . . . . . . .
Scaler controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CF card status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VGA port DC power enable/disable . . . . . . . . . . . . . . . . .
6
6
6
6
6
6
6
6
6
6
6
6
6
-
2
3
3
4
4
4
4
5
5
5
5
6
6
SERVICE AND SPARE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 1
SERVICE GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SIDE MOUNT UPGRADE KIT . . . . . . . . . . . . . . . . . . . .
REAR TOP MOUNT UPGRADE KIT . . . . . . . . . . . . . . .
OPEN THE MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . .
SEPARATE LCD PANEL ASSEMBLY . . . . . . . . . . . . . .
REPLACE HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLACE MAINBOARD . . . . . . . . . . . . . . . . . . . . . . . . .
SPARE PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASSEMBLY DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 - 1
7 - 1
7 - 2
7 - 3
7 - 3
7 - 5
7 - 6
7 - 7
7 - 13
v
OVERVIEW
SCOPE
The Jiva SL (TP5700) & Jiva EL (TP5800) series is a series of fully integrated
PC based Point-Of-Sale terminals. This series provides the best performance and the
most user-friendly interface for Point-Of-Sale, Hospitality and Kiosk systems. This
series also provides an industrial-use touch control panel over the 12” or 15” LCD
integrated on the front surface of the system. In short, this series engages modular design
for numerous advanced hi-tech applications in robust integrated construction.
FEATURES
l
l
l
l
l
l
l
l
l
l
l
CPU: Celeron compatible 400 MHz up
HDD: 20 GB or above available for Jiva EL (TP5800) series
CF Card Interface: available for Jiva SL (TP5700) series
Support Win98, Win2000, Win XP and Linux in Jiva EL (TP5800) series,
and WinCE, Win XP embedded in Jiva SL (TP5700) series
Support RDP architecture to boot WinCE in CF card
Support Linux thin client architecture.
High quality 12” / 15” TFT active matrix LCD panel
Vertical type LCD panel with easy tilt angle adjustment from 17.5° to
87.5°
Resistance type touch sensor
Extra long life touch panel that endures 10 million touches at same spot
Spill proof water resistant structure allowing easy cleaning
Easy maintenance construction
Various I/O ports supported, including:
a. 1 PS/2 KB port
b. 1 PS/2 mouse port
c. Serial Ports:4 for PS2 interface touch control. All with capability for
+5V DC support
d. 1 parallel port
TP-5700/5800 series Technical Manual 1 - 1
e.
f.
g.
h.
i.
l
l
l
l
l
l
l
l
l
l
l
l
2 USB 2.0 ports
1 LAN port 10/100 base T Ethernet
1 Compact Flash memory card connector (for Jiva SL systems only)
1 external VGA monitor port
1 cash drawer connector for control over 2 cash drawers with drawer
open detection
j. 1 UPS battery connector (for optional UPS battery in base)
k. 1 external CD ROM drive connector (for Jiva EL systems only)
l. 1 DC 12 V input connector
m. 1 set of Audio out port (1 Microphone input and 1 audio line output)
IRQ and I/O address of all COM ports can be changed through CMOS
setting.
Preprogrammed timer wake up function
COM port MODEM ring up function
LAN wake up function
Built-in UPS function with battery low voltage detect and alarm to
support the system from intermittent power failure (battery itself is an
option)
Accidental power off protection – The power switch is safely located at
one side, and this power switch can be defined as a “ON” switch only
through software command
Software power off makes full featured remote control through LAN or
MODEM possible
Forced power off against system malfunction under the power switch
on/off mode or under power switch on only mode with prolonged effort
Touch control functions: left/right button, double click, drag & drop
Touch sound can be enabled or disabled or pitch adjusted by software
control
High resolution touch sensor controller: 1024 X 1024
Support high performance DDR266 DRAM with maximum memory size
1GB in two modules
TP-5700/5800 series Technical Manual 1 - 2
l
l
l
Integrated structure for optional security devices (incl. top mount LCD
customer display and side mount security device with 40 keys
programmable keypad, smart card reader, finger print sensor, MSR)
Software programmable MSR parameters in KP100 for Win 98 or Win XP
VGA memory size programmable by software up to (8 – 64 MB)
OPTIONAL ITEMS
Note: The “∗” marked items in the following list means that option must be set
prior to shipment from the factory. The rest items can be set by the
dealers.
a) * DDR266 DRAM memory expansion up to 1GB
b) Internal UPS battery
c) Deluxe security device upgrade (KP100) covering keypad and option(s)
from KB interface MSR, smart card reader and finger print sensor
d) Common security device upgrade (SD100) covering option(s) from USB
interface MSR or smart card reader and finger print sensor or iButton
reader
e) Bar Code Card Reader (BC100)
f) Integrated rear top mount LCD customer display PD-302
g) VFD PD-2500 or graphic LCD PD-7100 stand alone Posiflex pole display
h) External 12” LCD monitor LM-6000 series
i) External CD ROM drive (for TP5800 only)
j) Posiflex POS printers
k) Posiflex cash drawers (CR3100/CR3200/CR4000/CR4100)
l) Single cash drawer control cable 20863018010 or 2 in 1 cash drawer
control cable 20863023800
m) Wireless LAN in USB interface
n) Preload OS
o) Wall mount kit
l Power saving support: standby mode
l Dual display support under OS utilizing multiple display
TP-5700/5800 series Technical Manual 1 - 3
l
Fanless design on Jiva SL (TP5700) series reduces dust/grease
accumulation, makes the machine the most reliable one and provides an
easy replacement of the memory storage device without opening the system.
TP-5700/5800 series Technical Manual 1 - 4
GENERAL SPECIFICATION
SYSTEM
l
l
l
l
CPU speed : Celeron compatible Eden series 400MHz up for TP5700; C3
800MHz up for TP5800
DRAM : DDR266 128 MB (expandable to 1GB)
CF card 16 – 512 MB for TP5700 only
Built-in 3.5” HDD 20 GB above in IDE interface for TP5800 only
POWER SOURCE
Item
Specification
Voltage range of adaptor input
100 ~ 240 V AC
Load limit of adaptor input
1.8 A max.
Input frequency
50 / 60 Hz
Total Power
Consumption
Display used
TP5700
TP5800
12.1” TFT LCD
53 W
NA
15” TFT LCD
60 W
80 W
SYSTEM POWER ON/OFF CONTROL
l
l
l
l
l
One main power ON/OFF slide switch at side, this switch can be
programmed as “ON” only
System can be waked up after each power off by any of the preset timer or a
remote COM port MODEM call or LAN packet
System can be switched off by software command through local or remote
program control
Forced power off when switch is ON/OFF or when switch is ON only with
prolonged effort
Power OFF to ON duration: 10 seconds min.
TP-5700/5800 series Technical Manual 2 - 1
UPS SUPPORT (battery option)
l
l
l
l
Supports system operation for 3~8 min. depending on loading condition
Green LED turned on when adaptor power stand-by
Blue LED flashes and system beeps when UPS battery starts working and
discharging, and Green LED flashes when UPS near to end
Working on UPS battery status can be detected through COM1 status port
12VDC POWER SUPPLY INTO Jiva SL
(TP5700) & Jiva EL (TP5800)
l
l
O / P : 12 +/- 1 V DC 6.67 Amp min. for TP5800; 5 Amp min. for TP5700
I / P : 110 VAC/1.6A or 240 VAC/0.8A max., 50 / 60 Hz
OVERALL POWER OUTPUT LIMIT
l
Including PS/2 KB, all USB & COM ports: +5VDC/2 Amp max.
INPUT / OUTPUT PORTS
l
l
l
l
l
l
l
l
l
l
l
1 X mini DIN 6 pin female PS/2 KB jack
1 X mini DIN 6 pin female PS/2 mouse jack
1 X VGA display port for external CRT display
1 X parallel port
1 X LAN port (Ethernet 10 base T and 100 base T)
2 X USB ports, USB 2.0 standard
4 X serial communication ports for TP5X12P/TP5X15P. 3 X serial
communication ports for TP5X12R/TP5X15R. All serial communication
ports can supply DC +5V through pin 9 under overall power output limit.
Default setting is standard RI signal input at this pin for all ports.
1 X 2nd IDE port with power for CD ROM drive or 2nd HDD (TP5800 only)
1 X cash drawer control port for controlling 2 X cash drawers
1 X 4 pin 12 V DC power input jack
1 X UPS connector for 2.3AH/12V or above Lead Acid battery
TP-5700/5800 series Technical Manual 2 - 2
TOUCH PANEL
l
l
l
l
l
Touch control interface: PS/2 mouse emulation
Sensor type: resistive
Resolution: 1024 x 1024
Calibration: initial calibration at setup only, no re-calibration required for
day to day power on/off
Driver support: DOS, Win98, Win CE, Win 2000, Win XP & Linux.
PS/2 TOUCH PANEL OPERATION
Win98 WinNT/2000 WinXP
Function available under OS
Firmware Version Readable By Software
YES
YES
YES
Touch Beep ON/OFF Programmable
YES
YES
YES
Touch Beep Pitch Programmable
YES
YES
YES
Touch Beep Duration Programmable
NO
YES
YES
Touch as Mouse Left Click (incl. Drag & Double Click)
YES
YES
YES
Double Click Area Programmable
YES
YES
YES
Double Click Duration Programmable
NO
YES
YES
Right Button Emulation ON/OFF Programmable
YES
NO
NO
Right Button Delay Time Programmable *
YES
NO
NO
Right / Left Button Selection Icon
NO
YES
YES
* The right button function can be engaged with a slight movement of a touch
(after being steady on any point) on the surface of touch panel.
PRELOAD OS
l
Option among Win98, Win CE, Win 2000 and Win XP
TP-5700/5800 series Technical Manual 2 - 3
OPERATOR DISPLAY
Display Type
COLOR TFT
12” LCD
COLOR TFT
15” LCD
View area
246 X 184.5 mm
304.1 X 228.1 mm
Internal Interface
TTL
TTL
2
250 cd/m2 min
Luminance
150 cd/m
Contrast Ratio
200:1
250:1
Resolution
1024 X 768
1024 X 768
Memory size
8 MB up to 64 MB share memory
Tilt angle
18° ~ 87°
AUDIO PORT
l
l
l
l
l
Output 2.83 Vp-p with max. output impedance 500 Ohm
20 dB gain for Microphone input
Input impedance 20 KOhm
Speaker load impedance 8 Ohm
Output audio power 1.0 W
LED COLOR
l
l
Type: blue/green dual color (blue for power on; green for stand by)
Indication coverage: system ON/OFF status, external power status, UPS
battery monitoring
EXTERIOR
l
DIMENSIONS:
BASE:
270mm (D) X 260mm (W)
PANEL:
375mm (W) X 315mm (H)
HEIGHT: 360mm (Panel vertical)
275mm (Panel horizontal)
PACKING DIMENSION: 588mm X 458mm X 358mm
or 22.9” X 19.8” X 17.6”
TP-5700/5800 series Technical Manual 2 - 4
l
WEIGHT:
NET WEIGHT
GROSS WEIGHT
TP5712
6.8 kgs (15.0lbs)
10.0 kgs (22.0 lbs)
TP5715
7.0 kgs (15.4 lbs)
10.5 kg (23.1 lbs)
TP5812
7.6 kgs (16.8lbs)
10.7 kgs (23.6lbs)
TP5815
7.8 kgs (17.2 lbs)
11.2 kg (24.6 lbs)
MECHANICAL NOISE LEVEL
l
l
Max. 65 dB measured at 30 cm distance for TP5800 series
Less than 30 dB for TP5700 series
ENVIRONMENTAL
l
TEMPERATURE RANGE: (excl. UPS battery)
Operating: 0°C ~ +40°C or 32°F ~ 104°F
Non-operating: -20°C ~ +60°C or -4°F ~ +140°F
l
TEMPERATURE RANGE for UPS battery
Operating: 0°C ~ +40°C or 32°F ~ 104°F
Non-operating: -20°C ~ +40°C or -4°F ~ +104°F
l
HUMIDITY RANGE:
Operating: 20%RH ~ 80%RH, non-condensing
max. wet bulb 26°C (78.8°F)
Non-operating: 10%RH ~ 80%RH, non-condensing
max. wet bulb 28.9°C (84.0°F)
ACCESSORIES
l
l
l
l
User’s manual: 1 copy
Mechanical key for opening cable cover: 1 pc
Power adapter 12 V DC 6.67 A max. plus power cord for TP5800 series; 5
A adapter for TP5700 series
Driver utility diskette or Recovery CD
TP-5700/5800 series Technical Manual 2 - 5
SAFETY APPROVALS
l
l
Whole system meet CE, FCC class A standard
(meet IEC1000-4-2/-3/-4/-5/-6/-8/-11)
Power supply is UL, VDE & T-mark approved
OPTIONS
CUSTOMER DISPLAY
MODEL Number
PD302
PD2500
PD7200
Display Media
LCD
VFD
LCD
Number of rows
2
2
2/4/2
Characters per row
20
20
20 / 26 / 10
Character width (mm)
6
7.2
17.2 / 8.0 /
17.2
Character height (mm)
9.66
11.25
7.79 / 5.55 /
16.7
Character format
5X7
5X7
Display color
Dark blue
Background color
Yellow
green
Black
Blue
Display area (mm x
mm)
147 x 21
193 x 39
179 x 36
Mounting method
Top mount
Power source
5 V DC
Blue /
Green
8 x 16 / 6 x 8
/ 16 x 16
White
Stand-alone Stand-alone
5 V DC /
12V DC /
12V AC
12V AC
DRAM EXPANSION
l
On board 2 DIMM sockets for 128 MB ea., 256 MB ea. and 512
MB ea. DDR266 SDRAM
TP-5700/5800 series Technical Manual 2 - 6
GENERAL UPGRADE KIT SD100
l
Functions include: MSR / smart card reader, finger print sensor /
iButton reader
DELUXE UPGRADE KIT KP100
l
Functions include: MSR, keypad, smart card reader, finger print
sensor
MAGNETIC STRIPE READER
l
l
l
l
l
USB interface in SD100; PS/2 KB interface in KP100
ISO 2 tracks ((track 1 + track 2) or (track 2 + track 3))
ISO 3 tracks (track 1 + track 2 + track 3)
Characteristic parameters of ISO readers can be set via software in
KP100 or via hardware jumper setting in SD100
AAMVA/CA DMV format supported in ISO 3 tracks model
SMART CARD READER
l
l
USB interface
PC/SC 1.0 standard
FINGER PRINT SENSOR
l
l
USB interface
Detects electric field in sub-dermal layer
iBUTTON READER
l
l
Programmed by RS232 interface
Output through PS2 KB or RS232 interface
UPS BATTERY
l
2.3 AH/12V lead acid battery
TP-5700/5800 series Technical Manual 2 - 7
EXTERNAL CD ROM DRIVE
l
l
l
24 x speed
USB or ATA IDE interface
Set as slave IDE device
CASH DRAWER CONTROL CABLE
l
2 in 1 cash drawer control cable 20863023800 for independent
control over two cash drawers of CR3100 or CR3200 or CR4000
WIRELESS LAN
l
IEEE 802.11b with USB interface
WALL MOUNT
l
Can be achieved by use of wall mount bracket
EXTERNAL FLOPPY DISK DRIVE
l
l
3.5” 2HD/2DD
Only USB interface model of this item is available in the market
PRINTER:
l
PP-1000
1. Dot matrix 7 pin
2. Bi-directional printing
3. Friction type
4. 42 columns for 16 CPI
5. Accepts paper width 3 inches with adjustable paper guide
6. Prints on ordinary or up to 3-fold carbonless copy paper
l
PP-2000
1. 2-station receipt/journal/validation printer
2. Dot matrix 9 pin
3. Bi-directional printing
4. Auto cutter provides full cut and partial cut
TP-5700/5800 series Technical Manual 2 - 8
5.
l
Auto-detect between RS232 and EPP interface
PP-3000
1. Dot matrix 9 pin
2. Bi-directional printing
3. Friction type
4. 40 columns for 15.4 CPI
5. Accepts paper width 2.25/3/3.25 inches with adjustable paper
guide
6. Prints on ordinary or up to 3-fold carbonless copy paper
l
PP-5600
1.
2.
3.
4.
5.
6.
l
Dot matrix 9 pin
Bi-directional printing with logic seeking
Friction type
40 columns for 16.9 CPI
Accepts paper width 3 inches
Prints on ordinary or up to 3-fold carbonless copy paper
PP-6000
1.
2.
3.
4.
5.
6.
7.
High speed thermal line printer up to 80 mm/sec
High resolution 8 dots/mm by 512 dots/line
Epson TM-T88 II compatible command set
Low noise high reliability
Auto roller blade cutter provides single point left partial cut
Thermal sensitive paper roll at width 80 mm
Supports UPC-A, EAN(JAN)13/8, ITF, CODE39, CODABAR
printing
8. Supports printing on label with marker on the other side
9. Provides also Charcoal color option
l
PP-7000 / PP-7000-II
1.
High speed thermal line printer up to 80 mm/sec in text mode and
150 mm/sec in page mode for PP-7000
2. Extremely high performance thermal line printer up to 180
mm/sec for both text and page modes for PP-7000-II
TP-5700/5800 series Technical Manual 2 - 9
3.
4.
5.
6.
7.
8.
High resolution 8 dots/mm by 512 dots/line
Epson TM-T88 II compatible command set
Low noise high reliability
Auto guillotine type cutter provides single point left partial cut
Thermal sensitive paper roll at width 80 mm
Supports UPC-A, EAN(JAN)13/8, ITF, CODE39, CODABAR
printing
9. Supports printing on label with marker on the other side
10. Provides also Charcoal color option
ELOTOUCH TOUCH PANEL
l
Extremely endurable life survives minimum 35,000,000 touches at
same spot
TP-5700/5800 series Technical Manual 2 - 10
RELIABILITY SPECIFICATION
l
POWER ADAPTOR MTBF: 150,000 HRS
l
TOUCH PANEL LIFE EXPECTANCY: 10,000,000 UP TOUCHES
AT SAME SPOT
l
LCD BACK LIGHT LIFE EXPECTANCY: 10,000 HRS FOR 12";
40,000 HRS FOR 15"
l
HDD MTBF: 50,000 HRS
l
CUSTOMER DISPLAY LIFE EXPECTANCY:
PD2500: 30,000 HRS
PD302: 100,000 HRS (for BACK LIGHT)
l
BCCR / MSR LIFE EXPECTANCY: 300,000 PASSES
l
POWER SWITCH LIFE EXPECTANCY: 50,000 STROKES
l
MOTHER BOARD MTBF: 50,000 HOURS
l
EXTERNAL FDD MTBF: 80,000 HRS
TP-5700/5800 series Technical Manual 3 - 1
l
EXTERNAL CD ROM DRIVE MTBF: 120,000 HRS
l
TP-5700/5800 series Technical Manual 3 - 2
SYSTEM DEFINITIONS
BLOCK DIAGRAM
UPS
Battery
UPS
Circuit
PWR
MNGR
12 V DC
Adaptor
VGA
Monitor
PSU Circuit
DDR 266
DRAM Module
LCD Panel
CPU
Eden 400 or C3
800 in EBGA
PS/2
Mouse Port
Touch Panel
Touch
Controller LCD
CCFL
CCFL
Inverter
Riser Card
CRT
Port
CLE266 (NB)
VT8235 (SB)
CR
COM1
LPC I/O Chip
W836970F
NVSRAM
COM2
Audio
CODEC
COM3
COM4
LPT
Audio
Line out
PS/2 KB
Port
KB
USB
0~1
USB
Device
LAN
Chip
BIOS
CR3X00
CR4X00
PS/2
Mouse
HDD
Mic.
In
2nd IDE
Channel
Ethernet
10/100 MB
CDROM
Drive
(TP-5800 only)
CF Card
Port
CF Mem.
Card
(TP-5700 only)
(+5V)
RS232
Device
(+5V)
RS232
Device
(+5V)
RS232
Device
(+5V)
RS232
Device
Parallel
Printer
Booster
Speaker
Mic.
TP-5700/5800 series Technical Manual 4 - 1
12 V DC IN CONNECTOR
PIN ASSIGNMENT OF 4 PIN PLUG:
PIN #
1
2
3
4
CASE
DEFINITION
+12 V
+12 V
GND
GND
CHASSIS GND
1
2
CASE
3
4
VGA CONNECTOR
l
This port is a standard 3 x 5 D-sub VGA connector
PIN #
1
2
3
4
5
DEFINITION
RED
GREEN
BLUE
NCID2
GND
PIN #
6
7
8
9
10
DEFINITION PIN # DEFINITION
GND
11 NCID0
GND
12 NCID1
GND
13 HSYNC
NC/+12VKEY 14 VSYNC
GND
15 NCID3
CASH DRAWER CONTROLLER
l
This is a RJ11 jack for cash drawer control providing control ability
over two cash drawers.
l Each cash drawer solenoid input is a 150 msec. grounding signal.
l The power to cash drawer solenoid is DC 12 V nominal.
l The command to open cash drawers is decoded through COM 1.
l The drawer open indication can be detected by software through status
check on RI signal of COM 1.
l Should any difficulty occur in using the cash drawer controller, please
try to arrange a serial printer to be connected to COM 1 so that the
hardware handshaking signals can be properly handled.
TP-5700/5800 series Technical Manual 4 - 2
USB0 / USB1
PIN ASSIGNMENT OF EACH 4 PIN JACK:
PIN #
1
2
3
4
DEFINITION
VCC
-DATA
+DATA
GND
PIN 1
SERIAL PORT COM1
PIN ASSIGNMENT OF 9 PIN D SUB MALE CONNECTOR:
DEFAULT SETTING
PIN # DEFINITION ALTERNATIVE
1
DCD
BATTWK
DCD
2
RX
3
TX
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
CR OPEN / +5 VDC RI
• IRQ 4 is assigned to this port. Can be changed in CMOS setup under
“Super IO Controller”
• Please refer to section “UPS DETECTION FUNCTION” in
“APPLICATION GUIDE” for BATTWK signal. Please refer to
“COM1 APPLICATION COMMENT” in same chapter for remarks on
this port.
• +5 V DC supply is UPS supported.
• Jumper selection: please refer to the description in Hardware details of
this manual.
TP-5700/5800 series Technical Manual 4 - 3
SERIAL PORT COM2/3/4
PIN ASSIGNMENT OF 9 PIN D SUB MALE CONNECTOR:
PIN # DEFINITION ALTERNATIVE DEFAULT SETTING
1 DCD
2
RX
3
TX
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
+5 VDC
RI
• IRQ 3 is assigned for COM2, IRQ9 is assigned for COM3, IRQ5 is
assigned for COM4. All can be changed in CMOS setup.
• Port COM2 is mostly suggested when a modem is to be connected.
• DC supply to these ports is UPS supported.
• Jumper selection: please refer to the description in Hardware details of
this manual.
ATA IDE CD ROM CONNECTOR (for
TP5815)
l
This port is a Half Pitch Centronics 36 F connector. The pin assignment
in this connector is proprietary. However, Vcc is supplied through pins
10, 11, 31; +12V DC is supplied through pins 14, 29, 32, 33 and Gnd is
connected at pins 19, 28, 30, 34.
TP-5700/5800 series Technical Manual 4 - 4
PARALLEL PORT LPT1
PIN ASSIGNMENT OF 25 PIN D SUB FEMALE CONNECTOR:
EPP MODE
PIN # SPP MODE
1 - STROBE
-WRITE
2 D0
D0
3 D1
D1
4 D2
D2
5 D3
D3
6 D4
D4
7 D5
D5
8 D6
D6
9 D7
D7
10 - ACK
INTR
11 BUSY
-WAIT
12 PE
NU
13 SLCT
NU
14 - AUTO FEED
-Datastb
15 - ERROR
NU
16 - INIT
NU
17 - SLCT IN
NU
18 GND
GND
19 GND
GND
20 GND
GND
21 GND
GND
22 GND
GND
23 GND
GND
24 GND
GND
25 GND
GND
• IRQ 7 is assigned for this port.
ECP MODE
-STROBE
D0
D1
D2
D3
D4
D5
D6
D7
-ACK
BUSY, PeriphAck
Perror, -AckReverse
SLCT
-AutoFeed, HostAck
-Fault, -PeriphRequest
-Init, -ReverseRequest
- SLCT IN
GND
GND
GND
GND
GND
GND
GND
GND
TP-5700/5800 series Technical Manual 4 - 5
LAN PORT
PIN ASSIGNMENT OF 8 PIN TELEPHONE JACK:
PIN # DEFINITION
1 TD +
2
TD 3
RD +
4
NC
5
NC
6
RD 7
NC
8
NC
• This port is defined as 100 base T or 10 base T LAN port.
• This port is utilized by the system in pnp (Plug-N-Play) way, IRQ
assigned is not fixed for this port. Most usual observation is IRQ 11.
PS/2 KEYBOARD CONNECTOR
PIN ASSIGNMENT OF 6 PIN MINI-DIN FEMALE CONNECTOR:
PIN #
1
2
3
4
5
6
DEFINITION
KBDAT
NC
GND
VCC
KBCLK
NC
TP-5700/5800 series Technical Manual 4 - 6
PS/2 MOUSE
PIN ASSIGNMENT OF 6 PIN MINI DIN JACK:
PIN #
1
2
3
4
5
6
DEFINITION
PMDAT
NC
GND
VCC
PMCLK
NC
AUDIO OUT
PIN ASSIGNMENT OF 3.5 Ø STEREO JACK:
CONTACT ON PLUG:
TIP
RING
OUTER
DEFINITION:
R
L
GND
MIC. IN
PIN ASSIGNMENT OF 3.5 Ø MONO JACK:
CONTACT ON PLUG:
TIP
OUTER
DEFINITION:
IN
GND
UPS BATTERY CONNECTOR
PIN ASSIGNMENT OF 4 PIN SOCKET:
PIN #
1
2
3
4
DEFINITION
+12 V
+12 V
GND
GND
PIN 1
TP-5700/5800 series Technical Manual 4 - 7
CF CARD CONNECTOR
l
Accepts Compact Flash Memory Card type II
TP-5700/5800 series Technical Manual 4 - 8
APPLICATION GUIDES
POWER SUPPLY TO COM PORTS
On the solder side of the main board, jumpers on JP13 and JP14 determine the
+5V DC supplies to the devices connected to COM1/COM2 and COM3/COM4
separately. Refer to the hardware details for jumper settings. The total load supplied
from the Jiva SL (TP5700) & Jiva EL (TP5800) series to all USB devices on 5 V DC
is limited to be within 1 Ampere, and power to all other peripherals including keyboard,
COM ports etc. on 5 V DC is also limited to be within 1 Ampere. No matter what, the
ventilation of the environment should be much improved to compensate the heat
accumulation due to such excessive load.
CUSTOMER DISPLAY
The customer display, selectable from top mount PD302 upgrade kit and the
stand alone PD303 or PD2500 or PD7200, can be connected to any available COM
port with an internally supplied power set per instruction in Hardware Detail. Please
refer to the user’s manual of each customer display for detail instructions. Please refer
to next paragraph if COM1 is selected for this usage.
COM1 APPLICATION COMMENT
Before using the port COM 1, the COM1 terminator should be removed and
stored for future use when there will be no regular RS232 device to be connected to
this port. It is definitely inadvisable to connect serial input devices like serial mouse to
COM 1 port without thorough investigation. The reason is that some input devices do
not provide standard RS232 hardware handshaking signals. In TP systems, the cash
drawer controller and power management controller share the COM 1 port. When the
system issues any command to cash drawer controller or power management controller,
the hardware handshaking signal would be in error status and could halt this port if
COM 1 is not connected properly. Any possible cross-link to the command for cash
drawer or power manager that is also using COM1 at 9600bps, none parity, 8 data bits,
TP-5700/5800 series Technical Manual 5 - 1
1 stop bit should be avoided. An index summary of such commands is tabulated at end
of this chapter.
CASH DRAWER
The software command to open the cash drawer or the first cash drawer with the
optional 2 in 1 cash drawer control cable is a hexadecimal code of <07> sent to COM1
port under the protocol of 9600bps, none parity, 8 data bits, 1 stop bit.
The software command to open the second cash drawer with the optional 2 in 1
cash drawer control cable is a hexadecimal code of <17> sent to COM1 port under the
same protocol as above.
The drawer open status can be obtained through checking the communication
status of COM1 at signal RI. When there is no drawer open, the RI signal of COM1 is
always set. When there is any cash drawer opened, the RI signal of COM1 is reset. The
RI signal is obtained as the bit 6 (the second most significant bit) of the I/O address
3FEh if the COM1 address is set to 3F8h~3FFh (conventional address for COM1) in
system configuration.
ATA IDE CD ROM CONNECTOR
The CD ROM connector supports a Posiflex provided CD ROM drive to be
connected to the Jiva EL (TP5800) series. This CD ROM drive is defined as the master
device in the IDE channel and can read data in 24 x speed.
POWER ON/OFF CONTROL
EXTERNAL POWER SWITCH
Whenever the Jiva SL (TP5700) & Jiva EL (TP5800) series is to be powered
on for the first time after connected to external AC power, this switch must be engaged
to turn on the power. This switch is originally an “ON/OFF” power switch. It can be
programmed into a power “ON” only switch through software command. To program
this switch, the programmer needs to issue the following mentioned commands in the
TP-5700/5800 series Technical Manual 5 - 2
application program to COM1 under the protocol: 9600 bps, parity none, 8 data bits, 1
stop bit.
• Change to power on only switch – the command string is <1B> <19> <01> or
alternatively <1B> <00> <00> <00> <00> <00> <00> <18> in hexadecimal format.
• Change to power on/off switch -- the command string is <1B> <19> <00> or
alternatively <1B> <00> <00> <00> <00> <00> <18> <00> in hexadecimal format.
(default status)
In case the power switch status has been changed from the default status, the
switch function will remain after power off. However, if the AC power has been
disconnected during the power off stage, such change will be discarded. Therefore, it is
advisable for the application program to reinstate the switch function every time the
system is rebooted or every time the program is executed to ensure the proper action of
the power switch. This function can also be achieved by use of the Posiflex Touch
Terminal Manager.
SOFTWARE SWITCH OFF
An easy method for software control to turn the system off is the software off
switch. The hexadecimal command string for software switch off function is :
<06> <16> <19> <1D> <n>.
In the above, the “n” indicates the time delay in seconds for actual power off
after the command string given to COM1. However, an alternative command string
<1B> <00> <00> <00> <00> <00> <00> <00> can be used instead to turn off the
system power immediately.
Some operating system or software may require complete termination of
application programs before system power off for the sake of system maintenance. In
that case the programmer has to program the command to close the application
programs (just like “Alt+F4” in Windows), and then at the end of the closing operation,
the application program should issue the above mentioned software switch off
command string to COM1 under the protocol: 9600 bps, parity none, 8 data bits, 1 stop
bit.
TP-5700/5800 series Technical Manual 5 - 3
FORCED POWER OFF
In case of serious system halt due to system resources conflict or any reason, the
system could fail to power off through normal means. The Forced Power Off method is
designed for such occasions. With the external power switch defined as power
ON/OFF switch (default status), push down and hold this Power ON/OFF Switch. The
system will be powered off within 10 seconds in this way. Whenever the machine
receives a software command to change the external power switch to ON only, the
forced power off function is disabled for early production of this product series by mid
2003. However, since 2nd half 2003, an enhance power off command is provided for
the software programmer to allow forced power off after changing the switch to be ON
only. The enhance forced power off command string is <1B> <00> <00> <00> <00>
<00> <18> <18> and it has to be sent in same way like the ON only switch command.
This enhanced forced power off requires the user to keep the switch pressed for a
longer period between 10 to 20 seconds to function.
In case the system halt situation is so serious that some hardware/firmware
registrations are already confused, this above mentioned forced power off could though
very unlikely still fail. When such situation happens, please remove the external power
input from the adaptor and disconnect the UPS battery for few minutes to reset the
hardware registers.
One example of the need for this forced power off function could happen when
power switch is triggered within 10 seconds of last switching off. It is a common
practice that once the system power is switched off there should be some waiting time
before next switching back on. If the system power is switched off and on in very short
time chances are the system LED could indicate power on status while the system
remains off. In such case, please use the forced power off function to cancel the error
and wait for 10 seconds before switching on again.
UPS BATTERY
The optional UPS battery is a maintenance-free lead-acid battery and is targeted
to support basically the data preservation and smooth running of the system during
intermittent power failure. This battery is not designed for prolonged power support to
the system against power shutdown. That means, when the AC power outage is known
TP-5700/5800 series Technical Manual 5 - 4
to last for more than few minutes, it is advisable to turn off the system instead of using
the battery up while repeatedly using it up reduces the battery life dramatically.
The battery will undergo self-discharging over time even when not in use. A
useful advice to preserve the battery at best condition is to regularly recharge the
battery if the battery or the TP system with the battery is put in storage for a period of
time. It is recommended to turn on the system to recharge the battery for 1 ~ 2 hours
every 3 months of storage if the storage temperature is lower than 30°C. The battery
should be recharged for 1 ~ 2 hours every month if the storage temperature exceeds
30°C. However, the user shall avoid the situation with storage temperature over 30°C
to protect the life of the battery. Do not connect any other battery to this UPS battery
because mixed use of batteries of different capacity, history, or manufacturers may
cause damages. In case the user wants to have a longer battery support time during AC
power off, he/she should consult his/her dealer for application of an external 12 V
battery.
UPS FUNCTION ENABLING
The complete UPS function requires use of the optional UPS battery. The
Posiflex UPS functions can support the system against intermittent power failure.
However, in order to achieve best hardware stability against any possible memory or
CMOS data loss or even system crash, the UPS function should be enabled or disabled
depending on the existence of UPS battery. This setup is based on the consideration that
when UPS battery is present and ready to serve, the UPS function should be enabled so
that the hardware power good signal will be maintained for a smooth power transition
to UPS battery power. On the other hand, when there is no UPS battery, the UPS
function must be disabled so that the hardware power good signal will be shut down
early enough to inhibit any improper operation of any device.
This setup on UPS function is in fact automatically taken care of with the
Posiflex software installed in the preloaded operating system of Windows. However,
just incase the application programmer wants to manipulate this setting or if the
operating system used is some one else, this setting can be achieved by sending
following command string to COM1 port under protocol: 9600 bps, parity none, 8 data
bits, 1 stop bit.
TP-5700/5800 series Technical Manual 5 - 5
Ÿ
Ÿ
To enable UPS function: <06> <16> <19> <1F> <05> or <1B> <00> <00>
<00> <00> <18> <00> <18>
To disable UPS function: <06> <16> <19> <1F> <04> or <1B> <00>
<00> <00> <00> <18> <18> <00>
UPS DETECTION FUNCTION
In the Jiva SL (TP5700) & Jiva EL (TP5800) series products, when the system
is working on UPS battery power, the status is indicated by LED and is detectable by
software. This “operating on battery” signal can be obtained through checking the
communication status of COM1 at signal DCD provided this signal is not engaged
elsewhere (In other words, Modem is not recommended to be used on COM1). When
the system is working on AC power, the DCD signal of COM1 is reset (value = 0).
When the system is working on battery power, the DCD signal of COM1 (BATTWK
signal) is set (value = 1). The DCD signal is obtained as the bit 7 (the most significant
bit) of the I/O address 3FEh if the COM1 address is set to 3F8h~3FFh (conventional
address for COM1) in system configuration.
There is further an auto detect function on the existence of UPS battery provided.
This capability supports the Posiflex software installed in the preloaded operating
system of Windows to enable or disable the UPS function automatically as long as it is
initialized. The system is capable to detect the existence / status of UPS battery and to
respond to 2 query command strings. These 2 query command strings have to be sent as
usual to COM1 under protocol: 9600 bps, parity none, 8 data bits, 1 stop bit. The
system changes DCD status of COM1 as response.
“Check Battery-Detect Capability” command string is <1B> <00> <00> <00>
<00> <18> <00> <00> in hexadecimal format. And the DCD of COM1 will be set for a
period of time if the battery-detect capability of the system is operating.
“Check Battery Condition” command string is <1B> <00> <00> <00> <00>
<18> <18> <18> in hexadecimal format. And the DCD of COM1 will be set for a
period of time if the battery responds correctly to the battery detect.
The period of time in these 2 responses starts after several machine cycles since
receival of the query command and stops about 15 seconds later or whenever another
query command is received. It is advisable to take a check on the response between 1 to
TP-5700/5800 series Technical Manual 5 - 6
10 seconds after sending the query command and to send the other query command only
after first response checked to avoid any possible ambiguity.
POSIFLEX TOOLS
In the preinstalled OS there will be a program group named Posiflex Tools if
any of the PS2 interface touch panel, UPS battery is installed and the deluxe security
device KP100. There will be a “Posiflex Touch Calibrator” and a “Posiflex Touch
Manager” in this group for the PS2 interface touch panel. The touch calibrator is a tool
for the user to recalibrate the touch screen once required. The touch manger allows the
user to define the touch response as beep sound control and double click speed. There
will be a “Posiflex Power Switch Manager” in the tool group for the UPS battery
installed. This utility automatically detects the existence of the UPS battery and handles
hardware setup accordingly besides the power control functions over the hardware
power on/off switch and the software power off function. There will be a “Posiflex
Programmable Keyboard” in the tool group if KP100 is installed. There will also be a
“Posiflex MSR Manager” in the tools group if a MSR is included in the installed
KP100. However, please note that this MSR manager won’t be applicable for the MSR
in SD100 -- the other type of upgrade kit. Maneuvering MSR behavior over SD100
requires some hardware modification.
The user may have also noticed that there can be program(s) “Posiflex Power
Switch Init” or “Posiflex MSR Init” in the StartUp program group or “Posiflex Power
OFF” in “Program Files” or “All Programs” menu or some shortcut links in Start menu
or on desktop per content installed in Posiflex Tools. These Init programs are required
for their related devices to function properly in Windows. The “Posiflex Power OFF”
provides the software control over the power management system. Details of the
Posiflex Tools follow.
TOUCH CALIBRATOR
This function can recalibrate the touch panel with the LCD display panel. After
clicking “Start”, the user is requested to touch the lower left corner and upper right
corner of the screen consecutively and then the confirmation block to ascertain the
calibration. Clicking “Exit” saves the calibration parameters and exits the program.
TP-5700/5800 series Technical Manual 5 - 7
TOUCH MANAGER
This function allows the user to define the touch response as beep sound control
and double click speed. Once executed, there will be several controller items as below.
ENABLE TOUCH BEEP
Clicking on this item alters the check status in the check box. When it is checked,
every time the panel is touched, there will be a beep sound determined by parameters
below this item.
BEEP FREQUENCY
Clicking on the left or right arrow decreases or increases the reference value for
the beep tone when touch beep enabled. This value ranges from 500 to 5000 at a step of
100.
BEEP DURATION TIME
Clicking on the left or right arrow decreases or increases the time for the beep
to continue when touch beep enabled. This value ranges from 20 to 1000 at a step of 20.
DOUBLE CLICK TIME
Clicking on the left or right arrow decreases or increases the time interval for
consecutive clicks to be identified as a double click. This value ranges from 10 to 1000
at a step of 10.
DOUBLE CLICK SNAP DOTS
Clicking on the left or right arrow decreases or increases the size of area for
consecutive clicks to be identified as a double click at same spot. This value ranges
from 5 to 100 at a step of 5. The larger the number set in this item the larger the area is
considered as same position on the touch panel. However, the accuracy of the touch
position will also be reduced as a consequence.
TASK BAR STATE
Clicking on this item makes it possible to utilize touch to call the task bar once it
is set to hidden. Otherwise it would be difficult for a mouse emulation of the touch to be
TP-5700/5800 series Technical Manual 5 - 8
at the very edge of screen display and making a movement to go outward from the
screen like a real mouse does.
EXIT
Clicking on this item saves all the parameters and exits the program.
POWER SWITCH MANAGER
POWER SWITCH SETTING
The function of the power switch that is at the lower part of the right side as
viewed in desktop application can be defined here. When “ON/OFF” function for this
switch is selected, the power switch turns the system on when the system is off and
turns the system off when the system is on. When “ON Only” function for this switch is
selected, the power switch always turns the system on regardless of the status
whether the system is On or Off. In this way, accidental switching off of the system is
avoided. However, the software power off per instructions given in page 5 - 3 of this
chapter or the “Posiflex Power OFF” function has to be engaged to turn off the system
in such approach.
UPS BATTERY STATUS
When the system is equipped with a valid UPS battery, the system will indicate
that the UPS function is “Enabled” to guard the system against intermittent power
failure. When there is no UPS battery installed or when the battery installed is already
out of service, the system will indicate that the UPS function is “Disabled” and the
system will immediately turn off to reject any possible noise or the consequent RTC
CMOS setup data loss when power fails. It is advisable to replace as soon as possible
an installed UPS battery but found out of service from this function.
POWER OFF DELAY TIME
This function defines the time delay between the software power off command
(Posiflex Power OFF) and the physical power off. The count is programmable between
1 and 255, and each count represents 1 sec delay. This software power off command is
an irrevocable process just like pulling the plug after a certain delay to allow the
shutdown procedures. So special care must be exercised in using this software power
TP-5700/5800 series Technical Manual 5 - 9
off command. However, this command must be engaged to turn the power off when the
power switch is set to “ON Only”.
SAVE AND EXIT
Clicking on this item saves all parameter and exits the program.
CANCEL AND EXIT
Clicking on this item discards all parameter changes and exits the program.
PROGRAMMABLE KEYBOARD
STARTING THE PROGRAM
This program applies only to the KP100 upgrade kit side mounted to a
TP5700/TP5800 series. It is assumed that a PS2 keyboard is connected to the back of
KP100 for entering data to be programmed into its programmable keys. If this program
is started without a KP100 connected, in failure of detecting a KP100, it will ask for
subject to program between KB4000 and KP100 series. Please select KP100 to start an
offline programming. Please prevent any action on keyboard, mouse or touch on screen
when the indicates so to have a proper detection on the KP100.
KEY MAP
The upper part of the screen display in this program below the command menu
represents a map in the key-layout of the programmable portion on the keyboard. Each
key is identified by a 2 character notation, in which the first letter stands for column, the
second number stands for row. The identification where current cursor is will be in
pink color while the rest in gray. The lower part of the screen display are editing areas.
When you touch any position in the upper map, that position becomes pink, the left row
of lower part becomes same column of keys in the map and the right row of lower part
becomes contents of each key in that column. At this moment the corresponding key in
the lower left row shows pink background. If you touch any position in the lower left
column, you may notice that the background color of that key turns into blue. This
indicates that you may edit the notation of that key in this program. When you touch any
bar in the lower right column, the position in lower left column corresponding to this
TP-5700/5800 series Technical Manual 5 - 10
bar turns into yellow to indicate that you are now editing the content of this particular
key.
COMMAND MENU
Please remember that if the keyboard programming utility ends without any
“Save” (to file) or “Write” (to keyboard) operation, every effort done in this utility will
be washed away leaving no slightest trace. Please always “Write” to keyboard in order
to “program” the KP100. Materials below help mastering this programming utility.
File – “Open” to load an existing template file into the program for editing. “Save” to
store the edited result into a template file. “Exit” to exit the program.
Keyboard – “Read” to load the content of the connected KP100 into program for
editing. “Write” to store the edited result into the connected KP100.
Edit – “Copy”, “Paste” and “Clear” functions over key map.
View – This menu is used to switch among “Pages” of the keyboard and is not
applicable to KP100.
Config – Beep function on key press and “Intercharacter Delay” are defined in this
menu. The so-called “Intercharacter Delay” determines how fast a string of
characters defined in each key are transmitted to the host TP system when that
key is pressed in application.
MSR – This menu is only applicable to KP100 of revision A0a. Please apply MSR
manager for most of MSR in KP100.
About – Version information of this utility.
Help – This menu was intended for giving guidance for programming the special
content. However, it has no action in this program.
Exit – To quit this program.
SPECIAL KEY CONTENT
To program a key containing any special function keys such as the “F1” through
“F12” or even some special keys only for particular language keyboard (“Muhenkan”
“Henkan” Hiragana”), the user shall right click the mouse at the editing bar in lower
right column. On mouse right click, there will be some editing functions in left column
of a popup box and special content selections in right column. After such contents are
TP-5700/5800 series Technical Manual 5 - 11
programmed to KP100, in application of KP100 when that key is pressed, it works as if
those special keys on a standard keyboard were pressed as predefined.
BREAK CODE – For programming function keys like “Shifts”, “Controls” or “Alts” in
content for a key, its corresponding “break code” must be also programmed into the key
content afterwards. Otherwise these function keys will act as if they are kept pressed
for any other contents transmitted to host after it.
TO INSERT A TIME DELAY – Selecting “Delay 1” or “Delay 10” or the like in the
content of a key can insert a time delay of 1 second or 10 seconds accordingly in the
keyboard input when that key is pressed in application.
TO PROGRAM MULTI-LEVEL – You may program in some keys on KP100 to
contain 1 to 7 “Marks” then you program each rest keys on KP100 to have multiple
sections of content and separate each section by “Separator”. In application, when the
multiple section defined key is pressed only the first section before any “Separator”
will be transmitted to the host TP system. When it is pressed in combination with a key
containing certain number of “Mark”s, then only the section after that number of
“Separator”s in this multiple defined key will go to the host.
MSR MANAGER
The MSR maneuver program is applicable to most PS2 KB interface MSR in
KP100 except those carrying the revision number of A0a on back of KP100. Please
note that the following is not applicable to standard MSR in SD100 that uses USB
interface.
USE ALT-NUM EMULATION
This function is required for systems using a different keyboard layout of the
alphabetical part from the US keyboard when track 1 of the MSR is enabled. This
function will have no influence if the MSR uses only track 2 and/or track 3. The reason
is that the data of the MSR are sent to the host via keyboard port. When the alphabetical
data in track 1 of the MSR is read, the data goes to the keyboard controller in scan code
format. However, this scan code could be confusing if the system keyboard controller
interprets it according to a different layout. (For example, the location for “A” in US
keyboard is that for “Q” in a French keyboard. The location for “Z” in US keyboard is
that for “Y” in a German keyboard.) One way to deal with such problem is to use the
TP-5700/5800 series Technical Manual 5 - 12
“Alt-num” approach. This means that, for example, when “A” is read, the scan codes
for pressing and holding “Alt” key while pressing “6” and “5” keys of the numerical
keypad consecutively are sent to the keyboard controller. Therefore, the data will not
be misinterpreted regardless of the keyboard layout.
ENABLE MSR TRACK 1
A tick in the check box enables the reading of track 1 data. Without this check,
the data of track 1 on the MSR will be ignored.
ENABLE MSR TRACK 2
A tick in the check box enables the reading of track 2 data. Without this check,
the data of track 2 on the MSR will be ignored.
ENABLE MSR TRACK 3
A tick in the check box enables the reading of track 3 data if the MSR reader is
a 3 track reader. Without this check, the data of track 3 on the MSR will be ignored.
MSR WILL SEND THE LEADING CODE
In data encoding of the magnetic stripes, each tracks are separated with each
start/end sentinels. However the user may decide whether to send codes of/for these
sentinels or not depending on the requirement of the application software.
MSR TRACK 1 LEADING CODE
MSR TRACK 2 LEADING CODE
MSR TRACK 3 LEADING CODE
MSR ENDING CODE
Once the codes for the sentinels of each track are defined to be sent to the
keyboard controller, the leading codes for each start sentinels and the ending code for
the common end sentinel can be selected from a table of displayable characters with
ASCII code from 20h to 7Eh. Pressing each left/right button selects each code. The
TP-5700/5800 series Technical Manual 5 - 13
default track 1 leading code is “%”; the default track 2 and track 3 leading code is “;”;
the default ending code is “?”.
INTERCHARACTER TRANSMISSION DELAY
Usually, the processing algorithm and the keyboard data input buffer in an
operating system are arranged in such a way that the system resources are preserved as
much as possible while data input from the keyboard port presents no problem.
However, as we know that the amount of data read from one single stroke of MSR can
be much much larger than any possibly fastest keyboard entry in same duration. Some
operating system may be unable to handle such a bunch of data in so short time.
Therefore, a so-called intercharacter delay is introduced to allow the keyboard
controller to digest the input data. When data read from the MSR is marching to the
keyboard controller, a programmable time delay is inserted between any two characters.
The value to define this intercharacter delay ranges from 1 to 32. The correspondent
delay time ranges from 4 ms to 66 ms.
RESET TO ENGLISH DEFAULTS
RESET TO NON-ENGLISH DEFAULTS
These two options provide users to reset all the MSR maneuver functions to the
proper defaults according to the system language the users uses. This consideration
involves mostly of the Alt-Num emulation and the intercharacter delay.
SAVE AND EXIT
Clicking on this item saves all parameter and exits the program.
CANCEL AND EXIT
Clicking on this item discards all parameter changes and exits the program.
SOFTWARE COMMAND INDEX
Following table is a collection of software command applicable to the Jiva SL
(TP5700) & Jiva EL (TP5800) series for a quick look up. The page number listed
could deviate from the display of this file if different viewer is utilized.
TP-5700/5800 series Technical Manual 5 - 14
Usage of the Command
Page Chapter
Section / Subsection
Open CR1
5-2
Application Guide Cash Drawer
Open CR2
5-2
Application Guide Cash Drawer
Drawer open sense
5-2
Application Guide Cash Drawer
Main switch ON only
5-3
Application Guide
Power On/Off Control
External Power Switch
/
Main switch ON/OFF
5-3
Application Guide
Power On/Off Control
External Power Switch
/
Software power off
5-3
Application Guide
Power On/Off Control
Software Switch Off
/
Enhance forced power off
5-4
Application Guide Forced Power Off
Enable UPS function
5-6
Application Guide UPS Function Enabling
Disable UPS function
5-6
Application Guide UPS Function Enabling
Check autodetect capability
5-6
Application Guide UPS Detection Function
Check battery condition
5-6
Application Guide UPS Detection Function
UPS status check
6-5
Hardware Details
Software Awareness of UPS
Status
EXTENDED DUAL DISPLAY MODE
The external monitor connector is a standard VGA type 3 x 5 pins D connector
and can be connected to any market available PC monitors. However, if extended dual
display mode (1st and 2nd screen showing different pictures) is to be engaged, the
shared video memory must be set to be 8 MB in the CMOS setup. Please enable the
power supply to this port per Hardware Details in later chapter when LM6001 is to be
connected.
NVSRAM
The NVSRAM in a Jiva SL (TP5700) & Jiva EL (TP5800) system is installed
in the mainboard of the Jiva SL (TP5700) & Jiva EL (TP5800) system. The NVSRAM
in a Jiva SL (TP5700) & Jiva EL (TP5800) system has a memory size of 32 KB and
addressed from D0000h to D7FFFh in the memory map. This arrangement gives a great
deal of easiness to a software programmer in utilizing the NVSRAM through direct
TP-5700/5800 series Technical Manual 5 - 15
software control in the application program in consideration of the hardware upgrading.
One easiest way to utilize the NVSRAM of a Jiva SL (TP5700) & Jiva EL (TP5800)
system is through the use of appropriate software driver to simulate a disk drive.
To have the NVSRAM work as a simulated disk drive, the user should first
simply download from web page http://www.posiflex.com.tw/english/download.htm
the file NDISK.SYS in Jiva SL (TP5700) & Jiva EL (TP5800) driver utility to a
convenient directory of his/her Hard Disk Drive, say copy the file NDISK.SYS to the
subdirectory C:\PATH where PATH means the subdirectory routing required, add
following sentence into the CONFIG.SYS file:
DEVICE = C:\PATH \ NDISK.SYS
DEVICEHIGH = C:\PATH \ NDISK.SYS
or
and then restart the system. This will give a simulated free disk space of 28,160 bytes
after restart of the system.
The NVSRAM will then work as a simulated disk drive D: which works not
only faster than a hard disk drive but also more reliable and safer especially in case of
power failure.
TP-5700/5800 series Technical Manual 5 - 16
HARDWARE DETAILS
MAIN BOARD
COMPONENT SIDE
JP18
JP22
JP24
JP23
KBMS1
AUDIO1
JP25
JP8
LAN1
U1
JP21
JP26
JP19
LPT1
D
I
M
1
D
I
M
2
VGA1
U2
PCI1
COM3
JP12
COM1
U11
L
C
D
1
U3
A1
CF1
B2
JP34
JP15
JP7
JP2
JP3
IDE2
IDE1
JP4
TP-5700/5800 series Technical Manual 6 - 1
SOLDER SIDE
JP6
BAT
JP9
JP16
+5V2
2
+5V
JP13
TP-5700/5800 series Technical Manual 6 - 2
JP11
JP14
JUMPERS AND CONNECTORS
ON COMPONENT SIDE
Position
AUDIO1
CF1
COM1
COM3
DIM1
DIM2
IDE1
IDE2
JP2
JP4
JP7
JP12
JP15
JP18
JP19
JP21
JP22
JP23
JP24
JP25
JP26
JP34
KBMS1
LAN1
LCD1
LPT1
PCI1
VGA1
Part Spec
3.5Ø Jacks
CF Slot
2x D Sub 9M
2x D Sub 9M
DDR Socket 184p
DDR Socket 184p
Slot 40p
Slot 40p
HDR 2x3
HDR 1x4
HDR 1x2
HDR 1x2
HDR 1x8 +L
Switch
HDR 1x3 Rt
RJ11 Jack
HDR 1x3 +L
Socket 4p
Socket 1x4
HDR 1x4 +L
HDR 1x4 +L
HDR 2x2
2x mini DIN 6p
Composite Conn.
Slot 60p
D Sub 25F
Slot SMD mini PCI
3x5 D
Usage
Audio Port
CF Card Slot
COM1 & COM2 Connector
COM3 & COM4 Connector
DDR SDRAM Socket
DDR SDRAM Socket
IDE1 Slot
IDE2 Slot
Touch Signal Setting (Reserved)
PS2 Mouse Signal Loop (Reserved)
CF Card Master/Slave Status Control
Reserved
Riser Card Control (Reserved)
Power Switch
LED Connector
CR Port
Exhausted Fan Connector (Reserved)
Power Jack
UPS Battery Connector
IDE Power Connector
CPU Fan Connector (Reserved)
Scaler Controller Setting (Reserved)
PS2 KB & PS2 Mouse Connector
LAN & 2xUSB Connector
Riser Card Slot
LPT Port
Mini PCI Slot (Reserved)
VGA Port
TP-5700/5800 series Technical Manual 6 - 3
ON SOLDER SIDE
Position
BAT1
JP6
JP9
JP11
JP13
JP14
JP16
Part Spec
Round Socket
Mini HDR 1x2
Mini HDR 1x2
Mini HDR 1x3
Mini HDR 2x3
Mini HDR 2x3
Mini HDR 1x3
Usage
CMOS BATTERY SOCKET
VGA DC SUPPLY
LAN Enable/Disable Control
CMOS Data Control
COM1/COM2 DC Supply Select
COM3/COM4 DC Supply Select
UPS Status
JUMPER SETTINGS
The “«” marks in the following tables denote the factory default settings.
CMOS DATA CONTROL
JP11 STATUS
CMOS DATA CONTROL
1-2 short
Clear CMOS data
2-3 short
Normal operation
«
COM1/COM2 DC SUPPLY SELECT
STATUS OF JP13 ON SOLDER SIDE
PIN 9 STATUS
1 – 3 short
COM1 Pin9 connected to 5 V DC
3 - 5 short
COM1 Pin9 connected as RI
2 – 4 short
COM2 Pin9 connected to 5 V DC
4 - 6 short
COM2 Pin9 connected as RI
«
«
Please note that the 5 V DC supply should be selected only for supporting the
Posiflex serial devices that are designed to be powered from this source. Whenever
such Posiflex device is to be removed from this port, the 5 V DC supply must be
deselected.
TP-5700/5800 series Technical Manual 6 - 4
COM3/COM4 DC SUPPLY SELECT
STATUS OF JP14 ON SOLDER SIDE
PIN 9 STATUS
1 – 3 short
COM3 Pin9 connected to 5 V DC
3 - 5 short
COM3 Pin9 connected as RI
2 – 4 short
COM4 Pin9 connected to 5 V DC
4 - 6 short
COM4 Pin9 connected as RI
«
«
Please note that the 5 V DC supply should be selected only for supporting the
Posiflex serial devices that are designed to be powered from this source. Whenever
such Posiflex device is to be removed from this port, the 5 V DC supply must be
deselected.
SOFTWARE AWARENESS OF UPS STATUS
STATUS OF JP16 ON SOLDER SIDE
COM1 PIN1 SIGNAL
1 – 2 short
Normal (DCD signal)
2 - 3 short
Detect UPS status
«
The UPS status is used to inform the software the power source the system is
operating on (AC adaptor or UPS battery). The default of this jumper is set to detect the
UPS status to enable the software detection on existence of AC power. When the DCD
bit of COM1 is set, the AC power is present. The user has to change this jumper if
he/she wants to detect the standard DCD signal on COM1.
SCALER CONTROLLER
STATUS OF JP34
TOUCH SIGNAL
1 – 2, 3 – 4 Short
TP076/TP077
All Open
TP056/057, TP066/067
«
CF CARD STATUS
STATUS OF JP7
STATUS IN IDE CHANNEL
Short
MASTER
Open
SLAVE
«
TP-5700/5800 series Technical Manual 6 - 5
VGA PORT DC POWER ENABLE/DISABLE
STATUS OF JP6 ON SOLDER SIDE
VGA PORT
Short
12 V DC ENABLED (For LM6001 or
TM6001)
Open
12 V DC DISABLED
PS2 MOUSE SIGNAL LOOP
STATUS OF JP4
MOUSE SIGNAL
«
Through Touch Controller
Li BATTERY CURRENT MEASUREMENT
STATUS OF JP12
Li BATTERY
Short
Connected
Open
Disconnected
«
TOUCH SIGNAL SETTING
STATUS OF JP2
TOUCH SIGNAL
1 – 3, 2 – 4 Short
COM4 PORT
3 – 5, 4 – 6 Short
N.A.USB
TP-5700/5800 series Technical Manual 6 - 6
«
USB MSR CONTROL BOARD (UMSRCPU)
JUMPER SETTING IN JP1
2
12
1
11
CN2
CN3
CN1
JP1
AT43301
U3
U5
UMSRCPU-D
T1 Enable -> 1&2 = Short ;T1 Disable -> 1&2 = Open
T2 Enable -> 3&4 = Short ;T2 Disable -> 3&4 = Open
T3 Enable -> 5&6 = Short ;T3 Disable -> 5&6 = Open
ISO MSR -> 7&8 = OPEN;JIS2 MSR-> 7&8 = Short
ALT+NUM ON -> 9&10 = Open;ALT+NUM OFF -> 9&10 = Short
Leading Code Enable -> 11&12 = Open;Disable -> 11&12 = Short
TP-5700/5800 series Technical Manual 6 - 7
SERVICE AND SPARE PARTS
SERVICE GUIDE
Reference to the Posiflex Jiva Instructional Assembly & Disassembly Video CD
could help instant comprehension on operations below.
SIDE MOUNT UPGRADE KIT
The available side mount upgrade kits include KP100 and SD100. The KP100
is a larger unit with always a 40 key programmable keypad. The SD100 is a smaller
unit without this keypad. Various function kits besides the keypad can be applied in the
upgrade kit. The possible configurations are tabulated as below:
Function Kits Included
SD100
KP100
No function kit but keypad
V
MSR (PS2 KB connector)
V
MSR (USB interface)
V
F/P sensor
V
V
SC reader
V
V
I/B (Dallas Key) reader
V
MSR (PS2 KB connector) + F/P sensor
V
MSR (PS2 KB connector) + SC reader
V
F/P sensor + SC reader
V
F/P sensor + MSR (USB interface)
V
SC reader + I/B (Dallas Key) reader
V
I/B (Dallas Key) reader + MSR (USB interface)
V
MSR (PS2 KB connector) + F/P sensor + SC reader
V
V
If the side mount unit SD100 is ordered together with the Jiva SL (TP5700) &
Jiva EL (TP5800) system, this side mount unit will be attached on the Jiva SL (TP5700)
& Jiva EL (TP5800) system when delivered. However, if the side mount unit is KP100
or if SD100 is ordered separately from the Jiva system, installation of the side mount
upgrade kit is required. To install the side mount upgrade kit please find two screw
holes on back of the right side of the main unit. Just align the side mount unit on the right
TP-5700/5800 series Technical Manual 7 - 1
edge of the main unit and fasten the two screws with washer as indicated in the picture.
Route the cable with or without an extension cable through the side of the cable cover
to proper port. Break the obstructing sidewall of the cable cover at the cable entrance
to the connector area.
Side Mount
Screw
REAR TOP MOUNT UPGRADE KIT
The upgrade kit that can be mounted on rear top of the whole Jiva
series (all TP series) is PD302, a 2 by 20 LCD customer display.
Separate the main unit from its stand assembly. Prepare power for the
PD302 in the service window on rear side of the main unit and then
reunite the touch terminal.
1. Aim the bottom center cavity of PD302 series toward the
latch stub at rear of touch terminal main unit. Then aim both
metal and plastic hooks at rear of the PD302 series toward
the suitable ventilation openings on top rear of the main
unit. Please use a phillips head driver to fasten the screws
Plastic hook Metal hook
on the metal hook but not to overdo it so that the metal
hooks hold the ribs of the ventilation holes from inside.
2. Plug the DB9 female connector to the COM port with power DC supply from the TP
series. If the COM1 terminator is found on COM1 port that happens to be the COM
port planed for PD302, please remove the COM1 terminator and save it at a safe
place for future use.
3. Route the cable to go through the notch on back of the stand assembly
of touch terminal as indicated in the picture. Reassemble the main
unit and stand assembly.
TP-5700/5800 series Technical Manual 7 - 2
4. Guidance for future un-installation: Please always use a screw driver to release
the metal hook before removing PD302 from the ventilation holes.
OPEN THE MAIN UNIT
Opening the main unit is a tricky and difficult job. The first and the easiest step
is to disconnect power and every cable (including the LED cable) and separate the
main unit from the paddle assembly. Unlock and open the cable cover.
To work on the most tricky part of the operation please
d
h
first notice the 8 hooks on the front cover holding the back
c
g
Hooks from
cover at about 6 cm (2.5”) away from each corner. The
Front Cover
simplified drawing on the left indicates the positions of these
a
e
b
f
hooks as viewed from the back of the main unit.
It takes skill and strength to get the front cover unhooked
from the back cover. A push/pull on the edge of the inner
opening of the front cover could be engaged to help unhooking
the front cover. But please keep cautious not to get
scratch/damage on the touch panel. The unhooking sequence
advisable from the experience suggests to unhook one hook on
the side (either left or right) then the hook on top or bottom
nearest the same corner to release one corner first. Then apply same trick to release the
other corner on same side and then the other side to remove the front cover from the
back cover. One example of doing so is to follow the alphabetical order (a to h) of the
hooks as indicated in the simplified drawing above.
Remove the LED cable from the LED hole in the front cover if necessary.
SEPARATE LCD PANEL ASSEMBLY
Please refer to the assembly drawing for all the following operations. After
removing the front cover, we see three screws on both sides. Unscrew these six screws,
it is then possible to remove the whole LCD panel assembly. However, in order not to
damage the three cables connected to the LCD panel assembly, do not take the LCD
panel assembly right away. With the LCD panel assembly lifted at top, please first
notice the way the cables connect and unscrew the four screws holding the riser card
TP-5700/5800 series Technical Manual 7 - 3
cover plate, remove the cover plate, and remove the riser card from the opening before
completely removing the LCD panel assembly.
4 screws on riser card plate
3 screws each side
Riser card
However, if the mechanical structure of the system is already of a newer version
that we call it as snap-on structure and utilizes minimal number of screws in assembly
as in pictures below a lot of unscrewing operations are eliminated. Press down the 2
springs on bottom side of LCD panel assembly and lift the LCD panel assembly by top
edges. Don’t pull the 2 lugs easily visible for this operation because they actually
belong to the lower part. Just press down the spring located at right side to the riser
card cover plate and meantime push this cover plate to the right to show the riser card.
1. Push springs down
3. Push the spring down
4. Push cover right
šÎ
Î š
2. Don’t pull the lugs!
Raise the top edges!
Now, please disconnect the three cables (LCD display cable, touch controller
cable and inverter cable) from the riser card and also the LCD panel assembly for
replacement of the riser card. Disconnect the connector(s) on the inverter board and
unscrew four screws to release the LCD panel from the metal frame. Unscrew two
screws to remove the inverter board. The touch control panel is fixed on the metal
frame as an individual service part. Please pay particular attention to the routing of the
three cables during the reverse process for reassembling. Please also make sure that in
the reassembly process, the edge of the riser card is secured in the openings of the riser
card cover plate.
REPLACE HDD (only for TP5815)
TP-5700/5800 series Technical Manual 7 - 4
Unscrew totally 9 screws (2 on top, 4 on Don’t touch circled screws!
bottom, 2 each on either side) on the cover plate of the
steel box revealed after removal of LCD panel
assembly. Do not loosen any of the 3 screws on each
side that the screw heads are within the small circular
openings of the cover plate.
Just as in the previous section, for the snap 1. Remove
on structure version the operation is also greatly this screw
simplified. Remove the only screw as indicated and 2. Pull down
pull the cover plate down to remove it.
cover plate
Disconnect the power and data cables to the
HDD. Unscrew the 4 screws holding the HDD
bracket to dismount the HDD assembly leaving the 4 screws on the bracket with their
washers, rubber sleeves and copper inner sleeves on the bracket. Unscrew the 4 screws
from bottom of the HDD mounting bracket to replace the HDD. Please note that there is
one rubber ring on each side of the mounting bracket for each of the 4 screws holding
HDD to its bracket.
These rubber sleeves, copper inner sleeves, rubber rings are the essential parts
for suspending the HDD against mechanical vibration and shock. That is one of the keys
why Posiflex products are always more endurable than other brands. Such suspension
parts, could be lost during parts replacement, and can be purchased as service part. To
screw HDD back to the mounting bracket, please align the rubber rings on each side of
the bracket and the screw hole on HDD bottom. Some mild adhesives could be applied
to help the operation if there comes the difficulty. To replace a lost rubber sleeve,
please first squeeze the rubber sleeve without the copper inner sleeve through the
opening in the bracket and make the bracket to settle in the middle ring groove of the
TP-5700/5800 series Technical Manual 7 - 5
rubber sleeve. Then insert the copper sleeve from the bottom of the bracket so that the
screw and washer can fix the bracket from top.
REPLACE MAINBOARD
After removal of HDD or HDD and the CD ROM adaptor card PST069 for
system since revision D, please remove the 4 (round head) screws at the bottom of the
connector panel and the 8 screws holding the mainboard to the back cover assembly.
Disconnect the exhaust fan and raise the mainboard up along the HDD support posts.
Unscrew the hex head screws of the connectors on the connector panel to release it
from the mainboard and screw them back to the mainboard in case of mainboard
Screws holding mainboard
are circled in these pictures
replacement.
No further disassembly on the back cover assembly is allowed except releasing
the exhaust fan from the metal box. Such disassembly operation by any non-well-trained
people will almost doomed to cause damage without awareness of the occurrence. Such
damage is strictly the responsibility of the person who intended to disassemble and is
not covered by the product warranty.
To reassemble the whole system back, please just do the counter actions in
reverse order.
TP-5700/5800 series Technical Manual 7 - 6
SPARE PARTS LIST
The column “Pos.” in the list below refers basically to the ID numbers indicated
in the Assembly Drawing. However, if this column is not available, it refers to a
packaging item. The column “S.” indicates the alternative selections available for that
position. Please pay particular attention in making selection among the alternatives
when there are some clues given in the column “Description” to indicate its relation
with other items in the system. Error in such selection may cause unrecoverable
damage. Once any particular selection of an item becomes obsolete through time, the
need for replacement shall call for replacement of other items related to that selection
to another. Please follow the separately issued list if it is renewed later. The snap-on
structure parts are not yet completed in this issue.
Pos. S. Part Number
1
2
3
101
4
5
6
Description
36272007101
Front Cover for 12.1” w/ Blue LED & cable,
Beige
36272007102
Front Cover for 12.1” w/ Blue LED & cable,
Charcoal
36272008101
Front Cover for 15” w/ Blue LED & cable for
Touch source: E, Beige
36272008102
Front Cover for 15” w/ Blue LED & cable for
Touch source: E, Charcoal
36282001002
Front Cover for 15” w/ Blue LED & cable for
Touch source: F, Beige
36282001001
Front Cover for 15” w/ Blue LED & cable for
Touch source: F, Charcoal
102
1
20862041400
CCBLA-414
HDD/CDROM Power Cable supporting Vcc
and + 12V DC for TP-5800 series only
103
1
20861038010
CCBLA-380A
HDD/CDROM Data Cable for TP-5800 series
only
104
1
20953002004
HDD 20GB or up for TP-5800 series only
TP-5700/5800 series Technical Manual 7 - 7
2
20953002011
Pos. S. Part Number
105
1
36202006000
DTP6KHDDKITASY
106
1
16200112000
MTP6M-112
107
1
1
108
2
109
1
1
2
110
3
4
3628200010
46280244200
46280254200
20833200000
HCT-50TC-8
36282002001
36282002002
HDD IBM 20GB or up for TP-5800 series only
Description
HDD Suspension Kit (incl. screws, washers,
rubber rings, rubber sleeves, copper inner
sleeves) for TP-5800 series only
HDD Mounting Bracket for TP-5800 series only
CPU Fan + Heat Sink w/ Cable for TP-5800
CPU or TP-5700 NB chipset (CLE266)
TP5700 series M/B
TP5800 series M/B
Exhaust Fan w/ Cable for TP-5800 series only
Back Cover Assembly (incl. Chassis), Beige
Back Cover Assembly (incl. Chassis), Charcoal
36282003001
Back Cover Assembly (incl. Chassis), Snap on
Structure, Beige
36282003002
Back Cover Assembly (incl. Chassis), Snap on
Structure, Charcoal
1
36201111001
DTP6KSTNDKIT-B
Stand Assembly (incl. Stopper), Beige
2
36201111002
DTP6KSTNDKIT-C
Stand Assembly (incl. Stopper), Charcoal
1
16200312001
MTP6P-008
Plastic Stopper for Main Unit, Beige
2
16200312002
MTP6P-008C
Plastic Stopper for Main Unit, Charcoal
111
112
TP-5700/5800 series Technical Manual 7 - 8
113
1
16200011300
MRUBFT19*5
Pos. S. Part Number
16100320001
MTP3P-020
Plastic Key, Beige
2
16100320002
MTP3P-020-C
Plastic Key, Charcoal
1
16200303001
MTP6P-003
Cable Cover, Beige
2
16200303002
MTP6P-003C
Cable Cover, Charcoal
118
1
119
2
1
1
121
2
1
16200120040
16200120060
16250104040
16200119020
MTP6M-119B
16200119050
36283001000
122
123
Description
1
116
120
Rubber Foot Set (1026319 x 05R x 4Pcs)
Riser Card Cover Plate
Riser Card Cover Plate, Snap on structure
I/O Connector Plate for TP5700/5800 series
Top Metal Cover Plate for Main Chassis
Top Metal Cover Plate for Main Chassis, Snap
on structure
LCD Display Cable set for 15” AU/CPT LCD
(M150XN05/CLAA150XG01)
on
TP076
(20864043600 + 20864043700)
2
20863042800
CCBLA-428
LCD Display Cable for 1024 x 768 LVDS LCD
12.1” LG (LP121X04) or 15” AU (B150XG02)
on TP056/7
1
46256204000
TP056
Riser Card, w/ PS2 Touch Controller, for LVDS
LCD of 15” AU (B150XG02) and 12.1” LG
(LP121SA-A2QT/LP121X04)
2
46281204100
TP076
Riser Card, w/ PS2 Touch Controller, for TTL
LCD of 15” AU (M150XN05)
TP-5700/5800 series Technical Manual 7 - 9
3
46281214100
TP076-CPT
Pos. S. Part Number
124
20862033400
CCBLA-334
7 Wire Touch Panel Extension Cable for F touch
1
20862029000
CCBLA-290
Inverter Cable for single backlight LVDS LCD
12.1” LG (LP121X04)
2
20862031600
CCBLA-316
Inverter Cable for 15” LCD of source AU/CPT
(M15DXN05/CLAA150XG01)
20811156201
LCD Panel 15” source AU
(model: M15DXN05)
20811157201
LCD Panel 15” source CPT
(model: CLAA150XG01)
20811121101
LCD Panel 12.1” source LG (single back light)
(model: LP121X04) LVDS 1024 x 768
20815121101
LCD Inverter for LVDS LCD (LP121X04),
single back light
36282034000
LCD Inverter for 15” LCD source AU
(M15DXN05) dual back light w/ insulator
20815151201
LCD Inverter for 15” LCD source CPT
(CLAA150XG01) dual back light w/o insulator
1
2
3
1
127
2
3
1
128
Description
1
125
126
Riser Card, w/ PS2 Touch Controller, for TTL
LCD of 15” CPT (CLAA150XG01)
2
3
36282014000
36282008000
36282029000
Touch Panel & Support Frame Assembly 15”
source Touch: F w/TP068A; LCD: AU/CPT
(model: M15DXN05 or CLAA150XG01)
Touch Panel & Support Frame Assembly 12.1”
source Touch: F w/TP068A; for LCD: LG
(single back light) (model: LP121X04) LVDS
1024 x 768
Touch Panel & Support Frame Assembly 15”,
Snap on Structure source Touch: F w/TP068A;
for LCD: AU/CPT (model: M15DXN05 or
CLAA150XG01 or B150XG02)
TP-5700/5800 series Technical Manual 7 - 10
Pos. S. Part Number
(128) 4
36282022000
Description
Touch Panel & Support Frame Assembly 12.1”,
Snap on Structure source Touch: F w/TP068A;
for LCD: LG (single back light) (model:
LP121X04) LVDS 1024 x 768
1
46209202000
TP069
External CDROM Adaptor Card (TP069) for
TP-5800 series only
131
1
36201005000
16200110020+2X
MSCRW#6-8+P
Cable Exit Cover Plate w/ 2x Screws
132
1
20901302032
CBT3.0VLI
Li-Battery CR2032
129
S. Part Number
1
2
Description
20972060120
AC Power Adaptor 12V/65W for TP5700
series
20972080121
AC Power Adaptor 12V/80W for TP5800
series
1
20868101300
CCBLPWR-AUST
Power Cord for Australia for TP5700 series
2
20868201300
CCBLPWR-EURP
Power Cord for Europe for TP5700 series
3
20868301300
CCBLPWR-JPN
Power Cord for Japan for TP5700 series
4
20868401300
CCBLPWR-SA
Power Cord for S.A. for TP5700 series
5
20868501300
CCBLPWR-UK
Power Cord for U.K. for TP5700 series
6
20868601300
CCBLPWR-USA
Power Cord for U.S.A. for TP5700 series
7
20868100500
Power Cord for Australia for TP5800 series
TP-5700/5800 series Technical Manual 7 - 11
S. Part Number
8
9
10
11
12
1
1
1
20868200500
20868300500
20868400500
20868500500
20868600500
16200511160
16200541050
16280900010
Description
Power Cord for Europe for TP5800 series
Power Cord for Japan for TP5800 series
Power Cord for S.A. for TP5800 series
Power Cord for U.K. for TP5800 series
Power Cord for U.S.A. for TP5800 series
TP57/58/6000 Packing Carton
TP57/58/6000 PE Foam per Pair
TP5700/5800 User’s Manual
TP-5700/5800 series Technical Manual 7 - 12
108
101
102
103
104
105
106
132
109
110
111
107
112
131
113
116
118
133
119
129
120
135
121
134
136
128
127
126
125
124
123
122
TP-5700/5800 series Technical Manual 7 - 13
