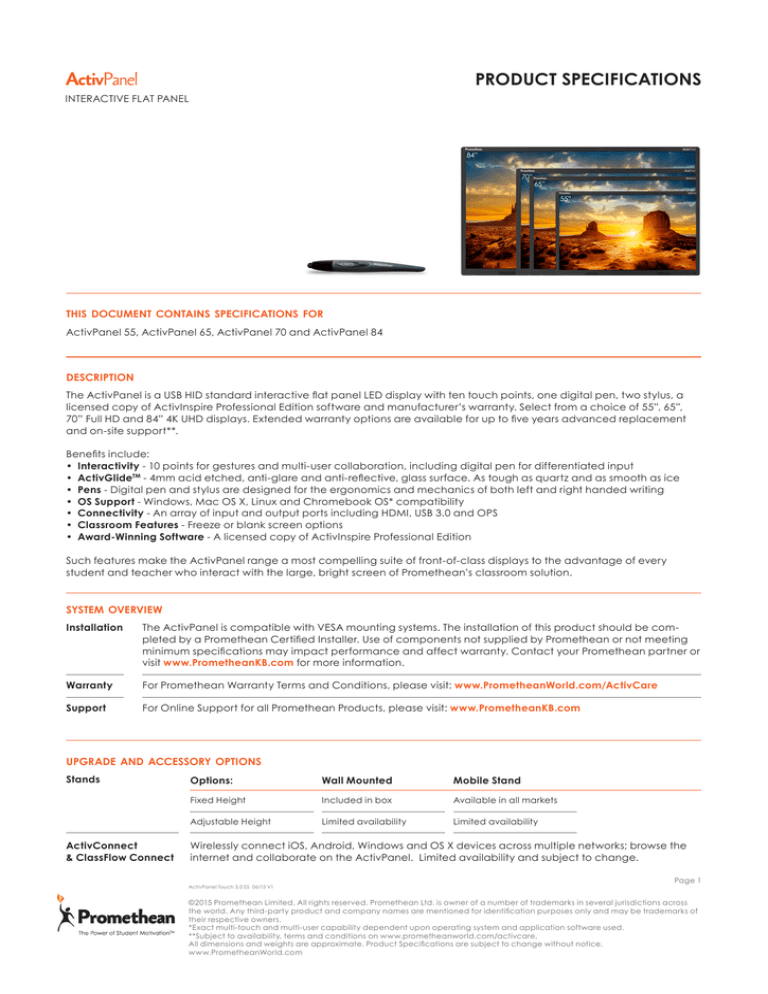

PRODUCT SPECIFICATIONS ActivPanel
ActivPanel
PRODUCT SPECIFICATIONS
INTERACTIVE FLAT PANEL
this document contains specifications for
ActivPanel 55, ActivPanel 65, ActivPanel 70 and ActivPanel 84
description
The ActivPanel is a USB HID standard interactive flat panel LED display with ten touch points, one digital pen, two stylus, a
licensed copy of ActivInspire Professional Edition software and manufacturer’s warranty. Select from a choice of 55”, 65”,
70” Full HD and 84” 4K UHD displays. Extended warranty options are available for up to five years advanced replacement
and on-site support**.
Benefits include:
• Interactivity - 10 points for gestures and multi-user collaboration, including digital pen for differentiated input
• ActivGlideTM - 4mm acid etched, anti-glare and anti-reflective, glass surface. As tough as quartz and as smooth as ice
• Pens - Digital pen and stylus are designed for the ergonomics and mechanics of both left and right handed writing
• OS Support - Windows, Mac OS X, Linux and Chromebook OS* compatibility
• Connectivity - An array of input and output ports including HDMI, USB 3.0 and OPS
• Classroom Features - Freeze or blank screen options
• Award-Winning Software - A licensed copy of ActivInspire Professional Edition
Such features make the ActivPanel range a most compelling suite of front-of-class displays to the advantage of every
student and teacher who interact with the large, bright screen of Promethean’s classroom solution.
system overview
Installation
The ActivPanel is compatible with VESA mounting systems. The installation of this product should be completed by a Promethean Certified Installer. Use of components not supplied by Promethean or not meeting
minimum specifications may impact performance and affect warranty. Contact your Promethean partner or
visit www.PrometheanKB.com for more information.
Warranty
For Promethean Warranty Terms and Conditions, please visit: www.PrometheanWorld.com/ActivCare
Support
For Online Support for all Promethean Products, please visit: www.PrometheanKB.com
upgrade and accessory options
Stands
ActivConnect
& ClassFlow Connect
Options:
Wall Mounted
Mobile Stand
Fixed Height
Included in box
Available in all markets
Adjustable Height
Limited availability
Limited availability
Wirelessly connect iOS, Android, Windows and OS X devices across multiple networks; browse the
internet and collaborate on the ActivPanel. Limited availability and subject to change.
ActivPanel Touch 3.0 SS 06/15 V1
Page 1
©2015 Promethean Limited. All rights reserved. Promethean Ltd. is owner of a number of trademarks in several jurisdictions across
the world. Any third-party product and company names are mentioned for identification purposes only and may be trademarks of
their respective owners.
*Exact multi-touch and multi-user capability dependent upon operating system and application software used.
**Subject to availability, terms and conditions on www.prometheanworld.com/activcare,
All dimensions and weights are approximate. Product Specifications are subject to change without notice.
www.PrometheanWorld.com
ActivPanel
PRODUCT SPECIFICATIONS
INTERACTIVE FLAT PANEL
technical specifications
ActivPanel 55”
ActivPanel 65”
ActivPanel 70”
ActivPanel 84”
Diagonal Size
55”
65”
70”
84”
Glass
4mm acid-etched
tempered glass
4mm acid-etched
tempered glass
4mm acid-etched
tempered glass
4mm acid-etched
tempered glass
Glass Hardness
7 Mohs
7 Mohs
7 Mohs
7 Mohs
Anti-Reflection,
Anti-Glare Tech
ActivGlide™
ActivGlide™
ActivGlide™
ActivGlide™
Class Features
Blank & Freeze Screen
Blank & Freeze Screen
Blank & Freeze Screen
Blank & Freeze Screen
Screen Type
LED TV
LED PID
LED DID
LED PD
LED Light Source
Backlight
Backlight
Backlight
Backlight
LED Type
IPS
VA
VA
IPS
Aspect Ratio
16:9
16:9
16:9
16:9
Optimum Resolution
Full HD 1080p
1920 x 1080 @ 60Hz
Full HD 1080p
1920 x 1080 @ 60Hz
Full HD 1080p
1920 x 1080 @ 60Hz
4K UHD 2160p
3840 x 2160 @ 30Hz
Display Area
1210mm x 680mm
(47.6in x 26.7in)
1428mm x 803mm
(56.2in x 31.6in)
1549mm x 872mm
(61in x 34.3in)
1867mm x 1053mm
(73.5” x 41.5”)
Pixel Density
40 PPI
34 PPI
31 PPI
52 PPI
Response Time
8ms
6.5ms
8ms
5ms
Refreshing Frequency
60Hz
60Hz
60Hz
30Hz UHD / 60Hz HD
Display Colours
16.7M
16.7M
1.06Bn
1.06Bn
Brightness
350 cd/m2 (350 Nits)
350 cd/m2 (350 Nits)
400 cd/m2 (400 Nits)
350 cd/m2 (350 Nits)
Contrast Ratio
1400:1
4000:1
4000:1
1400:1
Viewing Angle
178°
178°
178°
178°
Backlight Life Time
50,000 hrs
50,000 hrs
30,000 hrs
50,000 hrs
Speaker
Integral forward-facing
Integral forward-facing
Integral forward-facing
Integral forward-facing
Power
2 x 10W
2 x 10W
2 x 10W
2 x 10W
DISPLAY
AUDIO
CONNECTIVITY – AUDIO VIDEO IN
HDMI
x4
x4
x4
x 2 (HD 60Hz) x 2 (UHD 30Hz)
VGA (D-Sub)
x1
x1
x1
x1
Component In
x1
x1
x1
x1
AV-In
x1
x1
x1
x1
PC Audio (3.5mm)
x1
x1
x1
x1
USB 2.0 (media)
x1
x1
x1
x1
USB 3.0 (HD media)
x1
x1
x1
x1
RS232
x1
x1
x1
x1
OPS
x1
x1
x1
x1
ActivPanel Touch 3.0 SS 06/15 V1
Page 2
©2015 Promethean Limited. All rights reserved. Promethean Ltd. is owner of a number of trademarks in several jurisdictions across
the world. Any third-party product and company names are mentioned for identification purposes only and may be trademarks of
their respective owners.
*Exact multi-touch and multi-user capability dependent upon operating system and application software used.
**Subject to availability, terms and conditions on www.prometheanworld.com/activcare,
All dimensions and weights are approximate. Product Specifications are subject to change without notice.
www.PrometheanWorld.com
ActivPanel
PRODUCT SPECIFICATIONS
INTERACTIVE FLAT PANEL
activpanel specifications by model
ActivPanel 55”
ActivPanel 65”
ActivPanel 70”
ActivPanel 84”
CONNECTIVITY – AUDIO VIDEO OUT
HDMI Out
x 1 (HDMI 2 In only)
x 1 (HDMI 2 In only)
x 1 (HDMI 2 In only)
x 1 (HDMI 2 In only)
AV-Out
x1
x1
x1
x1
Digital Audio Out
(coaxial)
x1
x1
x1
x1
Headphone Socket
x1
x1
x1
x1
RS232 Out
x1
x1
x1
x1
Windows ® 7 to 10;
Mac OS X® 10.6 – 10.10;
Linux Ubuntu ® 12.04 – 14.04
Chromebook with touch
Windows ® 7 to 10;
Mac OS X® 10.6 – 10.10;
Linux Ubuntu ® 12.04 – 14.04
Chromebook with touch
Windows ® 7 to 10;
Mac OS X® 10.6 – 10.10;
Linux Ubuntu ® 12.04 – 14.04
Chromebook with touch
Windows ® 7 to 10;
Mac OS X® 10.6 – 10.10;
Linux Ubuntu ® 12.04 – 14.04
Chromebook with touch
Continuous Touch Points 10 for drawing & gestures
10 for drawing & gestures
10 for drawing & gestures
10 for drawing & gestures
Digital Pen
1
1
1
1
Gestures & Edge Swipes
Windows 8.1 Optimised
INTERACTIVITY
System
Windows 8.1 Optimised
Windows 8.1 Optimised
Windows ® 8.1 Optimised
USB HID Multitouch & Pen Yes – USB “B” 2.0
Yes – USB “B” 2.0
Yes – USB “B” 2.0
Yes – USB “B” 2.0
Technology
Infrared
Infrared
Infrared
Infrared
Resolution
32,768 × 32,768
32,768 × 32,768
32,768 × 32,768
32,768 × 32,768
Object Size Resolution
>6mm
>6mm
>6mm
>6mm
Positioning Accuracy
<2mm
<2mm
<2mm
<2mm
Tracking Rate
>200 inches / sec
>200 inches / sec
>200 inches / sec
>200 inches / sec
Output Rate
111Hz
111Hz
90Hz
83Hz
Response Time (first click)
18ms
18ms
22ms
24ms
Response Time
(subsequent click)
9ms
9ms
11ms
12ms
Scan Speed
9ms
9ms
11ms
12ms
Service Life
60,000 hrs
60,000 hrs
60,000 hrs
60,000 hrs
®
®
®
SENSOR TO LCD DISTANCES
1. Sensor to Glass
1. 1mm
1. 1mm
1. 1mm
1. 1mm
2. Glass
2. 4mm
2. 4mm
2. 4mm
2. 4mm
3. Glass to LCD
3. 2.5mm
3. 2.5mm
3. 2.5mm
3. 2.5mm
Version
Android ™ 4.2.1
Android ™ 4.2.1
Android ™ 4.2.1
Android ™ 4.2.1
CPU
ARM Cortex A7, 1.2GHz
ARM Cortex A7, 1.2GHz
ARM Cortex A7, 1.2GHz
ARM Cortex A7, 1.2GHz
GPU
Quad Core
Quad Core
Quad Core
Quad Core
RAM
1GB DDR3
1GB DDR3
1GB DDR3
1GB DDR3
ROM
4GB
4GB
4GB
4GB
Apps Installed
USB Media Player
USB Media Player
USB Media Player
USB Media Player
EMBEDDED ANDROID
ActivPanel Touch 3.0 SS 06/15 V1
Page 3
©2015 Promethean Limited. All rights reserved. Promethean Ltd. is owner of a number of trademarks in several jurisdictions across
the world. Any third-party product and company names are mentioned for identification purposes only and may be trademarks of
their respective owners.
*Exact multi-touch and multi-user capability dependent upon operating system and application software used.
**Subject to availability, terms and conditions on www.prometheanworld.com/activcare,
All dimensions and weights are approximate. Product Specifications are subject to change without notice.
www.PrometheanWorld.com
ActivPanel
PRODUCT SPECIFICATIONS
INTERACTIVE FLAT PANEL
activpanel specifications by model
ActivPanel 55”
ActivPanel 65”
ActivPanel 70”
ActivPanel 84”
Power Requirements
AC 100~240V
AC 100~240V
AC 100~240V
AC 100~240V
Dimension
1290mm x 782mm x 75mm
(50.8in x 30.8in x 3.0in)
1290mm x 782mm x 75mm
(50.8in x 30.8in x 3.0in)
1290mm x 782mm x 75mm
(50.8in x 30.8in x 3.0in)
1290mm x 782mm x 75mm
(50.8in x 30.8in x 3.0in)
Net Weight
42.1kg (92.8 lbs)
60.6Kg (134lb)
72Kg (159lb)
108.6Kg (239.4lb)
VESA Mount Point
(Wall/Stand)
4 x M8 (VESA 400 x 400)
4 x M8 (VESA 400 x 400)
4 x M8 (VESA 600 x 400)
4 x M8 (VESA 600 x 400)
VESA Mount Point
(NUC/Mini)
4 x M4 (VESA 100 and VESA
75, bracket not included)
4 x M4 (VESA 100 and VESA
75, bracket not included)
4 x M4 (VESA 100 and VESA
75, bracket not included)
4 x M4 (VESA 100 and VESA
75, bracket not included)
Packed Dimensions
1530mm x 975mm x 260mm
(60.2in x 38.3in x 10.2in)
1765mm x 1165mm x 320mm 1895mm x 1165mm x 320mm
(69.5in x 45.9in x 12.6in)
(74.6in x 47.6in x 13.4in)
2215mm x 1490mm x 395mm
(87.2in x 58.7in x 15.6in)
Packed Weight
56.4kg (124.3lbs)
82.8Kg (182.5lb)
137.2Kg (302.5lb)
PHYSICAL
93.5Kg (206lb)
TOTAL COST OF OWNERSHIP
Warranty**
Up to 5 years with options for Up to 5 years with options for Up to 5 years with options for Up to 5 years with options for
Advanced Replacement &
Advanced Replacement &
Advanced Replacement & Advanced Replacement &
On-Site Support
On-Site Support
On-Site Support
On-Site Support
Power Consumption
190W max
200W Max
310W Max
500W max
Power Consumption in
Standby Mode
<0.5W
<0.5W
<0.5W
<0.5W
Auto Standby After no
Video Input
Backlight after 5 mins
Panel standby after 60 mins
Backlight after 5 mins
Panel standby after 60 mins
Backlight after 5 mins
Panel standby after 60 mins
Backlight after 5 mins
Panel standby after 60 mins
Operating Temperature
5°C to 40°C (41°F to 104°F)
5°C to 40°C (41°F to 104°F)
5°C to 40°C (41°F to 104°F)
5°C to 40°C (41°F to 104°F)
Storage Temperature
2°C to 55°C (36°F to 131°F)
2°C to 55°C (36°F to 131°F)
2°C to 55°C (36°F to 131°F)
2°C to 55°C (36°F to 131°F)
Operating Humidity
20% to 80% humidity
20% to 80% humidity
20% to 80% humidity
20% to 80% humidity
Storage Humidity
10% to 90% humidity
10% to 90% humidity
10% to 90% humidity
10% to 90% humidity
ENVIRONMENTAL
COMPLIANCE & CERTIFICATION
UL / CUL
P
P
P
P
CE
P
P
P
P
FCC
P
P
P
P
CB
P
P
P
P
CCC
P
P
P
P
C-TICK
P
P
P
P
ActivPanel
x1
x1
x1
x1
Digital Pen
x1
x1
x1
x1
Stylus
x2
x2
x2
x2
Wall Mount
x1
x1
x1
x1
VESA Mount Bolts
x4
x4
x4
x4
PACKED CONTENTS
ActivPanel Touch 3.0 SS 06/15 V1
Page 4
©2015 Promethean Limited. All rights reserved. Promethean Ltd. is owner of a number of trademarks in several jurisdictions across
the world. Any third-party product and company names are mentioned for identification purposes only and may be trademarks of
their respective owners.
*Exact multi-touch and multi-user capability dependent upon operating system and application software used.
**Subject to availability, terms and conditions on www.prometheanworld.com/activcare,
All dimensions and weights are approximate. Product Specifications are subject to change without notice.
www.PrometheanWorld.com
ActivPanel
PRODUCT SPECIFICATIONS
INTERACTIVE FLAT PANEL
activpanel specifications by model
ActivPanel 55”
ActivPanel 65”
ActivPanel 70”
ActivPanel 84”
Remote Control
x1
x1
x1
x1
Batteries
x 3 AAA
x 3 AAA
x 3 AAA
x 3 AAA
Power Cable
x 1 (3m UK, US, EU, AUS)
x 1 (3m UK, US, EU, AUS)
x 1 (3m UK, US, EU, AUS)
x 1 (3m UK, US, EU, AUS)
HDMI Cable
x 1 (1.5m / 4.9ft)
x 1 (1.5m / 4.9ft)
x 1 (1.5m / 4.9ft)
x 1 (1.5m / 4.9ft)
USB Cable
x 1 (3m / 9.8ft)
x 1 (3m / 9.8ft)
x 1 (3m / 9.8ft)
x 1 (3m / 9.8ft)
VGA Cable
x 1 (1.5m / 4.9ft)
x 1 (1.5m / 4.9ft)
x 1 (1.5m / 4.9ft)
x 1 (1.5m / 4.9ft)
3.5mm Audio Cable
x 1 (1.5m / 4.9ft)
x 1 (1.5m / 4.9ft)
x 1 (1.5m / 4.9ft)
x 1 (1.5m / 4.9ft)
Installation Guide
x1
x1
x1
x1
User Guide
x1
x1
x1
x1
DIGITAL PEN
Pen Function
HID pen digitizer or mouse Independent and non-concurrent of touch
Left Click
Mechanical tip switch
Right Click
Barrel button
Hover
Yes
Nib Diameter
8mm (0.34in)
Positional Accuracy
+/-4mm (0.17in)
Valid Pen Angle
90 to 45 degrees
Pen Position Update Rate 65Hz
Battery
AAA non-rechargeable
Battery Life
>1 year
Pen Serviceable Parts
Battery & nib
Pen Storage
Pot attached to ActivPanel to protect pen and preserve battery life
Weight
37g
Size
170mm x 19mm x 23 mm (7.7in x 0.75in x 0.91in)
Operating Temperature
0°C to +40°C (32°F to 104°F)
Storage Temperature
-20°C to +60°C (14°F to 140°F)
Operating Humidity
20% to 80% non-condensing
Storage Humidity
10% to 90% non-condensing
0.5W EU Directive
Radio and Telecommunications Terminal Equipment Directive 199/5/EC.
Electromagnetic Compatibility (EMC) Directive 2004/108/EC and Low Voltage Directive (LVD) 2006/95/EC.
ROHS
Compliant
WEEE
Compliant
CE
EN 300 440-1; EN 300 440-2; EN 301 489-3; EN 55024; EN55022
FCC / IC
FCC CFR 47 Part 15 Subpart C; ICES-003
Safety
EN60950-1; IEC60950-1; UL60950-1; CAN/CSAC22.2 NO: 60950-01-07
ActivPanel Touch 3.0 SS 06/15 V1
Page 5
©2015 Promethean Limited. All rights reserved. Promethean Ltd. is owner of a number of trademarks in several jurisdictions across
the world. Any third-party product and company names are mentioned for identification purposes only and may be trademarks of
their respective owners.
*Exact multi-touch and multi-user capability dependent upon operating system and application software used.
**Subject to availability, terms and conditions on www.prometheanworld.com/activcare,
All dimensions and weights are approximate. Product Specifications are subject to change without notice.
www.PrometheanWorld.com
ActivPanel
PRODUCT SPECIFICATIONS
INTERACTIVE FLAT PANEL
ACTIPANEL 55” TECHNICAL DRAWING
FRONT
BACK
ActivPanel Touch 3.0 SS 06/15 V1
Page 6
©2015 Promethean Limited. All rights reserved. Promethean Ltd. is owner of a number of trademarks in several jurisdictions across
the world. Any third-party product and company names are mentioned for identification purposes only and may be trademarks of
their respective owners.
*Exact multi-touch and multi-user capability dependent upon operating system and application software used.
**Subject to availability, terms and conditions on www.prometheanworld.com/activcare,
All dimensions and weights are approximate. Product Specifications are subject to change without notice.
www.PrometheanWorld.com
ActivPanel
PRODUCT SPECIFICATIONS
INTERACTIVE FLAT PANEL
ACTIPANEL 65” TECHNICAL DRAWING
FRONT
BACK
ActivPanel Touch 3.0 SS 06/15 V1
Page 7
©2015 Promethean Limited. All rights reserved. Promethean Ltd. is owner of a number of trademarks in several jurisdictions across
the world. Any third-party product and company names are mentioned for identification purposes only and may be trademarks of
their respective owners.
*Exact multi-touch and multi-user capability dependent upon operating system and application software used.
**Subject to availability, terms and conditions on www.prometheanworld.com/activcare,
All dimensions and weights are approximate. Product Specifications are subject to change without notice.
www.PrometheanWorld.com
ActivPanel
PRODUCT SPECIFICATIONS
INTERACTIVE FLAT PANEL
ACTIPANEL 70” TECHNICAL DRAWING
FRONT
BACK
ActivPanel Touch 3.0 SS 06/15 V1
Page 8
©2015 Promethean Limited. All rights reserved. Promethean Ltd. is owner of a number of trademarks in several jurisdictions across
the world. Any third-party product and company names are mentioned for identification purposes only and may be trademarks of
their respective owners.
*Exact multi-touch and multi-user capability dependent upon operating system and application software used.
**Subject to availability, terms and conditions on www.prometheanworld.com/activcare,
All dimensions and weights are approximate. Product Specifications are subject to change without notice.
www.PrometheanWorld.com
ActivPanel
PRODUCT SPECIFICATIONS
INTERACTIVE FLAT PANEL
ACTIPANEL 84” TECHNICAL DRAWING
FRONT
BACK
ActivPanel Touch 3.0 SS 06/15 V1
Page 9
©2015 Promethean Limited. All rights reserved. Promethean Ltd. is owner of a number of trademarks in several jurisdictions across
the world. Any third-party product and company names are mentioned for identification purposes only and may be trademarks of
their respective owners.
*Exact multi-touch and multi-user capability dependent upon operating system and application software used.
**Subject to availability, terms and conditions on www.prometheanworld.com/activcare,
All dimensions and weights are approximate. Product Specifications are subject to change without notice.
www.PrometheanWorld.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
