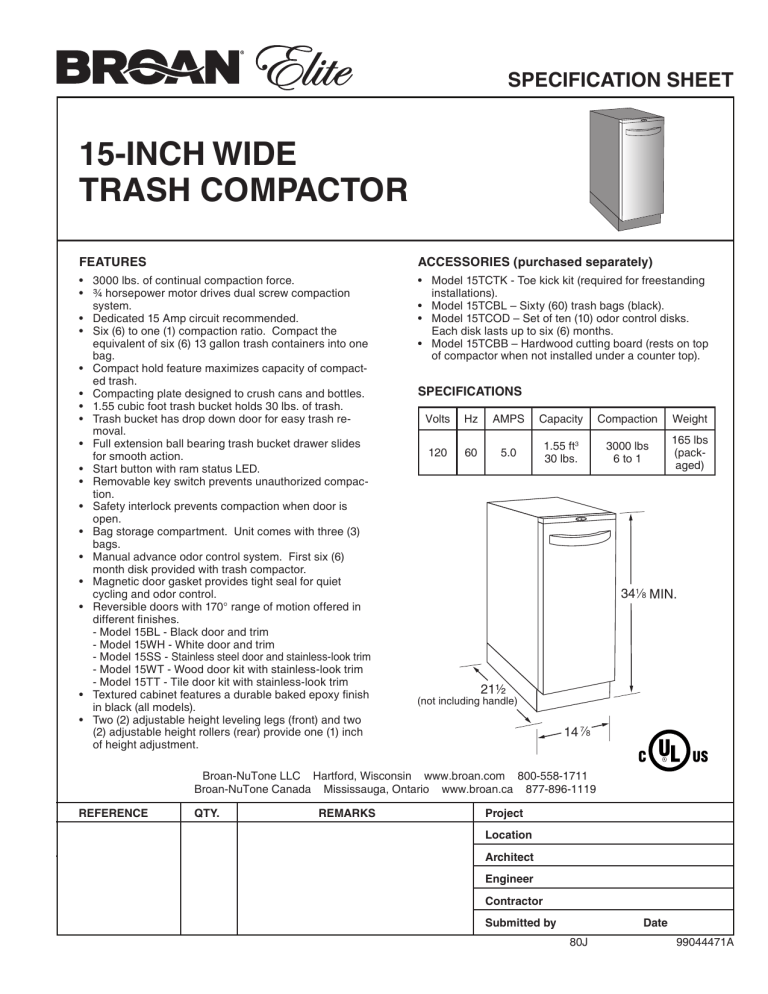

SPECIFICATION SHEET
15-inch wide
trash compactor
FEATURES
Accessories (purchased separately)
• 3000 lbs. of continual compaction force.
• ¾ horsepower motor drives dual screw compaction
system.
• Dedicated 15 Amp circuit recommended.
• Six (6) to one (1) compaction ratio. Compact the
equivalent of six (6) 13 gallon trash containers into one
bag.
• Compact hold feature maximizes capacity of compacted trash.
• Compacting plate designed to crush cans and bottles.
• 1.55 cubic foot trash bucket holds 30 lbs. of trash.
• Trash bucket has drop down door for easy trash removal.
• Full extension ball bearing trash bucket drawer slides
for smooth action.
• Start button with ram status LED.
• Removable key switch prevents unauthorized compaction.
• Safety interlock prevents compaction when door is
open.
• Bag storage compartment. Unit comes with three (3)
bags.
• Manual advance odor control system. First six (6)
month disk provided with trash compactor.
• Magnetic door gasket provides tight seal for quiet
cycling and odor control.
• Reversible doors with 170° range of motion offered in
different finishes.
- Model 15BL - Black door and trim
- Model 15WH - White door and trim
- Model 15SS - Stainless steel door and stainless-look trim
- Model 15WT - Wood door kit with stainless-look trim
- Model 15TT - Tile door kit with stainless-look trim
• Textured cabinet features a durable baked epoxy finish
in black (all models).
• Two (2) adjustable height leveling legs (front) and two
(2) adjustable height rollers (rear) provide one (1) inch
of height adjustment.
• Model 15TCTK - Toe kick kit (required for freestanding
installations).
• Model 15TCBL – Sixty (60) trash bags (black).
• Model 15TCOD – Set of ten (10) odor control disks.
Each disk lasts up to six (6) months.
• Model 15TCBB – Hardwood cutting board (rests on top
of compactor when not installed under a counter top).
Specifications
Volts
Hz
AMPS
Capacity
Compaction
Weight
120
60
5.0
1.55 ft3
30 lbs.
3000 lbs
6 to 1
165 lbs
(packaged)
341⁄8 MIN.
21½
(not including handle)
14 7⁄8
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119
REFERENCE
QTY.
REMARKS
Project
Location
Architect
Engineer
Contractor
Submitted by
80J
Date
99044471A
