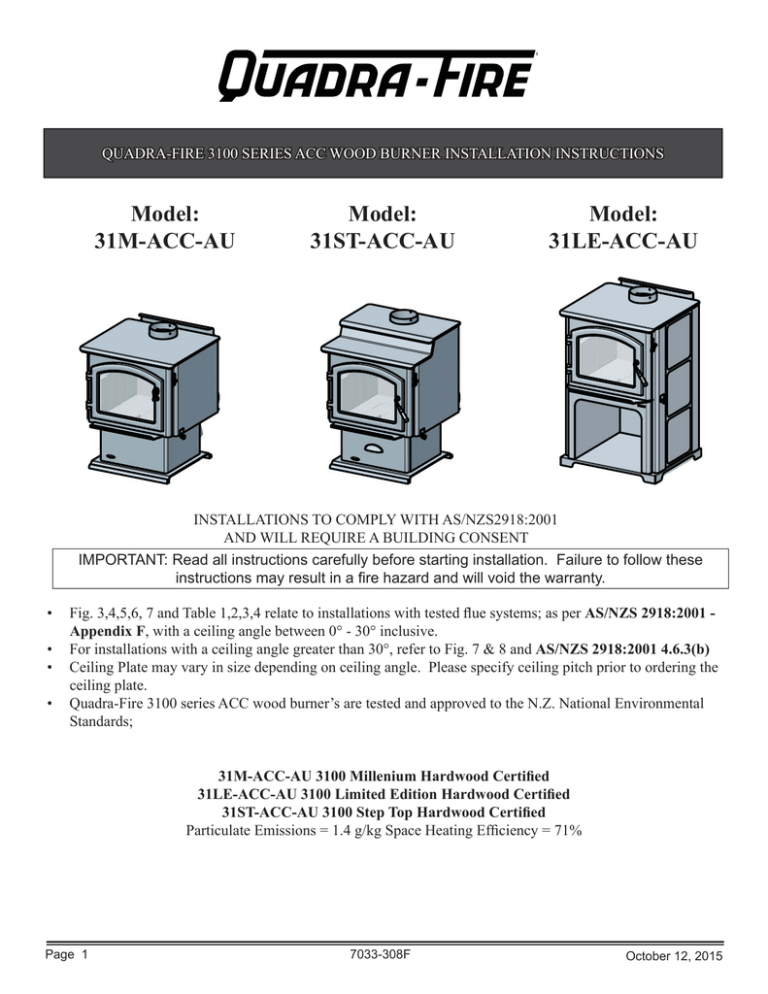

QUADRA-FIRE 3100 SERIES ACC WOOD BURNER INSTALLATION INSTRUCTIONS
Model:
31M-ACC-AU
Model:
31ST-ACC-AU
Model:
31LE-ACC-AU
INSTALLATIONS TO COMPLY WITH AS/NZS2918:2001
AND WILL REQUIRE A BUILDING CONSENT
IMPORTANT: Read all instructions carefully before starting installation. Failure to follow these
instructions may result in a fire hazard and will void the warranty.
•
•
•
•
Fig. 3,4,5,6, 7 and Table 1,2,3,4 relate to installations with tested flue systems; as per AS/NZS 2918:2001 Appendix F, with a ceiling angle between 0° - 30° inclusive.
For installations with a ceiling angle greater than 30°, refer to Fig. 7 & 8 and AS/NZS 2918:2001 4.6.3(b)
Ceiling Plate may vary in size depending on ceiling angle. Please specify ceiling pitch prior to ordering the
ceiling plate.
Quadra-Fire 3100 series ACC wood burner’s are tested and approved to the N.Z. National Environmental
Standards;
31M-ACC-AU 3100 Millenium Hardwood Certified
31LE-ACC-AU 3100 Limited Edition Hardwood Certified
31ST-ACC-AU 3100 Step Top Hardwood Certified
Particulate Emissions = 1.4 g/kg Space Heating Efficiency = 71%
Page 1
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
and Welcome to the Quadra-Fire Family!
Hearth & Home Technologies welcomes you to our tradition
of excellence! In choosing a Quadra-Fire appliance, you
have our assurance of commitment to quality, durability, and
performance.
our stoves, inserts and fireplaces. And yet we are old-fashioned when it comes to craftsmanship. Each unit is meticulously fabricated and surfaces are hand-finished for lasting
beauty and enjoyment. Our pledge to quality is completed
as each model undergoes a quality control inspection.
This commitment begins with our research of the market,
including ‘Voice of the Customer’ contacts, ensuring we
make products that will satisfy your needs. Our Research
and Development facility then employs the world’s most
advanced technology to achieve the optimum operation of
We wish you and your family many years of enjoyment in
the warmth and comfort of your hearth appliance. Thank
you for choosing Quadra-Fire.
3100 Series ACC
R
QUADRA-FIRE WOODFIRE COMPLIANCE LABEL
This appliance has been TESTED TO AS/NZS4013 for Hardwood by HRL Technology Report # HCMG/12/043A Date tested: May 2012
MODEL
QUADRA-FIRE 3100 SERIES ACC FREESTANDING WOOD STOVE
OVERALL AVERAGE EFFICIENCY BURNING HARDWOOD
WHEN TESTED IN ACCORDANCE TO AS/NZS 4012
AVERAGE PARTICULATE EMISSION FACTOR BURNING HARDWOOD
WHEN TESTED IN ACCORDANCE TO AS/NZS 4013
MAXIMUM AVERAGE HEAT OUTPUT BURNING HARDWOOD
APPROVED FUEL
SERIAL NO.
007050
JAN FEB MAR APR MAY JUN JUL AUG SEP
2015 2016 2017
WETBACK - ALL MODELS
MANUFACTURED BY
OCT NOV DEC
Millenium
1.4 g/kg
7.1 kW
BURN ONLY HARDWOOD WITH A MOISTURE CONTENT LESS THEN
25% (dry basis).
Wetbacks are NOT an approved option and must not be fitted.
Hearth & Home Technologies, 1445 North Highway, Colville, WA
99114, United States of America.
Step Top
PERFORMANCE MAY VARY FROM TEST VALUES DEPENDING ON ACTUAL
OPERATING CONDITIONS.
U.S. ENVIRONMENTAL PROTECTION AGENCY
Export stove. May not be operated within the United States.
Page 2
71%
7033-308F
INSTALLATION
DATE
7033-309B
October 12, 2015
3100 Series ACC Wood Burner
Quadra-Fire 3100 Millenium ACC Wood Burner Dimensions
677 mm
46 mm
616 mm
484 mm
379 mm
90 mm
397 mm
273 mm
749 mm
254 mm
457 mm
25 mm
533 mm
406 mm
499 mm
Quadra-Fire 3100 Limited Edition ACC Wood Burner Dimensions
677mm
618mm
170mm
641mm
1320mm
978mm
387mm
508mm
564mm
454mm
October 12, 2015
7033-308F
Page 3
3100 Series ACC Wood Burner
FLOOR PROTECTOR - 31M and 31LE
Quadra-fire 3100 Millenium and 3100 LE ACC produdcts do not require a insulating Floor Protector,
as they are tested and comply with the minimum Floor Protector requirements of AS/NZS 2918:2001.
Note:
▪ The minimum Floor Protector sizes are specified in the clearance chart, see Table 1 & 2.
▪ A Floor Protector can include ceramic tiles with grouted joints fixed directly onto a wooden floor or
a sheet of toughened glass, panel steel or any other non combustible material laid directly onto a
wooden floor.
▪ If installed directly onto a concrete slab, the concrete slab can be considered as the floor
protector,but must maintain the minimum measurement listed.
PARALLEL POSITIONNG - 31M and 31LE
Fig. 3
REAR WALL
G
A
E
F
REAR WALL
SIDE WALL
B
FLOOR PROTECTOR
D
C
Table 1
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
A
With Double Flue
Shield Fitted
Min. Clearance from back of unit to rear wall
175mm
B
Min. clearance from center of spigot to rear wall
345mm
C
Min. distance from front of base to floor protector front
300mm
D
Min. floor protector front width
800mm
E
Min. distance from rear wall to front of floor protector
1062mm
F
Min. distance from unit side to side wall
360mm
G
Min. clearance from center of spigot to side wall
668mm
NOTE: HEAT SHIELD REQUIREMENTS FOR HEAT SENSITIVE WALLS
Clearances may be reduced by provision of an appropriately located heat shield refer to
AS/NZS 2198:2001 3.2.3 TABLE 3.1
Page 4
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
CORNER POSITIONING (45°)
CORNER POSITIONING (45°) - 31M and 31LE
Fig. 4
L
R
NE
CO
R
AL
W
C
NE
R
CO
R
W
AL
L
B
A
F
D
FLOOR PROTECTOR
E
Table 2
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
A
Min. clearance from firebox corner to corner walls
With Double
Flue Shield
Fitted
225mm
B
Min. distance from center of spigot to corner walls
532mm
C
Min. distance from corner wall to floor protector front
1322mm
D
Min. floor protector projection from corner wall
756mm
E
Min. floor protector front width
800mm
F
Min. overall floor protector depth
1469mm
FIREBOX INSTALLATION
1. If a separate floor protector is being used position now. Place the firebox on the floor protector to
suit the minimum installation clearances. (See Fig 3 or 4).
2. Seismically restrain the firebox and the floor protector to the floor.
3. Fit 2 x 6mm fixings suitable for the floor material. DO NOT over tighten.
4. Fit timber trim pedestal edging to front and back of base (optional).
October 12, 2015
7033-308F
Page 5
3100 Series ACC Wood Burner
Quadra-Fire 31 Step Top ACC Wood Burner Dimensions
678mm
635mm
237mm
CL
618mm
318mm
391mm
870mm
457mm
406mm
292mm
527mm
170mm
89mm
CL
194mm
841mm
264mm
606mm
Page 6
537mm
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
FLOOR PROTECTOR - 31 Step Top
Quadra-fire 3100 Step Top ACC does not require a insulating Floor Protector, as they are tested and
comply with the minimum Floor Protector requirements of AS/NZS 2918:2001.
Note:
▪ The minimum Floor Protector sizes are specified in the clearance chart, see Table 3 & 4.
▪ A Floor Protector can include ceramic tiles with grouted joints fixed directly onto a wooden floor or
a sheet of toughened glass, panel steel or any other non combustible material laid directly onto a
wooden floor.
▪ If installed directly onto a concrete slab, the concrete slab can be considered as the floor
protector,but must maintain the minimum measurement listed.
PARALLEL POSITIONNG - 31 Step Top
Fig. 5
REAR WALL
G
A
E
F
REAR WALL
SIDE WALL
B
FLOOR PROTECTOR
D
C
Table 3
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double Flue
Shield Fitted
A
Min. Clearance from back of unit to rear wall
175mm
B
Min. clearance from center of spigot to rear wall
345mm
C
Min. distance from front of base to floor protector front
300mm
D
Min. floor protector front width
800mm
E
Min. distance from rear wall to front of floor protector
1062mm
F
Min. distance from unit side to side wall
325mm
G
Min. clearance from center of spigot to side wall
633mm
NOTE: HEAT SHIELD REQUIREMENTS FOR HEAT SENSITIVE WALLS
Clearances may be reduced by provision of an appropriately located heat shield refer to
AS/NZS 2198:2001 3.2.3 TABLE 3.1
October 12, 2015
7033-308F
Page 7
3100 Series ACC Wood Burner
CORNER POSITIONING (45°)
CORNER POSITIONING (45°) - 31 Step Top
Fig. 6
L
R
NE
CO
R
AL
W
C
NE
R
CO
R
W
AL
L
B
A
F
D
FLOOR PROTECTOR
E
Table 4
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double
Flue Shield
Fitted
A
Min. clearance from firebox corner to corner walls
130mm
B
Min. distance from center of spigot to corner walls
437mm
C
Min. distance from corner wall to floor protector front
1227mm
D
Min. floor protector projection from corner wall
661mm
E
Min. floor protector front width
800mm
F
Min. overall floor protector depth
1335mm
FIREBOX INSTALLATION
1. If a separate floor protector is being used position now. Place the firebox on the floor protector to
suit the minimum installation clearances. (See Fig 5 or 6).
2. Seismically restrain the firebox and the floor protector to the floor.
3. Fit 2 x 6mm fixings suitable for the floor material. DO NOT over tighten.
4. Fit timber trim pedestal edging to front and back of base (optional).
Page 8
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
3100 Limited Edition Special Instructions
REMOVING FROM PALLET
1. Remove Tile frames from both sides by lifting
up and away. (Fig. 9.1)
2. Remove both side panels using a phillips
screwdriver to remove 4 screws on back (Fig.
9.1)
3. Using a 11mm socket or wrench, remove 4
wood lag bolts located in corners of pedestal
base. (Fig. 9.2)
4. Lift stove off of pallet and reassemble sides.
The 31LE units are now being shipped with a tile
panel securing clip on both sides of the units (Fig
9.3). Please remove and discard pins prior to use
(Fig 9.4).
1
2
Fig.9.1
Fig.9.2
October 12, 2015
Fig.9.3
Fig.9.4
7033-308F
Page 9
3100 Series ACC Wood Burner
DECORATIVE TILE INSTALLATION
1. Remove Tile frames from sides by lifting up
and pulling away from stove.(Fig. 10.1)
2. Stack tiles in tile frame as shown (Fig. 10.2)
3. Reattach Tile Frames.
Fig.10.1
Fig.10.2
Page 10
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
GENERAL INSTRUCTIONS FOR FLUE SYSTEM
▪ Flue pipe installed crimp/narrow end down
▪ Outer casings installed crimped/narrow end up. (Critical when exposed above the roof)
▪ Inner casings - direction not critical
▪ Flue pipes - seal all joints including firebox spigot.
- fix with a minimum of 3 stainless steel rivets
▪ Flue pipe spacers - affix to flue pipe
▪ Flue system termination point - Refer to AS/NZS 2918:2001 4.9.1, see Fig. 9.
▪ Flue pipe shall extend not less than 4.6m above top of the floor protector as per
AS/NZS 2918:2001 4.9.1(a)
▪ Façade or chase systems - same rule applies as above.
▪ Roof penetration and flashing method refer to NZ Building Code E2.(From 01/07/05)
Note: These instructions apply to 150mm diameter flue pipe systems as tested to
AS/NZS 2918:2001
1. Either locate the appliance in position or by measuring at the ceiling mark the flue pipe centre position.
Check that the outer casing is unobstructed through the attic space or roof area.
2. Spike the centre with a nail. Transfer this position to the next surface above. Plumb bob/laser.
3. Cut out the ceiling penetration hole – square or rectangle – short axis equals outer casing diameter
plus 50mm, long axis as required. See Table 5 . Perform the same at the roof penetration.
4. Frame out the hole with minimum 75 x 50 timber or as required for roofing material. Minimum
requirement at roof penetration see NZ Building Code E2 Acceptable Solution (from 01/07/05).
5. Install the outer casing so that :(i) lower end is flush with the underside of the ceiling material and
(ii) with the addition of metal “L” brackets, affix to the outer casing at 90 degrees secure the outer
casing centrally to the ceiling and roof nogs. Alternatively substitute the “L” brackets for 25mm thick
non heat sensitive packers. Secure the outer casing through the packers with horizontal fixings to
the nogs. Refer to the General Instruction for termination height. The option of outer casing slips to
be taken into account.
6. Flash the outer casing to the roof material with the appropriate approved flashing.
7. If using an outer/inner casing combination, now install the inner casing ensuring it extends a minimum
200mm above the high side of the roof penetration. If not using a combination see ‘11’ below.
8. Refer to Firebox Installation, points 1 & 2.
9. Prepare the ceiling plate and place upside down over the flue spigot.
10. Install the flue pipes by preferred method – either up or down the outer casing. Affix each length
per the notes in General Instructions (above). Extend the flue pipe above the outer
casing to suit the casing cover/cowl assembly.
11. If the inner casing has not been installed, install now. Refer to 7 above for minimum height.
12. Install the cowl assembly, i.e. Top spacer, casing cover and cowl.
13. Position and secure the ceiling plate with the screws and spacers.
14. Wipe the flue pipe to remove finger marks.
15. Refer to Firebox Installation, point 3.
16. If flue offset is required, refer to AS/NZS 2918:2001 4.1
October 12, 2015
7033-308F
Page 11
3100 Series ACC Wood Burner
FLUE PENETRATION
Tested flue systems, as per AS/NZS 2918:2001
Fig. 5
Fig.
7
ADD Cowl
Drawing not to scale
Casing Cover
oversized casing cover
is necessary
minimum 25mm gap
between flue pipe casing &
combustible material
Spider Bracket
Non combustible material
Hebel block or 12mm
Promina board or similar
under the flashing
25
25
25
25
Approved Flashing
Roof Line
Inner Casing 200mm
above roof line
Outer Casing
Inner Casing
12
25
Internal Swage
12.5
Vented
Ceiling Plate
Flue Pipe
CL
CL
Quadra-fire 5700
C
L
Floor
The flue crimp must be cut so the swage
(half-moon bulge after the crimp) fits
tightly into the spigot.
Page 12
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
FLUE PENETRATION
1.QF.1F
Un-tested flue systems, as per AS/NZS 2918:2001, 4.6.3(b)
Fig.
Fig.86
ADD Cowl
AS/NZS2918:2001
Casing Cover
Un-tested flue with sloped ceiling
penetration greater than 30° from
horizontal
Spider Bracket
A = 25mm
Approved Flashing
4.6.3(b)
Fig 4.6 = downward distance of
casing and 3 x ø flue distance of
the ceiling plate
A
Ceiling Plate
Batten
A
150
3 x Ø flue pipe
Ceiling
flue pipe
Ø
Fig.
Fig. 97
ADD Cowl
AS/NZS2918:2001
Un-tested flue with sloped ceiling
penetration greater than 30° from
horizontal
Casing Cover
Spider Bracket
A = 25mm
4.6.3(b)
Fig 4.6 = 3 x ø flue from active flue
to heat sensitive surface
Approved Flashing
A
Ceiling Plate
Batten
A
Ceiling
October 12, 2015
flue pipe
Ø
7033-308F
Page 13
3100 Series ACC Wood Burner
GENERAL INSTRUCTIONS FOR FLUE SYSTEM
1. Unpack the Flue Mounted Shield, detach the three brackets and familarize yourself with the illustrations.
2. Using a sharp knife or razor blade, carefully cut through the plastic film on the “inside face” where
it meets the outer shield (refer sketch). Cut along the full length of the Flue Mounted Shield on both
side, then peel off and fully remove the plastic film from the stainless steel inner shield.
3. Peel back and fully remove the plastic film from the outer shield.
4. Fit the top bracket to the Flue Mounted Shield as illustrated ensuring the rear mid section of the
bracket fits “outside” while the two outer sections of the bracket fit “inside”.
5. Fit the appropriate lower bracket to your woodfire.
Lower Bracket “5B suitable for all other woodfires without an inner rear heatshield. On certain model
woodfires without a raised flue spigot it will be necessary to cut off both the lower outer legs from the
bracket “5B” leaving the entral tongue to locate inside the flue outlet only.
Two tabs are provided and if folded back at 90 degrees the bracket and Flue Mounted Shield will
mount lower onto the appliance.
The Flue Mounted Shield then locates into the two notches provided n bracket “5B” as illustated.
6. Once the Flue Mounted Shield is fitted in position onto either of the two lower mounting brackets,
check to ensure a large gap is not present between the top of the woodfire and the base of the Flue
Mounted Shield, as this may result in a hot spot on the rear wall directly behind the flue outlet. If your
woodfire has a lift off top grill the Flue Mounted Shield should be raised sufficiently to enable the top
grill to be removed.
7. Using the pre-punched holes in the two tabs provided on the top bracket as guides, drill into the
flue pipe and secure the top bracket to the flue pipe with two stainless steel rivets (not supplied).
MINIMUM HEIGHT OF FLUE SYSTEM EXIT
Fig.
Fig.10
8
More than 3000
3000
or less
3000
600 min.
3000
increase from 1000mm
minimum until clear within
3000mm of flue top
increase as necessary
until nothing within
3000mm of flue top
Any nearby structure
Page 14
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
AS/NZS 2918:2001 General Notes
WARNINGS:
WARNING: THE APPLIANCE AND FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE
WITH AS/NZS 2918 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING
CODE OR CODES.
WARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL
COMPLY WITH THE REQUIREMENTS OF AS/NZS 4013 WHERE REQUIRED BY THE REGULATORY AUTHORITY, I.E. THE APPLIANCE SHALL BE IDENTIFIABLE BY A COMPLIANCE PLATE
WITH THE MARKING ‘TESTED TO AS/NZS 4013’.
ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY
THE TESTING AUTHORITY IS CONSIDERED TO BE IN BREACH OF THE APPROVAL GRANTED
FOR COMPLIANCE WITH AS/NZS 4013.
CAUTION: MIXING OF APPLIANCE OR FLUE SYSTEM COMPONENTS FROM DIFFERENT
SOURCES OR MODIFYING THE DIMENSIONAL SPECIFICATION OF COMPONENTS MAY
RESULT IN HAZARDOUS CONDITIONS. WHERE SUCH ACTION IS CONSIDERED,
THE MANUFACTURER SHOULD BE CONSULTED IN THE FIRST INSTANCE.
CAUTIONS: CRACKED AND BROKEN COMPONENTS, e.g. GLASS PANELS OR CERAMIC TILES,
MAY RENDER THE INSTALLATION UNSAFE.
WARNING: ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN
WRITING BY THE TESTING AUTHORITY IS CONSIDERED AS BREACHING AS/NZS 4013.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKINDLE THE FIRE.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHEN ITS OPERATING.
WARNING: DO NOT STORE FUEL WITHIN HEATER INSTALLATION CLEARANCES.
WARNING: FOR OPTIMUM PERFORMANCE FUEL MUST BE LOADED SO THE LOGS LAY
“FRONT TO REAR” IN PREFERENCE TO LAYING ACROSS THE WIDTH OF THE FIREBOX.
SPACES SHOULD BE LEFT BETWEEN THE LOGS TO ENABLE OXYGEN TO GET TO AS MUCH
OF THE SURFACE OF THE FUEL AS POSSIBLE.
CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN
ACCORDANCE WITH THESE INSTRUCTIONS.
CAUTION: THE USE OF SOME TYPES OF PRESERVATIVE-TREATED WOOD AS A FUEL CAN BE
HAZARDOUS.
October 12, 2015
7033-308F
Page 15
3100 Series ACC Wood Burner
AUSTRALIAN WARRANTY INFORMATION
Hearth & Home Technologies Inc (HHT)
1445 N. Highway | Colville, WA 99114 | (509-684-3745)
HHT extends the following manufacturer’s warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased
from an HHT authorized dealer.
HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance
at the site of installation within two years following the date of original purchase, that the HHT appliance will be free from defects in
materials and workmanship at the time of manufacture.
After installation, if covered components manufactured by HHT are found to be defective in materials or workmanship during the applicable
warranty period, HHT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of
its obligations under this manufacturer’s warranty by replacing the product itself or refunding the verified purchase price of the product
itself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty is subject to
conditions, exclusions and limitations as described below.
Warranty coverage begins on the date of original purchase. In the case of new home construction, coverage under this manufacturer’s
warranty begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent, authorized
HHT dealer/ distributor, whichever occurs earlier. The warranty period for this manufacturer’s warranty shall commence no later than 24
months following the date of product shipment from HHT, regardless of the installation or occupancy date. The manufacturer’s warranty
period for parts and labor for covered components is produced in the following table.
The term “Limited Lifetime” in the table below is defined as: 20 years from the beginning date of warranty coverage for gas appliances,
and 10 years from the beginning date of warranty coverage for wood, pellet and coal appliances. These time periods reflect the minimum
expected useful lives of the designated components under normal operating conditions.
Warranty Period
Parts
Labor
1 Year
2 years
Hearth and Home Technologies Manufactured Appliances and Venting
EPA
Wood
Pellet
Coal
Electric
Venting
Wood
Gas
Components Covered
X
All parts and material
except as covered by
Conditions, Exclusions,
and Limitations listed
X
X
X
X
3 years
X
X
X
X
X
X
X
X
X
X
Igniters, electronic
components, and glass
Factory-installed blowers
Molded refractory panels
X
Firepots and Burnpots
5 years
1 year
7 years
3 years
10
years
1 year
X
Limited
Lifetime
3 years
X
X
X
X
X
X
X
X
X
X
90 Days
Page 16
X
X
X
X
Castings and baffles
X
X
Manifold tubes,
HHT chimney and
termination
Burners, logs and
refractory
7033-308F
Firebox and heat
exchanger
X
X
All replacement parts
beyond warranty period
October 12, 2015
3100 Series ACC Wood Burner
R
31M-ACC-AU
Service Parts
Millennium - Wood Stove
Beginning Manufacturing Date: Nov 2012
Advanced Combustion Control (ACC)
Ending Manufacturing Date: Active
1
3
4
2
5
14
6
7
13
12
8
9
10
11
Part number list on following page.
October 12, 2015
7033-308F
Page 17
3100 Series ACC Wood Burner
R
31M-ACC-AU
Service Parts
Beginning Manufacturing Date: Nov 2012
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
ITEM
DESCRIPTION
COMMENTS
Stocked
at Depot
PART NUMBER
SRV7033-144
1
Air Channel, Convection w/Bracket (Retain Original SN Label)
2
Air Supply Back
SRV7033-134
3
Flue Collar
SRV7000-302
4
Panel Assembly, Side, Left
7033-019
5
Rear Channel Assembly
7033-002
6
Tube Support Rack
7033-148
7
Brick Retainer
7033-149
8
Ceramic Fiber Blanket, 1/2“ Thick (19” W x 13-3/4” H)
832-3390
Y
9
BafÀe Board - 9-1/2 in W x 13-3/4 in H
SRV7033-209
Y
Pkg of 2
Y
Y
# 10 Brick Set
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10
.4
10.2
10.1
10.1
10.1
10.1
10.2 10.2 10.2
10.3
9”
8”
1-1/4”
2”
10
1-1/4”
10.3
5”
1-1/4”
2”
10.4
3”
9”
Brick Assembly - Complete Set
Pkg of 18
10.1
Brick, 9 x 4-1/2 x 1-1/4”
Qty. 12 Req.
10.2
Brick, 6 x 4-1/2 x 1-1/4”
Qty. 4 Req.
10.3
Brick, 9 x 4-1/2 x 1-1/4” w/angles, see diagram
Qty. 1 Req.
10.4
Brick, 9 x 3 x 1-1/4” w/angle, see diagram
Qty. 1 Req.
Brick, Uncut
11
Panel Assembly, Side, Right
12
Tube Channel Top - Tube Channel Access Cover
13
Tube, Channel Assembly
SRV7033-006
Pkg of 1
832-0550
Pkg of 6
832-3040
7033-017
SRV7033-237
Manifold Tubes
SRV7033-023
Y
Additional service part numbers appear on following page.
Page 18
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
R
31M-ACC-AU
Service Parts
Beginning Manufacturing Date: Nov 2012
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
ITEM
DESCRIPTION
COMMENTS
Stocked
at Depot
PART NUMBER
#14 Burn Rate Controls & Accociated Parts
14.10
14.1
14.9
14.2
14.3
14.4
14.8
14.5
14.6
14.7
14.1
Burn Rate Control Assembly
7033-033
Y
14.2
Spring Handle, 1/4”, Black
SRV7000-614
Y
14.3
Door Gasket - Front Air Timer Door
7033-282
Y
14.4
Timer Air Control Assembly
SRV7033-064
Y
14.5
Rear Air Control Arm Assembly
7033-035
Y
14.6
Start-Up Control Knob
7000-343
14.7
Air Control Rod Guide
7033-210
14.8
Latch, Magnet
14.9
Timer Arm Assembly
7033-034
Y
14.10
Timer (Only) Replacement Assembly
SRV480-1940
Y
For Air Control
229-0631
#15 Pedestal Assembly
15.1
15.2
15.3
15.1
Pedestal Riser
7033-207
15.2
Pedestal Base
7033-163
15.3
Strip, Oak Trim
Pkg of 2
832-0560
#16 BafÀe Protection channel
Front, looking into unit
Side view
Baffle
protection
Channel sits
In between
Front tube and
Fiber baffle.
16
BafÀe Protection channel
Ceramic blanket
Fiber baffle
This tab sits behind the front tube.
SRV7033-298
Additional service part numbers appear on following page.
October 12, 2015
7033-308F
Page 19
3100 Series ACC Wood Burner
R
31M-ACC-AU
Service Parts
Beginning Manufacturing Date: Nov 2012
Ending Manufacturing Date: Active
#17 Door Assembly
17.1
17.2
17.5
17.3
17.6
17.4
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
ITEM
17.1
DESCRIPTION
COMMENTS
Door Assembly
17.2
Hinge Pins, 1/2”
17.3
Door Handle Assembly
Black
Black (Pkg of 2)
Stocked
at Depot
PART NUMBER
DR-31/43BK-FH
7000-606/2
832-0540
Cam Latch
430-1141
Key, Cam Latch
430-1151
Nut, Locking Door Handle
Pkg of 24
226-0100/24
Y
Screw, Flat Head Philips 8-32 X 1/2
Pkg of 10
832-0860
Y
Washer, Sae, 3/8
Pkg of 3
832-0990
Y
Black
SRV7000-613
Y
7000-012
Y
17.4
Spring Handle, Door 1/2”
17.5
Door Glass Assembly - 15-1/2 in. W x 13-3/8 in H
17.6
Glass Frame Set
4 Pieces
832-0350
Gasket, Glass Tape - Field Cut to Size
5 Ft
832-0460
Y
Rope, Door, 3/4” X 84” - Field Cut to Size
7 Ft
832-1680
Y
Label, Burn Rate Air Control
7033-160
Label, Start-Up Air Control
7033-166
Additional service part numbers appear on following page.
Page 20
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
R
31M-ACC-AU
Service Parts
Beginning Manufacturing Date: Nov 2012
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual may
be ordered from an authorized dealer.
ITEM
DESCRIPTION
COMMENTS
Hinge Pins, 1/2”, Black
Stocked
at Depot
PART NUMBER
7000-606/2
Logo, Quadra-Fire
Nickel
200-3240
Spring Handle, 1/2”, Black
SRV7000-613
Y
Spring Handle, 1/4”, Black
SRV7000-614
Y
Component Pack (Includes Spring Handles (1) 1/2” and (2)
1/4”, Trimount Plug, and Owners Manual)
SRV7033-067
Paint Touch-Up
812-0910
Plug, Trimount, .250”
Pkg of 24
Door Handle Assembly
Gasket, Manifold
October 12, 2015
Pkg of 4
7033-308F
229-0880/24
Y
832-0540
Y
7038-168/4
Y
Page 21
3100 Series ACC Wood Burner
R
31ST-ACC-AU
Service Parts
Beginning Manufacturing Date: Feb 2013
Step Top - Wood Stove
Ending Manufacturing Date: Active
31ST-ACC-AU (Advanced Combustion Control)
1
3
2
4
14
13
12
5
10
6
9
7
11
8
Part number list on following page.
Page 22
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
R
31ST-ACC-AU
Service Parts
Beginning Manufacturing Date: Feb 2013
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor. Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
ITEM
DESCRIPTION
COMMENTS
Stocked
at Depot
PART NUMBER
1
Air Channel, Convection w/Bracket (Retain Original SN Label)
SRV7033-144
2
Air Supply Back
SRV7033-134
3
Panel Assembly, Side, Left
7033-038
#4 Brick Set Assembly
4.1
4.1
4.1
4.1
4.4
4.1
4.5
4.1
4.1
4.1
4.2
No brick,
Grate Location
4.2
4.2
4.1
4.4
4.1
4.2
4.3
9”
8”
1-1/4”
2”
4
1-1/4”
4.3
5”
1-1/4”
2”
4.5
3”
9”
Brick Assembly - Complete Set
Pkg of 18
4.1
Brick, 9 x 4-1/2 x 1-1/4”
Qty. 10 Req.
4.2
Brick, 6 x 4-1/2 x 1-1/4”
Qty. 4 Req.
4.3
Brick, 9 x 4-1/2 x 1-1/4” w/angles, see diagram
Qty. 1 Req.
4.4
Brick, 4-1/2 x 4-1/2 x 1-1/4”
Qty. 2 Req.
4.5
Brick, 9 x 3 x 1-1/4” w/angle, see diagram
Qty. 1 Req.
Brick, Uncut
SRV7033-032
Pkg of 1
832-0550
Pkg of 6
832-3040
5
Tube Support Rack
7033-148
6
Brick Retainer
7033-149
7
Ceramic Fiber Blanket, 1/2“ Thick (19” W x 13-3/4” H)
8
BafÀe Board - 9-1/2 in W x 13-3/4 in H
9
10
832-3390
Y
SRV7033-209
Y
Rear Channel Assembly
7033-002
Y
Access Cover
SRV7038-196
Pkg of 2
Handle, Access Cover
SRV7038-197
11
Panel Assembly, Side, Right
7033-037
12
Tube Channel Top - Tube Channel Access Cover
13
Tube, Channel Assembly
SRV7033-237
Manifold Tubes
SRV7033-023
Y
Additional service part numbers appear on following page.
October 12, 2015
7033-308F
Page 23
3100 Series ACC Wood Burner
R
31ST-ACC-AU
Service Parts
Beginning Manufacturing Date: Feb 2013
Ending Manufacturing Date: Active
#16 Pedestal Assembly
#15 Leg Assembly
#14 Burn Rate Control Assembly
16.1
14.10 15.1
14.1
16.3
14.9
14.2
15.3
14.3
14.4
14.8
14.5
16.2
15.2
14.7
14.6
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor. Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
ITEM
DESCRIPTION
14.1
Burn Rate Control Assembly
14.2
Spring Handle, Air Control 1/4”
14.3
14.4
COMMENTS
Stocked
at Depot
PART NUMBER
7033-033
Y
SRV7000-614
Y
Door Gasket - Front Air Timer Door
7033-282
Y
Timer Air Control Assembly
SRV7033-064
Y
14.5
Rear Air Control Arm Assembly
7033-035
Y
14.6
Start-Up Control Knob
7000-343
14.7
Air Control Rod Guide
7033-210
14.8
Latch, Magnet
14.9
Timer Arm Assembly
7033-034
Y
14.10
Timer (Only) Replacement Assembly
SRV480-1940
Y
15.1
Ash Pan Assembly
7033-008
Black ( Qty 1)
For Air Control
Ash Pan Leg - ARS
15.2
15.3
229-0631
7033-050
Legs, Queen Anne
Black
831-1240
Gold
831-1250
Nickel
LEGS-QANL
Leg Mount Brackets
Pkg of 2
SRV7033-183
Pedestal
For Air Control
PED-3143
16.1
Pedestal Assembly
7033-013
16.2
Strip, Oak Trim
832-0560
16.3
Door Assembly - ARS
SRV7033-015
Ash Pan Door Handle - ARS
7033-274
Ashpan Assembly
7033-010
Component Pack (Includes Gasket for Ash Removal,
Magnet and Fasteners)
Leg
7033-048
Pedestal
7033-045
Y
Gasket - ARS
SRV7033-296
Y
Latch, Handle Assembly - ARS
SRV7033-047
Y
Magnet Round
SRV7000-140
Y
Additional service part numbers appear on following page.
Page 24
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
R
31ST-ACC-AU
Service Parts
Beginning Manufacturing Date: Feb 2013
Ending Manufacturing Date: Active
Fiber Handle Assembly
#17 Door Assembly
Spring Handle Assembly
17.1
17.4
17.3
17.5
17.2
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and
Home Technologies does not sell directly to consumers. Provide model number and serial number when
requesting service parts from your dealer or distributor.
ITEM
17
DESCRIPTION
COMMENTS
Door Assembly
Stocked
at Depot
PART NUMBER
Black
DR-31/43BK-FH
17.1
Hinge Pins, 1/2”
Black (Pkg of 2)
7000-606/2
17.2
Rope, Door, 3/4” X 84” - Field Cut to Size
7 Ft
832-1680
Y
17.3
Door Glass Assembly - 15-1/2 in. W x 13-3/8 in H
7000-012
Y
5 Ft
832-0460
Y
17.4
Glass Frame Set
4 Pieces
832-0350
17.5
Door Handle Assembly
Spring
832-0540
Fiber
SRV7033-071
Gasket, Glass Tape - Field Cut to Size
Cam Latch
430-1141
Key, Cam Latch
430-1151
Y
Nut, Locking Door Handle
Pkg of 24
226-0100/24
Y
Screw, Flat Head Philips 8-32 X 1/2
Pkg of 10
832-0860
Y
Washer, Sae, 3/8
Pkg of 3
832-0990
Y
Front, looking into unit
Side view
Ceramic blanket
Fiber baffle
Baffle
protection
Channel sits
In between
Front tube and
Fiber baffle.
18
This tab sits behind the front tube.
BafÀe Protection Channel
SRV7033-298
Additional service part numbers appear on following page.
October 12, 2015
7033-308F
Page 25
3100 Series ACC Wood Burner
R
31ST-ACC-AU
Service Parts
Beginning Manufacturing Date: Feb 2013
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor. Hearth and Home Technologies does not sell directly to consumers. Provide
Stocked
at Depot
model number and serial number when requesting service parts from your dealer or distributor.
ITEM
Page 26
DESCRIPTION
COMMENTS
PART NUMBER
Channel, Ash Removal
Step-Top
7033-172
Logo, Quadra-Fire, Black
Pkg of 10
7000-649/10
Component Pack, Step Top, ( Owners Manual)
SRV7033-069
Paint Touch-Up
812-0910
Plug, Trimount, .250”
Pkg of 24
229-0880/24
Y
Gasket, Manifold
Pkg of 4
7038-168/4
Y
Label, Burn Rate Air Control
7033-160
Label, Start-Up Air Control
7033-166
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
R
31LE-ACC-AU
Service Parts
Beginning Manufacturing Date: March 2015
Ending Manufacturing Date: Active
4
1
3
2
5
6
7
8
9
11
10
12
13
14
16
17
15
18
Part number list on following page.
October 12, 2015
7033-308F
Page 27
3100 Series ACC Wood Burner
R
31LE-ACC-AU
Service Parts
Beginning Manufacturing Date: March 2015
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor. Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
ITEM
DESCRIPTION
COMMENTS
Stocked
at Depot
PART NUMBER
1
Air Channel, Convection w/Bracket (Retain Original SN Label)
SRV7033-144
2
Air Supply Back
SRV7033-134
3
Flue Collar
SRV7000-302
4
Panel Assembly, Side, Left
SRV7033-082
5
Ceramic Fiber Blanket, 1/2” Thick
832-3390
6
BafÀe Protection Channel
SRV7033-298
7
Tube Support Rack
7033-148
8
Brick Retainer
7033-149
9
BafÀe Board
Pkg of 2
Y
SRV7033-209
#10 Brick Set Assembly
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.2
10.4
10.1
10.1
10.1
10.2
10.2
10.1
10.2
10.3
9”
8”
1-1/4”
1-1/4”
10.3
2”
10
Firebrick Set, Complete Set
10.1
Brick, 9 x 4-1/2 x 1-1/4”
5”
1-1/4”
2”
10.4
3”
9”
SRV7033-006
Qty. 12 Req.
10.2
Brick, 6 x 4-1/2 x 1-1/4”
Qty. 4 Req.
10.3
Brick, 9 x 4-1/2 x 1-1/4” w/angles, see diagram
Qty. 1 Req.
10.4
Brick, 9 x 3 x 1-1/4” w/angle, see diagram
Qty. 1 Req.
Brick, Uncut
Pkg of 1
832-0550
Pkg of 6
832-3040
11
Tube, Channel Assembly
SRV7033-023
12
Tube Channel Top
SRV7033-237
Y
13
Rear Channel Assembly
7033-002
Y
Additional service part numbers appear on following page.
Page 28
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
R
31LE-ACC-AU
Service Parts
Beginning Manufacturing Date: March 2015
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor. Hearth and Home Technologies does not sell directly to consumers. Provide
Stocked
at Depot
model number and serial number when requesting service parts from your dealer or distributor.
ITEM
DESCRIPTION
COMMENTS
PART NUMBER
#14 Burn Rate Control Assembly
14.1
14.10
14.2
14.9
14.3
14.4
14.8
14.5
14.6
14.7
14.1
Burn Rate Control Assembly
7033-033
Y
14.2
Spring Handle,1/4”
250-8340
Y
14.3
Door Gasket
7033-282
Y
14.4
Timer Air Control Assembly
SRV7033-064
Y
14.5
Control Arm Assembly, Rear Air
SRV7033-079
14.6
Knob
7000-343
14.7
Air Control Rod Guide
7033-210
14.8
Latch, Magnet
229-0631
14.9
Timer Arm Assembly
7033-034
Y
14.10
Timer (Only) Replacement Assembly
SRV480-1940
Y
Pedestal Assembly
SRV7033-072
15
Logo, Quadra-Fire
Pkg of 10
7000-649/10
16
Panel Assembly, Side Right
SRV7033-080
17
Tile Frame
SRV7033-324
Additional service part numbers appear on following page.
October 12, 2015
7033-308F
Page 29
3100 Series ACC Wood Burner
R
31LE-ACC-AU
Service Parts
Beginning Manufacturing Date: March 2015
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and
Home Technologies does not sell directly to consumers. Provide model number and serial number when
requesting service parts from your dealer or distributor.
ITEM
DESCRIPTION
COMMENTS
Stocked
at Depot
PART NUMBER
#18 Door Assembly
18.1
18.4
18.3
18.5
18.2
18
Door Assembly
18.1
Hinge Pin, 1/2”
18.2
Rope, Door, 3/4” x 84”
18.3
Door Glass Assembly
DR-31/43BK-FH
430-5320
7 Ft.
Gasket, Glass Tape, 3/4” x 1/8”
18.4
Glass Frame Set
18.5
Door Handle Assembly
832-1680
Y
7000-012
Y
5 Ft.
832-0460
Y
4 pcs.
832-0350
SRV7033-071
Door Handle
SRV7044-188
Fiber Handle
SRV7060-212
Washer, Sae, 3/8 (3 Ea)
Pkg of 3
Y
832-0990
Cam Latch
430-1141
Key, Cam Latch
430-1151
Nut, 2-Wy Side-Lock Jam 3
Pkg of 24
226-0100/24
Y
Screw Flat Head Philips 8-32 x 1/2
Pkg of 10
220-0490/12
Y
Component Pack Assembly
SRV7033-086
(Includes Handles, and Owners Manual)
812-0910
Paint, Touch-Up
Additional service part numbers appear on following page.
Page 30
7033-308F
October 12, 2015
3100 Series ACC Wood Burner
October 12, 2015
7033-308F
Page 31
CONTACT INFORMATION:
Please contact your Quadra-Fire dealer with any questions or concerns.
For the number of your nearest Quadra-Fire dealer
log onto www.quadrafire.com
CAUTION
DO NOT DISCARD THIS MANUAL
• Important operating and • Read, understand and
follow these instrucmaintenance instructions for safe installations included.
tion and operation.
• Leave this manual with
party responsible for use
and operation.
D
DI O N
SC O
AR T
D
We recommend that you record the following pertinent
information for your 3100 Series ACC STOVE
Date purchased/installed:
Serial Number:
Location on appliance:
Dealership purchased from:
Dealer phone:
Notes:
Page 32
7033-308F
October 12, 2015
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
