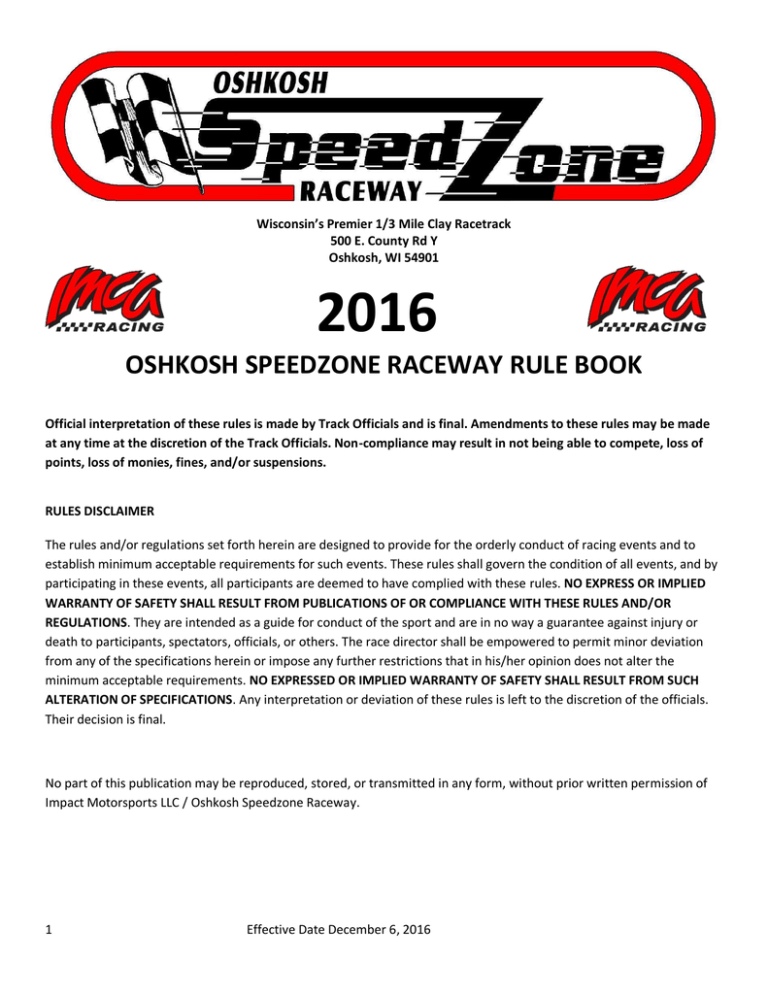

Wisconsin’s Premier 1/3 Mile Clay Racetrack
500 E. County Rd Y
Oshkosh, WI 54901
2016
OSHKOSH SPEEDZONE RACEWAY RULE BOOK
Official interpretation of these rules is made by Track Officials and is final. Amendments to these rules may be made
at any time at the discretion of the Track Officials. Non-compliance may result in not being able to compete, loss of
points, loss of monies, fines, and/or suspensions.
RULES DISCLAIMER
The rules and/or regulations set forth herein are designed to provide for the orderly conduct of racing events and to
establish minimum acceptable requirements for such events. These rules shall govern the condition of all events, and by
participating in these events, all participants are deemed to have complied with these rules. NO EXPRESS OR IMPLIED
WARRANTY OF SAFETY SHALL RESULT FROM PUBLICATIONS OF OR COMPLIANCE WITH THESE RULES AND/OR
REGULATIONS. They are intended as a guide for conduct of the sport and are in no way a guarantee against injury or
death to participants, spectators, officials, or others. The race director shall be empowered to permit minor deviation
from any of the specifications herein or impose any further restrictions that in his/her opinion does not alter the
minimum acceptable requirements. NO EXPRESSED OR IMPLIED WARRANTY OF SAFETY SHALL RESULT FROM SUCH
ALTERATION OF SPECIFICATIONS. Any interpretation or deviation of these rules is left to the discretion of the officials.
Their decision is final.
No part of this publication may be reproduced, stored, or transmitted in any form, without prior written permission of
Impact Motorsports LLC / Oshkosh Speedzone Raceway.
1
Effective Date December 6, 2016
IMPACT MOTORSPORTS LLC
D.B.A. OSHKOSH SPEEDZONE RACEWAY
PO BOX 3226
OSHKOSH, WI 54903-3226
DAY OF EVENT, TRACK NUMBER - 1-920-426-1111
Website - www.oshkoshspeedzone.net
Email – [email protected]
Facebook - www.facebook.com/thespeedzone
REPRESENTATIVES:
Competition Director – Bernie Baye – 920-660-7181 (cell)
IMCA Modified Rep. – Dennis Baldry – 920-203-0296 (Cell) / Mike King - 920-540-1608 (Cell)
Stock Car Rep. – Mike King - 920-540-1608 (Cell) / Ron Kohl (920-540-6325)
Sport Mod Rep. – Dennis Baldry – 920-203-0296 (Cell) / Mike King - 920-540-1608 (Cell)
Grand National Rep. – Mike King - 920-540-1608 (Cell) / Ron Kohl (920-540-6325)
Street Stock Rep. – Mike King - 920-540-1608 (Cell) / Ron Kohl (920-540-6325)
Dirt Devil Rep. – Shane Rasmussen - 920-757-3153 (Cell)
Flagman – Tracy Thrun
Scorer – Bob Schulz – 920- 277-6969 (Cell)
Marketing/Advertising – Jodi Vandermolen - 920-410-5418
Kids Club – Michelle Diener – 920-203-3469
IMPACT MOTORSPORTS LLC – OWNERS
JEFF LEMIESZ – 920-279-9096 (Cell)
LARRY STRATTON – 920-252-1463 (Cell)
REVISIONS/CLARIFICATIONS UNDERLINED AND IN RED
DIAGRAMS IN THIS BOOKLET ARE FOR REFERENCE ONLY WITH THE EXCEPTION OF THE IMCA
DIVISIONS
2
Effective Date December 6, 2016
SECTION - 10 - OSHKOSH SPEEDZONE
DIRT DEVIL DIVISION – 2016
ALL GENERAL TRACK RULES APPLY. PLEASE REFER TO GENERAL TRACK RULES SECTION FOR CAR NUMBER REQUIREMENTS,
APPEARANCE GUIDELINES, START TIMES, AGE REQUIREMENTS AND MANY MORE ISSUES. RACE TEAMS NOT COMPLYING WITH
GENERAL RULES WILL NOT BE ALLOWED TO COMPETE. RULE VIOLATIONS ARE IN LISTED IN THE GENERAL RULES.
IF IT DOES NOT SAY IT IS ALLOWED IN THE RULES, IT IS ILLEGAL. IF YOU ARE UNSURE OF ITS LEGALITY PLEASE
CONTACT A SPEEDZONE OFFICIAL.
THANK YOU!
Once you move out of the 4 Cylinder division to another higher division, you cannot move back to 4 Cylinders for
a 1 year time period!
10.1 SAFETY EQUIPMENT
Rules apply at all times car is on track. Snell-rated SA2005, SA2010 or SA2015 helmet required. Roll bar padding required in driver compartment.
Recommended: Fire retardant padding. SFI-approved full fire suit required. Fire retardant gloves, shoes and neck brace (or head and neck restraint)
required. Right and left seat head supports required if using head and neck restraint system. Recommended: Fire retardant head sock and
underwear, collapsible steering shaft. Driver-side window net required, minimum 16 inch by 20 inch ribbon or mesh style (1), and must be mounted
to roll cage so latch is at top front of window. Maximum four inch tall visor attached to window net. Minimum three inch (two inch with head
restraint system) wide SFI-approved five point safety belt assembly required, must be mounted securely to main roll cage. Recommended: Safety
belts no more than two years old. Kill switch required within easy reach of driver and must be clearly marked ‘OFF’ and ‘ON’.
10.2 BODY/CHASSIS
Any front wheel drive, compact car with three or four cylinder engine. All cars must remain strictly OEM. Must be unaltered OEM-appearing body.
No station wagons, convertibles or two seat sports cars allowed. Maximum wheelbase 107 inches, maximum one inch difference from side to side.
OEM steel unaltered floor pan only. Inner fenders may not be removed. Hood and trunk lid/hatch must be securely fastened. All doors must be
securely welded or bolted. All glass, exterior lights, chrome/plastic trim and hood insulation must be removed. Dash may be removed, but can
remain. Maximum Ten inches’ front and Seven inches on the rear sun visors allowed, opera window may be closed. Skirting allowed, must maintain
OEM appearance. Car number must be minimum four inches thick and 20 inches tall and clearly visible, on both sides, top and back of car, and
front, if possible. You may not twist the body and/or chassis of car
10.3VEHICLE IDENTIFICATION NUMBER (V.I.N.)
The V.I.N. must remain clearly visible and unaltered in at least one of the OEM locations. Any car missing the V.I.N. will not be allowed to compete.
IMCA highly recommends each racer maintain a copy of their vehicle repair manual.
10.4 BUMPERS/RUB RAILS
Bumpers must be approved OEM in OEM location, welded, chained or cabled to frame. Front and rear tow hooks mandatory. OEM
bumper covers should remain. May have one horizontal bar - maximum 1.75 inch OD - tying front frame horns together ahead of radiator. One
additional maximum one inch OD bar may be added for radiator protection; must be behind bumper, within confines of body, no wider than OEM
frame horns. Maximum one inch wide by two inch tall steel or lexan rub rails allowed - bolted flush to body. No sharp edges allowed on bumpers,
rub rails or bolts. No bars past outside edge of body other than rub rails.
10.5 ROLL CAGE
Six-point, full perimeter roll cage required. Must use minimum 1.5 inch O.D. with 0.095 inch wall thickness tubing. Rear hoop must have “X” bracing
configuration. Rear kickers required. Recommended: front brace bar from main halo to front cowl. Forward brace bar
allowed from main cage to front strut tower. Brace bar allowed between strut towers in front and rear. No other bracing allowed on front end.
Must have 1.25 inch minimum O.D. cross bar in top halo. Cage must be electric welded and attached using adequate plating (Recommended:
minimum 0.250 inch). No iron, galvanized pipe or fittings, square tubing, brazing or soldering allowed.
10.6 DOOR BARS
Minimum three horizontal door bars on driver side and two horizontal door bars on passenger side. Both sides must have vertical bracing from top
to bottom door bars. All tubing must be minimum 1.5 inch O.D. with 0.095 inch wall thickness. Steel door plates, 18 gauge or 0.049 inch minimum
thickness, must be securely welded to outside of door bars on driver side. Plate must cover area from top door bar to frame and from rear down
post to five inches in front of seat. Must be visible for inspection.
10.7 DRIVER COMPARTMENT
Minimum 3 windshield bars and protective screen mounted in front of driver. Aluminum high-back racing seat required. Must be securely mounted
to roll cage using 0.375 inch bolts. Driver must be sealed off from track, engine, transmission and fuel cell/tank. No mirrors. No gutting allowed
except for roll/door bar clearance. All flammable material, radio and air bags must be removed. Front and rear firewalls must remain and have no
holes. Interior must remain open.
10.8 SUSPENSION AND STEERING
3
Effective Date December 6, 2016
All components and mounts must be unaltered, OEM and match year, make/model of car used. Exception is: Recommended right rear safety hub
(for example 1987-1995 Caravan hub assembly). Brace bar allowed between strut towers in front and rear. No other bracing allowed on front end.
No weight jacks, modifications, racing components, aftermarket or homemade traction devices allowed. Rear wheels must track straight ahead and
be in alignment with front wheels. No more than 2 degrees camber on any wheel. No center steering. Quick release steering wheel is allowed, must
maintain OEM column. No aftermarket remote reservoir power steering. You
may reinforce the center of the rear axle
with plate no larger than width of axle beam and plate no longer than 16”
10.9 SPRINGS/SHOCKS/STRUTS
All shocks and struts must remain OEM, in OEM location. OEM springs may be modified. Spring rubbers allowed.
10.10 TIRES AND WHEELS
OEM DOT 13, 14, 15 or 16 inch diameter unaltered passenger tires only. Minimum 60 series, M, N, P, Q, R, S, T, and H speed rated tires only. No
racing, mud or snow tires. No re-caps, softening, conditioning, sanding, siping or grooving allowed. OEM steel or aluminum wheels allowed, must
have standard bead bump and maximum seven inch width. Reinforcing of OEM wheel center recommended. Approved 13, 14 or 15 inch diameter,
maximum 7 inch wide, racing wheels allowed. All racing wheels must display white “IMCA approved” decal and wheel manufacturer decal. Front
tires and wheels must be the same series, size and offset (0.50 inch tolerance); rear tires and wheels must be the same series, size and offset; do
not have to match front to rear. Tires must be inside of body. No wheel spacers or bleeder valves. Must use one inch O.D. steel lug nuts on steel
wheels. GRINDING IS ALLOWED.
10.11 BRAKES
Must be steel, unaltered, OEM operative, four wheel disc or drum brakes, and match year, make and model of car used. OEM master
cylinder only, in OEM location. No brake shut off or bias adjuster. Steel brake lines only.
10.12. EXHAUST
Exhaust manifold must be unaltered, OEM for year, make and model of car used. Smog pump, catalytic converter and air conditioning
compressor may be removed. Exhaust must turn toward ground. No exhaust in driver compartment.
10.13 WEIGHT
No ballast (extra weight) of any kind allowed. Any item deemed as ballast will be required to be removed.
10.14 BATTERY/STARTER
One 12 volt battery only. Must be securely mounted with positive terminal covered. Battery must be in Marine type case if mounted in
driver compartment. OEM starter only, must be in OEM location. Car must leave initial staging area on demand, unaided, or go to rear of that race.
10.15 GAUGES/ELECTRONICS
No unapproved cameras, transmitting or listening devices (exception is one-way RACEceiver radio by officials). 12 volt ignition system
only. No ignition boxes. No performance chips. All ignition components must be unaltered, OEM and match year, make and model of car used.
Aftermarket analog tach, oil pressure and water temp gauges only. Vehicle computer (ECU) should be mounted in accessible
location for inspection.
10.16 FUEL SYSTEM
Must have complete, unaltered, OEM fuel system for year, make and model of car used. Gasoline only, maximum 93 octane. No E85. No
performance additives. Gas tank ahead of rear axle allowed but must install shield under it. Gas tank behind rear axle must be replaced with
maximum eight gallon fuel cell and relocated to trunk area. Must mount with minimum two solid steel straps around entire cell, two inches wide
and 0.125 inch thick. Metal firewall or cell cover must be between driver and cell. Fuel cell vent, including cap vent, must have check valve. If racing
fuel cell does not have aircraft style positive seal filler neck/cap system - a flapper, spring or ball type filler rollover valve is required. External
4
Effective Date December 6, 2016
electric fuel pump wired to the ignition switch allowed with aftermarket fuel cell. No cool cans. Fuel lines through driver compartment must be
steel. Aftermarket fresh air pipe and air filter allowed, but no ram air.
10.17 TRANSMISSION
Must use OEM, unaltered transmission that came in year, make and model of car used. All forward and reverse gears must be operational.
Flywheel, flexplate, clutch assembly and torque converter must be unaltered, OEM for year, make and model of car used. No mini clutches or
couplers. Must have inspection hole in bell housing (accessible from top). No transmission coolers in driver compartment. No torque dividing final
drive. No locked differentials.
10.18 ENGINE COMPARTMENT
Engine and radiator must be OEM, in OEM location for year, make and model of car used. May use solid engine mounts or safety chains. No
accumulators/accusumps.
10.19 ENGINE
3 or 4 cylinder in-line engines only. Recommended: double overhead cam. All engine components must be unaltered OEM for year, make and
model of car used, must match V.I.N. Must use OEM crank, rods, valve sizes, stroke, etc. No aftermarket racing heads. No high performance or
sport car engines of any kind. No turbo charged, super charged, rotary engines, or engines utilizing variable cam-timing. No unapproved alterations
allowed to any engine; disqualification and $250 fine if illegal.
10.20 CAR CLAIM
(A) $1,500 cash claim or $500 and exchange on complete car. Fuel cell and electric fuel pump (if equipped) are included.
(B) Claim does not include – 1. Racing seat, 2. Safety belts.
AMENDMENTS TO THESE RULES MAY BE MADE AT ANY TIME IF
CERTAIN TYPES OF CARS ARE DOMINATING.
5
Effective Date December 6, 2016
UNSPORTSMAN-LIKE CONDUCT:
While Oshkosh Speedzone understands that auto racing is a highly emotional sport, we understand that good
sportsmanship is the cornerstone of any race program. This must include respect for all participants, Oshkosh
Speedzone Officials, track ownership & staff, push truck & wrecker crews, fans, and sponsors. While we understand the
emotion, Oshkosh Speedzone will not tolerate public displays of poor sportsmanship, stopping your race car on the track
to dispute a call or scoring placement, fighting, harassment, or verbal abuse. Threatening or obscene gestures and/or
language aimed at an official or competitor, rough driving, fighting, pushing or assaulting an official, or destroying
Oshkosh Speedzone property can result in disqualification, forfeiture of money, banishment from premises, probation,
and/or suspension. In case of suspension, if a number of race dates are handed out, rain-outs do not count. If money has
been paid prior to an infraction of any kind and a penalty assessed, the money MUST BE returned to Oshkosh Speedzone
prior to any further competition with the Oshkosh Speedzone. Drivers are responsible for the actions of their crews and
owners. Entering another racer’s pit stall in an aggressive manner is already a fault and in situations where problems
escalate because of it will have that taken into consideration, thus stay out of other competitor’s pit stalls. It should be
noted that team members whose car is not on the scales, or in the work area…. HAVE NO BUSINESS BEING IN THOSE
AREAS! In closing, sportsmanship does not just pertain to activities at the track. Remember what you say, type, or put on
social media has meaning and what you do has consequences, such as having your Oshkosh Speedzone member(ship) in
good standing revoked, so please think before you lash out.
• No alcohol, or illegal drugs may be consumed by a driver before or during an event. We reserve the right to have the
track medical staff determine if a driver, who we may suspect of doing either, be fit for competition.
• Parents are responsible for their minor children’s actions and safety whom they sign a release for to gain entry to the
pit area. The pit area is considered a restricted area.
• Drivers must remain with their car, until instructed otherwise by Oshkosh Speedzone officials or safety crew during
any red or yellow they are involved in.
Acknowledgement of Rules
Driver Signature ___________________________________________________ Date ______________
Owner Signature___________________________________________________ Date______________
Division:
( ) Modified, ( ) Stock Car, ( ) Sport Mod, ( ) Grand National, ( ) Street Stock, ( ) Dirt Devil
Car Number: __________
