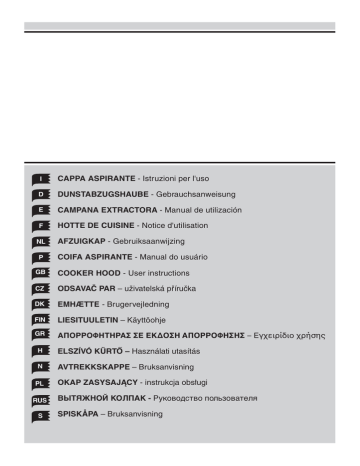

COOKER HOOD
I
CAPPA ASPIRANTE - Istruzioni per l'uso
D
DUNSTABZUGSHAUBE - Gebrauchsanweisung
E
CAMPANA EXTRACTORA - Manual de utilización
F
HOTTE DE CUISINE - Notice d'utilisation
NL
P
AFZUIGKAP - Gebruiksaanwijzing
COIFA ASPIRANTE - Manual do usuário
GB
COOKER HOOD - User instructions
CZ
ODSAVAČ PAR – uživatelská příručka
DK
EMHÆTTE - Brugervejledning
FIN
LIESITUULETIN – Käyttöohje
GR
ΑΠΟΡΡΟΦΗΤΗΡΑΣ ΣΕ ΕΚΔΟΣΗ ΑΠΟΡΡΟΦΗΣΗΣ – Εγχειρίδιο χρήσης
H
ELSZÍVÓ KÜRTŐ – Használati utasítás
N
AVTREKKSKAPPE – Bruksanvisning
PL
RUS
S
OKAP ZASYSAJĄCY - instrukcja obsługi
ВЫТЯЖНОЙ КОЛПАК - Руководство пользователя
SPISKÅPA – Bruksanvisning
Fig.1
max 80 cm
31.5
135
258
6
12
440
513 / 813
22
22
43.5
65 31
43.5
31
131
270
120
600 / 900
6
31.5
229
80
258
12
513 / 813
22
43.5
31
131
150
600 / 900
-3-
270
65 31
22
89.5
43.5
440
Fig.2
Fig.2a
A
P
B
L
O
P
P
Fig.3
Fig.4
B
B
440
440
Fig.5
Fig.6
G
-4-
Fig.7
A1
B1 B2
A1
A
B3
B
1
2
Fig.8
Fig.9
A1
A2
B2
B4
B1 B3
A
B
B
C
-5-
ENGLISH
GENERAL
Carefully read the following impor tant information
regarding installation safety and maintenance. Keep this
information booklet accessible for further consultations.
The appliance has been designed for use in the ducting
version (air exhaust to the outside), filtering version (air
circulation on the inside ) or with external motor .
GB
treated as domestic waste, but should be delivered to a
suitable electric and electronic appliance recycling
collection point. Follow local guidelines when disposing
of waste. For more information on the treatment, re-use
and recycling of this product, please contact your local
authority, domestic waste collection service or the shop
where the appliance was purchased.
INSTALLATION INSTRUCTIONS
SAFETY PRECAUTION
1. Take care when the cooker hood is operating
simultaneously with an open fireplace or burner that
depend on the air in the environment and are supplied
by other than electrical energy, as the cooker hood
removes the air from the environment which a burner or
fireplace need for combustion. The negative pressure in
the environment must not exceed 4Pa (4x10 -5 bar).
Provide adequate ventilation in the environment for a
safe operation of the cooker hood.
Follow the local laws applicable for exter nal air
evacuation.
Before connecting the model to the electricity network:
- control the data plate (positioned inside the appliance)
to ascertain that the voltage and power correspond to
the network and the socket is suitable. If in doubt ask a
qualified electrician.
- If the power supply cable is damaged, it must be
replaced with another cable or a special assembly, which
may be obtained direct from the manufacturer or from
the Technical Assistance Centre.
2. WARNING !
In certain circumstances electrical appliances may
be a danger hazard.
A) Do not check the status of the filters while the
cooker hood is operating
B) Do not touch bulbs or adjacent areas, during or
straight after pr olonged use of the lighting
installation.
C) Flambè cooking is prohibited underneath the
cooker hood
D) Avoid free flame, as it is damaging for the filters
and a fire hazard
E) Constantly check food frying to avoid that the
overheated oil may become a fire hazard
F) Disconnect the electrical plug prior to any
maintenance.
G) This appliance is not intended for use by young
children or infirm persons without supervision
H) Young children should be supervised to ensure
they do not play with the appliance
I) There shall be adequate ventilation of the room
when the rangehood is used at the same time as
appliances burning gas or other fuels
L) There is a risk of fire if cleaning is not carried out
in accordance with the instructions
This appliance conforms to the European Directive EC/
2002/96, Waste Electrical and Electronic Equipment
(WEEE). By making sure that this appliance is disposed
of in a suitable manner, the user is helping to prevent
potential damage to the environment or to public health.
symbol on the product or on the accompanying
The
paperwork indicates that the appliance should not be
Assembly and electrical connections must be carried
out by specialised personnel.
• Electric Connection
The appliance has been manufactured as a class II,
therefore no earth cable is necessary.
The connection to the mains is carried out as follows:
BROWN = L line
BLUE = N neutral
If not provided, connect a plug for the electrical load
indicated on the description label. Where a plug is
provided, the cooker hood must be installed in order that
the plug is easily accessible.
An omnipolar switch with a minimum aperture of 3mm
between contacts, in line with the electrical load and local
standards, must be placed between the appliance and
the network in the case of direct connection to the
electrical network.
• The minimum distance between the support surfaces
of the cooking pots on the cooker top and the lowest
part of the cooker hood must be at least 65 cm.
If a connection tube composed of two parts is used, the
upper part must be placed outside the lower part.
Do not connect the cooker hood exhaust to the same
conductor used to circulate hot air or for evacuating fumes
from other appliances generated by other than an
electrical source.
Before proceeding with the assembly operations, remove
the anti-grease filter(s) (Fig.5) so that the unit is easier
to handle.
In the case of assembly of the appliance in the suction
version prepare the hole for evacuation of the air.
• We recommend the use of an air exhaust tube which
has the same diameter as the air exhaust outlet hole. If
a pipe with a smaller diameter is used, the efficiency of
the product may be reduced and its operation may
become noisier.
• Warning! Plastic spacer fitting.
This product may also be supplied with a plastic spacer O,
which should be fitted before the hood is installed (Fig. 2a).
Fix the spacer to the hood using screws P (Fig. 2a).
To assemble the unit correctly, align the front panel of the
hood with the wall cabinet and decide on the distance
necessary to fill in any space remaining between the hood
and the wall.
Once the distance has been established, use a cutter to
remove the excess plastic (Fig. 2a).
• INSTALLATION
The following instruction should be followed to carry out
the correct installation of the cooker hood.
1) Mounting of the cooker hood on the lower side of
the cupboard.
2) Selection of the version (extraction or filtration)
- 18 -
• FIXING THE HOOD TO THE LOWER PART OF THE
WALL CABINET
This type of appliance must be fitted inside a cabinet or
inside another type of support structure. To fix it in place,
use 4 screws which are suitable for the type of cabinet,
making holes in accordance with the diagram shown in
(fig. 1). To fit the appliance correctly, align the front panel
of the cooker hood with the cabinet door and adjust
spacer E using screws P (fig. 2), then ensure the
appliance meets the cabinet at the rear.
• EXTRACTION THROUGH AN OUTSIDE WALL
The appliance expels the fumes through an outside wall
or a duct. It is necessary to buy a telescopic pipe in
accordance with the standards in use (inflammable) and
connect it to flange B (Fig 3).
• RECIRCULATION
To transform the cooker hood from the extraction version
to the re circulating one ask your supplier for an activated
carbon filter.
The filter must be fitted to the extracting group cooker
hood in the centre of the fan grille by twisting it by 90
degrees until it is gripped securely (Fig 6). For this
operation remove the anti-grease filter(s) G (Fig 5). The
clean air is returned into the room through a connecting
tube passing inside the cupboard and connected to the
ring B (fig 4).
USE AND MAINTENANCE
• We recommend that the cooker hood is switched on
before any food is cooked. We also recommend that the
appliance is left running for 15 minutes after the food is
cooked, in order to thoroughly eliminate all contaminated
air.
The effective performance of the cooker hood depends
on constant maintenance; the anti-grease filter and the
active carbon filter both require special attention.
• The anti-grease filter is used to trap any grease particles
suspended in the air, therefore is subject to saturation
(the time it takes for the filter to become saturated
depends on the way in which the appliance is used).
The acrylic filter, which is found resting on the grille,
should be replaced when the text, visible through the
grille, changes colour and the ink spreads; the new filter
should be fitted in such a way that the text can be seen
through the grille from outside the cooker hood.
If the filters do not have any text on them, or if metal
filters or aluminium panel filters are used, they should
be washed every 2 months in order to prevent the risk of
fire. To wash the filters, proceed as follows:
- Remove the filter from the grille and wash it using a
solution of water and neutral liquid detergent, leaving
the dirt to soften.
- Rinse thoroughly with warm water and leave to dry.
The metal filters and/or aluminium panel are also
dishwasher safe. If the filters are made using aluminium,
or if an aluminium panel is used, after a few washes the
colour may change. This does not mean they have to be
replaced.
If the replacement and washing instructions are not
followed, the anti-grease filters may present a fire hazard.
• The active carbon filters are used to purify the air which
is released back into the room. The filters are not
washable or re-usable and must be replaced at least once
every four months. The active carbon filter saturation level
depends on the frequency with which the appliance is
used, the type of cooking performed and the regularity
with which the anti-grease filters are cleaned.
• Remove build-up from the fan and other surfaces of
the cooker hood regularly using a cloth moistened with
denatured alcohol or non-abrasive neutr al liquid
detergent.
• The light on the cooker hood is designed for use during
cooking and not for general room illumination. Extended
use of the light reduces the average duration of the bulb.
• Replacing halogen light bulbs (Fig. 8).
To replace the halogen light bulbs B, remove the glass
pane C using a lever action on the relevant cracks.
Replace the bulbs with new ones of the same type.
Caution: do not touch the light bulb with bare hands.
MICROSWITCH (fig. 9).
Warning! This hood is fitted with a microswitch which
allows the activation of the functions (light and motor
speed) through the opening of the telescopic
undercarriage.
If the telescopic undercarriage is closed, neither the lights
nor the motor speed can be activated (fig. 9).
•COMMANDS: (pic.9) SLIDER the key symbols are explained below:
A = Light switch
A1 = Off key
A2 = On key
B = Speed control
B1 = Off key
B2 = FIRST SPEED key
B3 = SECOND SPEED key
B4 = THIRD SPEED key
• COMANDI: (Fig.7) SLIDER the key symbols are
explained below:
This hood is fitted with a microswitch which allows the
activation of the motor speed) through the opening of
the telescopic undercarr iage. If the telescopic
undercarriage is closed the motor speeds cannot be
activated.
This microswitch does not have an impact on the
activation of the lights which must be switched on through
the appropriate switch (see fig.7A).
A = Light switch
A1 = Off key
A2 = On key
B = Speed control
B1 = FIRST SPEED key
B2 = SECOND SPEED key
B3 = THIRD SPEED ke
Warning! If the telescopic undercarriage is closed with
the speed set at 2,, once it is re-opened, the hood will
be reactivated with the same speed in use when the hood
was closed.
THE
MANUFACTURER
DECLINES
ALL
RESPONSIBILITY FOR EVENTUAL DAMAGES
CAUSED BY BREACHING THE ABOVE WARNINGS.
- 19 -
3LIK0443
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
