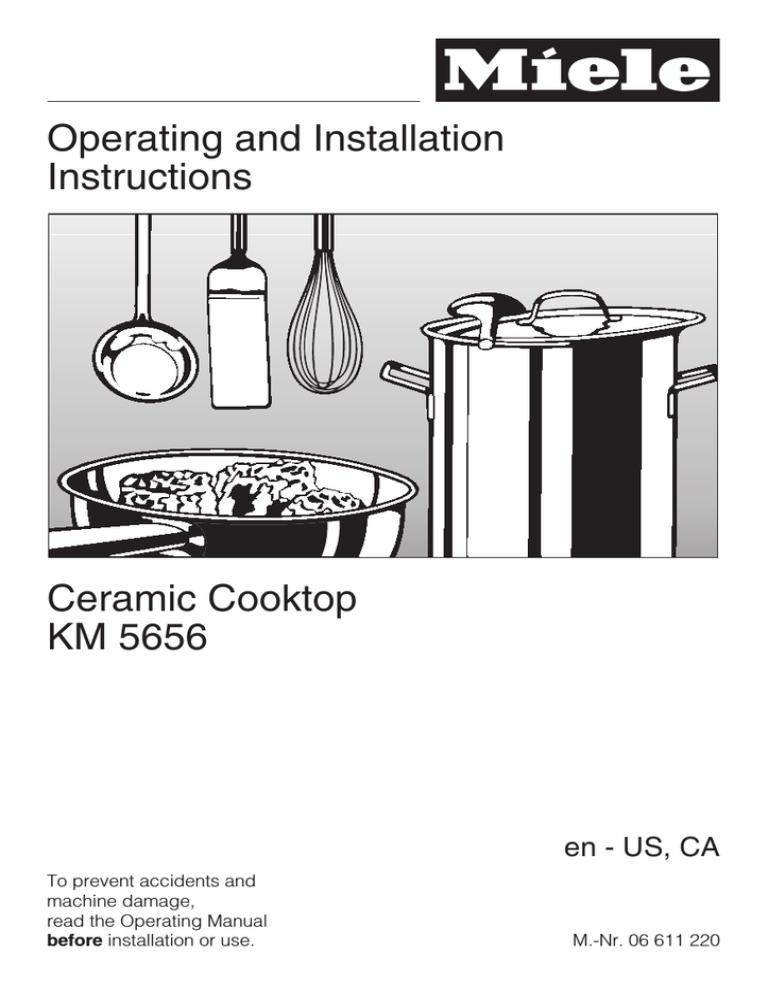

Operating and Installation
Instructions
Ceramic Cooktop
KM 5656
en - US, CA
To prevent accidents and
machine damage,
read the Operating Manual
before installation or use.
M.-Nr. 06 611 220
Contents
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Burner controls and displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Timer controls and display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Touch controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Resetting the touch controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Automatic reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Manual reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Turning on the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Turning on a burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Turning on a variable or extended burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Auto heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Turning off a burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Turning off the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Selecting cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting the timer to turn off a burner automatically . . . . . . . . . . . . . . . . . . . . . . . . 20
Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Child Safety Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Stop and Go. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety cut-out feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Overheating protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cooktop Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Technical Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Help protect our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
2
IMPORTANT SAFETY INSTRUCTIONS
READ THE OPERATING
INSTRUCTIONS CAREFULLY
BEFORE USING THE
COOKTOP
WARNING This appliance is only intended for
residential cooking. The
manufacturer cannot be held
responsible for damage or injury
caused by improper use or for uses
other than those for which this
appliance is intended.
When using your appliance follow
basic safety precautions including
the following:
Installation
Be certain your appliance is
properly installed and grounded by
a qualified technician in accordance
with national and local safety
regulations. The manufacturer cannot
be held responsible for damage
caused by incorrect installation or
connection.
Do not connect the appliance to
the main electrical supply using an
extension cord. Extension cords do not
meet the safety requirements of this
appliance.
Before servicing, disconnect the
appliance from the main power
supply.
To guarantee the electrical safety
of this appliance, continuity must
exist between the appliance and an
effective grounding system. It is
imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of the
house checked by a qualified
electrician. The manufacturer will not be
held responsible for damages caused
by the lack, or inadequacy, of an
effective grounding system.
Only for frame/facet cooktops:
A small gap will be visible between
cooktop and countertop for the first
days after installation. The gap will
decrease as the cooktop is used. The
electrical safety of your appliance is
warrantied despite the small gap.
Use
Do not use the appliance until it
has been properly installed in the
countertop.
This appliance is equipped with an
overheating protection feature. See
"Overheating protection" for more
information.
Never use the appliance to heat a
room. Due to the high
temperatures radiated, objects left near
the appliance could catch fire.
When the cooktop is turned on for
an extended period of time, the
control panel may get warm. This is not
a malfunction.
3
IMPORTANT SAFETY INSTRUCTIONS
Injury prevention
Children should not be left
unattended in an area where the
cooktop is in use. Never allow children
to sit or stand on any part of the
cooktop.
Caution: Do not store items of interest
to children in cabinets above the
cooktop. Children climbing on the
cooktop to reach these items could be
injured.
Use the Safety Lock to prevent
children from turning on the
cooking zones or changing the
settings. See "Safety lock" for more
information.
Keep all pots and pans out of the
reach of children. Danger of
burning or scalding. Special
cooktop/stove guards are available
from retail outlets.
Do not touch the cooktop or the
surrounding areas during or
immediately after use. The cooktop may
be hot even though it is dark in color.
Wait until the residual heat indicators
go out.
4
Protect your hands with insulated
gloves or potholders when using
the appliance. Use only dry, heat
resistant potholders. Moist or damp
potholders used on hot surfaces can
result in steam burns. Do not let the
potholder touch the hot heating
elements. Do not use towels or other
bulky items near the appliance.
Be aware of loose fitting or hanging
garments when operating the
cooktop, they may present a fire
hazard.
Use the proper pan size. Select
cookware with flat bottoms large
enough to cover the heating element.
Using undersized cookware will expose
a portion of the heating element and
may result in ignition of clothing or
handles becoming hot. The proper size
pot or pan will also improve efficiency.
Pot and pan handles should be
turned inward and not extend over
the countertop to reduce the risk of
burns, ignition of flammable materials,
and spills.
IMPORTANT SAFETY INSTRUCTIONS
Never leave a cooktop unattended
at high settings or when cooking
with oil or fat. Overheated oil could
ignite. Always heat oil slowly,
monitoring it as it heats.
To prevent burns and breathing
difficulty, allow the cooktop to cool
before cleaning. Some cleaners may
produce toxic fumes if applied to a hot
surface.
Do not use water on grease fires.
Smother or use a dry chemical or
foam-type extinguisher on any fire or
flame.
When wiping spills on a hot
cooktop with a wet sponge or
cloth, be careful to avoid steam burns.
When frying food make sure that
the food is as dry as possible
before placing it in oil. Moisture can
cause hot oil to splatter and boil over.
At high settings, be cautious of
splattering grease or boiling over
liquids which may produce smoke.
Do not flambé under an exhaust
hood. Flames could be drawn up
into the hood by the suction and the
grease filters may ignite.
Do not heat unopened containers.
Built-up pressure may cause the
container to burst and result in injury.
Before removing pots and pans be
sure to turn off the burners.
Do not let flammable materials,
i.e. cooking grease, accumulate on
the appliance.
Never cover the cooktop with a
cloth. A fire may result.
Do not store items on the cooktop
when not in use. Items could melt
or catch fire from residual heat or if the
cooktop is turned on inadvertently.
Flammable materials should not be
stored on or near the appliance.
If there is a drawer directly
underneath the appliance without a
protective base between it and the
cooktop, ensure that no aerosols,
combustible liquids or other flammable
materials are kept in it. If cutlery inserts
are to be placed in the drawer they
must be made of heat-resistant
material.
5
IMPORTANT SAFETY INSTRUCTIONS
Damage protection
Never place hot pots or pans over
the touch controls, this may
damage the electronics.
Do not drop anything on the
ceramic surface of the cooktop.
Even lightweight objects may cause
damage.
Do not use pots or pans with
pronounced edges or ridges on
the ceramic cooktop. These could
scratch the cooktop permanently. See
"Selecting cookware" for more
information. Grains of salt and sand can
cause scratches. Make sure that the
bases of any pots and pans are clean,
free of any fat or oils and are dry.
To prevent damage to the cooktop
do not use pots and pans with thin
bases on the cooktop. Never heat an
empty pan unless the pan manufacturer
states that you can do so.
Before using glass, glass/ceramic,
ceramic, earthenware or other
glazed cookware verify that they can be
used on a cooking surface.
6
Do not allow either solid or liquid
sugar, pieces of plastic or foil to fall
on the burners when they are hot. If
these residues are allowed to cool on
the ceramic surface pitting or even
cracking may occur.
Any spills should be removed as
quickly as possible to prevent them
from burning on and becoming difficult
to remove.
Do not use a steam cleaner to
clean this appliance. Steam could
penetrate electrical components and
cause a short circuit.
IMPORTANT SAFETY INSTRUCTIONS
Appliance safety
Further safety notes
In the event of any damage to the
appliance, it must be turned off
immediately and disconnected from the
main power supply. Call Miele’s
Technical Service Department.
Do not use the appliance until it has
been repaired. Ensure power is not
supplied to the appliance until repair
work is completed.
Make certain that the power cords
of small appliances do not come in
contact with the cooktop. The insulation
of the cable could become damaged.
Danger of electric shock!
Do not cook on a broken cooktop.
Any breakages or cracks in the
ceramic surface of the appliance are
defects and must be treated as such. If
the cooktop should break, cleaning
solutions and spills may penetrate the
broken cooktop and create a risk of
electric shock. Do not use the
appliance until it has been repaired.
Do not use plastic or aluminum.
They will melt at high temperatures.
Fire hazard!
If a pet gets on the cooktop a
touch control sensor could be
activated turning on a burner. Keep
pets away from the cooktop at all times
and activate the Safety Lock.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
Repairs should only be performed
by qualified technicians to ensure
safety. Repairs and other work by
unqualified persons could be
dangerous. Under no circumstances
open the outer casing of the appliance.
While the appliance is under
warranty repairs should only be
performed by an authorized service
technician. Otherwise the warranty is
void.
7
Guide to the appliance
Cooktop
ac Single burners
b Extended burner
d Variable burner
e Burner controls and displays
f Cooktop on or active indicator
g Cooktop ON/OFF touch control
h Safety lock touch control
i Safety lock indicator
j Timer controls and display
8
Guide to the appliance
Burner controls and displays
a Touch controls
To select the power level (touch individually).
To activate the second heating circle of the variable burner (touch simultaneously).
b Burner On/Off touch control
c Display:
=
0
=
1 to 9 =
#
=
F
=
A
=
po etc. =
so etc. =
Burner is ready for use
Burner is turned on
Power level
Residual heat
Fault (see "Safety cut-out feature")
Auto-heat with extended power level range
Program (see "Cooktop Settings")
Status (see "Cooktop Settings")
d Auto-heat indicator e.g. for front left burner
e Indicator shows activated variable or extended burner zone
9
Guide to the appliance
Timer controls and display
a Timer display
b Touch controls for setting the time
c Timer touch control
To turn the timer on/off, to toggle
between timer functions and to
select a burner for auto turn off.
d Auto turn off indicator,
e.g. rear right burner
Burner data
Burner
KM 5656
diameter in inches / cm
Power in watts
y
4 3 / 4" / 8 1/ 4"
(12 / 21 cm)
1100 / 2400
w
5 11/16" (14.5 cm)
11
11
7
1200
x
6 /16" / 6 /16" x 10 /16"
(17 cm / 17 x 26.5 cm)
1500 / 2400
z
7 1/16" (18 cm)
1800
All burners 7800
10
Before using for the first time
Clean the cooktop
Touch controls
Before using for the first time, clean and
dry the cooktop with a soft damp cloth.
This cooktop has electronic controls
activated by the touch of a finger. There
is a separate touch control for each
burner. A tone sounds to indicate that
contact has been made with a control.
Heat the cooktop
The metal components of the cooktop
have a protective coating which may
give off a slight odor the first time the
appliance is heated.
The smell will dissipate after a short
time and does not indicate a faulty
connection or appliance defect.
Keep the control area clean and do
not rest things on it. The touch
control sensors could mistake an
item or debris for a finger touch,
turning the cooktop on or off.
To prevent damage to the
electronics never place hot pans on
the control panel.
11
Resetting the touch controls
Automatic reset
Manual reset
To ensure the cooktop functions
properly the touch controls will
automatically reset:
^ Make sure no direct light (sun or
artificial) beams onto the cooktop.
The surrounding area of the cooktop
should not be completely shaded or
brightly lit.
– when the cooktop is connected to
the electrical supply,
– if there is an interruption to the
electrical supply, and
– during use in response to changing
light conditions.
During the automatic reset of the touch
controls the Child Safety Lock indicator
will light and the cooktop cannot be
turned on.
If the automatic reset could not be
completed an A will appear in the rear
left burner display and an F will appear
in the rear right burner display. The
front left and front right burner displays
will show numbers.
12
^ Make sure the cooktop and the touch
controls are not covered. Remove all
pots and pans and clean the cooktop
if necessary.
^ Trip the circuit breaker to the cooktop
or disconnect the appliance from the
power supply for 1 minute.
The touch controls will automatically
reset when power is restored.
If the problem persists, contact
Technical Service.
Use
Turning on the cooktop
^ Touch the s On/Off cooktop touch
control.
A horizontal bar – will appear in each of
the burner displays and the On/Off
indicator will light. If no setting is
chosen within a few seconds the
cooktop will turn itself off as a safety
measure.
Turning on a burner
^ Touch the s On/Off touch control for
the desired burner.
The respective burner display shows 0.
^ Select a power level between 1 and 9
by pressing the - or + control.
When turning on the cooktop you can
decide whether you want to cook with
auto heat or not. See "Auto heat" for
more information.
Turning on a variable or
extended burner
The second circle of a variable burner
or the extended burner can be turned
on to extend the cooking area for larger
pots and pans.
^ Turn the burner on.
^ Touch simultaneously the - and +
controls of the respective burner.
– left controls, lower +/- for the g
variable burner
– right controls, upper +/- for the C
variable burner
^ Select a power level.
The burner indicator will light to show
the second heating element.
To turn the extended heating element
off touch the - and + controls
simultaneously again.
Turn on with + to:
Cook without auto heat
Turn on with – to:
Cook with auto heat
13
Use
Settings
Use for
Power level*
Melting butter, chocolate, etc.
Dissolving gelatin
Preparing yogurt
1-2
Thickening sauces containing egg yolk and butter
Warming small quantities of food or liquid
Warming sticky foods
Cooking rice
1-3
Warming liquid and half-set foods
Thickening sauces
Cooking rice pudding
Cooking eggs
2-4
Defrosting deep frozen food
Steaming vegetables and fish
Cooking dumplings, pasta and soups
Cooking broths
3-5
Boiling and continued cooking of large quantities of food
5
Gentle frying (without overheating the fat) of fish, sausages,
fried eggs, etc.
6-7
Frying pancakes, etc.
7-8
Boiling a large volume of water
Auto heat
8-9
* These settings are intended as a guide only. When cooking with large pots,
large quantities or without using a lid a higher setting is needed. For smaller
quantities select a lower setting.
14
Use
Auto heat
When auto heat has been activated the
burner turns on automatically at the
highest setting and then changes to the
continued power level which was
selected. The heat-up time depends on
which continued power level has been
chosen (see table).
Power level
Heat up time
(minutes : seconds)
1
1 : 20
2
2 : 45
3
4 : 05
4
5 : 30
If a high continued power level was
selected, a shorter heat-up time is
necessary.
5
6 : 50
6
1 : 20
To activate auto heat
7
2 : 45
^ If 0 shows in the display, touch the until the desired continued power
level is displayed, e.g. 6.
8
2 : 45
9
-
During the heat up a dot lights next to
the power level number. When the heat
up time is complete the dot goes out.
The continued power level can be
increased or decreased during the heat
up phase with the -/+ controls. The heat
up time changes accordingly.
15
Use
Turning off a burner
Residual heat indicator
^ Touch the s On/Off touch control for
the desired burner.
The display shows - for a few seconds.
If the burner is still hot the residual heat
indicator will show.
Turning off the cooktop
^ Touch the s On/Off control for the
cooktop.
All burners are turned off. If any burners
are still hot the residual heat indicator
will show in the respective display.
The bars in the residual heat indicator
go out one after another as the burner
cools. The last residual heat indicator
will go out when the burner is cool
enough to touch.
Do not touch the burner or rest any
objects on the cooktop when the
residual heat indicator is on. Danger
of burns!
After a power failure the residual
heat indicator will flash.
Caution: If there is a fault, the
residual heat indicator will not light
even if the burners are still hot.
16
Selecting cookware
Following these tips will allow you to
make the most of your ceramic
cooktop.
The cooking surface
The ceramic cooktop is made of an
extremely hard and durable material.
The surface is scratch resistant, not
scratch proof. Avoid using cookware
with ridged bottoms. Ridged pots with
dirty or chipped enamel bottoms may
scratch the cooktop if they are pulled
across the ceramic surface.
Make sure the cooktop and pot bottoms
are clean before cooking. Certain
items, particularly sugar grains or
crystallized liquids such as molasses or
syrups are harder than ceramic and
can scratch the surface if they are not
cleaned off immediately. Small or light
scratches will not affect the safety or
performance of the cooktop.
The burner rings and touch controls are
fused into the ceramic glass and are
resistant to wear if properly maintained.
Do not use abrasive cleaners or pads,
as they may eventually wear off the
rings.
Pots and pans
Special cookware is not required, but
as is true with all types of cooking
appliances, the better the cookware,
the better the performance.
– For the most even and energy
efficient cooking, the diameter of the
pots/pans should match the diameter
of the burners as closely as possible.
– Use cookware with thick, flat, smooth
bottoms. Slightly concave bottoms
will also work adequately. Pans with
convex bottoms will not cook well.
– Using a lid while cooking will
minimize the loss of heat and
decrease the cooking time.
17
Selecting cookware
Copper bottom and aluminum pans
may leave a residue on the cooktop in
the form of metallic lines. This is normal.
These lines can be removed using a
non-abrasive ceramic cooktop cleaner
or a shielded scraper blade.
Be sure to clean the cooktop after
each use. Each time this residue is
allowed to melt it becomes harder to
remove and may mar the
appearance of the cooktop.
Let the cooktop cool before
cleaning.
Cast iron, glass or stoneware should
not be used because they have poor
heat transfer and may scratch the
cooktop surface.
18
Timer
The cooktop has a timer which can be
used to:
– time any activity in the kitchen.
– automatically turn off one (any)
burner.
The functions above can also be used
simultaneously.
Quick Guide:
Turn on
Touch m
Set
with - set from 99
to 00 minutes
with + set from 00
to 99 minutes
Toggle between
the functions
Touch m
Reset back to 00
touch - and +
simultaneously
Setting the timer
The timer can be set with the cooktop
either turned on or off. It can be set
from 1 to 99 minutes.
^ Touch the m timer control to turn the
timer on.
The display shows 00.
^ Press and hold the - or + sensor until
the desired time is displayed, e.g. 15
minutes.
The set time counts down in minutes in
the time display. The remaining time is
displayed and can be changed at any
time by pressing - or +.
After the set time has elapsed the
display shows 00 and an audible signal
is heard. After a few seconds the tone
will stop and the 00 will go out.
^ To end the signal touch the m timer
control.
19
Timer
Setting the timer to turn off a
burner automatically
To use this feature a power level must
be selected for the desired burner.
^ Turn the desired burner on and
select a power level.
^ Touch the m timer sensor.
The display will show 00.
^ Touch the m timer sensor again.
An indicator will light in the time
display.
^ If multiple burners are turned on,
press and hold the m timer sensor
until the indicator of the desired
burner lights, e.g. rear right.
With every touch of the m timer sensor
the indicators for the activated burners
light up clockwise from front left to front
right.
The set time counts down in minutes in
the time display. The remaining time is
displayed and can be changed at any
time by pressing - or +. The power level
can also be changed at any time.
When the set time has elapsed:
– the burner will automatically turn off,
– the burner display will show 0,
– the timer display will show 00, and
– an audible signal will be heard.
After a few seconds the tone will stop
and the 00 will go out.
^ To end the signal touch the m
sensor.
To toggle between the functions
If the timer is already used with one
function and the second function is
desired:
^ Touch the m sensor.
The timer display will show 00. Follow
the steps as previously described.
^ Press and hold the - or + sensor until
the desired time is displayed, e.g. 15
minutes.
20
To monitor the remaining time in the
function which is not displayed, touch
the m sensor once.
Safety features
Child Safety Lock
Keep children away from the
cooktop for their own safety.
The cooktop has a Child Safety Lock to
prevent children from turning on the
burners or changing the settings.
To deactivate the Child Safety Lock
^ Press and hold the $ Child Safety
Lock control until the indicator goes
out.
In the case of a power failure the
Child Safety Lock will be
deactivated.
The Child Safety Lock can be activated
while the cooktop is on or off.
Activating the Child Safety Lock
during cooktop use
– The settings for the burners and for
the timer cannot be altered.
– The burners and cooktop can still be
turned off but once turned off cannot
be turned on again.
Activating the Child Safety Lock
when the cooktop is turned off
– The cooktop cannot be turned on.
To activate the Child Safety Lock
^ Press and hold the $ Child Safety
Lock control until the respective
indicator lights.
The indicator will go out after a short
time.
If you touch the $ Child Safety Lock
control or select a setting, the indicator
will come on again to show that the
Child Safety Lock has been activated.
21
Safety features
Stop and Go
To activate Stop and Go
Stop and Go is a feature which reduces
the power of all turned on burners. The
cooktop can be left for a short time
without supervision and the danger of
boilovers.
^ Press and hold the $ Lock control
until you hear two audible signals in
quick succession. Do not touch the
$ Lock control too long or the Safety
Lock will be activated.
The safety lock indicator will flash. The
power for the activated burners is now
reduced to power level 1. The
respective burner will display 1.
If the automatic turn off function is
programmed for a burner, the time will
be interrupted when activating "Stop
and Go". The time will continue when
"Stop and Go" is deactivated.
To deactivate Stop and Go
^ Press and hold the $ Safety Lock
control until the indicator goes out.
The burners will now operate with the
last selected power level.
22
Safety features
Safety cut-out feature
Covered touch controls
The cooktop is on too long
The cooktop has a safety cut-out
feature in case it is not turned off after
use.
If a burner is turned on for an unusually
long period of time (see table), and the
power levels are not adjusted, the
cooktop will turn itself off automatically
and the residual heat indicator will light.
Power level
Maximum
operating hours
1
10
2
5
3
5
4
4
5
3
6
2
7
2
8
2
9
1
The cooktop will turn off automatically if
any of the touch controls are covered
for more than 10 seconds, e.g. by
finger contact, food boiling over, or an
object such as an oven mitt or towel.
A tone will sound every 30 secs. for
max. 10 min. The display will show a
flashing F.
^ Clean the touch controls or remove
the object.
This will turn off the signal tone and the
displayed F will go out.
^ Turn the cooktop on again with the s
touch control. The burners can now
be used.
^ If you wish to use the burners once
again, turn the cooktop on as you
normally would.
23
Safety features
Overheating protection
Each burner is equipped with a
temperature limiter. This limiter turns off
the heating elements in the burner
before the ceramic surface becomes
too hot. Once the ceramic surface has
cooled to a safe temperature the
heating elements will automatically turn
back on.
The overheating protection may be
activated by:
– turning on a burner without putting a
pan on it.
– heating an empty pan.
– an uneven pan not sitting evenly on
the burner.
– the pan not conducting heat
properly.
If the heating elements cycle on and
off, even at the highest setting, the
overheating protection has been
activated.
24
Cooktop Settings
The following default cooktop settings
of the cooktop can be reprogrammed if
needed:
Auto-heat settings
Default power
Demo mode
Power level range
Residual heat indicator
Safety lock
Stop and go
Timer function
Timer start setting
Timer tone
Tone for touch controls
If you would like to reprogram the
settings of your cooktop, please
contact Miele for assistance.
25
Cleaning and Care
Do not use a steam cleaner to clean
this appliance. Steam could
penetrate electrical components and
cause a short circuit. Pressurized
steam could cause permanent
damage to the surface and to
components for which the
manufacturer cannot accept
responsibility.
Do not use any sharp pointed
objects which could damage the
seal between the ceramic surface,
the surrounding frame and the
countertop.
Never use abrasive cleaners, caustic
(oven) cleaners, dishwasher
detergent, scouring pads, steel wool
or hard brushes. They will damage
the surface.
The ceramic surface can be cleaned
using a cleaner for ceramic
surfaces. Follow the manufacturer’s
instructions.
Make sure that no cleaner residue
remains on the ceramic surface by
carefully wiping the cooktop with a
damp cloth. They may damage the
cooktop or produce toxic fumes
when heated.
Be sure that pot and pan bases are
clean and dry.
After cleaning dry the ceramic
surface with a soft cloth to prevent a
build up of limescale deposits.
26
Clean any spills immediately before
they become difficult to remove.
Clean the appliance regularly,
preferably after each use. Allow the
appliance to cool before cleaning.
^ Wipe off any soiling using a damp
cloth. Stubborn soiling is best
removed with a shielded scraper
blade.
^ Apply a ceramic cleaner using a soft
cloth or paper towel. To remove any
limescale deposits or metallic residue
apply a ceramic cleanser using a soft
cloth or use a shielded scraper blade
if necessary.
^ After cleaning wipe the ceramic
surface with a damp cloth and dry.
A cleaner with a special additive to
prevent water marks and smears on the
ceramic surface may be used.
Any melted solids like sugar, plastic or
aluminum foil should be removed as
soon as possible, while the burner is
still warm. If they are allowed to harden
the cooktop may become pitted.
^ Turn the burner off.
^ Using a shielded scraper blade,
scrape the melted item immediately
off the burner while it is still hot.
Use caution: Danger of burns!
^ Allow the cooktop to cool and clean
as previously described.
Frequently asked questions
,Repairs should only be carried out by an authorized technician in
accordance with local and national safety regulations. Unauthorized repairs
could cause injury or appliance damage. The manufacturer cannot be held
responsible for unauthorized work.
What if the cooktop or the burners cannot be turned on?
Possible fault
Fix
The Safety Lock is activated.
Deactivate the safety lock.
See "Safety lock".
The main fuse has blown.
Check the main fuse.
What if the burner does not heat up but can be turned on and a power level
can be selected?
Possible fault
Fix
The cooktop is in the demo mode.
Call Miele Technical Service.
What if the cooktop turns off during use, a tone sounds and the residual
heat indicator or a flashing F appears?
Possible fault
Fix
The burner was on for too long or
the touch controls are covered.
See "Safety cut-out feature".
What if a heating element turns off then on again?
Possible fault
Fix
The overheating protection has
activated.
See "Overheating protection".
What if food does not cook when using auto-heat?
Possible fault
Fix
The pot or pan does not transfer
heat properly.
Use the correct pots and pans, see
"Selecting cookware".
Large amounts of food are
cooked.
Select a higher continued power level.
27
Frequently asked questions
What if one or more residual heat indicators flash?
Possible fault
Fix
There was a power failure during use.
The burners are turned off.
Turn the cooktop on as usual.
The residual heat indicators were lit
while the programming mode, e.g.
Safety Lock, Stop and Go, was
selected.
The residual heat indicators will flash
for about 45 minutes after leaving the
programming mode.
The cooktop can be used as usual.
What if when the cooktop is turned off, the burner displays show A, F and
numbers?
Possible fault
Fix
The touch controls could not be reset
automatically. They must be reset
manually.
See, "Resetting the touch controls Manual reset".
If the problem persists, call Miele
Technical Service.
What if the rear burner display shows F, the front burner display shows E
and the timer shows numbers?
Possible fault
Fix
Trip the circuit breaker to the cooktop
or disconnect the appliance from the
main power supply for 1 minute.
If the problem persists, call Miele
Technical Service.
28
Technical Service
In the event of a fault which you cannot
easily fix yourself, please contact the
Miele Technical Service Department at
the address on the back of this booklet.
When contacting Technical Service
please quote the serial number and
model of the cooktop. This information
is visible on the silver data plate
supplied with the cooktop.
Adhere data plate sticker here:
29
30
Installation Instructions
To prevent accidents
and machine damage
read these instructions
before
installation or use.
IMPORTANT SAFETY INSTRUCTIONS
Note to the installer:
Please leave this instruction book
with the consumer for the local
electrical inspector’s use.
The minimum distances given in
these Installation Instructions must
be observed in order to ensure safe
operation. Failure to do so increases
the risk of fire.
The cabinetry and venting hood
should be installed first to prevent
damage to the cooktop.
recommended
The cooktop can only be installed
as shown in the illustrations while
maintaining the required safety
distances shown. Do not install the
cooktop between two tall cabinets, this
is a fire hazard.
A minimum distance of 2" (50 mm)
from the cooktop to the rear wall and
a side wall must be maintained for
safety.
not recommended
The countertop must be bonded
with heat resistant (212 °F/100 °C)
adhesive to prevent distortion and
dissolving.
The cooktop must not be installed
over a dishwasher, refrigerator or
freezer. Heat radiated by the cooktop
may damage them.
32
not allowed
IMPORTANT SAFETY INSTRUCTIONS
To eliminate the risk of burns or fire
by reaching over heated surfaces,
cabinet storage space above the
cooktop should be avoided. If cabinet
storage is necessary, the risk can be
reduced by installing a venting hood to
project horizontally a minimum of 5"
beyond the bottom of the cabinets.
Because of the heat radiated it is
not recommend to install the
cooktop above a drawer. It should be
installed above a cabinet base unit with
a dummy drawer front. A protective
base should also be installed between
the dummy drawer and the cooktop.
This appliance is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the Miele Technical Service
Department with specific requirements.
The cooktop must not be
permanently sealed into the
countertop when installed. The sealing
strip under the edge of the cooktop
provides a sufficient seal for the
countertop. See "Sealing".
Safety distance above the
appliance
As a general rule there must be a safety
distance of at least 30" (760 mm)
between the appliance and any
objects above it, e.g. cabinetry, venting
hood, etc. If the manufacturer of these
items states a different figure, always
adhere to the greater distance. These
measurements should be given in their
operating and installation instructions.
If there is more than one appliance
beneath a hood, e.g. wok burner
and electric cooktop and they have
different minimum safety distances
always select the greater distance.
33
Installation
Cooktops flush with the countertop
a Wall
b Wall covering
c Back splash strip
d Countertop
e Countertop cut-out
f 2" (50 mm) minimum distance
34
Frame/Facet cooktops
Installation
Installation dimensions
a Spring clips
b Installation height
c Installation height power supply line
d Front
e Flexible stainless steel hose
Length = 3’ 11" (1200mm)
35
Installation
Cut out
^ Make the countertop cut-out following
the dimensions given in the
illustration.
Remember to maintain a minimum
distance of 2" (50 mm) between the
rear wall and the right or left side.
See also "IMPORTANT SAFETY
INSTRUCTIONS".
^ Seal the cut surfaces with a suitable
sealant to avoid swelling caused by
moisture.
The materials used must be heat
resistant.
36
If during installation the seal around
the frame does not sit flush with the
countertop in the corners, the corner
radius, maximum 3/16" (4 mm), can
be carefully filed down to fit.
Installation
Installing the spring clips
Wood or corian countertops
Granite countertops
^ Fix the supplied spring clips at the
marked positions as shown above,
by laying them on the upper edge of
the cut-out and then securing them
with the 1/8" x 1" (3.5 x 25 mm) screws
supplied.
^ For granite countertops, the spring
clips must be placed in position and
secured with strong, double-sided
adhesive tape.
^ In addition, coat the edges of the
spring clips with silicone sealant.
The screws are not needed for granite
countertops.
37
Installation
Installing the cooktop
Wooden countertop
^ Feed the power cord down through
the cut-out and connect the
appliance to the power supply.
^ Position the cooktop on the spring
clips, a.
^ Then with a hand on each side of the
cooktop press down evenly on the
edges until it clicks into position.
When doing so make sure that the
cooktop seal sits tightly on the
countertop to ensure it is sealed
correctly.
The cooktop can now only be
removed with a special tool.
^ Connect the cooktop to the main
power supply.
^ Turn the cooktop on and check the
function.
38
Granite countertops
Installation
Sealing
The cooktop must not be permanently
sealed into the countertop when
installed. The sealing strip under the
edge of the cooktop provides a
sufficient enough seal.
If the cooktop is sealed into position,
the countertop or the appliance may
be damaged if the cooktop needs to
be removed for maintenance or
service.
39
Electrical connection
,CAUTION: Before installation or
servicing, disconnect the power
supply by either removing the fuse,
shutting off the power main or
manually "tripping" the circuit
breaker.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and service by unqualified
persons could be dangerous and
the manufacturer will not be held
responsible.
Before connecting the appliance to
the power supply, make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This
data must correspond to prevent
appliance damage. Consult an
electrician if in doubt.
Only operate the cooktop after it has
been installed into the countertop.
Installer:
Please leave these instructions with
the consumer.
Power supply
^ Make sure your electrical supply
matches the data plate.
40
Connection
The cooktop is equipped with a flexible
power cord consisting of 3 wires ready
for connection to a grounded power
supply.
208/240 V, 60 Hz, 40 A fuse rating.
Black wire: connect to L1 (hot)
Red wire: connect to L2 (hot)
Green wire: connect to GND (ground)
A dedicated line and junction box
should be used to connect the cooktop
to a 40 A circuit.
For further information, see the wiring
diagram provided with the appliance.
WARNING:
THIS APPLIANCE MUST BE
GROUNDED!
Help protect our environment
Disposal of packing materials
Disposal of an old appliance
The cardboard box and packing
materials are biodegradable and
recyclable. Please recycle.
Old appliances contain materials that
can be recycled. Please contact your
local recycling authority about the
possibility of recycling these materials.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Before discarding an old appliance,
disconnect it from the electrical supply
and cut off the power cord to prevent it
from becoming a hazard.
41
42
43
Alterations rights reserved / 1207
For the most updated manual see the Miele website.
M.-Nr. 06 611 220 / 03
Download PDF
