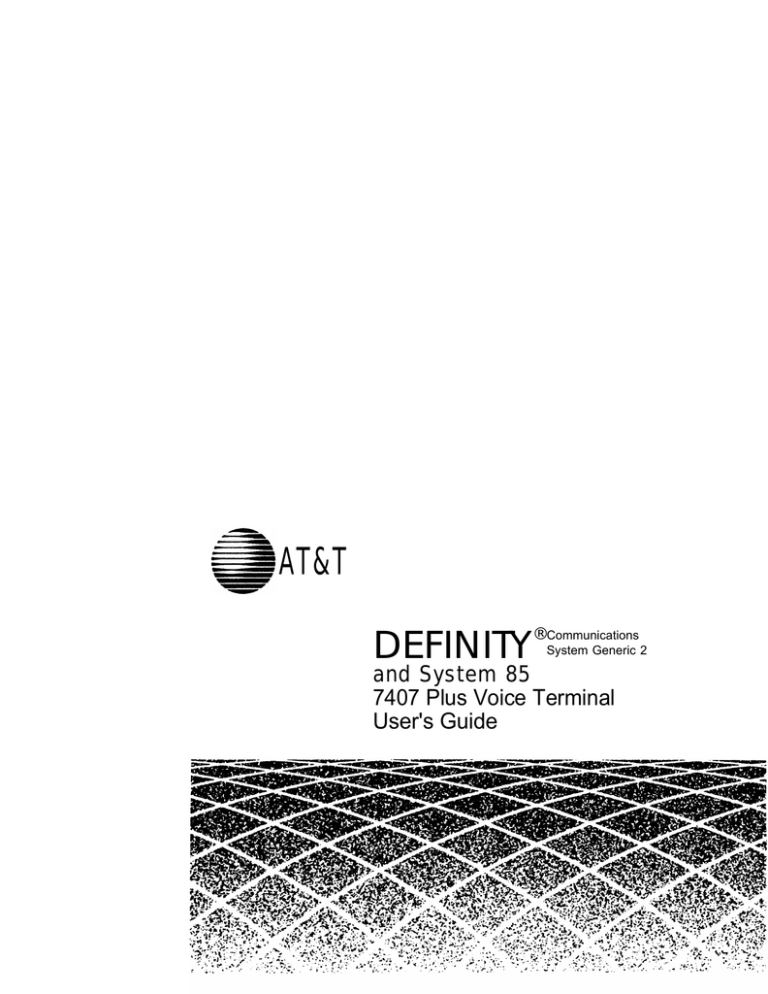

AT&T
DEFINITY
® Communications
System Generic 2
and System 85
7407 Plus Voice Terminal
User's Guide
NOTICE
While reasonable efforts were made to ensure that the information in this document
was complete and accurate at the time of printing, AT&T can assume no responsibility
for any errors. Changes or corrections to the information contained in this document
may be incorportated into future issues.
TO ORDER COPIES OF THIS DOCUMENT
Contact:
Order:
AT&T Customer Information Center
2855 North Franklin Road
P. O. Box 19901
Indianapolis, IN 46219
1-800-432-6600,
In Canada: 1-800-255-1242
Document No. 555-104-742
Issue 1, July 1991
For more information about AT&T documents, see Business Communications Systems
Publications Catalog (555-000-010).
HEARING AID COMPATIBILITY
This equipment is compatible with the inductively coupled hearing aids prescribed by
the Federal Communication Commission (FCC).
Prepared by
AT&T Technical Publications Department
Denver, CO 80234
©1991 AT&T
All Rights Reserved
Printed in USA
Contents
Your 7407 Plus Voice Terminal
1
A Quick Look at the Features
4
How to Use the Features
8
Voice Features
10
Abbreviated Dialing (AD)
10
Automatic Callback
12
Bridging
13
Call Coverage/Consult
14
Call Forwarding — Busy/Don't Answer
15
Call Forwarding — Follow Me
16
Call Park
17
Call Pickup
18
Conference
19
Drop
20
Hold
20
Intercom (Automatic/Dial)
21
Last Number Dialed
21
Leave Word Calling (LWC)
22
Message
23
Mute
23
Priority Calling
24
Reset Speakerphone
24
Select Button
25
Select Ring (and Ringer Volume)
26
Self-Test
27
Send All Calls
Speaker
27
28
Speakerphone
30
Terminal Busy Indication
32
Transfer
33
Display Features
33
Data/Time
34
Inspect
35
Message Retrieval
35
Normal
37
Timer
37
i
Tones and Their Meanings
38
Key Words to Know
39
Quick-Reference Lists
41
ii
Your 7407 Plus Voice Terminal
The 7407 Plus Voice Terminal is designed so that you can conveniently use the features
of the AT&T DEFINITY® Communication System Generic 2 and System 85. This
telephone is shown and explained below and on the following page.
Figure 1. 7407 Plus Voice Terminal
Starting at the upper left of Figure 1 and continuing clockwise:
1 ) Call appearances/
feature buttons
For handling incoming and outgoing calls (call appearances),
labeled with extension numbers. For accessing features
(feature buttons), labeled with feature names; each button is
equipped with a red light and a green light.
2) Handset
For placing and answering calls. In most cases, you must lift
the handset (go off-hook) before you can use a feature. Also
known as the receiver.
3) Display
For showing information (a built-in 2-line, 40-character LED
display).
4) Drop/Test button
For disconnecting from a call or dropping the last party
added to a conference call. When used with [ Select ] you
can perform a self-test of your telephone button lights, tone
ringer, and display.
5) Conference/Ring
button
For setting up conference calls. When used with [ Select ],
you can select a personalized ringing pattern for your
telephone.
6) Transfer button
For transferring a call to another telephone.
1
7) Hold button
For putting a call on hold.
8) Dial pad
The standard 12-button pad for dialing phone numbers and
accessing features. The letters, "Q" and "Z" have been added
to the appropriate dial pad keys for directory access, and the
"5" button on your dial pad has raised bars for visuallyimpaired users.
9) Feature buttons
For accessing features, labeled with feature names (22
buttons).
10) Speakerphone/
headset adapter jack
(on back of telephone)
For connecting an external speakerphone or a headset
adapter to your telephone. Located on the back of your
telephone, labeled
11) Line jack (on back
of telephone)
For connecting a line cord to your telephone. Located on the
back of your telephone, labeled "LINE."
12 Handset jack (on
back of telephone)
For connecting the handset cord to the telephone. Located on
the back of your telephone, labeled
13) Microphone
For speakerphone operation. Used when the speakerphone
options is set and speaker button is depressed.
14) Select button
Can be used in 3 different ways:
15) Mute button
1)
Used with [ Drop Test ] to initiate a self-test of your
telephone
2)
Used with [ Conference Ring ] select your own personalized ring
from among 8 available patterns
3)
Used with [ Speaker Reset Spkr ] to perform an acoustic test of
the environment and adjust the speakerphone to the
surrounding acoustic environment for optimal
performance.
For turning off the microphone of the built-in speakerphone
or the handset so the other person cannot hear you.
Note: If your telephone is set for the Speaker (listen-only)
feature, pressing the Mute button will affect only the handset.
When the Speaker feature is in use, the red Mute light will
always be on.
16) Message light
For indicating when a message has been left for you (steady
red light).
2
17) Speaker/Reset
Spkr button
For accessing the speaker or the built-in speakerphone and
microphone combination. When you touch [ Select ] and
[ Speaker Reset Spkr ] the built in speakerphone performs a test of the
surrounding acoustic environment by using a sequence of
tones. When the tones stop, your speakerphone has finished
adjusting itself for optimal performance. It is now ready for
use.
Note: Your telephone can be set for either the Speaker
(listen-only) feature or the Speakerphone (listen and talk)
feature. Check with your System Manager to see how your
Speaker button is to be used.
18) Volume control
button
For adjusting the volume of the built-in speakerphone when
you are using the speakerphone and a call is in progress, or
for adjusting the volume of the tone ringer when you are not
using the speakerphone.
19) Display control
buttons
For accessing display features, labeled with feature names
and equipped with green lights (9 buttons).
The following optional modules are compatible with the 7406 Plus Voice Terminal:
500A Headset Adapter
Provides a dual-purpose switch that turns on the adapter
connecting the headset to the telephone. Pressing the ON
switch is equivalent to going off-hook with the handset, and
pressing the OFF switch is equivalent to going on-hook with
the handset. Plugs into the speakerphone/headset adapter
jack.
7400B Data Module
Provides data capability to the attached DCP telephone. It
also provides integrated simultaneous voice data
communications over standard twisted-pair wiring. Plugs
into the line jack.
S101A and S201A
Speakerphone
Provides total telephone operation without using the handset
Turning on the speakerphone is equivalent to going off-hook
when placing or answering a call and turning off the
speakerphone is equivalent to going on-hook. A mute switch
is provided to temporarily cut off transmission to the distant
caller. Plugs into the speakerphone/headset adapter jack.
3
A Quick Look at the Features
Here are brief descriptions of some features, including what each one does and how
you might want to use it. The first features are voice features followed by display
features. You will have the Conference, Drop, Hold, Message, Mute, Select Ring, and
Transfer voice features, and Message Retrieval and Normal display features. In
addition, you may have many of the other features listed here; your System Manager
can advise you.
Voice Features
Abbreviated Dialing (AD) Allows you to store selected telephone numbers as 3 or
fewer digits for quick and easy dialing. Each number can be a complete or partial
telephone number, an extension number, or a trunk or feature code. There are 3
possible types of lists — personal, group, and system — and you can have a total of 3
lists. Numbers on a personal list are programmable by you; numbers on group lists
are programmable by the controller of the list; system lists are programmable only by
the System Manager. Use this feature as a timesaver for dialing frequently called,
lengthy, or emergency numbers. Note: Check with your System Manager for the
types of lists you have and how many of each.
Automatic Callback sends you a special 3-burst ring tone indicating that a
previously busy extension is now available. Use to avoid constant redialing when you
want to speak to someone who is frequently busy on the telephone. Note: You can
use this feature only for extensions, not outside numbers.
Bridging Permits you to answer or join calls to someone else’s extension by pressing
a bridged appearance button on your telephone. This button can be any call
appearance labeIed with another user’s primary extension number, as assigned to you
by your System Manager. Use to assist in handling calls for a designated co-worker.
Call Coverage Provides automatic redirection of certain calls to your telephone for
answering. (Your System Manager determines which calls will be sent to you.) Use to
answer calls for other extensions for whom you provide coverage. Call Coverage can
also automatically redirect your calls when your teIephone is busy, you are out of the
office, or you have pressed the Send All Calls button.
Call Forwarding — Busy/Don't Answer Temporarily forwards all your calls to
another extension or to the attendant if your telephone is busy or you do not answer
your calls within a preset number of rings. Use when you want your calls to be
forwarded to a telephone number of your choice.
Call Forwarding — Follow Me Temporarily forwards all your calls to another
extension or to an outside number, depending on your system. Use when you want
your calls to be automatically forwarded to a telephone number of your choice.
Call Park Puts a call on hold at your telephone, for retrieval at any extension. Use
when you need to go elsewhere to get information during a call, or whenever you
want to complete a call from a different location. Also, if the call received is for
someone else, use it to hold the call until the called party can answer from the nearest
available telephone.
4
Call Pickup Lets you answer a call at your telephone for another extension in your
pickup group. Use when you want to handle a call for a group member who is absent
or otherwise unable to answer. Note: You can use this feature only if you and the
called party have been assigned to the same pickup group by your System Manager.
Conference Allows you to add a third party to a call, so that you can conduct a 3way conversation. (If you want to conference more than 3 parties, call your attendant
for assistance.) Use to set up time-saving conferences, or to spontaneously include a
third party important to a discussion.
Drop Disconnects from a call without requiring you to hang up the handset or press
the switchhook. Can also be used with the Conference feature to disconnect the last
party added. Use whenever you want to continue using the handset after ending a
call.
Hold Puts a call in a holding state until you can return to it. While a call is on hold,
you can place another call, activate another feature, answer a waiting call, or leave
your telephone to do another task. Use when you have a call that you don't want to
drop, but have to interrupt briefly to do something else.
Intercom (Automatic/Dial) Gives you quick access to specified telephones. With
Automatic Intercom, you can call predetermined persons by pressing a single feature
button. With Dial Intercom, you can call any member of a predetermined group by
pressing a feature button and then dialing the group member’s 2- or 3-digit code.
Last Number Dialed Automatically redials the last number you dialed, either an
extension or an outside number. Use to save time in redialing a busy or unanswered
number. Available with DEFINITY Generic 2 and System 85 R2V4 and some R2V3
systems. Check with your System Manager to see if the feature is available in your
system.
Leave Word Calling (LWC) Leaves a message for another extension to call you back.
The called party will be able to dial message center, AUDIX, or a covering user to
retrieve a short, standard message that gives your name and extension, the date and
time you called, and the number of times you called. Use any time you want to have
someone call you back; it will help cut down on repeated call attempts.
Message Lets you know that a caller has left a message for you when the message
light goes on. You can then follow your System Manager's local message retrieval
procedures to get your message. See the Message Retrieval procedures under the
Display Features heading.
Mute Allows you to turn off the microphone of the speakerphone or the handset so
that the caller cannot hear you.
Priority Calling Allows you to call another extension with a distinctive 3-burst ring
to indicate that your call requires immediate attention. Use when you have important
or timely information for someone.
Reset Speakerphone Initiates an acoustic test of the surrounding acoustic
environment by using a sequence of tones. When the tones stop, your speakerphone
has finished adjusting itself for optimal performance. It is now ready for use. Use
whenever you move your telephone to a different location (even in the same room), or
whenever the light next to [ Speaker Reset Spkr ] is fluttering.
5
Select Button Used in any of 3 different ways
1)
When used with [ Drop Test ] you can perform a self-test of your telephone's lights,
ringer, and display.
2)
When used with [ Conference Ring ] you can select your own personalized ring from among
8 available patterns. Use to distinguish your ring from that of other nearby
telephones.
3)
When used with [ Speaker Reset Spkr ] the built-in speakerphone performs an acoustic test
of the environment to provide optimal speakerphone performance. Use whenever
you move your telephone to a different location (even in the same room), when
the telephone is unplugged, or when there has been a power failure. When any of
these three things happen, the light on this button will flutter to notify you that
the sound level and quality needs to be reset.
Self-Test Allows you to test the operation of the lights, ringer, and display of your
telephone.
Send All Calls Temporarily sends all your calls to the extension of a person
designated to answer them when you cannot (perhaps a secretary or receptionist). Use
when you will be away from your desk for awhile or when you do not want to be
interrupted by calls.
Speaker In the listen-only mode, allows you to place calls or access other voice
features without lifting the handset when speaker is on. However, in oder to speak to
the other party, you must lift the handset. Use with features that require listening
only, such as on-hook dialing, monitoring calls on hold, and retrieving messages.
Note: Your telephone has either the Speaker (listen-only) or the Speakerphone
function. In either case, you will have simply a [ Speaker Reset Spkr ] button. Check with the
System Manager.
Speakerphone Allows you to place and answer calls or access other voice features
without lifting the handset. When used with [ Select ], the built-in speakerphone
performs an acoustic test of the surrounding acoustic environment by using a sequence
of tones. When the tones stop, the speakerphone has finished adjusting itself for
optimal performance. Use the built-in speakerphone any time you prefer hands-free
communication, both speaking and listening, or for group conference situations. Note:
Your telephone may be set for the Speaker (listen only) rather than the Speakerphone
(listen and speak) feature. In either case, you will have simply a [ Speaker Reset Spkr ] button.
Check with the System Manager.
Terminal Busy Indication Provides a visual indication of the busy (off-hook) or idle
(on-hook) status of a specified telephone. Use this information when servicing calls for
another person. For example, if you area secretary servicing your supervisors calls,
use this feature to see whether your supervisor’s extension is busy or idle.
Transfer Transfers a call from your telephone to another extension or outside
number. Use when your caller needs to speak further with someone else. Note: Calls
from an outside number to your telephone can be transferred only to an extension, not
to another outside number.
6
Display Features
Date/Time Shows you the date and time. Use as a handy calendar and clock.
Inspect Shows you call-related information for an incoming call when you are
already active on a call. Use to identify and screen new calls.
Message Retrieval Allows you to retrieve messages left for you that have lit your
message light. Will also let you retrieve messages for other telephones, if you are so
authorized by your System Manager. Use to quickly and conveniently check
messages, even when you are already on a call.
Normal Identifies current call appearance, calling/called party, and calling/called
number. Use to see who is calling you and, when placing a call, to verify the number
you have dialed.
Timer Allows you to measure elapsed time. Use to keep track of time spent on a
call or task.
7
How to Use the Features
Many features are available for use with your 7407 Plus Voice Terminal. Because no
organization can use all of the available features, each organization must choose those
that best suit its needs. After the choices have been made, the person within your
organization who manages your telecommunication system must do any necessary
administration and label the feature buttons on individual telephones. This System
Manager can tell you how to use the features that have been administered for your
particular telephone. The procedures that follow give instructions for using some of
the more frequently used features. Features are listed alphabetically.
Special Instructions
The first time you use these procedures, you will need to customize them for yourself.
Your System Manager can supply the information required.
●
To the right of each feature name is a box. For each feature that you have, mark a
[ ✔ ] in the box if the box is blank. Voice features (Conference, Drop, Hold,
Message, Mute, Select Ring, Self-Test, and Transfer) and display features (Message
Retrieval and Normal) are already marked for you.
●
Most of the voice features can be activated or canceled by dialing 2- or 3-digit codes
(if they are not already assigned to a button). In the blanks provided within the
procedures, write in the feature code numbers.
●
To use a voice feature, you must have the handset off-hook (that is, you must pick up the
handset or turn on the speakerphone, if you have one) unless you are instructed to remain
on-hook in the procedures. You can activate or cancel most of the voice features by
dialing 2- or 3-digit codes (if they are not already assigned to a button). Write the
feature code numbers in the blanks provided within the procedures. These codes
are unique to your system; see your System Manager for the codes or to obtain more
information.
●
System 85 exists in several versions. In some cases, a feature operates differently
with one version than it does with another; where this occurs, the procedures
include a release (R) and version (V) notation. Be sure to follow the directions
corresponding to the release and version you are using. Ask your System Manager
if you do not know the release and version you have.
Note: If you receive an intercept tone (high-pitched, alternating high and low tone)
while attempting to use any feature, you have taken too much time to complete a step,
have made a dialing error, or do not have the feature available to you. If appropriate,
hang up or press [ Drop ], get dial tone, and begin at the first step.
Conventions
The following conventions are used in the procedures:
Italic procedure steps
Procedural steps in italic type are steps that you should
follow if you do not have a button assigned for the
feature.
8
[ xxxxx ]
A box representing a call appearance that is used
exclusively for placing, receiving, or holding calls.
[ Feature ] and
Boxes representing buttons that have features assigned
to them. The buttons are labeled with the feature name,
sometimes followed by an extension number or a
person’s name.
[ Feature xxxxx ]
[ DISPLAY INFORMATION ] A box containing fully capitalized words represents
information shown on the display.
[fe3adback tone]
The tone appearing in brackets after a step indicates
what you hear after successfully performing that step.
For more information, see Tones and Their Meanings and Key Words to Know at the
end of this guide.
Quick-Reference Lists
At the end of this guide is a set of quick-reference lists. Use the lists to record your
feature and trunk codes, Abbreviated Dialing personal list items, and frequently called
miscellaneous extensions. Once you have completed the lists, flip to that page as
needed, or make a photocopy and keep it handy.
9
Voice Features
Note: When placing and answering calls or using the voice features, you have the
option of doing so by lifting the handset or by pressing the [ Speaker ] button which
simultaneously activates the built-in speakerphone and built-in microphone.
Abbreviated Dialing (AD)
Note: If you hear the intercept tone while programming start over from the
beginning. Abbreviated Dialing buttons must first be assigned by your System
Manager.
To program or
reprogram an outside
number, extension, or
feature code into a
personal list
1
On a separate sheet of paper, jot down the outside
numbers, extensions, and feature codes you want to
program as items on your personal list (see example)
2
Press [ Program ] (while off-hook)
or dial Abbreviated Dialing program code (while off-hook)
[confirmation tone]
Note: This code is unique to your system and must be
obtained from your System Manager.
Press [ Personal List ]
or dial personal list code
3
1.
Note: This code is unique to your system and must be
obtained from your System Manager.
4
Dial desired list item number (for example, 09, 01-95,
and so on, depending on list size)
[dial tone]
5
Dial outside number, extension, or feature code you
want to store
Note: Generally, 20 characters or digits may be stored
on each button; for any special needs, see your System
Manager.
6
7
Press [ Personal List ]
or press [ # ]
[confirmation tone]
●
Number is stored
●
Repeat steps 3 through 6 if you want to program
additional items on the same list
Hang up or press [ Drop ] to end programming
●
Begin again at step 1 to program another personal list
(if you want to continue programming).
Note: Record your personal list items on the
Abbreviated Dialing list in the back of this guide; group
and system lists are available from the controller of the
list or from your System Manager.
10
To place a call using a
personal, group, or
system list
1 Press [ Personal List ] or [ Group List ] or [ System List ] (while off-hook)
or dial appropriate Abbreviated Dialing list code (while offhook)
Note: This code is unique to your system and must be
obtained from your System Manager.
●
List l
[dial tone]
●
List 2
[dial tone]
●
List 3
[dial tone]
2 Dial desired list item (1, 2, 3..., 01, 02...)
●
To unprogram an
Abbreviated Dialing
(AD) button
To program an
Abbreviated Dialing
(AD) button
Stored number is automatically dialed
1 Simply program a new one over the old one by using
the preceding procedure
1
Press [ Program ] (while off-hook)
or dial the Abbreviated Dialing program code (while off-hook)
[confirmation tone]
Note: This code is unique to your system and must be
obtained from your System Manager.
To see number stored
on an Abbreviated
Dialing (AD) button
2
Press selected [ AD xxxxx ]
3
Dial the outside number, extension, or feature code you
want to store
4
Press [ AD xxxxx ] again
5
Hang up or press [ Drop ] to end programming
1
Press selected [ AD xxxxx ] while on-hook
●
2
[confirmation tone]
Stored number is shown on display
Press [ Normal ] to return to normal display or repeat step
1 to see another number
11
To place a call using an
Abbreviated Dialing
(AD) button
1
Press selected [ AD xxxxx ] (while off-hook)
●
Call is automatically dialed
Automatic Callback
To automatically place
another call to an
extension that is
frequently busy
1
Press [ Auto Callback ] before or during call attempt
[dial or confirmation tone]
or dial Automatic Callback code before call attempt
[dial tone]
Note: This code is unique to your system and must be
obtained from your System Manager.
●
If you have an [ Auto Callback ] button, green light goes on
until callback is completed or canceled
2 Hang up (within 7 seconds) or press [ Drop ]
●
You will receive a 3-burst priority ring when both
your telephone and the called extension are idle
3 Lift handset when you hear priority ring
[ringback tone]
●
A call is automatically placed to extension, which
receives regular ringing
Note: Only one Automatic Callback call at a time can
be placed, and Automatic Callback is canceled after 20
to 40 minutes if the callback call is unanswered.
12
To cancel Automatic
Callback
1
Press [ Auto Callback ] again (while off-hook)
or dial Automatic Callback cancel code (while off-hook)
[confirmation tone]
Note: This code is unique to your system and must be
obtained from your System Manager.
●
Green light goes off
Bridging
To answer a bridged
call
1 Press [ xxxxx ] of bridged call
NOte: If your telephone has Ringing Appearance
Preference, this step is not necessary; you will
automatically be connected to the call when you lift the
handset.
2 Pick up handset
To prevent other
bridged telephones
from entering a call (on
a per-call basis)
1 Press [ Exclusion xxxxx ] while connected to the call
Note: Pressing [ Exclusion xxxxx ] again reactivates bridging.
13
Call Coverage/Consult
To answer a call for a
co-worker for whom
you are a coverage
point
1
To leave a message
telling a co-worker to
call the original caller’s
extension
1 Press [ Coverage Callback ] while connected to the call
[confirmation tone]
To talk privately with a
co-worker after
answering a redirected
call
1 Press [ Transfer ] or [ Conference ]
Press [ xxxxx ] of incoming call when ring begins or
green light flashes
Note: The call is not at your telephone until the light is
flashing.
Note: To leave a message telling a co-worker to call
you, activate Leave Word Calling instead.
●
2
[dial tone]
Call is temporarily put on hold
Press [ Consult ]
[priority ring to co-worker]
or dial co-worker's extension
[single-burst ring to co-worker]
Note: This code is unique to your system and must be
obtained from your System Manager.
Note: You can privately discuss call; if co-worker is not
available, press the fluttering [ xxxxx ] to reconnect to
call.
If your co-worker has activated Send All Calls, you
must use [ Consult ] to reach your co-worker.
3
Press [ Transfer ] again to send call to co-worker or press
[ Conference ] to make it a 3-party call
14
Call Forwarding — Busy/Don't Answer
To activate Call
Forwarding —
Busy/Don’t Answer
Note: To find out
which type of Call
Forwarding [ Call Forward ]
activates, contact your
System Manager.
1
Press [ Call Forward ] (while off-hook)
or dial Call Forwarding — Busy/Don’t Answer code (while
[dial tone]
off-hook)
Note: This code is unique to your system and must be
obtained from your System Manager.
2
Dial extension where calls will be sent
[confirmation tone]
Note: If you hear intercept tone, you are attempting to
forward your calls to a restricted telephone, a telephone
with Call Forwarding — Follow Me activated, or a
telephone in another partition or group (if you are in a
tenant services environment). See your System
Manager for more information.
To cancel Call
Forwarding —
Busy/Don’t Answer
3
Hang up or press [ Drop ]
1
Press [ Call Forward ] again from the extension where you
activated Call Forward (while off-hook)
or dial Call Forward cancel code (while off-hook)
[confirmation tone]
Note: This code is unique to your system and must be
obtained from your System Manager.
2
Hang up
●
Your calls will ring at your own telephone again
15
Call Forwarding — Follow Me
To temporarily redirect
all calls to an extension
or outside number of
your choice
Note: To find out
which type of Call
Forwarding [ Call Forward ]
activates, contact your
System Manager.
To cancel Call
Forwarding — Follow
Me
1
Press [ Call Forward ] (while off-hook)
or dial Call Forwarding — Follow Me code ( while off-hook)
[dial tone]
Note: This code is unique to your system and must be
obtained from your System Manager.
2
Dial extension or number where calls will be sent
[confirmation tone]
Note: You may hear a half ring for each call forwarded
after you have activated this feature and hung up.
Also, some telephones may have restrictions on where
calls can be forwarded; see your System Manager.
1
Press [ Call Forward ] again from the extension where you
activated Call Forward (while off-hook)
or dial Call Foward cancel code (while off-hook)
[confirmation tone]
Note: This code is unique to your system and must be
obtained from your System Manager.
2
Hang up
●
Your calls will ring at your own telephone again
16
Call Park
To park a call (for
retrieval at any
extension)
Note: The Call Park
button may be an
Abbreviated Dialing
button that has been
programmed with the
Call Park trunk code.
1
●
2
Second party is temporarily put on hold
Press [ Call Park ]
or dial Call Park trunk code
[dial tone]
Note: This code is unique to your system and must be
obtained from your System Manager.
3
Dial the Call Park zone number _ [confirmation tone]
4
Dial an idle answer-back channel number
[confirmation tone]
5
Press [ Recall ]
6
Press [ Transfer ]
7
Hang up
●
To retrieve parked call
from any extension
[dial tone]
Press [ Transfer ]
[ringback tone]
Held party is transferred to the answer-back channel
and hears ringback tone (or music) while waiting
1
Dial Call Park answer-back code
2
Dial channel number where call was parked
[confirmation tone]
[dial tone]
Note: if you receive intercept tone, parked call has
been disconnected or retrieved by another party.
17
Call Pickup
To answer a call to a
member of your pickup
group when your
telephone is idle
1
Press [ Call Pickup ] (while off-hook)
or dial Call Pickup code (while off-hook)
Note: This code is unique to your system and must be
obtained from your System Manager.
●
To answer a call to
your pickup group
while on another call
1
You are connected to ringing call
Press [ Hold ]
●
Present call put on hold
2
Press an idle call appearance
3
Press [ Call Pickup ]
or dial Call Pickup code
[dial tone]
Note: This code is unique to your system and must be
obtained from your System Manager.
●
Called telephone stops ringing
●
You are connected to ringing call
Note: To return to held call after completing present
call, press fluttering [ xxxxx ].
18
✔
Conference
To add a third party to
a call
1
Press [ Conference ]
●
2
[dial tone]
Present call temporarily put on hold and you are
given a new call appearance
Dial number of third party and wait for answer
Note: You can privately discuss the call with the third
at this time; if no answer or busy, press fluttering
[ xxxxx ] to return to the original party.
3
Press [ Conference ] again
●
To add a call you’ve
put on hold to another
call you’re connected to
1
Press [ Conference ]
2
Press [ xxxxx ] of first call
3
Press [ Conference ] again
●
To drop a third party
All parties now connected
[dial tone]
All parties now connected
1 Press [ Drop ]
●
You remain connected to original party
19
✔
Drop
To disconnect from a
normal call, or to drop
the last party added to
a conference call
1
Press [ Drop ]
✔
Hold
To keep a call waiting
while you answer
another call, make a
call, or perform some
other task
1 Press [ Hold ]
To answer a new call
while active on another
1
●
Note: If you put a conference call on hold, the other
parties remain connected.
Press [ Hold ]
●
2
1
Green light flutters
Press [ xxxxx ] of incoming call
●
To return to a held call
Green light flutters
You are connected to incoming call
Press [ xxxxx ] of held call
●
You are connected to held call
Note: If you are active on a call and you press the
[ xxxxx ] of the held call, the active call will be dropped.
20
Intercom (Automatic/Dial)
[ringback tone]
To make a call to your
predetermined
Automatic Intercom
partner
1
To dial a call to a
member of your Dial
Intercom group
1
Press [ Icom Dial xxx ] (while off-hook)
2
Dial group member’s 1- or 2-digit code [ringback tone]
Press [ Icom Auto xxx ] (while off-hook)
Intercom ring is sent
●
Intercom ring is sent
●
To answer any
intercom call
[dial tone]
1 Pick up handset or press [ Speaker Reset Speaker ]
You are connected to call
●
Note: If you are active on another call, first press
[ Hold ], then press flashing [ Icom ].
Last Number Dialed
To automatically redial
the last number you
dialed (extension,
outside number, or
trunk/feature code)
1
Press [ Last Dialed ] (while off-hook)
or dial Last Number Dialed code (while off-hook)
Note: This code is unique to your system and must be
obtained from your System Manager.
●
Number is automatically dialed (up to 20 digits)
Note: Available with DEFINITY Generic 2 and System
85 R2V4 and some R2V3 systems. Check with your
System Manager to learn if the feature is available on
your system.
Limitations on this feature should be noted. Digits
dialed via Abbreviated Dialing, feature dial codes,
authorization codes, and Station Message Detail
Recording (SMDR) account codes are NOT retained in
memory and must be redialed for each call.
To see the number you
last dialed
1
Press [ Last Dialed ] (while on-hook)
●
Last number dialed is shown
21
Leave Word Calling (LWC)
To leave a message
after dialing an
extension (when call is
not answered, or you
hear a coverage or
busy tone)
1 Press [ LWC ] any time after you complete dialing
[confirmation tone]
●
Note: If reorder tone is heard, message is not stored;
try again.
Note: You must have a
[ LWC ] button.
To leave a message
without ringing an
extension
1
Press [ LWC ]
or dial Leave Word Calling code
[dial tone]
Note: This code is unique to your system and must be
obtained from your System Manager.
2
Dial extension
●
To cancel a Leave
Word Calling message
(you cannot cancel
messages for an
AUDIX subscriber)
Message light on called telephone goes on (if so
equipped)
[confirmation tone]
Message light on called telephone goes on (if so
equipped)
3
Hang up or press [ Drop ]
1
Press [ Cancel LWC ] again from the extension where you
activated Leave Word Calling (while off-hook)
or dial Leave Word Calling cancel code (while off-hook)
[dial tone]
Note: This code is unique to your system and must be
obtained from your System Manager.
2
Dial extension
●
[confirmation tone]
Message is deleted
Note: If reorder tone is heard, message is not deleted;
try again.
22
✔
Message
To retrieve a message
when your message
light is on
1
See the Message Retrieval procedures under the
Display Features heading
or
Ask your System Manager for local retrieval methods
✔
Mute
Note: Use the Mute button in one of the following ways.
●
When you are talking on the handset, the Mute feature affects the handset rather
than the external speakerphone attached to the telephone.
●
If your telephone has the Speakerphone feature, use the Mute button to turn off the
microphone associated with the built-in speakerphone or the handset.
●
If your telephone has the Speaker (listen-only) feature, the Mute button turns off
only the handset. The Mute light will go on whenever the speaker goes on.
This feature has no effect on an external speakerphone attached to the telephone.
To prevent other party
from hearing you
1
Press [ Mute ]
●
2
Red light goes on and other party cannot hear you
When you are ready to resume conversation with other
party, press [ Mute ] again
●
Red light goes off and other party can hear you again
Note: The Mute feature turns off automatically when
you hang up, or switch from the speakerphone to the
handset or from the handset to the speakerphone.
23
Priority Calling
To place a priority call
(3-burst ring)
1
Press [ Priority ] (while off-hook)
or dial Priority Calling code (while off-hook)
[dial tone]
Note: This code is unique to your system and must be
obtained from your System Manager.
2
Dial extension
3 Wait for called party to answer
To change a regular
call into a priority call
(3-burst ring) when you
hear a call-waiting
ringback tone
1
Press [ Priority ]
●
2
Called party receives a priority call-waiting tone
(3-burst ring)
Wait for called party to answer
NOte: If you still receive a call-waiting ringback tone,
wait a few minutes and try again.
Reset Speakerphone
Note: If you are uncertain whether your telephone is set for Speaker (listen only) or
Speakerphone (listen and talk), check with your System Manager. Use the following
procedures if your telephone is set for the Speakerphone (listen and speak feature).
Note: When used with [ Select ], the built-in speakerphone performs a test of the
surrounding acoustical environment to provide optimal speakerphone performance.
Use the Reset Speakerphone feature when you move your telephone to a different
location (even in the same room), when the telephone is unplugged, or when there has
been a power failure. When any of these three things happen, the light on this button
will flutter to notify you that the sound level and quality needs to be reset. If you find
the green light next to [ Speaker Reset Spkr ] fluttering when you return to your office, the
telephone may have lost power (for example, by being unplugged or due to a power
failure). In this case, you will need to readjust the speakerphone’s sound level and
quality again.
You can initiate the Reset Speakerphone feature when your handset is on-hook, or
during a call in which you are using the built-in speakerphone in the unlikely event
that your speakerphone makes a squealing noise. If a call is in progress, you will not
hear the tones, and the sound quality is reset only for the duration of that call. Reset
Speakerphone should be used again after hanging up from the call.
24
To adjust the
speakerphone’s sound
quality to the room
acoustics
1
Ensure that the front of the telephone is not blocked in
any way and that the telephone is on a flat smooth
surface
2
Press [ Select ]
●
3
Green light next to [ Select ], goes on steadily
Press [ Speaker Reset Spkr ]
●
Green light next to [ Select ], goes off
●
Green light next to [ Speaker Reset Spkr ] flutters
intermittently
●
You hear a series of tones as the speakerphone
performs an acoustic test of the environment. When
the tones stop, your built-in speakerphone is ready
for use. The light next to [ Speaker Reset Spkr ] will turn off.
●
If you are on a call when you press [ Speaker Reset Spkr ],
you will not hear any tones.
✔
Select Button
To use any of the
features that require
the Select button
([ Select ])
1 Choose any of the following after pressing [ Select ]:
●
Press [ Drop Test ] to initiate a self-test of your telephone
lights, ringer, and display. For procedures, see "SelfTest" in this section.
●
Press [ Conference Ring ] to select one of 8 personalized
ringing patterns for your telephone. For procedures,
refer to "Select Ring" in this section.
●
Press [ Speaker Reset Spkr ] to adjust the sound level and
quality of your built-in speakerphone. Use whenever
you move-your telephone to a different location (even
in the same room), when the telephone is unplugged
or when there has been a power failure. For
procedures, refer to "Speakerphone" in this section.
25
Select Ring (and Ringer Volume)
To select a personalized
ring
✔
1 Press [ Select ] (while on-hook)
●
2
Green light goes on
Press [ Conference Ring ]
●
Green light next to [ Select ] flutters
●
Current ring pattern plays and repeats every 4
seconds
●
The display shows[ PERSONAL RING #x ] (x will be
a number from 1 to 8)
3 Continue to press [ Conference Ring ] to cycle through all 8
ringing patterns
4 When you hear the desired ringing pattern, press
[ Select ] again
●
Your new ring is set. Light next to [ Select ] goes off
Note: If you receive a call, go off-hook, or lose power
during selection, process is interrupted and you must
begin again. If you lose power after selection you will
also have to select your ring pattern again.
If you select any ringing pattern other than the first one,
outside calls will not be differentiated from inside calls.
To adjust ringer
volume if necessary
1
To raise the volume, press the right half of the Volume
control button labeled [ ▲ ]. To lower the volume, press
the left half of the Volume control button labeled [ ▼ ].
●
If you have a display, it shows
[ RINGER L>>>> H ] (There are 8 possible volume
settings. On the display, 1 arrow is the lowest
setting, and 8 arrows is the highest setting)
26
✔
Self-Test
To test lights, ringer,
and display of your
telephone
1
Press [ Select ] (while on-hook or off-hook)
●
Green light goes on
2 Press and hold [ Drop Test ]
3
●
Ringer sounds
●
All lights go on
●
Display is activated
Release [ Drop Test ] to end test
●
Ringer and lights return to pretest state. Green light
next to [ Select ] goes off.
Note: If ringer or lights do not respond during test,
notify your System Manager.
Send All Calls
To send all incoming
calls (except priority,
intercom, and personal
central office calls)
immediately to an
assigned extension,
AUDIX, or message
center for coverage
1
Press [ Send All Calls ] (while on-hook or off-hook)
or lift handset and dial Send All Calls code
[confirmation tone]
Note: You may hear a half ring as each call is sent to
coverage if you have a DEFINITY Generic 2 or System
85 R2V4.
Note: Check with your
System Manager to
determine how your
coverage path is set up
27
To send an assigned
group of extensions
(except priority,
intercom, and personal
central office calls)
immediately to an
assigned extension,
AUDIX, or message
center for coverage
1 Press [ SAC Group ] (while on-hook or off-hook)
[confirmation tone]
To cancel Send All
Calls or SAC Group
1
Press [ Send All Calls ] or [ SAC Group ] again (while on-hook or offhook)
or lift handset and dial Send All Calls cancel code
[confirmation tone]
●
Your calls ring at your own telephone again
Speaker
Note: Your telephone is set for either the Speaker (listen-only) or the Speakerphone
(listen and talk) function. Check with your System Manager to see which of these two
features you can use. You can use Reset Spkr feature to adjust the sound level and
quality of your speakerphone only if your telephone is set for Speakerphone (listen and
talk).
Use the following procedures if your telephone is set for the Speaker (listen only)
feature.
28
To place a call without
lifting the handset, or
to use speaker with
any listening-only
feature activity (such as
monitoring a call on
which you have been
put on hold or for
retrieving messages)
1
●
Green light next to [ Speaker Reset Spkr ] goes on; red light
next to [ Mute ] goes on
2 Place call or access selected feature
3
Note: In order for the
other party to hear
you, you must speak
through the handset.
To activate the speaker
while using the handset
Press [ Speaker Reset Spkr ]
1
Adjust speaker volume if necessary
●
To raise the volume, press the right half of the
Volume control button, labeled [ ▲ ]; to lower the
volume, press the left half of the Volume control
button, labeled [ ▼ ]
●
The display shows [ SPEAKER L >>>> H ] (There
are 8 possible volume settings. On the display, 1
arrow is the lowest setting and 8 arrows is the
highest setting)
Press [ Speaker Reset Spkr ]
●
Green light next to [ Speaker ] and the red light next to
[ Mute ] go on steadily
●
The speaker is active and the handset is turned off
To turn off speaker and
return to handset
1
Pick up the handset
To mute the
microphone associated
with the handset so the
other party cannot hear
you
1
Press [ Mute ]
●
2
Red light goes on and other party cannot hear you
Press [ Mute ] again to resume talking to other party
through handset
●
Red light goes off and other party can hear you again
29
To end a call (while
handset is on-hook and
only speaker is active)
1
Press [ Speaker Reset Spkr ]
●
Green light next to [ Speaker Reset Spkr ] and red light next
to [ Mute ] go off
Speakerphone
Note: If you are uncertain whether your telephone is set for the Speaker button
(listen-only) feature or the Speakerphone (listen and talk) feature, check with your
System Manager. Use the following procedures if your telephone is set for the
Speakerphone (listen and talk) feature.
For directions on using the Reset Speakerphone feature, see "Reset Speakerphone" in
this section.
30
Press [ Speaker Rest Spkr ]
1
To place/answer a call
without lifting the
handset, or to use
speakerphone with any
feature
●
Green light goes on steadily
2
Place or answer call, or access selected feature
3
Adjust speakerphone volume if necessary
●
To raise the volume, press the right half of the
Volume control button labeled [ ▲ ]; to lower the
volume, press the left half of the Volume control
button labeled [ ▼ ]
●
The display shows [ SPEAKER L>>>> H ] (There are 8
possible volume settings. On the display, 1 arrow is
the lowest setting and 8 arrows is the highest setting)
Note: The Volume control does not affect an external
speakerphone attached to your telephone.
To prevent other party
from hearing you
Note: If the
Speakerphone feature
is not active, the Mute
feature turns off the
microphone associated
with the handset (not
the speakerphone).
To change from
speakerphone to
handset
1
Press [ Mute ]
●
2
Red light goes on and other party cannot hear you
Press [ Mute ] again to resume talking to party
●
Red light goes off and other party can hear you again
1 Pick up handset and talk
●
Green light goes off next to [ Speaker Reset Spkr ]
31
To change from
handset to
speakerphone
To end a call
1
Press [ Speaker Reset Spkr ]
●
Green light goes on next to [ Speaker Reset Spkr ]
2
Hang up handset
1
Press [ Speaker Reset Spkr ] again hang up
●
Green light next to [ Speaker Reset Spkr ] goes off
Terminal Busy Indication
To see if the specified
telephone is busy or
idle
1
Look at the Terminal Busy Indication status light
●
The light will be on if the telephone is busy and off if
the telephone is idle
32
Transfer
To send present call to
another extension or
outside number
1
Note: See your System
Manager to determine
if you can transfer a
call to an outside
number
2
Press [ Transfer ]
●
Remain on the line and announce call if desired; if no
answer or number dialed is busy, return to held call
by pressing its call appearance
Press [ Transfer ] again
●
4
Present call put on hold and you are given a new call
appearance
Dial extension or number to which the call is to be
[ringback tone]
transferred
●
3
[dial tone]
Call is sent to dialed extension or number
Hang up or press [ Drop ]
Display Features
On/Off
The display is on when the telephone is on and off when the telephone is off.
Note: You may not have all of the Display Features listed below.
Normal Mode
In the normal mode, the display shows call information for the current active call
appearance:
●
You may have as many as 10 call appearances. Beginning with the first button in
the upper left corner of your faceplate and going down, the display identifies the
first 5 buttons as a through e; the 5 buttons in the second column are identified as f
through j. When the display shows [ a= ], it represents call information for the
first call appearance. The next button down would be shown as [ b= ], and so on,
continuing through [ j= ] if all 10 of these buttons are used for call appearances.
●
When you dial an extension, that number is shown and then replaced by the called
party’s name and extension.
33
●
When a call is received from another extension, the caller’s name is shown (or the
caller’s extension if a name is not administered); when a call is received from
outside, [ OUTSIDE CALL ] or a trunk identifier is shown.
●
The display remains in normal mode until you activate one of the other display
features. After using any of these features, return to normal mode by pressing
[ Normal ].
Date/Time
To see date and time
1
Press [ Date/Time ]
●
Display returns to normal mode after a few seconds
34
Inspect
To see who’s calling
while on a call
1
●
2
To see who’s on hold
while on a call
Press [ Inspect ]
Press [ Normal ] to return to display for present call
1 Press [ Inspect ]
2
Press [ xxxxx ] of held call
●
To answer a new call
while on a call
Name and number of caller are shown if from
extension; [ OUTSIDE CALL ] or other trunk source is
shown if from outside
You remain connected to present call
3
Press [ Normal ] to exit Inspect mode
1
Press [ Normal ] (if not already in normal mode)
●
2
Finish present call or put on hold
Press [ xxxxx ] of new call
✔
Message Retrieval
To see your messages
when your message
light is on (while onhook, off-hook, or on a
call)
1
Press [ Message Retrieve ]
2
Press [ Next Message ] to see first message (and then for each
following message)
To return a call to a
message sender
1
Pick up handset or activate speakerphone
2
Press [ Return Call ] while any part of message is shown
1
Press [ Delete ] while any part of message is shown
To erase a message
[dial tone]
35
To see a principal’s
(co-worker’s) messages
(can be during a call
with the principal)
Note: You must first
be designated as a
system-wide message
retriever by your
System Manager or the
principal must have
Message Retrieval
coverage that allows a
coverage point to
retrieve messages.
To return a call for the
principal to the
displayed extension
(while on a call with
the principal)
1
Select an idle [ xxxxx ] button, or put the principal on
[dial tone]
hold and select an idle [ xxxxx ] button
2
Press [ Covr Msg Retrieve ]
3
Dial the principal's extension
4
Press [ Next Message ] to see the first message (and then for each
following message)
5
Press held [ xxxxx ] to give them their messages, if
appropriate
1
Press [ Transfer ]
●
2
Press [ Return Call ] while any part of message is shown
3
Press [ Transfer ]
●
To erase a message
Principal is put on hold
1
Principal is connected to call
Press [ Delete ] while any part of message is shown
36
Normal
To return to normal
display after using any
display feature
✔
1
Press [ Normal ] (while on-hook or off-hook)
●
Display will show call information for active call
appearance
Timer
To see elapsed time
(hours, minutes,
seconds)
1
Press [ Timer ]
●
2
Green light goes on
Press [ Timer ] again to stop timer and clear display
●
Green light goes off
37
Tones and Their Meanings
Ringing tones are produced by an incoming call. Feedback tones are those that you
hear through the handset (receiver).
Ringing Tones
●
1 ring — A call from another extension.
●
2 rings — A call from outside or from the attendant.
●
3 rings — A priority call from another extension, or a call from an Automatic
Callback call that you placed.
●
half ring — A call redirected from your telephone to another because Send All Calls
or Call Forwarding — Follow Me is active.
●
intercom ring — A call directed to you by the Intercom feature.
Feedback Tones
●
busy tone — A low-pitched tone repeated 60 times a minute; indicates that the
number dialed is in use.
●
call-waiting ringback tone — A ringback tone with a lower-pitched signal at the
end; indicates that the extension called is busy, but the called party has been given a
call-waiting tone.
●
confirmation tone — 3 short bursts of tone; indicates that a feature activation or
cancellation has been accepted.
●
coverage tone — 1 long burst of tone; indicates that your call will be sent to another
extension to be answered by a covering user.
●
dial tone — A continuous tone; indicates that dialing can begin.
●
intercept/time-out tone — An alternating high and low tone; indicates a dialing
error, a denial of the requested service, or a failure to dial within a preset interval
(usually 10 seconds) after lifting the handset or dialing the previous digit.
●
recall dial tone — 3 short bursts of tone followed by a steady dial tone; indicates
that the feature request has been accepted and dialing can begin.
●
reorder tone — A fast-busy tone repeated 120 times a minute; indicates that all
trunks are busy.
●
ringback tone — A low-pitched tone repeated 15 times a minute; indicates that the
number dialed is being rung.
38
Key Words to Know
access code See feature code.
activate To begin or turn on the operation of a feature.
attendant The person who handles incoming and outgoing calls at the main
telephone console.
AUDIX Audio Information Exchange, an optional voice mail and message service
that provides coverage for calls to you by recording callers' messages and reporting
Leave Word Calling messages.
call appearance A button used exclusively to place, receive, or hold calls. It has an
assigned extension number and is equipped with a red light and a green light.
coverage Automatic redirection of calls from an unanswered telephone to another
telephone or answering service. Redirection could be to the extension of a receptionist,
secretary, co-worker, AUDIX, or message center. A person who provides coverage is a
covering user.
DEFINITY® Communications System Generic 2 The AT&T switch to which you
may be connected. It transmits and receives voice and data signals for all
communications equipment in your network. (See also System 85.)
dial pad The 12 pushbuttons you use to dial a number and access features.
extension A dialing number of 3 to 5 digits assigned to each telephone connected to
your DEFINITY® Generic 2 or your System 85.
feature A special function or service, such as Conference, Hold, and Send All Calls.
feature code A dial code of 1, 2, or 3 digits (4 digits in System 85 R2V4), that you use
to activate or cancel the operation of a feature.
group list One of the 3 types of Abbreviated Dialing lists; programmable by the
System Manager or a controller of the list. Contains telephone numbers useful to
members of a specific group, and stored as 1- or 2-digit list item, depending on the
number of members in the list.
handset The hand-held part of the telephone that you pick up, talk into, and listen
from. Also known as the receiver.
message retriever A person authorized by the System Manager to retrieve messages
for other users (coverage message retriever).
off-hook When the handset is removed from the cradle (for example, when you lift
the handset to place or answer a call) or speakerphone is ON.
on-hook When the handset is left on the cradle and speakerphone is OFF.
party A person who places or answers a call.
personal list One of the 3 types of Abbreviated Dialing lists; programmable by the
System Manager or by you, the user. Contains telephone numbers of your choice, and
stores each of them as a 1- or 2-digit list item, depending on the number of members
in the list.
personal list item One of the slots on an Abbreviated Dialing personal list.
39
pickup group A group of telephone users who can answer calls for each other
through the Call Pickup feature. Group members are determined by the System
Manager and are usually located in the same work area or perform similar job
functions.
priority call An important or urgent call that sends a special 3-burst ring and does
not redirect to coverage or forward to designated alternative number.
program/reprogram To use your dial pad to assign a telephone number to a personal
list item for Abbreviated Dialing. Programming is activated by dialing an access code
or by pressing the Program button.
retrieve To collect telephone messages using your local retrieval methods (Also,
with Call Park, to resume a call from an extension other than the one where the call
was first parked, placed, or received.)
ringer The device that produces the electronic ringing sound in your telephone.
Ringing Appearance Preference If your telephone is assigned Ringing Appearance
Preference, you will automatically be connected to an incoming call when you lift the
handset. You do not have to press a call appearance.
stored number A telephone number that has been programmed and stored as a 1-,
2-, 3-, or 4-digit list item for use with Abbreviated Dialing. It can be a complete or
partial telephone number, an extension number, or a trunk or feature code. Once
programmed, a number can be accessed by first dialing the list, then the list item
digit(s) under which it is stored. If the number is stored on an [ AD xxxxx ] button, the
number can be accessed by simply pressing that button.
switch The device that makes connections for all voice and data calls for a network,
and also contains software for features. Also known as a system, switching system, or
PBX (private branch exchange). Your switch is an AT&T DEFINITY®
Communications System Generic 2 or an AT&T System 85.
System 85 The AT&T switch to which you may be connected. It transmits and
receives voice and data signals for all communications equipment in your network
(See also DEFINITY® Communications System Generic 2.)
system list One of the 3 types of Abbreviated Dialing lists; programmable only by
the System Manager. Contains telephone numbers helpful to all system users.
System Manager The person responsible for specifying and managing the operation
of features for all the voice and data equipment in your network.
trunk A telecommunications channel between your switch and the local or longdistance calling network. Trunks of the same kind connecting to the same endpoints
are assigned to the same trunk group.
trunk code A dial code of up to 4 digits that you dial to access a trunk group to
place an outside call.
voice terminal A telephone equipped with an array of specially designed features
(for example, administrable buttons) and functional capabilities that distinguish it from
a conventional telephone.
40
Quick–Reference Lists
Feature Codes
Feature
ABBREVIATED DIALING
Personal
Group
System
Program
AUTOMATIC CALLBACK
Cancel
CALL FORWARDING —
BUSY/DON’T ANSWER
Cancel
CALL FORWARDING —
FOLLOW ME
Cancel
Code
Feature
CALL PARK
Answer Back
CALL PICKUP
LAST NUMBER DIALED
LEAVE WORD CALLING
Cancel
PRIORITY CALLING
SEND ALL CALLS
Cancel
Code
Trunk Codes
Description
Abbreviated Dialing
Code
Item
No.
l
2
3
4
Miscellaneous
Description
Message
Attendant
AUDIX
Extension
5
6
7
8
9
0
Personal List 1
Personal List 2
Download PDF

advertising
