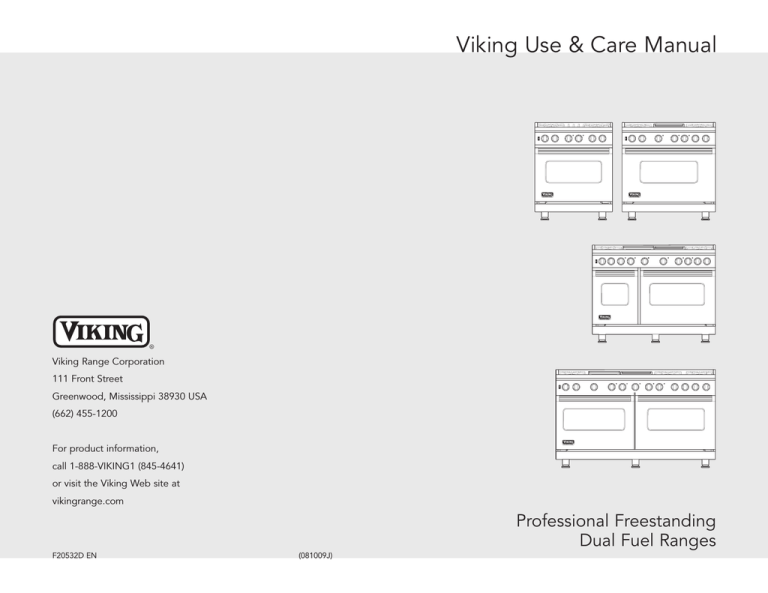

Viking Use & Care Manual
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-VIKING1 (845-4641)
or visit the Viking Web site at
vikingrange.com
Professional Freestanding
Dual Fuel Ranges
F20532D EN
(081009J)
Congratulations
Table of Contents
Getting Started
Congratulations and welcome to the elite world of Viking ownership.
We hope you will enjoy and appreciate the care and attention we have
put into every detail of your new, state-of-the-art self-cleaning range.
Your Viking range is designed to offer years of reliable service. This
Use and Care Manual will provide you with the information you need
to become familiar with your range’s care and operation.
Your complete satisfaction is our ultimate goal. If you have any
questions or comments about this product, please contact the dealer
from whom you purchased it, or contact our Consumer Support Center
at 1-888-VIKING1 (845-4641).
We appreciate your choice of a Viking range and hope that you will
again select our products for your other major range needs.
For more information about the complete and growing selection
of Viking products, contact your dealer or visit us online at
vikingrange.com.
Warnings ____________________________________________________4
Before Using Range__________________________________________13
Product Controls
Range Features _____________________________________________14
Oven Functions and Settings _________________________________16
Operation
Surface Operation ___________________________________________17
Lighting Burners___________________________________________17
Surface Burners-Automatic Reignition ________________________17
Vari-Simmer™_____________________________________________17
TruPower Plus™ Burner (where applicable) ___________________17
Surface Cooking Tips ______________________________________18
Griddle/Simmer Plate Operation ____________________________19
Griddle/Simmer Plate Clean Up & Care ______________________20
Grill Operation ____________________________________________21
Grill Clean Up & Care ______________________________________23
Cooking Vessels ___________________________________________26
Oven Features ______________________________________________26
Rack Positions_____________________________________________27
Using the Oven _____________________________________________27
Preheat __________________________________________________27
Conventional and Convection Cooking ______________________28
Baking _____________________________________________________30
BAKE (Two-Element Bake) __________________________________30
CONV BAKE (Convection Bake) _____________________________30
TRU CONV (TruConvec™) __________________________________31
Proofing ____________________________________________________31
Roasting____________________________________________________35
CONV ROAST (Convection Roast) ___________________________35
Broiling_____________________________________________________39
CONV BROIL (Convection Broil)_____________________________39
HI BROIL _________________________________________________39
MED BROIL ______________________________________________39
LOW BROIL ______________________________________________40
Convection Dehydrate/Defrost ________________________________43
Cooking Substitutes Charts ___________________________________44
Product Care
Cleaning and Maintenance ___________________________________45
Self-Clean Cycle _____________________________________________49
Replacing Oven Lights _______________________________________51
Door Removal_______________________________________________52
Door Replacement and Adjustment____________________________53
Troubleshooting _____________________________________________54
Service Information __________________________________________55
Warranty ___________________________________________________56
2
3
Getting Started
Warning and Important Safety Instructions appearing in this manual
are not meant to cover all possible conditions and situations that may
occur. Common sense, caution, and care must be exercised when
installing, maintaining, or operating the appliance.
ALWAYS contact the manufacturer about problems or conditions you do
not understand.
Recognize Safety Symbols, Words, Labels
DANGER
Hazards or unsafe practices which WILL result in
severe personal injury or death
WARNING
Hazards or unsafe practices which COULD result in
death or severe personal injury
CAUTION
Hazards or unsafe practices which COULD result in
minor personal injury.
All safety messages will identify the hazard, tell you how
to reduce the chance of injury, and tell you what can happen if
the instructions are not followed.
Read and follow all instructions before using this appliance to prevent
the potential risk of fire, electric shock, personal injury or damage to the
appliance as a result of improper usage of the appliance. Use appliance
only for its intended purpose as described in this manual.
To ensure proper and safe operation: Appliance must be properly
installed and grounded by a qualified technician. DO NOT attempt to
adjust, repair, service, or replace any part of your appliance unless it is
specifically recommended in this manual. All other servicing should be
referred to a qualified servicer. Have the installer show you the location of
the gas shutoff valve and how to shut it off in an emergency.
4
WARNING
If the information in this manual is not followed exactly,
a fire or explosion may result causing property damage,
personal injury or death.
WHAT TO DO IF YOU SMELL GAS:
• DO NOT try to light any appliance.
• DO NOT touch any electrical switch.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow
the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
WARNING
TIPPING HAZARD
To reduce the risk of the appliance tipping, it must
be secured by a properly installed anti-tip bracket(s).
To make sure the bracket has been installed
properly, look behind the range with a flashlight to verify proper
installation engaged in the rear top left corner of the range.
• THIS RANGE CAN TIP
• INJURIES TO PERSONS CAN RESULT
• INSTALL ANTI-TIP DEVICE PACKED WITH RANGE
• SEE INSTALLATION INSTRUCTIONS
WARNING
DO NOT use commercial oven cleaners inside the oven. Use of these
cleaners can produce hazardous fumes or can damage the porcelain
finishes.
WARNING
To avoid risk of property damage, personal injury or death;
follow information in this manual exactly to prevent a fire or
explosion. DO NOT store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any appliance.
5
Getting Started
Warnings
Warnings
Getting Started
Warnings
To Prevent Fire or Smoke Damage
Cooking Safety
• Be sure all packing materials are removed from the appliance before
operating it.
• Keep area around appliance clear and free from combustible materials,
gasoline, and other flammable vapors and materials.
• If appliance is installed near a window, proper precautions should be taken
to prevent curtains from blowing over burners.
• NEVER leave any items on the rangetop. The hot air from the vent may ignite
flammable items and may increase pressure in closed containers which may
cause them to burst.
• Many aerosol-type spray cans are EXPLOSIVE when exposed to heat and
may be highly flammable. Avoid their use or storage near an appliance.
• Many plastics are vulnerable to heat. Keep plastics away from parts of the
appliance that may become warm or hot. DO NOT leave plastic items on
the rangetop as they may melt or soften if left too close to the vent or a
lighted surface burner.
• Combustible items (paper, plastic, etc.) may ignite and metallic items
may become hot and cause burns. DO NOT pour spirits over hot foods.
DO NOT leave oven unsupervised when drying herbs, breads,
mushrooms, etc; fire hazard.
• To eliminate the hazard of reaching over hot surface burners, cabinet
storage should not be provided directly above a unit. If storage is provided,
it should be limited to items which are used infrequently and which are
safely stored in an area subjected to heat from an appliance. Temperatures
may be unsafe for some items, such as volatile liquids, cleaners or
aerosol sprays.
• ALWAYS place a pan on a surface burner before turning it on. Be sure you
know which knob controls which surface burner. Make sure the correct
burner is turned on and that the burner has ignited. When cooking is
completed, turn burner off before removing pan to prevent exposure to
burner flame.
• ALWAYS adjust surface burner flame so that it does not extend beyond the
bottom edge of the pan. An excessive flame is hazardous, wastes energy
and may damage the appliance, pan or cabinets above the appliance. This is
based on safety considerations.
• NEVER leave a surface cooking operation unattended especially
when using a high heat setting or when deep fat frying. Boilovers cause
smoking and greasy spillovers may ignite. Clean up greasy spills as soon as
possible. DO NOT use high heat for extended cooking operations.
• NEVER heat an unopened container on the surface burner or in the oven.
Pressure build-up may cause container to burst resulting in serious personal
injury or damage to the appliance.
• Use dry, sturdy pot-holders. Damp pot-holders may cause burns from steam.
Dishtowels or other substitutes should NEVER be used as potholders
because they can trail across hot surface burners and ignite or get caught on
appliance parts.
• ALWAYS let quantities of hot fat used for deep fat frying cool before
attempting to move or handle.
• DO NOT let cooking grease or other flammable materials accumulate in or
near the appliance, hood or vent fan. Clean hood frequently to prevent
grease from accumulating on hood or filter. When flaming foods under the
hood, turn the fan off.
• NEVER wear garments made of flammable material or loose fitting or longsleeved apparel while cooking. Clothing may ignite or catch utensil handles.
• ALWAYS place oven racks in the desired positions while oven is cool. Slide
oven rack out to add or remove food, using dry, sturdy potholders. ALWAYS
avoid reaching into the oven to add or remove food. If a rack must be
moved while hot, use a dry potholder.
• ALWAYS turn the oven off at the end of cooking.
• Use care when opening the oven door. Let hot air or steam escape before
moving or replacing food.
In Case of Fire
Turn off appliance and ventilating hood to avoid spreading the flame.
Extinguish flame, then turn on hood to remove smoke and odor.
• Cooktop: Smother fire or flame in a pan with a lid or cookie sheet.
• NEVER pick up or move a flaming pan.
• Oven: Smother fire or flame by closing the oven door.
DO NOT use water on grease fires. Use baking soda, a dry chemical or
foam-type extinguisher to smother fire or flame.
Child Safety
• NEVER leave children alone or unsupervised near the appliance when it is in
use or is still hot.
• NEVER allow children to sit or stand on any part of the appliance as they
could be injured or burned.
• DO NOT store items of interest to children over the unit. Children climbing
to reach items could be seriously injured.
• Children must be taught that the appliance and utensils in it can be hot.
Let hot utensils cool in a safe place, out of reach of small children.
Children should be taught that an appliance is not a toy. Children should not
be allowed to play with controls or other parts of the appliance.
6
7
Getting Started
Warnings
Getting Started
Warnings
Cooking Safety (cont.)
Utensil Safety (cont.)
• NEVER use aluminum foil to cover oven racks or oven bottom. This could
result in risk of electric shock, fire, or damage to the appliance. Use foil only
as directed in this guide.
• PREPARED FOOD WARNING: Follow food manufacturer's instructions. If a
plastic frozen food container and/or its cover distorts, warps, or is otherwise
damaged during cooking, immediately discard the food and its container. The
food could be contaminated.
• If you are “flaming” liquor or other spirits under an exhaust, TURN THE
FAN OFF. The draft could cause the flames to spread out of control.
• Once the unit has been installed as outlined in the Installation
Instructions, it is important that the fresh air supply is not obstructed.
The use of a gas cooking appliance results in the production of heat and
moisture in the room in which it is installed. Ensure that the kitchen is
well-ventilated. Keep natural venting holes open or install a mechanical
ventilation device. Prolonged or intensive use of the appliance may call
for additional (such as opening a window) or more effective ventilation
(such as increasing the level of a mechanical ventilation if present).
• This appliance has been tested for safe performance using conventional
cookware. DO NOT use any devices or accessories that are not specifically
recommended in this guide. DO NOT use eyelid covers for the surface units,
stovetop grills, or add-on oven convection systems. The use of devices or
accessories that are not expressly recommended in this manual can create
serious safety hazards, result in performance problems, and reduce the life
of the components of the appliance.
• The flame of the burner should be adjusted to just cover the bottom of
the pan or pot. Excessive burner setting may cause scorching of
adjacent counter-top surfaces, as well as the outside of the utensil. This
is based on safety considerations.
Utensil Safety
• Use pans with flat bottoms and handles that are easily grasped and stay
cool. Avoid using unstable, warped, easily tipped or loose-handled pans.
Also avoid using pans, especially small pans, with heavy handles as they
could be unstable and easily tip. Pans that are heavy to move when filled
with food may also be hazardous.
• Be sure utensil is large enough to properly contain food and avoid boilovers.
Pan size is particularly important in deep fat frying. Be sure pan will
accommodate the volume of food that is to be added as well as the bubble
action of fat.
• To minimize burns, ignition of flammable materials and spillage due to
unintentional contact with the utensil, DO NOT extend handles over
adjacent surface burners. ALWAYS turn pan handles toward the side or back
of the appliance, not out into the room where they are easily hit or reached
by small children.
• NEVER let a pan boil dry as this could damage the utensil and the
appliance.
• Follow the manufacturer's directions when using oven cooking bags.
• Only certain types of glass, glass/ceramic, ceramic or glazed utensils are
suitable for rangetop surface or oven usage without breaking due to the
sudden change in temperature. Follow manufacturer's instructions when
using glass.
8
Heating Elements
• NEVER touch oven heating elements, areas near elements, or interior
surfaces of oven.
• Heating elements may be hot even though they are dark in color. Areas near
elements and interior surfaces of an oven may become hot enough to cause
burns.
• During and after use, DO NOT touch or let clothing or other flammable
materials contact heating elements, areas near elements, or interior surfaces
of oven until they have had sufficient time to cool.
Cleaning Safety
• Turn off all controls and wait for appliance parts to cool before touching or
cleaning them. DO NOT touch the burner grates or surrounding areas until
they have had sufficient time to cool.
• Clean appliance with caution. Use care to avoid steam burns if a wet sponge
or cloth is used to wipe spills on a hot surface. Some cleaners can produce
noxious fumes if applied to a hot surface.
Self-Clean Oven
• Clean only parts listed in this guide. DO NOT clean door gasket. The door
gasket is essential for a good seal. Care should be taken not to rub, damage,
or move the gasket. DO NOT use oven cleaners of any kind in or around any
part of the self-clean oven.
• Before self-cleaning the oven, remove broiler pan, oven racks and other
utensils and wipe up excessive spillovers to prevent excessive smoke,
flare-ups or flaming.
• This range features a cooling fan which operates automatically during a
clean cycle. If the fan does not turn on, cancel the clean operation and
contact an authorized servicer.
• It is normal for the rangetop cooking surface of the range to become hot
during a self-clean cycle. Therefore, touching the rangetop cooking surface
during a clean cycle should be avoided.
9
Getting Started
Warnings
Getting Started
Important Safety Notice and Warning
The California Safe Drinking Water and Toxic Enforcement Act of 1986
(Proposition 65) requires the Governor of California to publish a list of
substances known to the State of California to cause cancer or
reproductive harm, and requires businesses to warn customers of potential
exposures to such substances. Users of this appliance are hereby warned
that when the oven is engaged in the self-clean cycle, there may be some
low-level exposure to some of the listed substances, including carbon
monoxide. Exposure to these substances can be minimized by properly
venting the oven to the outdoors by opening the windows and/or door in
the room where the appliance is located during the self-clean cycle.
Important notice regarding pet birds:
NEVER keep pet birds in the kitchen or in rooms where the fumes from the
kitchen could reach. Birds have a very sensitive respiratory system. Fumes
released during an oven self-cleaning cycle may be harmful or fatal to
birds. Fumes released due to overheated cooking oil, fat, margarine and
overheated non-stick cookware may be equally harmful.
About Your Appliance
WARNING
NEVER use appliance as a space heater to heat or warm a room to
prevent potential hazard to the user and damage to the appliance. Also,
DO NOT use the rangetop or oven as a storage area for food or cooking
utensils.
• For proper oven performance and operation, DO NOT block or obstruct the
oven vent duct located on the right side of the air grille.
• Avoid touching oven vent area while oven is on and for several minutes after
oven is turned off. When the oven is in use, the vent and surrounding area
become hot enough to cause burns. After oven is turned off, DO NOT touch
the oven vent or surrounding areas until they have had sufficient time to
cool.
• Other potentially hot surfaces include rangetop, areas facing the rangetop,
oven vent, surfaces near the vent opening, oven door, areas around the
oven door and oven window.
• The misuse of oven doors (e.g. stepping, sitting, or leaning on them) can
result in potential hazards and/or injuries.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
10
WARNING
ELECTRICAL SHOCK HAZARD
DO NOT touch a hot oven light bulb with a damp cloth as
the bulb could break. Should the bulb break, disconnect
power to the appliance before removing bulb to avoid
electrical shock.
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect the electric power at the main fuse or circuit
breaker before replacing bulb.
WARNING
BURN OR ELECTRICAL SHOCK HAZARD
Make sure all controls are OFF and oven is COOL before
cleaning. Failure to do so can result in burns or electrical
shock.
CAUTION
To avoid sickness and food waste, DO NOT allow defrosted food to
remain in the oven for more than two hours.
NOTICE
DO NOT turn the Temperature Control on during defrosting. Turning
the convection fan on will accelerate the natural defrosting of the food
without the heat.
CAUTION
BURN HAZARD
The oven door, especially the glass, can get hot. Danger of
burning: DO NOT touch the glass!
11
Getting Started
Warnings
Warnings
Getting Started
WARNING
This range features a self-cleaning cycle. During this cycle, the oven
reaches elevated temperatures in order to burn off soil and deposits. A
powder ash residue is left in the bottom of the oven after completion of
the self-clean cycle.
Note: DO NOT use commercial oven cleaners inside the oven. Use of
these cleaners can produce hazardous fumes or can damage the
porcelain finishes. DO NOT line the oven with aluminum foil or other
materials. These items can melt or burn during a self-clean cycle,
causing permanent damage to the oven.
CAUTION
DO NOT touch the exterior portions of the oven after
self-cleaning cycle has begun, since some parts become
extremely hot to the touch!
During the first few times the self-cleaning feature is used, there may
be some odor and smoking from the “curing” of the binder in the highdensity insulation used in the oven. When the insulation is thoroughly
cured, this odor will disappear. During subsequent self-cleaning
cycles, you may sense an odor characteristic of high temperatures.
KEEP THE KITCHEN WELL-VENTED DURING THE
SELF-CLEAN CYCLE.
CAUTION
You must carefully check the food during the dehydration process to
ensure that it does not catch fire.
All products are wiped clean with solvents at the factory to remove any
visible signs of dirt, oil, and grease which may have remained from the
manufacturing process. Before starting to cook, clean the range
thoroughly with hot, soapy water. There may be some burn off and
odors on first use of the appliance—this is normal.
Oven
Important! Before first use, wipe interior with soapy water and dry
thoroughly. Then set the oven selector to bake, the thermostat to
450°F, and operate for an hour.
All models include:
• A broad range of baking and broiling modes—up to eight cooking
modes in all—to make even your most challenging baking projects
a success.
• Exclusive VSH™ Pro Sealed Burner System (Vari-Simmer™ to
High)—combination of patented burner and top design provide
cleanability plus superior performance at simmer and high.
• Exclusive one-piece tooled and porcelainized cooking surface
contains spills for easy cleaning.
• Split baking and broiling elements—which reduces preheating time
and provides greater control and more even heating.
• A reversing convection fan which is two times larger than most on
the market—this allows you to cook foods more thoroughly and
evenly—even when baking large quantities.
• Four convection modes offering greater air circulation to shorten
cooking times and cook foods more evenly.
• Three broiling modes including a new low-broil mode for delicate
broiling and top-browning.
• A profiled, concealed bake element for easier cleaning.
• This appliance is certified by Star-K to meet strict regulations in
conjunction with specific instructions found on www.star-k.org
WARNING
BURN HAZARD
When self-cleaning, surfaces may get hotter than usual.
Therefore, children should be kept away.
CAUTION
DO NOT store items of interest to children over the unit. Children
climbing to reach items could be seriously injured.
12
13
Getting Started
Before Using Range
Warnings
Range Features
Range Features
Left Oven
Left Front Burner
Function
Control Knob
Selector Knob
(15,000 BTU)
Interior Oven
Light Switch
Griddle
Indicator Light
Left Oven
Temperature
Control Knob
CLEAN
OVEN
Self-Clean
Indicator
Light
GRIDDLE
Right Oven
Temperature
Indicator Light
CLEAN
Right Front Burner
Control Knob
(15,000 BTU)
OVEN
Dual Fuel
Convection-Self Clean
Product Controls
Self-Clean
Indicator
Light
2
1
3
4
Left Oven
Temperature
Indicator Light
1
Grill
Control
Knob
Right Oven
Function
Selector Knob
Griddle
Control
Knob
Right Oven
Temperature
Control Knob
Right Rear Burner
Control Knob
(15,000 BTU)
Denotes models
which have a
TruPower Plus™
18,500 BTU Burner
30” Four-Burner
36” Six-Burner
36” Four-Burner/Griddle
5
6
36” Four-Burner/Grill
7
48” Six-Burner/Grill
48” Eight Burner
48” Four-Burner/Grill/Griddle
48” Six-Burner/Griddle
48” Four-Burner/Griddle
48” Four-Burner/Grill/Griddle model shown
1.
2.
3
4.
5.
6.
7.
Four 15,000 BTU sealed burners with porcelain/
Cast iron caps and automatic ignition/Re-ignition
Island trim
Grill (Optional)
Griddle (Optional)
Identification plate
Three standard heavy-duty tilt-proof racks/
Six rack positions
Broiler pan–located inside oven
14
60” Six-Burner/Griddle
60” Six-Burner/Grill/Griddle
15
Product Controls
Left Rear Burner
Control Knob
(15,000 BTU)
Oven Functions and Settings
Surface Operation
BAKE (Two-Element Bake)
Lighting Burners
Use this setting for baking, roasting, and casseroles.
All burners are ignited by electric ignition. There
are no open-flame, “standing” pilots.
CONV BAKE (Convection Bake)
Use this setting to bake and roast foods at the same time with minimal
taste transfer.
TRU CONV (TruConvec™)
Product Controls
Use this bake setting for multi-rack baking for breads, cakes, cookies
(up to 6 racks of cookies at once).
CONV ROAST (Convection Roast)
Use this setting for roasting whole turkeys, whole chickens, hams, etc.
Surface Burners-Automatic Reignition
To light the surface burners, push and turn the
appropriate control knob counter clockwise to any position. This control is
both a gas valve and an electric switch. Burners will ignite at any “ON”
position with the automatic re-ignition system. If the flame goes out for
any reason, the burners will automatically reignite if the gas is still flowing.
When gas is permitted to flow to the burners, the electric igniters start
sparking. On all surface igniters you should hear a “clicking” sound. If you
do not, turn off the control and check that the unit is plugged in and that
the fuse or circuit breaker is not blown or tripped.
CONV BROIL (Convection Broil)
MED BROIL
Vari-Simmer™
Use this setting for broiling white meats such as chicken or meats
greater than 1” thick that would be over-browned in high broil.
Simmering is a cooking technique in which foods are cooked in hot
liquids kept at or just barely below the boiling point of water. Simmering
ensures gentler treatment than boiling to prevent food from toughening
and/or breaking up. The size of the pan and the volume of food can have
a significant effect on how high or low a flame is needed for simmering.
For this reason, Viking range and rangetop burners are engineered with a
Vari-Simmer setting. The Vari-Simmer setting is not just one simmer
setting, but provides a variable range of simmer settings. This variable
range of simmer settings allows you to adjust the flame height to achieve
the best simmer depending on the type and quantity of food being
simmered. It is this ability that makes the Vari-Simmer setting the most
accurate and trustworthy simmer on the market.
HI BROIL
LOW BROIL
Use this setting for delicate broiling such as meringue.
SELF CLEAN
Use this function to clean oven.
Convection Dehydration (TRU CONV)
Use this function to dehydrate fruits and vegetables.
Convection Defrost (TRU CONV)
TruPower Plus™ Burner (where applicable)
Use this function to defrost foods.
Proof (Left oven on 48”W. models)
Use this setting to allow yeast dough to rise.
Note: For more information on oven functions see “Operation”
section.
16
Certain model ranges are equipped with a TruPower Plus 18,500 BTU
burner in the front right burner position. This burner is designed to
provide extra high heat output, especially when using large pans, and
should be used for boiling large quantities or if you need to bring
something to a boild quickly. While the TruPower Plus burner has the
extra power needed to bring large quantities of liquid to a boil rapidly, it
is also able to be turned down low enough to provide a very low and
delicate simmer making this burner the most versatile burner on the
market.
17
Operation
Use this setting for broiling dark meats at 1” thickness or less where
rare or medium doneness is desired.
Within a few moments, enough gas will have traveled to the burner to
light. When the burner lights, turn the burner control to any position to
adjust the flame size. Setting the proper flame height for the desired
cooking process and selecting the correct cooking vessel will result in
superior cooking performance, while also saving time and energy.
Use this setting to broil thick cuts of meat.
Surface Operation
Surface Operation
Surface Cooking Tips
Griddle/Simmer Plate (on applicable models)
• Use low or medium flame heights when cooking in vessels that are
poor conductors of heat, such as glass, ceramic, and cast-iron.
Reduce the flame height until it covers approximately 1/3 of the
cooking vessel diameter. This will ensure more even heating within
the cooking vessel and reduce the likelihood of burning or scorching
the food.
• Reduce the flame if it is extending beyond the bottom of the
cooking vessel. A flame that extends along the sides of the vessel is
potentially dangerous, heats the utensil handle and kitchen instead
of the food, and wastes energy.
• Reduce the flame height to the minimum level necessary to perform
the desired cooking process. Remember that food cooks just as
quickly at a gentle boil as it does at a rolling boil. Maintaining a
higher boil than is necessary wastes energy, cooks away moisture,
and causes a loss in food flavor and nutrient level.
• The minimum pot or pan (vessel) diameter recommended is 6”
(15 cm). Use of pots or pans as small as 4” (10 cm) is possible but
not recommended.
The optional 15,000 BTU griddle is constructed of machined steel with a
blanchard finish and is uniquely designed to offer excellent cooking
performance as well as easy clean up. The griddle is equipped with an
electronic thermostat to maintain an even temperature across the
griddle once the desired temperature has been set. The griddle has a
power “ON” indicator light which glows when the griddle thermostat
has been turned on. This will cycle on and off as needed to indicate the
thermostat is maintaining the selected temperature. Before the griddle is
used it is important to season the griddle. This seasoning process will
change the appearance of the griddle plate. However, it will also prevent
food from sticking and protect the surface from moisture.
Heat Setting
Use
Simmer
Melting small quantities
Steaming rice
Simmering sauces
Low
Melting large quantities
Med Low
Low-temperature frying (eggs, etc.)
Simmering large quantities
Heating milk, cream sauces, gravies,
and puddings
Sauteing and browning, braising, and
pan-frying
Maintaining slow boil on large quantities
Med
Med High
High
High-temperature frying
Pan broiling
Maintaining fast boil on large quantities
Boiling water quickly
Deep-fat frying in large utensil
*Note: The above information is given as a guide only. You may need
to vary the heat settings to suit your personal requirements.
18
• Scrub the griddle plate with a mixture of one quart warm water and
1/4 cup white vinegar, using a blue Scotch-Brite™ pad. Dry thoroughly.
• Wash griddle with warm, soapy water. Rinse off and dry thoroughly.
• Season griddle by thinly coating the surface with approximately 1⁄2
to 1 teaspoon unsalted vegetable oil. Apply to entire griddle using a
paper towel or clean cloth. Let oil sit on griddle for approximately 1
hour and then wipe with a clean cloth or paper towel to absorb any
residual oil. The griddle is now ready to be used.
Griddle/Simmer Plate Operation
• Turn the griddle control knob counterclockwise to the desired
temperature setting. The power “ON” indicator light will glow
indicating the griddle thermostat is on.
• The double griddle has two thermostat control knobs which
control separate burners located beneath
Griddle Assembly
the griddle.
• When the griddle has reached the desired
Grease trough
temperature, the power “ON” indicator
light will turn off indicating the griddle is
preheated to the selected temperature.
Griddle
• Use liquid cooking oil or butter for eggs,
pancakes, French toast, fish and
sandwiches to prevent sticking.
• Routinely scrape loose food particles with
a metal spatula during cooking to make
the cleanup easier and to avoid the particles mixing with the food.
• To turn the griddle off, turn the thermostat knob clockwise to the
“OFF” position.
• ALWAYS turn to the“OFF” position when not in use and lower the
heat between cooking loads.
Note: On griddle model ranges, the griddle/simmer plate will not
function during the self-clean cycle.
19
Operation
Operation
Surface Heat Settings*
Seasoning the Griddle Before the First Use
Surface Operation
Griddle/Simmer Plate Clean Up & Care
Char-Grill (on applicable models)
• It is not necessary to wash the griddle after every use. When light
cooking is performed and AFTER the griddle has cooled, simply
wipe down the surface with a clean cloth or paper towel. The oils in
the food which cooked on the griddle surface will naturally season
the griddle providing a “natural” non-stick surface.
• After heavy cooking is completed and the griddle is still warm
enough to create steam, pour a small amount of club soda at room
temperature directly on the griddle. Using a metal spatula, pull oils
and food particles toward the trough in front. Wipe entire surface
with a paper towel. Follow with the seasoning process of applying oil.
• Keeping the griddle well seasoned will prevent the griddle from
developing surface rust. If the griddle is not used for a period of
time, it must be re-seasoned. The griddle must be re-seasoned each
time after it is washed.
• Non-stick cooking spray is not recommended as it contains a high
water content that has a tendency to burn quickly.
• Corn oil is not recommended as it has a high sugar level. It will
caramelize and burn on the surface making it very difficult to remove.
• After using the griddle, always remove the grease trough located in
the front. Simply pull the trough towards you and lift out. Be sure to
allow all surfaces to cool before removing the grease trough. The
trough or tray trap needs to be cleaned after each use. A fire hazard
may occur if grease is accumulated in the trough.
• Note - it is normal for the griddle to darken over time. This is the sign
of a well seasoned griddle.
• Important: Never flood a hot griddle with cold water. This thermal
shock promotes griddle warping and can cause the griddle to crack if
continued over a period of time.
• For heavy duty cleaning, Viking offers a Griddle Cleaning Kit (model
#GCK). This fast and effective commercial grade cleaning system will
clean your griddle in a matter of minutes. To order, contact your local
Viking dealer or order on the Viking website at vikingrange.com.
The optional 18,000 BTU char-grill is equipped with a single piece, heavyduty porcelainized cast-iron grill grate for easy movement of grilling
items. Beneath the grill grate are two slotted porcelainized flavor
generator plates which are designed to catch drippings and circulate a
smoke flavor back into the food. Beneath the flavor generator plates is a
two piece drip pan which catches any drippings that might pass beyond
the flavor generator plates. This unique grilling system is designed to
provide outdoor quality grilling indoors.
Griddle Cooking Chart
Food
Temp (°F)
Temp (°C)
Eggs
250-300
121-149
Bacon
300-325
149-163
Pancakes
375-400
191-205
French Toast
400
205
Fish Fillets
300
149
Hamburger
350
177
Steaks
350
177
20
Char-Grill Assembly
Before using the char-grill, you will need to follow these steps to properly
assemble the char-grill.
• Remove the two flavor generator plates and grill grate from the
cardboard packaging.
• Position the flavor generator plates so that the tab on each plate is
inserted in the right, rear hole and left, front hole on the drip pans.
(See char-grill assembly section on following pages.)
• After the flavor generator plates are properly located, place the grill
grate on top of the flavor generator plates. After this, the char-grill is
assembled and ready to use.
Char-Grill Operation
• Turn the overhead ventilation on prior to turning the grill on.
• Turn the grill knob counterclockwise to HI.
• Always preheat the grill for 5-10 minutes before placing food on the
grill grate.
• Place food items on the grill, cook as desired.
• To turn the grill off, turn the grill knob clockwise to the OFF position.
Char-Grill Cooking Tips
• When grilling chicken, roasts, well-done steaks or chops and thick
pieces of meat, sear on HI. Then, reduce the heat setting to prevent
excessive flare-up. This will allow the food to cook through without
burning the outside.
• After steaks, chops, or hamburgers have been allowed to sear for
approximately one minute, you may slide a spatula under the meat
and turn it approximately 90 degrees so that a waffle pattern will be
seared onto the food.
• Use a metal spatula instead of tongs or a fork to turn the meat. A
spatula will not puncture the meat allowing juices to escape.
• Turn the meat over only once. Juices are lost when steaks, chops or
hamburgers are turned several times. The best time to turn the meat
is after the juices have begun to bubble to the surface.
21
Operation
Operation
Surface Operation
Surface Operation
Surface Operation
Char-Grill Cooking Tips (cont.)
Char-Grill Assembly (cont.)
• To test for doneness, make a small slash in the center of the meat,
not the edge. This will prevent loss of juices.
• Occasionally there may be flare-ups or flames above the grill due to
drops of fat falling on the flavor generator plates. It is normal to have
some flare-up during grilling. Use a long handled spatula to move
food to another area until the flames subside.
• For ease of cleaning, leave the char-grill on for 10 minutes when
finished grilling. This will help make cleanup easier once the char-grill
has cooled down.
Char-Grill Disassembly for Cleaning
Follow these steps to disassemble the char-grill for cleaning. Make sure
the char-grill is completely cool before attempting to disassemble for
cleaning.
•
•
•
•
Remove the char-grill grate.
Remove the flavor-generator plates.
Remove the drip pan. Note that the drip pan is a two-piece drip pan.
Located beneath the burner is the drip tray. Under normal grilling
circumstances very little if any grease will accumulate in the drip tray.
If any grease has accumulated in the drip tray, simply wipe out with a
paper towel or damp cloth.
Grill
Flavorgenerator
plates
Two-piece
drip pan
Burner
Drip tray
22
• Char-grill grates:
o May be cleaned immediately after cooking is complete and before
turning off the flame. Before cleaning the grill, turn the flame
down to a lower setting such as “MED” or “LOW”. Use a soft
bristle brush to scrub the grill grate. Dip the brush frequently into
a bowl of water. Steam is created as the water contacts the hot
grate. The steam assists the cleaning process by softening the
food particles.
o For a thorough cleaning of the grill grate, use grill cleaner
according to manufacturer’s directions and then soak 15-20
minutes in a hot water and mild detergent solution. After soaking,
scrub with a blue Scotch-Brite™ pad. DO NOT use a steel wool
pad or abrasive cleaner, for risk of damaging the porcelain finish.
Dry thoroughly.
• Flavor generator plates and drip pan:
o Scrape off all burned on debris. The flavor generator plates and
drip pan are dishwasher safe. If you choose to not wash these
components in the dishwasher, then simply soak for 15-20 minutes
in a hot water and mild detergent solution. After soaking, scrub
with a blue Scotch-Brite™ pad.
23
Operation
Operation
Char-Grill Assembly
Char-Grill Clean Up & Care
Surface Operation
Surface Operation
Grill Cooking Chart
Food
Weight or
thickness
Grill Cooking Chart
Suggested Special instructions
and tips
Flame cooking
size time (min)
BEEF
Hamburger
Food
Weight or
thickness
Suggested Special instructions
and tips
Flame cooking
size time (min)
PORK
1/2”(1.3 cm) –
3/4” (1.9 cm)
Med
8 – 15
Grill, turning once
when juices rise
to the surface.
We recommend
that ground
chuck be used for
hamburgers, as
it will give you a
juicer hamburger
than ground
round. DO NOT
leave hamburgers
unattended since a
flare-up could
occur quickly.
Chops
Med
20 – 40
1” (2.5 cm)
Med
35 – 60
Med
45 – 60
Grill, turning
occasionally. During
the last few minutes,
brush barbecue
sauce, turning
several times.
High
12 – 15
Remove excess fat
from edge. Slash
remaining fat at
two-inch intervals.
Grill, turning once.
Med
5 – 10
Slit skin before
cooking. Grill,
turning once.
High
60 – 90
Med
40 – 60
Place skin side up.
Grill, turn, and
brush frequently
with melted butter,
margarine, oil, or
marinade.
Ribs
Ham steaks
(fully cooked)
1/2” (1.3 cm)
STEAKS
Operation
Rib, Club, Porterhouse, T-Bone, Sirloin
1” (2.5 cm)
Rare
(140°F/60°C) 1-1/2” (3.8 cm)
High
High
8 – 12
11 – 16
1” (2.5 cm)
Medium
(160°F/71°C) 1-1/2” (3.8 cm)
Med
High
12 – 20
16 – 25
1” (2.5 cm)
Well-done
(170°F/77°C) 1-1/2” (3.8 cm)
Med
High
20 – 30
25 – 35
High
30 – 40
Tenderloin
5 lbs. (2.3 kg)
24
Remove excess fat
from edge. Slash
remaining fat at 2”
(5.1 cm) intervals to
keep edges from
curling. Grill,
turning once.
Remove surface fat
and connective
tissue. Fold over
thin end to form
uniformly thick
piece. Bind with
string. Grill, turning
to brown evenly.
Brush often with
melted butter,
margarine or oil.
Cook until rare.
Hot dogs
Remove excess fat
from edge. Slash
remaining at 2”
(5.1 cm) intervals to
keep edges.
POULTRY
Chicken
Broiler/Fryer
– Halves or
Quarters
2 (0.9 kg) –
3 lbs. (1.4 kg)
FISH AND SEAFOOD
Steaks
Halibut
Salmon
Swordfish
3/4” (1.9 cm) – Med to
1” (2.5 cm)
High
Whole
Catfish
Trout
4 oz (113 g) –
8 oz (227 g)
Med to
High
25
8 – 15
12 – 20
Grill, turning once,
brush with melted
butter, margarine,
or oil to keep fish
moist.
Operation
1/2”(1.3 cm)
Surface Operation
Using the Oven
Cooking Vessels
Preheat
Each cook has his or her own preference for the particular cooking vessels
that are most appropriate for the type of cooking being done. Any and
all cooking vessels are suitable for use in the range and it is not necessary
to replace your present domestic vessels with commercial cookware. This
is a matter of personal choice. As with any cookware, yours should be in
good condition and free from excessive dents on the bottom to provide
maximum performance and convenience.
For best results, it is extremely
important that you preheat your
oven to the desired cooking
temperature before placing food
OV
items in the oven to begin cooking. In
FU EN
NC
many cooking modes, partial power from the
TIO
N
broiler is used to bring the oven to the preheat
OV
temperature. Therefore, placing food items in the
TE EN
MP
ER
oven during the preheat mode is not recommended.
AT
UR
E
The Viking Rapid Ready™ Preheat System is engineered so that
the oven is brought to the desired set temperature in a manner which
will provide the optimum cooking environment based on the selected
cooking mode in the shortest possible time.
Note: When using big pots and/or high flames, it is recommended to use
the front burners. There is more room in the front and potential cleanup
at rear of appliance due to staining or discoloration will be minimized.
Oven Features
Broil element
TruConvec™ element
(behind baffle)
Oven light
6
5
4
3
2
1
Oven light
One TruGlide™
rack
Also, preheat time can vary based on some external factors such as
room temperature and power supply. A significantly colder room
temperature or a power supply less than 240 VAC can lengthen the
time it takes for the oven to reach the desired set temperature.
Concealed bake element
Rack Positions
Each oven is equipped with three tilt-proof racks. All ovens have six
rack positions. Position 6 is the farthest from the oven bottom. Position
1 is the closest to the oven bottom. The racks can be easily removed
and arranged at various levels. For best results with conventional
baking, DO NOT use more than one rack at a time. It is also
recommended, when using two racks, to bake with the racks in
positions 2 and 4 or positions 3 and 5.
26
27
Operation
Operation
Two tilt-proof
racks
For instance, the preheat mode for TruConvec™ is designed to be
brought up to the set point temperature in a different manner than the
preheat mode for conventional bake. This is because TruConvec is
designed for multi-rack baking. So it is extremely critical that all rack
positions have reached the desired cooking temperature. As a result, it
is normal for oven to take slightly longer for the oven to preheat to
350°F in TruConvec mode when compared to the amount of time it
takes to preheat the oven cavity to 350°F in conventional bake mode.
Using the Oven
Using the Oven
Conventional and Convection Cooking
Conventional and Convection Cooking (cont.)
• Some recipes, especially those that are homemade, may require
adjustment and testing when converting from standard to
convection modes. If unsure how to convert a recipe, begin by
preparing the recipe in conventional bake. After achieving
acceptable results, follow the convection guidelines listed for the
similar food type. If the food is not prepared to your satisfaction
during this first convection trial, adjust only one recipe variable at a
time (cooking time, rack position, or temperature) and repeat the
convection test. Continue adjusting one recipe variable at a time
until satisfactory results are achieved.
Because of variations in food density, surface texture and consistency,
some foods may be prepared more successfully using the conventional
bake setting. For this reason, conventional baking is recommended
when preparing baked goods such as custard. The user may find other
foods that are also prepared more consistently in conventional bake.
This is perfectly normal. Convection cooking is a cooking technique
which utilizes fan forced air to circulate heat throughout the entire
oven creating the optimum cooking environment. Cooking with
convection is intended when performing multi-rack baking and for
baking heavier foods. Below are tips which will allow you to get the
best results out of your oven when cooking with convection.
• When using large (15" x 13") flat pans or trays that cover most of
the rack, rack positions 2 or 3 produce the best results.
• When baking on more than one rack, it is recommended to use one
of the convection modes and the 2nd and 4th position or the 3rd
and 5th position for more even baking. When baking on three racks,
use any combination of positions 2, 3, 4, and 5 for more consistent
results.
• Stagger pans in opposite directions when two racks and several pans
are used in conventional bake. If possible, no pan should be directly
above another.
• Allow 1 to 2 inches of air space around all sides of each pan for even
air circulation.
28
29
Multiple Rack Pan
Placement
Single Rack Pan
Placement
Operation
Operation
Pan Placement Tips
• As a general rule, to convert conventional recipes to convection
recipes, reduce the temperature by 25°F (-3.9°C) and the cooking
time by approximately 10 to 15%.
• Cooking times for standard baking and convection baking will be the
same. However, if using convection to cook a single item or smaller
load, then it is possible to have 10-15% reduction in cooking time.
(Remember convection cooking is designed for multi-rack baking or
cooking large loads.)
• If cooking items which require longer than 45 minutes, then it is
possible to see a 10-15% reduction in cooking time. This is
especially true for large items cooked in the convection roast
function.
• A major benefit of convection cooking is the ability to prepare foods
in quantity. The uniform air circulation makes this possible. Foods
that can be prepared on two of three racks at the same time include:
pizza, cakes, cookies, biscuits, muffins, rolls, and frozen convenience
foods.
• For three-rack baking, use any combination of rack positions 2, 3, 4,
and 5. For two-rack baking, use rack positions 2 and 4 or positions 3
and 5. Remember that the racks are numbered from bottom to top.
See “Oven Features” illustration on page 24.
• Items cooked in a convection function can be easily over-baked. This
being the case, it is usually a good idea to pull items out of the oven
just before they seem to be done. Items will continue to cook right
after they are set out of the oven.
Baking
Baking
BAKE (Two-Element Bake)
Full power heat is radiated
from the bake element in the
bottom of the oven cavity and
supplemental heat is radiated
from the broil element. This
function is recommended for
single rack baking. Many
cookbooks contain recipes to
be cooked in the conventional
two-element bake
manner. Conventional baking/
roasting is particularly suitable for dishes that require a high
temperature. Use this setting for baking, roasting, and casseroles.
The bottom element operates
at full power, and the top broil
element operates at
supplemental power. The
heated air is circulated by the
motorized fan in the rear of the
oven providing a more even
heat distribution. This even
convection bake
circulation of air equalizes the
temperature throughout the oven cavity and eliminates the hot and
cold spots found in conventional ovens. A major benefit of convection
baking is the ability to prepare food in quantity using multiple racks—
a feature not possible in a standard oven.
When roasting using this setting, cool air is quickly replaced, searing
meats on the outside and retaining more juices and natural flavor on
the inside with less shrinkage. With this heating method, foods can be
baked and roasted at the same time with minimal taste transfer, even
when different dishes are involved, such as cakes, fish or meat. The hot
air system is especially economical when thawing frozen food. Use this
setting for baking and roasting.
30
The rear element only operates at
full power. There is no direct heat
from the bottom or top elements.
The motorized fan in the rear of
the oven circulates air in the oven
cavity for even heating. Use this
setting for foods that require
gentle cooking such as pastries,
souffles, yeast breads, quick
TruConvec™
breads and cakes. Breads, cookies,
and other baked goods come out evenly textured with golden crusts.
No special bakeware is required. Use this function for single rack
baking, multiple rack baking, roasting, and preparation of complete
meals. This setting is also recommended when baking large quantities
of baked goods at one time.
Baking Tips
• Make sure the oven racks are in the desired positions before you
turn the oven on.
• DO NOT open the oven door frequently during baking. If you must
open the door, the best time is during the last quarter of the baking
time.
• Bake to shortest time suggested and check for doneness before
adding more time. For baked goods, a stainless steel knife placed in
the center of the product should come clean when done.
• Use the pan size and type recommended by the recipe to ensure
best results. Cakes, quick breads, muffins, and cookies should be
baked in shiny, reflective pans for light, golden crusts. Avoid the use
of old, darkened pans. Warped, dented, stainless steel and tincoated pans heat unevenly and will not give uniform baking results.
Proofing
This setting is designed for allowing yeast dough to rise to a
temperature between 85°F (29°C) and 100°F ( 38°C). Yeast doughs rise
or “proof” best when the temperature is between 85°F (29°C) and 100°F
(38°C). To make sure the dough is warm enough, cover the bowl loosely
with plastic wrap and/or cloth towel. Turn the oven function selector to
“PROOF”. Turn Temperature control until the oven light comes on
(typically around 200 degrees on the knob setting). Note that the Proof
function is designed to keep the oven between 85°F and 100°F
regardless of what temperature the knob is set at. Place the bowl on the
center rack of the oven and close door. When you think the dough has
doubled in size, lightly poke 2 fingers about 1/2” (1.3 cm) into the
dough. If the indentation remains, the dough has risen enough.
31
Operation
Operation
CONV BAKE
(Convection Bake)
TRU CONV (TruConvec™)
Baking
Baking
Baking Chart
BREADS
Biscuits
Yeast loaf
Yeast rolls
Nut bread
Cornbread
Gingerbread
Muffins
Corn muffins
CAKES
Angel food
Bundt
Cupcakes
Layer, sheet
Layer, two
Pound
COOKIES
Brownies
Choc. chip
Sugar
PASTRY
Cream puffs
PIES
Crust, unfilled
Crust, filled
Lemon meringue
Pumpkin
Custard
ENTREES
Egg rolls
Fish sticks
Lasagna, frz
Pot pie
Gr. peppers stuffed
Quiche
Pizza, 12"
Mac. & cheese, frz
VEGETABLES
Baked potatoes
Spinach souffle
Squash
French fries
Pan Size
Single Rack
Position
Temp
Time
(min)
Cookie sheet
Loaf pan
Cookie sheet
Loaf pan
8" x 8"
8" x 8"
Muffin tin
Muffin tin
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
400˚ F (204.4˚ C)
375˚ F (190.6˚ C)
400˚ F (204.4˚ C)
375˚ F (190.6˚ C)
400˚ F (204.4˚ C)
350˚ F (176.7˚ C)
375˚ F (190.6˚ C)
375˚ F (190.6˚ C)
8 - 10
30 - 35
12 - 15
30 - 35
20 - 25
35 - 40
15 - 20
15 - 20
Tube pan
Tube pan
Muffin pan
13" x 9"
9" round
Loaf pan
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
375˚ F (190.6˚ C)
350˚ F (176.7˚ C)
350˚ F (176.7˚ C)
350˚ F (176.7˚ C)
350˚ F (176.7˚ C)
350˚ F (176.7˚ C)
35 - 45
45 - 55
16 - 20
40 - 50
30 - 35
60 - 65
13" x 9"
Cookie sheet
Cookie sheet
3 or 4
3 or 4
3 or 4
350˚ F (176.7˚ C) 25 - 30
375˚ F (190.6˚ C) 12 - 15
350˚ F (176.7˚ C) 10 - 12
Cookie sheet
3 or 4
400˚ F (204.4˚ C) 30 - 35
9" round
9" round
9" round
9" round
6 - 4 oz cups
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
425˚ F (218.3˚ C)
375˚ F (190.6˚ C)
350˚ F (176.7˚ C)
350˚ F (176.7˚ C)
350˚ F (176.7˚ C)
10 - 12
55 - 60
12 - 15
40 - 45
35 - 40
Cookie sheet
Cookie sheet
Cookie sheet
Cookie sheet
13" x 9"
9" round
Cookie sheet
Cookie sheet
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
3 or 4
400˚ F (204.4˚ C)
425˚ F (218.3˚ C)
375˚ F (190.6˚ C)
400˚ F (204.4˚ C)
375˚ F (190.6˚ C)
400˚ F (204.4˚ C)
400˚ F (204.4˚ C)
375˚ F (190.6˚ C)
12 - 15
18 - 21
65 - 70
35 - 40
65 - 70
25 - 30
15 - 20
60 - 65
On rack
1 qt. casserole
Cookie sheet
Cookie sheet
3 or 4
3 or 4
3 or 4
3 or 4
375˚ F (190.6˚ C)
350˚ F (176.7˚ C)
375˚ F (190.6˚ C)
425˚ F (218.3˚ C)
60 - 65
45 - 50
50 - 55
15 - 20
*Note: The above information is given as a guide only.
32
Food
BREADS
Biscuits
Yeast loaf
Yeast rolls
Nut bread
Cornbread
Gingerbread
Muffins
Corn muffins
CAKES
Angel food
Bundt
Cupcakes
Layer, sheet
Layer, two
Pound
COOKIES
Brownies
Choc. chip
Sugar
PASTRY
Cream puffs
PIES
Crust, unfilled
Crust, filled
Lemon meringue
Pumpkin
Custard
ENTREES
Egg rolls
Fish sticks
Lasagna, frz
Pot pie
Gr. peppers stuffed
Quiche
Pizza, 12"
Mac. & cheese, frz
VEGETABLES
Baked potatoes
Spinach souffle
Squash
French fries
Pan Size
Single Rack
Position
Temp
Time
(min)
Cookie sheet
Loaf pan
Cookie sheet
Loaf pan
8" x 8"
8" x 8"
Muffin tin
Muffin tin
2&4
2&4
2&4
2&4
2&4
2&4
2&4
2&4
375˚ F (190.6˚ C)
350˚ F (176.7˚ C)
375˚ F (190.6˚ C)
350˚ F (176.7˚ C)
375˚ F (190.6˚ C)
325˚ F (162.8˚ C)
350˚ F (176.7˚ C)
350˚ F (176.7˚ C)
7-9
20 - 25
11 - 13
20 - 25
15 - 20
30 - 35
12 - 15
0 - 12
Tube pan
Tube pan
Muffin pan
13" x 9"
9" round
Loaf pan
3 or 4
3 or 4
2&4
2&4
2&4
2&4
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
30 - 35
35 - 40
15 - 17
30 - 32
25 - 30
5 - 50
13" x 9"
Cookie sheet
Cookie sheet
2&4
2,3,& 4
2,3,& 4
325˚ F (162.8˚ C)
350˚ F (176.7˚ C)
325˚ F (162.8˚ C)
20 -25
7 -10
9-10
Cookie sheet
2&4
375˚ F (190.6˚ C)
4 - 27
9" round
9" round
9" round
9" round
6 - 4oz cups
2&4
2&4
2&4
2&4
2&4
400˚ F (204.4˚ C) 7 - 9
350˚ F (176.7˚ C) 50 - 55
325˚ F (162.8˚ C) 4 - 5
325˚ F (162.8˚ C) 35 - 45
325˚ F (162.8˚ C) 30 - 35
Cookie sheet
Cookie sheet
Cookie sheet
Cookie sheet
13" x 9"
9" round
Cookie sheet
Cookie sheet
2&4
2&4
2&4
2&4
2&4
2&4
2&4
3 or 4
375˚ F (190.6˚ C)
400˚ F (204.4˚ C)
350˚ F (176.7˚ C)
375˚ F (190.6˚ C)
350˚ F (176.7˚ C)
375˚ F (190.6˚ C)
375˚ F (190.6˚ C)
350˚ F (176.7˚ C)
8 - 10
13 -16
60 - 65
10 - 12
45 - 50
20 - 25
10 - 12
45 - 50
On rack
1 qt. casserole
Cookie sheet
Cookie sheet
3 or 4
3 or 4
3 or 4
3 or 4
350˚ F (176.7˚ C)
325˚ F (162.8˚ C)
350˚ F (176.7˚ C)
400˚ F (204.4˚ C)
45 - 50
35 - 40
40 - 45
10 - 15
*Note: The above information is given as a guide only.
33
Operation
Operation
Food
Convection Baking Chart
Solving Baking Problems
Roasting
Baking problems can occur for many reasons. Check the chart below for
the causes and remedies for the most common problems. It is important
to remember that the temperature setting and cooking times you are
accustomed to using with your previous oven may vary slightly from
those required with this oven. If you find this to be true, it is necessary
for you to adjust your recipes and cooking times accordingly.
CONV ROAST*
(Convection Roast)
Problems
Cause
Remedy
Cakes burned on the
sides or not done
in center
1. Oven was too hot
2. Wrong pan size
3. Too many pans
1. Reduce temperature
2. Use recom. pan size
3. Reduce no. of pans
Cakes crack on top
1. Batter too thick
2. Oven too hot
3. Wrong pan size
1. Follow recipe
Add liquid
2. Reduce temperature
3. Use recom. pan size
Cakes are not level
1. Batter uneven
1. Distribute batter even
2. Oven or rack not level 2. Level oven or rack
3. Pan was warped
3. Use proper pan
Food too brown on
bottom
1. Oven door opened
too often
2. Dark pans being used
3. Incorrect rack position
4. Wrong bake setting
5. Pan too large
1. Use door window to
check food
2. Use shiny pans
3. Use recom. rack position
4. Adjust to conventional
or convection setting
as needed
5. Use proper pan
Food too brown on
top
1.
2.
3.
1.
1.
2.
3.
1.
Cookies too flat
Rack position too high
Oven not preheated
Sides of pan too high
Hot cookie sheet
Use recom. rack position
Allow oven to preheat
Use proper pans
Allow sheet to cool
between batches
Pies burned around
edges
1. Oven too hot
2. Too many pans used
3. Oven not preheated
1. Reduce temperature
2. Reduce no. of pans
3. Allow oven to preheat
Pies too light on top
1. Oven not hot enough
2. Too many pans used
3. Oven not preheated
1. Increase temperature
2. Reduce no. of pans
3. Allow oven to preheat
34
*Note: This function uses a high-speed convection fan for optimum
cooking performance. Some noise may be noticed from this high fan
speed. This is normal.
Note: You can also roast foods using bake settings. See the “Baking”
section for additional information.
Roasting Tips
ALWAYS use the broiler pan and grid supplied with each oven. The
hot air must be allowed to circulate around the item being roasted.
DO NOT cover what is being roasted. Convection roasting seals in
juices quickly for a moist, tender product. Poultry will have a light,
crispy skin and meats will be browned, not dry or burned. Cook meats
and poultry directly from the refrigerator. There is no need for meat or
poultry to stand at room temperature.
• As a general rule, to convert conventional recipes to convection
recipes, reduce the temperature by 25°F (-3.9°C) and the cooking
time by approximately 10 to 15%.
• ALWAYS roast meats fat side up in a shallow pan using a roasting
rack. No basting is required when the fat side is up. DO NOT add
water to the pan as this will cause a steamed effect. Roasting is a dry
heat process.
• Poultry should be placed breast side up on a rack in a shallow pan.
Brush poultry with melted butter, margarine, or oil before and during
roasting.
• For convection roasting, DO NOT use pans with tall sides as this will
interfere with the circulation of heated air over the food.
• If using a cooking bag, foil tent, or other cover, use the conventional
bake setting rather than either convection setting.
35
Operation
Operation
Common Baking Problems/Remedies
The convection element runs in
conjunction with the inner and
outer broil elements. The
reversible convection fan runs at
a higher speed in each
direction. This transfer of heat
(mainly from the convection
element) seals moisture inside
convection roast
of large roasts. A time savings is
gained over existing, single fan convection roast modes. Use this
setting for whole turkeys, whole chickens, hams, etc.
Roasting
Roasting
Roasting Tips (cont.)
Conventional Roasting Chart
(when using the Bake or Convection Bake setting)
Food
BEEF
Rib roast
Rare
Medium
Well done
Rump roast
Medium
Well done
Tip roast
Medium
Well done
LAMB
Lamb leg
PORK
Pork loin
Pork chops
1" thick
Ham, fully
cooked
POULTRY
Chicken, whole
Turkey,
unstuffed
Turkey
Turkey, stuffed
Turkey, stuffed
Turkey breast
Weight
Temp
Time
(min/lb)
Internal
Temp
4 - 6 lbs
4 - 6 lbs
4 - 6 lbs
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
25
30
40
140˚ F (60.0˚ C)
155˚ F (68.3˚ C)
170˚ F (76.7˚ C)
4 - 6 lbs
4 - 6 lbs
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
25
30
155˚ F (68.3˚ C)
170˚ F (76.7˚ C)
3 - 4 lbs
3 - 4 lbs
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
35
40
155˚ F (68.3˚ C)
170˚ F (76.7˚ C)
3 - 5 lbs
325˚ F (162.8˚ C)
30
180˚ F (82.2˚ C)
35
55 - 60
total time
180˚ F (82.2˚ C)
N/A
18
130˚ F (54.4˚ C)
3 - 4 lbs
375˚ F (190.6˚ C)
12 - 16 lbs 325˚ F (162.8˚ C)
30
16 - 20
180˚ F (82.2˚ C)
180˚ F (82.2˚ C)
20 - 24 lbs
12 - 16 lbs
20 - 24 lbs
4 - 6 lbs
16 - 20
17 - 21
17 - 21
20
180˚ F (82.2˚ C)
180˚ F (82.2˚ C)
180˚ F (82.2˚ C)
180˚ F (82.2˚ C)
3 - 5 lbs
325˚ F (162.8˚ C)
1 -1 1/4 lbs 350˚ F (176.7˚ C)
5 lbs
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
Note: The above information is given as a guide only.
36
37
Operation
Operation
• When using a meat thermometer, insert the probe halfway into the
center of the thickest portion of the meat. (For poultry insert the
thermometer probe between the body and leg into the thickest part
of the inner thigh.) The tip of the probe should not touch bone,
fat, or gristle to ensure an accurate reading. Check the meat
temperature halfway through the recommended roasting time. After
reading the thermometer once, insert it 1⁄2 inch (1.3 cm) further into
the meat, then take a second reading. If the second temperature
registers below the first, continue cooking the meat.
• Roasting times ALWAYS vary according to the size, shape and quality
of meats and poultry. Less tender cuts of meat are best prepared in
the conventional bake setting and may require moist cooking
techniques. Remove roasted meats from the oven when the
thermometer registers 5°F (-15°C) to 10˚ F (-12°C) lower than the
desired doneness. The meat will continue to cook after removal from
the oven. Allow roasts to stand 15 to 20 minutes after roasting in
order to make carving easier.
Broiling
Roasting
Convection Roasting Chart
BEEF
Rib roast
Rare
Medium
Well done
Rump roast
Medium
Well done
Tip roast
Medium
Well done
LAMB
Lamb leg
PORK
Pork loin
Pork chops
1" thick
Ham, fully
cooked
POULTRY
Chicken, whole
Turkey,
unstuffed
Turkey
Turkey, stuffed
Turkey, stuffed
Turkey breast
Weight
Temp
Time
(min/lb)
Internal
Temp
4 - 6 lbs
4 - 6 lbs
4 - 6 lbs
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
25
24
30
140˚ F (60.0˚ C)
155˚ F (68.3˚ C)
170˚ F (76.7˚ C)
4 - 6 lbs
4 - 6 lbs
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
20
24
155˚ F (68.3˚ C)
170˚ F (76.7˚ C)
3 - 4 lbs
3 - 4 lbs
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
30
35
155˚ F (68.3˚ C)
170˚ F (76.7˚ C)
*Note: This function uses a high-speed convection fan for optimum
cooking performance. Some noise may be noticed from this high fan
speed. This is normal.
3 - 5 lbs
325˚ F (162.8˚ C)
30
180˚ F (82.2˚ C)
HI BROIL
30
45 - 50
total time
180˚ F (82.2˚ C)
N/A
325˚ F (162.8˚ C)
15
130˚ F (54.4˚ C)
3-4 lbs
350 (176.7 C)
12 - 16 lbs 325˚ F (162.8˚ C)
25
11
180˚ F (82.2˚ C)
180˚ F (82.2˚ C)
11
9 - 10
9 - 10
20
180˚ F (82.2˚ C)
180˚ F (82.2˚ C)
180˚ F (82.2˚ C)
180˚ F (82.2˚ C)
3 - 5 lbs 325˚ F (162.8˚ C)
1 -1 1/4 lbs 325˚ F (162.8˚ C)
5 lbs
20 - 24 lbs
12 - 16 lbs
20 - 24 lbs
4 - 6 lbs
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
325˚ F (162.8˚ C)
Note: The above information is given as a guide only.
38
The top element operates at full
power. This function is exactly
the same as regular broiling with
the additional benefit of air
circulation by the motorized fan
in the rear of the oven. Smoke is
reduced since the airflow also
reduces peak temperatures on
the food. Use this setting for
broiling thick cuts of meats.
convection broil
Heat radiates from both broil
elements, located in the top of
the oven cavity, at full power.
The distance between the foods
and the broil elements
determines broiling speed. For
fast broiling, food may be as
close as 2 inches (5 cm) to the
broil element or on the top rack.
high broil
Fast broiling is best for meats
where rare to medium doneness is desired. Use this setting for broiling
small and average cuts of meat.
MED BROIL
Inner and outer broil elements
pulse on and off to produce less
heat for slow broiling. Allow
about 4 inches (10 cm) between
the top surface of the food and
the broil element. Slow broiling
is best for chicken and ham in
order to broil food without overbrowning it. Use this setting for
broiling small and average cuts
of meat.
medium broil
39
Operation
Operation
Food
CONV BROIL*
(Convection Broil)
Broiling
LOW BROIL
Broiling Tips
This mode uses only a fraction
of the available power to the
inner broil element for delicate
top-browning. The inner broil
element is on for only part of
the time. Use this setting to
gently brown meringue on racks
3 or 4 in 3-4 minutes.
Conventional broiling (LOW, MED or HI BROIL) is most successful for
cuts of meat 1-2 inches thick and is also more suitable for flat pieces of
meat. Convection broiling has the advantage of broiling food slightly
quicker than conventional. Convection broiling of meats produces
better results, especially for thick cuts. The meat sears on the outside
and retains more juices and natural flavor inside with less shrinkage.
• ALWAYS use a broiler pan and grid for broiling. They are designed
to provide drainage of excess liquid and fat away from the cooking
surface to help prevent splatter, smoke, and fire.
• To keep meat from curling, slit fatty edge.
• Brush chicken and fish with butter several times as they broil to
prevent drying out. To prevent sticking, lightly grease broiler tray.
• Broil on first side for slightly more than half the recommended time,
season, and turn. Season second side just before removing.
• ALWAYS pull rack out to stop position before turning or removing
food.
• Use tongs or a spatula to turn meats. NEVER pierce meat with a
fork, as this allows the juices to escape.
• Remove the broiler pan from the oven when you remove the food.
Drippings will bake onto the pan if it is left in the heated oven after
broiling. While pan is hot, place damp paper towel over grid. Drizzle
with liquid dishwashing detergent and pour water over grid. This will
make cleaning of the pan easier, or the broiler pan can be lined with
aluminum foil to make cleaning easier. Be sure the foil extends up
the side of the pan. Although it is not recommended, the grid can
also be covered with foil. Be sure to slit openings to conform with
the openings in the grid so melted fat can drain through to prevent
spattering, smoking, or the possibility of grease fire.
To Use Broil or Convection Broil
Rack Positions for Broiling
1. Arrange the oven rack in the desired position before turning
broiler on.
Note: Position 6 is the closest to the broiler and position 1 is the
closest to the oven bottom.
low broil
Broiling Instructions
Operation
Broiling is a dry-heat cooking method using direct or radiant heat.
It is used for small, individualized cuts such as steaks, chops, and
patties. Broiling speed is determined by the distance between the
food and the broil element. Choose the rack position based on desired
results.
2. Center the food on cold broiler pan and grid supplied with your
oven. Place broiler pan in oven.
3. Set the oven function selector to desired broiling function and the
temperature control knob to “Broil”.
4. Close the door. There is not a detent to hold the door in the open
broil stop position. With open door broiling the broil element does
not cycle on and off. With closed door broiling the broil element
might cycle on and off if an extended broiling time is required. A
built-in smoke "eliminator" in the top of the oven helps reduce
smoke and odors.
40
95%
80%
65%
50%
35%
25%
6
5
4
3
2
1
41
Operation
Broiling
Broiling
Convection Dehydrate/Defrost
Broiling Chart
Weight
BEEF
Sirloin, 1"
Rare
12 oz
Medium
12 oz
Well done
12 oz
T-Bone, 3/4"
Rare
10 oz
Medium
10 oz
Well done
10 oz
Hamburger, 1/2"
Rare
1/4 lb.
Medium
1/4 lb.
Well done
1/4 lb.
CHICKEN
Bnls breast
1 lb.
Bone-in breast
2 - 2 1/2 lb.
Chicken pieces
2 -2 1/2 lb.
HAM
Ham slice, 1"
1 lb.
LAMB
Rib chops, 1"
12 oz.
Shoulder
1 lb.
PORK
Loin chops, 3/4"
1 lb.
Bacon
FISH
Salmon steak
1 lb.
Fillets
1 lb.
Setting
Rack
Time
(min)
Conventional Broil
Conventional Broil
Conventional Broil
5
5
5
7
9
11
Conventional Broil
Conventional Broil
Conventional Broil
5
5
5
5
7
9
Convection Broil
Convection Broil
Convection Broil
5
5
5
4
7
9
Convection Broil
Conventional Broil
Convection Broil
4
4
4
18
20
18 (min/lb)
Conventional Broil
4
22
Convection Broil
Convection Broil
5
5
7
6
Convection Broil
Conventional Broil
4
4
14
6
Convection Broil
Convection Broil
5
5
7
6
DANGER
This oven is designed not only to cook, but also to dehydrate fruits
and vegetables.
1. Prepare the food as recommended.
2. Arrange the food on drying racks (not included with the oven;
contact a local store handling speciality cooking utensils).
3. Set the appropriate low temperature and turn the selector to “TRU
CONV”.
CAUTION
You must carefully check the food during the dehydration process to
ensure that it does not catch fire.
Convection Defrost
1. Place the frozen food on a baking sheet.
2. Set the temperature control to “OFF”.
3. Turn the selector to “TRU CONV”.
Note: The above information is given as a guide only.
42
WARNING
To avoid sickness and food waste, DO NOT allow defrosted food to
remain in the oven for more than two hours.
NOTICE
FOR YOUR
SAFETY
DO NOT turn the Temperature Control on during defrosting. Turning
the convection fan on will accelerate the natural defrosting of the food
without the heat.
43
Operation
Operation
Type and
Cut of Meat
Convection Dehydrate
Cooking Substitutes Charts
Cleaning and Maintenance
In many cases, a recipe requires an ingredient which is not readily
available or calls for a unit of measure that is not easily recognized.
The following charts have been provided as useful guides in these
situations.
Any piece of equipment works better and lasts longer when
maintained properly and kept clean. Cooking equipment is no
exception. Your range must be kept clean and maintained properly.
Before cleaning, make sure all controls are in the “OFF” position.
Disconnect power if you are going to clean thoroughly with water.
Ingredient Substitutes
Surface Burners
Recipe calls for:
Substitute with:
1 tbsp. cornstarch
2 tbsp. flour (thickening)
1 whole egg
2 egg yolks plus 1 tbsp. water
1 c. whole milk
1 c. skim milk plus 2 tbsp. margarine or
1/2 c. evaporated milk plus 1/2 c. water
Burner
grate
1 oz. unsweetened chocolate 3 tbsp. cocoa powder plus 1 tbsp. margarine
1 tbsp. baking powder
1/2 tsp. cream of tartar plus 1/4 tsp. baking soda
1/2 c. butter
7 tbsp. margarine or shortening
1 c. dairy sour cream
1 tbsp. lemon juice plus 1 c. evaporated milk
Operation
Canned Food Sizes
Can Size
Contents
Can Size
Contents
8 oz.
1 c.
No. 303
2 c.
Picnic
1-3/4 c.
No. 2
2-1/2 c.
No. 300
1-3/4 c.
No. 3
4c
No. 1 tall
2 c.
No. 10
12 c.
Kitchen Equivalent and Metrics
Burner
cap
Igniter
Burner
head
Burner
base*
* Note: When replacing burner head, arrow must be pointing towards
back of range.
Wipe up spill-overs as soon as possible after they occur and before
they get a chance to burn in and cook solid. In the event of a
spill-over, follow these steps:
• Allow the burner and grate to cool to a safe temperature level.
• Lift off the burner grate. Wash in warm soapy water.
• Remove the burner cap and burner head and clean.
Equivalent
Metric*
1 tbsp.
3 tsp
15 mL
Burner Caps
2 tbsp.
1 oz
30 mL
1 jig.
1-1/2 oz
45 mL
1/4 c.
4 tbsp.
60 mL
1/3 c.
1/2 c.
5 tbsp. plus 1 tsp.
8 tbsp.
80 mL
125 mL
1 c.
16 tbsp.
250 mL
1 pt.
2 c.
30 g
1 lb.
16 oz
454 g
The surface burner caps should be routinely removed and cleaned.
ALWAYS clean the burner caps after a spill-over. Keeping the burner
caps clean will prevent improper ignition and uneven flames. To clean,
pull burner cap straight up from the burner base. Wipe off surface
burner caps with warm, soapy water and a soft cloth after each use.
Use a non-abrasive cleanser such as Bon Ami™ and a soft brush or soft
Scotch Brite™ pad for cooked-on foods. Dry thoroughly after cleaning.
For best cleaning and to avoid possible rusting, DO NOT clean in
dishwasher or self-cleaning oven.
2.21 lb.
35.3 oz
1 kg
*Note: Rounded for easier measuring.
44
45
Product Care
Measure
Cleaning and Maintenance
Cleaning and Maintenance
WARNING
Burner Head
Control Knobs
If ports on burner head are clogged, clean with a straight pin.
DO NOT enlarge or distort the ports. DO NOT use a toothpick to
clean the ports. When replacing burner head, carefully align the 2 tabs
underneath the burner head with the outside edge of burner base.
Make sure the tabs are not aligned with the igniter and the burner cap
is level.
MAKE SURE ALL THE CONTROL KNOBS POINT TO THE OFF
POSITION BEFORE REMOVING. Pull the knobs straight off. Wash in
detergent and warm water. Dry completely and replace by pushing firmly
onto stem.
Note: For stubborn stains, use a non abrasive cleanser such as Bon
Ami™ and a soft brush or soft Scotch Brite™ pad.
Cleaning Tip: For difficult to clean burner caps and heads, place parts
in a zip seal bag with ammonia.
Burner Base
The base should be wiped regularly with hot soapy water at the end of
each cooling period. DO NOT use steel wool, abrasive cloths, cleanser,
or powders. To remove encrusted materials, soak the area with a hot
towel to loosen the material, then use a wooden nylon spatula.
DO NOT use a metal knife, spatula, or any other metal tool to scrape
the aluminum base.
• Wipe up any spills which remain on the sealed top surface.
• Replace burner cap, burner head, and grates after drying thoroughly.
Control Panel
Stainless Steel Parts
All stainless steel body parts should be wiped regularly with hot soapy
water at the end of each cooling period and with a liquid cleaner
designed for that material when soapy water will not do the job. DO
NOT use steel wool, abrasive cloths, cleansers, or powders. If necessary,
scrape stainless steel to remove encrusted materials, soak the area with
hot towels to loosen the material, then use a wooden or nylon spatula or
scraper. DO NOT use a metal knife, spatula, or any other metal tool to
scrape stainless steel. DO NOT permit citrus or tomato juice to remain
on stainless steel surface, as citric acid will permanently discolor stainless
steel. Wipe up any spills immediately.
DANGER
Brass Parts
CAUTION
All special ordered brass parts are coated with an epoxy coating.
DO NOT USE BRASS CLEANERS OR ABRASIVE CLEANERS ON
ANY BRASS PARTS. All brass body parts should be wiped regularly
with hot soapy water. When hot soapy water will not do the job, use
every day household cleaners that are not abrasive.
DO NOT use any cleaners containing ammonia or abrasives. They
could remove the graphics from the control panel. Use hot, soapy
water and a soft clean cloth.
Broiler Pan and Grid
Oven Surfaces
Clean with detergent and hot water. For stubborn spots, use a soap-filled
steel wool pad.
Oven Racks
Clean with detergent and hot water. Stubborn spots can be scoured
with a soap-filled steel wool pad. DO NOT CLEAN THE OVEN RACKS
OR RACK SUPPORT USING THE SELF-CLEAN CYCLE. They could
sustain damage due to the extreme heat of the Self-Clean cycle.
FOR YOUR SAFETY
46
47
Product Care
Product Care
Several different finishes have been used in your oven.
Your oven features a self-clean cycle for the oven interior. See the
“Self-Clean Cycle” section for complete instructions. NEVER USE
AMMONIA, STEEL WOOL PADS OR ABRASIVE CLOTHS, CLEANSERS,
OVEN CLEANERS, OR ABRASIVE POWDERS. THEY CAN
PERMANENTLY DAMAGE YOUR OVEN.
Cleaning and Maintenance
Self-Clean Cycle
Power Failure
This oven features an automatic pyrolytic self-cleaning cycle. During
this cycle, the oven reaches elevated temperatures in order to burn-off
soil and deposits. An integral smoke eliminator helps reduce odors
associated with the soil burn-off. A powder ash residue is left in the
bottom of the oven after completion of the self-clean cycle. The door
latch is automatically activated after selecting the self-clean setting.
The latch ensures that the door cannot be opened while the oven
interior is at clean temperatures.
If power failure occurs, the electric igniters will not work. No attempt
should be made to operate the appliance during a power failure. Make
sure the oven control is in the “OFF” position.
WARNING
POWER FAILURE WARNING
Due to safety considerations and the possibility of personal injury in
attempting to light and extinguish the burner, the grill should, not under
any circumstances, be used during a power failure. The grill burner
control should always remain in the “OFF” position during a power failure.
Momentary power failure can occur unnoticed. The range is affected only
when the power is interrupted. When it comes back on, the range will
function properly without any adjustments. A “brown-out” may or may
not affect range operation, depending on how severe the power loss is.
If the range is in the self-clean cycle when the power failure occurs, wait
until power is restored and allow door to unlock automatically. Turn all
controls off and restart self-clean cycle again, according to instructions.
DANGER
Before starting the Self-Clean cycle:
WARNING
1. Remove the oven racks, and any other items/utensils from the oven.
The high heat generated during the cleaning cycle can discolor,
warp, and damage these items. DO NOT use foil or liners in the
oven. During the self-clean cycle, foil can burn or melt and damage
the oven surface.
2. Wipe off any large spills from the oven bottom and sides. NEVER
use oven cleaners inside a self-cleaning oven or on raised portions
of the door.
3. Some areas of the oven must be cleaned by hand before the cycle
begins. Soils in these areas will be baked on and very difficult to
clean if not removed first. Clean the door up to the gasket, the
door frame, and up to 2 inches inside the frame with detergent and
hot water. Rinse thoroughly and dry.
DANGER
WARNING
CAUTION
BURN OR ELECTRICAL SHOCK HAZARD
Make sure all controls are OFF and oven is COOL before cleaning.
Failure to do so can result in burns or electrical shock.
CAUTION
Product Care
48
49
Product Care
DO NOT touch the exterior portions of the oven after self-cleaning
cycle has begun, since some parts become extremely hot to the touch!
During the first few times the self-cleaning feature is used, there may
be some odor and smoking from the curing of the binder in the highdensity insulation used in the oven. When the insulation is thoroughly
cured, this odor will disappear. During subsequent self-cleaning
cycles, you may sense an odor characteristic of high temperatures.
Keep the kitchen well-vented during the self-cleaning cycle.
Self-Clean Cycle
To start the Self-Clean cycle:
1. Close the door completely.
2. Turn the oven selector knob clockwise to the “SELF CLEAN” mode.
3. Turn the temperature control knob past the clean setting until the
knob stops. At this time, the clean indicator light will come on.
Within 30 seconds the automatic door latch engages and the oven
indicator light comes on. The oven indicator light will remain on
until the oven reaches the self-clean temperature and will then cycle
on and off during the self-clean cycle. When the oven reaches the
elevated temperature needed for self-clean, the door lock indicator
light comes on.
4. The door lock indicator light will remain on until the self-clean is
completed or interrupted and the oven temperature drops to a safe
temperature. A complete cycle is approximately 3-1/2 hours with an
additional 30 minutes needed for the oven to cool down enough
for the door latch to disengage.
Note: A fan noise will be heard during the self-clean cycle and will
continue to run for the 3-1/2 hour duration of the self-clean cycle.
Note: On griddle model ranges, the griddle/simmer plate will not
function during the self-clean cycle.
5. When the cycle is completed, turn both the oven selector and
temperature control knob to the “OFF” position. When the oven
has completely cooled, open door and remove any ash from the
oven surfaces with a damp cloth.
To stop the Self-Clean cycle:
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect the electric power at the main fuse or circuit
breaker before replacing bulb.
WARNING
DO NOT touch bulb with bare hands. Clean off any signs of oil from
the bulb and handle with a soft cloth.
DANGER
DO NOT touch bulb with bare hands. Clean off any signs of oil from
the bulb and handle with a soft cloth.
glass light
cover
1. Unsnap glass light cover
using a screwdriver in the
access groove.
DANGER
2. Firmly grasp light bulb and
pull out.
access
groove
CAUTION
3. Replace with halogen bulb
using volt and wattage
requirements listed on glass
cover.
4. Replace the light cover by
snapping glass cover onto
metal box.
light
bulb
CAUTION
5. Reconnect power at the main
fuse or circuit breaker.
FOR YOUR SAFETY
50
51
Product Care
Product Care
To cancel or interrupt the self-cleaning cycle, turn both the
temperature control knob and the oven function selector knob to
“OFF”. When the oven temperature drops to a safe temperature, the
automatic door latch will release and the oven door can be opened.
When the oven has completely cooled, remove any ash from the oven
surfaces with a damp sponge or cloth.
Replacing Oven Lights
Door Removal
Door Replacement and Adjustment
WARNING
1
TO PREVENT
PERSONAL INJURY
2
1
Before removing the doors,
make sure the pins are properly
installed in the hinges. Failure
to do so can result in personal
injury to hands and/or fingers.
Open door completely.
Place pin in pin hole.
3
2
Remove hinge trim screws
and hinge trim.
Open door completely.
Reinstall hinge trim.
3
Close until pins stop door.
4
Remove pins from hole in hinges.
Close door.
5
4
Lift door up and out.
If the door needs to be adjusted, loosen hinge
trim screws located in step 2. Adjust the screws
located between the door and kickplate
using a 5/32” hex head allen wrench. After
adjustment, tighten hinge trim screws.
52
53
Product Care
Product Care
Reinstall door to range.
Troubleshooting
Problem
Possible Cause and/or Remedy
Range will not function.
Range is not connected to electrical power:
Have electrician check power circuit breaker,
wiring, and fuses.
Oven does not operate in
self-clean.
Door is not shut tight enough for automatic
door latch to lock.
Oven is not clean after selfclean cycle.
Temperature control knob not rotated all the
way past clean until it stops.
Broil does not work.
Temperature control knob is rotated too far
past broil position.
Door will not open.
Oven is still in self-clean mode. If oven is
hot, door latch will release when safe
temperature is reached.
Oven light will not work.
Light bulb is burned out.
Range is not connected to power.
Igniters will not work.
Circuit is tripped.
Fuse is blown.
Service Information
If service is required, call your dealer or authorized service agency.
The name of the authorized service agency can be obtained from the
dealer or distributor in your area.
Have the following information readily available.
• Model number
• Serial number
• Date purchased
• Name of dealer from whom purchased
Clearly describe the problem that you are having. If you are unable to
obtain the name of an authorized service agency, or if you continue
to have service problems, contact Viking Range Corporation at
1-888-VIKING1 (845-4641), or write to:
VIKING RANGE CORPORATION
PREFERRED SERVICE
1803 Hwy 82W
Greenwood, Mississippi 38930 USA
Record the information indicated below. You will
need it if service is ever required. The model and
serial number can be found by either tilting range
back or using a mirror to look underneath on the
front edge of the bottom base.
Range is not connected to power.
Igniters sparking but no
flame ignition.
Gas supply valve is in “OFF” position.
Gas supply is interrupted.
Igniters sparking
continuously after flame
ignition.
Burner ignites but flame is
large, distorted, or yellow.
Power supply is not grounded.
Model no. _____________________ Serial no. ________________________
Power supply polarity is reversed.
Date of purchase _______________ Date installed ___________________
Igniters are wet or dirty.
Dealer’s name __________________________________________________
Burner ports are clogged.
Address ________________________________________________________
Air shutters not properly adjusted.
_______________________________________________________________
If service requires installation of parts, use only authorized parts to
insure protection under the warranty.
Keep this manual for future reference.
54
55
Product Care
Product Care
Unit is being operated on wrong type of gas.
Notes
Warranty
PROFESSIONAL SERIES
FREESTANDING DUAL FUEL RANGES WARRANTY
ONE YEAR FULL WARRANTY
Freestanding dual fuel ranges and all of their component parts, except as detailed below*, are warranted to
be free from defective materials or workmanship in normal household use for a period of twelve (12) months
from the date of original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its
option, any part which fails or is found to be defective during the warranty period.
_____________________________________________________________________________________________________
*Glass (including light bulbs), painted and decorative items are warranted to be free from defective materials
or workmanship for a period of ninety (90) days from the date of original retail purchase. ANY DEFECTS MUST
BE REPORTED TO THE SELLING DEALER WITHIN NINETY (90) DAYS FROM DATE OF ORIGINAL RETAIL
PURCHASE.
_____________________________________________________________________________________________________
Viking Range Corporation uses the most up-to-date processes and best materials available to produce all color finishes.
However, slight color variation may be noticed because of the inherent differences in painted parts and porcelain parts
as well as differences in kitchen lighting, product locations, and other factors.
_____________________________________________________________________________________________________
FIVE YEAR LIMITED WARRANTY
Any surface burner, griddle burner, grill burner, or oven burner which fails due to defective materials or
workmanship in normal household use during the second through fifth year from the date of original retail
purchase will be repaired or replaced, free of charge for the part itself, with the owner paying all other costs,
including labor.
TEN YEAR LIMITED WARRANTY
Any porcelain oven or porcelain inner door panel which rusts through due to defective materials or
workmanship in normal household use during the second through the tenth year from the date of original
retail purchase will be repaired or replaced, free of charge for the part itself, with the owner paying all other
costs, including labor.
NINETY (90) DAY RESIDENTIAL PLUS WARRANTY
This warranty applies to applications where use of the product extends beyond normal residential use. Examples are,
but not limited to, bed and breakfasts, fire stations, private clubs, churches, etc. This warranty excludes all commercial
locations such as restaurants, food service locations and institutional food service locations.
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
This warranty extends to the original purchaser of the product warranted hereunder and to each transferee
owner of the product during the term of the warranty.
This warranty shall apply to products purchased and located in the United States and Canada. Products must
be purchased in the country where service is requested. Warranty labor shall be performed by an authorized
Viking Range Corporation service agency or representative. Warranty shall not apply to damage resulting from
abuse, accident, natural disaster, loss of electrical power to the product for any reason, alteration, outdoor use,
improper installation, improper operation, or repair or service of the product by anyone other than an
authorized Viking Range Corporation service agency or representative. This warranty does not apply to
commercial usage. Warrantor is not responsible for consequential or incidental damage whether arising out of
breach of warranty, breach of contract, or otherwise. Some jurisdictions DO NOT allow the exclusion or
limitation of incidental of consequential damages, so the above limitation or exclusion may not apply to you.
Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of
purchase upon request, and making the appliance reasonably accessible for service. If the product or one of its
component parts contains a defect or malfunction during the warranty period, after a reasonable number of
attempts by the warrantor to remedy the defects or malfunctions, the owner is entitled to either a refund or
replacement of the product or its component part or parts. Warrantor’s liability on any claim of any kind, with
respect to the goods or services covered hereunder, shall in no case exceed the price of the goods or service
or part thereof which gives rise to the claim.
WARRANTY SERVICE
Under the terms of this warranty, service must be performed by a factory authorized Viking Range Corporation
service agent or representative. Service will be provided during normal business hours, and labor performed at
overtime or premium rates shall not be covered by this warranty. To obtain warranty service, contact the dealer
from whom the product was purchased, an authorized Viking Range Corporation service agent, or Viking
Range Corporation. Provide model and serial number and date of original purchase. For the name of your
nearest authorized Viking Range Corporation service agency, call the dealer from whom the product was
purchased or Viking Range Corporation. IMPORTANT: Retain proof of original purchase to establish warranty
period.
The return of the Owner Registration Card is not a condition of warranty coverage. You should, however,
return the Owner Registration Card so that Viking Range Corporation can contact you should any question of
safety arise which could affect you.
Any implied warranties of merchantability and fitness applicable to the above described surface burner, griddle
burner, grill burner, oven burner, porcelain oven, or porcelain inner door panel are limited in duration to the
period of coverage of the applicable express written limited warranties set forth above. Some jurisdictions DO
NOT allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which may vary from
jurisdiction to jurisdiction.
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
_____________________________________________________________________________________________________
Specifications subject to change without notice.
56
57
58
59
Download PDF

advertising
