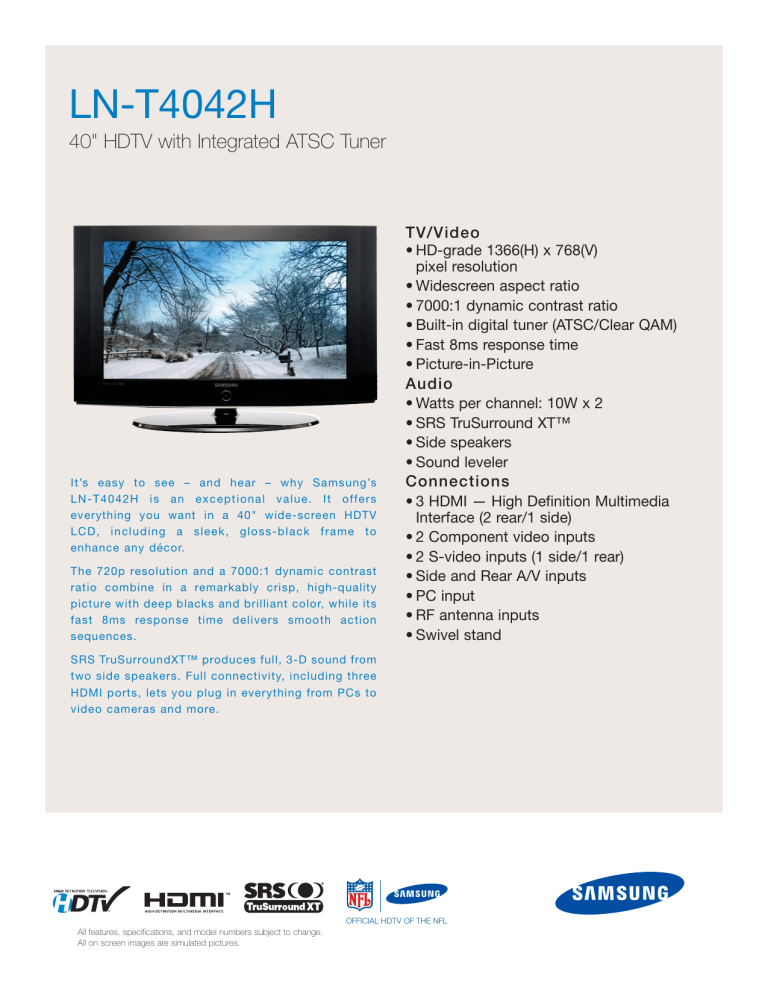

40" HDTV with Integrated ATSC Tuner
It’s easy to see – and hear – why Samsung’s
LN-T4042H is an exceptional value. It offers
everything you want in a 40" wide-screen HDTV
LCD, including a sleek, gloss-black frame to
enhance any décor.
The 720p resolution and a 7000:1 dynamic contrast
ratio combine in a remarkably crisp, high-quality
picture with deep blacks and brilliant color, while its
fast 8ms response time delivers smooth action
• HD-grade 1366(H) x 768(V)
pixel resolution
• Widescreen aspect ratio
• 7000:1 dynamic contrast ratio
• Built-in digital tuner (ATSC/Clear QAM)
• Fast 8ms response time
• Picture-in-Picture
• Watts per channel: 10W x 2
• SRS TruSurround XT™
• Side speakers
• Sound leveler
• 3 HDMI — High Definition Multimedia
Interface (2 rear/1 side)
• 2 Component video inputs
• 2 S-video inputs (1 side/1 rear)
• Side and Rear A/V inputs
• PC input
• RF antenna inputs
• Swivel stand
SRS TruSurroundXT™ produces full, 3-D sound from
two side speakers. Full connectivity, including three
HDMI ports, lets you plug in everything from PCs to
video cameras and more.
All features, specifications, and model numbers subject to change.
All on screen images are simulated pictures.
40" HDTV with Integrated ATSC Tuner
F e a t u re s
Widescreen Aspect Ratio
HD-Grade 1366 (H) x 768 (V) pixel
resolution: High resolution pixel
density with built-in image scaler to
handle inputs from a variety of digital
and analog audio/ video sources.
CCFL—Cold Cathode Fluorescent
Lamp: Provides colors in your picture
that were not available before.
170º(H)/170º(V) viewing angle
improves viewing angle, contrast,
and brightness to provide an even
better picture.
7000:1 contrast ratio/500nit
brightness: As two of the most
important determining factors in overall
picture quality, contrast and brightness
levels achieve new heights in this latest
generation LCD panel. Samsung’s
new LCD TV’s give the most stunning
realistic picture quality ever from a flat
panel set.
Wide Viewing Angle Panel
Built-in digital tuner: (ATSC/Clear
Picture-in-Picture (PIP) enables
convenient simultaneous viewing of TV
programs and video or PC sources.
Game Mode enhances dark areas,
sharpens the picture, speeds up the
image processing response and
enhances the sounds of your games.
Picture and sound quality optimized for
the special needs of gaming systems at
the touch of a button.
Response time: Fast 8ms response
time minimizes blurring of moving
V-Chip system1 allows blocking
of rated TV and movie programs
determined by the parent to contain
objectionable content.
Trilingual on-screen displays in
English, Spanish or French.
Variable sleep timer to turn the TV
off in varying time intervals.
SRS TruSurround XT™. TruSurround
is a patented SRS technology that
solves the problem of playing 5.1
multichannel content over two speakers. TruSurround delivers a compelling,
virtual surround sound experience
through any two-speaker playback
system, including internal television
speakers and headphones. It is fully
compatible with all multichannel
formats up to 5.1 channels.
Samsung Electronics America, Inc.
105 Challenger Road
Ridgefield Park, NJ 07660-0511
Tel (201) 229-4000 • 1-800-SAMSUNG
Stereo broadcast reception: (MTS
& SAP) with 181-channel capacity.
Side built-in speakers with 10 Watts x
2 audio power
Auto volume leveler keeps audio
volume consistent during channel
Side A/V ports provides easy
connections so you can connect a
camcorder, digital camera, or any other
digital device with no hassles.
Net dimensions and
weight (WxHxD)
Removable stand and VESA
compatible hole mounts: If you want
Dimensions: 47.2" x 31.6" x 15.2"
Weight: 60.6 lbs.
to install your TV on your wall, you can
easily remove the stand and use a
VESA compatible wall mount to safely
and stylishly attach your TV to the wall.
Auto wall mount compatible: 3dimensional operation via TV’s remote
control; no external IR receiver
without stand: 42.7" x 25.1" x 3.7"
without stand weight: 40.1 lbs.
with stand: 42.7" x 27.2" x 11.8"
with stand weight: 47.4 lbs.
Shipping information
O rd e r c o d e
Order code: LNT4042HX/XAA
UPC: 036725240421
Swivel Stand
HDMI (High-Definition Multimedia
Interface): 3
Component video: 2 (Y, Pb, Pr)
S-Video input: 1 side/1 rear
A/V inputs: 1 side/1 rear
PC input: 1
RF antenna inputs: 2
Headphone jack
Wa r r a n t y
1 year parts and 1 year labor warranty
(90 days parts and labor for commercial
use), with in-home service, backed by
Samsung toll-free support.
Panel: Wide (16:9) LCD
TV system: American NTSC
standard color
Channel coverage: VHF 2-13, UHF
14-69, CATV 1-125 (up to 181 preselected channels)
Antenna: CATV/VHF/UFH 75-ohm,
Watts per channel: 10W x 2
Feature dependent upon broadcasting of
information by local off-air TV and cable
HDMI, the HDMI logo and High Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
SRS TruSurround XT is a registered trademark
of SRS Labs, Inc.
©2007 NFL Properties LLC. All NFL-related
trademarks are trademarks of the National
Football League.
Design and specifications are subject to
change without notice. Non-metric weights
and measurements are approximate.
©2007 Samsung Electronics America, Inc.
All rights reserved Samsung is a registered
trademark of Samsung Electronics Co., Ltd.
All product and brand names are trademarks
or registered trademarks of their respective
307-SS Printed in USA
