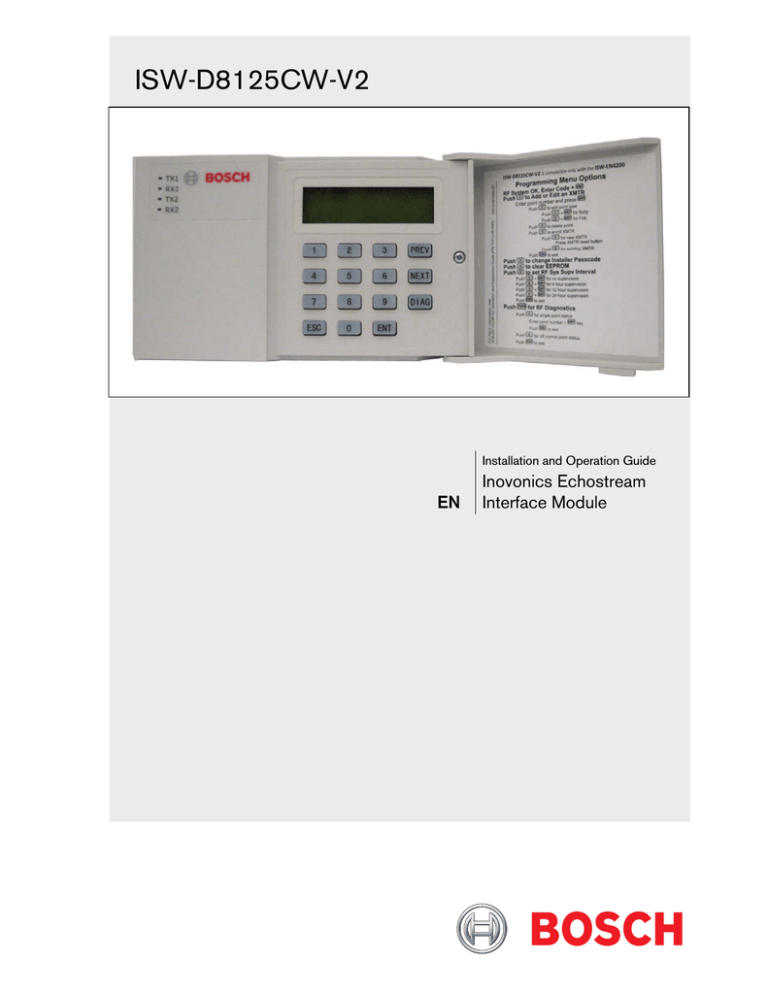

ISW-D8125CW-V2
Installation and Operation Guide
EN
Inovonics Echostream
Interface Module
ISW-D8125CW-V2 | Installation and Operation Guide | Contents
Contents
1.0
1.1
1.2
1.3
1.4
1.5
1.6
2.0
2.1
2.2
2.3
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
3.10
4.0
4.1
4.2
4.3
4.4
4.5
4.6
5.0
2
Overview ...............................................................................................................................................................3
FCC Compliance Notice, Part 15.........................................................................................................................3
Features ...................................................................................................................................................................3
Specifications ..........................................................................................................................................................4
Power.......................................................................................................................................................................4
System Supervision ................................................................................................................................................4
ISW-D8125CW-V2 Back View ............................................................................................................................4
Installation.............................................................................................................................................................5
Configuring the Commercial Wireless Interface Module..................................................................................5
Mounting the Commercial Wireless Interface Module .....................................................................................5
Wiring the Commercial Wireless Interface Module to the Control Panel and EN4200 Serial Receiver ....6
Operation ..............................................................................................................................................................9
Commercial Wireless Interface Module Quick Startup Recommendations ...................................................9
Labeling the Bosch Transmitters ..........................................................................................................................9
Keypad Overview ..................................................................................................................................................9
Initial Power-up ....................................................................................................................................................10
RF System OK .....................................................................................................................................................10
Call for Service.....................................................................................................................................................10
Factory Default Passcode ....................................................................................................................................10
Entering Invalid Passcodes..................................................................................................................................10
Keypad Menus .....................................................................................................................................................11
Other Programming Functions...........................................................................................................................15
Troubleshooting.................................................................................................................................................17
Troubleshooting Solutions ..................................................................................................................................17
EN4200 Receiver Supervision ............................................................................................................................19
Missing RF Transmitters .....................................................................................................................................19
Low Transmitter Battery Conditions .................................................................................................................19
Commercial Wireless Interface Module Power Cycle Operation ..................................................................19
Frequently Asked Questions ...............................................................................................................................19
Program Record Sheet .....................................................................................................................................21
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
ISW-D8125CW-V2 | Installation and Operation Guide | Overview
.
1.0 Overview
The ISW-D8125CW-V2 is an integrated commercial
wireless interface module and keypad. The keypad
accesses the programming and diagnostic functions of
the wireless portion of the system. The integrated
keypad on the commercial wireless interface module
looks different from the typical keypads (D1255,
D1256, D1257, and so on) so that it is not mistaken for
a system keypad.
The commercial wireless interface module must be
mounted within 5 ft of the control panel. It is designed
so that it is mounted right next to the D8103, D8108A
or D8109 enclosure.
The commercial wireless interface module is
compatible with the following control panels:
•
GV3 Series: D9412GV3, D7412GV3, D7212GV3
•
GV2 Series: D9412GV2, D7412GV2, D7212GV2
•
G Series: D9412G, D7412G, D7212G*
•
9000 Series: D9412, D9112*, D7412, D7212*
* These control panels must have Firmware 6.5 or later
installed (Firmware 6.51 or later for the D7212G).
All of the compatible control panels can have both
hardwired (D8128D OctoPOPITS, D8125 Popex /
D9127 POPITS, D8125MUX) and wireless points
connected at the same time.
To add wireless points, an Inovonics Echostream
EN4200 Serial Receiver must be connected to the
commercial wireless interface module which is then
connected to the control panel’s ZONEX 1 (and/or
ZONEX 2) terminals and Aux Power. For best
transmitter reception results, the EN4200 Serial
Receiver should be centrally located among the
transmitters. If transmitters are at too great of a
distance for the EN4200 Receiver to pick up the
transmission, install an EN5040-T RF Repeater.
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
1.1
FCC Compliance Notice, Part 15
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a commercial installation. This
equipment generates, uses, and can radiate radio
frequency energy, and, if not installed in accordance
with the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment on
and off, the user is encouraged to try to correct the
interference by one or more of the following measures:
1.
Reorient or relocate the receiving antenna.
2.
Increase the separation between the equipment
and the receiver.
3.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
4.
Consult the dealer or an experienced radio/TV
technician for help.
1.2
Features
•
The commercial wireless interface module features
a menu-driven user interface.
•
The commercial wireless interface module
supports the following number of Bosch
commercial wireless transmitters:
-
234 transmitters (117 per bus) on the D9112
and all versions of the D9412
65 transmitters on all versions of the D7412
32 transmitters on all versions of the D7212
Points 74 and 75 on ZONEX 1 and
Points 194 and 195 on ZONEX 2 cannot
be used for any device other than the
ISW-EN1224-ON Keyfob.
•
The commercial wireless interface module
provides diagnostic functions to troubleshoot RF
transmitters.
•
The commercial wireless interface module features
a fixed device check-in time of 3 minutes.
•
The commercial wireless interface module features
a programmable system supervision interval.
3
ISW-D8125CW-V2 | Installation and Operation Guide | Overview
1.3
Specifications
Table 1:
Commercial Wireless Interface
Module Specifications
Specification
User Interface
Operating
Voltage
Current
Operating
Temperature
Wiring
Dimensions
(HxWxD)
Value
- LCD Display: 2 lines x 16
characters, backlit
- Keypad: 0-9 numbers; ESC, ENT,
PREV, NEXT and DIAG keys
10.2 - 14 VDC supplied by Aux Power
from Control Panel or an External
Auxiliary Power Supply.
20 mA typical, 50 mA maximum
plus ≈ 60 mA for each EN4200 receiver
+32°F to +149°F (0°C to +65°C), 93%
Relative Humidity
18 AWG or 22 AWG Solid or Stranded.
Maximum distance from the control
panel to the commercial wireless
interface module cannot exceed 5 ft (1.5
m).
Maximum distance from
commercial wireless interface module to
EN4200 cannot exceed 100 ft (33 m).
3.94 in. x 6.5 in. x 1.2 in.
(10 cm x 16.6 cm x 3 cm)
For UL Listed installations, install the
commercial wireless interface module
within 20 ft (6 m) of, and within the same
room as, the EN4200 Serial Receiver.
1.4
•
All RF points will initialize in a normal state when
power is reapplied.
•
Alarms initiated prior to power loss would be
reset. If the alarm conditions persist when power is
restored, new alarms would be generated.
Programmed settings such as RF point
configuration will remain intact upon the
event of a power loss.
1.5
System Supervision
1.5.1
Watchdog
The commercial wireless interface module implements
a watchdog software. Failure of the program will result
in a software reset within two seconds. This may cause
a trouble condition on the control panel for the
duration of the reset.
1.5.2
Self-Testing
The commercial wireless interface module EEPROM
memory is automatically tested on a periodic basis.
The EEPROM checksum is verified every ten minutes.
If the EEPROM checksum fails, a point bus trouble
condition will be seen at the control panel.
1.6
ISW-D8125CW-V2 Back View
Refer to Figure 1 for an overview of the
ISW-D8125CW-V2 printed circuit board.
Figure 1:
8
1
Power
If the commercial wireless interface
module is powered down and then back
up, it may take up to a maximum of 5
minutes (Check-In Time is fixed at 3
minutes) for all the transmitters to report
back to the commercial wireless interface
module with their current status.
In addition, when the commercial wireless
interface module is powered up, all
programmed RF points will report Normal
until their state is updated.
The commercial wireless interface module’s power
should be connected to the control panel using the
Aux Power terminals. If the commercial wireless
interface module were to lose power, the following
conditions may result:
•
4
ISW-D8125CW-V2 Back View
2
7
3
4
6
12
3
4
5
6
7
8
5
Status LEDs (TX1, RX1, TX2, and RX2)
ZONEX BUS Terminals
RECEIVER 1 Terminals
RECEIVER 2 Terminals
Receiver (RCV) Selection Jumpers
Tamper Switch
LCD Contrast Adjustment
Built-in Sounder (indicates valid and invalid keypad entries)
All RF points will report to the control panel as
missing (trouble/alarm).
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
ISW-D8125CW-V2 | Installation and Operation Guide | Installation
.
2.0 Installation
The commercial wireless interface module
is packaged with a Point Label Sheet.
Save these, as you will use them when
identifying the point numbers on the
Bosch transmitters.
2.1
2.1.1
The commercial wireless interface module supports up
to two ISW-EN4200 Receivers.
By default, the commercial wireless interface module
supports one receiver. Refer to Figure 3 to set the RCV
pins.
Figure 3: Receiver (RCV) Pins Settings
Configuring the Commercial Wireless
Interface Module
P2
P1
1
1
Register (REG) Pins
By default, the commercial wireless interface module is
configured to register RF transmitters with a single
press of the transmitter’s reset button.
2
You can also configure the commercial wireless
interface module to require two presses of the RF
transmitter’s reset button to register the RF transmitter.
1
1
2
2
1
2
REG RCV
P2
Refer to Figure 2 to set the REG pins.
P1
2
REG RCV
Figure 2: Register (REG) Pins Settings
P2
1
1 - Setting for one receiver (default configuration)
2 Setting for two receivers
P1
1
2
1
2.2
2
1.
REG RCV
P2
P1
1
2
1
2
Mounting the Commercial Wireless
Interface Module
Select the knockout from the control panel
enclosure that will be used to route the wiring.
Figure 4: Enclosure Knockout Options
2
REG RCV
1 - Single-press setting (default configuration)
2 Double-press setting
2.1.2
Wire
Knockouts
Receiver (RCV) Pins
If you set the RCV jumper on the
commercial wireless interface module to
1 or remove the jumper plug from the
RCV pins, you can use only one receiver
and it must be connected to the Receiver
1 terminals on the commercial wireless
interface module. Refer to Figure 1 on
page 4 for the location of the RCV
jumper.
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
D8103 Enclosure shown.
2.
Select the location from which the commercial
wireless interface module’s wiring will be routed.
3.
Remove the base of the commercial wireless
interface module.
5
ISW-D8125CW-V2 | Installation and Operation Guide | Installation
Connect the wiring (refer to Figure 6 on page 7, or
Figure 7 on page 8) to the commercial wireless
interface module and mount the cover unit to the
base.
4.
Figure 5:
ISW-D8125CW-V2 Mounting Options
1
2
For best transmitter reception results, place the
EN4200 Serial Receiver in a central location among
the transmitters. If transmitters are too far away for the
receiver to pick up the transmission, install an
ISW-EN5040-T Commercial Wireless RF Repeater.
Certain installation configurations may require a
second EN4200 Receiver.
Refer to Figure 6 on page 7, and Figure 7 on page 8, for
proper wiring connections.
3
2
1
1 - Four-screw mounting holes
(for mounting on an electrical box)
2 Two-screw mounting holes
(for mounting on an electrical box or in control
panel enclosure)
3 Wire routing openings
2.3
Wiring the Commercial Wireless
Interface Module to the Control
Panel and EN4200 Serial Receiver
Disconnect all power to the control panel
and to the commercial wireless interface
module before starting any work with the
internal components.
For UL Listed installations, install the
commercial wireless interface module
within 20 ft (6 m) of, and within the same
room as, the EN4200 Serial Receiver.
The maximum distance from the control
panel to the commercial wireless interface
module cannot exceed 5 ft
(1.5 m).
6
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
ISW-D8125CW-V2 | Installation and Operation Guide | Installation
.
Figure 6: ISW-D8125CW-V2 to D9412 (GV3, GV2, and G) and D9112 Control Panel Wiring Diagram
TX
Vs
GND
RX
ZONEX OUT 1
28
ZONEX IN 1
27
ZONEX OUT 2
26
ZONEX IN 2
25
ZONEX POWER +
24
ZONEX COMMON
23
4
TX
Vs
GND
RX
3
ZONEX BUS
RECEIVER 1
GND
TX2
RX2
+12V
GND
TX1
RX1
+12V
OUT
GND
IN
+12V
5
RECEIVER 2
1
TX
Vs
GND
RX
6
TX
Vs
GND
RX
ZONEX BUS
GND
RX2
TX2
GND
RECEIVER 1
+12V
TX1
RX1
+12V
GND
IN
OUT
+12V
7
RECEIVER 2
2
1234567-
ISW-D8125CW-V2 connected to Zonex 1 on control panel (Points 9-127)
ISW-D8125CW-V2 connected to Zonex 2 on control panel (Points 129-247)
Control Panel
EN4200 Receiver (RECEIVER 1 on first ISW-D8125CW-V2)
EN4200 Receiver (RECEIVER 2 on first ISW-D8125CW-V2)
EN4200 Receiver (RECEIVER 1 on second ISW-D8125CW-V2)
EN4200 Receiver (RECEIVER 2 on second ISW-D8125CW-V2)
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
7
ISW-D8125CW-V2 | Installation and Operation Guide | Installation
Figure 7: ISW-D8125CW-V2 to D7412 and D7212 (GV3, GV2, and G) Control Panel Wiring Diagram
TX
Vs
2
GND
RX
ZONEX OUT 1
28
ZONEX IN 1
27
NOT USED
26
NOT USED
25
ZONEX POWER +
24
ZONEX COMMON
23
3
TX
Vs
GND
RX
ZONEX BUS
RECEIVER 1
RX2
GND
TX2
+12V
RX1
GND
TX1
+12V
GND
IN
OUT
+12V
4
RECEIVER 2
1
1- ISW-D8125CW-V2 connected to Zonex 1 on control panel (Points 9-127)
(D7412: Points 9-75; D7212: Points 9-40)
2- Control Panel
3- EN4200 Receiver (RECEIVER 1 on ISW-D8125CW-V2)
4- EN4200 Receiver (RECEIVER 2 on ISW-D8125CW-V2)
8
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
ISW-D8125CW-V2 | Installation and Operation Guide | Operation
.
3.0 Operation
3.1
Commercial Wireless Interface
Module Quick Startup
Recommendations
The following information details the recommended
programming steps that should be taken when
installing a commercial wireless interface module in a
new installation.
1.
Press the [2] key and change the Installer Passcode,
if necessary.
Refer to Section 3.9.6 Changing the Installer Passcode
on page 13.
3.3
Keypad Overview
To access the keypad on the commercial wireless
interface module, open the door by gently pulling on
the tab on the bottom center of the keypad (Figure 8).
Figure 8: Front View
1
2
TX1
RX1
TX2
3
RX2
4
If you lose or forget the Installer
Passcode, you must send the commercial
wireless interface module in for repair to
reset the Installer Passcode. The default
passcode is 123456.
2.
Press the [1] key to add RF Transmitters to the
system.
Refer to Section 3.9.1 Add or Edit an RF Transmitter
on page 11).
3.
Press the [DIAG] key to test the system during and
after installation.
3.2
Labeling the Bosch Transmitters
Prior to programming the Bosch transmitters or
commercial wireless interface module, it is
recommended that you take the time now to apply the
point number labels from the Point Label Sheet to the
individual transmitters.
5
12
3
4
5
TX1 LED (Transmit LED for Receiver 1)
RX1 LED (Receive LED for Receiver 1)
TX2 LED (Transmit LED for Receiver 2)
RX2 LED (Receive LED for Receiver 2)
Tab to open front door
Refer to Figure 9 for an overview of the built-in keypad.
Figure 9:
ISW-D8125CW-V2 Keypad
1
1
2
3
PREV
4
5
6
NEXT
7
8
9
DIAG
ESC
0
ENT
2
1 - LCD display
2 Keys (refer to Table 2 on page 10)
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
9
ISW-D8125CW-V2 | Installation and Operation Guide | Operation
Table 2:
Key
ESC
ENT
PREV
NEXT
DIAG
Key Descriptions
Description
Escape: Backs out of a programming option
or menu level.
Enter: Accepts a program entry.
Manually scrolls to a previous menu or point
selection. This key also stops the autoscrolling of the menus.
Manually scrolls to the next menu or point
selection. This key also stops the autoscrolling of the menus.
Shortcut to RF Diagnostics menu (see Section
3.9.9 RF on page 14).
A single beep indicates entry is
acknowledged. Two beeps indicate valid
entry. Three beep tones indicate an input
error was made.
3.4
Initial Power-up
When the commercial wireless interface module is
powered, it displays the idle text (Figure 10, Figure 11 or
Figure 12).
•
Figure 10 appears if no transmitters are
programmed into the commercial wireless
interface module.
•
Figure 11 appears if one or more transmitters are
already programmed in the commercial wireless
interface module and are not missing.
•
Figure 12 appears if the commercial wireless
interface module has a system fault.
Figure 10: System Defaulted Display
3.6
Call for Service
The keypad shows Figure 12 if one of the following
conditions occurs:
•
EEPROM Failed
•
Receiver Missing
•
Programmed RF Points Missing
•
Tamper Trouble
Figure 12: Call for Service
3.7
Factory Default Passcode
The commercial wireless interface module contains a
single passcode. To access the functions in the
commercial wireless interface module, this passcode
must be entered first. The default passcode loaded at
the factory is 123456 + [ENT]. This passcode can be
changed at any time from within programming mode.
To enter the default passcode, press 123456 + [ENT].
Figure 13: Invalid Code Display
3.8
Entering Invalid Passcodes
If you enter an invalid passcode, the keypad displays
Figure 13. If an invalid passcode is entered four
consecutive times, the keypad displays Figure 14.
The commercial wireless interface module disallows
any further entries for 5 minutes, unless power is
cycled to the unit.
Figure 14: Invalid Code/Keypad Locked Display
3.5
RF System OK
If the system is OK, the keypad shows Figure 11.
Figure 11: RF System Normal
10
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
ISW-D8125CW-V2 | Installation and Operation Guide | Operation
.
3.9
Keypad Menus
After you enter the passcode and press the [ENT] key,
the keypad scrolls through the main menu. The
keypad displays each option for three seconds.
3.9.1
Add or Edit an RF Transmitter
To add a new RF transmitter, or to edit one already
added to the system:
1.
From the idle text screen, enter the passcode and
press [ENT] to access the main menu.
2.
Press [1] to add or edit an RF Transmitter (RF
Xmtr).
3.
Enter the point number and press [ENT].
Refer to Figure 16 for the menu screen sequence.
Figure 15: Main Menu
Figure 16: RF Transmitter Menu Sequence
4.
To select a function, press the corresponding number
or function key displayed. This menu scrolls for 5
minutes. After 5 minutes, the display returns to
showing idle text if no keypad activity is detected.
The keypad displays the RF Transmitter Status
screen (refer to Figure X).
Figure 17: RF Transmitter Status
It is highly recommended that a walk test
be performed after all programming is
completed.
1 –RF transmitter point address
2 Point type assigned to the RF transmitter
3 Scrolling command options
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
11
ISW-D8125CW-V2 | Installation and Operation Guide | Operation
5.
At the RF Transmitter Menu (Figure 18), select the
desired action:
-
-
3.9.2
Push 1 to edit: Press [1] to change the RF
transmitter’s point type.
Push 2 to delete: Press [2] to delete the RF
transmitter from the system. Refer to Section
3.9.5 Deleting an RF Transmitter on page 13.
Push 3 to continue: Press [3] to add a new RF
transmitter, or change an existing one.
To add a new RF transmitter, refer to Section
3.9.3 Adding a New RF Transmitter on page 12.
To reprogram existing transmitters, refer to
Section 3.9.4 Adding an Existing RF Transmitter
on page 13.
Push ESC to Exit: Press [ESC] to exit the
current menu option.
1.
After you select a point number, the keypad cycles
through the RF Transmitter Menu options.
-
To change the transmitter’s point type, press
[1] then go to Step 2.
If the transmitter’s point type does not need to
be changed, go to Step 4.
Figure 18: RF Transmitter Menu Options
Point Type
The Point Type setting determines whether the
transmitter is a burg point or fire point.
3.9.3
Adding a New RF Transmitter
The first point added to the system sets
the allowable point range. For example, if
you add Points 9 to 127 (Zonex 1), the
point range is fixed at 9 to 127. If you add
Points 129 to 247 (Zonex 2), the point
range is fixed at 129 to 247. To clear the
point range, you must clear the EEPROM.
Refer to Section 3.9.7 Clearing the
EEPROM on page 14.
Check the Transmit and Receive LEDs
(TX1/RX1 and TX2/RX2) to verify
communication from Receiver 1 to
Receiver 2.
By default, all new points are assigned as
Burg points and have a fixed check-in
time of 3 minutes.
The supervisory interval for fire points is
fixed at 4 hours regardless of system
programming.
2.
Select from either Burg (default selection) or Fire
for the transmitter’s point type.
3.
After you select the point type, the keypad returns
to the RF Transmitter Menu options (Figure 18).
4.
Press [3] to continue adding the new RF
transmitter.
5.
The keypad presents two options:
-
Push 1 for new xmtr. (transmitter)
Push 2 for existing xmtr.
6.
Press [1] to add a new RF transmitter.
7.
When the keypad shows Press xmtr resset
button, remove the cover from the RF transmitter
and press the Reset button on the transmitter.
8.
When the transmitter is properly programmed, the
keypad shows Pt programmed.
If the transmitter is not properly programmed
within 5 minutes, a three-beep error tone sounds,
and the keypad shows Transmitter not detected.
9.
Record the point information in Section 5.0 Program
Record Sheet on page 17 and on the RF transmitter’s
point label.
10. Repeat this procedure to add more RF
transmitters.
12
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
ISW-D8125CW-V2 | Installation and Operation Guide | Operation
.
3.9.4
Adding an Existing RF Transmitter
It may be necessary to add an already installed
transmitter again to the commercial wireless interface
module, especially if the transmitter was deleted using
the RF Transmitter menu option (refer to Section 3.9.1
Add or Edit an RF Transmitter on page 11). In this case,
the RF transmitters can be re-added to the commercial
wireless interface module.
If you need to change the point type of an
existing RF transmitter, program the
transmitter is if it were a new transmitter.
Refer to Section 3.9.3 Adding a New RF
Transmitter on page 12.
Refer to Section 5.0 Program Record
Sheet on page 17 for point types when
replacing an RF transmitter or the
commercial wireless interface module.
3.9.5
To delete an RF transmitter:
1.
Follow the steps in Section 3.9.1 Add or Edit an RF
Transmitter on page 11 to reach the RF Transmitter
status display (Figure 17 on page 11).
2.
After you select a point number, the keypad cycles
through the following displays. Refer to Figure 18
on page 12.
3.
Press [2] to delete the RF transmitter.
4.
The keypad beeps twice and shows Ptxxx deleted
to indicate that the RF transmitter was deleted.
xxx = the RF transmitter’s point number.
The point number of the RF transmitter is
automatically incremented.
5.
In Section 4.0 Troubleshooting on page 17, indicate
which RF transmitter was deleted.
6.
Repeat this procedure to delete other RF
transmitters.
To add an existing RF transmitter:
1.
Follow the steps in Section 3.9.1 Add or Edit an RF
Transmitter on page 11 to reach the RF Transmitter
status display (Figure 17 on page 11).
Deleting an RF Transmitter
3.9.6
Changing the Installer Passcode
If you lose or forget the Installer
Passcode, you must send the commercial
wireless interface module in for repair to
reset the Installer Passcode.
2.
After you select a point number, the keypad cycles
through the following displays. Refer to Figure 18
on page 12.
3.
Press [3] to continue adding the RF transmitter.
By default, the Installer Passcode is 123456. To change
the Installer Passcode:
4.
The keypad presents two options:
1.
From the main menu (Figure 15 on page 11),
press [2].
The keypad shows Enter existing
passcode:******.
2.
Enter the current passcode.
If you incorrectly enter the passcode, a three-beep
error tone sounds, and the keypad shows Invalid
code... The keypad then returns to the main menu.
3.
After entering a valid passcode, the keypad shows
Enter new passcode:******.
Enter a new six-digit passcode.
4.
The keypad prompts you to re-enter the new
passcode. Enter it again.
5.
If both entries match, the keypad shows Passcode
changed.
If you incorrectly enter the passcode, a three-beep
error tone sounds, and the keypad shows Invalid
code... The keypad then returns to the main menu.
6.
To exit the Installer Passcode menu, press [ESC].
-
Push 1 for new xmtr. (transmitter)
Push 2 for existing xmtr.
5.
Press [2] for an existing RF transmitter.
6.
The keypad shows Ptxxx added.
xxx = the RF transmitter’s point number.
The point number of the RF transmitter is
automatically incremented.
7.
Record the point information in Section 5.0 Program
Record Sheet on page 17 and on the RF transmitter’s
point label.
8.
Repeat this procedure to re-add other RF
transmitters.
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
13
ISW-D8125CW-V2 | Installation and Operation Guide | Operation
3.9.7
Clearing the EEPROM
Clearing the EEPROM erases the entire
point database and resets the commercial
wireless interface module to the factory
default settings. Ensure that you have a
printed copy of the programming settings
so you can manually restore them after
clearing the EEPROM.
If the data in the commercial wireless interface module
has become corrupted and you need to reprogram the
commercial wireless interface module, you need to first
clear the EEPROM.
1.
3.9.9
RF Diagnostics
RF Diagnostics allows you to troubleshoot individual
RF transmitters programmed in the system. This menu
is split into two sub-menus: Individual point status and
Off-Normal point status.
To access the RF Diagnostics menu:
1.
Press the [DIAG] key when the keypad shows an
idle text display (Figure 10, Figure 11 or Figure 12)
2.
Enter a valid passcode and press [ENT].
The keypad displays the RF Diagnostics menu.
Figure 19: RF Diagnostics Menu
From the main menu (Figure 15 on page 11),
press [3]. The keypad shows the following series of
messages:
Clearing EEPROM erases all info!
Push ENT to clear EEPROM.
Push ESC to exit.
Push ENT again to confirm.
2.
Press the [ENT] key twice to erase the EEPROM.
3.9.8
Setting the RF System Supervision Interval
The RF System Supervision Interval determines how
long the commercial wireless interface module waits to
hear at least one check-in transmission (or any
transmission) from a transmitter before sending a
Missing event to the Control Panel.
The interval value that is chosen applies to
all burg point type transmitters system wide.
The supervision interval for fire points
remains fixed at 4 hours.
To set the RF System Supervision Interval:
1.
From the main menu (Figure 15 on page 11),
press [5].
2.
Select one of the available options:
-
3.
14
If there are any system faults, the keypad shows
the system faults first before showing the RF
Diagnostics menu.
3.
To view the status of a specific RF transmitter,
press [1].
4.
Enter the RF transmitter’s point number and press
[ENT].
-
Zonex 1: Points 9-127 (Points 74 and 75 are
not available)
Zonex 2: Points 129-247 (Points 194 and 195
are not available)
No supervision (Press [1] + [ENT])
4 hours (Press [2] + [ENT])
12 hours (Press [3] + [ENT])
24 hours (Press [4] + [ENT])
The keypad displays the new supervision interval
setting for two seconds.
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
ISW-D8125CW-V2 | Installation and Operation Guide | Operation
.
The keypad shows the point number status.
Figure 20: RF Point Number Status
3.10
Other Programming Functions
3.10.1 Programming the ISW-EN5040-T Repeater
If it is necessary to install an ISW-EN5040-T Repeater
into this system, it must be programmed as an RF
transmitter. Refer to Section 3.9.3 Adding a New RF
Transmitter on page 12.
The repeater only sends Low Battery Reports and
Tamper Reports.
1 –RF transmitter signal strength
(refer to Table 3 on page 15)
2 RF transmitter state
(refer to Table 3 on page 15)
For more information, refer to the instructions supplied
with the EN5040-T Repeater.
Table 3:
Refer to Table 4 for the information that the
commercial wireless interface module sends to the
control panel.
Signal
Strength
?
Bad
OK
State
Normal
Faulted
Tamper
Missing
Low Batt
Faulted,
Low Batt
Tamper,
Low Batt
RF Point Number Status Descriptions
Description
The commercial wireless interface module
did not receive at least 30 transmissions to
determine signal strength.
Relocate the RF transmitter.
Good signal strength.
Description
The RF transmitter is working as expected.
The RF transmitter is faulted.
The RF transmitter is tampered.
The RF transmitter is missing.
The RF transmitter’s battery is low.
The RF transmitter is faulted and its battery
is low.
The RF transmitter is tampered and its
battery is low.
5.
To see all off-normal points, press [2] from the
Diagnostics Menu. The keypad scrolls through all
off-normal points at 2-second intervals.
Press [PREV] or [NEXT] to stop the auto scrolling
and view off-normal points one at a time.
6.
Press [ESC] to exit the RF Diagnostics menu.
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
3.10.2 Programming the Control Panel for RF
Transmitters
Table 4:
Point Transition Reports
If the RF transmitter
sends:
A Faulted condition
A Tamper condition
A Normal condition
A Low Battery condition
The control panel receives:
Shorted condition
Open condition
Normal condition
Low Battery condition
Only D9412G, D7412G, D7212G,
D9412, D7412, D7212, and D9112
Control Panels, Version 6.50 and later,
are able to send RF BATTERY LOW
events. See the D9412G/D7412G
Program Entry Guide (P/N: 47775) for
information on programming RF
BATTERY LOW events. The
D9412GV3/GV2, D7412GV3/GV2, and
D7212GV3/GV2 can use any revision. In
addition, RPS Version 3.6 or later and
9000MAIN Handler Version 1.13 or
higher must be used to enable this event.
15
ISW-D8125CW-V2 | Installation and Operation Guide | Operation
If both a Tamper and Fault condition
occur, the Tamper condition takes priority
over the Fault condition and an open
condition is sent to the control panel.
Therefore, Bosch Security Systems, Inc.
recommends the following:
-
-
Controlled points be programmed as
‘Instant alarm on Open’ when armed and
‘Trouble’ when disarmed.
24 Hour points be programmed as
‘Instant alarm on Open’.
Fire points be programmed as ‘Trouble
on Open’.
An Open condition on the control panel
signifies a Tamper while a Short
condition is considered a Fault.
3.10.3 Programming the EN1224-ON Keyfob
The EN1224-ON Keyfob has four buttons: ON, OFF,
and two Alert (*) buttons. The ON button is used to
arm the area the point is assigned to and initiate the
Master Arm Delay state. The OFF button is used to
disarm the area to which the point is assigned.
When both Alert buttons are pressed, the commercial
wireless interface module sends a short to the control
panel for Point 75 or 195. Program the control panel
accordingly so that the Point Response provides the
appropriate response. To clear the condition from
Point 75 or 195, press the ON or OFF button on the
keyfob.
To program an EN1224-ON Keyfob, program the
lower-numbered point (74 or 194) as a new transmitter,
and program the higher-numbered point (75 or 195)
into the commercial wireless interface module as an
existing transmitter. This will enable both points on the
keyfob.
Only one EN1224-ON Keyfob can be added per
commercial wireless interface module. If more than
one system is installed, such as one each on Zonex Bus
1 and Zonex Bus 2, an equal number of Keyfobs can
be added. The ISW-D8125CW-V2 does not supervise
Low Battery or Missing conditions for any of the
keyfobs. The EN1224-ON Keyfob is treated as a
maintained keyswitch on the GV3, GV2, and G Series
Control Panels, and D9112 Control Panels. Set the
keyfob’s point index to Point Type 4, Response 2.
When using the keyfob, Points 74 and 75 (for Zonex
Bus 1 on GV3, GV2, and G Series Control Panels, and
D9112* Control Panels) and Points 194 and 195 (for
Zonex Bus 2 on D9412GV3/GV2, D9412G, D9412,
and D9112 Control Panels) are used.
* The D9112 Control Panel requires firmware version
6.3 or later to work with Bosch Commercial Wireless
products.
Do not program any other transmitters for
Points 74 and 75 or Points 194 and 195.
These are for the ISW-EN1224-ON
Keyfobs only.
16
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
ISW-D8125CW-V2 | Installation and Operation Guide | Troubleshooting
.
4.0 Troubleshooting
4.1
Troubleshooting Solutions
Symptom
Diagnosis
Remedy
Commercial wireless interface module has
lost communications with the EN4200. This
causes all programmed RF points on that
commercial wireless interface module to go
missing immediately (missing alarms or
missing troubles at control panel.) It will also
cause a Point Bus Fail 1 (or 2) at the control
panel.
Check for LED activity at receiver(s).
The commercial wireless interface module
hasn't 'heard' from an RF point for the
length of the programmed supervision
interval. The most common reasons are
damage to the transmitter, physical
environmental changes, or a dead battery.
Locate missing transmitter.
To find out which RF points are missing,
press [DIAG] for RF diagnostics, then [2]
for Off-normal point’s status. Display will
start at lowest numbered off-normal point
and automatically scroll up. [NEXT] or
[PREV] keys will switch to manual scrolling.
Point response is correct at the
commercial wireless interface module,
but incorrect at the control panel (for
example, RF point is in trouble when it
should be faulted, and so on).
Double-check wiring between
commercial wireless interface
module and EN4200.
•
+12 V/Vs to GND = approx. 13
VDC
•
DATA/OUT to GND =
fluctuating voltage (data flowing)
Make sure that RCV jumper on
commercial wireless interface
module is set to '1' if one EN4200 is
used on a commercial wireless
interface module; If two EN4200's
are used on a commercial wireless
interface module, set the RCV
jumper on the commercial wireless
interface module to '2'.
Check for physical damage. Check
battery voltage, which should equal
3.0 VDC min. Bring transmitter
closer to receiver and cause a
transmission, to determine if a range
problem exists due to a change in
the environment. For range
problems, a second EN4200 may be
added or add an EN5040-T repeater.
Internal diagnostics checksum failure
Clear EEPROM, and reprogram the
commercial wireless interface
module and all of its transmitters. If
EEPROM failure re-occurs, return
the commercial wireless interface
module for repair/replacement.
The tamper switch on the commercial
wireless interface module is open.
Check the commercial wireless
interface module enclosure to ensure
it is properly installed and closed.
Point programming at control panel is
incorrect.
Make sure point programming at
control panel is correct, especially
the Point Response. Remember that
regardless of transmitter type or
configuration of an external circuit,
the commercial wireless interface
module will always report a fault to
the control panel as a short, and a
tamper as an open. In most cases, a
point response type that gives
trouble on open is desired.
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
17
ISW-D8125CW-V2 | Installation and Operation Guide | Troubleshooting
Symptom
Diagnosis
Remedy
Received signal level for that point is low.
A second EN4200 receiver can be
installed in a different location to
increase range. A Bosch EN5040-T
high-power repeater may be used to
increase range to a greater degree.
Use the EN7016 to test the signal
range.
Commercial wireless interface module has
not received enough recent transmissions
from that RF point to give an 'OK' or 'BAD'
signal indication; Several transmissions are
required. The signal indication will start out
as '?' after power up, after programming an
RF point, or after an RF point has gone
missing.
Cause several transmissions to
update signal level. About 4 alarms
or tampers and 4 restorals spaced 5
seconds apart will cause enough
transmissions to get an accurate
signal indication. Without
activations, it will take approximately
90 minutes to get an adequate
number of signal strength readings.
These RF Points are programmed as Fire
Points. Transmitters programmed as Fire
points will be supervised at 4 hour intervals,
regardless of programmed supervision
interval time.
If those RF points are not for Fire
devices, reprogram the transmitter as
new, changing the transmitter point
type to Burg.
in RF Diagnostics
in RF Diagnostics
RF points go missing when
programmed supervision interval =
none.
18
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
ISW-D8125CW-V2 | Installation and Operation Guide | Troubleshooting
.
4.2
EN4200 Receiver Supervision
The commercial wireless interface module supervises
the Bosch
EN4200 receiver by periodically polling it. If the
EN4200 does not respond to the polls over a
165-sec period, the commercial wireless interface
module will initiate a Point Bus Trouble event back to
the control panel. The control panel will then initiate a
Point Bus Fail 1 (or 2) event.
If this occurs, the keypad shows Figure 21.
Figure 21: Call for Service
Enter a valid password. The keypad shows Figure 22.
Figure 22: Call for Service, Receiver Missing
4.5
Commercial Wireless Interface
Module Power Cycle Operation
In addition, when the commercial wireless interface
module is powered up, all transmitters report Normal
until their state is updated.
4.6
Frequently Asked Questions
What is the range of Inovonics Echostream Wireless
Transmitters?
Range for any wireless device depends on the
environment. In general, radio signals will be absorbed
into materials that contain moisture, such as concrete,
water, and earth. Radio signals will bounce off of metal
surfaces and penetrate fairly easily through drywall or
glass. In any case, the radio signals will lose some
power as they pass through or come in contact with
objects. For comparison purposes the only equitable
measurement is "true-line-of-sight". This is a condition
where there are absolutely no obstacles between the
transmitter's antenna and the receiver's antenna.
It is rare that an installation has a true-line-of-sight
condition so for a more definitive answer on range we
suggest you test the environment with an EN7016 Site
Survey Kit.
•
Dead battery
•
Physical environmental changes
In a typical building environment our 900 MHz signal
propagates easily around the metal studs and concrete
floors. Customers regularly tell us that they are
impressed with the performance. If additional coverage
is needed we offer an EN5040-T High Power Repeater.
These repeaters support an unlimited number of
Inovonics Echostream wireless transmitters.
•
Damage to the transmitter
How can I increase the range?
4.3
Missing RF Transmitters
A transmitter may go missing in the system due to the
following most common reasons:
The keypad shows Figure 21.
Enter a valid password. The keypad shows Figure 23.
You can use the EN5040-T repeater to extend the
range of any Inovonics Echostream wireless system.
What does the red decode LED/light mean?
Figure 23: Call for Service, Points Missing
The example of 019 used in Figure 23
represents the number of missing points,
not a specific point number.
4.4
This LED is located on the wireless receiver circuit
board. It is an indicator of the RF noise in the area.
Every time the light blinks the receiver is attempting to
decode a signal. This light shows that the unit is turned
on and working. It is listening to all of the radio energy
in the environment to determine if any signals are
coming in on the Inovonics Echostream protocol. If a
valid CW signal is received, the adjacent Valid LED
will illuminate.
Low Transmitter Battery Conditions
When the transmitter reports low battery conditions
and replacement is necessary be sure to press reset
button on transmitter after replacing battery. Also, be
sure to test the transmitter for proper operation after
replacing battery.
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
19
ISW-D8125CW-V2 | Installation and Operation Guide | Troubleshooting
Why can’t I program more than one RF transmitter
per point?
Programming more than a single transmitter to a given
point number defeats the ability of the Inovonics
Echostream system to supervise itself. This is a practice
called "stacking points" and is discouraged in practice.
Never stack points in a life-safety or security
application.
Can I externalize an antenna?
No. The EN5040-T acts as an external antenna.
20
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
ISW-D8125CW-V2 | Installation and Operation Guide | Program Record Sheet
.
5.0 Program Record Sheet
Installer Passcode (123456)
Supervision Interval
Point Table
Point #
Point
Type
Transmitter
Type
Loop Type
(External
Contact)
(circle one)
EOL
Resistor?
Internal
Contacts
(Magnetic)
Used?
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
Notes:
•
Point Text
• Location
21
ISW-D8125CW-V2 | Installation and Operation Guide | Program Record Sheet
Point #
22
Point
Type
Transmitter
Type
Loop Type
(External
Contact)
(circle one)
EOL
Resistor?
Internal
Contacts
(Magnetic)
Used?
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
Notes:
•
Point Text
• Location
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
ISW-D8125CW-V2 | Installation and Operation Guide | Program Record Sheet
.
Point #
Point
Type
Transmitter
Type
Loop Type
(External
Contact)
(circle one)
EOL
Resistor?
Internal
Contacts
(Magnetic)
Used?
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
N/O or N/C
Yes / No
Yes / No
Bosch Security Systems, Inc. | 8/11 | F01U161691-05
Notes:
•
Point Text
• Location
23
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, NY 14450
USA
www.boschsecurity.com
© Bosch Security Systems, Inc., 2011
Download PDF
