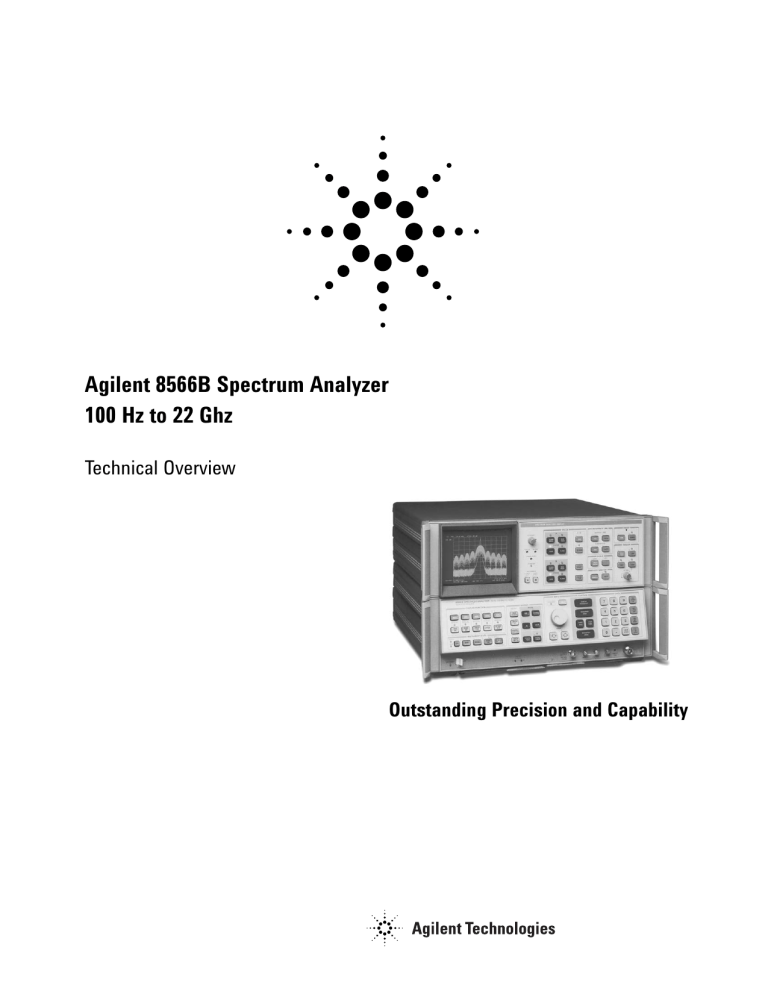

Agilent 8566B Spectrum Analyzer
100 Hz to 22 Ghz
Technical Overview
Outstanding Precision and Capability
The Agilent 8566B
Spectrum Analyzer…
…the Spectrum Analyzer
that keeps getting better
Designed for bench and system
use, the 8566B offers superior
measurement speed, microwave
frequency accuracy, and sensitivity.
Measure low-level signals up to 22 GHz
with narrow resolution bandwidths.
Synthesizer stability virtually eliminates long-term drift and residual FM.
Turbo speed option
Frequency range is 100 Hz to 22 GHz
with a dc-coupled input. Preselected
external mixers extend this coverage
from 26.5 to 75 GHz. Other external
mixers allow measurement to 325 GHz.
An internal bus and microcomputer
control make possible many powerful
operating and data processing features,
as well as flexibility under computer
control. Sixteen Kbytes of user RAM
are available for storing trace data,
instrument states, and custom downloadable programs (DLPs). All displayed
information can be sent directly to a
plotter when sweeptime is greater
than or equal to 20 ms.
Accurate measurements
Amplitude measurement range
extends from +30 to -135 dBm
with a 90 dB calibrated display.
-9
Less than 1 x 10 /day frequency
reference error and the spectrum
analyzer selectivity allow high
frequency accuracy even when you
are measuring small signals in the
presence of large ones.
Already a world leader in measurement speed, the 8566B can be made even
faster with Option 002, which nearly doubles the internal processing speed
of the analyzer. Some measurements can be made up to 50% faster, and
overall throughput is typically improved by 5 to 25%. (Sweep speed is not
affected by Option 002.)
The turbo option is compatible with all 8566B accessories, and it can be
added to any 8566B without affecting specifications. (An 8566A must first be
upgraded to a 8566B.)
Accessories and options
By adding measurement accessories and options, the 8566B spectrum
analyzer fits into many applications, including electromagnetic
compatibility (EMC) testing, broadband signal surveillance, and
component stimulus response testing.
• EMI measurement accessories and software create systems for testing
to commercial and military standards.
• Microwave tracking sources add scalar measurement capability.
• Preselected external mixers simplify millimeter-wave measurements
from 26.5 to 75 GHz.
• Interactive test generator (ITG) soft-front-panel-based drivers speed
software development.
• MIL-STD 45662A calibrations are available.
Custom Soft key programming
You can create complex measurement routines on an external controller, store
the programs in user RAM, and execute them using a single custom soft key.
Simple measurement routines can be entered from the intrument front
panel, stored in user RAM, and executed using a single custom soft key.
Turbo speed improvements
Operation
Trace dump
MKR AMPL
Harmonics test
FFT
2
Standard 8566B
1083 ms
8.4 ms
1007 ms
473 ms
Turbo 8566B
532 ms
3.7 ms
782 ms
243 ms
Speed improvement
51%
56%
22%
49%
EMC Measurement
Solutions
Test systems tailored to your needs
For EMI troubleshooting and pre-qualification testing, use your 8566B
spectrum analyzer with components and accessories from Agilent
Technology’s complete line of EMI products. The many offerings include
current probes, line impedance stabilization networks (LISNs), antennas,
positioning equipment, EMI measurement software, an RF preselector, and
a quasi-peak adapter.
Commercial and MIL EMI receivers
The 8566B spectrum analyzer forms the heart of two powerful and flexible
EM1 receivers. These receivers are ideal for commercial and military EMI
compliance testing from 20 Hz to 40 GHz.
The 8571A receiver is optimized for military EMI testing, making both peak
and average detection measurements using impulse bandwidths. The 8572A
includes all the features and capabilities of the 8571A, but adds quasi-peak
detection and specialized IF bandwidths for commercial compliance
measurements.
Both receivers offer ±2 dB absolute amplitude accuracy over their full 20 Hz
to 22 GHz frequency range, as required by MIL-STD 461 and CISPR
Publication 16. For higher frequency measurements, a 22 to 40 GHz block
downconverter can be added. The receivers include a built-in, 1 to 26.5 GHz
amplifier and a 20 Hz to 50 MHz input port with a built-in limiter and
rugged attenuator. They are also compatible with EMI measurement software
and complete line of test accessories.
3
Smart enough to make its own decisions…
One keystroke sends all CRT
information directly to a plotter 1
Easy-to-read, annotated
display shows instrument
settings and multiple traces
Coupled functions
SAVE and RECALL
store instrument settings
Measurement aids include four
tunable markers for direct and
relative signal measurements
1.
4
Instrument sweeptimes greater than or equal to 20 ms.
…with precision and speed
The 8566B offers
Powerful signal and trace-processing
functions perform complex data analysis
• Exceptional microwave performance
• Decision-making capability
• Enhanced processing speed
• Preselected millimeter coverage
• Advanced functions
• Downloadable programming capability
• Distributed processing with a computer
• Proven reliability, performance, and support
Interactive function and data controls
simplify operation
Dedicated keys make basic operations easy
5
Accessories That
Enhance Performance
Millimeter mixers
Preselected mixers
The 11974 Series preselected mixers eliminate the need for time-consuming
signal identification routines at millimeter frequencies. With preselection, no
images or multiples are generated to confuse measurements. These external
mixers allow you to quickly locate true signals, and they simplify software
development for automated measurements. The 11974 Series mixers are
available in four bands covering 26.5 to 75 GHz.
Harmonic mixers
The 11970 Series waveguide mixers are general-purpose external harmonic
mixers. They offer flat frequency response and low conversion loss without
requiring external dc bias or tuning adjustment. The 11970 Series mixers are
offered in six bands covering 18 to 110 GHz.
Preselected mixers eliminate images and multiples.
6
Harmonic mixing extends frequency range.
Tracking Sources
Add high dynamic range scalar measurement capability to the 8566B.
The 85644A and 85645A portable tracking sources allow you to use your
spectrum analyzer for measuring transmission and reflection characteristics
of devices. You can also characterize harmonic distortion, intermodulation
distortion, spurious products, and more.
The tracking sources give the 8566B dynamic range greater than 125 dB up
to 12.5 GHz and greater than 105 dB through 22 GHz.
Other features include:
• Swept offset tracking for mixer testing and swept TOI measurements
• Up to +10 dBm leveled output power
• Standalone CW source capability
High dynamic range scalar measurement
7
Microwave preamplifier
Boost the sensitivity of the 8566B spectrum analyzer with the 8449B
microwave preamplifier. This low noise, high gain preamplifier has a
frequency range of 1 to 26.5 GHz. Sensitivity improvements of up to 25 dB
allow you to detect and analyze very low level signals in dramatically
reduced time, using wider handwidths. Low return loss on the input and
output ports of the preamplifier minimizes mismatch uncertainty.
Displayed average noise level
0 dB attenuation, 10 Hz RBW (characteristic)
1.0 to 2.5 GHz
-155 dBm
2.0 to 5.8 GHz
-154 dBm
5.8 to 12.5 GHz
-150 dBm
12.5 to 18.6 GH
-144 dBm
18.6 to 22 GHz
-140 dBm
Computers and plotters
The 8566B spectrum analyzer works with computers that support BASIC.
Specifications
Specifications describe the instrument's
warranted performance over the 0 °
to 55 °C temperature range (unless
otherwise noted), with autocoupled
function operation and preselector
tracking optimized.
Characteristics provide information
about non-warranted instrument
performance.
8
Frequency
Measurement range 100 Hz to 22 GHz, dc-coupled input; up to 325 GHz with external mixers
Frequency reference error
Aging rate
< 1 x 10-9/day and < 2.5 x 10-7/year
Temperature stability
< 7 x 109 over 0 ° to 55 °C range
Center frequency
0 Hz to 22 GHz
Center frequency readout accuracy
Spans ≤ n x 5 MHz
± (2% of frequency span + frequency reference error x
center frequency +10 Hz)
Spans > n x 5 MHz
± (2% of frequency span + n x 100 kHz + frequency
reference error x center frequency) where n is the
harmonic mixing number, depending on center frequency:
n center frequency
1 100 Hz to 5.8 GHz
2 5.8 to 12.5 GHz
3 12.5 to 18.6 GHz
4 > 18.6 GHz
(After adjusting freq zero, add 30% of RES BW setting if error correction is not used.)
Zero span
± (frequency reference error x center frequency)
Specifications (continued)
Frequency span
0 Hz, 100 Hz to 22 GHz over 10 division CRT horizontal axis; variable in approximately 1%
increments. Two FULL SPAN keys select spans from 0 to 2.5 GHz and from 2 to 22 GHz.
Frequency span readout accuracy
Spans ≤ n x 5 MHz
± 1 % of indicated frequency separation
Spans > n x 5 MHz
± 3% of indicated frequency separation
Start or Stop Frequency Same as center frequency
Resolution
Resolution bandwidth 3 dB bandwidths of 10 Hz to 3 MHz in a 1. 3, 10 sequence.
Bandwidth may be selected manually or coupled to frequency span (AUTO mode).
3 dB bandwidth accuracy
3 MHz
±20%
3 kHz to 1 MHz
±10%
10 Hz to 1 kHz
±20%
(30 kHz and 100 kHz bandwidth accuracy figures apply only with ≤ 90% relative
humidity, 40 °C.)
60 dB/3 dB bandwidth selectivity ratio
100 kHz to 3 MHz
< 15:1
3 kHz to 30 kHz
< 13:1
30 Hz to 1 kHz
< 12:1
(60 dB points on 10 Hz bandwidth are separated by < 100 Hz.)
Bandwidth shape
Synchronously tuned, approximately Gaussian
Figure 1. Typical spectrum analyzer resolution
Stability
Residual FM (typical) For fundamental mixing (n = 1) < 50 kHz peak-to-peak,
freq. span > 5 MHz.
Drift Because analyzer is phase-locked at beginning of each sweep, drift occurs only
during time of one sweep.
Frequency span
< 100 kHz
100 kHz to 5 MHz
≥ 5 MHz
Center frequency drift 1
< Iø Hz/min of sweeptime
< 500 Hz/min of sweeptime
< 5 KHz/min of sweeptime
Spectral purity
Noise sidebands (for frequency span < 25 kHz – except 100 kHz offset – and center
frequency from 100 Hz to 5.8 GHz)
Offset from carrier sideband level
320 Hz -80 dBc/Hz
1 kHz
-85 dBc/Hz
10 kHz -90 dBc/Hz
100 kHz -105 dBc/Hz
1.
Typical, after 1 hr warmup at stabilized temp COUPLED FUNCTION not required.
9
Specifications (continued)
Typical noise sideband performance
Figure 2. Single sideband noise normalized to1 Hz BW vs offset from carrier
Figure 3. Typical analyzer and SSB noise at 5.0 GHz center frequency.
May be limited by average noise level.
Power-line-related sidebands
(for line conditions specfied in Power Requirements section)
SIDEBANDS
Offset from
carrier
< 360 Hz
360 kHz to 2 kHz
>2 kHz
≤ 100 MHz
-70 dBc
-75 dBc
-80 dBc
Center frequency
> 100 MHz 6.8 to
to 5.8 Ghz 12.6 GHz
-60 dBc
-64 dBc
-75 dBc 1
-69 dBc
-80 dBc 1
-74 dBc 1
12.6 to
18.6 Ghz
-60 dBc 1
-65 dBc 1
-70 dBc 1
18.6 to
22 GHz
-58 dBc 1
-63 dBc 1
-63 dBc 1
Amplitude
Measurement range
Measurement range is the total amplitude range over which the analyzer can measure
signal responses. The low value is determined by sensitivity (10 Hz RBW and 0 dB RF
input attenuation) and the high value by damage level.
Tuned frequency
Range
Non-preselected
100 Hz to 50 kHz
-95 to +30 dBm
50 kHz to 1 MHz
-112 to +30 dBm
1 MHz to 2.5 GHz
-134 to +30 dBm
Preselected
2.0 to 5.8 GHz
-132 to +30 dBm
5 8 to 12 5 GHz
-125 to +30 dBm
12 5 to 18 6 GHz
-119 to +30 dBm
18.6 to 22 GHz
-114 to +30 dBrn
Displayed values
Scale (over a 10 division CRT vertical axis with 0 dB reference level at top graticule line)
Calibration
Log 10 dB/div for 90 dB display from reference level.
Expanded from reference level:
5 dB/div for 50 dB display
2 dB/div for 20 dB display
1 dB/div for 10 dB display
Linear 10% of ref level/div when calibrated voltage
1.
10
Typical
Specifications (continued)
Reference level
Range
Log
Linear
+30.0 to -99.9 dBm or equivalent in dBmV, dBµV, volts. Readout expandable
to +60.0 dBm to -119.9 dBm (-139.9 dBrn for < 1 kHz RBW) 1
7.07 V to 2.2 µV full scale. Readout expandable to 223.6 V to 2.2 µV
(0.22 µV for < 1 kHz RBW) 1
Accuracy
The sum of the following factors determines the accuracy of the reference level readout.
Measurement technique used after calibration with CAL signal determines applicability of
uncertainty sources. Specifications given with preselector tracking optimized using
MARKER PRESELECTOR PEAK.
With corrected readout (SHIFT W and SHIFT X executed just prior to measurement), 20 °
to 30 °C temperature range, and minimum one hour warmup time.
Calibrator uncertainty
±0.3 dB
Frequency response (flatness) uncertainty
(10 dB attenuation)
100 Hz to 2.5 GHz
±0.6 dB
2.0 to 12.5 GHz
±1.7 dB
12.5 to 20 GHz
±2.2 dB
20 to 22.0 GHz
±3.0 dB
Cumulative, 100 Hz to 20 GHz
±2.2 dB
Absolute amplitude calibration uncertainty
The uncertainty of setting the frequency response curve absolutely when using
the internal CAL signal or other calibration signal in the 100 Hz to 2.5 GHz band
(10 dB input attenuation).
±0.6 dB
Resolution bandwidth switching uncertainty
Referenced to 1 MHz RES BW
10 Hz
±1.1 dB
30 Hz
±0.4 dB
100 Hz to 1 MHz
±0.2 dB
3 MHz
±0.2 dB
Log scale switching uncertainty ±0.1 dB
Log fidelity
Incremental
±0.1 dB/dB over 0 to 80 dB display
Cumulative
10 Hz RBW
≤ ±2.1 dB over 0 to 90 dB
≥ 30 Hz RBW
≤ ±1.5 dB over 0 to 90 dB
≤ ±1.0 dB over 0 to 80 dB
Linear fidelity
< ±3% of reference level over top 9-1/2 divisions of
the display
IF gain uncertainty Reference to -10 dBm; reference level with 10 dB input attenuation.
RBW ≥ 3 kHz
RBW 100 Hz-l kHz
RBW 30 Hz
RBW 10 Hz
1.
Reference level
0 to -59.9 dBm ≤ ± 0.3 dB
-60 to-100 dBm ≤ ±1.O dB
0 to -79.9 dBm ≤ ± 0.3 dB
-80 to -100 dBm ≤ ± 1.0 dB
0 to -79.9 dBm ≤ ± 0.3 dB
-80 to -100 dBm ≤ ±2.0dB
0 to -79.9 dBm ≤ ±1 .0 dB
-80 to -100 dBm ≤ ±2.0dB
Maximum total input power not to exceed +30 dBm damage level
11
Specifications (continued)
Log digitization uncertainty
10 dB/div
±0.2dB
5 dB/div
±O.I dB
2 dB/div
± 0.04 dB
1 dB/div
± 0.02 dB
Linear digitization uncertainty ± 0.2% of ref level
Error correction accuracy
± 0.4 dB
(applicable when SHIFT W
and SHIFT X are executed)
Reference line accuracy Equals the sum of reference level accuracy plus the scale fidelity
between the reference level and the reference line level.
Dynamic range
Spurious responses (signals generated by the analyzer due to input signals) for signals
< -40 dBm at the input mixer, all harmonic and intermodulation distortion > 70 dB
below input signal.
Second harmonic distortion (for mixer levels < -40 dBm)
100 Hz to 50 MHz
< -70 dBc
50 to 700 MHz
< -80 dBc
700 MHz to 2.5 GHz
< -70 dBc
For mixer levels ≤ -10 dBm
2 to 22 GHz
<-100 dBc
Figure 4. Typical optimum dynamic range
Third order intermodulation distortion
Third order intercept (TOI)
100 Hz to 5 MHz
> +5 dBm
5 MHz to 5.8 GHz
> +7 dBm
5.8 GHz to 18.6 GHz
> +5 dBm
18.6 to 22 GHz
> +5 dBm (typical)
2 to 22 GHz, for > 100 MHz
> +50 dBm (typical) signal separation
Image, multiple, and out-of-band responses
Image responses are due to input signals that are two times the IF frequency above or
below the tuned frequency. Multiple responses are due to input signals mixing with more
than one LO harmonic. Out-of-band responses are due to input signals outside of the
selected frequency band.
12
Specifications (continued)
Applied frequency
(GHz)
0 to 2.5
2.0 to 5.8
5.8 to 1 2.5
12.5 to 18.6
18.6 to 22.0
Tuned frequency
0 to 2.5
2.0 to 5.8
NA
-60 dBc
-60 dBc
-70 dBc
-50 dBc
-60 dBc
- 4 5 dBc
-60dBc
-40 dBc
-60 dBc
5.8 to 12.5
60 dBc
-60 dBc
-70 dBc
-60 dBc
-60 dBc
12.5 to 18.6
-60 d8c
-60 dBc
-60 dBc
-70 dBc
-60dBc
18.6 to 22.0
-60 dBc
-60 dBc
-60 dBc
-60 dBc
-70 dBc 1
Residual responses (signals displayed by the analyzer independent of input signals), 0 dB
input attenuation, no input signal.
100 Hz to 5.8 GHz
< -100 dBm 2
5.8 to 12.5 GHz
< -95 dBm
12.5 to 18.6 GHz
< -85 dBm
18.6 to 22 GHz
< -80 dBm
Gain compression
< 1 .0 dB, 100 Hz to 22 GHz. with < -5 dBm at input mixer
Displayed average noise level (sensitivity)
0 dB input attenuation, 10 Hz RBW
100 Hz to 50 kHz
< -95 dBm
50 kHz to 1 .0 MHz
< -112 dBm
1 .0 MHz to 2.5 GHz
< -134 dBm
2.0 to 5.8 GHz
< -132 dBm
5.8 to 12.5 GHz
< -125 dBm
12.5 to 18.6 GHz
< -119 dBm
18.6 to 22 GHz
< -114 dBm
Figure 5. Specified average displayed noise level, 100 Hz to 2.5 GHz,
non-preselected tuning range.
Figure 6. Specified average displayed noise level, 2.0 to 22 GHz,
preselected tuning range.
Marker (frequency and amplitude are read out continuously)
Marker type Frequency accuracy
Normal
Same as center frequency accuracy
Delta
Same as frequency span accuracy
Amplitude accuracy
Normal
Same as reference level accuracy + scale fidelity between the
reference level and marker position
Delta
Same as frequency response uncertainty and scale fidelity
between two markers
Sweep time accuracy (1 µs to 1500s full sweep)
< 200 second sweep time
± 10%
> 200 second sweep time
± 30%
1.
2.
lmage responses: - 6 0 dBc, 18.6 – 20.0 GHz; – 50 dBc, 20.0 – 22 GHz
Limited by the appropriate DANL or -100 dBm, whichever is greater.
13
Specifications (continued)
Inputs
RF input
100 Hz to 22 GHz, precision type-N female connector, dc-coupled
Maximum input level
ac
Continuous power: +30 dBm from 50 ohm source
Mixer protected by diode limiter, 100 Hz-2.5 GHz
Pulse power: ≤ 100 W, 10 µs pulse width with ≥ 50 dB input attenuation
(≤ 0 dBm peak power to input mixer)
dc
< 100 mA damage level
Input attenuator
0 to 70 dB in 10 dB steps
SWR (typical)
Input attenuation
10 dB
0 dB 1
Tune frequency
10O Hz to 2.5 GHz
1.2
2.3
2.5 GHz to 5.8 GHz
1.5
3.0
5.8 GHz to 22 GHz
1.9
3.0
Outputs
Calibrator (front panel)
100 MHz ± (frequency reference error x 100 MHz)
-10 dBm ± 0.3 dB; 50 ohm impedance, nominal
1st LO (front panel)
2.3 to 6.1 GHz; > +5 dBm;
50 ohm impedance, nominal
Sweep and tune output (rear panel)
-1 V/GHz of tuned frequency ± (2% + 10 mV)
10 kohm impedance, nominal
Display outputs (typical parameters)
X, Y, and Z outputs for auxiliary CRT displays.
X, Y
1V for full deflection
Z
0 to 1 V intensity modulation, -1 V blank
BLANK TTL level > 2.4 V for blanking
Compatible with most oscilloscopes.
Recorder outputs (typical parameters)
Outputs to drive all current X-Y recorders using positive pencoils or TTL pen uplift.
Horizontal sweep output (X-axis)
A voltage proportional to the horizontal sweep of the frequency sweep generator. 0 V
for left edge, +10 V for right edge; 1.7 kohm impedance, nominal.
Video output (Y-axis)
Detected video output (before A-D conversion) proportional to vertical deflection of the
CRT trace 100 mV/div from 0 to 1 V; < 475 ohm impedance, nominal
Penlift output (Z-axis)
During sweep, pen down 0 V from 10 ohm source
During retrace, pen up +15 V from 10 kohm source
21.4 MHz output (rear panel, typical)
21.4 MHz; 50 ohm impedance, nominal: -20 dBm for a signal at reference level. In log
scales, the IF output logarithmically related to RF input signal; in linear, the output is
linearly related.
Frequency reference (rear panel, typical)
10.000 MHz, 0 dBm; 50 ohm output impedance
10 MHz output (rear panel, typical)
≥ 5 dBm to ohm output impedance
Video output 0 to 2 V, > 10 ohm output impedance
Display
Cathode ray tube Post deflection accelerator, aluminized P31 phosphor, electrostatic
focus and deflection.
Viewing area Approximately 9.6 cm vertically by 11.9 cm horizontally (3.8 in x 4.7 in)
1.
14
When tuned to within ±3 MHz of signal
General Specifications
Temperature
Operation 0 ° to 55 °C
Storage
-40 ° to 75 °c
Increased internal temperatures may
result if the rear panel air filters are not
cleaned regularly.
Altitude
Operation ≤ 3 4,572 m (15,000 ft)
Storage
≥ 15,240 m (50,000 ft)
Dimensions
(Allow 100 mm, 4 inch clearance
at rear panel for interconnect cables.
Dimensions marked with * denote
with handels)
TOP
*626.4 mm (24.7 in)
457.2 mm (18 in)
598.5 mm (23.56 in)
558.8 mm (22 in)
425.5 mm (16.75 in)
279.2 mm
(11 in)
Environmental
Power requirements 50 to 60 Hz; 100,200,
120,220, or 240 V (+5%, -10%);
approximately 650 VA (40 VA
BACK
SIDE
in standby). 400 Hz operation
with Option 400.
Figure 7. Instrument dimensions with and without handles
Humidity
Operation Type tested to 95% relative
humidity, 25 ° to 40 °C,
except as noted in
electrical specifications.
Storage
5% to 90% relative humidity,
0 ° to 40 °C
EMI
Conducted and radiated
interference is within
the requirements of
MIL-STD-461C, Part 7 RE02
and CE03 (Air Force), and
CISPR Publication 11;
VDE 0871 and FTZ
526/527/79.
Warm-up time
Remote operation
Operation Requires 30 minute warm-up
from cold start, 0 ° to 55 °C.
The standard 8566B operates on the interface bus (GP-IB). All analyzer control settings
Internal temperature
(with the exception of VIDEO TRIGGER LEVEL, FOCUS, ALIGN, INTENSITY, FREQ ZERO,
equilibrium is reached after
AMPTD CAL, and LINE power) are remotely programmable. Function values, marker
2-hour warm-up at stable
frequency/amplitude.and A/B traces may be output; CRT labels and graphics may be input.
outside temperature.
LCL Returns analyzer to local control, if not locked out by controller.
Frequency reference (typical)
Service request
Frequency reference aging
SHIFT r calls an GP-IB request for service.
rate attained after 24 hour
GP-IB interface functions
warm-up from cold start at
SH1, AH1, T6, L4. SRI, RL1, PPO, DC1, Cl, C2, C3, C28, E2
25 °C. Frequency is within
Options
1 x 10'8 of final stabilized
All specifications for options are identical to standard 85668 except as noted.
frequency within 30 minutes. 400 Hz Power line frequency operation (Option 400)
Weight
Power line related sidebands (center frequency from 100 Hz to 5.8 GHz)
Total, net
50 kg (112 Ib)
Offset from Carrier
Sideband Level
< 2 kHz
-55 dBc
RF section, net 29 kg (65 Ib)
2 kHz to 5.5 kHz
-65 dBc
IF display
21 kg (47 Ib)
Power requirements
section, net
Line frequency
400 Hz ±10% line frequency (50 to 60 Hz operation for servicing only)
RF section,
35 kg (78 Ib)
Line
voltage
100
to 120 v (+5%, -10%)
shipping
Operating temperature range
IF display
27 kg (60 Ib)
400 Hz
0 ° to 55 °C
section,
50 Hz to 60 Hz
0 ° to 40 °C
shipping
(service only, not for extended periods)
15
Part Numbers
8566B spectrum analyzer – lOO Hz to 22 GHz
Option R02
Turbo retrofit kit for any 8566B
Option 002
Turbo option for faster measurements
Option 010
Rack mount slide kit
Option 016
Installed EMI receiver functions
Option 031
German operating manual
Option 080
Information card in Japanese
Option 081
Information card in French
Option 1BN MIL-STD 45662A calibration certification
Option 1BP
MIL-STD 45662A calibration certification with test data
Option 400
400 Hz operation
Option 462
100 Hz, 1 kHz, and 1 MHz
Impulse bandwidth filters for EMI measurements
Option 908
Rack flange kit without handles
Option 910
Extra operating and test and adjustment manuals
Option 913
Rack flange kit with handles
Option 915
Troubleshooting and repair manual set
Option W30 3-year customer return repair
Option W32 3-year customer return calibration
8566AB
Retrofit kit to convert 8566A to 8566B
Recommended accessories
85644A
Tracking source 300 kHz to 6.5 GHz
85645A
Tracking source 300 kHz to 26.5 GHz
8449B
Preamplifier 1 to 26.5 GHz
11975A
Amplifier 2 to 8 GHz
Preselected mixers
11974A
26.5 to 40 GHz preselected mixer
11974Q
33 to 50 GHz preselected mixer
11974U
40 to 60 GHz preselected mixer
11974V
50 to 75 GHz preselected mixer
11974
Option 003
Delete power supply
Harmonic mixers
11970K
18 to 26.5 GHz mixer
11970A
26.5 to 40 GHz mixer
11970Q
33 to 50 GHz mixer
11970T
18 to 40 GHz mixers, hardwood case, cables, tools
Option 001
Add 40 to 60 GHz mixer
Option 002
Add 33 to 50 GHz mixers
11970U
40 to 60 GHZ mixer
11970V
50 to 75 GHz mixer
11970W
75 to 110 GHz mixer
Option 009
Mixer connection set adds three 1-meter low-loss
SMA cables, wrench, Alien screw driver for any
11970 series mixer.
www.agilent.com
Agilent Technologies’ Test and Measurement Support,
Services, and Assistance
Agilent Technologies aims to maximize the value you
receive, while minimizing your risk and problems. We
strive to ensure that you get the test and measurement
capabilities you paid for and obtain the support you need.
Our extensive support resources and services can help
you choose the right Agilent products for your applications
and apply them successfully. Every instrument and system
we sell has a global warranty. Two concepts underlie
Agilent’s overall support policy: “Our Promise” and “Your
Advantage.”
Our Promise
Our Promise means your Agilent test and measurement
equipment will meet its advertised performance and
functionality. When you are choosing new equipment, we
will help you with product information, including realistic
performance specifications and practical recommendations
from experienced test engineers. When you receive your
new Agilent equipment, we can help verify that it works
properly and help with initial product operation.
Your Advantage
Your Advantage means that Agilent offers a wide range of
additional expert test and measurement services, which
you can purchase according to your unique technical and
business needs. Solve problems efficiently and gain a
competitive edge by contracting with us for calibration,
extra-cost upgrades, out-of-warranty repairs, and onsite
education and training, as well as design, system integration, project management, and other professional engineering services. Experienced Agilent engineers and technicians worldwide can help you maximize your productivity,
optimize the return on investment of your Agilent instruments and systems, and obtain dependable measurement
accuracy for the life of those products.
For more information on Agilent Technologies’ products,
applications or services, please contact your local
Agilent office.
Phone or Fax
United States:
(tel) 800 829 4444
(fax) 800 829 4433
Canada:
(tel) 877 894 4414
(fax) 800 746 4866
China:
(tel) 800 810 0189
(fax) 800 820 2816
Europe:
(tel) 31 20 547 2111
Japan:
(tel) (81) 426 56 7832
(fax) (81) 426 56 7840
Korea:
(tel) (080) 769 0800
(fax) (080)769 0900
Latin America:
(tel) (305) 269 7500
Taiwan:
(tel) 0800 047 866
(fax) 0800 286 331
Other Asia Pacific
Countries:
(tel) (65) 6375 8100
(fax) (65) 6755 0042
Email: tm_ap@agilent.com
Contacts revised: 05/27/05
The complete list is available at:
www.agilent.com/find/contactus
Product specifications and descriptions in this document
subject to change without notice.
© Agilent Technologies, Inc. 2005, 2004
Printed in USA, July 20, 2005
5091-3385E
Download PDF
