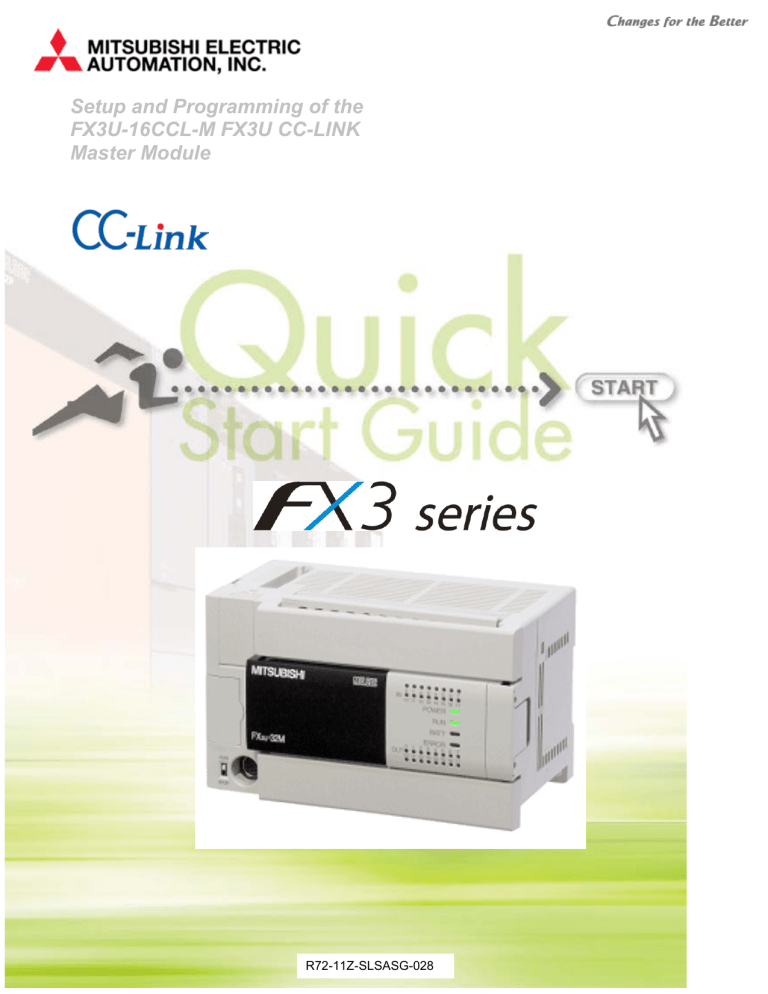

Setup and Programming of the
FX3U-16CCL-M
FX3U CC-LINK
Master Module
R72-11Z-SLSASG-028
Contents
Contents ................................................................................................................................................................... i
FURTHER READING REFERENCE LIST ............................................................................................................... ii
Chapter 1
Introduction ....................................................................................................................................... 1-1
Chapter 2
System Overview.............................................................................................................................. 2-1
Chapter 3
Wiring and Hardware Setup ............................................................................................................. 3-1
3.1
Master  Remote Station CC-LINK Wiring ......................................................................................... 3-1
3.2
Master  Remote Station CC-LINK Switch Settings ........................................................................... 3-1
Chapter 4 GX Works2 CC-Link Network Setup ................................................................................................ 4-1
4.1
CC-Link Network Parameters............................................................................................................... 4-1
4.2
CC-Link Remote I/O Buffer Memory Locations .................................................................................... 4-2
4.3
CC-Link Master Station Buffer Memory Locations ............................................................................... 4-3
4.4
Data Transfer per Remote Station ....................................................................................................... 4-4
Chapter 5 GX Works2 Program Example ......................................................................................................... 5-1
5.1
Initial Setup ........................................................................................................................................... 5-1
5.2
I/O and Data Word Transfer Function Blocks (FBs)............................................................................. 5-2
5.3
Remote Analog Module Setup ............................................................................................................. 5-4
Chapter 6 Other Master Features ..................................................................................................................... 6-1
6.1
Remote Slave Access Using FX3U-64CCL Modules and GX Works2 Software ................................. 6-1
6.2
Remote Device V2.0 Support ............................................................................................................... 6-4
Revisions ................................................................................................................................................................. 1
i
R72-11Z-SLSASG-028
FURTHER READING REFERENCE LIST
Mitsubishi
FX3U-16CCL-M User's Manual JY997D43601a
FX3U-16CCL-M Hardware Manual JY997D43401 (e) b
AJ65SBT-62DA Digital-Analog Converter Module User’s Manual SH_NA_080107-D
AJ65SBT-64AD Analog-Digital Converter Module User’s Manual SH_NA_080106-F
ATTACHMENTS
Mitsubishi
FX3U-16CCL-M CC-Link Master.gwz - GX Works2 Compressed File
ii
R72-11Z-SLSASG-028
Chapter 1
Introduction
This Quick Start Guide (QSG) provides instructions on how to set a FX3U CC-LINK Master Module (FX3U16CCL-M) to talk with two Remote I/O and two Analog Stations using GX Works2 Programmable Logic
Controller (PLC) Software. Only Version 1 CC-Link Network Devices are shown in the QSG. If Version 2 CCLink Network Devices are used please see the manual.
The objective of this QSG is to assist the users to quickly setup the FX3U CPU program to have the CC-LINK
Master Module communicate to the CC-LINK Remote Stations. This QSG contains the necessary configuration
information for the FX3U Network Setup.
Figure 1 FX3U CPU and Remote I/O Setup
1-1
Chapter 2
System Overview
This QSG was setup using the following test system. The FX3U CPU firmware must be Version 3.10 or greater
for Automatic Parameter Setup. The PLC Programming software must be GX Works2 V1.73B or Greater.
Melsoft Navigator was NOT used or required.
FX3U (V3.10)
FX3U16CCL-M
USB
FX-USB-AW
Laptop PC
GX Works2 V1.73B
CC-LINK
Cable
AJ65SBTB1-16D
Station 1
CC-LINK
Cable
Figure 2.1 Architecture of Test System
2-1
AJ65SBT-62DA
Station 3
AJ65SBTB2N-16R
Station 2
CC-LINK
Cable
AJ65SBT-64AD
Station 4
CC-LINK
Cable
Special Note: Differences from FX2N CC-Link Master
Item
FX3U-16CCL-M
FX2N-16CCL-M
CC-Link version
Ver.2.00 (Ver.1 supported)
Ver.1.10
Accessible
devices
Remote I/O stations
Remote I/O stations
Remote device stations
Intelligent device stations
Remote device stations
Max. number of
connected
stations
Remote I/O stations = 8
Remote device stations +
Intelligent device stations = 8
Remote I/O stations
=7
Remote device stations = 8
Parameter setting
method
Via From/To instructions
Via From/To instructions
CC-Link transient
communication
Available
Not supported
Connectable
master units per
PLC
Limited to one master unit per PLC
Multiple units supported
Dimensions
90H×55W×87D
Via GD2 network parameter
(depending on the PLC series)
90H×85W×87D
2-2
Chapter 3
Wiring and Hardware Setup
3.1 Master  Remote Station CC-LINK Wiring
This this example shows the Master and two Remote Stations.
Stations. Please insert the two additional stations as needed.
This QSG has a total of four Remote
Figure 3.1 CC-LINK Wiring Diagram
3.2 Master  Remote Station CC-LINK Switch Settings
The following chart shows the Rotary (Master) and Dip Switch Settings for each Remote Station
The Baud Rate is 5 Mbps for this network and the Master is Station# 0.
Station Part Number
AJ65SBTB1-16D
AJ65SBTB2N-16R
AJ65SBT-62DA
AJ65SBT-64AD
B.Rate Switches ON
1 and 2
1 and 2
1 and 2
1 and 2
Station No. Switches ON
1
2
1 and 2
4
FX3U (Rotary Switches)
3 = 5 Mbps
0 and 0
Figure 3.2.1 Switch Settings
3-1
Figure 3.2.2 Switch Settings On Hardware – Upper Remote Station, Lower Master
3-2
Chapter 4
GX Works2 CC-Link Network Setup
4.1 CC-Link Network Parameters
Under the Project Manager Select Parameter  Network Parameter  CC-Link
Figure 4.1 CC-Link Network Parameter Selection
The below selection will open. Set the following parameters:
•
•
•
Special Block No. = 0 (SFM 0 to 7)
Mode = Remote Net (Ver.1 Mode)
Total Module Connected = 4
Figure 4.1.2 Network Parameters – CC-Link
4-1
Select Station Information and set the following for each Station number
Figure 4.1.3 Station Information – CC-Link
4.2 CC-Link Remote I/O Buffer Memory Locations
The following shows the BFM locations that need to be accessed from the PLC program to Read Remote
Inputs (RX) and Remote Registers (RWr) and to Write to Remote Outputs (RY) and Registers (RWw). In
this QSG this is accomplished using two Function Blocks (FBs) as detailed later in this QSG.
Figure 4.2.1 Remote I/O BFMs
4-2
4.3 CC-Link Master Station Buffer Memory Locations
The following shows the BFM locations that the PLC program can read from to get CC-Link Network Status.
Figure 4.3.1 I/O Master BFMs
Figure 4.3.2 I/O Master Module Status Bits
Bits b0, b1 and b15 are used in the GX Works2 Program Example as shown in Chapter 5.
4-3
4.4 Data Transfer per Remote Station
Each Remote Station in the QSG occupies 1 Station in CC-Link V1.10 Mode.
This includes 32 RX, 32 RY, 4 RWw and 4 RWr words per station. These points are used regardless of the
physical station type installed.
4-4
Chapter 5
GX Works2 Program Example
5.1 Initial Setup
The demo program first configures the Number of Connected CC-Link Remote Modules (4) and the Head
Address of the Master Module (0). Also the Master Status Bits are read From the Master to the PLC
program. These are held in M20 through M35. M20, M21 and M35 are used in the demo program.
Figure 5.1 Initial Code Setup
M20 = Master Module Error (Off = Good)
M21 = Datalink Status of Master (ON = Good)
M35 = Master Module Read (ON = Good)
5-1
5.2 I/O and Data Word Transfer Function Blocks (FBs)
Two FBs were created to transfer Digital I/O and Data Words to and from the network.
Figure 5.2.1 Digital I/O and Data Word Transfer Function Blocks in PLC Code
Both Function Blocks require a Head Address and Number of Connected Modules data inputs as defined in
the Initial Setup. Both have Communication Status Outputs that can be used as interlocks as needed.
Figure 5.2.2 Digital I/O and Data Word Transfer Function Blocks under FB_Pool in Project Manager
5-2
Figure 5.2.3 Digital I/O and Data Word Transfer Function Blocks in Function Block Selection Window
The CCLinkDigitialIOComms Function Block transfers 32 bits of data to and 32 bits of data from each
Remote I/O Station starting at M1000 for Remote Inputs and M2000 for Remote Outputs.
For Station #1 (16 Point Input) M1000 thru M1031 are used. (RX)
For Station #2 (16 Point Output) M2032 thru M2063 are used. (RY)
For Station #3 (2DA) M1064 thru M1095 are used (RX) and M2064 thru M2095 (RY) are used.
For Station #4 (4AD) M1096 thru M1127 are used (RX) and M2096 thru M2127 (RY) are used.
Even though there are no Outputs being physically used for Station #1, 32 points of RYs are still used.
Even though only 16 physical inputs are being used for Station #1, 32 points of RXs are still used.
Refer back to Section 4.4 for map of RX, RY, and RWr and RWw data.
The CCLinkWordComms Function Block transfers 4 words of data to and 4 words of data from each
Remote Station starting at D1000 for Remote Inputs and D2000 for Remote Outputs.
For Station #1 D1000 thru D1003 are used (RWr) and D2000 thru D2003 are used (RWw)
For Station #2 D1004 thru D1007 are used (RWr) and D2004 thru D2007 are used (RWw)
For Station #3 D1008 thru D1011 are used (RWr) and D2008 thru D2011 are used (RWw)
For Station #4 D1012 thru D1015 are used (RWr) and D2012 thru D2015 are used (RWw)
Even though there are no RWr and RWw being physically used for Station #1 and #2, the data words are
still used by these stations.
Refer back to Section 4.4 for map of RX, RY, and RWr and RWw data.
5-3
5.3 Remote Analog Module Setup
In the MAIN program when Remote Input 1 (M1000) goes ON it SETS the Enable Analog Output Bit (M10)
and then 1 second later it SETS the Enable Analog Input Bit (M110
Figure 5.3.1 MAIN Program Detail for Analog Setup
5-4
In the ANALOG program the first section initiates the 62DA Module then enables Output Channel 1.
Figure 5.3.2 62DA Module Initialization and Enable
5-5
The 62DA Module uses the following RX/RY and RWr/RWw
Figure 5.3.3 62DA Module RX/RY I/O Points
M1088 = RX(n+1)8 (Initial Data Processing Requested)
M1089 = RX(n+1)9 (Initial Data Setting Complete)
M1091 = RX(n+1)B (Remote Ready)
M2089 = RY(n+1)9 (Initial Data Setting Request)
M2064 = RYn
(CH1 Analog Out Enable)
5-6
Figure 5.3.4 62DA Module RWw and RWr Data Points
D2008 = RWw (Analog Out Value)
D2010 = RWw2 (Analog Enable)
D2011 = RWw3 (Output Range)
5-7
In the ANALOG program the second section initiates the 64AD Module then Reads Input Channel 1.
Figure 5.3.5 64AD Module Initialization and Enable
5-8
The 64AD Module uses the following RX/RY and RWr/RWw
Figure 5.3.6 64AD Module RX/RY I/O Points
M1120 = RX(n+1)8 (Initial Data Processing Requested)
M1121 = RX(n+1)9 (Initial Data Setting Complete)
M1123 = RX(n+1)B (Remote Ready)
M2121 = RY(n+1)9 (Initial Data Setting Request)
5-9
Figure 5.3.7 64AD Module RWw and RWr Data Points
D2012= RWwn (Analog Enable)
D2013 = RWw(n+1) (Input Range)
D1012 = RWr (Analog Input CH1 Value)
5-10
Chapter 6
Other Master Features
6.1 Remote Slave Access Using FX3U-64CCL Modules and GX Works2 Software
Remote Access is setup through the Connection Destination Menu Manager
Figure 6.1 Connection Destination Example
6-1
First Select “Serial/USB” in the PC side I/F then Select “Other Station (Single Network)”
Figure 6.1.2 Select “Other Station” from Other Station Setting Menu
Select “CC-Link” from Network Communication Route
Figure 6.1.3 Select “CC-Link” from Network Communication Route Menu
6-2
Input Head I/O number for the FX3U CC-Link Master and the Station Number of the Intelligent Device
Station you want to program. Finally select “OK” and do Connection Test from the Transfer Setup Main
Menu.
Figure 6.1.4 Select CC-Link Head I/O and Intelligent Station Number
6-3
6.2 Remote Device V2.0 Support
Version 2.0 Remote Devices or Intelligent Device Stations can be access by setting the Remote Stations
Switch Settings properly. This is an example of setting the FX3U-64CCL for V2.0 support. 2 Stations with
Double expanded cyclic support.
Figure 6.2 FX3U-64CCL Switch Setting Example
Version 2.0 Remote Device or Intelligent Device Stations can be setup in CC-LINK Station Information as
needed. This is an example of setting the FX3U-64CCL for V2.0 support
Figure 6.2.1 FX3U-64CCL Station Setting Example
6-4
Revisions
February 2012 – Document Created and Published V1.0
