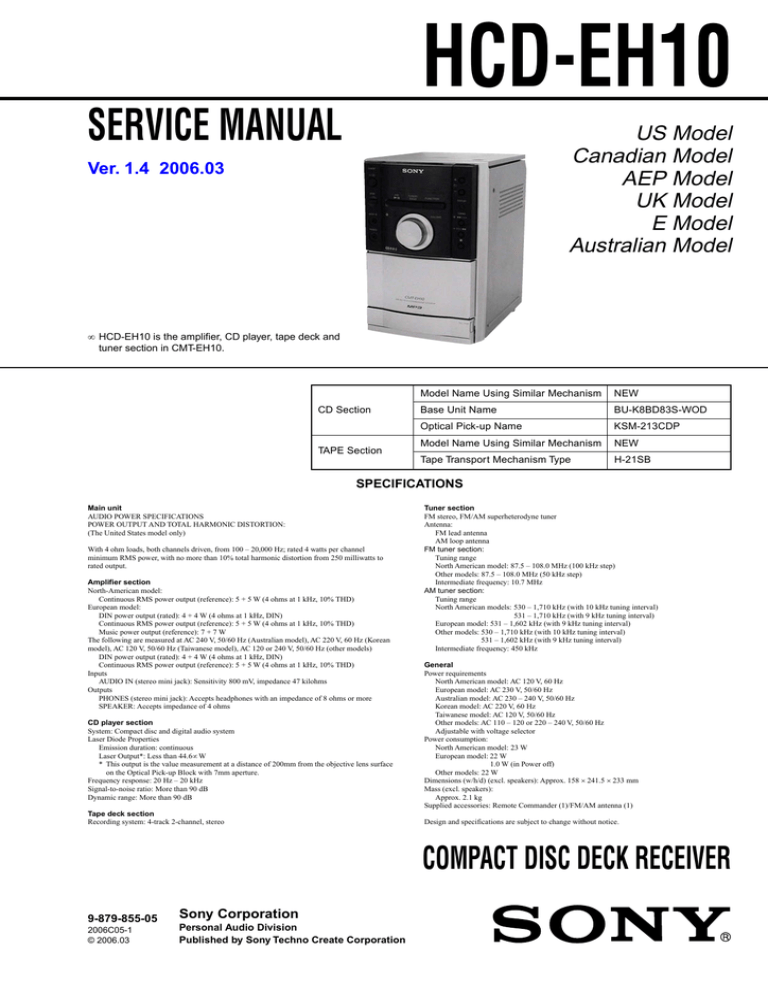

HCD-EH10
SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Ver. 1.4 2006.03
• HCD-EH10 is the amplifier, CD player, tape deck and
tuner section in CMT-EH10.
CD Section
TAPE Section
Model Name Using Similar Mechanism
NEW
Base Unit Name
BU-K8BD83S-WOD
Optical Pick-up Name
KSM-213CDP
Model Name Using Similar Mechanism
NEW
Tape Transport Mechanism Type
H-21SB
SPECIFICATIONS
Main unit
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION:
(The United States model only)
With 4 ohm loads, both channels driven, from 100 – 20,000 Hz; rated 4 watts per channel
minimum RMS power, with no more than 10% total harmonic distortion from 250 milliwatts to
rated output.
Amplifier section
North-American model:
Continuous RMS power output (reference): 5 + 5 W (4 ohms at 1 kHz, 10% THD)
European model:
DIN power output (rated): 4 + 4 W (4 ohms at 1 kHz, DIN)
Continuous RMS power output (reference): 5 + 5 W (4 ohms at 1 kHz, 10% THD)
Music power output (reference): 7 + 7 W
The following are measured at AC 240 V, 50/60 Hz (Australian model), AC 220 V, 60 Hz (Korean
model), AC 120 V, 50/60 Hz (Taiwanese model), AC 120 or 240 V, 50/60 Hz (other models)
DIN power output (rated): 4 + 4 W (4 ohms at 1 kHz, DIN)
Continuous RMS power output (reference): 5 + 5 W (4 ohms at 1 kHz, 10% THD)
Inputs
AUDIO IN (stereo mini jack): Sensitivity 800 mV, impedance 47 kilohms
Outputs
PHONES (stereo mini jack): Accepts headphones with an impedance of 8 ohms or more
SPEAKER: Accepts impedance of 4 ohms
CD player section
System: Compact disc and digital audio system
Laser Diode Properties
Emission duration: continuous
Laser Output*: Less than 44.6µ W
* This output is the value measurement at a distance of 200mm from the objective lens surface
on the Optical Pick-up Block with 7mm aperture.
Frequency response: 20 Hz – 20 kHz
Signal-to-noise ratio: More than 90 dB
Dynamic range: More than 90 dB
Tape deck section
Recording system: 4-track 2-channel, stereo
Tuner section
FM stereo, FM/AM superheterodyne tuner
Antenna:
FM lead antenna
AM loop antenna
FM tuner section:
Tuning range
North American model: 87.5 – 108.0 MHz (100 kHz step)
Other models: 87.5 – 108.0 MHz (50 kHz step)
Intermediate frequency: 10.7 MHz
AM tuner section:
Tuning range
North American models: 530 – 1,710 kHz (with 10 kHz tuning interval)
531 – 1,710 kHz (with 9 kHz tuning interval)
European model: 531 – 1,602 kHz (with 9 kHz tuning interval)
Other models: 530 – 1,710 kHz (with 10 kHz tuning interval)
531 – 1,602 kHz (with 9 kHz tuning interval)
Intermediate frequency: 450 kHz
General
Power requirements
North American model: AC 120 V, 60 Hz
European model: AC 230 V, 50/60 Hz
Australian model: AC 230 – 240 V, 50/60 Hz
Korean model: AC 220 V, 60 Hz
Taiwanese model: AC 120 V, 50/60 Hz
Other models: AC 110 – 120 or 220 – 240 V, 50/60 Hz
Adjustable with voltage selector
Power consumption:
North American model: 23 W
European model: 22 W
1.0 W (in Power off)
Other models: 22 W
Dimensions (w/h/d) (excl. speakers): Approx. 158 × 241.5 × 233 mm
Mass (excl. speakers):
Approx. 2.1 kg
Supplied accessories: Remote Commander (1)/FM/AM antenna (1)
Design and specifications are subject to change without notice.
COMPACT DISC DECK RECEIVER
9-879-855-05
2006C05-1
© 2006.03
Sony Corporation
Personal Audio Division
Published by Sony Techno Create Corporation
HCD-EH10
Ver. 1.4
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 270 ˚C
during repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
TABLE OF CONTENTS
1.
SERVICING NOTES ............................................... 3
2.
GENERAL ................................................................... 4
3.
DISASSEMBLY
3-1. Disassembly Flow ...........................................................
3-2. Rear Cabinet Section .......................................................
3-3. Front Cabinet Section, Top Cabinet Section and
MAIN Board ....................................................................
3-4. Mechanical Deck (H-21SB) ............................................
3-5. Base Unit Section (BU-K8BD83S-WOD) ......................
3-6. Optical Pick-up Block (KSM-213CDP) ..........................
6
6
7
7
8
8
4.
TEST MODE .............................................................. 9
5.
MECHANICAL ADJUSTMENTS ....................... 10
6.
ELECTRICAL ADJUSTMENTS ......................... 10
7.
DIAGRAMS
7-1.
7-2.
7-3.
7-4.
7-5.
7-6.
7-7.
7-8.
7-9.
7-10.
7-11.
Block Diagram – CD SERVO Section – .........................
Block Diagram – TUNER Section – ...............................
Block Diagram – MAIN Section – ..................................
Printed Wiring Board – CD Board – ...............................
Schematic Diagram – CD Board – ..................................
Printed Wiring Boards – MAIN Section – ......................
Schematic Diagram – MAIN Section (1/3) .....................
Schematic Diagram – MAIN Section (2/3) .....................
Schematic Diagram – MAIN Section (3/3) .....................
Printed Wiring Board – PANEL Board – ........................
Schematic Diagram – PANEL Board – ...........................
The following caution label is located inside the unit.
CLASS 1 LASER PRODUCT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This appliance is classified
as a CLASS 1 LASER
product.
This label is located on the
rear exterior.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 V AC range are suitable. (See
Fig. A)
1.5 k Ω
EXPLODED VIEWS
8-1.
8-2.
8-3.
8-4.
Overall Section ................................................................
Front Cabinet Section ......................................................
Top Cabinet Section ........................................................
Base Unit Section (BU-K8BD83S-WOD) ......................
9.
ELECTRICAL PARTS LIST ................................ 38
34
35
36
37
Refer to SUPPLEMENT-1 for the MAIN section of printed
wiring boards and schematic diagrams of US, Canadian,
Singapore, Taiwan, Korean and Australian models.
When repairing the set of AEP, UK, East European and Russian,
refer to either of original service manual/SUPPLEMENT-1
according to the set.
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
AC
voltmeter
(0.75 V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
2
8.
SAFETY-RELATED COMPONENT WARNING!!
To Exposed Metal
Parts on Set
0.15 µF
14
15
16
18
19
20
21
22
23
24
25
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE
FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS
QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT
DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.
HCD-EH10
Ver. 1.4
SECTION 1
SERVICING NOTES
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the leadfree mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 ˚C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 ˚C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
• MODEL IDENTIFICATION
– Rear Cabinet –
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
During normal operation of the equipment, emission of the laser
diode is prohibited unless the upper lid is closed while turning ON
the SW750. (push switch type)
The following checking method for the laser diode is operable.
• Method
Emission of the laser diode is visually checked.
1. Open the upper lid.
2. Push the SW750 as shown in Fig.1.
Note: Do not push the detection lever strongly, or it may be bent or damaged.
3. Press the CD u button.
4. Check the object lens for confirming normal emission of the
laser diode. If not emitting, there is a trouble in the automatic
power control circuit or the optical pick-up.
In this operation, the object lens will move up and down 2
times along with inward motion for the focus search.
Power Voltage
Indication
SW750
MODEL
US, Canadian models
AEP, UK, East European,
Russian models
Singapore model
Australian model
Korean model
Taiwan model
POWER VOLTAGE INDICATION
AC 120 V, 60 Hz
AC 230 V, 50/60 Hz
AC 110 – 120 or 220 – 240 V,
50/60 Hz
AC 230 – 240 V, 50/60 Hz
AC 220 V, 60 Hz
AC 120 V, 50/60 Hz
Fig.1 Method to push the SW750
3
HCD-EH10
SECTION 2
GENERAL
This section is extracted from
instruction manual.
"ASIC/PERATIONS
!DJUSTINGTHESOUND
4OADJUSTTHEVOLUME
0RESS6/,5-%nONTHEREMOTEORTURNTHE
6/,5-%CONTROLONTHEUNITȥ
4OADDASOUNDEFFECT
4O
0RESS
$3'8ȭONTHEUNIT
'ENERATEAMOREDYNAMIC
SOUND$YNAMIC3OUND
'ENERATOR8TRA
3ETTHESOUNDEFFECT
%1ȲONTHEREMOTE
4OTUNEINASTATIONWITHAWEAKSIGNAL
0RESS45.).'-/$%ȯONTHEREMOTEREPEATEDLY
UNTILh-!.5!,vAPPEARSANDTHENPRESSnONTHE
REMOTEREPEATEDLYOR45.).'ORnONTHEUNITȨTO
TUNEINTHEDESIREDSTATION
4OREDUCESTATICNOISEONAWEAK&-STEREO
STATION
0RESS&--/$%ȯONTHEREMOTEREPEATEDLYUNTIL
h-/./vAPPEARSTOTURNOFFSTEREORECEPTION
0LAYINGATAPE
5SEBUTTONSONTHEUNITFORTHEOPERATION
3ELECTATAPEFUNCTION
0RESS&5.#4)/.REPEATEDLYOR4!0%ONTHE
REMOTEȤ
0LAYINGA#$-0DISC
)NSERTATAPE
3ELECTTHE#$FUNCTION
/PENTHETAPE
SECTIONLID
0RESSýåSTOPEJECTȪONTHEUNITANDINSERTTHE
TAPEINTOTHECASSETTEHOLDER-AKESURETHEREISNO
SLACKINTHETAPETOAVOIDDAMAGINGTHETAPEORTHE
TAPEDECK
0RESS#$ONTHEREMOTEOR&5.#4)/.REPEATEDLY
Ȥ
0LACEADISC
0RESSå053(/0%.#,/3%ONTHEUNITANDPLACEA
DISCWITHTHELABELSIDEUPONTHE#$COMPARTMENT
4OCLOSETHE#$COMPARTMENTPRESSå053(/0%.
#,/3%ONTHEUNIT
å053(/0%.#,/3%
3TARTPLAYBACK
0RESSÙPLAYȪONTHEUNIT
4O
0AUSEPLAYBACK
0RESS
ãPAUSEȪONTHEUNIT4O
RESUMEPLAYPRESSITAGAIN
3TOPPLAYBACK
ýåSTOPEJECTȪONTHEUNIT
2EWINDORFAST
FORWARD
òØȪONTHEUNIT
"ESURETOPRESSýåSTOPEJECTȪONTHEUNITAFTERTHETAPEHAS
BEENWOUNDORREWOUNDTOTHEEND
.OTE
$ONOTTURNOFFTHESYSTEMDURINGPLAYBACKORRECORDING
3TARTPLAYBACK
0RESSÙPLAYȪOR#$úPLAYPAUSEȤON
THEUNIT
0RESS
4OCHANGE
0RESS
0AUSEPLAYBACK
ãPAUSEȪONTHEREMOTE
OR#$úȤONTHEUNIT4O
RESUMEPLAYPRESSITAGAIN
)NFORMATIONON
THEDISPLAY
$)30,!9ȧREPEATEDLYWHENTHE
SYSTEMISON
$ISPLAYMODE
#LOCK
$)30,!9ȧWHENTHESYSTEMIS
OFF 4HECLOCKISDISPLAYEDFOR
EIGHTSECONDS
3TOPPLAYBACK
"EFOREUSINGTHESYSTEM
4OUSETHEREMOTE
3LIDEANDREMOVETHEBATTERYCOMPARTMENTLIDȱAND
INSERTTHETWO2SIZE!!BATTERIESNOTSUPPLIEDÐ
SIDElRSTMATCHINGTHEPOLARITIESSHOWNBELOW
ýSTOPȩ
3ELECTAFOLDERONAN
nȦ
-0DISC
3ELECTATRACKORlLE ¼½ÊGOBACKGOFORWARD
ONTHEREMOTEñ×ONTHE
UNITȨ
&INDAPOINTINA
TRACKORlLE
(OLDDOWNòØREWINDFAST
FORWARDȨDURINGPLAYBACKAND
RELEASEITATTHEDESIREDPOINT
3ELECT2EPEAT0LAY
2%0%!4ȯONTHEREMOTE
REPEATEDLYUNTILh2%0vAPPEARS
4OCHANGETHEPLAYMODE
0RESS0,!9-/$%ȯONTHEREMOTEREPEATEDLYWHILE
THEPLAYERISSTOPPED9OUCANSELECTNORMALPLAYh v
FORALL-0lLESINTHEFOLDERONTHEDISCSHUFmEPLAY
h3(5&vORh 3(5&
vORPROGRAMPLAYh0'-v
.OTESONUSINGTHEREMOTE
s7ITHNORMALUSETHEBATTERIESSHOULDLASTFORABOUTSIXMONTHS
s$ONOTMIXANOLDBATTERYWITHANEWONEORMIXDIFFERENTTYPESOF
BATTERIES
s)FYOUDONOTUSETHEREMOTEFORALONGPERIODOFTIMEREMOVETHE
BATTERIESTOAVOIDDAMAGEFROMBATTERYLEAKAGEANDCORROSION
7HENPLAYINGA#$$!DISC
OPERATIONAS3(5&0LAY
.OTESON2EPEAT0LAY
s!LLTRACKSORlLESONADISCAREPLAYEDREPEATEDLYUPTOlVETIMES
sh2%0vINDICATESTHATASINGLETRACKORlLEISREPEATEDUNTILYOUSTOP
IT
.OTESONPLAYING-0DISCS
4URNONTHESYSTEM
s$ONOTSAVEOTHERTYPESOFTRACKSORlLESORUNNECESSARYFOLDERSONA
DISCTHATHAS-0lLES
s&OLDERSTHATHAVENO-0lLESARESKIPPED
s-0lLESAREPLAYEDBACKINTHEORDERTHATTHEYARERECORDEDONTO
THEDISC
s4HESYSTEMCANONLYPLAY-0lLESTHATHAVEAlLEEXTENSIONOF
h-0v
s)FTHEREARElLESONTHEDISCTHATHAVETHEh-0vlLEEXTENSION
BUTTHATARENOT-0lLESTHEUNITMAYPRODUCENOISEORMAY
MALFUNCTION
s4HEMAXIMUMNUMBEROF
nFOLDERSISINCLUDINGTHEROOTFOLDER
n-0lLESIS
n-0lLESANDFOLDERSTHATCANBECONTAINEDONASINGLEDISCIS
nFOLDERLEVELSTHETREESTRUCTUREOFlLESISEIGHT
s#OMPATIBILITYWITHALL-0ENCODINGWRITINGSOFTWARERECORDING
DEVICEANDRECORDINGMEDIACANNOTBEGUARANTEED)NCOMPATIBLE
-0DISCSMAYPRODUCENOISEORINTERRUPTEDAUDIOORMAYNOTPLAY
ATALL
0RESS˽¿POWERȢ
0RESS#,/#+4)-%23%4ȮONTHEREMOTE)FTHE
CURRENTMODEAPPEARSONTHEDISPLAYPRESS¼Ê
ȨONTHEREMOTEREPEATEDLYTOSELECTh#,/#+vAND
THENPRESS%.4%2ȰONTHEREMOTE
3ETTHETIME
0RESS¼ÊȨONTHEREMOTEREPEATEDLYTOSET
THEHOURANDTHENPRESS%.4%2ȰONTHEREMOTE
5SETHESAMEPROCEDURETOSETTHEMINUTES
4HECLOCKSETTINGSARELOSTWHENYOUDISCONNECTTHE
POWERCORDORIFAPOWERFAILUREOCCURS
.OTESONPLAYINGMULTISESSIONDISCS
3ELECTINGAMUSICSOURCE
0RESSTHEFOLLOWINGBUTTONSORPRESS&5.#4)/.Ȥ
REPEATEDLY
4OSELECT
s)FTHEDISCBEGINSWITHA#$$!OR-0SESSIONITISRECOGNIZED
ASA#$$!OR-0DISCANDPLAYBACKCONTINUESUNTILANOTHER
SESSIONISENCOUNTERED
s!DISCWITHAMIXED#$FORMATISRECOGNIZEDASA#$$!AUDIO
DISC
0RESS
#$
#$ȤONTHEREMOTE
4UNER
45.%2"!.$Ȥ
,ISTENINGTOTHERADIO
4APE
4!0%ȤONTHEREMOTE
3ELECTh&-vORh!-v
#OMPONENT
CONNECTED
USINGANAUDIOCORD
&5.#4)/.Ȥ
REPEATEDLYUNTILh!5$)/
).vAPPEARS
3ELECTTHETUNINGMODE
)FTHECOMPONENTHASTHE!6,3!UTOMATIC6OLUME,IMITER3YSTEM
OR"!33"//34FUNCTIONTURNOFFTHEFUNCTIONTOAVOIDDISTORTED
SOUNDFROMTHESPEAKERS
0RESS45.%2"!.$ȤREPEATEDLY
0RESS45.).'-/$%ȯONTHEREMOTEREPEATEDLY
UNTILh!54/vAPPEARS
4UNEINTHEDESIREDSTATION
0RESSnONTHEREMOTEOR45.).'ORnON
THEUNITȨ3CANNINGSTOPSAUTOMATICALLYWHENA
STATIONISTUNEDIN7HENYOUTUNEINASTATIONTHAT
PROVIDES2$3SERVICESTHESTATIONNAMEAPPEARSON
THEDISPLAY
4IP
4OSTOPAUTOMATICSCANNINGPRESSýSTOPȩ
4
&OREXAMPLEYOUCANVIEW#$-0DISCINFORMATIONSUCHASTHE
TRACKORlLENUMBERORFOLDERNAMEDURINGNORMALPLAYORTHETOTAL
PLAYTIMEWHILETHEPLAYERISSTOPPED
4HE34!.$"9INDICATORLIGHTSUPWHENTHESYSTEMISTURNEDOFF
.OTESONTHEDISPLAYINFORMATION
s4HEFOLLOWINGARENOTDISPLAYEDCORRECTLY
nTOTALPLAYINGTIMEFORADISCWITH-0lLES
nELAPSEDPLAYINGTIMEANDREMAININGTIMEOFAN-0lLEENCODED
USINGA6"2VARIABLEBITRATEWHENTHElLEISPLAYEDORISSHIFTED
WITHFASTFORWARDORFASTREVERSE
nFOLDERANDlLENAMESTHATDONOTFOLLOWEITHERTHE)3/,EVEL
ORSTANDARD
s4HEFOLLOWINGAREDISPLAYED
n)$TAGINFORMATIONFOR-0lLESWHEN)$VERSIONANDVERSION
TAGSAREUSED
nUPTOCHARACTERSOF)$TAGINFORMATIONUSINGUPPERCASELETTERS
!TO:NUMBERSTOANDSYMBOLS@
n ;<=?
3(5&0LAYPERFORMSTHESAME
4OSETTHECLOCK
3ELECTTHECLOCKSETMODE
#HANGINGTHEDISPLAY
4O
5SINGOPTIONALAUDIO
COMPONENTS
4OCONNECTANOPTIONALHEADPHONES
#ONNECTHEADPHONESTOTHE0(/.%3JACKȫONTHE
UNIT
4OCONNECTANOPTIONALCOMPONENT
#ONNECTADDITIONALAUDIOSOURCECOMPONENTSTOTHE
!5$)/).JACKȬONTHEUNITUSINGANAUDIOCORDNOT
SUPPLIED4URNDOWNTHEVOLUMEONTHESYSTEMANDTHEN
SELECTTHE!5$)/).FUNCTION
HCD-EH10
/THER/PERATIONS
#REATINGYOUROWN#$PROGRAM
2ECORDINGONTOATAPE
0ROGRAM0LAY
5SEA490%)NORMALTAPEONLY
5SEBUTTONSONTHEREMOTETOCREATEYOUROWNPROGRAM
9OUCANRECORDJUSTTHEPORTIONSYOULIKEFROMASOUND
SOURCEINCLUDINGCONNECTEDAUDIOCOMPONENTS
0RESS#$ȤTOSELECTTHE#$FUNCTION
0RESS0,!9-/$%ȯREPEATEDLYUNTILh0'-v
APPEARSWHILETHEPLAYERISSTOPPED
0RESS¼ÊORñ×ONTHEUNIT
ȨREPEATEDLYUNTILTHEDESIREDTRACKNUMBER
APPEARS
7HENPROGRAMING-0lLESPRESS nȦ
REPEATEDLYTOSELECTTHEDESIREDFOLDERANDTHENSELECT
THEDESIREDlLE
3ELECTEDTRACKORlLENUMBER
0RESS%.4%2ȰTOADDTHETRACKORlLETOTHE
PROGRAM
2EPEATSTEPSTHROUGHTOPROGRAMADDITIONAL
TRACKSORlLESUPTOATOTALOFTRACKSORlLES
4OPLAYYOURPROGRAMOFTRACKSORlLESPRESSÙ
ȪOR#$úȤONTHEUNIT
4HEPROGRAMREMAINSAVAILABLEUNTILYOUOPENTHE#$
COMPARTMENT4OPLAYITAGAINSELECTTHE#$FUNCTION
ANDPRESSÙȪOR#$úȤONTHEUNIT
5SEBUTTONSONTHEUNITTOCONTROLTAPERECORDING
)NSERTARECORDABLETAPEINTOTHECASSETTEHOLDER
WITHTHESIDEYOUWANTTORECORDFACINGFORWARD
0REPARETHERECORDINGSOURCE
3ELECTTHEDESIREDSOURCETORECORD
0LACETHEDISCYOUWANTTORECORD
7HENRECORDINGAFOLDERFROMAN-0DISCPRESS
0,!9-/$%ȯONTHEREMOTEREPEATEDLYTOSELECT
h vANDTHENPRESS nȨREPEATEDLYTOSELECT
THEDESIREDFOLDER
4ORECORDONLYYOURFAVORITE#$TRACKSOR-0lLESIN
YOURDESIREDORDERPERFORMSTEPSTOOFh#REATING
YOUROWN#$PROGRAMv
3TARTRECORDING
0RESSÿRECORDȪANDTHENSTARTPLAYINGTHE
DESIREDRECORDINGSOURCE
4HE#$STARTSPLAYINGAUTOMATICALLY
)FTHEREISNOISEWHILERECORDINGFROMTHETUNER
REPOSITIONTHEAPPROPRIATEANTENNATOREDUCETHENOISE
7HILERECORDINGYOUCANNOTLISTENTOOTHERSOURCES
4OSTOPRECORDINGPRESSýåȪ
4IP
4OCANCEL0ROGRAM0LAYPRESS0,!9-/$%ȯ
REPEATEDLYUNTILh0'-vDISAPPEARSWHILETHEPLAYERIS
STOPPED
7ERECOMMENDTHATYOUPRESSãȪlRSTANDTHENPRESSýåȪTO
AVOIDNOISEBEINGRECORDEDWHENYOUSTOPRECORDING
4ODELETETHELASTTRACKORlLEOFTHEPROGRAMPRESS
#,%!2ȳONTHEREMOTEWHILETHEPLAYERISSTOPPED
5SINGTHE4IMERS
4OVIEWPROGRAMINFORMATIONSUCHASTOTALTRACKNUMBER
OFTHEPROGRAMPRESS$)30,!9ȧREPEATEDLY
4HESYSTEMOFFERSTWOTIMERFUNCTIONS)FYOUUSEBOTH
TIMERSTHE3LEEP4IMERHASPRIORITY
3LEEP4IMER
0RESETTINGRADIOSTATIONS
9OUCANPRESETYOURFAVORITERADIOSTATIONSANDTUNE
THEMININSTANTLYBYSELECTINGTHECORRESPONDINGPRESET
NUMBER
5SEBUTTONSONTHEREMOTETOPRESETSTATIONS
0RESS45.%2"!.$ȤREPEATEDLYTOSELECT
h&-vORh!-v
0RESS45.).'-/$%ȯREPEATEDLYUNTIL
h!54/vAPPEARSORh-!.5!,vAPPEARSFORA
STATIONWITHAWEAKSIGNAL
0RESSnOR45.).'ORnONTHEUNITȨTO
TUNEINTHEDESIREDSTATION
3CANNINGSTOPSAUTOMATICALLYWHENASTATIONISTUNED
INANDTHENh45.%$vANDh34%2%/vFORSTEREO
PROGRAMSAPPEAR
9OUCANFALLASLEEPTOMUSIC4HISFUNCTIONWORKSEVENIF
THECLOCKISNOTSET
0RESS3,%%0ȴONTHEREMOTEREPEATEDLY)FYOUSELECT
h!54/vTHESYSTEMAUTOMATICALLYTURNSOFFAFTERTHE
CURRENTDISCORTAPESTOPSORINMINUTES
)FTHETAPEDECKISSTILLPLAYINGORRECORDINGATTHESET
TIMETHESYSTEMTURNSOFFAFTERTHETAPEDECKSTOPS
0LAY4IMER
9OUCANWAKEUPTO#$ORTUNERATAPRESETTIME
5SEBUTTONSONTHEREMOTETOCONTROLTHE0LAY4IMER
-AKESUREYOUHAVESETTHECLOCK
0REPARETHESOUNDSOURCE
0REPARETHESOUNDSOURCEANDTHENPRESS6/,5-%
nORTURNTHE6/,5-%CONTROLONTHEUNITȥTO
ADJUSTTHEVOLUME
4OSTARTFROMASPECIlC#$TRACKOR-0lLECREATE
YOUROWN#$PROGRAM
0RESS#,/#+4)-%23%4Ȯ
0RESS¼ÊȨREPEATEDLYTOSELECTh0,!9v
)Fh45.%$vDOESNOTAPPEARANDTHESCANNING
DOESNOTSTOPPRESS45.).'-/$%ȯUNTIL
h-!.5!,vAPPEARSANDPRESSnOR45.).'
ORnONTHEUNITȨREPEATEDLYTOTUNEINTHEDESIRED
STATION
0RESS45.%2-%-/29ȯONTHEREMOTE
0RESETNUMBER
ANDTHENPRESS%.4%2Ȱ
h/.4)-%vAPPEARSANDTHEHOURINDICATIONmASHES
3ETTHETIMETOSTARTPLAYING
0RESS¼ÊȨREPEATEDLYTOSETTHEHOUR
ANDTHENPRESS%.4%2Ȱ
4HEMINUTEINDICATIONmASHES5SETHEPROCEDURE
ABOVETOSETTHEMINUTE
5SETHESAMEPROCEDUREASINSTEPTOSETTHE
TIMETOSTOPPLAYING
3ELECTTHESOUNDSOURCE
0RESSnOR45.).'ORnONTHEUNITȨ
REPEATEDLYTOSELECTYOURDESIREDPRESETNUMBER
)FANOTHERSTATIONISALREADYASSIGNEDTOTHESELECTED
PRESETNUMBERTHESTATIONISREPLACEDBYTHENEW
STATIONS
0RESS%.4%2Ȱ
2EPEATSTEPSTHROUGHTOSTOREOTHERSTATIONS
9OUCANPRESETUPTO&-AND!-STATIONS4HE
PRESETSTATIONSARERETAINEDFORABOUTHALFADAYEVEN
IFYOUDISCONNECTTHEPOWERCORDORIFAPOWERFAILURE
OCCURS
4OCALLUPAPRESETRADIOSTATIONPRESS45.).'
-/$%ȯREPEATEDLYUNTILh02%3%4vAPPEARS
ANDTHENPRESSnOR45.).'ORnONTHE
UNITREPEATEDLYȨTOSELECTTHEDESIREDPRESET
NUMBER
0RESS¼ÊȨREPEATEDLYUNTILTHEDESIRED
SOUNDSOURCEAPPEARSANDTHENPRESS%.4%2Ȱ4HE
DISPLAYSHOWSTHETIMERSETTINGS
0RESS˽¿ȢTOTURNOFFTHESYSTEM
)FTHESYSTEMISONATTHEPRESETTIMETHE0LAY4IMER
WILLNOTPLAY
4OACTIVATEORCHECKTHETIMERAGAINPRESS#,/#+
4)-%23%,%#4ȮPRESS¼ÊȨREPEATEDLY
UNTILh0,!9vAPPEARSANDTHENPRESS%.4%2Ȱ
4OCANCELATIMERREPEATTHESAMEPROCEDUREASABOVE
UNTILh/&&vAPPEARSANDTHENPRESS%.4%2Ȱ
4OCHANGETHESETTINGSTARTOVERFROMSTEP
4IP
4HE0LAY4IMERSETTINGREMAINSASLONGASTHESETTINGISNOTCANCELED
MANUALLY
4OCHANGETHE!-TUNINGINTERVALFROMTHEFACTORYPRESET
TOK(ZORK(ZFORSOMEAREASTHISFUNCTIONIS
NOTAVAILABLEONTHE%UROPEANMODELTUNEINANY!-
STATIONANDTHENTURNOFFTHESYSTEM0RESS$)30,!9TO
DISPLAYTHECLOCKANDWHILEHOLDDOWN45.).'Ȩ
ONTHEUNITPRESS˽¿ȢONTHEUNIT!LLTHE!-PRESET
STATIONSAREERASED4ORESETTHEINTERVALTOTHEFACTORY
PRESETREPEATTHEPROCEDURE
5
HCD-EH10
SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
SET
3-2. REAR CABINET SECTION
(Page 6)
3-3. FRONT CABINET SECTION,
TOP CABINET SECTION AND
MAIN BOARD
(Page 7)
3-4. MECHANICAL DECK
(H-21SB)
(Page 7)
3-5. BASE UNIT SECTION
(BU-K8BD83S-WOD)
(Page 8)
3-6. OPTICAL PICK-UP BLOCK
(KSM-213CDP)
(Page 8)
Note: Follow the disassembly procedure in the numerical order given.
3-2. REAR CABINET SECTION
1 two screws
(BVTP3 × 10)
2 screw
(KTP3 × 8)
1 two screws
(BVTP3 × 10)
3
2 screw
(KTP3 × 8)
5 rear cabinet section
1 two screws
(BVTP3 × 10)
4 connector
(W002)
6
HCD-EH10
3-3. FRONT CABINET SECTION, TOP CABINET SECTION AND MAIN BOARD
9 top cabinet section
claw
claw
8 two screws
(B2.6)
2 connector
(SW750)
q; MAIN board
4 claw
6 flexible flat (23 core) cable (FFC151)
(CNS104)
7 lead wire (PIN102)
3 lead wire (PIN101)
4 claw
2 two connectors
(CNP501, CNP502)
1 flexible flat (25 core) cable (FFC701)
(US, Canadian, Singapore, Taiwan, Korean
and Australian models) (CNS111),
flexible flat (27 core) cable (FFC702)
(AEP, UK, East European and Russian models) (CNS112)
slide switch (REC/PB) (SW501)
2.3 ± 0.4mm
5 front cabinet section
REC lever
Note: Adjust so that the space of slide switch (REC/PB) (SW501)
REC lever becames 2.3 ± 0.4mm.
3-4. MECHANICAL DECK (H-21SB)
2 REC lever
1 screw
3 two screws
(BVTP2.6 × 8)
5 screw
(BVTP2.6 × 8)
4 PWB holder
5 two screws
(BVTP2.6 × 8)
6
9 mechanical deck
(H-21SB)
8 cable holder
7 two screws
7
HCD-EH10
3-5. BASE UNIT SECTION (BU-K8BD83S-WOD)
3
7 CD cover
6 two claws
4 vibration proof rubber (red)
6 two claws
8 base unit sction
(BU-K8BD83S-WOD)
5 vibration proof rubber
(green)
4 vibration proof rubber (red)
2 two screws
(PWH B2.6)
2 two screws
(PWH B2.6)
1 flexible flat (23 core) cable (FFC151)
(CN102)
5 vibration proof rubber
(green)
3-6. OPTICAL PICK-UP BLOCK (KSM-213CDP)
4 optical pick-up block
(KSM-213CDP)
1 flexible flat (16 core) cable
(CN301)
3 CD board
2 Remove four solders.
8
HCD-EH10
SECTION 4
TEST MODE
COLD RESET
* The cold reset clears all data including preset data stored in
the RAM to initial conditions. Execute this mode when
returning the set to the customer.
Procedure:
1. Press the I/1 button to turn the power on.
2. While pressing the x button, press the I/1 and [DSGX]
buttons.
3. The message “RESET” is displayed and the set is reset.
PANEL TEST
* All segments of liquid crystal display are tested, and the version
and released date of the micro computer are displayed.
Procedure:
1. Press the I/1 button to turn the power on.
2. While pressing the [DSGX] button, press the [DISPLAY] and
x buttons.
Then all segments of liquid crystal display are turned on.
3. Press the [FUNCTION] button, the version and released date of
the micro computer are displayed.
example of display:
0629 V008
CD POWER MANEGE
* This mode is for switch the CD power supply on/off. Even if
this state pulls out AC plug, it is held.
Procedure:
1. Press the I/1 button to turn the power on.
2. Set the FUNCTION to CD.
3. Press the I/1 button again to turn the power off (standby).
4. Press the [DISPLAY] button.
5. While pressing the x button, press the I/1 button.
6. If turns power on and display “CD POWER”, then display
“ON” or “OFF”.
5 REPEAT OFF MODE
* Number of repeat for CD playback is 5 times when the repeat
mode is “REPEAT”. This mode is used to enables CD to repeat
playback for limitless times.
Procedure:
1. Press the I/1 button to turn the power on.
2. Press the [FUNCTION] button to select “CD”.
3. Press three buttons of [DSGX], CD u and [DISPLAY]
simultaneously.
4. When the 5 repeat off mode is activated, “NO LIMIT” is
displayed on the liquid crystal display.
Version of micro computer
(In this case, version 008)
released date of micro computer
(In this case, released of June 29)
4. Press the [TUNER/BAND] button, the model name and
distination are displayed.
example of display:
JE CE2
distination
(In this case, European model)
model name
(In this case, HCD-LFXX)
5. To exit from this mode, perform the step 2.
TUNER STEP CHANGE-OVER
* Either the 9 kHz step or 10 kHz step can be selected for the
AM channel step.
Procedure:
1. Set the FUNCTION to AM, and press the I/1 button to turn
the power off.
2. Press the [DISPLAY] button.
3. While pressing the [TUNING +] button, press the I/1 button.
4. The message “9K STEP” or “10K STEP” is displayed on the
liquid crystal display, and thus the channel step is changed
over.
9
HCD-EH10
Ver. 1.1
SECTION 5
MECHANICAL ADJUSTMENTS
• Precaution
1. Clean the following parts with a denatured-alcohol-moistened
swab :
record/playback head
pinch roller
erase head
rubber belts
capstan
idlers
2. Demagnetize the record/playback head with a head
demagnetizer. (Do not bring the head magnetizer close to the
erase head.)
3. Do not use a magnetized screwdriver for the adjustments.
4. After the adjustments, appiy suitable locking compound to
the parts adjusted.
5. The adjustments should be performed with the rated power
supply voltage unless otherwise noted.
SECTION 6
ELECTRICAL ADJUSTMENTS
[AM (MW/LW)]
Setting:
Function : TUNER
BAND button : AM
60 cm
loop antenna A
Torque Meter
FWD
CQ-102AS
FWD
Back Tension
CQ-102C
FF
CQ-201AS
REW
CQ-201B
set
Meter Reading
2.0 – 8.0 mN⋅m
(20 – 80 g⋅cm)
(0.28 – 1.12 oz⋅inch)
0.15 – 0.6 mN⋅m
(1.5 – 6.0 g⋅cm)
(0.021 – 0.083 oz⋅inch)
5.0 – 17.7 mN⋅m
(50 – 177 g⋅cm)
(0.7 – 2.48 oz⋅inch)
5.0 – 17.7 mN⋅m
(50 – 177 g⋅cm)
(0.7 – 2.48 oz⋅inch)
Tension Meter
FWD
CQ-403A
30% amplitude
modulation by
400 Hz signal
[FM]
Setting:
Function : RADIO
RADIO BAND button: FM
MAIN board
JW403
(TUNER OUT L-ch)
FM RF signal
generator
MAIN board
CNP802 pin 1
level meter
+
–
set
• Tape Tension Measurement
Mode
loop antenna B
AM RF signal
generator
• Torque Measurement
Mode
0 dB=1 µV
TUNER SECTION
Meter Reading
more than 80 g
(more than 2.82 oz)
1 kHz frequency
deviation by FM 75 kHz MAIN board
signal
CNP802 pin 2
Output level:
as low as possible
MAIN board
JW148
(GND)
digital voltmeter
MAIN board
JW821 (VT)
JW805 (GND)
•
•
10 k Ω
Repeat the procedures in each adjustment several times, and
the tracking adjustments should be finally done by the trimmer
capacitors.
Remove FM antenna in FM adjustment.
AM VT VOLTAGE ADJUSTMENT
Adjustment Part Frequency Display Reading on Digital Voltmeter
L852
531 kHz
1.5 ± 0.1 V
Confirmation
1602 kHz
7.2 ± 0.5 V
AM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter
L851
531 kHz
FM VT VOLTAGE ADJUSTMENT
Adjustment Part Frequency Display Reading on Digital Voltmeter
10
L805
87.5 MHz
1.75 ± 0.1 V
Confirmation
108 MHz
6.2 ± 0.5 V
HCD-EH10
FM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter
L804
Adjustment Location:
98 MHz
FM DETECTOR ADJUSTMENT
Setting:
Function: TUNER
BAND button: FM
FM RF Signal
generator
MAIN board
JW403
(TUNER OUT L-ch)
– MAIN Board (Component Side) –
L852
AM VT
Voltage
Adjustment
L805
FM VT
Voltage
Adjustment
L806
FM Detector
Adjustment
L851
AM Tracking
Adjustment
set
Carrier frequency : 98 MHz
Modulation
: deviation by
FM 75 kHZ
Output level
: 60 dB
MAIN board
JW148 (GND)
1. Tune the set to 98 MHz.
2. Adjust L806 so that modulation distortion may become the
best in the vicinity of the maximum value where the tuner out
level becomes -156Bs or more.
L804
FM Tracking
Adjustment
– MAIN Board (Conductor Side) –
CNP802
1
3
JW805
(GND)
JW821
(VT)
JW403
(TUNER OUT L-ch)
JW402
(TUNER OUT R-ch)
JW148
(GND)
11
HCD-EH10
DECK SECTION
4. After the adjustments, apply suitable locking compound to
the pats adjusted.
0 dB=0.775 V
1. Demagnetize the record/playback head with a head
demagnetizer.
2. Do not use a magnetized screwdriver for the adjustments.
Adjustment Location: Record/Playback/Erase Head
– When there is a hole for the azimuth adjustment –
• Test Tape
Tape
P-4-A063
Signal
6.3 kHz, -10 dB
Used for
Azimuth Adjustment
RECORD/PLAYBACK HEAD AZIMUTH ADJUSTMENT
Note: Remove the sheet (azimuth) before this adjustment.
After the end of adjustment, try to paste sheet (azimuth) peeled off
to be the same position.
Adjust the tape mechanism deck detaching it from the set when there
is no hole for the azimuth adjustment in the set.
Procedure:
1. Mode: Playback
– When there is no hole for the azimuth adjustment –
test tape
P-4-A063
(6.3 kHz, –10 dB)
MAIN board
PHONES jack
(J102)
level meter
set
+
–
2. Turn the adjustment screw and check output peaks. If the peaks
do not match for L-CH and R-CH, turn the adjustment screw
so that outputs match within 1dB of peak.
within
1dB
L-CH
peak
within
1dB
Output
level
Screw
position
R-CH
peak
L-CH
peak
Screw
position
R-CH
peak
3. Mode: Playback
test tape
MAIN board
P-4-A063
PHONES jack oscilloscope
(6.3 kHz, –10 dB) (J102)
V
set
waveform of oscilloscope
in phase 45°
good
12
90° 135° 180°
wrong
H
mechanical deck
(H-21SB)
HCD-EH10
CD SECTION
Note:
1. CD Block is basically constructed to operate without adjustment.
2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.
3. Use an oscilloscope with more than 10 MW impedance.
4. Clean the object lens by an applicator with neutral detergent when the
signal level is low than specified value with the following checks.
5. Check the focus bias check when optical pick-up block is replaced.
FOCUS BIAS CHECK
oscilloscope
(DC range)
CD board
TP (RFACI)
TP (VC)
+
–
Procedure :
1. Connect oscilloscope to TP (RFACI) and TP (VC) on the CD
board.
2. Press the I/1 button to turn the power ON.
3. Set disc (YEDS-18) on the tray and press the CD u button
to playback.
4. Confirm that oscilloscope waveform is as shown in the figure
below. (eye pattern)
A good eye pattern means that the diamond shape (◊) in the
center of the waveform can be clearly distinguished.
VOLT/DIV: 200 mV
TIME/DIV: 500 ns
level:
0.9 ± 0.4 Vp-p
Checking Location:
– CD Board (Conductor Side) –
TP
(VC)
IC201
TP
(RFACI)
HCD-EH10
13
13
HCD-EH10
SECTION 7
DIAGRAMS
7-1. BLOCK DIAGRAM – CD SERVO Section –
OPTICAL
PICK-UP BLOCK
(KSM-213CDP)
70
RFACO
A
57 A
B
58 B
C
59 C
D
60 D
AOUT2 117
51 F
F
AUTOMATIC
POWER CONTROL
Q321
CD
AOUT1 112
50 E
E
LD
71
RFACI
XTAI 109
X201
16.9344MHz
66 LD
XTAO 108
• R-ch is omitted due to same as L-ch.
• SIGNAL PATH
67 PD
PD
A (Page 16)
R-CH
: CD PLAY
CD DSP
IC201
S201
(LIMIT)
SSTP 39
2-AXIS
DEVICE
FOCUS/TRACKING COIL DRIVER,
SLED/SPINDLE MOTOR DRIVER
IC402
FCS+
FCS–
TRK+
TRK–
SL+
M402
(SLED)
12 CH2OUTF
CH2FIN 6
45 FFDR
11 CH2OUTR
13 CH1OUTR
14 CH1OUTF
CH2RIN 7
CH1RIN 5
CH1FIN 4
46 FRDR
44 TRDR
43 TFDR
17 CH3OUTF
CH3FIN 23
41 SFDR
18 CH3OUTR
CH3RIN 22
42 SRDR
OPIN+ 2
38 MDP
SYSTEM CONTROLLER
IC701 (1/3)
M
SL–
SP+
M401
(SPINDLE)
CD D +3.3V
16 CH4OUTF
M
OPOUT 27
SP–
15 CH4OUTR
CH4IN 24
MUTE
XRST
20
8
DATA
CLOK
XLAT
SENS
SCOR
89
11
16
20
26
DATA2
CLK2
XLAT-MP3
REQ-MP3
IREQ-MP3
ACK-MP3
XTACN
12
90
13
14
10
15
7
31
30
8
29
43
7
5
6
10
12
49
50
34
SO0
SC0
TMCK
SI0
AN7
SI3
SO3
SC3
IC1
OCU1
SC2
SO2
P76
2 P25
11 OCU0
AMP-STBY
HCD-EH10
14
14
B (Page 16)
HCD-EH10
Ver. 1.3
7-2. BLOCK DIAGRAM – TUNER Section –
CNP802
ANTENNA
FM/AM
(AEP, UK, East European, Russian)
BAND-PASS
FILTER
BPF801
1
CF801
FM-MIX 3
36 FMRF-IN
FM MIX
AMP
Q803
CF802
8 FMIF-IN
FMDET-OUT 23
22 MPX-IN
TUNER
L-OUT 12
R-OUT 13
R-CH
L851
AM-RF
(US, Canadian, Singapore)
AM
TRACKING
L803
AM-IFT
3
1 AMRF-IN
CF803
AM-MIX 5
7 AMIF-IN
AMDET-OUT 24
D851
L852
AM-LO
AM VT
VOLTAGE
31 AM-OSC
L804
FM-RF
FM/AM TUNER,
FM/AM PLL
IC801
FM
TRACKING
34 FMRF-OUT
L805
FM-LO
FM VT
VOLTAGE
32 FM-OSC
(AEP, UK, East European, Russian)
VM +9V
L806
FM-DET
VM +9V
FM
DETECTOR
+4V
REGULATOR
Q862
DET AMP
Q861
RDS +4V
BO2 30
BO1 29
XIN
XOUT
DI
DO
CL
CE
AGC
D0
CL
XIN
XOUT
10 TEST
FIN
4
11 FM-DET
19
20
16 18 17 15 25
2 16
13
14
X801
75kHz
RDS DECODER
IC861
57 33 56 55 39
27 45
V2
SI1
V1
V0
AN3
TIN2
INT3
X861
4.332MHz
• R-ch is omitted due to same as L-ch.
• SIGNAL PATH
: FM
: AM
SYSTEM CONTROLLER
IC701 (2/3)
HCD-EH10
15
15
C (Page 16)
HCD-EH10
Ver. 1.3
7-3. BLOCK DIAGRAM – MAIN Section –
J105
R-CH
19 A1
AUDIO IN
OUT1 18
(Page 14) A
CD
POWER
AMP
IC301
23 C1
TUNER
• R-ch is omitted due to same as L-ch.
• SIGNAL PATH
R-CH
INPUT SELECT,
ELECTRICAL VOLUME
IC401
(Page 15) C
J102
PHONES
: TUNER
AMP-STBY
21 B1
: CD PLAY
B (Page 14)
: TAPE PLAY
: REC
REC1O 28
2 PB1P
L-CH
SD
13
SW501
(REC/PB)
PB
r
REC
HR501
(REC/PB)
: AUX IN
+
–
L
+
–
R
J101
SPEAKER
+
DC
DETECT
Q123
SW501-1
AC DETECT
Q121, 122
R-CH
D372
AC DETECT
Q371, 372
+
R-CH
SW501-2
B+ SWITCH
Q351, 352
AMP B+
TAPE
MECHANISM
DECK
RECT
D107 – 110
VM +9V
BIAS OSC
L501
OSC
Q507
AC DETECT
Q193
+3.1V
REGULATOR
Q801
TUNER +5V
+5V
REGULATOR
Q802
40
4
14
13
92
93
P27
X1A
X0A
X1
X0
X702
4.19MHz
AN4
X701
32.768kHz
TUNER +3.1V
D191, 192
AN0 36
VM +7V
REMOTE CONTROL
RECEIVER
IC703
SC1
LED0
46
17
CD A +3.3V
CD +1.8V
+1.8V
REGULATOR
IC202
SW750
(CD LID OPEN/CLOSE DETECT)
+3.3V
REGULATOR
Q191
POWER
TRANSFORMER
PT005
VSTBY
(AC IN)
F001
(EXCEPT Singapore)
CD D +3.3V
+3.3V
REGULATOR
Q192
COM0 – COM1
+9V
REGULATOR
Q101 – 103
RECT
D111, 113
(EXCEPT Singapore)
D112, 114
LED DRIVE
Q707
28 PPG1
P24 1
F002
(Singapore)
VOLUME
SEG0 – SEG31
9 IC0
LED701
(LCD BACK LIGHT)
LED702
STANDBY
ROTARY
ENCODER
SW700
D702
48 SI2
SYS +3.3V
VOLTAGE
DETECT
Q705, 706
AN6 42
SW701 – 705,
SW711 – 716
(FRONT PANEL KEYS)
37, 38, 41
LCD702
LIQUID
CRYSTAL
DISPLAY
63, 64, 67 – 89, 94 – 100
59 – 62
SYSTEM CONTROLLER
IC701 (3/3)
AN1, AN2, AN5
RSTX 54
RESET
SWITCH
Q704
HCD-EH10
16
16
+4V
REGULATOR
Q701 – 703
VOLTAGE
SELECTOR
S901
(Singapore)
HCD-EH10
Ver. 1.4
• Note for Printed Wiring Boards and Schematic Diagrams
Note on Printed Wiring Board:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
f
: internal component.
•
•
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen from
the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
• Waveforms
Note:
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part
number specified.
• Indication of transistor
C
Q
These are omitted.
•
•
•
•
B E
Q
B C
E
These are omitted.
• Circuit Boards Location
MAIN board
AC-SW board
•
•
•
•
CD board
PANEL board
PT-AC board
– CD Board –
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
•
f
: internal component.
• C : panel designation.
1
– MAIN Board –
IC201 1 (LRCK)
(CD PLAY mode)
qa
IC801 w; (XOUT)
(tuner mode)
3.3 Vp-p
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce por tant le numéro
spécifié.
IC201 5 (BCK)
(CD PLAY mode)
IC861 qf (XOUT)
(FM mode)
3.3 Vp-p
IC201 u; (RFACO)
(CD PLAY mode)
0.5 to 1.3 Vp-p
200 mV/DIV, 500 ns/DIV
4
• Abbreviation
AUS : Australian model
CND : Canadian model
EE
: East European model
KR
: Korean model
RU
: Russian model
SP
: Singapore model
TW : Taiwan model
IC201 <z/, (XTAO)
(CD PLAY mode)
2.3 Vp-p
59.4 ns
1 V/DIV, 20 ns/DIV
HCD-EH10
17
17
1 V/DIV, 10 µs/DIV
ws
IC701 os (X1)
3.1Vp-p
4 Vp-p
230 ns
1 V/DIV, 200 ns/DIV
3
30.6 µs
500 mV/DIV, 5 µs/DIV
qs
472 ns
IC701 qf (X1A)
3.2 Vp-p
13.3 µs
1 V/DIV, 10 µs/DIV
A : B+ Line.
B : B– Line.
H : Adjustment for repair.
Voltages and waveforms are dc with respect to ground
under no-signal conditions.
– CD Board –
no mark : CD PLAY
– Other Section –
no mark : FM
[
] : AM
(
) : CD PLAY
〈〈
〉〉 : TAPE PLAY
{
} : REC
Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production tolerances.
Circled numbers refer to waveforms.
Signal path.
F : FM
f : AM
J : CD PLAY
E : TAPE PLAY
j : REC
i : AUX IN
wa
1.6 Vp-p
22.8 µs
2
– PANEL Board –
1 V/DIV, 100 ns/DIV
239 ns
1 V/DIV, 100 ns/DIV
HCD-EH10
Ver. 1.4
• See page 17 for Circuit Boards Location.
7-4. PRINTED WIRING BOARD – CD Board –
1
2
3
: Uses unleaded solder.
4
5
6
7
8
9
10
A
M401
(SPINDLE)
CD BOARD (COMPONENT SIDE)
M
CD BOARD
C401
(CONDUCTOR SIDE)
B
S201
(LIMIT)
R280
C406
C451
R452
C405
28
R451
M
R277
C103
CN301
R292
C218
R270
C214
CN102
C222
C112
R112
C113
R113
C111
C322
C301
(11)
C303
11
1-868-067-
R265
C304
C264
R324
R322
Q321
C321
R321
C227
F
IC202
2
R323
R268
R257
C260
C256
C258
C230
E
(Page 20)
R250
R258
C261
C208
C323
R260
TP
(RFACI)
1
C226
1-868-067-
C
MAIN
BOARD
PIN101
(AEP, UK, EE, RU, KR)
(Page 20)
18
18
R111
11
OPTICAL PICK-UP BLOCK
(KSM-213CDP)
HCD-EH10
A
MAIN
BOARD
CNS104
90
C221
C254
R256
C274
91
61
R267
R254
60
C273
C265
R266
C223
R271
C257
14
C213
R253
C210
8
R291
C217
C224
R252
C252
C207
R203
C267
IC201
C251
R255
C253
R207
C204
120
C205
C220
C206
7
C404
R278
C219
C232
C203
R202
C202
TP
(VC)
C266
C110
C201
1
31
C268
C275
X201
1
R275
C292
R108
30
C215
3
M402
(SLED)
R110
C107
C105
R276
C277
C101
C102
E
C271
C276
R401
R201
15
R105
C291
R107
R101
C109
R104
R103
C272
C104
R109
R102
R421
R423
C424
C108
21
IC402
C
D
22
(11)
HCD-EH10
Ver. 1.4
• See page 17 for Waveforms. • See page 26 for IC Block Diagrams. • See page 31 for IC Pin Function Description.
7-5. SCHEMATIC DIAGRAM – CD Board –
0.01
0.47
C208
0.1
C230
100p
C260
C261
R260 0
C264
C273
470p
1000p
C210
0.1
TP
(RFACI)
R256
22k
C257
0.1
CN301
16P
R250 1M
C265 0.1
R265 4.7k
C274
0.1
VC
R324
100k
C258
R258 220k
R268 10k
R267
4.7k
220p
VCC
R266
1k
R257
100k
C221
0.1
C323
100
10V
R321
2.2
C322
1
C304
1
C303
10
C301
0.1
E
D
R322
2.2
A
B
Q321
2SA2119K
R323
0
TP1
C
OPTICAL
AUTOMATIC
PICK-UP
F
POWER
C321
1000p
CONTROL
BLOCK
GND
(KSM-213DCP)
C256
0.1
LD
VR
PD
F+
TP
(VC)
T+
RFDCO
AVDD4
PDSENS
LD
AC_SUM
PD
EG_IN
RFC
AVSS4
RFACO
BIAS
RFACI
AVDD3
ASYI
VCTL
ASYO
VPCO
FILI
CLTV
PCO
FILO
SVSS
SVDD
VSS
VDD
SVDD
AVSS3
0.1
SSTB-MP3
DATA
SVSS
C222
TEST1
TCLK2
F-
M401
D
(SPINDLE)
SP+
C
SPB
JTAGTCK
SL+
A
JTAGTDI
SL-
C207 100 10V
VC
JTAGTDO
R255 1k
C254 4700p
TP4
R254 10k
R253 1k
R451
22k
AVSS0
TEST
C206 0.1
AVDD0
TES1
SRDR
XVDD
SFDR
AVDD1
IOVSS1
AOUT1
SSTP
VREFL
MDP
AVSS1
LOCK
AVSS2
VSS
VREFR
VDD
AOUT2
VSS
OPIN+
OPIN-
CH1FIN
CH4CAPA
PREVCC
CH1RIN
CH4IN
OPOUT
CH2FIN
CH3FIN
GAIN-SW
CH2RIN
CH3RIN
GND
CNF4
CH2OUTR
POWVCC
CH1OUTR
CH2OUTF
CH3OUTR
COIL DRIVER,
CH1PUTF
FOCUS/TRUCKING
CH4OUTF
SVDD
CH4OUTR
SVSS
COUT
VDD
SCOR
C2PO
GFS
XPCK
WFCK
MIRR
CH3OUTF
FOK
DFCT
XUGF
DATA2
CLOK
IREQ-MP3
VSS
XRST
XTACN
BCK
BCKI
PCMDI
PCMD
3
IOVSS0
2
LRCKI
OUT
1
C219
0.1
LRCK
IN
IC202
BD18KA5FP
GND
+1.8V REGULATOR
R421
0
R292 100
IOVDD0
CN102
23P
R423
10k
C277 1
AVDD2
DATA
C424
0.1
C404
0.1
C276 1
C291
470p
C292
470p
XTAI
SVDD
C217
0.1
TFDR
SVSS
R291
100
C201
100
10V
R111 100
TRDR
XTAO
SENS
R112 100
XVSS
VDD
C202
0.1
C218
0.1
FFDR
FFDR
TFDR
R271
1M
R203
R113 100
FRDR
PLLVSS
XLAT
X201
16.9344MHz
C215
0.1
C232
0.1
FRDR
TRDR
R270
1k
ACK-MP3
C268
10p
C275
5p
C266
10p
CD DSP
IC201
CXD3014A-201R
REQ-MP3
C267
5p
C205
0.1
IOVDD1
IOVSS2
PLLVDD
XLAT-MP3
(Page 21)
TP2
E
DOUT
C223
0.1
C251 470p
C451 0.047
C214
0.1
R252 10k
TRDR
TP3
F
TFDR
TEI
IOVDD2
FFDR
TEO
VDD
FRDR
VSS
0.1
C252 4700p
R452 10k
C213
(SLED)
C253 470p
FEI
TRST
(AEP,UK,EE,RU, KR)
M402
FEO
JTAGTMS
SLED/SPINDLE
C227
1
C226
1
C220
0.1
VREF
R207
0
D-OUT
GND
DVDD(3.3V)
POWVCC
IC402
BA5947FM
C224
0.1
M-MUTE
MUTE
MOTOR DRIVER
CLK-MP3
D-GND
C203
100
10V
R202
0
L-CH
C204
0.1
R-CH
R201
0
R275
100
AVDD(3.3V)
R276
47k
XTCN
C271
0.1
R278 100
A-GND
C272
0.1
R277 100
(Page
21)
XRST
R110 100
R280
0
IREQ-MP3
R103 100
CLK
R105 100
DATA-MP3
R104 100
C405
0.1
XLAT-MP3
R109 100
C406
0.1
SL+
SP-
R107 100
XLAT
SL-
R108 100
ACK-MP3
SP+
REQ-MP3
R102 100
SENS
R101 100
SCOR
220p
220p
220p
C109
C107
22p
22p
C103
C105
C104
220p
220p
22p
22p
C101
C108
C110
C102
22p
22p
C113
C112
C111
M+7V
220p
M-GND
R401
0
C401
220
10V
S201
(LIMIT)
HCD-EH10
19
19
HCD-EH10
Ver. 1.4
• See page 17 for Circuit Boards Location.
7-6. PRINTED WIRING BOARDS – MAIN Section –
1
• Semiconductor
Location
3
8
9
10
11
(Page 24)
CD BOARD
CN102
A
B
PANEL BOARD
CNS701
JW115
JW114
R196
R192
R138
JW105
R134
JW112
R191
R176
JW163
JW164
CNP502
JW137
JW165
JW138
R175
JW152 C141
JW417
C502
JW410
C111
JW151
JW142
JR403
JW418
JW150
R517
JW107
R518
R515
R513
CNP501
R516
R514
R504
R505
PB
(AC IN)
PT-AC BOARD
R524
R532
R530
S501
2
C526
C525
R529
C527
R533
1
R531
R859
T002
F001
R526
R428
R519
C513
C512
R522
C528
T001
R534
C524
C415
C514
R528
R434
R433
C416
R520
R521
R527
C142
L103
JW139
C196
JW130
C115
R541
C431
CNS112
R406
C403
JW132
JW409
C409
R424
R405
JW414
R126
R127
R427
JW415
Q121
R124
SW501
(REC/PB)
REC
C511
C532
JW002
R525
C523
R355
R352
E
G
C315
C307
R544
R536
R543
R535
C562
R565
∗ NOT REPLACEABLE:
BUILT IN TRANSFORMER
∗
C565
C309
C303
R564
R307
R339
R383
C305
IC301
C381
C301
R382
E
R381
R340
R356
E
C564
R305
A
Q371
R384
C382
R545
R542
Q507
C304
D371
A
Q372
C311
R306
L501
C561
R561
R560
R302
R354
R353
PT005
POWER
TRANSFORMER
C308
JW168
C302
13
W008
C371
D
R374
S
R110
R373
(CHASSIS)
R371
JW149
R372
R375
R377
R376
R379
JW167
R378
Q351
R380
JW141
C501
R501
TAPE
MECHANISM
DECK
(R-CH)
HRP501
(REC/PB)
4
C406
C518
C534
C567
C310
R104
J
R115
J102
PHONES
(L-CH)
C519
C522
C312
JW145
E
C118
E
R425
R423 R426
Q122
R125
A
D372
R365
C
C410
R402
R404
R121
A
CN102
B
R119
R523
Q352
Q101
27
1
R351
R108
HT101
R109
C437
K
C110
C109
R107
JW156
JW147
E
D106
JW182
Q103
Q102
R430
C405
JW161
JW181
R102
E
R120
JW140
JR404
C401
JW412
K
R184
C404
C421
1
R429
JW144
R101
R510
14
C529 C531
JW406
R304
R112
R116
C432
26
1
C504
28
C438
R403
3
R111
JW153
C868
JW129
JW403 (TUNER OUT L-ch)
R103
C412
JW401
JW166
I
R512
C408
IC401
JW407
D110
D107
R519
C535
C508
C544
JW411
D109
C156
D111
D113
D108
C155
JW146
JW824
JW825
R811
D815
L805
R412
E
JW155
H
R511
R502
R411
C413
E
PIN101
C
(Page 18)
L104
R118
R419
C509
C507
C506
R506
C515
JW416
15
JW405
JW106
C121
CD
BOARD
R151
R441
C510
R509
C503
JR402 C407
JW408
JR401
JW160
C101
C543
R410
A
R106
C105
C183
R181
+
JW159
C505
R503
JW134
C402
C114
R105
JW102
C181
L
C433
R308
C306
R303 R301
JW143
K
JW101
JW103
R440
JW154
JW158 K
JW104
–
R130
D131
R182
C112
R128
C184
R129
J101
SPEAKER
R814
JW413
E
–
JW404
JW157
Q123
R123
C182
JW133
R152
R117
R442
R507
R839
JW148 (GND)
PIN102
R
K
C533
C122
D
(Page 24)
A/K
JW402 (TUNER OUT R-ch)
PANEL
BOARD
J105
AUDIO IN
A
R439
R847
R845
D193
3
R420
R193
R850
R863
R820
R838
R827
JW819
R842
R846
R837
R844
E
C838
Q801
Q802
G
R806
JW830
E
F
C815
JW829
R816
R829
C816
C817
R812
C824
C847
C841
C820
R849
C823
R819
X801
A
R808
C809
C834
C840
R830
C836
C839
R841
R817
C821
C848
C835
R835
C829
C830
JW835
R834
C807
C822 R813 R815
R836
C801
E
C825
L806
R818
R822
R833
C832
R840
JW822
D803
JW803
C852
R807
A
K
C819
C434
JW818
C191
1
JW136
JW128
JW131
JW821 (VT)
R809
JW802
R843
JW831
R853
JW817
JW805 (GND)
JW834
JW823
R851
C855
C802
D851
JW135
JW127
JW832
R185
R189
JW117
1 2
JW126
C826
JR801
L851
K
A A
C854
R802
JW833
E R186
JW124
C827
R508
D802
C805
C853
R805
C856
C831
JW804
C833
JW806
R848
C813
JR106
C806
C851
L852
IC801
JW162
R860
C818
C810
JW807
C873
JW814
D
JW816
JW815
D191
JW120
R187
Q193
R188
JW125
K
R195
D192
JW123
C828
A
JW116
JW119
C865
R862
A
R198
JW122
R861
R804
R803
C803
R801
C811
JW813
JW810
CF801
L804
JW809
R810
CF802
R821
C814
C864
R199
E Q192
JW118
JW121
9
JR861
C804
JW808
R826
R825
JR803 JW811
Q803
R824
K
E
JW840
JR802
E
R823 R831
A/K
A
E
R869
R865
8
JW812
C
Q861
R871 R870
C869
C866
K
ANTENNA
FM/AM
C862
C861
C863
BPF801
C812
A/K
CF803
A
D812
CNP802
R873
16
R876
1
C867
L803
R875
R874
Q862
IC861
E Q191
R197
JW113
R867 R866
R868
R857
R872
X861
R136
R146
JW110
JW836
R864
JW111
R140
R856
C193
R135
R150
R148
JW109
R139
C194
23
C192
R137
22
JW108 R145
B
R149
R144
R147
CNS104
1
CF801 – 803
+
Refer to SUPPLEMENT-1 for the MAIN section of printed
wiring boards and schematic diagrams of US, Canadian,
Singapore, Taiwan, Korean and Australian models.
When repairing the set of AEP, UK, East European and Russian,
refer to either of original service manual/SUPPLEMENT-1
according to the set.
7
2
J-5
F-6
D-3
B-5
J-3
I-3
I-3
H-4
H-4
F-3
B-8
B-8
B-9
J-4
I-4
I-5
I-4
I-6
E-2
E-2
C-2
B-6
B-6
6
A
C800
Q101
Q102
Q103
Q121
Q122
Q123
Q191
Q192
Q193
Q351
Q352
Q371
Q372
Q507
Q801
Q802
Q803
Q861
Q862
5
(Page 18)
R828
IC301
IC401
IC801
IC861
4
MAIN BOARD
D813
Ref. No. Location
D106
I-3
D107
H-3
D108
H-3
D109
H-4
D110
H-4
D111
H-3
D113
H-3
D131
G-4
D191
B-8
D192
B-8
D193
C-9
D371
I-5
D372
H-5
D802
C-4
D803
D-4
D812
C-2
D813
C-2
D815
E-5
D851
D-4
2
: Uses unleaded solder.
11, 12
1-868-227-
HCD-EH10
20
20
(11, 12)
3
W002
1
11, 12
1-868-228-
(11, 12)
HCD-EH10
Ver. 1.4
7-7. SCHEMATIC DIAGRAM – MAIN Section (1/3) –
(1/3)
CNP501
4P
A7
HRP501
A8
(REC/PB)
-1
R-CH
A10
A9
L-CH
JW107
SW501
CNP502
3P
-2
(REC/PB)
RDSC
TAPE
REC
RDS-CLK
RDSD
(Page 22)
RDS-DO
TUAS
MECHANISM
PB
TU-ANSD
DECK
C535
0.1
CNS112
27P
A11
TUDO
TU-DO
A12
TUDI
RDSC
I-RDS-SC
TUCK
RDSD
I-RDS-SD
TUCE
TUCE
O-TU-CE
TU-DI
(Page 23)
A13
TU-CLK
TU-CE
R193
100k
(Page 22)
Q191
KTC3203
A1
+3.3V REGUALTOR
DATA
R140 470
CCMD
CLK-MP3
R144 470
MCLK
DR-MUTE
R145 470
R199 100
R188
22k
R187 100
R198 100
CNS104
23P
R186 100
R197 100
AC DETECT
A6
R185 100
Q193
2SA1235F
A2
(Page 22)
Q192
KTC3203
+3.3V REGUALTOR
R192
100k
A3
C193
0.1
R191
1k
R196
100
R195
100
C192
0.1
R189
22k
DRMT
DVDD(3.3V)
R543
4.7k
D-OUT
DGND
C194
0.1
L-OUT
D193
UDZS3.9B
AGND
R545
4.7k
C191
220
10V
R542
10k
R-OUT
O-TU_DI
TUCK
O-TU-CK
TUAS
I-TU_ANSD
TUDO
I-TU-DO
CCLK
O-CD-CLK
CCMD
O-CD-CMD
MCLK
O-CLK-MP3
MDAT
I/O-DATA-MP3
DRMT
O-DR-MUTE
CLAT
O-CD-XLAT
MREQ
O-REQ-MP3
MLAT
O-XLAT-MP3
MACK
I-ACK-MP3
SCOR
I-CD-SCOR
SENS
I-CD-SENS
MIRQ
I-REQ-MP3
XTCN
O-CD-XTACN
(Page 25)
O-FUNC-SD
FUSD
R544
4.7k
AVDD(3.3V)
(Page 19)
R541
22k
TUDI
I-TP_STATE
XTACN
R146 470
XTSN
XRST
R147 470
XRST
O-POWER
IREQ-MP3
R148 470
MIRQ
I-P-MONI
CLK
R149 470
CCLK
VSTBY
DATA-MP3
R150 470
MDAT
U-GND
XLAT-MP3
R139 470
MLAT
REQ-MP3
R138 470
MREQ
ACK-MP3
R137 470
MACK
XLAT
R136 470
CLAT
SENS
R135 470
SENS
SCOR
R134 470
SCOR
O-AMP-ON/XRST
XRST
C196
0.1
J105
AUDIO IN
R175
47k
R152
4.7k
R151
4.7k
C115
0.1
L104
MGND
D192
10EDB40
VM(7V)
D191
10EDB40
A14
A15
A16
R176
47k
A17
A4
A18
A5
A19
(Page 22)
Q101-103
(Page 22)
+9V REGULATOR
JW166
Q101
2SB1274R
D131
MC2836
W8
D107
2A02M
D108
2A02M
C101
3300
25V
R109
470
C118
100
16V
PIN102
PT005
POWER TRANSFORMER
W002
3P
(CHASSIS)
C105
0.1
D110
2A02M
CN102
3P
F001
T160mAL
250V
R128
220
D109
2A02M
(AC IN)
D111
10EDB40
R108
100
R129
470
R110
100k
R130
220
R104
100k
C156
0.1
R103
47k
C109
0.01
D113
10EDB40
Q123
2SC3052F
Q121
2SC3052F
DC DETECT
R101
10k
C155
0.1
PANEL
BOARD
(Page 25)
C
CD
BOARD
(Page 19)
PIN101
R123
470k
D106
UDZS8.2B
JW002
D
R105
100k
Q102
2SC3052F
R121
220k
AC DETECT
R124
100
∗NOT REPLACEABLE:
C112
2200
25V
BUILT IN TRANSFORMER
R126
47k
R102
100
Q103
2SC3052F
R107
470
R127
47k
C110
0.22
R106
22k
C114
0.1
C122
220
10V
R125
4.7k
C121
0.47
Q122
2SC3052F
AC DETECT
Refer to SUPPLEMENT-1 for the MAIN section of printed
wiring boards and schematic diagrams of US, Canadian,
Singapore, Taiwan, Korean and Australian models.
When repairing the set of AEP, UK, East European and Russian,
refer to either of original service manual/SUPPLEMENT-1
according to the set.
HCD-EH10
21
21
HCD-EH10
Ver. 1.4
7-8. SCHEMATIC DIAGRAM – MAIN Section (2/3) –
(Page 21)
• See page 26 for IC Block Diagrams.
A1
C532
1000p
(Page 21)
R406
1k
TU-R
R403
1k
R411
1k
EMC-GND
C509
33 16V
C501 47p
R412
220
TU-GND
C502 47p
R404
220
R410
100k
TU-L
C406 0.22
VM9V
C531
1000p
C515
10p
C404 0.22
C403
0.1
C408 4700p
A3
C407 4700p
A2
(Page 23)
A6
FUSD
(2/3)
C543
1000p
C421
0.1
C503
470p
R507
2.2k
C505
0.047
R505
10k
R517
100k
C507
0.01
R515
47
R519
47k
R511
2.2M
R513
100
C513
1000p
R503
4.7k
C432 0.22
IC301
LA4631-E
C431 0.22
R501
100
POWER AMP
A7
A8
R502
100
INPUT SELECT,
ELECTRICAL
R301
47k
C309
1000p
R307
22k
R420 33k
R419 33k
R434 22k
R442 47k
C437
470p
C401
0.1
50V
R181
10
C304
100
16V
JW181
J101
SPEAKER
R365
2.2k
C301
2200p
C303
4.7
50V
R303
2.2k
R304
2.2k
R305
4.7k
R306
4.7k
C438
470p
R402
100
R379 1
R380 1
R377 1
R378 1
R375 1
R376 1
R373 1
R374 1
R111
470k
R371 1
R112
470k
R182
10
R372 1
JW182
R424
4.7k
R425
4.7k
C405
0.1
50V
J102
R116
220 R117
220
R115
220
R405
0
C413
100 16V
C402
100 16V
R426
4.7k
C434
470p
C533
0.1
C433
470p
R355
10k
R521
22k
R528
4.7k
R527
4.7k
R518
100k
C544
1000p
R514
100
R516
47
C510
33
16V
R532
4.7k
R534
10k
A9
A10
R531
4.7k
R529
2.2k
(Page 21)
R533
10k
C527
1000p
C526
0.01
A11
R535
220
R536
220
R561
22k
A12
C416
0.1
C567
4700p
A13
OSC
R564 R565
4.7
4.7
C415
0.1
R560
1k
C564
0.01
Q507
2SC3052F
D372
MC2838
R383
10k
R520
47k
C528
1000p
C519
0.1
R439
4.7k
R354
10k
D371
MC2838
C512
470p
R440
4.7k
C534 0.1
R381 R382
10k
10k
R351
10k
S
R522
22k
R530
2.2k
C525
0.01
Q371
2SA1235F
R118
220
C529
100p
C561
2200p
C381
1000p
Q351
2SJ599-Z-E2
C522
100p
R423
4.7k
C412
100
16V
C371
0.1
C184
0.1
C409
0.1
R429
4.7k
R430
4.7k
R
C182
0.1
C410
0.1
C523 0.01
C305
0.1
R523 4.7k
R339
100
C506
0.047
C518
0.1
R308 22k
R525 10k
C315
1000p
C310
1000p
R508
2.2k
R504 R506
4.7k
10k
R524 4.7k
C183
0.1
C302
1000p
R302
47k
R510
470k C508
0.01
C504
470p
C524 0.01
C181
0.1
L
C308
1000
16V
C306
0.1
C514
1000p
R512
2.2M
IC401
BD3881FV
R526 10k
C307
1000
16V
R340
100
R433 22k
C312
470p
R441 47k
VOLUME
C311
470p
C511
470p
R509
470k
C562
2200p
C565
1
L501
BIAS OSC
A14
PHONES
C142
0.01
C141 R120
0.01 2.2k
A15
R119
2.2k
Q351,352
C111
0.1
L103
Q352
2SC3052F
A16
Q371,372
R427
100k
AC DETECT
B+ SWITCH
Q372
2SC3052F
R356
22k
R352
2.2k
R353
10k
R384
1k
R428
100k
A17
C382
0.01
A18
A19
(Page 21)
A4
A5
(Page 21)
Refer to SUPPLEMENT-1 for the MAIN section of printed
wiring boards and schematic diagrams of US, Canadian,
Singapore, Taiwan, Korean and Australian models.
When repairing the set of AEP, UK, East European and Russian,
refer to either of original service manual/SUPPLEMENT-1
according to the set.
HCD-EH10
22
22
HCD-EH10
• See page 17 for Waveforms.
7-9. SCHEMATIC DIAGRAM – MAIN Section (3/3) –
Ver. 1.4
• See page 26 for IC Block Diagrams.
(3/3)
R857
22k
R862
470
D851
SVC347A
C868
68p
10p
5p
C854
C856
0.047
C851
R853 100k
10p
0.022
C852
L851
AM-RF
C853
JR861
0
L852
AM-LO
JW821
R809
1k
R851
22k
R808
10k
JR801
C804
0.1
R807
100k
FM/AM
D802
SVC230
C809
0.1
C819
1000p
C820
1000p
R803
10
R814
100
R802
10
RDS DECODER
IC861
PT2579SN
R850
2.2k
C817
0.1
C806
1000p
D813
1PS226
R839
100
C834
220
10V
R805
100k
CNP802
3P
ANTENNA
L804
C840
0.47
C822
470p
R806
0
Q801
2SC3052F
L805
FM-LO
FM-RF
C816
0.22
D815
1PS226
C821
0.047
C807
2200p
R849
22k
R817
10k
R816
10k
C815 100p
C802
0.1
R801
2.2k
C818
0
C866
470p
R861
10k
R813
10k
C803
0.01
C865
22
50V
R871
220k
+3.1V REGULATOR
BPF801
D812
1PS226
C862
0.1
R812
470
R811
4.7k
(VT)
D803
SVC230
R804
0
X861
4.332MHz
R865
10k
R873 2.2k
R867 10k
C855
470p
C869
47p
R864
10k
R827
100
C823
18p
C841
22
50V
X801
75KHz
C864
470p
C838
0.1
R818
47k
R830
47k
R863
22k
C863
22
50V
Q861
2SC3052F
C824
18p
R815
4.7k
R870
470k
R829
100k
C867
470p
DET AMP
R842
47k
R874
100k
R869
10k
R866
10k
Q802
2SC3052F
R856
22k
C861
0.1
Q862
2SC3052F
R875
100k
R872
220
+4V REGULATOR
+5V REGULATOR
R844 R845 R847
10
22
22
XIN
VDD
MPX-IN
FMDET-OUT
XOUT
DO
CL
DI
AMDET-OUT
C801
100 16V
R868
10k
R841
100
R876
47k
R834
22k
RDS-CLK
RDS-DO
R835
4.7k
CE
VSS
PD
AGC
R-OUT
L-OUT
LP-IN
FM-DET
P-COMP
BO1
LP-OUT
P-DET
AM-OSC
BO2
FMIF-IN
AMIF-IN
VCC2
FM-OSC
VCC1
AM
RF-IN
REG
FM-MIX
IC801
LV23003VA
AM-MIX
FMRF-OUT
FM/AM PLL
GND1
FM
RF-IN
FM/AM TUNER,
GND2
C839
0.1
TU-ANSD
TU-DO
R846
2.2k
TU-CLK
TU-DI
TU-CE
(Page
21)
VM9V
C825
1
TU-L
TU-GND
JR803
0
C814
0.1
R824
2.2k
R821
220
R823
100
0.22
C873
2p
R826
100
R819
47k
C826
100p
R820
10k
TU-R
0.1
JW805
EMC-GND
(GND)
C813
220
10V
R848
1k
C831
0.47
CF802
C827
100p
C800
0.1
C833 0.47
JR802
0
C811
CF801
C810
R810
1M
C828
100p
R822
2.2k
R833
10k
R836
10k
JW148
(GND)
(Page
22)
L806
R840
22k
FM DET
C832
0.47
JW403
C835
0.22
R837
1k
C836
0.22
R838
1k
(TUNER OUT L-ch)
R859
1k
CF803
R825
470
Q803
2SC5477
FM MIX AMP
R831
220
L803
R828
22
C812
0.1
C829
0.01
C830
0.01
C848
2200p
C847
2200p
JW402
(TUNER OUT R-ch)
R860
1k
AM-IFT
Refer to SUPPLEMENT-1 for the MAIN section of printed
wiring boards and schematic diagrams of US, Canadian,
Singapore, Taiwan, Korean and Australian models.
When repairing the set of AEP, UK, East European and Russian,
refer to either of original service manual/SUPPLEMENT-1
according to the set.
HCD-EH10
23
23
HCD-EH10
Ver. 1.4
• See page 17 for Circuit Boards Location.
7-10. PRINTED WIRING BOARD – PANEL Board –
• Semiconductor
Location
1
2
3
4
Ref. No. Location
D701
F-3
D702
F-4
CN799
1
JR709
2
1
C743
E
50
X702
JR713
C707
C742
R782
C717
26
C724
R768
JR703
JR704
24
R706
JW750
R709
R770
R776
JR715
B
R771
MAIN
BOARD
CNS111 (US, CND, SP, TW, KR, AUS)
CNS112 (AEP, UK, EE, RU)
R717
JW746
R716
R749
JW717
(Page 20)
R708
JW745
JW743
JW742
R707
R712
2
1
CNS701 27P (AEP, UK, EE, RU)
CNS702 25P (US, CND, SP, TW, KR,
AUS)
R735
JW741
JW740
JW701
R710
JW738
JW739
R772
R758
R754
JR716
R738
11, 12, 13
1-868-230-
HCD-EH10
24
24
SW701 – 705,
SW711 – 716
R778
JW747
JR701
A
R705
JW748
JR702
R764
27
25
R747
JW752
SW711
x
(Page 20)
IC703
JW753
R703
R763
C711
D702
JW760
3
R761
JW727
JW702
MAIN
BOARD
PIN102
AEP, UK, R724
EE, RU
R739
(AEP, UK, EE, RU, KR)
D
C708
JW759
R732
SW702
DSGX
R781
JW749
JW779
G
E
Q701
R775
JW703
R722
K
JW761
JW755
R725
JW700
R713
R742
K
JW762
R748
R731
JW721
E
1
C701
C703
C705
Q703
R715
JW704
JW722
R787
Q702
R719
R784
R702
R701
SW712
E
JW705
1
3
JW706
JW763
R755
JR705
JW751
SW700
ROTARY ENCODER
VOLUME
R760
L701
R785
JW707 R730
TUNING
–ml
E
D701
R711
E
R718
F
Q705
JR707 R779
X701
JW710
JW758
JR706
C704
JW720
JW719
R744
Q706
JW756
JW754
L702
JW711
JW708
JW769
SW716
CD
u
R765
JW718
R750
JW712
JW709
C713
JR710
1
JW757
SW713
R726
JW767
R756
100
R762
E
JW768
R751
JW764
TUNER
BAND
C731
R723
JW726
JW714
SW714
JW725
R721
FUNCTION
JW713
JR714
SW715
C702
R746
SW705
JW715
1
C718
JW774
JW765
C733
81
C732
JW781
30
JW770
C720
E
JW723
R728
Q704
JW724
R767
80
R753
R759
R743
R766
JW780
IC701
JW716
TUNING
+ML
JR718
31
D
DISPLAY
C734
R733
–
C736 (AEP, UK, EE, RU)
SW703
C
JW775
JW771
C714
C712
C716
C735
JW730
EXCEPT
US, CND
C740
51
JW777
JW772
C709
R745
JW733
JW778
C722
SW701
JW737
EXCEPT
US, CND
R783
C719
R757
LED702
STANDBY
JW736
C715
JW734
R736
JW735
C741
LED701
(LCD BACK LIGHT)
(AEP, UK, EE, RU)
LCD702
LIQUID CRYSTAL DISPLAY
Q707
JW773
B
R734
36
(NC)
R704
+
JR721
JR708
R727
C706
G-3
F-3
F-3
D-3
F-3
F-3
B-2
8
CNA750
R777
Q701
Q702
Q703
Q704
Q705
Q706
Q707
7
CD LID
OPEN/CLOSE DETECT
PANEL BOARD
C710
B-2
B-8
6
JW744
LED701
LED702
A
R714
C-5
E-6
5
SW750
SW704
IC701
IC703
: Uses unleaded solder.
(11, 12, 13)
HCD-EH10
Q702
2SC3052F
D701
UDZW-TE17-3.6B
C705
0.01
R722
220k
R711
22k
SEG16
SEG17
SEG18
SEG19
SEG20
SEG21
SEG22
SEG23
SEG24
X702 4.19MHz
SEG25
SEG26
C702
0.01
SEG27
R721
470
L702
0
SEG28
+4V REGULATOR
R767
220k
D702
MC2836
SEG29
C703
100
6.3V
SEG30
R775
47
SEG31
Q701
2SA1235F
R713
10k
Q701-703
Ver. 1.4
• See page 17 for Waveforms. • See page 31 for IC Pin Function Description.
7-11. SCHEMATIC DIAGRAM – PANEL Board –
LCD702
91X43296-B01
R759
100
C704
470
6.3V
Q704
RT1N441C
SEG31
R723
2.2k
C731
0.1
R753
100
RESET SWITCH
SEG30
SEG29
R719
1k
R766
10
Q703
2SC3052F
C701
0.1
SEG28
SEG27
R718
1k
SEG26
SEG25
R756 1k
O-CD-CLK
R709 1k
O-CD-CMD
R776 1k
O-CLK-MP3
R778 1k
I/O-DATA-MP3
R772 1k
O-DR-MUTE
R771 1k
O-CD-XLAT
R758 1k
O-REQ-MP3
R717 1k
O-XLAT-MP3
R735 1k
SEG16
I-TU-DO
SEG17
R703 4.7k
SEG18
I-TU_ANSD
SEG19
O-TU-CK
SEG20
R705 1k
SEG21
O-TU-CK
Q705
2SC3052F
SEG22
O-TU-DI
SEG23
R706 1k
VCC
O-TU_DI
SEG24
O-TU-CE
X1
R704 1k
L701
0
R730
10k
VSS
O-TU-CE
SEG23
R784
100k
X0
I-RDS-SD
SEG25
R747 1k
SEG26
I-RDS-SD
SEG24
SEG27
I-RDS-SC
SEG28
R724 1k
SEG29
I-RDS-SC
R785
10k
SEG30
(AEP,UK,EE,RU)
SEG31
CNS701 27P(AEP,UK,EE,RU)
CNS702 25P(US,CND,SP,TW,KR,AUS)
C711
0.1
P24
Q706
2SC3052F
P25
SEG13
I-TU-ANSD
I-TU-DO
SEG12
P27
SO3
R716 1k
SEG10
R779
1k
I-REQ-MP3
R715 1k
(Page
21)
SI3
SEG9
TMCK
SEG8
R749 1k
O-FUNC-SD
R701 1k
I-TP_STATE
R710 4.7k
O-AMP-ON
R702 100
O-POWER
R725 10k
I-P-MONI
R712 4.7k
SEG14
SEG8
SEG13
SEG7
SEG12
SEG7
SEG6
SEG11
SEG6
SEG5
SEG10
SEG5
SEG4
OCU1
SEG4
X0A
SEG3
X1A
SEG2
SEG9
SEG3
C732 18p
I-ACK-MP3
I-CD-SCOR
SEG8
SEG2
C733 22p
C707
1000p
X701
32.768Hz
R755
0
SYSTEM CONTROLLER
VCC
IC701
MB90802-107
SEG7
SEG6
VSS
VSS
O-CD-XTACN
SEG15
SEG10
SEG9
AEP,UK,
EE,RU
SEG16
SEG11
OCU0
R708 1k
SEG17
SEG12
SEG11
VOLTAGE DETECT
IC1
I-CD-SENS
SEG18
SEG13
C724 47p
R728
10k
IC0
I-CD-SCOR
SEG19
SEG14
SC3
R707 1k
SEG20
SEG14
R731 10k
Q705,706
I-ACK-MP3
SEG21
SEG15
P26
US,CND,SP,
TW,KR,AUS
SEG22
SEG15
SEG5
VCC
SEG1
I-REQ-MP3
O-CD-XTACN
JR715
470
R734
1k
LED702
SLR-342VRT32
I-TP_STATE
LED0
SEG1
LED1
SEG0
SEG4
SEG0
C706
0.1
SEG3
COM3
LED2
SEG2
COM3
COM2
STANDBY
LED3
SEG1
COM2
COM1
LED4
SEG0
COM1
COM0
LED5
COM0
LED6
V3
COM3
I-P-MONI
JW700
VSTBY
COM2
O-TU-DI
(AEP,UK,EE,RU)
LED7
U-GND
COM1
V2
O-TU-CK
C736
1000p
TIN0
COM0
V1
O-TU-CE
TIN1
V0
I-RDS-SD
RST
TIN2
RSTX
PPG1
MD0
SI0
MD1
SC0
MD2
MD0
SI
R736
0
MD2
LED701
SELU2B10A-S
R727
0
SO2
SC2
SI2
SO1
SC1
INT3
VSS
AN7
AN6
AN5
AN4
AN3
AN2
AN1
AN0
AVSS
P76
C713
47p
SI1
R726
100k
SO0
R751
100k
AVCC
SC
C720
1000p
C719
0.047
(LCD BACK LIGHT)
R757
100k
Q707
2SC3052F
LED DRIVE
CN799
10P
C712
0.1
C716
0.1
RST
SO
MD0
MD2
R714
10k
*R783
10k(AEP,UK,EE,RU)
C708 47p
R783
*
R782
*
C718 1000p
C715 1000p
(EXCEPT US,CND)
C740
1000p
C714 1000p
C735
1000p
C734 1000p
(AEP,UK,EE,RU)
C743 220p
C717 1000p
*R782
0(AEP,UK,EE,RU)
10k(SP,TW,KR,AUS)
(NC)
P66
C709 1000p
C741 220p
22k(SP,TW,KR,AUS)
C742 220p
SI
IC703
RPM7240-H18
R768
10k
SC
C710
0.22
I-ACK-MP3
I-REQ-MP3
I-RDS-SC
I-CD-SCOR
P66
P65
I-TP_STATE
I-TU-ANSD
R777
470
I-P-MONI
O-CD-XTACN
SO
C722 4700p
R748
47k
I-TU-DO
P65
REMOTE CONTROL RECEIVER
SW750
CD LID
OPEN/CLOSE
R781 *
SW700
R732 47k
ROTARY ENCODER
VOLUME
R764 R760
22k 100k
R787
47k
R738
10k
R754
10k
R770 47k
100k(EXCEPT US,CND)
R762
10k
R765
4.7k
R746
2.2k
R744
2.2k
R742
1k
SW716
SW715
SW714
SW713
SW712
R750
1k
R745
2.2k
R743
1k
SW704
SW703
+
-
R761
47k
JW701
DETECT
R733 47k
*R781
10k(US,CND)
R763
22k
R739 10k
CNA750
2P
(AEP,UK,EE,RU,KR)
CD
TUNER
FUNCTION
TUNING
BAND
+
HCD-EH10
25
25
TUNING
-
SW711
SW701
SW705
DISPLAY
SW702
DSGX
(Page 21)
HCD-EH10
• IC Block Diagrams
– CD Board –
15
MUTING
D
D
D
D
BAS2
16
OUT2
CH4OUTR
17
BAS1
CH4OUTF
18
OUT1
CH3OUTR
19
INA1
CH3OUTF
20
INA2
POWVCC
21
INB1
MUTE
22
INB2
GND
23
INC1
CH3RIN
24
INC2
CH3FIN
25
REC2O
CH4IN
26
REC2N
CH4CAPA
27
REC1N
OUTVREF
28
REC1O
OPOUT
IC401 BD3881FV
PREVCC
IC402 BA5947FM-E2
28
27
26
25
24
23
22
21
20
19
18
17
16
15
BASS
BASS
+ –
INTERFACE
LEVEL SHIFT
VOLUME
INTERFACE
TREBLE
INTERFACE
VOLUME
LOGIC
CONTROL
TREBLE
7
8
9
10
11
12
13
14
GND
TRE1
TRE2
VDD
CONT
VEE
CH1OUTF
VREFIN
GND
6
VOLIN2
14
5
VOLIN1
13
4
PB1O
12
CH1OUTR
9
8
3
PB2O
11
CH2OUTF
7
2
PB2N
10
CH2OUTR
6
CH2RIN
CH1FIN
5
CH2FIN
4
CH1RIN
3
SW
OPIN–
OPIN+
1 2
1
PB2P
D
PB1P
D
PB1N
D
POWVCC
+ –
D
VREF
– MAIN Board –
IC301 LA4631-E
THERMAL
SHUT DOWN
PROTECTOR
POP NOISE
PREVENTION
CIRCUIT
REFERENCE
AMP
INPUT
AMP
PRE
DRIVE AMP
OUTPUT
AMP
INPUT
AMP
PRE
DRIVE AMP
OUTPUT
AMP
STANDBY
SWITCH
5
6
7
8 9 10 11 12 13
IN1
PRE GND
IN2
STANDBY
P.P.
VCC
OUT2
OUT1
2 3 4
POWER GND
1
FILTER
RIPPLE
FILTER
HCD-EH10
26
26
HCD-EH10
IC801 LV23003VA
AM
RF
AM RF-IN 1
FM
RF
36 FM RF-IN
35 GND2
34 FMRF-OUT
REG 2
FM
MIX
FM-MIX 3
33 VCC2
FM
OSC
GND1 4
32 FM-OSC
AM
MIX
AM-MIX 5
AM
OSC
VCC1 6
OSC
BUFFER
LOW-PASS
FILTER
AGC
31
30
29
28
27
26
25
AM-OSC
BO2
BO1
LP-OUT
LP-IN
PD
AGC
AMIF-IN 7
AM
IF
AM
DET
24 AMDET-OUT
FMIF-IN 8
FM
IF
FM
DET
23 FMDET-OUT
FM
S-METER
SD
IF
BUFFER
ST
PIROT
DET
P-DET 9
TRIG
STSW
FF
FF
FF
PHASE
COMPARATOR
P-COMP 10
FM-DET 11
L-OUT 12
R-OUT 13
VCO
DECODER
22 MPX-IN
MUTE
VSS 14
POWER ON
RESET
UNIVERSAL
COUNTER
CE
DI
CL
DO
15
16
17
18
CCB
I/F
DATA SHIFT
REGISTER
LATCH
21 VDD
PROGRAMMABLE
DIVIDER
SWALLOW
COUNTER
UNLOCK
DETECTOR
PHASE
DETECTOE
CHARGE
PUMP
REFERENCE
DIVIDER
20 XOUT
19 XIN
27
HCD-EH10
RDCL
T57
OSC2
OSC1
DVDD
DVSS
TEST
MODE
IC861 PT2579SN
16
15
14
13
12
11
10
9
TEST LOGIC &
OUTPUT SELECTOR
SWITCH
OSCILLATION
&
DIVIDER
COSTAS LOOP
VARIABLE &
FIXED DIVIDER
BIPHASE
SYMBOL
DECODER
CLOCKED
COMPARATOR
CLOCK
REGENERATION
& SYNC
28
ANTI-ALIASING
FILTER
QUALITY BIT
GENERATOR
DIFFERENTIAL
DECODER
1
2
3
4
5
6
7
8
QUAL
RDDA
VREF
MUX
AVDD
AVSS
CIN
SCOUT
57 kHz
BAND PASS
(8th ORDER)
REFERENCE
VOLTAGE
RECONSTRUCTION
FILTER
HCD-EH10
• IC PIN FUNCTION DESCRIPITION
CD BOARD IC201 CXD3014A-201R (CD DSP)
Pin No.
Pin Name
I/O
1
LRCK
O
L/R sampling clock signal output terminal
2
LRCKI
I
L/R sampling clock signal input terminal
3
PCMD
O
Serial data output terminal
4
PCMDI
I
Serial data input terminal
5
BCK
O
Bit clock signal output terminal
6
BCKI
I
Bit clock signal input terminal
7
XTACN
I
Oscillation circuit on/off switch control signal input from the system controller
"L": oscillation stop, "H": self-oscillation
8
XRST
I
System reset signal input from the system controller "L": reset
9
VSS
IREQ-MP3
O
Ground terminal
10
Description
MP3 data request signal output to the system controller
11
CLOK
I
CD serial data transfer clock signal input from the system controller
12
DATA2
I
MP3 serial data input/output with the system controller
13
XLAT-MP3
14
REQ-MP3
I
I
MP3 data request signal input from the system controller
15
ACK-MP3
XLAT
O
I
CD serial data latch pulse signal input from the system controller
17
VDD
-
Power supply terminal (+1.8V)
18
SVSS
-
Ground terminal
19
SVDD
-
Power supply terminal (+1.8V)
20
SENS
O
Internal status (SENSE) signal output to the system controller
21
WFCK
-
Not used
22
XUGF
-
Not used
23
XPCK
-
Not used
24
GFS
-
Not used
25
C2PO
-
Not used
26
SCOR
O
Subcode sync (S0+S1) detection signal output to the system controller
27
VDD
-
Power supply terminal (+1.8V)
28
COUT
-
Not used
29
SVSS
-
Ground terminal
30
SVDD
-
Power supply terminal (+1.8V)
31
MIRR
-
Not used
32
DFCT
-
Not used
33
FOK
-
Not used
34
VSS
-
Ground terminal
35
VDD
-
Power supply terminal (+1.8V)
36
VSS
-
Ground terminal
37
MIRR
-
Not used
38
MDP
O
Spindle motor servo control signal output terminal
39
SSTP
I
Disc inner position detection signal input terminal
40
IOVSS1
-
Ground terminal
41
SFDR
O
Sled servo drive signal (+) output to the coil/motor driver
42
SRDR
O
Sled servo drive signal (-) output to the coil/motor driver
43
TFDR
O
Tracking servo drive signal (+) output to the coil/motor driver
44
TRDR
O
Tracking servo drive signal (-) output to the coil/motor driver
45
FFDR
O
Focus servo drive signal (+) output to the coil/motor driver
46
FRDR
O
Focus servo drive signal (-) output to the coil/motor driver
47
IOVDD1
-
Power supply terminal (+3.3V)
16
MP3 serial data latch pulse signal input from the system controller
MP3 acknowledge signal output to the system controller
29
HCD-EH10
Pin No.
Pin Name
I/O
48
AVDD0
-
Power supply terminal (+3.3V)
49
AVSS0
-
Ground terminal
50
E
I
E signal input from the optical pick-up block
51
I
I
F signal input from the optical pick-up block
52
F
TEI
53
TEO
O
Tracking error signal output terminal
54
FEI
I
Focus error signal input terminal
55
FEO
O
Focus error signal output terminal
56
VC
O
Middle point voltage output terminal
57
A
I
A signal input from the optical pick-up block
58
B
I
B signal input from the optical pick-up block
59
C
I
C signal input from the optical pick-up block
60
D
I
D signal input from the optical pick-up block
61
AVDD4
-
Power supply terminal (+3.3V)
62
RFDCO
O
Not used
Tracking error signal input terminal
63
PDSENS
I
Not used
64
AC_SUM
O
RFAC summing amplifier signal output terminal
65
EQ_IN
I
RF equalizer circuit input terminal
LD
O
Laser diode on/off control signal output to the automatic power control circuit
"L": laser off, "H": laser on
67
PD
I
Light amount monitor input from the optical pick-up block laser diode
68
RFC
I
Equalizer cut off frequency adjustment terminal
66
30
Description
69
AVSS4
-
Ground terminal
70
RFACO
O
EFM signal output terminal
71
RFACI
I
EFM signal input terminal
72
I
Power supply terminal (+3.3V)
73
AVDD3
BIAS
Asymmetry circuit constant current input terminal
74
ASYI
I
Playback EFM asymmetry comparator voltage input terminal
75
ASYO
O
Playback EFM full-swing output terminal
76
VPCO
O
Charge pump output terminal for broad-band EFM PLL
77
VCTL
I
VCO2 control voltage input terminal for broad-band EFM PLL
78
AVSS3
-
Ground terminal
79
CLTV
I
VCO1 control voltage input terminal for multiplier
80
FILO
O
Filter output terminal for master PLL
81
FILI
I
Filter input terminal for master PLL
82
PCO
O
Charge pump output terminal for master PLL
83
SVSS
-
Ground terminal
84
-
Power supply terminal (+1.8V)
85
SVDD
SSTB-MP3
I
MP3 standby on/off control signal input terminal "L": standby Not used
86
VDD
-
Power supply terminal (+1.8V)
87
I
Ground terminal
88
VSS
TEST1
89
DATA
I
CD serial data input from the system controller
90
CLK2
I
MP3 serial data transfer clock signal input from the system controller
91
SVSS
-
Ground terminal
Test terminal Normally: fixed at "L"
92
SVDD
-
Power supply terminal (+2.5V)
93
JTAGTCK
-
Not used
94
JTAGTDI
-
Not used
95
JTAGTDO
-
Not used
96
JTAGTMS
-
Not used
HCD-EH10
Pin No.
Pin Name
I/O
97
TRST
-
Not used
98
VSS
-
Ground terminal
99
VDD
-
Power supply terminal (+1.8V)
100
O
Power supply terminal (+3.3V)
101
IOVDD2
DOUT
Digital audio signal output terminal Not used
102
TEST
I
Test terminal Normally: fixed at "L"
103
TES1
I
Test terminal Normally: fixed at "L"
104
IOVSS2
-
Ground terminal
105
PLLVDD
-
Power supply terminal (+1.8V)
106
PLLVSS
-
Ground terminal
Ground terminal
Description
107
XVSS
-
108
XTAO
O
System clock output terminal (16.9344 MHz)
109
XTAI
I
System clock input terminal (16.9344 MHz)
110
XVDD
-
Power supply terminal (+1.8V)
111
AVDD1
-
Power supply terminal (+3.3V)
112
AOUT1
O
L-ch analog audio signal output terminal
113
VREFL
O
L-ch reference voltage output terminal
114
AVSS1
-
Ground terminal
115
AVSS2
-
Ground terminal
116
VREFR
O
R-ch reference voltage output terminal
117
AOUT2
O
R-ch analog audio signal output terminal
118
AVDD1
-
Power supply terminal (+3.3V)
119
IOVDD0
-
Power supply terminal (+3.3V)
120
IOVSS0
-
Ground terminal
31
HCD-EH10
Ver. 1.3
PANEL BOARD IC701 MB90802-107 (SYSTEM CONTROLLER)
Pin No.
Pin Name
I/O
Description
1
P24
O
Main power on/off control signal output terminal
2
P25
O
Standby control signal output to the power amplifier and system reset signal output to the CD DSP
3
P26
-
Not used
4
P27
O
Serial data output to the electrical volume
5
SO3
O
MP3 serial data output to the CD DSP
6
SC3
O
MP3 serial data transfer clock signal output to the CD DSP
7
SI3
I
MP3 serial data input terminal
8
TMCK
O
CD serial data latch pulse signa output to the CD DSP
9
IC0
I
Remote control signal input from the remote control receiver
10
IC1
O
MP3 serial data latch pulse signal output to the CD DSP
11
OCU0
O
System reset signal output to the motor/coil driver
12
OCU1
O
MP3 data request signal output to the CD DSP
13
X0A
I
Sub system clock input terminal (32.768 kHz)
14
X1A
O
Sub system clock output terminal (32.768 kHz)
15
VCC
-
Power supply terminal (+3.1V)
16
VSS
-
Ground terminal
17
LED0
O
LED drive signal output terminal for STANDBY indicater
18 to 24
LED1 to LED7
O
Not used
25, 26
TIN0, TIN1
O
Not used
27
TIN2
I
RDS serial data input terminal (AEP, East European, Russian models)
28
PPG1
I
CD lid open/close detection switch input terminal "L": CD lid close
"H": on
29
SI0
I
Internal status (SENSE) signal input from the CD DSP
30
SC0
O
CD serial data transfer clock signal output to the CD DSP
31
SO0
O
CD serial data output to the CD DSP
32
AVCC
-
Power supply terminal (+3.1V)
33
SI1
I
Serial data input from the FM/AM tuner
34
P76
O
Oscillator control signal output to the CD DSP
35
AVSS
-
Ground terminal
36
AN0
I
Power monitor input terminal
37, 38
AN1, AN2
I
Front panel key input terminal (A/D input)
39
AN3
I
Auto gain control signal input terminal
40
AN4
I
REC switch signal input terminal
41
AN5
I
Front panel key input terminal (A/D input)
42
AN6
-
Not used
43
AN7
I
Subcode sync (S0+S1) detection signal input from the CD DSP
44
VSS
-
Ground terminal
45
INT3
I
RDS serial data transfer clock signal input terminal (AEP, East European, Russian models)
46
SC1
O
LED drive signal output terminal for liquid crystal display back light
47
SO1
I
Model destination setting terminal
48
SI2
I
Dial pulse input of the rotary encoder (for VOLUME control)
49
SC2
I
MP3 data request signal input from the CD DSP
50
SO2
I
MP3 acknowledge signal input from the CD DSP
51 to 53
MD2 to MD0
-
Not used
54
RSTX
I
Reset signal input from the reset switch "L": reset
For several hundreds msec. after the power supply rises, "L" is input, then it changes to "H"
55
V0
O
Chip enable signal output to the FM/AM tuner
32
HCD-EH10
Pin No.
Pin Name
I/O
56
V1
O
serial data transfer clock signal output to the FM/AM tuner
57
V2
O
Serial data output to the FM/AM tuner
58
V3
-
Terminal for doubler circuit capacitor connection to develop liquid crystal display drive voltage
59 to 62
COM0 to COM3
O
Common drive signal output to the liquid crystal display
63, 64
SEG0, SEG1
O
Segment drive signal output to the liquid crystal display
65
VCC
-
Power supply terminal (+3.1V)
66
GND
-
Ground terminal
67 to 89
SEG2 to SEG24
O
Segment drive signal output to the liquid crystal display
90
VCC
-
Power supply terminal (+3.1V)
91
VSS
-
Ground terminal
92
X1
I
Main system clock output terminal (4.19 MHz)
93
X0
O
Main system clock input terminal (4.19 MHz)
O
Segment drive signal output to the liquid crystal display
94 to 100 SEG25 to SEG31
Description
33
HCD-EH10
Ver. 1.4
SECTION 8
EXPLODED VIEWS
NOTE:
•
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
•
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑
↑
Parts Color Cabinet's Color
• Abbreviation
AUS : Australian model EE : East European model
CND : Canadian model
KR : Korean model
8-1.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
The mechanical parts with no reference
number in the exploded views are not supplied.
RU : Russian model
SP : Singapore model
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
TW : Taiwan model
OVERALL SECTION
8
top cabinet section
7
(SP)
F002
not supplied
#3
7
#3
#1
FFC151
#5
#5
4
MAIN board
3
not supplied
1
#1
#2
not supplied
not supplied
PT005
5
5
#3
F001
#3
#3
front cabinet section
not supplied
2
6
Ref. No.
Part No.
Description
1
1
1
1
1
A-1138-536-A
A-1158-524-A
A-1158-531-A
A-1158-537-A
A-1158-540-A
MAIN BOARD, COMPLETE (AEP, UK, EE, RU)
MAIN BOARD, COMPLETE (US, CND)
MAIN BOARD, COMPLETE (KR)
MAIN BOARD, COMPLETE (AUS)
MAIN BOARD, COMPLETE (SP)
1
2
3
A-1169-746-A MAIN BOARD, COMPLETE (TW)
3-701-748-00 CLAMP
2-636-516-01 CABINET, REAR
(AEP, UK, EE, RU, TW, KR, AUS)
2-636-516-11 CABINET, REAR (US)
2-636-516-21 CABINET, REAR (CND)
3
3
Remark
3
04
04
04
04
2-636-516-31
1-769-079-51
1-775-790-81
1-790-757-51
1-827-597-81
CABINET, REAR (SP)
CORD, POWER (KR)
CORD, POWER (AUS)
CORD, POWER (US, CND)
CORD, POWER (TW)
04
04
5
6
1-830-891-11
1-831-370-11
4-247-752-01
A-1138-529-A
CORD, POWER (UK)
CORD, POWER (AEP, EE, RU, SP)
FOOT, RUBBER
PT-AC BOARD, COMPLETE (EXCEPT SP, TW)
34
Ref. No.
6
6
7
8
0 F001
Part No.
Description
Remark
A-1158-541-A PT-AC BOARD, COMPLETE (SP)
0 F001
PT-AC BOARD, COMPLETE (TW)
SCREW (2.6X8), +BVTP
AC-SW BOARD, COMPLETE (SP)
FUSE (T0.16AL/250V)
(AEP, UK, EE, RU, KR, AUS)
1-532-467-33 FUSE (T0.315AL/250V) (US, CND, SP, TW)
0 F002
FFC151
0 PT005
0 PT005
0 PT005
1-532-275-33
1-832-627-21
1-443-829-11
1-443-856-11
1-443-857-11
0 PT005
#1
#2
#3
#5
1-443-858-11
7-685-246-19
7-685-646-79
7-685-647-79
7-685-646-79
#5
A-1169-744-A
4-951-620-01
A-1158-542-A
1-532-275-33
FUSE (T0.16AL/250V) (SP)
CABLE, FLEXIBLE FLAT (23 CORE)
TRANSFORMER, POWER (AEP, UK, EE, RU)
TRANSFORMER, POWER (US, CND)
TRANSFORMER, POWER (KR)
TRANSFORMER, POWER (SP, TW, AUS)
SCREW +KTP 3X8 TYPE2 NON-SLIT
SCREW +BVTP 3X8 TYPE2 IT-3
SCREW +BVTP 3X10 TYPE2 IT-3
SCREW +BVTP 3X8 TYPE2 IT-3
(US, CND, AEP, UK, EE, RU)
7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
(KR, SP, TW, AUS)
HCD-EH10
Ver. 1.4
8-2.
FRONT CABINET SECTION
72
FFC701, FFC702
66
65
67
57
58
56
55
LED701
59
PANEL board
72
LCD702
not
supplied
60
62
61
64
72
54
63
72
72
72
68
74
78
71
69
53
51
52
75
73
76
not
supplied
72
77
70
not supplied
not supplied
78
Ref. No.
Part No.
Description
51
52
53
54
55
2-636-520-01
2-637-768-01
2-636-517-01
2-636-527-01
2-636-519-01
COVER (C), BUTTON
SPRING (CASSETTE)
LID, CASSETTE
KNOB (VOL)
WINDOW (DISPLAY) (AEP, UK, EE, RU)
Remark
55
56
56
57
58
2-636-519-11 WINDOW (DISPLAY)
(US, CND, SP, TW, KR, AUS)
2-636-514-01 CABINET, FRONT (EXCEPT US)
2-636-514-11 CABINET, FRONT (US)
2-636-533-01 INDICATOR (POWER)
2-636-523-01 BUTTON (POWER)
59
60
61
62
63
2-636-521-01
3-252-828-01
3-047-468-51
2-636-525-01
2-636-522-01
64
64
64
A-1138-541-A PANEL BOARD, COMPLETE (AEP, UK, EE, RU)
A-1158-525-A PANEL BOARD, COMPLETE (US, CND)
A-1158-532-A PANEL BOARD, COMPLETE (SP, TW, KR, AUS)
BUTTON (FUNCTION)
SCREW (B2.6), (+) PWH TAPPING
DAMPER
BUTTON (OPERATION)
BUTTON (CASSETTE)
(z, N, m, M, x Z, X)
Ref. No.
Part No.
Description
65
66
67
2-636-545-01 SHEET (LCD)
2-636-532-01 ILLUMINATOR (LCD)
2-636-531-01 HOLDER (LCD)
68
69
70
71
72
2-636-546-01
3-701-748-00
1-797-374-11
2-636-526-01
4-951-620-01
LEVER (REC)
CLAMP
DECK, MECHANICAL (H-21SB)
SPRING BUTTON COVER (C)
SCREW (2.6X8), +BVTP
73
74
75
76
77
78
2-636-524-01
2-663-087-01
2-663-694-01
2-670-389-01
2-670-390-01
3-254-022-01
HOLDER, PWB
SHEET (AZIMUTH)
WASHER
BELT (1)
BELT (2)
SCREW
Remark
FFC701 1-832-634-21 CABLE, FLEXIBLE FLAT (25 CORE)
(US, CND, SP, TW, KR, AUS)
FFC702 1-832-644-21 CABLE, FLEXIBLE FLAT (27 CORE)
(AEP, UK, EE, RU)
LCD702 1-805-941-12 DISPLAY PANEL, LIQUID CRYSTAL
LED701 6-501-139-01 LED SELU2B10A-SLF62 (LCD BACK LIGHT)
35
HCD-EH10
Ver. 1.3
8-3.
TOP CABINET SECTION
101
102
not supplied
103
104
111
106
112
105
SW750
107
108
base unit section
(BU-K8BD83S-WOD)
108
110
109
109
110
Ref. No.
Part No.
Description
101
102
103
104
105
2-636-518-01
1-452-899-11
3-019-395-01
2-637-769-01
2-636-515-01
LID, CD
MAGNET
PLATE, CHUCKING
SPRING (CD)
CABINET, TOP (EXCEPT US)
105
106
107
2-636-515-11 CABINET, TOP (US)
3-047-468-11 DAMPER
4-247-493-01 COVER, CD
36
Remark
Ref. No.
Part No.
Description
108
109
3-931-379-21 RUBBER, VIBRATION PROOF (RED)
3-252-828-01 SCREW (B2.6), (+) PWH TAPPING
110
111
112
SW750
3-931-379-31
3-253-143-01
4-951-620-01
1-692-960-11
Remark
RUBBER, VIBRATION PROOF (GREEN)
SCREW (B2.6), (+) P TAPPING
SCREW (2.6X8), +BVTP
SWITCH, PUSH (1 KEY)
(CD LID OPEN/CLOSE DETECT)
HCD-EH10
8-4.
BASE UNIT SECTION
(BU-K8BD83S-WOD)
151
(including sled motor (M402),
spindle motor (M401))
included in 151
(spindle motor (M401))
included in 151
(sled motor (M402))
152
S201
153
Ref. No.
Part No.
Description
Remark
0 151
8-820-126-01 OPTICAL PICK-UP BLOCK
(KSM-213CDP/C2NP)
(Including sled motor (M402),
spindle motor (M401))
Ref. No.
152
153
S201
Part No.
Description
Remark
1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)
A-1134-279-A CD BOARD, COMPLETE
1-771-853-11 SWITCH, DETECTION (LIMIT)
37
HCD-EH10
Ver. 1.4
CD
SECTION 9
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Abbreviation
AUS : Australian model
CND : Canadian model
Ref. No.
Part No.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA... : µA...
uPA... : µPA...
uPB... : µPB...
uPC... : µPC...
uPD... : µPD...
• CAPACITORS
uF: µF
• COILS
uH: µH
EE : East European model
KR : Korean model
RU : Russian model
SP : Singapore model
Description
Remark
A-1134-279-A CD BOARD, COMPLETE
******************
< CAPACITOR >
C101
C102
C103
C104
C105
1-162-919-11
1-162-919-11
1-162-919-11
1-164-230-11
1-162-919-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
22PF
22PF
22PF
220PF
22PF
5%
5%
5%
5%
5%
50V
50V
50V
50V
50V
C107
C108
C109
C110
C111
1-164-230-11
1-164-230-11
1-164-230-11
1-164-230-11
1-164-230-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
220PF
220PF
220PF
220PF
220PF
5%
5%
5%
5%
5%
50V
50V
50V
50V
50V
C112
C113
C201
C202
C203
1-162-919-11
1-162-919-11
1-128-995-21
1-164-360-11
1-128-995-21
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
22PF
22PF
100uF
0.1uF
100uF
5%
5%
20%
50V
50V
10V
16V
10V
C204
C205
C206
C207
C208
1-164-360-11
1-164-360-11
1-164-360-11
1-128-995-21
1-164-360-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.1uF
100uF
0.1uF
C210
C213
C214
C215
C217
1-164-360-11
1-164-360-11
1-164-360-11
1-164-360-11
1-164-360-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
16V
16V
16V
16V
16V
C218
C219
C220
C221
C222
1-164-360-11
1-164-360-11
1-164-360-11
1-164-360-11
1-164-360-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
16V
16V
16V
16V
16V
C223
C224
C226
C227
C230
1-164-360-11
1-164-360-11
1-165-908-11
1-165-908-11
1-162-927-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
1uF
1uF
100PF
10%
10%
5%
16V
16V
10V
10V
50V
C232
C251
C252
C253
C254
1-164-360-11
1-164-315-11
1-162-968-11
1-164-315-11
1-162-968-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
470PF
0.0047uF
470PF
0.0047uF
5%
10%
5%
10%
16V
50V
50V
50V
50V
38
20%
20%
16V
16V
16V
10V
16V
Ref. No.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
TW : Taiwan model
When indicating parts by reference
number, please include the board.
Part No.
Description
Remark
C256
C257
C258
C260
C261
1-107-826-11
1-107-826-11
1-164-230-11
1-117-863-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
220PF
0.47uF
0.01uF
10%
10%
5%
10%
10%
16V
16V
50V
6.3V
25V
C264
C265
C266
C267
C268
1-162-964-11
1-107-826-11
1-162-915-11
1-162-910-11
1-162-915-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.001uF
0.1uF
10PF
5PF
10PF
10%
10%
0.5PF
0.25PF
0.5PF
50V
16V
50V
50V
50V
C271
C272
C273
C274
C275
1-107-826-11
1-164-360-11
1-164-315-11
1-107-826-11
1-162-910-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
470PF
0.1uF
5PF
10%
C276
C277
C291
C292
C301
1-165-908-11
1-165-908-11
1-164-315-11
1-164-315-11
1-164-360-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
1uF
1uF
470PF
470PF
0.1uF
10%
10%
5%
5%
10V
10V
50V
50V
16V
C303
C304
C321
C322
C323
1-137-710-11
1-165-908-11
1-162-964-11
1-165-908-11
1-128-995-21
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
10uF
1uF
0.001uF
1uF
100uF
20%
10%
10%
10%
20%
6.3V
10V
50V
10V
10V
C401
C404
C405
C406
C424
1-128-394-11
1-164-360-11
1-164-360-11
1-164-360-11
1-164-360-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
220uF
0.1uF
0.1uF
0.1uF
0.1uF
20%
10V
16V
16V
16V
16V
C451
1-165-176-11 CERAMIC CHIP
0.047uF
10%
16V
< CONNECTOR >
CN301
1-770-425-51 CONNECTOR, FFC/FPC 16P
< IC >
IC201
IC202
IC402
8-753-246-30 IC CXD3014A-201R
6-708-736-01 IC BD18KA5FP-E2
6-705-808-01 IC BA5947FM-E2
< TRANSISTOR >
Q321
6-551-120-01 TRANSISTOR
2SA2119K
16V
16V
5%
50V
10%
16V
0.25PF 50V
HCD-EH10
CD
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Ver. 1.3
MAIN
Remark
< BAND PASS FILTER >
< RESISTOR/FERRITE BEAD >
R101
R102
R103
R104
R105
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R107
R108
R109
R110
R111
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R112
R113
R201
R202
R203
1-216-809-11
1-216-809-11
1-216-295-00
1-216-295-00
1-500-445-21
METAL CHIP
100
5%
METAL CHIP
100
5%
SHORT CHIP
0
SHORT CHIP
0
FERRITE, EMI (SMD) (2012)
1/10W
1/10W
R207
R250
R252
R253
R254
1-216-295-00
1-216-857-11
1-216-833-11
1-216-821-11
1-216-833-11
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
1M
10K
1K
10K
R255
R256
R257
R258
R260
1-216-821-11
1-216-837-11
1-216-845-11
1-216-849-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
R265
R266
R267
R268
R270
1-216-829-11
1-216-821-11
1-216-829-11
1-216-833-11
1-216-821-11
R271
R275
R276
R277
R278
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1K
22K
100K
220K
0
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
1K
4.7K
10K
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
1-216-857-11
1-216-809-11
1-216-841-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1M
100
47K
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R280
R291
R292
R321
R322
1-216-864-11
1-216-809-11
1-216-809-11
1-216-789-11
1-216-789-11
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
100
100
2.2
2.2
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R323
R324
R401
R421
R423
1-216-864-11
1-216-845-11
1-216-295-00
1-216-864-11
1-216-833-11
SHORT CHIP
METAL CHIP
SHORT CHIP
SHORT CHIP
METAL CHIP
0
100K
0
0
10K
5%
1/10W
5%
1/10W
R451
R452
1-216-837-11 METAL CHIP
1-216-833-11 METAL CHIP
22K
10K
5%
5%
1/10W
1/10W
BPF801 1-236-711-41 FILTER, BAND PASS
< CAPACITOR >
C101
C105
C109
C110
C111
1-126-944-11
1-100-566-91
1-162-970-11
1-115-467-11
1-164-156-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
3300uF
0.1uF
0.01uF
0.22uF
0.1uF
20%
10%
10%
10%
25V
25V
25V
10V
25V
C112
C114
C115
C118
C121
1-126-943-11
1-100-566-91
1-164-156-11
1-126-933-11
1-117-863-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
2200uF
0.1uF
0.1uF
100uF
0.47uF
20%
10%
25V
25V
25V
16V
6.3V
C122
C141
C142
C155
C156
1-126-934-11
1-162-970-11
1-162-970-11
1-164-156-11
1-164-156-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
220uF
0.01uF
0.01uF
0.1uF
0.1uF
20%
10%
10%
C181
C182
C183
C184
C191
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-126-934-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
0.1uF
0.1uF
0.1uF
0.1uF
220uF
20%
25V
25V
25V
25V
16V
C192
C193
C194
C196
C301
1-100-566-91
1-100-566-91
1-100-566-91
1-100-566-91
1-162-966-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.1uF
0.1uF
0.0022uF
10%
10%
10%
10%
10%
25V
25V
25V
25V
50V
C302
C303
C304
C305
C306
1-162-964-11
1-126-963-11
1-126-933-11
1-100-566-91
1-100-566-91
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.001uF
4.7uF
100uF
0.1uF
0.1uF
10%
20%
20%
10%
10%
50V
50V
16V
25V
25V
C307
C308
C309
C310
C311
1-126-767-11
1-126-767-11
1-162-964-11
1-162-964-11
1-162-962-11
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
1000uF
1000uF
0.001uF
0.001uF
470PF
20%
20%
10%
10%
10%
16V
16V
50V
50V
50V
C312
C315
C371
C381
C382
1-162-962-11
1-162-964-11
1-164-156-11
1-162-964-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
470PF
0.001uF
0.1uF
0.001uF
0.01uF
10%
10%
10%
10%
50V
50V
25V
50V
25V
C401
C402
C403
C404
C405
1-126-956-11
1-126-933-11
1-100-566-91
1-115-467-11
1-126-956-11
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
ELECT
0.1uF
100uF
0.1uF
0.22uF
0.1uF
20%
20%
10%
10%
20%
50V
16V
25V
10V
50V
C406
C407
C408
C409
C410
1-115-467-11
1-162-968-11
1-162-968-11
1-100-566-91
1-100-566-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.22uF
0.0047uF
0.0047uF
0.1uF
0.1uF
10%
10%
10%
10%
10%
10V
50V
50V
25V
25V
C412
C413
1-126-933-11 ELECT
1-126-933-11 ELECT
100uF
100uF
20%
20%
16V
16V
20%
10%
16V
25V
25V
25V
25V
< VIBRATOR >
X201
1-795-101-21 VIBRATOR, CERAMIC (16.9344MHz)
************************************************************
A-1138-536-A MAIN BOARD, COMPLETE
********************
3-254-142-01 SCREW (B3), (+) BV TAPPING
Refer to the SUPPLEMENT-1 for the MAIN board of the except
AEP, UK, East European and Russian models.
39
HCD-EH10
MAIN
Ref. No.
Part No.
Description
Remark
C415
C416
C421
1-100-566-91 CERAMIC CHIP
1-100-566-91 CERAMIC CHIP
1-100-566-91 CERAMIC CHIP
0.1uF
0.1uF
0.1uF
10%
10%
10%
25V
25V
25V
C431
C432
C433
C434
C437
1-115-467-11
1-115-467-11
1-162-962-11
1-162-962-11
1-162-962-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.22uF
0.22uF
470PF
470PF
470PF
10%
10%
10%
10%
10%
10V
10V
50V
50V
50V
C438
C501
C502
C503
C504
1-162-962-11
1-162-923-11
1-162-923-11
1-162-962-11
1-162-962-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
470PF
47PF
47PF
470PF
470PF
10%
5%
5%
10%
10%
50V
50V
50V
50V
50V
C505
C506
C507
C508
C509
1-165-176-11
1-165-176-11
1-162-970-11
1-162-970-11
1-126-966-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
0.047uF
0.047uF
0.01uF
0.01uF
33uF
10%
10%
10%
10%
20%
16V
16V
25V
25V
50V
C510
C511
C512
C513
C514
1-126-966-11
1-162-962-11
1-162-962-11
1-162-964-11
1-162-964-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
33uF
470PF
470PF
0.001uF
0.001uF
20%
10%
10%
10%
10%
50V
50V
50V
50V
50V
C515
C518
C519
C522
C523
1-162-915-11
1-164-156-11
1-164-156-11
1-162-927-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10PF
0.1uF
0.1uF
100PF
0.01uF
0.5PF
5%
10%
50V
25V
25V
50V
25V
C524
C525
C526
C527
C528
1-162-970-11
1-162-970-11
1-162-970-11
1-162-964-11
1-162-964-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01uF
0.01uF
0.01uF
0.001uF
0.001uF
10%
10%
10%
10%
10%
25V
25V
25V
50V
50V
C529
C531
C532
C533
C534
1-162-927-11
1-162-964-11
1-162-964-11
1-100-566-91
1-100-566-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
100PF
0.001uF
0.001uF
0.1uF
0.1uF
5%
10%
10%
10%
10%
50V
50V
50V
25V
25V
C535
C543
C544
C561
C562
1-100-566-91
1-162-964-11
1-162-964-11
1-162-966-11
1-162-966-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.001uF
0.001uF
0.0022uF
0.0022uF
10%
10%
10%
10%
10%
25V
50V
50V
50V
50V
C564
C565
C567
C800
C801
1-162-970-11
1-115-156-11
1-130-479-00
1-164-156-11
1-126-933-11
CERAMIC CHIP
CERAMIC CHIP
MYLAR
CERAMIC CHIP
ELECT
0.01uF
10%
1uF
0.0047uF 5%
0.1uF
100uF
20%
25V
10V
50V
25V
16V
C802
C803
C804
C806
C807
1-100-566-91
1-162-970-11
1-100-566-91
1-162-964-11
1-162-966-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.01uF
0.1uF
0.001uF
0.0022uF
10%
10%
10%
10%
10%
25V
25V
25V
50V
50V
C809
C810
C811
C812
C813
1-100-566-91
1-115-467-11
1-164-156-11
1-164-156-11
1-126-934-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
0.1uF
0.22uF
0.1uF
0.1uF
220uF
10%
10%
25V
10V
25V
25V
16V
40
20%
Ref. No.
Part No.
Description
Remark
C814
C815
C816
C817
C818
1-164-156-11
1-162-927-11
1-115-467-11
1-100-566-91
1-216-864-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
SHORT CHIP
0.1uF
100PF
0.22uF
0.1uF
0
5%
10%
10%
25V
50V
10V
25V
C819
C820
C821
C822
C823
1-162-964-11
1-162-964-11
1-165-176-11
1-162-962-11
1-162-918-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.001uF
0.001uF
0.047uF
470PF
18PF
10%
10%
10%
10%
5%
50V
50V
16V
50V
50V
C824
C825
C826
C827
C828
1-162-918-11
1-125-837-11
1-162-927-11
1-162-927-11
1-162-927-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
18PF
1uF
100PF
100PF
100PF
5%
10%
5%
5%
5%
50V
6.3V
50V
50V
50V
C829
C830
C831
C832
C833
1-162-970-11
1-162-970-11
1-117-863-11
1-117-863-11
1-117-863-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01uF
0.01uF
0.47uF
0.47uF
0.47uF
10%
10%
10%
10%
10%
25V
25V
6.3V
6.3V
6.3V
C834
C835
C836
C838
C839
1-126-934-11
1-115-467-11
1-115-467-11
1-100-566-91
1-100-566-91
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
220uF
0.22uF
0.22uF
0.1uF
0.1uF
20%
10%
10%
10%
10%
16V
10V
10V
25V
25V
C840
C841
C847
C848
C851
1-117-863-11
1-126-965-11
1-162-966-11
1-162-966-11
1-165-176-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.47uF
22uF
0.0022uF
0.0022uF
0.047uF
10%
20%
10%
10%
10%
6.3V
50V
50V
50V
16V
C852
C853
C854
C855
C856
1-162-915-11
1-164-227-11
1-162-915-11
1-162-962-11
1-162-910-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10PF
0.022uF
10PF
470PF
5PF
0.5PF
10%
0.5PF
10%
0.25PF
50V
25V
50V
50V
50V
C861
C862
C863
C864
C865
1-100-566-91
1-100-566-91
1-126-965-11
1-162-962-11
1-126-965-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
ELECT
0.1uF
0.1uF
22uF
470PF
22uF
10%
10%
20%
10%
20%
25V
25V
50V
50V
50V
C866
C867
C868
C869
C873
1-162-962-11
1-162-962-11
1-162-925-11
1-162-923-11
1-162-907-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
470PF
470PF
68PF
47PF
2PF
10%
10%
5%
5%
0.25PF
50V
50V
50V
50V
50V
< FILTER >
CF801
CF802
CF803
1-795-426-11 FILTER, CERAMIC
1-579-554-21 FILTER, CERAMIC
1-781-962-21 FILTER, CERAMIC
< CONNECTOR >
CNP501
CNP502
* CNP802
CNS104
CNS112
1-815-445-11
1-815-444-11
1-506-680-11
1-779-291-11
1-779-295-11
PIN, CONNECTOR (PWB) 4P
PIN, CONNECTOR (PWB) 3P
PLUG, CONNECTOR (2.5mm) 3P
CONNECTOR, FFC (LIF (NON-ZIF)) 23P
CONNECTOR, FFC (LIF (NON-ZIF)) 27P
HCD-EH10
MAIN
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
< DIODE >
Description
Remark
< TRANSISTOR >
D106
D107
D108
D109
D110
8-719-056-85
8-719-046-07
8-719-046-07
8-719-046-07
8-719-046-07
DIODE
DIODE
DIODE
DIODE
DIODE
UDZ-TE-17-8.2B
2A02M
2A02M
2A02M
2A02M
Q101
Q102
Q103
Q121
Q122
8-729-141-83
8-729-120-28
8-729-120-28
8-729-120-28
8-729-120-28
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SB1094-LK
2SC1623-L5L6
2SC1623-L5L6
2SC1623-L5L6
2SC1623-L5L6
D111
D113
D131
D191
D192
6-500-522-01
6-500-522-01
6-500-334-01
6-500-522-01
6-500-522-01
DIODE
DIODE
DIODE
DIODE
DIODE
10EDB40-TA1B2
10EDB40-TA1B2
MC2836-T112-1
10EDB40-TA1B2
10EDB40-TA1B2
Q123
Q191
Q192
Q193
Q351
8-729-120-28
8-729-036-86
8-729-036-86
8-729-600-22
6-550-843-01
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
FET
2SC1623-L5L6
KTC3203Y-AT
KTC3203Y-AT
2SA1235-F
2SJ599-Z-E2-AZ
D193
D371
D372
D802
D803
8-719-083-58
6-500-335-01
6-500-335-01
6-501-369-01
6-501-369-01
DIODE
DIODE
DIODE
DIODE
DIODE
UDZSTE-173.9B
MC2838-T112-1
MC2838-T112-1
SV230-TB-E
SV230-TB-E
Q352
Q371
Q372
Q507
Q801
8-729-120-28
8-729-600-22
8-729-120-28
8-729-120-28
8-729-120-28
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SC1623-L5L6
2SA1235-F
2SC1623-L5L6
2SC1623-L5L6
2SC1623-L5L6
D812
D813
D815
D851
8-719-062-51
8-719-062-51
8-719-062-51
6-501-142-01
DIODE
DIODE
DIODE
DIODE
1PS226-115
1PS226-115
1PS226-115
SVC347A-TL-E
Q802
Q803
Q861
Q862
8-729-120-28
6-550-304-01
8-729-120-28
8-729-120-28
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SC1623-L5L6
2SC5477-T122-1
2SC1623-L5L6
2SC1623-L5L6
< IC >
IC301
IC401
IC801
IC861
6-706-641-01
6-702-895-01
6-708-840-01
6-708-918-01
IC
IC
IC
IC
< RESISTOR >
LA4631-E
BD3881FV
LV23003VA
PT2579SN
R101
R102
R103
R104
R105
1-216-833-11
1-216-809-11
1-216-841-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
100
47K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R106
R107
R108
R109
R110
1-216-837-11
1-216-817-11
1-216-809-11
1-216-817-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
22K
470
100
470
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R111
R112
R115
R116
R117
1-216-853-11
1-216-853-11
1-249-409-11
1-249-409-11
1-249-409-11
METAL CHIP
METAL CHIP
CARBON
CARBON
CARBON
470K
470K
220
220
220
5%
5%
5%
5%
5%
1/10W
1/10W
1/4W
1/4W
1/4W
R118
R119
R120
R121
R123
1-249-409-11
1-216-825-11
1-216-825-11
1-216-849-11
1-216-853-11
CARBON
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
220
2.2K
2.2K
220K
470K
5%
5%
5%
5%
5%
1/4W
1/10W
1/10W
1/10W
1/10W
R124
R125
R126
R127
R128
1-216-809-11
1-216-829-11
1-216-841-11
1-216-841-11
1-216-813-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
4.7K
47K
47K
220
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R129
R130
R134
R135
R136
1-216-817-11
1-216-813-11
1-216-817-11
1-216-817-11
1-216-817-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
470
220
470
470
470
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R137
R138
R139
R140
R144
1-216-817-11
1-216-817-11
1-216-817-11
1-216-817-11
1-216-817-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
470
470
470
470
470
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
< JACK >
J101
J102
J105
1-780-314-11 TERMINAL BOARD (SPEAKERS)
1-815-629-11 JACK (PHONES)
1-566-822-51 JACK (AUDIO IN)
< JUMPER RESISTOR >
JR106
JR401
JR402
JR403
JR404
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JR801
JR802
JR803
JR861
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
< COIL >
L103
L104
L501
L803
L804
1-469-152-11
1-469-152-11
1-456-094-11
1-433-741-11
1-457-163-11
FERRITE, EMI (SMD) (2012)
FERRITE, EMI (SMD) (2012)
TRANSFORMER, BIAS OSCILLATION
TRANSFORMER, IF
COIL, AIR-CORE
L805
L806
L851
L852
1-457-162-11
1-457-168-11
1-457-161-11
1-456-596-11
COIL, AIR-CORE
COIL, DET
COIL, AM ANTENNA
COIL, MW OSC
< CONNECTOR >
* PIN101 1-564-187-00 PIN, CONNECTOR
* PIN102 1-564-187-00 PIN, CONNECTOR
41
HCD-EH10
MAIN
Ref. No.
Part No.
Description
R145
R146
R147
R148
R149
1-216-817-11
1-216-817-11
1-216-817-11
1-216-817-11
1-216-817-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
470
470
470
470
470
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R150
R151
R152
R175
R176
1-216-817-11
1-216-829-11
1-216-829-11
1-216-841-11
1-216-841-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
470
4.7K
4.7K
47K
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R181
R182
R185
R186
R187
1-216-797-11
1-216-797-11
1-247-807-31
1-247-807-31
1-247-807-31
METAL CHIP
METAL CHIP
CARBON
CARBON
CARBON
10
10
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/4W
1/4W
1/4W
R188
R189
R191
R192
R193
1-216-837-11
1-216-837-11
1-216-821-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
22K
22K
1K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R195
R196
R197
R198
R199
1-216-809-11
1-216-809-11
1-247-807-31
1-247-807-31
1-247-807-31
METAL CHIP
METAL CHIP
CARBON
CARBON
CARBON
100
100
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/4W
1/4W
1/4W
R301
R302
R303
R304
R305
1-216-837-11
1-216-837-11
1-216-825-11
1-216-825-11
1-216-829-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
22K
22K
2.2K
2.2K
4.7K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R306
R307
R308
R339
R340
1-216-829-11
1-216-837-11
1-216-837-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
22K
22K
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R351
R352
R353
R354
R355
1-216-833-11
1-216-825-11
1-216-833-11
1-216-833-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
2.2K
10K
10K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R356
R365
R371
R372
R373
1-216-837-11
1-216-825-11
1-218-446-11
1-218-446-11
1-218-446-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
22K
2.2K
1
1
1
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R374
R375
R376
R377
R378
1-218-446-11
1-218-446-11
1-218-446-11
1-218-446-11
1-218-446-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1
1
1
1
1
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R379
R380
R381
R382
R383
1-218-446-11
1-218-446-11
1-216-833-11
1-216-833-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1
1
10K
10K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R384
R402
R403
1-216-821-11 METAL CHIP
1-216-809-11 METAL CHIP
1-216-821-11 METAL CHIP
1K
100
1K
5%
5%
5%
1/10W
1/10W
1/10W
42
Remark
Ref. No.
Part No.
Description
Remark
R404
R405
1-216-813-11 METAL CHIP
1-216-864-11 SHORT CHIP
220
0
5%
1/10W
R406
R410
R411
R412
R419
1-216-821-11
1-216-845-11
1-216-821-11
1-216-813-11
1-216-839-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1K
100K
1K
220
33K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R420
R423
R424
R425
R426
1-216-839-11
1-216-829-11
1-216-829-11
1-216-829-11
1-216-829-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
33K
4.7K
4.7K
4.7K
4.7K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R427
R428
R429
R430
R433
1-216-845-11
1-216-845-11
1-216-829-11
1-216-829-11
1-216-837-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
4.7K
4.7K
22K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R434
R439
R440
R441
R442
1-216-837-11
1-216-829-11
1-216-829-11
1-216-841-11
1-216-841-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
22K
4.7K
4.7K
47K
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R501
R502
R503
R504
R505
1-216-809-11
1-216-809-11
1-216-829-11
1-216-829-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
4.7K
4.7K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R506
R507
R508
R509
R510
1-216-833-11
1-216-825-11
1-216-825-11
1-216-853-11
1-216-853-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
2.2K
2.2K
470K
470K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R511
R512
R513
R514
R515
1-216-861-11
1-216-861-11
1-216-809-11
1-216-809-11
1-216-805-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
2.2M
2.2M
100
100
47
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R516
R517
R518
R519
R520
1-216-805-11
1-216-845-11
1-216-845-11
1-216-841-11
1-216-841-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
47
100K
100K
47K
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R521
R522
R523
R524
R525
1-216-837-11
1-216-837-11
1-216-829-11
1-216-829-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
22K
22K
4.7K
4.7K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R526
R527
R528
R529
R530
1-216-833-11
1-216-829-11
1-216-829-11
1-216-825-11
1-216-825-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
4.7K
4.7K
2.2K
2.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R531
R532
R533
R534
R535
1-216-829-11
1-216-829-11
1-216-833-11
1-216-833-11
1-216-813-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
4.7K
10K
10K
220
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
HCD-EH10
MAIN
Ref. No.
Part No.
Description
R536
R541
R542
R543
R544
1-216-813-11
1-216-837-11
1-216-833-11
1-216-829-11
1-216-829-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
220
22K
10K
4.7K
4.7K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
Remark
R545
R560
R561
R564
R565
1-216-829-11
1-216-821-11
1-216-837-11
1-216-793-11
1-216-793-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
1K
22K
4.7
4.7
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R801
R802
R803
R804
R805
1-216-825-11
1-216-797-11
1-216-797-11
1-216-864-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
METAL CHIP
2.2K
10
10
0
100K
5%
5%
5%
1/10W
1/10W
1/10W
5%
1/10W
R806
R807
R808
R809
R810
1-216-864-11
1-216-845-11
1-216-833-11
1-216-821-11
1-216-857-11
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
100K
10K
1K
1M
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R811
R812
R813
R814
R815
1-216-829-11
1-216-817-11
1-216-833-11
1-216-809-11
1-216-829-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
470
10K
100
4.7K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R816
R817
R818
R819
R820
1-216-833-11
1-216-833-11
1-216-841-11
1-216-841-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
10K
47K
47K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R821
R822
R823
R824
R825
1-216-813-11
1-216-825-11
1-216-809-11
1-216-825-11
1-216-817-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
220
2.2K
100
2.2K
470
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R826
R827
R828
R829
R830
1-216-809-11
1-216-809-11
1-216-801-11
1-216-845-11
1-216-841-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
22
100K
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R831
R833
R834
R835
R836
1-216-813-11
1-216-833-11
1-216-837-11
1-216-829-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
220
10K
22K
4.7K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R837
R838
R839
R840
R841
1-216-821-11
1-216-821-11
1-216-809-11
1-216-837-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1K
1K
100
22K
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R842
R843
R844
R845
R846
1-216-841-11
1-216-853-11
1-216-797-11
1-216-801-11
1-216-825-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
47K
470K
10
22
2.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R847
R848
R849
1-216-801-11 METAL CHIP
1-216-821-11 METAL CHIP
1-216-837-11 METAL CHIP
22
1K
22K
5%
5%
5%
1/10W
1/10W
1/10W
Ref. No.
Part No.
Description
Ver. 1.4
PANEL
Remark
R850
R851
1-216-825-11 METAL CHIP
1-216-837-11 METAL CHIP
2.2K
22K
5%
5%
1/10W
1/10W
R853
R856
R857
R859
R860
1-216-845-11
1-216-837-11
1-216-837-11
1-216-821-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
22K
22K
1K
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R861
R862
R863
R864
R865
1-216-833-11
1-216-817-11
1-216-837-11
1-216-833-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
470
22K
10K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R866
R867
R868
R869
R870
1-216-833-11
1-216-833-11
1-216-833-11
1-216-833-11
1-216-853-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
10K
10K
10K
470K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R871
R872
R873
R874
R875
1-216-849-11
1-216-813-11
1-216-825-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
220K
220
2.2K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R876
1-216-841-11 METAL CHIP
47K
5%
1/10W
< SWITCH >
SW501
1-762-369-11 SWITCH, SLIDE (REC/PB)
< VIBRATOR >
X801
1-795-926-11 VIBRATOR, CRYSTAL (75kHz)
X861
1-579-900-21 VIBRATOR, CRYSTAL (4.332MHz)
************************************************************
A-1138-541-A PANEL BOARD, COMPLETE (AEP, UK, EE, RU)
A-1158-525-A PANEL BOARD, COMPLETE (US, CND)
A-1158-532-A PANEL BOARD, COMPLETE (SP, TW, KR, AUS)
**********************
2-636-531-01 HOLDER, LCD
2-636-532-01 ILLUMINATOR, LCD
2-636-545-01 SHEET, LCD
< CAPACITOR >
C701
C702
C703
C704
C705
1-164-156-11
1-162-970-11
1-126-382-11
1-119-941-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
0.1uF
0.01uF
100uF
470uF
0.01uF
10%
20%
20%
10%
25V
25V
16V
6.3V
25V
C706
C707
C708
C709
C710
1-164-156-11
1-162-964-11
1-162-923-11
1-162-964-11
1-115-467-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.001uF
47PF
0.001uF
0.22uF
10%
5%
10%
10%
25V
50V
50V
50V
10V
C711
C712
C713
C714
C715
1-164-156-11
1-164-156-11
1-162-923-11
1-162-964-11
1-162-964-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
47PF
0.001uF
0.001uF
5%
10%
10%
25V
25V
50V
50V
50V
C716
1-164-156-11 CERAMIC CHIP
0.1uF
25V
43
HCD-EH10
Ver. 1.4
PANEL
Ref. No.
Part No.
Description
C717
C718
C719
C720
1-162-964-11
1-162-964-11
1-165-176-11
1-162-964-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.001uF
0.001uF
0.047uF
0.001uF
10%
10%
10%
10%
50V
50V
16V
50V
Remark
C722
C724
C731
C732
C733
1-162-968-11
1-162-923-11
1-164-156-11
1-162-918-11
1-162-919-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.0047uF
47PF
0.1uF
18PF
22PF
10%
5%
50V
50V
25V
50V
50V
C734
C735
C736
1-162-964-11 CERAMIC CHIP
1-162-964-11 CERAMIC CHIP
1-162-964-11 CERAMIC CHIP
0.001uF
0.001uF
0.001uF
C740
1-162-964-11 CERAMIC CHIP
0.001uF
C741
1-162-960-11 CERAMIC CHIP
220PF
10%
50V
10%
50V
10%
50V
(AEP, UK, EE, RU)
10%
50V
(AEP, UK, EE, RU)
10%
50V
C742
C743
1-162-960-11 CERAMIC CHIP
1-162-960-11 CERAMIC CHIP
220PF
220PF
10%
10%
5%
5%
50V
50V
< CONNECTOR >
CNS701 1-779-295-11 CONNECTOR, FFC (LIF (NON-ZIF)) 27P
(AEP, UK, EE, RU)
CNS702 1-779-293-11 CONNECTOR, FFC (LIF (NON-ZIF))
(US, CND, SP, TW, KR, AUS)
< DIODE >
D701
D702
6-501-163-01 DIODE UDZW-TE17-3.6B
6-500-334-01 DIODE MC2836-T112-1
< IC >
IC701
IC703
6-806-137-01 IC MB90802-107
6-600-446-01 IC RPM7240-H18
Ref. No.
Part No.
Description
Remark
LED702 8-719-060-44 LED SLR-342VRT32 (STANDBY)
< TRANSISTOR >
Q701
Q702
Q703
Q704
Q705
8-729-600-22
8-729-120-28
8-729-120-28
1-801-806-11
8-729-120-28
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SA1235-F
2SC1623-L5L6
2SC1623-L5L6
DTC144EKA
2SC1623-L5L6
Q706
Q707
8-729-120-28 TRANSISTOR
8-729-120-28 TRANSISTOR
2SC1623-L5L6
2SC1623-L5L6
< RESISTOR >
R701
R702
R703
R704
R705
1-216-821-11
1-216-809-11
1-216-829-11
1-216-821-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1K
100
4.7K
1K
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R706
R707
R708
R709
R710
1-216-821-11
1-216-821-11
1-216-821-11
1-216-821-11
1-216-829-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1K
1K
1K
1K
4.7K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R711
R712
R713
R714
R715
1-216-837-11
1-216-829-11
1-216-833-11
1-216-833-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
22K
4.7K
10K
10K
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R716
R717
R718
R719
R721
1-216-821-11
1-216-821-11
1-216-821-11
1-216-821-11
1-216-817-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1K
1K
1K
1K
470
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R722
R723
R724
1-216-849-11 METAL CHIP
1-216-825-11 METAL CHIP
1-216-821-11 METAL CHIP
220K
2.2K
1K
R725
R726
1-216-833-11 METAL CHIP
1-216-845-11 METAL CHIP
10K
100K
5%
1/10W
5%
1/10W
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
5%
1/10W
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
< RESISTOR >
JR701
JR702
JR703
JR704
JR705
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JR706
JR707
JR708
JR709
JR710
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
R727
R728
R730
R731
R732
1-216-864-11
1-216-833-11
1-216-833-11
1-216-833-11
1-216-841-11
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
10K
10K
10K
47K
JR713
JR714
JR715
JR716
JR718
1-216-864-11
1-216-864-11
1-216-817-11
1-216-864-11
1-216-864-11
SHORT CHIP
SHORT CHIP
METAL CHIP
SHORT CHIP
SHORT CHIP
0
0
470
0
0
R733
R734
R735
R736
R738
1-216-841-11
1-216-821-11
1-216-821-11
1-216-864-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
METAL CHIP
47K
1K
1K
0
10K
5%
5%
5%
1/10W
1/10W
1/10W
5%
1/10W
JR721
L701
L702
1-216-864-11 SHORT CHIP
1-216-864-11 SHORT CHIP
1-216-864-11 SHORT CHIP
R739
R742
R743
R744
R745
1-216-833-11
1-216-821-11
1-216-821-11
1-216-825-11
1-216-825-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
1K
1K
2.2K
2.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R746
R747
1-216-825-11 METAL CHIP
1-216-821-11 METAL CHIP
2.2K
1K
R748
R749
1-216-841-11 METAL CHIP
1-216-821-11 METAL CHIP
47K
1K
5%
1/10W
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
5%
1/10W
5%
1/10W
0
0
0
< LIQUID CRYSTAL DISPLAY >
LCD702 1-805-941-12 DISPLAY PANEL, LIQUID CRYSTAL
< LED >
LED701 6-501-139-01 LED SELU2B10A-SLF62 (LCD BACK LIGHT)
44
HCD-EH10
PANEL
Ref. No.
Part No.
Description
Remark
Ref. No.
R750
1-216-821-11 METAL CHIP
1K
5%
1/10W
X702
1-795-054-51 VIBRATOR, CERAMIC (4.19MHz)
************************************************************
R751
R753
R754
R755
R756
1-216-845-11
1-216-809-11
1-216-833-11
1-216-864-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
METAL CHIP
100K
100
10K
0
1K
5%
5%
5%
1/10W
1/10W
1/10W
A-1138-529-A PT-AC BOARD, COMPLETE
*********************
5%
1/10W
1-533-233-31 FUSE HOLDER
R757
R758
R759
R760
R761
1-216-845-11
1-216-821-11
1-216-809-11
1-216-845-11
1-216-841-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
1K
100
100K
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R762
R763
R764
R765
R766
1-216-833-11
1-216-837-11
1-216-837-11
1-216-829-11
1-216-797-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
22K
22K
4.7K
10
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R767
R768
R770
R771
R772
1-216-849-11
1-216-833-11
1-216-841-11
1-216-821-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
220K
10K
47K
1K
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R775
R776
R777
R778
R779
1-216-805-11
1-216-821-11
1-216-817-11
1-216-821-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
47
1K
470
1K
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R781
1-216-833-11 METAL CHIP
10K
5%
R781
1-216-845-11 METAL CHIP
R782
1-216-833-11 METAL CHIP
R782
R783
1-216-864-11 SHORT CHIP
1-216-833-11 METAL CHIP
R783
1-216-837-11 METAL CHIP
22K
R784
R785
R787
1-216-845-11 METAL CHIP
1-216-833-11 METAL CHIP
1-216-841-11 METAL CHIP
100K
10K
47K
1/10W
(US, CND)
100K
5%
1/10W
(EXCEPT US, CND)
10K
5%
1/10W
(SP, TW, KR, AUS)
0 (AEP, UK, EE, RU)
10K
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
(SP, TW, KR, AUS)
5%
1/10W
5%
1/10W
5%
1/10W
< SWITCH >
SW700
SW701
SW702
SW703
SW704
1-478-642-11
1-762-875-21
1-762-875-21
1-762-875-21
1-762-875-21
ENCODER, ROTARY (VOLUME)
SWITCH, KEYBOARD (I/1)
SWITCH, KEYBOARD (DSGX)
SWITCH, KEYBOARD (
–)
SWITCH, KEYBOARD (
+)
SW705
SW711
SW712
SW713
SW714
1-762-875-21
1-762-875-21
1-762-875-21
1-762-875-21
1-762-875-21
SWITCH, KEYBOARD (DISPLAY)
SWITCH, KEYBOARD (x)
SWITCH, KEYBOARD (TUNING –, m l)
SWITCH, KEYBOARD (TUNING +, M L)
SWITCH, KEYBOARD (FUNCTION)
SW715
SW716
1-762-875-21 SWITCH, KEYBOARD (TUNER, BAND)
1-762-875-21 SWITCH, KEYBOARD (CD u)
Part No.
Description
Ver. 1.4
PT-AC
Remark
< CONNECTOR >
W002
1-819-131-11 PIN, CONNECTOR 3P
************************************************************
MISCELLANEOUS
**************
04
04
04
04
04
1-769-079-51
1-775-790-81
1-790-757-51
1-827-597-81
1-830-891-11
04
70
102
1-831-370-11 CORD, POWER (AEP, EE, RU, SP)
1-797-374-11 DECK, MECHANICAL (H-21SB)
1-452-899-11 MAGNET
0 151
8-820-126-01 OPTICAL PICK-UP BLOCK
152
0 F001
1-832-404-21
1-532-275-33
0 F001
0 F002
1-532-467-33
1-532-275-33
CORD, POWER (KR)
CORD, POWER (AUS)
CORD, POWER (US, CND)
CORD, POWER (TW)
CORD, POWER (UK)
(KSM-213CDP/C2NP)
(Including sled motor (M402),
spindle motor (M401))
CABLE, FLEXIBLE FLAT (16 CORE)
FUSE (T0.16AL/250V)
(AEP, UK, EE, RU, KR, AUS)
FUSE (T0.315AL/250V) (US, CND, SP, TW)
FUSE (T0.16AL/250V) (SP)
FFC151 1-832-627-21 CABLE, FLEXIBLE FLAT (23 CORE)
FFC701 1-832-634-21 CABLE, FLEXIBLE FLAT (25 CORE)
(US, CND, SP, TW, KR, AUS)
FFC702 1-832-644-21 CABLE, FLEXIBLE FLAT (27 CORE)
(AEP, UK, EE, RU)
0 PT005 1-443-829-11 TRANSFORMER, POWER (AEP, UK, EE, RU)
0 PT005 1-443-856-11 TRANSFORMER, POWER (US, CND)
0 PT005 1-443-857-11 TRANSFORMER, POWER (KR)
0 PT005
S201
SW750
1-443-858-11 TRANSFORMER, POWER (SP, TW, AUS)
1-771-853-11 SWITCH, DETECTION (LIMIT)
1-692-960-11 SWITCH, PUSH (1 KEY)
(CD LID OPEN/CLOSE DETECT)
*************************************************************
ACCESSORIES
************
0
0
1-569-008-22 ADAPTOR, CONVERSION 2P (SP)
1-770-019-61 ADAPTOR, CONVERSION PLUG (UK)
< VIBRATOR >
X701
1-760-252-12 VIBRATOR, CRYSTAL (32.768kHz)
Refer to the SUPPLEMENT-1 for the PT-AC board
of the except AEP, UK, East European and Russian
models.
45
HCD-EH10
MEMO
46
HCD-EH10
SERVICE MANUAL
Ver. 1.4 2006.03
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
SUPPLEMENT-1
File this supplement with the service manual.
Subject: Change of MAIN and PT-AC boards (Suffix-13)
In this set, MAIN and PT-AC boards have been changed in the midway of
production.
Printed wiring boards and schematic diagrams of new type, and changed
parts list are described in this supplement-1.
Refer to original service manual for other information.
1.
NEW/FORMER DESCRIPTION
– MAIN Board (Component Side) –
– PT-AC Board (Component Side) –
Former : 1-868-227-11, -12
New
: 1-868-227-13
Former : 1-868-228-11, -12
New
: 1-868-228-13
9-879-855-81
HCD-EH10
Ver. 1.4
2.
DIAGRAMS
• Note for Printed Wiring Boards and Schematic Diagrams
Note on Printed Wiring Board:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
f
: internal component.
•
•
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
• Indication of transistor
C
Q
These are omitted.
B E
Q
B C
E
These are omitted.
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
•
f
: internal component.
• C : panel designation.
Note:
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce por tant le numéro
spécifié.
• A : B+ Line.
• H : Adjustment for repair.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : FM
[
] : AM
{
} : REC
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
• Signal path.
F : FM
f : AM
J : CD PLAY
E : TAPE PLAY
j : REC
i : AUX IN
• Abbreviation
AUS : Australian model
CND : Canadian model
EE
: East European model
KR
: Korean model
RU
: Russian model
SP
: Singapore model
TW : Taiwan model
2
HCD-EH10
Ver. 1.4
: Uses unleaded solder.
2-1. PRINTED WIRING BOARDS – MAIN Section –
• Semiconductor
Location
6
7
CD BOARD
CN102
A
B
11
12
JW115
JW114
R196
R192
C192
JW105
R134
JW112
R191
R176
JW164
JW163
CNP502
JW165
R175
C431
R119
JW152 C141
JW417
C115
L103
JW139
C196
JW130
R117
R115
C111
JW150
R517
JW107
R518
JW151
R515
R513
CNP501
R516
C502
JR403
JW410
JW418
SW501
(REC/PB)
REC
PB
(AC IN)
R519
C513
C512
R522
R532
R530
T001
T006
S501
WH006
F002
G
W007
C315
WH007
R542
C302
T005
C307
WH005
BLK
∗
13
1-868-595-
PT005
POWER
TRANSFORMER
C308
JW168
RED
WHT
∗ NOT REPLACEABLE:
BUILT IN TRANSFORMER
R560
R536
R543
R535
C562
R565
C303
R564
E
13
W008
C371
R374
S
R373
(CHASSIS)
R371
JW149
R372
R375
R377
R376
R379
R378
R380
Q351
JW167
13
1-868-227-
HCD-EH10
3
220 – 240V
r
110 – 120V
WHT
R544
R561
C309
C311
W005
VOLTAGE
SELECTOR
JW003
JW002
C565
R307
R339
C305
IC301
C381
R545
C564
C301
R382
E
R381
R340
R352
E
R365
R355
Q352
R356
R383
C382
R354
R353
C561
Q507
R305
A
Q371
R384
Q372
L501
C304
D371
S002
BLK
R533
R531
1
R525
C312
A
W006
C527
C523
R302
R306
(TW)
(EXCEPT SP, TW)
RED
F001
2
C525
R529
C534
C567
C310
T002
R534
C526
R860
R859
R428
C415
C514
R520
R521
R434
R433
C416
C528
R524
R526
(SP)
AC-SW BOARD
PT-AC BOARD
C511
C532
R527
TAPE
MECHANISM
DECK
(R-CH)
JW142
C409
R424
C518
C522
R528
R404
R405
R514
R504
R505
C434
C410
R402
C501
J102
PHONES
C142
JW137
R541
R406
C403
JW132
JW409
JW153
C868
R865
JW129
R120
JW140
HRP501
(REC/PB)
4
C519
C524
D
R110
JW141
R427
JW415
R126
R127
R124
R125
A
D372
JW145
E
C118
E
R116
C432
R420
R523
R104
JW147
C869
C862
JW825
JW824
JW823
JW822
JW821 (VT)
R809
D815
C820
Q121
A
CN102
C
L104
1
R351
B
C437
K
C110
C109
R107
R108
R109
Q101
C529 C531
R430
R425
R423 R426
Q122
JW412
JW161
D109
C156
D111
D113
C155
JW146
JW156
(EXCEPT SP)
JW169
D106
HT101
JW182
E
R151
R118
R419
JR404
C405
K
Q103
R152
(L-CH)
C406
R501
1
R429
3
Q102
R508
D802
R851
C852
R403
JW144
R102
E
C404
C421
14
C401
JW406
(SP)
R101
26
1
R510
C408
28
C438
R304
D114
JW170 (EXCEPT SP)
D112 (SP)
R184
C412
JW401
JW166
JW133
JW181
R111
R512
C504
IC401
JW407
D110
JW155
D107
R519
C535
C508
C544
R502
R411
C413
E
D108
R511
C506
R506
C515
JW416
JW411
PIN101 E
(AEP, UK, EE, RU, KR)
D
R112
JW405
JW106
C121
C101
27
J105
AUDIO IN
C509
R509
C503
15
JW160
(AEP, UK, EE, RU, KR)
H
R853
D803
L805
R839
JW159
EXCEPT
US, CND
R441
C510
C507
R503
JR402 C407
JW408
JR401
JW414
C183
R181
+
C105
C181
C505
C543
R410
A
C114
R105
JW102
CNS111
25P (US, CND, SP, TW,
KR, AUS)
CNS112
27P (AEP, UK, EE, RU)
R193
JW134
R121
L
C433
R412
R106
JW103
R814
C402
D131
R182
–
D193
3
JW136
R442
K
JW158 K
R131
JW101
C191
1
JW128
R507
JW154
R130
JW104
R843
R440
R103
C113
–
R123
R
J101
SPEAKER
JW148 (GND)
Q123
E
JW143
R129
JW157
C184
C182
R128
JW404
C122
(US, CND)
JW135
JW126
C533
C
+
K
R308
C306
R303 R301
R845
R185
R189
JW117
(AEP, UK, EE, RU)
1 2
A/K
JW402 (TUNER OUT R-ch)
R842
E R186
A
R863
R820
R838
R837
R827
JW125
R439
PIN102
PANEL
BOARD
R806
JW830
R847
JW819
C843 (US, CND, SP,
TW, KR, AUS)
JW829
E
C838
R844
(AEP, UK, EE, RU, KR)
C817
C840
R829
C809
C834
C816
C822
JW124
C827
R850
JW413
C847
C841
C815
C807
R813 R815
R818
C823
X801
C828
JW131
A
R808
D191
JW120
R187
Q193
R188
JW119
JW127
L851
D192
JW123
C826
JW832
R195
JW122
R861
JW831
R807
A
K
C819
R812
C829
C830
R849
C821
C848
C835
R817
R816
Q802
C805
C855
C802
JW818
R836
R830
E
C853
JW809
JW802
C836
C839
R841
R802
JW833
JW116
JW118
JW121
JR801
K
D851
JW817
C825
L806
R805
A A
C854
IC801
R822
R833
C832
R840
R834
C851
JW803
JW834
R835
A
R811
(US, CND)
JW804
JR106
C833
(AEP, UK, EE, RU)
JW805 (GND)
C865
JW162
K
JW403 (TUNER OUT L-ch)
C831
JR105
A
C806
L852
C824
(AUS) C813
(SP)
JW816
C811
JR103
R874
C864
(US, CND, SP,
TW, KR, AUS)
JW837
R804
JW815
R801
JW806
JW807
(TW)
C873
(KR)
JR102
L804
R803
C803
C810
(AEP, UK, EE, RU)
JW814
JR101
R871 R870
E
JW840
C856
R824
CF802
JW813
E
R869
9
JR861
C804
JW808
CF801
R821
C814
JW810
R823
R826
CF802
JR104
R810
R848
(US, CND, SP,
TW, KR, AUS)
R825
R831
Q803
JR803 JW811
K
R828
G
C861
BPF801
8
C818
JR802
E
Q861
R862
R819
A
D813
A/K
CD
BOARD
C866
JW812
C
E
C863
K
ANTENNA
FM/AM
D
C812
A/K
CF803
A
D812
CNP802
R873
16
E Q192
JW137
1
C867
L803
R875
R199
R198
R138
R867 R866
JW113
R857
IC861
E Q191
R197
R876
X861
Q862
R864
R872
R856
R136
R146
JW110
JW836
B
JW111
R140
JW109
(AEP, UK, EE, RU)
C193
R135
R150
R148
R139
C194
23
JW108 R145
R868
CF801 – 803
J
10
R149
R137
22
1
I
9
PANEL BOARD
CNS701 (AEP, UK, EE, RU)
CNS702 (US, CND, SP, TW, KR, AUS)
JW138
R144
R147
CNS104
2
F
8
(US, CND, SP, TW, AUS)
C195
Q801
J-3
I-3
I-3
H-4
H-4
F-3
B-8
B-8
B-9
J-4
I-4
I-5
I-4
I-6
E-2
E-2
C-2
B-6
B-6
5
A
JW835
Q101
Q102
Q103
Q121
Q122
Q123
Q191
Q192
Q193
Q351
Q352
Q371
Q372
Q507
Q801
Q802
Q803
Q861
Q862
4
MAIN BOARD
R846
J-5
F-6
D-3
B-5
3
C801
IC301
IC401
IC801
IC861
2
C800
Ref. No. Location
D106
I-3
D107
H-3
D108
H-3
D109
H-4
D110
H-4
D111
H-3
D113
H-3
D131
G-4
D191
B-8
D192
B-8
D193
C-9
D371
I-5
D372
H-5
D802
C-4
D803
D-4
D812
C-2
D813
C-2
D815
E-5
D851
D-4
1
3
(13)
3
W002
1
13
1-868-228-
(13)
(13)
HCD-EH10
Ver. 1.4
2-2. SCHEMATIC DIAGRAM – MAIN Section (1/3) –
(1/3)
CNP501
4P
A7
HRP501
A8
-1
(REC/PB)
R-CH
A10
C535
0.1
A9
JW137
2.2
L-CH
(US,CND)
CNP502
3P
JW107
SW501
-2
JW137
(EXCEPT US,CND)
TAPE
(REC/PB)
RDSC
MECHANISM
REC
RDS-CLK
DECK
RDSD
(Page 22)
RDS-DO
TUAS
PB
CNS111 25P(US,CND,SP,TW,KR,AUS)
A11
TU-ANSD
(AEP,UK,EE,RU)
TUDO
CNS112 27P(AEP,UK,EE,RU)
A12
TU-DO
TUDI
RDSC
I-RDS-SC
TUCK
RDSD
I-RDS-SD
TUCE
TUCE
A13
TU-DI
TU-CLK
(Page 6)
O-TU-CE
TU-CE
R193
100k
(Page 5)
Q191
KTC3203
A1
+3.3V REGUALTOR
DATA
R140 470
CCMD
CLK-MP3
R144 470
MCLK
DR-MUTE
R145 470
DRMT
R188
22k
R187 100
R199 100
R186 100
R198 100
CNS104
23P
R185 100
R197 100
AC DETECT
A6
C193
0.1
R191
1k
R196
100
R195
100
C192
0.1
R189
22k
DGND
R543
4.7k
C195
0.1
O-TU-CK
TUAS
I-TU_ANSD
I-TU-DO
CCLK
O-CD-CLK
CCMD
O-CD-CMD
MCLK
O-CLK-MP3
MDAT
I/O-DATA-MP3
DRMT
O-DR-MUTE
CLAT
DVDD(3.3V)
D-OUT
O-TU_DI
TUCK
TUDO
Q193
2SA1235F
A2
(Page 5)
+3.3V REGUALTOR
R192
100k
A3
Q192
KTC3203
TUDI
O-CD-XLAT
MREQ
O-REQ-MP3
MLAT
O-XLAT-MP3
MACK
I-ACK-MP3
SCOR
I-CD-SCOR
AEP,UK,
EE,RU
(US,CND,SP,TW,AUS)
C194
0.1
L-OUT
D193
UDZW-TE17-3.9B
AGND
R545
4.7k
C191
220
10V
R542
10k
R-OUT
R541
22k
I-CD-SENS
MIRQ
I-REQ-MP3
XTCN
O-CD-XTACN
FUSD
R544
4.7k
AVDD(3.3V)
SENS
US,CND,SP,
TW,KR,AUS
O-FUNC-SD
I-TP_STATE
XTACN
R146 470
XTSN
XRST
R147 470
XRST
O-POWER
IREQ-MP3
R148 470
MIRQ
I-P-MONI
CLK
R149 470
CCLK
VSTBY
DATA-MP3
R150 470
MDAT
U-GND
XLAT-MP3
R139 470
MLAT
REQ-MP3
R138 470
MREQ
ACK-MP3
R137 470
MACK
XLAT
R136 470
CLAT
SENS
R135 470
SENS
SCOR
R134 470
SCOR
XRST
O-AMP-ON/XRST
C196
0.1
J105
AUDIO IN
R152
4.7k
R175
47k
R151
4.7k
L104
MGND
D192
10EDB40
VM(7V)
C115
0.1
D191
10EDB40
A14
A15
A16
R176
47k
A17
A4
A18
A5
A19
(Page 5)
(Page 5)
Q101-103
+9V REGULATOR
JW166
Q101
2SB1274R
∗ C105
0.1 (AEP,UK,EE,RU)
0.47 (KR)
D131
MC2836
W8
D107
2A02M
F001
T160mAL 250V(AEP,UK,EE,RU,KR,AUS)
T315mAL 250V(US,CND,SP,TW)
R109
470
W002
3P
PIN102
(SP)
D110
2A02M
CN102
3P
D112
IN4002
D109
2A02M
(TW)
D114
IN4002
EXCEPT
(AC IN)
SP,TW
C156
0.1
D111
10EDB40
C155
0.1
D113
10EDB40
R128
220
JW169
JW170
R108
100
R129
220
R110
100k
EXCEPT
R131
220
C105
0.1
∗
R130
220
R104
100k
D106
UDZW-TE17-8.2B
R123
470k
R103
47k
C109
0.01
SP
Q123
2SC3052F
Q121
2SC3052F
DC DETECT
R101
10k
JW002
R105
100k
Q102
2SC3052F
R121
220k
AC DETECT
R124
100
∗NOT REPLACEABLE:
C113
2200
35V
BUILT IN TRANSFORMER
R126
47k
W006
W005
W007
WH005
WH007
(SP)
WH006
(AEP,UK,EE,RU,KR)
C118
100
16V
PT005
POWER TRANSFORMER
(CHASSIS)
JW003
D108
2A02M
C101
3300
35V
R102
100
Q103
2SC3052F
R107
470
R127
47k
S202
F2
T160mL
250V
VOLTAGE
SELECTOR
220-240V
110-120V
HCD-EH10
4
4
C110
0.22
R106
22k
C114
0.1
C122
220
10V
R125
4.7k
C121
0.47
Q122
2SC3052F
AC DETECT
PIN101
HCD-EH10
2-3. SCHEMATIC DIAGRAM – MAIN Section (2/3) –
(Page 4)
A1
C532
1000p
(Page 4)
R406
1k
TU-R
R403
1k
R411
1k
EMC-GND
C509
33 16V
C501 47p
R412
220
TU-GND
C502 47p
R404
220
R410
100k
TU-L
C406 0.22
VM9V
C531
1000p
C515
10p
C404 0.22
C403
0.1
C408 4700p
A3
C407 4700p
A2
(Page 6)
A6
FUSD
(2/3)
C543
1000p
C421
0.1
C503
470p
R507
2.2k
C505
0.047
R505
10k
R517
100k
C507
0.01
R515
47
R519
47k
R511
2.2M
R513
100
C513
1000p
R503
4.7k
C432 0.22
IC301
LA4631-E
C431 0.22
R501
100
POWER AMP
A7
A8
R502
100
INPUT SELECT,
ELECTRICAL
R301
47k
C309
1000p
R307
22k
R420 33k
R419 33k
R441 47k
R433 22k
C437
470p
C401
0.1
50V
R181
10
C304
100
16V
JW181
J101
SPEAKER
R365
2.2k
C301
2200p
C303
4.7
50V
R303
2.2k
R304
2.2k
R305
4.7k
R306
4.7k
C438
470p
R402
100
R380 1
R377 1
R378 1
R379 1
R375 1
R376 1
R373 1
R374 1
R111
470k
R371 1
R112
470k
R182
10
R372 1
JW182
R424
4.7k
R425
4.7k
C405
0.1
50V
J102
R116
220 R117
220
R115
220
R405
0
C413
100 16V
C402
100 16V
R426
4.7k
C434
470p
C533
0.1
C433
470p
R355
10k
R521
22k
R528
4.7k
R527
4.7k
R518
100k
C544
1000p
R514
100
R516
47
C510
33
16V
R532
4.7k
R534
10k
A9
A10
R531
4.7k
R529
2.2k
(Page 4)
R533
10k
C527
1000p
C526
0.01
A11
R535
220
R536
220
R561
22k
A12
C416
0.1
C567
4700p
A13
OSC
R564 R565
4.7
4.7
C415
0.1
R560
1k
C564
0.01
Q507
2SC3052F
D372
MC2838
R383
10k
R520
47k
C528
1000p
C519
0.1
R439
4.7k
R354
10k
D371
MC2838
C512
470p
R440
4.7k
C534 0.1
R381 R382
10k
10k
R351
10k
S
R522
22k
R530
2.2k
C525
0.01
Q371
2SA1235F
R118
220
C529
100p
C561
2200p
C381
1000p
Q351
2SJ599-Z-E2
C522
100p
R423
4.7k
C412
100
16V
C371
0.1
C184
0.1
C409
0.1
R429
4.7k
R430
4.7k
R
C182
0.1
C410
0.1
C523 0.01
C305
0.1
R525 10k
R339
100
C506
0.047
C518
0.1
R308 22k
R523 4.7k
C315
1000p
C310
1000p
R508
2.2k
R504 R506
4.7k
10k
C524 0.01
C183
0.1
C302
1000p
R302
47k
R510
470k C508
0.01
C504
470p
R526 10k
C181
0.1
L
C308
1000
16V
C306
0.1
C514
1000p
R512
2.2M
IC401
BD3881FV
R524 4.7k
C307
1000
16V
R340
100
R434 22k
C312
470p
R442 47k
VOLUME
C311
470p
C511
470p
R509
470k
C562
2200p
C565
1
L501
BIAS OSC
A14
PHONES
C142
0.01
C141 R120
0.01 2.2k
A15
R119
2.2k
Q351,352
C111
0.1
L103
Q352
2SC3052F
A16
Q371,372
R427
100k
AC DETECT
B+ SWITCH
Q372
2SC3052F
R356
22k
R352
2.2k
R353
10k
R384
1k
R428
100k
A17
C382
0.01
A18
A19
A4
A5
(Page 4)
HCD-EH10
5
5
(Page 4)
HCD-EH10
Ver. 1.4
2-4. SCHEMATIC DIAGRAM – MAIN Section (3/3) –
(AEP,UK,EE,RU)
(3/3)
R857
22k
R862
470
D851
SVC347A
C868
68p
10p
5p
C854
C856
0.047
C851
R853 100k
10p
0.022
C852
L851
AM-RF
C853
JR861
0
L852
AM-LO
JW821
R809
1k
R851
22k
R807
100k
R808
10k
JR801
C804
0.1
C809
0.1
C819
1000p
C820
1000p
CNP802
3P
ANTENNA
FM/AM
R803
10
C843
220p
L804
R814
100
(US,CND,SP,TW,KR,AUS)
R802
10
RDS DECODER
IC861
PT2579SN
R850
2.2k
C817
0.1
C806
1000p
D813
1PS226
R839
100
C834
220
10V
R805
100k
D802
SVC230
C822
470p
R806
0
C840
0.47
Q801
2SC3052F
L805
FM-LO
FM-RF
C816
0.22
D815
1PS226
C821
0.047
C807
2200p
R849
22k
R817
10k
+3.1V REGULATOR
R816
10k
C815 100p
C802
0.1
C818
0
C866
470p
R861
10k
R813
10k
C803
0.01
C865
22
50V
R871
220k
BPF801
D812
1PS226
C862
0.1
R812
470
R811
4.7k
(VT)
D803
SVC230
R804
0
X861
4.332MHz
R865
10k
R873 2.2k
R867 10k
C855
470p
C869
47p
R801
2.2k
R864
10k
R827
100
C823
18p
C841
22
50V
X801
75KHz
C864
470p
C838
0.1
R830
47k
R863
22k
C863
22
50V
Q861
2SC3052F
C824
18p
R818
47k
R815
4.7k
R870
470k
R829
100k
C867
470p
DET AMP
R842
47k
R874
100k
R869
10k
R866
10k
Q802
2SC3052F
R856
22k
C861
0.1
Q862
2SC3052F
R875
100k
R872
220
+4V REGULATOR
+5V REGULATOR
XIN
VDD
XOUT
FMDET-OUT
MPX-IN
DO
CL
DI
AMDET-OUT
C801
100 16V
R841
100
R876
47k
R834
22k
RDS-CLK
RDS-DO
R835
4.7k
CE
VSS
R-OUT
L-OUT
PD
AGC
LP-IN
FM-DET
BO1
LP-OUT
P-COMP
P-DET
AM-OSC
BO2
FMIF-IN
AMIF-IN
VCC2
FM-OSC
AM-MIX
AM
RF-IN
REG
FM-MIX
IC801
LV23003VA
VCC1
FMRF-OUT
FM/AM PLL
GND1
FM
RF-IN
GND2
FM/AM TUNER,
R868
10k
R844 R845 R847
10
22
22
C839
0.1
TU-ANSD
TU-DO
R846
2.2k
TU-CLK
TU-DI
TU-CE
(Page
4)
VM9V
C825
1
TU-L
TU-GND
CF802
1000P
JR803
0
C814
0.1
R824
2.2k
0.22
C873
2p
R826
100
R821
220
R820
10k
TU-R
JW805
EMC-GND
C800
0.1
L806
R848
1k
C831
0.47
CF802
R819
47k
(GND)
C813
220
10V
R823
100
C826
100p
C833 0.47
JR802
0
C827
100p
0.1
(US,CND,SP,TW,KR,AUS)
C811
CF801
C810
R810
1M
C828
100p
R822
2.2k
R833
10k
R836
10k
FM DET
R840
22k
C832
0.47
(AEP,UK,EE,RU)
JW403
C835
0.22
R837
1k
(TUNER OUT L-ch)
R859
∗
∗R859,860
1k(AEP,UK,EE,RU)
22k(US,CND,SP,TW,KR,AUS)
CF803
∗R828
22(AEP,UK,EE,RU)
47(US,CND,SP,TW,KR,AUS)
R825
470
Q803
2SC5477
C836
0.22
FM MIX AMP
R831
220
L803
R828
∗
C812
0.1
C829
0.01
AM-IFT
C830
0.01
C848
∗
C847
∗
∗C847,848
2200p(EXCEPT US,CND)
4700p(US,CND)
HCD-EH10
6
6
R838
1k
JW402
(TUNER OUT R-ch)
R860
∗
JW148
(GND)
(Page
5)
HCD-EH10
AC-SW
3.
Ver. 1.4
MAIN
ELECTRICAL PARTS LIST
NOTE:
•
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
•
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
•
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
•
F: nonflammable
• Abbreviation
AUS : Australian model EE : East European model
CND : Canadian model
KR : Korean model
Ref. No.
Part No.
Description
The components identified by mark
Items marked “*” are not stocked since they
are seldom required for routine service.
0 or dotted line with mark 0 are
Some delay should be anticipated when
critical for safety.
ordering these items.
Replace only with part number
SEMICONDUCTORS
specified.
In each case, u: µ, for example:
Les composants identifiés par une
uA... : µA...
uPA... : µPA...
marque 0 sont critiquens pour la
uPB... : µPB...
uPC... : µPC...
sécurité.
uPD... : µPD...
Ne les remplacer que par une pièce
CAPACITORS
portant le numéro spécifié.
uF: µF
COILS
When indicating parts by reference
uH: µH
number, please include the board.
RU : Russian model
TW : Taiwan model
SP : Singapore model
Remark
Ref. No.
Part No.
Description
Remark
A-1158-542-A AC-SW BOARD, COMPLETE (SP)
**********************
1-533-233-31 FUSE HOLDER
< SWITCH >
0 S002
1-786-920-11 SWITCH, VOLTAGE SELECTION
(VOLTAGE SELECTOR)
************************************************************
A-1138-536-A
A-1158-524-A
A-1158-531-A
A-1158-537-A
A-1158-540-A
A-1169-746-A
MAIN BOARD, COMPLETE (AEP, UK, EE, RU)
MAIN BOARD, COMPLETE (US, CND)
MAIN BOARD, COMPLETE (KR)
MAIN BOARD, COMPLETE (AUS)
MAIN BOARD, COMPLETE (SP)
MAIN BOARD, COMPLETE (TW)
*********************
7-685-646-79 SCREW +BVTT 3X8 TYPE2 N-S
(US, CND, AEP, UK, EE)
7-685-647-79 SCREW +BVTT 3X10 TYPE2 N-S
(SP, TW, KR, AUS)
< BAND PASS FILTER >
BPF801 1-236-711-41 FILTER, BAND PASS
< CAPACITOR >
C101
C105
1-128-549-11 ELECT
1-100-566-91 CERAMIC CHIP
3300uF
0.1uF
C105
1-117-863-11 CERAMIC CHIP
0.47uF
C109
C110
C111
1-162-970-11 CERAMIC CHIP
1-115-467-11 CERAMIC CHIP
1-164-156-11 CERAMIC CHIP
0.01uF
0.22uF
0.1uF
C113
C114
C115
C118
C121
1-126-953-11
1-100-566-91
1-164-156-11
1-126-933-11
1-117-863-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
2200uF
0.1uF
0.1uF
100uF
0.47uF
20%
10%
C122
C141
C142
C155
C156
1-126-934-11
1-162-970-11
1-162-970-11
1-165-621-11
1-165-621-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
220uF
0.01uF
0.01uF
0.1uF
0.1uF
20%
10%
10%
C181
1-164-156-11 CERAMIC CHIP
0.1uF
20%
35V
10%
25V
(AEP, UK, EE, RU)
10%
6.3V
(KR)
10%
25V
10%
10V
25V
20%
10%
35V
25V
25V
16V
6.3V
16V
25V
25V
50V
50V
25V
C182
C183
C184
C191
1-164-156-11
1-164-156-11
1-164-156-11
1-126-934-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
0.1uF
0.1uF
0.1uF
220uF
C192
C193
C194
C195
1-100-566-91
1-100-566-91
1-100-566-91
1-100-566-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
C196
1-100-566-91 CERAMIC CHIP
0.1uF
10%
25V
0.1uF
10%
25V
0.1uF
10%
25V
0.1uF
10%
25V
(US, CND, SP, TW, AUS)
0.1uF
10%
25V
C301
C302
C303
C304
C305
1-162-966-11
1-162-964-11
1-126-963-11
1-126-933-11
1-100-566-91
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
0.0022uF
0.001uF
4.7uF
100uF
0.1uF
10%
10%
20%
20%
10%
50V
50V
50V
16V
25V
C306
C307
C308
C309
C310
1-100-566-91
1-126-767-11
1-126-767-11
1-162-964-11
1-162-964-11
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.1uF
1000uF
1000uF
0.001uF
0.001uF
10%
20%
20%
10%
10%
25V
16V
16V
50V
50V
C311
C312
C315
C371
C381
1-162-962-11
1-162-962-11
1-162-964-11
1-164-156-11
1-162-964-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
470PF
470PF
0.001uF
0.1uF
0.001uF
10%
10%
10%
10%
50V
50V
50V
25V
50V
C382
C401
C402
C403
C404
1-162-970-11
1-126-956-11
1-126-933-11
1-100-566-91
1-115-467-11
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.01uF
0.1uF
100uF
0.1uF
0.22uF
10%
20%
20%
10%
10%
25V
50V
16V
25V
10V
C405
C406
C407
C408
C409
1-126-956-11
1-115-467-11
1-162-968-11
1-162-968-11
1-100-566-91
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.22uF
0.0047uF
0.0047uF
0.1uF
20%
10%
10%
10%
10%
50V
10V
50V
50V
25V
C410
C412
C413
C415
C416
1-100-566-91
1-126-933-11
1-126-933-11
1-100-566-91
1-100-566-91
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.1uF
100uF
100uF
0.1uF
0.1uF
10%
20%
20%
10%
10%
25V
16V
16V
25V
25V
C421
C431
C432
C433
1-100-566-91
1-115-467-11
1-115-467-11
1-162-962-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.22uF
0.22uF
470PF
10%
10%
10%
10%
25V
10V
10V
50V
20%
25V
25V
25V
16V
7
HCD-EH10
Ver. 1.4
MAIN
Ref. No.
8
Part No.
Description
Remark
C434
1-162-962-11 CERAMIC CHIP
470PF
10%
50V
C437
C438
C501
C502
C503
1-162-962-11
1-162-962-11
1-162-923-11
1-162-923-11
1-162-962-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
470PF
470PF
47PF
47PF
470PF
10%
10%
5%
5%
10%
50V
50V
50V
50V
50V
C504
1-162-962-11 CERAMIC CHIP
470PF
10%
50V
C505
C506
C507
C508
1-165-176-11
1-165-176-11
1-162-970-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.047uF
0.047uF
0.01uF
0.01uF
10%
10%
10%
10%
16V
16V
25V
25V
C509
C510
C511
C512
C513
1-126-966-11
1-126-966-11
1-162-962-11
1-162-962-11
1-162-964-11
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
33uF
33uF
470PF
470PF
0.001uF
20%
20%
10%
10%
10%
50V
50V
50V
50V
50V
C514
C515
C518
C519
C522
1-162-964-11
1-162-915-11
1-164-156-11
1-164-156-11
1-162-927-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.001uF
10PF
0.1uF
0.1uF
100PF
10%
0.5PF
5%
50V
50V
25V
25V
50V
C523
C524
C525
C526
C527
1-162-970-11
1-162-970-11
1-162-970-11
1-162-970-11
1-162-964-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01uF
0.01uF
0.01uF
0.01uF
0.001uF
10%
10%
10%
10%
10%
25V
25V
25V
25V
50V
C528
C529
C531
C532
C533
1-162-964-11
1-162-927-11
1-162-964-11
1-162-964-11
1-100-566-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.001uF
100PF
0.001uF
0.001uF
0.1uF
10%
5%
10%
10%
10%
50V
50V
50V
50V
25V
C534
C535
C543
C544
C561
1-100-566-91
1-100-566-91
1-162-964-11
1-162-964-11
1-162-966-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.001uF
0.001uF
0.0022uF
10%
10%
10%
10%
10%
25V
25V
50V
50V
50V
C562
C564
C565
C567
C800
1-162-966-11
1-162-970-11
1-115-156-11
1-130-479-00
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
MYLAR
CERAMIC CHIP
0.0022uF 10%
0.01uF
10%
1uF
0.0047uF 5%
0.1uF
50V
25V
10V
50V
25V
C801
C802
C803
C804
C806
1-126-933-11
1-100-566-91
1-162-970-11
1-100-566-91
1-162-964-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
100uF
0.1uF
0.01uF
0.1uF
0.001uF
20%
10%
10%
10%
10%
16V
25V
25V
25V
50V
C807
C809
C810
C811
C812
1-162-966-11
1-100-566-91
1-115-467-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.0022uF 10%
0.1uF
10%
0.22uF
10%
0.1uF
0.1uF
50V
25V
10V
25V
25V
C813
C814
C815
C816
C817
1-126-934-11
1-164-156-11
1-162-927-11
1-115-467-11
1-100-566-91
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
220uF
0.1uF
100PF
0.22uF
0.1uF
16V
25V
50V
10V
25V
20%
5%
10%
10%
Ref. No.
Part No.
Description
C818
C819
C820
C821
C822
1-216-864-11
1-162-964-11
1-162-964-11
1-165-176-11
1-162-962-11
SHORT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0
0.001uF
0.001uF
0.047uF
470PF
10%
10%
10%
10%
50V
50V
16V
50V
C823
C824
C825
C826
C827
1-162-918-11
1-162-918-11
1-125-837-11
1-162-927-11
1-162-927-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
18PF
18PF
1uF
100PF
100PF
5%
5%
10%
5%
5%
50V
50V
6.3V
50V
50V
C828
C829
C830
C831
C832
1-162-927-11
1-162-970-11
1-162-970-11
1-117-863-11
1-117-863-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
100PF
0.01uF
0.01uF
0.47uF
0.47uF
5%
10%
10%
10%
10%
50V
25V
25V
6.3V
6.3V
C833
C834
C835
C836
C838
1-117-863-11
1-126-934-11
1-115-467-11
1-115-467-11
1-100-566-91
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.47uF
220uF
0.22uF
0.22uF
0.1uF
10%
20%
10%
10%
10%
6.3V
16V
10V
10V
25V
C839
C840
C841
C843
1-100-566-91
1-117-863-11
1-126-965-11
1-162-960-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
C847
1-162-966-11 CERAMIC CHIP
0.1uF
10%
25V0.47uF
10%
6.3V
22uF
20%
50V
220PF
10%
50V
(US, CND, SP, TW, KR, AUS)
0.0022uF 10%
50V
(EXCEPT US, CND)
C847
1-162-968-11 CERAMIC CHIP
C848
1-162-966-11 CERAMIC CHIP
C848
1-162-968-11 CERAMIC CHIP
C851
C852
1-165-176-11 CERAMIC CHIP
1-162-915-11 CERAMIC CHIP
50V
(US, CND)
0.0022uF 10%50V
(EXCEPT US, CND)
0.0047uF 10%
50V
(US, CND)
0.047uF 10%
16V
10PF
0.5PF 50V
C853
C854
C855
C856
C861
1-164-227-11
1-162-915-11
1-162-962-11
1-162-910-11
1-100-566-91
0.022uF
10PF
470PF
5PF
0.1uF
10%
25V
0.5PF 50V
10%
50V
0.25PF 50V
10%
25V
(AEP, UK, EE, RU)
C862
1-100-566-91 CERAMIC CHIP
0.1uF
C863
1-126-965-11 ELECT
22uF
C864
1-162-962-11 CERAMIC CHIP
470PF
C865
1-126-965-11 ELECT
22uF
C866
1-162-962-11 CERAMIC CHIP
470PF
10%
25V
(AEP, UK, EE, RU)
20%
50V
(AEP, UK, EE, RU)
10%
50V
(AEP, UK, EE, RU)
20%
50V
(AEP, UK, EE, RU)
10%
50V
(AEP, UK, EE, RU)
C867
1-162-962-11 CERAMIC CHIP
470PF
C868
1-162-925-11 CERAMIC CHIP
68PF
C869
1-162-923-11 CERAMIC CHIP
47PF
C873
1-162-907-11 CERAMIC CHIP
2PF
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
Remark
0.0047uF 10%
10%
50V
(AEP, UK, EE, RU)
5%
50V
(AEP, UK, EE, RU)
5%
50V
(AEP, UK, EE, RU)
0.25PF 50V
HCD-EH10
Ver. 1.4
MAIN
Ref. No.
Part No.
Description
Remark
< FILTER/CAPACITOR >
CF801
CF802
CF802
CF803
1-795-426-11 FILTER, CERAMIC
1-128-821-51 SERAMIC
1000PF
5%
50V
(US, CND, SP, TW, KR, AUS)
1-579-554-21 FILTER, CERAMIC (AEP, UK, EE, RU)
1-781-962-21 FILTER, CERAMIC
Ref. No.
Part No.
Description
Remark
JR106
JR401
JR402
1-216-864-11 SHORT CHIP
1-216-864-11 SHORT CHIP
1-216-864-11 SHORT CHIP
0 (AEP, UK, EE, RU)
0
0
JR403
JR404
JR801
JR802
JR803
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
0
0
0
0
0
JR861
1-216-864-11 SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
< CONNECTOR >
CNP501
CNP502
* CNP802
CNS104
CNS111
1-815-445-11
1-815-444-11
1-506-680-11
1-779-291-11
1-779-293-11
PIN, CONNECTOR (PWB) 4P
PIN, CONNECTOR (PWB) 3P
PLUG, CONNECTOR (2.5mm) 3P
CONNECTOR, FFC (LIF (NON-ZIF)) 23P
CONNECTOR, FFC (LIF (NON-ZIF)) 25P
(US, CND, SP, TW, KR, AUS)
0 (AEP, UK, EE, RU)
< RESISTOR >
JN137
1-249-385-11 CARBON
2.2
5%
1/4W
(US,CND)
< COIL >
CNS112 1-779-295-11 CONNECTOR, FFC (LIF (NON-ZIF)) 27P
(AEP, UK, EE, RU)
< DIODE >
D106
D107
D108
D109
D110
6-501-172-01
8-719-046-07
8-719-046-07
8-719-046-07
8-719-046-07
DIODE
DIODE
DIODE
DIODE
DIODE
UDZW-TE17-8.2B
2A02M
2A02M
2A02M
2A02M
D111
D112
D113
D114
D131
6-500-522-01
8-719-904-02
6-500-522-01
8-719-904-02
6-500-334-01
DIODE
DIODE
DIODE
DIODE
DIODE
10EDB40-TA1B2
1N4002 (SP)
10EDB40-TA1B2
1N4002 (SP)
MC2836-T112-1
D191
D192
D193
D371
D372
6-500-522-01
6-500-522-01
6-501-164-01
6-500-335-01
6-500-335-01
DIODE
DIODE
DIODE
DIODE
DIODE
10EDB40-TA1B2
10EDB40-TA1B2
UDZW-TE17-3.9B
MC2838-T112-1
MC2838-T112-1
D802
D803
D812
D813
D815
6-501-369-01
6-501-369-01
8-719-062-51
8-719-062-51
8-719-062-51
DIODE
DIODE
DIODE
DIODE
DIODE
SV230-TB-E
SV230-TB-E
1PS226-115
1PS226-115
1PS226-115
D851
6-501-142-01 DIODE SVC347A-TL-E
< IC >
IC301
IC401
IC801
IC861
6-706-641-01
6-702-895-01
6-708-840-01
6-708-918-01
IC
IC
IC
IC
LA4631-E
BD3881FV
LV23003VA
PT2579SN (AEP, UK, EE, RU)
< JACK >
J101
J102
J105
1-780-314-11 TERMINAL BOARD (SPEAKERS)
1-815-629-11 JACK (PHONES)
1-566-822-51 JACK (AUDIO IN)
< JUMPER RESISTOR >
JR101
JR102
JR103
JR104
JR105
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0 (KR)
0 (TW)
0 (AUS)
0 (SP)
0 (US, CND)
L103
L104
L501
L803
L804
1-469-152-11
1-469-152-11
1-456-094-11
1-433-741-11
1-457-163-11
FERRITE, EMI (SMD) (2012)
FERRITE, EMI (SMD) (2012)
TRANSFORMER, BIAS OSCILLATION
TRANSFORMER, IF
COIL, AIR-CORE
L805
L806
L851
L852
1-457-162-11
1-457-168-11
1-457-161-11
1-456-596-11
COIL, AIR-CORE
COIL, DET
COIL, AM ANTENNA
COIL, MW OSC
< CONNECTOR >
* PIN101 1-564-187-00 PIN, CONNECTOR (AEP, UK, EE, RU, KR)
* PIN102 1-564-187-00 PIN, CONNECTOR (AEP, UK, EE, RU, KR)
< TRANSISTOR >
Q101
Q102
Q103
Q121
Q122
8-729-141-83
8-729-120-28
8-729-120-28
8-729-120-28
8-729-120-28
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SB1094-LK
2SC1623-L5L6
2SC1623-L5L6
2SC1623-L5L6
2SC1623-L5L6
Q123
Q191
Q192
Q193
Q351
8-729-120-28
8-729-036-86
8-729-036-86
8-729-600-22
6-550-843-01
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
FET
2SC1623-L5L6
KTC3203Y-AT
KTC3203Y-AT
2SA1235-F
2SJ599-Z-E2-AZ
Q352
Q371
Q372
Q507
Q801
8-729-120-28
8-729-600-22
8-729-120-28
8-729-120-28
8-729-120-28
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SC1623-L5L6
2SA1235-F
2SC1623-L5L6
2SC1623-L5L6
2SC1623-L5L6
Q802
Q803
Q861
Q862
8-729-120-28
6-550-304-01
8-729-120-28
8-729-120-28
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SC1623-L5L6
2SC5477-T122-1
2SC1623-L5L6
2SC1623-L5L6
< RESISTOR >
R101
R102
R103
R104
R105
1-216-833-11
1-216-809-11
1-216-841-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
R106
1-216-837-11 METAL CHIP
10K
100
47K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
22K
5%
1/10W
9
HCD-EH10
MAIN
Ref. No.
Part No.
Description
R107
R108
R109
R110
1-216-817-11
1-216-809-11
1-216-817-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
470
100
470
100K
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R111
R112
R115
R116
R117
1-216-853-11
1-216-853-11
1-249-409-11
1-249-409-11
1-249-409-11
METAL CHIP
METAL CHIP
CARBON
CARBON
CARBON
470K
470K
220
220
220
5%
5%
5%
5%
5%
1/10W
1/10W
1/4W
1/4W
1/4W
R118
R119
R120
R121
R123
1-249-409-11
1-216-825-11
1-216-825-11
1-216-849-11
1-216-853-11
CARBON
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
220
2.2K
2.2K
220K
470K
5%
5%
5%
5%
5%
1/4W
1/10W
1/10W
1/10W
1/10W
R124
R125
R126
R127
R128
1-216-809-11
1-216-829-11
1-216-841-11
1-216-841-11
1-216-813-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
4.7K
47K
47K
220
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R129
R130
R131
R134
R135
1-216-813-11
1-216-813-11
1-216-813-11
1-216-817-11
1-216-817-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
220
220
220
470
470
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R136
R137
R138
R139
R140
1-216-817-11
1-216-817-11
1-216-817-11
1-216-817-11
1-216-817-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
470
470
470
470
470
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R144
R145
R146
R147
R148
1-216-817-11
1-216-817-11
1-216-817-11
1-216-817-11
1-216-817-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
470
470
470
470
470
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R149
R150
R151
R152
R175
1-216-817-11
1-216-817-11
1-216-829-11
1-216-829-11
1-216-841-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
470
470
4.7K
4.7K
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R176
R181
R182
R185
R186
1-216-841-11
1-216-797-11
1-216-797-11
1-247-807-31
1-247-807-31
METAL CHIP
METAL CHIP
METAL CHIP
CARBON
CARBON
47K
10
10
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/4W
1/4W
R187
R188
R189
R191
R192
1-247-807-31
1-216-837-11
1-216-837-11
1-216-821-11
1-216-845-11
CARBON
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
22K
22K
1K
100K
5%
5%
5%
5%
5%
1/4W
1/10W
1/10W
1/10W
1/10W
R193
R195
R196
R197
R198
R199
1-216-845-11
1-216-809-11
1-216-809-11
1-247-807-31
1-247-807-31
1-247-807-31
METAL CHIP
METAL CHIP
METAL CHIP
CARBON
CARBON
CARBON
100K
100
100
100
100
100
5%
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/4W
1/4W
1/4W
R301
R302
R303
1-216-837-11 METAL CHIP
1-216-837-11 METAL CHIP
1-216-825-11 METAL CHIP
22K
22K
2.2K
5%
5%
5%
1/10W
1/10W
1/10W
10
Remark
Ref. No.
Part No.
Description
Remark
R304
R305
1-216-825-11 METAL CHIP
1-216-829-11 METAL CHIP
2.2K
4.7K
5%
5%
1/10W
1/10W
R306
R307
R308
R339
R340
1-216-829-11
1-216-837-11
1-216-837-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
22K
22K
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R351
R352
R353
R354
R355
1-216-833-11
1-216-825-11
1-216-833-11
1-216-833-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
2.2K
10K
10K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R356
R365
R371
R372
R373
1-216-837-11
1-216-825-11
1-218-446-11
1-218-446-11
1-218-446-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
22K
2.2K
1
1
1
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R374
R375
R376
R377
R378
1-218-446-11
1-218-446-11
1-218-446-11
1-218-446-11
1-218-446-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1
1
1
1
1
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R379
R380
R381
R382
R383
1-218-446-11
1-218-446-11
1-216-833-11
1-216-833-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1
1
10K
10K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R384
R402
R403
R404
R405
1-216-821-11
1-216-809-11
1-216-821-11
1-216-813-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
1K
100
1K
220
0
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R406
R410
R411
R412
R419
1-216-821-11
1-216-845-11
1-216-821-11
1-216-813-11
1-216-839-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1K
100K
1K
220
33K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R420
R423
R424
R425
R426
1-216-839-11
1-216-829-11
1-216-829-11
1-216-829-11
1-216-829-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
33K
4.7K
4.7K
4.7K
4.7K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R427
R428
R429
R430
R433
1-216-845-11
1-216-845-11
1-216-829-11
1-216-829-11
1-216-837-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
4.7K
4.7K
22K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R434
R439
R440
R441
R442
1-216-837-11
1-216-829-11
1-216-829-11
1-216-841-11
1-216-841-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
22K
4.7K
4.7K
47K
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R501
R502
R503
R504
R505
1-216-809-11
1-216-809-11
1-216-829-11
1-216-829-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
4.7K
4.7K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
HCD-EH10
Ver. 1.4
MAIN
Ref. No.
Part No.
Description
R506
R507
R508
R509
R510
1-216-833-11
1-216-825-11
1-216-825-11
1-216-853-11
1-216-853-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
2.2K
2.2K
470K
470K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
Remark
R511
R512
R513
R514
R515
1-216-861-11
1-216-861-11
1-216-809-11
1-216-809-11
1-216-805-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
2.2M
2.2M
100
100
47
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R516
R517
R518
R519
R520
1-216-805-11
1-216-845-11
1-216-845-11
1-216-841-11
1-216-841-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
47
100K
100K
47K
47K
5%
5%
5%
5%
5%
R521
R522
R523
R524
R525
1-216-837-11
1-216-837-11
1-216-829-11
1-216-829-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
22K
22K
4.7K
4.7K
10K
R526
R527
R528
R529
R530
1-216-833-11
1-216-829-11
1-216-829-11
1-216-825-11
1-216-825-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
R531
R532
R533
R534
R535
1-216-829-11
1-216-829-11
1-216-833-11
1-216-833-11
1-216-813-11
R536
R541
R542
R543
R544
Ref. No.
Part No.
Description
Remark
R818
R819
R820
1-216-841-11 METAL CHIP
1-216-841-11 METAL CHIP
1-216-833-11 METAL CHIP
47K
47K
10K
5%
5%
5%
1/10W
1/10W
1/10W
R821
R822
R823
R824
R825
1-216-813-11
1-216-825-11
1-216-809-11
1-216-825-11
1-216-817-11
220
2.2K
100
2.2K
470
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
R826
R827
R828
1-216-809-11 METAL CHIP
1-216-809-11 METAL CHIP
1-216-801-11 METAL CHIP
R828
1-216-805-11 METAL CHIP
R829
1-216-845-11 METAL CHIP
5%
1/10W
5%
1/10W
5%
1/10W
(AEP, UK, EE, RU)
47
5%
1/10W
(US, CND, SP, TW, KR, AUS)
100K
5%
1/10W
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R830
R831
R833
R834
R835
1-216-841-11
1-216-813-11
1-216-833-11
1-216-837-11
1-216-829-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
47K
220
10K
22K
4.7K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
10K
4.7K
4.7K
2.2K
2.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R836
R837
R838
R839
R840
1-216-833-11
1-216-821-11
1-216-821-11
1-216-809-11
1-216-837-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
1K
1K
100
22K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
4.7K
10K
10K
220
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R841
R842
R843
R844
R845
1-216-809-11
1-216-841-11
1-216-853-11
1-216-797-11
1-216-801-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
47K
470K
10
22
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
1-216-813-11
1-216-837-11
1-216-833-11
1-216-829-11
1-216-829-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
220
22K
10K
4.7K
4.7K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R846
R847
R848
R849
R850
1-216-825-11
1-216-801-11
1-216-821-11
1-216-837-11
1-216-825-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
2.2K
22
1K
22K
2.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R545
R560
R561
R564
R565
1-216-829-11
1-216-821-11
1-216-837-11
1-216-793-11
1-216-793-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
1K
22K
4.7
4.7
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R851
R853
R856
1-216-837-11 METAL CHIP
1-216-845-11 METAL CHIP
1-216-837-11 METAL CHIP
22K
100K
22K
R857
1-216-837-11 METAL CHIP
22K
R801
R802
R803
R804
R805
1-216-825-11
1-216-797-11
1-216-797-11
1-216-864-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
METAL CHIP
2.2K
10
10
0
100K
5%
5%
5%
1/10W
1/10W
1/10W
R859
1-216-821-11 METAL CHIP
1K
5%
1/10W
5%
1/10W
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
(AEP, UK, EE, RU)
R859
1-216-837-11 METAL CHIP
5%
1/10W
R860
1-216-821-11 METAL CHIP
R806
R807
R808
R809
R810
1-216-864-11
1-216-845-11
1-216-833-11
1-216-821-11
1-216-857-11
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
100K
10K
1K
1M
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R860
1-216-837-11 METAL CHIP
R861
1-216-833-11 METAL CHIP
R862
1-216-817-11 METAL CHIP
R811
R812
R813
R814
R815
1-216-829-11
1-216-817-11
1-216-833-11
1-216-809-11
1-216-829-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
470
10K
100
4.7K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
22K
5%
1/10W
(US, CND, SP, TW, KR, AUS)
1K
5%
1/10W
(AEP, UK, EE, RU)
22K
5%
1/10W
(US, CND, SP, TW, KR, AUS)
10K
5%
1/10W
(AEP, UK, EE, RU)
470
5%
1/10W
(AEP, UK, EE, RU)
R863
R864
1-216-837-11 METAL CHIP
1-216-833-11 METAL CHIP
22K
10K
R865
1-216-833-11 METAL CHIP
10K
R816
R817
1-216-833-11 METAL CHIP
1-216-833-11 METAL CHIP
10K
10K
5%
5%
1/10W
1/10W
R866
1-216-833-11 METAL CHIP
10K
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
22
5%
1/10W
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
(AEP, UK, EE, RU)
11
HCD-EH10
Ver. 1.4
MAIN PT-AC
Ref. No.
Part No.
Description
Remark
R867
1-216-833-11 METAL CHIP
10K
5%
1/10W
(AEP, UK, EE, RU)
R868
1-216-833-11 METAL CHIP
10K
R869
1-216-833-11 METAL CHIP
10K
R870
1-216-853-11 METAL CHIP
470K
R871
1-216-849-11 METAL CHIP
220K
R872
1-216-813-11 METAL CHIP
220
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
(AEP, UK, EE, RU)
R873
1-216-825-11 METAL CHIP
2.2K
R874
1-216-845-11 METAL CHIP
100K
R875
1-216-845-11 METAL CHIP
100K
R876
1-216-841-11 METAL CHIP
47K
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
(AEP, UK, EE, RU)
5%
1/10W
(AEP, UK, EE, RU)
< SWITCH >
SW501
1-762-369-11 SWITCH, SLIDE (REC/PB)
< VIBRATOR >
X801
1-767-388-21 VIBRATOR, CRYSTAL (75kHz)
(US, CND, SP, TW, KR, AUS)
X801
1-795-926-11 VIBRATOR, CRYSTAL (75kHz)
(AEP, UK, EE, RU)
X861
1-579-900-21 VIBRATOR, CRYSTAL (4.332MHz)
(AEP, UK, EE, RU)
************************************************************
A-1138-529-A PT-AC BOARD, COMPLETE (EXCEPT SP, TW)
A-1158-541-A PT-AC BOARD, COMPLETE (SP)
A-1169-744-A PT-AC BOARD, COMPLETE (TW)
*********************
1-533-233-31 FUSE HOLDER
< CONNECTOR >
W002
1-819-131-11 PIN, CONNECTOR 3P
************************************************************
MISCELLANEOUS
**************
0 PT005
0 PT005
0 PT005
0 PT005
12
1-443-829-11
1-443-856-11
1-443-857-11
1-443-858-11
TRANSFORMER, POWER (AEP, UK, EE, RU)
TRANSFORMER, POWER (US, CND)
TRANSFORMER, POWER (KR)
TRANSFORMER, POWER (SP, TW, AUS)
Ref. No.
Part No.
Description
Remark
HCD-EH10
SERVICE MANUAL
Ver. 1.4 2006.03
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
SUPPLEMENT-2
File this supplement with the service manual.
Subject: Change of CD board (Suffix-12)
In this set, CD board has changed in the midway of production.
Printed wiring board and schematic diagram of new type, and changed
parts list are described in this supplement-2.
Refer to original service manual for other information.
1.
NEW/FORMER DESCRIPTION
– CD Board (Component Side) –
Former : 1-868-067-11
New
: 1-868-067-12
9-879-855-82
HCD-EH10
2.
DIAGRAMS
• Note for Printed Wiring Board and Schematic Diagram
Note on Printed Wiring Board:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
•
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen from
the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
• Indication of transistor
C
Q
B E
These are omitted.
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
Note:
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce por tant le numéro
spécifié.
• A : B+ Line.
• Voltages are dc with respect to ground under no-signal
conditions.
no mark : CD PLAY
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
• Signal path.
J : CD PLAY
• Abbreviation
EE
: East European model
KR
: Korean model
RU
: Russian model
2
HCD-EH10
: Uses unleaded solder.
2-1. PRINTED WIRING BOARD – CD Board –
1
2
3
4
5
6
7
8
9
10
A
CD BOARD (COMPONENT SIDE)
CD BOARD
M
M401
(SPINDLE)
(CONDUCTOR SIDE)
S201
(LIMIT)
C401
B
C403
R280
C405
C406
R421
C
C104
22
21
15
8
14
IC402
R451
R104
R105
M
R109
R102
C272
28
C451
R107
R452
R110
R423
C109
R101
1
R277
R275
R108
7
M402
(SLED)
C219
31
D
C102
TP
(VC)
C220
C101
C232
C215
C268
120
C224
R291
C217
IC201
C205
C207
C206
C251
C223
61
C254
R256
R207
C323
C221
C208
C261
R260
C256
C258
C230
R268
R267
R265
12
R322
R321
Q321
C321
C273
R324
R323
E
C303
C264
C227
1-868-067-
(12)
C322
F
C222
90
TP
(RFACI)
C274
C204
91
CN301
C265
R266
E
60
R254
C257
C202
R201
CN102
C213
R255
C253
C210
C203
R202
R252
R253
R258
C266
R271
C201
C252
R203
C260
R250
C110
C275
R257
X201
C267
C108
R270
C276
C214
R401
C292
R292
C218
1
30
C277
C424
R278
C105
C291
C103
C107
C271
R276
R103
C404
C112
C301
C113
R112
R113
R111
C304
C111
C226
4
3
5
1
IC203
OPTICAL PICK-UP BLOCK
(KSM-213CDP)
12
1-868-067MAIN BOARD
PIN101
(AEP, UK, EE, RU, KR)
HCD-EH10
3
3
(12)
MAIN
BOARD
CNS104
HCD-EH10
2-2. SCHEMATIC DIAGRAM – CD Board –
C260 0.47
C261 0.01
R260 0
C273 470p
C264 1000p
C210
0.1
TP
(RFACI)
C208
0.1
C230
100p
R256
22k
C257
0.1
R265 4.7k
R250 1M
R258 220k
C265 0.1
R268 10k
C274
0.1
CN301
16P
VC
R267
4.7k
C258 220p
VCC
R266
1k
R257
100k
R324
100k
C221
0.1
C323
100
10V
R321
2.2
C322
1
C301
0.1
C304
1
C303
10
E
D
R322
2.2
TP1
A
B
Q321
2SA2119K
R323
0
C
OPTICAL
AUTOMATIC
F
POWER
C321
1000p
PICK-UP
BLOCK
GND
CONTROL
KSM-213CDP
C256
0.1
LD
VR
PD
F+
TP
(VC)
T+
JTAGTCK
AVDD4
RFDCO
PDSENS
LD
AC_SUM
PD
EG_IN
RFC
RFACI
AVSS4
RFACO
BIAS
AVDD3
ASYI
ASYO
VCTL
VPCO
AVSS3
FILI
CLTV
PCO
FILO
SVSS
SVDD
VSS
VDD
SVDD
SSTB-MP3
C222 0.1
DATA
SVSS
TEST1
TCLK2
F-
M401
D
(SPINDLE)
SP+
C
SPB
SL+
JTAGTDI
A
C207 100 10V
JTAGTDO
VC
JTAGTMS
FEO
TP4
TRST
R254 10k
TP3
AVSS0
R451
22k
FRDR
FRDR
FFDR
TRDR
XVSS
TRDR
TFDR
R271
1M
R203
XTAO
TFDR
XTAI
SRDR
XVDD
AOUT1
SSTP
VREFL
MDP
AVSS1
LOCK
C291
470p
AVSS2
VSS
VREFR
VDD
AOUT2
VSS
OPIN+
OPIN-
OPOUT
PREVCC
CH1FIN
CH4CAPA
GAIN-SW
CH2FIN
CH1RIN
CH4IN
CH2RIN
CH3FIN
GND
CH3RIN
CNF4
M-MUTE
IC402
BA5947FM
DVDD(3.3V)
C227
1
C226
1
C220
0.1
VREF
MOTOR DRIVER
C224
0.1
D-OUT
POWVCC
SLED/SPINDLE
CLK-MP3
R207
0
GND
COIL DRIVER,
CH2OUTR
FOCUS/TRUCKING
MUTE
SVDD
POWVCC
SVSS
COUT
VDD
SCOR
C2PO
GFS
XPCK
XUGF
WFCK
SENS
SVDD
SVSS
VDD
XLAT
ACK-MP3
REQ-MP3
DATA2
CLOK
IREQ-MP3
VSS
XRST
XTACN
BCK
BCKI
PCMDI
PCMD
LRCKI
FOK
DFCT
MIRR
CH3OUTR
+1.8V REGULATOR
IC203
BH18LB1WG-TR
LRCK
IOVSS0
VOUT
NC
STBY
GND
VIN
IOVDD0
C219
0.1
XLAT-MP3
R292 100
AVDD2
CN102
23P
R421
0
C277 1
C292
470p
DATA
R423
10k
CH1PUTF
C217
0.1
IOVSS1
C276 1
R291
100
C201
100
10V
R111 100
SFDR
AVDD1
CH2OUTF
R112 100
C202
0.1
CH1OUTR
C218
0.1
C424
0.1
C404
0.1
CH3OUTF
R113 100
TP2
FFDR
PLLVSS
R270
1k
X201
16.9344MHz
C215
0.1
IOVDD1
CH4OUTF
C268
10p
CD DSP
IC201
CXD3014A-201R
C232
0.1
CH4OUTR
C275
5p
AVDD0
IOVSS2
PLLVDD
C205
0.1
C451 0.047
E
TEST
TES1
C266
10p
C251 470p
R452 10k
DOUT
C206 0.1
C267
5p
R252 10k
F
TFDR
TEI
TRDR
VDD
IOVDD2
C223
0.1
(SLED)
C252 4700p
FFDR
TEO
FRDR
VSS
C213 0.1
C214
0.1
M402
C253 470p
FEI
R253 1k
(AEP,UK,EE,RU, KR)
SL-
C254 4700p
R255 1k
D-GND
C203
100
10V
R202
0
L-CH
C204
0.1
R-CH
R201
0
R275
100
AVDD(3.3V)
R276
47k
XTCN
C271
0.1
R278 100
A-GND
C272
0.1
R277 100
XRST
R110 100
R280
0
IREQ-MP3
R103 100
CLK
R105 100
DATA-MP3
R104 100
C405
0.1
XLAT-MP3
R109 100
C406
0.1
R107 100
XLAT
SL+
ACK-MP3
SL-
SP-
R108 100
SP+
REQ-MP3
R102 100
SENS
R101 100
SCOR
220p
22p
C107 220p
C109
C104 220p
C105
C103 22p
220p
C101 22p
C102 22p
C108
C110 220p
C112 22p
C113 22p
M+7V
C111 220p
M-GND
R401
0
C401
220
10V
S201
(LIMIT)
HCD-EH10
4
4
HCD-EH10
3.
CD
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
Ref. No.
Part No.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA... : µA...
uPA... : µPA...
uPB... : µPB...
uPC... : µPC...
uPD... : µPD...
• CAPACITORS
uF: µF
• COILS
uH: µH
Description
Remark
A-1134-279-A CD BOARD, COMPLETE
*******************
< CAPACITOR >
C101
C102
C103
C104
C105
1-162-919-11
1-162-919-11
1-162-919-11
1-164-230-11
1-162-919-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
22PF
22PF
22PF
220PF
22PF
5%
5%
5%
5%
5%
50V
50V
50V
50V
50V
C107
C108
C109
C110
C111
1-164-230-11
1-164-230-11
1-164-230-11
1-164-230-11
1-164-230-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
220PF
220PF
220PF
220PF
220PF
5%
5%
5%
5%
5%
50V
50V
50V
50V
50V
C112
C113
C201
C202
C203
1-162-919-11
1-162-919-11
1-128-995-21
1-164-360-11
1-128-995-21
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
22PF
22PF
100uF
0.1uF
100uF
5%
5%
20%
50V
50V
10V
16V
10V
C204
C205
C206
C207
C208
1-164-360-11
1-164-360-11
1-164-360-11
1-128-995-21
1-164-360-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.1uF
100uF
0.1uF
C210
C213
C214
C215
C217
1-164-360-11
1-164-360-11
1-164-360-11
1-164-360-11
1-164-360-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
16V
16V
16V
16V
16V
C218
C219
C220
C221
C222
1-164-360-11
1-164-360-11
1-164-360-11
1-164-360-11
1-164-360-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
16V
16V
16V
16V
16V
C223
C224
C226
C227
C230
1-164-360-11
1-164-360-11
1-165-908-11
1-165-908-11
1-162-927-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
1uF
1uF
100PF
10%
10%
5%
16V
16V
10V
10V
50V
C232
C251
C252
C253
C254
1-164-360-11
1-164-315-11
1-162-968-11
1-164-315-11
1-162-968-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
470PF
0.0047uF
470PF
0.0047uF
5%
10%
5%
10%
16V
50V
50V
50V
50V
20%
20%
16V
16V
16V
10V
16V
Ref. No.
When indicating parts by reference
number, please include the board.
Part No.
Description
Remark
C256
C257
C258
C260
C261
1-107-826-11
1-107-826-11
1-164-230-11
1-117-863-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
220PF
0.47uF
0.01uF
10%
10%
5%
10%
10%
16V
16V
50V
6.3V
25V
C264
C265
C266
C267
C268
1-162-964-11
1-107-826-11
1-162-915-11
1-162-910-11
1-162-915-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.001uF
0.1uF
10PF
5PF
10PF
10%
10%
0.5PF
0.25PF
0.5PF
50V
16V
50V
50V
50V
C271
C272
C273
C274
C275
1-107-826-11
1-164-360-11
1-164-315-11
1-107-826-11
1-162-910-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
470PF
0.1uF
5PF
10%
C276
C277
C291
C292
C301
1-165-908-11
1-165-908-11
1-164-315-11
1-164-315-11
1-164-360-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
1uF
1uF
470PF
470PF
0.1uF
10%
10%
5%
5%
10V
10V
50V
50V
16V
C303
C304
C321
C322
C323
1-137-710-11
1-165-908-11
1-162-964-11
1-165-908-11
1-128-995-21
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
10uF
1uF
0.001uF
1uF
100uF
20%
10%
10%
10%
20%
6.3V
10V
50V
10V
10V
C401
C404
C405
C406
C424
1-128-394-11
1-164-360-11
1-164-360-11
1-164-360-11
1-164-360-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
220uF
0.1uF
0.1uF
0.1uF
0.1uF
20%
10V
16V
16V
16V
16V
C451
1-165-176-11 CERAMIC CHIP
0.047uF
10%
16V
16V
16V
5%
50V
10%
16V
0.25PF 50V
< CONNECTOR >
CN102
CN301
1-770-706-21 CONNECTOR, FFC/FPC 23P
1-770-425-51 CONNECTOR, FFC/FPC 16P
< IC >
IC201
IC203
IC402
8-753-246-30 IC CXD3014A-201R
6-709-050-01 IC BH18LB1WG-TR
6-705-808-01 IC BA5947FM-E2
5
HCD-EH10
CD
Ref. No.
Part No.
Description
Remark
< TRANSISTOR >
Q321
6-551-120-01 TRANSISTOR
2SA2119K
< RESISTOR/FERRITE BEAD >
R101
R102
R103
R104
R105
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R107
R108
R109
R110
R111
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R112
R113
R201
R202
R203
1-216-809-11
1-216-809-11
1-216-295-00
1-216-295-00
1-500-445-21
METAL CHIP
100
5%
METAL CHIP
100
5%
SHORT CHIP
0
SHORT CHIP
0
FERRITE, EMI (SMD) (2012)
1/10W
1/10W
R207
R250
R252
R253
R254
1-216-295-00
1-216-857-11
1-216-833-11
1-216-821-11
1-216-833-11
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
1M
10K
1K
10K
R255
R256
R257
R258
R260
1-216-821-11
1-216-837-11
1-216-845-11
1-216-849-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
R265
R266
R267
R268
R270
1-216-829-11
1-216-821-11
1-216-829-11
1-216-833-11
1-216-821-11
R271
R275
R276
R277
R278
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1K
22K
100K
220K
0
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
4.7K
1K
4.7K
10K
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
1-216-857-11
1-216-809-11
1-216-841-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1M
100
47K
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R280
R291
R292
R321
R322
1-216-864-11
1-216-809-11
1-216-809-11
1-216-789-11
1-216-789-11
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
100
100
2.2
2.2
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R323
R324
R401
R421
R423
1-216-864-11
1-216-845-11
1-216-295-00
1-216-864-11
1-216-833-11
SHORT CHIP
METAL CHIP
SHORT CHIP
SHORT CHIP
METAL CHIP
0
100K
0
0
10K
5%
1/10W
5%
1/10W
R451
R452
1-216-837-11 METAL CHIP
1-216-833-11 METAL CHIP
22K
10K
5%
5%
1/10W
1/10W
< VIBRATOR >
X201
6
1-795-101-21 VIBRATOR, CERAMIC (16.9344MHz)
Ref. No.
Part No.
Description
Remark
HCD-EH10
MEMO
7
HCD-EH10
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver.
Date
Description of Revision
1.0
2005.09
New
1.1
2005.11
Correction of Torque and Tape Tension Measurements
Addition of Ref. No. 76, 77 on EXPLODED VIEWS
1.2
2005.12
(ECN-ECB33898/ENG-05012)
Change of MAIN, PT-AC and PANEL boards (suffix-12)
Change of PANEL board (suffix-13)
Change of MAIN and PT-AC boards (suffix-13) (SUPPLEMENT-1)
(ECN-ECB27448/ECB33087)
1.3
2006.01
Addition of US, Canadian and Singapore models
1.4
2006.03
Addition of Taiwan, Korean and Australian models
Change of CD board (Suffix-12) (SUPPLEMENT-2)
2
(ECN-ECB42207)
Download PDF
