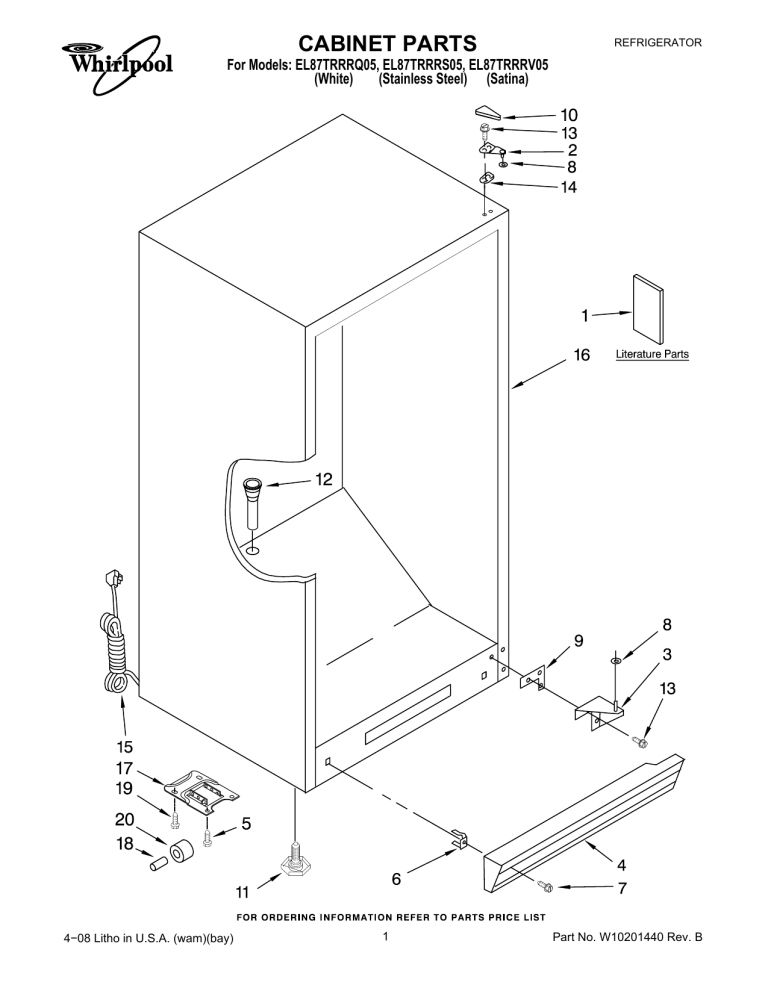

CABINET PARTS

CABINET PARTS
REFRIGERATOR
For Models: EL87TRRRQ05, EL87TRRRS05, EL87TRRRV05
(White)
(Stainless Steel) (Satina)
4−08 Litho in U.S.A. (wam)(bay)
1
Part No. W10201440 Rev. B
CABINET PARTS
For Models: EL87TRRRQ05, EL87TRRRS05, EL87TRRRV05
(White)
(Stainless Steel) (Satina)
Illus.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Part
No.
DESCRIPTION
Literature Parts
8210433 Owners Manual
8210378 Energy Guide/Tag
Top Hinge
W10179593 White
8210251 Black
Bottom Hinge
W10201501 White
8210268 Black
Grille
(Includes 6 & 7)
8210290 White
8210294 Black
4357277 Screw
4356803 Clip, Grille
Screw
4357243 White
8210262 Black
4390520 Washer
4390489 Shim Bottom
Cover, Hinge
4357279 White
4390763 Black
Leg, Leveller
4390866 White
W10177676 Black
W10164544 Grommet, Drain
4356830 Screw
4390489 Shim, Hinge
8210302 Power Cord
Cabinet (Not A
Serviceable Part)
8210265 Bracket, Roller
8210211 Axle
8210266 Screw
4390754 Roller, Front
2
W10201440
LINER PARTS
For Models: EL87TRRRQ05, EL87TRRRS05, EL87TRRRV05
(White) (Stainless Steel) (Satina)
W10201440
3
LINER PARTS
For Models: EL87TRRRQ05, EL87TRRRS05, EL87TRRRV05
(White) (Stainless Steel) (Satina)
Illus.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Part
No.
DESCRIPTION
8210342 Pan, Crisper
4390770 Shelf, Crisper
(Upper)
4390772 Shelf, Crisper
(Lower)
4390773 Channel,
Crisper Cover
4390766 Thermostat
4357292 Knob, Thermostat
4357124 Timer, Defrost
8210350 Lamp, Socket
4390465 Bulb
4390743 Light Shield
4357041 Plate,
Thermostat
4357042 Screw
4390513 Light, Switch
4357295 Vent Plug
4390768 Shelf, Middle
4390767 Shelf, Top
8210236 Pan, Crisper
(Upper)
4356849 Screw
W10135693 Bracket, Light
4390774 Support,
Crisper Cover
4390775 Egg Bin
4
W10201440
DOOR PARTS
For Models: EL87TRRRQ05, EL87TRRRS05, EL87TRRRV05
(White) (Stainless Steel) (Satina)
W10201440
5
DOOR PARTS
For Models: EL87TRRRQ05, EL87TRRRS05, EL87TRRRV05
(White) (Stainless Steel) (Satina)
Illus.
No.
Part
No.
1
8210352
8210353
8210354
2
8210401
8210402
3
8210339
8210343
4 W10179592
5
8210379
6
8210381
7
8
9
8533976
488208
10
11
12
8210400
489491
2219698
4390656
4390758
13
2313345W
2313345B
W10202711
14
15
4357067
8210382
16
2255411
DESCRIPTION
Exterior Door
(Includes
Interior Liner)
White
Stainless Steel
Satina
Stop, Door
(Top)
White
Black
Gasket
White
Black
Bin, Door
Rail, Door
(Lower)
Housing, Dairy
Compartment
Screw, Set
Screw
Stop, Door
(Bottom)
Natural
Screw
Stud, Handle
Nameplate
White
Black
Handle
White
Black
Brushed Aluminum
(Includes Item 8)
Vent Plug
Door,
Compartment
Clip, Handle
6
W10201440
UNIT PARTS
For Models: EL87TRRRQ05, EL87TRRRS05, EL87TRRRV05
(White) (Stainless Steel) (Satina)
W10201440
7
UNIT PARTS
For Models: EL87TRRRQ05, EL87TRRRS05, EL87TRRRV05
(White) (Stainless Steel) (Satina)
Illus.
No.
Part
No.
1
2
3
4
5
6
4390662
4390782
4357004
4356920
4356923
4357123
7 W10164623
8
9
10
11
12
13
14
4390663
4390664
4390783
8210239
4357129
4356943
4357110
8210240
15
16
17
18
19
20
21
4356738
4357299
8210242
8210261
8210241
4356846
4356335
22
23
24
25
26
4356847
8210220
8210248
4357245
27
28
29
30
31
32
33
34
35
36
4390753
8210202
4356952
4390821
4356970
4357277
W10202715
4390754
4390755
W10164624
4357020
4357128
DESCRIPTION
Cover, Evaporator
Evaporator
Fan Motor
Fan Blade
Heater Defrost
Plate, Evaporator
Mount
Drain Pan
Gasket, Cover
Evaporator
Right
Left
Bi−Metal Defrost
Capacitor
Bracket, Motor
Screw, Motor
Screw
Compressor
(Includes Items
15,16,17 & 19)
Relay
Drier
Cover
Block, Foam
Overload
Sleeve
Grommet,
Compressor
Washer
Screw, Compressor
Condenser
Heat, Exchanger
Compressor Pan
White
Black
Clip
Screw
Screw
Screw
Harness, Unit
Roller
Axle
Shield, Heater
Grommet
Shield, Motor
REFRIGERANT CHARGE
4.107 oz.
(R−134A)
8
W10201440
OPTIONAL PARTS (NOT INCLUDED)
For Models: EL87TRRRQ05, EL87TRRRS05, EL87TRRRV05
(White) (Stainless Steel) (Satina)
Illus.
No.
Part
No.
DESCRIPTION
Customer Touch−Up Material
350930 Enamel, White
(13 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
Refinishing Material
799344 Enamel, White
(1 Qt. Uncut)
Miscellaneous
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
978941 Insulation
Fiberglass
(63−1/2" x 35−1/2
x 2−5/8")
505587 Sealer Mastic
(1 Qt.)
503695 Cork Sealer
(1/4 Pound)
W10201440
9
