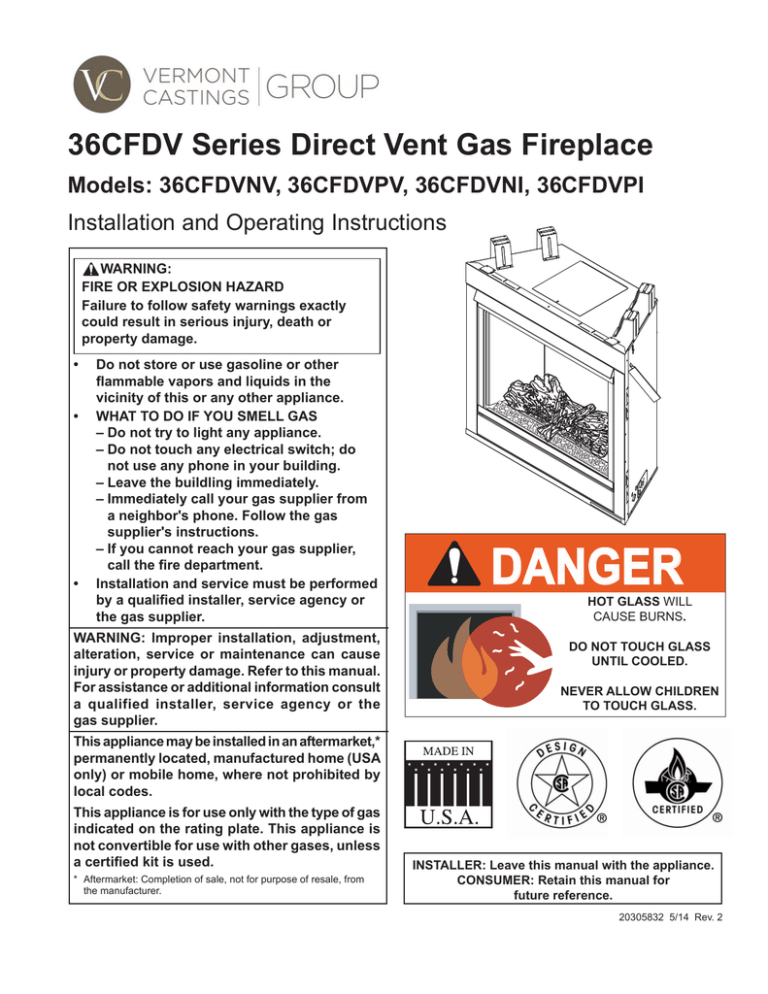

Vermont Castings DVRTSB Operating instructions

36CFDV Series Direct Vent Gas Fireplace
Models: 36CFDVNV, 36CFDVPV, 36CFDVNI, 36CFDVPI
Installation and Operating Instructions
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
•
•
•
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Leave the buildling immediately.
– Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
– If you cannot reach your gas supplier,
call the fire department.
Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this manual.
For assistance or additional information consult
a qualified installer, service agency or the
gas supplier.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
This appliance may be installed in an aftermarket,*
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is for use only with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.
* Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for
future reference.
20305832 5/14 Rev. 2
36CFDV Series Gas Fireplace
CONTENTS
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE.
Thank you and congratulations on your purchase of a Vermont Castings Group fireplace.
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions fully may result in a possible fire hazard and will void the warranty.
Important Safety Information ................................................ 3
Optional Fan/Blower System FK12 ................................. 31
Code Approval ........................................................................ 4
Operating Instructions – Millivolt........................................ 32
For Your Safety Read Before Lighting ............................. 32
What To Do If You Smell Gas .......................................... 32
Lighting Pilot for the First Time ........................................ 32
Lighting Pilot .................................................................... 33
Lighting Burner ................................................................ 34
To Turn Off Gas ............................................................... 34
Product Features .................................................................... 5
Product Specifications ....................................................... 6
Fireplace Controls ............................................................. 6
Gas Specifications & Orifice Sizes .................................... 6
Gas Pressures................................................................... 6
High Elevations ................................................................. 6
Cold Climate Insulation ..................................................... 6
Fireplace & Framing Dimensions ...................................... 7
Pre-Installation Information ................................................... 7
Before You Start ................................................................ 7
Items Required for Installation........................................... 7
Fireplace Framing ............................................................ 7
Fireplace Location ............................................................. 7
Clearances .............................................................................. 8
Clearances to Combustibles ............................................. 8
Mantel Clearances ............................................................ 8
Fireplace Installation .............................................................. 9
Secure Fireplace to Floor or Framing................................ 9
Finishing Material .............................................................. 9
Venting Installation Information .......................................... 10
Optional Top Vent Application.......................................... 10
Installation Precautions ................................................... 12
General Venting .............................................................. 12
Termination Location ................................................ 13
Termination Clearances ........................................... 14
Assembling Vent Pipe ..................................................... 14
Flex Vent Pipe ................................................................. 14
Twist Lock Pipe ............................................................... 15
Rear Vent Installation Only .............................................. 15
How to Use the Vent Graph............................................. 16
Vent Pipe Clearances ...................................................... 17
Rear Wall Vent Applications ........................................... 18
Rear Wall Vent Installation—Twist Lock Pipe .................. 18
Rear Wall Vent Installation—Flex Vent Pipe ................... 18
Top Vent Side Wall Application ........................................ 19
Vertical Side Wall Applications ........................................ 21
Vertical Side Wall Installaion—Twist Lock Pipe ............... 21
Vertical Side Wall Installation—Flex Vent Pipe ............... 22
Below Grade Installation ................................................. 23
Vertical Through-the-Roof Application ............................. 24
Vertical Through-the-Roof Installation ............................. 25
Fireplace Installation ............................................................ 27
Check Gas Type .............................................................. 27
Installation Items Needed ................................................ 27
Gas Pipe Installation ....................................................... 28
Check Gas Pressure – Millivolt ....................................... 29
Electrical Installation – Millivolt .......................................... 29
Electrical Wiring............................................................... 29
Remote Wall Mounted Switch ......................................... 30
Remote Wall Switch ........................................................ 30
Optional DC Remote Systems ........................................ 30
Optional Fan/Blower System BLOT ................................ 31
2
Check Gas Pressure – IPI .................................................... 35
Electrical Installation – IPI ................................................... 35
Electrical Wiring............................................................... 35
Junction Box Wiring......................................................... 36
Wall Switch Installation .................................................... 36
IPI System Wiring Diagram ............................................. 37
Operating Instructions – IPI................................................. 38
For Your Safety Read Before Lighting ............................. 38
What To Do If You Smell Gas .......................................... 38
Operating Instructions ..................................................... 39
To Turn Off Gas ............................................................... 39
Operation and Indications—EcoLogic Control System ... 40
Final Installation ................................................................... 41
Glass Frame Removal..................................................... 41
Pilot Flame ...................................................................... 42
Burner Flame................................................................... 42
Installing Porcelain Liner Kit ............................................ 42
Installing Brick Liner Kit ................................................... 43
Rockwool Placement ....................................................... 43
Adjustable Baffle ............................................................. 44
Log Placement ................................................................ 44
Lava Rock and Ember Placement ................................... 45
Fireglass and Stone Placement ...................................... 46
Cleaning and Maintenance .................................................. 47
Burner, Pilot and Control Compartment .......................... 47
Burner.............................................................................. 47
Vent System .................................................................... 47
Glass Door ...................................................................... 47
Logs................................................................................. 47
Rock Wool ...................................................................... 47
Troubleshooting ................................................................... 48
Millivolt Standing Pilot Ignition ......................................... 48
IPI System ....................................................................... 49
All Control/Pilot Systems ................................................. 50
Replacement Parts ............................................................... 51
Firebox Components ....................................................... 51
Logs................................................................................. 52
Standing Pilot – Millivolt Control ...................................... 53
IPI System ....................................................................... 54
Venting Components............................................................ 55
Optional Accessories ........................................................... 57
Massachusetts Requirements ............................................. 58
Limited Lifetime Warranty Policy ........................................ 59
Efficiency Ratings ................................................................ 60
20305832
IMPORTANT SAFETY INFORMATION
INSTALLER
Please leave these instructions with the appliance.
OWNER
Please retain these instructions for future reference.
WARNING
• Read this owner’s manual carefully and
•
•
completely before trying to assemble, operate,
or service this fireplace.
Any change to this fireplace or its controls can
be dangerous.
Improper installation or use of this fireplace
can cause serious injury or death from fire,
burns, explosions, electrical shock and carbon
monoxide poisoning.
This fireplace is a vented product. This fireplace must be
properly installed by a qualified service person. The glass
door must be properly seated and sealed. If this unit is not
properly installed by a qualified service person with glass
door properly seated and sealed, combustion leakage can
occur.
CARBON MONOXIDE POISONING: Early signs of carbon
monoxide poisoning are similar to the flu with headaches,
dizziness and/or nausea. If you have these signs, the fireplace may not have been installed properly. Get fresh air
at once! Have the fireplace inspected and serviced by a
qualified service person. Some people are more affected
by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia,
those under the influence of alcohol, and those at high
altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor added
to these gases can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings. Keep
this manual for reference. It is your guide to safe and proper
operation of this fireplace.
1. Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning may be
required due to excessive lint from carpeting,
bedding material, et cetera. It is imperative that
control compartments, burners and circulating air
passageways of the appliance be kept clean.
2. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certified
kit is used.
20305832
36CFDV Series Gas Fireplace
3. For propane/LP fireplace, do not place propane/LP
supply tank(s) inside any structure. Locate propane/LP
supply tank(s) outdoors. To prevent performance problems, do not use propane/LP fuel tank of less than 100
lbs. capacity.
4. If you smell gas:
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building .
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
5. Never install the fireplace:
• In a recreational vehicle
• Where curtains, furniture, clothing, or other flammable objects are less than 36" from the front, top,
or sides of the fireplace
• In high traffic areas
• In windy or drafty areas
6. Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
7. This fireplace reaches high temperatures. Children
and adults should be alerted to the hazards of high
surface temperature and should stay away to avoid
burns or clothing ignition. Fireplace will remain hot
for a time after shutdown. Allow surfaces to cool before
touching.
8. Young children should be carefully supervised
when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical
barrier is recommended if there are at risk individuals in the house. To restrict access to a fireplace
or stove, install an adjustable safety gate to keep
toddlers, young children and other at risk individuals out of the room and away from hot surfaces.
9. Clothing or other flammable material should not be
placed on or near the appliance.
10. When the appliance is installed directly on carpeting,
tile or other combustible material other than wood flooring, you must set appliance on a metal or wood panel
or hearth pad extending the full width and depth of the
appliance.
11. Do not modify fireplace under any circumstances. Any
parts removed for servicing must be replaced prior to
operating fireplace.
12. Turn fireplace off and let cool before servicing, installing, or repairing. Only a qualified service person should
install, service, or repair the fireplace. Have burner
system inspected annually by a qualified service
person.
3
36CFDV Series Gas Fireplace
CODE APPROVAL
Direct Vent type appliances draw all combustion air from
outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to
comply with the established standards for DIRECT VENT
GAS FIREPLACE HEATERS in the USA and Canada as
follows:
LISTED VENTED GAS FIREPLACE HEATER
TESTED TO:
ANSI Z21.88a-2012/CSA 2.33a-2012 STANDARDS
The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, or the National Gas and Propane
Installation Code, CSA B149.1.
A manufactured home (USA only) or mobile home OEM
installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280,
or when such a standard is not applicable, the Standard for
Manufactured Home Installations, ANSI/NCSBCS A225.1,
or Standard for Gas Equipped Recreational Vehicles and
Mobile Housing, CSA Z240.4.
IMPORTANT:
PLEASE READ THE FOLLOWING
CAREFULLY
It is normal for fireplaces fabricated of steel
to give off some expansion and/or contraction
noises during the start up or cool down cycle.
Similar noises are found with your furnace heat
exchanger or car engine.
IMPORTANT:
PLEASE READ THE FOLLOWING
CAREFULLY
It is not unusual for gas fireplace to give off some
odor the first time it is burned. This is due to the
manufacturing process.
Please ensure that your room is well ventilated
during burn off — open all windows.
It is recommended that you burn your fireplace
for at least ten (10) hours the first time you use it.
Place the fan switch in the “OFF” position during
this time.
WARNING
13. You must keep control compartments, burners, and
circulating air passages clean. More frequent cleaning
may be needed due to excessive lint and dust. Turn off
the gas valve and pilot light before cleaning fireplace.
14. Have venting system inspected annually by a qualified service person. If needed, have venting system
cleaned or repaired. Refer to Cleaning and Maintenance, Page 47.
15. Keep the area around your fireplace clear of combustible materials, gasoline, and other flammable vapor
and liquids. Do not run fireplace where these are used
or stored. Do not place items such as clothing or decorations on or around fireplace.
16. Do not use this fireplace to cook food or burn paper or
other objects.
17. Never place anything on top of fireplace.
18. Do not use any solid fuels (wood, coal, paper, cardboard, etc.) in this fireplace. Use only the gas type
indicated on rating plate.
19. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22.1.
20. Do not obstruct the flow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and
proper operation.
21. Do not use fireplace if any part has been under water.
Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which as been
under water.
22. Do not operate fireplace if any log is broken.
23. Do not use a blower insert, heat exchanger insert, or
any other accessory not approved for use with this
fireplace.
24. Do not operate appliance with the glass front
removed, cracked, or broken. Replacement of the
glass should be done by a licensed qualified service person.
IMPORTANT SAFETY INFORMATION
4
Never connect unit to private (non-utility)
gas wells. This gas is commonly known
as wellhead gas.
20305832
36CFDV Series Gas Fireplace
PRODUCT FEATURES
GAS SPECIFICATIONS & ORIFICE SIZE
•
•
•
•
•
•
•
•
This appliance has been certified for use with either
natural or propane gas. See appropriate data plates.
This appliance is not for use with solid fuels.
The appliance is approved for bedroom or bedsitting
room installations.
The appliance must be installed in accordance with local
codes if any. If none exist use the current installation
code. ANSI Z223.1/NFPA 54 in the USA, CSA B149 in
Canada.
This appliance is mobile home approved.
The appliance must be properly connected to a venting
system.
The appliance is not approved for closet installations.
This appliance is approved to be vented using Vermont
Castings Group Twist-Lock Direct Vent components.
The classification “noncombustible material” includes, but
is not limited to stone, brick and mortar. Noncombustibles
are safe to overlay the black-painted metal face (including
radiant plates) and do not pose a fire hazard. Do not allow
any noncombustible finish material to extend past or interfere with fireplace opening.
The classification “combustible material” includes, but is not
limited to plywood, drywall and particle board. Combustible
materials may contact the sides, bottom or back of firebox.
Do not overlay the black painted face with combustible
materials.
FIREPLACE CONTROLS
Model
36CFDVNV
36CFDVPV
36CFDVNI
36CFDVPI
Fuel
Nat.
LP
Nat.
LP
Max. Input Min. Input
BTU/h
BTU/h
21,000
15,000
21,000
17,500
21,000
15,000
21,000
17,500
Orifice
Size
#44
#54
#44
#54
HIGH ELEVATIONS
Input ratings are shown in BTU per hour and are certified
without derating for elevations up to 4,500 feet (1,370
m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having jurisdiction.
In Canada, please consult provincial and/or local authorities having jurisdiction for installations at elevations
above 4,500 feet (1,370 m).
COLD CLIMATE INSULATION
NOTE
PRODUCT SPECIFICATIONS
If you live in a cold climate, seal all cracks
around your appliance, and wherever cold air
could enter the room, with noncombustible
material. It is especially important to insulate
the outside chase cavity between the studs
and under the floor on which the appliance
rests, if the floor is above ground level.
COLD CLIMATE OPTION (IPI Models Only)
Hi/Lo Knob
Off/Pilot/On Knob
Figure 1 –
36CFDV Fireplace Controls – Millivolt
FP3011
GAS PRESSURES
Inlet Minimum
Inlet Maximum
Manifold Pressure
20305832
Natural
5.5" w.c.
14.0" w.c.
3.5" w.c.
Propane (LP)
11.0" w.c.
14.0" w.c.
10.0" w.c.
Your fireplace is equipped with an intermittent pilot ignition
(IPI) control. An IPI control with a standing pilot option provides the dual benefit of an economical and environmentally
responsible product and one which lights easily even in
the coldest climates. When in intermittent pilot mode (as
it comes from the factory), your pilot remains unlit until
needed, saving you fuel. Standing pilot mode, by comparison, is characterized by a continuously burning pilot.
The benefit of a pilot which lights only when needed is fuel
savings. However, with no pilot burning in your fireplace,
units operating in colder climates may experience delayed
start up or lock out. Because colder air is heavier than
milder air and there is no pilot burning to maintain a warm
stable temperature in your firebox, establishing a draft to
aid ignition becomes difficult. This is perfectly normal but
can be somewhat frustrating.
To remedy this issue, your fireplace has been designed with
a cold climate pilot option, which, when active, maintains
a warmer temperature inside your firebox to make ignition
faster and more efficient. Operating your appliance in cold
climate (aka standing) pilot mode will prohibit the need for
5
36CFDV Series Gas Fireplace
PRODUCT FEATURES
multiple ignition attempts and will prevent the system from
delaying start up or locking out.
To activate the cold climate option, simply move the cold
climate toggle switch located on the right side of the black
control center to the “On” (left) position. (Figure 2) You can
operate your appliance in this mode regardless of whether
you are using a remote control, wall switch or thermostat.
Master Switch
Cold Climate Switch
LED indicator
Control Board
FP3047
Figure 2 –
36CFDV Fireplace Controls–IPI (featuring Cold Climate option)
2256” (562 mm)
Minimum Rough
Opening
Depth
3856O” (798 mm)
83
13
”(
6QE
(
54
"
56M m)
27 m
92
(6
1556QE”
(405 mm)
1/2” (13 mm)
or 5/8” (16 mm)
)
m
m
3756M” (946 mm)
Minimum Rough Opening Width
3856O” (798 mm)
15(6QE”
(392 mm)
Minimum Rough
Opening
Height
3856O”
(978 mm)
C
L
2956QE” (738 mm)
19(6”
(505 mm)
3856O”
(978 mm)
3456QE”
(884 mm)
256”
(651 mm)
2156QE”
(535 mm)
76”
(187 mm)
15/16”
(24 mm)
32” (813 mm)
3756M” (946 mm)
46QE” (110 mm)
256M” (57 mm)
Figure 3 –
36CFDV Series Fireplace Dimensions
6
20305832
36CFDV Series Gas Fireplace
PRE-INSTALLATION INFORMATION
BEFORE YOU START
FIREPLACE LOCATION
Read this homeowner manual thoroughly and follow all
instructions carefully. Inspect all contents for shipping
damage and immediately inform your dealer if any damage
is found. Do not install any unit with damaged, incomplete,
or substitute parts. Check your packing list to verify that
all listed parts have been received. You should have the
following:
Plan for the installation of your appliance. This includes
determining where the unit is to be installed, the vent configuration to be used, framing and finishing details, and
whether any optional accessories (i.e. blower, wall switch,
or remote control) are desired. Consult your local building
code agency to ensure compliance with local codes, including permits and inspections.
•
•
•
•
The following factors should be taken into consideration:
Fireplace (Firebox and Burner System)
Log Set
Rock Wool
Volcanic Rock
ITEMS REQUIRED FOR INSTALLATION
WARNING
Tools and Building Supplies:
• Phillips Screwdriver
• Hammer
• Pliers
• Square
• Level
• Tee Joint
• Pipe Wrench
• Saw and/or saber saw
• Measuring Tape
• Electric Drill and Bits
• Framing Materials
• Wall Finishing Materials
• Caulking Material (Noncombustible)
• Fireplace Surround Material (Noncombustible)
• Piping Complying with Local Codes
• Pipe Sealant Approved for use with Propane/LPG
(Resistant to Sulfur Compounds)
•
•
•
•
•
•
•
Clearance to side-wall, ceiling, woodwork, and windows.
Minimum clearances to combustibles must be maintained.
This fireplace may be installed along a wall, across a
corner, or use an exterior chase. Refer to Figure 4 for
suggested locations.
Location should be out of high traffic areas and away
from furniture and draperies due to heat from appliance.
Never obstruct the front opening of the fireplace.
Do not install in the vicinity where gasoline or other
flammable liquids may be stored.
Vent pipe routing. See Venting section found in this
manual for allowable venting configurations.
These units can be installed in a bedroom. See National
Fuel Gas Code ANSI Z233.1/NFPA 54 — (current
edition), the Uniform Mechanical Code — (current edition), and Local Building Codes for specific installation
requirements.
E
A
B
Y
C
Do not fill spaces around firebox with
insulation or other materials. This could
cause a fire.
D
B
F
FIREPLACE FRAMING
Firebox framing can be built before or after the appliance
is set in place. Construct firebox framing following Figure
3 (page 6) for specific installation requirements and for
firebox dimensions. The framing headers may rest on the
top of the firebox standoffs. Do not bring headers below
top of standoffs.
The firebox may be installed directly on a combustible floor
or raised on a platform of an appropriate height. When
the firebox is installed directly on carpeting, tile, or other
combustible material, other than wood flooring, the firebox
shall be installed on a metal or wood panel extending the
full width and depth of the enclosure.
20305832
A Flat on Wall
B Cross Corner
C Island**
D Room Divider*
E Flat on Wall Corner*
F Chase Installation
** Island (C) and room divider (D) installation is possible as long as the
horizontal portion of vent system (X) does not exceed 20' (6 m).
*
When you install your fireplace in (D) room divider or (E) flat on wall
corner positions (Y), a minimum of 6" (102 mm) clearance must be
maintained from perpendicular wall and front of fireplace.
Figure 4 –
Locating Gas Fireplace
7
36CFDV Series Gas Fireplace
CLEARANCES
Finish Wall
WARNING
CLEARANCES TO COMBUSTIBLES
Follow these instructions carefully to
ensure safe installation. Failure to follow
in struc tions exactly can create a fire
hazard.
The appliance cannot be installed on a
carpet, tile or other combustible material
other than wood flooring. If installed on
carpet or vinyl flooring, the appliance
shall be installed on a metal, wood or
noncombustible material panel extending
full width and depth of the appliance.
Stud
12” (305 mm)
12”
(305 mm)
Header
8” (203 mm)
6” (152 mm)
11”
(279 mm)
256O”
(64 mm)
10”
(254 mm)
8” (203 mm)
Standoffs
Top of Heat
Exhaust Vent
FP3000
Side View
g
ilin
Ce
72"
(1828 mm)
Minimum
Stud
Wall
Combustible
Material Area
Side Wall
1"
156O”
356O”
256O”
456O”
3"
Side of Fireplace
Opening
45°
5"
6"
6"
(152 mm)
Minimum
Front View
FP3013
Figure 6 –
Mantel Clearances
FP3012
MANTEL CLEARANCES
NOTE: The combustible area above the facing must not
protrude more than 3/4" (19 mm) from the facing. If it
does, it is considered a mantel and must meet the mantel
requirements listed in this manual.
8
WARNING
Figure 5 –
Ceiling and Side Wall Clearances
Never obstruct or modify the air inlet.
This may create a fire hazard.
20305832
36CFDV Series Gas Fireplace
FIREPLACE INSTALLATION
SECURE FIREPLACE TO FLOOR OR
FRAMING
The fireplace must be secured to the floor and/or to framing
studs as shown in Figure 7. Use two (2) wood screws or
masonry/concrete screws to secure fireplace to the floor.
Use four (4) screws to attach fireplace to framing. The side
nailing flanges are 1⁄2" or 5⁄8" to accommodate different wall
thickness.
FINISHING MATERIAL
NOTE: Any wiring (i.e. remote control, wall switch, and
optional fan) must be done prior to final finishing to avoid
costly reconstruction.
Only noncombustible materials (i.e. brick, tile, slate, steel,
or other materials with a UL fire rating of Zero) may be
used to cover the black surface of the appliance. A 300°F
minimum adhesive may be used to attach facing materials
to the black surface. If joints between the finished wall
and the fireplace surround are sealed, a 300°F minimum
sealant material (General Electric RTV103 or equivalent)
must be used.
Finished Wall Support Tabs
(Do Not Use for Framing or Header)
Framing
Nailing
Flange
Screws
Framing
Screw
Nailing
Flange
Nailing
Flanges
Screw
Screw
Screw
FP3014
Figure 7 –
Securing Fireplace to Floor and Framing Studs
20305832
9
36CFDV Series Gas Fireplace
VENTING INSTALLATION
OPTIONAL TOP VENT APPLICATION
The appliance is shipped as a rear vent unit. If the installation layout requires the unit to be a top vent configuration
the appliance can be converted by following the steps
below.
3. Remove the plate with the 4" collar and gasket by removing four (4) screws. Set aside. Figure 10
4. Remove the top plate located on top of the unit by removing one (1) screw. Set aside. Figure 10
Top Plate
When removing and refitting the plates be sure the associated gaskets are undamaged and refitted as required.
Remove
Screw
1. Remove the rear plate by removing one (1) screw. Set
aside. Figure 8
Screw
Remove
Screws
Rear Plate
4" Collar
Remove
Screws
FP3021
Figure 8 –
Remove Rear Plate
2. Remove the plate with the 7" collar and gasket by removing eight (8) screws. Set aside. Figure 9
FP3023
Figure 10 –
Remove 4" Collar and Gasket and Top Plate
5. Remove one (1) screw to remove the inner top plate
located on top directly beneath the plate just removed.
Break away the 7" circle using a screwdriver and reinstall. Figure 11
Inner Top Plate
Remove
Screws
FP3025
7" Collar
Remove Circle
Remove
Screws
FP3022
FP3024
Figure 9 –
Remove 7" Collar and Gasket
10
Figure 11 –
Remove Circle Section from Inner Top Plate
20305832
36CFDV Series Gas Fireplace
VENTING INSTALLATION
6. Remove the large square plate and gasket by removing
the eight (8) screws. Set aside. Figure 12
Remove
Screws
8. Install the plate and plates with collars removed in Steps
1-3 in reverse order onto the top of the unit. Install the
top plate and large and small plates in reverse order
into back of unit. Figure 14.
Large Square
Plate
FP3026
FP3028
Figure 14 –
Completed Top Vent Conversion
Figure 12 –
Remove Large Square Plate and Gasket
7. Remove the small square plate and gasket by removing
four (4) screws. Set aside. Figure 13
Remove Screws
Small
Square
Plate
FP3027
Figure 13 –
Remove Small Square Plate and Gasket
20305832
11
This fireplace must be vented to the
outside. The venting system must NEVER
be attached to a chimney serving a separate
solid fuel burning appliance. Each gas
appliance must use a separate vent system.
Do not use common vent systems.
Do not pack the open air spaces with
insulation or other materials. This could
cause high temperatures and may present
a fire hazard.
NOTICE
WARNING
Read all instructions completely and
thoroughly before attempting installation.
Failure to do so could result in serious injury,
property damage or loss of life. Operation
of improperly installed and maintained
venting system could result in serious injury,
property damage or loss of life.
WARNING
WARNING
36CFDV Series Gas Fireplace
Failure to follow these instructions will
void the warranty.
INSTALLATION PRECAUTIONS
Consult local building codes before beginning the
installation. The installer must make sure to select the
proper vent system for installation. Before installing vent
kit, the installer must read this fireplace manual and vent
kit instructions.
Only a qualified installer/service person should install venting system. The installer must follow these safety rules:
• Wear gloves and safety glasses for protection.
• Use extreme caution when using ladders or when on
rooftops.
• Be aware of electrical wiring locations in walls and
ceilings.
VENTING INSTALLATION
GENERAL VENTING
Your fireplace is approved to be vented either through the
side wall, or vertical through the roof.
•
Only Vermont Castings Group venting components
specifically approved and labeled for this fireplace
may be used.
•
Flexible UL1777 listed venting may be used in any venting application where rigid direct vent components can
be used. All restrictions, clearances and allowances that
pertain to the rigid piping apply to the flexible venting.
Flex kits may not be modified. Flex kits may be added to
the end of a vent run made of rigid vent sections using
pipe manufacturer's approved flex to pipe adapters. This
may occur only if doing so does not violate any of the
venting length, height, routing, horizontal to vertical ratio
requirements or clearance considerations detailed in this
manual.
•
Venting terminals shall not be recessed into a wall or siding.
•
Select the amount of vertical rise desired. All horizontal
run of venting must have 1/4" rise for every 12" (305 mm)
of run towards the termination below 71/2 feet of vertical
rise. With 71/2 feet (2.3 m) or more vertical rise off top of
fireplace, the horizontal run may run level. NEVER run
vent piping downward.
•
Horizontal venting which incorporates the twist lock pipe
must be installed on a level plane without an inclining or
declining slope.
•
Horizontal venting which incorporates the use of flex
venting shall have an inclining slope from the unit of 1"
(25 mm) per 24" (610 mm).
There must not be any obstruction such as bushes, garden sheds, fences, decks or utility buildings within 24"
(610 mm) from the front of the termination hood.
Do not locate termination hood where excessive snow or
ice build up may occur. Be sure to check vent termination area after snow falls, and clear to prevent accidental
blockage of venting system. When using snow blowers,
make sure snow is not directed towards vent termination
area.
Location of Vent Termination
It is imperative the vent termination be located observing
the minimum clearances as shown on following page.
The following actions will void the warranty on your venting system:
• Installation of any damaged venting component.
• Unauthorized modification of the venting system.
• Installation of any component part not manufactured
or approved by Vermont Castings Group.
• Installation other than permitted by these instructions.
12
20305832
36CFDV Series Gas Fireplace
VENTING INSTALLATION
TERMINATION LOCATION
INSIDE
CORNER DETAIL
G
V
H
A
D
V
E
L
C
B
V
F
B
Fixed
Closed
Ope
rable
V
B
V
Operable
V
Fixed
Closed
B
B
B
J
V VENT TERMINATION
M
X
I
A
CFM145a
Figure 15 –
Termination Locations
V
X AIR SUPPLY INLET
V
K
X
AREA WHERE TERMINAL IS NOT PERMITTED
CANADIAN INSTALLATIONS1
US INSTALLATIONS2
A = Clearance above grade, veranda, porch,
deck or balcony
12" (30cm)
12" (30cm)
B = Clearance to window or door that may be
opened
6" (15cm) for appliances <10,000 BTU/h
(3kW)
12" (30cm) for appliances >10,000 BTU/h
(3kW) and <100,000 BTU/h (30kW)
36" (91cm) for appliances >100,000 BTU/h
(30kW)
6" (15cm) for appliances <10,000 BTU/h
(3kW)
9" (23cm) for appliances >10,000 BTU/h
(3kW) and <50,000 BTU/h (15kW)
12" (30cm) for appliances >50,000 BTU/h
(15kW)
C = Clearance to permanently closed window
12" (305mm) recommended to prevent
window condensation
12" (305mm) recommended to prevent
window condensation
D = Vertical clearance to ventilated soffit
located above the terminal within a horizontal distance of 2' (610 mm) from the
center line of the terminal
18" (458mm)
18" (458mm)
E = Clearance to unventilated soffit
12" (305mm)
12" (305mm)
F = Clearance to outside corner
see next page
see next page
G = Clearance to inside corner
see next page
see next page
H = Clearance to each inside of center line
extended above meter/regulator assembly
3' (91cm) within a height of 15' (5m) above
the meter/regulator assembly
3' (91cm) within a height of 15' (5m) above
the meter/regulator assembly
I=
3' (91cm)
3' (91cm)
J = Clearance to non-mechanical air supply
inlet to building or the combustion air inlet
to any other appliance
Clearance to service regulator vent outlet
6" (15cm) for appliances <10,000 BTU/h
(3kW)
12" (30cm) for appliances >10,000 BTU/h
(3kW) and <100,000 BTU/h (30kW)
36" (91cm) for appliances >100,000 BTU/h
(30kW)
6" (15cm) for appliances <10,000 BTU/h
(3kW)
9" (23cm) for appliances >10,000 BTU/h
(3kW) and <50,000 BTU/h (15kW)
12" (30cm) for appliances >50,000 BTU/h
(15kW)
K = Clearance to mechanical air supply inlet
6' (1.83m)
3' (91cm) above if within 10' (3m) horizontally
(2.13m)†
L = Clearance above paved sidewalk or
paved driveway located on public property
7'
M = Clearance under veranda, porch, deck or
balcony
12" (30cm)‡
1 In accordance with the current CSA-B149 Installation Codes
2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel
Gas Codes
† A vent shall not terminate directly above a sidewalk or paved
driveway which is located between two single family dwellings and
serves both dwellings
‡ Only permitted if veranda, porch, deck or balcony is fully open on a
minimum 2 sides beneath the floor.
20305832
7' (2.13m)†
12" (30cm)‡
NOTE: 1. Local codes or regulations may require different
clearances.
2. The special venting system used on Direct Vent
Fireplaces are certified as part of the appliance, with
clearances tested and approved by the listing agency.
3. Vermont Castings Group assumes no responsibility for
the improper performance of the appliance when the venting
system does not meet these requirements.
13
36CFDV Series Gas Fireplace
VENTING INSTALLATION
TERMINATION CLEARANCES
Termination clearances for buildings with combustible and non-combustible exteriors.
Inside Corner
Alcove Applications*
Outside Corner
D
C
G=
Combustible
6" (152 mm)
G
V
Noncombustible
2" (51 mm)
V
V
O
F
Balcony with perpendicular side wall
Balcony with no side wall
C
F=
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
E
E = Min. 2” (51 mm) for
non-vinyl sidewalls
Min. 12” (305 mm) for
vinyl sidewalls
O = 8’ (2.4 m) Min.
M
M
V
V
P
M=
Combustible &
Noncombustible
12" (305 mm)
Combustible &
Noncombustible
M = 12" (305 mm)
P = 6” (152 mm)
No. of
Caps
DMIN.
CMAX.
1
3' (914 mm) 2 x DACTUAL
2
6' (1.8 m)
3
4
7' (2.7 m) 2/3 x DACTUAL
12' (3.7 m) 1/2 x DACTUAL
1 x DACTUAL
DMin. = Number of Termination caps x 3
CMax. = (2 / Number termination caps) x DActual
584-15
*NOTE: Termination in an alcove space (spaces open only on one side
and with an overhang) is permitted with the dimensions specified for
vinyl or non-vinyl siding and soffits. 1. There must be a 3' (914 mm) minimum between termination caps. 2. All mechanical air intakes within 10'
(1 m) of a termination cap must be a minimum of 3' (914 mm) below the
termination cap. 3. All gravity air intakes within 3' (914 mm) of a termination cap must be a minimum of 1' (305 mm) below the termination cap.
Figure 16 –
Termination Clearances
• Tighten flex clamp to flex pipe so it is tight to collar and
ASSEMBLING VENT PIPE
•
Only venting components manufactured or approved by
Vermont Castings Group may be used in Direct Vent systems.
•
cannot slip off.
Apply a tug to be sure the vent will not slip off the collars.
Repeat process with 7" flex vent pipe. The same procedure must be performed on the vent side.
USA Installations
The venting system must conform to local codes and/or
the current National Fuel Code ANSI Z223.1/NFPA 54.
Canadian Installations
The venting system must be installed in accordance with
the current CSA-B149.1 installation code.
FLEX VENT PIPE
Secure flex vent pipe in place with a hose clamp (provided).
• Be sure the flex pipe overlaps at least 1" (25 mm) onto
the collars of the fireplace and termination. If the termination has an internal bead, be sure to overlap and
secure 1" (25 mm) past the bead.
14
Hose Clamp
Figure 17 –
Secure Flex Vent Pipe with Hose Clamps.
FP2290
20305832
36CFDV Series Gas Fireplace
VENTING INSTALLATION
TWIST LOCK PIPE
REAR VENT INSTALLATION ONLY
When using twist lock pipe it is not necessary to use sealant on the joints.
Install the 4" (102 mm) inner vent pipe to the appliance
inner collar and secure with three (3) stainless steel sheet
metal screws. Figure 19. Install the 7" (178 mm) outer
vent pipe to the appliance outer collar. Secure pipe to the
rear cover plate using the tabs and three (3) sheet metal
screws. Figure 20. If a 45° or 90° elbow is being used, attach the elbow to the appliance in the same manner then
attach the venting to the elbow.
To join twist lock pipes together, simply align the beads of
the male end with the grooves of the female end, twisting
the pipe until the flange on the female end contacts external flange on the male end. It is recommended that you
secure the joints with three (3) sheet metal screws, however, this is not mandatory with twist lock pipe. Figure 18
NOTE: Sealant is not required to assemble fireplace
venting. Do not use silicone sealant at the inner flue
exhaust connections.
To make it easier to assembly the joints, we suggest putting a lubricant (Vaseline or similar) on the male end of the
twist lock pipe prior to assembly.
Male End
Sheet Metal
Screws
4" Inner
Pipe
Female End
TWL100
Screw Holes
Figure 18 –
Twist-lock Pipe Joints
Figure 19 –
Install 4" Inner Vent Pipe
FP3001a
Sheet Metal Screw
7" Outer
Pipe
FP3031
Figure 20 –
Install 7" Outer Vent Pipe
20305832
15
36CFDV Series Gas Fireplace
VENTING INSTALLATION
The Vent Graph should be read in conjunction with the
following vent installation instructions to determine the relationship between the vertical and horizontal dimensions
of the vent system.
1. Determine the height of the center of the horizontal
vent pipe exiting through the outer wall. Using this
dimension on the Side wall Vent Graph, Figure 21, locate the point intersecting with the slanted graph line.
2. From the point of this intersection, draw a vertical line
to the bottom of the graph.
3. Select the indicated dimension, and position the fireplace in accordance with same.
EXAMPLE A:
If the vertical dimension from the floor of the unit is 11' (3.4
m) the horizontal run to the face of the outer wall must not
exceed 14' (4.3 m).
EXAMPLE B:
If the vertical dimension from the floor of the unit is 7' (2.1
m), the horizontal run to the face of the outer wall must not
exceed 8' (2.4 m).
Refer to Page 23 for snorkel requirements.
Vertical Dimension from the Floor of Unit to the Center of
the Horizontal Vent Pipe
HOW TO USE THE VENT GRAPH
X
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
eg: A
2 4 6 8 10 12 14 16 18 20
Horizontal Dimension From the Outside of Termination to
the Back of the Fireplace
X = 22" minimum for 33" Model
X = 251⁄4" minimum for 36" Models
(Floor to center of horizontal pipe)
Figure 21 –
Side Wall Venting Graph
16
20305832
36CFDV Series Gas Fireplace
VENTING INSTALLATION
VENT PIPE CLEARANCES
A Minimum 1" (25
mm) Clearance
to Combustibles
Permitted All Around
Flue at Outside Wall
A Minimum of 3" (76
mm) Clearance to the
Top Is Required Along
Horizontal Length until
Flue Pipe Penetrates
Outside Wall.
A Minimum of 3" (76 mm)
Clearance to the Top Is
Required Along Horizontal
Length until Flue Pipe
Penetrates Outside Wall.
3"
Rear Vent
1"
1"
3"
1
1" "
FP3017
A Minimum 1" (25
mm) Clearance
to Combustibles
Permitted All Around
Flue at Outside Wall
Top Vent
1
1" "
FP3018
20305832
WARNING
Rear Wall Vent: Horizontal sections of this
vent system require a minimum of 3" (76
mm) clearances to combustibles at the top
of the flue and 1" (25 mm) clearance at the
sides and bottom until the flue penetrates
the outside wall. A minimum 1" clearance
all around the flue is acceptable at this point
of penetration.
Rear/Top Vent Vertical Side wall: Horizontal
sections of this vent system require a
minimum of 3" (76 mm) clearances to
combustibles at the top of the flue and 1"
(25 mm) clearance at the sides and bottom
until the flue penetrates the outside wall. A
minimum 1" clearance all around the flue
is acceptable at this point of penetration. If
vertical rise is 71/2 feet (2.3 m) or higher when
top venting, the clearance to combustibles
is 1" on all sides of the horizontal run.
WARNING
WARNING
Figure 22 –
Combustible Clearances for Vent Pipe
All vertical sections of this vent system
require a minimum of 1" (25 mm) clearance
to combustibles on all sides of the pipe.
17
36CFDV Series Gas Fireplace
VENTING INSTALLATION
REAR WALL VENT APPLICATIONS
Vent Opening for Combustible Walls
When installed as a rear vent unit this appliance may be
vented directly to a termination located on the rear wall
behind the appliance.
95⁄8"
(244 mm) Min.
• Only Vermont Castings Group approved venting components are approved to be used in these applications
(Refer to ‘Venting Components’ listed for different installation requirements).
The maximum horizontal distance between the rear of
the appliance (or end of the transition elbow in a corner application) and the outside face of the rear wall is
20" (508 mm). Figure 23
Only one 45° elbow is allowed in these installations.
Minimum clearances between vent pipe and combustible materials are as follows:
Top – 3" (76 mm), except at outside wall 1" (25 mm)
Sides – 1" (25 mm)
Bottom – 1" (25 mm)
•
•
•
Rear Vent Top View
20”
(508 mm)
Max.
20”
(508 mm)
Max.
95⁄8"
(244 mm)
Min.
Fireplace Hearth
Framing Detail
Opening for Noncombustible Wall
71⁄2"
(190 mm)
FP2293
Fireplace Hearth
Figure 24 –
Locate vent opening on wall
Step 2
Secure firestop to the inside frame, center in the 95⁄8" x
95⁄8" vent opening.
Step 3
Measure the horizontal length requirement for the venting
including a 2" (51 mm) overlap, i.e. from the elbow to the
outside wall face plus 2" (51 mm). Figure 25
Step 4
Figure 23 –
Rear Vent Application, No Elbows
FP3002
REAR WALL VENT INSTALLATION – TWIST
LOCK PIPE
Step 1
Locate and cut the vent opening in the wall.
For combustible walls first frame in opening. Figure 24
NOTE: When using flex vent, the opening will have to be
measured according to the 1" (25 mm) rise in 24" (610
mm) vertical run.
Combustible Walls: Cut a 95⁄8" H x 95⁄8" W (244 x 244
mm) hole through the exterior wall and frame as shown.
Figure 24
Noncombustible Walls: Hole opening should be 71⁄2"
(191 mm) diameter.
18
Install the 4" (102 mm) vent to the appliance collar and
secure with 3 sheet metal screws. Install the 7" (178 mm)
vent pipe to the appliance collar and secure with 3 sheet
metal screws. It is not necessary to seal this connection.
If a 45° elbow is being used attach the elbow to the appliance in the same manner then attach the venting to the
elbow.
It is critical that there is no downward slope
away from the appliance when connecting
the vent or elbow.
Step 5
Guide the venting through the vent hole as you place the
appliance in its installed position. Guide the 4" (102 mm)
and 7" (178 mm) collar of the vent termination into the
outer ends of the venting. Do not force the termination. If
the vent pipes do not align with the termination, remove
and realign the venting at the appliance flue collars. Figure 25. Attach the termination to the wall as outlined in the
instruction sheet supplied with the termination.
20305832
36CFDV Series Gas Fireplace
VENTING INSTALLATION
Finish Wall
Firestop
Vent
Termination
Rise
FP1472
Figure 27 –
There must be a 1/2" rise per foot length
TOP VENT SIDE WALL APPLICATION
Figure 25 –
Side View of Final Unit Location
FP2294
REAR WALL VENT INSTALLATIONS –
FLEX VENT PIPE
The Vent Graph, showing the relationship between vertical and horizontal side wall venting, will help to determine
the various dimensions allowable.
Follow Steps 1 and 2 on Page 18.
Step 3
Install the 4" (102 mm) flex vent pipe to the appliance collars described in “General Information Assembling Vent
Pipes,” Page 14. If the installation requires a 45° angle,
grasp the vent pipe close to the appliance collar and bend
to 45°. DO NOT exceed 45°. Figure 26
Install the 7" vent pipe in the same manner as Step 2.
NOTE: There must be a 1⁄2" (13 mm) rise in a 12" (305
mm) length of flex vent.
Step 4
Assemble the flex vent to the collars on the termination as
you did on the appliance.
Minimum clearance between vent pipes and combustible materials is 3" (76 mm) on top, and 1" (25 mm) on
the bottom and sides unless otherwise noted.
When vent termination exits through foundations less
than 20" (508 mm) below siding outcrop, the vent pipe
must flush up with the siding.
It is best to locate the fireplace in such a way that minimizes the number of offsets and horizontal vent length.
The horizontal vent run refers to the total length of vent
pipe from the flue collar of the fireplace (or the top of the
Transition Elbow) to the face of the outer wall.
Horizontal plane means no vertical rise exists on this portion of the vent assembly.
Termination
When installing the appliance as a rear vent unit, the
90° or 45° Transition Elbow attached directly to the
rear of the unit is NOT INCLUDED in the following criteria and calculations, and unless specifically mentioned should be ignored when calculating venting
layouts.
Firestop
Flex Section
Appliance
Since it is very important that the venting system
maintain its balance between the combustion air intake and the flue gas exhaust, certain limitations as
to vent configurations apply and must be strictly adhered to.
ollars
•
•
•
FP1473
Figure 26 –
Grasp the vent pipe close to the collar and end to 45°
angle. Do not exceed 45°.
20305832
The maximum number of 90° elbows per side wall installation is three (3). Figure 28
If a 90° elbow is fitted directly on top of the fireplace
flange the maximum horizontal vent run before the termination or a vertical rise is 36" (914 mm). Figure 29
If a 90° elbow is used in the horizontal vent run (level height maintained) the horizontal vent length is reduced by 36" (914 mm). Figures 30 & 31. This does
not apply if the 90° elbows are used to increase or
redirect a vertical rise. Figure 28
19
36CFDV Series Gas Fireplace
VENTING INSTALLATION
3 x 90°
Elbows
3 x 90°
Elbows
B
A
A + B = 17' (Max.)
(5.2m)
FP1176
Figure 28 –
Maximum three (3) 90° elbows per installation
7'6"
(2.3m)
36"
(914mm)
Max.
FP1178
Figure 30 –
Horizontal Run Reduction
36"
(914mm)
Max.
B 7'
(2.1 m)
A 10'
(3 m)
FP1177
Figure 29 –
Maximum horizontal run with no rise
Example: According to the vent graph (Page 16) the
maximum horizontal vent length in a system with a 71⁄2'
(2.3 m) rise is 20' (6 m) and if a 90° elbow is required in
the horizontal vent it must be reduced to 17' (5.2 m).
In Figures 30 & 31, dimension A plus B must not be greater than 17' (5.2 m)
• The maximum number of 45° elbows permitted per installation is six (6). These elbows can be installed in
either the vertical or horizontal run.
• For each 45° elbow installed in the horizontal run, the
length of the horizontal run MUST be reduced by 18"
(457 mm). This does not apply if the 45° elbows are
installed on the vertical part of the vent system.
• The maximum number of elbow degrees in a system is
270°. Figure 32
Example:
Elbow 1
Elbow 2
Elbow 3
Elbow 4
Total angular variation
=
=
=
=
=
90°
45°
45°
90°
270°
7'6"
(2.3 m)
Figure 31 –
Maximum Vent Run with Elbows
V584-201
1 + 2 + 3 + 4 = 270°
1
1
2
2
3
3
4
4
FP1180
Figure 32 –
Maximum Elbow Usage
20
20305832
36CFDV Series Gas Fireplace
VENTING INSTALLATION
VERTICAL SIDE WALL APPLICATIONS
For all vertical Side wall installations, the supplied flue
restrictors must be installed. Install the flue restrictor
according to the settings shown in the Vertical Side wall
Installation Flue Restrictor Chart in order to balance the
airflow in and out of the unit and to maintain proper flame
height.
Vertical Side wall Installation
Flue Restrictor Setting Chart
Vertical Run
0-8 feet of pipe
(0 – 2.4 m)
8-12 feet of pipe
(2.4 – 3.7 m)
12-20 feet of pipe
(3.7 – 6 m)
Horizontal Run
3-4 feet of pipe
(,9 – 1.2 m)
4-6 feet of pipe
(1.2 – 1.8 m)
6-10 feet of pipe
(1.8 – 3 m)
Restrictor Setting
Minimum restriction
Figure 33
Medium restriction
Figure 34
Maximum restriction
Figure 35
FP3043
Figure 35 –
Flue Restrictor Set at Maximum Restriction
VERTICAL SIDE WALL INSTALLATION –
TWIST LOCK PIPE
NOTE: For all top vent vertical through-the-roof installations, install the supplied flue restrictors onto the top edge
of the firebox flue adapter according to the Vertical Side
wall Installation Flue Restrictor Chart.
Step 1
Figure 33 –
Flue Restrictor Set at Minimum Restriction
FP3044
Locate vent opening on the wall. It may be necessary to
first position the fireplace and measure to obtain hole location. Depending on whether the wall is combustible or
noncombustible, cut opening to size. Figure 36 (For combustible walls first frame in opening.)
NOTE: When using flex vent, the opening will have to be
measured according to the 1/2" (13 mm) rise in 12" (305
mm) vent run.
Combustible Walls: Cut a 95⁄8"H x 95⁄8"W (244 x 244 mm)
hole through the exterior wall and frame as shown. Figure
36
Noncombustible Walls: Hole opening must be 71⁄2" (191
mm) in diameter.
Step 2
Secure firestop to the inside frame, center in the 95⁄8" x
95⁄8" vent opening.
Step 3
Place fireplace into position. Measure the vertical height
(X) required from the base of the flue collars to the center
of the wall opening. Figure 37
Step 4
FP3042
Using appropriate length of pipe section(s) attach to fireplace with three (3) screws. Follow with the installation of
the inner and outer elbow, again secure joints with three
(3) sheet metal screws.
Figure 34 –
Flue Restrictor Set at Medium Restriction
20305832
21
36CFDV Series Gas Fireplace
VENTING INSTALLATION
Vent Opening for Combustible Walls
X
95⁄8"
(244 mm)
95⁄8"
(244 mm)
X
Fireplace Hearth
Framing Detail
Opening for Noncombustible Wall
71⁄2"
(190 mm)
FP1182
FP2293
Fireplace Hearth
Figure 36 –
Locate Vent Opening on Wall
tion to the wall with screws provided and caulk around the
wall plate to weatherproof. As an alternative to screwing
the termination directly to the wall, you may also use expanding plugs or an approved exterior construction adhesive. You may also attach the termination with screws
through the inner body into the 4" vent pipe, however for
this method, you must extend the 4" pipe approximately
6" (152 mm) beyond the outer face of the wall.
X
FP1181
Figure 37 –
Vertical Height Requirements
Step 5
NOTE
Measure the horizontal length requirement including a 2"
(51 mm) overlap, i.e. from the elbow to the outside wall
face plus 2" (51 mm) (or the distance required if installing
a second 90° elbow). Figure 38
Always install horizontal venting on a level
plane.
Step 6
Use appropriate length of pipe sections – telescopic or
fixed – and install. The sections which go through the wall
are packaged with the starter kit, and can be cut to suit if
necessary.
Step 7
Guide the vent terminations 4" and 7" collard into their
respective vent pipes. Double check that the vent pipes
overlap the collars by 2" (51 mm). Secure the termina22
NOTE
X
Figure 38 –
Horizontal Length Requirement
Support horizontal pipes every 36" (914
mm) with metal pipe straps.
VERTICAL SIDE WALL INSTALLATION –
FLEX VENT PIPE
NOTE: For all top vent vertical through-the-roof installations, install the supplied flue restrictors onto the top edge
of the firebox flue adapter according to the Vertical Side
wall Installation Flue Restrictor Chart on Page 21.
NOTE: The 40" (1016 mm) flex vent is used for 90° off the
top of the unit then out the back wall.
Follow Step 1 and 2 on Page 21.
Step 3
Install the four (4) spacer springs on the 4" flex vent
pipe. When installing the spacer springs around the 4"
pipe, stretch the spring to approximately 15" (381 mm),
wrap the spring around the pipe and interlock the ends
of the spacer spring approximately 2" (51 mm). Measure
63⁄4"(172 mm) from the end of the pipe. Place the next
spring 5" (127 mm) from the previously installed spring.
Place the next spring 6" (152 mm) from the last spring.
Finally place the last spring 12" (305 mm) from the last
spring installed. Figure 39
20305832
36CFDV Series Gas Fireplace
VENTING INSTALLATION
BELOW GRADE INSTALLATION
4" Flex Vent Pipe
12"
(305mm)
Spacer Spring
6"
(152mm)
5"
(127mm)
66M"
(172mm)
FP1474
Figure 39 –
Install Spacer Springs
Step 4
Install the 4" (102 mm) flex vent pipe to the appliance collar as described on Page 14. Secure the end with the first
spring 63⁄4" (172 mm) from the flex pipe end to the unit.
Step 5
Slide the 7" (178 mm) flex vent pipe over the 4" flex vent
pipe and secure the 7" collar as described on Page 14.
Step 6
Bend the flex pipe horizontal so the bottom of the horizontal pipe measure 61⁄2" (165 mm) from the top of the unit
immediately after the 90° formation. Figure 40. Be sure to
follow the 1⁄2" (13 mm) rise in a 12" (305 mm) horizontal
run rule.
When it is not possible to meet the required vent terminal
clearances of 12" (305 mm) above grade level, a snorkel kit is recommended. It allows installation depth down
to 7" (178 mm) below grade level. The 7" (178 mm) is
measured from the center of the horizontal vent pipe as it
penetrates through the wall.
Ensure the side wall venting clearances are observed.
If venting system is installed below ground, we recommend a window well with adequate and proper
drainage to be installed around the termination area.
If installing a snorkel, a minimum 24" (610 mm) vertical
rise is necessary. The maximum horizontal run with the
24" vertical pipe is 36" (914 mm). This measurement is
taken from the collar of the fireplace (or transition elbow)
to the face of the exterior wall. See the Side wall Venting
Graph for extended horizontal run if the vertical exceeds
24" (610 mm).
1. Establish vent hole through the wall. Page 22, Figure 36
2. Remove soil to a depth of approximately 16" (406 mm)
below base of snorkel. Install drain pipe. Install window
well (not supplied). Refill hole with 12" (305 mm) of
coarse gravel leaving a clearance of approximately 4"
(102 mm) below snorkel. Figure 41
3. Install vent system.
4. Ensure a watertight seal is made around the vent pipe
coming through the wall.
5. Apply high temperature sealant caulking (supplied)
around the 4" and 7" snorkel collars.
6. Slide the snorkel into the vent pipes and secure to the
wall.
7. Level the soil so as to maintain a 4" (102 mm) clearance
below snorkel. Figure 41
Step 7
Screws
Install the 4" flex then 7" flex to the termination.
7TDVSNORK
(Snorkel)
Firestop
4" (102 mm)
Clearance
Min.
7" Pipe
656O" (165mm)
Window
Well
24" (610 mm)
Minimum*
Gravel
Drain
Foundation Wall
FP1475
*A minimum of 24" (610 mm) vertical
pipe must be installed when using the
7TDVSNORK Kit.
Figure 40 –
Bend flex vent at 90° so horizontal portion is 61⁄2" (165 mm)
off top of unit
BG402a
Figure 41 –
Below Grade Installation
20305832
23
NOTE
36CFDV Series Gas Fireplace
VENTING INSTALLATION
Do not back fill around snorkel. A clearance
of at least 4" must be maintained between the
snorkel and the soil.
Vertical Through-the-Roof Installation
Flue Restrictor Setting Chart
Vertical Run
8-12 feet of pipe
(2.4 – 3.7 m)
12-40 feet of pipe
(3.7 – 12 m)
If the foundation is recessed, use recess brackets (not
supplied) for securing lower portion of the snorkel. Fasten brackets to wall first, then secure to snorkel with self
drilling #8 x 1⁄2 sheet metal screws. It will be necessary to
extend vent pipes out as far as the protruding wall face.
Figure 42
Restrictor Setting
Medium restriction
Figure 43
Maximum restriction
Figure 44
Snorkel
Foundation
Recess
Wall Screws
Watertight
Seal Around
Pipe
Sheet Metal
Screws
BG401
FP3043
Figure 42 –
Snorkel installation, recessed foundation
Figure 44 –
Flue Restrictor Set at Maximum Restriction
This gas fireplace has been approved for:
VERTICAL THROUGH-THE-ROOF APPLICATION
• Vertical installations up to 40' (12 m) in height. Up to
For all vertical through-the-roof installations, the supplied
flue restrictors must be installed. Install the flue restrictor
according to the settings shown in the Vertical Through-theRoof Installation Flue Restrictor Chart in order to balance
the airflow in and out of the unit and to maintain proper
flame height.
a 10' (3 m) horizontal vent run can be installed within
the vent system using a maximum of two 90° elbows.
Figure 45
• Up to two 45° elbows may be used within the horizontal
run. For each 45° elbow used on the horizontal plane,
the maximum horizontal length must be reduced by
18" (450 mm).
Example: Maximum horizontal length:
No elbows
= 10' (3 m)
1 x 45° elbow = 8.5' (2.6 m)
2 x 45° elbows = 7' (2.1 m)
• A minimum of an 8' (2.5 m) vertical rise is required.
• Two sets of 45° elbow offsets may be used within the
•
•
FP3042
Figure 43 –
Flue Restrictor Set at Medium Restriction
24
•
vertical sections. From 0 to a maximum of 8' (2.5 m) of
vent pipe can be used between elbows. Figure 46
7DVCS supports offsets. Figure 48. This application
will require that you first determine the roof pitch and
use the appropriate starter kit. (Refer to Venting Components List)
The maximum angular variation allowed in the system
is 270°. Figure 46
For the minimum height of the vent above the highest point of penetration through the roof refer to Figure
49.
20305832
36CFDV Series Gas Fireplace
VENTING INSTALLATION
VERTICAL THROUGH-THE-ROOF
INSTALLATION
Max. Height 40' (12.2 m)
Min. Height 8' (2.4 m)
NOTE: For all top vent vertical through-the-roof installations, install the supplied flue restrictors onto the top
edge of the firebox flue adapter according to the Vertical Through-the-Roof Installation Flue Restrictor Chart on
Page 24.
Max. 10' (3 m)
1. Locate your fireplace.
2. Plumb to center of the (4") flue collar from ceiling
above and mark position.
3. Cut opening equal to 93⁄4" x 93⁄4" (248 x 248 mm).
4. Proceed to plumb for additional openings through the
roof. In all cases, the opening must provide a minimum
of 1 inch clearance to the vent pipe, i.e., the hole must
be at least 93⁄4" x 93⁄4" (248 x 248 mm).
5. Place fireplace into position.
6. Place firestop(s) or Attic Insulation Shield into position
and secure. Figure 47
Support Straps
Every 3' (.9 m)
Max.
Height 40' (12.2 m)
Min.
Height 8' (2.4 m)
Max. 10' (3 m)
Attic Insulation
Shield
(7DV1AIS)
Upper Floor
FP1183
11"
(279 mm)
Figure 45 –
Support Straps for Horizontal Runs
Ceiling Installation
FP1029
1 + 2 + 3 + 4 = 270°
Joist
1
2
3
4
Firestop
Spacer
1
2
Nails (4)
3
Figure 47 –
Place Firestop Spacer(s) and Secure
4
FP1179
Figure 46 –
Maximum Elbow Usage
20305832
7. Install roof support (Figure 48) and roof flashing making sure upper flange is below the shingles. Figure 50
8. Install appropriate pipe sections until the venting is
above the flashing. Figure 48
9. Install storm collar and seal around the pipe.
10. Add additional vent lengths for proper height. Figure
49
11. Apply high temperature sealant to 4" and 7" collars of
vertical vent termination and install.
25
36CFDV Series Gas Fireplace
VENTING INSTALLATION
If there is a room above ceiling level, fire stop spacer must
be installed on both the bottom and the top side of the
ceiling joists. If an attic is above ceiling level an Attic Insulation Shield must be installed. The enlarged ends of the
vent section always face downward.
FP1184
Typical Roof
Support
Application
Typical Ceiling
Support
Application
Figure 48 –
Venting Supports
3 #5 Sheet Metal
Screws per Joint
Sealant
Horizontal Overhang
Storm Collar
2 ft.
Min.
2 ft. Min.
Lowest
Discharge
Opening
TWL101a
Termination
Vent
12
H*
Figure 50 –
Roof Flashing
X
Storm Collar
FP1971
Flashing
1" Minimum Clearance to
Combustibles
Concentric
Vent Pipe
Figure 49 –
Minimum Chimney Clearance
Roof Pitch
Flat to 6/12
Over 6/12 to 7/12
Over 7/12 to 8/12
Over 8/12 to 9/12
Over 9/12 to 10/12
Over 10/12 to 11/12
Over 11/12 to 12/12
H (feet)
1.0
1.25
1.5
2.0
2.5
3.25
4.0
*H – Minimum height from roof to
lowest discharge opening of vent
26
20305832
36CFDV Series Gas Fireplace
FIREPLACE INSTALLATION
CHECK GAS TYPE
WARNING
Use proper gas type for the fireplace you are installing.
If you have conflicting gas type, do not install fireplace.
See dealer where you purchased the fireplace for proper
fireplace for your gas type or conversion kit.
External
Regulator
A qualified installer or service person must
connect appliance to gas supply. Follow all
local codes.
100 lb. (min)
Propane/LP
Supply Tank
Vent Pointing
Down
INSTALLATION ITEMS NEEDED
CAUTION
For propane/LP connections only, the installer must supply
an external regulator. The external regulator will reduce
incoming gas pressure. You must reduce incoming gas
pressure to between 11 and 13 inches of water. If you do
not reduce incoming gas pressure, burner system regulator damage could occur. Install external regulator with the
vent pointing down as shown in Figure 51. Pointing the
vent down protects it from freezing rain or sleet.
FP1977
Figure 51 –
External Regulator with Vent Pointing Down
(Propane/LP Only)
CAUTION
Before installing fireplace and burner system, make sure
you have the items listed below.
• External regulator
• Piping (check local codes)
• Equipment shutoff valve* • Test gauge connection*
• Tee joint
• Pipe wrench
• Sediment trap (recommended)
• Sealant (resistant to propane/LP gas)
(supplied by installer)
• approved flexible gas line with gas connector (if
allowed by local codes — not provided)
* A CSA design-certified equipment shutoff valve with
1/8" NPT tap is an acceptable alternative to test
gauge connection. Purchase the CSA design-certified
equipment shutoff valve from your dealer.
Use only new black iron or steel pipe.
Internally tinned copper or copper tubing
can be used per National Fuel Code, Section
2.6.3, providing gas meets hydrogen sulfide
limits, and where permitted by local codes.
Gas piping system must be sized to provide
minimum inlet pressure (listed on data plate)
at the maximum flow rate (BTU/hr). Undue
pressure loss will occur if the pipe is too
small.
When using copper or flex connectors use only fittings
approved for gas connections. The gas control inlet is
3/8" NPT.
For propane/LP units, never connect
fireplace directly to the propane/LP supply.
This burner system requires an external
regulator (not supplied). Install the external
regulator between the burner system and
propane/LP supply.
20305832
27
36CFDV Series Gas Fireplace
WARNING
GAS PIPE INSTALLATION
Only persons licensed to work with natural
or lp gas may make the necessary gas
connections to this appliance.
NOTE: The gas line connection may be made using 1/2"
rigid tubing or an approved flex connector. Since some
municipalities have additional local codes it is always best
to consult your local authorities and the current edition of
the National Fuel Gas Code ANSI.Z223.1, NFPA54. In
Canada CSA-B149 (1 or 2) Installation Code.
A listed manual shutoff valve must be installed upstream of
the appliance. Union tee and plugged 1/8" NPT pressure
tapping point should be installed upstream of the appliance. Figure 52
IMPORTANT: Install main gas valve (equipment shutoff
valve) in an accessible location. The main gas valve is for
turning on or shutting off the gas to the fireplace.
CAUTION
Check your building codes for any special requirements for
locating equipment shutoff valve to fireplaces.
A manual shutoff valve must be installed
upstream of the appliance. Union tee
and plugged 1/8" NPT pressure tapping
point should be installed upstream of the
appliance. Figure 52
CAUTION
Apply pipe joint sealant lightly to male threads. This will
prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged burner system valve.
We recommend that you install a sediment trap/drip leg in
supply line as shown in Figure 52. Locate sediment trap/
drip leg where it is within reach for cleaning. Install in piping
system between fuel supply and burner system. Locate
sediment trap/drip leg where trapped matter is not likely
to freeze. A sediment trap collects moisture and contaminants and keeps them from going into the burner system
gas controls. If sediment trap/drip leg is not installed or is
installed wrong, burner system may not run properly.
28
Use pipe joint sealant that is resistant to
liquid petroleum (LP) gas.
FIREPLACE INSTALLATION
CHECK GAS PRESSURE – MILLIVOLT
1. Check gas type. The gas supply must be the same as
stated on the appliance’s rating decal. If the gas supply
is different from the fireplace, STOP! Do not install the
appliance. Contact your dealer immediately.
2. To facilitate easier installation, an 18" (457 mm) flex line
with manual shut-off valve has been provided with this
appliance. Install and attach 1/2" gas line onto shut-off
valve.
3. After completing gas line connection, purge air from
gas line and test all gas joints from the gas meter to the
fireplace for leaks. Use a solution of 50/50 water and
soap or a gas sniffer.
4. To adjust flame height, turn HI/LO knob to HI to get
maximum pressure to burner. Turn HI/LO knob to LO
to get minimum pressure.
5. To check gas pressures at valve, turn captured screw
counter clockwise 2 or 3 turns and then place tubing
to pressure gauge over test point. Turn unit to high.
Figure 53. After taking pressure reading, be sure and
turn captured screw clockwise firmly to reseal. Do not
over torque. Check test points for gas leaks.
CSA Design-Certified
Equipment Shutoff Valve
with 1/8" NPT Tap*
Approved Flexible
Gas Line
Tee Joint
Sediment Trap/
Drip Leg
Pipe Nipple
Cap
3"
Mi
nim
um
Figure 52 –
Gas Connection
Natural Gas
From Gas Meter
(4.5" w.c. to 10.5" w.c. Pressure)
Propane/LP
From External Regulator
(11" w.c. to 13" w.c. Pressure)
20305832
36CFDV Series Gas Fireplace
ELECTRICAL INSTALLATION – MILLIVOLT
ELECTRICAL WIRING
JUNCTION BOX WIRING
1. This should be done before framing the fireplace. Wire
the receptacle into an electrical circuit. Wire with minimum 60° C wire in accordance with prevailing codes.
2. Remove the external junction box cover by removing
the screw from the side of the outside firebox wall.
Junction box was installed at the factory.
3. The junction box cover has a factory installed “romex”
style strain relief connector. After connecting the wires,
route the wire leads through this connector. Refer to
the wiring diagram in Figure 59 (page 36).
CAUTION
Verify proper operation after servicing.
WARNING
NOTE: If installed in mobile home, fireplace must be bolted
securely to floor.
WARNING
This fireplace will work without any electrical supply.
Electricity is only needed to operate blower.
Electrical connections should only
be performed by a qualified, licensed
electrician. Main power must be off when
connecting to main electrical power supply
or performing service. All wiring shall be
in compliance with all local, city and state
codes. The appliance, when installed, must
be electrically grounded in accordance
with local codes or in the absence of local
codes, with the National Electrical Code
ANSI/NFPA 70 (latest edition) and Canadian
Electrical Code, CSA C22.1.
DO NOT USE OPEN FLAME TO
CHECK FOR GAS LEAKS.
Label all wires before disconnecting when
servicing controls. Wiring errors can cause
improper and dangerous operation.
Pressure
Test “IN”
Pressure
Test “OUT”
FP1979
HI/LO Knob
Pilot Adjustment Screw
Figure 53 –
Millivolt Gas Pressure Check at Gas Valve
20305832
29
36CFDV Series Gas Fireplace
ELECTRICAL INSTALLATION – MILLIVOLT
A remote wall switch and up to fifteen (15) feet of 18 Ga.
wire may be used with this appliance. Attach the wall
switch in a junction box at the desired location on the
wall. Figure 54. Do not extend beyond the wall switch wire
length provided.
NOTE: Extended lengths of wire may cause the fireplace
not to function properly. Longer length of wire is permitted
if the wire is made out of larger gauge (diameter) wire.
Always check with local code.
WARNING
REMOTE WALL MOUNTED SWITCH
Do not connect wall switch to (110 V)
circuit.
REMOTE
WALL SWITCH
ON
HI
ON
OFF
PILOT
LO
OFF
TH
TP
TH/TP
OPTIONAL REMOTE
CONTROL RECEIVER
ON
OFF
Figure 54 –
Wiring Diagram for Wall Switch
FP3032
REMOTE WALL SWITCH
Position the wall switch. Do not extend beyond the 15 feet
of wire.
OPTIONAL DC REMOTE SYSTEMS
See section entitled Hearth Mount in the Millivolt hand held
remote instructions supplied with the remote.
1. Using a flat head screw driver, bend the “remote” tabs
up from the bottom of the fireplace. Figure 55
2. Follow the instructions on remote control to snap the
remote cover plate to the remote receiver
3. Connect the wire terminal from the remote receiver.
Figure 54
4. Use the screws that came with the remote control to
mount the remote receiver cover to the bent up “remote”
tabs. Figure 55
Remote
Tab
Remote Control
Receiver
Figure 55 –
Optional Control Location
30
Optional Blower
Speed Control
FP3019
20305832
36CFDV Series Gas Fireplace
ELECTRICAL INSTALLATION – MILLIVOLT
OPTIONAL FAN/BLOWER SYSTEMS – BLOT
The junction box for the fan/blower systems has been factory
installed. This system requires that 110-120 VAC to be wired to the
factory installed junction box before the fireplace is permanently
installed. Figure 56
120V AC
Receptacle
Junction Box
Black
Green
Thermostatic
Switch
Speed Control
Black
White
Black
FP2296
Black
Thermostatic
Control Blower
Figure 56 –
Blower Wiring Diagram
OPTIONAL FAN/BLOWER SYSTEMS – FK12
AC552
Figure 57 –
FK12 Fan
20305832
31
36CFDV Series Gas Fireplace
OPERATING INSTRUCTIONS – MILLIVOLT
WARNING
FOR YOUR SAFETY READ BEFORE LIGHTING
If you do not follow these instruction
exactly, a fire or explosion may result
causing property damage, personal
injury or loss of life.
A. This appliance is equipped with a pilot which must be lit with built-in piezo ignitor while following these
instructions exactly.
B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
•
•
•
•
•
•
Turn off all gas to the appliance.
Open windows.
Do not attempt to light any appliance.
Do not touch any electric switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in, or turn the gas control knob. Never use tools. If the knob will not push
in or turn by hand, don't try to repair it. Call a qualified service technician. Force or attempted repair
may result in a fire or explosion.
D. Do not use this appliance if any part of it has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas control
that has been under water.
INITIAL LIGHTING
Purge air from the supply line as follows:
•
•
•
•
Open main shutoff valve.
Unscrew main pressure test point.
Leave inlet test screw open until gas comes in.
When gas is flowing, tighten inlet screw immediately.
WARNING
LIGHTING PILOT FOR THE FIRST TIME
Never use an open flame to check for
gas leak.
LEAK TESTING
1. Follow the pipe from the gas supply line connection to the gas valve. Check connection for leaks
with soap and water mixture.
2. Next check for gas leaks at the burner with soap and water mixture.
3. Check the pilot for gas leaks with soap and water mixture.
32
20305832
36CFDV Series Gas Fireplace
OPERATING INSTRUCTIONS – MILLIVOLT
LIGHTING PILOT FOR THE FIRST TIME
You may check for gas leaks with the following methods only:
DANGER
• Soap and water solution
• An approved leak testing spray
• Electronic sniffer
Never check for gas leak with open
flame!
WARNING
APPROVED LEAK TESTING METHOD
If using a soap and water solution
to test for leaks, DO NOT spray
solution onto control body.
NOTE: Remove any excessive pipe
compound from the connections.
Excessive pipe compound can set off
electronic sniffers.
Check for gas leaks in each of the following locations:
•
•
•
•
Pipe from the gas supply line connection to the gas valve
Burner connections
• Field made joints / gas shutoff valve
Pilot
• Factory made joints
Each joint or connection
• All joints on valve and control body
WARNING
LIGHTING PILOT
The control has an interlock device that does not allow the lighting of the fireplace up to the
moment the safety device of the flame has not interrupted the gas flow. After that period of
time (when the magnet is closed), it is possible to start the lighting operation.
The gas control knob is designed to be operated by hand. DO NOT use any tools during this
operation. Damaged knobs may result in serious injury.
1. Depress and turn knob counterclockwise
to
pilot position.
2. Depress fully and hold pilot gas knob. Depress
piezo igniter as many times as needed to ignite pilot.
Keep knob fully depressed for a few seconds.
Release and check that pilot continues to burn.
PILOT
F
OF
If the pilot does not stay lit, repeat steps 1 and 2.
ON
PIL
Pilot Position
OT
Continued on next page
20305832
33
36CFDV Series Gas Fireplace
OPERATING INSTRUCTIONS – MILLIVOLT
LIGHTING BURNER
LIGHTING THE BURNER
Depress and turn the knob counterclockwise
to the “ON” position.
It will take less than four (4) seconds for the burner to ignite.
MAIN BURNER SWITCH
This switch allows you to turn on and to turn off the main burner
without using the gas valve knob. is in the “ON” position to light the
main burner.
Wall Switch
F
OFF
ON
PILOT
ON
OF
ILOT
PIL
OT
On Position
PIL
P
Pilot Position
OT
TO TURN OFF GAS
Depress and turn knob clockwise
to “OFF” position.
PIL
Off Position
34
ON
OFF
PI L O
T
OT
20305832
CHECK GAS PRESSURE and ELECTRICAL INSTALLATION – IPI
36CFDV Series Gas Fireplace
Pressure Inlet
CHECK GAS PRESSURE – IPI
1. This fireplace is equipped with an IPI control valve which
operates on 6 volts. The 6 volt DC adapter plugs into
the fireplace junction box A/C power supply.
2. The IPI system can also be operated without A/C power.
The system can run on four (4) “AA” batteries using the
optional battery backup for approximately six (6) months
under normal use.
Optional Accessories
This fireplace may be used with a wall switch, wall mounted
thermostat or IPI hand held remote control.
20305832
WARNING
General
Figure 58 –
IPI Valve
Pressure
Outlet
Pilot Adjustment Screw
Do not use open flame to check for gas
leaks.
WARNING
ELECTRICAL WIRING
FP3034
Electrical connections should only
be performed by a qualified, licensed
electrician. Main power must be off when
connecting to main electrical power supply
or performing service. All wiring shall be
in compliance with all local, city and state
codes. The appliance, when installed, must
be electrically grounded in accordance with
local codes or in the absence of local codes,
with the National Electrical Code ANSI/NFPA
70 (latest edition) and Canadian Electrical
Code, CSA C22.1.
CAUTION
1. Check gas type. The gas supply must be the same as
stated on the appliance’s rating decal. If the gas supply
is different from the fireplace, STOP! Do not install the
appliance. Contact your dealer immediately.
2. To facilitate easier installation, a 18" (610 mm) flex line
with manual shut-off valve has been provided with this
appliance. Install and attach 1/2" gas line onto shut-off
valve.
3. After completing gas line connection, purge air from
gas line and test all gas joints from the gas meter to the
fireplace for leaks. Use a solution of 50/50 water and
soap solution or a gas sniffer.
4. To check gas pressures at valve, turn captured screw
counter clockwise 2 or 3 turns and then place tubing
to pressure gauge over test point. Turn unit to high.
Figure 58. After taking pressure reading, be sure and
turn captured screw clockwise firmly to reseal. Do not
over torque. Check test points for gas leaks.
Label all wires before disconnecting when
servicing controls. Wiring errors can cause
improper and dangerous operation.
35
36CFDV Series Gas Fireplace
ELECTRICAL INSTALLATION – IPI
WALL SWITCH INSTALLATION
1. This should be done before framing the fireplace. Wire
the receptacle into an electrical circuit. Wire with minimum 60° C wire in accordance with prevailing codes.
2. Remove the external junction box cover by removing
the screw from the side of the outside firebox wall.
Junction box was installed at the factory.
3. The junction box cover has a factory installed “romex”
style strain relief connector. After connecting the wires,
route the wire leads through this connector. Refer to
the wiring diagram in Figure 59.
The wall switch wire connection is located off the wire
harness coming out of the IPI Control Board. The label is
wired 'wall switch'. Connect the low voltage switch wires to
the two (2) terminals labeled "wall switch" from the control
board. Run wire to desired location on wall. Up to 50 feet
of 18 gauge wire may be used if necessary. Attach wires
to wall switch. Mount the wall switch in a junction box and
screw on cover. Figure 60
120V AC
60Hz
WARNING
JUNCTION BOX WIRING
Do not connect wall switch
to 110 V circuit.
Factory Supplied
Not Supplied
Junction Box
Figure 59 –
Junction Box Wiring Diagram
36
20305832
36CFDV Series Gas Fireplace
ELECTRICAL INSTALLATION – IPI
IPI SYSTEM WIRING DIAGRAM
Pilot
RF Receiver
LEARN Button
Control Board
Black
6V AC
Adapter
White
Conversion
NG/LP
Sensor
Cold Climate
Switch
Ignitor / Sparker
Plug-in Connector
Control Board to Switch
Main Switch
Wall Switch
Ground
DC Power/Green
Gas Out
Gas In
Pilot Gas Tubing
Figure 60 –
IPI System Wiring Diagram
20305832
CAUTION
Valve
Electrical connections should only be
performed by a qualified, licensed electrician.
Main power supply must be turned off before
connecting fans to the main electrical power
supply or performing service.
37
36CFDV Series Gas Fireplace
OPERATING INSTRUCTIONS – IPI
WARNING
FOR YOUR SAFETY READ BEFORE LIGHTING
If you do not follow these instructions
exactly, a fire or explosion may result
causing property damage, personal injury
or loss of lie.
A. This appliance is equipped with an ignition device which automatically lights the pilot. Refer to the
instructions.
B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
•
•
•
•
Do not attempt to light any appliance.
Do not touch any electric switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
C. Turn Master Switch to ON position by hand. Never use tools. If the switch will not function by hand,
do not try to repair it. Call a qualified service technician. Force or attempted repair may result in a fire
or explosion.
D. Do not use this appliance if any part of it has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas control
that has been under water.
38
20305832
OPERATING INSTRUCTIONS – IPI
36CFDV Series Gas Fireplace
OPERATING INSTRUCTIONS
1. STOP! Read the safety information above.
2. This appliance is equipped with an ignition device which automatically lights the burner. Do not try to
light the burner by hand.
3. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas,
STOP! Follow "B" in the safety information on Page 38. If you do not smell gas, go to next step.
4. Press the wall switch to the "ON" (-) position. Sparker will spark and pilot flame will light.
5. Once pilot flame is established, the main burner flame will light automatically.
6. If the pilot will not stay lit after several tries, turn the master switch to "OFF" and call your service
technician or gas supplier.
Wall Switch
Master Switch
TO TURN OFF GAS TO APPLIANCE
1. Turn Wall Switch to "OFF".
2. Turn Master Switch to "OFF".
3. Turn off all electrical power to the appliance if service is to be performed.
20305832
39
36CFDV Series Gas Fireplace
OPERATIONS AND INDICATIONS—ECOLOGIC CONTROL SYSTEM
OPERATIONS AND INDICATIONS
Cold
Climate
Switch
RF Learn
Button
LED
Master
Switch
System Set Up Chart
NOTE: When using ON/OFF wall switch, the master switch, located in bottom of fireplace must be in
the ON position to perform all configuration setup operations.
FUNCTION
OPERATION
DEFAULT
SETTING
Cold Climate Pilot On/Off
Flip the toggle switch to ON.
OFF
RF Receiver Learn Button
Push the RF Learn Button on Control Board (use a paper clip)
until you hear a beep. Then press any button on a handheld
remote approved for the fireplace.
Operations
FUNCTION
OPERATION
Power Up
Flip the Master Switch to ON position to power up the system.
Fireplace On
Turn on wall switch to turn the fireplace on. NOTE: If master switch was
just switched to ON, then at first use of wall switch, it may need to be
turned ON - OFF - ON to synchronize the two switch settings.
Fireplace Off
Turn the wall switch to the OFF position, or turn the ON/OFF master
switch to the OFF position
Self Diagnostics Chart
The fireplace has a self diagnostic LED display next to the Master Switch enabling you to troubleshoot
problems and potentially avoid a service call. Please refer to the chart below for indicator reference.
FUNCTION
OPERATION
Control Board Chip Cover
Missing
One RED (1 time)
Spark Fail
Two RED (1 time)
No Sensor Signal
Three RED (1 time)
Trial Lockout
One GREEN, every 2 seconds (until manual reset)
Flames Loss Lockout
One RED-GREEN, every 2 seconds (until manual reset)
AC Power On
GREEN Solid
Remote Operations
The following functions are available on the RMSC handheld remote.
NOTE: Flame height control is only available with purchase and installation of a stepper motor kit.
40
REMOTE FUNCTION
OPERATION
Fireplace On
Press the ON button on the transmitter.
Fireplace Off
Press the OFF button 3 times or hold the OFF button 3
seconds for memory off.
Flame Height Up
Press the ON button once to turn on the fireplace with
maximum flame setting.
Flame Height Down
Press the OFF button to lower the flame height to
medium and low.
Count Down Timer Mode
Press TIMER button to enter the timer mode. Keep
pressing the TIMER button to set the desired time or
press TIMER button to “0” to exit timer mode.
ICON
20305832
36CFDV Series Gas Fireplace
GLASS FRAME REMOVAL
1. Remove canopy by pulling forward.
2. Release the two (2) latches on the top of the fireplace
by pulling forward and up. Figure 61
3. Tilt glass frame out and lift glass frame up and away.
Figure 62
4. Set glass frame aside.
CAUTION
FINAL INSTALLATION
Each latch has a quick spring force. When
reinstalling glass, keep fingers clear.
WARNING
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
FP3041
Figure 61 –
Glass Frame Latch
Glass Frame
Figure 62 –
Remove Glass Frame
20305832
FP3015
41
36CFDV Series Gas Fireplace
FINAL INSTALLATION
PILOT FLAME
INSTALLING PORCELAIN LINER KIT
The flames from the pilot should be visually checked as
soon as the heater is installed and periodically during
normal operation. Figure 63. The pilot flame must always
be present when the fireplace is in operation. The pilot
flame has three distinct flames, one engulfing the thermopile, one engulfing the thermocouple or sensor, and the
other reaching to the main burner.
NOTE: Porcelain liner kit PL36CFDVB is approved to be
used with optional fireglass, stones and log kit.
Thermocouple
Sensor
Thermopile
Sparker
FP3005
FP1943
Millivolt Control Pilot
IPI Pilot
Figure 63 –
Pilot Flame
WARNING: Before installing the panels, turn off fireplace
and allow to cool.
Kit contents:
•
•
•
•
One (1) Right panel
One (1) Left panel
One (1) Rear panel
Four (4) Self-drilling #8 screws
NOTE: If logs are being used, porcelain panels must be
installed first.
1. Remove glass frame per page 41 and stones, fireglass
or logs (if applicable).
2. Remove top heat shield.
3. Place rear panel against the center of the rear wall of
the firebox.
4. Place left and right panels against firebox sides and attach top flanges of the panels using self-drilling screws
provided.
5. Replace stones, fireglass and/or logs as applicable
and re-install glass frame.
BURNER FLAME
The flames from the burner should be visually checked
as soon as the heater is installed and periodically during
normal operation. In normal operation, at full rate, and after
operating for about 15 to 30 minutes, the flame should be
yellow. Figure 64
If the flame is blue and only in the center, turn off unit and
let cool. After unit is cool, remove logs and check to make
sure rock wool is placed correctly. Replace logs.
Top Flange
NOTE: The type of installation, vent system configuration,
and wind effects may cause the flame patterns to vary.
Left Panel
Rear Panel
KT1892
Right Panel
Figure 65 –
Porcelain liner installation
LG1182
Figure 64 –
Burner Flame Appearance
42
20305832
36CFDV Series Gas Fireplace
FINAL INSTALLATION
INSTALLING BRICK LINER KIT
•
•
•
•
•
One (1) Right panel
One (1) Left panel
One (1) Rear panel
Two (2) Self-drilling #8 screws
Two (2), Back retainer brackets
1. Remove glass door frame per instructions on page 41
and log set (if applicable) .
2. Remove the top heat shield.
3. Install the center firebrick panel on the back wall first.
Stand firebrick panel straight up against the back of
fireplace with the bottom edge at bottom of inner firebox.
4. Repeat Step 3 with the left and right side firebrick panels. Secure the top of each side firebrick panel to the
fireplace with one retainer bracket and one screw.
5. Use a screw gun to drive in the self-drilling screw into
the sheet metal through the hole in the retainer bracket.
6. Re-install top heat shield.
7. Re-install glass door frame and log set.
Always handle the firebrick panels with
two hands. Do not force the firebrick
panels into place. Excessive force will
break the firebrick panels. Always wash
hands after handling the panels.
IMPORTANT
Kit contents:
Turn off, unplug, and allow the fireplace
to cool before installing the firebrick
panels. Only a qualified service person
should service and repair the fireplace.
A qualified service person must connect and disconnect the fireplace to the
gas supply. Follow all local codes.
Read these instructions carefully before beginning to install the firebrick
walls. Please check your fireplace size
and model number to verify the correct
kit part number.
NOTE
WARNING: Before installing firebrick, turn off fireplace
and allow to cool.
WARNING
NOTE: Brick liner kits FB36CFDVCC,FB36CFDVCR and
FB36CFDVTB are approved for use with optional log kit.
Some fireplace systems may require removal
of a screen panel, glass front, log assembly or
engine assembly before you can install the firebrick kit. Please refer to the homeowner's manual for further instruction.
ROCK WOOL PLACEMENT
1. Your fireplace is supplied with three (3) 8-gram bags
of rock wool embers: Use one (1) 8 gram bag or rock
wool for propane/LP models and up to three (3) bags
of rock wool for natural gas models depending on the
size of your fireplace.
2. For best results in flame appearance and operation, pull
the rock wool apart into dime-sized pieces or smaller.
Cover the entire ported surface of the burner with one
thin layer of rock wool. Figure 67
3. Place the logs on the burner. Refer to the “Log Placement Section.” Light the unit and after 15 minutes check
burner flame and glow. Adjust embers as necessary to
achieve an even and clean flame.
Retainer
Bracket
Left Panel
Rear Panel
KT1893
Right Panel
Figure 66 –
Firebrick liner installation
20305832
Rock Wool Area
FP3016
43
WARNING
36CFDV Series Gas Fireplace
FINAL INSTALLATION
LOG PLACEMENT
The use of too much rock wool could
cause flame to burn poorly and may cause
sooting.
1. Place rear log (#1) on the two (2) pins on the false hearth
in the back of the firebox. The log should rest firmly on
the mounting pins. Figure 69
Rear Log #1
False Hearth
Rock Wool
LG1176
Figure 67 –
Placement of Rock Wool on Burner
LG1177
Figure 69
ADJUSTABLE BAFFLE
NOTE: An adjustable baffle plate is shipped in the maximum open position secured to the false bottom. The baffle
plate may be adjusted forward up to 3/8" to fully close to
regain the flame height by restricting air flow to the burner
for some applications. Figure 68
Adjustable Baffle
2. Place the bottom left and right logs (#2 & #3) on the two
(2) pins located on the left and right sides of the false
hearth toward the front. Figure 70
Bottom Left
Log #2
Bottom Right
Log #3
LG1178
Figure 68 –
Adjustable Baffle
FP3039
Figure 70
3. Bend the tab in the center front of the false hearth up to
a 90° angle. Figure 71. Place the top log (#4) by resting
the square notch located on the bottom of the log over
the tab mentioned above. Rest the top part of the log
on the flat areas of the rear log. Figure 72
44
20305832
36CFDV Series Gas Fireplace
FINAL INSTALLATION
LAVA ROCK PLACEMENT
WARNING
Sprinkle lava rock on the raised floor of the inner combustion chamber. Evenly distribute the rock. Figure 73
Do not sprinkle the lava rock on top of the
burner. This may cause potential sooting,
glass breakage and a fire hazard
Figure 71
Center Tab
LG1183
Top Log #4
LG1180
Figure 72
LG1184
Figure 73
20305832
Lava Rock
45
WARNING
36CFDV Series Gas Fireplace
FIREGLASS AND STONE PLACEMENT
Pilot Shield
Turn off gas before servicing fireplace. It
is recommended that a qualified service
technician perform these check-ups at the
beginning of each heating season.
FIREGLASS AND STONE PLACEMENT
Your CFDV fireplace system is designed to be configured
in a traditional format (with logs) or a contemporary design
(using fireglass and stones). You may elect to use only
fireglass or a combination of fireglass and stones. (The unit
is not designed to be operated with stones only. If you opt
to utilize the stones, you must also place fireglass on the
burner.) The below instructions explain how to set up the
fireplace with fireglass and/or fireglass and stones. The
CK36CFDV kit and/or GKB, GKD, GKO and GKS fireglass
kits are designed for use with these instructions.
WARNING: Before beginning installation, turn off fireplace and allow to cool completely.
Kit contents:
• 16 Stones
• 1 Bag of Onyx Glass
• 1 Bag of Diamond Glass
• Pilot Shield
• 2 Screws
Figure 74
NOTE: The 36CFDV is designed to operate with either
glass only or with glass and stones.
Glass & Stone Installation
Begin by placing stones randomly on the unported areas of the burner. Then place stones around the burner
and on top of the false hearth. Figure 75 Mix the glass
and place it on top of the burner between and around the
stones. Sprinkle glass over the false bottom and on the
inclined front edge of the false bottom. Build the glass up
toward the top of the incline. Figure 76
NOTE: Do not allow glass to fall down in the pilot area as
it may obstruct the pilot flame.
Tools required: Phillips screwdriver, vacuum
CAUTION: Use gloves when handling glass pieces.
1. Remove the canopy above the glass frame by sliding
it forward. Set aside.
2. Remove the access panel located beneath the glass
frame by lifting it up and out of the unit. Set aside.
3. Remove the glass frame assembly by releasing the
latches on top of the fireplaces and tilting frame forward. Lift off and set aside.
4. Remove the logs if they are installed. Vacuum the rock
wool off the burner.
5. Remove the four (4) pin log plate assemblies by removing the two (2) screws on each assembly. Discard.
NOTE: There is a right front pin log plate assembly, a
left front pin log plate assembly and two (2) rear pin log
plate assemblies.
6. Loosen two (2) pilot screws.
7. Install the extra pilot shield provided with the kit by sliding it down between the front of the pilot and the burner. Fasten the shield using the two (2) screws supplied
in kit. Figure 74
8. Tighten screws that were loosened in Step 6.
Figure 75
Figure 76
46
20305832
36CFDV Series Gas Fireplace
CLEANING AND MAINTENANCE
Glass Only Installation
Mix the glass and sprinkle over the burner, false bottom
and on the inclined front edge of the false bottom. Build
the glass up toward the top of the incline.
NOTE: Do not allow glass down in the pilot area to eliminate obstructing the pilot flame.
CAUTION: Do not place any glass between the burner and the false bottom as this will effect the performance of the unit. Use a vacuum to remove any glass
in the event it has fallen and is blocking the air gap.
NOTE: Remove any glass in bottom door track.
Replace glass, access panel and canopy in reverse order
of removal.
CLEANING AND MAINTENANCE
BURNER, PILOT AND CONTROL
COMPARTMENT
Keep the control compartment, logs, and burner areas
surrounding the logs clean by vacuuming or brushing at
least twice a year. Make sure the burner porting, pilot air
opening and burner air opening are free of obstructions
at all times.
BURNER
Inspect area around the injector. Remove any lint or foreign
material with a brush or vacuum.
VENT SYSTEM
The fireplace and venting system should be inspected
before initial use and at least annually by a qualified field
service person. Inspect the external vent cap on a regular
basis to make sure that no debris is interfering with the
airflow. Inspect entire venting system to ensure proper
function.
• Handle glass door with care to avoid striking or scratching it on hard objects.
To clean glass door, follow “Glass Removal” procedure
outlined in the Final Installation section. Film deposit on the
inside of the glass should be cleaned off using a nontoxic,
non-corrosive, non-abrasive, mild-cleaning solution. Simply
apply an adequate amount to the glass and wipe off with
a damp cloth. After all maintenance has been completed,
re-install glass door.
LOGS
Leave logs installed in the fireplace for cleaning. Vacuum
surface of the logs with a brush attachment. If logs must
be removed for cleaning, handle carefully by holding gently
at each end. Gloves are recommended to prevent skin irritation from ceramic fibers. If skin becomes irritated, wash
gently with soap and water. Vacuum surface of logs with
brush attachment or brush logs with a soft bristle brush (i.e.
clean, dry paintbrush). To place logs back in the fireplace,
Refer to “Log Placement” section in this manual.
NOTE: Do not use fluids to clean ceramic fiber logs.
ROCK WOOL
Replace or add rock wool as required following installation instructions in the Final Installation section of this
manual.
STONES AND FIREGLASS
Vacuum surface of the stones with a brush attachment.
Fireglass can be removed (an empty wet/dry vac works well
to gather up fireglass) and washed with soap and water.
Allow to dry thoroughly before placing back on the burner.
GLASS FRAME
Thoroughly clean the inside of the glass door after using
the fireplace for ten hours. Periodically clean the glass as
necessary.
When cleaning the glass, remember:
• Do not remove the glass when hot. Allow glass to
cool before removal.
• NEVER use abrasive materials.
• Keep children and pets a safe distance away.
• Never operate the fireplace without the glass door
properly secured.
• Never operate the fireplace if the glass is broken.
• Replace any glass that is chipped, cracked, or broken.
Replacement glass frame assemblies MUST be supplied by the fireplace manufacturer – No substitute
materials may be used.
20305832
47
36CFDV Series Gas Fireplace
TROUBLESHOOTING
MILLIVOLT STANDING PILOT IGNITION
SYMPTOM
1. Spark ignitor will
not light pilot after
repeated triggering
of piezo.
POSSIBLE CAUSE
A. Wire disconnected.
B. Defective ignitor.
C. No gas or low gas pressure.
D. No Propane/LPG in tank
2. Pilot will not stay
lit after carefully
following lighting
instructions.
A. Defective thermocouple
B. Defective valve
3. Pilot burning, valve
knob turned to
“ON,” switch is
turned to “ON,”
but burner will not
ignite.
A. Defective switch, wall
switch, remote control or
wire
B. Pilot flame too small
C. Defective or malfunctioning thermopile
D. Defective valve
4. Frequent pilot
outage problem.
48
A. Pilot flame may be too
high or too low, causing
pilot safety to drop out
ACTION
A. Open door and check to make sure wire is connected to
ignitor.
B. Check for spark at electrode and pilot. If no spark and
electrode wire is properly connected, replace pilot
assembly.
C. Check remote/manual shut off valve from fireplace. Low
pressure can be caused by bent lines, restricted lines,
low pressure line pressure. Consult with plumber or gas
supplier.
D. Check Propane/LPG tank. Refill tank.
A. Check that thermocouple flame impinges on thermocouple. Clean and/or adjust pilot for maximum flame
impingement. Ensure that the thermocouple connection
at the gas valve is fully inserted and tight.
Disconnect the thermocouple from the valve, place one
millivolt lead wire on the tip of the thermocouple and the
other meter lead wire on the thermocouple copper lead.
Start the pilot and hold the valve knob in. If the millivolt
reading is less than 15 mV, replace pilot assembly.
B. If thermocouple is producing more than 15 mV, replace
faulty valve.
A. Check switch and wire for proper connection. Place
jumper wires across terminals of switch. If burner comes
on, replace defective switch. If the switch is OK, repeat
the same procedure on remote control If burner comes
on, replace remote control.
Place jumper wire across wire at gas valves (terminals
marked TH and TP/TH). If burner comes on, wires are
faulty or connections are bad. Replace wire.
B. If pilot flame is not close enough to the thermopile, adjust
pilot flame.
C. Check thermopile wire connections to make sure all
are tight and that the thermopile is fully inserted into
pilot assembly. Check thermopile with a millivolt meter.
Connect leads to TP and TP/TH terminals on the control
valve. If meter reading is below 325 mV, replace pilot
assembly.
D. Turn valve knob to “On” and switch to “ON.” Take a reading at the thermopile leads (TP & TP/TH) on the valve.
If the meter reads greater than 175 mV and the burner
does not light, replace defective valve.
A. Clean and adjust the pilot flame for maximum flame
impingement on thermocouple.
20305832
36CFDV Series Gas Fireplace
TROUBLESHOOTING
IPI SYSTEM
OPERATION
FAULT
Using
battery?
Install batteries and/or
plug in the AC adapter
No beep in about
5 seconds
A
Flip the master switch
to the ON position
Make sure
control board
is connected
to wire
harness to
battery pack
Using
AC power?
After the beep
Press the wall switch
to ON position
No beep
or
no sound from the
valve indicating pilot
solenoid open
C
Sparking doesn’t
continue
D
Main burner doesn’t
light
Cold climate switch
20305832
B
No sparking on
the pilot
Pilot doesn’t light
No function
ACTION
DIAGNOSIS
E
F
Check NG/LP
conversion cap
and control
board
connections
Check pilot
connections
Battery polarity wrong?
Re-install batteries
Battery voltage low?
Change batteries
AC plug is plugged to
AC mains?
Plug the AC plug to
AC mains
The 5-pin connector on
the AC board broken or
bent?
Repair or replace the
AC adapter
LED on the wire
harness does not show
solid green?
Replace the AC adapter
Check valve
connections
Check
grounding
Check power
supply (go
through A )
Replace the Control
Board
Go through
B
Sparking is happening
elsewhere (under the
pilot), re-install/replace
the pilot
The Control Board is having interference from the
surrounding metal (Ground)
Check gas supply
Go through E
Go through C
The sensor on the pilot
is not in the flame
(pilot flame too small)?
Check the cold climate switch and control board
connector
Re-install the Control
Board, move it around
or change the
Control Board
Sparking is not in the
path of gas flow, adjust
sparker position or
replace the pilot
Adjust sensor position
or replace the pilot
Replace cold climate
switch
49
36CFDV Series Gas Fireplace
TROUBLESHOOTING
ALL PILOT/CONTROL SYSTEMS
SYMPTOM
1. The pilot and main
burner extinguish
while in operation
POSSIBLE CAUSE
ACTION
A. Inner vent pipe leaking
exhaust gases back into
system
A. Check for flue product leak. Replace defective pipe section.
B. Horizontal vent improperly
pitched
C. Improper vent cap installation
B. Check horizontal-venting piping is running upward 1/4"
per foot. Do not run the pipe level or downward.
C. Check for proper installation and freedom from debris
or blockage.
2. Glass Soots
A. Flame impingement on logs
A. Install log set per the instructions
Inspect the injector and air intake area. Make sure
this area does not have any blockage from debris and
clean.
Check gas supply.
3. Flame burns blue
and lifts off burner
(ghosting)
A. Insufficient fresh air being
supplied
A. Ensure that the vent cap is installed properly and free of
debris. Ensure that the vent system joints are tight and
have no leaks. Ensure that no debris has been blocking
the inner air intake at the bottom back of the combustion
chamber. Ensure that the glass is properly secure and
latch.
50
20305832
36CFDV Series Gas Fireplace
REPLACEMENT PARTS
1
5
2
4
6
3
7,8
9
FIREBOX COMPONENTS
Ref.
Description
Standard Features
1.
Junction Box Assy.
2.
Glass Frame Assy.
Factory Installed Service Parts
3.
Thermostat Sensor for Blower
Firebrick – Cottage Clay
4.
Rear
5.
Left
6.
Right
Firebrick – Tavern Brown
4.
Rear
5.
Left
6.
Right
Firebrick – Cottage Red
4.
Rear
5.
Left
6.
Right
20305832
Qty.
36CFDV
1
1
26D2128K
20305406K
1
26D2870
1
1
1
20305737K
20305739K
20305738K
1
1
1
20305919K
20305921K
20305920K
1
1
1
20305916K
20305918K
20305917K
51
36CFDV Series Gas Fireplace
REPLACEMENT PARTS
1
3
2
4
LOGS
Item
1.
2.
3.
4.
52
Description
Rear Log #1
Bottom Left Log #2
Bottom Right Log #3
Top Log #4
36CFDV
54D0117
54D0118
54D0119
54D0120
20305832
36CFDV Series Gas Fireplace
REPLACEMENT PARTS
1
3
2
6
5
8
7
9
4
11
10
13
12
14
STANDING PILOT – MILLIVOLT CONTROL
Ref.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Description
Burner Assy.
Burner Tube
Gas Valve Assy.
Pilot Assy.
Replacement Thermocouple
Replacement Igniter and Wire
Replacement Thermopile
Piezo Igniter
Injector
Flexhose w/Shut-Off Valve
Venturi
Rocker Switch
Wire Assy.
Wire Assy.
Qty.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
36CFDVNV
20305899K
20305364K
37D0117
37D0018K
24D0808
10001297
26D0566
14D0503
59D0062
69D0030
69D1119
32D0232
44D0500
44D0501
36CFDVPV
20305899K
20305364K
37D0118
37D0019K
24D0808
10001297
26D0566
14D0503
20H3146
69D0030
69D1026
32D0232
44D0500
44D0501
Fuel Conversion Kits – Millivolt
Natural Gas to LP
36CFDVNV
LP to Natural Gas
36CFDVPV
20305832
Kit #36CFDVCKPV
Kit #36CFDVCKNV
53
36CFDV Series Gas Fireplace
REPLACEMENT PARTS
1
3
2
6
5
4
7
9
8
11
10
IPI SYSTEM
Ref.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Description
Burner Assy.
Burner Tube
Gas Valve Assy.
Pilot Assy.
Control Board
Control Box
Injector
Flexhose w/Shut-Off Valve
Venturi
A/C Adapter (6 Volt)
Cold Climate Switch
Wire Valve Control (not shown)
Wire On/Off Switch to Control Board
(not shown)
Qty.
1
1
1
1
1
1
1
1
1
1
1
1
1
36CFDVNI
20305899K
20306019K
95E0101
95E0103
95E0108
95E0100
59D0062
69D0030
69D1119
95E0105
95E0111
80D0010
95E0110
36CFDVPI
20305899K
20306019K
95E0102
95E0104
95E0108
95E0100
20H3146
69D0030
69D1026
95E0105
95E0111
80D0010
95E0110
Fuel Conversion Kits – IPI System
Natural Gas to LP
36CFDVNI
LP to Natural Gas
36CFDVPI
54
Kit #36CFDVCKPI
Kit #36CFDVCKNI
20305832
36CFDV Series Gas Fireplace
VENTING COMPONENTS
Vertical Venting
Vertical Vent Termination Kits
Twist Lock Pipe
s
nt
ne
po
om s
C
n
4F ting ctio jt t
8
d is
e
5 en s
V e 9 tw
Twist Lock Elbows
Shields and Supports
20305832
Description
Model Number
Vertical Vent Termination w/ Storm Collar
(flashing NOT included)
7TDVSKV
Vertical Vent Termination w/ Storm Collar – 8 pack
(flashing NOT included)
7TDVSKV/8
Vertical Vent Termination w/ 1/12 – 6/12 Flashing, Storm
Collar and Ceiling Support Kit
7TDVSKVA*
Vertical Vent Termination w/ 6/12 – 12/12 Flashing,
Storm Collar and Ceiling Support Kit
7TDVSKVB*
Vertical Vent Termination w/ Flat Flashing, Storm Collar
and Ceiling Support Kit
7TDVSKVF*
20" Rigid Pipe – single pack
7TDVP20
30" Flex Pipe – single pack
7FDVP30
12" – 18" Adjustable Vent Length
7TDVP1218
35" – 64" Adjustable Vent Length
7TDVP3564
8" Vent Pipe – 4 pack
7TDVP8/4
12" Vent Pipe – 4 pack
7TDVP12/4
24" Vent Pipe – 4 pack
7TDVP24/4
36" Vent Pipe
7TDVP36
36" Vent Pipe – 30 pack
7TDVP36/30
48" Vent Pipe
7TDVP48
48" Vent Pipe – 30 pack
7TDVP48/30
45° Elbow for Vertical/Horizontal Offset
7TDV45
45° Elbow for Vertical Offsets – 8 pack
7TDV45/8
90° Elbow for Vertical/Horizontal Offset
7TDV90
90° Elbow for Vertical/Horizontal Offset – 8 pack
7TDV90/8
1" Firestop
7DV1FS
1" Attic Insulation Shield
7DV1AIS
Combination Horizontal Offset/Roof Support
7DVCS
55
36CFDV Series Gas Fireplace
VENTING COMPONENTS
Horizontal Venting
Horizontal Vent Termination Kits
Twist Lock Pipe
s
t
en
n
po
m
Co ons
F
g
ti jt
4 n
58 enti sec d ist
V e 9 tw
Twist Lock Elbows
Shields and Supports
56
Description
Model Number
Rear Vent Hot Touch Termination Kit w/ 10" to 16"
Adjustable Termination Pipe, Firestop, and Hot Touch
Termination w/ Siding Shield
7TBRHTK
Up and Out Side Wall Termination Kit w/ 10" to 16"
Adjustable Termination Pipe, 90° Elbow, Firestop, and
Cool Touch Termination w/ Siding Shield
7TDVSCTK
Rear Vent Cool Touch Termination w/ Siding Shield for
Straight-out Applications and Firestop – 8 pack
7TRVCT/8
Rear Vent Hot Touch Termination w/ Siding Shield for
Straight-out Applications and Firestop – 8 pack
7TRVHT/8
Termination Guard for 7" T.L. Rear Vent Hot Touch
Terminations 97TRVT/7TSVKT)
7TRVTG
Snorkel Termination
7TDVSNORK
7" T.L. DVRTSB Termination Screen Guard
7TBSG
Up and Out Starter Kit w/ 40" Flex Pipe, Firestop, Cool
Touch Termination w/ Siding Shield, and 2 ea. Clamp
Bands
7FDVSCTK
20" Termination Pipe – 8 pack
7TDVP20/8
10" – 16" Adjustable Termination Pipe – 4 pack
7TDVPA/4
12" – 18" Adjustable Vent Length
7TDVP1218
35" – 64" Adjustable Vent Length
7TDVP3564
8" Vent Pipe – 4 pack
7TDVP8/4
12" Vent Pipe – 4 pack
7TDVP12/4
24" Vent Pipe – 4 pack
7TDVP24/4
36" Vent Pipe
7TDVP36
36" Vent Pipe – 30 pack
7TDVP36/30
48" Vent Pipe
7TDVP48
48" Vent Pipe – 30 pack
7TDVP48/30
45° Elbow for Vertical/Horizontal Offset
7TDV45
45° Elbow for Vertical Offsets – 8 pack
7TDV45/8
90° Elbow for Vertical/Horizontal Offset
7TDV90
90° Elbow for Vertical/Horizontal Offset – 8 pack
7TDV90/8
1" Firestop
7DV1FS
3" Firestop
7DV3FS
1" Attic Insulation Shield
7DV1AIS
Combination Horizontal Offset/Roof Support
7DVCS
20305832
36CFDV Series Gas Fireplace
OPTIONAL ACCESSORIES
There are a variety optional accessories available for
the 36CFDV Direct Vent Fireplace. Porcelain panels are
available as an alternative to the firebrick provided with your
fireplace. The porcelain panels can give your fireplace a
smooth contemporary look and feel.
The Contemporary Stone and Glass Kit includes a set
of ceramic fiber stones and fireglass and can be used
to alter your fireplace from a rustic look to a minimalist
appearance. Additional crushed fireglass is available in a
variety of colors.
There is also a choice of two optional fans. The BLOT fan
utilizes a thermostat for blower operation. The FK12 fan
is also available. A speed control is available to regulate
fan speed.
20305832
Porcelain Panel Kit
Contemporary Stone and Glass Kit
PL36CFDVB
CK36CFDV
Crushed Fireglass Kits:
Glass Kit Bronze
Glass Kit Diamond
Glass Kit Onyx
Glass Kit Sapphire
Blower Kits:
T-Stat Blower w/ Speed Control
Manual Blower
Speed Control
GKB
GKD
GKO
GKS
BLOT
FK12
26D0746
57
36CFDV Series Gas Fireplace
MASSACHUSETTS
RESIDENTS ONLY
Please read and follow these special requirements
NOTE REGARDING VENTED PRODUCTS
2. Approved Carbon Monoxide Detectors. Each carbon
This product must be installed by a licensed plumber or gas fitter monoxide detector as required in accordance with the above
when installed within the Commonwealth of Massachusetts.
provisions shall comply with NFPA 720 and be ANSI/UL 2034
listed and IAS certified.
Any residence with a direct vent product must have a carbon
monoxide (CO) detector installed in the residence.
Installation of the fireplace or vented gas log in the State of
Massachusetts requires the damper to be permanently removed
or welded in the fully open position.
In addition, a naturally vented gas log may not be installed in a
bedroom or bathroom in the State of Massachusetts.
3. Signage. A metal or plastic identification plate shall
be permanently mounted to the exterior of the building at a
minimum height of eight (8) feet above grade directly in line with
the exhaust vent terminal for the horizontally vented gas fueled
heating appliance or equipment. The sign shall read, in print size
no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY
BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS.”
Flex line installation must not exceed 36 inches and must have a
4. Inspection. The state or local gas inspector of the side
T shutoff valve.
wall horizontally vented gas fueled equipment shall not approve
the installation unless, upon inspection, the inspector observes
NOTE REGARDING VENT FREE PRODUCTS
This product must be installed by a licensed plumber or gas fitter carbon monoxide detectors and signage installed in accordance
with the provisions of 248 CMR 5.08(2)(a)1 through 4.
when installed within the Commonwealth of Massachusetts.
In addition, vent free products may not be installed in a
bedroom or bathroom regardless of size or type in the State of
Massachusetts.
(b) Exemptions: The following equipment is exempt from 248
CMR 5.08(2)(a)1 through 4:
a. In the event that the side wall horizontally vented gas
fueled equipment is installed in a crawl space or an attic, the
hard wired carbon monoxide detector with alarm and battery
back-up may be installed on the next adjacent floor level.
2. The “special venting systems” shall be Product Approved
by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
1. The equipment listed in Chapter 10 entitled "Equipment Not
Flex line installation must not exceed 36 inches and must have a Required To Be Vented" in the most current edition of NFPA 54
as adopted by the Board; and
T shutoff valve.
2. Product Approved side wall horizontally vented gas fueled
CARBON MONOXIDE DETECTOR REQUIREMENTS
equipment installed in a room or structure separate from the
(2) Revise 10.8.3 by adding the following additional
dwelling, building or structure used in whole or in part for
requirements:
residential purposes.
(a) For all side wall horizontally vented gas fueled equipment
(c) Manufacturer requirements — Gas Equipment Venting
installed in every dwelling, building or structure used in whole
System Provided. When the manufacturer of Product
or in part for residential purposes, including those owned
Approved side wall horizontally vented gas equipment provides
or operated by the Commonwealth and where the side wall
a venting system design or venting system components with
exhaust vent termination is less than seven (7) feet above
the equipment, the instructions provided by the manufacturer
finished grade in the area of the venting, including but not limited for installation of the equipment and the venting system shall
to decks and porches, the following requirements shall be
include:
satisfied:
1. Detailed instructions for the installation of the venting
1. Installation of carbon monoxide detectors. At the time
system design or the venting system components; and
of installation of the side wall horizontal vented gas fueled
2. A complete parts list for the venting system design or
equipment, the installing plumber or gas fitter shall observe
venting
system.
that a hard wired carbon monoxide detector with an alarm and
battery back-up is installed on the floor level where the gas
(d) Manufacturer requirements — Gas Equipment Venting
equipment is to be installed. In addition, the installing plumber
System Not Provided. When the manufacturer of a Product
or gas fitter shall observe that a battery operated or hard wired
Approved side wall horizontally vented gas fueled equipment
carbon monoxide detector with an alarm is installed on each
does not provide the parts for venting the flue gases, but
additional level of the dwelling, building or structure served by
identifies “special venting systems,” the following requirements
the side wall horizontal vented gas fueled equipment. It shall be shall be satisfied by the manufacturer:
the responsibility of the property owner to secure the services of
1. The referenced "special venting system" instructions
qualified licensed professionals for the installation of hard wired shall be included with the appliance or equipment installation
carbon monoxide detectors
instructions; and
b. In the event that the requirements of this subdivision
can not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply with the
above requirements; provided, however, that during said thirty
(30) day period, a battery operated carbon monoxide detector
with an alarm shall be installed.
58
(e) A copy of all installation instructions for all Product Approved
side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all
venting design
20305832
36CFDV Series Gas Fireplace
LIMITED LIFETIME WARRANTY POLICY
LIFETIME WARRANTY
The following components are warranted for life to the original owner, subject to proof of purchase: Firebox,
Combustion Chamber and Heat Exchanger.
FIVE YEAR WARRANTY
The following components are warranted five (5) years to the original owner, subject of proof of purchase:
Ceramic Fiber Logs.
BASIC WARRANTY
Vermont Castings Group warrants the components and materials in your gas appliance to be free from manufacturing and material defects for a period of two years from date of installation. After installation, if any of the
components manufactured by Vermont Castings Group in the appliance are found to be defective in materials
or workmanship, Vermont Castings Group will, at its option, replace or repair the defective components at
no charge to the original owner. Vermont Castings Group will also pay for reasonable labor costs incurred
in replacing or repairing such components for a period of two years from date of installation. Any products
presented for warranty repair must be accompanied by a dated proof of purchase.
This Limited Lifetime Warranty will be void if the appliance in not installed by a qualified installer in accordance with the installation instructions. The Limited Lifetime Warranty will also be void if the appliance is not
operated and maintained according to the operating instructions supplied with the appliance, and does not
extend to (1) firebox/burner assembly damage by accident, neglect, misuse, abuse, alterations, negligence
of others, including the installation thereof by unqualified installers, (2) the costs of removal, re-installation or
transportation of defective parts on the appliance, or (3) incidental or consequential damage. All service work
must be performed by an authorized service representative.
This warranty is expressly in lieu of other warranties, express or implied, including the warranty of merchantability of fitness for purpose and of all other obligations or liabilities. Vermont Castings Group does not
assume for it any other obligations or liabilities in connection with sale or use of the appliance. It states that
do not allow limitations on how long an implied warranty lasts, or do not allow exclusion of indirect damage,
those limitations of exclusions may not apply to you. You may also have additional rights not covered in the
Limited Lifetime Warranty.
Vermont Castings Group reserves the right to investigate any and all the claims against the Limited Lifetime
Warranty and decide upon method of settlement.
IF WARRANTY SERVICE IS NEEDED:
1. Contact your supplier. Make sure you have your warranty, your sales receipt and the model/
serial number of your Vermont Castings Group product.
2. DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF.
20305832
59
36CFDV Series Gas Fireplace
Based on CSA P.4.1-09
Efficiency Ratings
Model
36CFDVNV
36CFDVPV
36CFDVNI
36CFDVPI
EnerGuide Ratings
Fireplace Efficiency (%)
63.0
67.7
66.2
71.6
D.O.E.
(AFUE%)
62.01
66.16
62.01
66.16
149 Cleveland Drive • Paris, Kentucky 40361
www.vermontcastingsgroup.com
60
20305832
