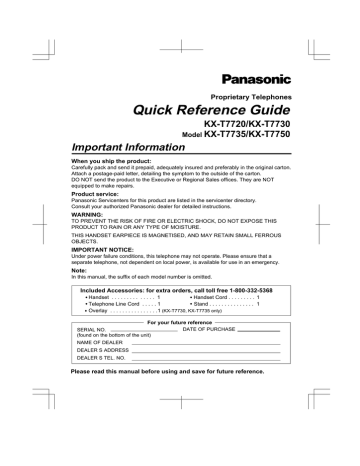

Proprietary Telephones

Quick Reference Guide

KX-T7720/KX-T7730

Model

KX-T7735/KX-T7750

Important Information

When you ship the product:

Carefully pack and send it prepaid, adequately insured and preferably in the original carton.

Attach a postage-paid letter, detailing the symptom to the outside of the carton.

DO NOT send the product to the Executive or Regional Sales offices. They are NOT equipped to make repairs.

Product service:

Panasonic Servicenters for this product are listed in the servicenter directory.

Consult your authorized Panasonic dealer for detailed instructions.

WARNING:

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR ANY TYPE OF MOISTURE.

THIS HANDSET EARPIECE IS MAGNETISED, AND MAY RETAIN SMALL FERROUS

OBJECTS.

IMPORTANT NOTICE:

Under power failure conditions, this telephone may not operate. Please ensure that a separate telephone, not dependent on local power, is available for use in an emergency.

Note:

In this manual, the suffix of each model number is omitted.

Included Accessories: for extra orders, call toll free 1-800-332-5368

Handset . . . . . . . . . . . . . . 1 Handset Cord . . . . . . . . . 1

Telephone Line Cord . . . . . 1 Stand . . . . . . . . . . . . . . . 1

Overlay . . . . . . . . . . . . . . . . 1

(KX-T7730, KX-T7735 only)

For your future reference

SERIAL NO.

(found on the bottom of the unit)

DATE OF PURCHASE

NAME OF DEALER

DEALER S ADDRESS

DEALER S TEL. NO.

Please read this manual before using and save for future reference.

Features List

Outside (CO) Line button

Off-hook On-hook

Programmable Function button

Talk

Feature number

*

"Location of Controls" is shown on page 8.

Desired Function

Calling

Operation

Making Calls

To an extension extension no.

To an external party phone no.

Redial

To program

KX-TA624

KX-TA1232

One-Touch

Dialing

(Check the type of your Main Unit.)

phone no.

To dial

assigned as a One-touch dialing button

Calling an operator

To set

3

KX-TA624

KX-TA1232

(Check the type of your Main Unit.)

desired no.

Speed Dialing

(Personal)

Speed Dialing

(System)

To dial

3

KX-TA624

KX-TA1232

(Check the type of your Main Unit.)

To dial system speed dial no.

personal speed dial no. personal speed dial no.

– 2 –

Features List

Desired Function

Operation

Receiving Calls

Handsfree answerback

(KX-T7720/7730

/7735 only)

While on-hook

Outside (CO) Line (KX-TA1232 only)

Picking up a call

Directed extension no.

extension no.

(Check the type of your Main Unit.)

Group

KX-TA624

KX-TA1232

Automatic

Callback Busy

When the Dialled Extension is Busy/No Answer

To set

While hearing a busy tone

To call

If you hear callback ringing

To leave a notification

Message

Waiting

Sender

To cancel a notification

KX-TA624

receiver's extension no.

KX-TA1232

receiver's extension no.

(Check the type of your Main Unit.)

To call back

Receiver

To clear all notifications

KX-TA624

your extension no.

KX-TA1232

(Check the type of your Main Unit.)

– 3 –

Features List

Desired Function

Operation

When the Dialled Extension is Busy/No Answer

Sender

While hearing a busy tone

Wait for an answer.

Call Waiting

Receiver

KX-TA624

For outside calls

Set

Cancel

For intercom calls

KX-TA1232

Set

Cancel

(Check the type of your Main Unit.)

Set

Cancel

To talk to the new party

While hearing the Call Waiting tone

Terminating a current status Holding a current status

Holding

During a Conversation

To retrieve a call at the holding extension

Holding a call

To retrieve an outside call from another extension

Holding a call exclusively

Holding

Transferring a call

To retrieve a call on exclusive hold

Screened extension no.

to an extension

phone no.

to an external party

(System programming is required.)

Unscreened to an extension extension no.

Wait for an answer.

Announce.

– 4 –

Features List

Desired Function

Operation

Useful Features

To page

All extensions

Group group no.

KX-TA624

All external speakers

All extensions & external speakers

Paging

KX-TA1232

All external speakers

Specific external speaker external speaker no.

All extensions & external speakers

(Check the type of your Main Unit.)

To answer an announced page

From a telephone speaker

From an external speaker external speaker no.

(Check the type of your Main Unit.)

KX-TA624

KX-TA1232

Three-party conference

Setting Absent

Message

third party’s no.

To set

KX-TA624

message no.

KX-TA1232

message no.

(Check the type of your Main Unit.)

parameter

(if required) parameter

(if required)

To cancel

KX-TA624

KX-TA1232

(Check the type of your Main Unit.)

– 5 –

Announce.

Features List

Desired Function

Log-In/Log-Out

Forwarding a call

Operation

Useful Features

KX-TA624

KX-TA1232

For Log-In

For Log-Out

(Check the type of your Main Unit.)

For Log-In

For Log-Out

KX-TA624

All calls extension no.

Busy/No answer extension no.

To an outside line

Follow Me line access code phone no.

your extension no.

Cancel Follow Me your extension no.

Cancel

KX-TA1232

All calls extension no.

Busy extension no.

No answer extension no.

Busy/No answer extension no.

To an outside line line access code

Follow Me phone no.

your extension no.

Cancel Follow Me your extension no.

Cancel

(Check the type of your Main Unit.)

– 6 –

Features List

Desired Function

Do Not Disturb

(DND)

Operation

Useful Features

KX-TA624

#

KX-TA1232

#

Set

Cancel

Set

Cancel

(Check the type of your Main Unit.)

Locking your extension

KX-TA624 (lock code is 4 digits)

7 7 lock code lock code

7 7 lock code

KX-TA1232 (lock code is 3 digits)

#

7

7

7

7 lock code lock code

# lock code

Lock

Unlock

(Check the type of your Main Unit.)

Lock

Unlock

Clearing the setting

7 9 #

KX-TA624

7 9 0

KX-TA1232

(Check the type of your Main Unit.)

* Consult your dealer for more details on the operations above.

*

– 7 –

Location of Controls

RINGER Volume Selector

LCD (Liquid Crystal Display)

1

2

3

4

5

6

7

8

17

16

15

14

13

Headset Jack

9 10 11 12

Microphone

*

The display and LCD Back-lit are only available on the KX-T7730/7735.

* Headset (not included): Recommended KX-TCA87/88/90

*

The KX-T7750 does not have a microphone.

1

PROGRAM: Used to enter and exit the programming mode.

2

CONF (Conference): Used to establish a multiple party conversation.

3

INTERCOM: Used to make or receive intercom calls.

4

FWD/DND (Call Forwarding/Do Not

Disturb): Used to perform Call Forwarding or Do Not Disturb.

– 8 –

5

FLASH/RECALL: Used for External Feature

Access or to disconnect the current call, and make another call without hanging up.

6

AUTO ANS (Auto Answer)

(KX-T7720/7730/7735): Used to receive an incoming call in the hands-free mode.

MUTE (KX-T7720/7730/7735): Used to mute the microphone during a conversation.

VOICE CALL (KX-T7750): Used to receive a notification via monitor in place of ringing.

Location of Controls

7

AUTO DIAL/STORE: Used for speed dialing or storing program changes.

8

REDIAL: Used to redial.

9

TRANSFER: Used to transfer a call to another party.

10

HOLD: Used to place a call on hold.

11

SP-PHONE (KX-T7720/7730/7735): Used for the handsfree operation.

MONITOR (KX-T7750): Used for handsfree dialing. You can monitor the other party’s voice handsfree.

12

NAVIGATOR KEY (KX-T7730/7735):

Used to adjust the volume and the display contrast, or select desired items for each function.

VOLUME KEY (KX-T7720/7750): Used to adjust the volume.

13

Programmable Function Button: Used as a one-touch dial button (Button assignment is required).

Initial Settings

Speaker volume

*

While on-hook or during a conversation

14

Flexible Outside (CO) Line Button:

Used to make or receive an outside call.

Pressing this button seizes an idle outside line automatically. (Button assignment is required.) Also used as function buttons.

(Button assignment is required.)

15

PAUSE: Used to insert a pause during dialing.

16

MESSAGE: Used to leave a message waiting indication, or call back the party who left the message waiting indication.

17

Message/Ringer Lamp: The Message/

Ringer lamp informs you visually that you have a message or a call.

When you receive a call, the lamp flashes depending on the ringing pattern.

When the ringing pattern is set to Single

(Slow flash), Double (Moderate flash), or

Triple (Rapid flash) in your PBX, the lamp flashes. When the other ringing patterns are set in your PBX, the lamp may not flash. (e.g., S-Double, Call Waiting

Tone1).

When someone has left you a message, the lamp is lit continuously.

Handset/Headset volume

*

While using the handset or headset

Press

SP-PHONE.

Press Up or Down.

Press Up or Down.

Ringer volume

Display contrast

*

KX-T7730/7735

While on-hook or receiving a call

RINGER

Slide the lever of the RINGER Volume Selector to the desired setting (HIGH/LOW/OFF).

Press Left or Right.

*

The above settings may return to default settings if the telephone line cord is disconnected, or the main unit’s power is interrupted.

– 9 –

Connection

The telephone line cord

(included)

To the main unit ( )

/PABX

< Back view>

CAUTION

Ensure the cord is inserted in the groove to prevent damage to the connector.

Wall Mounting

1

Pull down the handset hook until it locks,

so the tab holds the handset.

2

Remove the attached stand.

2

Headset

1

3

Mount the unit on the wall.

To temporarily place the handset down

during a conversation, hook it over the top edge of the phone as shown.

*

KX-T7735 model illustrated on this page.

– 10 –

Important Safety Instructions

When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury.

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the main unit

before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit near water, for example, near a bathtub, washbowl, kitchen sink, or the like.

5. Place this unit securely on a stable surface. Serious damage and/or injury may result if the unit falls.

6. Do not cover slots and openings on

the unit. They are provided for ventilation and protection against overheating. Never place the unit near radiators, or in a place where proper ventilation is not provided.

7. Do not allow anything to rest on the extension cord. Do not locate this unit where the cord will be abused by persons walking on it.

8. Do not overload wall outlets and extension cords. This can result in the risk of fire or electric shock.

9. Never push any objects through slots in this unit. This may result in the risk of fire or electric shock. Never spill any liquid on the unit.

10. To reduce the risk of electric shock, do not disassemble this unit.

Take the unit to an authorized servicenter when service is required.

Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the unit is subsequently used.

– 11 –

11. Unplug this unit from the main unit, and refer servicing to an authorized servicenter when the following conditions occur:

A. When the extension cord is damaged or frayed.

B. If liquid has been spilled into the unit.

C. If the unit has been exposed to rain or water.

D. If the unit does not work normally by following the manual.

Adjust only controls covered by the manual. Improper adjustment may require extensive work by an authorized servicenter.

E. If the unit has been dropped, or physically damaged.

F. If the unit exhibits a distinct change in performance.

12. During thunderstorms, avoid using telephones except cordless types.

There may be a remote risk of an electric shock from lightning.

13. Do not use this unit to report a gas leak, when in the vicinity of the leak.

SAVE THESE

INSTRUCTIONS

FCC and Other Information

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.

CAUTION: To assure continued compliance with FCC rules, do not make any unauthorized modifications. When programming emergency numbers and/or making test calls to emergency numbers:

1) Remain on the line and briefly explain to the dispatcher the reason for the call before hanging up.

2) Perform such activities in the off peak hours, such as early morning hours or late evenings.

• If there is any problem, unplug the extension and connect a known working phone. If the known working phone operates properly, have the defective phone repaired by your maintainer. If the known working phone does not operate properly, check the PBX System and the internal extension wiring.

• Keep the unit away from heating appliances and electrical noise generating devices such as fluorescent lamps and motors.

• The unit should be kept free of dust, moisture and vibration, and should not be exposed to direct sunlight.

• Do not use benzine, thinner, or any abrasive powder to clean the cabinet. Wipe it with a soft cloth.

• Do not disassemble this unit. Dangerous electrical shock could result. The unit must only be disassembled and repaired by qualified service technicians.

• When a failure occurs which exposes any internal parts, disconnect the telephone line and mains supply immediately and return the unit to your maintainer.

This telephone provides magnetic coupling for hearing aids.

Panasonic Consumer Electronics

Company, Division of Matsushita

Electric Corporation of America

One Panasonic Way,

Secaucus, New Jersey 07094

www.panasonic.com

Panasonic Sales Company ("PSC"),

Division of Matsushita Electric of

Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5,

San Gabriel Industrial Park, Carolina,

Puerto Rico 00985

2002 Kyushu Matsushita Electric Co., Ltd. All Rights Reserved.

Printed in the United Kingdom

PSQW1921ZA

KU0902YS0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
