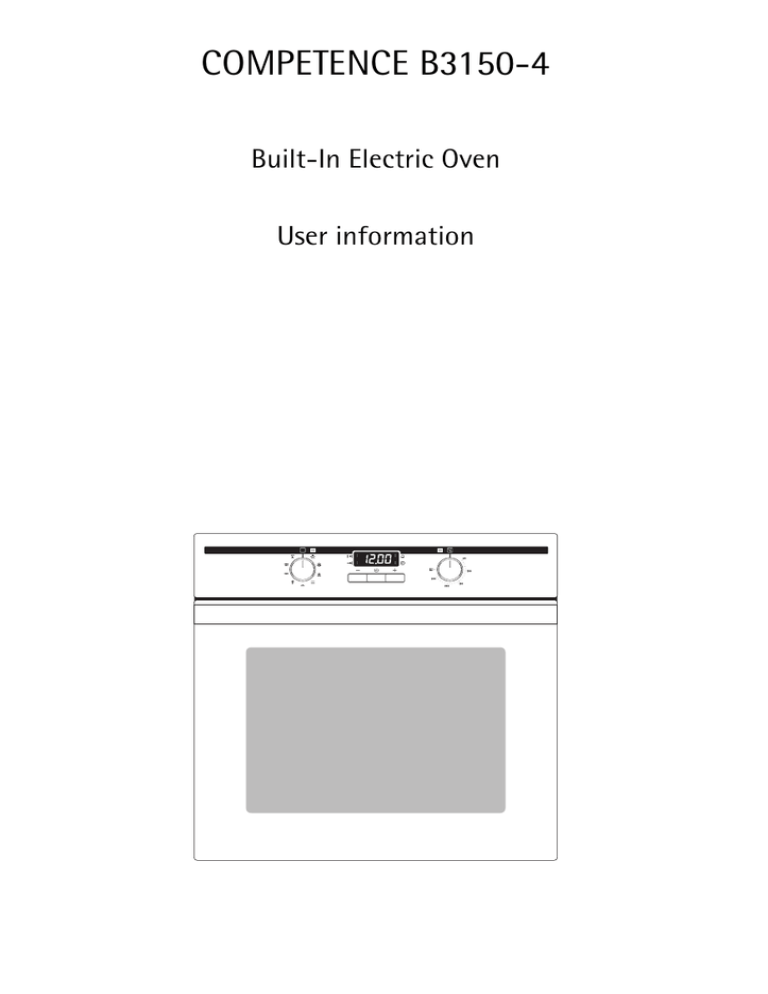

COMPETENCE B3150-4
Built-In Electric Oven
User information
Dear customer,
Please read this User Information carefully and keep it to refer to at a
later date.
Pass this User Information on to any subsequent owner of the appliance.
1
3
2
2
The following symbols are used in the text:
Safety instructions
Warning: Notes that concern your personal safety.
Attention: Notes that show how to avoid damage to the appliance.
Useful tips and hints
Environmental information
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oven Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oven accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
7
7
8
8
Before Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setting and changing the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Initial Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the Oven On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oven Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inserting the Oven Shelf, Baking Tray and Roasting Pan . . . . . . . . . . . . . . .
Inserting/Removing the Grease Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching Off the Time Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
11
12
13
14
15
16
Uses, Tables and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Baking table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table for Bakes and Gratins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Frozen Ready Meals Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roasting table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Grill Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Grilling table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Defrosting table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Making Preserves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
21
23
27
28
29
30
32
32
33
33
34
35
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oven interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fat Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shelf Support Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oven Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oven Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36
36
36
36
36
37
38
39
3
Oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Oven door glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48
Safety information for the installer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Guarantee/Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service
4
52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Operating Instructions
1 Safety instructions
5
This appliance conforms with the following EU Directives:
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending
Directive 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Electrical safety
• This appliance must be only connected by a registered electrician.
• In the event of a fault or damage to the appliance: Take the fuses out
or switch off.
• Repairs to the appliance must only be carried out by qualified service engineers. Considerable danger may result from improper repairs.
If repairs become necessary, please contact our Customer Services or
your dealer.
Child Safety
• Never leave children unsupervised when the appliance is in use.
Safety whilst Using
• This appliance is intended to be used for cooking, roasting and baking
food in the home.
• Take care when connecting electric appliances to sockets nearby. Do
not allow connecting leads to come into contact with or to catch beneath the hot oven door.
• Warning: Risk of burns! The interior of the oven becomes hot during use.
• Using ingredients containing alcohol in the oven may create an alcohol-air mixture that is easily ignited. In this case, open the door carefully. Do not have embers, sparks or naked flames in the vicinity when
opening the door.
3
Information on acrylamides
According to the latest scientific knowledge, intensive browning of
food, especially in products containing starch, can constitute a health
risk due to acrylamides. Therefore we recommend cooking at the lowest
possible temperatures and not browning foods too much.
5
How to avoid damage to the appliance
• Do not line the oven with aluminium foil and do not place baking
trays, pots, etc. on the oven floor, as the heat that builds up will damage the oven enamel.
• Fruit juices dripping from the baking tray will leave stains, which you
will not be able to remove. For very moist cakes, use a deep tray.
• Do not put any strain on the oven door when open.
• Never pour water directly into the oven when it is hot. This could
cause damage to or discoloration of the enamel.
• Rough handling, especially around the edges of the front panel, can
cause the glass to break.
• Do not store any flammable materials inside the oven. These could ignite when the oven is switched on.
• Do not store any moist foods inside the oven. This could damage the
oven enamel.
• After switching off the cooling fan, do not keep uncovered dishes in
the oven. Moisture may condense in the oven interior or on the glass
doors and may get into the units.
3
6
Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do
not affect the appliance’s suitability for normal and correct use. They
therefore do not constitute a defect in the sense of the warranty law.
Description of the Appliance
General Overview
Control panel
Door
handle
Full glass
door
Control Panel
Oven Power Indicator
Temperature Pilot Light
Time display
Clock function buttons
Oven Functions
Temperature selector
7
Oven Features
Top heat and heating elements
Oven lighting
Shelf positions
Fat Filter
Fan heating element
Fan
Bottom Heat
Oven shelf runners,
removable
Oven accessories
Oven shelf
For cookware, cake tins, roasts and
grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan
for collecting fat.
8
Before Using for the first time
Setting and changing the time
3
The oven only operates when the time has been set.
When the appliance has been connected to the electrical supply or
when there has been a power cut,
the function indicator Time
flashes automatically.
1. To change a time that has already
been set, press the Selection button repeatedly until the function
indicator Time flashes.
2. Using the or button, set the
current time.
After approx. 5 seconds, the flashing stops and the clock displays the
time set.
3
The appliance is now ready to use.
The time can only be changed if no
automatic function (Cook time
or End time ) has been set.
9
Initial Cleaning
1
3
Before using the oven for the first time you should clean it thoroughly.
Caution: Do not use any caustic, abrasive cleaners! The surface could
be damaged.
To clean metal fronts use commercially available cleaning agents.
1. Turn the oven function switch to oven lighting .
2. Remove all accessories and the shelf support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm water and washing-up liquid, and
dry.
4. Wipe the front of the appliance with a damp cloth.
10
Using the Oven
Switching the Oven On and Off
Oven Power Indicator
Oven Functions
Temperature Pilot Light
Temperature selector
1. Turn the oven functions dial to the desired function.
2. Turn the temperature selector to the desired temperature.
The power indicator is lit as long as the oven is in operation.
The temperature pilot light is lit as long as the oven is heating up.
3. To turn the oven off, turn the oven functions dial and the temperature
selector to the Off position.
3
Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool. When the oven is switched off, the fan continues to run to
cool the appliance down, then switches itself off automatically.
11
Oven Functions
The oven has the following functions:
Oven function
12
Application
Heating element/
fan
Light
Using this function you can light
up the oven interior, e.g. for
cleaning.
---
Fan cooking
For baking on up to three oven
levels at the same time.
Set the oven temperatures 20-40
°C lower than when using Conventional.
Rear heating element, fan
Al Gusto Hot air
For baking on one oven level dish- Bottom heat, rear
es that require more intensive
wall heating elebrowning and a crispy base.
ment, fan
Set the oven temperatures 20-40
°C lower than when using Conventional.
Conventional
For baking and roasting on one
oven level.
Top heat,
bottomheat
Bottom heat
For baking cakes with crispy or
crusty bases.
Bottom heat
Defrost
For defrosting e. g. flans and ga- Fan
teaux, butter, bread, fruit or other
frozen foods.
Grill
For grilling flat foodstuffs placed Grill
in the middle of the grill and for
toasting.
Dual gril
For grilling flat foodstuffs in
Grill, top heat
large quantities and for toasting.
Rotitherm
For roasting larger joints of meat
or poultry on one level.
The function is also suitable for
gratinating and browning.
Grill, top heat, fan
Inserting the Oven Shelf, Baking Tray and Roasting Pan
3
Shelf runner safety and anti-tip device
As a shelf runner safety device, all insertable components have a small
curved indentation at the bottom on the right and left-hand edge.
Always insert insertable components so that this indentation is at the
back of the oven interior. This indentation is also important for preventing the insertable components from tipping.
Inserting the baking tray or
roasting pan
Push the baking tray or roasting pan
between the guide bars of the selected oven level.
3
Inserting the oven shelf:
Insert the oven shelf so that the
feet point downwards.
Push the oven shelf between the
guide bars of the selected oven level.
The high rim around the oven shelf
is an additional device to prevent
cookware from slipping.
Inserting the oven shelf and
roasting pan together
Lay the oven shelf on the roasting
pan.
Push the roasting pan between the
guide bars of the selected oven level.
13
Inserting/Removing the Grease Filter
Only use the grease filter when
roasting to protect the rear heating
elements from fat splashes.
Inserting the grease filter
Hold the grease filter by the
grip and insert the two mounts
downwards into the opening on
the rear wall of the oven (fan
opening).
Taking out the grease filter
Hold the grease filter by the
grip and unhook it.
14
Clock Functions
Function Indicators
Button
Time display
Function Indicators
Selector Button
Button
Countdown
To set a countdown. A signal sounds after the time has elapsed.
This function does not affect the functioning of the oven.
Cook time
To set how long the oven is to be in use.
End time
To set when the oven is to switch off again.
Time
To set, change or check the time
(See also section “Before Using for the First Time”).
15
3
2
How to use the clock functions
• After a function has been selected, the corresponding function indicator flashes for about 5 seconds. During this period, the desired
times can be set using the or button.
• When the desired time has been set, the function indicator continues
to flash for approx. 5 seconds. After that the function indicator is
then lit. The set time begins to run.
• Press any of the buttons to stop the audible signal.
• The desired oven function and temperature can be selected before or
after the clock functions Cook time and End time are set.
• When the cooking process is completed, turn the oven function dial
and the temperature selector back to the OFF position.
Switching Off the Time Display
By switching off the time display you can save energy.
Switching off the time display
Press and hold down any two buttons until the display becomes dark.
3
16
Switching on the time display
Hold down any button until the time reappears in the display.
The display can only be switched off if none of the clock functions
Cook time , End time or Countdown is in use.
Countdown
1. Press the Selection button repeatedly until the function indicator Countdown flashes.
2. Using the or button set the
desired Countdown (max. 2 hours
30 minutes).
After approx. 5 seconds the display
shows the time remaining.
The function indicator
Countdown lights up.
When the time has elapsed, the
function indicator flashes and an
audible signal sounds for 2 minutes.
The signal can be stopped by pressing any button.
17
Cook time
1. Press the Selection button repeatedly until the function indicator Cook time flashes.
2. Using the or button set the
desired cooking time.
After approx. 5 seconds the display
returns to showing the current time.
The function indicator Cook time
lights up.
When the time has elapsed, the
function indicator flashes, an audible signal sounds for 2 minutes and
the oven switches itself off.
3. The signal and the programme can
be stopped by pressing any button.
18
End time
1. Press the Selection button repeatedly until the function indicator End time flashes.
2. Using the or button set the
desired switch-off time.
After approx. 5 seconds the display
returns to showing the current time.
The function indicator End time
lights up.
When the time has elapsed, the
function indicator flashes, an audible signal sounds for 2 minutes and
the oven switches itself off.
3. The signal and the programme can
be stopped by pressing any button.
19
3
Cook time
and End time
combined
Cook time and End time can be used simultaneously, if the oven is
to be switched on and off automatically at a later time.
1. Using the Cook time function, set
the time required for cooking the
dish.
In this example, 1 hour.
2. Using the End time function, set
the time at which the dish should
be ready.
In this case 14:05:00.
The function indicators Cook
time and End time light up
and the current time is shown in the
display.
In this case 12:05.
The oven switches on automatically
at the time calculated.
In this case, at 13:05:00.
And switches itself off again when the cooking time entered has
elapsed.
In this case, at 14:05.
20
Uses, Tables and Tips
Baking
Oven function: Fan cooking
or Conventional
Baking tins
• For Conventional dark metal and non-stick tins are suitable.
• For Fan cooking bright metal tins are also suitable.
Oven levels
• Baking with Conventional is possible on one oven level.
• With Fan cooking you can bake on up to 3 baking trays at the
same time:
1 baking tray:
e.g. oven level 3
1 cake tin:
e.g. oven level 1
2 baking trays:
z. g., oven levels 1 and 3
3 baking trays:
oven levels 1, 3 and 5
21
3
2
22
General Instructions
• Insert the tray with the bevel at the front.
• With Conventional or Fan cooking you can also bake with two
tins next to one another on the oven shelf at the same time. This does
not significantly increase baking time.
When frozen foods are used the trays inserted may distort during cooking. This is due to the large difference in temperature between the
freezing temperature and the temperature in the oven. Once the trays
have cooled the distortion will disappear again.
How to use the Baking Tables
The tables give the required temperature settings, baking times and
oven shelf levels for a selection of typical dishes.
• Temperatures and baking times are for guidance only, as these will
depend on the consistency of pastry, dough or mixture, the amount
and the type of baking tin.
• We recommend using the lower temperature the first time and then
if necessary, for example, if a deeper browning is required, or baking
time is too long, selecting a higher temperature.
• If you cannot find the settings for a particular recipe, look for the
one that is most similar.
• If baking cakes on baking trays or in tins on more than one level, baking time may be extended by 10-15 minutes.
• Moist recipes (for example, pizzas, fruit flans, etc.) are baked on one
level.
• Cakes and pastries at different heights may brown at an uneven rate
at first. If this occurs, please do not change the temperature setting. Different rates of browning even out as baking progresses.
• Your new oven may bake or roast differently to your previous appliance. So adapt your normal settings (temperature, cooking times) and
oven shelf levels to the recommendations in the following tables.
With longer baking times, the oven can be switched off about
10 minutes before the end of baking time, to make use of the residual
heat.
Unless otherwise stated, the values given in the tables assume that
cooking is started with the oven cold.
Baking table
Baking on one oven level
Type of
baking
Oven function
Oven
level
Temperature
Time
°C
Hr: Mins.
Baking in tins
Ring cake or brioche
Fan cooking
1
150-160
0:50-1:10
Madeira cake/fruit cakes
Fan cooking
1
140-160
1:10-1:30
Sponge cake
Fan cooking
1
140
0:25-0:40
Sponge cake
Conventional
1
160
0:25-0:40
0:10-0:25
Flan base - short pastry
Fan cooking
3
170-1801)
Flan base - sponge mixture
Fan cooking
3
150-170
0:20-0:25
Apple pie
Conventional
1
170-190
0:50-1:00
Apple pie (2tins Ø20cm,
diagonally off set)
Fan cooking
1
160
1:10-1:30
Apple pie (2tins Ø20cm,
diagonally off set)
Conventional
1
180
1:10-1:30
Savoury flan (e. g, quiche
lorraine)
Fan cooking
1
160-180
0:30-1:10
Cheesecake
Conventional
1
170-190
1:00-1:30
Cakes/pastries/breads on baking trays
Plaited bread/bread
crown
Conventional
3
170-190
0:30-0:40
Christmas stollen
Conventional
3
160-1801)
0:40-1:00
Bread (rye bread)
-first of all
-then
Conventional
1
2301)
160-180
0:25
0:30-1:00
Cream puffs/eclairs
Conventional
3
160-1701)
0:15-0:30
0:10-0:20
Swiss roll
Conventional
3
180-2001)
Cake with crumble
topping (dry)
Fan cooking
3
150-160
0:20-0:40
Buttered almond cake/
sugar cakes
Conventional
3
190-2101)
0:15-0:30
Fruit flans
(made with yeast dough/
sponge mixture)2)
Fan cooking
3
150
0:35-0:50
23
Type of
baking
Oven function
Oven
level
Temperature
Time
°C
Hr: Mins.
Fruit flans
(made with yeast dough/
sponge mixture)2)
Conventional
3
170
0:35-0:50
Fruit flans made with
short pastry
Fan cooking
3
160-170
0:40-1:20
Yeast cakes with delicate
toppings (e. g, quark,
cream, custard)
Conventional
3
160-1801)
0:40-1:20
Pizza (with a lot of topping)2)
Fan cooking
1
180-2001)
0:30-1:00
Pizza (thin crust)
Fan cooking
1
200-2201)
0:10-0:25
Unleavened bread
Fan cooking
1
200-220
0:08-0:15
Tarts (CH)
Fan cooking
1
180-200
0:35-0:50
Short pastry biscuits
Fan cooking
3
150-160
0:06-0:20
Viennese whirls
Fan cooking
3
140
0:20-0:30
0:20-0:30
Biscuits
Viennese whirls
Conventional
3
1601)
Biscuits made with
sponge mixture
Fan cooking
3
150-160
0:15-0:20
Pastries made with egg
white, meringues
Fan cooking
3
80-100
2:00-2:30
Macaroons
Fan cooking
3
100-120
0:30-0:60
Biscuits made with yeast
dough
Fan cooking
3
150-160
0:20-0:40
Puff pastries
Fan cooking
3
170-1801)
0:20-0:30
3
1601)
0:20-0:35
3
1801)
0:20-0:35
3
1)
0:20-0:30
1)
0:20-0:30
Rolls
Rolls
Small cakes (20per tray)
Small cakes (20per tray)
Fan cooking
Conventional
Fan cooking
Conventional
1) Pre-heat the oven
2) Use the drip tray or roasting tray
24
3
140
170
Baking on more than one oven level
Fan
cooking
Type of baking
Fan
cooking
Shelf positions from bottom
2 levels
3 levels
Temperature in °C
Time
Hours:
Mins.
Cakes/pastries/breads on baking trays
Cream puffs/Eclairs
1/4
---
160-1801))
0:35-0:60
Dry streusel cake
1/3
---
140-160
0:30-0:60
Biscuits/small cakes/pastries/rolls
Short pastry biscuits
1/3
1/3/5
150-160
0:15-0:35
Viennese whirls
1/3
1/3/5
140
0:20-0:60
Biscuits made with
sponge mixture
1/3
---
160-170
0:25-0:40
Biscuits made with egg
white, meringues
1/3
---
80-100
2:10-2:50
Macaroons
1/3
---
100-120
0:40-1:20
Biscuits made with yeast
dough
1/3
---
160-170
0:30-0:60
Puff pastries
1/3
---
170-1801)
0:30-0:50
Rolls
1/4
---
160
0:30-0:55
Small cakes (20per tray)
1/4
---
1)
140
0:25-0:40
1) Pre-heat the oven
25
Tips on Baking
Baking results
Possible cause
Remedy
The cake is not
browned enough underneath
Wrong oven level
Place cake lower
The cake sinks (becomes soggy, lumpy,
streaky)
Oven temperature too high
Use a slightly lower setting
Baking time too short
Set a longer baking time
Baking times cannot be reduced by setting higher
temperatures
Too much liquid in the mixture
Use less liquid.
Pay attention to mixing
times, especially if using
mixing machines
Oven temperature too low
Set oven temperature higher.
Baking time too long
Set a shorter baking time
Cake is too dry
Cake browns unevenly Oven temperature too high
and baking time too short
Set a lower oven temperature and a longer baking
time
Mixture is unevenly distribut- Spread the mixture evenly
ed
on the baking tray
Cake does not cook in
the baking time given
26
Grease filter is inserted
Take out the grease filter
Temperature too low
Use a slightly higher oven
setting
Grease filter is inserted
Take out the grease filter
Table Al Gusto Hot air
Shelf position
Temperature
°C
Time
Hr: Mins.
Pizza (thin crust)
1
180 - 2001)
20 - 30
Pizza (with a lot of topping)
1
180 - 200
20 - 30
Tarts
1
180 - 200
45 - 60
Spinach flan
1
160 -180
45 - 60
Quiche Lorraine
1
170 - 190
40 - 50
Quark flan, round
1
140 - 160
60 - 90
Quark flan on tray
1
140 - 160
50 - 60
Apple cake, covered
1
150 - 170
50 - 70
Vegetable pie
1
160 - 180
50 - 60
Type of baking
Unleavened bread
1
1)
10 - 20
1801)
40 - 50
250 - 270
Puff pastry flan
1
160 -
Flammekuchen (Pizza-like dish
from Alsace)
1
250 - 2701)
12 - 20
Piroggen (Russian version of
calzone)
1
180 - 2001)
15 - 25
1) Pre-heat the oven
Table for Bakes and Gratins
Dish
Pasta bake
Oven function
Shelf Temperature
Time
position
°C
Hr: Mins.
Conventional
1
180-200
0:45-1:00
Conventional
1
180-200
0:25-0:40
Fan cooking
1
160-170
0:15-0:30
Baguettes topped with
melted cheese1)
Fan cooking
1
160-170
0:15-0:30
Sweet bakes
Conventional
1
180-200
0:40-0:60
Fish bakes
Conventional
1
180-200
0:30-1:00
Stuffed vegetables
Fan cooking
1
160-170
0:30-1:00
Lasagne
Vegetables au
gratin1)
1) Pre-heat the oven
27
Frozen Ready Meals Table
Food to be
cooked
Oven function
Shelf
position
Temperature
°C
Time
Frozen pizza
Conventional
3
as per manufacturer’s instructions
as per manufacturer’s instructions
Chips1)
(500 g)
Fan cooking
3
200-220
as per manufacturer’s instructions
Baguettes
Conventional
3
as per manufacturer’s instructions
as per manufacturer’s instructions
Fruit flans
Conventional
3
as per manufacturer’s instructions
as per manufacturer’s instructions
1) Comments: Turn chips 2 or 3 times during cooking
28
Roasting
Oven function: Conventional
or Rotitherm
Roasting dishes
• Any heat-resistant ovenware is suitable to use for roasting (please
read the manufacturer's instructions).
• Large roasting joints can be roasted directly in the roasting tray or
on the oven shelf with the roasting tray placed below it.
• For all lean meats, we recommend roasting these in a roasting tin
with a lid. This will keep the meat more succulent.
• All types of meat, that can be browned or have crackling, can be
roasted in the roasting tin without the lid.
3
Tips on using the roasting chart
The information given in the following table is for guidance only.
• We recommend cooking meat and fish weighing 1 kg and above in
the oven.
• To prevent escaping meat juices or fat from burning on to the pan,
we recommend placing some liquid in the roasting pan.
• If required, turn the roast (after 1/2 - 2/3 of the cooking time).
• Baste large roasts and poultry with their juices several times during
roasting. This will give better roasting results.
• You can switch the oven off about 10 minutes before the end of the
roasting time, in order to utilise the residual heat.
29
Roasting table
Type of meat
Quantity
Ovenfunction
Shelf
position
Temperature
°C
Time
Hours
mins.
Beef
Pot roast
1-1.5 kg
Conventional
1
200-250 2:00-2:30
per cm. of
thickness
Roast beef or fillet
- rare
per cm.
of thickness
Rotitherm
1
1902001)
- medium
per cm.
of thickness
Rotitherm
1
180-190 0:06-0:08
- well done
per cm.
of thickness
Rotitherm
1
170-180
Shoulder, neck, ham
joint
1-1.5 kg
Rotitherm
1
160-180 1:30-2:00
Chop, spare rib
1-1.5 kg
Rotitherm
1
170-180
1:00-1:30
Meat loaf
750 g-1 kg
Rotitherm
1
160-170
0:45-1:00
Porkknuckle (precooked)
750 g-1 kg
Rotitherm
1
150-170
1:30-2:00
1 kg
Rotitherm
1
160-180 1:30-2:00
1.5-2 kg
Rotitherm
1
160-180 2:00-2:30
Leg of lamb, roast
lamb
1-1.5 kg
Rotitherm
1
150-170
Saddle of lamb
1-1.5 kg
Rotitherm
1
160-180 1:00-1:30
Saddle of hare, leg
of hare
up to 1 kg
Conventional
3
2202501)
0:25-0:40
Saddle of venison
1.5-2 kg
Conventional
1
210-220
1:15-1:45
Haunch of venison
1.5-2 kg
Conventional
1
200-210
1:30-2:15
0:05-0:06
0:08-0:10
Pork
Veal
Roast veal
Knuckle of veal
Lamb
1:15-2:00
Game
30
Type of meat
Shelf
position
Temperature
°C
Time
Hours
mins.
Quantity
Ovenfunction
Poultry portions
200-250g
each
Rotitherm
1
200-220 0:35-0:50
Half chicken
400-500g
each
Rotitherm
1
190-210
0:35-0:50
Chicken, poulard
1-1.5 kg
Rotitherm
1
190-210
0:45-1:15
Duck
1.5-2 kg
Rotitherm
1
180-200 1:15-1:45
Goose
3.5-5 kg
Rotitherm
1
160-180 2:30-3:30
Turkey
2.5-3.5 kg
Rotitherm
1
160-180 1:45-2:30
Turkey
4-6 kg
Rotitherm
1
140-160 2:30-4:00
1-1.5 kg
Conventional
1
210-220
Poultry
Fish (steamed)
Whole fish
0:45-1:15
1) Pre-heat the oven
31
Grill Sizes
1
3
Oven function: Grill
setting
or Dual gril
with maximum temperature
Important: Always grill with the oven door closed.
The empty oven should always be pre-heated with the grill functions
for 5 minutes.
• For grilling, place the shelf in the recommended shelf position.
• Always insert the tray for collecting the fat into the first shelf position from the bottom.
• The grilling times are guidelines.
• Grilling is particularly suitable for flat pieces of meat or fish.
Grilling table
Grilling time
Food to be grilled
1st side
2nd side
Burgers
4
8-10 mins.
6-8 mins.
Pork fillet
4
10-12 mins.
6-10 mins.
Sausages
4
8-10 mins.
6-8 mins.
Fillet steaks, veal steaks
4
6-7 mins.
5-6 mins.
Fillet of beef, roast beef
(approx. 1 kg)
3
10-12 mins.
10-12 mins.
Toast1)
3
4-6 mins.
3-5 mins.
Toast with topping
3
6-8 mins.
---
1) Do not pre-heat
32
Oven level
Defrosting
Oven function: Defrost
(no temperature setting)
• Unwrap the food and place it on a plate on the oven shelf.
• Do not cover with a plate or bowl, as these can substantially lengthen
the defrosting time.
• For defrosting, place the shelf in the 1st oven level from the bottom.
Defrosting table
Dish
Defrosting
Further
time
defrosting
mins.
time (mins.)
Comments
Chicken, 1000 g
100-140
20-30
Place the chicken on an upturned
saucer placed on a large plate
Turn halfway through
Meat, 1000 g
100-140
20-30
Turn halfway through
Meat, 500 g
90-120
20-30
Turn halfway through
Trout, 150g
25-35
10-15
---
Strawberries,
300g
30-40
10-20
---
Butter, 250g
30-40
10-15
---
Cream, 2 x 200g
80-100
10-15
Cream can also be whipped when still
slightly frozen in places
60
60
Gateau, 1400g
---
33
Drying
Oven function: Fan cooking
• Use oven shelves covered with greaseproof paper or baking parchment.
• You get a better result if you switch the oven off halfway through
the drying time, open the door and leave the oven to cool down
overnight.
• After this finish drying the food to be dried.
Food to be dried
Temperature
in °C
Oven level
1 level
2 levels
Time in hours
(Guideline)
Vegetables
Beans
60-70
3
1/4
6-8
Peppers (strips)
60-70
3
1/4
5-6
Vegetables for soup
60-70
3
1/4
5-6
Mushrooms
50-60
3
1/4
6-8
Herbs
40-50
3
1/4
2-3
Plums
60-70
3
1/4
8-10
Apricots
60-70
3
1/4
8-10
Apple slices
60-70
3
1/4
6-8
Pears
60-70
3
1/4
6-9
Fruit
34
Making Preserves
Oven function: Bottom heat
• For preserving, use only commercially available preserve jars of the
same size.
• Jars with twist-off or bayonet type lids and metal tins are not
suitable.
• When making preserves, the first shelf position from the bottom is
the one most used.
• Use the shelf for making preserves. There is enough room on this for
up to six 1-litre preserving jars.
• The jars should all be filled to the same level and clamped shut.
• Place the jars on the baking tray in such a way that they are not
touching each other.
• Pour approx. 1/2 litre of water into the baking tray so that sufficient
moisture is produced in the oven.
• As soon as the liquid starts to pearl in the first jars (after about 3560 minutes with 1 litre jars), switch the oven off or reduce the temperature to 100°C (see table).
Preserves table
The times and temperatures for making preserves are for guidance only.
Preserve
Temperature
in°C
Cooking time
until simmering
in mins.
Continue to
cook at 100°C
in mins.
Strawberries, blueberries,
raspberries, ripe gooseberries
160-170
35-45
---
Unripe gooseberries
160-170
35-45
10-15
160-170
35-45
10-15
160-170
50-60
5-10
Mushrooms
160-170
40-60
10-15
Cucumbers
160-170
50-60
---
Mixed pickles
160-170
50-60
15
Kohlrabi, peas, asparagus
160-170
50-60
15-20
Beans
160-170
50-60
---
Soft fruit
Stone fruit
Pears, quinces, plums
Vegetables
Carrots1)
1)
1) Leave standing in oven when switched off
35
Cleaning and Care
1
Warning: For cleaning, the appliance must be switched off and cooled
down.
Warning: For safety reasons, do not clean the appliance with steam jet
or high-pressure cleaning equipment.
Attention: Do not use any scouring agents, sharp cleaning tools or
scourers.
Outside of the appliance
• Wipe the front of the appliance with a soft cloth and warm water
and washing up liquid.
• For metal fronts, use normal commercially available cleaning agents.
Oven interior
Clean the appliance after each use. In this way, dirt is easier to clean off
and is not allowed to burn on.
1. For cleaning, turn the oven light on.
2. After every use, wipe the oven with a solution of washing-up liquid and
allow to dry.
3
1
Clean stubborn dirt with a special oven cleaner.
Important: If using an oven spray, please follow the manufacturer's instructions exactly.
Accessories
Wash all slide-in units (shelf unit, baking tray, shelf support rails etc.)
after each use and dry well. Soak briefly to make them easier to clean.
Fat Filter
1. Clean the fat filter in hot water and washing up liquid or in the dishwasher.
2. Badly burned on soiling can be removed by boiling the filter in a little
water to which 2-3 tablespoonsful of dishwasher cleaner has been added.
36
Shelf Support Rails
The shelf support rails on the left and right hand sides of the oven can
be removed for cleaning the side walls.
Removing the shelf support rails
First pull the front of the rail away
from the oven wall (1) and then unhitch at the back (2).
3
Fitting the shelf support rails
Important! The rounded ends of
the guide rails must be pointing forwards!
To re-insert, first hook the rail into
place at the back (1) and then insert
the front and press into place (2).
37
Oven Lighting
1
3
Warning: Risk of electric shock! Prior to changing the oven light bulb:
– Switch off the oven!
– Disconnect from the electricity supply.
Place a cloth on the oven floor to protect the oven light and glass cover.
Changing the oven light bulb/
cleaning the glass cover
1. Remove the glass cover by turning
it anti-clockwise and then clean it.
2. If necessary: replace with
25 watt, 230 V, 300 °C heat-resistant oven lighting.
3. Refit the glass cover.
38
Oven Ceiling
The upper heating element can be folded down to make it easier to
clean the oven ceiling.
1
Folding down the heating element
Warning: Only fold down the heating element when the oven is
switched off and there is no risk of
being burnt!
1. Remove the side shelf support rails.
2. Grip the heating element at the
front and pull it forwards and out
over the support lug on the inner
wall of the oven.
3. The heating element will now fold
down.
1
Caution: Do not use force to press
the heating element down! The
heating element might break.
Cleaning the oven ceiling
Repositioning the heating element
1. Move the heating element back up
towards the oven ceiling.
2. Pull the heating element forwards
against the spring pressure and
guide it over the oven support lug.
3. Settle it onto the support.
4. Insert shelf support rail.
1
Important: The heating element
must be positioned correctly and securely on both sides above the support lug on the inner wall of the
oven.
39
Oven door
For easier cleaning of the oven interior the oven door of your appliance
can be taken off its hinges.
Removing the oven door from its hinges
1. Open the oven door as far as it will
go.
2. Undo the clamping levers (A) on
both door hinges fully.
3. Close the oven door as far as the
first position (approx. 45°).
3
40
4. Take hold of the oven door with a
hand on each side and pull it away
from the oven at an upwards angle
(Take care: It is heavy).
Lay the oven door with the outer
side facing downwards on something soft and level, for example, a
blanket in order to prevent scratches.
Hanging the oven door back on its hinges
1. From the handle side take hold of
the oven door with a hand on each
side and hold at an angle of approx.
45°.
Position the recesses on the bottom
of the oven door on the hinges on
the oven.
Let the door slide down as far as it
will go.
2. Open the oven door as far as it will
go.
3. Fold up the clamping levers (A) on
both door hinges back into their
original positions.
4. Close the oven door.
41
Oven door glass
1
The oven door is fitted with two panels of glass mounted one behind
the other. The inner panel can be removed for cleaning.
Important Rough handling, especially around the edges of the front
panel, can cause the glass to break.
Removing the door glass
1. Open the oven door as far as it will
go.
2. Undo the clamping levers (A) on
both door hinges fully.
3. Close the oven door as far as the
first position (approx. 45°).
4. Take hold of the door trim (B) on
the upper edge of the door at both
sides and press inwards to release
the clip seal. Then remove the door
trim by pulling upwards.
42
5. Take hold of the door glass on its
upper edge and take it out of the
guide by pulling it upwards.
Cleaning the door glass
Clean the door glass thoroughly with a solution of water and washing
up liquid. Then dry it carefully.
43
Putting the door glass back
1. From above insert the door glass at
an angle into the door profile at the
bottom edge of the door and lower
it.
2. Take hold of the door trim (B) at
each side, position it on the inside
edge of the door and plug the door
trim(B) into the upper edge of the
door.
3
44
On the open side of the door
trim (B) there is a guide bar (C). This
must be pushed between the outer
door panel and the guide corner(D).
The clip seal (E) must be snapped in.
3. Open the oven door as far as it will
go.
4. Fold up the clamping levers (A) on
both door hinges back into their
original positions.
5. Close the oven door.
45
What to do if …
Problem
The oven does not heat up
The oven lighting is not
operating
1
3
3
46
Possible cause
Remedy
The oven is not switched
on
Switch the oven on
The clock is not set
Set the current time on the
clock
The required settings have
not been set
Check the settings
The house wiring fuse (in
the fuse box) has tripped
Check the fuse
If the fuses trip several
times, please call a qualified electrician
The oven light bulb is
faulty
Replace the oven bulb
If you are unable to remedy the problem by following the above
suggestions, please contact your dealer or the Customer Care Department.
Warning! Repairs to the appliance are only to be carried out by qualified service engineers. Considerable danger to the user may result from
improper repairs.
If the appliance has been wrongly operated, the visit from the customer
service technician or dealer may not take place free of charge, even
during the warranty period.
Advice on cookers with metal fronts:
Because of the cold surface at the front of the cooker, opening the
oven door during (or just after) baking or roasting may cause the glass
to steam up.
Disposal
2
2
Packaging material
The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at the community waste disposal facilities.
Old appliance
W
1
The symbol
on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.
Warning: So that the old appliance can no longer cause any danger,
make it unusable before disposing of it.
To do this, disconnect the appliance from the mains supply and remove the mains cable from the appliance.
47
Installation Instructions
1
1
Attention: The new appliance may only be installed and connected by
a registered expert.
Please comply with this. If you do not, any damage resulting is not covered by the warranty.
Safety information for the installer
• The electrical installation is to be set up so that the appliance can be
isolated from the mains with a minimum 3mm all-pole contact separation.
Suitable separation devices include e.g. cut-outs, fuses (screw fuses
are to be taken out of the holder), RCD’s and contactors.
• Anti-shock protection must be provided by the installation.
• The built-in unit must meet the stability requirements of DIN 68930.
• Built-in ovens and built-in cooking surfaces are fitted with special
connection systems. For safety reasons, they must only be combined
with appliances from the same manufacturer.
48
49
50
51
Guarantee/Customer Service
Weitere Kundendienststellen im Ausland
In diesen Ländern gelten die Garantiebedingungen der örtlichen Partner. Diese können dort eingesehen werden.
Further after-sales service agencies overseas
In these countries our AEG-Electrolux agents’ own guarantee conditions are applicable. Please obtain further details direct.
Autres agences étrangères assurant le service après-vente
Dans ces pays, les conditions de garantie des concessionnaires de la région sont valables. Vous pouvez les consulter sur place.
Otros puntos de Postventa en el extranjero
En estos países rigen las condiciones de nuestros representantes locales.
las cuales pueden ser consultadas allí mismo.
Ulteriori uffici del servizio tecnico assistenza clienti all’estero
In questi paesi sono valide le condizioni di garanzia dei partner locali.
Queste condizioni possono essere esaminante sul luogo.
Serviços de assistência técnica no estrangeiro
Nestes países são válidas as condições de garantia dos concessionários
locais, podendo aí ser consultadas.
További vevöszolgálati irodák külföldön
Ezekben az országokban a mi AEG-Electrolux vevöszolgálatainknál
saját jótállási feltételek alkalmazhatók. A további adatokat kérjük
közvetlenül szerezzék be.
Servisne službe
Na garancijskem listu boste našli seznam pooblašèenih servisnih
služb AEG-Electrolux.
52
U.A.E. Abu Dhabi
Universal Trading Company
P.O. Box 43 99
Tel.: 6335331
Service Center 6733974
Jordan
Jordan Household
Supply Co. Ltd.
P.O. Box 3/68
Amman/Tel.: 69 70 50
Malta
ITC
International Trading Company
White House Building
Mountbatte Street
Blata L-Bajda/Tel.: 220644
Egypt
Middle East Commercial
Center
4 Salah El Dein St. - 2nd floor
Heliopolis, Kairo
Egypt
Tel.: 2024181719
Canada
EURO-LINE Appliances
2150 Winston PARK Drive 20
Oakville, Ontario L6H 5V1
Tel.: 905 829 3980
Fax: 905 829 3985
Mauritius
Happy World Centre Ltd.
P.O. 7 54
1 Chausee Street
Port Louis
Tel.: 25355
Australia
The Andi-Co Group
1 Stamford Road
Oakleigh VIC 3166
Tel.: (03) 9569 1255
Fax: (03) 9569 1450
www.andico.com.au
Korea (South)
Core Incorp.
3/F Chewoo Bldg.
200 Nonhyun-Dong
Kangnam-Ku 135-010
Seoul
Telefon 82 2 549 89 61
Namibia
AEG NAMIBIA (PTY)
LIMITED-Jeppe Street
Northern Industrial Area
Windhoek
Tel.: (061) 21-6082/4
Fax: (061) 217838
Bahrain/Arabian Gulf
A.A. Zayani & Sons
P.O. Box 9 32
Bahrain
Tel.: 17311124
Croatia
Electrolux D.O.O.
Suplova 7
10000 Zagreb
Tel.: 1 61 19512
Fax: 1 61 19513
New Zealand
Monaco Corporation Ltd.
10 Rothwell Avenue
Albany - Auckland
4399 Auckland 1
New Zealand
Tel.: 00 64-92 59 11 11
Fax: 00 64-92 59 11 12
Bulgaria
Electrolux Bulgaria E.O.O.D.
91 Levski Blvd.
1000 Sofia
Tel.: 2 806676
Fax. 2 980 5276
Kuwait/Arabian Gulf
Ali Al-Ghanim Est.
P.O. Box 21540 - Safat
Tel.: 4822190
Fax: 4820116
Syria
WATTAR CO.
P.O. Box 36109
Mazzeh - Damascus
Direct Phone: 00963116132649
Fax: 00963116119537
Cyprus
Hadjikyrlakos & Sons Ltd.
Prodromou 121
P.O. Box 21587
Nicosia 1511
Service Telephones:
Nicosia 02 481226
Limassol 05 562182
Larnaca 04 633929
Paphos 06 932 699
Lebanon
Adib & Assaferi
P.O. Box 539
Tripoli
Iran
ARIAN International Development Co.
AEG Showroom
Shariati, Balatar as Safar
Teheran / Iran
Phone No. Showroom:
021 / 285 513 / 4
Phone No. Service:
021 / 312 27 67 / 8
Estonia
Electrolux Estonia Ltd.
Mustamäe tee 24
EE0006 Tallinn
Tel.: (372) 6 650 090
Fax: (372) 6 650 092
Latvia
Electrolux Latvija Ltd.
Kr.Barona iela 130/2
Riga, LV-1012
Tel.: 371 7313626
Fax: 371 7845954
Poland
Electrolux Poland Sp. zo.o.
ul. Domaniewska 41
02-034 Warszawa
tel.: 022 874 33 33
fax: 022 874 33 00
Hong Kong
Dah Chong Hong Ltd.
20 Kai Cheung Road
Kowloon Bay
Kowloon - Hong Kong
Tel.: 0085222621620
Fax: 0085227550333
Lithuania
Electrolux Lithuania
Verkui 29
2600 Vilnus
Tel.: 372 272 3326
Fax: 372 272 3366
Russia
Electrolux Russia Ltd.
16 Olympiysky prospekt
129090 Moscow
Tel.: (095) 937 7837
Fax: (095) 926 5513
53
54
Israel
Evis Ltd.
Tadiran-Ampa Service
10 Gibonay Israel Street
New Industrial Zone
Netanya, 42504
Israel
Malaysia
Arzbergh Engineering
No. 49A/B, Jalan Petaling
Utama 7
4600 Petaling Jaya
Tel.: 3 795 1084
Fax: 3 795 1082
Saudi Arabia
Awad Badi Nahas Est
Shara Siteen
Jeddah 21463
Phone: 6646583
Alia Trading Co
Mecca Road
Riyadh 11491
Phone 4645977
Japan
Electrolux Japan Ltd.
Domestic Appliances
Department
Maruzen Showa Warehouse
Building
Tookai 4-5-12, Ota-ku
143-006 Tokyo
Tel.: 0120-13-7117
Fax: 03-3790-5257
Singapore
Group Pte Ltd.
833 Bukit Timah Road
Unit no. 01-11 Royalville
279887 Singapore
Tel.: 0065 64638484
Fax: 0065 64638488
Slovenia
Electrolux Slovenia D.O.O.
Traska Ul. 132
1000 Ljubljana
Tel.: 61 1234 137
Fax: 61 1234 238
Thailand
Olympia Thai Tower, 444
Rachadapiser Road
Samsennok- Huaykwang
10320 Bangkok
Thailand
Tel.: 006625136111
Fax: 006625136334
Slovakia Rep.
Electrolux Slovakia S.R.O.
Seberiniho 1
821 03 Bratislava
Tel.: 02 4333 4322, 4355
Fax: 02 4333 6976
South Africa
AEG (Pty) Ltd.
55, 12th Road
P.O. Box 1 02 64
Kew/Johannesburg 2000
Tel.: 8069111
Hungary
Electrolux Lehel KFT
Erzsébet Királyné útja 87.
1142 Budapest
Tel.: 00361/467-3200
Czech Rep.
ELECTROLUX DOMÁCå
SPOTØEBIÈE CZ
DIVIZE ELECTROLUX S.R.O.
Customer Centre
Hanusova ul.
140 21 Praha 4
Tel.: 2 6112 6112
Telefax: 2 6112 3504
European Guarantee
This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user
manual, for the period specified in the appliance guarantee or otherwise by law. If you move
from one of these countries to another of the countries listed below the appliance guarantee
will move with you subject to the following qualifications:
• The appliance guarantee starts from the date you first purchased the appliance which will be
evidenced by production of a valid purchase document issued by the seller of the appliance.
• The appliance guarantee is for the same period and to the same extent for labour and parts as
exists in your new country of residence for this particular model or range of appliances.
• The appliance guarantee is personal to the original purchaser of the appliance and cannot be
transferred to another user.
• The appliance is installed and used in accordance with instructions issued by Electrolux and is
only used within the home, i.e. is not used for commercial purposes.
• The appliance is installed in accordance with all relevant regulations in force within your new
country of residence.
The provisions of this European Guarantee do not affect any of the rights granted to you by law.
55
www.electrolux.com
56
p
t
b
Albania
+35 5 4 261 450
Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/
Belgien
+32 2 363 04 44
Bergensesteenweg 719, 1502 Lembeek
Èeská republika
+420 2 61 12 61 12
Budìjovická 3, Praha 4, 140 21
Danmark
+45 70 11 74 00
Sjællandsgade 2, 7000 Fredericia
Deutschland
+49 180 32 26 622
Muggenhofer Str. 135, 90429 Nürnberg
Eesti
+37 2 66 50 030
Mustamäe tee 24, 10621 Tallinn
España
+34 902 11 63 88
Carretera M-300, Km. 29,900
Alcalá de Henares Madrid
France
www.electrolux.fr
Great Britain
+44 8705 929 929
Addington Way, Luton, Bedfordshire
LU4 9QQ
Hellas
+30 23 10 56 19 70
4 Limnou Str., 54627 Thessaloniki
Hrvatska
+385 1 63 23 338
Slavonska avenija 3, 10000 Zagreb
Ireland
+353 1 40 90 753
Long Mile Road Dublin 12
Italia
+39 (0) 434 558500
C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija
+37 17 84 59 34
Kr. Barona iela 130/2, LV-1012, Riga
Lietuva
+370 5 2780609
Verkių 29, LT09108 Vilnius
Luxembourg
+35 2 42 43 13 01
Rue de Bitbourg, 7, L-1273 Hamm
Magyarország
+36 1 252 1773
H-1142 Budapest XIV,
Erzsébet királyné útja 87
Nederland
+31 17 24 68 300
Vennootsweg 1, 2404 CG Alphen aan den Rijn
Norge
+47 81 5 30 222
Risløkkvn. 2 , 0508 Oslo
Österreich
+43 18 66 400
Herziggasse 9, 1230 Wien
Polska
+48 22 43 47 300
ul. Kolejowa 5/7, Warsaw
Portugal
+35 12 14 40 39 39
Quinta da Fonte - Edificio Gonçalves
Zarco - Q 35
2774 - 518 Paço de Arcos
Romania
+40 21 451 20 30
Str. Garii Progresului 2, S4, 040671 RO
Schweiz/Suisse/
Svizzera
+41 62 88 99 111
Industriestrasse 10, CH-5506 Mägenwil
p
t
b
Slovenija
+38 61 24 25 731
Electrolux Ljubljana d.o.o.
Gerbiceva 98, 1000 Ljubljana
Slovensko
+421 2 43 33 43 22
Electrolux Slovakia s.r.o., Electrolux
Domáce spotrebièe SK, Seberíniho 1,
821 03 Bratislava
Suomi
www.electrolux.fi
Sverige
+46 (0)771 76 76 76
Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm
Türkiye
+90 21 22 93 10 25
Tarlabaþý caddesi no : 35 Taksim
Istanbul
Ðîññèÿ
+7 095 937 7837
129090 Ìîñêâà, Îëèìïèéñêèé
ïðîñïåêò, 16, ÁÖ „Îëèìïèê“
57
Service
In the event of technical faults, please first check whether you can
remedy the problem yourself with the help of the operating instructions (section “What to do if…”).
If you were not able to remedy the problem yourself, please contact the
Customer Care Department or one of our service partners.
In order to be able to assist you
quickly, we require the following
information:
– Model description
– Product number (PNC)
– Serial number (S No.)
(for numbers see rating plate)
– Type of fault
– Any error messages displayed by
the appliance
So that you have the necessary reference numbers from your appliance
at hand, we recommend that you write them in here:
58
Model description:
.....................................
PNC:
.....................................
S No:
.....................................
59
www.electrolux.com
822 928 872-A-291106-01
Subject to change without notice
Download PDF
