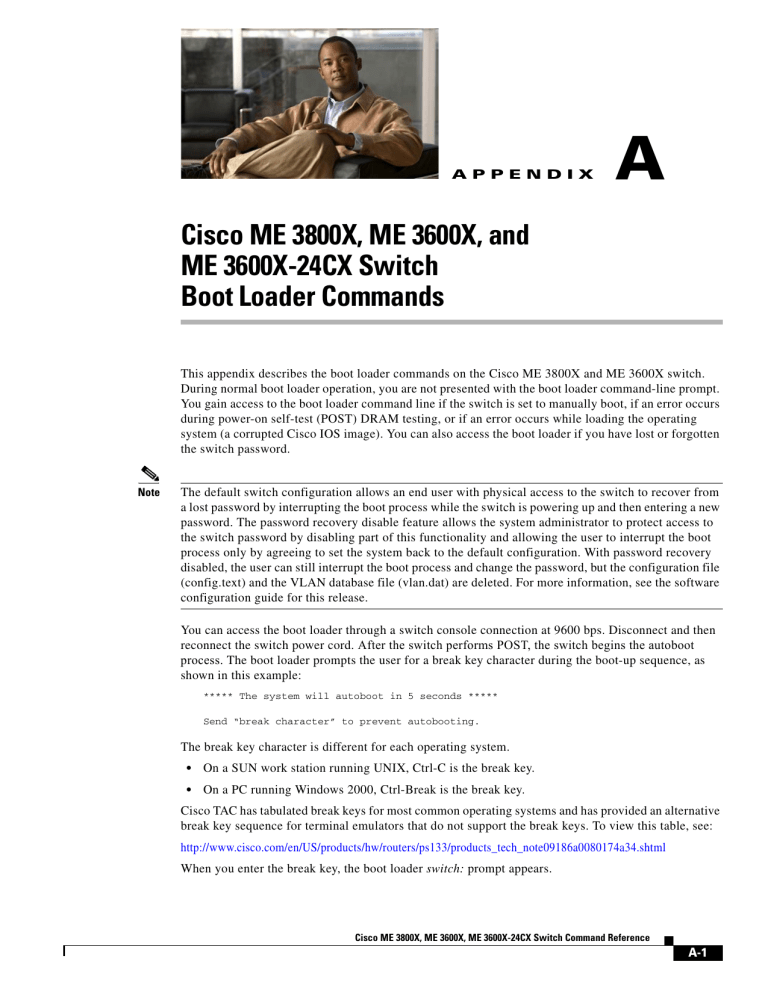

This appendix describes the boot loader commands on the Cisco ME 3800X and ME 3600X switch.
During normal boot loader operation, you are not presented with the boot loader command-line prompt.
You gain access to the boot loader command line if the switch is set to manually boot, if an error occurs
during power-on self-test (POST) DRAM testing, or if an error occurs while loading the operating
system (a corrupted Cisco IOS image). You can also access the boot loader if you have lost or forgotten
the switch password.
Note
The default switch configuration allows an end user with physical access to the switch to recover from
a lost password by interrupting the boot process while the switch is powering up and then entering a new
password. The password recovery disable feature allows the system administrator to protect access to
the switch password by disabling part of this functionality and allowing the user to interrupt the boot
process only by agreeing to set the system back to the default configuration. With password recovery
disabled, the user can still interrupt the boot process and change the password, but the configuration file
(config.text) and the VLAN database file (vlan.dat) are deleted. For more information, see the software
configuration guide for this release.
You can access the boot loader through a switch console connection at 9600 bps. Disconnect and then
reconnect the switch power cord. After the switch performs POST, the switch begins the autoboot
process. The boot loader prompts the user for a break key character during the boot-up sequence, as
shown in this example:
***** The system will autoboot in 5 seconds *****
Send “break character” to prevent autobooting.
The break key character is different for each operating system.
•
On a SUN work station running UNIX, Ctrl-C is the break key.
•
On a PC running Windows 2000, Ctrl-Break is the break key.
Cisco TAC has tabulated break keys for most common operating systems and has provided an alternative
break key sequence for terminal emulators that do not support the break keys. To view this table, see:
http://www.cisco.com/en/US/products/hw/routers/ps133/products_tech_note09186a0080174a34.shtml
When you enter the break key, the boot loader switch: prompt appears.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-1
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
The boot loader performs low-level CPU initialization, performs POST, and loads a default operating
system image into memory.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-2
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
arp
arp
To display the contents the Address Resolution Protocol (ARP) table, use the arp command in boot
loader mode.
arp [ip_address]
Syntax Description
ip_address
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
(Optional) Show the ARP table or the mapping for a specific IP address.
Usage Guidelines
The ARP table has the IP-address-to-MAC-address mappings.
Examples
This example shows how to display the ARP table:
Switch: arp 172.20.136.8
arp'ing 172.20.136.8...
172.20.136.8 is at 00:1b:78:d1:25:ae, via port 0
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-3
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
boot
boot
To load and boot an executable image and to enter the command-line interface, use the boot command
in boot loader mode.
boot [-post | -n | -p | flag] filesystem:/file-url ...
Syntax Description
-post
(Optional) Runs the loaded image with an extended or comprehensive power-on
self-test (POST). Using this keyword causes POST to take longer to complete.
-n
(Optional) Pauses for the Cisco IOS debugger immediately after launching.
-p
(Optional) Pauses for the JTAG debugger right after loading the image.
filesystem:
Alias for a flash file system. Use flash: for the system board flash device.
/file-url
(Optional) Path (directory) and name of a bootable image. Separate image names
with a semicolon.
Defaults
The switch attempts to automatically boot the system by using information in the BOOT environment
variable. If this variable is not set, the switch attempts to load and execute the first executable image it
can by performing a recursive, depth-first search throughout the flash file system. In a depth-first search
of a directory, each encountered subdirectory is completely searched before continuing the search in the
original directory.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
When you enter the boot command without any arguments, the switch attempts to automatically boot
the system by using the information in the BOOT environment variable, if any. If you supply an image
name for the file-url variable, the boot command attempts to boot the specified image.
When you set boot loader boot command options, they are executed immediately and apply only to the
current boot loader session. These settings are not saved for the next boot operation.
Filenames and directory names are case sensitive.
Examples
This example shows how to boot the switch using the new-image.bin image:
Switch: boot flash:/new-images/new-image.bin
After entering this command, you are prompted to start the setup program.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-4
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
boot
Related Commands
Command
Description
set
Sets the BOOT environment variable to boot a specific image when the
BOOT keyword is appended to the command.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-5
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
cat
cat
To display the contents of one or more files, use the cat command in boot loader mode.
cat filesystem:/file-url ...
Syntax Description
filesystem:
Alias for a flash file system. Use flash: for the system board flash device.
/file-url
Path (directory) and name of the files to display. Separate each filename with a space.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
Filenames and directory names are case sensitive.
If you specify a list of files, the contents of each file appears sequentially.
Examples
This example shows how to display the contents of two files:
Switch: cat flash:/new-images/info flash:env_vars
version_suffix: image-name
version_directory: image-name
image_name: image-name.bin
ios_image_file_size: 63984644
total_image_file_size: 8133632
image_feature: IP|LAYER_3|PLUS|MIN_DRAM_MEG=128
image_family: me340x
info_end:
BAUD=57600
MANUAL_BOOT=no
Related Commands
Command
Description
more
Displays the contents of one or more files.
type
Displays the contents of one or more files.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-6
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
copy
copy
To copy a file from a source to a destination, use the copy command in boot loader mode.
copy [-b block-size] filesystem:/source-file-url filesystem:/destination-file-url
Syntax Description
-b block-size
(Optional) This option is used only for internal development and testing.
filesystem:
Alias for a flash file system. Use flash: for the system board flash device.
/source-file-url
Path (directory) and filename (source) to be copied.
/destination-file-url
Path (directory) and filename of the destination.
Defaults
The default block size is 4 KB.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
Filenames and directory names are case sensitive.
Directory names are limited to 45 characters between the slashes (/); the name cannot contain control
characters, spaces, deletes, slashes, quotes, semicolons, or colons.
Filenames are limited to 45 characters; the name cannot contain control characters, spaces, deletes,
slashes, quotes, semicolons, or colons.
If you are copying a file to a new directory, the directory must already exist.
Examples
This example show how to copy a file at the root:
Switch: copy flash:test1.text flash:test4.text
.
File "flash:test1.text" successfully copied to "flash:test4.text"
You can verify that the file was copied by entering the dir filesystem: boot loader command.
Related Commands
Command
Description
delete
Deletes one or more files from the specified file system.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-7
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
delete
delete
To delete one or more files from the specified file system, use the delete command in boot loader mode.
delete filesystem:/file-url ...
Syntax Description
filesystem:
Alias for a flash file system. Use flash: for the system board flash device.
/file-url
Path (directory) and filename to delete. Separate each filename with a space.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
Filenames and directory names are case sensitive.
The switch prompts you for confirmation before deleting each file.
Examples
This example shows how to delete two files:
Switch: delete flash:test2.text flash:test5.text
Are you sure you want to delete "flash:test2.text" (y/n)?y
File "flash:test2.text" deleted
Are you sure you want to delete "flash:test5.text" (y/n)?y
File "flash:test2.text" deleted
You can verify that the files were deleted by entering the dir flash: boot loader command.
Related Commands
Command
Description
copy
Copies a file from a source to a destination.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-8
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
dir
dir
To display a list of files and directories on the specified file system, use the dir command in boot loader
mode.
dir filesystem:/file-url ...
Syntax Description
filesystem:
Alias for a flash file system. Use flash: for the system board flash device.
/file-url
(Optional) Path (directory) and directory name whose contents you want to
display. Separate each directory name with a space.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
Directory names are case sensitive.
Examples
This example shows how to display the files in flash memory:
Switch: dir flash:
Directory of flash:/
3
11
21
9
16
14
22
17
-rwx
-rwx
-rwx
drwx
-rwx
-rwx
-rwx
drwx
1839
1140
26
768
1037
1099
96
192
Mar
Mar
Mar
Mar
Mar
Mar
Mar
Mar
01
01
01
01
01
01
01
06
2002
2002
2002
2002
2002
2002
2002
2002
00:48:15
04:18:48
00:01:39
23:11:42
00:01:11
01:14:05
00:01:39
23:22:03
config.text
vlan.dat
env_vars
html
config.text
homepage.htm
system_env_vars
image-name
15998976 bytes total (6397440 bytes free)
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-9
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
dir
Table A-1 describes the fields in the display.
Table A-1
Related Commands
dir Field Descriptions
Field
Description
2
Index number of the file.
-rwx
File permission, which can be any or all of these:
•
d—directory
•
r—readable
•
w—writable
•
x—executable
1644045
Size of the file.
<date>
Last modification date.
env_vars
Filename.
Command
Description
mkdir
Creates one or more directories.
rmdir
Removes one or more directories.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-10
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
flash_init
flash_init
To initialize the flash file system, use the flash_init command in boot loader mode.
flash_init
Syntax Description
This command has no arguments or keywords.
Defaults
The flash file system is automatically initialized during normal system operation.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
During the normal boot process, the flash file system is automatically initialized.
Use this command to manually initialize the flash file system. For example, you use this command
during the recovery procedure for a lost or forgotten password.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-11
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
format
format
To format the specified file system and destroy all data in that file system, use the format command in
boot loader mode.
format filesystem:
Syntax Description
filesystem:
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Alias for a flash file system. Use flash: for the system board flash device.
Usage Guidelines
Caution
Use this command with care; it destroys all data on the file system and renders your system unusable.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-12
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
fsck
fsck
To check the file system for consistency, use the fsck command in boot loader mode.
fsck [-test | -f] filesystem:
Syntax Description
-test
(Optional) Initializes the file system code and perform extra POST on flash memory.
An extensive, nondestructive memory test is performed on every byte that makes up
the file system.
-f
(Optional) Initializes the file system code and perform a fast file consistency check.
Cyclic redundancy checks (CRCs) in the flashfs sectors are not checked.
filesystem:
Alias for a flash file system. Use flash: for the system board flash device.
Defaults
No file system check is performed.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
To stop an in-progress file system consistency check, disconnect the switch power and then reconnect
the power.
Examples
This example shows how to perform an extensive file system check on flash memory:
Switch: fsck -test flash:
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-13
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
help
help
To display the available commands, use the help command in boot loader mode.
help
Syntax Description
This command has no arguments or keywords.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
You can also use the question mark (?) to display a list of available boot loader commands.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-14
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
memory
memory
To display memory heap utilization information, use the memory command in boot loader mode.
memory
Syntax Description
This command has no arguments or keywords.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Examples
This example shows how to display memory heap utilization information:
Switch:
Text:
Rotext:
Data:
Bss:
Heap:
memory
0x00700000
0x00000000
0x0071cf24
0x0072529c
0x00756f98
-
0x0071cf24
0x00000000
0x00723a0c
0x00746f94
0x00800000
(0x0001cf24
(0x00000000
(0x00006ae8
(0x00021cf8
(0x000a9068
bytes)
bytes)
bytes)
bytes)
bytes)
Bottom heap utilization is 22 percent.
Top heap utilization is 0 percent.
Total heap utilization is 22 percent.
Total bytes: 0xa9068 (692328)
Bytes used: 0x26888 (157832)
Bytes available: 0x827e0 (534496)
Alternate heap utilization is 0 percent.
Total alternate heap bytes: 0x6fd000 (7327744)
Alternate heap bytes used: 0x0 (0)
Alternate heap bytes available: 0x6fd000 (7327744)
Table A-2 describes the fields in the display.
Table A-2
memory Field Descriptions
Field
Description
Text
Beginning and ending address of the text storage area.
Rotext
Beginning and ending address of the read-only text storage area. This part of the data
segment is grouped with the Text entry.
Data
Beginning and ending address of the data segment storage area.
Bss
Beginning and ending address of the block started by symbol (Bss) storage area. It
is initialized to zero.
Heap
Beginning and ending address of the area in memory that memory is dynamically
allocated to and freed from.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-15
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
mgmt_clr
mgmt_clr
To clear the Ethernet management port statistics, use the mgmt_clr command in boot loader mode.
mgmt_clr
Syntax Description
This command has no arguments or keywords.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Examples
This example shows how to clear the Ethernet management port statistics:
Switch: mgmt_clr
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-16
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
mgmt_init
mgmt_init
To initialize the Ethernet management port, use the mgmt_init command in boot loader mode.
mgmt_init
Syntax Description
This command has no arguments or keywords.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
Use the mgmt_init command only during debugging of the Ethernet management port.
Examples
This example shows how to initialize the Ethernet management port:
Switch: mgmt_init
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-17
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
mgmt_show
mgmt_show
To display the Ethernet management port statistics, use the mgmt_show command in boot loader mode.
mgmt_show
Syntax Description
This command has no arguments or keywords.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Examples
This example shows how to display the Ethernet management port statistics:
Switch: mgmt_show
Statistics
Received
Transmitted
--------------------------------------------------good frame bytes
:
60
120
good frames
:
1
2
bad frames
:
0
0
dropped frames
:
0
0
queue overflowed
:
0
0
memory access errors :
0
0
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-18
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
mkdir
mkdir
To create one or more new directories on the specified file system, use the mkdir command in boot
loader mode.
mkdir filesystem:/directory-url ...
Syntax Description
filesystem:
Alias for a flash file system. Use flash: for the system board flash device.
/directory-url
Name of the directories to create. Separate each directory name with a space.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
Directory names are case sensitive.
Directory names are limited to 45 characters between the slashes (/); the name cannot contain control
characters, spaces, deletes, slashes, quotes, semicolons, or colons.
Examples
This example shows how to make a directory called Saved_Configs:
Switch: mkdir flash:Saved_Configs
Directory "flash:Saved_Configs" created
This example shows how to make two directories:
Switch: mkdir flash:Saved_Configs1 flash:Test
Directory "flash:Saved_Configs1" created
Directory "flash:Test" created
You can verify that the directory was created by entering the dir filesystem: boot loader command.
Related Commands
Command
Description
dir
Displays a list of files and directories on the specified file system.
rmdir
Removes one or more directories from the specified file system.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-19
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
more
more
To display the contents of one or more files, use the more command in boot loader mode.
more filesystem:/file-url ...
Syntax Description
filesystem:
Alias for a flash file system. Use flash: for the system board flash device.
/file-url
Path (directory) and name of the files to display. Separate each filename with
a space.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
Filenames and directory names are case sensitive.
If you specify a list of files, the contents of each file appears sequentially.
Examples
This example shows how to display the contents of two files:
Switch: more flash:/new-images/info flash:env_vars
version_suffix: image-name
version_directory: image-name
image_name: image-name.bin
ios_image_file_size: 63984644
total_image_file_size: 8133632
image_feature: IP|LAYER_3|PLUS|MIN_DRAM_MEG=128
image_family: family
info_end:
BAUD=57600
MANUAL_BOOT=no
Related Commands
Command
Description
cat
Displays the contents of one or more files.
type
Displays the contents of one or more files.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-20
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
peek
peek
To read data from a memory location, use the peek command in boot loader mode.
peek location
Syntax Description
location
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Examples
32-bit memory location.
This example shows how to read data from a memory location:
Switch: peek 0xfff80000
ox4BE000=102
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-21
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
ping
ping
To send ICMP ECHO REQUEST packets to a network host, use the ping command in boot loader mode.
ping ip-address
Syntax Description
ip-address
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Examples
The IP address of the network host.
This example shows how to send an echo request packet to a network host:
Switch: ping 1.1.1.1 255.255.255.0
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-22
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
poke
poke
To write data to one writable memory location, use the poke command in boot loader mode.
poke location
Syntax Description
location
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Examples
32-bit memory location.
This example shows how to write data to a writeable memory location:
Switch: poke 0xfff80000
ox4BE000=102
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-23
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
rename
rename
To rename a file, use the rename command in boot loader mode.
rename filesystem:/source-file-url filesystem:/destination-file-url
Syntax Description
filesystem:
Alias for a flash file system. Use flash: for the system board flash device.
/source-file-url
Original path (directory) and filename.
/destination-file-url
New path (directory) and filename.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
Filenames and directory names are case sensitive.
Directory names are limited to 45 characters between the slashes (/); the name cannot contain control
characters, spaces, deletes, slashes, quotes, semicolons, or colons.
Filenames are limited to 45 characters; the name cannot contain control characters, spaces, deletes,
slashes, quotes, semicolons, or colons.
Examples
This example shows a file named config.text being renamed to config1.text:
Switch: rename flash:config.text flash:config1.text
You can verify that the file was renamed by entering the dir filesystem: boot loader command.
Related Commands
Command
Description
copy
Copies a file from a source to a destination.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-24
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
reset
reset
To perform a hard reset on the system, use the reset command in boot loader mode. A hard reset is
similar to power-cycling the switch, clearing the processor, registers, and memory.
reset
Syntax Description
This command has no arguments or keywords.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Examples
This example shows how to reset the system:
Switch: reset
Are you sure you want to reset the system (y/n)?y
System resetting...
Related Commands
Command
Description
boot
Loads and boots an executable image and enters the command-line interface.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-25
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
rmdir
rmdir
To remove one or more empty directories from the specified file system, use the rmdir command in boot
loader mode.
rmdir filesystem:/directory-url ...
Syntax Description
filesystem:
Alias for a flash file system. Use flash: for the system board flash device.
/directory-url
Path (directory) and name of the empty directories to remove. Separate each
directory name with a space.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
Directory names are case sensitive and limited to 45 characters between the slashes (/); the name cannot
contain control characters, spaces, deletes, slashes, quotes, semicolons, or colons.
Before removing a directory, you must first delete all the files in the directory.
The switch prompts you for confirmation before deleting each directory.
Examples
This example shows how to remove a directory:
Switch: rmdir flash:Test
You can verify that the directory was deleted by entering the dir filesystem: boot loader command.
Related Commands
Command
Description
dir
Displays a list of files and directories on the specified file system.
mkdir
Creates one or more new directories on the specified file system.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-26
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
set
set
To set or display environmental variables that can be used to control the boot loader or any other software
running on the switch, use the set command in boot loader mode.
set variable value
Note
Syntax Description
Under normal circumstances, it is not necessary to alter the setting of the environment variables.
variable value
Use one of these keywords for variable and value:
MANUAL_BOOT—Decides whether the switch automatically or manually boots.
Valid values are 1, yes, 0, and no. If it is set to no or 0, the boot loader attempts to
automatically boot the system. If it is set to anything else, you must manually boot
the switch from the boot loader mode.
BOOT filesystem:/file-url—A semicolon-separated list of executable files to try to
load and execute when automatically booting.
If the BOOT environment variable is not set, the system attempts to load and execute
the first executable image it can find by using a recursive, depth-first search through
the flash: file system. If the BOOT variable is set but the specified images cannot be
loaded, the system attempts to boot the first bootable file that it can find in the flash
file system.
ENABLE_BREAK—Decides whether the automatic boot process can be
interrupted by using the Break key on the console.
Valid values are 1, yes, on, 0, no, and off. If it is set to 1, yes, or on, you can interrupt
the automatic boot process by pressing the Break key on the console after the flash
file system has initialized.
HELPER filesystem:/file-url—A semicolon-separated list of loadable files to
dynamically load during the boot loader initialization. Helper files extend or patch
the functionality of the boot loader.
PS1 prompt—A string that is used as the command-line prompt in boot loader mode.
CONFIG_FILE flash:/file-url—The filename that Cisco IOS uses to read and write
a nonvolatile copy of the system configuration.
BAUD rate—The rate in bits per second (bps) used for the console. The Cisco IOS
software inherits the baud rate setting from the boot loader and continues to use this
value unless the configuration file specifies another setting. The range is from 0 to
4294967295 bps. Valid values are 50, 75, 110, 150, 300, 600, 1200, 1800, 2000,
2400, 3600, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 56000, 57600, 115200,
and 128000.
The most commonly used values are 300, 1200, 2400, 9600, 19200, 57600, and
115200.
HELPER_CONFIG_FILE filesystem:/file-url—The name of the configuration file
to be used by the Cisco IOS helper image. If this is not set, the file specified by the
CONFIG_FILE environment variable is used by all versions of Cisco IOS that are
loaded, including the helper image. This variable is used only for internal
development and testing.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-27
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
set
Defaults
The environment variables have these default values:
MANUAL_BOOT: No (0)
BOOT: Null string
ENABLE_BREAK: No (Off or 0) (the automatic boot process cannot be interrupted by pressing the
Break key on the console).
HELPER: No default value (helper files are not automatically loaded).
PS1: switch:
CONFIG_FILE: config.text
BAUD: 9600 bps
HELPER_CONFIG_FILE: No default value (no helper configuration file is specified).
SWITCH_NUMBER: 1
SWITCH_PRIORITY: 1
Note
Environment variables that have values are stored in the flash file system in various files. The format of
these files is that each line contains an environment variable name and an equal sign followed by the
value of the variable. A variable has no value if it is not listed in this file; it has a value if it is listed in
the file even if the value is a null string. A variable that is set to a null string (for example, “ ”) is a
variable with a value. Many environment variables are predefined and have default values.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
Environment variables are case sensitive and must be entered as documented.
Environment variables that have values are stored in flash memory outside of the flash file system.
Under normal circumstances, it is not necessary to alter the setting of the environmental variables.
The MANUAL_BOOT environment variable can also be set by using the boot manual global
configuration command.
The BOOT environment variable can also be set by using the boot system filesystem:/file-url global
configuration command.
The ENABLE_BREAK environment variable can also be set by using the boot enable-break global
configuration command.
The HELPER environment variable can also be set by using the boot helper filesystem:/file-url global
configuration command.
The CONFIG_FILE environment variable can also be set by using the boot config-file flash:/file-url
global configuration command.
The HELPER_CONFIG_FILE environment variable can also be set by using the boot helper-config-file
filesystem:/file-url global configuration command.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-28
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
set
The HELPER_CONFIG_FILE environment variable can also be set by using the boot helper-config-file
filesystem:/file-url global configuration command.
The boot loader prompt string (PS1) can be up to 120 printable characters except the equal sign (=).
Examples
This example shows how to change the boot loader prompt:
Switch: set PS1 loader:
loader:
You can verify your setting by using the set boot loader command.
Related Commands
Command
Description
unset
Resets one or more environment variables to its previous setting.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-29
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
set_param
set_param
To write system parameters to the system flash memory, use the set_param command in boot loader
mode.
set_param
Syntax Description
This command has no arguments or keywords.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Examples
This example shows how to write system parameters to system flash memory.
Switch: set_param
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-30
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
sleep
sleep
To pause for a specified number of seconds, use the sleep command in boot loader mode.
sleep value
Sets the time to pause the boot loader in seconds. The range is 0 to 231–1.
Syntax Description
value:
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Examples
This example shows how to pause the boot loader process for 30 seconds:
Switch: sleep 30
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-31
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
type
type
To display the contents of one or more files, use the type command in boot loader mode.
type filesystem:/file-url ...
Syntax Description
filesystem:
Alias for a flash file system. Use flash: for the system board flash device.
/file-url
Path (directory) and name of the files to display. Separate each filename with
a space.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Usage Guidelines
Filenames and directory names are case sensitive.
If you specify a list of files, the contents of each file appears sequentially.
Examples
This example shows how to display the contents of two files:
Switch: type flash:/new-images/info flash:env_vars
version_suffix: image-name
version_directory: image-name
image_name: image-name.bin
ios_image_file_size: 63984644
total_image_file_size: 8133632
image_feature: IP|LAYER_3|PLUS|MIN_DRAM_MEG=128
image_family: family
info_end:
BAUD=57600
MANUAL_BOOT=no
Related Commands
Command
Description
cat
Displays the contents of one or more files.
more
Displays the contents of one or more files.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-32
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
unset
unset
To reset one or more environmental variables, use the unset command in boot loader mode.
unset variable ...
Note
Syntax Description
Under normal circumstances, it is not necessary to alter the setting of the environment variables.
variable
Use one of these keywords for variable:
MANUAL_BOOT—Decides whether the switch automatically or manually
boots.
BOOT—Resets the list of executable files to try to load and execute when
automatically booting. If the BOOT environment variable is not set, the
system attempts to load and execute the first executable image it can find by
using a recursive, depth-first search through the flash file system. If the
BOOT variable is set but the specified images cannot be loaded, the system
attempts to boot the first bootable file that it can find in the flash file system.
ENABLE_BREAK—Decides whether the automatic boot process can be
interrupted by using the Break key on the console after the flash file system
has been initialized.
HELPER—A semicolon-separated list of loadable files to dynamically load
during the boot loader initialization. Helper files extend or patch the
functionality of the boot loader.
PS1—A string that is used as the command-line prompt in boot loader mode.
CONFIG_FILE—Resets the filename that Cisco IOS uses to read and write
a nonvolatile copy of the system configuration.
BAUD—Resets the rate in bits per second (bps) used for the console. The
Cisco IOS software inherits the baud rate setting from the boot loader and
continues to use this value unless the configuration file specifies another
setting.
HELPER_CONFIG_FILE—Resets the name of the configuration file to be
used by the Cisco IOS helper image. If this is not set, the file specified by the
CONFIG_FILE environment variable is used by all versions of Cisco IOS
that are loaded, including the helper image. This variable is used only for
internal development and testing.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-33
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
unset
Usage Guidelines
Under normal circumstances, it is not necessary to alter the setting of the environmental variables.
The MANUAL_BOOT environment variable can also be reset by using the no boot manual global
configuration command.
The BOOT environment variable can also be reset by using the no boot system global configuration
command.
The ENABLE_BREAK environment variable can also be reset by using the no boot enable-break
global configuration command.
The HELPER environment variable can also be reset by using the no boot helper global configuration
command.
The CONFIG_FILE environment variable can also be reset by using the no boot config-file global
configuration command.
The HELPER_CONFIG_FILE environment variable can also be reset by using the no boot
helper-config-file global configuration command.
Examples
This example shows how to reset the prompt string to its previous setting:
Switch: unset PS1
Switch:
Related Commands
Command
Description
set
Sets or displays environment variables.
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-34
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
version
version
To display the boot loader version, use the version command in boot loader mode.
version
Syntax Description
This command has no arguments or keywords.
Command Modes
Boot loader
Command History
Release
Modification
12.2(52)EY
This command was introduced.
Examples
This example shows how to display the boot loader version:
Switch: version
switch-name Boot Loader (xxxxx-HBOOT-M) Version 12.2(xx)EX
Compiled Wed 12-Sept-05 14:58 by devgoyal
Switch:
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-35
Appendix A
Cisco ME 3800X, ME 3600X, and ME 3600X-24CX Switch Boot Loader Commands
version
Cisco ME 3800X, ME 3600X, ME 3600X-24CX Switch Command Reference
A-36
