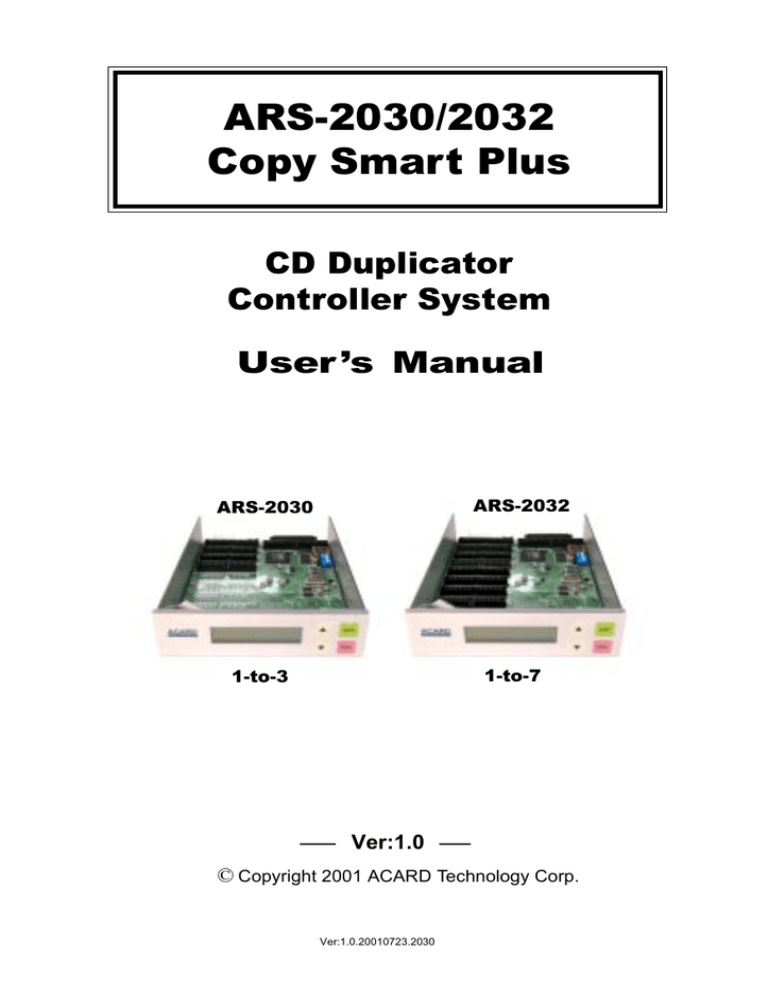

ARS-2030/2032
Copy Smart Plus
CD Duplicator
Controller System
User ’s Manual
ARS-2032
ARS-2030
1-to-7
1-to-3
Ver:1.0
© Copyright 2001 ACARD Technology Corp.
Ver:1.0.20010723.2030
Copyright and Trademarks Information
The information of product in this manual is subject to change without prior notice
and does not represent a commitment on part of the vendor, who assume no
liability or responsibility for any errors that may appear in this manual.
ACARD and SCSIDE are the trademarks of ACARD Technology Corp. IBM is a
trademark of the International Business Machine Corporation. Apple and the
PowerMac Logo are registered trademarks of Apple Corporation. All brand
names and trademarks are properties of their respective owners.
This manual contains materials protected under International Copyright Laws. All
rights reserved. No part of this manual may be reproduced, transmitted or
transcribed without the expressed written permission of the manufacturer and
authors of this manual.
ACARD’s Copy Smart Plus is used only for backing personal data and editing
personal audio tracks. Violates Copy Right is a criminal charge, ACARD's Copy
Smart Plus only supports legal backup operation purpose.
ACARD Technology Corp. is not responsible for the illegal actions of the users.
Table of Contents
Chapter 1 Introduction ..................................................................5
1.1 Overview ...................................................................................5
1.2 Features ....................................................................................6
1.3 Specifications ...........................................................................6
Chapter 2 Installation Procedure ................................................7
2.1 Contorller only ..........................................................................7
2.2 Whole duplicator without writer installed ..............................7
2.3 Completed duplication system ...............................................7
Chapter 3 Key Functions and Operating Instruction ...............10
Chapter 4 Board Layout ..............................................................13
Chapter 5 Function ......................................................................14
5.1 Copy ........................................................................................14
5.2 Test .......................................................................................... 14
5.3 Test&Copy ...............................................................................15
5.4 Verify .......................................................................................16
5.5 Compare ..................................................................................16
5.6 Prescan ...................................................................................17
5.7 Disc Info ..................................................................................18
5.8 Select Source ..........................................................................18
5.9 Image .......................................................................................19
5.9.1 Load ..................................................................................19
5.9.2 Delete Image .....................................................................20
5.9.3 Image Info .........................................................................20
5.9.4 Compare Image ................................................................21
5.9.5 Select Partition ..................................................................22
5.9.6 Select Src Drive ................................................................23
5.10 Edit Track ..............................................................................23
5.10.1 CD to CD Edit..................................................................23
5.10.2 CD to HD .........................................................................25
5.10.3 Play Audio Track .............................................................28
5.10.4 Close Session .................................................................29
5.11 Setup ......................................................................................29
5.11.1 Language (optional).........................................................30
5.11.2 Burn Speed .....................................................................30
5.11.3 Read Speed ....................................................................30
5.11.4 Auto Start Drive ...............................................................31
5.11.5 Start up menu ..................................................................31
5.11.6 Auto Verify .......................................................................31
5.11.7 Auto Compare .................................................................32
5.11.8 Auto Prescan ...................................................................32
5.11.9 Eject Disc ........................................................................33
5.11.10 Burn on The Fly .............................................................33
5.11.11 Burn Mode .....................................................................34
5.11.12 Button Sound .................................................................34
5.11.13 Device Info ....................................................................35
5.11.14 System Info ...................................................................36
5.11.15 Quick Erase ...................................................................36
5.11.16 Full Erase ......................................................................37
5.12 Adv Setup ..............................................................................37
5.12.1 UnderRun Protect ...........................................................38
5.12.2 Overburn .........................................................................38
5.12.3 Read Error Skip ...............................................................38
5.12.4 Format Hard Disk ............................................................39
5.12.5 Verify HDD ......................................................................39
5.12.6 Burn-in.............................................................................40
5.12.7 Update Firmware .............................................................40
5.12.8 Compare Firmware .........................................................41
5.12.9 H/W Diagnostic ...............................................................41
5.12.10 Load Default ..................................................................42
Chapter 6 Troubleshooting ......................................................... 43
Appendix 1 Optional SCSI-IDE Bridge Products .......................45
Appendix 2 LCD Message List ....................................................46
Appendix 3 Technical Support Form ..........................................49
ARS-2030/2032 Copy Smart Plus
Chapter 1 Introduction
1.1 Overview
The users who want to backup their CD normally have go through many steps by
turning on their computer, launching the software, setting up various parameters,
and tiding up their computer sometimes up to a hours to get a CD backup if the
CD backup are more than one. Obviously, a standalone ARS-2030/2032 Copy
Smart Plus will easily resolve the little inconvenience and drawback mentioned
above.
CD Copy Smart Plus is the first CD-to-CD standalone duplicator and does not
need to connect to a computer for performance. It provides a flawless function in
duplicating any format of compact disks with excellent accuracy. With its professional mechanism design and multi-function LCD panel, CD Copy Smart Plus is
easy for any end-user to operate. It is a perfect cost-effective CD-R duplicator for
audio, data, and video applications. Four simple pushbuttons panel is designed
to provide copy modes selection and copy operation.
1.2 Features
!
!
!
!
!
!
!
!
!
!
Standalone IDE to IDE CD Copy controller
Build-in ACARD SCSIDE Technology
4 (ARS-2030) / 8 (ARS-2032) independent IDE channel
Self system diagnostics when power on
Supports Hard Drive image
Auto format detection
User friendly interface with message rich LCD display
Fast copies supports high speed CD-RW writing mode
Easy operation without software and training are required
Firmware upgrade via CD-ROM
5
ARS-2030/2032 Copy Smart Plus
1.3 Specification
Power requirement - voltage : 5VB+/- 5%
current : 0.5A Max.
Environment -
Temperature
Operating 0 oC to 70 oC
Storage -20 oC to 85 oC
Humidity
15% to 90%
-
Dimentions
-
Connectors
-
Models:
Length:
Width:
Height:
AEC-2030/2032
200 mm
146.2 mm
42
mm
40-pin internal IDE connector
Cable (Optional) - Using ATA-66 (*Cable of length do not use longer than
46cm)
CD Format - CD-ROM (Mode1 & Mode2), CD-ROM/XA (Mode2 form1 &
form2), CD-DA, Mixed-Mode, Video CD, CD-I, Karaoke CD,
Photo CD (Single & Multi-session), CD-Extra, HFS, CDBridge, ISO9660, CD-R, and CD-RW
Writing mode - Auto Detect (DAO, TAO)
Support CD-ROM Drive* - Support CD-ROM Drive: TEAC 40X (CD-540E),
F/W 3.0A & expand read speed to 17-40X
Support CD-RW Drive* - Plextor, TEAC, Sanyo, Nichimen, SONY, RICOH
* Please visit ACARD web site to get the newest list (http://www.acard.com)
or E-Mail to support@acard.com
6
ARS-2030/2032 Copy Smart Plus
Chapter 2 Installation Procedure
When you get CD Copy Smart Plus, you could find the package in the following
possibilities: controller only; whole duplicator without writer installed & completed
duplication system.
2.1 Contorller only
1. Before the installation, please prepare the necessary devices as following:
!CD-ROM drive
!CD-R/RW drive
!IDE case (5~10-bay chassis suggested).
!Hard drive and mobile rack (IDE-bus hard drive-Option)
!Switching power supply (300W suggested).
2. After the preparation as above and make sure that:
!All IDE devices must be in Master mode.
2.2 Whole duplicator without writer installed
!Unpack the package of the duplicators.
!Prepare the CD-R/RW writers according to the recommendation of list
for installation. Please check for unlisted CD-RW writer if needed from
supplier.
!Assemble the duplicator according to your need.
!Make sure that the voltage setting is correct.
2.3 Completed duplication system
!Unpack the package of duplicators.
!Check the entire unit to see if there is any mal-function or damage found.
!Make sure that the voltage setting is correct.
!Hard drive is an optional installation to the duplication system.
7
ARS-2030/2032 Copy Smart Plus
Hardware Connection with Hard Drive for ARS-2030
Copy Smart Plus
Controller
CD-ROM
IDE 0 (S)
HDD
IDE 0 (M)
CD-RW
IDE 1
CD-RW
IDE 2
CD-RW
IDE 3
When the system connect with hard drive, the hard drive must connect on IDE 0
port with “Master” setting and the CD-ROM must set with “Slave”.
Hardware Connection without Hard Drive for ARS-2030
Copy Smart Plus
Controller
CD-ROM
IDE 0
CD-RW
IDE 1
CD-RW
IDE 2
CD-RW
IDE 3
8
ARS-2030/2032 Copy Smart Plus
Hardware Connection for ARS-2032
CD-ROM
HDD
CD-RW
CD-RW
CD-RW
Copy Smart Plus
CD-RW
CD-RW
CD-RW
CD-RW
IDE 0 (S)
IDE 0 (M)
IDE 1
IDE 2
IDE 3
Controller
IDE 4
IDE 5
IDE 6
IDE 7
When the system connect with hard drive, the hard drive must connect on IDE 0
port with “Master” setting and the CD-ROM must set with “Slave”.
Hardware Connection for ARS-2032
CD-ROM
IDE 0
HDD
IDE 1
CD-RW
IDE 2
CD-RW
IDE 3
Copy Smart Plus
Controller
CD-RW
IDE 4
CD-RW
IDE 5
CD-RW
IDE 6
CD-RW
IDE 7
9
ARS-2030/2032 Copy Smart Plus
Chapter 3 Key Functions and Operating Instruction
1. LCD Display Panel: Display main functions and all messages.
2.
: Scroll up through menus or functions.
3.
: Scroll down through menus or functions.
4.
: Execute the function which you select.
5.
: Cancel the function which you select.
When the CD Copy Smart Plus have been checked the hardware installation
correctly, power on the system. The CD Copy Smart Plus will process a selftesting for the seconds. After self-testing procedure running, the LCD will show:
1.
ARS-2030
ARS-2032
3.
2.
CD Duplicator
1-3 ver: 1.10B
Initialize SDRAM.....
CD Duplicator
1-7 ver: 1.10T
4. 1. Copy
Detect Drives.....
10
ARS-2030/2032 Copy Smart Plus
Two different main operation procedure are required to install the duplicatior with:
1. With hard drive installed
! Duplicator will detect the hard drive and create partitions for it (each partition
will have 1G capacity, e.g. 10GB Hard Disk will probably have 10 partitions
which it is included 9 working partitions and 1 TEMP partition)
! Use the Select Source to set the hard drive being the target source.
! Then select which partition to store the data in the “Image” in Main Menu.
! If there is no data stored in present/selected partition of hard drive, press the
arrow button to select “load” function and place the master disc into the CDROM, then press “ENT” button to load data into the present/selected
partition. Change another master disc for data loading. Master data can be
!
!
!
!
!
stored in different partition switch to that particular partition (Please refer to
Image) for loading.
Switch to Copy function by pressing arrow button. Place blank CD-R or CDRW discs into all the CD writers. Press “ENT” button to strat copying when
all writers detect the CD discs.
When Copy is completed on all CD writers, those CD discs passed will be
ejected automatically (default setting: Passed discs will be ejected. This can
be changed according to your setting). For continuous duplication, place
additional blank discs into the CD writers and repeat the above procedures.
Failed disc(s) will remain in respective CD writer(s) (Default setting: Failed
disc NOT ejected. This can be changed according to your need). Press
each eject button on the CD writer to eject disc manually.
The duplicator will prompt you an error message when you try to copy a
partition that contains no data. In this case, please switch to “Load” function
to load data first.
Do not press any button on duplicator during operation as interruption/
termination of operation will cause error and might cause the duplicator to
hang up (depend on writers installed). The CD-R discs will be ruined and
can not be used again.
11
ARS-2030/2032 Copy Smart Plus
2. Without hard drive installation
! Place master disc to CD-ROM.
! Switch to Copy function by pressing arrow button. Place blank CD-R or CDRW disc into all the CD writers. Press “ENT” button to strat copying when all
writers detect the CD discs.
! When Copy is completed on all CD writers, the passed CD disc will be
ejected (Default setting: discs passed will be ejected. This can be changed
according to your need). For continuous duplication, place additional blank
discs into the CD writers and repeat the above procedures.
! Failed disc(s) will remain in respective CD writer(s) (Default setting: Failed
disc NOT ejected. This can changed according to your need). Press ENT
button will eject those failed CD discs from CD writers or press each eject
button on the CD writer to eject disc manually.
ATA-66 Cable Layout:
Please identify two different kinds of cable before the hardware installation.
1. Three connector for Source devices (CD-ROM / Optional
Hard drive)
Connect to ARS2030/2032 IDE
ports
Connect to IDE CDROM drive (Slave)
Connect to IDE hard
drive (Master)
2. Two connector for Target devices (CD-R/RW)
Connect to ARS-2030/
2032 IDE ports
Connect to IDE CD-R/RW
12
ARS-2030/2032 Copy Smart Plus
Chapter 4 Board Layout
ARS-2030
5
ARS-2032
Host Made
Target Made
5
13
ARS-2030/2032 Copy Smart Plus
Chapter 5 Function
5.1 Copy
When doing the coping process, the data will really burn into the blank CD-R/RW
discs. Before doing the coping process, please make sure the present partition in
hard drive if it correct and contains data (with hard drive installed) or the master
CD is put in the CD-ROM drive (without hard drive installed) before coping.
1. Copy
Copying-24X 0%
650.0MB
74:00
1.Copy
OK: 03
Place blank CD-R/CD-RW discs into the CD
writers, when all writers detect the CDs, press
“ENT” button, duplicator will start copying.
LCD will show the process of copying
information.
When Copy is finished, those discs passed will
be ejected automatically and failed ones will
remain in CD writers.
Put new CDs in the writers for additional copy. When the CD-RW discs containing data can also be copied by duplicator if the writers installed are capable of
CD-RW writing. Data stored in the CD-RW disc will be quickly erased automatically before copying new data, no special setting or procedure required to erase
the old data.
5.2 Test
This will simulate that the data is really written onto the CD-R/RW disc process.
When testing process is completed, the CD-R/RW discs will remain blank.
2.Test
Press “ENT” button to start the disc simulation
of copy or press “ESC” to exit.
14
ARS-2030/2032 Copy Smart Plus
Erasing disc
Testing-24X
0%
650.0MB
74:00
2.Test
OK: 03
For CD-RW discs that contain data, emulate
will do quick erase of all old data before
emulation. Thus, never do emulate on CD-RW
discs that contain important data.
LCD will show the process of testing
information.
When the process is finished, the LCD will
show the message of the “Test” result.
Termination halfway of Emulate will not affect the CD-R disc and they will remain
blank. But please note that CD-RW discs containing data may be destroyed and
cannot be retrieved again. Some CD writers may not support sudden termination
during operation. The duplicator may hang up and you can only reset those
writers by re-starting the power.
5.3 Test&Copy
3.Test & Copy
Press “ENT” button to do the disc testing then
really write the data on the disc or press “ESC”
to exit.
Testing-24X
0%
650.0MB
74:00
Before doing the coping process, the writers will
simulate that the data is really written onto the
CD-R/RW disc process.
Copying-24X 0%
650.0MB
74:00
When testing process was completed, duplicator will start really writting data onto the CD-R/
RW disc. The CD-R/RW discs will contain data.
15
ARS-2030/2032 Copy Smart Plus
3.Test & Copy
OK: 03
When the process is finished, the LCD will
show the message of the “Test&Copy” result.
5.4 Verify
This will verify the target of discs if can read correctly in the CD-ROM drive after
copying of the discs. Different discs in the CD writer and CD-ROM drive can be
verified together simultaneously.
4.Verify
Verify--24X 0%
650.0MB
74:00
4.Verify
OK: 03
Press “ENT” button to start the disc verify or
press “ESC” to exit.
LCD will show the process of “Verify”
information.
When the process is finished, the LCD will
show the message of the “Verify” result.
5.5 Compare
When the comparison of process is going, the data between master and target
discs will be compared after discs copy.
5.Compare
Compare-24X 0%
650.0MB
74:00
Press “ENT” button to do the disc compare or
press “ESC” to exit.
LCD will show the process of “Compare”
information.
16
ARS-2030/2032 Copy Smart Plus
Compare
Fail: 0
OK: 3
Diff: 0
Src: 01 CD-ROM
Total:
650.0MB
Src: 02 CD-RW
Identical
Compare
Fail: 1
OK: 2
Diff: 0
Src: 01 CD-ROM
Total:
0 Bytes
Src: 02 CD-RW
TOC not match
When the process is finished, the LCD will show
the message of the “Compare” result. Then the
CD discs will be ejected by CD writer.
Press “ENT” button to see the detail of “Compare” information.
If the compare result is identical, the LCD will
show the message as left.
When the compare result is failed. The message will show that the number of discs is failed
& succeeded.
Press “ENT” button to see the detail of “Compare” information.
If the compare result is failed, the LCD will show
the reason of fail message as left.
5.6 Prescan
This function will scan the master of the disc if can read correctly and test the
reading speed.
6.Prescan
Scaning-24X 0%
650.0MB
74:00
Press “ENT” button to prescan the disc or press
“ESC” to exit.
LCD will show the process of scanning
information.
17
ARS-2030/2032 Copy Smart Plus
PreScan OK!
If the master of the disc can read correctly, the
LCD will show “OK!” message.
PreScan Fail!
If the master of the disc can not read correctly,
the LCD will show “Fail!” message.
5.7 Disc Info
This function will show the total of data information from the master disc.
7.Disc Info
Total 02 Sessions
Total 10 Tracks
Total: 74:00
Total: 650 MB
Press “ENT” button to show the disc information or press “ESC” to exit.
The LCD will show the total sessions and
tracks on the master disc.
Press “ENT” button again, the LCD will show
the total time and capacity on the master disc.
Session 01
Track 01 - 09
Press “ENT” button again and use arrow button
to select the session, LCD will show what the
information is contained on the session.
Track 01
AUDIO 03:54
Press “ENT” button again and use arrow button
to select the track, LCD will show what the
information is contained on the track.
5.8 Select Source
This function is provided for user to make a setting of the target source coming
from. The source could be selected from CD-ROM, CD-R/RW, or hard drive.
18
ARS-2030/2032 Copy Smart Plus
Press “ENT” button to entry the select source
function or press “ESC” to exit..
8.Select Source
Then use arrow button to select the CD-ROM,
CD-RW or hard drive as the master source.
Src: CD-ROM
01 IDE0 Slave
CD-ROM selected!
When the source is selected, then press “ENT”
button. LCD will show the source information
as on the left.
Duplicator will prompt you an error message when you select the hard drive as a
source and try to copy from a partition that contains without data. Switch to proper
partition or use “Image” function to load the master data to current partition.
5.9 Image
This function will be valid when hard drive is installed in the duplicator.
Otherwise, this function will be showed “No HDD” on the LCD.
Press “ENT” button to enter the selection and
press “ESC” to exit.
9.Image
5.9.1 Load
Place the master CD disc into the CD-ROM or any one of the CD
writers, the duplicator will detect and analyze the master CD.
9-01.Image
Load
P: A
Load- A -24X 0%
650.0MB
74:00
Press “ENT” button to load data into the current
partition of the hard drive.
LCD will show the process of “Load”
information.
19
ARS-2030/2032 Copy Smart Plus
Image load OK
When the image is succeeded to load into hard
drive, the LCD will show as left.
Image Exists
Overwrite?Yes
If there is an image exit in current partition,
system will ask to overwrite it. Use arrow button
to make “Yes” or “No” selection.
5.9.2 Delete Image
This function clears the master data stored in the current partition of
hard drive. After you make a image on the hard drive and then want to
empty the image on the hard drive. The “Delete Image” function will
delete the current partition of hard drive which user select. To process
the function just make a selection and press “ENT” button to delete it.
9-02. Image P: A
Delete Image
When the hard drive of partition contains image,
you can use the function to delete it.
System will make a confirmation to make sure
that the partition of image will be deleted. Using
arrow button to make “Yes” or “No” selection.
Delete Image in
Partition A?Yes
When the image is successful deleted from
hard drive, the LCD will show as left.
Partition A:
Image is deleted
5.9.3 Image Info
This function will show the total sessions and tracks in the current
partition on hard drive.
9-03.Image
Image Info
P: A
Press “ENT” button to show the disc information or press “ESC” to exit.
20
ARS-2030/2032 Copy Smart Plus
Total 01 Sessions
Total 01 Tracks
The LCD will show the total sessions and tracks
in the hard drive of partition.
Total: 74:00
Total: 650 MB
Press “ENT” button again, the LCD will show
the total time and capacity in the hard drive of
partition.
Session 01
Track 01 - 01
Press “ENT” button again and use arrow button
to select the session, LCD will show what the
information is contained in the session.
Track 01
DATA 650.0MB
Press “ENT” button again and use arrow button
to select the track, LCD will show what the
information is contained in the track.
5.9.4 Compare Image
This setting will compare the image between the target source and the
current working partition on hard drive.
9-04. Image P: A
Compare Image
Comp-A-24X 0%
650.0MB
74:00
Compare OK: 1
Fail: 0
Diff: 0
Src: 01 CD-ROM
Total: 650.0MB
Press “ENT” button to process or press “ESC”
to exit.
LCD will show the process of “Compare”
information.
When the process is finished, the LCD will show
the message of the “Compare” result.
Press “ENT” button to see the detail of “Compare” information.
21
ARS-2030/2032 Copy Smart Plus
Tgt: 00 HDD
Identical
P:A
Compare OK: 0
Fail: 1
Diff: 0
Src: 01 CD-ROM
Total:
0 Bytes
Src: 02 CD-RW
TOC not match
If the compare result is identical, the LCD will
show the message as left.
When the compare result is failed. The message will show that the number of discs is failed
& succeeded.
Press “ENT” button to see the detail of “Compare” information.
If the compare result is failed, the LCD will show
the reason of fail message as left.
5.9.5 Select Partition
This setting help selects the current working partition on hard drive.
After selecting a partition, exit will bring you back to Copy function in
main menu directly.
9-05.Image P: A
Select Image
Press “ENT” button to change the setting or
press “ESC” to exit.
Hard drive installed on duplicator will be partitioned by 1G in each
partition. Number of partitions available depends on the hard drive’s
capacity. No pre-Formatting or software setup is required to install the
hard drive. Each partition in hard drive will be labeled in alphabetical
order starting from A, B, C…Z, AA, AB... etc.
Select Working
Partition - A
Using arrow button to select which partition will
be worked.
22
ARS-2030/2032 Copy Smart Plus
Set Partition to
A
When the partition is set, the LCD will show as
left.
5.9.6 Select Src Drive
This setting will select particular drive to be a target source and the data
will be coming from.
9-06. Image
P: A
Image Src Drive
Press “ENT” button and arrow button to select
the source or press “ESC” to exit.
Select Img Src:
01 IDE0 CD-ROM
Then use arrow button to select the CD-ROM or
CD-RW as the master source to load the image
from.
Load image from
Drive ID-01
When the source is selected, then press “ENT”
button. LCD will show the source information
as on the left.
5.10 Edit Track
This is a track-selecting function that can combine tracks on different CD discs
into one single CD disc. For example, you can make a collection of favorite
songs from different music CDs and store them into one CD disc.
10. Edit Track
Press “ENT” button and arrow button to select
or press “ESC” to exit.
5.10.1 CD to CD Edit
Select “CD to CD Edit” to select the exit CD track on the CD-ROM
then you can copy directly from CD to CD.
10-01. Edit Track
CD to CD Edit
Press “ENT” button to change setting; “ESC”
button to bring you to next setting.
23
ARS-2030/2032 Copy Smart Plus
Select Track:
1/10
03:25
Follow the LCD to select the track that you want
to edit.
Select Track:
+1/10
03:25
Press “ENT” button to select the track. After the
track is selected, the “+” will appear. Press
“ENT” again will cancel the track that you select
to edit.
Select Track:
End 1Trk03:25
Finally, when the track of selection is made.
Please use arrow button to move to the “End”
manual.
End edit disc
and burn?Yes
Press “ENT” button to finish the disc edition.
Using arrow button to make “Yes” or “No”
selection.
Copying- 24X Edit
1/10 - > 1/1
Burn Complete!
OK: 03
Continue edit
next Disc?Yes
Insert next disc
Select Track:
+2/10
04:25
LCD will show the process of “CD Edit” copying
information.
When Copy is finished, the LCD will show the
“Burn Complete!” message.
System will ask if to continue edit. Using arrow
button to make “Yes” or “No” selection.
If “Yes” is selected, the source disc will be
ejected. Please inset another audio disc to
edit.
Follow the step to select the track that you want
to edit. Then press “ENT” button to add it on
the disc.
24
ARS-2030/2032 Copy Smart Plus
Select Track:
End 2Trk07:50
Finally, when the track of selection is made.
Please use arrow button to move to the “End”
manual.
End edit disc
and burn?Yes
Press “ENT” button to finish the disc edition.
Using arrow button to make “Yes” or “No”
selection.
Copying- 24X Edit
1/10 - > 2/2
Burn Complete!
OK: 03
LCD will show the process of “CD Edit” copying
information.
When Copy is finished, the LCD will show the
“Burn Complete!” message.
Continue edit
next Disc?No
System will ask if to continue edit. Using arrow
button to make the “No” selection then press
“ENT” button.
Close all disc’s
session? Yes
The system will ask to close the disc session.
Using arrow button to make “Yes” or “No”
selection.
Closing Session
Please wait---
LCD will show the process of closing session.
5.10.2 CD to HD
Select “CD to HD” to copy CD data into current partition of hard drive.
10-02. Edit Track
CD to HDD Edit
Press “ENT” button to enter the setting; “ESC”
button to bring you to next setting.
25
ARS-2030/2032 Copy Smart Plus
Select Track:
1/10
03:25
Follow the LCD to select the track that you want
to edit.
Select Track:
+1/10
03:25
Press “ENT” button to select the track. After the
track is selected, the “+” will appear. Press
“ENT” again will cancel the track that you select
to edit.
Select Track:
End 1Trk03:25
Finally, when the track of selection is made.
Please use arrow button to move to the “End”
manual.
End edit disc
and burn?Yes
Press “ENT” button to finish the disc edition.
Using arrow button to make “Yes” or “No”
selection.
Load- P0 -24X Edit
1/10 - > 1/1
The source will be loaded to hard drive. LCD
will show the process of data loading
information.
Image load OK
When “Image Load” is finished, the LCD will
show the “Image load OK” message.
Continue edit
next Disc?Yes
Insert next disc
Select Track:
+2/10
04:25
System will ask if to continue edit. Using arrow
button to make “Yes” or “No” selection.
If “Yes” is selected, the source disc will be
ejected. Please inset another audio disc to
edit.
Follow the step to select the track that you want
to edit. Then press “ENT” button to add it on
the disc.
26
ARS-2030/2032 Copy Smart Plus
Select Track:
End 2Trk07:50
Finally, when the track of selection is made.
Please use arrow button to move to the “End”
manual.
End edit disc
and burn?Yes
Press “ENT” button to finish the disc edition.
Using arrow button to make “Yes” or “No”
selection.
Load- P0 -24X Edit
1/10 - > 2/2
The source will be loaded to hard drive. LCD
will show the process of data loading
information.
Image load OK
When “Image Load” is finished, the LCD will
show the “Image load OK” message.
Continue edit
next Disc?No
System will ask if to continue edit. Using arrow
button to make “Yes” or “No” selection. Select
“No” to go next step.
Burn or Move to
partition?Burn
System will ask if to burn into CD or move to
partition. Select “Burn” will start to record audio
from hard drive into CD.
Copy- P0 -24X
1/2 Trk03:25
Burn Complete !
OK: 03
Burn or Move to
partition? Move
0%
LCD will show the process of copying from hard
drive to CD information.
When burnning is finished, the LCD will show
the “Burn Complete !” message.
Select “Move” will move the data from hard
drive template to partition.
27
ARS-2030/2032 Copy Smart Plus
Select Partition
A
Moving to P: A
0%
Moving to P: A
OK!
Image Exists
Overwrite?Yes
Moving to P: A
0%
Moving to P: A
OK!
Select the partition that the data will move into.
LCD will show the process of the data is
moving.
When moveing is finished, the LCD will show
the “OK!” message.
If the current partition contains image data,
system will ask to overwrite it. Select “No” to
keep the data image, “Yes” to overwrite it.
LCD will show the process of the data is
moving.
When moving is finished, the LCD will show the
“OK!” message.
5.10.3 Play Audio Track
Select “Play Audio” will make the copy smart plus as a music player.
The user can plug-in the trumpet into the audio out from the device.
10-03. Edit Track
Play Audio Track
Select Track:
1/10
03:25
Press “ENT” button to enter the play audio
function; “ESC” button to bring you to next
setting.
Using arrow button to select which track you
are going to play.
28
ARS-2030/2032 Copy Smart Plus
Playing Track-1
00:00 / 03:25
LCD will show the information of the track you
are playing.
5.10.4 Close Session
Select “Close Session” will make the disc close and can not write any
data into. This function can make disc to be read on normal player.
10-04. Edit Track
Close Session
Close all disc’s
session? Yes
Closing Session
Please wait--Closing
OK :3
Complete
Fail :0
Press “ENT” button to enter the setting; “ESC”
button to bring you to next setting.
System will ask a confirmation to close the
disc’s session. After this step, the disc can not
be written data into.
LCD will show the message of the closing disc’s
session.
When closing session is finished, the LCD will
show the number of discs “OK” and “Fail”
message.
5.11 Setup
This function contains a list of options which allows user to change the orginal
default settings. As there are different settings under the setup function to control
the duplicator’s operation, we suggest using the original default settings for
optimal operation.
11. Setup
Press “ENT” button to enter the “Setup”
function.
29
ARS-2030/2032 Copy Smart Plus
5.11.1 Language (optional)
To set which message of language is shown on the LCD. There are
English, Traditional Chinese, Simplified Chinese and Japanese
languages are supported on LCD.
11-01. Setup
Language
Press “ENT” to change the setting and “ESC” to
exit.
5.11.2 Burn Speed
This setting controls the maximum writing speed of CD writers.
Default setting is “Auto” which will use the highest writing speed of
the writers. Sometimes maximum writing speed will cause high
failure rate that may be due to poor CD quality or unstable CD writing
in high speed. Under this circumstance, please lower the writing
speeding under this setting to get higher successful rate in CD
writing.
11-02. Setup
Burn Speed
Burn Speed
24X
Press “ENT” to enter the setting and “ESC” to
exit.
Using arrow button to change the burning
speed then press “ENT”. (Depend on the CDRW maximum speed support)
5.11.3 Read Speed
Setting the reading speed of the target source CD-ROM.
11-03. Setup
Read Speed
Read Speed
32X
Press “ENT” to enter the setting and “ESC” to
exit.
Using arrow button to change the reading
speed then press “ENT”. (Depend on the CDROM maximum speed support)
30
ARS-2030/2032 Copy Smart Plus
5.11.4 Auto Start Drive
This setting controls choose the CD writers will auto start to copy or
test when the blank discs insert to CD/RW. Default setting is “Off”.
11-04. Setup
Auto Start Drive
Auto Start Drive
Off
Press “ENT” button to enter “Auto Start Drive”
and “ESC” to exit.
Using arrow button to change “The number” or
“Off” setting then press “ENT” or press “ESC” to
go back 11-04 manual.
5.11.5 Strat up menu
This setting controls selects one of the menu items which will become
the first menu item to show when turn on duplicator.
11-05. Setup
Startup Menu
Startup Menu
1.Copy
Press “ENT” button to enter “Startup Menu” and
“ESC” to exit.
Using arrow button to select menu item setting
for the first menu item to show (1 to 11 items)
then press “ENT”.
5.11.6 Auto Verify
This setting controls On and Off of auto verify the target discs if can
read correctly in the CD-ROM drive after copying of the discs. Default setting is “Off”.
11-06. Setup
Auto Verify
Press “ENT” button to enter “Auto Verify ” and
“ESC” to exit.
31
ARS-2030/2032 Copy Smart Plus
Auto Verify
Off
Using arrow button to change “On” or “Off”
setting then press “ENT” or press “ESC” to go
back 11-06 manual.
5.11.7 Auto Compare
This setting controls On and Off of auto compare the data between
master and target discs after discs copy. Default setting is “Off”.
11-07. Setup
Auto Compare
Auto Compare
Off
Press “ENT” button to enter “Auto Compare”
and “ESC” to exit.
Using arrow button to change “On” or “Off”
setting then press “ENT” or press “ESC” to go
back 11-07 manual.
5.11.8 Auto Prescan
This setting controls On and Off of auto prescan the master of the
disc if can read correctly and test the reading speed. Default setting
is “OFF”.
11-08. Setup
Auto Prescan
Auto Prescan
Off
Press “ENT” button to enter “Auto Prescan” and
“ESC” to exit.
Using arrow button to change “On” or “Off”
setting then press “ENT” or press “ESC” to go
back 11-08 manual.
32
ARS-2030/2032 Copy Smart Plus
5.11.9 Eject Disc
This setting controls the ejection of discs by CD writer. Three options
are available: “Eject Good Only” setting will only eject the passed
discs automatically and leave the failed one in the CD writers. “Eject
All Disc” means the CD writers will eject the CD discs no matter
whether operation is successful or failed. “Do Not Eject” means all
discs will remain in CD writers when job is done and you will have to
eject discs from the CD writers manually.
11-09. Setup
Eject Disc
Press “ENT” button to enter “Eject Disc” and
“ESC” to exit
Eject Disc
Eject Good Only
Using arrow button to select “Eject Good Only”,
then press “ENT” or press “ESC” to go back 1109 manual.
Eject Disc
Eject All Disc
Using arrow button to select “Eject All Disc”,
then press “ENT” or press “ESC” to go back 1109 manual.
Eject Disc
Do Not Eject
Using arrow button to select “Do Not Eject”,
then press “ENT” or press “ESC” to go back 1109 manual.
5.11.10 Burn on The Fly
This setting controls the writing methods of CD disc. When the
setting is “On”, the data will direct copy from source drive to the target
drives. When the setting is “Off”, the data will load into a particular
temp. partition in the hard drive. Then the copying data will come
from the source partition.
11-10. Setup
Burn On The Fly
Press “ENT” button to enter “Burn On The Fly”
and “ESC” to exit
33
ARS-2030/2032 Copy Smart Plus
Burn On The Fly
On
Using arrow button to change “On” or “Off”
setting then press “ENT” or press “ESC” to go
back 11-10 manual.
There is no HDD !
If the system does not connect with hard drive,
the LCD will show the message as left.
5.11.11 Burn Mode
This setting controls the writing methods of CD disc including “Disc At
Once” (DAO) or “Track At Once” (TAO). Default setting is “DAO”.
Some CD writers may support different writing methods. If the
method selected is not supported, duplicator will automatically switch
to the other one.
11-11. Setup
Burn Mode
Burn Mode
DAO
Press “ENT” button to enter “Burn Mode” and
“ESC” to exit
Using arrow button to change “TAO” or “DAO”
mode setting then press “ENT” or press “ESC”
to go back 11-11 manual.
5.11.12 Button Sound
This setting controls On and Off of button sound. Default setting is
“On”. Press “ENT” button to change and “ESC” to exit.
11-12. Setup
Button Sound
Button Sound
On
Press “ENT” button to enter “Button Sound” and
“ESC” to exit
Using arrow button to change “On” or “Off”
setting then press “ENT” or press “ESC” to go
back 11-12 manual.
34
ARS-2030/2032 Copy Smart Plus
5.11.13 Device Info
This function will show what devices you connect with. When copy
control support the devices’ brand and type of information will be
showed on LCD.
11-13. Setup
Device Info
00 IDE0 Master
CD-ROM:TEAC
CD-540E
3.0A
01 IDE1 Master
CD-RW:PLEXTOR
CD-R PX-W2410A
1.01
02 IDE2 Master
CD-RW:PLEXTOR
CD-R PX-W2410A
1.01
Press “ENT” button to enter the device information and “ESC” to exit.
Using arrow button to select the device or press
“ESC” to go back 11-13 manual.
Press “ENT” button to see the device information and “ESC” to go back 11-13 manual.
Using arrow button to select another device or
press “ESC” to go back 11-13 manual.
Press “ENT” button to see the device information and “ESC” to go back 11-13 manual.
Using arrow button to select another device or
press “ESC” to go back 11-13 manual.
Press “ENT” button to see the device information and “ESC” to go back 11-13 manual.
35
ARS-2030/2032 Copy Smart Plus
03 IDE3 Master
CD-RW:PLEXTOR
Using arrow button to select another device or
press “ESC” to go back 11-13 manual.
CD-R PX-W2410A
1.01
Press “ENT” button to see the device information and “ESC” to go back 11-13 manual.
5.11.14 System Info
This function will show the system of information on the LCD.
11-14. Setup
System Info
Press “ENT” button to enter the “System Info”
and see the next information, press “ESC” to
exit.
CD Duplicator
1-3 ver: 1.10B
SST: 39SF020
2001 / 11 / 16
CD Duplicator
1-7 ver: 1.10T
WINBOND: W49F002U
2001 / 11 / 16 ACARD
The LCD shows
ARS-2030 as
left.
The LCD shows
ARS-2032 as
left.
5.11.15 Quick Erase
This function will quick erase the data on the CD-RW disc. It will take
a short time to do it.
11-15. Setup
Quick Erase
All data will be
lost, erase?Yes
Press “ENT” button to enter the “Quick Erase”
and “ESC” to exit.
Using arrow button to change “Yes” or “No”
setting then press “ENT” or press “ESC” to go
back 11-15 manual.
36
ARS-2030/2032 Copy Smart Plus
Erasing disc
00:24 (Quick)
Quick Erase
OK:01 Fail:00
LCD will show the process of the erasing disc.
When erasing disc is finished, the LCD will
show the message as left. Press “ESC” to go
back 11-15 manual
5.11.16 Full Erase
This function will full erase the data on the CD-RW disc. As it will
complete to erase the data, it will take a minutes to do it.
11-16. Setup
Full Erase
All data will be
lost, erase?Yes
Press “ENT” button to enter the “Full Erase”
and “ESC” to exit.
Using arrow button to change “Yes” or “No”
setting then press “ENT” or press “ESC” to go
back 11-16 manual.
Erasing disc
03:24 (Full)
LCD will show the process of the erasing disc.
Full Erase
OK:01 Fail:00
When erasing disc is finished, the LCD will
show the message as left. Press “ESC” to go
back 11-16 manual
5.12 Adv Setup
Some of advance setup function allows user to change the system configuration.
Changes should be made only when you are fully familiar with the function. To
enter the function, please press “ESC” button for 2 seconds.
37
ARS-2030/2032 Copy Smart Plus
5.12.1 UnderRun Protect
This setting controls On and Off of Buffer Under Run Protection (ex.
Burn Proof, SafeBurn, JustLink, Seamless Link...etc.). Default setting
is “On”.
12-01. Adv Setup
UnderRun Protect
UnderRun Protect
On
Press “ENT” button to enter “UnderRun Protect” and “ESC” to exit.
Using arrow button to change “On” or “Off”
setting then press “ENT” or press “ESC” to go
back 12-01 manual.
5.12.2 Overburn
This setting controls turns on the CD writer which has overburn
function. Default setting is “Off”.
12-02. Adv Setup
Overburn
Overburn
On
Press “ENT” button to enter “Overburn” and
“ESC” to exit.
Using arrow button to change “On” or “Off”
setting then press “ENT” or press “ESC” to go
back 12-02 manual.
5.12.3 Read Error Skip
This setting controls error skipping during source is reading. The
default setting is “Off”. When an error is detected during source
loading, the duplicator will stop to load and display read error
message. If the setting is “On”, there will be no message shown
even there is an error in reading. You can use this function to copy
some CD with errors.
12-03. Adv Setup
Read Error Skip
Press “ENT” button to enter “Read Error Skip”
and “ESC” to exit.
38
ARS-2030/2032 Copy Smart Plus
Read Error Skip
Off
Using arrow button to change “On” or “Off”
setting then press “ENT” or press “ESC” to go
back 12-03 manual.
5.12.4 Format Hard Disk
This setting controls will initiate the hard drive and delete al of the
Images.
12-04. Adv Setup
Format HDD
Press “ENT” button to enter “Format HDD” and
“ESC” to exit.
All data will be
lost, format? Yes
Using arrow button to change “Yes” or “No”
setting then press “ENT” or press “ESC” to go
back 12-04 manual.
There is no HDD!
If the system does not connect with hard drive,
the LCD will show the message as left.
5.12.5 Verify HDD
This will verify the target of entire Hard Disk or any selected partitions of hard dirve if it can read correctly.
12-05. Adv Setup
Verify HDD
Press “ENT” button to enter “Verify HDD” and
“ESC” to exit.
Verify Disk or
Partition? Disk
Using arrow button to change setting to “Disk”
then press “ENT” or press “ESC” to go back 1205 manual.
Verify Disk or
Partition? Parti
Using arrow button to change setting to “Parti”
then press “ENT” or press “ESC” to go back 1205 manual.
39
ARS-2030/2032 Copy Smart Plus
5.12.6 Burn-in
This function is a burn-in test function. It will run the emulate
writer function continuously. Between each cycle of emulate
write, the CD discs in CD writers will be ejected automatically
and re-insert again for continuous testing.
12-06. Adv Setup
Burn-in
Press “ENT” button to enter “Burn-in” and
“ESC” to exit.
Burn-in
Test
The data will not be writed on the blank
CD discs and the discs will remain blank
as original after test.
Sel burn-in num:
Run Continuous
Using arrow button to change
“RunContinuous”, “1~10”, “10~100”,
“100~1000” setting. Press “ENT” or “ESC”
button to go back 12-06 manual.
Burn-in
Erase&Copy
The system will repeat to erase and write
on the CD-RW discs. It is only for CD-RW
discs to do rewriteable.
Sel burn-in num:
Run Continuous
Using arrow button to change
“RunContinuous”, “1~10”, “10~100”,
“100~1000” setting. Press “ENT” or “ESC”
button to go back 12-06 manual.
5.12.7 Update Firmware
This function will update your firmware to the latest one. Place
the CD disc which it contain the latest firmware data (firmware
CD disc) into CD-ROM drive, the duplicator will find the data
and update its firmware automatically. During updating, do not
turn off the power of machine since the update will not be
finished till machine reset itself.
40
ARS-2030/2032 Copy Smart Plus
Procedures to make the firmware CD disc by yourself:
1. Get the firmware from ACARD through e-mail or directly download from the web site: http://www.acard.com
2. Unzip the firmware you have got and write the file “cdxxx.bin”
into the root directory of blank CD-R or CD-RW disc. Session of the
CD has to be closed. If the same CD disc still has capacity to add
more data, it can be used to store newer version of firmware. When
updating the firmware program from the CD, only the one in last
session will be used. Other versions in previous sessions will be
ignored.
12-07. Adv Setup
Update Firmware
Select source drive to CD-ROM first! Then
press “ENT” button to enter “UpdateFirmware”
and “ESC” to exit.
Searching F/W--XXX/XXXXX
System will search the new firmware from the
CD and the LCD will show the process as left.
When find the new firmware, just press “ENT”
button. The system will update it.
5.12.8 Compare Firmware
This function will help to compare with current control frimware
version and the update version when the firmware disc was placed
into the CD-ROM.
12-08. Adv Setup
Compare Firmware
Press “ENT” button to enter “Compare Firmware” and “ESC” to exit.
5.12.9 H/W Diagnostic
This function will detect what devices are connected with the control.
The LCD will showed the information of the hardware.
41
ARS-2030/2032 Copy Smart Plus
12-09. Adv Setup
H/W Diagnostic
Press “ENT” button to enter “H/W Diagnostic”
and “ESC” to exit.
↑↓ Enter ESC
Hold ESC to exit
LCD will ask user to do the button test. Following the LCD instruction test each function
button.
After the button function testing, the system will self-test SDRAM, the
hardware connecting test, and flash test. Every testing process will
be shown on the LCD. It just take a minutes to get the results of
hardware diagnotic. It is a easy way to know if the system work
properly.
Test finished
When testing is finished, the LCD will show the
“Test finished” message. Press “ESC” button to
go back 12-09 manual.
5.12.10 Load Default
This function will reset whole previous setting back to factory’s
default setting. Different settings will cause duplicator to react
differently.
12-10. Adv Setup
Load Default
Press “ENT” button to enter “Load Default” and
“ESC” to exit.
Load Default
Config? Yes
Using arrow button to change setting. When
“Yes” is selected, the duplicator will return to
factory’s default setting.
Load Default
OK
The LCD message will show the setting have
been changed by “OK” as left.
42
ARS-2030/2032 Copy Smart Plus
Chapter 6 Trouble Shooting
1. No display on LCD or the unit does not operate when power on.
! Please check the connection of power cable and the environment of power
outlet is normal.
! Turn off the power of machine, open the case of duplicator to check whether
the power cable is fixed.
2. LCD shows the Error message.
! During operation like Copy, Test, Compare and Verify, you may press ESC
button to abort the operation. An Error message will be shown no the LCD.
Some CD writers, abort will cause th duplicator to hang up and you have
to re-start the power to return to normal operation.
! Failed reading may cause the error message shown on the LCD display.
Change the master CD to try again.
! During operation, if read error, buffer under run or writing error occurs, the
LCD will show error message like: Pass xx, failed xx.
! If there is no device connected and detected by duplicator during power-on,
the duplicator will show error message no LCD before entering the main
menu.
3. CD-ROM can not read disc and shows error message.
! Check the format of master CD or master CD itself for damage.
! Use any of the CD-Writers to read the master; if it works, the CD-ROM may be
defective or not compatible with CD-ROM.
4. Buttons do not function.
! May be still busy on task.
! Button malfunction.
! Faulty board.
5. Copy completed but CD-R disc is not readable / executable?
! Use compare to check.
! Change another CD-ROM drive to test.
43
ARS-2030/2032 Copy Smart Plus
6. The failure rate is high.
! Lower the speed of CD-Writers and try again.
! Quality of bland disc is poor.
! Check for latest firmware version.
! Check the CD-Writer maximum writing speed. Over 24X writing process
please copy to hard drive first then to CD.
7. Can not boot-up or fail to upgrade firmware.
! Contact your dealer to solve the problem. Please note you may be charged
for this.
! Check the BIOS program is correct since normally customer will download
wrong program or simply write the zipped file to CD which should be first
unzipped before writing.
! Failed upgrade might cause failed boot. This can only be solver by returning
the control board to agent or factory directly. It is not necessary to return
whole system under failed upgrade.
8. Can not find “12. Adv Setup” function.
! Press “ESC” button for 2 seconds to enter the “Adv Setup”.
9. To cancel the duplicator working process.
! Press “ESC” button for 2 seconds to cancel any “Copy”, “Test”, or “Verify” etc.
function while the job in working process.
44
ARS-2030/2032 Copy Smart Plus
Appendix 1
1. Copy
2. Test
3. Test&Copy
4. Verify
5. Compare
6. Prescan
7. Disc Info
8. Select Source
9. Image
9.01 Load (If there is an image exist in current partition, ask overwrite it or select another partition)
9.02 Delete Image
9.03 Image Info
9.04 Compare Image
9.05 Select Image (Size of each partition is 1GB)
9.06 Image Src Drive (Select which drive to load image)
10. Edit Track (For AUDIO disc only)
10.01 CD to CD Edit
10.02 CD to HDD Edit
10.03 Play Audio Track
10.04 Close Session
11. Setup
11.01 Language (LCD Type1:English)
11.02 Burn Speed (If no disc in CD-RW, list all supported speed else list speed supported by disc)
11.03 Read Speed (Maximum )
11.04 Auto Start Drive (If ready CD-RW number equals to this value, auto start to copy or test)
11.05 Startup Menu
11.06 Auto Verify (On Off)
11.07 Auto Compare (On Off)
11.08 Auto Prescan (On Off)
11.09 Eject Disc (1.Eject Good Only 2.Eject All Disc 3.Do Not Eject)
11.10 Burn On The Fly (On Off)
11.11 Burn Mode (1.DAO 2.TAO)
11.12 Button Sound (On Off)
11.13 Device Info
11.14 System Info
11.15 Quick Erase
11.16 Full Erase
12. Adv Setup
(Press ESC 2 seconds to enter this menu)
12.01 UnderRun Protect (On Off)
12.02 Overburn (On Off)
12.03 Read Error Skip (On Off)
12.04 Format HDD
12.05 Verify HDD
12.06 Burn-in
12.06.0 1 Erase&Copy
12.0 6.02 Test
12.07 Update Firmware (Update new version firmware from CD-ROM or CD-RW)
12.08 Compare Firmware
12.09 H/W Diagnostic
12.10 Load Default (Restore System default config)
: Meaning default setting
45
ARS-2030/2032 Copy Smart Plus
Appendix 2 LCD Message List
Normal LCD Message List:
:
Message
Description
Initialize the memory on the system
Initialize SDRAM
Detect what drives is connected with the system
Detect Drives
While the function is working, cancel the job
User Abort!
Analyzing the source disc
Analyzing....
Source drive is not ready to read
Source Drive Not
Ready
Target drive is not ready to write
Target Drive Not
Ready
Source disc in not ready for reading
Source Disc Not
Ready
Target drive is not ready for writing
Target Disc Not
Ready
System is erasing the data on the CD-RW disc
Erasing disc
Fail to get Drive Info! The drive information can not recognize
Fail to get Src Disc Can not read the information from CD disc
Info!
The new setting of configuration can not be saved
Save new config
Fail!
Load Default Config? Loading the factory default setting
Src&Tgt can't in the When doing the comparing, the source and target can not
in the same channel
same channel
System is preparing the data and devices connecting for
Preparing......
CD recording
Check Target Please System is checking the target device, wait for a while
Wait......
Audio Disc!!! Can't Audio disc can not do the comparing
compare!
After comparing, the contains of CD is the same
Identical
During the comparing, the disc is read error
Read disc error
CD’s TOC data can not read
Cannot read TOC
After comparing, the source and target device’ s TOC is
TOC not match
not match
The source CD is blank without data
Source Disc
Empty !!!
The target of CD do not have enough space to record the
Target overflow
source
The target of disc is not empty to record
Target Disc Not
Empty!!!
46
ARS-2030/2032 Copy Smart Plus
Press a Key to Eject Press any key to eject the good disc after the recording
process
Good Disc
Press a Key to Eject Press any key to eject the fail disc after the recording
process
Fail Disc
CD-RW device can not support this function
CD-RW does not
Support the Func
Press “ESC” for a seconds to terminate the testing
Hold ESC to exit
All data will be lost, All data on the CD disc will be losing. Confirmation to
erase the CD-RW disc
erase?
CD-RW disc have been erased
Erase Finished
No Eraseable Disc in The CD discs on the CD-RW devices is not erasable disc
CD-RW !!
The Message of Connecting Hard Drive with Image Loading:
:
Message
Description
The hard drive is not format yet
HDD not Format!
The message of formatting hard drive
Format HDD?
All data will be lost, All data on the hard drive will be losing. Confirmation of
the formatting hard drive
format?
Formatting hard drive have been done
Format HDD OK !
The image have been loaded from CD to hard drive
Image load OK
The image fail to load from CD to hard drive
Image load Fail
The hard drive does not have enough space to store the
HDD too small to
data image (at least 1Gbytes)
handle image!
The system can not find a valid hard drive
No Valid HDD!
The space of hard drive is too small
HDD too small
No Image in Partition In partition xx does not have a data image
xx
In current partition does exist data image. The
Image Exists
confirmation of the overwriting the exist data image
Overwrite?
partition
Deleting the data image in partition xx
Delete Image in
Partition xx?
The image partition have been damaged
Partition Damage
Verify the entire hard drive or just particular partition
Verify Disk or
Partition?
Verify Hard Disk OK! Verify the hard drive successfully
Verify Hard Disk Fail! Failing to verify the hard drive
Verify the partition header
Verify Partition
Header!
This function must select a formatted hard drive
Select HD First!
47
ARS-2030/2032 Copy Smart Plus
The Message of Audio Edit:
:
Message
Description
Abort the tracks selected and delete it
Lost selected
Tracks?
Finishing the music disc edit and start to record the CD
End edit disc and
burn?
Continue edit next Asking to continue editing next music disc or not
Disc?
The CD disc space is not enough to record the selecting of
Target Overflow
tracks, please re-select it.
Re-Select
Closing the disc’s session and can not allow to record any
Close all disc’s
further data
session?
The hard drive can not edit as a source audio CD
Can’t edit HDD
The source of CD disc can not find a audio track
No AUDIO track in
this disc
Asking to insert the next audio disc
Insert next disc
The disc of sessions have been close already
Sessions were
closed already !
Confirmation of direct burning to CD disc or move the data
Burn or Move to
to the partition
partition?
Tgt overflow, del last The CD disc space is not enough to record the selecting of
tracks, asking to delete the last track.
trk?
Asking to insert a empty disc and continue the process
Ins empty disc
Continue?
The Message of Firmware Update:
:
Message
Description
Invalid firmware Disc The disc is not contained a valid firmware
Firmware is updating
Updating F/W
Update F/W xxxx to Confirmation of updating firmware version from xxxx to
yyyy
yyyy ?
Searching for a valid firmware
Searching F/W…
The firmware check sum error
Check Sum Error!
Source can’t be Hard During the firmware compare, the source can not be hard
drive
Disk!
Last update F/W OK! The lasting update firmware is successful
The lasting update firmware is fail
Last update F/W
Fail!
The Flash ROM is fail to write
Flash ROM fail!
48
ARS-2030/2032 Copy Smart Plus
Appendix 3
Technical Support Form
Email: support@acard.com
http://www.acard.com
Model:
F/W Version:
ARS-2030 / ARS-2032
Channel
IDE0 CD-ROM
IDE1 CD-R/RW
IDE2 CD-R/RW
IDE3 CD-R/RW
IDE4 CD-R/RW
IDE5 CD-R/RW
IDE6 CD-R/RW
IDE7 CD-R/RW
Model
F/W Version
Hard Disk
Configuration
Hard Disk Model/type
Capacity
Firmware version
Others
Problem Description
MAL2030X32EX10-0
49
Download PDF
