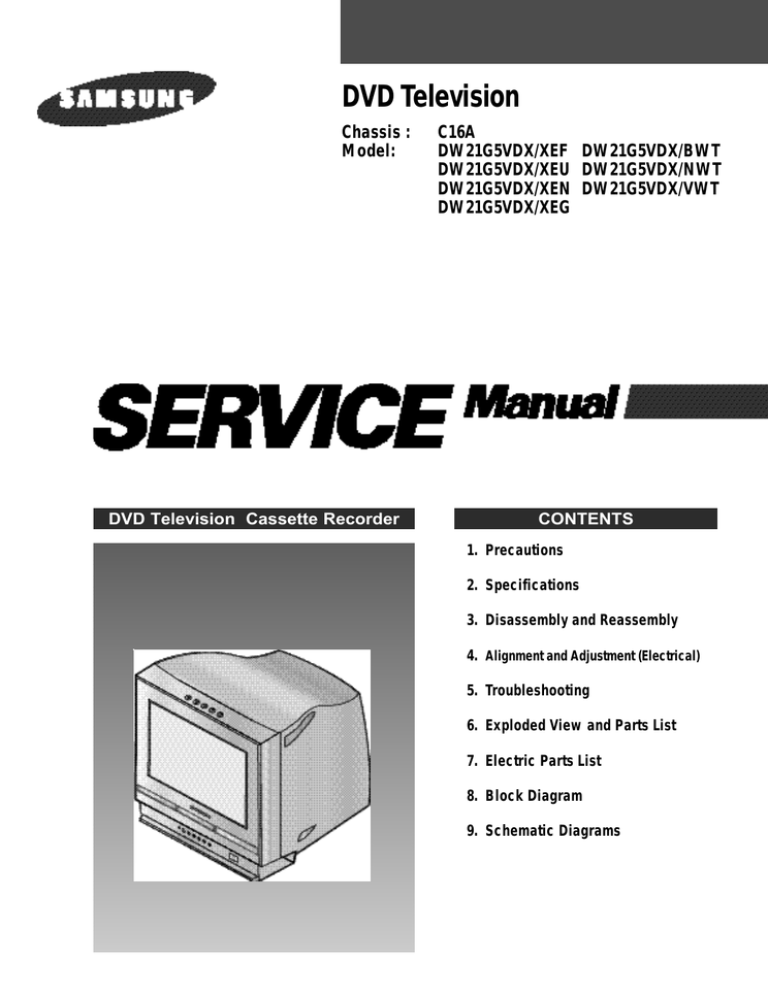

DVD Television
Chassis :
Model:
DVD Television Cassette Recorder
C16A
DW21G5VDX/XEF DW21G5VDX/BWT
DW21G5VDX/XEU DW21G5VDX/NWT
DW21G5VDX/XEN DW21G5VDX/VWT
DW21G5VDX/XEG
CONTENTS
1. Precautions
2. Specifications
3. Disassembly and Reassembly
4. Alignment and Adjustment (Electrical)
5. Troubleshooting
6. Exploded View and Parts List
7. Electric Parts List
8. Block Diagram
9. Schematic Diagrams
Precautions
1. Precautions
Follow these safety, servicing and ESD precautions to prevent damage and protect against potential
hazards such as electrical shock and X-rays.
1-1 Safety Precautions
1. Be sure that all of the built-in protective
devices are replaced. Restore any missing
protective shields.
2. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including: nonmetallic control knobs
and compartment covers.
3. Make sure that there are no cabinet openings
through which people—particularly
children—might insert fingers and contact
dangerous voltages. Such openings include
the spacing between the picture tube and the
cabinet mask, excessively wide cabinet
ventilation slots, and improperly fitted back
covers.
If the measured resistance is less than 1.0
megohm or greater than 5.2 megohms, an
abnormality exists that must be corrected
before the unit is returned to the customer.
4. Leakage Current Hot Check (Figure 1-1):
Warning: Do not use an isolation
transformer during this test. Use a leakagecurrent tester or a metering system that
complies with American National Standards
Institute (ANIS C101.1, Leakage Current for
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug
the AC line cord directly into the power
outlet. With the unit’s AC switch first in the
ON position and then OFF, measure the
current between a known earth ground (metal
water pipe, conduit, etc.) and all exposed
metal parts, including: antennas, handle
brackets, metal cabinets, screwheads and
control shafts. The current measured should
not exceed 0.5 milliamp. Reverse the powerplug prongs in the AC outlet and repeat the
test.
Samsung Electronics
Fig. 1-1 AC Leakage Test
6. Antenna Cold Check:
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across
the two AC prongs. Connect one lead of the
ohmmeter to an AC prong. Connect the other
lead to the coaxial connector.
7. X-ray Limits:
The picture tube is especially designed to prohibit X-ray emissions. To ensure continued
X-ray protection, replace the picture tube only
with one that is the same type as the original.
Carefully reinstall the picture tube shields and
mounting hardware; these also provide X-ray
protection.
8. High Voltage Limits:
High voltage must be measured each time servicing is done on the B+, horizontal deflection
or high voltage circuits. Correct operation of
the X-ray protection circuits must be
reconfirmed whenever they are serviced.
(X-ray protection circuits also may be called
“horizontal disable” or “hold-down”.)
Heed the high voltage limits. These include
the X–ray Protection Specifications Label, and
the Product Safety and X-ray Warning Note on
the service data schematic.
1-1
Precautions
1-1 Safety Precautions (Continued)
9. High voltage is maintained within specified
limits by close-tolerance, safety-related
components and adjustments. If the high
voltage exceeds the specified limits, check
each of the special components.
10. Design Alteration Warning:
Never alter or add to the mechanical or
electrical design of this unit. Example: Do not
add auxiliary audio or video connectors. Such
alterations might create a safety hazard. Also,
any design changes or additions will void the
manufacturer’s warranty.
11. Hot Chassis Warning:
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only
if the AC power plug is inserted so that the
chassis is connected to the ground side of the
AC source.
To confirm that the AC power plug is inserted
correctly, do the following: Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the
reading is greater than 1.0V, remove the AC
power plug, reverse its polarity and reinsert.
Re-measure the voltage between the chassis
and ground.
12. Some TV chassis are designed to operate with
85 volts AC between chassis and ground,
regardless of the AC plug polarity. These units
can be safely serviced only if an isolation
transformer inserted between the receiver and
the power source.
13. Some TV chassis have a secondary ground
system in addition to the main chassis ground.
This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulating material that must not be defeated
or altered.
15. Observe the original lead dress, especially
near the following areas: Antenna wiring,
sharp edges, and especially the AC and high
voltage power supplies. Always inspect for
pinched, out-of-place, or frayed wiring. Do
not change the spacing between components
and the printed circuit board. Check the AC
power cord for damage. Make sure that leads
and components do not touch thermally hot
parts.
16. Picture Tube Implosion Warning:
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure
that the replacement picture tube is the same
as the original.
17. Do not remove, install or handle the picture
tube without first putting on shatterproof
goggles equipped with side shields. Never
handle the picture tube by its neck. Some
“in-line” picture tubes are equipped with a
permanently attached deflection yoke; do not
try to remove such “permanently attached”
yokes from the picture tube.
18. Product Safety Notice:
Some electrical and mechanical parts have
special safety-related characteristics which
might not be obvious from visual inspection.
These safety features and the protection they
give might be lost if the replacement component differs from the original—even if the
replacement is rated for higher voltage,
wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
(
) or (
).
Use replacement components that have the
same ratings, especially for flame resistance
and dielectric strength specifications.
A replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.
14. Components, parts and wiring that appear to
have overheated or that are otherwise
damaged should be replaced with parts that
meet the original specifications. Always
determine the cause of damage or overheating, and correct any potential hazards.
1-2
Samsung Electronics
Precautions
1-2 Servicing Precautions
Warning1: First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a conflict between
the servicing and safety precautions, always follow the safety precautions.
Warning2: An electrolytic capacitor installed with the wrong polarity might explode.
1. Servicing precautions are printed on the
cabinet. Follow them.
2. Always unplug the unit’s AC power cord from
the AC power source before attempting to: (a)
Remove or reinstall any component or
assembly, (b) Disconnect an electrical plug or
connector, (c) Connect a test component in
parallel with an electrolytic capacitor.
3. Some components are raised above the printed
circuit board for safety. An insulation tube or
tape is sometimes used. The internal wiring is
sometimes clamped to prevent contact with
thermally hot components. Reinstall all such
elements to their original position.
4. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the portion around
the serviced part has not been damaged.
Samsung Electronics
5. Check the insulation between the blades of the
AC plug and accessible conductive parts
(examples: metal panels, input terminals and
earphone jacks).
6. Insulation Checking Procedure: Disconnect the
power cord from the AC source and turn the
power switch ON. Connect an insulation
resistance meter (500V) to the blades of the AC
plug.
The insulation resistance between each blade
of the AC plug and accessible conductive parts
(see above) should be greater than 1 megohm.
7. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of
its assemblies) unless all solid-state heat sinks
are correctly installed.
8. Always connect a test instrument’s ground
lead to the instrument chassis ground before
connecting the positive lead; always remove
the instrument’s ground lead last.
1-3
Precautions
1-3 Precautions for Electrostatically Sensitive Devices (ESDs)
1. Some semiconductor (“solid state”) devices
are easily damaged by static electricity. Such
components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect
transistors. The following techniques will
reduce the occurrence of component damage
caused by static electricity.
2. Immediately before handling any semicon
ductor components or assemblies, drain the
electrostatic charge from your body by
touching a known earth ground. Alternatively,
wear a discharging wrist-strap device. (Be
sure to remove it prior to applying power—
this is an electric shock precaution.)
3. After removing an ESD-equipped assembly,
place it on a conductive surface such as
aluminum foil to prevent accumulation of
electrostatic charge.
4. Do not use freon-propelled chemicals. These
can generate electrical charges that damage
ESDs.
1-4
5. Use only a grounded-tip soldering iron when
soldering or unsoldering ESDs.
6. Use only an anti-static solder removal device.
Many solder removal devices are not rated as
“anti-static”; these can accumulate sufficient
electrical charge to damage ESDs.
7. Do not remove a replacement ESD from its
protective package until you are ready to
install it. Most replacement ESDs are
packaged with leads that are electrically
shorted together by conductive foam,
aluminum foil or other conductive materials.
8. Immediately before removing the protective
material from the leads of a replacement ESD,
touch the protective material to the chassis or
circuit assembly into which the device will be
installed.
9. Minimize body motions when handling
unpackaged replacement ESDs. Motions such
as brushing clothes together, or lifting a foot
from a carpeted floor can generate enough
static electricity to damage an ESD.
Samsung Electronics
Precautions
1-4 Handling the optical pick-up
The laser diode in the optical pick up may suffer electrostatic breakdown because of potential static electricity from clothing and your body.
The following method is recommended.
(1) Place a conductive sheet on the work bench (The
black sheet used for wrapping repair parts.)
(2) Place the set on the conductive sheet so that the
chassis is grounded to the sheet.
(3) Place your hands on the conductive sheet(This
gives them the same ground as the sheet.)
(4) Remove the optical pick up block
(5) Perform work on top of the conductive sheet. Be
careful not to let your clothes or any other static
sources to touch the unit.
WRIST-STRAP
FOR GROUNDING
1M
THE UNIT
1M
CONDUCTIVE SHEET
Fig.1-3
(6) Short the short terminal on the PCB, which is inside the Pick-Up ASS’Y, before replacing the PickUp. (The short terminal is shorted when the PickUp Ass’y is being lifted or moved.)
(7) After replacing the Pick-up, open the short terminal
on the PCB.
Be sure to put on a wrist strap grounded to the sheet.
Be sure to lay a conductive sheet made of copper etc.
Which is grounded to the table.
Samsung Electronics
1-5
Precautions
1-5 Pick-up disassembly and reassembly
1-5-1 Disassembly
1) Remove the power cable.
2) Switch SW3 on Deck PCB to “OFF” before
removing the Flat-Cable.
( Inserted into Main PCB DCN1. See Fig. 1-4)
3) Disassemble the Deck.
4) Disassemble the Deck PCB.
1-5-2 Assembly
1) Replace the Pick-up.
2) Assemble the Deck PCB.
3) Reassemble the Deck.
4) Insert Flat-Cable into Main PCB DCN1 and switch
SW3 on Deck PCB to “ON”. (See Fig 1-4)
Note : If the assembly and disassembly are not done in correct sequence, the Pick-up may be damaged.
1-6
Samsung Electronics
2-1. Specifications
The descriptions and characteristics given in this booklet are given for information purposes only and
are subject to modification without notice.
TELEVISION PART
Colour systems
TV standards
Number of channels
Reception range/cable TV
Aerial input
PAL(option) / SECAM(option) (UK;PAL)
L/L’(option), B/G(option), D/K(option) (UK;I)
100 programmes
Hyperband/interband tuner
75 Ohms, coaxial cable
DISC
DVD (DIGITAL VERSATILE DISC)
CD : 12 Cm
CD : 8 Cm
CD : 12 Cm
GENERAL
Power supply
Consumption
Audio output power
Number of loudspeakers
Tube size
Tube type
Sockets
Dimensions (W x D x H)/Weight
Operating temperature
Relative humidity
Samsung Electronics
Reading Speed : 3,49 m/sec.
Approx. Play Time (Single sided, Single Layer Disc) : 135 min.
Reading Speed : 1,2 to 1,4 m/sec.
Maximum Play Time : 74 min.
Reading Speed : 1,2 to 1,4 m/sec.
Maximum Play Time : 20 min.
Reading Speed : 1,2 to 1,4 m/sec.
Maximum Play Time : 74 min. (Video + Audio)
220-240V~, 50Hz (110-260V~, 50/60Hz; option)
85W
7Watts x 2
2
21” (51cm)
BLACK MATRIX
2 SCART(SCART1 : FULL RGB SCART) ON THE REAR.
(SCART2 : MONITOR OUT) ON THE REAR.
1 RCA input (audio and video2) on the front
Earphones output (3.5 mm mini-jack)
1 aerial/cable TV coaxial input
606 X 513 X 505mm / 39.5Kg
5°C - 35°C
10% - 75%
2-1
Alignment and Adjustments (Electrical)
4. Alignment and Adjustments (Electrical)
4-1 Preadjustment
4-1-1 Factory Mode
4-1-3 When CRT Is Replaced
1. Do not attempt these adjustments in the Video
Mode.
Make the following adjustments after setting up
purity and convergence:
2. The Factory Mode adjustments are necessary
when either the EEPROM (IC902) or the CRT
is replaced.
White Balance
Sub-Brightness
Vertical Center
Vertical Size
Horizontal Size
3. Do not tamper with the “Adjustment” screen
of the Factory Mode menu. This screen is
intended only for factory use.
4-1-2 When EEPROM (IC902) Is Replaced
1. When IC902 is replaced all adjustment data
revert to initial values. It is necessary to reprogram this data.
2. After IC902 is replaced, warm up the TV for
10 seconds.
4-2 Factory (“Service”) Mode
4-2-1 Procedure for the “Adjustment” Mode
1. This mode uses the standard remote control.
The Service Mode is activated by: (1) pressing
the “FACTORY” service key on the local-keyboard, or (2) by entering the following remotecontrol sequence (within 2 seconds):
STAND-BY →DISPLAY →MENU→ MUTE→
POWER ON
2. The “SERVICE (FACTORY)” message will be
displayed. The Service Mode has three components: Adjustment, Option Bytes and Reset.
4. Selection sequences for the
PAL/SECAM B/G, L systems:
down or up key:
TXP>SBT>SCT>SCR>STT>BCR>BLG>RG>
GG>BG>PWL>SC>SL>VA>PUS>PHS>GRE>
BB>CDL>BKS>PEW>PEP>PEUC>PELC>
PDL>VSC>HP>HB>TC>WS
5. The VOLUME keys increase or decrease the
adjustment values, (stored in the
non-volatile memory) when Adjustment Mode
is cancelled.
3. Access the Adjustment Mode by pressing the
“VOLUME” keys ( Up or Down). The adjustment parameters are listed in the accompanying table, and selected by pressing the CHANNEL keys (▲,▼).
Samsung Electronics
4-1
Alignment and Adjustments (Electrical)
4-2-2 Adjust
OSD
Initial
Adjust
Range
Function
OSD
Initial
TXP
4
Fix
0-7
Osd Position
PHS
34
SBT
6
0-23
Sub Brigh
GRE
1
SCT
10
0-23
Sub Contrast
BB
SCR
6
0-13
Sub Color
Fix
Adjust
Range
Function
0-63
Pal Horizon Shift
Fix
0-1
Greenish level
0
Fix
0-1
Blue Screen
CDL
11
Fix
0-15
Cathode Drive Level
0
Fix
STT
9
0-13
Sub Tint
BKS
0-1
Black Stretcher
BLR
8
0-15
Low Light R
REW
30
0-15
EW
BLG
8
0-15
Low Light G
PEP
2
0-15
EW Parabola
RG
32
0-63
High Light R
PEUC
0
Fix
0-63
Under Corner
0-63
High Light G
PELC
0
Fix
0-63
Lower Corner
0-63
High Light B
PDL
7
Fix
0-15
VSC
32
Fix
0-63
HP
32
Fix
0-63
H-Paralleogram
Fix
GG
32
BG
32
PWL
15
Fix
0-15
Peak white level
SC
11
Fix
0-63
S-Correction
Fix
SL
27
0-63
Vertical Slope
HB
32
Fix
0-63
Horizontal Bow
VA
12
0-63
Vertical Amplitu
TC
32
Fix
0-63
EW Trapezium
PVS
26
0-63
Pal vertical shift
WS
1
Fix
0-63
White Stretch
NOTE :
Fix
PVS, VA, PHS, NVS, NHS parameters must be aligned using
both the 50 Hz and 60 Hz vertical-field rates.
4-2-3 AGING Mode (Reference Only)
This pattern is used for pre-heating the CRT during manufacturing--it is accessed in the
factory by twice pressing the "FACTORY" key .
Even if the TV power is cut off, the Aging Mode is not cancelled.
The "AGING" marking is displayed on the screen.
The AGING mode is cancelled by repressing the "FACTORY" key.
4-2
Samsung Electronics
Alignment and Adjustments (Electrical)
4-2-4 OPTION
Adjust
Range
1
HELP MSG
ON
ON/OFF
2
LANGUAGE
EUROPE
EUROPE/RUSSIA/ARAB
3
SYSTEM
CF
CF/CI/CW/CX/CB/CII
4
ATS OPTION
ON
ON/OFF
5
AUTO CLOCK
OFF(Fix)
ON/OFF
6
S-Modulation
54%
54%/80%/100%
7
TTX
ON
ON/OFF
8
TTX DEFAULT
FLOF
FLOF/LIST
NO
OSD
9
4-2-5 RESET
The Reset Mode is used during factorying inspection
Function Reset : After Factorying Reset, the following items itens revert to their initial values.
1. Volume
2. Program Channel
11
0
3. P- STD
MEMORY
4. Auto Power
OFF
5. NR
OFF
6. Skip(Store/Clear)
ALL CLEAR
Cautim : When the EEPROM is replaced ; all items revert to their initial values.
Samsung Electronics
4-3
Alignment and Adjustments (Electrical)
4-3 Other Adjustments
4-3-1 General
1. Usually, a color TV needs only slight
touch-up adjustment upon installation.
Check the basic characteristics such as height,
horizontal and vertical sync and focus.
2. The picture should have good black and white
details. There should be no objectionable
color shading; if color shading is present,
perform the purity and convergence adjustments described below.
3. Use the specified test equipment or its
equivalent.
4. Correct impedance matching is essential.
5. Avoid overload. Excessive signal from a sweep
generator might overload the front-end of the
TV. When inserting signal markers, do not
allow the marker generator to distort test
results.
6. Connect the TV only to an AC power source
with voltage and frequency as specified on the
backcover nameplate.
7. Do not attempt to connect or disconnect any
wires while the TV is turned on. Make sure
that the power cord is disconnected before
replacing any parts.
8. To protect against shock hazard, use an
isolation transformer.
4-3-2 Automatic Degaussing
A degaussing coil is mounted around the
picture tube, so that external degaussing after
moving the TV should be unnecessary. But
the receiver must be properly degaussed upon
installation.
The degaussing coil operates for about 1
second after the power is switched ON. If the
set has been moved or turned in a different
direction, disconnect its AC power for at least
10 minutes.
If the chassis or parts of the cabinet become
magnetized, poor color purity will result. If
this happens, use an external degaussing coil.
Slowly move the degaussing coil around the
faceplate of the picture tube and the sides and
front of the receiver. Slowly withdraw the coil
to a distance of about 6 feet before removing
power.
4-3-3 High Voltage Check
CAUTION: There is no high voltage
adjustment on this chassis. The B+ power
supply must be set to +130 volts (Full color
bar input and normal picture level).
1. Connect a digital voltmeter to the second
anode of the picture tube.
2. Turn on the TV. Set the Brightness and
Contrast controls to minimum (zero beam
current).
3. The high voltage should not exceed 30KV.
4. Adjust the Brightness and contrast controls to
both extremes. Ensure that the high voltage
does not exceed 30KV under any conditions.
4-4
Samsung Electronics
Alignment and Adjustments (Electrical)
4-3-4 FOCUS Adjustment
1. Input a black and white signal.
2. Adjust the tuning control for the clearest picture.
3. Adjust the FOCUS control for well defined scanning lines in the center area of the screen.
4-3-5 Screen Adjustment
1. Turn to the ACTIVE channel.
2. Adjust the VR screen for a normal picture is (no blooming or flyback line).
3. Adjust the FOCUS control for well defined scanning lines in the center area of the screen.
4-3-6 Purity Adjustment
1. Warm up the receiver for at least 20 minutes.
2. Plug in the CRT deflection yoke and tighten the clamp screw.
3. Plug the convergence yoke into the CRT and set in as shown in Fig. 5-1.
4. Input a black and white signal.
5. Fully demagnetize the receive by applying an external degaussing coil.
6. Turn the CONTRAST and BRIGHTNESS controls to maximum.
7. Loosen the clamp screw holding the yoke. Slide the yoke backward or forward to provide
vertical green belt. (Fig. 5-2).
8. Tighten the convergence yoke.
9. Slowly move the deflection yoke forward, and adjust for the best overall green screen.
10. Temporarily tighten the deflection yoke.
11. Produce blue and red rasters by adjusting the low-light controls. Check for good purity
in each field.
12. Tighten the deflection yoke.
Samsung Electronics
4-5
Alignment and Adjustments (Electrical)
2
4-3-7 I C BUS GEOMETRIC Adjust
V SIZE(VA)
UP CPIN (PEUC)
V LINEARITY (SL)
LO CPIN (PELC)
V S CORRECTION (SC)
TILT (TC)
H POSITION (PHS)
AFC BOW (HB)
H SIZE
AFC ANGLE (HP)
PIN COMP (PEP)
V POSITION (PVS)
4-6
Samsung Electronics
Alignment and Adjustments (Electrical)
Fig. 5 -1 Convergence Magnet Assembly
Fig. 5-2 Center Convergence Adjustment
4-3-8 White Balance Adjustment
4-4-7 (A) HIGH-LIGHT ADJUSTMENT
1. Input either a Lion Head or a “pure white” pattern.
2. Warm up the TV for 30 minutes.
3. Check the data in the Service Mode
4. Adjust RG, BG in the Factory Mode.
5-4-7 (B) LOW-LIGHT ADJUSTMENT
1. Automatically accomplished during the high-light adjustment.
Samsung Electronics
4-7
Alignment and Adjustments (Electrical)
4-3-8 Center Convergence Adjustment
1. Warm up the receiver for at least 20 minutes.
2. Adjust the two tabs of the 4 pole magnets to
change the angle between them. Superimpose
the red and blue vertical lines in the center
area of the screen.
3. Adjust the Brightness and Contrast controls for
a well defined picture.
4. Adjust the two-tab pairs of the 4 pole magnets,
and change the angle between them.
Superimpose the red and the blue vertical
lines in the center area of the screen.
5. Turn the both tabs at the same time, keeping
the angle constant, and superimpose the red
and blue horizontal line in the center of the
screen.
6. Adjust the two-tab pairs of the 6-pole magnets
to superimpose the red and blue line onto the
green. (Changing the angle affects the vertical
lines, and rotating both magnets affects the
horizontal lines.)
7. Repeat adjustments 2~6, if necessary.
8. Since the 4-pole magnets and 6-pole magnets
interact, the dot movement is complex
(Fig. 5-3).
Fig 5-3 Center Convergence Adjustment
4-8
Samsung Electronics
Troubleshooting
5. Troubleshooting
5-1 No Power (No Picture on)
Check
both terminal voltages
of C815 (130V)
Yes
No
Check both
terminal voltages of
C804 (280~300V).
Yes
Is IC801S Pin 3
19~22V?
Yes
Check/Replace
DZ801,DZ808,
DZ802,PC801S
No
Check D801S
F801,Q801.
No
No
Check whether
each power line
is short or open.
No
Check IC801S
Check
Voltage of 80V, 15V, 20V,
13V power line..
Yes
Is IC901
Pin 64 Voltage 5V?
Yes
No
Check/Replace
IC901.
No
Check/Replace
IC902.
Check H.V SYNC on
IC901 Pins 36,37
Yes
Check
IC901 Pin 20 is High
when power is On.
Yes
Check the voltage
of TU01S.
Samsung Electronics
5-1
Troubleshooting
5-2 No Power (No LED On)
No
Check IC901 #31
Yes
Check IC904
Check IC901 #52, #53
No
No
No
Yes
Check another I2C
Bus Line.
Check after Bus
Line Open
Check IC805
No
Replace
Yes
Check D805
No
Replace
Yes
Check IC801S
Check IC901 #50~52
Yes
No
Replace
IC901
5-2
Samsung Electronics
Troubleshooting
5-3 No RF Picture / Sound
Yes (No Sound)
Check IC901 #52, #53
No Picture Yes
Check Tuois
SDA,SCL
No
Yes
Check chroma inodule
H-out
Replace
No
Check Tuner SIF
output?
No
Replace
Yes
Yes
Check Q402,Q401
Check Sound module
B+, 5V,8V
No
Yes
Replace
Yes
Replace
No
Check 8V, 5V
Power Line
Sound Module Replace
Check
c/module, R405,R435
R424,R425,D411,
D401
No
Replace
Samsung Electronics
5-3
Troubleshooting
5-4 DVD PLAY NO PICTURE
Check CN201
y-cut,c-out
No
Yes
Check chroma module
Check DVD
No
Replace
5-5 DVD PLAY NO SOUND
Check CN201
D-L, D-R
No
Yes
Check Sound module
Check DVD
No
Replace
5-4
Samsung Electronics
Troubleshooting
5-6 No Picture (Sound OK)
1
Check the Brightness, Contrast and Color adjustments
2. Check: AV Picture
3. See Video Block Diagram
5-7 No Sound (Picture OK)
1. Check the Volume adjustment level.
2. Check AV Video
3. See Audio Block Diagram
5-8 RF Weak Signal (Playback, AV Mode OK)
1. Check Tuner (TU01S) B+. Check: 8V (IC802)
33V (DZ201). Check 5V (IC804)
5-9 No Vertical SCAN
1. Check R425, D401
2. Check IC301, #2
3. Check Chroma module Vertical-out Line
4. Check DY Connector
5-10 Horizontal Size
1. Check L406, C411, R421, Q403, D404, R413, R405
5-11 On-Screen Display Missing
1. Check IC901 #32, #33, 34
2. Check Chroma module
5-12 No Teletext
1. Check IC901 #30
2. Check IC901 #24 (CVBS)
Samsung Electronics
5-5
A
LD is outputted
from object lens
at play key input?
Yes
No
B
FE om SOC1-25
is within specified
range?
No
Check RIC1 and A,B,C,D input.
Yes
No focus incoming and
no disc occurs
SIC3-1,2 output
are mormal?
Yes
A
Check open state from
DRIC4 to pick-up.
No
Check SIC3.
Troubleshooting
No Focus incoming
5-13 DVD Block Troubleshooting
5-6
No Disc recognition
Samsung Electronics
Samsung Electronics
NO LD CD ON
No pick-up home positing
B
SLD, SIC-34
output is normal?
No
Check MIC1
Yes
Check the Sled Motor and connection
No
Check MIC1
Yes
Yes
LED+, SLEDSIC3-32,33 output are
normal?
RIC1-21 is 5V?
No
Check SIC3
Divide RQ1 emitter terminal
voltage and 5V real voltage
difference into 10ohm.
Yes
Current exceeds 0.1A?
No
Open check in related circuit.
Yes
5-7
Troubleshooting
LD out pick-up replace.
Troubleshooting
5-8
No Search Operation
FINE SEEK Check
No
MIRR, SIC1-157
output is normal?
No
Check pick-up.
Yes
Yes
Yes
FINE SEEK MIRR
signal(RIC1-46) is missing?
No
RF AGCO, RIC1-72
Output level is
normal?
Check RIC1 peripheral circuit.
Check RIC1 Peripheral curcuit.
Yes
No
TZCO signal
(SIC1-24)is occurs?
Check SIC1 Peripheral curcuit.
Yes
Actual velocity occurs
at SIC1-34 terminal?
No
Check SIC1 peripheral circuit.
No
Track incomming is
delayed?
Time out due to many jump counts
Yes
Actual velocity occurs
at SIC4-32,33 terminal?
No
Yes
Check SIC3 peripheral circuit.
Yes
TE occurs in
search range?
No
TE is within
2V and 3V?
No
Focus On?
No
A
Yes
Yes
No
Yes
Pick-up transfer smooth.
Samsung Electronics
See "Fine Seek Check"
Yes
Check MECHA.
Check SIC1 peripheral circuit.
No
SIC1-33 output
are normal?
Check RIC1-26 terminal.
SIC3-28,29
terminaloutputs
are normal?
Yes
No
Check SIC3 peripheral circuit.
Check DCN1 and pick-up.
Samsung Electronics
Abnormal rotation of
disc motor
No Tray open/close
No
No
Input of RF signal
is normal?(SIC1-15)
No
RIC1-71 output
is normal?
Check RIC1 peripheral
circuit and A,B,C,D
Yes
No
Yes
No
RIC1-70 output
are normal?
SPD output is normal?
(SIC1-35)
Yes
Check RIC1 doldering and power
After resoldering SIC1
MIC1-84,85 is
Open;"L","L"?
Close;"H","H"?
Yes
Micom(MIC1) error
Yes
Check SIC3-35,36
output open/close
No
Check SIC3
Yes
Check path to RIC1 and SIC1
Check signal line state from
SIC3-35,36 to tray motor.
SIC3-2 output(FG)
is normal?
No
Check SIC3 soldering and power
Yes
SIC3-9 signal
MON is "H"?
Check or replace disc motor
Check SIC1, MIC1.
5-9
Troubleshooting
Yes
No
DVD Video output error
Pin of VDD-2.5&
VDD-3.3 in ZIC1 has
normal level?
'NO DISK'appers
afrer pick-up moves up and
down twice at power on?
Troubleshooting
5-10
DVD play error
No
Check the connection between
pin 1 in PCNS1 and pin 3 in ZIC5
Yes
Check DIC1,MIC1 peripheral short
Yes
27MHz clock is
input is normal at
pin 159 in ZIC1?
Yes
No
Check the connection between
pin 6 in ZIC4 and pin 129 in ZIC1
Yes
27MHz clock is
input in DIC1-14?
No
Check 27MHz oscillating part.
Yes
Signals are output
from SIC1-42,44?
Anlog output is
normal at pin133 in
ZIC?
No
Check the soldering of ZIC1
Yes
No
Replace SIC1
Analog signals are
inputted normally
pin7 in ICD302
No
Check the connection between
pin 133 in ZIC1 and ICD302
Yes
Yes
Power is normal
at pin16 in ICD302?
ZIC1 peripheral soldering
and short check.
No
Check the connection between
ICD302 and emitter of ICD105
Yes
Pin 1 in ICD302
is in low stste?
No
Check the connection between
pin23 in ICD601 and pin in ICD302
Yes
Samsung Electronics
Output level is normal
at pin10,14,15(Y signal)and
pin12,13(C signal) in ICD302?
Yes
Check IC202-5,6 and IC701-8
No
Check the soldering of ICD302
Samsung Electronics
CD/VCD/DVD L/R output error
(Mixed Audio output)
Digital output error
No
Normal DA-DATA 0
input in ICD501-6
No
Check ZIC1-121 output.
No
Check ZIC1-125
(CD/VCD;16.934MHz,
DVD;18.432MHz)
Yes
ICD502-1,7 OUTPUT
is normal?
Yes
Check ZIC1 perpheral circuit.
Yes
Yes
Analog output of
ICD501-20,21,22,23 is
normal?
Output in ZIC1-127
is normal?
Output in
ICD503-6,8,10 is
normal?
No
Check ICD503
Yes
No
Check ICD502 peripheral circuit
Check JKD501 peripheral
soldering shot.
Yes
Bast terminal level
QD501,502
are"L"?
Check MSP3451G peripheral circuit
Check ICD601-3 mute.
5-11
Troubleshooting
Yes
No
Rmote control doesn't operate
When any key is
pressed, check an input data si
output from CN004
pins7,8,9?
No
Check 5V is input
to CN004 pin 10
No
Check 5V is output from the
QD103 emitter.
(Check 8V is input to CND001 pin11)
No
Check RMD701 located on the
Control Board
No
Check the component and pattern
between CND004 and ICD601
Yes
Yes
When the remote
control operates,check the
remote pulse is input to
CN004 pim13?
Check the key Desn't
Operate
Yes
Check the remote
pules is input to ICD601
pin47?
Yes
Check 8MHz is
normaloscillated from
IC601 pin40,41?
Samsung Electronics
Yes
Check the specigications of CN001
pins 1~5,7,9 and TV MICOM
(IC901)
No
Check VCC and X-TAL of
ICD601 (XTC601)
Troubleshooting
Key doesn't operate
5-14 Trobleshooting
5-12
Key or Rmote control
doesn't Operate
Exploded View & Parts List
6. Exploded View & Parts List
6-1 21G5VDX/XEF
No
1
Code No
Description
Specification
Q’ty
AA91-00494D
ASSY CABINET FRONT;,21G5,(SPK)004P+012P
1
AA64-01321C
CABINET FRONT;21G5,DB021P+SV012P MPP,HIP
1
1-1
AA64-01328B
DECORATION-FRONT;21G5,ABS HB,-,-,G3676,L
3
1-2
AA64-70123A
BADGE-BRAND;AL,SAMSUNG,SILVER,L=50,FLAT,
1
1-3
AA64-01324B
KNOB POWER;21G5,ABS HB,-,G3676,SV012P,-,
1
1-4
AA61-60003J
SPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,-
1
1-5
AA64-00846D
INLAY AV;21G5,PS SHEET,T0.3,-,BLK,-,3P
1
1-6
AA65-30105A
CLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE
2
1-7
AA64-01326B
INDICATOR LED;21G5,ACRYL,-,-,-,-,-
1
1-8
AA64-01325B
WINDOW REMOCON;21G5,PC V0,-,-,-,-,VIOLET
1
1-9
6003-001019
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
1
1-10
AA64-01323B
KNOB-DVD;21G5,ABS HB,-,G3676,SV012P,-,-
1
1-11
6003-001025
SCREW-TAPTITE;RH,+,B,M4,L20,ZPC(BLK),SWR
2
1-12
AA64-01572C
KNOB-TV;21G5,ABS,-,G3676,SV012P,HB,-,-
1
1-13
6003-001023
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
2
1-14
AA91-00536A
ASSY HOLDER SPK;-,-,8ohm/13W,BLK,TVDP##(
1
1-15
6006-001095
SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
8
2
AA94-02917A
ASSY CRT;AA03-00207A,+380mG,A51QDX991X0
1
2-1
AA65-00009B
CLAMP-D,COIL;NYLON 66,V0,-,-,21A8,-
4
Remark
Exploded View & Parts List
6-2 DVD Deck Assembly
H107
H103
H102
H100
900
H108
905
H105
H104
H109
S.N.A.
H110
H106
H220
H200
H203
900
901
H202
900
906
H202
S.N.A.
H206
H205
H207
H208
H204
H210
Loc. No
900
901
903
904
905
906
H100
H102
H103
H104
H105
H106
H107
H108
H109
H110
H200
H202
H203
H204
H205
H206
H207
H208
H210
H220
H240
H241
Parts No.
6003-001157
6001-001332
6009-001245
6001-001196
BG60-10020A
AH60-00010A
AH61-00391B
AH66-00111A
AH66-00080A
AH66-00074A
AH66-00072A
AH31-00015A
AH66-00112A
AH66-00073A
AH66-00079A
AH66-00081A
AH97-00369B
AH73-00023A
AH61-50327A
AH66-00075A
AH66-00076A
AC60-30306A
AH31-00017A
AH61-00403A
AH31-00016A
AJ97-00014A
AH92-00609A
3809-001181
Description ; Specification
SCREW-TAPTITE;PWH,+,B,M2,L6,ZPC(YEL),SWR
SCREW-MACHINE;FH,+,M2,L8,ZPC(YEL),SWRCH1
SCREW-SPECIAL;SWRCH18A,NYLOCK,SOCKET,HEX
SCREW-MACHINE;BH,+-,M2,L4,ZPC(YEL),SWRCH
SCREW-SP MOTOR;-,BHW TOOTH,-,-,M1.7,L3,SCREW-MACHINE-MOTOR;-,+,SWCH18AK,M1.7,L2
HOUSING-ASSY;DP-5,ABS+POM,-,-,-,-,-,-,-,
CLAMPER-ASSY;DP-5,POM+MAGNET,-,-,-,DP-5
LEVER-S/W;WHITE,-,-,-,-,-,-,GEAR-HOUSING;-,POM M90-44,-,-,-,-,-,-,-,
PULLEY-GEAR;-,POM M90-44,-,-,MOTOR-LOAD ASSY;-,DP-5,-,BELT-PULLEY;-,CR,T1.5,ID30,-,-,DP-5
GEAR-TRAY;-,POM M90-44,-,-,-,-,-,-,-,SLIDER-HOUSING;DP-5,-,-,-,POM(KEPITAL F2
TRAY-DISC;-,ABS HR0370F,-,BLK,-,DP-5
ASSY-P/U DECK;2LD,DP-5,RUBBER-INSULATOR;BUTYL RUBBER,-,DP-3,
SHAFT-P/U;DP,SUS420J2,OD3,L84.7,S/FINISH
GEAR-FEED A;-,POM M90-44,-,-,-,-,-,-,-,GEAR-FEED B;-,POM M90-44,-,-,-,-,-,-,-,WASHER-SLIT;-,-,ID2.1,OD5.0,T0.5,-,POLYS
MOTOR-SPINDLE ASSY;-,DP-5,-,SPRING-SPINDLE;-,SWPB,-,CS,PI4.9,PI0.7,MOTOR-FEED ASSY;-,DP-5,-,ASSY-PICK-UP;SOH-D2A,-,ASSY PCB-DECK;DVD-811/XAA,VALINO DECK 2L
CABLE-FLAT;30V,-30to+80C,80mm,40P,1.25mm
Remark
Exploded View & Parts List
6-3 Precautions when disassembling the assay module deck
1. Remove the door-tray from the TV set.
Removing the door-tray
When on the DVD door-tray (In power ON, use the Open key)
1. Turn on the TV set.
2. Press the Open key to open
the door
3. Remove the door-tray by puling
it towards with one hand
2. When the DVD door-tray doesn’t operate.
NOTE : For operation descriptions, the CRT is shown transpatent.
2. Softly life the rear of the assay module deck and remove it
1. Remove the back cabinet.
2. Press the DVD deck side hole with
a
shaped JIG.
3. Pull the protruding door towards.
4. Remove the door-tray by pulling
it towards with one hand.
* Caution : The door-tray/tray may be broken unless the door-tray is
not removed first when disassembling the assay module deck.
Electric Parts List
7. Electrical Parts List
7-1 DW21G5VDX/XEF
Level Loc. No. Code No.
Description ; Specification
Remark
ASSY PCB MAIN(OPT)
1
*
AA94-02804A ASSY PCB MAIN(OPT);DW21G5,C16A,-,-
..2
..2
...3
...3
...3
..2
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
..2
...3
...3
...3
..2
...3
...3
...3
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
CN101
D812
AA39-20010B
AA96-00111T
0402-001230
6003-000333
AA62-30013L
AA96-50406A
0205-000129
1204-000517
6003-000333
AA62-30180K
AA96-50373C
AA62-30181K
AA61-10386A
6003-000333
1203-001482
0205-000129
AA96-00111U
1203-001697
6003-000333
AA62-30013L
AA96-00569A
1203-002139
6003-000333
AA62-30012G
AA13-00027A
1203-001752
3722-000195
AA27-00103A
AA27-00098A
AA27-00113A
AA27-30003S
AA96-00275A
6003-000333
AA60-30001A
AA62-00051A
0502-001136
0402-001296
0205-000129
AA96-50305C
0505-000156
6003-000333
AA62-30012E
AA26-00096A
AA26-00094A
AA40-00015A
AA65-30018A
AA65-30018A
AA65-30110A
0202-000187
2001-000347
AA26-00069A
AA99-30191D
2301-001338
2401-003025
2401-003024
3711-003052
3711-000628
3711-003975
2303-001015
2301-001219
2306-000235
2306-000188
2306-000321
2306-000321
2201-002002
IC301
IC801S
IC802
IC803
IC901
IC904
JA701
L408
L808
LC801S
LR401S
Q401
Q403
T444S
T801S
TU01S
WIRE
C407
C806
C815
CN201
CN701
CN901
CR401S
CR402S
CR404S
CR405S
CX801S
CX802S
CY801S
Samsung Electronics
LEAD CONNECTOR-ASSY;-,YFH800-01,S,1P,500
ASSY H/S;-,POWER,AA62-30013L,FMG-G2CS,D
DIODE-RECTIFIER;FMG-G2CS,1000V,3A,TO-220
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,ASSY-H/S;-,-,AA62-30180K,LA7845,GREASE-SILICON;SC102,JAPAN
IC-VERTIVAL DEF.;LA7845,SIP,7P,-,PLASTIC
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR,-,WHT,50/13,-,
ASSY-H/S;-,-,AA62-30181K,KA3S1265R,HEAT SINK-ES;-,AL6063 EXTR.,2,WHT,40MM,BRACKET-IC;-,-,SECC 100,T1.0,-,KA2S0680,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
IC-PWM CONTROLLER;3S1265R,TO-3P,5P,210,P
GREASE-SILICON;SC102,JAPAN
ASSY H/S;-,POWER,AA62-30013L,KA78R08,TV
IC-VOLTAGE REGULATOR;78R08,TO-220,4P,-,P
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,ASSY H/S;-,SOUND,AA62-30012G,KA378R12,T
IC-POSI.FIXED REG.;378R12,TO-220F,4P,393
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT-SINK,ES;-,A6063 EXTR,55/22.5,-,-,-,
IC-MCU;SAA5565PS-OTP,OTP,ST,128K,52P,
IC-POSI.FIXED REG.;LF33CV,TO-220,3P,-,PL
JACK-SCART;42P,-,SN,BLK,NO
COIL CHOKE;600UH,-,600UH,+-10%,600UH,0.5
COIL CHOKE;-,-,24uH,10%,-,0.1,3.0A,DR10X
COIL DEGAUSSING;-,-,4.8mH,-,48T,9ohm,-,2
COIL-LINEARLITY;-,54uH,YL81DR14x15,0.12m
ASSY H/S;-,COMPLEX,AA62-00051A,KSD5703,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,-,SBHG
HEAT SINK-PS;-,-,-,SILVER,HOLE 31mm,ALL,
TR-POWER;KSD5703,NPN,70W,TO-3PF,ST,8DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,
GREASE-SILICON;SC102,JAPAN
ASSY H/S;-,SOUND,AA62-30012E,IRF620,21G
FET-SILICON;IRF620,N,200V,5A,0.8ohm,50W,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR,-,-,TO-220 H55
TRANS FBT;FUJ-29C007A(S),CT29A6,4.3mH,-,
TRANS SWITCHING;EER5345,SMD21G5,-,DC100~
TUNER-F/S;TCPW3001PD09A(S),PAL/SECAM,TR,
CLAMP-WIRE;NYLON-66,-,-,DATL-600,DONG-A,
CLAMP-WIRE;NYLON-66,-,-,DATL-600,DONG-A,
CLAMP-WIRE;NYLON 66,V2,BLK,PAL TVI,ALL M
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
R-CARBON;13KOHM,5%,1/8W,AA,TP,1.8X3.2MM
TRANS FBT;FUJ-29C002C(S),DREAM3,4,-,-,-,
ASSY-PCB ROBOT; AA94-02804A ,ER
C-FILM,MPE-PPF;0.68nF,5%,1.6kV,TP,28x7x1
C-AL;330uF,20%,400V,GP,ST,30x40,10
C-AL;220uF,20%,200V,WT,TP,22x35,10
CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAGH
CONNECTOR-HEADER;-,11P,1R,2.5mm,STRAIGHT
CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
C-FILM,PPF;5.5nF,5%,1.6kV,TP,29x9.5x17,2
C-FILM,MPE-PPF;3.9nF,5%,1.6KV,TP,29x8.5x
C-FILM,MPPF;560nF,5%,400V,TP,26*22.5*14,
C-FILM,MPPF;330nF,5%,400V,TP,26x19.5x11,
C-FILM,MPPF;470NF,5%,275V,TP,-,22.5
C-FILM,MPPF;470NF,5%,275V,TP,-,22.5
C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,TP,16x
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Level Loc. No. Code No.
...3
...3
...3
....4
....4
....4
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
CY802S
D801S
D805
D808
FP801S
IC701
IC804
IC805
IC902
L405
LX801S
LX802S
NT801S
PC801S
PT801S
RL801S
T401
C101
C102
C103
C104
C105
C106
C107
C201
C301
C302
C303
C304
C305
C306
C307
C308
C309
C401
C402
C403
C404
C405
C406
C408
C409
C411
C412
C414
C420
C421
C422
C424
C427
C601
C602
C603
C606
C607
C701
C702
C703
C704
C705
C706
C709
C710
C711
C715
C716
2201-002002
0402-001160
AA96-00111C
0402-000233
6003-000333
AA62-30013L
AA96-00111C
3601-000281
1001-001114
1203-001006
1203-001006
1103-001198
AA27-00096A
AA29-30002N
AA29-30002N
1404-001045
0604-001038
1404-000002
3501-001040
AA26-50001R
AA99-10186T
2202-000243
2202-000243
2401-000480
2305-000665
2401-000133
2305-000665
2401-002619
2401-000133
2301-000192
2401-000318
2201-002031
2305-000285
2305-001011
2301-000342
2401-000360
2305-000665
2301-000192
2201-000556
2401-001397
2201-000556
2401-001397
2401-001625
2401-000569
2305-000382
2301-001435
2301-000192
2305-000178
2401-002619
2301-001065
2201-000556
2401-001527
2201-000132
2401-002267
2401-000133
2202-000231
2202-000231
2202-000231
2202-000231
2305-000412
2305-000412
2401-002463
2401-002463
2305-000412
2305-000412
2401-001840
2401-001840
2202-000231
2202-000231
2202-000231
Description ; Specification
Remark
C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,TP,16x
DIODE-BRIDGE;D5SB60,600V,6A,SIP-4,ASSY-H/S;-,-,AA62-30013L,FML-G12S,DIODE-RECTIFIER;FML-G12S,200V,5A,-,SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,ASSY-H/S;-,-,AA62-30013L,FML-G12S,FUSE-CARTRIDGE;250V,4A,TIME-LAG,GLASS,5.
IC-VIDEO SWITCH;TEA6425,VIDEO SWITCH ,DI
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
IC-EEPROM;24C16-PC C,256X8Bit,DIP,8P,300
COIL HORIZ. WIDTH;-,10.0mH,DR15 X 27.5,U
FILTER-LINE NOISE;-,16MH,1.5A,AC100~260V
FILTER-LINE NOISE;-,16MH,1.5A,AC100~260V
THERMISTOR-NTC;4.7OHM,15%,2900K,35.0MW,T
PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST
THERMISTOR-PTC;9ohm,20%,-,-,TR,RECT,RELAY-POWER;12VDC,500mW,10A,1FormA,15mS,
TRANS-HORIZ.DRIVE;-,80MH,520UH,4UH,G11A
ASSY-PCB MAIN,AUTO; AA99-30191D ,V
S.N.A
C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3.
C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3.
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-AL;100uF,20%,25V,LZ,TP,8x11.5,5
C-CERAMIC,DISC;0.005nF,0.5pF,50V,NP0,TP,
C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
C-FILM,MPEF;22nF,5%,100V,TP,3.5x12.5x7.5
C-FILM,PEF;2.2nF,5%,50V,TP,7.4x3.9x13mm,
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;6.8uF,20%,50V,GP,TP,5x11,5
C-AL;1uF,20%,250V,GP,TP,6.3x11,5
C-FILM,MPEF;4.7nF,5%,400V,TP,-,5mm
C-FILM,PPF;1.5nF,5%,1.2kV,TP,15x8x12.5mm
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,MPEF;10nF,5%,100V,TP,-,5mm
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-FILM,MPPF;47nF,5%,630V,TP,19x15.5x7,7.
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;47uF,20%,250V,HR,TP,13x25mm,5m
C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5
C-AL;2.2uF,20%,250V,GP,TP,8x11.5,5
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
7-1
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-2
C717
C803
C804
C807
C808
C809
C810
C811
C812
C813
C814
C816
C817
C818
C820
C821
C822
C824
C825
C826
C827
C828
C829
C830
C831
C832
C833
C834
C835
C836
C838
C839
C841
C842
C843
C901
C902
C903
C904
C905
C906
C907
C908
C909
C910
C911
C912
C913
C914
C915
C916
C917
CN502A
CN701S
CN901S
CR403
D301
D305
D307
D401
D402
D403
D404
D405
D406
D407
D408
D409
D410
D411
D413
D415
D801
D803
D804
D806
D807
Code No.
Description ; Specification
2202-000231
2305-000412
2201-000332
2303-000163
2401-003046
2301-000395
2401-002594
2301-000310
2305-000665
2401-002619
2201-000639
2401-003058
2201-000599
2401-002215
2201-000599
2301-000192
2401-003141
2201-000599
2401-002215
2401-002215
2201-000599
2201-000599
2401-001998
2401-001998
2401-001998
2401-001998
2401-002619
2401-001513
2305-000665
2301-000192
2305-000665
2401-003034
2401-002463
2401-002463
2201-000374
2401-000480
2401-000480
2202-000796
2202-000791
2202-000632
2202-000632
2401-000242
2401-002144
2401-002144
2201-000980
2201-000980
2401-001914
2401-003561
2202-000796
2401-002463
2401-002075
2401-002463
3711-002646
2011-001133
2503-000156
2301-001268
0402-000546
0401-000005
0401-000005
0402-000540
0402-000540
0402-000132
0402-000537
0401-000005
0402-000132
0401-000005
0402-000546
0401-000005
0403-001316
0402-000540
0402-000537
0401-000005
0402-001111
0402-000546
0402-000546
0401-000005
0402-000132
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4
C-FILM,PPF;2.2nF,5%,800V,TP,15x13x8.5,7.
C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5
C-FILM,PEF;18nF,5%,50V,TP,6.5x12.5x3.5mm
C-AL;220uF,20%,16V,GP,TP,8x11.5,5
C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X5,
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-CERAMIC,DISC;0.68nF,10%,2kV,Y5P,TP,9x5
C-AL;100uF,20%,200V,WT,TP,16x25,7.5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;2200uF,20%,25V,WT,TP,13x25,5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-AL;2200uF,20%,25V,WT,TP,13x25,5mm
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;2200uF,20%,25V,WT,TP,13x25,5
C-AL;2200uF,20%,25V,WT,TP,13x25,5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,16V,WT,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,16V,WT,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-CERAMIC,DISC;0.22nF,5%,50V,NP0,TP,10.5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,DISC;0.03nF,5%,50V,NP0,TP,5x3,
C-CERAMIC,DISC;0.03nF,5%,50V,NP0,TP,5x3,
C-AL;1uF,20%,50V,BP,TP,5x11,5
C-AL;1uF,10%,50V,GP,TP,5x11mm,5
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
R-NETWORK;33K/24K/75x3,5%,1/8W,X,SIP,6P,
C-NETWORK;100pFx4,20%,50V
C-FILM,PPF;33nF,5%,630V,TP,20x11x17,7.5
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N5397GP,600V,1.5A,DO-20
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
Remark
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
D809
D810
D811
D901
D902
D905
D906
D907
D908
D909
DZ201
DZ302
DZ303
DZ304
DZ305
DZ306
DZ701
DZ702
DZ703
DZ801
DZ802
DZ803
DZ806
DZ808
DZ901
DZ902
DZ903
DZ904
DZ905
F801A
F801B
FA801S
FA802S
FA803S
J248
L203
L205
L206
L208
L301
L302
L303
L304
L305
L406
L407
L601
L602
L603
L606
L607
L608
L609
L701
L702
L703
L704
L706
L707
L708
L709
L710
L801
L802
L803
L804
L809
L813
L814
L815
L816
L901
L902
L903
L904
L905
L906
Code No.
Description ; Specification
0402-000493
0402-000493
0402-000493
0401-000005
0401-000005
0401-000005
0403-000510
0403-000510
0401-000005
0401-000005
0403-000700
0403-001329
0403-001329
0403-001329
0403-001221
0403-001167
0403-000720
0403-000720
0403-000720
0403-001322
0403-000508
0403-001167
0403-001317
0403-000704
0403-001316
0403-000510
0403-000510
0403-000510
0403-000714
3602-000114
3602-000114
3601-001163
3601-001163
3601-001163
2001-000745
2701-001034
2701-000114
2701-000114
2701-000114
2701-000114
3301-000287
3301-000287
3301-000287
3301-000287
2701-000114
3301-000287
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000116
2701-000114
2701-000114
2701-000114
2901-000297
2901-000299
2901-000297
2701-000114
2701-000114
2901-000297
3301-001223
3301-001223
3301-001223
3301-000287
3301-001223
3301-000287
3301-000287
3301-000287
2701-001034
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000184
Remark
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D
DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500
DIODE-ZENER;MTZJ3.0B,3.01-3.22V,500mW,DO
DIODE-ZENER;TZP7.5B,7.5V,7.5-8.4V,1W,DODIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ3.3B,3.3V,3.32-3.53V,500
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
FUSE-AXIAL LEAD;125V,7A,-,EPOXY,2.4X7.1M
FUSE-AXIAL LEAD;125V,7A,-,EPOXY,2.4X7.1M
FUSE-AXIAL LEAD;125V,7A,-,EPOXY,2.4X7.1M
R-CARBON;4.7OHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;22uH,10%,5x14mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;22uH,10%,5x14mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
Samsung Electronics
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
PCB
Q402
Q701
Q702
Q703
Q704
Q802
Q803
R101
R102
R103
R104
R105
R106
R207
R208
R209
R210
R211
R212
R213
R215
R218
R301
R302
R303
R304
R305
R306
R309
R310
R314
R315
R401
R402
R403
R404
R405
R406
R407
R408
R409
R410
R411
R412
R413
R414
R416
R417
R418
R419
R421
R422
R423
R424
R425
R426
R427
R429
R430
R432
R434
R435
R436
R604
R605
R606
R608
R609
R610
R611
R612
R701
R702
R703
R704
R705
Code No.
Description ; Specification
AA41-00385A
0502-001007
0501-000283
0501-000283
0501-000389
0501-000389
0501-000369
1203-001217
2001-000864
2001-000969
2001-000702
2001-000281
2001-000281
2001-000362
2001-001352
2001-000969
2001-000325
2001-000281
2001-000281
2001-000281
2001-000281
2001-001352
2001-000938
2004-001983
2004-001984
2001-000016
2008-001029
2008-001029
2008-001107
2001-000290
2001-000290
2004-001986
2004-001402
2001-001078
2001-001078
2001-001155
2001-001088
2008-000252
2003-000755
2001-000066
2001-001055
2001-000028
2001-001114
2001-001152
2001-000020
2008-000266
2001-000290
2003-002156
2001-001093
2001-001078
2001-001037
2001-000028
2001-001179
2004-001373
2008-001018
2008-001018
2003-002178
2001-001110
2001-000812
2004-000433
2004-001376
2001-001107
2008-001018
2003-002151
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000429
2001-000429
2001-000429
2001-000037
2001-000037
Samsung Electronics
PCB-MAIN;DW-21G5,FR-1,1L,A,1.6T,330x245
TR-POWER;KSC2073-H2,NPN,25W,TO-220,ST,6
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOIC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;39KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;120OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-FUSIBLE(S);5.6OHM,5%,2W,AF,TP,3.9X10MM
R-FUSIBLE(S);5.6OHM,5%,2W,AF,TP,3.9X10MM
R-FUSIBLE(S);300ohm,5%,2W,AG,TP,3.9x12mm
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL(S);35.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4
R-CARBON(S);15KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);15KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x
R-METAL OXIDE(S);6.8Kohm,5%,2W,AF,TP,4x1
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);47KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M
R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);15KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);0.39OHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-METAL OXIDE(S);1Kohm,5%,2W,AG,TP,3.9x1
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R-METAL(S);11Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-METAL OXIDE;18KOHM,5%,2W,AG,TP,6X16MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4
Remark
S.N.A
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R706
R707A
R708
R709
R710
R711
R712
R713
R714
R715
R716
R717
R718
R719
R720
R801
R802
R803
R804
R805
R806
R807
R808
R809
R810
R811
R813
R814
R815
R816
R817
R818
R819
R821
R823
R824
R825
R826
R827
R828
R834
R835
R837
R838
R839
R841
R842
R843
R901
R902
R903
R904
R906
R907
R908
R909
R910
R913
R914
R915
R916
R918
R919
R920
R921
R922
R923
R924
R925
R926
R927
R928
R929
R930
R931
R932
R933
Code No.
2001-000429
2001-000281
2001-000969
2001-000969
2001-000734
2001-000281
2001-000734
2001-000429
2001-000734
2001-000429
2001-000969
2001-000281
2001-000660
2001-000977
2001-000969
2001-001103
2003-001025
2003-001025
2003-001025
2001-001150
2001-001150
2001-001163
2001-001163
2001-001153
2001-001178
2004-001408
2001-001153
2001-000085
2001-001086
2001-001088
2001-000429
2001-001113
2004-001983
2004-001889
2001-000290
2008-001011
2006-001002
2001-000019
2008-001086
2008-001086
2001-000812
2003-002024
2001-001153
2001-000812
2001-001163
2001-000786
2001-000812
2001-000812
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000007
2001-000429
2001-000429
2001-000429
2001-000734
2001-000429
2001-000539
2001-000429
2001-000362
2001-000362
2001-000362
2001-000429
2001-000628
2001-000429
2001-000780
2001-000734
2001-000290
2001-000429
2001-000290
2001-000429
2001-000290
2001-000429
2001-000429
2001-000290
Description ; Specification
Remark
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x
R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);18KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);127Kohm,1%,1/2W,AA,TP,2.5x6.5
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-CEMENT;1.2ohm,5%,5W,CB,TP,9x13x25mm
R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm
R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL OXIDE(S);91Kohm,5%,2W,AF,TP,3.9x
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;24KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
7-3
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
..2
..2
R934
R935
R936
R937
R938
R939
R940
R941
R942
R943
R944
R945
R946
R947
R948
R949
R950
R951
R952
R953
R954
R955
R956
R957
RX801S
RY801S
RY802S
VP801S
VX801S
X901
Code No.
Description ; Specification
2001-000281
2001-000281
2001-000449
2001-000449
2001-000273
2001-000429
2001-000066
2001-000290
2001-000290
2001-000734
2001-000734
2001-000734
2001-000734
2001-000734
2001-000734
2001-000734
2001-000429
2001-000628
2001-000628
2001-000628
2001-000734
2001-000290
2001-000689
2001-000290
2002-001011
2002-001011
2002-001013
1405-000152
1405-000152
2801-003433
AA65-30109A
AA65-30009A
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;390KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-COMPOSITION;3.3Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;3.3Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x
VARISTOR;560V,2500A,14x8.5mm,TP
VARISTOR;560V,2500A,14x8.5mm,TP
CRYSTAL-UNIT;12MHZ,30PPM,28-AAM,30PF,30O
CLAMP-FBT;NYLON-66,V2,BLK,-,-,CLAMP-FBT;ABS,V0,BLK,-,-,-
Remark
S.N.A
S.N.A
ASSY CRT
1
*
..2
AA94-02917A ASSY CRT;AA03-00207A,+380mG,A51QDX991X0
AA03-00207A CRT COLOR;A51QDX991X001,-,21DF,0.74,-,UN
ASSY PCB CRT
1
*
AA95-00800A ASSY PCB CRT;-,C16A,21,PAL,DW21G5
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
C520
CN502A
CN503A
IC501
IC502
IC503
2201-000723
AA39-20030B
AA39-20029K
AA96-50151B
AA96-50151B
AA96-50151B
1201-001131
6001-000057
6021-000222
AA61-10060A
AA41-00362A
3704-000114
AA99-20081D
2306-000122
2306-000122
2201-002031
2305-000154
2201-000599
2306-000122
2306-000122
2305-000154
2201-000599
2306-000122
2306-000122
2201-000193
2305-000154
2201-000599
2401-001513
2401-002183
2401-002264
7-4
PCB
V999
C501
C502
C503
C504
C505
C506
C507
C509
C510
C511
C512
C513
C514
C515
C516
C517
C518
C-CERAMIC,DISC;4.7nF,20%,3KV,Y5U,TP,16x5
LEAD CONNECTOR-ASSY;-,67096-008,S,8P,400
LEAD CONNECTOR-ASSY;-,67096-007,S,7P,400
ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS
SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1
NUT-HEXAGON;2C,M3,ZPC(YEL),SM20C 1
BRACKET-TR;-,-,CUS-1 1/2H,T0.5,-,-,PCB-CRT(PAL);TF21G5,FR-1,1L,A,1.6T,330x2
SOCKET-CRT;14P,29.1,35.5,SN,ISH09S/BK
ASSY-PCB SUB,AUTO; AA99-30191E ,V
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-CERAMIC,DISC;0.005nF,0.5pF,50V,NP0,TP,
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP,
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;47uF,20%,16V,WT,TP,5x11,5
C-AL;220uF,20%,16V,GP,TP,8x9,5mm
C-AL;10uF,20%,350V,GP,TP,10x20mm,5m
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
..2
Code No.
C519
CN502
CN503
D501
D502
D503
D504
D505
D506
D507
D508
D509
D510
DZ501
DZ503
DZ505
L501
L502
Q501
R502
R503
R504
R507
R509
R510
R511
R513
R514
R515
R516
R517
R518
R519
R520
R521
R522
R523
R524
R525
R526
R527
R529
R530
Description ; Specification
2401-002264
3711-002647
3711-002646
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000132
0401-000005
0401-000005
0401-000005
0403-000720
0403-000720
0403-000720
2701-000115
2701-000112
0501-000389
2001-001049
2001-001117
2004-001408
2002-001017
2001-001049
2001-001117
2004-001408
2003-001018
2002-001017
2001-001049
2001-000052
2001-001117
2004-001408
2001-000052
2001-000052
2002-001017
2001-001093
2001-001197
2001-001062
2002-001012
2008-001049
2002-001006
2001-000290
2001-000290
AA63-10002A
3722-001503
0202-000187
Remark
C-AL;10uF,20%,350V,GP,TP,10x20mm,5m
CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;100uH,10%,3x7mm
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);910OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4
R-COMPOSITION;8.2Mohm,5%,1/2W,AA,TP,3.7x
R-FUSIBLE(S);3.9OHM,5%,2W,AF,TP,3.9X10MM
R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
BAND-TIE;-,NYLON66 V2,-,-,L100,NTR,-,JACK-PIN;1P,1PI,NI,RED,SCR-JACK
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
S.N.A
ASSY PCB CONTROL
S.N.A
S.N.A
S.N.A
S.N.A
1
*
AA95-00801A ASSY PCB CONTROL;-,C16A,DW21G5,-
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
CND701
CND703
CND704
CND704
LDD701
LDD71A
PCB
PCB+HC
RMD701
SWD701
SWD702
SWD703
SWD704
SWD705
SWD707
SWD708
SWD709
SWD710
SWD711
AA39-00207A
AA39-00075A
AA39-00159B
3711-001128
0601-000385
AA61-50044A
AA41-00330A
6003-001023
AA59-60002B
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
0202-000187
AA61-00586B
AA99-20086Q
2401-002291
2202-000632
CD701
CD702
LEAD CONNECTOR ASSY;-,-,-,13P,-,-,-,3502
LEAD CONNECTOR-ASSY;-,-,-,-,-,-,-,-,-,YB
LEAD CONNECTOR ASSY;-,-,-,8P,TUBE,-,-,-,
CONNECTOR-HEADER;BOX,8P,1R,2.5mm,ANGLE,S
LED;ROUND,RED,3mm,700nm
GUIDE-LED;-,ABS,V0,BLK,-,AIWA,PCB-TVDP CONTROL;SMD-21G5,FR-1,1L,A,1.6T
S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
MODULE-REMOCON;-,ORC-50HF,38KHZ,940MM,ME
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
HOLDER-TOP;15X5,ABS,BLK,HB,-,ASSY-PCB SUB,AUTO; AA95-00801A ,V
S.N.A
C-AL;47uF,20%,16V,GP,TP,6.3x5,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
Samsung Electronics
Electric Parts List
Loc. No.
...3
...3
...3
...3
...3
...3
QD701
RD701
RD702
RD703
ZDD701
ZDD702
Code No.
Description ; Specification
0504-000118
2001-000290
2001-000857
2001-000429
0403-001211
0403-000510
Remark
TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOR-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
ASSY-PCB,SOUND
1
*
AA95-00805A ASSY-PCB,SOUND;-,DW21G5,C16A,PAL,-,-
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
BR01
BR02
CN601
CN602
CN603
ICD701
LD607
LD608
LD609
LD610
AA61-10068A
AA61-10068A
3711-002708
3711-001283
3711-002644
1203-000274
AA27-00119A
AA27-00119A
AA27-00119A
AA27-00119A
AA63-00341B
0202-001004
0202-000187
AA99-20081C
2404-000284
2203-000181
2404-000235
2404-000235
2203-000181
2404-000235
2404-000235
2404-000235
2404-000235
2404-000235
2404-000235
2404-000235
2203-000181
2404-000284
2203-000181
2404-000284
2404-000284
2203-000444
2203-000444
2203-000444
2203-000444
2404-000465
2404-000465
2404-000465
2404-000465
2404-000465
2203-000444
2203-000444
2203-000753
2404-000284
2203-000181
2404-000284
2203-000701
2203-000701
2203-001077
2203-001077
2203-001077
2401-001840
2203-000142
2404-000465
2203-000444
2203-000142
2404-000465
2203-000444
2203-000181
2401-002594
2203-000716
2203-000716
2404-000167
2404-000167
CD601
CD602
CD603
CD604
CD605
CD606
CD607
CD608
CD609
CD610
CD611
CD612
CD613
CD614
CD615
CD616
CD617
CD618
CD619
CD620
CD621
CD622
CD623
CD624
CD625
CD626
CD627
CD628
CD629
CD630
CD631
CD632
CD633
CD634
CD635
CD636
CD637
CD639
CD640
CD641
CD642
CD643
CD644
CD645
CD646
CD647
CD648
CD649
CD650
CD651
Samsung Electronics
BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,CONNECTOR-HEADER;NOWALL,10P,1R,2.5mm,ANG
CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG
CONNECTOR-HEADER;BOX,5P,1R,2.5mm,STRAIGH
IC-POSI.FIXED REG.;7805,TO-220,3P,-,PLAS
COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
SHIELD;21G5,SPTE,T0.5,AUDIO
SOLDER-CREAM;SQ-2030M SZH-1,S63A,D0.04,6
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
ASSY-PCB SUB,AUTO; AA95-00805A ,V
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;330nF,+80-20%,50V,Y5V,TP,
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;0.002nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.002nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;220uF,20%,16V,GP,TP,8x11.5,5
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,-
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
CD652
CD654
CD655
CD656
CD657
CD658
CD659
CD660
CD661
CD662
CD663
CD664
CD665
CD666
CD667
CD668
CD669
CD670
CD671
CD672
CD673
CD674
CD675
CD676
CD677
CD678
CD679
CD680
CD699
CD701
CD702
CD703
CD704
CD705
CD706
CD707
CD708
DD601
ICD601
ICD602
ICD603
LD601
LD602
LD603
LD604
LD605
LD606
PCB
RD601
RD602
RD603
RD604
RD605
RD606
RD607
RD608
RD609
RD610
RD611
RD612
RD613
RD614
RD615
RD616
RD618
RD619
RD620
RD621
RD622
RD623
RD624
RD625
RD626
RD627
RD628
RD629
RD630
Code No.
Description ; Specification
2203-000181
2404-000160
2203-000181
2404-000160
2203-000181
2401-000287
2203-000181
2401-000287
2203-000181
2203-000578
2203-000578
2203-000181
2203-000578
2203-000578
2203-000239
2203-000239
2203-000181
2203-000239
2203-000239
2404-000465
2203-000578
2203-000444
2203-000444
2203-000444
2203-000444
2203-000444
2203-000444
2203-000181
2203-000221
2404-000275
2203-000181
2404-000275
2203-000181
2404-001098
2404-001098
2404-001098
2404-001098
0401-000133
1204-001772
1201-000541
1201-001681
2702-001100
2702-001100
2702-001100
2901-000297
2901-000297
2901-000297
AA41-00356B
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000290
2007-000290
2007-000070
2007-000290
2007-000290
2007-000084
2007-000074
2007-000074
2007-000468
2007-000084
2007-000084
2007-000094
2007-000129
2007-000084
2007-000329
2007-001010
2007-000329
2007-001010
2007-000084
2007-000084
2007-000129
2007-000094
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;1UF,20%,50V,GP,TP,6032
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;1UF,20%,50V,GP,TP,6032
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,3216
C-TA,CHIP;100UF,10%,10V,GP,TP,7343
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;100UF,10%,10V,GP,TP,7343
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;1uF,20%,25V,GP,TP,3216,C-TA,CHIP;1uF,20%,25V,GP,TP,3216,C-TA,CHIP;1uF,20%,25V,GP,TP,3216,C-TA,CHIP;1uF,20%,25V,GP,TP,3216,DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
IC-SOUND PROCESSOR;MSP3451G-A2,LQFP,64P,
IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
IC-AUDIO AMP;1101,SOP,30P,433MIL,-,-,PLA
INDUCTOR-RADIAL;3.9uH,10%,4x6mm
INDUCTOR-RADIAL;3.9uH,10%,4x6mm
INDUCTOR-RADIAL;3.9uH,10%,4x6mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,PCB-SOUND;SMD-21G5,FR-4,2L,B,1.6T,180x24
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;11Kohm,5%,1/16W,DA,TP,1608
R-CHIP;51Kohm,5%,1/16W,DA,TP,1608
R-CHIP;11Kohm,5%,1/16W,DA,TP,1608
R-CHIP;51Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
Remark
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-5
Electric Parts List
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
Code No.
RD631
RD632
RD633
RD634
RD635
RD636
RD637
RD638
RD639
RD640
RD642
RD643
XD601
ZD601
ZD602
ZD603
ZD604
Description ; Specification
2007-000084
2007-000093
2007-000093
2007-000805
2007-000805
2007-000210
2007-001179
2007-000308
2007-000308
2007-000029
2007-000572
2007-000029
2801-000186
0403-001117
0403-001117
0403-001117
0403-001117
Remark
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;20Kohm,5%,1/16W,DA,TP,1608
R-CHIP;20Kohm,5%,1/16W,DA,TP,1608
R-CHIP;36Kohm,5%,1/16W,DA,TP,1608
R-CHIP;36Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
CRYSTAL-UNIT;18.432MHz,25ppm,28-AAM,8pF,
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
ASSY-PCB,MASTER
1
*
..2 CN801
..2 PCB
..2 SW811S
..2
..2
..2
..2
AA95-00806A ASSY-PCB,MASTER;-,DW21G5,C16A,PAL,-,AA39-20179F
AA41-00355A
3403-000179
0202-000187
6001-000057
AA61-10320A
AA99-20087F
LEAD CONNECTOR-ASSY;-,-,-,3(2)P,-,-,-,YF
PCB-MASTER;DW21G5,FR-1,1L,A,1.6T,245x245
SWITCH-PUSH;250V,5A,DPST,-,JPW-2104B
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1
BRACKET-MASTER;-,T3350,SECC,T1.0,-,-,ASSY-PCB SUB,AUTO; AA95-00806A ,V
S.N.A
S.N.A
S.N.A
S.N.A
ASSY-PCB,PFC
1
*
AA95-00974A ASSY-PCB,PFC;-,DW21G5,C16A,PAL,-,-
..2
..2
..2
..2
..2
..2
..2
..2
CN01
HP+PFC
LP01
PCB
AA39-00206A
6003-001023
AA27-00116A
AA41-00358A
AA64-01764B
0202-000187
AA61-00496B
AA99-20087G
LEAD CONNECTOR ASSY;-,-,-,2P,-,-,-,YFH80
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
COIL CHOKE;CODE_NO,-,35mH,-0, +5%,-,2.8O
PCB-PFC;DW21G5,CEM-1,1L,A,1.6T,330x245
INLAY-BARRIER,PFC;21G5,PVC,T0.4,SHEET 94
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
HOLDER-PCB;21G5,ABS V0,GRAY,-,-,GUJU
ASSY-PCB SUB,AUTO; AA95-00974A ,V
S.N.A
S.N.A
S.N.A
S.N.A
ASSY POWER CORD
1
*
AA96-20130F ASSY POWER CORD;-,CP2/NO(4.0R),H/C 250mm
ASSY M/DECK-DVDP
1
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
...3
...3
7-6
*
CN001A
CN002A
CN003
AA94-03216A
3809-001213
AA39-20497D
AA39-20497A
AA98-00096A
AA95-00803A
CN11
3708-001364
CN11A 3809-001180
CN12
AA39-00148A
CND001 3711-003975
CND002 3711-003052
CND003 AA39-20005D
CND004 3711-000682
CND01A AA39-00190A
CND02A AA39-00149A
ICD101 AA96-50162E
1203-001083
6003-000333
AA62-30013E
ICD102 1203-001697
ICD103 1203-000122
ASSY M/DECK-DVDP;DW-21G5,-,-,D-100P,2LD,
CABLE-FLAT;30V,80C,250mm,40P,1.25mm,UL28
LEAD CONNECTOR ASSY;-,-,-,1P,-,-,-,YFH80
LEAD CONNECTOR-ASSY;-,YFH800-01,RING,1P,
ASSY-PCB,M/DVDP;-,DVD-PVE22/BON,C16A,-,S.N.A
ASSY-PCB,INTERFACE;-,DW21G5,C16A,PAL,-,CONNECTOR-FPC/FC/PIC;35P,1.25MM,STRAIGHT
CABLE-FLAT;30V,-30to+80C,80mm,35P,1.25mm
CBF HARNESS;-,-,-,8P,-,-,-,YBNH250-08,52
CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAGH
LEAD CONNECTOR-ASSY;-,-,-,3P,-,-,-,YBNH2
CONNECTOR-HEADER;BOX,13P,1R,2mm,ANGLE,SN
LEAD CONNECTOR ASSY;-,-,-,14P,-,-,-,3515
CBF HARNESS;-,-,-,10P,-,-,-,35155-1000,S
ASSY-H/S;-,-,AA62-30013E,PQ3RF23,IC-VOLTAGE REGULATOR;3RF23,TO-202,4P,12.
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT-SINK,ES;-,A6063 EXTR,-,-,30(21) T02
IC-VOLTAGE REGULATOR;78R08,TO-220,4P,-,P
IC-NEGA.FIXED REG.;7908,TO-220,3P,-,PLAS
Loc. No.
...3
...3
....4
....4
....4
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
ICD104
ICD105
JKD501
RD110
ADD501
ADD502
BD501
BD502
BDD101
BDD102
BDD301
CD101
CD102
CD103
CD104
CD105
CD106
CD107
CD108
CD109
CD110
CD111
CD112
CD113
CD114
CD115
CD116
CD117
CD118
CD119
CD120
CD121
CD122
CD301
CD302
CD303
CD304
CD305
CD306
CD307
CD308
CD313
CD314
CD315
CD316
CD317
CD318
CD325
CD326
CD327
CD328
CD329
CD501
CD502
CD503
CD504
CD505
CD506
CD507
CD508
CD509
CD510
CD511
CD512
CD513
CD514
CD515
CD516
CD517
CD518
CD519
CD520
Code No.
Description ; Specification
1203-001006
AA96-50162K
1203-001006
6003-000333
AA62-30013E
3707-001005
2006-001002
0202-000187
AA99-20081U
0407-000123
0407-000116
3301-000287
3301-000287
3301-000287
3301-000287
3301-000287
2401-001363
2401-001363
2305-000289
2401-001840
2202-000632
2401-001840
2305-000289
2401-001840
2401-001840
2202-000632
2401-000302
2401-002144
2202-000632
2401-001840
2202-000632
2202-000632
2202-000632
2401-002144
2401-002144
2202-000632
2401-001397
2401-001840
2202-000210
2202-000205
2202-000231
2202-000791
2202-000210
2202-000205
2202-000231
2202-000791
2202-000210
2202-000205
2202-000231
2202-000791
2401-002042
2203-000181
2401-001363
2401-000914
2306-000122
2401-001363
2401-000914
2401-002042
2202-000632
2401-002042
2202-000632
2401-002042
2202-000632
2203-000716
2203-000444
2203-000444
2203-000716
2203-000444
2203-000444
2401-002144
2203-000260
2401-002144
2203-000260
2401-002235
2401-002235
2401-001363
2401-002144
Remark
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
ASSY H/S;-, DVD INTERFACE,AA62-30013E,7
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT-SINK,ES;-,A6063 EXTR,-,-,30(21) T02
CONNECTOR-OPTICAL;PLUG,SM,-,4.4/2.0MM
R-CEMENT;1.2ohm,5%,5W,CB,TP,9x13x25mm
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
ASSY-PCB SUB,AUTO; AA99-30192L ,V
DIODE-ARRAY;1SS184,80V,300mA,CA2-3,SOT-2
DIODE-ARRAY;DAP202K,80V,100mA,CK2-3,SOTCORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;270PF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;270PF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;270PF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;22uF,20%,16V,GP,TP,5x11,5
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;22uF,20%,16V,GP,TP,5x11,5
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
S.N.A
S.N.A
S.N.A
Samsung Electronics
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
CD521
CD522
CD523
CD601
CD602
CD603
CD604
CD605
CD606
CD703
CND003
DD101
DD104
DD105
DD106
DD107
DD501
DD502
DD503
DD601
DD602
DD603
ICD302
ICD501
ICD502
ICD503
ICD601
ICD602
LD301
LD302
LD303
LD304
LD307
LD308
LD501
LD601
PCB
QD103
QD107
QD108
QD109
QD501
QD502
QD503
QD504
QD505
QD506
QD507
RD103
RD105
RD106
RD107
RD109
RD111
RD301
RD302
RD304
RD308
RD309
RD310
RD501
RD502
RD503
RD504
RD505
RD506
RD507
RD508
RD509
RD510
RD511
RD512
RD513
RD514
RD515
RD516
RD517
Code No.
Description ; Specification
2401-000603
2202-000127
2202-000632
2401-001840
2202-000797
2401-001250
2202-000205
2202-000205
2202-000632
2401-002144
3711-002642
0402-000493
0402-000132
0401-000005
0401-000005
0402-000493
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
1201-001419
1002-001213
1201-000163
0801-000442
AA09-00104A
1203-000642
2701-000238
2701-000238
2701-000238
2701-000238
2701-000238
2701-000238
2701-000002
2701-000115
AA41-00277A
0501-000362
0501-000442
0504-000142
0504-000119
0501-000342
0501-000342
0504-000156
0504-000118
0504-000118
0504-000156
0504-000128
2001-000028
2001-000290
2007-000493
2007-000493
2001-000734
2003-001036
2001-001006
2001-001006
2001-001006
2001-000969
2001-000969
2001-000969
2007-000468
2007-000468
2001-000258
2001-000429
2001-000429
2001-000429
2001-000429
2001-000258
2001-000258
2001-000258
2007-000468
2001-000429
2007-000221
2007-000468
2007-000468
2007-000221
2007-000468
Samsung Electronics
Remark
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-AL;4.7uF,20%,35V,GP,TP,4x5,5
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;47uF,20%,16V,GP,TP,5x11,5
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,STRAIGH
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
IC-VIDEO AMP;7660,SSOP,16P,173MIL,3,6DB,
IC-D/A CONVERTER;AK4393VF,24BIT,SOP,28P,
IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
IC-CMOS LOGIC;74HCU04,INVERTER,SOP,14P,1
IC MICOM;UPD78F0034AGC-OTP,SMD-21G5,64,
IC-RESET;572,TO-92,3P,-,PLASTIC,2.35/2.
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
PCB-INTERFACE;SMD-21G5,FR-1,1L,A,1.6T,24
S.N.A
TR-SMALL SIGNAL;KSA2328A-Y,NPN,1W,TO-92L
TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9
TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T
TR-DIGITAL;KSR1004,NPN,300MW,47K/47K,TOTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOTR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOTR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL OXIDE(S);3.3ohm,5%,2W,AF,TP,3.9x
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
RD518
RD519
RD520
RD521
RD522
RD523
RD524
RD525
RD526
RD527
RD528
RD529
RD530
RD531
RD532
RD533
RD534
RD535
RD601
RD602
RD603
RD604
RD605
RD606
RD607
RD608
RD609
RD610
RD611
RD612
RD613
RD614
RD615
RD616
RD617
RD618
RD619
RD620
RD621
RD622
RD623
RD624
RD625
RD626
RD627
RD628
RD629
RD630
RD631
RD632
RD633
RD634
RD635
RD636
RD637
RD638
RD639
RD640
RD641
RD642
RD643
RD644
RD645
RD646
RD647
RD648
RD649
RD650
RD651
RD652
RD653
RD654
RD655
RD656
RD657
RD658
RD659
Code No.
2007-000468
2007-000221
2007-000468
2007-000468
2007-000221
2007-000300
2007-000300
2007-000468
2001-000429
2007-000572
2007-000572
2001-000241
2001-000281
2001-000281
2007-000468
2007-000572
2007-000572
2007-000572
2007-000468
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000300
2007-000300
2007-000468
2007-000468
2001-000429
2001-000429
2007-000468
2007-000468
2007-000468
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000429
2001-000010
2001-000832
2001-000429
2001-000429
2001-000290
2001-000290
2001-000429
2001-000290
2007-000300
2007-000300
2001-000429
2001-000429
2007-000300
2001-000429
2007-000300
2001-000429
2007-000300
2001-000429
2001-000290
2001-000429
2001-000429
Description ; Specification
Remark
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
7-7
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
Code No.
RD660
RD661
RD662
RD663
RD664
RD665
RD666
RD668
RD669
XTD601
ZDD101
ZDD501
ZDD702
ZDD703
ZDD704
ZDD705
ZDD706
ZDD707
ZDD708
ZDD709
D/P+FD
DECK+F
DVD/P+
O/P+FD
SDT+FD
Description ; Specification
2007-000468
2001-000429
2007-000468
2001-000429
2007-000300
2007-000300
2007-000300
2001-000515
2007-000981
2801-003750
0403-001373
0403-000714
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
AA91-00561A
AA90-00641A
6003-001023
6003-001022
6003-001023
6003-001023
6003-001023
AA61-00482B
AA63-00339B
AA65-00011B
Remark
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
CRYSTAL-UNIT;8MHZ,30PPM,28-AAA,22PF,80OH
DIODE-ZENER;MTZJ5.1A,4.81V-5.07V,500mW,D
DIODE-ZENER;MTZJ3.3B,3.3V,3.32-3.53V,500
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
ASSY DECK-M/DVDP;-,2LD,VALINO,DVD-DV002/
ASSY FRAME;DO,SMD21G5
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RH,+,B,M3,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
FRAME-DECK;21G5,-,HIPS V0,-,BLK,-,SHIELD-DECK,TOP;21G5,SECC,T0.5,TOP
CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,15M
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY-PCB,A/V
1
*
AA95-00802A ASSY-PCB,A/V;-,DW21G5,C16A,PAL,-,-
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
CM50
CM51
CM52
CM53
CM54
CM55
CNM705
CNM711
CNM712
JAC701
JAC702
LM50
LM51
LM52
LM53
LM54
LM55
PCB
RM50
RM51
WCNM70
WCNM71
2401-002144
2401-002144
2001-000309
2001-000309
2202-000231
2202-000231
3711-000628
AA39-00070A
3711-002644
3722-001031
3722-000143
2001-000309
2001-000309
3301-000287
3301-000287
2701-000114
2701-000114
AA41-00354B
2001-000028
2001-000028
AA39-20160D
AA39-20020D
AA63-10002A
0202-000187
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
R-CARBON;110OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;110OHM,5%,1/8W,AA,TP,1.8X3.2MM
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
CONNECTOR-HEADER;-,11P,1R,2.5mm,STRAIGHT
LEAD CONNECTOR-ASSY;-,-,-,-,-,-,-,-,-,YB
CONNECTOR-HEADER;BOX,5P,1R,2.5mm,STRAIGH
JACK-RCA;3P,3.6MM,#18,AU
JACK-PHONE;1P(VER),3.4mm,AG,BLK,NO
R-CARBON;110OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;110OHM,5%,1/8W,AA,TP,1.8X3.2MM
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
PCB-AV;SMD-21G5,FR-1,1L,B,1.6T,245x24
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
LEAD CONNECTOR-ASSY;-,67096-11,S,11P,600
LEAD CONNECTOR-ASSY;-,67096-005,S,5P,600
BAND-TIE;-,NYLON66 V2,-,-,L100,NTR,-,SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
S.N.A
S.N.A
ASSY-PCB,CHROMA
1
*
AA95-00992A ASSY-PCB,CHROMA;-,DW28G5-WIDE,C16A,PAL,-
..2
..2
..2
..2
..2
..2
..2
...3
...3
BK201
BK202
CN201
CN202
CN203
AA61-10068A
AA61-10068A
3711-002710
3711-003543
3711-002647
0202-000187
AA99-20088F
2203-000440
2309-000138
7-8
C201
C202
BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,CONNECTOR-HEADER;NOWALL,15P,1R,2.5mm,ANG
CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
ASSY-PCB SUB,AUTO; AA95-00992A ,V
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-FILM,PE-PPF;100nF,5%,50V,TP,20x16x8.5,
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
C204
C205
C206
C207
C208
C209
C210
C211
C212
C213
C214
C215
C216
C217
C218
C219
C220
C222
C223
C225
C226
C227
C228
C229
C230
C231
C232
C233
C234
C235
C236
C237
C238
C250
C259
C261
C262
C263
IC201S
IC205
L202
L206
L207
PCB
Q203
R201
R203
R205
R206
R207
R208
R209
R210
R211
R212
R213
R216
R217
R218
R219
R220
R221
R222
R223
R224
R225
R227
R232
R233
R234
R235
R236
R237
R238
R240
R261
R262
Code No.
Description ; Specification
2203-000257
2203-000715
2203-000218
2305-000665
2203-000440
2305-000412
2203-000218
2401-001840
2305-000412
2305-000289
2305-000412
2203-002398
2203-002398
2203-002398
2203-002398
2203-002398
2203-002398
2203-000218
2203-000218
2305-000289
2203-000998
2203-000998
2401-002235
2203-000218
2401-001840
2305-000665
2401-002183
2401-002183
2301-000383
2301-000445
2401-000603
2203-000440
2203-000440
2401-000603
2203-000851
2203-000715
2305-000412
2401-002144
1204-001740
1204-001773
2702-001094
2702-001094
2702-001094
AA41-00399A
0501-000727
2007-000101
2007-000129
2007-000078
2007-000090
2007-000074
2007-000828
2008-000206
2007-000074
2007-000074
2007-000074
2007-001002
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000070
2007-000074
2007-000074
2007-000074
2007-000416
2007-001002
2008-000206
2007-000078
2007-000082
2007-000074
2007-000129
2007-000092
2007-000309
2007-000070
2007-000070
Remark
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160
C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,16V,GP,TP,8x9,5mm
C-AL;220uF,20%,16V,GP,TP,8x9,5mm
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-FILM,PEF;4.7nF,5%,50V,TP,5.5x7x3mm,5mm
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;0.039nF,5%,50V,NP0,TP,160
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,1608
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-AL;47uF,20%,16V,GP,TP,5x11,5
IC-VIDEO PROCESS;TDA8889H,QFP,64P,-,PLAS
IC-FILTER;TDA9181T,SOP,16P,300MIL,PLASTI
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
PCB-CHROMA;DW21G5,FR-4,2L,A,1.6T,180x245
TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
R-CHIP;82Kohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;39Kohm,1%,1/16W,DA,TP,1608
R-FUSIBLE(S);1ohm,5%,1/2W,AF,TP,2.5x6.5m
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;510ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;15ohm,5%,1/16W,DA,TP,1608
R-CHIP;510ohm,5%,1/16W,DA,TP,1608
R-FUSIBLE(S);1ohm,5%,1/2W,AF,TP,2.5x6.5m
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
S.N.A
Samsung Electronics
Electric Parts List
7-2 DW21G5VDX/XEG
Loc. No.
Code No.
Description ; Specification
Remark
ASSY PCB MAIN(OPT)
1
*
AA94-02804B ASSY PCB MAIN(OPT);DW21G5VDX/XEG,C16A,GE
..2
..2
...3
...3
...3
..2
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
..2
...3
...3
...3
..2
...3
...3
...3
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
...3
CN101
D812
AA39-20010B
AA96-00111T
0402-001230
6003-000333
AA62-30013L
AA96-50406A
0205-000129
1204-000517
6003-000333
AA62-30180K
AA96-50373C
AA62-30181K
AA61-10386A
6003-000333
1203-001482
0205-000129
AA96-00111U
1203-001697
6003-000333
AA62-30013L
AA96-00569A
1203-002139
6003-000333
AA62-30012G
AA13-00027A
1203-001752
3722-000195
AA27-00103A
AA27-00098A
AA27-00113A
AA27-30003S
AA96-00275A
6003-000333
AA60-30001A
AA62-00051A
0502-001136
0402-001296
0205-000129
AA96-50305C
0505-000156
6003-000333
AA62-30012E
AA26-00096A
AA26-00094A
AA40-00015A
AA65-30018A
2001-000347
AA99-30208W
2301-001338
2401-003025
2401-003024
3711-003052
3711-000628
3711-003975
2303-001015
2301-001219
2306-000235
2306-000188
2306-000321
2306-000321
2201-002002
2201-002002
0402-001160
AA96-00111C
0402-000233
6003-000333
AA62-30013L
AA96-00111C
IC301
IC801S
IC802
IC803
IC901
IC904
JA701
L408
L808
LC801S
LR401S
Q401
Q403
T444S
T801S
TU01S
WIRE
C407
C806
C815
CN201
CN701
CN901
CR401S
CR402S
CR404S
CR405S
CX801S
CX802S
CY801S
CY802S
D801S
D805
D808
Samsung Electronics
LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,500,
ASSY H/S;-,POWER,AA62-30013L,FMG-G2CS,D
DIODE-RECTIFIER;FMG-G2CS,1000V,3A,TO-220
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,ASSY-H/S;-,-,AA62-30180K,LA7845,GREASE-SILICON;SC102,JAPAN
IC-VERTIVAL DEF.;LA7845,SIP,7P,-,PLASTIC
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR,-,WHT,50/13,-,
ASSY-H/S;-,-,AA62-30181K,KA3S1265R,HEAT SINK-ES;-,AL6063 EXTR.,2,WHT,40MM,BRACKET-IC;-,-,SECC 100,T1.0,-,KA2S0680,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
IC-PWM CONTROLLER;3S1265R,TO-3P,5P,210,P
GREASE-SILICON;SC102,JAPAN
ASSY H/S;-,POWER,AA62-30013L,KA78R08,TV
IC-VOLTAGE REGULATOR;78R08,TO-220,4P,-,P
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,ASSY H/S;-,SOUND,AA62-30012G,KA378R12,T
IC-POSI.FIXED REG.;378R12,TO-220F,4P,393
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT-SINK,ES;-,A6063 EXTR,55/22.5,-,-,-,
IC-MCU;SAA5565PS-OTP,OTP,ST,128K,52P,
IC-POSI.FIXED REG.;LF33CV,TO-220,3P,-,PL
JACK-SCART;42P,-,SN,BLK,NO
COIL CHOKE;600UH,-,600UH,+-10%,600UH,0.5
COIL CHOKE;-,-,24uH,10%,-,0.1,3.0A,DR10X
COIL DEGAUSSING;-,-,4.8mH,-,48T,9ohm,-,2
COIL-LINEARLITY;-,54uH,YL81DR14x15,0.12m
ASSY H/S;-,COMPLEX,AA62-00051A,KSD5703,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,-,SBHG
HEAT SINK-PS;-,-,-,SILVER,HOLE 31mm,ALL,
TR-POWER;KSD5703,NPN,70W,TO-3PF,ST,8DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,
GREASE-SILICON;SC102,JAPAN
ASSY H/S;-,SOUND,AA62-30012E,IRF620,21G
FET-SILICON;IRF620,N,200V,5A,0.8ohm,50W,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR,-,-,TO-220 H55
TRANS FBT;FUJ-29C007A(S),CT29A6,4.3mH,-,
TRANS SWITCHING;EER5345,SMD21G5,-,DC100~
TUNER-F/S;TCPW3001PD09A(S),PAL/SECAM,TR,
CLAMP-WIRE;NYLON-66,-,-,DATL-600,DONG-A,
R-CARBON;13KOHM,5%,1/8W,AA,TP,1.8X3.2MM
ASSY-PCB ROBOT; AA94-02804B ,ER
C-FILM,MPE-PPF;0.68nF,5%,1.6kV,TP,28x7x1
C-AL;330uF,20%,400V,GP,ST,30x40,10
C-AL;220uF,20%,200V,WT,TP,22x35,10
CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAGH
CONNECTOR-HEADER;-,11P,1R,2.5mm,STRAIGHT
CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
C-FILM,PPF;5.5nF,5%,1.6kV,TP,29x9.5x17,2
C-FILM,MPE-PPF;3.9nF,5%,1.6KV,TP,29x8.5x
C-FILM,MPPF;560nF,5%,400V,TP,26*22.5*14,
C-FILM,MPPF;330nF,5%,400V,TP,26x19.5x11,
C-FILM,MPPF;470NF,5%,275V,TP,-,22.5
C-FILM,MPPF;470NF,5%,275V,TP,-,22.5
C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,TP,16x
C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,TP,16x
DIODE-BRIDGE;D5SB60,600V,6A,SIP-4,ASSY-H/S;-,-,AA62-30013L,FML-G12S,DIODE-RECTIFIER;FML-G12S,200V,5A,-,SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,ASSY-H/S;-,-,AA62-30013L,FML-G12S,-
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
FP801S
IC701
IC804
IC805
IC902
L405
LX801S
LX802S
NT801S
PC801S
PT801S
RL801S
T401
C101
C102
C103
C104
C105
C106
C201
C301
C302
C303
C304
C305
C306
C307
C308
C309
C401
C402
C403
C404
C405
C406
C408
C409
C411
C412
C414
C420
C421
C422
C424
C427
C601
C602
C603
C606
C607
C701
C702
C703
C704
C705
C706
C709
C710
C711
C715
C716
C717
C803
C804
C807
C808
C809
C810
C811
C812
C813
C814
Code No.
Description ; Specification
3601-000281
1001-001114
1203-001006
1203-001006
1103-001198
AA27-00096A
AA29-30002N
AA29-30002N
1404-001045
0604-001038
1404-000002
3501-001040
AA26-50001R
AA99-10203Q
2202-000243
2202-000243
2401-000480
2305-000665
2401-000133
2305-000665
2401-000133
2301-000192
2401-000318
2201-002031
2305-000285
2305-001011
2301-000342
2401-000360
2305-000665
2301-000192
2201-000556
2401-001397
2201-000556
2401-001397
2401-001625
2401-000569
2305-000382
2301-001435
2301-000192
2305-000178
2401-002619
2301-001065
2201-000556
2401-001527
2201-000132
2401-002267
2401-000133
2202-000231
2202-000231
2202-000231
2202-000231
2305-000412
2305-000412
2401-002463
2401-002463
2305-000412
2305-000412
2401-001840
2401-001840
2202-000231
2202-000231
2202-000231
2202-000231
2305-000412
2201-000332
2303-000163
2401-003046
2301-000395
2401-002594
2301-000310
2305-000665
2401-002619
2201-000639
Remark
FUSE-CARTRIDGE;250V,4A,TIME-LAG,GLASS,5.
IC-VIDEO SWITCH;TEA6425,VIDEO SWITCH ,DI
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
IC-EEPROM;24C16-PC C,256X8Bit,DIP,8P,300
COIL HORIZ. WIDTH;-,10.0mH,DR15 X 27.5,U
FILTER-LINE NOISE;-,16MH,1.5A,AC100~260V
FILTER-LINE NOISE;-,16MH,1.5A,AC100~260V
THERMISTOR-NTC;4.7OHM,15%,2900K,35.0MW,T
PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST
THERMISTOR-PTC;9ohm,20%,-,-,TR,RECT,RELAY-POWER;12VDC,500mW,10A,1FormA,15mS,
TRANS-HORIZ.DRIVE;-,80MH,520UH,4UH,G11A
ASSY-PCB MAIN,AUTO; AA99-30208W ,V
S.N.A
C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3.
C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3.
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-AL;100uF,20%,25V,LZ,TP,8x11.5,5
C-CERAMIC,DISC;0.005nF,0.5pF,50V,NP0,TP,
C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
C-FILM,MPEF;22nF,5%,100V,TP,3.5x12.5x7.5
C-FILM,PEF;2.2nF,5%,50V,TP,7.4x3.9x13mm,
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;6.8uF,20%,50V,GP,TP,5x11,5
C-AL;1uF,20%,250V,GP,TP,6.3x11,5
C-FILM,MPEF;4.7nF,5%,400V,TP,-,5mm
C-FILM,PPF;1.5nF,5%,1.2kV,TP,15x8x12.5mm
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,MPEF;10nF,5%,100V,TP,-,5mm
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-FILM,MPPF;47nF,5%,630V,TP,19x15.5x7,7.
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;47uF,20%,250V,HR,TP,13x25mm,5m
C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5
C-AL;2.2uF,20%,250V,GP,TP,8x11.5,5
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4
C-FILM,PPF;2.2nF,5%,800V,TP,15x13x8.5,7.
C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5
C-FILM,PEF;18nF,5%,50V,TP,6.5x12.5x3.5mm
C-AL;220uF,20%,16V,GP,TP,8x11.5,5
C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X5,
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-CERAMIC,DISC;0.68nF,10%,2kV,Y5P,TP,9x5
7-9
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-10
C816
C817
C818
C820
C821
C822
C824
C825
C826
C827
C828
C829
C830
C831
C832
C833
C834
C835
C836
C838
C839
C841
C842
C843
C901
C902
C903
C904
C905
C906
C907
C908
C909
C910
C911
C912
C913
C914
C915
C916
C917
CN502A
CN701S
CN901S
CR403
D301
D305
D307
D401
D402
D403
D404
D405
D406
D407
D408
D409
D410
D411
D413
D415
D801
D803
D804
D806
D807
D809
D810
D811
D901
D902
D905
D906
D907
D908
D909
DZ201
Code No.
Description ; Specification
2401-003058
2201-000599
2401-002215
2201-000599
2301-000192
2401-003141
2201-000599
2401-002215
2401-002215
2201-000599
2201-000599
2401-001998
2401-001998
2401-001998
2401-001998
2401-002619
2401-001513
2305-000665
2301-000192
2305-000665
2401-003034
2401-002463
2401-002463
2201-000374
2401-000480
2401-000480
2202-000796
2202-000791
2202-000632
2202-000632
2401-000242
2401-002144
2401-002144
2201-000980
2201-000980
2401-001914
2401-003561
2202-000796
2401-002463
2401-002075
2401-002463
3711-002646
2011-001133
2503-000156
2301-001268
0402-000546
0401-000005
0401-000005
0402-000540
0402-000540
0402-000132
0402-000537
0401-000005
0402-000132
0401-000005
0402-000546
0401-000005
0403-001316
0402-000540
0402-000537
0401-000005
0402-001111
0402-000546
0402-000546
0401-000005
0402-000132
0402-000493
0402-000493
0402-000493
0401-000005
0401-000005
0401-000005
0403-000510
0403-000510
0401-000005
0401-000005
0403-000700
C-AL;100uF,20%,200V,WT,TP,16x25,7.5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;2200uF,20%,25V,WT,TP,13x25,5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-AL;2200uF,20%,25V,WT,TP,13x25,5mm
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;2200uF,20%,25V,WT,TP,13x25,5
C-AL;2200uF,20%,25V,WT,TP,13x25,5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,16V,WT,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,16V,WT,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-CERAMIC,DISC;0.22nF,5%,50V,NP0,TP,10.5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,DISC;0.03nF,5%,50V,NP0,TP,5x3,
C-CERAMIC,DISC;0.03nF,5%,50V,NP0,TP,5x3,
C-AL;1uF,20%,50V,BP,TP,5x11,5
C-AL;1uF,10%,50V,GP,TP,5x11mm,5
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
R-NETWORK;33K/24K/75x3,5%,1/8W,X,SIP,6P,
C-NETWORK;100pFx4,20%,50V
C-FILM,PPF;33nF,5%,630V,TP,20x11x17,7.5
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N5397GP,600V,1.5A,DO-20
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
Remark
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
DZ302
DZ303
DZ304
DZ305
DZ306
DZ701
DZ702
DZ703
DZ801
DZ802
DZ803
DZ806
DZ808
DZ901
DZ902
DZ903
DZ904
DZ905
F801A
F801B
FA801S
FA802S
FA803S
J248
L203
L205
L206
L208
L301
L302
L303
L304
L305
L406
L407
L601
L602
L603
L606
L607
L608
L609
L701
L702
L703
L704
L706
L707
L708
L709
L710
L801
L802
L803
L804
L809
L813
L814
L815
L816
L901
L902
L903
L904
L905
L906
PCB
Q402
Q701
Q702
Q703
Q704
Q802
Q803
R101
R102
R103
Code No.
Description ; Specification
0403-001329
0403-001329
0403-001329
0403-001221
0403-001167
0403-000720
0403-000720
0403-000720
0403-001322
0403-000508
0403-001167
0403-001317
0403-000704
0403-001316
0403-000510
0403-000510
0403-000510
0403-000714
3602-000114
3602-000114
3601-001163
3601-001163
3601-001163
2001-000745
2701-001034
2701-000114
2701-000114
2701-000114
2701-000114
3301-000287
3301-000287
3301-000287
3301-000287
2701-000114
3301-000287
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000116
2701-000114
2701-000114
2701-000114
2901-000297
2901-000299
2901-000297
2701-000114
2701-000114
2901-000297
3301-001223
3301-001223
3301-001223
3301-000287
3301-001223
3301-000287
3301-000287
3301-000287
2701-001034
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000184
AA41-00385A
0502-001007
0501-000283
0501-000283
0501-000389
0501-000389
0501-000369
1203-001217
2001-000864
2001-000969
2001-000702
Remark
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D
DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500
DIODE-ZENER;MTZJ3.0B,3.01-3.22V,500mW,DO
DIODE-ZENER;TZP7.5B,7.5V,7.5-8.4V,1W,DODIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ3.3B,3.3V,3.32-3.53V,500
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
FUSE-AXIAL LEAD;125V,7A,-,EPOXY,2.4X7.1M
FUSE-AXIAL LEAD;125V,7A,-,EPOXY,2.4X7.1M
FUSE-AXIAL LEAD;125V,7A,-,EPOXY,2.4X7.1M
R-CARBON;4.7OHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;22uH,10%,5x14mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;22uH,10%,5x14mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
PCB-MAIN;DW-21G5,FR-1,1L,A,1.6T,330x245
TR-POWER;KSC2073-H2,NPN,25W,TO-220,ST,6
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOIC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;39KOHM,5%,1/8W,AA,TP,1.8X3.2MM
S.N.A
Samsung Electronics
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R104
R105
R106
R207
R208
R209
R210
R211
R212
R213
R215
R218
R301
R302
R303
R304
R305
R306
R309
R310
R314
R315
R401
R402
R403
R404
R405
R406
R407
R408
R409
R410
R411
R412
R413
R414
R416
R417
R418
R419
R421
R422
R423
R424
R425
R426
R427
R429
R430
R432
R434
R435
R436
R604
R605
R606
R608
R609
R610
R611
R612
R701
R702
R703
R704
R705
R706
R707A
R708
R709
R710
R711
R712
R713
R714
R715
R716
Code No.
2001-000281
2001-000281
2001-000362
2001-001352
2001-000969
2001-000325
2001-000281
2001-000281
2001-000281
2001-000281
2001-001352
2001-000938
2004-001983
2004-001984
2001-000016
2008-001029
2008-001029
2008-001107
2001-000290
2001-000290
2004-001986
2004-001402
2001-001078
2001-001078
2001-001155
2001-001088
2008-000252
2003-000755
2001-000066
2001-001055
2001-000028
2001-001114
2001-001152
2001-000020
2008-000266
2001-000290
2003-002156
2001-001093
2001-001078
2001-001037
2001-000028
2001-001179
2004-001373
2008-001018
2008-001018
2003-002178
2001-001110
2001-000812
2004-000433
2004-001376
2001-001107
2008-001018
2003-002151
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000429
2001-000429
2001-000429
2001-000037
2001-000037
2001-000429
2001-000281
2001-000969
2001-000969
2001-000734
2001-000281
2001-000734
2001-000429
2001-000734
2001-000429
2001-000969
Samsung Electronics
Description ; Specification
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;120OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-FUSIBLE(S);5.6OHM,5%,2W,AF,TP,3.9X10MM
R-FUSIBLE(S);5.6OHM,5%,2W,AF,TP,3.9X10MM
R-FUSIBLE(S);300ohm,5%,2W,AG,TP,3.9x12mm
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL(S);35.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4
R-CARBON(S);15KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);15KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x
R-METAL OXIDE(S);6.8Kohm,5%,2W,AF,TP,4x1
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);47KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M
R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);15KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);0.39OHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-METAL OXIDE(S);1Kohm,5%,2W,AG,TP,3.9x1
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R-METAL(S);11Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-METAL OXIDE;18KOHM,5%,2W,AG,TP,6X16MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
Remark
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R717
R718
R719
R720
R801
R802
R803
R804
R805
R806
R807
R808
R809
R810
R811
R813
R814
R815
R816
R817
R818
R819
R821
R823
R824
R825
R826
R827
R828
R834
R835
R837
R838
R839
R841
R842
R843
R901
R902
R903
R904
R906
R907
R908
R909
R910
R913
R914
R915
R916
R918
R919
R920
R921
R922
R923
R924
R925
R926
R927
R928
R929
R930
R931
R932
R933
R934
R935
R936
R937
R938
R939
R940
R941
R942
R943
R944
Code No.
2001-000281
2001-000660
2001-000977
2001-000969
2001-001103
2003-001025
2003-001025
2003-001025
2001-001150
2001-001150
2001-001163
2001-001163
2001-001153
2001-001178
2004-001408
2001-001153
2001-000085
2001-001086
2001-001088
2001-000429
2001-001113
2004-001983
2004-001889
2001-000290
2008-001011
2006-001002
2001-000019
2008-001086
2008-001086
2001-000812
2003-002024
2001-001153
2001-000812
2001-001163
2001-000786
2001-000812
2001-000812
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000007
2001-000429
2001-000429
2001-000429
2001-000734
2001-000429
2001-000539
2001-000429
2001-000362
2001-000362
2001-000362
2001-000429
2001-000628
2001-000429
2001-000780
2001-000734
2001-000290
2001-000429
2001-000290
2001-000429
2001-000290
2001-000429
2001-000429
2001-000290
2001-000281
2001-000281
2001-000449
2001-000449
2001-000273
2001-000429
2001-000066
2001-000290
2001-000290
2001-000734
2001-000734
Description ; Specification
Remark
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x
R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);18KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);127Kohm,1%,1/2W,AA,TP,2.5x6.5
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-CEMENT;1.2ohm,5%,5W,CB,TP,9x13x25mm
R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm
R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL OXIDE(S);91Kohm,5%,2W,AF,TP,3.9x
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;24KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
7-11
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
..2
..2
..2
..2
..2
..2
R945
R946
R947
R948
R949
R950
R951
R952
R953
R954
R955
R956
R957
RX801S
RY801S
RY802S
VP801S
VX801S
X901
Code No.
Description ; Specification
2001-000734
2001-000734
2001-000734
2001-000734
2001-000734
2001-000429
2001-000628
2001-000628
2001-000628
2001-000734
2001-000290
2001-000689
2001-000290
2002-001011
2002-001011
2002-001013
1405-000152
1405-000152
2801-003433
0202-000187
AA65-30018A
AA65-30109A
AA65-30110A
AA65-30009A
AA26-00069A
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;390KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-COMPOSITION;3.3Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;3.3Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x
VARISTOR;560V,2500A,14x8.5mm,TP
VARISTOR;560V,2500A,14x8.5mm,TP
CRYSTAL-UNIT;12MHZ,30PPM,28-AAM,30PF,30O
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
CLAMP-WIRE;NYLON-66,-,-,DATL-600,DONG-A,
CLAMP-FBT;NYLON-66,V2,BLK,-,-,CLAMP-WIRE;NYLON 66,V2,BLK,PAL TVI,ALL M
CLAMP-FBT;ABS,V0,BLK,-,-,TRANS FBT;FUJ-29C002C(S),DREAM3,4,-,-,-,
Remark
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY CRT
1
*
..2
AA94-02917A ASSY CRT;AA03-00207A,+380mG,A51QDX991X0
AA03-00207A CRT COLOR;A51QDX991X001,-,21DF,0.74,-,UN
ASSY M/DECK-DVDP
1
*
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
...3
...3
...3
...3
....4
....4
....4
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
CN001A
CN002A
CN003
7-12
AA94-03216A ASSY M/DECK-DVDP;DW-21G5,-,-,D-100P,2LD,
3809-001213
AA39-20497D
AA39-20497A
AA98-00096A
AA95-00803A
CN11
3708-001364
CN11A 3809-001180
CN12
AA39-00148A
CND001 3711-003975
CND002 3711-003052
CND003 AA39-20005D
CND004 3711-000682
CND01A AA39-00190A
CND02A AA39-00149A
ICD101 AA96-50162E
1203-001083
6003-000333
AA62-30013E
ICD102 1203-001697
ICD103 1203-000122
ICD104 1203-001006
ICD105 AA96-50162K
1203-001006
6003-000333
AA62-30013E
JKD501 3707-001005
RD110
2006-001002
0202-000187
AA99-20081U
ADD501 0407-000123
ADD502 0407-000116
BD501
3301-000287
BD502
3301-000287
BDD101 3301-000287
BDD102 3301-000287
BDD301 3301-000287
CD101
2401-001363
CABLE-FLAT;30V,80C,250mm,40P,1.25mm,UL28
LEAD CONNECTOR ASSY;,1P,YFH800-01,RING,4
LEAD CONNECTOR-ASSY;-,YFH800-01,RING,1P,
ASSY-PCB,M/DVDP;-,DVD-PVE22/BON,C16A,-,S.N.A
ASSY-PCB,INTERFACE;-,DW21G5,C16A,PAL,-,CONNECTOR-FPC/FC/PIC;35P,1.25MM,STRAIGHT
CABLE-FLAT;30V,-30to+80C,80mm,35P,1.25mm
CBF HARNESS;,8P,YBNH250-08,5264-08,100MM
CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAGH
LEAD CONNECTOR-ASSY;,3P,YBNH250-03,67096
CONNECTOR-HEADER;BOX,13P,1R,2mm,ANGLE,SN
LEAD CONNECTOR ASSY;,14P,35155-1400,S,40
CBF HARNESS;,10P,35155-1000,S,400MM,1185
ASSY-H/S;-,-,AA62-30013E,PQ3RF23,IC-VOLTAGE REGULATOR;3RF23,TO-202,4P,12.
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT-SINK,ES;-,A6063 EXTR,-,-,30(21) T02
IC-VOLTAGE REGULATOR;78R08,TO-220,4P,-,P
IC-NEGA.FIXED REG.;7908,TO-220,3P,-,PLAS
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
ASSY H/S;-, DVD INTERFACE,AA62-30013E,7
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT-SINK,ES;-,A6063 EXTR,-,-,30(21) T02
CONNECTOR-OPTICAL;PLUG,SM,-,4.4/2.0MM
R-CEMENT;1.2ohm,5%,5W,CB,TP,9x13x25mm
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
ASSY-PCB SUB,AUTO; AA99-30192L ,V
S.N.A
DIODE-ARRAY;1SS184,80V,300mA,CA2-3,SOT-2
DIODE-ARRAY;DAP202K,80V,100mA,CK2-3,SOTCORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
CD102
CD103
CD104
CD105
CD106
CD107
CD108
CD109
CD110
CD111
CD112
CD113
CD114
CD115
CD116
CD117
CD118
CD119
CD120
CD121
CD122
CD301
CD302
CD303
CD304
CD305
CD306
CD307
CD308
CD313
CD314
CD315
CD316
CD317
CD318
CD325
CD326
CD327
CD328
CD329
CD501
CD502
CD503
CD504
CD505
CD506
CD507
CD508
CD509
CD510
CD511
CD512
CD513
CD514
CD515
CD516
CD517
CD518
CD519
CD520
CD521
CD522
CD523
CD601
CD602
CD603
CD604
CD605
CD606
CD703
CND003
DD101
DD104
DD105
DD106
DD107
DD501
Code No.
Description ; Specification
2401-001363
2305-000289
2401-001840
2202-000632
2401-001840
2305-000289
2401-001840
2401-001840
2202-000632
2401-000302
2401-002144
2202-000632
2401-001840
2202-000632
2202-000632
2202-000632
2401-002144
2401-002144
2202-000632
2401-001397
2401-001840
2202-000210
2202-000205
2202-000231
2202-000791
2202-000210
2202-000205
2202-000231
2202-000791
2202-000210
2202-000205
2202-000231
2202-000791
2401-002042
2203-000181
2401-001363
2401-000914
2306-000122
2401-001363
2401-000914
2401-002042
2202-000632
2401-002042
2202-000632
2401-002042
2202-000632
2203-000716
2203-000444
2203-000444
2203-000716
2203-000444
2203-000444
2401-002144
2203-000260
2401-002144
2203-000260
2401-002235
2401-002235
2401-001363
2401-002144
2401-000603
2202-000127
2202-000632
2401-001840
2202-000797
2401-001250
2202-000205
2202-000205
2202-000632
2401-002144
3711-002642
0402-000493
0402-000132
0401-000005
0401-000005
0402-000493
0401-000005
Remark
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;270PF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;270PF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;270PF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
S.N.A
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;22uF,20%,16V,GP,TP,5x11,5
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;22uF,20%,16V,GP,TP,5x11,5
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-AL;4.7uF,20%,35V,GP,TP,4x5,5
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;47uF,20%,16V,GP,TP,5x11,5
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,STRAIGH
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
Samsung Electronics
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
DD502
DD503
DD601
DD602
DD603
ICD302
ICD501
ICD502
ICD503
ICD601
ICD602
LD301
LD302
LD303
LD304
LD307
LD308
LD501
LD601
PCB
QD103
QD107
QD108
QD109
QD501
QD502
QD503
QD504
QD505
QD506
QD507
RD103
RD105
RD106
RD107
RD109
RD111
RD301
RD302
RD304
RD308
RD309
RD310
RD501
RD502
RD503
RD504
RD505
RD506
RD507
RD508
RD509
RD510
RD511
RD512
RD513
RD514
RD515
RD516
RD517
RD518
RD519
RD520
RD521
RD522
RD523
RD524
RD525
RD526
RD527
RD528
RD529
RD530
RD531
RD532
RD533
RD534
Code No.
Description ; Specification
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
1201-001419
1002-001213
1201-000163
0801-000442
AA09-00104A
1203-000642
2701-000238
2701-000238
2701-000238
2701-000238
2701-000238
2701-000238
2701-000002
2701-000115
AA41-00277A
0501-000362
0501-000442
0504-000142
0504-000119
0501-000342
0501-000342
0504-000156
0504-000118
0504-000118
0504-000156
0504-000128
2001-000028
2001-000290
2007-000493
2007-000493
2001-000734
2003-001036
2001-001006
2001-001006
2001-001006
2001-000969
2001-000969
2001-000969
2007-000468
2007-000468
2001-000258
2001-000429
2001-000429
2001-000429
2001-000429
2001-000258
2001-000258
2001-000258
2007-000468
2001-000429
2007-000221
2007-000468
2007-000468
2007-000221
2007-000468
2007-000468
2007-000221
2007-000468
2007-000468
2007-000221
2007-000300
2007-000300
2007-000468
2001-000429
2007-000572
2007-000572
2001-000241
2001-000281
2001-000281
2007-000468
2007-000572
2007-000572
Samsung Electronics
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
IC-VIDEO AMP;7660,SSOP,16P,173MIL,TRIPLE
IC-D/A CONVERTER;AK4393VF,24BIT,SOP,28P,
IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
IC-CMOS LOGIC;74HCU04,INVERTER,SOP,14P,1
IC MICOM;UPD78F0034AGC-OTP,SMD-21G5,64,
IC-RESET;572,TO-92,3P,-,PLASTIC,2.35/2.
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
PCB-INTERFACE;SMD-21G5,FR-1,1L,A,1.6T,24
TR-SMALL SIGNAL;KSA2328A-Y,NPN,1W,TO-92L
TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9
TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T
TR-DIGITAL;KSR1004,NPN,300MW,47K/47K,TOTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOTR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOTR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL OXIDE(S);3.3ohm,5%,2W,AF,TP,3.9x
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
Remark
S.N.A
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
RD535
RD601
RD602
RD603
RD604
RD605
RD606
RD607
RD608
RD609
RD610
RD611
RD612
RD613
RD614
RD615
RD616
RD617
RD618
RD619
RD620
RD621
RD622
RD623
RD624
RD625
RD626
RD627
RD628
RD629
RD630
RD631
RD632
RD633
RD634
RD635
RD636
RD637
RD638
RD639
RD640
RD641
RD642
RD643
RD644
RD645
RD646
RD647
RD648
RD649
RD650
RD651
RD652
RD653
RD654
RD655
RD656
RD657
RD658
RD659
RD660
RD661
RD662
RD663
RD664
RD665
RD666
RD668
RD669
XTD601
ZDD101
ZDD501
ZDD702
ZDD703
ZDD704
ZDD705
ZDD706
Code No.
2007-000572
2007-000468
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000300
2007-000300
2007-000468
2007-000468
2001-000429
2001-000429
2007-000468
2007-000468
2007-000468
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000429
2001-000010
2001-000832
2001-000429
2001-000429
2001-000290
2001-000290
2001-000429
2001-000290
2007-000300
2007-000300
2001-000429
2001-000429
2007-000300
2001-000429
2007-000300
2001-000429
2007-000300
2001-000429
2001-000290
2001-000429
2001-000429
2007-000468
2001-000429
2007-000468
2001-000429
2007-000300
2007-000300
2007-000300
2001-000515
2007-000981
2801-003750
0403-001373
0403-000714
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
Description ; Specification
Remark
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
CRYSTAL-UNIT;8MHZ,30PPM,28-AAA,22PF,80OH
DIODE-ZENER;MTZJ5.1A,4.81V-5.07V,500mW,D
DIODE-ZENER;MTZJ3.3B,3.3V,3.32-3.53V,500
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
7-13
Electric Parts List
Loc. No.
....4
....4
....4
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
ZDD707
ZDD708
ZDD709
D/P+FD
DECK+F
DVD/P+
O/P+FD
SDT+FD
Code No.
Description ; Specification
0401-000005
0401-000005
0401-000005
AA91-00561A
AA90-00641A
6003-001023
6003-001022
6003-001023
6003-001023
6003-001023
AA61-00482B
AA63-00339B
AA65-00011B
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
ASSY DECK-M/DVDP;-,2LD,VALINO,DVD-DV002/
ASSY FRAME;DO,SMD21G5
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RH,+,B,M3,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
FRAME-DECK;21G5,-,HIPS V0,-,BLK,-,SHIELD-DECK,TOP;21G5,SECC,T0.5,TOP
CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,15M
Remark
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY PCB CRT
1
*
AA95-00800A ASSY PCB CRT;-,C16A,21,PAL,DW21G5
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
C520
CN502A
CN503A
IC501
IC502
IC503
2201-002117
AA39-20030B
AA39-20029K
AA96-50151B
AA96-50151B
AA96-50151B
1201-001131
6001-000057
6021-000222
AA61-10060A
AA41-00362A
3704-000114
AA99-20081D
2306-000122
2306-000122
2201-002031
2305-000154
2201-000599
2306-000122
2306-000122
2305-000154
2201-000599
2306-000122
2306-000122
2201-000193
2305-000154
2201-000599
2401-001513
2401-002183
2401-002264
2401-002264
3711-002647
3711-002646
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000132
0401-000005
0401-000005
0401-000005
0403-000720
0403-000720
0403-000720
2701-000115
2701-000112
0501-000389
2001-001049
2001-001117
2004-001408
2002-001017
2001-001049
2001-001117
2004-001408
2003-001018
7-14
PCB
V999
C501
C502
C503
C504
C505
C506
C507
C509
C510
C511
C512
C513
C514
C515
C516
C517
C518
C519
CN502
CN503
D501
D502
D503
D504
D505
D506
D507
D508
D509
D510
DZ501
DZ503
DZ505
L501
L502
Q501
R502
R503
R504
R507
R509
R510
R511
R513
C-CERAMIC,DISC;4.7nF,20%,3kV,Y5U,TP,16x6
LEAD CONNECTOR-ASSY;,8P,67096-008,S,400,
LEAD CONNECTOR-ASSY;,7P,67096-007,S,400,
ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS
SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1
NUT-HEXAGON;2C,M3,ZPC(YEL),SM20C 1
BRACKET-TR;-,-,CUS-1 1/2H,T0.5,-,-,PCB-CRT(PAL);TF21G5,FR-1,1L,A,1.6T,330x2
SOCKET-CRT;14P,29.1,35.5,SN,ISH09S/BK
ASSY-PCB SUB,AUTO; AA99-30191E ,V
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-CERAMIC,DISC;0.005nF,0.5pF,50V,NP0,TP,
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP,
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;47uF,20%,16V,WT,TP,5x11,5
C-AL;220uF,20%,16V,GP,TP,8x9,5mm
C-AL;10uF,20%,350V,GP,TP,10x20mm,5m
C-AL;10uF,20%,350V,GP,TP,10x20mm,5m
CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;100uH,10%,3x7mm
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
..2
Code No.
R514
R515
R516
R517
R518
R519
R520
R521
R522
R523
R524
R525
R526
R527
R529
R530
Description ; Specification
2002-001017
2001-001049
2001-000052
2001-001117
2004-001408
2001-000052
2001-000052
2002-001017
2001-001093
2001-001197
2001-001062
2002-001012
2008-001049
2002-001006
2001-000290
2001-000290
AA63-10002A
3722-001503
0202-000187
Remark
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);910OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4
R-COMPOSITION;8.2Mohm,5%,1/2W,AA,TP,3.7x
R-FUSIBLE(S);3.9OHM,5%,2W,AF,TP,3.9X10MM
R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
BAND-TIE;-,NYLON66 V2,-,-,L100,NTR,-,JACK-PIN;1P,1PI,NI,RED,SCR-JACK
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
S.N.A
ASSY PCB CONTROL
S.N.A
S.N.A
S.N.A
S.N.A
1
*
AA95-00801A ASSY PCB CONTROL;-,C16A,DW21G5,-
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
CND701
CND703
CND704
CND704
LDD701
LDD71A
PCB
PCB+HC
RMD701
SWD701
SWD702
SWD703
SWD704
SWD705
SWD707
SWD708
SWD709
SWD710
SWD711
AA39-00207A
AA39-00075A
AA39-00159B
3711-001128
0601-000385
AA61-50044A
AA41-00330A
6003-001023
AA59-60002B
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
0202-000187
AA61-00586B
AA99-20086Q
2401-002291
2202-000632
0504-000118
2001-000290
2001-000857
2001-000429
0403-001211
0403-000510
CD701
CD702
QD701
RD701
RD702
RD703
ZDD701
ZDD702
LEAD CONNECTOR ASSY;,13P,35023-0013,5100
LEAD CONNECTOR-ASSY;-,-,-,-,-,-,-,-,-,YB
LEAD CONNECTOR ASSY;,8P,TUBE,5264-08,351
CONNECTOR-HEADER;BOX,8P,1R,2.5mm,ANGLE,S
LED;ROUND,RED,3mm,700nm
GUIDE-LED;-,ABS,V0,BLK,-,AIWA,PCB-TVDP CONTROL;SMD-21G5,FR-1,1L,A,1.6T
S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
MODULE-REMOCON;-,ORC-50HF,38KHZ,940MM,ME
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
HOLDER-TOP;15X5,ABS,BLK,HB,-,ASSY-PCB SUB,AUTO; AA95-00801A ,V
S.N.A
C-AL;47uF,20%,16V,GP,TP,6.3x5,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOR-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
ASSY-PCB,A/V
1
*
AA95-00802A ASSY-PCB,A/V;-,DW21G5,C16A,PAL,-,-
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
CM50
CM51
CM52
CM53
CM54
CM55
CNM705
CNM711
CNM712
JAC701
JAC702
LM50
LM51
LM52
2401-002144
2401-002144
2001-000309
2001-000309
2202-000231
2202-000231
3711-000628
AA39-00070A
3711-002644
3722-001031
3722-000143
2001-000309
2001-000309
3301-000287
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
R-CARBON;110OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;110OHM,5%,1/8W,AA,TP,1.8X3.2MM
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
CONNECTOR-HEADER;-,11P,1R,2.5mm,STRAIGHT
LEAD CONNECTOR-ASSY;-,-,-,-,-,-,-,-,-,YB
CONNECTOR-HEADER;BOX,5P,1R,2.5mm,STRAIGH
JACK-RCA;3P,3.6MM,#18,AU
JACK-PHONE;1P(VER),3.4mm,AG,BLK,NO
R-CARBON;110OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;110OHM,5%,1/8W,AA,TP,1.8X3.2MM
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
Samsung Electronics
Electric Parts List
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
Code No.
LM53
LM54
LM55
PCB
RM50
RM51
WCNM70
WCNM71
Description ; Specification
3301-000287
2701-000114
2701-000114
AA41-00354B
2001-000028
2001-000028
AA39-20160D
AA39-20020D
AA63-10002A
0202-000187
Remark
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
PCB-AV;SMD-21G5,FR-1,1L,B,1.6T,245x24
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
LEAD CONNECTOR-ASSY;-,67096-11,S,11P,600
LEAD CONNECTOR-ASSY;,5P,67096-005,S,600,
BAND-TIE;-,NYLON66 V2,-,-,L100,NTR,-,SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
S.N.A
S.N.A
ASSY-PCB,SOUND
1
*
AA95-00805A ASSY-PCB,SOUND;-,DW21G5,C16A,PAL,-,-
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
BR01
BR02
CN601
CN602
CN603
ICD701
LD607
LD608
LD609
LD610
AA61-10068A
AA61-10068A
3711-002708
3711-001283
3711-002644
1203-000274
AA27-00119A
AA27-00119A
AA27-00119A
AA27-00119A
AA63-00341B
0202-001004
0202-000187
AA99-20081C
2404-000284
2203-000181
2404-000235
2404-000235
2203-000181
2404-000235
2404-000235
2404-000235
2404-000235
2404-000235
2404-000235
2404-000235
2203-000181
2404-000284
2203-000181
2404-000284
2404-000284
2203-000444
2203-000444
2203-000444
2203-000444
2404-000465
2404-000465
2404-000465
2404-000465
2404-000465
2203-000444
2203-000444
2203-000753
2404-000284
2203-000181
2404-000284
2203-000701
2203-000701
2203-001077
2203-001077
2203-001077
2401-001840
2203-000142
2404-000465
2203-000444
2203-000142
2404-000465
2203-000444
2203-000181
2401-002594
CD601
CD602
CD603
CD604
CD605
CD606
CD607
CD608
CD609
CD610
CD611
CD612
CD613
CD614
CD615
CD616
CD617
CD618
CD619
CD620
CD621
CD622
CD623
CD624
CD625
CD626
CD627
CD628
CD629
CD630
CD631
CD632
CD633
CD634
CD635
CD636
CD637
CD639
CD640
CD641
CD642
CD643
CD644
CD645
CD646
CD647
Samsung Electronics
BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,CONNECTOR-HEADER;NOWALL,10P,1R,2.5mm,ANG
CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG
CONNECTOR-HEADER;BOX,5P,1R,2.5mm,STRAIGH
IC-POSI.FIXED REG.;7805,TO-220,3P,-,PLAS
COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
SHIELD;21G5,SPTE,T0.5,AUDIO
SOLDER-CREAM;SQ-2030M SZH-1,S63A,D0.04,6
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
ASSY-PCB SUB,AUTO; AA95-00805A ,V
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;330nF,+80-20%,50V,Y5V,TP,
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;0.002nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.002nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;220uF,20%,16V,GP,TP,8x11.5,5
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
CD648
CD649
CD650
CD651
CD652
CD654
CD655
CD656
CD657
CD658
CD659
CD660
CD661
CD662
CD663
CD664
CD665
CD666
CD667
CD668
CD669
CD670
CD671
CD672
CD673
CD674
CD675
CD676
CD677
CD678
CD679
CD680
CD699
CD701
CD702
CD703
CD704
CD705
CD706
CD707
CD708
DD601
ICD601
ICD602
ICD603
LD601
LD602
LD603
LD604
LD605
LD606
PCB
RD601
RD602
RD603
RD604
RD605
RD606
RD607
RD608
RD609
RD610
RD611
RD612
RD613
RD614
RD615
RD616
RD618
RD619
RD620
RD621
RD622
RD623
RD624
RD625
RD626
Code No.
Description ; Specification
2203-000716
2203-000716
2404-000167
2404-000167
2203-000181
2404-000160
2203-000181
2404-000160
2203-000181
2401-000287
2203-000181
2401-000287
2203-000181
2203-000578
2203-000578
2203-000181
2203-000578
2203-000578
2203-000239
2203-000239
2203-000181
2203-000239
2203-000239
2404-000465
2203-000578
2203-000444
2203-000444
2203-000444
2203-000444
2203-000444
2203-000444
2203-000181
2203-000221
2404-000275
2203-000181
2404-000275
2203-000181
2404-001098
2404-001098
2404-001098
2404-001098
0401-000133
1204-001772
1201-000541
1201-001681
2702-001100
2702-001100
2702-001100
2901-000297
2901-000297
2901-000297
AA41-00356B
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000290
2007-000290
2007-000070
2007-000290
2007-000290
2007-000084
2007-000074
2007-000074
2007-000468
2007-000084
2007-000084
2007-000094
2007-000129
2007-000084
2007-000329
2007-001010
2007-000329
2007-001010
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;1UF,20%,50V,GP,TP,6032
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;1UF,20%,50V,GP,TP,6032
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,3216
C-TA,CHIP;100UF,10%,10V,GP,TP,7343
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;100UF,10%,10V,GP,TP,7343
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;1uF,20%,25V,GP,TP,3216,C-TA,CHIP;1uF,20%,25V,GP,TP,3216,C-TA,CHIP;1uF,20%,25V,GP,TP,3216,C-TA,CHIP;1uF,20%,25V,GP,TP,3216,DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
IC-SOUND PROCESSOR;MSP3451G-A2,LQFP,64P,
IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
IC-AUDIO AMP;1101,SOP,30P,433MIL,-,-,PLA
INDUCTOR-RADIAL;3.9uH,10%,4x6mm
INDUCTOR-RADIAL;3.9uH,10%,4x6mm
INDUCTOR-RADIAL;3.9uH,10%,4x6mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,PCB-SOUND;SMD-21G5,FR-4,2L,B,1.6T,180x24
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;11Kohm,5%,1/16W,DA,TP,1608
R-CHIP;51Kohm,5%,1/16W,DA,TP,1608
R-CHIP;11Kohm,5%,1/16W,DA,TP,1608
R-CHIP;51Kohm,5%,1/16W,DA,TP,1608
Remark
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
7-15
Electric Parts List
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
Code No.
RD627
RD628
RD629
RD630
RD631
RD632
RD633
RD634
RD635
RD636
RD637
RD638
RD639
RD640
RD642
RD643
XD601
ZD601
ZD602
ZD603
ZD604
Description ; Specification
2007-000084
2007-000084
2007-000129
2007-000094
2007-000084
2007-000093
2007-000093
2007-000805
2007-000805
2007-000210
2007-001179
2007-000308
2007-000308
2007-000029
2007-000572
2007-000029
2801-000186
0403-001117
0403-001117
0403-001117
0403-001117
Remark
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;20Kohm,5%,1/16W,DA,TP,1608
R-CHIP;20Kohm,5%,1/16W,DA,TP,1608
R-CHIP;36Kohm,5%,1/16W,DA,TP,1608
R-CHIP;36Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
CRYSTAL-UNIT;18.432MHz,25ppm,28-AAM,8pF,
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
ASSY-PCB,MASTER
1
*
..2 CN801
..2 PCB
..2 SW811S
..2
..2
..2
..2
AA95-00806A ASSY-PCB,MASTER;-,DW21G5,C16A,PAL,-,AA39-20179F
AA41-00355A
3403-000179
0202-000187
6001-000057
AA61-10320A
AA99-20087F
LEAD CONNECTOR-ASSY;,3(2)P,YFH800-150,S,
PCB-MASTER;DW21G5,FR-1,1L,A,1.6T,245x245
SWITCH-PUSH;250V,5A,DPST,-,JPW-2104B
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1
BRACKET-MASTER;-,T3350,SECC,T1.0,-,-,ASSY-PCB SUB,AUTO; AA95-00806A ,V
S.N.A
S.N.A
S.N.A
S.N.A
ASSY-PCB,PFC
1
*
AA95-00974A ASSY-PCB,PFC;-,DW21G5,C16A,PAL,-,-
..2
..2
..2
..2
..2
..2
..2
..2
CN01
HP+PFC
LP01
PCB
AA39-00206A
6003-001023
AA27-00116A
AA41-00358A
AA64-01764B
0202-000187
AA61-00496B
AA99-20087G
LEAD CONNECTOR ASSY;,2P,YFH800-02,S,300M
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
COIL CHOKE;CODE_NO,-,35mH,-0, +5%,-,2.8O
PCB-PFC;DW21G5,CEM-1,1L,A,1.6T,330x245
INLAY-BARRIER,PFC;21G5,PVC,T0.4,SHEET 94
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
HOLDER-PCB;21G5,ABS V0,GRAY,-,-,GUJU
ASSY-PCB SUB,AUTO; AA95-00974A ,V
S.N.A
S.N.A
S.N.A
S.N.A
ASSY-PCB,CHROMA
1
*
AA95-00992A ASSY-PCB,CHROMA;-,DW28G5-WIDE,C16A,PAL,-
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
BK201
BK202
CN201
CN202
CN203
AA61-10068A
AA61-10068A
3711-002710
3711-003543
3711-002647
0202-000187
AA99-20088F
2203-000440
2309-000138
2203-000257
2203-000715
2203-000218
2305-000665
2203-000440
2305-000412
2203-000218
2401-001840
2305-000412
2305-000289
2305-000412
2203-002398
7-16
C201
C202
C204
C205
C206
C207
C208
C209
C210
C211
C212
C213
C214
C215
BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,CONNECTOR-HEADER;NOWALL,15P,1R,2.5mm,ANG
CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
ASSY-PCB SUB,AUTO; AA95-00992A ,V
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-FILM,PE-PPF;100nF,5%,50V,TP,20x16x8.5,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
C216
C217
C218
C219
C220
C222
C223
C225
C226
C227
C228
C229
C230
C231
C232
C233
C234
C235
C236
C237
C238
C250
C259
C261
C262
C263
IC201S
IC205
L202
L206
L207
PCB
Q203
R201
R203
R205
R206
R207
R208
R209
R210
R211
R212
R213
R216
R217
R218
R219
R220
R221
R222
R223
R224
R225
R227
R232
R233
R234
R235
R236
R237
R238
R240
R261
R262
R263
R266
XT201
Code No.
Description ; Specification
2203-002398
2203-002398
2203-002398
2203-002398
2203-002398
2203-000218
2203-000218
2305-000289
2203-000998
2203-000998
2401-002235
2203-000218
2401-001840
2305-000665
2401-002183
2401-002183
2301-000383
2301-000445
2401-000603
2203-000440
2203-000440
2401-000603
2203-000851
2203-000715
2305-000412
2401-002144
1204-001740
1204-001773
2702-001094
2702-001094
2702-001094
AA41-00399A
0501-000727
2007-000101
2007-000129
2007-000078
2007-000090
2007-000074
2007-000828
2008-000206
2007-000074
2007-000074
2007-000074
2007-001002
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000070
2007-000074
2007-000074
2007-000074
2007-000416
2007-001002
2008-000206
2007-000078
2007-000082
2007-000074
2007-000129
2007-000092
2007-000309
2007-000070
2007-000070
2007-000074
2007-000070
2801-003433
Remark
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160
C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,16V,GP,TP,8x9,5mm
C-AL;220uF,20%,16V,GP,TP,8x9,5mm
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-FILM,PEF;4.7nF,5%,50V,TP,5.5x7x3mm,5mm
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;0.039nF,5%,50V,NP0,TP,160
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,1608
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-AL;47uF,20%,16V,GP,TP,5x11,5
IC-VIDEO PROCESS;TDA8889H,QFP,64P,-,PLAS
IC-FILTER;TDA9181T,SOP,16P,300MIL,PLASTI
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
PCB-CHROMA;DW21G5,FR-4,2L,A,1.6T,180x245
TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
R-CHIP;82Kohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;39Kohm,1%,1/16W,DA,TP,1608
R-FUSIBLE(S);1ohm,5%,1/2W,AF,TP,2.5x6.5m
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;510ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;15ohm,5%,1/16W,DA,TP,1608
R-CHIP;510ohm,5%,1/16W,DA,TP,1608
R-FUSIBLE(S);1ohm,5%,1/2W,AF,TP,2.5x6.5m
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
CRYSTAL-UNIT;12MHZ,30PPM,28-AAM,30PF,30O
S.N.A
ASSY POWER CORD
1
..2
..2
*
AA96-20130F ASSY POWER CORD;-,CP2/NO(4.0R),H/C 250mm
3811-000401 WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22
AA39-10003B POWER-CORD;-,KJP-140,KLCE-2F,2.4m,HOUS,S
S.N.A
Samsung Electronics
Electric Parts List
Loc. No.
..2
Code No.
Description ; Specification
AA61-20284A HOLDER;-,P-CORD,PP,VO,BLK,KE-002
Remark
S.N.A
*
AA91-00494D ASSY CABINET FRONT;,21G5,(SPK)004P+012P
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
CF+KCD
CF+KCT
SPK+CF
WIN+CF
6003-001019
6003-001019
6003-001023
6003-001019
AA64-01325B
AA64-01326B
AA64-01328B
AA64-01572C
AA64-01763B
AA91-00537A
AA65-30105A
AA64-70123A
AA61-60003J
AA64-00846D
AA64-01321C
AA64-01323B
AA64-01324B
Code No.
Description ; Specification
Remark
REMOCON
1
ASSY CABINET FRONT
1
Loc. No.
*
AA59-00165C REMOCON;-,TM63,TVDP,48,SILVER,S/S,PAL,
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
WINDOW REMOCON;21G5,PC V0,-,-,-,-,VIOLET
INDICATOR LED;21G5,ACRYL,-,-,-,-,DECORATION-FRONT;21G5,ABS HB,-,-,G3676,L
KNOB-TV;21G5,ABS,-,G3676,SV012P,HB,-,INLAY-BARRIER,FRONT;21G5,PVC,T0.4,SHEET
ASSY HOLDER SPK;-,-,8ohm/13W(1.75uF),BLK
CLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE S.N.A
BADGE-BRAND;AL,SAMSUNG,SILVER,L=50,FLAT,
SPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,INLAY AV;21G5,PS SHEET,T0.3,-,BLK,-,3P
S.N.A
CABINET FRONT;21G5,DB021P+SV012P MPP,HIP
KNOB-DVD;21G5,ABS HB,-,G3676,SV012P,-,KNOB POWER;21G5,ABS HB,-,G3676,SV012P,-,
ASSY CABINET
1
*
AA90-00630C ASSY CABINET;21G5,CW21G5VDX/XEG
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
AV+CF
BACK
CB+CF
CB+FD
DCP+CF
KPP+CF
RJ+CB
SPK+CF
TKC+CF
6002-000522
AA60-00091A
6003-001025
6003-001025
6003-001023
6003-001023
6003-001025
6006-001095
6002-000522
AA65-30008A
AA65-00009B
AA60-10050R
AA64-01322B
AA64-01329C
AA64-01330C
AA64-01542A
AA64-01327B
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
SPACER-FELT;-,FELT,150X10,-,-,BLK,T0.35,
SCREW-TAPTITE;RH,+,B,M4,L20,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L20,ZPC(BLK),SWR
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RH,+,B,M4,L20,ZPC(BLK),SWR
SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
CLAMP-CORD;PE,HB,BLK,-,-,CLAMP-D,COIL;NYLON 66,V0,-,-,21A8,SCREW-ASSY;WC,HH,+,M5,L31.5,SWRCH18A,ZPC
CABINET BACK;21G5,HIPS,HB,-,BLK
INLAY-BACK,TV;21G5,PS SHEET,T0.5,-,BLK,INLAY-BACK,DVD;21G5,PS SHEET,T0.5,-,BLK,
DOOR-TRAY,ASSY;21G5,ABS HB,-,G3676,-,-,L
DOOR-TRAY;21G5,ABS HB,-,G3676,-,-,LB017M
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY CHASSIS PART
1
*
..2 C/B+H/
..2 PCB+HC
..2
AA90-00631B ASSY CHASSIS PART;C15A,DW21G5
S.N.A
6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
AA61-00483B HOLDER-CHASSIS;21G5,ABS V0,GRAY,-,-,-
ASSY HOLDER SPK
1
*
AA91-00536A ASSY HOLDER SPK;-,-,8ohm/13W,BLK,TVDP##(
ASSY ACCESSORY
1
..2
..2
*
AA94-03338A ASSY ACCESSORY;DW21G5VDX/XEG,C16A,GERMANS.N.A
AA68-01379A MANUAL USERS;DW21G5VD,GER,W/P100(G),1,B5 S.N.A
AA68-01378A MANUAL USERS;DW21G5VD,ENG,W/P100(G),1,B5 S.N.A
Samsung Electronics
7-17
Electric Parts List
7-2 DW21G5VDX/XEU
Loc. No.
Code No.
Description ; Specification
Remark
ASSY PCB MAIN(OPT)
1
*
AA94-02804D ASSY PCB MAIN(OPT);DW21G5VDX/XEU,C16A,U.
..2
..2
...3
...3
...3
..2
...3
...3
...3
...3
..2
...3
...3
...3
...3
...3
..2
...3
...3
...3
..2
...3
...3
...3
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
..2
...3
...3
...3
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
...3
...3
CN101
D812
AA39-20010B
AA96-00111T
0402-001230
6003-000333
AA62-30013L
AA96-50406A
0205-000129
1204-000517
6003-000333
AA62-30180K
AA96-50373C
AA62-30181K
AA61-10386A
6003-000333
1203-001482
0205-000129
AA96-00111U
1203-001697
6003-000333
AA62-30013L
AA96-00569A
1203-002139
6003-000333
AA62-30012G
AA13-00027A
1203-001752
3722-000195
AA27-00103A
AA27-00098A
AA27-00113A
AA27-30003S
AA96-00275A
6003-000333
AA60-30001A
AA62-00051A
0502-001136
0402-001296
0205-000129
AA96-50305C
0505-000156
6003-000333
AA62-30012E
AA26-00096A
AA26-00094A
AA40-00015A
AA65-30018A
AA99-30208X
2301-001338
2401-003025
2401-003024
3711-003052
3711-000628
3711-003975
2303-001015
2301-001219
2306-000235
2306-000188
2306-000321
2306-000321
2201-002002
2201-002002
0402-001160
AA96-00111C
0402-000233
6003-000333
AA62-30013L
AA96-00111C
3601-000281
7-18
IC301
IC801S
IC802
IC803
IC901
IC904
JA701
L408
L808
LC801S
LR401S
Q401
Q403
T444S
T801S
TU01S
WIRE
C407
C806
C815
CN201
CN701
CN901
CR401S
CR402S
CR404S
CR405S
CX801S
CX802S
CY801S
CY802S
D801S
D805
D808
FP801S
LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,500,
ASSY H/S;-,POWER,AA62-30013L,FMG-G2CS,D
DIODE-RECTIFIER;FMG-G2CS,1000V,3A,TO-220
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,ASSY-H/S;-,-,AA62-30180K,LA7845,GREASE-SILICON;SC102,JAPAN
IC-VERTIVAL DEF.;LA7845,SIP,7P,-,PLASTIC
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR,-,WHT,50/13,-,
ASSY-H/S;-,-,AA62-30181K,KA3S1265R,HEAT SINK-ES;-,AL6063 EXTR.,2,WHT,40MM,BRACKET-IC;-,-,SECC 100,T1.0,-,KA2S0680,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
IC-PWM CONTROLLER;3S1265R,TO-3P,5P,210,P
GREASE-SILICON;SC102,JAPAN
ASSY H/S;-,POWER,AA62-30013L,KA78R08,TV
IC-VOLTAGE REGULATOR;78R08,TO-220,4P,-,P
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,ASSY H/S;-,SOUND,AA62-30012G,KA378R12,T
IC-POSI.FIXED REG.;378R12,TO-220F,4P,393
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT-SINK,ES;-,A6063 EXTR,55/22.5,-,-,-,
IC-MCU;SAA5565PS-OTP,OTP,ST,128K,52P,
IC-POSI.FIXED REG.;LF33CV,TO-220,3P,-,PL
JACK-SCART;42P,-,SN,BLK,NO
COIL CHOKE;600UH,-,600UH,+-10%,600UH,0.5
COIL CHOKE;-,-,24uH,10%,-,0.1,3.0A,DR10X
COIL DEGAUSSING;-,-,4.8mH,-,48T,9ohm,-,2
COIL-LINEARLITY;-,54uH,YL81DR14x15,0.12m
ASSY H/S;-,COMPLEX,AA62-00051A,KSD5703,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,-,SBHG
HEAT SINK-PS;-,-,-,SILVER,HOLE 31mm,ALL,
TR-POWER;KSD5703,NPN,70W,TO-3PF,ST,8DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,
GREASE-SILICON;SC102,JAPAN
ASSY H/S;-,SOUND,AA62-30012E,IRF620,21G
FET-SILICON;IRF620,N,200V,5A,0.8ohm,50W,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT SINK-ES;-,A6063 EXTR,-,-,TO-220 H55
TRANS FBT;FUJ-29C007A(S),CT29A6,4.3mH,-,
TRANS SWITCHING;EER5345,SMD21G5,-,DC100~
TUNER-F/S;TCPW3001PD09A(S),PAL/SECAM,TR,
CLAMP-WIRE;NYLON-66,-,-,DATL-600,DONG-A,
ASSY-PCB ROBOT; AA94-02804D ,ER
C-FILM,MPE-PPF;0.68nF,5%,1.6kV,TP,28x7x1
C-AL;330uF,20%,400V,GP,ST,30x40,10
C-AL;220uF,20%,200V,WT,TP,22x35,10
CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAGH
CONNECTOR-HEADER;-,11P,1R,2.5mm,STRAIGHT
CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
C-FILM,PPF;5.5nF,5%,1.6kV,TP,29x9.5x17,2
C-FILM,MPE-PPF;3.9nF,5%,1.6KV,TP,29x8.5x
C-FILM,MPPF;560nF,5%,400V,TP,26*22.5*14,
C-FILM,MPPF;330nF,5%,400V,TP,26x19.5x11,
C-FILM,MPPF;470NF,5%,275V,TP,-,22.5
C-FILM,MPPF;470NF,5%,275V,TP,-,22.5
C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,TP,16x
C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,TP,16x
DIODE-BRIDGE;D5SB60,600V,6A,SIP-4,ASSY-H/S;-,-,AA62-30013L,FML-G12S,DIODE-RECTIFIER;FML-G12S,200V,5A,-,SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEATSINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,ASSY-H/S;-,-,AA62-30013L,FML-G12S,FUSE-CARTRIDGE;250V,4A,TIME-LAG,GLASS,5.
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
IC701
IC804
IC805
IC902
L405
LX801S
LX802S
NT801S
PC801S
PT801S
RL801S
T401
C101
C102
C103
C104
C105
C106
C201
C301
C302
C303
C304
C305
C306
C307
C308
C309
C401
C402
C403
C404
C405
C406
C408
C409
C411
C412
C414
C420
C421
C422
C424
C427
C601
C602
C603
C606
C607
C701
C702
C703
C704
C705
C706
C709
C710
C711
C715
C716
C717
C803
C804
C807
C808
C809
C810
C811
C812
C813
C814
C816
Code No.
Description ; Specification
1001-001114
1203-001006
1203-001006
1103-001198
AA27-00096A
AA29-30002N
AA29-30002N
1404-001045
0604-001038
1404-000002
3501-001040
AA26-50001R
AA99-10203R
2202-000243
2202-000243
2401-000480
2305-000665
2401-000133
2305-000665
2401-000133
2301-000192
2401-000318
2201-002031
2305-000285
2305-001011
2301-000342
2401-000360
2305-000665
2301-000192
2201-000556
2401-001397
2201-000556
2401-001397
2401-001625
2401-000569
2305-000382
2301-001435
2301-000192
2305-000178
2401-002619
2301-001065
2201-000556
2401-001527
2201-000132
2401-002267
2401-000133
2202-000231
2202-000231
2202-000231
2202-000231
2305-000412
2305-000412
2401-002463
2401-002463
2305-000412
2305-000412
2401-001840
2401-001840
2202-000231
2202-000231
2202-000231
2202-000231
2305-000412
2201-000332
2303-000163
2401-003046
2301-000395
2401-002594
2301-000310
2305-000665
2401-002619
2201-000639
2401-003058
Remark
IC-VIDEO SWITCH;TEA6425,VIDEO SWITCH ,DI
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
IC-EEPROM;24C16-PC C,256X8Bit,DIP,8P,300
COIL HORIZ. WIDTH;-,10.0mH,DR15 X 27.5,U
FILTER-LINE NOISE;-,16MH,1.5A,AC100~260V
FILTER-LINE NOISE;-,16MH,1.5A,AC100~260V
THERMISTOR-NTC;4.7OHM,15%,2900K,35.0MW,T
PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST
THERMISTOR-PTC;9ohm,20%,-,-,TR,RECT,RELAY-POWER;12VDC,500mW,10A,1FormA,15mS,
TRANS-HORIZ.DRIVE;-,80MH,520UH,4UH,G11A
ASSY-PCB MAIN,AUTO; AA99-30208X ,V
S.N.A
C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3.
C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3.
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-AL;100uF,20%,25V,LZ,TP,8x11.5,5
C-CERAMIC,DISC;0.005nF,0.5pF,50V,NP0,TP,
C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15
C-FILM,MPEF;22nF,5%,100V,TP,3.5x12.5x7.5
C-FILM,PEF;2.2nF,5%,50V,TP,7.4x3.9x13mm,
C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;6.8uF,20%,50V,GP,TP,5x11,5
C-AL;1uF,20%,250V,GP,TP,6.3x11,5
C-FILM,MPEF;4.7nF,5%,400V,TP,-,5mm
C-FILM,PPF;1.5nF,5%,1.2kV,TP,15x8x12.5mm
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,MPEF;10nF,5%,100V,TP,-,5mm
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-FILM,MPPF;47nF,5%,630V,TP,19x15.5x7,7.
C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.
C-AL;47uF,20%,250V,HR,TP,13x25mm,5m
C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5
C-AL;2.2uF,20%,250V,GP,TP,8x11.5,5
C-AL;1000uF,20%,16V,GP,TP,10x20,5
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4
C-FILM,PPF;2.2nF,5%,800V,TP,15x13x8.5,7.
C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5
C-FILM,PEF;18nF,5%,50V,TP,6.5x12.5x3.5mm
C-AL;220uF,20%,16V,GP,TP,8x11.5,5
C-FILM,PEF;68nF,5%,50V,TP,8.0X8.5X4.0X5,
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-CERAMIC,DISC;0.68nF,10%,2kV,Y5P,TP,9x5
C-AL;100uF,20%,200V,WT,TP,16x25,7.5
Samsung Electronics
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
C817
C818
C820
C821
C822
C824
C825
C826
C827
C828
C829
C830
C831
C832
C833
C834
C835
C836
C838
C839
C841
C842
C843
C901
C902
C903
C904
C905
C906
C907
C908
C909
C910
C911
C912
C913
C914
C915
C916
C917
CN502A
CN701S
CN901S
CR403
D301
D305
D307
D401
D402
D403
D404
D405
D406
D407
D408
D409
D410
D411
D413
D415
D801
D803
D804
D806
D807
D809
D810
D811
D901
D902
D905
D906
D907
D908
D909
DZ201
DZ302
Code No.
2201-000599
2401-002215
2201-000599
2301-000192
2401-003141
2201-000599
2401-002215
2401-002215
2201-000599
2201-000599
2401-001998
2401-001998
2401-001998
2401-001998
2401-002619
2401-001513
2305-000665
2301-000192
2305-000665
2401-003034
2401-002463
2401-002463
2201-000374
2401-000480
2401-000480
2202-000796
2202-000791
2202-000632
2202-000632
2401-000242
2401-002144
2401-002144
2201-000980
2201-000980
2401-001914
2401-003561
2202-000796
2401-002463
2401-002075
2401-002463
3711-002646
2011-001133
2503-000156
2301-001268
0402-000546
0401-000005
0401-000005
0402-000540
0402-000540
0402-000132
0402-000537
0401-000005
0402-000132
0401-000005
0402-000546
0401-000005
0403-001316
0402-000540
0402-000537
0401-000005
0402-001111
0402-000546
0402-000546
0401-000005
0402-000132
0402-000493
0402-000493
0402-000493
0401-000005
0401-000005
0401-000005
0403-000510
0403-000510
0401-000005
0401-000005
0403-000700
0403-001329
Samsung Electronics
Description ; Specification
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;2200uF,20%,25V,WT,TP,13x25,5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-AL;2200uF,20%,25V,WT,TP,13x25,5mm
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;2200uF,20%,25V,WT,TP,13x25,5
C-AL;2200uF,20%,25V,WT,TP,13x25,5
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;1000uF,20%,25V,GP,TP,10x20,5mm
C-AL;47uF,20%,25V,GP,TP,5x11,5
C-AL;47uF,20%,16V,WT,TP,5x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,16V,WT,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-CERAMIC,DISC;0.22nF,5%,50V,NP0,TP,10.5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-AL;10uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,10V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,DISC;0.03nF,5%,50V,NP0,TP,5x3,
C-CERAMIC,DISC;0.03nF,5%,50V,NP0,TP,5x3,
C-AL;1uF,20%,50V,BP,TP,5x11,5
C-AL;1uF,10%,50V,GP,TP,5x11mm,5
C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C-AL;470uF,20%,16V,GP,TP,8x11.5,5
CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
R-NETWORK;33K/24K/75x3,5%,1/8W,X,SIP,6P,
C-NETWORK;100pFx4,20%,50V
C-FILM,PPF;33nF,5%,630V,TP,20x11x17,7.5
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP
DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N5397GP,600V,1.5A,DO-20
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
Remark
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
DZ303
DZ304
DZ305
DZ306
DZ701
DZ702
DZ703
DZ801
DZ802
DZ803
DZ806
DZ808
DZ901
DZ902
DZ903
DZ904
DZ905
F801A
F801B
FA801S
FA802S
FA803S
J248
L203
L205
L206
L208
L301
L302
L303
L304
L305
L406
L407
L601
L602
L603
L606
L607
L608
L609
L701
L702
L703
L704
L706
L707
L708
L709
L710
L801
L802
L803
L804
L809
L813
L814
L815
L816
L901
L902
L903
L904
L905
L906
PCB
Q402
Q701
Q702
Q703
Q704
Q802
Q803
R101
R102
R103
R104
Code No.
Description ; Specification
0403-001329
0403-001329
0403-001221
0403-001167
0403-000720
0403-000720
0403-000720
0403-001322
0403-000508
0403-001167
0403-001317
0403-000704
0403-001316
0403-000510
0403-000510
0403-000510
0403-000714
3602-000114
3602-000114
3601-001163
3601-001163
3601-001163
2001-000745
2701-001034
2701-000114
2701-000114
2701-000114
2701-000114
3301-000287
3301-000287
3301-000287
3301-000287
2701-000114
3301-000287
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000116
2701-000114
2701-000114
2701-000114
2901-000297
2901-000299
2901-000297
2701-000114
2701-000114
2901-000297
3301-001223
3301-001223
3301-001223
3301-000287
3301-001223
3301-000287
3301-000287
3301-000287
2701-001034
2701-000114
2701-000114
2701-000114
2701-000114
2701-000114
2701-000184
AA41-00385A
0502-001007
0501-000283
0501-000283
0501-000389
0501-000389
0501-000369
1203-001217
2001-000864
2001-000969
2001-000702
2001-000281
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D
DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D
DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO
DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500
DIODE-ZENER;MTZJ3.0B,3.01-3.22V,500mW,DO
DIODE-ZENER;TZP7.5B,7.5V,7.5-8.4V,1W,DODIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
DIODE-ZENER;MTZJ3.3B,3.3V,3.32-3.53V,500
FUSE-HOLDER;-,-,30mohm
FUSE-HOLDER;-,-,30mohm
FUSE-AXIAL LEAD;125V,7A,-,EPOXY,2.4X7.1M
FUSE-AXIAL LEAD;125V,7A,-,EPOXY,2.4X7.1M
FUSE-AXIAL LEAD;125V,7A,-,EPOXY,2.4X7.1M
R-CARBON;4.7OHM,5%,1/8W,AA,TP,1.8X3.2MM
INDUCTOR-AXIAL;22uH,10%,5x14mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;22uH,10%,5x14mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm
PCB-MAIN;DW-21G5,FR-1,1L,A,1.6T,330x245
TR-POWER;KSC2073-H2,NPN,25W,TO-220,ST,6
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TOIC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL
R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;39KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
Remark
S.N.A
7-19
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-20
R105
R106
R207
R208
R209
R210
R211
R212
R213
R215
R218
R301
R302
R303
R304
R305
R306
R309
R310
R314
R315
R401
R402
R403
R404
R405
R406
R407
R408
R409
R410
R411
R412
R413
R414
R416
R417
R418
R419
R421
R422
R423
R424
R425
R426
R427
R429
R430
R432
R434
R435
R436
R604
R605
R606
R608
R609
R610
R611
R612
R701
R702
R703
R704
R705
R706
R707A
R708
R709
R710
R711
R712
R713
R714
R715
R716
R717
Code No.
Description ; Specification
2001-000281
2001-000362
2001-001352
2001-000969
2001-000325
2001-000281
2001-000281
2001-000281
2001-000281
2001-001352
2001-000938
2004-001983
2004-001984
2001-000016
2008-001029
2008-001029
2008-001107
2001-000290
2001-000290
2004-001986
2004-001402
2001-001078
2001-001078
2001-001155
2001-001088
2008-000252
2003-000755
2001-000066
2001-001055
2001-000028
2001-001114
2001-001152
2001-000020
2008-000266
2001-000290
2003-002156
2001-001093
2001-001078
2001-001037
2001-000028
2001-001179
2004-001373
2008-001018
2008-001018
2003-002178
2001-001110
2001-000812
2004-000433
2004-001376
2001-001107
2008-001018
2003-002151
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000429
2001-000429
2001-000429
2001-000037
2001-000037
2001-000429
2001-000281
2001-000969
2001-000969
2001-000734
2001-000281
2001-000734
2001-000429
2001-000734
2001-000429
2001-000969
2001-000281
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;120OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;62OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM
R-FUSIBLE(S);5.6OHM,5%,2W,AF,TP,3.9X10MM
R-FUSIBLE(S);5.6OHM,5%,2W,AF,TP,3.9X10MM
R-FUSIBLE(S);300ohm,5%,2W,AG,TP,3.9x12mm
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL(S);35.7Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4
R-CARBON(S);15KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);15KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x
R-METAL OXIDE(S);6.8Kohm,5%,2W,AF,TP,4x1
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1.8KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);47KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M
R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);15KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);0.39OHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL(S);100Kohm,1%,1/2W,AA,TP,2.4x6.4
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-METAL OXIDE(S);1Kohm,5%,2W,AG,TP,3.9x1
R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R-METAL(S);11Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10
R-METAL OXIDE;18KOHM,5%,2W,AG,TP,6X16MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
Remark
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
R718
R719
R720
R801
R802
R803
R804
R805
R806
R807
R808
R809
R810
R811
R813
R814
R815
R816
R817
R818
R819
R821
R823
R824
R825
R826
R827
R828
R834
R835
R837
R838
R839
R841
R842
R843
R901
R902
R903
R904
R906
R907
R908
R909
R910
R913
R914
R915
R916
R918
R919
R920
R921
R922
R923
R924
R925
R926
R927
R928
R929
R930
R931
R932
R933
R934
R935
R936
R937
R938
R939
R940
R941
R942
R943
R944
R945
Code No.
Description ; Specification
2001-000660
2001-000977
2001-000969
2001-001103
2003-001025
2003-001025
2003-001025
2001-001150
2001-001150
2001-001163
2001-001163
2001-001153
2001-001178
2004-001408
2001-001153
2001-000085
2001-001086
2001-001088
2001-000429
2001-001113
2004-001983
2004-001889
2001-000290
2008-001011
2006-001002
2001-000019
2008-001086
2008-001086
2001-000812
2003-002024
2001-001153
2001-000812
2001-001163
2001-000786
2001-000812
2001-000812
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000007
2001-000429
2001-000429
2001-000429
2001-000734
2001-000429
2001-000539
2001-000429
2001-000362
2001-000362
2001-000362
2001-000429
2001-000628
2001-000429
2001-000780
2001-000734
2001-000290
2001-000429
2001-000290
2001-000429
2001-000290
2001-000429
2001-000429
2001-000290
2001-000281
2001-000281
2001-000449
2001-000449
2001-000273
2001-000429
2001-000066
2001-000290
2001-000290
2001-000734
2001-000734
2001-000734
Remark
R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x
R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x
R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);18KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.
R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6.
R-METAL(S);127Kohm,1%,1/2W,AA,TP,2.5x6.5
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-FUSIBLE(S);0.18ohm,10%,2W,AF,TP,3.9x10
R-CEMENT;1.2ohm,5%,5W,CB,TP,9x13x25mm
R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M
R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm
R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL OXIDE(S);91Kohm,5%,2W,AF,TP,3.9x
R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;24KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
Samsung Electronics
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
..2
..2
..2
..2
..2
..2
..2
R946
R947
R948
R949
R950
R951
R952
R953
R954
R955
R956
R957
RX801S
RY801S
RY802S
VP801S
VX801S
X901
Code No.
Description ; Specification
2001-000734
2001-000734
2001-000734
2001-000734
2001-000429
2001-000628
2001-000628
2001-000628
2001-000734
2001-000290
2001-000689
2001-000290
2002-001011
2002-001011
2002-001013
1405-000152
1405-000152
2801-003433
2001-000347
0202-000187
AA26-00069A
AA65-30018A
AA65-30109A
AA65-30110A
AA65-30009A
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;300OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;390KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-COMPOSITION;3.3Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;3.3Mohm,5%,1/2W,AA,TP,3.7x
R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x
VARISTOR;560V,2500A,14x8.5mm,TP
VARISTOR;560V,2500A,14x8.5mm,TP
CRYSTAL-UNIT;12MHZ,30PPM,28-AAM,30PF,30O
R-CARBON;13KOHM,5%,1/8W,AA,TP,1.8X3.2MM
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
TRANS FBT;FUJ-29C002C(S),DREAM3,4,-,-,-,
CLAMP-WIRE;NYLON-66,-,-,DATL-600,DONG-A,
CLAMP-FBT;NYLON-66,V2,BLK,-,-,CLAMP-WIRE;NYLON 66,V2,BLK,PAL TVI,ALL M
CLAMP-FBT;ABS,V0,BLK,-,-,-
Remark
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY CRT
1
*
..2
AA94-02917A ASSY CRT;AA03-00207A,+380mG,A51QDX991X0
AA03-00207A CRT COLOR;A51QDX991X001,-,21DF,0.74,-,UN
ASSY M/DECK-DVDP
1
*
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
....4
....4
....4
...3
...3
...3
...3
....4
....4
....4
...3
...3
...3
...3
....4
....4
....4
....4
....4
....4
....4
....4
CN001A
CN002A
CN003
AA94-03216A ASSY M/DECK-DVDP;DW-21G5,-,-,D-100P,2LD,
3809-001213
AA39-20497D
AA39-20497A
AA98-00096A
AA95-00803A
CN11
3708-001364
CN11A 3809-001180
CN12
AA39-00148A
CND001 3711-003975
CND002 3711-003052
CND003 AA39-20005D
CND004 3711-000682
CND01A AA39-00190A
CND02A AA39-00149A
ICD101 AA96-50162E
1203-001083
6003-000333
AA62-30013E
ICD102 1203-001697
ICD103 1203-000122
ICD104 1203-001006
ICD105 AA96-50162K
1203-001006
6003-000333
AA62-30013E
JKD501 3707-001005
RD110
2006-001002
0202-000187
AA99-20081U
ADD501 0407-000123
ADD502 0407-000116
BD501
3301-000287
BD502
3301-000287
BDD101 3301-000287
BDD102 3301-000287
BDD301 3301-000287
CD101
2401-001363
Samsung Electronics
CABLE-FLAT;30V,80C,250mm,40P,1.25mm,UL28
LEAD CONNECTOR ASSY;,1P,YFH800-01,RING,4
LEAD CONNECTOR-ASSY;-,YFH800-01,RING,1P,
ASSY-PCB,M/DVDP;-,DVD-PVE22/BON,C16A,-,S.N.A
ASSY-PCB,INTERFACE;-,DW21G5,C16A,PAL,-,CONNECTOR-FPC/FC/PIC;35P,1.25MM,STRAIGHT
CABLE-FLAT;30V,-30to+80C,80mm,35P,1.25mm
CBF HARNESS;,8P,YBNH250-08,5264-08,100MM
CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
CONNECTOR-HEADER;BOX,10P,1R,2.5mm,STRAGH
LEAD CONNECTOR-ASSY;,3P,YBNH250-03,67096
CONNECTOR-HEADER;BOX,13P,1R,2mm,ANGLE,SN
LEAD CONNECTOR ASSY;,14P,35155-1400,S,40
CBF HARNESS;,10P,35155-1000,S,400MM,1185
ASSY-H/S;-,-,AA62-30013E,PQ3RF23,IC-VOLTAGE REGULATOR;3RF23,TO-202,4P,12.
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT-SINK,ES;-,A6063 EXTR,-,-,30(21) T02
IC-VOLTAGE REGULATOR;78R08,TO-220,4P,-,P
IC-NEGA.FIXED REG.;7908,TO-220,3P,-,PLAS
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
ASSY H/S;-, DVD INTERFACE,AA62-30013E,7
IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,
SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW
HEAT-SINK,ES;-,A6063 EXTR,-,-,30(21) T02
CONNECTOR-OPTICAL;PLUG,SM,-,4.4/2.0MM
R-CEMENT;1.2ohm,5%,5W,CB,TP,9x13x25mm
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
ASSY-PCB SUB,AUTO; AA99-30192L ,V
S.N.A
DIODE-ARRAY;1SS184,80V,300mA,CA2-3,SOT-2
DIODE-ARRAY;DAP202K,80V,100mA,CK2-3,SOTCORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
CD102
CD103
CD104
CD105
CD106
CD107
CD108
CD109
CD110
CD111
CD112
CD113
CD114
CD115
CD116
CD117
CD118
CD119
CD120
CD121
CD122
CD301
CD302
CD303
CD304
CD305
CD306
CD307
CD308
CD313
CD314
CD315
CD316
CD317
CD318
CD325
CD326
CD327
CD328
CD329
CD501
CD502
CD503
CD504
CD505
CD506
CD507
CD508
CD509
CD510
CD511
CD512
CD513
CD514
CD515
CD516
CD517
CD518
CD519
CD520
CD521
CD522
CD523
CD601
CD602
CD603
CD604
CD605
CD606
CD703
CND003
DD101
DD104
DD105
DD106
DD107
DD501
Code No.
2401-001363
2305-000289
2401-001840
2202-000632
2401-001840
2305-000289
2401-001840
2401-001840
2202-000632
2401-000302
2401-002144
2202-000632
2401-001840
2202-000632
2202-000632
2202-000632
2401-002144
2401-002144
2202-000632
2401-001397
2401-001840
2202-000210
2202-000205
2202-000231
2202-000791
2202-000210
2202-000205
2202-000231
2202-000791
2202-000210
2202-000205
2202-000231
2202-000791
2401-002042
2203-000181
2401-001363
2401-000914
2306-000122
2401-001363
2401-000914
2401-002042
2202-000632
2401-002042
2202-000632
2401-002042
2202-000632
2203-000716
2203-000444
2203-000444
2203-000716
2203-000444
2203-000444
2401-002144
2203-000260
2401-002144
2203-000260
2401-002235
2401-002235
2401-001363
2401-002144
2401-000603
2202-000127
2202-000632
2401-001840
2202-000797
2401-001250
2202-000205
2202-000205
2202-000632
2401-002144
3711-002642
0402-000493
0402-000132
0401-000005
0401-000005
0402-000493
0401-000005
Description ; Specification
Remark
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,25V,GP,TP,6.3x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;470uF,20%,25V,GP,TP,10x16,5
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;270PF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;270PF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;270PF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;22uF,20%,16V,GP,TP,5x11,5
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;22uF,20%,16V,GP,TP,5x11,5
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-AL;470uF,20%,16V,GP,TP,10x12.5,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C-AL;4.7uF,20%,35V,GP,TP,4x5,5
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
C-AL;47uF,20%,16V,GP,TP,5x11,5
CONNECTOR-HEADER;BOX,3P,1R,2.5MM,STRAIGH
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
7-21
Electric Parts List
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
7-22
DD502
DD503
DD601
DD602
DD603
ICD302
ICD501
ICD502
ICD503
ICD601
ICD602
LD301
LD302
LD303
LD304
LD307
LD308
LD501
LD601
PCB
QD103
QD107
QD108
QD109
QD501
QD502
QD503
QD504
QD505
QD506
QD507
RD103
RD105
RD106
RD107
RD109
RD111
RD301
RD302
RD304
RD308
RD309
RD310
RD501
RD502
RD503
RD504
RD505
RD506
RD507
RD508
RD509
RD510
RD511
RD512
RD513
RD514
RD515
RD516
RD517
RD518
RD519
RD520
RD521
RD522
RD523
RD524
RD525
RD526
RD527
RD528
RD529
RD530
RD531
RD532
RD533
RD534
Code No.
Description ; Specification
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
1201-001419
1002-001213
1201-000163
0801-000442
AA09-00104A
1203-000642
2701-000238
2701-000238
2701-000238
2701-000238
2701-000238
2701-000238
2701-000002
2701-000115
AA41-00277A
0501-000362
0501-000442
0504-000142
0504-000119
0501-000342
0501-000342
0504-000156
0504-000118
0504-000118
0504-000156
0504-000128
2001-000028
2001-000290
2007-000493
2007-000493
2001-000734
2003-001036
2001-001006
2001-001006
2001-001006
2001-000969
2001-000969
2001-000969
2007-000468
2007-000468
2001-000258
2001-000429
2001-000429
2001-000429
2001-000429
2001-000258
2001-000258
2001-000258
2007-000468
2001-000429
2007-000221
2007-000468
2007-000468
2007-000221
2007-000468
2007-000468
2007-000221
2007-000468
2007-000468
2007-000221
2007-000300
2007-000300
2007-000468
2001-000429
2007-000572
2007-000572
2001-000241
2001-000281
2001-000281
2007-000468
2007-000572
2007-000572
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
IC-VIDEO AMP;7660,SSOP,16P,173MIL,TRIPLE
IC-D/A CONVERTER;AK4393VF,24BIT,SOP,28P,
IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
IC-CMOS LOGIC;74HCU04,INVERTER,SOP,14P,1
IC MICOM;UPD78F0034AGC-OTP,SMD-21G5,64,
IC-RESET;572,TO-92,3P,-,PLASTIC,2.35/2.
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;1.8uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
INDUCTOR-AXIAL;10uH,10%,3x7mm
PCB-INTERFACE;SMD-21G5,FR-1,1L,A,1.6T,24
TR-SMALL SIGNAL;KSA2328A-Y,NPN,1W,TO-92L
TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9
TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T
TR-DIGITAL;KSR1004,NPN,300MW,47K/47K,TOTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOTTR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOTR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOTR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-METAL OXIDE(S);3.3ohm,5%,2W,AF,TP,3.9x
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;82OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
Remark
S.N.A
Loc. No.
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
....4
RD535
RD601
RD602
RD603
RD604
RD605
RD606
RD607
RD608
RD609
RD610
RD611
RD612
RD613
RD614
RD615
RD616
RD617
RD618
RD619
RD620
RD621
RD622
RD623
RD624
RD625
RD626
RD627
RD628
RD629
RD630
RD631
RD632
RD633
RD634
RD635
RD636
RD637
RD638
RD639
RD640
RD641
RD642
RD643
RD644
RD645
RD646
RD647
RD648
RD649
RD650
RD651
RD652
RD653
RD654
RD655
RD656
RD657
RD658
RD659
RD660
RD661
RD662
RD663
RD664
RD665
RD666
RD668
RD669
XTD601
ZDD101
ZDD501
ZDD702
ZDD703
ZDD704
ZDD705
ZDD706
Code No.
Description ; Specification
2007-000572
2007-000468
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2001-000281
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000300
2007-000300
2007-000468
2007-000468
2001-000429
2001-000429
2007-000468
2007-000468
2007-000468
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000429
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000290
2001-000429
2001-000010
2001-000832
2001-000429
2001-000429
2001-000290
2001-000290
2001-000429
2001-000290
2007-000300
2007-000300
2001-000429
2001-000429
2007-000300
2001-000429
2007-000300
2001-000429
2007-000300
2001-000429
2001-000290
2001-000429
2001-000429
2007-000468
2001-000429
2007-000468
2001-000429
2007-000300
2007-000300
2007-000300
2001-000515
2007-000981
2801-003750
0403-001373
0403-000714
0401-000005
0401-000005
0401-000005
0401-000005
0401-000005
Remark
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;68KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
CRYSTAL-UNIT;8MHZ,30PPM,28-AAA,22PF,80OH
DIODE-ZENER;MTZJ5.1A,4.81V-5.07V,500mW,D
DIODE-ZENER;MTZJ3.3B,3.3V,3.32-3.53V,500
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
Samsung Electronics
Electric Parts List
Loc. No.
....4
....4
....4
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
ZDD707
ZDD708
ZDD709
D/P+FD
DECK+F
DVD/P+
O/P+FD
SDT+FD
Code No.
Description ; Specification
0401-000005
0401-000005
0401-000005
AA91-00561A
AA90-00641A
6003-001023
6003-001022
6003-001023
6003-001023
6003-001023
AA61-00482B
AA63-00339B
AA65-00011B
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
ASSY DECK-M/DVDP;-,2LD,VALINO,DVD-DV002/
ASSY FRAME;DO,SMD21G5
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RH,+,B,M3,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
FRAME-DECK;21G5,-,HIPS V0,-,BLK,-,SHIELD-DECK,TOP;21G5,SECC,T0.5,TOP
CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,15M
Remark
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY PCB CRT
1
*
AA95-00800A ASSY PCB CRT;-,C16A,21,PAL,DW21G5
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
C520
CN502A
CN503A
IC501
IC502
IC503
2201-002117
AA39-20030B
AA39-20029K
AA96-50151B
AA96-50151B
AA96-50151B
1201-001131
6001-000057
6021-000222
AA61-10060A
AA41-00362A
3704-000114
AA99-20081D
2306-000122
2306-000122
2201-002031
2305-000154
2201-000599
2306-000122
2306-000122
2305-000154
2201-000599
2306-000122
2306-000122
2201-000193
2305-000154
2201-000599
2401-001513
2401-002183
2401-002264
2401-002264
3711-002647
3711-002646
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000546
0402-000132
0401-000005
0401-000005
0401-000005
0403-000720
0403-000720
0403-000720
2701-000115
2701-000112
0501-000389
2001-001049
2001-001117
2004-001408
2002-001017
2001-001049
2001-001117
2004-001408
2003-001018
PCB
V999
C501
C502
C503
C504
C505
C506
C507
C509
C510
C511
C512
C513
C514
C515
C516
C517
C518
C519
CN502
CN503
D501
D502
D503
D504
D505
D506
D507
D508
D509
D510
DZ501
DZ503
DZ505
L501
L502
Q501
R502
R503
R504
R507
R509
R510
R511
R513
Samsung Electronics
C-CERAMIC,DISC;4.7nF,20%,3kV,Y5U,TP,16x6
LEAD CONNECTOR-ASSY;,8P,67096-008,S,400,
LEAD CONNECTOR-ASSY;,7P,67096-007,S,400,
ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,ASSY-H/S;-,AMP,AA61-10060A,TDA6111Q,IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS
SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1
NUT-HEXAGON;2C,M3,ZPC(YEL),SM20C 1
BRACKET-TR;-,-,CUS-1 1/2H,T0.5,-,-,PCB-CRT(PAL);TF21G5,FR-1,1L,A,1.6T,330x2
SOCKET-CRT;14P,29.1,35.5,SN,ISH09S/BK
ASSY-PCB SUB,AUTO; AA99-30191E ,V
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-CERAMIC,DISC;0.005nF,0.5pF,50V,NP0,TP,
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-FILM,MPPF;100nF,5%,50V,TP,7.3x4.0x5.0m
C-CERAMIC,DISC;0.01nF,0.25pF,50V,NP0,TP,
C-FILM,MPEF;100nF,5%,400V,TP,21.5x6.5x11
C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.
C-AL;47uF,20%,16V,WT,TP,5x11,5
C-AL;220uF,20%,16V,GP,TP,8x9,5mm
C-AL;10uF,20%,350V,GP,TP,10x20mm,5m
C-AL;10uF,20%,350V,GP,TP,10x20mm,5m
CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH
CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
INDUCTOR-AXIAL;10uH,10%,3x7mm
INDUCTOR-AXIAL;100uH,10%,3x7mm
TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-METAL OXIDE(S);220ohm,5%,2W,AF,TP,3.9x
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
..2
..2
..2
R514
R515
R516
R517
R518
R519
R520
R521
R522
R523
R524
R525
R526
R527
R529
R530
Code No.
Description ; Specification
2002-001017
2001-001049
2001-000052
2001-001117
2004-001408
2001-000052
2001-000052
2002-001017
2001-001093
2001-001197
2001-001062
2002-001012
2008-001049
2002-001006
2001-000290
2001-000290
AA63-10002A
3722-001503
0202-000187
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);2KOHM,5%,1/2W,AA,TP,2.4X6.4M
R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.
R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9
R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.
R-CARBON(S);910OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4
R-COMPOSITION;8.2Mohm,5%,1/2W,AA,TP,3.7x
R-FUSIBLE(S);3.9OHM,5%,2W,AF,TP,3.9X10MM
R-COMPOSITION;4.7Kohm,5%,1/2W,AA,TP,3.7x
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
BAND-TIE;-,NYLON66 V2,-,-,L100,NTR,-,JACK-PIN;1P,1PI,NI,RED,SCR-JACK
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
Remark
S.N.A
S.N.A
ASSY PCB CONTROL
S.N.A
S.N.A
S.N.A
S.N.A
1
*
AA95-00801A ASSY PCB CONTROL;-,C16A,DW21G5,-
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
CND701
CND703
CND704
CND704
LDD701
LDD71A
PCB
PCB+HC
RMD701
SWD701
SWD702
SWD703
SWD704
SWD705
SWD707
SWD708
SWD709
SWD710
SWD711
AA39-00207A
AA39-00075A
AA39-00159B
3711-001128
0601-000385
AA61-50044A
AA41-00330A
6003-001023
AA59-60002B
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
3404-000176
0202-000187
AA61-00586B
AA99-20086Q
2401-002291
2202-000632
0504-000118
2001-000290
2001-000857
2001-000429
0403-001211
0403-000510
CD701
CD702
QD701
RD701
RD702
RD703
ZDD701
ZDD702
LEAD CONNECTOR ASSY;,13P,35023-0013,5100
LEAD CONNECTOR-ASSY;-,-,-,-,-,-,-,-,-,YB
LEAD CONNECTOR ASSY;,8P,TUBE,5264-08,351
CONNECTOR-HEADER;BOX,8P,1R,2.5mm,ANGLE,S
LED;ROUND,RED,3mm,700nm
GUIDE-LED;-,ABS,V0,BLK,-,AIWA,PCB-TVDP CONTROL;SMD-21G5,FR-1,1L,A,1.6T
S.N.A
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
MODULE-REMOCON;-,ORC-50HF,38KHZ,940MM,ME
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
HOLDER-TOP;15X5,ABS,BLK,HB,-,ASSY-PCB SUB,AUTO; AA95-00801A ,V
S.N.A
C-AL;47uF,20%,16V,GP,TP,6.3x5,5
C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP
TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TOR-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500
ASSY-PCB,A/V
1
*
AA95-00802A ASSY-PCB,A/V;-,DW21G5,C16A,PAL,-,-
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
CM50
CM51
CM52
CM53
CM54
CM55
CNM705
CNM711
CNM712
JAC701
JAC702
LM50
LM51
LM52
2401-002144
2401-002144
2001-000309
2001-000309
2202-000231
2202-000231
3711-000628
AA39-00070A
3711-002644
3722-001031
3722-000143
2001-000309
2001-000309
3301-000287
C-AL;47uF,20%,16V,GP,TP,5x11,5
C-AL;47uF,20%,16V,GP,TP,5x11,5
R-CARBON;110OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;110OHM,5%,1/8W,AA,TP,1.8X3.2MM
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP
CONNECTOR-HEADER;-,11P,1R,2.5mm,STRAIGHT
LEAD CONNECTOR-ASSY;-,-,-,-,-,-,-,-,-,YB
CONNECTOR-HEADER;BOX,5P,1R,2.5mm,STRAIGH
JACK-RCA;3P,3.6MM,#18,AU
JACK-PHONE;1P(VER),3.4mm,AG,BLK,NO
R-CARBON;110OHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;110OHM,5%,1/8W,AA,TP,1.8X3.2MM
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
7-23
Electric Parts List
Loc. No.
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
Code No.
LM53
LM54
LM55
PCB
RM50
RM51
WCNM70
WCNM71
Description ; Specification
3301-000287
2701-000114
2701-000114
AA41-00354B
2001-000028
2001-000028
AA39-20160D
AA39-20020D
AA63-10002A
0202-000187
Remark
CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
PCB-AV;SMD-21G5,FR-1,1L,B,1.6T,245x24
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4
LEAD CONNECTOR-ASSY;-,67096-11,S,11P,600
LEAD CONNECTOR-ASSY;,5P,67096-005,S,600,
BAND-TIE;-,NYLON66 V2,-,-,L100,NTR,-,SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
S.N.A
S.N.A
S.N.A
ASSY-PCB,SOUND
1
*
AA95-00805A ASSY-PCB,SOUND;-,DW21G5,C16A,PAL,-,-
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
BR01
BR02
CN601
CN602
CN603
ICD701
LD607
LD608
LD609
LD610
AA61-10068A
AA61-10068A
3711-002708
3711-001283
3711-002644
1203-000274
AA27-00119A
AA27-00119A
AA27-00119A
AA27-00119A
AA63-00341B
0202-001004
0202-000187
AA99-20081C
2404-000284
2203-000181
2404-000235
2404-000235
2203-000181
2404-000235
2404-000235
2404-000235
2404-000235
2404-000235
2404-000235
2404-000235
2203-000181
2404-000284
2203-000181
2404-000284
2404-000284
2203-000444
2203-000444
2203-000444
2203-000444
2404-000465
2404-000465
2404-000465
2404-000465
2404-000465
2203-000444
2203-000444
2203-000753
2404-000284
2203-000181
2404-000284
2203-000701
2203-000701
2203-001077
2203-001077
2203-001077
2401-001840
2203-000142
2404-000465
2203-000444
2203-000142
2404-000465
2203-000444
2203-000181
2401-002594
7-24
CD601
CD602
CD603
CD604
CD605
CD606
CD607
CD608
CD609
CD610
CD611
CD612
CD613
CD614
CD615
CD616
CD617
CD618
CD619
CD620
CD621
CD622
CD623
CD624
CD625
CD626
CD627
CD628
CD629
CD630
CD631
CD632
CD633
CD634
CD635
CD636
CD637
CD639
CD640
CD641
CD642
CD643
CD644
CD645
CD646
CD647
BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,CONNECTOR-HEADER;NOWALL,10P,1R,2.5mm,ANG
CONNECTOR-HEADER;NOWALL,14P,1R,2.5mm,ANG
CONNECTOR-HEADER;BOX,5P,1R,2.5mm,STRAIGH
IC-POSI.FIXED REG.;7805,TO-220,3P,-,PLAS
COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
COIL CHOKE;10uH,-,10uH,10%,0.07,0.1ohm M
SHIELD;21G5,SPTE,T0.5,AUDIO
SOLDER-CREAM;SQ-2030M SZH-1,S63A,D0.04,6
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
ASSY-PCB SUB,AUTO; AA95-00805A ,V
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-TA,CHIP;4.7uF,20%,16V,-,TP,3528,1.4
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;330nF,+80-20%,50V,Y5V,TP,
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;10uF,20%,16V,-,TP,3528,C-CERAMIC,CHIP;0.002nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.002nF,0.25pF,50V,NP0,TP
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;220uF,20%,16V,GP,TP,8x11.5,5
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
CD648
CD649
CD650
CD651
CD652
CD654
CD655
CD656
CD657
CD658
CD659
CD660
CD661
CD662
CD663
CD664
CD665
CD666
CD667
CD668
CD669
CD670
CD671
CD672
CD673
CD674
CD675
CD676
CD677
CD678
CD679
CD680
CD699
CD701
CD702
CD703
CD704
CD705
CD706
CD707
CD708
DD601
ICD601
ICD602
ICD603
LD601
LD602
LD603
LD604
LD605
LD606
PCB
RD601
RD602
RD603
RD604
RD605
RD606
RD607
RD608
RD609
RD610
RD611
RD612
RD613
RD614
RD615
RD616
RD618
RD619
RD620
RD621
RD622
RD623
RD624
RD625
RD626
Code No.
Description ; Specification
2203-000716
2203-000716
2404-000167
2404-000167
2203-000181
2404-000160
2203-000181
2404-000160
2203-000181
2401-000287
2203-000181
2401-000287
2203-000181
2203-000578
2203-000578
2203-000181
2203-000578
2203-000578
2203-000239
2203-000239
2203-000181
2203-000239
2203-000239
2404-000465
2203-000578
2203-000444
2203-000444
2203-000444
2203-000444
2203-000444
2203-000444
2203-000181
2203-000221
2404-000275
2203-000181
2404-000275
2203-000181
2404-001098
2404-001098
2404-001098
2404-001098
0401-000133
1204-001772
1201-000541
1201-001681
2702-001100
2702-001100
2702-001100
2901-000297
2901-000297
2901-000297
AA41-00356B
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000468
2007-000290
2007-000290
2007-000070
2007-000290
2007-000290
2007-000084
2007-000074
2007-000074
2007-000468
2007-000084
2007-000084
2007-000094
2007-000129
2007-000084
2007-000329
2007-001010
2007-000329
2007-001010
Remark
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,C-TA,CHIP;2.2uF,20%,16V,-,TP,3216,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;1UF,20%,50V,GP,TP,6032
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;1UF,20%,50V,GP,TP,6032
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-AL;100uF,20%,16V,WT,TP,6.3x11,5
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C-TA,CHIP;22uF,10%,16V,GP,TP,6032,C-CERAMIC,CHIP;220nF,20%,50V,Y5V,TP,3216
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,3216
C-TA,CHIP;100UF,10%,10V,GP,TP,7343
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;100UF,10%,10V,GP,TP,7343
C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C-TA,CHIP;1uF,20%,25V,GP,TP,3216,C-TA,CHIP;1uF,20%,25V,GP,TP,3216,C-TA,CHIP;1uF,20%,25V,GP,TP,3216,C-TA,CHIP;1uF,20%,25V,GP,TP,3216,DIODE-SWITCHING;RLS4148,100V,200mA,SOD-8
IC-SOUND PROCESSOR;MSP3451G-A2,LQFP,64P,
IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
IC-AUDIO AMP;1101,SOP,30P,433MIL,-,-,PLA
INDUCTOR-RADIAL;3.9uH,10%,4x6mm
INDUCTOR-RADIAL;3.9uH,10%,4x6mm
INDUCTOR-RADIAL;3.9uH,10%,4x6mm
FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,PCB-SOUND;SMD-21G5,FR-4,2L,B,1.6T,180x24
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;11Kohm,5%,1/16W,DA,TP,1608
R-CHIP;51Kohm,5%,1/16W,DA,TP,1608
R-CHIP;11Kohm,5%,1/16W,DA,TP,1608
R-CHIP;51Kohm,5%,1/16W,DA,TP,1608
S.N.A
Samsung Electronics
Electric Parts List
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
RD627
RD628
RD629
RD630
RD631
RD632
RD633
RD634
RD635
RD636
RD637
RD638
RD639
RD640
RD642
RD643
XD601
ZD601
ZD602
ZD603
ZD604
Code No.
Description ; Specification
2007-000084
2007-000084
2007-000129
2007-000094
2007-000084
2007-000093
2007-000093
2007-000805
2007-000805
2007-000210
2007-001179
2007-000308
2007-000308
2007-000029
2007-000572
2007-000029
2801-000186
0403-001117
0403-001117
0403-001117
0403-001117
Remark
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;22Kohm,5%,1/16W,DA,TP,1608
R-CHIP;4.7Kohm,5%,1/16W,DA,TP,1608
R-CHIP;20Kohm,5%,1/16W,DA,TP,1608
R-CHIP;20Kohm,5%,1/16W,DA,TP,1608
R-CHIP;36Kohm,5%,1/16W,DA,TP,1608
R-CHIP;36Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012
R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;10OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R-CHIP;0OHM,5%,1/10W,DA,TP,2012
CRYSTAL-UNIT;18.432MHz,25ppm,28-AAM,8pF,
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
ASSY-PCB,MASTER
1
*
..2 CN801
..2 PCB
..2 SW811S
..2
..2
..2
..2
AA95-00806A ASSY-PCB,MASTER;-,DW21G5,C16A,PAL,-,AA39-20179F
AA41-00355A
3403-000179
0202-000187
6001-000057
AA61-10320A
AA99-20087F
LEAD CONNECTOR-ASSY;,3(2)P,YFH800-150,S,
PCB-MASTER;DW21G5,FR-1,1L,A,1.6T,245x245
SWITCH-PUSH;250V,5A,DPST,-,JPW-2104B
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1
BRACKET-MASTER;-,T3350,SECC,T1.0,-,-,ASSY-PCB SUB,AUTO; AA95-00806A ,V
S.N.A
S.N.A
S.N.A
S.N.A
ASSY-PCB,PFC
1
*
AA95-00974A ASSY-PCB,PFC;-,DW21G5,C16A,PAL,-,-
..2
..2
..2
..2
..2
..2
..2
..2
CN01
HP+PFC
LP01
PCB
AA39-00206A
6003-001023
AA27-00116A
AA41-00358A
AA64-01764B
0202-000187
AA61-00496B
AA99-20087G
LEAD CONNECTOR ASSY;,2P,YFH800-02,S,300M
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
COIL CHOKE;CODE_NO,-,35mH,-0, +5%,-,2.8O
PCB-PFC;DW21G5,CEM-1,1L,A,1.6T,330x245
INLAY-BARRIER,PFC;21G5,PVC,T0.4,SHEET 94
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
HOLDER-PCB;21G5,ABS V0,GRAY,-,-,GUJU
ASSY-PCB SUB,AUTO; AA95-00974A ,V
S.N.A
S.N.A
S.N.A
S.N.A
ASSY-PCB,CHROMA
1
*
AA95-00992A ASSY-PCB,CHROMA;-,DW28G5-WIDE,C16A,PAL,-
..2
..2
..2
..2
..2
..2
..2
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
BK201
BK202
CN201
CN202
CN203
AA61-10068A
AA61-10068A
3711-002710
3711-003543
3711-002647
0202-000187
AA99-20088F
2203-000440
2309-000138
2203-000257
2203-000715
2203-000218
2305-000665
2203-000440
2305-000412
2203-000218
2401-001840
2305-000412
2305-000289
2305-000412
2203-002398
C201
C202
C204
C205
C206
C207
C208
C209
C210
C211
C212
C213
C214
C215
Samsung Electronics
BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,BRACKET-PCB;-,M2160,SPTE,T0.3,-,-,CONNECTOR-HEADER;NOWALL,15P,1R,2.5mm,ANG
CONNECTOR-HEADER;NOWALL,16P,1R,2.54MM,AN
CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH
SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb
ASSY-PCB SUB,AUTO; AA95-00992A ,V
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-FILM,PE-PPF;100nF,5%,50V,TP,20x16x8.5,
C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
S.N.A
S.N.A
S.N.A
S.N.A
Loc. No.
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
...3
C216
C217
C218
C219
C220
C222
C223
C225
C226
C227
C228
C229
C230
C231
C232
C233
C234
C235
C236
C237
C238
C250
C259
C261
C262
C263
IC201S
IC205
L202
L206
L207
PCB
Q203
R201
R203
R205
R206
R207
R208
R209
R210
R211
R212
R213
R216
R217
R218
R219
R220
R221
R222
R223
R224
R225
R227
R232
R233
R234
R235
R236
R237
R238
R240
R261
R262
R263
R266
XT201
Code No.
Description ; Specification
2203-002398
2203-002398
2203-002398
2203-002398
2203-002398
2203-000218
2203-000218
2305-000289
2203-000998
2203-000998
2401-002235
2203-000218
2401-001840
2305-000665
2401-002183
2401-002183
2301-000383
2301-000445
2401-000603
2203-000440
2203-000440
2401-000603
2203-000851
2203-000715
2305-000412
2401-002144
1204-001740
1204-001773
2702-001094
2702-001094
2702-001094
AA41-00399A
0501-000727
2007-000101
2007-000129
2007-000078
2007-000090
2007-000074
2007-000828
2008-000206
2007-000074
2007-000074
2007-000074
2007-001002
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000074
2007-000070
2007-000074
2007-000074
2007-000074
2007-000416
2007-001002
2008-000206
2007-000078
2007-000082
2007-000074
2007-000129
2007-000092
2007-000309
2007-000070
2007-000070
2007-000074
2007-000070
2801-003433
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,1608
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-FILM,MPEF;220nF,5%,63V,TP,-,5mm
C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160
C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,160
C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm
C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,2012
C-AL;100uF,20%,16V,GP,TP,6.3x11,5
C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m
C-AL;220uF,20%,16V,GP,TP,8x9,5mm
C-AL;220uF,20%,16V,GP,TP,8x9,5mm
C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm
C-FILM,PEF;4.7nF,5%,50V,TP,5.5x7x3mm,5mm
C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,C-AL;1uF,20%,50V,GP,TP,5x11,5
C-CERAMIC,CHIP;0.039nF,5%,50V,NP0,TP,160
C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,1608
C-FILM,MPEF;470nF,5%,63V,TP,-,5mm
C-AL;47uF,20%,16V,GP,TP,5x11,5
IC-VIDEO PROCESS;TDA8889H,QFP,64P,-,PLAS
IC-FILTER;TDA9181T,SOP,16P,300MIL,PLASTI
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
INDUCTOR-RADIAL;10uH,10%,6x4mm
PCB-CHROMA;DW21G5,FR-4,2L,A,1.6T,180x245
TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,
R-CHIP;82Kohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;39Kohm,1%,1/16W,DA,TP,1608
R-FUSIBLE(S);1ohm,5%,1/2W,AF,TP,2.5x6.5m
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;510ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;15ohm,5%,1/16W,DA,TP,1608
R-CHIP;510ohm,5%,1/16W,DA,TP,1608
R-FUSIBLE(S);1ohm,5%,1/2W,AF,TP,2.5x6.5m
R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R-CHIP;0ohm,5%,1/16W,DA,TP,1608
CRYSTAL-UNIT;12MHZ,30PPM,28-AAM,30PF,30O
Remark
S.N.A
ASSY POWER CORD
1
..2
..2
*
AA96-20126J ASSY POWER CORD;-,EP3/YES(HK),H/C 250MM,
3811-000401 WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22
AA39-10007X POWER-CORD;-,EP3/YES(HK),H03VVH2-F,2.4m,
S.N.A
7-25
Electric Parts List
Loc. No.
..2
Code No.
Description ; Specification
AA61-20284A HOLDER;-,P-CORD,PP,VO,BLK,KE-002
Remark
S.N.A
*
Code No.
Description ; Specification
Remark
REMOCON
1
ASSY HOLDER SPK
1
Loc. No.
*
AA59-00165C REMOCON;-,TM63,TVDP,48,SILVER,S/S,PAL,
AA91-00536A ASSY HOLDER SPK;-,-,8ohm/13W,BLK,TVDP##(
ASSY CABINET FRONT
1
*
AA91-00494D ASSY CABINET FRONT;,21G5,(SPK)004P+012P
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
CF+KCD
CF+KCT
SPK+CF
WIN+CF
6003-001019
6003-001019
6003-001023
6003-001019
AA64-01325B
AA64-01326B
AA64-01328B
AA64-01572C
AA64-01763B
AA91-00537A
AA65-30105A
AA64-70123A
AA61-60003J
AA64-00846D
AA64-01321C
AA64-01323B
AA64-01324B
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
WINDOW REMOCON;21G5,PC V0,-,-,-,-,VIOLET
INDICATOR LED;21G5,ACRYL,-,-,-,-,DECORATION-FRONT;21G5,ABS HB,-,-,G3676,L
KNOB-TV;21G5,ABS,-,G3676,SV012P,HB,-,INLAY-BARRIER,FRONT;21G5,PVC,T0.4,SHEET
ASSY HOLDER SPK;-,-,8ohm/13W(1.75uF),BLK
CLAMP-WIRE;NYLON 66,V2,NTR,15MM,ALL MODE S.N.A
BADGE-BRAND;AL,SAMSUNG,SILVER,L=50,FLAT,
SPRING-CS;-,SUS304,0.5,OD6,H12,N7,-,-,INLAY AV;21G5,PS SHEET,T0.3,-,BLK,-,3P
S.N.A
CABINET FRONT;21G5,DB021P+SV012P MPP,HIP
KNOB-DVD;21G5,ABS HB,-,G3676,SV012P,-,KNOB POWER;21G5,ABS HB,-,G3676,SV012P,-,
ASSY CABINET
1
*
AA90-00630F ASSY CABINET;21G5,CW21G5VDX/XEU
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
..2
...3
AV+CF
BACK
CB+CF
CB+FD
DCP+CF
KPP+CF
RJ+CB
SPK+CF
TKC+CF
6002-000522
AA60-00091A
6003-001025
6003-001025
6003-001023
6003-001023
6003-001025
6006-001095
6002-000522
AA65-30008A
AA65-00009B
AA60-10050R
AA64-01322B
AA64-01329C
AA64-01330C
AA64-01542A
AA64-01327B
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
SPACER-FELT;-,FELT,150X10,-,-,BLK,T0.35,
SCREW-TAPTITE;RH,+,B,M4,L20,ZPC(BLK),SWR
SCREW-TAPTITE;RH,+,B,M4,L20,ZPC(BLK),SWR
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
SCREW-TAPTITE;RH,+,B,M4,L20,ZPC(BLK),SWR
SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL)
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
CLAMP-CORD;PE,HB,BLK,-,-,CLAMP-D,COIL;NYLON 66,V0,-,-,21A8,SCREW-ASSY;WC,HH,+,M5,L31.5,SWRCH18A,ZPC
CABINET BACK;21G5,HIPS,HB,-,BLK
INLAY-BACK,TV;21G5,PS SHEET,T0.5,-,BLK,INLAY-BACK,DVD;21G5,PS SHEET,T0.5,-,BLK,
DOOR-TRAY,ASSY;21G5,ABS HB,-,G3676,-,-,L
DOOR-TRAY;21G5,ABS HB,-,G3676,-,-,LB017M
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
S.N.A
ASSY CHASSIS PART
1
*
..2 C/B+H/
..2 PCB+HC
..2
AA90-00631B ASSY CHASSIS PART;C15A,DW21G5
S.N.A
6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
AA61-00483B HOLDER-CHASSIS;21G5,ABS V0,GRAY,-,-,-
ASSY ACCESSORY
1
..2
..2
7-26
*
AA94-03440A ASSY ACCESSORY;DW21G5VDX/XEU,C16A,U.K,SE S.N.A
AA68-20051A MANUAL-SERVICE;ALL,W/P 100(G),B5,ENG,SEU
S.N.A
AA68-01378A MANUAL USERS;DW21G5VD,ENG,W/P100(G),1,B5 S.N.A
Samsung Electronics
COM-FILT ER
IC(T DA8887)
Y/Cin(20,21)
COMB Y/C
T UNER
RF CVBS
INPUT Select
DVD CVBS
RF CVBS
PIP module
PIP
MAIN
RCA(Scart) jack
AVin1 CVBS
AVin2 CVBS
OSD R/G/B/FB
AVout1 CVBS(RF)
AVout2 CVBS
AVin2 CVBS
AVin2 CVBS
crt Ro(31)
crt Go
crt Bo
VM
PIP CVBS
MAIN CVBS
S- VHS Y/C
front RCA jack
AVin 2 CVBS
Y/Pb/Pr in
CVBS(24)
CRT - drive
8. Block Diagrams
INPUT Select
DVD Y/C
8-1 C16A DVDP Block Diagram
Samsung Electronics
DVDP input
DVD Y/C
DVD CVBS
PIP R/G/Bout
R/G/B1(scart)
41,42,43
CVBS2
CVBS OUT 1
CVBS OUT 2
MICOM IN
PIP R/G/B/F B
35.36.37.38
(OSD RGB)
YUV OUT
39(Y)
47(U),V(48)
scart R/G/Bin
MICOM OSD R/G/B/FB
(IN) pal wide
Y.U.V(OUT )
42P Scart jack
scart Vout1/2
scart Aout 1/2
RF Vout
Monitor Vout
Block Diagrams
8-1
Block Diagrams
8-2 C16A Audio Block Diagram
SOUND Module
TUNER
TCPW3001PA
50 ICD601
ICD603
MSP
3451G
41,42
21
28,29
L.R
SCART1
L.R
L.R
20
25,26
SCART2
ICD602
3
5
23,25
6
TL062
CDT
AUDIO
AMP
TA1101B
7
SPEAKER
26,22
38,39
RCA Input
45, 44
L.R
DVD Input
MICOM
8-3 VIDEO Block Diagram
CHROMA DODULE
V-out
TUNER
10
TCPW3001PA
10
TEA6425
In
SCART1 Input
Out
14.16
20.21
95
17
R,G,B
Out
SCART2 Input
CRT
DRIVE
TDA 6111Q
COMB
FILTER
TDA9181
CHROMA
VCDIC
TDA8889H
R
G
B
CRT
R
G
B
IK
6 8
RCA Input
In
CVBS
DVD Input
8-2
Y-Out
C-Out
Samsung Electronics
ICD102
KA78R08
MOT OR B+ (8V)
SAVE CT L
A - 20V
AUDIO AMP + 8V
ICD103
KA7908
AUDIO AMP - 8V
P WR CT L
AL 5V (I/F MICOM)
A 8.0V
ICD105
KA78R05
ICD104
KA78R05
A 6.2
ICD101
PQ32RF33
PC 5V(DIGIT AL VCC)
8-4 C16A Power Block Diagram
Samsung Electronics
A 12.0V
I/F MICOM VCC
RMT VCC
SERVO / RF
DSP / MEMORY
PC 5V(ANALOG VCC)
MAIN MICOM
AUD DAC A- VCC
PC 3.3V(ZIVA VCC)
ZIVA VCC
AUD DAC D- VCC
Block Diagrams
8-3
DVDP
MECHA
40PIN F PC
T V MAIN
PROT OCOL
PWR CT L
DVD
MAIN
PCB
DVD MAIN
PROT OCOL
ICD601
INT ERF ACE
MICOM
DOWN MIX AUDIO
D/A CONVERT ER
ICD501
AUDIO DAC
AK4393(2CH)
IEC- 958/1937
POST F IL T ER
POST F IL T ER
DAT A0
LRCK / BCK
Y/Cb/Cr
CVBS
ICD502
Rt
6dB Y/C
AMP
VIDEO ENCODER OUT
CND004
CND002
Lt
ICD302
CN11
CONT ROL PCB (KEY & RMT )
CVBS
CND003
DIGIT AL AUDIO
(OPT ICAL OUT )
Block Diagrams
POWER BL OCK
CN12
(8V/D5V/A5V
/3.3V)
8-5 C16A DVDP Block Diagram
8-4
CND001
SUPPLY VOLT AGE (+ 12.0V / + 8.0V / + 6.2V / - 12V)
Samsung Electronics
Block Diagrams
8-6 Block Diagram
A130V
FBT
COLLECTOR
200V
HORIZONTAL
CRT-DRIVE
33V
TUMER
16.5V
HDT, +VERTICAL DROVE
-13.5V
- VERTOCAL DRIVE
HEATER
CRT-HEATER
IC803
SOUND AMP
TA1101B
A13.5V
378R12
A13.5V
78R08
CHROMA TDA 8889H
IC802
SWITCH TEA6425
AUDIO MSP 34151G
A12.5V
DVD-DECK
A-12V
IC804
A8V
78R05
TUNER
CHROMA COMB FILTER EDA9181
IC805
IC904
78R05
LF330CU
M-COM
IC902
EEPROM
DVD-DECK
Samsung Electronics
8-5
Block Diagrams
MEMO
8-6
Samsung Electronics
Schematic Diagrams
9-1. POWER BLOCK
005
007
006
013
008
010
011
012
Samsung Electronics
9-1
Schematic Diagrams
MICOM
005
007
006
013
008
010
011
012
9-2
Samsung Electronics
Schematic Diagrams
H/V DRIVE
014
015
016
017
018
019
020
024
022
024
Samsung Electronics
9-3
Schematic Diagrams
SIGNAL BLOCK
030
031
027
028
026
033
025
032
029
041
040
038
039
036
035
034
037
9-4
Samsung Electronics
Schematic Diagrams
9-2. MASTER
Samsung Electronics
9-5
Schematic Diagrams
9-3 CHROMA
9-6
Samsung Electronics
Schematic Diagrams
9-4 CRT
Samsung Electronics
9-5 A/V
9-7
Schematic Diagrams
9-6 INTERPACE
9-8
Samsung Electronics
Schematic Diagrams
9-7 CONTROL
Samsung Electronics
9-9
Schematic Diagrams
9-8 SOUND
9-10
Samsung Electronics
Schematic Diagrams
9-9 Main-Micom (DVD)
Samsung Electronics
9-11
Schematic Diagrams
9-10 SERVO
9-12
Samsung Electronics
Schematic Diagrams
9-11 AV DECODER
Samsung Electronics
9-13
Schematic Diagrams
9-12 DECK
SERVO
9-14
Samsung Electronics
Schematic Diagrams
9-13. Chief IC PIN voltage
65
SW1
D-RESET
B-STOP
D1-CON
SW2
S-MUTE
W-ENABLE
HOLD
SC1-ID
N.C
AFT
SC2-ID
GND
_
4.6
3.3
3.3
0.4
0.4
0.4
3.3
3.2
0.1
_
2.6
0.1
N.C
N.C
D-COIL
N.C
WIDE-CTL
TV-POWER
N.C
VSSA
N.C
CVBS
BLACK
IREF
0.4
0.02
1
0.25
1.3
TV-CS
TV-SD
TV-SI
TV-CLK
IR
VDP
RESET
2.2
2.3
4.9
5
5
3.3
F/B
R
G
B
1.63
1.5
2.3V
2.2V
VDDA
MIX
0.4
0.7
2.8
0.62
0.62
0.62
3.2
0.2
5
8
VDD
HALF
5
V-OUT
V+OUT
2.3
5
EHT-F/S
2.3 V
FBP-IN
1.8V
2V
1.4V
.4
Samsung Electronics
9-15
Schematic Diagrams
_
_
9-16
PIN NAME
PIN NAME
PIN NO.
PIN NO.
PIN NAME
PIN NAME
_
PIN NAME
PIN NO.
PIN NAME
_
_
PIN NAME
PIN NO.
PIN NAME
_
_
PIN NAME
PIN NO.
PIN NAME
_
_
PIN NAME
PIN NO.
PIN NAME
_
_
_
Samsung Electronics
Schematic Diagrams
_
PIN NAME
PIN NO.
PIN NAME
_
_
PIN NAME
PIN NO.
PIN NAME
_
Samsung Electronics
9-17
Schematic Diagrams
9-18
Samsung Electronics
ELECTRONICS
© Samsung Electronics Co., Ltd. Jan.2001
Printed in Korea
3C16A-2101
Download PDF
