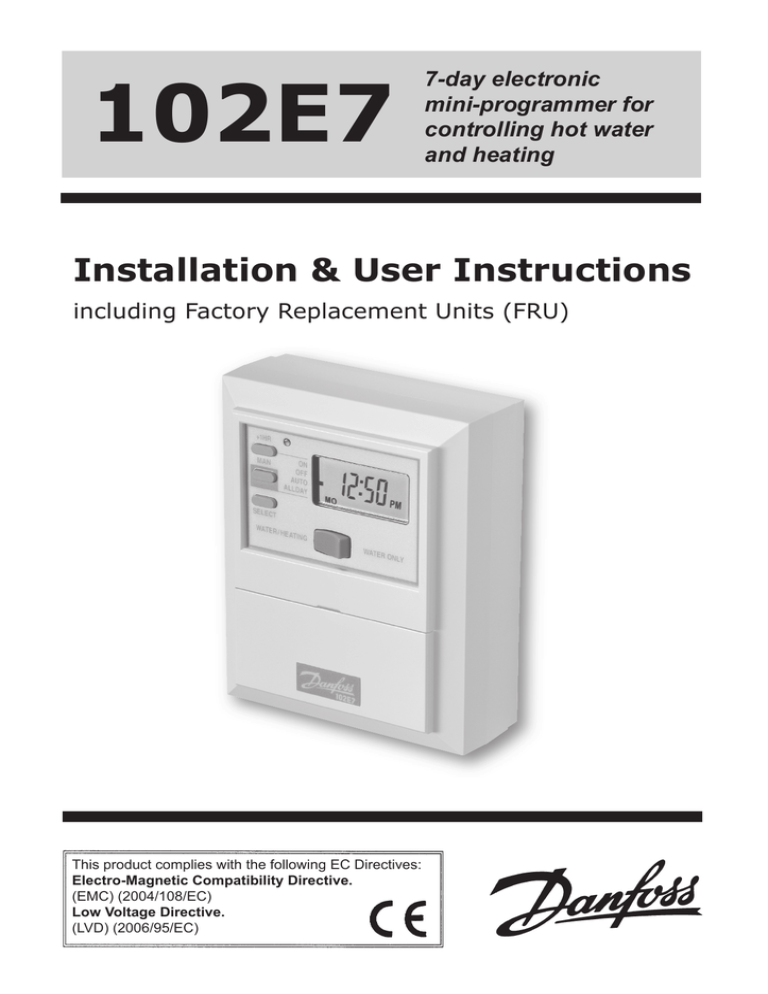

Danfoss | 102E7 | Installation & User Instructions

102E7
7-day electronic
mini-programmer for
controlling hot water
and heating
Installation & User Instructions
including Factory Replacement Units (FRU)
This product complies with the following EC Directives:
Electro-Magnetic Compatibility Directive.
(EMC) (2004/108/EC)
Low Voltage Directive.
(LVD) (2006/95/EC)
Index
Installation
Product specification
3
Installation
4-6
Wiring
6-9
Replacement
10-11
INDEX
User
2
Your programmer
12
Resetting the unit
12
24hr or AM/PM display
13
Setting the Time and Day
13
Factory preset programmes
14
Changing the preset programmes
15
Setting the programme - 7 day
16-17
Setting the programme - 5/2 day
18-19
Running your programme
20
Temporary user overrides
21
Changing clocks forward/back
22
Battery backup
23
Contact details
24
Installation Instructions
Please Note:
This product should only be installed by a qualified
electrician or competent heating installer, and
should be in accordance with the current edition of
the IEEE wiring regulations.
Product specification
Power supply
230 Vac ± 15%, 50 Hz
Switching action
1 x SPST, Type 1B
Max. Switch rating
264Vac, 50/60Hz, 3(1)A
Running/Setting Accuracy
±1 min./month
Power Reserve
Minimum 24 hours
Enclosure Rating
IP30
Max. Ambient Temperature
45°C
Dimensions, mm (W, H, D)
102 x 136 x 47
Design standard
EN 60730-2-7
Control Pollution Situation
Degree 2
Rated Impulse Voltage
2.5kV
Ball Pressure Test
75°C
Specification
Specification
3
Installation
NB. For FRU units - go straight to point 6 below.
1. Loosen the fixing screw in the base of the unit to release
the Wiring Cover.
2. Holding the unit face downwards, press firmly in the
centre of the wallplate and slide it apart and lift it from
the module.
3. Fix the wallplate and terminal block to the wall, or
plaster box, as required. Ensure that the screw heads
do not protrude beyond the vertical centre rib of the
wallplate, or this will prevent the module correctly
locating onto the wallplate.
Vertical centre rib
Installation
Screw fixing holes
(screwheads MUST
NOT protrude
above centre rib)
Wallplate & Terminals
4. Surface cables can only enter from below the unit. Cut
an appropriate cable aperture in the wiring cover. If the
wallplate is mounted on a plaster box, cables can enter
from the rear below the terminal block.
4
5. Electrical connections are simplified by using a Wiring
Centre. However, if this is not used, the wallplate
terminal identification is as shown.
Water
Heating
Mains Supply
(via 3 amp fuse)
ON
ON
COM
1
2
3
N
L
5
6
If the system being controlled is 230Vac then terminals
3 and L must be linked with insulated cable capable
of carrying full load current. Whilst the unit does not
require an earth connection, a terminal is provided on
the wallplate for earth continuity purposes.
7. Find out from the user whether the unit is required to
operate in 7-day mode (factory preset) or weekday/
weekend mode (5/2 day). To convert to 5/2 day
mode remove the small two-way connector from the
pins towards the left of the recess on the rear of the
module, then press the button marked R/S under the
flap to RESET the unit.
8. Ensure all dust and debris are cleared from the area.
Plug the module into the wallplate by locating it onto
the wallplate and, when flush with it, sliding it down,
ensure the hook at the top of the wallplate engages
with the slot at the back of the module.
9. Before setting the programme, check the unit and circuit.
Set the rocker switch to WATER & HEATING. Press the
SELECT button until the bar in the display lines up with
the word ON. Adjust the remote thermostats to check the
system operates correctly.
Installation
6. Referring to the wiring diagrams on page 6-9, connect
the unit as shown.
5
10. Then press the SELECT button until the bar lines up
with the word OFF and check the system does not
operate.
11. Set the rocker switch to WATER ONLY. Press the
SELECT button until the bar in the display lines up
with the word ON and check that the water circuit only
operates.
12. When the circuit check has been completed, replace
the wiring cover and tighten the fixing screw. Cut
any cable aperture in the wiring cover which may be
necessary to accommodate surface mounted cables.
13. Finally set time of day and programmes required,
noting that the unit is supplied with a pre-set
programme, as stated on Page 14.
102, 102E5, 102E7
Wiring
Wiring
6
Typical Gravity DHW with Pumped Heating
2
1
5
3
6
102E7
102E5
TERMINALS
TERMINALS
LINK
L
COM
N
ROOM
'STAT
L
N
N
BOILER
TERMINALS
L
N
PUMP
TERMINALS
Typical domestic gas or oil-fired central heating system
with gravity hot water and pumped heating. (If a room
thermostat is not used, wire pump live directly to terminal 2
of the 102E7).
Wiring
CALL
MAINS
SUPPLY
FUSED
3 AMP
7
Typical Heating and Hot Water control system using
3-port mid-position valve
2
1
5
3
6
102E7
102E5
TERMINALS
TERMINALS
LINK
L
ROOM
'STAT COM
CALL
N
WHITE
BLUE
OR
BROWN
N
CYL.
'STAT
COM
SAT
CALL
GREY
RED OR
ORANGE
Wiring
MID-POSITION VALVE
8
L
N
MAINS
SUPPLY
FUSED
3 AMP
BOILER &
PUMP
TERMINALS
The above control system is available as the Danfoss
Randall 102E7 HEATSHARE pack, which also includes the
RMT room thermostat, AT cylinder thermostat, HS3 midposition valve and a WB12 wiring box.
Typical Heating and Hot Water control system using
2-port zone valves
2
1
5
3
6
102E5
102E7
TERMINALS
TERMINALS
LINK
COM
L
COM
ROOM
'STAT
SAT
CALL CYL.
'STAT
N
N
MAINS
SUPPLY
FUSED
3 AMP
CALL
HEATING
VALVE
N
N
L
N
BOILER &
PUMP
TERMINALS
The above control system is available as the Danfoss
Randall 102E7 HEATPLAN pack, which also includes the
RMT room thermostat, AT cylinder thermostat, two 22mm
HPP zone valves and a WB12 wiring box.
Wiring
D.H.W
VALVE
9
10
2
2
2
1,3
HORSTMANN
DIAMOND 424
POTTERTON 423
SANGAMO S409 F1
& F4
SANGAMO (Early
model) S410 Form 4
Boiler
(8)
HORSTMANN
CORAL 423 & 424
2
4
RANDALL MKII R6
HORSTMANN
DIAMOND 423
4
RANDALL 3020P, 3060
4
5
4
4
4
Air ‘Stat
(8)
5
2
2
2
1
1
Heating
ON
Water
ON
RANDALL 102, 102E,
102E7
DANFOSS RANDALL
102E7
-
-
-
-
-
-
-
-
3
3
COM
Replacement
N,2
N,1,3
N
N
N
2,3
3
1,7
5
5 (N)
L
L
L,1,3
L,1,3
L,1,3
1
1,2
6
6
6 (L)
MAINS SUPPLY
(via 3 amp fuse)
4,6
5
5
5
4,7
6
3
A
6
6
5
7
5
B
6
6
C
An additional terminal block is required where these disconnected
leads (or pairs of leads) should be
terminated
11
3
5
3
5
3
3
V
2
2
SMITHS IND.
CENTROLLER 100
SMITHS IND.
CENTROLLER 60
SMITHS IND.
CENTROLLER 10
SMITHS IND.
CENTROLLER 70
SWITCHMASTER
320, 350
SWITCHMASTER 600
VENNER VENOTROL
VENNER VENOTROL
80 (Air ‘Stat)
VENNER VENOTROL
80 (Air ‘Stat Linked)
-
-
-
-
-
-
-
-
-
Replacement
5
A/S
S,F
1
1
4
2
4
2
N,1,3
N,1,3
N,A,M
N
N
1
N
1
N
L
L
L,L1
L
4,L
2
L
2
L
A/S,5
T,P
2
2
3
1,4
3
1
0
4
6
4
User Instructions
Your programmer
Your programmer & Resetting the unit
Your 102E7 mini-programmer allows you to switch your
heating and hot water on and off at times that suit you.
12
The 102E7 can provide 3 ON periods and 3 OFF periods each
day and can offer either 7-day control (a different programme
for each day of the week) or 5/2 day control (one set of
programmes for weekdays and a different set for weekends).
Before you start
Open the flap on the front of
the unit.
Press and release the R/S
button using a small, nonmetallic object (e.g. matchstick,
biro tip)
This will reset the unit, reinstate
the preset programmes and set
the time to 12:00pm on Monday.
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/S
Press and hold DAY and NEXT
ON/OFF buttons for 1.5 seconds
to toggle between 24hr clock and
AM/PM display, as required.
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/S
Setting the correct Time & Day
SETTING THE TIME
Press PROGRAMME once
R/S
The words SET TIME will appear
at the top of the display and the
time will flash on and off
Use + and – buttons to set the
correct time
When time is correct press
PROGRAMME again.
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/S
24hr or AM/PM display & Setting the Time & Day
Choice of 24hr or AM/PM display
SETTING THE DAY
Press DAY repeatedly until the
correct day of the week is displayed.
MO is Monday, TU is Tuesday etc.
R/S
13
Factory Presets
Factory preset programmes
The unit is supplied with the following preset programme
which will be active after the unit has been reset.
Mon-Fri
Sat-Sun
1st ON
6.30am
7.30am
1st OFF
8.30am
10.00am
2nd ON
12.00pm
12.00pm
2nd OFF
12.00pm
12.00pm
3rd ON
5.00pm
5.00pm
3rd OFF
10.30pm
10.30pm
NB. 2nd ON and 2nd OFF are set to the same time.
These 2 times are ignored by the programme therefore
the heating will just come on once in the morning and
once in the evening. If you want the heating to come on in
the middle of the day set the 2nd ON and 2nd OFF to the
times you require.
Accepting the preset times
If you are happy to use the settings above, you don’t
need to do anything else.
To accept the presets press the
PROGRAMME button until the colon
in the display begins to flash.
Your unit is now in RUN mode.
14
Before you change the preset programmes
Your installer will have set your unit to operate in one of the
following modes:
● 7 day - different settings for each day of the week
(page 16-17) - default setting
!
Please follow the correct instructions to programme
your unit.
Please Note
The unit must be programmed in sequence and ON/
OFF times cannot be set out of sequence.
If you want to leave a preset time as it is, simply press
NEXT ON/OFF to move on to the next setting
Your clock will allow you to programme 3 ON/OFF
settings per day. If you do not wish to use one of the
ON/OFF settings, simply programme the ON time to
be the same as the OFF time and the setting will not
operate.
!
Changing the preset programmes
● 5/2 day - one set of programmes for weekdays and
another for weekends (page 18-19)
If at any time you get confused and need to reset your
timings to the standard preset programme, press the
R/S button to return to the preset programmes.
15
Programming the heating & hot water
in 7-day mode
Programming the unit - 7-day mode
1.
Use the + and - buttons to
set the time you want your
heating to first come on in
the morning (Event 1).
2.
Press NEXT ON/OFF to
move to Event 2.
Either press COPY to use
the same settings as the
day before or continue to
programme the central
heating ON and OFF
times, using the + and
- buttons to set the time
you want and pressing the
NEXT ON/OFF button to
move to the next setting.
3.
16
Press PROGRAMME until
SET ON TIME appears at
the top of the display and
MO appears at the bottom
of the display.
Press DAY button once
only. TU will appear at the
bottom of the display.
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/S
R/S
R/S
R/S
R/S
a) NEXT ON/OFF button to
move to the next setting,
b) + and - buttons to amend
the time
c) DAY to advance to the next
day.
Alternatively press COPY to
keep the same settings as the
day before
4.
5.
Press the PROGRAMME
button to return the unit to
RUN mode
Proceed to page 20.
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/S
To advance to next time
setting
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/S
To amend TIME
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/S
To move to next DAY
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/S
COPY previous event times
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
Return to RUN mode
R/S
Programming the unit - 7-day mode
Continue programming the
rest of the week by pressing:
17
Programming the heating & hot water
in 5/2 day mode
Programming the unit - 5/2 day mode
1.
18
Press PROG until SET
ON TIME appears at the
top of the display and
MOTUWETHFR appears at
the bottom of the display.
Use the + and - buttons to
set the time you would like
your heating/hot water to
first come on in the morning
(Event 1).
2.
Press NEXT ON/OFF once
only.
Use the + and - buttons to
set the time you want your
heating/hot water to go off
(Event 2).
To move to the next setting,
i.e. when you would like your
heating/hot water to come
on again (Event 3) press the
NEXT ON/OFF button again.
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/
R/
R/
R/
R/
Continue programming the
heating/hot water ON and
OFF times for weekday
Events 4, 5 & 6 as in Step 2.
4.
Press the DAY button once
and SASU will appear at the
bottom of the display.
Either press COPY to
keep the same settings for
Saturday and Sunday as
you have programmed for
Monday to Friday.
Alternatively, programme
new ON/OFF times by
pressing the NEXT ON/OFF
button to move to the next
setting and using the + and
- buttons to set the time you
want.
5.
6.
Press the PROG button to
return the unit to RUN mode
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/
To advance to next time
setting
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/
To amend TIME
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/
COPY previous event times
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
Return to RUN mode
R/
Programming the unit - 5/2 day mode
3.
Proceed to page 20.
19
Running your programme
The 102E7 will either control your hot water and heating
together, or just your hot water (i.e. during the summer,
when heating is no longer required).
To make your selection use the rocker switch under
the LCD display to select either WATER/HEATING or
WATER ONLY
RUN mode
To run the central heating and/or hot water programme
press the SELECT button.
As you press SELECT a bar on the display will move
between ON, OFF, ALLDAY and AUTO
ON = the hot water/heating will remain on
constantly
OFF = the hot water/heating will not come on
AUTO = the hot water/heating will come on
and go off according to the programmed times
ALLDAY = the unit will come on at the first
programmed ON and will remain on until the
last programmed OFF
Select the option you require, depending on your
20 circumstances, time of year, etc.
Temporary User Overrides
Sometimes you may need to need change the way you
use your heating temporarily, i.e due to unusually cold
weather. The 102E7 has two convenient overrides which
can be selected without affecting the set programme.
+1HOUR
Press +1HOUR once if you need an extra hour of
operation (a red light will come on)
If the system is off it will come on for an hour. If it
is already on it will add an extra hour so the system
stays on for an extra hour.
To cancel the override press +1HOUR again (red light
will go off). Otherwise the override will self-cancel at
the next programmed event.
Override buttons
Override
buttons
MAN
Press MAN button once to manually override the
programme (only whilst unit is set to AUTO or
ALLDAY) (a red light will come on)
If the system is on it will go off. If it is off it will
come on. The set programme will resume at the next
programmed ON/OFF time.
To cancel the override press MAN again (red light
will go off).
21
Changing clocks forward & backwards (Summer/Winter)
22
Changing clock forward/back
To change from Summer to Winter
(clocks back)
- press and hold - button
To change from Winter to Summer
(clocks forward)
- press and hold + button
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
PROGRAMME
+
DAY
NEXT/ON/OFF
-
COPY
R/S
R/S
NOTE: After the first time this change has been made
this feature will only allow the clock to be changed in
the correct direction.
Take care when making this
change for the first time.
If it is made in the wrong
direction the unit will have
to be reset and any usersettings re-entered.
!
Battery backup
In the event of a power cut, the built-in battery will keep
your time and programme settings for up to 2 days.
After 2 days without mains power the display will become
blank and the memory will be lost.
When mains power is restored, the unit should be
RESET, by pressing the R/S button beneath the flap,
using a small non-metallic object, i.e. matchstick, biro tip
(see page 12).
Battery backup
The clock will now be set to 12.00pm on Monday, the
preset programme will be active and any programme
changes will have to be re-entered.
23
Still having problems?
Call your local heating engineer:
Name:
Tel:
Visit our website:
www.danfoss-randall.co.uk
Email our technical department:
drl_technical@danfoss.com
Call our technical department
0845 121 7505
(8.45-5.15 Mon-Thurs, 8.45-4.45 Fri)
For a large print version of these
instructions please contact the Marketing
Services Department on 0845 121 7400.
Danfoss Randall Ltd
Ampthill Road
Bedford
MK42 9ER
Tel: 01234 364621
Fax: 01234 219705
Part No 2754v03 Issue 3 01/08
Download PDF
