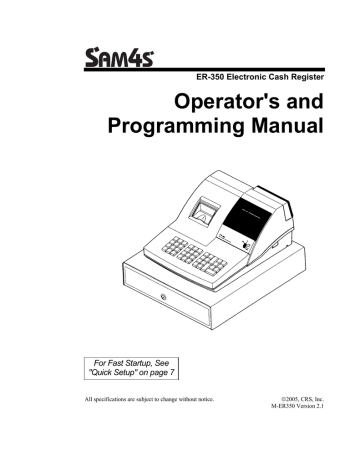

ER-350 Electronic Cash Register

Operator's and

Programming Manual

For Fast Startup, See

"Quick Setup" on page 7

All specifications are subject to change without notice.

©2005, CRS, Inc.

M-ER350 Version 2.1

CRS, Inc.

Limited Warranty and Disclaimers of Warranty

This manual has been developed by CRS, Inc. It is intended for the use of its customers and service personnel and should be read in its entirety before attempting to install, use or program the product(s).

Nothing contained in this manual shall be deemed to be, and this manual does not constitute, a warranty of, or representation with respect to, the product or any of the products to which this manual applies. This manual is subject to change without notice and CRS, Inc. has no obligation to provide any updates or corrections to this manual. Further, CRS, Inc. also reserves the right, without prior notice, to make changes in equipment design or components as it deems appropriate. No representation is made that this manual is complete or accurate in all respects and CRS, Inc. shall not be liable for any errors or omissions contained in this manual. In no event shall CRS, Inc. be liable for any incidental or consequential damages relating to or arising out of the use of this manual. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied or reproduced without prior written consent of CRS, Inc.

NOTICE

IF ANY WARRANTY IS EXTENDED TO YOU WITH REGARD TO THE PRODUCT(S) TO WHICH THIS MANUAL APPLIES, IT

IS A WARRANTY FROM THE ENTITY OR INDIVIDUAL FROM WHOM YOU DIRECTLY PURCHASED THE PRODUCT(S).

SUBJECT TO THE FOREGOING, UNLESS YOU ARE A DIRECT END USER CUSTOMER OF CRS, INC., CRS, INC. DOES NOT

EXTEND TO YOU ANY EXPRESS WARRANTY OR ANY IMPLIED WARRANTY AND EXPRESSLY DISCLAIMS ANY IMPLIED

WARRANTY OF MERCHANTABILITY, FITNESS FOR USE, OR FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY

WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS IN CONNECTION WITH THE PRODUCT(S)

OR ANY SOFTWARE, DRIVERS, OR PROGRAMMING PRODUCT, WHETHER EMBEDDED IN PRODUCT(S) OR PROVIDED AS

A SEPARATE PROGRAM, OR USED IN CONJUNCTION WITH THIS/THESE PRODUCT(S). CRS, INC. SPECIFICALLY DOES

NOT WARRANT THAT THE OPERATION OF ANY DRIVERS, SOFTWARE, OR PROGRAMMING PRODUCTS LICENSED

HEREUNDER, WHETHER EMBEDDED IN PRODUCTS OR PROVIDED AS SEPARATE PROGRAMS, SHALL BE

UNINTERRUPTED OR ERROR FREE OR THAT FUNCTIONS CONTAINED IN SUCH DRIVERS, SOFTWARE OR

PROGRAMMING PRODUCTS SHALL OPERATE IN COMBINATION(S) WHICH MAY BE SELECTED FOR USE BY YOU OR

OTHERWISE MEET YOUR REQUIREMENTS.

CRS, Inc. is not responsible for any damages or loss, either direct, indirect, special, incidental or consequential, which you may experience as a result of your purchase or use of the product(s). Your sole remedy in the event that you encounter any difficulties with the product(s) is against the entity or individual from whom you purchased the product(s).

Revision 2.0 - April 1, 2005

WARNING - U.S.

THIS EQUIPMENT GENERATES, USES AND CAN RADIATE RADIO FREQUENCY ENERGY, AND IF NOT INSTALLED AND USED

IN ACCORDANCE WITH THE INSTRUCTIONS MANUAL, MAY CAUSE INTERFERENCE TO RADIO COMMUNICATIONS. IT HAS

BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A COMPUTING DEVICE PURSUANT TO SUBPART J

OF PART 15 OF FCC RULES WHICH ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST SUCH

INTERFERENCE WHEN OPERATED IN A COMMERCIAL ENVIRONMENT. OPERATIONS OF THE EQUIPMENT IN A

RESIDENTIAL AREA IS LIKELY TO CAUSE INTERFERENCE IN WHICH CASE THE USER, AT HIS OWN EXPENSE, WILL BE

REQUIRED TO TAKE WHATEVER MEASURES MAY BE REQUIRED TO CORRECT THE INTERFERENCE.

NOTICE - CANADA

THIS APPARATUS COMPLIES WITH THE CLASS “A” LIMITS FOR RADIO INTERFERENCE AS SPECIFIED IN THE CANADIAN

DEPARTMENT OF COMMUNICATIONS RADIO INTERFERENCE REGULATIONS.

CET APPAREIL EST CONFORME AUX NORMES CLASS “A” D’INTERFERENCE RADIO TEL QUE SPECIFIER PAR MINISTRE

CANADIEN DES COMMUNICATIONS DANS LES REGLEMENTS D’INTERFERENCE RADIO.

ATTENTION

The product that you have purchased may contain a battery that may be recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of the battery into the municipal waste system.

Check with your local solid waste officials for details concerning recycling options or proper disposal

.

Contents

Introduction 1

Using This Manual .................................................................................................................... 1

Using Flowcharts......................................................................................................... 1

Basic Features and Functions .................................................................................................... 2

Keyboard ..................................................................................................................... 2

Control Lock ............................................................................................................... 4

Display ........................................................................................................................ 5

Quick Setup

7

Unpacking.................................................................................................................................. 7

Installing the Paper .................................................................................................................... 7

Installing the Ribbon Cartridge ............................................................................................... 10

Clearing Memory..................................................................................................................... 11

Basic Programming ................................................................................................................. 12

Setting the Date ......................................................................................................... 12

Setting the Time ........................................................................................................ 12

Programming Tax...................................................................................................... 13

Programming a Taxable Department......................................................................... 15

Basic Operations...................................................................................................................... 16

Registering Items....................................................................................................... 16

Totaling a Cash Sale.................................................................................................. 17

Tendering a Cash Sale............................................................................................... 17

Tendering a Check Sale............................................................................................. 18

Totaling a Charge Sale .............................................................................................. 18

Advanced Operating Instructions

19

Clerk Operations...................................................................................................................... 19

Clerk Sign On............................................................................................................ 19

Clerk Sign Off ........................................................................................................... 19

Department Registrations ........................................................................................................ 20

Open Department ...................................................................................................... 20

Preset Price Department ............................................................................................ 20

Department Repeat Entry .......................................................................................... 21

Multiplication ............................................................................................................ 21

Department Multiplication With Decimal Point........................................................ 22

Split Pricing............................................................................................................... 22

Single Item Department............................................................................................. 23

PLU (Price Look Up) Registrations ........................................................................................ 24

Open PLU.................................................................................................................. 24

Preset Price PLU ....................................................................................................... 24

PLU Repeat Entry ..................................................................................................... 24

PLU Multiplication.................................................................................................... 25

PLU Multiplication With Decimal Point................................................................... 25

ER-350 Electronic Cash Register V2.1 i

ii

Split Pricing PLU ......................................................................................................26

Shifting or Exempting Tax ......................................................................................................27

Shifting Tax ...............................................................................................................27

Exempting Tax ..........................................................................................................28

Percent Key (+% and -%) Operations......................................................................................29

Preset Percent on a Department or PLU Item............................................................29

Enter a Percent on a Department or PLU ..................................................................29

Percent On Sale Total ................................................................................................30

Return Merchandise Registrations...........................................................................................30

Voids and Corrections .............................................................................................................31

Void Last Item...........................................................................................................31

Void Previous Item....................................................................................................31

Cancel ........................................................................................................................32

Void Position Operations ..........................................................................................32

- (Minus) Key Registrations ....................................................................................................33

No Sale Operations ..................................................................................................................34

Open Drawer .............................................................................................................34

Non Add Number ......................................................................................................34

Received On Account Operations............................................................................................35

Paid Out Operations.................................................................................................................35

Totaling and Tendering............................................................................................................36

Subtotaling a Sale ......................................................................................................36

Totaling a Cash Sale ..................................................................................................36

Tendering a Cash Sale ...............................................................................................37

Tendering a Check Sale.............................................................................................37

Totaling a Charge Sale ..............................................................................................38

Check Cashing...........................................................................................................38

Split Tender ...............................................................................................................39

Post Tender................................................................................................................40

Currency Conversion.................................................................................................41

Add Check .................................................................................................................42

Receipt On/Off and Receipt on Request....................................................................43

Advanced Programming Instructions

45

Department Programming........................................................................................................45

Programming Department Status...............................................................................45

Programming Department Entry Limit or Price ........................................................48

System Option Programming...................................................................................................50

System Option Table .................................................................................................52

Advanced Tax Programming ...................................................................................................54

Tax Rate Programming..............................................................................................54

Tax Table Programming ............................................................................................56

+% and -% Key Programming.................................................................................................58

- (Minus) Key Programming....................................................................................................60

CANCEL Key Programming ...................................................................................................62

Programming the CANCEL Key...............................................................................62

Currency Conversion ...............................................................................................................63

Programming Clerks ................................................................................................................64

PLU (Price Look Up) Programming........................................................................................66

Programming PLU Status..........................................................................................66

Programming PLU Entry Limit or Price ...................................................................69

Setting a Register Number .......................................................................................................71

Programming Descriptions ......................................................................................................72

Customer Logo ..........................................................................................................72

ER-350 Electronic Cash Register V2.1

Department Descriptor .............................................................................................. 74

PLU Descriptor ......................................................................................................... 75

Code Table ................................................................................................................ 76

Setting Receipt/Journal Status ................................................................................................. 77

Printing a Programming Report............................................................................................... 77

Reports 79

Report Summary...................................................................................................................... 79

Running a Report ...................................................................................................... 80

Cash-In-Drawer Declaration.................................................................................................... 80

Declaring Cash .......................................................................................................... 80

Report Samples........................................................................................................................ 81

Financial Report ........................................................................................................ 81

Hourly Sales Report .................................................................................................. 84

PLU Report ............................................................................................................... 85

Clerk Report .............................................................................................................. 86

Cash-in-Drawer Report ............................................................................................. 87

Check-in-Drawer Report ........................................................................................... 87

System Balancing .................................................................................................................... 88

Department Sales Total ............................................................................................. 88

Net Total.................................................................................................................... 88

Gross Total ................................................................................................................ 88

Grand Total ............................................................................................................... 88

Manual Revision Record

89

ER-350 Electronic Cash Register V2.1 iii

Introduction

Using This Manual

Congratulations! You have selected a very flexible electronic cash register designed for years of reliable service. The SAM4s ER-350 will fit many retail stores, shops and restaurants. It provides fast transaction processing, security, and detailed sales information.

• To Get Started turn to “Quick Setup” on page 7. This section covers unpacking, memory clearing, a few simple programming steps, and instructions for basic cash register transactions. All of the features of the SAM4s ER-350 (except the clerk functions) operate immediately, without additional programming steps. In most cases, all the programming you need to do is covered in this section.

• For information about reports and balancing see “Reports” on page 79.

This manual also includes detailed information about many additional features that will help you solve the special calculation problems or security issues that you might face.

• For detailed programming instructions, see “Advanced Programming” on page 45.

• For detailed operations sequences, see “Advanced Operating Instructions” on page 19.

Using Flowcharts

Flowcharts are used to supplement step by step instructions throughout this manual. For example, the following flowchart describes how to register $1.00 into department 1/9:

1 0 0

1/9

This flowchart means:

1. Press numeric key 1.

2. Press numeric key 0.

3. Press numeric key 0.

Follow the flowchart from left to right, pressing the keys in the order they are shown. Numeric keypad entries are shown as square keys. Department and function keys are shown as rectangular keys.

ER-350 Electronic Cash Register V2.1 Introduction

1

Basic Features and Functions

Keyboard

PAPER

FEED

#/NO

SALE

@/

FOR

7 8 9

4/12 8/16

DEPT

SHIFT

CLERK

#

RECD

ACCT

+% -%

4

5 6 PLU

ADD

CHECK

PAID

OUT

3/11 7/15

CANCEL

MDSE

RTRN

C/

CONV

TAX

SHIFT

VOID

CLEAR

1

0

2

00

3

.

2/10

1/9

6/14 SUB

TOTAL

CHARGE

CHECK

TEND

CASH/TEND

5/13

Key Descriptions

Key

PAPER FEED

Numeric Keypad:

0-9 and 00

CLEAR

Department Keys

DEPT SHIFT

#/NO SALE

@/FOR

VOID

Description

Press to advance then printer paper.

Use the numeric keypad to enter amounts, other numeric values.

Press to clear numeric errors made on keyboard prior to pressing the registration key. Also press to stop the error alarm when incorrect entries are made.

There are eight department keys on the keyboard to register different types of merchandise. (Eight additional department classifications are available by using the DEPT SHIFT key, for a total of 16 department classifications.)

Departments may be used to accept open priced entries, or may be programmed to register preset prices

Press the Department Shift key before pressing a department to access departments 9 to 16.

Press to open the cash drawer when you have not already started a transaction. Also, may be used to print any number (up to 8 digits) on the printer paper.

Enter a quantity, then press the @/FOR key to enter multiple items. Also use to enter “split pricing” items, such as 1 item at 3 for $.89.

Press to void (or erase) the last item entered. You can also void an item previously entered within a transaction by pressing SUBTOTAL, then

VOID then re-entering the item you wish to correct.

2

Introduction

ER-350 Electronic Cash Register V2.1

RTRN MDSE

- (MINUS)

CANCEL

C/CONV

-% , +%

PLU

RECD ACCT

PAID OUT

TAX SHIFT

. (Decimal)

CLERK #

SUB TOTAL

CHARGE

CHECK

CASH/TEND

ADD CHECK

If you wish to return or refund an item, press Return Merchandise, then reenter any item you wish.

Register a negative amount by entering a price, then pressing the -

(MINUS) key. For example, you can enter bottle returns or coupons using the - (MINUS) key.

Press to void (or erase) all items entered thus far in any transaction.

Press the Currency Conversion key to convert the sale subtotal into an equivalent value in foreign currency. You must first program foreign currency exchange rates. See “Currency Conversion” on page 63.

Use the Percent keys to add a percentage surcharge or subtract a percentage from an item or the subtotal of the sale. You can enter the amount of the percentage before pressing the -% or +% keys, or you can program a preset percentage if you are consistently using the same percentage. See “+% and

-% Key Programming” on page 58 to set a preset percentage.

Use to register a Price Look Up (PLU).

Use to accept cash into the cash drawer when you are not actually selling merchandise. For example, use the Received on Account key to accept payments for previously sold merchandise, or record loans to the cash drawer.

Use to track cash paid out for merchandise or to record loans from the cash drawer.

Press to reverse the programmed tax status of a department key. For example, by using the TAX SHIFT key prior to registering a taxable item, the item will be sold without sales tax added.

Use the Decimal key to enter fractions of percentages. For example to enter a one third off discount, enter 3 3 . 3 3 before pressing the -% key.

Use to sign on or sign off a clerk, if you have decide to use a clerk sales tracking system. See “Programming Clerks” on page 64.

Press to see the subtotal of a sale.

Press to total a transaction paid by charge or credit card.

Press to total a transaction paid by check. Also if the check amount is over the amount purchased, enter the amount of the check, then press the

CHECK key. The drawer will open and the cash change will be computed.

Press to total a transaction paid by cash. Also if the cash amount tendered is over the amount purchased, enter the amount of the tender, then press the

CASH/TEND key. The drawer will open and the cash change will be computed.

Press when you wish to issue a receipt, but not yet pay for the sale. For example, one person may wish to pay for two guest checks at a restaurant, or one person may pay for two admissions, where separate receipts are required for each person.

ER-350 Electronic Cash Register V2.1 Introduction

3

Control Lock

OFF

VOID Use to void (correct) items outside of a sale.

VOID REG

X

OFF

The register is inoperable.

REG Use for normal registrations.

X Use to read register reports.

Z

PGM

Z Use to read register reports and reset totals to zero.

PGM Use to program the register.

The SAM4s ER-350 includes two sets of keys that may be used to access the following key lock positions.

Key Positions Accessible

VOID

X

Z

PGM

VOID, OFF, REG, X

OFF, REG X

OFF, REG, X, Z

ALL POSITIONS

Note: Keys may be removed from the key lock in the OFF or REG positions.

4

Introduction

ER-350 Electronic Cash Register V2.1

Display

Front Display

DPT RPT AMOUNT

DPT

RPT

AMOUNT

CLERK

Indicates the department number of the registration (2 digits).

Indicates the number of times an item has been repeated.

Displays the amount the amount of the item, subtotal or total.

If the clerk system is implemented, one of 10 lines illuminate indicating which clerk is active.

Display Messages

C

Change Due

E

Error

-

Negative entry

=

Total

E1

Input Error

E3

Printer Error (paper jam)

Rear Display

The rear display may be lifted and turned for easy customer viewing.

ER-350 Electronic Cash Register V2.1 Introduction

5

Quick Setup

Unpacking

1. Unpack and Unwrap the cash register.

2. Locate in the packing the following items:

• 1 roll of paper

• 1 ribbon cartridge

• 1 rewind spindle

• 1 set of control keys

3. Remove the cardboard protectors from the cash drawer.

4. Plug the register into a grounded outlet (three prong), insert a control key and turn the key to the REG control lock position.

Installing the Paper

1. Remove the printer cover.

Quick Setup

7

ER-350 Electronic Cash Register V2.1

8

Quick Setup

2. For proper feeding through the print head, cut or tear a straight even edge on the end of the paper roll. Place the paper roll in the paper holder so that the paper will feed from the bottom of the roll.

3. Insert the end of the paper into the paper slot.

ER-350 Electronic Cash Register V2.1

5. If you wish to use the printer to print a sales journal, insert the paper into the paper take-up spool. Also see “Setting Receipt/Journal Status” on page 77. Wind the paper two or three turns around the spool shaft and install the spool in the mount.

6. If you wish to use the printer to print customer receipts, pass the paper through the window of the printer cover and replace the printer cover.

ER-350 Electronic Cash Register V2.1 Quick Setup

9

Installing the Ribbon Cartridge

1. Remove the printer cover.

2. If you are replacing a worn ribbon, lift up to remove the old cartridge. You must install the first cartridge on a new cash register.

3. Insert the new ribbon cartridge firmly into place.

4. Turn the post on the ribbon cartridge to tighten the ribbon.

5. Replace the printer cover

10

Quick Setup

ER-350 Electronic Cash Register V2.1

Clearing Memory

This step insures that the cash register is cleared of any totals or programming. After this procedure, the cash register is ready for programming and operation.

WARNING: This is a one time procedure. Do not repeat this procedure after the cash register is programmed, it causes all programs and totals to be erased.

1. Unplug the register.

2. Turn the control lock to PGM position.

3. Press and hold the CLEAR key while connecting the AC plug into a power outlet.

CLEAR

POWER

UP

4. When memory is cleared, the register prints:

# INITIAL RAM ALL CLEAR #

ER-350 Electronic Cash Register V2.1 Quick Setup

11

Basic Programming

This section covers the basic programming necessary to get your cash register running quickly. See

“Advanced Programming” on page 45 for if you wish to program options that are not included in this section.

Setting the Date

The date sequence is Month-Day-Year.

1. Turn the control lock to the PGM position.

2. Enter the date in the format you have selected and press the SUBTOTAL key:

M M D D Y Y

@/

FOR

Date Setting Example

If the date is March 1, 1999, enter:

0 3 0 1 9 6

@/

FOR

The date you have entered will display and print on the printer:

03-01-1999

Setting the Time

1. Turn the control lock to the PGM position.

2. Enter the hour and minute in military time (24 hour time) and press the @/FOR key:

H H M M

@/

FOR

Time Setting Example

If the time is 3:25 PM, enter:

1 5 2 5

@/

FOR

The time you have entered will display and print on the printer:

15:25

12

Quick Setup

ER-350 Electronic Cash Register V2.1

Programming Tax

Most sales taxes can be programmed by entering a tax percentage rate. However, in some cases you may find that tax that is entered as a percentage does not follow exactly the tax chart that apply in your area. If this is the case, you must enter your tax using tax table programming. This method will match tax collection exactly to the break points of your tax table. See “Tax Table Programming” on page 56.

Important Note: After you have entered your tax program, test for accuracy by entering several transactions of different dollar amounts. Carefully check to make sure the tax charged by the cash register matches the tax amounts on the printed tax chart for your area. As a merchant, you are responsible for accurate tax collection. If the cash register is not calculating tax accurately, or if you cannot program your tax properly from the information in this manual, contact your local SAM4s dealer for assistance.

Programming a Tax Rate Percentage

1. Turn the control lock to the PGM position.

2. Enter the rate, with a decimal. 0.000-99.999. It is not necessary to enter proceeding zeros. For example, for 6%, enter 06.000 or 6.000.)

4. Enter:

1 to set tax rate 1

2

to set tax rate 2

3

to set tax rate 3

7. See tax rate program examples on page 14.

Tax Rate Programming Flowchart

.

Tax Rate

0 0

Tax #

(1-3)

TAX

SHIFT

CASH/

TEND

Please Note: After programming the tax rate, you must program your department or departments taxable to calculate tax. See page 15 for department programming steps.

ER-350 Electronic Cash Register V2.1 Quick Setup

13

Tax Rate Programming Example

If tax 1 is 6 percent, enter:

6 .

0 0 0 0 0 1

TAX

SHIFT

If tax 2 is 7.5 percent, enter:

7 .

5 0 0 0 0 2

If tax 3 is 10 percent, enter:

1 0 .

0 0 0 0 0 3

Press the CASH/TEND key to end programming.

CASH/

TEND

The rates you have entered will display and print on the printer:

TAX1 STATUS 00

TAX1 RATE 6.000

TAX2 STATUS 00

TAX2 RATE 7.500

TAX3 STATUS 00

TAX3 RATE 10.000

PROGRAM TERMINATE

01-03-1999 16:36

000013 0

TAX

SHIFT

TAX

SHIFT

14

Quick Setup

ER-350 Electronic Cash Register V2.1

Programming a Taxable Department

1. Turn the control lock to the PGM position.

2. Complete the tax status table below by adding the status digits for each tax. Then enter the resulting tax status code.

Taxable by Rate 1? Yes = 1

No = 0

+

Taxable by Rate 2?

+

Taxable by Rate 3?

Yes = 2

No = 0

Yes = 4

No = 0

+

=

4. Press the department key you wish to program, or press DEPT SHIFT and the appropriate department if you are programming departments 9-16.

5. Repeat steps 2, 3 and 4 for each department you wish to program.

Taxable Department Programming Flowchart

Repeat for each

Department

Tax

Status

Code

@/

FOR

DEPT

SHIFT

Use DEPT SHIFT for depts 9-16

DEPT

KEY

CASH/

TEND

Taxable Department Programming Example

Set department 1 taxable by tax rate 1:

1

@/

FOR 1/9

Press the CASH/TEND key to end programming.

CASH/

TEND

The tax status you have entered will display and print on the printer:

DEPT.1 T1 0

PROGRAM TERMINATE

01-03-1999 16:36

000014 00

ER-350 Electronic Cash Register V2.1 Quick Setup

15

Basic Operations

Registering Items

1. Enter an amount on the ten key pad. Do not use the decimal key. For example, for

$2.99, enter:

2 9 9

2. Press a department key. For example, press department 1/9:

1/9

Repeating an Item

3. To register a second item exactly as the first, press the department key a second time.

For example, press department 1/9:

1/9

Registering Multiple Items

4. Enter the quantity of items being purchase, press the @/FOR key. For example, enter

4 on the numeric key pad and press the @/FOR key:

4

@/

FOR

5. Enter an amount on the ten key pad. Do not use the decimal key. For example, for

$1.99, enter:

1 9 9

6. Press a department key. For example, press department 2/10:

2/10

16

Quick Setup

ER-350 Electronic Cash Register V2.1

Totaling a Cash Sale

1. Register the items you wish to sell.

2. To display and print the subtotal of the sale including tax, press SUBTOTAL:

SUB

TOTAL

3. To total a cash sale, press CASH/TEND:

CASH/

TEND

4. The display will indicate “=” for total, the drawer will open and the receipt will print as in the example on the right.

Tendering a Cash Sale

1. Register the items you wish to sell.

2. To display and print the subtotal of the sale including tax, press SUBTOTAL:

SUB

TOTAL

3. Enter the amount tendered by the customer.

For example, for $20.00 enter:

2 0 0 0

CASH/

TEND

5. The display will indicate “C” for change, the drawer will open and the receipt will print as in the example on the right.

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 99

DEPT.1 T1 $2 99

4 X @1.99

DEPT.2 $7 96

SUBTOTAL $14.30

TAXABLE1 $5.98

TAX1 AMOUNT $0.36

CASH $14.30

03-01-1999 15:27

000002 00

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 99

DEPT.1 T1 $2 99

4 X @1.99

DEPT.2 $7 96

SUBTOTAL $14.30

TAXABLE1 $5.98

TAX1 AMOUNT $0.36

TOTAL $14.30

CASH $20.00

CHANGE $5.70

03-01-1999 15:27

000004 00

ER-350 Electronic Cash Register V2.1 Quick Setup

17

Tendering a Check Sale

1. Register the items you wish to sell.

2. To display and print the subtotal of the sale including tax, press SUBTOTAL:

SUB

TOTAL

3. Enter the amount of the check tendered by the customer. For example, for $20.00 enter:

2 0 0 0

CHECK

5. The display will indicate “C” for change, the drawer will open and the receipt will print as in the example on the right.

Totaling a Charge Sale

1. Register the items you wish to sell.

2. To display and print the subtotal of the sale including tax, press SUBTOTAL:

SUB

TOTAL

CHARGE

4. The display will indicate “=” for total, the drawer will open and the receipt will print as in the example on the right.

Note: Charge tendering is not allowed.

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 99

DEPT.1 T1 $2 99

4 X @1.99

DEPT.2 $7 96

SUBTOTAL $14.30

TAXABLE1 $5.98

TAX1 AMOUNT $0.36

TOTAL $14.30

CHECK $20.00

CHANGE $5.70

03-01-1999 15:27

000005 00

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 99

DEPT.1 T1 $2 99

4 X @1.99

DEPT.2 $7 96

SUBTOTAL $14.30

TAXABLE1 $5.98

TAX1 AMOUNT $0.36

CHARGE $14.30

03-01-1999 15:27

000006 00

18

Quick Setup

ER-350 Electronic Cash Register V2.1

Advanced Operating

Instructions

Clerk Operations

If you wish to use the clerk system, you must first activate the clerk system by setting system option

#16. See “System Option Programming” on page 50. You can activate the clerk system for stay down or pop-up mode.

• Stay down means that once a clerk is signed on, the same clerk will remain signed on until a different clerk signs on or the original clerk signs off. A stay down clerk system might be used when only one operator uses the register at a time, and a different operator begins when a work shift is changed.

• Pop-up means that the clerk is automatically signed off an the end of each transaction.

Therefore, to begin a transaction, you must first sign a clerk on. A pop-up clerk system might be used in a department store, where several clerks might use the register during the same shift, and clerk sales information is required.

Clerk Sign On

♦ To sign on, enter the secret code and press the CLERK key, or press the CLERK key, then enter the secret code and press the CLERK key again.

CLERK or CLERK CLERK

Secret clerk #

Secret clerk #

Clerk Sign Off

♦ To sign off, enter 0, press the CLERK key.

0 CLERK

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

19

Department Registrations

As you make department registrations, you can follow your entries by viewing the display. The digits marked “DPT” indicate the department used. The digit marked “RPT” counts items as they are repeated.

Open Department

1. Enter an amount on the ten key pad. Do not use the decimal key. For example, for

$2.99, enter:

2 9 9

2. Press a department key. For example, press department 1/9:

1/9

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 99

TAXABLE1 $2.99

TAX1 AMOUNT $0.18

CASH 3.17

03-01-1999 15:27

000002 00

Preset Price Department

A preset department registers the price that was previously programmed. See “Department

Programming” on page 45 to program preset prices.

1. Press a preset department key. For example, press department 5/13:

5/13

THANK-YOU

CALL AGAIN

DEPT.5 $1 29

CASH $1.29

03-01-1999 15:27

000005 00

20

Advanced Operating Instructions

ER-350 Electronic Cash Register V2.1

Department Repeat Entry

Open or preset price departments may be repeated as many times as necessary by pressing the same department again. (Likewise open or preset PLUs may be repeated by pressing the PLU key again.)

1. Enter an amount on the ten key pad. Do not use the decimal key. For example, for

$2.99, enter:

2 9 9

2. Press a department key. For example, press department 1/9:

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 99

DEPT.1 T1 $2 99

TAXABLE1 $5.98

TAX1 AMOUNT $0.36

CASH $6.34

03-01-1999 15:28

000006 00

1/9

3. To register a second item exactly as the first, press the department key a second time. For example, press department 1/9:

1/9

Multiplication

When several of the same items are to be entered into the same Department, you can use multiplication. You may enter a quantity up to 4 figures (1 to 9999) using the @/FOR key. You may multiply open or preset departments.

1. Enter the quantity of items being purchased, press the @/FOR key. For example, enter 4 on the numeric key pad and press the @/FOR key:

4

@/

FOR

2. Enter an amount on the ten key pad. Do not use the decimal key. For example, for

$1.99, enter:

1 9 9

Press a department key. For example, press department 1/9:

THANK-YOU

CALL AGAIN

4 X @1.99

DEPT.1 T1 $7 96

TAXABLE1 $7.96

TAX AMOUNT $0.48

SUBTOTAL $7.96

CASH $8.44

03-01-1999 15:29

000007 00

1/9

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

21

Department Multiplication With Decimal Point

If you are selling items by weight, or if you are selling yard goods, you can multiply a fraction of a unit.

1. Enter the quantity purchased with the decimal point, press the @/FOR key. For example, for 3 ¾ pounds of produce, enter:

3 .

7 5

@/

FOR

2. Enter an amount on the ten key pad. Do not use the decimal key. For example, if the price is $.99 per pound, enter:

9 9

Press a department key. For example, press department 1/9:

THANK-YOU

CALL AGAIN

3.750 X @0.99

DEPT.1 T1 $3 71

TAXABLE1 $3.71

TAX AMOUNT $0.22

CASH $3.93

03-01-1999 15:30

000008 00

1/9

Split Pricing

When items are priced in groups, i.e. 3 for $1.00, you can enter the quantity purchased and let the register calculate the correct price.

1. Enter the quantity purchased, press the

@/FOR key. For example, enter:

2

@/

FOR

2. Enter the quantity of the group price, press the @/FOR key. For example, if the items are priced 3 for $1.00, enter:

3

@/

FOR

THANK-YOU

CALL AGAIN

2/3 X @1.00

DEPT.1 T1 $0.67

TAXABLE1 $0.67

TAX AMOUNT $0.04

CASH $0.71

03-01-1999 15:31

000009 00

3. Enter an amount on the ten key pad. For example, if the items are priced 3 for

$1.00, enter:

1 0 0

4. Press a department key. For example, press department 1/9:

1/9

22

Advanced Operating Instructions

ER-350 Electronic Cash Register V2.1

Single Item Department

Single item departments automatically total as a cash sale immediately after registration. Use single item departments for speedy one item sales. For example if you are selling admission tickets, and all ticket sales are one item sales, you can assign open or preset department single item department for ticket sales. After each registration, the drawer will immediately open, and a separate receipt is printed. See “Department Programming” on page 45 to program a single item department.

1. Press a single item preset department key.

(or enter a price and press a single item open department key.) For example, press department 6/14:

6/14

THANK-YOU

CALL AGAIN

DEPT.6 $1 29

CASH 3.17

03-01-1999 15:32

000010 00

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

23

PLU (Price Look Up) Registrations

PLUs must be programmed before they may be operated. See “PLU (Price Look Up) Programming” on page 66 to program open or preset PLUs.

Open PLU

1. Enter the PLU number, press the PLU key.

For example, enter:

2 PLU

2. Enter an amount on the ten key pad. Do not use the decimal key. For example, for

$2.99, enter:

2 9 9

PLU

Preset Price PLU

1. Enter the PLU number, press the PLU key.

For example, enter:

1 PLU

THANK-YOU

CALL AGAIN

PLU2 T1 $2 99

TAXABLE1 $2.99

TAX1 AMOUNT $0.18

CASH 3.17

03-01-1999 15:45

000032 00

THANK-YOU

CALL AGAIN

PLU1 $1 29

CASH $1 29

03-01-1999 15:46

000033 00

PLU Repeat Entry

1. Enter the PLU number, press the PLU key.

For example, enter:

1 PLU

2. To register a second item exactly as the first, press the PLU key a second time:

PLU

THANK-YOU

CALL AGAIN

PLU1 T1 $2 99

PLU1 T1 $2 99

TAXABLE1 $5.98

TAX1 AMOUNT $0.36

CASH $6.34

03-01-1999 15:51

000035 00

24

Advanced Operating Instructions

ER-350 Electronic Cash Register V2.1

PLU Multiplication

When several of the same items are to be entered into the same PLU, you can use multiplication.

You may enter a quantity up to 4 figures (1 to 9999) using the @/FOR key. You may multiply open or preset open or preset PLUs.

1. Enter the quantity of items being purchased, press the @/FOR key. For example, enter 4 on the numeric key pad and press the @/FOR key:

4

@/

FOR

2. Enter the PLU number, press the PLU key.

For example, enter:

1 PLU

THANK-YOU

CALL AGAIN

4 X @1.99

PLU1 T1 $7 96

TAXABLE1 $7.96

TAX AMOUNT $0.48

SUBTOTAL $7.96

CASH $8.44

03-01-1999 15:51

000036 00

PLU Multiplication With Decimal Point

If you are selling items by weight, or if you are selling yard goods, you can multiply a fraction of a unit.

1. Enter the quantity purchased with the decimal point, press the @/FOR key. For example, for 3 ¾ pounds of produce, enter:

3 .

7 5

@/

FOR

2. Enter the PLU number, press the PLU key.

For example, enter:

3 PLU

THANK-YOU

CALL AGAIN

3.750 X @2.99

PLU3 T1 $11 21

TAXABLE1 $11 21

TAX AMOUNT $0.67

CASH $11.88

03-01-1999 15:52

000037 00

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

25

Split Pricing PLU

When items are priced in groups, i.e. 3 for $1.00, you can enter the quantity purchased and let the register calculate the correct price.

1. Enter the quantity purchased, press the

@/FOR key. For example, enter:

2

@/

FOR

2. Enter the quantity of the group price, press the @/FOR key. For example, if the items are priced 3 for $1.00, enter:

3

@/

FOR

THANK-YOU

CALL AGAIN

2/3 X @2.99

PLU3 T1 $1.99

TAXABLE1 $1.99

TAX AMOUNT $0.12

CASH $2.11

03-01-1999 15:55

000039 00

3. Enter the PLU number, press the PLU key.

For example, enter:

3 PLU

26

Advanced Operating Instructions

ER-350 Electronic Cash Register V2.1

Shifting or Exempting Tax

Shifting Tax

Taxable Departments and PLUs can be programmed to automatically add the appropriate tax or taxes. Occasionally, you may need to sell a normally taxable item without tax, or a normally taxable item with tax. You can perform this tax shifting with the TAX SHIFT key.

1. Enter the number for the tax you wish to shift. Press 1 to shift tax 1, press 2 to shift tax 2 or press 3 to shift tax 3. Press the

TAX SHIFT key. For example, shift tax

1:

1

TAX

SHIFT

THANK-YOU

CALL AGAIN

DEPT.1 $2 99

TAXABLE1 $2.99

CASH $2.99

03-01-1999 15:27

000002 00

2. Enter an amount on the ten key pad. Do not use the decimal key. For example, for

$2.99, enter:

2 9 9

3. Press a department key. For example, press department 1/9:

1/9

1, the registration will non-taxable by tax 1, the registration will include tax.

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

27

Exempting Tax

Occasionally, you may need to exempt tax from an entire sale. For example, you might remove all state and local taxes when you sell to a church or charitable institution.

1. Enter an amount on the ten key pad. Do not use the decimal key. For example, for

$2.99, enter:

2 9 9

2. Press a taxable department key. For example, press department 1/9:

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 99

SUBTOTAL $3.17

CASH $2.99

03-01-1999 15:28

000045 00

1/9

SUB

TOTAL

4. Enter the number for the tax you wish to exempt. Press 1 to shift tax 1, press 2 to shift tax 2 or press 3 to shift tax 3. Press the TAX SHIFT key. For example, exempt tax 1:

1

TAX

SHIFT

5. Total the sale with CASH/TEND,

CHECK, or CHARGE. The sale will not include tax 1.

28

Advanced Operating Instructions

ER-350 Electronic Cash Register V2.1

Percent Key (+% and -%) Operations

Use the Percent keys to add a percentage surcharge or subtract a percentage from an item or the subtotal of a sale. You can enter the amount of the percentage before pressing the -% or +% keys, or you can program a preset percentage if you are consistently using the same percentage.

Programming determines whether it is possible to enter a percentage when the key is also programmed with a preset percentage. See “+% and -% Key Programming” on page 58 to set a preset percentage.

Preset Percent on a Department or PLU Item

In this example the -% key is preset with a rate of %10.00.

1. Register the discounted item.

-%

3. The discount is automatically subtracted.

THANK-YOU

CALL AGAIN

DEPT 2 $10.00

-% 10.000

-1.00

CASH $9.00

03-01-1999 15:51

000031 00

Enter a Percent on a Department or PLU

You can also operate the -% or +% keys by entering the percentage of the discount or surcharge. If necessary, you can enter the percentage with a decimal key (up two 3 digits, i.e. 99.999%).

1. Register the discounted item.

2. Enter the percentage. If you are entering a fraction of a percent, you must use the decimal key. For example, for H off enter:

3 3 .

3 3 3

THANK-YOU

CALL AGAIN

DEPT 2 $10.00

-% 33.333

-3.33

CASH $6.67

03-01-1999 15:52

000032 00

-%

4. The discount is automatically subtracted.

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

29

Percent On Sale Total

In this example a surcharge of 15% is applied.

1. Register the items you wish to sell.

SUB

TOTAL

3. Enter the percentage. For example, for

15% enter:

1 5

+%

5. The surcharge is automatically added.

THANK-YOU

CALL AGAIN

DEPT 2 $10.00

SUBTOTAL $10.00

+% 15.000

$1.50

CASH $11.50

03-01-1999 15:53

000033 00

Return Merchandise Registrations

If you wish to return or refund an item, press Return Merchandise, then re-enter any item you wish.

You can return merchandise as part of a sale, or you can return merchandise as a separate transaction and return cash to the customer.

1. To return an item, press MDSE RTRN:

MDSE

RTRN

2. Enter the price of the item you wish to return, then press the department key where it was registered originally.

2 9 9

2/10

3. Total the sale with CASH/TEND,

CHECK, or CHARGE.

THANK-YOU

CALL AGAIN

RETURN MDSE

DEPT 2 T1 -2.99

TAXABLE1 -2.99

TAX1 AMOUNT -0.18

CASH -3.17

03-01-1999 15:50

000030 00

30

Advanced Operating Instructions

ER-350 Electronic Cash Register V2.1

Voids and Corrections

Void Last Item

This function corrects the last item entered.

1. Register the item you wish to sell.

VOID

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 29

DEPT 2 $1.29

VOID

DEPT 2 -1.29

TAXABLE1 $2.29

TAX1 AMOUNT $0.14

CASH $2.43

03-01-1999 15:47

000027 00

Void Previous Item

This function allows you to correct an item registered previously in a transaction.

1. Register an item. Then register a second item.

2. To correct the first item, press CLEAR, then press VOID:

CLEAR VOID

3. Enter the price of the first item, then press the department key where it was registered originally.

1 2 9

2/10

THANK-YOU

CALL AGAIN

DEPT 2 $1.29

DEPT.1 T1 $2 29

VOID

DEPT 2 -1.29

TAXABLE1 $2.29

TAX1 AMOUNT $0.14

CASH $2.43

03-01-1999 15:49

000029 00

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

31

Cancel

The CANCEL key allows you to stop any transaction. Anything registered within the transaction before the CANCEL key is pressed is automatically corrected. The CANCEL key may be inactivated through programming, see “CANCEL Key Programming” on page 62.

1. Register the items you wish to sell.

CANCEL

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 29

COUPON -0.50

CANCEL------------------

03-01-1999 15:46

000026 00

Void Position Operations

You can use the Void control lock position to correct any complete transaction. To correct any transaction:

1. Turn the control lock to the VOID position.

2. Enter the transaction you wish to correct exactly as it was entered originally in the

REG control lock position. You can enter discounts, voids, returns, tax exemptions or any other function.

3. All totals and counters are corrected as if the original transaction did not take place.

THANK-YOU

CALL AGAIN

VOID MODE

DEPT.1 T1 -2 29

DEPT 2 -1.00

SUBTOTAL -3.43

TAXABLE1 -2.29

TAX1 AMOUNT -0.14

CASH -3.43

03-01-1999 15:46

000026 00

32

Advanced Operating Instructions

ER-350 Electronic Cash Register V2.1

- (Minus) Key Registrations

You can register a negative amount by entering a price, then pressing the - (Minus) key. For example, you can enter bottle returns or coupons using the - (Minus) key.

Note: You can program the minus key so that tax is charged on the gross amount, or on the net amount after the subtraction. See “- (Minus) Key

Programming” on page 60.

1. Register the items you wish to sell.

2. Enter the amount you wish to subtract from the sale, for example for a $.50 coupon, enter:

5 0

-

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 29

COUPON -0.50

TAXABLE1 $2.29

TAX1 AMOUNT $0.14

CASH $1.93

03-01-1999 15:42

000025 00

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

33

No Sale Operations

Open Drawer

The #/NO SALE key will open the cash drawer when you have not already started a transaction.

1. Press #/NO SALE:

#/NO

SALE

2. The drawer will open and the receipt will print as in the example on the right.

THANK-YOU

CALL AGAIN

OPEN DRAWER

03-01-1999 15:44

000022 00

Non Add Number

You can also use the #/NO SALE key to print any number (up to 8 digits) on the printer paper. You can enter the number any time during a transaction. For example, if you wish to record a charge account number, enter the number and press the #/NO SALE key before totaling the sale with the

CHARGE key.

1. Register the items you wish to sell.

2. Enter the number you wish to record, for example enter:

1 2 3 4

#/NO

SALE

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 99

NON ADD NO. 1234

TAXABLE1 $2.99

TAX1 AMOUNT $0.18

CHARGE $3.17

03-01-1999 15:41

000023 00

CHARGE

5. The display will indicate “=” for total, the drawer will open and the receipt will print as in the example on the right.

34

Advanced Operating Instructions

ER-350 Electronic Cash Register V2.1

Received On Account Operations

You can use the Received on Account key to accept cash into the cash drawer when you are not actually selling merchandise. For example, use the Received on Account key to accept payments for previously sold merchandise, or record loans to the cash drawer.

1. Enter the amount of cash you are receiving, for example, enter:

2 0 0 0

2. Press RECD ACCT:

RECD

ACCT

THANK-YOU

CALL AGAIN

RECEIVED ON $20.00

03-01-1999 15:40

000020 00

3. The drawer will open and the receipt will print as in the example on the right.

Paid Out Operations

You can use the PAID OUT key to track cash paid out for merchandise or to record loans from the cash drawer.

1. Enter the amount of cash you are paying, for example, enter:

2 0 0 0

2. Press PAID OUT:

PAID

OUT

THANK-YOU

CALL AGAIN

PAID OUT $20.00

03-01-1999 15:41

000021 00

3. The drawer will open and the receipt will print as in the example on the right.

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

35

Totaling and Tendering

Three keys may be used to total and total a sale: CHECK , CHARGE , CASH/TEND key. The

CHECK and CASH/TEND keys can also be used for change calculation.

Subtotaling a Sale

1. Register the items you wish to sell.

2. To display and print the subtotal of the sale including tax, press SUBTOTAL:

SUB

TOTAL

3. The subtotal will display with “=” indicated in the left digit position of the display.

Totaling a Cash Sale

1. Register the items you wish to sell.

2. To total a cash sale, press CASH/TEND:

CASH/

TEND

3. The display will indicate “=” for total, the drawer will open and the receipt will print as in the example on the right.

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 99

DEPT.1 T1 $2 99

4 X @1.99

DEPT.2 $7 96

SUBTOTAL $14.30

TAXABLE1 $5.98

TAX1 AMOUNT $0.36

CASH $14.30

03-01-1999 15:27

000002 00

36

Advanced Operating Instructions

ER-350 Electronic Cash Register V2.1

Tendering a Cash Sale

1. Register the items you wish to sell.

2. Enter the amount tendered by the customer.

For example, for $20.00 enter:

2 0 0 0

CASH/

TEND

4. The display will indicate “C” for change, the drawer will open and the receipt will print as in the example on the right.

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 99

DEPT.1 T1 $2 99

4 X @1.99

DEPT.2 $7 96

SUBTOTAL $14.30

TAXABLE1 $5.98

TAX1 AMOUNT $0.36

TOTAL $14.30

CASH $20.00

CHANGE $5.70

03-01-1999 15:27

000004 00

Tendering a Check Sale

1. Register the items you wish to sell.

2. Enter the amount tendered by the customer.

For example, for $20.00 enter:

2 0 0 0

CHECK

4. The display will indicate “C” for change, the drawer will open and the receipt will print as in the example on the right.

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 99

DEPT.1 T1 $2 99

4 X @1.99

DEPT.2 $7 96

SUBTOTAL $14.30

TAXABLE1 $5.98

TAX1 AMOUNT $0.36

TOTAL $14.30

CHECK $20.00

CHANGE $5.70

03-01-1999 15:27

000005 00

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

37

Totaling a Charge Sale

1. Register the items you wish to sell.

CHARGE

3. The display will indicate “=” for total, the drawer will open and the receipt will print as in the example on the right.

Note: Charge tendering is not allowed.

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2 99

DEPT.1 T1 $2 99

4 X @1.99

DEPT.2 $7 96

SUBTOTAL $14.30

TAXABLE1 $5.98

TAX1 AMOUNT $0.36

CHARGE $14.30

03-01-1999 15:27

000006 00

Check Cashing

Check cashing means exchanging cash for a check. Normally, this function is not allowed. If you wish to allow check cashing, you must set system option #15 to a value of 1. See “System Option

Programming” on page 50.

1. Enter the amount of the check tendered by the customer. For example, for $20.00 enter:

2 0 0 0

THANK-YOU

CALL AGAIN

CHECK $20.00

CASH -20.00

03-01-1999 15:33

000013 00

CHECK

TEND

3. The display will indicate “C” for change, the drawer will open and the receipt will print as in the example on the right.

38

Advanced Operating Instructions

ER-350 Electronic Cash Register V2.1

Split Tender

Split tendering means paying for one sale by different payment methods. For example, a $20.00 sale could be split so $10.00 is paid in cash, and the remaining $10.00 is charged. If necessary, you can make several different payments.

Note: If a portion of a sale is to be charged, the charge payment must be entered last.

1. Register the items you wish to sell.

2. Enter the amount of cash tendered by the customer. For example, enter $10.00 and press CASH/TEND:

1 0 0 0

CASH/

TEND

3. The display will indicate “=” and $10.00, indicating the amount still due. The drawer will not open. Press CHARGE to charge the remaining amount:

CHARGE

4. The display will indicate “=” for total, the drawer will open and the receipt will print as in the example on the right.

THANK-YOU

CALL AGAIN

DEPT.2 $20 00

SUBTOTAL $20.00

TOTAL $20.00

CASH $10.00

TOTAL $10.00

CHARGE $10.00

03-01-1999 15:34

000014 00

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

39

Post Tender

Post tendering means computing change after the sale has been totaled and the drawer is open. This feature is useful when a customer changes the amount of the tender or the clerk becomes confused counting change manually. Normally, this function is not allowed. If you wish to allow post tendering, you must set system option #14 to a value of 1. See “System Option Programming” on page 50.

1. Register the items you wish to sell.

CASH/

TEND

3. The display will indicate “=” for total, the drawer will open and the receipt will print as in the example on the right.

4. Enter the amount of the tender, Press

CASH/TEND:

2 0 0 0

CASH/

TEND

5. The display will indicate “C” for change and display $17.88 change due.

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2.00

SUBTOTAL $2.12

TAXABLE1 $2.00

TAX1 AMOUNT $0.12

CASH $2.12

03-01-1999 15:36

000015 00

40

Advanced Operating Instructions

ER-350 Electronic Cash Register V2.1

Currency Conversion

If you normally accept currency from a neighboring nation, you can program the SAM4s ER-350 to convert the subtotal of a sale to the equivalent cost in the foreign currency. To do this, you need to program the conversion factor. For example, if the US dollar (home currency) is worth 1.3720

Canadian dollars (foreign currency), the conversion factor is 1.3720. See “Programming Currency

Exchange Rates” on page 63 to set a conversion rate.

1. Register the items you wish to sell. due in your home currency:

SUB

TOTAL

3. To convert the amount due to an equivalent value in foreign currency, press C/CONV:

C/CONV

4. Enter the amount of the foreign currency tender, Press CASH/TEND:

1 0 0 0

CASH/

TEND

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2.00

SUBTOTAL $2.12

TAXABLE1 $2.00

TAX1 AMOUNT $0.12

FOREIGN AMT @10.00

CHANGE RATE #1.3720

HOME AMT. $7.29

CHANGE $.5.17

03-01-1999 15:38

000016 00

5. The display will indicate “C” for change and display $5.17 change due. The change

due is computed in home currency!

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

41

Add Check

Use the ADD CHECK key when you wish to issue a receipt, but not yet pay for the sale. For example, one person may wish to pay for two guest checks at a restaurant, or one person may pay for two admissions, where separate receipts are required for each person.

1. Register the items you wish to sell on the first receipt. the items:

ADD

CHECK

3. Register the items you wish to sell on the next receipt, press ADD CHECK to issue a receipt for the items:

ADD

CHECK

THANK-YOU

CALL AGAIN

DEPT.1 T1 $2.00

TAXABLE1 $2.00

TAX1 AMOUNT $0.12

ADD CHECK $2.12

03-01-1999 15:39

000017 00 due for both of the receipts:

SUB

TOTAL

THANK-YOU

CALL AGAIN

DEPT.2 $5.00

ADD CHECK $5.00

03-01-1999 15:39

000018 00

5. Total or tender the sale with CASH/TEND,

CHECK or CHARGE

THANK-YOU

CALL AGAIN

TAXABLE1 $2.00

TAX1 AMOUNT $0.12

CASH $7.12

03-01-1999 15:39

000018 00

42

Advanced Operating Instructions

ER-350 Electronic Cash Register V2.1

Receipt On/Off and Receipt on Request

When a receipt is not normally issued, you can turn the receipt function on or off.

If the receipt is off, you can still issue a receipt after the sale has been completed. Normally, this function is not allowed. If you wish to allow after sale receipts, you must set system option #17 to a value of 1. See “System Option Programming” on page 50.

To Turn the Receipt Off

♦ With the control lock in the REG position, press PAID OUT:

PAID

OUT

To Turn the Receipt On

♦ With the control lock in the REG position, press PAID OUT again:

PAID

OUT

Printing a Receipt after the Sale

♦ After the sale has been totaled, but before the next transaction is started, press

CASH/TEND:

CASH/

TEND

Note: Because receipt memory is limited, when a sale has more than 30 items or more than 3 tenders, the receipt after sale can not print all items. A row of dots is printed indicating the receipt is incomplete.

ER-350 Electronic Cash Register V2.1 Advanced Operating Instructions

43

Advanced Programming

Instructions

Department Programming

Programming Department Status

There are two parts to department programming. Department status is set here. Depending on whether you select open or preset department status is this section, you can also program either the open department entry limit or the preset department price. See “Programming Department Entry

Limit or Price” on page 48.

Use this section to program the following status options:

• Set negative departments that subtract from the sale, rather than normal positive departments which add to the sale.

• Enforce the entry of a non-adding number before the department entry. See “Non Add

Number” on page 34 for operation sequences.

• Disable the departments, so that entries are not allowed.

• Choose Open or Preset departments. Open departments accept amount entries. Use open departments to enter different priced items into the same category. Preset departments automatically register a preprogrammed price when the department key is pressed. Use preset departments to register an individual item quickly and accurately.

For example, cigarette packs or food items can be assigned to departments as presets.

When you select preset departments, you can also decide if the department can also accept open entries. This option is referred to as “preset override”.

• Set single item departments which automatically total as a cash sale immediately after the department entry. Single item departments are used to speed up one item sales.

• Select a tax status to determine whether sales tax is automatically added.

Unless otherwise programmed, departments are positive, open, not taxable, not single item departments, and accept unlimited amounts (up to 7 digit entry). Therefore, it is not necessary to program departments you wish to be open, positive, non-taxable, not single item, with no entry limit.

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

45

Programming Department Status

1. Turn the control lock to the PGM position.

2. Decide if you want a negative, enforced non-add entry, or disabled department. If you do not want any of these department options, enter 0. If you wish to select any of these options, complete the table below by adding the status digits for each option. Enter the resulting digit.

Department is

Negative

Yes = 1

No = 0

+

Enforce Non-Add

Entry

Department is Disabled

Yes = 2

No = 0

Yes = 4

No = 0

+

+

=

3. Decide if you want a preset or single item department. If you do not want any of these department options, enter 0. If you wish to select any of these options, complete the table below by adding the status digits for each option. Enter the resulting digit.

Department is Preset Yes = 1

No = 0

+

Allow Preset Override

+

Department is Single

Item

Yes = 2

No = 0

Yes = 4

No = 0

+

=

4. Complete the tax status table below by adding the status digits for each tax. Then enter the resulting tax status code.

Taxable by Rate 1? Yes = 1

No = 0

+

Taxable by Rate 2?

+

Taxable by Rate 3?

Yes = 2

No = 0

Yes = 4

No = 0

+

=

6. Press the department key you wish to program, or press DEPT SHIFT and the appropriate department if you are programming departments 9-16.

7. Repeat steps 2 through 6 for each department you wish to program.

46

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Department Status Programming Flowchart

Repeat for each

Department

Negative?

Non-Add?

Disabled?

Preset?

Single item?

Tax

Status

Code

@/

FOR

DEPT

SHIFT

Use DEPT SHIFT for depts 9-16

DEPT

KEY

Department Status Programming Examples

For example, set:

• department 1 open, taxable by rate 1

• department 4 preset, taxable by rate 2

• department 9 negative, preset, taxable by rate 1 & 2

To set Department 1, enter:

0 0 1

@/

FOR 1/9

To set Department 4, enter:

0 1 2

@/

FOR 4/12

To set Department 9, enter:

1 1 3

@/

FOR

Press the CASH/TEND key to end programming.

DEPT.

SHIFT 1/9

CASH/

TEND

The status you have entered will display and print on the printer:

DEPT.1 1

DEPT.4 12

DEPT.9 113

PROGRAM TERMINATE

01-03-1999 16:36

000014 00

CASH/

TEND

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

47

Programming Department Entry Limit or Price

Note: Open departments are automatically assigned a 7 digit entry limit. You do not need to program this section for open departments, unless you wish to set a different limit.

If you are programming a open department:

• You can limit errors by setting the maximum amount that may be entered into a department.

If you are programming a preset department:

• You can set the preset price. The price you program here is the amount that is automatically registered when the department key is pressed.

Programming a Department Entry Limit or Price

1. Turn the control lock to the PGM position.

2. If the department is preset, enter the preset price, up to seven digits (01 to 1234567).

(It is not necessary to enter proceeding zeros. For example enter $1.00 as 100.)

OR,

If the department is open, enter the entry limit you wish to set.

3. Press the department key you wish to program, or press DEPT SHIFT and the appropriate department if you are programming departments 9-16.

4. Repeat from step 2 above for each department you wish to set.

48

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Department Entry Limit or Price Programming Flowchart

Repeat for each Preset Department

Preset Price or

High Amount Lock Out

(Leading zeros are not necessary)

DEPT

SHIFT

Use DEPT SHIFT for depts 9-16

DEPT

KEY

CASH/

TEND

Department Entry Limit or Price Programming Examples

For example, set:

• department 1 open, with a entry limit of $50.00

• department 4 preset for $2.50

• department 9 preset for $0.99

To set Department 1, enter:

5 0 0 0

1/9

To set Department 3, enter:

2 5 0

4/12

To set Department 9, enter:

9 9

DEPT

SHIFT 1/9

Press the CASH/TEND key to end programming.

CASH/

TEND

The tax status you have entered will display and print on the printer:

DEPT.1 $50.00

DEPT.4 $2.50

DEPT.9 $0.99

PROGRAM TERMINATE

01-03-1999 18:56

000049 00

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

49

System Option Programming

Twenty system options are provided so that you can configure the SAM4s ER-350 to your exact requirements. Refer to the “System Option Table” on page 52 to review the system options. Read each option carefully to determine if you wish to make any changes.

NOTE: Because after clearing memory all options settings are automatically set to 0, and because your most likely option selections require a status setting of 0, you do not need to program this section unless you wish to change the default status.

Programming a System Option:

1. Turn the control lock to the PGM position.

2. Enter the option number of the system option you wish to change. Press the RECD

ACCT key.

3. Enter the number representing the status you have selected. Press the PAID OUT key.

4. Repeat from step 3 for each system option you wish to change.

System Option Flowchart

Repeat for each

System Option

RECD

ACCT

Option # Status

PAID

OUT

CASH/

TEND

50

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

System Option Programming Examples

Set the following options

• Option 15: Allow check cashing.

• Option 20: Enforce cash or check tender at totaling.

To set option 16:

1 5

RECT

ACCT

1

PAID

OUT

To set option 20:

2 0

RECT

ACCT

1

Press the CASH/TEND key to end programming.

PAID

OUT

CASH/

TEND

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

51

System Option Table

NOTE: Shaded areas are the default settings, in other words, the shaded area indicates the way the register is automatically set up.

STATUS

6

7

8

4

5

Option

No.

1

2

3

9

10

11

SYSTEM OPTION

Print the grand total on X,/Z report.

Print the gross total on X,/Z report.

Reset the consecutive number counter after a Z report.

Reset the Z counter after Z report.

Skip totals with zero value on X,Z report.

Reset the grand total after a Z report.

Print the subtotal when pressed.

Cash must be declared before X/Z report.

Allow X reports

Decimal point position

Select a method for tax printing:

Print Taxable Totals.

Print Taxable Totals.

Print Taxable Totals.

Do not print Taxable Total.

Do not print Taxable Total.

Do not print Taxable Total.

Print tax amounts separately.

Print only total of all taxes.

Do not print tax amounts.

Print tax amounts separately.

Print only total of all taxes.

Do not print tax amounts.

2

3

0

1

4

5

YES = 0

NO = 1

NO = 0

YES = 1

YES = 0

NO = 1

0 = none

1 = 1 place

2 = 2 places

1 = 3 places

YES = 0

NO = 1

YES = 0

NO = 1

NO = 0

YES = 1

NO = 0

YES = 1

YES = 0

NO = 1

NO = 0

YES = 1

52

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Option

No.

12

13

14

15

16

17

18

SYSTEM OPTION

Rounding method for percentage key and tax.

Rounding method for decimal multiplication and split pricing.

Allow Post Tender.

Round up at 0.50

Always Round up

Always Round down

Round up at 0.50

Always Round up

Always Round down

Allow Check Cashing.

Select clerk option:

Clerk function inactive.

Allow clerk function. Clerk stay down mode.

Allow clerk function. Clerk pop up mode.

Allow receipt after sale.

Print Currency Symbol:

19

Do not print currency symbol.

Enforce cash or check tender at totaling.

STATUS

0

1

2

0

1

2

NO = 0

YES = 1

NO = 0

YES = 1

0

1

2

NO = 0

YES = 1

0

1

2

NO = 0

YES = 1

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

53

Advanced Tax Programming

Use the instructions in this chapter only if you wish to determine tax program entries yourself. See

“Programming Tax” on page 13 to enter a simple tax rate.

Important Note: After you have entered your tax program, test for accuracy by entering several transactions of different dollar amounts. Carefully check to make sure the tax charged by the cash register matches the tax on the printed tax chart for your area. As a merchant, you are responsible for accurate tax collection. If the cash register is not calculating tax accurately, or if you cannot find the correct tax information for your area in the Appendix, contact the CRS, Inc. Service Center at 1-888-333-6776 for assistance.

Tax Rate Programming

You can program up to three separate taxes on the SAM4s ER-350. Set tax rate(s) here.

• If you are entering a tax table, see “Tax Table Programming” on page 56 to enter the tax break points.

• If you are entering a Canadian Goods and Services Tax (GST), use tax rate 3 for the

GST tax, and use tax rates 1 and/or 2 for any other provincial tax or taxes.

Programming Tax Rates and Status

1. Turn the control lock to the PGM position.

2. If the tax is a percentage rate, enter it with a decimal. (0.000-99.999). It is not necessary to enter proceeding zeros. For example, for 6%, enter 06.000 or 6000.

3. For the type of tax, enter:

0

if the tax is a percentage added to the sale (normal add on tax)

1 if the tax is a percentage value added tax (VAT; calculated as part of the sale) the tax is a Canadian GST. Enter:

1 if the GST (tax 3) is taxable by rate 1

2 if the GST (tax 3) is taxable by rate 2

3 if the GST (tax 3) is taxable by rates 1 and 2

5. Enter:

1 to set tax rate 1

2

to set tax rate 2

3

to set tax rate 3

54

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Tax Rate Programming Flowchart

.

Tax Rate

Tax type

GST tax

Info

Tax #

(1-3)

TAX

SHIFT

CASH/

TEND

Tax Rate Examples

If tax 1 is 6 percent, enter:

6 .

0 0 0 0 0 1

TAX

SHIFT

If tax 3 is 8 percent Canadian GST and the GST is taxable, enter:

8 .

0 0 0 2 3 3

Press the CASH/TEND key to end programming.

CASH/

TEND

The rates you have entered will display and print on the printer:

TAX1 STATUS 00

TAX1 RATE 6.000

TAX3 STATUS 23

TAX3 RATE 8.000

PROGRAM TERMINATE

01-03-1999 16:36

000013 00

00

TAX

SHIFT

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

55

Tax Table Programming

In some cases, a tax that is entered as a percentage does not follow exactly the tax charts that apply in your area (even if the tax chart is based on a percentage). In these cases, we recommend that you enter your tax using tax table programming. This method will match tax collection exactly to the break points of your tax table.

Before programming, obtain a copy of the tax table you wish to program. You will need the printed tax table if you wish to determine the break point entries yourself.

Note: You can enter up to 47 break points.

Determining Break Point Entries

1. Refer to the “Tax Table Programming Example - Illinois 6% Tax Table” on page 57 to help with this exercise.

2. Calculate the break point differences by subtracting the high side of the previous range from the high side of the dollar range.

3. Examine the pattern of break point differences to determine when the break points begin to repeat. Mark the beginning break points that do not fit a pattern as “nonrepeat breaks.” Mark the break points that are repeating in a pattern as “repeat breaks.”

Programming a Tax Table

1. Turn the control lock to the PGM position.

2. Enter the number of the tax you are programming (1, 2, or 3), press the TAX SHIFT key.

3. Enter the maximum amount that is not taxed, press the TAX SHIFT key.

4. Enter the first tax amount charged, press the TAX SHIFT key.

5. For each non-repeat break point, enter the high side from the sale dollar range and press the TAX SHIFT key.

7. For each repeat break point, enter the high side from the sale dollar range and press the

TAX SHIFT key.

56

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Tax Table Programming Example - Illinois 6% Tax Table

Tax Charged Sale Dollar Range

Break point

Differences

$0.00

$0.01

$0.02

$0.03

$0.04

$0.05

$0.06

$0.07

$0.08

$0.09

$0.10

$0.11

$0.12

$0.13

$0.14

$0.00 - $0.10

$0.11 - $0.21

$0.22 - $0.38

$0.39 - $0.56

$0.57 - $0.73

$0.74 - $0.91

$0.92 - $1.08

$1.09 - $1.24

$1.25 - $1.41

$1.42 - $1.58

$1.59 - $1.74

$1.75 - $1.91

$1.92 - $2.08

$2.09 - $2.24

$2.25 - $2.41

11

17

18

17

18

17

16

17

17

16

17

17

16

17

Non-Repeat

Repeat

To enter the program for the Illinois 6% tax table:

10. Enter 1 0 8 (repeat break point), press the TAX SHIFT key.

11. Enter 1 2 4 (repeat break point), press the TAX SHIFT key.

12. Enter 1 4 1 (repeat break point), press the TAX SHIFT key.

13. Press the CASH/TEND key to complete the tax program.

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

57

+% and -% Key Programming

There are two percentage keys on the keyboard: +% and -%. The +% key applies a surcharge. The

-% key applies a discount. Without any further programming, you can apply a discount or surcharge to an individual item or to the subtotal of a sale be entering a percentage and pressing the +% or -% key. This program allows you to:

• decide to calculate any taxes before or after the percentage is applied

• set a preset percentage for the +% or -% key

• if a preset percentage is set, decide if you wish to also allow a percentage to be entered

• inactivate the key

Programming the +% or -% Key

1. Turn the control lock to the PGM position.

2. Enter the percentage rate you wish to preset, or 0 if you only wish to enter the percentage. Press the +% or -% key, depending on which key you are programming.

Be sure to enter the decimal point if you are setting a rate that is not an even percentage, i.e. enter 33 H % as 3 3 . 3 3 3. If you are setting an even percentage, it is not necessary to enter the decimal point, i.e. enter 50 % as 5 0.

3. To decide if tax is calculated before or after the percentage is applied, complete the table below by adding the status digits for each tax. Then enter the resulting tax status code.

Calculate Rate 1 after the discount/surcharge?

Yes = 1

No = 0

+

Calculate Rate 2 after the discount/surcharge?

Calculate Rate 3 after the discount/surcharge?

Yes = 2

No = 0

Yes = 4

No = 0

+

+

=

4. Enter:

0

If you do not wish to allow the operator to also enter a percentage (override).

1 if you wish to allow the operator to also enter a percentage (override).

2

if you wish the key to be inactive.

+% or -% Key Programming Flowchart

.

Preset Percentage

Tax

Status

Code

Override?

Inactive?

+% or

-%

CASH/

TEND

58

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

+% or -% Key Programming Example

Set the -% (discount) Key preset for 50% and so that tax 1 is calculated after the discount is applied and override is allowed. Enter:

5 0 .

0 0 0 1 1 -%

CASH/

TEND

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

59

- (Minus) Key Programming

The - (Minus) key is used to enter the amount of a coupon that is subtracted from the sale.

• The - (Minus) key can programmed to be taxable or non-taxable. In other words, when you are subtracting a coupon, you can calculate sales tax on the net or the gross cost of the item. If the - (Minus) key is taxable, you will calculate sales tax on the net cost of the item. If the - (Minus) key is -non-taxable, you will calculate sales tax on the gross cost of the item.

• You can also program limit errors by setting the maximum amount that may be entered into the - (Minus) key. For example, setting a 3 digit limit means the maximum you can enter is $9.99. This is referred to as the High Digit Lock Out, or HDLO.

Programming the - (Minus) Key

1. Turn the control lock to the PGM position.

2. Enter the High Digit Lock Out (entry limit) digit from the table below. (Enter 0 for no limit.)

HDLO Limits

5

6

0

1

2

3

4

.01 - .09

.01 - .99

.01 - 9.99

.01 - 99.99

.01 - 999.99

.01 - 9999.99

.01 - 99999.99

3. To decide if tax is calculated before or after the percentage is applied, complete the table below by adding the status digits for each tax. Then enter the resulting tax status code.

Calculate Rate 1 after the Minus (-) key entry?

Yes = 1

No = 0

+

Calculate Rate 2 after the Minus (-) key entry?

Calculate Rate 3 after the Minus (-) key entry?

Yes = 2

No = 0

Yes = 4

No = 0

+

+

=

4. Enter:

0 for active minus key

1 for inactive minus key

60

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Minus (-) Key Programming Flowchart

-

CASH/

TEND

HDLO

Tax

Status

Code

Inactive?

Minus (-) Key Programming Example

Set the Minus (-) key with a three digit HDLO ($9.99) and so that tax 1 is calculated after the Minus

(-) key amount is entered. (In other words, tax is calculated on the net cost of the item.) Enter:

3 1 0 -

CASH/

TEND

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

61

CANCEL Key Programming

The CANCEL key can be made inactive. Normally the key is active, however, you may wish to inactivate it for security reasons.

Programming the CANCEL Key

1. Enter:

0 to activate the CANCEL key

1 to inactivate the CANCEL key

Cancel Key Programming Flowchart

CANCEL

CASH/

TEND

Inactive?

Cancel Key Programming Example

To inactivate the CANCEL key, enter:

1 CANCEL

CASH/

TEND

62

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Currency Conversion

If you normally accept currency from a neighboring nation, you can program the SAM4s ER-350 to convert the subtotal of a sale to the equivalent cost in the foreign currency. To do this, you need to program the conversion factor. For example, if the US dollar (home currency) is worth 1.3720

Canadian dollars (foreign currency), the conversion factor is 1.3720.

Note: Foreign currency exchange rates may be stated as “foreign currency in dollars”, or “dollars in foreign currency”. Use the rate stated in “dollars in foreign currency” when you are programming this section.

Programming Currency Exchange Rates

1. Turn the control lock to the PGM position.

2. Enter the exchange rate of up to 5 digits (do not enter the decimal point).

3. Enter a number from 0 to 4 to indicate the decimal position.

Currency Exchange Rate Programming Flowchart

C/CONV

CASH/

TEND

Exchange Rate

Decimal

Position

Currency Exchange Rate Programming Example

The US dollar (home currency) is worth 1.3720 Canadian dollars (foreign currency.

1 3 7

Exchange Rate

2 0 4 C/CONV

CASH/

TEND

Decimal

Position

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

63

Programming Clerks

If you wish to use the clerk system, you must first activate the clerk system by setting system option

#16. See “System Option Programming” on page 50. You can activate the clerk system for with a stay down or pop-up mode.

• Stay down means that once a clerk is signed on, the same clerk will remain signed on until a different clerk signs on or the original clerk signs off. A stay down clerk system might be used when only one operator uses the register at a time, and a different operator begins when a work shift is changed.

• Pop-up means that the clerk is automatically signed off an the end of each transaction.

Therefore, to begin a transaction, you must first sign a clerk on. A pop-up clerk system might be used in a department store, where several clerks might use the register during the same shift, and clerk sales information is required.

With the clerk system activated, you can operate up to 10 clerks. The clerk registering a transaction is printed on the bottom of the receipt to indicate clerks 1 through 10. For example:

03-01-1999 15:27

000002 CLERK 1 00

See “Clerk Operations” on page 19 for clerk sign on and sign off sequences.

Programming a Clerk Code

The clerk code consists of a three digit secret number, followed by the digit representing the number of the clerk.

1. Turn the control lock to the PGM position.

2. Set system option #16 to a value or 1 or 2 (for with a stay down or pop-up mode). See

“System Option Programming” on page 50.

3. Enter the clerk number (1-10), press the CLERK key.

4. Enter a three digit secret code, press the @/FOR key

5. Repeat from step 3 for each clerk you wish to program.

Clerk Programming Flowchart

Repeat for each clerk

CLERK

Clerk #

1.thru 10

Secret clerk #

@/

FOR

CASH/

TEND

64

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Clerk Programming Example

To set Clerk #5 with a code of 5 6 7, enter:

5 CLERK 5 6 7

@/

FOR

Printing Clerk Codes:

If you need to verify clerk codes:

1. Turn the control lock to the PGM position.

3. The printer will print as in the example below:

THANK-YOU

CALL AGAIN

CLERK 1 1

CLERK 2 2

CLERK 3 3

CLERK 4 4

CLERK 5 567

CLERK 6 6

CLERK 7 7

CLERK 8 8

CLERK 9 9

CLERK 10 10

03-01-1999 15:39

000017 00

CASH/

TEND

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

65

PLU (Price Look Up) Programming

The SAM4s ER-350 offers 300 PLUs (Price Look Ups) as a standard feature. Like departments

PLUs (Price Look Ups) may be open or preset.

• Preset PLUs are used to register preset items. The most significant difference between a preset department and a preset PLU is the method of registration. While preset departments are registered by simply pressing the department key, preset PLUs are registered by entering the PLU number and pressing the PLU key.

There are many possible uses for preset PLUs. Since there are many more PLUs than departments, you may use PLUs when you wish to accurately price and count a larger group of items. Possible uses include: menu items in a restaurant or items (such as cigarettes) that you wish to inventory.

• Use open PLUs when you wish to enter different priced items into a larger number of categories.

Programming PLU Status

There are two parts to PLU programming. PLU status is set here. Depending on whether you select open or preset PLU status in this section, you can also program either the open PLU entry limit or the preset PLU price. See “Programming PLU Entry Limit or Price” on page 69.

Use this section to program the following status options:

• Set negative PLUs that subtract from the sale, rather than normal positive PLUs which add to the sale.

• Enforce the entry of a non-adding number before the PLU entry. See “Non Add

Number” on page 34 for operation sequences.

• Disable the PLUs, so that entries are not allowed.

• Choose Open or Preset PLUs.

• Set single item PLUs which automatically total as a cash sale immediately after the department entry. Single item departments are used to speed up one item sales.

• Select a tax status to determine whether sales tax is automatically added.

66

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Programming PLU Status

1. Turn the control lock to the PGM position.

2. Enter the number of the PLU you wish to program (1-300), press the PLU key.

3. Decide if you want a negative, enforced non-add entry, or disabled PLU. If you do not want any of these options, enter 0. If you wish to select any of these options, complete the table below by adding the status digits for each option. Enter the resulting digit.

PLU is Negative Yes = 1

No = 0

+

Enforce Non-Add

Entry

PLU is Disabled

Yes = 2

No = 0

Yes = 4

No = 0

+

+

=

4. Decide if you want a preset or single item PLU. If you do not want any of these options, enter 0. If you wish to select any of these options, complete the table below by adding the status digits for each option. Enter the resulting digit.

PLU is Preset Yes = 1

No = 0

+

PL:U is Single Item Yes = 2

No = 0

+

=

5. Complete the tax status table below by adding the status digits for each tax. Then enter the resulting tax status code.

Taxable by Rate 1? Yes = 1

No = 0

+

Taxable by Rate 2?

+

Taxable by Rate 3?

Yes = 2

No = 0

Yes = 4

No = 0

+

=

6. Press the department key that you want this PLUs’ sales added to, or press DEPT

SHIFT and the appropriate department if you are selecting departments 9-16.

7. Repeat steps 2 through 6 for each PLU you wish to program.

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

67

PLU Status Programming Flowchart

Repeat for each

PLU

PLU #

PLU

DEPT

SHIFT

Negative?

Non-Add?

Disabled?

Preset?

Single item?

Tax

Status

Code

Use DEPT SHIFT for depts 9-16

DEPT

KEY

CASH/

TEND

PLU Status Programming Examples

For example, set:

• PLU #1 preset, not single item, taxable by rate 1, with sales reported to department 2.

• PLU #30 preset, single item, taxable by rate 2, with sales reported to department 4.

• PLU #6 open, not single item, non-taxable, with sales reported to department 9.

To set PLU 1, enter:

1 PLU 0 1 1

2/10

To set PLU 30, enter:

3 0 PLU 0 3 2

4/12

To set PLU 6, enter:

6 PLU 0 0 0

DEPT

SHIFT

Press the CASH/TEND key to end programming.

CASH/

TEND

The status you have entered will display and print on the printer:

PLU1 11

DEPT.2

PLU30 T1 32

DEPT.4

PLU6 0

DEPT.9

PROGRAM TERMINATE

01-03-1999 16:36

000014 00

1/9

68

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Programming PLU Entry Limit or Price

Note: Open PLUs are automatically assigned a 7 digit entry limit. You do not need to program this section for open PLUs, unless you wish to set a different limit.

If you are programming a open PLU:

• You can limit errors by setting the maximum amount that may be entered into a PLU.

If you are programming a preset PLU:

• You can set the preset price. The price you program here is the amount that is automatically registered when the PLU is entered.

Programming a PLU Entry Limit or Price

1. Turn the control lock to the PGM position.

2. Enter the number of the PLU you wish to program (1-300), press the PLU key.

3. If the PLU is preset, enter the preset price, up to seven digits (01 to 1234567). (It is not necessary to enter proceeding zeros. For example enter $1.00 as 100.)

OR

If the PLU is open, enter the highest amount that may be entered into the PLU.

5. Repeat from step 2 above for each PLU you wish to program.

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

69

PLU Entry Limit or Price Programming Flowchart

Repeat for each Preset PLU

PLU

PLU #

Preset Price or

High Amount Lock Out

(Leading zeros are not necessary)

PLU Entry Limit or Price Programming Examples

For example, set:

• PLU 1 with a preset price of $1.99

• PLU 30 with a preset price of $10.00

• PLU 6 with a entry limit of $5.00

To set PLU 1, enter:

1 PLU 1 9 9

@/

FOR

To set PLU 30, enter:

3 0 PLU 1 0 0 0

To set PLU 6, enter:

6 PLU 5 0 0

@/

FOR

Press the CASH/TEND key to end programming.

CASH/

TEND

The tax status you have entered will display and print on the printer:

PLU1 T1 @1.99

PLU30 T2 @10.00

PLU6 @5.00

PROGRAM TERMINATE

01-03-1999 18:56

000049 00

@/

FOR

@/

FOR

CASH/

TEND

70

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Setting a Register Number

You can program a two digit register number that will print on the lower right corner of each transaction. If you are using more than one cash register, the register number can be used to identify the register where the transaction was entered.

03-02-1996 02:38

000026 99

Register Number

To set a register identification number:

1. Turn the control lock to the PGM position.

2. Enter register number and press the #/NS key:

#/NS

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

71

Programming Descriptions

Customer Logo

Without otherwise programming, the customer logo will print a two line message at the top of each receipt:

THANK-YOU

CALL AGAIN

If you wish you can replace this message with your own custom message. Your message can be up to 5 lines long.

Programming a Custom Logo:

1. Turn the control lock to the PGM position.

3. Refer to the “Code Table” on page 76 and enter the two digits that represent each character you wish. You can enter up to 26 character codes for each line.

5. Enter the two digit number that represents the line of the message you wish to program:

11 = 1 st

Line

12 = 2 nd

Line

13 = 3 rd

Line

14 = 4 th

Line

15 = 5 th

Line

7. Repeat from step 2 for each line you are programming.

Logo Programming Flowchart

Repeat for each Line of the Logo

@/

FOR

@/

FOR

Up to 26

2-digit character codes

Line #

Code

CHECK/

TEND

CASH/

TEND

72

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Logo Programming Example

Program the first line of the logo to say “GENERAL STORE”

1. Turn the control lock to the PGM position.

3. To center the message on the receipt, enter six space characters: 7 0 7 0 7 0 7 0 7 0

7 0.

4. Enter the codes representing the text “GENERAL STORE”: 2 6 2 4 3 3 2 4 3 7 2 0 3 1

7 0 3 8 3 9 3 4 3 7 2 4.

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

73

Department Descriptor

Without otherwise programming, each department will print the department number for registrations and reporting. For example, the receipt will look like this:

DEPT.1 T1 $2.99

DEPT.7 T1 $1.99

If you wish you can each department descriptor with a custom descriptor, up to 12 characters in length. For example, you could program your own descriptors like this:

GROCERY T1 $2.99

MEAT T1 $1.99

Programming a Department Descriptor

1. Turn the control lock to the PGM position.

3. Refer to the “Code Table” on page 76 and enter the two digits that represent each character you wish. You can enter up to 10 character codes for each department.

5. Press the department key you wish to program, or press DEPT SHIFT and the appropriate department if you are programming departments 9-16.

6. Repeat from step 2 for each department you are programming.

Department Descriptor Programming Flowchart

Repeat for each department

@/

FOR

Up to 10

2-digit character codes

@/

FOR

DEPT

SHIFT

Use DEPT

SHIFT for depts

DEPT

KEY

CASH/

TEND

Department Descriptor Programming Example

Program the department 1 descriptor to say “GROCERY”

1. Turn the control lock to the PGM position.

3. Enter the codes representing the text “GROCERY”: 2 6 3 7 3 4 2 2 2 4 3 7 4 4.

5. Press the Department 1/9 key

74

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

PLU Descriptor

If you are using PLUs, the PLU descriptor print the PLU code unless you choose to program a custom descriptor. For example, the receipt will look like this:

PLU1 T1 $2.99

PLU23 T1 $1.99

If you wish you can each department descriptor with a custom descriptor, up to 12 characters in length. For example, you could program your own descriptors like this:

CIGARETTE T1 $2.99

APPLES T1 $1.99

Programming a PLU Descriptor

1. Turn the control lock to the PGM position.

3. Refer to the “Code Table” on page 76 and enter the two digits that represent each character you wish. You can enter up to 10 character codes for each PLU.

5. Enter the PLU number, press the PLU key.

6. Repeat from step 2 for each department you are programming.

PLU Descriptor Programming Flowchart

Repeat for each PLU

@/

FOR

@/

FOR

Up to 10

2-digit character codes

PLU

Code

PLU Descriptor Programming Example

Program the descriptor for PLU 1 to say “APPLES”

1. Turn the control lock to the PGM position.

PLU

CASH/

TEND

3. Enter the codes representing the text “APPLES”: 2 0 3 5 3 5 3 1 2 4 3 8.

5. Enter the PLU code, press the PLU key.

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

75

Code Table

Using the Code Table

3. Find the second entry digit for the character by following the row to the left margin of the table.

For example the code for A is 20 and the code for Z is 45.

1. Find the character you wish to print.

2. Find the first entry digit for the character by following the column to the top of the table.

Second

Entry

0

1 2 3 4 5 6 7

0 A K U

! SPACE

1 1 B L V / " |

2 2 C M W : % ^

6

7

6 G Q @ > * }

7 H R & ? + _

-

WIDTH

76

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Setting Receipt/Journal Status

The printer can be set to generate customer receipts, or print a sales journal. In the receipt mode, the printer will print the logo and feed the paper a sufficient length so that a receipt can be torn off. In the journal mode, there is no additional paper feeding between transactions. The default state of this program is the RECEIPT status.

To change the printer status from receipt to journal, or from journal to receipt:

1. Turn the control lock to the X position.

2. Enter 9999 on the numeric keypad and press the PAID OUT key.

9 9 9 9

PAID

OUT

Printing a Programming Report

You can generate a printed report of all the programming options.

1. Turn the control lock to the PGM position.

ER-350 Electronic Cash Register V2.1 Advanced Programming Instructions

77

Program Report Example:

Department Status ->

Department Price or Limit ->

(Department Status and Price/Limit is

listed for each department)

Tax 1 Status ->

Tax 1 Rate ->

Tax 2 Status ->

Tax 2 Rate ->

Tax 3 Status ->

Tax 3 Rate ->

Percentage Discount Key Status ->

Percentage Discount Key Rate ->

Percentage Surcharge Key Status ->

Percentage Surcharge Key Rate ->

Minus (-) Key Status ->

Currency Conversion Exchange Rate ->

Decimal Position ->

System Option Value ->

System Option Value ->

System Option Value ->

(System Option Value is listed for

each option)

System Option Value ->

PLU Status & Department ->

PLU Price ->

(PLU Status and Price is listed for each PLU that is programmed)

Date/Time ->

Transaction Counter/Register Number ->

THANK-YOU

CALL AGAIN

DEPT.1 70

$0.00

DEPT.2 70

$0.00

DEPT.3 70

$0.00

.

.

.

DEPT.16 70

$0.00

TAX1 STATUS 00

TAX1 RATE 0.000

TAX2 STATUS 00

TAX2 RATE 0.000

TAX3 STATUS 00

TAX3 RATE 0.000

-% STATUS 0

-% RATE 0.000

+% STATUS 0

+% RATE 0.000

- STATUS 0

CHANGE RATE #0

DECIMAL 0

OPTION1 0

OPTION2 0

OPTION3 0

.

.

.

OPTION20 0

PLU1 011 DEPT.4

T1 $1.00

.

.

.

03-11-1999 16:03

000066 00

78

Advanced Programming Instructions

ER-350 Electronic Cash Register V2.1

Reports

Report Summary

There are two basic types of reports: "X", or read-only and "Z", or read & reset to zero. Some reports are available in both types.

The following table summaries the reports available on the SAM4s ER-350:

Report

Financial

Control Lock

Position

X or Z

Key

CASH/

TEND

Period-to-Date Financial X or Z

CHARGE

Hourly Sales X or Z

X/TIME

All PLU X or Z

PLU

Clerk X or Z

String Report (Financial,

PLU, Time and Clerk reports in sequence)

From/To PLU

Z

X

CLERK

SUB

TOTAL

PLU

First PLU

PLU

Cash in Drawer

Check in Drawer

X

X

Last PLU

SUB

TOTAL

CHECK

TEND

ER-350 Electronic Cash Register V2.1 Reports

79

Running a Report

1. Find the report you wish to run from the table on the previous page.

2. Turn the control lock to the X or the Z position.

3. Press the appropriate key for the report you wish to run.

Cash-In-Drawer Declaration

Cash-In-Drawer Declaration is an optional feature that forces you to count the drawer and declare the drawer count before a report can be run. By forcing the operator to declare, without knowledge of the expected drawer totals, you are assured that all cash will be deposited. System option #8 must be set to a value of 1 to enforce cash declaration. See “System Option Programming” on page 50 to program system options.

Declaring Cash

1. Turn the control lock to the X position.

2. Enter the amount of the cash counted, press the SUBTOTAL key:

9 8 7 9

SUB

TOTAL

3. The printer will print the declared amount, the cash-in-drawer total from the cash register and compute the difference

4. Proceed to run the report you wish to print.

Note: You must run a report after declaring cash before registering any new transactions.

THANK-YOU

CALL AGAIN

INPUT AMOUNT $98.79

CASH IN DRAWER

$92.29

DIFFERENCE $6.50

03-01-1999 15:57

000041 00

80

Reports

ER-350 Electronic Cash Register V2.1

Report Samples

Financial Report

Note: This sample report is shown with items of zero value listed on the report.

Your report may only show totals with values other than zero, depending on the setting for system option #5.

Report Name ->

Report Type/Reset (Z) Counter

Department Activity Counter ->

Department Sales Total ->

(Department Counters and Totals are

listed for each department)

THANK-YOU

CALL AGAIN

< DAILY REPORT >

X 1

DEPT.1 18

T1 $33.03

DEPT.2 1

$0.07

DEPT.3 4

$50.99

DEPT.4 2

$3.50

DEPT.5 0

$0.00

DEPT.6 0

$0.00

DEPT.7 1

$20.99

.

.

.

DEPT.16 0

$0.00

------------------------

+DEPT TTL 26

$108.58

-DEPT TTL 0

$0.00

ADJST DEPT TTL 26

$108.58

------------------------

Continued on the next page . . .

ER-350 Electronic Cash Register V2.1 Reports

81

82

Reports

Total of non-taxable sales ->

Taxable sales for tax rate 1 ->

Tax 1 amount collected ->

Taxable sales for tax rate 2 ->

Tax 2 amount collected ->

Taxable sales for tax rate 3 ->

Tax 3 amount collected ->

NONTAX TTL

TAXABLE1 $33.04

TAX AMOUNT $1.98

TAXABLE2 $0.00

TAX AMOUNT $0.00

TAXABLE3 $0.00

TAX AMOUNT $0.00

-% 0

$0.00

+% 0

$0.00

-% 0

$0.00

NET TOTAL $110.57

CREDIT TAX1 $0.00

CREDIT TAX2 $0.00

CREDIT TAX3 $0.00

RETURN MDSE 1

-10.00

VOID KEY 0

$0.00

VOID MODE 0

$0.00

CANCEL 0

$0.00

GROSS TTL $120.57

CASH 6

$60.59

CHECK 2

$19.99

CHARGE 1

$29.99

RECEIVED ON 2

$30.99

PAID OUT 1

$10.00

Continued on the next page . . .

ER-350 Electronic Cash Register V2.1

Foreign Currency Total ->

Cash in drawer amount ->

Check in drawer amount - >

Count of no sales ->

Customer Count ->

Non-resettable Grand Total ->

Date/Time ->

Transaction Counter/Register Number ->

CURRENCY TOTAL

$0.00

CASH IN DRAWER

$81.58

CHECK IN DRAWER

$19.99

NO SALE COUNT 0

CUSTOMER COUNT 9

******************

GRAND TOTAL

$12474.83

03-11-1999 2:03

000089 00

ER-350 Electronic Cash Register V2.1 Reports

83

Hourly Sales Report

The Hourly sales report lists the number of transaction and their dollar total for each hour of the day.

Report Name ->

Report Type/Reset (Z) Counter

Time Period Activity Counter ->

Time Period Sales Total ->

(Counters and Totals are

listed for each time period)

Activity count of all time periods ->

Total of all time periods ->

Date/Time ->

Transaction Counter/Register Number ->

THANK-YOU

CALL AGAIN

< TIME REPORT >

X 1

10:00 7

$7.59

11:00 1

$346.67

12:00 9

$110.57

******************

CNT TOTAL 17

TOTAL $474.83

03-11-1999 12:03

000091 00

84

Reports

ER-350 Electronic Cash Register V2.1

PLU Report

The PLU report lists the activity and sale total for each PLU.

Report Name ->

Report Type/Reset (Z) Counter

PLU Activity Counter ->

PLU tax status/PLU price or limit ->

Reporting Dept/PLU Sales Total ->

(PLU Counters and Totals are

listed for each PLU)

Activity count of all PLUs ->

Total of all PLUs ->

Date/Time ->

Transaction Counter/Register Number ->

THANK-YOU

CALL AGAIN

< PLU REPORT >

X 1

PLU1 1

T1 @1.99

DEPT.2 $1.99

PLU30 1

T2 @10.00

DEPT.4 $10.00

******************

CNT TOTAL 417

TOTAL $12474.83

03-11-1999 2:03

000089 00

ER-350 Electronic Cash Register V2.1 Reports

85

Clerk Report

If you are using a clerk system, the clerk report is available. (See “System Option Programming” on page 50 and set option #16 to a value of 1 or 2 if you wish to use the clerk system.)

Report Name ->

Report Type/Reset (Z) Counter

Total sales for the clerk ->

Number of no sales performed ->

Customer Count for the clerk ->

(Totals are listed

for each CLERK)

Total count of all No Sales ->

Total count of all customers ->

Date/Time ->

Transaction Counter/Register Number ->

THANK-YOU

CALL AGAIN

< CLERK REPORT >

X 1

•CLERK 1 $1.06

NO SALE CNT. 0

CUSTOM. CNT 1

•CLERK 2 $7.92

NO SALE CNT. 0

CUSTOM. CNT 9

*****************

NO SALE CNT. 0

CUSTOM. CNT 10

TOTAL $8.98

03-11-1999 2:03

000089 00

86

Reports

ER-350 Electronic Cash Register V2.1

Cash-in-Drawer Report

Run a Cash-in-Drawer report to quickly verify the amount of cash that should be in the cash drawer.

Report Name ->

Cash in drawer amount ->

Date/Time ->

Transaction Counter/Register Number ->

THANK-YOU

CALL AGAIN

< CASH-IN-DRAWER >

CASH-IN-DRAWER

$81.58

03-11-1999 2:03

000097 00

Check-in-Drawer Report

Run a Check-in-Drawer report to quickly verify the amount of checks that should be in the cash drawer.

Report Name ->

Check in drawer amount ->

Date/Time ->

Transaction Counter/Register Number ->

THANK-YOU

CALL AGAIN

< CHECK-IN-DRAWER >

CHECK-IN-DRAWER

$19.00

03-11-1999 2:14

000101 00

ER-350 Electronic Cash Register V2.1 Reports

87

System Balancing

Department Sales Total

+

-

=

+DEPT TTL (Add All Positive Departments)

-DEPT TTL (Add All Negative Departments)

ADJST DEPT TTL

Net Total

+

-

-

+

+

+

+

=

ADJST DEPT TTL

TAX1 AMOUNT

TAX2 AMOUNT

TAX3 AMOUNT

+% (Surcharge Total)

-% (Discount Total)

- (Minus Key Total)

NET TTL

Gross Total

+

+

+

-

+

+

=

NET TTL

RETURN MDSE

VOID KEY

+% (Surcharge Total)

-% (Discount Total)

- (Minus Key Total)

GROSS TTL

Grand Total

+

+

=

Yesterdays Grand Total

Gross Total

GRAND TOTAL

88

Reports

ER-350 Electronic Cash Register V2.1

Manual Revision Record

Edition Date published Revison contents

V2.0 10/11/2006

ER-350 Electronic Cash Register V2.1 Manual Revision Record

89

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
