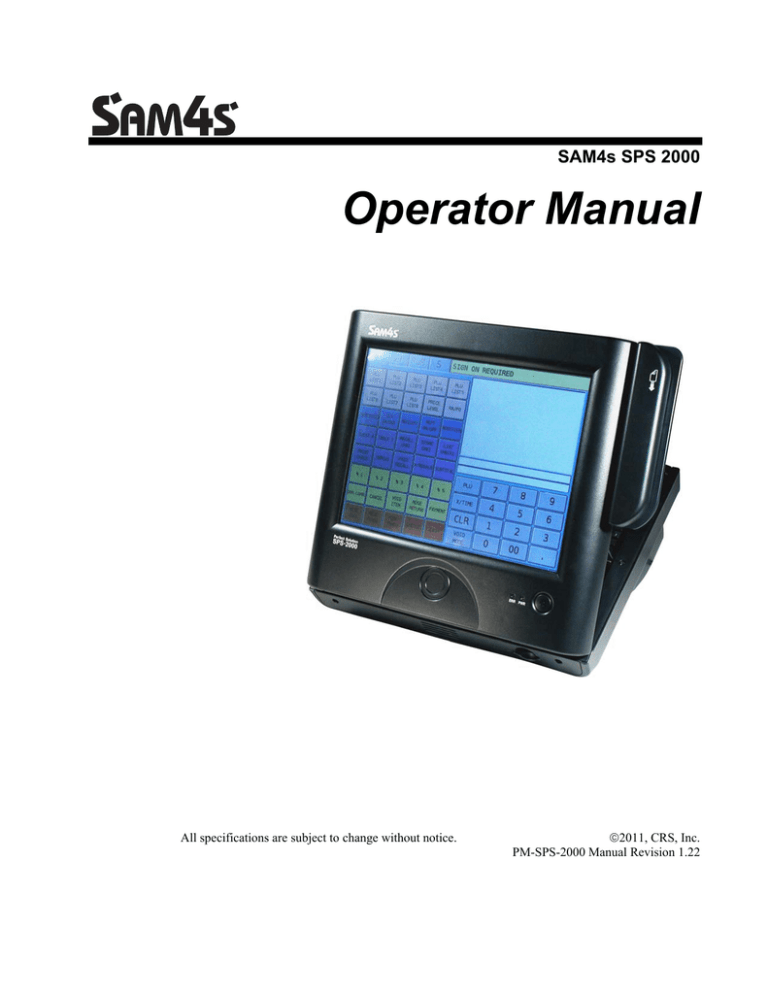

SAM4s SPS 2000

Operator Manual

All specifications are subject to change without notice.

2011, CRS, Inc.

PM-SPS-2000 Manual Revision 1.22

CRS, Inc.

Limited Warranty and Disclaimers of Warranty

This manual has been developed by CRS, Inc. It is intended for the use of its customers and service personnel and should be read in its entirety before attempting to install, use or program the product(s).

Nothing contained in this manual shall be deemed to be, and this manual does not constitute, a warranty of, or representation with respect to, the product or any of the products to which this manual applies. This manual is subject to change without notice and CRS, Inc. has no obligation to provide any updates or corrections to this manual. Further, CRS, Inc. also reserves the right, without prior notice, to make changes in equipment design or components as it deems appropriate. No representation is made that this manual is complete or accurate in all respects and CRS, Inc. shall not be liable for any errors or omissions contained in this manual. In no event shall CRS, Inc. be liable for any incidental or consequential damages relating to or arising out of the use of this manual. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied or reproduced without prior written consent of CRS, Inc.

NOTICE

IF ANY WARRANTY IS EXTENDED TO YOU WITH REGARD TO THE PRODUCT(S) TO WHICH THIS MANUAL APPLIES, IT

IS A WARRANTY FROM THE ENTITY OR INDIVIDUAL FROM WHOM YOU DIRECTLY PURCHASED THE PRODUCT(S).

SUBJECT TO THE FOREGOING, UNLESS YOU ARE A DIRECT END USER CUSTOMER OF CRS, INC., CRS, INC. DOES NOT

EXTEND TO YOU ANY EXPRESS WARRANTY OR ANY IMPLIED WARRANTY AND EXPRESSLY DISCLAIMS ANY IMPLIED

WARRANTY OF MERCHANTABILITY, FITNESS FOR USE, OR FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY

WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS IN CONNECTION WITH THE PRODUCT(S)

OR ANY SOFTWARE, DRIVERS, OR PROGRAMMING PRODUCT, WHETHER EMBEDDED IN PRODUCT(S) OR PROVIDED AS

A SEPARATE PROGRAM, OR USED IN CONJUNCTION WITH THIS/THESE PRODUCT(S). CRS, INC. SPECIFICALLY DOES

NOT WARRANT THAT THE OPERATION OF ANY DRIVERS, SOFTWARE, OR PROGRAMMING PRODUCTS LICENSED

HEREUNDER, WHETHER EMBEDDED IN PRODUCTS OR PROVIDED AS SEPARATE PROGRAMS, SHALL BE

UNINTERRUPTED OR ERROR FREE OR THAT FUNCTIONS CONTAINED IN SUCH DRIVERS, SOFTWARE OR

PROGRAMMING PRODUCTS SHALL OPERATE IN COMBINATION(S) WHICH MAY BE SELECTED FOR USE BY YOU OR

OTHERWISE MEET YOUR REQUIREMENTS.

CRS, Inc. is not responsible for any damages or loss, either direct, indirect, special, incidental or consequential, which you may experience as a result of your purchase or use of the product(s). Your sole remedy in the event that you encounter any difficulties with the product(s) is against the entity or individual from whom you purchased the product(s).

Revision 2.0 - April 1, 2005

WARNING - U.S.

THIS EQUIPMENT GENERATES, USES AND CAN RADIATE RADIO FREQUENCY ENERGY, AND IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTIONS MANUAL, MAY CAUSE INTERFERENCE TO RADIO COMMUNICATIONS. IT HAS BEEN

TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A COMPUTING DEVICE PURSUANT TO SUBPART J OF

PART 15 OF FCC RULES WHICH ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST SUCH INTERFERENCE

WHEN OPERATED IN A COMMERCIAL ENVIRONMENT. OPERATIONS OF THE EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY

TO CAUSE INTERFERENCE IN WHICH CASE THE USER, AT HIS OWN EXPENSE, WILL BE REQUIRED TO TAKE WHATEVER

MEASURES MAY BE REQUIRED TO CORRECT THE INTERFERENCE.

NOTICE - CANADA

THIS APPARATUS COMPLIES WITH THE CLASS “A” LIMITS FOR RADIO INTERFERENCE AS SPECIFIED IN THE CANADIAN

DEPARTMENT OF COMMUNICATIONS RADIO INTERFERENCE REGULATIONS.

CET APPAREIL EST CONFORME AUX NORMES CLASS “A” D’INTERFERENCE RADIO TEL QUE SPECIFIER PAR MINISTRE

CANADIEN DES COMMUNICATIONS DANS LES REGLEMENTS D’INTERFERENCE RADIO.

ATTENTION

The product that you have purchased may contain a battery that may be recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of the battery into the municipal waste system.

Check with your local solid waste officials for details concerning recycling options or proper disposal

.

Precaution Statements

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1. Be sure that all built-in protective devices are replaced. Restore any missing protective shields.

2. When reinstalling the chassis and its assemblies, be sure to restore all protective devices, including nonmetallic control knobs and compartment covers.

3. Make sure there are no cabinet openings through which people - particularly children - might insert fingers and contact dangerous voltages.

Such openings include excessively wide cabinet ventilation slots and improperly fitted covers and drawers.

4. Design Alteration Warning:

Never alter or add to the mechanical or electrical design of the SECR. Unauthorized alterations might create a safety hazard. Also, any design changes or additions will void the manufacturer’s warranty.

5. Components, parts and wiring that appear to have overheated or that are otherwise damaged should be replaced with parts that meet the original specifications. Always determine the cause of damage or over- heating, and correct any potential hazards.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer.

Dispose used batteries according to the manufacturer’s instructions.

6. Observe the original lead dress, especially near the following areas : sharp edges, and especially the

AC and high voltage supplies. Always inspect for pinched, out-of-place, or frayed wiring. Do not change the spacing between comp-onents and the printed circuit board. Check the AC power cord for damage. Make sure that leads and components do not touch thermally hot parts.

7. Product Safety Notice:

Some electrical and mechanical parts have special safety-related characteristics which might not be obvious from visual inspection. These safety features and the protection they give might be lost if the replacement component differs from the original - even if the replacement is rated for higher voltage, wattage, etc.

Components that are critical for safety are indicated in the circuit diagram by shading, ( ) or ( ). Use replacement components that have the same ratings, especially for flame resistance and dielectric strength specifications. A replacement part that does not have the same safety characteristics as the original might create shock, fire or other hazards.

ATTENTION ll y a danger d’explosion s’il y a remplacement incorrect de la batterie.

Remplacer uniquement avec une batterie du même type ou d’un type équivalent recommandé par le constructeur.

Mettre au rebut les batteries usagées conformément aux instructions du fabricant.

SAFETY NOTICE :

"For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible."

WARNING: First read the-Safety Precautions-section of this manual. If some unforeseen circumstance creates a conflict between the servicing and safety precautions, always follow the safety precautions.

WARNING: An electrolytic capacitor installed with the wrong polarity might explode.

1. Servicing precautions are printed on the cabinet.

Follow them.

2. Always unplug the units AC power cord from the

AC power source before attempting to:

(a) Remove or reinstall any component or assembly

(b) Disconnect an electrical plug or connector

(c) Connect a test component in parallel with an electrolytic capacitor

3. Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.

4. After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the portion around the serviced part has not been damaged.

5. Check the insulation between the blades of the AC plug and accessible conductive parts (examples

: metal panels and input terminals).

6. Insulation Checking Procedure:

Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500V) to the blades of AC plug.

The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

7. Never defeat any of the B+ voltage interlocks.

Do not apply AC power to the unit (or any of its assemblies) unless all solid-state heat sinks are correctly installed.

8. Always connect an instrument’s ground lead to the instrument chassis ground before connecting the positive lead ; always remove the instrument’s ground lead last.

1-3 Precautions for Electrostatically Sensitive Devices (ESDs)

1. Some semiconductor (solid state) devices are easily damaged by static electricity. Such components are called Electrostatically Sensitive Devices (ESDs); examples include integrated circuits and some fieldeffect transistors. The following techniques will reduce the occurrence of component damage caused by static electricity.

2. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wriststrap device. (Be sure to remove it prior to applying power - this is an electric shock precaution.)

3. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of electrostatic charge.

7. Do not remove a replacement ESD from its protective package until you are ready to install it.

Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.

8. Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.

9. Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting a foot from a carpeted floor can generate enough static electricity to damage an ESD.

4. Do not use freon-propelled chemicals. These can generate electrical charges that damage ESDs.

5. Use only a grounded-tip soldering iron when soldering or unsoldering ESDs.

6. Use only an anti-static solder removal device.

Many solder removal devices are not rated as antistatic; these can accumulate sufficient electrical charge to damage ESDs.

Contents

Introduction 9

SAM4s SPS-2000 Overview .....................................................................................................9

Hardware .....................................................................................................................9

Software ......................................................................................................................9

Options ........................................................................................................................9

Safe Operation .........................................................................................................................10

ECR Power Requirements .......................................................................................................10

About Power Conditioning Equipment ...................................................................................11

Surge Protectors and Power Conditioners.................................................................11

Ground Guard Conditioners ......................................................................................11

Uninterruptible Power Supplies (UPS) .....................................................................12

Terminal Controls & Connections...........................................................................................13

Front Panel Angle Adjustment ..................................................................................13

Rear Display..............................................................................................................14

SD Memory Card Slot...............................................................................................14

Connection Panel.......................................................................................................15

Getting Started 17

Default Screen Layout .............................................................................................................17

Custom Screen Layouts ...........................................................................................................18

Screen Saver ............................................................................................................................19

Initialize/Re-boot .....................................................................................................................19

Function Key Definitions ........................................................................................................20

Keylinks...................................................................................................................................27

Passwords ................................................................................................................................28

Password Notes .........................................................................................................28

Error Messages ........................................................................................................................29

Basic Operations 35

Signing On/Off ........................................................................................................................35

Sign On by the Employee Key ..................................................................................36

Sign On by Push Button Key ....................................................................................36

Sign On by Employee Card.......................................................................................36

Sign On by Fingerprint..............................................................................................36

Sign On by Continue Key .........................................................................................36

Sign Off.....................................................................................................................36

Clerk Interrupt ...........................................................................................................37

Clocking In/Out .......................................................................................................................37

Clock In .....................................................................................................................37

Clock Out for Break ..................................................................................................38

Clock In from Break..................................................................................................38

Clock Out for Day .....................................................................................................38

Clock In/Out by Fingerprint ......................................................................................38

SAM4s SPS-2000 Operator Manual v1.22 Contents

5

6

Contents

Time Clock Edit ........................................................................................................39

Outside of Sale Functions ........................................................................................................40

Time Display .............................................................................................................40

Received on Account.................................................................................................40

Paid Out.....................................................................................................................40

Registering PLUs/Items...........................................................................................................41

Preset PLUs ...............................................................................................................41

Open PLUs ................................................................................................................41

Code Entry Preset PLUs............................................................................................41

Code Entry Open PLUs .............................................................................................41

PLU Price/HALO Override.......................................................................................41

PLU Price Change .....................................................................................................41

Repeat........................................................................................................................41

PLU Price Inquiry......................................................................................................41

Registering a Not Found PLU ...................................................................................42

Price Level Shift ........................................................................................................43

Scale Items.................................................................................................................43

Print Key....................................................................................................................44

Auto Grill Item ..........................................................................................................45

Promo ........................................................................................................................45

Waste .........................................................................................................................45

Price Inquiry ..............................................................................................................45

Food Stamp Shift.......................................................................................................46

Tax Shift/Tax Exemption ..........................................................................................46

Corrections & Voids ................................................................................................................47

Clear ..........................................................................................................................47

Error Correct..............................................................................................................47

Void Item...................................................................................................................47

Cancel........................................................................................................................47

Transaction Void .......................................................................................................47

Merchandise Return...................................................................................................48

Discounts/Coupons/Surcharges ...............................................................................................48

Sale (Subtotal) Discounts ..........................................................................................48

Item Discounts...........................................................................................................49

Surcharges .................................................................................................................50

Totaling/Tendering ..................................................................................................................50

Cash ...........................................................................................................................50

Check.........................................................................................................................50

Check Cashing...........................................................................................................51

Miscellaneous (Charge) Tender.................................................................................51

Preset Tender.............................................................................................................51

Split Tender ...............................................................................................................51

Integrated Payment System Operations.....................................................................51

Foreign Currency Subtotal & Tender ........................................................................53

Food Stamp Subtotal & Tender .................................................................................53

Post-Finalization Procedures ...................................................................................................54

Paid Order Recall ......................................................................................................54

Receipt Issue..............................................................................................................54

Validate .....................................................................................................................55

Quick Service Operations ........................................................................................................56

Typical QSR Keyboard .............................................................................................56

Sample Transaction Receipt ......................................................................................57

Drive Thru Operations...............................................................................................58

Training Mode .........................................................................................................................60

SPS-2000 Delivery System......................................................................................................61

SAM4s SPS-2000 Operator Manual v1.22

Delivery System Features..........................................................................................61

Delivery Related Programs........................................................................................61

Delivery Operations ..................................................................................................62

Guest Check Operations ..........................................................................................................68

Overview ...................................................................................................................68

Manual Previous Balance..........................................................................................70

Hard Check Posting...................................................................................................72

Soft Check Posting ....................................................................................................73

Seat # Assignment .....................................................................................................78

Split Check ................................................................................................................82

Split Check—Graphical Method ...............................................................................83

Hold/Print Hold .........................................................................................................87

List Check .................................................................................................................89

Repeat........................................................................................................................90

Transfer Table ...........................................................................................................91

Combine Checks for Payment ...................................................................................92

Transfer Check ..........................................................................................................93

Tip Declare................................................................................................................95

Using Graphical Table Management .......................................................................................97

Graphic Table Management Operations....................................................................98

SPS-2000 Table Reservation.....................................................................................99

Reports 103

Report Menu ..........................................................................................................................103

Report Table ..........................................................................................................................104

Printing & Saving Reports ......................................................................................106

Cash Declaration....................................................................................................................107

X Mode Program ...................................................................................................................108

Time Clock Edit ......................................................................................................108

Edit Inventory Item .................................................................................................109

Date Time Setting....................................................................................................109

Drawer Assignment.................................................................................................110

FTP Transmission..................................................................................................................110

Receipt Reprint ......................................................................................................................110

DataTran Operation ...............................................................................................................111

Initialize EFT...........................................................................................................112

Open Batch..............................................................................................................112

Close Current Batch/ Close Current Batch with Debit............................................112

Change Batch Number ............................................................................................112

Issue Local Total .....................................................................................................113

Issue Local Transaction...........................................................................................113

Issue Local Batch Status Report..............................................................................114

Enable Dial In Load/Enable Dial Out Load ............................................................114

Gratuity Entry..........................................................................................................115

Initialize Pin Pad .....................................................................................................115

Get Gift Card Balance .............................................................................................115

Post Authorization...................................................................................................116

Report Samples......................................................................................................................117

Financial Report ......................................................................................................117

Sales By Time Period ..............................................................................................119

PLU Reports............................................................................................................119

Employee Reports ...................................................................................................120

Group.......................................................................................................................122

Drawer Totals..........................................................................................................122

SAM4s SPS-2000 Operator Manual v1.22 Contents

7

Labor Groups...........................................................................................................123

Sales and Labor % ...................................................................................................123

Daily Sales...............................................................................................................124

Groups By Time Period...........................................................................................124

Analysis 1 By Time Periods ....................................................................................125

Analysis 2 By Time Periods ....................................................................................125

Analysis 3 By Time Periods ....................................................................................126

Track By Time Periods............................................................................................126

Open Check .............................................................................................................127

Product Mix.............................................................................................................127

Product Projections..................................................................................................128

Station Totals...........................................................................................................128

Daily Time Keeping ................................................................................................129

Shift Report .............................................................................................................130

Inventory .................................................................................................................132

PLU Stock ...............................................................................................................134

PLU Stock by Group ...............................................................................................134

Electronic Journal....................................................................................................135

Food Cost ................................................................................................................136

Balancing Formulas ...............................................................................................................137

Program Maintenance 139

PLU Maintenance ..................................................................................................................139

Changing Item Prices ..............................................................................................139

Employee File Maintenance ..................................................................................................142

Employee Field Definitions.....................................................................................145

Appendix 147

Report Function Key Report Code Structure.........................................................................147

Report # Table ........................................................... Error! Bookmark not defined.

Report Option Table .................................................. Error! Bookmark not defined.

Special Report Commands ......................................................................................150

Manual Revision Record 151

8

Contents

SAM4s SPS-2000 Operator Manual v1.22

Introduction

SAM4s SPS-2000 Overview

Hardware

The SPS-2000 features a 12.1” color LCD touch screen and many popular off-the-shelf POS peripherals can be connected by way of serial communication ports. The SPS-2000 has no hard disk drive, instead running its built-in application software from on-board flash memory and storing data on non-volatile RAM.

Equipped with an LCD touch screen, the SPS-2000 resembles in appearance and application a PC-based POS terminal. However, unlike open-architecture PC-based terminals, the SPS-

2000 cannot run other PC applications – it is only capable of running the bundled, built-in

POS application.

Software

The built-in SPS-2000 POS application has considerable flexibility and can be configured for both retail sales and food sales in quick and table service environments

Like ECR programs, the SPS-2000 application program allows the reseller to configure the terminal to perform in a specific setting. After consulting with the merchant, the reseller uses

S-Mode (secure) programs set to memory allocation, system configurations, key functions and locations, port assignments, passwords and other system settings. Then the P-Mode

(program) is used to complete the end user program for the merchant with, price look-up

(PLU) programs, messages, employees, taxes, and other system options.

Options

Each SPS-2000 ECR is configured with all options included. Each SPS-2000 has maximum memory, a card reader, SD memory card reader, and a rear display standard. No additional terminal options are available.

SAM4s SPS-2000 Operator Manual v1.22 Introduction

9

Safe Operation

 Do not locate your SAM4s SPS-2000 in a damp or wet environment. Avoid high humidity, direct sunlight and temperature extremes.

 Always plug your SPS-2000 into a grounded three-prong outlet. Never use two-prong adaptors or ungrounded outlets.

 Check to make sure the power outlet provides the correct voltage: (120V +/- 10%).

 Immediately disconnect the ECR from the power source in case of spilled liquid in the

ECR, smoke, or strange smells. Call your authorized dealer for assistance.

 Do not operate the ECR with wet hands.

 Use a soft dry cloth to clean the ECR cabinet. Do not use wet clothes or solvents.

 Do not open the ECR case to attempt repairs. Dangerous voltages can cause shock.

Service attempts by untrained personnel can cause unnecessary damage to your ECR.

ECR Power Requirements

 Be aware that other electrical devices on the same circuit can cause your ECR to malfunction. Avoid plugging your ECR into outlets where other high-current devices are connected.

 Be aware that power quality issues, including voltage fluctuations, electrical noise, spikes, outages, interruptions, and other power viruses can disrupt or damage modern electronic equipment, including ECRs and PCs.

 When ECRs are interconnected in networks, connected to PCs or where communications cables connect peripherals, particular care must be taken with power sources and communication cable routing. Your authorized dealer can provide detailed power specifications for these applications. Failure to implement installation requirements for networked systems may cause system failures and/or poor system performance.

10

Introduction

SAM4s SPS-2000 Operator Manual v1.22

About Power Conditioning Equipment

Surge Protectors and Power Conditioners

Most people are familiar with surge protectors, which guard against damage due to sudden spikes in the electrical current. A power conditioner provides protection against surges in power just as a surge suppressor does, but a power conditioner also maintains a continuous voltage during temporary voltage reductions, such as a brownout. This is referred to as

conditioning. Power conditioners also can filter EMI emanating from a power source and can smooth the rhythmic cycle

of alternating current

.

While surge protectors safeguard equipment, a power conditioner cleans the signal, eliminating interference on the line.

CRS recommends the PowerVAR ABC065-11 (CRS P/N 701002), a 0.65 amp power conditioner that is suitable for most ECR applications. POWERVAR standard power conditioners are for use with any microprocessor based electronic equipment. Thanks to their low impedance isolation transformer, you can trust these conditioners to protect your sensitive equipment from the biggest problems for today's computers.

Ground Guard Conditioners

POS systems consisting of workstations connected in an Ethernet network must have the same point of reference, (i.e. common ground potential for all equipment in the system.)

Unlike electronic loads, traditional electrical loads such as motors, lights, heavy appliances, etc. use the equipment ground for safety purposes only and do not rely on it for proper operation. Computer equipment, on the other hand, introduces the equipment-grounding conductor as an active part of the power supply in referencing digital logic. Therefore networked POS systems require isolated/dedicated ground circuits to insure proper operation.

CRS recommends POWERVAR ground guard conditioners for network applications. Only the “Ground Guard” conditioner from POWERVAR can be used as an alternative to isolated/dedicated ground circuits. Traditional power conditioners cannot be used as an alternative as they do not address the ground issues over a network. The Ground Guard conditioner must protect every piece of equipment in the POS system in order to operate properly. POWERVAR Ground Guard power conditioners are available in sizes from 0.65 to 16 amps, to protect single or multiple POS components.

SAM4s SPS-2000 Operator Manual v1.22 Introduction

11

Uninterruptible Power Supplies (UPS)

On sites where there is a known problem with temporary power outages or brownouts, battery back-up devices should be installed. Most battery back-up devices are known as

Uninterruptible Power Supplies (UPS). When power to equipment is momentarily lost, the

UPS devices draw power from an internal ‘gel cell’ battery to keep the equipment operating.

The length of time these devices power the POS system is dependent on the capacity of the internal batteries. Many sizes are available, but typically the units installed on POS equipment keep the computers powered for about 20 minutes. This will give servers and managers time to settle bills, print checks and power down the system in an orderly fashion.

CRS recommends POWERVAR Security One Series Uninterruptible Power

Supplies, the most advanced, line-interactive, true sine wave UPM products available for your application. Each model is designed to provide total protection for your system from a complete range of power quality problems. Security One

Series Uninterruptible Power Supplies are available with or without the patented Ground

Guard conditioning circuitry.

12

Introduction

SAM4s SPS-2000 Operator Manual v1.22

Terminal Controls & Connections

The Error light will flash during IRC communication

Front Panel Angle Adjustment

Standard

Magnetic Card

Reader (MCR)

Front Panel Power Button

Press and hold the Front Panel

Power Button to alternately shut down or activate the touch screen.

Note that the main power switch is located on the bottom of the terminal in the right-rear corner.

The front panel power button may be enabled or disabled in the S-

Mode options program.

Set the position of the front panel support to adjust the angle of the front panel from 22° to 77°.

SAM4s SPS-2000 Operator Manual v1.22 Introduction

13

Rear Display

SD Memory Card Slot

Standard Rear Display

The SPS-2000 SD Memory Card slot can be used to:

 Load Application Program Updates

 Save/Load End User Program Settings

 Load Key Images

 Save Screen Captures

14

Introduction

SAM4s SPS-2000 Operator Manual v1.22

Connection Panel

Terminal Power

On/Off switch

Standard Terminal ports include:

 Cash Drawer Port (Supports 2-Drawers)

 LAN port

 Keyboard/Mouse Ports

 2-USB Ports

 LPT Port (Parallel)

 6-RS-232C Comm. Ports (2-DB9 Male/4-RJ45)

AC Power Cord

Connection

Serial Number/

Identification

Label

The Standard

Rear Display uses RS-232C

Port #6

SAM4s SPS-2000 Operator Manual v1.22 Introduction

15

16

Introduction

SAM4s SPS-2000 Operator Manual v1.22

Getting Started

Default Screen Layout

Mode Tabs

Touch one of the four

Tabs to control the

SPS-2000 Mode:

REG = Registration

REP = Reports

PRG = Program

S = Secure Mode

A password may be required for access to

REP, PRG & S modes.

Main Screen

Forty keys display on the main screen.

Keys can be items/categories

(PLUs) or functions.

A total of 200 different screens

(Keylinks) can be displayed to organize items or functions.

SAM4s SPS-2000 Operator Manual v1.22 Getting Started

17

Message Line:

Displays Error

Messages, Clerk

Identification &

Transaction totals.

Transaction Detail

is displayed here. If over 12 items are registered, a scroll bar displays.

Transaction

Summary Line.

Status Line:

Displays current

Price level,

Receipt on/off status & register #.

Fixed Keys

The 10-key pad, and eight essential function keys are fixed.

Fixed keys cannot be moved

or changed.

Custom Screen Layouts

After your authorized dealer prepares your SPS-2000 for installation, your main screen and keylink screens will look different. Each screen will contain the variety of item and function keys that you require. Your screens will be designed using the following capabilities:

The Main Screen and each Keylink screen provide 40 single size key locations in a 5 x 8 matrix.

Large, wide and vertical keys may be used and unused locations may be eliminated.

Keys colors can be chosen from an

18-color palate.

Images may be used instead of text for key identification.

Keys may be set to open new screens (keylinks). In this example, the beverage key

(above) is set to open a new screen offering 5-different beverage sizes

18

Getting Started

SAM4s SPS-2000 Operator Manual v1.22

Screen Saver

A screen saver can be implemented; your authorized dealer can install a custom graphic image to display. Depending upon the setting, the screen saver will display after 1 to 99 minutes of inactivity.

When the screen saver is activated, simply touch the screen to restore the normal display.

Initialize/Re-boot

The initialize function allows you to exit any register activity and return to a beginning or cleared state. Any transaction that is in progress will be exited and totals for that transaction will not be updated.

Here are some reasons you may want to initialize your ECR:

 The register is in an unknown state, and you wish to exit the current program or transaction without following normal procedures.

 You have performed a function that includes a compulsory activity, such as validating or printing, and you wish to bypass the compulsory activity.

 An initial clear may be necessary as part of servicing, or troubleshooting an SPS-

2000 register or system.

Perform this procedure only as necessary. Contact your authorized SAM4S dealer first if you have questions about operating or programming your SPS-2000.

To Initialize the SPS-2000, turn the main power switch off, then on again. The SPS-2000 will be ready for operation about 30 seconds after re-booting.

Warning: If you initialize while a transaction is in progress, the transaction will be aborted and totals/counters will not be updated.

SAM4s SPS-2000 Operator Manual v1.22 Getting Started

19

Function Key Definitions

Note that key descriptions are programmable. Key descriptions on your screen may be different than the function key name. For example, the “%1” function key may be programmed and labeled to operate as a store coupon key.

ADD CHECK

CANCEL

CASH

TIP DECLARE

CHECK

CHECK CASH

CHECK ENDORSE

CLEAR

CONTINUE

CURR. CONV. 1-5

TABLE DSP

NEXT DOLLAR

#

013

Use to add multiple guest checks (tracking balances or soft checks) for payment together. See “Combine Checks for Payment” on page

92. See "TRAY SUBTL" on page 25 to add separate transactions when you are not tracking balances.

016

Touch CANCEL to abort a transaction in progress. All current items are removed (voided).

018

Use CASH to finalize or tender cash sales. Change is computed when the amount of cash tendered is greater than the amount of the sale.

019

Use to declare employee tips if you are not using the employee time keeping feature. (If you are using employee time keeping, you are prompted to declare tips when clocking out.)

021

Use CHECK to finalize or tender check sales. Change is computed when the amount of the check tendered is greater than the amount of the sale.

022

Use the CHECK CASH key to exchange a check for cash outside of a sale.

023

If compulsory check endorsement is set with the CHECK key, use the CHECK ENDORSE key to print the endorsement message after a check is inserted into the appropriate printer.

024

Use the CLEAR function to clear numeric entries or error conditions.

025

Use to override the pop-up employee function after a transaction.

Allows the employee to post an additional transaction without signing on again.

026-

030

Use to convert and display the value of the transaction in foreign currency. Only cash tender is allowed after touching a CURR

CONV key. Change is calculated and issued in home currency.

033

Feature not currently available.

034

Touch the NEXT DOLLAR key to tender an amount the next whole dollar above the sale total. For example, if the sale total were $2.52, then the NEXT DOLLAR key would automatically tender $3.00.

20

Getting Started

SAM4s SPS-2000 Operator Manual v1.22

REPORT

DONE

DRIVE THRU

EAT-IN

EMPLOYEE

EMPLOYEE (1-10)

ERR.CORR

FD/S SHIFT

FD/S SUBTL

FD/S TEND

GUEST #

HOLD

INACTIVE

LIST CHECK 1-4

DELIVERY

036

You can print out reports from the REG tab using the REPORT key.

Reports are generated by first entering the report code, then touching the REPORT key, i.e: [Report Code] [REPORT]. See

“Report Function Key Report Code Structure” on page 147 in the appendix of this manual. Note: This feature is available on v2.00j or later software.

037

Touch the DONE key to exit a keylink screen and return to the main screen.

038

DRIVE THRU is a subtotal function. Touch DRIVE THRU to record the amount of the transaction in the drive thru total on the financial report. Tax calculation can be changed to accommodate different tax rules for drive thru sales.

039

EAT-IN is a subtotal function. Touch EAT-IN to record the amount of the transaction in the eat-in total on the financial report. Tax calculation can be changed to accommodate different tax rules for eat-in sales. Sales cannot be split between eat-in and take-out.

040

The EMPLOYEE # key is used to sign on a cashier, clerk, server or employee.

041-

050

The EMPLOYEE (1-10) keys can be programmed to sign on a specific employee when touched directly, without entering a code.

052

Touch ERR CORR immediately after an item to void that item.

053

Touch FD STMP SHIFT to shift the pre-programmed food stamp status of an item prior to its registration.

054

Touch FD STMP SUBTTL to display the total of food stamp eligible items registered in the current transaction.

055

Touch the FD STMP TEND key to tender Food Stamps after the display of the food stamp eligible subtotal. Depending upon function key programming, change less than $1 may be applied to any cash balance or issued as cash change.

056

Use to record the number of guests served by a transaction. The entry may be compulsory. The entry appears on receipts and the kitchen printer/KVS.

057

Use to identify an individual item, or an entire transaction so that the designated items will not print/display at the kitchen printer/KVS at the current finalization. Items designated as "hold" items will display on the screen with an "H".

058

Use to define an inactive key location.

064-

067

Touch LIST CHECK (for the appropriate tracking file) to display a list of all open soft checks in the file.

069

The Delivery function key is used to initiate a delivery transaction.

When touched, the Delivery key opens the customer record screen.

Here existing accounts can be opened, new accounts created, or existing accounts deleted.

SAM4s SPS-2000 Operator Manual v1.22 Getting Started

21

PARK DELIVERY

SERV DELIVERY

DELIVERY LIST

MACRO 1 - 40

MACRO #

MDSE RETURN

MISC TEND 1-16

MISC TEND #

MODIFIER 1-10

#/NO SALE

P/BAL

PAID OUT 1-5

PAID RECALL

%1 - %10

PLU

PRICE INQ

22

Getting Started

070

The Park Delivery function key allows you to accept orders and hold them for preparation and delivery at a later time.

071

The Serv Delivery function key releases held parked orders for preparation.

072

Touch the Delivery List function key to display a list of open delivery check numbers, with name, time and status. From the list, you can release a parked order for preparation.

077-

116

119-

134

Use to execute one of forty possible preprogrammed key sequences.

($1, $5, $10, and $20 are the default preset tender keys for macros

1-4.)

117

Use to execute one of the forty possible macros by entering the macro number and touching the MACRO # key.

118

Touch the MDSE RETURN key to adjust items inside or outside of a transaction.

Touch a MISC TEND key to finalize or tender sales paid by various charges or other media. Tendering may or may not be allowed depending upon function key programming. (Charge is the default descriptor for MISC TEND #1)

135

Access any of the 16 possible miscellaneous tender functions by entering the tender number (1-16) and touching the MISC TEND # key.

136-

145

Preceding a PLU entry, a modifier key changes a digit of the PLU number, causing a different PLU to be registered. Modifier keys can be set to change any of the 14 PLU digit positions to any specified digit (0-9).

147

Use to enter a non-adding memo number during a transaction (# function) or use to open the cash drawer outside of a sale (no sale function).

148

Enter an amount, and then touch the Manual Previous Balance

(P/BAL) key to enter a beginning balance in a “Hard Check” system. Transactions where the P/BAL key is used must be finalized with one of the STORE CHECK keys.

151-

155

Touch a PAID OUT key to remove cash, check or miscellaneous media from the drawer.

156

The PAID RECALL key is used to recall last x number of transactions, starting with the last transaction finalized. (X is determined in memory allocation.) Once recalled, a transaction could be reviewed (touch PAID RECALL again to view the previous transaction). To exit the paid order view, touch CLEAR.

157-

166

Ten discount keys (%1 - %10) are available to handle various kinds of discounts, markdowns and adjustments to items or transactions.

167

Enter the PLU code number and touch PLU to register a PLU.

169

Touch the PRICE INQ to display the PLU price without actually registering the PLU.

SAM4s SPS-2000 Operator Manual v1.22

PRICE LVL 1-20

PRINT

PRINT CHECK

PRINT HOLD

PROMO

QUIT

RECEIPT ON/OFF

RECALL CHECK # 1-4

RECD ACCT 1-5

RECEIPT

REPEAT

170-

189

Touch a LEVEL key prior to a PLU entry to shift the price of a

PLU to a different price set in PLU programming.

190

Touch the PRINT function to send items that require special preparation to the kitchen printer (or KVS) before the sale is finalized. An item can be programmed as an auto grill item, requiring the PRINT key to be touched every time the menu item is sold. This function does not affect normal kitchen printer/KVS routing. The PRINT function also sends items in group sequence using the “meal order feature” available at version 2.02n or later.

Items are given a meal order priority through group programming.

Each time the PRINT key is touched, the next priority of items will be release to the kitchen printer.

191

Prints the soft guest check (tracking file) that is currently displayed.

The PRINT CHECK key may be programmed to store (service) the check automatically.

192

Use to remove the "hold" designation from an item or order, so that the items and their instructions are now sent to the kitchen printer/KVS at finalization.

193

Touch the PROMO key to void the price (the item remains) of an item. Can be used for 2 for 1 promotions. A PROMO count is available for each menu item.

195

Touch QUIT to automatically sign off the current cashier/clerk.

196

Touch RECEIPT ON/OFF to toggle the receipt function from on to off (versions before V2.01r) or touch [1] [RECEIPT ON/OFF] to turn receipt on or [2] [RECEIPT ON/OFF] to turn receipt off

(versions 2.01r or later.) You must first have a receipt printer connected, identified to the register, and the print receipt automatically option (see General Printing Options) turned on. Key also controls report printing.

197-

200

201-

205

The check tracking system can maintain only balances (hard check) or entire transactions (soft check) in the register memory. Four different tracking files can be separated to maintain, for example: restaurant checks, call-in orders, delivery orders, and/or table balances. Touch one of the four RECALL CHECK # keys directly to begin a tracking transaction, or enter the tracking number and touch the RECALL CHECK # key to access the existing tracking balance.

Touch a RECD ACCT key to add cash, check or miscellaneous media to the drawer.

206

Touch the RECEIPT key to issue a transaction receipt at the designated receipt printer.

207

Touch the REPEAT key to quickly re-order a set of items. When a check is recalled, simply touch the REPEAT key to automatically register all of the items registered at the previous posting.

SAM4s SPS-2000 Operator Manual v1.22 Getting Started

23

SCALE

SEAT #

SPLIT ITEM

SPLIT PAY

STOCK INQ

STORE CHECK 1-4

SUBTOTAL

TABLE # (1-4)

TAKE-OUT

TAX EXEMPT

TAX SHIFT 1-6

CLK IN/OUT

TIP (1-3)

208

Touch the SCALE key to automatically display the weight from a scale connected to the register, or to manually enter a weight for extension.

209

Use to identify a specific seat (or person) within a transaction.

Facilitates separate payment by seat, and identifies to the food preparation staff (through the kitchen printer/KVS) how to assemble meals. Seat numbers may be assigned at the time of entry or, if necessary, later in the transaction.

211

When like items are consolidated in a transaction you can move the cursor to the item and touch the SPLIT ITEM key to display the items separately, instead of in consolidated form, used normally to assist the items to seat allocation.

212

Touch the SPLIT PAY key to divide the amount of a guest check into equal segments for payment by more than one person.

213

Touch the STOCK INQ key, and then enter (or scan) an item to view the stock status of the item. (The item must be a stock item to use this function.)

214-

217

The check tracking system can maintain only balances (hard check) or entire transactions (soft check) in the register memory. Four different tracking files can be separated to maintain, for example, restaurant checks, call-in orders, delivery orders, and/or table balances. Touch one of the four STORE CHECK # keys to finalize a tracking transaction. (This function is equivalent to a SERVICE function.)

218

Touch SUBTOTAL to display the message “SUBTOTAL” on the display. Although a running total is always displayed on the bottom of the screen, the SUBTOTAL key may be required before some functions, such as subtotal discount.

219-

222

Use to enter the table number of the check. If a table number is entered, the TABLE # key can also be used to recall the check.

223

TAKE-OUT is a subtotal function. Touch TAKE-OUT to record the amount of the transaction in the take-out total on the financial report. Tax calculation can be changed to accommodate different tax rules for take-out sales. Sales cannot be split between eat-in and take-out.

224

The TAX EXEMPT can be preprogrammed to exempt specific taxes from a sale.

225-

230

Use to shift the preprogrammed tax status of an item. Touch before an item entry to make taxable.

231

Touch the CLK IN/OUT key to record start and stop work times for the registered employee. Hours worked are maintained by the time clock system.

232-

234

Use to enter a tip amount on a check.

24

Getting Started

SAM4s SPS-2000 Operator Manual v1.22

TRANSFER CHECK (1-4)

TRAY SUBTL

VALID

VOID ITEM

WASTE

FUNC.LIST#

X/TIME

STRING REPORT #

PARK ORDER

SERVE ORDER

KP ROUTING

235-

238

Use to transfer one or all open soft checks form one server to another server. A transfer check receipt will print.

239

Touch the TRAY SUBTL key to finalize a transaction that will be paid later with subsequent transactions. See "ADD CHECK" on page 20 to add multiple soft checks for payment.

240

Touch VALID to initiate a single line validation. (A printer with validation capability must be connected to the system and programmed appropriately.)

241

Touch the VOID ITEM key to remove an item from a transaction.

Locate the cursor on the item you wish to remove and touch the

VOID ITEM key.

242

Used to start and end entries of items that are wasted. A waste count is maintained for each item and inventory is adjusted.

243

Use to manually advance to a specific Key Link. Enter the Key link

# (1-200), touch the FUNC.LIST# key.

244

Use the X/TIME key to multiply, to register split price items, or display the time in the REG mode.

245

Use to execute string report from REG mode. Enter number of string report to execute. Manager password may be required.

246

Used in conjunction with a kitchen video system and the SERVE

ORDER function key. Enter a number and touch PARK ORDER to park or "suspend" an order on the video monitor until the order is completely filled. In the case of a drive through order that cannot be completed when the customer arrives at the pick-up window, the operator would park the order until it was completely filled. The order would then be served or bumped by using the SERVE

ORDER key.

247

Used in conjunction with a kitchen video system and the PARK

ORDER function key. Enter a number and touch SERVE ORDER to serve or bump the order from a video monitor. No video keypad is needed for this function.

248

The KP ROUTING key is used to override KP Time Period control.

For example, a restaurant might normally operate two kitchens at one time and one kitchen at other times. In case the volume of business changes, the manager might want to control the KP routing manually. Also, a single item, or large order might be required to be sent to a different printer than normal. Select STAYDOWN or

TRANS. POP UP. To operate, before the transaction, touch [1] [KP

ROUTING] for period one or [2] [KP ROUTING] for period two.

SAM4s SPS-2000 Operator Manual v1.22 Getting Started

25

SPLIT CHECK

ALPHA TEXT

NEW CHECK1-4

PRICE CHANGE

EFT FUNC.

26

Getting Started

249

The Split Check function provides another method of breaking down checks for payment. Note that this method works best when check numbers are not automatically assigned. Many programmers/installers will use the table number as the check number, and in this situation the feature works quite well.

Place a “Split Check” key on the screen. Recall a check (table).

Select the item you wish to place on a new check by touching the item on the display, then touching [Split Check]. Note that an asterisk (*) now displays next to the item. Continue to mark additional items to be assigned to a different check as necessary.

Touch [Store Check]. The prompt will ask you to enter the number of the check you wish the designated items to be assigned to. Enter the check (table) number and touch OK. The original check with be stored automatically and the new check with the split items is open for storing or payment.

If you wish to use the split check feature in applications where checks are automatically assigned, you must first open and store a new check. Make note of the check number. Then open the check from which you wish to split items from. Identify the items using the [Split Check] key as described above. Then when prompted to enter the number of the check where the selected items are to be assigned, enter the number of the new check you previously created.

250

Use to type a name or message that will be associated with a soft check. Touch the ALPHA TEXT key anytime after a check has been opened, then type a message (up to 15 characters) using the alpha keyboard overlay and touch OK. Multiple message lines can be entered. The message is saved and printed/displayed with the order. A system option controls whether the message is printed on the guest check.

251-

254

The standard recall check key allows a check to be opened if it does not already exist. This is excellent in hospitality tracking, however for account management credit may not so readily be given.

Therefore when this button is programmed accounts are not opened automatically. A warning will indicate an account does not exist if an attempt is made to open using the recall check key. The new check button is used to open new accounts. The programmability for this key is automatically picked up from the status of the Recall check key.

256

This allows the pre-programmed price of an item to be changed.

There are optionally programmed restrictions.

258

When pressed (in REG Mode) a list of EFT functions display:

Open Batch, Close Current Batch, Close Batch with Debit, Gratuity

Entry, Get Gift Card Balance. See Authority Level Programming to restrict access to open/close batch functions. Note: available on software v2.00g or later.

SAM4s SPS-2000 Operator Manual v1.22

Keylinks

The main screen provides 40 programmable locations. In addition to the main screen you can define 199 additional 40-location screens referred to as “Keylinks”. (Note that the default program pre-defines the first 12 keylinks for PLU lists and various function lists.)

In the example depicted below, the PLU List keys and the Payment key open new Keylink

Screens.

More About Keylinks

 Keylinks have multiple uses. Typically they will be used as menu screens containing like items such as entrees, appetizers or drinks or condiments. They may also be used to organize function keys such as discounts or payment keys.

 Keylinks can display any combination of PLU keys (menu items or condiments) or function keys such as % keys, media keys, etc.

 Keylinks can be opened (displayed) by touching a key on the Main screen or by touching a key on another Keylink. Keylinks can also be opened automatically after the entry of a PLU item (see PLU

Programming).

 Keylinks can be programmed to remain open for unlimited entries, with the DONE key used to close the Keylink screen, or can be programmed to close automatically after a set number of entries are completed.

SAM4s SPS-2000 Operator Manual v1.22 Getting Started

27

Passwords

The correct password is required to access Report Mode, P-Mode and S-Mode. Also, manager controlled activities can be completed only after the correct password is entered.

Password Notes

 Default S-Mode and P-Mode Passwords are: 2000; the default Report Mode password is:

0000 (meaning no password entry is required to access this mode); the default manager

password is: 9999. You can set your own 4-digit passwords by selecting Passwords in S mode.

 Separate passwords for report levels (X and Z1-Z5) can be set in S-Mode System Option

#7. Here the default password is also 0000, meaning all report levels can be accessed without password entry.

 Authority Level option #40 (found in P-Mode/Employee) allows access to Report Mode,

P-Mode and S-Mode without password entry. Employees (such as managers) linked to an authority level with this option selected, can conveniently access all modes without password entry.

 If an employee card system is used, and the MANAGER REQUIRED message displays, employees with manager status can swipe their card to complete the transaction.

(Available at version 2.00s)

28

Getting Started

SAM4s SPS-2000 Operator Manual v1.22

Error Messages

The SPS-2000 displays messages on the top line of the screen, immediately to the right of the function tabs.

Note that each of the standard messages described below can be customized. Your program may display slightly different text messages.

AMOUNT REQUIRED

This operation requires an amount entry.

BAD VALUE

The number entered is incorrect for the task being performed.

BUFFER FULL

The buffer for soft check, hard check, or buffered receipt has reached capacity. For hard checks, the operator must touch the SERVICE key to print the items and clear the buffer. The operator must then pick up the previous balance again in order to continue with finalization. In a soft check environment, this message will appear when the check has reached capacity (maximum lines stored). The register will require the sale to be finalized with the option of printing a bill if required

BUSY

Destination register is busy (pre poll memory is in use). Requires a clear command from the P.C. or

Register.

CASH DECLARATION REQUIRED

Cash declaration has been programmed as compulsory, and must first be performed before reports

CASH-IN-DRAWER LIMIT EXCEEDED

The programmed Cash-In-Drawer limit has been exceeded.

CHECK KEY POSITION

The key lock is in the wrong position.

CHECK# IS ASSIGNED AUTOMATICALLY

The operator has attempted to open a new guest check by assigning a check number. The register has been programmed to generate its own check numbers.

CHECK# REQUIRED!

This register has been programmed to force check number entry to begin a transaction. An existing guest check must be recalled, or a new one started.

CONDIMENT REQUIRED!

This PLU has been programmed to require a condiment entry.

CRC ERROR

An error has occurred in the block check sum while transferring data in IRC mode.

DUPLICATE!

This check already exists. May also apply to secret code programming.

ANALYSIS 1?/ANALYSIS 2?/ANALYSIS 3?

This operation is set for compulsory entry of one of the three analysis keys.

SAM4s SPS-2000 Operator Manual v1.22 Getting Started

29

ENTER EMPLOYEE CODE

The employee is required to sign on before performing a task.

ENTER GUEST COUNT

The operator must enter the number of guests when opening a guest check, or beginning a sale.

ENTER SEAT#

Seat # entry required before operation can continue.

ENTER TABLE#

Table number entry is required to open a guest check, or begin sale.

ENTRY REQUIRED

The function selected from the WLU requires a numeric entry, i.e. a percentage for an open percent discount.

ERROR

General error message.

ERROR JAM

Receipt / journal printer jammed message.

GALLON AMOUNT REQUIRED

This entry involves a gallonage PLU, and requires an amount entry.

HALO OVER!

The amount entered exceeds the programmed HALO i.e. the task exceeds the maximum amount allowed.

ILLEGAL KEY SEQUENCE

The operator has used an illegal key sequence.

IN USE!

This guest check or clerk number is already open elsewhere in the system. This is also applicable when the floating clerk system is activated and the operator is in use on another terminal.

INACTIVE!

The key touched is inactive. This message also appears if VOID Mode has been disabled.

INPUT QTY

Quantity input is required for a condiment WLU

KITCHEN PRINTER FAILURE

The kitchen printer has failed to respond. Printing has been re-routed to the designated back-up printer is programmed.

MANAGER OVERRIDE REQUIRED

The manager password must be input in order to override a HALO amount, or other restriction.

MANAGER REQUIRED

The manager password must be input to complete this operation.

30

Getting Started

SAM4s SPS-2000 Operator Manual v1.22

MEMORY FULL

Memory is full.

NEGATIVE

This sale has gone negative. Negative sales are programmed as not allowed.

NO CHECK #

This message appears when the system cannot find this guest check number.

NO DATA

PLU can not be found (does not appear in Register Mode). Usually associated with stock entry on an IRC system when the PLU exists in one terminal but not another. On the terminal where the PLU does not exist the message not found will appear.

NO DRAWER!

The employee currently signed on is not assigned to a drawer, and is not allowed to perform cash sales, or the drawer is no longer attached and is required in order to continue.

NO MANUAL ENTRY

Manual entry is not allowed (scale function).

NO PAPER

Slip printer is out of paper, appears when printing to a loose-leaf printer.

NO PLU!

The number entered is not a valid PLU. This message will also appear if a PLU number “built” using modifier keys recalls an invalid PLU number.

NONADD# REQUIRED

This operation requires the entry of a Non-Add number to fulfill the compulsory requirements.

NOT DISCOUNTABLE

The preceding entry is not discountable, product is not available for discounting.

NOT PROGRAMMED!

This key has not been programmed

NOT READY!

Remote printer is not ready for printing tasks.

NOT ZERO

Displayed when trying to delete a PLU that still has sales counts and stock amounts. The PLU must first be reset and cleared from all Z Mode reports.

OFF LINE!

IRC communications have gone off line.

OPEN DRAWER

The register has been programmed not to operate with the cash drawer open.

SAM4s SPS-2000 Operator Manual v1.22 Getting Started

31

OVERRIDE NOT ALLOWED

X-Mode override is not allowed for this operation.

P/BAL REQUIRED!

This register has been programmed to require a previous balance entry.

PAPER END

The guest check printer has reached the end of the form, or the Receipt/Journal paper is at, or near, the end of its roll.

RANGE OVER

The number entered is out of range.

REMOVE PAPER

Validation is complete and the paper must now be removed.

SCALE FAIL!

The register is not able to find the scale.

SCALE REQUIRED!

This item requires a weight this may be entered either manually or automatically.

SEQUENCE ERROR!

The preceding key sequence is not allowed.

SINGLE ITEM!

This PLU has been programmed as a single item PLU and cannot be used within a sale.

SUBTOTAL REQUIRED

The SUBTOTAL key must be touched before continuing.

SYSTEM ERROR

Normal Operation error.

TARE# REQUIRED

This PLU/scale item requires a tare weight entry.

TRAY SUBTOTAL REQUIRED!

This prompt appears while in a TRAY SUBTOTAL transaction. The operator must first touch the TRAY

SUBTOTAL key before touching any tender keys.

VALIDATION REQUIRED!

This operation requires validation to complete the compulsory settings.

WASTE REQUIRED!

The operator is in the middle of a waste operation, and must touch the WASTE key in order to complete the operation.

32

Getting Started

SAM4s SPS-2000 Operator Manual v1.22

WRONG EMPLOYEE

The employee attempting to open this guest check is not the original person who started the guest check.

Also appears when attempting to sign on a new employee without first signing the current employee off, if overlap employee is not programmed.

ZERO AMOUNT

The register has been programmed to not allow negative sales, and to consider a zero amount as a negative sale.

SAM4s SPS-2000 Operator Manual v1.22 Getting Started

33

34

Getting Started

SAM4s SPS-2000 Operator Manual v1.22

Basic Operations

Signing On/Off

Notes for Clerk Operation

 Choose between "Push Button", "Operating Code", "Employee Number” or

“Fingerprint” for the employee sign on method. Clerks may also be signed on by

MCR. (See "System Option Programming/General Function Options" in the

Program Manual.)

 If you choose "Push Button" sign on, use any of the 10 direct employee keys to sign on by directly touching a key. (See "Keyboard Key Location" in the

Program Manual to locate the appropriate functions.) You must also link a specific employee to each push button key. (To make these links, see "System

Option Programming/General Function Options" in the Program Manual.)

 If you choose "Secret Code" sign on, use the EMPLOYEE key to sign on by code entry. (See "Keyboard Key Location" in the Program Manual to locate the appropriate function.) You must also program an operating code for each employee. (See "Employee Programming" in the Program Manual.)

 If you choose "Employee Number" sign on, use the EMPLOYEE key to sign on by employee number entry. (See "Keyboard Key Location" in the Program

Manual to locate the appropriate function.) The employee number is the sequential number (i.e. 1-10) for each employee in the employee file.

 Fingerprint sign-on requires an optional DIGENT IZZEX FD 1000 Fingerprint identification device. Each employee fingerprint must be recorded in program mode. (Available in version 2.00s or later.)

 Employee operation can be stay down or pop up. (See "System Option

Programming/General Function Options" in the Program Manual.)

Basic Operations

35

SAM4s SPS-2000 Operator Manual v1.22

Sign On by the Employee Key

When the register is signed off, the message line displays: SIGN ON REQUIRED.

1. Enter the employee number (use the operating code number of the sequential employee number, depending upon the program).

2. Touch EMPLOYEE. The employee name displays in the message line.

Sign On by Push Button Key

If your system is using individual push button employee keys:

Touch the appropriate EMPLOYEE key. The employee name displays in the message line.

Sign On by Employee Card

If your system is using employee cards:

Swipe the employee card. The employee name displays in the message line.

Sign On by Fingerprint

You can sign on by fingerprint if your system is using an optional DIGENT IZZEX FD 1000

Fingerprint identification device. (Available with version 2.00s or later.)

1. From the REG screen, enter the employee file number and touch EMPLOYEE key.

The Fingerprints window displays.

2. Touch the employee’s finger to scanner and touch MATCH.

3. The Please Wait message displays while the fingerprint is scanned. If the fingerprint matches, the sign on is completed; if the fingerprint does not match, an error message displays.

Sign On by Continue Key

If a CONTINUE key is present on your keyboard, you can sign on the same employee for the next transaction.

Touch CONTINUE.

Sign Off

1. Enter “0”.

2. Touch EMPLOYEE. The message line displays: SIGN ON REQUIRED.

Or,

Touch QUIT (if a QUIT key is present on your keyboard.)

36

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Clerk Interrupt

If allowed, a new employee can sign on while a transaction being processed by another employee is still in progress. Under the new employee, a new transaction can be entered and completed. When the employee processing the suspended transaction signs on again, the suspended transaction can be continued and finalized.

Clocking In/Out

Clock In

1. Enter the employee clock in code and touch the CLK IN/OUT function key to display the clock in/out window:

Job codes that are available for the employee are displayed.

2. Touch the job code button for the job you are performing to clock in.

3. Touch OK to complete the clock in.

Note: Depending upon system programming, the employee may sign on with their employee number, or their employee clock in code. The employee clock in code may be different than the employee operating code.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

37

Clock Out for Break

1. Enter the employee clock in code and touch the CLK IN/OUT function key to display the clock in/out window:

Clock in and out times for the day are displayed.

2. Touch the OUT FOR BRK key.

3. Touch OK to complete the clock in.

Clock In from Break

1. Enter the employee clock in code and touch the CLK IN/OUT function key to display the clock in/out window:

2. Touch the job code button for the job you are performing to clock in.

3. Touch OK to complete the clock in.

Clock Out for Day

1. Enter the employee clock in code and touch the CLK IN/OUT function key to display the clock in/out window:

2. Touch the OUT key.

3. Touch OK to complete the clock in.

Clock In/Out by Fingerprint

Fingerprint clock in/out requires an optional DIGENT IZZEX FD 1000 Fingerprint identification device. Each employee fingerprint must be recorded in program mode.

(Available with version 2.00s or later.)

1. From the REG screen, touch the CLOCK IN/OUT key.

2. Touch the employee’s finger to scanner and touch MATCH.

3. The Please Wait message displays while the fingerprint is scanned. If the fingerprint matches, the Clock In/Out screen for the employee is displayed; if the fingerprint does not match, an error message displays.

4. Complete the clock in by selecting a job code and touching OK.

38

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Time Clock Edit

If an employee forgets to clock in or out, authorized persons can use the time clock edit function to correct or add time incorrect clock entries.

1. Select the REP tab. (Password entry may be required)

2. Touch X MODE PGM and then TIME CLOCK EDIT.

3. Select the period to be edited, X/Z (DAILY) EDIT, or periodic edits, if they are used.

4. Enter the Employee #, touch OK. The Time Clock Edit screen displays:

5. Touch the field to be corrected, and then enter the correct time and touch OK. Use the PAGE UP and/or PAGE DOWN keys as necessary to display all records.

6. When corrections are completed, touch SAVE to exit with changes saved.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

39

Outside of Sale Functions

Time Display

Touch the X/TIME key. The date, time, current operator, software version and PLU capacity display. Touch Close to exit.

Received on Account

1. Touch the RECD ACCT key.

Note: After touching RECD ACCT, you must go directly to media functions, any

other key will cause and error.

2. Enter media received:

Enter cash received, touch CASH

Enter checks received, touch CHECK

Enter miscellaneous tenders received, touch the appropriate key

3. The transaction detail area of the screen keeps a running total of media received.

Touch DONE to finalize.

Paid Out

1. Touch the PAID OUT key.

Note: After touching PAID OUT, you must go directly to media functions, any other

key will cause and error.

2. Enter media paid out:

Enter cash paid out, touch CASH

Enter checks paid out, touch CHECK

Enter miscellaneous tenders paid out, touch the appropriate key

3. The transaction detail area of the screen keeps a running total of media paid out.

Touch DONE to finalize.

40

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Registering PLUs/Items

Preset PLUs

Touch a preset PLU to register an item.

Open PLUs

Enter the price and touch an open PLU to register an open-priced PLU.

Code Entry Preset PLUs

Enter the PLU code number and touch the PLU key to register then item.

Code Entry Open PLUs

1. Enter the PLU code number and touch the PLU key. The Amount Required window displays.

2. Enter the price and touch OK.

PLU Price/HALO Override

PLU override must be allowed. See individual PLU programming and also see P Mode

System Options – General Function Options to set the global override option. Both options must be set to perform an override.

Enter the override price and touch the PLU to override the preprogrammed price.

PLU Price Change

In REG mode, the sequence: [PRICE CHANGE] [PLU] [PRICE] [PRICE CHANGE] will change the PLU price. The PLU flag “ALLOW PRICE CHANGE” controls this function.

Repeat

After an item has been registered, touch the PLU again to repeat the item.

PLU Price Inquiry

Use the PRICE INQ key to check the price of an item without registering it.

1. Touch the PRICE INQ key.

2. Enter the PLU number and touch the PLU key. The item displays with the current price.

3. Touch the PLU key again if you wish to register the item.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

41

Registering a Not Found PLU

Designed to be used in a scanning system, the NOT FOUND PLU key allows the operator to immediately enter basic PLU information for an item that is not in the PLU file. If the "Not

Found PLU" message displays when a PLU is entered (or when an item is scanned) the operator can touch the NOT FOUND PLU key and will be prompted to enter PLU price, and if programmed, the descriptor and linking information. The item is registered immediately.

1. Scan or enter a PLU that is not in the PLU file. The NOT FOUND PLU message displays.

2. Touch the NOT FOUND PLU key. The PRICE/HALO entry box displays.

3. Enter the price for the item, touch OK. The LINK STATUS entry box displays.

4. Enter the status link for the PLU, touch OK. The LINK GROUP entry box displays.

5. Enter the primary group link for the PLU, touch OK. The DESCRIPTOR entry box displays.

6. Use the alpha keyboard overlay to type the descriptor for the item, touch OK. The item is registered.

42

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Price Level Shift

The current price level can be set by price level key, or automatically by the time of day or day of week. Price levels can be locked into a specific level (stay down) or they can return to a default level after being shifted to another level for a single registration (pop up). When price level keys are used, touch the appropriate price shift key prior to entering the PLU.

Scale Items

The SPS 2000 can be interfaced to an electronic scale, allowing direct entry of the item's weight by using the SCALE key.

Scale Program Notes

 See P-Mode Programming, PLU, PLU Status Group. The following options affect each PLU linked to a PLU status group.

 Option # 13: IS PLU SCALEABLE? If yes, the PLU may be registered only by multiplying a weight by the PLU.

 Option #14: AUTO SCALE ON THIS PLU? If yes, the weight on the scale will be automatically multiplied when the PLU is registered.

 Option #15: AUTO TARE# (0-20) If a tare is selected here, the preprogrammed tare weight will be subtracted from the scale weight when the

PLU is registered.

 See P-Mode Programming, Function Key to set the SCALE Key attributes:

 MANAGER REQUIRED?

 ALLOW MANUAL ENTRY OF WEIGHT?

 INHIBIT TARE WEIGHT ENTRY?

 MANAGER REQUIRED FOR TARE ENTRY?

 TARE ENTRY IS COMPULSORY?

 WEIGHT SYMBOL : Y=kg/N=lb

Direct Sale Entry

1. Place the item on the scale.

2. Touch the SCALE key to display the weight.

3. Register the open or preset PLU.

Manual Weight Entry

1. Enter the weight using the decimal key.

2. Touch the SCALE key to display the weight.

3. Register the open or preset PLU.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

43

Auto Tare Weight

1. Place the item on the scale.

2. Touch the SCALE key to display the weight.

3. Register the open or preset PLU.

Manual Tare Weight Entry

1. Place the item on the scale.

2. Enter the tare # and touch the SCALE key to display the weight less the tare.

3. Register the open or preset PLU.

Open Tare Weight Entry

1. Place the item on the scale.

2. Touch 20. This will call for tare 20, which is an open tare.

3. Touch the SCALE

4. Touch the decimal [.], then the numeric 3. This will enter a tare weight of 0.3 lb.

5. Touch the SCALE key.

6. Register the open or preset PLU.

Print Key

The PRINT key allows the operator to send items to the kitchen printer. Use the PRINT key

(or label the key GRILL) to send items wouldn't normally go to a kitchen printer or send items that require special attention. All printer output made using the key is in addition to regular output.

To use the PRINT key function, touch the PRINT key before the first item and immediately after the last item to want printed for special attention.

1. Touch PRINT.

2. Enter the item and condiments or instructions.

3. Touch the PRINT key again to send the item & instructions to the printer identified on the PRINT key.

Note: The PLU Status Group flag #28 “Print on KP?” must be set to Y (yes) for items that are to be sent to a printer via the PRINT key.

The PRINT key also sends items in group sequence using the “meal order feature” available at version 2.02n or later. Items are given a meal order priority through group programming.

Each time the PRINT key is touched, the next priority of items will be release to the kitchen printer.

44

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Auto Grill Item

Some items may be programmed as "AUTO GRILL" so they will always be sent to the designated grill printer. The advantage of using auto grill is the item is sent to the printer immediately when the next item is registered, or when the PRINT key is touched. This allows for speedy service in quick service environments.

1. Enter the auto grill item and condiments or instructions.

2. Enter the next item or touch the PRINT key to send the item and instructions to the kitchen printer group identified in the PLUs status group at "K-GRILL GROUP #".

Promo

The PROMO key allows the operator to account for promotional items (i.e. by two, get one free). This key will remove the cost of the item from the sale, but not the count. In the case of by two, get one free the count remains three items, but the customer is only charged for two.

1. Register the items to be sold.

2. Touch PROMO.

3. Register the items to be promo'd.

Void of Promo Items

The promo item must be voided before the charged item. For example, if a hot dog and a promo hot dog are registered, the promo hot dog must be voided before the paid hot dog is voided. If more than one paid hot dogs are registered, the promo hot dog must be voided before the last paid hot dog is voided.

Waste

The WASTE key allows control of inventory by accounting for items that must be removed from stock due to spoilage, breakage, or mistakes. The WASTE key may be under manager control, requiring the manager code entry. The WASTE key is not allowed within a sale.

1. Touch WASTE.

2. Register the wasted items.

3. Touch WASTE to finalize.

Price Inquiry

Use the PRICE INQ key to check the price of an item without registering it.

1. Touch PRICE INQ.

2. Touch the PLU item key on the screen or enter the PLU number and touch the PLU key.

3. Touch the PLU key again if you wish to register the item.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

45

Food Stamp Shift

Note: Display (Yes or No) of food stamp eligible indicators is controlled by option #11 of System Option Programming – Tax Options.

To sell a non-food stamp eligible item with food stamp eligibility, touch the

FD/S SHIFT key before the item entry.

To sell a food stamp eligible item as non-food stamp eligible, touch the FD/S SHIFT key before the item entry.

Tax Shift/Tax Exemption

Note: Display (Yes or No) of taxable item indicators is controlled by option #5 of

System Option Programming – Tax Options.

Excepting Tax from a Taxable Item

To except tax 1, touch TAX SHIFT1 before registering the item; to except tax 2, touch TAX

SHIFT2; to except multiple taxes, touch each of the appropriate tax shift keys before

registering the item.

Adding Tax to a Non-Taxable Item

To charge tax 1, touch TAX SHIFT1 before registering the item; to charge tax 2, touch TAX

SHIFT2; to charge multiple taxes, touch each of the appropriate tax shift keys before

registering the item.

Adding Tax to a Non-Taxable Item

To charge tax 1, touch TAX SHIFT1; to charge tax 2, touch TAX SHIFT2; to charge multiple taxes, touch each of the appropriate tax shift keys,

Excepting Tax on an Entire Sale

Taxes can be removed from an entire sale by using a pre-programmed TAX EXEMPT key or by pressing the appropriate tax shift key before tendering the sale.

46

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Corrections & Voids

Clear

Touch the CLEAR key to erase numeric entries or clear an error condition.

Error Correct

Touch the ERR. CORR. key to void the last item entered. Note that the VOID ITEM key may also be used to correct the last item entered.

Void Item

Use the VOID ITEM key to void an item previously entered in a transaction. To void a previous item:

Or,

Touch CLEAR, touch VOID ITEM, and then touch or enter the item to be voided.

Touch the item or condiment where it is displayed – note that the item touched is now selected and highlighted. Touch VOID ITEM to remove the item or condiment.

Note: If an item is voided, condiments associated with the item are also removed.

Cancel

Use the cancel function to completely abort a transaction in progress. No totals or counters are updated for items registered prior to cancelling a transaction. Cancel cannot be used after tendering or finalization. Employee authority determines if the Cancel function is allowed.

Cancel does not open the cash drawer.

Touch CANCEL to abort a transaction in progress.

Transaction Void

A VOID MODE key (key code #31) must be placed on the keyboard. Entry of the current time may be required before a transaction void sequence. See P Mode System

Options/General Function Option #36. If time entry is required, the subsequent void operation will adjust the time report for the correct period. If VOID MODE is under manager control, entry of the manager password is required.

1. Touch the VOID MODE key. If required enter the manager password.

2. If required, enter the time of the original transaction, touch X/TIME.

3. Enter Items to be voided. Finalize the void sale using the appropriate tender.

4. If necessary, void additional transactions.

5. Touch the VOID MODE key again to exit void mode.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

47

Merchandise Return

Use this function to return (credit) merchandise inside or outside of a sale.

Touch MDSE RETURN, and then enter the item to be returned.

Discounts/Coupons/Surcharges

The % (percentage) key is programmable and may be set up to handle a variety of discounts, surcharges or coupons. Up to 10 keys are available, each can:

 Apply to a Sale or an Item,

 Accept an amount entry or calculate a percentage,

 Be positive (surcharge) or negative (discount),

 Be open or preset (preset may be price or percentage, depending upon other setup),

 Calculate taxes before or after the discount is applied,

 Allow the discount to reduce the food stamp subtotal,

 Allow the “do it” subtotal discount function,

 Enforce validation after the % key function,

 If the % key is preset at a set percentage, allow override of the percentage, or to allow override of the percentage in ‘X’ mode only,

 If the % key is an item discount/surcharge function, net the item total or not,

 If the % key is a subtotal amount function (vendor coupon), allow multiple coupons without pressing subtotal or allow only one coupon.

Sale (Subtotal) Discounts

To deduct an open percentage discount from a sale (or override a preset percentage):

1. Register items.

2. Touch SUBTOTAL.

3. Enter discount percentage. If the discount is fractional, use the decimal key. For example, enter 1 5 . 5 for a 15.5% discount.

4. Touch the % key.

5. Finalize the transaction.

To deduct a preset percentage discount from a sale:

1. Register items.

2. Touch SUBTOTAL.

3. Touch the % key.

4. Finalize the transaction.

48

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

To deduct a coupon against a sale:

1. Register items.

2. Touch SUBTOTAL.

3. Enter the amount of the coupon.

4. Touch the % key.

5. Finalize the transaction.

To apply a “Do It” discount:

Note: This function allows the operator to accept a short tender as full payment for the sale. The amount short is automatically tracked in the discount key total.

1. Register items.

2. Touch SUBTOTAL.

3. Enter the amount of the tender, touch the % key.

4. Touch CASH.

Item Discounts

To deduct an open percentage discount from an item (or override a preset percentage):

1. Register item.

2. Enter discount percentage. If the discount is fractional, use the decimal key. For example, enter 1 5 . 5 for a 15.5% discount.

3. Touch the % key.

To deduct a preset percentage discount from an item:

1. Register the item.

2. Touch the % key.

To deduct a preset percentage discount from an item entered earlier in the sale:

1. Touch the item or condiment where it is displayed – note that the item touched is now selected and highlighted.

2. Touch the % key.

To deduct a store coupon against an item:

1. Enter the amount of the coupon, touch the % key.

2. Enter or touch the PLU the discount is to be applied to.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

49

Surcharges

To add an open percentage surcharge to a sale:

1. Register items.

2. Touch SUBTOTAL.

3. Enter surcharge percentage. If the surcharge is fractional, use the decimal key. For example, enter 1 5 . 5 for a 15.5% surcharge.

4. Touch the % key.

5. Finalize the transaction.

To add a preset percentage surcharge to a sale:

1. Register items.

2. Touch SUBTOTAL.

3. Touch the % key.

4. Finalize the transaction.

To add an open percentage surcharge to an item:

1. Register item.

2. Enter surcharge percentage. If the surcharge is fractional, use the decimal key. For example, enter 1 5 . 5 for a 15.5% surcharge.

3. Touch the % key.

To add a preset percentage surcharge to an item:

1. Register the item.

2. Touch the % key.

Totaling/Tendering

Cash

Touch the CASH key, or enter the amount of the cash tendered and touch the CASH key. The register will display the change due.

Check

Touch the CHECK key, or enter the amount of the cash tendered and touch the

CHECK key. The register will display the change due.

50

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Check Cashing

A separate function key is available for check cashing. Check cashing limits may apply and a manager code may be needed to complete the transaction.

Enter the amount of the check to be cashed, touch the CHECK CASH key. The cash and check-in-drawer totals will be adjusted appropriately.

Miscellaneous (Charge) Tender

Up to sixteen miscellaneous tender keys are available for accepting various types of charges.

Each key can be configured separately with maximum charge limits, tendering requirements/rules, tax exemption rules and validation requirements. Operation sequences will vary depending upon the situation. (See “Integrated Payment System Operations” below where an integrated electronic payment system is used.)

To accept a miscellaneous tender payment:

Touch the MISC TENDER key, or (where allowed) enter the amount of the cash tendered and touch the MISC TENDER key. The register will display the change due.

Preset Tender

Macro keys can be programmed to execute preprogrammed amount tenders for common currencies such as $5, $10 or $20 cash.

Split Tender

Multiple payments can be recorded for a single transaction. Cash, Check, and/or Misc. tenders can be recorded in any order, as many times as necessary to pay the entire transaction.

Integrated Payment System Operations

Credit Transaction

1. Enter items.

2. Touch or tender into the appropriate MISC TEND key. The message “SLIDE

CARD” displays.

3. Swipe card. The message “WAITING RESP.” displays until the card verification is complete.

4. When verification is complete, the draft is printed.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

51

Debit Transaction

1. Enter items.

2. Touch or tender into the appropriate MISC TEND key (with debit function). The message “SLIDE CARD” displays.

3. Swipe card. The message “GETTING PIN.” displays. (At the PIN pad, the ENTER

PIN message displays.)

4. At the PIN pad, enter the PIN and touch the OK key. The terminal now displays

“WAITING RESP.” until the card verification is complete.

5. When verification is complete, the draft is printed.

Gift Card – Sale of Gift Card

1. Register the gift card amount into a PLU linked to a unique PLU Status Group with the gift card activate function.

2. Touch or tender into the appropriate tendering key. The message “SLIDE GIFT” displays.

3. Swipe the gift card. The terminal displays “WAITING RESP.” until the card verification is complete.

4. When verification is complete, the receipt and the draft are printed.

Gift Card – Add to Existing Card

1. Register the gift card amount to be added into a PLU linked to a unique PLU Status

Group with the gift card addition function.

2. Touch or tender into the appropriate tendering key. The message “SLIDE GIFT” displays.

3. Swipe the gift card. The terminal displays “WAITING RESP.” until the card verification is complete.

4. When verification is complete, the receipt and the draft are printed.

Gift Card – Payment with Gift Card

1. Register a normal transaction. Touch the Gift Card Tender key (a miscellaneous tender key programmed with the gift card function.)

2. Swipe the gift card. The terminal displays “WAITING RESP.” until the card verification is complete.

3. When verification is complete, the receipt and the draft are printed.

Manual Card Entry

1. Enter items.

2. Touch or tender into the appropriate MISC TEND key. The message “SLIDE

CARD” displays.

3. If card will not read, touch CLEAR once, the message “Enter Acct No” Displays.

52

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

4. Enter the account number and touch OK (or touch CLEAR again to abort the transaction.)

5. The “WAITING RESP.” message displays and the transaction completes normally.

Electronic Payment – Merchandise Return

1. Complete the merchandise return transaction as you would a normal transaction.

Touch MDSE RTRN prior to entering each returned item.

2. Touch the appropriate MISC TEND key. The message “SLIDE CARD” displays.

3. Swipe card. The message “WAITING RESP.” displays until the card verification is complete.

4. When verification is complete, the draft is printed.

Electronic Payment – Void Transaction

Transaction Void allows a transaction to be voided from the batch and not reported to the cardholder statement.

1. Touch the VOID MODE key.

2. Enter items.

3. Touch or tender into the appropriate MISC TEND key. The message “SLIDE

CARD” displays.

4. Swipe card. The message “ENTER AUTH CODE.” displays.

5. Enter the authorization code printed for the transaction to be voided, touch OK.

6. The message “ENTER REF CODE” displays. Enter the Reference number from the transaction to be voided. Touch OK.

7. The message “WAITING RESP.” displays until the transaction is found and the original record voided.

Foreign Currency Subtotal & Tender

1. Enter items

2. Touch the appropriate conversion key, which is pre-programmed with the exchange rate (for example, a Canadian Dollar may be worth $0.75 US.)

3. Enter amount tendered in foreign currency and touch CASH. Note that change is computed in home currency.

Food Stamp Subtotal & Tender

Food Stamp options include:

 The FD/S TEND key can be programmed to forgive tax on items paid for with food stamps.

 Food Stamp change of less than $1 can be applied toward the sale or given as change.

Consult with your installing dealer to verify that food stamp programming is set to correspond with food stamp merchant rules in your area.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

53

To complete a food stamp transaction:

1. Enter items. (Food stamp eligibility is pre-set for each item.)

2. Touch FD/S SUBTL. The total of items eligible for food stamp payment displays:

3. Enter food stamp tender amount, touch FD/S TEND.

4. Pay remainder due (if any) with CASH, CHECK or by one of the miscellaneous tender functions (charge).

Post-Finalization Procedures

Paid Order Recall

Touch the PAID RECALL key to view the previous transaction. Touch the PAID

RECALL key again to view the next previous transaction. Up to 10 preceding transactions

(depending upon memory allocation) may be viewed by repeatedly pressing the PAID

RECALL key.

 Use the scroll bar, if necessary, to view the entire transaction.

 Touch RECEIPT if necessary to print a recalled transaction.

 Touch CLEAR to exit.

At V3.00g29, the option “Use EJ Recall” was added to the function key program. When selected, this option will display a list of transactions on the left side of the screen. When a transaction is selected, the transaction detail is displayed in the right window of the screen as shown in the example below:

Select

Transaction to display

Transaction detail

Receipt Issue

Touch RECEIPT to print a transaction receipt. If the issue of multiple receipts is allowed, touch RECEIPT a second time to print a receipt copy.

54

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Validate

When a printer supporting single line validation is attached, insert paper into the printer and touch the VALID key to initiate the single line validation.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

55

Quick Service Operations

Typical QSR Keyboard

CHILD, SM, MED, LG and X-LG are modifier keys. When items are sold in different sizes, touch a modifier before touching the desired item. For example, touch MED, and then touch FROZEN BEV.

 When items are sold in different flavors, or with different options, registration of the item may trigger a new (keylink) screen. In this example, the frozen beverage is available in a variety of flavors. Touch the desired flavor to complete the item registration.

56

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

 After all options are selected, the completed item is displayed and the register is ready for another entry or finalization.

Sample Transaction Receipt

A SAM4s Ellix 20S thermal receipt printer generated the receipt shown here (actual size).

Programmable preamble message (up to 6 lines)

Customer logo – stored in the non-volatile printer memory

Date, time, day of week

Transaction information: consecutive number, register number, employee,

Programmable preamble message (up to 6 lines)

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

57

Drive Thru Operations

When drive thru operations are implemented,: Drive Thru Store, Drive Thru Recall keys, will appear on the screen. (The Drive Thru Store key is one of the Store Check function keys with the “auto check management” feature enabled. The Drive Thru Recall key is one of the Recall Check function keys with the “Drive Thru” feature enabled.)

Park Order and Serve Order keys may also be used in conjunction with a kitchen video

system option.

Drive Thru Store

1. Enter items.

2. Press the DRIVE THRU STORE key.

Drive Thru Order Number

Drive Thru Recall

1. Press the DRIVE THRU RECALL key

2. Add or void items as necessary.

3. Finalize the transaction with CASH,

CHECK or one of the miscellaneous

tender (charge) functions.

Note: Items added after recall are shown below the dotted line

Drive Thru

Order Number

58

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Drive Thru Park

Enter a number and press PARK ORDER to park or "suspend" an order on the video monitor until the order is completely filled. In the case of a drive through order that cannot be completed when the customer arrives at the pick-up window, the operator would park the order until it was completely filled. The order would then be served or bumped by using the

SERVE ORDER key.

Drive Thru Serve

Enter a number and press SERVE ORDER to serve or bump the order from a video monitor.

No video keypad is needed for this function.

Alpha Text

The Alpha Text key can be used to type a name or message that will be associated with a stored order (soft check). Press the ALPHA TEXT key anytime after an order has been opened, then type a message (up to 15 characters) using the alpha keyboard overlay and press

ENTER. The message is saved and printed/displayed with the order.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

59

Training Mode

An employee file can be created and designated for training purposed. Sign on the designated training employee. The message “*****TRAINING*****” display on the screen and print on the receipt (if a receipt printer is attached and programmed).

Note that if you are performing training in tracking file operations, training activity will be added to tracking files. Be sure to designated specific files for training purposes, and/or clear tracking files after training activity.

Training Mode Program Notes

1. Designate an employee file to be used for training. Set the P Mode Employee Option for that employee to “Training Mode” = YES.

2. Refer to P Mode System Options/Training Mode Options select printing, drawer and other training related options.

60

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

SPS-2000 Delivery System

Delivery System Features

 Customer records (called “Delivery Tables”) are stored in the SPS-2000 memory. The number of Deliver Tables is defined in memory allocation (each requiring 660 bytes), with a maximum of 9999 records.

 Eleven customer information fields are stored for each delivery table.

 Orders are tracked by assigning one of the four available tracking files to hold delivery orders

 The Delivery function key is used to initiate a delivery transaction. When touched, the

Delivery key opens the customer record screen. Here existing accounts can be opened,

new accounts created, or existing accounts deleted.

 The Last Purchase function is available from the delivery customer record screen.

Touch the Last Purchase key to view a record of the last 48 items purchased by the delivery customer. The items are viewed under three tabs, each listing up to 16 items.

Items viewed here can be quickly selected and reordered.

 The Park Delivery function key allows you to accept orders and hold them for preparation and delivery at a later time.

 The Serv Delivery function key releases held parked orders for preparation.

Delivery Related Programs

 Set the number of delivery tables: S/Memory Allocation/Option #33.

 Use tracking file #1 for delivery tracking: S/System Options/Option #21.

 Set Tracking files as you would any in other tracking system:

○ Set the register number that holds check tracking data and the register that hold backup data (S/System Options/Option s#10 & 11 -- for single register systems, just set the register number.)

○ Set Memory Allocation for number of lines per check and maximum number of checks (S/Memory Allocation/Options # 11 & 12). Be certain that the number of tracking files available exceeds the number of delivery tables Allocated

 Use the Key Relocation program to assign function keys as necessary: Delivery

(function key code #069); Park Delivery (function key code #070); Serv Delivery

(function key code #071).

 Use the Key Relocation program to assign Store Check 1, Recall Check 1, and List

Check 1 function keys. Use the default options for the Recall Check 1 key, do not

enable drive thru, set “assigned by register” to No, and set the length of Check# in

Digits” to 00.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

61

Delivery Operations

Entering a Delivery Transaction

1. Touch the Delivery key to initiate a delivery order. A blank customer record screen displays:

2. Touch the Open New/Existing key.

3. Enter the customer account number (up to 10 digits – in most cases the customer telephone number with area code will be used) and then touch OK.

62

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

4. If the number entered is a new account, a blank record screen will display with fields open for entry.

Each field will store information as shown below:

Account No 9

Title 12

First Name

Last Name

12

20

Address 40

Address 2 30

City 30

Telephone 15

E-mail 30

Zip Code

Loyalty Points

Last Visit

12

Not currently used

Displays last date of activity for this account

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

63

Touch the field you wish to update.

Enter alphanumeric field data (see field size information) and touch OK. Information entered for the new customer will be stored under the account number.

5. If the customer account number is an existing account number, information for the customer will display:

6. After customer information is recalled or entered, touch OK to begin an order. (A check will open a check with the customer account number as the check number.)

7. Register the items for the customer.

8. Touch Store Check 1.

9. Requisitions will be directed to the kitchen printer (if used). Deliver the order when compete. When the delivery person returns with payment, pay the check by using the

Recall Check 1 key and entering the appropriate payment.

64

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Parking an Order for Delivery at a Later Time

1. Enter a delivery transaction as described in 1-7 of “Entering a Delivery Transaction” on page 62. Do not touch the Store Check 1 key at this time, instead touch Park Delivery.

You will be prompted to enter the order park time.

2. Enter the time preparation for the order should begin in 24-hour (HHMM) format and then touch OK.

3. Touch the Store Check function key. Items will automatically be held (S) and not routed to kitchen printers. Touch to CLOSE to close the check.

Note: Before v2.00x, held checks were marked with an (H).

“Hold” Status

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

65

4. When the time set for the parked order is reached, the message: “Order in Park, Press

List Check” message will display. The error tone will sound every 15 seconds, providing a prompt for the operator to release the order for preparation.

Press the List Check key to display a list of open checks (there may be more than one) with the check status indicated:

“Parked” Status

5. Touch he “parked” order you wish to release for preparation, touch OPEN.

6. The customer record screen will display, allowing the operator to verify the customer.

Touch OK.

7. The stored customer order will display (note hold status (H) for each item is still displayed.) Touch Serv Delivery.

8. Touch Store Check 1.

9. Requisitions will be directed to the kitchen printer(s) (if used). Deliver the order when compete. When the delivery person returns with payment, pay the check by using the

Recall Check 1 key and entering the appropriate payment.

66

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Viewing/Re-Ordering from the Last Purchase Screen

1. Begin or recall a customer account (see “Entering a Delivery Transaction” on page 62 and follow steps 1-5).

2. Touch the Last Purchase key.

3. The last 48 items ordered by this customer will display. If more than 16 items are in the record, items can be viewed by pressing the Last Purchase 2 or Last Purchase 3 tabs. If you wish to re-order an item(s) viewed on the Last Purchase screen, select the item(s) (a check mark will display for the item) and touch OK. The item(s) will automatically register on a new order for the customer.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

67

Guest Check Operations

Overview

The SPS 2000 can employ a manual previous balance, hard check, or soft check system. If manual previous balance is selected, the check balance is not saved in memory and is input manually by the operator (use the manual previous balance key). If a hard check system is selected, only the previous balance is maintained in memory. If a soft check system is selected, the check detail is kept in memory until the check is paid. (After a check is paid, check detail is available only through the PAID RECALL function, if it is implemented, or the closed check file, if it is implemented.)

For hard or soft check operations, the following tracking options are available:

1. Tracking by manually entering the check number. (The number of digits in the check number may be set from 0-10, with zero meaning no fixed length.) Table number entry may be required.

2. Tracking by automatically assigning a check number. Starting check numbers can be set for each register in the system.

3. Tracking by Table Number, where a check number is also assigned. Multiple checks may be assigned at the same table.

In cases 1 & 3 above both a check # and a table # are connected to a balance. The balance can be recalled either by the check number, or by the table number. (If there are multiple checks at the same table, an attempt to recall by table number will result in a screen listing the open checks at the table. The operator may then select one of the checks to open.)

Multiple Tracking Files

The SPS 2000 allows up to four separate tracking files. This allows you to set up different files for guest check/table tracking, phone order tracking, drive thru tracking for multiple windows, delivery order tracking or whatever your application requires. The number of tracking files and the number of checks for each file are defined in memory allocation. The method of tracking you select (hard/soft) applies to all tracking files.

Because there are four possible tracking files, there are separate sets of keys for each of the following functions:

 RECALL CHECK (1-4)

 STORE CHECK (1-4)

 TABLE (1-4)

 LIST CHECK (1-4)

 TRANSFER CHECK (1-4)

68

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Note that the tracking file number (1-4) is displayed on the screen in situations when checks are listed (i.e. checks with held items, multiple checks on the same table, the List Check screen and the Transfer Check screen.)

Tracking File # is indicated

# Of Guests

Entry is optional and is controlled by an option on the Recall Check key program. The number of guests may be required on all transactions or only on tracking transactions.

Alpha Check Number

Traditionally, check numbers are numeric, either manually entered or assigned by the register. However, the SPS-2000 has the capability of using an alphanumeric name for a check. (Alpha check numbers are set with P Mode System Option/Tracking File Option

#17.)

Alpha check numbers are especially useful for ordering systems where the customer is called by name when the order is ready. When alpha check numbers are used, the alpha name is limited to nine characters.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

69

Manual Previous Balance

NOTES:

Neither the new balance or transaction items are stored in memory and neither can be recalled when using manual previous balance posting.

You must set memory allocation to “Hard” check to post manual balances.

Although not commonly used, the SPS 2000 has the capability of manual previous balance operations. Manual previous balance means that the balance amount is entered through the numeric keypad. New items entered are added to the previous balance and the new balance is computed when the transaction is finalized. Any of the four STORE 1-4 keys may be used to service the transaction.

Function Key Notes:

 Use the P/BAL key (function key code #148) to enter the previous balance amount.

Opening a Check

1. Enter zero, touch P/BAL.

2. Enter items.

3. Touch any one of the four store check functions, i.e. STORE #1.

70

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Adding to a Check

1. Enter amount, touch P/BAL.

2. Enter items.

3. Touch STORE #1.

Paying a Check

1. Enter amount, touch P/BAL.

2. Touch CASH, or enter the amount tendered and touch CASH, or

Touch CHECK, or enter the amount tendered and touch CHECK, or

Touch one of the miscellaneous tender keys, or enter the amount tendered and touch of the miscellaneous tender keys.

Note: If tender is less than balance, touch STORE #1 to finalize.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

71

Hard Check Posting

With "hard check" posting, only current balances are stored in memory.

Procedures and options relating to beginning, adding to and paying a check are the same on

"hard" and "soft" check posting, except it is necessary to print an update to the check at each posting. Note that when a hard check is recalled, the previous balance is displayed. (In soft check posting the previously registered items are recalled.)

Opening a Hard Check

Depending on the method used:

Enter check number, touch CHECK #, or

Enter table number, touch TABLE #.

Note that the previous balance is displayed.

72

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Soft Check Posting

It is not necessary to print the check at each posting. The PRINT CHECK key will print the check at the designated printer. The PRINT CHECK key can be programmed to automatically service the transaction.

Soft Check Tracking Program Notes:

Discuss these options with your authorized SPS-2000 dealer or refer to the SPS-2000

Program Reference Manual.

 You must set the check tracking method to “Soft”. See S Mode Memory Allocation option #8.

 You must set the maximum number of lines per check. See S Mode Memory

Allocation option #11.

 You must set the maximum number of check for each tracking file. See S Mode

Memory Allocation option #12.

 You must set the register number that holds the check tracking file and backup file.

See S Mode System options #10 and #11.

 You must set the options for the Recall Check key. See P Mode Function Keys

#197-200. Options set here include:

 Enforce Seat Number

 Table Entry Required

 Multiple Checks Allowed for each Table

 Guest Count Entry Required

 Compulsory for all Sales

 (Check #) Assigned by Register

 Opening Employee has Exclusive Access

 Print Receipt after Store Check

 Other related options

 Set P Mode System Options/Tracking File Options

 Starting Check Numbers

 Options to reset check numbers on Z of Financial or Open Check Reports

 Option to print Barcodes on checks

 Option to use Alpha Check Numbers

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

73

Beginning a Check

1. Depending on how your system is programming, you can begin a check with either a check or table:

 Enter check number: depending upon programming you may enter the check number and touch one of the Recall Check functions, i.e. RECALL #1, or touch the

RECALL key to automatically assign a check number. (After beginning a check

with the check number, you may be required to enter a table number, or if table enter is not required, you may optionally enter a table number.)

 If Table# is compulsory, if only one check per table is allowed, and if checks are automatically assigned, you can enter the number of the table and touch TABLE#.

The table is opened and the check is automatically assigned.

2. If guest entry is required, enter number of guests and touch the GUEST # key.

3. Enter the items ordered.

4. Touch the appropriate Store Check function, i.e. STORE #1. The message “SERVED” displays momentarily.

The check #, table #, guest count and employee associated with the check are displayed.

74

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Adding to a Check

1. If a table and check are both assigned you may either:

 Enter the check number, touch the appropriate recall check function, i.e. RECALL

#1

 Enter the table number, touch the appropriate Table # function, i.e. TABLE 1.

2. If you open a table where more than one check is open, the screen will list the open checks for the table:

3. Touch a check to select it and then touch OPEN.

A dotted line displays to separate items posted previously from items posted at this time.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

75

4. Enter the new items ordered.

5. Touch the appropriate Store Check function, i.e. STORE #1. The message “SERVED” displays momentarily.

Paying a Check

1. If a table and check are both assigned you may either:

 Enter the check number, touch the appropriate recall check function, i.e. RECALL

#1

 Enter the table number and touch the appropriate Table # function, i.e. TABLE 1.

2. If you open a table where more than one check is open, the screen will list the open checks for the table. Touch a check to select it and then touch OPEN.

76

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

3. If necessary, additional items can be registered at the time of payment.

4. If necessary, enter a tip amount and touch one of the TIP function keys, i.e. TIP1.

5. Touch CASH, or enter the amount tendered and touch CASH, or

Touch CHECK, or enter the amount tendered and touch CHECK, or

Touch one of the miscellaneous tender keys, or enter the amount tendered and touch of the miscellaneous tender keys.

Note: If tender is less than balance, touch STORE #1 to finalize.

Sample Print of Soft Check

Guest Check before Settlement

Guest Check after Settlement

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

77

Seat # Assignment

The seat # system may be employed in a soft check system. Its' purposes are:

 To separate orders by individuals so that orders are identified by individual on kitchen requisitions.

 To facilitate separate payments.

Seat # entry can be enforced, or if optional, seat #'s can be applied to items previously entered.

Enforced Seat # Entry

Notes:

 When seat # is enforced, it is enforced for each main item. Seat # is not required for condiments.

 Items are displayed as they are entered.

 The seat number is displayed to the right of each main item.

Procedure:

1. Open a check.

2. If you attempt to enter an item without a seat number entry, the "ENTER SEAT#" prompt displays.

3. Enter seat # (up to 2 digits).

4. Enter main item and condiments.

5. Enter the seat number for the next item, touch the SEAT # key.

6. Enter the next item and its condiments.

The seat number “S1” displays after the item.

78

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Changing the Seat # on a Previously Entered Item

1. Touch the item you wish to change.

2. Touch SEAT #.

3. Enter a new number and touch SEAT #.

Optional Seat # Entry

 When seat # is not compulsory, touch the item to which you wish to assign a seat number. Touch SEAT # and then enter a seat number and touch SEAT #.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

79

Splitting Consolidated Items

When like items are consolidated, touch the SPLIT ITEM key to separate items for separate seat assignment or split checks.

1. Touch the consolidated item you wish to split.

2. Touch SPLIT ITEM to split the items.

80

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Print Check by Seat Number

1. Open a check. Identify items by seat number.

2. Touch Print Check. The print check dialog will offer the following options:

 SINGLE CHECK – ALL SEATS

 SEPARATE CHECKS – ALL SEATS

 SINGLE CHECK –ONE SEAT (This option available at version 3.00g29 or later. When selected, you will be prompted to enter a seat number.)

Payment by Seat Number

3. Open a check. Identify items by seat number.

4. Touch Subtotal and then touch Seat #. Each seat is displayed with the seat total and tax. If there are items without seat assignments, they will be displayed with the identification: “NO SEAT”.

5. Touch the seat you wish to pay and enter the appropriate payment, CASH, CHECK or MISC TENDER.

6. Continue to settle each seat until the check is completely paid, or touch STORE

CHECK to store the unpaid seats.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

81

Split Check

The Split Check function key (Key #249) allows you to select item or items on a soft check for assignment to another check. To split items from one check to another:

1. Open an existing guest check.

2. Select an item by touching it.

3. Touch Split Check. Note that the item designated for assignment to another check is marked with an asterisk.

4. Continue to select additional items.

5. Touch the appropriate Store Check key. You will be prompted to enter the check number to which the selected items are to be transferred.

6. Enter the check number and touch OK.

82

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Split Check—Graphical Method

Graphical split check is available at software version 3.00j or later. This feature is available for systems using check tracking (Not table tracking—if table tracking is required use check number representing the table number) and manually input check numbers (see “Checks

Assigned by Register Notes” on page 86.)

Use the Split Check function key (Key #249) to select item or items on a soft check for assignment to another check. To split items from one check to another:

1. Open a new check and add items, or open an existing guest check.

2. Touch Split Check. The Split Check Edit screen displays with the current check items listed. Note that if you are consolidating like items (for example “2 BUD”) and you wish to split one of the items, you must first use the split item key to separate the items (“1 BUD” and “1 BUD”).

Note: Optionally, you can touch the number of new checks you wish to split, and

then touch the Split Check function key, you will be immediately prompted to enter the new check numbers and then the Split Check Edit screen will open with the next checks available to move items.

Left Arrow and

Right Arrow keys are active only when you are separating into more than three checks. When four or more checks are open, use these keys to view the check where you wish to move items.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

83

3. To create a new check, touch Add.

4. Enter a check number and touch OK. The new check displays on the Split Check

Edit screen. Add additional check(s) as needed. The original check and two additional checks can be viewed simultaneously. If more than two checks are added, use the arrow left () and arrow right () keys to select the check you wish to view.

84

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

5. Touch an item that you wish to transfer to a new check. Note the item is highlighted.

6. Touch the check you wish where you wish the item to be added. Note that the item is moved. Continue to move items as necessary by touching to select the item you wish to move and then touching the check where you wish the item to be assigned. You can move items back-and-forth to correct mistakes.

7. Touch Cancel to exit without making changes,

Touch Remove to remove a check (you cannot remove when items are assigned to the check.

Touch Finish to exit to the Split Check Edit screen saving all changes. Newly created checks will be serviced. The original check will remain open.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

85

Checks Assigned by Register Notes

When the Split Check function is used and the Recall Check key is set with the “ASSIGNED

BY REGISTER” option set to YES, simply touch the ADD key from the Split Check Edit screen and the next available check will be assigned.

If you touch the number of new checks you wish to split, and then touch the SPLIT CHECK function key, the Split Check Edit screen will open with the next checks available to move items. For example, touch [2] and SPLIT CHECK; the Split Check Edit screen will open with the next two available check numbers available.

86

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Hold/Print Hold

This feature is used in a table service restaurant. It prevents kitchen printer /KVS instructions from being sent immediately after items are registered and stored. For example, an employee registers a customer order consisting of appetizers and main course entrees. Without this feature, both the appetizer and main course items are sent to the kitchen at the same time.

With this feature, the employee can "hold" main course items, which prevents them from being sent to the kitchen printer (even thought they are programmed to be sent to a printer).

Then, later, the employee can recall the check and print the main course items, so they can be prepared and served when the customer is ready to eat them.

A held item is indicated on the display with an 'H' to the left of the item.

See P Mode System Options/Tracking File Options to set the following related options:

 Option #4: Automatically select held items when a check is recalled, Yes or No.

(This flag is to facilitate printing of held items.)

 Option #5: Display warning to operator that check(s) have held items when employee finalizes any check, Yes or No.

When using software version 2.02b or later, see PLU/PLU STATUS GROUP option #46

“Hold Automatically” to automatically hold items by group. (For example, you may wish to automatically hold dessert items when they are first entered.)

Hold an Item

1. Touch the item you wish to hold.

2. Touch the HOLD key. Note that when a main item is held, its condiments or instructions are also held. Note that an ‘H’ displays next to the held items.

3. Store the check by touching the appropriate store check key, i.e. STORE CHK1.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

87

4. If the system is programmed to warn the operator if items are held when the check is stored, (See P mode System Options/Tracking File Options #5) the held item message displays. The message will list all checks with held items, so that the server is reminded of other checks/tables where held items may need to be released.

5. Touch CLOSE to store the check.

Print All Held Items

1. Recall an order with held items. (Flag is set to automatically select held items.)

Touch any key except PRINT HOLD (or Repeat) to de-select items if you are proceeding with any other operation.

2. Touch PRINT HOLD. (Hold status is removed for selected items; items will be sent to appropriate output when the check is serviced.)

Note: This operation has been enhanced at software version 2.00x: items are now selected when the guest check is recalled (visually with a “S”). When a guest check with

HELD items is recalled items can be selected using the ENTER function key. This will add a “S” in front of the item. When [PRINT HOLD] is pressed, the “S” will be removed and when the guest check is serviced those items will be released to the KP or

KVS. Any item with a “H” will continue to be HELD.

Print an Individual Item

1. Recall an order with held items. (Option to automatically select held items is set to

“No”.)

2. Touch the item you wish to print.

3. Touch PRINT HOLD. (Hold status is removed for selected item; item will be sent to appropriate output when the check is serviced.)

88

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

List Check

1. Sign on an employee.

2. Touch LIST CHECK to display the employee’s open checks. If more than eight checks are open, use the PREV and/or NEXT keys to scroll through the list.

3. Touch a check to select it. Touch OPEN to open the selected check, or touch

CLOSE to close the list check window.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

89

Repeat

You can repeat the last items posted by using the REPEAT key. This simplifies registration of another round of drinks.

1. Open a check. Enter Items.

2. Touch the appropriate store check key, i.e. STORE CHECK 1.

3. Recall the Check.

4. Touch REPEAT. Note that the items posted previously are repeated.

90

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Transfer Table

If permitted by authority level programming, an employee is allowed to move a check to a different table by re-entering a different table number. This can be done multiple times, if necessary.

1. Recall a check by entering a table or check number.

2. Enter a new table number by entering the number and touching the TABLE # key.

3. Continue with the transaction by adding items, accepting payment or servicing

Current Table number is displayed.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

91

Combine Checks for Payment

1. Sign on an employee.

2. Touch the ADD CHECK key.

3. Enter the table # or check # of the first check to be paid. Touch the appropriate

Recall Check or Table # key.

4. Enter the table # or check # of the next check to be paid. Touch the appropriate

Recall Check or Table # key.

5. Pay the checks together using CASH, CHECK, and/or MISC TEND.

Checks listed for payment together

Alpha Guest Check Notes

When using alpha check numbers, the procedure is slightly different:

1. Touch Add Check

2. Touch Recall Check, the entry keyboard displays.

3. Enter Name, touch OK.

4. Touch Recall Check and continue to enter check names until all the checks you wish to combine are entered.

5. Pay checks or service (if serviced checks are stored in the last check entered.)

92

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Transfer Check

Checks can be transferred in two ways:

 Individually, by signing on a new employee and opening the check. The "Automatic transfer check" system flag must be set to “Yes” to allow this option and Authority level programming must be set to allow the employee to access checks that were not opened by them.

 Individually or in groups, using one of the transfer check function keys (TRANS

CHECK 1-4).

 Totals accumulate to the employee that posted the charges.

To transfer check through a transfer check key:

1. Sign on an employee.

2. Touch the TRANS CHECK key.

3. Select the FROM employee from the list.

4. Select the TO employee from the list.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

93

5. Select “All Checks” or “One Check”.

6. If “One Check” is selected, a list will display from which you can select the check to transfer. Touch the check you wish to transfer and touch OPEN. If “All Checks” is selected, the “Check Transferred” message will display.

7. The “Check Transferred” message displays.

Printed Chit for

Transferred Check

94

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Tip Declare

If the employee time keeping feature is used, the operator may be prompted to enter cash tips when clocking out. (Set the employee authority level option #33, “Compulsory Tip Entry” to

Yes.) Sign on the employee.

1. Clock out the employee, the Declare Cash Tips window displays.

2. Enter the declared amount and touch OK

The TIP DECLARE key can be used to enter cash tips when the time keeping feature is not used.

1. Touch the TIP DECLARE key.

2. Enter the declared amount and touch OK

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

95

Printed Chit for

Tip Declaration

96

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

Using Graphical Table Management

The SPS-2000 graphical table management display offers the following features:

 You can design a facsimile of the restaurant floor plan placing tables on up to five floors – for example a main floor, bar, counter, patio, or other serving locations.

 You can place up to 30 tables on each floor.

 Tables can be displayed in different shapes and sizes and moved to locations on the screen that represents their actual locations.

Once the tables are designed and located upon the table display screen, the screen can be used in the operation of the register.

 The table display screen can be displayed manually or automatically. If a manual display is used, press the Table Display key to view the table layout. If an automatic system is employed, the table layout displays immediately after an employee is logged on to operate the register.

 With the table layout displayed, the operator can touch a table to open or recall the check for the table. The table number or name will correspond with the check number.

 Guest counts can be entered from the table display screen.

 The color of the table on the display reflects the table’s status:

Pink Tables are empty tables

Orange Tables are have open checks

Green Tables have printed checks

 Operators can move check balances from one table to another.

 Operators can add check balances from multiple tables to a single table.

Table Management Program Notes

Refer to the SPS-2000 Program Reference Manual for detailed setup instructions.

 S Mode System Option #16 determines whether the table display is automatic or manual. Set “Use Graphic Table Management” to YES for automatic table display;

Set to NO for manual display.

 When using graphic table management, the table number or name corresponds with the guest check number (not the table number.) Set options for the appropriate recall check key as follows:

Set “Table Entry Required” to NO

Set “Assigned by Register” to NO

Set other Recall Check key options a necessary

 S Mode Memory allocation for maximum number of checks (option #12) must exceed the number of tables in use.

 S Mode System Options #10 and #11 must be set to locate the check file in the register system.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

97

Graphic Table Management Operations

If table management is “manual” touch the Table Display key. or,

If table management is “automatic” sign on an employee to display the Table screen.

Each Table displays with basic table information:

 Check number/name

 Guest count

 Table balance

Touch Add to move or add table balances

Touch Guest to enter the guest count

The table color reflects the status of the table:

Pink = Empty

Orange = Active

Green = Check

Printed

Open the Floor list box to select and display the appropriate floor

Opening a Table

Touch a table to open the check associated with the table.

Touch Payment to close the Table screen

Entering Table Guest Counts

Touch Guest and enter the guest count. Then touch the appropriate table. If guest count is compulsory, you can either enter the guest count from the table screen or through the guest count key on the keyboard.

Moving a Balance to another Table

Touch Add. Select the table you wish to move to, and then touch Add again.

Adding Two or More Tables

Touch Add. Touch the tables you wish to add, and then touch Add again. All table balances are added to the last table selected.

98

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

SPS-2000 Table Reservation

A basic table reservation feature has been added to theSPS-2000 table management system at software version 2.03i. The feature allows you to mark a table as “reserved” with the customer name, number and reservation time. A reserved table will display on the table map in a yellow. When the customer arrives, the reservation can be canceled to remove the

“reserved” status, and the check can be started. .

1. If table management is “manual” touch the Table Display key. or,

If table management is “automatic” sign on an employee to display the Table screen.

2. Note the Reservation and Cancel Reservation touch keys.

3. Touch Reservation. Note “Reservation” is displayed in yellow at the bottom of the screen.

4. Touch the table button representing the table you wish to reserve.

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

99

5. Touch the appropriate fields to enter the Reserved Name, Customer #, and Reserved

Time fields. Touch OK to finalize the reservation.

6. The Reservation screen displays. Note the complete reservation information for the table is displayed in yellow on the table icon.

7. To cancel the reservation, touch the Cancel Reservation button. Note “Cancel

Reservation” is displayed in yellow at the bottom of the screen.

8. Touch the reserved table you wish to cancel.

100

Basic Operations

SAM4s SPS-2000 Operator Manual v1.22

SAM4s SPS-2000 Operator Manual v1.22 Basic Operations

101

Reports

Report Menu

Touch the REP (report) tab to view the report menu. (Note: An employee must be signed on to active the tab; password entry may be required.)

NOTE: Screen layout modified at version 2.00s

SAM4s SPS-2000 Operator Manual v1.22 Reports

103

Report Table

The following table summarizes all of the SPS-2000 reports, the mode in which they are available and whether the report is available from an individual register or from a group of registers through IRC.

Report Button Report Name

Financial¹

Mode Available

X1/Z1 - X5/Z5

Individual/IRC

Individual/IRC

All PLUs¹

From/To PLUs

PLUs By Group

PLUs By Selected Group

Top 20 PLUs

PLU Zero Sales

PLU Zero Sales By Group

PLU Sales By Price Level

Not Found PLU

Employees¹

Individual Employee

Employee Currently Signed

On

Active Employees

Clocked In Employees

Outstanding Interrupt

Balance

Groups by Employee¹

Groups¹

From/To Groups

Selective Group

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

Individual/IRC

Individual/IRC

Individual/IRC

Individual/IRC

Individual/IRC

Individual/IRC

Individual/IRC

Individual/IRC

XI/Z1 Individual/IRC

X1/Z1 - X5/Z5 Individual/IRC

X1/Z1 - X5/Z5 Individual/IRC

X1/Z1 - X5/Z5 Individual/

(IRC with 2.00x or later)

X1-X5 Individual/IRC

X1-X5 Individual/IRC

X/Z Individual/IRC

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

Individual/IRC

Individual/IRC

Individual/IRC

Individual/IRC

104

Reports

SAM4s SPS-2000 Operator Manual v1.22

Report Button Report Name

Sales By Time Period¹

Groups By Time Periods¹

Eat-In By Time Periods¹

Take Out By Time Periods¹

Drive Thru By Time

Periods¹

Track 1 By Time Periods¹

Track 2 By Time Periods¹

Track 3 By Time Periods¹

Track 4 By Time Periods¹

Open Check For Track 1¹

Open Check For Track 2¹

Open Check For Track 3¹

Open Check For Track 4¹

Open Check For Selected

Employee

Open Check For Current

Employee

Open Check For Track

1,2,3,&4

Product Mix¹

Product Projections

PLU Stock¹

Stock by PLU Range

Stock by Group

Stock by Individual Group

Inventory¹

PLU Minimum Stock

Mode Available Individual/IRC

X1/Z1 - X5/Z5 Individual/IRC

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

Individual/IRC

Individual/IRC

Individual/IRC

Individual/IRC

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

Individual/IRC

Individual/IRC

Individual/IRC

X1/Z1 - X5/Z5 Individual/IRC

X/Z IRC

X/Z IRC

X/Z IRC

X/Z IRC

X/Z IRC

X/Z IRC

X/Z IRC

X1/Z1 - X2/Z2 Individual/IRC

X Individual/IRC

X/Z Individual/IRC

X/Z Individual/IRC

X/Z Individual/IRC

X/Z Individual/IRC

X/Z IRC

X/Z IRC

SAM4s SPS-2000 Operator Manual v1.22 Reports

105

106

Reports

Report Button Report Name Mode Available Individual/IRC

X1/Z1 - X5/Z5 Individual/IRC

String Report #1

String Report #2

String Report #3

String Report #4

Labor Groups

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

X1/Z1 - X5/Z5

Individual/IRC

Individual/IRC

Individual/IRC

X1/Z1-X2/Z2 IRC

Sales and Labor %

Drawer Totals

X1 - X5

X1 - X5

X1 - X5

IRC

Individual/IRC

Individual/IRC

Drawer 1/2/3

Daily Sales¹

X2/Z2 Only Individual/IRC

X/Z IRC

Station Totals

Time Keeping (Individual or all employee¹)

Day Shift

X1/Z1 - X5/Z5 IRC²

X/Z Individual/IRC

X/Z IRC

Food Cost

Electronic Journal¹

X/Z Individual

X1 - X5 Individual/IRC

Custom

Prepoll

X1/Z1 - X5/Z5 Individual/IRC

X/Z

Mix and Match¹

¹ Indicated reports are pollable by SAM2000.

² Although Time Keeping reports reside in a designated register, and they are not consolidated, Time Keeping reports should be available at any from any register though IRC communication.

Printing & Saving Reports

After a report is selected and displayed, PRINT and SAVE option buttons are displayed.

Touch PRINT to print the report at the designated receipt printer. Touch SAVE to save the report in .txt (text) format on an SD card. The report will be saved on the SD card in the path:

sps2000/backup/xxxxxx/REP_mmddyyyy where “xxxxxx” is the six digit store number and mmddyyyy is the date of the report.

SAM4s SPS-2000 Operator Manual v1.22

Cash Declaration

From the REP mode tab, touch CASH DECLARATION to display the Cash

Declaration Screen

Enter an amount and press the appropriate tender key. Repeat to enter additional amounts.

After completing all entries, press OK to accept entries and exit the screen.

SAM4s SPS-2000 Operator Manual v1.22 Reports

107

X Mode Program

Beginning at software version 2.00s the REP mode screen was reorganized. The following function are now found on the X MODE PGM menu:

Time Clock Edit

If an employee forgets to clock in or out, authorized persons can use the time clock edit function to correct or add time incorrect clock entries.

1. Select the REP tab. (Password entry may be required)

2. Touch X MODE PGM and then TIME CLOCK EDIT.

3. Select the period to be edited, X/Z (DAILY) EDIT, or periodic edits, if they are used.

4. Enter the Employee #, touch OK. The Time Clock Edit screen displays:

108

Reports

5. Touch the field to be corrected, and then enter the correct time and touch OK. Use the PAGE UP and/or PAGE DOWN keys as necessary to display all records.

6. When corrections are completed, touch SAVE to exit with changes saved.

SAM4s SPS-2000 Operator Manual v1.22

Edit Inventory Item

1. Select the REP tab. (Password entry may be required)

2. Touch X MODE PGM and then EDIT INVENTORY ITEM.

Date Time Setting

1. Select the REP tab. (Password entry may be required)

2. Touch X MODE PGM and then touch DATE TIME SETTING. The RTC

SETTING (real time clock) screen displays.

3. Input the Date/Time in MMDDYYYYHHMMSS format. Touch OK.

SAM4s SPS-2000 Operator Manual v1.22 Reports

109

Drawer Assignment

Note: This function available at software version 2.01n or later. At version 2.02b or later drawer assignment is automatically downloaded to the IRC network.

With enhanced drawer assignment, cashiers can now be assigned to specific drawers at specific registers. If REG#0 is selected the drawer assignment will be valid at all terminals.

1. Select the REP tab. (Password entry may be required)

2. Touch X MODE PGM and then touch DRAWER ASSIGNMENT. The RTC

SETTING (real time clock) screen displays.

3. Set the drawer assignment for each employee (the number is determined by memory allocation – use the PREV. RECORD/NEXT RECORD key to view additional employees.) After making settings, touch CLOSE.

FTP Transmission

Reserved for future use.

Receipt Reprint

Note: This feature is available at version 2.00t or later.

Receipt copies can be printed after the sale provided that the transaction data is resident in the electronic journal. (You must allocate for electronic journal and set the appropriate electronic journal system options.)

From the REP menu, touch Receipt Reprint. At the prompt enter the consecutive number of the transaction you wish to reprint; touch OK. The transaction will be retrieved from the electronic journal and printed at the designated receipt printer.

110

Reports

SAM4s SPS-2000 Operator Manual v1.22

DataTran Operation

1. Select the REP tab. (Password entry may be required.)

2. Touch DATATRAN. The DATATRAN OPERATION menu screen displays.

3. Touch the operation you wish to perform.

4. Touch PAGE DOWN to view the complete list.

SAM4s SPS-2000 Operator Manual v1.22 Reports

111

Initialize EFT

Select Initialize EFT to verify communications, software versions and installed networks.

List of Installed Networks

Status of Installed

DATE 5/24/2004 THU TIME 16:15

** LIST INSTALLED NETWORRKS **

CHK DEN --- --- VER:3.89

OFF ON OFF OFF

EMPLOYEE1 NO.000019 REG 01

Software Version

Open Batch

Manual batch opening and closing may be required by your payment processor. If required, it is recommended to open a new batch right after closing today’s batch, so it is ready to go for the next day.

Touch OPEN BATCH. No printing takes place.

Close Current Batch/ Close Current Batch with Debit

Manual batch opening and closing may be required by your payment processor. Touch

CLOSE CURRENT BATCH. or CLOSE BATCH WITH DEBIT if the batch contains

debit transactions. The message “WAITING RESP.” displays. When communication is complete, the Local Batch Status prints and the batch is closed.

Change Batch Number

The change batch number command is used to assign a new batch number to an existing batch. It is used with certain credit card processors to rectify settlement problems. It is used infrequently. (Attempt to change batch number will be denied if bank does not allow the feature.)

112

Reports

SAM4s SPS-2000 Operator Manual v1.22

Issue Local Total

This report is added for ease of customer balancing actual totals in the Datatran to the system wide reports. A summary of each kind of credit card and a batch total should match the totals within the SPS 2000 system-wide report before the Settle Batch is attempted.

DATE 5/24/2004 TUE

****LOCAL TOTAL REPORT ****

AMEX .00 0

VISA .00 5

MASTER .00 0

DISCOVER 2.00 1

PRIVATE LABEL .00 0

DINERS .00 0

JCB .00 0

DEBIT 12.00 2

TOTAL 14.00 3

NO.000011 REG01 EMPLOYEE1 TIME 11:07

Issue Local Transaction

If “terminal based” processing is used, the Local Transaction Report contains details of each transaction in the current batch. When “host based” processing is used, transaction data is stored at the processor.

Example

DATE 5/24/2004 MON

****LOCAL TRANSACTION REPORT ****

C 93 1 DB

6011000990139424 09/12

APP: VITAL2

REF: 506714501913

AMT: 6.00 TIP: *

03/08/05 08:37:40

===============================

C 93 1 DB

400300123456781 09/08

APP: VITAL2

REF: 506715500507

AMT: 6.00 TIP: *

03/08/05 09:05:58

===============================

A 54 1 D

6011000990139424 09/12

APP: VITAL1

REF: *

AMT: 2.00 TIP: *

03/08/05 09:26:51

===============================

NO.000015 REG01 EMPLOYEE1 TIME 09:32

SAM4s SPS-2000 Operator Manual v1.22 Reports

113

Issue Local Batch Status Report

The Local Batch Status Report also prints when a batch is closed.

See Explanations

DATE 5/24/2004 MON

**** LOCAL BATCH STATUS ****

C 1 2 2 5.00 2 5.00

NO.000011 REG01 EMPLOYEE1 TIME 11:07

Local Batch Status Explanations:

(From Left to Right)

C Batch Status C=Closed/O=Open

2

2

Batch Transaction Count

Batch Item Count

2 Batch Forwarded Transaction Count

5.00 Batch Forwarded Balance

Enable Dial In Load/Enable Dial Out Load

If instructed by Datacap support, you can use these options to update DataTran software.

Choose Enable Dial In Load to allow Datacap to call the DataTran and send updates. Choose

Enable Dial Out Load to call Datacap to connect. You will be required to enter the phone number and terminal I.D.

114

Reports

SAM4s SPS-2000 Operator Manual v1.22

Gratuity Entry

The Gratuity Entry command allows the operator to add a tip to a pre-authorized credit sale.

To add a tip,

1. Select the Gratuity Entry command from the Datatran Operation Menu. The Gratuity

Entry window displays (the form shown below requires software version 2.01b.)

2. Fill the form fields: a. The EMPLOYEE drop-down box allows managers to enter a gratuity for other employees. b. The CARD TYPE drop-down box allows tips to be assigned to multiple

MISC TEND keys for reporting purposes. c. Enter the Record number from the merchant credit draft (REC NO:). d. Enter the original TRANSACTION AMOUNT (also from the merchant draft). e. Use the ORIGINAL TIP AMOUNT and NEW TIP AMOUNT fields to fix an incorrect tip and also update the register reports

3. Click OK. When complete, the register will print a receipt of the tip entry. The tip amount is automatically added to the employee report (to the employee that enters the tip) and to the financial report.

Initialize Pin Pad

Initializes the Pin Pad.

Get Gift Card Balance

Select Gift Card Balance, the operator will be prompted to slide a gift card. The balance will be printed on the receipt printer.

SAM4s SPS-2000 Operator Manual v1.22 Reports

115

Post Authorization

Note: This function was identified as “Credit Post Authorization” on versions prior to

V3.00w.

If electronic authorization is not approved and the merchant receives voice authorization, the transaction can be entered into the batch with this function:

1. Select POST AUTHORIZE from the DATATRAN OPERATION menu. The “SLIDE

CARD” message displays.

2. If the card is present, slide the card and go to step 6.

3. If the card is not present, press CLEAR. The message “ENTER ACCT NO” displays.

4. Enter the card account number and press ENTER. The message “ENTER EXP DATE” displays.

5. Enter the expiration date (4-digit format: MMYY). The message “ENTER ORIG TRAN

AMT” displays.

6. Enter the original transaction amount and press ENTER. The message “ENTER AUTH

CODE” displays.

7. Enter the authorization code from the call center and press ENTER. The message

“WAITING RESPONSE” displays.

8. When the communication is complete, the credit transaction data will print.

116

Reports

SAM4s SPS-2000 Operator Manual v1.22

Report Samples

Financial Report

F I N A N C I A L R E P O R T

X 1 R E P O R T 0 0 0 3

D E S C R I P T O R C O U N T T O T A L

+ P L U T T L 0 0 . 0 0 0 0 0 . 0 0

- P L U T T L 0 0 . 0 0 0 0 0 . 0 0

A D J U S T E D T T L 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

N O N - T A X 0 0 . 0 0 0 0 0 . 0 0

T A X 1 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 2 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 3 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 4 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 5 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 6 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 1 0 0 . 0 0 0 0 0 . 0 0

T A X 2 0 0 . 0 0 0 0 0 . 0 0

T A X 3 0 0 . 0 0 0 0 0 . 0 0

T A X 4 0 0 . 0 0 0 0 0 . 0 0

T A X 5 0 0 . 0 0 0 0 0 . 0 0

T A X 6 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 1 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 2 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 3 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 4 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 5 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 6 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

E A T I N S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A K E O U T S A L E S 0 0 . 0 0 0 0 0 . 0 0

D R I V E T H R U S A L E S 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

% 1 0 0 . 0 0 0 0 0 . 0 0

% 2 0 0 . 0 0 0 0 0 . 0 0

% 3 0 0 . 0 0 0 0 0 . 0 0

% 4 0 0 . 0 0 0 0 0 . 0 0

% 5 0 0 . 0 0 0 0 0 . 0 0

% 6 0 0 . 0 0 0 0 0 . 0 0

% 7 0 0 . 0 0 0 0 0 . 0 0

% 8 0 0 . 0 0 0 0 0 . 0 0

% 9 0 0 . 0 0 0 0 0 . 0 0

% 1 0 0 0 . 0 0 0 0 0 . 0 0

N E T S A L E S 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

C R E D I T T A X 1 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 2 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 3 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 4 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 5 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 6 0 0 . 0 0 0 0 0 . 0 0

SAM4s SPS-2000 Operator Manual v1.22 Reports

117

Note: Audation is the total of all sales ending in a negative balance.

F O O D S T M P C R E D I T 0 0 . 0 0 0 0 0 . 0 0

M D S E R E T U R N 0 0 . 0 0 0 0 0 . 0 0

E R R O R C O R R E C T 0 0 . 0 0 0 0 0 . 0 0

P R E V I O U S V O I D 0 0 . 0 0 0 0 0 . 0 0

T R A N S V O I D 0 0 . 0 0 0 0 0 . 0 0

C A N C E L 0 0 . 0 0 0 0 0 . 0 0

G R O S S S A L E S 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

C A S H S A L E S 0 0 . 0 0 0 0 0 . 0 0

R / A 1 0 0 . 0 0 0 0 0 . 0 0

R / A 2 0 0 . 0 0 0 0 0 . 0 0

R / A 3 0 0 . 0 0 0 0 0 . 0 0

R / A 4 0 0 . 0 0 0 0 0 . 0 0

R / A 5 0 0 . 0 0 0 0 0 . 0 0

P / O 1 0 0 . 0 0 0 0 0 . 0 0

P / O 2 0 0 . 0 0 0 0 0 . 0 0

P / O 3 0 0 . 0 0 0 0 0 . 0 0

P / O 4 0 0 . 0 0 0 0 0 . 0 0

P / O 5 0 0 . 0 0 0 0 0 . 0 0

A U D A C T I O N 0 0 . 0 0 0 0 0 . 0 0

# / N O S A L E S 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

C A S H - I N - D R A W E R 0 0 . 0 0 0 0 0 . 0 0

C H E C K - I N - D R A W E R 0 0 . 0 0 0 0 0 . 0 0

F / S - I N - D R A W E R 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 1 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 2 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 3 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 4 0 0 . 0 0 0 0 0 . 0 0

… … … .

M I S C T E N D 1 6 0 0 . 0 0 0 0 0 . 0 0

D R A W E R T O T A L 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

P R O M O 0 0 0 0 0 . 0 0

W A S T E 0 0 0 0 0 . 0 0

T R A I N I N G T O T A L 0 0 . 0 0 0 0 0 . 0 0

P R E V I O U S B A L A N C E 0 0 . 0 0 0 0 0 . 0 0

T I P 1 0 0 . 0 0 0 0 0 . 0 0

T I P 2 0 0 . 0 0 0 0 0 . 0 0

T I P 3 0 0 . 0 0 0 0 0 . 0 0

G U E S T S 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

A V E R A G E 0 0 0 . 0 0

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

118

Reports

SAM4s SPS-2000 Operator Manual v1.22

Sales By Time Period

Note:

See flag PGM\SYSTEM

OPTIONS\REPORT

OPTIONS\EXCLUDE TAX ON

THE TIME PERIOD REPORT =

Y/N.

 If the flag = N then the Time period report uses the NET

SALES number.

 If the flag = Y then the Time period report uses the

ADJST TTL number.

S A L E S B Y T I M E P E R I O D R E P O R T

X 1 R E P O R T 0 0 0 3

T I M E P E R I O D # / C U S T O M E R S T O T A L

0 8 : 0 0 - 0 9 : 0 0 3 1 1 . 5 4

0 9 : 0 0 - 1 0 : 0 0 1 5 1 8 6 . 8 2

1 1 : 0 0 - 1 2 : 0 0 6 7 . 9 9

1 2 : 0 0 - 1 3 : 0 0 1 2 . 4 0

1 4 : 0 0 - 1 5 : 0 0 1 3 1 4 6 . 8 2

T O T A L 3 8 3 5 5 . 0 7

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

PLU Reports

All Plus

From/To PLUs

PLUs By Group

PLUs By Group For Selected Group

Top 20 PLUs

PLU Zero Sales

PLU Zero Sales By Group

PLU Sales By Price Level

Notes:

1. Whole unit reporting if there is no decimal activity.

2. Total/Counter capacity varies by memory allocation.

Counters: 6-8 digits

Totals: 8-10 digits

P L U R E P O R T

X 1 R E P O R T 0 0 0 3

I T E M P R O M O W A S T E U S A G E P L U %

P L U # G R O U P C O U N T T O T A L

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

H A M B U R G E R 1 2 6 5 0 . 0 0 %

0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 3 3 . 0 0

C H E E S E B U R G E R 1 4 8 5 0 . 0 0 %

0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 3 3 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

T O T A L 2 6 1 4

6 6 . 0 0

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

SAM4s SPS-2000 Operator Manual v1.22 Reports

119

120

Reports

Employee Reports

Individual Employee

Employee Currently Signed On

Active Employee (Reports Clocked-In Employees Only)

E M P L O Y E E R E P O R T

X 1 R E P O R T 0 0 0 3

E M P L O Y E E # 0 0 0 1 K E L L Y

D E S C R I P T O R C O U N T T O T A L

N O N - T A X 0 0 . 0 0 0 0 0 . 0 0

T A X 1 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 2 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 3 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 4 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 5 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 6 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 1 0 0 . 0 0 0 0 0 . 0 0

T A X 2 0 0 . 0 0 0 0 0 . 0 0

T A X 3 0 0 . 0 0 0 0 0 . 0 0

T A X 4 0 0 . 0 0 0 0 0 . 0 0

T A X 5 0 0 . 0 0 0 0 0 . 0 0

T A X 6 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 1 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 2 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 3 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 4 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 5 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 6 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

A N A L Y S I S 1 S A L E S 0 0 . 0 0 0 0 0 . 0 0

A N A L Y S I S 2 S A L E S 0 0 . 0 0 0 0 0 . 0 0

A N A L Y S I S 3 S A L E S 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

% 1 0 0 . 0 0 0 0 0 . 0 0

% 2 0 0 . 0 0 0 0 0 . 0 0

% 3 0 0 . 0 0 0 0 0 . 0 0

% 4 0 0 . 0 0 0 0 0 . 0 0

% 5 0 0 . 0 0 0 0 0 . 0 0

% 6 0 0 . 0 0 0 0 0 . 0 0

% 7 0 0 . 0 0 0 0 0 . 0 0

% 8 0 0 . 0 0 0 0 0 . 0 0

% 9 0 0 . 0 0 0 0 0 . 0 0

% 1 0 0 0 . 0 0 0 0 0 . 0 0

N E T S A L E S 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

C R E D I T T A X 1 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 2 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 3 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 4 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 5 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 6 0 0 . 0 0 0 0 0 . 0 0

SAM4s SPS-2000 Operator Manual v1.22

Note: Audation is the total of all sales ending in a negative balance.

F O O D S T M P C R E D I T 0 0 . 0 0 0 0 0 . 0 0

M D S E R E T U R N 0 0 . 0 0 0 0 0 . 0 0

E R R O R C O R R E C T 0 0 . 0 0 0 0 0 . 0 0

P R E V I O U S V O I D 0 0 . 0 0 0 0 0 . 0 0

T R A N S V O I D 0 0 . 0 0 0 0 0 . 0 0

C A N C E L 0 0 . 0 0 0 0 0 . 0 0

G R O S S S A L E S 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

C A S H S A L E S 0 0 . 0 0 0 0 0 . 0 0

R / A 1 0 0 . 0 0 0 0 0 . 0 0

R / A 2 0 0 . 0 0 0 0 0 . 0 0

R / A 3 0 0 . 0 0 0 0 0 . 0 0

R / A 4 0 0 . 0 0 0 0 0 . 0 0

R / A 5 0 0 . 0 0 0 0 0 . 0 0

P / O 1 0 0 . 0 0 0 0 0 . 0 0

P / O 2 0 0 . 0 0 0 0 0 . 0 0

P / O 3 0 0 . 0 0 0 0 0 . 0 0

P / O 4 0 0 . 0 0 0 0 0 . 0 0

P / O 5 0 0 . 0 0 0 0 0 . 0 0

A U D A C T I O N 0 0 . 0 0 0 0 0 . 0 0

# / N O S A L E S 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

C A S H - I N - D R A W E R 0 0 . 0 0 0 0 0 . 0 0

C H E C K - I N - D R A W E R 0 0 . 0 0 0 0 0 . 0 0

F / S - I N - D R A W E R 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 1 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 2 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 1 6 0 0 . 0 0 0 0 0 . 0 0

D R A W E R T O T A L 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

P R O M O 0 0 0 0 0 . 0 0

W A S T E 0 0 0 0 0 . 0 0

T R A I N I N G T O T A L 0 0 . 0 0 0 0 0 . 0 0

P R E V I O U S B A L A N C E 0 0 . 0 0 0 0 0 . 0 0

T I P 1 0 0 . 0 0 0 0 0 . 0 0

T I P 2 0 0 . 0 0 0 0 0 . 0 0

T I P 3 0 0 . 0 0 0 0 0 . 0 0

G U E S T S 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

A V E R A G E 0 0 0 . 0 0

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

SAM4s SPS-2000 Operator Manual v1.22 Reports

121

Group

G R O U P R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2 0 0 0 1

# G R O U P C O U N T T O T A L %

0 1 D E S C R I P T O R 0 0 0 0 0 0 0 0 0 0 0 0 0 0 . 0 0 0 . 0 0

0 2 D E S C R I P T O R 0 0 0 0 0 0 0 0 0 0 0 0 0 0 . 0 0 0 . 0 0

G R O U P T O T A L 0 0 0 0 0 0 0 0 0 0 0 0 0 0 . 0 0

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

Drawer Totals

D R A W E R T O T A L S R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2 0 0 0 1

C A S H - I N - D R A W E R 0 0 . 0 0 0 0 0 . 0 0

C H E C K - I N - D R A W E R 0 0 . 0 0 0 0 0 . 0 0

F / S - I N - D R A W E R 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 1 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 2 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 3 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 4 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 5 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 6 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 1 6 0 0 . 0 0 0 0 0 . 0 0

D R A W E R T O T A L 0 0 . 0 0 0 0 0 . 0 0

E M P L O Y E E : K E L L Y

# 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

122

Reports

SAM4s SPS-2000 Operator Manual v1.22

Labor Groups

L A B O U R G R O U P S R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2 0 0 0 1

D E S C R I P T O R H O U R S

C O U N T E R H E L P 0 . 0 0

K I T C H E N S T A F F 0 . 0 0

M A N A G E R 0 . 0 0

T O T A L T I M E W O R K E D 0 . 0 0

A V G . D A I L Y L A B O R C O S T 0 0 . 0 0

E M P L O Y E E : K E L L Y

# 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

Sales and Labor %

S A L E S A N D L A B O U R % R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2 0 0 0 1

0 0 : 0 0 - 0 1 : 0 0

0 1 : 0 0 - 0 2 : 0 0

C U S T : 0 N E T S A L E S 0 0 0 0 . 0 0

A V G / C U S T : 0 0 . 0 0

H R S L A B O R : 0 L A B O R C O S T : 0 0 0 0 . 0 0

% / N E T S A L E S : 0 0 . 0 0

L A B O R / C U S T : 0 0 . 0 0

S A L E S / M A N H O U R : 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

T O T A L

C U S T : 0 N E T S A L E S : 0 0 0 0 . 0 0

A V G / C U S T : 0 0 . 0 0

H R S L A B O R : 0 L A B O R C O S T : 0 0 0 0 . 0 0

% / N E T S A L E S : 0 0 . 0 0

L A B O R / C U S T : 0 0 . 0 0

S A L E S / M A N H O U R : 0 0 0 . 0 0

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

Notes: The Sales and Labor Report uses data from the Sales by Time Period Report and the Time Keeping Report. You must clear both reports daily to get meaningful Sales

& Labor % Report data.

There are eight items per every time unit in Sales and Labor Report. 'CUST' and 'NET

SALES' values are from Sales by Time Period Report where 'AVG/CUST' is division of these two values. You can calculate 'HRS LBR' and 'LABOR COST' from Time

Keeping Report and Pay Rate Program. 'HRS LBR' is sum of working hours for all employees who had worked in this time period. LABOR COST' is the sum of the product of working hours and pay rate for every employee. '%/NET SALES' is ratio of

NET SALES to LABOR COST. 'LABOR$/CUST' is labor cost for one customer which can be calculated dividing the LABOR COST by number of customers. Divide NET

SALES by 'HRS LBR' to yield 'SALES/MANHOUR'.

SAM4s SPS-2000 Operator Manual v1.22 Reports

123

124

Reports

Daily Sales

D A I L Y S A L E S R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2 0 0 0 1

D A Y C O U N T T O T A L

1 3 1 1 . 5 4

2 1 5 1 8 6 . 8 2

3 6 7 . 9 9

1 3 1 2 . 4 0

1 7 1 3 1 4 6 . 8 2

T O T A L 3 8 3 5 5 . 0 7

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

Groups By Time Period

Reporting for each time period and each group. (Selected groups and periods shown here.)

G R O U P S B Y T I M E P E R I O D R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2

0 0 0 1

T I M E P E R I O D C U S T T O T A L A V G / T R A N S

0 0 : 0 0 - 0 1 : 0 0 9 9 9 9 9 9 9 9 9 9 9 9 . 9 9 9 9 . 9 9

C O U N T T O T A L

G R O U P 1 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 2 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 3 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 4 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 5 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 6 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 7 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 8 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

T I M E P E R I O D C U S T T O T A L A V G / T R A N S

0 1 : 0 0 - 0 2 : 0 0 9 9 9 9 9 9 9 9 9 9 9 9 . 9 9 9 9 . 9 9

C O U N T T O T A L

G R O U P 1 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 2 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 3 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 4 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 5 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 6 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 7 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O U P 8 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

SAM4s SPS-2000 Operator Manual v1.22

Analysis 1 By Time Periods

E A T - I N B Y T I M E P E R I O D R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2

0 0 0 1

T I M E P E R I O D C O U N T T O T A L

0 0 : 0 0 - 0 1 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 1 : 0 0 - 0 2 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 3 : 0 0 - 0 4 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 4 : 0 0 - 0 5 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 5 : 0 0 - 0 6 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

T O T A L 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

Analysis 2 By Time Periods

A N A L Y S I S 2 B Y T I M E P E R I O D R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2 0 0 0 1

T I M E P E R I O D C O U N T T O T A L

0 0 : 0 0 - 0 1 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 1 : 0 0 - 0 2 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 3 : 0 0 - 0 4 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 4 : 0 0 - 0 5 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 5 : 0 0 - 0 6 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

T O T A L 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

SAM4s SPS-2000 Operator Manual v1.22 Reports

125

Analysis 3 By Time Periods

A N A L Y S I S 3 B Y T I M E P E R I O D R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2

0 0 0 1

T I M E P E R I O D C O U N T T O T A L

0 0 : 0 0 - 0 1 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 1 : 0 0 - 0 2 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 3 : 0 0 - 0 4 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 4 : 0 0 - 0 5 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 5 : 0 0 - 0 6 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

T O T A L 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

Track By Time Periods

Track 1 By Time Periods

Track 2 By Time Periods

Track 3 By Time Periods

Track 4 By Time Periods

T R A C K 1 B Y T I M E P E R I O D S R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2 0 0 0 1

T I M E P E R I O D C O U N T T O T A L

0 0 : 0 0 - 0 1 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 1 : 0 0 - 0 2 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 3 : 0 0 - 0 4 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 4 : 0 0 - 0 5 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

0 5 : 0 0 - 0 6 : 0 0 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

T O T A L 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

126

Reports

SAM4s SPS-2000 Operator Manual v1.22

Open Check

Open Check For Track 1

Open Check For Track 2

Open Check For Track 3

Open Check For Track 4

Open Check For Selected Employee

Open Check For Current Employee

Open Check For Track 1, 2, 3, & 4

Note:

The indicator [T] is used to identify training mode checks.

Be sure to clear training mode checks after training activity.

D A T E 1 2 / 0 5 / 2 0 0 8 F R I

O P E N C H E C K F O R T R A C K 1 R E P O R T

X 1 R E P O R T 0 0 0 1

T B L # C H E C K # G # E M P L O Y E E T I M E T O T A L

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

I R C R E G # 0 1

0 0 0 1 0 1 0 : 1 7 [ T ]

2 1 E M P L O Y E E $ 0 . 0 0

0 0 0 2 0 1 1 : 0 2

1 1 E M P L O Y E E $ 0 . 0 0

T R A C K # 1 T O T A L $ 0 . 0 0

N O . 0 0 0 0 0 4 R E G 0 1 1 E M P L O Y E E T I M E 1 2 : 2 3

Product Mix

P R O D U C T M I X R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2 0 0 0 1

P R O D U C T / T I M E U N I T # P C C O U N T T O T A L

B O T T L E B E C K S ( C A S E )

0 0 : 0 0 - 0 5 : 5 9 0 0 0 1 # 0 8 4 2 0 4 2 2 2 . 3 6

0 0 : 0 0 - 1 5 : 5 9 0 0 0 1 # 0 8 4 2 0 4 2 2 2 . 3 6

0 0 : 0 0 - 2 3 : 5 9 0 0 0 1 # 0 8 4 2 0 4 2 2 2 . 3 6

T O T A L 0 0 0 5 # 0 1 2 6 1 2 6 6 7 . 0 8

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

SAM4s SPS-2000 Operator Manual v1.22 Reports

127

Product Projections

P R O D U C T P R O J E C T I O N S R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2 0 0 0 1

P R O D U C T P R O J E C T I O N S W E D

B O T T L E B E C K S ( C A S E )

T I M E W E E K 1 W E E K 2 W E E K 3 W E E K 4 A V G

0 6 : 0 0 - 0 7 : 5 9 5 5 5 5 5

0 8 : 0 0 - 0 8 : 2 9 1 0 2 0 3 0 4 0 2 5

0 8 : 3 0 - 0 8 : 5 9 0 0 0 7 0 0 1 7 5

0 9 : 3 0 - 0 9 : 5 9 0 0 6 8 1 1 7

T O T A L 1 5 2 5 1 0 3 7 4 6 2 2 2

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

Station Totals

Prints for each register in an IRC configuration.

S T A T I O N R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2 0 0 0 1

R E G # 0 1 : C O U N T T O T A L

N E T S A L E S 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

G R O S S S A L E S 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

D R A W E R 1 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

D R A W E R 2 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

D R A W E R 3 9 9 9 9 9 9 . 9 9 9 9 9 9 9 9 9 9 . 9 9

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

128

Reports

SAM4s SPS-2000 Operator Manual v1.22

Daily Time Keeping

D A I L Y T I M E K E E P I N G R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2 0 0 0 1

E M P # S S N N A M E T I P S

0 0 0 1 1 2 3 4 5 6 7 8 9 A N N I E 0 0 . 0 0

1 2 : 0 0 - 1 3 : 0 0 M A N A G E R

1 3 : 0 0 - 1 4 : 0 0 S E R V E R

M A N A G E R 1 . 0 0 R E G 0 . 0 0 O T

S E R V E R 1 . 0 0 R E G 0 . 0 0 O T

T O T A L R E G 2 . 0 0 H R 1 4 . 0 0 C S T

T O T A L L B R 2 . 0 0 H R 1 4 . 0 0 C S T

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

M A N A G E R

R E G 1 . 0 0 H R 8 . 0 0 C S T

T O T A L L B R 1 . 0 0 H R 8 . 0 0 C S T

S E R V E R

R E G 1 . 0 0 H R 6 . 0 0 C S T

T O T A L L B R 1 . 0 0 H R 6 . 0 0 C S T

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

T O T A L

R E G 2 . 0 0 H R 1 4 . 0 0 C S T

O T 0 . 0 0 H R 0 . 0 0 C S T

T O T A L L A B O R 2 . 0 0 H R 1 4 . 0 0 C S T

T O T A L T I P S 0 . 0 0

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

SAM4s SPS-2000 Operator Manual v1.22 Reports

129

130

Reports

Shift Report

Complete Financial Reporting is available for each of 4 possible shifts. Shifts can be changed automatically at a set time or manually.

S H I F T R E P O R T

X 1 R E P O R T 0 0 0 3

D E S C R I P T O R C O U N T T O T A L

+ P L U T T L 0 0 . 0 0 0 0 0 . 0 0

- P L U T T L 0 0 . 0 0 0 0 0 . 0 0

A D J U S T E D T T L 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

N O N - T A X 0 0 . 0 0 0 0 0 . 0 0

T A X 1 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 2 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 3 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 4 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 5 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 6 S A L E S 0 0 . 0 0 0 0 0 . 0 0

T A X 1 0 0 . 0 0 0 0 0 . 0 0

T A X 2 0 0 . 0 0 0 0 0 . 0 0

T A X 3 0 0 . 0 0 0 0 0 . 0 0

T A X 4 0 0 . 0 0 0 0 0 . 0 0

T A X 5 0 0 . 0 0 0 0 0 . 0 0

T A X 6 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 1 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 2 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 3 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 4 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 5 0 0 . 0 0 0 0 0 . 0 0

E X E M P T T A X 6 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

A N A L Y S I S 1 S A L E S 0 0 . 0 0 0 0 0 . 0 0

A N A L Y S I S 2 S A L E S 0 0 . 0 0 0 0 0 . 0 0

A N A L Y S I S 3 S A L E S 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

% 1 0 0 . 0 0 0 0 0 . 0 0

% 2 0 0 . 0 0 0 0 0 . 0 0

% 3 0 0 . 0 0 0 0 0 . 0 0

% 4 0 0 . 0 0 0 0 0 . 0 0

% 5 0 0 . 0 0 0 0 0 . 0 0

% 6 0 0 . 0 0 0 0 0 . 0 0

% 7 0 0 . 0 0 0 0 0 . 0 0

% 8 0 0 . 0 0 0 0 0 . 0 0

% 9 0 0 . 0 0 0 0 0 . 0 0

% 1 0 0 0 . 0 0 0 0 0 . 0 0

N E T S A L E S 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

C R E D I T T A X 1 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 2 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 3 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 4 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 5 0 0 . 0 0 0 0 0 . 0 0

C R E D I T T A X 6 0 0 . 0 0 0 0 0 . 0 0

SAM4s SPS-2000 Operator Manual v1.22

Note: Audation is the total of all sales ending in a negative balance.

F O O D S T M P C R E D I T 0 0 . 0 0 0 0 0 . 0 0

M D S E R E T U R N 0 0 . 0 0 0 0 0 . 0 0

E R R O R C O R R E C T 0 0 . 0 0 0 0 0 . 0 0

P R E V I O U S V O I D 0 0 . 0 0 0 0 0 . 0 0

T R A N S V O I D 0 0 . 0 0 0 0 0 . 0 0

C A N C E L 0 0 . 0 0 0 0 0 . 0 0

G R O S S S A L E S 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

C A S H S A L E S 0 0 . 0 0 0 0 0 . 0 0

R / A 1 0 0 . 0 0 0 0 0 . 0 0

R / A 2 0 0 . 0 0 0 0 0 . 0 0

R / A 3 0 0 . 0 0 0 0 0 . 0 0

R / A 4 0 0 . 0 0 0 0 0 . 0 0

R / A 5 0 0 . 0 0 0 0 0 . 0 0

P / O 1 0 0 . 0 0 0 0 0 . 0 0

P / O 2 0 0 . 0 0 0 0 0 . 0 0

P / O 3 0 0 . 0 0 0 0 0 . 0 0

P / O 4 0 0 . 0 0 0 0 0 . 0 0

P / O 5 0 0 . 0 0 0 0 0 . 0 0

A U D A C T I O N 0 0 . 0 0 0 0 0 . 0 0

# / N O S A L E S 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

C A S H - I N - D R A W E R 0 0 . 0 0 0 0 0 . 0 0

C H E C K - I N - D R A W E R 0 0 . 0 0 0 0 0 . 0 0

F / S - I N - D R A W E R 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 1 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 2 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 3 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 4 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 5 0 0 . 0 0 0 0 0 . 0 0

M I S C T E N D 1 6 0 0 . 0 0 0 0 0 . 0 0

D R A W E R T O T A L 0 0 . 0 0 0 0 0 . 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

P R O M O 0 0 0 0 0 . 0 0

W A S T E 0 0 0 0 0 . 0 0

T R A I N I N G T O T A L 0 0 . 0 0 0 0 0 . 0 0

P R E V I O U S B A L A N C E 0 0 . 0 0 0 0 0 . 0 0

T I P 1 0 0 . 0 0 0 0 0 . 0 0

T I P 2 0 0 . 0 0 0 0 0 . 0 0

T I P 3 0 0 . 0 0 0 0 0 . 0 0

G U E S T S 0 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

A V E R A G E 0 0 0 . 0 0

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

SAM4s SPS-2000 Operator Manual v1.22 Reports

131

132

Reports

Inventory

An example of the inventory report follows:

I N V E N T O R Y R E P O R T

X 1 R E P O R T X 1 0 0 0 3 X 2 0 0 0 1

C O N S O L I D A T E D 0 1 - 0 2

I N V # 0 0 2 B U R G E R

B E G I N I N G I N V E N T O R Y 1 0 0 0 . 0 0

R E C E I P T S 1 0 0 . 0 0

T R A N S F E R I N S 2 5 . 0 0

T R A N S F E R O U T S 1 0 . 0 0

R A W W A S T E - 5 . 0 0

T H E O R E T I C A L U S A G E 1 1 0 . 0 0

S H E L F C O U N T 1 0 0 0 . 0 0

A C T U A L U S E A G E 1 1 2 . 0 0

E N D I N G I N V E N T O R Y 9 9 8 . 0 0

V A L U E O F I N V E N T O R Y 2 2 4 5 . 5 0

V A R I A N C E + / - - 2 . 0 0

V A R I A N C E C O S T - 4 . 5 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

N E T S A L E 1 3 7 6 . 1 5

F O O D C O S T 3 1 2 . 0 0

V A L U E O F I N V E N T O R Y 2 2 4 5 . 5 0

V A R I A N C E C O S T - 4 . 5 0

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

Inventory Definitions

Beginning Inventory

The Beginning Quantity as entered in (inventory - register begin quantity), for the first report.

Additional reports will get the begin quantity from the END value from the last “Z” reset

Receipts

Receipt Quantity as entered in X-mode (inventory - edit inventory item-daily edit/period edit).

Transfer In

The Transfer In Quantity as entered in X-mode (inventory - edit inventory item-daily edit/period)

Transfer Out

Transfer Out Quantity as entered in X-mode (inventory - edit inventory item -daily edit/period)

Raw Waste

SAM4s SPS-2000 Operator Manual v1.22

Raw Waste Quantity as entered in X-mode (inventory - edit inventory item -daily edit/period).

Theoretical Usage

The Theoretical Use Quantity. =[(PROMO+WASTE+SOLD (ITEM/PLU Report)] *

[COUNT (RECIPE TABLE)]

Shelf Count

The Shelf is the Actual Inventory Quantity as entered in X-mode (inventory - edit inventory item - daily edit/period edit).

Actual Usage

The Actual Use Quantity. =[(BEGIN)+(RECPT)+(TR/IN)-(TR/OUT)-(RAW WASTE)-

(SHELF)]

Ending Inventory

The Ending Quantity. If no actual inventory quantity is entered in X-mode. END =

[(BEGIN)+(RECPT)+(TR/IN)-(TR/OUT)-(RAW WASTE)-(T.USE)]. If an actual inventory quantity

entered. END=[(BEGIN)+(RECPT)+(TR/IN)-(TR/OUT)-(RAW WASTE)-

(A.USE)]

Value Of Inventory

The Value of inventory items on hand. VALUE=[(END)*(COST)]

Variance +/-

The Variance +/-. VR+/- =[(T.USE)-(A.USE)]

Variance Cost

The Variance Cost. V.CST=[(VR+/-)*(COST)]

Food Cost

The Food Cost. FDCST=[(A.USE)*(COST)]

SAM4s SPS-2000 Operator Manual v1.22 Reports

133

PLU Stock

PLUs designated as stock PLUs (see PLU Status Group Programming) will appear

F I N A N C I A L R E P O R T

X 1 R E P O R T 0 0 0 3

D E S C R I P T O R C O U N T

B O T T L E B E C K S 1 2 3 4

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

PLU Stock by Group

Further stock reporting formats are available

F I N A N C I A L R E P O R T

X 1 R E P O R T 0 0 0 3

D E S C R I P T O R C O U N T

B O T T L E B E C K S 1 2 3 4

B O T T L E B E E R S

T O T A L 1 2 3 4

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

134

Reports

SAM4s SPS-2000 Operator Manual v1.22

Electronic Journal

All information can be selected by individual transaction type to be stored and reported extracted as required i.e. all Cash Transactions, VOIDs etc

CASH TRANSACTIONS

All cash sales made during normal operation

CHECK TRANSACTIONS

All check sales made during normal operation

MISC TEND TRANSACTIONS

All Miscellaneous tender operations made during normal operation

TRANSACTIONS WITH %

All sales containing a discount or premium operation

RECD ACCT & PAID OUT

All received on account or Paid out sales transactions

RETURN TRANSACTIONS

All Merchandise Return sales transactions

WITH ERROR CORRS & VOIDS

All Transactions containing an error correct or voids.

NO SALES

All Transactions containing no sale operations.

CANCEL TRANSACTIONS

All Register Mode cancelled transactions

TRANSACTIONS NEGATIVE

All Transactions with negative product sales.

REPORTS

All Read & Reset reports which are printed

PROGRAM SCANS

All Program scans which are printed.

CHECK TRACKING

All sales registered for open checks.

SAM4s SPS-2000 Operator Manual v1.22 Reports

135

136

Reports

Food Cost

F O O D C O S T R E P O R T

X 1 R E P O R T 0 0 0 3

B U R G E R P R I C E 1 . 9 5

P L U # 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6

U S A G E C O U N T 2 8

I T E M C O S T 1 . 2 0 0

U S A G E C O S T 3 3 . 6 0

S A L E S C O U N T 2 8

N E T S A L E S 5 4 . 6 0

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

S T E A K P R I C E 1 1 . 9 5

P L U # 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6

U S A G E C O U N T 1 0 5

I T E M F O O D C O S T 2 . 2 5 0

U S A G E C O S T 2 3 6 . 2 5

S A L E S C O U N T 1 0 5

N E T S A L E S 1 2 5 4 . 7 5

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

T O T A L F O O D C O S T 2 6 9 . 8 5

T O T A L S A L E S C O U N T 1 3 3

N E T S A L E S T O T A L 1 3 0 9 . 3 5

E M P L O Y E E : K E L L Y # 0 1

T I M E 0 9 : 0 3 N O . 0 0 0 0 0 0

Definitions

Usage Count

(SALES COUNT + PROMO COUNT + WASTE COUNT)

Item Food Cost

COMBINED COST OF ALL INGREDIENTS\RECIPIES ASSOCIATED WITH THE

ITEM.

Usage Cost

(USAGE * ITEM FOOD COST)

Sales Count

(SALES COUNT)

Net Sales

(SALES COUNT * PRICE)

Shelf Count

The Shelf is the Actual Inventory Quantity as entered in X-mode (inventory - edit inventory item - daily edit/period edit).

SAM4s SPS-2000 Operator Manual v1.22

Balancing Formulas

+

+

+

+

+

+

=

+

+

+

+

+

PLU Sales Total

Tax 1 Amount

Tax 2 Amount

Tax 3 Amount

Tax 4 Amount

Tax 5 Amount

Tax 6 Amount

Item Coupon Total (when NET=N)

Item Percentage Discount (when NET=N)

Sale Coupon Amounts

Sale Percentage Discounts

Sale Surcharge Amounts

+

+

+

+

+

+

+

+

+

+

+

+

Negative PLU Total

Item Coupon Total (when NET=Y)

Item Percentage Discount (when NET=Y)

Sale Coupon Amounts

Sale Percentage Discounts

Credit Tax 1

Credit Tax 2

Credit Tax 3

Credit Tax 4

Credit Tax 5

Credit Tax 6

VOID Position Total

SAM4s SPS-2000 Operator Manual v1.22 Reports

137

Program Maintenance

PLU Maintenance

Changing Item Prices

1. From the PGM mode PROGRAMMING MENU touch PLU to view the PLU program selection window.

2. Touch PLU ADD & CHANGE to view the SELECT PLU screen.

SAM4s SPS-2000 Operator Manual v1.22 Program Maintenance

139

3. Select a PLU to edit in one of two ways:

Touch a PLU key located on the keyboard. (If the PLU you wish to edit is not displayed on the MAIN SCREEN, touch the key that displays the keylink where the

PLU is located, or touch PAGE UP/PAGE DOWN until the appropriate Key Link where you wish to edit a PLU displays.)

or

Enter the PLU number and touch OK.

4. After a PLU is selected, the PLU PROGRAMMING screen displays at the PAGE #1 tab:

5. Touch the PRICES tab.

140

Program Maintenance

SAM4s SPS-2000 Operator Manual v1.22

6. Depending upon memory allocation, prices or HALOs (high amount lock outs that apply to open price entry PLUs) will display for one to five price levels. Touch the current price to make a price change.

7. Enter a new price and touch OK.

8. If you wish to change prices on another PLU, touch the PREV. RECORD or NEXT

RECORD keys to display the price screen for the previous or next sequential PLU,

or touch CLOSE to return to the PLU Select screen.

SAM4s SPS-2000 Operator Manual v1.22 Program Maintenance

141

Employee File Maintenance

The employee file contains information for register operators as well as employees who use the register only to clock in or out (employee time keeping.) Specific functions that are allowed or disallowed for each employee are determined by assigning the employee to an authority level.

Two 10-digit code numbers may be assigned for each employee. A clock-in code is used to clock in or out and a separate sign on code used to operate the register. The social security number is for reference only and appears only on reports.

The total number of employees (up to 999) is set in memory allocation.

1. Select EMPLOYEE from the P-Mode menu, and then select EMPLOYEE to display the EMPLOYEE selection screen. The program screen for the first employee in the file displays with the first of two pages of options in view.

2. Select an employee to program or edit by employee number (touch the current number and enter a new one) or by touching the NEXT RECORD or PREV.

RECORD keys until the appropriate employee is in view. If you are adding a new

employee, touch the NEXT RECORD key until the next unused employee file displays.

142

Program Maintenance

SAM4s SPS-2000 Operator Manual v1.22

3. Touch fields as necessary to set the options on page #1.

NAME

Set the employee name here.

SOCIAL SEC #

Enter the employee social security number.

CLOCK IN CODE

Enter a number (up to 10 digits in length) that will be used by this employee to clock in and/or out.

OPERATING CODE

Enter the secret code number (up to 10 digits in length) that can be used to sign in/out.

LINK TO AUTHORITY LEVEL

Operations and programs that can be accessed by this employee are determined by selecting a authority level here.

JOB CODE#/PAY RATE#

An employee might have more than one job, possibly with a different pay rate for each job. For example, in a restaurant, an employee might work as a server one day, and on a different day or shift, work as a cashier. Here you can list up to six different job codes and six different pay rates for each employee.

By assigning separate job codes and pay rates for each employee, the built in time clock can track and report hours and wage costs appropriately.

Note that the job code you assign for JOB1 is the default job code for clocking in/out.

OPEN DRAWER# DIRECT (0-2) VIA (3-9)

SAM4s SPS-2000 Operator Manual v1.22 Program Maintenance

143

4. Touch the page #2 tab to set the remaining employee file options.

TRAINING MODE?

If Y, this employee will be in training, regardless of the training mode status of the entire register.

DEFAULT PRICE LEVEL

If multiple price levels are used, set the default level for this employee.

DEFAULT SCREEN LEVEL (0-200)

You can set a default screen level (keylink) to display when this employee is signed on to operate.

MANAGER

You can assign this employee “manager” status to perform manager controlled functions without password entry.

EDIT JOB CODES

Note: An employee with the appropriate authority level must be signed on to perform job code

programming.

Job codes are used to break down the hours worked for all employees into different categories (See

"Labor Groups" report in the Operation Manual.) A breakdown of hours by job is also reported for each employee (See "Time Keeping" reports in the Operation Manual.)

The job codes to be used by all employees are set up here. There are 20 possible job codes. Each job code you wish to activate must be given a descriptor here.

EDIT PAY RATES

Note: An employee with the appropriate authority level must be signed on to perform pay rate

programming.

The pay rates set here can be used by all employees. There are up to 50 pay rates.

DALLAS KEY LINK

This option is not available.

144

Program Maintenance

SAM4s SPS-2000 Operator Manual v1.22

Employee Field Definitions

SOCIAL SEC #

CLOCK IN CODE

Enter a number (up to 10 digits in length) that will be used by this employee to clock in and/or out.

OPERATING CODE

Enter the secret code number (up to 10 digits in length) that can be used to sign in/out. Note that system option # 21 "EMPLOYEE SIGN-ON" must be set to "SECRET CODE" to use this number.

LINK TO AUTHORITY LEVEL

Operations and programs that can be accessed by this employee are determined by selecting a authority level here.

OPEN DRAWER# (0-2)

If drawer 0 is assigned, the employee can only perform check track postings (not payments).

JOB CODE#/PAY RATE#

An employee might have more than one job, possibly with a different pay rate for each job. For example, in a restaurant, an employee might work as a server one day, and on a different day or shift, work as a cashier. Here you can list up to six different job codes and six different pay rates for each employee.

By assigning separate job codes and pay rates for each employee, the built in time clock can track and report hours and wage costs appropriately.

See "Time Clock Procedures" in the SPS-2000 Operation Manual for instructions on clocking on/off for different jobs. Note that the job code you assign for JOB1 is the default job code for clocking in/out.

OPEN DRAWER# DIRECT (0-2) VIA (3-9)

TRAINING MODE?

If Y, this employee will be in training, regardless of the training mode status of the entire register.

DEFAULT PRICE LEVEL

DEFAULT SCREEN LEVEL (0-200)

MANAGER

EDIT JOB CODES

Note: An employee with the appropriate authority level must be signed on to perform job code

programming.

Job codes are used to break down the hours worked for all employees into different categories (See

"Labor Groups" report in the Operation Manual.) A breakdown of hours by job is also reported for each employee (See "Time Keeping" reports in the Operation Manual.)

SAM4s SPS-2000 Operator Manual v1.22 Program Maintenance

145

The job codes to be used by all employees are set up here. There are 20 possible job codes. Each job code you wish to activate must be given a descriptor here.

EDIT PAY RATES

Note: An employee with the appropriate authority level must be signed on to perform pay rate

programming.

The pay rates set here can be used by all employees. There are up to 50 pay rates.

DALLAS KEY LINK

This option is not available.

146

Program Maintenance

SAM4s SPS-2000 Operator Manual v1.22

Appendix

Report Function Key Report Code Structure

You can print out reports from the REG tab using the REPORT key. Reports are generated by first entering the report code, then touching the REPORT key, i.e:

[Report Code] [REPORT]

The REPORT key code is #36 and is available on software versions 2.00j or later.

Report Code Structure

010100

1. Enter the 2-digit report number. See the “Report Table” below.

2. Enter “0” for X reports; enter “1” for Z reports

3. Enter the report level: “1” through “5”

4. Enter “0” for standalone reports: enter “1” for IRC reports, (or “2’ to view

IRC for all registers without entering the IRC range with v.2.02b or later).

5. Enter the option code, 1-4 digits. See the “Report Option Table” below. If no option is selected, enter “0”.

The report code example above “010100” generates an X1 Standalone Financial Report.

Report # Table

NO. REPORT NAME

01 Financial

02

03

04

05

Sales by Time Period

All PLU’s

From/To PLU (available version 3.00g31 or later)

PLU’s by Group

X/Z & REPORT LEVEL IRC

X1 & Z1 also X5 to Z5 INDIVIDUAL & IRC

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

SAM4s SPS-2000 Operator Manual v1.22 Appendix

147

PLU’s by Group for Selected Group

Top 20 PLU’s

PLU Zero Sales

PLU Zero Sales by Group

PLU Sales by Price Level

Mix and Match report

Not Found

Employees

Individual Employees

Employee Currently Signed on

Groups by Employee

Groups

From/To Groups

Selective Groups

Drawer Totals

Drawer 1/2/3

Labour Groups

Sales & Labour %

Daily Sales

Groups By Time Period

Analysis 1By Time Period

Analysis 2 By Time Period

Analysis 3 By Time Period

Track 1 By Time Period

Track 2 By Time Period

Track 3 By Time Period

Track 4 By Time Period

Checks for Track 1

Checks for Track 2

Checks for Track 3

Checks for Track 4

Checks for Selected Employee

Checks for Current Employee

Checks for Track 1,2,3,4

Product Mix

Product Projections

37

38

39

40

41

34

35

36

30

31

32

33

26

27

28

29

23

24

25

19

20

21

22

16

17

18

09

10

11

06

07

08

12

13

14

15

148

Appendix

X1 & Z1 also X5 to Z5

X1 to X5 read only

X1 to X5 read only

X1 to X5 read only

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 only

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 to X5 read only

X1 to X5 read only

X1 & Z1 also X5 to Z5

X1 & Z1 also X2 & Z2

X2 & Z2

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1 also X5 to Z5

X1 & Z1

X1 & Z1

X1 & Z1

X1 & Z1

X1 & Z1

X1 & Z1

X1 & Z1

X1 & Z1 also X2 & Z2

X1 read only

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL

INDIVIDUAL & IRC

INDIVIDUAL & IRC

Individual/(IRC with

2.00x or later)

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

IRC

IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

IRC from REG holding data

IRC from REG holding data

IRC from REG holding data

IRC from REG holding data

IRC from REG holding data

IRC from REG holding data

IRC from REG holding data

INDIVIDUAL & IRC

INDIVIDUAL & IRC

SAM4s SPS-2000 Operator Manual v1.22

19

41

45

50

45

46

47

42

43

44

Station Totals

Active Employees – time keeping

Daily Time Keeping

Shift Reporting

Inventory

PLU Stock

X1

X1 read only

X1 & Z1 also X5 to Z5

X1 & Z1

X1 & Z1

X1 & Z1

52

53

54

55

48

49

50

51

Not use this by REPORT key function.

Stock by Group

Stock by Individual Group

Food Cost

PLU Minimum Stock

Not use this by REPORT key function.

String Report 1 – as defined by program

String Report 2 – as defined by program

X1 & Z1

X1 & Z1

X1 & Z1

X1 & Z1

56

57

58

String Report 3 – as defined by program

String Report 4 – as defined by program

Custom Report

X1 & Z1*

X1 & Z1 *

X1 & Z1*

X1 & Z1*

X1 & Z1

59

60

Pre-Poll Report – Hard Copy Print Out

Not use this by REPORT key function.

X1 & Z1

61 Clocked in employees X1 read only

* Generates X/Z Level based on string report programming in PGM mode.

04

Report Option Table

From/To PLU

06

14

18

PLU’s by Group for Selected Group

Individual Employees

From/To Groups

Selective Groups

Product Projections

Shift Reporting

Stock by Individual Group

IRC

IRC

IRC

INDIVIDUAL & IRC

IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL & IRC

INDIVIDUAL

INDIVIDUAL & IRC

INDIVIDUAL & IRC

OPTION

Enter the From PLU #, “.”then the To PLU#. For example if the report is a the PLU range from PLU #

38000 to 41000, enter “38000.41000”.

Group number (1~2 digit)

Employee number (1~3 digit)

Frome/To Group number (4 digits)

If from group number is 1 and to group number is 2, option data is 0102.

Group number (1~2 digit)

Week data (1 digit)

Shift number (1 digit)

Group number (1~2 digit)

SAM4s SPS-2000 Operator Manual v1.22 Appendix

149

Special Report Commands

99000 Print Super Macro (available at version 3.00y or later)

99100 Print Super Macro and Reset (available at version 3.00y or later)

98000 Save PGM/Reports to SD card (available at version 3.00g29 or later)

98100 Save PGM/Reports to USB Memory (available at version 3.00g29 or later)

150

Appendix

SAM4s SPS-2000 Operator Manual v1.22

Manual Revision Record

V1.15

V1.16

V1.17

V1.18

V1.19

Edition

V1.1

V1.2

V1.3

V1.4

V1.5

V1.6

V1.7

V1.8

V1.9

V1.10

V1.11

V1.12

V1.13

V1.14

Date published

9/05/2006

9/22/2006

11/16/2006

12/13/2006

12/19/2006

1/26/2007

3/29/2007

5/1/2007

6/6/2007

6/29/2007

10/23/2007

1/24/2008

5/14/2008

11/10/2008

5/27/2009

9/29/2009

10/6/2009

3/24/2010

10/20/2010

Revision contents

Added support for V2.00c/d software.

Add features associated with software V2.00g

Add features associated with software V2.00l.

Add Balancing Formulas

Add features associated with software V2.00t

Improved Add Check Sequence Instructions

Added feature associated with software V2.00x/2.01b

Add features associated with software V2.01n;

Add features associated with software V2.01r; clarify function of KP Routing key; IRC of “Employee

Signed On” report available at 2.00x or later

Use CLEAR to exit Paid Recall p20, p52

Added features associated with V2.02n

Split Check Function Key explanation added.

Explanation of Sales and Labor % report, pg 113.

Added features associated with V2.03k

Added features associated with V3.00w; Alpha Add

Check operation notes; Added Graphical Split check operation instructions

Paid Recall function clarified. Pollable reports indicated. Available Daily Sales report clarified.

Active Employee Report clarified.

Corrected delivery field information. Clarified P/Bal function.

Added precaution pages

Time Period Report notes added.

Print check with separate seats option added.

REPORT function key commands added.

SAM4s SPS-2000 Operator Manual v1.22 Manual Revision Record

151

V1.20

V1.21

V1.22

6/24/2011

12/20/2011

9/06/2012

“Use EJ Recall” option added for Paid Recall function key. Added features associated with v.3.00g30 application software release.

Clarify check transfer: totals accumulate to server that posted items.

Daily Sales Report mode updated (p.148). From/To

PLU report added to Report Function Key.

152

Manual Revision Record

SAM4s SPS-2000 Operator Manual v1.22

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
