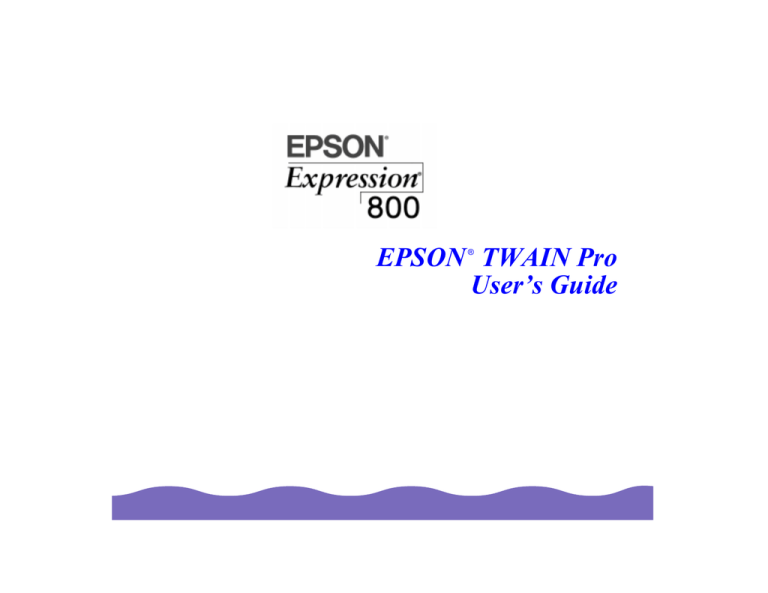

Epson Expression 800 TWAIN Pro User`s guide

EPSON TWAIN Pro
User’s Guide
®
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted
in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of SEIKO EPSON CORPORATION. The information contained herein is designed only for
use with this EPSON scanner. EPSON is not responsible for any use of this information as applied to other
scanners.
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or
third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of:
accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product,
or (excluding the U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and
maintenance instructions.
SEIKO EPSON CORPORATION and its affiliates shall not be liable for any damages or problems arising from
the use of any options or any consumable products other than those designated as Original EPSON Products
or EPSON Approved Products by SEIKO EPSON CORPORATION.
A Note Concerning Responsible Use of Copyrighted Materials
Digital cameras and scanners, like photocopiers and conventional cameras, can be misused by improper
copying of copyrighted material. While some countries’ laws permit limited copying of copyrighted material in
certain circumstances, those circumstances may not be as broad as some people assume. EPSON
encourages each user to be responsible and respectful of copyright laws when using digital cameras and
scanners.
Page 2
Trademarks
EPSON is a registered trademark of SEIKO EPSON CORPORATION, and EPSON Expression is a registered
trademark of Epson America, Inc. EPSON FaxAdvice is a trademark, and EPSON SoundAdvice is a service
mark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be
trademarks of their respective companies.
Copyright © 1998 by Epson America, Inc., Torrance, California, USA
ETP1298-00
12/98
Page 3
Contents
Introduction
6
System Requirements
Windows System Requirements
Macintosh System Requirements
7
7
8
How to Use This Manual
9
Where to Get Help
10
Scanning from Your Application Software
13
Basic Scanning
Selecting Basic Settings
13
15
Previewing Your Scan
Preview Zooming Options
Using Marquees
21
22
22
Advanced Scanning
27
Customizing Image Types
28
Customizing Destination Settings
32
Adjusting Source and Target Image Sizes
Scaling the Image
35
37
Page 4
Using Automatic Adjustment Features
Using Auto Locate
Using Auto Exposure
37
38
39
Adjusting Image Controls
Using the Eyedropper Buttons
39
42
Using Tone Correction
Customizing Tone Correction Settings
42
44
Using Color Adjustments
Changing the Gray Balance Intensity
Changing the Saturation
45
46
46
Saving Custom Settings
47
Configuring EPSON TWAIN Pro
48
Troubleshooting
50
Problems Using EPSON TWAIN Pro
50
Problems with Image Quality
55
Glossary
62
Index
64
Page 5
Introduction
EPSON® TWAIN Pro is the interface program between your application
software and scanner that lets you scan images into your software. It
includes many features for previewing and modifying your images for a
perfect scan:
◗ Captures all kinds of image types, from black and white text to 36-bit
color images
◗ Locates and exposes the image automatically
◗ Opens a separate Preview window allowing you to change settings
and view their effects before you scan
◗ Provides a helpful marquee feature so you can frame the exact image
or a specific portion of it for scanning
◗ Uses EPSON’s Auto Area Segmentation and Text Enhancement
Technology features to improve text recognition and provide clear
separation from graphic areas when you scan images with text
◗ Gives you predefined settings for a variety of image types and output
destinations, and lets you customize your own settings
Introduction
Page 6
System Requirements
Onscreen color and
tone reproduction
depend on the
display capabilities
of your computer
system, including the
video controller,
monitor, and
software.
Before installing the scanner software, make sure your system meets the
following minimum requirements. If you are scanning high resolution
images, you need more than the minimum available hard disk space
listed.
Windows® System Requirements
◗ An IBM® compatible PC with a 486/66 MHz or faster processor
◗ Microsoft® Windows 95, Windows 98, or Windows NT® 4.0
◗ 16MB RAM for Windows 95 and Windows 98; 32MB RAM for
Windows NT (32MB RAM recommended for all systems)
◗ 50MB available hard disk space
◗ PCI slot for the Adaptec® SCSI adapter (included with your scanner)
◗ VGA color monitor with 640 × 480 resolution (a color monitor with a
resolution of 800 × 600 or higher recommended)
◗ 8-bit 256-color display adapter card (24-bit display adapter card with
millions of colors recommended)
Introduction
Page 7
Macintosh® System Requirements
EPSON TWAIN Pro supports the Apple® ColorSync™ 2.0 color
management system and QuickTime.™
Onscreen color and
tone reproduction
depend on the
display capabilities
of your computer
system, including
the video controller,
monitor, and
software.
◗ PowerPC™ (or higher processor) running system 7.5 (system 8.1 or
later recommended)
◗ Macintosh standard SCSI interface
◗ 16MB RAM (32MB RAM recommended)
◗ 50MB available hard disk space
◗ CD-ROM drive
◗ VGA color monitor with 640 × 480 resolution (a color monitor with a
resolution of 800 × 600 or higher recommended)
◗ 8-bit 256-color display adapter card (24-bit display adapter card with
millions of colors recommended)
Introduction
Page 8
How to Use This Manual
This User’s Guide tells you what you need to know to scan with EPSON
TWAIN Pro on a Windows or Macintosh system. For instructions on
installing the software, see Setting Up and Using Your Scanner.
Scanning from Your Application Software gives step-by-step instructions
for basic scanning and previewing of your images.
Advanced Scanning describes advanced EPSON TWAIN Pro
procedures, such as customizing image type and destination settings,
adjusting image size and scale, using image controls, tone correction,
and color adjustments, saving custom setting groups, and configuring
EPSON TWAIN Pro.
Troubleshooting provides solutions to problems you may encounter.
At the end, you’ll find a Glossary and an Index.
Introduction
Page 9
Where to Get Help
EPSON provides customer support through the following services:
Electronic support services
Service
Access
World Wide Web
From the Internet, you can reach EPSON’s Home Page at
http://www.epson.com.
EPSON Internet FTP
Site
If you have Internet FTP capability, use your Web browser (or other
software for FTP downloading) to log onto ftp.epson.com with the user
name anonymous and your e-mail address as the password.
EPSON Download
Service
You can call the EPSON Download Service at (800) 442-2007. Set your
communications software to 8 data bits, 1 stop bit, no parity. Modem
speed can be up to 28.8 Kbps.
EPSON Forum on
CompuServe®
Members of CompuServe can type GO EPSON at the menu prompt to
reach the Epson America Forum. For a free introductory CompuServe
membership, call (800) 848-8199 and ask for representative #529.
Introduction
Page 10
Automated telephone services
Service
Access
EPSON SoundAdviceSM For pre-recorded answers to commonly asked questions about EPSON
products 24 hours a day, seven days a week, call (800) 922-8911.
EPSON FaxAdvice™
Access EPSON’s technical information library by calling
(800) 922-8911. You must provide a return fax number to use this
service.
EPSON Referral
Service
For the location of your nearest Authorized EPSON Reseller or
Customer Care Center, call (800) 922-8911.
Introduction
Page 11
EPSON also provides technical support and information on the
installation, configuration, and operation of EPSON products. Dial
(310) 974-1970 (U.S.) or (905) 709-3839 (Canada), 6 A.M. to 6 P.M.,
Pacific Time, Monday through Friday.
If you need help
using software
with an EPSON
product, see the
documentation for
that program for
technical support
information.
Introduction
Before you call, please have the following information ready:
◗ Product name
◗ Product serial number
◗ Computer configuration
◗ Description of the problem
You can purchase optional equipment, manuals, and accessories from
EPSON Accessories at (800) 873-7766 (U.S. sales only). In Canada,
please call (800) 873-7766 for dealer referral. For U.S. sales, you can
also visit our website at www.epsonsupplies.com.
Page 12
Scanning from Your
Application Software
Before scanning, make sure you’ve installed the EPSON TWAIN Pro
software (as described in Setting Up and Using Your Scanner) and the
application software that supports EPSON TWAIN Pro, such as Adobe
Photoshop.®
This chapter gives you instructions on:
If you start your
application software
before turning on
your scanner, the
software may not
work properly.
◗ Basic Scanning
You usually need to
perform steps 3
and 4 only once,
when you use your
scanner and
TWAIN-compliant
software for the
first time.
Follow the steps in this section to start EPSON TWAIN Pro and select the
settings for a basic scan of one image. To scan multiple images or use
advanced EPSON TWAIN Pro settings, see Advanced Scanning.
◗ Previewing Your Scan
Basic Scanning
1 Before you start your application software, make sure to set up and
turn on the scanner as described in Setting Up and Using Your
Scanner. Then place the document you want to scan on the document
table.
2 Start your application software.
Scanning from Your Application Software
Page 13
3 Select the scanner source. For example, choose Import or Acquire
from the File menu, and then select one of the following:
Windows 95, 98, NT 4.0: Select TWAIN_32 Source
Macintosh: Select TWAIN Source or TWAIN Select
4 Then select one of the following in the Select Source dialog box:
Windows 95, 98, NT 4.0: EPSON TWAIN Pro(32-bit)
Macintosh: EPSON TWAIN Pro
For help anytime
you’re using EPSON
TWAIN Pro, click the
Help button.
5 To open EPSON TWAIN Pro for scanning, choose Import or Acquire
from the File menu and then select one of the following:
Windows 95, 98, NT 4.0: TWAIN_32
Macintosh: TWAIN or TWAIN Acquire
The EPSON TWAIN Pro window appears.
The screen examples
in this book are from
EPSON TWAIN Pro
for Macintosh. The
Windows screens
look a bit different, but
they contain the
same options. Any
exceptions are noted
in the text.
Scanning from Your Application Software
Page 14
To select your scanning settings, see Selecting Basic Settings below.
Selecting Basic Settings
Document Source
settings for optional
equipment appear in
the list only when
that option is
installed.
If you’re scanning
positive, reflective
originals with
the optional
transparency unit
and its reflective mat
installed, be sure to
select Flatbed as the
Document Source
option.
For most scans, you need to check four basic settings: Document
Source, Image Type, Destination, and Resolution. You’ll also probably
want to preview the image to check it before the actual scan; for
instructions, see Previewing Your Scan.
1 If you’re scanning a document from the scanner’s document table,
select Flatbed (default) as the Document Source setting. If you’ve
installed the optional auto document feeder or transparency unit on
your scanner, select one of the following options in the Document
Source list:
Document Source
options
Description
Auto Document Feeder
For scanning documents using the auto
document feeder
TPU for Neg. Film
For scanning negative film (such as 35 mm
film strips) with the transparency unit
TPU for Pos. Film
For scanning positive film (such as 35 mm
slides) with the transparency unit
Scanning from Your Application Software
Page 15
2 For best results, select an Image Type each time you scan. Image
types automatically select other TWAIN Pro settings and set the
ranges for your Image Controls.
Image Type
Default settings
36-bit Color
(HiFi)*
Pixel Depth: 36-bit Color; Scanning Mode: Best;
De-screening: Off
24-bit Color
(Std)
Pixel Depth: 24-bit Color; Scanning Mode: Best;
De-screening: Off
Pixel Depth: 8-bit Gray; Scanning Mode: Best;
24-bit Color
De-screening De-screening: On; Dropout: None
12-bit Gray
(HiFi)*
Pixel Depth: 12-bit Gray; Scanning Mode: Best;
De-screening: Off; Dropout: None
8-bit Gray
(Std)
Pixel Depth: 8-bit Gray; Scanning Mode: Best;
De-screening: Off; Dropout: None
Line Art
Pixel Depth: Black & White; Scanning Mode: Draft;
Dropout: None; B/W Option: None; Halftone: None
OCR
Pixel Depth: Black & White; Scanning Mode: Best;
Dropout: None; B/W Option: Text Enhancement
Technology
Copy & Fax
Pixel Depth: Black & White; Scanning Mode: Draft;
Dropout: None; B/W Option: Auto Area Segmentation;
Halftone: Model A (Hard tone)
* The 36-bit Color (HiFi) and 12-bit Gray (HiFi) settings are available only for
certain applications, such as Adobe Photoshop 4.0 or 5.0 (full version).
Scanning from Your Application Software
Page 16
You can also change the settings for these options or save your own
custom Image Types. See Customizing Image Types for more
information.
3 Now select the output device where you want to display or print your
scanned image from the Destination list. These destinations
automatically select resolution and sharpness settings appropriate for
the output device. Select one of the following options:
Sharpness settings
range from -2 (most
unfocused) to 2
(sharpest).
Destination options
Default settings
Screen
Resolution: 72 Drawing/Halftone, 72 Photo;
Sharpness: 0
Screen Vivid
Resolution: 72 Drawing/Halftone, 72 Photo;
Sharpness: +1
Prepress 175 lpi
Resolution: 350 Drawing/Halftone, 350 Photo;
Sharpness: 0
Prepress 150 lpi
Resolution: 300 Drawing/Halftone, 300 Photo;
Sharpness: 0
Prepress 133 lpi
Resolution: 266 Drawing/Halftone, 266 Photo;
Sharpness: 0
Prepress 120 lpi
Resolution: 240 Drawing/Halftone, 240 Photo;
Sharpness: 0
LineWork Scan
Resolution: 1200 Drawing/Halftone, 600
Photo; Sharpness: +1
Stylus Photo
Resolution: 720 Drawing/Halftone, 360 Photo;
Sharpness: +1
Scanning from Your Application Software
Page 17
Destination options
Default settings
Stylus Photo 700
Resolution: 720 Drawing/Halftone, 360 Photo;
Sharpness: +1
Stylus Photo EX
Stylus COLOR
Resolution: 720 Drawing/Halftone, 240 Photo;
Sharpness: +1
Stylus COLOR II
Stylus COLOR IIs
(Windows only)
Stylus COLOR 200
(Windows only)
Stylus COLOR 300
(Windows only)
Stylus COLOR 400
(Windows only)
Stylus COLOR 500
Stylus COLOR 600
Stylus COLOR 800
Stylus COLOR 850
Stylus Pro XL
Stylus Pro XL+
Stylus Pro 5000
Scanning from Your Application Software
Resolution: 720 Drawing/Halftone, 360 Photo;
Sharpness: +1
Page 18
Destination options
Default settings
Stylus 1500
Resolution: 720 Drawing/Halftone, 240 Photo;
Sharpness: +1
Stylus COLOR 1520
Keep in mind that the
Resolution setting is
closely related to the
Target height and
width and Scale
settings, and
drastically affects
your file size.
Stylus COLOR 3000
EPL-C8000
Resolution: 600 Drawing/Halftone, 200 Photo;
Sharpness: +1
InkJet Printer
Resolution: 720 Drawing/Halftone, 360 Photo;
Sharpness: +1
Laser Printer
Resolution: 600 Drawing/Halftone, 200 Photo;
Sharpness: +1
FAX
Resolution: 200 Drawing/Halftone, 200 Photo;
Sharpness: +1
OCR
Resolution: 300 Drawing/Halftone, 300 Photo;
Sharpness: 0
You can also change the settings for these options or save your own
custom destinations. See Customizing Destination Settings for more
information.
4 Most of the time, the Image Type and Destination settings you
choose automatically select the correct Resolution setting for your
image. If you need to change it, select a new setting from the
Resolution list, or enter a value in the Resolution textbox. The
resolutions listed are: 50, 72, 200, 240, 266, 300, 350, 360, 400, 600,
720, 800, 1200, 3200, 4800, 6400, and 12800 dpi.
Scanning from Your Application Software
Page 19
5 It’s a good idea to preview your image before you actually scan so you
can make any necessary changes. See Previewing Your Scan for
preview instructions. See Advanced Scanning for information on the
rest of the TWAIN Pro settings.
6 When you’re ready to scan, click the Scan button. The scanned image
appears in your application window.
7 If necessary, click the Close button to close the EPSON TWAIN Pro
window and return to your application.
To modify or save your scanned image using your application
software, see your software documentation.
Scanning from Your Application Software
Page 20
Previewing Your Scan
You can preview your image in a separate Preview window to see the
effects of your settings before scanning. Previewing also allows you
to determine the width and height of the scanned image and the final
file size.
To crop the image or scan multiple portions of an image, you can preview
and use a marquee. See Using Marquees.
You cannot preview
an image that
exceeds available
memory or disk
space.
Although the image in
the Preview window
changes when you
modify settings, the
settings don’t affect
the real image until
you scan it.
Click the Preview button to open the Preview window.
preview
zooming
options
marquee
options
preview
image area
adjust
options
Scanning from Your Application Software
Page 21
Preview Zooming Options
Click the
Zoom Preview button to enlarge the active marquee.
See Using Marquees for more information.
Click the
Return to Full Preview button to restore the zoomed
marquee to a full preview (available only when the preview image or
marquee is zoomed).
Click the
Return to Zoom Preview button to restore the image to the
previous zoomed size (available only when the marquee was zoomed
previously). This restores the zoomed preview from memory, which is
quicker than clicking the Zoom Preview button again.
Using Marquees
A marquee is a frame around an entire image, or a portion of an image so
you can scan only the most important part. You can even create multiple
marquees on one or more images and scan them one at a time, if your
application software supports multiple image windows.
To create a marquee, follow these steps:
1 Move the mouse pointer over the image in the Preview window. The
pointer becomes a cross hair.
2 Position the pointer in the corner of the area you want to select and
press the mouse button.
Scanning from Your Application Software
Page 22
3 Drag the mouse across the image, creating a marquee (or frame).
4 Release the button when the marquee contains the image area you
want.
If you need to adjust the marquee size or position, see Resizing and
Moving Marquees. To create additional marquees, see Creating Multiple
Marquees. To delete or duplicate a marquee, see Deleting and
Duplicating Marquees.
Resizing and Moving Marquees
To resize a marquee, place the mouse pointer over any of the eight boxes
on its edge. The pointer changes to a double-headed arrow. Click the
mouse button and drag the box up, down, sideways, or diagonally to the
size you want.
Scanning from Your Application Software
Page 23
To resize the marquee proportionally, press the Shift key and drag the
box (Windows only).
To move a marquee, place the mouse pointer anywhere on the edge of
the marquee. The pointer changes to a hand. Click the mouse button and
drag the entire marquee to move it where you want it.
To limit movement of the marquee to vertical or horizontal movement,
press the Shift key and drag the marquee up and down or side to side
(Windows only).
Scanning from Your Application Software
Page 24
Creating Multiple Marquees
You can create multiple marquees in one image to sequentially scan only
the most important parts while ignoring the rest. You can also scan
multiple images with a marquee on each.
Marquees can be different sizes and they can overlap. Additional
marquees can be made anywhere except on the frame of another
marquee. The
Total Marquees icon indicates how may marquees
have been created.
To create an additional marquee, draw a new one as described in Using
Marquees or duplicate the active one as described in Deleting and
Duplicating Marquees.
active
marquee
To distinguish the active marquee from other marquees, check the
marquee frame. The active marquee has eight small boxes on it. To
select a different marquee as the active one, move the mouse pointer to
Scanning from Your Application Software
Page 25
the corner of an inactive marquee. The pointer changes to a single arrow
(Windows). Click the mouse button once to select it as the active
marquee.
Once you’ve created multiple marquees, you can create different settings
for each one and save them with a unique name for later use, if you want.
See Saving Custom Settings for details.
When you’ve finished selecting your settings, you can batch scan all the
marquees at once using the Scan All button. Click Scan All in the
EPSON TWAIN Pro window. TWAIN Pro loads each marquee into your
application as a separate image, one at a time. When you’re finished,
close EPSON TWAIN Pro and modify and save your images in your
application.
Deleting and Duplicating Marquees
You can also delete
the active marquee
by pressing the
Delete key on your
keyboard.
To delete a marquee, make it the active marquee (as described under
Creating Multiple Marquees). Then click the
Delete Marquee button
to delete it.
To create another marquee the same size as the active marquee, click
the
Duplicate Marquee button.
Scanning from Your Application Software
Page 26
Advanced Scanning
The instructions in this chapter tell you how to perform these advanced
scanning operations:
◗ Customizing Image Types
◗ Customizing Destination Settings
◗ Adjusting Source and Target Image Sizes and scale
◗ Using Automatic Adjustment Features, such as Auto Locate and Auto
Exposure
◗ Adjusting Image Controls, such as the exposure, highlights, and
shadows
◗ Using Tone Correction
◗ Using Color Adjustments, such as saturation
◗ Saving Custom Settings
◗ Configuring EPSON TWAIN Pro preview and color options
Advanced Scanning
Page 27
Customizing Image Types
You can change the settings for the predefined Image Type options in
EPSON TWAIN Pro or add new options of your own.
To customize an image type or create a new one, click the Image Type
button in the EPSON TWAIN Pro window. You see the Image Type dialog
box:
Most of the example
screens in this
chapter are from
EPSON TWAIN Pro
for Macintosh. The
Windows screens
look a bit different,
but the options are
the same, unless
noted in the text.
Windows
Macintosh
To change the settings of one of the predefined image types, select it
from the Image Type list, change the settings, and click Save.
Advanced Scanning
Page 28
If you’re running Windows, you can also create a new image type. Select
a predefined type with similar settings from the Image Type Name list,
then type a name for your new image type in the box at the top of the list.
Change the settings as necessary and click Save.
To delete an image type, select it in the Image Type list and click Delete.
The table below describes the Image Type settings.
Image Type setting Options
Description
Pixel Depth
36-bit Color
For 36-bit color images
24-bit Color
For 24-bit color images
12-bit Gray
For 12-bits/pixel images in shades of gray
8-bit Gray
For 8-bits/pixel images in shades of gray
Black & White
For 1 bit/pixel black and white images
Draft
Scans faster and at a lower resolution for drafts
Best
Scans at the highest quality
ON
Improves quality when scanning photographs and
illustrations printed in newspapers and magazines by
turning the dots in the halftone screen process into a
smoother pattern
OFF
Turns descreening off
Scanning Mode
De-screening
Advanced Scanning
Page 29
Image Type setting Options
Description
Dropout*
None
Includes all color values in a monochrome scan
Red
Represents red areas as white in a monochrome scan
Green
Represents green areas as white in a monochrome scan
Blue
Represents blue areas as white in a monochrome scan
None
Selects no black and white scanning options
Text
Enhancement
Technology
Improves text recognition accuracy and removes the
document background when performing OCR (Optical
Character Recognition) scanning
Auto Area
Segmentation
Separates text from graphics when scanning grayscale
images by applying a halftone algorithm to improve
quality for fax and copy applications
B/W Option
(Windows)
Black and White
Option (Macintosh)
Advanced Scanning
Page 30
Image Type setting Options
Description
Halftone**
None
Lets the data format of your image determine the tone
Mode A (Hard
tone)
Converts the image into a hard toned distinct image of 1
and 2 bits/pixel/color
Mode B (Soft
tone)
Converts the image into a softer tone for images with
large areas of similar tones (1 bit/pixel/color)
Mode C (Net
screen)
Represents images in net screen, similar to newspaper
photographs (1 bit/pixel/color)
Dither A (4 × 4
Bayer)
Represents images in a 4 × 4 Bayer dither pattern
Dither B (4 × 4
Spiral)
Represents images in a 4 × 4 spiral dither pattern
Dither C (4 × 4
Net screen)
Represents images in a 4 × 4 net screen dither pattern
Dither D (8 × 4
Net screen)
Represents images in an 8 × 4 net screen dither pattern
* Dropout is available only when the Pixel Depth setting is set to 8-bit Gray, 12-bit Gray, or Black & White.
** Halftone is available only when the Pixel Depth setting is set to Black & White.
Advanced Scanning
Page 31
Customizing Destination Settings
You can change the settings for the predefined Destination options
available in EPSON TWAIN Pro or add new options of your own.
To customize a destination (output device) or create a new one, click the
Destination button in the EPSON TWAIN Pro window. You see the
Destination dialog box:
To change the settings of one of the predefined destinations, select it
from the Destination Name list, change the settings, and click Save.
To create a new destination, type a name for it in the box at the top of the
list, then change the settings as necessary and click Save.
To delete a destination, select it in the Destination Name list and click
Delete.
Advanced Scanning
Page 32
The resolution and sharpness (–2 = most unfocused to 2 = sharpest)
default settings for each of the predefined Destination options are listed in
the table below:
Destination options Default settings
You can also select
the Resolution
setting from the list
on the EPSON
TWAIN Pro window.
Resolution is closely
related to the Target
width and height and
Scale settings. Keep
in mind that changing
one setting may
affect the others.
Screen
Resolution: 72 Drawing/Halftone, 72 Photo;
Sharpness: 0
Screen Vivid
Resolution: 72 Drawing/Halftone, 72 Photo;
Sharpness: +1
Prepress 175 lpi
Resolution: 350 Drawing/Halftone, 350 Photo;
Sharpness: 0
Prepress 150 lpi
Resolution: 300 Drawing/Halftone, 300 Photo;
Sharpness: 0
Prepress 133 lpi
Resolution: 266 Drawing/Halftone, 266 Photo;
Sharpness: 0
Prepress 120 lpi
Resolution: 240 Drawing/Halftone, 240 Photo;
Sharpness: 0
LineWork Scan
Resolution: 1200 Drawing/Halftone, 600 Photo;
Sharpness: +1
Stylus Photo
Resolution: 720 Drawing/Halftone, 360 Photo;
Sharpness: +1
Stylus Photo 700
Stylus Photo EX
Advanced Scanning
Page 33
Destination options Default settings
Stylus COLOR
Stylus COLOR II
Resolution: 720 Drawing/Halftone, 240 Photo;
Sharpness: +1
Stylus COLOR IIs
(Windows)
Stylus COLOR 200
(Windows)
Stylus COLOR 300
(Windows)
Stylus COLOR 400
(Windows)
Stylus COLOR 500
Stylus COLOR 600
Stylus COLOR 800
Stylus COLOR 850
Stylus Pro XL
Stylus Pro XL+
Stylus 1500
Stylus COLOR 1520
Stylus COLOR 3000
Stylus Pro 5000
Advanced Scanning
Resolution: 720 Drawing/Halftone, 360 Photo;
Sharpness: +1
Page 34
Destination options Default settings
EPL-C8000
Resolution: 600 Drawing/Halftone, 200 Photo;
Sharpness: +1
Inkjet Printer
Resolution: 720 Drawing/Halftone, 360 Photo;
Sharpness: +1
Laser Printer
Resolution: 600 Drawing/Halftone, 200 Photo;
Sharpness: +1
FAX
Resolution: 200 Drawing/Halftone, 200 Photo;
Sharpness: +1
OCR
Resolution: 300 Drawing/Halftone, 300 Photo;
Sharpness: 0
Adjusting Source and Target Image Sizes
Sometimes the
values you select
may be rounded up or
down to retain the
proportions of your
image or marquee.
The Source width and height fields indicate the size of the entire preview
image or of the active marquee. You can type in a new width and height to
specify exactly how much of the image you want to scan.
measurement units
To change the unit of measurement used for the Source and Target
width and height fields, select inches, pixels, or cm (centimeters) from
the measurement units list.
Advanced Scanning
Page 35
The Target width and height fields indicate the size of your scanned
image using the current settings. The values in these fields change as
you modify settings. You can also type in a specific width and height to
specify the target image size exactly.
The Source and
Target width and
height, Scale, and
Resolution settings
are all closely
related. Keep in mind
that changing one
setting may affect the
others. The width and
height settings are
ignored if you scan
without first
previewing the
image.
Advanced Scanning
lock button
file size
To lock the Target width and height values, click the lock button. Click it
again to unlock the values.
The file size indicator on the right shows the approximate size of the
scanned image in KB or MB.
Page 36
Scaling the Image
The Scale field indicates the amount by which an image is enlarged or
reduced during scanning.
The Scale, Source,
and Target width
and height, and
Resolution settings
are all closely related.
Keep in mind that
changing one setting
may affect the others.
The range of the
possible scale values
depends on the
Resolution setting.
You can adjust the scale by moving the slider, clicking the left or right
arrow, or typing a percentage in the Scale field.
Using Automatic Adjustment Features
EPSON TWAIN Pro includes three automatic adjustment features to help
you quickly prepare your preview image for scanning, as described in
these sections:
◗ Using Auto Locate
◗ Using Auto Exposure
Advanced Scanning
Page 37
Using Auto Locate
Click the
Auto Locate button in the Preview window to crop
everything on the document table except your image.
Auto Locate button
If you want to scan part of an image, drag the mouse pointer to create a
marquee around the area to be scanned. (It doesn’t have to be precise.)
Then click the Auto Locate button. The marquee automatically adjusts to
the area you defined.
Auto Locate button
Advanced Scanning
Page 38
Using Auto Exposure
The Auto Exposure
feature is
automatically
enabled after a full
preview and zoom
preview.
If you have a Macintosh
and you can’t click the
Auto Exposure button or
adjust Image Controls,
click the Configuration
button on the EPSON
TWAIN Pro Main
window to check the
Color Sync setting. You
can’t use these tools if
Color Sync is selected.
Advanced Scanning
Click the
Auto Exposure button on the Preview window to
automatically adjust the image exposure. Auto Exposure sets the
Exposure, Highlight, Gamma, and Shadow settings in the Image
Controls dialog box and the Gray Balance Intensity setting in the Color
Adjustment dialog box.
Adjusting Image Controls
Use the Image Controls to adjust the following settings:
◗ Exposure
◗ Gamma
◗ Highlight
◗ Shadow
◗ Threshold*
Page 39
Click the
box:
Image Controls button to display the Image Controls dialog
The Auto Exposure
feature overrides any
Image Controls
setting you select.
If you have a Macintosh,
you can’t adjust Image
Controls if Color Sync is
selected in the
Configuration dialog
box.
eyedropper
buttons
setting fields
and sliders
To change the Image Controls, move the slider for the setting or click the
left or right arrows. You can also type a value in the field on the right. See
Using the Eyedropper Buttons for instructions on using the eyedropper
buttons.
Advanced Scanning
Page 40
The Image Controls settings are described in the table below.
Image Controls settings
Description
Exposure
Select the intensity of light in the image as
determined by a combination of the
Highlight and Shadow settings from –10
(darkest) to 20 (brightest)
Gamma
Select the amount of contrast in your
image from 50 (lowest) to 500 (highest)
Highlight
Select the amount of detail visible in
the brightest areas of the image from 61
(lightest) to 490 (darkest)
Shadow
Select the amount of detail visible in
the darkest areas of your image from 0
(lightest) to 60 (darkest)
Threshold*
Select the point at which the gray areas in
the image are scanned as either black or
white from 0 (darkest) to 255 (lightest)
* The Threshold setting is available only when the Pixel Depth setting is set to
Black & White and the Halftone setting is set to None. When the Threshold
setting is active, the rest of the Image Controls are not available.
Advanced Scanning
Page 41
Using the Eyedropper Buttons
The Highlight and Shadow settings include an eyedropper button you
can use to select particular colors in the image for use as the highlight
and shadow colors.
Click an eyedropper button and move the mouse pointer over the preview
image; the pointer changes to an eyedropper icon. Then click on a color
that you want to use as the highlight (lightest color) or shadow (darkest
color) for the entire image. The color box beneath the setting turns to that
color.
Using Tone Correction
You can use Tone Correction to change the pixel brightness in the
midtones, highlights, and shadows of an image. This produces greater
detail in the image without dramatically changing it.
Advanced Scanning
Page 42
Click the
Tone Correction button on the Preview window to display
the Tone Correction dialog box.
tone curve
output
checkboxes
and fields
tone correction
types list
channels radio
buttons
Each point on the tone curve represents the Output checkbox
characteristic to its right. For example, the top point on the curve
represents the Highlight characteristic.
In addition, the Channels radio buttons indicate the color(s) that the tone
curve will modify: red, green, blue, or all three colors.
Advanced Scanning
Page 43
Once you’ve selected the color you want to modify using the Channels
buttons, use these methods to change the tones:
◗ Drag points on the tone curve to adjust the tone value.
◗ Type a number in the field for an Output setting and click outside the
Tone Correction dialog box. To lock a setting in place so it’s unaffected
by changes in other settings, click its checkbox. The setting will not
change unless you drag its point on the tone curve.
◗ Select a setting from the tone correction type list. Select Linear,
Lighten, Darken, Flat Contrast, High Contrast, or Open Shadow.
You can also create your own custom tone correction settings, as
described below.
Customizing Tone Correction Settings
To save a custom tone correction setting, first make the changes on the
Tone Correction dialog box. The tone correction setting in the list changes
to User Defined. Change the name in the list box to the one you want to
use for your custom setting. Then click Save.
To delete a setting, select its name in the tone correction list and click
Delete.
Advanced Scanning
Page 44
Using Color Adjustments
You can adjust the Gray Balance Intensity and Saturation of colors in a
color image using the Color Adjustment tools.
The Color
Adjustment settings
are disabled if you
click the Scan button
without previewing
the image.
Click the
Color Adjustment button on the Preview window to display
the Color Adjustment dialog box:
If the Pixel Depth in
the Image Type
dialog box is set to
8-bit Gray, 12-bit
Gray, or Line Art,
you cannot select the
Color Adjustment
button.
Advanced Scanning
Page 45
Changing the Gray Balance Intensity
The Gray Balance Intensity setting adjusts the gray tones in the image
to appear more neutral. You may need to adjust this setting if the three
colors that are mixed together to form the neutral gray are unbalanced.
To change the Gray Balance Intensity, follow these steps:
1 First click the eyedropper button and move the mouse pointer onto
your preview image. The mouse pointer changes to an eyedropper
icon.
2 Select a color that you want removed from the neutral gray tones in the
image in the Preview window. The original and corrected colors appear
in the boxes beside the eyedropper button.
3 Adjust the gray level (from 0 to 100) by moving the slider or clicking the
left or right arrow. You can also type a value in the field on the right.
Changing the Saturation
Changing the saturation level of colors increases or decreases the
amount of color in each hue. Less saturated colors are more pale, while
saturated colors are richer.
Adjust the saturation level from –100 (less saturated) to 100 (more
saturated) by moving the slider or clicking the left or right arrow. You can
also type a value in the field on the right.
Advanced Scanning
Page 46
Saving Custom Settings
You can save a custom set of all the EPSON TWAIN Pro settings for your
scan so you can easily select it when you perform a similar scan later.
Click the Settings button in the EPSON TWAIN Pro window to display the
Settings dialog box:
current
settings
The currently selected EPSON TWAIN Pro settings are listed on the right.
To save these settings, click Save (you can type a new name for the
group to replace the name User Defined). When you want to use this
settings group again, click Settings, select the group, and click OK.
To delete a custom setting group, click its name in the list; then click Delete.
Advanced Scanning
Page 47
Configuring EPSON TWAIN Pro
You can configure EPSON TWAIN Pro’s preview and color options so
they work the way you want whenever you use the program.
Click the Configuration button to display the Configuration dialog box:
Macintosh
Windows
To specify the size of the Preview window, select Large, Medium, or
Small in the Preview Window Size list.
If you want to automatically save the preview image and all the scanning
settings when you preview, scan, or close EPSON TWAIN Pro, click the
Save Preview Image and Settings checkbox.
Click the Fast Preview checkbox to enable high-speed loading of the
preview image.
Advanced Scanning
Page 48
To automatically adjust the exposure each time you preview the image,
click the Auto Exposure on Preview button. See Using Auto Exposure
for more information.
If you have the Artist
or Professional model
of the scanner, use
Monaco Profiler Lite to
achieve better color
management. See the
electronic manual on
your Monaco Profiler
Lite CD-ROM for
details.
You can specify an exact size for image areas selected with the
eyedropper options in the Image Controls and Color Adjustment dialog
boxes from the Eyedropper Sampling Area list. Select 1 × 1 pixel, 3 × 3
pixel, or 5 × 5 pixel.
If you’re experienced with color management software, you can use the
Windows ICM feature (on Windows 95 or 98) or the ColorSync feature
(on a Macintosh).
To experiment with EPSON TWAIN Pro’s ICM or ColorSync feature,
make sure you move or rename EPSON TWAIN Pro’s original profiles
and replace them with new ones as follows:
In Windows, move or rename the Gt9600r.icm file (and the
Gt9600t.icm file, if you have a transparency unit) in the
Windows\System\Color folder. Then name and store your new
profile(s) with the same name(s) in the same folder.
Don’t move or rename
the Gt9600t.icm or
EPSON GT-9600 TPU
profiles unless you
have a transparency
unit.
Advanced Scanning
On a Macintosh, move or rename the EPSON GT-9600 profile (and
the EPSON GT-9600 TPU profile, if you have a transparency unit) in
the System Folder\Preferences\ColorSync Profiles folder. Then name
and store your new profile(s) with the same name(s) in the same
folder.
Be sure to increase the Gamma value in the Image Controls tool, if
necessary.
Page 49
Troubleshooting
If you encounter any problems using EPSON TWAIN Pro, try the
solutions in these sections:
◗ Problems Using EPSON TWAIN Pro
◗ Problems with Image Quality
If the information here doesn’t help you solve the problem, check with
your dealer or contact EPSON. See Where to Get Help for contact
information.
Problems Using EPSON TWAIN Pro
The rows in the Screen Calibration dialog box never seem to match closely enough.
Problem
Solution
Your monitor
adjustments may
be off.
Try adjusting your monitor’s brightness and contrast settings.
Troubleshooting
Page 50
When you select a TWAIN source, EPSON TWAIN Pro isn’t listed.
Problem
Solution
Either EPSON TWAIN
Pro wasn’t installed or
it wasn’t installed
correctly.
Reinstall the software following the instructions in Setting Up and Using
Your Scanner.
EPSON TWAIN Pro doesn’t start.
Problem
Solution
The scanner isn’t
ready.
Make sure your scanner is turned on and the cables are connected
properly.
Your system does not
meet the minimum
requirements.
Make sure your computer, scanner, and software are compatible and
meet the specifications under System Requirements.
EPSON TWAIN Pro
needs more memory.
Make sure EPSON TWAIN Pro can access enough system memory.
See the section on memory allocation in your computer manual.
EPSON TWAIN Pro is
not selected as your
TWAIN source.
EPSON TWAIN Pro may not be selected as the TWAIN source in your
application. See Basic Scanning for instructions on selecting it.
Your SCSI settings are
incorrect.
You may have selected the wrong SCSI ID during setup. Check the
settings for your scanner and any other SCSI devices you may have.
Then reinstall EPSON TWAIN Pro following the instructions in Setting
Up and Using Your Scanner.
Troubleshooting
Page 51
Problem
Solution
A system error has
occurred.
An error condition may have caused your application or the TWAIN
source to stop working correctly. Save any documents in process, close
any open applications, and exit Windows. Restart Windows, then start
your application and try again.
Sometimes an error condition may cause the computer to display a
message telling you that your scanner is not recognized. If this happens,
reset your scanner by pushing the RESET button. Then restart your
computer and try again.
Windows has detected
new hardware.
Troubleshooting
If you are using Windows 95 or 98, its hardware detection utility may not
have correctly detected the SCSI controller. Restart Windows and see
the Windows Help utility for instructions on detecting new hardware.
Page 52
The scanner does not start scanning.
Problem
Solution
The scanner isn’t
ready.
Check if the scanner’s READY light is on. If not, press the RESET
button and try again.
You have a system
interrupt conflict
(Windows).
If you have other expansion cards in your computer, make sure they’re
not set to the same interrupt level or I/O address as the interface card for
your scanner. See your computer manual and interface card manual.
Your INF file may not
be loaded correctly
(Windows).
Use Add/Remove Programs in the Windows Control Panel to uninstall
EPSON TWAIN Pro, then reinstall it. See Setting Up and Using Your
Scanner for installation instructions.
You’re scanning a large
image and running out
of system memory.
If the image you’re scanning is too large or if your system has a
minimum amount of memory installed, you may run out of memory.
You’ll usually get an error message or your system locks up when this
happens. Reduce the image size or resolution and try scanning again. If
you still can’t scan the image, add more system memory.
On a Macintosh, you can assign additional memory to the application
itself. See your Macintosh documentation for details.
If you’ve just scanned a large image in Photoshop® and then
immediately scanned another, Photoshop may not have released the
memory allocated for the first image. Select Purge in Photoshop’s Edit
menu, or close Photoshop, restart it, and try scanning again.
You don’t have enough
hard disk space.
Troubleshooting
Try reducing the document size, scanning fewer pages at once, or
deleting unused files on your hard disk. If you’re running Windows,
empty your Recycle Bin. If these methods don’t work, see your system
documentation for more information about freeing hard disk space.
Page 53
You have trouble scanning multiple images.
Problem
Solution
Your application
program doesn’t
support multiple image
scanning.
Some application programs don’t support scanning of multiple images.
When you try to batch scan or use the optional auto document feeder
with this type of program, you get an error message or the system locks
up. Check the program documentation and, if necessary, use another
program for batch scanning.
You may not have
enough system
memory or hard disk
space.
Try the following:
◗ Reduce the size or resolution of your images, or scan fewer pages
at once.
◗ If you’re running Windows, empty your Recycle Bin.
◗ Delete unused files on your hard disk
◗ Add system memory. If you have a Macintosh, you can assign
additional memory to the application itself. (See your Macintosh
documentation for details.)
If these methods don’t work, see your system documentation for more
information about freeing system memory or hard disk space.
Troubleshooting
Page 54
You cannot scan images at all or only a few dots appear in the scanned image.
Problem
Solution
You may have selected
incorrect scan settings.
Select different EPSON TWAIN Pro settings. You may have selected an
incorrect Image Type or Destination setting, or the Exposure,
Highlight, and Tone Correction settings may be inappropriate for your
image. If Image Type is set to Line Art, try decreasing the Threshold
setting.
Problems with Image Quality
Images are very dark and without details.
Problem
Solution
Some EPSON TWAIN
Pro settings may be set
incorrectly.
If the Halftone setting is available, make sure it is set to a halftone mode,
not to None.
Check that the Destination (output device) is set correctly. Try setting
Destination to Screen or Screen Vivid if your printer isn’t listed.
Change the Exposure, Tone Correction, and Shadow settings to
lighter values and scan the image again.
Some application software does not support 36-bit color. If you set your
Image Type to 36-bit Color, change the setting to 24-bit Color. Then
scan again.
Troubleshooting
Page 55
The entire image is distorted or blurred.
Problem
Solution
The document isn’t
positioned correctly on
the scanner’s
document table.
Make sure that the document is placed flat against the document table.
You may have moved the document during scanning. Check the position
of the document.
See that the scanner is not tilted or placed on an unstable surface.
Part of the image is distorted or blurred.
Problem
Solution
The document isn’t
positioned correctly on
the scanner’s
document table.
Part of the original may be wrinkled, warped, or not in contact with the
document table. Be sure the document is flat.
The document table is
dusty or dirty.
Turn the scanner off and unplug the power cable, then gently wipe the
document table with a soft, dry, lint-free cloth.
There may be IRQ
(interrupt request)
conflicts within your
system.
Check your operating system manual and electronic help files for
instructions on how to resolve IRQ conflicts.
Troubleshooting
Page 56
Color is patchy or distorted at the edges of the document.
Problem
Solution
The document isn’t
positioned correctly on
the scanner’s
document table.
If the original is very thick or warped at the edges, the edges of the
image may be discolored. Cover the edges of the original with opaque
paper to avoid interference from outside light.
If part of the original is outside the document table, the edge may be
discolored. Change the position of the original.
The image is faint or out of focus.
Problem
Solution
The document isn’t
positioned correctly on
the scanner’s
document table.
Make sure the document is placed flat on the document table.
Some EPSON TWAIN
Pro settings may be set
incorrectly.
Check your Tone Correction setting and/or select a darker Exposure
setting.
Your monitor isn’t
calibrated or isn’t
adjusted correctly.
Make sure you have calibrated your monitor to your scanner as
described in Setting Up and Using Your Scanner. Also check your
monitor’s brightness and contrast settings.
Troubleshooting
Page 57
A line of dots is always missing on the scanned image.
Problem
Solution
Your print heads are
dirty.
If this happens only on your printed image, your printer’s print head may
need cleaning; see your printer manual.
Your scanner may be
malfunctioning.
If this happens on both your screen and printout, the scanner’s sensor
may be malfunctioning. Consult your dealer.
The colors on the monitor seem different from those of the original image.
Problem
Solution
Your monitor may not
be calibrated correctly.
Depending on your monitor, its resolution/color settings, and your
EPSON TWAIN Pro settings, the screen colors may differ from the
original colors. This is normal, especially if the colors in the printed
image more closely match the original. Make sure you’ve performed the
screen calibration as described in Setting Up and Using Your Scanner.
Your Destination
setting may be
incorrect.
For best results on basic scans, select Screen or Screen Vivid as your
Destination setting.
Your system’s color
matching may be
affecting your results.
Check the color matching and color management capabilities of your
computer, display adapter, and software. Some computers can change
the color palette to adjust colors on your screen. (See your software and
computer manuals for details.)
Exact matching of colors on your monitor, scanner and printer is very
difficult. If you have the Artist or Professional model of the EPSON
Expression 800, use Monaco Profiler Lite to set up ICC profiles for these
devices. See the electronic manual on the Monaco Profiler Lite CD-ROM
for details.
Troubleshooting
Page 58
Printed colors are different from those in the original image.
Problem
Solution
You may need to use a
color correction mode.
Colors in the printed image may not match the colors of the original
image exactly because the scanning and printing processes use
different color interpreting technologies. Use the ICM (Windows) or
ColorSync (Macintosh) features in EPSON TWAIN Pro to more closely
match the colors. (See Configuring EPSON TWAIN Pro for instructions.)
Your system’s color
matching may be
affecting your results.
Exact matching of colors on your monitor, scanner and printer is very
difficult. If you have the Artist or Professional model of the EPSON
Expression 800, use Monaco Profiler Lite to set up ICC profiles for these
devices. See the electronic manual on the Monaco Profiler Lite CD-ROM
for details.
The printed image is larger or smaller than the size of the original.
Problem
Solution
You may have used the
Zoom Preview feature.
Check the image size settings in your application and EPSON TWAIN
Pro. Don’t use the size of the image on your monitor to judge the printed
size.
The Scale slider is set Set the Scale slider on the EPSON TWAIN Pro main window to scale
to scale the image at a the image to 100%.
percentage greater
than or less than 100%.
Troubleshooting
Page 59
The colors of the preview for your negative film image look strange.
Problem
Solution
The wrong Document
Source setting is
selected.
Make sure you select TPU for Neg. Film as the Document Source
setting.
The film guide or slide
transparency guide
affects the exposure of
the scanning area.
The scanner software perceives the dark film guide frame as white,
which alters the exposure of the scanning area and causes the scan to
appear darker. To see the colors that will actually be scanned, select an
area by clicking and dragging the mouse over the preview, then click the
zoom preview button.
The printer can’t print the image, or the printout is garbled or isn’t an image.
Problem
Solution
Your printer and
computer may not be
securely connected.
Check that the printer is properly connected to the computer and is
correctly set up; see your printer manual.
Your software is not
installed correctly for
your printer.
Check that your application software is properly installed and set up for
your printer; see your application software manual.
Troubleshooting
Page 60
Moiré (crosshatch) patterns appear in the scanned image.
Problem
Solution
You have scanned a
document with halftone
patterns.
To minimize moiré patterns, try the following:
Troubleshooting
◗
Place a transparent sheet between the document and the document
table to unfocus the image slightly.
◗
Move or angle the document slightly.
◗
Adjust the Sharpness setting to a lower value to unfocus the image.
See Customizing Destination Settings for more information.
◗
Change the Scale setting slightly.
◗
In the Image Type dialog box, make sure the Scanning Mode option
is set to Best and the De-screening option is set to On. See
Customizing Image Types for details.
Page 61
Glossary
bit
Short for binary digit. The smallest unit of data in computer processing. A
bit can represent two values, on and off, or 1 and 0.
bit/pixel
The unit that indicates the number of bits allocated for a pixel. The larger
the value, the more detail a pixel can represent.
color correction
A method of adjusting the color image data for a particular type of device
so that the reproduction results come close to the original colors.
default
A set of values used when no other selections have been made.
De-screening
Counters the effect of the screen process on your image and turns the
dots into a smoother pattern. De-screening is useful for scanning
photographs and illustrations printed in newspapers or magazines to
improve lost resolution or sharpness.
dither
A process in which software or an output device simulates continuous
tones with groups of dots.
Glossary
dpi
Dots per inch. A unit of measurement for resolution. The higher the value,
the higher the resolution.
Dropout
An EPSON TWAIN Pro option that lets you select a color for the scanner
to ignore.
Halftone
A method of using dot patterns to represent an image.
Page 62
marquee
monochrome
pixel
Glossary
A sizeable and moveable frame on a preview image that identifies the
part selected for scanning.
Black and white images, or images represented only by the intensity of
luminosity.
Short for picture element. Every image is composed of a number of
pixels. Pixels are also counted in units of dots.
resolution
Indication of how finely an image is resolved into pixels. Measured in dots
per inch (dpi), pixels per inch (ppi), or samples per inch (spi).
scan
An operation performed by the sensor and the carriage of a scanner. The
sensor “reads” the colors in an image, and sends the color information to
the computer as digital data.
Threshold
An EPSON TWAIN Pro option that sets the point at which gray values in
an image are represented as either black or white.
Page 63
Index
A
Accessories, EPSON, 12
Auto Area Segmentation, 6
Auto document feeder
ordering, 12
settings, 15
Auto Exposure, 39, 40, 49
Auto Locate, 38
Automatic adjustment features, using,
37 to 39
B
Batch scanning, 26, 38, 54
Blurred image, 56
C
Calibration problems, 50, 57 to 58
Color
buttons, 42
Color Adjustment settings, 45 to 46
correction options, 59
managing, 49
problems, 57 to 60
Index
ColorSync, 49
CompuServe, 10
Configuration settings, 48 to 49
Contrast, adjusting, 41, 42
Custom settings, saving, 26, 47
D
Destination setting, 17 to 19, 55
Destinations, customizing, 32 to 35
Document position problems, 56 to 57
Document Source setting, 15
Download Service, 10
E
EPSON
Accessories, 12
automated telephone services, 11
electronic support services, 10 to 12
telephone support, 12
Exposure
adjusting automatically, 39
adjusting manually, 41
Exposure setting, 55
Page 64
F
M
Faint image, 57
FaxAdvice, EPSON, 11
Features, 6
FTP site, 10
Macintosh system requirements, 8
Main window, 14
Manual, how to use, 9
Marquees
creating automatically, 38
creating manually, 22 to 23
deleting, 26
duplicating, 26
moving, 24
multiple, 25 to 26
resizing, 23 to 24
using, 22 to 26
Memory problems, 51, 53 to 54
Moiré patterns, 61
Monitor
Macintosh, 8
Windows, 7
G
Gamma setting, 41
Gray Balance Intensity setting, 45 to 46
H
Halftone setting, 31
Help, EPSON, 10 to 12
Highlight, adjusting, 41 to 42
I
ICM, 49
Image Controls
adjusting, 39 to 42
default settings, 16
Image quality problems, 55 to 61
Image size, adjusting, 35 to 37, 59
Image Type setting, 15 to 19
Image types, customizing, 28 to 31
Internet support numbers, 10
Index
N
Negative film, scanning, 15
O
Options, ordering, 12
Out of focus image, 57
Output device, selecting, 17 to 19, 55
Page 65
P
S
Photoshop problems, 53
Pixel Depth setting, 29, 31, 41, 45
Previewing
configuration options, 48 to 49
images, 21 to 26
zooming options, 22, 59
Printer problems, 59, 60
Problems
batch scanning, 54
blurred image, 56
color matching, 58 to 59
faint or out of focus image, 57
image quality, 55 to 61
line of dots is missing, 58
scanner does not start, 53
screen calibration, 50
using TWAIN Pro, 50 to 55
Saturation setting, 45, 46
Scale settings, 19, 33, 36, 37
Scanning
advanced, 27 to 49
basic, 13 to 20
from application software, 13 to 26
multiple images, 25 to 26, 38, 54
previewing, 21 to 26
SCSI interface
Macintosh, 8
problems, 51
Windows, 7
Service, 10 to 12
Settings
adjusting gray tones, 45 to 46
adjusting image size, 35 to 37
adjusting saturation, 45 to 46
automatic adjustment tools, 37 to 39
correcting tone, 42 to 44
default Destination settings, 33 to 35
Exposure, 41
Gamma (contrast), 41
Highlight, 41, 42, 44
Image Type options, 28 to 31
saving custom settings, 47
selected incorrectly, 55, 57
selecting basic, 15 to 20
Shadow, 42
Threshold, 41
Shadow setting, 41, 55
Q
QuickTime, 8
R
Referral Service, EPSON, 11
Requirements, system, 7
Resolution setting, 17 to 19, 33 to 35
Index
Page 66
Size, adjusting image, 35 to 37
Software installation problems, 51, 60
SoundAdvice, EPSON, 11
Source settings, 35 to 37
Support, 10 to 12
System interrupt conflicts, 53
System requirements
Macintosh, 8
Windows, 7
T
Target settings, 17 to 19, 32 to 37
Technical support numbers, 10 to 12
Text Enhancement Technology, 6
Threshold setting, 41
Tone Correction settings
customizing, 44
problems, 55
using, 42 to 44
Index
Transparency unit
ordering, 12
scanning reflective documents, 15
settings, 15
Troubleshooting, 50 to 61
TWAIN Pro
accessing from application software,
13 to 14
configuring, 48 to 49
problems using, 50 to 55
TWAIN source, selecting, 14, 51
W
Windows system requirements, 7
World Wide Web site, 10
Z
Zooming options, 22, 59
Page 67
