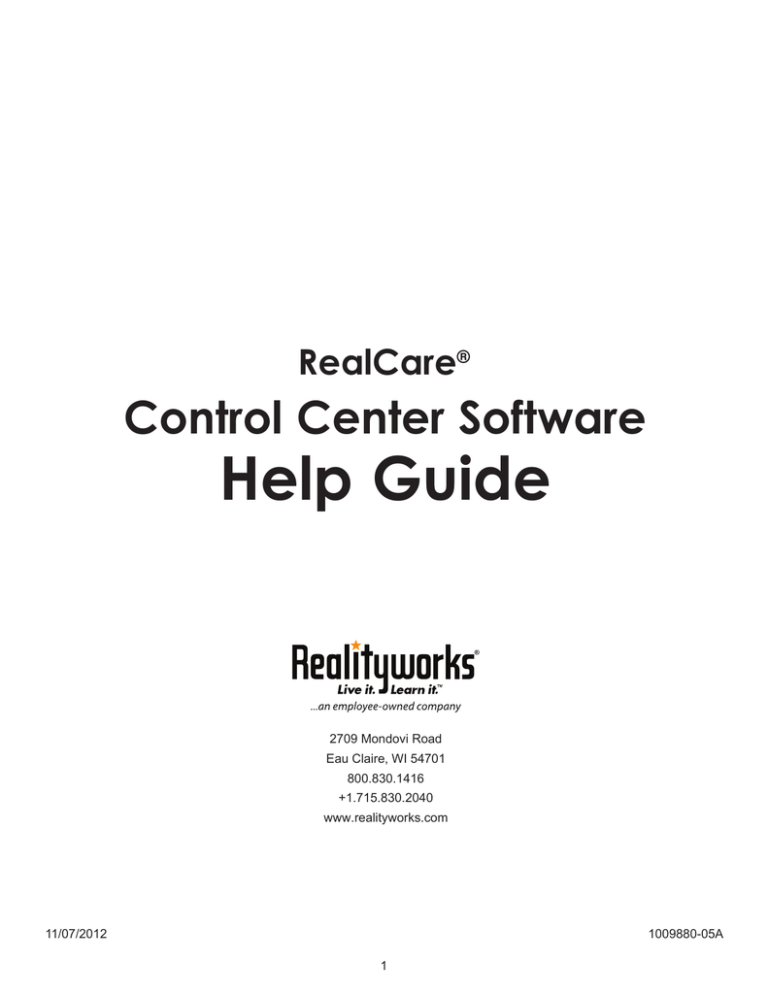

RealCare

®

Control Center Software

Help Guide

2709 Mondovi Road

Eau Claire, WI 54701

800.830.1416

+1.715.830.2040

www.realityworks.com

11/07/2012 1009880-05A

1

Table of Contents

Table of Contents ............................................................................................ 2

General Information ........................................................................................ 3

Control Center Software Help Guide ..................................................................... 3

Useful Terms .......................................................................................................... 4

Getting Started ................................................................................................ 6

Before Starting ....................................................................................................... 6

Add Babies to the Baby List................................................................................... 7

Control Center Software Program Window .................................................. 9

Introduction ............................................................................................................ 9

Main Screen......................................................................................................... 10

All Babies List Column Headers .......................................................................... 10

All Babies Menu Bar ............................................................................................ 11

Program Toolbar .................................................................................................. 11

View Baby Information Screen ............................................................................ 12

Baby Demonstration ..................................................................................... 13

Start a Simulation ......................................................................................... 15

Program Baby Screen ......................................................................................... 15

Save Program Data ............................................................................................. 16

Assign Baby ID .................................................................................................... 17

Assign Class Name ............................................................................................. 18

Assign Student and Baby Names ........................................................................ 19

Assign ID1 and ID2 Numbers .............................................................................. 20

Assign Ethnicity ................................................................................................... 21

Assign Gender ..................................................................................................... 22

Simulation Start and Stop Time ........................................................................... 23

Select Specific Schedule Numbers...................................................................... 24

Select Quiet Times............................................................................................... 26

During the Simulation................................................................................... 28

Day Care.............................................................................................................. 28

Baby Birth Certificate ........................................................................................... 29

Generating Reports ............................................................................................. 30

After the Simulation ...................................................................................... 31

Report List ........................................................................................................... 31

Selecting the Report Language ........................................................................... 34

Using Reports ...................................................................................................... 35

Export a Report.................................................................................................... 42

Maintenance .................................................................................................. 43

Maintenance Screen ............................................................................................ 43

Locate a Baby ...................................................................................................... 43

Troubleshooting ................................................................................................... 44

Get Control Center Software and Baby Updates ................................................. 45

Calibrate Battery .................................................................................................. 47

Assign a Comm Channel ..................................................................................... 48

Delete a Baby from the Baby List ........................................................................ 49

Uninstall Control Center Software ....................................................................... 49

End User License Agreement ...................................................................... 50

2

General Information

This section contains information about the Control Center software program, how to start using the software with

RealCare

®

Babies, how to get assistance using the software, and a list of terms that are used by the software.

Control Center Software Help Guide

The RealCare

®

Control Center software is intended for wireless control of one or more RealCare

®

Baby II-plus and

RealCare

®

Baby 3 infant simulators (referred to as Babies in this guide). It manages parenting simulation programming, displays Baby status, and permits student report download and storage.

The Control Center software communicates only with RealCare

®

Baby II-plus and RealCare

®

Baby 3.

Program Functions

Control Center software contains all of the tools necessary to program Babies for infant care simulations, download student reports, and perform maintenance on Babies. The software assigns the class name, Baby name, student name,

Baby ethnicity and gender, start and stop times for the simulation, the simulation care level (easy, medium, or hard), and preset quiet times when Babies will not cry for care. The software also downloads and stores simulation reports in a database.

See

Useful Terms

Getting Assistance

Help information can be viewed on the Help menus in this software.

Additional assistance is available at the Product Support section of the Realityworks website at www.realityworks.com or by calling 800.830.1416. Contact Product Support for all types of technical support such as operating assistance, assistance in analyzing simulation data, and arranging a repair.

3

Useful Terms

About

. . . . . . . . . . . . . . . . .Shows the version number and manufacture date of your Control Center software.

Activate Baby

. . . . . . . . . .Prompts the Baby electronics module to start wireless communication with the wireless communication adapter.

Active

. . . . . . . . . . . . . . . . .A Baby that is scheduled for or actively engaged in an infant care simulation.

Add

. . . . . . . . . . . . . . . . . . .Screen that allows adding Babies to the All Babies list to establish wireless communication.

Add a Baby

. . . . . . . . . . . .Establishes wireless communication between the wireless communication adapter and the

Baby electronics module.

Available

. . . . . . . . . . . . . .Status when Baby is not engaged or scheduled for a simulation.

Baby ID

. . . . . . . . . . . . . . .An identification number assigned to an infant simulator.

Baby List

. . . . . . . . . . . . . .Babies contained in the Baby database, displayed on the main screen All Babies list.

Baby Name

. . . . . . . . . . . .A name assigned to an infant simulator for a simulation. The name can be changed before each simulation starts.

Car Seat

. . . . . . . . . . . . . . .RealCare Baby 3 is able to determine length of time it has been in car seat when used in conjunction with car seat detection tags.

Caregiver Wristband

. . . . .Wristband containing a unique identification disc worn by the person caring for Baby.

Care Level

. . . . . . . . . . . . .The frequency and length of Baby care requests during the simulation (easy, medium, hard, custom, or random levels can be assigned).

Charging Station

. . . . . . . .DC charger for charging five infant simulators at one time.

Class

. . . . . . . . . . . . . . . . .The folder name for simulation reports.

Clipboard

. . . . . . . . . . . . . .During the Export process, the software copies a graphic file of the active report to a virtual clipboard for pasting into an e-mail message or word processing document.

Clothing

. . . . . . . . . . . . . . .RealCare Baby 3 features clothing detection. Baby is able to distinguish what article of clothing is worn and for how long.

Database

. . . . . . . . . . . . . .A list of Babies that have been added/bound to the Control Center software.

Day Care

. . . . . . . . . . . . . .An option a facilitator can activate on demand when the participant cannot care for Baby. Baby does not request any care when the Day Care option is active.

Demonstration

. . . . . . . . .Demonstrate each of Baby’s actions individually, i.e. feeding, burping, rocking, etc.

Electronics Module

. . . . . .Circuit board assembly with rechargeable batteries that communicates with the wireless communication adapter and records simulation data.

Ethnicity

. . . . . . . . . . . . . .Ethnic identity that is assigned to the Baby (African-American, American Indian, Asian, Caucasian, Hispanic, Japanese, or Light-skinned African-American).

End Simulation

. . . . . . . . .Option that stops the simulation and downloads the final report.

Gender

. . . . . . . . . . . . . . . .Sex (male or female) that is assigned to an infant simulator.

Get Report

. . . . . . . . . . . . .A Control Center command that allows the user to retrieve and view a simulation report while the simulation is running.

Host Computer

. . . . . . . . .The computer containing the Control Center software and connected to the wireless communication adapter.

LED

. . . . . . . . . . . . . . . . . .Light Emitting Diode; an indicator light that illuminates when a function is active such as power on, Baby transmitting, etc.

Main Screen

. . . . . . . . . . . .The default screen displayed when Control Center software is started.

Mishandle

. . . . . . . . . . . . .Number in the simulation report that shows how many times the participant did not support

Baby’s head, roughly handled Baby, placed Baby in a wrong position, or shook Baby resulting in Shaken Baby Syndrome (see curriculum for more information).

Missed Care

. . . . . . . . . . . .Percentage and total in the simulation report that shows how often the participant did not provide care to Baby within two minutes.

4

Page

. . . . . . . . . . . . . . . . . .Control Center command that is intended to locate (i.e. “page”) a specific Baby by prompting the Baby to coo.

Parent

. . . . . . . . . . . . . . . .Participant assigned to an infant care simulation.

Pending

. . . . . . . . . . . . . . .A Baby changing from one status to another.

Print Report

. . . . . . . . . . . .Prints a simulation report to a printer.

Program Baby

. . . . . . . . . .Assign Baby characteristics and schedule simulation times and care level.

Proper Care

. . . . . . . . . . . .A percentage and tally in the simulation report that shows how often the participant provided care successfully (within two minutes).

Ready

. . . . . . . . . . . . . . . . .Status when Baby is not engaged or scheduled for an infant care simulation.

Report Due

. . . . . . . . . . . .Status when a Baby has finished a simulation but has not downloaded the final report.

Quiet Times

. . . . . . . . . . . .Preset period during the infant care simulation when Baby does not require care.

Schedule Day

. . . . . . . . . .Choose from schedules 1 through 15. These schedules were taken from real infants.

Schedule Order

. . . . . . . . .The mix of care levels assigned to an infant care simulation that can be easy, medium, or hard in difficulty.

Single Charger

. . . . . . . . .DC Charger for a single infant simulator.

Start

. . . . . . . . . . . . . . . . . .The scheduled simulation starting day and time.

Stop

. . . . . . . . . . . . . . . . . .The scheduled simulation stop day and time.

Student ID

. . . . . . . . . . . . .Identification number disc given to each participant during a simulation. Primary caregiver is

ID1 and secondary caregiver is ID2.

Student Name

. . . . . . . . . .The name of the participant assigned to an infant simulator.

USB Cable

. . . . . . . . . . . . .Cable used to connect the communication pod to the host computer.

Temperature

. . . . . . . . . . .RealCare Baby 3 is able to report temperature in either Fahrenheit or Celsius.

The temperature reported is internal to Baby and not external temperature.

Troubleshooting

. . . . . . . .Control Center command that allows the user to verify that the Baby is operating normally.

View Report

. . . . . . . . . . . .View simulation report on screen.

Wireless communication

adaptor

. . . . . . . . . . . . .Transmitter that communicates with the Baby electronics module. It may be either an X-stick or a communication pod.

X-stick

. . . . . . . . . . . . . . . .Wireless communication adaptor that communicates with the Baby electronics module.

5

Getting Started

Before Starting

Charge the Baby Battery Module

Before starting the first time, plug Baby into charger.

1. Connect the charging station or the single charger to a 120 VAC source.

2. Connect the charging station or the single charger to the power connection located on the Baby battery cover.

3. Baby is ready to connect to Control Center software.

4. Allow Baby to charge completely (up to 6 hours).

Hint! Control Center connects and communicates with Babies much faster while Babies are plugged into a charger!

Install the Software

Before connecting the wireless communication adaptor to the host computer, make sure that Control Center software is installed. See the RealCare® Control Center software CD readme.rtf file for additional information.

1. Place the software disk into the CD drive.

2. Open the readme.rtf file to view install instructions

3. Run Setup.exe to start the install Wizard.

4. Follow the on-screen instructions to install software.

Control Center Software

Multilingual Application

Control Center software can be used in several languages. The software is installed and automatically displayed in the language that is selected in your user your computer..

Regional and Language Options

settings on

Simulation reports can also be printed in multiple languages, without regard to which language you use for the software.

See

Selecting the Report Language

.

Connect the Wireless Communication Adaptor

Connect the wireless communication adaptor to an open USB port before starting the Control Center software.

To remove communication device, unplug from computer.

XStick

Create a Database

In order to communicate with the Control Center and run simulations, each Baby must be added to the Control Center’s

Baby list. The first time the software is started, the database is empty. A database must be created by adding Babies to the Baby list.

6

Add Babies to the Baby List

When the Control Center software starts, it displays the database (also referred to as the Baby list).

Main Screen

. The Baby list shows all of the Babies in the Baby

When the Control Center software is run for the first time, the database is empty and Babies must be added. Additional

Babies can be added at any time.

The Baby list is empty when the software is used for the first time.

Open Add Baby Screen

1. On the main screen, left-click

[Add]

.

2. The Add Baby screen displays. If there are no active

Babies in range, the list will be blank.

2. The Add Baby screen displays and the Baby list is empty.

7

1. Left-click

[Add]

.

Activate Baby

1. Locate the small recessed button in the upper part of

Baby’s back.

2. Use a pointed object such as an unfolded paper clip to push inward and HOLD the button for two chimes, then release.

Do not use a ballpoint pen or pencil! Permanent damage to the Baby exterior can result!

1. Locate the recessed button.

2. Press paper clip in and hold until

Baby chimes two times.

Paper clip

3. Yellow LED illuminates.

3. The yellow LED illuminates and stays on for three minutes. If yellow light turns off, repeat step 2.

Add Babies to Baby List

1. Activate Baby and open the Add Baby screen.

2. The Baby ID appears in the Add Baby screen table in the left column.

3. Battery level will display. Red indicates a very low charge. Baby should be charged immediately. Green indicates an adequate charge level.

4. RealCare Baby 3 will not have ethnicity or gender assigned. See Assigning Ethnicity and Assigning Gender for more details.

5. A green check in the

Comm

(Communication) column indicates communication with the wireless communication adaptor. A red crossed circle indicates that communication has been lost.

6. The

Status

column shows

Pending

. Baby’s yellow LED will remain illuminated.

7. After several seconds, Baby’s status on the Add Baby screen changes from green. The Baby now belongs to this Control Center software.

Pending

to

Added

and the check turns

8. If a Baby is not added to the Baby list for some reason, the Comm icon changes to a red, crossed-circle and the Status changes to

NOT Added

. When this happens, the Baby requires re-activation.

9. Left-click the Back button to return to the Main Screen.

8

Control Center Software Program Window

Introduction

RealCare

®

Control Center software contains all of the tools necessary to program Babies, download simulation reports, and perform maintenance on Babies. The software is used to:

Assign Baby name and identification numbers.

Assign student name and identification numbers.

Assign Baby ethnicity and gender.

Assign start and stop times for the infant care simulation.

Assign care level — easy, medium, hard, custom, or random.

Assign preset quiet times when Babies will not request care.

Download simulation reports to a report database.

Terminate a simulation before the scheduled stop time.

Activate the day care option (a period when Baby does not require care).

Starting the Control Center software opens the Main

Screen, which displays the All Babies database, menus, and program toolbar.

Babies menu

Program Toolbar

All Babies database

Green icon indicates the wireless communication adaptor is ready. Red icon indicates the wireless communication adaptor is not communicating.

Babies Menu

Add

............................... Displays the Add Babies screen to allow adding new Babies to the database.

See

Add Babies to the Baby List

.

All Babies

.................... Displays the entire database list with Baby ID, student name, simulation start date, simulation stop date, battery condition, and communication status.

Available

...................... Displays a list of Babies available for a new simulation.

Active

........................... Displays a list of Babies that are engaged in or programmed for a simulation.

Report Due

.................. Displays a list of Babies that have completed a simulation and have a final report ready to download.

Reports Menu

Reports

........................ Displays the entire existing report list.

See

Report List

.

Add

............................... Allows user to create a new report folder in the report database. See

Add a Report Folder

.

Edit

............................... Displays the report folder screen which permits renaming, emptying, or deleting report folders.

See

Edit Report Folders

.

Trash

............................ A folder that contains deleted reports.

See

Delete a Folder

.

Babies menu

Reports menu

9

Main Screen

The main screen with the All Babies list is the default screen and displays when Control Center software is started. The first time the software is used, the Baby list will be empty.

See

Add Babies to the Baby List

.

All Babies menu bar

Babies menu

Reports menu

The All Babies list displays all Babies that are in the database.

“All Babies” List Column Headers

Check Box

................... Left-click the check box to select the Baby. A check will display in the box. Leftclick again to de-select the Baby. Select or de-select all Babies on the list by left-clicking on the

X

at the top of the check box column.

Select

Deselect

Baby ID

........................ Column that displays the unique Baby identification number. This number is preset but can be changed on the Program Babies screen. See

Assign Baby ID

.

Student Name

.............. Column that displays the student name assigned to the Baby on the Program Baby screen. This only appears for

Active

or

Report Due

Babies. See

Assign Student and Baby Names.

Start

............................. Column that displays the infant care simulation start day and time. This only appears for

Active

or

Report Due

Babies. See

Start a Simulation

.

Stop

.............................. Column that displays the infant care simulation stop day and time. This only appears for

Active

or

Report Due

Babies. See

Start a Simulation.

Battery

......................... Column that displays the charge condition of the Baby battery module. Red dots indicate a very low charge. Babies with this battery condition need to be charged immediately. Green dots indicate an adequate charge level.

Comm

.......................... (Communication) Column that displays the simulator communication condition. A green check indicates that the simulator has communication with the wireless communication adaptor. A red crossed circle indicates no communication.

Status

........................... Column that displays the simulator status of each Baby —

Available

(can be programmed for a simulation),

Active

(already programmed for a simulation), and simulation but has not downloaded the simulation report).

Report Due

(has completed a

10

All Babies Menu Bar

Demo

............................ Displays the demonstration screen to allow demonstrating or practicing each of Baby’s features individually or as a pre-selected group. Select one or more Babies and left-click the Baby demonstration screen. See

Baby Demonstration

.

Demo

to display

Program Baby

............. Displays the program screen to assign the class name, Baby name, student name, caregiver

ID numbers, ethnicity and gender, simulation start and stop times, care level schedule, and quiet time schedule. Select one or more Babies and left-click

Baby screen. See

Start a Simulation

.

Program Baby

to display the Program

Birth Certificate

........... Displays a screen to print one or more Baby birth certificates. Select one or more Babies and leftclick

See

Birth Certificates

to display the Baby Birth Certificate Summary screen.

Baby Birth Certificate

.

Get Report

................... Downloads a report from a Baby that has a simulation in progress.

Stop

.............................. Ends the simulation before the programmed stop time and downloads a report. Select one or more Babies and left-click

See

Stop

Stop Simulation Time

.

to end the simulation.

Maintenance

................ Displays the Maintenance screen to locate a Baby and perform troubleshooting functions. Select one Baby by left-clicking the Baby check box and left-click nance screen. See

Maintenance

.

Maintenance

to display the Mainte-

Day Care

...................... Displays the Day Care screen to start or stop day care. Select one or more Babies and left-click

Day Care

to display the Day Care screen. See

Day Care

.

Program Toolbar

The toolbar allows access to features that support Control Center software operation and technical support.

File Menu

Pod Tool

....................... A tool for Product Support use. It should only be used with

Product Support supervision.

Export

.......................... Copies a selected report to the computer’s virtual clipboard for pasting into an image editor, a word processing document or an e-mail.

Quit

.............................. Left-click to close the Control Center software. Database is saved to the host computer.

Edit Menu

Preferences

................. Permits use of an alternate Baby communication channel if needed. See

Assign a Comm Channel

.

Delete Babies

.............. Permits the removal of selected Babies from the database. See

Delete a Baby from the Baby List

.

11

Help Menu

Help

. . . . . . . . . . . . . . . . . .Left-click Help to display the Control Center Help

Guide.

Check for Updates

. . . . . .Left-click to download the latest software updates.

About

. . . . . . . . . . . . . . . . .Left-click to display the product version number.

View Baby Information Screen

The View Baby Information screen allows the user to display the current Baby information.

Open the View Baby Information Screen

1. On any Main Screen Baby list, move the mouse cursor onto the Baby ID and left-click. The View Baby Information screen will display.

2. Left-click

Back

to return to the original screen.

1. Left-click the Baby ID.

Back

to return.

12

Baby Demonstration

The Demonstration screen allows practice or demonstration of all of Baby’s features. Baby demonstration is available when the Baby status is

Available

.

The Demonstration screen for Baby is not available when Baby is tive infant care simulation).

Active

or

Ready

(engaged in or programmed for an ac-

Open the Demonstration Screen

1. On the Available Babies screen or All Babies screen, left-click the Baby check box for Baby to be demonstrated.

2. Left-click

Demo

. The Demonstration screen will display.

1. Left-click the Baby check box.

Demo

.

Demonstration Presets

Choose any of these preset demonstration options if you don’t want to select specific event durations and order of demonstration. Left-clicking on

Preset 1

,

Preset 2

the preset demonstration by left-clicking

,

Feed

,

Burp

Start Demo

.

,

Diaper

, or

Rock

loads preset settings for a demonstration. Start

Preset 1

........................ Selects a preset mix of events that include Coo, Feed, Burp, Diaper, Cough, and Rock. Each event will demonstrate one time. Events play in order and last for 60 seconds with 30 seconds of quiet between each event.

Preset 2

........................ Selects a preset mix of events that include Feed, Burp, Diaper, and Rock. Events will demonstrate in a random order continuously. Each event lasts 120 seconds with 30 seconds of quiet between each event.

Feed

............................. Selects the preset Feed demonstration setting which lasts 30 seconds.

Burp

............................. Selects the preset Burp demonstration setting which lasts 30 seconds.

Diaper

.......................... Selects the preset Diaper demonstration setting which lasts 30 seconds.

Rock

............................. Selects the preset Rock demonstration setting which lasts 30 seconds.

13

Start Demo

1. On the Demonstration screen, left-click the Baby check box for the Baby to be demonstrated.

2. Left-click a check box for one or more of tions (

Coo

,

Feed

,

Burp

,

Diaper

,

Cough

, or

Rock

or one of the preset demonstra-

Preset 1

,

Preset 2

,

Feed

,

Burp

,

Diaper

, or

Rock

).

3. Set the

Event duration

and

Quiet between events

time in seconds by left-clicking the up or down arrows.

4. Left-click

This order

or

Random order

.

5. Left-click

Play Once

or

Continuous

.

6. Left-click

Start Demo

to start the demonstration.

1. Left-click the Baby check box.

Start Demo

.

3. Set the event duration and quiet time between events.

4. Left-click or

This Order

Random Order

.

2. Select a demonstration by left-clicking a check box or preset demonstration.

Play Once

or

Continuous

.

Stop Demo

Left-click

Stop Demo

to end the demonstration.

14

Start a Simulation

The Program Baby screen allows the user to assign the class name, the Baby name, student name, the ID1 and ID2 numbers, Baby ethnicity and gender, simulation start and stop times, simulation care level (easy, medium, hard, custom, or random), and quiet times when Babies will not require care.

Program Baby Screen

Open the Program Baby Screen

1. Left-click each

Baby check box

for each Baby to be programmed on the Main Screen database list.

2. Left-click

Program Baby

. The Program Baby screen will display to allow assigning data to the first Baby on the list.

1. Left-click the Baby check box to program that Baby.

Program Baby

.

Program Baby Screen

1. Left-click

Previous

or

Next

to toggle to program screens for other selected Babies.

Previous

or

Next

to toggle through selected Babies on the list.

2. Left-click

See

Done

to display the Program

Baby summary screen so that the program data can be saved.

Save Program Data

.

Class

............................ The report folder name where the final report will be stored. See

sign Class Name

.

As-

Done when finished.

Student

........................ The name of the person participating in the simulation. See

Assign Student and

Baby Names

.

Baby

............................. The name assigned to the infant simulator during the simulation.

See

Assign Student and Baby Names

.

Baby ID

........................ The Baby identification number. See

Assign

Baby ID

.

ID1 and ID2

.................. The identification number for the small circular disc worn on a wristband by the person caring for Baby. The ID contains a micro chip with a unique identification number that is recognized by

Baby. See

Assign ID1 and ID2 Numbers

.

15

Ethnicity

...................... Ethnic identity assigned to each Baby. See

Assign Ethnicity

.

Gender

......................... Sex (male or female) assigned to each Baby. See

Assign Gender

.

Start

............................. The simulation scheduled start time and date. See

Simulation Start and Stop Time

.

Stop

.............................. The simulation scheduled stop time and date. See

Simulation Start and Stop Time

.

Schedule Order

........... The order in which Baby will follow the infant care schedules chosen by the instructor (easy, medium, hard, custom, or random levels can be selected). See

Select Specific Schedule Numbers

.

Quiet Times

................. Pre-set periods of time throughout the simulation when the Baby does not request care from the participant. See

Select Quiet Times

.

Save Program Data

When all of the program information is entered, save the data to the Babies as follows.

Hint - Plug Babies into charger for faster communication.

Done

.

1. Left-click

Done

. The Program Baby - Summary screen will display.

2. Review the data displayed for accuracy.

3. To make changes to the data before saving it, left-click needed and left-click

Done

again.

Back

to reopen the Program Baby screen. Make any changes

4. If the data is correct, left-click

Send to Baby(s)

. The

Send to Baby(s)

button deactivates (grays out).

5. The program data is transmitted to the listed Baby or Babies.

6. Baby status changes from

Available

to

Pending

briefly, then to

Ready

or

Active

for a successful save.

7. Baby Status may also show

Fail

not saved. If that happens, the

, which means communication with Baby was interrupted and the program data was

Send to Baby(s)

gram data. If this happens frequently, see

button re-activates. Left-click the button again to re-transmit the pro-

Assign a Comm Channel

.

8. When the simulation begins, Baby status will change from

Ready

to

Active

.

Send to Baby(s)

.

16

Assign Baby ID

The Baby ID number is pre-assigned to a Baby and identifies the Baby on various software screens. The Baby ID can be changed for a Baby after it is added to the Baby list.

Assign the Baby ID

1. On the Program Baby screen, left-click

Baby ID [Edit]

.

2. The Edit Baby ID dialog box displays. Enter the new Baby ID number. The identification can be no longer than eight letters, numbers, and spaces.

3. Click OK to save the new Baby ID and close the dialog box. The new Baby ID will appear below

Baby ID [Edit]

.

When finished entering all program data, left-click

Done

. See

Save Program Data

.

1. Left-click to open the Edit Baby ID dialog box.

2. Enter the new Baby ID.

OK

.

17

Assign Class Name

When Baby completes a simulation, the Control Center software downloads a final report. The report appears in the reports folder with the class name. See

Report List

.

1. On the Program Baby screen, left-click the

Class

field down arrow.

2. Select a Class Folder Name by left-clicking an existing name in the drop-down menu or left-click a new class folder.

New Class

to create

1. Left-click to display Class Name list.

New Class report folder.

to display the add

3. Left-clicking

New Class

opens the Add Report Folder dialog window. Enter the new folder name into the text field.

The class folder name can be no longer than 15 characters (letters, number, and spaces).

4. Left-click

OK

to save the folder name.

When finished entering all program data, left-click

Done

. See

Save Program Data

.

3. Enter a new Class Name.

4. Left-click to save the new class name.

18

Assign Student and Baby Names

When the simulation final report is generated and downloaded to a report folder, the student name and the Baby name appear within the report. A student and Baby name should be assigned for each new simulation.

Enter Student and Baby Name

1. On the Program Baby screen, select the

Student

text field and enter the student name.

2. Select the

Baby

text field and enter a Baby name.

When finished entering all program data, left-click

Done

. See

Save Program Data

.

1. Type in the student name.

Devon James

Gregory

2. Type in the Baby name.

19

Assign ID1 and ID2 Numbers

Before starting a simulation, Baby is assigned an identification disc with a unique identification number. When this number is entered into the Baby database it allows Baby to recognize and record the caregiver’s performance during the simulation. Each Baby can have two IDs —ID1 and ID2.

Assign the IDs

1. Left-click

ID1 [Edit]

or

ID2 [Edit]

.

2. The Edit Student ID dialog box displays. Enter the five digits printed on the ID disc.

3. Left-click

OK

to save the ID number and close the dialog box. The new ID number will appear below

ID1 [Edit]

or

ID2

[Edit]

.

When finished entering all program data, left-click

Done

. See

Save Program Data

.

1. Left-click to open the Edit Student ID dialog window.

2. Enter the ID number. Enter ID1 and ID2 separately.

3. Left-click to save the new ID number.

20

Assign Ethnicity

The ethnicity can be changed by following the steps below.

1. Left-click

Ethnicity [Edit]

.

2. The Edit Ethnicity dialog box displays. Left-click on the desired ethnicity name.

3. Left-click

Cancel

to abandon entering the ethnicity and close the dialog box or left-click close the dialog box.

OK

to save the ethnicity and

4. The new ethnicity will appear below

Ethnicity [Edit]

.

When finished entering all program data, left-click

Done

. See

Save Program Data

.

1. Left-click on

Ethnicity [Edit]

to display the Edit Ethnicity dialog box.

2. Left-click to select the desired ethnicity.

OK

to save the ethnicity.

4. The ethnicity displays below

Ethnicity [Edit]

.

21

Assign Gender

The gender can be changed by following the steps below.

1. Left-click

Gender [Edit]

.

2. The Edit Gender dialog box displays. Left-click on the desired Baby gender.

3. Left-click

Cancel

to abandon entering the gender and close the dialog box or left-click close the dialog box.

OK

to save the gender and

4. The new gender will appear below

Gender [Edit]

.

When finished entering all program data, left-click

Done

. See

Save Program Data

.

1. Left-click on

Gender [Edit]

to display the Edit Gender dialog box.

2. Left-click to select the desired gender.

OK

to save the gender.

4. The gender displays below

Gender [Edit]

.

22

Simulation Start and Stop Time

Before starting a simulation, the start time and stop time must be scheduled on the Program Baby screen. A simulation can be programmed up to seven days in advance and can run for up to seven days in length.

Start Simulation Time

1. Left-click the

Start

day down arrow.

2. Left-click on the day to start the simulation.

3. Left-click the

Start

time down arrow.

4. Left-click on the desired time to start the simulation.

3. Left-click the down arrow.

1. Left-click the down arrow.

2. Left-click to select the desired start day.

4. Left-click to select the desired start time.

Stop Simulation Time

The scheduled simulation stop day and time must create a simulation of at least one hour.

1. Left-click the

Stop

day down arrow.

2. Left-click on the desired day to stop the simulation.

3. Left-click the

Stop

time down arrow.

4. Left-click on the desired time to stop the simulation.

When finished entering all program data, left-click

See

Save Program Data

.

Done

.

3. Left-click the down arrow.

1. Left-click the down arrow .

2. Left-click to select the desired stop day.

4. Left-click to select the desired stop time.

23

Select Specific Schedule Numbers

Selecting specific schedule numbers for each day of the simulation is a separate option from selecting an easy, medium, or hard mix of schedules for all days. To learn how to select an easy, medium, or hard mix of schedules, see the “Schedule Helper” section on the next page.

Specific schedule numbers or a care level must be selected for the simulation before it starts. There are 15 real infant schedules you can choose from, and they are ranked as easy, medium, or hard. A random mix is also available (see next page). The care level or specific schedule numbers are scheduled for five days. If the simulation lasts more than five days, the schedules will repeat from the beginning.

Schedule Order - To choose specific schedule numbers for each day:

Each schedule order field represents one day of the simulation.

1. Left-click the

Schedule Order

down arrow.

2. Left-click the desired schedule number.

Easy Care Schedules:

— 9, 11, 12, 13, or 15.

Medium Care Schedules:

— 2, 3, 7, 10, or 14.

Hard Care Schedules:

— 1, 4, 5, 6, or 8.

1. Left-click the down arrow to open the drop-down menu.

2. Left-click to select the desired schedule number.

24

Schedule Helper

The schedule helper dialog window lets you choose an easy, medium, hard, or random mix of infant schedules.

1. Left-click

Schedule Helper

to open the Schedule Helper dialog box.

[Schedule Helper] the dialog box.

to open

Random Schedule Selection

1. Left-click on

Easy Mix

,

Medium Mix

, Hard Mix, or

Random

to select a schedule mix.

2. Left-click

OK

to save selected schedule mix and close the dialog window.

OK your choices.

to save

1. Left-click to select the desired schedule mix.

Make Changes to the Schedule Mix Manually

Changes to the mix of schedules can be made manually in the Schedule Helper dialog box.

1. Left-click the down arrow for one of the days.

2. Left-click the desired schedule number.

3. Left-click

Cancel

changes and close the dialog box or left-click

OK

to abandon

to save changes and close the dialog box.

1. Left-click down arrow.

2. Left-click to select the desired schedule number.

When finished entering all program data, left-click

Done

. See

Save Program Data

.

25

OK

when finished.

Select Quiet Times

Quiet times are preset periods during the simulation when Baby does not require care. Up to three quiet times can be set during a simulation. Each quiet time can be up to 12 hours long. Quiet times starting at or before the start time or after the stop time are ignored.

Set the Day

1. Left-click on

Quiet Time

day down arrow.

2. Left-click on the desired day.

1. Left-click the down arrow.

2. Left-click to select the desired day.

Set the Start Time

1. Left-click on

Quiet Time

start time down arrow.

2. Left-click on the desired start time.

2. Left-click to select the desired start time.

1. Left-click the down arrow.

26

Set the Duration

1. Left-click on the

Quiet Times

duration down arrow.

2. Left-click on the desired duration.

1. Left-click the down arrow.

2. Left-click to select the desired duration.

3. The total scheduled quiet time displays in an information window. It is possible to schedule quiet time periods that overlap. Overlapping quiet time periods and quiet time scheduled before the simulation start time and after the simulation stop time are not included in the total quiet time.

3. Total scheduled quiet time displays in this information window.

Clear a Scheduled Quiet Time

1. Left-click

[Reset]

. The scheduled quiet time period will be deleted from the simulation.

1. Left-click [Reset].

When finished entering all program data, left-lick

Done

. See

Save Program Data

.

27

During the Simulation

Day Care

Day care is activated on demand when the student cannot care for Baby. Baby does not request any care when the day care option is active. The Day Care screen allows the user to start and stop day care.

To start and stop day care, Baby must be engaged in an active simulation. Babies will also need to be within communication range.

Start and Stop Day Care

1. On the Active Babies screen, left-click the Baby check box.

2. Left-click the

Day Care

button. The Day Care screen will display.

Day Care

to display the day care screen.

1. Left-click the Baby check box.

3. On the Day Care screen, left-click on the Baby check box to select a Baby for day care.

4. Start day care by left-clicking change from

Start Day Care

. Baby will not require care until day care is ended. The status will

Active

to

Day Care

.

5. Stop day care by left-clicking

End Day Care

. Baby will resume the simulation and the status will change from

Day

Care

to

Active

.

4. Left-click to start day care.

5. Left-click to end day care.

3. Left-click the Baby check box.

6. Left-click

Back

to close the Day Care screen.

28

Baby Birth Certificate

The Baby Birth Certificates - Summary screen allows printing birth certificates on a host computer printer, or as a hard copy if you have a printed curriculum binder. This template can be printed or photocopied and birth certificate data for each participant can be printed from the All Babies screen or the Available Babies screen in the software.

Open the Baby Birth Certificates Screen

1. On a Baby list, left-click the Baby check box.

2. Left-click

Birth Certificates

. The Baby Birth Certificates - Summary screen will display.

Birth Certificates

.

1. Left-click the Baby check box.

Print Birth Certificate

1. On the Baby Birth Certificates - Summary screen, left-click

Print Birth Certificates

. The print dialog box displays.

Print Birth Certificates

.

2. Left-click

Preferences

to select the page size, orientation, margins, and set the paper source to manual feed or bypass.

3. Left-click on the printer to be used.

4. Insert the birth certificate templates into the manual feed tray of your printer. Print one birth certificate first, as a test, to make sure that you have inserted the paper into the printer in the right direction.

5. Left-click will print.

Print

. The birth certificate

3. Select a printer.

Preferences

to select the page size, orientation, margins, and set the paper source to manual feed or bypass.

29

Print

.

Generating Reports

Control Center software enables users to generate two types of reports:

1. Optional manual progress reports to monitor participants while the simulation is in progress.

2. Final reports automatically created for each participants at the end of the simulation.

The option below allows retrieval of simulation data from Baby while the simulation is still in progress.

Select Babies and Get Report

Make sure all Babies you want to Get Reports for are within communication range of the wireless communication adaptor.

If Babies are not within range, the command will time out after a few attempts.

1. On the Baby list, left-click all of the Baby check boxes you want a report for.

2. Left-click

Get Repor

t. The software and wireless communication adaptor will search for each checked Baby in the list, one at a time, and retrieve the simulation reports.

3. The Status column will change briefly to read

Get Report

and then

Report OK

if the command was successful, or

Report Fail

if the command failed.

The simulation report will be placed into the folder that Baby’s reports have been assigned to. Each new download of a report for that Baby during the same simulation will overwrite the old report automatically and store it in the same location.

When the simulation is over and Baby is brought within range of the computer, the software automatically retrieves the final simulation data and overwrites the older report.

Get Report

.

1. Left-click the Baby check box.

30

After the Simulation

The Report menus allow collecting, viewing, exporting, and printing student reports. You can edit the Class Name, Student

Name, Baby Name, or add your own comments to the reports. When the Control Center software is opened for the first time, there is only one report folder in the report database, called No Class. See information in each simulation report.

Assign Class Name

or

Add a Report

Folder

to learn how to create, move, and delete folders. See

Using Reports

to learn how to edit the rubric and other

Report List

Simulation reports are added to a report folder by entering the report folder name when programming Baby for a simulation. See

Assign Class Name

.

Add a Report Folder

1. On the main screen, left-click box displays.

Reports [Add]

. The Add Report Folder dialog

2. Enter the new folder name into the text field.

[Add]

.

3. Left-click

OK

to save the folder name or folder and close the dialog box.

Cancel

to abandon creating a new

Note: The “No Class” folder itself cannot be deleted or renamed.

2. Enter the folder name.

OK

.

4. The new folder name displays on the report list with the number of reports in the folder.

4. The folder name displays on the folder list.

31

Edit Report Folders

You can rename report folders, empty reports to the trash folder, or delete a single report (move it to the trash folder).

1. Left-click

Reports [Edit]

to open the Report Folders screen.

2. The Report Folders screen displays.

[Edit]

.

Rename a Folder

1. To rename a folder, left-click the folder check box on the folder list.

2. Left-click

Rename

. The Name Folder dialog box displays.

Rename

.

1. Left-click the folder check box.

3. Enter the new folder name into the text field.

4. The class folder name can be no longer than 15 characters (letters, numbers, and spaces).

5. Left-click

OK

to save the new folder name or

Cancel

to abandon renaming a folder and close the dialog box.

6. The new folder name displays on the report list with the number of reports in the folder.

3. Enter the new folder name in the text field.

32

OK

.

Empty a Folder

Folders must be emptied before they can be deleted.

1. Left-click on

Reports [Edit]

to open the Report Folders screen.

2. Left-click the folder check box for the folder to be emptied.

3. Left-click

Empty

on the Report Folders screen.

4. All reports in the selected folder are moved to the trash folder.

Empty

.

2. Left-click the folder check box.

Delete a Folder

A folder cannot be deleted if it contains any student reports. See

Empty a Folder

.

1. To delete a folder, click the folder check box on the folders list.

2. Left-click

Delete

on the Report Folders screen.

3. The selected report folder is erased from the database.

Delete

.

[Edit]

.

1. Left-click the folder check box.

33

Selecting the Report Language

Reports can be viewed and printed in another supported language, regardless of the language you are using on your computer.

Select a language

1. Left-click on

Language: English

. A drop-down list will appear containing other language choices.

2. Left-click on the language you would like to use for viewing and printing reports. All reports will be displayed and printed in that language until you change it.

here

.

2. Left-click on the language you want.

34

Using Reports

Reports in the report folder list can be viewed, edited, printed, moved to a different folder, or deleted.

View a Report

1. Left-click on the report folder name that contains reports to be viewed.

2. The list of reports in the folder display on the folder list. Left-click on the Baby check box for the report or reports to be displayed.

3. Left-click on

View

. The first selected report will display.

4. Left-click Previous and Next to toggle between each report.

5. Left-click

Back

to close the report without saving any changes or left-click

Done

to save and changes and close the reports.

1. Left-click the folder name.

2. Left-click on the Baby check box.

View

.

report or

Previous go to the preceding

Next

to

to go to the next report.

Typical report

35

View a Report continued

1. RealCare Baby 3 contains sensors to read the internal temperature of Baby. On the second page of the report, you can view the temperature range that Baby was in.

2. RealCare Baby 3 is able to detect the clothing it is wearing. This can be used in conjunction with the temperature readings to determine if Baby was clothed appropriately for the environment. This chart can be found on the second page of the report.

3. RealCare Baby 3 is also equipped with car seat detection sensors. The second page of the report will tell you how long Baby was in the car seat.

Typical report page 2

1. Internal Temperature

2. Clothing Detection

3. Car Seat Detection

36

Edit Reports

Some information in each report can be changed (class, student, Baby name, the grading rubric, and comments. See

View a Report

.

Change Class Folder

The report being viewed can be moved to another report folder but a new report folder cannot be created.

1. On the Report screen, leftclick

Class [Edit]

. The List

Selection dialog box displays.

2. Left-click on the destination folder name.

3. Left-click

OK

to save the destination folder name or

Cancel

to abandon moving the report and close the dialog box.

Class [Edit]

.

2. Left-click on the new folder name.

OK

.

Change the Student Name

A new student name can be entered into the report as follows.

1. Left-click

Student [Edit]

. The Edit Student dialog box displays.

2. Enter the new student name.

3. Left-click

OK

to save the new name or

Cancel

to abandon entering a new name and close the dialog box.

1. Left-click the Student

[Edit]

icon.

2. Enter the new student name in the text field.

OK

.

37

Change the Baby Name

A new Baby name can be entered into the report as follows.

1. Left-click

Baby [Edit]

. The Edit Baby Name dialog box displays.

2. Enter the new Baby name.

3. Left-click

OK

to save the new name or a new name and close the dialog box.

Cancel

to abandon entering

1. Left-click the

Baby [Edit]

icon.

2. Enter the new Baby name in the text field.

OK

.

Edit the Mishandle Rubric

The mishandle rubric can be edited as follows.

1. Left-click

[Edit Rubric]

. The Edit Mishandle Rubric dialog box displays.

2. Adjust each percentage ( or down arrows.

Shaken Baby

,

Head Support

,

Wrong Position

,

Rough Handling

) by left-clicking on the up

3. When adjustments are complete, left-click the rubric and close the dialog box.

OK

to save the edit rubric information or

Cancel

to abandon the changes to

Caution! Changing the mishandle rubric will update all reports in the database, both old and new.

[Edit Rubric]

.

2. Left-click on the up and down arrows.

38

OK

.

Edit the Other Grade Adjustment

A grade adjustment can be performed as follows.

1. Left-click

[Edit Other]

. The Edit Other Grade Adjustment dialog box displays.

2. Adjust by left-clicking

Adjust Grade by

up or down arrows as a positive or negative percentage.

3. When adjustment is complete, left-click the dialog box.

OK

to save the adjustment or

Cancel

to abandon the adjustment and close

Caution! Changing the “Edit Other Grade Adjustment” only updates one report - the one that is currently visible on the screen.

2. Left-click on the up and down arrows.

[Edit Other]

.

OK

.

Add Comments to the Report

Comments can be added to the report as follows.

1. Left-click

Comments: [Edit]

. The Edit Comments dialog box displays.

2. Enter text into the text field.

3. When adding text is complete, left-click dialog box.

OK

to save the comments or

Cancel

to abandon comments and close the

Comments: [Edit]

.

2. Enter text into the text field.

39

OK

.

Print a Report

Simulation reports can be printed on a printer as follows. Open the report folder containing the report to be printed.

1. Left-click on the Baby check box for the report to be printed. More than one Baby can be selected.

2. Left-click

Print

. The Print Reports - Summary screen will display.

1. Left-click on the Baby check box.

Print

.

3. Left-click on the Print Reports - Summary screen the folder report list without printing.

Print

icon. The Print dialog box displays. Left-click

Back

to return to

Print

.

4. Left-click gins, etc.

Preferences

to select the page size, source, orientation, mar-

5. Left-click on the printer to be used.

6. Left-click will print.

Print

. The reports

Preferences

to select the page size, source, orientation, and margins.

4. Select a Printer.

40

Print

.

Delete a Report

Open the folder containing the report to be deleted.

1. Left-click on the Baby check box for the report to be deleted.

2. Left-click

Delete

. The report is moved to the trash folder.

Caution! Reports deleted from the trash folder are permanently deleted from the database.

Delete

.

1. Left-click on the Baby check box.

Move a Report to a Different Report Folder

Open the folder containing the report to be moved.

1. Left-click on the Baby check box for the report to be moved.

2. Left-click the

Move

down arrow. The report folder list displays.

3. Left-click on the destination folder or

New Folder

to create a new folder.

a. To create a new folder, left-click

New Folder

.

b. The Add Report Folder dialog box displays.

c. Enter the new folder name and left-click

OK

. The report moves to the new folder.

1. Left-click on the Baby check box.

2. Left-click the

Move

down arrow.

3. Left-click on the report destination.

41

Export a Report

This option saves a copy of the actively viewed report to the computer clipboard as an image file. You can paste this file into many applications, including e-mail, word processing programs, and photo editing programs. Only one report can be exported at a time.

1. Left-click on the report folder name that contains the reports to be exported.

2. The list of reports in the folder are displayed. Left-click on the Baby check box for the report to be exported.

3. Left-click on

View

. The selected report will display.

4. Left-click the

Left-click on

File

menu and position your cursor over

Export

. A flyout appears with the words

Copy to Clipboard

.

Copy to Clipboard

. The viewed report is copied as an image file to your computer’s clipboard.

5. Open an e-mail, a word processing document, etc. and choose e-mail or word processing document and choose

Edit

-->

Paste

or do a RIGHT-click in the body of the

Paste

to insert the report image.

Note: If your word processing, e-mail, or other software program has difficulty pasting the report image into a document, close and reopen that program and try the File-->Export-->Copy to Clipboard command again.

(Text-based programs (word processing, e-mail, etc.) give preference to text on the clipboard, not images. This may cause the program to paste any previously copied text rather than your report image. Closing and opening the program resets the clipboard, allowing you to copy and paste your report image.)

2. Left-click on the Baby check box.

View

.

1. Left-click the folder name.

File

and choose

Export

.

42

Maintenance

Maintenance Screen

The Maintenance screen allows the user to locate a Baby that is within communication range and perform diagnostics and testing.

Open the Maintenance Screen

1. On the All Babies screen or Available Babies screen, left-click on the Baby check box for each Baby that requires maintenance or location.

2. Left-click

Maintenance

. The Maintenance screen will display.

Maintenance

.

1. Left-click the Baby check box.

Locate a Baby

1. Left-click the Baby check box for the Baby to be located.

2. Locate Baby by left-clicking

Page

to prompt Baby to coo.

Page

.

1. Left-click the Baby check box.

43

Troubleshooting

Use the Troubleshooting screen if you want to check that your Baby is functioning normally.

Open the Troubleshooting Screen

1. On the Maintenance screen, left-click the Baby check box for the Baby that requires troubleshooting.

2. Left-click

Troubleshooting

to display the Troubleshooting screen.

Troubleshooting

.

1. Left-click the Baby check box.

Troubleshoot Baby

1. Left-click the Baby check box for Baby requiring testing.

2. Left-click

Start Test

. Baby will chime when ready for testing. Status will change from

Available

to

Diag

.

3. Refer to the table below for instructions and Baby’s response to actions.

4. Baby will coo if all tests are passed. A green check displays below each symbol when that test is successful.

5. Left-click

Stop Test

and Baby will chime. The Baby’s status will display

Available

.

Test Function Action Needed by Test Person

Battery

Memory

None (automatic)

None (automatic)

Movement (two tests) Hold Baby on tummy, then head down

Feeding sensor

Neck forward

Neck backward

Rough handling

Yellow diaper

Green diaper

Wireless ID

E-stop

Temperature

Outfit Top

Outfit Bottom

Body Suit

Outerwear

Sleeper

Move Baby

Bring bottle to Baby’s mouth

Tilt Baby’s head forward

Tilt Baby’s head backward

Strike Baby on its right side just above the hip

Place yellow diaper onto Baby

Place green diaper onto Baby

Hold ID close to Baby’s belly button

Push recessed E-stop push button on Baby’s back

None (automatic)

Place Outfit sensor close to Baby’s belly button

Place Outfit sensor close to Baby’s belly button

Place Body Suit sensor close to Baby’s belly button

Place Outerwear sensor close to Baby’s belly button

Place Sleeper sensor close to Baby’s belly button

Car Seat Place Baby into Car Seat

All tests pass None (automatic)

Baby Response Test Symbol

None

Coo

Two chimes

CS

Mov

Cough

Chime

Whimper

Two whimpers

Three whimpers

Chime

Chime

Chime

Chime

None

Chime

Chime

Chime

Chime

Chime

Temp

OT

OB

Bd

Ow

Sl

Yel

Grn

ID

ES

Btl

Nf

Nb

RH

Chime

CA

Coo

Pass

44

Get Control Center Software and Baby Updates

Software updates for both Control Center and Babies themselves can be retrieved via an Internet connection.

Check for Updates

1. Left-click on the

Help

menu.

2. Left-click on

Check for Updates

. Make sure your Internet connection is active.

3. A web browser window will open, and a message will appear telling you if any updates are available for your version of Control Center software or for Baby.

4. If updates are available, see the sections below.

1. Left-click on the

Help

menu.

Check for Updates

.

Download and Install Software Updates

1. Left-click on the download button for the Control Center software update.

2. A window will appear containing instructions on how to complete the update download and installation.

3. Download the update installer file to your hard drive.

4. Open or run the downloaded file to start the update installation.

5. Follow the on-screen instructions to complete the installation.

6. A software update may or may not include a Baby update. If Babies show a green checkmark and an asterisk in the

Comm column, they have a software update available. See Update Babies.

45

Update Babies

Updates will become available via the Realityworks website. Please see

Get Control Center Software and Baby Updates

for download instructions. If Babies show a green checkmark and an asterisk in the

Comm

column, they have a software update available.

1. Connect all Babies to a charger.

2. At the All Babies screen, left-click the Baby check box for each Baby with an update available icon (green check and an asterisk) in the Comm column.

3. Left-click Maintenance.

4. Left-click Update Babies. An instruction box appears.

5. Rarely, the software indicates that a Baby requires a factory update. Please contact Product Support in that case.

6. Left-click the OK button in the instruction box.

7. A window appears showing the status of each Baby’s update.

8. Updated Baby’s status changes to Updating: Done.

9. The update process continues until every selected Baby is updated. Babies that temporarily fail are retried until successful.

10. The update process can be started and stopped as many times as desired.

Important notes:

Have all Babies plugged into charger while updating.

Each Baby could take over 35 minutes to update. Large numbers of Babies can take a very long time to update. You may need to review your computer’s standby and hibernate settings.

No harm will come from cancelling or interrupting Baby updates.

Maintenance

.

1. Left-click the Baby check boxes).

Update Babies

.

3. Deselect any Babies without a green checkmark and asterisk (update available).

46

Calibrate Battery

Weak batteries take less time to fully discharge starting from a full charge. Calibrate Battery checks Baby’s battery module in a fast discharge mode and compares the discharge time to normal batteries.

Fully Charge Baby

1. Connect Baby to charger. The green charge light on Baby’s back turns ON.

2. Wait up to 6 hours for Baby’s green charge light to turn OFF.

3. Baby’s batteries now have a full charge.

4. Unplug Baby from charger.

Calibrate Battery

1. Fully charge Babies and unplug from charger as described above.

2. At the Maintenance screen, left-click

Calibrate Battery.

An instruction box appears.

3. Left-click

OK

to check Baby’s battery module or

Cancel

to do nothing.

4. Status column changes to

Calibrate --

.

5. Baby status stays in

Calibrate --

until the batteries are completely discharged (up to 20 hours).

6. Baby status automatically returns to

Available

when Calibrate Battery finishes.

1. Fully charge Babies and unplug from charger.

Calibrate Battery

.

OK

.

4. Baby status changes to

Calibrate --

.

Read Calibrate Battery Result

1. Calibrate Battery completely discharges Baby’s battery, so plug Baby into the charger.

2. At the Maintenance screen, position the mouse pointer over the Baby battery balls.

3. Read the result at the bottom of the window.

2. Position mouse pointer over battery balls.

47

3. Read the result.

Assign a Comm Channel

Depending on local conditions, WiFi or other radio sources may interfere with Baby communication. If the Baby Comm column frequently goes red even though the Baby is present and charged, you may wish to try another Comm Channel.

1. Channel change only works for current version Babies. Older Babies must use Comm channel 2. Affected Babies will trigger an “Are you sure?” prompt during channel change. See Get Software and Baby updates.

2. Plug all Babies into a charger.

3. Wait for the communication icon to appear green, which means it is available for channel scanning. You may position your mouse pointer over the icon to see how many commands remain be processed.

4. Left-click on

Edit

in the top menu bar.

5. Left-click on

Preferences

in the pull down menu to open the Edit Preferences window.

to

4. Left-click on

Edit

.

5. Left-click on

Preferences

.

6. A graph of available channels appears. Open channels display as long green bars and heavily used channels display as short red bars. Channel activity may vary greatly from minute to minute, so monitor the graph for at least several minutes.

7. Pay special attention to the graph bar of the current channel, as marked by a green radio select button. A very short red bar indicates Baby communication interference. Please choose another channel.

8. Select another channel by left-clicking on the numbered radio button, or select the best channel by left-clicking

Auto

Select

.

9. Left-click

OK

or

Apply

to save your changes, or

Cancel

to discard your changes.

10. Babies should connect to the Control Center software using the new channel within a few minutes. If they do not, make sure they are plugged into a charger.

Note: The end user should leave the uct Support supervision.

Log Comm Activity to File

check box unchecked. It should only be used with Prod-

48

Delete a Baby from the Baby List

To remove a Baby from the Baby list:

1. Left-click the Baby check box.

2. Left-click

Edit

on the Control Center software toolbar.

3. Left-click

Delete Babies

on the drop-down menu. The Caution dialog box displays.

Edit

.

Delete Babies

.

1. Left-click the Baby check box.

4. Left-click list or

No

Yes

to delete Baby from the Baby

to do nothing. Deleting removes the

Baby ID and all other Baby information from the database.

Yes

to delete Baby.

Uninstall Control Center Software

If necessary, Control Center software can be removed from the host computer by doing the following. To prevent damage to the operating system, always follow this procedure. If problems occur when removing the software, contact Realityworks Product Support (800.830.1416) before proceeding.

Windows

1. Left-click the Windows

Start

button.

2. Left-click

Control Panel

.

3. Left-click on

Programs and Features

.

4. Select

Baby Control Center

and left-click

Uninstall

.

Macintosh

1. Go to the Baby Control Center Software folder.

2. Open the

_uninst

folder.

3. Double-click

unistaller

.command.

4. Follow the on screen instructions to complete the uninstall.

49

End User License Agreement

Subscription and License Agreement

By clicking the “accept” button and using this software, you agree to become bound by the terms of this Subscription and License Agreement (“Agreement”). If you do not agree to these terms, click on “decline” and, if you are downloading this software from a CD ROM, promptly return it to your vendor. READ THE FOLLOWING USE CONDITIONS AND

DISCLAIMERS IN THIS AGREEMENT CAREFULLY BEFORE INDICATING YOUR ACCEPTANCE. In this Agreement, the term “you” refers to: (i) an individual purchasing a RealCare

®

Control Center subscription, as agent for a corporation, organization or other entity; or (ii) an individual consenting to this Agreement as a condition of using a RealCare

®

Control

Center through a subscription purchased by a school or other institution (“Institution”), where the individual is employed by, a student or parent of a student at, or otherwise affiliated with the Institution.

REALCARE

®

CONTROL CENTER Subscription and License Agreement

LICENSE. Realityworks, Inc., in consideration of payment of the applicable subscription fee and acceptance of this

Agreement, grants you a non-exclusive, transferable license and right to use and access the RealCare

®

Control Center subscription (the “Licensed Materials”). This subscription permits access and use of the Licensed Materials by loading the software on a computer(s).

OWNERSHIP. The Licensed Materials, including without limitation all copyrights and other intellectual property rights therein, are the sole and exclusive property of Realityworks (or its parents, subsidiaries, affiliates, or designers) or its suppliers. By indicating that you accept these terms, you do not become the owner of the Licensed Materials, but are entitled to use them according to the terms of this Agreement.

PROHIBITED USES: Except as expressly permitted in this Agreement, any copying, distribution or modification of the

Licensed Materials is strictly prohibited. No part of the Licensed Materials may be copied for resale or other commercial use, or posted on public bulletin boards, web sites, Internet domains, or online chat rooms. No part of the Licensed Materials may be reverse engineered or included in other software.

LIMITED WARRANTY. This software is warranted by Realityworks, Inc. to be free from defects for two years following acceptance of the terms of this License Agreement. Realityworks, Inc. will replace at its expense any defective software returned to it during the warranty period. EXCEPT AS SET FORTH IN THE FOREGOING SENTENCE, REALITYWORKS

MAKES NO WARRANTY OR REPRESENTATION, EXPRESSED OR IMPLIED, WITH RESPECT TO THE LICENSED

MATERIALS, WHICH ARE LICENSED “AS IS”. ALL OTHER WARRANTIES ARE EXPRESSLY EXCLUDED AND DIS-

CLAIMED, INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR

A PARTICULAR PURPOSE, AND ANY WARRANTIES ARISING BY STATUTE OR OTHERWISE IN LAW OR FROM

COURSE OF DEALING, COURSE OF PERFORMANCE, OR USE OF TRADE. ANY STATEMENTS OR REPRESEN-

TATIONS MADE BY ANY OTHER PERSON OR ENTITY ARE VOID. YOU ASSUME ALL RISK AS TO THE QUALITY,

FUNCTION, PERFORMANCE, AND ACCURACY OF THE LICENSED MATERIALS.

LIMITATION OF LIABILITY. IN NO EVENT WILL REALITYWORKS OR ANY OTHER PARTY WHO HAS BEEN IN-

VOLVED IN THE CREATION, PRODUCTION, PROMOTION OR MARKETING OF THE LICENSED MATERIALS BE

LIABLE TO YOU OR ANY OTHER PARTY FOR ANY SPECIAL, INDIRECT, INCIDENTAL, RELIANCE, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES, INCLUDING LOSS OF DATA OR PROFITS, OR FOR INABILITY TO USE THE

LICENSED MATERIALS, EVEN IF REALITYWORKS OR SUCH OTHER PARTY HAS BEEN ADVISED OF THE POS-

SIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL REALITYWORKS OR SUCH OTHER PARTY’S LIABILITY FOR

ANY DAMAGES OR LOSS TO YOU OR ANY OTHER PARTY EXCEED THE LICENSE FEE PAID FOR THE LICENSED

MATERIALS.

GENERAL. If any provision of this Agreement is determined to be invalid or unenforceable under any applicable law, it shall be deemed omitted and the remaining provisions shall continue in full force and effect. This Agreement may be modified only in writing authorized by Realityworks. Realityworks’ waiver of any right shall not constitute a waiver of that or any other right in the future. This Agreement shall be governed by and construed in accordance with the laws and in the state and federal courts of the State of Wisconsin.

This Agreement constitutes the entire understanding between the parties with respect to the subject matter hereof, and all prior agreements, representations, statements, and undertakings, oral or written, are hereby expressly superseded and canceled.

50

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
