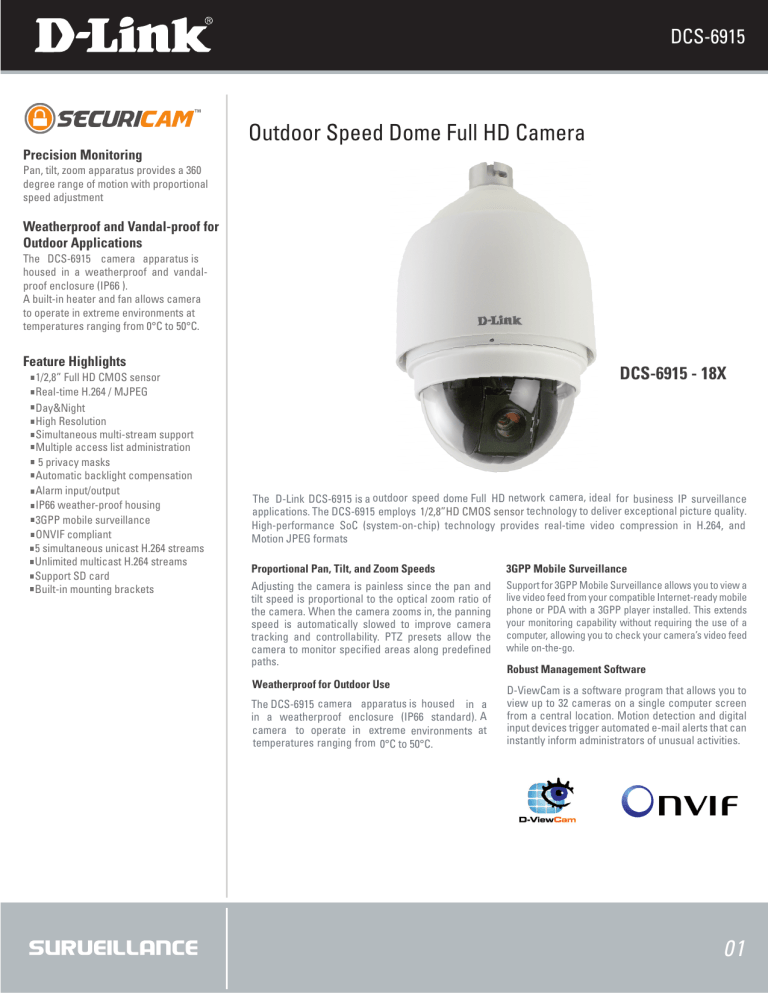

Outdoor Speed Dome Full HD Camera
Precision Monitoring
Pan, tilt, zoom apparatus provides a 360
degree range of motion with proportional
speed adjustment
Weatherproof and Vandal-proof for
Outdoor Applications
The DCS-6915 camera apparatus is
housed in a weatherproof and vandalproof enclosure (IP66 ).
A built-in heater and fan allows camera
to operate in extreme environments at
temperatures ranging from 0°C to 50°C.
Feature Highlights
1/2,8” Full HD CMOS sensor
Real-time H.264 / MJPEG
High Resolution
Simultaneous multi-stream support
Multiple access list administration
5 privacy masks
Automatic backlight compensation
Alarm input/output
IP66 weather-proof housing
3GPP mobile surveillance
ONVIF compliant
5 simultaneous unicast H.264 streams
Unlimited multicast H.264 streams
Support SD card
Built-in mounting brackets
DCS-6915 - 18X
The D-Link DCS-6915 is a outdoor speed dome Full HD network camera, ideal for business IP surveillance
applications. The DCS-6915 employs 1/2,8”HD CMOS sensor technology to deliver exceptional picture quality.
High-performance SoC (system-on-chip) technology provides real-time video compression in H.264, and
Motion JPEG formats
Proportional Pan, Tilt, and Zoom Speeds
3GPP Mobile Surveillance
Adjusting the camera is painless since the pan and
tilt speed is proportional to the optical zoom ratio of
the camera. When the camera zooms in, the panning
speed is automatically slowed to improve camera
tracking and controllability. PTZ presets allow the
camera to monitor specified areas along predefined
Support for 3GPP Mobile Surveillance allows you to view a
live video feed from your compatible Internet-ready mobile
phone or PDA with a 3GPP player installed. This extends
your monitoring capability without requiring the use of a
computer, allowing you to check your camera’s video feed
while on-the-go.
Weatherproof for Outdoor Use
The DCS-6915 camera apparatus is housed in a
in a weatherproof enclosure (IP66 standard). A
camera to operate in extreme environments at
temperatures ranging from 0°C to 50°C.
Robust Management Software
D-ViewCam is a software program that allows you to
view up to 32 cameras on a single computer screen
from a central location. Motion detection and digital
input devices trigger automated e-mail alerts that can
instantly inform administrators of unusual activities.
Outdoor Speed Dome Full HD Camera
Technical Specifications
Camera Hardware Profile
1/2,8” Full HD CMOS sensor
Min illumination: 0.8 lux / F1.2 (Color), 0.08 lux / F1.2 (B/W)
High Resolution
1-10x variable digital zoom
PTZ Hardware Profile
Image Features
Video Resolution
Optical Zoom: 18X
Digital Zoom: 10X
Focal length: 4.7~84.6 mm
Pan travel: 360° endless
Pan and tilt speed proportional to zoom ratio
Tilt Travel: ± 90° with autoflip
Resume after Power loss
Manual Speed: 0.5°~80°/s
Home Function: Preset, Sequence, Auto pan, Cruise
Presets : 99 points
Auto Flip: Mechanical/Digital/Off
Preset Speed Tilt : 0°~200°/s
Digital Slow Shutter
Preset Speed Pan : 0°~300°/s
Image Freeze
Sequence path and Cruise
Image Inverse
Configurable image size, quality, frame rate, and bit rate
Support Backlight Compensation (BLC)
Time stamp and text overlays
Tamper Detection
5 configurable privacy masks
Configurable white balance, shutter speed, brightness, saturation,
contrast, sharpness
Configurable motion detection windows
Fixed bandwidth management from 20 Kbps to 8 Mbps
Video Compression
H.264/MJPEG format compression simultaneously
H.264 multicast streaming
JPEG for still image
Multiple streaming at 1920x1080 @30fps
Up to 30 fps at 176 x 144
Up to 30 fps at 1280 x 720
Up to 30 fps at 320 x 240
Up to 30 fps at 1290 x 1080
Up to 30 fps at 640 x 480
External Device Interface
Alarm inputs
Alarm outputs
10/100M BaseT Fast Ethernet RJ-45 interface
Network Protocols
IPv4/IPv6, TCP/IP, UDP, ICMP, DHCP Client, DNS Client, SMTP Client, FTP Client, HTTP / HTTPS, RTP, 3GPP, IGMP, ONVIF Compliant
Administrator and user group protection
Password authentication
System Requirements for
Web Interface
Event Management
Operating system: Microsoft windows, 2000, XP, Vista, 7
Browser: Internet explorer, Firefox, Netscape, Mozilla, Opera
Event notification and upload snapshots/video clips via HTTP,
Multiple event notification
Multiple recording methods for easy backup
Supports multiple HTTP, SMTP and FTP servers
Remote Management
Configuration accessible via web browser
HTTP firmware upgrade (Firmware available at D-Link website)
Take snapshots/video clips and save to local hard drive or NAS via web browser
Mobile Support
Windows 2000 / XP / Vista / Win 7 / Pocket PC / Mobile Phone which 3GPP
D-ViewCam™ System
Operating System: Microsoft Windows R 7 / Vista / XP
D-ViewCam™ Software
Remote management/control of up to 32 cameras
Supports all management functions provided in web interface
Viewing of up to 32 cameras on one screen
Scheduled motion triggered, or manual recording options
Protocol: Standard TCP/IP
Web Browser: Internet Explorer 6 or higher
Power Input
Max. Power Consumption
Max 65 W (with heater and fan)
Operating Temperature
0° to 50° C ( 32° to 122° F)
Storage Temperature
-20° to 70° C (-4° to 158° F)
Dome Operation
Built-in heater and fan
IP-66 standard
20% to 80% non-condensing
2.6 kg (5.9 lbs)
D-Link Corporation
No. 289 Xinhu 3rd Road, Neihu,Taipei 114,Taiwan
Specifications are subject to change without notice.
D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries.
All other trademarks belong to their respective owners.
©2011 D-Link Corporation. All rights reserved.
Release 01 (March 2011)
