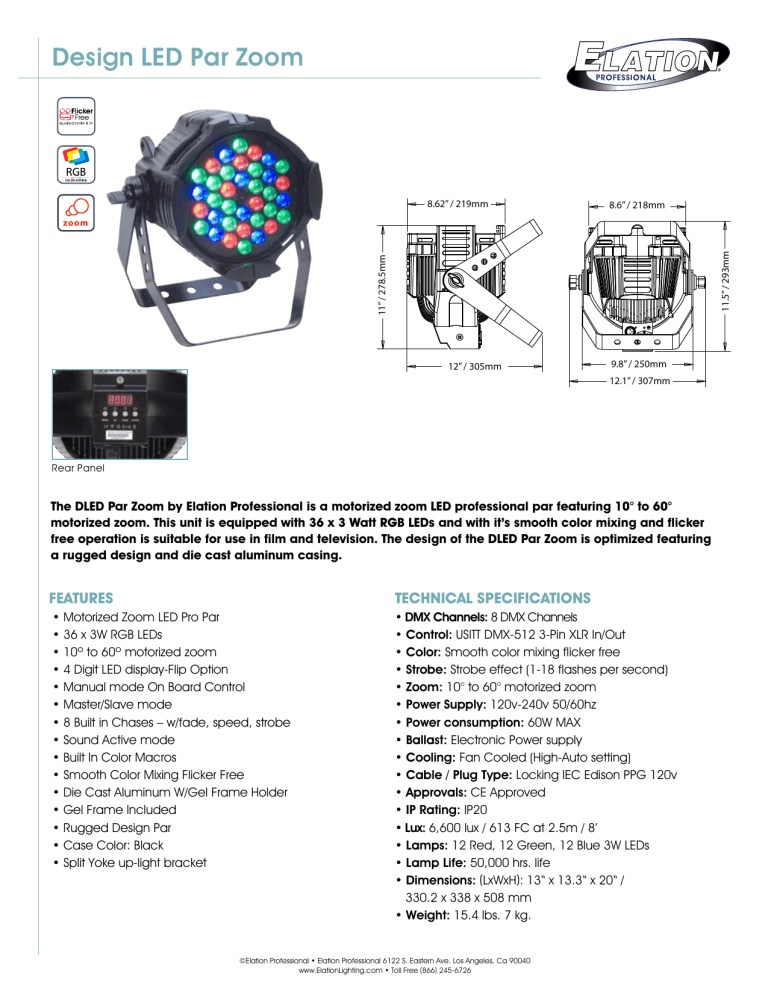

Design LED Par Zoom Cut Sheet

Design LED Par Zoom
DESIGN LED PAR zOOM
Features / Specifications:
11.5” / 293mm
8.6” / 218mm
8.6” / 218mm
11” / 278.5mm
Motorized zoom LED Pro Par
10° to 60° motorized zoom
36 x 3 Watt RGB LED’s
Smooth Color Mixing Flicker Free
Rugged Design Par
Die Cast Aluminum Case
3 Pin & 5pin DMX
8.62” / 219mm
8.62” / 219mm
Built In Color Macros
Power
60W MAX / 10v-40V 50/60hz
7 Channels DMX
,440 lux / 8 fc @ 10’
15.4lbs
13”L x 13.3”W x 0”H
11” / 278.5mm
zoom
•
•
•
•
•
•
•
•
•
•
•
•
•
12” / 305mm
12” / 305mm
DESIGN LED PAR zOOM MH
9.8” / 250mm
9.8” / 250mm
12.1” / 307mm
12.1” / 307mm
Features / Specifications:
•
Motorized zoom Moving Head LED Pro Par
•
10° to 60° motorized zoom
•
36 x 3 Watt RGB LED’s
•
Smooth Color Mixing Flicker Free
•
Rugged Design Par
Rear Panel
•
Die Cast Aluminum Case
•
3 & 5pin DMX
•
Built
In Color Macros,
& Manual control
The DLED Par Zoom by Elation
Professional
is Auto
a motorized
zoom LED professional par featuring 10° to 60°
•
Pan / Tilt 540/630 x 65
zoom
motorized zoom. This unit
equipped
with
x 3 Watt 50/60hz
RGB LEDs and with it’s smooth color mixing and flicker
• isPower
180W
MAX36
/ 10v-40V
free operation is suitable
in film
and television. The design of the DLED Par Zoom is optimized featuring
• for
13use
Channels
DMX
• cast
,440
lux / 8 fccasing.
@ 10’
a rugged design and die
aluminum
•
4lbs
•
13” x 13.3” x 0”
•
18.1”L x 0.5”W x 3.8”H
FEATURES
TECHNICAL SPECIFICATIONS
• Motorized Zoom LED Pro Par
• 36 x 3W RGB LEDs
• 10º to 60º motorized zoom
• 4 Digit LED display-Flip Option
• Manual mode On Board Control
• Master/Slave mode
• 8 Built in Chases – w/fade, speed, strobe
• Sound Active mode
• Built In Color Macros
• Smooth Color Mixing Flicker Free
• Die Cast Aluminum W/Gel Frame Holder
• Gel Frame Included
• Rugged Design Par
• Case Color: Black
• Split Yoke up-light bracket
• DMX Channels: 8 DMX Channels
• Control: USITT DMX-512 3-Pin XLR In/Out
• Color: Smooth color mixing flicker free
• Strobe: Strobe effect (1-18 flashes per second)
• Zoom: 10° to 60° motorized zoom
• Power Supply: 120v-240v 50/60hz
• Power consumption: 60W MAX
• Ballast: Electronic Power supply
• Cooling: Fan Cooled (High-Auto setting)
• Cable / Plug Type: Locking IEC Edison PPG 120v
• Approvals: CE Approved
• IP Rating: IP20
• Lux: 6,600 lux / 613 FC at 2.5m / 8’
• Lamps: 12 Red, 12 Green, 12 Blue 3W LEDs
• Lamp Life: 50,000 hrs. life
• Dimensions: (LxWxH): 13“ x 13.3“ x 20“ /
330.2 x 338 x 508 mm
• Weight: 15.4 lbs. 7 kg.
• Rigging:
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free (866) 245-6726
Design LED Par Zoom
PHOTOMETRICS
Design LED Par Zoom
Photometric Beam Angle Data
7° Beam Angle, 13° Field Angle
LUX x 0.0929 = FC
R (12)
81 FC / 868 LUX
20 FC / 218 LUX
9 FC / 95 LUX
G (12)
424 FC / 4,562 LUX
111 FC / 1,192 LUX
49 FC / 530 LUX
61 FC / 660 LUX
15 FC / 162 LUX
7 FC / 72 LUX
613 FC / 6,600 LUX
146 FC / 1,573 LUX
65 FC / 695 LUX
2.5 m
8 ft
5m
16 ft
7.5 m
25 ft
0m
0 ft
13° Field Angle
7° Beam Angle
B (12)
RGB (36)
Beam Diameter
7° Beam Angle
Ø 0.30 m / Ø 0.98 ft
Ø 0.60 m / Ø 2.00 ft
Ø 0.90 m / Ø 3.00 ft
13° Field Angle
Ø 0.58 m / Ø 2.00 ft
Ø 1.16 m / Ø 4.00 ft
Ø 1.74 m / Ø 6.00 ft
49° Beam Angle, 55° Field Angle
LUX x 0.0929 = FC
2 FC / 22 LUX
9 FC / 93 LUX
0.7 FC / 8 LUX
4 FC / 38 LUX
B (12)
4 FC / 38 LUX
1 FC / 11 LUX
0.4 FC / 4.7 LUX
RGB (36)
37 FC / 402 LUX
11 FC / 123 LUX
5 FC / 49 LUX
2.5 m
8 ft
5m
16 ft
7.5 m
25 ft
0m
0 ft
55° Field Angle
6 FC / 70 LUX
28 FC / 298 LUX
49° Beam Angle
R (12)
G (12)
Beam Diameter
49° Beam Angle
Ø 2.30 m / Ø 7.50 ft
Ø 4.60 m / Ø 15.10 ft
Ø 6.90 m / Ø 22.64 ft
55° Field Angle
Ø 2.61 m / Ø 9.00 ft
Ø 5.22 m / Ø 17.00 ft
Ø 7.83 m / Ø 26.00 ft
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free (866) 245-6726
Design LED Par Zoom
DMX TRAITS
8 DMX Channels:
Channel Value
1
1 - 255
2
1 - 255
3
1 - 255
4
1 - 255
5
1 - 255
6
1 - 255
7
1 - 255
8
1 - 255
Function
Red Intensity 0% - 100%
Green Intensity 0% - 100%
Blue Intensity 0% - 100%
Color Macro
Chase Programs
Shutter/Strobe
Dimming
Zoom
Product Order Code
Description
EDL-490
108w LED RGB die cast par w 10°-60° zoom
Optional Accessories
Description
LSF 1010
10X10” LIGHT SHAPING FILTER 10º X 60º
NARROW CLAMP
2” PIPE WRAP AROUND ALUMINUM CLAMP
DRC OPTIPAR
8 PACK ROAD CASE FOR DLED PAR ZOOM
