Video | MIC Series 500 Classic

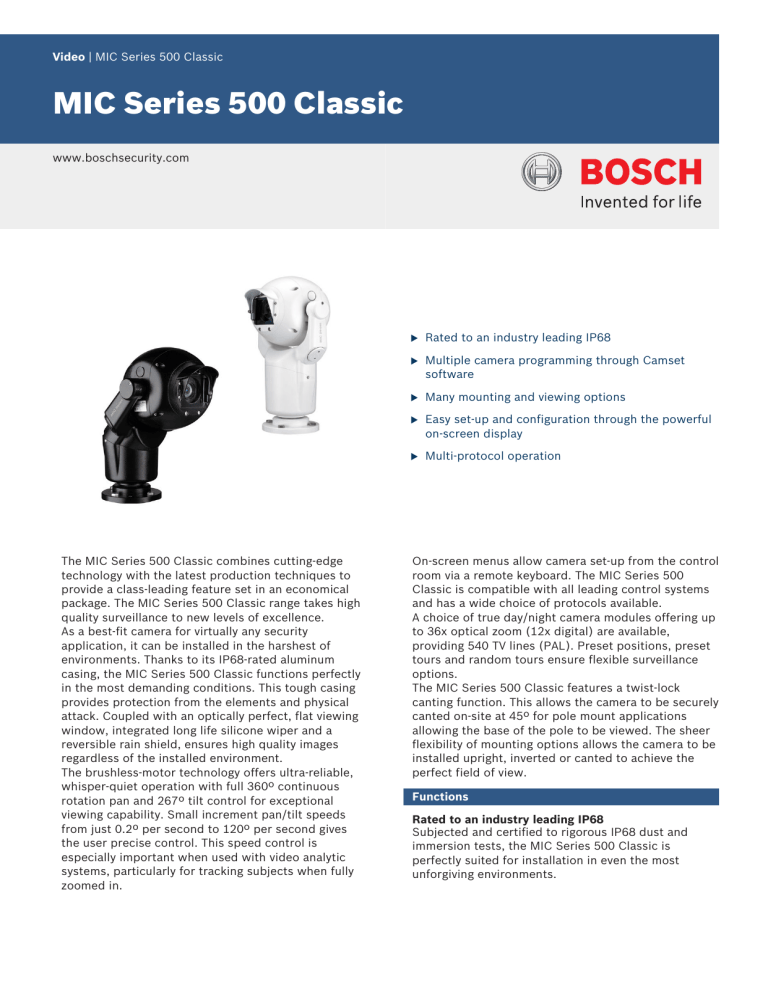

MIC Series 500 Classic
www.boschsecurity.com
The MIC Series 500 Classic combines cutting-edge
technology with the latest production techniques to
provide a class-leading feature set in an economical
package. The MIC Series 500 Classic range takes high
quality surveillance to new levels of excellence.
As a best-fit camera for virtually any security
application, it can be installed in the harshest of
environments. Thanks to its IP68-rated aluminum
casing, the MIC Series 500 Classic functions perfectly
in the most demanding conditions. This tough casing
provides protection from the elements and physical
attack. Coupled with an optically perfect, flat viewing
window, integrated long life silicone wiper and a
reversible rain shield, ensures high quality images
regardless of the installed environment.
The brushless-motor technology offers ultra-reliable,
whisper-quiet operation with full 360º continuous
rotation pan and 267º tilt control for exceptional
viewing capability. Small increment pan/tilt speeds
from just 0.2º per second to 120º per second gives
the user precise control. This speed control is
especially important when used with video analytic
systems, particularly for tracking subjects when fully
zoomed in.
u
Rated to an industry leading IP68
u
Multiple camera programming through Camset
software
u
Many mounting and viewing options
u
Easy set-up and configuration through the powerful
on-screen display
u
Multi-protocol operation
On-screen menus allow camera set-up from the control
room via a remote keyboard. The MIC Series 500
Classic is compatible with all leading control systems
and has a wide choice of protocols available.
A choice of true day/night camera modules offering up
to 36x optical zoom (12x digital) are available,
providing 540 TV lines (PAL). Preset positions, preset
tours and random tours ensure flexible surveillance
options.
The MIC Series 500 Classic features a twist-lock
canting function. This allows the camera to be securely
canted on-site at 45º for pole mount applications
allowing the base of the pole to be viewed. The sheer
flexibility of mounting options allows the camera to be
installed upright, inverted or canted to achieve the
perfect field of view.
Functions
Rated to an industry leading IP68
Subjected and certified to rigorous IP68 dust and
immersion tests, the MIC Series 500 Classic is
perfectly suited for installation in even the most
unforgiving environments.
2 | MIC Series 500 Classic
Brushless motor technology
Ultra-reliable brushless motors provide whisper-quiet
operation and smooth control.
Installation/configuration notes
212
(8.35)
355.6
(14.00)
Host of mounting and viewing options
Faultless operation in upright, inverted or canted
positions gives the user a host of mounting and
viewing possibilities. The twist-lock canting feature
allows the MIC Series 500 Classic to be canted to 45º
on site. This allows, for example, the base of the pole
to be viewed in upright pole-mounted applications.
Multi-protocol operation
Compatible with virtually any control equipment
available today, the MIC Series 500 Classic range
seamlessly integrates with the vast majority of security
systems.
275
(10.83)
Easy set-up
Camera settings can be adjusted via the on-screen
menu from a control room via a remote keyboard.
mm
(in.)
Applications:
•
•
•
•
•
•
•
•
•
•
•
General CCTV
Town centers
ANPR systems
Vandalism prone areas
Extreme environments
Rapid deployment
High security
Prestigious developments
Broadcast
Marine/costal
Architectural
ø125
(4.92)
Front Detail, 90° (straight)
177.8
(7.00)
Electromagnetic
Compatibility (EMC)
Complies with FCC Part 15, ICES-003, and CE
regulations, including EN50130-4 and
EN61000-3-2 & 3-3 and EN55022
Product Safety
Complies with CE regulations, UL, EN, and IEC
Standards 60950-1 & 22
Weatherproofing
IP68 (1m submersion for 24 hours)
Region
Certification
Europe
CE
Global
IP Rating
USA
UL
UL 60950-1, 2nd Edition:2007
FCC
CFR 47 FCC part 15:2009, Class B
CSA
CAN/CSA-C22.2 No. 60950-1-07
Canada
2004/108/EC, 2006/95/EC
355.6
(14.00)
Certifications and approvals
mm
(in.)
ø125
(4.92)
Side Detail, 90° (straight)
3 | MIC Series 500 Classic
312
(12.28)
212
(8.35)
Back Light Compensation
(BLC)
On/Off
White Balance
Automatic
Automatic Gain Control
(AGC)
-3 to 28 dB, 2 dB steps
Aperture Control
16 Steps
232
(9.13)
18x Optical Zoom Module
mm
(in.)
ø125
(4.92)
Front Detail, 45° (canted)
Lens
F=4.1 mm (wide) to 73.8 mm (tele), F1.4 to
F3.0
Zoom
18x optical (12x digital)
Angle of View
48° (wide) to 2.8° (tele)
Minimum Illumination
1/60 s mode, 0.7 lx (typical) (F1.4, 50 IRE)
1/4 s mode, 0.07 lx (typical) (F1.4, 50 IRE)
Shutter Speed
1/3 to 1/10,000 s (20 steps) PAL
36x Optical Zoom Module
232
(9.13)
312
(12.28)
255
(10.04)
mm
(in.)
ø125
(4.92)
Lens
F=3.4 mm (wide) to 122.4 mm (tele), F1.6 to
F4.5
Zoom
36x optical (12x digital)
Angle of View
57.8° (wide) to 1.7° (tele)
Minimum Illumination
1/60 s mode: 1.4 lx (typical) (F1.6, 50 IRE)
1/4 s mode: 0.1 lx (typical) (F1.6, 50 IRE)
Shutter Speed
1/3 to 1/10,000 s (20 steps) PAL
Operational
Auto Flip
Yes
Manual Flip
Yes
E-flip
Yes, E-flip enables the camera module to invert the
Presets
64 telemetry presets accurate to 0.08° utilizing
resolver technology using the on-screen menu or
via Camset,
Up to 10 camera module presets (Sony sets) to
allow ANPR, color correction etc.
Preset Tours
Four (4) tours each with up to 32 presets
Side Detail, 45° (canted)
Technical specifications
Camera Module
Image Sensor
1/4 in. Exview CCD (WDR)
Pattern Tours
Two (2) tours
Effective Pixel Elements
Approx. 440,000; 752(H) x 582(V) PAL
Sector Titles
64 sectors, 20 characters per title
Horizontal Resolution
540 TVL
Preset Titles
20-character caption for each of the 64 presets
Filter
Automatic mechanical IR cut filter
Home Position
Preset 1 or tour
Focus System
Auto or manual
On-screen Menu
Iris
Auto or manual with slow shutter
integration modes
Most camera functions can be accessed through
the on screen menu
Synchronization
Internal / External (V-Lock)
Signal-to-Noise Ratio
(SNR)
50 dB or more
4 | MIC Series 500 Classic
Communication and Protocols
Communication
RS485 / RS422
Control Protocol
FV and Bosch protocols pre-installed. Twin
protocol packs including FV/Pelco, FV/VCL, FV/
American Dynamics and FV/Kalatel can be loaded
using the MIC Universal Camera Setup Software
Utility (Camset)
Connectivity
MIC Universal Camera
Setup Software Utility
(Camset)
Supplied free with each camera, Camset
allows direct connection to a USB equipped
PC via the MIC Series PSU or over a full
duplex or IP network to provide access to all
camera functions and useful diagnostic
tools
Video
Coaxial via composite cable
Telemetry
Twisted pair. Simplex, half and full duplex
operation via composite cable
Power
Via composite cable
Alarms
Alarm Card
Optional, 8-input with washer pump drive
function, fits in MIC Series power supply
Biphase Converter
Optional, fits in MIC Series power supply
expansion slot (BP-4)
Environmental
Operating Temperature
-40 °C to +60 °C (-40 °F to +140 °F)
Weatherproofing
IP68 (1m submersion for 24 hours)
Construction
Dimensions (WxHxD)
Upright and Inverted
212 x 355 x 177 mm
(8.35 x 13.98 x 6.97 in.)
Canted
212 x 312 x 255 mm
(8.35 x 12.28 x 10.0 in.)
Weight
7 kg (15.43 lb) including 4 in. pitch circle
diameter (PCD) base
Viewing Window
Tempered flat glass
Construction Material
Cast solid aluminum
Alarm Inputs
One (1) tamper input (additional inputs
possible with optional alarm card)
Standard Colors
Black (RAL9005) or white (RAL9010)
Alarm Communication
Tamper switch (ground connection)
Standard Finish
Alocrom 1200 surface treatment with
powder coat paint, sand finish
Window Wiper
Standard
Canting
Twist Lock canting secured by two security
screws
Mechanical
Drive Unit
Brushless, integral pan/tilt motor drive
Pan Angle
360° continuous rotation
Pan Speed
Up to 120° per second (variable)
Ordering information
Tilt Angle
270°
Tilt Speed
0.2° to 80° per second (variable)
MIC500ALBUR14618P MIC Series 500 Classic 18x PAL
Camera with Integrated Wiper, Black
Speed Control
Closed loop electronics
Preset Accuracy
±0.17° typical
Proportional Pan/Tilt to
Zoom
Yes
18x, PAL, PTZ camera, black, with an integrated wiper
Order number MIC500ALBUR14618P
MIC500ALBUR14636P MIC Series 500 Classic 36x PAL
Camera with Integrated Wiper, Black
36x, PAL, PTZ camera, black, with an integrated wiper
Order number MIC500ALBUR14636P
Electrical
Input Voltage
18 VAC
Power Consumption
25 W max.
Options
MIC500ALAUR14618P MIC Series 500 Classic 18x PAL
Camera with Integrated Wiper, White
18x, PAL, PTZ camera, white, with an integrated wiper
Order number MIC500ALAUR14618P
MIC500ALAUR14636P MIC Series 500 Classic 36x PAL
Camera with Integrated Wiper, White
Camera Module
18x camera module or 36x camera module
Camera Color System
PAL
Order number MIC500ALAUR14636P
Telemetry Control Card
Built-in
Accessories
Washer Drive
Optional washer kit (MIC-WKT Kit with
washer pump drive)
MIC-24PSU-UL 24 VAC Camera Power Supply
36x, PAL, PTZ camera, white, with an integrated wiper
24 VAC, 50/60 Hz power supply for MIC Series
cameras
Order number MIC-24PSU-UL
5 | MIC Series 500 Classic
MIC-115PSU-UL 115 VAC Camera Power Supply
MIC-SCA-WD Shallow Conduit Adapter, White
115 VAC, 60 Hz power supply for MIC Series cameras
Shallow conduit adapter for a MIC-WMB, a MIC-PMB,
or a MIC-SPR mount, white sand finish (RAL9010)
Order number MIC-115PSU-UL
MIC-240PSU-UL 240 VAC Camera Power Supply
Order number MIC-SCA-WD
230 VAC, 50 Hz power supply for MIC Series cameras
MIC-SCA-BD Shallow Conduit Adapter, Black
Order number MIC-240PSU-UL
Shallow conduit adapter for a MIC-WMB, a MIC-PMB,
or a MIC-SPR, black sand finish (RAL9005)
MIC-ALM Alarm and Washer Pump Drive Card
8 Input alarm and washer pump drive card for PSU
(Not for IR PSU)
Order number MIC-ALM
MIC-BP4 Biphase Converter
Biphase converter for non-IR versions of MIC series
power supply units
Order number MIC-BP4
MICUSB485CVTR2 USB to RS485 Signal Converter
Order number MIC-SCA-BD
MIC-SPR-WD Spreader Plate, White
Aluminum spreader plate suitable for brickwork
surface mounting, white sand finish (RAL9010)
Order number MIC-SPR-WD
MIC-SPR-BD Spreader Plate, Black
Aluminum spreader plate suitable for brickwork
surface mounting, black sand finish (RAL9005)
Order number MIC-SPR-BD
USB to RS485 signal converter to allow MIC Series
cameras to connect to a PC, supplied with each
camera
Corner mount bracket, white sand finish (RAL9010)
Order number MICUSB485CVTR2
Order number MIC-CMB-WD
MIC-CMB-WD Corner Mount Bracket, White
MIC-501KBD Keyboard Controller
MIC-CMB-BD Corner Mount Bracket, Black
Keyboard controller with 3-axis joystick for 1 camera
(FV PROTOCOL ONLY)
Corner mount bracket, black sand finish (RAL9005)
Order number MIC-501KBD
Order number MIC-CMB-BD
MIC-WMB-WD Wall Mount Bracket, White
MIC-516KBD Keyboard Controller
Wall mount bracket, white sand finish (RAL9010)
Keyboard controller with 3-axis joystick for 1 to 16
cameras (FV PROTOCOL ONLY)
Order number MIC-WMB-WD
Order number MIC-516KBD
MIC-WMB-BD Wall Mount Bracket, Black
MIC-WKT Washer Kit
Order number MIC-WMB-BD
Washer kit for non infrared MIC models (includes
washer pump drive card, washer nozzle and mounting
brackets for wall and 4 in. PCD base)
Order number MIC-WKT
HAC-WAS05-20 24 VAC Washer
24 VAC washer inst. 4M 25L
Wall mount bracket, black sand finish (RAL9005)
MIC-PMB Pole Mount Bracket
Pole mount bracket (includes 2 x 455 mm stainless
steel banding straps for pole diameters 75 to 145 mm)
Order number MIC-PMB
MIC-2M-S 2 m Shielded Composite Cable
UPA-2420-50 Power Supply
Shielded Composite 2 m cable that provides power,
telemetry and video connection from a MIC Series
camera to a MIC Series power supply
220 VAC, 50 Hz, 24 VAC, 20 VA Out
Order number MIC-2M-S
Order number HAC-WAS05-20
Order number UPA-2420-50
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor, 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Order number UPA-2450-60
MIC-DCA-WD Deep Conduit Adapter, White
Deep conduit adapter for 4 in. PCD base, white sand
finish (RAL9010)
Order number MIC-DCA-WD
MIC-DCA-BD Deep Conduit Adapter, Black
Deep conduit adapter for 4 in. PCD base, black sand
finish (RAL9005)
Order number MIC-DCA-BD
MIC-10M-S 10 m Shielded Composite Cable
Shielded Composite 10 m cable that provides power,
telemetry and video connection from a MIC Series
camera to a MIC Series power supply
Order number MIC-10M-S
MIC-20M-S 20 m Shielded Composite Cable
Shielded Composite 20 m cable that provides power,
telemetry and video connection from a MIC Series
camera to a MIC Series power supply
Order number MIC-20M-S
6 | MIC Series 500 Classic
MIC-25M-S 25 m Shielded Composite Cable
Shielded Composite 25 m cable that provides power,
telemetry and video connection from a MIC Series
camera to a MIC Series power supply
Order number MIC-25M-S
Represented by:
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
security.sales@us.bosch.com
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
emea.securitysystems@bosch.com
www.boschsecurity.com
© Bosch Security Systems 2013 | Data subject to change without notice
2322523787 | en, V1, 04. Oct 2013
Asia-Pacific:
Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
apr.securitysystems@bosch.com
www.boschsecurity.asia
China:
America Latina:
Bosch (Shanghai) Security Systems Ltd. Robert Bosch Ltda Security Systems Division
201 Building, No. 333 Fuquan Road
Via Anhanguera, Km 98
North IBP
CEP 13065-900
Changning District, Shanghai
Campinas, Sao Paulo, Brazil
200335 China
Phone: +55 19 2103 2860
Phone +86 21 22181111
Fax: +55 19 2103 2862
Fax: +86 21 22182398
latam.boschsecurity@bosch.com
www.boschsecurity.com.cn
www.boschsecurity.com
Download PDF
